Owner’s Manual
Contents
Before You Start
2 Important Safety Information
4 What’s in the Box
5 Assemble Your Wagner Paint Crew
Using the Wagner Paint Crew
6 Proper Use and Functions
7 Pressure Relief Procedure

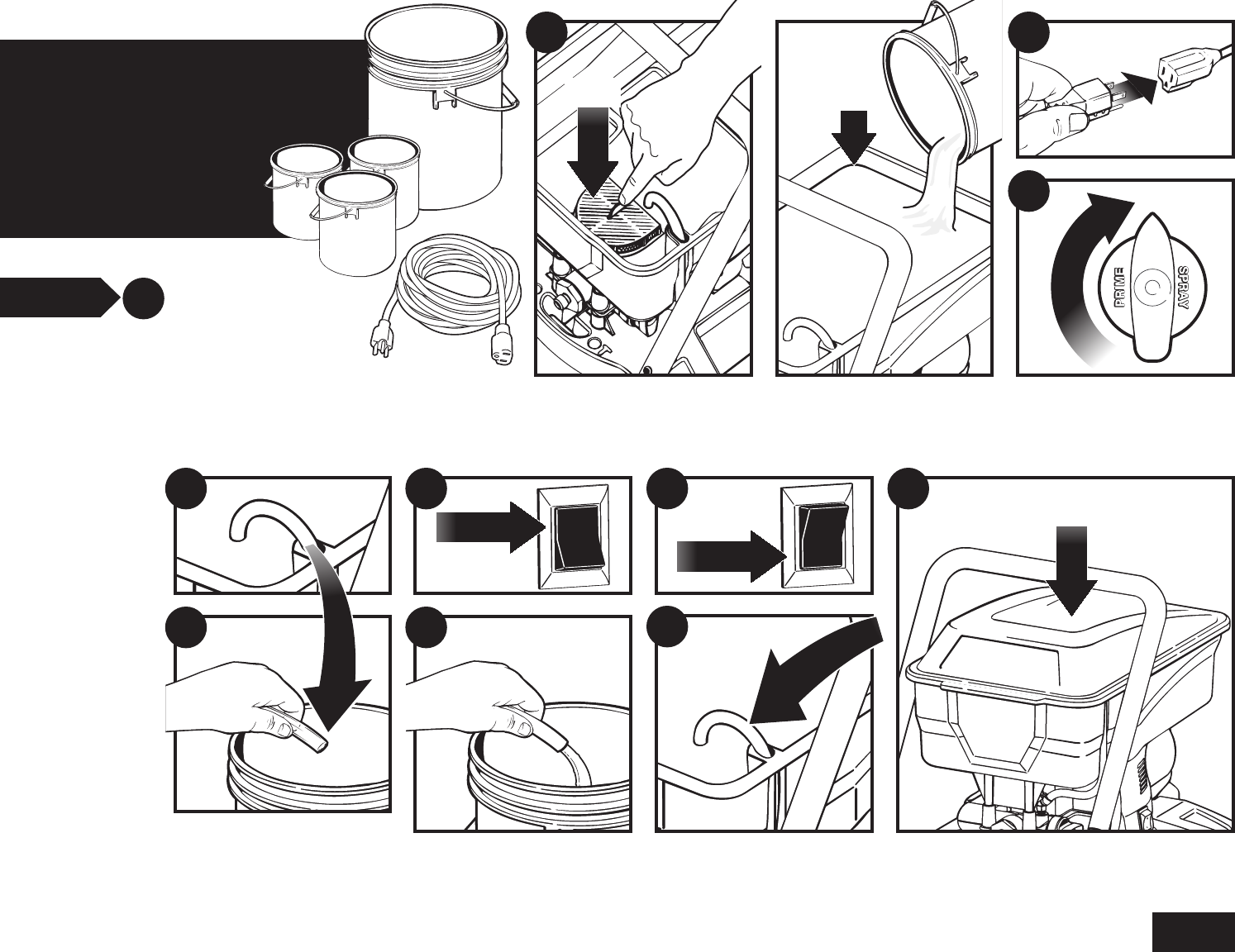

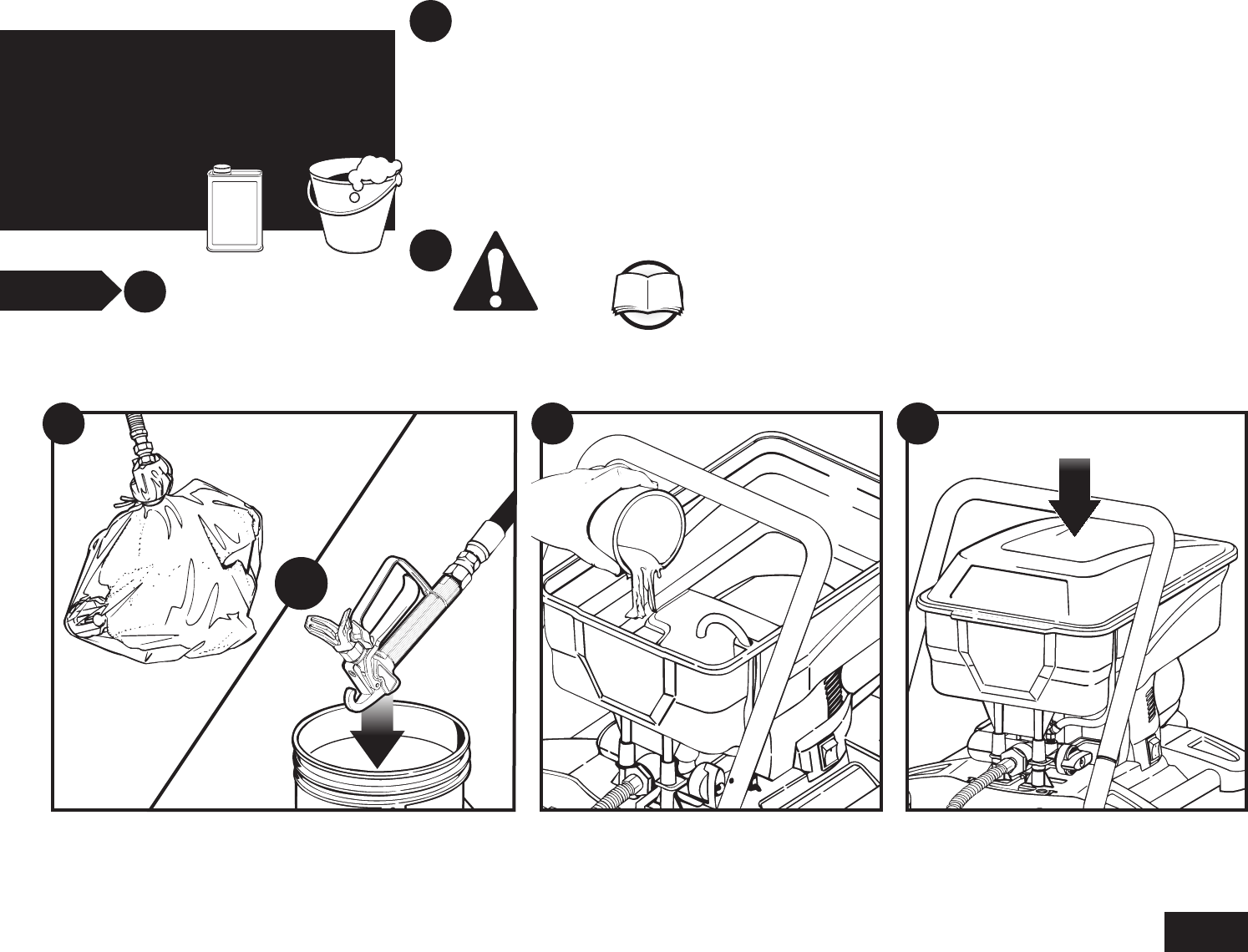

8 Load Material
9 Getting Material to Flow Prior to
Spraying

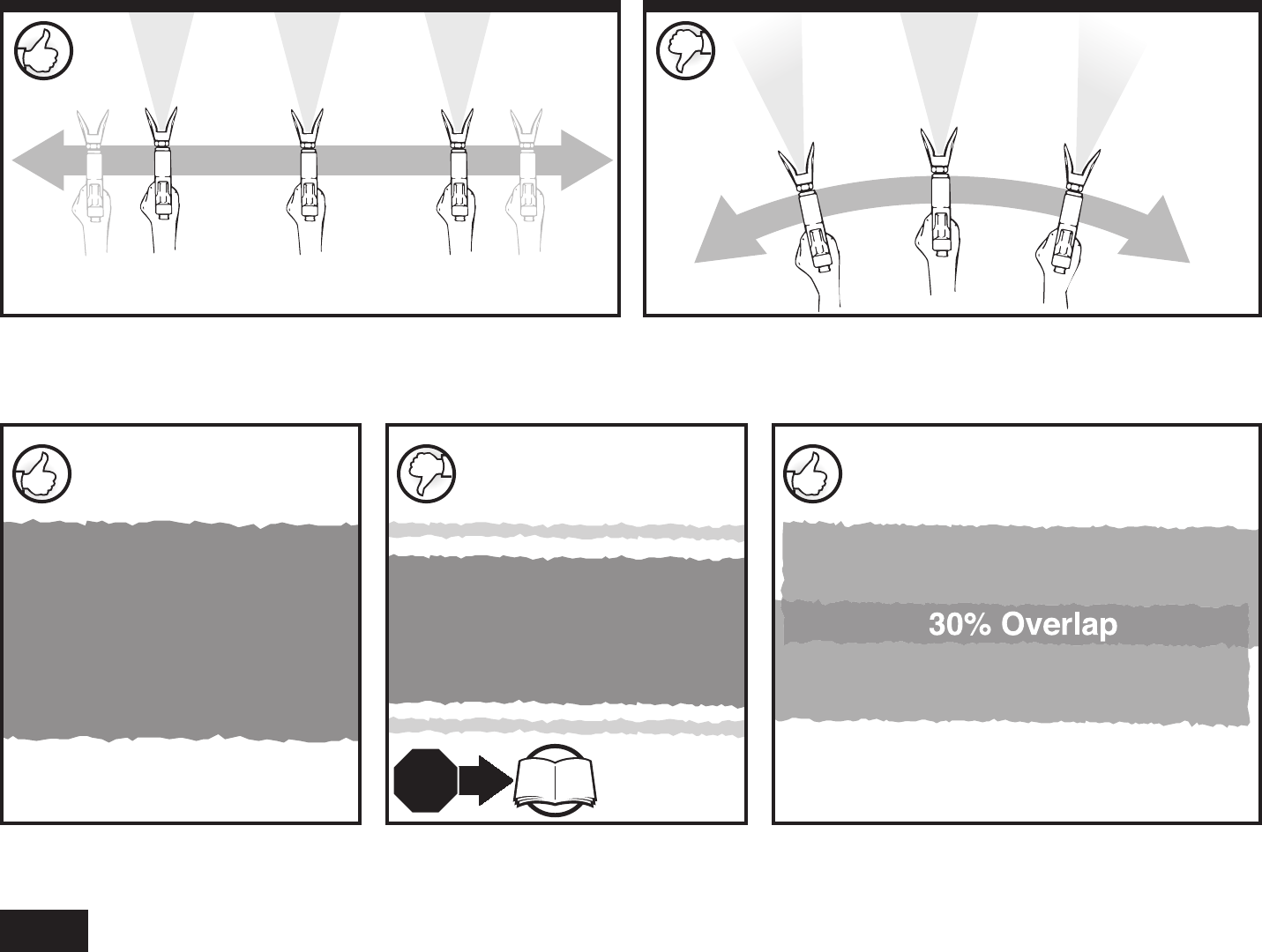

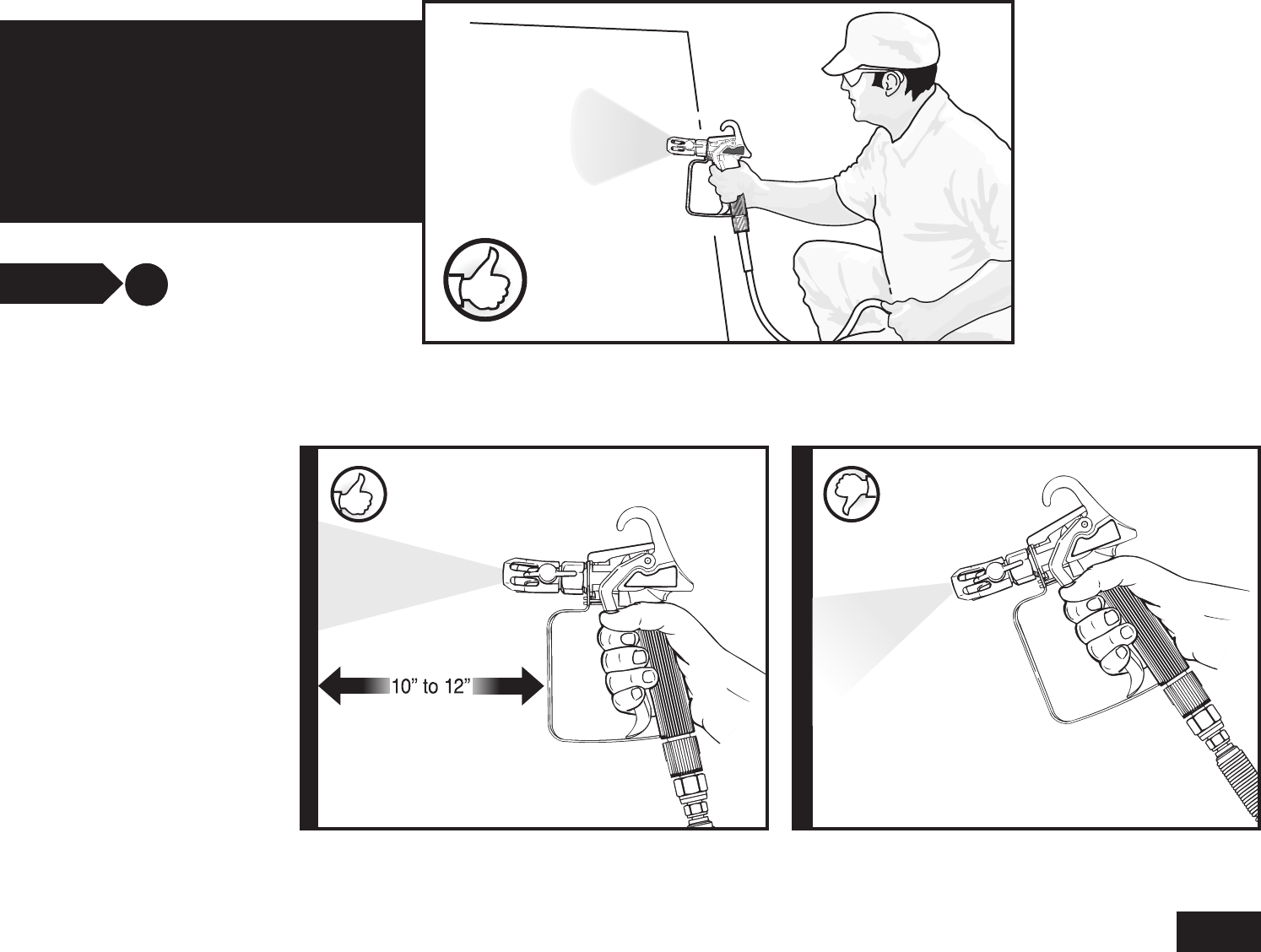

10 Practice Spraying
Tips if Experiencing Spray Issues
12 Common Solutions to Spraying Issues

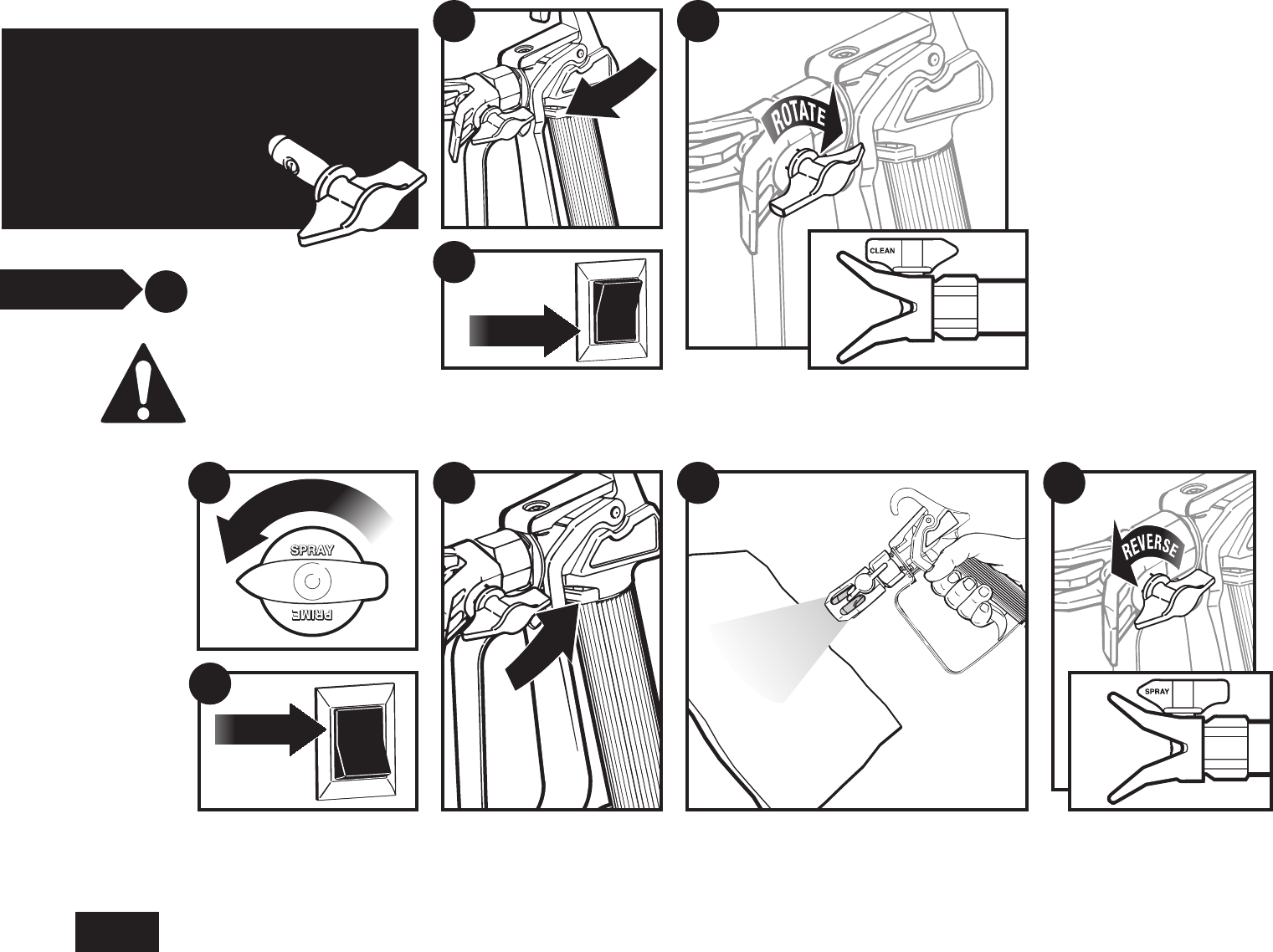

13 Clear the Spray Tip

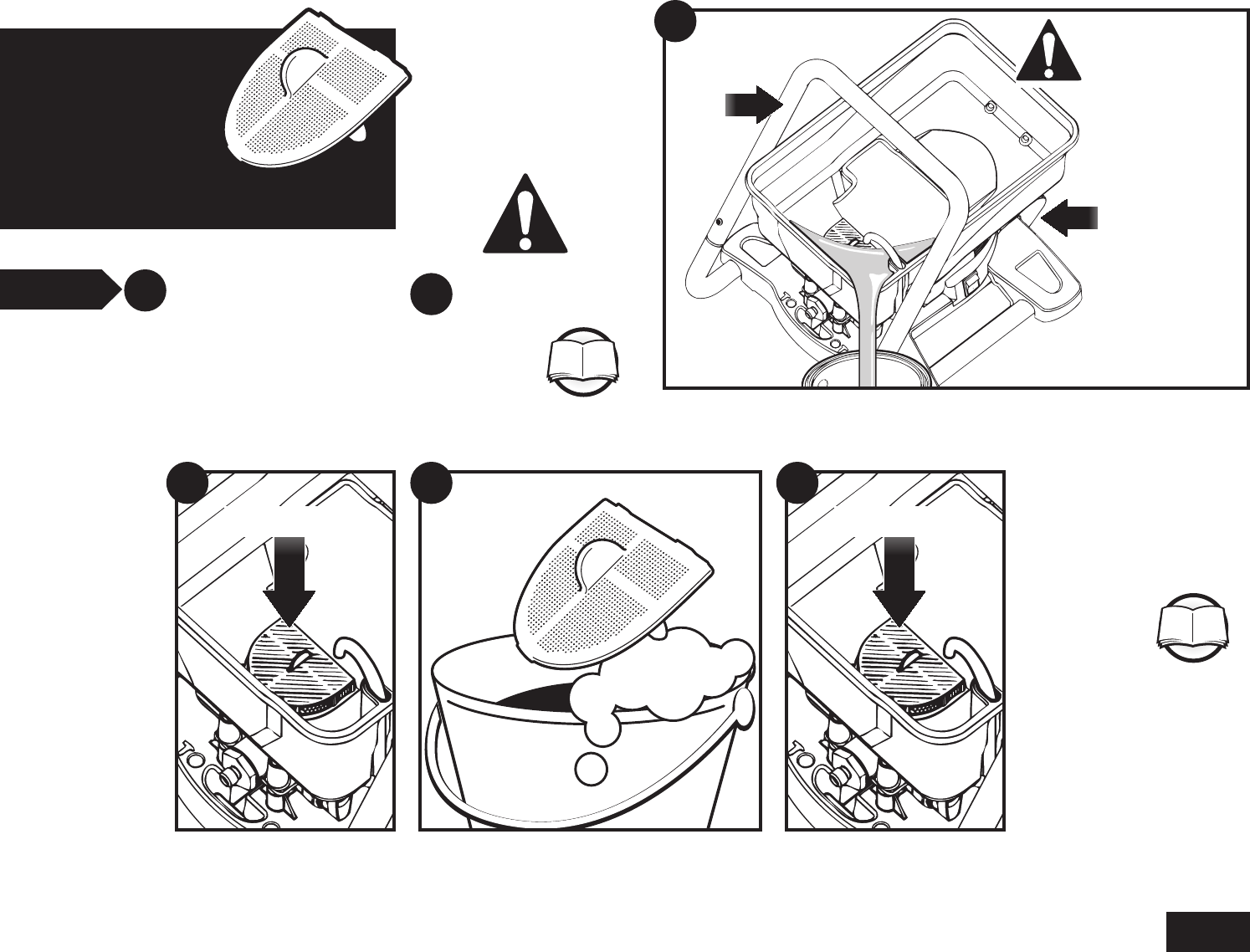

14 Clean the Inlet Filter
15 Clean the Spray Gun Filter
Cleanup and Storage
16 Shut Down and Short Term Storage
17 Startup From Short Term Storage
18 Flush Material from Sprayer
19 Clean the Hopper

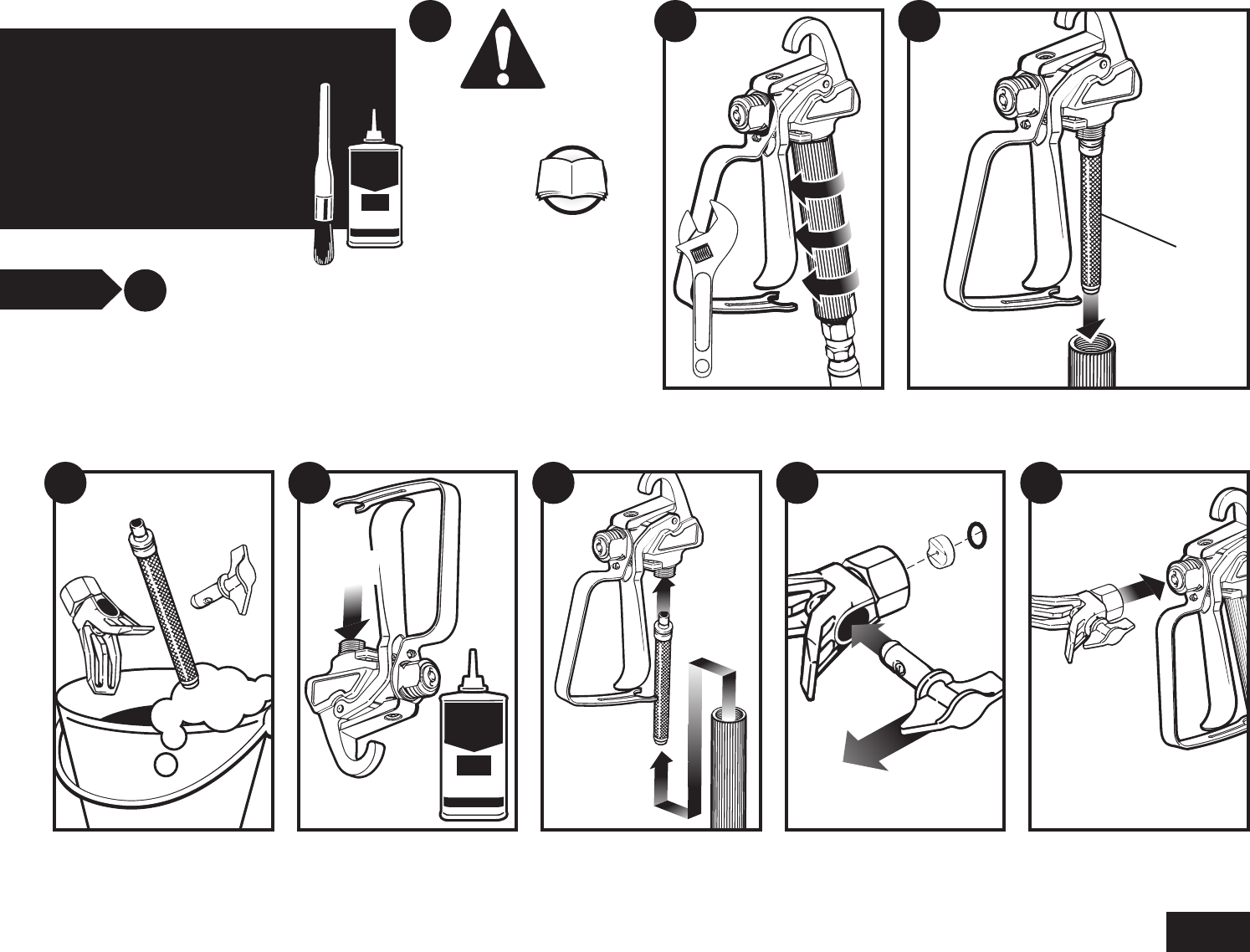

20 Clean Spray Gun Components

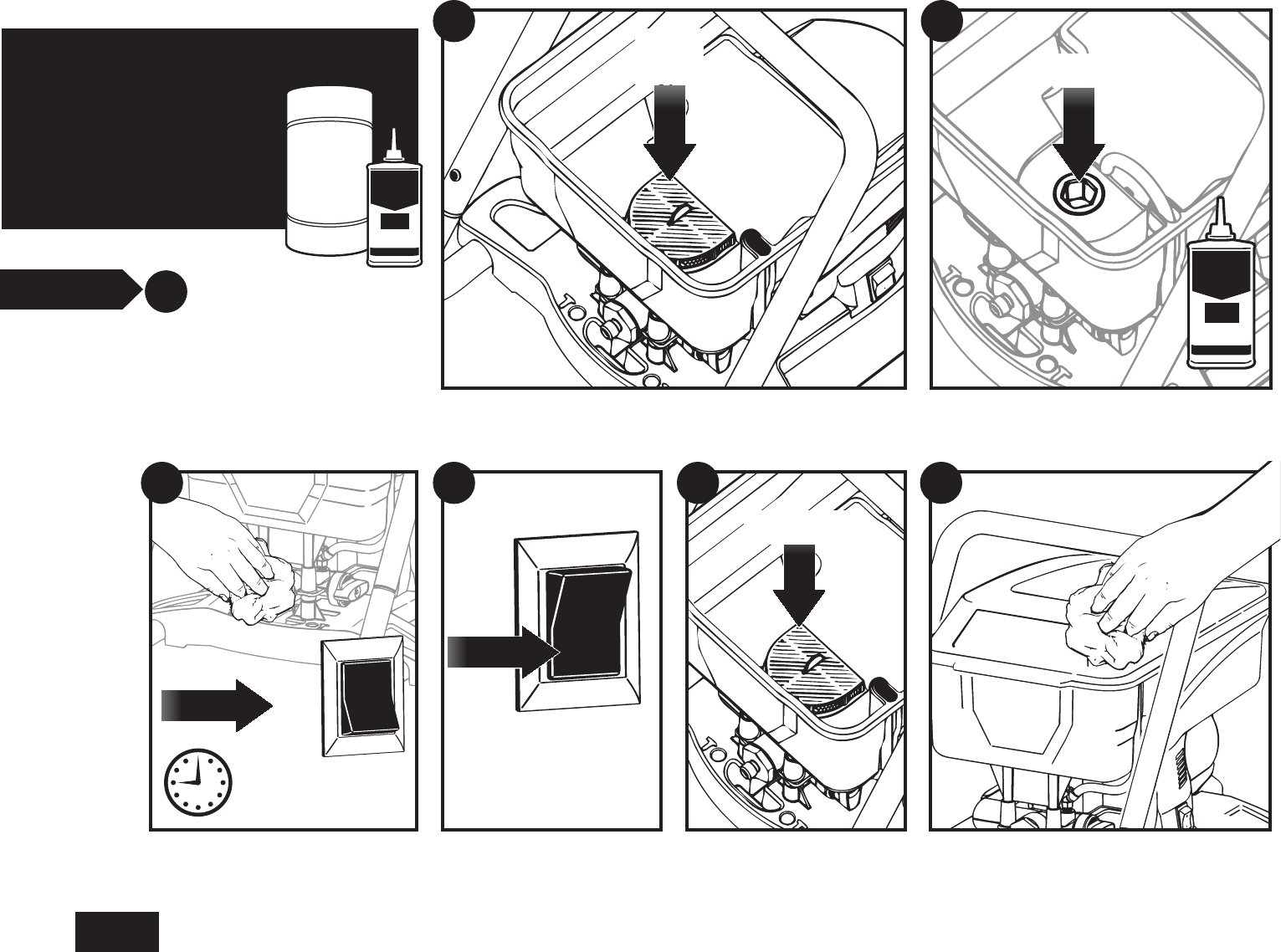

21 Long Term Storage
Troubleshooting
22 Fix Spraying Problems

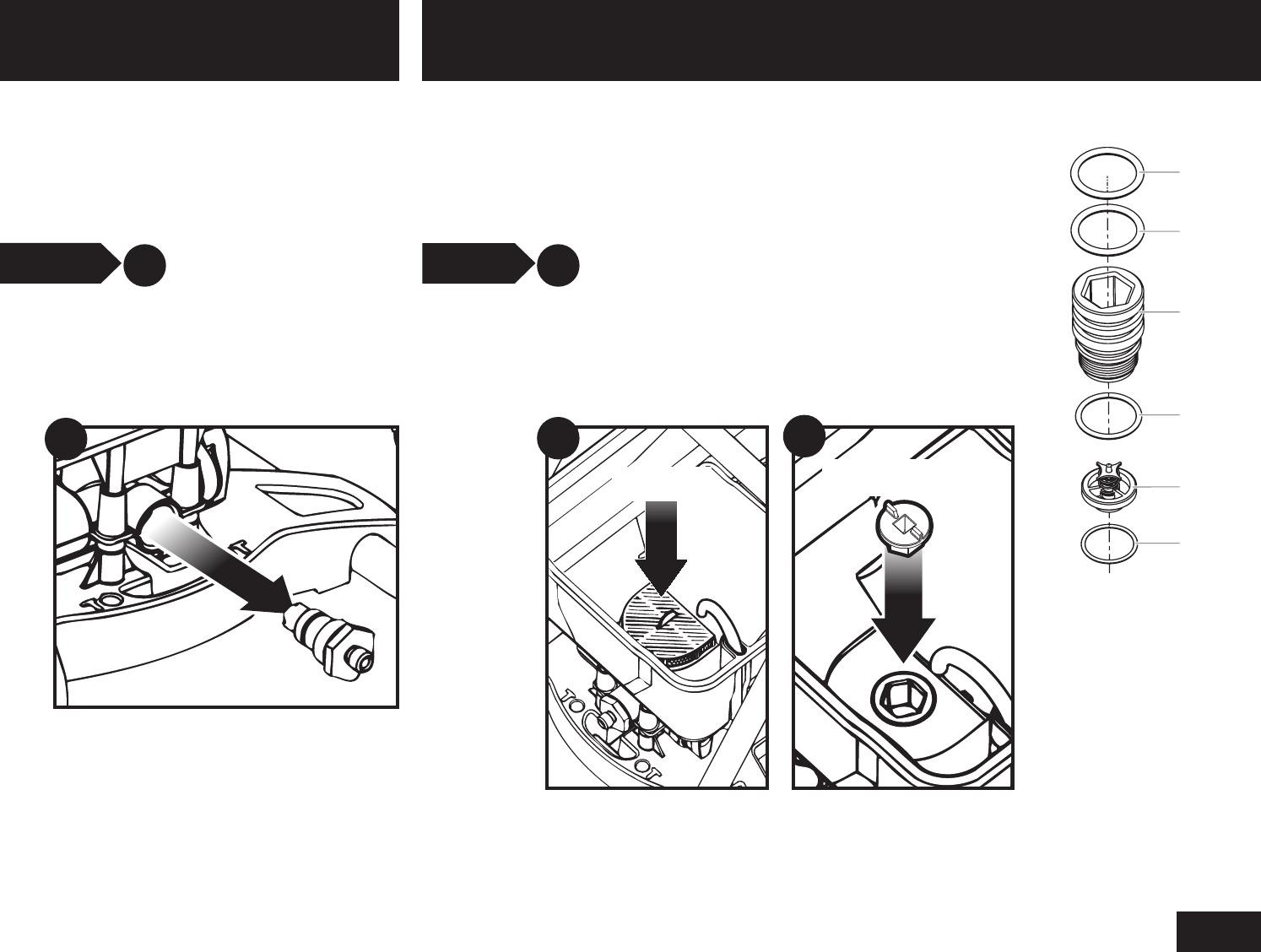

24 Replacing Outlet Valve
24 Cleaning or Replacing Inlet Valve

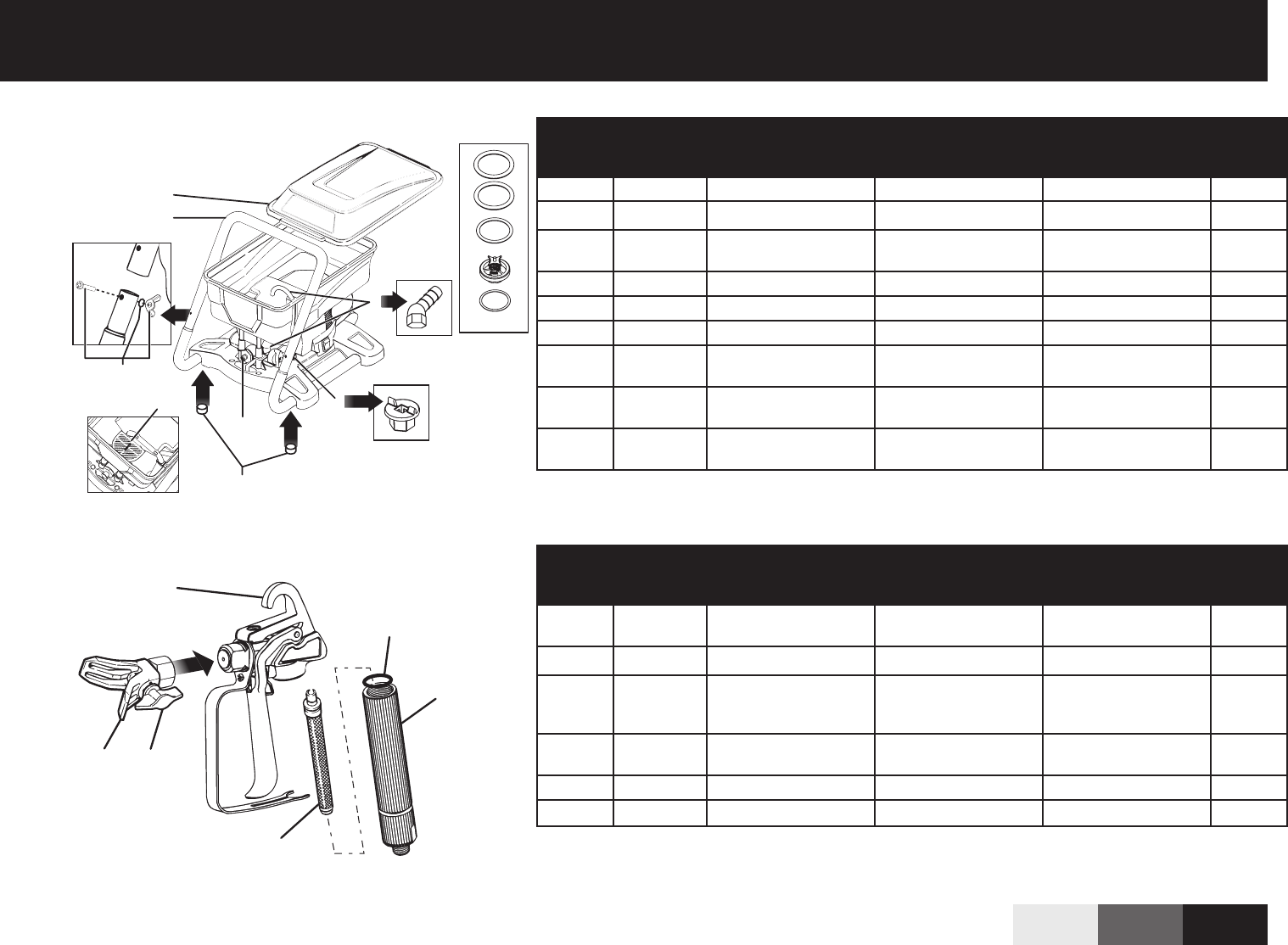

Parts List
74 Parts and Accessories for Your Paint
Crew
Warranty
75 Limited Warranty for Your Paint Crew
0708 • Form No. 0504945A
Important Safety
Information
Read all safety information before operating the
equipment. Save these instructions
to PRIME to relieve the pressure. Refer to the
Pressure Relief Procedure (page 7) described in the
pump manual.
• ALWAYS keep the tip guard in place while spraying.
The tip guard provides some protection but is mainly
a warning device.
• ALWAYS remove the spray tip before ushing or
cleaning the system.
• Paint hose can develop leaks from wear, kinking
and abuse. A leak can inject material into the skin.
Inspect the hose before each use. Do not use hose
to lift or pull equipment.
• NEVER use a spray gun without a working trigger
lock and trigger guard in place.
• All accessories must be rated at or above 2800
PSI/193 BAR. This includes spray tips, guns,
extensions, and hose.
NOTE TO PHYSICIAN:
Injection into the skin is a traumatic injury. It is
important to treat the injury as soon as possible.
DO NOT delay treatment to research toxicity.
Toxicity is a concern with some coatings injected
directly into the blood stream. Consultation with
a plastic surgeon or reconstructive hand surgeon
may be advisable.
HAZARD: HAZARDOUS VAPORS
Paints, solvents, insecticides, and other materials
can be harmful if inhaled or come in
contact with the body. Vapors can
cause severe nausea, fainting, or
poisoning.
PREVENTION:
• Use a respirator or mask if vapors can be inhaled.
Read all instructions supplied with the mask to be
sure it will provide the necessary protection.
• Wear protective eye wear.
• Wear protective clothing as required
by coating manufacturer.
HAZARD: EXPLOSION OR FIRE
Solvent and paint fumes can explode or
ignite. Property damage and/or severe
injury can occur.
PREVENTION:
• Provide extensive exhaust and fresh
air introduction to keep the air within
the spray area free from accumulation
of ammable vapors. Solvent and
paint fumes can explode or ignite.
• Do not spray in a conned area.
• Avoid all ignition sources such as static electric
sparks, open ames, pilot lights, electrical
appliances, and hot objects. Connecting or
disconnecting power cords or working light switches
can make sparks. Paint or solvent owing through
the equipment is able to result in static electricity.
• Do not smoke in spray area.
• Fire extinguisher must be present and in good
working order.
• Place paint pump in a well-ventilated area away
from the spray object. Flammable vapors are often
heavier than air. Floor area must be extremely well
ventilated.
• The equipment and objects in and around the spray
area must be properly grounded to prevent static
sparks.
• Keep area clean and free of paint or solvent
containers, rags and other ammable materials.
• Use only conductive or grounded high pressure
uid hose. Gun must be grounded through hose
connections.
• Power cord must be connected to a grounded
circuit.
• Always ush unit into a separate metal container,
at low pump pressure, with spray tip removed.
Hold gun rmly against side of container to ground
container and prevent static sparks.
• Follow the material and solvent manufacturer’s
warnings and instructions. Know the contents of the
paints and solvents being sprayed. Read all Material
Safety Data Sheets (MSDS) and container labels
provided with the paints and solvents. Follow the
paint and solvent manufacturer’s safety instructions.
Indicates a hazardous situation which,
if not avoided, could result in death or
serious injury.
HAZARD: Injection injury
A high pressure paint stream produced by this
equipment can pierce the skin and
underlying tissues, leading to serious
injury and possible amputation. See a
physician immediately.
DO NOT TREAT AN INJECTION
INJURY AS A SIMPLE CUT! Injection can lead to
amputation. See a physician immediately.
The maximum operating range of the gun is 2800
PSI/193 BAR uid pressure.
PREVENTION:
• NEVER aim the gun at any part of the body.
• Do not aim the gun at, or spray any person or
animal.
• NEVER allow any part of the body to touch the uid
stream. DO NOT allow body to touch a leak in the
uid hose.
• NEVER put your hand in front of the gun. Gloves
will not provide protection against an injection injury.
• ALWAYS lock the gun trigger, shut the pump off,
and release all pressure before servicing, cleaning
the tip or guard, changing tip, or leaving unattended.
Pressure will not be released by turning off the
motor. The PRIME/SPRAY knob must be turned
To reduce the risks of fire or explosion, electrical shock and the injury
to persons, read and understand all instructions included in this manual.
Be familiar with the controls and proper usage of the equipment.
Before You Start
Before You Start • Important Safety Information English
2

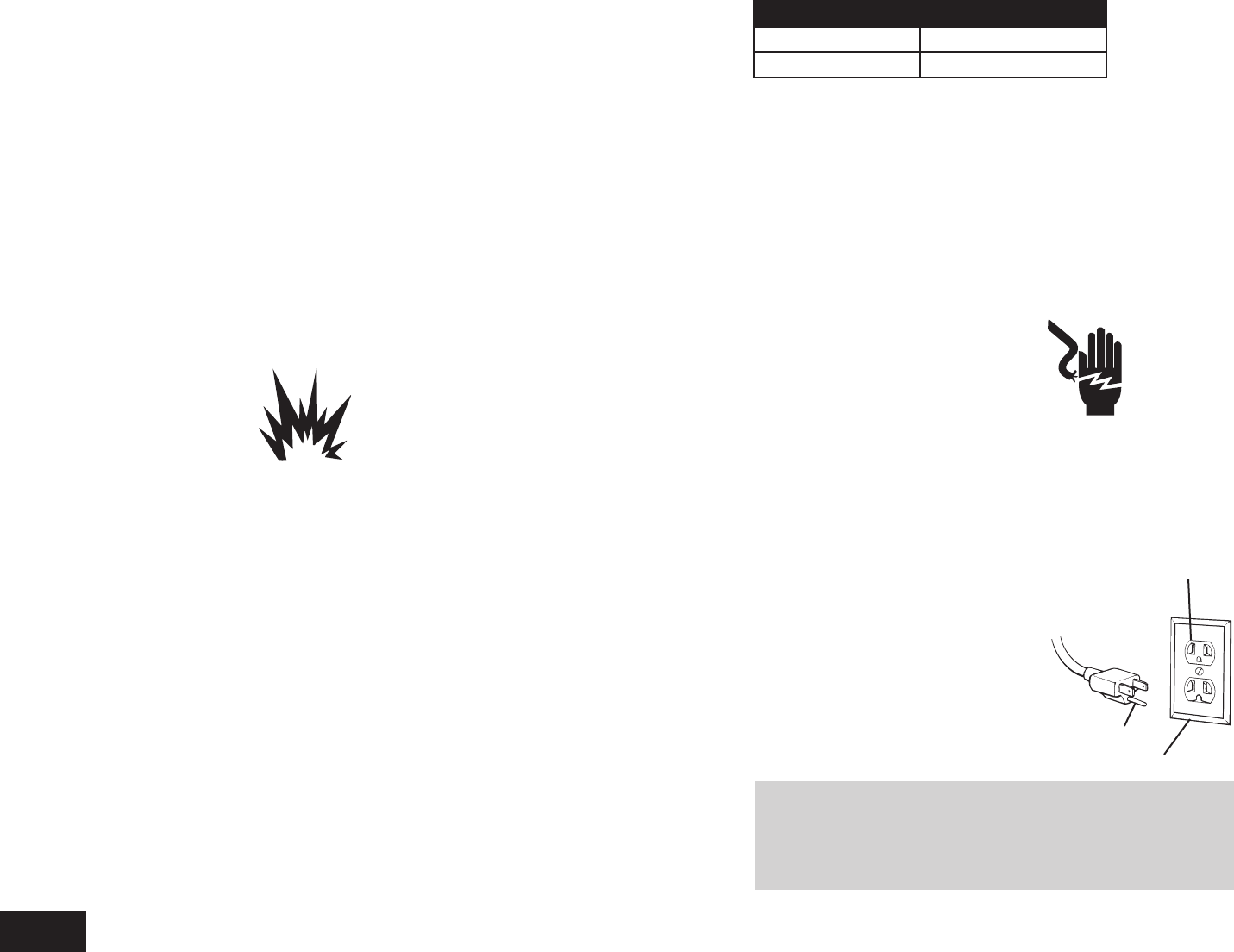

Grounded outlet
Grounded pin
Cover for grounded outlet box
• This product may be used only with water-based
materials or materials with a minimum ash point of
70ºF (21ºC) for spraying or cleaning. Do not spray
or clean with materials having a ash point less
than 70ºF (21ºC), such as solvent based lacquers,
enamels, and/or stain blockers. Flash point is the
temperature at which a uid can produce enough
vapors to ignite.
• Plastic can cause static sparks. Never hang plastic
to enclose a spray area. Do not use plastic drop
cloths when spraying ammable materials.
• Use lowest possible pressure to ush equipment.
• Do not spray onto pump assembly.
HAZARD: EXPLOSION HAZARD DUE TO
INCOMPATIBLE MATERIALS
Will cause property damage or severe injury.
PREVENTION:
• Do not use materials containing
bleach or chlorine.
• Do not use halogenated
hydrocarbon solvents such as
bleach, mildewcide, methylene
chloride and 1,1,1 - trichloroethane.
They are not compatible with aluminum.
• Contact your coating supplier about the compatibility
of material with aluminum.
HAZARD: GENERAL
Can cause severe injury or property damage.
PREVENTION:
• Read all instructions and safety precautions before
operating equipment.
• Follow all appropriate local, state, and national
codes governing ventilation, re prevention, and
operation.
• The United States Government Safety Standards
have been adopted under the Occupational
Safety and Health Act (OSHA). These standards,
particularly part 1910 of the General Standards and
part 1926 of the Construction Standards should be
consulted.
• Use only manufacturer authorized parts. User
assumes all risks and liabilities when using parts
that do not meet the minimum specications and
safety requirements of the pump manufacturer.
• Before each use, check all hoses for cuts, leaks,
abrasion or bulging of cover. Check for damage or
movement of couplings. Immediately replace the
hose if any of these conditions exist. Never repair a
paint hose. Replace it with another grounded high-
pressure hose.
• All hoses and ttings must be secured before
operating spray pump. Unsecured parts can eject
at great force or leak a high pressure uid stream
causing severe injury.
• All hoses, swivels, guns, and accessories must be
pressure rated at or above 2800 PSI/193 BAR.
• Do not spray outdoors on windy days.
• Wear clothing to keep paint off skin and hair.
• Do not operate or spray near children. Keep children
away from the equipment at all times.
• Do not overreach or stand on an unstable support.
Keep effective footing and balance at all times.
• Stay alert and watch what you are doing.
• Do not operate the unit when fatigued or under the
inuence of drugs or alcohol.
IMPORTANT ELECTRICAL INFORMATION
NOTICE
Use only a 3-wire extension cord that has a 3-blade
grounding plug and a 3-slot receptacle that will accept
the plug on the product. Make sure your extension
cord is in good condition. When using an extension
cord, be sure to use one heavy enough to carry the
current your product will draw. An undersized cord
will cause a drop in line voltage resulting in loss of
power and overheating. A 14 or 12 gauge cord is
recommended (see chart). If an extension cord is to
be used outdoors, it must be marked with the sufx
W-A after the cord type designation. For example, a
designation of SJTW-A would indicate that the cord
would be appropriate for outdoor use.
Wagner Spray Tech accessory extension cords
recommended:
P/N 0090241 20 foot extension cord.
P/N 0090242 35 foot extension cord.
Cord gauge Maximum cord length
12 150 feet
14 100 feet
Do not use more than 50 feet of spray hose. If
you need to spray further than 50 feet from your
power source, use more extension cord, not
more spray hose.
Grounding Instructions
This product must be grounded. In the event of an
electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the
electric current. This product is equipped with a cord
having a grounding wire with an appropriate grounding
plug. The plug must be plugged into an outlet that is
properly installed and grounded in accordance with all
local codes and ordinances.
WARNING - Improper installation of the
grounding plug can result in a risk of
electric shock.
If repair or replacement of the cord or plug
is necessary, do not connect the green
grounding wire to either at blade terminal. The wire
with insulation having a green outer surface with or
without yellow stripes is the grounding wire and must
be connected to the grounding pin.
Check with a qualied electrician or serviceman if the
grounding instructions are not completely understood,
or if you are in doubt as to whether the product is
properly grounded. Do not modify the plug provided.
If the plug will not t the outlet, have the proper outlet
installed by a qualied electrician.
This product is for use on a nominal 120 volt
circuit and has a grounding plug that looks
like the plug illustrated below. Make sure that
the product is connected to an outlet having
the same conguration as the plug. No
adapter should be used with this product.
If you experience problems with your sprayer at any time
during assembly, operation, or cleanup, please refer to the
Troubleshooting section of this manual (page 22), or call
customer service at: 1-800-328-8251
Before You Start
Before You Start • Important Safety Information 3
English
SPRAY
PRIME
O
l
Spray Hose
Trigger
Trigger
Lock
Spray Tip
Assembly
Spray Hose Fitting
The Spray Gun
Hopper Lid
Spray
Hose
Outlet
ON/OFF Switch
Hopper
Material
Return
Tube
PRIME/SPRAY Knob
Handle
Handle
Hardware
Inlet
Filter
The Paint Crew
Fill Line
Questions?
Call Wagner Technical Service
1-800-328-8251
Register your product online at:
www.wagnerspraytech.com
What’s in the Box?
Inlet Valve Tool
Saddle seat*
Spray tip
Washer*
Spray
guard
* Saddle seat and washer come
pre-assembled inside spray guard
English
4
Before You Start
Before You Start • What’s in the Box?

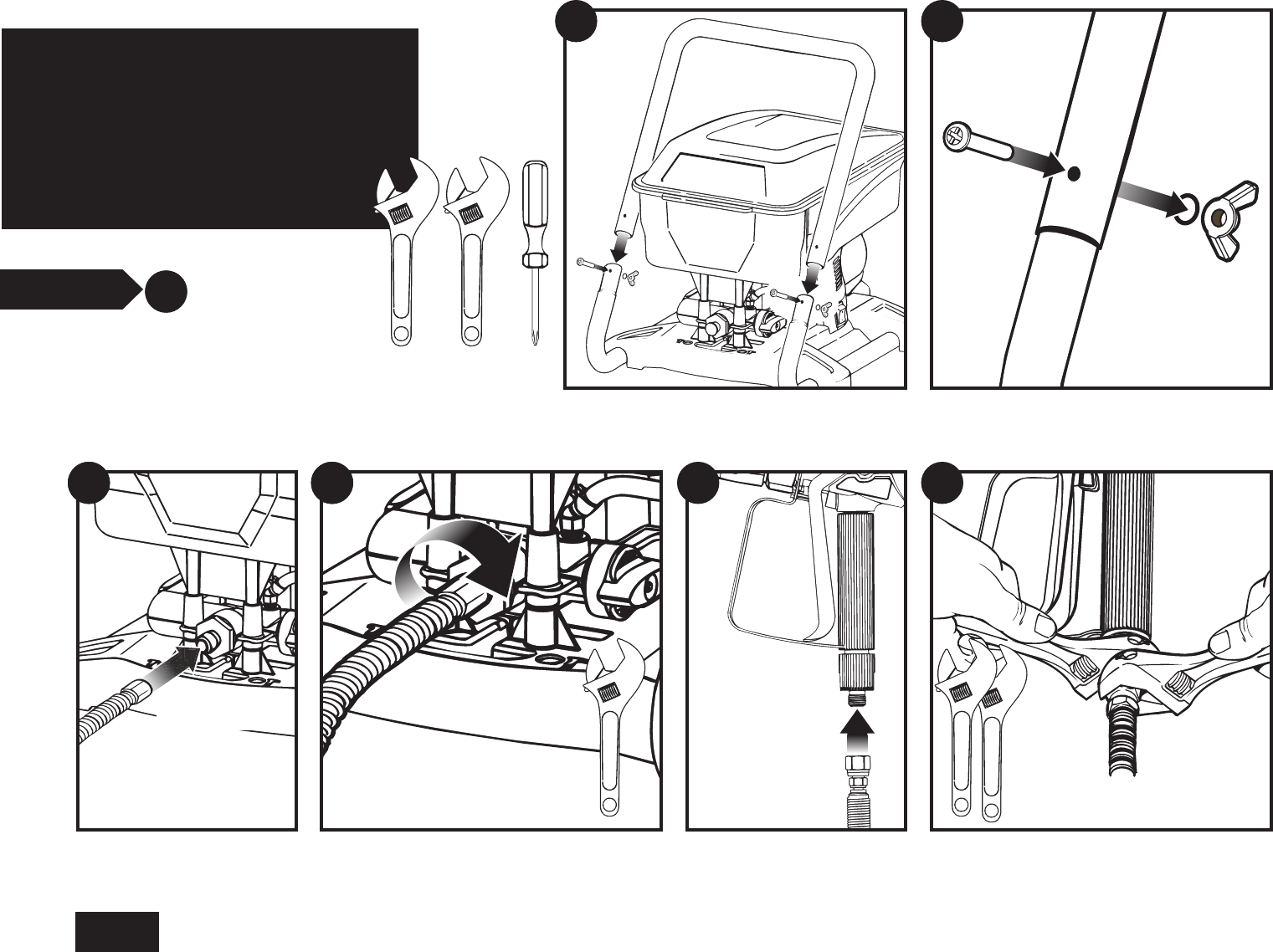

3. On each side of the handle install bolt and
tighten wing nut over lock washer
2. Insert handle
Start 1
Start 1
Assemble Your
Wagner Paint
Crew
What you’ll need
• Phillips screwdriver
• Wrench (2)
Note: Do not plug in the
power cord until assembly is
complete.
4. Thread one end of spray
hose to outlet valve on sprayer 5. Tighten with wrench 6. Thread other end of spray
hose to spray gun 7. Hold spray gun with one wrench and tighten
hose nut with other wrench
THREAD
THREAD
TIGHTEN
65
2 3
4 5 6 7
Before You Start • Assemble Your Wagner Paint Crew
English 55
Before You Start
SPRAY
PRIME
O
l
Proper Use and
Functions
Specications
Weight . . . . . . . . . . . . . . . . . . .25 lbs
Capacity . . . . . . . . . . . . . . . . . .2 gallon hopper
Power source . . . . . . . . . . . . . .½ Hp universal motor
Power requirement . . . . . . . . . .15 amp minimum circuit on
120 VAC, 60 Hz current
Generator . . . . . . . . . . . . . . . . .8000 Watt
Max. spraying pressure . . . . . .2800 PSI
Capability
Sprays a variety of paints (oil-based and latex),
primers, stains, preservatives and other nonabrasive
materials. Do not use materials with ash points
below 70° F (21° C)
Do not use!
This pump should not be used with textured materials,
block ller, lacquers, industrial enamels, or asphalt
sealer or materials containing HHC. See coating
supplier if ash point is not listed on the container
Safety features
Spray gun trigger lock and pressure diffuser; built-
in tip safety guard; PRIME/SPRAY knob for safe
pressure release. Conforms to ULSTD 1450. Certied
to CAN/CSAC 22.2 NO 68-92

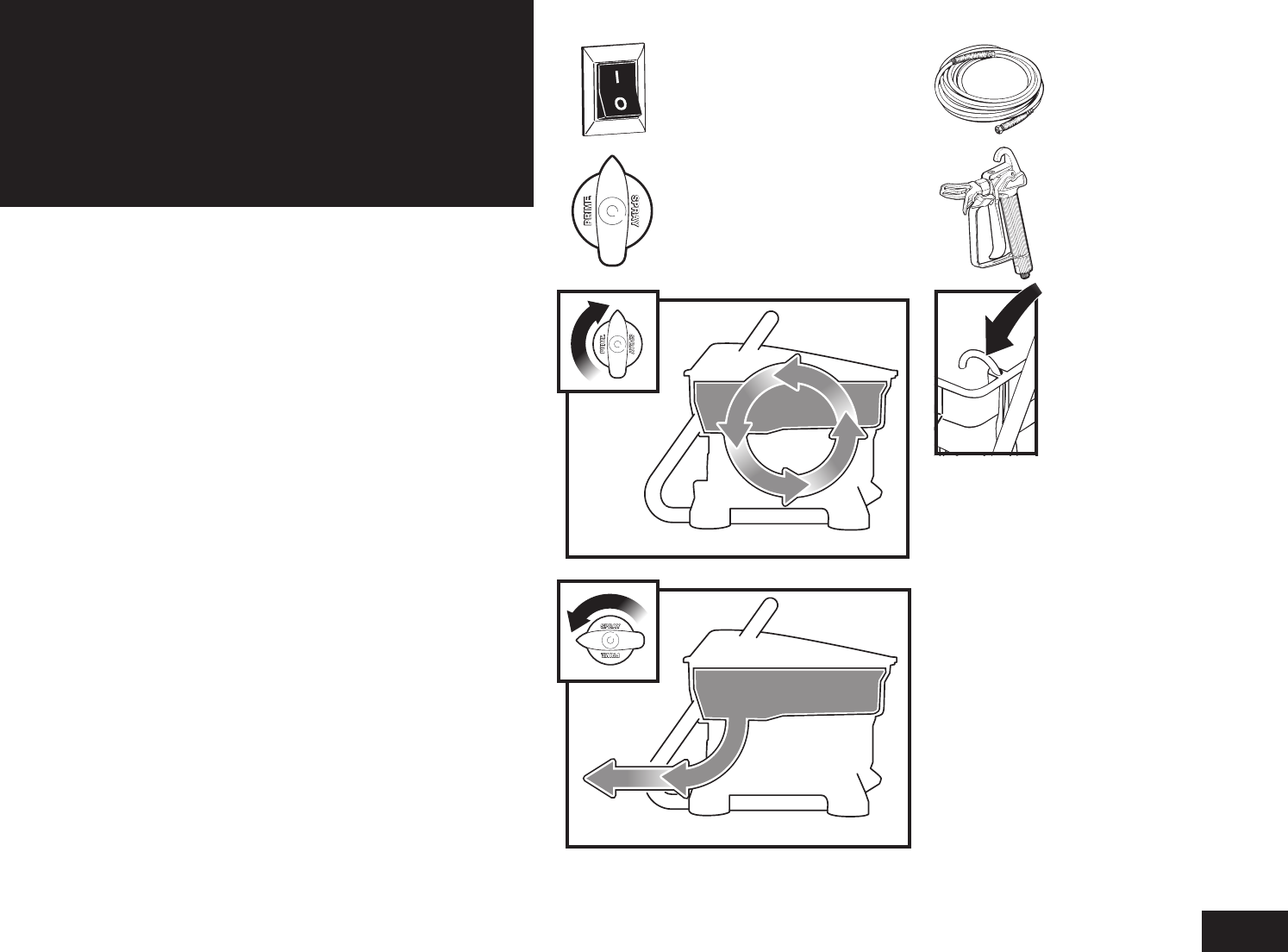

ON/OFF Switch: The ON/
OFF switch turns power
to sprayer on and off
(O=OFF,|=ON)
Spray Gun: The spray gun
controls the delivery of material
being pumped
Spray Hose: The spray hose
connects the spray gun to the
pump
Controls and Functions
Material Return Tube:
Fluid is sent back out through
the return tube and into the
hopper when the PRIME/
SPRAY knob is in the PRIME
position
PRIME/SPRAY Knob: The
PRIME/SPRAY knob directs
material to the material return
tube when set to PRIME (gure
A) or to spray hose when set to
SPRAY (gure B)
Figure A.
Figure B.
PRIME
SPRAY
Using the Wagner Paint Crew
Using the Wagner Paint Crew • Proper Use and Functions English
6
l
O
Start
Important Safety Warning
Be careful when handling the spray gun so
you don’t accidently spray yourself. The
high pressure paint stream could pierce
your skin causing serious injury. If an
accident happens see detail procedures in
the Safety Information section on pages 4-5.
See physician immediately and bring this
instruction manual.
2. Lock spray gun 5. Unlock spray gun. Spray into a waste bucket
until pressure is relieved. Lock the spray gun
3. Turn power OFF
L
O
C
K
OFF
T
U
R
N
What you’ll need
•Waste bucket

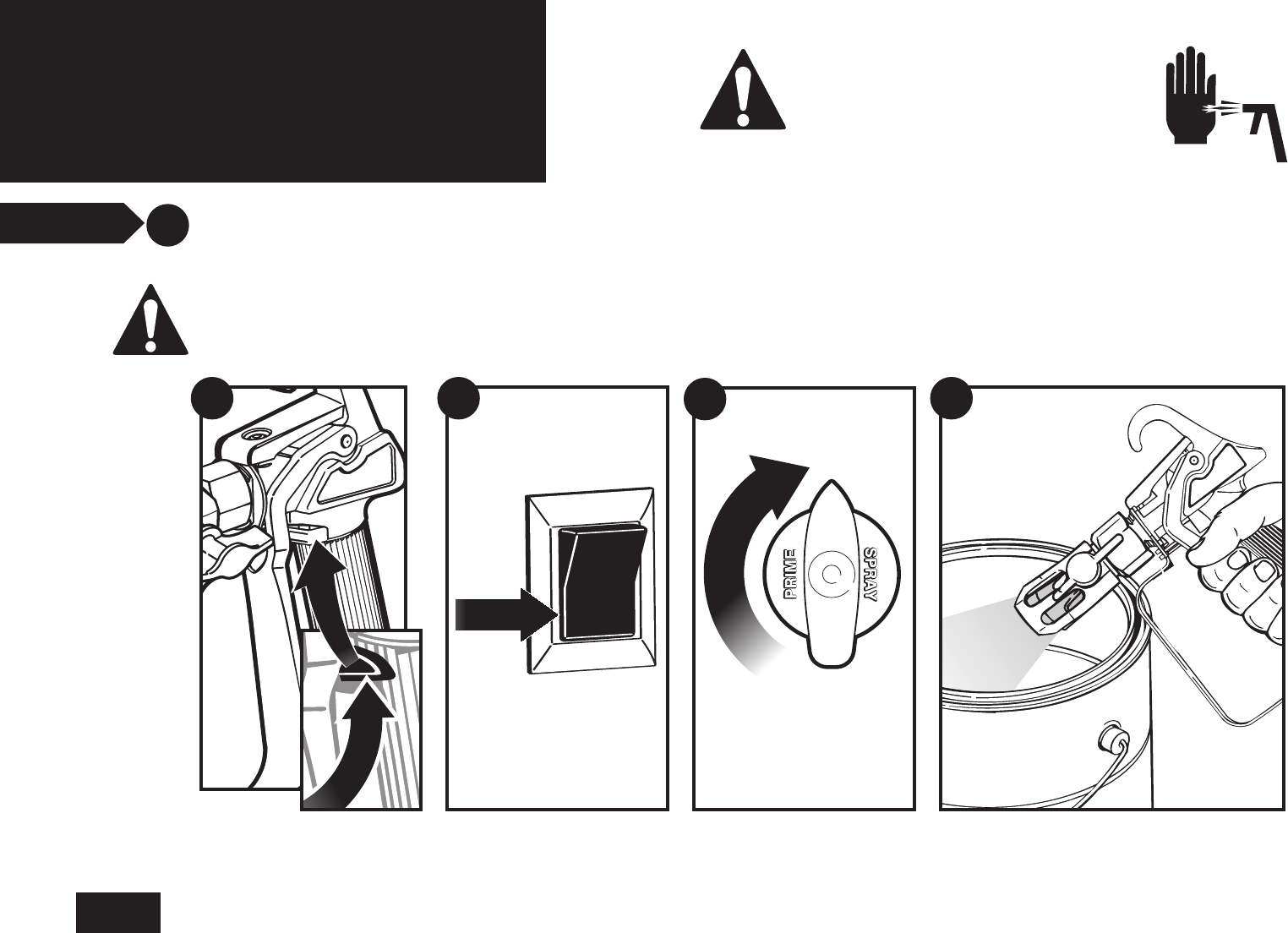

Pressure Relief
Procedure*
* Perform when instructed
Be sure to follow the Pressure Relief Procedure when shutting the
unit off for any purpose. This procedure is used to relieve pressure
from the spray hose. Failure to do so could result in serious injury.
Start
4. Turn knob to PRIME
3 5
4
2
1
Using the Wagner Paint Crew
Using the Wagner Paint Crew • Pressure Relief Procedure
English 7
l
O
l
O
ON
OFF
HOPPER LID
Start
1. Load
Material
What you’ll need
•The material you plan to
spray
• Extension cord
•Waste container 2. Push tab on lter twice to
test inlet valve operation 3. Fill hopper TIP: If material
is old, strain when pouring
into hopper to help prevent
clogging when spraying
4. Plug in sprayer
5. Turn knob to PRIME
T
U
R
N
PUSH
FILL
TO
LINE
12. Place hopper lid on10. Turn power OFF
11. Snap return tube back in
place
8. Turn power ON
9. Steady ow for 5 seconds
6. Remove material return
tube from hopper
7. Hold tube over waste
container
R
E
P
L
A
C
E
T
U
B
E
1
2 4
5
6 8 10 12
7 9 11
Using the Wagner Paint Crew
English
8Using the Wagner Paint Crew • Load Material
SQUEEZE
l
O
ON
L
O
C
K
What you’ll need
•Scrap material/cardboard
•Drop cloths to protect oors and furnishings from
overspray
Special Note
Don’t let the hopper run empty. If the hopper runs
empty go to page 8 “Load Material” and page 9 “Get-
ting Material to Flow “ and follow the steps as shown
2. Getting
Material to Flow
Prior to Spraying
3. Point spray gun at piece of scrap material/
cardboard. Squeeze and hold trigger for steps
4-6
2. Unlock spray gun by turning
trigger lock down
U
N
L
O
C
K
7. Release trigger and lock
spray gun
6. Continue to squeeze trigger until the material
is owing freely through spray gun
5. Turn knob to SPRAY4. Turn power ON
T
U
R
N
SPRAY
Start
32
1
4 5 6 7
Using the Wagner Paint Crew
English 9
Using the Wagner Paint Crew • Getting Material to Flow Prior to Painting
GOOD JOB!
Hold the Spray Gun Level
BAD
Start
3. Practice
Spraying
What you’ll need
•Scrap material/cardboard
GOOD
JOB!
Practice on a piece of scrap material/cardboard
Tip:
Trigger gun after starting the
stroke. Release the trigger
before ending the stroke. The
spray gun should be mov-
ing when the trigger is pulled
and released. Overlap each
stroke by about 30%. This
will ensure an even coating.
11
Using the Wagner Paint Crew
Using the Wagner Paint Crew • Practice Spraying English
10
Start
stroke
End
stroke
Pull
trigger
Release
trigger
Move
steadily
!
GOOD JOB! BAD
Spray Technique
Spray Pattern
GOOD SPRAY PATTERN BAD SPRAY PATTERN: TAILING GOOD JOB!
Overlap Your Strokes
See page 12
Using the Wagner Paint Crew
Using the Wagner Paint Crew • Practice Spraying
English 11
If material isn’t flowing
properly after clearing
these things see
additional instructions in
the Fix Spraying Problems
section
Page 22
Common
Solutions to
Spraying Issues
Keep material owing smoothly while
spraying
Straining material when loading hopper helps
minimize clogging
If experiencing issues with spray patterns
or if material isn’t flowing smoothly follow
instructions to clear the following:
Filter
Spray Tip
If using thicker material the tip may become
clogged. Follow Clear the Spray Tip Instructions
on page 13
Inlet Filter
The inlet lter located in
the hopper is more likely to
clog with thick material or if
something like a leaf gets in the
hopper, follow Clean the Inlet
Filter instructions on page 14
Spray Gun Filter
When using thicker material the lter may
become clogged follow Clean the Spray Gun
Filter instructions on page 15
Spray Tip
Inlet Filter
Solutions if Experiencing Spray Issues
Solutions if Experiencing Spray Issues • While You Are Spraying English
12
L
O
C
K
l
O
3
Note: If spray tip is difcult
to rotate relieve pressure
by turning PRIME/SPRAY
knob to PRIME and squeeze
trigger while pointing at scrap
material/cardboard. Release
trigger and try rotating spray tip
again
l
O
ON
U
N
L
O
C
K
1
Start 1
Clear the
Spray Tip
2. Release trigger and lock
spray gun
3. Turn power OFF
What you’ll need
•Scrap material/cardboard
Do not attempt to unclog or
clean the tip with your nger.
High pressure uid can
cause injection injury.
4. Rotate reversible spray tip 180 degrees to
CLEAN position (arrow pointing toward rear of
spray gun)
OFF
5. Turn knob to SPRAY
6. Turn power ON
8. Point at scrap material/cardboard and
squeeze trigger until material comes out in a
high pressure stream. Release trigger and lock
spray gun
9. Reverse spray tip so arrow
points forward and resume
spraying
7. Unlock spray gun
T
U
R
N
4
5
6
8 97
2
Solutions if Experiencing Spray Issues
Solutions if Experiencing Spray Issues • Clear the Spray Tip
English 13
HANDLE
HANDLE
Start
IMPORTANT: Never clean
lter by poking with sharp
object.
Perform Pressure
Relief Procedure
Page 7
4. Remove inlet lter from
hopper
3. Empty material from hopper into original material container
7. To resume painting follow:
Load Material and
Get Material to Flow
instructions
Page 8-9
INLET FILTER
Clean
the Inlet
Filter
What you’ll need
•Original material container
•Warm, soapy water for latex
material
•Mineral spirits for oil based
materials
5. Clean inlet lter using appropriate cleaning
solution; warm, soapy water for latex material
and mineral spirits for oil based materials
6. Replace inlet lter
REPLACE
The sprayer can
be heavy when
lled with spraying
material. Make sure
to lift with your legs
and not your back in
order to reduce the
risk of injury.
1
3
4
2
5 6
English
14 Tips if Experiencing Spray Issues • Clean the Inlet Filter
Tips if Experiencing Spray Issues
Start 1
Clean the
Spray Gun
Filter
What you’ll need
•Wrench
•Warm, soapy water for latex
material
•Mineral spirits for oil based
materials
•Replacement spray gun lter
(if necessary)
5. Remove lter from housing
9. Reassemble spray gun8. Replace cleaned lter, tapered end rst,
into gun housing. Note: It is important to place
tapered end rst to ensure proper sprayer
operation
7. Inspect
lter for
damage and
replace if rips
are found
IMPORTANT: Never clean
lter by poking with sharp
object.
Perform Pressure
Relief Procedure
Page 7
6. Clean with appropriate
cleaning solution for material
being used; warm, soapy water
for latex material and mineral
spirits for oil based material
3. Pull trigger guard to separate from lter
housing
PULL
4. Unscrew lter housing using
a wrench
2
5 6 987
3 4
English 15
Tips if Experiencing Spray Issues • Clean the Spray Gun Filter
Tips if Experiencing Spray Issues
HOPPER LID
5. If your break is more than an hour slowly pour
½ cup of water of paint in hopper. This helps
prevent paint from drying and causing possible
clogs
6. Place lid on hopper and keep sprayer out of
sun
Instructions are for latex material only
Note: If using oil based material follow instructions for
Cleanup and Storage on page 18
This procedure should be used when taking a short term
break or when ending your project for the day. If your break
is longer than 16 hours follow instructions for Cleanup and
Storage on page 18
Shut Down
and Short Term
Storage
What you’ll need
•Water
•Plastic bag or bucket
•Rags
Start
4. Place spray gun in plastic bag or immerse into bucket of water
Perform Pressure Relief Procedure
Page 7
MINERAL
SPIRITS
or
5 6
2
1
4
3
OR
English
16 Cleanup and Storage • Shut Down and Short-Term Storage
Cleanup and Storage

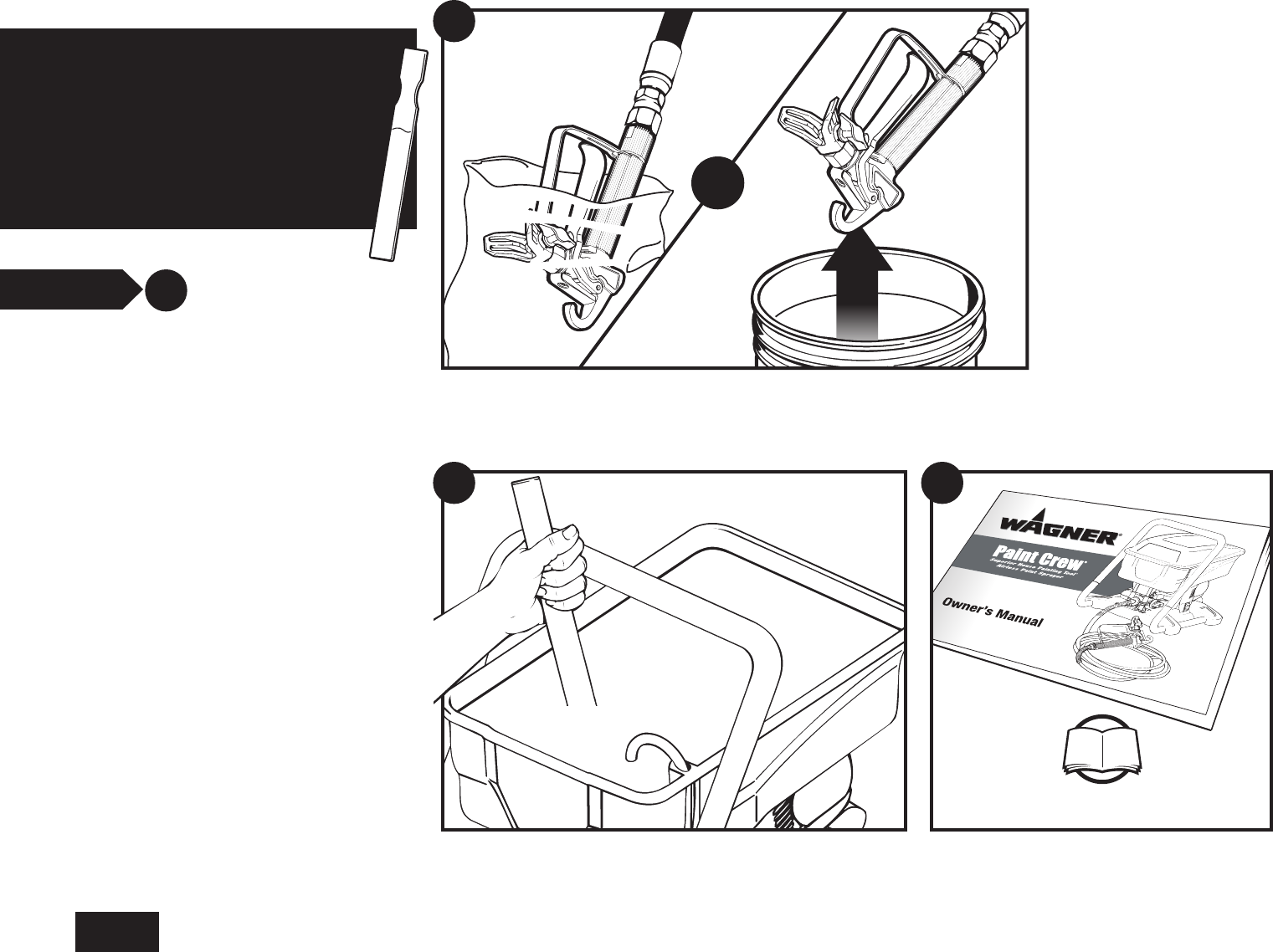

4. Steps for Getting Material to Flow (page 9)3. If water was added during shut down stir water into material
2. Remove spray gun from plastic bag or from bucket of water
Startup from
Short Term
Storage
What you’ll need
•Stir stick
Start
43
2
Page 9
1
OR
English 17
Cleanup and Storage • Startup from Short-Term Storage
Cleanup and Storage
l
O
SQUEEZE
T
U
R
N
ON
HANDLE
HANDLE
l
O
OFF

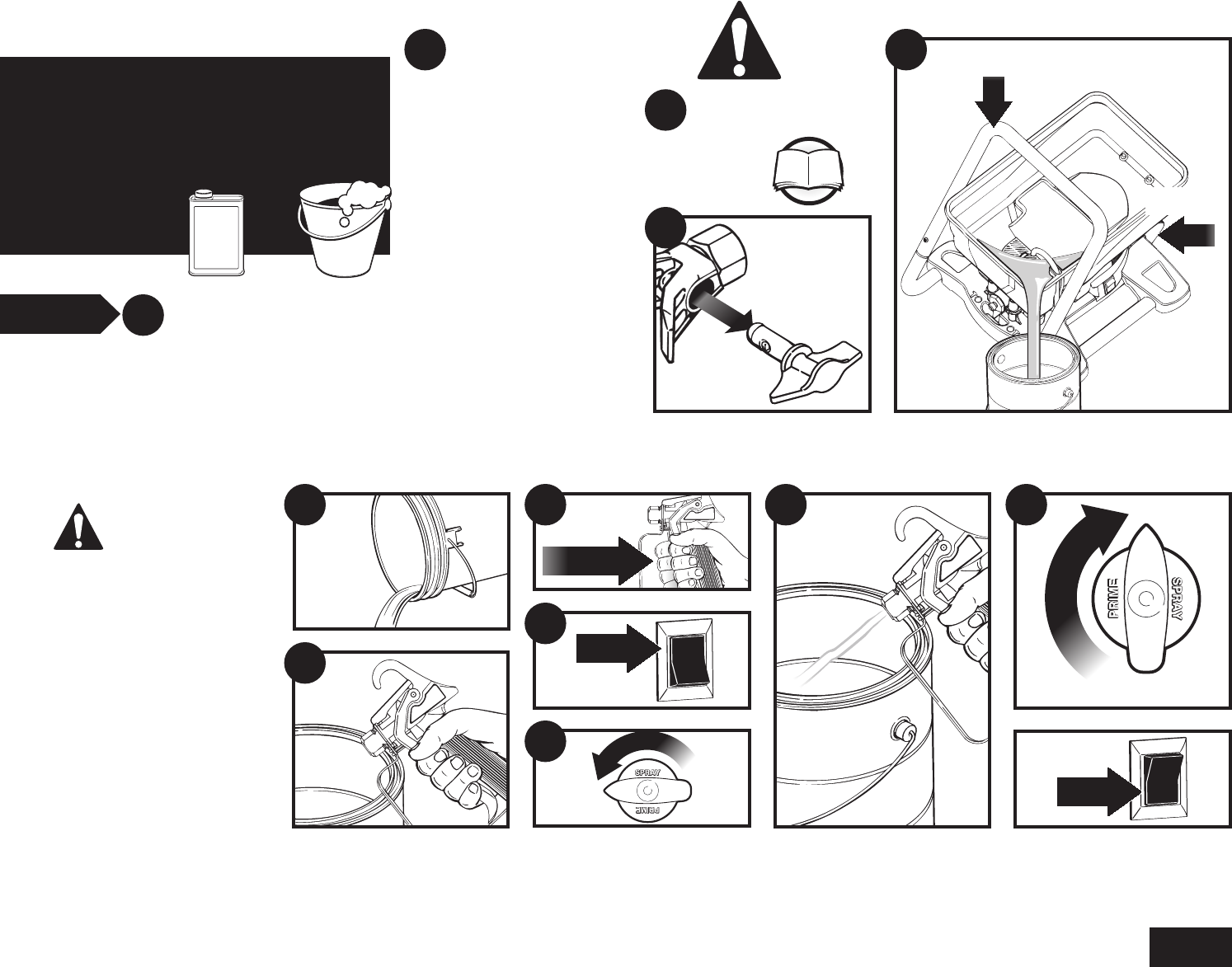

Flush Material
From Sprayer
12. Turn knob to PRIME and
squeeze trigger until pressure
is relieved. Release trigger, lock
spray gun, turn power OFF
11. Continue squeezing trigger
until uid is coming out clear.
Repeat as necessary
8. Squeeze trigger
9. Turn power ON
10. Turn knob to SPRAY
6. Fill hopper with appropriate
cleaning solution
7. Point spray gun at side of
waste container
Follow these steps
whenever cleaning
with mineral spirits:
• If spraying or cleaning with
oil-based materials, the spray
gun must be grounded while
preparing the spray hose or
cleaning.
• Ground the gun by holding it
against the edge of a metal
container while purging.
Failure to do so may lead to a
static electric discharge which
may cause a re
• Always ush spray gun at least
one hose length from spray
pump
• If collecting ushed solvent in
one gallon metal container,
place it into an empty ve
gallon container, then ush
• Area must be free from vapors
• Follow all cleanup instructions
4. Remove spray tip and guard
and place in cleaning solution
What you’ll need
• Warm, soapy water if using
latex material
• Mineral spirits if using oil-
based material
• Waste container
Cleaning Notes
• When using latex material,
clean sprayer and
components with warm,
soapy water. For oil based
material use mineral spirits.
Never use mineral spirits
with latex materials
• NEVER use gasoline to
clean sprayer
• Dispose of used cleaning
solution properly
• Thorough cleaning and
lubrication of sprayer is
important to ensure proper
operation after storage
• If you ush your sprayer
with mineral spirits, repeat
Flush Material From Sprayer
instructions using warm-
soapy water
5. Empty material from hopper into original
material container. Make sure to lift with your
legs and not your back to avoid injury.
Start
T
U
R
N
Perform Pressure
Relief Procedure
Page 7
MINERAL
SPIRITS
or
2
3
4
5
6
7
811 12
9
10
1
English
18
Cleanup and Storage
Cleanup and Storage • Clean the Sprayer
l
O
l
O
ON
OFF
2-3 MINUTES
3. Remove inlet lter and clean with appropriate cleaning solution.
Replace inlet lter in hopper
9. Hold material return tube
over a waste container. Run for
2 to 3 minutes
10. Turn power OFF
7. Turn knob to PRIME
8. Turn power ON
4. Partially ll hopper with
NEW cleaning solution
2. Rinse hopper with appropriate cleaning
solution
What you’ll need
• Warm, soapy water
• Mineral spirits if using oil-
based material
• Rags
Start

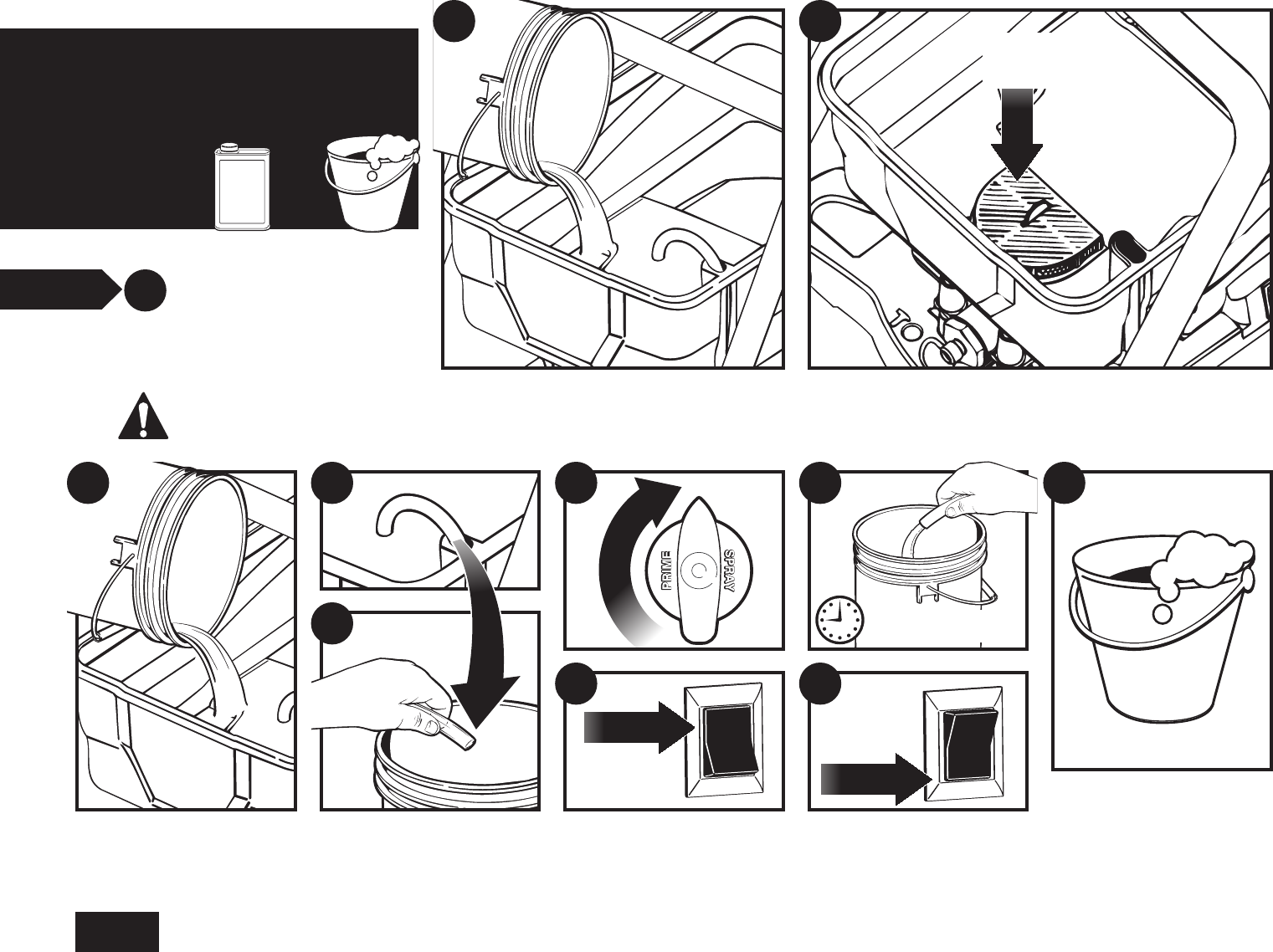

Clean the Hopper
INLET
FILTER
T
U
R
N
11. Properly dispose of
cleaning solution in hopper
Note: If mineral spirits were
used to clean hopper repeat
clean hopper instructions using
warm, soapy water
MINERAL
SPIRITS
or
5. Remove material return
tube from hopper
6. Hold tube over waste
container
Do not allow any uid to drip
onto the motor housing.
3
97
10
4
2
1
8
115
6
English 19
Cleanup and Storage • Clean the Hopper
Cleanup and Storage
HOUSEHOLD
OIL
HOUSEHOLD
OIL
Start
Clean
Spray Gun
Components
What you’ll need
• Soft bristled brush
• Light household oil
• Warm, soapy water if using
latex material
• Mineral spirits for oil based
material
• Wrench
4. Remove lter from spray gun
7. Install gun lter tapered-end
rst. Reassemble spray gun
6. Pour a few drops of light
household oil inside gun
housing
5. Clean spray tip and lter
with soft bristled brush and
appropriate cleaning solution
8. Install spray tip with arrow
pointing towards front of spray
guard tip
9. Install spray tip and guard
assembly
Filter
OIL
Start
Perform Pressure
Relief Procedure
Page 7
3. Pull trigger guard to separate
from lter housing and unscrew
housing using a wrench
1
4
5 6 7 8 9
1
2 3
Cleanup and Storage
Cleanup and Storage • Clean Spray Gun Components English
20
l
O
ON
OFF
5 SECONDS
HOUSEHOLD
OIL
HOUSEHOLD
OIL
l
O
Start 1
Long Term
Storage
2. Remove inlet lter
4. Cover outlet valve with a rag. Turn
power ON. Let run for 5 seconds 5. Turn power OFF 7. Wipe entire unit, hose and spray gun with
damp cloth to remove accumulated material
INLET
FILTER
Start What you’ll need
•Light household oil
•Rags
6. Replace inlet lter
REPLACE
3. Pour approximately 2 ounces of light
household oil into inlet valve
OIL
2
4 75
1
6
3
Cleanup and Storage
Cleanup and Storage • Long Term Storage
English 21
Before servicing, always release system
pressure by following Pressure Relief
Procedure (page 7).
Problem A: The sprayer does not start
Cause Solution
1. Sprayer is not plugged in Plug sprayer in
2. ON/OFF switch is set to OFF Turn ON/OFF switch to ON
3. The sprayer shuts off while under pressure Motor will cycle ON and OFF while spraying to regulate pressure. This is normal
4. No voltage is coming from wall plug Test the power supply voltage
5. The extension cord is damaged or has too low a capacity Replace extension cord
6. There is a problem with sprayer motor Take sprayer to Wagner Authorized Service Center
Problem B: The sprayer starts but does not draw material when the PRIME/SPRAY knob is set to PRIME
Cause Solution
1. The sprayer will not prime properly or has lost prime Refer to Getting Material to Flow section see page 9
2. The hopper is empty Refer to Load Material and Getting Material to Flow sections see pages 8-9
3. The sprayer is not on level ground Relocate sprayer to level ground
4. The inlet lter is clogged Refer to Clean the Inlet Filter see page 14
5. The inlet valve is stuck Inlet may be stuck from old material. Push lter tab to release. If still stuck refer to Clean
the Inlet Filter see page 14 or Replace the Inlet Valve see page 24 *
6. The outlet valve is stuck Refer to Replacing Outlet Valve see page 24
7. The inlet valve is worn or damaged Refer to Cleaning or Replacing Inlet Valve see page 24 *
8. The PRIME/SPRAY valve is plugged Take sprayer to Wagner Authorized Service Center
Problem C: The sprayer draws up material but the pressure drops when the gun is triggered
Cause Solution
1. The spray tip is worn Replace spray tip with a new one**
2. The inlet lter is clogged Refer to Clean the Inlet Filter see page 14
3. The spray tip is plugged Refer to Clear the Spray Tip see page 13
4. The spray gun lter is clogged Refer Clean the Spray Gun Filter see page 15. Keep extra lters on hand
5. The material is too heavy or coarse Thin or strain the material
6. The outlet valve assembly is dirty or worn Refer to Replacing Outlet Valve see page 24 *
7. The inlet valve assembly is damaged or worn Refer to Clean or Replace Inlet Valve see page 24 *
Fix Spraying Problems
English
22
Troubleshooting
Troubleshooting • Fixing Spraying Problems
Problem D: The PRIME/SPRAY knob is set to SPRAY and there is flow through the material return tube
Cause Solution
1. The PRIME/SPRAY valve is dirty or worn Take sprayer to Wagner Authorized Service Center
Problem E: The spray gun leaks
Cause Solution
1. Gun lter housing is loose Tighten handle
2. Internal parts of spray gun are worn or dirty Take sprayer to Wagner Authorized Service Center
Problem F: The spray tip assembly leaks
Cause Solution
1. The spray tip was assembled incorrectly Check tip assembly and assemble properly see page 20, steps 8-9
2. Gun seal is worn Replace the seal*
Problem G: The spray gun will not spray
Cause Solution
1. The spray tip plugged Refer to Clear the Spray Tip see page 13
2. The spray gun lter is clogged Refer to Clean the Spray Gun Filter see page 15. Keep extra lters on hand
3. The spray tip is in CLEAN position Rotate spray tip to SPRAY position see page 13, step 9
4. PRIME/SPRAY knob not set on SPRAY Turn PRIME/SPRAY knob to SPRAY see page 9 Getting Material to Flow
Problem H: The spray pattern is poor (tailing)
Cause Solution
1. The spray tip is plugged Refer to Clear the Spray Tip see page 13
2. The inlet lter is clogged Refer to Clean the Inlet Filter see page 14
3. The spray gun lter is clogged Refer to Clean the Spray Gun Filter see page 15. Keep extra lters on hand
4. The spray tip is worn Replace the spray tip
5. The material is too thick Thin material using appropriate thinning solution
6. Pressure loss Refer to Causes and Solutions for Problem C
Daily Maintenance
The only daily maintenance necessary is thorough cleaning
Follow the cleaning procedures in this manual
* Special repair kits with instructions are available for these procedures. Refer to the Maintenance section of this manual for a list of the kits and their part numbers
** Additional parts are available for this procedure. Refer to the Accessories (page 74) section of this manual for a list of the parts and their part numbers
Extended Maintenance
Some pump parts eventually wear out from use and must be
replaced. The following is a list of available repair kits. Pump
performance is the only reliable indicator of when to replace wear
parts. Refer to the Troubleshooting section for more information
on when to use these kits
Kit Part # Description
0515221 Inlet valve kit
0515237 Outlet valve kit
0501014 Saddle seat/seal kit
23
English
Troubleshooting
Troubleshooting • Fixing Spraying Problems
Inlet
fitting
O-ring
Inlet
fitting
O-ring
Inlet
fitting
O-ring
Inlet
fitting
Inlet
valve
Inlet
valve
O-ring
2. Remove inlet lter from
bottom of hopper
4. Inspect the three inlet tting
O-rings and replace if worn. If
not replacing O-rings do not
remove them but clean with
appropriate cleaning solution
based on material being used.
Lubricate with light household oil
5. Place inlet valve O-ring in
housing and set inlet valve on
top of O-ring
6. Replace inlet tting in house
and tighten with inlet valve tool
and ratchet wrench
INLET VALVE TOOL
What you’ll need
•Wrench
•Rag
•Warm, soapy water if using
latex material
•Mineral spirits for oil based
material
Start
Replacing Outlet Valve
REMOVE
3. Attach inlet valve tool to
ratchet wrench extension.
Insert inlet valve tool into inlet
tting. Turn counter-clockwise
and remove from housing
2. Unscrew outlet valve from outlet valve
housing using wrench
3. Remove any accumulated material inside
outlet valve housing using appropriate solution
for material being used
4. Replace with new outlet valve and tighten
with wrench
REMOVE
Cleaning or replacing the inlet valve may be necessary if
spray performance remains poor after following steps in
the Fix Spraying Problems section. Problems with the inlet
valve are usually caused by improper cleaning or storage.
Replacement kits may be ordered by calling the customer
service number found on page 2
Replacement of the outlet valve may be
necessary if spray performance remains
poor after following steps in the Fix
Spraying Problems section. Replacement
valves can be ordered by calling the customer
service number found on page 2
What you’ll need
•Inlet valve tool
•Ratchet wrench, extension
•Household oil
•Warm, soapy water if using latex material
•Mineral spirits for oil based material
Cleaning or Replacing Inlet Valve
Start
INLET VALVE
2
1
3
2
1
English
24
Troubleshooting
Troubleshooting • Replace Outlet Valve
Español
74 Français
74 English
74
48
5
1
3
2
7
6
6
12
3
4
5
6
9
Spray Gun • Pistolet • Pistola
Sprayer • Pulvérisateur • Rociador Item
Article
Articulo
Part No.
No de piéce
Pieza No. English - Description Français - Description Español - Descripción
Quantity
Quantite
Cantidad
1 0515223 Hopper lid
Couvercle de trémie Tapa de tolva
1
2 0515297 Handle, upper
Poignée Mango
1
3 0515225 Bolt, washer, and wing
nut kit
Trousse de boulon,
rondelle et écrou
Juego de perno,
rondana y tuerca
1
4 0515417 Inlet lter
Filtre d’entrée Filtro de entrada
1
5 0515237 Outlet valve
Soupape de sortie Válvula de salida
1
6 0515999 Feet
Supports Soportes
4
7 0515226 Return tube / tting
Tube de retour / raccord Tubo de retorno /
conector
1
8 0515370 Inlet valve tool
Outil de soupape
d’entrée
Herramienta de válvula
de entrada
1
9 0515221 Inlet valve kit
Trousse de joint de
soupape d’entrée
Juego de sellos para la
válvula de entrada
1
Parts and Accessories • Pièces et Accessoires • Piezas y Accesorios
Item
Article
Articulo
Part No.
No de piéce
Pieza No. English - Description Français - Description Español - Descripción
Quantity
Quantite
Cantidad
1 0501011 Guard assembly
Protège-embout Ensamblaje de
protección
1
2 0501413 Tip, 413
Buse, 413 Boquilla, 413
1
3 0515229 Complete gun assembly
Includes items 3,4,5,6
Pistolet et ses
composants (incluis les
articles 3-6)
Ensamblaje de la pistola
(incluye articulos 3-6)
1
4 0154675 Filter, 100 mesh (yellow,
2 pack)
Filtre, maille 100 (jaune,
trousse de 2)
Filtro, malla 100
(amarillo, juego de 2)
1
5 0515228 Seal Joint d’etanchéite Sello 1
6
------
Filter housing Logement de ltre Alojamiento de ltro 1
Parts List • Liste de pièces • Lista de piezas
Warranty • Garantie • Garantía
Español 75
FrançaisEnglish
Limited Warranty
AIRLESS PAINT SPRAY EQUIPMENT
This product, manufactured by Wagner Spray Tech Corporation
(Wagner), is warranted to the original retail purchaser against
defects in material and workmanship for one year from date of
purchase.
This warranty does not cover damage resulting from improper
use, accidents, user’s negligence or normal wear. This warranty
does not cover any defects or damages caused by service or
repair performed by anyone other than a Wagner Authorized
Service Center. This warranty does not apply to accessories.
ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE IS LIMITED TO
ONE YEAR FROM DATE OF PURCHASE.
WAGNER SHALL NOT IN ANY EVENT BE LIABLE FOR ANY
INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND,
WHETHER FROM BREACH OF THIS WARRANTY OR ANY
OTHER REASON.
If any product is defective in material and/or workmanship
during the applicable warranty period, return it with proof of
purchase, transportation prepaid to any Wagner Authorized
Service Center. (Service Center listing is enclosed with this
product.) Wagner’s Authorized Service Center will either repair
or replace the product (at Wagner’s option) and return it to you,
postage prepaid.
SOME STATES DO NOT ALLOW LIMITATIONS ON
HOW LONG AN IMPLIED WARRANTY LASTS OR THE
EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATION AND EXCLUSION
MAY NOT APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS,
AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY
FROM STATE TO STATE.
GARANTIE LIMITÉE
MATÉRIEL DE PULVÉRISATION DE PEINTURE SANS AIR
Ce produit, fabriqué par Wagner Spray Tech Corporation
(Wagner), est garanti, au bénéce de l’acheteur au détail
d’origine, contre tout vice de matières et toute malfaçon pour un
an à compter de la date d’achat.
La présente garantie ne s’applique pas aux dégâts entraînés
par une utilisation incorrecte, par la négligence de l’usager ou
par l’usure normale. La présente garantie ne s’applique pas non
plus aux défectuosités ou dommages résultant de l’entretien
ou de la réparation que fait une personne quelconque qui
ne soit pas membre d’un centre d’entretien autorisé pour les
produits Wagner. La présente garantie ne s’applique pas aux
accessoires.
TOUTE GARANTIE IMPLICITE DE QUALITÉ MARCHANDE
OU D’ADAPTATION À UN USAGE PARTICULIER EST LIMITÉE
À UNE PÉRIODE DE 30 JOURS POUR UNE UTILISATION
PROFESSIONNELLE OU DE LOCATION ET D’UNE ANNÉE
POUR L’UTILISATION DOMESTIQUE, À COMPTER DE LA
DATE D’ACHAT.
TOUTE GARANTIE IMPLICITE DE VENDABILITÉ OU DE
CONVENANCE À UNE DESTINATION PARTICULIÈRE EST
LIMITÉE À UN AN À COMPTER DE LA DATE D’ACHAT.
Si un produit est défectueux en ce qui concerne les matériaux
ou l’exécution pendant la période de garantie applicable, vous
devez le retourner, avec une preuve d’achat et frais de port
payés, à n’importe quel centre d’entretien autorisé pour les
produits Wagner. (Une liste de ces centres d’entretien est jointe
à ce produit.) Le centre d’entretien autorisé pour les produits
Wagner réparera ou remplacera le produit (à la discrétion de
Wagner) et vous le retournera par la poste, avec frais de port
payés.
CERTAINES PROVINCES INTERDISENT LES
RESTRICTIONS SUR LA DURÉE D’UNE GARANTIE
IMPLICITE OU L’EXCLUSION DES DOMMAGES
ACCESSOIRES OU INDIRECTS. IL SE PEUT DONC QUE LA
RESTRICTION ET L’EXCLUSION ÉNONCÉES CI-DESSUS
NE S’APPLIQUENT PAS À VOUS.
LE PRÉSENTE GARANTIE VOUS ACCORDE DES DROITS
JURIDIQUES SPÉCIFIQUES, ET VOUS AVEZ PEUT-
ÊTRE D’AUTRES DROITS, QUI PEUVENT VARIER D’UNE
PROVINCE À L’AUTRE.
GARANTÍA LIMITADA
EQUIPO DE ATOMIZACIÓN DE PINTURA SIN AIRE
Este producto, fabricado por Wagner Spray Tech Corporation
(Wagner), está garantizado ante el comprador original contra
defectos de materiales y mano de obra durante un año contado
a partir de la fecha de compra.
Esta garantía no cubre los daños que sean resultado de un uso
inapropiado, accidentes, negligencia del usuario o un desgaste
normal. Esta garantía no cubre ningún defecto o daño que
haya sido causado por los servicios o reparaciones llevadas a
cabo por alguien que no sea un técnico del Centro de Servicio
Autorizado de Wagner. Esta garantía no es válida para ningún
accesorio.
CUALQUIER GARANTIA IMPLICITA DE COMERCIALIZACION
O IDONEIDAD PARA CUALQUIER PROPOSITO EN
PARTICULAR QUEDA LIMITADA A UN AÑO A PARTIR DE LA
FECHA DE COMPRA.
WAGNER NO SERÁ EN NINGÚN CASO RESPONSABLE
DE NINGÚN DAÑO INCIDENTAL O DE CONSECUENCIA
DE NINGUNA CLASE, QUE RESULTE DE VIOLAR ESTA
GARANTÍA O POR CUALQUIER OTRA RAZÓN.
Si algún producto llegara a tener defectos de material y/o mano
de obra durante el período de validez de la garantía, devuélvalo
junto con el comprobante de compra y ete previamente
pagado, a cualquier Centro de Servicio Autorizado de Wagner.
(La lista de Centros de Servicio viene adjunta con este
producto.) El Centro de Servicio Autorizado de Wagner reparará
o reemplazará el producto (según la opción de Wagner) y se lo
devolverá, con porte previamente pagado.
ALGUNOS ESTADOS NO PERMITEN LIMITACIONES EN
CUANTO A LA DURACIÓN DE UNA GARANTÍA IMPLÍCITA
O LA EXCLUSIÓN DE DAÑOS INCIDENTALES O DE
CONSECUENCIA, DE MANERA QUE LA LIMITACIÓN Y
EXCLUSIÓN ANTERIORES PODRÍAN NO SER VÁLIDAS
PARA USTED.
ESTA GARANTÍA LE CONCEDE DERECHOS LEGALES
ESPECÍFICOS, PERO USTED PODRÍA TENER DERECHO A
OTROS, LOS CUALES VARÍAN DE UN ESTADO A OTRO.
Limited Warranty for Your Paint Crew 770
