Wahoo Fitness WF119 ELEMNT Rival (multisport gps heart rate watch) User Manual A01 STB PET 307000220178 01 20170710

Wahoo Fitness LLC ELEMNT Rival (multisport gps heart rate watch) A01 STB PET 307000220178 01 20170710

TempConfidential_WF119-User Manual-2017-12-01

QUICK START GUIDE
wahoofitness.com/instructions
FR Guide de démarrage rapide 1 // Téléchargez l'app. Des
questions ? Allez sur www.wahoofitness.com/instructions
2 // Activez ELEMNT RIVAL et assurez-vous que le Bluetooth
est activé 3 // Associez ELEMNT RIVAL à l'app avec QR Code
et suivez les instructions de l'app 4 // Montez sur votre vélo
et pédalez
IT Guida rapida all'avvio 1 // Scarica app. Domande? Visitate
www.wahoofitness.com/instructions 2 // Accendi a ELEMNT
RIVAL e assicurati che il Bluetooth sia attivo 3 // Connetti
ELEMNT RIVAL all'app con QR Code e segui le istruzioni
dell'app 4 // Sali sulla bici e pedala
ES Guía para comienzo rápido 1 // Descarga la aplicación.
¿Alguna pregunta? Vaya a www.wahoofitness.com/instructions.
2 // Enciende ELEMNT RIVAL y asegúrate de que Bluetooth esté
encendido 3 // Empareja ELEMNT RIVAL con la aplicación con QR
Code y sigue las instrucciones de la aplicación 4 // Monta la
bicicleta y anda
DE Kurzanleitung 1 // App herunterladen. Fragen? Weitere
Infos unter www.wahoofitness.com/instructions 2 // ELEMNT
RIVAL und Bluetooth einschalten 3 // ELEMNT RIVAL über QR
Code mit App verbinden und App-Anweisungen befolgen
4 // Am Fahrrad montieren und losfahren
SC 快速入门指南 1 // 下载应用. 有问题? 请前往
www.wahoofitness.com/instructions 2 // 开启ELEMNT RIVAL 并确
保蓝牙已打开 3 // 利用QR Code与应用匹配ELEMNT RIVAL 并按照应
用指导操作 4 // 安装在自行车上，开 始 骑 行
TC 快速入門指南 1 // 下載應用. 有問題 ? 請前往
www.wahoofitness.com/instructions 2 // 開啟ELEMNT RIVAL 並
確保藍牙已開啟 3 // 利用QR Code與應用匹配ELEMNT RIVAL 並按
照應用指導操作 4 // 在自行車上安裝後開始騎行
JA クイックスタートガイド 1 // アプリをダウンロード. 質問がありま
すか？www.wahoofitness.com/instructionsをご覧ください 2 //
ELEMNT RIVAL をオンにし、Bluetoothがオンになっていることを確認
3 // QR CodeでELEMNT RIVAL をアプリと同期し、アプリの指示に従って
ください 4// Bike and Rideに乗る
KO 빠른 시작 가이드 1 // 앱 다운로드. 질문이 있으세요?
www.wahoofitness.com/instructions을(를) 방문하세요. 2 //
ELEMNT RIVAL 를 켜고 블루투스를 켜세요 3 // ELEMNT RIVAL 를 QR
Code로 앱과 연결하고 앱 설명을 따르세요 4 // 자전거를 타고 달리세요
V1
Downloading...

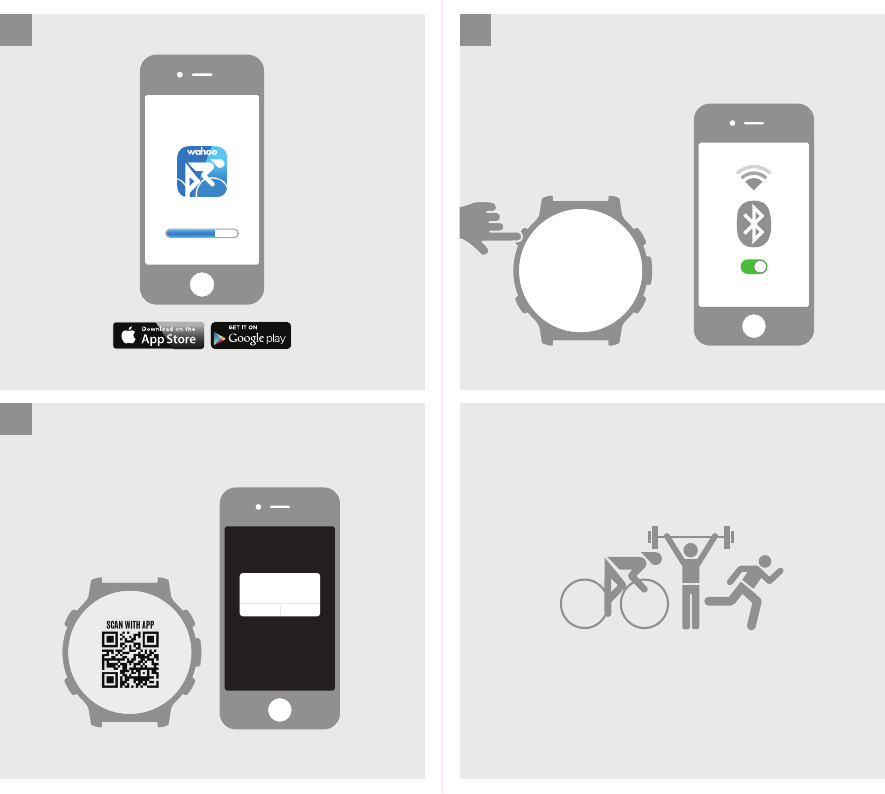

1Download the Wahoo ELEMNT App 2Turn on ELEMNT RIVAL and ensure
Bluetooth is on
ON
WHEN PROMPTED BY iPHONE,
TAP “PAIR” TO COMPLETE
THE PROCESS...
Bluetooth Pairing Request
“ELEMNT RIVAL” would like to pair
with your iPhone.
PairCancel
3Pair ELEMNT RIVAL to app with QR
code and follow app instructions
Questions? Go to wahoofitness.com/instructions
ENJOY YOUR WORKOUT!
ELEMNT Rival multisport GPS watch
The ELEMNT Rival is a multisport gps heart rate watch offered by Wahoo Fitness, giving you
plenty of functionality plus enabling you to measure your performance with ease.
The ELEMNT Rival is designed to be used in conjunction with the ELEMNT companion app, a
free app which allows you to maximize the potential of the ELEMNT Rival and makes getting the
most out of your workout an easier task.
As a stand alone device, the ELEMNT Rival gathers information on heart rate, temperature,
elevation, location & speed. By connecting additional sensors, the ELEMNT Rival can gather a
wealth of information to expand your reporting ability on your workout.
Use with or without your smartphone when performing a workout and enjoy quick and easy
automated upload of your workouts via Bluetooth.
iOS: This product is designed for use on the iPhone 4s and newer, iPad 3rd gen
and newer, iPad mini, iPad Air, and iPod 5th gen and newer.
Android:
This product is designed for use with Android devices compliant with the
Bluetooth 4.0 protocol running version 4.3 or newer & must allow Third
Party App Access to the Bluetooth 4.0 Radio.
NOTE: Wahoo Fitness has not tested complete compatibility with all Android devices
matching this description. Please download the app from the Google Play Store to
ensure that it installs on your device before purchasing a product.
This product is shipped with the following:
• ELEMNT Rival Multisport GPS Watch
• ELEMNT Rival Charger
• Quickstart guide
• Important Product Info Guide
Setting Up:
This setup guide is intended to assist with readying your ELEMNT Rival for first use and
pairing to the ELEMNT companion app.
ELEMNT Rival multisport watch:
1. Remove from packaging.
2. Turn on by pressing the power button located on the upper left side of the device.
After first time loading, a QR code will be displayed. You are now ready to start
setting up the ELEMNT Rival with the ELEMNT companion app on your
smartphone.
NOTE: Although the ELEMNT Rival ships with approximately 50% charge, for best
results, it is recommended that the device be charged fully before performing your first
workout.
PAIRING THE ELEMNT TO YOUR SMARTPHONE:
iOS USERS:
1. Download the ELEMNT companion app from the App Store.
2. Open the ELEMNT companion app & watch the introductory welcome video or skip
to continue. Make sure you have bluetooth enabled on your mobile device.
3. Select start to proceed with pairing the companion app to your ELEMNT Rival.
4. If not turned on already, turn your ELEMNT Rival on by pressing the upper left hand
button.
5. Pair your ELEMNT Rival with your smartphone by scanning the QR code displayed
on the ELEMNT Rival. (Simply place the ELEMNT Rival in front of your phone camera.)
NOTE: The ELEMNT companion app requires access to the camera in order to scan
the QR code. Please enable access to the camera when prompted.
6. When the dialogue box appears, select Pair to complete the pairing process.
7. The ELEMNT companion app will now display the login page. Log in by signing up
to the Wahoo Fitness Cloud or use your Facebook login to proceed.
NOTE: Login is necessary to backup your data and sync between devices. This
step can be skipped, but will be required in order to view your data on other devices.
8. Log in to your favorite fitness sites and ELEMNT Rival will automatically upload your
workouts over bluetooth. Alternatively, select Next and add these later.
9. Complete a basic profile to be used with the ELEMNT Rival. This information will be
used to calculate metrics such as calories and HR zones. Alternatively, select Next and
add these later.
10. Enable Live Track if desired to allow you to see other riders on the ELEMNT Rival
and allows other ELEMNT users to see you. Additionally, you can also share a link with
family and friends to view your location online.
11. If you choose to enable Live Track, you can also automatically share your location
with others. Add recipients via email to continue or select Next.
ANDROID USERS:
1. Download the ELEMNT companion app from the Google Play store.
2. Open the ELEMNT companion app & watch the introductory welcome video or skip
to continue. Make sure you have bluetooth turned on.
3. Select “Start” to proceed with pairing the companion app to your ELEMNT Rival.
4. If not turned on already, turn your ELEMNT Rival on by pressing the upper left hand
button.
5. Pair your ELEMNT RIVAL with your smartphone by scanning the QR code displayed
on the ELEMNT BOLT. (Simply place the ELEMNT RIVAL in front of your phone
camera.)
NOTE: The ELEMNT companion app requires access to the camera in order to
scan the QR code. Please enable access to the camera if prompted.
6. The ELEMNT companion app will now display the login page. Log in by signing up
to the Wahoo Fitness Cloud to proceed.
NOTE: Login is necessary to backup your data and sync between devices. This
step can be skipped, but will be required in order to view your data on other devices.
7. Turn Bluetooth on to enable the ELEMNT RIVAL essential services such as update
of your device and to upload workouts.
8. Log in to your favorite fitness sites and ELEMNT RIVAL will automatically upload
your workouts over bluetooth. Alternatively, select Next and add these later.
9. Complete a basic profile to be used with the ELEMNT BOLT. This information will be
used to calculate metrics such as calories and HR zones. Alternatively, select Next and
add these later.
10. Enable Live Track if desired to allow you to see other riders on the ELEMNT RIVAL
and allows other ELEMNT users to see you. Additionally, you can also share a link with
family and friends to view your location online.
11. If you choose to enable Live Track, you can also automatically share your location
with others. Add recipients via email to continue or select Next.
After initial installation, the ELEMNT RIVAL will perform a step-by-step tour. Read up on
how to use or select “Skip tour” to exit. Your ELEMNT RIVAL is now set up and ready
for action.

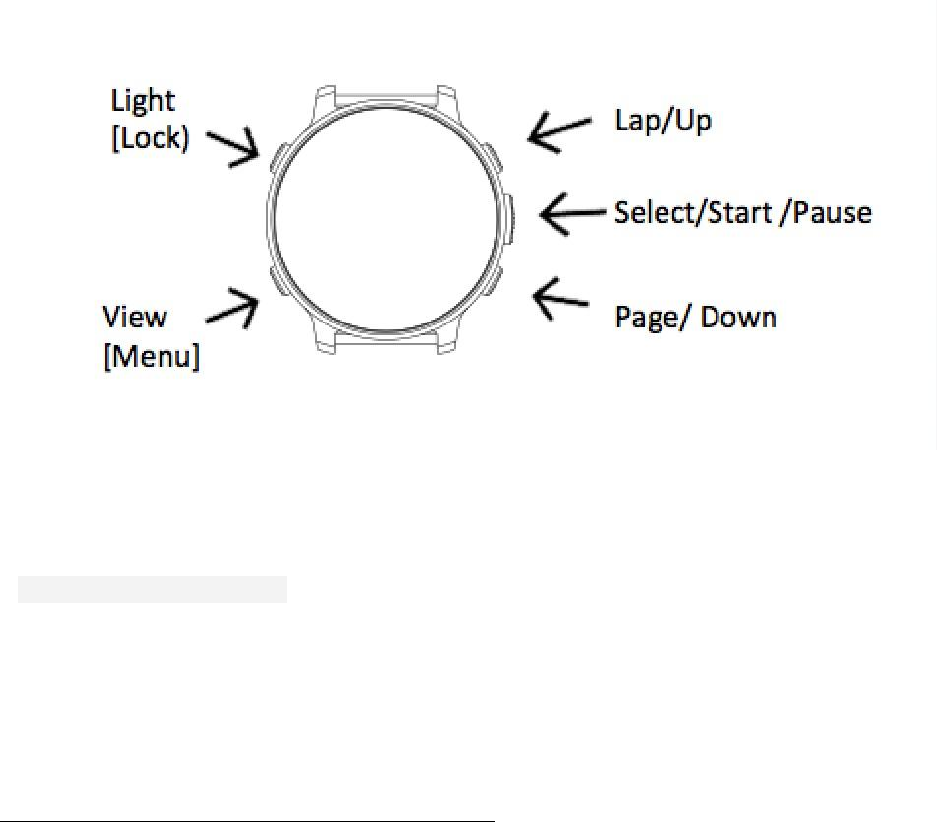

Getting to Know your ELEMNT Rival:
The ELEMNT RIVAL interface consists of the following buttons:
How to find E-label
Hold down “menu” button (bottom left).
Select “System”
Select “Certifications”
Design Specifications:
• Physical Dimensions (LxWxH) :46.5 x46.5 x 12.5mm
• Display Size: 240 x 240
• Battery: lithium ion
• Battery Life: Up to 14 hours
Product Warranty & Returns:
For information on the Wahoo Returns Policy or for product Warranty details:
http://www.wahoofitness.com/returns-and-warranty
FCC ID: PADWF119
IC: 10563A-WF119
%
'
'
&
$
 
$
