Walt Disney Parks and Resorts US XPD-R1G1 Experience Payment Device User Manual

Walt Disney Parks and Resorts US., INC. Experience Payment Device Users Manual

Users Manual

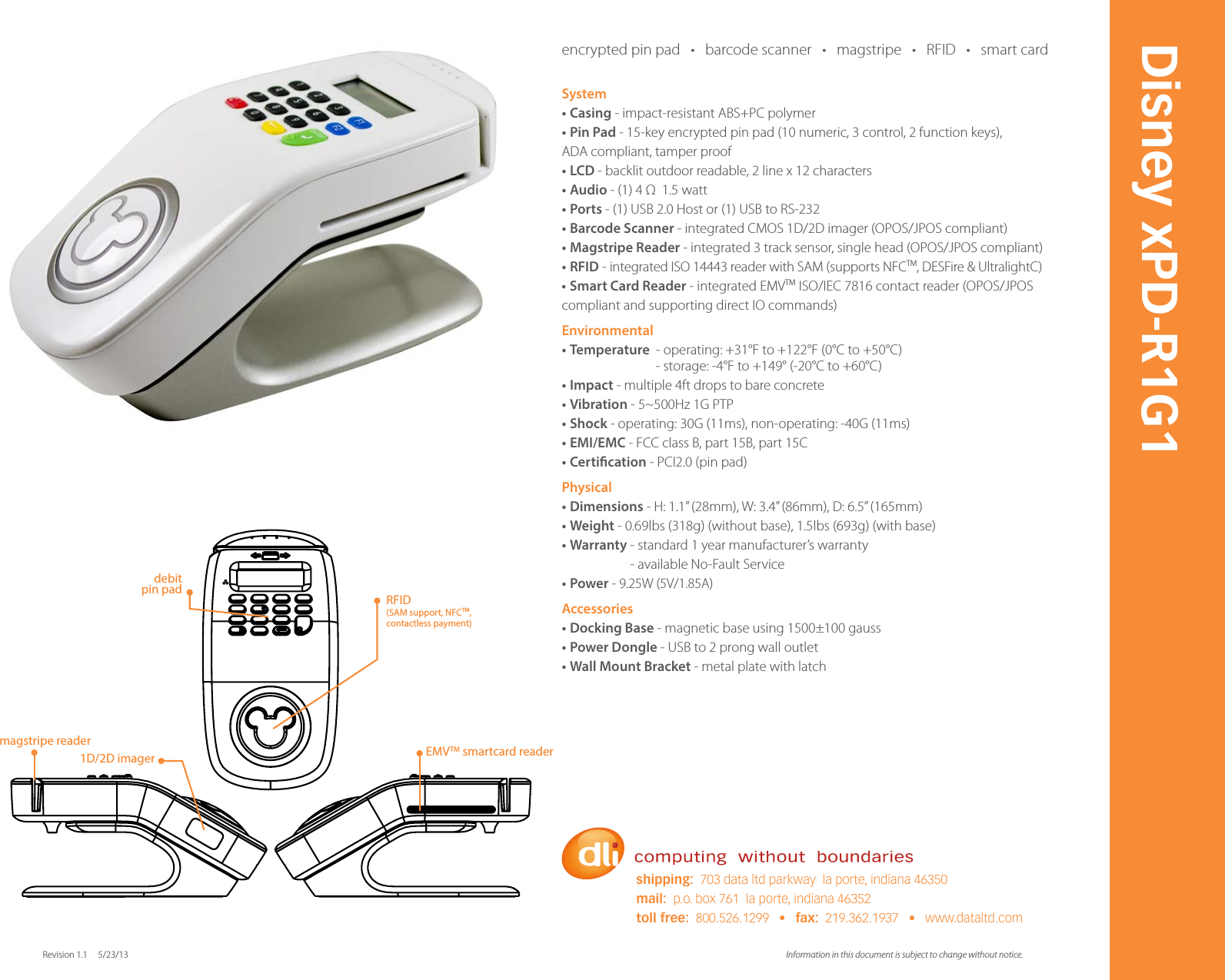

System
•Casing - impact-resistant ABS+PC polymer
•PinPad - 15-key encrypted pin pad (10 numeric, 3 control, 2 function keys),
ADA compliant, tamper proof
•LCD - backlit outdoor readable, 2 line x 12 characters
•Audio - (1) 4 Ω 1.5 watt
•Ports - (1) USB 2.0 Host or (1) USB to RS-232
•BarcodeScanner - integrated CMOS 1D/2D imager (OPOS/JPOS compliant)
•MagstripeReader - integrated 3 track sensor, single head (OPOS/JPOS compliant)
•RFID - integrated ISO 14443 reader with SAM (supports NFCTM, DESFire & UltralightC)
•SmartCardReader - integrated EMVTM ISO/IEC 7816 contact reader (OPOS/JPOS
compliant and supporting direct IO commands)
Environmental
•Temperature - operating: +31°F to +122°F (0°C to +50°C)
- storage: -4°F to +149° (-20°C to +60°C)
•Impact - multiple 4ft drops to bare concrete
•Vibration - 5~500Hz 1G PTP
•Shock - operating: 30G (11ms), non-operating: -40G (11ms)
•EMI/EMC - FCC class B, part 15B, part 15C
•Certication - PCI2.0 (pin pad)
Physical
•Dimensions - H: 1.1” (28mm), W: 3.4” (86mm), D: 6.5” (165mm)
•Weight - 0.69lbs (318g) (without base), 1.5lbs (693g) (with base)
•Warranty - standard 1 year manufacturer’s warranty
- available No-Fault Service
•Power -
9.25W (5V/1.85A)
Accessories
•DockingBase - magnetic base using 1500±100 gauss
•PowerDongle - USB to 2 prong wall outlet
•WallMountBracket - metal plate with latch
Information in this document is subject to change without notice. Revision 1.1 5/23/13
Disney xPD-R1G1
shipping: 703 data ltd parkway la porte, indiana 46350
mail: p.o. box 761 la porte, indiana 46352
toll free: 800.526.1299 • fax: 219.362.1937 • www.dataltd.com

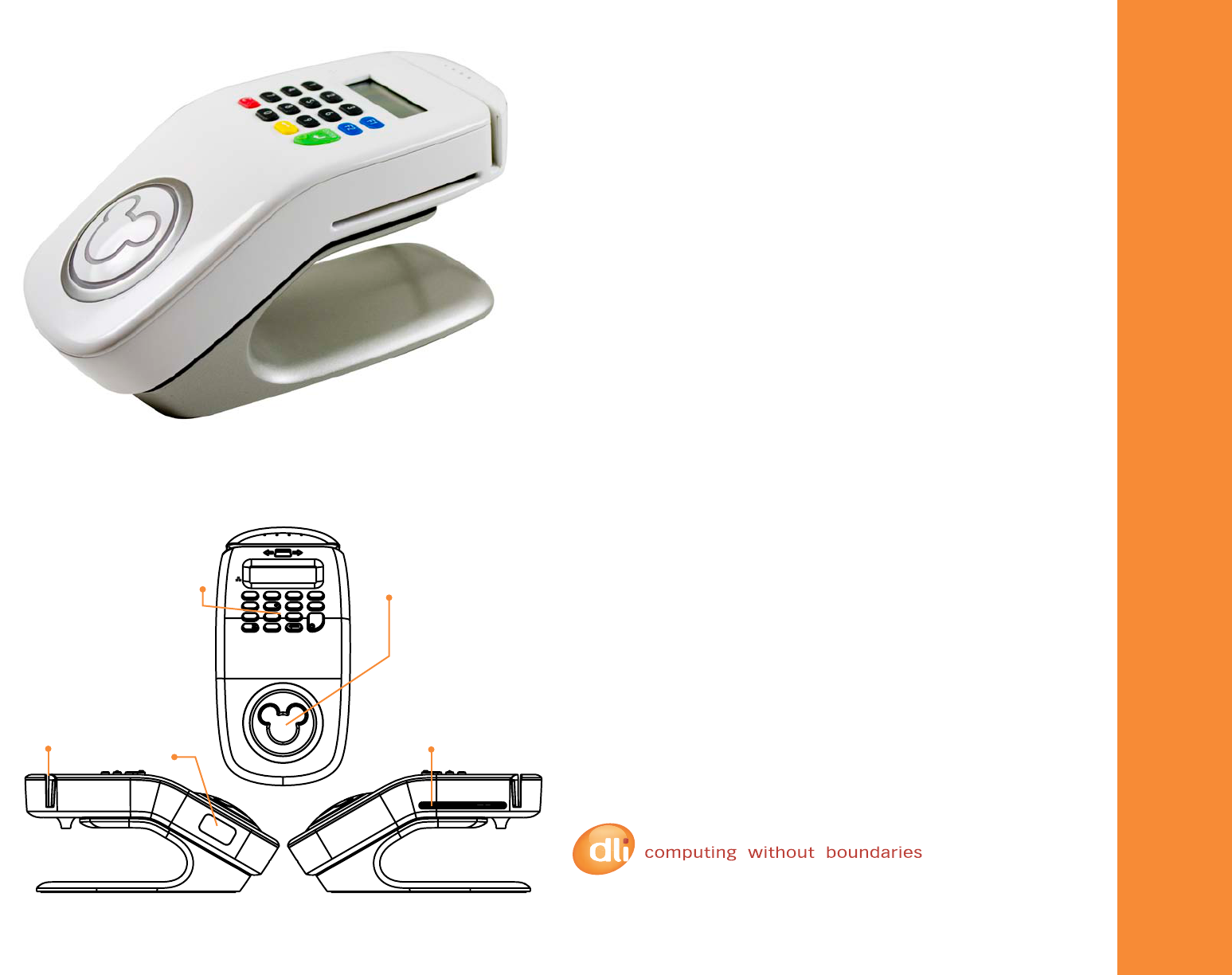

1D/2D imager
magstripe reader EMVTM smartcard reader
debit
pin pad RFID
(SAM support, NFCTM,
contactless payment)
encrypted pin pad • barcode scanner • magstripe • RFID • smart card
Information in this document is subject to change without notice. Revision 1.1 5/23/13
Disney xPD-R1G1
shipping: 703 data ltd parkway la porte, indiana 46350
mail: p.o. box 761 la porte, indiana 46352
toll free: 800.526.1299 • fax: 219.362.1937 • www.dataltd.com

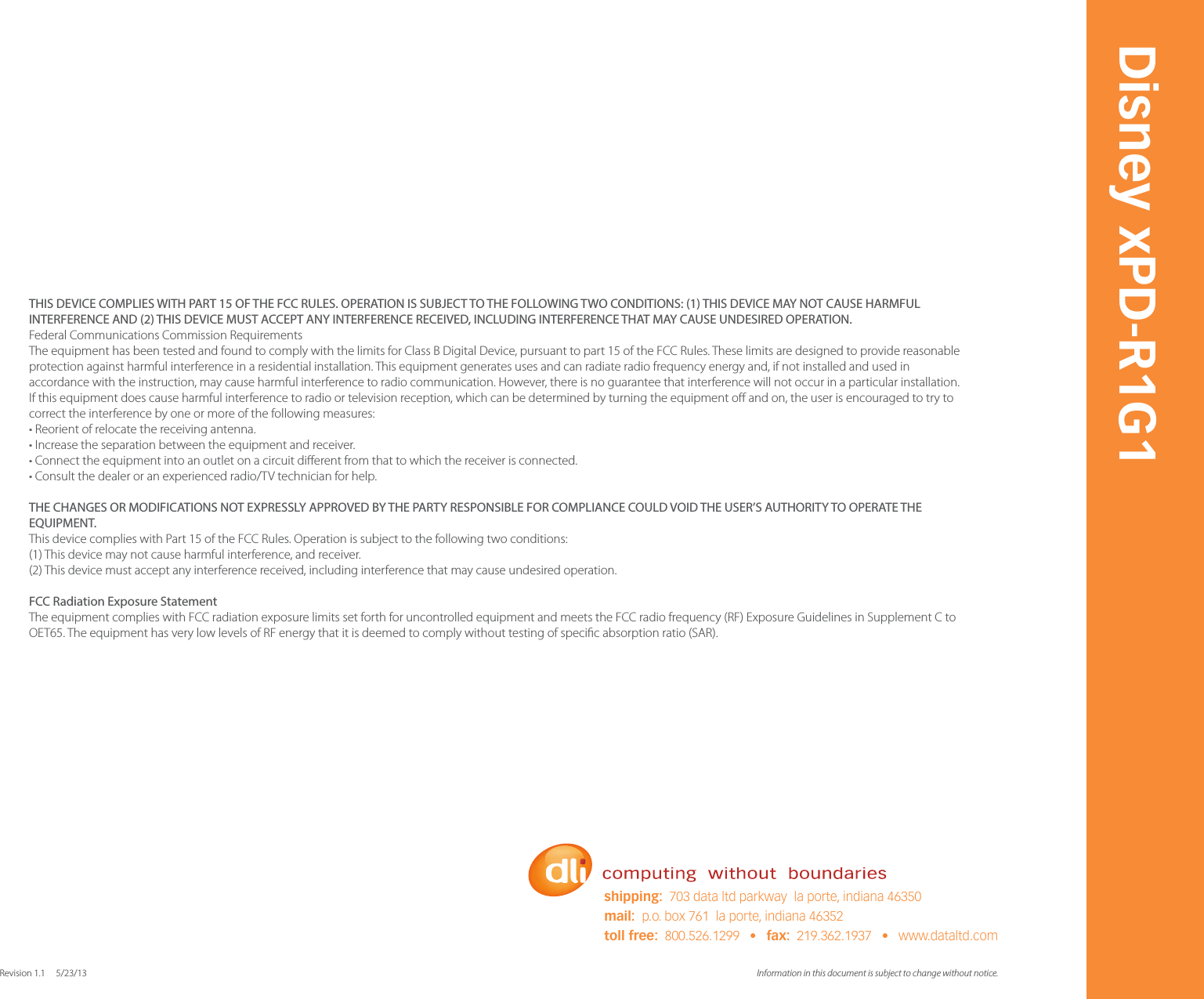

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL
INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
Federal Communications Commission Requirements
The equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient of relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
THE CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER’S AUTHORITY TO OPERATE THE
EQUIPMENT.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and receiver.
(2) This device must accept any interference received, including interference that may cause undesired operation.
FCC Radiation Exposure Statement
The equipment complies with FCC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to
OET65. The equipment has very low levels of RF energy that it is deemed to comply without testing of specic absorption ratio (SAR).
