Wanlida Group MP1607 Mobile DVD Player User Manual
Wanlida Group Co., Ltd. Mobile DVD Player Users Manual
Users Manual
Applicant: WANLIDA GROUP CO., LTD.
FCC ID: SMFMP1607
Federal Communication Commission Interference Statement:
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates
, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However
, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
- 2 -
Contents
Congratulations on purchasing your Myron & Davis. Read this manual to get
started using your Myron & Davis quickly.
Important Safety Instructions.......... 2
Precautions with Moisture.......... .3
Function Features...................... .4
Parts Introduction....................... .5
Remote Control.......................... .8
Connections............................... .10
Preparation................................. .11
Use of Remote Control.......... .11
Compatible disc formats........ .12
Power Supply............................. .13

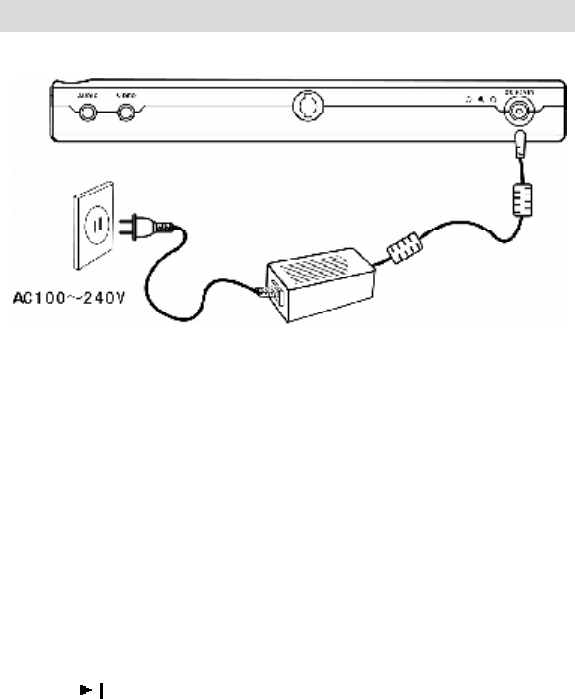

Use of Adapter ...13

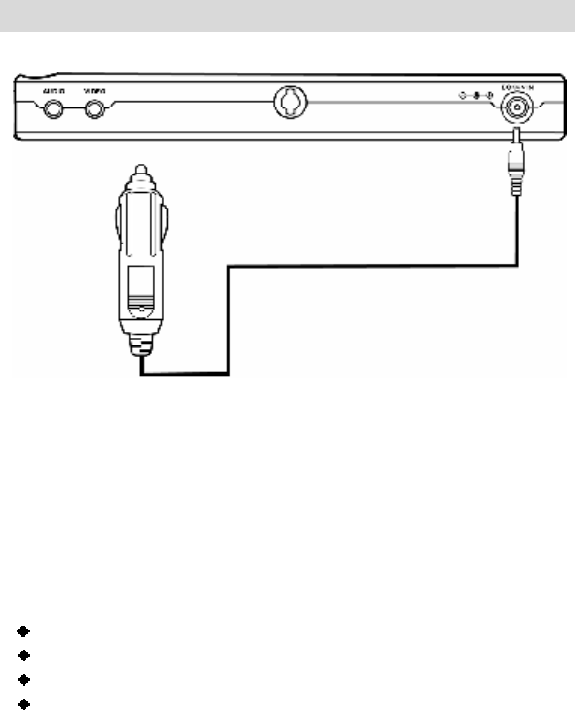

Use of Car Adapter ............. .14
Basic Operations........................ .15
FM transmitter use ..17
System Setup............................. .18
Play Functions............................ .21

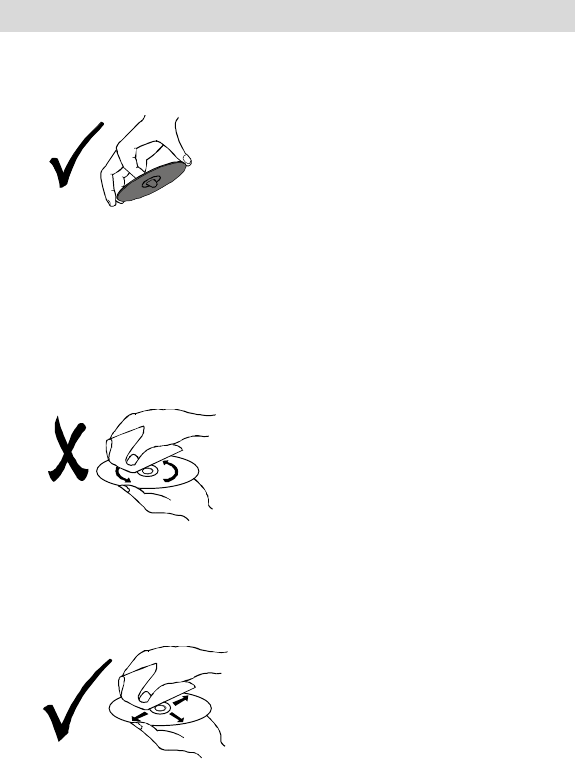

Care of Discs.............................. .25
Troubleshooting.......................... .26
Specifications............................. .27
- 3 -
Important Safety Instructions
The lighting flash with arrowhead symbol within a triangle alerts the user
to dangerous voltage! which could cause electric shock.
The exclamation point within a triangle indicates to the user to read
important operating and maintenance instructions in the manual.
NOTES
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use near water.
6) Clean only with dry cloth.
7)Do not block any ventilation openings. Maintain well ventilated conditions around
the product. Do not put product on bed, sofa or anything that blocks ventilation.
Install in accordance with the manufacturer"s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong is provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of
time.
14) Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
15) Apparatus should not be exposed to dripping or splashing. Nothing filled with
liquids, such as vases, should be placed on the apparatus.
WARNING: To reduce the risk of fire
or electric shock, DO NOT expose
this product to rain or moisture.
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. DANGER: Visible laser radiation when
open and interlock failed or defeated.
Avoid direct exposure to beam.
3. CAUTION: Do not open the top cover.
There are no user serviceable parts inside
the unit. Leave all servicing to qualified
service
p
ersonnel.
- 4 -

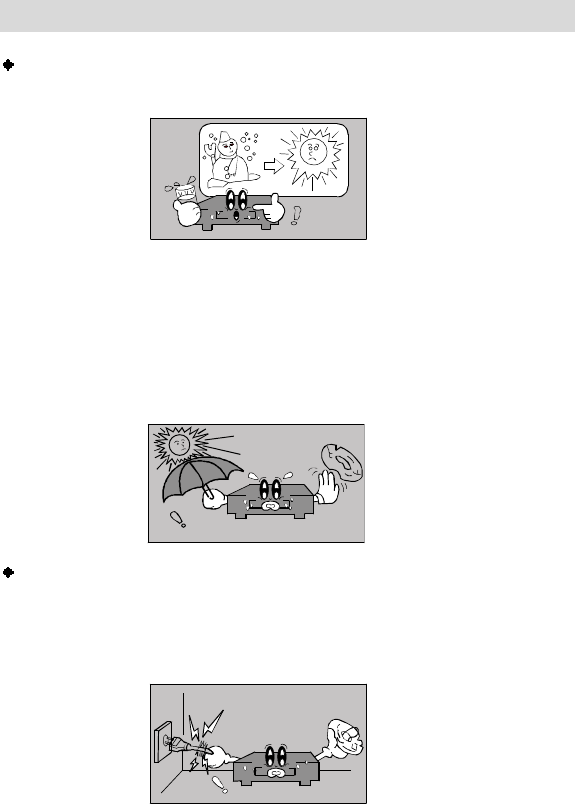

Precautions with Moisture
Under the following circumstances, moisture may appear on the lens of the product,
which is the most sensitive part of the DVD player.
- The DVD player is suddenly moved from a cold place to a warm place.
- A room is heated while the DVD player starts operating, or the DVD is placed by an
air-conditioner.
- In the hot summer season, the DVD player is moved from an air-conditioned room to
a hot, damp place to be used.
- The DVD player is being operated in a damp place.
If moisture appears on the player, discontinue use.
If the player is operated under said conditions, or the disc is loaded, certain interior
components could be damaged. Take disc out, plug power in, switch power on the
DVD player on for two to three hours to dry.
- 5 -
Function Features
1. EXCELLENT SOUND
Dolby Digital delivers great sound.
2. HIGH RESOLUTION
MPEG2 decoding format achieves
more than 500 lines of horizontal
resolution.
3. SPECIAL FUNCTIONS
Supports language caption and
parental-lock.
4. COMPATIBILITY
Compatible with DVD, CD, CD-R/RW,
PICTURE CD and MP3 discs.
5. PARTICULAR PERFORMANCE
Multi-speed, fast forward, fast
backward and repeat playback.
6. SEARCH BY TIME
Search for a certain track of a disc by
selected time.
7. LAST MEMORY PLAYBACK
Store the stopped playback track in
memory and continue playing disc
from this spot.
8. ON-SCREEN DISPLAY
You can choose English, Spanish, or
French for ON-SCREEN display
language.
9. AUDIO OUT
Analog audio output.
10.POWER ADAPTER SWITCH
Automatically adapts to voltage
requirements in U.S. and other
countries.
12. Wireless transmitter function
Transform the audio signal to FM
signal first and then output 2 FM
channels.
DVD players and discs are coded by region. So, the region code of unit should
match with the code of disc. The region code of this unit is 1.
This product incorporates copyright protection technology that is protected by
method claims of certain U.S. patents and other intellectual property rights
owned by Macrovision Corporation and other rights owners. Use of this
copyright protection technology must be authorized by Macrovision
Corporation, and is intended for home and other limited viewing uses only
unless otherwise authorized by Macrovision Corporation. Reverse
engineering or disassembly is prohibited.
- 6 -
Parts Introduction
DVD Player
1. TFT Liquid Crystal Display
2. +/- button
3. MODE button
4. NEXT SKIP button
PREV SKIP button
5. STOP/ OFF button
6. PLAY / ON button
7. Speaker
8. Remote sensor
9. Indicator light
10. AUDIO jack
11. VIDEO jack
12. Stand fixing hole
13. DC 9.5V input jack
14. OPEN button
15. Disc cover
- 7 -
Parts Introduction

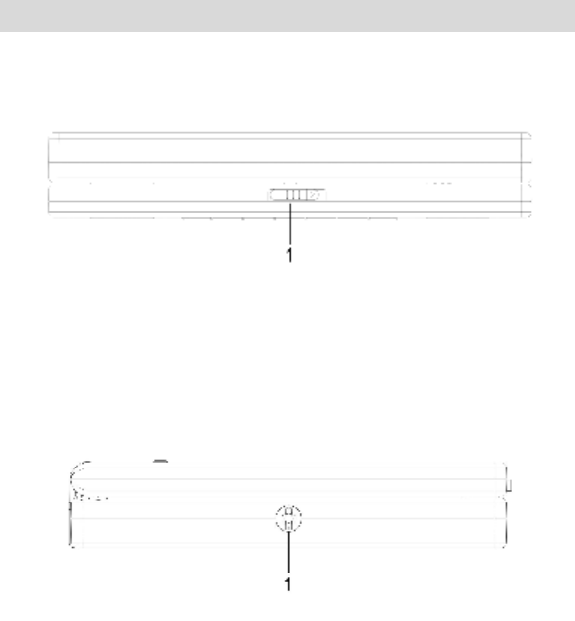

Front View
1. Latch hook
Left View
1. Stand fixing hole
- 8 -
Parts Introduction

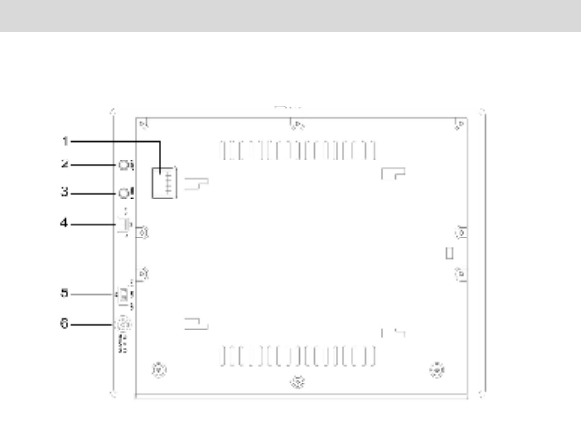

Bottom View
1. Battery contacting point
2. VIDEO input jack
3. AUDIO input jack
4. AV IN/OUT switch

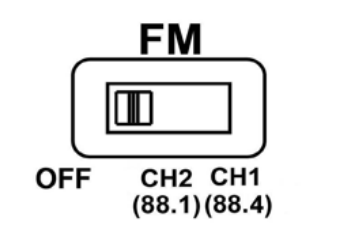

5. FM CH1 (fixed frequency 88.4)
FM CH2 (fixed frequency 88.1)
FM OFF switch
6. DC 9.5V IN
- 9 -

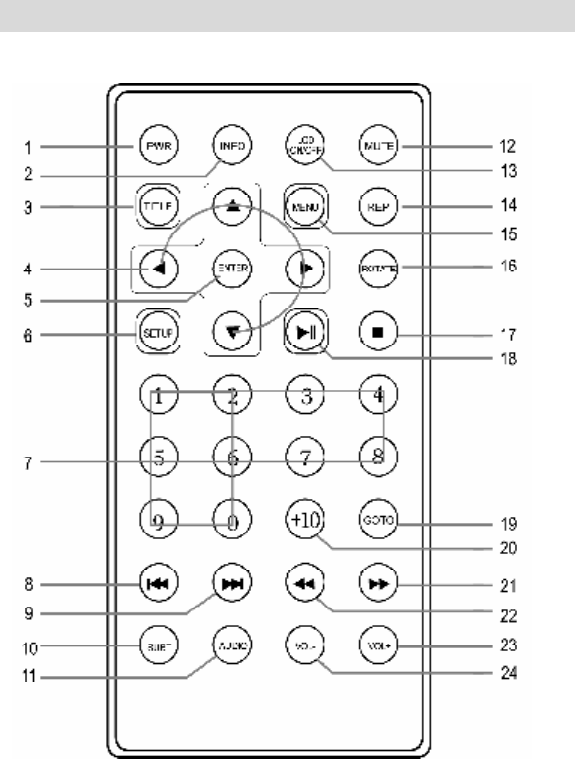

Remote Control
- 10 -
Remote Control
1. PWR button
-Press to turn the player on or off.
2. INFO button
-Press for detailed information on
the disc playing.
-Keep pressing to remove
information from screen.
3. TITLE button
-Press to display titles if present on
the disc.
4. Direction buttons
-Press to select menu items.
5. Enter button
-Press to confirm the items or
settings.
6. SETUP button
-Press to access the DVD player"s
setup menu.
7. 0-9 number buttons
-Select numbers by pressing these
buttons.
8. PREV SKIP button
-Press to go to beginning of current
track. Press again quickly to go to
beginning of previous track.
9. NEXT SKIP button
-Press to go to next track.
10. SUBT button
-When a DVD is playing, press to
select a subtitle language or to turn
subtitles off.
11. AUDIO button
-Press to access various audio
languages (if the disc contains
multiple audio languages).
12. MUTE button
-Press to turn speakers sound on
or off during play.
13. LCD ON/OFF
-Press to close LCD screen when
loading a disc in normal mode.
- Press this button again to open LCD
screen.
14. REP button
-Press to repeat a chapter, track,
title, or all content.
15. MENU button
-Press to select the disc menu.
16. ROTATE button
-Press to inverse the image.
17. button
-Press once to stop play and then
press button to resume normal
play.
-Press the button twice to stop
playback completely.
18. button
-Press to play after loading a disc.
-Press once to pause play.
-Press this button again to resume
normal play.
19. GOTO button
-Press toselect the desired disc
starting time, track or title.
20. +10 button
-Select numbers greater than 9 by
pressing the (+10) button first, and
then an additional number button.
21. FWD SCAN button
-Press to search forward.
22. REV SCAN button
-Press to search backward.
23. VOL +
- Press to increase the volume.
24. VOL-
- Press to lower the volume.
- 11 -
Connections
Connect to a TV
Audio/video connections
1. Always ensure that the DVD player, TV and any other electrical equipment
connected to DVD player is switched off and unplugged from the power supply.
2. Connect the DVD player to the TV"s audio/video inputs with audio/video cables.
Connect to an Amplifier
The DVD player can be connected to an AV amplifier. Please refer to your Audio
equipment"s manual before connecting.
- 12 -
Preparation
Use of Remote Control

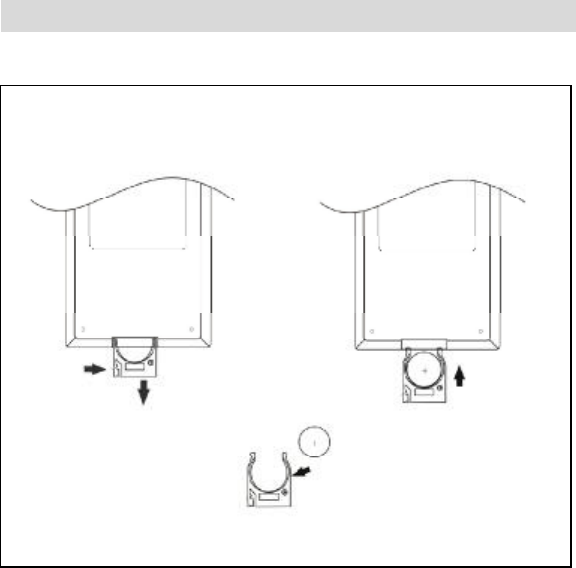

1. According to the drawings above, take the back cover off the remote control, then
pull the empty battery tray out.
2. Prior to shipping, a separating film was covering the battery.Remove this film.
3. Place the battery into the tray and then insert the tray into the remote control.
4. For best usage, aim the remote directly at the player"s receiving window from a
range no greater than 15 feet, and at angles no greater than 60 degrees.
5. In the case of normal use, the battery will last for one year.
6. Remove the battery when the remote control is not in use for a long time.
- 13 -
Preparation

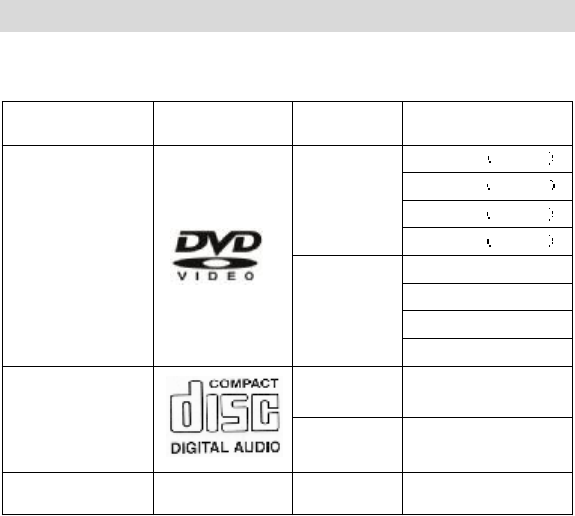

Compatible Disc Formats
The unit can play discs bearing any of the following logos:
DISC LOGO DIAMETER PLAYBACK TIME/
PLAYABLE SIDES
133 min SS-SL
242 min SS-DL
266 min DS-SL
12cm
484 min DS-DL
41 min ( SS-SL )
75 min ( SS-DL )
82 min (DS-SL)
DVD
8cm
150 min (DS-DL)
12cm 74 min
CD
8cm 20 min
MP3 (no logo) 12cm 600 min
Operation method of some DVD discs is specified by the software manufacturer.
Please follow the instruction manual of the disc.
The DVD Player will play most recordable (CD-R) or erasable (CD-RW) CDs, but
playback of CD-R or CD-RW discs created on a computer requires proper formatting
and finalization of the disc for audio playback. Some computers and/or software
programs may not be capable of creating compatible discs.
About Disc Terms
- Title
Generally, pictures or music compressed in a DVD are divided into several sections;
the title! is the heading of each section.
- Chapter
A smaller section of picture or music in a DVD under the title. Usually one title is
comprised of one or more chapters and each of them is numbered for easy
searching. Some discs may not have recorded chapters.
-Track
A smaller segment of picture or music ofa CD under the chapter. Each track is
numbered for easy searching.
- 14 -
Preparation
Use of AC Adapter
The player is supplied with a power adapter.
1. Connect AC adaptor to the side of the DVD player in the slot marked DC 9.5V IN!.
2. Plug the two-prong end of the power cord to a grounded electrical socket.
Note: Please turn player"s power off before unplugging.
Pre-operation
1. Connect to power.
2. Press OPEN button to open disc cover.
3. Put disc into the tray with printed side up.
4. Close the disc cover.
5. Pressing button on the front panel to turn on the player.
6. Adjust the volume with VOLUME+, VOLUME # buttons on the remote control. Or,
you can adjust the volume with +! and # buttons on the control panel.
- 15 -
Preparation
Use of Car adapter
You can use Car Adapter while in a vehicle:
Connect the Car Adapter Power Plug into the unit"s Power Jack and the other end to
the Vehicle Cigarette Lighter Socket.
Attention:
Do not operate the unit or view video software while driving a vehicle.
Place the unit in a proper position for viewing.
Please detach battery pack when using car adapter as power source.
We advise you power off the player at the instant of car start-up.
Your portable DVD player comes with a lithium ion rechargeable battery pack as
optional accessory. Please see detailed operation in the owner s manual of
Battery pack.
- 16 -
Basic Operation
Please read the following instructions carefully before using your DVD player
for the first time.
Warning: Do not play poor quality discs to prevent damage to lens.
1. Turn on the player"s power by pressing button on the front panel.
2. Press OPEN button to open the disc cover.
3. Load disc with the label side up.
4. Close the disc cover. The player will automatically search for the disc and
play it.
Begin Play
1. Press button on the remote control.
2. Press (direction buttons) or the number buttons to select a scene.
3. Press ENTER or .
Pause
1. Press button on remote control to pause during play.
2. Press button to resume normal play.
- 17 -
Basic Operation
Stop
1. During play, press button on the remote control to stop playing.
2. Press button to continue playing from the point where it last stopped.
Title Menu
1. Press TITLE button on the remote control during play. The title menu will
appear on the TFT screen.
2. Press (direction buttons) or the number buttons to select the title or
disc menu item you wish to play.
3. Press or Enter buttonto start a disc.
NOTE: Title Menu functions are only available for DVD discs.
Previous and Next
1. Press PREV button on the remote control or on the control panel to play
the previous track.
2. Press NEXT button on the remote control or on the control panel to play
the next track.
Mode
Press MODE button on the control panel to change the level of brightness,
contrast and color. Please adjust these levels with +and "buttonson the control
panel.
Pressing MODE button to display the screen as follows:
Normal LB/4:3 Rotated WIDE/16:9 Rotated LB/4:3 Normal WIDE 16:9
FM Transmitter Use
This unit is equipped with an audio frequency transmitting function;you can use
any FM equipment to receive a signal from it. The FM regulator is regulator is on
the bottom of the player.
Please follow the steps below:
1.Switch to CH1 or CH2 to open FM transmitter during play. Regulate the
volume to your satisfaction.
2.Turn on your FM receiving equipment and regulate the frequency to match
the unit (FM88.4 for CH1, FM88.1 for CH2).
3.Switch to “FM OFF” to turn off this function.
Attention: Please press MUTE button on the remote controlto turn off the
sound of speaker before you receiving the FM signal by IR earphones.
-18-
- 19 -
System Setup
SETUP
You can change the default settings to customize performance to your own
preference.
1. Remove the disc from the DVD drive and press the SETUP button on the
remote control. The settings menu will appear. It includes General Setup,
Speaker Setup, Dolby Digital Setup, Video Setup and Preference Setup. Press
SETUP button again to exit setup menu.
2. Press (direction buttons) on the remote control to select a category.
3. All the items in the category will appear on the TV screen. Press the ENTER
button to confirm your selection.
Category
1. When you enter a category, the item highlighted is the current setup.
2. Press (right direction button) on the remote control to select category.
3. Press the direction buttons to select your preference. The item you select will
be highlighted.
4. Press ENTER or button to confirm your selection.
5. Press (left direction button) to enter other setup menus.
General Setup
The general setup is shown as follows:
1. TV Display
Select Normal PS or Normal LB when a 4:3 TV is connected.
Select WIDE when a 16:9 wide screen TV is connected.
2. OSD Language
There are three different OSD languages for selection. You can select any one of
them according to your preference.
- 20 -
System Setup
3. Captions
You can turn captions on or off during play.
4. Screen Saver
Press setup button on the remote control to enter general setup, move the
highlight to screen saver! by buttons, enter screen saver! item by
Enter or button and then select on! or off!.
5. Last memory
Press setup button on the remote control to enter general setup, move the
highlight to last memory! by buttons, enter last memory! item by
button and then select on! or off!.
Dolby Digital Setup
1. Dual Mono
Please use this item set the output mode of channel: Stereo, L-Mono,
R-Mono or mixed sound.
2. Dynamic
Please use this item to adjust linear dynamic compression rate to get
different signal compression effects.
Speaker Setup
1. Down Mix
Select LT/RT! in DOWNMIX to output mixed audio in the format provided by
Dolby. Select Stereo! to output stereo signal.
- 21 -
System Setup
Preference Page
1. Audio, Subtitle, Disc Menu
This setting allows you to hear or read subtitles in English, French, Spanish,
Chinese, Japanese, Korean, Russian or Thai.
2. Parental Control
DVD discs equipped with the child lock function are rated according to their
contents and settings vary from disc to disc. Depending on the disc, you can
replace or lock out violent scenes, or lock out play of the disc altogether.
Access parental control on sub-menu by pressing (direction
buttons) on the remote control, then press ENTER. An interactive menu will
appear.
3. Password
Parental control features are password protected. Choose a password that
you can remember easily or write it down. The default password is 1369.
4. Default Reset
Use this function to reset all the settings.
NOTE: Please stop the disc before browsing preference page.
Video Setup
1. Sharpness
Use this item to adjust sharpness setting.
2. Brightness
Use this item to adjust brightness level.
3. Contrast
Use this item to adjust contrast level.
- 22 -
Play Functions
Repeat
Press REP button on the remote control to repeat a title, a chapter or a track.
Continually pressing the REPEAT button will display a menu in the following
order: Chapter, Title, All.
Audio
DVD discs contain up to 8 audio bit streams. For Example: English, French etc.
To select the audio bit stream you prefer press the AUDIO button on the remote
control during play. The DVD player will play the next audio bit stream every time
you press the AUDIO button in succession.
NOTE: This function is only available for discs onto which several audio bit
streams have been recorded.
Fast Forward & Rewind
Press to fast-forward and press to rewind.
Subtitle
A DVD disc can be recorded with 32 subtitles.
Press SUBTITLE button on the remote control, the mode of subtitles will recycle
as follows: SUBTITLE 1/N: Subtitle 1 appears on the screen. SUBTITLE 2/N:
Subtitle 2 appears on the screen.
SUBTITLE N/N: Subtitle N appears on the screen (N is the total number of
subtitles that the current disc contains). SUBTITLE OFF: No subtitle.
NOTE: This function is available for DVDs recorded with multi-subtitles.
- 23 -
Play Functions
Search by time
You can use the GOTO button to search by time, i.e., to play from a given time.
During DVD playback, press GOTO button to display the title or chapter, then
press number buttons to select the scene you want to watch.
Resume Play
1. Press button at the spot that you wish to stop. The player memorizes the
track where playback was stopped.
2. Press button to resume normal play. The player resumes play from
where you stopped last time. If the disc is removed, this function will be invalid.
Press button twice or open the disc tray to stop the disc play completely,
when you press again it will read the disc from the very beginning, not
from where it was stopped.
- 24 -
Play Functions
Playing an MP3 disc
MP3 is the third audio compression format of international standard MPEG, which
compresses the audio signal at the rate of 12:1. Using MP3 format, one disc can
record more than 600 minutes of music, and the sound quality is similar to that of
CDs.
There are many different formats for storing MP3 songs. Usually, one MP3 disc
includes many folders (directories) and every folder includes several files (songs).
Use UP/DOWN buttons to select the directory you want and press ENTER to
access it. Press PLAY to play the song you selected.
During playback, you can use and buttons to select other songs.
The player can only output stereo signal when playing MP3 discs.
There is no search by time or slow playback function for MP3 discs.
- 25 -
Play Functions
Playing a JPEG disc
JPEG is a common picture format that has small file size and low quality loss rate
of picture. Hundreds of pictures can be stored in a disc in this format. In order to
utilize real digital album, use film to make a !PICTURE CD! in JPEG format.
OPERATION
1. Normal Playback
Load a JPEG disc. OSD will display the menu (the left side is the main menu and
the right side is submenu). Press the direction buttons to choose item and then
press Enter to confirm your selection.
Many discs have other items besides pictures.
Use left/right button to move cursor to playback mode column, use the
UP/DOWN button to confirm.
2. Picture Rotation
Press direction buttons on the remote control to rotate pictures when browsing
JPEG files. Once another picture is selected, rotate function will stop.
There are four kinds of modes for rotation, you can press different direction
buttons to rotate the picture:
LEFT ----- Inversion/Normal
RIGHT ----- Enantiomorphism/Normal
UP ----- Rotate up
DOWN ----- Rotate down
NOTE: Because of the different methods of production, some JPEG discs cannot
be browsed with rotation.
- 26 -
Care of Discs
How to hold discs
When loading or removing discs, try not
to touch their playing surfaces.
Cleaning
Fingerprints or stain on the disc may
affect the quality of sound and picture.
To clean your discs, use a soft clean
cloth to wipe them. If necessary,
moisten a soft cloth with diluted neutral
detergent to remove heavy dirt or
fingerprints.
Do not wipe in a circular direction
(concentric scratches in the disc groove
tend to cause noise).
Gently wipe from thecenter to the outer
edge.
Cleaning Care
Use a soft, dry cloth for cleaning. For
stubborn dirt, soak the cloth in some
detergent; ring well first and wipe. Use a
dry cloth to wipe it dry. Do not use any
volatile agents such as gas or paint
thinner, because they may damage the
surface of the player.
Lens cleaner
The player"s pickup lens should not
become dirty under normal use, but if
for some reason it should malfunction
due to soiling, contact your nearest
WACA authorized service center. Lens
cleaners are commercially available, but
special care should be exercised in their
use since some may cause damage to
the lens.
- 27 -
Troubleshooting
Others possibilities:
Static or other external interference may causethe player to function abnormally.In order to
recover normal status, unplug the power-supply cord and then plug it in outlet to reset the
player. If the problems still exist, please disconnect the power and consult your service
center or a qualified technician.
SYMPTOM HOW TO CHECK
The player cannot play.
- Please make sure the disc cover is closed.
- Please make sure a disc is loaded.
- Please make sure the disc isn"t loaded upside down.
- Disc should be clean, not dirty or warped.
- Player"s region code should be the same as region
code of DVD disc.
- Is there water condensation on the lens? If so, remove
the disc and keep the player powered up for at least
two hours.
There is no sound.
- Please make sure system connection is correct.
- Please make sure the speakers are turned on.
-Please make sure the sound setup of DVD disc is
correct.
- Is your disc dirty or warped? Clean or replace thedisc.
There is no picture.
- Please make sure TV is on and in correct video mode.
- Please make sure your system connection is correct.
- Please make sure your unit is in AV out mode. Switch
AV tab to out on the bottom of unit.
Poor AV performance. - Is your disc dirty or warped? Clean or replace disc.
The remote control does not
work.
- Please make sure there is no obstructionbetween the
remote control and the player.
- Please make sure you are pointing the remote control
at the player.
- Please make sure batteries are inserted correctly
(check polarity).
- Please make sure batteries of remote control are not
out of power or weak. If they are, replace them.
- 28 -
Specifications
TFT screen size 7 inches
Laser Wavelength 780/650nm
Video System NTSC
Frequency Response 20Hz 20kHz ±2.5dB
Audio Signal-to-noise Rate 85dB
Audio distortion + noise -70dB 1kHz
Channel Separation 70dB 1kHz
Dynamic Range 80dB 1kHz
Audio Out Analog Audio Out Out Level: 2V±0.2
1.0 , Load: 10k
Video Out Video Out Out Level:1VP-P±0.2, Load:75
Unbalanced Negative
Power AC 100-240V 50/60Hz
Power Consumption 25W
Dimensions 200mm x 156mm x 30mm (L*W*D)
Weight 0.9kg
DESIGN AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
Manufactured under license from Dolby Laboratories.
Dolby! and the double-D symbol are trademarks of Dolby Laboratories.
Confidential unpublished works. ©1992 -1997 Dolby Laboratories.
All rights reserved.
