Wanlida Group PC88903 Notebook PC w/WLAN User Manual Manual

Wanlida Group Co., Ltd. Notebook PC w/WLAN Manual

Manual

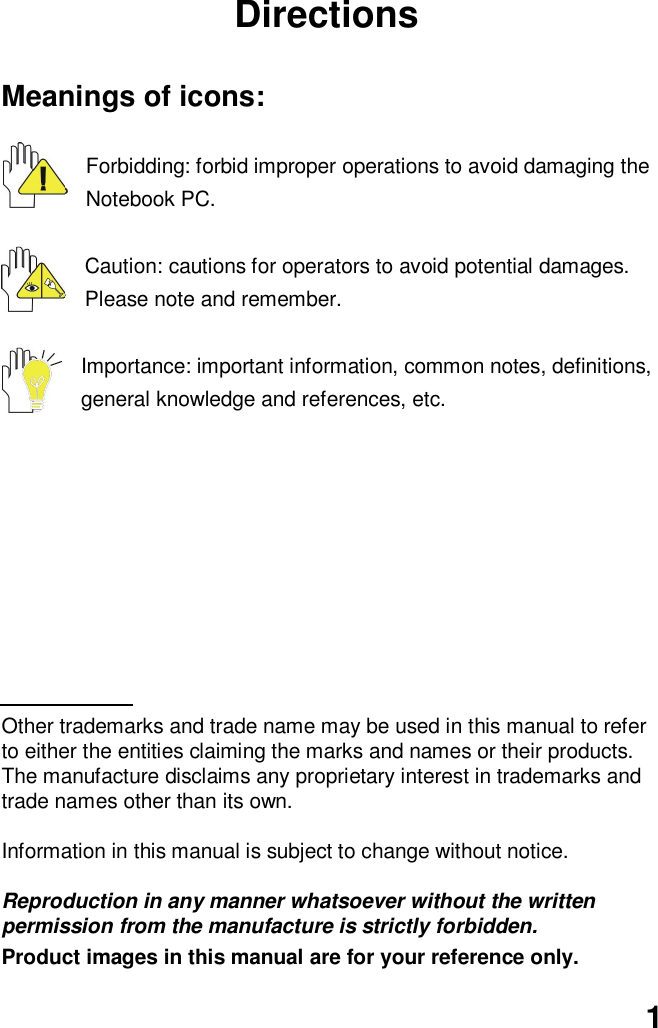

1DirectionsMeanings of icons:Forbidding: forbid improper operations to avoid damaging theNotebook PC.Caution: cautions for operators to avoid potential damages.Please note and remember.Importance: important information, common notes, definitions,general knowledge and references, etc.Other trademarks and trade name may be used in this manual to referto either the entities claiming the marks and names or their products.The manufacture disclaims any proprietary interest in trademarks andtrade names other than its own.Information in this manual is subject to change without notice.Reproduction in any manner whatsoever without the writtenpermission from the manufacture is strictly forbidden.Product images in this manual are for your reference only.
2ContentDirections.............................................................................................................................................. 1Safety Precautions ............................................................................................................................ 41 Knowing Your Notebook PC ....................................................................................................... 61-1 Top Side .....................................................................................................................61-2 Right Side ...................................................................................................................71-3 Left Side ......................................................................................................................71-4 Bottom Side ................................................................................................................82 Caring the Notebook PC............................................................................................................... 92-1 LCD Screen ................................................................................................................92-2 Hard Disk Drive (HDD) ...............................................................................................92-3 Battery Pack .............................................................................................................102-4 Keyboard ..................................................................................................................102-5 Touch Pad ................................................................................................................102-6 Other accessories ....................................................................................................102-7 If the water come into the Notebook PC ..................................................................112-8 Other Notes ..............................................................................................................113 Traveling with the Notebook PC ..............................................................................................  123-1 Attention ....................................................................................................................123-2 How to enter the suspend mode ..............................................................................124 Keep the data for future possible use ................................................................................... 134-1 HDD Partition ............................................................................................................134-2 Class the data in the HDD .......................................................................................135 Getting Started .............................................................................................................................. 145-1 Install the Rechargeable Battery..............................................................................145-2 Remove the Battery Pack ........................................................................................145-3 Connecting the Power Adapter ................................................................................156 Using Your Notebook PC ........................................................................................................... 166-1 Turning on the Notebook PC ...................................................................................166-2 Adjust the Brightness of LCD Screen ......................................................................166-3 Keyboard Usage .......................................................................................................166-4 Card Reader Usage .................................................................................................176-5 The Memory Card ....................................................................................................187 Internet Connection ..................................................................................................................... 187-1 Connecting with the network via Wired LAN ...........................................................187-2 Wireless LAN ............................................................................................................197-3 DSL ...........................................................................................................................218 Power Managing System ........................................................................................................... 228-1 Battery System .........................................................................................................228-1-1 Checking Battery Power ..................................................................................22

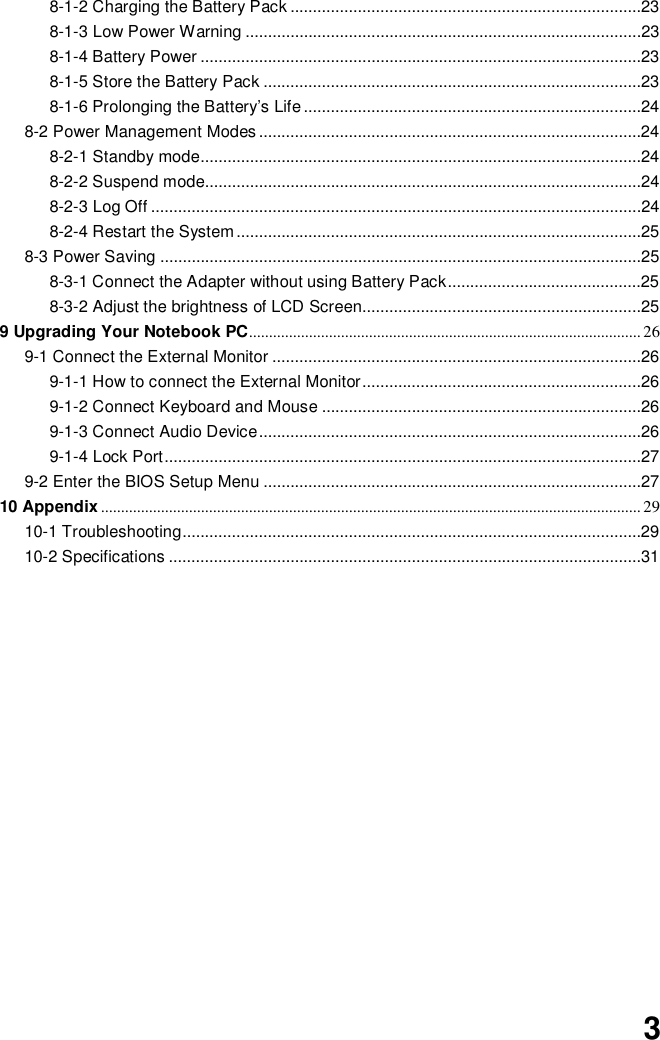

38-1-2 Charging the Battery Pack ..............................................................................238-1-3 Low Power Warning ........................................................................................238-1-4 Battery Power ..................................................................................................238-1-5 Store the Battery Pack ....................................................................................238-1-6 Prolonging the Battery’s Life ...........................................................................248-2 Power Management Modes .....................................................................................248-2-1 Standby mode..................................................................................................248-2-2 Suspend mode.................................................................................................248-2-3 Log Off .............................................................................................................248-2-4 Restart the System ..........................................................................................258-3 Power Saving ...........................................................................................................258-3-1 Connect the Adapter without using Battery Pack ...........................................258-3-2 Adjust the brightness of LCD Screen..............................................................259 Upgrading Your Notebook PC ..................................................................................................  269-1 Connect the External Monitor ..................................................................................269-1-1 How to connect the External Monitor ..............................................................269-1-2 Connect Keyboard and Mouse .......................................................................269-1-3 Connect Audio Device .....................................................................................269-1-4 Lock Port ..........................................................................................................279-2 Enter the BIOS Setup Menu ....................................................................................2710 Appendix ....................................................................................................................................... 2910-1  Troubleshooting ......................................................................................................2910-2 Specifications .........................................................................................................31

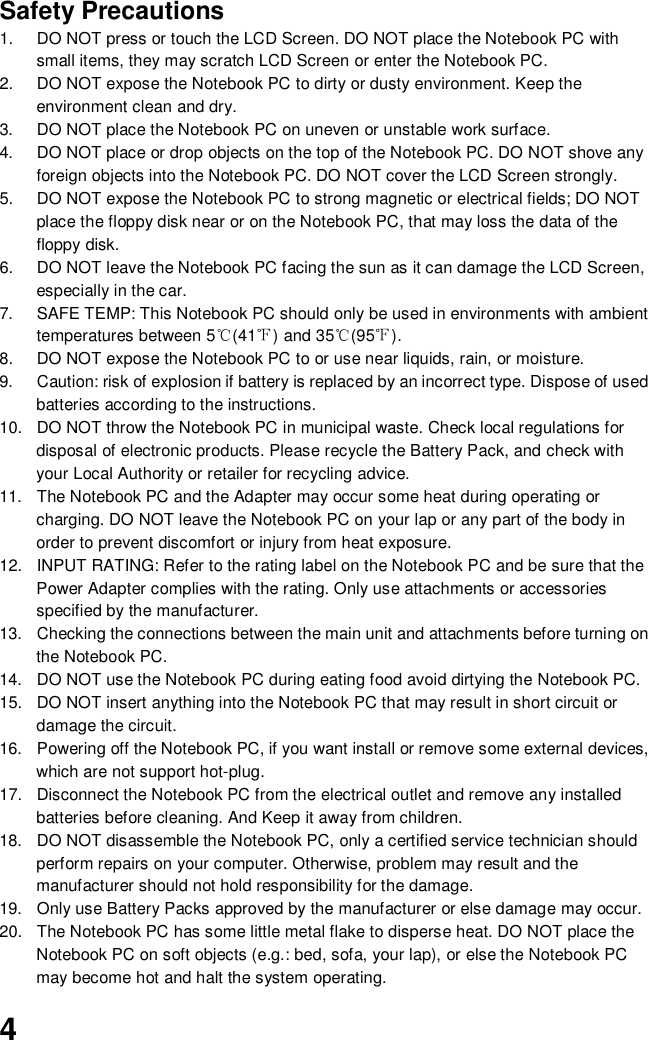

4Safety Precautions1.  DO NOT press or touch the LCD Screen. DO NOT place the Notebook PC withsmall items, they may scratch LCD Screen or enter the Notebook PC.2.  DO NOT expose the Notebook PC to dirty or dusty environment. Keep theenvironment clean and dry.3.  DO NOT place the Notebook PC on uneven or unstable work surface.4.  DO NOT place or drop objects on the top of the Notebook PC. DO NOT shove anyforeign objects into the Notebook PC. DO NOT cover the LCD Screen strongly.5.  DO NOT expose the Notebook PC to strong magnetic or electrical fields; DO NOTplace the floppy disk near or on the Notebook PC, that may loss the data of thefloppy disk.6.  DO NOT leave the Notebook PC facing the sun as it can damage the LCD Screen,especially in the car.7.  SAFE TEMP: This Notebook PC should only be used in environments with ambienttemperatures between 5(41) and 35(95).8.  DO NOT expose the Notebook PC to or use near liquids, rain, or moisture.9.  Caution: risk of explosion if battery is replaced by an incorrect type. Dispose of usedbatteries according to the instructions.10.  DO NOT throw the Notebook PC in municipal waste. Check local regulations fordisposal of electronic products. Please recycle the Battery Pack, and check withyour Local Authority or retailer for recycling advice.11.  The Notebook PC and the Adapter may occur some heat during operating orcharging. DO NOT leave the Notebook PC on your lap or any part of the body inorder to prevent discomfort or injury from heat exposure.12.  INPUT RATING: Refer to the rating label on the Notebook PC and be sure that thePower Adapter complies with the rating. Only use attachments or accessoriesspecified by the manufacturer.13.  Checking the connections between the main unit and attachments before turning onthe Notebook PC.14.  DO NOT use the Notebook PC during eating food avoid dirtying the Notebook PC.15.  DO NOT insert anything into the Notebook PC that may result in short circuit ordamage the circuit.16.  Powering off the Notebook PC, if you want install or remove some external devices,which are not support hot-plug.17.  Disconnect the Notebook PC from the electrical outlet and remove any installedbatteries before cleaning. And Keep it away from children.18.  DO NOT disassemble the Notebook PC, only a certified service technician shouldperform repairs on your computer. Otherwise, problem may result and themanufacturer should not hold responsibility for the damage.19.  Only use Battery Packs approved by the manufacturer or else damage may occur.20.  The Notebook PC has some little metal flake to disperse heat. DO NOT place theNotebook PC on soft objects (e.g.: bed, sofa, your lap), or else the Notebook PCmay become hot and halt the system operating.

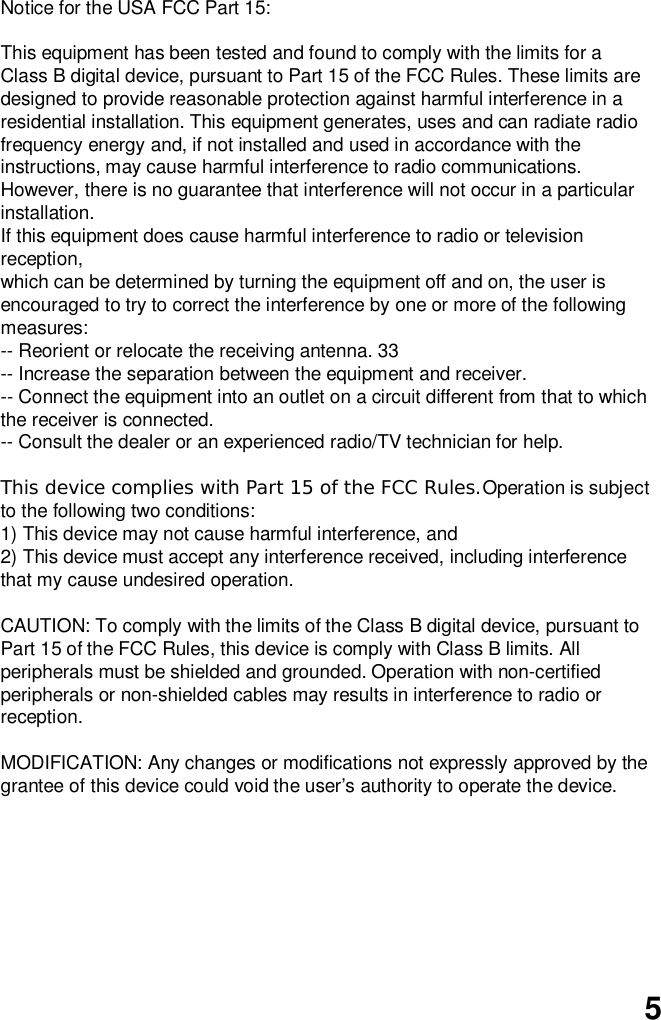

5Notice for the USA FCC Part 15:This equipment has been tested and found to comply with the limits for aClass B digital device, pursuant to Part 15 of the FCC Rules. These limits aredesigned to provide reasonable protection against harmful interference in aresidential installation. This equipment generates, uses and can radiate radiofrequency energy and, if not installed and used in accordance with theinstructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particularinstallation.If this equipment does cause harmful interference to radio or televisionreception,which can be determined by turning the equipment off and on, the user isencouraged to try to correct the interference by one or more of the followingmeasures:-- Reorient or relocate the receiving antenna. 33-- Increase the separation between the equipment and receiver.-- Connect the equipment into an outlet on a circuit different from that to whichthe receiver is connected.-- Consult the dealer or an experienced radio/TV technician for help.This device complies with Part 15 of the FCC Rules.Operation is subjectto the following two conditions:1) This device may not cause harmful interference, and2) This device must accept any interference received, including interferencethat my cause undesired operation.CAUTION: To comply with the limits of the Class B digital device, pursuant toPart 15 of the FCC Rules, this device is comply with Class B limits. Allperipherals must be shielded and grounded. Operation with non-certifiedperipherals or non-shielded cables may results in interference to radio orreception.MODIFICATION: Any changes or modifications not expressly approved by thegrantee of this device could void the user’s authority to operate the device.

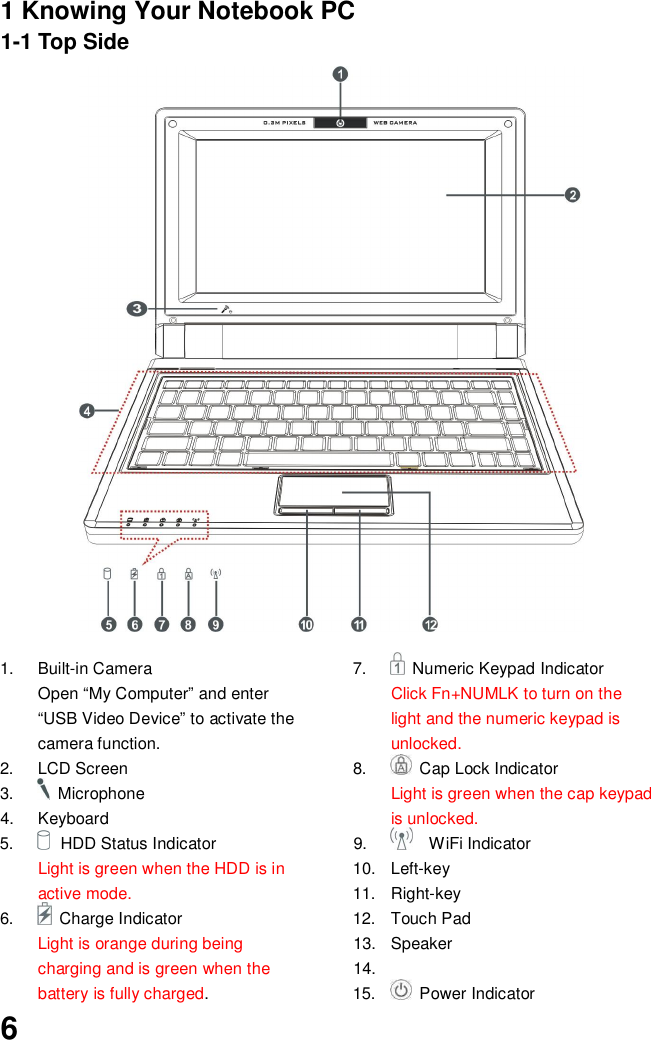

61 Knowing Your Notebook PC1-1 Top Side1.  Built-in CameraOpen “My Computer” and enter“USB Video Device” to activate thecamera function.2.  LCD Screen3.  Microphone4. Keyboard5. HDD Status IndicatorLight is green when the HDD is inactive mode.6.  Charge IndicatorLight is orange during beingcharging and is green when thebattery is fully charged.7.  Numeric Keypad IndicatorClick Fn+NUMLK to turn on thelight and the numeric keypad isunlocked.8.  Cap Lock IndicatorLight is green when the cap keypadis unlocked.9.   WiFi Indicator10. Left-key11. Right-key12.  Touch Pad13. Speaker14.15.  Power Indicator

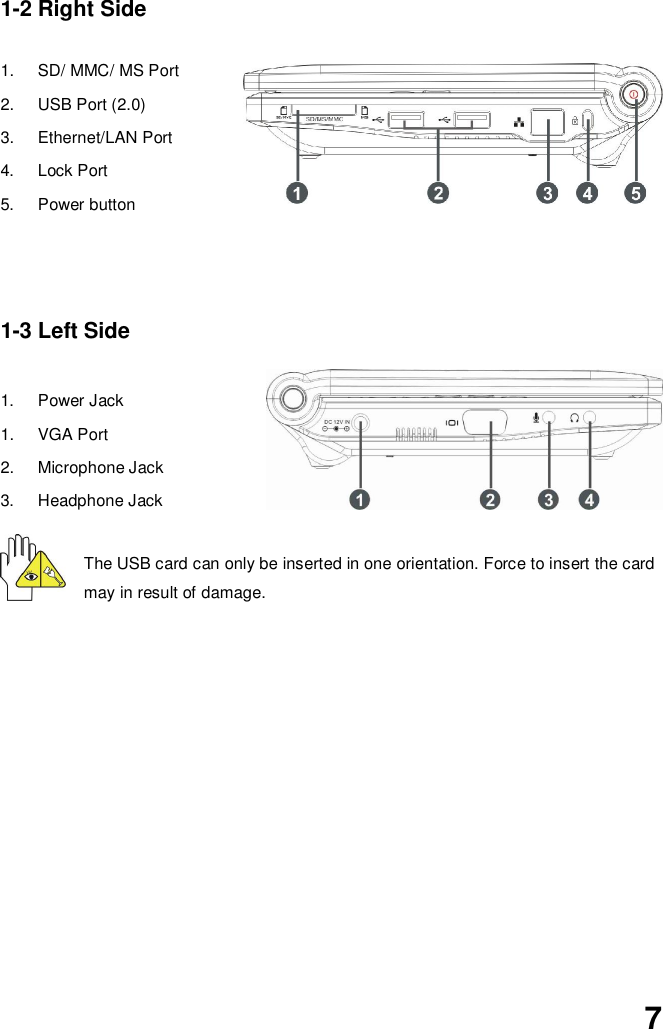

71-2 Right Side1.  SD/ MMC/ MS Port2.  USB Port (2.0)3.  Ethernet/LAN Port4.  Lock Port5.  Power button1-3 Left Side1.  Power Jack1.  VGA Port2. Microphone Jack3.  Headphone JackThe USB card can only be inserted in one orientation. Force to insert the cardmay in result of damage.

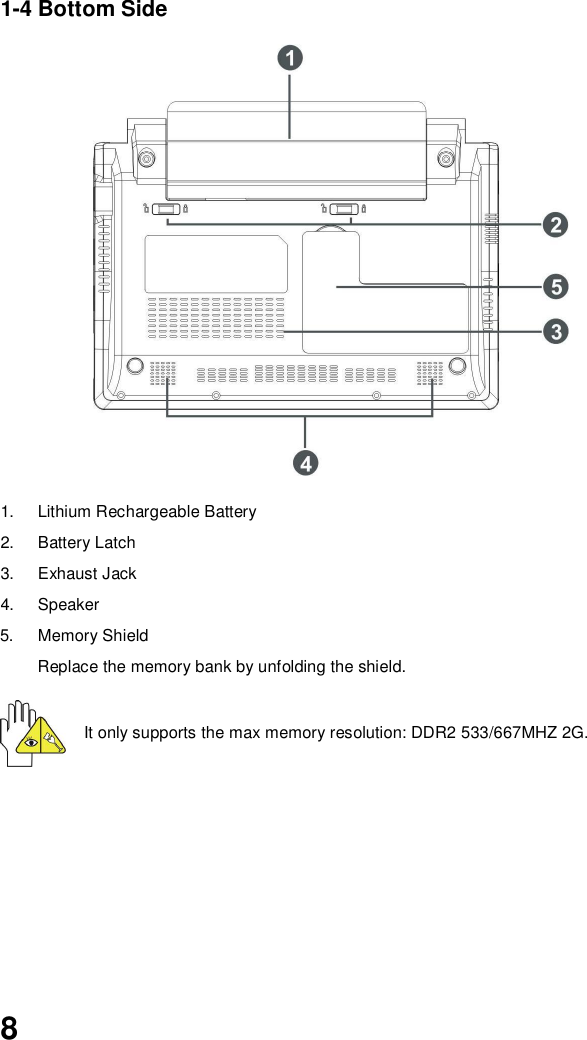

81-4 Bottom Side1.  Lithium Rechargeable Battery2. Battery Latch3.  Exhaust Jack4. Speaker5.  Memory ShieldReplace the memory bank by unfolding the shield.It only supports the max memory resolution: DDR2 533/667MHZ 2G.

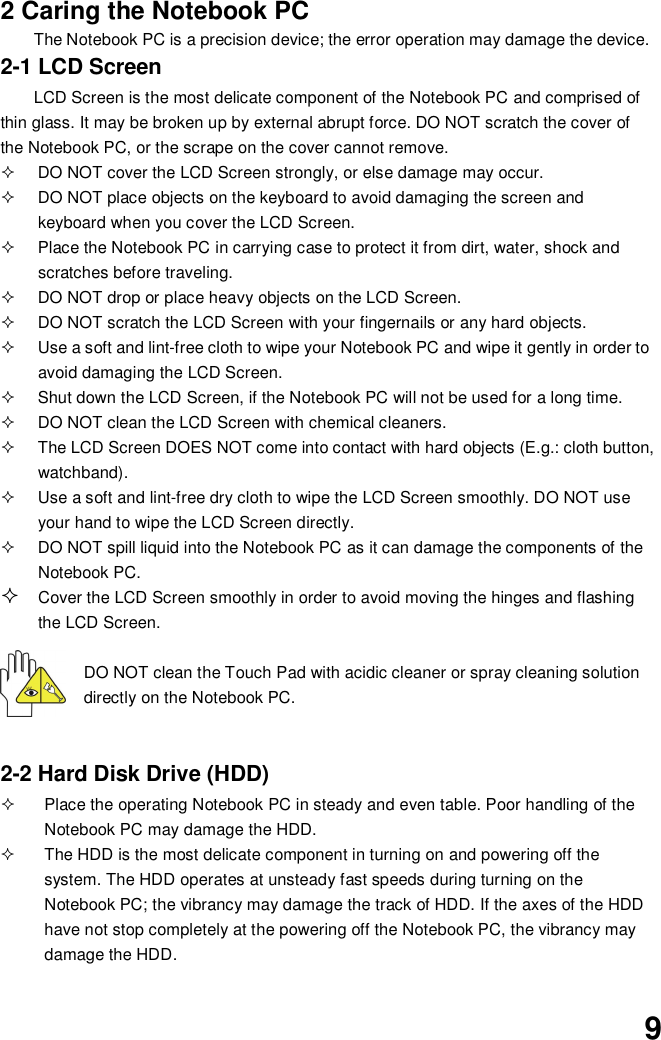

92 Caring the Notebook PCThe Notebook PC is a precision device; the error operation may damage the device.2-1 LCD ScreenLCD Screen is the most delicate component of the Notebook PC and comprised ofthin glass. It may be broken up by external abrupt force. DO NOT scratch the cover ofthe Notebook PC, or the scrape on the cover cannot remove.  DO NOT cover the LCD Screen strongly, or else damage may occur.  DO NOT place objects on the keyboard to avoid damaging the screen andkeyboard when you cover the LCD Screen.  Place the Notebook PC in carrying case to protect it from dirt, water, shock andscratches before traveling.  DO NOT drop or place heavy objects on the LCD Screen.  DO NOT scratch the LCD Screen with your fingernails or any hard objects.  Use a soft and lint-free cloth to wipe your Notebook PC and wipe it gently in order toavoid damaging the LCD Screen.  Shut down the LCD Screen, if the Notebook PC will not be used for a long time.  DO NOT clean the LCD Screen with chemical cleaners.  The LCD Screen DOES NOT come into contact with hard objects (E.g.: cloth button,watchband).  Use a soft and lint-free dry cloth to wipe the LCD Screen smoothly. DO NOT useyour hand to wipe the LCD Screen directly.  DO NOT spill liquid into the Notebook PC as it can damage the components of theNotebook PC.Cover the LCD Screen smoothly in order to avoid moving the hinges and flashingthe LCD Screen.DO NOT clean the Touch Pad with acidic cleaner or spray cleaning solutiondirectly on the Notebook PC.2-2 Hard Disk Drive (HDD)  Place the operating Notebook PC in steady and even table. Poor handling of theNotebook PC may damage the HDD.  The HDD is the most delicate component in turning on and powering off thesystem. The HDD operates at unsteady fast speeds during turning on theNotebook PC; the vibrancy may damage the track of HDD. If the axes of the HDDhave not stop completely at the powering off the Notebook PC, the vibrancy maydamage the HDD.

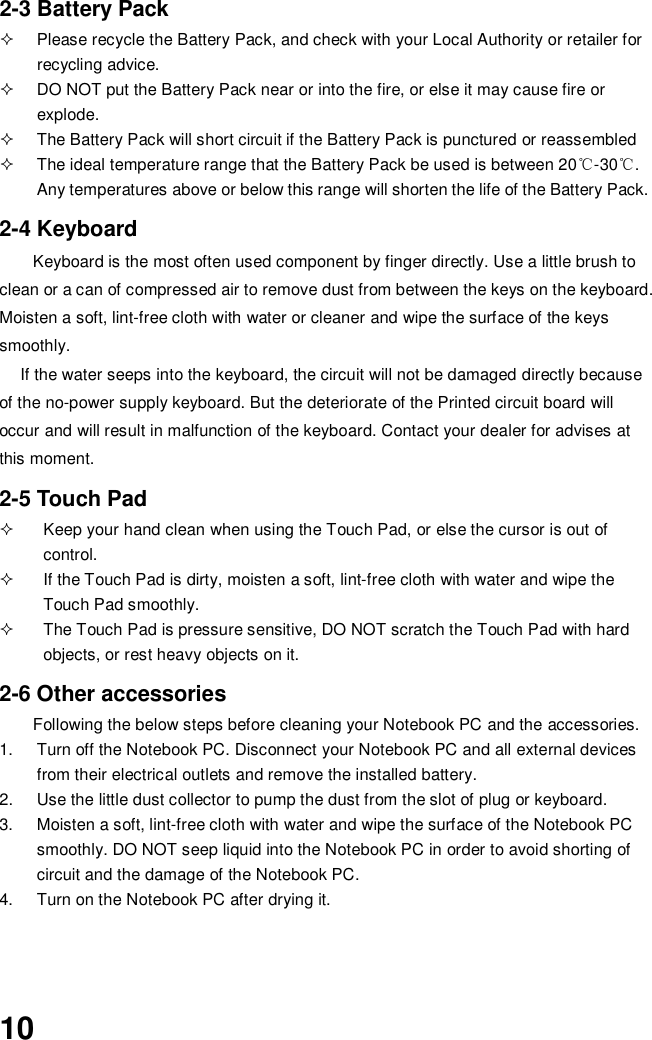

102-3 Battery Pack  Please recycle the Battery Pack, and check with your Local Authority or retailer forrecycling advice.  DO NOT put the Battery Pack near or into the fire, or else it may cause fire orexplode.  The Battery Pack will short circuit if the Battery Pack is punctured or reassembled  The ideal temperature range that the Battery Pack be used is between 20-30.Any temperatures above or below this range will shorten the life of the Battery Pack.2-4 KeyboardKeyboard is the most often used component by finger directly. Use a little brush toclean or a can of compressed air to remove dust from between the keys on the keyboard.Moisten a soft, lint-free cloth with water or cleaner and wipe the surface of the keyssmoothly.If the water seeps into the keyboard, the circuit will not be damaged directly becauseof the no-power supply keyboard. But the deteriorate of the Printed circuit board willoccur and will result in malfunction of the keyboard. Contact your dealer for advises atthis moment.2-5 Touch Pad  Keep your hand clean when using the Touch Pad, or else the cursor is out ofcontrol.  If the Touch Pad is dirty, moisten a soft, lint-free cloth with water and wipe theTouch Pad smoothly.  The Touch Pad is pressure sensitive, DO NOT scratch the Touch Pad with hardobjects, or rest heavy objects on it.2-6 Other accessoriesFollowing the below steps before cleaning your Notebook PC and the accessories.1.  Turn off the Notebook PC. Disconnect your Notebook PC and all external devicesfrom their electrical outlets and remove the installed battery.2.  Use the little dust collector to pump the dust from the slot of plug or keyboard.3.  Moisten a soft, lint-free cloth with water and wipe the surface of the Notebook PCsmoothly. DO NOT seep liquid into the Notebook PC in order to avoid shorting ofcircuit and the damage of the Notebook PC.4.  Turn on the Notebook PC after drying it.

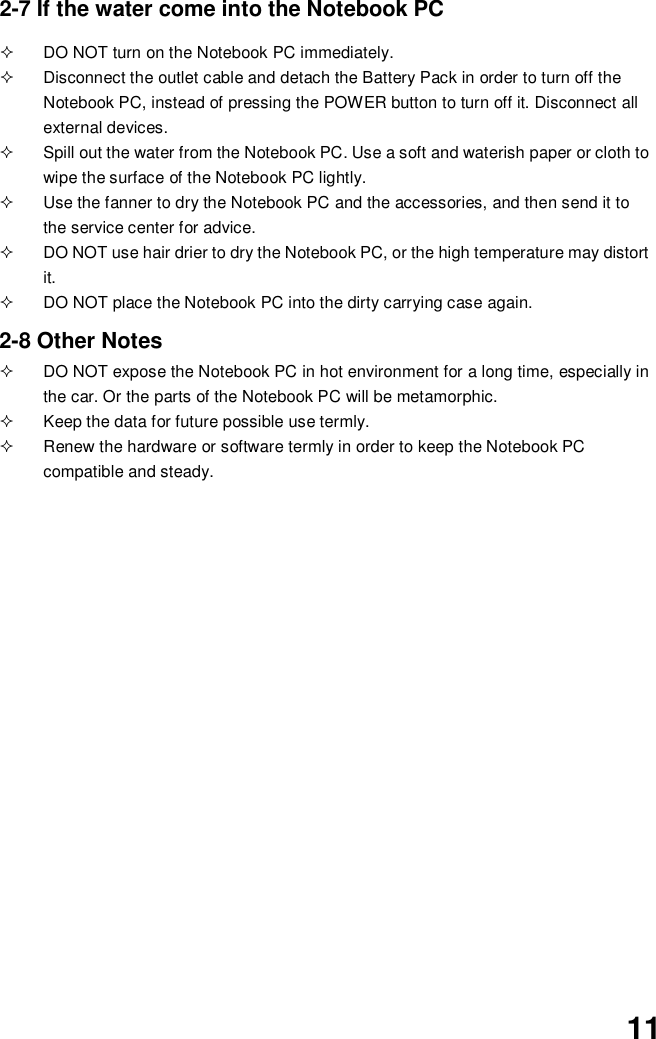

112-7 If the water come into the Notebook PC  DO NOT turn on the Notebook PC immediately.  Disconnect the outlet cable and detach the Battery Pack in order to turn off theNotebook PC, instead of pressing the POWER button to turn off it. Disconnect allexternal devices.  Spill out the water from the Notebook PC. Use a soft and waterish paper or cloth towipe the surface of the Notebook PC lightly.  Use the fanner to dry the Notebook PC and the accessories, and then send it tothe service center for advice.  DO NOT use hair drier to dry the Notebook PC, or the high temperature may distortit.  DO NOT place the Notebook PC into the dirty carrying case again.2-8 Other Notes  DO NOT expose the Notebook PC in hot environment for a long time, especially inthe car. Or the parts of the Notebook PC will be metamorphic.  Keep the data for future possible use termly.  Renew the hardware or software termly in order to keep the Notebook PCcompatible and steady.

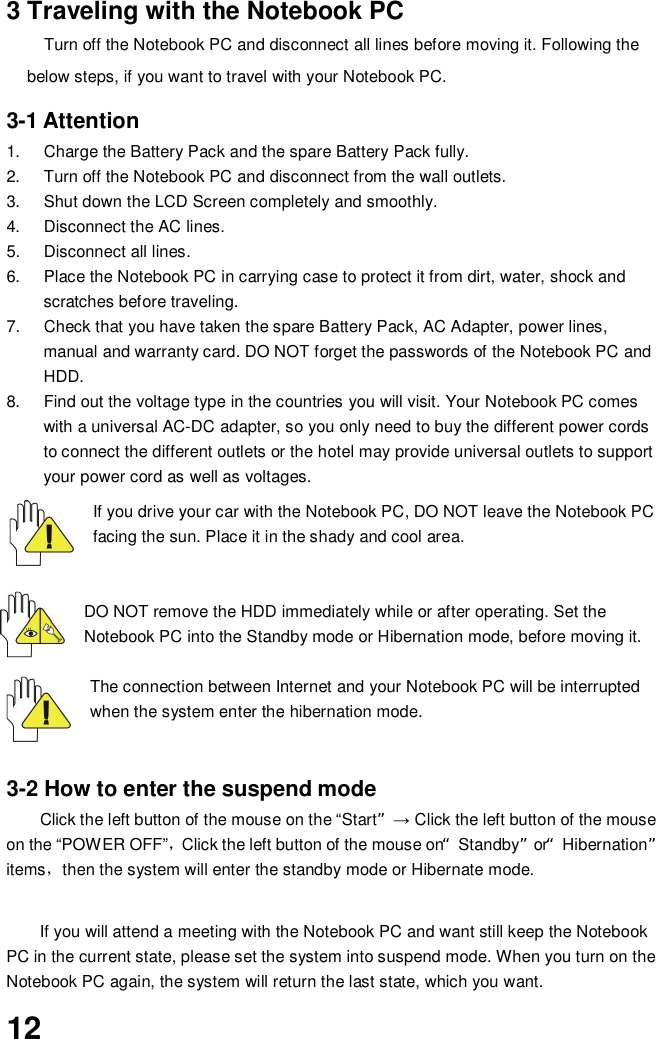

123 Traveling with the Notebook PCTurn off the Notebook PC and disconnect all lines before moving it. Following thebelow steps, if you want to travel with your Notebook PC.3-1 Attention1.  Charge the Battery Pack and the spare Battery Pack fully.2.  Turn off the Notebook PC and disconnect from the wall outlets.3.  Shut down the LCD Screen completely and smoothly.4.  Disconnect the AC lines.5.  Disconnect all lines.6.  Place the Notebook PC in carrying case to protect it from dirt, water, shock andscratches before traveling.7.  Check that you have taken the spare Battery Pack, AC Adapter, power lines,manual and warranty card. DO NOT forget the passwords of the Notebook PC andHDD.8.  Find out the voltage type in the countries you will visit. Your Notebook PC comeswith a universal AC-DC adapter, so you only need to buy the different power cordsto connect the different outlets or the hotel may provide universal outlets to supportyour power cord as well as voltages.If you drive your car with the Notebook PC, DO NOT leave the Notebook PCfacing the sun. Place it in the shady and cool area.DO NOT remove the HDD immediately while or after operating. Set theNotebook PC into the Standby mode or Hibernation mode, before moving it.The connection between Internet and your Notebook PC will be interruptedwhen the system enter the hibernation mode.3-2 How to enter the suspend modeClick the left button of the mouse on the “Start” Click the left button of the mouseon the “POWER OFF”Click the left button of the mouse on“Standby”or“Hibernation”itemsthen the system will enter the standby mode or Hibernate mode.If you will attend a meeting with the Notebook PC and want still keep the NotebookPC in the current state, please set the system into suspend mode. When you turn on theNotebook PC again, the system will return the last state, which you want.

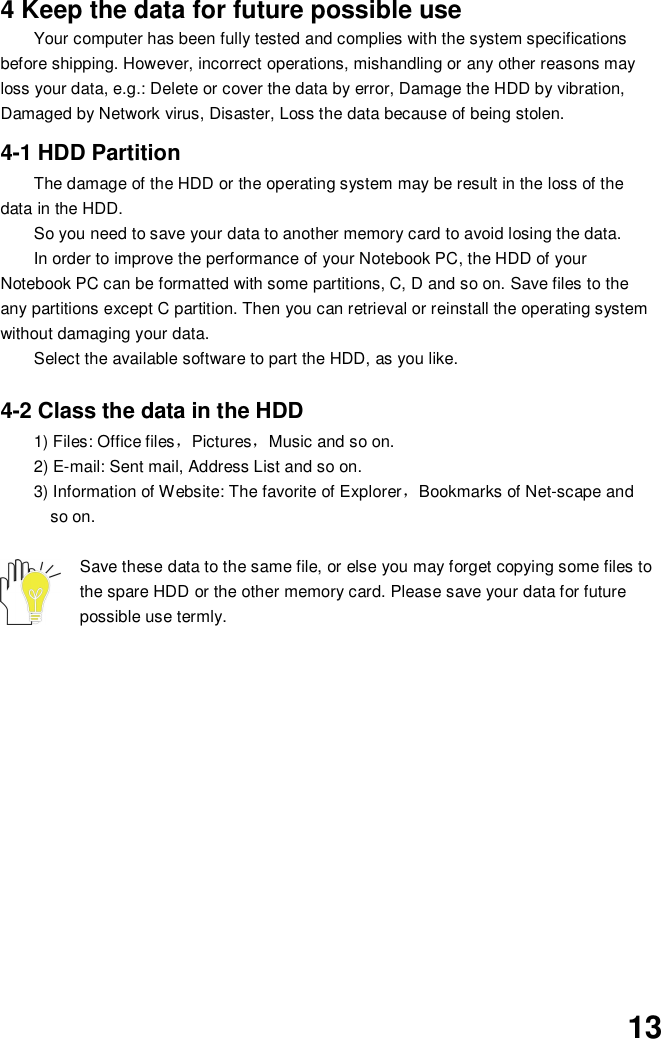

134 Keep the data for future possible useYour computer has been fully tested and complies with the system specificationsbefore shipping. However, incorrect operations, mishandling or any other reasons mayloss your data, e.g.: Delete or cover the data by error, Damage the HDD by vibration,Damaged by Network virus, Disaster, Loss the data because of being stolen.4-1 HDD PartitionThe damage of the HDD or the operating system may be result in the loss of thedata in the HDD.So you need to save your data to another memory card to avoid losing the data.In order to improve the performance of your Notebook PC, the HDD of yourNotebook PC can be formatted with some partitions, C, D and so on. Save files to theany partitions except C partition. Then you can retrieval or reinstall the operating systemwithout damaging your data.Select the available software to part the HDD, as you like.4-2 Class the data in the HDD1) Files: Office filesPicturesMusic and so on.2) E-mail: Sent mail, Address List and so on.3) Information of Website: The favorite of ExplorerBookmarks of Net-scape andso on.Save these data to the same file, or else you may forget copying some files tothe spare HDD or the other memory card. Please save your data for futurepossible use termly.

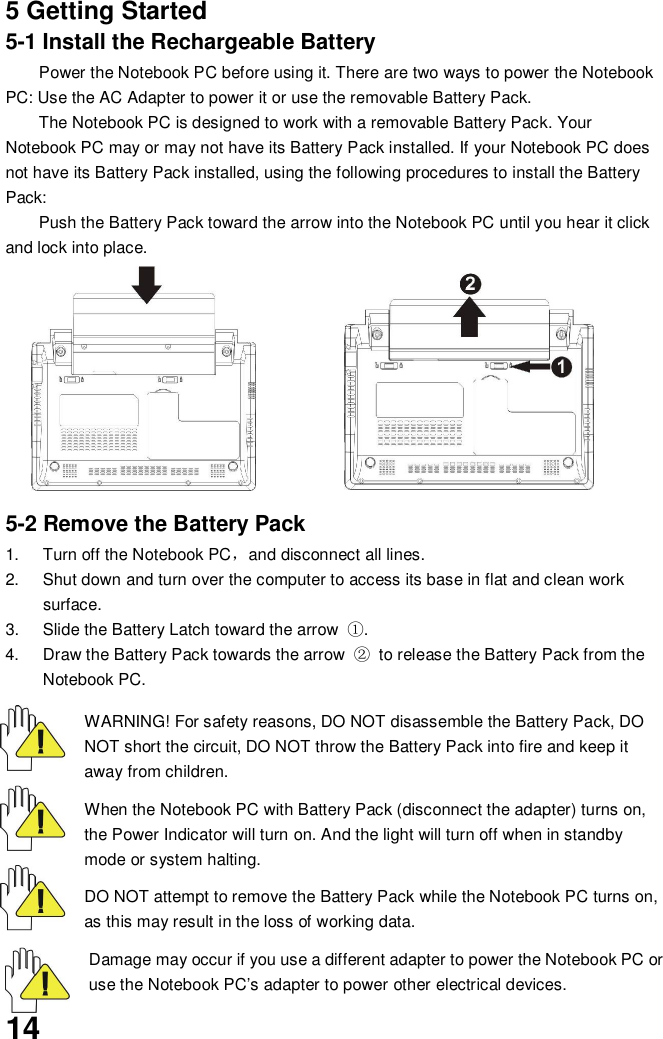

145 Getting Started5-1 Install the Rechargeable BatteryPower the Notebook PC before using it. There are two ways to power the NotebookPC: Use the AC Adapter to power it or use the removable Battery Pack.The Notebook PC is designed to work with a removable Battery Pack. YourNotebook PC may or may not have its Battery Pack installed. If your Notebook PC doesnot have its Battery Pack installed, using the following procedures to install the BatteryPack:Push the Battery Pack toward the arrow into the Notebook PC until you hear it clickand lock into place.5-2 Remove the Battery Pack1.  Turn off the Notebook PCand disconnect all lines.2.  Shut down and turn over the computer to access its base in flat and clean worksurface.3.  Slide the Battery Latch toward the arrow .4.  Draw the Battery Pack towards the arrow   to release the Battery Pack from theNotebook PC.WARNING! For safety reasons, DO NOT disassemble the Battery Pack, DONOT short the circuit, DO NOT throw the Battery Pack into fire and keep itaway from children.When the Notebook PC with Battery Pack (disconnect the adapter) turns on,the Power Indicator will turn on. And the light will turn off when in standbymode or system halting.DO NOT attempt to remove the Battery Pack while the Notebook PC turns on,as this may result in the loss of working data.Damage may occur if you use a different adapter to power the Notebook PC oruse the Notebook PC’s adapter to power other electrical devices.

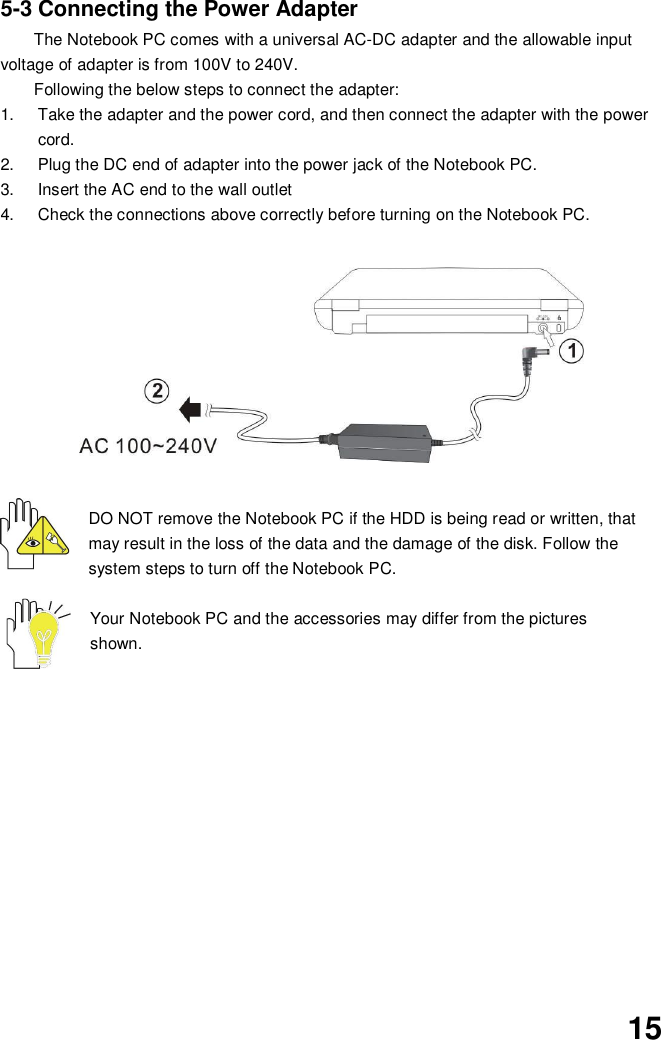

155-3 Connecting the Power AdapterThe Notebook PC comes with a universal AC-DC adapter and the allowable inputvoltage of adapter is from 100V to 240V.Following the below steps to connect the adapter:1.  Take the adapter and the power cord, and then connect the adapter with the powercord.2.  Plug the DC end of adapter into the power jack of the Notebook PC.3.  Insert the AC end to the wall outlet4.  Check the connections above correctly before turning on the Notebook PC.DO NOT remove the Notebook PC if the HDD is being read or written, thatmay result in the loss of the data and the damage of the disk. Follow thesystem steps to turn off the Notebook PC.Your Notebook PC and the accessories may differ from the picturesshown.

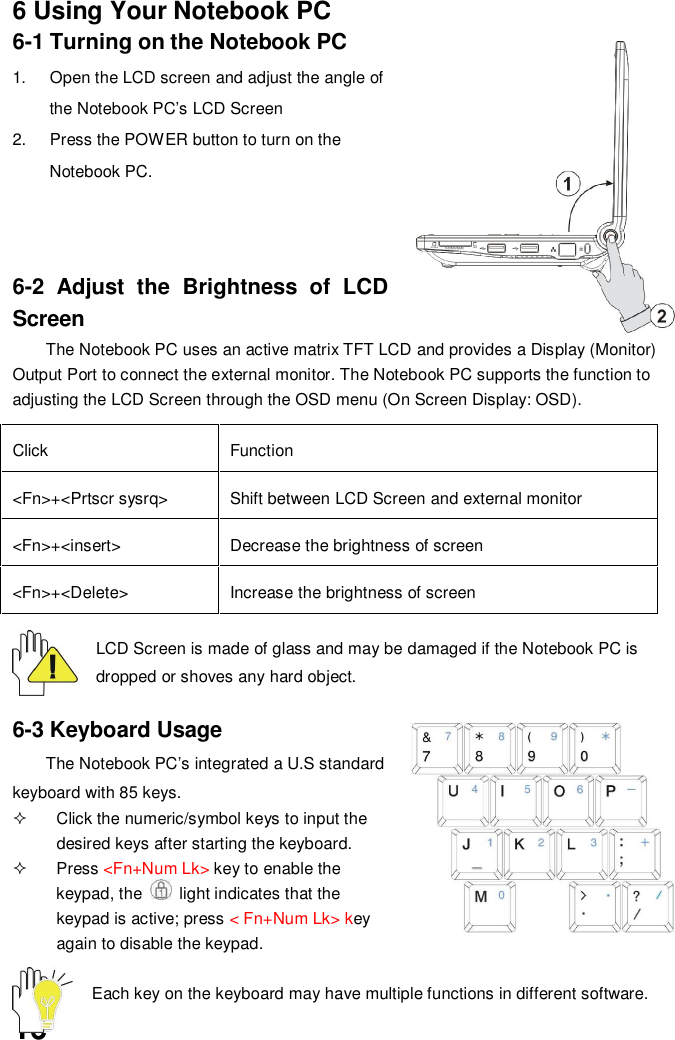

166 Using Your Notebook PC6-1 Turning on the Notebook PC1.  Open the LCD screen and adjust the angle ofthe Notebook PC’s LCD Screen2.  Press the POWER button to turn on theNotebook PC.6-2 Adjust the Brightness of LCDScreenThe Notebook PC uses an active matrix TFT LCD and provides a Display (Monitor)Output Port to connect the external monitor. The Notebook PC supports the function toadjusting the LCD Screen through the OSD menu (On Screen Display: OSD).Click Function<Fn>+<Prtscr sysrq> Shift between LCD Screen and external monitor<Fn>+<insert> Decrease the brightness of screen<Fn>+<Delete> Increase the brightness of screenLCD Screen is made of glass and may be damaged if the Notebook PC isdropped or shoves any hard object.6-3 Keyboard UsageThe Notebook PC’s integrated a U.S standardkeyboard with 85 keys.  Click the numeric/symbol keys to input thedesired keys after starting the keyboard. Press <Fn+Num Lk> key to enable thekeypad, the   light indicates that thekeypad is active; press < Fn+Num Lk> keyagain to disable the keypad.Each key on the keyboard may have multiple functions in different software.

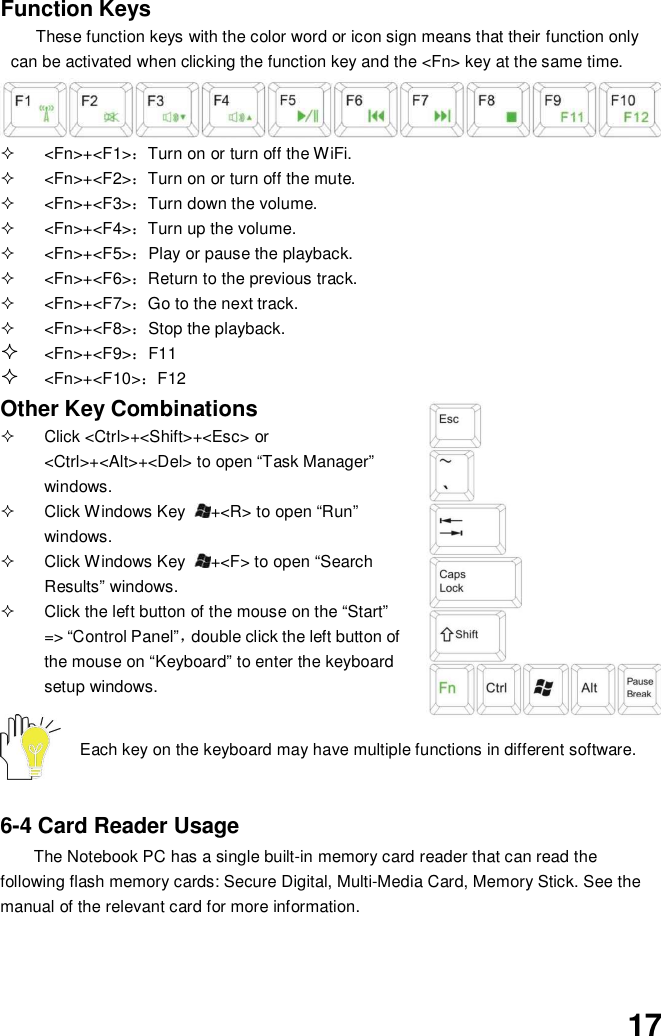

17Function KeysThese function keys with the color word or icon sign means that their function onlycan be activated when clicking the function key and the <Fn> key at the same time. <Fn>+<F1>Turn on or turn off the WiFi. <Fn>+<F2>Turn on or turn off the mute. <Fn>+<F3>Turn down the volume. <Fn>+<F4>Turn up the volume. <Fn>+<F5>Play or pause the playback. <Fn>+<F6>Return to the previous track. <Fn>+<F7>Go to the next track. <Fn>+<F8>Stop the playback.<Fn>+<F9>F11<Fn>+<F10>F12Other Key Combinations  Click <Ctrl>+<Shift>+<Esc> or<Ctrl>+<Alt>+<Del> to open “Task Manager”windows.  Click Windows Key +<R> to open “Run”windows.  Click Windows Key +<F> to open “SearchResults” windows.  Click the left button of the mouse on the “Start”=> “Control Panel”double click the left button ofthe mouse on “Keyboard” to enter the keyboardsetup windows.Each key on the keyboard may have multiple functions in different software.6-4 Card Reader UsageThe Notebook PC has a single built-in memory card reader that can read thefollowing flash memory cards: Secure Digital, Multi-Media Card, Memory Stick. See themanual of the relevant card for more information.

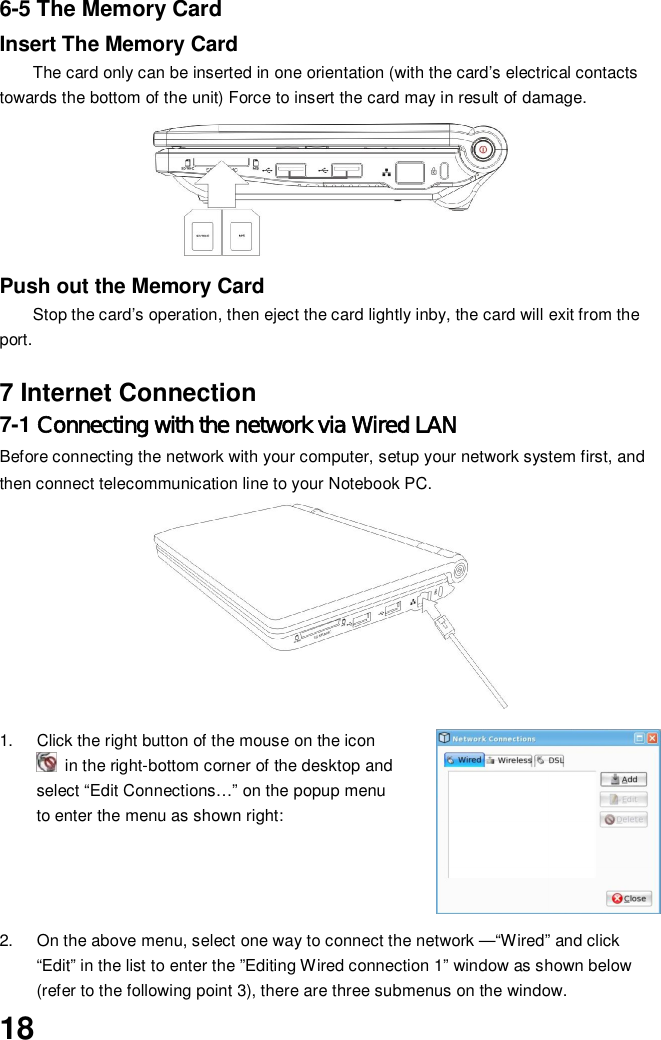

186-5 The Memory CardInsert The Memory CardThe card only can be inserted in one orientation (with the card’s electrical contactstowards the bottom of the unit) Force to insert the card may in result of damage.Push out the Memory CardStop the card’s operation, then eject the card lightly inby, the card will exit from theport.7 Internet Connection7-1 Connecting with the network via Wired LANBefore connecting the network with your computer, setup your network system first, andthen connect telecommunication line to your Notebook PC.1.  Click the right button of the mouse on the icon  in the right-bottom corner of the desktop andselect “Edit Connections…” on the popup menuto enter the menu as shown right:2.  On the above menu, select one way to connect the network —“Wired” and click“Edit” in the list to enter the ”Editing Wired connection 1” window as shown below(refer to the following point 3), there are three submenus on the window.

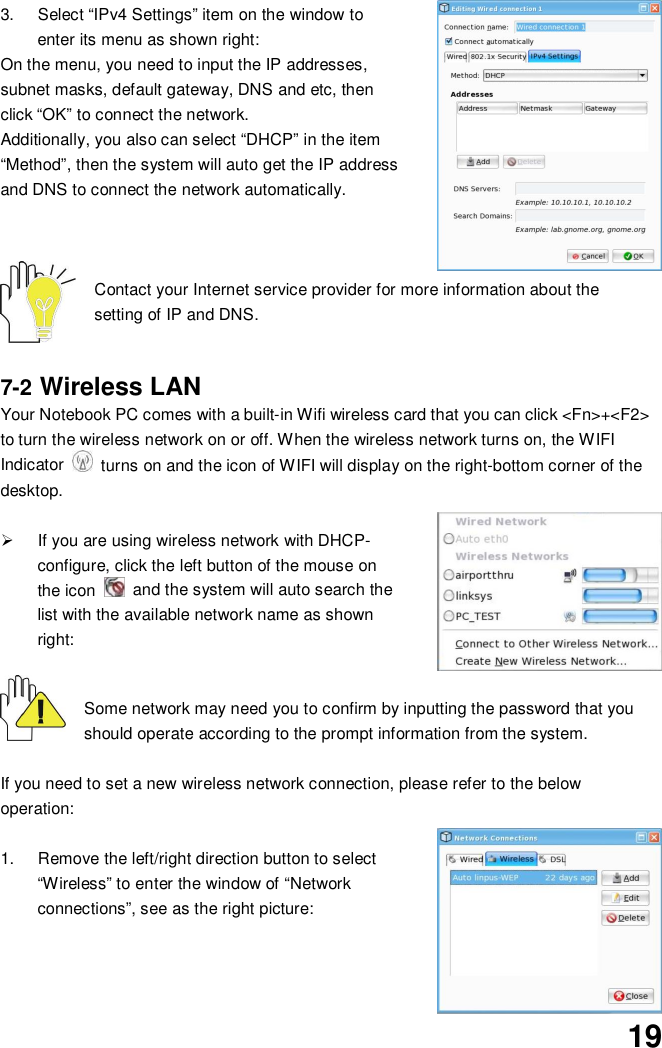

193.  Select “IPv4 Settings” item on the window toenter its menu as shown right:On the menu, you need to input the IP addresses,subnet masks, default gateway, DNS and etc, thenclick “OK” to connect the network.Additionally, you also can select “DHCP” in the item“Method”, then the system will auto get the IP addressand DNS to connect the network automatically.Contact your Internet service provider for more information about thesetting of IP and DNS.7-2 Wireless LANYour Notebook PC comes with a built-in Wifi wireless card that you can click <Fn>+<F2>to turn the wireless network on or off. When the wireless network turns on, the WIFIIndicator   turns on and the icon of WIFI will display on the right-bottom corner of thedesktop.  If you are using wireless network with DHCP-configure, click the left button of the mouse onthe icon   and the system will auto search thelist with the available network name as shownright:Some network may need you to confirm by inputting the password that youshould operate according to the prompt information from the system.If you need to set a new wireless network connection, please refer to the belowoperation:1.  Remove the left/right direction button to select“Wireless” to enter the window of “Networkconnections”, see as the right picture:
202.  Click “Add” in the list on the above window to enter the menu as shown below, thereare three submenus on the window.WirelessOn the menu, you only need to input the desired networkname in the item “SSID” as shown right:Wireless SecurityOn the menu, choose the right encryted way in “Security”.See as right:IPv4 SettingsOn the menu, input the correct IP address, subnet masks,default gateway, DNS and ect. See as right:Click OK to start connection after finished the settings and click the icon in theright-bottom corner of the screen to check if the connection is successful or not.Some Methods of WiFi Encrypted in common:1. WEP 40/128-bit Hexadecimal    3. WPA & WPA2 Personal2. WEP 40/128-bit ASCII.          4. WPA & WPA2 Enterprise

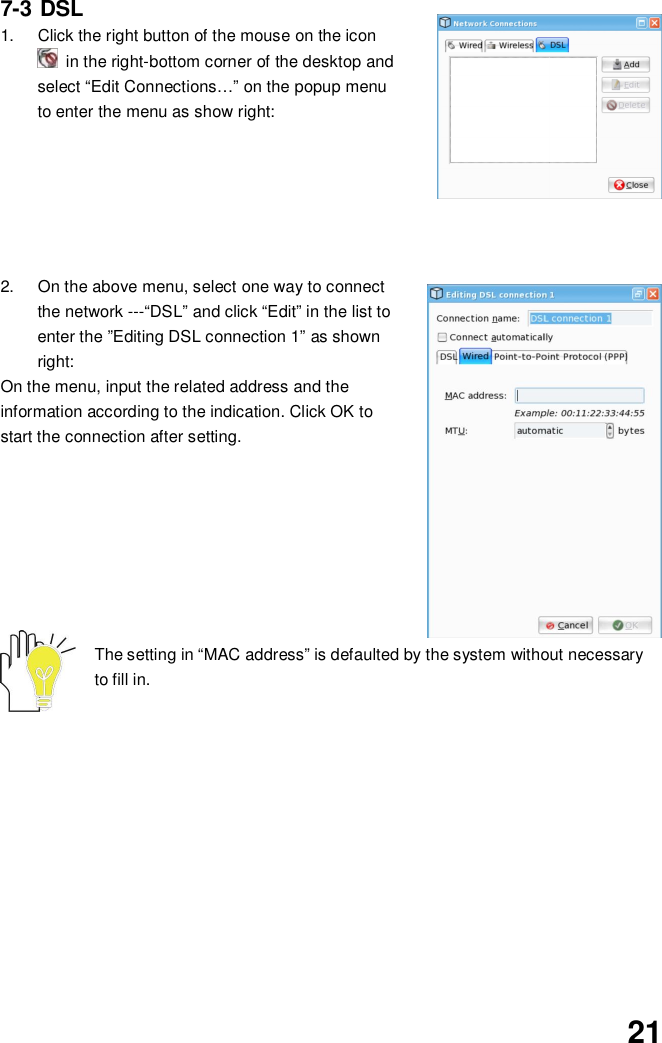

217-3 DSL1.  Click the right button of the mouse on the icon  in the right-bottom corner of the desktop andselect “Edit Connections…” on the popup menuto enter the menu as show right:2.  On the above menu, select one way to connectthe network ---“DSL” and click “Edit” in the list toenter the ”Editing DSL connection 1” as shownright:On the menu, input the related address and theinformation according to the indication. Click OK tostart the connection after setting.The setting in “MAC address” is defaulted by the system without necessaryto fill in.

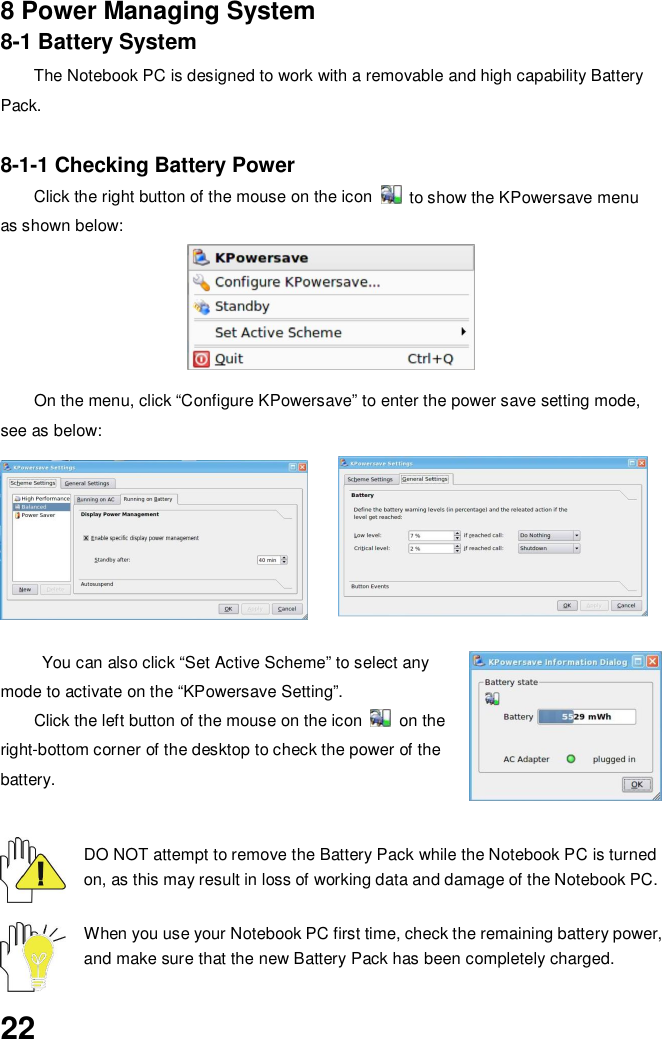

228 Power Managing System8-1 Battery SystemThe Notebook PC is designed to work with a removable and high capability BatteryPack.8-1-1 Checking Battery PowerClick the right button of the mouse on the icon   to show the KPowersave menuas shown below:On the menu, click “Configure KPowersave” to enter the power save setting mode,see as below:You can also click “Set Active Scheme” to select anymode to activate on the “KPowersave Setting”.Click the left button of the mouse on the icon  on theright-bottom corner of the desktop to check the power of thebattery.DO NOT attempt to remove the Battery Pack while the Notebook PC is turnedon, as this may result in loss of working data and damage of the Notebook PC.When you use your Notebook PC first time, check the remaining battery power,and make sure that the new Battery Pack has been completely charged.

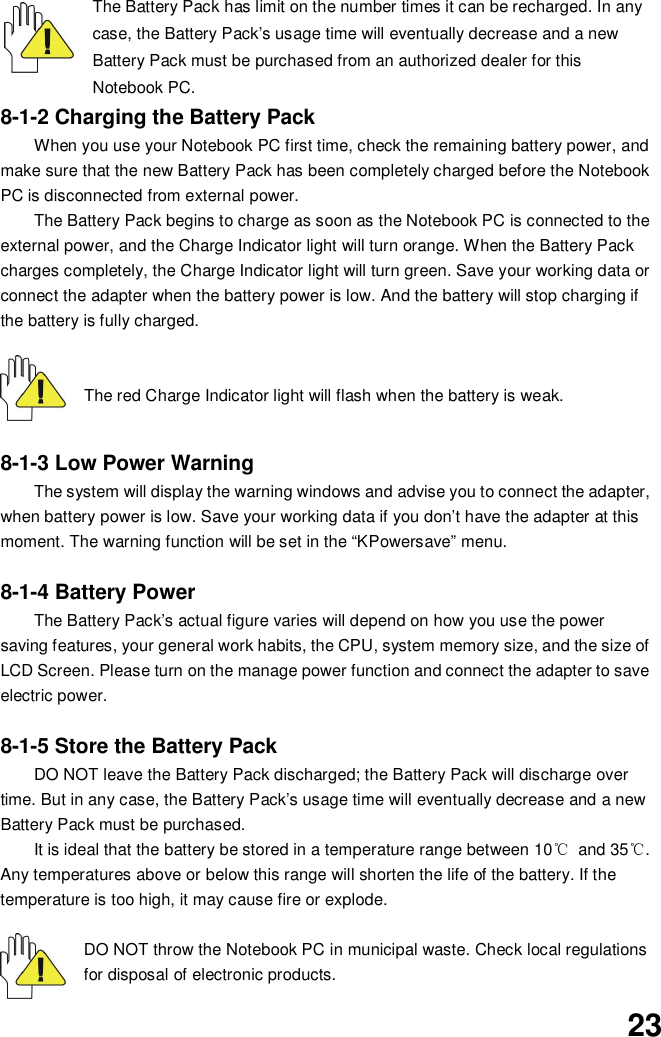

23The Battery Pack has limit on the number times it can be recharged. In anycase, the Battery Pack’s usage time will eventually decrease and a newBattery Pack must be purchased from an authorized dealer for thisNotebook PC.8-1-2 Charging the Battery PackWhen you use your Notebook PC first time, check the remaining battery power, andmake sure that the new Battery Pack has been completely charged before the NotebookPC is disconnected from external power.The Battery Pack begins to charge as soon as the Notebook PC is connected to theexternal power, and the Charge Indicator light will turn orange. When the Battery Packcharges completely, the Charge Indicator light will turn green. Save your working data orconnect the adapter when the battery power is low. And the battery will stop charging ifthe battery is fully charged.The red Charge Indicator light will flash when the battery is weak.8-1-3 Low Power WarningThe system will display the warning windows and advise you to connect the adapter,when battery power is low. Save your working data if you don’t have the adapter at thismoment. The warning function will be set in the “KPowersave” menu.8-1-4 Battery PowerThe Battery Pack’s actual figure varies will depend on how you use the powersaving features, your general work habits, the CPU, system memory size, and the size ofLCD Screen. Please turn on the manage power function and connect the adapter to saveelectric power.8-1-5 Store the Battery PackDO NOT leave the Battery Pack discharged; the Battery Pack will discharge overtime. But in any case, the Battery Pack’s usage time will eventually decrease and a newBattery Pack must be purchased.It is ideal that the battery be stored in a temperature range between 10 and 35.Any temperatures above or below this range will shorten the life of the battery. If thetemperature is too high, it may cause fire or explode.DO NOT throw the Notebook PC in municipal waste. Check local regulationsfor disposal of electronic products.
248-1-6 Prolonging the Battery’s Life  Use the AC adapter wherever the AC wall outlet is available. Charge the batterycompletely for using in your traveling.  Take the card from the Express Card port when the Notebook PC does notconnect to the electric outlets in order to save the power of Battery Pack.  The ideal working temperature is from 20 to 30. Any temperatures above orbelow this range will shorten the actual usage time of the Battery Pack.  After charging the Battery Pack completely, keep the Battery Pack in the NotebookPC. It will stop charging if the Battery Pack is fully charged and not be damaged.  DO NOT leave the Battery Pack discharged over three month, the Battery Pack willbe damaged, it must continue to be charge every three months, as well as thespare Battery Pack.  Purchase an additional Battery Pack.  DO NOT often plug or pull the Adapter from the electric outlets, it is the best way toprolong the Battery Pack’s life.  The life expectancy of the Battery Pack is approximately 300 recharges.  Store the Battery Pack in cool and dry place, the ideal temperature is from 10 to30. The Battery Pack will discharge quickly in hot environment and the life of theBattery Pack will be shortened.  DO NOT throw the Notebook PC in municipal waste. Check local regulations fordisposal of electronic products.  DO NOT put the Battery Pack near or in the fire, or else it may cause fire orexplode.  The Battery Pack will short circuit if the Battery Pack puncture or reassemble.8-2 Power Management Modes8-2-1 Standby modeThe function of Standby mode: Store your current data and status in RAM, turn offthe external device, but the Power Indicator Light still turns on. If you press the POWERbutton, the system will operate again. Standby timer as set through “KPowersaveSetting”.8-2-2 Suspend modeIn “Suspend” mode: The computer saves the current state of the system in RAMand switches off power to the CPU. The power indicator light flashes in this mode.Press the POWER button to restart the system.8-2-3 Log OffClick the left button of the Power icon   to select “Shut Down”.
25If the system is force to turn off because of using up the power in the standby mode.Your current data and status will be stored on the HDD. The system will operate againafter changing a power-full battery or connecting the wall outlets.When the power is used up, the Notebook PC will exit the standby mode and turn off.Store your working data, before using up the power of the Battery Pack.8-2-4 Restart the SystemPress POWER button to exit the suspend mode and enter the current status. Andthe “restart” function will reactivate all the operating programs.Press and hold the POWER button for over 4 seconds to turn off the NotebookPC if the system halts. Press and hold the POWER button for over 2 secondsto turn off in normal mode.8-3 Power SavingWhen you use a battery as the source power for your Notebook PC, you can takeadvantage of power management settings to conserve battery life.8-3-1 Connect the Adapter without using Battery PackThe Battery Pack has a limit on the number times it can be recharged. DO NOT usethe Battery Pack if you have the adapter.8-3-2 Adjust the brightness of LCD ScreenIf necessary, adjust the brightness of the LCD Screen in order to save the electricpower. Close the LCD Screen if you don’t need to use your computer for a brief period.

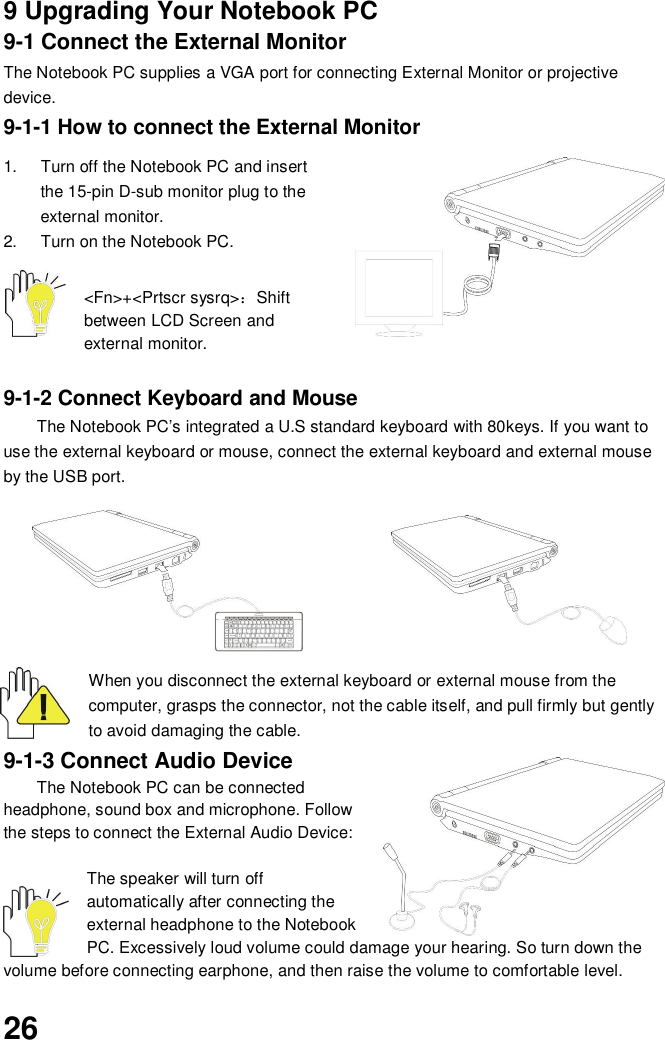

269 Upgrading Your Notebook PC9-1 Connect the External MonitorThe Notebook PC supplies a VGA port for connecting External Monitor or projectivedevice.9-1-1 How to connect the External Monitor1.  Turn off the Notebook PC and insertthe 15-pin D-sub monitor plug to theexternal monitor.2.  Turn on the Notebook PC.<Fn>+<Prtscr sysrq>Shiftbetween LCD Screen andexternal monitor.9-1-2 Connect Keyboard and MouseThe Notebook PC’s integrated a U.S standard keyboard with 80keys. If you want touse the external keyboard or mouse, connect the external keyboard and external mouseby the USB port.When you disconnect the external keyboard or external mouse from thecomputer, grasps the connector, not the cable itself, and pull firmly but gentlyto avoid damaging the cable.9-1-3 Connect Audio DeviceThe Notebook PC can be connectedheadphone, sound box and microphone. Followthe steps to connect the External Audio Device:The speaker will turn offautomatically after connecting theexternal headphone to the NotebookPC. Excessively loud volume could damage your hearing. So turn down thevolume before connecting earphone, and then raise the volume to comfortable level.

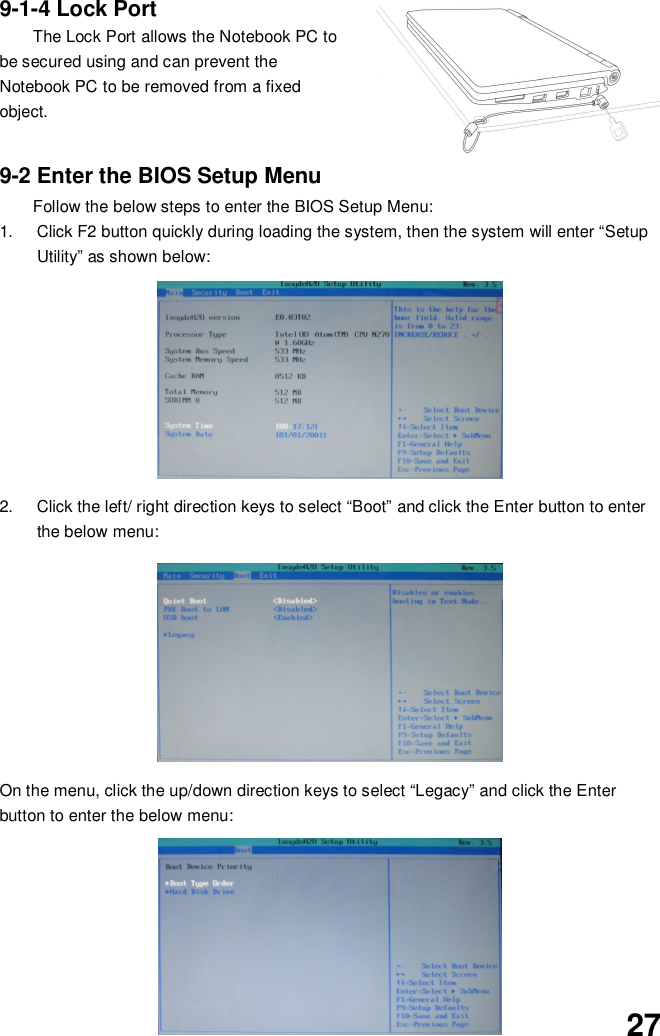

279-1-4 Lock PortThe Lock Port allows the Notebook PC tobe secured using and can prevent theNotebook PC to be removed from a fixedobject.9-2 Enter the BIOS Setup MenuFollow the below steps to enter the BIOS Setup Menu:1.  Click F2 button quickly during loading the system, then the system will enter “SetupUtility” as shown below:2.  Click the left/ right direction keys to select “Boot” and click the Enter button to enterthe below menu:On the menu, click the up/down direction keys to select “Legacy” and click the Enterbutton to enter the below menu:

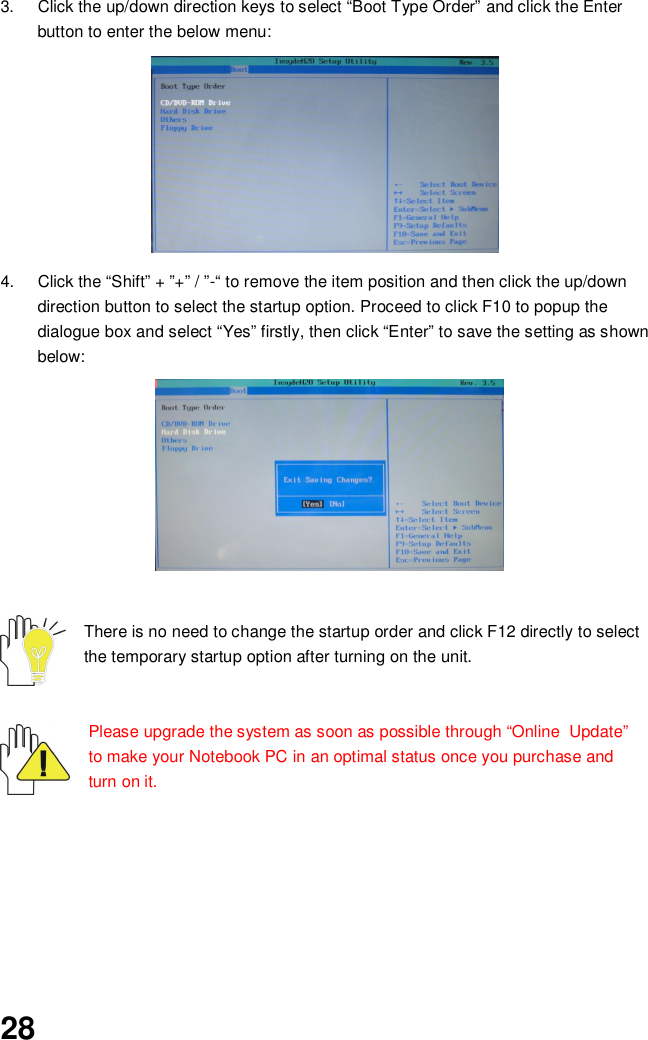

283.  Click the up/down direction keys to select “Boot Type Order” and click the Enterbutton to enter the below menu:4.  Click the “Shift” + ”+” / ”-“ to remove the item position and then click the up/downdirection button to select the startup option. Proceed to click F10 to popup thedialogue box and select “Yes” firstly, then click “Enter” to save the setting as shownbelow:There is no need to change the startup order and click F12 directly to selectthe temporary startup option after turning on the unit.Please upgrade the system as soon as possible through “Online  Update”to make your Notebook PC in an optimal status once you purchase andturn on it.

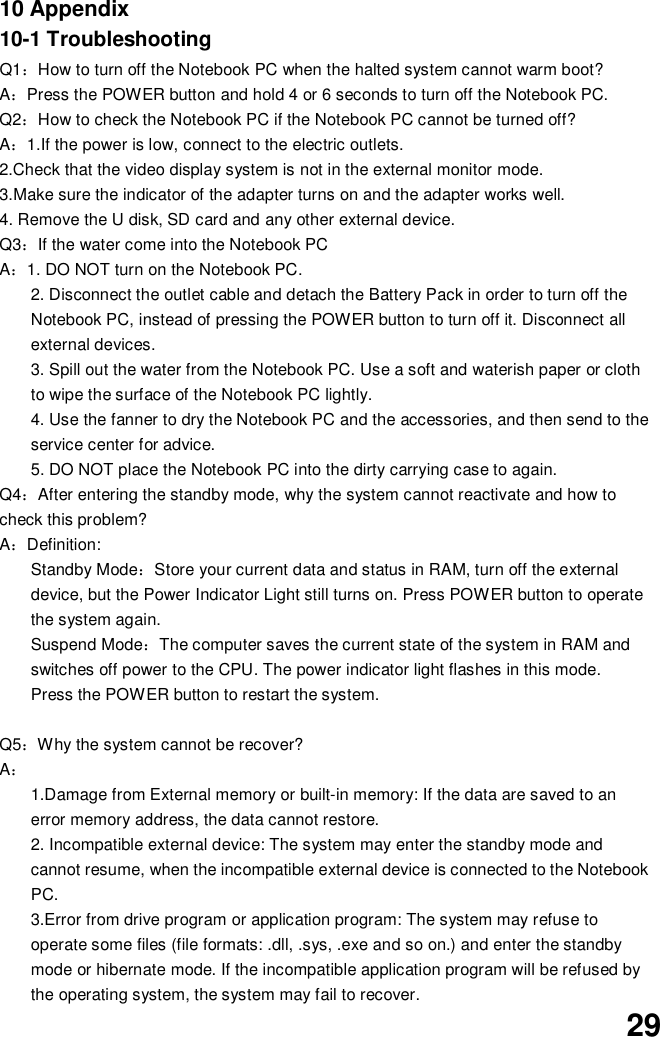

2910 Appendix10-1 TroubleshootingQ1How to turn off the Notebook PC when the halted system cannot warm boot?APress the POWER button and hold 4 or 6 seconds to turn off the Notebook PC.Q2How to check the Notebook PC if the Notebook PC cannot be turned off?A1.If the power is low, connect to the electric outlets.2.Check that the video display system is not in the external monitor mode.3.Make sure the indicator of the adapter turns on and the adapter works well.4. Remove the U disk, SD card and any other external device.Q3If the water come into the Notebook PCA1. DO NOT turn on the Notebook PC.2. Disconnect the outlet cable and detach the Battery Pack in order to turn off theNotebook PC, instead of pressing the POWER button to turn off it. Disconnect allexternal devices.3. Spill out the water from the Notebook PC. Use a soft and waterish paper or clothto wipe the surface of the Notebook PC lightly.4. Use the fanner to dry the Notebook PC and the accessories, and then send to theservice center for advice.5. DO NOT place the Notebook PC into the dirty carrying case to again.Q4After entering the standby mode, why the system cannot reactivate and how tocheck this problem?ADefinition:Standby ModeStore your current data and status in RAM, turn off the externaldevice, but the Power Indicator Light still turns on. Press POWER button to operatethe system again.Suspend ModeThe computer saves the current state of the system in RAM andswitches off power to the CPU. The power indicator light flashes in this mode.Press the POWER button to restart the system.Q5Why the system cannot be recover?A1.Damage from External memory or built-in memory: If the data are saved to anerror memory address, the data cannot restore.2. Incompatible external device: The system may enter the standby mode andcannot resume, when the incompatible external device is connected to the NotebookPC.3.Error from drive program or application program: The system may refuse tooperate some files (file formats: .dll, .sys, .exe and so on.) and enter the standbymode or hibernate mode. If the incompatible application program will be refused bythe operating system, the system may fail to recover.

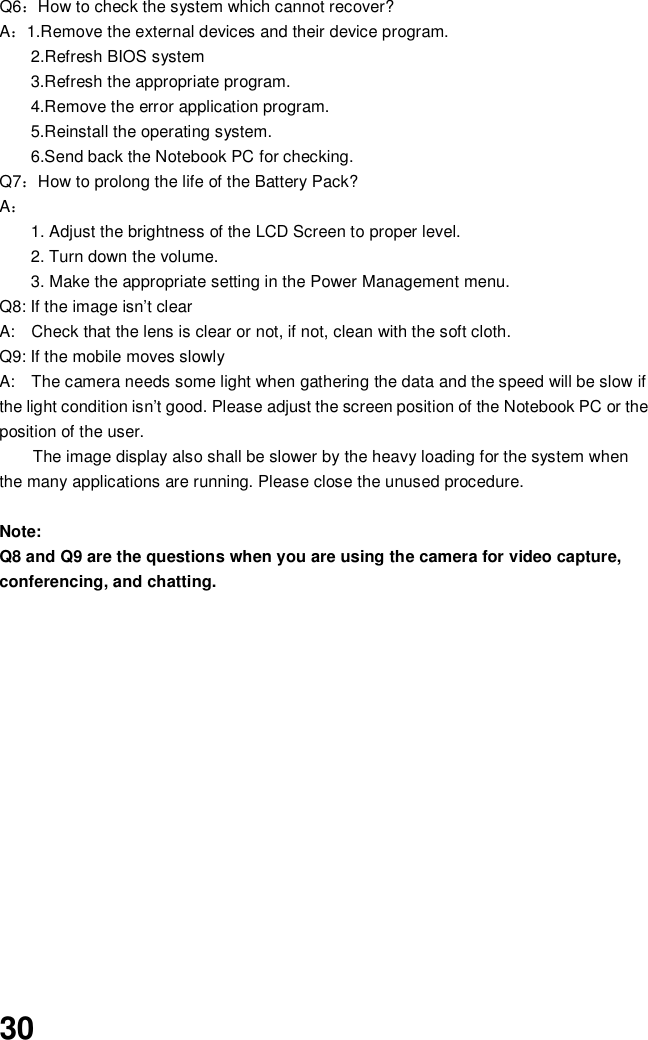

30Q6How to check the system which cannot recover?A1.Remove the external devices and their device program.2.Refresh BIOS system3.Refresh the appropriate program.4.Remove the error application program.5.Reinstall the operating system.6.Send back the Notebook PC for checking.Q7How to prolong the life of the Battery Pack?A1. Adjust the brightness of the LCD Screen to proper level.2. Turn down the volume.3. Make the appropriate setting in the Power Management menu.Q8: If the image isn’t clearA:   Check that the lens is clear or not, if not, clean with the soft cloth.Q9: If the mobile moves slowlyA:   The camera needs some light when gathering the data and the speed will be slow ifthe light condition isn’t good. Please adjust the screen position of the Notebook PC or theposition of the user.The image display also shall be slower by the heavy loading for the system whenthe many applications are running. Please close the unused procedure.Note:Q8 and Q9 are the questions when you are using the camera for video capture,conferencing, and chatting.

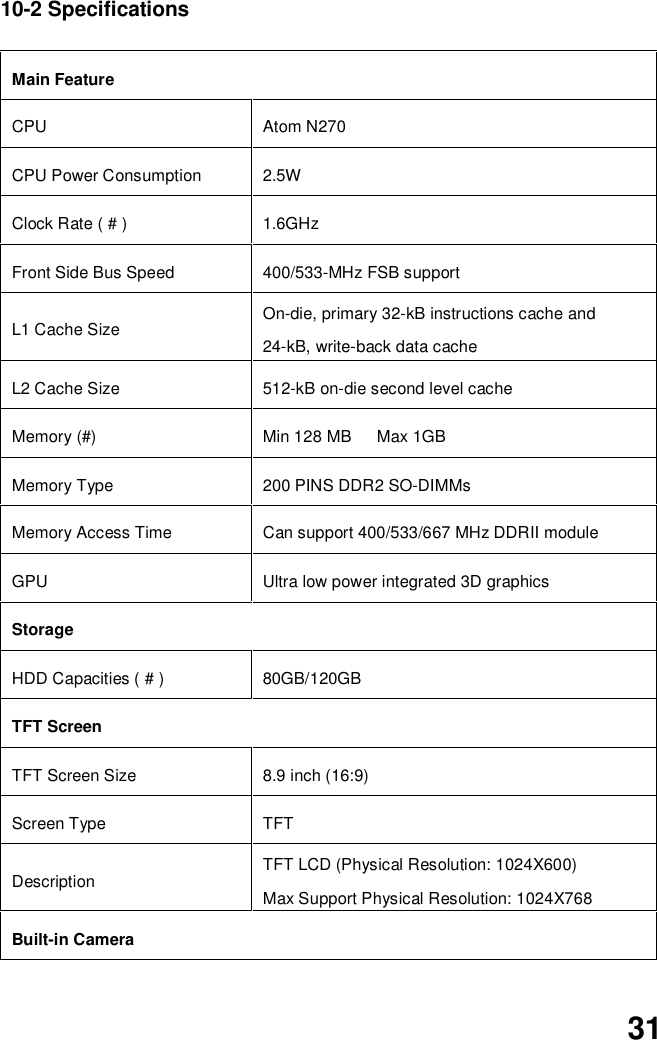

3110-2 SpecificationsMain FeatureCPU Atom N270CPU Power Consumption 2.5WClock Rate ( # ) 1.6GHzFront Side Bus Speed 400/533-MHz FSB supportL1 Cache Size On-die, primary 32-kB instructions cache and24-kB, write-back data cacheL2 Cache Size 512-kB on-die second level cacheMemory (#) Min 128 MB    Max 1GBMemory Type 200 PINS DDR2 SO-DIMMsMemory Access Time Can support 400/533/667 MHz DDRII moduleGPU Ultra low power integrated 3D graphicsStorageHDD Capacities ( # ) 80GB/120GBTFT ScreenTFT Screen Size 8.9 inch (16:9)Screen Type TFTDescription TFT LCD (Physical Resolution: 1024X600)Max Support Physical Resolution: 1024X768Built-in Camera
32Resolution 640*480Video/Audio FeatureVideo Card Type Integrate video cardVideo Card Capacity Share Dynamic EMS Memory 32MBAudio System Built-in speakerSound Card Type HD CodecNetwork Card 100MbpsI/O DeviceMouse Touch PadKeyboard U.S 80-key keyboardConditionOperating Temperature 5-35Operating Humidity 35%-85%Storage Temperature -20-55Storage Humidity 20%-93%PowerAdapter AC 100~240V; DC 12VOutput Power (maximum) 36WBattery (Type) Lithium rechargeable batteryBattery Capacity (#) 4000MAH

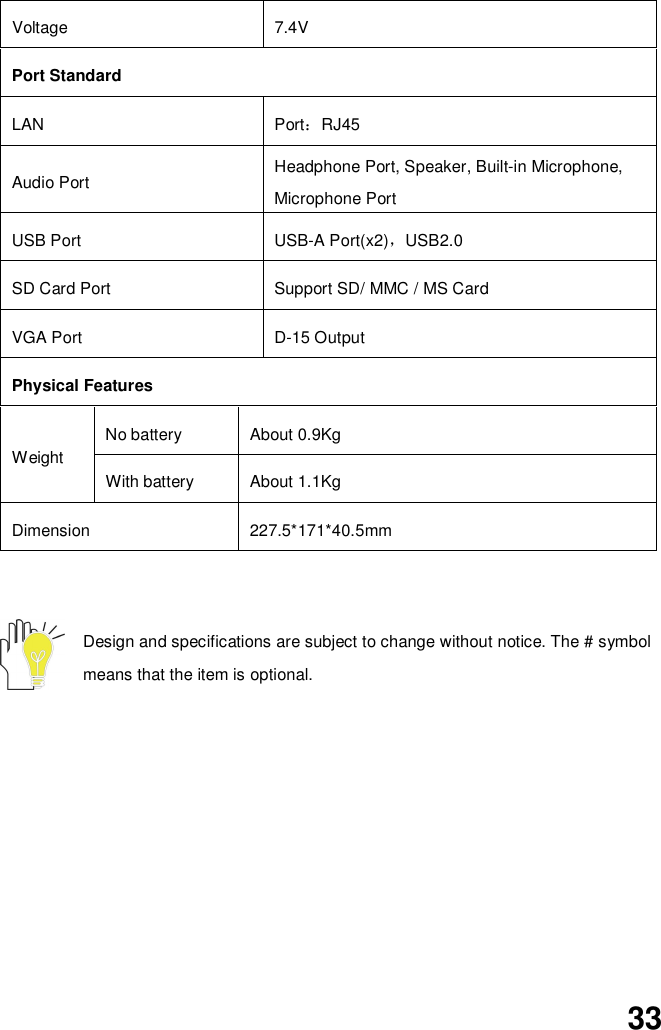

33Design and specifications are subject to change without notice. The # symbolmeans that the item is optional.Voltage 7.4VPort StandardLAN PortRJ45Audio Port Headphone Port, Speaker, Built-in Microphone,Microphone PortUSB Port USB-A Port(x2)USB2.0SD Card Port Support SD/ MMC / MS CardVGA Port D-15 OutputPhysical FeaturesWeightNo battery About 0.9KgWith battery About 1.1KgDimension 227.5*171*40.5mm
