Wanlida Group PCA1001 Tablet Personal Computer User Manual

Wanlida Group Co., Ltd. Tablet Personal Computer

User manual

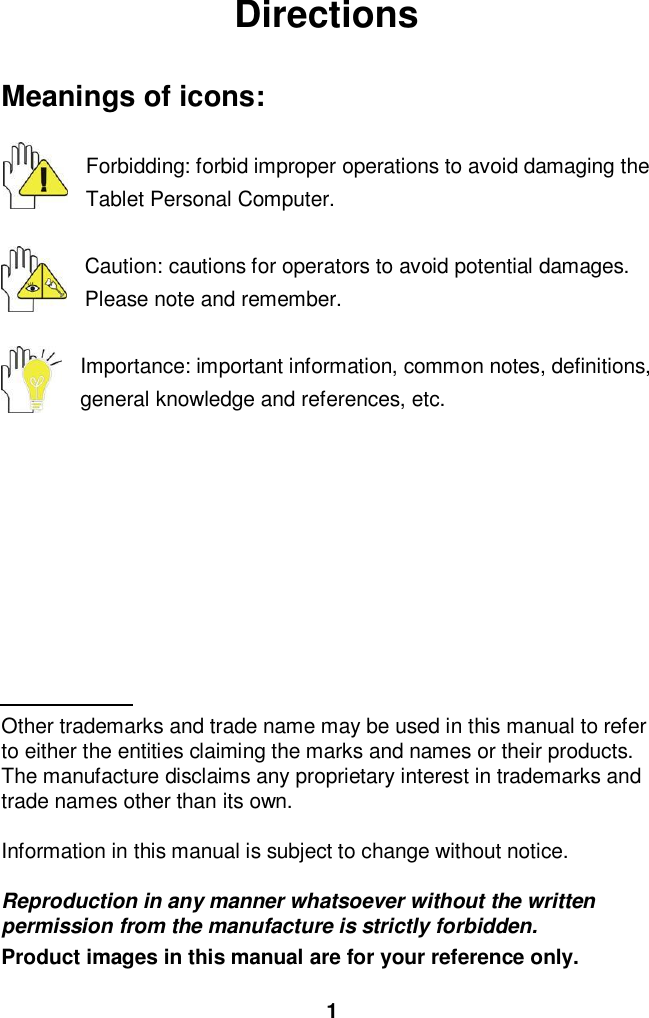

1DirectionsMeanings of icons:Forbidding: forbid improper operations to avoid damaging theTablet Personal Computer.Caution: cautions for operators to avoid potential damages.Please note and remember.Importance: important information, common notes, definitions,general knowledge and references, etc.Other trademarks and trade name may be used in this manual to referto either the entities claiming the marks and names or their products.The manufacture disclaims any proprietary interest in trademarks andtrade names other than its own.Information in this manual is subject to change without notice.Reproduction in any manner whatsoever without the writtenpermission from the manufacture is strictly forbidden.Product images in this manual are for your reference only.

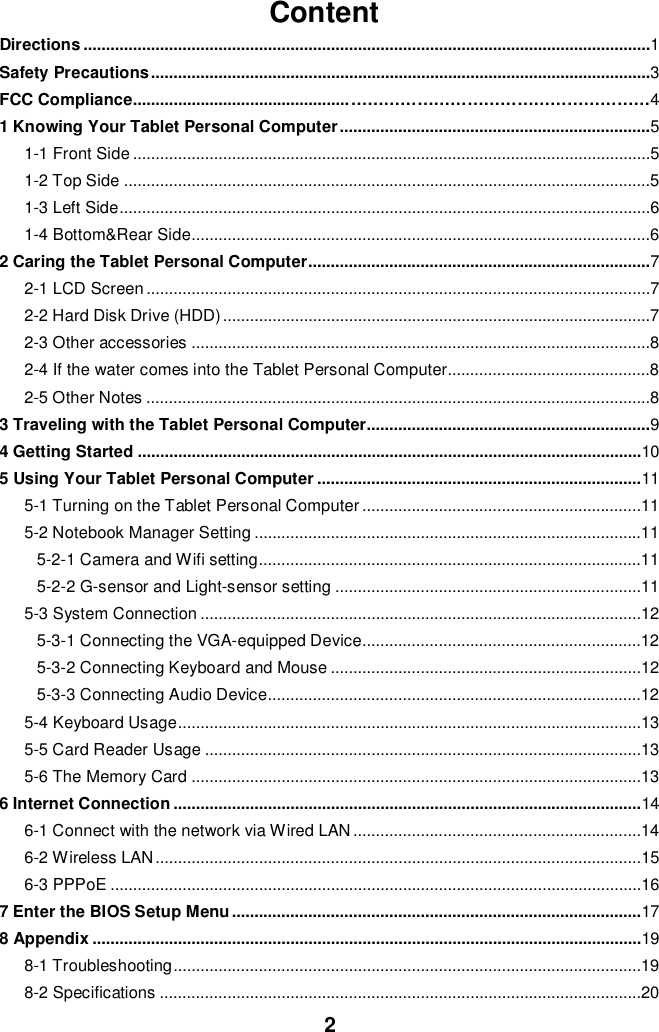

2ContentDirections ..............................................................................................................................1Safety Precautions ...............................................................................................................3FCC Compliance................................................ ………………………………………………41 Knowing Your Tablet Personal Computer .....................................................................51-1 Front Side ...................................................................................................................51-2 Top Side .....................................................................................................................51-3 Left Side ......................................................................................................................61-4 Bottom&Rear Side ......................................................................................................62 Caring the Tablet Personal Computer ............................................................................72-1 LCD Screen ................................................................................................................72-2 Hard Disk Drive (HDD) ...............................................................................................72-3 Other accessories ......................................................................................................82-4 If the water comes into the Tablet Personal Computer.............................................82-5 Other Notes ................................................................................................................83 Traveling with the Tablet Personal Computer...............................................................94 Getting Started ................................................................................................................105 Using Your Tablet Personal Computer ........................................................................115-1 Turning on the Tablet Personal Computer ..............................................................115-2 Notebook Manager Setting ......................................................................................115-2-1 Camera and Wifi setting .....................................................................................115-2-2 G-sensor and Light-sensor setting ....................................................................115-3 System Connection ..................................................................................................125-3-1 Connecting the VGA-equipped Device ..............................................................125-3-2 Connecting Keyboard and Mouse .....................................................................125-3-3 Connecting Audio Device ...................................................................................125-4 Keyboard Usage .......................................................................................................135-5 Card Reader Usage .................................................................................................135-6 The Memory Card ....................................................................................................136 Internet Connection ........................................................................................................146-1 Connect with the network via Wired LAN ................................................................146-2 Wireless LAN ............................................................................................................156-3 PPPoE ......................................................................................................................167 Enter the BIOS Setup Menu ...........................................................................................178 Appendix ..........................................................................................................................198-1 Troubleshooting ........................................................................................................198-2 Specifications ...........................................................................................................20

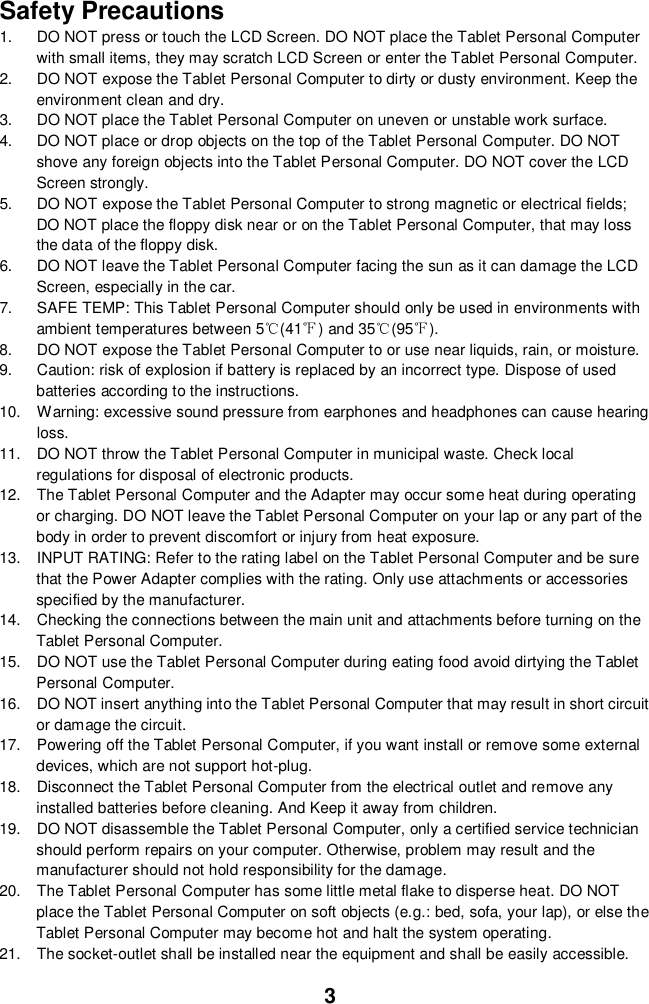

3Safety Precautions1. DO NOT press or touch the LCD Screen. DO NOT place the Tablet Personal Computerwith small items, they may scratch LCD Screen or enter the Tablet Personal Computer.2. DO NOT expose the Tablet Personal Computer to dirty or dusty environment. Keep theenvironment clean and dry.3. DO NOT place the Tablet Personal Computer on uneven or unstable work surface.4. DO NOT place or drop objects on the top of the Tablet Personal Computer. DO NOTshove any foreign objects into the Tablet Personal Computer. DO NOT cover the LCDScreen strongly.5. DO NOT expose the Tablet Personal Computer to strong magnetic or electrical fields;DO NOT place the floppy disk near or on the Tablet Personal Computer, that may lossthe data of the floppy disk.6. DO NOT leave the Tablet Personal Computer facing the sun as it can damage the LCDScreen, especially in the car.7. SAFE TEMP: This Tablet Personal Computer should only be used in environments withambient temperatures between 5(41) and 35(95).8. DO NOT expose the Tablet Personal Computer to or use near liquids, rain, or moisture.9. Caution: risk of explosion if battery is replaced by an incorrect type. Dispose of usedbatteries according to the instructions.10. Warning: excessive sound pressure from earphones and headphones can cause hearingloss.11. DO NOT throw the Tablet Personal Computer in municipal waste. Check localregulations for disposal of electronic products.12. The Tablet Personal Computer and the Adapter may occur some heat during operatingor charging. DO NOT leave the Tablet Personal Computer on your lap or any part of thebody in order to prevent discomfort or injury from heat exposure.13. INPUT RATING: Refer to the rating label on the Tablet Personal Computer and be surethat the Power Adapter complies with the rating. Only use attachments or accessoriesspecified by the manufacturer.14. Checking the connections between the main unit and attachments before turning on theTablet Personal Computer.15. DO NOT use the Tablet Personal Computer during eating food avoid dirtying the TabletPersonal Computer.16. DO NOT insert anything into the Tablet Personal Computer that may result in short circuitor damage the circuit.17. Powering off the Tablet Personal Computer, if you want install or remove some externaldevices, which are not support hot-plug.18. Disconnect the Tablet Personal Computer from the electrical outlet and remove anyinstalled batteries before cleaning. And Keep it away from children.19. DO NOT disassemble the Tablet Personal Computer, only a certified service technicianshould perform repairs on your computer. Otherwise, problem may result and themanufacturer should not hold responsibility for the damage.20. The Tablet Personal Computer has some little metal flake to disperse heat. DO NOTplace the Tablet Personal Computer on soft objects (e.g.: bed, sofa, your lap), or else theTablet Personal Computer may become hot and halt the system operating.21. The socket-outlet shall be installed near the equipment and shall be easily accessible.

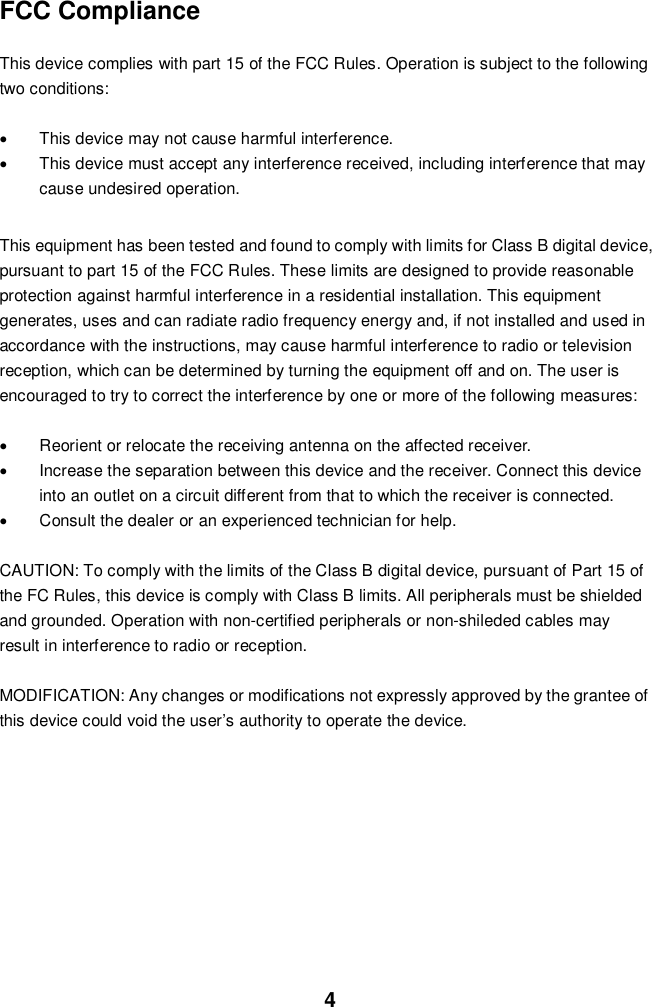

4FCC ComplianceThis device complies with part 15 of the FCC Rules. Operation is subject to the followingtwo conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that maycause undesired operation.This equipment has been tested and found to comply with limits for Class B digital device,pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonableprotection against harmful interference in a residential installation. This equipmentgenerates, uses and can radiate radio frequency energy and, if not installed and used inaccordance with the instructions, may cause harmful interference to radio or televisionreception, which can be determined by turning the equipment off and on. The user isencouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna on the affected receiver. Increase the separation between this device and the receiver. Connect this deviceinto an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced technician for help.CAUTION: To comply with the limits of the Class B digital device, pursuant of Part 15 ofthe FC Rules, this device is comply with Class B limits. All peripherals must be shieldedand grounded. Operation with non-certified peripherals or non-shileded cables mayresult in interference to radio or reception.MODIFICATION: Any changes or modifications not expressly approved by the grantee ofthis device could void the user’s authority to operate the device.
51 Knowing Your Tablet Personal Computer1-1 Front Side1. Built-in CameraEnable or disable the camerafunction by clicking “NotebookManager”.2. LCD Touch-sensitive Screen3. (To open the “NotebookManager” window)4. Up/Down Direction Button5. OK Button6. Light-Sensor Indicator1-2 Top Side1. Bulit-in Microphone Jack2. Charge IndicatorLight is orange during beingcharged and is green during normalworking; light turns off when thebattery is fully charged and flasheswhen the battery is weak.3. Power Button

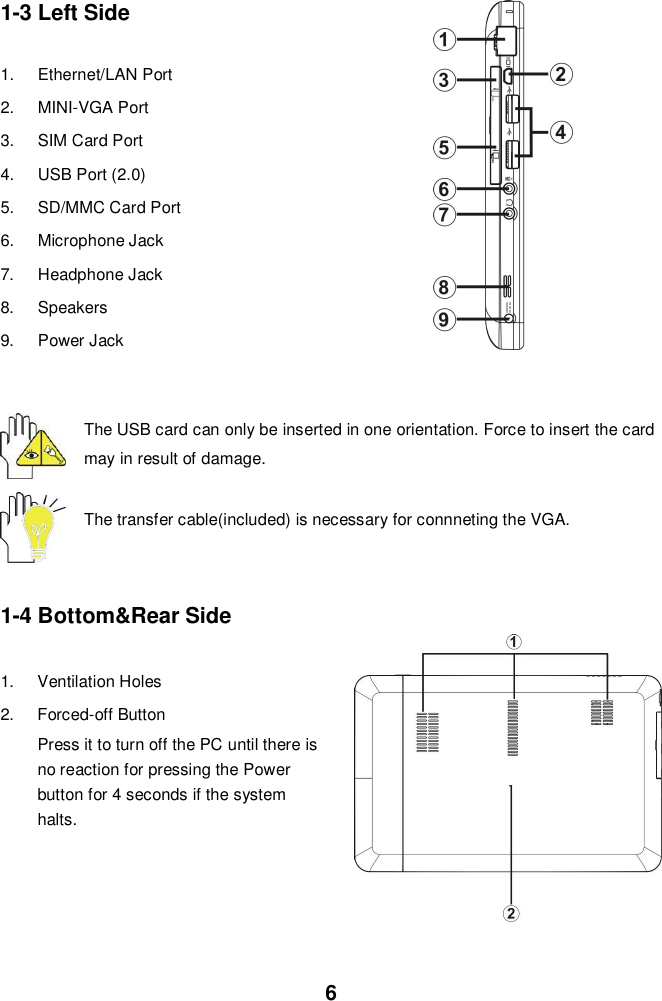

61-3 Left Side1. Ethernet/LAN Port2. MINI-VGA Port3. SIM Card Port4. USB Port (2.0)5. SD/MMC Card Port6. Microphone Jack7. Headphone Jack8. Speakers9. Power JackThe USB card can only be inserted in one orientation. Force to insert the cardmay in result of damage.The transfer cable(included) is necessary for connneting the VGA.1-4 Bottom&Rear Side1. Ventilation Holes2. Forced-off ButtonPress it to turn off the PC until there isno reaction for pressing the Powerbutton for 4 seconds if the systemhalts.

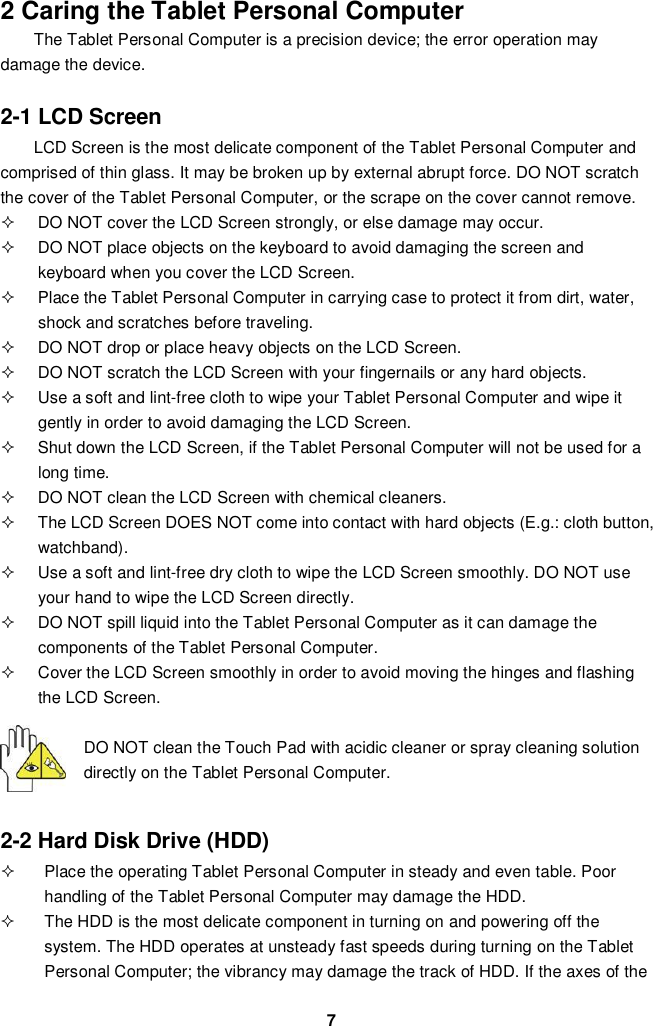

72 Caring the Tablet Personal ComputerThe Tablet Personal Computer is a precision device; the error operation maydamage the device.2-1 LCD ScreenLCD Screen is the most delicate component of the Tablet Personal Computer andcomprised of thin glass. It may be broken up by external abrupt force. DO NOT scratchthe cover of the Tablet Personal Computer, or the scrape on the cover cannot remove. DO NOT cover the LCD Screen strongly, or else damage may occur. DO NOT place objects on the keyboard to avoid damaging the screen andkeyboard when you cover the LCD Screen. Place the Tablet Personal Computer in carrying case to protect it from dirt, water,shock and scratches before traveling. DO NOT drop or place heavy objects on the LCD Screen. DO NOT scratch the LCD Screen with your fingernails or any hard objects. Use a soft and lint-free cloth to wipe your Tablet Personal Computer and wipe itgently in order to avoid damaging the LCD Screen. Shut down the LCD Screen, if the Tablet Personal Computer will not be used for along time. DO NOT clean the LCD Screen with chemical cleaners. The LCD Screen DOES NOT come into contact with hard objects (E.g.: cloth button,watchband). Use a soft and lint-free dry cloth to wipe the LCD Screen smoothly. DO NOT useyour hand to wipe the LCD Screen directly. DO NOT spill liquid into the Tablet Personal Computer as it can damage thecomponents of the Tablet Personal Computer. Cover the LCD Screen smoothly in order to avoid moving the hinges and flashingthe LCD Screen.DO NOT clean the Touch Pad with acidic cleaner or spray cleaning solutiondirectly on the Tablet Personal Computer.2-2 Hard Disk Drive (HDD) Place the operating Tablet Personal Computer in steady and even table. Poorhandling of the Tablet Personal Computer may damage the HDD. The HDD is the most delicate component in turning on and powering off thesystem. The HDD operates at unsteady fast speeds during turning on the TabletPersonal Computer; the vibrancy may damage the track of HDD. If the axes of the

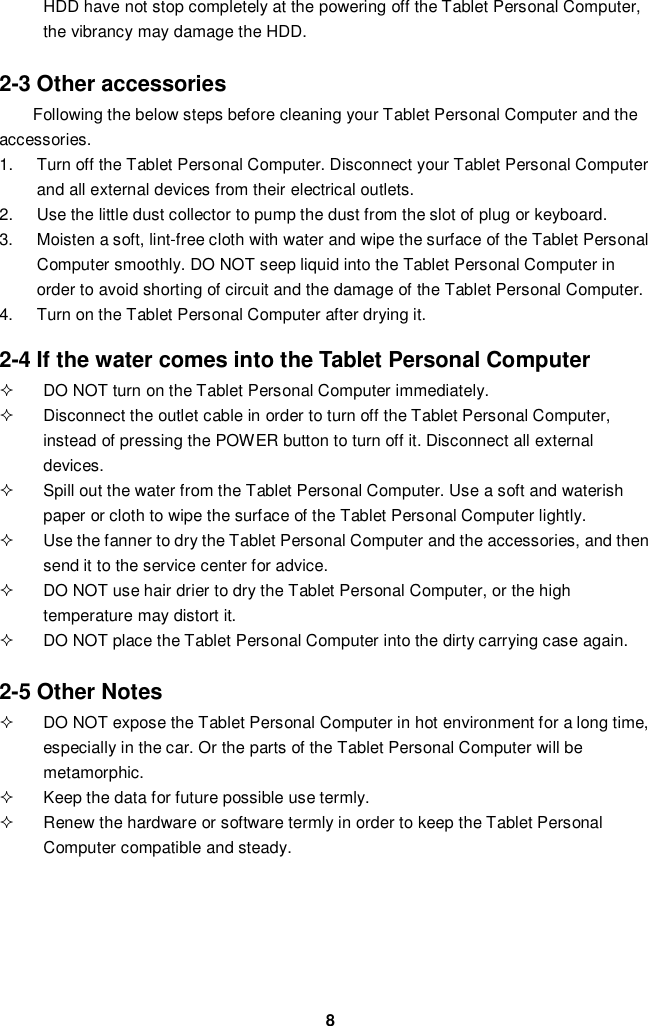

8HDD have not stop completely at the powering off the Tablet Personal Computer,the vibrancy may damage the HDD.2-3 Other accessoriesFollowing the below steps before cleaning your Tablet Personal Computer and theaccessories.1. Turn off the Tablet Personal Computer. Disconnect your Tablet Personal Computerand all external devices from their electrical outlets.2. Use the little dust collector to pump the dust from the slot of plug or keyboard.3. Moisten a soft, lint-free cloth with water and wipe the surface of the Tablet PersonalComputer smoothly. DO NOT seep liquid into the Tablet Personal Computer inorder to avoid shorting of circuit and the damage of the Tablet Personal Computer.4. Turn on the Tablet Personal Computer after drying it.2-4 If the water comes into the Tablet Personal Computer DO NOT turn on the Tablet Personal Computer immediately. Disconnect the outlet cable in order to turn off the Tablet Personal Computer,instead of pressing the POWER button to turn off it. Disconnect all externaldevices. Spill out the water from the Tablet Personal Computer. Use a soft and waterishpaper or cloth to wipe the surface of the Tablet Personal Computer lightly. Use the fanner to dry the Tablet Personal Computer and the accessories, and thensend it to the service center for advice. DO NOT use hair drier to dry the Tablet Personal Computer, or the hightemperature may distort it. DO NOT place the Tablet Personal Computer into the dirty carrying case again.2-5 Other Notes DO NOT expose the Tablet Personal Computer in hot environment for a long time,especially in the car. Or the parts of the Tablet Personal Computer will bemetamorphic. Keep the data for future possible use termly. Renew the hardware or software termly in order to keep the Tablet PersonalComputer compatible and steady.
93 Traveling with the Tablet Personal ComputerTurn off the Tablet Personal Computer and disconnect all lines before moving it.Following thebelow steps, if you want to travel with your Tablet Personal Computer.Attention1. Turn off the Tablet Personal Computer and disconnect from the wall outlets.2. Shut down the LCD Screen completely and smoothly.3. Disconnect the AC lines.4. Disconnect all lines.5. Place the Tablet Personal Computer in carrying case to protect it from dirt, water,shock and scratches before traveling.6. Check that you have taken the AC Adapter, power lines, manual and warranty card.DO NOT forget the passwords of the Tablet Personal Computer.7. Find out the voltage type in the countries you will visit. Your Tablet PersonalComputer comes with a universal AC-DC adapter, so you only need to buy thedifferent power cords to connect the different outlets or the hotel may provideuniversal outlets to support your power cord as well as voltages.If you drive your car with the Tablet Personal Computer, DO NOT leave theTablet Personal Computer facing the sun. Place it in the shady and cool area.Set the Tablet Personal Computer into the Standby mode or Hibernation mode,before moving it.The connection between Internet and your Tablet Personal Computer will beinterrupted when the system enter the hibernation mode.

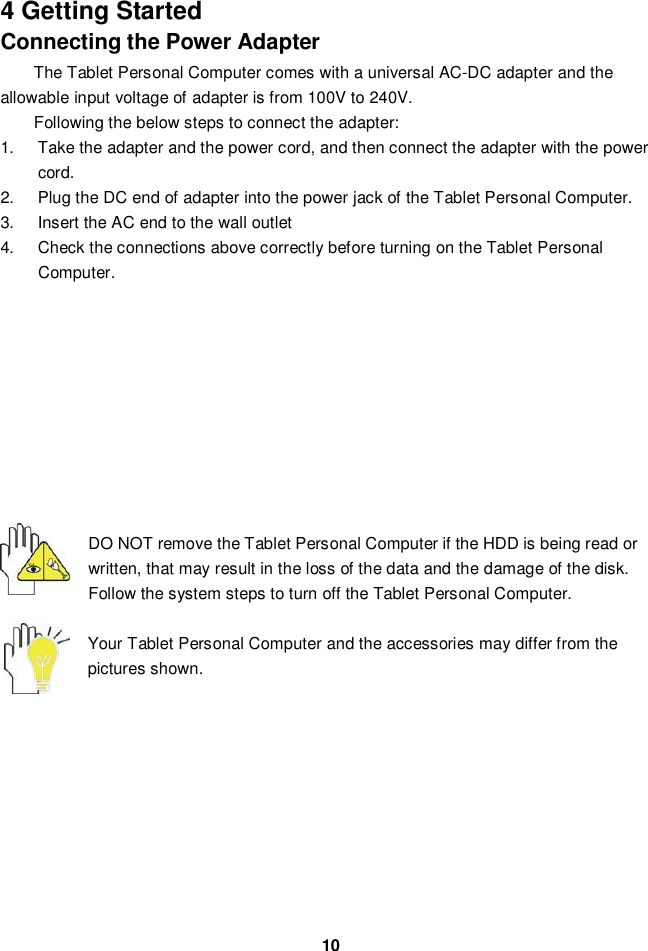

104 Getting StartedConnecting the Power AdapterThe Tablet Personal Computer comes with a universal AC-DC adapter and theallowable input voltage of adapter is from 100V to 240V.Following the below steps to connect the adapter:1. Take the adapter and the power cord, and then connect the adapter with the powercord.2. Plug the DC end of adapter into the power jack of the Tablet Personal Computer.3. Insert the AC end to the wall outlet4. Check the connections above correctly before turning on the Tablet PersonalComputer.DO NOT remove the Tablet Personal Computer if the HDD is being read orwritten, that may result in the loss of the data and the damage of the disk.Follow the system steps to turn off the Tablet Personal Computer.Your Tablet Personal Computer and the accessories may differ from thepictures shown.

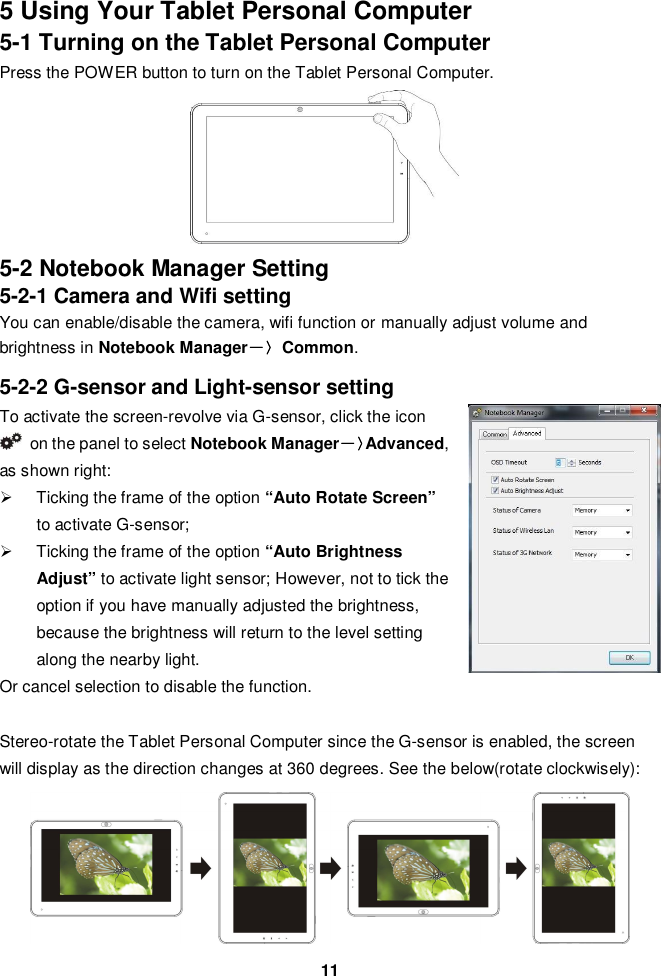

115 Using Your Tablet Personal Computer5-1 Turning on the Tablet Personal ComputerPress the POWER button to turn on the Tablet Personal Computer.5-2 Notebook Manager Setting5-2-1 Camera and Wifi settingYou can enable/disable the camera, wifi function or manually adjust volume andbrightness in Notebook ManagerCommon.5-2-2 G-sensor and Light-sensor settingTo activate the screen-revolve via G-sensor, click the iconon the panel to select Notebook ManagerAdvanced,as shown right: Ticking the frame of the option “Auto Rotate Screen”to activate G-sensor; Ticking the frame of the option “Auto BrightnessAdjust” to activate light sensor; However, not to tick theoption if you have manually adjusted the brightness,because the brightness will return to the level settingalong the nearby light.Or cancel selection to disable the function.Stereo-rotate the Tablet Personal Computer since the G-sensor is enabled, the screenwill display as the direction changes at 360 degrees. See the below(rotate clockwisely):
12The horizontal revolving is unavailable.5-3 System ConnectionThe Notebook supplies the mini-VGA port for connecting External Monitor or TV viamini-VGA transfer cable.5-3-1 Connecting the VGA-equipped DeviceConnect one end of mini-VGA transfer cableto the VGA port of the unit, the other endwith VGA cable to the VGA port of thedevice, as shown right:After connecting, switch the external displayto be VGA mode.While connecting external digital television via VGA port, you canselect the display mode among”LCD”, “LCD and CRT” and “CRT” inNotebook Manager.Note: the display mode switch is unavailable as the video isplaying.5-3-2 Connecting Keyboard and MouseThe Tablet Personal Computer’s integrated the virtual screen keyboard. If you want touse the external keyboard or mouse, connect the external keyboard and external mouseby the USB port.When you disconnect the external keyboard or external mouse from thecomputer, grasp the connector, not the cable itself, and pull firmly butgently to avoid damaging the cable.5-3-3 Connecting Audio Device
13The Tablet Personal Computer can be connected headphone, sound box andmicrophone.The speaker will turn off automatically after connecting the externalheadphone to the Tablet Personal Computer. Excessively loud volume coulddamage your hearing. So turn down the volume before connecting earphone,and then raise the volume to comfortable level.5-4 Keyboard UsageThe Tablet Personal Computer isn’t designed with visible keyboard. Click StartAll ProgramsAccessoriesEase of AccessOn-Screen Keyboard to activate the virtualkeyboard.5-5 Card Reader UsageThe Tablet Personal Computer has a single built-in memory card reader that canread the following flash memory cards: Secure Digital, Multimedia Card. See the manualof the relevant card for more information.5-6 The Memory CardInsert The Memory CardThe card only can be inserted in one orientation (with the card’s electrical contactstowards the bottom of the unit). Force to insert the card may in result of damage.Pull out the Memory CardStop the card’s operation, then pull the card out from the port.
146 Internet Connection6-1 Connect with the network via Wired LANBefore connecting to the network, setup your networksystem, and then connect your network cable to yourTablet Personal Computer.The WINDOWS 7 OS comes with most networking protocols installed automatically,such as TCP/IP. However, you still have to set the Address configuration for thespecified Network IP, Sharing etc. See as below:Some applications may need to be run by your administrator credential.1. Right click NetworkProperties Network and Sharing Center as right:2. Click Local Connection GeneralProperties Local Area ConnectionProperties. On the window, select Internet Protocol Version4 (TCP/IPv4) Properties to enter the menu as below:
153. On the menu, you need to input the IP addresses, subnet masks, default gateway,DNS and etc, then click “OK” to finish setting. The system will start connecting tothe network.6-2 Wireless LANYour Tablet Personal Computer comes with a built-in Wifi wireless card that you canactivate/de-activate using the Notebook ManagerCommon Wireless Lan Enabled.Left click the icon and it will display the list of currentlyavailable networks as shown right:The system will continue to auto search the availablenetworks from which you can select the desired one; Tick“Connect automatically” and click “Connect” so that thesystem will auto connect at the next time it turns on. If itconnects successfully, it will display the relatedinformation on the screen.Some networks may require a password, which you should enter according tothe prompted information on screen.If you need to set a new wireless network connection, please double click thedesired network name on the list.With the following operation, you can set the static IP address for wireless network.1. Right click Network Properties  Network and Sharing Center, thenselect Change adapter settingsNetwork Connections windowit’s availablefor setting the static IP Address in local area network connectionright clickWireless Network ConnectionProperties to enter the menu as below:

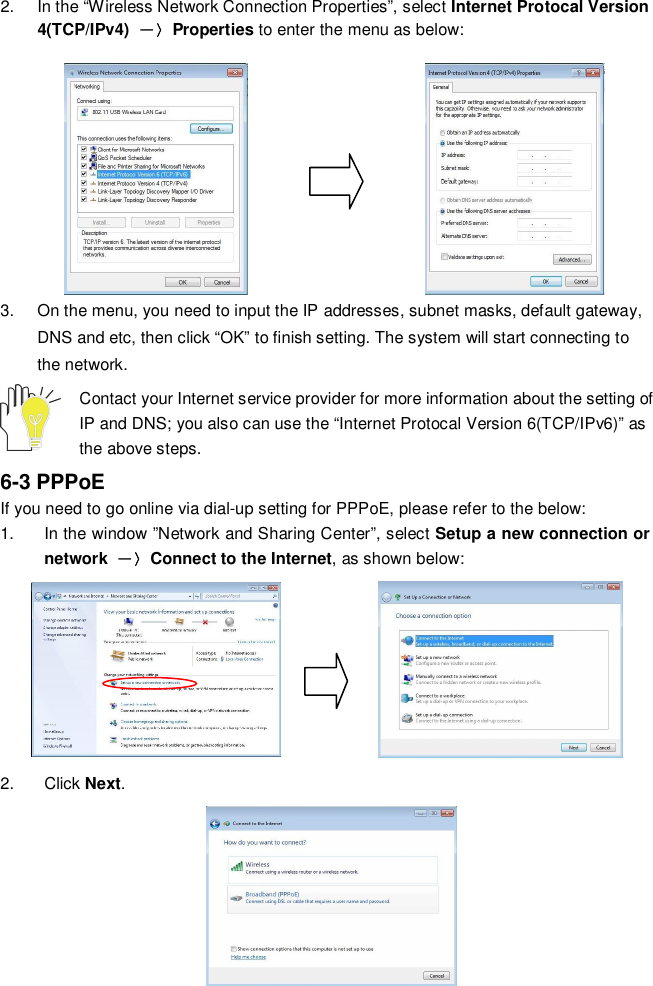

162. In the “Wireless Network Connection Properties”, select Internet Protocal Version4(TCP/IPv4)Properties to enter the menu as below:3. On the menu, you need to input the IP addresses, subnet masks, default gateway,DNS and etc, then click “OK” to finish setting. The system will start connecting tothe network.Contact your Internet service provider for more information about the setting ofIP and DNS; you also can use the “Internet Protocal Version 6(TCP/IPv6)” asthe above steps.6-3 PPPoEIf you need to go online via dial-up setting for PPPoE, please refer to the below:1. In the window ”Network and Sharing Center”, select Setup a new connection ornetwork Connect to the Internet, as shown below:2. Click Next.

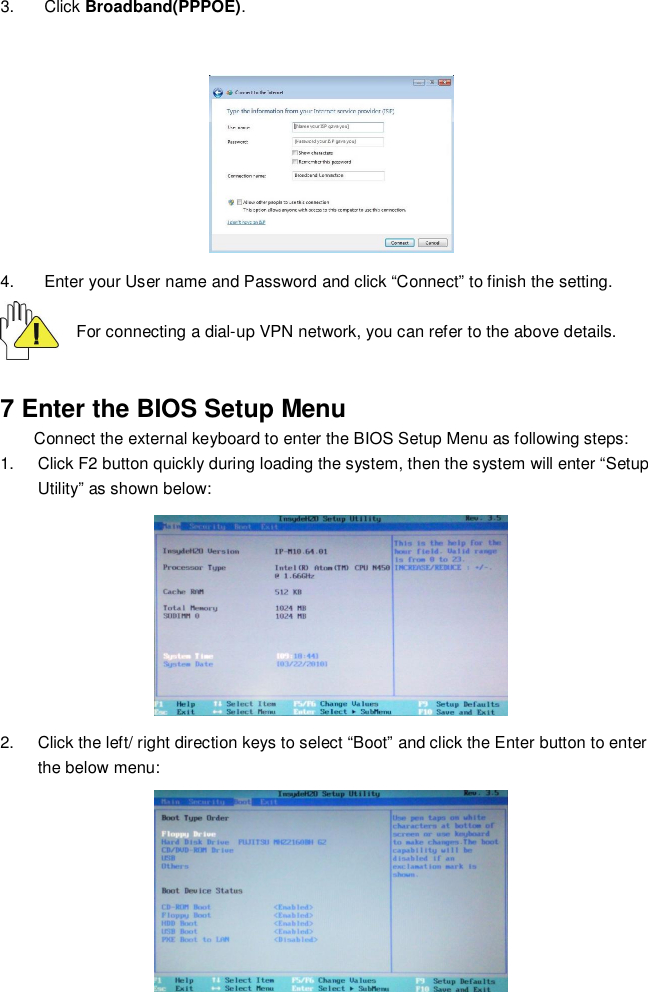

173. Click Broadband(PPPOE).4. Enter your User name and Password and click “Connect” to finish the setting.For connecting a dial-up VPN network, you can refer to the above details.7 Enter the BIOS Setup MenuConnect the external keyboard to enter the BIOS Setup Menu as following steps:1. Click F2 button quickly during loading the system, then the system will enter “SetupUtility” as shown below:2. Click the left/ right direction keys to select “Boot” and click the Enter button to enterthe below menu:

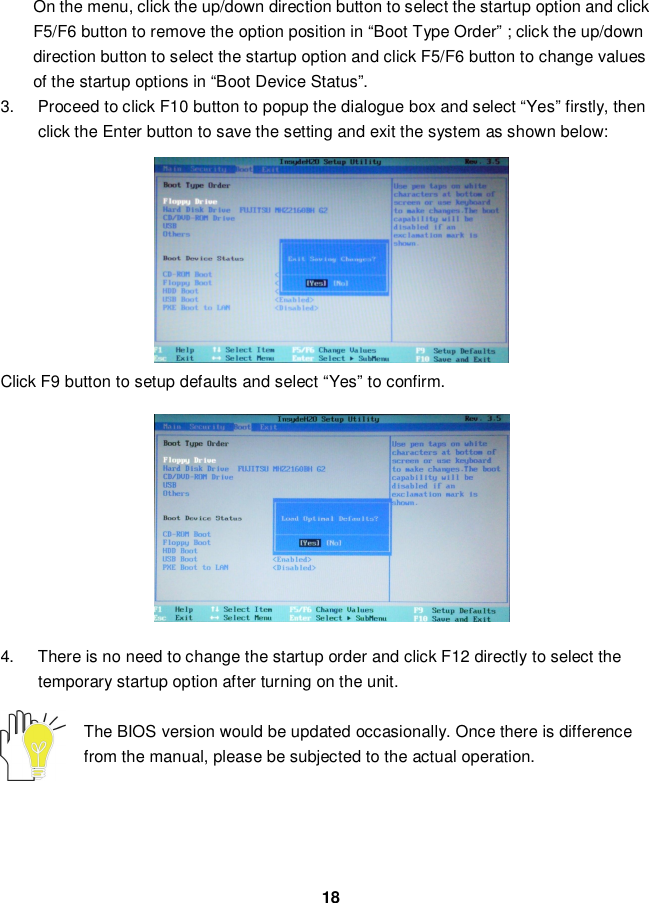

18On the menu, click the up/down direction button to select the startup option and clickF5/F6 button to remove the option position in “Boot Type Order” ; click the up/downdirection button to select the startup option and click F5/F6 button to change valuesof the startup options in “Boot Device Status”.3. Proceed to click F10 button to popup the dialogue box and select “Yes” firstly, thenclick the Enter button to save the setting and exit the system as shown below:Click F9 button to setup defaults and select “Yes” to confirm.4. There is no need to change the startup order and click F12 directly to select thetemporary startup option after turning on the unit.The BIOS version would be updated occasionally. Once there is differencefrom the manual, please be subjected to the actual operation.

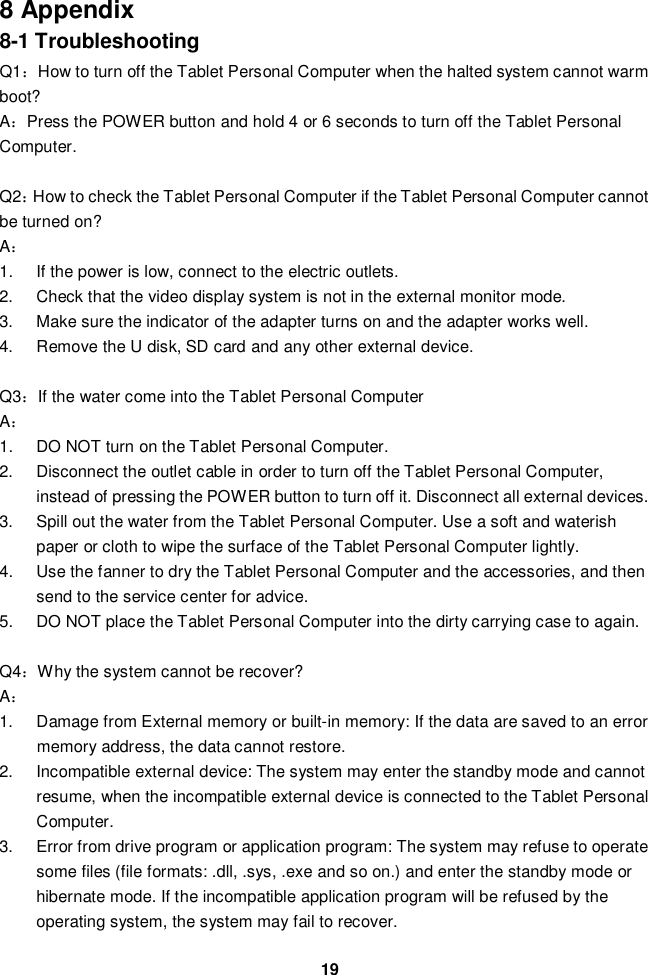

198 Appendix8-1 TroubleshootingQ1How to turn off the Tablet Personal Computer when the halted system cannot warmboot?APress the POWER button and hold 4 or 6 seconds to turn off the Tablet PersonalComputer.Q2How to check the Tablet Personal Computer if the Tablet Personal Computer cannotbe turned on?A1. If the power is low, connect to the electric outlets.2. Check that the video display system is not in the external monitor mode.3. Make sure the indicator of the adapter turns on and the adapter works well.4. Remove the U disk, SD card and any other external device.Q3If the water come into the Tablet Personal ComputerA1. DO NOT turn on the Tablet Personal Computer.2. Disconnect the outlet cable in order to turn off the Tablet Personal Computer,instead of pressing the POWER button to turn off it. Disconnect all external devices.3. Spill out the water from the Tablet Personal Computer. Use a soft and waterishpaper or cloth to wipe the surface of the Tablet Personal Computer lightly.4. Use the fanner to dry the Tablet Personal Computer and the accessories, and thensend to the service center for advice.5. DO NOT place the Tablet Personal Computer into the dirty carrying case to again.Q4Why the system cannot be recover?A1. Damage from External memory or built-in memory: If the data are saved to an errormemory address, the data cannot restore.2. Incompatible external device: The system may enter the standby mode and cannotresume, when the incompatible external device is connected to the Tablet PersonalComputer.3. Error from drive program or application program: The system may refuse to operatesome files (file formats: .dll, .sys, .exe and so on.) and enter the standby mode orhibernate mode. If the incompatible application program will be refused by theoperating system, the system may fail to recover.
20Q5How to check the system which cannot recover?A1. Remove the external devices and their device program.2. Refresh BIOS system3. Refresh the appropriate program.4. Remove the error application program.5. Reinstall the operating system.6. Send back the Tablet Personal Computer for checking.Q6How to prolong the life of the Battery?A1. Adjust the brightness of the LCD Screen to proper level.2. Turn down the volume.3. Make the appropriate setting in the Power Management menu.Q7: If the image isn’t clearA: Check that the lens is clear or not, if not, clean with the soft cloth.Q8: If the mobile moves slowlyA: The camera needs some light when gathering the data and the speed will be slow ifthe light condition isn’t good. Please adjust the screen position of the Tablet PersonalComputer or the position of the user.The image display also shall be slower by the heavy loading for the system whenthe many applications are running. Please close the unused procedure.Note:Q7 and Q8 are the questions when you are using the camera for video capture,conferencing, and chatting.8-2 SpecificationsMain FeatureCPU Intel Atom N450CPU Power Consumption 5.5W MAXL1 Cache Size On-die, primary 32-kB instructions cache and24-kB, write-back data cache

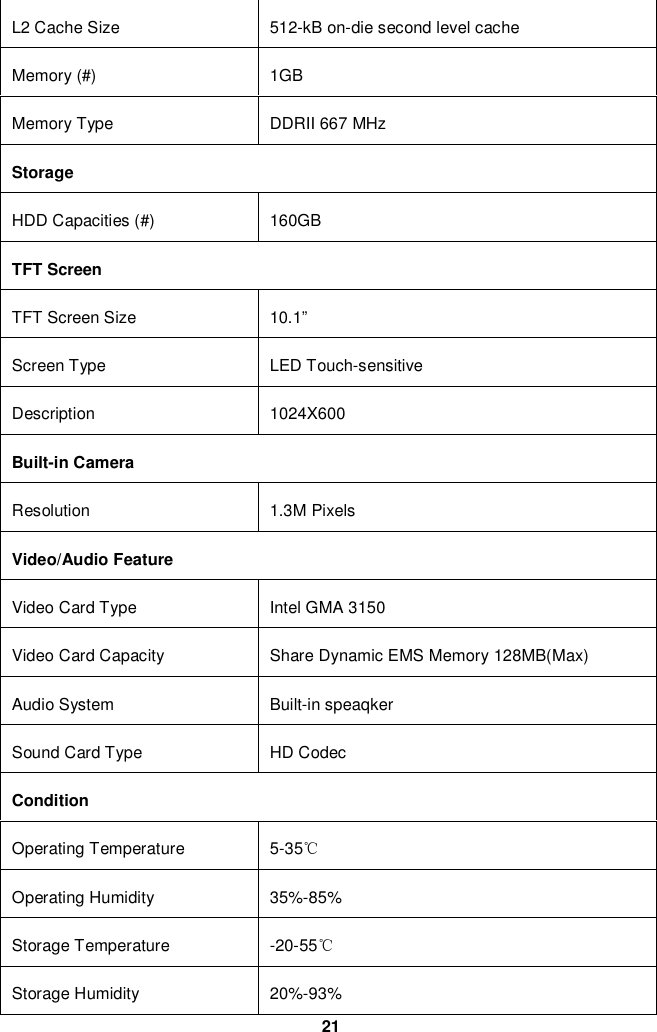

21L2 Cache Size 512-kB on-die second level cacheMemory (#) 1GBMemory Type DDRII 667 MHzStorageHDD Capacities (#) 160GBTFT ScreenTFT Screen Size 10.1”Screen Type LED Touch-sensitiveDescription 1024X600Built-in CameraResolution 1.3M PixelsVideo/Audio FeatureVideo Card Type Intel GMA 3150Video Card Capacity Share Dynamic EMS Memory 128MB(Max)Audio System Built-in speaqkerSound Card Type HD CodecConditionOperating Temperature 5-35Operating Humidity 35%-85%Storage Temperature -20-55Storage Humidity 20%-93%

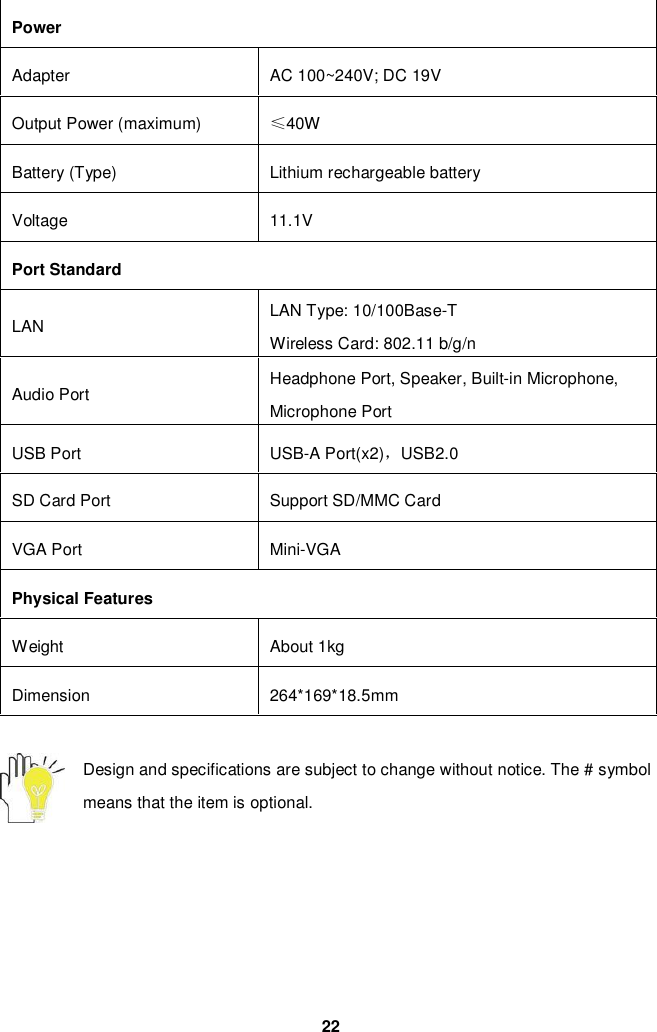

22PowerAdapter AC 100~240V; DC 19VOutput Power (maximum) 40WBattery (Type) Lithium rechargeable batteryVoltage 11.1VPort StandardLAN LAN Type: 10/100Base-TWireless Card: 802.11 b/g/nAudio Port Headphone Port, Speaker, Built-in Microphone,Microphone PortUSB Port USB-A Port(x2)USB2.0SD Card Port Support SD/MMC CardVGA Port Mini-VGAPhysical FeaturesWeight About 1kgDimension 264*169*18.5mmDesign and specifications are subject to change without notice. The # symbolmeans that the item is optional.
