Wanlida Group PDM-0742 Portable DVD Player with TFT-LCD User Manual PD 67004 051207 2
Wanlida Group Co., Ltd. Portable DVD Player with TFT-LCD PD 67004 051207 2
Users Manual
1
CAUTION: USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION
EXPOSURE.

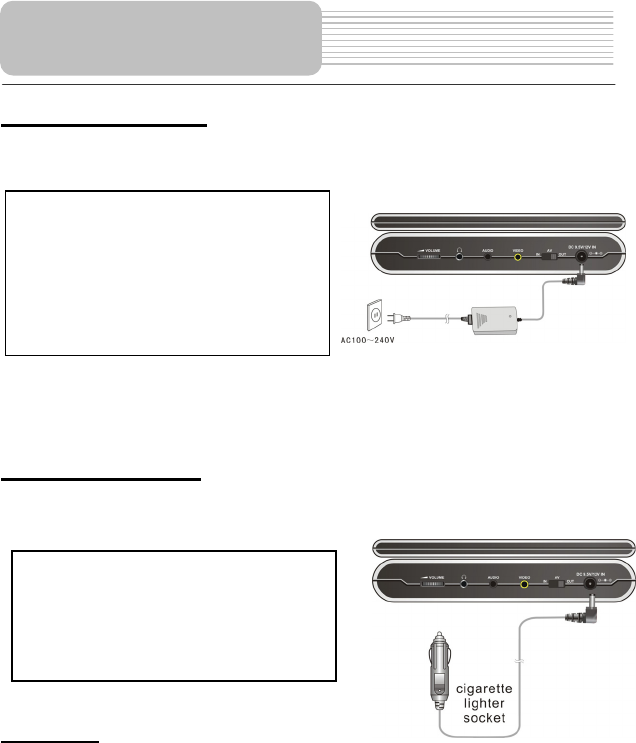

POWER SUPPLY:
Connect the supplied adapter to the side of the DVD player in the slot marked “Power
In”. Plug the two-prong end of the power cord to an AC100-240V outlet. If you have
difficulty inserting the plug, turn it over and reinsert it, if the unit will not the used for a
long time, disconnect the plug from the outlet.
NOTE:
Before plugging the power cord into an AC outlet, make sure that all the connections
have been made.
Important Safety
Instructions
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NO
T
REMOVE COVER (OR BACK). NO USE-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric to
p
ersons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accom
p
an
y
in
g
the a
pp
liance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OF MOISTURE.
CAUTION: Laser radiation when open. Do not stare into beam.
2
CAUTION: These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so.
Refer to service manual for servicing instructions.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Maintain well ventilated conditions around
the product, Do not put product on bed, sofa or anything that blocks ventilation.
Install in accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide blade or the third prong is
provided for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of
time.
14) Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
15) Apparatus shall not be exposed to dripping or splashing and no objects filled with
liquids, such as vases, shall be placed on the apparatus.
Note: Do not touch the color TFT LCD screen by hand directly.
Important Safety
Instructions
3
Copyright Protection
This product incorporates copyright protection technology that is protected by U.S.
patents and other intellectual property rights. Use of this copyright protection
technology must be authorized by Macrovision, and is intended for home and other
limited viewing uses only unless otherwise authorized by Macrovision. Reverse
engineering or disassembly is prohibited.
Note
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment
IMPORTANT FOR LASER PRODUCT
S
1. CLASS 1 LASER PRODUCT
2. DANGER: Visible laser radiation when open and
interlock failed or defeated. Avoid direct exposure to
beam.
3. CAUTION: Do not open the top cover. There are no
user serviceable parts inside the unit. Leave all
servicin
g
to
q
ualified service
p
ersonnel.
Important Safety
Instructions
4
High-quality audio and video
Advanced Playing Functions
Other Special Functions
Excellent sound: Dolby Decode
r
delivers great sound.
A
V input: External Audio, Video
input can be connected to mos
t
external AV sources.
AV Output: Analog audio output can
be connected to external amplifier.
On-Screen Display: You can choose
from English, French, German, etc.
for the On-Screen Display language.
Compatibility: Compatible DVD, CD
and JPEG discs, etc.
Particular Performance:
Multi-speed, fast forward, fast
backward, slow playback and
repeated playback.
Search by Time: Search for a
certain track of a disk by selected
time.
Last Memory Playback: Memorizes
the stopped playback track and
continues playing the disk from this
spot when the power is kept to
supplied. (Only available for DVD
and CD disc
)
.
Special Functions: Supports screen
multi-language caption, multi-angle
viewing and zooming function.
High Resolution: MPEG-2 decoding
format achieves more than 500 lines
of horizontal resolution.
Power Adapter Switch:
A
utomatically adapts to voltage
requirements in U.S and othe
r
countries.
Features
Docking Jack: this unit is designed with docking jack on the bottom for connecting
with an optional docking station. The docking station is integrated with connectors fo
r
peripheral devices to eliminate the complicated connections and save valuable space
around the player.
5
Accessories List

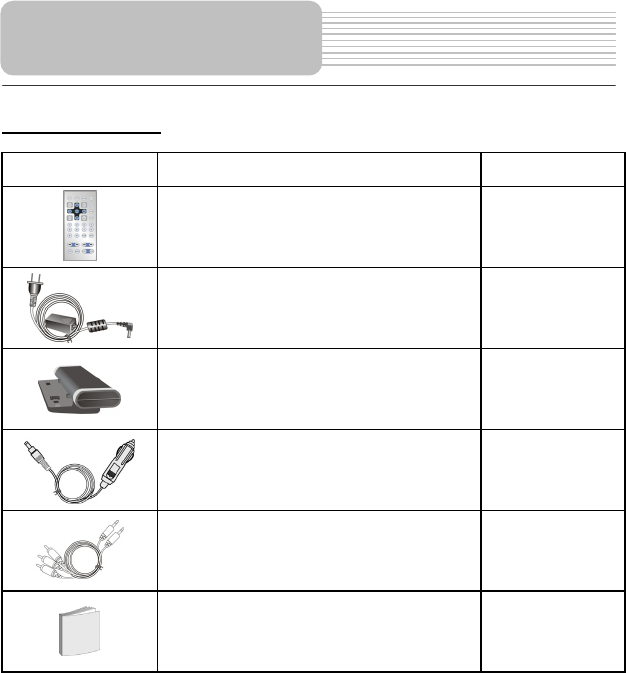

ITEM NAME QTY
Remote Control (with battery) 1
Power Supply Cord with AC Adapter 1
Rechargeable Battery Pack 1
DC Adapter (Car Adapter) 1
Audio/Video Cable 1
Operation Manual 1
NOTE
：
Accessories and their parts numbers are subject to change without prior notice.
Accessories
6
…………………………………………….1
………………………………………….….4
………………………………………….….5
………………………………………..…...7
…………………………………….……….9
…………………………………………....10
…………………………………………....11
…………………………………………....12
……………………………………..……..15
…………………………………..………..17
………………………………………..…..18
………………………………………..…..21
……………………………………..……..22
…………………………………………....23
…………………………………………....26
…………………………………….…….. 27
…………………………………………... 29
……………………………………….…...33
…………………………………………... 34
…………………………………………... 36
DVD Playback
CD Playback
JPEG Playback
Troubleshooting
Specifications
System Setup
Definition
Contents
Important Safety Instructions
Features
Notes on Discs
Playback Operation
Remote Control
Power Supply Preparation
Rechargeable Battery
System Connections
Accessories
View of Front Panel
View of Side Panels
View of Bottom Panel
Revolving LCD Screen
7

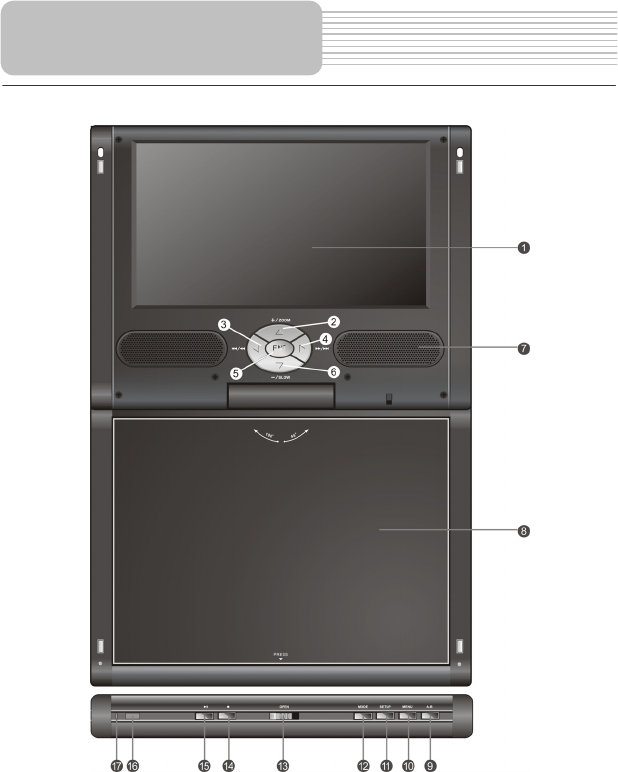

1. LCD screen
2. +/ZOOM Button
Press to realize various zoom functions.
Press Mode button and then press this button to increase the level of brightness,
contrast and color.
View of Front Panel
8
3. / Button
Press to search backward fast.
Press for a longer time to return to the previous list/track/chapter.
4. / Button
Press to search forward fast.
Press for a longer time to return to next list/track/chapter.
5. ENT button
Press to confirm selection.
6. -/SLOW Button
Press to activate slow playback function.
Press Mode button and then press this button to decrease the level of brightness,
contrast and color.
7. Speaker
8. Disc tray cover
When the disc is loaded gently press the cover to close it.
9. A-B Repeat button
Press to play a certain selected segment repeatedly.
10. MENU Button
Press to display or cancel the menu.
11. SETUP Button
Press to enter the player’s system setup.
12. MODE Button
Press to enter the menu of brightness, contrast or color.
Press and hold for longer time to change the aspect ratio between 16:9 and
4:3.
13. OPEN Switch
Push to open the disc tray cover.
14. (Stop) Button
Press to stop playback. Then press button to resume playback from the
stopped spot. Press this button twice to stop playback completely.
15. (Play/Pause) Button
Press once to pause the playback, and press it again to resume the playback.
16. Remote Control Sensor
17. Charge Indicator
Light is red when the battery is being charged; green when it is fully charged.
View of Front Panel
9

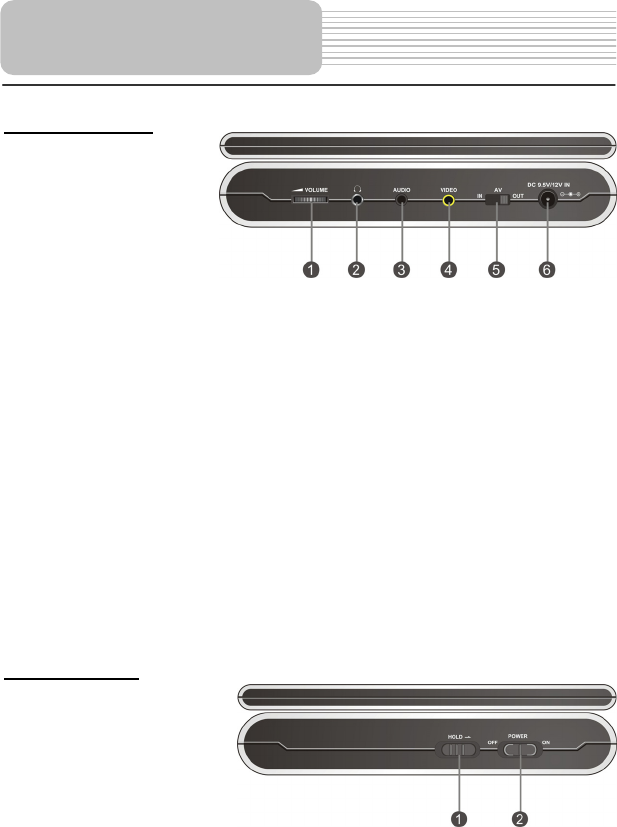

Right Side View
1. Volume Control knob
Used to adjust the volume of the headphone and speaker.
2. Headphone Jack
Used to connect wired headphones for private listening. When headphones are
connected to this jack the speaker will be turned off automatically.
3. Audio Input/Output Jack
When the AV IN/OUT switch is switched to “IN”, this jack is used for audio input.
When the AV IN/OUT switch is switched to “OUT”, this jack is used for audio
output.
4. Video Input/Output Jack
Used for input/output video signal from/to an external monitor or video source.
5. AV IN/OUT Switch
Switch to “IN” to input external Audio/Video signal. Switch to “OUT” to keep normal
playback or output.
6. DC 9.5/12V Input Jack
Used to connect the DC 9.5/12V adaptor.
Left Side View
1. HOLD button
Push the HOLD switch to activate or cancel HOLD function.
When the HOLD function is activated, all operation on the front panel is invalid
except the POWER and OPEN switch.
2. Power ON/OFF Switch
Used to turn the power on or off.
View of Side Panels
10

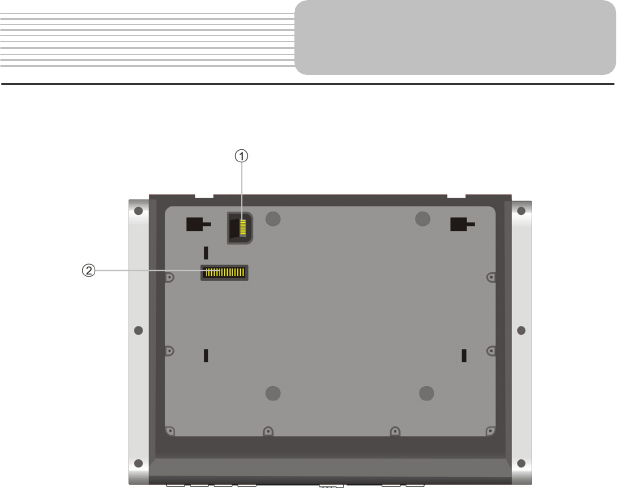

1. Rechargeable Battery Contacts
For connecting the rechargeable battery pack.
2. Docking Jack
This portable DVD player is designed with a Docking Jack on the bottom. The
Docking Jack is designed for connecting to external Docking station to get more
expanded functions. Docking station is a set of electrical connection interface that
enables a portable DVD to effectively serve as a desktop DVD. It typically
integrated with connectors for peripheral devices to eliminate the complicated
connections and save valuable space around. With Docking Station, you can
simultaneously enjoy the expansion possibilities of desktop model DVD with the
portability of portable DVD.
View of Bottom Panel
11

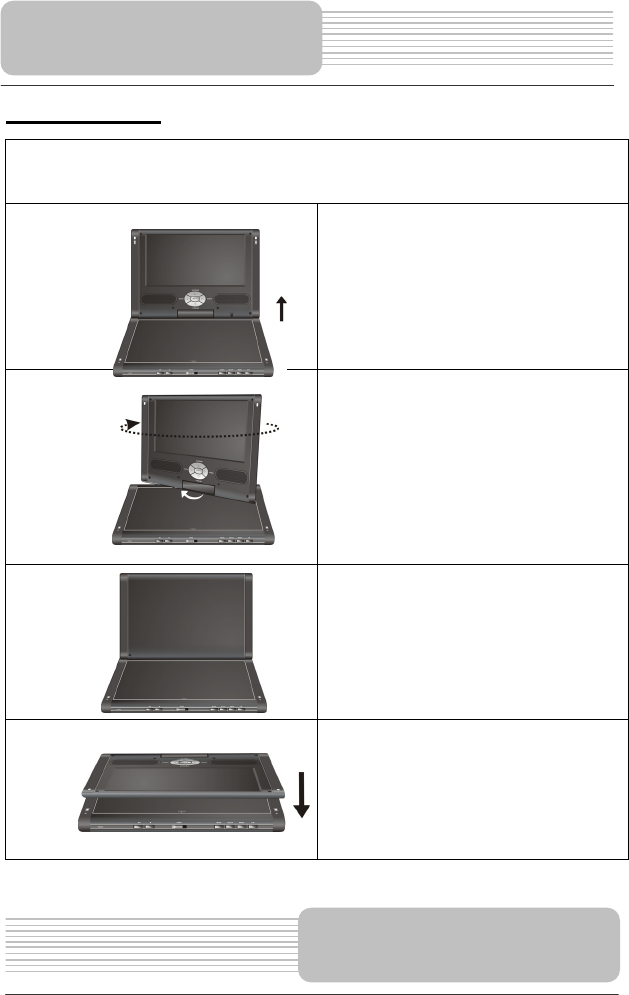

Revolving Steps
The revolving LCD screen is one of the outstanding features about this product. We’d
like to suggest you to take the following steps for proper operation.
Pos. A
1. Open the screen cover to position
(A) as shown in left figure at which
the screen is vertical to the operation
panel.
Pos. B
2. Revolving the screen horizontally
about it’s axis in the clockwise only.
The maximum revolving degree is
180 (position C). If you want to return
to initial position (A), please revolve
screen counter clockwise until it
clicks.
Pos. C
3. You can rotate the screen vertically
from position C to the operation panel
as indicated in left fig.
Pos. D
4. The final rotating position (position D)
at which the screen facing upward
and back to operation panel.
Remote Control
Revolving LCD Screen
12
1. MUTE button
Press to turn the loud speaker off or on.
2. INFO button
Press to display or cancel the detailed information of the disc during playback.
3. TITLE button
Press to display title menu if it exits in the disc.
4. Direction button
Press to select different options.
5. ENTER button
Press to access playback or confirm your selection.
6. SETUP button
Press to enter the player’s system setup.
Remote Control
13
7. 0-9 number buttons
Press to select an option in the menu.
8. NEXT button
Press to skip to the next list, track or chapter.
9. PREV button
Press to return to the previous list, track or chapter.
10. SUBT button
Press to select different subtitle languages if the disc contains multiple subtitle
languages.
11. ANGLE button
Press to access various camera angles if the DVD disc contains multiple camera
angles.
12. A-B button
Press to play a section of the disc from point A to point B. Press once to select the
starting point A, press again to select the end point B. During A-B repeat playback,
press this button to stop the repeat.
13. ZOOM button
Press to realize various zoom functions.
14. REP button
Press to repeat a chapter, title or the entire disc.
15. MENU button
Display the DVD disc menu on screen during playback.
16. PAUSE button
Press to pause playback.
17. STOP button
Press to stop playback. Then press the PLAY button to resume playback from the
stopped spot. Press this button twice to stop playback completely.
18. PLAY button
Press to begin playback.
19. GOTO button
Press to select the desired disc starting time, title or chapter.
20. +10 button
Press this button and the additional number buttons to select item number which
is greater than 9.
21. REV SCAN button
Press to search backward fast during playback.
22. FWD SCAN button
Press to search forward fast during playback.
23. SLOW button
Press to activate slow playback function.
24. AUDIO button
Press to select different languages when a DVD disc with multiple audio
languages is played. Press to select different audio track when a CD disc is
played.
Remote Control
14
Preparation of Remote Control

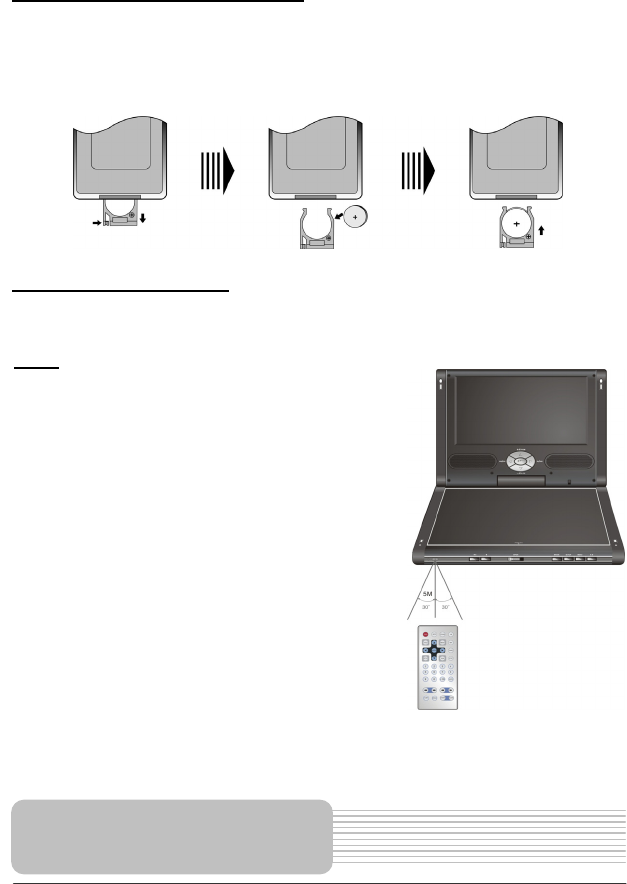

Follow the steps below to install the battery.
1. Pull the battery holder out from the remote control in the direction of the arrow.
2. Load a new battery properly with the (+) sided up.
3. Insert the battery holder back into the original position.
Use of Remote Control
Point the remote control unit from no more than about 5m from the remote control
sensor and within about 60 degrees of the front of the unit.
System Connections
Note
Under normal use the battery will last fo
r
six months.
Improper use of the battery may cause
overheating, explosion or ignition, which
can result in an injury or a fire. Battery
leakage may damage the remote control.
Do not expose the remote control unit to
direct sunlight.
Do not recharge, disassemble, deform o
r
heat the battery.
Do not put the battery in fire or water.
Immediately replace the exhausted
battery.
Take out battery when the remote is not in
use for a long time.
15
Always ensure that the DVD player, TV and any other electrical equipment to be
connected with are switched off and unplugged from the power supply.
Ensure that you observe the color coding when connecting audio and video
cables.
Connecting to TV

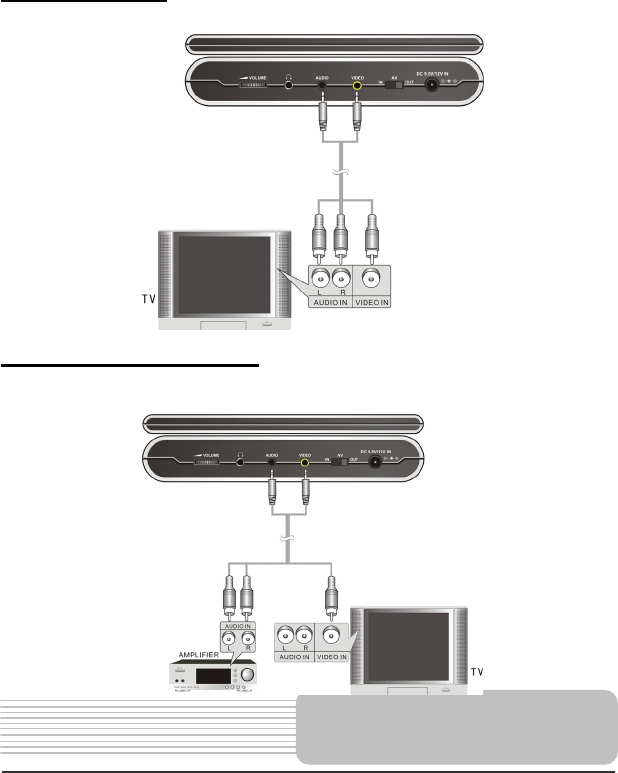

Follow the drawing below to connect the DVD player to TV's Audio/Video input with
Audio/Video cable.
Connecting to An Amplifier
Refer to your audio equipment's manual before connection.
Follow the drawing below to connect the DVD player to AV amplifier.
System Connections
16
Connecting to External AV Source
The player supports an AV signal input function. Use the audio/video cable to connect
the unit to an external AV signal source such as a DVD, VCR etc. After connecting,
switch the DVD/AV IN to AV IN.
NOTE: Noise may occur in speakers when there is an external audio signal input while
playing a DVD disc. Unplug the audio cord to clear the noise.
Connecting to the Headphones
Connect the headphones to the headphone jack on either side of the player.
17
Using the AC Adapter
The player is supplied with an AC adapter for powering the unit and charging the
battery.
Note: 1. Turn player's power off before unplugging.
2. In the case of using the adapter, the LCD screen will be brighter than using the
rechargeable battery.
Using of Car Adapter
The player is supplied with a Car Adapter for powering the unit and charging the battery
in a vehicle.
Attention
Do not operate the unit or view video software while driving a vehicle.
Place the unit in a proper position for viewing.
Detach battery pack when using the AC or car adapter as power source.
Disconnect the player from the Car Adapter when starting the vehicle.
1. Connect AC adapter to the left side
of the DVD player in the jack marked
DC 9.5/12V IN as shown on the
right.
2. Plug the two-prong end of the powe
r
cord into a grounded electrical
outlet. The power indicator lights
Connect the car adapter power plug to
the unit's power jack and the other end to
the vehicle cigarette lighter socket as the
right figure.
Power Supply Preparation
18
About Rechargeable Battery Pack
Your portable DVD player comes with a lithium ion rechargeable battery that attaches
to the bottom of the DVD player. Charge the battery fully before initial use. Charging
time is normally about 5 hours. A fully charged battery delivers about 3 hours of use but
playing time varies from disc to disc. If the battery will not be used for a long period of
time, charge the battery fully before storage.
Working conditions and precautions for the rechargeable battery
New battery should be fully charged before initial use.
Battery should only be used and charged when temperature is between 32-100F.
Never put the battery in fire or water.
Do not expose the battery to high temperature or store in hot, sunny place.
Maintain well-ventilated conditions around the product to avoid overheating.
Don’t put the product on a bed, sofa or anything that may block ventilation to the
product.
Do not short the battery terminals.
Do not open the battery.
Detach the battery after charging is complete. When charging the battery pack,
the charge light will turn red, when the charging is complete, the light will turn
green.
Detach the battery when it is not in use.
When the charge of the battery is weak, low power indicator will appear on the
LCD screen. The player will turn off automatically several minutes later.
Warning:
Do not touch any metal object to the battery connectors, as it will put the battery in
standby mode. To exit the standby mode, connect the battery and DVD player to AC or
DC power.
Rechargeable Battery
19

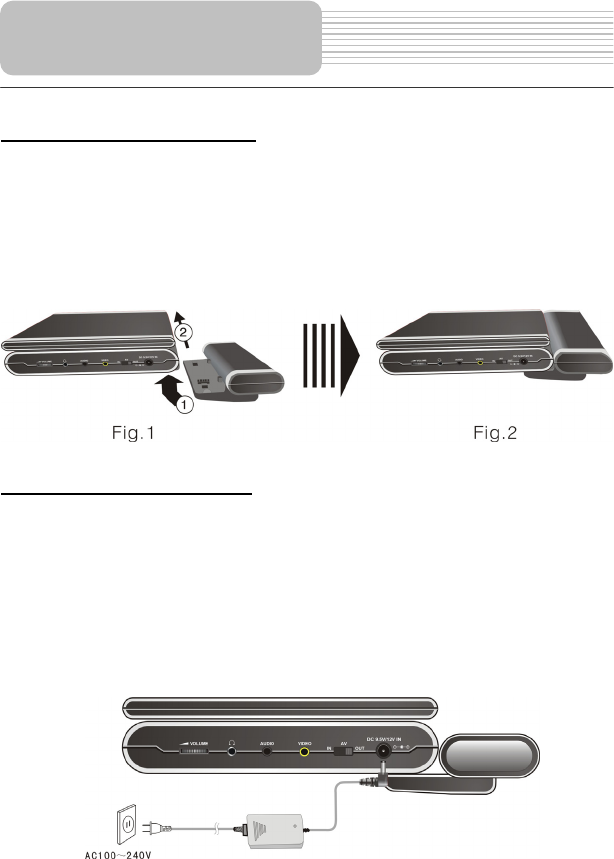

Attaching the Battery Pack
Refer to the following steps for attaching the Battery Pack:
1. With one hand on the DVD Player to prevent it from moving, take the battery
and align the plastic tabs on the battery pack with holes on the player, and push
the battery pack into the DVD Player.
2. Slide the Battery Pack until you hear it click and lock into place.
Charging the Battery Pack
The battery pack must be attached to the DVD player to charge it by using the supplied
AC Power Adapter.
1. Attach the battery pack to the DVD player.
2. Plug the supplied AC Power Adapter into the player’s power jack marked with “DC
9.5/12V IN”, which is located on right side of the DVD Player.
3. Plug the other end of the AC Power Adapter Cord into a household AC Outlet as
shown below:
Rechargeable Battery
20
Detaching the Battery Pack
When being turned off, the DVD Player still consumes some power in standby mode.
This will eventually discharge the battery. If the DVD Player is not going to be used for
long periods of time, the battery pack should be detached.
Make sure the power is turned off before detaching the Battery Pack.

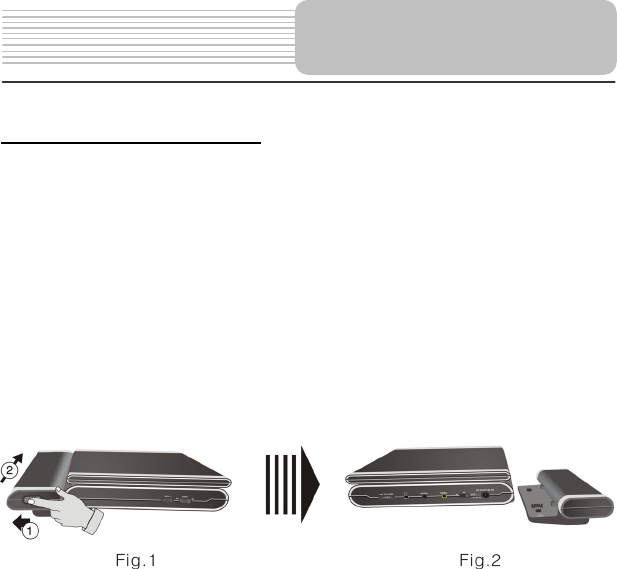

1. Press and hold the Battery Release Tab in the direction of the arrow as shown
in Fig.1 below.
2. Slide the Battery Pack gently towards the direction of the arrow as shown in
Fig.1 below.
3. Carefully remove the Battery Pack from your player.
Rechargeable Battery
21

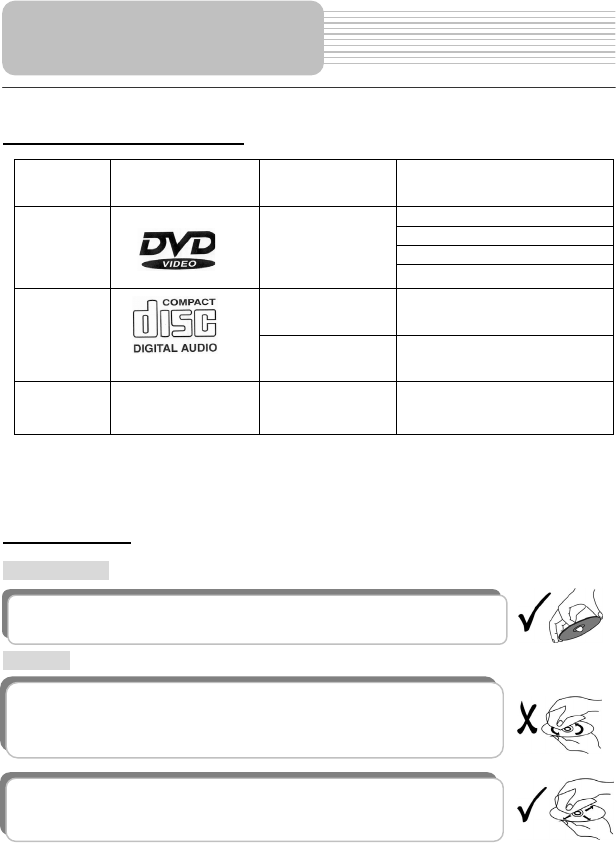

Compatible Disc Formats
DISC LOGO
DIAMETER
PLAYBACK TIME/
PLAYABLE SIDES
133 min (SS-SL)
242min (SS-DL)
266min (DS-SL)
DVD
12cm
484 min (DS-DL)
12cm 74min
CD
8cm 20min
JPEG 12cm
Operation methods of some DVD discs are specified by the software manufacturer.
Please follow the instructions of the disc.
Care of Discs
Holding Discs
Cleaning
When loading or removing discs, try not to touch their playing
surfaces as the right figure.
Fingerprints or stain on the disc may affect the quality of sound and
picture. To clean your discs, use a soft clean cloth to wipe them. I
f
necessary, moisten a soft cloth with diluted neutral detergent to remove
heavy dirt or fingerprints.
Do not wipe in a circular direction as the figure in the right middle
(concentric scratches on the disc groove tend to cause noise). Gentl
y
wipe from the center of the disc to the outer edge as the right figure.
Notes on Discs
22
PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING
YOUR DVD PLAYER FOR THE FIRST TIME.
WARNING: Do not play poor quality discs to avoid damaging the lens.
Pre-operation
1. Connect the unit to power supply through the provided AC adaptor.
2. Switch POWER ON/OFF to ON to turn on the DVD player.

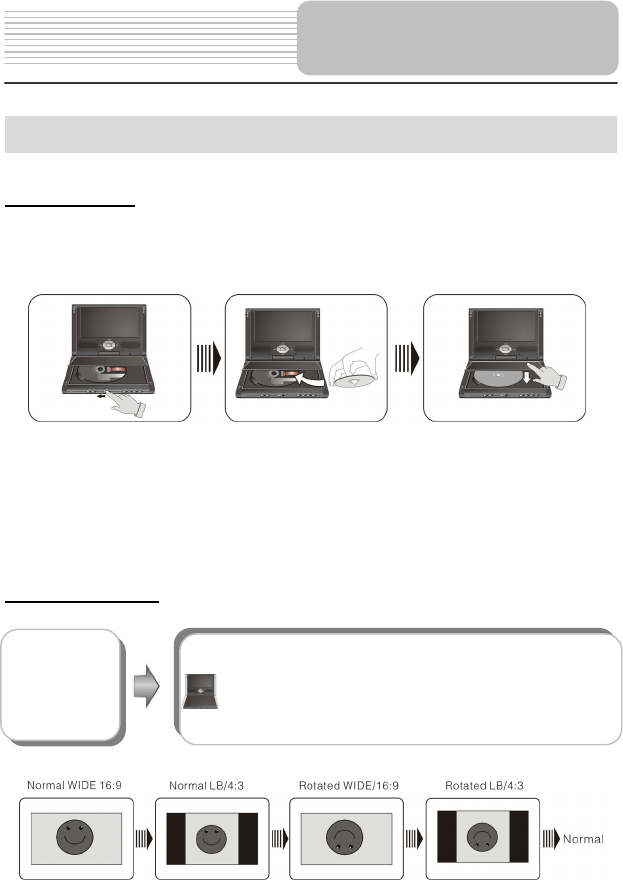

3. Push the OPEN switch on the unit to open the disc tray cover. Put a disc in the
disc tray with printed side up. Close the disc cover. (See below)
4. The player will search disc and play it automatically. The screen will indicate you to
activate the TVG function and you can enter the TVG setup menu to activate the
function. (Please see P32 for details)
5. Adjust the volume with the VOLUME control on the right panel to the desired level.
6. To turn the player off, switch the POWER ON/OFF on the left panel to OFF.
Basic Operation
Playback Operation
MODE button
Press the mode button and then press the +/ZOOM o
r
-
/
SLOW button to adjust brightness, contrast and color o
f
the screen.
Press the MODE button for longer time to change the
aspect ratio of the screen between 16: 9 and 4:3. See
below for details:
23
Basic Operation (continued)
DVD Playback
Playback Operation
PAUSE
/
button
Press the PAUSE/button to pause during playback and
press it again to resume normal play.
For DVD discs, press the ZOOM button to display the
image as 1x-2x-3x-4x-normal size in sequence.
Press the ZOOM button again to return to normal
playback.
ZOOM button
In normal playback, press the A-B button to select the
segment that you want to play repeatedly. Press once to
select the beginning point A, press again to select the
ending point B and play the segment repeatedly. Press
A
-B button again to cancel the repeat segment.
This function is not available for JPEG disc.
A-B button
ENTER/ENT
button
Load a disc in, the player will search the disc and play it
automatically. Press the direction buttons () to
highlight the item that you want to play and press the
ENTER/ENT button to confirm.
STOP/ button
During playback, press the STOP/ button once to stop
playback and then press the PLAY/ button to resume
normal playback from the place where the STOP/
button is pressed. Press the STOP/button twice
repeatedly to stop playback completely.
MENU button
Press the MENU button during playback. The root menu
will appear on the screen. Press the MENU again to
resume the normal playback; press the direction buttons
() or 0-9 buttons to select the title or disc menu
item you wish to play, and press the ENT /ENTER button
to confirm.
24
DVD Playback (continued)
Playback Operation
& buttons Press the button to go to the previous chapter. Press
the button to play the next chapter.
& buttons
Press the / button to play fast forward/rewind. Press
it repeatedly, the fast forward/rewind playback will be
undergoing at the speed of 2X, 4X, 8X, 16X and normal
in sequence.
Press the PLAY/ button to return to normal playback.
GOTO button
During playback, press the GOTO button repeatedly to
enter the menu to select desired disc chapter or playbac
k
time.
Use the 0-9 buttons to select according to you
r
preference and then press the ENTER/ENT button to
confirm. Press the GOTO button to exit.
AUDIO button
To select the audio bit stream you prefer, press the
A
UDIO button during playback. The DVD player will pla
y
the next audio bit stream every time you press the AUDIO
button in succession.
Note: This function is useful only when a DVD dis
c
contains multiple audio languages.
REP button Press the REP button to repeat a Chapter, All or cancel
repeat in sequence.
When a DVD is playing, press the SUBT button to selec
t
a subtitle language or to turn subtitle off. A DVD disc can
be recorded with at most 32 subtitles.
NOTE: This function is available for discs recorded with
multi-subtitles
SUBT button
25
DVD Playback (continued)
Playback Operation
TITLE button
In general, the content of a DVD disc can be divided into
several titles, and also there are several menus in a title.
Press the TITLE button during playback. The title menu
will appear on the screen. Press the direction buttons
() or 0-9 number buttons to select the title or disc
menu item you want to watch and then press the ENTER/
ENT button to confirm.
INFO button Press to display or cancel the detailed information o
f
the disc during playback.
SLOW button
Press the SLOW button to play the disc slow forward as
following: 1/2 – 1/4 – 1/8 – 1/16 – normal playback.
During slow playback, press the PLAY/ to resume
normal playback.
Press the ANGLE button to play the disc in multi-angle.
Multi-angle means that a scene is shot from differen
t
angle so that audience can watch from any angle, like the
drawings below:
If there are multiple angles in a scene, you can use the
A
NGLE button to select the angle you like to enjoy. Press
the ANGLE button repeatedly to view different angle.
NOTE: This function is only available for the DVD dis
c
that coded with multi-angle.
ANGLE button
26
CD Playback
Playback Operation
PAUSE/
button
Press the PAUSE/button to pause during playback.
Press the PLAY/ button to resume normal playback.
STOP/ button
During pla
y
bac
k
, press the STOP/button once to stop
and then press the PLAY/ button to resume normal
playback from the place where the STOP/button is
pressed. Press the STOP/button twice repeatedly to
stop playback completely.
& buttons
Press the / button to play fast forward/rewind. Press
it repeatedly, the fast forward/ rewind playback will be
undergoing at the speed of 2X, 4X, 8X, 16X in sequence.
Press the PLAY/button to return to normal
p
la
y
back.
& buttons Press the button to play last chapter.
Press the button to play next chapter.
GOTO button
Press the GOTO button to select desired disc starting
time, track starting time or track.
Press the GOTO button to enter the GOTO menu.
Use the direction buttons to select the item you wan
t
to set.
Use the 0-9 and +10 buttons to select directly and then
press the ENTER button to confirm.
INFO button Press the INFO button display or cancel detailed
information during playback.
REP button Press the REP button repeated to repeat a Track, All o
r
cancel repeat in sequence.
AUDIO button
Press the AUDIO button to select desired sound effect.
Press it repeatedly and the display will be as follows:
Left Right Stereo
27
JPEG Playback
Pre-operation
Note: Many discs have other items besides pictures.
Buttons Operation
playP
1. Load a JPEG in the disc tray, and the player will search and play disc automatically.
2.The screen displays the root folder with several subdirectories/subfolders. Use the
, buttons to select desired folder. Then press the ENT, ENTER or PLAY/ button
to confirm your selection.
3.The screen enters the selected subfolder with several files. Use the , buttons to
select desired file. Then press the ENT, ENTER or PLAY/ button to confirm you
r
selection.
4.Press the button to return to senior folder or directory.
STOP/
button
Press the STOP/ button to return the menu and then
press the PLAY/ button to return to normal playback.
PAUSE/
button
Press the PAUSE/button to pause during playback.
Press the PLAY/ button to resume normal playback.
REPEAT
Under root menu, press the button to enter REPEAT
setup. Then press the ENTER/ENT button repeatedly to
set the repeat mode and the screen will display as follows
in sequence: DISC NORMAL DIS
C
REPEAT SHUFFLE SINGLE TRACK REPEA
T
TRACK FOLDER NORMAL FOLDER REPEAT
Press the button to exit.
MENU button Press the MENU button during playback to return to the
previous folder. Press the PLAY/ button or ENTER/ENT
button to resume normal playback.
GOTO button
During playback, press the GOTO button to select the
desired file.
Press the 0-9 buttons directly to select according to you
r
preference.
Playback Operation
28
JPEG Playback (continued)
Playback Operation
While viewing a picture, use the direction buttons to rotate the picture.
Press the button to rotate the current picture clockwise:
Press the button to rotate the current picture anti-clockwise:
Picture Rotate
29
LANGUAGE SETUP
You can change the default settings of this unit to customize its performance to your own
preference.
Note: Set the system up while playback is stopped completely or there is no disk in the
player.
To set up your system:
1. Press the SETUP button and the setup menu will appear on the screen. It includes
VIDEO SETU, LANGUAGE SETU, PREFERENCE, FM and TVGuardian.
2. Press the direction buttons to select a sub-menu you want to set up and then press
the ENT/ENTER button to access. In the sub-menu, use the or button to
highlight the “MAIN PAGE” and press the ENT/ENTER button to exit.
3. Press the SETUP button again to exit setup menu at any time during setting.
System Setup
Press the SETUP button and then screen will
display as the left.
1. OSD Language
This item is used to set the OSD (on-screen
display) language.
Press the or button to highlight this item.
Press the button to access.
There are several languages for you to choose.
Press the or button to choose the prope
r
one.
Press the ENTER/ENT button to confirm you
r
selection.
Press the button to exit from this item.
30
LANGUAGE SETUP (continued)
System Setup

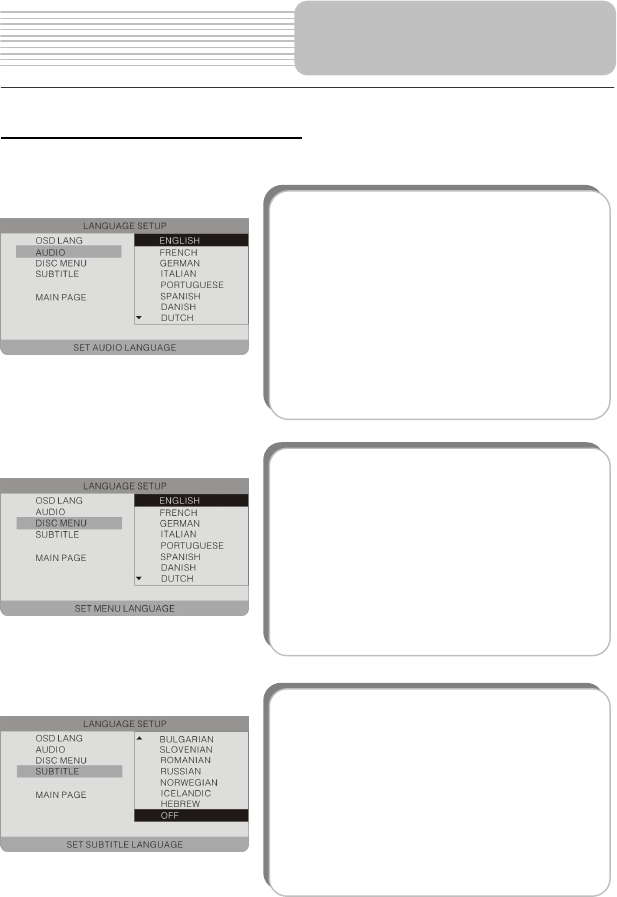

2. Audio
This item is used to set the audio outpu
t
language.
Press the or button to highlight this item.
Press the button to access.
There are several languages for you to choose.
Press the or button to choose the prope
r
one.
Press the ENTER/ENT button to confirm you
r
selection.
Press the button to exit from this item.
3. Disc Menu
This item is used to set the menu language.
Press the or button to highlight this item.
Press the button to access.
There are several languages for you to choose.
Press the or button to choose the prope
r
one.
Press the ENTER/ENT button to confirm you
r
selection.
Press the button to exit from this item.
4. Subtitle
This item is used to set the subtitle language.
Press the or button to highlight this item.
Press the button to access.
There are several languages for you to choose.
Press the or button to choose the prope
r
one.
Press the ENTER/ENT button to confirm you
r
selection.
Press the button to exit from this item.
31
PREFERENCE
System Setup
1.TV DISPLA
Y
This item is used to set TV display mode.
Press the or button to highlight this item.
Press the button to access.
It includes 4:3 PS, 4:3 LB and 16:9.
Press the or button to choose the prope
r
one.
Press the ENTER/ENT button to confirm you
r
selection.
Press the button to exit from this item.
Note: Select 4:3 PS or 4:3 LB when a 4:3 TV is
connected.
Select 16:9 when a 16:9 wide screen TV is
connected.
2. Angle Mark
This item is used to set the Angle Mark on or off.
Press the or button to highlight this item.
Press the button to access.
Press the or button to select ON or OFF.
Press the ENTER/ENT button to confirm you
r
selection.
Press the button to exit from this item.
This function is effective only if alternative
viewing angles are available on the disc.
3. RESUME
This item is used to set last memory state.
Press the or button to highlight this item.
Press the button to access.
Press the or button to choose ON or OFF.
Press the ENTER/ENT button to confirm you
r
selection.
Press the button to exit from this item.
32
PREFERENCE (continued)
FM
TVGuardian

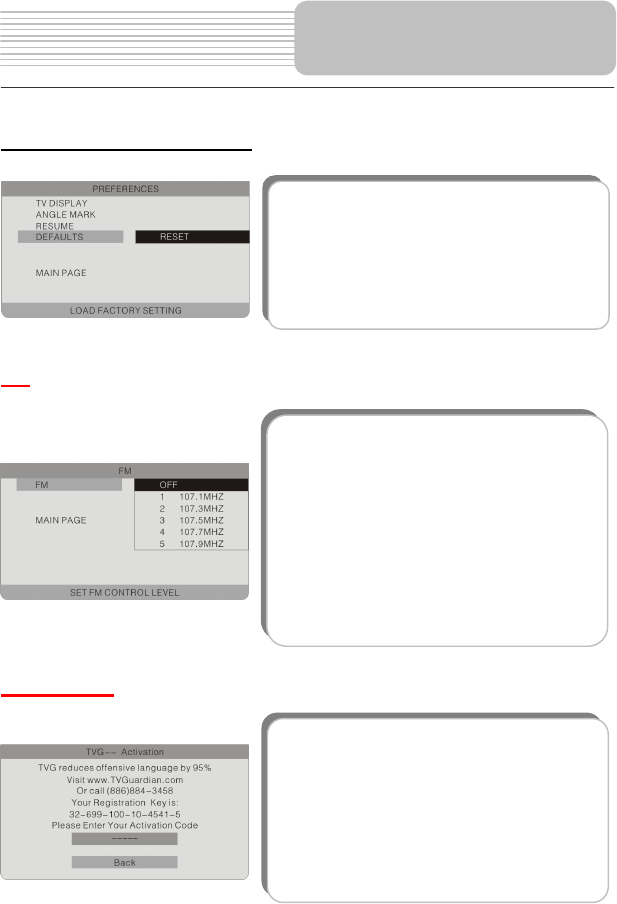

4. DEFAULTS
This item is used to reset the unit.
Press the or button to highlight this item.
Press the button to access.
Press the ENTER/ENT button to reset.
Then all the settings of your unit are back to the
original state.
FM
This item is used to emit FM radio signal.
Press the or button to highlight this item.
Press the button to access.
Press the or button to choose the prope
r
frequency or OFF.
Press the ENTER/ENT button to confirm you
r
selection.
Press the button to exit from this item.
A
fter you select the proper frequency, you can
use the wireless earphone to receive radio
program.
TVG--
A
ctivation
This item is used to filtrate offensive language.
Obtain your activation code via the appointed
web or the phone.
Press the button to highlight code column.
Use the 0-9 number buttons to enter the code.
Press the ENTER/ENT button to activate this
function.
System Setup
33
Letterbox screen
This refers to a screen on which the playback picture of wide-screen DVDs appears with
black bands running along the top and bottom.
Pan & Scan screen
This refers to a screen on which the playback picture of wide-screen DVDs is cut off at the
left and right sides.
Title, Chapter (DVD)
DVDs are divided into some large sections (titles) or some small sections (chapters). Each
section is numbered: these numbers are called Title number or Chapter number.
Title 1 Title 2
Chapter1 Chapter 1
Chapter2
…… ……
Track (CD)
CDs are divided into some sections (tracks). Each section is numbered; these numbers are
called Track number.
Track 1 Track 2 Track 3 ……
JPEG
JPEG is a common picture format that
has small file size and low quality loss
rate of picture. Hundreds of pictures can
be stored in a disc in this format. In
order to utilize real digital album, use film
to make a Picture CD in JPEG format.
Definitions
34
If you suspect there is something wrong with the DVD player, immediately turn the power off.
Disconnect the power connector and check that there is no smoke or excessive heat coming
from the unit.
Never open or try to repair the unit yourself. There are no user serviceable parts inside.
PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
The player canno
t
play.
The disc cover may not be
closed.
Close the disc cover.
There may be no discs in
the DVD drive. Put a disc in to the DVD drive.
The disc may not be put in
in the right way. Put the disc in with the label
side up.
The disc may be dirty o
r
warped. Clean or change the disc.
The player's region code
may not as the same as the
region code of DVD disc.
Make sure the player's
region code is the same as
the region code of DVD
disc.
There may be water on the
lens. Remove the disc and keep
the player being powered of
f
for at least two hours.
There is no sound .
The system connection ma
y
be not correct. Connect the system
correctly.
The speakers may be
turned down. Turn on the speaker.
The sound setup of the DVD
disc may be not correct. Setup the sound of the DVD
correctly.
The disc may be dirty o
r
warped. Clean or change the disc.
Troubleshooting
35
Other possibilities:
Static or other external interference may cause the player function abnormally. In order to
recover normal status, please unplug the power-supply cord and then plug it into the outlet
again to reset the player. If the problems still exist, please cut off the power supply and
consult your service center or the qualified technician.
PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
There is no picture.
The LCD may be not in
correct video mode. Choose the correct video
mode.
The system connection ma
y
be not correct. Connect the system
correctly.
The unit may be not in A
V
out mode. Switch AV IN/OUT on the
right panel to OUT.
Poor AV performance. The disc may be dirty o
r
warped. Clean or change the disc.
The remote control
does not work
There may be some
obstructions between the
remote control and the
player.
Remove the obstruction
between the remote control
and the player.
The remote control may not
be pointed at the player. Point the remote control at
the player directly.
The batteries of remote
control may be out of powe
r
or weak.
Make sure the polarity o
f
each battery is correct.
The batteries of remote
control may not be inserted
correctly.
Replace the batteries.
Troubleshooting
36
TFT screen size 7 inches (16：9)
Screen resolution 480x234
Laser Wavelength 780/650nm
Video System NTSC
Frequency Response 20Hz-20kHz ±2.5dB
Audio Signal-to-noise Rate ≥85dB
Audio distortion + noise ≤ -70dB (1kHz)
Channel Separation ≥70dB (1kHz)
Dynamic Range ≥80dB (1kHz)
Audio Out Out Level 2V±0.2
1.0 , Load 10kΩ
Video Out
Out Level 1VP-P±0.2, Load 75Ω
Unbalanced Negative
Power AC100～240V（50/60Hz）
Dimensions 205mm x 153mm x 41mm
Weight Approximate 1 Kg
DESIGN AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
Specifications
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
Confidential unpublished works. © 1992 -1997 Dolby Laboratories, Inc.
All rights reserved.
