Wanstonic Electronics BT-36 Bluetooth EDR 2.0 Class 1 USB Dongle User Manual Manual

Wanstonic Electronics Ltd. Bluetooth EDR 2.0 Class 1 USB Dongle Manual

Manual

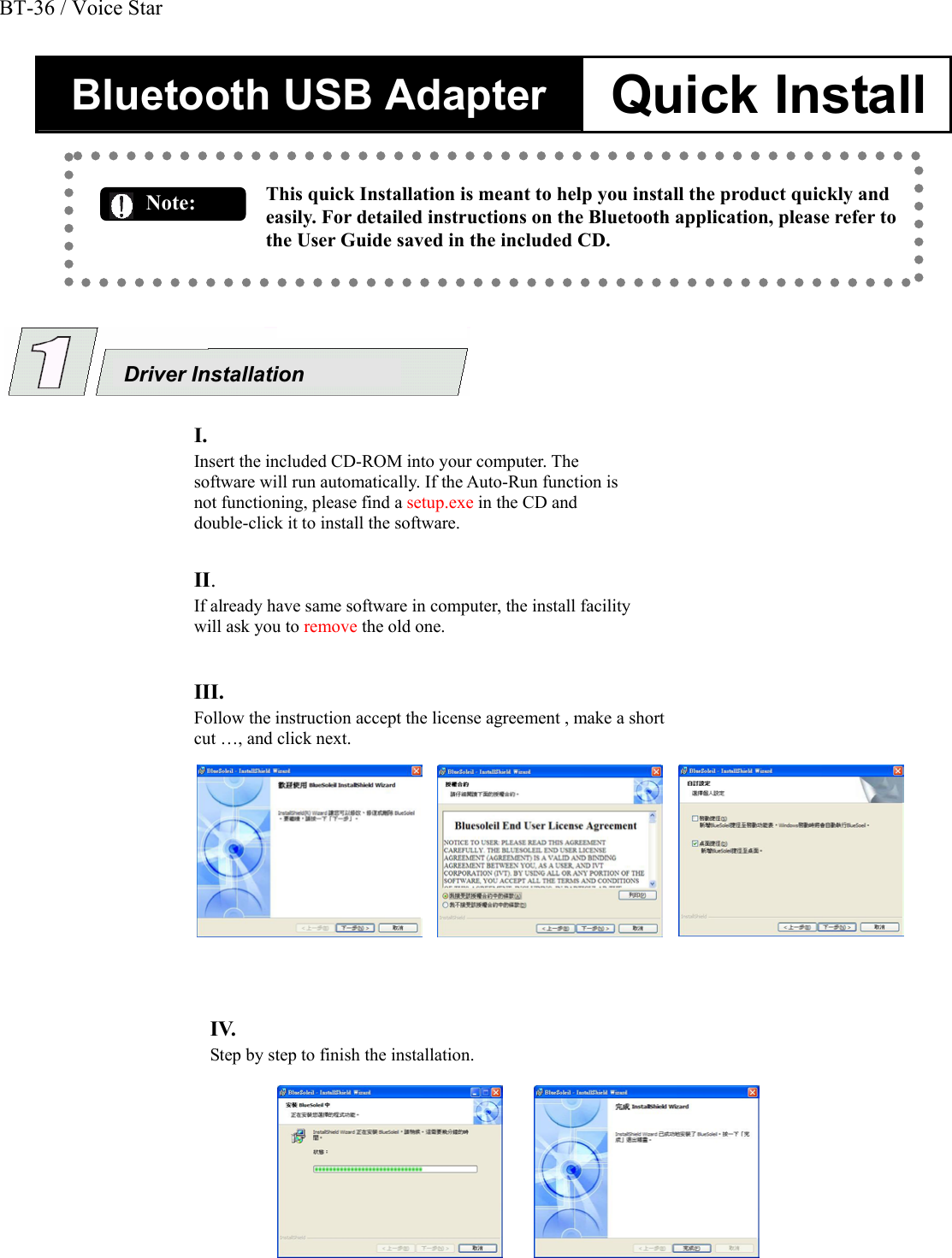

Bluetooth USB Adapter Quick Install This quick Installation is meant to help you install the product quickly and easily. For detailed instructions on the Bluetooth application, please refer to the User Guide saved in the included CD. Note: Driver Installation I. Insert the included CD-ROM into your computer. The software will run automatically. If the Auto-Run function is not functioning, please find a setup.exe in the CD and double-click it to install the software. II. If already have same software in computer, the install facility will ask you to remove the old one. III. Follow the instruction accept the license agreement , make a short cut …, and click next. IV. Step by step to finish the installation. BT-36 / Voice Star

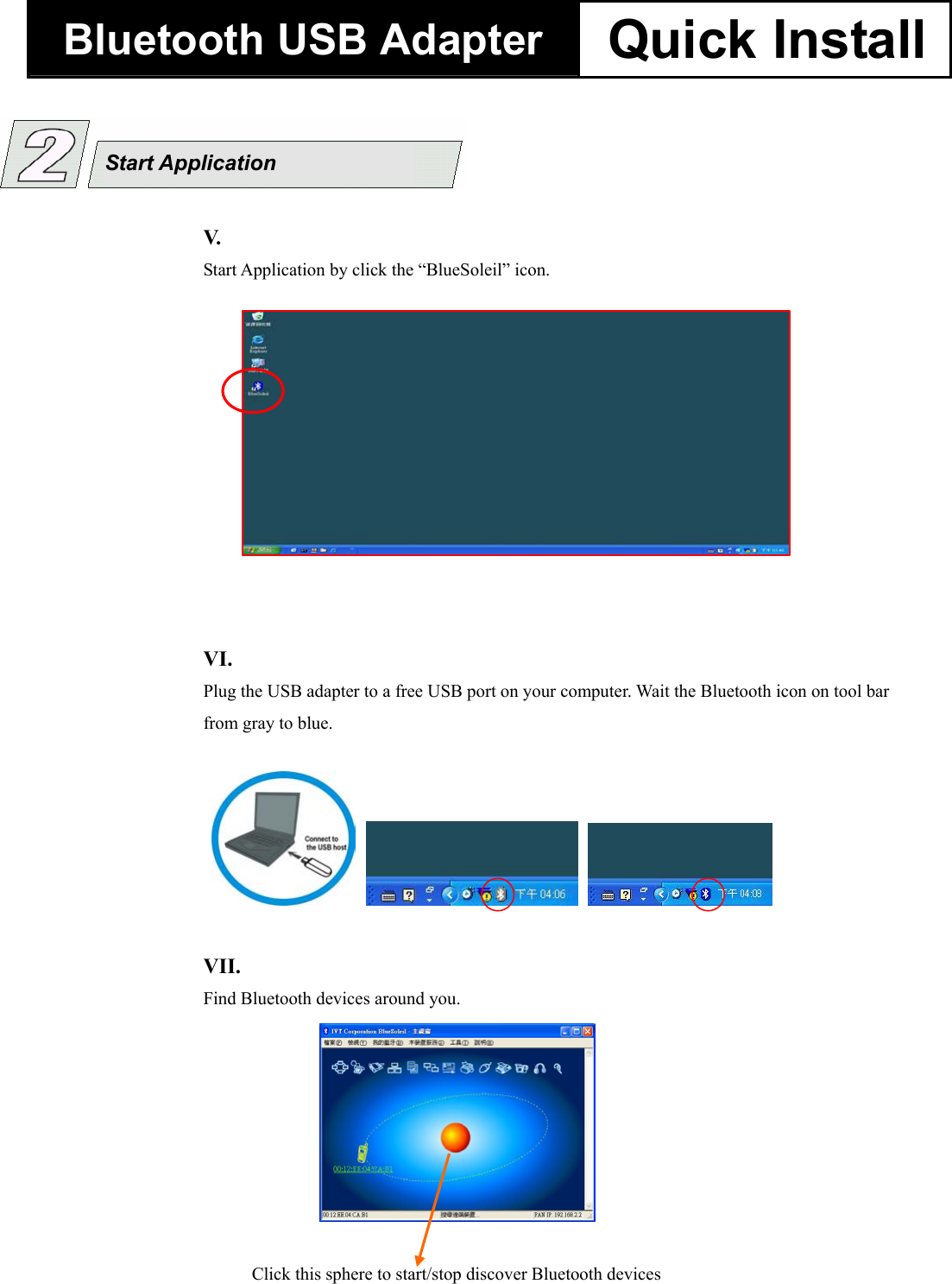

Bluetooth USB Adapter Quick Install V. Start Application by click the “BlueSoleil” icon. Click this sphere to start/stop discover Bluetooth devicesVII. Find Bluetooth devices around you. VI. Plug the USB adapter to a free USB port on your computer. Wait the Bluetooth icon on tool bar from gray to blue. Start Application

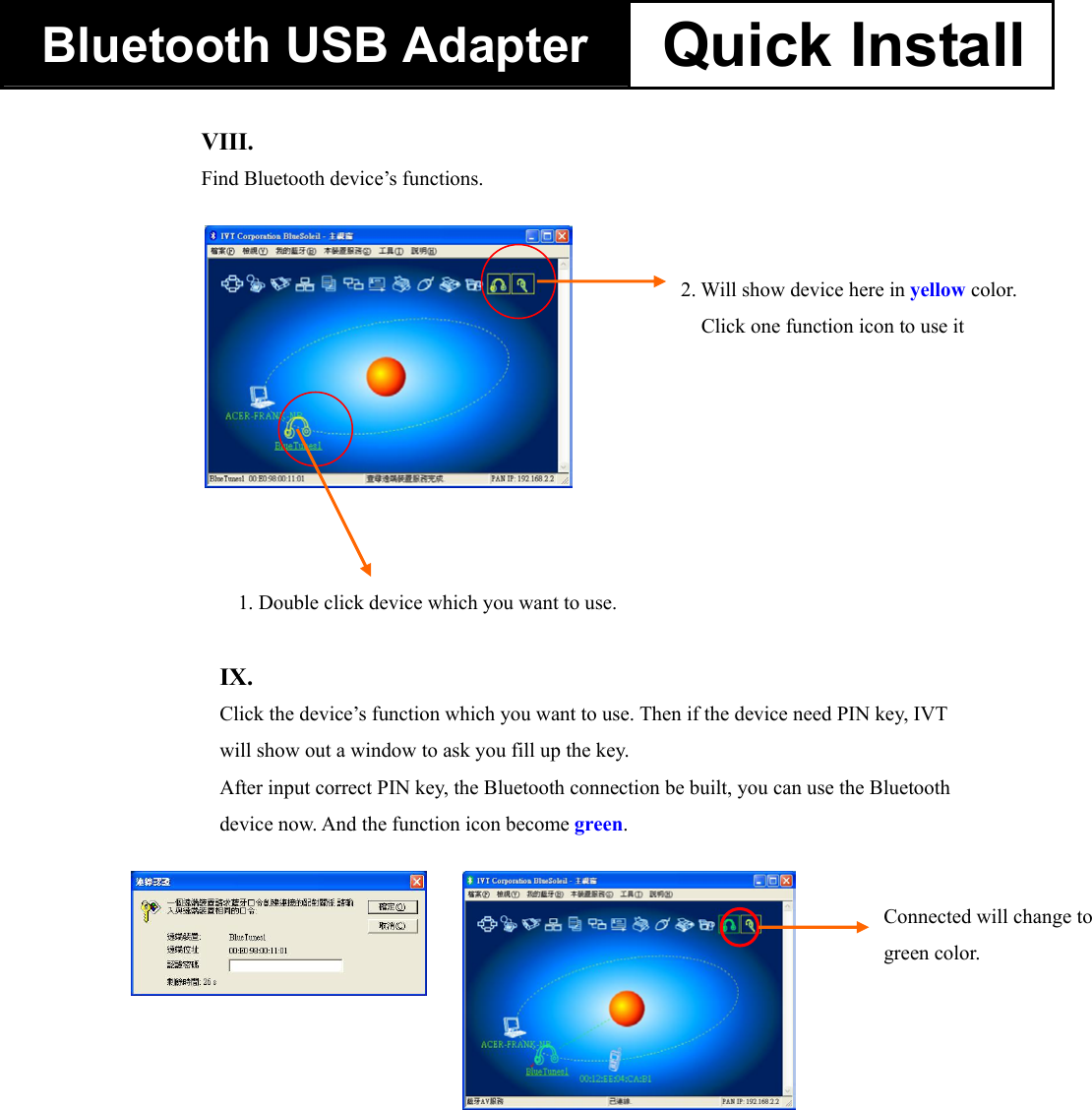

Bluetooth USB Adapter Quick Install VIII. Find Bluetooth device’s functions. 1. Double click device which you want to use. 2. Will show device here in yellow color. Click one function icon to use it IX. Click the device’s function which you want to use. Then if the device need PIN key, IVT will show out a window to ask you fill up the key. After input correct PIN key, the Bluetooth connection be built, you can use the Bluetooth device now. And the function icon become green. Connected will change to green color.

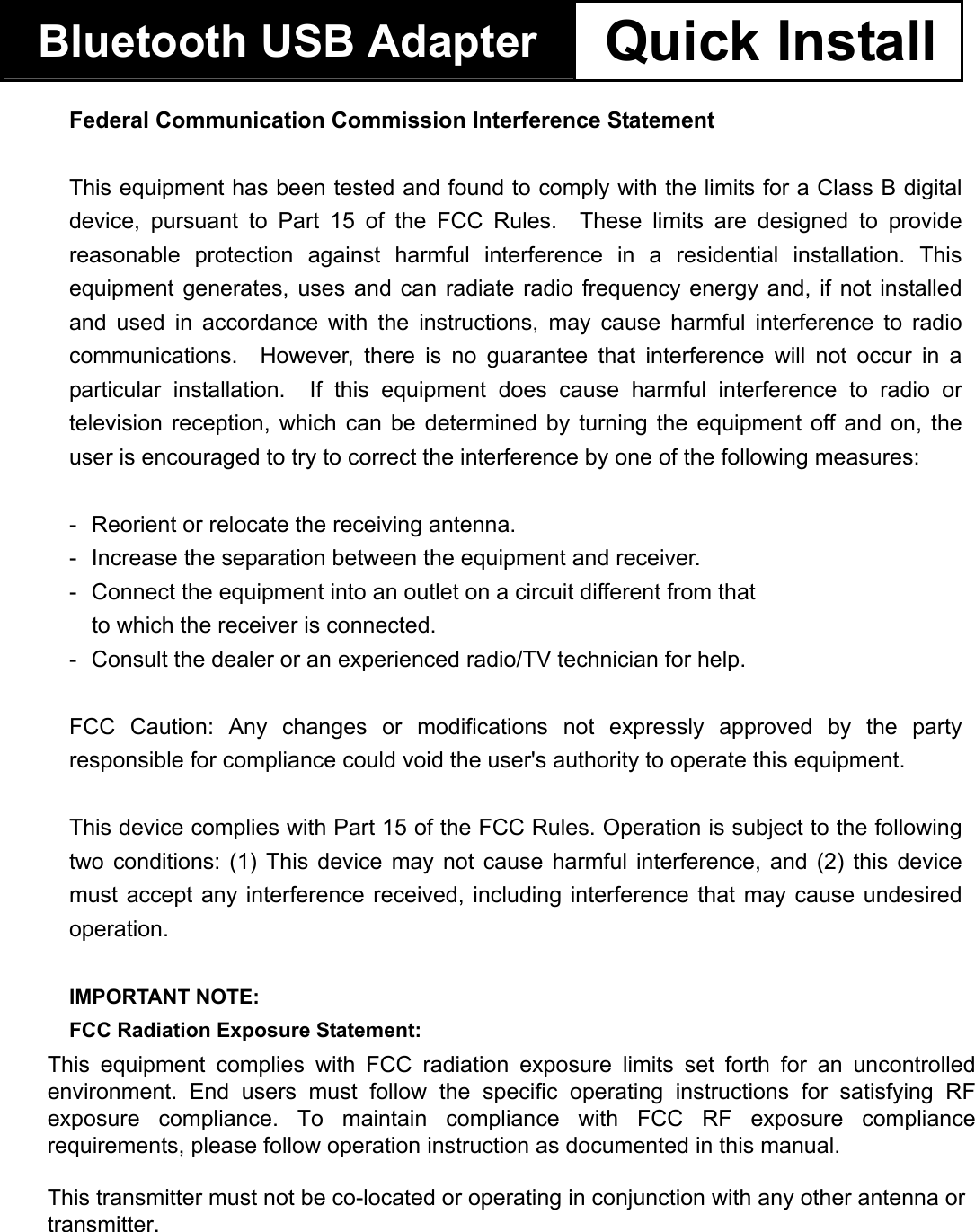

Bluetooth USB Adapter Quick Install Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with FCC radiation exposure limits set forth for an uncontrolledenvironment. End users must follow the specific operating instructions for satisfying RFexposure compliance. To maintain compliance with FCC RF exposure compliancerequirements, please follow operation instruction as documented in this manual.This transmitter must not be co-located or operating in conjunction with any other antenna ortransmitter.
