Watchdata Technologies W1981-PLUS Contact Smart Card Reader User Manual 1

Watchdata Technologies Pte Ltd Contact Smart Card Reader 1

W1981-PLUS_User manual

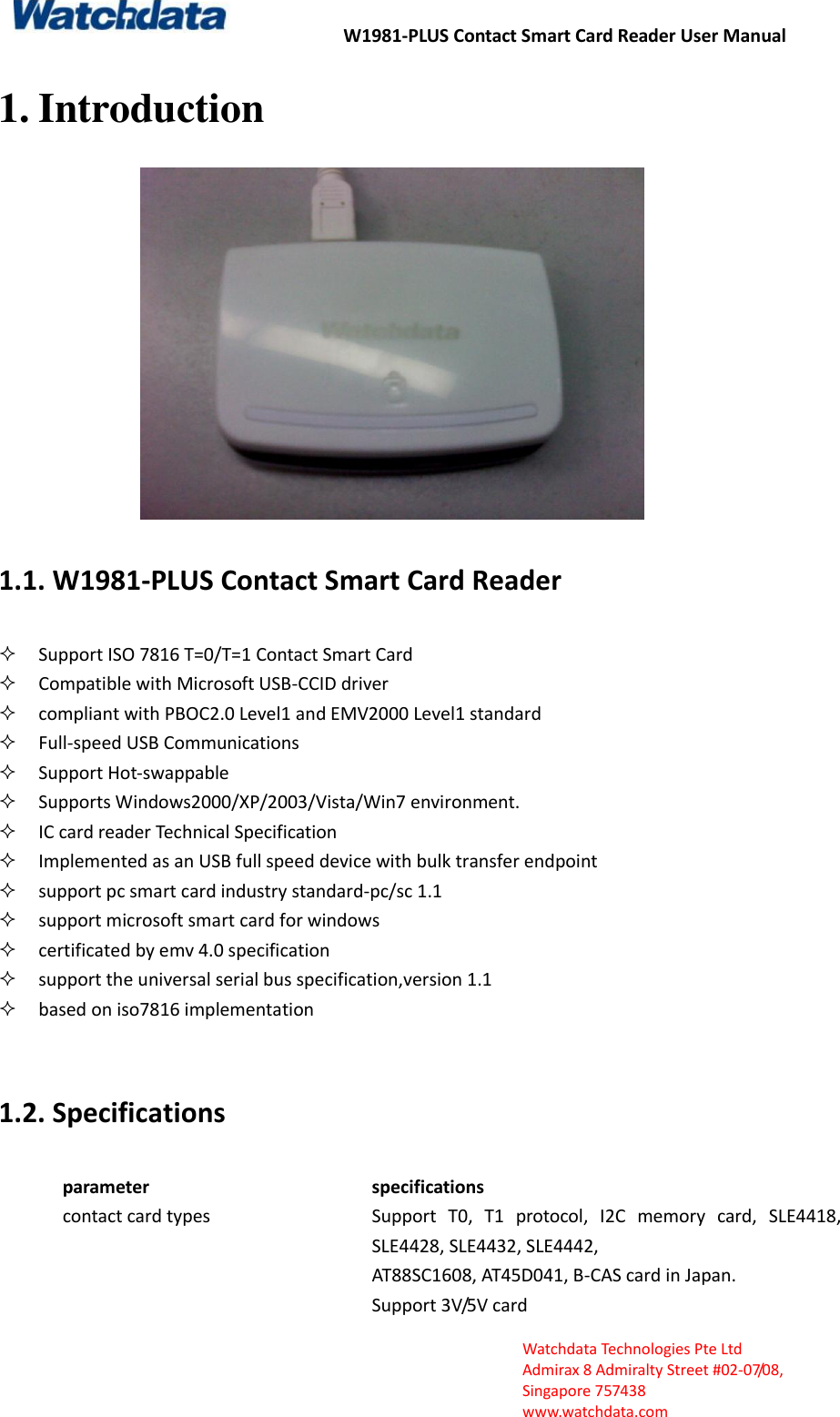

W1981-PLUS Contact Smart Card Reader User Manual Watchdata Technologies Pte Ltd Admirax 8 Admiralty Street #02‐07/08, Singapore 757438 www.watchdata.com 1. Introduction 1.1. W1981-PLUS Contact Smart Card Reader  Support ISO 7816 T=0/T=1 Contact Smart Card  Compatible with Microsoft USB-CCID driver  compliant with PBOC2.0 Level1 and EMV2000 Level1 standard  Full-speed USB Communications  Support Hot-swappable  Supports Windows2000/XP/2003/Vista/Win7 environment.  IC card reader Technical Specification  Implemented as an USB full speed device with bulk transfer endpoint  support pc smart card industry standard-pc/sc 1.1  support microsoft smart card for windows  certificated by emv 4.0 specification  support the universal serial bus specification,version 1.1  based on iso7816 implementation 1.2. Specifications parameter specifications contact card types Support T0, T1 protocol, I2C memory card, SLE4418, SLE4428, SLE4432, SLE4442, AT88SC1608, AT45D041, B-CAS card in Japan. Support 3V/5V card

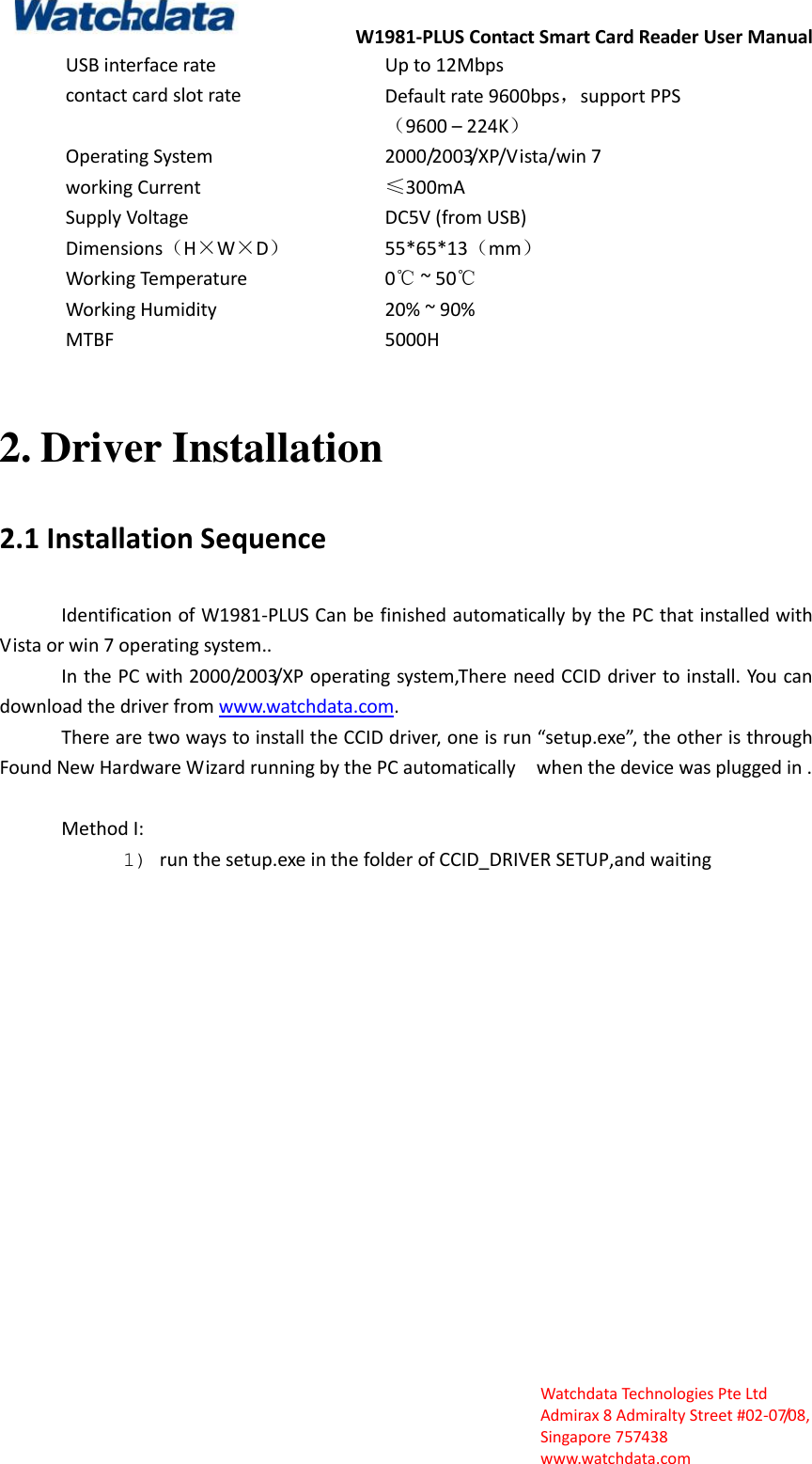

W1981-PLUS Contact Smart Card Reader User Manual Watchdata Technologies Pte Ltd Admirax 8 Admiralty Street #02‐07/08, Singapore 757438 www.watchdata.com USB interface rate Up to 12Mbps contact card slot rate Default rate 9600bps，support PPS （9600 – 224K） Operating System 2000/2003/XP/Vista/win 7 working Current ≤300mA Supply Voltage DC5V (from USB) Dimensions（H×W×D） 55*65*13（mm） Working Temperature 0℃ ~ 50℃ Working Humidity 20% ~ 90% MTBF 5000H 2. Driver Installation 2.1 Installation Sequence Identification of W1981-PLUS Can be finished automatically by the PC that installed with Vista or win 7 operating system.. In the PC with 2000/2003/XP operating system,There need CCID driver to install. You can download the driver from www.watchdata.com. There are two ways to install the CCID driver, one is run “setup.exe”, the other is through Found New Hardware Wizard running by the PC automatically when the device was plugged in . Method I: 1) run the setup.exe in the folder of CCID_DRIVER SETUP,and waiting

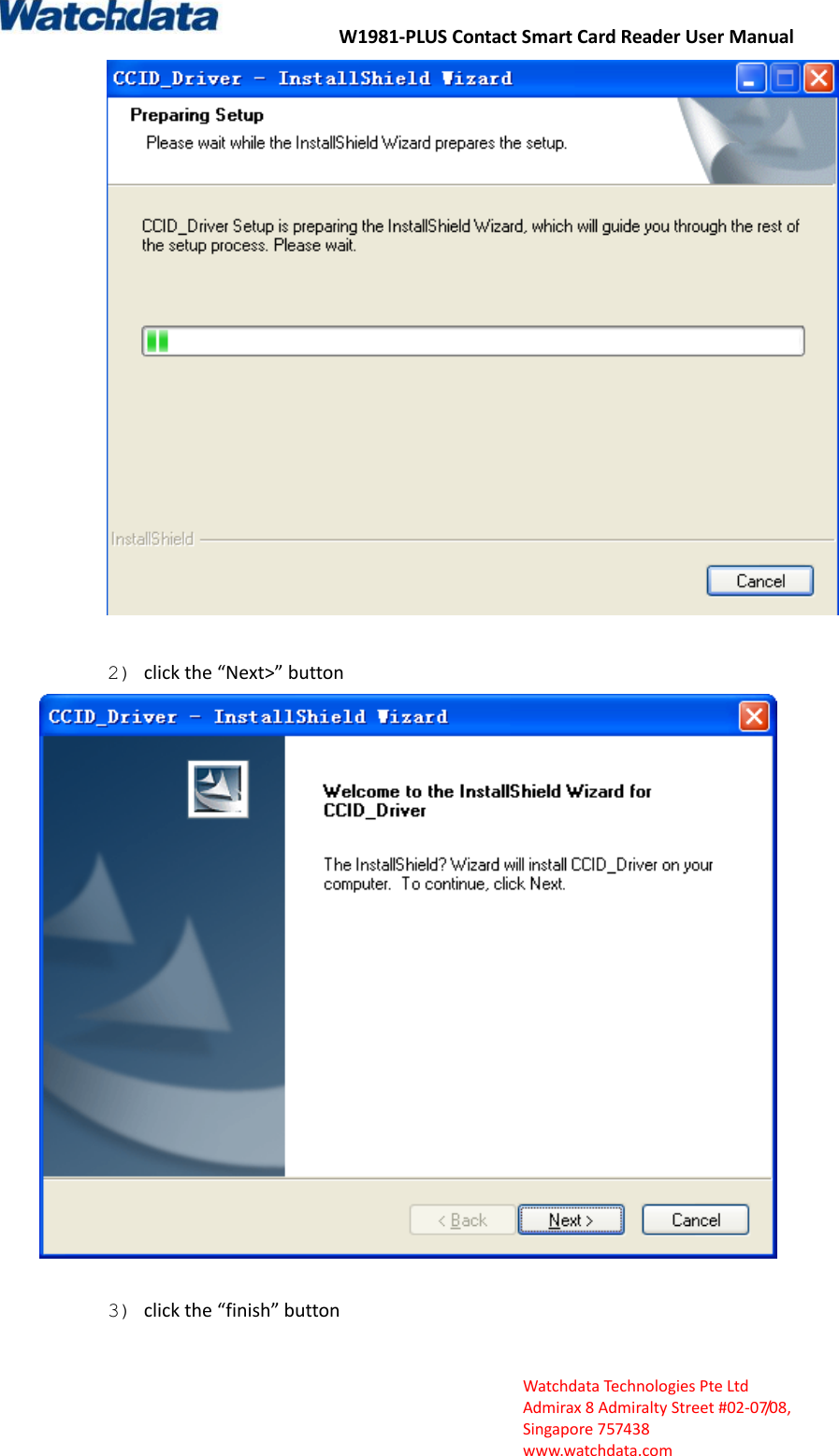

W1981-PLUS Contact Smart Card Reader User Manual Watchdata Technologies Pte Ltd Admirax 8 Admiralty Street #02‐07/08, Singapore 757438 www.watchdata.com 2) click the “Next>” button 3) click the “finish” button

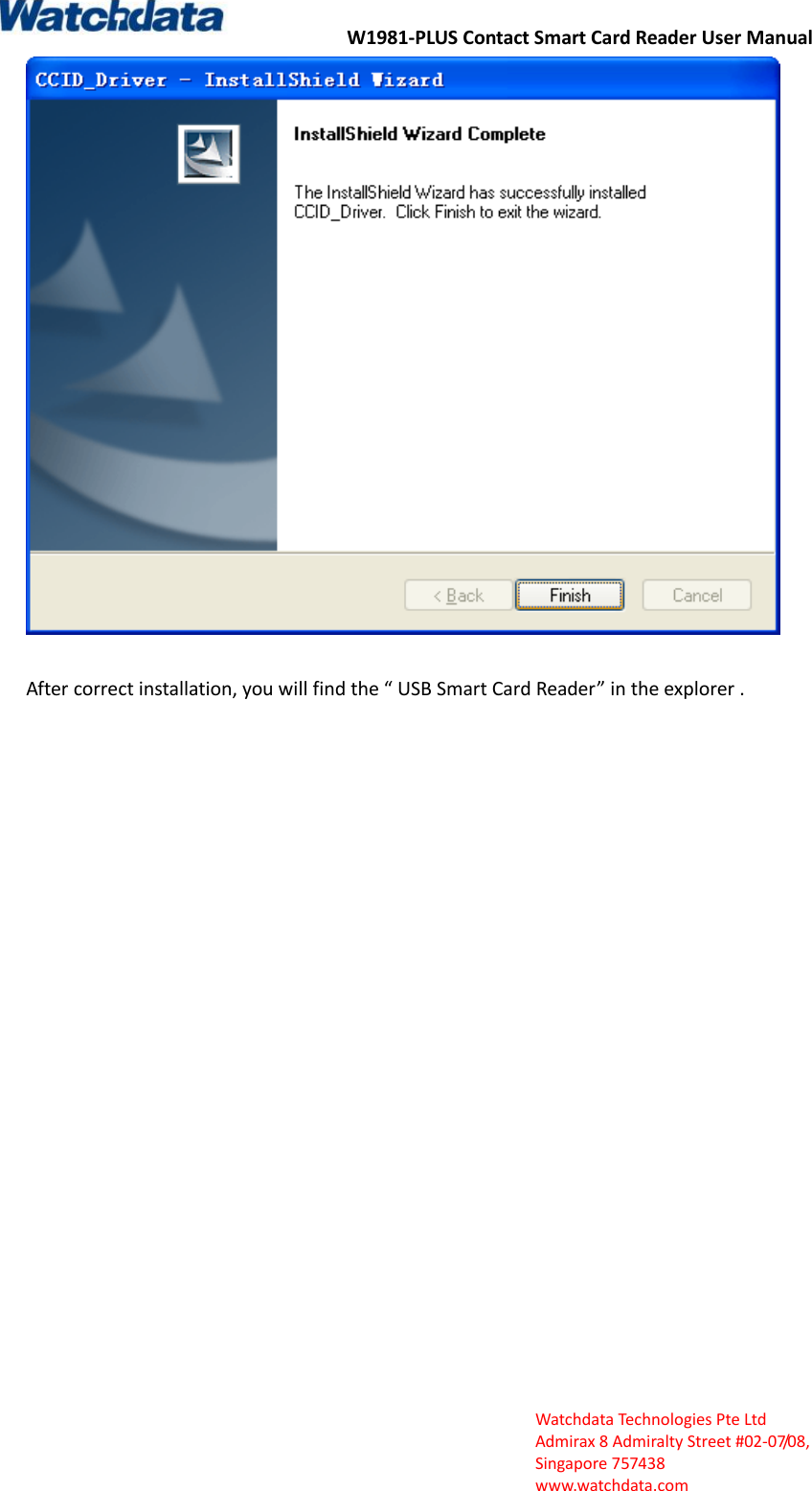

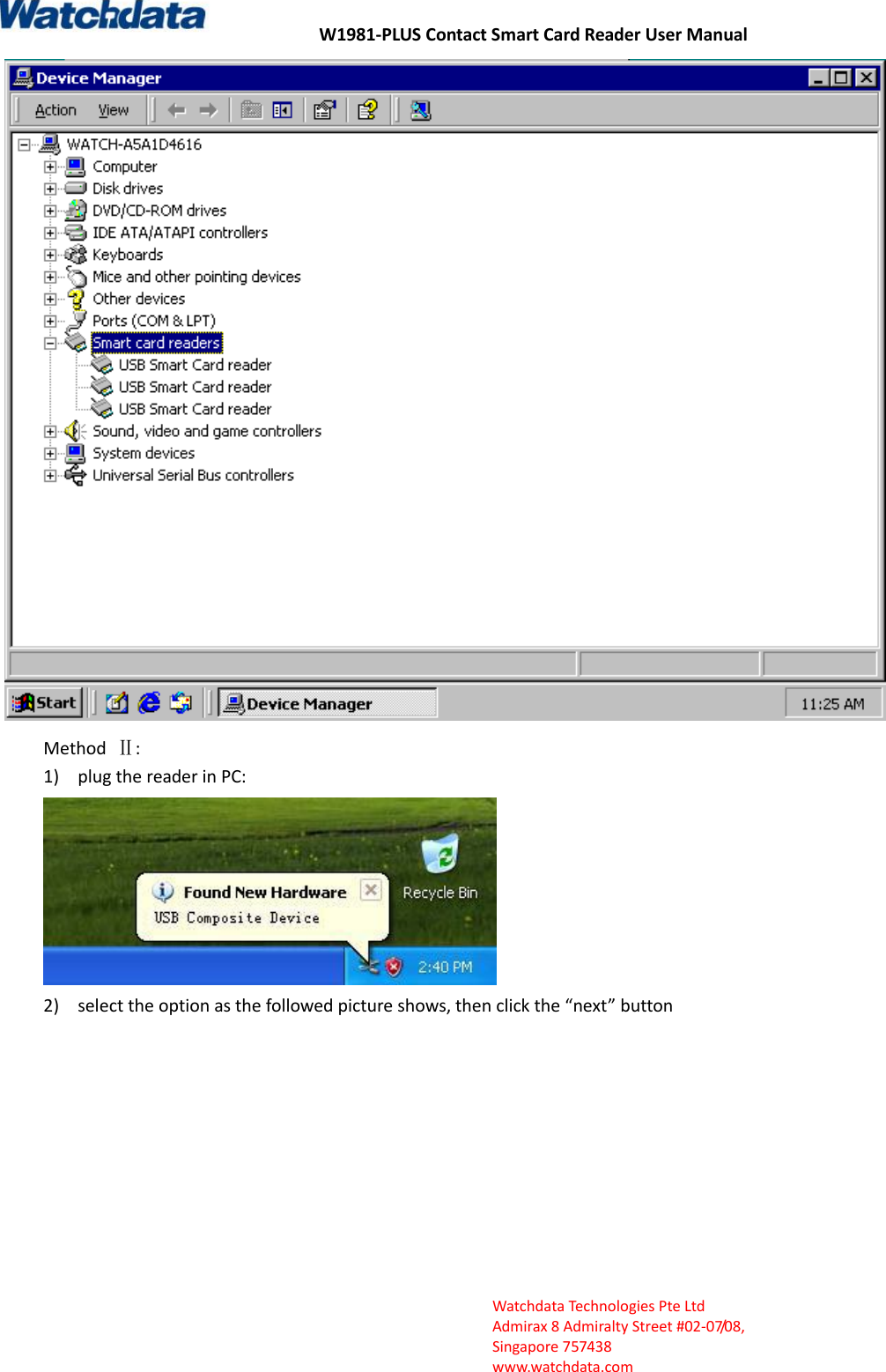

W1981-PLUS Contact Smart Card Reader User Manual Watchdata Technologies Pte Ltd Admirax 8 Admiralty Street #02‐07/08, Singapore 757438 www.watchdata.com After correct installation, you will find the “ USB Smart Card Reader” in the explorer .

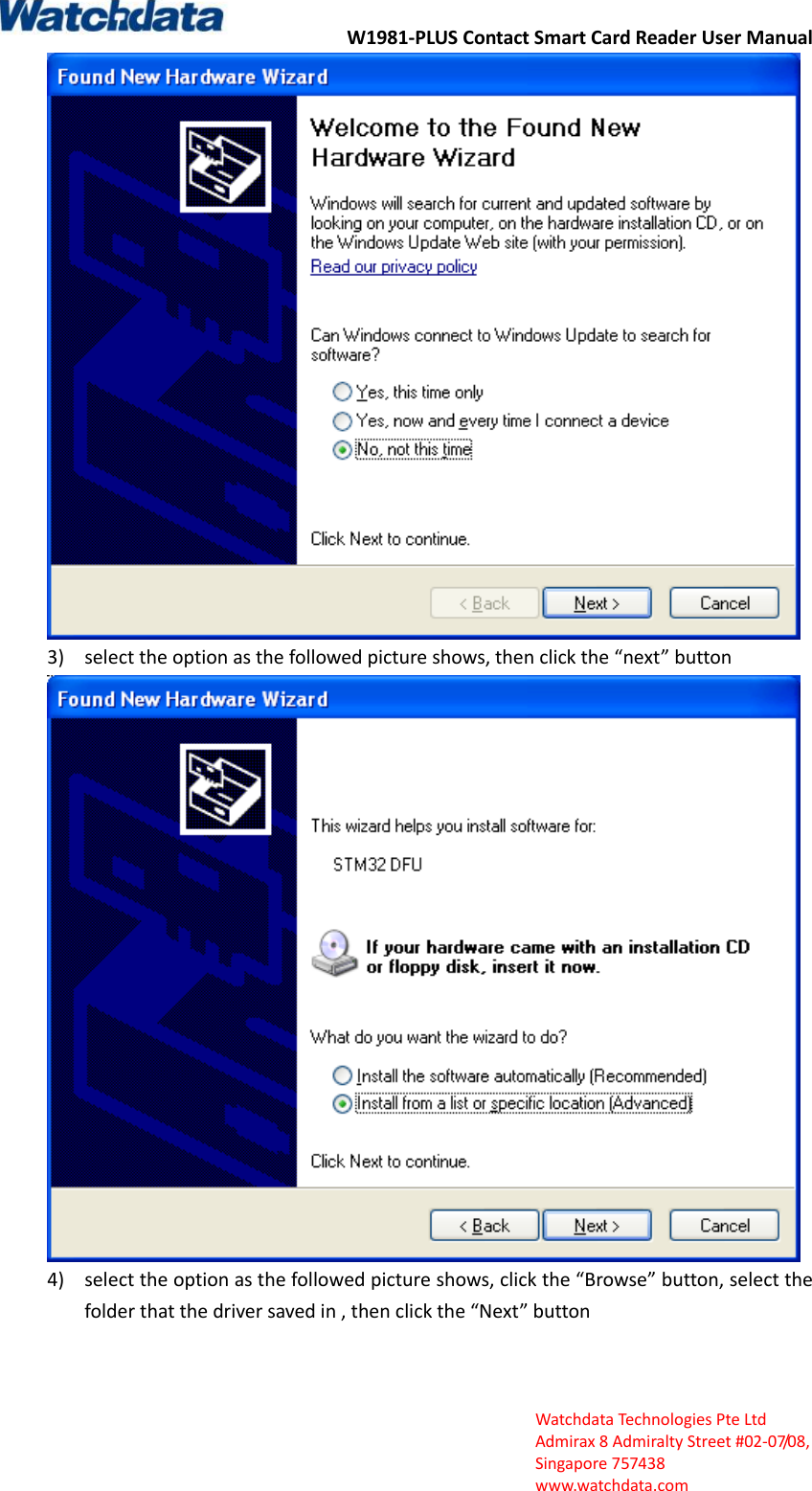

W1981-PLUS Contact Smart Card Reader User Manual Watchdata Technologies Pte Ltd Admirax 8 Admiralty Street #02‐07/08, Singapore 757438 www.watchdata.com Method Ⅱ: 1) plug the reader in PC: 2) select the option as the followed picture shows, then click the “next” button

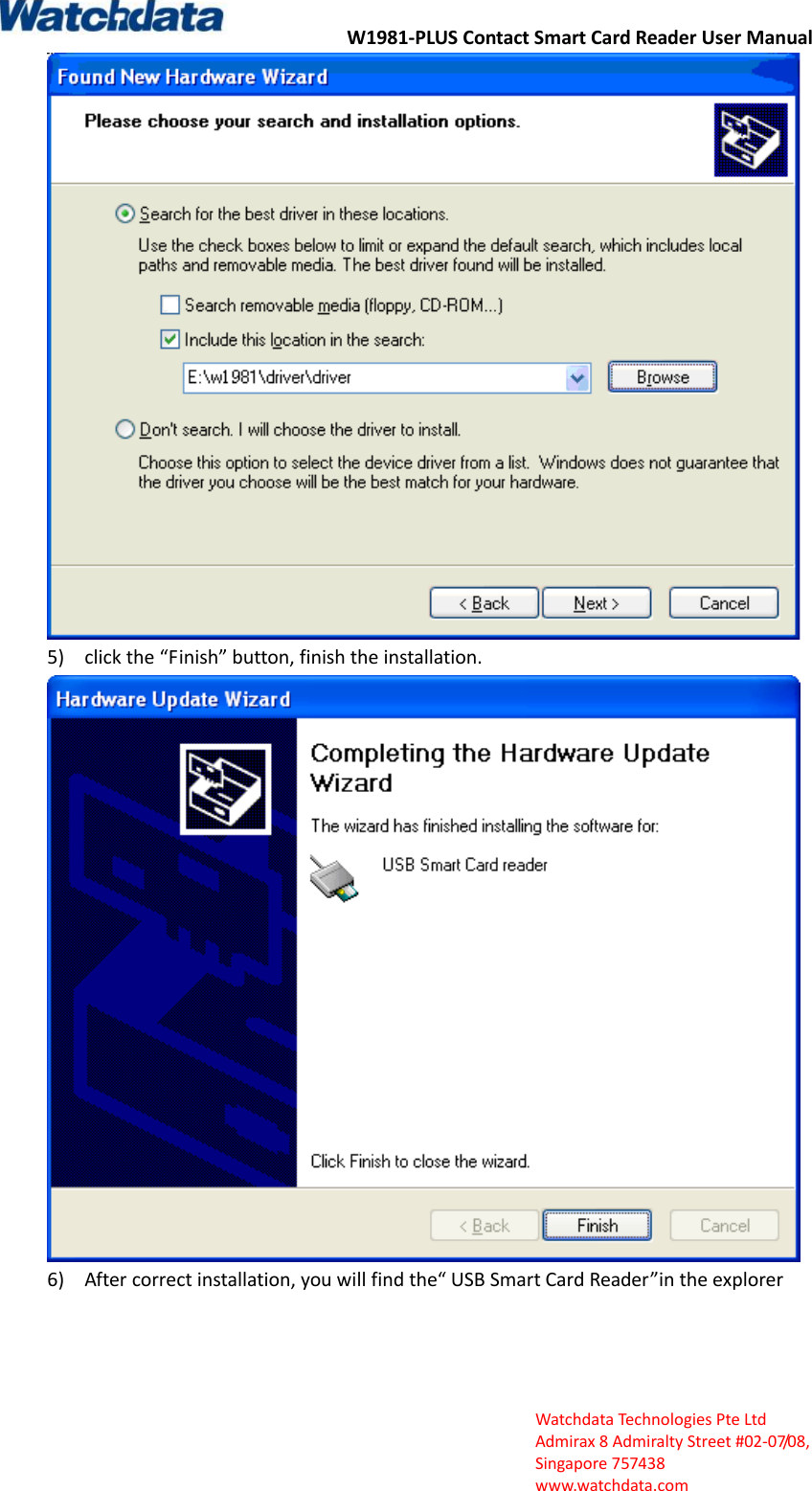

W1981-PLUS Contact Smart Card Reader User Manual Watchdata Technologies Pte Ltd Admirax 8 Admiralty Street #02‐07/08, Singapore 757438 www.watchdata.com 3) select the option as the followed picture shows, then click the “next” button 4) select the option as the followed picture shows, click the “Browse” button, select the folder that the driver saved in , then click the “Next” button
W1981-PLUS Contact Smart Card Reader User Manual Watchdata Technologies Pte Ltd Admirax 8 Admiralty Street #02‐07/08, Singapore 757438 www.watchdata.com 5) click the “Finish” button, finish the installation. 6) After correct installation, you will find the“ USB Smart Card Reader”in the explorer
W1981-PLUS Contact Smart Card Reader User Manual Watchdata Technologies Pte Ltd Admirax 8 Admiralty Street #02‐07/08, Singapore 757438 www.watchdata.com 3. Communication Protocol Communication protocol between the pc and the reader is compliant with the CCID protocol. There are some examples that can make the users understood how to send the APDU command to the card through the reader . Note: All the numbers in the commands are hexadecimal. 3.1 APDU command format from the PC to the reader Information field Identifier Length Description The head of APDU ommand Type 1 CCID Command Length 4 Length of Abdata Slot 1 Code of slot Bseq 1 Code of result bBwi 1 Time of block waiting Level Param 2 Communication level parameter

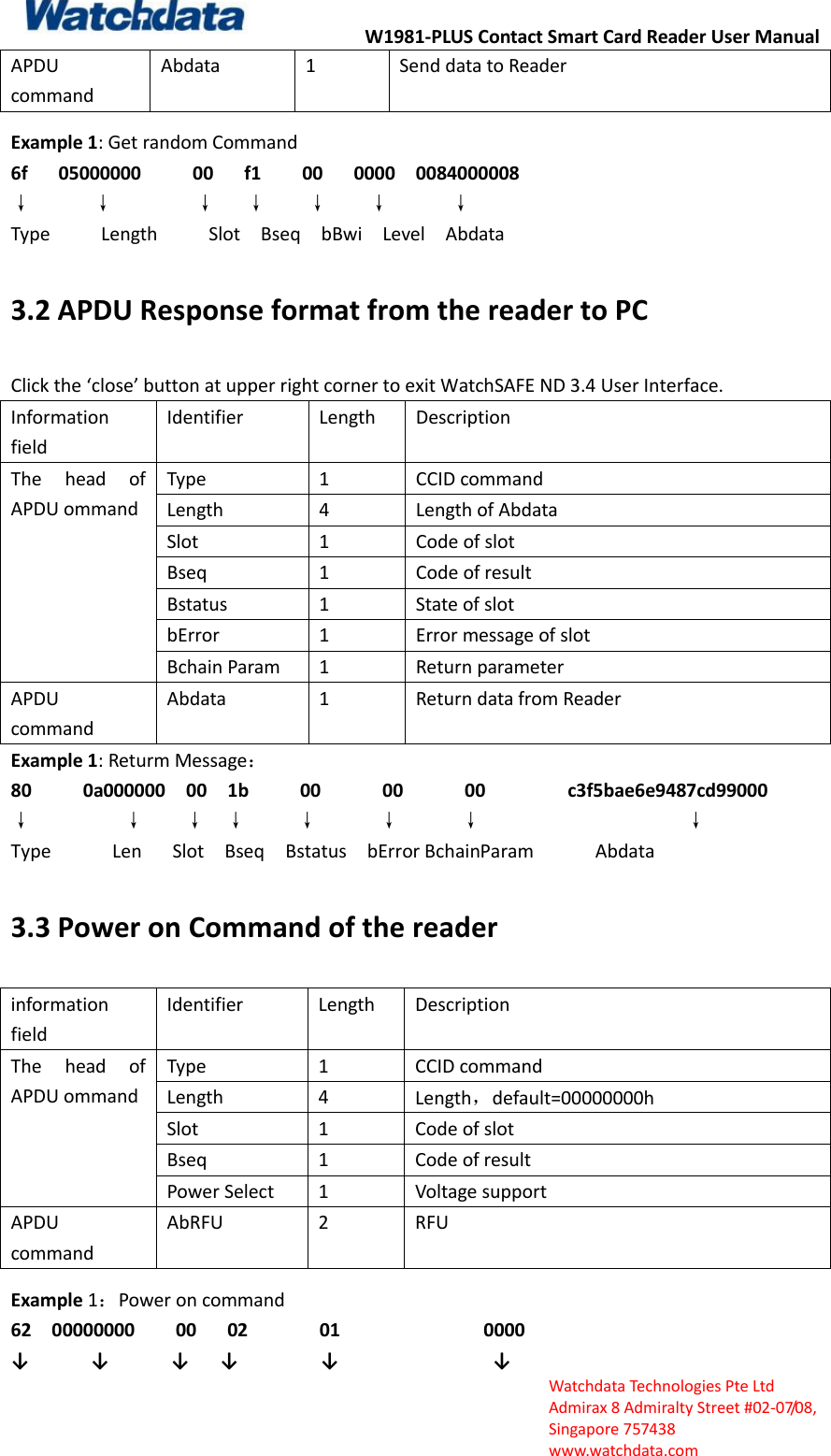

W1981-PLUS Contact Smart Card Reader User Manual Watchdata Technologies Pte Ltd Admirax 8 Admiralty Street #02‐07/08, Singapore 757438 www.watchdata.com APDU command Abdata 1 Send data to Reader Example 1: Get random Command 6f 05000000 00 f1 00 0000 0084000008 ↓ ↓ ↓ ↓ ↓ ↓ ↓ Type Length Slot Bseq bBwi Level Abdata 3.2 APDU Response format from the reader to PC Click the ‘close’ button at upper right corner to exit WatchSAFE ND 3.4 User Interface. Information field Identifier Length Description The head of APDU ommand Type 1 CCID command Length 4 Length of Abdata Slot 1 Code of slot Bseq 1 Code of result Bstatus 1 State of slot bError 1 Error message of slot Bchain Param 1 Return parameter APDU command Abdata 1 Return data from Reader Example 1: Returm Message： 80 0a000000 00 1b 00 00 00 c3f5bae6e9487cd99000 ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ Type Len Slot Bseq Bstatus bError BchainParam Abdata 3.3 Power on Command of the reader information field Identifier Length Description The head of APDU ommand Type 1 CCID command Length 4 Length，default=00000000h Slot 1 Code of slot Bseq 1 Code of result Power Select 1 Voltage support APDU command AbRFU 2 RFU Example 1：Power on command 62 00000000 00 02 01 0000 ↓ ↓ ↓ ↓ ↓ ↓

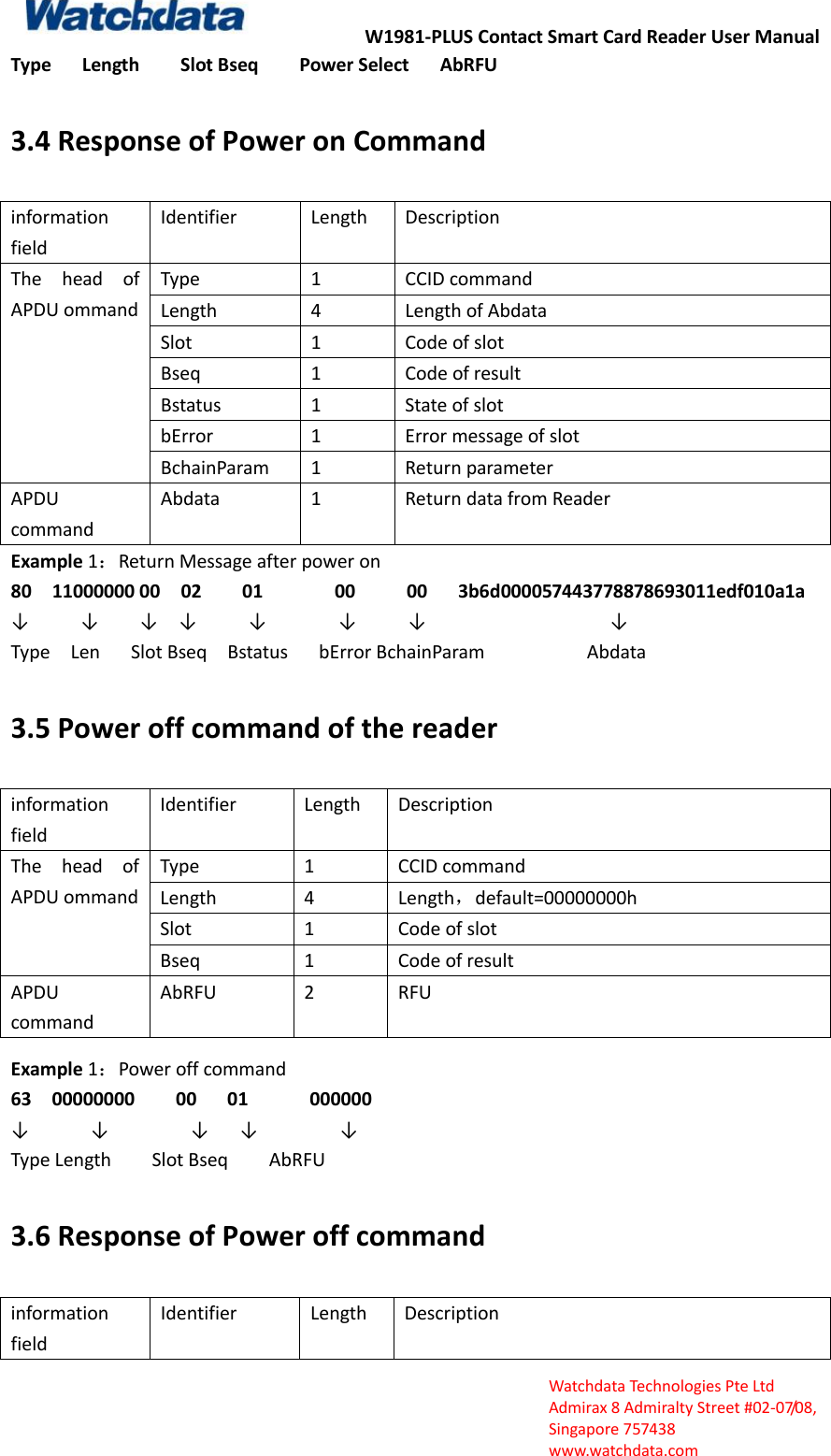

W1981-PLUS Contact Smart Card Reader User Manual Watchdata Technologies Pte Ltd Admirax 8 Admiralty Street #02‐07/08, Singapore 757438 www.watchdata.com Type Length Slot Bseq Power Select AbRFU 3.4 Response of Power on Command information field Identifier Length Description The head of APDU ommand Type 1 CCID command Length 4 Length of Abdata Slot 1 Code of slot Bseq 1 Code of result Bstatus 1 State of slot bError 1 Error message of slot BchainParam 1 Return parameter APDU command Abdata 1 Return data from Reader Example 1：Return Message after power on 80 11000000 00 02 01 00 00 3b6d000057443778878693011edf010a1a ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ Type Len Slot Bseq Bstatus bError BchainParam Abdata 3.5 Power off command of the reader information field Identifier Length Description The head of APDU ommand Type 1 CCID command Length 4 Length，default=00000000h Slot 1 Code of slot Bseq 1 Code of result APDU command AbRFU 2 RFU Example 1：Power off command 63 00000000 00 01 000000 ↓ ↓ ↓ ↓ ↓ Type Length Slot Bseq AbRFU 3.6 Response of Power off command information field Identifier Length Description

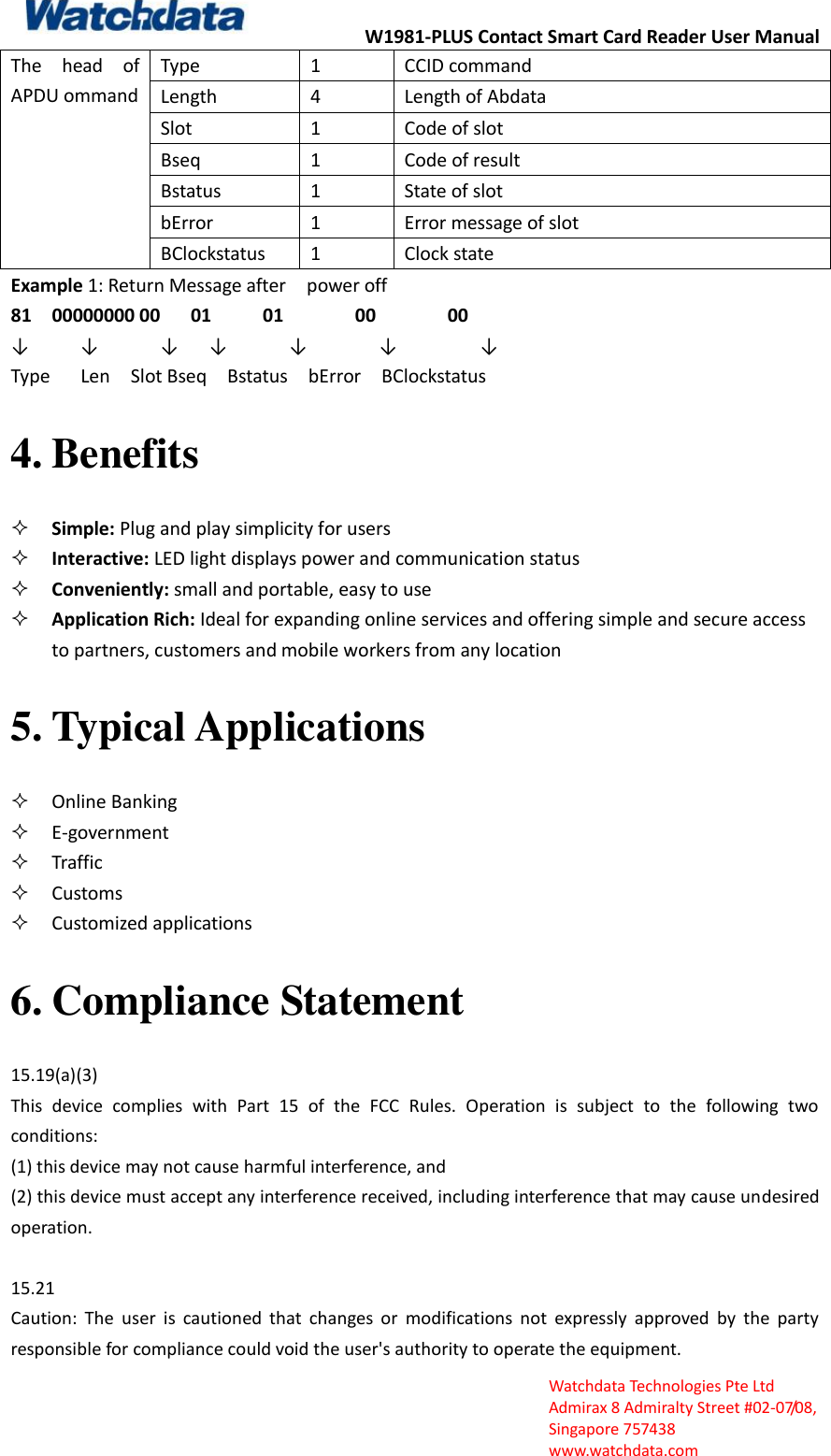

W1981-PLUS Contact Smart Card Reader User Manual Watchdata Technologies Pte Ltd Admirax 8 Admiralty Street #02‐07/08, Singapore 757438 www.watchdata.com The head of APDU ommand Type 1 CCID command Length 4 Length of Abdata Slot 1 Code of slot Bseq 1 Code of result Bstatus 1 State of slot bError 1 Error message of slot BClockstatus 1 Clock state Example 1: Return Message after power off 81 00000000 00 01 01 00 00 ↓ ↓ ↓ ↓ ↓ ↓ ↓ Type Len Slot Bseq Bstatus bError BClockstatus 4. Benefits  Simple: Plug and play simplicity for users  Interactive: LED light displays power and communication status  Conveniently: small and portable, easy to use  Application Rich: Ideal for expanding online services and offering simple and secure access to partners, customers and mobile workers from any location 5. Typical Applications  Online Banking  E‐government  Traffic  Customs  Customized applications 6. Compliance Statement 15.19(a)(3) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 15.21 Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

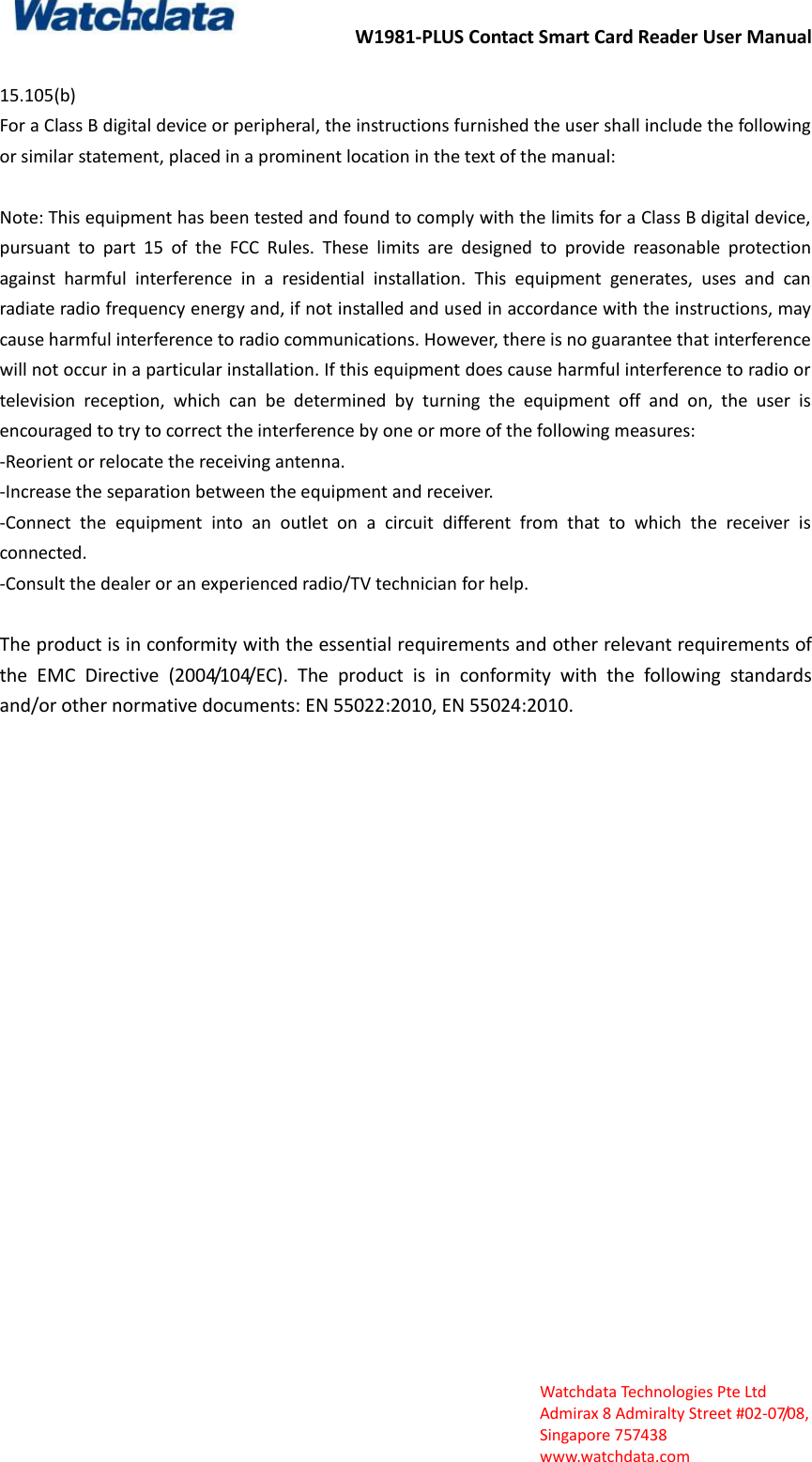

W1981-PLUS Contact Smart Card Reader User Manual Watchdata Technologies Pte Ltd Admirax 8 Admiralty Street #02‐07/08, Singapore 757438 www.watchdata.com 15.105(b) For a Class B digital device or peripheral, the instructions furnished the user shall include the following or similar statement, placed in a prominent location in the text of the manual: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The product is in conformity with the essential requirements and other relevant requirements of the EMC Directive (2004/104/EC). The product is in conformity with the following standards and/or other normative documents: EN 55022:2010, EN 55024:2010.
