INSTALLATION AND

SERVICE MANUAL

WaterBoss

4343 S. Hamilton Road, Groveport, Ohio 43125

Model 550, 700 and 900 Water Softeners

Version 4

QUESTIONS? ................................................................................................................. 1

GETTING MAXIMUM EFFICIENCY FROM YOUR APPLIANCE ..................................... 2

CHECKLIST BEFORE INSTALLATION............................................................................. 3

DO'S AND DON’TS ......................................................................................................... 4

REFERENCE ILLUSTRATIONS ....................................................................................... 5

CYCLES .......................................................................................................................... 10

INSTALLATION AND START-UP PROCEDURES .......................................................... 11

SETTING THE 4 BUTTON CONTROLLER ..................................................................... 13

ADVANCED SETTINGS FOR THE 4 BUTTON CONTROLLER ...................................... 14

CARE, MAINTENANCE AND PARTS ............................................................................. 16

SPECIFICATIONS/CAPACITY CHART ........................................................................... 25

TROUBLESHOOTING ..................................................................................................... 26

LIMITED WARRANTY ..................................................................................................... 28

NOTES ............................................................................................................................. 29

Table of Contents

When calling the HelpLine, please have this guide and the serial number

available. From 8 am to 5 pm EST, call 1-800-437-8993.

Your serial number may be found on top of your valve assembly.

From 8 am to 5 pm EST, use the 800 HelpLine: 1-800-437-8993

The HelpLine is available to help answer questions about specific water problems, appliance

installation and operation. When calling the HelpLine, please have this guide and the serial

number of your appliance available. Your serial number may be found on top of your valve

assembly (See figures 2-3.)

Date of Installation: __________________________________

Model Number: _____________________________________

Serial Number: ______________________________________

Returned Limited warranty Card Date: ___________________

Questions

When calling the HelpLine, please have this guide and the serial number

available. From 8 am to 5 pm EST, call 1-800-437-8993.

Your serial number may be found on top of your valve assembly.

How To Get The Maximum Efficiency From Your Appliance

1. Fill salt cabinet when water level is above salt level. DO NOT MIX DIFFERENT TYPES OF SALT.

If iron is present in your water, use a salt with an iron-cleaning additive to help keep resin

clean. You may also use a resin cleaner on a monthly basis in place of salt with cleaning

additives. If iron is not present in your water, a clean pellet, solar or cube type salt is recom-

mended. The use of rock salt is not recommended because it contains impurities that can

plug up the injector assembly.

2. You may use a salt substitute (such as potassium chloride) in place of water conditioner

salt. If you start with water conditioner salt, you can switch to a salt substitute at any time -

or vice versa. If potassium chloride is used in place of nugget or pellet salt, increase your

hardness setting by 12% (multiply by 1.12). Do not use Potassium Chloride if there is iron in

your water.

3. Should your electricity be turned off for any reason you must reset the time of day if you

programmed your appliance for delayed regeneration.* (see page 14)

4. Protect your appliance from freezing, including drain line.

5. By-pass the appliance when servicing the well, plumbing, or pump. When work is complet-

ed, turn on the nearest cold water tap until water runs clear before putting appliance back in

service. See figures 4 - 5 - 6.

6. Install after the pressure tank.

When calling the HelpLine, please have this guide and the serial number

available. From 8 am to 5 pm EST, call 1-800-437-8993.

Your serial number may be found on top of your valve assembly.

Checklist Before Installation

Water Pressure

- Not less than 20 psi constant for softeners.

Double check hardness

- of water with test strips provided to verify that your appliance

is right for the job.

Model 550 FOR MUNICIPALLY-SUPPLIED WATER

is for water without iron and up

to 25 grains of hardness per gallon.

Model 700

for up to 70 grains hardness per gallon.

Model 900

for up to 90 grains hardness per gallon. (See specifications, page 30.)

Water Supply Flow Rate

- 5 gallons per minute is recommended as minimum.

Drain

- Drain appliance to floor drain or washer drain. To prevent back-siphoning,

the installer must provide an adequate air gap or a siphon break. See figure 1.

Electricity

- The transformer supplied is a standard 120 volt, 60 cycle A.C. for USA or

220 volt, 50 cycle A.C. for outside the USA. See figure 8.

Water Quality

- If the water supply contains sulfur, bacteria, iron bacteria, tannins,

algae, oil, acid or other unusual substances, then unless the appliance is represented as

being capable of treating these contaminants in the specifications, other special

treatment of the water supply must be used to remove these contaminants before they

enter this product.

If you have any questions call our HelpLine!

When calling the HelpLine, please have this guide and the serial number

available. From 8 am to 5 pm EST, call 1-800-437-8993.

Your serial number may be found on top of your valve assembly.

SOME DO'S

1. Do comply with all local plumbing and electrical codes.

2. Do install pressure-reducing valve if inlet pressure exceeds 90 psi.

3. Do install gravity drain on salt storage cabinet. See figure 7.

4. Do secure drain line on appliance and at drain outlet. See figure 3.

5. Do allow a minimum of 8 to 10 feet of 3/4” pipe from the outlet of the water conditioner

to the inlet of the water heater. See figure 1.

SOME DON’TS

1. Do not install if checklist items are not satisfactory.

2. Do not install if incoming or outlet piping water temperature exceeds

120 degrees Fahrenheit. Please see specification on page 25.

3. Do not allow soldering torch heat to be transferred to valve components or

plastic parts. See Installation Tip, page 6.

4. Do not overtighten plastic fittings.

5. Do not place appliance right up against a wall which would deny access to

plumbing. See figure 1.

6. Do not install the appliance backwards. Follow arrows on inlet/outlet.

See figure 2.

7. Do not plug the transformer into an outlet that is activated by an on/off switch.

See figure 8.

8. Do not connect the drain and the overflow (gravity drain) together.

See figure 1.

Do’s And Don’ts

When calling the HelpLine, please have this guide and the serial number

available. From 8 am to 5 pm EST, call 1-800-437-8993.

Your serial number may be found on top of your valve assembly.

Use this diagram as a location and installation guide for your

Model 550

Model 700

and

Model 900

,water conditioners. This diagram applies to all types of installations

(i.e. basement, slab, crawl space, outside).

Bypass Valves. To simplify installation and servicing, a one-piece or a three way bypass

valve appliance is recommended when installing your appliance. A bypass appliance also pro-

vides access to untreated water when required (i.e. for lawn and gardening purposes.)

Also, see figures 4 through 6.

Caution: If less than 10 feet of pipe connect the water treatment appliance(s), to the water heater,

then a Check Valve must be installed between the water treatment appliance and the water heater.

Install the Check Valve as close to the water heater as possible.

Reference Illustrations

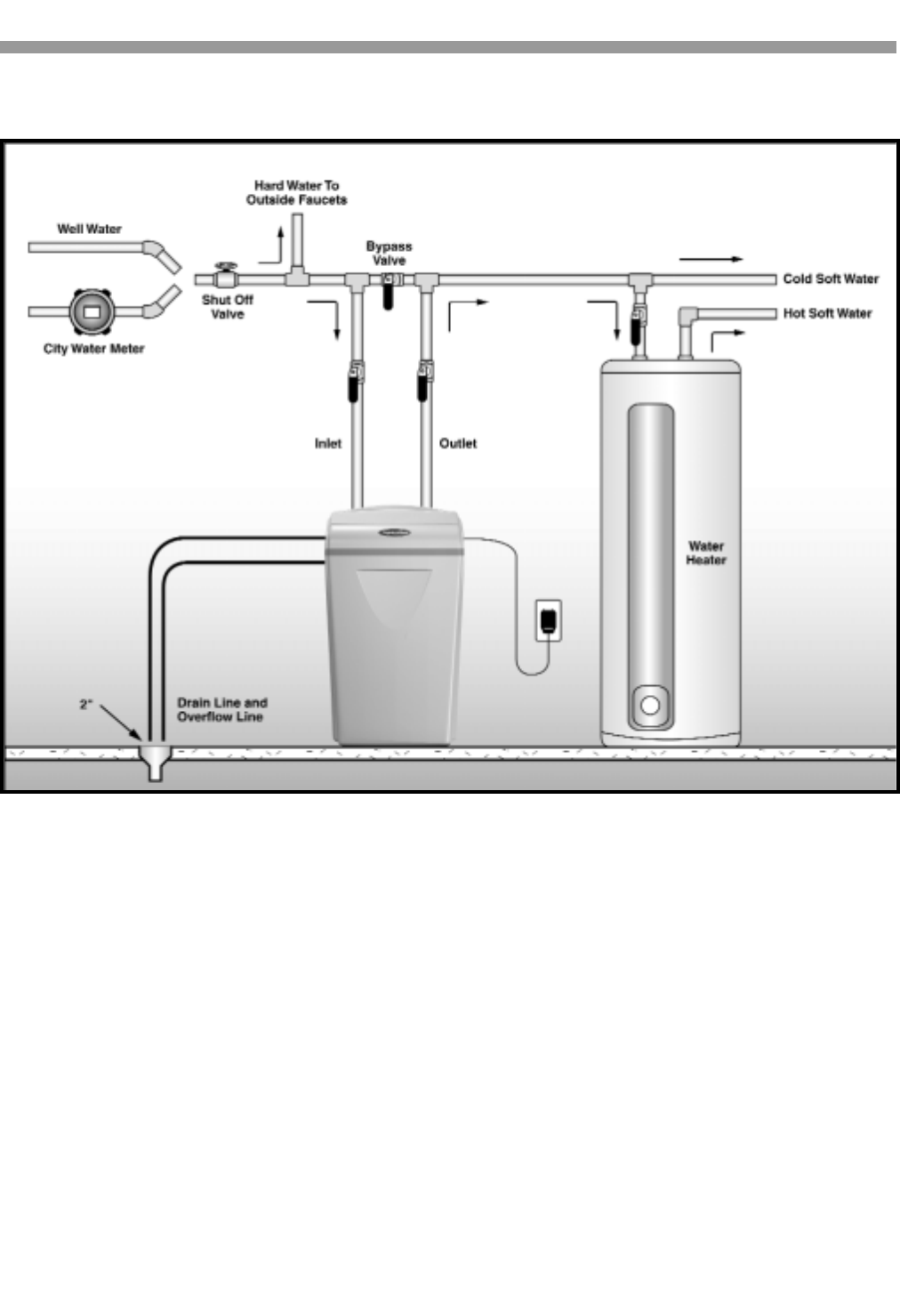

Figure 1- Installation Guide

When calling the HelpLine, please have this guide and the serial number

available. From 8 am to 5 pm EST, call 1-800-437-8993.

Your serial number may be found on top of your valve assembly.

Reference Illustrations

CAUTION! The drain line must not be

kinked, crimped or restricted in any way.

The drain line should be a minimum 1/2" inside

diameter and cannot be reduced in size.

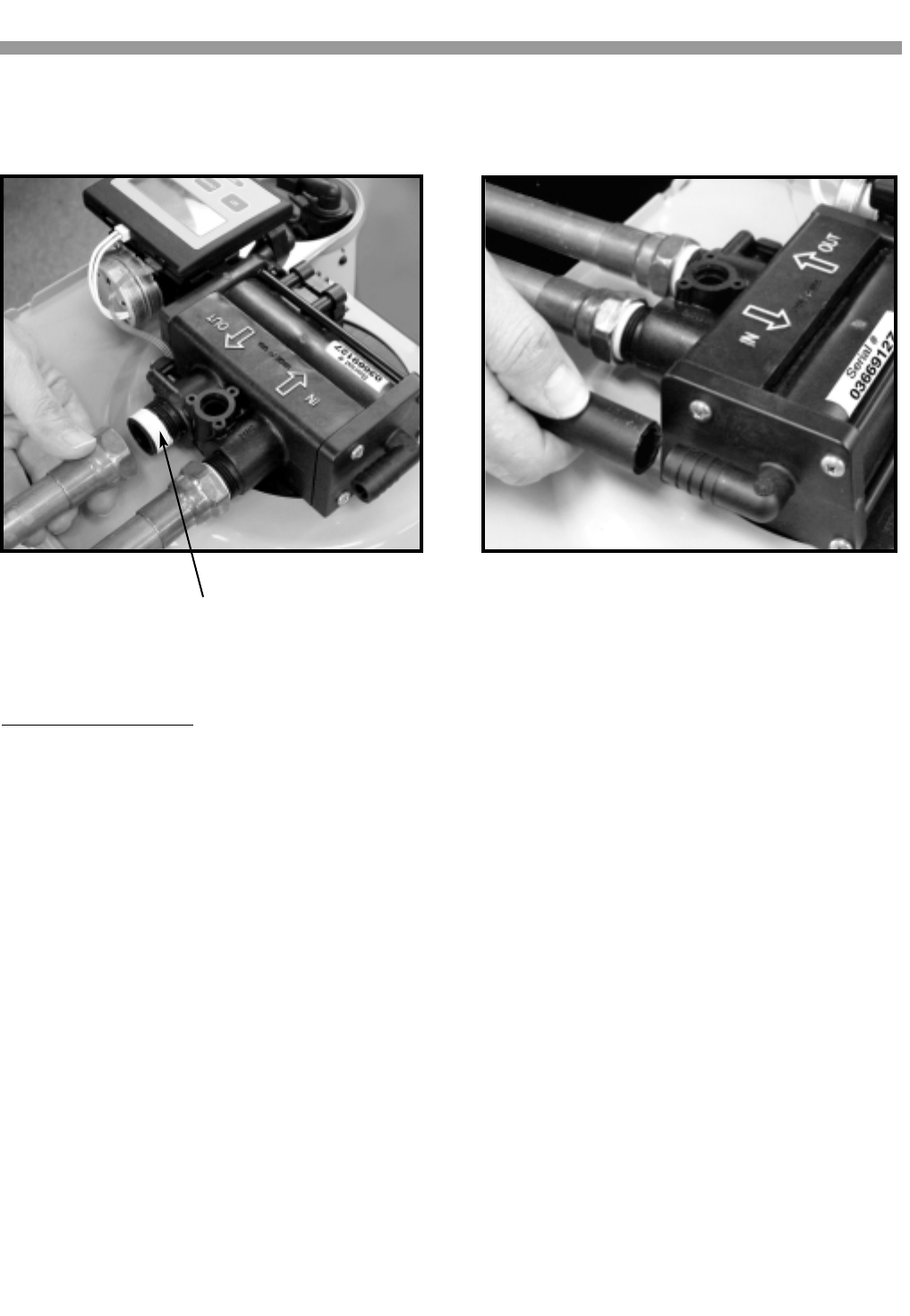

Figure 2

PLUMBING CONNECTIONS

Figure 3

CONNECTING DRAIN LINE

INSTALLATION TIP

When preparing the male threaded fittings of the I/O adapter, follow the guidelines to avoid

damage to the plastic pipe threads.

1. For best results, use 1/2” wide Teflon® tape and wrap the threads three times with each

consecutive wrap on top of the previous wrap. To prevent tearing of the the tape, use Teflon®

paste on the first two threads only. This lubricates the tape and fills the small void areas that

may exist between the threads. When the joint is complete, there will be a small bead of

sealant at the fitting interface indicating a properly joined connection.

2. When preparing copper fittings, it is always advisable to use a union where there is a

threaded connection to facilitate repairing a potential leak in one of your soldered joints.

3. To prevent heat damage to the plastic pipe threads of the adapter, prepare the copper tail

assemblies ahead of time so they can cool down before final assembly. The copper tube

length should be a minimum of 3-1/2” long. To prevent cross threading, turn the fitting coun-

terclockwise until you feel the threads engage, then tighten. Do not overtighten the fittings.

CAUTION NOTE:

To avoid damage, do not allow heat from the torch to be transferred to the

plastic valve component.

Teflon®Tape

Reference Illustrations

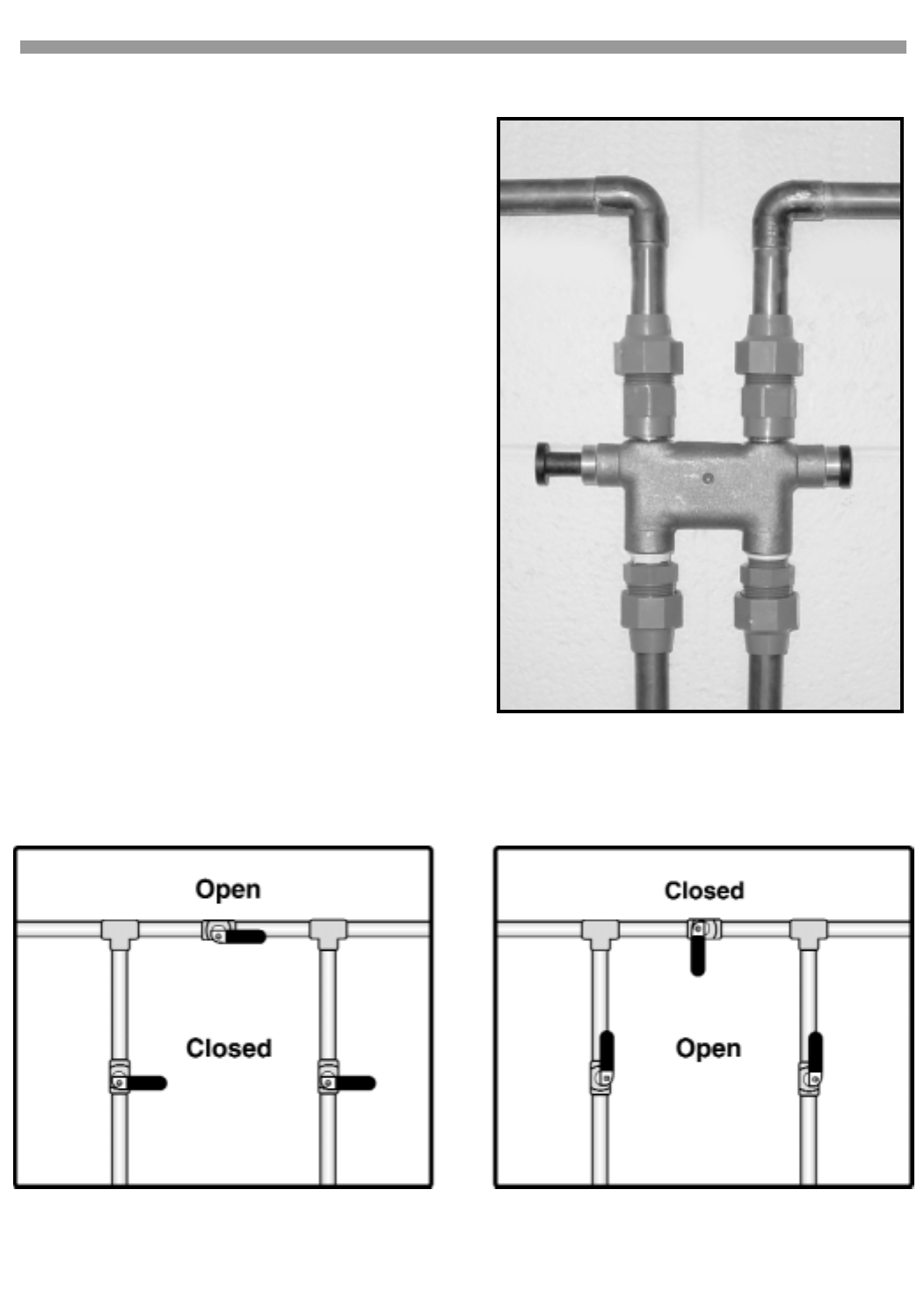

Figure 4 - Bypass Valve

Figure 5 -

In Bypass Position

for service or bypass.

Optional Bypass Valve Part #93884 may be

available through your local hardware store,

plumber or call our HelpLine 1-800-437-8993

From 8 am to 5 pm EST. to order.

Figure 6 -

In Service Position

Figure 8

Reference Illustrations

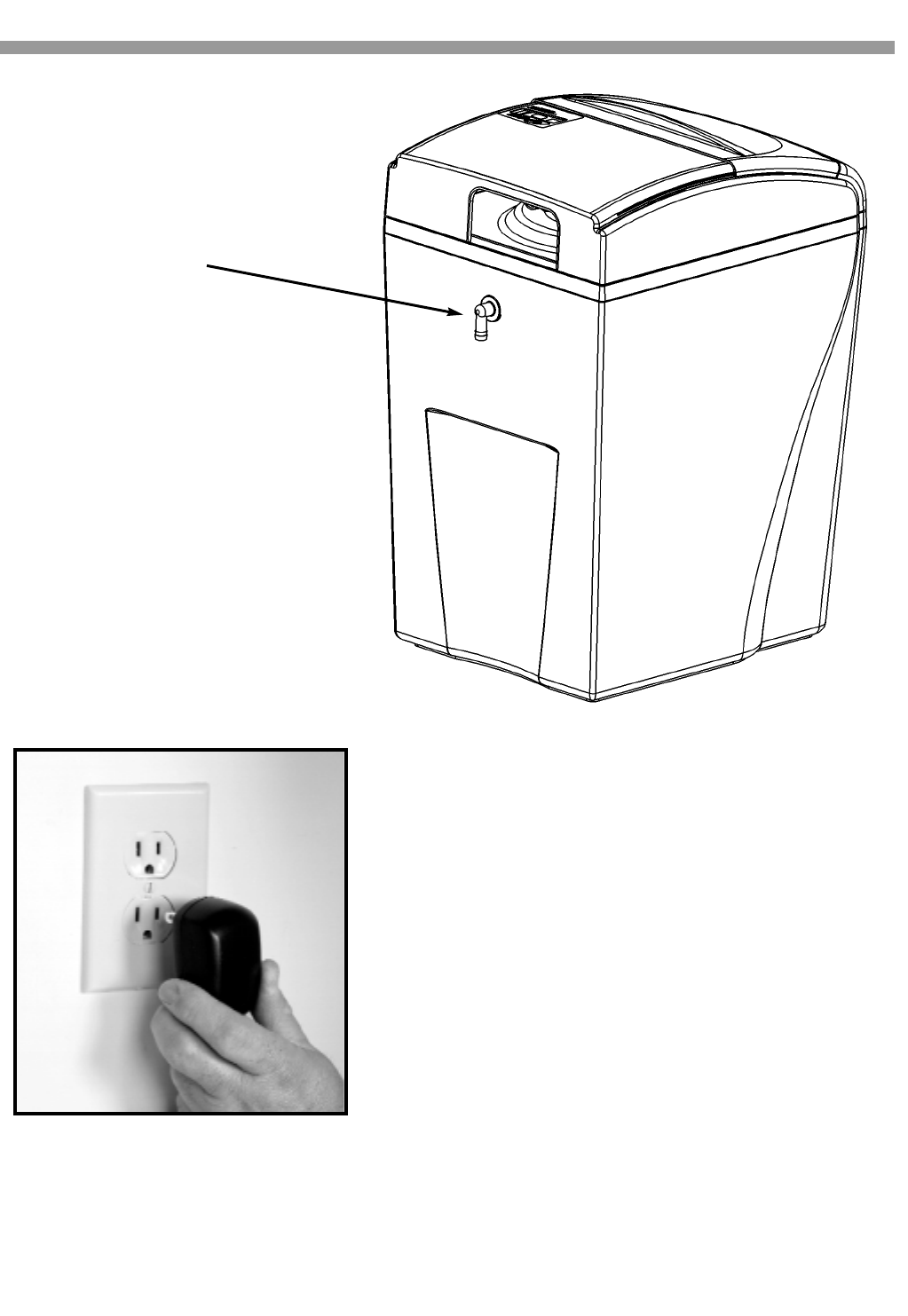

PLUGGING IN TRANSFORMER

Do not plug transformer into an outlet

that is controlled by on/off switch.

Figure 7

OVERFLOW

CONNECTION

(1/2” I.D.)

When calling the HelpLine, please have this guide and the serial number

available. From 8 am to 5 pm EST, call 1-800-437-8993.

Your serial number may be found on top of your valve assembly.

Reference Illustrations

Figure 10

ADDING SALT TO

THE BRINE CABINET

2 GALLONS

Figure 9

Cycles

Water by-passes your appliance during regeneration to allow iron, sediment, hardness, etc.

to be washed down the drain. After regeneration, the appliance returns to service, providing

your home with treated water.

Regeneration cycles:

1. First up-flow backwash. A rapid up-flow of water flushes out the resin bed and cleans the

sediment filter.

2. Brine. Brine is drawn out of the brine cabinet and up through the media tank, cleaning the

resin bed and releasing accumulated hardness and iron.

3. Slow rinse. A slow up-flow rinse process then flushes out the brine, hardness and iron.

4. Second up-flow backwash. This up-flow backwash flushes out any remaining brine solution

and sediment from cycle 2.

5. Downflow soft water brine refill. Soft water is directed to the brine cabinet to prepare the

brine for the next regeneration sequence.

6. Return to service. Regeneration is complete and the appliance is returned to normal operation.

When calling the HelpLine, please have this guide and the serial number

available. From 8 am to 5 pm EST, call 1-800-437-8993.

Your serial number may be found on top of your valve assembly.

Installation And Start-Up Procedures

Each water conditioning appliance includes water test strips and 8' of drain line.

CAUTION: Be sure the controller is firmly “locked” onto the drive end cap assembly. The four tabs

on top of the drive end cap will allow the clips on the bottom of the controller case to lock onto the

end cap tabs. (See detail diagram on page 16. Fig. 11.)

1. Placement: Place your appliance in desired location. Turn off electricity and water supply to

water heater. Make sure inlet/outlet and drain connections meet the applicable local codes. Check

arrows on valve to be sure water flows in proper direction. See figures 1, 2, & 3.

CAUTION: DO NOT PLUMB APPLIANCE IN BACKWARD. See page 6

2. Drain Line: must be a minimum of 1/2"-5/8” I.D. tubing and should make the shortest run to a

suitable drain. The drain line may be elevated up to 8 feet from the discharge on the appliance as

long as the water pressure in your appliance is 40 psi or more. If drain line is 25' or longer, increase

drain line to 5/8" I.D. Also, the end of the drain line must be equal in height or lower than the control

valve. See figure 1.

3. Flushing: Before placing your appliance in service, it is very important to flush the cold water

lines of any debris. Turn on water supply, open the nearest cold water tap and let the water run for 2

to 3 minutes or until the water flows clear. Then put the by-pass in the Service position. See figures

4 through 6.

4. Check Leaks. Close faucet and check for leaks. If leaks are found, turn off main water supply

and open the nearest cold water faucet to depressurize lines. Close faucet to eliminate siphoning

action. Repair leaks. Turn on water supply and electricity to water heater. Place the bypass valve

in the Service position. See figures 4 and 6.

5. Connect Overflow Line. The overflow line must end at a drain that is at least 3" lower than the

bottom of the overflow fitting. It is a gravity line and cannot be run overhead. See figure 7.

6. Complete The Installation. Open a cold water tap and allow the appliance to flush for 20 minutes

or until approximately 72 gallons has passed through the appliance per NSF requirements.

7. Plug In Transformer. See figure 8.

When calling the HelpLine, please have this guide and the serial number

available. From 8 am to 5 pm EST, call 1-800-437-8993.

Your serial number may be found on top of your valve assembly.

Installation And Start-Up Procedures

8. Setting Number. For

Models 700, 900

, and

550

for municipally-supplied water, determine

your controller setting number. Do not guess at the setting; continued water quality problems

or damage to the appliance could result.

Municipal water - call your local water company to determine your water hardness in grains

per gallon. This will be your setting number. Or, follow the instructions on the hardness test

strip provided with your

Model 550

to determine your hardness reading. This will be your

setting number.

Well water - follow the instructions on the pH and hardness test strips provided with your

appliance to determine the pH and hardness of your water.

Iron adjustment: if pH is 7 or above and you know your water has iron, add 15 to

your hardness reading in grains per gallon and enter the result as your setting #.

Example: hardness in grains per gallon from test strip is 20 + 15 = 35 = setting #.

This is a temporary setting until you have an accurate water test.

If the result of your hardness test strip reaches the test maximum of 25 grains per

gallon, mix 1 cup tap water with 1 cup distilled water, then retest for hardness. Multiply your

reading x 2 and use this number as your setting number. If the test strip result is still 25

grains per gallon, call your HelpLine. Or, contact the company below to test for hardness, iron

and pH.

WATERSCREEN

National Testing Laboratories, Inc.

1-800-458-3330 - 9 am - 5 pm EST

If you feel you have an abnormal amount of iron, push the powerClean®button for

Models 700

and

900

only. Also, be sure to use salt with an iron-cleaning additive.

Be aware that model

Model 550

for municipally-supplied water is not designed to treat water

with iron. If pH is below 7, Call your HelpLine.

9. Adding Water & Salt. Be sure to remove any packaging or installation materials before

adding salt. Next, add no more than 2 gallons of water to the brine cabinet. Then add salt to

the brine cabinet, wait 2 hours then push the immediate recharge button and hold for 5 sec-

onds. A regeneration cycle will begin and continue as follows:

Model 900

, 48 minutes;

Model 550

for municipally-supplied water, 27 minutes; and

Model 700

33 minutes. After the

first regeneration, your softener will automatically refill the correct amount of water in the

brine cabinet. See figure 10.

10. Refill Salt when the salt level drops below the water level in the brine cabinet. Always

keep salt above water level. See figure 10

CAUTION! Failure to install, operate and maintain your water treatment

appliance as instructed will VOID the product limited warranty.

NOTE! Make sure the Owner's Limited warranty Card is filled in and mailed

within 30 days of installation. NO POSTAGE REQUIRED.

Setting The 4 Button Controller

DEMAND REGENERATION

You won't have to worry about vacation settings or extra guests because the controller measures

water usage and regenerates based on need. The appliance will regenerate using only the neces-

sary amount of water and salt. If power has been turned off, your appliance will retain programmed

settings indefinitely. See figure 9.

1) ENTERING YOUR HARDNESS SETTING

See page 12 for determining your setting number. Push the “SET” button for about 5 seconds.

Now, the water hardness setting number shown in the digital readout will increase 1 grain each time

you push the "CHANGE" button. After 70 grains for

Model 700

(90 grains for

Model 900

and 25

grains for

Model 550

) the read-out will return to 03, and continue to count up until the display num-

ber matches the hardness number. Press the “SET” button to save the hardness number. To

recheck the hardness, hold down the "SET" for about 5 seconds.

2) GALLONS REMAINING

After setting water hardness, gallons remaining until the next automatic regeneration is shown in the

digital display. NOTE: Gallons remaining are in hundreds. 12=1,200 gallons

3) RECHARGE/REGENERATION STATUS

Regeneration cycle numbers are shown during regeneration. The read-out will flash with the cycle

number. The flashing regeneration numbers are:

First cycle: (01) First Backwash

Second & Third cycles: (02) Brine/Slow Rinse

Fourth cycle: (03) Second Backwash

Fifth cycle: (04) Brine Refill

Sixth cycle: (HO) Service

To quickly advance through the regeneration cycles, press and hold the Regenerate button for 2

seconds. Wait for the cycle to begin, after 20 seconds press and hold the Regenerate button until

the cycle number changes (about 2 seconds.) Each cycle can be advanced in this manner.

4) waterMizer

The waterMizer®wheel will turn whenever water is being used. See figure 9.

5) REGENERATE

To start an immediate regeneration, press The “Regenerate” button and hold for 3 seconds. The

Regenerate button is used when starting your water conditioner, to start an immediate regeneration,

or to restore capacity if you have run out of salt. If your appliance has run out of salt, you may not

have soft water available. Open the salt lid and add salt. Wait two hours, then press the

"REGENERATE" button and hold for 3 seconds. See figure 9.

6) POWERCLEAN™

The powerClean™ feature is a service/maintenance step for water supplies that have an excessive

amount of iron. Activating this feature is a simple push of the powerClean™ button on the controller.

PowerClean™ will appear in the display when this feature is activated. The appliance will regener-

ate every other day with five pounds of salt. Leave the powerClean™ feature on for a minimum of

two weeks. The frequent regeneration will elimate iron buildup in the resin bed. The use of salt with

an iron cleaning agent or iron out cleaner is recommended for continuous use as a preventive

measure against iron fouling of the resin bed. To deactivate this feature, simply press the

powerClean™ button. Use this feature every six months as a part of your routine maintenance pro-

cedure to insure a long service life for your water treatment appliance. See figure 9.

Setting The Controller - Continued

ADVANCED CUSTOMER SETTINGS:

Your appliance can be programmed for High Capacity (HC) or High Efficiency (HE). High Capacity

means the appliance will regenerate less often, but use more salt. High Efficiency will make the

appliance regenerate more often and use less salt. See Specification/Capacity Chart, pg. 25.

1. Hold down SET and CHANGE for 3 seconds to enter advanced customer settings mode.

While SET and CHANGE are being held down, the display should show only the controller

type. After the 3 seconds, the entire screen is lit for a half second, and then "HC" will appear.

2. Pressing and releasing the CHANGE button will toggle the digit display between "HC" and

"HE". Pressing and releasing the SET button will advance programming to the next step.

Default is "HC".

3. The controller will now display "Demand Mode." Each press of the CHANGE button will

switch between "Demand Mode" and "Delayed Mode".

Delayed Mode allows regeneration at a specific time (e.g. at 2 am when less water is being

used.) Demand Mode triggers a regeneration as soon as softening capacity is exhausted.

Pressing and releasing the SET button will advance programming to the next step. Default is

"Demand Mode".

4. "96 Hours" is now displayed. Pressing and releasing the CHANGE button will toggle this

on and off.

If "96 Hours" is selected, the unit will work no more than 4 days without a regeneration.

Note: If there is iron in your water, select this option.

Pressing and releasing the SET button will advance programming to the next step.

Default is for "96 Hours" to be ON.

5. "Gallons X100" is now displayed. Pressing and releasing the CHANGE button will toggle

between "Gallons X100" and "Liters X1000". Choosing gallons sets the controller to English

units, and choosing liters sets it to metric units. Pressing and releasing the SET button will

advance programming to the next step.

6. If "Gallons" was chosen "12" is now displayed. If "Liters" was chosen "24" is displayed.

Pressing and releasing the CHANGE button will toggle between "24" and "12". This controls

the selection of a 12-hour (AM/PM) or 24-hour clock. If 24-hour, 00=midnight.

Default is "12".

Setting The Controller - Continued

7. "Set Time" and "12" is now lit. To set the time, press and hold the CHANGE button to

advance the numerical display, and switch from "PM" to "AM" if appropriate. Note: set the

time to the nearest hour. Pressing and releasing the SET button will save the time displayed

and advance to the next menu. Pressing and releasing the SET button will advance pro-

gramming to the next step. Default is 12 PM.

8. "Set Reg. Time" and "02" is now displayed. To set the regeneration time, press and

release the CHANGE button to advance the numerical display. Pressing and releasing the SET

button will save the "regen. time" displayed and put the unit into operation. Default is 2 AM.

PROGRAMMING IS NOW COMPLETE

4 Button Error Descriptions

“E1” Home magnet not found: Cycle power by unplugging the transformer and plugging it

back in and it will look for Home again.

“E2” Motor not plugged in: Plug motor in and cycle power. If it is plugged in, then motor

wiring or the motor plug is defective.

“E3” Home offset error:Disk didn’t start in proper home location. Controller will automatically

try to reset itself by finding Home and continuing the regeneration.

“E4” Magnet stuck at Home: Gear teeth aren’t engaged, gear stripped, something is jammed

in the valve. Cycle the power to reset.

“E5” Memory error:Replace board.

When calling the HelpLine, please have this guide and the serial number

available. From 8 am to 5 pm EST, call 1-800-437-8993.

Your serial number may be found on top of your valve assembly.

Care, Maintenance and Parts

PART# DESCRIPTION QUANITY

1 54306 Salt Port Lid 1

2 54324 Valve Cover Assembly 1

3 54540-550 Computer Control Assembly 1

54540-700 Computer Control Assembly 1

54540-900 Computer Control Assembly 1

4 93245 12V Transformer/Power Cord 1

5 54303 Cabinet. 550 / 700 1

54309 Cabinet. 900 1

6 54305 Support Panel 1

7 93530-CITY Media tank, empty, fill plug, 550 only 1

93530 Media tank, empty, 700 only 1

95505 Media tank, empty, 900 only 1

Figure 11

Care, Maintenance and Parts

Figure 12 - Cabinet and Assemblies

PART# DESCRIPTION QUANITY

1 CO700A Cabinet Overflow 1

2 54510 I/O Adapter Assembly 1

3 93838 O-Ring 2

4 93281 Fill Plug, Model 550 only 1

5 93272 O-Ring, Model 550 only 2

6 93808 O-Ring 2

7 90828 O-Ring 1

8 95301T-JG Drive End Cap Assembly 1

9 93870 Screw 4

10 93848 3/8” Brine Line (7”) 1

11 93501 Injector Assembly 1

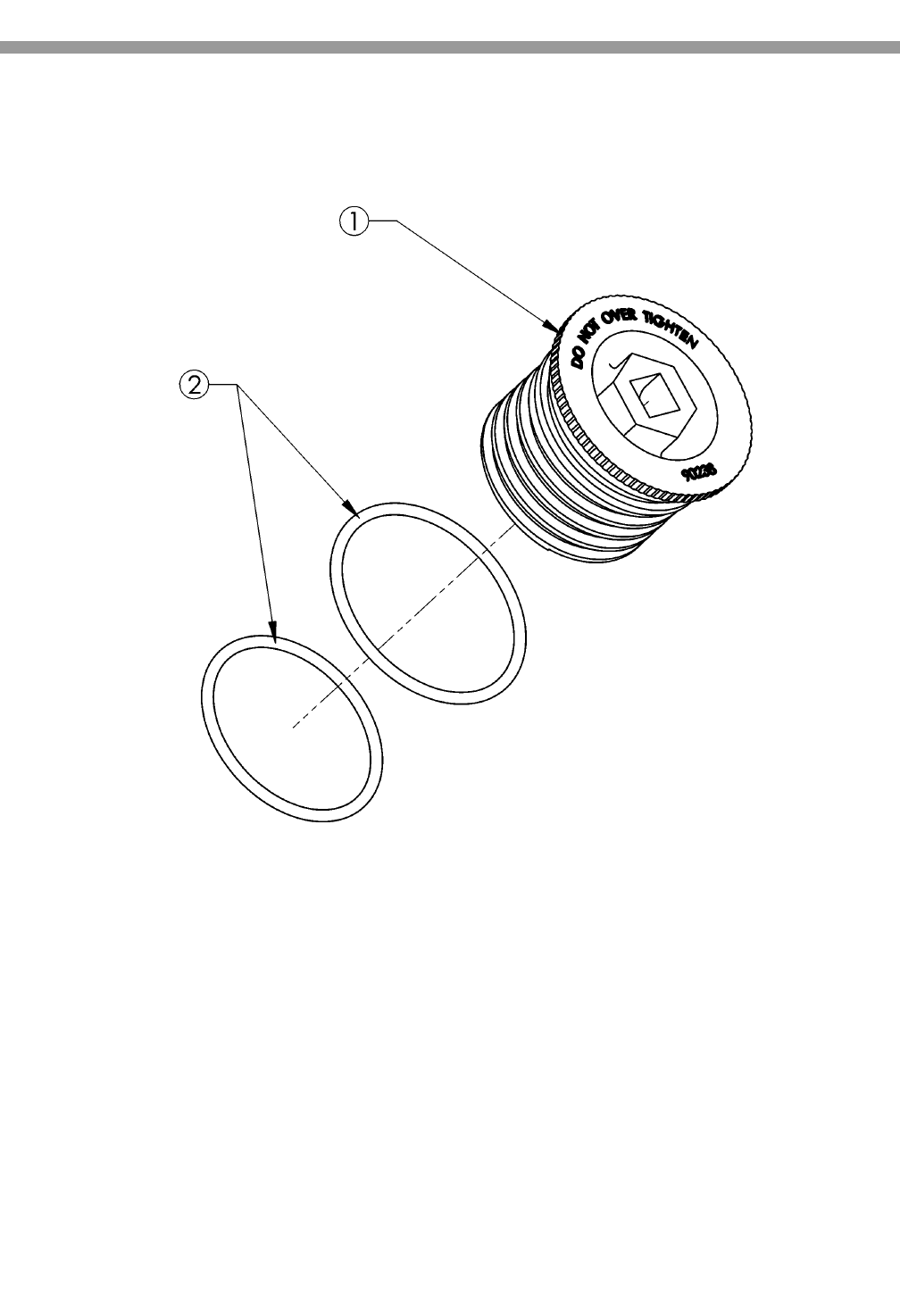

12 93835 Sleeve 2

13 93524 Drain End Cap, Barbed, Model 700 and 900 only, not shown 1

90614-3.0 Drain End Cap Assembly, Model 550 only 1

14 93809 Screw 2

15 V185 Drain Fitting, 1/2” MNT x Barb, Model 550 only 1

16 93842 Drain Line 1

Care, Maintenance and Parts

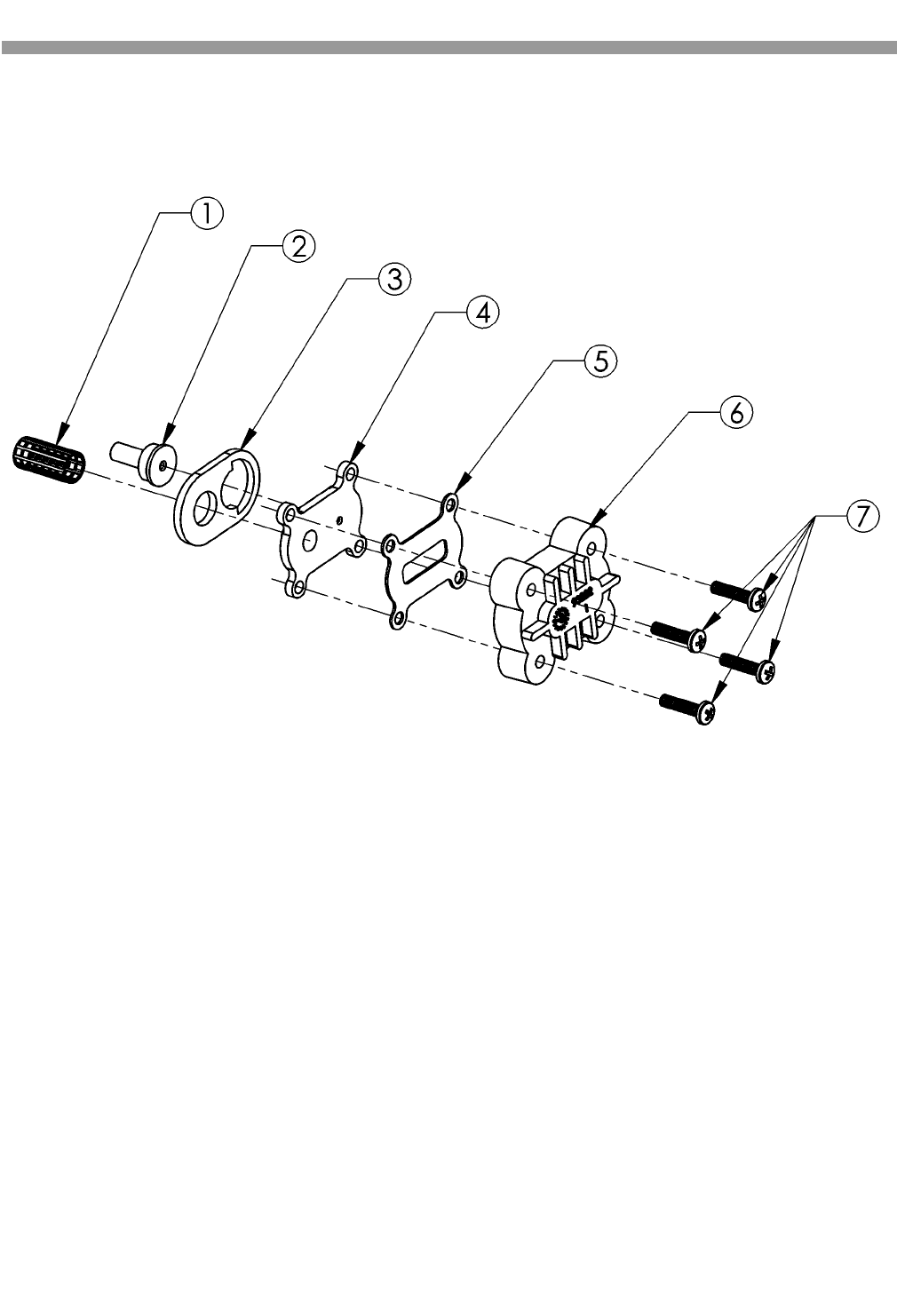

Figure 13 - Injector Assembly

PART# DESCRIPTION QUANITY

1 93810 Injector Screen 1

2 93223 Injector Throat 1

3 93220 Injector Seal 1

4 93221 Injector Nozzle 1

5 93232 Top Injector Seal (Thin) 1

6 93222 Injector Cap 1

7 90807 Screw 4

93501 includes all of the above.

Care, Maintenance and Parts

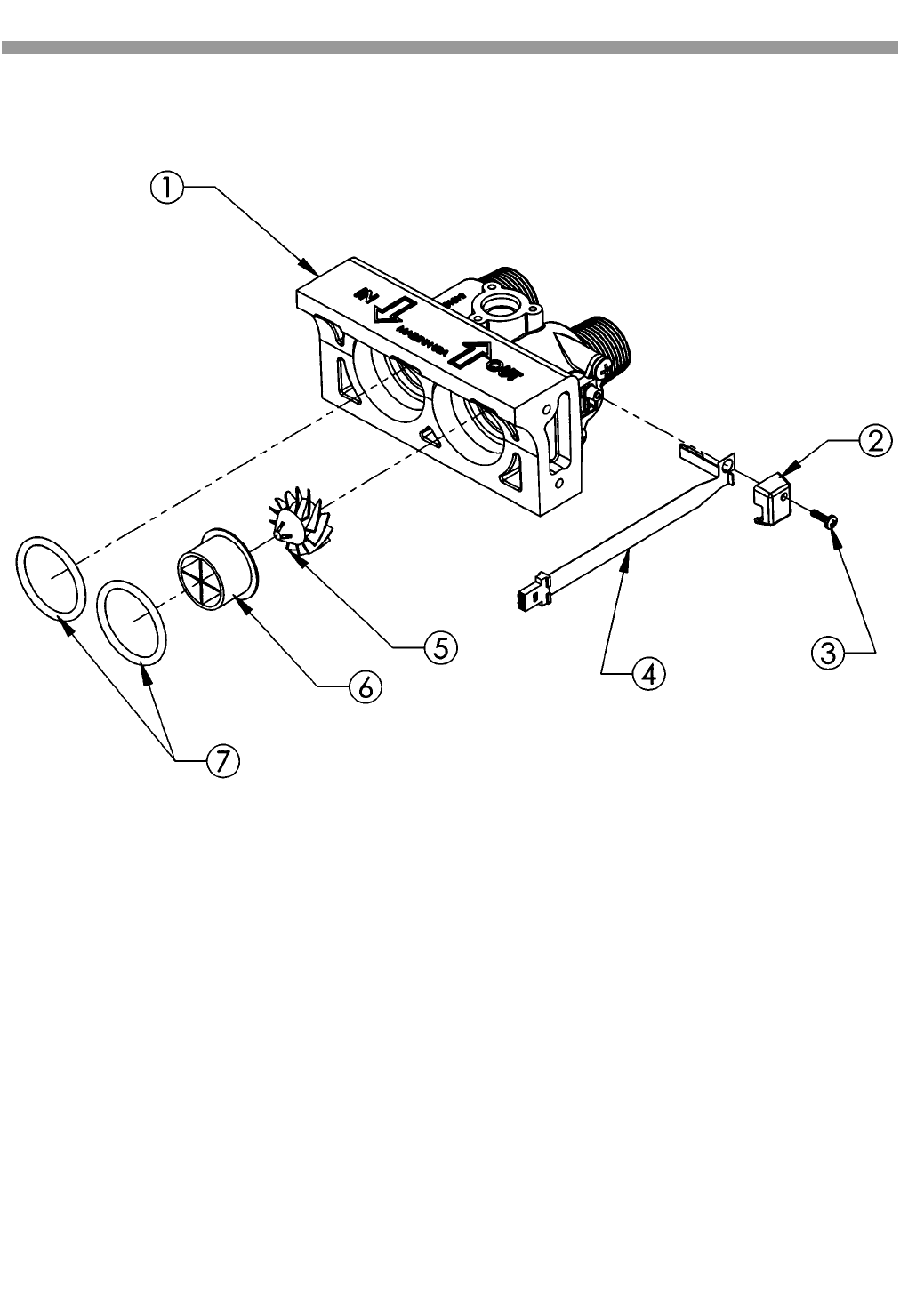

Figure 14 - I/O Adapter Assembly

PART# DESCRIPTION QUANITY

1 54131 3/4" IO Adapter 1

2 90232 Turbine Sensor Cap 1

3 90809 Sensor Cap Screw 1

4 93858 Turbine Sensor Assembly 1

5 90522 Turbine Assembly 1

6 93229 Flow Director 1

7 93838 “O” Ring 2

54510 includes all of the above.

Care, Maintenance and Parts

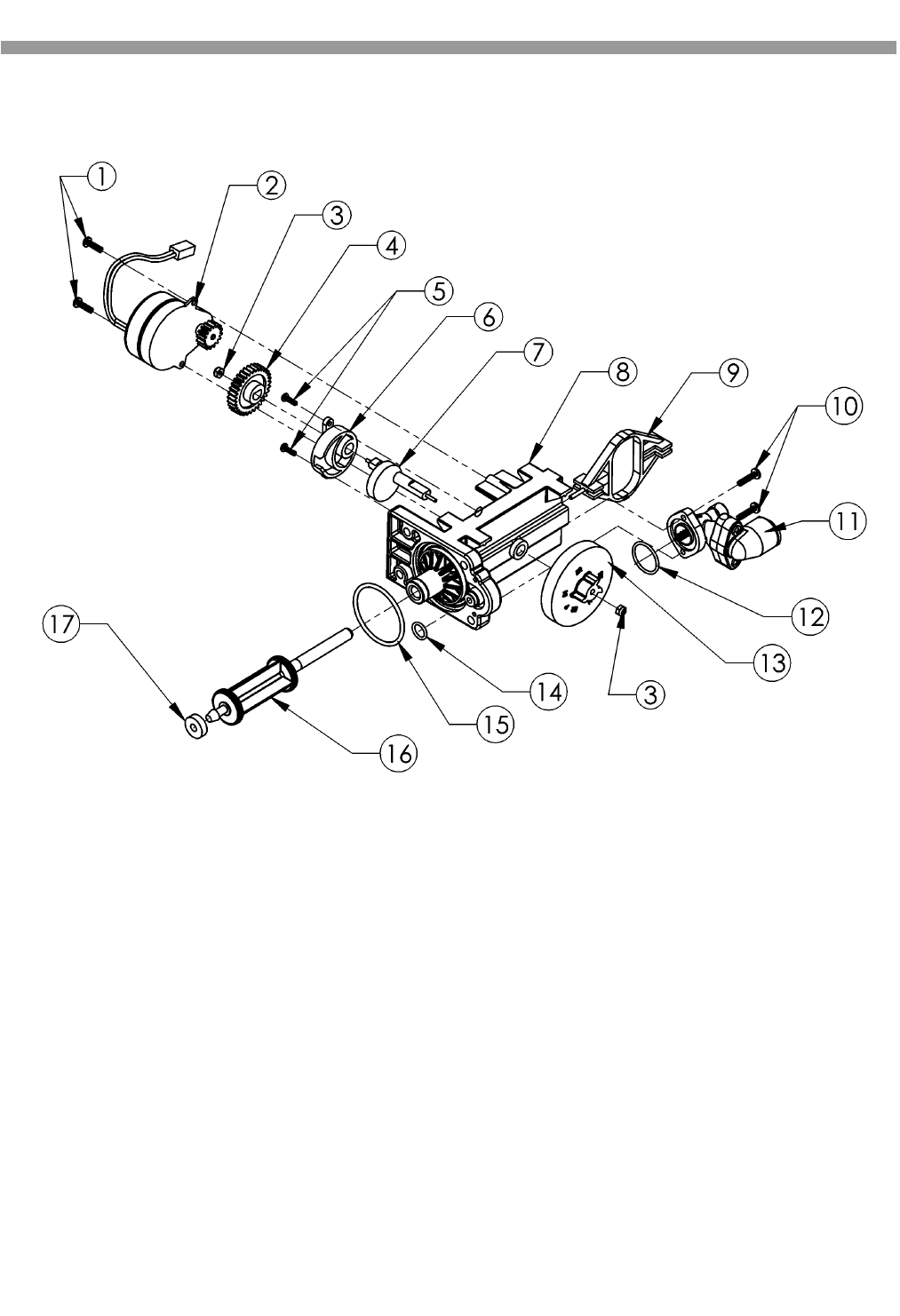

Figure 15 - Drive End Cap Assembly

PART# DESCRIPTION QUANITY

1 90802 Screw 2

2 90217 Drive Motor 1

3 93891 1/4” Hex Nut 2

4 93238 Drive Gear 1

5 90809 Screw, Cam Cover 2

6 93219 Piston Slide Cam Cover 1

7 93217 Piston Slide Cam 1

8 93583 Drive End Cap 1

9 93216 Piston Slide 1

10 90818 Screw 2

11 93601-JG Brine Valve Housing Ass’bly 1

12 90821 O-Ring 1

13 54502 Magnet Disk Assembly 1

14 90828 O-Ring 1

15 93808 O-Ring 1

16 93522-A Drive Piston Ass’bly 1

17 93839 Drain Gasket 1

Care, Maintenance and Parts

Figure 16 - Brine Valve Housing Assembly

PART# DESCRIPTION QUANITY

1 93620 Piston Assembly 1

(includes O-ring & Spring)

2 90821 O-ring 1

3 93260 Housing 1

4 93878 Quad Ring 1

5 93254 Quad Ring Retainer 1

6 90843 .5 pm Flow Control 1

7 93805 O-ring 1

8 93243-JG Housing Cap Assembly (John Guest) 1

9 200199 3/8” Locking Clip 1

10 90807 Screw 2

Concave Side

93601-JG includes all of the above.

Care, Maintenance and Parts

Figure 17 - Safety Shutoff Assembly

PART# DESCRIPTION QUANITY

1 54226 Safety Shutoff 1

2 54227 Float 1

3 54228 Air Check, 550 & 700 1

4 54229 Air Check, 900 1

Care, Maintenance and Parts

Figure 18 - Brine Valve Elbow Assembly

Care, Maintenance and Parts

Figure 19 - Bottom Fill Plug Assembly

PART# DESCRIPTION QUANITY

1 90238 Fill Plug 1

2 90819 O-ring 2

Maximum compensated hardness (grains)

Maximum ferrous iron reduction

Minimum pH

Media type and amounts

Salt usage (lbs.) / Capacity (HC - High Capacity)

Salt usage (lbs.) / Capacity (HE - High Efficiency)

Maximum water temperature

Mineral tank size

Peak flow rate / psi drop

Pressure drop @ service flow rate of 4 gpm

Maximum flow rate to drain during regeneration (backwash gpm)

Water Pressure (minimum-maximum psi)

Minimum water flow required (gpm)

Maximum Chlorine (ppm)

Controller type

Regeneration time (minutes) (HC - High Capacity)

Regeneration time (minutes) (HE - High Efficiency)

Water used/regeneration (gallons) (HC - High Capacity)

Water used/regeneration (gallons) (HE - High Efficiency)

Frequency of regeneration (days)

Salt Storage

Height (in.)

Footprint (in.)

Electrical Rating

Plumbing Connections

Shipping Weight - Approximate (lbs.)

6.5 / 17,800 7.5 / 27,000 5.0 / 11,500

70 90 25

10 ppm 10 ppm 0

777

Specifications/Capacity Chart

2.5 / 10,500 6.0 / 24,000 1.25 / 5,000

120ºF 120ºF 120ºF

10.5 X 14” I.D. 10.5 X 21” I.D. 10.5 X 14” I.D.

16 gpm/15 10 gpm/14.5 10 gpm/15

3.2 4.0 3.2

2.0 2.0 3.0

20 / 120 20 / 120 20 / 120

5 5 5

1 1 2

4 Button 4 Button 4 Button

33 48 27

18 38 9

25 33 25

16 27 15

Demand Demand Demand

120 lbs. 160 lbs. 120 lbs.

25.75” 30.75” 25.75”

14.75” X 18.75” 14.75” X 18.75” 14.75” X 18.75”

12VAC, 1 phase60 Hz 12VAC, 1 phase60 Hz 12VAC, 1 phase60 Hz

3/4 ” MNPT 3/4” MNPT 3/4” MNPT

85 lbs 105 lbs 85 lbs

MODEL #

700 900 550

Power Clean Filter Media

Super Fine Mesh

Resin - .7 cu. ft.

Power Clean Filter Media

Super Fine Mesh

Resin - 1 cu. ft.

Redox Media - 4 lbs

Activated Carbon - .15 cu.ft

Super Fine Mesh Resin - .5 cu. ft.

When calling the HelpLine, please have this guide and the serial number

available. From 8 am to 5 pm EST, call 1-800-437-8993.

Your serial number may be found on top of your valve assembly.

Troubleshooting

Problem Cause Solution

Add salt (refer to "Regenerate" Page

13)

Remove air check draw tube and

flush with clean water. Clean injec-

tor assembly. Clean any sediment

from brine cabinet.

Straighten, thaw or unclog the drain

line.

Remove injector cap and clean noz-

zle and throat with a wooden tooth-

pick. Clean screen and replace

throat if removed.

High humidity or the wrong kind of

salt can create a salt bridge.This is

a crust that forms an empty space

between the water and salt.To test,

use a blunt object like a broom han-

dle. Push the handle into the salt to

dislodge the salt bridge.

Place bypass valve in the service

position.

Check that unit is plumbed correctly.

Reset hardness (refer to

“Regenerate” Page 13).

Reset water and reset hardness.

Check waterMizer light. Light should

flash with water usage. If no light,

see below.

Place bypass valve in the service

position.

Check that unit is plumbed correctly.

Remove sensor from IO housing.Test

by placing magnet on the sensor chip.

If light turns, clean or replace turbine.

If no light, replace sensor.

Repair the leak.

Run water.Verify flashing light.

Plug in transformer.

Check power source. Make sure

outlet is not controlled by a switch.

Test with volt meter for 12 VAC at

control. If 0 VAC, replace trans-

former.

No salt in brine cabinet.

Sediment in brine tank has plugged

the brine line and air check.

Drain line is pinched, frozen or

restricted.

Clogged injector assembly (page 18).

Salt bridge has formed.

The plumbing bypass valve is in the

the bypass position (page 7).

Unit is plumbed backwards.

Extended power outage.

Water hardness has increased.

Not metering water.

The plumbing bypass valve is in the

the bypass position (page 7).

Unit is plumbed backwards.

Sensor not receiving signal from mag-

net on turbine (page 19).

There is a leak in your household

plumbing appliance.

Turbine stopped over sensor.

Electric cord is unplugged.

No electric power at outlet.

Defective transformer (fig. 8).

No soft water after regeneration.

No soft water.

waterMizer light does not turn

when water is flowing.

waterMizer light turns when

water is not being used.

waterMizer light turns steadily.

Read-out lights do not glow.

Troubleshooting

Problem Cause Solution

With 12 VAC present at controller,

replace circuit board.

Make sure computer control is pushed

all the way onto drive end cap.

Remove foreign objects from valve

body.

Repair drive end cap.

Remove restriction, thaw or straight-

en drain line.

Clean flow control, air check and

brine line. Clean any sediment from

brine cabinet.

Clean or replace injector. Replace

throat if removed.

Remove brine valve. Lubricate piston

with silicone grease and reassemble.

Replace magnet disc.

Replace control.

Clean injector screen, nozzle and

throat. See figure 13 page 18.

Maintain min. pressure of 20 psi.

See specifications page 25.

Remove restrictions.

Remove restrictions, replace if

crimped.

Verify correct water level relative to

salt setting. Check lines for loose

connections.

Verify adequate pressure and volume

of water supply.

See specifications page 25.

Defective circuit board (fig. 9).

Computer control not attached properly.

Foreign object in valve body.

Broken valve assembly. Motor running.

Magnet disc not turning (page 20).

Restricted, frozen or pinched drain line.

Plugged brine line, brine line flow con-

trol or air check (page 21, 22).

Plugged injector assembly

(page 18).

Sticking brine refill valve.

Magnet disc defective.

Defective position sensor.

Plugged Injector.

Low water pressure.

Drain line or flow control restricted.

Brine line restricted or crimped.

Excessive amount of water in

brine cabinet.

Intermittent pressure drop

from feed source.

Read-out lights do not glow.

Unit stays in regeneration. Cycle

numbers remain flashing.

Excess water in brine tank.

Should be approx. 6 - 8" with

salt for Models 700 and 550,

and 8-10” for Model 900.

Not regenerating in proper

sequence.

Salty water.

When calling the HelpLine, please have this guide and the serial number

available. From 8 am to 5 pm EST, call 1-800-437-8993.

Your serial number may be found on top of your valve assembly.

Limited Warranty

To Whom Warranty is Extended

This warranty is issued to the original owner at the original

location site and is not transferable to other sites or to sub-

sequent owners of the appliance.

TO PLACE THE EQUIPMENT UNDER WARRANTY, THE

WARRANTY REGISTRATION CARD MUST BE COMPLETED

AND RETURNED BY THE ORIGINAL OWNER TO

WaterBoss

WITHIN 30 DAYS OF INSTALLATION.

Coverage

This limited warranty covers the

WaterBoss

®appliances

delivered to the original owner at the original location when the

appliance is purchased for personal, family, or household use. It

is intended to cover defects occurring in workmanship or mate-

rials or both.

Warrantor's Performance and Length of Limited warranty -

WaterBoss

®warrants that upon receipt from the original

owner of any mechanical or electronic part which is found to

be defective in materials or workmanship,

WaterBoss

®will

repair or replace the defective item for 3 years from date

of original installation.

WaterBoss

®further warrants that upon receipt from

the original owner of any

WaterBoss

® media tank / valve

body, brine cabinet, found to be defective in material or

workmanship,

WaterBoss

®will repair or replace the defec-

tive item for 10 years from date of original installation.

All defective parts must be returned, along with the equip-

ment serial number and date of original installation, to

WaterBoss

®PREPAID, and replacement parts will be returned

WaterBoss

®to the original owner FREIGHT COLLECT.

FURTHER EXCLUSIONS AND LIMITATIONS ON WARRANTY

THERE ARE NO WARRANTIES OTHER THAN THOSE

DESCRIBED IN THIS WARRANTY INSTRUMENT.

This warranty does not cover any service call or labor costs

incurred with respect to the removal and replacement of any

defective part or parts.

WaterBoss

®will not be liable for, nor

will it pay service call or labor charges incurred or expended

with respect to this warranty.

In the event the water supply being processed through this

product contains bacterial iron, algae, sulphur, tannins,

organic matter or other unusual substances, then, unless

the appliance is represented as being capable of handling

these substances in the product specifications, other special

treatment of the water supply must be used to remove these

substances before they enter this product. Otherwise,

WaterBoss

®shall have no obligations under this warranty.

This warranty does not cover damage to a part or parts of

the appliance from causes such as fire, accidents, freezing,

or unreasonable use, abuse or neglect by the owner.

This warranty does not cover damage to a part or parts of

the appliance resulting from improper installation. All plumb-

ing and electrical connections should be made in accordance

with all local codes and the installation instructions provided

with the appliance. The warranty does not cover damage

resulting from use with inadequate or defective plumbing;

inadequate or defective water supply or pressure; inadequate

or defective house wiring; improper voltage, electrical service,

or electrical connections; or violation of applicable building,

plumbing, or electrical codes laws, ordinances or regulations.

THIS WARRANTY DOES NOT COVER INCIDENTAL,

CONSEQUENTIAL OR SECONDARY DAMAGES.

ANY IMPLIED WARRANTIES ON THE PRODUCT

DESCRIBED IN THIS WARRANTY WILL NOT BE

EFFECTIVE AFTER THE EXPIRATION OF THIS

WARRANTY.

Some states do not allow limitations on how long an implied

warranty lasts or the exclusion or limitation of incidental or

consequential damages, so the above limitations and exclu-

sion may not apply to you. This warranty gives you specific

legal rights and you may also have other rights which vary

from state to state.

Claims Procedures

Any defects covered by this warranty should be promptly

reported to:

WaterBoss

4343 South Hamilton Road,

Groveport, Ohio 43125

In writing about the defects, please provide the original

owner’s name, telephone number and original address, seri-

al number and model number of the product, and date of

purchase .

WaterBoss

®reserves the right to replace defec-

tive parts with exact duplicates or their equivalent.

For Owner’s Reference

Model No. _________________________________

Equipment Serial No. _________________________________

Installation Date _____________________________________

Installer’s Signature __________________________________

WaterBoss

will not accept any returns

after 6 months from date of purchase.

Call: 1-800-437-8993

For Return Information

Notes

When calling the HelpLine, please have this guide and the serial number

available. From 8 am to 5 pm EST, call 1-800-437-8993.

Your serial number may be found on top of your valve assembly.

WaterBoss

®P.O. Box 298, Groveport, OH 43125

LITHO USA Form #93966 Version 4 RV0403WAL24M

Water Boss 700 Users Manual

700 to the manual 97d226f5-dee7-45cf-a4dd-094a26dbf994

Navigation menu

Versions of this User Manual:

Views

Navigation
