User’s Manual

Registered Company

Winona, Minnesota USA

ISO 9001

TOTAL

3 Year Warranty

CUS

TISF

CTI

EZ-ZONE® PM

Integrated Controller Models

1241 Bundy Boulevard., Winona, Minnesota USA 55987

Phone: +1 (507) 454-5300, Fax: +1 (507) 452-4507 http://www.watlow.com

Safety Information

We use note, caution and warning symbols through-

out this book to draw your attention to important

operational and safety information.

A “NOTE” marks a short message to alert you to

an important detail.

A “CAUTION” safety alert appears with informa-

tion that is important for protecting your equip-

ment and performance. Be especially careful to

read and follow all cautions that apply to your

application.

A “WARNING” safety alert appears with infor-

mation that is important for protecting you,

others and equipment from damage. Pay very

close attention to all warnings that apply to your

application.

The safety alert symbol, ç (an exclamation

point in a triangle) precedes a general CAUTION

or WARNING statement.

The electrical hazard symbol, Ó (a lightning bolt

in a triangle) precedes an electric shock hazard

CAUTION or WARNING safety statement.

ç CAUTION or WARNING

Ó Electrical Shock Hazard

CAUTION or WARNING

Warranty

The EZ-ZONE® PM is manufactured by ISO

9001-registered processes and is backed by a three-

year warranty to the first purchaser for use, provid-

ing that the units have not been misapplied. Since

Watlow has no control over their use, and some-

times misuse, we cannot guarantee against failure.

Watlow’s obligations hereunder, at Watlow’s option,

are limited to replacement, repair or refund of pur-

chase price, and parts which upon examination prove

to be defective within the warranty period specified.

This warranty does not apply to damage resulting

from transportation, alteration, misuse or abuse. The

purchaser must use Watlow parts to maintain all

listed ratings.

Technical Assistance

If you encounter a problem with your Watlow control-

ler, review your configuration information to verify

that your selections are consistent with your applica-

tion: inputs, outputs, alarms, limits, etc. If the prob-

lem persists, you can get technical assistance from

your local Watlow representative (see back cover), by

e-mailing your questions to wintechsupport@watlow.

com or by dialing +1 (507) 494-5656 between 7 a.m.

and 5 p.m., Central Standard Time (CST). Ask for for

an Applications Engineer. Please have the following

information available when calling:

• Complete model number

• All configuration information

• User’s Manual

• Factory Page

Return Material Authorization (RMA)

1. Call Watlow Customer Service, (507) 454-5300,

for a Return Material Authorization (RMA) num-

ber before returning any item for repair. If you

do not know why the product failed, contact an

Application Engineer or Product Manager. All

RMA’s require:

• Ship-to address

• Bill-to address

• Contact name

• Phone number

• Method of return shipment

• Your P.O. number

• Detailed description of the problem

• Any special instructions

• Name and phone number of person returning

the product.

2. Prior approval and an RMA number from the

Customer Service Department is required when

returning any product for credit, repair or evalu-

ation. Make sure the RMA number is on the out-

side of the carton and on all paperwork returned.

Ship on a Freight Prepaid basis.

3. After we receive your return, we will examine it

and try to verify the reason for returning it.

4. In cases of manufacturing defect, we will enter a

repair order, replacement order or issue credit for

material returned. In cases of customer mis-use,

we will provide repair costs and request a pur-

chase order to proceed with the repair work.

5. To return products that are not defective, goods

must be be in new condition, in the original boxes

and they must be returned within 120 days of

receipt. A 20 percent restocking charge is applied

for all returned stock controls and accessories.

6. If the unit is unrepairable, you will receive a let-

ter of explanation. and be given the option to have

the unit returned to you at your expense or to

have us scrap the unit.

7. Watlow reserves the right to charge for no trouble

found (NTF) returns.

The EZ-ZONE® PM User’s Manual is copyrighted

by Watlow Winona, Inc., © July 2007 with all rights

reserved.

EZ-ZONE® PM is covered by U.S. Patent No.

6,005,577 and Patents Pending

Watlow EZ-ZONE® PM Integrated Controller • 1 • Table of Contents

TC Table of Contents

Chapter 1: Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Standard Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Chapter 2: Install and Wire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Chapter 3: Keys and Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Attention Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Chapter 4: Home Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Chapter 5: Operations Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Chapter 6: Setup Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Chapter 7: Profiling Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Chapter 8: Factory Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Chapter 9: Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Chapter 10: Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

Troubleshooting Alarms, Errors and Control Issues . . . . . . . . . . . . . . 66

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Ordering Information for Integrated Controller Models . . . . . . . . . . . . 71

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Watlow EZ-ZONE® PM Integrated Controller • 2 • Chapter 1 Overview

Chapter 1: Overview

The EZ-ZONE® PM takes the pain out of solving

your thermal loop requirements.

Watlow’s EZ -ZONE® PM controllers offer options

to reduce system complexity and the cost of control-

loop ownership. You can order the EZ-ZONE® PM as

a PID controller or an over-under limit controller, or

you can combine both functions in the PM Integrat-

ed Limit Controller. You now have the option to in-

tegrate a high-amperage power controller output, an

over-under limit controller and a high-performance

PID controller all in space-saving, panel-mount

packages. You can also select from a number of se-

rial communications options to help you manage sys-

tem performance.

It just got a whole lot easier to solve the ther-

mal requirements of your system. Because the EZ-

ZONE® PM controllers are highly scalable, you only

pay for what you need. So if you are looking for a

PID controller, an over-under limit controller or an

integrated controller, the EZ-ZONE® PM is the an-

swer.

Standard Features and Benefits

Advanced PID Control Algorithm

• TRU-TUNE+

Adaptive tune provides tighter con-

trol for demanding applications.

• Auto Tune for fast, efficient start ups

High-amperage Power Control Output

• Drives 15 amp resistive loads directly

• Reduces component count

• Saves panel space and simplifies wiring

• Reduces the cost of ownership

EZ-ZONE® configuration communications and

software

• Saves time and improves the reliability of control-

ler set up

FM Approved Over-under Limit with Auxiliary

Outputs

• Increases user and equipment safety for over-

under temperature conditions

Parameter Save & Restore Memory

• Reduces service calls and down time

Agency approvals: UL Listed, CSA, CE, RoHS,

W.E.E.E. FM

• Assures prompt product acceptance

• Reduces end product documentation costs

• FM approval on Limit Models

• Semi F47-0200

P3T Armor Sealing System

• NEMA 4X and IP66 offers water and dust resis-

tance, can be cleaned and washed down

• Backed up by UL 50 independent certification to

NEMA 4X specification

Three-year warranty

• Demonstrates Watlow’s reliability and product

support

Touch-safe Package

• IP2X increased safety for installers and operators

Removable cage clamp wiring connectors

• Reliable wiring, reduced service calls

• Simplified installation

EZ-Key

• Programmable EZ-Key enables simple one-touch

operation of repetitive user activities

Programmable Menu System

• Reduces set up time and increases operator effi-

ciency

Full-featured Alarms

• Improves operator recognition of system faults

• Control of auxiliary devices

Heat-Cool Operation

• Provides application flexibility with accurate tem-

perature and process control

Profile Capability

• Preprogrammed process control

• Ramp and soak programming with four files and

40 total steps

Watlow EZ-ZONE® PM Integrated Controller • 3 • Chapter 1 Overview

A Conceptual View of the PM

The flexibility of the PM’s software and hardware al-

lows a large range of configurations. Acquiring a bet-

ter understanding of the controller’s overall function-

ality and capabilities while at the same time plan-

ning out how the controller can be used will deliver

maximum effectiveness in your application.

It is useful to think of the controller in three

parts: inputs; procedures; and outputs. Information

flows from an input to a procedure to an output when

the controller is properly configured. A single PM

controller can carry out several procedures at the

same time, for instance closed-loop control, monitor-

ing for several different alarm situations and oper-

ating switched devices, such as lights and motors.

Each process needs to be thought out carefully and

the controller’s inputs, procedures and outputs set up

properly.

Inputs

The inputs provide the information that any given

programmed procedure can act upon. In a simple

form, this information may come from an operator

pushing a button or as part of a more complex pro-

cedure it may represent a remote set point being re-

ceived from another controller.

Each analog input typically uses a thermocouple

or RTD to read the temperature of something. It can

also read volts, current or resistance, allowing it to

use various devices to read humidity, air pressure,

operator inputs and others values. The settings in

the Analog Input Menu (Setup Page) for each analog

input must be configured to match the device con-

nected to that input.

Each digital input reads whether a device is active

or inactive. A PM with digital input-output hardware

includes two sets of terminals each of which can be

used as either an input or an output. Each pair of

terminals must be configured to function as either

an input or output with the Direction parameter in

the Digital Input/Output Menu (Setup Page).

The Function or EZ Key on the front panel of the

PM also operates as a digital input by toggling the

function assigned to it in the Digital Input Function

parameter in the Function Key Menu (Setup Page).

Functions

Functions use input signals to calculate a value. A

function may be as simple as reading a digital input

to set a state to true or false, or reading a tempera-

ture to set an alarm state to on or off. Or, it could

compare the temperature of a process to the set point

and calculate the optimal power for a heater.

To set up a function, it’s important to tell it what

source, or instance, to use. For example, an alarm

may be set to respond to either analog input 1 or 2

(instance 1 or 2, respectively).

Keep in mind that a function is a user-pro-

grammed internal process that does not execute any

action outside of the controller. To have any effect

outside of the controller, an output must be config-

ured to respond to a function.

Outputs

Outputs can perform various functions or actions in

response to information provided by a function, such

as operating a heater; turning a light on or off; un-

locking a door; or turning on a buzzer.

Assign an output to a Function in the Output

Menu or Digital Input/Output Menu. Then select

which instance of that function will drive the select-

ed output. For example, you might assign an output

to respond to alarm 4 (instance 4) or to retransmit

the value of analog input 2 (instance 2).

You can assign more than one output to respond

to a single instance of a function. For example, alarm

2 could be used to trigger a light connected to output

1 and a siren connected to digital output 5.

Input Events and Output Events

Input events are internal states that are set by the

digital inputs. Digital input 5 provides the state of

input event 1, and digital input 6 provides the state

of input event 2. Wait for Event steps in profiles

are triggered by these events. The setting of Digital

Input Function (Setup Page, Digital Input/Output

Menu) does not change the relationship between the

input and the event, so take care not to configure the

function in a way that would conflict with a profile

that uses an input event. An input will still control

the input event state, even if Digital Input Function

is set to None.

Output events are internal states that can only be

set by profile steps. Outputs 1 through 4 can be con-

figured to respond to output events.

Watlow EZ-ZONE® PM Integrated Controller • 4 • Chapter 1 Overview

EZ-ZONE® PM Integrated Model 1/16 DIN with a Current Transformer — Input/Output

(no communications options 2 to 3)

Universal Sensor Input, Configuration Communications,

Red/Green 7-Segment Display

Supervisory

Power

Board

Slot C

PID

Controller

Board

Slot A

ramp-soak

with 4 ﬁles

(optional)

Output 4 none, switched dc, form A

mechanical (5 A) or solid-state (0.5 A)

relay

Output 3 none, switched dc/open

collector, form C mechanical (5 A) or

solid-state (0.5 A) relay, process (V, mA)

Output 2 none, switched dc, no-arc

power control (15 A), form A mechanical

(5 A) or solid-state (0.5 A) relay

Output 1 none, switched dc/open

collector, form C mechanical (5 A) or

solid-state (0.5 A) relay, process (V, mA)

off, heat, cool,

duplex, alarm,

retransmit,

event

off, heat, cool,

alarm, event

off, heat, cool,

alarm, event,

retransmit

off, heat, cool,

alarm, event

EZ Key

programmable event

Digital Output (or Input) 5 (optional)

none, switched dc

Digital Output (or Input) 6 (optional)

none, switched dc

off, heat, cool,

alarm, event

off, heat, cool,

alarm, event

Network

remote user interface,

personal computer,

programmable logic

controller, human-

machine interface

EIA 485 Communications

Standard Bus, Modbus RTU (optional)

Current

Transformer

Board

(optional)

Slot B

Analog Input 1 thermocouple,

RTD, process (V, mV, mA, 1k po-

tentiometer)

Digital Input (or Output) 5

(optional) none, switch, volts dc

Digital Input (or Output) 6

(optional) none, switch, volts dc

Analog Input 2

current transformer

none,

idle set point,

alarm reset,

tune,

silence alarm,

manual/auto mode,

control outputs off,

lock keypad,

force alarm,

TRU-TUNE+® disable

loop & alarms off,

proﬁle disable,

proﬁle hold/resume,

proﬁle start,

proﬁle start/stop,

restore user settings

current transformer

input sensor

Input

Functions

Output

Functions

Current Monitoring

• detects heater current flow

• provides an alarm indication of a failed-load issue.

Watlow EZ-ZONE® PM Integrated Controller • 5 • Chapter 1 Overview

EZ-ZONE® PM Integrated Model 1/16 DIN with Remote Set Point — Input/Output

(no communications options 2 to 3)

Universal Sensor Input, Configuration Communications,

Red/Green 7-Segment Display

Supervisory

Power

Board

Slot C

PID

Controller

Board

Slot A

ramp-soak

with 4 ﬁles

(optional)

Output 4 none, switched dc, form A

mechanical (5 A) or solid-state (0.5 A)

relay

Output 3 none, switched dc/open

collector, form C mechanical (5 A) or

solid-state (0.5 A) relay, process (V, mA)

Output 2 none, switched dc, no-arc

power control (15 A), form A mechanical

(5 A) or solid-state (0.5 A) relay

Output 1 none, switched dc/open

collector, form C mechanical (5 A) or

solid-state (0.5 A) relay, process (V, mA)

off, heat, cool,

duplex, alarm,

retransmit,

event

off, heat, cool,

alarm, event

off, heat, cool,

alarm, event

EZ Key

programmable event

Digital Output (or Input) 5 (optional)

none, switched dc

Digital Output (or Input) 6 (optional)

none, switched dc

off, heat, cool,

alarm, event

off, heat, cool,

alarm, event

Network

remote user interface,

personal computer,

programmable logic

controller, human-

machine interface

EIA 485 Communications

Standard Bus, Modbus RTU (optional)

Remote Set

Point

Board

(optional)

Slot B

Analog Input 1 thermocouple,

RTD, process (V, mV, mA, 1k po-

tentiometer)

Digital Input (or Output) 5

(optional) none, switch, volts dc

Digital Input (or Output) 6

(optional) none, switch, volts dc

none,

idle set point,

alarm reset,

tune,

silence alarm,

manual/auto mode,

control outputs off,

local-remote,

lock keypad,

force alarm,

TRU-TUNE+® disable

loop & alarms off,

proﬁle disable,

proﬁle hold/resume,

proﬁle start,

proﬁle start/stop,

restore user settings

input sensor

Input

Functions

Output

Functions

Analog Input 2 thermocouple,

RTD, process (V, mV, mA, 1k po-

tentiometer)

off, heat, cool,

duplex, alarm,

retransmit,

event

Remote Set Point Operation

• Supports efficient set point manipulation from a remote device, such as a master control or PLC.

Watlow EZ-ZONE® PM Integrated Controller • 6 • Chapter 1 Overview

EZ-ZONE® PM Integrated Model 1/16 DIN with a Limit — Input/Output

(no communications options 2 to 3)

Universal Sensor Input, Configuration Communications,

Red/Green 7-Segment Display

Supervisory

Power

Board

Slot C

PID

Controller

Board

Slot A

ramp-soak

with 4 ﬁles

(optional)

Output 4

form A mechanical (5 A) relay

Output 3 none, switched dc/open

collector, form C mechanical (5 A) or

solid-state (0.5 A) relay, process (V, mA)

Output 2 none, switched dc, no-arc

power control (15 A), form A mechanical

(5 A) or solid-state (0.5 A) relay

Output 1 none, switched dc/open

collector, form C mechanical (5 A) or

solid-state (0.5 A) relay, process (V, mA)

off, heat, cool,

duplex, alarm,

retransmit,

event

off, heat, cool,

alarm, event

limit

EZ Key

programmable event

Digital Output (or Input) 5 (optional)

none, switched dc

Digital Output (or Input) 6 (optional)

none, switched dc

off, heat, cool,

alarm, event

off, heat, cool,

alarm, event

Network

remote user interface,

personal computer,

programmable logic

controller, human-

machine interface

EIA 485 Communications

Standard Bus, Modbus RTU (optional)

Limit

Controller

Board

(optional)

Slot B

Analog Input 1 thermocouple,

RTD, process (V, mV, mA, 1k po-

tentiometer)

Digital Input (or Output) 5

(optional) none, switch, volts dc

Digital Input (or Output) 6

(optional) none, switch, volts dc

none, limit reset,

idle set point,

tune,

alarm reset,

silence alarm,

manual/auto mode,

control outputs off,

lock keypad,

force alarm,

TRU-TUNE+® disable

loop & alarms off,

proﬁle disable,

proﬁle hold/resume,

proﬁle start,

proﬁle start/stop,

restore user settings

input sensor

Input

Functions

Output

Functions

Analog Input 2 thermocouple,

RTD, process (V, mV, mA, 1k po-

tentiometer)

off, heat, cool,

duplex, alarm,

retransmit,

event, limit

Integrated PID and Limit Controller

• Reduces wiring time and termination complexity compared to connecting separate products

• Reduces panel space

• Reduces installation costs

• Increases dependability with backup control sensor operation

• Increases user and equipment safety for over-under temperature conditions

Watlow EZ-ZONE® PM Integrated Controller • 7 • Chapter 1 Overview

EZ-ZONE® PM Integrated Model 1/16 DIN with Expanded Communications

— Input/Output

Universal Sensor Input, Configuration Communications,

Red/Green 7-Segment Display

Supervisory

Power

Board

Slot C

PID

Controller

Board

Slot A

ramp-soak

with 4 ﬁles

(optional) Output 2 none, switched dc, no-arc

power control (15 A), form A mechanical

(5 A) or solid-state (0.5 A) relay

Output 1 none, switched dc/open

collector, form C mechanical (5 A) or

solid-state (0.5 A) relay, process (V, mA)

off, heat, cool,

duplex, alarm,

retransmit,

event

off, heat, cool,

alarm, event

EZ Key

programmable event

Digital Output (or Input) 5 (optional)

none, switched dc

Digital Output (or Input) 6 (optional)

none, switched dc

off, heat, cool,

alarm, event

off, heat, cool,

alarm, event

Network

remote user interface,

personal computer,

programmable logic

controller, human-

machine interface

EIA 485 Communications

Standard Bus, Modbus RTU (optional)

Communi-

cations

Board

(optional)

Slot B

Analog Input 1 thermocouple,

RTD, process (V, mV, mA, 1k po-

tentiometer)

Digital Input (or Output) 5

(optional) none, switch, volts dc

Digital Input (or Output) 6

(optional) none, switch, volts dc

none,

idle set point,

tune,

alarm reset,

silence alarm,

manual/auto mode,

control outputs off,

lock keypad,

force alarm,

TRU-TUNE+® disable

loop & alarms off,

proﬁle disable,

proﬁle hold/resume,

proﬁle start,

proﬁle start/stop,

restore user settings

input sensor

Input

Functions

Output

Functions

Communications

EIA-232/485 Modbus RTU,

EtherNet/IPTM, Modbus TCP

Serial Communication Capabilities

• Supports network connectivity to a PC or PLC

• Available in a wide range of protocol choices, including Modbus RTU, EtherNet/IP™, Modbus TCP

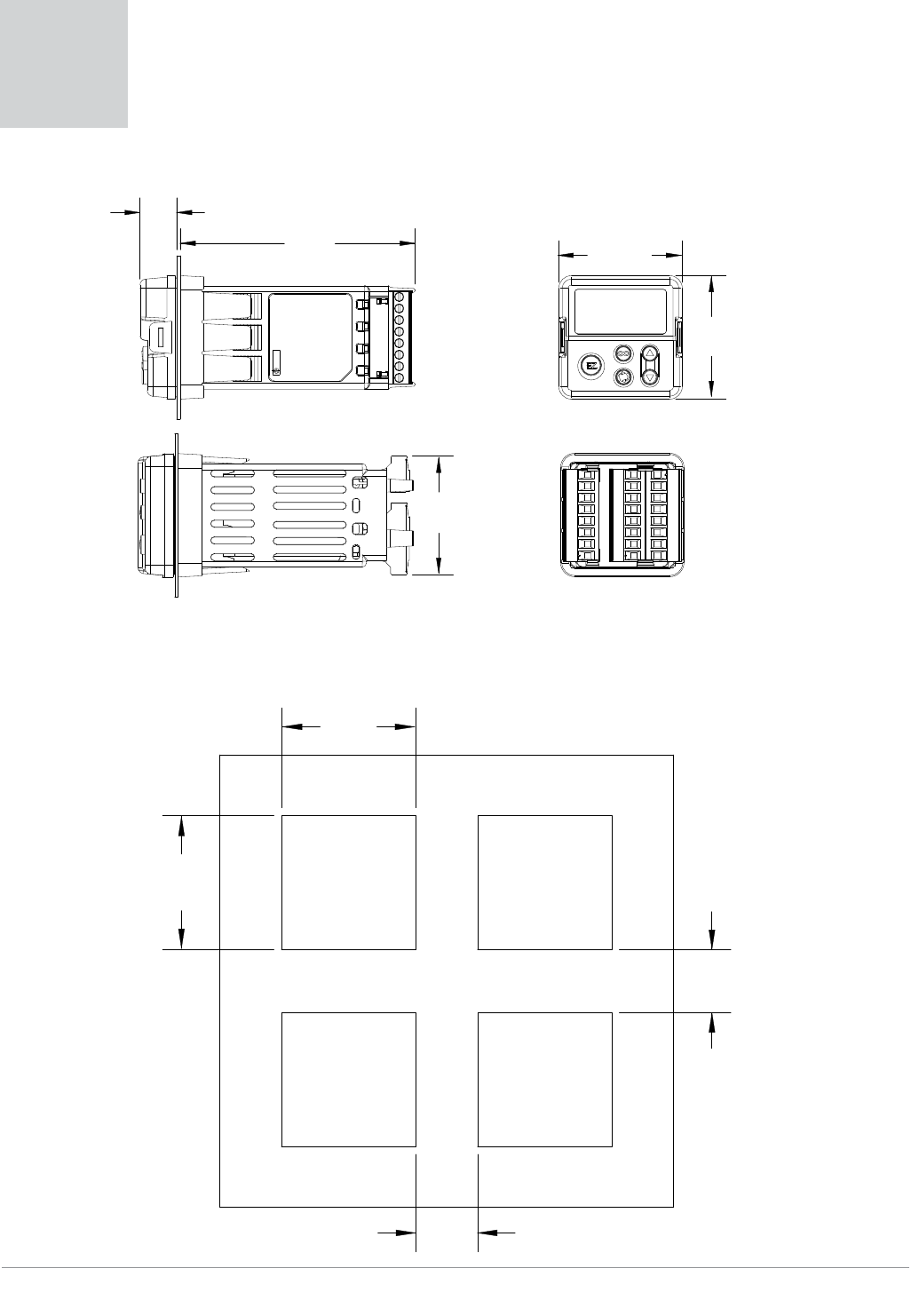

Watlow EZ-ZONE® PM Integrated Controller • 8 • Chapter 2 Install and Wire

15.8 mm

(0.62 in)

101.6 mm

(4.00 in) 53.3 mm

(2.10 in)

53.3 mm

(2.10 in)

51.2 mm

(2.02 in)

Side Front

Top Back

Chapter 2:

Install and Wire

Dimensions

21.6 mm

(0.85 in)

45.2 mm

(1.78 in)

45.2 mm

(1.78 in)

21.6 mm

(0.85 in)

Recommended panel spacing

panel thickness 1.53 to 9.52 mm

(0.060 to 0.375)

Watlow EZ-ZONE® PM Integrated Controller • 9 • Chapter 2 Install and Wire

Installation

case

retention collar

panel

bezel

gasket

1. Make the panel cutout using the mounting tem-

plate dimensions in this chapter.

Insert the case assembly into the panel cutout.

2. While pressing the case assembly firmly against

the panel, slide the mounting collar over the back

of the controller.

If the installation does not require a NEMA 4X

seal, slide the mounting collar up to the back of

the panel tight enough to eliminate the spacing

between the gasket and the panel.

Slide the mounting collar over

the back of the controller.

Place the blade of a screw-

driver in the notch of the

mounting collar assembly.

3. For a NEMA 4X (UL50, IP66) seal, place the

blade of a screwdriver in the notch of the mount-

ing collar assembly and push toward the panel

while applying pressure to the face of the control-

ler. Don't be afraid to apply enough pressure to

properly install the controller. The seal system is

compressed more by mating the mounting collar

tighter to the front panel (see pictures above). If

you can move the case assembly back and forth

in the cutout, you do not have a proper seal.

The tabs on each side of the mounting collar have

teeth that latch into the ridges on the sides of the

controller. Each tooth is staggered at a different

depth from the front so that only one of the tabs,

on each side, is locked onto the ridges at a time.

Note: There is a graduated measurement difference between

the upper and lower half of the display to the panel. In order to

meet the seal requirements mentioned above, ensure that the

distance from the front of the top half of the display to the panel

is 16 mm (0.630 in.) or less, and the distance from the front of

the bottom half and the panel is 13.3 mm (0.525 in.) or less.

Removing the Mounted Controller from Its Case

1. From the controller's face, pull out the tab on

each side until you hear it click.

Pull out the tab on each side

until you hear it click.

Grab the unit above and below

the face and pull forward.

2. Once the sides are released, grab the unit above

and below the face with two hands and pull the

unit out.

If it is difficult to pull the unit out, remove the

connectors from the back of the controller. This

should make it easier to remove.

ÓWarning:

• This equipment is suitable for use in class 1, div. 2, Groups

A, B, C and D or Non-Hazardous locations only. Temperature

Code T4A.

• WARNING – EXPLOSION HAZARD. Substitution of component

may impair suitability for class 1, div. 2.

• WARNING – EXPLOSION HAZARD. Do not disconnect equip-

ment unless power has been switched off or the area is known

to be nonhazardous.

Watlow EZ-ZONE® PM Integrated Controller • 10 • Chapter 2 Install and Wire

Returning the Controller to its Case

1. Ensure that the orientation of the controller is

correct and slide it back into the housing.

Note: The controller is keyed so if it feels that it will not

slide back in do not force it. Check the orientation again

and reinsert after correcting.

2. Using your thumbs push on either side of the con-

troller until both latches click.

Chemical Compatibility

This product is compatible with acids, weak alkalis,

alcohols, gamma radiation and ultraviolet radiation.

This product is not compatible with strong alkalis,

organic solvents, fuels, aromatic hydrocarbons, chlo-

rinated hydrocarbons, esters and keytones.

ÓWarning:

All electrical power to the controller and controlled circuits

must be disconnected before removing the controller from the

front panel or disconnecting other wiring.

Failure to follow these instructions may cause an electrical

shock and/or sparks that could cause an explosion in class 1,

div. 2 hazardous locations.

Watlow EZ-ZONE® PM Integrated Controller • 11 • Chapter 2 Install and Wire

Slot A Slot B

Output Terminal Function Configuration

1234

common (Any switched dc output can use this common.)

dc- (open collector)

dc+

Switched dc/open collector

output 1: PM6 _ _ C _-_ _ _ _ A _ _

output 3: PM6 _ _ _ _-_ _ C _ A _ _

dc-

dc+

Switched dc

output 2: PM6 _ _ _ C-_ _ _ _ A _ _

output 4: PM6 _ _ _ _-_ _ _ C A _ _

voltage or current -

voltage +

current +

Universal Process

output 1: PM6 _ _ F _-_ _ _ _ A _ _

output 3: PM6 _ _ _ _-_ _ F _ A _ _

normally open

common

normally closed

Mechanical Relay 5 A, Form C

output 1: PM6 _ _ E _-_ _ _ _ A _ _

output 3: PM6 _ _ _ _-_ _ E _ A _ _

normally open

common

No-arc 15 A, Form A

output 2: PM6 _ _ _ H-_ _ _ _ A _ _

normally open

common

Mechanical Relay 5 A, Form A

output 2: PM6 _ _ _ J-_ _ _ _ A _ _

output 4: PM6 _ _ _ _-_ _ _ J A _ _

normally open

common

Solid-state Relay 0.5 A, Form A

output 1: PM6 _ _ K _-_ _ _ _ A _ _

output 2: PM6 _ _ _ K-_ _ _ _ A _ _

output 3: PM6 _ _ _ _-_ _ K _ A _ _

output 4: PM6 _ _ _ _-_ _ _ K A _ _

Communications

Modbus RTU EIA-485 T+/R+

Modbus RTU EIA-485 T-/R-

Modbus RTU EIA-485 common

Modbus RTU EIA-485 T+/R+

Modbus RTU EIA-485 T-/R-

Modbus RTU EIA-232 common

Modbus RTU EIA-232 to DB9 pin 2

Modbus RTU EIA-232 to DB9 pin 3

Modbus RTU 232/485 Communications

PM6 _ _ _ _-2 A A A A _ _

V+

V-

DeviceNet™ power

Positive side of DeviceNet™ bus

Shield interconnect

Negative side of DeviceNet™ bus

DeviceNet™ power return

DeviceNet™ Communications

PM6 _ _ _ _-5 A A A A _ _

EtherNet/IP™ and Modbus TCP unused

EtherNet/IP™ and Modbus TCP receive -

EtherNet/IP™ and Modbus TCP unused

EtherNet/IP™ and Modbus TCP receive +

EtherNet/IP™ and Modbus TCP transmit -

EtherNet/IP™ and Modbus TCP transmit +

Ethernet 10/100 supporting EtherNet/IP™

and Modbus TCP

PM6 _ _ _ _-3 A A A A _ _

Inputs

S2 (RTD) or current +, potentiometer wiper

S3 (RTD), thermocouple -, current - or volts -

S1 (RTD), thermocouple + or volts +

Universal Sensor

input 1: all configurations

input 2: PM6 _ _ _ _-_ (R or L) _ _ A _ _

mA ac

Current Transformer

PM6 _ _ _ _-_ T _ _ A _ _

Terminal Definitions for Slots A and B.

Slot A Slot B Slot C

Output 1 Output 2 Input 1

Output 3 Output 4 Input 2

Power485 CommsDig I/O 5 & 6

Communications

Slot B

Watlow EZ-ZONE® PM Integrated Controller • 12 • Chapter 2 Install and Wire

Slot C Terminal Function Configuration

power input: ac or dc+

power input: ac or dc-

all

Standard Bus or Modbus RTU EIA-485 common

Standard Bus or Modbus RTU EIA-485 T-/R-

Standard Bus or Modbus RTU EIA-485 T+/R+

Standard Bus or Modbus

PM6 _ _ _ _-1 _ _ _ A _ _

Standard Bus EIA-485 common

Standard Bus EIA-485 T-/R-

Standard Bus EIA-485 T+/R+

PM6 _ _ _ _-(A, 2 or 3) _ _ _ A _ _

digital input-output common

digital input or output 6

digital input or output 5

PM6 _ 2 _ _-_ _ _ _ A _ _

PM6 _ 4 _ _-_ _ _ _ A _ _

Terminal Definitions for Slot C.

Slot A Slot B Slot C

Output 1 Output 2 Input 1

Output 3 Output 4 Input 2

Power485 CommsDig I/O 5 & 6

Communications

Slot B

Controller

Power Supply

12 to 40VÎ (dc)

24 to 28VÅ (ac)

85 to 264VÅ (ac)

Safety Isolation

No Isolation

Low-voltage

Isolation

Low-voltage

Isolation

Low-voltage

Isolation

Low-voltage

Isolation

Low voltage power bus

and

internal bus

Digital Inputs and

Outputs 5 & 6

Switched DC, Open

Collector, Process Outputs

Analog Input 1

Analog Input 2

Mechanical Relay,

Solid-state Relay &

No-arc Relay Outputs

EIA-485

Communications Port

RS-232/EIA-485

Communications Port

Ethernet

Communications Port

Low-voltage Isolation: 42V peak

Safety Isolation: 1,528VÅ (ac)

No Isolation

PM Integrated isolation blocks.

Watlow EZ-ZONE® PM Integrated Controller • 13 • Chapter 2 Install and Wire

Warning:

Use National Electric (NEC)

or other country-specific

standard wiring and safety

practices when wiring and

connecting this controller to

a power source and to elec-

trical sensors or peripheral

devices. Failure to do so may

result in damage to equip-

ment and property, and/or

injury or loss of life.

Note:

Maximum wire size termina-

tion and torque rating:

• 0.0507 to 3.30 mm2 (30 to

12 AWG) single-wire termi-

nation or two 1.31 mm2 (16

AWG)

• 0.8 Nm (7.0 lb.-in.) torque

Note:

Adjacent terminals may be

labeled differently, depend-

ing on the model number.

Note:

To prevent damage to the

controller, do not connect

wires to unused terminals.

Note:

Maintain electrical isolation

between analog input 1, digi-

tal input-outputs, switched

dc/open collector outputs and

process outputs to prevent

ground loops.

Note:

The control output common

terminal and the digital com-

mon terminal are referenced

to different voltages and

must remain isolated.

Low Power

power

Slot C

fuse

• 12 to 40VÎ (dc)

• 20 to 28VÅ (ac)

• 20 to 28VÅ (ac) Semi Sig F47

• 47 to 63 Hz

• 10VA maximum power consumption

PM6 _ (3 or 4) _ _-_ _ _ _ A _ _

High Power

power

Slot C

fuse

• 85 to 264VÅ (ac)

• 100 to 240VÅ (ac) Semi Sig F47

• 47 to 63 Hz

• 10VA maximum power consumption

PM6 _ (1 or 2) _ _-_ _ _ _ A _ _

Digital Input or Output 5

input or output +

common -

Slot C Digital Input

• update rate 10 Hz

• dry contact or dc voltage

DC voltage

• maximum input 36V at 3 mA

• minimum high state 3V @ 0.25 mA

• maximum low state 2V

Dry contact

• minimum open resistance 500 Ω

• maximum closed resistance 100 Ω

• maximum short circuit 13 mA

Digital Output

• update rate 10 Hz

• output voltage 24V

• current limit, Output 5, 24 mA

maximum

• capable of driving a 3-pole

DIN-A-MITE

• open-circuit voltage 22 to

32VÎ (dc)

PM6 _ (2 or 4) _ _-_ _ _ _ A _ _

Digital Input or Output 6

input or output +

common -

Slot C Digital Input

• update rate 10 Hz

• dry contact or dc voltage

DC voltage

• maximum input 36V at 3 mA

• minimum high state 3V @ 0.25 mA

• maximum low state 2V

Dry contact

• minimum open resistance 500 Ω

• maximum closed resistance 100 Ω

• maximum short circuit 13 mA

Digital Output

• update rate 10 Hz

• output voltage 24V

• current limit, Output 6, 10 mA

maximum

• capable of driving a single-pole

DIN-A-MITE

• open-circuit voltage 22 to

32VÎ (dc)

PM6 _ (2 or 4) _ _-_ _ _ _ A _ _

Warning:

Use National Electric (NEC)

or other country-specific

standard wiring and safety

practices when wiring and

connecting this controller to

a power source and to elec-

trical sensors or peripheral

devices. Failure to do so may

result in damage to equip-

ment and property, and/or

injury or loss of life.

Note:

Maximum wire size termina-

tion and torque rating:

• 0.0507 to 3.30 mm2 (30 to

12 AWG) single-wire termi-

nation or two 1.31 mm2 (16

AWG)

• 0.8 Nm (7.0 lb.-in.) torque

Note:

Adjacent terminals may be

labeled differently, depend-

ing on the model number.

Note:

To prevent damage to the

controller, do not connect

wires to unused terminals.

Note:

Maintain electrical isolation

between analog input 1, digi-

tal input-outputs, switched

dc/open collector outputs and

process outputs to prevent

ground loops.

Note:

The control output common

terminal and the digital com-

mon terminal are referenced

to different voltages and

must remain isolated.

Watlow EZ-ZONE® PM Integrated Controller • 14 • Chapter 2 Install and Wire

Input 1 Thermocouple

Slot A

• 20 Ω maximum source resistance

• >20 MΩ input impedance

• 3 microampere open-sensor detection

• Thermocouples are polarity sensitive. The negative lead (usually

red) must be connected to S1.

• To reduce errors, the extension wire for thermocouples must be

of the same alloy as the thermocouple.

PM6 _ _ _ _-_ _ _ _ A _ _ (all)

Input 1 RTD

2-wire

Slot A

3-wire

Slot A

• platinum, 100 and 1,000 Ω @ 0°C

• calibration to DIN curve (0.00385 Ω/Ω/°C)

• 20 Ω total lead resistance

• RTD excitation current of 0.09 mA typical. Each

ohm of lead resistance may affect the reading by

0.03°C.

• For 3-wire RTDs, the S1 lead (usually white) must

be connected to R1.

• For best accuracy use a 3-wire RTD to compensate

for lead-length resistance. All three lead wires must

have the same resistance.

PM6 _ _ _ _-_ _ _ _ A _ _ (all)

Input 1 Process

volts

Slot A

amperes

Slot A

• 0 to 20 mA @ 100 Ω input impedance

• 0 to 10VÎ (dc) @ 20 kΩ input impedance

• 0 to 50 mVÎ (dc) @ 20 kΩ input impedance

• scalable

PM6 _ _ _ _-_ _ _ _ A _ _ (all)

Input 1 Potentiometer

Slot A

CCW

• Use a 1 kΩ potentiometer.

PM6 _ _ _ _-_ _ _ _ A _ _ (all)

Watlow EZ-ZONE® PM Integrated Controller • 15 • Chapter 2 Install and Wire

Warning:

Use National Electric (NEC)

or other country-specific

standard wiring and safety

practices when wiring and

connecting this controller to

a power source and to elec-

trical sensors or peripheral

devices. Failure to do so may

result in damage to equip-

ment and property, and/or

injury or loss of life.

Note:

Maximum wire size termina-

tion and torque rating:

• 0.0507 to 3.30 mm2 (30 to

12 AWG) single-wire termi-

nation or two 1.31 mm2 (16

AWG)

• 0.8 Nm (7.0 lb.-in.) torque

Note:

Adjacent terminals may be

labeled differently, depend-

ing on the model number.

Note:

To prevent damage to the

controller, do not connect

wires to unused terminals.

Note:

Maintain electrical isolation

between analog input 1, digi-

tal input-outputs, switched

dc/open collector outputs and

process outputs to prevent

ground loops.

Note:

The control output common

terminal and the digital com-

mon terminal are referenced

to different voltages and

must remain isolated.

Input 2 Thermocouple

Slot B

• 20 Ω maximum source resistance

• >20 MΩ input impedance

• 3 microampere open-sensor detection

• Thermocouples are polarity sensitive. The negative lead (usually

red) must be connected to S2.

• To reduce errors, the extension wire for thermocouples must be

of the same alloy as the thermocouple.

PM6 _ _ _ _-_ (R or L) _ _ A _ _

Input 2 RTD

2-wire

Slot B

3-wire

Slot B • platinum, 100 and 1,000 Ω @ 0°C

• calibration to DIN curve (0.00385 Ω/Ω/°C)

• 20 Ω total lead resistance

• RTD excitation current of 0.09 mA typical. Each

ohm of lead resistance may affect the reading by

0.03°C.

• For 3-wire RTDs, the S1 lead (usually white) must

be connected to R2.

• For best accuracy use a 3-wire RTD to compensate

for lead-length resistance. All three lead wires must

have the same resistance.

PM6 _ _ _ _-_ (R or L) _ _ A _ _

Input 2 Process

volts

Slot B

amperes

Slot B

• 0 to 20 mA @ 100 Ω input impedance

• 0 to 10VÎ (dc) @ 20 kΩ input impedance

• 0 to 50 mVÎ (dc) @ 20 kΩ input impedance

• scalable

PM6 _ _ _ _-_ (R, T or L) _ _ A _ _

Input 2 Potentiometer

Slot B

CCW

• Use a 1 kΩ potentiometer.

PM6 _ _ _ _-_ (R or L) _ _ A _ _

Warning:

Use National Electric (NEC)

or other country-specific

standard wiring and safety

practices when wiring and

connecting this controller to

a power source and to elec-

trical sensors or peripheral

devices. Failure to do so may

result in damage to equip-

ment and property, and/or

injury or loss of life.

Note:

Maximum wire size termina-

tion and torque rating:

• 0.0507 to 3.30 mm2 (30 to

12 AWG) single-wire termi-

nation or two 1.31 mm2 (16

AWG)

• 0.8 Nm (7.0 lb.-in.) torque

Note:

Adjacent terminals may be

labeled differently, depend-

ing on the model number.

Note:

To prevent damage to the

controller, do not connect

wires to unused terminals.

Note:

Maintain electrical isolation

between analog input 1, digi-

tal input-outputs, switched

dc/open collector outputs and

process outputs to prevent

ground loops.

Note:

The control output common

terminal and the digital com-

mon terminal are referenced

to different voltages and

must remain isolated.

Watlow EZ-ZONE® PM Integrated Controller • 16 • Chapter 2 Install and Wire

Input 2 Current Transformer

Slot B

• Input range is 0 to 50 mA.

• current transformer part number: 16-0246

• 100 Ω input impedance

• response time: 1 second maximum

• accuracy +/-1 mA typical

PM6 _ _ _ _-_ T _ _ A _ _

Watlow EZ-ZONE® PM Integrated Controller • 17 • Chapter 2 Install and Wire

Warning:

Use National Electric (NEC)

or other country-specific

standard wiring and safety

practices when wiring and

connecting this controller to

a power source and to elec-

trical sensors or peripheral

devices. Failure to do so may

result in damage to equip-

ment and property, and/or

injury or loss of life.

Note:

Maximum wire size termina-

tion and torque rating:

• 0.0507 to 3.30 mm2 (30 to

12 AWG) single-wire termi-

nation or two 1.31 mm2 (16

AWG)

• 0.8 Nm (7.0 lb.-in.) torque

Note:

Adjacent terminals may be

labeled differently, depend-

ing on the model number.

Note:

To prevent damage to the

controller, do not connect

wires to unused terminals.

Note:

Maintain electrical isolation

between analog input 1, digi-

tal input-outputs, switched

dc/open collector outputs and

process outputs to prevent

ground loops.

Note:

The control output common

terminal and the digital com-

mon terminal are referenced

to different voltages and

must remain isolated.

Output 1 Switched DC/Open Collector

dc - (open collector)

dc +

common X1

Slot A Switched DC

• 30 mA dc maximum supply

current

• short circuit limited to <50 mA

• 22 to 32VÎ (dc) open circuit

voltage

• Use dc- and dc+ to drive exter-

nal solid-state relay.

• DIN-A-MITE compatible

• single-pole: up to 4 in parallel

or 4 in series

• 2-pole: up to 2 in parallel or 2

in series

• 3-pole: up to 2 in series

Open Collector

• 100 mA maximum output cur-

rent sink

• 30VÎ (dc) maximum supply

voltage

• Any switched dc output can

use the common terminal.

• Use an external power supply

to control a dc load, with the

load positive to the positive

of the power supply, the load

negative to the open collector

and common to the power sup-

ply negative.

See Quencharc note.

PM6 _ _ C _-_ _ _ _ A _ _

Internal

Circuitry

dc-

dc+

Load

Switched DC

Power

Supply

Internal

Circuitry

dc-

common

dc+

Open

Collector

Load

Output 1 Mechanical Relay, Form C

normally open

normally closed

common

Slot A

• 5 A at 240VÅ (ac) or 30VÎ (dc)

maximum resistive load

• 20 mA at 24V minimum load

• 125 VA pilot duty at 120/240VÅ

(ac), 25 VA at 24VÅ (ac)

• 100,000 cycles at rated load

• Output does not supply power.

• for use with ac or dc

See Quencharc note.

PM6 _ _ E _-_ _ _ _ A _ _

Internal

Circuitry

common

normally

open

Mechanical

Relay

normally

closed

Output 1 Universal Process

volts or current -

current +

volts +

Slot A

• 0 to 20 mA into 800 Ω maxi-

mum load

• 0 to 10VÎ (dc) into voltage 1

kΩ minimum load

• scalable

• output supplies power

• cannot use voltage and current

outputs at same time

• Output may be used as re-

transmit or control.

PM6 _ _ F _-_ _ _ _ A _ _

Quencharc Note:

Switching pilot duty inductive

loads (relay coils, solenoids,

etc.) with the mechanical

relay, solid state relay or

open collector output options

requires use of an R.C. sup-

pressor. Note: If output 1 is a universal process output, output 2 cannot function as a variable-time-base output.

Warning:

Use National Electric (NEC)

or other country-specific

standard wiring and safety

practices when wiring and

connecting this controller to

a power source and to elec-

trical sensors or peripheral

devices. Failure to do so may

result in damage to equip-

ment and property, and/or

injury or loss of life.

Note:

Maximum wire size termina-

tion and torque rating:

• 0.0507 to 3.30 mm2 (30 to

12 AWG) single-wire termi-

nation or two 1.31 mm2 (16

AWG)

• 0.8 Nm (7.0 lb.-in.) torque

Note:

Adjacent terminals may be

labeled differently, depend-

ing on the model number.

Note:

To prevent damage to the

controller, do not connect

wires to unused terminals.

Note:

Maintain electrical isolation

between analog input 1, digi-

tal input-outputs, switched

dc/open collector outputs and

process outputs to prevent

ground loops.

Note:

The control output common

terminal and the digital com-

mon terminal are referenced

to different voltages and

must remain isolated.

Watlow EZ-ZONE® PM Integrated Controller • 18 • Chapter 2 Install and Wire

Output 1 Solid-state Relay, Form A

normally open

common

Slot A

• 0.5 A at 20 to 264VÅ (ac) maxi-

mum resistive load

• 20 VA 120/240VÅ (ac) pilot duty

• opto-isolated, without contact

suppression

• maximum off state leakage of

105 microamperes

• output does not supply power

• Do not use on dc loads.

• See Quencharc note.

PM6 _ _ K _-_ _ _ _ A _ _

Internal Circuitry

common

normally

open

Solid-state Relay

Output 2 Switched DC

dc+

dc-

Slot A

• 10 mA DC maximum supply

current

• short circuit limited to <50 mA

• 22 to 32VÎ (dc) open circuit

voltage

• use dc- and dc+ to drive exter-

nal solid-state relay

• DIN-A-MITE compatible

• single-pole: up to 2 in series,

none in parallel

PM6 _ _ _ C-_ _ _ _ A _ _

Internal

Circuitry

dc-

dc+

Load

Switched DC

Output 2 No-arc Relay, Form A

common

normally open

Slot A

• 15 A at 85 to 264VÅ (ac) resis-

tive load only

• 2,000,000 cycle rating for no-arc

circuit (preliminary)

• 100 mA minimum load

• 2 mA maximum off state leakage

• Do not use on dc loads.

• Output does not supply power.

PM6 _ _ _ H-_ _ _ _ A _ _

Output 2 Mechanical Relay, Form A

common

normally open

Slot A

• 5 A at 240VÅ (ac) or 30VÎ (dc)

maximum resistive load

• 20 mV at 24V minimum load

• 125 VA pilot duty @ 120/240VÅ

(ac), 25 VA at 24VÅ (ac)

• 100,000 cycles at rated load

• Output does not supply power.

• for use with ac or dc

See Quencharc note.

PM6 _ _ _ J-_ _ _ _ A _ _

Internal

Circuitry

common

normally

open

Mechanical

Relay

Quencharc Note:

Switching pilot duty inductive

loads (relay coils, solenoids,

etc.) with the mechanical

relay, solid state relay or

open collector output options

requires use of an R.C. sup-

pressor.

Watlow EZ-ZONE® PM Integrated Controller • 19 • Chapter 2 Install and Wire

Warning:

Use National Electric (NEC)

or other country-specific

standard wiring and safety

practices when wiring and

connecting this controller to

a power source and to elec-

trical sensors or peripheral

devices. Failure to do so may

result in damage to equip-

ment and property, and/or

injury or loss of life.

Note:

Maximum wire size termina-

tion and torque rating:

• 0.0507 to 3.30 mm2 (30 to

12 AWG) single-wire termi-

nation or two 1.31 mm2 (16

AWG)

• 0.8 Nm (7.0 lb.-in.) torque

Note:

Adjacent terminals may be

labeled differently, depend-

ing on the model number.

Note:

To prevent damage to the

controller, do not connect

wires to unused terminals.

Note:

Maintain electrical isolation

between analog input 1, digi-

tal input-outputs, switched

dc/open collector outputs and

process outputs to prevent

ground loops.

Note:

The control output common

terminal and the digital com-

mon terminal are referenced

to different voltages and

must remain isolated.

Output 2 Solid-state Relay, Form A

common

normally open

Slot A

• 0.5 A at 20 to 264VÅ (ac) maxi-

mum resistive load

• 20 VA 120/240VÅ (ac) pilot duty

• opto-isolated, without contact

suppression

• maximum off state leakage of

105 microamperes

• Output does not supply power.

• Do not use on dc loads.

See Quencharc note.

PM6 _ _ _ K-_ _ _ _ A _ _

Internal Circuitry

common

normally

open

Solid-state Relay

Output 3 Switched DC/Open Collector

dc +

common X3

Slot B

dc - (open collector)

Switched DC

• 30 mA dc maximum supply

current

• short circuit limited to <50 mA

• 22 to 32VÎ (dc) open circuit

voltage

• Use dc- and dc+ to drive exter-

nal solid-state relay.

• DIN-A-MITE compatible

• single-pole: up to 4 in parallel

or 4 in series

• 2-pole: up to 2 in parallel or 2

in series

• 3-pole: up to 2 in series

Open Collector

• 100 mA maximum output cur-

rent sink

• 30VÎ (dc) maximum supply

voltage

• Any switched dc output can

use the common terminal.

• Use an external power supply

to control a dc load, with the

load positive to the positive

of the power supply, the load

negative to the open collector

and common to the power sup-

ply negative.

See Quencharc note.

PM6 _ _ _ _-_ _ C _ A _ _

Internal

Circuitry

dc-

dc+

Load

Switched DC

Power

Supply

Internal

Circuitry

dc-

common

dc+

Open

Collector

Load

Output 3 Mechanical Relay, Form C

normally open

normally closed

common

Slot B

• 5 A at 240VÅ (ac) or 30VÎ (dc)

maximum resistive load

• 20 mA at 24V minimum load

• 125 VA pilot duty at 120/240VÅ

(ac), 25 VA at 24VÅ (ac)

• 100,000 cycles at rated load

• Output does not supply power.

• for use with ac or dc

See Quencharc note.

PM6 _ _ _ _-_ _ E _ A _ _

Internal

Circuitry

common

normally

open

Mechanical

Relay

normally

closed

Quencharc Note:

Switching pilot duty inductive

loads (relay coils, solenoids,

etc.) with the mechanical

relay, solid state relay or

open collector output options

requires use of an R.C. sup-

pressor.

Warning:

Use National Electric (NEC)

or other country-specific

standard wiring and safety

practices when wiring and

connecting this controller to

a power source and to elec-

trical sensors or peripheral

devices. Failure to do so may

result in damage to equip-

ment and property, and/or

injury or loss of life.

Note:

Maximum wire size termina-

tion and torque rating:

• 0.0507 to 3.30 mm2 (30 to

12 AWG) single-wire termi-

nation or two 1.31 mm2 (16

AWG)

• 0.8 Nm (7.0 lb.-in.) torque

Note:

Adjacent terminals may be

labeled differently, depend-

ing on the model number.

Note:

To prevent damage to the

controller, do not connect

wires to unused terminals.

Note:

Maintain electrical isolation

between analog input 1, digi-

tal input-outputs, switched

dc/open collector outputs and

process outputs to prevent

ground loops.

Note:

The control output common

terminal and the digital com-

mon terminal are referenced

to different voltages and

must remain isolated.

Watlow EZ-ZONE® PM Integrated Controller • 20 • Chapter 2 Install and Wire

Output 3 Universal Process

volts or current -

current +

volts +

Slot B

• 0 to 20 mA into 800 Ω maxi-

mum load

• 0 to 10VÎ (dc) into voltage 1

kΩ minimum load

• scalable

• Output supplies power.

• cannot use voltage and current

outputs at same time

• Output may be used as retrans-

mit or control.

PM6 _ _ _ _-_ _ F _ A _ _

Note: If output 3 is a universal process

output, output 4 cannot function as a

variable-time-base output.

Output 3 Solid-state Relay, Form A

normally open

common

Slot B • 0.5 A at 20 to 264VÅ (ac) maxi-

mum resistive load

• 20 VA 120/240VÅ (ac) pilot

duty

• opto-isolated, without contact

suppression

• maximum off state leakage of

105 microamperes

• Output does not supply power.

• Do not use on dc loads.

See Quencharc note.

PM6 _ _ _ _ -_ _ K _ A _ _

Internal Circuitry

common

normally

open

Solid-state Relay

Output 4 Switched DC

dc+

dc-

Slot B

• 10 mA DC maximum supply

current

• short circuit limited to <50 mA

• 22 to 32VÎ (dc) open circuit

voltage

• Use dc- and dc+ to drive exter-

nal solid-state relay.

• DIN-A-MITE compatible

• single-pole: up to 2 in series,

none in parallel

PM6 _ _ _ _-_ _ _ C A _ _

Internal

Circuitry

dc-

dc+

Load

Switched DC

+W4

Output 4 Mechanical Relay, Form A

common

normally open

Slot B

• 5 A at 240VÅ (ac) or 30VÎ (dc)

maximum resistive load

• 20 mV at 24V minimum load

• 125 VA pilot duty at 120/240VÅ

(ac), 25 VA at 24VÅ (ac)

• 100,000 cycles at rated load

• Output does not supply power.

• for use with ac or dc

See Quencharc note.

PM6 _ _ _ _-_ _ _ J A _ _

Internal

Circuitry

common

normally

open

Mechanical

Relay

Quencharc Note:

Switching pilot duty inductive

loads (relay coils, solenoids,

etc.) with the mechanical

relay, solid state relay or

open collector output options

requires use of an R.C. sup-

pressor.

Watlow EZ-ZONE® PM Integrated Controller • 21 • Chapter 2 Install and Wire

Warning:

Use National Electric (NEC)

or other country-specific

standard wiring and safety

practices when wiring and

connecting this controller to

a power source and to elec-

trical sensors or peripheral

devices. Failure to do so may

result in damage to equip-

ment and property, and/or

injury or loss of life.

Note:

Maximum wire size termina-

tion and torque rating:

• 0.0507 to 3.30 mm2 (30 to

12 AWG) single-wire termi-

nation or two 1.31 mm2 (16

AWG)

• 0.8 Nm (7.0 lb.-in.) torque

Note:

Adjacent terminals may be

labeled differently, depend-

ing on the model number.

Note:

To prevent damage to the

controller, do not connect

wires to unused terminals.

Note:

Maintain electrical isolation

between analog input 1, digi-

tal input-outputs, switched

dc/open collector outputs and

process outputs to prevent

ground loops.

Note:

The control output common

terminal and the digital com-

mon terminal are referenced

to different voltages and

must remain isolated.

Output 4 Solid-state Relay, Form A

common

normally open

Slot B

• 0.5 A at 20 to 264VÅ (ac) maxi-

mum resistive load

• 20 VA 120/240VÅ (ac) pilot duty

• opto-isolated, without contact

suppression

• maximum off state leakage of

105 microamperes

• Output does not supply power.

• Do not use on dc loads.

See Quencharc note.

PM6 _ _ _ _-_ _ _ K A _ _

Internal Circuitry

common

normally

open

Solid-state Relay

Quencharc Note:

Switching pilot duty inductive

loads (relay coils, solenoids,

etc.) with the mechanical

relay, solid state relay or

open collector output options

requires use of an R.C. sup-

pressor.

Warning:

Use National Electric (NEC)

or other country-specific

standard wiring and safety

practices when wiring and

connecting this controller to

a power source and to elec-

trical sensors or peripheral

devices. Failure to do so may

result in damage to equip-

ment and property, and/or

injury or loss of life.

Note:

Maximum wire size termina-

tion and torque rating:

• 0.0507 to 3.30 mm2 (30 to

12 AWG) single-wire termi-

nation or two 1.31 mm2 (16

AWG)

• 0.8 Nm (7.0 lb.-in.) torque

Note:

Adjacent terminals may be

labeled differently, depend-

ing on the model number.

Note:

To prevent damage to the

controller, do not connect

wires to unused terminals.

Note:

Maintain electrical isolation

between analog input 1, digi-

tal input-outputs, switched

dc/open collector outputs and

process outputs to prevent

ground loops.

Note:

The control output common

terminal and the digital com-

mon terminal are referenced

to different voltages and

must remain isolated.

Watlow EZ-ZONE® PM Integrated Controller • 22 • Chapter 2 Install and Wire

Standard Bus EIA-485 Communications

T-/R-

common

Slot C

T+/R+

• Wire T-/R- to the A terminal of

the EIA-485 port.

• Wire T+/R+ to the B terminal of

the EIA-485 port.

• Wire common to the common

terminal of the EIA-485 port.

• Do not route network wires

with power wires. Connect net-

work wires in daisy-chain fash-

ion when connecting multiple

devices in a network.

• Do not connect more than 16

EZ-ZONE® PM controllers on a

network.

• maximum network length:

1,200 meters (4,000 feet)

• 1/8th unit load on EIA-485 bus

PM6 _ _ _ _-(A, 2 or 3) _ _ _ A _ _

Modbus RTU or Standard Bus EIA-485 Communications

T-/R-

common

Slot C

T+/R+

• Wire T-/R- to the A terminal of

the EIA-485 port.

• Wire T+/R+ to the B terminal of

the EIA-485 port.

• Wire common to the common

terminal of the EIA-485 port.

• Do not route network wires

with power wires. Connect net-

work wires in daisy-chain fash-

ion when connecting multiple

devices in a network.

• A termination resistor may be

required. Place a 120 Ω resistor

across T+/R+ and T-/R- of last

controller on network.

• Only one protocol per port is

available at a time: either Mod-

bus RTU or Standard Bus.

• Do not connect more than 16

EZ-ZONE® controllers on a

Standard Bus network.

• Maximum number of EZ-

ZONE® controllers on a Modbus

network is 247.

• maximum network length:

1,200 meters (4,000 feet)

• 1/8th unit load on EIA-485 bus.

PM6 _ _ _ _-1 _ _ _ A _ _

EIA-232/485 Modbus RTU Communications

485 common

485 T+/R+ CB

Slot B

485 T-/R-

485 T+/R+

485 T-/R-

232 common

232 (TX) to DB9 pin 2 (RD)

232 (RD) to DB9 pin 3 (TX)

• Wire T-/R- to the A terminal

of the EIA-485 port.

• Wire T+/R+ to the B termi-

nal of the EIA-485 port.

• Wire common to the com-

mon terminal of the EIA-

485 port.

• Do not route network wires

with power wires. Connect

network wires in daisy-

chain fashion when connect-

ing multiple devices in a

network.

• A termination resistor may

be required. Place a 120 Ω

resistor across T+/R+ and

T-/R- of last controller on

network.

• Do not wire to both the EIA-

485 and the EIA-232 pins at

the same time.

• Two EIA-485 terminals of

T/R are provided to assist in

daisy-chain wiring.

• Do not connect more than

one EZ-ZONE® PM control-

ler on an EIA-232 network.

• Do not connect more than

16 EZ-ZONE® controllers

on a Standard Bus EIA-485

network.

• Maximum number of EZ-

ZONE® controllers on a

Modbus network is 247.

• maximum EIA-232 network

length: 15 meters (50 feet)

• maximum EIA-485 network

length: 1,200 meters (4,000

feet)

• 1/8th unit load on EIA-485

bus.

PM6 _ _ _ _-2 AAA A _ _

Modbus-IDA

Terminal

EIA/TIA-485

Name

Watlow Termi-

nal Label

Function

DO A CA or CD T-/R-

D1 B CB or CE T+/R+

common common CC or CF common

Note:

Avoid continuous writes

within loops. Excessive

writes to EEPROM will cause

premature EEPROM failure.

The EEPROM is rated for

1,000,000 writes.

Watlow EZ-ZONE® PM Integrated Controller • 23 • Chapter 2 Install and Wire

Warning:

Use National Electric (NEC)

or other country-specific

standard wiring and safety

practices when wiring and

connecting this controller to

a power source and to elec-

trical sensors or peripheral

devices. Failure to do so may

result in damage to equip-

ment and property, and/or

injury or loss of life.

Note:

Maximum wire size termina-

tion and torque rating:

• 0.0507 to 3.30 mm2 (30 to

12 AWG) single-wire termi-

nation or two 1.31 mm2 (16

AWG)

• 0.8 Nm (7.0 lb.-in.) torque

Note:

Adjacent terminals may be

labeled differently, depend-

ing on the model number.

Note:

To prevent damage to the

controller, do not connect

wires to unused terminals.

Note:

Maintain electrical isolation

between analog input 1, digi-

tal input-outputs, switched

dc/open collector outputs and

process outputs to prevent

ground loops.

Note:

The control output common

terminal and the digital com-

mon terminal are referenced

to different voltages and

must remain isolated.

- A

+ B

com

power

- A

+ B

common

power

supply

- A

+ B

common

power

RUI/Gateway

EZKB-_ A _ _- _ _ _ _

EZ-ZONE

ST_ _ - (B or F) _ A _ -_ _ _ _

fuse

- A

+ B

com

power

- A

+ B

common

power

- A

+ B

common

power

PLC

EZ-ZONE® PM

EZ-ZONE

ST_ _ - (B or F) _ M _ -_ _ _ _

power

supply

fuse

A network using Watlow's Standard Bus

and an RUI/Gateway.

A network using Modbus RTU.

Wiring a Serial EIA-485 Network

Do not route network wires with pow-

er wires. Connect network wires in

daisy-chain fashion when connecting

multiple devices in a network.

A termination resistor may be re-

quired. Place a 120 Ω resistor across

T+/R+ and T-/R- of the last controller

on a network.

Only one protocol per port is avail-

able at a time: either Modbus RTU or

Standard Bus.

EtherNet/IP™ and Modbus TCP Communications

receive -

unused E8

Slot B

unused

receive +

transmit -

transmit +

RJ-45

T568B wire

color

Signal Slot

8 brown unused E8

7 brown & white unused E7

6 green receive - E6

5 white & blue unused E5

4 blue unused E4

3 white & green receive + E3

2 orange transmit - E2

1 white & orange transmit + E1

EtherNet/IP™ and Modbus TCP communica-

tions to connect with a 10/100 switch.

• Do not route network

wires with power

wires.

• Connect one Ethernet

cable per controller to

a 10/100 mbps ether-

net switch. Both Mod-

bus TCP and Ether-

Net/IP™ are available

on the network.

• A RUI may be con-

nected at the same

time using Slot C.

Note:

Avoid continuous writes

within loops. Excessive

writes to EEPROM will cause

premature EEPROM failure.

The EEPROM is rated for

1,000,000 writes.

Terminal Signal Function

V+ V+ DeviceNet™ power

CH CAN_H positive side of DeviceNet™

bus

SH shield shield interconnect

CL CAN_L negative side of DeviceNet™

bus

V- V- DeviceNet™ power return

DeviceNet™ Communications

CAN_L

V-

V+

V-

Slot B

V+

CAN_H

shield

Watlow EZ-ZONE® PM Integrated Controller • 24 • Chapter 3 Keys and Displays

WATLOW

EZ-ZONE

Chapter 3: Keys and Displays

Infinity Key ˆ

Press to back up one lev-

el, or press and hold for

two seconds to return to

the Home Page.

Advance Key ‰

Advances through

parameter prompts.

Upper Display:

In the Home Page, displays

the process value, otherwise

displays the value of the pa-

rameter in the lower display.

Zone Display:

Indicates the controller zone

that the remote user interface

(RUI) is currently communi-

cating with.

1 to 9 = zones 1 to 9

A = zone 10 E = zone 14

b = zone 11 F = zone 15

C = zone 12 H = zone 16

d = zone 13

Lower Display:

Indicates the set point or out-

put power value during opera-

tion, or the parameter whose

value appears in the upper

display.

EZ Key:

This key can be programmed

to do various tasks, such as

starting a profile.

Temperature Units Indi-

cator Lights:

Indicates whether the tem-

perature is displayed in

Fahrenheit or Celsius.

Output Activity:

Number lights indicate ac-

tivity of outputs 1 through

5. A flashing light indicates

retransmit activity.

Percent Units Indicator

Lights when the controller is

displaying values as a per-

centage or when the open-

loop set point is displayed.

Profile Activity;

Lights when a profile is run-

ning. Flashes when a profile

is paused.

Communications Activity

Flashes when another device

is communicating with this

controller.

Up and Down Keys ¿ ¯

In the Home Page, adjusts

the set point in the lower dis-

play. In other pages, changes

the upper display to a higher

or lower value, or changes a

parameter selection.

Responding to a Displayed Message

Attention Codes

An active message will cause the display to toggle be-

tween the normal settings and the active message in

the upper display and [Attn] in the lower display.

Your response will depend on the message and the

controller settings. Some messages, such as Ramp-

ing and Tuning, indicate that a process is underway.

If the message was generated by a latched alarm or

limit condition, the message can be cleared when the

condition no longer exists. If an alarm has silencing

enabled, it can be silenced.

Push the Advance Key to display [ignr] in

the upper display and the message source (such as

[Li;h1]) in the lower display.

Use the Up ¿ and Down ¯ keys to scroll through

possible responses, such as Clear [`CLr] or Silence

[`SiL]. Then push the Advance ‰ or Infinity ˆ key

to execute the action.

[AL;L1] [AL;L2] [AL;L3] [AL;L4] Alarm Low 1 to 4

[AL;h1] [AL;h2] [AL;h3] [AL;h4] Alarm High 1 to 4

[AL;E1] [AL;E2] [AL;E3] [AL;E4] Alarm Error 1 to 4

[Er;i1] [Er;i2] Error Input 1 or 2

[Li;L1] [Li;L2] Limit Low 1 or 2

[Li;h1] [Li;h2] Limit High 1 or 2

[Li;E1] [Li;E2] Limit Error 1 or 2

[tUn1] Tuning

[`rP1] Ramping

[LP;o1] Loop Open Error

[LP;r1] Loop Reversed Error

[`C;Er] Current Error

[`h;Er] Heater Error

Watlow EZ-ZONE® PM Integrated Controller • 25 • Chapter 3 Keys and Displays

Navigating the EZ-ZONE® PM Integrated Controller

WATLOW

[

``Ai]

[`Set]

EZ-ZONE

[``70]

[``72]

WATLOW EZ-ZONE

Home Page from anywhere: Press the Infinity Key ˆ for two seconds to return to the Home Page.

[``70]

[``72]

WATLOW EZ-ZONE

[``Ai]

[oper]

WATLOW EZ-ZONE

Operations Page from Home Page: Press both the Up ¿ and Down ¯ keys for three seconds.

[``70]

[``72]

WATLOW EZ-ZONE

[``Ai]

[`Set]

WATLOW EZ-ZONE

Setup Page from Home Page: Press both the Up ¿ and Down ¯ keys for six seconds.

[``70]

[``72]

WATLOW EZ-ZONE

[``P1]

[Prof]

WATLOW EZ-ZONE

Profiling Page from Home Page: Press the Advance Key ‰ for three seconds.

[``70]

[``72]

WATLOW EZ-ZONE

[CUST]

[FCty]

WATLOW EZ-ZONE

Factory Page from Home Page: Press both the Advance ‰ and Infinity ˆ keys for six seconds.

Watlow EZ-ZONE® PM Integrated Controller • 26 • Chapter 4 Home Page

Chapter 4: Home Page

Custom Menu

Number

Home

Page

Display

(defaults)

Parameter Name Settings Custom

Display

(defaults)

Parameter Page and Menu

1 Upper Display (value only) Active Process Value [Ac;Pu] Operations Page, Analog Iput Menu

2 Lower Display (value only) Active Set Point [Ac;SP] Operations Page, Profile Status Menu

3 [C;;M1] Control Mode [`C;M] Operations Page, Loop Menu

4 [h;Pr1] Heat Power [`h;Pr] Operations Page, Monitor Menu

5 [C;Pr1] Cool Power [`C;Pr] Operations Page, Monitor Menu

6 [AUt1] Autotune [`AUt] Operations Page, Loop Menu

7 [id;S1] Idle Set Point [idLE] Operations Page, Loop Menu

8 [P;;St1] Profile Start [P;Str] Home Page only (See Profile Page Chapter.)

9 [P;;AC1] Profile Action Request [P;ACr] Home Page only (See Profile Page Chapter.)

10 to 20 (skipped) None [nonE] (Add parameters to the Home Page in the Custom

Menu, Factory Page.)

Default Home Page

The Home Page is a customized list of as many as 20

parameters that can be configured and changed in

the Custom Menu [ CUSt] (Factory Page). The default

list of nine parameters below includes the Active

Process Value (value in upper display) and Active Set

Point (value in lower display). The Attention [Attn]

parameter appears only if there is an active message.

An active message could be a reported error, for ex-

ample, [C;Er1] (Current Error), or it could be for in-

formation only, for example, [tUN1] (Autotuning).

Use the Advance Key ‰ to step through the other

parameters. The parameter prompt will appear in

the lower display, and the parameter value will ap-

pear in the upper display. You can use the Up ¿ and

Down ¯ keys to change the value of read-write pa-

rameters, just as you would in any other menu.

If Control Mode is set to Auto, the process value

is in the upper display and the Closed Loop Set Point

(read-write) is in the lower display.

If a profile is running, the process value is in the

upper display and the Target Set Point (read only) is

in the lower display.

If Control Mode is set to Manual, the process val-

ue is in the upper display and the output power level

(read-write) is in the lower display.

If Control Mode is set to Off, the process value is

in the upper display and [`oFF] (read only) is in the

lower display.

If a sensor failure has occurred, [----] is in the

upper display and the output power level (read-write)

is in the lower display.

Changing the Set Point

You can change the set point by using the Up ¿ and

Down ¯ keys, when a profile is not running.

If the set point is displayed and the % indicator is

lit, the controller is in open-loop (manual) mode.

Note: Avoid continuous writes within loops. Excessive writes to

EEPROM will cause premature EEPROM failure. The EEPROM is

rated for 1,000,000 writes.

Default Home Page Parameters

Watlow EZ-ZONE® PM Integrated Controller • 27 • Chapter 4 Home Page

Display Parameter Name

Description

Setting Range Default Appears If

[Attn] Attention

An active message will cause the

display to toggle between the

normal settings and the active

message in the upper display and

[Attn] in the lower display.

Your response will depend on the

message and the controller set-

tings. Some messages, such as

Ramping and Tuning, indicate

that a process is underway. If

the message was generated by a

latched alarm or limit condition,

the message can be cleared when

the condition no longer exists. If

an alarm has silencing enabled, it

can be silenced.

Push the Advance Key to display

[ignr] in the upper display and

the message source (such as

[Li;h1]) in the lower display.

Use the Up ¿ and Down ¯ keys to

scroll through possible responses,

such as Clear [`CLr] or Silence

[`SiL]. Then push the Advance

‰ or Infinity ˆ key to execute

the action.

[AL;L1] [AL;L2] [AL;L3] [AL;L4]

Alarm Low 1 to 4

[AL;h1] [AL;h2] [AL;h3] [AL;h4]

Alarm High 1 to 4

[AL;E1] [AL;E2] [AL;E3] [AL;E4]

Alarm Error 1 to 4

[Er;i1] [Er;i2] Error Input 1 or 2

[Li;L1] [Li;L2] Limit Low 1 or 2

[Li;h1] [Li;h2] Limit High 1 or 2

[Li;E1] [Li;E2] Limit Error 1 or 2

[tUn1] Tuning

[`rP1] Ramping

[LP;o1] Loop Open Error

[LP;r1] Loop Reversed Error

[`C;Er] Current Error

[`h;Er] Heater Error

an alarm or error mes-

sage is active.

[P;St1] Profile Start

Select a profile or step number that

will be affected by Profile Action.

0 to 40 0 the controller includes

profiling (PM6 R _ _

_-_ _ _ _ _ _ _).

[P;AC1] Profile Action Request

Select the action to apply to the

profile (1 to 4) or step selected in

Profile Start.

[nonE] No Action

[ProF} Start a Profile

[StEP] Start a Step

[PAUS] Pause

[rESU] Resume

[`End] End

None the controller includes

profiling (PM6 R _ _

_-_ _ _ _ _ _ _).

Parameters that appear only in the Home Page

Watlow EZ-ZONE® PM Integrated Controller • 28 • Chapter 5 Operations Page

5Chapter 5: Operations Page

To go to the Operations Page from the Home Page,

press both the Up ¿ and Down ¯ keys for three sec-

onds. [``Ai] will appear in the upper display and

[oPEr] will appear in the lower display.

• Press the Up ¿ or Down ¯ key to move through

the menus.

• Press the Advance Key ‰ to move to a submenu.

• Press the Up ¿ or Down ¯ key to move through

the submenus.

• Press the Advance Key ‰ to move through the pa-

rameters of the menu or submenu.

• Press the Infinity Key ˆ to move backwards

through the levels: parameter to submenu; sub-

menu to menu; menu to Home Page.

• Press and hold the Infinity Key ˆ for two seconds

to return to the Home Page.

Note: Avoid continuous writes within loops. Excessive writes to

EEPROM will cause premature EEPROM failure. The EEPROM is

rated for 1,000,000 writes.

Home

Page Operations Page Parameters

[~~p~]

Åˆ

[~~Sp]

<>Æ

[``Ai]

Åˆ

[oPEr]

‰Æ

[~~~I]

Åˆ

[``Ai]

‰Æ

[`ain]

‰Æ

[`i;Er]

‰Æ

Ç

[`i;Ca]

‰

Hold both keys

for 3 seconds.

Analog

Input Menu

<Ç

È>

Input 1

Submenu

<Ç

È>

Process

Value

Input Error

Status

Input

Calibration

Offset

ÉˆInput 2

Submenu

Same as above.

Éˆ

[`diO]

Åˆ

[oPEr]

‰Æ

[~~~5]

Åˆ

[`diO]

‰Æ

[`do;S]

‰Æ

Ç

[`Ei;S]

‰

Digital In-

put/Output

<Ç

È>

Digital I/O 5

Submenu

<Ç

È>

Output State Event Input

Status

ÉˆDigital I/O 6

Submenu

Same as above.

Éˆ

[LiM]

Åˆ

[oPEr]

‰Æ

[`LL;S]

‰Æ

Ç

[`Lh;S]

‰

Limit

<Ç

È>

Limit Low

Set Point

Limit High

Set Point

Éˆ

[Mon]

Åˆ

[oPEr]

‰Æ

[C;MA]

‰Æ

[`h;Pr]

‰Æ

[`C;Pr]

‰Æ



[`C;SP]

‰Æ

Ç

[`Pu;A]

‰

Monitor

<Ç

È>

Control

Mode Active

Heat Power Cool Power Closed Loop

Working Set

Point

Process

Value Active

Éˆ

[Loop]

Åˆ

[oPEr]

‰Æ

[`r;En]

‰Æ

[`r;tY]

‰Æ

[`C;M]

‰Æ

[A;tSP]

‰Æ

[`AUt]

‰Æ

[`C;SP]

‰Æ

[`id;S]

‰Æ

[`h;Pb]

‰Æ

[`h;hY]

‰Æ

[`C;Pb]

‰Æ

[`C;hy]

‰Æ

[``ti]

‰Æ

[``td]

‰Æ

[``db]

‰Æ

Ç

[`o;SP]

‰

Loop Menu

<Ç

È>

Remote

Enable

Remote Set

Point Type

Control

Mode

Autotune

Set Point

Autotune

Request

Closed Loop

Set Point

Idle Set

Point

Heat Propor-

tional Band

Heat Hyster-

esis

Cool Propor-

tional Band

Cool Hyster-

esis

Time Integral Time Deriva-

tive

Dead Band Open Loop

Set Point

Éˆ

[ALM]

Åˆ

[oPEr]

‰Æ

[~~~I]

Åˆ

[ALM]

‰Æ

[`A;Lo]

‰Æ

Ç

[`A;hi]

‰

Alarm

<Ç

È>

Alarm 1

Submenu

<Ç

È>

Alarm Low

Set Point

Alarm High

Set Point

ÉˆAlarm 2 to 4

Submenus

Same as above.

Éˆ

[CUrr]

Åˆ

[oPEr]

‰Æ

[`C;hi]

‰Æ



[`C;Lo]

‰Æ



[`CU;r]

‰Æ



[`C;Er]

‰Æ

Ç

[`h;er]

‰

Current

<Ç

È>

Current High

Set Point

Current Low

Set Point

Current Read Current Error Heater Error

Éˆ

[P;StA]

Åˆ

[oPEr]

‰Æ

[P;Str]

‰Æ

[P;ACr]

‰Æ

[`Stp]

‰Æ

[S;tYP]

‰Æ

[tg;SP]

‰Æ

[AC;SP]

‰Æ

[`S;ti]

‰Æ

[Ent1]

‰Æ

Ç

[``JC]

‰

Proﬁ le

Status

<Ç

È>

Proﬁ le Start Proﬁ le

Action

Request

Active Step Active Step

Type

Active Target

Set Point

Active Set

Point

Step Time

Remaining

Active Event

Output

(1 or 2)

Jump Count

Remaining

Note:

Some of these menus and parameters may not appear, depending

on the controller's options. See model number information in the

Appendix for more information.

If there is only one instance of a menu, no submenus will appear.

Navigating the Operations Page

Watlow EZ-ZONE® PM Integrated Controller • 29 • Chapter 5 Operations Page

Display Parameter name

Description

Set-

tings

Range Default Appears If

[``Ai] [```1] [```2]

[oPEr] [``Ai] [``Ai]

Analog Input Menu Analog Input 1 or Analog Input 2 (input 2 appears if PM6 _ _ _ _-_ [R, T or L] _ _ A _ _)

[`Ain]

[ Ain]

Analog Input (1 or 2)

Process Value

View the process value.

-1,999.000 to 9,999.000°F or units

-1,128.000 to 5,537.000°C

always

[`i;Er]

[ i.Er]

Analog Input (1 or 2)

Error Status

View the cause of the most recent error. If the

[Attn]

message is

[Er;i1]

[Er;i2]

, this param-

eter will display the cause of the input error.

[nonE] None

[OPEn] Open

[Shrt] Shorted

[`E;M] Measurement Error

[E;CAL] Bad Calibration Data

[Er;Ab] Ambient Error

[E;;Rtd] RTD Lead Resistance Error

None always

[`i;Ca]

[ i.CA]

Analog Input (1 or 2)

Calibration Offset

Offset the input reading to compensate for lead

wire resistance or other factors that cause the in-

put reading to vary from the actual process value.

-1,999.000 to 9,999.000°F or units

-1,110.555 to 5,555.000°C

0.0 always

[`dio] [```5] [```6]

[oPEr] [`dio] [`dio]

Digital Input/ Digital Input or Digital Input or

Output Menu Output 5 Output 6 (menu appears if PM6 _ [2 or 4] _ _-_ _ _ _ A _ _)

[`do;S]

[ do.S]

Digital Output (5 or 6)

Output State

View the state of this output.

[``on] On

[`off] Off

always

[`Ei;S]

[ Ei.S]

Digital Input (5 or 6)

Event Input Status

View this event input state.

[iACt] Inactive

[`ACt] Active

always

[ LiM]

[oPEr]

Limit Menu (menu appears if PM6 _ _ _ _-_ L _ _ AAA)

[`LL;S]

[ LL.S]

Limit

Low Set Point

Set the low process value that will trigger the

limit.

-1,999.000 to 9,999.000°F or units

-1,128.000 to 5,537.000°C

0.0°F or

units

-18.0°C

Limit Sides (Set-

up Page) is not

set to High.

[`Lh;S]

[ Lh.S]

Limit

High Set Point

Set the high process value that will trigger the

limit.

-1,999.000 to 9,999.000°F or units

-1,128.000 to 5,537.000°C

0.0°F or

units

-18.0°C

Limit Sides (Set-

up Page) is not

set to Low.

[Mon]

[oPEr]

Monitor Menu

[C;MA]

[C.MA]

Monitor

Control Mode Active

View the current control mode.

[`off] Off

[AUto] Auto

[MAn] Manual

always

[`h;Pr]

[ h.Pr]

Monitor

Heat Power

View the current heat output level.

0.0 to 100.0% 0.0 always

[`C;Pr]

[ C.Pr]

Monitor

Cool Power

View the current cool output level.

-100.0 to 0.0% 0.0 always

[`C;SP]

[ C.SP]

Monitor

Closed Loop Working Set Point

View the set point currently in effect.

-1,999.000 to 9,999.000°F or units

-1,128.000 to 5,537.000°C

75°F or

units

24°C

always

[`Pu;A]

[ Pv.A]

Monitor

Process Value Active

View the current filtered process value using the

control input.

-1,999.000 to 9,999.000°F or units

-1,128.000 to 5,537.000°C

always

Note: Some values will be rounded off to fit in the four-character display. Full values can be read with other interfaces.

If there is only one instance of a menu, no submenus will appear.

Watlow EZ-ZONE® PM Integrated Controller • 30 • Chapter 5 Operations Page

Display Parameter name

Description

Set-

tings

Range Default Appears If

[Loop]

[oPEr]

Loop Menu

[`r;En]

[ r;En]

Loop

Remote Enable

Switch control to the remote set point.

[``no] No

[`YES] Yes

No PM6 _ _ _ _-_ (R

) _ _ A A A

[`r;ty]

[ r.ty]

Loop

Remote Set Point Type

Select how the remote set point will be deter-

mined.

[AUto] Auto (closed loop)

[MAn] Manual (open loop)

Auto Remote Enable

is set to Yes.

[`C;M]

[ C.M]

Loop

Control Mode

Select the method that the controller will use to

control.

[`off] Off

[AUto] Auto (closed loop)

[MAn] Manual (open loop)

Auto always

[A;tSP]

[A.tSP}

Loop

Autotune Set Point

Set the set point that the autotune will use, as a

percentage of the current set point.

50.0 to 200.0% 90.0 Heat Algorithm

or Cool Algo-

rithm (Setup

Page) is set to

PID.

[`AUt]

[ AUt]

Loop

Autotune Request

Start an autotune. While autotune is active, the

Home Page will display

[Attn]

[tUn1]

. When

the autotune is complete, the message will clear

automatically.

[``no] No

[`YES] Yes

No Heat Algorithm

or Cool Algo-

rithm (Setup

Page) is set to

PID.

[`C;SP]

[ C.SP]

Loop

Closed Loop Set Point

Set the set point that the controller will automati-

cally control to.

Low Set Point to High Set Point

(Setup Page)

75.0°F or

units

24.0°C

always

[`id;S]

[ id.S]

Loop

Idle Set Point

Set a closed loop set point that can be triggered by

an event state.

Low Set Point to High Set Point

(Setup Page)

75.0°F or

units

24.0°C

always

[`h;Pb]

[ h.Pb]

Loop

Heat Proportional Band

Set the PID proportional band for the heat outputs.

0.001 to 9,999.000°F or units

-1,110.555 to 5,555.000°C

25.0°F or

units

14.0°C

Heat Algorithm

(Setup Page) is

set to PID.

[`h;hy]

[ h.hy]

Loop

Heat Hysteresis

Set the control switching hysteresis for on-off con-

trol. This determines how far into the “on” region

the process value needs to move before the output

turns on.

0.001 to 9,999.000°F or units

-1,110.555 to 5,555.000°C

3.0°F or

units

2.0°C

Heat Algorithm

(Setup Page) is

set to On-Off.

[`C;Pb]

[ C.Pb]

Loop

Cool Proportional Band

Set the PID proportional band for the cool outputs.

0.001 to 9,999.000°F or units

-1,110.555 to 5,555.000°C

25.0°F or

units

14.0°C

Cool Algorithm

(Setup Page) is

set to PID.

[`C;hy]

[ C.hy]

Loop

Cool Hysteresis

Set the control switching hysteresis for on-off con-

trol. This determines how far into the “on” region

the process value needs to move before the output

turns on.

0.001 to 9,999.000°F or units

-1,110.555 to 5,555.000°C

3.0°F or

units

2.0°C

Cool Algorithm

(Setup Page) is

set to On-Off.

[``ti]

[ ti]

Loop

Time Integral

Set the PID integral for the outputs.

0 to 9,999 seconds per repeat 180.0 sec-

onds per

repeat

Heat Algorithm

or Cool Algo-

rithm (Setup

Page) is set to

PID.

[``td]

[ td]

Loop

Time Derivative

Set the PID derivative time for the outputs.

0 to 9,999 seconds 0.0

seconds

Heat Algorithm

or Cool Algo-

rithm (Setup

Page) is set to

PID.

Note: Some values will be rounded off to fit in the four-character display. Full values can be read with other interfaces.

If there is only one instance of a menu, no submenus will appear.

Watlow EZ-ZONE® PM Integrated Controller • 31 • Chapter 5 Operations Page

Display Parameter name

Description

Set-

tings

Range Default Appears If

[``dB]

[ db]

Loop

Dead Band

Set the offset to the proportional band. With a

negative value, both heating and cooling outputs

are active when the process value is near the set

point. A positive value keeps heating and cooling

outputs from fighting each other.

-1,000.0 to 1,000.0°F or units

-556 to 556°C

0.0 Heat Algorithm

and Cool Algo-

rithm (Setup

Page) are set to

PID or On-Off.

[`o;SP]

[ o.SP]

Loop

Open Loop Set Point

Set a fixed level of output power when in manual

(open-loop) mode.

-100 to 100% (heat and cool)

0 to 100% (heat only)

-100 to 0% (cool only)

0.0 always

[ ALM] [```1] [```2] [```3] [```4]

[oPEr] [ALM] [ALM] [ALM] [ALM]

Alarm Menu Alarm 1 Alarm 2 Alarm 3 Alarm 4

[`A;Lo]

[ A.Lo]

Alarm (1 to 4)

Low Set Point

If Alarm Type (Setup Page, Alarm Menu) is set to:

process - set the process value that will trigger a

low alarm.

deviation - set the span of units from the closed

loop set point that will trigger a low alarm.

-1,999.000 to 9,999.000°F or units

-1,128.000 to 5,537.000°C

32.0°F

or units

0.0°C

Alarm Sides

(Setup Page) is

not set to High.

[`A;hi]

[ A.hi]

Alarm (1 to 4)

High Set Point

If Alarm Type (Setup Page, Alarm Menu) is set to:

process - set the process value that will trigger a

high alarm.

deviation - set the span of units from the closed

loop set point that will trigger a high alarm.

-1,999.000 to 9,999.000°F or units

-1,128.000 to 5,537.000°C

300.0°F

or units

150.0°C

Alarm Sides

(Setup Page) is

not set to Low.

[CUrr]

[oPEr]

Current Menu (menu appears if PM6 _ _ _-_ T _ _ A _ _)

Note: To use the current sensing feature, Time Base (Setup Page, Output

Menu) must be set to 0.7 seconds or more.

[`C;hi]

[ C.hi]

Current

High Set Point

Set the current value that will trigger a high

heater error state.

-1,999.000 to 9,999.000 50.0 Current Sides

(Setup Page) is

set to High or

Both.

[`C;Lo]

[ C.Lo]

Current

Low Set Point

Set the current value that will trigger a low

heater error state.

-1,999.000 to 9,999.000 0.0 Current Sides

(Setup Page) is

set to Low or

Both.

[`CU;r]

[ CU.r]

Current

Read

View the most recent current value monitored by

the current transformer.

-1,999.000 to 9,999.000 0 always

[`C;Er]

[ C.Er]

Current

Error

View the cause of the most recent load fault.

[nonE] None

[Shrt] Shorted

[open] Open

None always

[`h;Er]

[ h.Er]

Current

Heater Error

View the cause of the most recent load fault moni-

tored by the current transformer.

[nonE] None

[high] High

[Low] Low

None always

[P;Sta]

[oPEr]

Profile Status Menu (menu appears if PM6 R _ _ _-_ _ _ _ A _ _)

* Some parameters in the Profile Status Menu can be changed for the

currently running profile, but should only be changed by knowledgeable

personnel and with caution. Changing parameters via the Profile Status

Menu will not change the stored profile but will have an immediate im-

pact on the profile that is running.

Changes made to profile parameters in the Profiling Pages will be

saved and will also have an immediate impact on the running profile.

Note: Some values will be rounded off to fit in the four-character display. Full values can be read with other interfaces.

If there is only one instance of a menu, no submenus will appear.

Watlow EZ-ZONE® PM Integrated Controller • 32 • Chapter 5 Operations Page

Display Parameter name

Description

Set-

tings

Range Default Appears If

[P;Str]

{P.Str]

Profile Status

Profile Start

Select a step or profile to load.

1 to 40 0 (none) always

[P;ACr]

{P.ACr]

Profile Status

Profile Action Request

Select what action to apply to the currently loaded

profile.

[nonE] None

[ProF] Profile Start

[PAUS] Pause

[rESU] Resume

[`End] End

[StEP] Step Start

None always

[`StP]

[ StP]

Profile Status

Active Step

View the currently running step.

0 to 40 0 (none) always

[S;typ]

[S.typ]

Profile Status

Active Step Type

View the currently running step type.

[UStP] Unused Step

[``ti] Time

[rAtE] Rate

[SoAH] Soak

[`W;E] Wait For Event

[W;Pr] Wait For Process

[W;bo] Wait For Both

[``JL] Jump Loop

[`End] End

Unused

Step

a profile is

active.

[tg;SP]

[tg.SP]

Profile Status

*Active Target Set Point

View or change the target set point of the current

step.

-1,999.000 to 9,999.000°F or units

-1,128.000 to 5,537.000°C

0.0°F

or units

-18.0°C

a profile is

active.

[AC;SP]

[AC.SP]

Profile Status

Active Set Point

Display the current set point, even if the profile is

ramping.

-1,999.000 to 9,999.000°F or units

-1,128.000 to 5,537.000°C

0.0°F

or units

-18.0°C

always

[`S;ti]

[ S.ti]

Profile Status

* Step Time Remaining

View or change the time remaining for the current

step.

Step is displayed in seconds. If the time exceeds

9,999 seconds, the display will show 9,999 and

remain there while the control continues to

decrement internally. Once the remaining time

is equal to or less than 9,999 the display will

represent the actual seconds remaining.

As an example, if a three-hour soak time is cur-

rently being monitored, the first value displayed

will be 9,999, and the display will remain at

9,999 until the remaining time is approximately

equal to 2 hours and 46 minutes. At this point

the display will track the actual seconds re-

maining.

0 to 9,999.000 seconds 0.0 always

[Ent1]

[Ent2]

Profile Status

*Active Event Output (1 or 2)

View or change the event output states.

[`off] Off

[``on] On

Off always

[``JC]

[ JC]

Profile Status

Jump Count Remaining

View the jump counts remaining for the current

loop. In a profile with nested loops, this may not

indicate the actual jump counts remaining.

0 to 9,999 0 always

Note: Some values will be rounded off to fit in the four-character display. Full values can be read with other interfaces.

If there is only one instance of a menu, no submenus will appear.

Watlow EZ-ZONE® PM Integrated Controller • 33 • Chapter 6 Setup Page

6Chapter 6: Setup Page

Home Page Setup Page Parameters

[~~p~]

Åˆ

[~~Sp]

<>Æ

[~`A1]

Åˆ

[~set]

‰Æ

[~~~1]

Åˆ

[~~AI]

‰Æ

[~sen]

‰Æ

[~lin]

‰Æ

[`Rt;l]

‰Æ

[`s;lo]

‰Æ

[`s;hi]

‰Æ

[`r;lo]

‰Æ

[`r;hi]

‰Æ

[`P;EE]

‰Æ

[`P;EL]

‰Æ

[`FiL]

‰Æ

[`i;Er]

‰Æ

[`dEC]

‰Æ

Ç

[`S;bA]

‰

Hold both keys

for 6 seconds.

Analog Input

<Ç

È>

Input 1

Submenu

<Ç

È>

Sensor Type Linearization RTD Leads Scale Low Scale High Range Low Range High Process

Error Enable

Process

Error Low

Filter Time Input Error

Latching

Decimal Sensor

Backup

Enable

Éˆ

Input 2

Submenu

Same as above without sensor backup enable.

Éˆ

[~dio]

Åˆ

[~set]

‰Æ

[~~~5]

Åˆ

[~dio]

‰Æ

[`dir]

‰Æ

[``Fn]

‰Æ

[`o;Ct]

‰Æ

[`o;tb]

‰Æ

[`o;Lo]

‰Æ

[`o;hi]

‰Æ

[``Fi]

‰Æ

[`Leu]

‰Æ

[``Fn]

‰Æ

Ç

[``Fi]

‰

Digital

Input/Output

<Ç

È>

In/Out 5

Submenu

<Ç

È>

Direction Output

Function

Output

Control

Output Time

Base

Output Low

Power Scale

Output High

Power Scale

Output

Function

Instance

Digital Input

Level

Digital Input

Function

Digital Input

Function

Instance

Éˆ

In/Out 6

Submenu

Same as above.

Éˆ

[Lim]

Åˆ

[~set]

‰Æ

[`L;Sd]

‰Æ

[`L;hy]

‰Æ



[`L;it]

‰Æ

[sp;lh]

‰Æ

[sp;ll]

‰

Limit Menu

<Ç

È>

Limit Sides Limit

Hysteresis

Limit

Integrate

Set Point

Limit High

Set Point

Limit Low

Éˆ

[loop]

Åˆ

[~set]

‰Æ

[`h;Ag]

‰Æ

[`C;Ag]

‰Æ

[`C;Cr]

‰Æ

[t;tUn]

‰Æ

[t;bnd]

‰Æ

[`t;gn]

‰Æ

[t;Agr]

‰Æ

[`UFA]

‰Æ

[FAiL]

‰Æ

[MAn]

‰Æ

[`L;dE]

‰Æ

[`L;dt]

‰Æ

[`L;dd]

‰Æ

[``RP]

‰Æ

Loop Menu

<Ç

È>

Heat

Algorithm

Cool

Algorithm

Cool Output

Curve

TRU-

TUNE+™

Enable

TRU-

TUNE+™

Band

TRU-

TUNE+™

Gain

Autotune

Aggressive-

ness

User Failure

Action

Input Error

Failure

Manual

Power

Open Loop

Detect

Enable

Open Loop

Detect Time

Open Loop

Detect

Deviation

Ramp Action

[`R;SC]

‰Æ

[`R;rt]

‰Æ

[`l;sp]

‰Æ

[`h;SP]

‰Æ

[sp;Lo]

‰Æ

Ç

[SP;hi]

‰

Ramp Scale Ramp Rate Low Set

Point

High Set

Point

Set Point Low

Limit Open

Loop

Set Point High

Limit Open

Loop

Éˆ

[OtPt]

Åˆ

[~set]

‰Æ

[~~~1]

Åˆ

[OtPt]

‰Æ

[~o;tY]

‰Æ

[~~Fn]

‰Æ

[~r;Sr]

‰Æ

[~~Fi]

‰Æ

[`S;Lo]

‰Æ

[`S;hi]

‰Æ

[`r;Lo]

‰Æ

[`r;hi]

‰Æ

[`o;Lo]

‰Æ

[`o;hi]

‰Æ

[`o;CA]

‰Æ

[``Fn]

‰Æ

Output Menu

<Ç

È>

Output 1

Submenu

<Ç

È>

Output

Type

Output

Function

Retransmit

Source

Output

Function

Instance

Scale Low Scale High Range Low Range High Output Low

Power Scale

Output High

Power Scale

Calibration

Offset

Output

Function

[``Fi]

‰Æ

[`o;Ct]

‰Æ

[`o;tb]

‰Æ

[`o;Lo]

‰Æ

Ç

[`o;hi]

‰

Output

Function

Instance

Output

Control

Output Time

Base

Output Low

Power Scale

Output High

Power Scale

Éˆ

[OtPt]

Åˆ

[~set]

‰Æ

[~~~2]

Åˆ

[OtPt]

‰Æ

[~~Fn]

‰Æ

[~~Fi]

‰Æ

[`o;Ct]

‰Æ

[`o;tb]

‰Æ

[`o;Lo]

‰Æ

Ç

[`o;hi]

‰

Output Menu

<Ç

È>

Output 2

Submenu

<Ç

È>

Output

Function

Output

Function

Instance

Output

Control

Output Time

Base

Output Low

Power Scale

Output High

Power Scale

Éˆ

Output 3

Submenu

Same as Output 1.

Éˆ

Output 4

Submenu

Same as Output 2.

Éˆ

[ALM]

Åˆ

[~set]

‰

[~~~1]

Åˆ

[ALM]

‰Æ

[`A;ty]

‰Æ

[`sr;a]

‰Æ

[`is;a]

‰Æ

[`A;hy]

‰Æ

[`A;Lg]

‰Æ

[`A;Sd]

‰Æ

[`A;La]

‰Æ

[~A;bL]

‰Æ

[`A;Si]

‰Æ

[A;dSp]

‰Æ

Ç

[`A;dL]

‰

Alarm Menu

<Ç

È>

Alarm 1

Submenu

<Ç

È>

Alarm Type Alarm

Source

Alarm

Source

Instance

Alarm

Hysteresis

Alarm Logic Alarm Sides Alarm

Latching

Alarm

Blocking

Alarm

Silencing

Alarm

Display

Alarm Delay

Éˆ

Alarm 2 to 4

Submenus

Same as above.

Éˆ

[CUrr]

Åˆ

[~SEt]

‰Æ

[`C;Sd]

‰Æ

[`CU;r]

‰Æ

[`C;dt]

‰Æ

[`C;SC]

‰Æ

[C;oFS]

‰Æ

Ç

[`C;Si]

‰

Current

<Ç

È>

Current Sides Current

Reading

Enable

Current

Detect

Threshold

Current

Scaling

Current

Offset

Current

Source Out-

put Instance

Éˆ

[`FUn]

Åˆ

[~SEt]

‰Æ

[`leu]

‰Æ

[``Fn]

‰Æ

Ç

[``Fi]

‰

Function Key

<Ç

È>

Digital Input

Level

Digital Input

Function

Instance

Éˆ

[gl;bl]

Åˆ

[~SEt]

‰Æ

[`C_F]

‰Æ

[AC;LF]

‰Æ

[p;typ]

‰Æ

[`gse]

‰Æ

Ç

[~gsd]

‰

Global Menu

<Ç

È>

Display Units AC Line

Frequency

Proﬁ le Type Guaranteed

Soak Enable

Guaranteed

Soak Devia-

tion

Éˆ

[CoM]

Åˆ

[~SEt]

‰Æ

[PCoL]

‰Æ

[`Ad;S]

‰Æ

[Ad;M]

‰Æ

[bAUd]

‰Æ

[`PAr]

‰Æ

[M;hL]

‰Æ

[iP;M]

‰Æ

[iP;F1]

…

[iP;F4]

‰Æ

[iP;S1]

…

[iP;S4]

‰Æ

[iP;g1]

…

[iP;g4]

‰Æ

[Mb;E]

‰Æ

Ç

[EiP;E]

‰

Communica-

tions Menu

<Ç

È>

Protocol Address

Standard

Bus

Address

Modbus

Baud Rate

Modbus

Parity

Modbus

Word Order

IP Address

Mode

IP Fixed

Address

Part 1

IP Fixed

Address

Part 4

IP Fixed

Subnet

Part 1

IP Fixed

Subnet

Part 4

IP Fixed

Gateway

Part 1

IP Fixed

Gateway

Part 4

Modbus TCP

Enable

Ethernet IP

Enable

Navigating the Setup Page

Note:

Some of these menus and parameters may not

appear, depending on the controller's options.

See model number information in the Appendix

for more information.

If there is only one instance of a menu, no sub-

menus will appear.

Watlow EZ-ZONE® PM Integrated Controller • 34 • Chapter 6 Setup Page

To go to the Setup Page from the Home Page, press

both the Up ¿ and Down ¯ keys for six seconds.

[``Ai] will appear in the upper display and [`Set]

will appear in the lower display.

• Press the Up ¿ or Down ¯ key to move through

the menus.

• Press the Advance Key ‰ to move to a submenu.

• Press the Up ¿ or Down ¯ key to move through

the submenus.

• Press the Advance Key ‰ to move through the pa-

rameters of the menu or submenu.

• Press the Infinity Key ˆ to move backwards

through the levels: parameter to submenu; sub-

menu to menu; menu to Home Page.

• Press and hold the Infinity Key ˆ for two seconds

to return to the Home Page.

Note: Avoid continuous writes within loops. Excessive writes to

EEPROM will cause premature EEPROM failure. The EEPROM

is rated for 1,000,000 writes.

Dis-

play

Parameter Name

Description

Set-

tings

Range Default Appears If

[``Ai] [```1] [```2]

[`Set] [``Ai] [``Ai]

Analog Input Menu Analog Input 1 or Analog Input 2 (input 2 appears if PM6 _ _ _ _-_ [R, T or L] _ _ A _ _)

[`Sen]

[ SEn]

Input (1 or 2)

Sensor Type

Set the analog sensor type to match the

device wired to this input.

Note: There is no open-sensor detection for

process inputs.

[`oFF] Off

[``tC] Thermocouple

[`mu] Millivolts

[uolT] Volts dc

[`MA] Milliamps dc

[r0;1H] RTD 100 Ω

[r1;0H] RTD 1,000 Ω

[`Pot] Potentiometer 1 kΩ

Thermocouple always

[`Lin]

[ Lin]

Input (1 or 2)

Linearization

Set the linearization to match the thermo-

couple wired to this input.

[```b] B

[```C] C

[```d] D

[```E] E

[```F] F

[```J] J

[```H] K

[```n] N

[```r] R

[```S] S

[```t] T

JSensor Type is set to

Thermocouple.

[`Rt;L]

[ rt.L]

Input (1 or 2)

RTD Leads

Set to match the number of leads on the

RTD wired to this input.

[```2] 2

[```3] 3

2 Sensor Type is set to

RTD 100 Ω or RTD

1,000 Ω.

[`S;Lo]

[ S.Lo]

Input (1 or 2)

Scale Low

Set the low scale for process inputs. This

value, in millivolts, volts or milliamps, will

correspond to the Range Low displayed by

the controller.

-100.0 to 1,000.0 0.0 Sensor Type is set to Mil-

livolts, Volts, Milliamps

or Potentiometer 1 kΩ.

[`S;hi]

[ S.hi]

Input (1 or 2)

Scale High

Set the high scale for process inputs. This

value, in millivolts, volts or milliamps, will

correspond to the Range High displayed by

the controller.

-100.0 to 1,000.0 20.0 Sensor Type is set to Mil-

livolts, Volts, Milliamps

or Potentiometer 1 kΩ.

[`r;Lo]

[ r.Lo]

Input (1 or 2)

Range Low

Set the low range for the displayed process

input units.

-1,999.000 to 9,999.000 0.0 Sensor Type is set to Mil-

livolts, Volts, Milliamps

or Potentiometer 1 kΩ.

[`r;hi]

[ r.hi]

Input (1 or 2)

Range High

Set the high range for the displayed pro-

cess input units.

-1,999.000 to 9,999.000 9,999 Sensor Type is set to Mil-

livolts, Volts, Milliamps

or Potentiometer 1 kΩ.

[`P;EE]

[ P.EE]

Input (1 or 2)

Process Error Enable

Turn the Process Error Low feature on or

off.

[`off] Off

[Low] Low

Off Sensor Type is set to Mil-

livolts, Volts, Milliamps

or Potentiometer 1 kΩ.

Note: Some values will be rounded off to fit in the four-character display. Full values can be read with other interfaces.

If there is only one instance of a menu, no submenus will appear.

Watlow EZ-ZONE® PM Integrated Controller • 35 • Chapter 6 Setup Page

Dis-

play

Parameter Name

Description

Set-

tings

Range Default Appears If

[`P;EL]

[ P.EL]

Input (1 or 2)

Process Error Low

If the process value drops below this value,

it will trigger an input error.

-100.0 to 1,000.0 0.0 Sensor Type is set to Mil-

livolts, Volts, Milliamps

or Potentiometer 1 kΩ,

and Error Enable is set

to Low.

[`FiL]

[ FiL]

Input (1 or 2)

Filter Time

Filtering smooths out the process signal to

both the display and the input. Increase

the time to increase filtering.

0.0 to 60.0 seconds 0.5 always

[`i;Er]

[ i.Er]

Input (1 or 2)

Error Latching

Turn input error latching on or off. If

latching is on errors must be manually

cleared.

[`off] Off

[``on] On

Off always

[`dEC]

[ dEC]

Input (1 or 2)

Decimal

Set the precision of the displayed value.

[```0] Whole

[``0;0] Tenths

[`0;00] Hundredths

[0;000] Thousandths

Whole always

[`S;bA]

[ S.bA]

Input 1

Sensor Backup Enable

If the input 1 sensor fails, the controller

will use the input 2 sensor.

[`oFF] Off

[``on] On

Off PM6 _ _ _ _-_ L _ _ A A A.

[`dio] [```5] [```6]

[`Set] [`dio] [`dio]

Digital Input/ Digital Input or Digital Input or

Output Menu Output 5 Output 6 (menu appears if PM6 _ [2 or 4] _ _-_ _ _ _ A _ _)

[`dir]

[ dir]

Digital Input/Output (5 or 6)

Direction

Set the function to an input or output.

[OtPt] Output

[``in] Input Voltage

[iCon] Input Dry Contact

Output always

[``Fn]

[ Fn]

Digital Output (5 or 6)

Function

Select what function will drive this output.

[`oFF] Off

[CooL] Cool

[hEAt] Heat

[ALM] Alarm

[`Ent] Event

Off Direction is set to Out-

put.

[`o;Ct]

[ o.Ct]

Digital Output (5 or 6)

Control

Set the output control type. This param-

eter is only used with PID control, but can

be set anytime.

[`Ftb] Fixed Time Base

[`utb] Variable Time Base

Fixed Time

Base

Direction is set to Out-

put.

[`o;tb]

[ o.tb]

Digital Output (5 or 6)

Time Base

Set the time base for fixed-time-base con-

trol.

0.1 to 60.0 seconds (solid-

state relay or switched dc)

5.0 to 60.0 seconds (mechani-

cal relay or no-arc power

control)

0.1 sec. [SSR &

sw dc]

20.0 sec.

[mech, relay,

no-arc]

Control is set to Fixed

Time Base.

[`o;Lo]

[ o.Lo]

Digital Output (5 or 6)

Low Power Scale

The power output will never be less than

the value specified and will represent the

value at which output scaling begins.

0.0 to 100.0% 0.0% Direction is set to Output

and Source is set to

Heat or Cool.

[`o;hi]

[ o.hi]

Digital Output (5 or 6)

High Power Scale

The power output will never be greater

than the value specified and will represent

the value at which output scaling stops.

0.0 to 100.0% 100.0% Direction is set to Output

and Source is set to

Heat or Cool.

[``Fi]

[ Fi]

Digital Output (5 or 6)

Function Instance

Select which source instance will drive the

output.

1 to 4 None Direction is set to Out-

put, and there is more

than one instance of the

Function selection.

Note: Some values will be rounded off to fit in the four-character display. Full values can be read with other interfaces.

If there is only one instance of a menu, no submenus will appear.

Watlow EZ-ZONE® PM Integrated Controller • 36 • Chapter 6 Setup Page

Dis-

play

Parameter Name

Description

Set-

tings

Range Default Appears If

[`leu]

[ LEu]

Digital Input (5 or 6)

Level

Select what action will be interpreted as a

true state.

[high] High

[Low] Low

High Direction is set to Input

Voltage or Input Dry

Contact.

[``Fn]

[ Fn]

Digital Input (5 or 6)

Function

Select the function that will be triggered

by a true state.

Functions respond to a level state change

or an edge level change.

[none] None

[idLE] Idle Set Point Enable

(level)

[tUnE] Tune (edge)

[ALM] Alarm Reset (edge)

[`SiL] Silence Alarms (edge)

[MAn] Manual/Auto Mode

(level)

[`oFF] Control Outputs Off

(level)

[`r;En] Remote Set Point En-

able (level)

[P;LoC] Lock Keypad (level)

[`F;AL] Force Alarm (level)

[`t;dA] TRU-TUNE+® Dis-

able (level)

[`AoF] Alarm Outputs &

Control Loop Off (level)

[USr;r] Restore User Settings

(edge)

[P;diS] Profile Disable (level)

[P;hoL] Profile Hold/Resume

(level)

[ProF] Profile Start Number

(edge)

[P;StS] Profile Start/Stop

(level)

[LMr] Limit Reset (edge)

None Direction is set to Input

Voltage or Input Dry

Contact, and the fea-

ture is available.

[``Fi]

[ Fi]

Digital Input (5 or 6)

Function Instance

Select which instance of the Event Func-

tion will be triggered by a true state.

0 All Instances (except pro-

files)

(For example, if Digital Func-

tion is set to Silence Alarms

and Function Instance is set

to 0, then this digital input

will silence all alarms.)

1 to 4

1 Direction is set to Input

Voltage or Input Dry

Contact, and there is

more than one instance

of the Function selec-

tion.

[ LIm]

[`Set]

Limit Menu (menu apprears if PM6 _ _ _ _-_ L _ _ AAA)

[`L;Sd]

[ L.Sd]

Limit

Sides

Select which side or sides of the process

value will be monitored.

[both] Both

[high] High

[LoW] Low

Both always

[`L;hy]

[ L.hy]

Limit

Hysteresis

Set the hysteresis for the limit function.

This determines how far into the safe

range the process value must move before

the limit turns the output back on.

0.001 to 9,999.000°F or units

0.001 to 5,555.000°C

3.0°F or units

2.0°C

always

sp;lh

[ SP.Lh]

Limit

Set Point Limit High

Clamp the operational limit high maxi-

mum setting to this value.

-1999.000 - 9999.000 9999.000 always

Note: Some values will be rounded off to fit in the four-character display. Full values can be read with other interfaces.

If there is only one instance of a menu, no submenus will appear.

Watlow EZ-ZONE® PM Integrated Controller • 37 • Chapter 6 Setup Page

Dis-

play

Parameter Name

Description

Set-

tings

Range Default Appears If

sp;ll

[SP.LL]

Limit

Set Point Limit Low

Clamp the operational limit low maximum

setting to this value.

-1999.000 - 9999.000 -1999.000 always

[`L;it]

[ L.it]

Limit

Integrate

In a limit state the controller will turn off

the outputs, terminate an active profile

and freeze PID and TRU-TUNE+® calcula-

tions.

[``no] No

[`YES] Yes

No always

[ Loop]

[`Set]

Loop Menu

[`h;Ag]

[ h.Ag]

Loop

Heat Algorithm

Set the heat control method.

[`oFF] Off

[`Pid] PID

[on;of] On-Off

PID always

[`C;Ag]

[ C.Ag]

Loop

Cool Algorithm

Set the cool control method.

[`oFF] Off

[`Pid] PID

[on;of] On-Off

Off always

[`C;Cr]

[ C.Cr]

Loop

Cool Output Curve

Select a special cool output curve to

change the responsiveness of the system.

[`oFF] Off

[`Cr;A] Curve A

[`Cr;b] Curve B

Off Cool Algorithm is set to

Off.

[t;tUn]

[t.tUn]

Loop

TRU-TUNE+® Enable

Enable or disable the TRU-TUNE+®

adaptive tuning feature.

[``no] No

[`YES} Yes

No Cool Algorithm or Heat

Algorithm is set to PID.

[t;bnd]

[t.bnd]

Loop

TRU-TUNE+® Band

Set the range, centered on the set point,

within which TRU-TUNE+® will be in ef-

fect. Use this function only if the controller

is unable to adaptive tune automatically.

0 Auto

1 to 100

0 Cool Algorithm or Heat

Algorithm is set to PID

and TRU-TUNE+® En-

able is set to Yes.

[`t;gn]

[ t.gn]

Loop

TRU-TUNE+® Gain

Select the responsiveness of the TRU-

TUNE+® adaptive tuning calculations.

More responsiveness may increase over-

shoot.

1 to 6 Most to least respon-

sive

3 Cool Algorithm or Heat

Algorithm is set to PID

and TRU-TUNE+® En-

able is set to Yes.

[t;Agr]

[t.Agr]

Loop

Autotune Aggressiveness

Select the aggressiveness of the autotun-

ing calculations.

[Undr] Under damped

[Crit] Critical damped

[ouer] Over damped

Critical Cool Algorithm or Heat

Algorithm is set to PID.

[`UFA]

[ UFA]

Loop

User Failure Action

Select what the controller outputs will do

when the user switches control to manual

mode.

[`oFF] Off, sets output power

to 0%

[bPLS] Bumpless, maintains

same output power, if it was

less than 75% and stable,

otherwise 0%

[MAn] Manual Fixed, sets

output power to Manual

Power setting

[USEr] User, sets output

power to last open-loop set

point the user entered

Off always

Note: Some values will be rounded off to fit in the four-character display. Full values can be read with other interfaces.

If there is only one instance of a menu, no submenus will appear.

Watlow EZ-ZONE® PM Integrated Controller • 38 • Chapter 6 Setup Page

Dis-

play

Parameter Name

Description

Set-

tings

Range Default Appears If

[FAiL]

Loop

Input Error Failure

Select what the controller outputs will do

when an input error switches control to

manual mode.

[`oFF] Off, sets output power

to 0%

[bPLS] Bumpless, maintains

same output power, if it was

less than 75% and stable,

otherwise 0%

[MAn] Manual Fixed, sets

output power to Manual

Power setting

[USEr] User, sets output

power to last open-loop set

point the user entered

Off always

[MAn]

Loop

Manual Power

Set the manual output power level that

will take effect if an input error failure

occurs.

Set Point Open Loop Limit

Low to Set Point Open Loop

Limit High (Setup Page)

0.0 Input Error Failure is set

to Manual Fixed.

[`L;dE]

[ L.dE]

Loop

Open Loop Detect Enable

Turn on the open-loop detect feature to

monitor a closed-loop operation for the ap-

propriate response.

[``no] No

[`YES} Yes

No controller is equipped

with a current trans-

former input (PM6 _ _ _

_ - _T _ _ _ _ _).

[`L;dt]

[ L.dt]

Loop

Open Loop Detect Time

The Open Loop Detect Deviation value

must occur for this time period to trigger

an open-loop error.

0 to 3,600 seconds 240 Open Loop Detect Enable

is set to Yes.

[`L;dd]

[ L.dd]

Loop

Open Loop Detect Deviation

Set the value that the process must devi-

ate from the set point to trigger an open-

loop error.

-1,999.000 to 9,999.000°F or

units

-1,110.555 to 5,555.000°C

10.0°F or units

6.0°C

Open Loop Detect Enable

is set to Yes.

[``rP]

[ rP]

Loop

Ramp Action

Select when the controller's set point will

ramp to the defined end set point.

[`oFF] Off

[`Str] Startup

[StPt] Set Point Change

[both] Both

Off always

[`r;SC]

[ r.SC]

Loop

Ramp Scale

Select the scale of the ramp rate.

[hoUr] Hours

[Min] Minutes

Minutes Ramp Action is set to

Startup, Set Point or

Both.

[`r;rt]

[ r.rt]

Loop

Ramp Rate

Set the rate for the set point ramp. Set

the time units for the rate with the Ramp

Scale parameter.

0.0 to 9,999.000°F or units

0.0 to 5,555.000°C

1.0°F or units

1.0°C

Ramp Action is set to

Startup, Set Point or

Both.

[`L;SP]

[ L.SP]

Loop

Low Set Point

Set the low end of the set point range.

-1,999.000 to 9,999.000°F or

units

-1,128.000 to 5,537.000°C

-1,999°F or

units

-1,128°C

always

[`h;SP]

[ h.SP]

Loop

High Set Point

Set the high end of the set point range.

-1,999.000 to 9,999.000°F or

units

-1,128.000 to 5,537.000°C

9,999°F or

units

5,537°C

always

[SP;Lo]

[SP.Lo]

Loop

Set Point Low Limit Open Loop

Set the minimum value of the open-loop

set point range.

-100 to 100% -100 always

[SP;hi]

[SP.hi]

Loop

Set Point High Limit Open Loop

Set the maximum value of the open-loop

set point range.

-100 to 100% 100 always

Note: Some values will be rounded off to fit in the four-character display. Full values can be read with other interfaces.

If there is only one instance of a menu, no submenus will appear.

Watlow EZ-ZONE® PM Integrated Controller • 39 • Chapter 6 Setup Page

Dis-

play

Parameter Name

Description

Set-

tings

Range Default Appears If

[otpt] [```1] [```2] [```3] [```4]

[`Set] [otpt] [otPt] [otpt] [otpt]

Output Menu Output 1 Output 2 Output 3 Output 4 (check model number for output information)

[`o;ty]

[ o.ty]

Output (1 or 3)

Type

Select whether the process output will op-

erate in volts or milliamps.

[uoLt] Volts

[`MA] Milliamps

Volts a process output (PM6 _

_ F _-_ _ _ _ A _ _ or PM6

_ _ _-_ _ F _ A _ _)

[``Fn]

[ Fn]

Output (1 or 3)

Function

Select what function will drive this output.

[`oFF] Off

[hEAt] Heat

[CooL] Cool

[dUPL] Duplex

[ALM] Alarm

[`Ent] Event

[rMt] Retransmit

Heat (output 1)

Off (output 2)

a process output (PM6 _

_ F _-_ _ _ _ A _ _ or PM6

_ _ _-_ _ F _ A _ _)

[`r;Sr]

[ r.Sr]

Output (1 or 3)

Retransmit Source

Select the value that will be retransmitted.

[``Ai] Analog Input

[StPt] Set Point

[CUrr] Current

Analog Input a process output (PM6

_ _ F _-_ _ _ _ A _ _ or

PM6 _ _ _-_ _ F _ A _ _)

and Function is set to

Retransmit.

[``Fi]

[ Fi]

Output (1 or 3)

Function Instance

Select which source instance will drive the

output.

1 to 4 1 a process output (PM6 _

_ F _-_ _ _ _ A _ _ or PM6

_ _ _-_ _ F _ A _ _) and

there is more than one

instance of the Function

selection.

[`S;Lo]

[ S.Lo]

Output (1 or 3)

Scale Low

Set the minimum value of the process out-

put range in electrical units.

0.00 to 20.00 0.00 a process output (PM6 _

_ F _-_ _ _ _ A _ _ or PM6

_ _ _-_ _ F _ A _ _)

[`S;hi]

[ S.hi]

Output (1 or 3)

Scale High

Set the maximum value of the process out-

put range in electrical units.

0.00 to 20.00 10.00 a process output (PM6 _

_ F _-_ _ _ _ A _ _ or PM6

_ _ _-_ _ F _ A _ _)

[`r;Lo]

[ r.Lo]

Output (1 or 3)

Range Low

Set the minimum value of the retransmit

value range in process units. When the

retransmit source is at this value, the

retransmit output will be at its Scale Low

value.

-1,999.000 to 9,999.000°F or

units

-1,128.000 to 5,537.000°C

0.0°F or units

-18°C

a process output (PM6

_ _ F _-_ _ _ _ A _ _ or

PM6 _ _ _-_ _ F _ A _ _)

and Function is set to

Retransmit.

[`r;hi]

[ r.hi]

Output (1 or 3)

Range High

Set the maximum value of the retransmit

value range in process units. When the

retransmit source is at this value, the re-

transmit output will be at its Scale High

value.

-1,999.000 to 9,999.000°F or

units

-1,128.000 to 5,537.000°C

9,999.0°F or

units

5,537.0°C

a process output (PM6

_ _ F _-_ _ _ _ A _ _ or

PM6 _ _ _-_ _ F _ A _ _)

and Function is set to

Retransmit.

[`o;Lo]

[ o.Lo]

Output (1 or 3)

Low Power Scale

Set the minimum value of the output

range.

0.0 to 100.0% 0.0 a process output (PM6 _ _

F _-_ _ _ _ A _ _ or PM6

_ _ _-_ _ F _ A _ _) and

Function is set to Heat

or Cool.

[`o;hi]

[ o.hi]

Output (1 or 3)

High Power Scale

Set the maximum value of the output

range.

0.0 to 100.0% 100.0 a process output (PM6 _ _

F _-_ _ _ _ A _ _ or PM6

_ _ _-_ _ F _ A _ _) and

Function is set to Heat

or Cool.

[`o;CA]

[ o.CA]

Output (1 or 3)

Calibration Offset

Set an offset value for a process output.

-1,999.000 to 9,999.000°F or

units

-1,110.555 to 5,555.000°C

0.0°F or units

0.0°C

a process output (PM6 _ _

F _-_ _ _ _ A _ _ or PM6

_ _ _-_ _ F _ A _ _)

Note: Some values will be rounded off to fit in the four-character display. Full values can be read with other interfaces.

If there is only one instance of a menu, no submenus will appear.

Watlow EZ-ZONE® PM Integrated Controller • 40 • Chapter 6 Setup Page

Dis-

play

Parameter Name

Description

Set-

tings

Range Default Appears If

[``Fn]

[ Fn]

Output (1 to 4)

Function

Select what function will drive this output.

[`oFF] Off

[hEAt] Heat

[CooL] Cool

[ALM] Alarm

[`Ent] Event

[LiM] Limit (outputs 3 & 4)

Heat

Alarm

Off (outputs 3

& 4)

a time-proportioned out-

put (solid-state relay,

switched dc or mechani-

cal relay)

[``Fi]

[ Fi]

Output (1 to 4)

Function Instance

Select which source instance will drive the

output.

1 to 4 1 a time-proportioned out-

put (solid-state relay,

switched dc or mechani-

cal relay), and there is

more than one instance

of the Function selec-

tion.

[`o;Ct]

[ o.Ct]

Output (1 to 4)

Control

Set the output control type. This param-

eter is only used with PID control, but can

be set anytime.

[`Ftb] Fixed Time Base

[`utb] Variable Time Base

Fixed Time

Base

a time-proportioned out-

put (solid-state relay,

switched dc or mechani-

cal relay).

If output 1 is a universal

process output, output

2 cannot function as

a variable-time-base

output. If output 3 is

a universal process

output, output 4 cannot

function as a variable-

time-base output.

[`o;tb]

[ o.tb]

Output (1 to 4)

Time Base

Set the time base for fixed-time-base con-

trol.

0.1 to 60.0 seconds (solid-

state relay or switched dc)

5.0 to 60.0 seconds (mechani-

cal relay or no-arc power

control)

0.1 sec. [SSR &

sw dc]

20.0 sec.

[mech, relay,

no-arc]

a time-proportioned

output (solid-state

relay, switched dc or

mechanical relay) and

Control is set to Fixed

Time Base.

[`o;Lo]

[ o.Lo]

Output (1 to 4)

Low Power Scale

The power output will never be less than

the value specified and will represent the

value at which output scaling begins.

0.0 to 100.0% 0.0% a time-proportioned out-

put (solid-state relay,

switched dc or mechani-

cal relay) and Source is

set to Heat or Cool.

[`o;hi]

[ o.hi]

Output (1 to 4)

High Power Scale

The power output will never be greater

than the value specified and will represent

the value at which output scaling stops.

0.0 to 100.0% 100.0% a time-proportioned out-

put (solid-state relay,

switched dc or mechani-

cal relay) and Source is

set to Heat or Cool.

[Alm] [```1] [```2] [```3] [```4]

[`Set] [Alm] [Alm] [Alm] [Alm]

Alarm Menu Alarm 1 Alarm 2 Alarm 3 Alarm 4

[`A;ty]

[ A.ty]

Alarm (1 to 4)

Type

Select how the alarm will or will not track

the set point.

[`oFF] Off

[PR;AL] Process Alarm

[dE;AL] Deviation Alarm

Off always

[`sr;a]

[ Sr.A]

Alarm (1 to 4)

Source

Select what will trigger this alarm.

[``Ai] Analog Input

[PWr] Power (process only)

[CUrr] Current (process only)

Analog Input always

[`is;a]

[ iS.A]

Alarm (1 to 4)

Source Instance

If Alarm Source is set to input, select

which input to use.

1 or 2 1 there is more than one

instance of the Source

selection.

Note: Some values will be rounded off to fit in the four-character display. Full values can be read with other interfaces.

If there is only one instance of a menu, no submenus will appear.

Watlow EZ-ZONE® PM Integrated Controller • 41 • Chapter 6 Setup Page

Dis-

play

Parameter Name

Description

Set-

tings

Range Default Appears If

[`A;hy]

[ A.hy]

Alarm (1 to 4)

Hysteresis

Set the hysteresis for an alarm. This de-

termines how far into the safe region the

process value needs to move before the

alarm can be cleared.

0.001 to 9,999.000°F or units

0.001 to 5,555.000°C

1.0°F or units

1.0°C

always

[`A;Lg]

[ A.Lg]

Alarm (1 to 4)

Logic

Select what the output condition will be

during the alarm state.

[`AL;C] Close On Alarm

[`AL;o] Open On Alarm

Close On

Alarm

always

[`A;Sd]

[ A.Sd]

Alarm (1 to 4)

Sides

Select which side or sides will trigger this

alarm.

[both] Both

[high] High

[LoW] Low

Both always

[`A;LA]

[ A.LA]

Alarm (1 to 4)

Latching

Turn alarm latching on or off. A latched

alarm has to be turned off by the user.

[nLAt] Non-Latching

[`LAt] Latching

Non-Latching always

[`A;bL]

[ A.bL]

Alarm (1 to 4)

Blocking

Select when an alarm will be blocked.

After startup and/or after the set point

changes, the alarm will be blocked until

the process value enters the normal range.

[`oFF] Off

[`Str] Startup

[StPt] Set Point

[both] Both

Off always

[`A;Si]

[ A.Si]

Alarm (1 to 4)

Silencing

Turn alarm silencing on to allow the user

to disable this alarm.

[`oFF] Off

[``on] On

Off always

[A;dSP]

[A.dSP]

Alarm (1 to 4)

Display

Display an alarm message when an alarm

is active.

[`oFF] Off

[``on] On

On always

[`A;dL]

[ A.dL]

Alarm (1 to 4)

Delay

Set the time the alarm will be delayed

after the process value exceeds the alarm

set point.

0 to 9,999 seconds 0 always

[CUrr]

[`Set]

Current Menu (menu appears if PM6 _ _ _ _-_ T _ _ A _ _)

[`C;Sd]

[ C.Sd]

Current

Sides

Select which side of the current to monitor.

[`oFF] Off

[high] High

[LoW] Low

[both] Both

Off always

[`CU;r]

[ CU.r]

Current

Reading Enable

Display under- or over-range current.

[``no] No

[`YES} Yes

No always

[`C;dt]

[ C.dt]

Current

Detect Threshold

For factory adjustment only.

3 to 59 9 always

[`C;SC]

[ C.SC]

Current

Scaling

Adjust scaling to match the transformer's

high range.

0 to 9,999.000 amperes 50.0 always

[C;oFS]

[C.oFS]

Current

Offset

Calibrate the current reading with an

offset value.

-1,999.000 to 9,999.000 0.0 always

Note: Some values will be rounded off to fit in the four-character display. Full values can be read with other interfaces.

If there is only one instance of a menu, no submenus will appear.

Watlow EZ-ZONE® PM Integrated Controller • 42 • Chapter 6 Setup Page

Dis-

play

Parameter Name

Description

Set-

tings

Range Default Appears If

[`C;Si]

[ C.Si]

Current

Source Output Instance

Select which output instance the current

transformer will monitor.

1 to 6 1 (if not pro-

cess)

2 (otherwise)

always

[`FUn]

[`Set]

Function Key Menu

[`Leu]

[ LEv]

Function Key

Level

Select what state the Function Key will be

in at startup.

Pressing the Function Key will toggle the

selected action.

[high] High

[Low] Low

High always

[``Fn]

[ Fn]

Function Key

Digital Input Function

Program the EZ Key to trigger an action.

Functions respond to a level state change

or an edge level change.

[none] None

[idLE] Idle Set Point Enable

(level)

[tUnE] Tune (edge)

[ALM] Alarm Reset (edge)

[`SiL] Silence Alarms (edge)

[MAn] Manual/Auto Mode

(level)

[`oFF] Control Outputs Off

(level)

[`r;En] Remote Set Point En-

able (level)

[P;LoC] Lock Keypad (level)

[`F;AL] Force Alarm (level)

[`t;dA] TRU-TUNE+® Dis-

able (level)

[`AoF] Alarm Outputs &

Control Loop Off (level)

[USr;r] Restore User Settings

(edge)

[P;diS] Profile Disable (level)

[P;hoL] Profile Hold/Resume

(level)

[ProF] Profile Start Number

(edge)

[P;StS] Profile Start/Stop

(level)

[LMr] Limit Reset (edge)

None always, but only the

available features can be

selected.

[``Fi]

[ Fi]

Function Key

Instance

Select which instance the EZ Key will af-

fect. If only one instance is available, any

selection will affect it.

0 All Instances (except Pro-

file)

(For example, if Digital Func-

tion is set to Silence Alarms

and Function Instance is set

to 0, then the digital input

would silence all alarms.)

1 to 4

0 there is more than one

instance of the Digital

Input Function selec-

tion.

[gLbL]

[`Set]

Global Menu

[`C_F]

[ C_F]

Global

Display Units

Select which units will be displayed.

[```F] °F

[```C] °C

°F always

[AC;LF]

[AC.LF]

Global

AC Line Frequency

Set the frequency to the applied ac line

power source.

[``50] 50 Hz

[``60] 60 Hz

60 Hz always

Note: Some values will be rounded off to fit in the four-character display. Full values can be read with other interfaces.

If there is only one instance of a menu, no submenus will appear.

Watlow EZ-ZONE® PM Integrated Controller • 43 • Chapter 6 Setup Page

Dis-

play

Parameter Name

Description

Set-

tings

Range Default Appears If

[P;typ]

[P.tyP]

Global

Profile Type

Set the profile startup to be based on a set

point or a process value.

[StPt] Set Point

[`Pro] Process

Set Point the controller includes

profiling (PM6 R _ _ _-_

_ _ _ A _ _).

[`GSE]

[ gSE]

Global

Guaranteed Soak Enable

Enables the guaranteed soak deviation

function in profiles.

[`oFF] Off

[``on] On

Off the controller includes

profiling (PM6 R _ _ _-_

_ _ _ A _ _).

[`GSd]

[ gSd]

Global

Guaranteed Soak Deviation

Set the value of the deviation band that

will be used in all profile step types. The

process value must enter the deviation

band before the step can proceed.

0.0 to 9,999.000°F or units

0.0 to 5,555.000°C

10.0°F or units

6.0°C

the controller includes

profiling (PM6 R _ _ _-_

_ _ _ A _ _).

[CoM] [```1] [```2]

[`SEt] [CoM] [CoM]

Communications Menu Communications 1 Communications 2

[PCoL]

Communications 1

Protocol

Set the protocol of this controller to the

protocol that this network is using.

[`Std] Standard Bus

[Mod] Modbus RTU

Modbus the controller includes

Modbus RTU (PM6 _ _

_ _-1 _ _ _ A _ _).

[`Ad;S]

[ Ad.S]

Communications 1

Address Standard Bus

Set the network address of this controller.

Each device on the network must have a

unique address.

The Zone Display on the front panel will

display this number.

1 to 16 1 Protocol is set to Stan-

dardbus

Range depends on the

model.

[Ad;M]

[Ad.M]

Communications (1 or 2)

Address Modbus

Set the network address of this controller.

Each device on the network must have a

unique address.

1 to 247 1 Protocol is set to Modbus

Range depends on the

model.

[bAUd]

Communications (1 or 2)

Baud Rate Modbus

Set the speed of this controller's commu-

nications to match the speed of the serial

network.

9,600

19,200

38,400

9,600 Protocol is set to Modbus.

Range depends on the

model.

[`PAr]

[ PAr]

Communications

Parity Modbus (1 or 2)

Set the parity of this controller to match

the parity of the serial network.

[none] None

[EuEn] Even

[`odd] Odd

None Protocol is set to Modbus.

Range depends on the

model.

[M;hL]

[M.hL]

Communications (1 or 2)

Modbus Word Order

Select the word order of the two 16-bit

words in the floating-point values.

[Lohi] Low-High

[hiLo] High-Low

Low-High Protocol is set to Modbus.

[iP;M]

[iP.M]

Communications 2

IP Address Mode

Select DHCP to let a DHCP server assign

an address to this controller.

[dhCP] DHCP

[F;Add] Fixed Address

the controller includes

EtherNet/IP (PM6 _ _ _

_-3AA _ A _ _).

[iP;F1]

[ip.F1]

Communications 2

IP Fixed Address Part 1

Set the IP address of this controller. Each

device on the network must have a unique

address.

0 to 255 169 IP Address Mode is set

to Fixed

[iP;F2]

[ip.F2]

Communications 2

IP Fixed Address Part 2

Set the IP address of this controller. Each

device on the network must have a unique

address.

0 to 255 254 IP Address Mode is set

to Fixed

Note: Some values will be rounded off to fit in the four-character display. Full values can be read with other interfaces.

If there is only one instance of a menu, no submenus will appear.

Watlow EZ-ZONE® PM Integrated Controller • 44 • Chapter 6 Setup Page

Dis-

play

Parameter Name

Description

Set-

tings

Range Default Appears If

[iP;F3]

[ip.F3]

Communications 2

IP Fixed Address Part 3

Set the IP address of this controller. Each

device on the network must have a unique

address.

0 to 255 1 IP Address Mode is set

to Fixed

[iP;F4]

[ip.F4]

Communications 2

IP Fixed Address Part 4

Set the IP address of this controller. Each

device on the network must have a unique

address.

0 to 255 1 IP Address Mode is set

to Fixed

[iP;S1]

[ip.S1]

Communications 2

IP Fixed Subnet Part 1

Set the IP subnet mask for this controller.

0 to 255 255 IP Address Mode is set

to Fixed

[iP;S2]

[ip.S2]

Communications 2

IP Fixed Subnet Part 2

Set the IP subnet mask for this controller.

0 to 255 255 IP Address Mode is set

to Fixed

[iP;S3]

[ip.S1]

Communications 2

IP Fixed Subnet Part 3

Set the IP subnet mask for this controller.

0 to 255 0 IP Address Mode is set

to Fixed

[iP;S4]

[ip.S4]

Communications 2

IP Fixed Subnet Part 4

Set the IP subnet mask for this controller.

0 to 255 0 IP Address Mode is set

to Fixed

[iP;g1]

[ip.g1]

Communications 2

IP Fixed Gateway Part 1

Set the IP gateway address for this con-

troller.

0 to 255 0 IP Address Mode is set

to Fixed

[iP;g2]

[ip.g2]

Communications 2

IP Fixed Gateway Part 2

Set the IP gateway address for this con-

troller.

0 to 255 0 IP Address Mode is set

to Fixed

[iP;g3]

[ip.g3]

Communications 2

IP Fixed Gateway Part 3

Set the IP gateway address for this con-

troller.

0 to 255 0 IP Address Mode is set

to Fixed

[iP;g4]

[ip.g4]

Communications 2

IP Fixed Gateway Part 4

Set the IP gateway address for this con-

troller.

0 to 255 0 IP Address Mode is set

to Fixed

[Mb;E]

[Mb.E]

Communications 2

Modbus TCP Enable

Activate Modbus TCP.

[``no] No

[`YES} Yes

Yes the controller includes

Modbus TCP (PM6 _ _ _

_-3AA _ A _ _).

[EiP;E]

[EiP.E]

Communications 2

EtherNet/IP™ Enable

Activate EtherNet/IP™.

[``no] No

[`YES} Yes

Yes the controller includes

EtherNet/IP (PM6 _ _ _

_-3AA _ A _ _).

Note: Some values will be rounded off to fit in the four-character display. Full values can be read with other interfaces.

If there is only one instance of a menu, no submenus will appear.

Watlow EZ-ZONE® PM Integrated Controller • 45 • Chapter 7 Profiling Page

Chapter 7: Profiling Page

Home

Page

Proﬁ ling

Page Steps Step Types

[~~p~]ˆ

[~~Sp]‰

[~~p1]ˆ

[FiLe]‰

[~~`1]

[``P1]

ˆ

‰

[~~ti]ˆ

[S;tyP]‰



[tg;SP]‰[hoUr]‰[Min]‰[`SEC]‰[Ent1]‰



[Ent2]‰

Hold key for 3

seconds.

Proﬁ le 1

<

>

<

>

Steps 1 to 10

Proﬁ le 1

Time

<

>

Target Set

Point

Hours Minutes Seconds Event

Output 1

Event

Output 2

ˆ[``P2]ˆ

[FiLE]‰

[~~11]

[``P2]

[rAtE]ˆ

[S;tyP]‰



[tg;SP]‰[rAtE]‰[Ent1]‰



[Ent2]‰

Proﬁ le 2

<

>

<

>

Steps 11 to 20

Proﬁ le 2

Rate

<

>

Target Set

Point

Rate Event

Output 1

Event

Output 2

ˆ[``P3]ˆ

[FiLE]‰

[~~21]

[``P3]

[SoAH]ˆ

[S;tyP]‰



[hoUr]‰[Min]‰[`SEC]‰[Ent1]‰



[Ent2]‰

Proﬁ le 3

<

>

<

>

Steps 21 to 30

Proﬁ le 3

Soak

<

>

Hours Minutes Seconds Event

Output 1

Event

Output 2

ˆ[``P4]ˆ

[FiLE]‰

[~~31]

[``P4]

[`WE]ˆ

[S;tyP]‰



[WE;1]‰[WE;2]‰[Ent1]‰



[Ent2]‰

Proﬁ le 4

<

>

<

>

Steps 31 to 40

Proﬁ le 4

Wait For

Event

<

>

Wait Event 1 Wait Event 2 Event

Output 1

Event

Output 2

[W;Pr]ˆ

[S;tyP]‰



[W;Pi]‰[WPr]‰[Ent1]‰



[Ent2]‰

Wait For

Process

<

>

Wait for

Process

Instance

Wait for

Process

Value

Event

Output 1

Event

Output 2

[W;bo]ˆ

[S;tyP]‰



[tg;SP]‰[WE;1]‰[WE;2]‰[Ent1]‰



[Ent2]‰

Wait For Both

<

>

Target Set

Point

Wait Event 1 Wait Event 2 Event

Output 1

Event

Output 2

[``JL]ˆ

[S;tyP]‰



[``JS]‰[``JC]‰[Ent1]‰



[Ent2]‰

Jump Loop

Step

<

>

Jump Step Jump Count Event

Output 1

Event

Output 2

[`End]ˆ

[S;tyP]‰[`End]

End Step

<

>

End Type

[UStP]

[S;tyP]

Unused Step

<

>

Navigating the Profiling Page Note:

Some of these menus and parameters may not appear,

depending on the controller's options. See model num-

ber information in the Appendix for more information.

If there is only one instance of a menu, no submenus

will appear.

Watlow EZ-ZONE® PM Integrated Controller • 46 • Chapter 7 Profiling Page

The Profiling Page allows you to enter your ramp

and soak profile information.

To go to the Profiling Page from the Home Page,

press the Advance Key ‰ for three seconds, until

[ProF] appears in the lower display and the pro-

file number appears in the upper display. Press

the Up ¿ or Down ¯ key to change to another pro-

file.

• Press the Advance Key ‰ to move to the selected

profile's first step.

• Press the Up ¿ or Down ¯ keys to move

through the steps.

• Press the Advance Key ‰ to move through the

selected step's settings.

• Press the Up ¿ or Down ¯ keys to change the

step's settings.

• Press the Infinity Key ˆ at any time to return

to the step number prompt.

• Press the Infinity Key ˆ again to return to the

profile number prompt.

• From any point press and hold the Infinity Key

ˆ for two seconds to return to the Home Page.

Note: Changes made to profile parameters in the Profiling

Pages will be saved and will also have an immediate impact

on the running profile.

Some parameters in the Profile Status Menu can be changed

for the currently running profile, but should only be changed

by knowledgeable personnel and with caution. Changing pa-

rameters via the Profile Status Menu will not change the stored

profile but will have an immediate impact on the profile that is

running.

How to Start a Profile

After defining the profile follow the steps below to

run the profile:

1. From the Home Page push the Advance Key ‰

repeatedly until Profile Start [P;St1] appears in

the lower display.

2. Use the Up ¿ or Down ¯ key to choose the file

or step number within a profile where you want

the profile to begin running.

3. Press the Advance Key ‰. This takes you to

Profile Action [P;AC1], where you can select the

appropriate action.

• [none] No action

• [ProF] Begin execution from first step of the

specified profile number, whether it exists or not.

• [PAUS] Pause the currently running profile.

• [rESU] Resume running the profile from the

previously paused step.

• [`End] End the profile.

• [StEP] Begin running the profile from the spec-

ified step number.

Note: Avoid continuous writes within loops. Excessive writes to

EEPROM will cause premature EEPROM failure. The EEPROM

is rated for 1,000,000 writes.

Display Parameter name

Description

Set-

tings

Range

(Integer values for Mod-

bus in parentheses.)

Default Appears If

Profiling parameters appear if the controller includes profiling (PM6 R _ _ _-_ _ _ _ A _ _).

[ProF]

Profile

Select the profile to be edited or viewed.

P1 to P4 1 always

[``p1]

[ P1] to

[``p4]

[ P4]

Step

Select a step to edit or view.

1 to 10 [profile 1]

11 to 20 [profile 2]

21 to 30 [profile 3]

31 to 40 [profile 4]

always

[S;typ]

[S.typ]

Step Type

Select a step type.

[UStP] Unused Step

[``ti] Time

[rAtE] Rate

[SoAH] Soak

[`W;E] Wait For Event

[W;Pr] Wait For Process

[W;bo] Wait For Both

[``JL] Jump Loop

[`End] End

Unused always

[tg;SP]

[tg.SP]

Step Type Parameters

Target Set Point

Select the set point for this step.

-1,999.000 to

9,999.000°F or units

-1,128 to 5,537.000°C

0.0°F or

units

-18°C

Step Type is set to Time,

Rate, Wait for Process or

Wait for Both.

Note: Some values will be rounded off to fit in the four-character display. Full values can be read with another interface.

Watlow EZ-ZONE® PM Integrated Controller • 47 • Chapter 7 Profiling Page

Display Parameter name

Description

Set-

tings

Range

(Integer values for Mod-

bus in parentheses.)

Default Appears If

[hoUr]

Step Type Parameters

Hours

Select the hours (plus Minutes and Seconds) for

a timed step.

0 to 99 0 Step Type is set to Time

or Soak.

[Min]

Step Type Parameters

Minutes

Select the minutes (plus Hours and Seconds) for

a timed step.

0 to 59 0 Step Type is set to Time

or Soak.

[~SEC]

[ SEC]

Step Type Parameters

Seconds

Select the seconds (plus Hours and Minutes) for

a timed step.

0 to 59 0 Step Type is set to Time

or Soak.

[rate]

[rAtE]

Step Type Parameters

Rate

Select the rate for ramping in degrees or units

per minute.

0 to 9,999.000°F or units

per minute

0 to 5,555.000°C per

minute

0.0 Step Type is set to Rate.

[W;Pi]

[W.Pi]

Step Type Parameters

Wait For Process Instance

Select which analog input Wait For Process will

use.

1 or 2 1 Step Type is set to Wait

For Process and the con-

troller has two process

inputs.

[WPr]

Step Type Parameters

Wait For Process Value

The step will wait until the process value is

equal to the Wait-for Process Value. Once the

Wait For Process is satisfied, this step ends.

-1,999.000 to

9,999.000°F or units

-1,128.000 to

5,537.000°C

0.0°F or

units

-18.0°C

Step Type is set to Wait

For Process.

[WE;1]

[WE.1]

[WE;2]

[WE.2]

Step Type Parameters

Wait Event (1 and 2)

Select the event state that must be satisfied

during this step. Digital input 5 provides the

state of Event 1, and digital input 6 provides

the state of Event 2.

[`oFF] Off

[``on] On

[nonE] None

Off Step Type is set to Wait

Event or Wait for Both.

[~~JS]

[ JS]

Step Type Parameters

Jump Step

Select a step to jump to.

1 to 40 0 Step Type is set to Jump

Loop.

[~~JC]

[ JC]

Step Type Parameters

Jump Count

Set the number of jumps. A value of 0 creates

an infinite loop. Loops can be nested four deep.

0 to 9,999 0 Step Type is set to Jump

Loop.

[~End]

[ End]

Step Type Parameters

End Type

Select what the controller will do when this pro-

file ends.

[`oFF] Control Mode

set to Off

[Hold] Hold last closed-

loop set point in the

profile

[USEr] User, reverts to

previous set point

User Step Type is set to End.

[Ent1]

[Ent2]

Step Type Parameters

Event Output (1 and 2)

Select whether Event Output 1 or 2 is on or off

during this step.

[`oFF] Off

[``on] On

Off Step Type is set to Time,

Rate, Soak, Wait Event,

Wait for Process, Wait

for Both or Jump Loop.

Note: Some values will be rounded off to fit in the four-character display. Full values can be read with another interface.

Watlow EZ-ZONE® PM Integrated Controller • 48 • Chapter 7 Profiling Page

Display Step Type

Description

Parameters in Step Type

Profiling parameters appear if the controller includes profiling (PM6 R _ _ _-_ _ _ _ A _ _).

[``ti]

[ ti]

Step Types

Time

A Time Step controls at the Target Set Point and maintains

two event output states for the designated time.

[tg;SP] Target Set Point

[hoUr] Hours

[Min] Minutes

[`SEC] Seconds

[Ent1] Event Output 1

[Ent2] Event Output 2

[rAtE]

Step Types

Rate

A Rate Step ramps the process value to the Target Set Point

in degrees per minute while maintaining two event output

states.

[tg;SP] Target Set Point

[rAtE] Rate

[Ent1] Event Output 1

[Ent2] Event Output 2

[SoAH]

[SoAk]

Step Types

Soak

A Soak Step maintains the last Target Set Point and two

event output states for the designated time.

[hoUr] Hours

[Min] Minutes

[`SEC] Seconds

[Ent1] Event Output 1

[Ent2] Event Output 2

[`W;E]

[ W.E]

Step Types

Wait For Event

A Wait Event Step will wait for the event input states to

match the two Wait Event settings.

[WE;1] Wait Event 1 (digital input 5)

[WE;2] Wait Event 2 (digital input 6)

[Ent1] Event Output 1

[Ent2] Event Output 2

[W;Pr]

[W.Pr]

Step Types

Wait For Process

A Wait For Process Step will wait for the process value to

match the Wait For Process value.

[WPr] Wait For Process Instance

[WPr] Wait For Process Value

[Ent1] Event Output 1

[Ent2] Event Output 2

[W;bo]

[W.bo]

Step Types

Wait For Both

A Wait For Both Step will wait for the process value to

match the Target Set Point and for the event states to match

the two event output settings

[tg;SP] Target Set Point

[WE;1] Wait Event 1 (digital input 5)

[WE;2] Wait Event 2 (digital input 6)

[Ent1] Event Output 1

[Ent2] Event Output 2

[``JL]

[ JL]

Step Types

Jump Loop

A Jump Loop step will jump to the Jump Step the number

of times designated in Jump Count. Loops can be nested up

to four deep.

[``JS] Jump Step

[``JC] Jump Count

[Ent1] Event Output 1

[Ent2] Event Output 2

[`End]

[ End]

Step Types

End

An End Step will end the profile. If a profile doesn't include

an End Step, control will move to the next step. If no End

Step is confronted, after step 40 control will default to the

set point in effect before the profile started.

[`End] End Type

[UStP]

Step Types

Unused Step

This is an empty step that can be used to, in effect, erase a

step in a profile.

Watlow EZ-ZONE® PM Integrated Controller • 49 • Chapter 8 Factory Page

To go to the Factory Page from the Home Page,

press and hold both the Advance ‰ and Infinity ˆ

keys for six seconds.

• Press the Advance Key ‰ to move through the

parameter prompts.

• Press the Up ¿ or Down ¯ keys to change the

parameter value.

• Press the Infinity Key ˆ to return to the Home

Page.

Note: Avoid continuous writes within loops. Excessive writes to

EEPROM will cause premature EEPROM failure. The EEPROM

is rated for 1,000,000 writes.

Chapter 8: Factory Page

Home

Page Factory Page Parameters

[~~p~]ˆ

[~~Sp]‰ˆ

[CUST]ˆ

[FCty]‰

[```I]ˆ

[CUST]‰



[`PAr]‰



[`iid]‰

Hold both keys

for 6 seconds. Custom

<

>

Custom 1

Submenu

Parameter Instance

ˆCustom 2

to 20

Submenus

Same as above.

ˆ[`LoC]ˆ

[FCty]‰



[LoC;o]‰[LoC;P]‰[rLoC]‰



[SLoC]‰

Lockout

<

>

Lock

Operations

Page

Lock

Proﬁ ling

Page

Read Lock Set Lock

ˆ[diAg]ˆ

[FCty]‰



[``Pn]‰[`rEu]‰[S;bLd]‰[``Sn]‰[dAtE]‰[USr;r]‰[USr;S]‰[iP;A1] …[iP;A4]‰



[C;LEd]‰

Diagnostic

<

>

Part Number Software

Revision

Software

Build

Serial

Number

Date of

Manufacture

User Restore

Set

User Save

Set

IP Actual

Address

Part 1

IP Actual

Address

Part 4

Communica-

tions Indica-

tor Light

ˆ[`CAL]ˆ

[FCty]‰

[~~~I]ˆ

[`CAl]‰



[`Mu]‰[ELi;o]‰[ELi;S]‰[ELo;o]‰



[ELo;S]‰

Calibration

<

>

Calibration 1

Submenu

<

>

Electrical

Measure-

ment

Electrical

Input Offset

Electrical

Input Slope

Electrical

Output

Offset

Electrical

Output Slope

ˆCalibration 2

Submenu

Same as above.

Navigating the Factory Page

Note:

Some of these menus and parameters may

not appear, depending on the controller's

options. See model number information in

the Appendix for more information.

If there is only one instance of a menu, no

submenus will appear.

Watlow EZ-ZONE® PM Integrated Controller • 50 • Chapter 8 Factory Page

Dis-

play

Parameter Name

Description

Set-

tings

Range Default Appears If

[CUSt] [```1] [``20]

[FCty] [CUSt] [CUSt]

Custom Menu Custom 1 Custom 20

[`PAr]

[ PAr]

Custom Menu

Parameter 1 to 20

Select the parameters that will

appear in the Home Page.

The Parameter 1 value will ap-

pear in the upper display of

the Home Page. It cannot be

changed with the Up and Down

Keys in the Home Page.

The Parameter 2 value will ap-

pear in the lower display in the

Home Page. It can be changed

with the Up and Down Keys, if

the parameter is a writable one.

Scroll through the other Home

Page parameters with the Ad-

vance Key ‰.

[nonE] None

[`Pro] Process

[StPt] Set Point

[AC;pu] Active Process Value

[AC;SP] Active Set Point

[``op] Open Loop Set Point

[`i;CA] Input Calibration Offset

[`C_F] Display Units

[USr;r] User Restore Set

[`A;Lo] Alarm Low Set Point

[`A;hi] Alarm High Set Point

[`A;hy] Alarm Hysteresis

[`AUt] Autotune

[`C;M] User Control Mode

[`h;Pr] Heat Power

[`C;Pr] Cool Power

[``ti] Time Integral

[``td] Time Derivative

[``db] Dead Band

[`h;Pb] Heat Proportional Band

[`h;hy] Heat Hysteresis

[`C;Pb] Cool Proportional Band

[`C;hy] Cool Hysteresis

[`r;rt] Ramp Rate

[`CU;r] Current Read

[t;tUn] TRU-TUNE+® Enable

[idLE] Idle Set Point

[CUSt] Custom Menu

[P;Str] Profile Start

[P;ACr] Profile Action Request

[`gSd] Guaranteed Soak Deviation Value

[`LL;S] Limit Low Set Point

[`Lh;S] Limit High Set Point

[`L;hy] Limit Hysteresis

Active Process

Value (1, Top

Display)

Active Set Point

(2, Bottom

Display)

User Control

Mode (4)

Heat Power (5)

Cool Power (6)

Autotune (7)

Idle Set Point

(8)

Profile Start (9)

Profile Action

(10)

None (11 to 20)

always

[`iid]

[ iid]

Custom Menu

Instance

Select which instance of the pa-

rameter will be selected.

1 to 4 the para meter

may apply to more

than one instance.

[`LoC]

[FCty]

Lockout Menu

[LoC;o]

[LoC.o]

Lockout Menu

Lock Operations Page

Change the security level of the

Operations Page.

1 to 3 2 always

[LoC;P]

[LoC.P]

Lockout Menu

Lock Profiling Page

Change the security level of the

Profiling Page.

1 to 3 3 always

Note: Some values will be rounded off to fit in the four-character display. Full values can be read with another interface.

If there is only one instance of a menu, no submenus will appear.

Watlow EZ-ZONE® PM Integrated Controller • 51 • Chapter 8 Factory Page

Dis-

play

Parameter Name

Description

Set-

tings

Range Default Appears If

[rLoC]

Lockout Menu

Read Lockout Security

Set the read security clearance

level. The user can access the se-

lected level and all lower levels.

If the Set Lockout Security level

is higher than the Read Lockout

Security, the Read Loc

kout Secu-

rity level takes priority.

1 to 5

1 Home Page

2 Operations Page*

3 Profiling Page*

4 Setup Page and Diagnostics Menu

5 Lock, Calibration and Custom menus

*You can change the security level of the

Operations and Profiling pages with

Lock Operations Page and Lock Profil-

ing Page.

5 always

[SLoC]

Lockout Menu

Set Lockout Security

Set the write security clearance

level. The user can access the se-

lected level and all lower levels.

If the Set Lockout Security level

is higher than the Read Lockout

Security, the Read Locko

ut Secu-

rity level takes priority.

0 to 5

0 No changes allowed, except to [SLoC]

1 Home Page

2 Operations Page*

3 Profiling Page*

4 Setup Page and Diagnostics Menu

5 Lock, Calibration and Custom menus

*You can change the security level of the

Operations and Profiling pages with

Lock Operations Page and Lock Profil-

ing Page.

5 always

[diAg]

[FCty]

Diagnostics Menu

[``Pn]

[ Pn]

Diagnostics Menu

Part Number

Display this controller's part

number.

always

[`rEu]

[ rEu]

Diagnostics Menu

Software Revision

Display this controller's firmware

revision number.

always

[S;bLd]

[S.bLd]

Diagnostics Menu

Software Build

Display the firmware build num-

ber.

0 to 2,147,483,647 always

[``Sn]

[ Sn]

Diagnostics Menu

Serial Number

Display the serial number.

0 to 2,147,483,647 always

[dAtE]

Diagnostics Menu

Date of Manufacture

Display the date code.

0 to 2,147,483,647 always

[USr;r]

[USr.r]

Diagnostics Menu

User Restore Set

Replace all of this controller's set-

tings with another set.

[none] None

[SEt1] User Set 1

[SEt2] User Set 2

[FCty] Factory Default

None always

[USr;S]

[USr.S]

Diagnostics Menu

User Save Set

Save all of this controller's set-

tings to the selected set.

[none] None

[SEt1] User Set 1

[SEt2] User Set 2

None always

[iP;A1]

[iP.A1]

Diagnostics Menu

IP Actual Address Part 1

Display the first part of this

controller's IP address.

0 to 255 None the controller in-

cludes EtherNet/

IP (PM6 _ _ _ _-

3AA _ A _ _).

[iP;A2]

[iP.A2]

Diagnostics Menu

IP Actual Address Part 2

Display the second part of this

controller's IP address.

0 to 255 None the controller in-

cludes EtherNet/

IP (PM6 _ _ _ _-

3AA _ A _ _).

Note: Some values will be rounded off to fit in the four-character display. Full values can be read with another interface.

If there is only one instance of a menu, no submenus will appear.

Watlow EZ-ZONE® PM Integrated Controller • 52 • Chapter 8 Factory Page

Dis-

play

Parameter Name

Description

Set-

tings

Range Default Appears If

[iP;A3]

[iP.A3]

Diagnostics Menu

IP Actual Address Part 3

Display the third part of this

controller's IP address.

0 to 255 None the controller in-

cludes EtherNet/

IP (PM6 _ _ _ _-

3AA _ A _ _).

[iP;A4]

[iP.A4]

Diagnostics Menu

IP Actual Address Part 4

Display the fourth part of this

controller's IP address.

0 to 255 None the controller in-

cludes EtherNet/

IP (PM6 _ _ _ _-

3AA _ A _ _).

[C;LEd]

[C.LEd]

Diagnostics Menu

Communications Indicator

Light

Select which channel the Commu-

nications Activity indicator light

will monitor.

[`oFF] Off

[Con1] Channel 1

[Con2] Channel 2

[Both] Both

[`CAL] [```1] [```2]

[FCty] [`CAL] [`CAL]

Calibration Menu Calibration 1 Calibration 2 (input 2 appears if PM6 _ _ _ _-_ [R, T or L] _ _ A _ _)

[`Mu]

[ Mv]

Calibration Menu (1 or 2)

Electrical Measurement

Read the raw electrical value

for this input in the units cor-

responding to the Sensor Type

(Setup Page, Analog Input Menu)

setting.

-1,999.000 to 9,999.000 always

[ELi;o]

[ELi.o]

Calibration Menu (1 or 2)

Electrical Input Offset

Change this value to calibrate the

low end of the input range.

-1,999.000 to 9,999.000 0.0 always

[ELi;S]

[ELi.S]

Calibration Menu (1 or 2)

Electrical Input Slope

Adjust this value to calibrate the

slope of the input value.

-1,999.000 to 9,999.000 1.0 always

[ ELo;o]

[ELo.o]

Calibration Menu (1 or 2)

Electrical Output Offset

Change this value to calibrate the

low end of the output range.

Menu 2 calibrates output 3.

-1,999.000 to 9,999.000 0.0 the controller has

process outputs:

(PM6_ _F_- _ _ _

_A_ _) or (PM6_

_ _ _-_ _F_A_ _)

[ELo;S]

[ELo.S]

Calibration Menu (1 or 2)

Electrical Output Slope

Adjust this value to calibrate the

slope of the output value.

Menu 2 calibrates output 3.

-1,999.000 to 9,999.000 1.0 the controller has

process outputs:

(PM6_ _F_- _ _ _

_A_ _) or (PM6_

_ _ _-_ _F_A_ _)

Note: Some values will be rounded off to fit in the four-character display. Full values can be read with another interface.

If there is only one instance of a menu, no submenus will appear.

Watlow EZ-ZONE® PM Integrated Controller • 53 • Chapter 9 Features

9Chapter 9: Features

Saving and Restoring User Settings . . . . . . . . . . . . . . . . . . . . . . . . . .54

Programming the Home Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Tuning the PID Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Manual Tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Autotuning with TRU-TUNE+™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Calibration Offset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Filter Time Constant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Sensor Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Sensor Backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Set Point Low Limit and High Limit . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Scale High and Scale Low . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Range High and Range Low . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Receiving a Remote Set Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Duplex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

No-arc Relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Retransmitting a Process Value or Set Point . . . . . . . . . . . . . . . . . . . . 58

Cool Output Curve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Control Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Output Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Auto (closed loop) and Manual (open loop) Control . . . . . . . . . . . . . . 59

On-Off Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Proportional Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Proportional plus Integral (PI) Control . . . . . . . . . . . . . . . . . . . . . . . . . 61

Proportional plus Integral plus Derivative (PID) Control . . . . . . . . . . . 61

Dead Band . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Variable Time Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Single Set Point Ramping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Process and Deviation Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Alarm Set Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Alarm Hysteresis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Alarm Latching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Alarm Silencing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Alarm Blocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Current Sensing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Programming the EZ Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

Using Lockout to Secure Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Watlow EZ-ZONE® PM Integrated Controller • 54 • Chapter 9 Features

Saving and Restoring User Settings

Recording setup and operations parameter settings

for future reference is very important. If you uninten-

tionally change these, you will need to program the

correct settings back into the controller to return the

equipment to operational condition.

After you program the controller and verify

proper operation, use User Save Set [USr;S] (Fac-

tory Page, Diagnostics Menu) to save the settings

into either of two files in a special section of memory.

If the settings in the controller are altered and you

want to return the controller to the saved values, use

User Restore Set [USr;r] (Factory Page, Diagnostics

Menu) to recall one of the saved settings.

A digital input or the Function Key can also be

configured to restore parameters.

Note: Only perform the above procedure when you are sure that

all the correct settings are programmed into the controller. Sav-

ing the settings overwrites any previously saved collection of

settings. Be sure to document all the controller settings.

Programming the Home Page

Watlow’s patented user-defined menu system im-

proves operational efficiency. The user-defined Home

Page provides you with a shortcut to monitor or

change the parameter values that you use most of-

ten.

You can create your own Home Page with as

many as 20 of the active parameters. When a param-

eter normally located in the Setup Page or Opera-

tions Page is placed in the Home Page, it is acces-

sible through both. If you change a parameter in the

Home Page, it is automatically changed in its origi-

nal page. If you change a parameter in its original

page it is automatically changed in the Home Page.

The default parameters will automatically appear

in the Home Page.

Change the list of parameters in the Home Page

from the Custom Menu [CUSt] (Factory Page).

Tuning the PID Parameters

Autotuning

When an autotune is performed on the EZ-ZONE®

PM, the set point is used to calculate the tuning set

point.

For example, if the active set point is 200° and

Autotune Set Point [A;tSP] (Operations Page, Loop

Menu) is set to 90 percent, the autotune function

utilizes 180° for tuning. This is also how autotun-

ing works in previous Watlow Winona controllers. In

addition, changing the active set point in previous

controllers causes the autotune function to restart;

where with the EZ-ZONE® PM changing the set

point after an autotune has been started has no af-

fect.

A new feature in EZ-ZONE® PM products will al-

low set point changes while the control is autotun-

ing, this includes while running a profile or ramping.

When the auto tune is initially started it will use

the current set point and will disregard all set point

changes until the tuning process is complete. Once

complete, the controller will then use the new set

point.

This is why it is a good idea to enter the active set

point before initiating an autotune.

Autotuning calculates the optimum heating and/

or cooling PID parameter settings based on the sys-

tem's response. Autotuning can be enabled whether

or not TUNE-TUNE+™ is enabled. The PID settings

generated by the autotune will be used until the au-

totune feature is rerun, the PID values are manually

adjusted or TRU-TUNE+® is enabled.

To initiate an autotune, set Autotune Request

[`AUt] (Operations Page, Loop Menu) to [`YES].

You should not autotune while a profile is running. If

the autotune cannot be completed in 60 minutes, the

autotune will time-out and the original settings will

take effect.

The lower display will flash between [tUnE] and

the set point while the autotuning is underway. The

temperature must cross the Autotune Set Point five

times to complete the autotuning process. Once com-

plete, the controller controls at the normal set point,

using the new parameters.

Select a set point for the tune with Autotune Set

Point. The Autotune Set Point is expressed as a per-

cent of the Closed Loop Set Point.

If you need to adjust the tuning procedure's ag-

gressiveness, use Autotune Aggressiveness [T;Agr]

(Setup Page, Loop Menu). Select under damped [Un-

dr] to bring the process value to the set point quick-

ly. Select over damped [ouer] to bring the process

value to the set point with minimal overshoot. Select

critical damped [Crit] to balance a rapid response

with minimal overshoot.

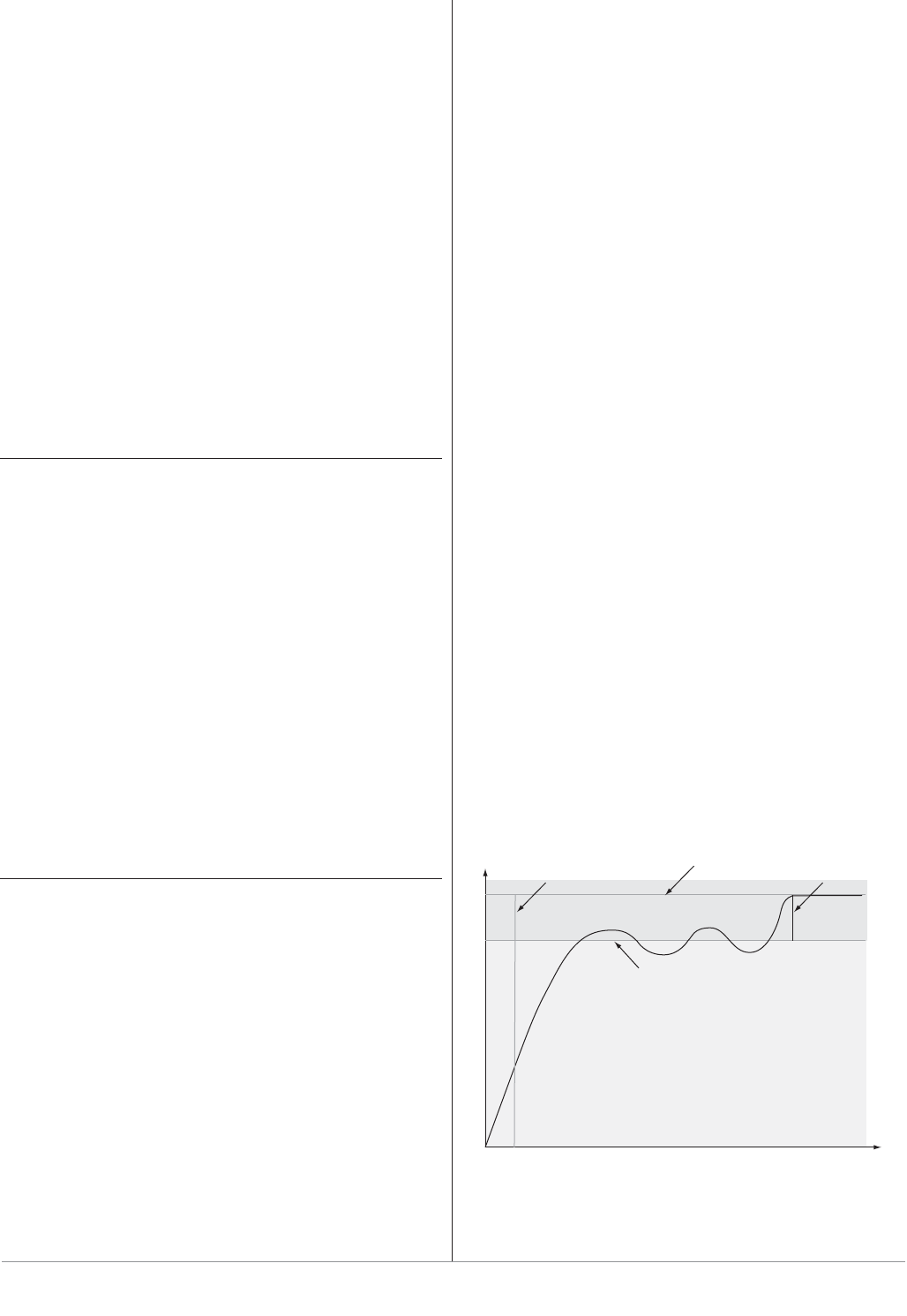

Time

Temperature

Autotune begins

Process Set Point

Autotune Set Point

(90 percent of Process Set Point)

Autotune complete

Watlow EZ-ZONE® PM Integrated Controller • 55 • Chapter 9 Features

Manual Tuning

In some applications, the autotune process may not

provide PID parameters for the process characteris-

tics you desire. If that is the case, you may want to

tune the controller manually.

1. Apply power to the controller and establish a set

point typically used in your process.

2. Go to the Operations Page, Loop Menu, and set

Heat Proportional Band [`h;Pb] and/or Cool Pro-

portional Band [`C;Pb] to 5. Set Time Integral

[``ti] to 0. Set Time Derivative [``td] to 0.

3. When the system stabilizes, watch the process

value. If it fluctuates, increase the Heat Propor-

tional Band or Cool Proportional Band value in 3

to 5° increments until it stabilizes, allowing time

for the system to settle between adjustments.

4. When the process has stabilized, watch Heat

Power [`h;Pr] or Cool Power [`C;Pr] (Operations

Page, Monitor Menu). It should be stable ±2%. At

this point, the process temperature should also

be stable, but it will have stabilized before reach-

ing the set point. The difference between the set

point and actual process value can be eliminated

with Integral.

5. Start with an Integral value of 6,000 and allow

10 minutes for the process temperature to reach

the set point. If it has not, reduce the setting by

half and wait another 10 minutes. Continue re-

ducing the setting by half every 10 minutes until

the process value equals the set point. If the pro-

cess becomes unstable, the Integral value is too

small. Increase the value until the process stabi-

lizes.

6. Increase Derivative to 0.1. Then increase the set

point by 11° to 17°C. Monitor the system’s ap-

proach to the set point. If the process value over-

shoots the set point, increase Derivative to 0.2.

Increase the set point by 11° to 17°C and watch

the approach to the new set point. If you increase

Derivative too much, the approach to the set

point will be very sluggish. Repeat as necessary

until the system rises to the new set point with-

out overshoot or sluggishness.

For additional information about autotune and PID

control, see related features in this chapter.

Autotuning with TRU-TUNE+®

The TRU-TUNE+® adaptive algorithm will optimize

the controller's PID values to improve control of dy-

namic processes. TRU-TUNE+® monitors the process

variable and adjusts the control parameters auto-

matically to keep your process at set point during set

point and load changes. When the controller is in the

adaptive control mode, it determines the appropriate

output signal and, over time, adjusts control param-

eters to optimize responsiveness and stability. The

TRU-TUNE+® feature does not function for on-off

control.

The preferred and quickest method for tuning a

loop is to establish initial control settings and contin-

ue with the adaptive mode to fine tune the settings.

Setting a controller's control mode to tune starts

this two-step tuning process. (See Autotuning in this

chapter.) This predictive tune determines initial,

rough settings for the PID parameters. Then the loop

automatically switches to the adaptive mode which

fine tunes the PID parameters.

Once the process variable has been at set point for

a suitable period (about 30 minutes for a fast process

to roughly two hours for a slower process) and if no

further tuning of the PID parameters is desired or

needed, TRU-TUNE+™ may be turned off. However,

keeping the controller in the adaptive mode allows it

to automatically adjust to load changes and compen-

sate for differing control characteristics at various

set points for processes that are not entirely linear.

Once the PID parameters have been set by the

TRU-TUNE+™ adaptive algorithm, the process, if

shut down for any reason, can be restarted in the

adaptive control mode.

Turn TRU-TUNE+™ on or off with TRU-TUNE+™

Enable [t;tUn] (Setup Page, Loop Menu).

Use TRU-TUNE+™ Band [t;bnd] (Setup Page,

Loop Menu) to set the range above and below the

set point in which adaptive tuning will be active.

Adjust this parameter only in the unlikely event

that the controller is unable to stabilize at the set

point with TRU-TUNE+™ Band set to auto (0). This

may occur with very fast processes. In that case, set

TRU-TUNE+™ Band to a large value, such as 100.

Use TRU-TUNE+™ Gain [`t;gn] (Setup Page,

Loop Menu) to adjust the responsiveness of the adap-

tive tuning calculations. Six settings range from 1,

with the most aggressive response and most poten-

tial overshoot (highest gain), to 6, with the least ag-

gressive response and least potential for overshoot

(lowest gain). The default setting, 3, is recommended

for loops with thermocouple feedback and moderate

response and overshoot potential.

Before Tuning

Before autotuning, the controller hardware must be

installed correctly, and these basic configuration pa-

rameters must be set:

• Sensor Type [`SEn] (Setup Page, Analog Input

Menu), and scaling, if required;

• Function [``Fn] (Setup Page, Output Menu) and

scaling, if required.

How to Autotune a Loop

1. Enter the desired set point or one that is in the

middle of the expected range of set points that

you want to tune for.

2. Enable TRU-TUNE+®.

Watlow EZ-ZONE® PM Integrated Controller • 56 • Chapter 9 Features

3. Initiate an autotune. (See Autotuning in this

chapter.)

When autotuning is complete, the PID parameters

should provide good control. As long as the loop is in

the adaptive control mode, TRU-TUNE+® continu-

ously tunes to provide the best possible PID control

for the process.

WARNING! During autotuning, the controller sets the output

to 100 percent and attempts to drive the process variable

toward the set point. Enter a set point and heat and cool

power limits that are within the safe operating limits of your

system.

Inputs

Calibration Offset

Calibration offset allows a device to compensate for

an inaccurate sensor, lead resistance or other factors

that affect the input value. A positive offset increases

the input value, and a negative offset decreases the

input value.

The input offset value can be viewed or changed

with Calibration Offset [`i;CA] (Operations Page,

Analog Input Menu).

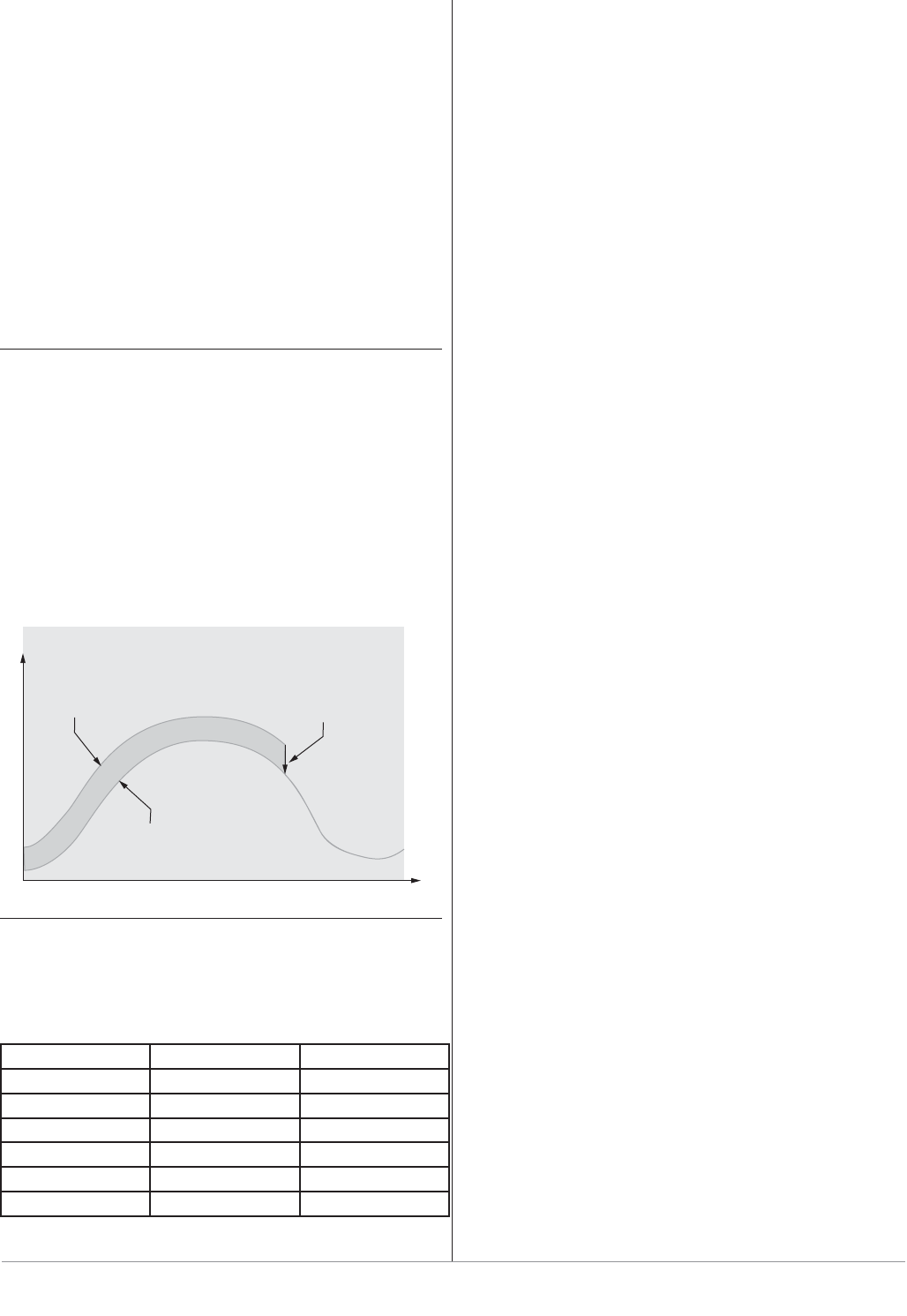

Time

Temperature

Temperature Reading

from Sensor

Actual Process Temperature

Negative Calibration Offset will

compensate for the difference

between the Sensor Reading and

the Actual Temperature

Calibration

To calibrate an analog input, you will need to provide

two electrical signals or resistance loads near the ex-

tremes of the range that the application is likely to

utilize. See recommended values below:

Sensor Type Low Source High Source

thermocouple 0.000 mV 50.000 mV

millivolts 0.000 mV 50.000 mV

volts 0.000V 10.000V

milliamps 0.000 mA 20.000 mA

100 Ω RTD 50.00 Ω 350.00 Ω

1,000 Ω RTD 500.00 Ω 3,500.00 Ω

Follow these steps for a thermocouple or pro-

cess input:

1. Apply the low source signal to the input you are

calibrating. Measure the signal to ensure it is ac-

curate.

2. Read the value of Electrical Measurement [`Mu]

(Factory Page, Calibration Menu) for that input.

3. Calculate the offset value by subtracting this val-

ue from the low source signal.

4. Set Electrical Input Offset [ELi;o] (Factory Page,

Calibration Menu) for this input to the offset val-

ue.

5. Check the Electrical Measurement to see whether

it now matches the signal. If it doesn’t match, ad-

just Electrical Offset again.

6. Apply the high source signal to the input. Mea-

sure the signal to ensure it is accurate.

7. Read the value of Electrical Measurement for

that input.

8. Calculate the gain value by dividing the low

source signal by this value.

9. Set Electrical Slope [ELi;S] (Factory Page, Cali-

bration Menu) for this input to the calculated

gain value.

10. Check the Electrical Measurement to see wheth-

er it now matches the signal. If it doesn’t match,

adjust Electrical Slope again.

Set Electrical Offset to 0 and Electrical Slope to 1 to

restore factory calibration.

Follow these steps for an RTD input:

1. Measure the low source resistance to ensure it

is accurate. Connect the low source resistance to

the input you are calibrating.

2. Read the value of Electrical Measurement [`Mu]

(Factory Page, Calibration Menu) for that input.

3. Calculate the offset value by subtracting this val-

ue from the low source resistance.

4. Set Electrical Input Offset [ELi;o] (Factory Page,

Calibration Menu) for this input to the offset val-

ue.

5. Check the Electrical Measurement to see whether

it now matches the resistance. If it doesn’t match,

adjust Electrical Offset again.

6. Measure the high source resistance to ensure it

is accurate. Connect the high source resistance to

the input.

7. Read the value of Electrical Measurement for

that input.

8. Calculate the gain value by dividing the low

source signal by this value.

9. Set Electrical Slope [ELi;S] (Factory Page, Cali-

bration Menu) for this input to the calculated

gain value.

10. Check the Electrical Measurement to see wheth-

er it now matches the signal. If it doesn’t match,

adjust Electrical Slope again.

Watlow EZ-ZONE® PM Integrated Controller • 57 • Chapter 9 Features

Set Electrical Offset to 0 and Electrical Slope to 1 to

restore factory calibration.

Filter Time Constant

Filtering smoothes an input signal by applying a

first-order filter time constant to the signal. Filter-

ing the displayed value makes it easier to monitor.

Filtering the signal may improve the performance of

PID control in a noisy or very dynamic system.

Adjust the filter time interval with Filter Time

[`FiL] (Setup Page, Analog Input Menu).

Example: With a filter value of 0.5 seconds, if the

process input value instantly changes from 0 to 100

and remained at 100, the display will indicate 100 after

five time constants of the filter value or 2.5 seconds.

Unfiltered Input Signal

Time

Temperature

Filtered Input Signal

Time

Temperature

Sensor Selection

You need to configure the controller to match the in-

put device, which is normally a thermocouple, RTD or

process transmitter.

Select the sensor type with Sensor Type [`Sen]

(Setup Page, Analog Input Menu).

Sensor Backup

Sensor backup maintains closed-loop control after an

input failure by switching control to input 2.

The sensor backup feature is only available in an

EZ-ZONE® PM Integrated limit or remote set point

controller.

Turn sensor backup on or off with Sensor Backup

Enable [`S;bA] (Setup Page, Analog Input 1).

Set Point Low Limit and High Limit

The controller constrains the set point to a value be-

tween a set point low limit and a set point high limit.

Set the set point limits with Low Set Point

[`L;SP] and High Set Point [`h;SP] (Setup Page,

Loop Menu).

There are two sets of set point low and high lim-

its: one for a closed-loop set point, another for an

open-loop set point.

Set Point Range (must be between Range High and Range Low)

Low Limit of selected functional range

High Limit of selected functional range

Gas Pressure

Range High Range (between High Limit of Sensor and Range Low)

Range Low Range (between Low Limit of Sensor and Range High)

Set Point Low

Set Point High

Scale High and Scale Low

When an analog input is selected as process voltage

or process current input, you must choose the value

of voltage or current to be the low and high ends. For

example, when using a 4 to 20 mA input, the scale

low value would be 4.00 mA and the scale high value

would be 20.00 mA. Commonly used scale ranges are:

0 to 20 mA, 4 to 20 mA, 0 to 5V, 1 to 5V and 0 to 10V.

You can create a scale range representing other

units for special applications. You can reverse scales

from high values to low values for analog input sig-

nals that have a reversed action. For example, if 50

psi causes a 4 mA signal and 10 psi causes a 20 mA

signal.

Scale low and high low values do not have to match

the bounds of the measurement range. These along

with range low and high provide for process scaling

and can include values not measureable by the control-

ler. Regardless of scaling values, the measured value

will be constrained by the electrical measurements of

the hardware.

Select the low and high values with Scale Low

[`S;Lo] and Scale High [`S;hi]. Select the displayed

range with Range Low [`r;Lo] and Range High

[`r;hi] (Setup Page, Analog Input Menu).

Range High and Range Low

With a process input, you must choose a value to rep-

resent the low and high ends of the current or voltage

range. Choosing these values allows the controller’s

display to be scaled into the actual working units of

measurement. For example, the analog input from a

humidity transmitter could represent 0 to 100 per-

cent relative humidity as a process signal of 4 to 20

mA. Low scale would be set to 0 to represent 4 mA

and high scale set to 100 to represent 20 mA. The in-

dication on the display would then represent percent

humidity and range from 0 to 100 percent with an

input of 4 to 20 mA.

Select the low and high values with Range Low

[`r;Lo] and Range High [`r;hi] (Setup Page, Analog

Input Menu).

Receiving a Remote Set Point

The remote set point feature allows the controller

to use a thermocouple, RTD, 1 k potentiometer or

process signal at input 2 to establish the set point,

Watlow EZ-ZONE® PM Integrated Controller • 58 • Chapter 9 Features

which allows its set point to be manipulated by an

external source. A common application would use one

ramping controller with a set-point retransmit out-

put to ramp multiple controllers using the remote set

point. Or you could use an analog output from a PLC

to send set point values to an EZ-ZONE® PM.

The controller must have two process inputs to

use the remote set point feature.

You may select between local and remote set

points at the front panel, with an event input, from a

remote computer using the communications feature

or from an external switch using an event input.

Make sure all input and output impedances are

compatible.

Switch to the remote set point with Remote En-

able [`r;En] (Operations Page, Loop Menu). Select

whether the remote set point controls an open- or

closed-loop set point with Remote Set Point Type

[`r;ty].

Assign the function of switching to a remote set

point to a digital input with Digital Input Function

[``Fn] (Setup Page, Digital Input Menu).

Assign the function of switching to a remote set

point to the EZ Key with Digital Input Function

[``Fn] (Setup Page, Function Key Menu).

Outputs

Duplex

Certain systems require that a single process output

control both heating and cooling outputs. An EZ-

ZONE® PM controller with a process output can func-

tion as two separate outputs.

With a 4 to 20mA output the heating output will

operate from 12 to 20mA (0 to +100 percent) and the

cooling output will operate from 12 to 4mA (0 to -100

percent).

In some cases this type of output is required by

the device that the EZ-ZONE® PM controls, such as

a three-way valve that opens one way with a 12 to

20mA signal and opens the other way with a 4 to

12mA signal. This feature reduces the overall system

cost by using a single output to act as two outputs.

Outputs 1 and 3 can be ordered as process out-

puts. Select duplex [dUPL] as the Output Function

[``Fn] (Setup Page, Output Menu). Set the output to

volts [uoLt] or milliamps [`MA] with Output Type

[`o;ty]. Set the range of the process output with

Scale Low [`S;Lo] and Scale High [`S;hi].

No-arc Relay

A no-arc relay provides a significant improvement in

the life of the output relay over conventional relays.

Conventional mechanical relays have an expected

life of 100,000 cycles at the rated full-load current.

The shorter life for conventional relays is due to the

fact that when contacts open while current is flowing

metal degradation occurs. This action produces un-

avoidable electrical arcing causing metal to transfer

from one contact to the other. The arcing conditions

continue on each subsequent contact opening until

over time the resistance through the contacts in-

creases causing the contacts to increase in tempera-

ture. Eventually, the contacts will weld together and

the relay remains in the on state.

The Watlow no-arc relay is a hybrid relay. It uses

a mechanical relay for the current load and a triac

(solid-state switch) to carry the turn-on and turn-off

currents. No-arc relays extend the life of the relay

more than two million cycles at the rated full-load

current.

Although a no-arc relay has significant life advan-

tages, a few precautions must be followed for accept-

able usage:

Do not use:

• hybrid relays for limit contactors. A limit or

safety device must provide a positive mechanical

break on all hot legs simultaneously;

• dc loads with hybrid relays. The triacs used for

arc suppression will turn off only with ac line

voltage;

• hybrid switches to drive any inductive loads, such

as relay coils, transformers or solenoids;

• cycle times less than five seconds on hybrid

switches;

• on loads that exceed 264V ac through relay;

• on loads that exceed 15 amperes load;

• on loads less than 100 mA;

• no-arc relays in series with other no-arc relays.

Retransmitting a Process Value or Set Point

The retransmit feature allows a process output to

provide an analog signal that represents the set

point or process value. The signal may serve as a

remote set point for another controller or as an in-

put for a chart recorder documenting system perfor-

mance over time.

In choosing the type of retransmit signal the op-

erator must take into account the input impedance

of the device to be retransmitted to and the required

signal type, either voltage or milliamps.

Typically applications might use the retransmit

option to record one of the variables with a chart re-

corder or to generate a set point for other controls in

a multi-zone application.

Outputs 1 and 3 can be ordered as process out-

puts. Select retransmit [rMt] as the Output Func-

tion [``Fn] (Setup Page, Output Menu). Set the out-

put to volts [uoLt] or milliamps [`MA] with Output

Type [`o;ty]. Select the signal to retransmit with

Retransmit Source [`r;Sr].

Watlow EZ-ZONE® PM Integrated Controller • 59 • Chapter 9 Features

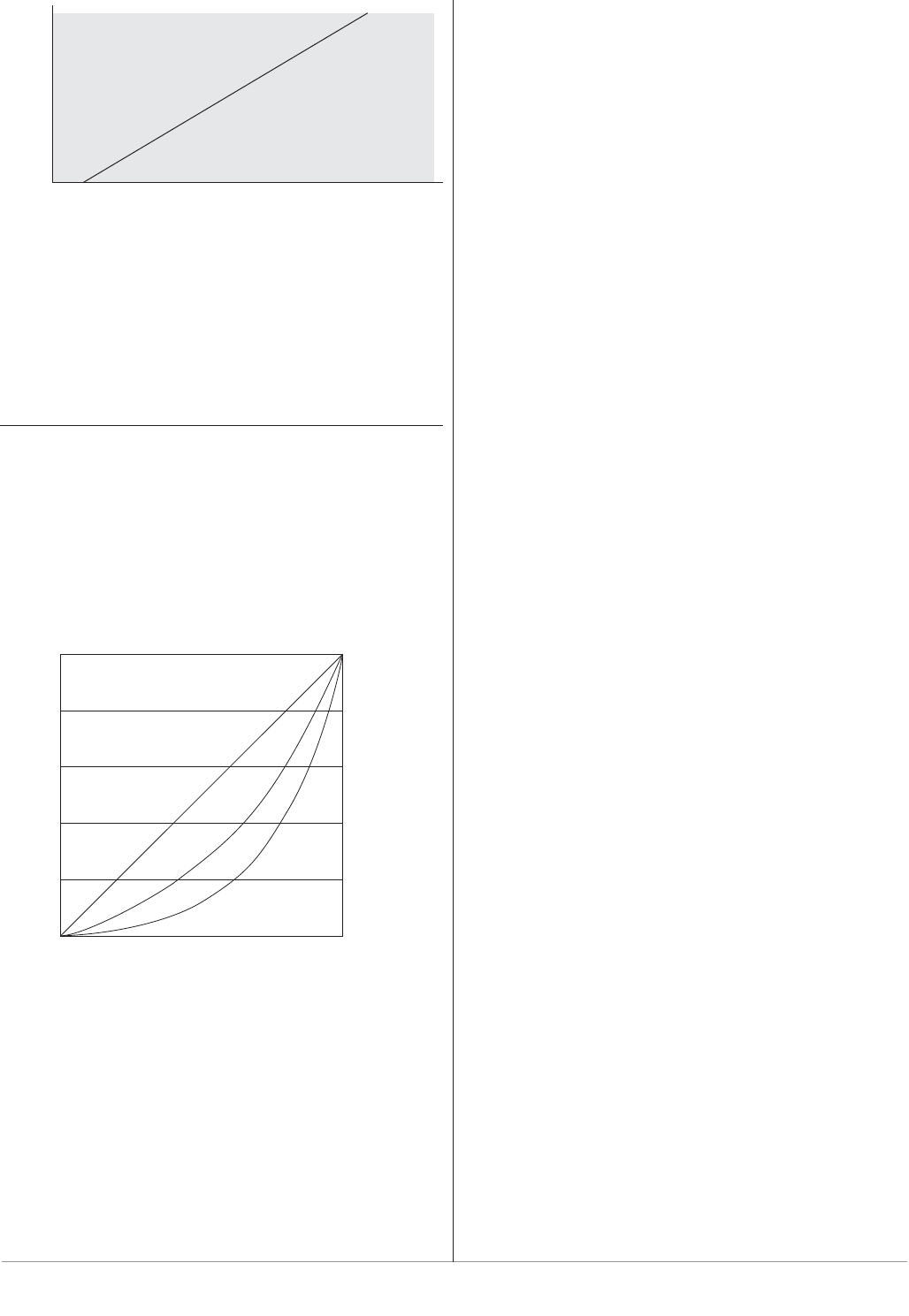

Retransmit Source

Output Scale

Range High

Range Low

Scale High

Scale Low

Set the range of the process output with Scale

Low [`S;Lo] and Scale High [`S;hi]. Scale the re-

transmit source to the process output with Range

Low [`r;Lo] and Range High [`r;hi].

When the retransmit source is at the Range Low

value, the retransmit output will be at its Scale Low

value. When the retransmit source is at the Range

High value, the retransmit output will be at its Scale

High value.

Cool Output Curve

A nonlinear output curve may improve performance

when the response of the output device is nonlinear.

If a cool output uses one of the nonlinear curves a

PID calculation yields a lower actual output level

than a linear output would provide.

These output curves are used in plastics extruder

applications: curve 1 for oil-cooled extruders and

curve 2 for water-cooled extruders.

Actual Output Power

100

PID Calculation

Linear Curve 1

Curve 2

Select a nonlinear cool output curve with Cool

Output Curve [`C;Cr] (Setup Menu, Loop Menu).

Control Methods

Output Configuration

Each controller output can be configured as a heat

output, a cool output, an alarm output or deactivat-

ed. No dependency limitations have been placed on

the available combinations. The outputs can be con-

figured in any combination. For instance, all three

could be set to cool.

Heat and cool outputs use the set point and Oper-

ations parameters to determine the output value. All

heat and cool outputs use the same set point value.

Heat and cool each have their own set of control pa-

rameters. All heat outputs use the same set of heat

control parameters and all cool outputs use the same

set of cool output parameters.

Each alarm output has its own set of configura-

tion parameters and set points, allowing independent

operation.

Auto (closed loop) and Manual (open loop) Control

The controller has two basic modes of operation, auto

mode and manual mode. Auto mode allows the con-

troller to decide whether to perform closed-loop con-

trol or to follow the settings of Input Error Failure

[FAiL] (Setup Page, Loop Menu). The manual mode

only allows open-loop control. The EZ-ZONE® PM

controller is normally used in the auto mode. The

manual mode is usually only used for specialty appli-

cations or for troubleshooting.

Manual mode is open-loop control that allows the

user to directly set the power level to the controller’s

output load. No adjustments of the output power level

occur based on temperature or set point in this mode.

In auto mode, the controller monitors the input to

determine if closed-loop control is possible. The con-

troller checks to make certain a functioning sensor is

providing a valid input signal. If a valid input signal

is present, the controller will perform closed-loop con-

trol. Closed-loop control uses a process sensor to de-

termine the difference between the process value and

the set point. Then the controller applies power to a

control output load to reduce that difference.

If a valid input signal is not present, the control-

ler will indicate an input error message in the upper

display and [Attn] in the lower display and respond

to the failure according to the setting of Input Error

Failure [FAiL]. You can configure the controller to

perform a “bumpless” transfer [bPLS], switch power

to output a preset fixed level [MAn], or turn the out-

put power off.

Bumpless transfer will allow the controller to

transfer to the manual mode using the last power

value calculated in the auto mode if the process had

stabilized at a ±5 percent output power level for the

time interval of Time Integral (Operations Page,

Loop) prior to sensor failure, and that power level is

less than 75 percent.

Watlow EZ-ZONE® PM Integrated Controller • 60 • Chapter 9 Features

Time

Temperature

40%

Sensor

Break

2 minutes Locks in

Output

Power

Set Point Actual Temperature

Output Power

Power

100%

Input Error Latching [`i;Er] (Setup Page, Ana-

log Input Menu) determines the controller’s response

once a valid input signal returns to the controller.

If latching is on, then the controller will continue to

indicate an input error until the error is cleared. To

clear a latched alarm, press the Advance Key ‰ then

the Up Key ¿.

If latching is off, the controller will automatically

clear the input error and return to reading the tem-

perature. If the controller was in the auto mode when

the input error occurred, it will resume closed-loop

control. If the controller was in manual mode when

the error occurred, the controller will remain in

open-loop control.

The Manual Control Indicator Light % is on when

the controller is operating in manual mode.

You can easily switch between modes if the Con-

trol Mode [`C;M] parameter is selected to appear in

the Home Page.

To transfer to manual mode from auto mode,

press the Advance Key ‰ until [`C;M] appears in

the lower display. The upper display will display

[AUto] for auto mode. Use the Up ¿ or Down ¯ keys

to select [Man]. The manual set point value will be

recalled from the last manual operation.

To transfer to auto mode from manual mode,

press the Advance Key ‰ until [`C;M] appears in

the lower display. The upper display will display

[MAn] for manual mode. Use the Up ¿ or Down ¯

keys to select [AUto]. The automatic set point value

will be recalled from the last automatic operation.

Changes take effect after three seconds or imme-

diately upon pressing either the Advance Key ‰ or

the Infinity Key ˆ.

On-Off Control

On-off control switches the output either full on or

full off, depending on the input, set point and hys-

teresis values. The hysteresis value indicates the

amount the process value must deviate from the set

point to turn on the output. Increasing the value de-

creases the number of times the output will cycle.

Decreasing hysteresis improves controllability. With

hysteresis set to 0, the process value would stay clos-

er to the set point, but the output would switch on

and off more frequently, and may result in the output

“ chattering.”

On-off control can be selected with Heat Algo-

rithm [`h;Ag] or Cool Algorithm [`C;Ag] (Setup Page,

Loop Menu).

On-off hysteresis can be set with Heat Hysteresis

[`h;hY] or Cool Hysteresis [`C;hY] (Operations Page,

Loop Menu).

Note: Input Error Failure Mode [faIl] does not function in on-

off control mode. The output goes off.

Set Point

Time

Temperature

The heating action switches off when the process

temperature rises above the set point.

The heating action

switches on at startup.

Hysteresis

Process Temperature

Hysteresis

Time

Temperature

The cooling action

switches

on at startup.

Process Temperature

The cooling action switches on when

the process temperature rises above

the set point plus the hysteresis.

Set Point

The heating action switches on when the process temperature

drops below the set point minus the hysteresis.

The cooling action switches off when the process

temperature drops below the set point.

Proportional Control

Some processes need to maintain a temperature or

process value closer to the set point than on-off con-

trol can provide. Proportional control provides closer

control by adjusting the output when the temperature

or process value is within a proportional band. When

the value is in the band, the controller adjusts the

output based on how close the process value is to the

set point.

The closer the process value is to the set point, the

lower the output power. This is similar to backing

off on the gas pedal of a car as you approach a stop

sign. It keeps the temperature or process value from

swinging as widely as it would with simple on-off

control. However, when the system settles down, the

temperature or process value tends to “droop” short

of the set point.

With proportional control the output power level

equals (set point minus process value) divided by the

proportional band value.

Watlow EZ-ZONE® PM Integrated Controller • 61 • Chapter 9 Features

In an application with one output assigned to

heating and another assigned to cooling, each will

have a separate proportional parameter. The heating

parameter takes effect when the process temperature

is lower than the set point, and the cooling param-

eter takes effect when the process temperature is

higher than the set point.

Adjust the proportional band with Heat Pro-

portional Band [`h;Pb] or Cool Proportional Band

[`C;Pb] (Operations Page, Loop Menu).

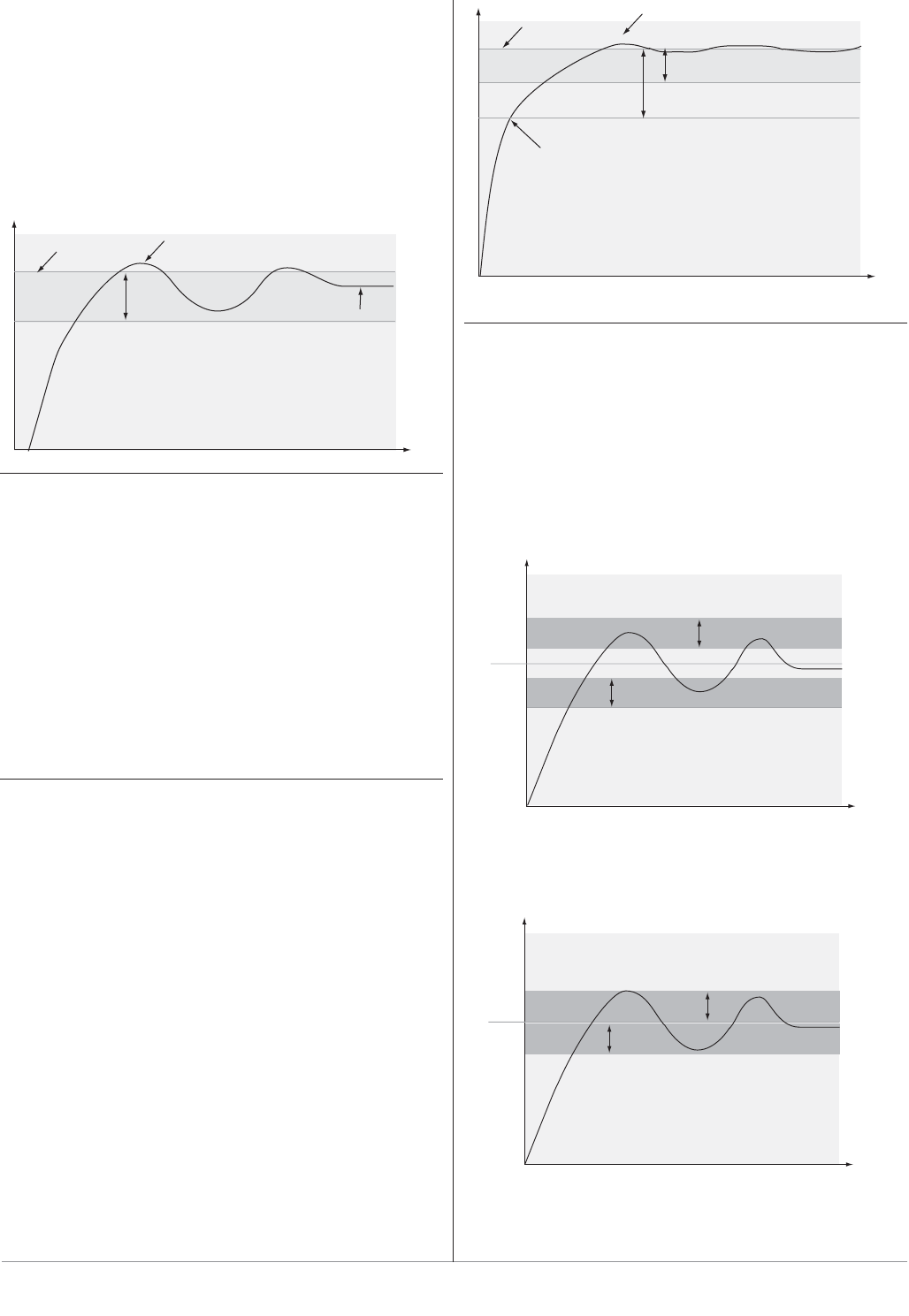

Time

Temperature

Set Point

Proportional Band Droop

Overshoot

Proportional plus Integral (PI) Control

The droop caused by proportional control can be cor-

rected by adding integral (reset) control. When the

system settles down, the integral value is tuned to

bring the temperature or process value closer to the

set point. Integral determines the speed of the cor-

rection, but this may increase the overshoot at start-

up or when the set point is changed. Too much inte-

gral action will make the system unstable. Integral

is cleared when the process value is outside of the

proportional band.

Adjust the integral with Time Integral [``ti]

(Operations Page, Loop Menu).

Proportional plus Integral plus Derivative (PID)

Control

Use derivative (rate) control to minimize the over-

shoot in a PI-controlled system. Derivative (rate) ad-

justs the output based on the rate of change in the

temperature or process value. Too much derivative

(rate) will make the system sluggish.

Derivative action is active only when the process

value is within twice the proportional value from the

set point.

Adjust the derivative with Time Derivative

[``td] (Operations Page, Loop Menu).

Time

Temperature

Set Point

Reduced Overshoot

Proportional Band

Proportional Band x 2

Heating Slows

Dead Band

In a PID application the dead bands above and below

the set point can save an application’s energy and

wear by maintaining process temperature within ac-

ceptable ranges.

Proportional action ceases when the process value

is within the dead band. Integral action continues to

bring the process temperature to the set point.

Using a positive dead band value keeps the two

systems from fighting each other.

Time

Temperature

Positive Dead Band

Set Point

Heat Output Active

Cool Output Active

When the dead band value is zero, the heat-

ing output activates when the temperature drops be-

low the set point, and the cooling output switches on

when the temperature exceeds the set point.

Time

Temperature

Zero Dead Band

Set Point

Heat Output Active

Cool Output Active

Watlow EZ-ZONE® PM Integrated Controller • 62 • Chapter 9 Features

When the dead band value is a negative val-

ue, both heating and cooling outputs are active when

the temperature is near the set point.

Time

Temperature

Negative Dead Band

Set Point

Heat Output Active

Cool Output Active

Adjust the dead band with Dead Band [``db]

(Operations Page, Loop Menu).

Variable Time Base

Variable time base is the preferred method for con-

trolling a resistive load, providing a very short time

base for longer heater life. Unlike phase-angle firing,

variable-time-base switching does not limit the cur-

rent and voltage applied to the heater.

With variable time base outputs, the PID algo-

rithm calculates an output between 0 and 100%, but

the output is distributed in groupings of three ac

line cycles. For each group of three ac line cycles, the

controller decides whether the power should be on or

off. There is no fixed cycle time since the decision is

made for each group of cycles. When used in conjunc-

tion with a zero cross (burst fire) device, such as a

solid-state power controller, switching is done only at

the zero cross of the ac line, which helps reduce elec-

trical noise (RFI).

Variable time base should be used with solid-state

power controllers, such as a solid-state relay (SSR)

or silicon controlled rectifier (SCR) power controller.

Do not use a variable time base output for control-

ling electromechanical relays, mercury displacement

relays, inductive loads or heaters with unusual resis-

tance characteristics.

The combination of variable time base output and

a solid-state relay can inexpensively approach the ef-

fect of analog, phase-angle fired control.

Select the AC Line Frequency [AC;LF] (Setup Page,

Global Menu), 50 or 60 Hz.

100 percent output

10 ON, 0 OFF

50 percent output

3 ON, 3 OFF

66 percent output

6 ON, 3 OFF

Note:

When output 1 is a universal process output, output 2 cannot

use variable time base, fixed time base only.

When output 3 is configured as a universal process, output 4

cannot use variable time base, fixed time base only.

Single Set Point Ramping

Ramping protects materials and systems that can-

not tolerate rapid temperature changes. The value of

the ramp rate is the maximum degrees per minute or

hour that the system temperature can change.

Select Ramp Action [``rP] (Setup Page, Loop

Menu):

[`oFF] ramping not active.

[`Str] ramp at startup.

[StPt] ramp at a set point change.

[both] ramp at startup or when the set point

changes.

Select whether the rate is in degrees per minute

or degrees per hour with Ramp Scale [`r;SC]. Set

the ramping rate with Ramp Rate [`r;rt] (Setup

Page, Loop Menu).

Set Point

Time

Temperature

Temperature reaches Set Point quickly

Watlow EZ-ZONE® PM Integrated Controller • 63 • Chapter 9 Features

Set Point

Time

Temperature

Temperature ramps to Set Point at a set rate

degrees

per minute

Alarms

Alarms are activated when the output level, process

value or temperature leaves a defined range. A user

can configure how and when an alarm is triggered,

what action it takes and whether it turns off auto-

matically when the alarm condition is over.

Configure alarm outputs in the Setup Page before

setting alarm set points.

Alarms do not have to be assigned to an output.

Alarms can be monitored and controlled through the

front panel or by using software.

Process and Deviation Alarms

A process alarm uses one or two absolute set points

to define an alarm condition.

A deviation alarm uses one or two set points that

are defined relative to the control set point. High

and low alarm set points are calculated by adding or

subtracting offset values from the control set point.

If the set point changes, the window defined by the

alarm set points automatically moves with it.

Select the alarm type with Type [`A;ty] (Setup

Page, Alarm Menu).

Alarm Set Points

The alarm high set point defines the process value

or temperature that will trigger a high side alarm.

It must be higher than the alarm low set point and

lower than the high limit of the sensor range.

The alarm low set point defines the temperature

that will trigger a low side alarm. It must be lower

than the alarm high set point and higher than the

low limit of the sensor range.

View or change alarm set points with Low Set

Point [`A;Lo] and High Set Point [`A;hi] (Operations

Page, Alarm Menu).

Alarm Hysteresis

An alarm state is triggered when the process value

reaches the alarm high or alarm low set point. Alarm

hysteresis defines how far the process must return

into the normal operating range before the alarm can

be cleared.

Alarm hysteresis is a zone inside each alarm set

point. This zone is defined by adding the hysteresis

value to the alarm low set point or subtracting the

hysteresis value from the alarm high set point.

View or change alarm hysteresis with Hysteresis

[`A;hy] (Setup Page, Alarm Menu).

Normal Operating Range

Low Side Alarm Range

High Side Alarm Range Alarm High Set Point

Alarm Low Set Point

Time

Temperature

Alarm Hysteresis

Alarm Latching

A latched alarm will remain active after the alarm

condition has passed. It can only be deactivated by

the user.

An active message, such as an alarm message,

will cause the display to toggle between the normal

settings and the active message in the upper display

and [Attn] in the lower display.

Push the Advance Key to display [ignr] in the

upper display and the message source in the lower

display.

Use the Up ¿ and Down ¯ keys to scroll through

possible responses, such as Clear [`CLr] or Silence

[`SiL]. Then push the Advance ‰ or Infinity ˆ key

to execute the action.

See the Keys and Displays chapter and the Home

Page chapter for more details.

An alarm that is not latched (self-clearing) will

deactivate automatically when the alarm condition

has passed.

Turn alarm latching on or off with Latching

[`A;LA] (Setup Page, Alarm Menu).

Normal Operating Range

Alarm High

Set Point

Time

Temperature

Alarm Low

Set Point

The alarm state continues until the

temperature drops to the Alarm High

Set Point minus the hysteresis. A

latching alarm could be turned off by

the operator at this point. A non-

latching alarm would turn off

automatically.

The alarm state begins when the temperature

reaches the Alarm High Set Point

Process

Temperature

Alarm Hysteresis

Watlow EZ-ZONE® PM Integrated Controller • 64 • Chapter 9 Features

Alarm Silencing

If alarm silencing is on the operator can disable the

alarm output while the controller is in an alarm

state. The process value or temperature has to enter

the normal operating range beyond the hysteresis

zone to activate the alarm output function again.

An active message, such as an alarm message,

will cause the display to toggle between the normal

settings and the active message in the upper display

and [Attn] in the lower display.

Push the Advance Key to display [ignr] in the

upper display and the message source in the lower

display.

Use the Up ¿ and Down ¯ keys to scroll through

possible responses, such as Clear [`CLr] or Silence

[`SiL]. Then push the Advance ‰ or Infinity ˆ key

to execute the action.

See the Keys and Displays chapter and the Home

Page chapter for more details.

Turn alarm silencing on or off with Silencing

[`A;Si] (Setup Page, Alarm Menu).

Alarm Blocking

Alarm blocking allows a system to warm up after

it has been started up. With alarm blocking on, an

alarm is not triggered when the process tempera-

ture is initially lower than the alarm low set point

or higher than the alarm high set point. The process

temperature has to enter the normal operating range

beyond the hysteresis zone to activate the alarm

function.

If the EZ-ZONE® PM has an output that is func-

tioning as a deviation alarm, the alarm is blocked

when the set point is changed, until the process value

re-enters the normal operating range.

Turn alarm blocking on or off with Blocking

[`A;bL] (Setup Page, Alarm Menu).

Current Sensing

Open heater circuit detection

Current Error [`C;Er] (Operations Page, Current

Menu) detects an open load circuit if no current is

flowing through the current transformer when the

output is active and the load is supposed to be on.

Shorted heater circuit detection

Current Error detects a shorted load circuit if cur-

rent is flowing through the current transformer

when the output is inactive and the load is supposed

to be off.

Set the current detect set points with High Set

Point [`C;hi] and Low Set Point [`C;Lo] (Operations

Page, Current Menu).

View the current level and most recent faults with

Read, Current Error [`C;Er] (Operations Page, Cur-

rent Menu) and Heater Error [`h;Er] (Operations

Page, Current Menu).

Programming the EZ Key

You can program the EZ Key either in the Setup

Menu or with configuration software, such as EZ-

ZONE® Configurator, using a personal computer.

The following examples show how to program the

EZ Key to start and stop a profile.

Using keys and display:

1. To go to the Setup Page from the Home Page,

press both the Up ¿ and Down ¯ keys for six sec-

onds. [``Ai] will appear in the upper display and

[`Set] will appear in the lower display.

2. Press the Up Key ¿ until [`Fun] appears in the

upper display and [`SEt] will appear in the lower

display.

3. Press the Advance Key ‰ until Digital Input Level

[`leu] appears in the lower display. Use an ar-

row key to specify the state of the key (high or low)

when the controller is powered up. Functions will

toggle with each press of the EZ Key, such as Pro-

file Start/Stop.

4. Press the Advance Key ‰. The lower display will

show Digital Function [``Fn]. Press the Up ¿ or

Down ¯ key to scroll through the functions that

can be assigned to the EZ Key

When Profile Start/Stop [P;StS] appears in the

upper display and [``Fn] appears in the lower

display, press the Advance Key ‰ once to select

that function and move to the Function Instance

[``Fi] parameter.

5. Press the Up ¿ or Down ¯ key to scroll to the

profile that you want the EZ Key to control.

6. The instance tells the controller which of the

numbered functions should be acted upon. For

profiles, there are 4 instances. Press the Infinity

Key ˆ once to return to the submenu, twice to

return to the main menu or three times to return

to the Home Page.

Using the software with Standard Bus:

1. Make the necessary physical connections between

the personal computer and the EZ-ZONE® PM.

Set Protocol (Setup Page, Communications Menu)

to Standard Bus. Run the software and allow it

to connect to the controller by directing it or al-

lowing it to find the appropriate communications

port.

2. After the software connects to the controller, look

on the left side of your screen under the Param-

eters Menus for Function Key under Setup. Click

on the plus sign to reveal the Function Key 1

submenu.

3. Click on Function Key 1, then select a Digital In-

put Function and a Function Instance.

If you want to start and stop a profile with the EZ

Key, select Profile Start/Stop and the number of the

profile that you want the EZ Key to control.

Watlow EZ-ZONE® PM Integrated Controller • 65 • Chapter 9 Features

Using Lockout to Secure Settings

If unintentional changes to parameter settings might

raise safety concerns or lead to downtime, your can

use the lockout feature to make them more secure.

Each of the menus in the Factory Page and each

of the pages, except the Factory Page, has a security

level assigned to it. You can change the read and

write access to these menus and pages by using the

parameters in the Lockout Menu (Factory Page).

Lockout Menu

There are four parameters in the Lockout Menu (Fac-

tory Page):

Lock Operations Page [LoC;o] sets the security level

for the Operations Page. (default: 2)

Lock Profiling Page [LoC;P] sets the security level

for the Profiling Page. (default: 3)

Read Lockout Security [rLoC] determines which

pages can be accessed. The user can access the

selected level and all lower levels. (default: 5)

Set Lockout Security [SLoC] determines which pa-

rameters within accessible pages can be written

to. The user can write to the selected level and

all lower levels. (default: 5)

Home Page: 1

Operations Page: 1

or 3

Setup Page: 4

Profiling Page: 1

or 3

Factory Page Menus

Custom Menu: 5

Lockout Menu: 0

Diagnostic Menu: 0

Calibration Menu: 5

432

default

Security Levels

Bars indicate page and menu access by security level.

The following examples show how the Lockout

Menu parameters may be used in applications:

1. You can lock out access to the Operations Page

but allow an operator access to the Profile Menu,

by changing the default Profile Page and Opera-

tions Page security levels. Change Lock Opera-

tions Page [LoC;o] to 3 and Lock Profiling Page

[LoC;P] to 2. If Set Lockout Security [SLoC] is

set to 2 or higher and the Read Lockout Security

[rLoC] is set to 2, the Profiling Page and Home

Pages can be accessed, and all writable parame-

ters can be written to. Pages with security levels

greater than 2 will be locked out (unaccessible).

2 If Set Lockout Security [SLoC] is set to 0 and

Read Lockout Security [rLoC] is set to 5, all

pages will be accessible, however, changes will

not be allowed on any pages or menus, with one

exception: Set Lockout Security [SLoC] can be

changed to a higher level.

3. The operator wants to read all the menus and not

allow any parameters to be changed.

In the Factory Page, Lockout Menu, set Read

Lockout Security [rLoC] to 5 and Set Lockout

Security [SLoC] to 0.

4. The operator wants to read and write to the

Home Page and Profiling Page, and lock all other

pages and menus.

In the Factory Page, Lockout Menu, set Read

Lockout Security [rLoC] to 2 and Set Lockout

Security [SLoC] to 2.

In the Factory Page, Lockout Menu, set Lock

Operations Page [LoC;O] to 3 and Lock Profiling

Page [LoC;P] to 2.

5. The operator wants to read the Operations

Page, Setup Page, Profiling Page, Diagnostics

Menu, Lock Menu, Calibration Menu and Cus-

tom Menus. The operator also wants to read and

write to the Home Page.

In the Factory Page, Lockout Menu, set Read

Lockout Security [rLoC] to 1 and Set Lockout

Security [SLoC] to 5.

In the Factory Page, Lockout Menu, set Lock

Operations Page [LoC;O] to 2 and Lock Profiling

Page [LoC;P] to 3.

Note: Avoid continuous writes within loops. Excessive writes to

EEPROM will cause premature EEPROM failure. The EEPROM is

rated for 1,000,000 writes.

Watlow EZ-ZONE® PM Integrated Controller • 66 • Appendix

Troubleshooting Alarms, Errors and Control Issues

Indication Description Possible Cause(s) Corrective Action

Alarm won’t clear or

reset

Alarm will not clear or reset

with keypad or digital input

• Alarm latching is active

• Alarm set to incorrect output

• Alarm is set to incorrect source

• Sensor input is out of alarm set point

range

• Alarm set point is incorrect

• Alarm is set to incorrect type

• Digital input function is incorrect

• Reset alarm when process is within

range or disable latching

• Set output to correct alarm source

instance

• Set alarm source to correct input in-

stance

• Correct cause of sensor input out of

alarm range

• Set alarm set point to correct trip

point

• Set alarm to correct type: process, de-

viation or power

• Set digital input function and source

instance

Alarm won’t occur Alarm will not activate output • Alarm silencing is active

• Alarm blocking is active

• Alarm is set to incorrect output

• Alarm is set to incorrect source

• Alarm set point is incorrect

• Alarm is set to incorrect type

• Disable alarm silencing, if required

• Disable alarm blocking, if required

• Set output to correct alarm source

instance

• Set alarm source to correct input in-

stance

• Set alarm set point to correct trip

point

• Set alarm to correct type: process, de-

viation or power

[AL;E1] Alarm Error

[AL;E2]

[AL;E3]

[AL;E4]

Alarm state cannot be deter-

mined due to lack of sensor

input

• Sensor improperly wired or open

• Incorrect setting of sensor type

• Calibration corrupt

• Correct wiring or replace sensor

• Match setting to sensor used

• Check calibration of controller

[AL;L1] Alarm Low

[AL;L2]

[AL;L3]

[AL;L4]

Sensor input below low alarm

set point

• Temperature is less than alarm set

point

• Alarm is set to latching and an alarm

occurred in the past

• Incorrect alarm set point

• Incorrect alarm source

• Check cause of under temperature

• Clear latched alarm

• Establish correct alarm set point

• Set alarm source to proper setting

[AL;h1} Alarm High

[AL;h2]

[AL;h3]

[AL;h4]

Sensor input above high

alarm set point

• Temperature is greater than alarm

set point

• Alarm is set to latching and an alarm

occurred in the past

• Incorrect alarm set point

• Incorrect alarm source

• Check cause of over temperature

• Clear latched alarm

• Establish correct alarm set point

• Set alarm source to proper setting

[Er;i1] Error Input

[Er;i2]

Sensor does not provide a

valid signal to controller

• Sensor improperly wired or open

• Incorrect setting of sensor type

• Calibration corrupt

• Correct wiring or replace sensor

• Match setting to sensor used

• Check calibration of controller

Limit won’t clear or

reset

Limit will not clear or reset

with keypad or digital input

• Sensor input is out of limit set point

range

• Limit set point is incorrect

• Digital input function is incorrect

• Correct cause of sensor input out of

limit range

• Set limit set point to correct trip point

• Set digital input function and source

instance

[Li;E1] Limit Error

[Li;E2]

Limit state cannot be deter-

mined due to lack of sensor

input, limit will trip

• Sensor improperly wired or open

• Incorrect setting of sensor type

• Calibration corrupt

• Correct wiring or replace sensor

• Match setting to sensor used

• Check calibration of controller

[Li;L1] Limit Low

[Li;L2]

Sensor input below low limit

set point

• Temperature is less than limit set

point

• Limit outputs latch and require reset

• Incorrect alarm set point

• Check cause of under temperature

• Clear limit

• Establish correct limit set point

Chapter 10: Appendix

Watlow EZ-ZONE® PM Integrated Controller • 67 • Appendix

Indication Description Possible Cause(s) Corrective Action

[Li;h1] Limit High

[Li;h2]

Sensor input above high limit

set point

• Temperature is greater than limit set

point

• Limit outputs latch and require reset

• Incorrect alarm set point

• Check cause of over temperature

• Clear limit

• Establish correct limit set point

[LP;o1]

Loop Open Error

Open Loop Detect is active

and the process value did

not deviate by a user-select-

ed value in a user specified

period.

• Setting of Open Loop Detect Time

incorrect

• Setting of Open Loop Detect Devia-

tion incorrect

• Thermal loop is open

• Open Loop Detect function not re-

quired but activated

• Set correct Open Loop Detect Time for

application

• Set correct Open Loop Deviation value

for application

• Determine cause of open thermal loop:

misplaced sensors, load failure, loss of

power to load, etc.

• Deactivate Open Loop Detect feature

[LP;r1]

Loop Reversed Error

Open Loop Detect is active

and the process value is

headed in the wrong direc-

tion when the output is

activated based on devia-

tion value and user-selected

value.

• Setting of Open Loop Detect Time

incorrect

• Setting of Open Loop Detect Devia-

tion incorrect

• Output programmed for incorrect

function

• Thermocouple sensor wired in reverse

polarity

• Set correct Open Loop Detect Time for

application

• Set correct Open Loop Deviation value

for application

• Set output function correctly

• Wire thermocouple correctly, (red wire

is negative)

[`rP1] Ramping 1 Controller is ramping to new

set point

• Ramping feature is activated • Disable ramping feature if not re-

quired

[tUN1] Autotuning 1 Controller is autotuning the

control loop

• User started the autotune function

• Digital input is set to start autotune

• Wait until autotune completes or dis-

able autotune feature

• Set digital input to function other

than autotune, if desired

No heat/cool action Output does not activate load • Output function is incorrectly set

• Control mode is incorrectly set

• Output is incorrectly wired

• Load, power or fuse is open

• Control set point is incorrect

• Incorrect controller model for applica-

tion

• Set output function correctly

• Set control mode appropriately (Open

vs Closed Loop)

• Correct output wiring

• Correct fault in system

• Set control set point in appropriate

control mode and check source of set

point: remote, idle, profile, closed loop,

open loop

• Obtain correct controller model for ap-

plication

No Display No display indication or LED

illumination

• Power to controller is off

• Fuse open

• Breaker tripped

• Safety interlock switch open

• Separate system limit control acti-

vated

• Wiring error

• Incorrect voltage to controller

• Turn on power

• Replace fuse

• Reset breaker

• Close interlock switch

• Reset limit

• Correct wiring issue

• Apply correct voltage, check part

number

No Serial Communi-

cation

Cannot establish serial com-

munications with the con-

troller

• Address parameter incorrect

• Incorrect protocol selected

• Baud rate incorrect

• Parity incorrect

• Wiring error

• EIA-485 converter issue

• Incorrect computer or PLC communi-

cations port

• Incorrect software setup

• Termination resistor may be required

• Set unique addresses on network

• Match protocol between devices

• Match baud rate between devices

• Match parity between devices

• Correct wiring issue

• Check settings or replace converter

• Set correct communication port

• Correct software setup to match con-

troller

• Place 120 Ω resistor across EIA-485

on last controller

Watlow EZ-ZONE® PM Integrated Controller • 68 • Appendix

Indication Description Possible Cause(s) Corrective Action

Process doesn’t con-

trol to set point

Process is unstable or never

reaches set point

• Controller not tuned correctly • Perform autotune or manually tune

system

• Control mode is incorrectly set • Set control mode appropriately (Open

vs Closed Loop)

• Control set point is incorrect • Set control set point in appropriate

control mode and check source of set

point: remote, idle, profile, closed loop,

open loop

Temperature runway Process value continues to

increase or decrease past set

point.

• Controller output incorrectly pro-

grammed

• Verify output function is correct (heat

or cool)

• Thermocouple reverse wired • Correct sensor wiring (red wire nega-

tive)

• Controller output wired incorrectly • Verify and correct wiring

• Short in heater • Replace heater

• Power controller connection to con-

troller defective

• Replace or repair power controller

• Controller output defective • Replace or repair controller

[`100] Device Error

[rEtn]

Controller displays internal

malfunction message at

power up.

• Controller defective • Replace or repair controller

[`h;Er] Heater Error Heater Error • Current through load is above current

trip set point

• Check that the load current is proper.

Correct cause of overcurrent and/or en-

sure current trip set point is correct.

• Current through load is below current

trip set point

• Check that the load current is proper.

Correct cause of undercurrent and/or

ensure current trip set point is correct.

[`C;Er]

Current Error

Load current incorrect. • Shorted solid-state or mechanical

relay

• Replace relay

• Open solid-state or mechanical relay • Replace relay

• Current transformer load wire associ-

ated to wrong output

• Route load wire through current

transformer from correct output, and

go to the [`C;Si] Source Output In-

stance parameter (Setup Page, Current

Menu) to select the output that is driv-

ing the load.

• Defective current transformer or con-

troller

• Replace or repair sensor or controller

• Noisy electrical lines • Route wires appropriately, check for

loose connections, add line filters

Menus inaccessible Unable to access [`SEt],

[OPEr], [FCty] or [ProF]

menus or particular prompts

in Home Page

• Security set to incorrect level • Check lockout setting in Factory Page

• Digital input set to lockout keypad • Change state of digital input

• Custom parameters incorrect • Change custom parameters in Factory

Page

EZ-Key doesn’t work EZ-Key does not activate re-

quired function

• EZ-Key function incorrect • Verify EZ-Key function in Setup Menu

• EZ-Key function instance not incor-

rect

• Check that the function instance is

correct

• Keypad malfunction • Replace or repair controller

Watlow EZ-ZONE® PM Integrated Controller • 69 • Appendix

Specifications

Line Voltage/Power

• 85 to 264VÅ (ac), 47 to 63 Hz

• 12 to 40VÎ (dc); 20 to 28VÅ (ac), 47 to 63 Hz

• 10VA maximum power consumption

• Data retention upon power failure via nonvolatile memory

• Compliant with Semi F47-0200, Figure R1-1 voltage sag require-

ments @ 24Å (ac) or higher

Environment

• -18 to 65°C (0 to 149°F) operating temperature

• -40 to 85°C (-40 to 185°F) storage temperature

• 0 to 90 percent RH, non-condensing

Accuracy

• Calibration accuracy and sensor conformity: ±0.1 percent of ac-

curacy span, ±1°C at the calibrated ambient temperature and

rated line voltage

• Types R, S, B; 0.2 percent

• Type T below -50°C (58°F); 0.2 percent

• Calibration ambient temperature @ 25°C, ±3°C (77°F, ±5°F)

• Accuracy span: 540°C (1,000°F) minimum

• Temperature stability: ±0.1°C/°C (±0.1°F/°F) rise in ambient

maximum

• Process Output: ±15 mV using 0 to 10 VÎ (dc), resolution @ 3

mV and ±30 μA using 0 to 20 mA, resolution @ 6 μA

Agency Approvals

• UL® Listed to UL 61010-1 File E185611.

• UL Reviewed to CSA C22.2 No. 61010-1-04.

• UL 50 Type 4X, NEMA 4X indoor locations, IP66 front panel seal.

• FM Class 3545 File 3029084 temperature limit switches.

• CE – See Declaration of Conformity. RoHS and W.E.E.E. compliant.

• ODVA – EtherNet/IP™ Compliance.

• UL® Listed to ANSI/ISA 12.12.01-2001 File E184390.

• UL reviewed to CSA C22.2 No. 213-1987.

• This equipment is suitable for use in Class I, Division 2, Groups A,

B, C and D or Non-Hazardous locations only. Temperature Code

T4A.

• WARNING – EXPLOSION HAZARD. Substitution of component

may impair suitability for Class I, Division 2.

• WARNING – EXPLOSION HAZARD. Do not disconnect equipment

unless power has been switched off or the area is known to be non-

hazardous.

Controller

• Microprocessor-based, user-selectable control modes

• PID module: Single universal input, 2 outputs

• Limit module: Single universal input, 2 outputs

• 2 total additional digital input/outputs shared between PID and

limit functions

• Control sampling rates: input 10 Hz, outputs 10 Hz

Serial Communications

• Isolated communications EIA-485, Standard Bus: all models;

EIA-232/485, Modbus™ RTU and Ethernet IP/Modbus™ TCP

serial communications. Future options include DeviceNet™ and

Profibus™ DP

Wiring Termination, Touch-Safe Terminals

• Input, power and controller output terminals touch-safe remov-

able 3.30 to 0.0507mm² (12 to 30 AWG)

• Wire strip length 7.6 mm (0.30 in)

• Torque 0.8 Nm (7.0 lb.- in.)

Universal Input

• Thermocouple, grounded or ungrounded sensors

>20 MΩ input impedance

Maximum of 2K Ω source resistance

• RTD 2- or 3-wire, platinum, 100 and 1,000 Ω @ 0°C calibration

to DIN curve (0.00385 Ω/Ω/°C); lead resistance effect: 0.3°C/Ω

maximum

• Process, 0 to 20 mA @ 100 Ω, or 0 to 10VÎ (dc) and 0 to 50 mV @

20 kΩ input impedance; scalable

• Inverse scaling

Accuracy Range

Type J: 0 to 750°C or 32 to 1,383°F (±1.75°C)

Type K: -200 to 1,250°C or -328 to 2,282°F (±2.45°C)

Type T: -200 to 350°C or -328 to 662°F (±1.55°C)

Type E: -328 to 1,652°C or -200 to 900°F (±2.10°C)

Type N: 0 to 1,250°C or 32 to 2,282°F (±2.25°C)

Type C: 0 to 2,315°C or 32 to 4,199°F (±3.32°C)

Type D: 0 to 2,315°C or 32 to 4,199°F (±3.32°C)

Type F: 0 to 1,343°C or 32 to 2,450°F (±2.39°C)

Type R: 0 to 1,450°C or 32 to 2,642°F (±3.90°C)

Type S: 0 to 1,450°C or 32 to 2,642°F (±3.90°C)

Type B: 870 to 1,700°C or 1,598 to 3,092°F (±2.66°C)

RTD (DIN): -200 to 800°C or -328 to 1,472°F (±2.00°C)

Volts: 0 to 10 (±0.01V)

mA DC: 0 to 20 (±0.02 mA)

mV: 0 to 50 (±0.05 mV)

Potentiometer: 0 to 1,200 Ω (±1.0 Ω)

Functional Operating Range

Type J: -210 to 1,200°C or -346 to 2,192°F

Type K: -200 to 1,370°C or -328 to 2,500°F

Type T: -200 to 400°C or -328 to 750°F

Type E: -200 to 1,000°C or -328 to 1,832°F

Type N: -200 to 1,300°C or -328 to 2,372°F

Type C: 0 to 2,315°C or 32 to 4,200°F

Type D: 0 to 2,315°C or 32 to 4,200°F

Type F: 0 to 1,395°C or 32 to 2,543°F

Type R: -50 to 1,767°C or -58 to 3,214°F

Type S: -50 to 1,767°C or -58 to 3,214°F

Type B: 0 to 1,816°C or 32 to 3,300°F

RTD (DIN): -200 to 800°C or -328 to 1,472°F

Process: -1,999 to 9,999 units

Digital Input

• Update rate 10 Hz

• Dry contact or dc voltage

DC voltage

• Maximum input 36V at 3 mA

• Minimum high state 3V @ 0.25 mA

• Maximum low state 2V

Dry contact

• Minimum open resistance 10 kΩ

• Maximum closed resistance 50 Ω

• Maximum short circuit 13 mA

Digital Output

• Update rate 10 Hz

• Output voltage 24V

• Current limit, Output 5, 24 mA maximum; Output 6, 10 mA

maximum

Current Measurement

• Requires optional current transformer 16-0246

• Accepts 0 to 50 mA signal (user programmable range) 2 to 50A

usable

• Displayed operating range and resolution can be scaled and are

user programmable.

Output Hardware

• User selectable for heat-cool as on-off, P, PI, PD, PID, alarm ac-

tion or limit.

Switched DC

• Unregulated 22 to 32VÎ (dc) low side @ 30 mA outputs 1 and 3,

10 mA outputs 2 and 4

Open Collector

• Output sink 100 mA @ 30VÎ (dc) maximum

Watlow EZ-ZONE® PM Integrated Controller • 70 • Appendix

Solid-State Relay

• 0.5 A @ 24 to 264VÅ (ac) maximum, opto-isolated, without con-

tact suppression; maximum off-state leakage current: 105 micro-

amperes

Electromechanical Relay, Form A

• 5 A, 24 to 240VÅ (ac) or 30VÎ (dc) maximum, resistive load,

100,000 cycles at rated load, 125 VA pilot duty

• Requires a minimum load of 20 mA @ 24V

Electromechanical Relay, Form C

• 5 A, 24 to 240VÅ (ac) or 30VÎ (dc) maximum, resistive load,

100,000 cycles at rated load, 125 VA pilot duty

• Requires a minimum load of 20 mA @ 24V

No-arc Relay Form A

• 15 A, 85 to 264VÅ (ac), no VÎ (dc), resistive load, 2 million cycles

at rated load (preliminary), maximum off-state leakage current:

2 mA

Process

• Universal process/Retransmit, outputs range selectable, 0 to 10

VÎ (dc) into minimum 1,000 Ω load, 0 to 20 mA into maximum

800 Ω load

Operator Interface

• Dual 4-digit, 7-segment LED displays

• Advance, infinity, up and down keys plus an EZ Key program-

mable function key

• Typical display update rate 1Hz

• Agency approved to IP66/NEMA 4X

Dimensions

Size Behind

Panel

(max.)

Width Height Display Height

1/16 101.6 mm

(4.00 in)

53.3 mm

(2.10 in)

53.3 mm

(2.10 in)

up: 10.80 mm (0.425 in)

low: 6.98 mm (0.275 in)

Weight

• Controller: 200 g (7.1 oz.)

• User manual: 167.26 g (5.9 oz)

Modbus® is a trademark of AEG Schneider Automation Inc.

EtherNet/IP™ is a trademark of ControlNet International Ltd. used

under license by Open DeviceNet Vendor Association, Inc. (ODVA).

UL® is a registered trademark of Underwriters Laboratories Inc.

DeviceNet™ is a trademark of Open DeviceNet Vendors Associatlon.

Note: These specifications are subject to change without prior

notice.

Watlow EZ-ZONE® PM Integrated Controller • 71 • Appendix

Controller P M 6__

__ __ __ - __ __ __ __ A__ __

EZ-ZONE® Integrated Controller Models

Universal Sensor Input, configuration communications

TRU-TUNE+® Adaptive Tune, red-green 7-segment displays

Package Size

61⁄16 DIN

Primary Function

CPID Controller

RRamp and Soak

SCustom Firmware

Power Supply, Digital Input/Output

1100 to 240VÅ (ac)

2100 to 240VÅ (ac) plus 2 digital i/o points

312 to 40VÎ (dc) and 20 to 28VÅ (ac)

412 to 40VÎ (dc) and 20 to 28VÅ (ac), plus 2 digital i/o points

Output 1 and 2 Hardware Options

Output 1 Output 2

CA Switched dc/open collector None

CH Switched dc/open collector No-arc 15 A power control

CC Switched dc/open collector Switched dc

CJ Switched dc/open collector Mechanical relay 5 A, form A

CK Switched dc/open collector Solid-state relay 0.5 A, form A

EA Mechanical relay 5 A, form C None

EH Mechanical relay 5 A, form C No-arc 15 A power control

EC Mechanical relay 5 A, form C Switched dc

EJ Mechanical relay 5 A, form C Mechanical relay 5 A, form A

EK Mechanical relay 5 A, form C Solid-state relay 0.5 A, form A

FA Universal process None

FC Universal process Switched dc (cannot use variable time base)

FJ Universal process Mechanical relay 5 A, form A (cannot use variable time base)

FK Universal process Solid-state relay 0.5 A, form A (cannot use variable time base)

AK None Solid-state relay 0.5 A, form A

KK Solid-state relay 0.5 A, form A Solid-state relay 0.5 A, form A

KH Solid-state relay 0.5 A, form A No-arc 15 A power control

Communications Options All options below include EIA-485 Standard Bus.

ANone

1EIA 485 Modbus RTU®

With options 2 or 3, order option AA for outputs 3 & 4.

2Modbus RTU 232/485

3EtherNet/IP™, Modbus TCP

Auxilliary Control Functions With Communications Options 2 to 6, option A must be ordered below.

ANone

RRemote Set point input

TCurrent Transformer Input (no Output 3 & 4 Option FA, FC, FJ or FK)

LIntegrated Limit Controller with universal input (outputs 3 & 4 Option CJ, EJ or AJ only)

Output 3 and 4 Hardware Options With Communications Options 2 or 3, option AA must be ordered below.

Output 3 Output 4

AA None None

AJ None Mechanical relay 5 A, form A

CA Switched dc/open collector None

CC Switched dc/open collector Switched dc

CJ Switched dc/open collector Mechanical relay 5 A, form A

CK Switched dc/open collector Solid-state relay 0.5 A, form A

EA Mechanical relay 5 A, form C None

EC Mechanical relay 5 A, form C Switched dc

EJ Mechanical relay 5 A, form C Mechanical relay 5 A, form A

EK Mechanical relay 5 A, form C Solid-state relay 0.5 A, form A

FA Universal Process None

FC Universal Process Switched dc (cannot use variable time base)

FJ Universal Process Mechanical relay 5 A, form A (cannot use variable time base)

FK Universal Process Solid-state relay 0.5 A, form A (cannot use variable time base)

AK None Solid-state relay 0.5 A, form A

KK Solid-state relay 0.5 A, form A Solid-state relay 0.5 A, form A

Future Options

Additional Options

AA Standard EZ-ZONE® face plate

12 Class 1, div. 2 (not available with Integrated Limit Controller or mechanical relay outputs)

Ordering Information for Integrated Controller Models

Note: The model of controller that you have is one of many possible models in the EZ-ZONE® PM family of controllers. To view the others, visit

our website (http://www.watlow.com/literature/pti search.cfm) and type EZ-ZONE® into the Keyword field.

Watlow EZ-ZONE® PM Integrated Controller • 72 • Appendix

[`A;bL] Alarm Blocking 41, 64

[AC;LF] AC Line Frequency 42, 62

[AC;SP] Active Set Point 32

[Ad;M] Address Modbus 43

[`Ad;s] Address Standard Bus 43

[A;dSP] Alarm Display 41

[`A;hi] Alarm High Set Point 31, 63

[`A;hy] Alarm Hysteresis 41, 63

[``Ai] Analog Input Menu 29, 34

[`ain] Process Value 29

[`A;LA] Alarm Latching 41, 63

[AL;E1] [AL;E2] [AL;E3] [AL;E4]

Alarm Error 1 to 4 24, 27

[`A;Lg] Alarm Logic 41

[AL;h1] [AL;h2] [AL;h3] [AL;h4]

Alarm High 1 to 4 24, 27

[AL;L1] [AL;L2] [AL;L3] [AL;L4]

Alarm Low 1 to 4 24, 27

[ALM] Alarm Menu 31, 40

[`A;Lo] Alarm Low Set Point 31, 63

[`A;Sd] Alarm Sides 41

[`A;Si] Alarm Silencing 41, 64

[A;tSP] Autotune Set Point 30, 54

[Attn] Attention 24, 26, 27, 63, 64

[`A;ty] Alarm Type 40, 63

[`AUt] Autotune 30, 54

[AUt1] Autotune, Home Page 26

[bAUd] Baud Rate 43

[`C;Ag] Cool Algorithm 37, 60

[`CAL] Calibration Menu 52

[`C;Cr] Cool Output Curve 37, 59

[`C;dt] Current Detect Threshold 41

[`C;Er] Current Error 24, 27, 31, 64

[`C_F] Display Units 42

[`C;hi] Current High Set Point 31,

[`C;hy] Cool Hysteresis 30, 60

[C;LEd] Communications Indicator

Light 52

[`C;Lo] Current Low Set Point 31, 64

[`C;M] Control Mode 30, 60

[C;M1] Control Mode, Home Page 26

[C;MA] Control Mode Active 29

[C;oFS] Current Offset 41

[CoM] Communications Menu 43

[`C;Pb] Cool Proportional Band 30,

55, 61

[`C;Pr] Cool Power 29, 55

[C;Pr1] Cool Power, Home Page 26

[`C;SC] Scaling 41

[`C;Sd] Current Sides 41

[`C;Si] Current Source Output

Instance 42

[`C;SP] Closed Loop Set Point 30

[`C;SP] Closed Loop Working Set

Point 29

[`CU;r] Current Read 31

[`CU;r] Current Reading Enable 41

[CUrr] Current Menu 31, 41

[CUSt] Custom Menu 26, 50, 54

[dAtE] Date of Manufacture 51

[``db] Dead Band 31, 62

[`dEC] Decimal 35

[diAg] Diagnostics Menu 51

[`dio] Digital Input/Output Menu

[`dir] Direction 35

[`do;S] Digital Output State 29

[EiP;E] Ethernet/IP™ Enable 44

[`Ei;S] Event Input Status 29

[ELi;o] Electrical Input Offset 52, 56

[ELi;S] Electrical Input Slope 52, 56

[ELo;o] Electrical Output Offset 52

[ELo;S] Electrical Output Slope 52

[`End] End 48

[`End] End Type 47

[Ent1] Active Event Output 1 32

[Ent1] Event Output 1 47

[Ent2] Active Event Output 2 32

[Ent2] Event Output 2 47

[Er;i1] [Er;i2] Error Input 1 or 2

24, 27

[FAiL] Input Error Failure 38, 59

[`FiL] Filter 35

[``Fi] Digital Input Function In-

stance 36

[``Fi] Function Key Instance 42

[``Fi] Digital Output Function

Instance 35

[``Fi] Output Function Instance 39,

[``Fn] Digital Input Function 36, 42

[[``Fn] Digital Output Function 35

[``Fn] Output Function 39, 40, 55

[`FUn] Function Key Menu 42

[gLbL] Global Menu 42

[`gSd] Guaranteed Soak Deviation

[`gSE] Guaranteed Soak Enable 43

[`h;Ag] Heat Algorithm 37, 60

[`h;Er] Heater Error 24, 27, 31, 64

[`h;hy] Heat Hysteresis 30, 60

[hoUr] Hours 47

[`h;Pb] Heat Proportional Band 30,

55, 61

[`h;Pr] Heat Power 29, 55

[h;Pr1] Heat Power, Home Page 26

[`h;SP] Control Loop High Set Point

[`i;CA] Calibration Offset 29, 56–57

[`id;S] Idle Set Point 30

[id;S1] Idle Set Point, Home Page 26

[`i;Er] Input Error Latching 35

[`i;Er] Input Error Status 29

[`iid] Instance 50

[iP;A1] IP Actual Address Part 1 51

[iP;A2] IP Actual Address Part 2 51

[iP;A3] IP Actual Address Part 3 52

[iP;A4] IP Actual Address Part 4 52

[iP;F1] IP Fixed Address Part 1 43

[iP;F2] IP Fixed Address Part 2 43

[iP;F3] IP Fixed Address Part 3 44

[iP;F4] IP Fixed Address Part 4 44

[iP;g1] IP Fixed Gateway Part 1 44

[iP;g2] IP Fixed Gateway Part 2 44

[iP;g3] IP Fixed Gateway Part 3 44

[iP;g4] IP Fixed Gateway Part 4 44

[iP;M] IP Address Mode 43

[iP;S1] IP Fixed Subnet Part 1 44

[iP;S2] IP Fixed Subnet Part 2 44

[iP;S3] IP Fixed Subnet Part 3 44

[iP;S4] IP Fixed Subnet Part 4 44

[`is;a] Alarm Source Instance 40

[``JC] Jump Count 47

[``JC] Jump Count Remaining 32

[``JL] Jump Loop 48

[``JS] Jump Step 47

[`leu] Digital Input Level 36, 42

[`L;dd] Open Loop Detect Deviation

[`L;dE] Open Loop Detect Enable 38

[`L;dt] Open Loop Detect Time 38

[`Lh;S] Limit High Set Point 29

[`L;hy] Limit Hysteresis 36

[Li;E1] [Li;E2] Limit Error 1 or 2 24,

[Li;h1] [Li;h2] Limit High 1 or 2 24,

[Li;L1] [Li;L2] Limit Low 1 or 2 24,

[LiM] Limit Menu 29, 36

[`Lin] Linearization 34

[`L;it] Limit Integrate 37

[`LL;S] Limit Low Set Point 29

[`LoC] Lockout Menu 50

[LoC;o] Lock Operations Page 50, 65

[LoC;P] Lock Pro ling Page 50, 65

[Loop] Loop Menu 30, 37

[LP;o1] Loop Open Error 24, 27

[LP;r1] Loop Reversed Error 24, 27

[`L;Sd] Limit Sides 36

[`L;SP] Loop Low Set Point 38

[MAn] Manual Power 38

[Mb;E] Modbus TCP Enable 44

[M;hL] Modbus Word Order 43

[Min] Minutes 47

[Mon] Monitor Menu 29

[`Mu] Electrical Measurement 52,

[`o;CA] Calibration Offset 39

[`o;Ct] Output Control 35, 40

[`o;hi] Output High Power Scale

35, 39, 40

[`o;Lo] Output Low Power Scale

Index

Watlow EZ-ZONE® PM Integrated Controller • 73 • Appendix

35, 39, 40

[``oP] Open Loop Set Point 31

[`o;tb] Output Time Base 35, 40

[otPt] Output Menu 39

[`o;ty] Output Type 39

[P;AC1] Pro le Action Request 27

[P;AC1] Pro le Action Request,

Home Page 26

[P;ACr] Pro le Action Request 32

[`PAr] Parameter 1 to 20 50

[`PAr] Parity 43

[PCoL] Protocol 43

[`P;EE] Process Error Enable 34

[`P;EL] Process Error Low 35

[``Pn] Part Number 51

[ProF] Pro le 46

[P;St1] Pro le Start 27

[P;St1] Pro le Start, Home Page 26

[P;StA] Pro le Status Menu 31

[P;Str] Pro le Start 32

[P;tyP] Pro le Type 43

[`Pu;A] Process Value Active 29

[rAtE] Rate 47, 48

[`r;En] Remote Enable 30, 58

[`rEu] Software Revision 51

[`r;hi] Range High 34, 39, 57

[`r;Lo] Range Low 34, 39, 57

[rLoC] Read Lockout Security 51, 65

[``rP] Ramp Action 38, 62

[`rP1] Ramping 24, 27

[`r;rt] Ramp Rate 38, 62

[`r;SC] Ramp Scale 38, 62

[`r;Sr] Retransmit Source 39

[`rt;L] RTD Leads 34

[`r;ty] Remote Set Point Type 30

[`S;bA] Sensor Backup Enable 35,

[S;bLd] Software Build 51

[`SEC] Seconds 47

[`SEn] Sensor Type 34, 55, 57

[`S;hi] Scale High 34, 39, 57

[`S;Lo] Scale Low 34, 39, 57

[SLoC] Set Lockout Security 51, 65

[``Sn] Serial Number 51

[SoAh] Soak 48

[SP;hi] Set Point High Limit Open

Loop 38

[SP;Lo] Set Point Low Limit Open

Loop 38

[`sr;a] Alarm Source 34

[StEP] Step 46

[`S;ti] Step Time Remaining 32

[`StP] Active Step 32

[S;tyP] Active Step Type 32

[S;tyP] Step Type 46

[t;Agr] User Tune Aggressiveness

37, 54

[t;bnd] TRU-TUNE+® Band 37, 55

[``td] Time Derivative 30, 55, 61

[`t;gn] TRU-TUNE+® Gain 37, 55

[tg;SP] Active Target Set Point 32

[tg;SP] Target Set Point 46

[``ti] Time 48

[``ti] Time Integral 30, 55, 61

[t;tUn] TRU-TUNE+® Enable 37, 55

[tUn1] Tuning 24, 27

[`UFA] User Failure Action 37

[USr;r] User Restore Set 51, 54

[USr;S] User Save Set 51, 54

[UStP] Unused Step 48

[W;bo] Wait For Both 48

[`W;E] Wait For Event 48

[WE;1] Wait Event 1 47

[WE;2] Wait Event 2 47

[W;Pi] Wait For Process Instance 47

[W;Pr] Wait For Process 48

[WPr] Wait For Process 47

accuracy 69

Active Event Output (1 or 2) 32

Active Process Value

Home Page 26

Active Set Point 32

Home Page 26

Active Step 32

Active Step Type 32

Active Target Set Point 32

AC Line Frequency 42, 62

adaptive tuning 55

Address Modbus 43

Address Standard Bus 43

Advance Key 24

agency approvals 2, 69

alarms 63

Blocking 41, 64

deviation 63

Display 41

Hysteresis 41, 63

Latching 41, 63

Logic 41

process 63

set points 63

Sides 41

Silencing 41, 64

Source 40

Source Instance 40

Type 40

alarm blocking 64

Alarm Error 1 to 4 24

Alarm High 1 to 4 24

Alarm Low 1 to 4 24

Alarm Menu 31, 40

Operations Page 28

Setup Page 33

Analog Input Menu 29, 34

Operations Page 28

Setup Page 33

Attention Codes 24, 26

Autotune 54

Home Page 26

Autotune Aggressiveness 37

Autotune Request 30

Autotune Set Point 30, 54

autotuning 54–55

autotuning with TRU-TUNE+® 55

auto (closed loop) control 59

Baud Rate 43

Blocking 41, 64

bumpless transfer 59

calibrating an analog input 56

Calibration Menu 52

Factory Page 49

Calibration Offset 29, 39, 56–57

changing the set point 26

chattering output 60

chemical compatibility 10

Closed Loop Set Point 30

Closed Loop Working Set Point 29

communications activity light 24

Communications Indicator Light 52

Communications Menu 43

Setup Page 33

Control 35, 40

controller speci cations 69

control methods 59

Control Mode 30, 60

Home Page 26

Control Mode Active 29

Cool Algorithm 37, 60

Cool Hysteresis 30, 60

Cool Output Curve 37, 59

cool output curve 59

Cool Power 29, 55

Home Page 26

Cool Proportional Band 30, 55, 61

Current Error 24, 31, 64

current measurement 69

Current Menu 31, 41

Operations Page 28

Setup Page 33

Current Sensing 64

current sensing 64

Custom Menu 26, 50, 54

Factory Page 49

Home Page 26

Date of Manufacture 51

Dead Band 31, 61, 62

Decimal 35

Declaration of Conformity 76

default Home Page parameters 26

Detect Threshold 41

Watlow EZ-ZONE® PM Integrated Controller • 74 • Appendix

deviation alarms 63

Diagnostics Menu 51

Factory Page 49

Digital Input/Output Menu 29, 35

Operations Page 28

Setup Page 33

digital inputs 3

Digital Input Function 3, 42

digital input speci cations 69

digital output speci cations 69

dimensions 8, 70

Direction 35

Display 41

displays 24

Display Units 42

Down Key 24

duplex 58

Electrical Gain 56

Electrical Input Offset 52

Electrical Input Slope 52

Electrical Measurement 52, 56

Electrical Output Offset 52

Electrical Output Slope 52

End 48

End Set Point Value 47

environment 69

Error Input 1 or 2 24

EtherNet/IP™ 23

Ethernet/IP™ Enable 44

Event Input Status 29

Event Output (1 and 2) 47

EZ Key 24, 64

Factory Page 49

Filter Time 35, 57

 lter time constant 57

Function 36, 55

Function Instance 35, 39, 40

Function Key Menu 42, 64

Setup Page 33

Global Menu 42

Setup Page 33

Guaranteed Soak Deviation 43

Guaranteed Soak Enable 43

Heater Error 24, 31, 64

Heat Algorithm 37, 60

Heat Hysteresis 30, 60

Heat Power 29, 55

Home Page 26

Heat Proportional Band 30, 55, 61

High Power Scale 35, 39, 40

high range 57

high scale 57

High Set Point

Alarm 31, 63

Current 31, 64

Limit 29

Loop 38, 57

Home Page 26, 54

default display 26

Hours 47

Hysteresis 36, 41, 63

Integrate 37

Idle Set Point 30

Home Page 26

In nity Key 24

inputs 3

Input Error Failure 38, 59

Input Error Latching 35, 60

Input Error Status 29

input events 3

Input Function Instance 36

Input Sensor Type 55

installation 9

Instance 42, 50

IP Actual Address Part 1 51

IP Actual Address Part 2 51

IP Actual Address Part 3 52

IP Actual Address Part 4 52

IP Address Mode 43

IP Fixed Address Part 1 43

IP Fixed Address Part 2 43

IP Fixed Address Part 3 44

IP Fixed Address Part 4 44

IP Fixed Gateway Part 1 44

IP Fixed Gateway Part 2 44

IP Fixed Gateway Part 3 44

IP Fixed Gateway Part 4 44

IP Fixed Subnet Part 1 44

IP Fixed Subnet Part 2 44

IP Fixed Subnet Part 3 44

IP Fixed Subnet Part 4 44

Jump Count 47

Jump Count Remaining 32

Jump Loop 48

Jump Step 47

keys 24

Latching 41, 63

Level 36, 42

Limit Error 1 or 2 24

Limit High 1 or 2 24

Limit Low 1 or 2 24

Limit Menu 29, 36

Operations Page 28

Setup Page 33

Linearization 34

line voltage/power 69

Lockout Menu 50, 65

Factory Page 49

Lock Operations Page 50, 65

Lock Pro ling Page 50, 65

Logic 41

Loop Menu 30, 37

Operations Page 28

Setup Page 33

Loop Open Error 24

Loop Reversed Error 24

lower display 24

Low Power Scale 35, 39, 40

low range 57

low scale 57

Low Set Point

Alarm 31, 63

Current 31, 64

Limit 29

Loop 38, 57

manual (open loop) control 59

Manual Control Indicator Light 60

Manual Power 38

manual tuning 54

message, display 24

Message Action 27

Minutes 47

Modbus TCP 23

Modbus TCP Enable 44

Modbus Word Order 43

Monitor Menu 29

Operations Page 28

navigating

Factory Page 49

Operations Page 28

pages and menus 25

Pro ling Page 45

Setup Page 33

network wiring 23

No-arc Relay 58

Offset 41

on-off control 60

Open Loop Detect Deviation 38

Open Loop Detect Enable 38

Open Loop Detect Time 38

Open Loop Set Point 31

Operations Page 28, 50

operator interface 70

ordering information

integrated controller models 71

outputs 3

output activity lights 24

output con guration 59

output events 3

Output Function 35, 39, 40

output hardware speci cations 69

Watlow EZ-ZONE® PM Integrated Controller • 75 • Appendix

Output Menu 39

Setup Page 33

output power scaling 59

Output State 29

Output Type 39

P, Q

P3T armor sealing system 2

Parameter 1 to 20 50

Parity 43

Part Number 51

percent units indicator light 24

process alarms 63

Process Error Enable 34

Process Error Low 35

Process Value 29

Process Value Active 29

Pro le 46

Pro le Action 26

Pro le Action Request 32

Home Page 27

pro le activity light 24

Pro le Start 27, 32

Home Page 26

Pro le Status Menu 31

Operations Page 28

Pro le Type 43

Pro ling Page 45, 50

programming the Home Page 54

proportional control 60

plus integral (PI) control 61

plus integral plus derivative (PID)

control 61

Protocol 43

Ramp Action 38

Ramp Rate 38, 62

Ramp Scale 38, 62

Range High 34, 39, 57

Range Low 34, 39, 57

Rate 47, 48

Reading Enable 41

Read Lockout Security 51, 65

receiving a remote set point 57

Remote Enable 30, 58

Remote Set Point Type 30

restoring user settings 54

retransmit 58

Retransmit Source 39

RTD Leads 34

saving user settings 54

Scale High 34, 39, 57

Scale Low 34, 39, 57

Scaling 41

Seconds 47

secure settings 65

sensor backup 57

Sensor Backup Enable 35, 57

sensor selection 57

Sensor Type 34, 55, 57

serial communications 69

Serial Number 51

Setup Page 33

Set Lockout Security 51, 65

set point high limit 57

Set Point High Limit Open Loop 38

set point low limit 57

Set Point Low Limit Open Loop 38

Sides

Alarm 41

Current 41

Limit 36, 37

Silencing 41, 64

single set point ramping 62

Soak 48

Software Build 51

Software Revision 51

Source 40

Source Output Instance 42

speci cations 69

Step 46

Step Time Remaining 32

Step Type 46

Target Set Point 46

temperature units indicator lights 24

Time 48

Time Base 35, 40

Time Derivative 30, 55, 61

Time Integral 30, 55, 61

troubleshooting 66

TRU-TUNE+® Band 37, 55

TRU-TUNE+® Enable 37, 55

TRU-TUNE+® Gain 37, 55

tuning the PID parameters 54

Type 40, 63

universal input 69

Unused Step 48

upper display 24

Up Key 24

User Failure Action 37

User Restore Set 51, 54

User Save Set 51, 54

User Tune Aggressiveness 54

using the software 64

variable time base 62

W, X, Y

Wait Event (1 and 2) 47

Wait For Both 48

Wait For Event 48

Wait For Process 47, 48

Wait For Process Instance 47

weight 70

wiring

digital input or output 5 13

digital input or output 6 13

EIA-232/485 Modbus RTU commu-

nications 22

high power 13

input 1 potentiometer 14

input 1 process 14

input 1 RTD 14

input 1 thermocouple 14

input 2 current transformer 16

input 2 potentiometer 15

input 2 process 15

input 2 RTD 15

input 2 thermocouple 15

low power 13

Modbus RTU or standard bus

EIA-485 communications 22

output 1 mechanical relay, form C

output 1 solid-state relay, form A

output 1 switched dc/open collec-

tor 17

output 1 universal process 17

output 2 mechanical relay, form

A 18

output 2 no-arc relay, form A 18

output 2 solid-state relay, form A

output 2 switched DC/open collec-

tor 18

output 3 mechanical relay, form C

output 3 solid-state relay, form A

output 3 switched dc/open collec-

tor 19

output 3 universal process 20

output 4 mechanical relay, form

A 20

output 4 solid-state relay, form A

output 4 switched DC/solid-state

relay 20

standard bus EIA-485 communica-

tions 22

wiring a network 23

wiring termination, touch-safe termi-

nals 69

zone display 24

Watlow EZ-ZONE® PM Integrated Controller • 76 • Appendix

Declaration of Conformity

Series EZ Zone PM

Watlow Winona, Inc.

1241 Bundy Blvd.

Winona, MN 55987 USA

Declares that the following product:

Designation: Series EZ Zone PM (Panel Mount)

Model Numbers: PM (3 or 6)(Any letter or number) – (1, 2, 3 or 4)(A, C, E, F or K)

(A, C, H, J or K)(Any letter or number) – (Any letter or number)

(A, C, E, F or K)(A, D, J or K)(Any two letters or numbers)

Classification: Temperature control, Installation Category II, Pollution degree 2

Rated Voltage and Frequency: 100 to 240 V~ ac 50/60 Hz or 15 to 36 Vt dc/24 V~ ac 50/60 Hz

Rated Power Consumption: 10 VA maximum.

Environmental Rating: Front Panel IP66

Meets the essential requirements of the following European Union Directives by using the relevant

standards show below to indicate compliance.

2004/108/EC Electromagnetic Compatibility Directive

EN 61326 1997 A1:1998

A2:2002

Electrical equipment for measurement, control and

laboratory use – EMC requirements (Industrial Immunity,

Class B Emissions

EN 61000-4-2 1996 A1, A2, 2001 Electrostatic Discharge Immunity

EN 61000-4-3 2002 A1, A2, 2005 Radiated Field Immunity

EN 61000-4-4 2004 Electrical Fast-Transient / Burst Immunity

EN 61000-4-5 1995 A1, A2, 2001 Surge Immunity

EN 61000-4-6 1996 A1,A2,A3, 2005 Conducted Immunity

EN 61000-4-11 2004 Voltage Dips, Short Interruptions and Voltage Variations

Immunity

EN 61000-3-2 2000 ED.2. Harmonic Current Emissions

EN 61000-3-31 1995 A1, A2, 2002 Voltage Fluctuations and Flicker

1For mechanical relay loads, cycle time may need to be extended up to 30 seconds to meet flicker

requirements depending on load switched and source impedance.

73/23/EEC Low-Voltage Directive

EN 61010-1 2001 Safety Requirements of electrical equipment for measurement, control

and laboratory use. Part 1: General requirements

Compliant with 2002/95/EC RoHS Directive

2002/96/EC WEEE Directive Equipment Requires Recycling

Raymond D. Feller III Winona, Minnesota, USA

Name of Authorized Representative Place of Issue

General Manager August, 2007

Title of Authorized Representative Date of Issue

Signature of Authorized Representative

Declaration of Conformity

How to Reach Us

Corporate Headquarters

Watlow Electric Manufacturing Company

12001 Lackland Road

St. Louis, MO 63146

Sales: 1-800-WATLOW2

Manufacturing Support: 1-800-4WATLOW

Email: info@watlow.com

Website: www.watlow.com

From outside the USA and Canada:

Tel: +1 (314) 878-4600

Fax: +1 (314) 878-6814

Latin America

Watlow de México S.A. de C.V.

Av. Fundición No. 5

Col. Parques Industriales

Querétaro, Qro. CP-76130

Mexico

Tel: +52 442 217-6235

Fax: +52 442 217-6403

Europe

Watlow France SARL

Immeuble Somag

16, Rue Ampère

95307 Cergy-Pontoise CEDEX

France

Tel: + 33 (0)1 30 73 24 25

Fax: + 33 (0)1 30 73 28 75

Email: info@watlow.fr

Website: www.watlow.fr

Watlow GmbH

Postfach 11 65, Lauchwasenstr. 1

D-76709 Kronau

Germany

Tel: +49 (0) 7253 9400-0

Fax: +49 (0) 7253 9400-900

Email: info@watlow.de

Website: www.watlow.de

Watlow Italy S.r.l.

Viale Italia 52/54

20094 Corsico MI

Italy

Tel: +39 024588841

Fax: +39 0245869954

Email: italyinfo@watlow.com

Website: www.watlow.it

Watlow Ibérica, S.L.U.

CME - Avda. de la Vía Láctea, s/n. Oficina 24

28830 - San Fernando de Henares Madrid

Spain

Tel: +34.91.675.1292

Fax: +34.91.648.7380

Email: info@watlow.es

Website: www.watlow.es

Watlow

Storgatan 24

302 43 Halmstad

Sweden

Tel: + 46 (0)35 27 11 66

Fax: +46 (0)35 27 11 67

Email: info@watlow.se

Website: www.watlow.se

Watlow UK Ltd.

Linby Industrial Estate

Linby, Nottingham, NG15 8AA

United Kingdom

Telephone: (0) 115 964 0777

Fax: (0) 115 964 0071

Email: info@watlow.co.uk

Website: www.watlow.co.uk

From outside The United Kingdom:

Tel: +44 115 964 0777

Fax: +44 115 964 0071

Asia and Pacific

Watlow Singapore Pte Ltd.

16 Ayer Rajah Crescent,

#06-03/04,

Singapore 139965

Tel: +65 6773 9488 Fax: +65 6778 0323

Email: info@watlow.com.sg Website:www.watlow.com.sg

Watlow Australia Pty., Ltd.

4/57 Sharps Road

Tullamarine, VIC 3043

Australia

Tel: +61 3 9335 6449

Fax: +61 3 9330 3566

Website: www.watlow.com

瓦特隆电子科技(上海)有限公司

(销售办事处)

上海市浦东新区张江工业园区碧波路115号572弄22棟 *

邮编: 201203

电话: 86 21 5080-0902 传真: 86 21 5080-0906

电子邮箱: info@watlow.cn Website: www.watlow.cn

Watlow Electric Manufacturing (Shanghai) Company

115-22#, 572nd Lane, Bibo Road, Zhangjiang High-Tech Park,

Shanghai, PRC 201203

People’s Republic of China

Tel: +86 21 5080-0902 Fax: +86 21 5080-0906

Email: info@watlow.cn Website: www.watlow.cn

ワトロー・ジャパン株式会社

〒101-0047 東京都千代田区内神田1-14-4

四国ビル別館9階

Tel: 03-3518-6630 Fax: 03-3518-6632

Email: infoj@watlow.com Website: www.watlow.co.jp

Watlow Japan Ltd.

1-14-4 Uchikanda, Chiyoda-Ku

Tokyo 101-0047

Japan

Tel: +81-3-3518-6630 Fax: +81-3-3518-6632

Email: infoj@watlow.com Website: www.watlow.co.jp

Revised: September 20, 2007

Watlow Korea Co., Ltd.

#1406, E&C Dream Tower, 46, Yangpyeongdong-3ga

Yeongdeungpo-gu, Seoul 150-103

Republic of Korea

Tel: +82 (2) 2628-5770 Fax: +82 (2) 2628-5771

Website: www.watlow.co.kr

Watlow Malaysia Sdn Bhd

No. 14-3 Jalan 2/114

Kuchai Business Centre

Jalan Kuchai Lama

58200 Kuala Lumpur

Malaysia

Tel: +60 3 7980 7741 Fax: +60 3 7980 7739

瓦特龍電機股份有限公司

80143 高雄市前金區七賢二路189號 10樓之一

電話: 07-2885168 傳真: 07-2885568

Watlow Electric Taiwan Corporation

10F-1 No.189 Chi-Shen 2nd Road Kaohsiung 80143

Taiwan

Tel: +886-7-2885168 Fax: +886-7-2885568

Your Authorized Watlow Distributor

Watlow Electric C Ez Zone Pm Users Manual PMI Insides Rev

EZ-ZONE PM to the manual a572950c-9ba0-3d24-318a-e655f787b6f6

Navigation menu

Versions of this User Manual:

Views

Navigation
