Wave Multimedia YUNTAB706 MID User Manual

Shenzhen Wave Multimedia Co.,LTD MID

Users Manual

1
User Manual
Model:E706
Brand: YUNTAB
2
Content
User Manual .................................................................................................................................... 1
Content............................................................................................................................................. 2
1 Introduction .................................................................................................................................. 4
1.1 Acknowledgement ............................................................................................................ 4
1.2 Announcements ............................................................................................................... 4
1.3 Safety Instruction ............................................................................................................. 4
1.4 Abbreviation/Terminology ............................................................................................... 6
2 MID Introduction .......................................................................................................................... 7
2.1 MID Operation and Preparation ..................................................................................... 7
2.2 MID Status and Reminder ......................................................................................... 7
3 Quick Start Guide ........................................................................................................................ 9
3.1 Keys Function ................................................................................................................... 9
3.2 Startup and Shutdown .................................................................................................... 9
3.3 Open and Close of the Screen .................................................................................... 10
3.4 Usage of Touch Screen ................................................................................................. 10
3.5 Home Page ..................................................................................................................... 11
3.6 Visit Application Procedures ......................................................................................... 13
3.7 USB Connection ............................................................................................................ 13
3.8 Typing words .................................................................................................................. 14
3.9 Operation Technique ..................................................................................................... 16
4 Basic Setting .............................................................................................................................. 16
4.1 Wireless and Internet .................................................................................................... 16
4.14 Language and Input Method ................................................................................... 33
4.16 Date and Time .............................................................................................................. 36
5 Multi-Media ................................................................................................................................. 40
5.1 Music ............................................................................................................................... 40
5.2 Photo Gallery .................................................................................................................. 41
5.3 Camera ............................................................................................................................ 42
5.4 FM Radio ......................................................................................................................... 42
6 Communication Function ......................................................................................................... 45
6.2 Text Message ................................................................................................................. 45
6.3 Contact List ..................................................................................................................... 46
7 Internet ........................................................................................................................................ 47
7.1 Browser ........................................................................................................................... 47

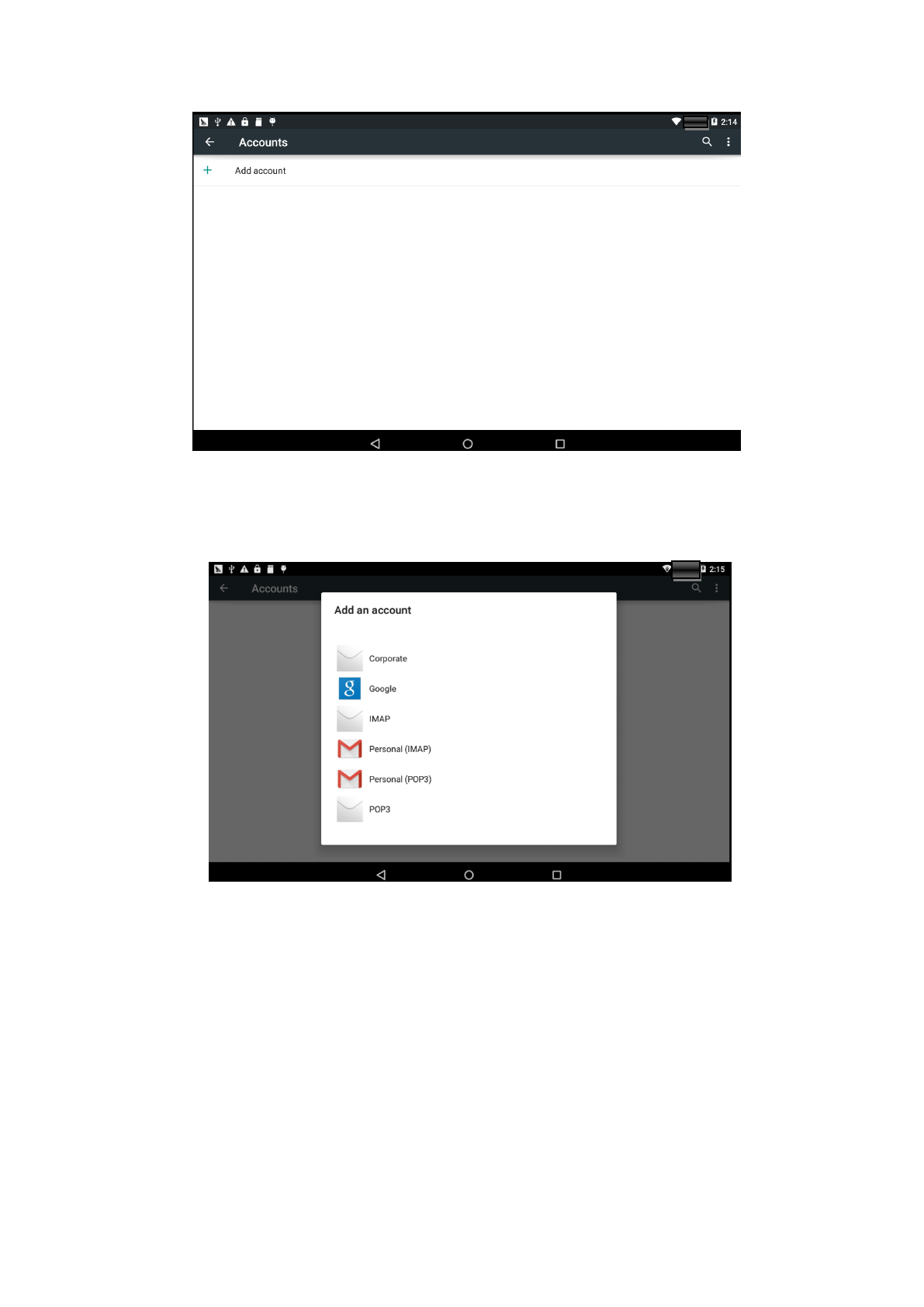

7.2 Email ................................................................................................................................ 48
8 Other Application Procedures ................................................................................................. 51
8.1 Clock ................................................................................................................................ 51
8.2 Calculator ........................................................................................................................ 51

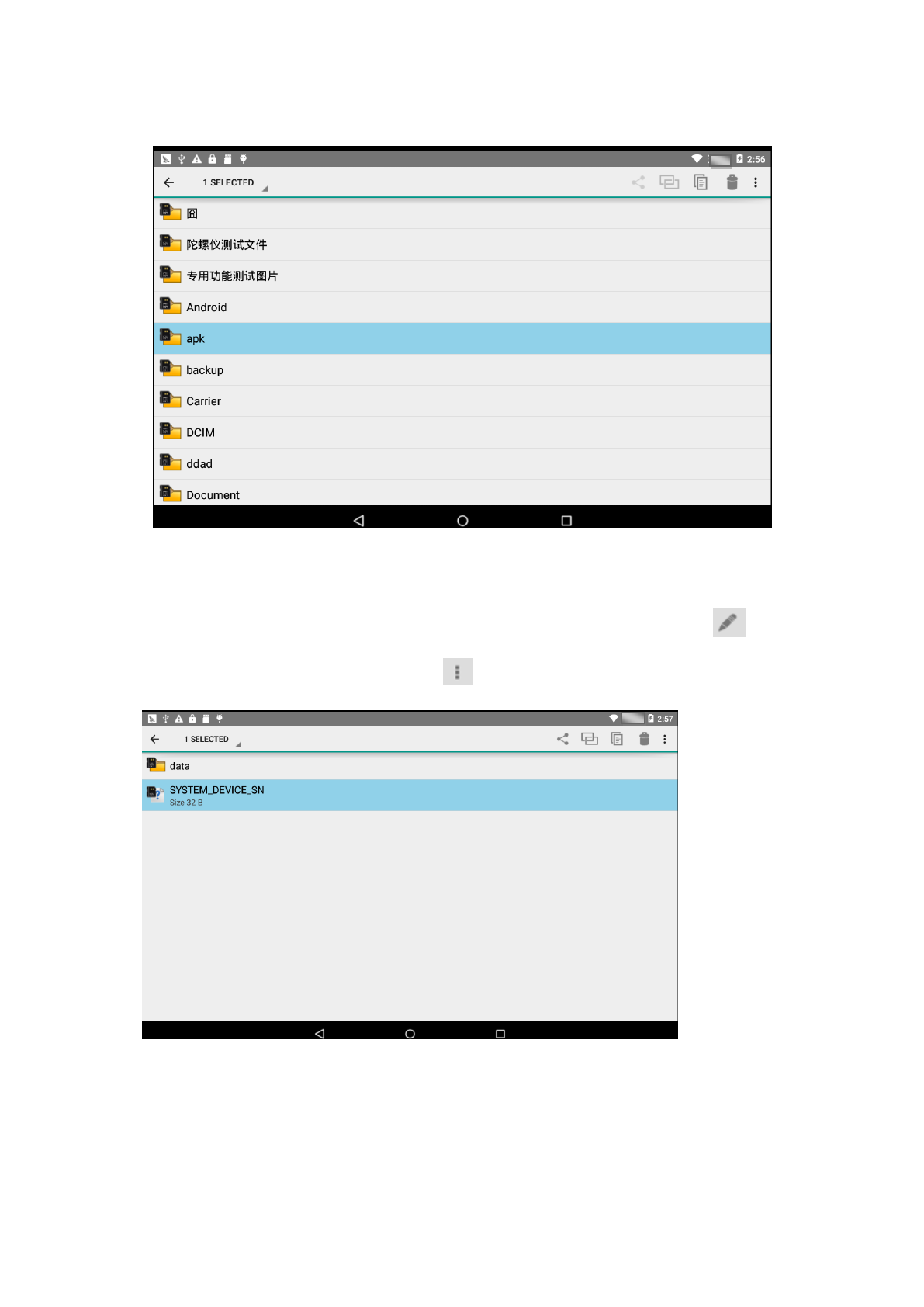

8.3 File Manager ................................................................................................................... 52
9.4 Recorder ......................................................................................................................... 54
9 Installation of Procedures ........................................................................................................ 56
3
9.1 Installation ....................................................................................................................... 56
9.2 Uninstall ........................................................................................................................... 56
10 Troubles Shooting ................................................................................................................... 57
4
1 Introduction
1.1 Acknowledgement
Thanks for your purchase of our product. E706，is a 7 1inches high clear board
computer. Its CPU is MT8321, it is based on Android 5.1operation system, and easy to
expand the third application procedure.
The product is designed with various functions, including WIFI, so on. It is easy to
achieve wireless communication and internet, you have access to surf the internet
anytime and anywhere; so that it can be used for navigating through installing map
software. There are many sensors which offer you brand-new operation and
entertainment; besides, it has camera shooting, which leads electronic consumption to
enter into a fresh palm internet entertainment time.
The manual systemically introduces the functions, use techniques and
announcements, please read this manual carefully before your operation.
1.2 Announcements
Preventive maintainance
Please always keep the MID dry. To avoid the device short trouble, corrosion
fault and electric short, please prevent the device, battery and charger from
water and moisture, and don’t operate the device or charger by wet hand.
To avoid failure of device, battery and charger, please prevent the device,
battery, charger from violent shock or shake.
To avoid failure of device, battery and charger, please prevent the device,
battery, charger of all over heating or too cold circumstance
Never shock, throw, prod the MID, or drop, extrude, bend the MID.
Never disassemble the device and accessories arbitrarily, otherwise the device
and accessories are not in our company warranty scope.
1.3 Safety Instruction
Before the operation of the MID, please read this chapter and teach your kids about these
5
information. For further details, please refer to the safety instructions and announcement.
Never use the MID when driving car, in order to ensure safe driving.
In the medical area, please abide by related rules and regulations. Please
shut down the MID when it is near to the medical area.
To avoid the wireless signal to interrupt the plane- controlled signal, please
shut down the MID or using airplane mode when you are boarding a flight,
To avoid electronic equipment failure, please shut down the MID in the
vicinage of high-accuracy electronic equipments.
Please don’t disassemble the MID and accessories. Only authorized agent
has access to service the MID.
Please keep the MID far away from magnetic equipments, the radiation of
MID may erase the data stored in the magnetic equipments.
Never use the MID in the vicinage of high temperature, inflammable gas
( gas station).
Protect the MID and accessories from kids reach scope, and avoid the kids
to use the MID without parents’ supervision.
Please comply with related rules and regulations, and respect others’
privacy and legal rights while using the MID.
Please strictly adhere to related instructions in the manual when using USB
cable to ensure the safety of the MID or PC.
Never use the MID in bathroom or other humid environment, and please
protect the MID from liquid wash or wet.
6
1.4 Abbreviation/Terminology
Abbreviation/Terminolo
gy
Full Name
Description
MID
Mobile Internet Device
Mobile Internet Terminal
WIFI
Wireless Fidelity
Base on IEEE 802.11b standard
wireless LAN
T F
TransFlash
Alternative name Micro SD,super
miniature memory card
7
2 MID Introduction
2.1 MID Operation and Preparation
Battery Charging
If this navigator is first used, please use AV adaptor to fully charge it.
1. Apply the power adptor to charge for MID.
2.2 MID Status and Reminder
Reminder icons
When some remind message appears in your reminder window, please click column
and slip the screen to open the reminder list. Choose the menu you need, and confirm the
information. Then you can close the reminder window through clicking the column to slide
up. Please refer to below status icons:
New email
Airplane Mode on
USB connected
USB debugging connected
Return button
Downloading
Display recently-used
application
Home button
Current electric
volume.
WIFI connected, internet is
available
Reminder board
Reminder icons will work while receiving emails, WIFI is open, you can open the
reminder board to view the detailed information.
Open the reminder board
8
When the reminder column shows new reminder icon, please hold the column and slip
down your finger, then the reminder board is opened.
9
3 Quick Start Guide
3.1 Keys Function
Keys Funcction Description：
Short press to sleep/wake up, long press to startup
and shutdown.
increase the volume
decrease the volume
Click it in any interface will return to main interface.
click it in any interface will return to previous menu
This button will display in menu interface.
display recently browsed history
3.2 Startup and Shutdown
Startup
Long press POWER key for three seconds, you can enter into startup picture. The
system enters into screen lock status, please unlock it.
Shutdown
1． Long press POWER, it will popoup shutdown window.
2． Shutdowm window contains mute mode, airplane mode,reboot mode and
shutdown four options.
3． Click Shutdown is the last step.
10
3.3 Open and Close of the Screen
Screen will be closed on its own when no operation happens.
1. Screen will be closed on its own if no operation happens for some time to save
battery power
2. When screen is open, press POWER key, the screen will be closed
immediately.
Open the screen when it is closed.
If the screen is closed, short press POWER to open the screen. The screen will be

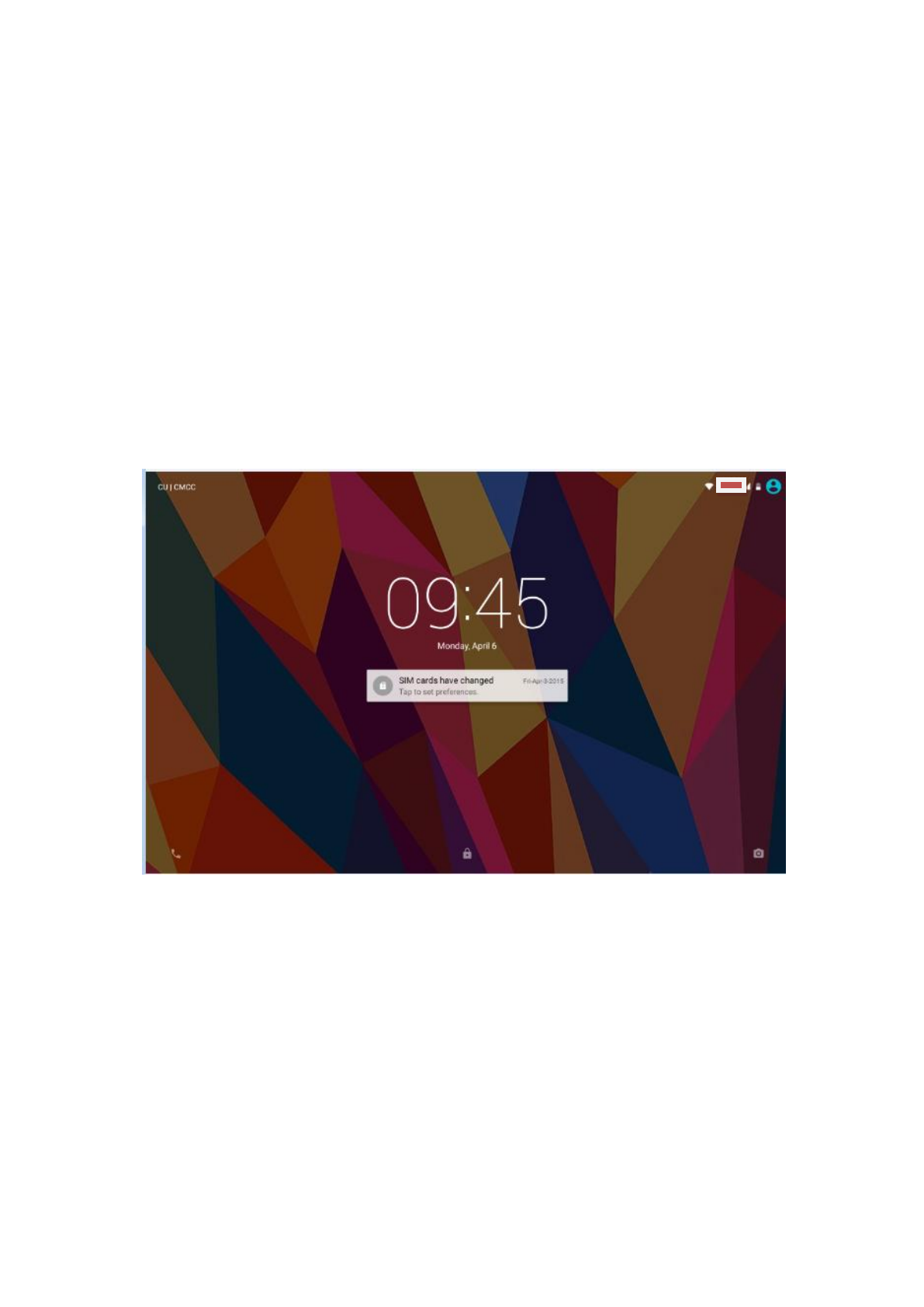

locked open it, it will show the picture as below picture, left slide to unlock and enter into
camera, right slide the unlock icon to unlock the screen.
Picture 3.1
3.4 Usage of Touch Screen
MID operating methods
There are below methods to view the main screen, menu and application procedure in
your MID.
Click
When you want to use the screen keyboard typing or choose application in the main
interface, you only need to touch it by your finger.
Press on
11
If you want to open some item( textbox or the link in the webpage), or shortcut and main
procedure move, you can press on this item.
Quickly slide or slide
Quickly slide or slide indicates make quick vertical or horizoncial movement by finger.
Pull
Before you pull, you need to hold the it with strenghth until you pull it into the position you
want.
Rotate
For most pictures, you only need to retate the MID sidewise to change the screen
direction from horizoncial to vertical. For instance, when you are typing wods, and
watching movies.
3.5 Home Page
Main interface as below picture 3.2, long press the blank and it will popup windows to set
wallpaper, folder, widgets, and shortcut.
Picture 3.2
The extended home page

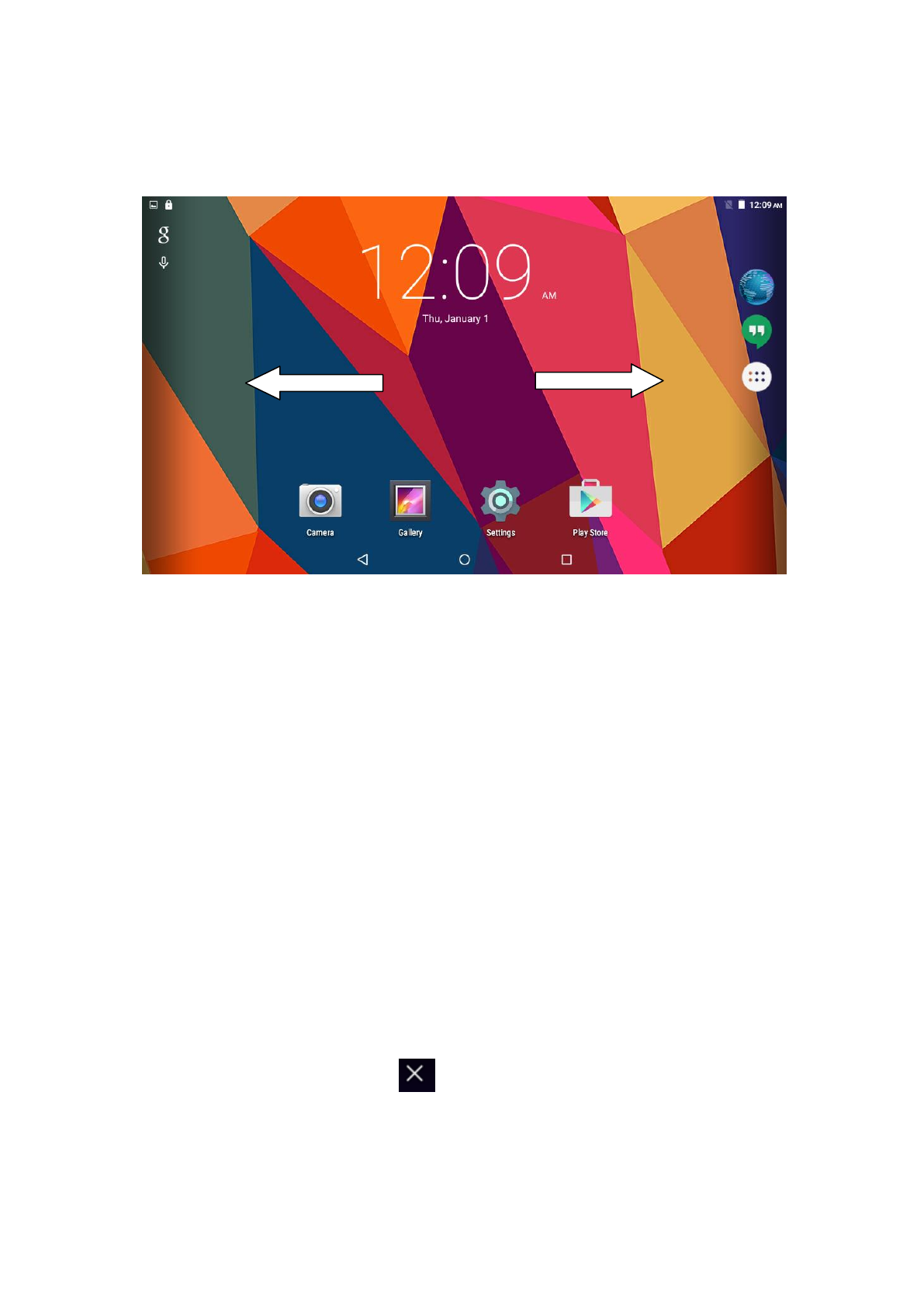

The home page can be extended beyond the wideness of screen to provide more
display recently browsed
history
Home
return
time
Batty volume
Notice
column
12
space, which you can put new-added shortcuts and widgets. Click the blank space
in home page then slide right or left to extend to the right or left of the screen. In the
home page, there are two extended pictures, as Picture 3.3.
Picture 3.3
The shortcut icons management in desktop application.
Create folder icon in desktop
1. Drag the icons need to be put together on one icon(can also overlay
several icons)as Picture 3.4.
2. Then click the overlayed icons, the applications can be folded, as Picture
3.5.
Click the unnamed folder in the black box, it will popup the hidden keyboard, the folder
name can be renamed (this is similiar with Apple IOS system), the icons position can be
changed through long press.
Picture 3.5
Remove the icons in desktop
1. Long press the icons need to be remove, then on the right above of the
screen, it will appear icons.
2. Drag the icon to the above of the remove icon, till the icon become red, then
move your finger to delete the icon.
Change the wallpaper of desktop
13
1． In home page, long press any blank space in main screen, it will popup a
window to change the wallpaper.
2． Click the gallery or wallpaper gallery to select the wallpaper.
3.6 Visit Application Procedures
Click in right top of Picture 3.2, enter into main interface as Picture 3.6,
choose the application procedure you want to visit.
Picture 3.6

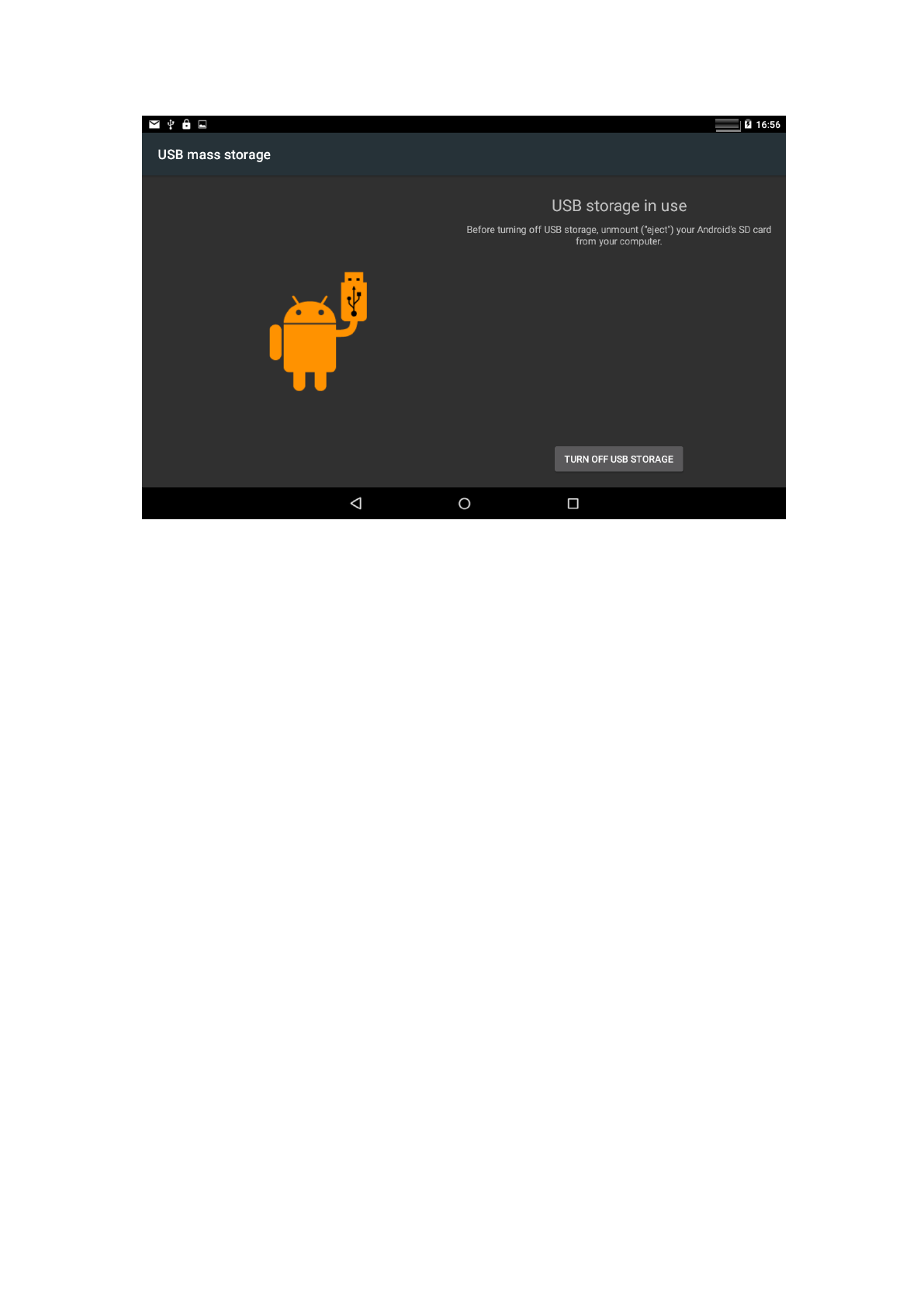

3.7 USB Connection

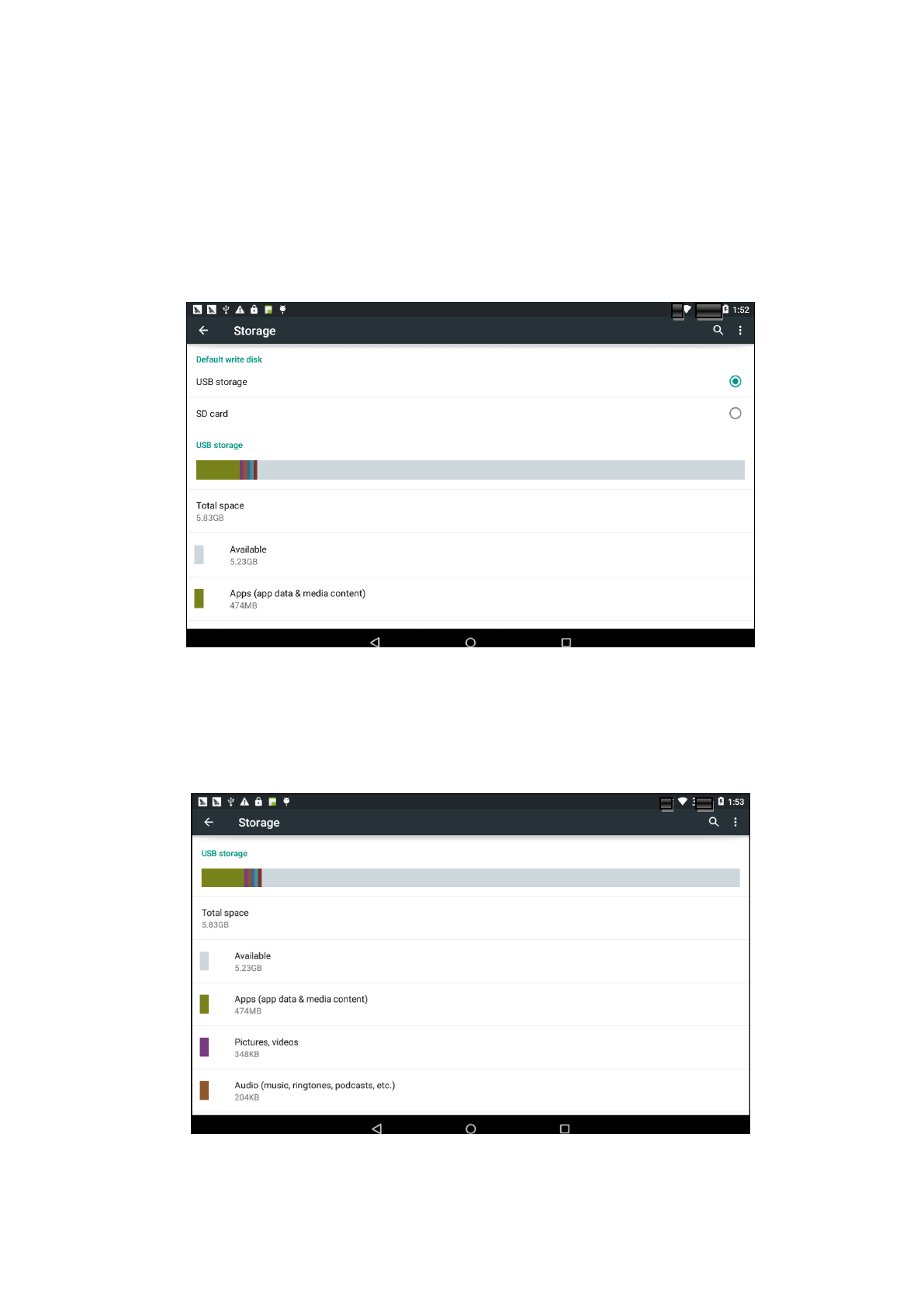

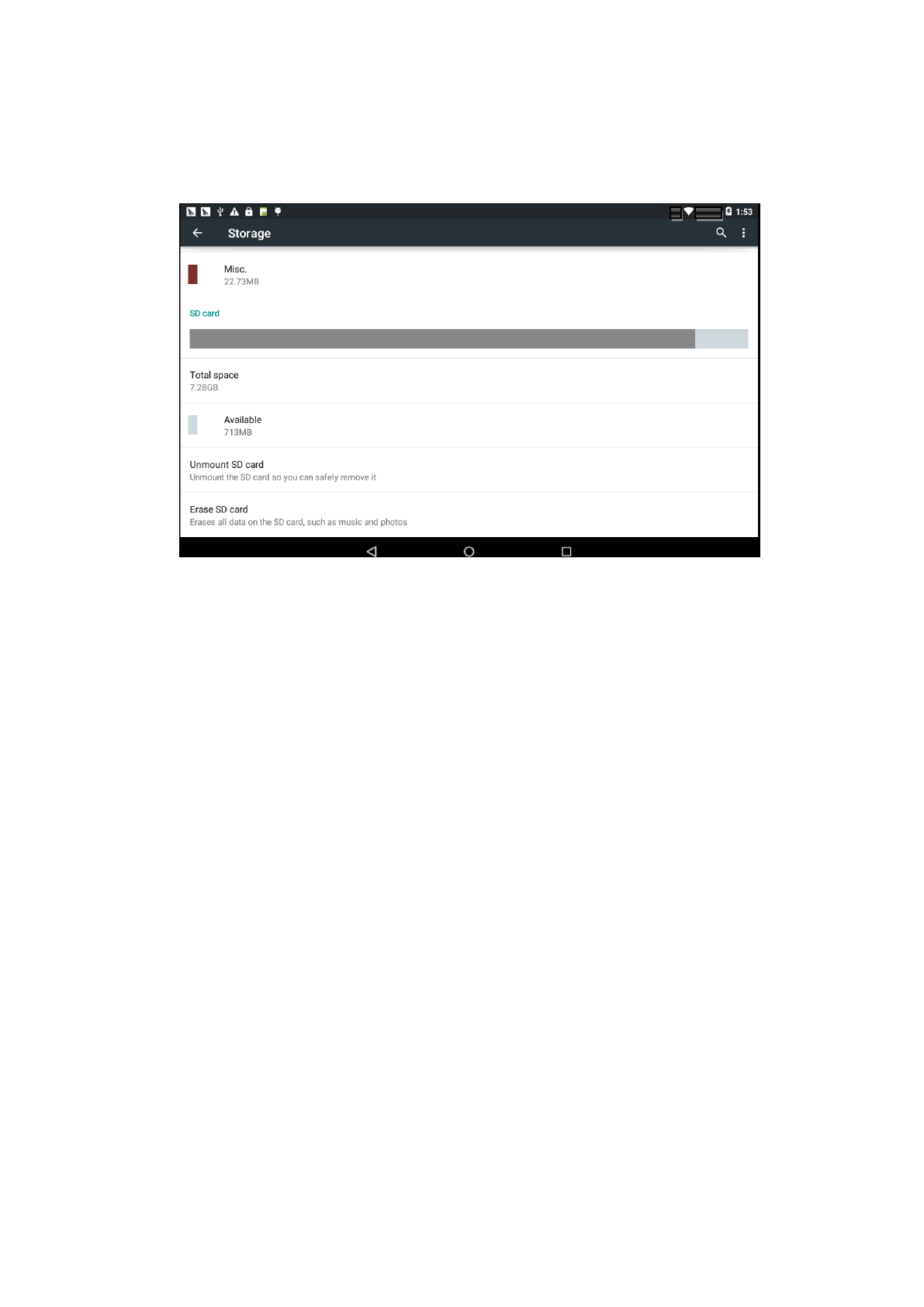

MID storage configuration
Before transmitting documents, you have to conduct storage configuration for your MID:
1. Connect the MID and computer by USB cable, the reminder column will show the
remind information.
2. Open the reminder board; please view the MID status and reminder to learn how
to open the board.
3. In the reminder board, click the “USB Connected”, it will as below Picture 3.4,
then click “open USB storage configuration”.
4. Now the USB is connected successfully.
Return to
home page
14
Picture 3.7
Copy the document into memory card
1. Connect the MID to computer with USB cable.
2. As MID storage configuration, it is connected with computer successfully.
3. Open the “My computer” in your computer, check the items in “removable disc”.
4. Copy the documents you need into “removable disc”.
5. After copying finishes, click “shutdown the USB storage configuration” to uninstall.
Notice: When the MID is connected with USB cable, and you open the USB storage
configuration, you can’t view the memory card through the MID. Only after you detach
the USB cable, you can view the memory card in the MID.
3.8 Typing words
Use the screen keyboard
When you start the procedure or choose the words or numbers edition, it will show
the screen keyboard. The keyboard contains below typing options:
1. Android keyboard
2. Google Pinyin
Choose the typing method you want
1. Click Setting pocedure application.
15
2. Click Language and Keyboard.
3. In the text setting area will reveal all the installed words-typing methods in your
MID.
4. Tick the typing method you want.
Use and switch of input method
Picture 3.8
1
switch the capital and small letter
2
switch the mode of words input
3
click to insert the space
4
click input to execute
5
delete the character in the left of cursor, click and hold to delete
all the characters in the left og the cursor.
①
②
③
3
⑤
④
16
3.9 Operation Technique
Enter widgets interface
In the application interface,click widgets on the above of screen, or slide the
screen, it will swtich into widgets interface. Long press any widget to create its
shortcut, then you can enter into the application through the shortcut icon.
Create application shortcut icons in the desktop
In the application interface or widgets interface, long press any icon to switch
into desktop automatically, drag and hold the icon, you can move to any
position in the desktop.
Remind: If the target position has no space, the widget won’t be add in the main
screen.
4 Basic Setting
4.1 Wireless and Internet
1. Connect Wi-Fi
1) In the main menu or interface, choose setting application procedure.
2) Click WLAN, open wifi, MID will automatically search the available Wifi
wireless internet. As Picture 4.3
3) Choose the Wi-Fi internet you want to connect, if it has password, it will
popup the password window, enter password, click connect.
17
Picture 4.3
2. Add Network
1) Click icon in right top, as Picture 4.4
Picture 4.4
2) Input network SSID, the wireless network name, click save.
3) Click user name already saved, click connect to use network, as Picture
4.5
18
Picture 4.5
3. Network Notice
If you open Network Notice, when WIFI signal appears, the right bottom will
remind you available WLAN network, as Picture 4.3
4. Keep WI-FI on during sleep..
1. Click icon in right top of Picture 4.6, select advanced.
2. Click Keep WI-FI on during sleep, as Picture 4.7
Picture 4.7
19
1. password, and match the device to connect.
2. After match successfully, choose the operation you want to, click to enter
into Picture 4.9.
Picture 4.9
2.Display the file you received
Choose display the file you received in Picture 4.10, you can view
download and upload files.
Picture 4.11
Check WIFI data usage
Click icon in right top of Picture 4.11 click Data Usage, as Picture 4.12
20
Picture 4.12
Picture 4.13
Click VPN, as Picture 4.14, input VPN user name and password, click connect.
21
Picture 4.14
4.5-3 Network sharing and portable hotspots
Portable WI-FI hotspots
1. Click setting application in main menu.
2. Click more when wifi is well connected, open network share and portable
hotspot
Picture 4.15
22
Picture 4.16
3. Click keep WI-FI hotspots on, choose open time.
4. Return to previous menu, open portable WLAN hotspots, click Set up WI-FI
hotspots.
Picture 4.17
4.6 Sound & notification
1. Open settings, click contextual model, as Picture 4.19,
23
Picture 4.19
2. Click standard to enter into Picture 4.20
Picture 4.20
1. Vibrate
In picture 4.20, click vibrate, MID will vibrate when someone calls you.
2. Volume
In picture 4.27, click volume, you can set ringtone, notice, and alarm volume, as Picture
4.21
24
Picture 4.21
3. Voice call Ringtone
In picture 4.27, click phone ringtone to choose voice call ringtone, as Picture
4.22
Picture 4.22
(Note: Except standard, silent, meet, outdoor are only for selection, they can’t be set.)
4.7 Display
4.7-1 Adjust the screen brightness
1 . Click Setting application procedure.
2. Click display, choose brightness,
3. Drag the portlito to adjust the brightness volume.As Picture 4.23
25
Picture 4.23
4. Click OK after brightness is adjusted.
4.7-2 Wallpapers
1. Click setting application.
2. Click display, click wallpaper.
3. You can choose different wallpapers as you like—live
wallpapers---gallery(user defined)---wallpapers (system defect)---video
wallpaper, as Picture 4.24
Picture 4.24
4.7-3 Auto rotation
System is defaulted as open auto rotation, when it is turned off, system won’t
rotate MID screen by G-sensor.
4.7-4 Sleep
4. Click setting appliation.
5. Click display.
6. Click sleep.
7. Set the sleep time as you want, as Picture 4.25
26
Picture 4.25
4.7-5 Font size
Click font size to adjust the font size, as Picture 4.26
Picture 4.26
4.8 Storage
Open setting function, click memory, click preferred install location, you
can choose isntall new application to choose preferred install location.
Check SD card and MID storage space.
27
3. Enter into setting application.
4. Click storage, check storage space.
1. Internal storage
(1) System storage
System storage is the spcae MID leave for system file, as
Picture 4.27. it can’t be viewed.
Picture 4.27
(2)Internal storage
Internal storage is MID local NAND storage, as Picture 4.39, if you need to check the
storage content, you can check it in main menu.
Picture 4.28
28
2. SD card
You can check storage space, SD card available space, unmount SD card
and erease SD card, as Picture 4.29
Picture 4.29
Safely remove SD card
1. Click setting application.
2. Click memory.
3. Click uninstall SD card.
4. Now you can remove SD card safely.
Note: Removing SD card safely can protect SD card and increase its lifetime.
4.9 Battery
Click setting function, select battery, you can view the battery situation, as Picture
4.30
Picture 4.30
4.10 Application program
1. Click setting application in Apps.
2. Select application, after enter, you can manage and delete installed
application and check system used storage space and left space. (As
Picture 4.31)
29
Picture 4.31
3. View the working device, used space and available space, as Picture 4.32
Picture 4.32
4.11 Account and Sync
1. Select setting application
2. Open account and sync, as Picture 4.33
30
Picture 4.33
3. Click add an account, as Picture 4.34
Picture 4.34
4. After successfully load, it will open the sync function, as Picture 4.35
31
Picture 4.35
4.12 Location service
Click setting, select Mode, as Picture 4.36
Picture 4.36
4.13 Safety setting
Set locked screen
32
Lock the touch screen by unlock icon or password to protect your MID.
Note: After setting screen locked, you should enter the passcode each time
when you startup or screen is locked
Set unlocked picture
1. Click setting application in main interface.
2. Click safe.
3. Click locked the screen.
4. Choose picture in text setting area.
5. Click next following the remind message.
6. The unlocked pattern board pop up, there are nine touch spots,
connect 4 points from vertical, horizontal or diagonal direction. As
Picture 4.10, move your finger from the screen when finish. The system
will record yous new unlock pattern.
7. Click continue.
8. When you see the reminder, enter the unlock pattern, then click
confirm.
Picture 4.37
Set unlock PIN code
1. Click setting application in main interface.
2. Click safe.
3. Click screen locked.
4. Choose PIN in text setting area.
5. Enter new PIN code(numbers) and click continue.
6. Ener new PIN code again and click confirm.
33
Set unlock password
1. Click setting application in main interface.
2. Click safe.
3. Click screen locked.
4. Set password in text seting area.
5. Set new password(letters and numbers) and then click
continue.
6. Enter the password again and the click confirm.
Unknown source
1. In main interface, click setting.
2. Click safety.
3. Click unknown source,as Picture 4.54
Picture 4.38
Note: Manual installing APK files needs to turn on unknown source.
4.14 Language and Input Method
Click setting, select language and input method, choose language to switch
language, as
34
Picture 4.39
Click setting, choose language and input, choose Android keyboard setting, click
input language, as Picture 4.56
Picture 4.40
Choose the language you want to change in the language list, as Picture 4.41
35
Picture 4.41
4.15 Backup and Reset
Connect WIFI and login your google account, choose backup my data, system will
backup your data into google server.
If you need to recovery factory reset, please click reset, as Picture 4.42, if you need
to formulate NAND, please click reset tablet.
Picture 4.42
36
4.16 Date and Time
According to the preset, system will voluntorily apply the date, zone, and time provided by
internet.
Manual set date, time and zone
1． Click Setting application procedure.
2． Slide down the screen, then click date and time.
3． Turn off “auto setting of date and time”.
4． Turn off “auto setting zone’.
5． Click Zone Selecting, then choose the zone lists. Slide down the list to view
more zones.
6． Click Date setting, then click upper or down buton to adjust date, month, and
year, click setting when you finish selection.
7． Click Time setting, then click upper or down button to adjust hour and minute,
click AM or PM to change morning or afternoon ( there is no such selection
when you se 24-hour format). Click Setting to finish.
8． Click 24-hour format, switch between 12-hour or 24-hour formay, the time
format you choose will be used on the alarm clock.
9． Click date format setting, then choose the time format you want to show on MID.
Picture 4.43
Note: If you use the time internet provided, you will not able to set the date, time and time
37
zone.
4.17 Fixed-time Startup and Shutdown
1. Click Setting application procedure
2. Click fixed-tine startup and shutdown.
3. Operate as below Picture 4.61
Picture 4.44
4.18 Assisstance Function
4.18-1. Large size
Click it to make system font large size
4.18-2. Click power button to end calls
When Click call, press “power” button, call will end but not hold.
4.18-3. Touch and hold delay
Click touch and hold delay to increae time, as Picture 4.45
Click it into
fixed-time
startup
setting
Click it into
fixed-time
shutdown
setting
Turn on/off
fixed-time
startup
Turn
on/off
fixed-time
shutdown
38
Picture 4.45
4.18-4 Install webpage script
It will allow you install webpage scrip when you open system,, but it will increase the
risk when you are browsing webpage.
4.19 Engineer Selection
4.19-1 USB adjustment
After opening USB adjustment, you can use some software to read MID software, but
when USB adjustment is turned on, USB storage needs to manual adjust.
4.19-2 Keep awaken state
If you open keep awaken state, it wll never auto sleep when your MID is charging.
4.19-3 Pointer Location
If you open pointer location, it will display touch vertical and horizontal direction.
4.19-4 Show touches
If you open display touch screen operation, it will display touch opeation on the screen.
It is suggested to use with same direction as pointer location.
4.19-5 Show screen update
If you open screen refresh, it will display related area when the area is refreshing.
4.19-6 Show CPU usage
After open CUP usage, in the right top of MID will show CPU usage situation.as Picture
4.46
39
Picture 4.46
40
5 Multi-Media
5.1 Music
Enter into music player: in menu or desktop click music icon to enter into music
player, click the music you want to play, as Picture 5.1:
Picture 5.1
Picture 5.2
Album
Pause/play
Next song
Previous song
Artist
Album
Song name
Random play
41
Drag the progress bar to adjust play progress.
Operation of music player button as Picture 5.2
5.2 Photo Gallery
Photo gallery application can auto search photos and video files in SD card, and
photo gallery will classify these photos and videos in folder. You can apply photo
gallery to view and edit photos, set the photos as wallpaper and watch the video.
View pictures
1. Click gallery application in main interface.
2. Enter into gallery, click the folder you want to view.
3. Click the picture you want to view, the system will play it in full screen
mode automatically.
4. The pictures can be zoom in and zoom out, put two fingers on the
screen, the separete the fingers(gather up the fingers, the picture will
be zoom in) or double click the screen.
Note: when you browse the pictures, slide left or right to view more pictures.
Edit and set pictures
When check the pictures in full screen mode, click menu key to display menu
selection, you can choose the selection you need to edit and setting pictures.
Slide Show
1. Open a picture, use virtual key to click menu key, display menu
selection.
2. Click slide show, it will auto loop play(or choose button in
picture folder)
Crop
1. Click menu key to display menu selection.
2. Then click crop, click and drag related area to adjust the cropper.
3. Click cropper and drag it inside and outside to adjust the image.
4. After adjust the size you want, click crop.
5. If you wish to give up to crop, click cancel to return to picture browse.
Edit
1. Click menu key, display the menu selection.
42
2. Click edit.
3. Adjust teh brightness, style, color, antialias setting in selection.
4. Click save.
5. If you want to give up edit, click return key, click not to return to
picture browse.
5.3 Camera
In the main interface or desktop, click camera application procedure , enter into
camera
Operation of camera ,Switch camera: choose Menu key, click switch front/back
camera, as Picture 5.4
Picture 5.4
5.4 FM Radio
Click in the main interface or desktop to enter into FM radio interface:
Radio button operation instruction as Picture 5.5:
View the
pictures and
videos
Switch
front/back
camera
Click it to take
pictures
Switch the panoramic
play mode.
camera shooting
mode
Sub menu
normalCamera
mode
43
Picture 5.5
Open speaker
Save
button
Previous
channel
Next channel
Current
frequency
Exit FM
44
Save channels: Click button in the main interface to save the
channel, and the channel will be saved in channels list.
Note: You need to insert earphone as antenna when using FM radio, If no
antenna, your MID can’t search any frequency band.
45
6 Communication Function
6.2 Text Message
1 Enter into main menu, choose application procedure.
2 Click “Edit new message”
Picture 6.2
Directly input
phone number
Add receiver
Send
message
Menu(discard,insert
text and settings)
46
6.3 Contact List
Click Contact list in the main interface, enter into the contact list as Picture 6.3
Picture 6.3
Search contact: click button, enter into search function
Add contact: click button, enter into add contact interface.
47
7 Internet
7.1 Browser
In case of Wi-Fi or mobile internet is connected well (Please refer to Chapter 4.1 for
wireless and internet setting), click IE browser in the main menu or desktop to
enter the IE interface, as Picture 7.1
Picture 7.1
Click address bar to input the website, click start, enter into related webpage, then you
can browse the website information, as Picture 7.1.2 and you can click the menu you can
refresh ,save to bookmarks,,share page,bookmarks,,history and setting the webpage.
Address
column
menu
Save bookmark
48
Picture7.1.2
7.2 Email
Email application procedure contains email setting guide, you can add the external POP3
OR IMAP email account of normal web email service provider (For instance, Yahoo,
Gmail, Hotmail and 163),as Picture 7.2
Picture 7.2
a. Email Setting
49
1． After you click the sending email icon , you can see the email setting
guide, which can help you to set.
2． Input your email address and password.
3． Click “Next step” button, choose your email type is POP3 or IMAP.
4． Click “Next Step” button to check whether the email box servicer can receive
or send emails
5． Input the email account and display the email subiject, and click finish.
6． If the email box is available, you will enter into your mail box automatically.
b. Delete the email account
You can delete setted POP3 or IMAP email account from your MID.
Click 。
1. Enter into your mail box.
2. Press Menu key.
3. Click Account
4. Press the account you want to delete.
5. Click confirm to remove.
c. Send E-mail
1． Click to display your mail box.
2． Click the inbox, it will refresh the new emails automatically; click it to read new
email.
3． Press Menu key. Menus will popup.
4． Click Edit to enter into new email editing interface.
5． Input the receiver’s email address.
6． Input the subject and email content.
7． If you want to add attachment, click menu key, the menu popup.
8． Click “Attach file” (photo,music, video,contacts).
9． Click “send” to send the email out.
50
Picture 7.3
Click it and
Add
attachment
51
8 Other Application Procedures
8.1 Clock
Click Clock procedure, enter into below interface as Picture 9.1.
There are clock, picture, music and homepage buttons.
Picture 8.1
8.2 Calculator
1. Click.
2. Enter into the basic board of calculator.
3. Soft touch the numbers or operator in calulator to calculate.
Set alarm
52
Pictuer8.2
8.3 File Manager
File manager will copy, cut, delete, rename the documents or the folder in the TF card, it
also will share the files, install apk etc.
In the main menu or desktop, click the document manager icon to enter into
documents manager.
Picture8.3
a、Copy, cut, delete, rename the files and folder: choose the file or folder, long pressthe
RAM
External
SD card
53
file or folder to enter into the interface as Picture 9.4, you can operate the file or folder.
Picture8.4
b、Paste the copy or cut file: choose the file you want to paste, choose right top icon
to enter into Picture 9.5, choose right top icon to enter into Picture 9.6
Picture8.5
54
Picture 8.6
C. Share file:choose any file, long press it, it will popup “share”, choose the share way you
want in the list
d、Install apk file：Choose the file suffixed .apk in the file manager, you can install the third
part software as reminder.
e、Build new folder: Choose the menu you want to build the file, click icon in right
top, choose new folder, you can build new folder as reminder.
9.4 Recorder
In the main interface or desktop, click recorder icon to enter into record
interface, click record key to start record. Click Stop key to stop recording.
Click Play key to play the recorded sound. The system will auto remind you to use
or abandon this record, please choose it manually.
Play the record: choose the video player to play the recorded sound, choose the recorded
sound in the source manager, and click it to play.
55
Picture8.8
56
9 Installation of Procedures
9.1 Installation
Install the third party application procedure
1. Click “file manager” application procedure; choose the application
procedure you need to install.
2. Hold the application procedure you need to install.
3. It popup install, click install apk.
4. Finish the installation as guide, it will operate.
Note: The third party procedure searched from internet to use on the system are all
suffixed with .apk.
9.2 Uninstall
Uninstall application procedure
1. Click setting icon in main interface.
2. Click manage application procedure, list all the application
procedures insralled in the system.
3. Click the APK you want to uninstall, click uninstall.
4. Click confirm to finish uninstallation.
Skill: The procedure manager installed by system has many convinent methods to
uninstal after opening procedure manager, click uninstall, it will list all the application
procedures installed by system.
57
10 Troubles Shooting
1. The first startup of MID is slow
After the MID system upgraded, the first startup need to install the
pre-installed application softwares, the lead time is around 2-3 minutes,
the startup afterwards will be much quicker.
2. MID can’t connect Wi-Fi
Make sure the wireless router of internet service can work in normal.
Ensure the MID and wireless router in certain distance, and no wall or
other barrier between them.
Ensure the user name and password both correct.
3. MID feels hot
When many application procedures are used in meanwhile, or the
brightness of screen open to the lightest or under charging, MID may feel
fever. It is normal.
4. Email can’t be set or Registeration of application procedure.
Ensure your internet is well connected.
Make sure your email setting way is correct.
Keep your system time and local time consitent.
5. The system is abnormal and can’t work.
When you install some third party application procedure, it may cause
abnormal work, you can press Reset key(next to power port) to reset the
system.
6. The webpage can’t be opened
Please keep the distance between from route to MID in effective
range.
Please restart WIFI and try again.
7. MID works terribly slow sometimes
It is normal phenomenon. Please turn off some application you don’t
need in advanced task management, or uninstall some third party application to release
more system resource.
58
FCC Warning
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement. The device
can be used in portable exposure condition without restriction.

Navigation menu
