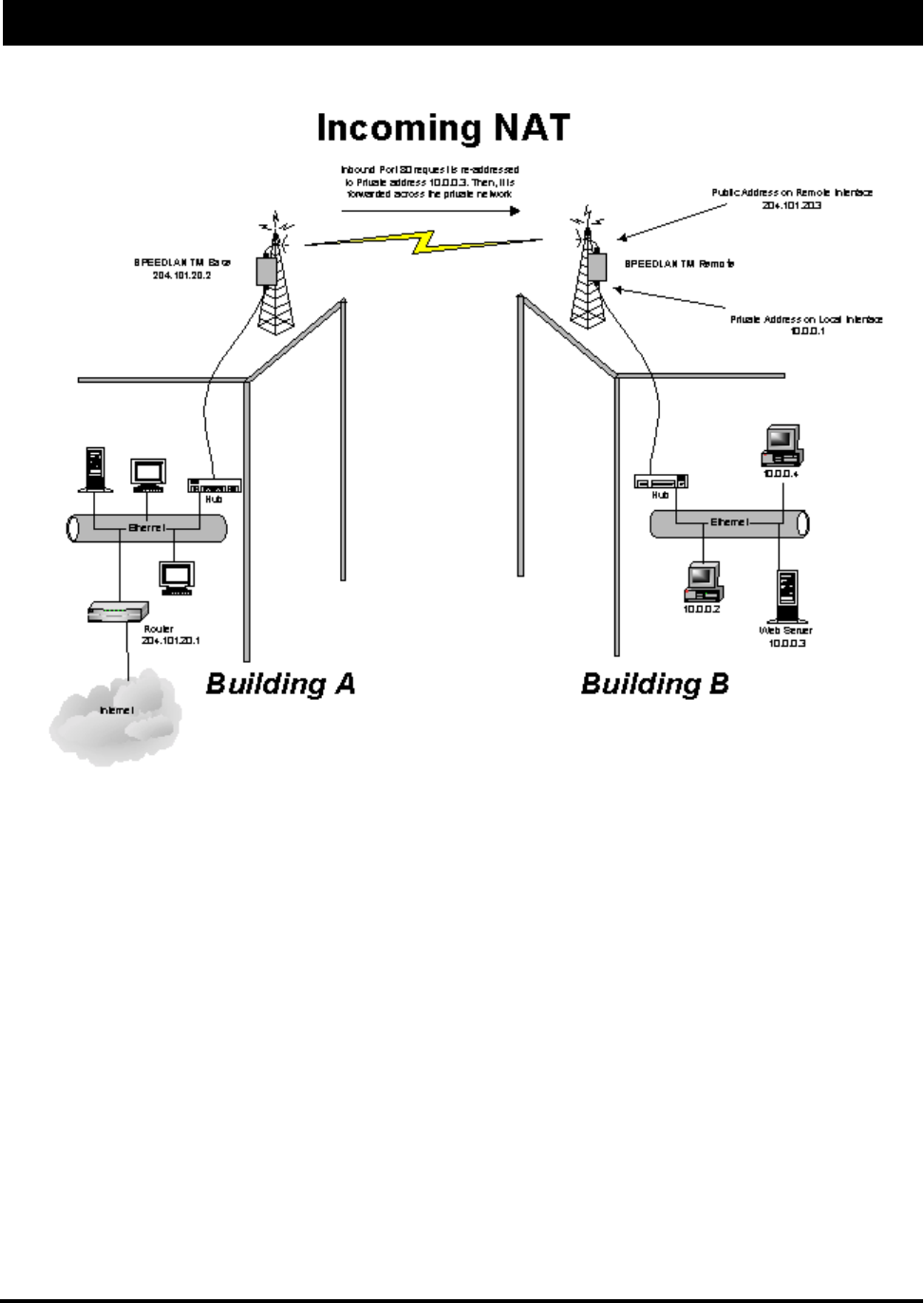

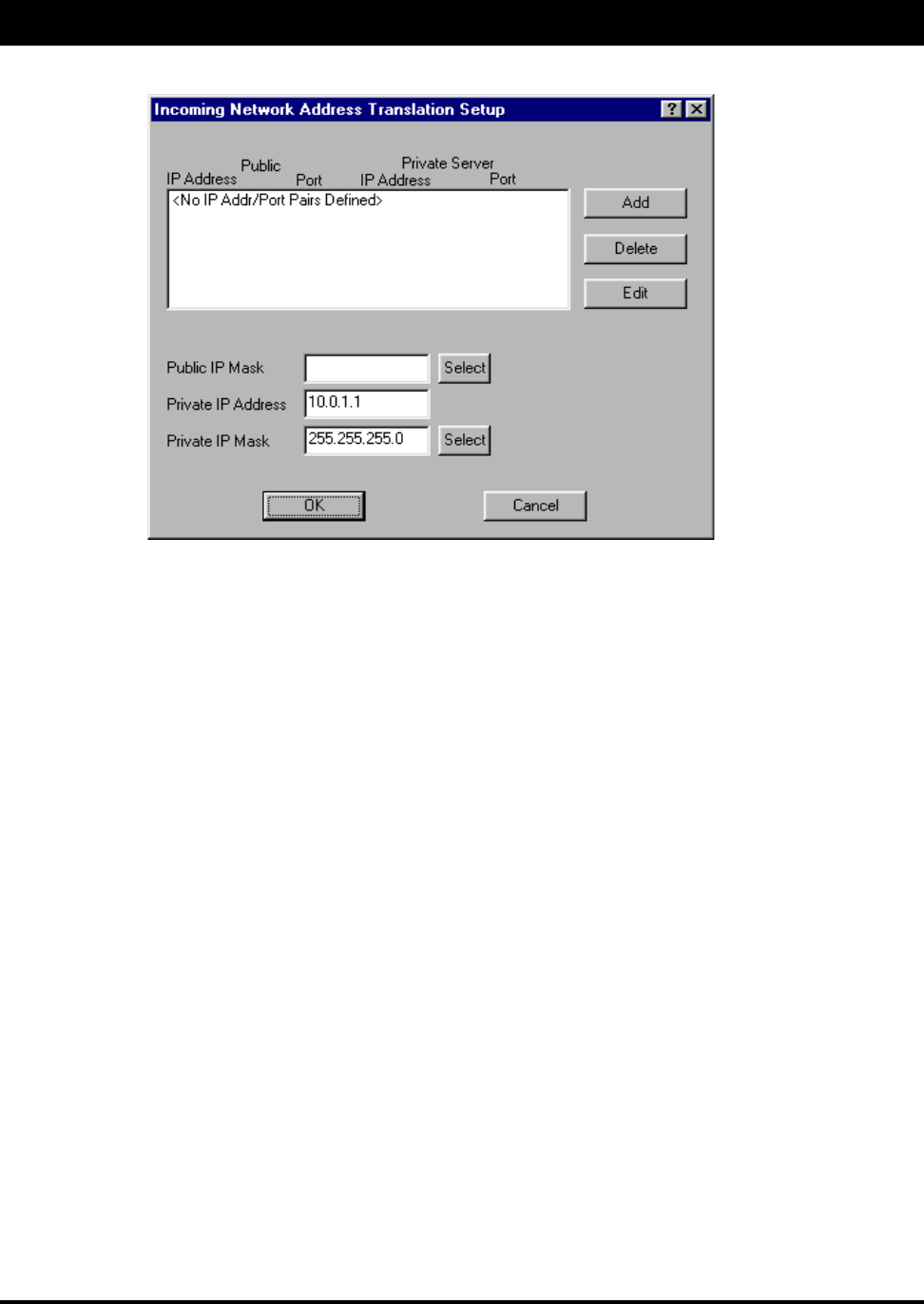

Incoming NAT.......................................47

1. INTRODUCTION........................................7

Features and Benefits..............................9

Features Chart........................................10

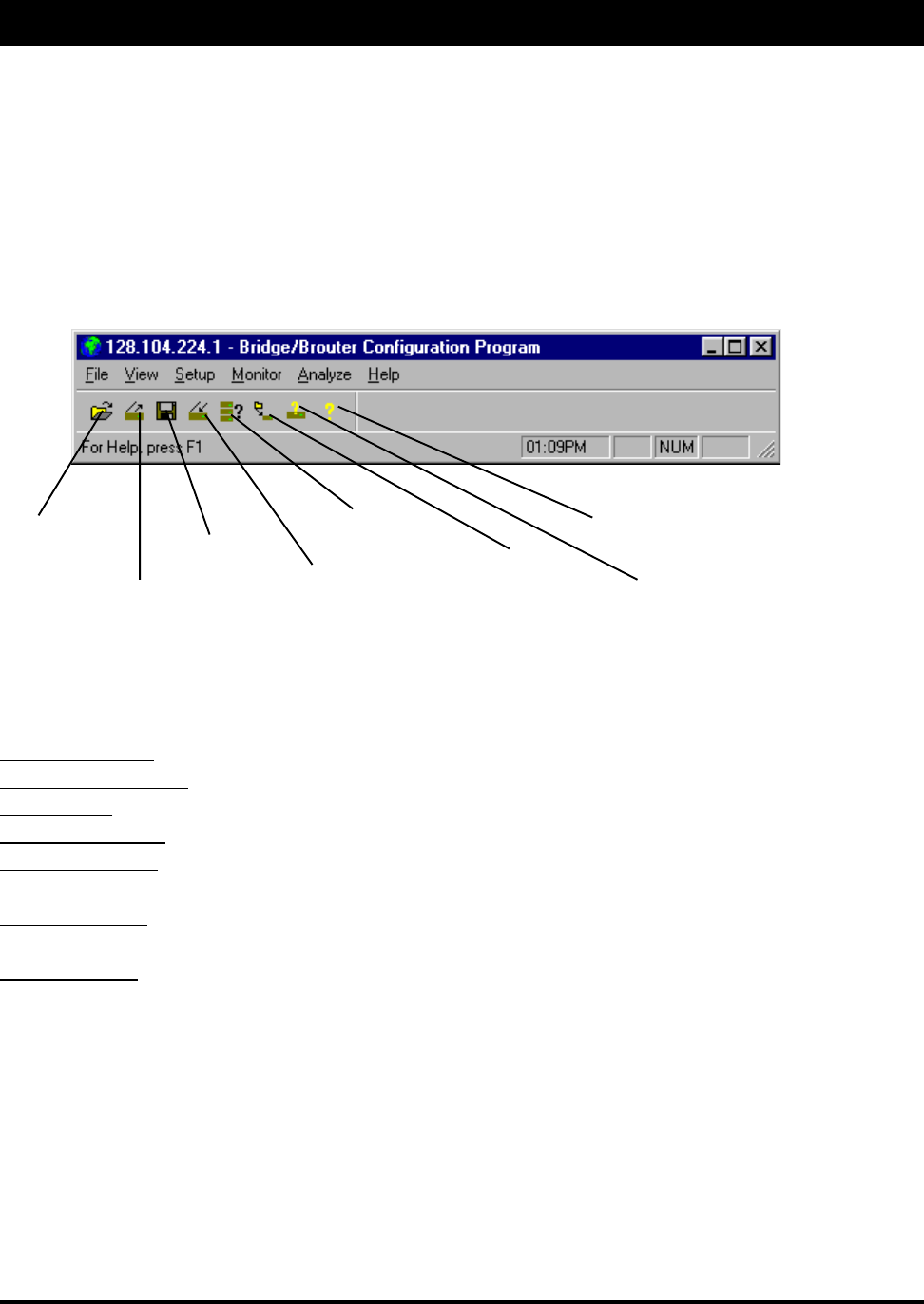

2. USING CONFIGURATOR.......................11

Installation and Description.....................13

3.CONFIGURING SPEEDLAN TM..............15

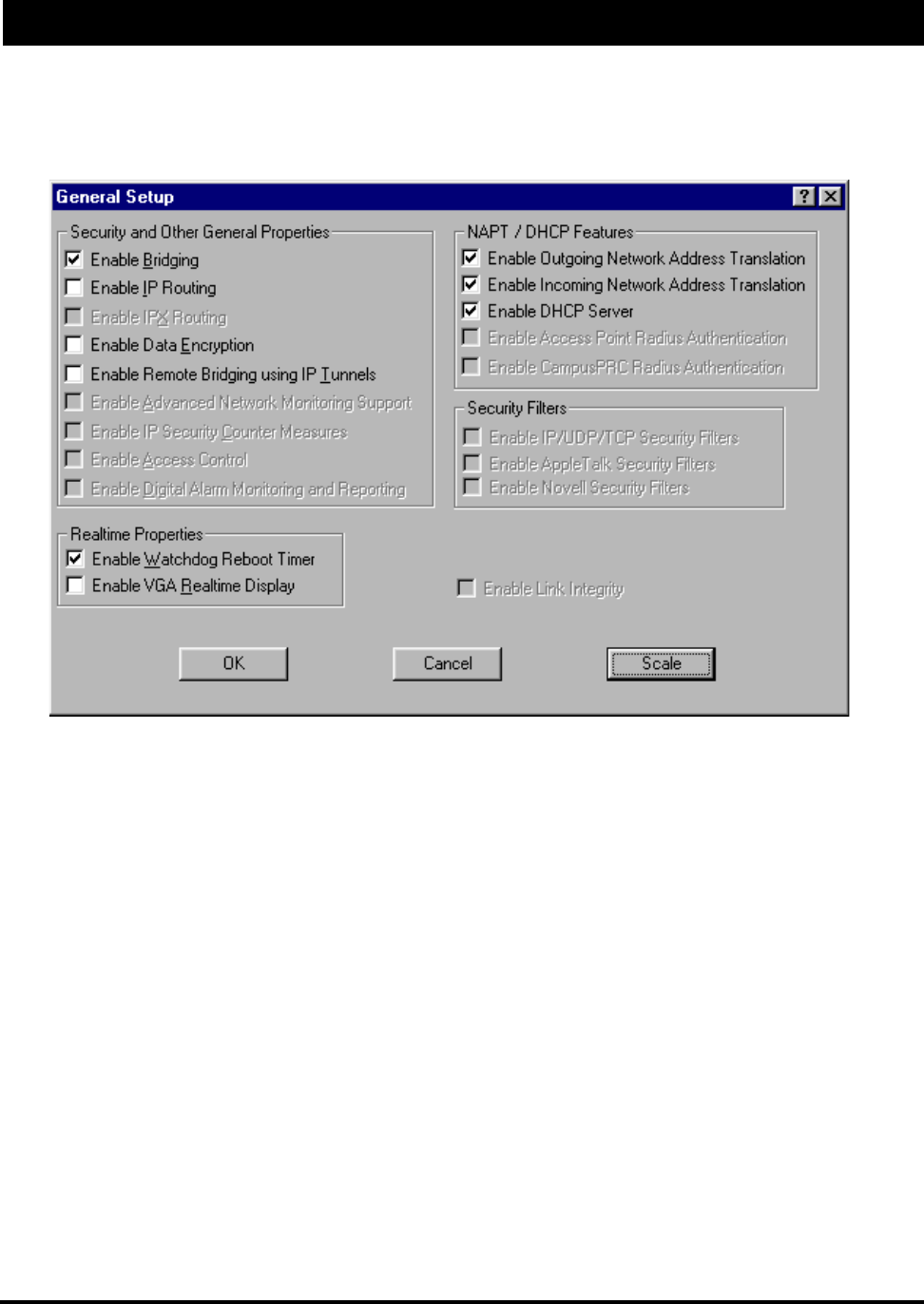

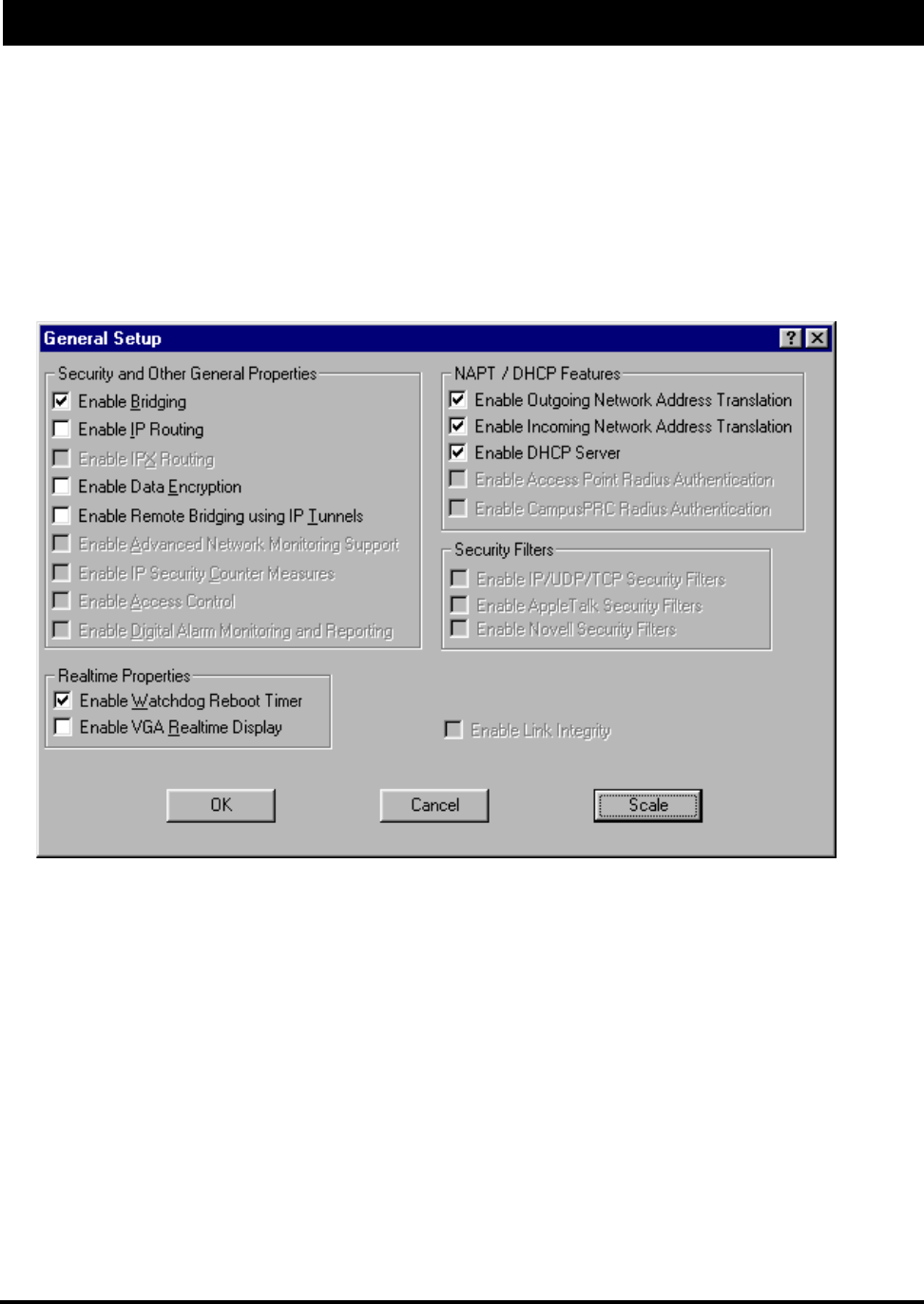

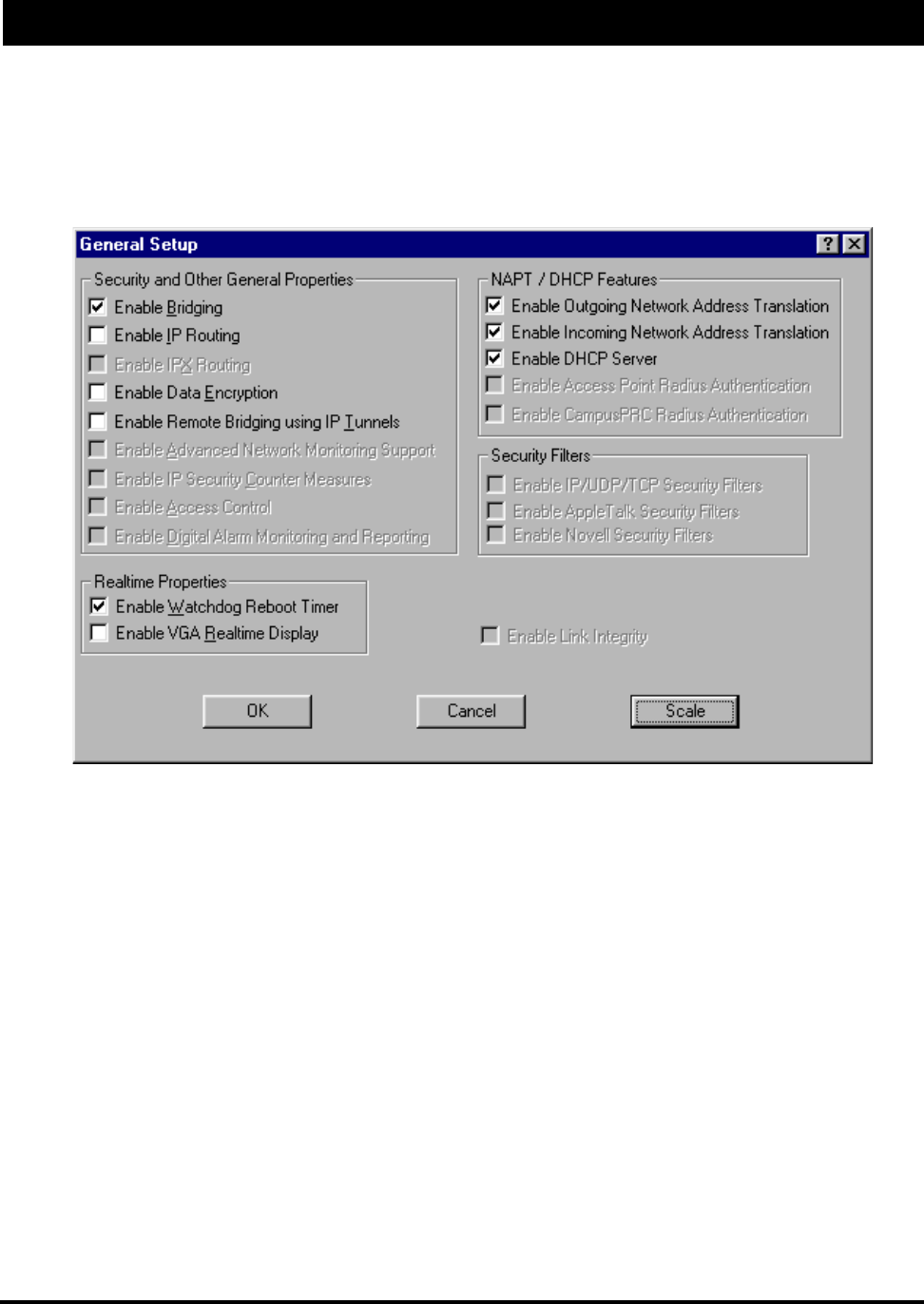

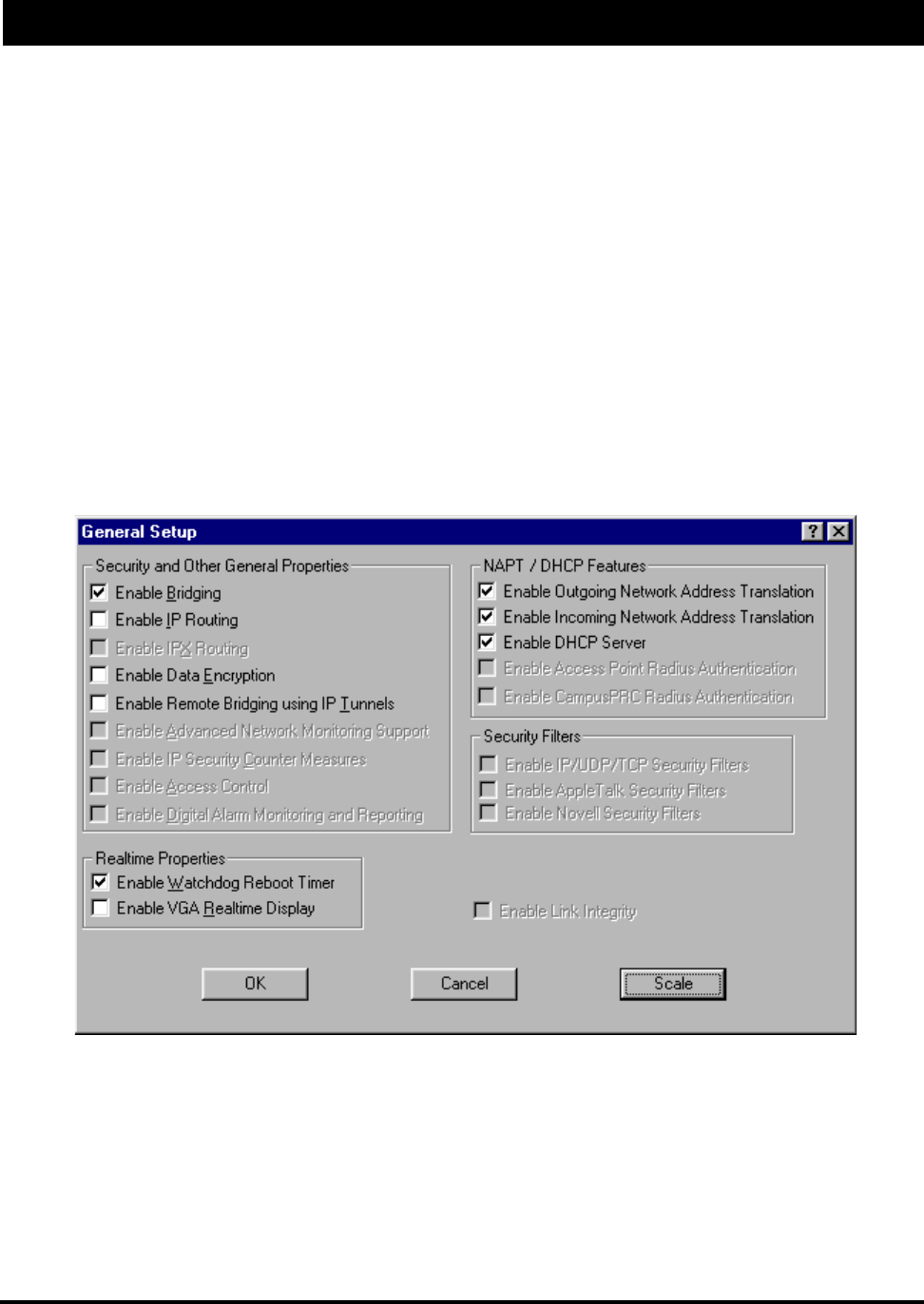

General Setup.........................................17

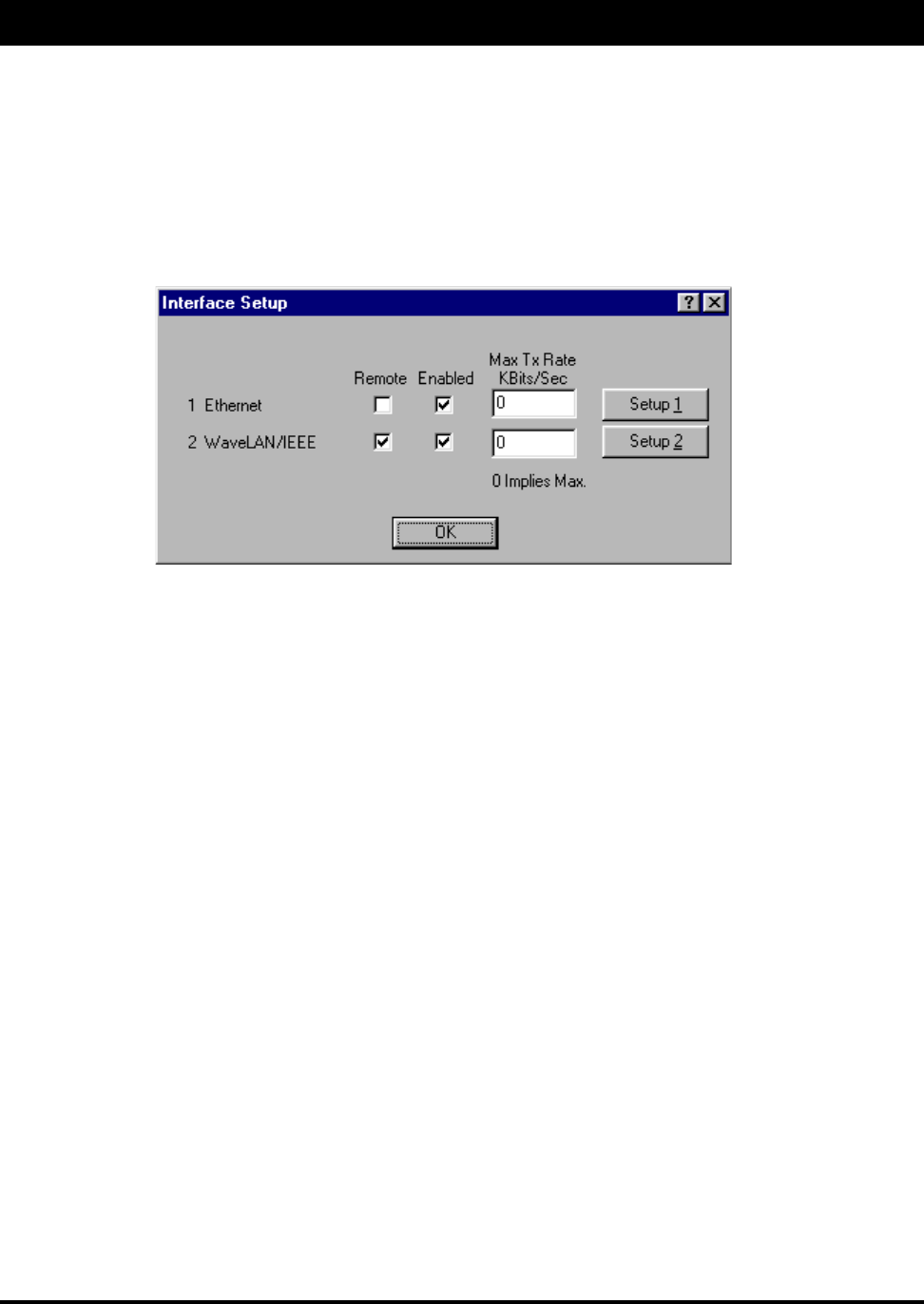

Interface and Advanced Interface .........20

The Setup Buttons...................................21

Transport Methods .............................22

4. BRIDGING SETUP...................................25

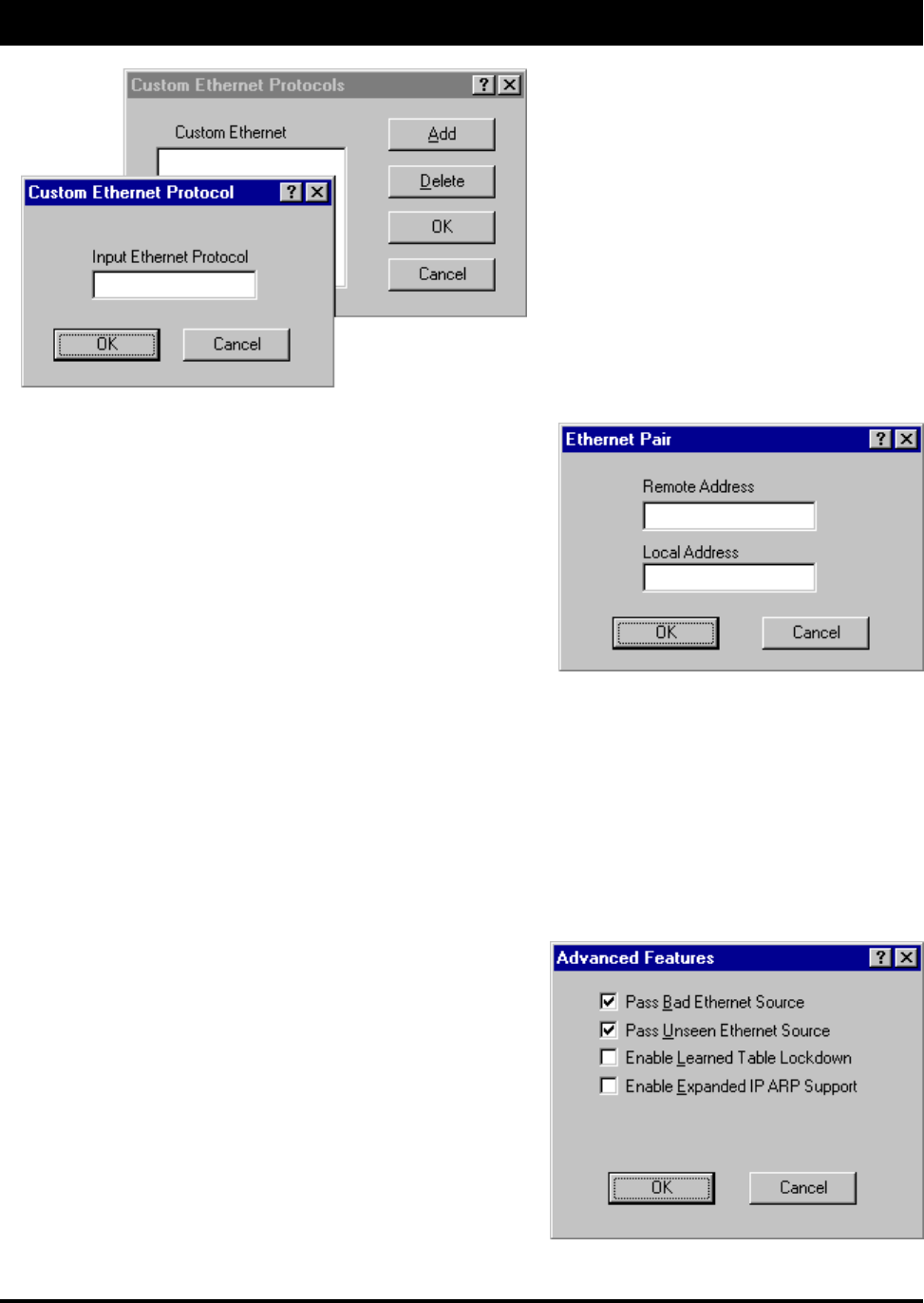

Protocol Filtering.....................................27

Ethernet Protocols................................27

MAC Filtering.........................................28

Permit Ethernet Multicasts......................28

Permit Ethernet Broadcasts.....................29

Storm Thresholds....................................29

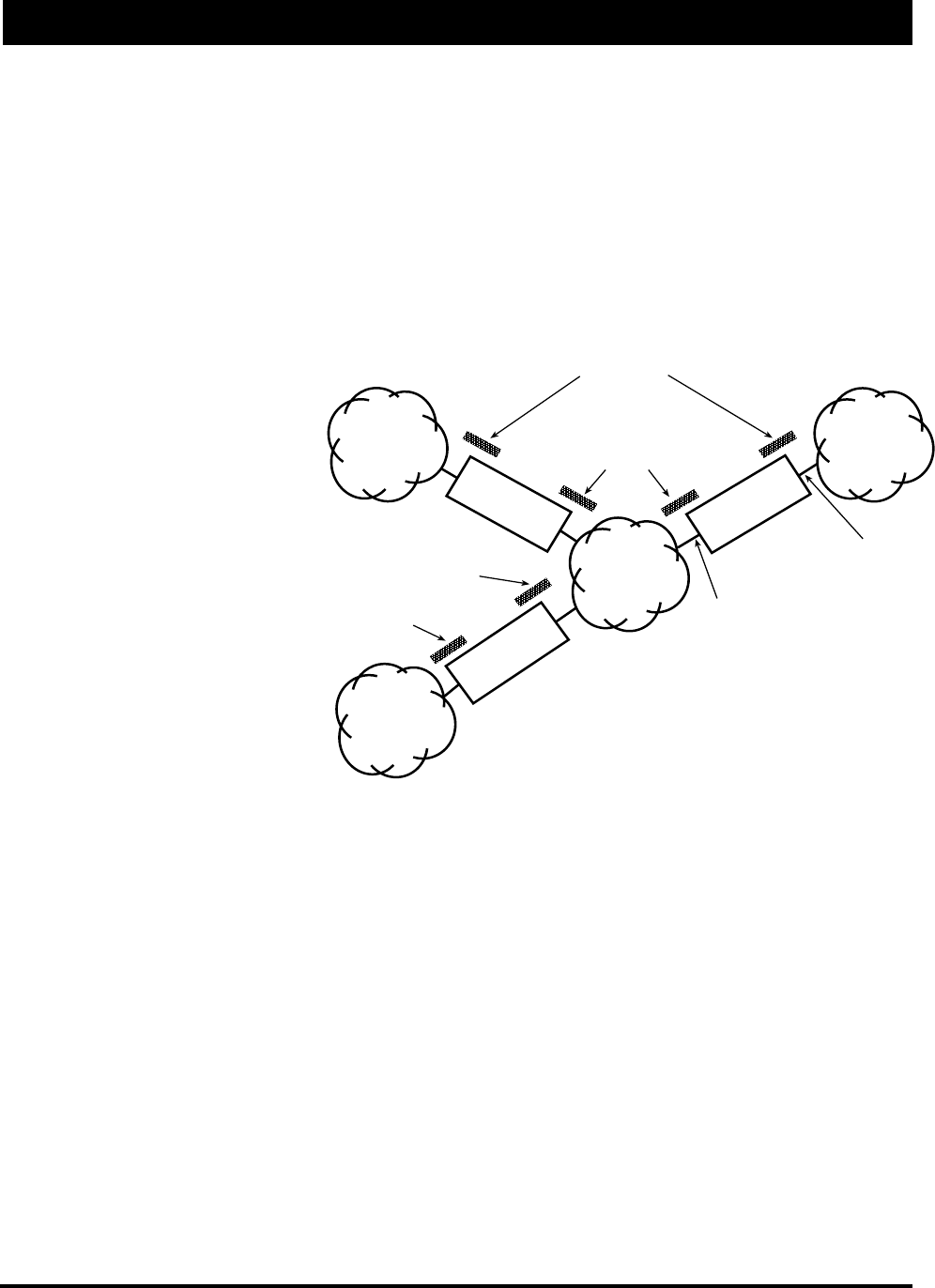

Tunnel Partners......................................30

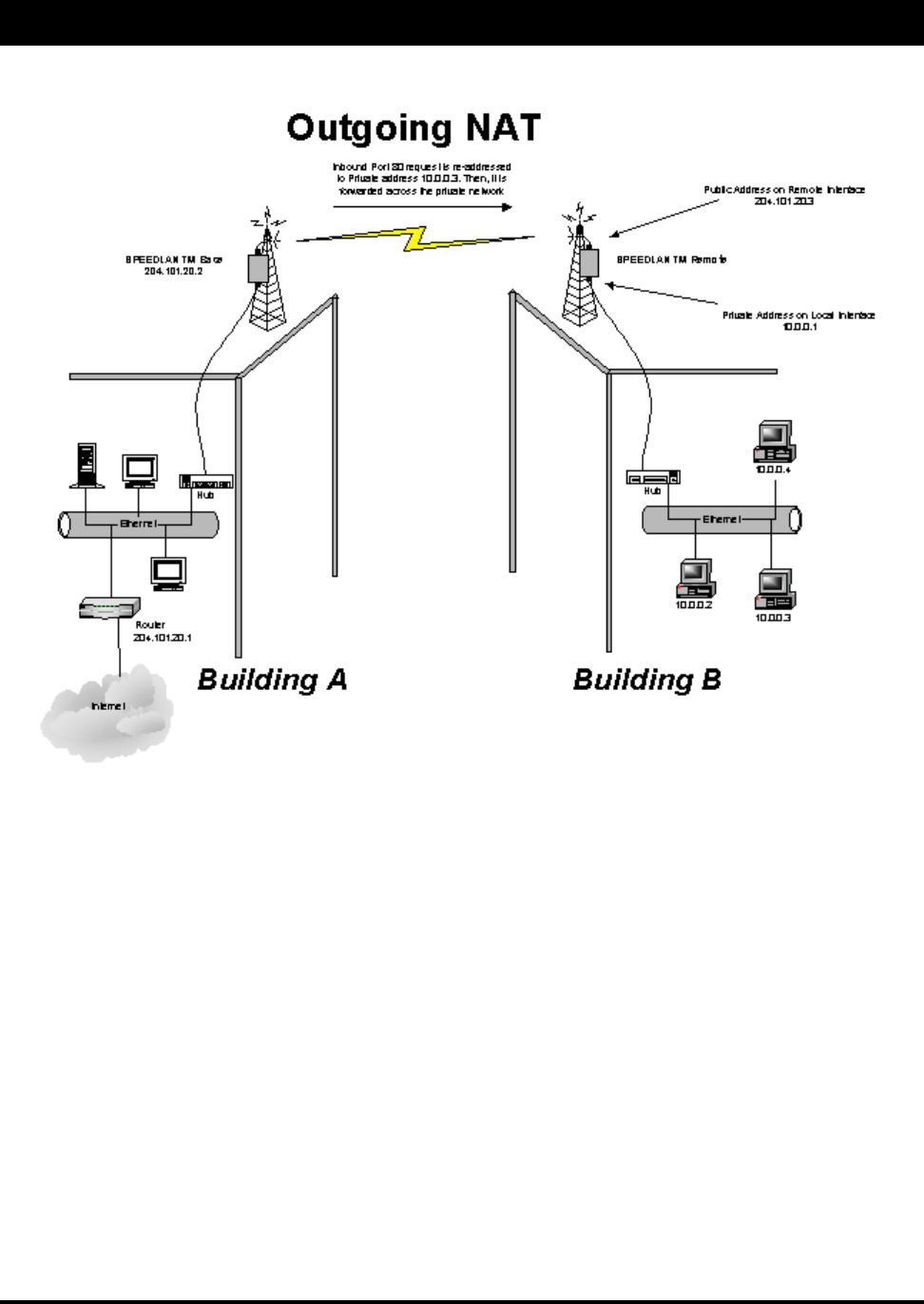

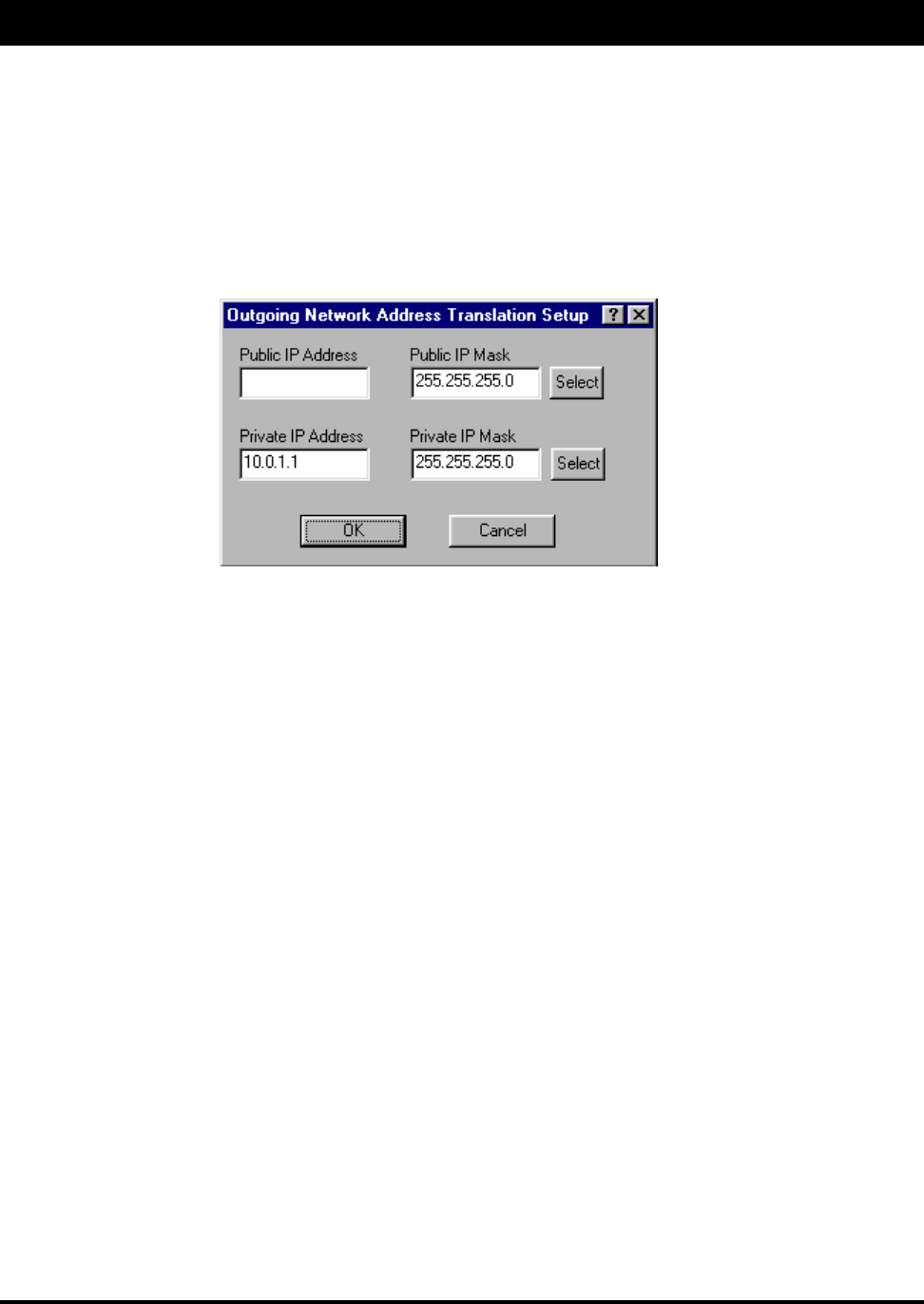

Outgoing NAT...........................................49

6. IP-ROUTER SETUP..................................53

IP-Router Setup.......................................54

RIP Routing..............................................56

7. SNMP SETUP.............................................59

8. SYSTEM ACCESS SETUP......................63

9. SNMP MONITORING..................................67

Remote Statistics......................................69

Interface Monitor......................................71

SNMP Monitor.........................................72

IP Monitor................................................73

IP/TCP/UDPMonitor................................76

ICMP Monitor.........................................78

9. TABLES.......................................................83

System Information....................................85

Bridge Learn Table...................................86

IP ARP Table...........................................87

IP Route Table.........................................88

IP/TCP Connection Table........................90

IP/UDP Listener Table.............................91

Local - IP Address Table.........................92

10. APPENDIX..............................................93

Common Ethernet Protocols...................95

Common Ethernet Vendor Addresses....98

Common Ethernet Multicast Addresses.113

Common Ethernet Broadcast Addresses.116

SPEEDLAN TM

INTRODUCTION

SPEEDLAN TM

Features and Benefits

IP Routing with Advanced Filtering for Security

The SPEEDLAN TM supports IP Routing in addition to bridging. It can be used to add routing capability when an

IP router may be a more appropriate choice.

Transparent Ethernet Bridging with Advanced Filtering for Security and Network Reliability

SPEEDLAN TM supports what is known as Transparent Ethernet Bridging with no Spanning Tree or Source

Routing support. Since the brouter contained in the SPEEDLAN TM is intended to provide network security

between a local LAN and a campus or enterprise wide network, and since using multiple bridges in a Spanning

Tree could compromise this security, the Spanning Tree scenario is not supported. In addition to the Transparent

Ethernet Bridging, the SPEEDLAN TM can drop (i.e., not forward) packets based upon the encapsulated higher

layer data within the packet. It is this option that gives SPEEDLAN TM the ability to perform advanced firewall

filtering and can add a significant measure of security and network reliablility to a network, surpassing that

provided by modern multiprotocol routers.

SPEEDLAN TM

Features Chart

Hardware Supported

10/100BASE-T Ethernet Card

SPEEDLAN Wireless Radio

Bridging Features

Transparent Bridging

Filtering by Ethernet Multicast, Broadcast and Bad Packets

Filtering by Protocol

Filtering by Ethernet Address Pair

Generic Ethernet Tunneling through IP Networks

Learned Table Lockdown

Expanded IP ARP Support

Automatic Broadcast Storm Protection and Notification

SNMP Features

IP “ping” Support

IP SNMP Support (MIB II, Ethernet, Inteface, SNMP, and Bridge MIB)

IP SNMP WaveLAN

IP SNMP Trap Support

SNMP Access Lists

IP-Router Features

IP Static Routing with Direct and Static Routes

ICMP Messages, Default Router, and Subnet Support

SNMP Support for All Router-Related MIB Variables

RIP Support

Encryption Features (Add-on Option)

Data Encryption of Wireless Packets

SPEEDLAN TM

USING CONFIGURATOR

SPEEDLAN TM

Installing the Windows SPEEDLAN TM Configurator

1. Shut down all programs and applications.

2. Note: The SPEEDLAN TM Configurator uses digital libraries, which reside on your Windows 95/

98/NT 4.0 PC. If a program or application is open, the Setup will not install correctly. If the

configurator is not installed correctly, the brouter could be rendered and inoperable after saving a

configuration.

3. Insert the CD into your floppy drive (i.e., Drive E, F, etc.).

4. If the setup.exe program does not install automatically, click Start + Run. The Run dialog box

appears. Click Browse and locate the setup.exe where your CD-ROM drive is located. Then,

click Open and OK.

5. Follow the installation prompts.

6. After the installation is complete, restart your computer.

Note: Visit the web site for the newest SPEEDLAN TM Configurator.

File Menu

The Windows 95/98/NT 4.0 Configurator will configure either a remote Flash ROM in the SPEEDLAN unit

or configure a SPEEDLAN file saved on your computer. You can configure a SPEEDLAN file on your

computer and download it to the brouter later after you have verified that all settings are correct. This can make

reconfiguring your SPEEDLAN TM a quick operation if you have the completed configuration already saved

to your computer.

Configuring a Remote SPEEDLAN TM

To configure a remote (network attached) brouter, you can use the Open Remote Config and Save functions.

You must have a remote SPEEDLAN TM configuration opened with the Configuration Utility before any

configuration functions may be performed. After you have opened the remote device and configured it, you can

then save your configuration back to the open device. When you ‘Save’ back to the remote device, its Flash

ROM will be erased and then reprogrammed with the new configuration. After you save the configuration, you

must wait the required 15-second period to allow the Flash ROM to be fully programmed and let the bridge

reboot with the new configuration. Turning off the SPEEDLAN TM or otherwise interrupting the repro-

gramming of the Flash ROM will damage the programming of the brouter, and render it inoperable.

Note: Anytime you make changes in Frequency, IP Routing, or Network ID, start with the brouter

furthest away from your current location. This will help avoid loss of communication between units.

Configuring a Saved Configuration File

To configure a saved CNF file (configuration file), open it from the file menu using the open function. You then

configure the file just as if you were configuring a remote SPEEDLAN TM. When you are finished configuring

the file, save it to disk from the file menu using the “Save Config File as...” function. The “Open Remote

Config...” and “Save Config” functions are used for accessing and saving directly to the brouter without using

a file saved on diskette. Be careful when you save the configuration file that you do not save the configuration

directly to the SPEEDLAN TM; otherwise, you will be configuring the brouter and may not be able to re-

access it after uploading the incorrect configuration to it.

Windows 95/98/NT 4.0 SPEEDLAN TM Configurator

SPEEDLAN TM

Exporting and Importing a Configuration

Once you have opened a remote brouter, you can take a “snapshot” of the current configuration with the

“Save Config as...” function. This function will result in creating a CNF file. The extension .CNF is used to

denote the special exported binary configuration file. The CNF file created with the “Save as...” function can

later be imported into another brouter by using the “Import Config File” function, then saving the configuration

to the brouter using the “Save Config” function.

The Toolbar

Below the menus you see a row of seven icons. Each icon depicts a function that can also be accessed from the

menus.

The File Menu

Open Config File - This function is used to open a configuration file from disk.

Open Remote Config - This opens the configuration file directly from a remote device.

Save Config - Saves the configuration you are working on to the place where you opened it.

Save Config File as - Saves the current configuration into a file on disk. This file will have the extension .CNF.

Import Config File - This opens a configuration file from disk. This function is used when you are going to save

the configuration from disk to a remote brouter.

Upload Software - This function is to load a raw and unconfigured binary file to the brouter. This is done only

in the event that the brouter’s firmware has been damaged.

Reboot Remote - Use this function to reboot a brouter from a remote location.

Exit - Closes the SPEEDLAN TM Configuration program.

Open

Open Remote

Save

Select Device

Save Remote Upload Software System Information

Help

SPEEDLAN TM

CONFIGURING SPEEDLAN TM

SPEEDLAN TM

General Setup Menu

The third menu from the left is the Setup Menu. In this menu are the screens you will use to configure your

brouters. Below are descriptions of the menu items and the settings found on their respective screens.

Enable IP Routing - The transparent routing function will be enabled when this is item is checked. IP Routing

will work properly only if the routes are set up in the IP Route Menu. If the routes are not set up properly

before you save the configuration, the bridge will become inoperable. Default is off.

Enable Bridging - The transparent bridging function will be enabled when this is item is checked. If you want

the brouter to perform the bridging function,you must enable this. When bridging is enabled, the Bridge Setup

Screen will be accessible. Bridging should be enabled for nearly all applications of the brouter. Default is on.

(This function should never be disabled.)

General Setup

SPEEDLAN TM

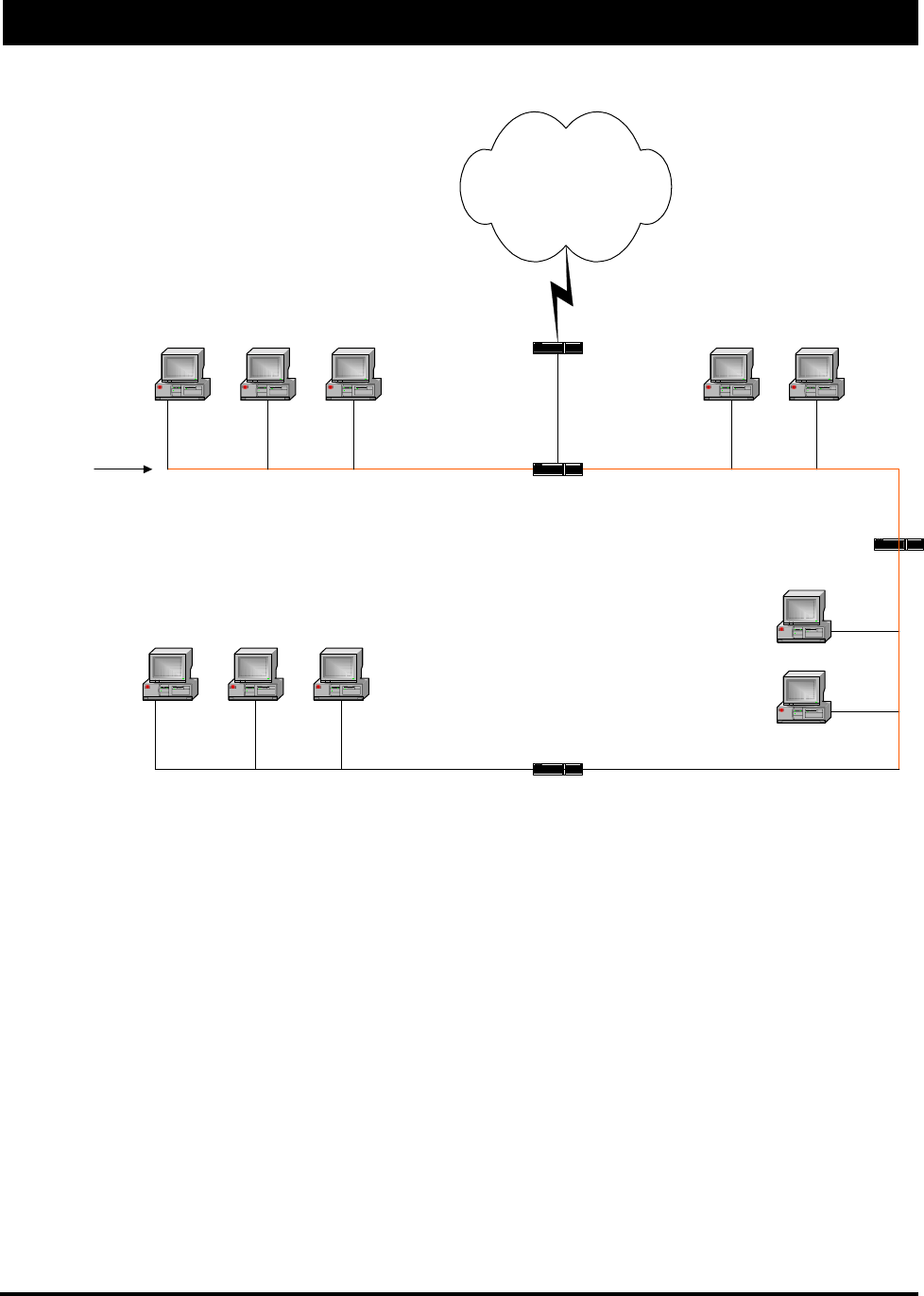

Enable Remote Bridging using IP Tunnels - SPEEDLAN TM supports a special feature which will enable

Ethernet packets of any protocol type to be encapsulated in IP packets and sent to other brouters (purchased

from Wave Wireless )for de-encapsulation. This method can be used to setup virtual Ethernet LANs between

several points using an IP network as the transport layer.

Enable Advanced Network Monitoring Support - This option is not available at this time.

Enable IP Security Counter Measures - This option is not available at this time.

Enable Access Control - This option is not available at this time.

Enable Digital Alarm Monitoring and Reporting - This option is not available at this time.

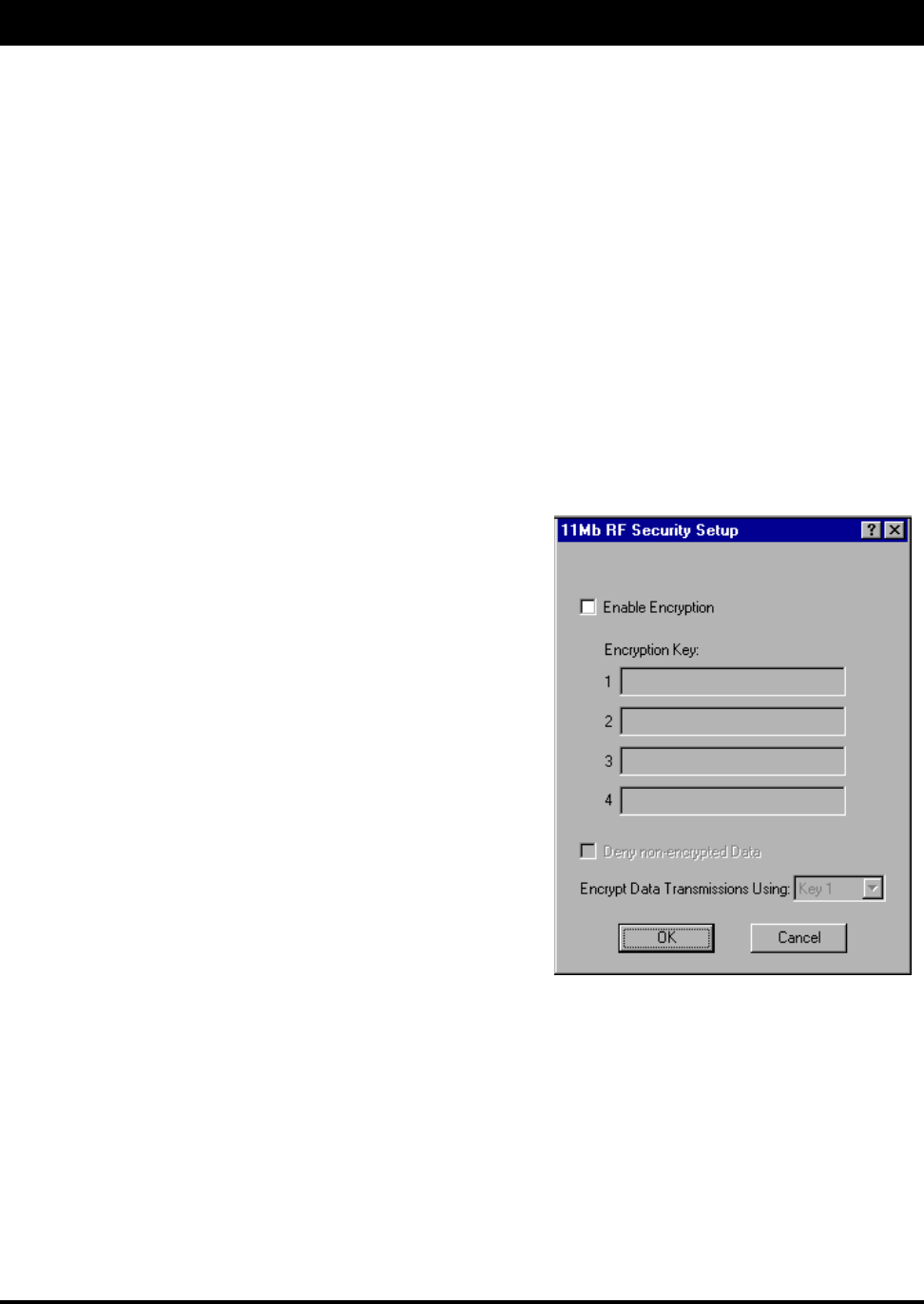

Enable Data Encryption - This optional feature allows you to encrypt wireless data transmissions on top

of the encryption provided by the radio. It provides 56 bit DES encryption. It is not shipped standard as

part of the XE units. If you did not purchase it when you originally bought the SPEEDLAN TM units, it can

be purchased later as a software upgrade.

Data encryption is disabled by default. Check the box labeled “Enable Encryption” to enable the encryption

features. You will still need to define at least one encryption key before your wireless traffic will be transmit-

ted using wireless data encryption. To do this, return to the drop down menu presented when you clik on

Setup. Now you will see a Data Encryption Setup item added to the menu list. Select Data Encryption

Setup. Select the DES Encryption button and enter an 8 digit alhpanumeric string in the range of “a-z”, “A-

Z”, and “0-9”.

Examples:

· Alphanumeric: a5F2z4wK

Warning: This setting must be set to the same value on all XE units you wish to have communicate

together. Failure to set them to the same value will prevent any communications from taking place.

(e.g. for multipoint to work properly, the base station AND all of the satellite units must use the same

Encryption Key setting.

SPEEDLAN TM

Enable Watchdog Reboot Timer - This feature instructs the bridge to reboot in the event that the bridge fails

to receive any incoming packets, from any port, for a period of 10 minutes. The brouter will assume an error

has occured and will reboot. If, after the brouter reboots, it does not receive an incoming hello signal, the

bridge will listen for the hello signal until the user reboots the brouter manually. The Watchdog will recognize

when a signal has been re-established and will reset the timer accordingly.

Enable VGA Realtime Display - This feature allows a client to install a video card and a monitor and view

the statistics directly from the unit, instead of Configurator, laptop, PC, etc.

Note: Click Scale to view the LED Forwarding Scale.

Enable Outgoing Network Address Translation - This option enables a company to map the private

networks IP addresses into one or more global public network IP addresses. This means that outsiders will

only view the single (or more if designated) IP network address assigned for global viewing on the Internet.

For more informatoin, see Setting UP NAT, page 61.

Enable Incoming Network Address Translation - This option enables a company to unmap public

network IP address into private network IP addresses. For more information, see Setting UP NAT on

page 61

Enable DHCP Server - This option enables the DHCP client and the interface that is selected. For more

information, see Setting UP the IP Addresses, page 58.

Enable Access Point Radius Authentication - This option is not available at this time

Enable CampusPRC Radius Authentication - This option is not available at this time.

Enable Link Integrity - This option is not available at this time..

Enable IP/UDP/TCP Security Filters - This option is not available at this time.

Enable AppleTalk Security Filters - This option is not available at this time.

Enable Novell Security Filters - This option is not available at this time.

SPEEDLAN TM

The interfaces that are installed in your brouter will be represented on this screen. The Remote check box is

used to designate which interfaces will be considered local and remote. The local interface is consider to be the

interface that connects directly to the local LAN with respect to the unit. The remote interface is considered to

be the interface that connects with the remote LAN. The set up buttons are used to access the portion of the

configuration which controls how the individual interfaces are configured.

The Advanced Interface Setup has a few more advanced settings, but essentially they are the same set up

screen. Note that the Max Tx rate is available on both the Interface Setup and Advanced Interface Setup.

Max Tx Rate is useful to ISPs that want to regulate the maximum bandwidth provided to each customer. These

settings should not be changed without the assistance of a Wave Wireless Networking Technical Support

Engineer. Backup and Perm are not used with the XE series products. These fields must remain empty.

Interface & Advanced Interface Setup

SPEEDLAN TM

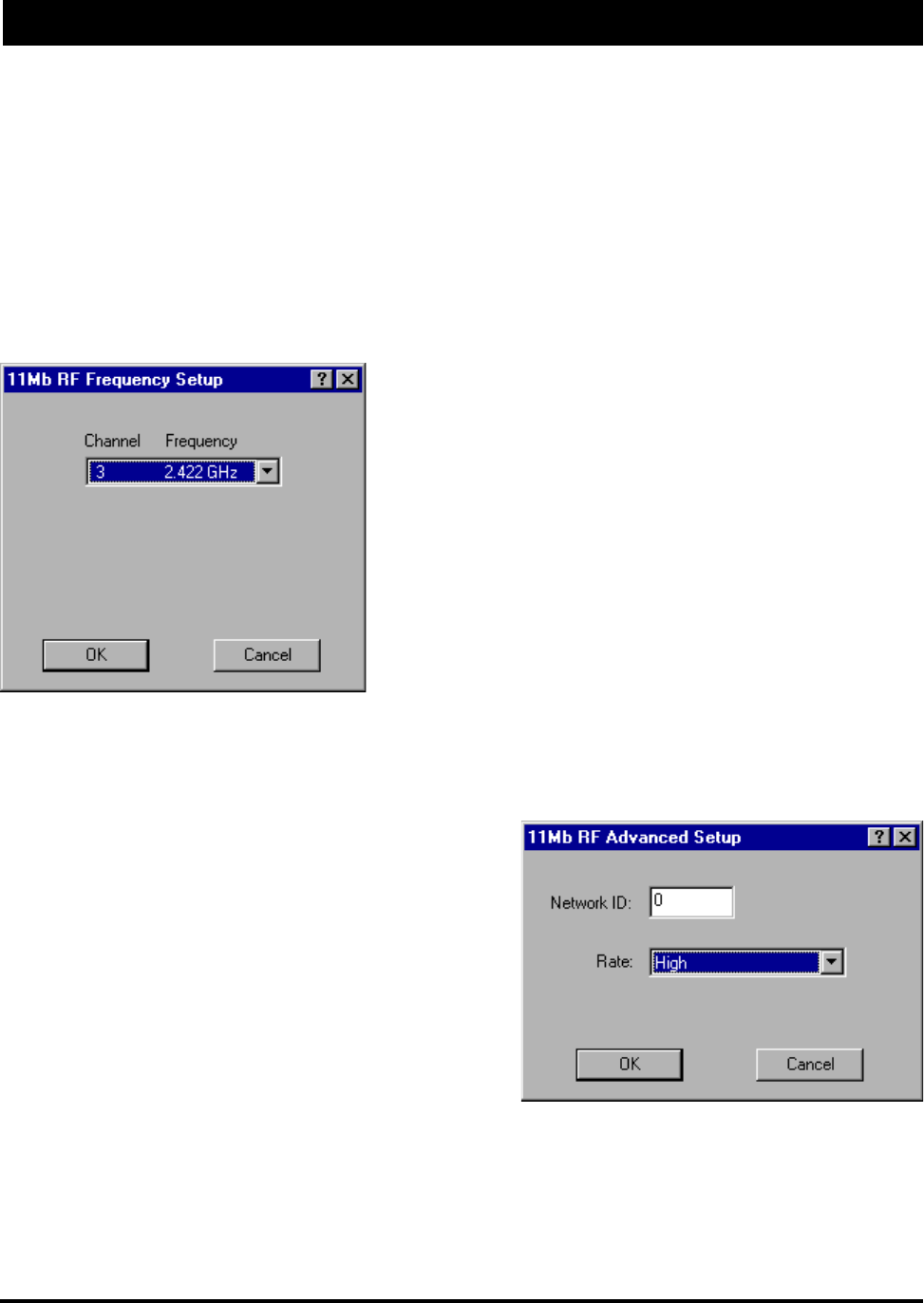

Setup 2 - 11 Mb RF Interface Setup - On this screen are the configuration settings that control the individual

interfaces and how they communicate with each other. On the next page you will find a description of the

settings and how they effect the performance of the SPEEDLAN interfaces.

The Setup Buttons

Pressing the Setup buttons (1 and 2) on the Interface & Ad-

vanced Interface Setup screen will open the Setup screen for

the interface selected.

The card also supports full-duplex operation when connected

to either a 10 or 100 Mbps LAN port. The default setting is

for Half-Duplex. The interface can be configured to operate

in Full Duplex using the options on this setup screen.

Setup 1 - Ethernet Setup

SPEEDLAN products come standard with a 10/100 Base-T

interface to connect to your wired network. Although the

interface is capable of operating at both 10 Mbps and 100

Mbps, it is not autosensing or autoswitching. The default set-

ting is for 10 Mbps half-duplex operation. If you which to

connect your SPEEDLAN unit to a 100 Mbps port, the

Ethernet interface can be manually switched to 100 Mbps in

this portion of the setup.

SPEEDLAN TM

Campus PRC Mode (This is a Polling Base Station) - This setting should be used if this is the one and only

base station in the wireless network cell. When the number of satellites become greater then approximately 5

to 10 stations the Non-Polling Base Station sometimes is not as able to keep up with the wireless traffic that

needs to be forwarded. The Polling Base Station alleviates this problem by continuously communicating with

all of the satellite stations in its cell, and is responsible for dynamically assigning how much time is to be alotted

to each satellite in the next transmission of data packets from that satellite. This is done after every transmission

Campus Cell PRC Mode (No base stations) - This method of transportation requires that all brouters be

able to detect each other. If any of the stations are unable to see each other then a Base Station must be

assigned that can repeat traffic from one brouter to another. This method utilizes Campus Cell PRC packet

bundling which reduces the amount of overhead caused by sending smaller individual packets across the

wireless network. This greatly improves the performance of the SPEEDLAN network

Campus PRC Mode (This is a Non-Polling Base Station) - This setting should be used if this is the only

base station in the SPEEDLAN TM wireless network cell. With the previously mentioned ‘Campus Cell PRC

Mode (No Base Stations)’ setting there is a requirement that all wireless stations be able to transmit to and

receive from ALL other stations in the wireless network. This is not always possible due to particular topology

and terrain. SPEEDLAN TM has a special mode where one of the wireless stations can be configured as a

Base Station and all other wireless nodes setup as Satellite Stations. In this configuration the only requirement

is that each satellite station be able to communicate directly with the base station. The base station is respon-

sible for repeating packets that need travel between the satellite stations. The Non-Polling Base Station does

not allocate bandwidth to each statellite. This is preferable when the total number of satellites in the wireless cell

is less then somewhere between 5 to 10 stations.

The performance of this approach is greatly improved if the base station is connected to the most heavily

loaded network or network server. This is due to the fact that data flowing from one satellite to another

satellite station must be repeated (retransmitted) by the base station, thus more of the wireless band-

width is used. Data packets flowing from a satellite station to the base station are transmitted directly to

the base station without the need to be repeated.

Transport Methods

The industry compatible method of transmitting and receiving data over wireless networks cause data packets

to frequently be lost. This is due to the fact that a wireless network does not have the ability to detect collisions

like a wired Ethernet network. On an Ethernet network collisions can be detected by the hardware and are

automatically retransmitted. Ethernet is refered to as CSMA/CD (Carrier Sense Multiple Access with Colli-

sion Detection). Wireless networks are CSMA/CA (Carrier Sense Multiple Access with Collision Avoidance).

The reason collisions can not be detected is wireless cannot receive and transmit at the same time, hence

SPEEDLAN TM is not able to listen for the collisions. In practice a properly operating SPEEDLAN point-to-

point network will loose, due to collisions, less than 1% of the transmitted packets. This packet loss is not

normally a problem with protocols such as Novell IPX (without the Burst Mode NLM), but may cause

networks using most other protocols to experience poor performance. Campus Cell PRC helps to alleviate

this problem by placing multiple packets into one larger packet, thus saving bandwidth by eliminating the extra

overhead.

SPEEDLAN TM

Campus PRC (This is a Satellite Station) - This is the configuration required for stations that are to be

installed into a wireless network cell that utilizes a base station. Except for the base station, all the stations in this

type of wireless network cell should be configured as Satellite Stations. The satellite configuration tells the

brouter to forward all data that needs to pass through the wireless network to the base station. In addition, the

satellite stations are configured to listen to the base station for instructions if they are forthcoming.

and greatly improves the performance of a base station wireless network cell when the total number of satellite

stations is greater then 5 to 10 stations. As the number of stations increases, the usage of the wireless network

cell increases and efficiency is proportionately improved.

Frequency Button - The Frequency button can be found in the

lower right hand corner of the individual interfaces setup screens.

Clicking this button will open a new screen that allows you to

change the operating frequency of the interface. All of the brouters

expected to communicate with this device should be configured

with the same frequency.

Advanced 11 Mb RF Interface Setup

Network ID - The Network ID is a security setting that allows

the SPEEDLAN TM unit to reject packets from other wireless

bridges in the area. Although the bridging or routing table would

reject the packet once it was processed, the Network ID allows

the bridge to reject the packet with much less processing. This

improves the performance of the SPEEDLAN TM units in installations where many wireless bridges are co-

located in the same area or where other organizations may be running wireless bridges of their own. The

default setting is 0 and the valid range is 0 to 15.

Warning: This setting must be set to the same value on

all SPEEDLAN TM units you wish to have communicate

together. Failure to set them to the same value will pre-

vent any communications from taking place. (e.g. for

multipoint to work properly, the base station AND all of

the satellite units must use the same Network ID setting)

Rate – This setting refers to the RF data rate. The

SPEEDLAN TM 11 Mbps radio has four data rates that can

be used:

High - This is the full 11 Mbps data rate. The interface default to this value and it is recommended that you

operate using it for most installations. The receiver sensitivity of the radio with this setting is –82 dBm.

Medium – This setting limits the card to providing 5.5 Mbps of bandwidth. The receiver sensitivity of the radio

with this setting is –85 dBm.

SPEEDLAN TM

11 Mb RF Security Setup – These settings are used to encrypt data that will be transmitted by the 11 Mb RF

port and also to decrypt data that is received by 11 Mb RF port. You may define up to 4 encryption keys to be

used for decrypting incoming data and one key for encrypting outgoing data.

Check the box labeled “Enable Encryption” to enable the encryption features. You will still need to define at

least one encryption key before your wireless traffic will be transmitted using wireless data encryption.

The Encryption Key can be defined using either:

• 5 alphanumeric characters in the range of “a-z”, “A-Z”,

and “0-9”

• A 10 digit hexadecimal value using the range “A-F” and

“0-9”. If you choose to use the hexadecimal method, use

the prefix “0x” (zero, x) in defining the key

Examples:

• Alphanumeric: a5F2z

• Hexadecimal: 0xA95F2BR39K

Write down the values you enter as Encryption Keys and store

them in a secure place. The values you enter will only be visible

when they are entered for the first time. Each time this option is

displayed after the initial setup, the values will appear only as

“xxxxxxxxxx”

Warning: This setting must be set to the same value on all

XE units you wish to have communicate together. Failure

to set them to the same value will prevent any communications from taking place. (e.g. for multipoint

to work properly, the base station AND all of the satellite units must use the same Encryption Key

setting.

There is also an option to Deny non encrypted Data. This feature is disabled by default and is designed

primarily for multipoint SPEEDLAN installations where it may not be necessary to run using data encryption at

all locations. If you enable this option, any data received by this SPEEDLAN TM unit will not be passed to the

wired network interface.

Standard – This setting limits the card to providing 2 Mbps of bandwidth. The receiver sensitivity of the radio

with this setting is –89 dBm. You must use this setting if you want your XE unit to communicate with an older

SPEEDLAN unit that uses a 2 Mbps radio.

Low - This setting limits the card to providing 1 Mbps of bandwidth. The receiver sensitivity of the radio with

this setting is –92 dBm.

Warning: This setting must be set to the same value on all XE units you wish to have communicate

together. Failure to set them to the same value will prevent any communications from taking place.

SPEEDLAN TM

BRIDGING SETUP

SPEEDLAN TM

The SPEEDLAN TM is an IEEE 802.3

MAC- layer bridge. The bridge can be con-

figured to bridge or pass any 802.3 frame

type protocols, including Novell IPX, TCP/

IP, AppleTalk, etc. The SPEEDLAN TM

can also be configured to filter packets by

their destination and origin. This is done us-

ing the unique MAC (Media Access Con-

trol) addresses that all network interface de-

vices have assigned to them at the factory.

Protocol Filtering - By default, the

SPEEDLAN is configured to pass all net-

work protocols. When you press the Edit

button, you will be presented with a list of

protocols which you can select for filtering.

After selecting the protocols, highlight them

on this screen and press the Bridge or Deny

buttons to set how each protocol will be

treated. The radio buttons in the Protocol

Filtering box determine how unselected pro-

tocols are treated.

Ethernet Protocols - Some common

Ethernet protocols and their associated

ID numbers have been placed in this

table. Simply select one from this list if

you wish to set a filter for it.

If the protocol you wish to filter is not

presented here, click Custom, Add and

enter the hex ID for that protocol.

SPEEDLAN TM

Permit Ethernet Multicasts - Standard Ethernet bridges will always forward multicast packets. Some pro-

tocols do not use multicast packets, such as TCP/IP and Novell IPX. If you do not use protocols that use

multicast packets, you can drop them by shutting off multicasts on the SPEEDLAN TM. Shutting off multicast

packets will reduce the traffic being sent across your wireless network link. This will also reduce the number of

interrupts that each computer connected to your network experiences.

Pass Bad Ethernet Source - The standard Ethernet bridges

we have tested will pass Ethernet packets with a broadcast or

multicast address as their source (i.e., packets with their first bit

set to 1). The Ethernet specification for Transparent (i.e. Non-

Source-Routing) Bridges does not allow these types of packets,

which are considered bad packets. Our studies have shown that

a common failure mode of many Ethernet interfaces and net-

working software is to transmit packets like these. If you do not

need to permit Source-Routing packets, we suggest that you

deny these packets. The default setting is selected to permit these

packets.

Advanced Features - Clicking the Advanced button brings up this screen. Below are descriptions of the

settings and how they will effect your network.

MAC Filtering - By default, the SPEEDLAN TM is config-

ured to pass all traffic between all MAC-Address pairs. To add

an address pair into the filter, click on the Add button in the MAC

Filtering box. You will be prompted to enter the Remote Ad-

dress, which will be the MAC Address that resides on the remote

side of the brouter, and the Local Address, which will be the

MAC Address that resides on the local side of your network.

The side of the bridge you configured determines the remote side

and local side (in the Interface Setup screen).

SPEEDLAN TM

Storm Thresholds - One of the unique and very useful features of the SPEEDLAN TM is its ability to keep

broadcast and multicast storms from spreading throughout a network. Network storms are common and can

cause bridges, routers, workstations, servers, and PCs to slow down or crash. Storms occur if network

equipment is configured incorrectly, if network software is not functioning properly, or poorly designed pro-

grams such as network games are used. These settings are disabled by default.

Enable Expanded IP ARP Support - Enabling this feature will cause the Bridge to also watch the IP/ARP

packets that occur on the network. The SPEEDLAN TM takes no action in response to IP/ARP packets

(since that is the role of an IP router) except to add the IP address to its IP/ARP table. This feature is helpful on

an IP network because it will build a database of MAC-layer-address-to-IP address pairs. An SNMP moni-

toring program, such as the SPEEDLAN TM Configurator, can at any time extract this information. NOTE: 1)

The IP/ARP table is never timed out in this mode. 2) This feature is not available if the brouter is routing IP. The

default value for this setting is Disabled.

Permit Ethernet Broadcasts - Standard Ethernet bridges will always forward broadcast packets. Many

protocols do not use broadcasts (e.g. AppleTalk Phase II, DECnet, and others). However, IP/ARP does use

broadcasts. If you do not use IP or any other protocol that requires broadcasts, you can deny them. Shutting

off broadcast packets will reduce the traffic being sent across your wireless network link. This will also greatly

reduce the number of interrupts that each computer connected to your network experiences. Networks with a

high number of broadcasts will slow down the processing of all attached computers, even those that aren’t

using the network.

Enable Learned-Table Lockdown - A standard bridge watches the source address of each packet it receives

on any of its interfaces. As new addresses are seen, entries are added to the learned table that contains each

source address and the interface number that address was received on. If a source address is later seen on a

different interface, the bridge will immediately change the interface number in the learned-table entry. This

condition could happen in a correctly functioning network if someone moved a computer to a different part of

the network. This could also happen if someone was trying to capture network packets by spoofing the bridge.

Enabling learned-table lockdown will prevent the interface number from being changed once the source ad-

dress has been seen. A standard bridge will also time-out the learned-table records every 10 minutes. If

learned-table lockdown is enabled, these records will not be timed out. Once a record is learned, it will not

change or be deleted until either the bridge reboots or the learned table become completely filled and needs to

be reset. (NOTE: A typical SPEEDLAN TM learned table can contain over 12,000 records.) The default

value for this setting is Disabled.

Pass Unseen Ethernet Source - Standard Ethernet bridges will always forward packets with destination

addresses that have not been learned (i.e., have not previously been seen as a source address of a packet).

This characteristic is needed for the proper operation of an Ethernet bridge. The downside to this, as our

studies have shown, is that the failure mode of many Ethernet interface cards is to send out erroneous packets

with good CRCs but with random Ethernet destination and source addresses. Standard bridges will permit

these erroneous packets because they have not “learned” the random destination, and then add this packet’s

random source address to their finite learned table. This situation is not uncommon and can greatly hinder the

operation of standard bridges. If you choose to deny unlearned packets, the brouter will not forward unicast

packets to Ethernet addresses that have not already been seen as a source address. This scheme works for

most protocols because it relies on the characteristics of most upper-layer protocols to transmit ARP requests

or hello packets. It should be set to deny only by a qualified network engineer after careful testing and consid-

eration. The default value for this setting is checked.

SPEEDLAN TM

Interface Threshold - This setting deter-

mines the maximum number of broadcast

or multicast packets that can occur during

a one-second period before a storm is

declared for the assigned interface. Once

it is determined that a storm is occurring, any additional broadcast or multicast packets received on that

interface will be denied until the storm is determined to be over. The storm will be determined to be over once

a one-second period has occurred with no broadcast or multicast packets received on that interface. The

settings for broadcast packets and multicast packets are configured independently.

Address Threshold - This setting deter-

mines the maximum number of broadcast

or multicast packets that can occur during

a one-second period before a storm con-

dition is declared for a particular Ethernet

address (host). Once it is determined that

a storm is occurring, any additional broad-

cast or multicast packets from that host

address will be denied until the storm is

determined to be over. The storm will be

determined to be over when 30 seconds

have passed in which every one-second

period has less then the stated threshold in

broadcast or multicast packets. The set-

tings for broadcast packets and multicast

packets are configured independently.

Preset Button - This button sets the broadcast and multicast storm thresholds to the recommended values.

These values have been determined to offer good protection without interfering with the operation of the

typical network. These values may need to be tuned for your particular network.

Tunnel Partners - Tunneling is a method of encapsulating

Ethernet packets received from the local interface in an IP/

UDP packet and sending them to one or more tunnel part-

ners. Tunneling can be used to set up virtual Ethernet net-

works. In the General Setup menu, if the Remote Bridging

using IP Tunnels is enabled, Tunnel Partners can be set

up. This menu specifies the IP addresses of each of the

bridge/routers that are to participate in the tunnel group.

Specify the addresses of all the bridges that are participat-

ing in the tunnel group but DO NOT specify the IP ad-

dresses on this brouter.

SPEEDLAN TM

LAN C

Bridge

Internet

or Campus

IP Network

Bridge

LAN A

Standard Ethernet

Packet

Ethernet Packet

Encapsulated in

IP/UDP

Ethernet Packet

Encapsulated in

IP/UDP

Standard

Ethernet

Packet

Remote

Interface

Local

Interface

LAN B

Generic Ethernet Tunneling

(Through an IP Network)

The three brouters are set up to tunnel one

or more protocols and each is a tunnel

partner to the other two brouters. This

configuration allows LAN A, LAN B, and

LAN C to become a virtual private Ethernet

network with the Internet as the transport

mechanism for data between them. The

encapsulated data packets can be optionally

encrypted to make the virtual private

network more secure.

Encrypt Bridge Tunnel Packets - If purchased, brouters (from Wave Wireless) may contain a special soft-

ware-encryption algorithm that is distinct from the optional SPEEDLAN encryption chip on the brouters. If

Data Encryption is enabled on the General Setup menu and if an Encryption Key is set up in the Data Encryp-

tion menu, enabling encryption here will cause all Ethernet packets transmitted to tunnel partners to be en-

crypted and encapsulated inside IP packets. The IP packet itself cannot be encrypted, because industry-

standard IP routers, like those on the Internet, would not be able to forward the encrypted packets.

SPEEDLAN TM

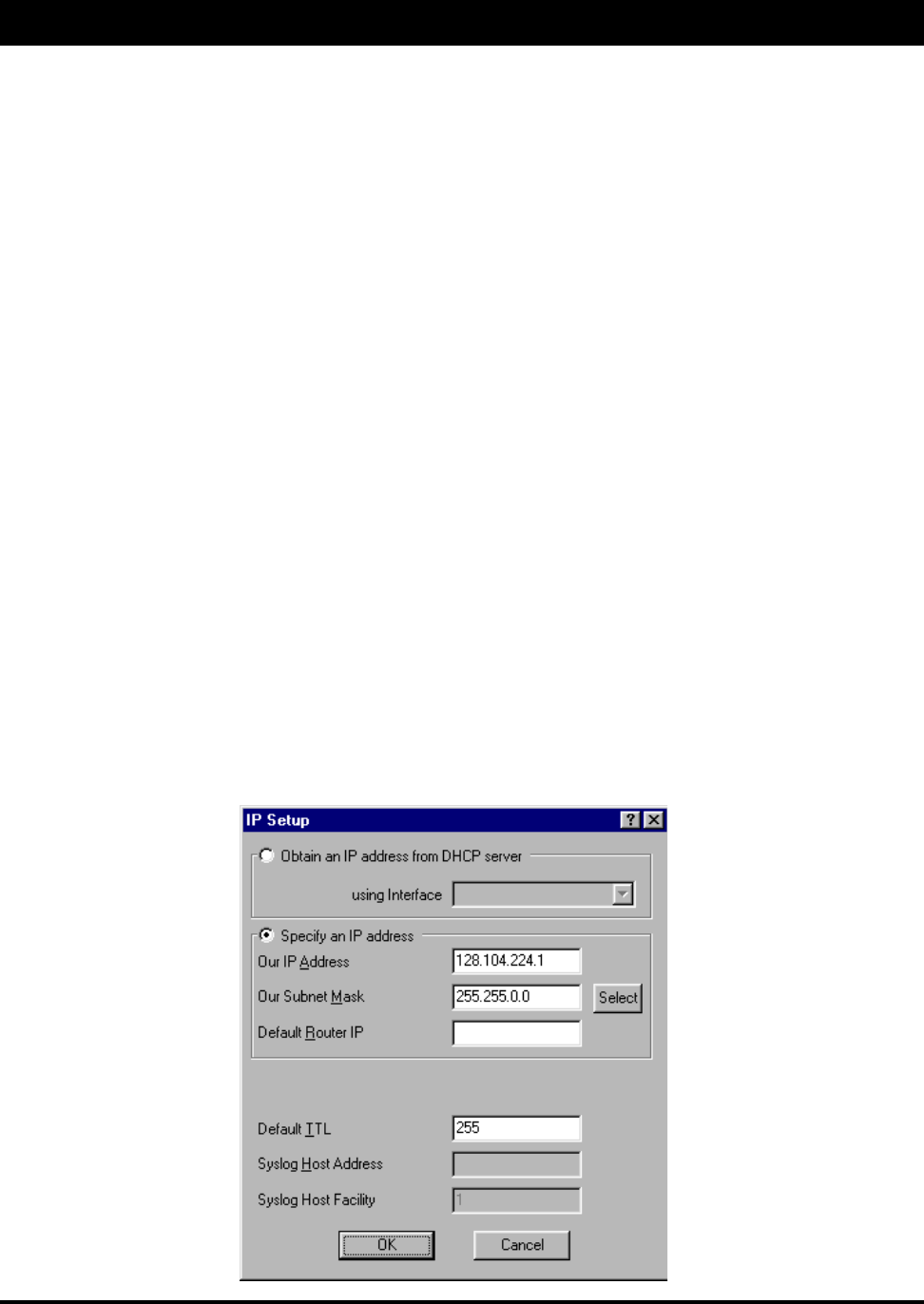

Setting Up the IP Addresses (IP Host Setup)

SPEEDLAN TM

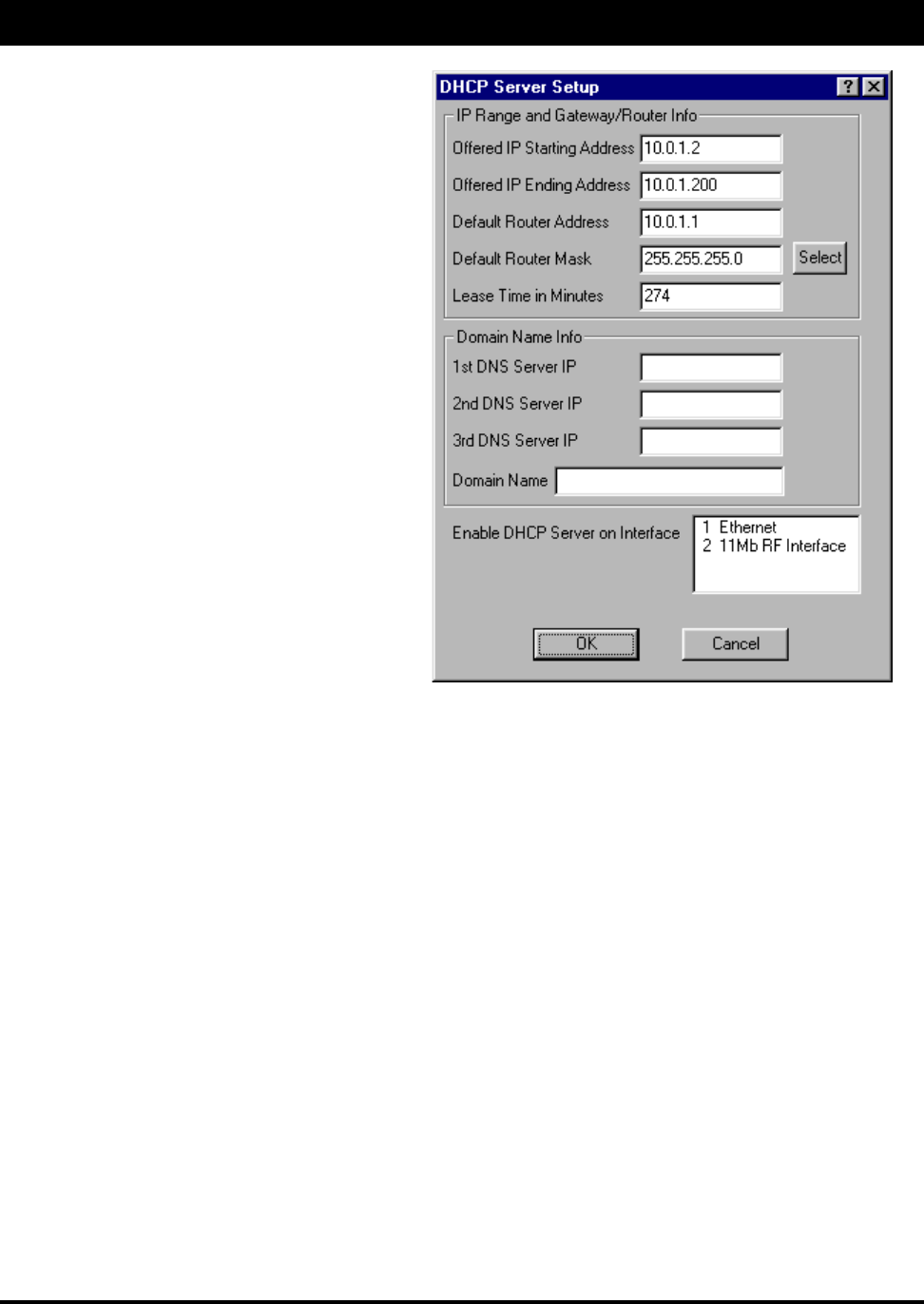

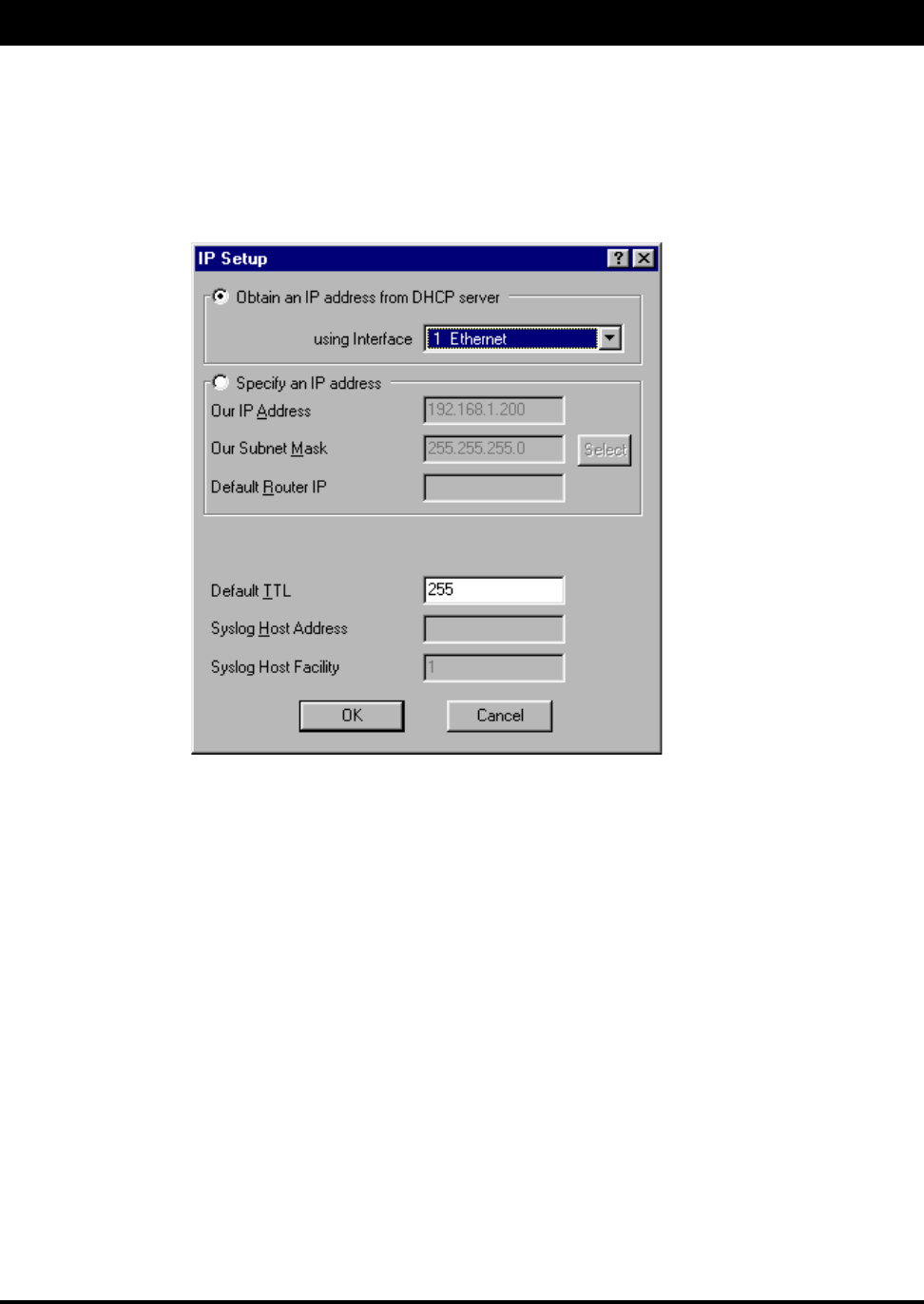

Use DHCP to set up the server and client IP addressing for the network. Use NAT to set up the translation

for incoming and outgoing network IP addresses.

If you do not understand the basics of IP addressing, DHCP, or NAT please read the next section,

Part I - Quick Overview of IP Addressing, below. Otherwise, skip to Part II - Setting Up the IP

Address, page 56 .

Part I - Quick Overview of IP Addressing

IP Addressing is important because it tells the network how to locate the computers or network equipment

connected to it. IP addresses are given so each computer or equipment on the network contains a unique

address. In addition, network addresses and node addresses, depending on the Class (A, B, C, etc),

contain their own unique address as well. IP addressing provides the following information:

•Provides communication between different platforms and diverse systems

•Provides universal data transfer over large geographic distances

•Has been “adopted” as a standard in the computer industry

What is an IP address?

An IP address contains 32 bits of information, which is divided into the following:

•Two sections: the network address and the node address (also known as the host address)

•To keep it simple, lets call it four bytes (octets)

Note: Each octet contains 8 bits, which are equivalent to 1 byte. Each octet is separated by a

period (.).

The following examples show the conversion of the same IP address into several different formats:

Decimal (130.57.30.56)

Hexadecimal (82.39.1E.38)

Binary (10000010.00111001.00011110.00111000).

Internet Address Classes

Understanding this methodology is difficult, even for customers. Therefore, let’s explain this in easier terms.

The first octet defines the “class” of the address, which is the only method to tell the size of the network

(how big) and where the internet address belongs. There are three main classes:

•Class A: 35.0.0.0

•Class B: 128.5.0.0

•Class C: 192.33.33.0

This definition is not random; it is based on the fact that routers, by reading just the first three bits of the

address field, designate which network class it belongs to. This selection simplifies the way routers handle

the messages (packets) and speed up the forwarding process.

-non-bolded text = Part of network address

-bolded text = Part of local address (node section)

SPEEDLAN TM

In fact, IP defines five classes:

•Class A addresses use 8 bits (1 octet) for the network portion and 24 bits (3 octets) for the node

(or host) section of the address. This provides up to 128 networks with 16.7 million nodes for each

network.

•First byte is assigned as network address

•Remaining bytes used for node addresses

•Format: network, node, node, node

•In IP address 49.22.102.70, “49” is network address and “22.102.70” is the node

address – all machines on this network have the “49” network address assigned to them

•Maximum of 224 or 16,777,216 nodes

• Class B addresses use 16 bits (two octets) for the network portion and 16 bits for the node (or

host) section of the address. This provides up to 16, 384 networks with 64,534 nodes for each

network.

•First two bytes are assigned as network address

•Remaining bytes used for node addresses

•Format: network, network, node, node

•In IP address 130.57.30.56, “130.57” is the network address, and “30.56” is the

node address

•Maximum of 216 or a total of 65,534 nodes

•Class C addresses use 24 bits (3 octets) for the network portion and 8 bits (two octets) for the

node (or host) section of the address. This provides 16.7 million networks with 256 nodes for each

network.

•First three bytes are assigned as network address

•Remaining byte used for node address

•Format: network, network, network, node

•In IP address 198.21.74.102, “198.21.74” is the network address, and “102” is the

node address

•Maximum of 28 or 254 node addresses

•Class D

•Range is 224.0.0.0 to 239.255.255.255

•Used for multicast packets (i.e., host sends out router discovery packets to learn all of the

routers on the network)

•Class E

•Range is 240.0.0.0 to 255.255.255.255

•Reserved for future use

Note: Class D & E should NOT be assigned to net assignment of IP addresses. In addition, the

first octet, 127, is reserved.In each network definition, the first node number (i.e., “0”) is used to

define the network, as well as the last number (i.e., “255”). The last number is known as the

broadcast address.

Public IP addresses can be obtained from the following address:

Network Solutions

InterNIC Registration Services

505 Huntmar Park Drive

Herndon, VA 22070

hostmaster@internic.net

SPEEDLAN TM

Note: Non-public Addresses can include network address assigned from the network administrator or

from the IP provider. Also, there is one network in each class that is defined for private use, allowing

the creation of internal networks. These addresses are Class A: 10.0.0.0, Class B: 172.10.0.0, and

Class C: 192.168.0.0.

Subnetting a Network

The increasing number of hosts and networks make impractical address blocks that are not smaller

than 245. In order keep the IP address small, so routers can manage them without changing the

whole protocol, a smaller network definition is created. This is called a subnet. Subnets are intended to:

•Reduce network traffic

•Optimize performance

•Simplify management

•Create more effective and efficient addresses for large geographic distances

Default Subnet masks

•Class A: 255.0.0.0

•Class B: 255.255.0.0

•Class C: 255.255.255.0

Note: Subnet mask is bolded.

What is a Subnet?

This term allows you to create multiple networks within one Class A, B, or C network. Each data link

(octet) contains its own unique identifier also known as the subnet. Also, each node on the same data link

must belong on the same subnet as well.

What is a Subnet Mask?

This term allows you to mask section(s) (depending on the class specified) of the octets in the network

address. Each octet used in the subnet mask is assigned to a data link. The leftover octet(s) are assigned to

the remaining nodes.

For more information on subnetting, see the example below and figure on the next page.

Example of Subnetting:

For example, a Class C network (255.255.255.0) contains three masked octets (255.255.255). The last

octet (0) is leftover for remaining nodes (i.e., computers).

If Router D is reading IP Addresses 195.172.3.1 (let’s call this IP Address 1) and 195.172.3.64 (let’s call

this IP Address 2) on this Class C network, it would send IP Address 1 to Subnet A and IP Address 2 to

Subnet B. The remaining nodes in each subnet (A through D) on this network can contain up to 254 pieces

of network equipment (computers, printers, fax machines, bridges or routers (also know as brouters), etc.).

SPEEDLAN TM

Figure of Subnetting a Network

Still confused?

An easier method to explain this concept is to use the classic “mailing” analogy used in IP addressing.

Consider that this network, called Long Street, is four blocks long. There are 254 houses on Long Street,

and each block contains 64 houses. Houses 1 to 63 reside on Block A. Houses 64 to 127 reside on Block

B. Houses 128 to 191 reside on Block C. Houses 192 to 254 reside on Block D. Think of each block as a

subnet. This means that Blocks A, B, C, and D are all part of Long Street, which is also known as the

network in this example. The mailman would organize the letters (or IP addresses for network equipment)

by creating four piles (one for each block, or subnet). As soon as the mailman picks up Pile A in his hand, he

knows which block to turn on. This same reasoning applies to Piles B, C, and D as well. Router D knows

exactly which subnet to transfer (or turn) the packets to by reading its IP and subnet mask address. Note

that each subnet on this network is 255.255.255.192. Why is 192 the last octet in the subnet mask and not

64? The last octet, 192, is the mask that allows 64 “houses” to know that the mailman (or router) is coming

in advance. The “houses” will know it’s mailman “Jim” by looking at the IP number.

Note: If the network is managed by a Simple Network Management Protocol for local or Internet

access, each brouter must contain a unique IP Address. This is one of the benefits of static or dynamic

addressing.

Internet

Router D

Router B

Router C

Computer Computer

Computer

Computer Computer Computer

Long Street

Subnet A

IP Address: 195.172.3.1

Subnet Mask: 255.255.255.192

Subnet B

IP Address: 195.172.3.64

Subnet Mask: 255.255.255.192

Subnet C

IP Address: 195.172.3.128

Subnet Mask: 255.255.255.192

Subnet D

IP Address: 195.172.3.192

Subnet Mask: 255.255.255.192

Router A

SPEEDLAN TM

How does a network administrator assign an IP address?

IP addresses are supplied by the network administrator (you), the ISP, or hosting company.

The two types of IP addressing – manual (static) and automatic (dynamic) addressing – are described

below.

Manual (static) Addressing - Each device connected to the Internet must have its own unique IP address.

Also, if a computer is being used as a server, you will assign it a permanent IP address. This enables other

computers to connect to it. Static addressing is also beneficial to users that need to maintain a “constant”

connection to the Internet. This will enable users to easily access the IP address.

Automatic (dynamic) Addressing - A DHCP (Dynamic Host Configuration Protocol) server assigns the

IP address to each computer as the computer connects to the network. If a computer moves to a new

network (i.e., great for temporary employees or mobile users), it must be assigned a new IP address for that

network. DHCP can be used to manage these assignments automatically. DHCP is described in further

detail below.

What is DHCP?

Dynamic Host Configuration Protocol (DHCP) allows network administrators (you) to assign static or

dynamic IP addresses for the period of time needed to connect to the Internet. Think of DHCP as leasing an

apartment. A prospective tenant may not need to live in an apartment for two years, maybe just a year.

Therefore, the tenant will only sign a one-year lease agreement. For example, each time a computer is set up

to connect to the Internet, the network administrator uses DHCP to automatically assign the computer a

unique IP address. That computer will give up its IP address when it is no longer needed (when the lease

has ended) allowing new a computer (or a new tenant) on the same network to use it. This benefits

educational and corporate settings where users often log on to different computers. In this case more IP

addresses outnumber computers because you can quickly reconfigure the network if needed from a

centralized location.

Servers that utilize DHCP help resolve security, costly IP addressing services, and compatibility problems.

DHCP is an alternative to BOOTP, which reduces the agony of assigning IP addresses and also provides

advanced configuration options.

Note: The figure on the next page may help you understand how a DHCP address is generally

assigned.

SPEEDLAN TM

Figure of DHCP Addressing

Client

DHCP

Server

1. The client asks DHCP server for IP address and configuration if needed.

2. The DHCP server assigns an available IP address to client.

3. The client takes IP address from DHCP server and requests for any configuration needed.

4. DHCP server confirms IP address and configuration.

What is NAT?

Network Address Translation (NAT) is the conversion of an Internet Protocol address (IP address) used

within one network to a different IP address within another network. One network is designated the inside

network and the other is the outside network.

Network Address Translation (NAT) occurs when there is a translation among an Internet Protocol (IP

address) used within one network (designated as inside network) to a different IP addresses within another

network (designated as outside network). Network Address Translators (NATs) allow companies to

decrease the number of global IP addresses. This enables companies to communicate with a single IP

address (or more than one IP address). For example, a company can provide its clients with one IP

address, allowing access to the company’s firewall only. This IP address is not a “real” address on the

company’s internal network, but it is successfully translated to the correct IP location through NAT

(i.e., NAT router). Therefore, the company controls access through firewalls and provides multiple IP

addresses to outside customers without excessive limited resources, or “global” Internet IP protocols.

SPEEDLAN TM

As the packet is transmitted from the private network across the public network, the packet will be

re-addressed as 204.101.20.3 (public address of SPEEDLAN TM). When the packet returns to the

SPEEDLAN TM and then back to the private network, the packet will be re-addressed (the IP address of

the private network) by using the MAC address contained in the header to identify the destination.

Outgoing NAT

SPEEDLAN TM

Incoming NAT

Incoming NAT allows you to specify ports on the private network that you would like to be available on

the public network. For example, if a web server on a server is IP Address 10.0.0.3, you can create a pair

that will specify that all requests received on the public IP address, Port 80, be forwarded to IP Address

10.0.0.3 on the private IP address, Port 80.

SPEEDLAN TM

Part II - Setting Up the IP Address

In this section you will first assign a static IP address or enable the DHCP client. Second, choose the

appropriate interface for the DHCP client. Third, enable the DHCP Server on the SPEEDLAN TM.

Note: Confirm the IP address of your SPEEDLAN TM units by performing the following tasks.

Open the SPEEDLAN TM Configurator. From the File menu, choose Open Remote Config.

Then, click Scan. The Scan dialog box appears. Select the appropriate brouter and click OK.

Click OK again. A message box appears confirming that the “Configuration has been read from the

Bridge” (i.e., 128.104.224.1). Click OK.

To set up the IP address, do one of the following:

1. Physically assign a static IP address (Static IP)

2. Enable DHCP client and choose appropriate interface (Dynamic).

Note: After following Option #2 above, proceed to Enabling the DHCP Server on the

SPEEDLAN, page 59.

Physically Assigning a Static IP Address

To physically assign a static IP address, do the following:

1. From the Setup menu, choose IP Setup. The IP Setup dialog box appears.

SPEEDLAN TM

2. Select the Specify an IP address option. Enter the following information:

•Our IP Address – The unique number assigned by the network administrator, ISP or host

provider. This tells network the location (IP address) of the computer on the Internet (i.e.,

128.104.224.2).

•Our Subnet Mask - This term allows network administrators to mask section(s) (depending on

the class specified) of the octets in the network address. Each octet used in the subnet mask is

assigned to a data link. The leftover octet(s) are assigned to the remaining nodes.

Note: For more information, see the figure called Subnetting a Network in the section called

Part I - A Quick Overview of IP Addressing, page 48. Once the packet has traveled to the

appropriate network, it goes through a masking process. A subnet mask is composed of zeros (0s)

and (1s). This tells the router which addresses to look under and which ones not to look under.

Therefore, subnet masking allows the router to transfer the packet traffic more quickly than a

network without a subnet. Again, this address is obtained from the network administrator, IP host, or

host provider.

•Default Router IP – If you have an established network, use the IP address for the router

already set up for that network. If you do not have an established network, leave this entry

blank.

•Default TTL – This information should already be entered. The IP host on the Internet will send

out each packet with a default “Time to Live” parameter. If you want to override the factory

default of 64 attempts, you can specify your new default here. This parameter should not be

changed unless you are very familiar with IP functionality and how the Time to Live parameter

will affect the method packets the treated by your network, as well as the network to which you

are bridged (or routed).

Note: Click Select to view the IP Mask List. Select the appropriate IP Mask and click OK.

3. After you have finished entering the appropriate information, click OK.

4. Now save the changes to the brouter. From the File menu, choose Save Config.

5. A message box appears informing you that the information will be saved to the brouter

(i.e., 128.104.22.4). Click Ye s .

6. The Configurator confirms that the configuration has been saved. Click OK. Restart the computer.

Note: You are finished with this section. If you want to set up NAT, see Part III - Setting Up NAT,

page 61.

SPEEDLAN TM

Enabling the DHCP Client and Choosing the Appropriate Interface

To enable the DHCP client and choose the appropriate interface, do the following:

1. From the Setup menu, choose IP Setup. The IP Setup dialog box appears.

2. Select the Obtain an IP address from DHCP Server option.

3. Next, select the interface for Ethernet or wireless network from the Using Interface drop-down list.

Make sure that you select the interface that the DHCP server is located on.

Note: The information for Default TTL should already be entered. The IP host on the Internet

sends out each packet with a default “Time to Live” parameter. If you want to override the factory

default of 64 attempts, you can specify your new default here. This parameter should not be

changed unless you are very familiar with IP functionality and how the Time to Live parameter

will affect the method packets the treated by your network, as well as the network to which you

are bridged (or routed).

SPEEDLAN TM

Enabling the DHCP Server on the SPEEDLAN TM

To enable the DHCP Server on the SPEEDLAN TM, do the following:

1. From the Setup menu, choose General Setup. The General Setup dialog box appears.

2. Select the Enable DHCP Server check box; this will enable you to set up the DHCP Server.

Note: The only active NAT / DHCP check boxes in the NAPT / DHCP Features section (in the

dialog box above) are the following:

•Enable Outgoing Network Address Translation - This feature enables a company to map

the private networks IP addresses into one or more global public network IP addresses. This

means that outsiders will only view the single (or more if designated) IP network address

assigned for global viewing on the Internet. For more information, see Part III - Setting Up

NAT, page 61.

•Enable Incoming Network Address Translation - This feature enables a company to unmap

public network IP address into private network IP addresses. For more information, see

Part III - Setting Up NAT, page 61.

3. From the Setup menu, choose DHCP Server Setup. The DHCP Server Setup dialog box

appears (as shown on the next page).

SPEEDLAN TM

4. Enter the IP range and gateway/router

information:

•Offered IP Starting Address – This

is the start of the block of allowed IP

addresses. For example, the

“offered” IP address between a block

of 20 to 40 is 20.

•Offered IP Ending Address – This is

the end of the block of allowed IP

addresses. For example, the “ending”

IP address between a block of 20 and

40 is 40.

•Default Router Address – This is the

IP address of the default router that

allows clients to move outgoing packets

to a single router on the same subnet.

•Default Router Mask – This is the

router that initially accepts or transfers

packet to the directly connected

networks or static networks.

•Lease Time in Minutes – This is the

amount of minutes that the computer

can use the assigned IP address. When

the time is up, the IP address will be

reassigned to another computer.

Note: Click Select to view the IP Mask List. Select the appropriate IP Mask and click OK.

5. Enter the domain name information:

•1st DNS Server IP – This setting will specify the client’s 1st DNS Server.

•2nd DNS Server IP – This setting will specify the client’s secondary DNS server.

•3rd DNS Server IP – If needed, this setting will specify the client’s third DNS server.

•Domain Name – This is the web domain name of the organization on the Internet such as

“www.speedlan.com”. It is not necessary to use the first portion of the domain name leaving

the entry as “Speedlan.com”.

6. Select the interface that you want to Enable DHCP on (i.e., Ethernet or wireless interface).

7. Click OK.

8. After you have finished entering the appropriate information, click OK.

9. Now save the changes to the bridge or router. From the File menu, choose Save Config.

10. A message box appears informing you that the information will be saved to the bridge or router.

Click Ye s .

11. The Configurator confirms that the configuration has been saved. Click OK. Restart the computer.

SPEEDLAN TM

Part III - Setting UP NAT

This section explains how to setup outgoing and incoming Network Address Translation (NAT). For more

information on outgoing and incoming NAT, see pages 54 and 55.

To setup outgoing NAT, do the following:

1. From the Setup menu, choose General Setup. The General Setup dialog box appears.

2. Select the Enable Outcoming Network Address Translation check box. Click OK.

3. From the Setup menu, choose Outgoing Network Address Translation Setup.

4. The Outgoing Address Translation Setup dialog box appears (as shown on the next page).

SPEEDLAN TM

Note: Click Select to view the IP Mask List. Select the appropriate IP Mask and click OK.

6. Click OK.

7. After you have finished entering the appropriate information, click OK.

8. Now save the changes to the bridge or router. From the File menu, choose Save Config.

9. A message box appears informing you that the information will be saved to the bridge or router.

Click Ye s .

10. The Configurator confirms that the configuration has been saved. Click OK. Restart the computer.

Note: NAT is a useful tool that will be enabled the majority of the time on the client or satellite side

of the SPEEDLAN ISP or SPEEDLAN MP. It is rarely enabled on the base unit. NAT is also

useful to have private networks connected to public networks (i.e., the Internet) without needed a

public IP address for every node. By using only one pulbic IP address, NAT controls who in the

private network made a request to an address in the public network. This translates the IP

addresses from one side to another, hiding the private network from the public. This means that the

public will view only one public and valid IP address.

5. Enter the appropriate outgoing information:

•Public IP Address – This is the IP address for the outside network. If you have more than one

public address, you can assign it to node on a private network (One-to-One NAT). Therefore,

all requests for a particular IP address from the outside or public network will be translated to

the appropriate private IP address. This may be necessary if you have a server or workstation

(computer) that needs to be connected to a remote network.

•Private IP Address – This is the IP address for the inside or private network only, which hides

behind the Public IP address.

•Public IP Mask – This address assigns the Subnet mask to the Public (Ethernet) portion of the

SPEEDLAN unit.

•Private IP Mask - This address assigns the Subnet mask to the private network interface.

SPEEDLAN TM

To set up incoming IP network address for NAT, do the following:

1. From the Setup menu, choose General Setup. The General Setup dialog box appears.

2. Select the Enable Incoming Network Address Translation check box. Click OK.

3. From the Setup menu, choose Incoming Network Address Translation Setup.

4. The Incoming Address Translation Setup dialog box appears (as shown on the next page).

SPEEDLAN TM

5. Enter the appropriate incoming information:

•Public IP Address – This is the IP address for the outside network. If you have more than one

public address you can assign it to a node on the private network (One-to-One NAT).

Therefore, all requests for a particular IP address from the outside or public network will be

translated to the appropriate private IP address. This may be necessary if you have a server or

workstation (or computer) that needs to be connected to a remote network.

•Private IP Address – This is the IP address for the inside network only, which hides behind the

public IP address.

•Private IP Mask - This address assigns the Subnet mask to the private network interface.

Note: Click Select to view the IP Mask List. Select the appropriate IP Mask and click OK.
