WaveIP GAOFDM700-RSU Indoor Transmitter Unit User Manual Introduction
WaveIP Ltd. Indoor Transmitter Unit Introduction
WaveIP >
Users Manual
WaveIP Ltd. GigAccess™ OFDM 700 RSU
Pa
g
e 2 of 10
G
Gi
ig
gA
Ac
cc
ce
es
ss
s™
™
O
OF
FD
DM
M
7
70
00
0
R
RS
SU
U
I
In
ns
st
ta
al
ll
la
at
ti
io
on
n
a
an
nd
d
O
Op
pe
er
ra
at
ti
io
on
n
I
In
ns
st
tr
ru
uc
ct
ti
io
on
ns
s
January 2006
WaveIP Ltd.
P.O. Box 336
Yokneam 20692, Israel
Tel: 972-4-9937333
Fax: 972-4-9592614
Info@waveip.com
The information contained in this document is of commercial value,
proprietary to WaveIP. It is conveyed to the recipient solely for the
purpose of evaluation. Reproduction of this document, disclosure of its
contents or any other use of the information herein is strictly forbidden
unless expressly authorized in writing by WaveIP.
WaveIP Ltd. GigAccess™ OFDM 700 RSU
Pa
g
e 3 of 10
T
TA
AB
BL
LE
E
O
OF
F
C
CO
ON
NT
TE
EN
NT
TS
S
1. INTRODUCTION..................................................................................... 4
1.1 GENERAL.................................................................................................4
1.2 GIGACCESS™ OFDM SYSTEM OVERVIEW..........................................................4
2. INSTALLATION...................................................................................... 5
2.1 PACKING LIST...........................................................................................5
2.2 INSTALLATION PROCEDURE............................................................................6
2.2.1 General ..............................................................................................6
2.2.2 Before You Start..................................................................................6
2.2.3 Installation .........................................................................................7
2.2.4 Radio Channel Selection .......................................................................8
2.2.5 User PC Setup .....................................................................................8
2.2.6 Safety ................................................................................................8
2.3 FCC INFORMATION.....................................................................................9
3. GIGACCESS™ OFDM 700 RSU TECHNICAL SPECIFICATIONS................ 10
3.1 GENERAL SPECIFICATION............................................................................10
3.2 RESIDENTIAL SUBSCRIBER UNIT (RSU) ..........................................................10
3.3 RADIO SPECIFICATIONS..............................................................................10
T
TA
AB
BL
LE
E
O
OF
F
F
FI
IG
GU
UR
RE
ES
S
Figure 1-1: Typical sector in GigAccess™ OFDM System .........................................4
Figure 2-1: RSU package content ........................................................................5
Figure 2-2: GigAccess™ OFDM Self-install RSU......................................................6
Figure 2-3: GigAccess™ RSU - Installation Scheme................................................8
WaveIP Ltd. GigAccess™ OFDM 700 RSU
Pa
g
e 4 of 10
1
1.
.
I
In
nt
tr
ro
od
du
uc
ct
ti
io
on
n
1
1.
.1
1
G
Ge
en
ne
er
ra
al
l
This document describes how to install and use GigAccess™ OFDM 700 Residential
Subscriber Unit (RSU) to obtain wireless high-speed Internet access.
1
1.
.2
2
G
Gi
ig
gA
Ac
cc
ce
es
ss
s™
™
O
OF
FD
DM
M
S
Sy
ys
st
te
em
m
O
Ov
ve
er
rv
vi
ie
ew
w
GigAccess™ OFDM is a wireless point-to-point and point-to-multipoint broadband
communication system. The basic subsystem is composed of a single sector, which
consists of an Access Unit (AU) and up to 250 Subscriber Units (SU). Each sector is a
stand-alone communication network operating on a star topology with a gateway to
the WAN, which allows two-way communication between the SUs and the WAN via
the AU.

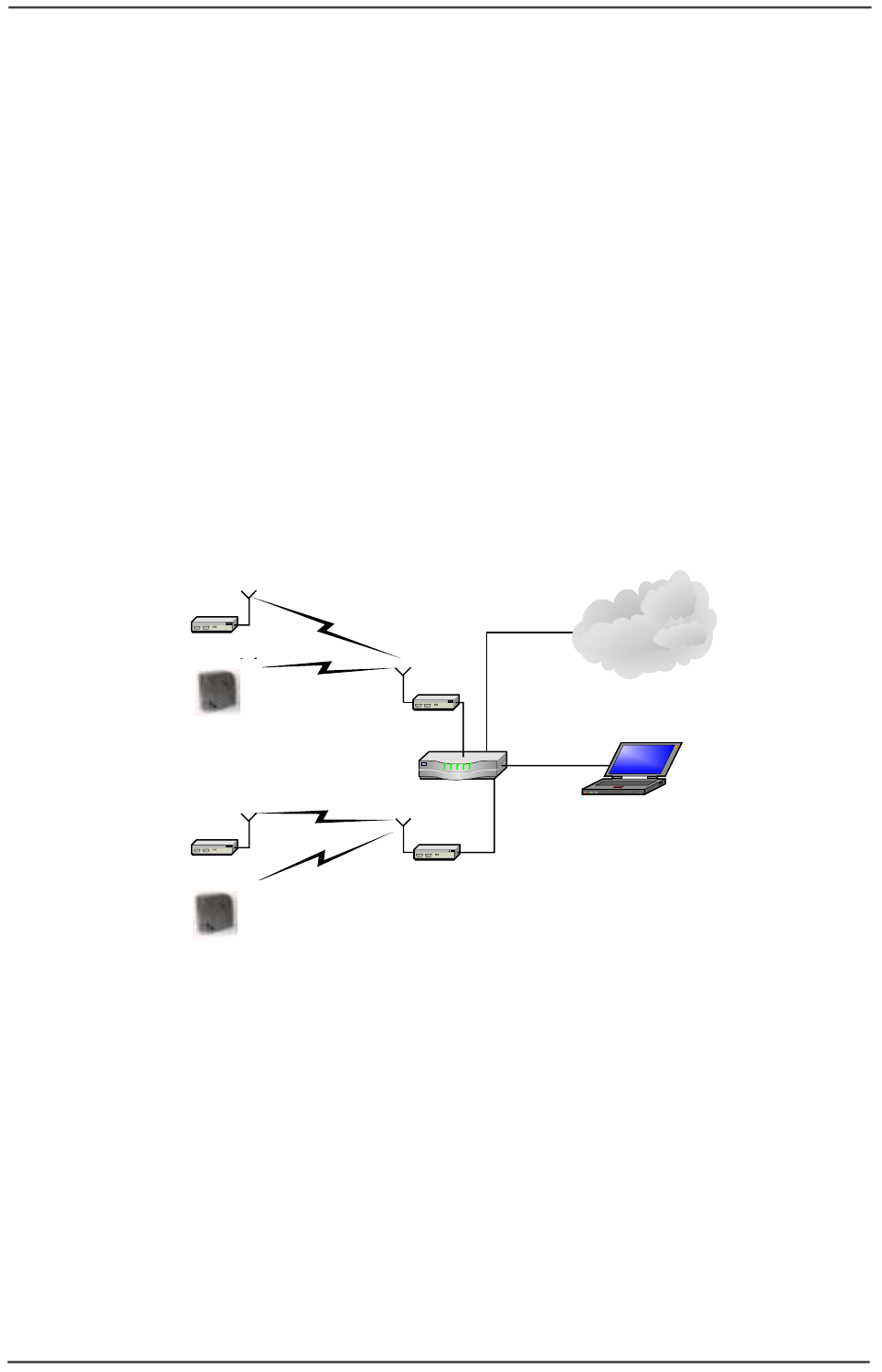

The following figure depicts a general description of a typical sector in the GigAccess™
OFDM system.
AU
AU
Switch/Router
SU
SU
SU
SU
Base Controller
(Option)
WAN
Figure 1-1: Typical sector in GigAccess™ OFDM System
RSU
RSU
WaveIP Ltd. GigAccess™ OFDM 700 RSU
Pa
g
e 5 of 10
2
2.
.
I
In
ns
st
ta
al
ll
la
at
ti
io
on
n
2
2.
.1
1
P
Pa
ac
ck
ki
in
ng
g
L
Li
is
st
t
When you first open the package, verify that the unit is complete with the following
components:
1. RSU Unit
2. Indoor Power Supply (AC input).
3. Quick start guide.
Quick Start
Guide
GigAccess RSU
Self-Install Residential
Subscriber Unit
End User Manual
Figure 2-1: RSU package content
3
2
1
WaveIP Ltd. GigAccess™ OFDM 700 RSU
Pa
g
e 6 of 10
2
2.
.2
2
I
In
ns
st
ta
al
ll
la
at
ti
io
on
n
P
Pr
ro
oc
ce
ed
du
ur
re
e
2
2.
.2
2.
.1
1
G
Ge
en
ne
er
ra
al
l
The RSU is a self-installed, plug and play unit, which requires minimum operation
from the user.

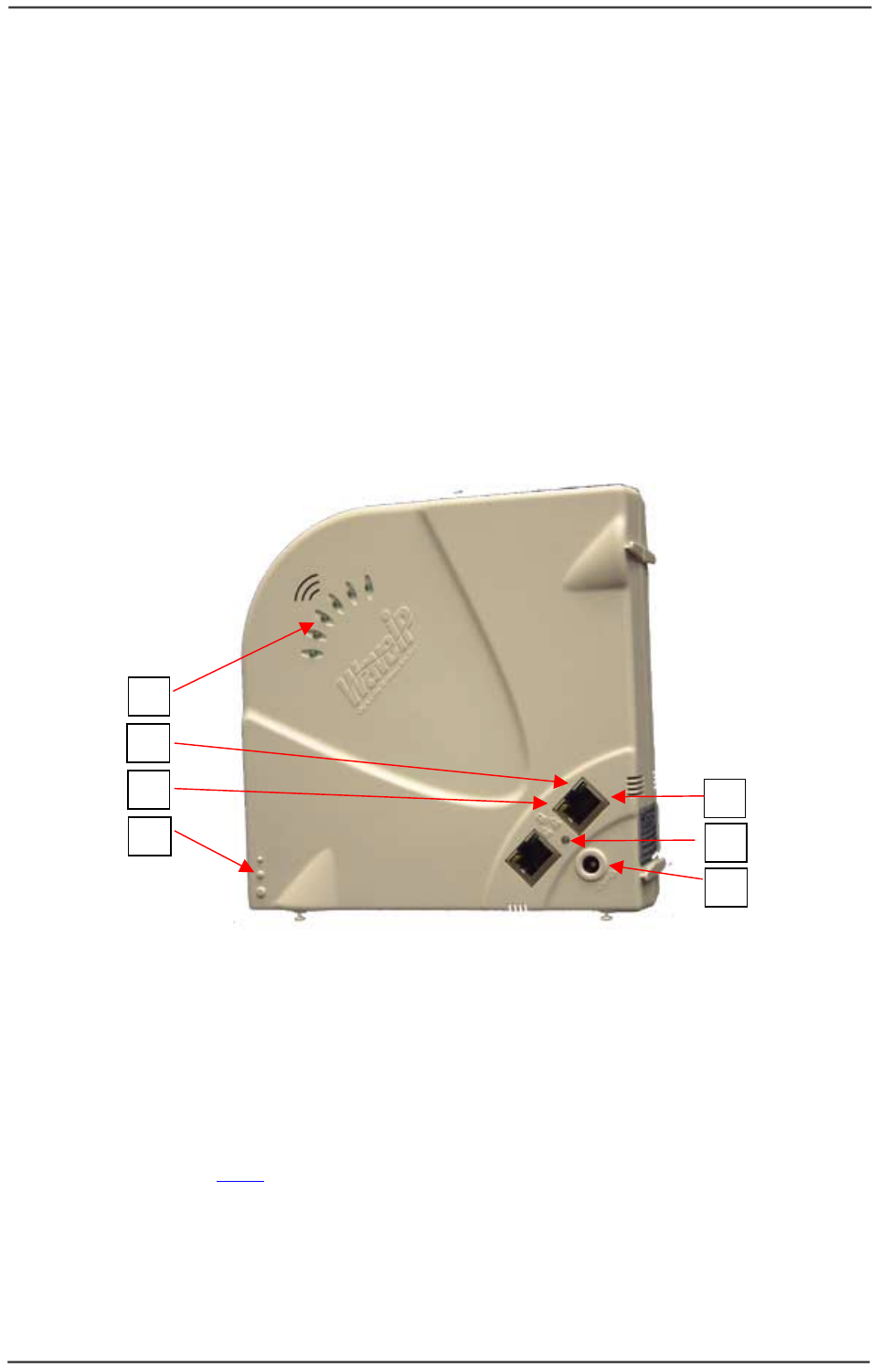

A description of the RSU is given in the figure below.
1. Polarization Indication
2. Air link led (Green)
3. ETH link led (Yellow)
4. Received Signal Indicator Lights
5. ETH Connector
6. Power led
7. DC Power Jack
Figure 2-2: GigAccess™ OFDM Self-install RSU
2
2.
.2
2.
.2
2
B
Be
ef
fo
or
re
e
Y
Yo
ou
u
S
St
ta
ar
rt
t
1) Make sure your computer is equipped with an Ethernet Network Interface
(NIC)
2) Make sure your computer is set up to automatically obtain an IP address (refer
to section 2.2.5 for more information).
3) Select the appropriate location for the RSU:
• Make sure you are operating the RSU in a room near an outside window.
• Locate the RSU in such a way that the antenna side will be directed
towards your service provider (AU direction).
1
4
7
6
5
3
2
WaveIP Ltd. GigAccess™ OFDM 700 RSU
Pa
g
e 7 of 10
• Obtain a clear line of site to the AU as much as possible - avoid any
physical obstacles, which may block the signal.
2
2.
.2
2.
.3
3
I
In
ns
st
ta
al
ll
la
at
ti
io
on
n
The installation process should follow the following steps:
1) Connect the CAT5 Ethernet cable from the RSU data port to your PC NIC. Note
that your RSU consists two Ethernet ports, so you can connect your PC to
either of them, or to connect two PCs; each PC to different Ethernet connector.
2) Connect the power supply to the AC wall socket and to the RSU DC power
port.
WARNING! Use only with the supplied Power Supply adapter
3) Align the RSU until you get the maximum receive signal from your service
provider. Best received indication when maximum “Received Power Indication
LEDs” are light. Check both vertical and horizontal polarization and select the
polarization that gives you the best receiving power. The RSU antenna
polarization must be the same as in the AU antenna. In most applications, the
preferred orientation is vertical polarization. (Above ground propagation of the
signal is better when it is polarized vertically).
4) The RSU will automatically acquire the radio channel of the AU.
• Verify that the Air link led flashes (green led on the Ethernet connector),
which indicated reception from the AU.
• Verify that the Ethernet link led light (yellow led on the Ethernet connector)
when the PC is connected. This led will flash in case of Ethernet data
transaction between the RSU and the PC.
Now you are ready to surf into the Internet.
WARNING! Do not put any obstacle in front antenna. A minimum separation distance
of 20 cm must be maintained between the device in operation and all persons.
WaveIP Ltd. GigAccess™ OFDM 700 RSU
Pa
g
e 8 of 10
AU Direction
Ethernet
Data Cable
CAT5
Power
Supply
100-240V AC
RSU

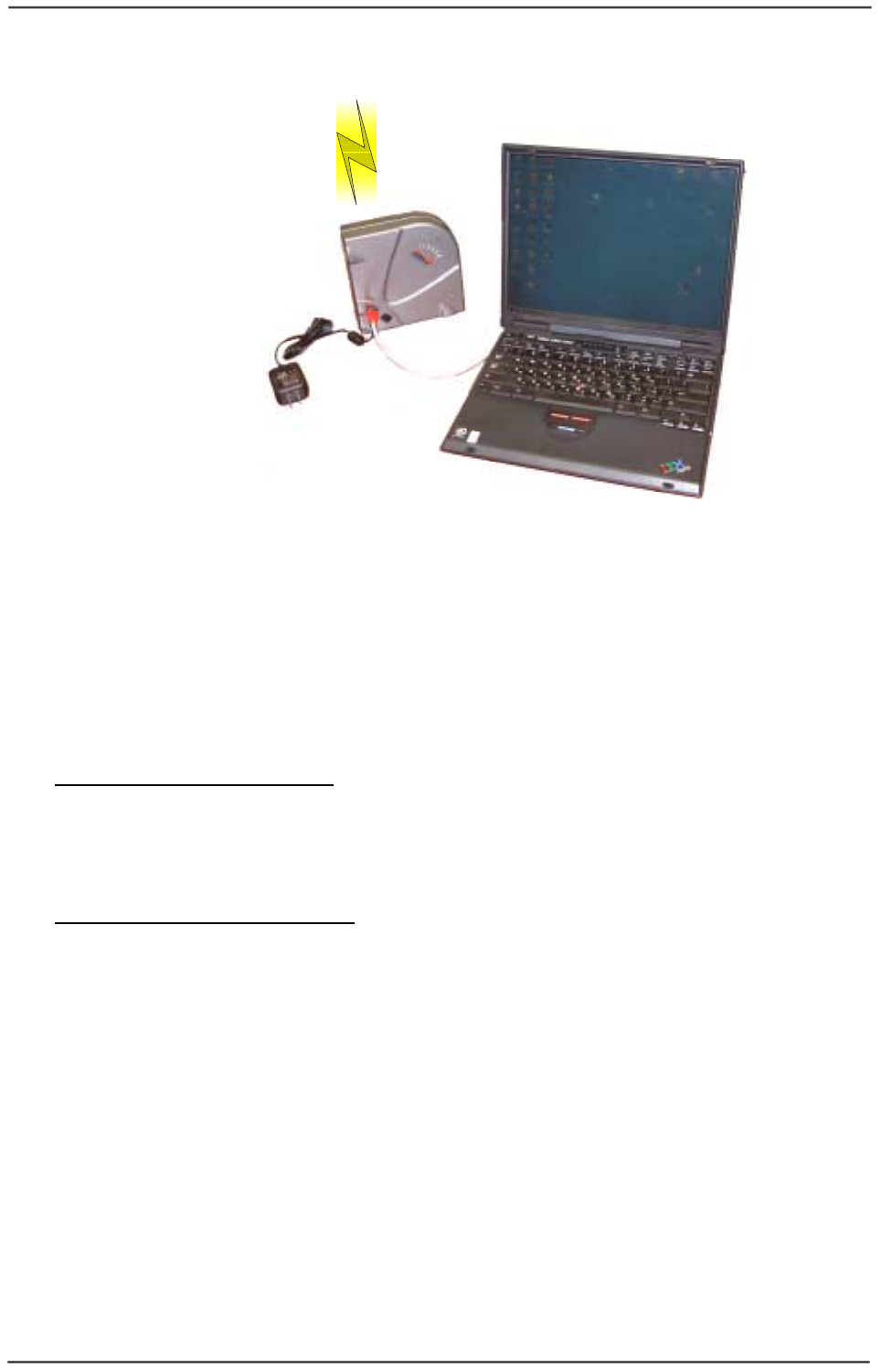

Figure 2-3: GigAccess™ RSU - Installation Scheme
2
2.
.2
2.
.4
4
R
Ra
ad
di
io
o
C
Ch
ha
an
nn
ne
el
l
S
Se
el
le
ec
ct
ti
io
on
n
The radio channel is defined at the AU side.
The RSU is pre-configured to scan all channels. Therefore it will acquire the AU
channel automatically.
2
2.
.2
2.
.5
5
U
Us
se
er
r
P
PC
C
S
Se
et
tu
up
p
In Case of specific IP setup – configuration the PC IP as followed:
• Press right click on the Network Neighborhood Icon.
• Select the Protocol reed and press properties.
• Choose the Specify an IP address and fill in the required specific IP address.
In Case of DHCP/NAT setup - Configure the PC NIC obtain an IP address from
DHCP server. For this configuration follow the following steps:
• Press right click on the Network Neighborhood Icon.
• Select the Protocol reed and press properties.
• Choose Obtain an IP address from DHCP server.
2
2.
.2
2.
.6
6
S
Sa
af
fe
et
ty
y
• Do not immerse the equipment in any type of liquid.
• Only operate the equipment from the power source(s) Supplied by
Manufacturer! Any other type of input power source may cause damage to the
equipment and voids the warranty.
• Do not place the equipment on an unstable surface.
• Do not disassemble the equipment. Removing covers voids the warranty.
• Do not expose the equipment to extreme hot or cold temperatures.
WaveIP Ltd. GigAccess™ OFDM 700 RSU
Pa
g
e 9 of 10
2
2.
.3
3
F
FC
CC
C
I
In
nf
fo
or
rm
ma
at
ti
io
on
n
Notice: This device has been tested and found to comply with Radio Frequency
Exposure Limits. A minimum separation distance of 20 cm must be maintained
between the device in operation and all persons.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
This device Complies With FCC Standards
FOR HOME OR OFFICE USE
FCC Notice, USA
This equipment has been tested and found to comply with the limits for Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient the relocate-receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device must accept any interference received including interference that may
cause undesired operation. Any unauthorized modification or changes to this device
without the express approval of WaveIP may void the user’s authority to operate this
device. Furthermore, this device intended to be used only when installed in
accordance with the instructions outlined in this manual. Failure to comply with these
instructions may also void the user’s authority to operate this device and/or the
manufacturer’s warranty.
WaveIP Ltd. GigAccess™ OFDM 700 RSU
Pa
g
e 10 of 10
3
3.
.
G
Gi
ig
gA
Ac
cc
ce
es
ss
s™
™
O
OF
FD
DM
M
7
70
00
0
R
RS
SU
U
T
Te
ec
ch
hn
ni
ic
ca
al
l
S
Sp
pe
ec
ci
if
fi
ic
ca
at
ti
io
on
ns
s
3
3.
.1
1
G
Ge
en
ne
er
ra
al
l
S
Sp
pe
ec
ci
if
fi
ic
ca
at
ti
io
on
n
Access technology TDMA (Time division multiple access)
Duplex schemes TDD (Time division duplex)
Wireless MAC Interface Proprietary based on IEEE 802.16
Applications Access, Campus, Consecutive
3
3.
.2
2
R
Re
es
si
id
de
en
nt
ti
ia
al
l
S
Su
ub
bs
sc
cr
ri
ib
be
er
r
U
Un
ni
it
t
(
(R
RS
SU
U)
)
Physical Interface 2 x 10/100 Base-T
Connector Type RJ-45
Protocol Supported IP, ICMP, TCP, UDP, RTP, ARP, FTP, TFTP,
DNS, HTTP, NAT, DHCP, PPPoE, RADIUS
AAA, VLAN 802.1q.
Packet classification Wire-speed based to information in layers
2, 3 and 4-7: MAC, IP, Protocol, Ports, TOS
and VLAN, payload
Output Power: (at antenna port) up to +25 dBm
Antenna 6 dBi
Software Update Over the Air Download via TFTP
Operating Temperature 0°C - +40°C
Power (via indoor Outlet) 3.3 VDC, <6 Watt
Mechanical 6.3" x 6.3" x 2"
3
3.
.3
3
R
Ra
ad
di
io
o
S
Sp
pe
ec
ci
if
fi
ic
ca
at
ti
io
on
ns
s
Operating Frequency 710 - 716 MHz and 740 - 746 MHz
RF Waveform Orthogonal Frequency Division Multiplexing
(OFDM).
Modulation BPSK, QPSK, 16QAM
EIRP +31 dBm
Number of Channels 2
Antenna Polarization Vertical or Horizontal
Data Rates up to 9 Mbps
