WaveLynx Technologies WLTC-DHMM-1M26 13.56 MHz RF reader, 13.56 MHz RF reader with Bluetooth communication capability. User Manual

WaveLynx Technologies Corporation 13.56 MHz RF reader, 13.56 MHz RF reader with Bluetooth communication capability. Users Manual

Contents

Users Manual

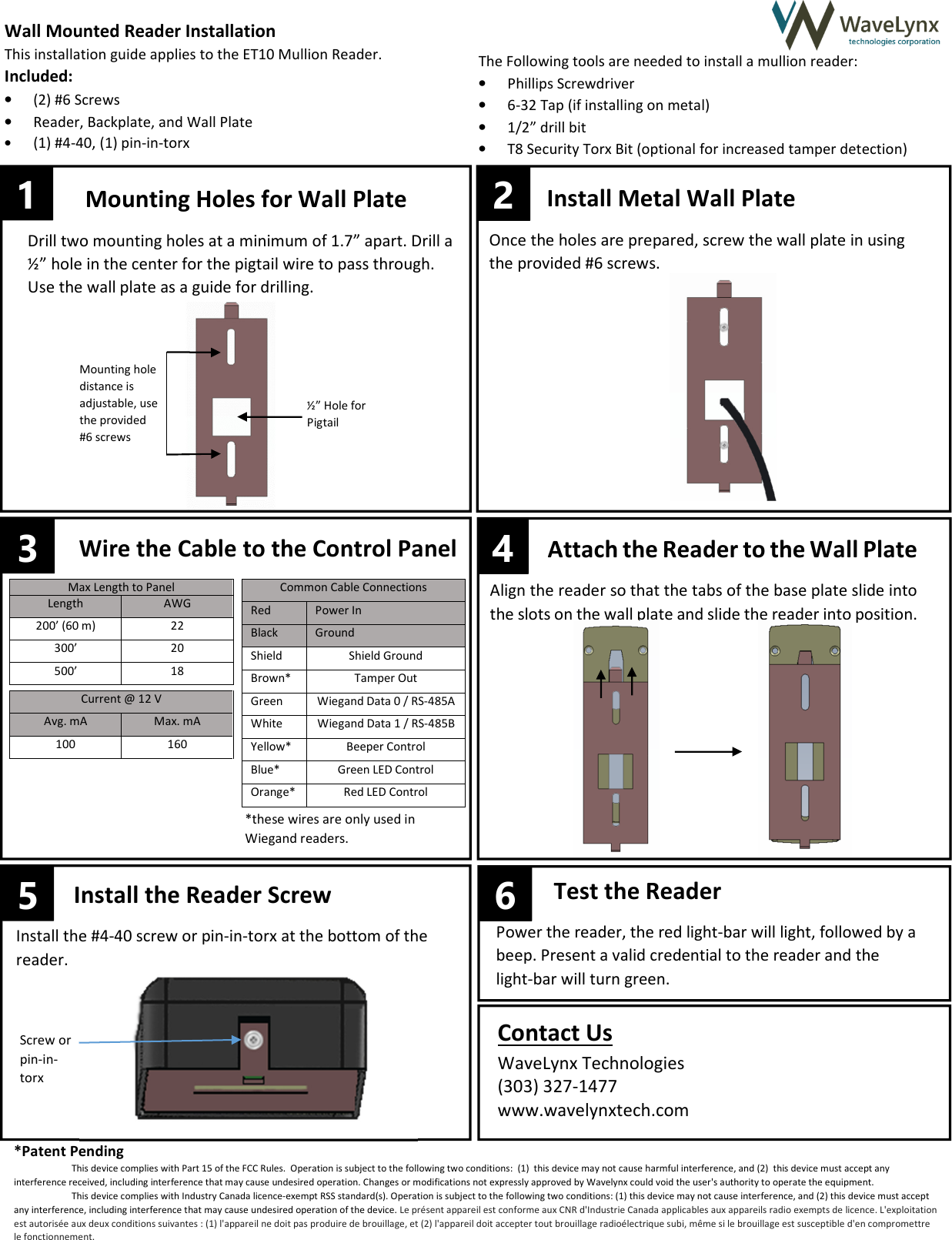

5 –– Max Length to Panel Length AWG 200’ (60 m) 22 300’ 20 500’ 18 Common Cable Connections Red Power In Black Ground Shield Shield Ground Brown* Tamper Out Green Wiegand Data 0 / RS-485A White Wiegand Data 1 / RS-485B Yellow* Beeper Control Blue* Green LED Control Orange* Red LED Control Current @ 12 V Avg. mA Max. mA 100 160 Install the Reader Screw Install the #4-40 screw or pin-in-torx at the bottom of the reader. Test the Reader Power the reader, the red light-bar will light, followed by a beep. Present a valid credential to the reader and the light-bar will turn green. Attach the Reader to the Wall Plate Align the reader so that the tabs of the base plate slide into the slots on the wall plate and slide the reader into position. Wall Mounted Reader Installation This installation guide applies to the ET10 Mullion Reader. Included: • (2) #6 Screws • Reader, Backplate, and Wall Plate • (1) #4-40, (1) pin-in-torx The Following tools are needed to install a mullion reader: • Phillips Screwdriver • 6-32 Tap (if installing on metal) • 1/2” drill bit • T8 Security Torx Bit (optional for increased tamper detection) Mounting Holes for Wall Plate Drill two mounting holes at a minimum of 1.7” apart. Drill a ½” hole in the center for the pigtail wire to pass through. Use the wall plate as a guide for drilling. 3 Wire the Cable to the Control Panel *these wires are only used in Wiegand readers. 4 6 1 2 Install Metal Wall Plate Once the holes are prepared, screw the wall plate in using the provided #6 screws. Mounting hole distance is adjustable, use the provided #6 screws ½” Hole for Pigtail Screw or pin-in-torx Contact Us WaveLynx Technologies (303) 327-1477 www.wavelynxtech.com *Patent Pending This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Wavelynx could void the user's authority to operate the equipment. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
