WaveMark Document 97-0009 Rev B
WaveMark SmartWand SW1500 RFID/Barcode Reader

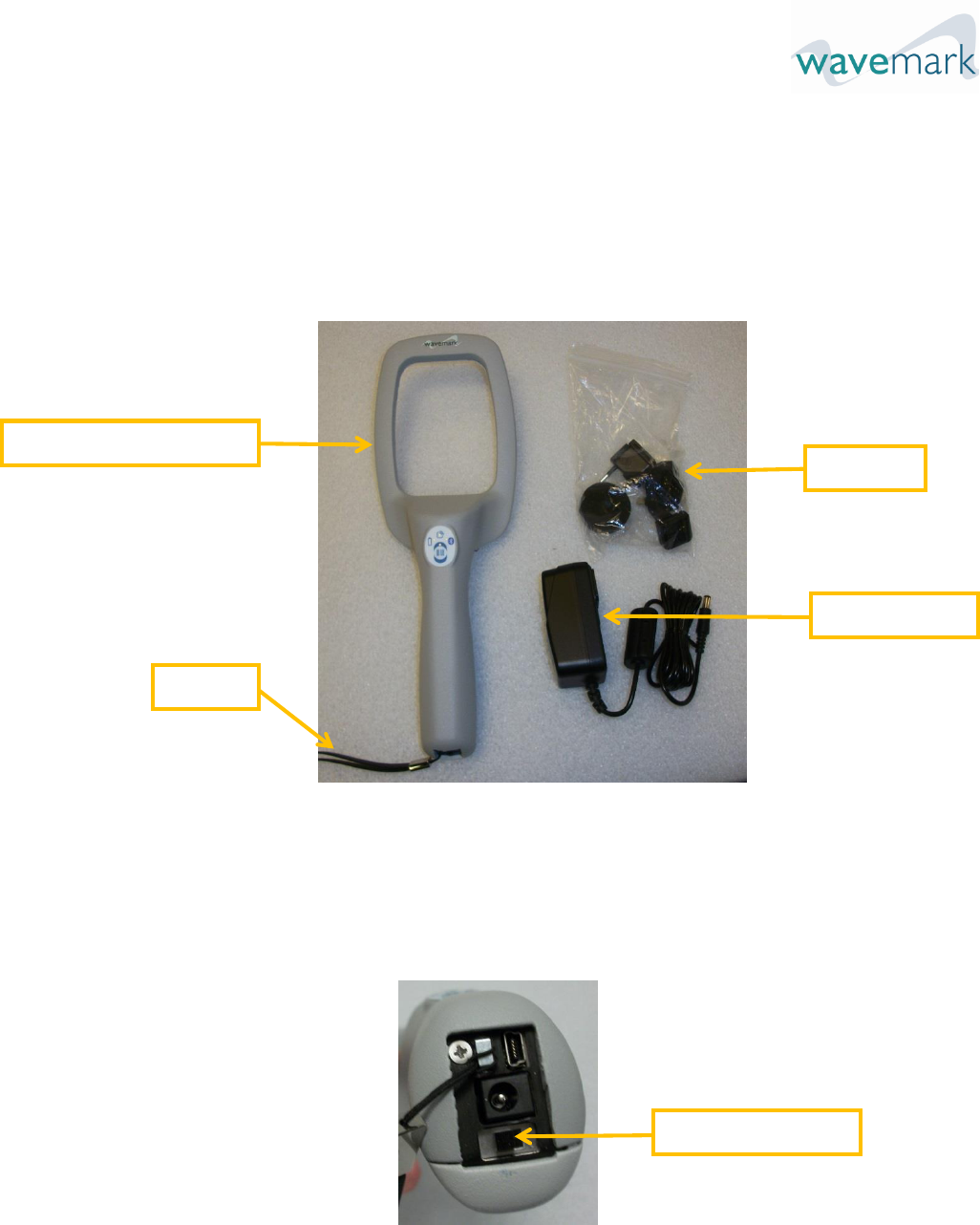

The WaveMark SmartWand SW1500 Portable RFID/Barcode Reader Kit comprises the following
components:
1. WaveMark SmartWand (WaveMark 01-0029-R)
2. Power Supply/charger (WaveMark 90-0094-R)
3. International Plug kit for Power Supply (WaveMark 90-0095-R)
4. Tether strap (WaveMark 90-0096-R)
5. Software (please see your WaveMark representative for appropriate software applications)
The WaveMark SmartWand is a battery-operated RFID/Barcode reader and is equipped with a
rechargeable battery pack that is capable of running the reader for one 8-hour shift (50% RFID
duty-cycle) on a full charge. The battery pack is based upon Lithium Ion cells, nominally 7.4VDC.
The SmartWand battery pack is shipped to the customer pre-installed in the WaveMark
SmartWand and is partially charged when shipped.
The WaveMark SmartWand has a power slide switch on the back.
WaveMark SmartWand
Power Supply
Tether
Plug Kit
Power slide switch
![](/img.php?id=2074194&img=bg2.png)
WaveMark Document 97-0009 Rev B
When the switch is in the left position, the WaveMark SmartWand is off. Slide the switch to the
right to turn it on. A green or orange power light on the control panel will light if the device is on:
Steady Green power light: WaveMark SmartWand is charged to over 50%.
Steady Orange power light: WaveMark SmartWand is charged to between 20% and 50%.
Flashing Orange power light: WaveMark SmartWand is operating on low charge (less than
20%).

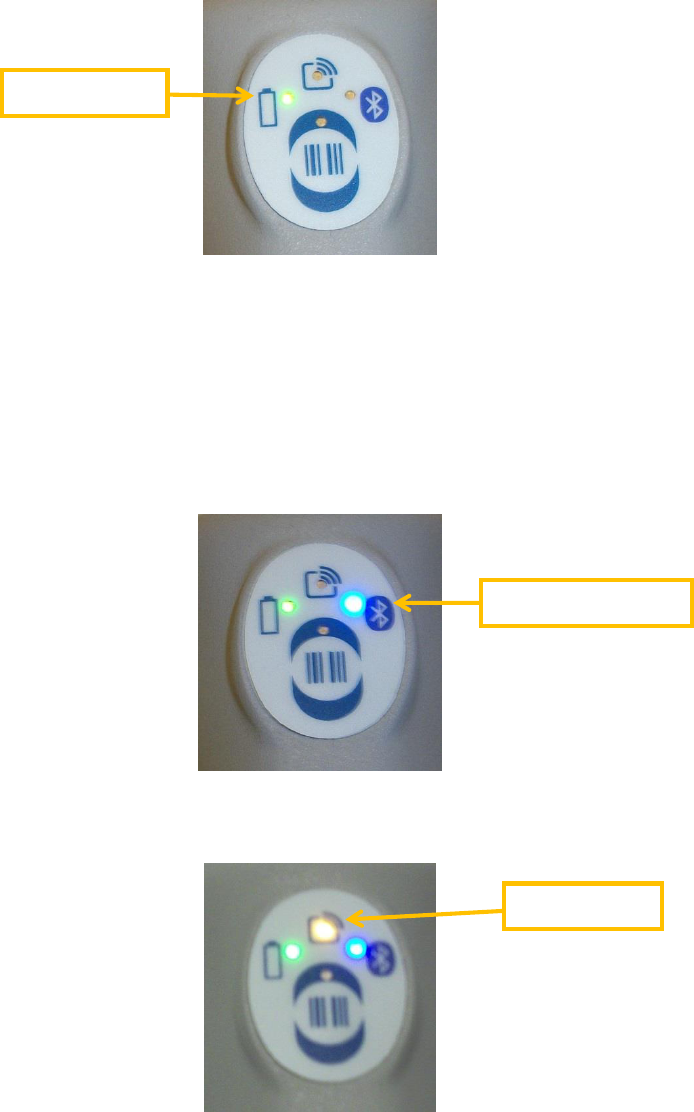

The control panel has 3 other lights:
Bluetooth® blue light (solid blue when device is paired to a host, brief flash when
communication to host is in process).
Yellow RFID light (solid yellow when RFID reader function is operational and seeking RFID
tags, brief flash when RFID tags are read).
Power Light
Bluetooth® Light
RFID Light
![](/img.php?id=2074194&img=bg3.png)
WaveMark Document 97-0009 Rev B

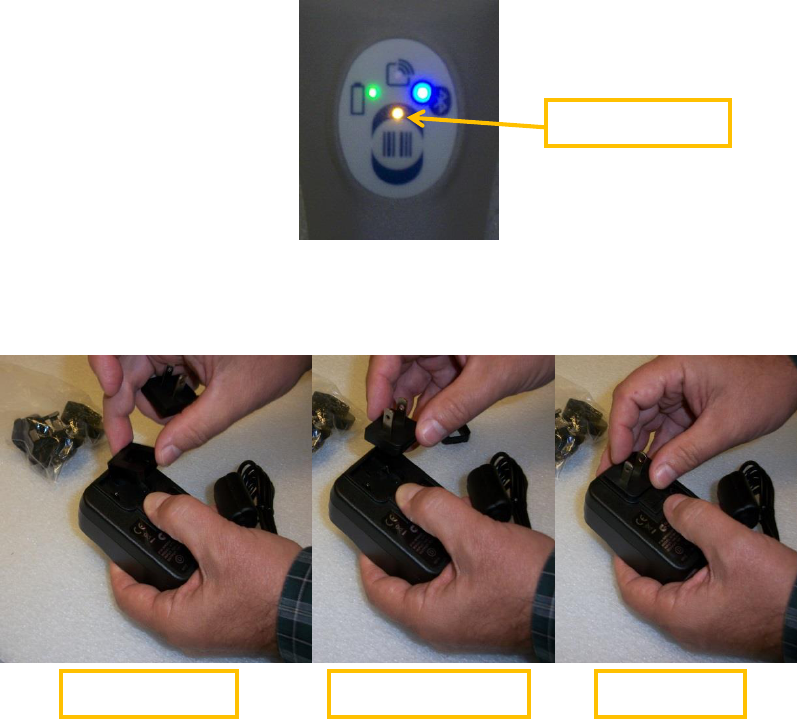

Yellow Barcode light (solid yellow when Barcode function is operational; in this state, the
Barcode button can be used to read a Barcode. When the yellow light is not lit, this button
performs no function).
Use only the charger that is supplied with the WaveMark SmartWand (WaveMark part number 90-
0094-R charger and 90-0095-R international plug kit). Select the plug that is appropriate for the
electrical receptacles in your area.
The WaveMark SmartWand should be charged with the power slide switch in the off (left) position.
When charging, the power light will be flashing green. When fully charged, the power light will be
solid green. Do not use the WaveMark SmartWand to read RFID tags or Barcodes while it is
charging. A full charge will take approximately 6 hours, but shorter charging cycles will provide a
partial charge. It is OK to leave the charger connected to the WaveMark SmartWand for extended
periods of time, as long as the power switch is “off”. The charger is a multi-stage “smart” charger
designed to sense the condition of the battery and provide protection against over- and under-
charging.
Barcode Light
Install Plug
Select Plug Style
Remove Filler
![](/img.php?id=2074194&img=bg4.png)
WaveMark Document 97-0009 Rev B

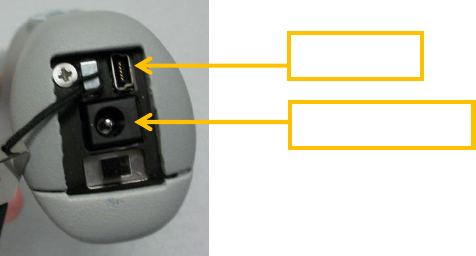

The WaveMark SmartWand has a USB-mini-B port adjacent to the charging port. This USB port is
not currently supported for any user accessible purpose. It also will not successfully charge the
battery in the WaveMark SmartWand. Do not plug a USB cable into this port.
When you are ready to use the WaveMark SmartWand to read RFID tags or Barcodes, disconnect
the charger, slide the power switch to the “on” position, and follow the instructions of the Host
software application that you are using.
The SmartWand battery pack is customer replaceable. This should only be necessary after
approximately 300 charging cycles when the operating time is no longer sufficient. Use only
battery packs that are supplied by WaveMark (part number 04-0098-R). Replacement instructions
are supplied with the purchase of a spare battery.
Charging port
USB port
![](/img.php?id=2074194&img=bg5.png)
WaveMark Document 97-0009 Rev B
Specifications
Length: 333 mm
Width: 115 mm
Height: 76 mm
Weight: 400 grams
Operating Temperature Range: 0 degrees C to +40 degrees C
Charging Voltage: 12 V DC nominal
Charging Current: 0.5 A Max
RFID Tag Types Supported: HF, ISO 15693, 13.56 MHz
Maximum Read Speed: 50 RFID tags/second
Bluetooth: Smart Ready, Bluetooth® 4.0
Maximum Bluetooth Pairing Range: 50 meters

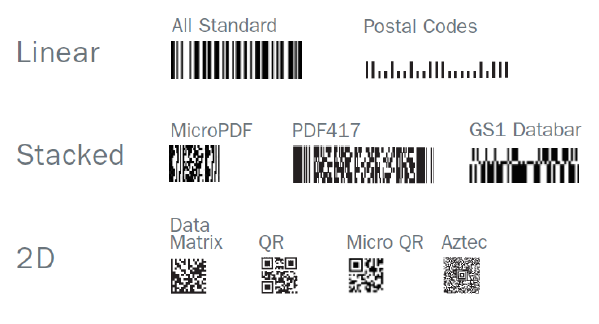

Barcode Reader: 1-D + 2-D Imager
WaveMark Document 97-0009 Rev B
Notice of FCC Compliance
FCC ID UQY-SW1500
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
Changes or modifications not expressly approved by WaveMark, Inc. could void the user’s authority to
operate the equipment.
Warning! FCC Radiation Exposure Statement:
This portable equipment with its antenna complies with the FCC’s RF radiation exposure limits set forth for
an uncontrolled environment. To maintain compliance follow the instructions below:
1) This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
2) Avoid direct contact to the antenna, or keep contact to a minimum while using this equipment.
FCC Compliance statement for Bluetooth® Radio:
This device contains FCC ID: PVH0946
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions;
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
Bluetooth® QDID: B018179
Safety
This product must only be serviced by WaveMark trained service personnel.
Barcode LED Safety: EN 60825-1:1994+A1+A2 Class 1
[Add Lithium Ion battery safety notices]
Statement of Compliance
This device meets RoHS directive requirements.
