Dualwave-I
Wireless Modem
User Manual
Revision 3.2
July 2003
© Wavenet Technology Pty Ltd
ACN 079 965 003
Publication No. DWI10012WT32
Published July 2003
This publication is copyright and no part may be reproduced or copied without the prior consent of:
Wavenet Technology Pty Ltd.
140 Burswood Rd
Burswood, 6100
Western Australia
Telephone: +61 8 9262 0200
Facsimile: +61 8 9355 5622
E-mail: wavenet@wavenet.com.au
Web Site: www.wavenet.com.au
This manual is intended to be used for the operation of Wavenet Technology equipment. Performance
figures quoted are typical values and subject to normal manufacturing and service tolerances.
Wavenet Technology Pty Ltd reserves the right to alter, without notice, the equipment, software or
specification to meet technological advancement.
COMPAQ and the Compaq logo are registered in the U.S. Patent and Trademark Office. iPAQ is a
trademark of Compaq Information Technologies Group, LP. Microsoft, ActiveSync, Windows and the
Windows logo are registered trademarks or trademarks of Microsoft Corporation in the United States
and other countries. Other product and company names herein may be the trademarks of their
respective owners.
Whilst every precaution has been taken in the preparation of this document, neither Wavenet
Technology Pty Ltd nor any of its representatives shall have any liability to any person or entity with
respect to any liability, loss or damage caused or alleged to be caused directly or indirectly by the
information contained in this document.
Published by Wavenet Technology Pty Ltd.
This device has not been authorized as required by the rules of the Federal Communications
Commission (FCC). This device is not, and may not be, offered for sale or lease, or sold or
leased within the USA, until authorization is obtained.
This product contains a transmitter approved under the FCC rules.
FCC ID:PQS-DWI800D
This device complies with Part 15 of the FCC rules.. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received including interference that may cause undesired
operation.
This product is approved under Industry Canada (IC) RSS119 rules.
IC: 4062A-DWI800D
Dualwave-I Modem User Manual ___________________________________________________________ Contents
DWI10012WT31 3 Wavenet Technology
Contents
Introduction ......................................................................................................5
Modem Features ..........................................................................................6
Compliance Statement .................................................................................7
Information for Your Safety...........................................................................7
System Requirements ..................................................................................9
Checking the Package Contents ..................................................................9
Exploring Your Dualwave-I Modem ............................................................10

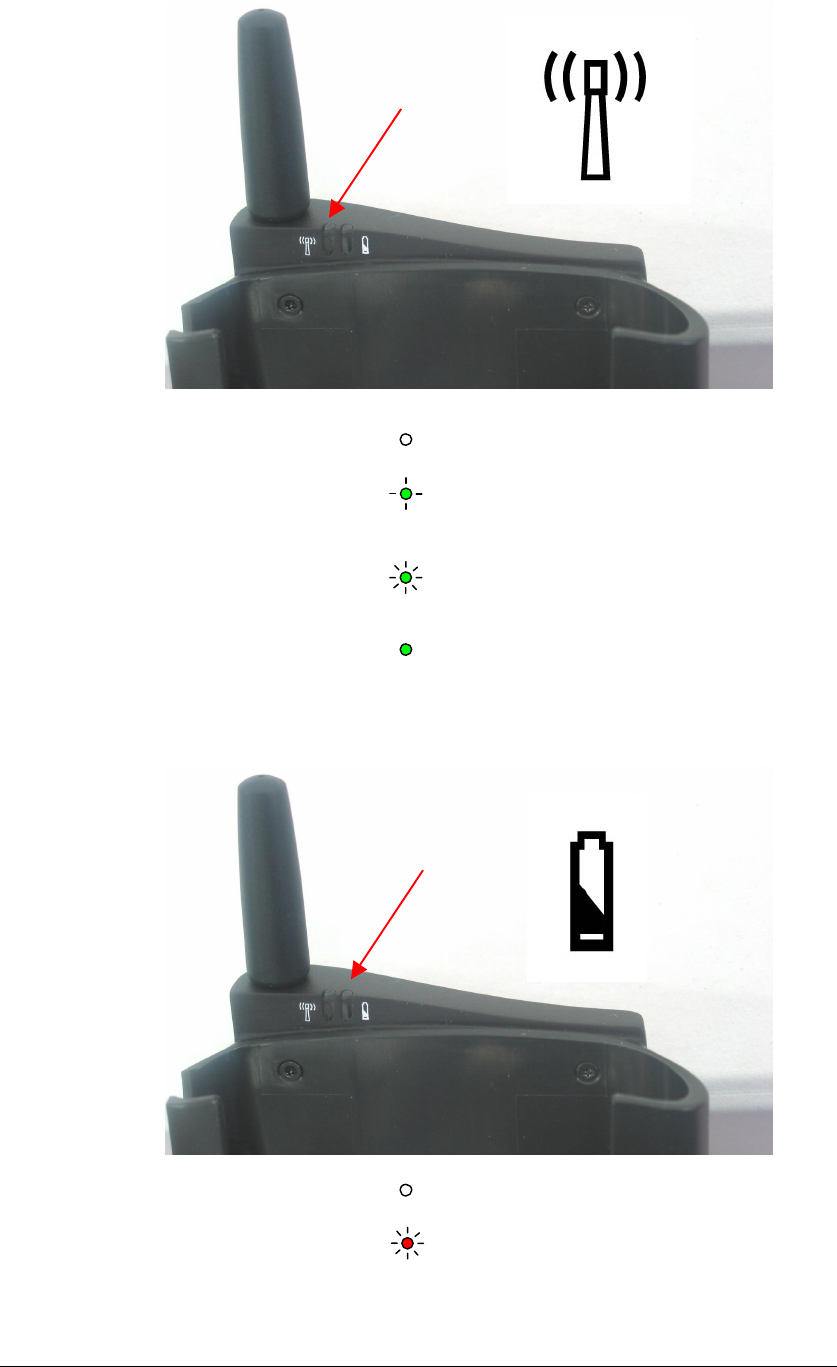

Power/On-Line Indicator .........................................................................11
Low Battery Indicator ..............................................................................11

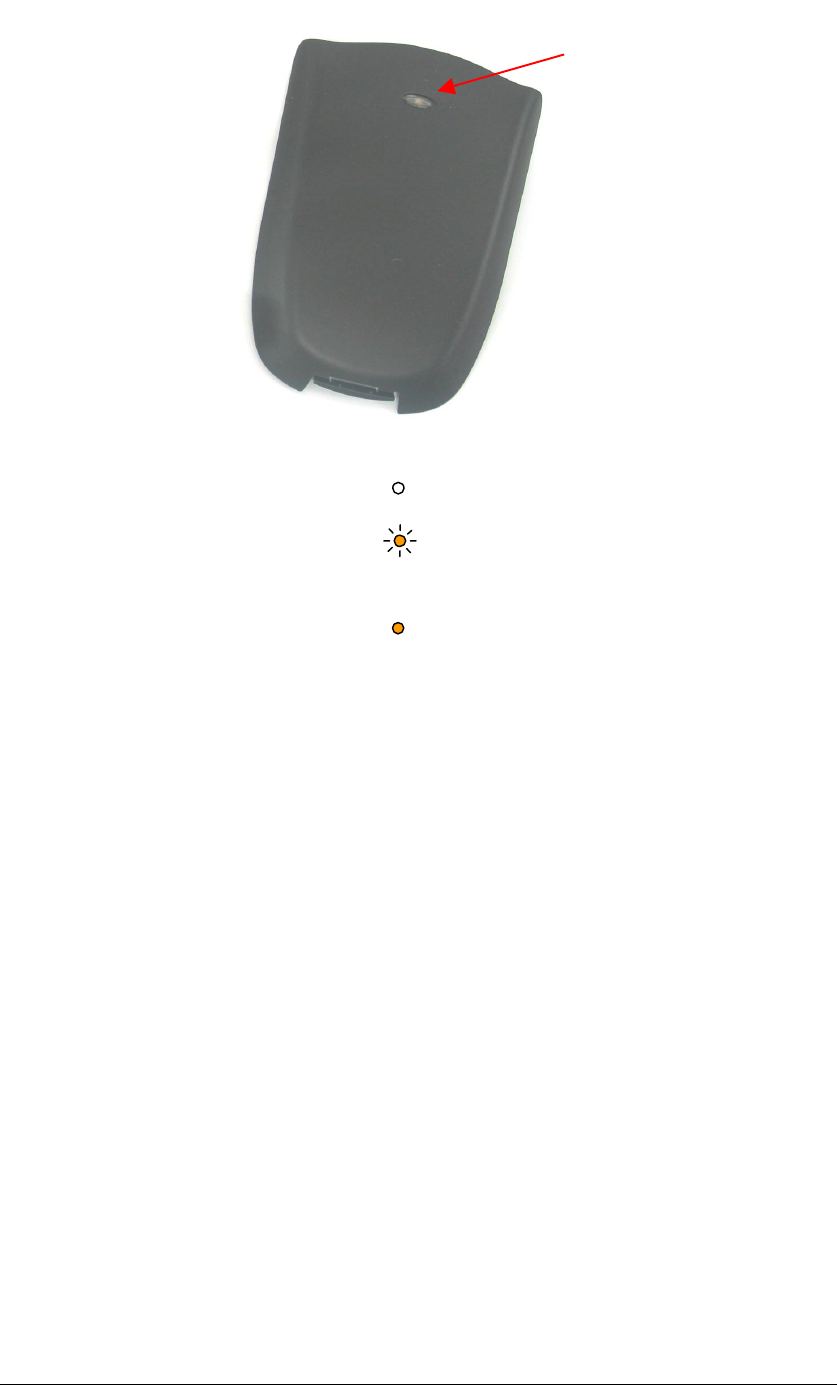

Battery Charging Indicator ......................................................................12
Getting Started...............................................................................................13
Setting up the Modem and iPAQ ................................................................13
Dualwave-I Modem Software Overview .....................................................13
DWiUART.ppc30_arm.CAB....................................................................13
DWiVDD.ppc30_arm.CAB ......................................................................13

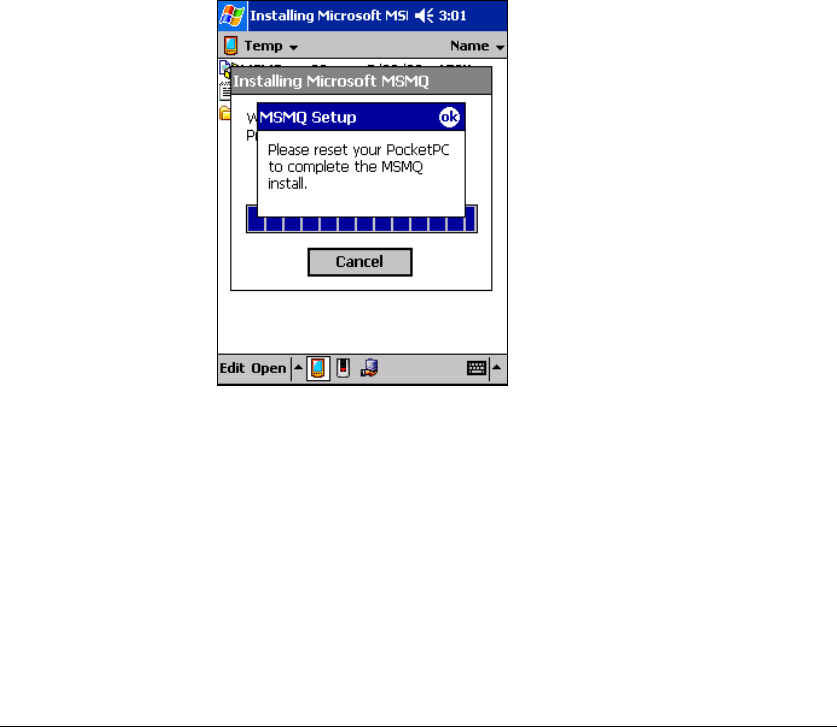

MSMQ.ppc30_arm.CAB .........................................................................14

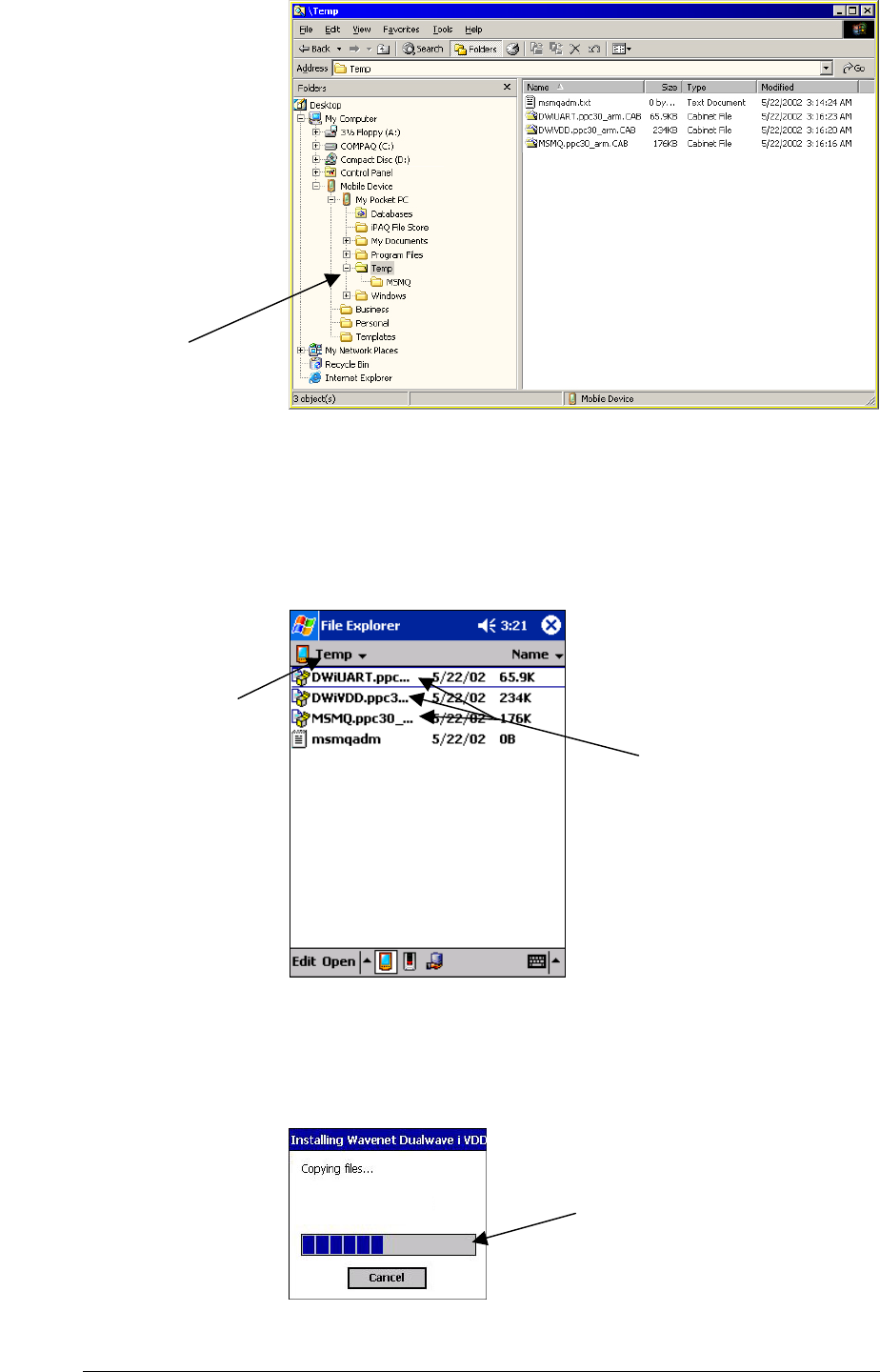

Installing the Modem Software ...................................................................14

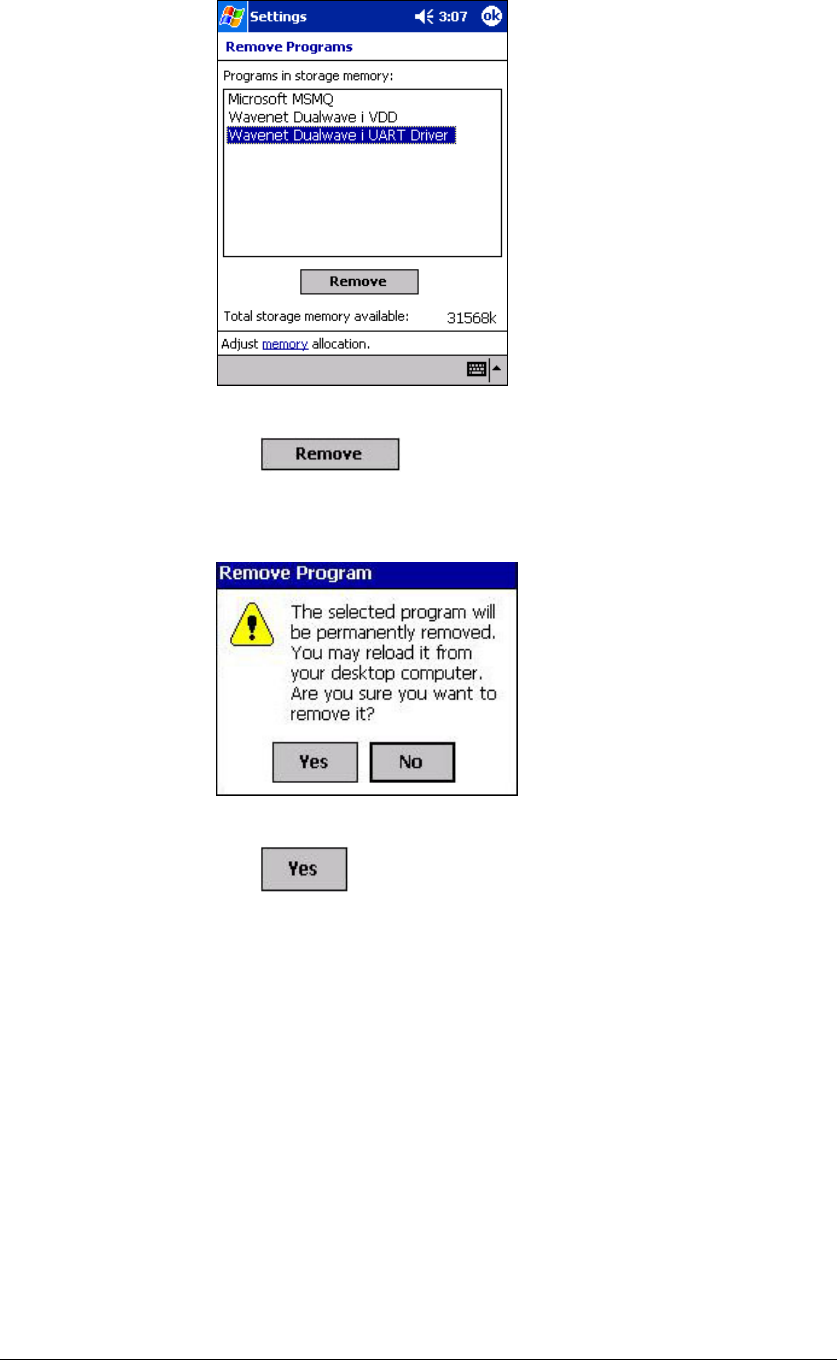

Removing Software From Your iPAQ .....................................................17

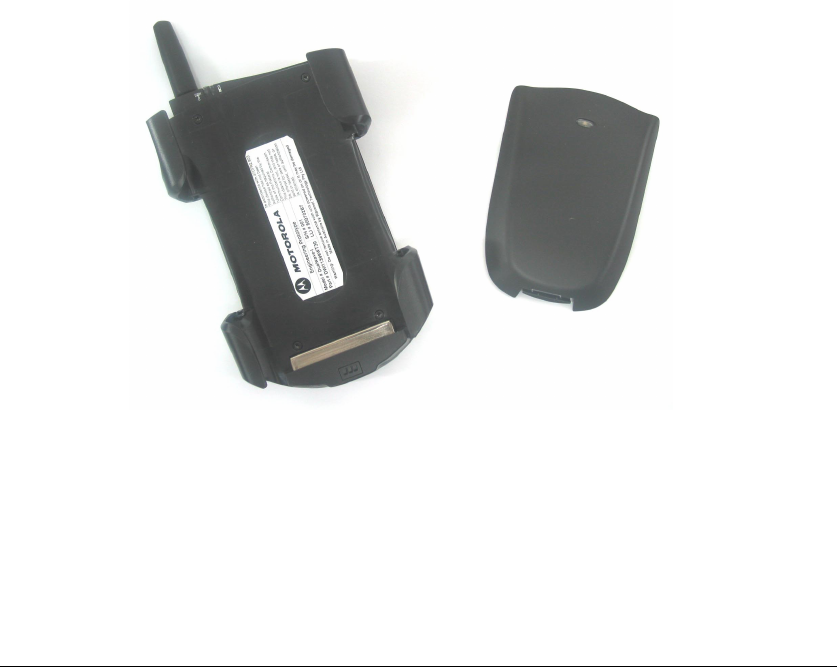

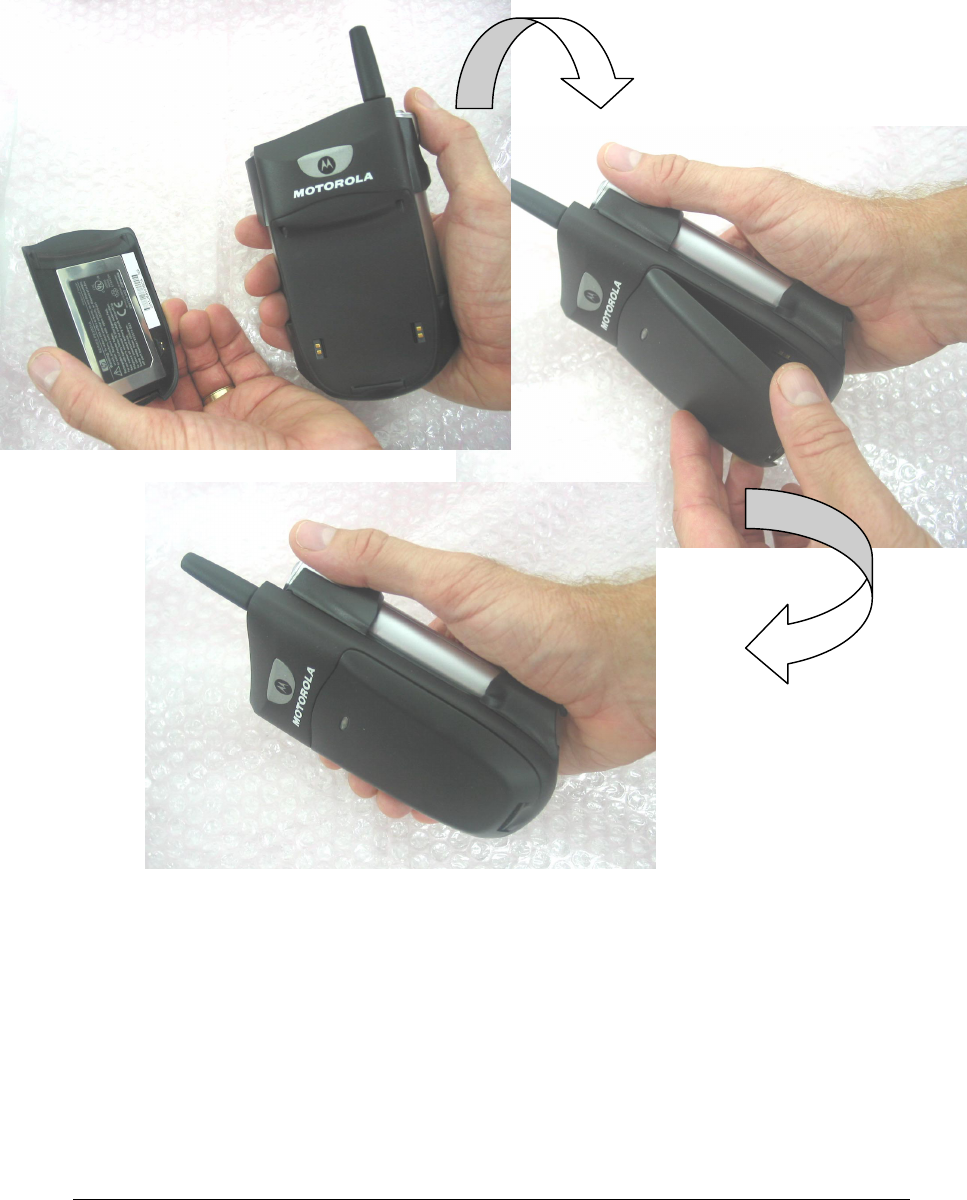

Fitting the external battery to the modem ...................................................19

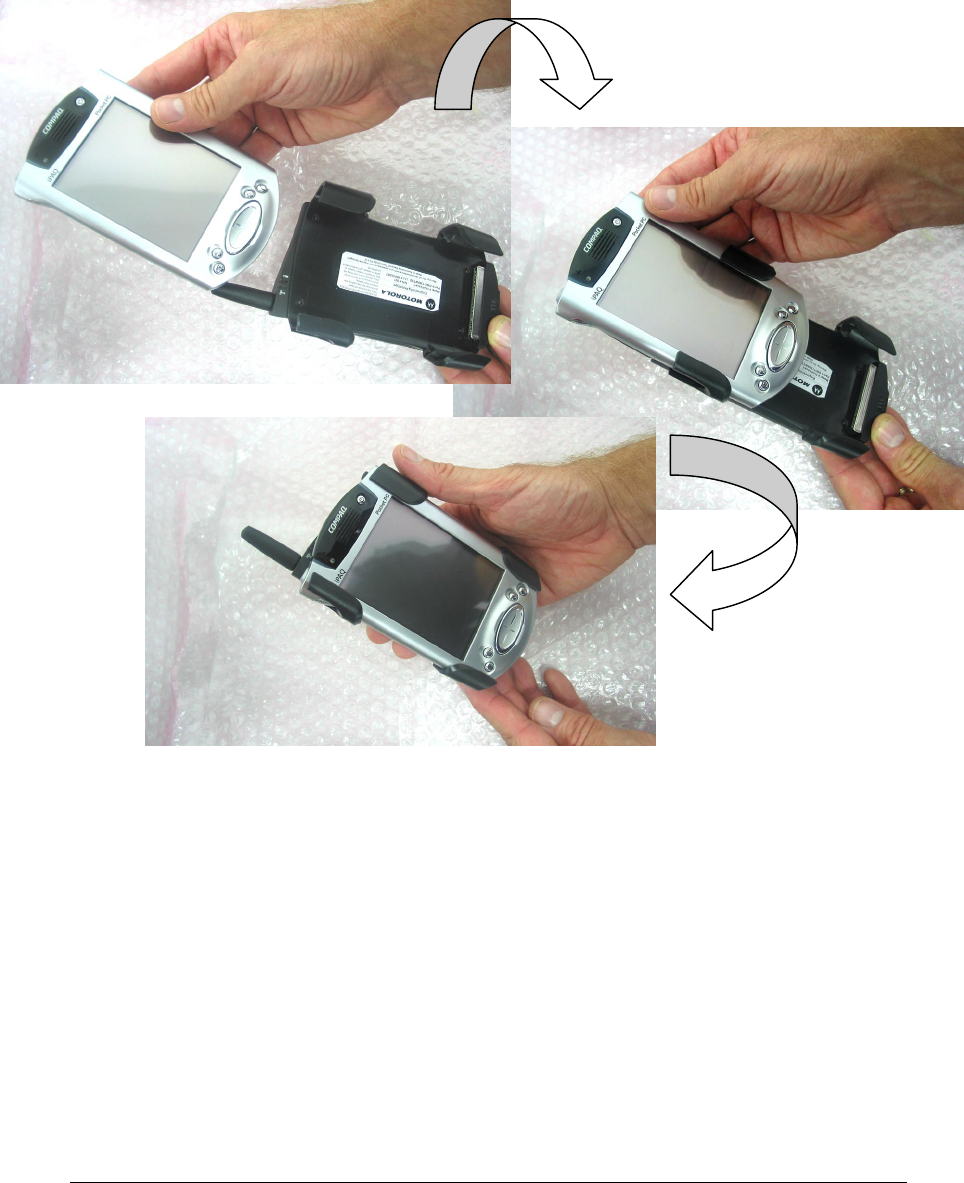

Engaging the iPAQ with the modem...........................................................20
Removing the Dualwave-I Modem..........................................................20
Charging the Modem Battery......................................................................21
Using Your Dualwave-I Modem .....................................................................23
Switching the Modem On/Off......................................................................23
Using the Modem Info Application..............................................................23

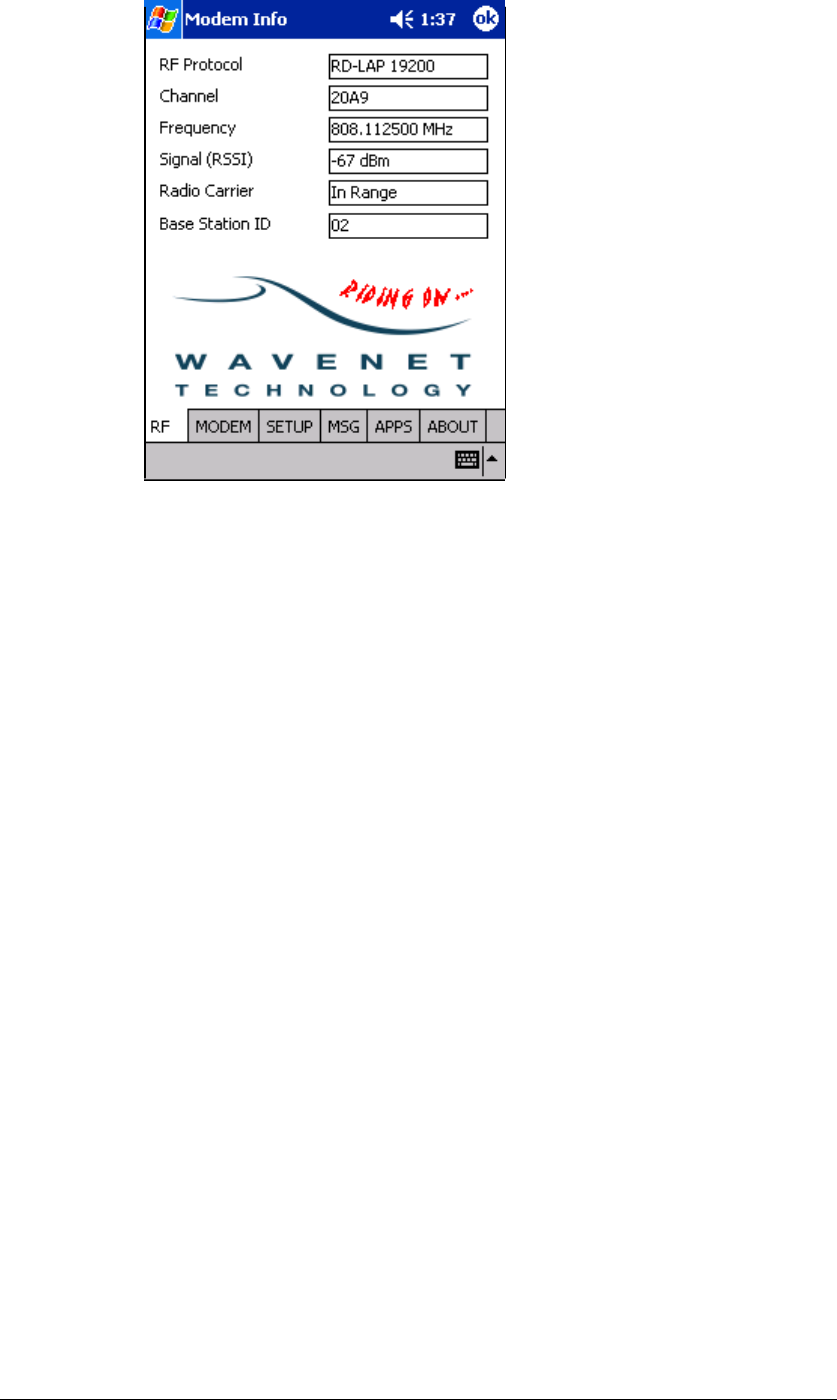

RF (Network Status) Tab ........................................................................24

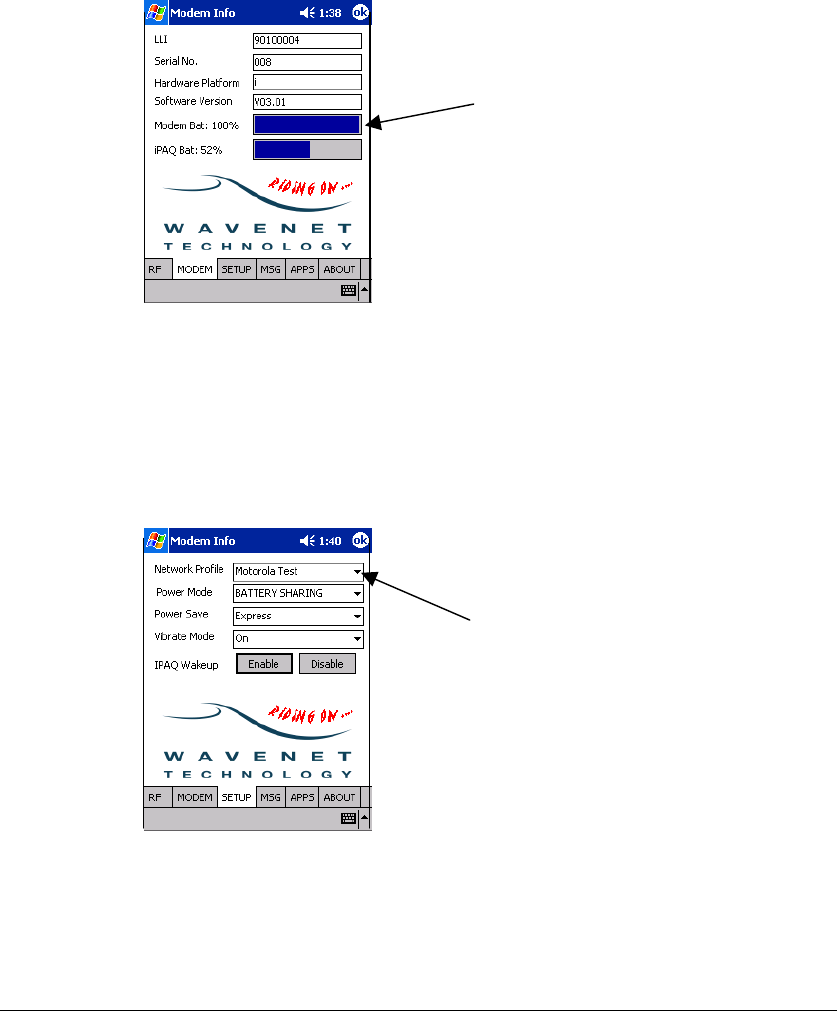

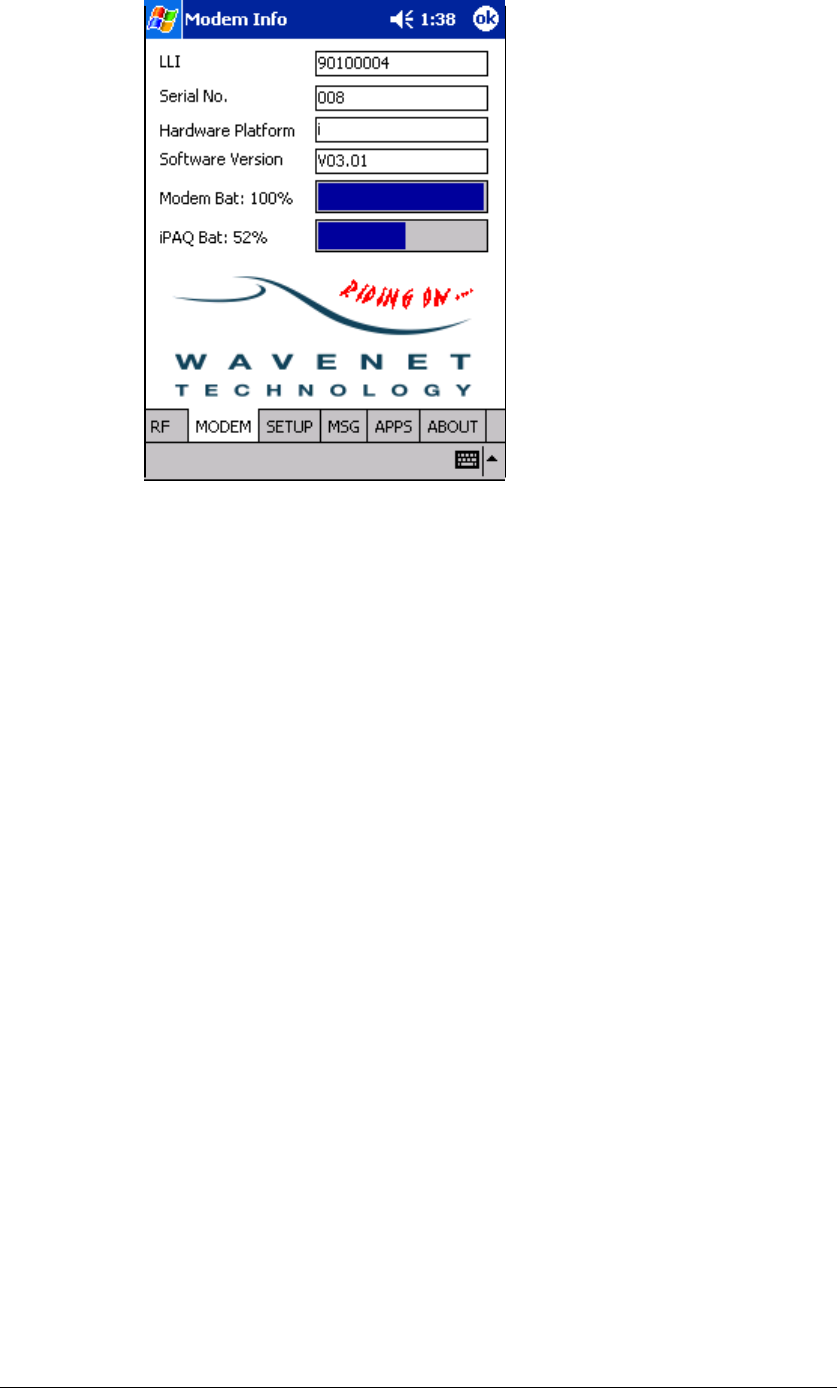

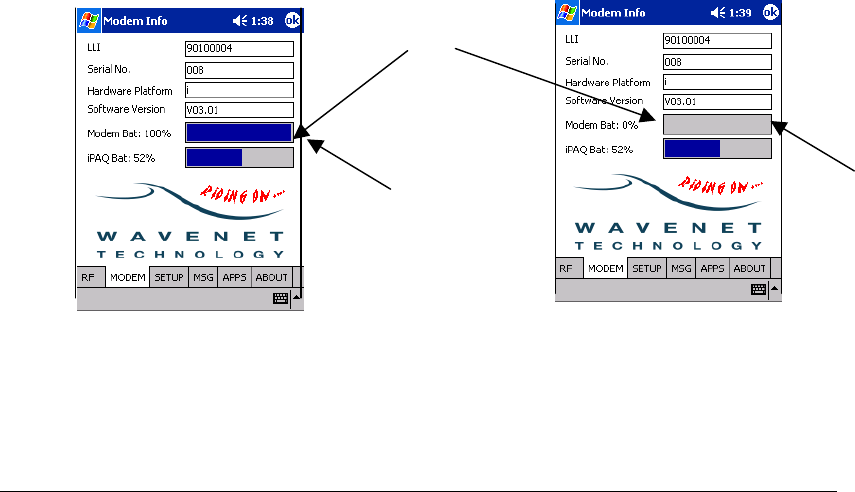

Modem (Status) Tab ...............................................................................25

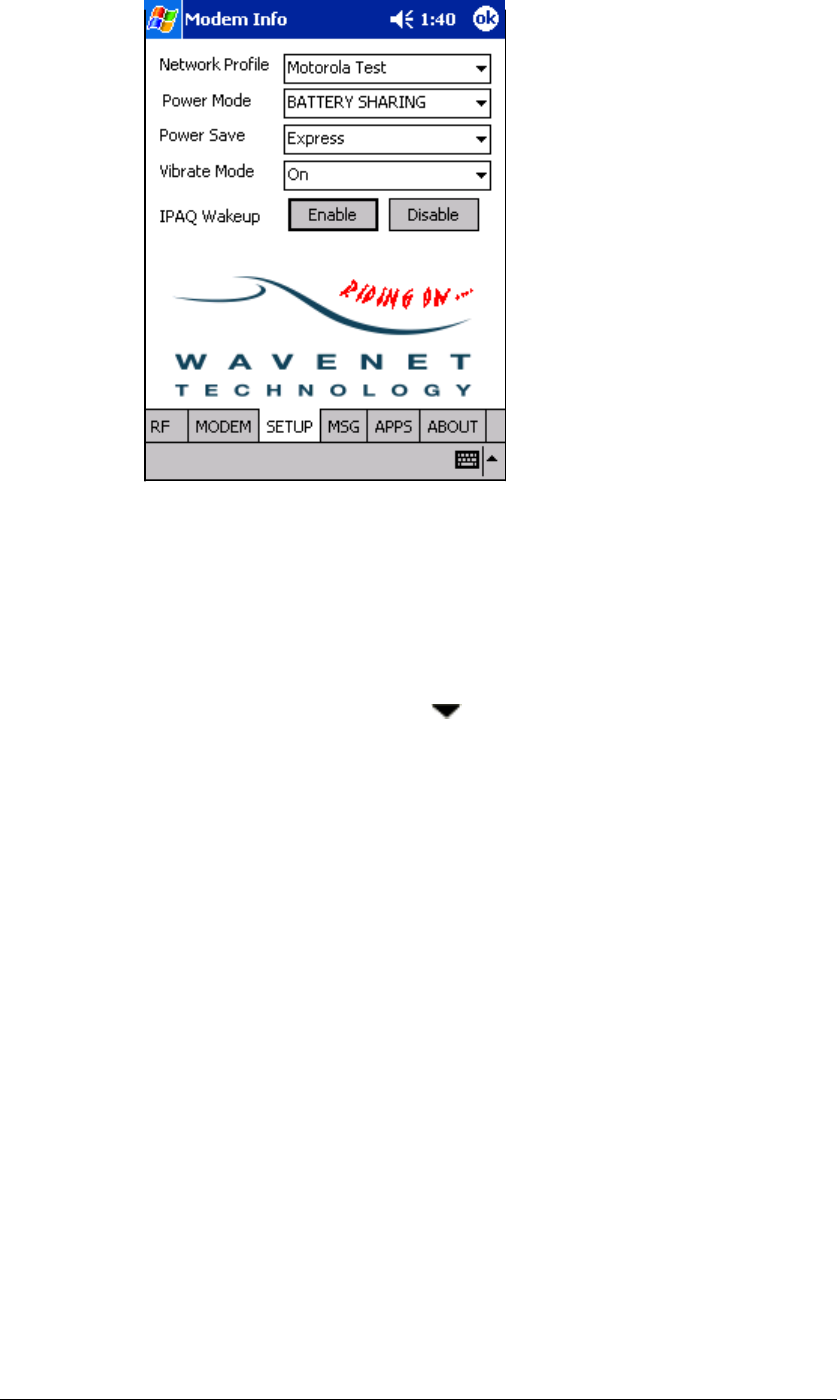

Settings Tab............................................................................................26

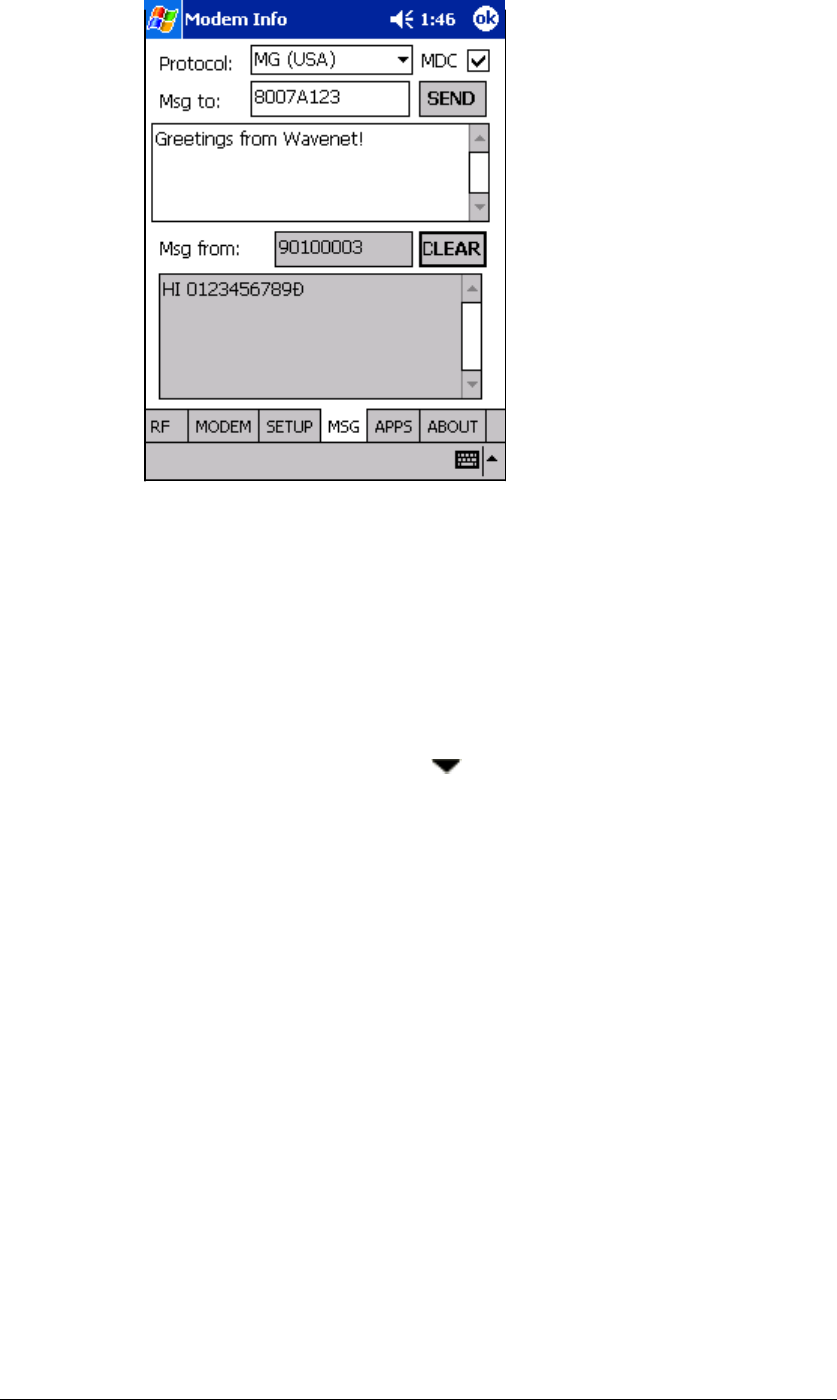

Messages Tab ........................................................................................28

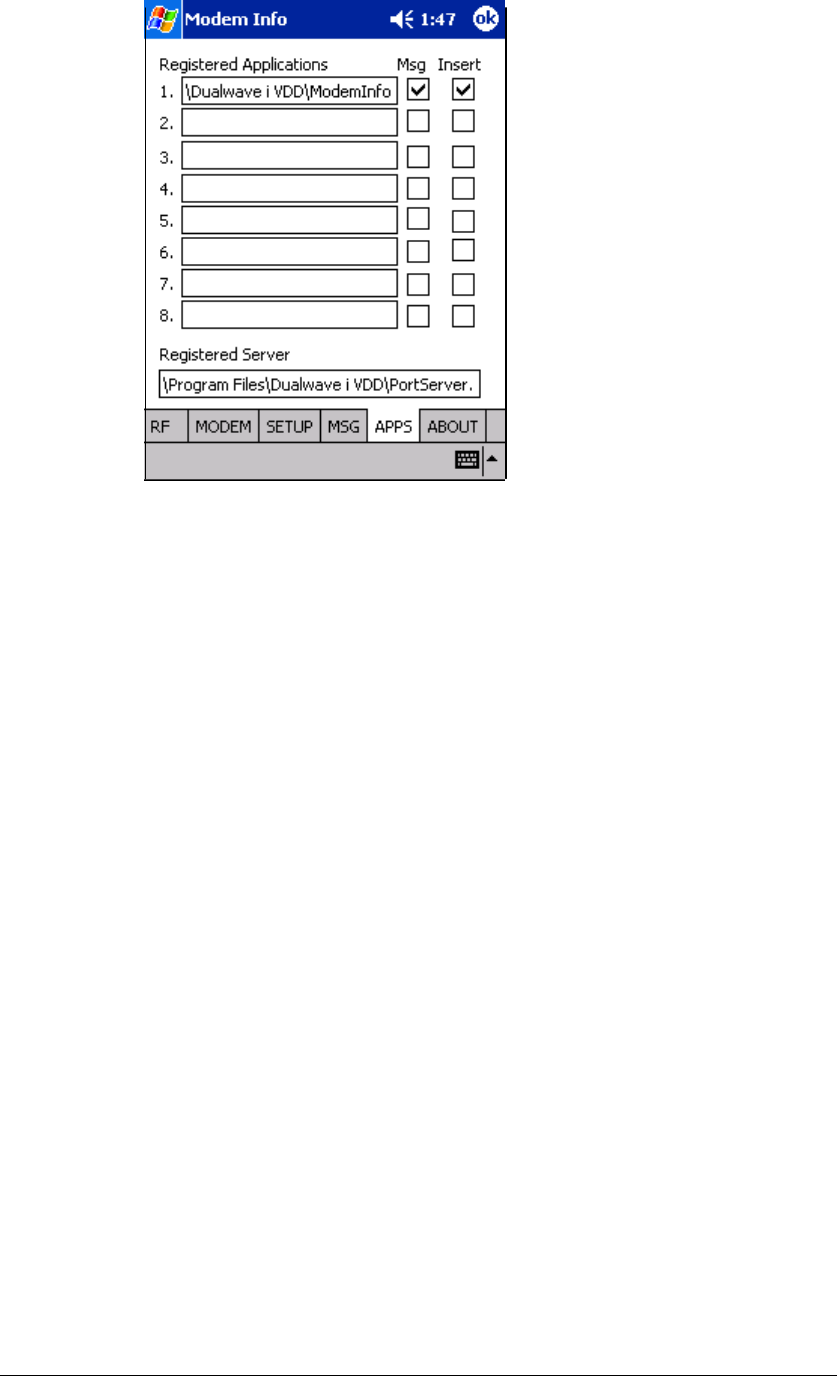

Applications Tab .....................................................................................30

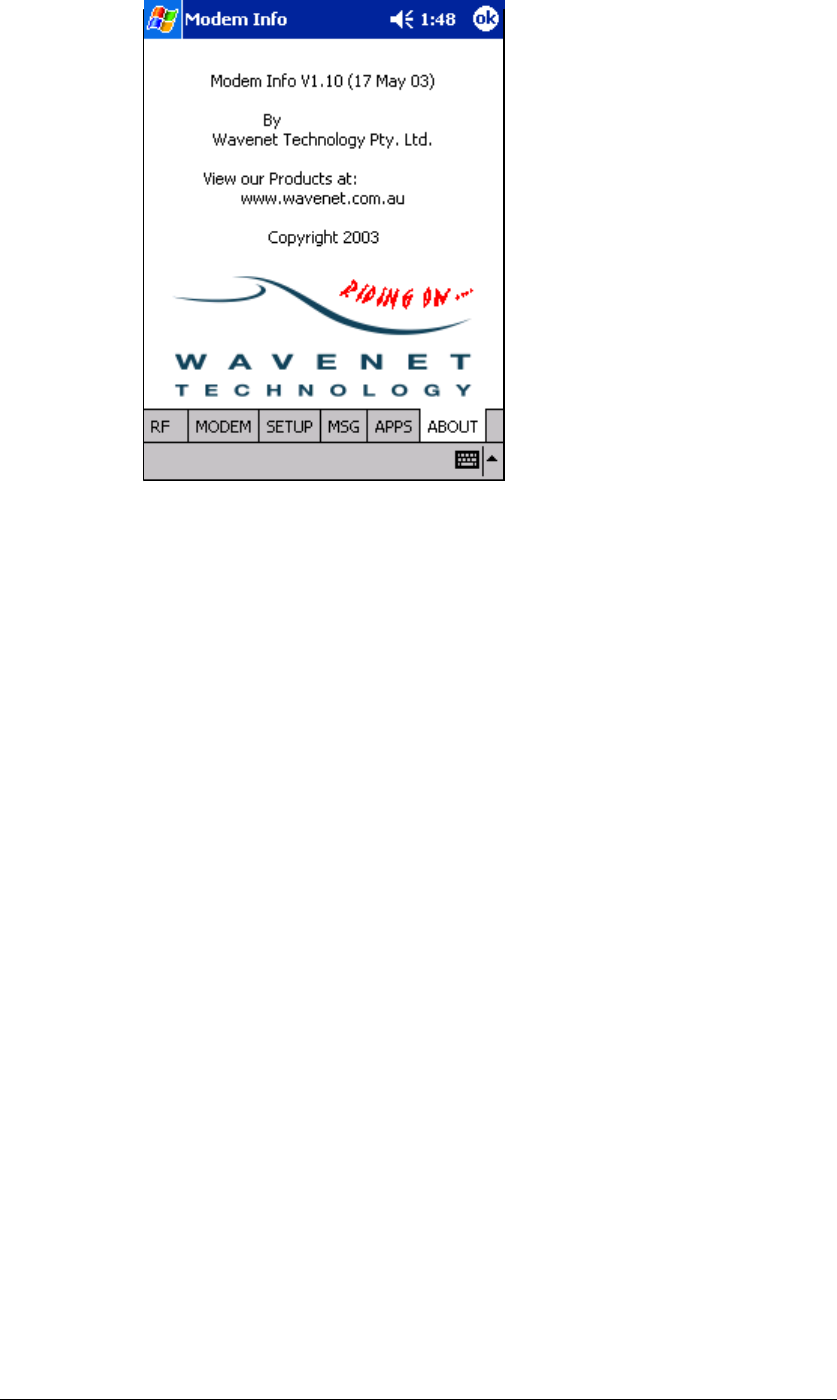

About Tab ...............................................................................................31
Synchronising Data Between Your iPAQ and Computer............................31
Updating Firmware on Your Dualwave-I Modem........................................31
Installing New Software on Your iPAQ .......................................................32
Troubleshooting .............................................................................................33
Technical Support ......................................................................................36
Specifications.................................................................................................39
Contents ___________________________________________________________ Dualwave-I Modem User Manual
Wavenet Technology 4 DWI10012WT31
Dualwave-I Modem User Manual __________________________________________________ Care & Maintenance
DWI10012WT31 5 Wavenet Technology
Introduction
The Wavenet Dualwave-I modem is a high performance wireless
modem developed for the Compaq iPAQ Pocket PC, H3800 and
H3900 series devices. It enables access to worldwide DataTAC
wireless networks to send and receive email, job dispatch, stock market
trading, Internet browsing, etc. All of which can be done while in
transit.

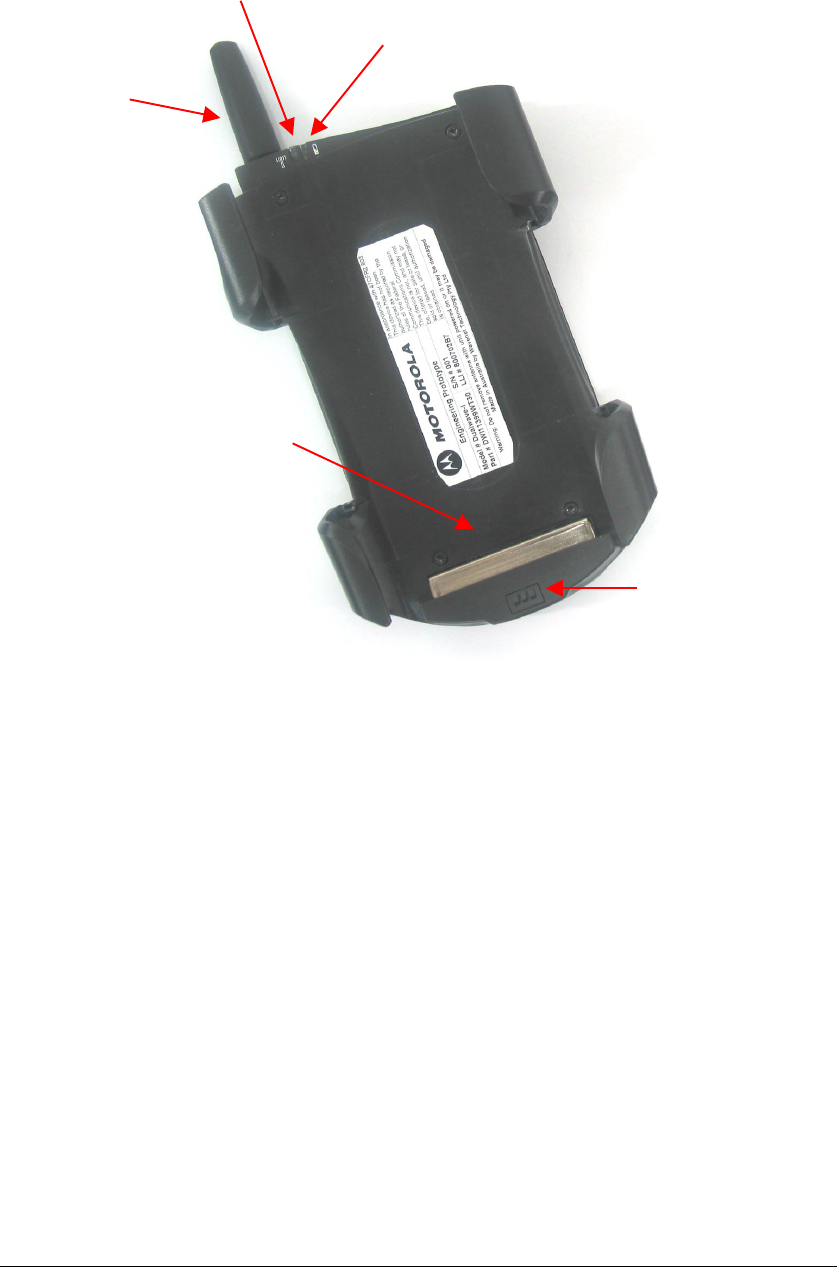

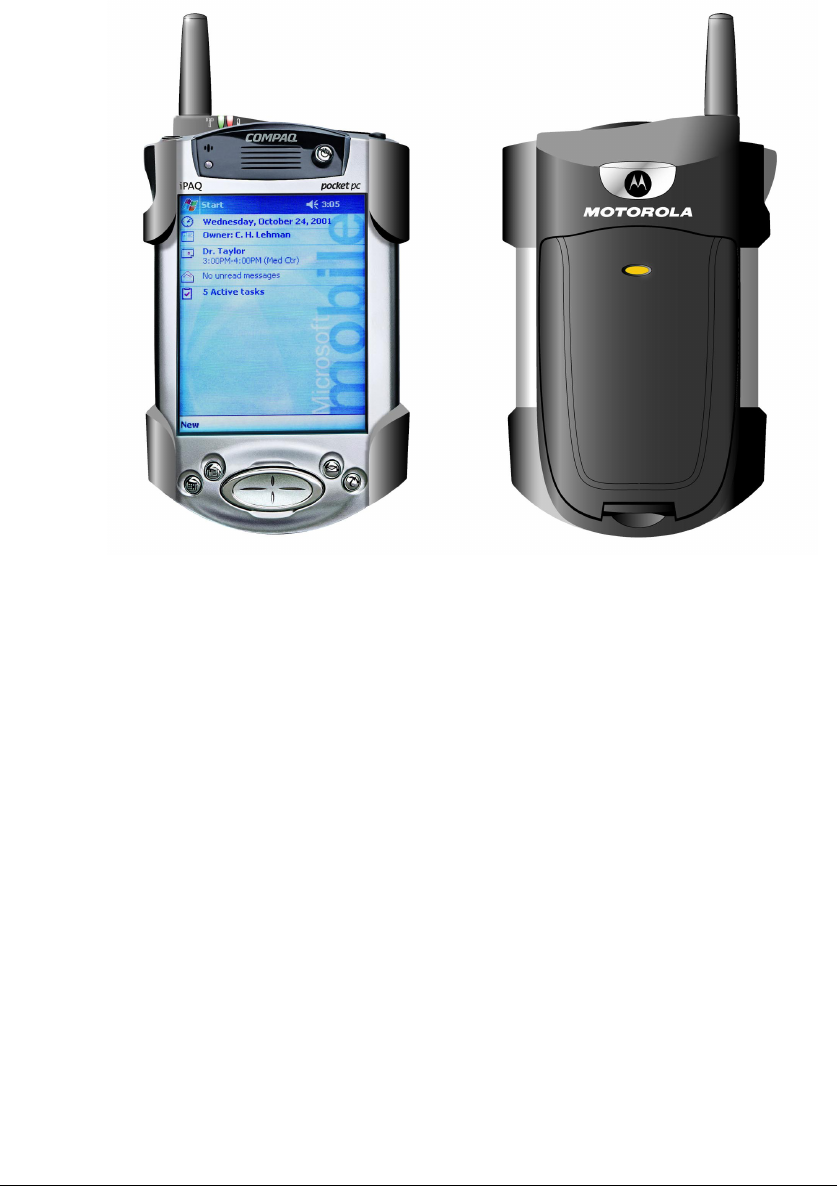

Front and Rear views of the Dualwave-I Modem
This manual provides details on how to set up, charge and use the
modem. There is a troubleshooting section to the rear of the manual
and a section on care and maintenance. Specifications are provided on
the last page.
Care & Maintenance __________________________________________________ Dualwave-I Modem User Manual
Wavenet Technology 6 DWI10012WT31
Modem Features
The Dualwave-I modem has the following features:
• Automatic power on/off when the iPAQ Pocket PC is inserted and
removed, respectively – no manual on/off switch
• Always on-line using the Private DataTAC network with automatic
network roaming
• High sensitivity reception
• Auto wake-up of Compaq iPAQ Pocket PC on incoming messages
with silent “Vibration Alert” option
• Status indicators for visual feedback:
o “Power/On-Line” showing modem and network status
o “Battery Low” warning
o “Battery Charging” status (on the rear face of the battery)
• Externally replaceable rechargeable Li-Ion polymer battery which
can be conveniently swapped as required. A 920 mAh capacity is
fitted as standard, sufficient for a full business day of activity
• Use the modem battery to trickle charge the iPAQ battery during
modem use or as an exclusive extended battery to increase iPAQ
operating time
• Modem battery is recharged simultaneously with the iPAQ Pocket
PC when both units are inserted into the iPAQ Desktop Cradle or
when directly connected to the mains adaptor via the iPAQ serial
port (depending on iPAQ model – refer to the iPAQ user manual)
• Supports Private DataTAC RD-LAP and Native Command
Language (NCL) Protocols
• Easy to attach and remove with plug and play capability (using
supplied drivers)
• Form hugging stylish design with compact ¼-wave helical coil
antenna
Dualwave-I Modem User Manual __________________________________________________ Care & Maintenance
DWI10012WT31 7 Wavenet Technology
Compliance Statement
This equipment has been tested and found to comply with the limits for
a class B digital device, pursuant to Part 15 of the FCC rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the manufacturer’s instructions, may cause
interference harmful to radio communications.
There is no guarantee however, that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined
by comparing the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult your supplier or an experienced radio/TV technician for
assistance.
Warning: Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void the user’s
authority to operate this equipment.
Information for Your Safety
Please read these safety instructions and the operation instructions
provided in this manual before operating the modem or the battery
charger.
SAR (RF Absorption Levels into body)
Your modem contains a low power transmitter and receiver. When it is
switched on, it receives and sends out radio frequency (RF) signals. In
August 1996, the Federal Communications Commission (FCC)
adopted RF exposure (SAR) guidelines with safety levels for handheld
wireless devices. These guidelines are consistent with safety standards
previously set by both USA and International Standards: ANSI C95.1
(1992), NCRP Report 89 (1986), ICNIP (1996).
The modem is designed for handheld operation and has been certified
to comply with the aforementioned FCC guidelines and standards
under worst case conditions (zero separation distance). To maintain
the optimum operational characteristics, no part of the human body
should be in contact with the antenna during use.
Care & Maintenance __________________________________________________ Dualwave-I Modem User Manual
Wavenet Technology 8 DWI10012WT31
Safe Use
Switch the modem off in areas where radio devices are forbidden, or
when it may cause interference or danger. For example, fuel depots
(fuel storage and distribution areas), chemical plants, locations in
which hazardous or combustible gases may be present and where
blasting operations are in progress.
Do not use the modem in an aircraft. Such use may affect aircraft
instrumentation, communication and performance and may be illegal.
Be aware that the modem may interfere with the functionality of
inadequately protected medical devices, including pacemakers.
Additionally, the effect of the radio signals from the modem on other
electronic systems, including those in your car (such as electronic fuel-
injection systems, electronic anti-skid braking systems, and electronic
cruise-control systems) is unknown and malfunction of these systems
may result.
Do not place the modem on an unstable surface. It may fall, causing
injury and damage the equipment.
Discard the modem properly; the unit uses a lithium-ion battery. The
lithium-ion battery should not be disposed of in a fire. Dispose of the
lithium-ion battery in accordance with the laws and regulations in your
area governing disposal of such cell types. Contact your supplier if you
have any questions concerning disposal of the modem or battery.
Never push objects of any kind into the modem through any openings
as they may short out parts that could result in a fire or electrical shock.
Never spill liquid of any kind on the modem. Do not use the modem
near water (for example near a bathtub or sink, in a wet basement, near
a swimming pool etc.). The modem should be situated away from heat
sources.
Unplug the modem from the battery charger and remove the battery
before cleaning. Do not use liquid or aerosol cleaners. Use a damp
cloth to clean the unit.
Disconnect the battery charger, remove the battery and contact your
supplier if:
• Rain or other liquids have been spilled on and damaged the
modem.
• The modem has been dropped or damaged in any way.
• The modem does not operate normally by following the
instructions contained in this manual.
Failure to observe any or all of these instructions will void the
warranty.
Dualwave-I Modem User Manual __________________________________________________ Care & Maintenance
DWI10012WT31 9 Wavenet Technology
System Requirements
To install the modem device driver and Modem Info user interface
software onto your iPAQ, your computer system must meet the
following minimum requirements:
• Intel compatible 486 computer or higher
• Windows 98, or Windows NT 4.0, or later.
• Microsoft ActiveSync v3.5 or later
• 8MB RAM (memory) minimum, 16 MB recommended
• 1MB available hard disk space
• CD-ROM drive
• One available USB/com port (used for the ActiveSync process)
In addition, your iPAQ must have:
• The iPAQ desktop software already installed
• 500kB of available memory
• Microsoft Pocket PC v3.0 or later
Checking the Package Contents
The following items should be included in the box.
You should also have the CD-ROM, which includes
the Modem Info software and this User Manual.
Dualwave-I
Modem
Slim
920mAh
Battery
Care & Maintenance __________________________________________________ Dualwave-I Modem User Manual
Wavenet Technology 10 DWI10012WT31
Exploring Your Dualwave-I Modem
A picture of the Dualwave-I modem is shown below.
The modem is comprised of the following components:
PDA Port Provides a connection between the iPAQ and
the modem.
Latches Connects and releases the iPAQ from the
modem.
Antenna Compact ¼ wave helical coil type
Status Indicators Provides visual feedback regarding network
connectivity (On-Line) and Battery Capacity
Note there is no manual on/off power switch. The modem is automatically
powered on/off when the iPAQ Pocket PC is inserted and removed
respectively.
Low Battery Indicator
Power/On-Line Status
PDA Port
PDA Latch
Antenna
Dualwave-I Modem User Manual __________________________________________________ Care & Maintenance
DWI10012WT31 11 Wavenet Technology
Power/On-Line Indicator
Off The modem is off.
Slow flashing green
(once per 12 seconds)
The modem is off but the battery is
being used to supplement the iPAQ.
Slow flashing green
(once per second)
The modem is on and scanning for a
network connection.
On The modem is on and registered to a
network.
Low Battery Indicator
Off Battery is ok
Rapid flashing red
(five times per
second)
The battery is too low for normal
operation. Re-charge the battery
immediately.
On-Line
Indicato
r
Low Battery
Indicator
Care & Maintenance __________________________________________________ Dualwave-I Modem User Manual
Wavenet Technology 12 DWI10012WT31
Battery Charging Indicator
Off Battery is ok
Slow flashing orange
(two times per sec)
The battery being re-charged.
On The battery is fully re-charged.
Battery Charging
Indicator
Dualwave-I Modem User Manual __________________________________________________ Care & Maintenance
DWI10012WT31 13 Wavenet Technology
Getting Started
Setting up the Modem and iPAQ
Before using your Dualwave-I modem, you must:
Install the modem software onto your iPAQ Pocket PC
Fit the external battery to the modem
Engage the iPAQ Pocket PC onto the modem
Fully charge the modem and iPAQ batteries
Dualwave-I Modem Software Overview
Included on the CD-ROM are the modem device drivers and Modem
Info user application software. These are contained within three CAB
files, which need to be installed on iPAQ Pocket PC, namely:
DWiUART.ppc30_arm.CAB
DWiVDD.ppc30_arm.CAB
MSMQ.ppc30_arm.CAB
DWiUART.ppc30_arm.CAB
This CAB file contains the low level drivers that instantly create a
serial communications port to the Dualwave-I modem upon every
iPAQ insertion into the modem sleeve. These drivers must be installed
to enable access to the Dualwave-I modem for any application
software. This CAB file also contains a basic programmers interface
for third party application developers who should refer to document
“DWI Modem Device Driver” (DWI10006WTxx) for further
information.
DWiVDD.ppc30_arm.CAB
This CAB file contains the Dualwave-I Virtual Device Driver, Port
Server and Modem Info application.
Modem Info is a graphical user interface modem diagnostic and
information tool to enable you to:
Check the network connection status and modem parameters
Check the modem hardware and battery status
Set the various operating modes of the modem
Register third party applications for invocation on specific
modem events
Modem Info is supplied in both executable and source code form as an
example for iPAQ application developers to communicate with the
Dualwave-I modem.
Care & Maintenance __________________________________________________ Dualwave-I Modem User Manual
Wavenet Technology 14 DWI10012WT31
The Virtual Device Driver (VDD) and Port Server are essentially
“middleware” software which provides a layer of abstraction to
application developers so that communications with the modem can be
significantly simplified. They remove the requirement to fully
understand the Native Communication Language (NCL) syntax to
communicate with the modem.
In addition, the VDD and Port Server allows multiple applications (or
“sessions”) on the iPAQ Pocket PC to simultaneously interface with
different network host servers, such as an email client, web browser,
dispatch application or Modem Info itself. Messages are routed to the
appropriate application via the Microsoft Message Queue facility.
Third party application developers should refer to document “DWI
Modem Virtual Device Driver and Application Interface”
(DWI10010WTxx) for further information.
If multi-session capability is not required, the VDD and Port Server
CAB file does not need to be installed, however, Modem Info requires
this middleware software in order to operate.
MSMQ.ppc30_arm.CAB
The Microsoft Message Queue (MSMQ) allows multiple applications
(or sessions) to simultaneously utilise the single Dualwave-I modem in
which an iPAQ is inserted. It is the mechanism by which information is
routed between the appropriate application on the iPAQ Pocket PC and
the network host server.
Installing the Modem Software
To install the CAB files onto your iPAQ, ensure that the iPAQ desktop
software has been installed on your computer first and then use the
following procedure.
Note: Do NOT connect the modem to your iPAQ whilst installing the
CAB files.
1. Connect the auto-sync cable (supplied with your iPAQ),
between the iPAQ and the corresponding port on your PC or
use the iPAQ cradle.
2. Switch the PC on and insert the CD-ROM, which was supplied
with your modem, into your CD-ROM drive.
3. Locate the three CAB files on the CDROM using Microsoft
Explorer.
4. From your PC, copy and paste the three CAB files into the
Mobile Device/My Pocket PC/Temp folder as shown in the
following diagram:
Dualwave-I Modem User Manual __________________________________________________ Care & Maintenance
DWI10012WT31 15 Wavenet Technology
5. From your iPAQ, select Start to display the Start menu.
6. Select Programs > File Explorer.
7. Navigate to the Temp folder.
8. Tap the DWiVDD.ppc30_arm.CAB file to install the
Dualwave-I Virtual Device Driver and Modem Info application
A progress bar is displayed during the installation.
Copy and paste all the
CAB files into this folder.
CAB files
Temp
folde
r
Progress bar
Care & Maintenance __________________________________________________ Dualwave-I Modem User Manual
Wavenet Technology 16 DWI10012WT31
After the installation the CAB file is automatically deleted from
the Temp folder.
9. Install the DWiUART.ppc30_arm.CAB file using the same
procedure for installing the ModemInfo CAB file described
above.
10. Check to see if MSMQ (Microsoft Message Queue) application
has already been installed on your iPAQ.
a. Tap Start and select Settings.
b. Select the System tab and tap the Remove Programs icon.
c. If the MSMQ application has already been installed, you
should see a reference to it in the Programs in Storage
Memory list.
d. If there is a reference to MSMQ, there is no need to install
the CAB file. Proceed to step 14.
e. If there is no reference to MSMQ, you must install the CAB
file.
11. To install the MSMQ CAB file, follow the same procedure for
installing the ModemInfo CAB file.
12. After installing the MSMQ CAB file, the following screen is
displayed.
13. Reset the iPAQ by pressing the iPAQ reset button located on
the bottom of the iPAQ. The iPAQ reset button is recessed,
simply insert a thin blunt pointed object (e.g. your iPAQ
stylus), into the recession and press.
14. Connect your iPAQ to the modem.

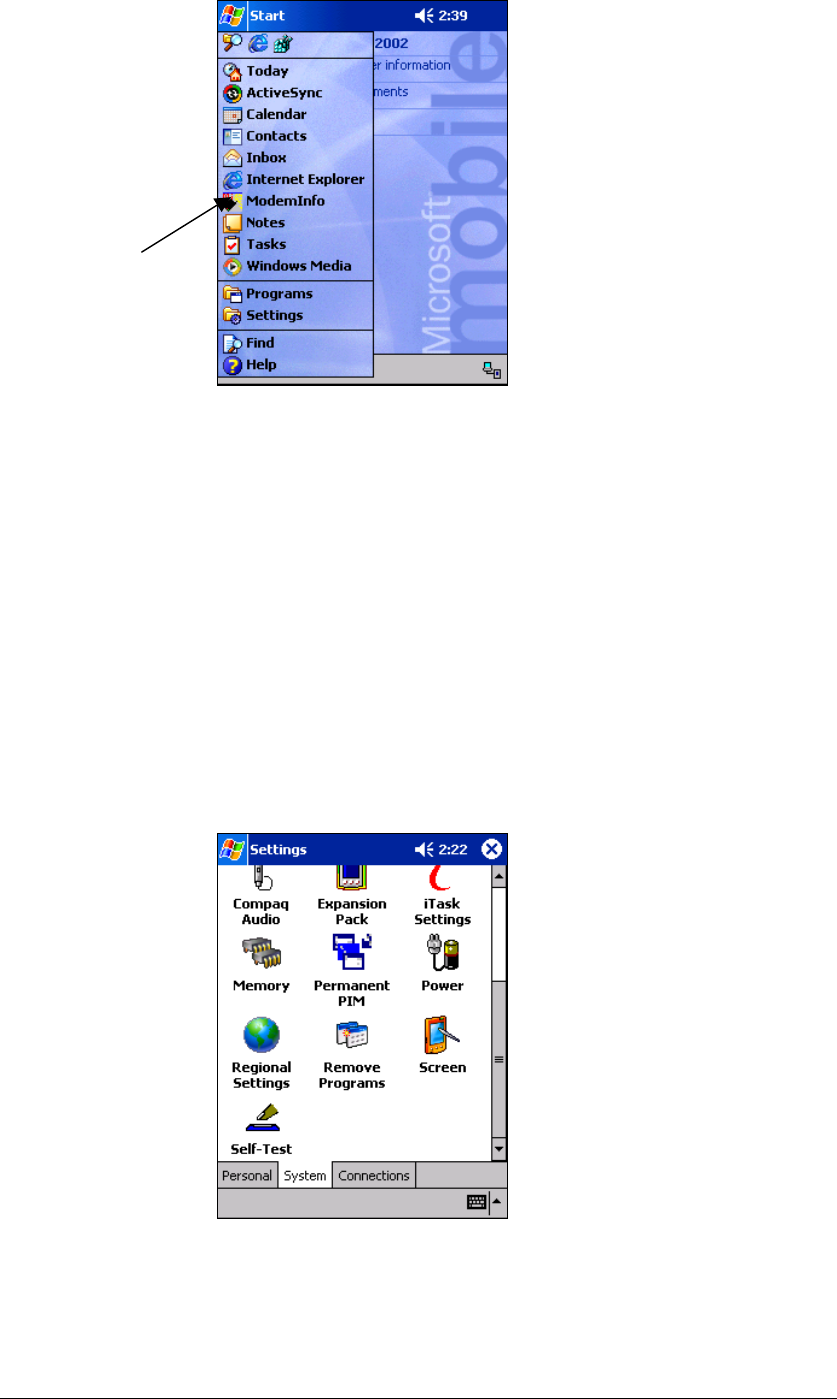

15. To confirm the successful installation, tap Start to display the
Start menu. The ModemInfo application is now visible.
Dualwave-I Modem User Manual __________________________________________________ Care & Maintenance
DWI10012WT31 17 Wavenet Technology
Removing Software From Your iPAQ
To remove the software from your iPAQ, refer to the instructions in
your iPAQ User manual. The typical procedure is shown below.
1. Close all applications.
2. Remove the iPAQ from the modem.
3. Tap Start to display the Start menu.
4. Tap Settings.
5. Select the System tab.
The following screen is displayed:
6. Tap Remove Programs.
ModemInfo
application
Care & Maintenance __________________________________________________ Dualwave-I Modem User Manual
Wavenet Technology 18 DWI10012WT31
7. Select the appropriate application.
8. Tap .
A confirmation message is displayed.
9. Tap to uninstall the application from your iPAQ.
Note: It is NOT recommended to uninstall the MSMQ
application.
Dualwave-I Modem User Manual __________________________________________________ Care & Maintenance
DWI10012WT31 19 Wavenet Technology
Fitting the external battery to the modem
To fit the external battery to the modem, follow the steps below:
1. Slide the top two pins of the battery into the corresponding holes
on the rear of the modem
2. Press the lower battery latch into the modem until you hear a click.
Care & Maintenance __________________________________________________ Dualwave-I Modem User Manual
Wavenet Technology 20 DWI10012WT31
Engaging the iPAQ with the modem
To connect the modem to your iPAQ, follow the steps below:
3. Slide the iPAQ into the modem so that the PDA ports are aligned.
4. Push the modem until you hear a click. The iPAQ engages onto a
latch that secures the iPAQ to the modem.
Removing the Dualwave-I Modem
To remove the modem from your iPAQ, use your thumb to push the
iPAQ forward from the base of the modem to disengage the latch and
then slide the iPAQ away from the modem.
Dualwave-I Modem User Manual __________________________________________________ Care & Maintenance
DWI10012WT31 21 Wavenet Technology
Charging the Modem Battery
Your modem’s lithium-ion battery is supplied discharged. For optimum
performance, you should charge it fully before use. If during use, the
Low battery indicator starts flashing red, the battery needs immediate
recharging or it should be swapped with a re-charged unit.
The modem battery is automatically recharged simultaneously with the
iPAQ when both units are inserted into the iPAQ Desktop Cradle (as
supplied with the iPAQ) or when directly connected to the mains
adaptor via the iPAQ serial port (depending on iPAQ model – refer to
your iPAQ user manual)
Follow the steps below to charge the iPAQ and modem’s battery:
1. Connect your iPAQ to the modem.
Slide the iPAQ into the desktop cradle.
2. Plug the iPAQ battery charger into a power source and the iPAQ
cradle. The iPAQ battery charging indicator on the iPAQ front
panel will flash when the iPAQ is charging and the battery
charging indicator on the rear face of the modem battery will also
flash when it is charging.
Note: Perform an overnight charge when charging the modem’s
battery for the first time.
3. When the iPAQ and battery charging indicators fully illuminate
both batteries are fully charged. If only one indicator fully
illuminates, only that corresponding battery is fully charged.
4. Remove the iPAQ and modem from the cradle when fully charged.
When the modem battery is fully charged, the internal charger stops
charging until the battery capacity falls below a certain value. The
battery charger will then automatically start recharging the batteries
again.
Care & Maintenance __________________________________________________ Dualwave-I Modem User Manual
Wavenet Technology 22 DWI10012WT31
Dualwave-I Modem User Manual __________________________________________________ Care & Maintenance
DWI10012WT31 23 Wavenet Technology
Using Your Dualwave-I Modem
Switching the Modem On/Off
The Dualwave-I modem does not contain a manual on/off power
switch. The modem is automatically powered on/off when the iPAQ
Pocket PC is inserted and removed respectively.
Before operating your Dualwave-I modem ensure the battery is fully
charged, Modem Info software has been installed on the iPAQ and the
iPAQ is inserted into the modem, as described earlier.
Upon first iPAQ insertion the modem Power/On-Line indicator should
display slow flashing green (once per second) as the modem searches
for a network connection. As soon as the modem is registered the
Power/On-Line indicator will fully illuminate. If network access is
denied or no network can be found the Power/On-Line indication will
continue to search to flash until it can register somewhere. On
subsequent insertions the Power/On-Line indicator will reflect the
power mode state set in the Modem Info application (refer to page ).
If the Low Battery display starts flashing red, the battery needs
charging. See the previous section, Charging the Modem Battery on
page 21, for further information.
The iPAQ and Dualwave-I modem is now ready for use.
Note: The network profile is set by default for the modem to be used in
U.S.A. To use the modem in Canada or other countries, this setting
must be changed. See page 26 for information on changing the network
profile.
Using the Modem Info Application
Modem Info is a graphical user interface modem diagnostic and
information tool to enable you to:
Check the network connection status and modem parameters
Check the modem hardware and battery status
Set the various operating modes of the modem
Send and Receive short text messages
Register third party applications for invocation on specific
modem events
Modem Info consisting of a single screen with six tabs. These tabs are
described in the following sub-sections.
To access ModemInfo, select the ModemInfo application from the
main screen. By default the Settings tab is displayed.
Care & Maintenance __________________________________________________ Dualwave-I Modem User Manual
Wavenet Technology 24 DWI10012WT31
RF (Network Status) Tab
This tab displays the following information:
RF Protocol The network radio protocol
Channel Radio channel currently being used by the
modem. This is displayed as a hexadecimal
number.
Frequency The frequency measured in MHz.
Signal (RSSI) The Received Signal Strength Indicator (RSSI)
measured in dBm.
Radio Carrier Indicates whether the modem is in or out of
radio range.
Base Station ID The identity of the Base Station.
Dualwave-I Modem User Manual __________________________________________________ Care & Maintenance
DWI10012WT31 25 Wavenet Technology
Modem (Status) Tab
This tab contains the version information on the modem, including the
LLIs and serial numbers. The following information is displayed:
LLI Logical Link Identifier. This is the unique
identity of the modem.
Serial No. Serial number of the modem.
Hardware
Platform
The hardware platform of the modem.
Software Version Shows the version number of the firmware in
the modem.
Modem Battery A visible indicator that shows the status of the
modem battery. Low battery levels can affect
the wireless connection robustness.
IPAQ Battery A visible indicator that shows the status of the
iPAQ battery.
Care & Maintenance __________________________________________________ Dualwave-I Modem User Manual
Wavenet Technology 26 DWI10012WT31
Settings Tab
This tab displays the following information about the modem attached
to the iPAQ:
Network Profile You may select a network profile from those
stored in the modem. Change the setting by
tapping and select from the drop-down list.
Power Mode There are four power modes available;
ON (modem only) – The modem is on and the
battery is exclusively used by the modem
Battery Sharing – The modem is on but the
modem battery is “shared” with the iPAQ to
extend the iPAQ operating time. In order to
share this capacity the modem periodically
trickle charges the iPAQ when the voltage is
lower than the modem battery by a certain
threshold. Trickle charging is inhibited when
the modem battery voltage falls below 3.7V.
Battery Extended – The modem is off
(actually in a very low power mode) and the
modem battery is exclusively used by the iPAQ
through the trickle charge mechanism described
previously.
OFF (No battery sharing) – The modem is off
(actually in a very low power mode) and access
to the modem battery is disabled.
Dualwave-I Modem User Manual __________________________________________________ Care & Maintenance
DWI10012WT31 27 Wavenet Technology
Power Save The Power Save option can greatly reduce the
power consumption of your modem but it
requires the network operator to support these
options.
The modem is designed to stay on so that it can
notify you when it receives incoming messages
and so you can quickly access your e-mail
messages and information from the web.
To conserve power, the modem can be set to
one of several modes which have different
power usage and latency options.
By default, the Power Save option is set to
Maximum.
Tap and select one of the following options
from the drop down list.
Express The power save option is disabled,
shortest battery life. The modem
receiver is continuously powered.
Min Minimum power save. The modem
wakes up to receive messages every
32 seconds.
Average Average power save. The modem
wakes up to receive messages every
64 seconds.
Max Maximum power save, longest
battery life. The modem wakes up
to receive messages every 128
seconds.
Vibrate Mode Tap to switch the vibrator on, off or Test. If the
vibrate mode is set to on, the modem vibrator
will be triggered when a packet is received
while the iPAQ is off. Select test to test the
vibrator.
IPAQ Wakeup This is a master Wakeup enable feature for the
iPAQ to be woken up by the modem on an
incoming message.
Care & Maintenance __________________________________________________ Dualwave-I Modem User Manual
Wavenet Technology 28 DWI10012WT31
Messages Tab
This tab allows you to send simple text messages to and from the
iPAQ:
Protocol You may select different message transport
protocols. The correct type for the connected
network must be used to successfully send and
receive messages. Change the setting by
tapping and select from the following drop-
down list.
USER Defined
Host Messaging
MG (Australia)
MG (USA)
For example, to send a message between two
Dualwave-I devices, select the MG protocol for
the country you are in, uncheck MDC and type
the device LLI in the “Msg To” field
MDC Selecting this button will put the message in
MDC compatibility format. This is only
required for private networks.
Send Selecting this button will transmit the text in the
message box to the addressed host or device.
Msg To This field is used to specify the destination host
or device address. In the case of User Defined
you must provide the full message header
Dualwave-I Modem User Manual __________________________________________________ Care & Maintenance
DWI10012WT31 29 Wavenet Technology
format, for Host Messaging you must provide
the host address and in the case of MG
messaging you must provide the device LLI
address.
Msg From The field opposite provides information on the
received message source address and the field
below displays the received message text
Clear This button is used to clear the received
message text box
Care & Maintenance __________________________________________________ Dualwave-I Modem User Manual
Wavenet Technology 30 DWI10012WT31
Applications Tab
This tab displays a list of Registered Applications on your iPAQ that
are registered for wakeup
If desired, register those applications that need to be invoked when the
modem receives an incoming message and/or when the iPAQ is
inserted into the Dualwave-I modem. Up to eight applications can be
registered for wakeup. To register an application, tab onto a blank edit
box, fill in the full path of an application and check one or both of the
associated check boxes. To deregister simply ensure both check boxes
are unchecked and/or delete the contents of the associated edit box.
In the example shown, the Modem Info application will be
automatically invoked the next time the iPAQ is inserted into the
modem.
The Registered Server edit box lists the full path of the server
application. This application is invoked when the iPAQ is inserted into
the modem. It runs in the background, allowing multiple client
applications (like Modem Info) concurrent use of the Dualwave-I
modem. If you want to run an application that requires exclusive use of
the modem, deregister the server application by deleting the contents
of the edit box and re-attach the modem.
Dualwave-I Modem User Manual __________________________________________________ Care & Maintenance
DWI10012WT31 31 Wavenet Technology
About Tab
The Modem Info version number is displayed.
Tap the OK icon to return to the Main screen.
Synchronising Data Between Your iPAQ and Computer
To synchronise data between the iPAQ and your computer, refer to the
instructions in your iPAQ User Manual.
Updating Firmware on Your Dualwave-I Modem
Firmware is the resident software installed on your modem.
For optimum performance ensure that you are using the latest firmware
version.
Follow the procedure below to check the version number of the
firmware currently loaded on your modem.
1. Connect your iPAQ to the modem as described previously.
2. Switch your iPAQ on.
3. Select the Modem Info application from the main screen.
By default the Info tab is displayed.
4. Select the Modem Versions tab.
5. From the Modem Versions tab, check the version number of the
firmware.
Care & Maintenance __________________________________________________ Dualwave-I Modem User Manual
Wavenet Technology 32 DWI10012WT31
Using your web browser on your PC, navigate to the download site and
check for the latest version of the modem firmware.
If the version on the web is later than the firmware version on your
modem, download the self-extracting file and follow the online
instructions.
Installing New Software on Your iPAQ
Refer to the installation instructions that came with your software.
There may be a Read Me file.
Typically, to install new software on your iPAQ from your PC, follow
the same steps as installing the ModemInfo Software on page 21.
Dualwave-I Modem User Manual __________________________________________________ Care & Maintenance
DWI10012WT31 33 Wavenet Technology
Troubleshooting
If you encounter a problem with your modem or battery charger,
review the following list of frequently asked questions.
I’m getting no response from the modem.
Make sure that the iPAQ is fully inserted into the modem, the
Modem Info application has power setting is on and the modem is fully
charged. The Power/On-Line indicator should be illuminated and Low-
Battery indicator off.
Select the Modem Info application from your iPAQ’s main screen to
display the Modem Info screen. Check the battery indicator is showing
adequate battery charge status.
Refer to page 21 for information on charging your modem.
The Power/On-Line Indicator is continually flashing green.
Check your network profile setting by selecting the Modem Info
application from your iPAQ’s main screen to display the Modem Info
screen. Select the Settings tab to display the screen below:
Select the operator profile you have subscribed to eg Motient if you are
using your modem in U.S.A. or Bell Mobility if you are in Canada.
Default profile is
shown
Battery Charge
Capacity is
shown here
Care & Maintenance __________________________________________________ Dualwave-I Modem User Manual
Wavenet Technology 34 DWI10012WT31
Check the Power/On-Line indicator. It should fully illuminate when
connected with the network. Also check the RSSI signal level in the
ModemInfo application. It should be greater than –110dBm.
I’m having difficulty sending and receiving messages. The Online
indicator fluctuates between on and flashing.
Fluctuation in signal strength can happen in fringe areas on densely
populated areas with tall building. When operating in an area of low
signal strength, the modem may go on and off line as the signal
fluctuates above and below the minimum user level.
Check that you are in an area that provides coverage. Your network
provider should have the details.
The modem may also temporarily go off line and back on as it roams
from one frequency to another in order to obtain improved coverage
per normal network operation.
What can I do to get back in range?
The wireless signal needs a clear path; avoid congested or metal
buildings or tunnels. Tree leaves and windows may also affect the
signal strength, as can environmental conditions, for example heavy
rain. Try moving away from buildings and hold the device away from
your body.
The status shows that I’m in range, but I’m still having difficulty
sending and receiving messages.
Check the battery level as low battery levels can affect the connection.
Select the Modem Info application from your iPAQ’s main screen to
display the Modem Info screen. Check the battery indicator and
compare it with the examples below.
If the battery indicator shows that the battery capacity is low, charge
the battery as described on page 21.
Low battery
Battery Indicator
Charged
battery
Dualwave-I Modem User Manual __________________________________________________ Care & Maintenance
DWI10012WT31 35 Wavenet Technology
How do I locate the LLI and serial numbers assigned to my modem?
The LLI and serial numbers are located in three places:
On the package
On the label on the back of the modem
From the Modem Versions tab in the Modem Info application.
How do I check the modem settings?
The Modem Info application provides information about your modem
and the active settings. Select the Setup tab from Modem Info.
I can’t get the modem to charge.
Confirm that iPAQ is fully inserted into the modem, the pair are fully
inserted into the iPAQ cradle and the battery charger power cable is
properly connected to the cradle.
Confirm that your battery charger is plugged into an AC outlet and that
the AC outlet has power.
How can I extend battery life?
You can extend battery life by:
Turning off the modem when you are not using it.
Selecting the Maximum Power Save option from the Modem
Info Setup tab if your network operator supports this feature.
Does a weak RF signal affect battery life?
The battery usage estimates assume that the modem is switched on
between eight to ten hours a day and you are located in a good RF area.
The life of the battery charge may be considerably less if you are
operating your modem in a weak RF area.
Can I still receive messages when the iPAQ and modem is charging?
Yes, messages can be sent and received when the iPAQ and modem
batteries are charging.
Care & Maintenance __________________________________________________ Dualwave-I Modem User Manual
Wavenet Technology 36 DWI10012WT31
What happens if I don’t disconnect the battery charger after the
battery is fully charged?
When the batteries are fully charged, the battery charger stops charging
until the batteries’ capacity falls below a certain value. The battery
charger will then automatically start recharging the batteries again.
Technical Support
If after reviewing all the sources listed you cannot solve your problem,
please contact your supplier.
Dualwave-I Modem User Manual __________________________________________________ Care & Maintenance
DWI10012WT31 37 Wavenet Technology
Care & Maintenance
Your modem does not require regular maintenance. However,
periodically clean off the dirt and dust that may adhere to the exterior
casing. Use the following procedure:
1. Disconnect the battery charger and cables from the
modem.
2. Dampen a clean, soft cloth with water and wring the cloth well.
3. Use the well wrung cloth to gently remove dirt and dust.
Do not dampen the connectors or ports. Immediately remove any
moisture that contacts these components by wiping them with a dry
cloth.
Optionally clean the iPAQ connector by using a pencil eraser.
Do not use a sodden cloth or apply a liquid to any portion of the
modem or battery charger.
Never use substances containing alcohol, thinners or benzene on the
equipment. Use of these substances may deform, discolour or dissolve
the casing.
The modem’s lithium-ion battery life will be shortened if used in
extreme temperatures.
Do not use the modem outside its extreme temperature limits
Do not leave the modem switched on in direct sunlight inside
automobiles as the case temperature can easily exceed specification
limits.
Care & Maintenance __________________________________________________ Dualwave-I Modem User Manual
Wavenet Technology 38 DWI10012WT31
Dualwave-I Modem User Manual _______________________________________________________ Specifications
DWI10012WT31 39 Wavenet Technology
Specifications
Physical Properties
Weight Approximately 150g
Size (L x W x H) 136mm x 82mm x 18mm
(excluding antenna)
LED Indicators
Power/On-Line indicator (Green) Off - Power off
Slow flashing - Scanning
On - Registered
Low Battery Indicator (Red) Rapid flashing - Re-charge battery
Communication Protocols
Modem to radio network protocol RD-LAP 19.2 kbps
RD-LAP 9.6 kbps
Modem to terminal (e.g. handheld) protocol NCL 1.2
PDA Port Compaq iPAQ 100 pin Expansion Pack
Serial communications interface
Transmitter
Frequency range 806 – 825MHz
Channel spacing 25 kHz for RD-LAP 19.2 kbps
12.5 kHz for RD-LAP 9.6 kbps
Data rate RDLAP 9.6kbps, 19.2kbps
MDC 4.8kbps
RF output power 1.8W nominal (into 50Ω load)
Receiver
Frequency range 851 – 870MHz
Channel spacing 25 kHz for RD-LAP 19.2 kbps
12.5 kHz for RD-LAP 9.6 kbps
Sensitivity (*) < -113dB (5% PER conducted, 19.2kbps)
RSSI -120dBm ~ -45dBm
Modem Battery
Battery Externally replaceable Li-Ion type
3.6V nominal, 920mA/hour
Protection circuit Prevents overcharge and deep discharge
Note - Extreme temperature operation will degrade battery life.
Environmental Conditions
Operating temperature 0°C to 45°C
Storage temperature -20°C to 60°C
Relative humidity 5-95% Non condensing
(*) Receiver sensitivity excludes influence of the iPAQ Pocket PC RFI emissions. Over-the-air performance varies
with iPAQ model and antenna used.
