Waverly Labs WLABSV1PR Pilot Translating Earpiece User Manual Pilot userManual indd
Waverly Labs Inc. Pilot Translating Earpiece Pilot userManual indd
User Manual
1 - dos - due - dois - deux - два - 两
User Manual
2 - dos - due - dois - deux - два - 二

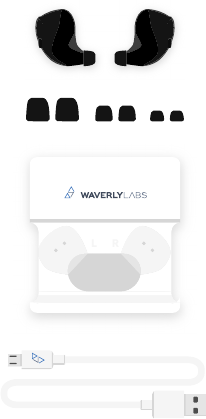

WHAT’S INSIDE
Pilot Earbuds
3x Eartips (S, M, L)
Travel Charge Case
USB Charge Cable
3 - tres - tre - três - trois - три - 三
INDEX
Setting up your pilot
Music and phone functions
Charging
FAQ and Troubleshooting
Support
Warranty
4
8
10
14
16
18
4 - cuatro - quattro - quatro - quatre - четыре - 四
SETTING UP YOUR PILOT

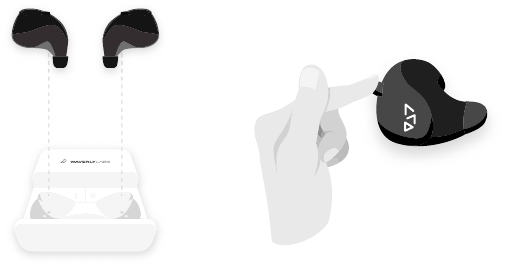

Make sure your Pilot earpieces are
charged. Remove them from char-
ger, they will turn on automatically.
If they don't, press the button for 1
second.
Both earpieces should be connected
to each other. Choose one earpiece
to connect to. Press the button on
that earpiece for 3 seconds to nd
your earpiece.
Not ConnectedMacbook Pro
ConnectedPilot-R
ConnectedApple Watch
MY DEVICES
Bluetooth
STATUS
Bluetooth
Settings
9:41
5 - cinco - cinque - cinco - cinq - пять - 五
Pilot Speech Translator
Turn on Bluetooth on your device.
Pair only the chosen earpiece in your
device settings. You should hear "Pi-
lot Connected". Now both earpieces
should be ready to use.
Download the Pilot Speech Translator
app and start your rst conversation.
Download at:
pilot.link
6 - seis - sei - seis - six - шесть - 六

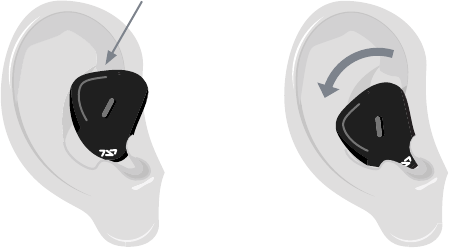

FITTING YOUR PILOT
NOTE
This feature should
align with the contour
of your ear
Insert the earpiece with the tip
pointed down.
Rotate the earpiece towards the
back of your ear to lock it in place.
7 - siete - sette - sete - sept - семь - 七

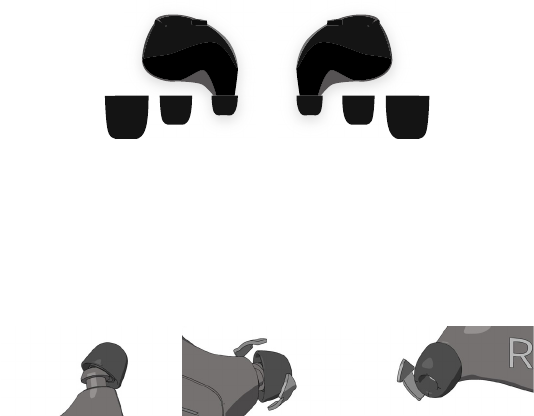

EARTIPS
For better comfort and t we included 3 ear-tips that adapt to the shape of the ear canal.
REPLACING AN EAR TIP
Carefully remove the ear tip by tilting and rotating the base.
1) Place the ear tip’s base cylinder at 45 degrees in relation to the earpiece nuzzle.
2) Rotate 180 degrees to get it inside properly.
3) Adjust the ear-tip's position at your preference. Normally the longer sides should be
vertical to the ground, so it matches the ear canal's shape.
1 2 3
8 - ocho - otto - oito - huit - восемь - 八
CALLS
MUSIC CONTROLS
The button on each pilot earpiece can be used to control music.
Pilot can also be used to answer calls.
COMMAND
Play/Pause
Skip Track
Press Once
Press Twice
COMMAND
Accept Call
Reject Call
End Call
Press Once
Press and Hold
Press and Hold During Call
Warning! Remember
to listen to your
devices at a safe
volume!
Attention! N'oubliez
pas d'écouter vos ap-
pareils à un volume
sûr!
9 - nueve - nove - nove - neuf - девять - 九
To turn ON the earpieces press the button for 2 seconds.
To turn OFF the earpieces press the button for 5 seconds.
Alternatively placing them on the charger case also turns
them OFF.
Aer 5 minutes of inactivity, the earpieces will automatically
turn o to save battery.
Conveniently, pressing 5 seconds on one earpiece will turn o
both earpieces.
ON/OFF
10 - diez - dieci - dez - dix - десять - 十
CHARGING
To charge the earbuds, place them into the portable case.
Solid Red LEDs show that they are charging. When fully
charged, the LEDs turn solid white, and then turn o.
The charger provides 3-4 full charges of the earpieces.
11 - once - undici - onze - onze - одиннадцать - 十一
BATTERY LEVEL
LIGHT
Solid Red
Solid White
STATUS
Charging
Full Battery
LEDs
Battery Charging Time: Approx. 1. 5 -2 hours (Full charge)
25%
50%
75%
100%
12 - doce - dodici - doze - douze - двенадцать - 十二

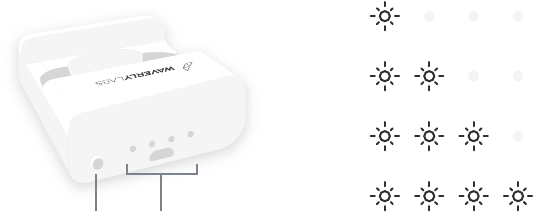

CHECKING BATTERY LEVEL OF THE CHARGER
To check the charger's battery level, press the button on the
back of the device. The corresponding number of LEDs will
illuminate to show the charger's remaining battery life.
BATTERY
BUTTON LEDs
13 - trece - tredici - treize - treze - тринадцать - 十三
OPERATING AND STORAGE TEMPERATURES
FOR EARPHONE
Operate in a place where temperature is always between 0 °C to 50°C. Relative
humidity. The storage temperatures is 0°C~60°C.
FOR CHARGING CASE
Operate in a place where temperature is always between 0 °C to 50°C. Relative
humidity. The storage temperatures is -10°C~45°C.
-Use only the batteries provided with the product.
-Risk of explosion if battery is replaced by an incorrect type.
-Dispose of used batteries according to the instructions.
-Do not dispose of batteries in re.
-Do not use the product in places where there are explosive hazards.
-Do not expose the product to excessive heat caused by heating equipment or
direct sunlight.
14 - catorce - quattordici - catorze - quatorze - четырнадцать - 十四
FAQs
How long does the battery last?
The battery life of your Pilot depends on usage. It lasts approximately 4 hours
while playing music/talking. The accompanying charger provides 3-4 addi-
tional charges. To save battery, the Pilot has a power saving mode.
What is power saving mode?
Aer 5 minutes of inactivity, the earpieces will turn o automatically, saving
power for when it’s needed and avoiding a full discharge.
Can I use only one earpiece?
Yes, you only need one earpiece to use all the functions normally.
How do I charge the earpieces?
Make sure you place the Right and Le earpiece on their corresponding side
of the charger. When the earpieces are charging, the red light will show up.
Please refer to our charging section (page 10) for more information.
What is an Over the Air (OTA) update?
You can update your Pilot remotely via the Pilot app to get more exciting
features in the future.
15 - quince - quindici - quinze - quinze - пятнадцать - 十五
Is the Pilot waterproof?
Your Pilot is IP42 certied, meaning that it is dust resistant and resistant to
mild moisture and sweat.
How do I keep my Pilot clean?
The polished surface of Pilot makes it easy to clean; a damp paper towel
should be enough to clean it. You can also remove the eartips if needed for
further cleaning.
How do I wear them?
Please refer to page 6 for a visual guide.
Can I pair with computers and other Bluetooth devices ?
Yes, you can pair to any Bluetooth 2.1 and above enabled device. However, the
translation feature will only be enabled within the Pilot app which requires an
iOS or Android device.
Why is it called the Pilot?
Because it helps you navigate dierent languages (Babel Fish was taken).
16 - dieciséis - sedici - dezesseis - seize - шестнадцать - 十六
CONTACT
SUPPORT
MODEL NUMBERS
Still have questions? We are here to help! Don't
hesitate to get in touch.
The following is a set of resources to ensure you
get the most out of your Pilot:
Web: waverlylabs.com/support
Email: support@waverlylabs.com
V100RR, V100LR, V100RB, V100LB, V100RW,
V100LW, V100C, V100.
17 - diecisiete - diciassette - dezessete - dix-sept - семнадцать - 十七
MORE INFORMATION
Pour plus d’informations dans votre langue, visitez
www.waverlylabs.com/?lang=fr
Para obtener más información en su idioma, visite
www.waverlylabs.com/?lang=es
Para mais informações no seu idioma, visite
www.waverlylabs.com/?lang=pt-pt
有 关 您 的 语 言 的 更 多 信 息 ，请 访 问
www.waverlylabs.com/?lang=CN
あなたの言語の詳細については、
www.waverlylabs.com/?lang=jp をご覧ください。
18 - dieciocho - diciotto - dezoito - dix-huit - восемнадцать - 十八
WARRANTY INFORMATION
Waverly Labs: Pilot One (1) Year Limited Warranty:
IMPORTANT: BY USING PILOT, YOU AGREE TO BE BOUND BY THE TERMS OF THE WAVERLY LABS PILOT
ONE (1) YEAR LIMITED WARRANTY (“WARRANTY”) AS SET OUT BELOW. DO NOT USE YOUR PRODUCT
UNTIL YOU HAVE READ THE TERMS OF THE WARRANTY. IF YOU DO NOT AGREE TO THE TERMS OF THE
WARRANTY, DO NOT USE THE PRODUCT AND RETURN IT WITHIN THE RETURN PERIOD STATED IN OUR
RETURN POLICY (FOUND AT http://www.waverlylabs.com/return-policy/).
What does this warranty cover?
Waverly Labs Inc. (“Waverly Labs” or “us” or “we”) warrant that the Pilot device (including earpiece(s)
and charger) and any other Waverly Labs devices contained in the original packaging (the “Product”)
shall be free against any material defects in production, materials, or workmanship when used in a
reasonable manner and as subject to the terms contained in this Limited Warranty, for a period of one
(1) year from the date of original purchase directly from Waverly Labs (the “Warranty Duration”). This
Limited Warranty only extends to the end-user of the Product. Proof of purchase is required in order to
process a claim under this Limited Warranty.
What is not covered?
This Warranty does not apply to any Product that has been modied, serviced, or altered by anyone
who is not authorized by us to perform such activities. Although this Warranty covers manufacturing
defects, it does not cover damages that the Product may have sustained in shipping or transit to the
end user. We do not guarantee that the Product will be completely error-free, nor are we responsible
for damage arising from failure to follow instructions relating to the Product’s use. This Warranty
does not cover any soware contained within the Product. Further, this Warranty does not apply to
damage or defects caused by (1) accident, abuse, mishandling, dropping, ood, re, earthquake or
19 - diecinueve - diciannove - dezenove - dix-neuf - девятнадцать - 十九
other external causes; (2) WATER AND/OR FOOD SPILLAGE DAMAGE; (3) normal wear and tear (including
cosmetic damage) unless caused by a manufacturing or workmanship defect; (4) improper storage;
(5) improper testing or unauthorized repair, including, without limitation, any damage caused by the
end-user opening the physical Product hardware; and (6) operation of the Product (a) using improper
voltage or power supply or (b) not in accordance with our instructions. All consumable components
subject to regular wear and tear, including battery, ear tips, and other accessories are not covered
by this Warranty. Further, this Warranty does not apply if the factory-applied serial number has been
altered or destroyed.
How do I have my warranty claim processed?
Please follow the directions contained in our Return Policy (http://www.waverlylabs.com/return-pol-
icy/), contacting support@waverlylabs.com. In accordance with the Return Policy, we may repair or
replace the Product or issue you a refund, depending on the circumstance.
Local Law, Limitations
IMPORTANT: This Warranty gives you specic legal rights, and you may also have other rights which
vary from state to state, province to province, or country to country. For a full understanding of your
rights, consult your local law.Waverly Labs shall (subject to applicable local law) not be liable for inci-
dental, indirect, special, or consequential damages, including loss of revenue, prots, or data resulting
from breach of any express or implied warranty or any indirect or consequential damages.To the extent
permitted by law, this Warranty and the remedies set forth herein are exclusive and in lieu of all other
warranties, remedies and conditions, whether oral, written, statutory, express or implied. We disclaim
all statutory and implied warranties, including without limitation, warranties of merchantability and
tness for a particular purpose and warranties against hidden or latent defects, to the extent permit-
ted by law. Insofar as such warranties cannot be disclaimed, we hereby limit the duration and remedies
20 - veinte - venti - vinte - vingt - двадцать - 二十
of such warranties to the duration of this express limited Warranty and, at our option, the repair or
replacement services described below. Some jurisdictions do not allow limitations on how long an
implied warranty may last, so the limitation described above may not apply to you.
CAUTION!
Exposure to Radio Frequency Radiation. The installer of this radio equipment must ensure that the
antenna is located or pointed such that it does not emit RF eld in excess of Health Canada limits for
the general population. Consult Safety Code 6, obtainable from Health Canada’s website http://www.
hc-sc.ca.
This equipment complies with Industry Canada radiation exposure limits set forth for an uncon-
trolled environment. End user must follow the specic operating instructions for satisfying RF expo-
sure compliance. This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter. The device is designed to meet the requirements for exposure to radio waves
established by the Industry Canada. These requirements set a SAR limit of 1.6 W/kg averaged over one
gram of tissue. The highest SAR value reported under this standard during product certication for
using at the ear is 0.031 W/kg for le ear ( IC : 23324-WLABSV1PL). The highest SAR value reported
under this standard during product certication for using at the ear is 0.040W/kg for right ear ( IC :
23324-WLABSV1PR).
Industry Canada Statement “This device complies with Industry Canada’s licence-exempt RSSs.
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2)
This device must accept any interference, including interference that may cause undesired operation
of the device.”
FCC
21 - veintiuno - ventuno - vinte e um - vingt et un - двадцать один - 二十一
Warning: Changes or modications to this unit not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two condi-
tions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause unde-
sired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interfer-
ence will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment o and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help
Shielded cables must be used with this unit to ensure compliance with the Class B FCC limits.
22 - veintidos - venti due - vinte e dois - vingt-deux - двадцать два - 二十二
INFORMATIONS DE GARANTIE
Waverly Labs: Garantie Limitee de un (1) an:
IMPORTANT: EN UTILISANT PILOT, VOUS ACCEPTEZ DE SOUSCRIRE AUX TERMES DE LA GARANTIE
(“WARRANTY”) LIMITÉE D’UN AN DE PILOT WAVERLY LABS COMME DÉCRIT CI-DESSOUS. N’UTILISEZ
PAS VOTRE PRODUIT AVANT D’AVOIR LU LES TERMES DE LA GARANTIE. SI VOUS N’ACCEPTEZ PAS LES
TERMES DE LA GARANTIE, N’UTILISEZ PAS LE PRODUIT ET RETOURNEZ LE DURANT LA PÉRIODE DE
RETOUR STIPULE DANS NOS RÈGLES DE RETOURS (SUR http://www.waverlylabs.com/return-policy/).
Que couvre cette garantie?
Waverly Labs Inc. (“Waverly Labs” ou “notre” ou “nous”) garantit que le produit Pilot (incluant les
oreillettes et le chargeur) et quelque autre produit de Waverly Labs contenu dans le lot (“Produit”)
doit être dénué de tout matériel défectueux résultant de la production, matériel, ou eort de travail si
utilise de maniere adequate et respectant les termes stipulés dans cette garantie limitée à une période
de un (1) an depuis la date originale d’achat direct chez Waverly Labs (la “Warranty Duration). Cette
garantie limitée s'étend seulement à l’utilisateur nal du produit. Une preuve d’achat est obligatoire
pour procéder à une plainte sous la garantie limitée.
Qu’est ce que la garantie ne couvre pas?
La Garantie ne s’applique pas à quelque produit modie, oert, ou change par qui que ce soit qui n’est
pas autorisé par nous à performer de telles activités. Quand bien même cette Garantie couvre les
défauts de manufacture, elle ne couvre pas les dommages que le Produit peut avoir reçu lors de l’envoi
ou transport vers l’utilisateur nal. Nous ne garantissons pas que le produit sera entièrement sans
erreur, ou que nous soyons responsable pour les dommages résultant de l'échec de suivre les instruc-
tions relatives à l’usage du produit. Cette garantie ne couvre pas les sowares compris avec le produit.
Également, cette Garantie ne s’applique pas aux dommages et erreurs cause par (1) accident, abus,
23 - veintitres - venti tre - vinte e três - vingt troix - двадцать три - 二十三
mauvais-usage, chute, inondations, feu, tremblements de terre ou autres causes externes;
(2) DOMMAGE PAR EAU ET/OU NOURRITURE; (3) port normal et déchirure (inclus dommage cosmétique)
a moins que cause par un défaut de manufacture ou de travail humain; (4) stockage impropre; (5) test
impropre ou réparation non-autorisée, inclut, sans limitation dommages causés par l’utilisateur nal
a l’ouverture du produit hardware; and (6) opérer le produit (a) utilisant un voltage impropre ou source
d'énergie ou (b) en non-accordance avec nos instructions. Tous les composants consommables sujet
a des ports et déchirements réguliers, inclus batterie, embouts d’oreillettes, et autres accessoires ne
sont pas couvert par cette Garantie. Egalement, cette Garantie ne s’applique pas si le numero de serie
appliqué a l’usine a été modié ou détruit.
Comment puis-je faire valoir ma garantie?
Veuillez suivre les instructions stipulées dans notre Return Policy (http://www.waverlylabs.com/
return-policy/), contactez support@waverlylabs.com. Conformément à nos conditions de retour, nous
pouvons réparer ou remplacer le Produit, ou bien le rembourser, suivant les circonstances.
Lois locales, Limitations
IMPORTANT: Cette Garantie vous donne des droits legaux speciques, mais vous pouvez aussi avoir
d’autres droits qui varient d’état à état, province à province, ou pays à pays. Pour une compréhension
plus détaillée de vos droits, consultez votre lois locale.
Waverly Labs ne sera pas (en fonction de la loi locale applicable) responsable pour tout dommage acci-
dentel, indirect, spécique, de conséquence et/ou incluant perte de revenue, de prot ou de donnée ré-
sultant d’une violation de garantie explicite ou implicite ou autre dommage indirect ou de conséquence.
24 - veinticuatro - ventiquattro - vinte e quatro - vingt quatre - двадцать четыре - 二十四
INFORMATIONS DE GARANTIE (A CONTINUÉ)
Dan s le me sure p erm ise p ar la lo i, cet te Ga rant ie et l es so luti ons m enti onné es s'é tend ent e t surp ass e tou tes
autres garanties, solutions et conditions, verbales, écrites, statutaires, explicites ou implicites. Nous
dénonçons, toutes garanties statutaires ou implicites, incluant sans limitation les garanties de commer-
ciabilité ou d'aptitude à un but particulier et garanties contre défaillances latentes ou cachées, permises
par la loi. Dans la mesure où de telles garanties ne peuvent être rejetées, nous limitons la durée et les solu-
tions de telles garanties à la duree limitée de cette Garantie explicite et, à notre choix, la réparation ou les
services de remplacement décrit ci-dessous. Certaines juridictions n'autorisent pas de limitations sur la
durée d’une garantie implicite, donc la limitation décrite plus haut ne s’appliquera peut être pas à vous.
Cet équipement est conforme aux limites d'exposition aux rayonnements d'Industrie Canada
établies pour un environnement non contrôlé. L'utilisateur nal doit suivre les instructions d'utilisa-
tion spéciques pour satisfaire à la conformité d'exposition RF.
Cet émetteur ne doit pas être situé ou fonctionner conjointement avec une autre antenne ou un autre
émetteur. L'appareil est conçu pour répondre aux exigences d'exposition aux ondes radio établies
par Industrie Canada. Ces exigences xent une limite SAR de 1,6 W / kg en moyenne sur un gramme de
tissu. La valeur DAS la plus élevée rapportée sous cette norme lors de la certication du produit pour
une utilisation à l'oreille est de 0,031 W / kg pour l'oreille gauche (IC: 23324-WLABSV1PL). La valeur
DAS la plus élevée rapportée sous cette norme lors de la certication du produit à utiliser à l'oreille est
de 0,040 W / kg pour l'oreille droite (IC: 23324-WLABSV1PR).
Avis d’industrie Canada : Le présent appareil est conforme aux CNR d’Industrie Canada applicables
aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1)
Cet dispositif ne peut causer des interférences; et (2) Cet appareil doit accepter toute interférence, y
compris les interférences qui peuvent causer un mauvais fonctionnement de l'appareil.
24 - veinticuatro - ventiquattro - vinte e quatro - vingt quatre - двадцать четыре - 二十四 25 - veinticinco - venticinque - vinte e cinco - vingt cinq - двадесет и пет - 二十五
DISPOSAL
Your product is designed and manufactured with high quality
materials and components which can be recycled and reused.
This symbol on a product means that the product is covered
by European Directive 2012/19/EU.
This symbol means that the product contains batteries covered
by European Directive 2013/56/EU which cannot be disposed of
with normal household waste.
Inform yourself about the local separate collection system for electrical and electronic products and
batteries. Follow local rules and never dispose of the product and batteries with normal household
waste. Correct disposal of old products and batteries helps prevent negative consequences for the
environment and human health.
Waverly Labs, Inc. Brooklyn, NY. All rights reserved. PILOT and the Waverly Labs logo are trademarks of
Waverly Labs, inc. in the U.S. or one or more countries. The absense of a product or service name or logo
from this list does not constitute a waiver of Waverly Labs, Inc trademark or other intellectual property
rights concerning that name or logo. The Bluetooth word mark and logos are registered trademarks
owned by Bluetooth SIG. Inc. and any use of such marks by Waverly Labs, Inc. is under license. The
Android robot is reproduced or modied from work created and shared by Google and used according
to terms described in the Creative Commons 3.0 Attribution License. iOS is a trademark or registered
trademark of Cisco in the US and other countries and is used under license. Other trademarks and trade
names are those of their respective owners.
FCC ID: 2AN4B-WLABSV1PR (Right ear)
FCC ID: 2AN4B-WLABSV1PL (Le ear)
IC: 23324- WLABSV1PR (Right ear)
IC: 23324- WLABSV1PL (Le ear)
2017 © this product has been manufactured and distributed by Waverly Labs Inc.
19 Morris Ave, Brooklyn, New York 11205 USA.
Please visit www.waverlylabs.com for additional information.
27 - dos - due - dois - deux - два - 两
Pilot Speech Translator
Download at:
pilot.link
APP
waverlylabs.com
A world without language barriers
This product complies with the following regulatons and certications:
