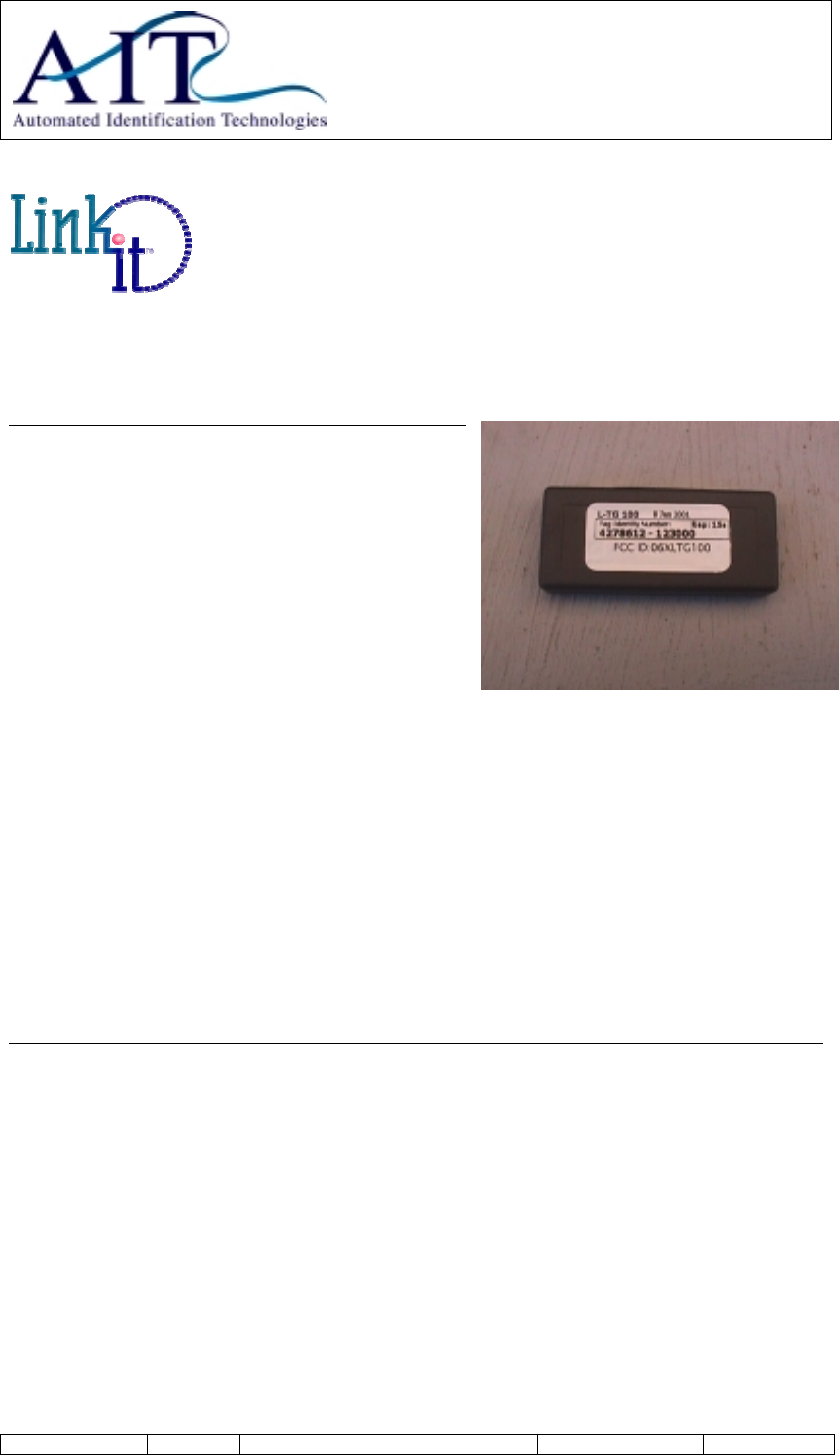

135188 V1.1 REAL TIME RESOURCE CONTROL9 JANUARY 2001 Page 1 of 3
Link-it™
Product Information Sheet
Active Tag
L-TG100 (Domino Tag)
L-TG101 (Domino Tag with Movement Sensor)
Description:
The Link-it™ series of Active Tags are
powered by an internal battery. The Tag will,
for the duration of its life, transmit a Radio
Frequency (RF) signal at a pre-set time-interval.
The Tag life is estimated at 5 years at a
transmission time interval of approximately 15
seconds. The lifespan of the Tag ends when the
battery life is exhausted. Battery status can be
inferred by interrogating the internal Tag Age
Counter Value.
The transmitted Tag data includes Customer Site Code (CSC), Tag ID, Tag Age
Counter Value, Movement Alarm and Tamper Alarm status.
For protection against adverse environmental conditions, Link-it™ Tags are
encapsulated in a moulded plastic case, which is ultrasonically sealed during the
manufacturing process.
The Domino Tag is generally used for asset tagging. The mounting and affixing of a
Tag depends on the type of application. The standard method is by VHB type double-
sided adhesive tape.
The Tag can be configured to accommodate Wiegand interfacing.
Features:
• Configurable settings, including Site Code Vendor ID, Tag ID, Transmission
Repetition Interval and Alarm functions (these are programmed at order
placement stage)
• Low power consumption. Tag life is estimated at 5 years when transmitting at a
15-second interval.
• A random dispersion around the transmit interval mean is used to minimise the
inter-tag collisions
• External Antennae
135188 V1.1 REAL TIME RESOURCE CONTROL9 JANUARY 2001 Page 2 of 3
Link-it™
Product Information Sheet
Applications:
Link-it™ Tags can be mounted on a variety of items. Where permanent fixing is
required, VHB double-sided tape is used.
Specification:
Environmental
Operating temperature -10º C to +60º C
Storage temperature -20º C to +70º C
Humidity 5% to 90% (non condensing)
Physical
Size 61mm x 30mm x 9mm (Domino Enclosure)
Weight 15 grams (excluding antenna)
Colour Grey (Clariant 04-600 2%)
Type of material PVC (ultrasonically sealed) IP 65
RF Specifications
Tx Frequency 433.92Mhz±10MHz
Power Output -14 dBm, 72 db µV, 4300 µV/m, 38µW
Modulation OOK
Bandwidth 3 MHz
Stability Loosely coupled Saw
Electrical Specifications
Power Internally powered Lithium Battery
Range Options
Domino Tag (without external antenna) Approximately 2.5 Meters
Domino Tag (with external antenna) Approximately 6 Meters
Certification
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
This device has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
device generates, uses, and can radiate radio frequency energy and, if installed and
used in accordance with the instruction, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this device does cause harmful interference to radio or
television reception, the user is encouraged to try to correct the interference by one or
more of the following measures:
135188 V1.1 REAL TIME RESOURCE CONTROL9 JANUARY 2001 Page 3 of 3
Link-it™
Product Information Sheet
• Reorient or relocate the receiving antenna.
• Increase the separation between the computer and receiver.
• Connect the computer into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the grantee of this
device could void the user’s authority to operate the equipment.
