Wavetrend Technologies Limited Active Duo RFID Tag TGP-A Datasheet

Contents

Datasheet

Europe, Australasia and Middle East – Corporate Office USA, Canada and South America South Africa
+44 (0)20 8334 8400 +1 (703) 539 8502 +27 (0)11 792 6066

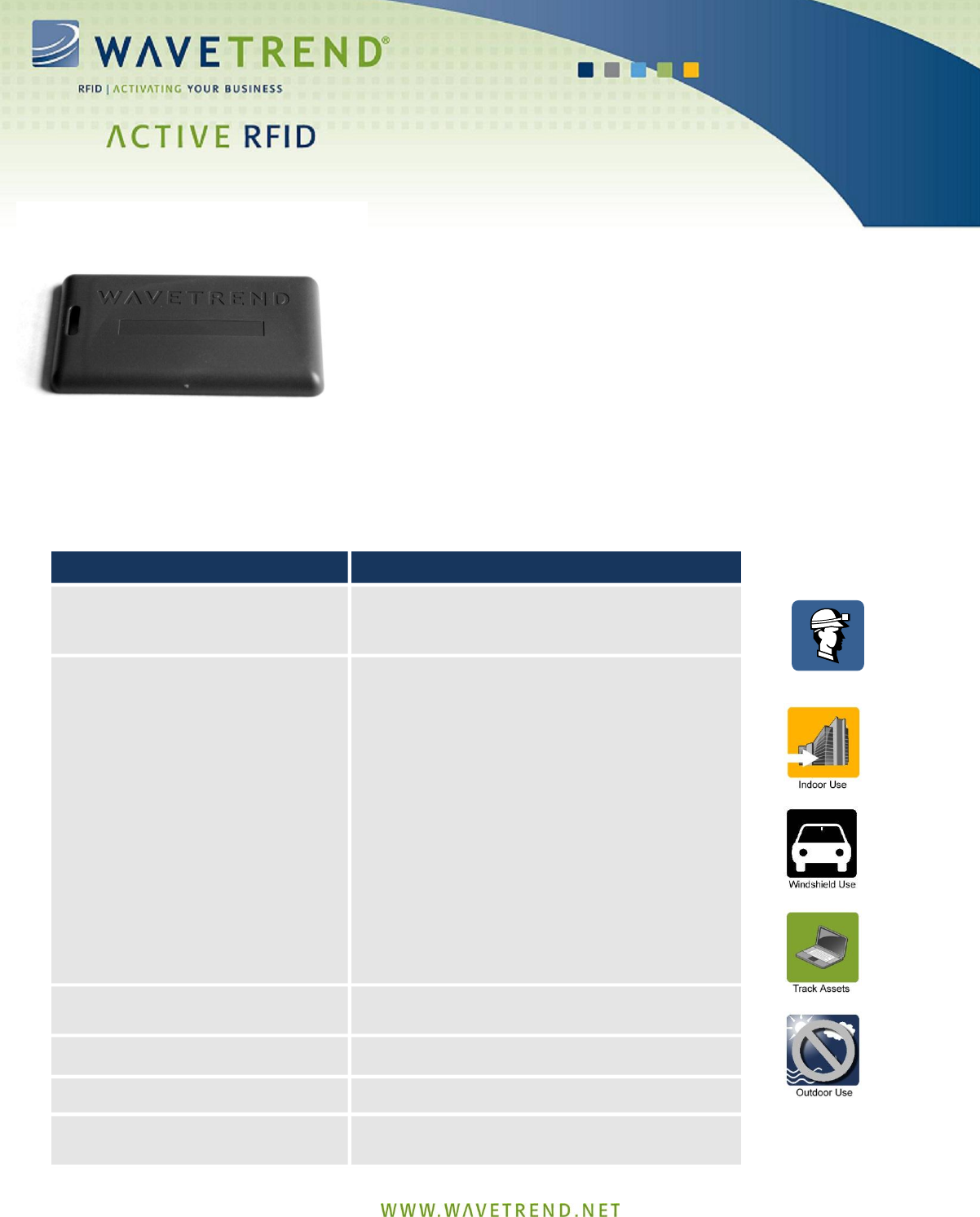

Personnel Tag
TGP-A
Beacon tag transmitting a unique ID & data at pre-set intervals
Ultra low power consumption provides exceptional battery life
Ultra long-range transmitter
Low battery warning
Anti-tamper alert option
Passive RFID technologies including HID and UHF GEN2
The TGP-A ActivDuo Personnel Tag is an active tag that continuously transmits a unique ID number, which can be detected
by Wavetrend® reader. An internal battery powers the tag and Wavetrend’s patented ultra low power use design ensures
longer battery life at higher rates of transmission than any other brand of active RFID tag. Various preset transmission
intervals are available.
.
KEY FEATURES
BUSINESS BENEFITS
Tag can be configured to hold standard
26-bit Wiegand numbering
Allows tag to be used with existing access control
systems separately or together with the active RFID
system.
Configurable settings include:
Site / Vendor ID
Tag ID
Various transmission repetition intervals
(default 15s)
Adjustable Movement Alert
Tamper Alarm
A unique code that can be allocated by Wavetrend to
each customer on request. Readers can be set to
ignore tags with incorrect site codes.
4.2 billion tag ID’s are available per site code.
The Age Counter allows for advance notification of
the end of battery life and for the unique identification
for each transmission made by the tag. Beacon rates
are as follows: 15, 30.
The sensitivity of the tags motion sensor can be set
on a Scale of 1-10 allowing a scale from the most
sensitive movement to prolonged shocks.
Provides instant notification of unauthorized attempts
to remove a tag from an asset.
Collision avoidance algorithm
Reduces loss of data caused by simultaneous
transmissions from multiple tags.
Ultra low power consumption
Lifespan of 3 years when transmitting at the standard or
greater interval.
Sealed to IP64 standards
Splash proof
Housing incorporates dip-slot
For convenient wearing and flexibility of use.
Best Usage
Guide
Personnel
Europe, Australasia and Middle East – Corporate Office USA, Canada and South America South Africa
+44 (0)20 8334 8400 +1 (703) 539 8502 +27 (0)11 792 6066
Personnel Tag
TGP-A
The TGP-A Personnel Tag is generally used
for security & safety applications requiring
people to carry a tag. The housing
incorporates a clip-slot for convenient
wearing for that purpose. However, it may
be used in other applications such as asset
monitoring. The mounting and affixing
method for the tag depends on the type of
application it is used in. The tag must not be
fixed directly onto metal surfaces.
The TGP-A-DT tag is a ‘dual technology’ tag
that incorporates a customer supplied
passive RFID PET e.g. the HID MicroProx
TM
chip, allowing the tag to function on other
passive RFID systems such as a door
access control system.
Model Range
The tags can be ordered using the part
numbers listed below:
Air Interface Protocols
L-Series’ refers to a proprietary
communication protocol used between
Wavetrend® tags and readers.
L-Series tags provide ultra long read range
and are ideal for use in low tag density (< 30
tags per reader) operations such as
personnel tracking, small asset
management applications and access
control systems.
Multiple classes, allowing the user to
select shorter messaging packets for high
speed or high density application
Typical Applications
Specifications
Environmental
Operating temperature
Storage temperature
Humidity
: -30°C to +60°C
: -40°C to +70°C
: 5% to 90% (non-condensing)
Physical
Size
Weight
Colour
Material
: 85 x 54 x 6.5 mm
: 24 grams
:
:ABS (ultrasonically sealed) IP64
Radio Frequency
Transmit Frequency
Power Output (avg.)
Range
: 433.92 MHz
: 77 dB
V/m @ 3m
: 1 to 100+ meters (actual range is determined by the
choice of reader & antenna used to detect the tag and
the environment it is used in)
Electrical
Power
: Internally powered by lithium battery
accessories
TA501
TA501-AT
(All sold in packs of 10)
: Tag attachment kit
: Tamper alerting tag attachment kit
User definable data fields, allowing up
to 200 characters of user data to be
stored on the tag
Smart telemetry tag, that alert and log
the user if out of bounds conditions in
either temperature or humidity occur
Greater selection of tag beacon rates
offering greater tag of
the reduction in
spurious transmissions.
L-Series+ tags can only be read by L-Series+
readers. L-Series readers can read both L-
Series and L-Series+ tags.
* (from front page) Battery life calculations assume
operation at room temperature with the default
status transmission interval of 15 seconds, without
the anti-tamper circuit armed and without a motion
sensor fitted
Ordering & Further Information
For more information on purchasing the
Active TGP-A Tag please email
Wavetrend’s Sales team:
sales@wavetrend.net
For more information on Wavetrend® visit
our website.
FCC Statement of Conformity
Wavetrend , TGP-A Active Duo ,
FCC ID: 06XTGP-A
This device complies with Part 15 of the FCC rules subject to the following three conditions:
1) This device may not cause harmful interference.
2) This device must accept all interference received, including interference that may cause
undesired operation.
3)
This device is for commercial use only and intended for use in a confined area with an
appropriate system receiver
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
