User Manual
WBS-2400
Metro Base Station
Installation Guide
May 2008
Note: To better reflect the value of Wavion products we are changing the name of our product
family from Access Points (AP) to Wireless Base Stations (WBS), consequently the existing
WS-410 product name will be changed to Wavion WBS-2400.
The new product name emphasizes the difference in architecture (Multiple Radio system) and
the value to customer, superiority in performance (coverage, capacity, indoor penetration
and immunity to interference) of Wavion WiFi base station over any other standard outdoor
WiFi access point products available in the market.
All references in Wavion's documentation to WS-410 refers also to the WBS-2400 , and vice
versa. Both products are exactly the same except for the name change.
Copyright Notice
©2006 Wavion, Inc. All rights reserved. Wavion is a registered trademark of Wavion in the
United States and certain other jurisdictions. Specifications are subject to change without
notice. Loctite is a registered trademark of Loctite Corporation, USA.
FCC Notice to Users and Operators
This equipment has been tested and found to comply with the limits for a digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference, in which case the user will be required to correct the
interference at his own expense. (If this equipment does cause interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to correct the interference by using one of the following measures:
•Reorient or relocate the receiving antenna.
•Increase separation between the equipment and receiver.
•Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
Installation Guide
Contents
FCC Notice to Users and Operators ................................. 2
Chapter 1 ABOUT THIS GUIDE ...........................................5
Preface .............................................................................. 5
Conventions ....................................................................... 5
Contacting Technical Support................................................ 6
Chapter 2 INTRODUCTION .................................................7
Chapter 3 INSTALLING THE WAVION WBS-2400 METRO BASE
STATION..........................................................9
Important Safety Instructions............................................. 10
Preparing for Installation.................................................... 11
Installation Hardware and Tools.................................... 11
Choosing a Location.................................................... 12
Preparing the Site....................................................... 12
Power Source Options ................................................. 12
Safety Precautions...................................................... 13
Mounting Strategies........................................................... 13
Using Hose Clamps............................................................ 14
Mounting on a Pole, or Streetlight ....................................... 14
Metal or Wood Pole Mounting ....................................... 15
Wood Brace Mounting.................................................. 19
Streetlight Mounting ................................................... 20
Grounding the Wavion WBS-2400........................................ 23
Grounding the Data Protection Device ........................... 25
Connecting Antennas......................................................... 27
Connecting Power.............................................................. 28
Connecting to AC Power (Category C)............................ 28
Connecting to Streetlight Power (Category C)................. 31
Connecting to DC Power .............................................. 32
Connecting a Data Port ...................................................... 34
Connecting Peripherals....................................................... 38
PoE Power Sourcing Power Output ................................ 39
Using a Backhaul Unit ................................................. 39
Safety Information for the Wavion WBS-2400....................... 40
Service Instructions........................................................... 41
4Wavion Networks
Chapter 4 POWER CONSUMPTION .....................................43
Chapter 5 PRODUCT SPECIFICATION..................................45
Chapter 6 ANTENNA SPECIFICATIONS AND PATTERNS ...........49
SF-245W 2.4GHz Omnidirectional Antenna..................... 50
MT_342015NV_SN_035_EL 2.4 GHz Antenna................. 50
Chapter 7 INSTALLATION ACCESSORIES .............................55
Power Cable ..................................................................... 56
Ethernet Cables ................................................................ 56
Lightning Protection........................................................... 56
Power Over Ethernet.......................................................... 56
Client Connectivity ............................................................ 57
Chapter 8 AC WIRING DIAGRAMS ....................................59
AC Wiring Photoelectric Power Tap....................................... 60
AC Wiring Power Cable 120VAC, 15A Plug............................. 62
Chapter 9 BACKHAUL UNIT INSTALLATION INSTRUCTIONS.....63
Chapter 10 WIND LOADING CONSIDERATIONS.....................65
APPENDIX A: WBS-2400 PRODUCT LIST .....................67
ACRONYMS..............................................................69
Installation Guide 5
CHAPTER 1
About This Guide
Preface
This guide details the Wavion WBS-2400 installation procedures. The intended audience of
this document is trained technical professionals.
Conventions
The exclamation point within a triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in
the literature accompanying the product.
The lightning flash with an arrowhead symbol within a triangle is intended to
alert the user to the presence of uninsulated dangerous voltage within the
product’s enclosure that may be of sufficient magnitude to constitute a risk
of electric shock to persons.
The notebook is intended to alert the user of a note containing further
information.
About This Guide
6Wavion Networks
Contacting Technical Support
For technical support, contact Wavion using these methods:
Address: Wavion Technical Support
Wavion Inc.
1190 Saratoga Avenue
San Jose, California 95129
USA
Telephone: +1-408-261-7000
Fax: +1-408-261-7001
Email: support@wavionnetworks.com
Web: www.wavionnetworks.com
Installation Guide 7
CHAPTER 2
Introduction
The WBS-2400 is a new category of Wi-Fi Base Station designed from the ground up for
metro-Wi-Fi deployments. It is based on six antennas and radios and custom-built ASICs,
utilizes Wavion's powerful multi-antenna signal processing technologies, and provides
significant performance gains to off-the-shelf 802.11 standards-based Wi-Fi clients.
The WBS-2400 may be mounted on streetlights or rooftops and may be easily interfaced with
either wired internet connections, wireless mesh or backhaul equipment. Multiple power
options are provided for maximum flexibility.
Complete management of the WBS-2400 is provided through SNMP, a graphical user
interface, and SYSLOG services.
The WBS-2400 Wi-Fi Base Station uses six omni-directional antennas and beam-forming
technology in order to provide significant performance gains to off-the-shelf 802.11
standards-based Wi-Fi clients.
Introduction
8Wavion Networks
Installation Guide 9
CHAPTER 3
Installing the Wavion WBS-2400 Metro Base
Station
This guide explains how to safely install the Wavion WBS-2400 Metro Base Station. The
following topics are covered in this chapter:
•Important Safety Instructions on page 10
•Preparing for Installation on page 11
•Mounting Strategies on page 13
•Using Hose Clamps on page 14
•Mounting on a Pole, or Streetlight on page 14
•Grounding the Wavion WBS-2400 on page 23
•Connecting Antennas on page 27
•Connecting Power on page 28
•Connecting a Data Port on page 34
•Connecting Peripherals on page 38
•Safety Information for the Wavion WBS-2400 on page 40
•Service Instructions on page 41
Installing the Wavion WBS-2400 Metro Base Station
10 Wavion
Important Safety Instructions
WARNING: It is illegal to modify the construction of this product. Modifying the
operating frequency or enhancing the transmit output power through the use of
external amplifiers or other equipment is specifically disallowed by the
“Telecommunications Act.”
WARNING: This device is for outdoor or indoor use with conditions that no harmful
interference to authorized radio stations results from the operation of this device.
This device shall not influence aircraft security and/or interfere with legal
communications as defined in the “Telecommunications Act.” If this device is found to
cause interference, the operator of this equipment shall cease operating this device
immediately until no interference is achieved.
NOTE: This device must be installed by a trained professional, value added reseller or
systems integrator who is familiar with RF planning issues and the regulatory limits
in the United States of America.
CAUTION: Read and save these instructions. Heed all warnings. Follow all
instructions.
CAUTION: Do not defeat the safety purpose of the grounding. Only use attachments/
accessories specified by the manufacturer.
CAUTION: Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way. For example, if
the power-supply cord or plug is damaged, liquid has been spilled on the
apparatus, objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, it does not operate normally, or has been
dropped.
WARNING: Risk of personal injury or death when installing this device! There is a risk
of personal injury or death if the WBS-2400 antennas come near electric power lines.
Carefully read and follow all instructions in this manual. By nature of the installation,
you may be exposed to hazardous environments and high voltage. Use caution when
installing the outdoor system.
WARNING: This apparatus must be connected to earth ground.
WARNING: Do not open the unit. There is a risk of electric shock inside.
CAUTION: You are cautioned that any change or modification not expressly approved
in this manual could void your authority to operate this equipment.
CAUTION: There are no user-serviceable parts inside. All service must be performed
by qualified personnel.
CAUTION: The RJ45 connectors of your Wavion WBS-2400 may source DC power on
pins 4,5 and 7,8. The IEE 802.3 standards allow for pins 4,5 and 7,8 to be used for
Power Over Ethernet. Some products may be incompatible with the Wavion Power
Over Ethernet capability.
Installing the Wavion WBS-2400 Metro Base Station
Installation Guide 11
Preparing for Installation
The Wavion WBS-2400 must be installed by a trained professional, or systems integrator
who is familiar with RF planning issues and regulatory limits as defined by the governing
body of the country in which the unit will be installed.
The following lists the equipment required for installation and explains how to prepare the
installation site.
Installation Hardware and Tools
Wavion provides the following accessories to install the Wavion WBS-2400:

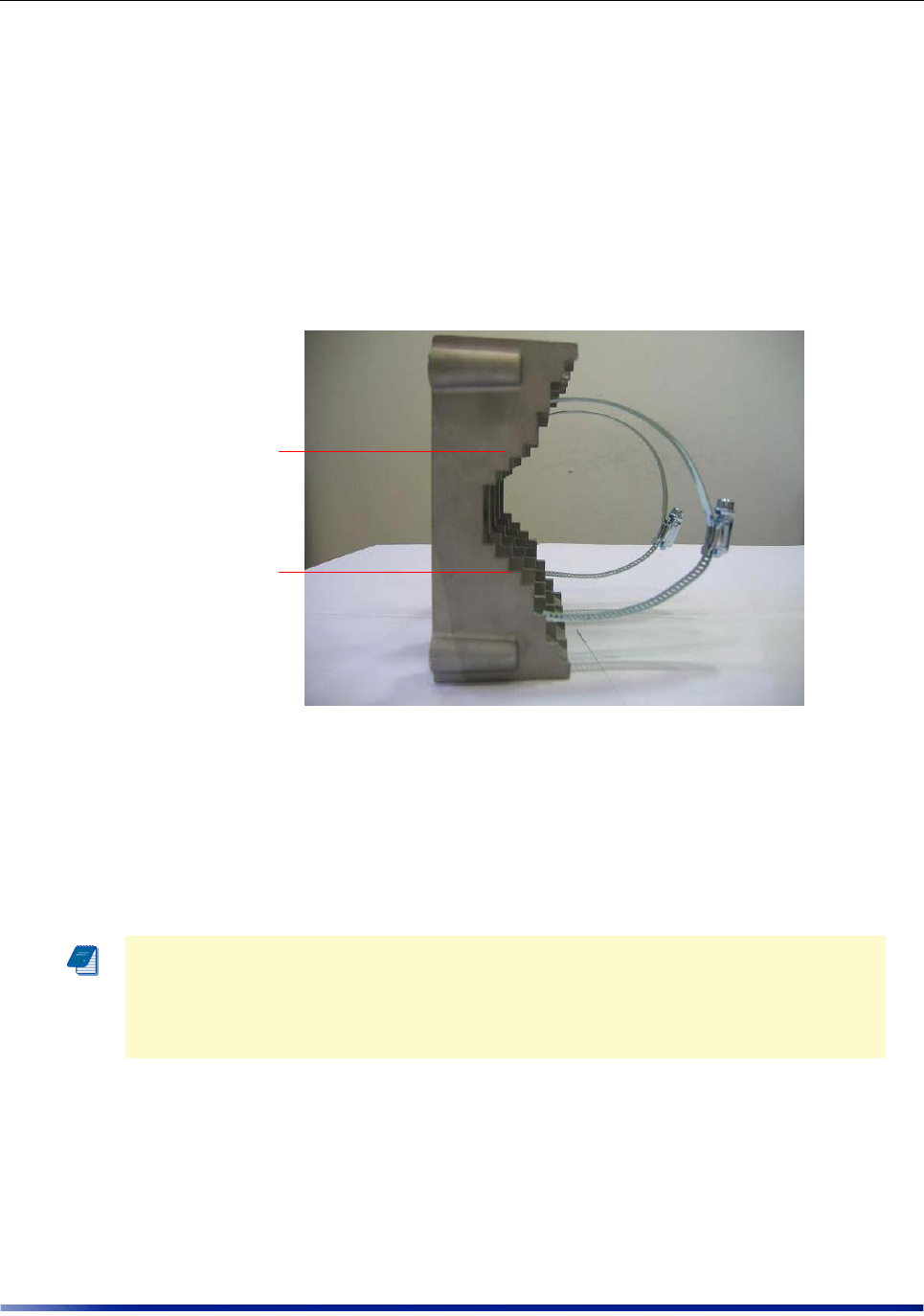

•One pole bracket
•Two 3-6-inch diameter worm drive hose clamps
•Seven 8mm stainless steel hex head machine bolts
•Allen wrench - 4mm and 5mm
•Six Antennas
You must supply the following tools:
•1/4-inch flat blade screwdriver
•Wood brace mounting only: four 5/8-inch diameter, 3-inch long lag bolts
CAUTION: Only UL listed parts and components will be used for installation. Use UL
listed devices having an environmental rating equal to or better than the enclosure
rating to close all unfilled openings.
CAUTION: To maintain Overvoltage (Installation) Category II, install a suitable surge
suppressor device in the branch circuit to limit expected transients to Overvoltage
Category II values. The limits are based on IEC60664 and are also located in Table
2H of UL60950 (for mains 110V, the transient rating is 1500V).
CAUTION: The WBS-2400 must be installed only with the equipped antennas.
CAUTION: A minimum distance of 40cm from the WBS-2400's antenna should be
kept when the system is operated.
CAUTION: Read and save these instructions. Heed all warnings. Follow all
instructions.
WARNING: Do not modify the construction of this product. Modifying the operating
frequency or enhancing the transmit output power through the use of external
amplifiers or other equipment is illegal.
WARNING: This device is for use outdoors or indoors on the condition that operation
of this device causes no harmful interference to authorized radio stations. This device
shall not influence aircraft security and/or interfere with legal communications. If this
device is found to cause interference, the operator of this equipment shall cease
operating this device immediately.
Installing the Wavion WBS-2400 Metro Base Station
12 Wavion
Choosing a Location
The Wavion WBS-2400 is a radio device and susceptible to interference that can reduce
throughput and range. To ensure the best performance follow these guidelines:
•Direct line-of-sight operation is preferred.
•It is recommend not to install the WBS-2400 near devices operating in the 2.4 GHz
frequency range.
•The WBS-2400 should be installed at the highest point of a metal pole such that there will
be no interference caused by RF reflections. If this is not possible, the WBS-2400 should
be installed at least 3 meters from the metal pole.
•It is always best to have the maximum distance possible from an RF radiating source.
Preparing the Site
When installing the Wavion WBS-2400, you must follow the appropriate electrical and
building codes to ensure safe and durable wiring. Follow the National Electrical Code (NEC)
requirements, unless local codes in your area take precedence over the NEC code.
For installations that have 10/100 Base-T Category 5 network cables attached to the Wavion
WBS-2400, there is a distance limit of 100m maximum between devices for 10/100BaseT
operation.
An appropriate ground cable should be available. Grounding through electrical wiring or CAT-
5 cable is not sufficient.
Please refer to standards for building entrance protection.
Power Source Options
The Wavion WBS-2400 supports the following options for connecting to a power source:
•AC power source (3-wire service) — 3W(P+N+PE) or 3W(2P+PE); 110-220 VAC, 50/60
Hz. See Chapter 7: Installation Accessories on page 55 for details.
•NEMA plug, for streetlight photoelectric control power tap (2-wire service) —2W(2P) or
2W(P+N); 100-240 VAC 50/60 Hz. See Chapter 7: Installation Accessories on page 55 for
details.
•DC power source (2-wire service); 48VDC See Chapter 7: Installation Accessories on
page 55 for details.
•The WBS-2400 can be powered by a Wavion Injector connected to Ethernet port B (ETH
B). See Chapter 7: Installation Accessories on page 55 for details.
WARNING: Use only a rated power source to connect the AC powered outdoor
system. Do not connect to a power source of different voltage.
Installing the Wavion WBS-2400 Metro Base Station
Installation Guide 13
Safety Precautions
Installing the Wavion WBS-2400 can be very hazardous. Take precautions to avoid the
following:
•Exposure to high voltage lines
•Contact with AC wiring
•Injuries from dropped tools and equipment
•Falls when working at heights or with ladders
Mounting Strategies
Consider the available mounting structures and antenna clearance when choosing a
mounting location. The Wavion WBS-2400 should always be mounted with the top of the unit
parallel to the ground, and with the antennas pointing upward and clear of obstruction.
It is recommended to attach ground and data cables to the WBS-2400 prior to mounting.
Before mounting the WBS-2400, read the wiring instructions in Grounding the Wavion WBS-
2400 on page 23 and Connecting a Data Port on page 34.
Figure 3.1. demonstrates acceptable options for mounting on a streetlight. In both cases the
WBS-2400 is mounted to ensure clearance for the antennas above the height of the
streetlight.
CAUTION: You must always install an external grounding wire. You must also ground
the outdoor data protection device to a bonded pipe or ground rod. Perform a simple
continuity check between the WBS-2400 and the ground termination point to
confirm. Make sure that grounding is complete before you connect power to the
Wavion WBS-2400.
NOTE: The WBS-2400 should be mounted with at least 4 ft of clearance around the
antennas to eliminate potential interference from the mounting structure.
Antennas clear of any
obstruction
Installing the Wavion WBS-2400 Metro Base Station
14 Wavion

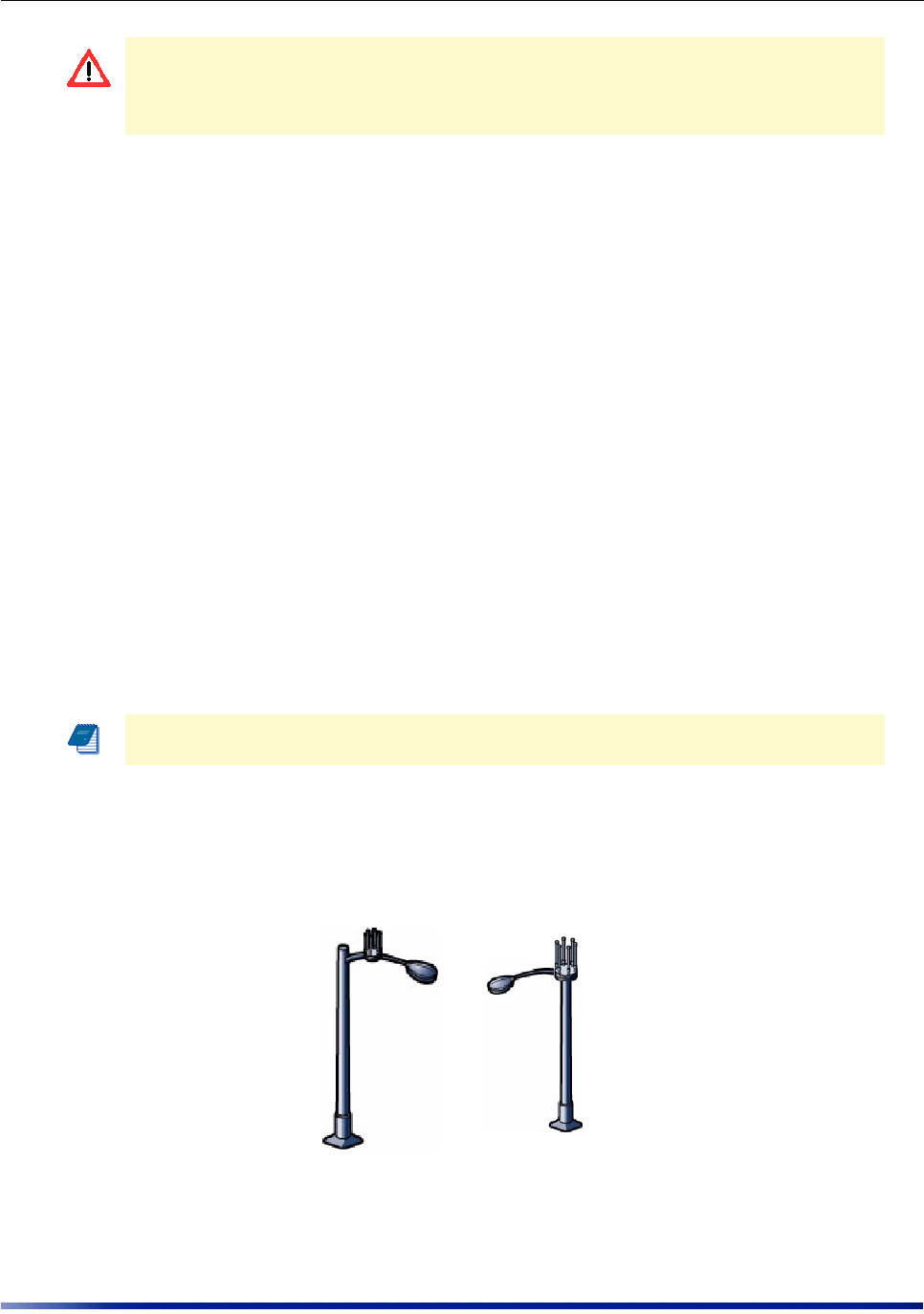

Figure 3.1. Example Mounting Locations on a Streetlight
Using Hose Clamps
Hose clamps are used by the mounting assembly to secure the WBS-2400 to the mounting
structure. Figure 3.2 demonstrates how to correctly use the hose clamps. The bands must be
threaded through slots in the pole bracket, and then attached to either a vertical or a
horizontal pole and tightened.
There are three slots inside the pole bracket that can used to thread each hose clamp.
Choose the slot that is appropriate for the size of the pole.
Figure 3.2. Using Hose Clamps
Mounting on a Pole, or Streetlight
The following explains how to mount the Wavion WBS-2400 on a pole, tower, or streetlight.
It is recommended to mount the WBS-2400 on aluminum or galvanized steel structures.
NOTE: The Wavion WBS-2400 must be mounted with the top of the unit parallel with
the ground and with the antennas pointing upward.
NOTE: Before mounting the WBS-2400, read the wiring instructions in Grounding the
Wavion WBS-2400 on page 23 and Connecting a Data Port on page 34.
NOTE: Mounting to wood, concrete, or painted poles requires primary grounding for
the unit. Check the national electrical codes in your area for specific rules.
Bands threaded
through inner
slots
Installing the Wavion WBS-2400 Metro Base Station
Installation Guide 15
Metal or Wood Pole Mounting
Figure 3.3 shows the correct way to mount the Wavion WBS-2400 on an outdoor metal pole.
Figure 3.4 shows the correct way to mount the Wavion WBS-2400 on an outdoor wooden
pole. There is much similarity between the two installations. Metal pole installation requires
that the antennas are higher than the top of the pole. This is not a requirement for wooden
poles.

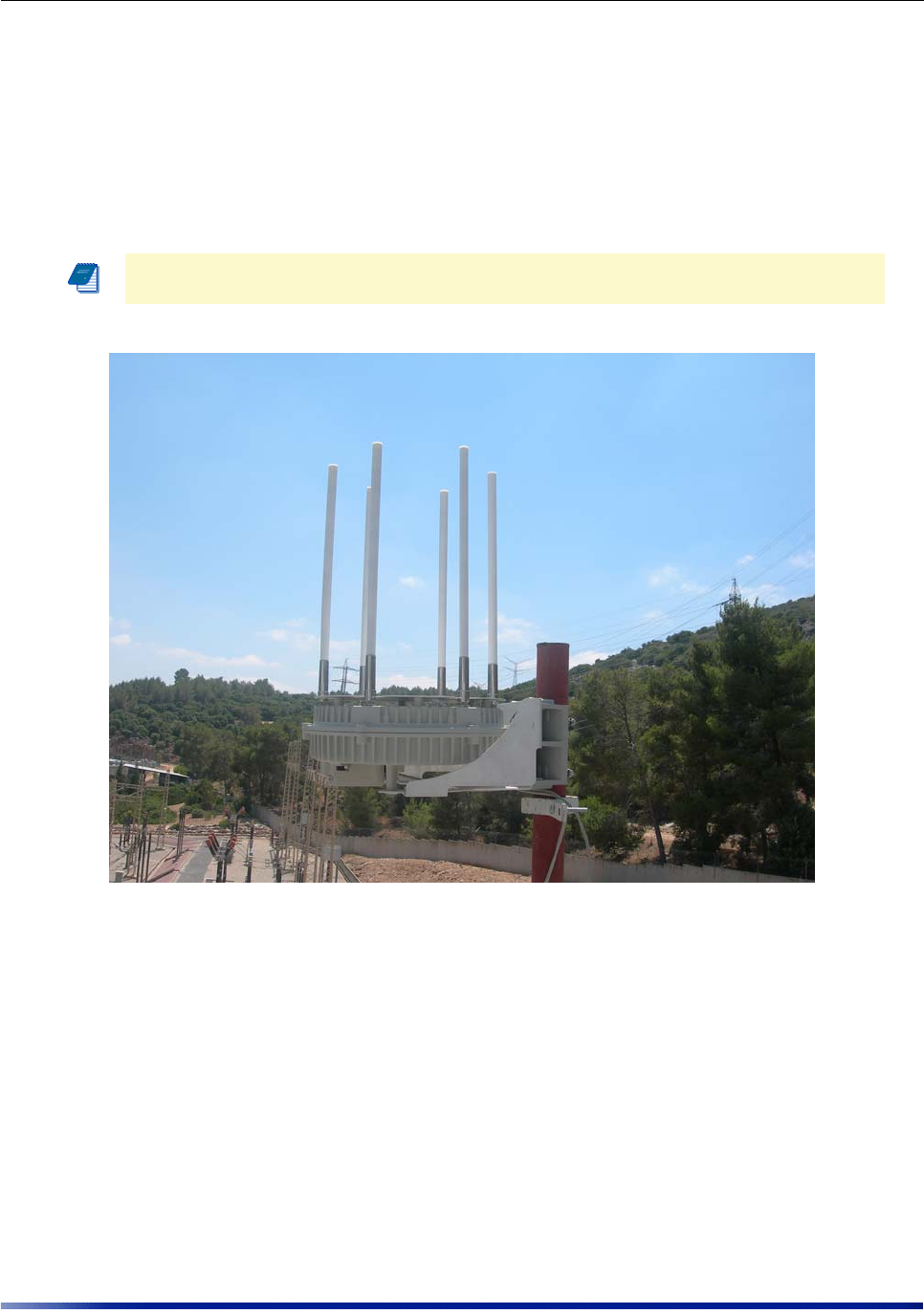

Figure 3.3. Mounting on a Metal Pole
NOTE: Antennas must be higher than the top of the metal pole and clear of any
obstructions.
Installing the Wavion WBS-2400 Metro Base Station
16 Wavion

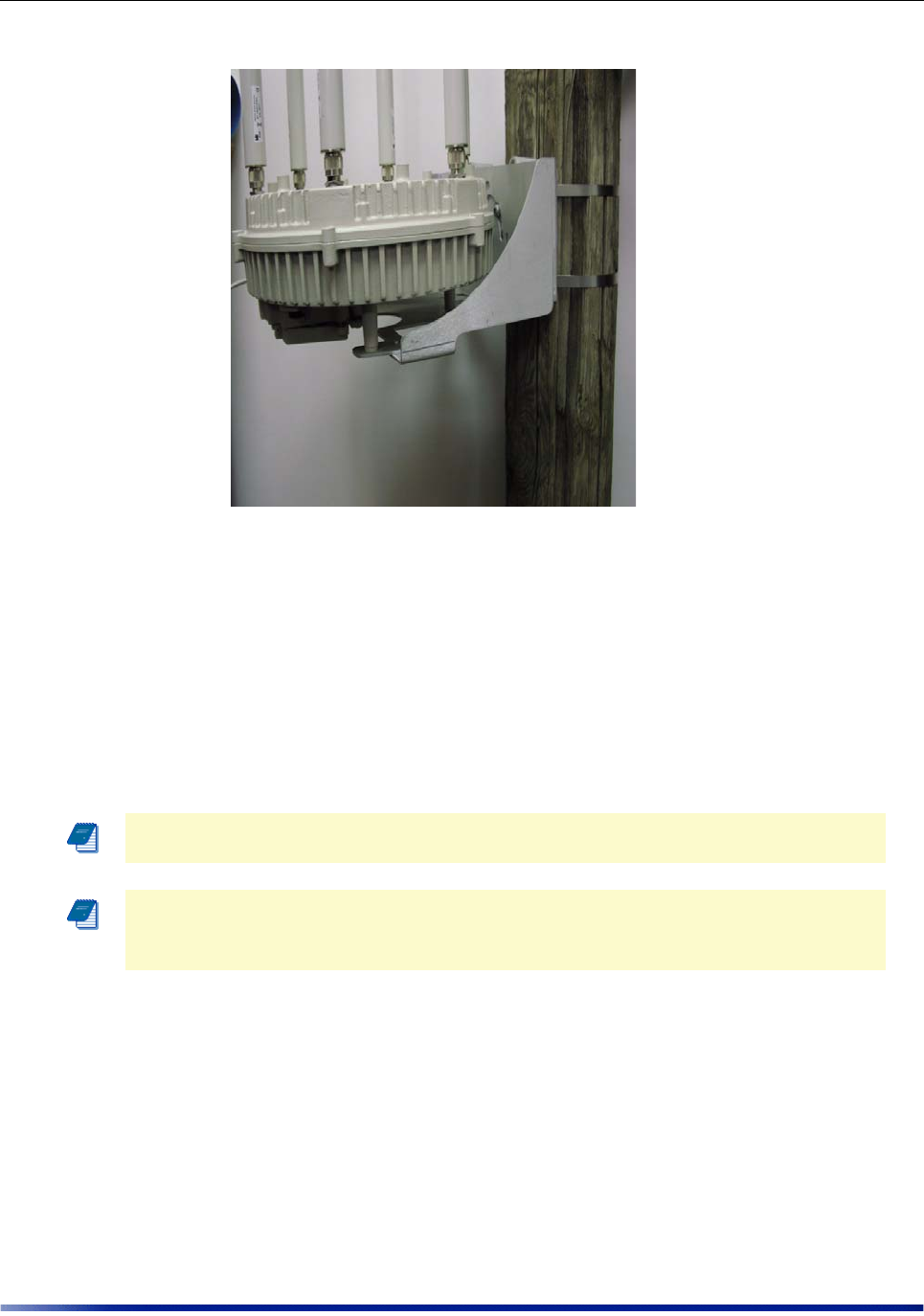

Figure 3.4. Mounting on a Wooden Pole
To mount the Wavion WBS-2400 on a metal or wood pole
1. Choose a mounting location. You can attach the WBS-2400 to any pole or pipe with
diameter of 3-10 inches. Wooden poles of larger diameter require different types of
clamps.
2. Slip the bands of the hose clamps through the inner slots of the pole bracket. Choose the
slot that is appropriate for the diameter of the mast.
3. Use the hose clamps to fasten the pole bracket to the pole.
NOTE: The hose clamps supplied support a mast diameter of 3-6 inches. You can
supply your own hose clamps if you need a different size.
NOTE: Installations on large wooden poles require band clamps such as those
supplied by Panduit, www.panduit.com. Such a product is listed as “Metal, Locking
Tie Extra Heavy Duty 304 Stainless Steel”. The tie and the installation tool are shown
below
Installing the Wavion WBS-2400 Metro Base Station
Installation Guide 17
Figure 3.5. Wood Pole Mounting Tool and Clamp

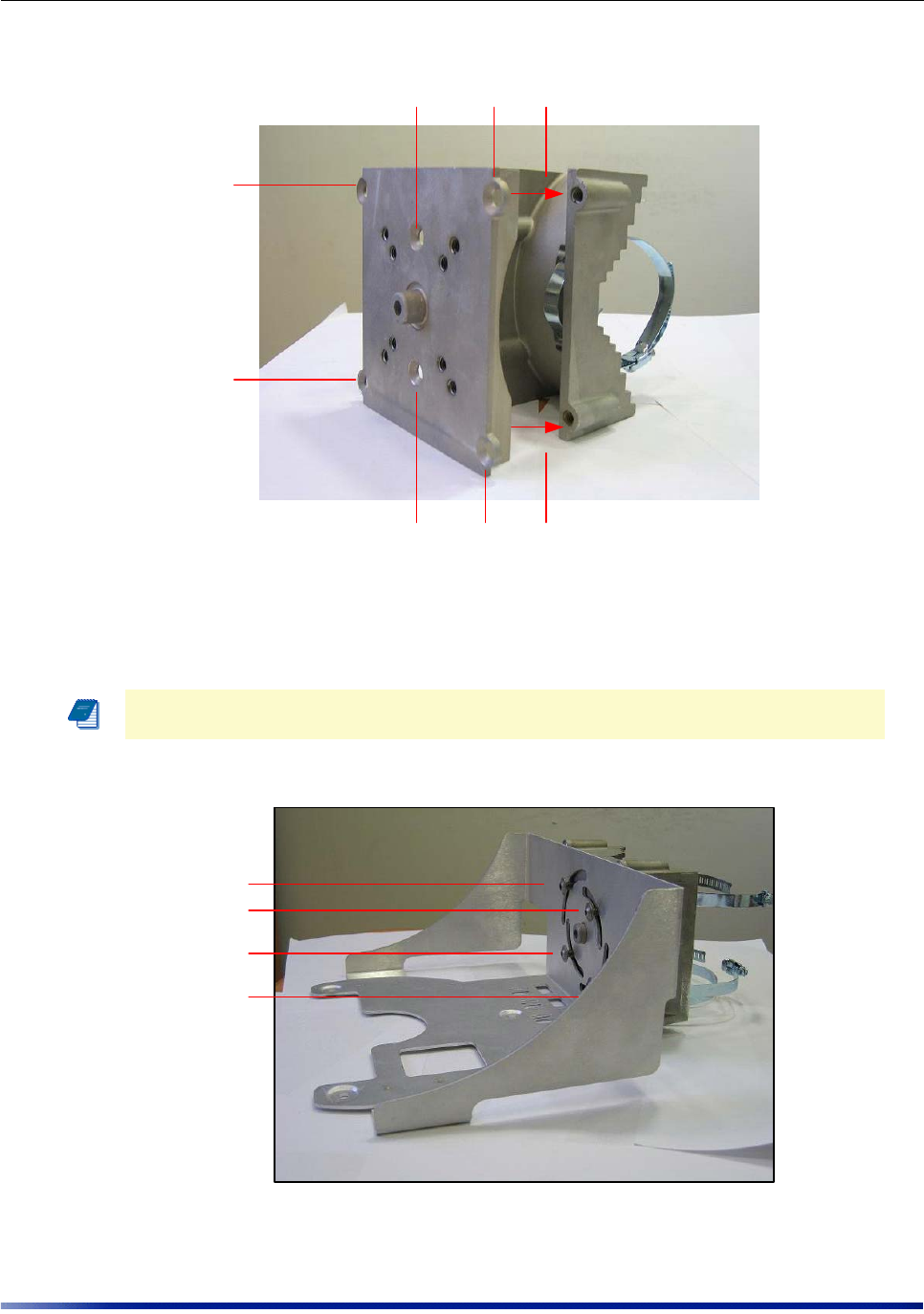

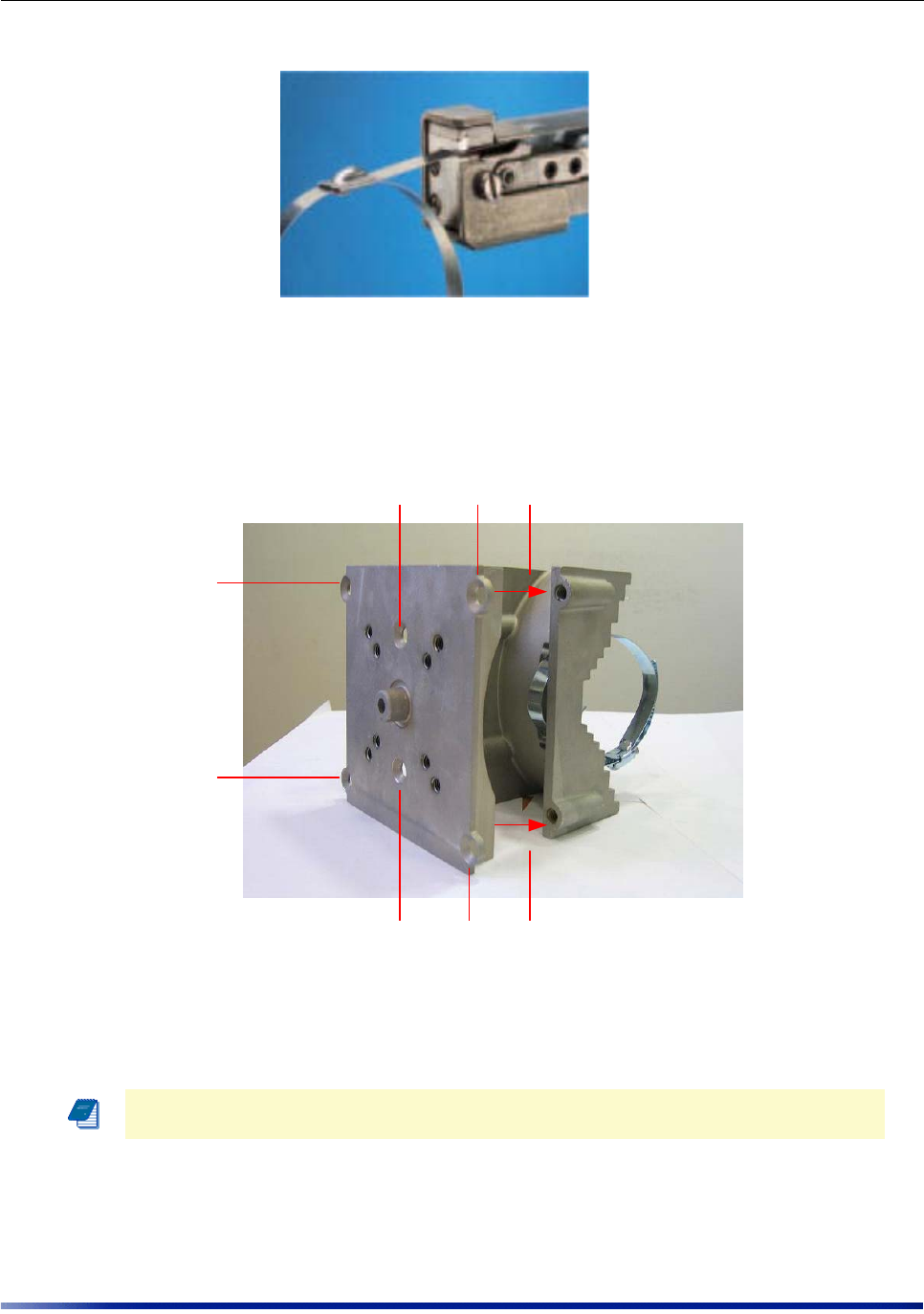

4. Attach the back plate to the hose bracket as labeled #1 in Figure 3.6
5. Insert the six flathead bolts into the holes in the back plate labeled #2 in Figure 3.6 and
tighten.
Figure 3.6. Attaching the Back Plate to the Pole Bracket
6. Attach the tray to the back plate as shown in Figure 3.7.
NOTE: The tray must be parallel to the ground. The tray can be rotated to obtain the
correct position.
2
22
2
2
2
1
1
Installing the Wavion WBS-2400 Metro Base Station
18 Wavion
7. Insert the four 8mm stainless steel hex head bolts into the tray as shown below and
tighten. Use a 5mm Allen wrench to tighten the bolts.
Figure 3.7. Attaching the Tray to the Back Plate

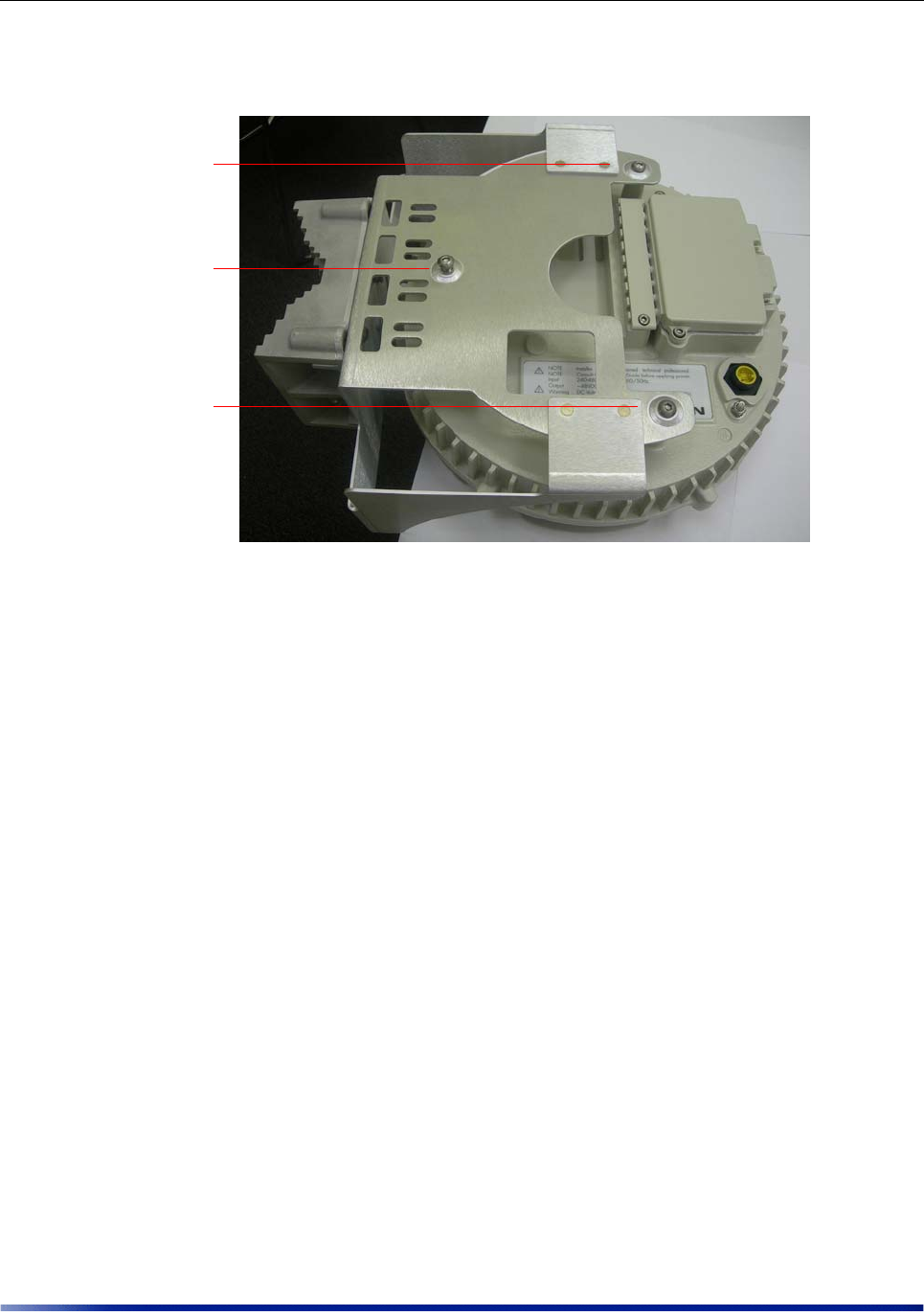

8. Slide the WBS-2400 onto the tray. Insert three 8mm stainless steel hex head bolts from
underneath the tray into the WBS-2400. Use a 5mm Allen wrench to tighten the bolts.
Figure 3.8. Attaching the WBS-2400 to the Tray
To continue installing the WBS-2400, see Grounding the Wavion WBS-2400 on page 23
Insert bolts
Insert
bolts
Installing the Wavion WBS-2400 Metro Base Station
Installation Guide 19
Wood Brace Mounting

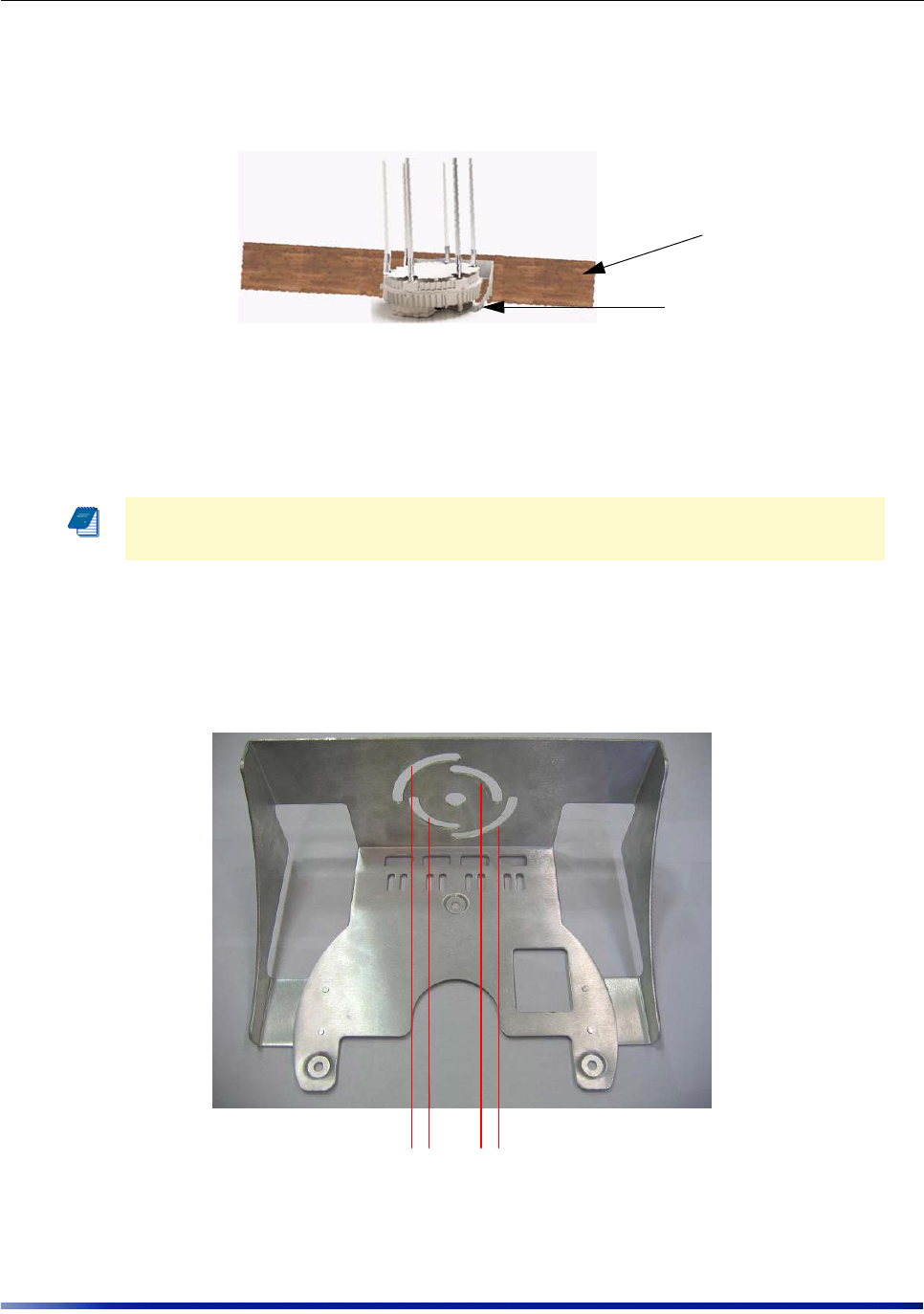

You can mount the tray directly onto a wood brace without using pole hose clamps.
Figure 3.9. Wood Brace Mounting Option
You can attach the WBS-2400 to any wood brace.
To mount the Wavion WBS-2400 on a wood brace
1. Select a mounting location.
2. Attach the tray directly to the wood brace using four 5/8 inch diameter, 3 inch long lag
bolts as shown in Figure 3.10. Use an appropriate Allen wrench to tighten the bolts. Make
sure that the wood brace is level.
Figure 3.10. Tray Mount for Wood Brace
NOTE: Before attaching the WBS-2400 make sure that the wood can support the
WBS-2400 weight plus wind loading. Please see Chapter 9 for wind loading
considerations.
Tray
Wood Brace
Insert bolts
Installing the Wavion WBS-2400 Metro Base Station
20 Wavion

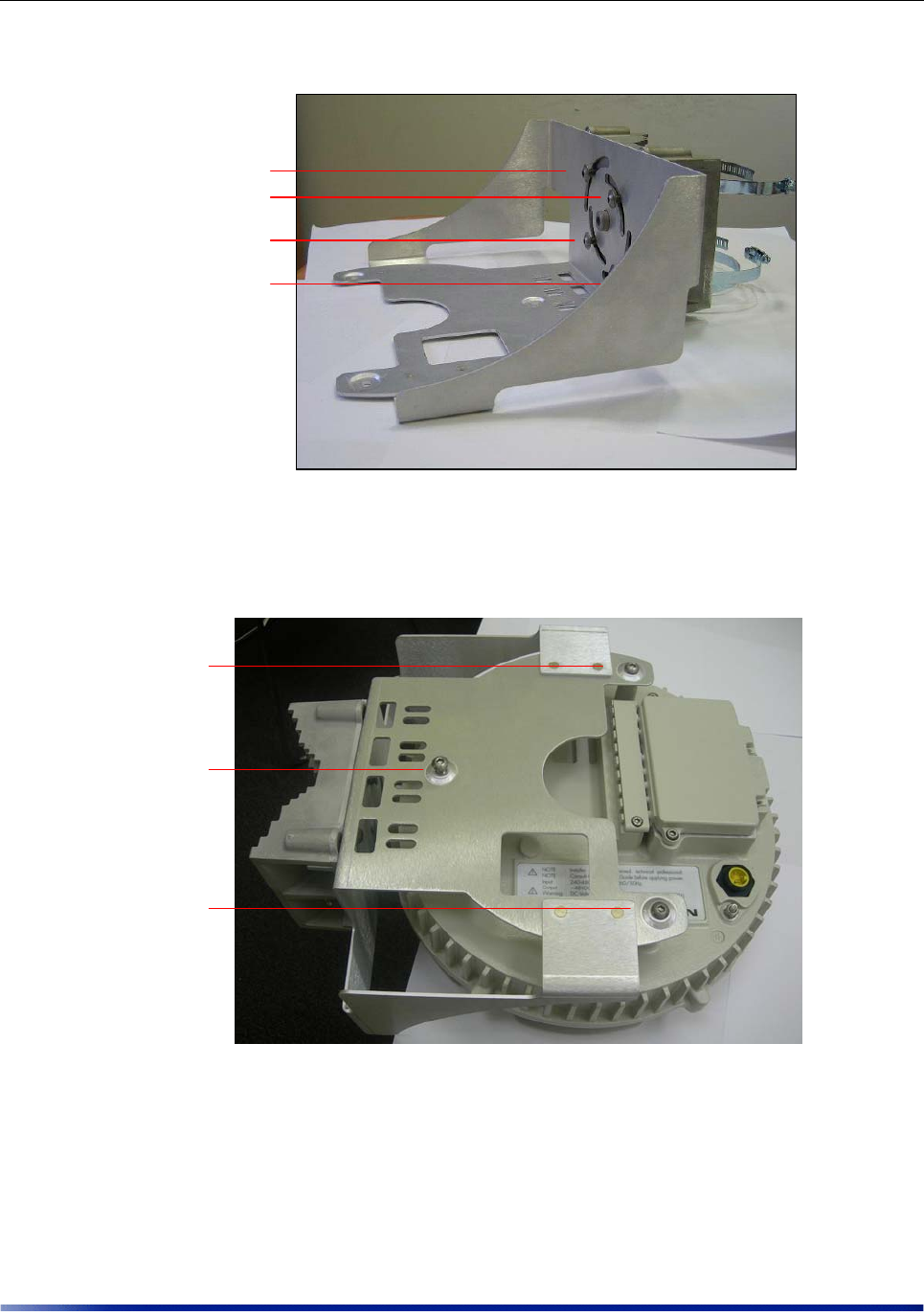

3. Slide the WBS-2400 onto the tray. Insert three 8mm stainless steel hex head machine
bolts from underneath the tray into the WBS-2400. Use a 5mm Allen wrench to tighten
the bolts.
Figure 3.11. Attaching the WBS-2400 to the Tray
To continue installing the WBS-2400, see Grounding the Wavion WBS-2400 on page 23.
Streetlight Mounting
You can mount the Wavion WBS-2400 on the horizontal or angled arm of a streetlight.
To mount the Wavion WBS-2400 on a streetlight
1. Choose a mounting location. You can attach the WBS-2400 to any streetlight arm with
diameter of 3 to 10 inches.
2. Slip the bands of the hose clamps through the inner slots of the pole bracket. Choose the
slot that is appropriate for the diameter of the mast.
3. Use the hose clamps to fasten the pole bracket to the pole.
4. Attach the back plate to the pole bracket as labeled #1 in Figure 3.12
NOTE: The hose clamps supplied supports a mast diameter of 3-6 inches. You can
supply your own hose clamps is you need a different size.
Insert
bolts
Installing the Wavion WBS-2400 Metro Base Station
Installation Guide 21
5. Insert the six bolts into the holes in the back plate labeled #2 in Figure 3.12 and tighten.
Figure 3.12. Attaching the Back Plate to the Pole Bracket
6. Attach the tray to the back plate as shown in Figure 3.13.
7. Insert four 8mm stainless steel hex head machine bolts into the tray. Tighten the bolts
using a 5mm Allen wrench.
Figure 3.13. Attaching the Tray to the Back Plate
NOTE: The tray must be parallel to the ground. The tray can be rotated to obtain the
correct position.
2
22
2
2
2
1
1
Insert bolts
Installing the Wavion WBS-2400 Metro Base Station
22 Wavion
8. Slide the WBS-2400 onto the tray. Insert 3 8mm stainless steel hex head machine bolts
from underneath the tray into the WBS-2400 and tighten the bolts. Tighten the bolts using
a 5mm Allen wrench.
Figure 3.14. Attaching the WBS-2400 to the Tray
To continue installing the WBS-2400, see Grounding the Wavion WBS-2400 on page 23.
Insert
bolts
Installing the Wavion WBS-2400 Metro Base Station
Installation Guide 23
Grounding the Wavion WBS-2400

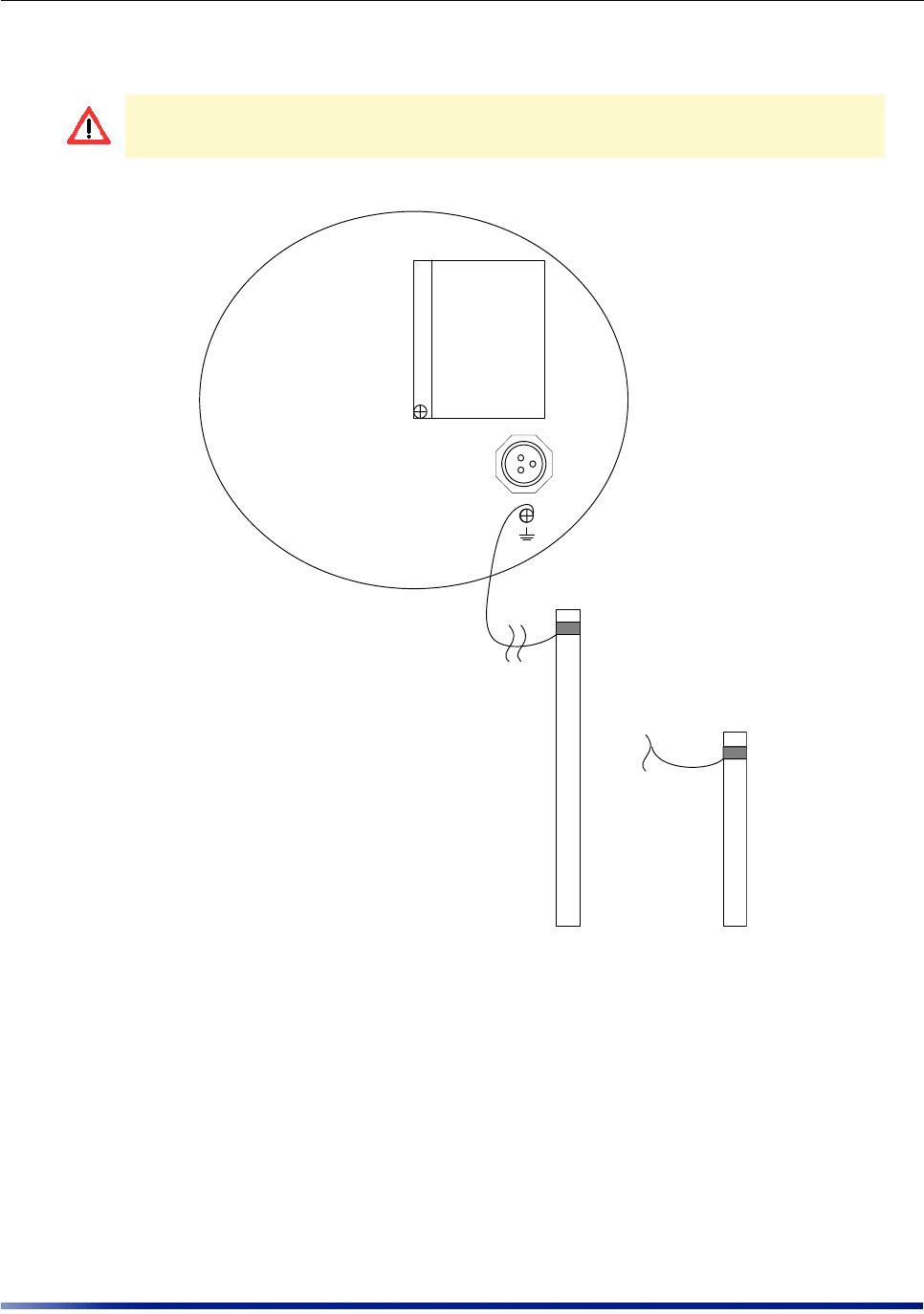

The method for grounding the Wavion WBS-2400 is shown in the figure below.
Figure 3.15. Grounding Method
CAUTION: You must always install an external grounding wire. You must also ground
the outdoor data protection device to a ground rod or a bonded pipe. Make sure you
have completed grounding before you connect power to the WBS-2400.
Grounding
screw
10 AWG wire to
ground
Grounding strap
on pipe or
grounding rod
Installing the Wavion WBS-2400 Metro Base Station
24 Wavion
To ground the Wavion WBS-2400
1. Remove the nut and star washers from the grounding screw.

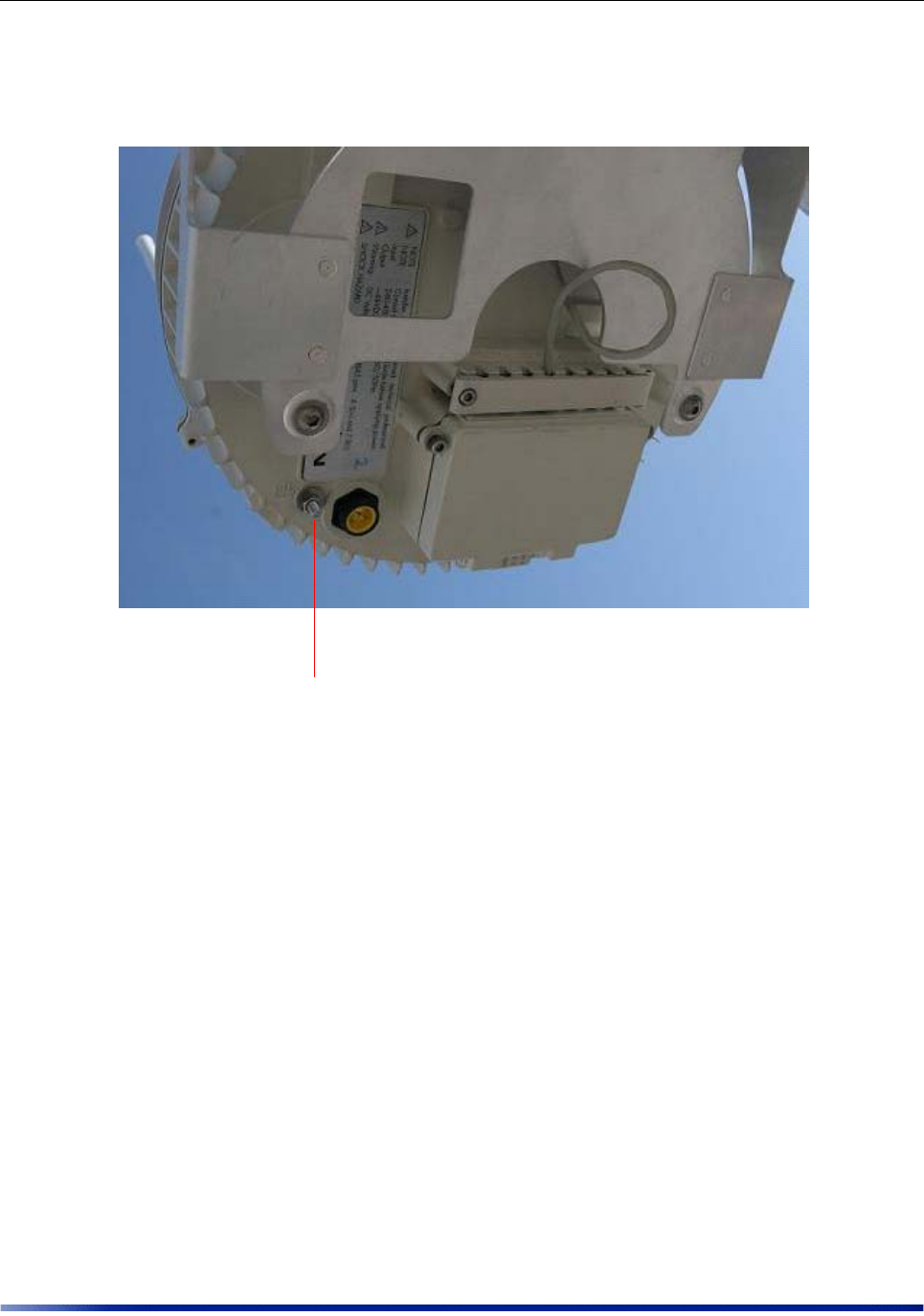

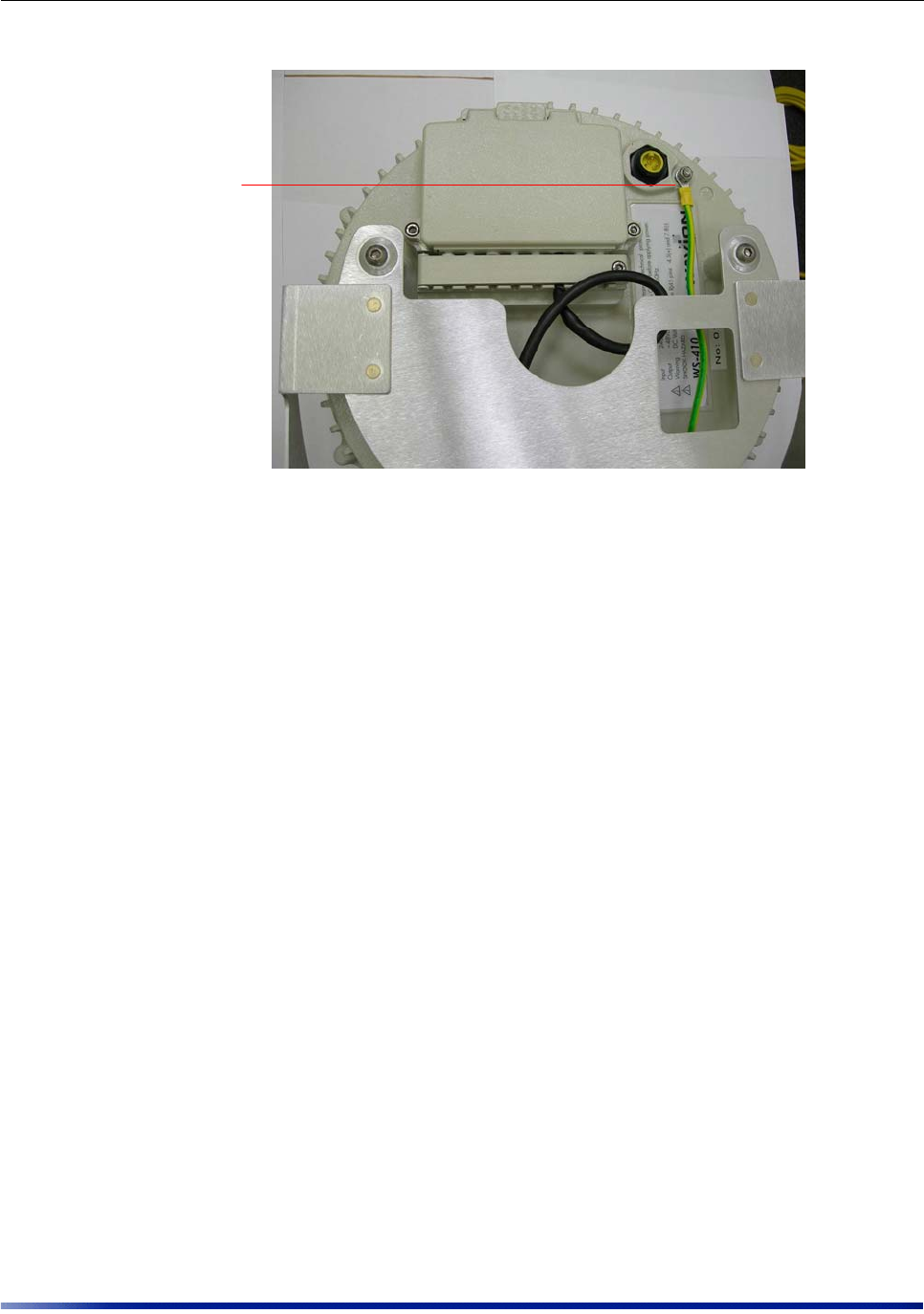

Figure 3.16. Grounding Screw
2. Attach one star washer to the grounding screw.
Grounding screw
Installing the Wavion WBS-2400 Metro Base Station
Installation Guide 25
3. Attach #10 AWG bare copper wire with an M6 terminal ring to the grounding screw.
4. Attach the second star washer and tighten the nut.
5. Attach the other end of the grounding wire to a grounding strap that is attached to a
grounded surface or other earth ground (for example, a grounding rod).
Grounding the Data Protection Device
The grounding method for an indoor data protection device is shown in Figure 3.17.
To ground an indoor data protection device
1. Position the protection device as close to the entrance of the building entrance as possible.
2. Attach a length of #10 AWG bare copper wire to the ground post on the data protection
device.
3. Attach the other end of the grounding wire to the ground connection of an electrical outlet
or a grounded water pipe.
Attach wire to
grounding
screw
Installing the Wavion WBS-2400 Metro Base Station
26 Wavion

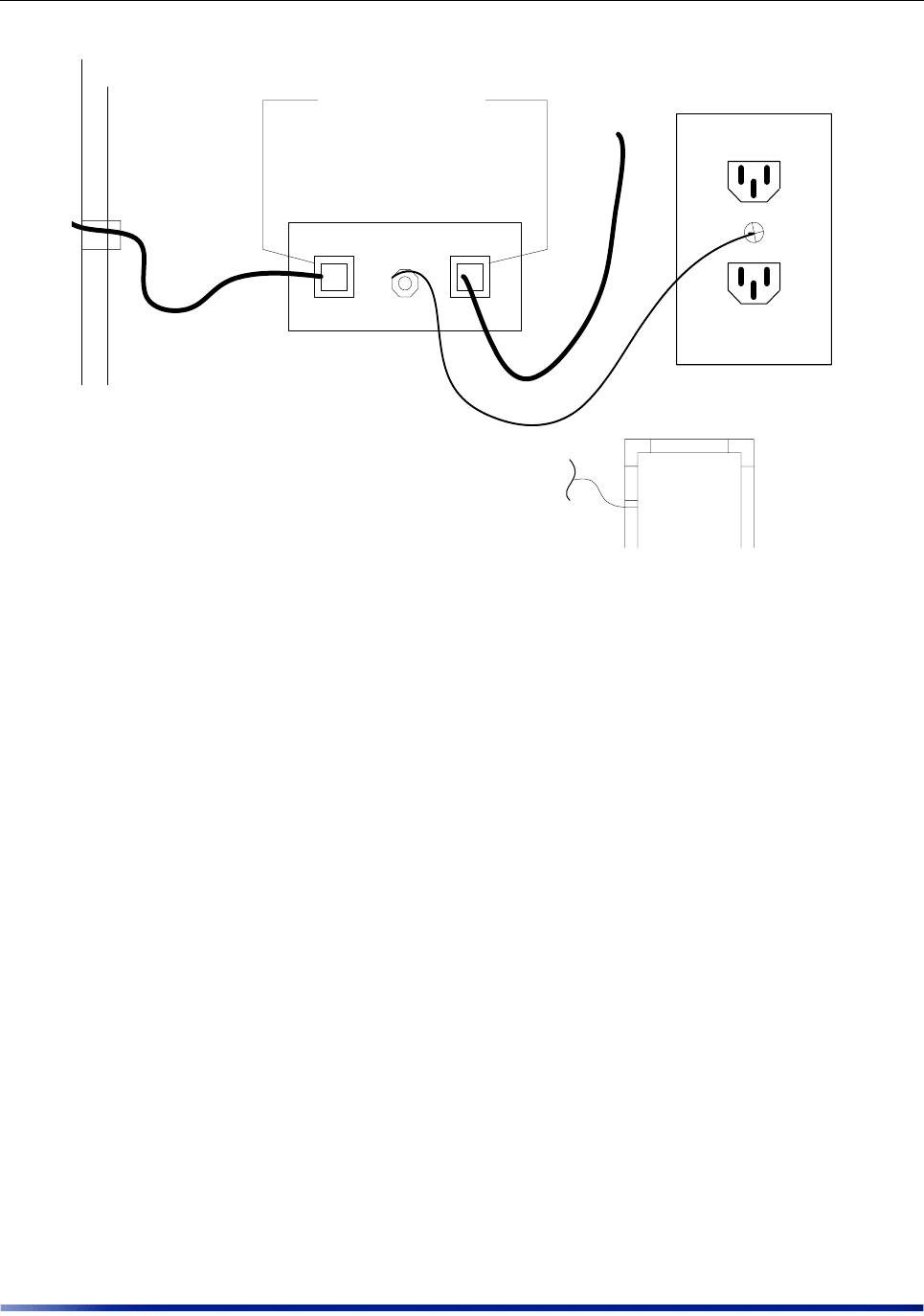

Figure 3.17. Grounding the Indoor Network Protection Unit
Indoor network
protection unit
Data cable
enters building
wall through
conduit
To network
Grounding wire to
electrical outlet ground or
water pipe
10 AWG wire
to ground
Shielded RJ45 ports
Installing the Wavion WBS-2400 Metro Base Station
Installation Guide 27
Connecting Antennas
This section explains how to connect the six antennas to the WBS-2400. In order for the
WBS-2400 to work properly, six antennas must be connected.
Screw each of the 6 antennas into the an N-Type connectors on the WBS-2400.

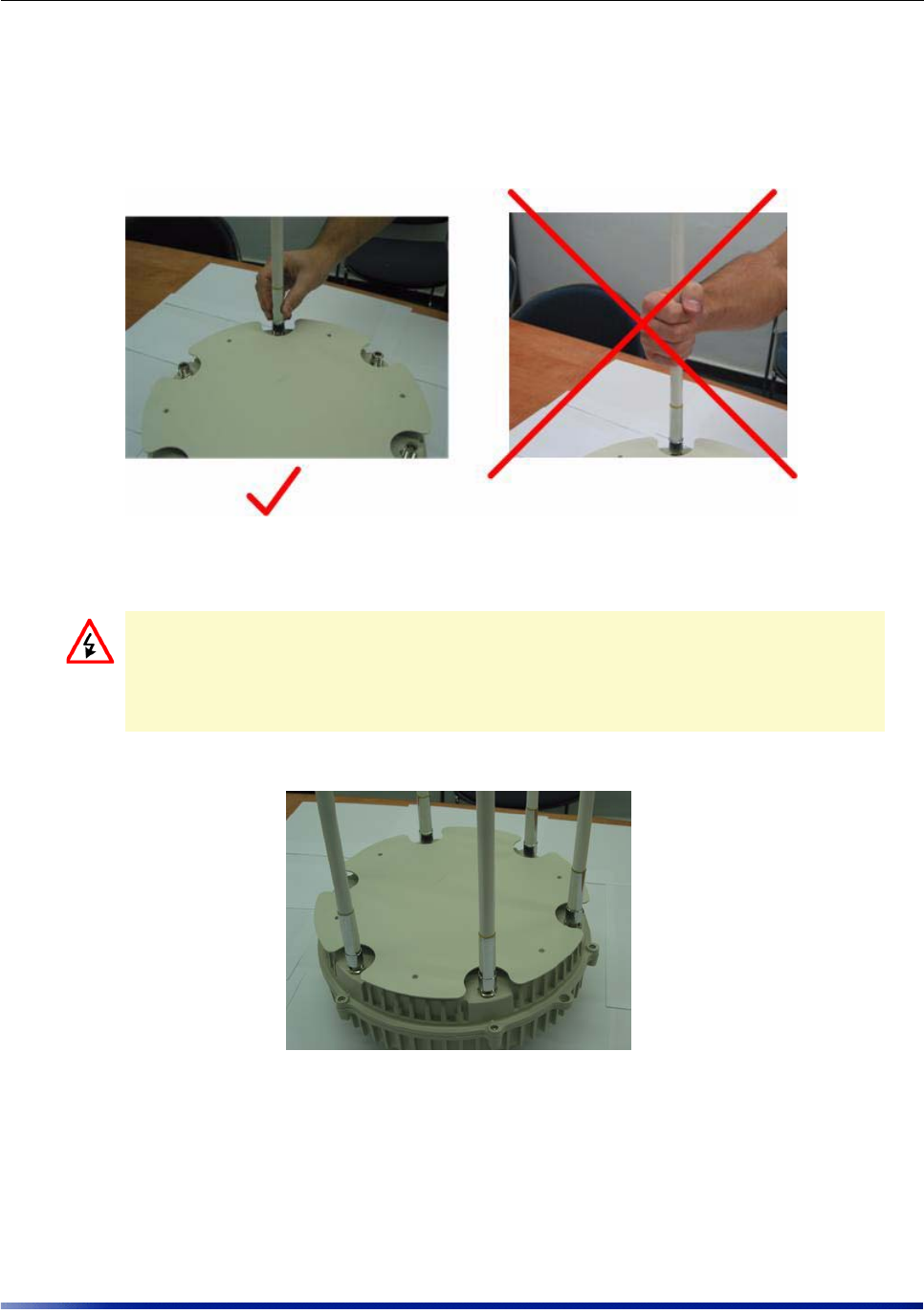

Figure 3.18. Connecting the Antennas
The successful insertion of six antennas should look as follows.
WARNING: Only connect the unit to the power supply once all the antennas are
connected.
WARNING: Use caution when connecting the antennas. Undue haste can damage the
unit.
WARNING: Do not screw in the antenna when holding the top section of the antenna.
You will most likely damage the antenna.
Installing the Wavion WBS-2400 Metro Base Station
28 Wavion
Connecting Power
The following describes how to connect the WBS-2400 to power. There are three options for
connecting the Wavion WBS-2400 to a power source:
•AC power source (3-wire service) — 3W(P+N+PE) or 3W(2P+PE); 110-220 VAC, 50/60
Hz. Chapter 7: Installation Accessories on page 55 for details.
•NEMA plug, for streetlight photoelectric control power tap (2-wire service) —2W(2P) or
2W(P+N); 100-240 VAC 50/60 Hz. See Chapter 7: Installation Accessories on page 55
for details.
•DC power source (2-wire service); 48VDC See Chapter 7: Installation Accessories on
page 55 for details.
•Wavion injector connected to Ethernet port B (ETH B). See Chapter 7: Installation
Accessories on page 55 for details.
Connecting to AC Power (Category C)
The AC power connections for a Category C AC power source are shown in Figure 3.19.
WARNING: Turn the power off before working on an electrical circuit. Turn off the
breaker to the circuit you plan to work on. Post a sign on the service panel so nobody
tries to reconnect power while you are working on the circuits. Double-check the
circuit with a circuit tester before you touch it to make sure the correct breaker has
been disconnected.
CAUTION: You must always install an external grounding wire. Perform a simple
continuity check between the WBS-2400 and the ground termination point to
confirm. You must also ground the outdoor data protection device to a ground rod or
a bonded pipe. Make sure you have completed grounding before you connect power
to the WBS-2400.
WARNING: All wiring should be performed by a licensed electrician. All wiring and
connections must conform to local uniform building codes.
Installing the Wavion WBS-2400 Metro Base Station
Installation Guide 29

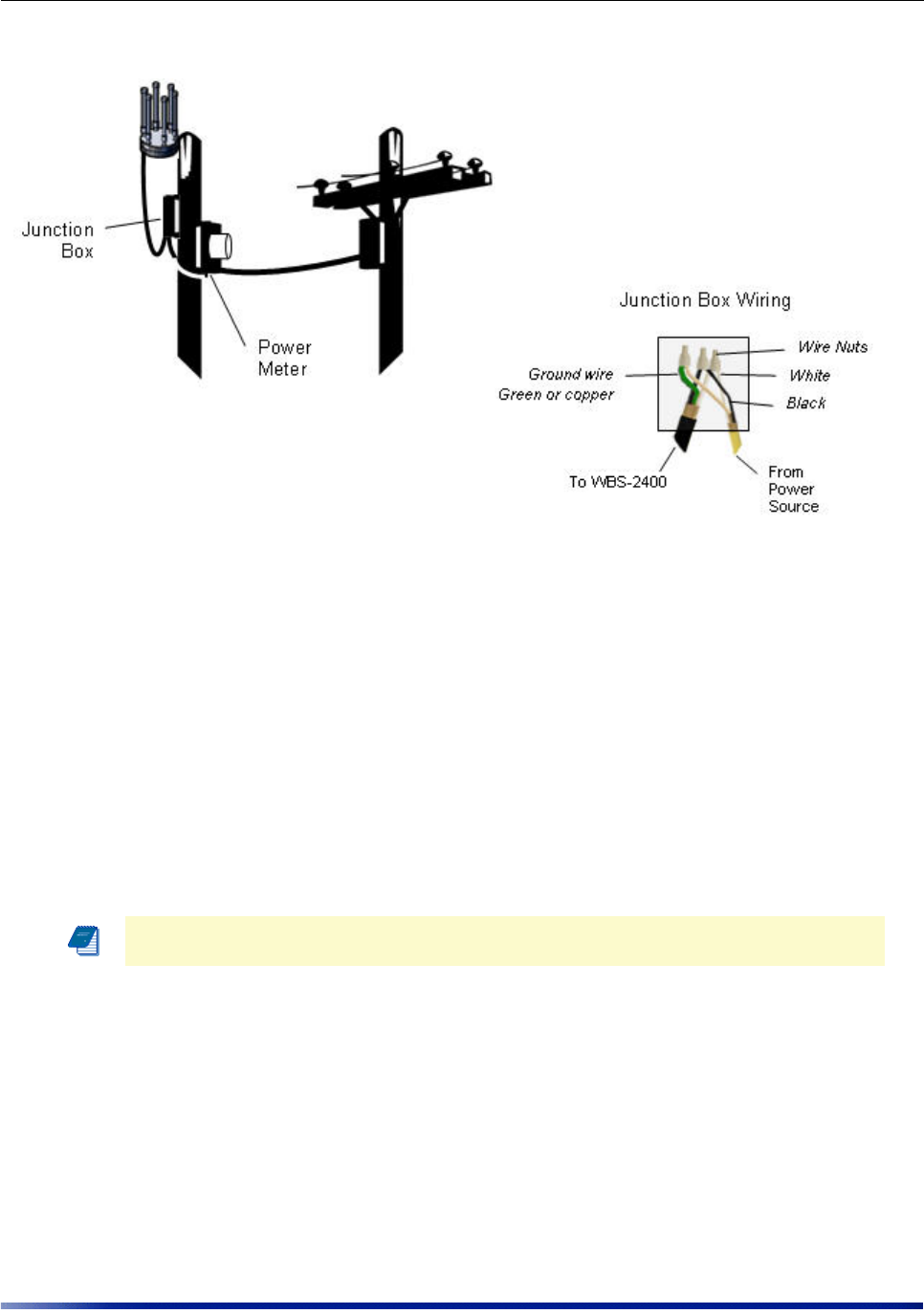

Figure 3.19. Connecting Category C AC Power
To connect an AC power source
1. Verify that the service voltage is the following:
•NEMA plug, for streetlight photoelectric control power tap (2-wire service) —2W(2P) or
2W(P+N); 100-240 VAC 50/60 Hz. See Chapter 7: Installation Accessories on page 55 for
details.
2. Make sure the power is turned off on the designated circuits.
3. Install a 1/2 inch liquid-tight conduit from the building entrance point to within 3 feet of
the outdoor system.
4. Run 3-wire AC service through the conduit.
5. Connect the conduit to a junction box. The conduit and junction box must be IEEE/ANSI
compliant and suitable for outdoor use.
NOTE: Data and power must not be enclosed in the same conduit.
Installing the Wavion WBS-2400 Metro Base Station
30 Wavion
6. Connect the AC cable to the WBS-2400 and tighten the nut.
7. Connect the Wavion WBS-2400 to one of the following power sources:
•AC power source (3-wire service) — 3W(P+N+PE) or 3W(2P+PE); 110-220 VAC, 50/60
Hz. See Chapter 7: Installation Accessories on page 55 for details.
•NEMA plug, for streetlight photoelectric control power tap (2-wire service) —2W(2P) or
2W(P+N); 100-240 VAC 50/60 Hz. See Chapter 7: Installation Accessories on page 55 for
details.
•Reenergize the circuit and check that the power to the WBS-2400 turns on.

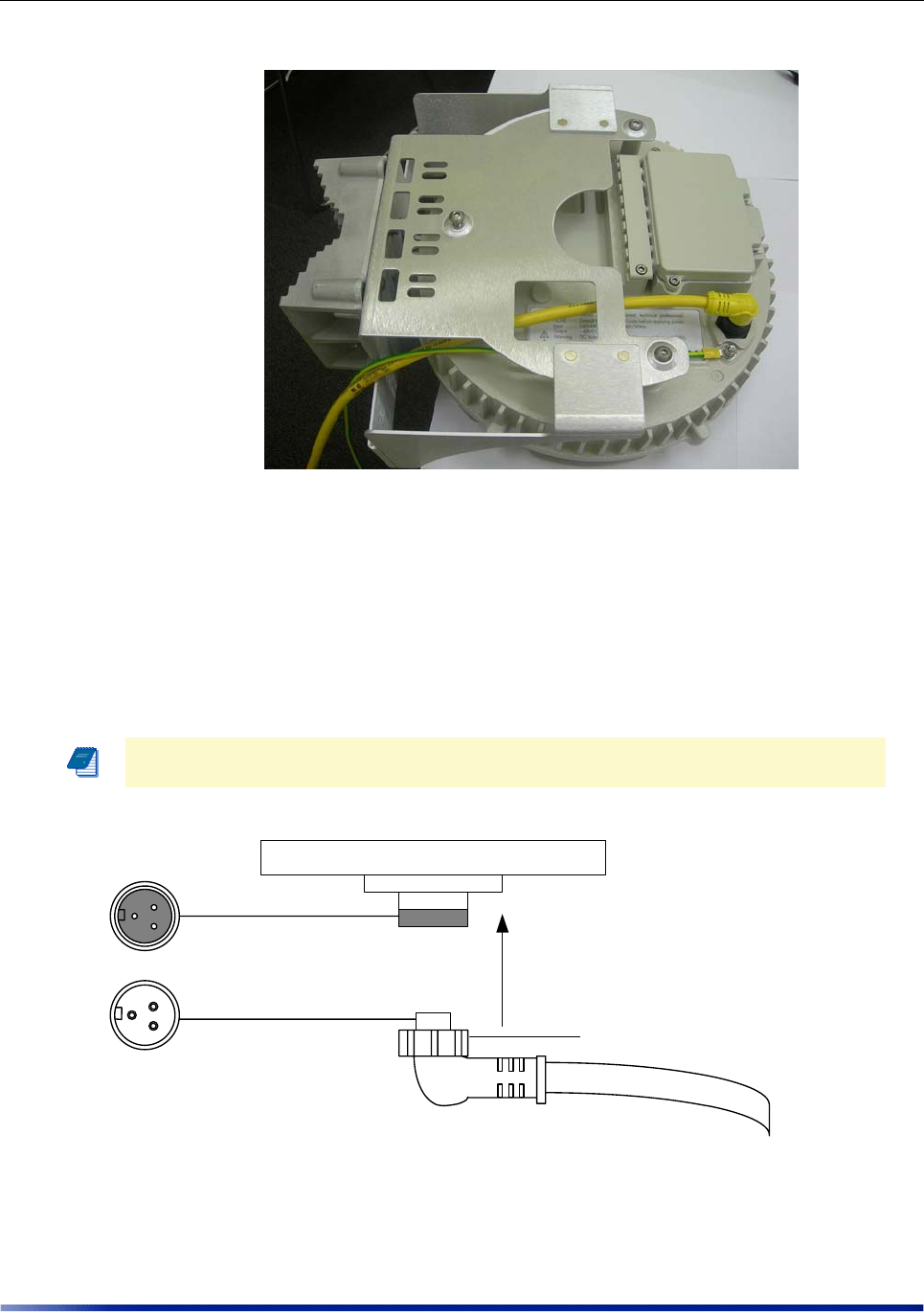

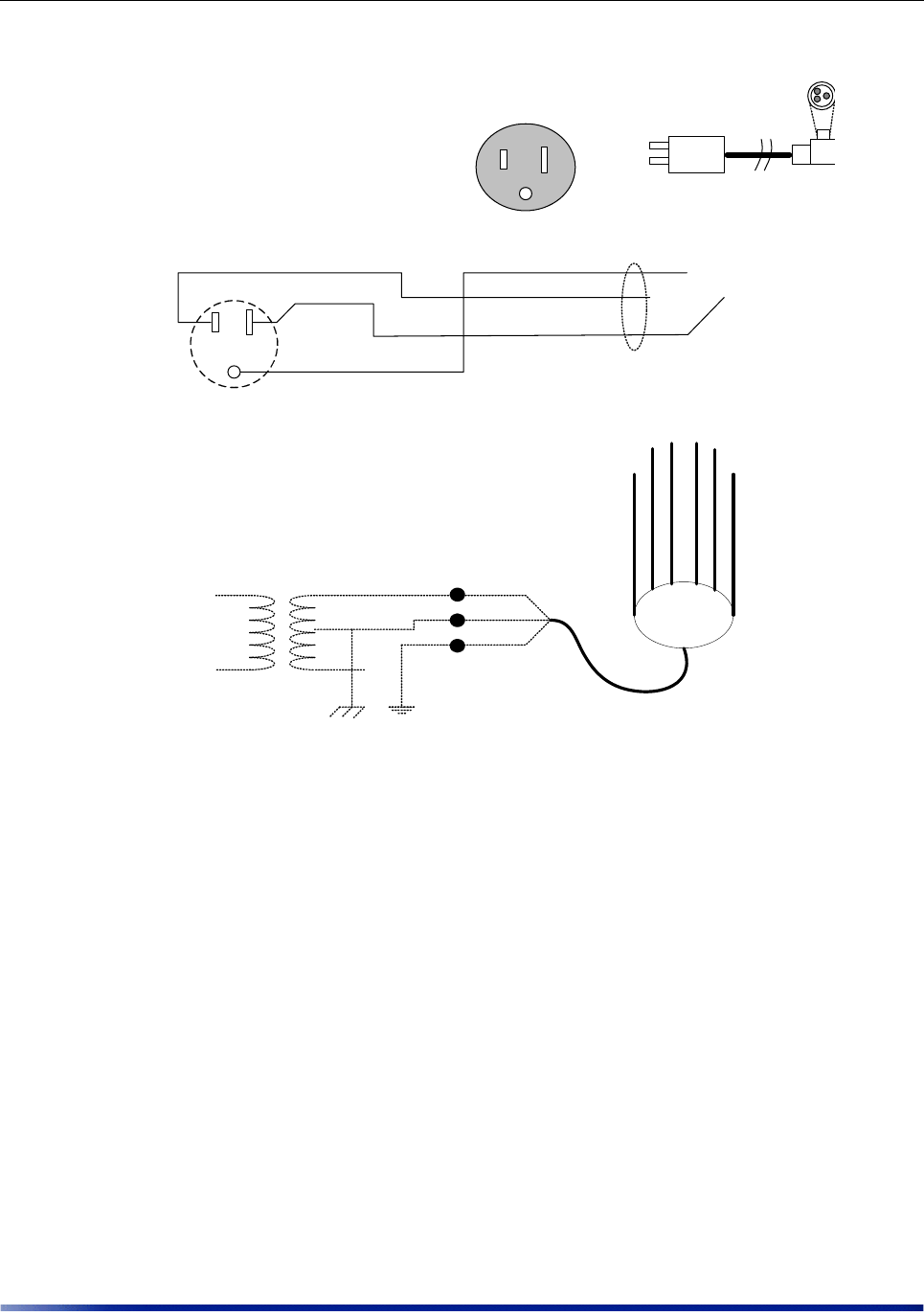

Figure 3.20. Connecting the AC Power Cable
NOTE: The Wavion WBS-2400 is equipped with additional AC surge protection and
fuse branch circuit protection. AC current protection of 20Amp should be installed.
Connect
the AC
cable
Tighten nut to secure
power connection
Installing the Wavion WBS-2400 Metro Base Station
Installation Guide 31
Connecting to Streetlight Power (Category C)
The following describes the power connections for Category C streetlight power. For outdoor
lighting commonly used by utilities, use the 3-prong NEMA twist-lock adapter with twist-lock
style photoelectric controls. The street light adapter uses a 3-pronged NEMA twist-lock
adapter that is installed between the outdoor lighting control and its fixture. The NEMA twist-
lock adapter is designed to be used with UL 773 listed outdoor lighting controls operating
with the following:
NEMA plug, for streetlight photoelectric control power tap (2-wire service) —2W(2P) or
2W(P+N); 100-240 VAC 50/60 Hz. See Chapter 7: Installation Accessories on page 55 for
details.

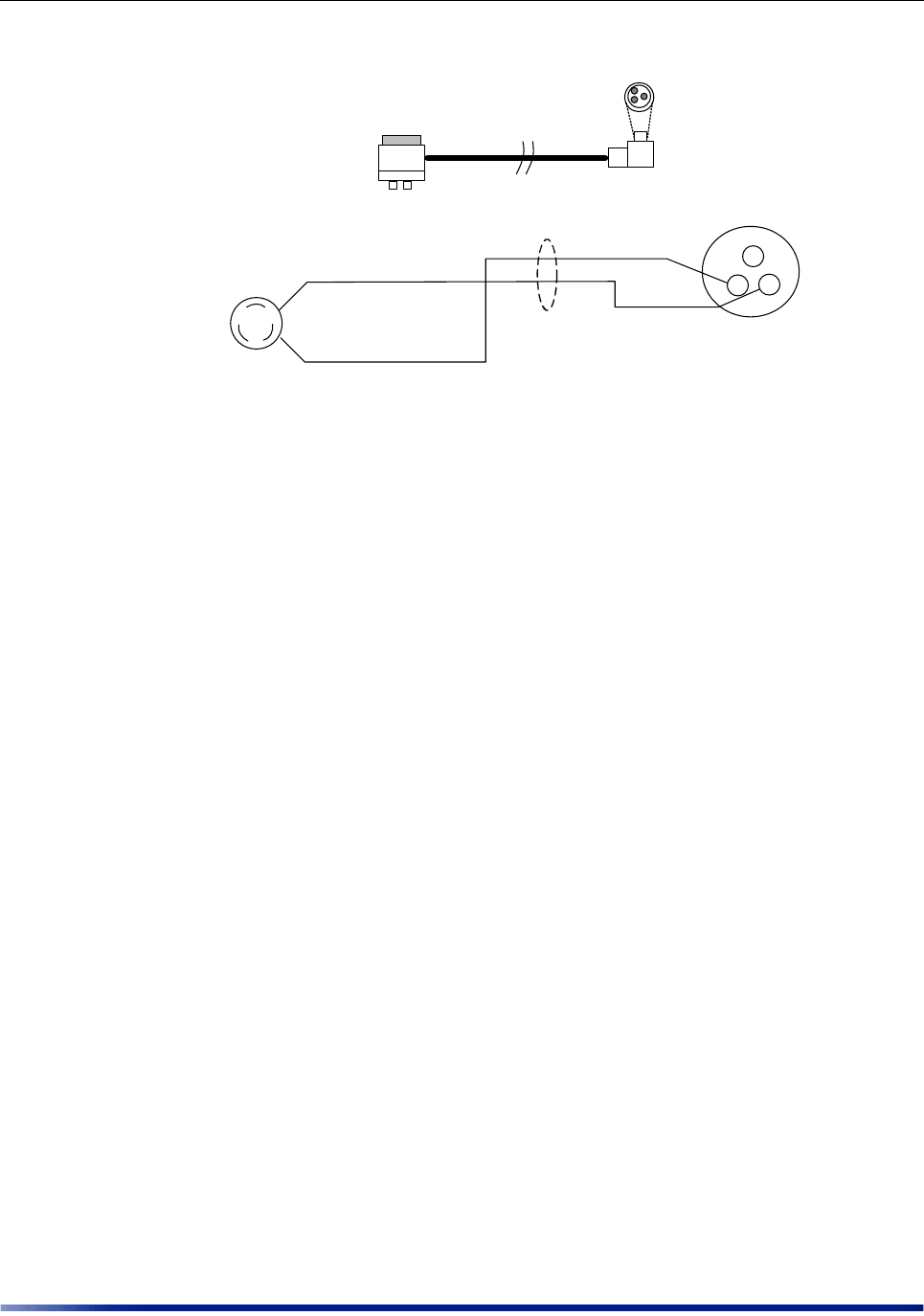

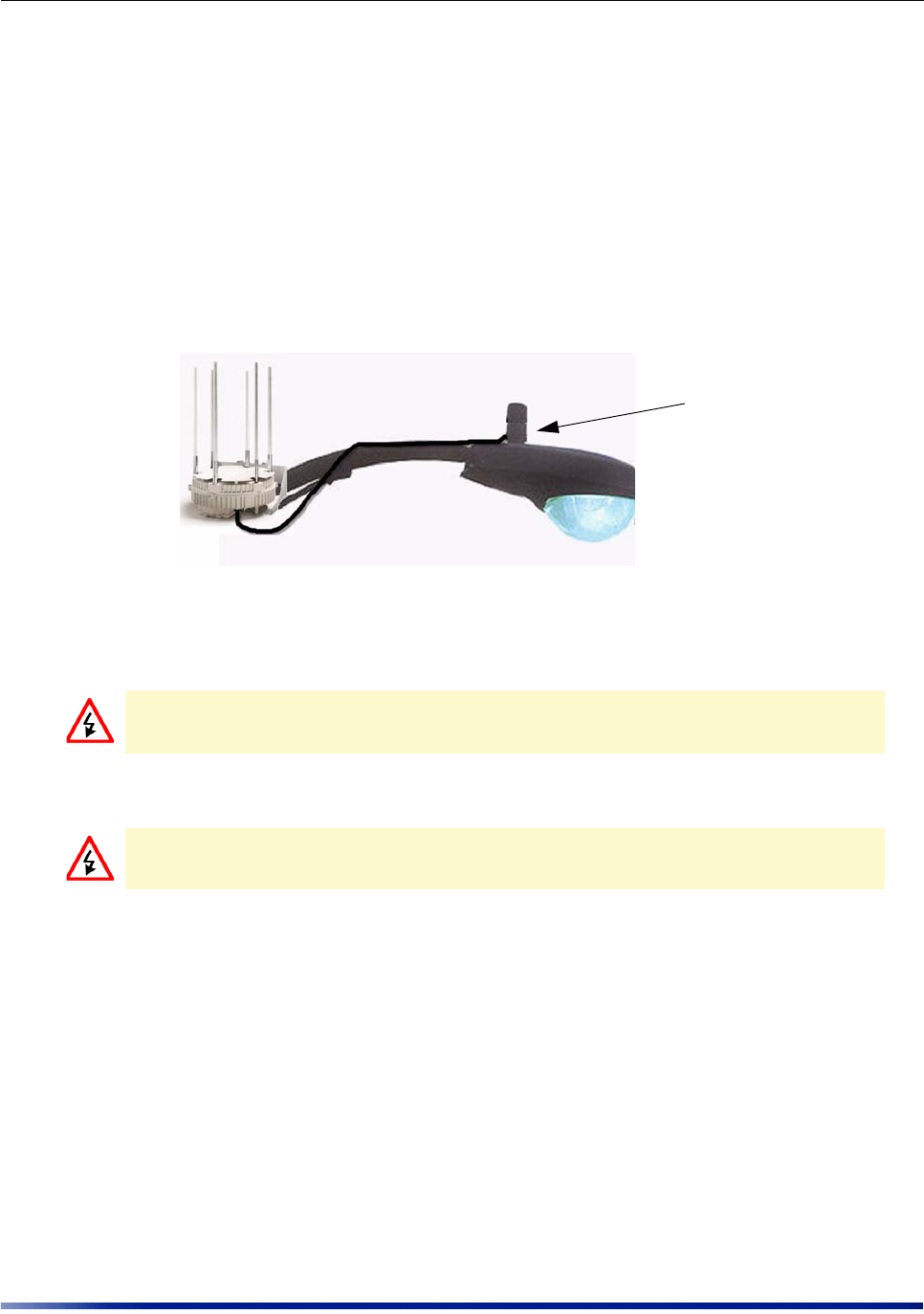

Figure 3.21. Connecting Streetlight Power
To connect a streetlight power source
1. Verify that the service voltage is the following:
•NEMA plug, for streetlight photoelectric control power tap (2-wire service) —2W(2P) or
2W(P+N); 100-240 VAC 50/60 Hz. See Chapter 7: Installation Accessories on page 55 for
details.
2. Make sure that the power is turned off on the designated circuits.
3. Remove the photosensor from the streetlight.
4. Connect the NEMA 3 prong plug from the Wavion WBS-2400 to the photosensor connector
on the streetlight.
5. Connect the photosensor to the top of the NEMA 3 prong plug.
6. Connect the AC plug to the WBS-2400 and tighten by hand.
WARNING: Connect the WBS-2400 only to a twist-lock style outdoor lighting control
powered by 100-240 VAC 50/60 Hz. Do not connect it to twist-lock style outdoor
lighting controls powered by higher voltage.
WARNING: Be extremely careful when connecting to Category C streetlight power.
AC Power from
power adapter on
photosensor
Installing the Wavion WBS-2400 Metro Base Station
32 Wavion
7. Reenergize the circuit and confirm that the power to the WBS-2400 comes on.
Connecting to DC Power
The DC power connections for a DC power source are shown in Figure 3.22.

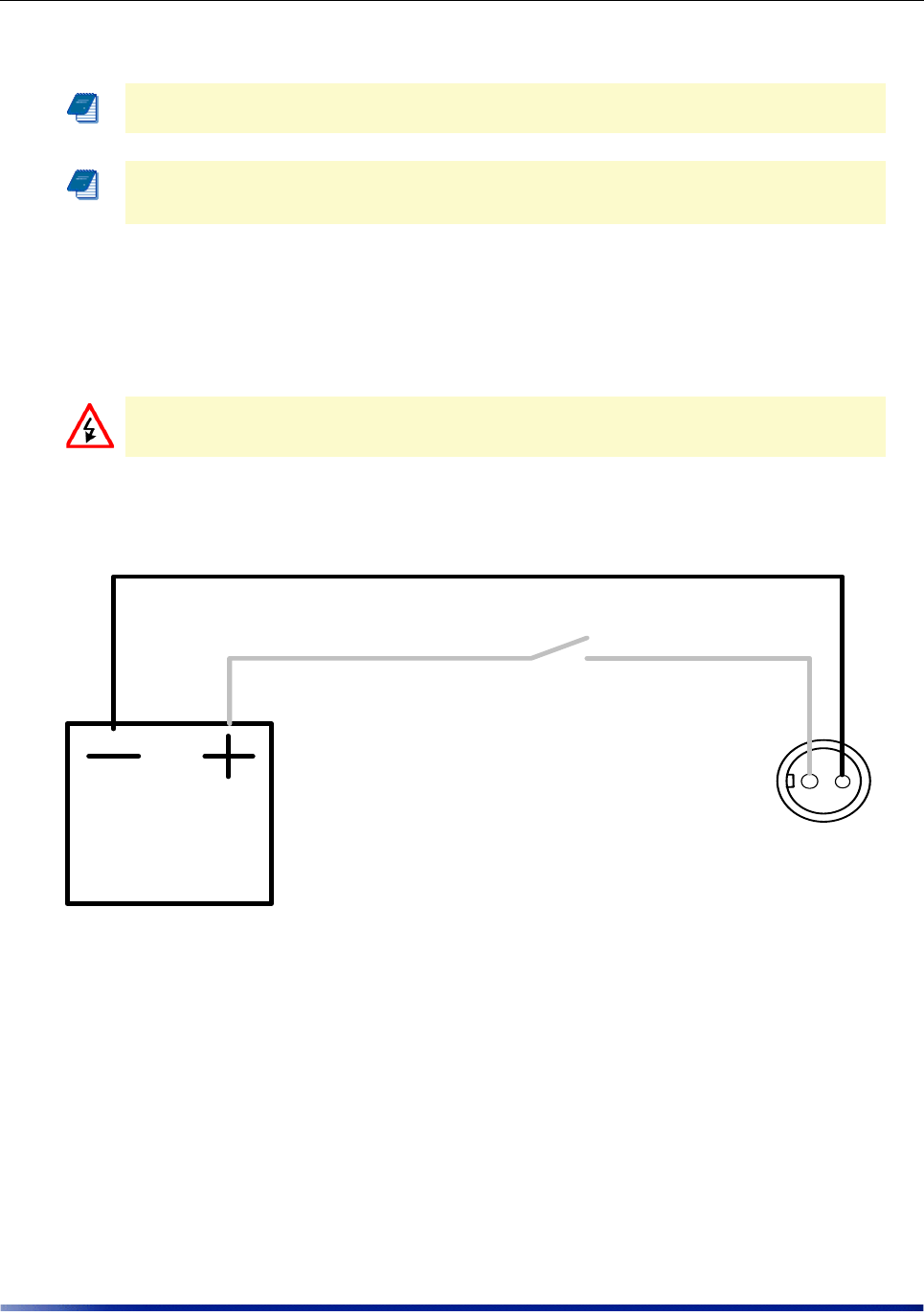

Figure 3.22. Connecting DC Power
To connect an DC power source
1. Verify that the service voltage is the following: 48VDC in the correct polarity.
2. Connect positive Voltage to White wire of the DC cable.
3. Connect Negative Voltage to Black wire of the DC cable.
4. Make sure the power is turned off on the designated circuits.
5. Install a 1/2 inch liquid-tight conduit from the building entrance point to within 3 feet of
the outdoor system.
NOTE: The Wavion WBS-2400 is equipped with additional AC surge protection and
fuse branch circuit protection. AC current protection of 20Amp should be installed.
NOTE: Do not leave connectors open to the environment. Cover connectors with the
closure cap when not in use and tighten the cap. See Chapter 7: Installation
Accessories on page 55.
WARNING: All wiring should be performed by a licensed electrician. All wiring and
connections must conform to local uniform building codes.
DC Power source
1
2
Main Circuit Braker
Black (-)
White (+)
Installing the Wavion WBS-2400 Metro Base Station
Installation Guide 33
6. Run 2-wire DC service through the conduit..
7. Connect the DC cable to the WBS-2400 and tighten the nut.
8. Reenergize the circuit and check that the power to the WBS-2400 turns on.

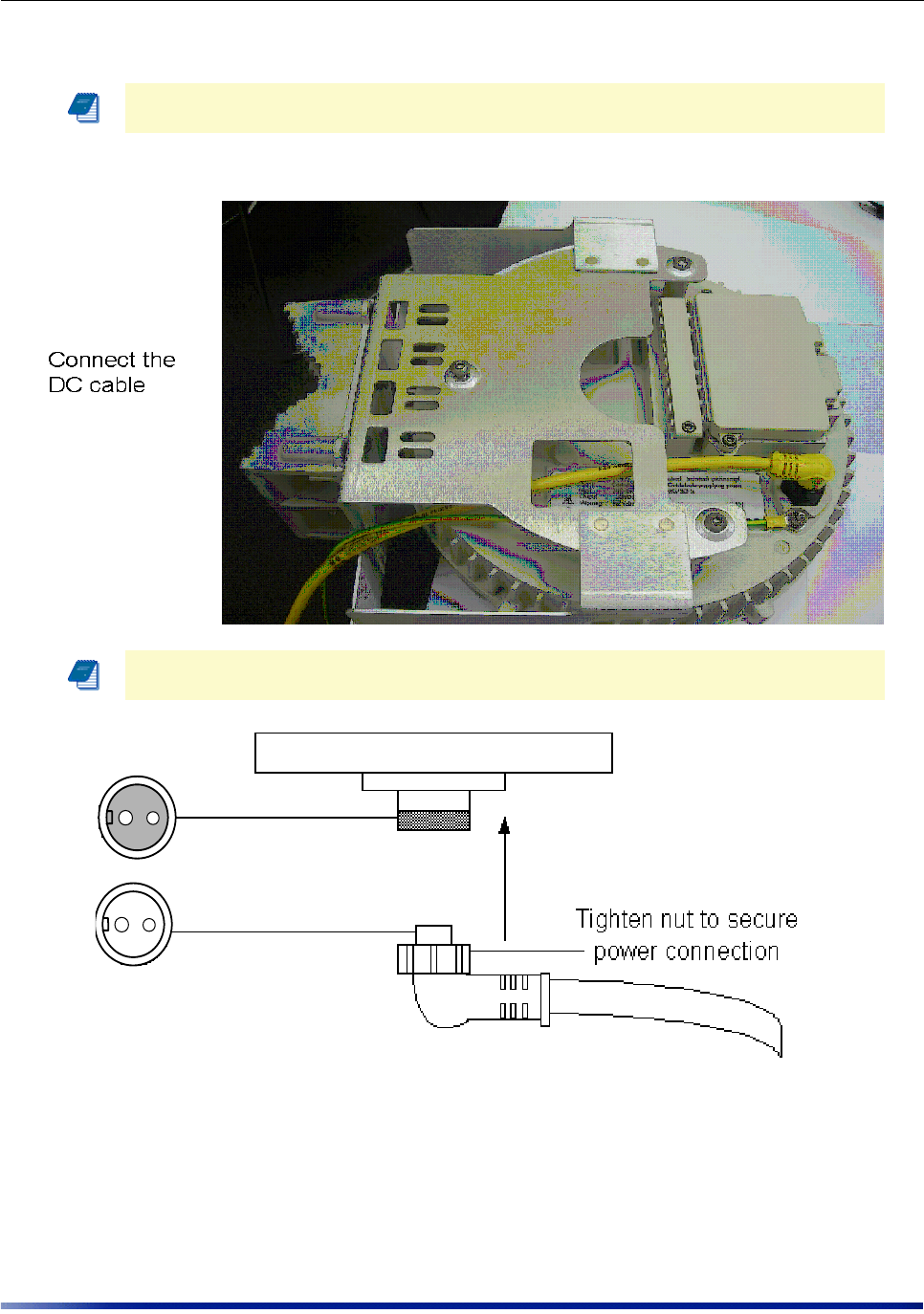

Figure 3.23. Connecting the DC Power Cable
NOTE: Data and power must not be enclosed in the same conduit.
NOTE: The Wavion WBS-2400 is equipped with fuse branch circuit protection.
External DC current protection of 10Amp should be installed.
1
2
1
2
1 - White (+)
2 - Black (-)
Installing the Wavion WBS-2400 Metro Base Station
34 Wavion
Connecting a Data Port

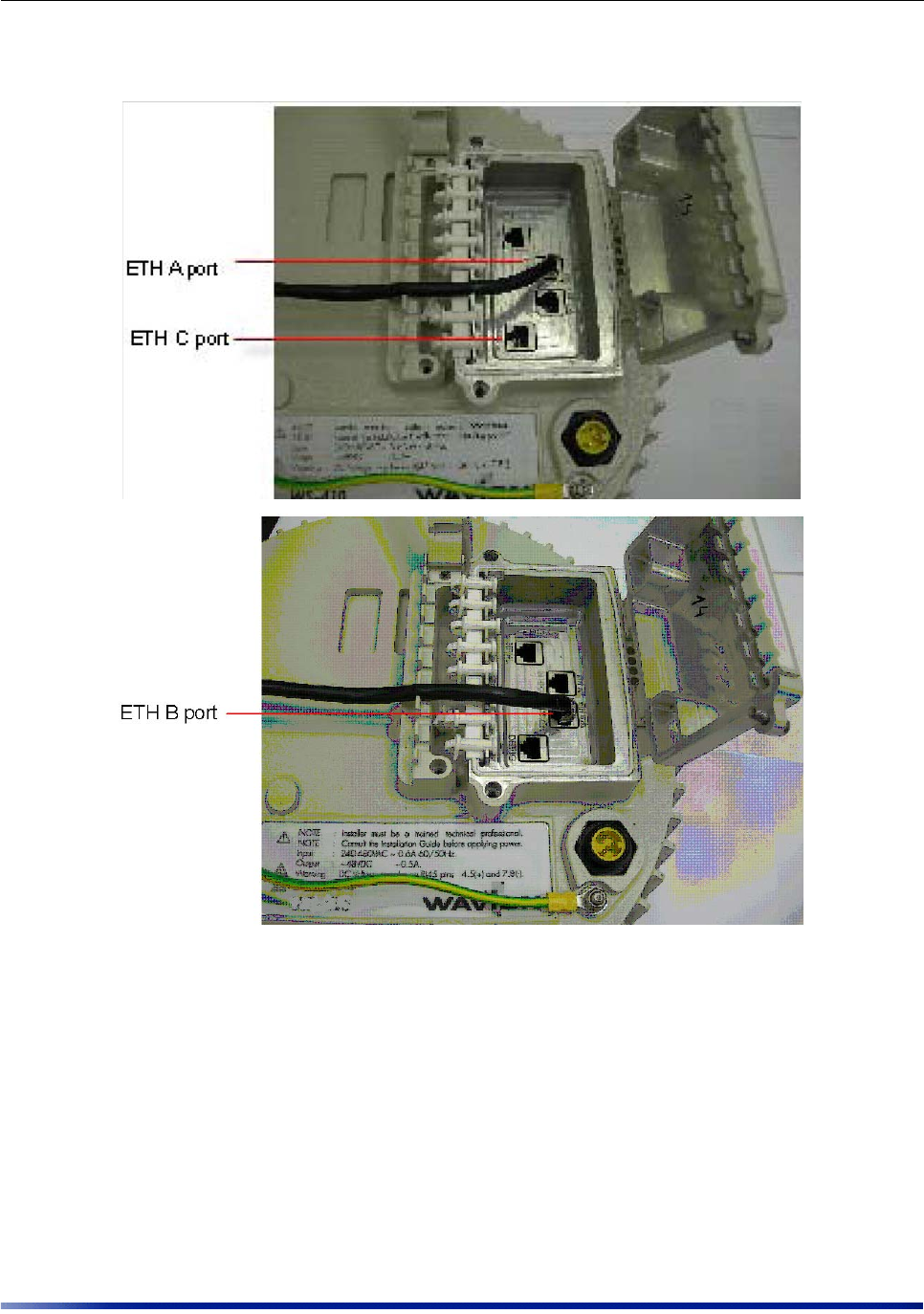

The Wavion WBS-2400 is equipped with four RJ45 connectors. The left hand port named
“SERIAL” is for engineering use only. Use the ETH A port if you are connected to the external
unit (backhaul, camera, and etc.) for which you have to supply 12/24VDC power. Use the
ETH B port if you are connected to external unit for which you have to supply 48VDC power.
In case you do not need to power an external device you can connect either ETH A, ETH B, or
ETH C ports. All three Ethernet ports can be active simultaneously.
NOTE: Use only shielded Cat5e cable rated for outdoor use. See Chapter 7:
Installation Accessories on page 55 for details. The shields of the Cat5 cable
must be properly terminated and bonded to the unit and to the protective earth (PE)
at the building entrance. This provides protection against the risk of fire, electrical
hazard and ensures the reliable operation of this equipment,
NOTE: National Electrical Codes (NEC) Article 800 requires the use of an Agency
Listed (UL/CSA) Building Entrance Protector for all power and communications cables
entering a building. Article 800 is intended to protect the building and occupants
from fires caused by transient voltage and current surges.
WARNING: DC voltage may be present on Ethernet A and Ethernet B pins 4,5 (+) and
7,8 (-)
NOTE: This is not a mid-span powered device. Do not attempt to daisy-chain Power
Over Ethernet devices.
Installing the Wavion WBS-2400 Metro Base Station
Installation Guide 35
The figures below show the options for routing cables to the Wavion WBS-2400. Connect the
Ethernet cable to the appropriate data port (ETH A, ETH B, or ETH C).

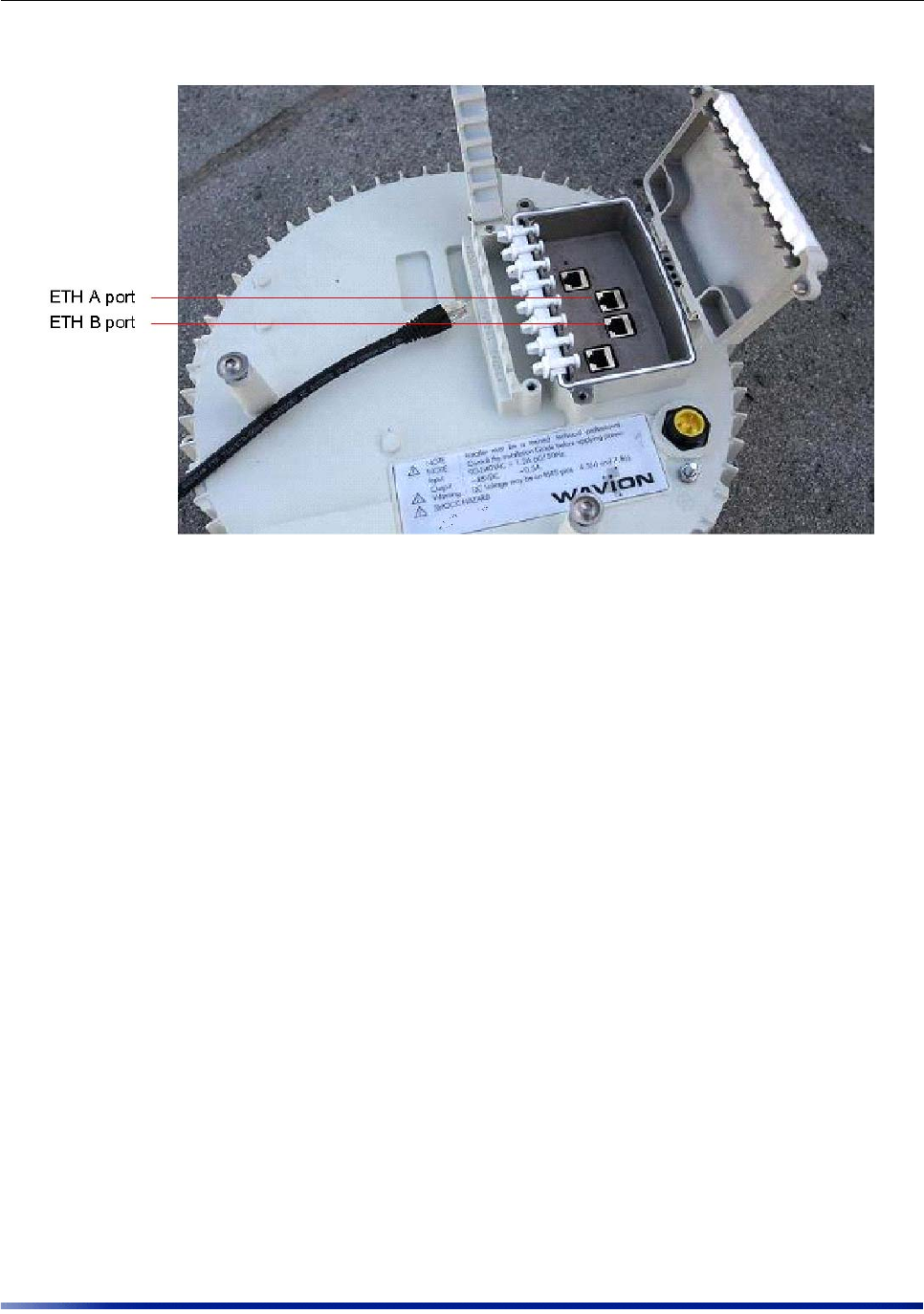

Figure 3.24. Data Port Connection Options
When connecting to the Ethernet port, if you need to terminate the Ethernet cable, use a
standard RJ45 termination. Use a shielded RJ45 plug and be sure to connect the shield of the
Ethernet cable to the shield of the RJ 45 plug.
To connect to the data port
1. Make sure that the power is turned off for the designated circuits.
2. Run shielded Category 5 Ethernet cable appropriate for outdoor use from a data
protection unit to the Wavion WBS-2400.
Installing the Wavion WBS-2400 Metro Base Station
36 Wavion
3. Connect one end of the Category 5 cable to the data protection unit.
4. Open the connector access cover on the bottom of the WBS-2400 by unscrewing the two
bolts.
5. Open the strip next to the connector access cover by unscrewing the bolt.

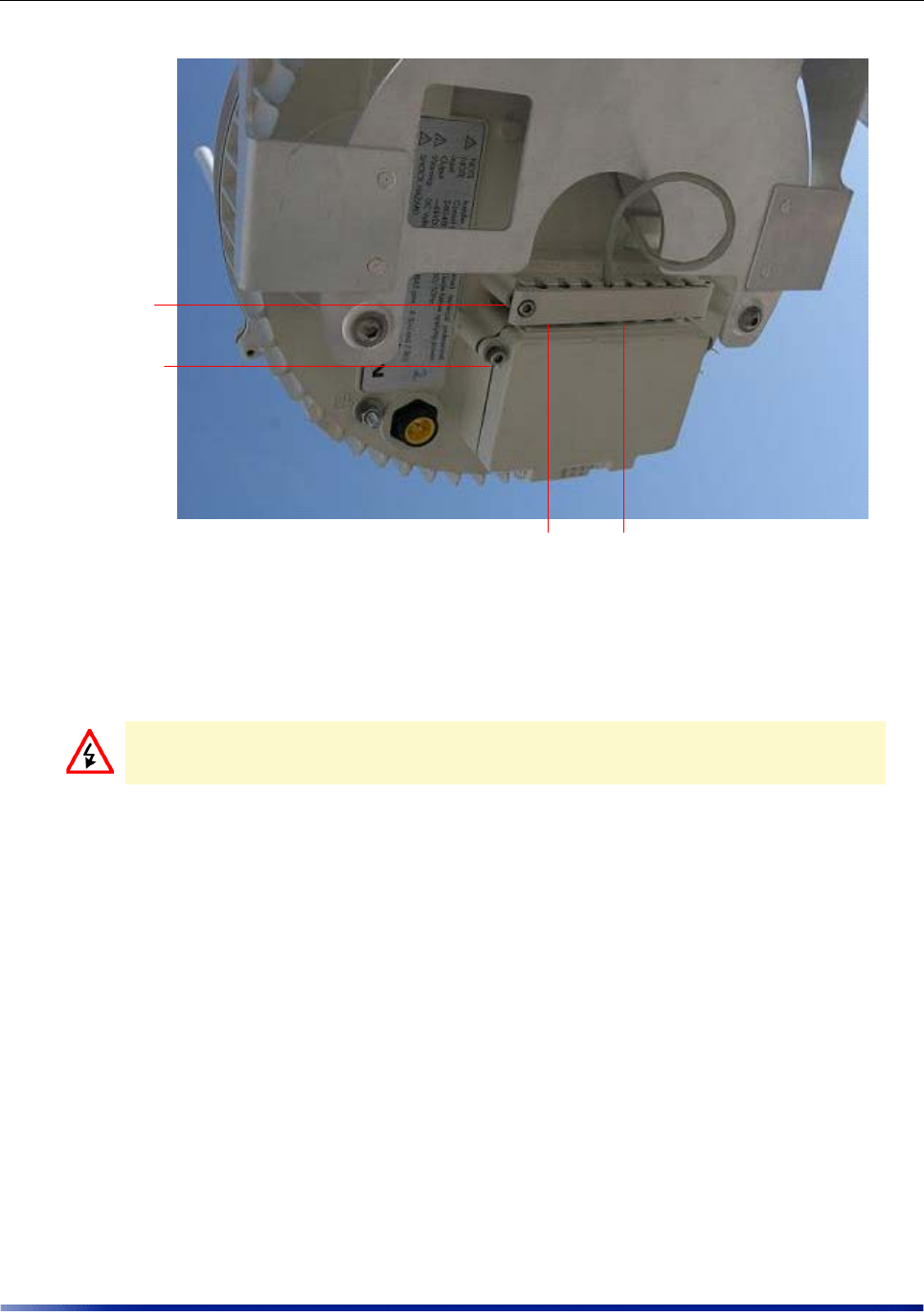

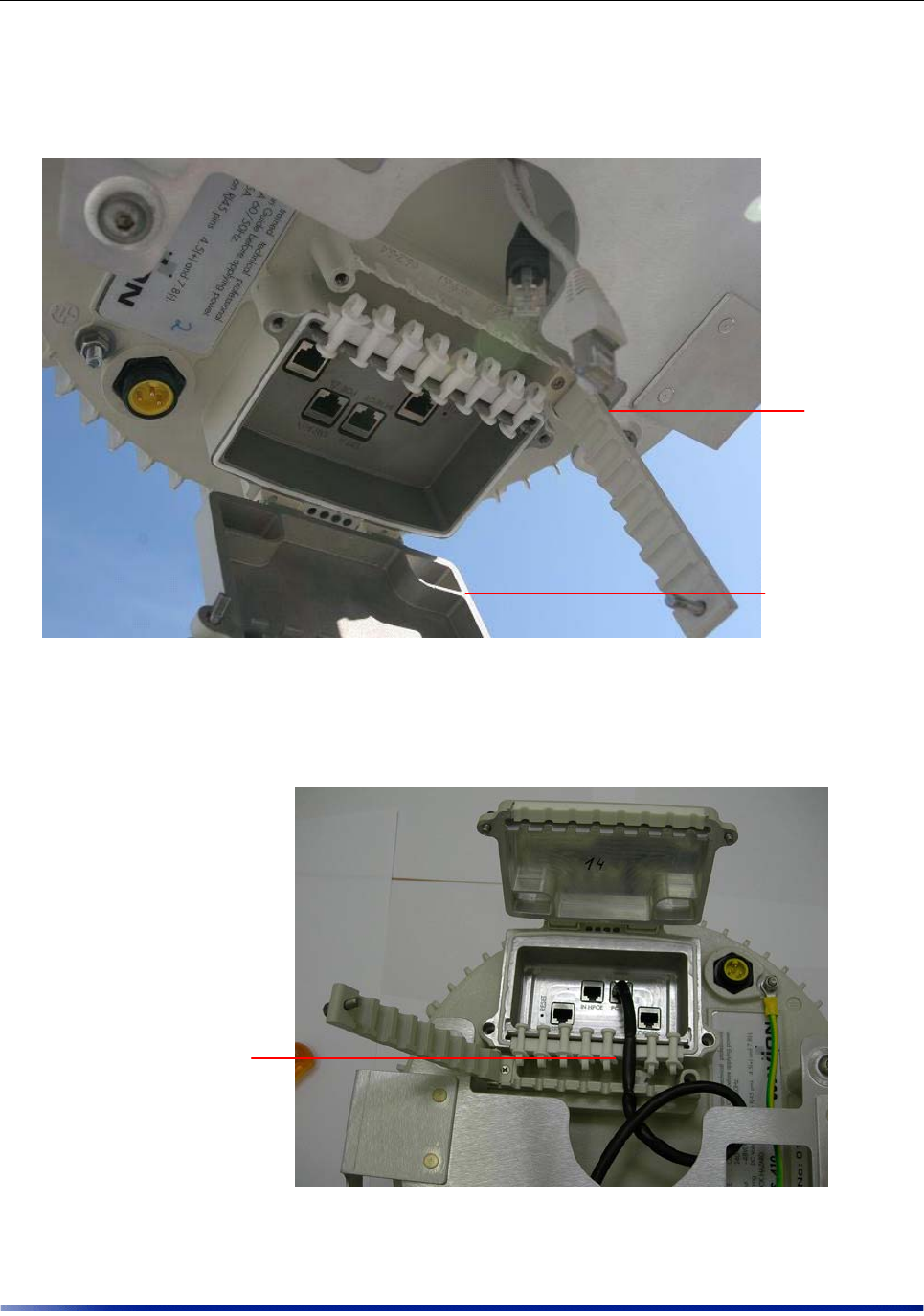

Figure 3.25. Opening the Strip and Connector Access Cover
6. Select the slot that matches the diameter of the Ethernet cable and remove the rubber
plug.
Figure 3.26. Removing the Plug Matching the Diameter of the Cable
Strip
Connector
access cover
Select and
remove plug with
matching
diameter to the
Ethernet cable
Installing the Wavion WBS-2400 Metro Base Station
Installation Guide 37
7. Connect the cable ends on the WBS-2400 to the ETH A,ETH B, or ETH C ports. Use a
shielded RJ45 8-pin modular plug to terminate the cables at the desired lengths.
8. The port named “DEBUG” is functioning as ETH C port.
9. Make sure that the protection unit is properly grounded.
10.Apply silicon across the rubber plugs.
11.Close the strip and tighten the bolt using the 4mm Allen wrench.
12.Close the connector access cover and tighten the bolts using the 4mm Allen wrench. This
ensures a watertight seal.
Installing the Wavion WBS-2400 Metro Base Station
38 Wavion
13.Apply silicon in the gap between the strip and the connector access cover.
Figure 3.27. Closing the Covers
14.Create a drip loop of at least 10 inches by looping the cables back to the tray and using a
tie wrap to secure.
Connecting Peripherals
The WBS-2400 can source 24VDC or 12VDC power on ETH A and 48VDC power on the ETH B
connectors on pins 4,5 and 7,8, This allows the WBS-2400 to power an external device.
WARNING: If you are using a Wavion Injector, make sure you are not supplying
power to the injector until you insert the RJ45 connector into its socket, or you may
risk electric shock.
Close
connector
access cover
Close strip
Apply silicon
Installing the Wavion WBS-2400 Metro Base Station
Installation Guide 39
PoE Power Sourcing Power Output
ETH A and ETH B RJ45 Pin Descriptions for Data Connection
Using a Backhaul Unit
If the installation location does not provide a place to connect to the internet (for example,
on an electricity pole), you need to use a backhaul unit.
There are two types of backhaul units:
•A backhaul unit that provides its own power
Voltage Max Power Output
48VDC 30W
24VDC 24W
12VDC 12W
WARNING: Table above defines maximum output power in case that only one of two
ports (ETH A or ETH B) is sourcing power to the external device. If both ports are
powering the external device the total output power should not exceed 30W.
NOTE: The output power support is available on selected models. Please refer to
appendix A: WBS-2400 Product list.
NOTE: PoE output can only be supported if the WBS-2400 is powered by AC or DC
voltage input.
NOTE: Use only shielded Cat5e cable rated for outdoor use. Chapter 7: Installation
Accessories on page 55 for details. For protection against risk of fire, electrical
hazard and to ensure the reliable operation of this equipment, the shields of the Cat5
cable must be properly terminated and bonded to the unit and to the protective earth
(PE) at the building entrance.
Pin T/R Signal Color Description
1 T TXD+ Orange-White TX Data 10/100BaseT
2 R TXD- Orange TX Data 10/100BaseT
3 T RXD+ Green-White RX Data 10/100BaseT
4 R PoE+ Blue Power output, 12/24/48 VDC (+)
5 T PoE+ Blue-White Power output, 12/24/48 VDC (+)
6 R RXD- Green RX Data 10/100BaseT
7 T PoE- Brown-White Power output, 12/24/48 VDC (-)
8 R PoE- Brown Power output, 12/24/48 VDC (-)
Installing the Wavion WBS-2400 Metro Base Station
40 Wavion
•A backhaul unit that uses power supplied by the WBS-2400
The following backhaul unit can be powered by the WBS-2400:
•Motorola Canopy uses 24VDC PoE input voltage. Please use the correct WBS-2400 product
version to power the Canopy unit.
•Alvarion VL uses 48VDC PoE input voltage (Please refer to Chapter 7: Installation
Accessories on page 55 for details on connecting the Alvarion unit to the WBS-2400)
Safety Information for the Wavion WBS-2400
The Federal Communications Commission (FCC) with its action in ET Docket 96-8 has
adopted a safety standard for human exposure to RF electromagnetic energy emitted by FCC
certified equipment. Proper operation of the Wavion WBS-2400 according to the instructions
found in this manual results in user exposure that is substantially below the FCC
recommended limits.
Follow these guidelines to ensure safe operation of the Wavion WBS-2400:
•Do not touch or move the antennas while the unit is transmitting or receiving.
•Make sure the antennas are connected when operating the radio or attempting to transmit
data, otherwise, the radio may be damaged.
•Do not hold the antenna to be close to or touching any exposed parts of the body,
especially the face or eyes, while transmitting.
•The use of wireless devices on airplanes is governed by the Federal Aviation
Administration (FAA).
•The use of wireless devices in hazardous locations is limited to the constraints posed by
the safety directors of such environments.
NOTE: The antennas on the WBS-2400 must be higher than the antennas on the
backhaul unit.
F
WARNING: Make sure the backhaul unit has the correct voltage appropriate for the
installation.
NOTE: When using a backhaul unit that uses power supplied by the WBS-
2400, connect the Ethernet cable to either ETH A or ETH B.
NOTE: When using a Wavion injector, the WBS-2400 cannot supply power to the
backhaul unit.
NOTE: Make sure to use the correct part number for the backhaul unit to avoid
causing damage to the unit.
Installing the Wavion WBS-2400 Metro Base Station
Installation Guide 41
•The use of wireless devices in hospitals is restricted to the limits set forth by each
hospital.
•Do not operate a portable transmitter near unshielded blasting caps or in an explosive
environment.
•The Wavion WBS-2400 must be used only with Wavion approved components and
antennas.
Service Instructions
The Wavion WBS-2400 contains no user serviceable parts inside.
Installing the Wavion WBS-2400 Metro Base Station
42 Wavion
Installation Guide 43
CHAPTER 4
Power Consumption
This chapter describes the power consumption details for the WBS-2400. The power
consumption of the WBS-2400 varies according to the operational conditions and data
transmission rates.
The table below shows the overall maximum power consumption under different conditions.
WBS-2400 Input
Voltage
WBS-2400 Input
Power when PoE
output is not used
WBS-2400 (Max)
Input Power
when a 24VDC
PoE output is
used
WBS-2400 (Max)
Input Power
when a 48VDC
PoE output is
used
110 VAC 50/60 Hz 40W 72W 74W
220 VAC 50/60 Hz 44W 78W 81W
Power Consumption
44 Wavion
Installation Guide 45
CHAPTER 5
Product Specification
The tables in this chapter contain specifications for the Wavion WBS-2400.
* RX Sensitivity
Wireless Specifications
IEEE 802.11b/g compliant
Frequency band 2.4 - 2.483 GHz
Modulation •802.11b: DSSS (DBPSK, DQPSK, CCK)
•802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK)
TX Power Maximum 802.11b and 802.11g
Beamformer Directed Power EIRP + Beamfroming gain: 42.5dBm
EIRP Calculations Antenna Gain - 7.5 dBi
Total EIRP - 3.5 dBm
RX Sensitivity* 802.11b and 802.11g
Antenna Array Six 7.5dBi omni-directional antennas
-105.5 dBm @ 1 Mbps
-103 dBm @ 2 Mbps
-100.5 dBm @ 5.5 Mbps
96 dBm @ 11 Mbps
-102.5 dBm @ 6 Mbps
-100.5 dBm @ 9 Mbps
-99.5 dBm @ 12 Mbps
-98 dBm @ 18 Mbps
-95 dBm @ 24 Mbps
-92 dBm @ 36 Mbps
-88 dBm @ 48 Mbps
-86 dBm @ 54 Mbps
Product Specification
46 Wavion
Networking and QoS Specifications
Full 802.11b/g client compatibility
16 VLANs
16 SSIDs
Security Specifications
Packet filtering via layer 2 & 3
WEP (64 bit or 128 bit)
WPA:
Encryption: WEP or TKIP
Authentication: Pre-Shared Key or 802.1x with RADIUS Server (EAP-TLS, PEAP, EAP-
TTLS)
VPN pass-through and tagging
HTTPS for web-based management tools
Management Specifications
Web based configuration and management too
SNMPv2 with standard and Wavion MIB support
Configuration save and restore
Network and client statistics
Physical Specifications
Network Interfaces •Auto-sensing 10/100 Ethernet
•Input from Wavion Injector
Auxiliary Network Interface •For connection to a backhaul interface where PoE to
the backhaul device is required.
•Auto-sensing 10/100 Ethernet
•Input/Output Power over Ethernet
Power Input •Weather-tight power connector plug for 100-240
VAC power input
•Power from a Wavion Injector (ETH B port only)
Product Specification
Installation Guide 47
Indicator Lights •Two Ethernet port LED Link/Act indicators (only for
ETH A and ETH B ports)
•System Status LED indicator
•RF channel status indicator
Physical Dimensions Base:
•Diameter - 13in (33cm)
•Height - 5in (12cm)
Antenna Array:
•Height - 17in (43cm)
Weight: 20lbs (8kg)
Power Specifications
Power Input •100 - 240 VAC weather-proof power cable, 50/60 Hz
with standard AC connector or street light NEMA
photo-electric control power tap
•55VDC, supplied over Ethernet from Wavion injec-
tor.
Input Power Consumption •Power from Wavion Injector 35W @ 55VDC
•For AC input see Chapter 4: Power Consumption on
page 43
Output Power over Ethernet
Option For powering an external device:
•48VDC, 0.6A max.
•24DC, 1A max.
•12VDC, 1A max.
•The output power from both ETH A and ETH B ports
must NOT exceed 30W.
Environmental Specifications
Operating Temperature Range -40°C to +55°C
Storage Temperature Range -45°C to +85°C
Weather Rating IP65
Wind Survivability 165 mph
Salt and Fog Rust Resistance MIL-STD-810F 509.4
Shock and Vibration ESTI 300-192-4 spec T41.E
Transportation ISTA2A
Approvals
RF FCC CFR part 15, Class C
Physical Specifications
Product Specification
48 Wavion
Safety TUVus
EMC 47 CFR Part 15, Sub Part B, Class B (USA)
Approvals
Installation Guide 49
CHAPTER 6
Antenna Specifications and Patterns
The chapter describes antenna specifications and patterns for the antennas supplied with the
Wavion WBS-2400.
Antenna Specifications and Patterns
50 Wavion
SF-245W 2.4GHz Omnidirectional Antenna
MT_341017/N/A and MT_342015NV_SN_035_EL 2.4 GHz Antenna

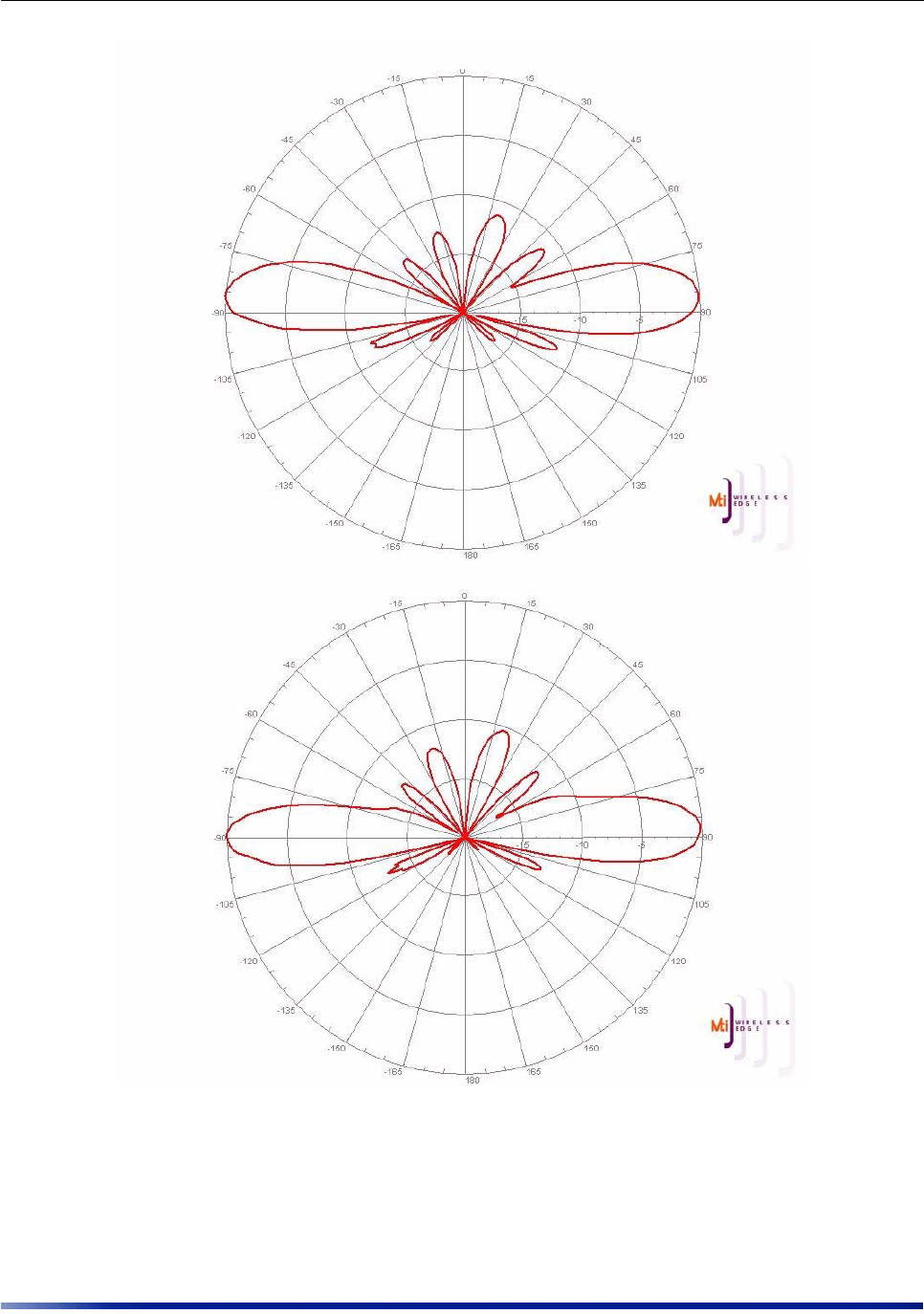

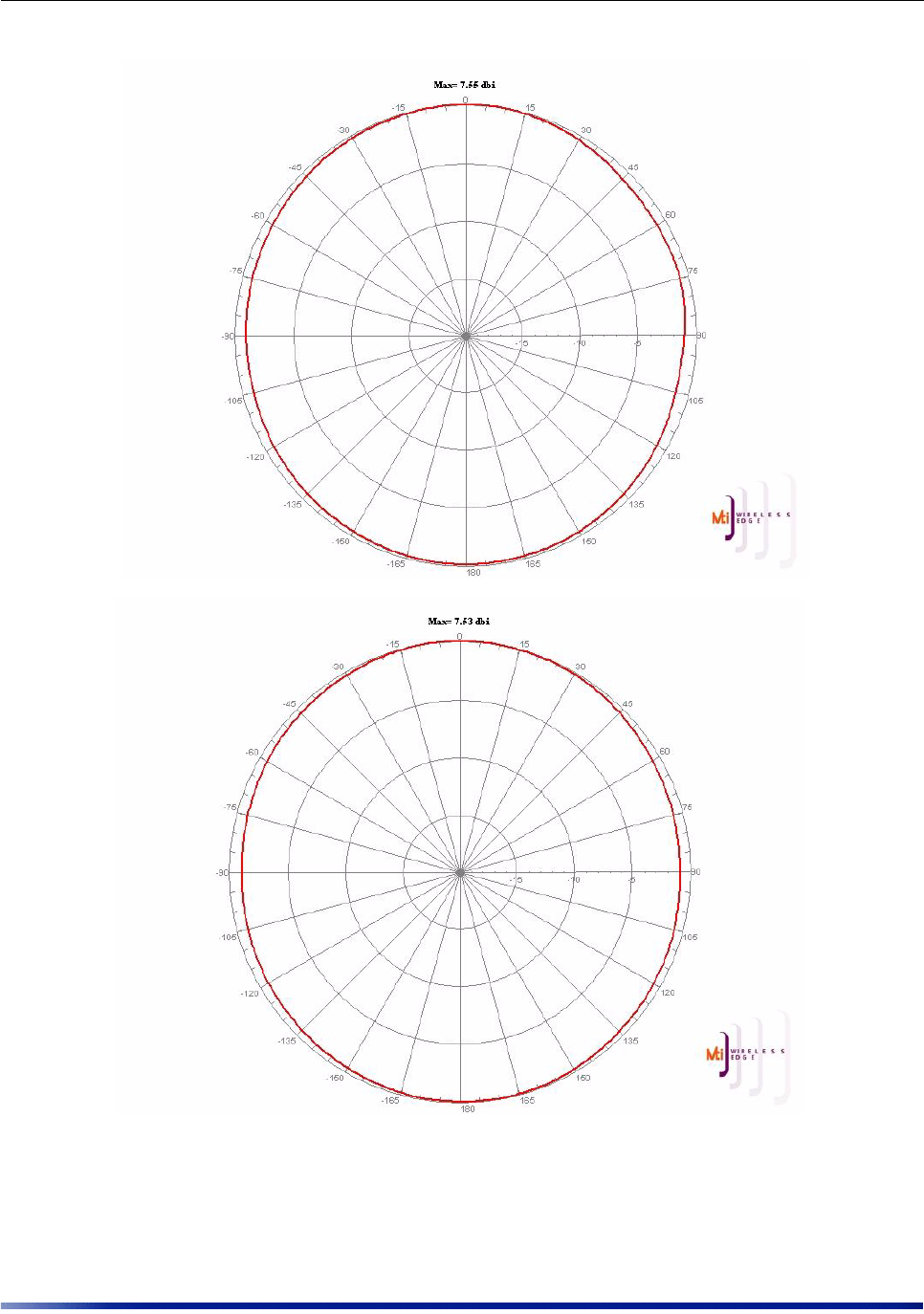

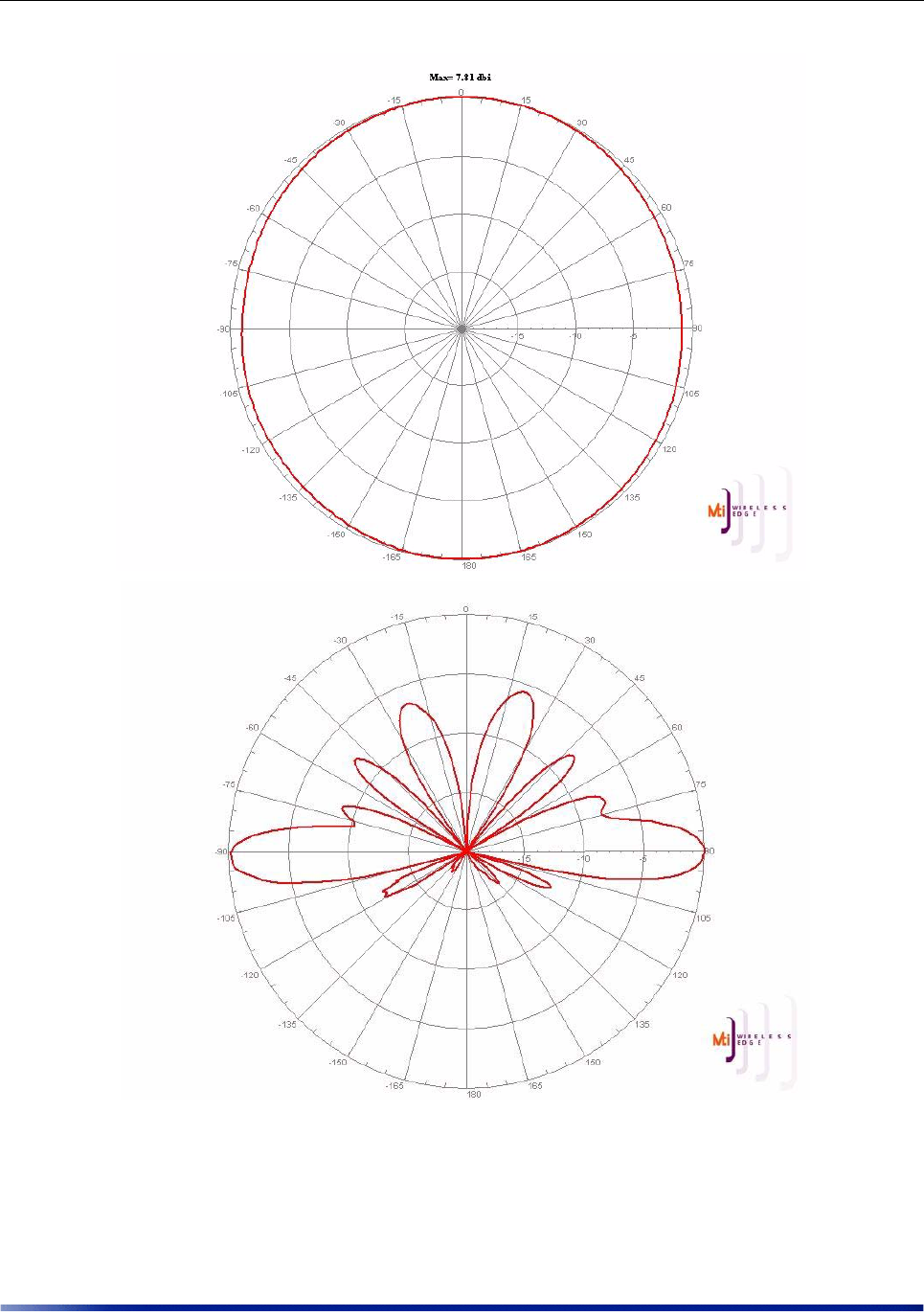

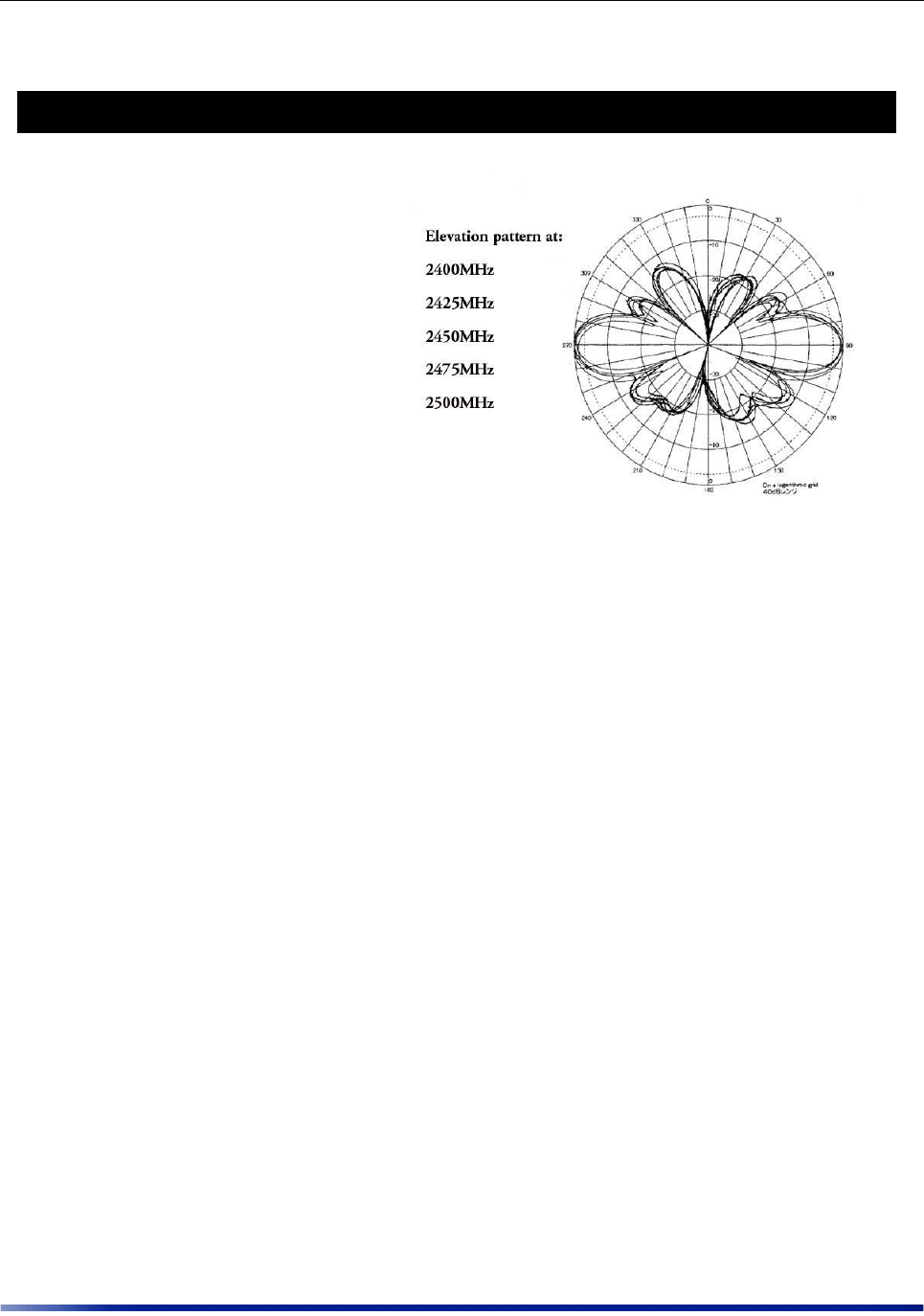

The following describes the patterns for the antenna:
Specifications Pattern
2400-2500MHz
Gain: 7.4dBi
Length: 17.5 inches
Weight: 4.7 oz
-3dB Beam-width: 20 degrees
Cross Polar Rejection: 15dB +
Max Power: 50 watts
Max wind survival: 150MPH +
Wind Load: 7.1 sq in
Connector: Integral N-male
Radome: White UV stabilized
fiberglass
Mast mounting hardware optional
Mobile lip mount optional
Mobile permanent mount optional
Antenna Specifications and Patterns
Installation Guide 51
Antenna Specifications and Patterns
52 Wavion
Antenna Specifications and Patterns
Installation Guide 53
Antenna Specifications and Patterns
54 Wavion
Installation Guide 55
CHAPTER 7
Installation Accessories
This chapter describes the accessories available for the WBS-2400 and ordering information.
The following topics are covered in this chapter:
•Power Cable on page 56
•Ethernet Cables on page 56
•Lightning Protection on page 56
•Power Over Ethernet on page 56
•Client Connectivity on page 57
Installation Accessories
56 Wavion
Power Cable
Ethernet Cables
Lightning Protection
Power Over Ethernet
Description Part Number
Power Cable for Wavion Base Station, 110 VAC, 20 feet WPC-AC-6M-US
Power Cable for Wavion Base Station, 110 VAC, 6 feet. WPC-AC-2M-US
Power Cable for Wavion Base Station,, 110-240 VAC, 20 feet
(Unterminated) WPC-AC-6M-UNV
Street Light Power Tap for Wavion Switch 410, 110/220 VAC, 30 feet WPC-SLP-9M
Street Light Power Tap for Wavion Switch 410, 110/220 VAC, 6 feet WPC-SLP-2M
Closure Caps for Plugs and Receptacles. An all-weather cover/cup for the
AC power connector, to be used when no AC power is required WPC-
Power Cable for Wavion Base Station, 48 VDC, 6 feet. WPC-DC-6M-UNV
Description Manufacturer Part
Number Distributor Contact
Information Order
Number
Outdoor CAT5 4-
pair data cable Belden 7929A Anixter www.anixter.com
Outdoor CAT5e
double jacket 4-
pair data cable
Teldor 8393204101 G.Bares Tel: +972-(4)-
8215450
Description Manufacturer Part
Number Distributor Contact
Information Order
Number
Data protection
device Hyperlink HGLN-CAT5-1 www.hyperlinktec
h.com
Description Part Number
Wavion Injector for powering the WBS-2400 over an Ethernet cable.
Output 55VDC, 1A. WPI-AC-55W
Installation Accessories
Installation Guide 57
Client Connectivity
Description Manufacturer
Alvarion - Use Alvarion Indoor-Outdoor CAT 5e cable with pin crossing (pin 5 of the
WBS-2400 PoE connector goes to pin 7 of Alvarion RJ45 connector, pin 7 of the WBS-
2400 PoE connector goes to pin 5 of the Alvarion RJ45 connector)
See Installation
Guide
Motorola (Canopy) - Use outdoor CAT 5e cable with spare pin crossing (pin 4 5 of the
WBS-2400 PoE connector goes to pin 7 8 Motorola RJ45 connector respectively)
(pin 7 8 of the WBS-2400 PoE connector goes to pin 4 5Motorola RJ45 connector
respectively)
Installation Accessories
58 Wavion
AC Wiring Diagrams
60 Wavion
AC Wiring Photoelectric Power Tap
23
11-Green
1-Black
1-White
WS410PT-02-GE-AA (6') or
WS410PT-01-GE-AA (30')
Photoelectric Power-Tap
Power Input Cable
2Wire - 100-240VAC
NEMA Plug - UL Standard
773 Plug-in looking type
for photocontrols in use
with area lighting
Length: 4' or 20'
16/2 SOOW
Carol P-7K-123033 MSHA or equal
Black
White
L2/N
North
AC Wiring Diagrams
Installation Guide 61
Figure 8.28. AC Wiring Photoelectric Power Tap
L1
L2
Protective Earth
Black
White WS-410
North North
L1
N
Power-Tap single phase - two wire service
NEMA Photoelectric
Control / UL773
(female)
NEMA Photoelectric
Control / UL773
Power-Tap Adapter
(male)
White
N
L1
L2
Protective Earth
Black
Red WS-410
North North
L1
L2
Power-Tap single phase - two wire service
NEMA Photoelectric
Control / UL773
(female)
NEMA Photoelectric
Control / UL773
Power-Tap Adapter
(male)
White
L2
L1
L2
Protective Earth
Black
White WS-410
North North
L1
L2
Three phase - two wire service (Delta)
NEMA Photoelectric
Control / UL773
(female)
NEMA Photoelectric
Control / UL773
Power-Tap Adapter
(male)
White
L2
L1
L2
Protective Earth
Black
Red
WS-410
North North
L1
L2
208Vac three phase - two wire service
(grounded-Wye)
NEMA Photoelectric
Control / UL773
(female)
NEMA Photoelectric
Control / UL773
Power-Tap Adapter
(male)
White
L2
Black
L1
Black
L1
Black
L1
277 Vac
L3
N
480 Vac
AC Wiring Diagrams
62 Wavion
AC Wiring Power Cable 120VAC, 15A Plug
Figure 8.29. AC Wiring Power Cable 120VAC, 15A Plug
L1 Black
L2/N White
Protective Earth Green or
Green/Yellow
White
Black
Green or Green/Yellow
WS410PC-04-GE-AA (6') or
WS410PC-03-GE-AA (20')
Overvoltage Category 2 or IEEE/ANSI
C62.41 Category B Power Electrical
Service Cable 3Wire - 120Vac
Black White
Green
Length: 3' to 30'
16/3 S00W
WS-410
120Vac single phase: three wire service
L1
L2
Neutral
Black
White
Green
Black (L1)
White (N)
Green
Protective Earth Input Power Cable
Installation Guide 63
CHAPTER 9
Backhaul Unit Installation Instructions
This chapter describes how to install a backhaul unit with the WBS-2400.
Use the assembly equipment provided with the backhaul unit to install. Wavion does not
provide brackets or mounting equipment for the backhaul unit. Make sure the WBS-2400 is
installed in a higher position then the backhaul unit so the antennas are unobstructed. If the
backhaul unit is powered externally, connect to either ETH A, ETH B, or ETH C port. If the
backhaul unit is not powered externally, connect to either ETH A or ETH B port, according to
the backhaul input voltage.
WARNING: Disconnect power to the WBS-2400 before connecting the
backhaul unit.
NOTE: Make sure to use the correct Wavion part number for each backhaul
unit
Backhaul Unit Installation Instructions
64 Wavion
Installation Guide 65
CHAPTER 10
Wind Loading Considerations
This chapter describes wind loading considerations for the WBS-2400.
The Wavion WBS-2400 weighs approximately 16 lbs, including all mounting hardware. When
the Wavion WBS-2400 is mounted on a pole, the sail area of the WBS-2400 is approximately
1 square foot. The Wavion WBS-2400 can load a pole with a maximum load of 3400 Newton
in wind conditions of 165mph.
NOTE: It is recommended to evaluate the static and dynamic load bearing
capabilities for each assembly and installation individually. It is your
responsibility to evaluate the load bearing capabilities of the structure.
Wind Loading Considerations
66 Wavion
Installation Guide 67
Appendix A: WBS-2400 Product list
Part Number Product name Product description
12405101 WBS-2400-POE-FCC Spatially adaptive, multimulti radio WiFi base
station, PoE input, no PoE output.
FCC/TUV compliant
12405102 WBS-2400-POE-EU Spatially adaptive, multi radio WiFi base station,
PoE input, no PoE output.
ETSI / CE compliant
12405201 WBS-2400-AC-48-FCC Wavion 2.4GHz Spatially adaptive, multi radio
WiFi base station, with 2.4GHz self backhaul.
100-240VAC input and 48VDC PoE output for
external device.
FCC/TUV compliant
12405202 WBS-2400-AC-48-EU Spatially adaptive, multi radio WiFi base station,
100-240VAC input and 48VDC PoE output for
external device.
ETSI / CE compliant
12405501 WBS-2400-DC-48-FCC Spatially adaptive, multi radio WiFi base station,
48VDC input and 48VDC PoE output for external
device.
FCC/TUV compliant
12405502 WBS-2400-DC-48-EU Spatially adaptive, multi radio WiFi base station,
48VDC input and 48VDC PoE output for external
device.
ETSI / CE compliant
12405301 WBS-2400-AC-24-FCC Spatially adaptive, multi radio WiFi base station,
100-240VAC input and 24/48VDC PoE output for
external device
FCC/TUV compliant
12405302 WBS-2400-AC-24-EU Spatially adaptive, multi radio WiFi base station,
100-240VAC input and 24/48VDC PoE output for
external device.
ETSI / CE compliant
Appendix A: WBS-2400 Product list
68 Wavion
12405601 WBS-2400-DC-24-FCC Spatially adaptive, multi radio WiFi base station,
48VDC input and 24/48VDC PoE output for
external device.
FCC/TUV compliant
12405602 WBS-2400-DC-24-EU Spatially adaptive, multi radio WiFi base station,
48VDC input and 24/48VDC PoE output for
externalexternal device.
ETSI / CE compliant
12405401 WBS-2400-AC-12-FCC Spatially adaptive, multi radio WiFi base station,
100-240VAC input and 12/48VDC PoE output for
external device
FCC/TUV compliant
12405402 WBS-2400-AC-12-EU Spatially adaptive, multi radio WiFi base station,
100-240VAC input and 12/48VDC PoE output for
external device.
ETSI / CE compliant
12405701 WBS-2400-DC-12-FCC Spatially adaptive, multi radio WiFi base station,
48VDC input and 12/48VDC PoE output for
external device.
FCC/TUV compliant
12405702 WBS-2400-DC-12-EU Spatially adaptive, multi radio WiFi base station,
48VDC input and 12/48VDC PoE output for
external device.
ETSI / CE compliant
Part Number Product name Product description
Installation Guide 69
Acronyms
Acronym Description
2P Two-Phase or Split Phase
2W Two-Wire
3W Three-Wire
AC Alternating Current
ANSI American National Standards Institute
AWG American Wire Gauge
CCelsius
CAT Category
CCK Complementary Code Keying
CFR Code of Federal Regulations
CSA Canadian Standard Association
dB Decibels
dBi Decibels Relative to an Isotropic Radiator
DBPSK Differential-Binary Phase-Shift Keying
DC Direct Current
DQPSK Differential-Quadrature Phase-Shift Keying
DSSS Direct-Sequence Spread Spectrum
EMC Electromagnetic Compatibility
EN IEC standard
ESD Electrostatic Discharge
FCC Federal Communications Commission
Hz Hertz
HPoE High Power over Ethernet
IEEE Institute of Electrical and Electronics Engineers
IP67 Ingress Protection Standard
ISTA International Safe Transit Association
LAN Local Area Network
Mbps Megabits Per Second
MHz Megahertz
Acronyms
70 Wavion
MIL-STD Military Standard
NNeutral
NEC National Electrical Codes
NEMA National Electrical Manufacturers Association
OFDM Orthongonal Frequency Division Multiplexing
PPhase
PE Protective Earth
PoE Power over Ethernet
RJ45 Registered Jack 45
RSS Received Signal Strength
Rx Receive
RXD Receive Data
TUV Technical Inspection Association
Tx Transmit
TXD Transmit Data
UL Underwriters Laboratories
VAC Voltage (Alternating Current)
VCCI Voluntary Control Council for Interference
VDC Voltage (Direct Current)
W Watts
Acronym Description
