Wavion WBS5800-2S WBS-5800S Outdoor Wi-Fi Base Station User Manual WBS2400 5800 IG Sector AF Rev 4

Wavion Ltd. WBS-5800S Outdoor Wi-Fi Base Station WBS2400 5800 IG Sector AF Rev 4

User Manual

WBS-2400 & WBS-5800
Outdoor Wi-Fi Sector Base Station
Installation Guide
Rev. 3
February 2009
Note: To better reflect the value of Wavion products we are changing the name of our product
family from Access Points (AP) to Wireless Base Stations (WBS), consequently the existing WS-
410 product name will be changed to Wavion WBS-2400.
The new product name emphasizes the difference in architecture (Multiple Radio system) and
the value to customer, superiority in performance (coverage, capacity, indoor penetration and
immunity to interference) of Wavion WiFi base station over any other standard outdoor WiFi
access point products available in the market.
All references in Wavion's documentation to WS-410 refer also to the WBS-2400, and vice
versa. Both products are exactly the same except for the name change.
Copyright Notice
©2006, 2007, 2008 Wavion, Inc. All rights reserved. Wavion is a registered trademark of
Wavion in the United States and certain other jurisdictions. Specifications are subject to change
without notice.
FCC Notice to Users and Operators
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference, in which case the user will be required to correct the interference
at his own expense. If this equipment does cause interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to
correct the interference by using one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician.
Installation Guide 3
Warning
:
Changes or modifications to this unit not expressly approved
by the party responsible for compliance could void the user’s authority
to operate the equipment.
Note
:
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Note
:
According to the FCC rules the WBS-5800 unit must only be
used for fixed point to point applications with fixed clients.
R&TTE Compliance Statement
This equipment (ETSI-models only) complies with all the requirements of DIRECTIVE
1999/5/CE OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on
radio equipment and telecommunication terminal Equipment and the mutual recognition
of their conformity (R&TTE)
4 Wavion Networks
Contents
Chapte r 1
About This Guide ........................................................................ 5
Preface .................................................................................................... 5
Conventions ............................................................................................. 5
Contacting Technical Support .................................................................... 6
Chapte r 2
Introduction ............................................................................... 7
Chapte r 3
Package Content ........................................................................ 8
Chapte r 4
Installing the Wavion WBS-2400/5800 Sector Base Station .. 10
Important Safety Instructions.................................................................. 11
Preparing for Installation......................................................................... 12
Choosing a Location................................................................................ 13
Preparing the Site ................................................................................... 13
Mounting Strategies................................................................................ 14

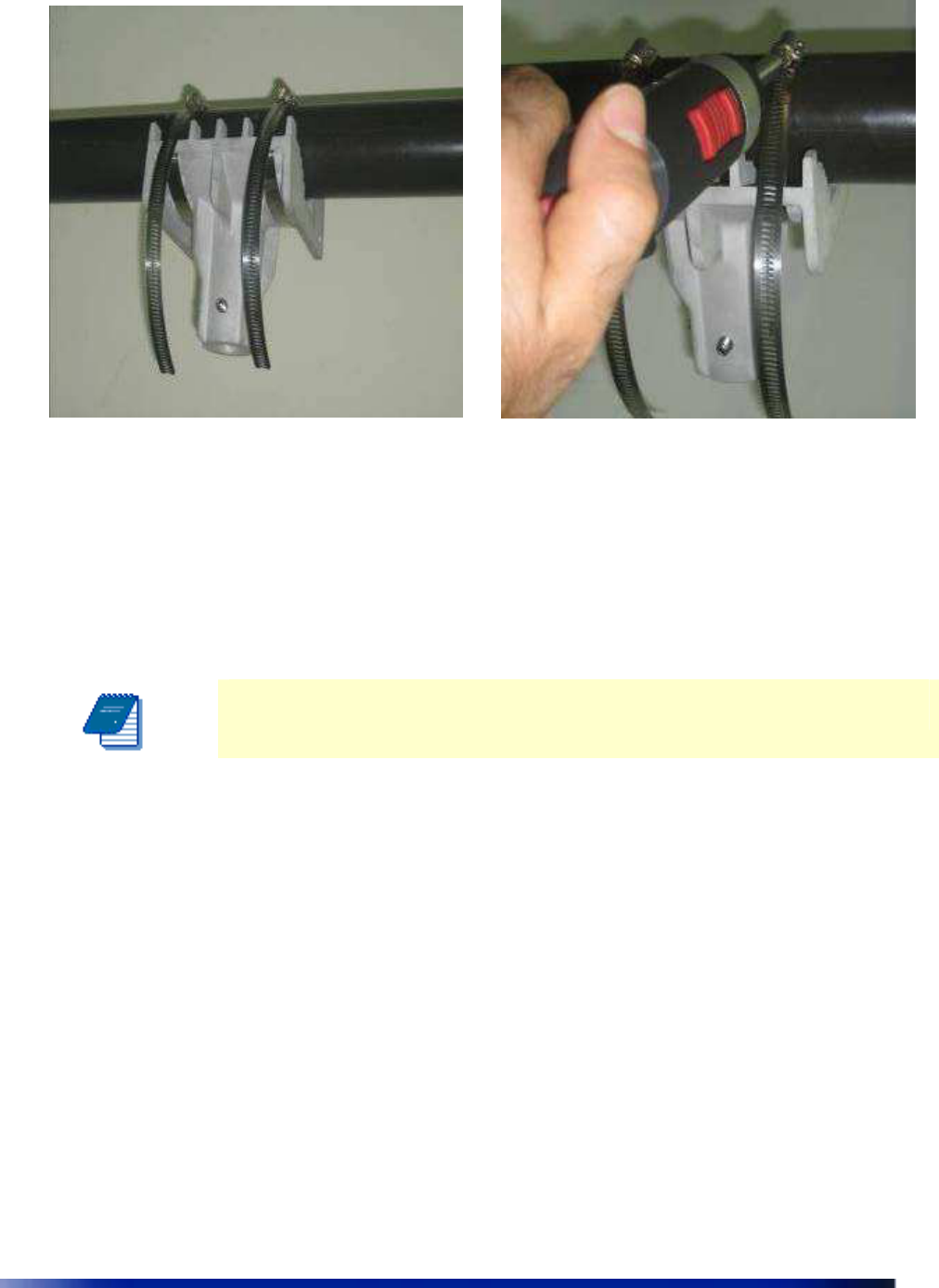

Using Hose Clamps ................................................................................. 14
Mounting on a Pole/Streetlight ................................................................ 15

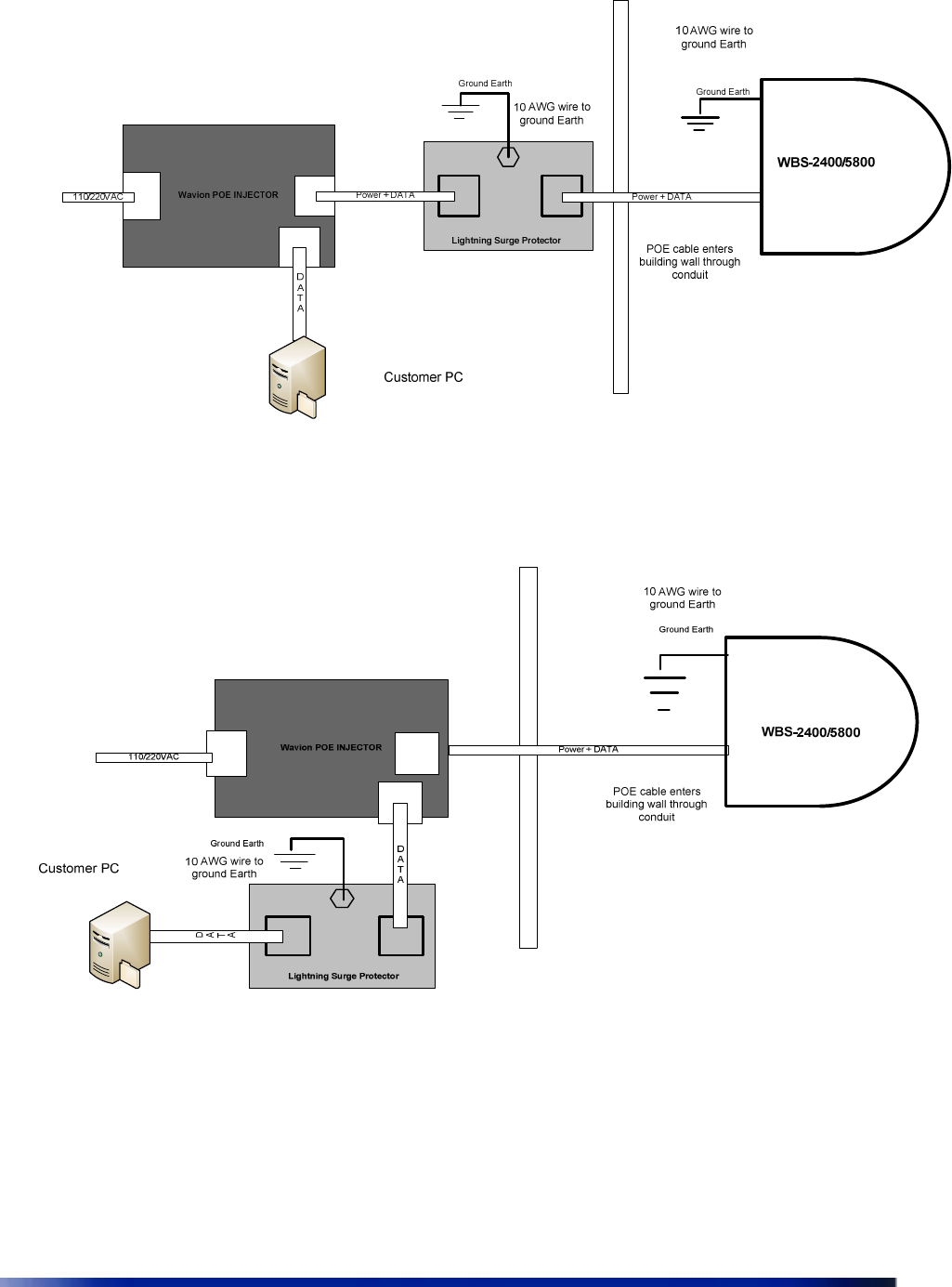

Grounding the Data Protection Device...................................................... 18
Connecting Power and DATA................................................................... 20
Safety Information for the Wavion WBS-2400/5800.................................. 24
Service Instructions ................................................................................ 25
Chapte r 5
Product Specification WBS-2400 Sector.................................. 26
Chapte r 6
Antenna 2.4GHz Specifications and Patterns .......................... 30
MT-343037/CV 2.4GHz Sector Antenna .................................................... 30
Chapte r 7
Product Specification WBS-5800 ............................................. 33
Chapte r 8
Antenna 5.8GHz Specifications and Patterns .......................... 39
MT-463009CV 5.8GHz Antenna Azimuth Patterns directional Antenna ........ 39
Chapte r 9
Installation Accessories ........................................................... 41
Ethernet Cables ...................................................................................... 42
Sun Protection ........................................................................................ 42
Lightning Protection ................................................................................ 42
Power Over Ethernet............................................................................... 42
Chapte r 10
Wind Loading Considerations .................................................. 43
Chapte r 11
Acronyms.................................................................................. 44
Chapte r 12
Appendix A: WBS-2400/5800 Product list............................... 46
5 Wavion Networks
Chapter 1
About This Guide
Preface
This guide details the Wavion WBS-2400/5800 Sector installation procedures. The
intended audience of this document is trained technical professionals.
Conventions
The exclamation point within a triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in
the literature accompanying the product.
The lightning flash with an arrowhead symbol within a triangle is intended to
alert the user to the presence of uninsulated dangerous voltage within the
product’s enclosure that may be of sufficient magnitude to constitute a risk of
electric shock to persons.
The notebook is intended to alert the user of a note containing further
information.
About This Guide
6 Wavion Networks
Contacting Technical Support
For technical support, contact Wavion using these methods:
Address:
Wavion Technical Support
Wavion
6 Hayetzira Street,
PO BOX 580
Yoqneam Illit, 20692
Israel
Telephone: +972-4-9097300
Fax: +972-4-9097322
Email:
support@wavionnetworks.com
Web:
www.wavionnetworks.com
Introduction
Installation Guide 7
Chapter 2
Introduction
WBS-2400/5800 Sector a high capacity, IP services oriented Broadband Wireless access system.
WBS-2400/5800 Sector is a new category of Broadband Wireless Base Station designed from
the ground up for metro-Wi-Fi deployments. The system employs wireless packet switched data
technology to support high-speed IP services including fast Internet and Virtual Private
Networks. WBS-2400/5800 Sector users are provided with a network connection that is always
on, supporting immediate access to the Internet and other IP services at high data rates. The
system is designed for cellular-like deployment, enabling the system architecture to vary in size
and structure. A system can include any number of cells, each containing several base station
access units for better coverage of densely populated areas.
It is based on three antennas and radios and custom-built ASICs, utilizes Wavion's powerful
multi-antenna signal processing technologies, and provides significant performance gains to off-
the-shelf 802.11 standards-based
The WBS-2400/5800 Sector may be mounted on streetlights or rooftops and may be
easily interfaced with wired internet connections, wireless mesh or backhaul equipment.
Complete management of the WBS-2400/5800 Sector is provided through SNMP, a
graphical user interface, and SYSLOG services.
8 Wavion Networks
Chapter 3
Package Content
Check that the package contains:
• POE injector unit with wall mounting kit
• Outdoor Unit
• Pole mounting bracket for the outdoor unit

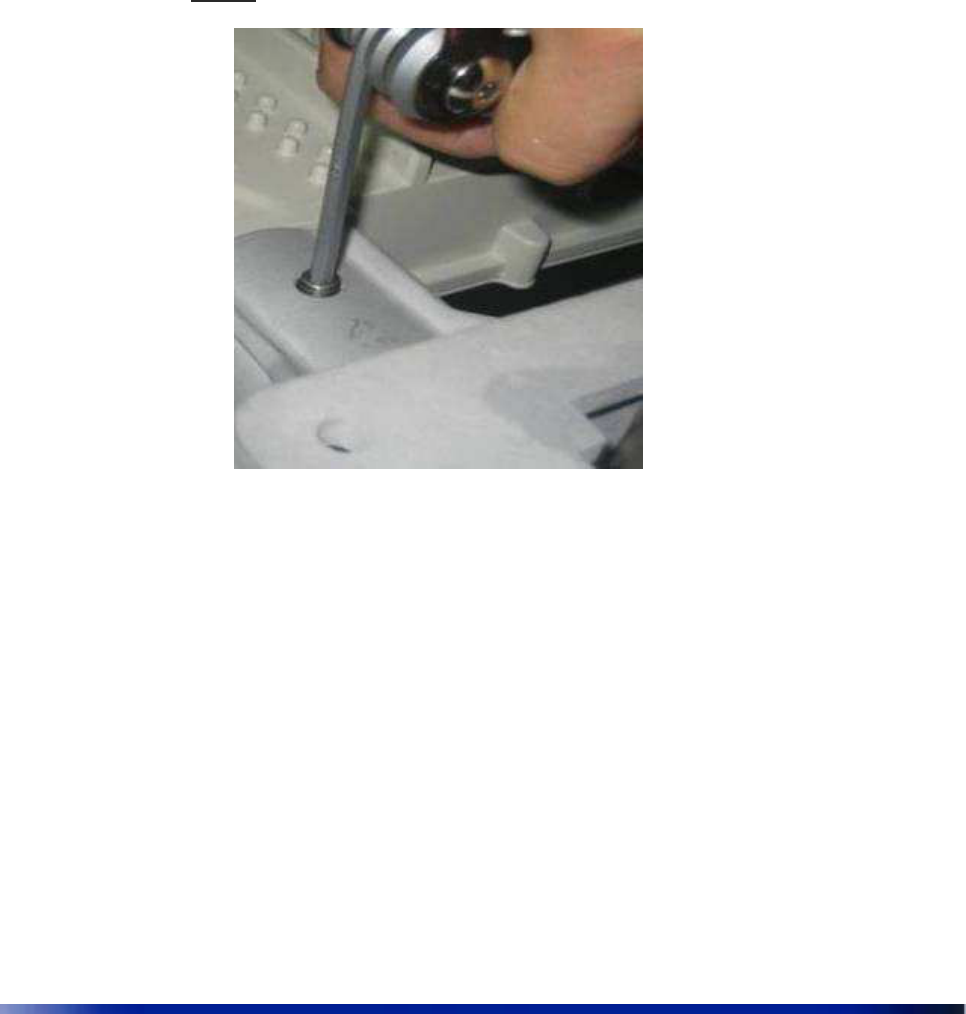

• Allen head wrench with 4 screws
• Waterproof sealing tape for IP67 (band to sealing rubber)
Additional Equipment and Tools required for Installation
• Ethernet cable (straight for connecting to a hub/switch)
• Crimping tool for RJ-45 connectors.
• Ground cable with an appropriate termination.
• Mains plug adapter or termination plug (if the power plug on the supplied AC
power cord does not fit local power outlets).
• Portable PC with Ethernet card and Telnet software and a straight Ethernet
cable.
WARNING
:
Use straight Ethernet (POE) cable connecting the injector to AF unit in order to have
all the features work properly (reset button and Link LED). Using cross cable might cause turn
Link led to “ON” permanently and also may be the cause software reset. DATA cable connecting
the injector to the network can be cross cable as well.
Package Content
Installation Guide 9
• Addition tools and materials, including appropriate means (e.g. a pole) for
installing the outdoor equipment.
• 1/4-inch flat blade screwdriver
WARNING
:
ONLY experienced installation professionals who are familiar with local
building and safety codes and, wherever applicable, are licensed by the
appropriate government regulatory authorities should install outdoor units and
antennas. Failure to do so may void the WBS-2400/5800 product warranty and
may expose the end user or Service Provider to legal and financial liabilities.
Wavion and its resellers or distributors are not liable for injury, damage or
regulation violations associated with the installation of Outdoor Units or antennas
10 Wavion Networks
Chapter 4
Installing the Wavion WBS-2400/5800 Sector
Base Station
This guide explains how to safely install the Wavion WBS-2400/5800 Sector Base Station.
The following topics are covered in this chapter:
• Important Safety Instructions
• Preparing for Installation
• Mounting Strategies
• Using Hose Clamps
• Mounting on a Pole, or Streetlight
• Grounding the Wavion WBS-2400/5800
• Connecting Power and Data
• Safety Information for the Wavion WBS-2400/5800
• Service Instructions
Installation Guide 11
Important Safety Instructions
W
ARNING
:
It is illegal to modify the construction of this product. Modifying
the operating frequency or enhancing the transmit output power through the
use of external amplifiers or other equipment is specifically disallowed by the
"Telecommunications Act."
W
ARNING
:
This device is for outdoor or indoor use with conditions that no
harmful interference to authorized radio stations results from the operation
of this device. This device shall not influence aircraft security and/or
interfere with legal communications as defined in the "Telecommunications
Act." If this device is found to cause interference, the operator of this
equipment shall cease operating this device immediately until no
interference is achieved.
Note
: This device must be installed by a trained professional, value added
reseller or systems integrator who is familiar with RF planning issues and the
regulatory limits in the United States of America.
Caution
: Read and save these instructions. Heed all warnings. Follow all instructions.
Do not defeat the safety purpose of the grounding.
Caution
: Only use attachments/accessories specified by the manufacturer.
Caution
: Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way. For example, if
the power-supply cord or plug is damaged, liquid has been spilled on the
apparatus, objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, it does not operate normally, or has been
dropped.
Warning:
Risk of personal injury or death when installing this device! There
is a risk of personal injury or death if the WBS-2400/5800 antennas come
near electric power lines. Carefully read and follow all instructions in this
manual. By nature of the installation, you may be exposed to hazardous
environments and high voltage. Use caution when installing the outdoor
system.
Warning:
This apparatus must be connected to earth ground
Warning:
Do not open the unit. There is a risk of electric shock inside.
Caution
:
You are cautioned that any change or modification not expressly
approved
in this manual could void your authority to operate this equipment.
12 Wavion Networks
Caution
: There are no user-serviceable parts inside. All service must be
performed by qualified personnel.
Caution
Only UL listed parts and components will be used for installation. Use UL listed
devices having an environmental rating equal to or better than the enclosure rating to
close all unfilled openings.
Caution
To maintain Overvoltage (Installation) Category II, install a suitable surge
suppressor device in the branch circuit to limit expected transients to Overvoltage
Category II values. The limits are based on IEC60664 and are also located in Table 2H
of UL60950 (for mains 110V, the transient rating is 1500V).
Caution
The WBS-2400/5800must be installed only with the equipped
antennas.
Caution
A minimum distance of 40cm from the WBS-2400/5800X's antenna should be
kept when the system is operated.
Caution
Read and save these instructions. Heed all warnings. Follow all
instructions
Preparing for Installation
ONLY experienced installation professionals who are familiar with local building and
safety codes and, wherever applicable, are licensed by the appropriate government
regulatory authorities should install outdoor units and antennas.
The following lists the equipment required for installation and explains how to prepare
the installation site.
WARNING
: Do not modify the construction of this product. Modifying
the operating frequency or enhancing the transmit output power
through the use of external amplifiers or other equipment is illegal.
WARNING
This device is for use outdoors or indoors on the condition
that operation of this device causes no harmful interference to
authorized radio stations. This device shall not influence aircraft security
and/or interfere with legal communications. If this device is found to
cause interference, the operator of this equipment shall cease operating
this device immediately.
Installation Guide 13
Choosing a Location
To ensure the optimal performance select the locations for the equipment using the following
guidelines:
The antenna (integrated on the front panel of the outdoor unit) should provide a
direct, or near line of sight, with the sector location that need to be covered.
The antenna should be aligned to face the CPEs that aim to be in service, higher
the placement of the antenna, the better the achievable link quality (but not in all
cases).
Average rooftop (depend on the topology of the location) should be
The location of the outdoor unit should enable easy access to the unit for
installation and testing
Avoid installations in locations that devices operating in the same frequency
range.
The outdoor unit should be installed at the highest point of a metal pole that
there will be no interference caused by RF reflections. If this is not possible, it
should be installed at least 3 meters from the metal pole.
It is recommended to use maximum distance possible from an RF radiating
source.
Preparing the Site
1. Follow the appropriate electrical and building codes to ensure safe and
durable wiring.
2. Follow the National Electrical Code (NEC) requirements, unless local codes in
your area take precedence over the NEC code
3. The length of the indoor-to-outdoor Ethernet cable should not exceed 90
meters. The length of the Ethernet cable connecting the indoor unit to the
user's equipment, together with the length of the Indoor-to-Outdoor cable,
should not exceed 100 meters.
4. An appropriate ground cable should be available. Connect a grounding cable
between the Ground terminal of the outdoor unit and a good ground
connection.
Please refer to standards for building entrance protection.
14 Wavion Networks
Mounting Strategies
Consider the available mounting structures and antenna clearance when choosing a
mounting location. Wavion outdoor unit WBS-2400/5800 Sector should be mounted
on
horizontal pole only the antennas pointing vertically and clear of obstruction.
It is recommended to attach ground and data cables to the WBS-2400/5800 Sector prior
to mounting. Before mounting the WBS-2400/5800 Sector, read the wiring instructions in
Grounding the Wavion WBS-2400/5800
and
Connecting Power and Data.
Note
: The WBS-2400/5800 should be mounted with at least 4 ft/3 Meter of
clearance around the antennas to eliminate potential interference from the
mounting structure.
Figure 4.1 Pole mounting kit for the Outdoor Unit & Sealing kit
Using Hose Clamps
Special hose clamps that include threaded holes are used by the mounting assembly to
secure the WBS-2400/5800 Sector to the mounting structure.
Figure 4.2 demonstrate
how to correctly use the hose clamps. The bands must be threaded through holes in the
pole bracket, and then attached horizontal pole and tightened.
There are two pairs of threaded holes on the back of the unit, enabling to use the special
clamps for mounting the unit on diverse pole diameters.
Installation Guide 15
Figure 4.2 Using Special Hose Clamps & Screwing the Clamps
Mounting on a Pole/Streetlight
WBS-2400/5800 Sector can be mounted on a pole, tower, or streetlight. It is
recommended to mount the WBS-2400/5800 Sector on aluminum or galvanized steel
structures.
Note
Before mounting the WBS-2400/5800, read the wiring instructions in
Grounding the Wavion WBS-2400/5800 and Connecting a Data Port chapter.
16 Wavion Networks
To mount the Wavion WBS-2400/5800 on a metal/wood/streetlight pole:
1. Choose a mounting location. You can attach the WBS-2400/5800 Sector outdoor unit
to any pole or pipe with diameter of 3-10 inches. Wooden poles of larger diameter
require different types of clamps (any streetlight arm with diameter of 3 to 10 inches
will fit for this installation).
2. Slip the bands of the hose clamps through the slots of the pole bracket
3. Use the hose clamps to fasten the pole bracket to the pole.
4. Insert the WBS-2400/5800
Sector onto the pole bracket, obtain the correct position
and tighten 4 bolts using 4mm Allen wrench.
Figure 4.3 Attaching the WBS-2400/5800 to the pole bracket
Installation Guide 17
Note
: The WBS-2400/5800 unit must be parallel to the ground. The unit
can be rotated to obtain the correct position.
Note
Installations on large wooden poles require band clamps such as
those supplied by Panduit, www.panduit.com. Such a product is listed as
"Metal, Locking Tie Extra Heavy Duty 304 Stainless Steel". The tie and
the installation tool are shown below
To continue installing the WBS-2400/5800, see
Grounding the Wavion WBS-2400/5800
chapter

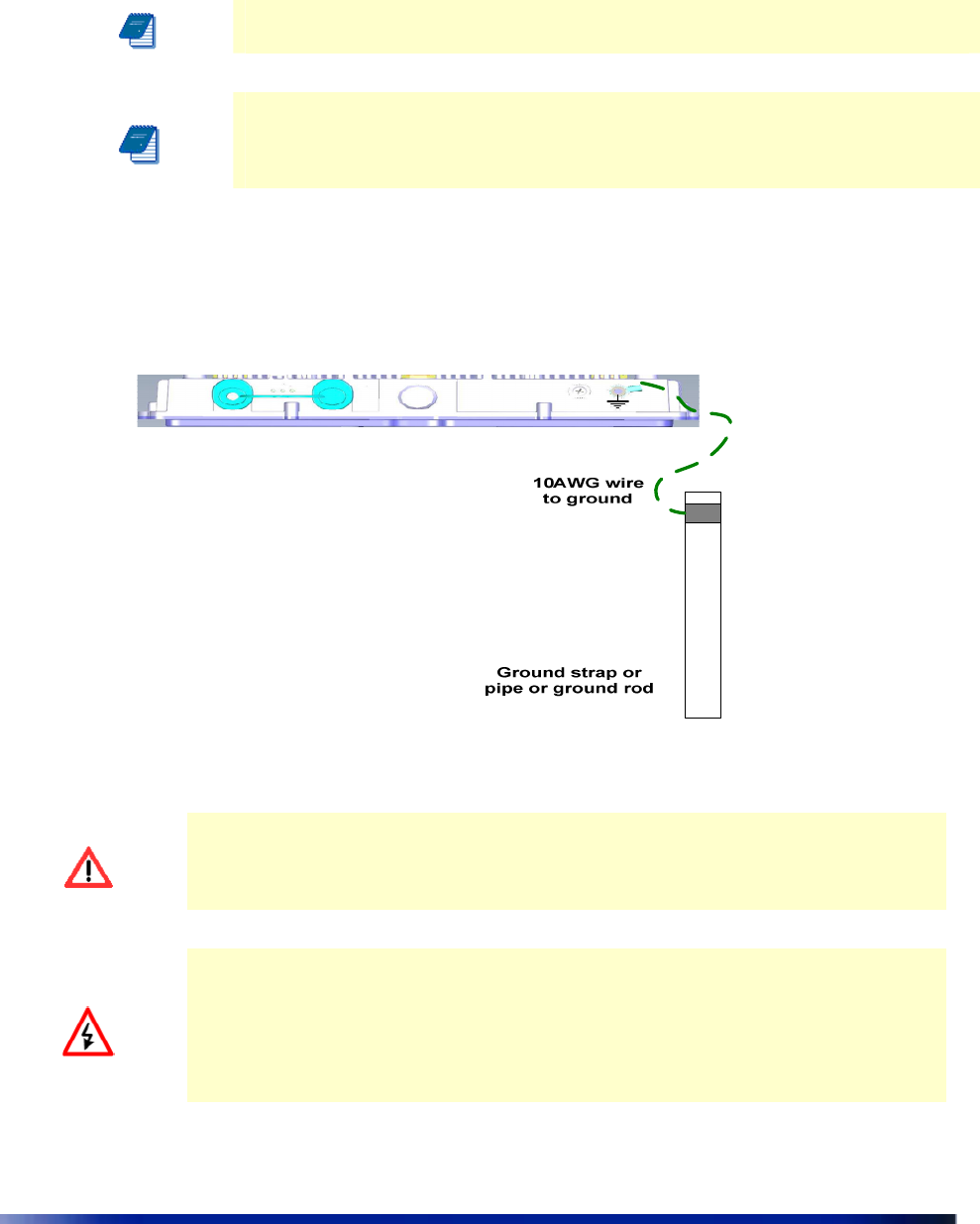

Grounding WBS-2400/5800 Sector is shown in the figure below.
Figure 4.4 Grounding Method
Caution
: You must always install an external grounding wire. You must
also ground the outdoor data protection device to a ground rod or a
bonded pipe. Make sure you have completed grounding before you
connect power to the WBS-2400/5800.
Warning
: Transient or electrostatic discharges that may occur at the WBS-
2400/5800, for example a lightning strike, may damage your network
equipment connected to the WBS-2400/5800 and cause personnel injury
or death of persons touching the exposed metal connectors of the
equipment. You must install a properly grounded lightning surge
protector. Carefully follow the installation instructions provided by the
manufacturer of the protection device. See
18 Wavion Networks
To ground the Wavion WBS-2400/5800:
The Grounding screw is located on the side panel of the outdoor unit.
To connect the grounding cable:
1. Connect one end of a grounding cable to the grounding terminal and tighten the
grounding screw firmly.
Do the following steps:
a. Remove the nut and star washers from the grounding screw.
b. Attach one star washer to the grounding screw.
c. Attach #10 AWG bare copper wires with an M6 terminal ring to the
grounding screw.
d. Attach the second star washer and tighten the nut.
2. Connect the other end of the grounding cable to a good ground (earth)
connection. (For example, a grounding rod).

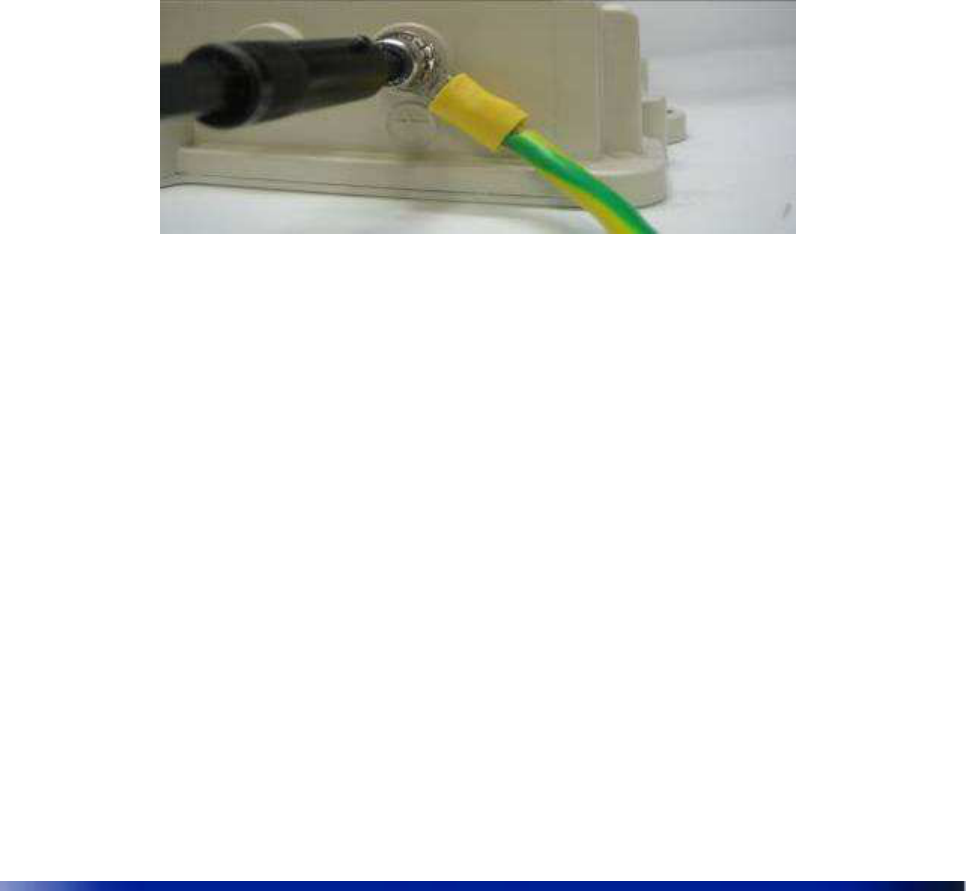

Figure 4.5 Grounding
Grounding the Data Protection Device
The grounding method for an indoor data protection device is shown in
Figure 4.6
.
To ground an indoor data protection device:
1. Position the protection device as close to the building entrance as possible.
2. Attach a length of #10 AWG bare copper wires to the ground post on the data
protection device.
3. Attach the other end of the grounding wire to the ground connection of an
electrical outlet or a grounded water pipe.
Installation Guide 19
Figure 4.6 Grounding indoor injector by Network Protection Unit
Figure 4.7 Grounding injector that located outdoor by Network Protection Unit
20 Wavion Networks
Connecting Power and DATA
The following describes how to apply power and data to the WBS-2400/5800X
Caution
: You must always install an external grounding wire. Perform a
simple continuity check between the WBS-2400/5800and the ground
termination point to confirm. You must also ground the outdoor data
protection device to a ground rod or a bonded pipe. Make sure you have
completed grounding before you connect power to the WBS-2400/5800X.
The Wavion WBS-2400/5800 is equipped with two RJ45 connectors. The right hand port
named "TEST" is for engineering use only (!) and has to be sealed with the sealing
rubber. Use the ETH port to connect data and power cable.
Figure 4.8 Connecting PoE cable
W
ARNING: The port named "TEST" is for engineering use only. In any
case do not connect PoE source to "TEST" port (!)
Installation Guide 21
When connecting to the Ethernet port, if you need to terminate the Ethernet cable, use a
standard RJ45 termination. Use a shielded RJ45 plug and be sure to connect the shield of
the Ethernet cable to the shield of the RJ 45 plug.
To connect to the data port:
1. Make sure that the power is turned off for the designated circuits.
2. Run shielded Category 5 Ethernet cable appropriates for outdoor use from a POE
injector to the Wavion WBS-2400/5800 through the lightning protection device.
See "Grounding the Data protection device" section for connection diagram.
3. Connect one end of the Category 5 cable to the "RADIO" port of the Wavion POE
injector.
4. Connect the other cable end to ETH port on the WBS-2400/5800. Use a shielded
RJ45 8-pin modular plug to terminate the cables at the desired lengths.
5. Place the sealing rubber on the cable and push it towards RJ45 connector on
WBS-2400/5800
6. This port must be sealed with the provided rubber seal, make sure that the
waterproof Seal strip is also attached.
W
ARNING: The shields of the Cat5 cable must be properly terminated and
bonded to the unit and to the protective earth (PE) at the building
entrance. This provides protection against the risk of fire, electrical hazard
and ensures the reliable operation of this equipment.
Note:
National Electrical Codes (NEC) Article 800 requires the use of
an Agency Listed (UL/CSA) Building Entrance Protector for all power
and communications cables entering a building. Article 800 is intended
to protect the building and occupants from fires caused by transient
voltage and current surges.
Note:
This is not a mid-span powered device. Do not attempt to daisy-
chain Power Over Ethernet devices.
22 Wavion Networks
Figure 4.9 Sealing rubber
7. Remove the strip nylon cover
Installation Guide 23
Figure 4.10 Sealing rubber
8. Tighten the band on sealing rubber for better sealing or using weatherproof
Stripe.
Figure 4.11 Weatherproof Stripe sealing
9. Connect the data cable from the network to "Ethernet" port of POE injector.
10. Connect POE injector to AC power source to power WBS-2400/5800 unit.
Note:
Use high quality sealing material such as Scotch® 130C Linerless Rubber
(attached to the product) Splicing Tape from 3M to ensure IP-67 compliant
protection against dust and water
.
24 Wavion Networks
POE port RJ45 Pin Descriptions
Pin T/R Signal Color Description
1 T TXD+ Orange-White TX Data 10/100BaseT
2 R TXD- Orange TX Data 10/100BaseT
3 T RXD+ Green-White RX Data 10/100BaseT
4 R PoE+ Blue Power input, 55 VDC (+)
5 T PoE+ Blue-White Power input, 55 VDC (+)
6 R RXD- Green RX Data 10/100BaseT
7 T PoE- Brown-White Power input, 55 VDC (-)
8 R PoE- Brown Power input, 55 VDC (-)
Safety Information for the Wavion WBS-2400/5800
The Federal Communications Commission (FCC) with its action in ET Docket 96-8 has
adopted a safety standard for human exposure to RF electromagnetic energy emitted by
FCC certified equipment. Proper operation of the Wavion WBS-2400/5800according to
the instructions found in this manual, results in user exposure that is substantially below
the FCC recommended limits.
Follow these guidelines to ensure safe operation of the Wavion WBS-2400/5800X:
• Do not touch or move the antennas while the unit is transmitting or receiving.
• Make sure the antennas are connected when operating the radio or attempting to
transmit data, otherwise, the radio may be damaged.
• Do not hold the antenna to be close to or touching any exposed parts of the body,
especially the face or eyes, while transmitting.
• The use of wireless devices on airplanes is governed by the Federal Aviation
Administration (FAA).
• The use of wireless devices in hazardous locations is limited to the constraints posed
by the safety directors of such environments.
• The use of wireless devices in hospitals is restricted to the limits set forth by each
hospital.
• Do not operate a portable transmitter near unshielded blasting caps or in an explosive
environment.
• The Wavion WBS-2400/5800must be used only with Wavion approved components
and antennas.
Installation Guide 25
Service Instructions
The Wavion WBS-2400/5800 contains no user serviceable parts inside.
26 Wavion Networks
Chapter 5
Product Specification WBS-2400 Sector
The tables in this chapter contain specifications for the Wavion WBS-2400.
Wireless Specifications
compliant IEEE 802.11b/g
Frequency band 2.4 - 2.483 GHz
Modulation
• 802.11b: DSSS (DBPSK, DQPSK, CCK)
• 802.11g: OFDM (64QAM, 16QAM, QPSK,
BPSK)
TX Power Maximum 802.11b and 802.11g
Beamformer
Directed Power EIRP + Beamfroming gain: 42.5dBm
EIRP Calculations Antenna Gain - 10.5 dBi
Total EIRP - 34.5 dBm
RX Sensitivity* 802.11b and 802.11g
Antenna Array three 10.5 dBi directional antennas
* RX Sensitivity
-105.5
dBm @
1
Mbps
-103
dBm @
2
Mbps
-100.5
dBm @
5.5
Mbps
96 dBm
@
11
Mbps
-102.5
dBm @
6
Mbps
-100.5
dBm @
9
Mbps
-99.5
dBm @
12
Mbps
-98
dBm @
18
Mbps
-95 24
Installation Guide 27
dBm @ Mbps
-92
dBm @
36
Mbps
-88
dBm @
48
Mbps
-86
dBm @
54
Mbps
Security Specifications
Packet filtering via layer 2 & 3
WEP (64 bit or 128 bit)
WPA:
Encryption: WEP or TKIP
Authentication: Pre-Shared Key or 802.1x with RADIUS Server (EAP-TLS, PEAP, EAP-TTLS)
VPN pass-through and tagging
HTTPS for web-based management tools
Management Specifications
Web based configuration and management too
SNMPv2 with standard and Wavion MIB support
Configuration save and restore
Network and client statistics
Networking and QoS Specifications
Full 802.11b/g client compatibility
16 VLANs
16 SSIDs
28 Wavion Networks
Physical Specifications
Network Interfaces • Auto-sensing 10/100 Ethernet
• Input from Wavion Injector
Power Input • Power from a Wavion POE Injector.
Indicator Lights
• Ethernet port LED Link/Act indicator
• System Status LED indicator
• RF channel status indicator
Physical Dimensions
• Height: 9 cm
• Length: 39 cm
• Width: 36 cm
• Weight: 4.6 Kg
without mounting brackets
Power
Specifications •
Power Input • 55VDC, supplied over Ethernet from Wavion injector.
Input Power
Consumption
• Power from Wavion Injector max.0.8A @ 55VDC
• Input power consumption for units is max.
0.45A@55V
; maximal power 25W.
Installation Guide 29
Environmental Specifications
Operating Temperature Range -40°C to +55°C (without Sun Shield)
-40°C to +60°C (with Sun Shield)
Storage Temperature Range -45°C to +85°C
Weather Rating IP67
Wind Survivability 165 mph
Salt and Fog Rust Resistance MIL-STD-810F 509.4
Shock and Vibration ESTI 300-192-4 spec T41.E
Transportation ISTA2A
Approvals
RF
FCC CFR 47 part 15, Sub Part C
ETSI 300 328 V1.7.1 (2006)
Safety
TUVus
EN 60950-1:2001+A11:2004
IEC 60950-1:2001
First Edition
Information Technology equipment – Safety – Part 1
EMC
FCC CFR 47 Part 15, Sub Part B, Class B (USA)
ETSI 301 489-4 V1.3.1 (2002), ETSI 301 489-1 V1.5.1 (2003)
Regulatory
Compliance
RoHS , CE
0682 - TBD!
30 Wavion Networks
Chapter 6
Antenna 2.4GHz Specifications and Patterns
The chapter describes antenna specifications and patterns for the antennas supplied with the
Wavion WBS-2400.

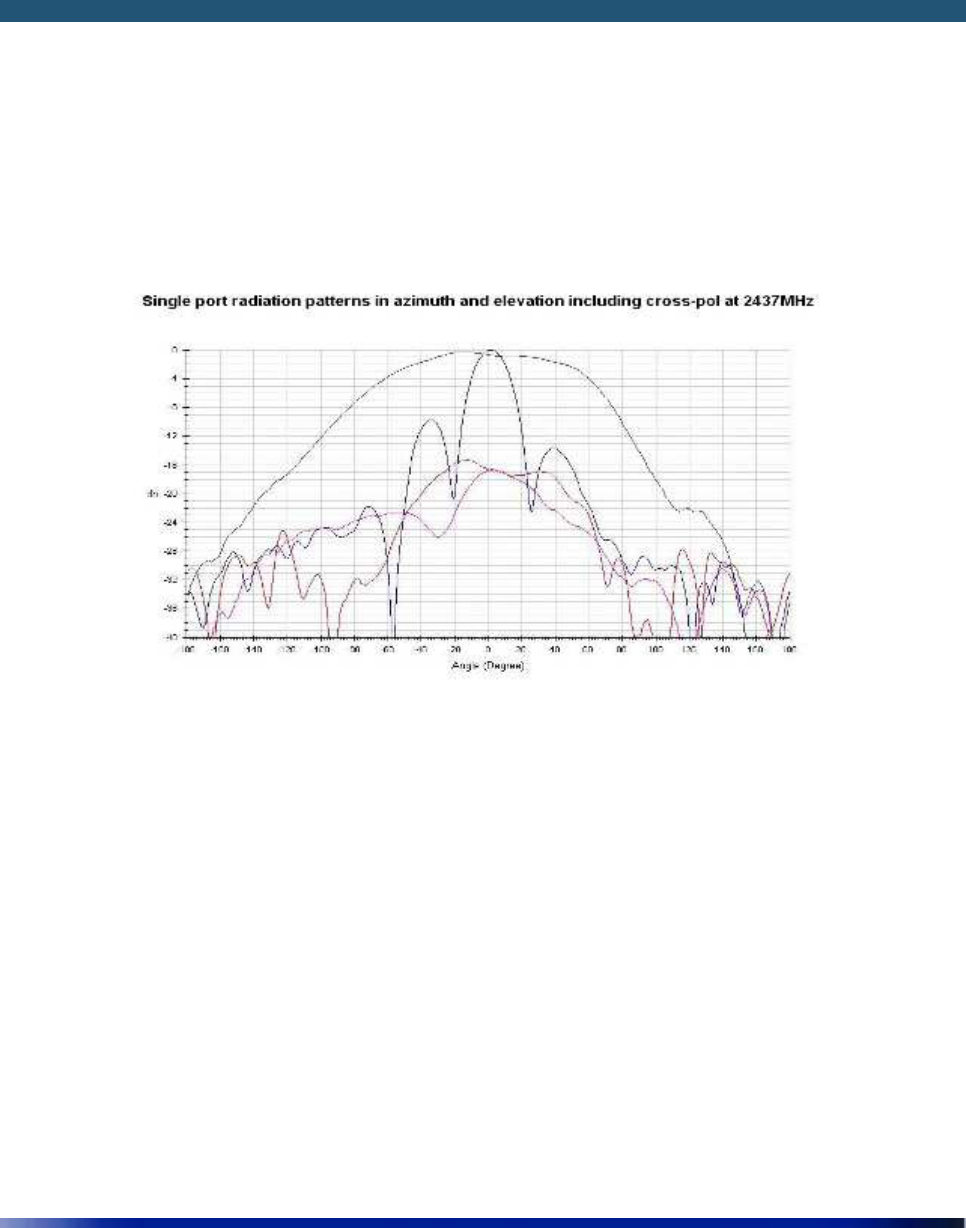

MT-343037/CV 2.4GHz Sector Antenna
2.4GHz Flat Panel Base Station Antenna
Installation Guide 31
Antenna Electrical Specifications
Number of antennas 3
Frequency Range 2.4 - 2.4835 GHz
Peak Gain
2.4-2.4835 GHz 10.5 dBi (min)
0 dBi (max) design goal at all directions
-8 dBi (max) design goal at all directions
VSWR 1.5 :1 (max) R.L. -14 dB (max)
Azimuth 3 dB Beamwidth
120° ± 3°
Azimuth Ripple 3 dB (max)
Azimuth Squint ± 3°
Polarization Linear Vertical
Elevation
3 dB
Beamwidth 20° ± 1°
Elevation Tilt ± 2° (max)
Side Lobes Level - 12 dB (max)
Side Lobes Level @ ±120°
azimuth (0 degree
elevation)
- 20 dB (max)
Cross Polarization - 15 dB (max)
Front to Back Ratio - 25 dB (max)
Isolation between
antennas 10 to 20 dB
Input Impedance 50 Ohms
Input Power 6 W (max)
Lighting protection
DC Grounded
Mechanical
Dimensions (Lx W x D) 346.5 x 344.7x 44 mm (max)
The antenna contour per Wavion enclosure
Weight 1.2 kg (max), 1.0 kg design goal
RF Connector 3x MCX female
Radome Plastic color- RAL 9002
Base Plate Aluminum with chemical conversion coating
Outline Drawing See attached drawing.
Spacing between
elements 90 mm
Antenna service life 10 Years (min)
32 Wavion Networks
Antenna ENVIRONMENTAL
TEST STANDARD DURATION TEMPERATURE NOTES
Water Tightness IEC 529 - - IP67***
Internal pressure TBD ****
Solar Radiation ASTM G53 1000 h - -
Flammability UL 94 - - Class HB
Salt Spray IEC 68-2-11 Ka 500 h - -
Ice And Snow - - - 25mm
Radial
Wind Speed Survival
Operation -
- -
- -
- 266 Km/h
160 Km/h
Regulatory Compliance RoHS , CE
0682
Low Temperature IEC 68-2-1 72 h -45°C -
High Temperature IEC 68-2-2 72 h +90°C -
Temp. Cycling IEC 68-2-14 1 h -45°C +90°C 3 Cycles
Vibration IEC 60721-3-4 30
min/axis - Random
4M5
Shock Mechanical IEC 60721-3-4 - - 4M5
Humidity ETSI EN300-2-4
T4.1E 144 h - 95%
Installation Guide 33
Chapter 7
Product Specification WBS-5800
The tables in this chapter contain specifications for the Wavion WBS-5800.
Wireless Specifications
compliant IEEE 802.11b/g
Frequency band 5.725–5.850 GHz
Modulation 802.11a: OFDM (64QAM, 16QAM, QPSK, BPSK)
TX Power Maximum
Max. power per antenna: 19dBm (FCC version -
Maximum transmit power will vary by channel and data
rate)
Beamformer
Directed Power EIRP + Beamfroming gain: 43dBm
EIRP Calculations Antenna Gain – 12.5 dBi
Total EIRP - 35.5 dBm
RX Sensitivity* 802.11a
Antenna Array Three 12.5 dBi omni-directional antennas
* RX Sensitivity
-102.5
dBm @
6
Mbps
-100.5
dBm @
9
Mbps
-99.5
dBm @
12
Mbps
-98
dBm @
18
Mbps
-95
dBm @
24
Mbps
-92
dBm @
36
Mbps
-88
dBm @
48
Mbps
-86
dBm @
54
Mbps
34 Wavion Networks
Management Specifications
Web based configuration and management too
SNMPv2 with standard and Wavion MIB support
Configuration save and restore
Network and client statistics
Security Specifications
Packet filtering via layer 2 & 3
WEP (64 bit or 128 bit)
WPA:
Encryption: WEP or TKIP
Authentication: Pre-Shared Key or 802.1x with RADIUS Server (EAP-TLS, PEAP, EAP-TTLS)
VPN pass-through and tagging
HTTPS for web-based management tools
Networking and QoS Specifications
Full 802.11b/g client compatibility
16 VLANs
16 SSIDs
Installation Guide 35
Environmental Specifications
Operating Temperature Range -40°C to +55°C (without Sun Shield)
-40°C to +60°C (with Sun Shield)
Storage Temperature Range -45°C to +85°C
Weather Rating IP67
Wind Survivability 165 mph
Salt and Fog Rust Resistance MIL-STD-810F 509.4
Shock and Vibration ESTI 300-192-4 spec T41.E
Transportation ISTA2A
Physical Specifications
Network Interfaces • Auto-sensing 10/100 Ethernet
• Input from Wavion Injector
Power Input • Power from a Wavion POE Injector.
Indicator Lights
• Ethernet port LED Link/Act indicator
• System Status LED indicator
• RF channel status indicator
Physical Dimensions
• Height: 9 cm
• Length: 39 cm
• Width: 36 cm
• Weight: 4.6 Kg
without mounting brackets
Power
Specifications •
Power Input • 55VDC, supplied over Ethernet from Wavion injector.
Input Power
Consumption
• Power from Wavion Injector max.0.8A @ 55VDC
• Input power consumption for units is max.
0.45A@55V
; maximal power 25W.
36 Wavion Networks
Approvals
RF
FCC CFR 47 part 15, Sub Part C
Safety
TUVus
EN 60950-1:2001+A11:2004
IEC 60950-1:2001
First Edition
Information Technology equipment – Safety – Part 1
EMC FCC CFR 47 Part 15, Sub Part B, Class B (USA)
Installation Guide 37
Antenna Electrical Specifications
Number of antennas 3
Frequency Range 5.7 - 5.9 GHz
Peak Gain
5.7 - 5.9 GHz 12.5 dBi
VSWR 1.5 :1 (max) R.L. -14 dB (max)
Azimuth 3 dB Beamwidth 120° ± 3°
Azimuth Ripple 3 dB (max)
Azimuth Squint ± 3°
Polarization Linear Vertical
Elevation 3 dB Beamwidth 20° ± 1°
Elevation Tilt ± 2° (max)
Side Lobes Level - 12 dB (max)
Side Lobes Level @ ±120°
azimuth (0 degree
elevation)
- 20 dB (max)
Cross Polarization - 15 dB (max)
Front to Back Ratio - 25 dB (max)
Isolation between antennas 10 to 20 dB
Input Impedance 50 Ohms
Input Power 6 W (max)
Lighting protection
DC Grounded
Mechanical
Dimensions (Lx W x D) 346.5 x 344.7x 44 mm (max)
The antenna contour per Wavion enclosure
Weight 1.2 kg (max), 1.0 kg design goal
RF Connector 3x MCX female
Radome Plastic color- RAL 9002
Base Plate Aluminum with chemical conversion coating
Outline Drawing See attached drawing.
Spacing between elements 90 mm
Antenna service life 10 Years (min)
Water Tightness IEC 529 - - IP67***
38 Wavion Networks
Internal pressure TBD ****
Solar Radiation ASTM G53 1000 h - -
Flammability UL 94 - - Class HB
Salt Spray IEC 68-2-11 Ka 500 h - -
Ice And Snow - - - 25mm
Radial
Wind Speed Survival
Operation -
- -
- -
- 266 Km/h
160 Km/h
Regulatory Compliance RoHS , CE
0682
Low Temperature IEC 68-2-1 72 h -45°C -
High Temperature IEC 68-2-2 72 h +90°C -
Temp. Cycling IEC 68-2-14 1 h -45°C +90°C 3 Cycles
Vibration IEC 60721-3-4 30
min/axis - Random
4M5
Shock Mechanical IEC 60721-3-4 - - 4M5
Humidity ETSI EN300-2-4
T4.1E 144 h - 95%
ENVIRONMENTAL
TEST STANDARD DURATION TEMPERATURE NOTES
Installation Guide 39
Chapter 8
Antenna 5.8GHz Specifications and Patterns
The chapter describes antenna specifications and patterns for the antennas supplied with the
Wavion WBS-5800.

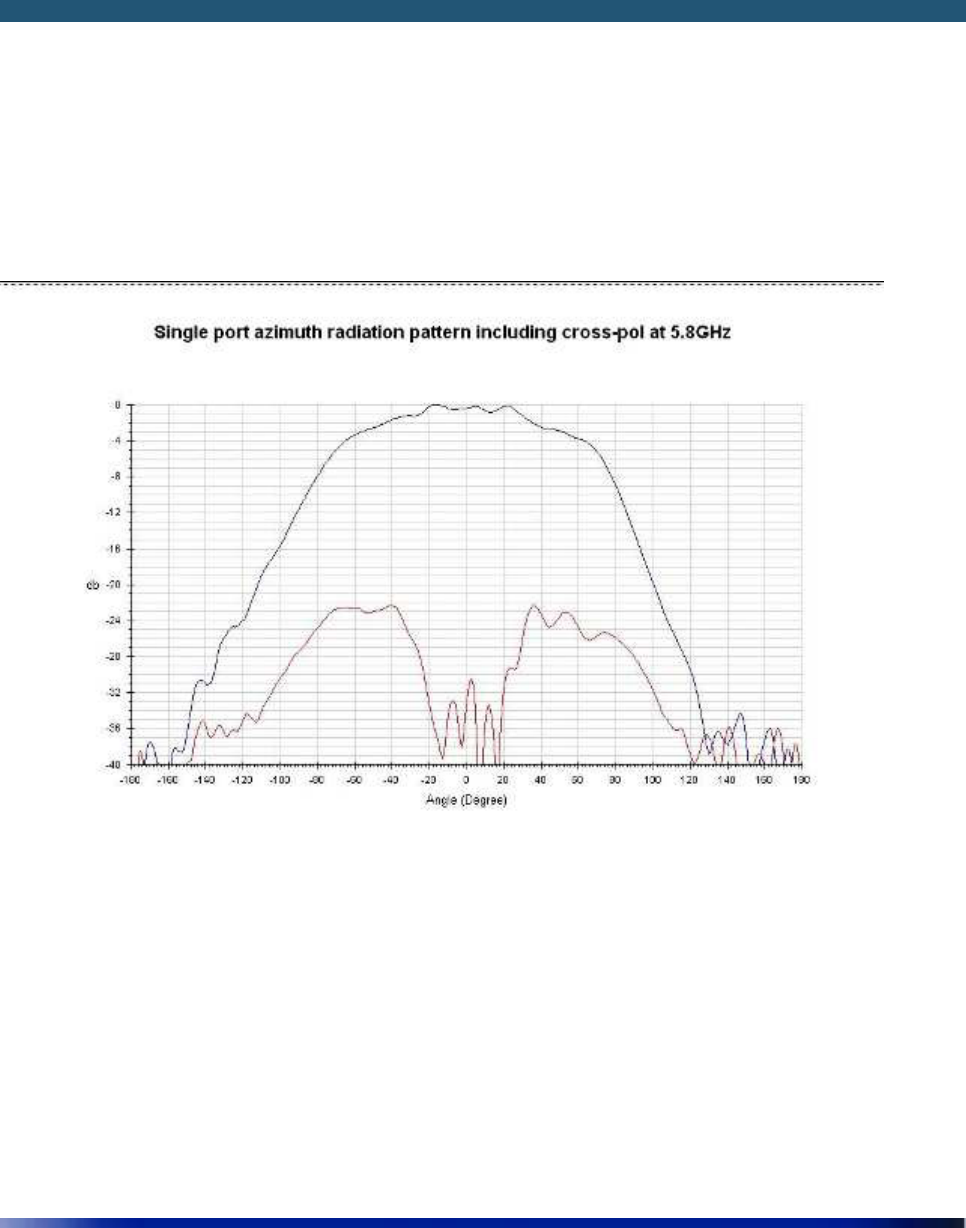

MT-463009CV 5.8GHz Antenna Azimuth Patterns directional
Antenna
40 Wavion Networks

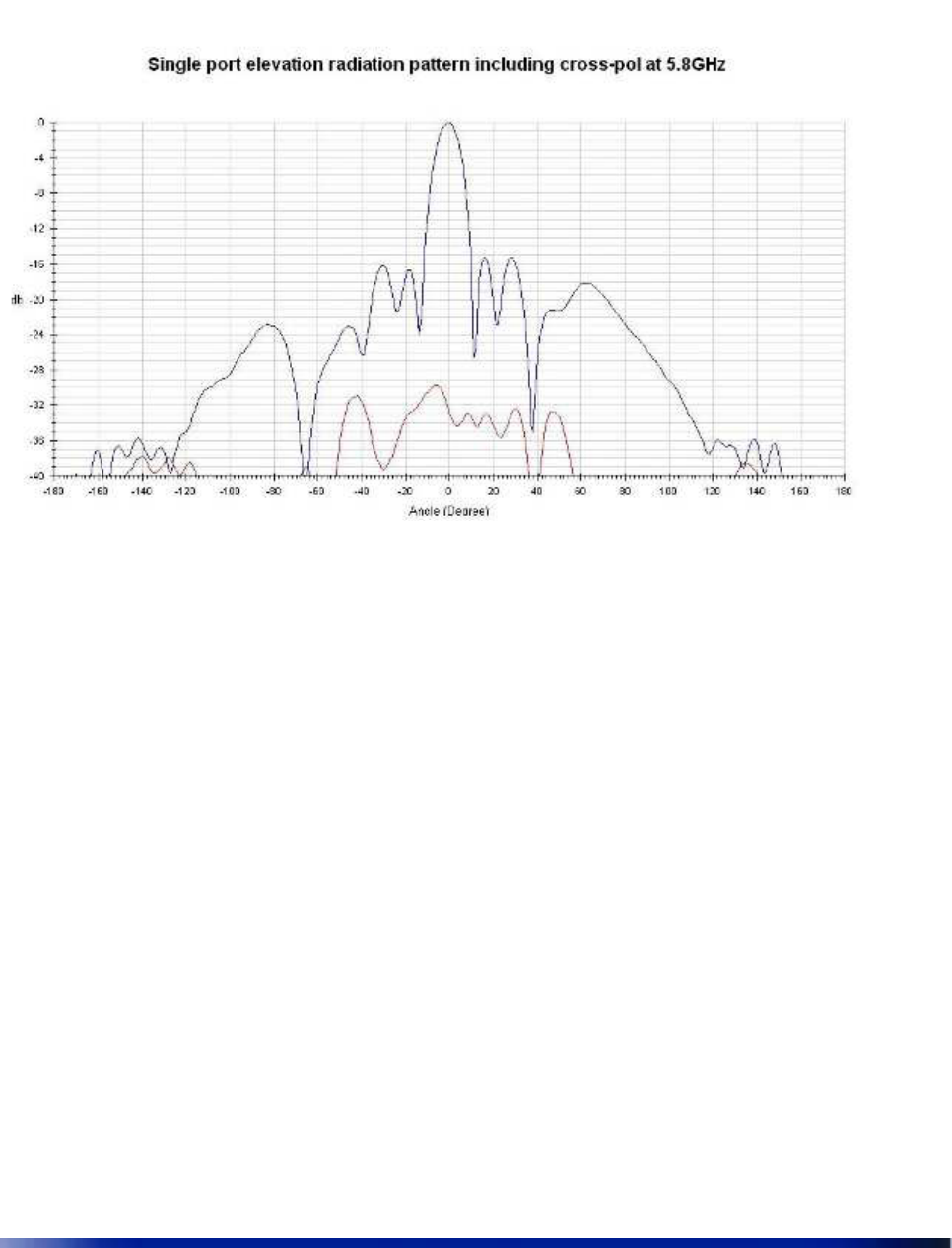

MT-463009CV 5.8GHz Antenna Elevation Patterns
Installation Guide 41
Chapter 9
Installation Accessories
This chapter describes the accessories available for the WBS-2400 and ordering
information. The following topics are covered in this chapter:
•
Ethernet Cables
•
Sun Protection
•
Lightning Protection
•
Power Over Ethernet
42 Wavion Networks
Ethernet Cables
Description Manufacturer Part
Number Distributor Contact
Information
Outdoor
CAT5e
double
jacket 4-pair
data cable
Teldor 8393204101 G.Bares Tel: +972-(4)-
8215450
Sun Protection
Description Product
Name
Part
Number
Sun Shield for WBS-2400/5800X, extends upper operation
temperature range to +60°C
WA-SUN-
SH 27009023
Lightning Protection
Description Manufacturer Part
Number Contact Information
Data protection
device Hyperlink HGLN-
CAT5-2 www.hyperlinktech.com
Power Over Ethernet
Description Product
Name
Part
Number
Wavion Injector for powering the WBS-2400/5800over an
Ethernet cable. Output 55VDC, 1A.
WPI-AC-
55W 27002213
Installation Guide 43
Chapter 10
Wind Loading Considerations
This chapter describes wind loading considerations for the WBS-2400/5800X.
Note:
It is recommended to evaluate the static and dynamic load
bearing capabilities for each assembly and installation individually. It
is your responsibility to evaluate the load bearing capabilities of the
structure.
The Wavion WBS-2400/5800weighs approximately 16 lbs, including all mounting
hardware. When the Wavion WBS-2400/5800is mounted on a pole, the sail area of the
WBS-2400/5800is approximately 1 square foot. The Wavion WBS-2400/5800can load a
pole with a maximum load of 3400 Newton in wind conditions of 165mph.
44 Wavion Networks
Chapter 11
Acronyms
Acronym Description
2P Two-Phase or Split Phase
2W Two-Wire
3W Three-Wire
AC Alternating Current
ANSI American National Standards Institute
AWG American Wire Gauge
C Celsius
CAT Category
CCK Complementary Code Keying
CFR Code of Federal Regulations
CSA Canadian Standard Association
dB Decibels
dBi Decibels Relative to an Isotropic Radiator
DBPSK Differential-Binary Phase-Shift Keying
DC Direct Current
DQPSK Differential-Quadrature Phase-Shift Keying
DSSS Direct-Sequence Spread Spectrum
EMC Electromagnetic Compatibility
EN IEC standard
ESD Electrostatic Discharge
FCC Federal Communications Commission
Hz Hertz
HPoE High Power over Ethernet
IEEE Institute of Electrical and Electronics
Engineers
IP67 Ingress Protection Standard
ISTA International Safe Transit Association
LAN Local Area Network
Installation Guide 45
Mbps Megabits Per Second
MHz Megahertz
MIL-STD Military Standard
N Neutral
NEC National Electrical Codes
NEMA National Electrical Manufacturers
Association
OFDM Orthogonal Frequency Division
Multiplexing
P Phase
PE Protective Earth
PoE Power over Ethernet
RJ45 Registered Jack 45
RSS Received Signal Strength
Rx Receive
RXD Receive Data
TUV Technical Inspection Association
Tx Transmit
TXD Transmit Data
UL Underwriters Laboratories
VAC Voltage (Alternating Current)
VCCI Voluntary Control Council for Interference
VDC Voltage (Direct Current)
W Watts
46 Wavion Networks
Chapter 12
Appendix A: WBS-2400/5800 Product list
Part Number Product namer Product description
TBD12406101 WBS-2400-FCC
Spatially adaptive, multi radio 2.4GHz WiFi base
station,
6 antenna
FCC/TUV compliant
12406102 WBS-2400-EU
Spatially adaptive, multi radio 2.4GHz WiFi base
station,
6 antenna
ETSI / CE compliant
12406104 WBS-2400-IL
Spatially adaptive, multi radio 2.4GHz WiFi base
station,
6 antenna
Israel compliant
15806101 WBS-5800-FCC
Spatially adaptive, multi radio 5.8GHz WiFi base
station,
6 antenna
FCC/TUV compliant

Navigation menu
