Wavion WBS700L-1 Base station User Manual WBS 700 IG v3 1
Wavion Ltd. Base station WBS 700 IG v3 1
Wavion >
user manual
WBS-700 Mhz
Outdoor Wi-Fi Base Station
Installation Guide
Rev. 1
September 2010
Copyright Notice
©2010 Wavion, Inc. All rights reserved. Wavion is a registered trademark of Wavion in the
United States and certain other jurisdictions. Specifications are subject to change without
notice.
FCC Notice to Users and Operators
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference, in which case the user will be required to correct the interference
at his own expense. If this equipment does cause interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to
correct the interference by using one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician.
Note This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user’s authority to
operate the equipment.
3 Wavion Networks
Contents
Chapter 1 About This Guide....................................................................... 4
Preface.................................................................................................. 4
Conventions........................................................................................... 4
Contacting Technical Support .................................................................. 5
Chapter 2 Introduction.............................................................................. 6
Chapter 3 Package Content....................................................................... 7
Chapter 4 Installing the Wavion WBS-700 Metro Base Station ................ 9
Important Safety Instructions.................................................................10
Preparing for Installation........................................................................11
Choosing a Location...............................................................................12
Preparing the Site..................................................................................12
Mounting Strategies...............................................................................13
Using Hose Clamps................................................................................13
Mounting on a Pole/Streetlight................................................................15
Metal/Wood/Streetlight Pole Mounting.....................................................15
Grounding the Data Protection Device .....................................................20
Connecting Antennas.............................................................................22
Antenna Sealing ....................................................................................25
Connecting Power and DATA ..................................................................26
Safety Information for the Wavion WBS-700............................................30
Service Instructions ...............................................................................30
Chapter 5 Product Specification WBS-700.............................................. 31
Chapter 6 Installation Accessories.......................................................... 33
Lightning Protection...............................................................................33
Power Over Ethernet..............................................................................33
Chapter 7 Wind Loading Considerations ................................................. 34
Chapter 8 Acronyms................................................................................ 35
4 Wavion Networks
Chapter 1
About This Guide
Preface
This guide details the Wavion WBS-700 installation procedures. The intended audience of
this document is trained technical professionals.
Conventions
The exclamation point within a triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in
the literature accompanying the product.
The lightning flash with an arrowhead symbol within a triangle is intended to
alert the user to the presence of uninsulated dangerous voltage within the
product’s enclosure that may be of sufficient magnitude to constitute a risk of
electric shock to persons.
The notebook is intended to alert the user of a note containing further
information.
Installation Guide 5
Contacting Technical Support
For technical support, contact Wavion using these methods:
Address:
Wavion Technical Support
Wavion
5 Hamada Street,
PO BOX 580
Yoqneam Illit, 20692
Israel
Telephone: +972-4-9097343
Fax: +972-4-9097322
Email: support@wavionnetworks.com
Web: www.wavionnetworks.com
Introduction
Installation Guide 6
Chapter 2
Introduction
WBS-700 a high capacity, IP services oriented Broadband Wireless access system.
WBS-700 is a new category of Broadband Wireless Base Station designed from the ground up
for metro-Wi-Fi deployments. The system employs wireless packet switched data technology to
support high-speed IP services including fast Internet and Virtual Private Networks. WBS-700
users are provided with a network connection that is always on, supporting immediate access to
the Internet and other IP services at high data rates. The system is designed for cellular-like
deployment, enabling the system architecture to vary in size and structure. A system can
include any number of cells, each containing several base station access units for better
coverage of densely populated areas.
It is based on six antennas and radios and custom-built ASICs, utilizing Wavion's powerful
multi-antenna signal processing technologies, and provides significant performance gains to off-
the-shelf 802.11 standards-based clients.
The WBS-700 may be mounted on streetlights or rooftops and may be easily interfaced
with wired internet connections, wireless mesh or backhaul equipment.
Complete management of the WBS-700 is provided through SNMP, a graphical user
interface, and SYSLOG services.
Package Content
Installation Guide 7
Chapter 3
Package Content
Check that the package contains:
Qty Description
1 WBS-700 outdoor unit with connections to external antennas
6 N-type to N-type RF cables
6 Antennas
2 CLAMPS 46-125 X 14 MM STST
1 POST CLAMP
1 Safety cable
1 POE injector unit with wall mounting kit
1 AC PLUG, US
24 Screws 10-32 X 1/2" SOCKET CAP SCREW
24 Lock Washers
24 FLAT Washers
1 LN tool , 4mm Allen wrench
Sealing tape SCOTCH 130C
Additional Equipment and Tools required for Installation
Ethernet cable (straight for connecting to a hub/switch)
Crimping tool for RJ-45 connectors.
Ground cable with an appropriate termination.
Mains plug adapter or termination plug (if the power plug on the supplied AC
power cord does not fit local power outlets).
Portable PC with Ethernet card and Telnet software and a straight Ethernet
cable.
WARNING: Use straight Ethernet (POE) cable connecting the injector to WBS-700 in order to have
all the features work properly (reset button and Link LED). Using cross cable might cause turn
Link led to “ON” permanently and also may be the cause software reset. DATA cable connecting
the injector to the network can be cross cable as well.
8 Wavion Networks
Addition tools and materials, including appropriate means (e.g. a pole) for
installing the outdoor equipment.
1/4-inch flat blade screwdriver
WARNING: ONLY experienced installation professionals who are familiar with local
building and safety codes and, wherever applicable, are licensed by the
appropriate government regulatory authorities should install outdoor units and
antennas. Failure to do so may void the WBS-700 product warranty and may
expose the end user or Service Provider to legal and financial liabilities. Wavion
and its resellers or distributors are not liable for injury, damage or regulation
violations associated with the installation of Outdoor Units or antennas
Installation Guide 9
Chapter 4
Installing the Wavion WBS-700 Metro Base
Station
This guide explains how to safely install the Wavion WBS-700 Metro Base Station. The
following topics are covered in this chapter:
Important Safety Instructions
Preparing for Installation
Mounting Strategies
Using Hose Clamps
Mounting on a Pole
Grounding the Wavion WBS-700
Connecting Antennas
Connecting Power and Data
Safety Information for the Wavion WBS-700
Service Instructions
10 Wavion Networks
Important Safety Instructions
WARNING: It is illegal to modify the construction of this product. Modifying the
operating frequency or enhancing the transmit output power through the use of
external amplifiers or other equipment is specifically disallowed by the
"Telecommunications Act."
WARNING: This device is for outdoor or indoor use with conditions that no harmful
interference to authorized radio stations results from the operation of this device.
This device shall not influence aircraft security and/or interfere with legal
communications as defined in the "Telecommunications Act." If this device is found
to cause interference, the operator of this equipment shall cease operating this
device immediately until no interference is achieved.
Note: This device must be installed by a trained professional, value added reseller
or systems integrator who is familiar with RF planning issues and the regulatory
limits in the United States of America.
Caution: Read and save these instructions. Heed all warnings. Follow all instructions.
Do not defeat the safety purpose of the grounding.
Caution: Only use attachments/accessories specified by the manufacturer.
Caution: Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way. For example, if the power-
supply cord or plug is damaged, liquid has been spilled on the apparatus, objects
have fallen into the apparatus, the apparatus has been exposed to rain or moisture,
it does not operate normally, or has been dropped.
Warning: Risk of personal injury or death when installing this device! There is a risk
of personal injury or death if the WBS-700 antennas come near electric power lines.
Carefully read and follow all instructions in this manual. By nature of the installation,
you may be exposed to hazardous environments and high voltage. Use caution when
installing the outdoor system.
Warning: This apparatus must be connected to earth ground
Warning: Do not open the unit. There is a risk of electric shock inside.
Caution: You are cautioned that any change or modification not expressly
approved
in this manual could void your authority to operate this equipment.
Caution: There are no user-serviceable parts inside. All service must be
performed by qualified personnel.
Installation Guide 11
Caution Only UL listed parts and components will be used for installation. Use UL listed
devices having an environmental rating equal to or better than the enclosure rating to
close all unfilled openings.
Caution To maintain Overvoltage (Installation) Category II, install a suitable surge
suppressor device in the branch circuit to limit expected transients to Overvoltage
Category II values. The limits are based on IEC60664 and are also located in Table 2H
of UL60950 (for mains 110V, the transient rating is 1500V).
Caution The WBS-700 must be installed only with the equipped antennas.
Caution A minimum distance of 46 cm from the WBS-700 antenna should be kept
when the system is operated.
Caution Read and save these instructions. Heed all warnings. Follow all
instructions
Preparing for Installation
ONLY experienced installation professionals who are familiar with local building and
safety codes and, wherever applicable, are licensed by the appropriate government
regulatory authorities should install outdoor units and antennas.
The following lists the equipment required for installation and explains how to prepare
the installation site.
WARNING: Do not modify the construction of this product. Modifying
the operating frequency or enhancing the transmit output power
through the use of external amplifiers or other equipment is illegal.
WARNING This device is for use outdoors or indoors on the condition
that operation of this device causes no harmful interference to
authorized radio stations. This device shall not influence aircraft security
and/or interfere with legal communications. If this device is found to
cause interference, the operator of this equipment shall cease operating
this device immediately.
12 Wavion Networks
Choosing a Location
To ensure the optimal performance select the locations for the equipment using the following
guidelines:
The antenna (not-integrated on the front panel of the outdoor unit) should
provide a direct, or near line of sight, with the sector location that need to be
covered.
The antenna should be aligned to face the CPEs that aim to be in service, higher
the placement of the antenna, the better the achievable link quality (but not in all
cases).
Average rooftop (depend on the topology of the location) should be
The location of the outdoor unit should enable easy access to the unit for
installation and testing
Avoid installations in locations that devices operating in the same frequency
range.
The outdoor unit should be installed at the highest point of a metal pole that
there will be no interference caused by RF reflections. If this is not possible, it
should be installed at least 3 meters from the metal pole.
It is recommended to use maximum distance possible from an RF radiating
source.
Preparing the Site
1. Follow the appropriate electrical and building codes to ensure safe and
durable wiring.
2. Follow the National Electrical Code (NEC) requirements, unless local codes in
your area take precedence over the NEC code
3. The length of the indoor-to-outdoor Ethernet cable should not exceed 90
meters. The length of the Ethernet cable connecting the indoor unit to the
user's equipment, together with the length of the Indoor-to-Outdoor cable,
should not exceed 40 meters.
4. An appropriate ground cable should be available. Connect a grounding cable
between the Ground terminal of the outdoor unit and a good ground
connection.
Please refer to standards for building entrance protection.
Installation Guide 13
Mounting Strategies
Consider the available mounting structures and antenna clearance when choosing a
mounting location. Wavion outdoor unit WBS-700 should always be mounted with the top
of the unit parallel to the ground, and with the antennas pointing upward and clear of
obstruction.
It is recommended to attach ground and data cables to the WBS-700 prior to mounting.
Before mounting the WBS-700, read the wiring instructions in Grounding the Wavion
WBS-700 and Connecting Power and Data.
Note: The WBS-700 should be mounted with at least 4 ft/3 Meter of clearance
around the antennas to eliminate potential interference from the mounting
structure.

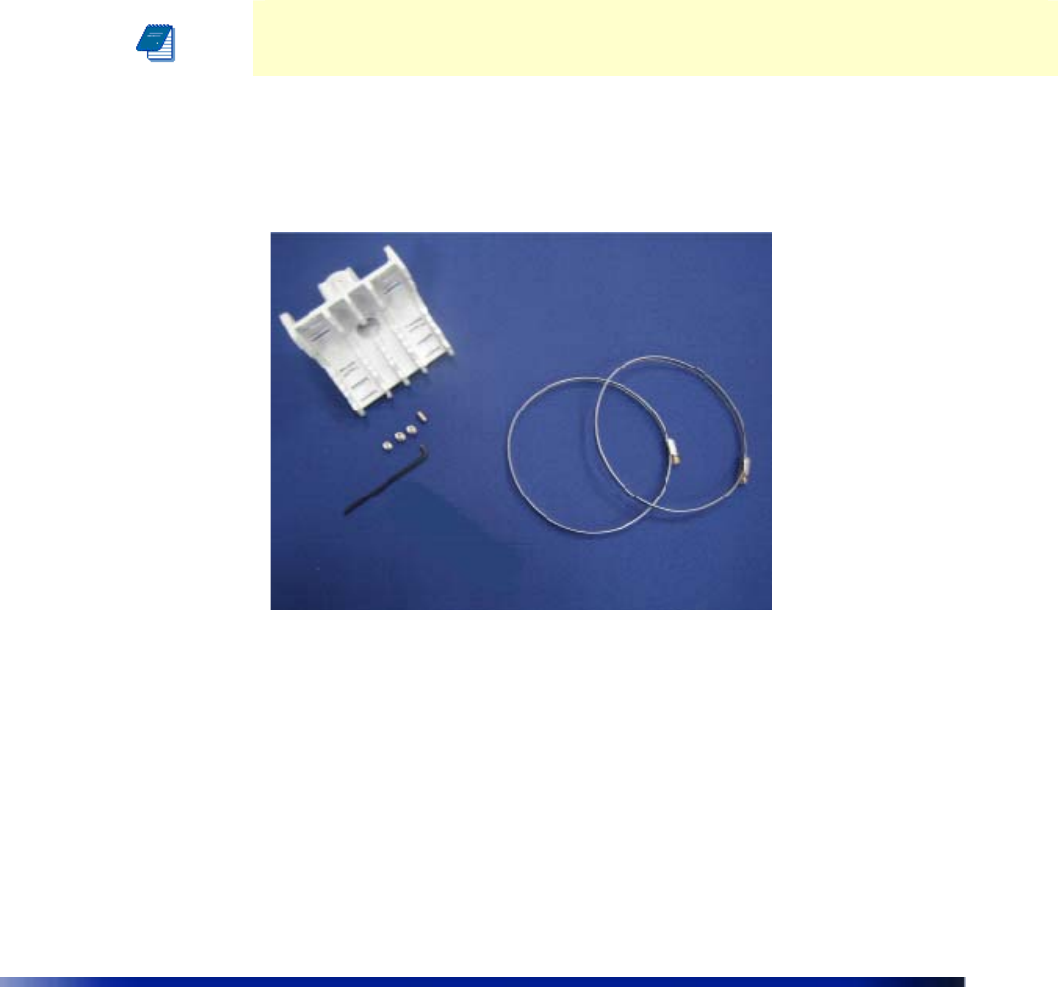

Figure 4.1 Pole mounting kit for the Outdoor Unit & Sealing kit
Using Hose Clamps
Special hose clamps that include threaded holes are used by the mounting assembly to
secure the WBS-700 to the mounting structure. Figure 4.2 demonstrate how to correctly
use the hose clamps. The bands must be threaded through holes in the post clamp, and
then attached to either a vertical or a horizontal pole and tightened.
14 Wavion Networks
There are two pairs of threaded holes on the back of the unit, enabling to use the special
clamps for mounting the unit on diverse pole diameters.

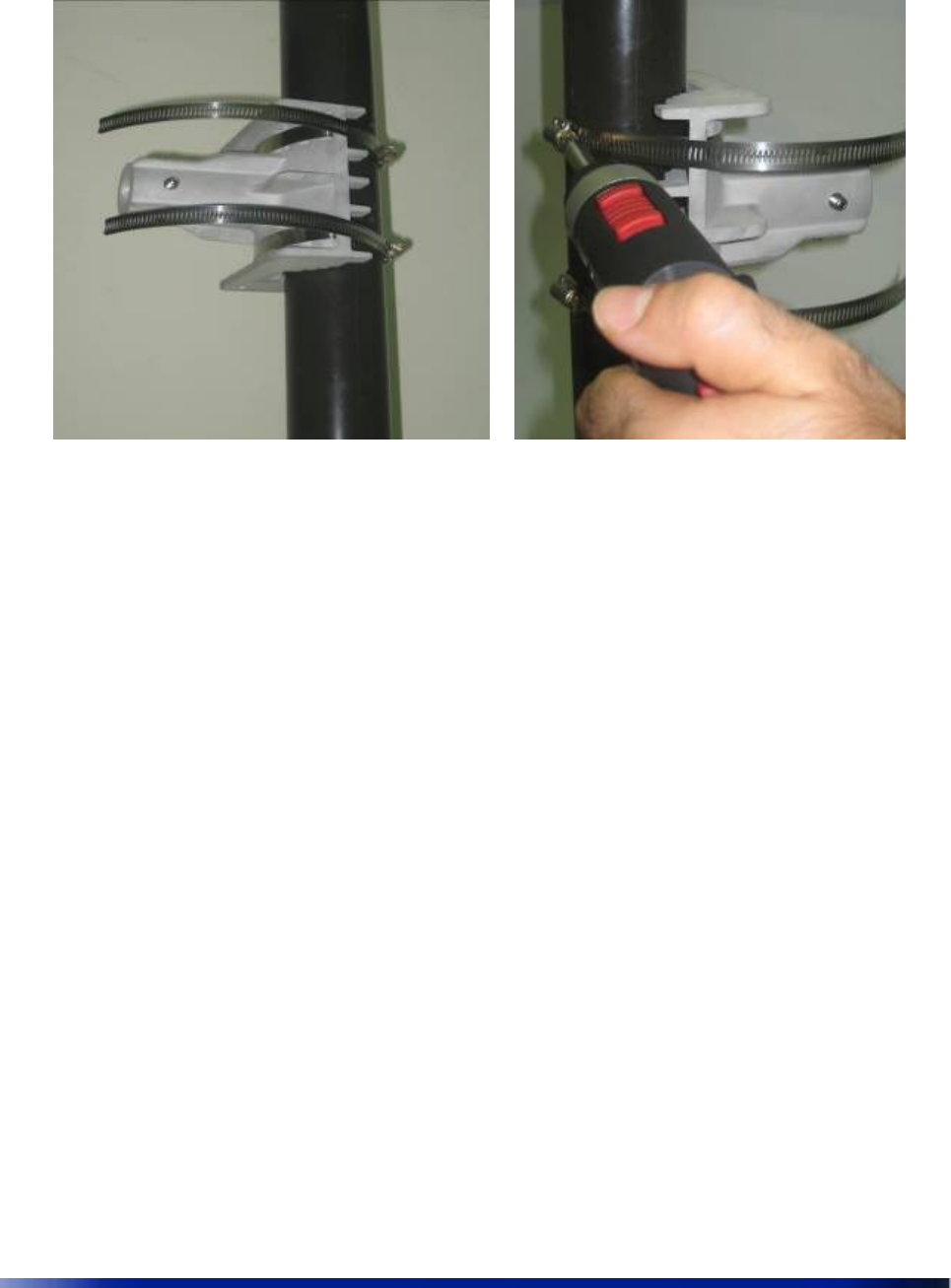

Figure 4.2 Using Special Hose Clamps & Screwing the Clamps
Installation Guide 15
Mounting on a Pole/Streetlight
WBS-700 can be mounted on a pole, tower, or streetlight. It is recommended to
mount the WBS-700 on aluminum or galvanized steel structures.
Note The Wavion WBS-700 must be mounted with the top of the unit
parallel with the ground and with the antennas pointing upward.
Note Before mounting the WBS-700, read the wiring instructions in
Grounding the Wavion WBS-700 and Connecting a Data Port chapter.
Metal/Wood/Streetlight Pole Mounting
Figure 4.3 illustrate how to mount an WBS-700 unit on a pole, using the clamp on an outdoor
metal pole.
Figure 4.3 Mounting on a Metal Pole
Metal pole
installation
requires that
the antennas
are higher
than the top
of the pole
16 Wavion Networks
Warning: Metal pole installation requires that the antennas are higher than
the top of the pole.
Note Antennas must be higher than the top of the metal pole and clear of
any obstructions
Note Mounting to wood, concrete, or painted poles requires primary
grounding for the unit. Check the national electrical codes in your area for
specific rules.
To mount the Wavion WBS-700 on a metal/wood/streetlight pole:
1. Choose a mounting location. You can attach the WBS-700 outdoor unit to any pole
or pipe with diameter of 3-10 inches. Wooden poles of larger diameter require
different types of clamps (any streetlight arm with diameter of 3 to 10 inches will fit
for this installation).
2. Slip the bands of the hose clamps through the slots of the post clamp
3. Use the hose clamps to fasten the post clamp to the pole.
4. Insert the WBS-700 into the post clamp.

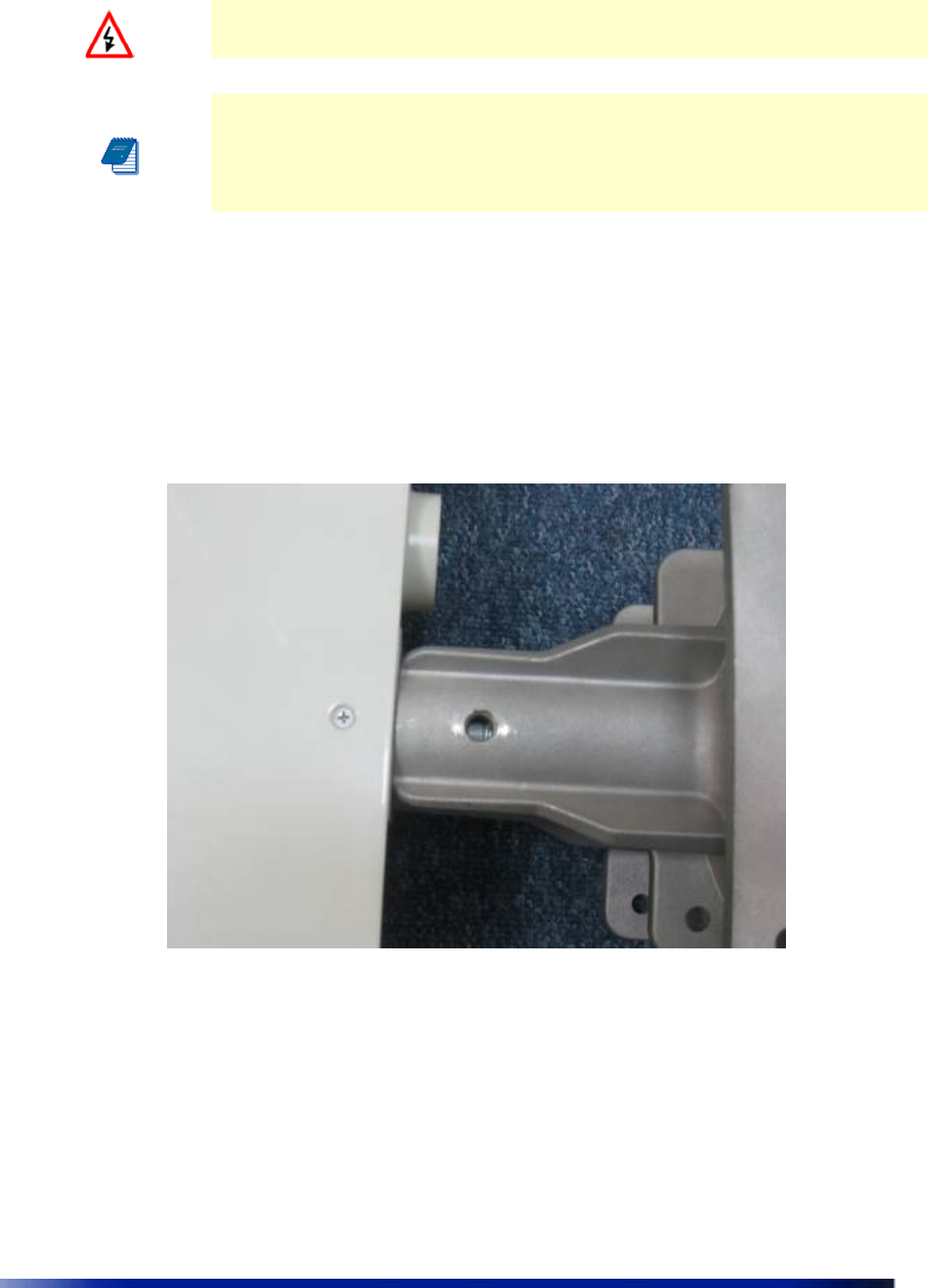

Figure 4.4 Insert the WBS-700 into the post clamp
Installation Guide 17
5. Attach safety cable to protect installed unit

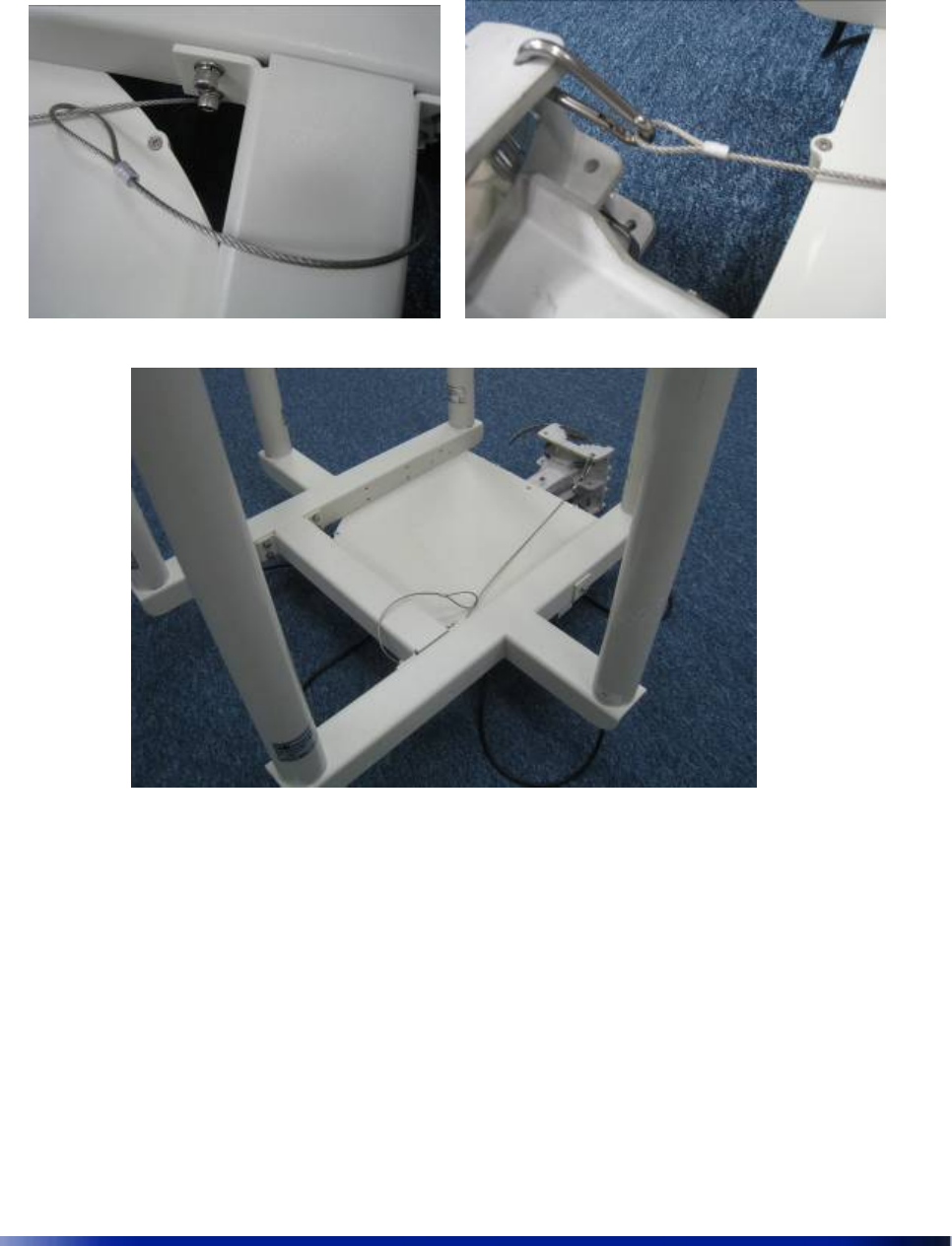

Figure 4.5 Attached Safety Cable
18 Wavion Networks
6. Use a torque wrench click type or digital set to 10 ft-lb, put a layer of loctite 242
type on the screws surface and torque all 4 screws. Re- torque to 15 ft-lb

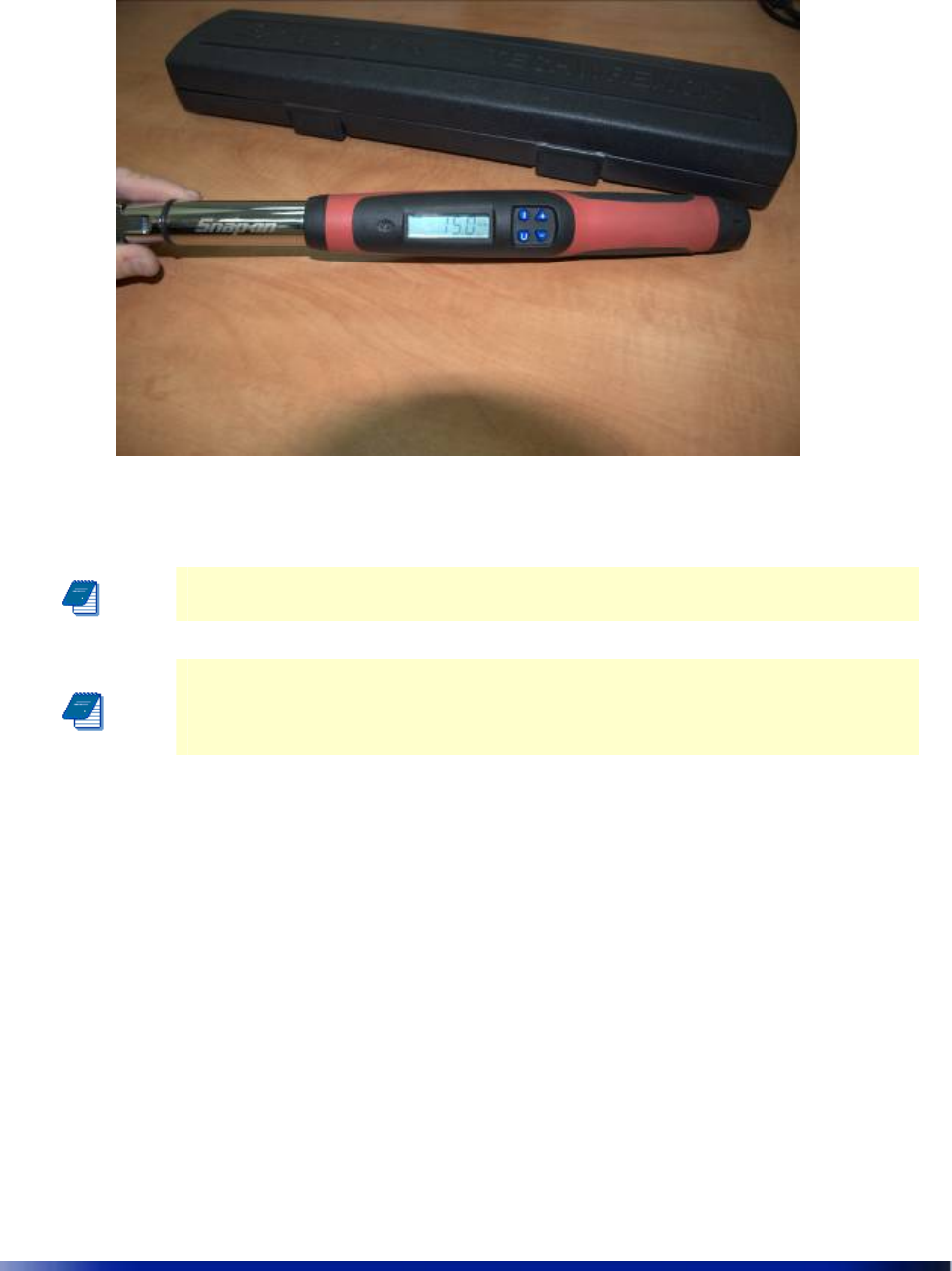

Figure 4.6 Use a torque wrench click
Note: The WBS-700 unit must be parallel to the ground. The unit can be
rotated to obtain the correct position.
Note Installations on large wooden poles require band clamps such as
those supplied by Panduit, www.panduit.com. Such a product is listed as
"Metal, Locking Tie Extra Heavy Duty 304 Stainless Steel". The tie and
the installation tool are shown below
Installation Guide 19
7. Grounding WBS-700.
Figure 4.7 Grounding Method
Caution: You must always install an external grounding wire. You must
also ground the outdoor data protection device to a ground rod or a
bonded pipe. Make sure you have completed grounding before you
connect power to the WBS-700.
Warning: Transient or electrostatic discharges that may occur at the WBS-
700, for example a lightning strike, may damage your network equipment
connected to the WBS-700 and cause personnel injury or death of persons
touching the exposed metal connectors of the equipment. You must install
a properly grounded lightning surge protector. Carefully follow the
installation instructions provided by the manufacturer of the protection
device.
To ground the Wavion WBS-700:
The Grounding screw is located on the side panel of the outdoor unit.
To connect the grounding cable:
1. Connect one end of a grounding cable to the grounding terminal and tighten the
grounding screw firmly.
Do the following steps:
a. Remove the nut and star washers from the grounding screw.
b. Attach one star washer to the grounding screw.
c. Attach #10 AWG bare copper wires with an M6 terminal ring to the
grounding screw.
d. Attach the second star washer and tighten the nut.
20 Wavion Networks
2. Connect the other end of the grounding cable to a good ground (earth)
connection. (For example, a grounding rod).

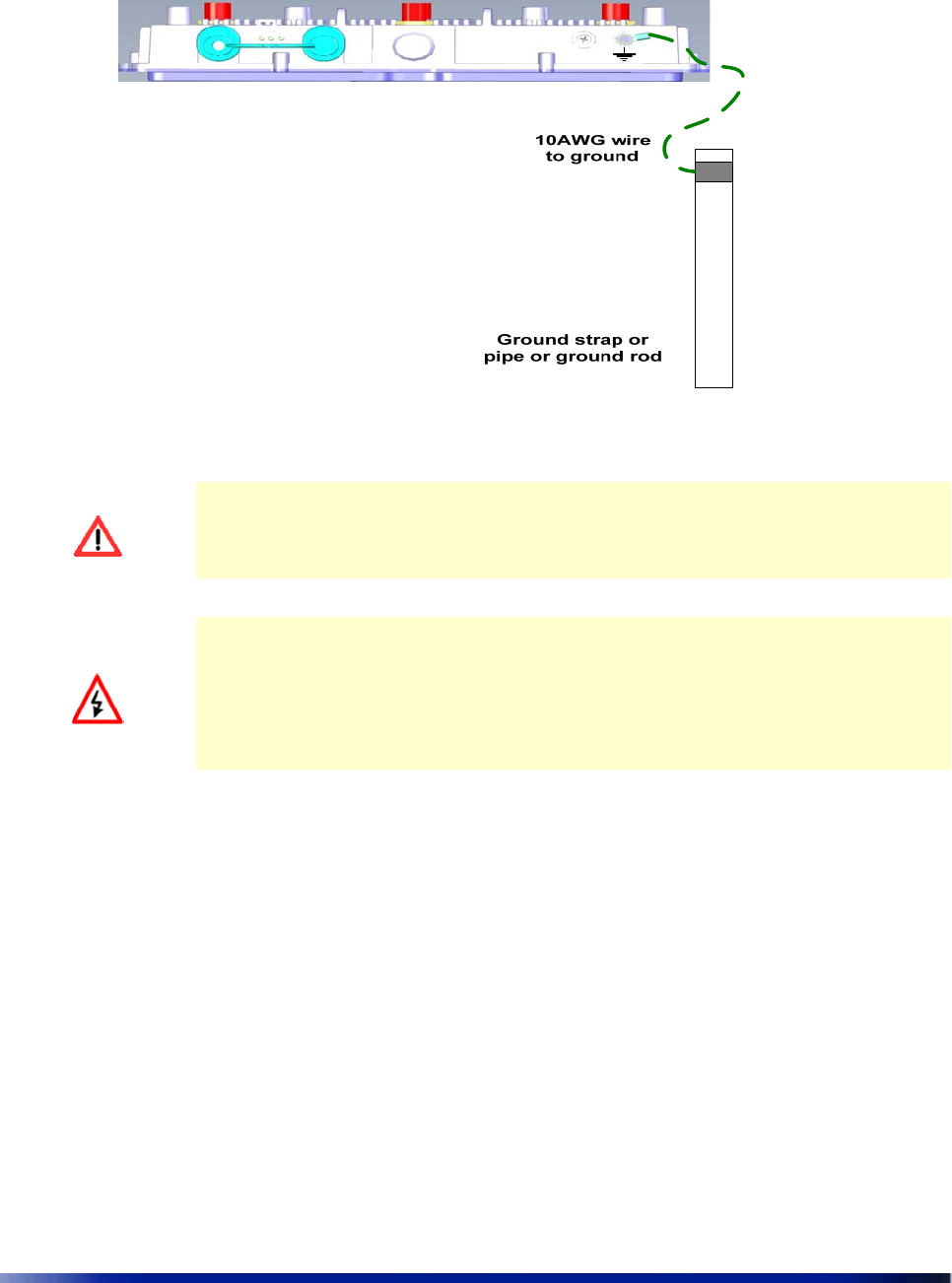

Figure 4.8 Grounding
Grounding the Data Protection Device
The grounding method for an indoor data protection device is shown in Figure 4.9.
To ground an indoor data protection device:
1. Position the protection device as close to the building entrance as possible.
2. Attach a length of #10 AWG bare copper wires to the ground post on the data
protection device.
3. Attach the other end of the grounding wire to the ground connection of an
electrical outlet or a grounded water pipe.

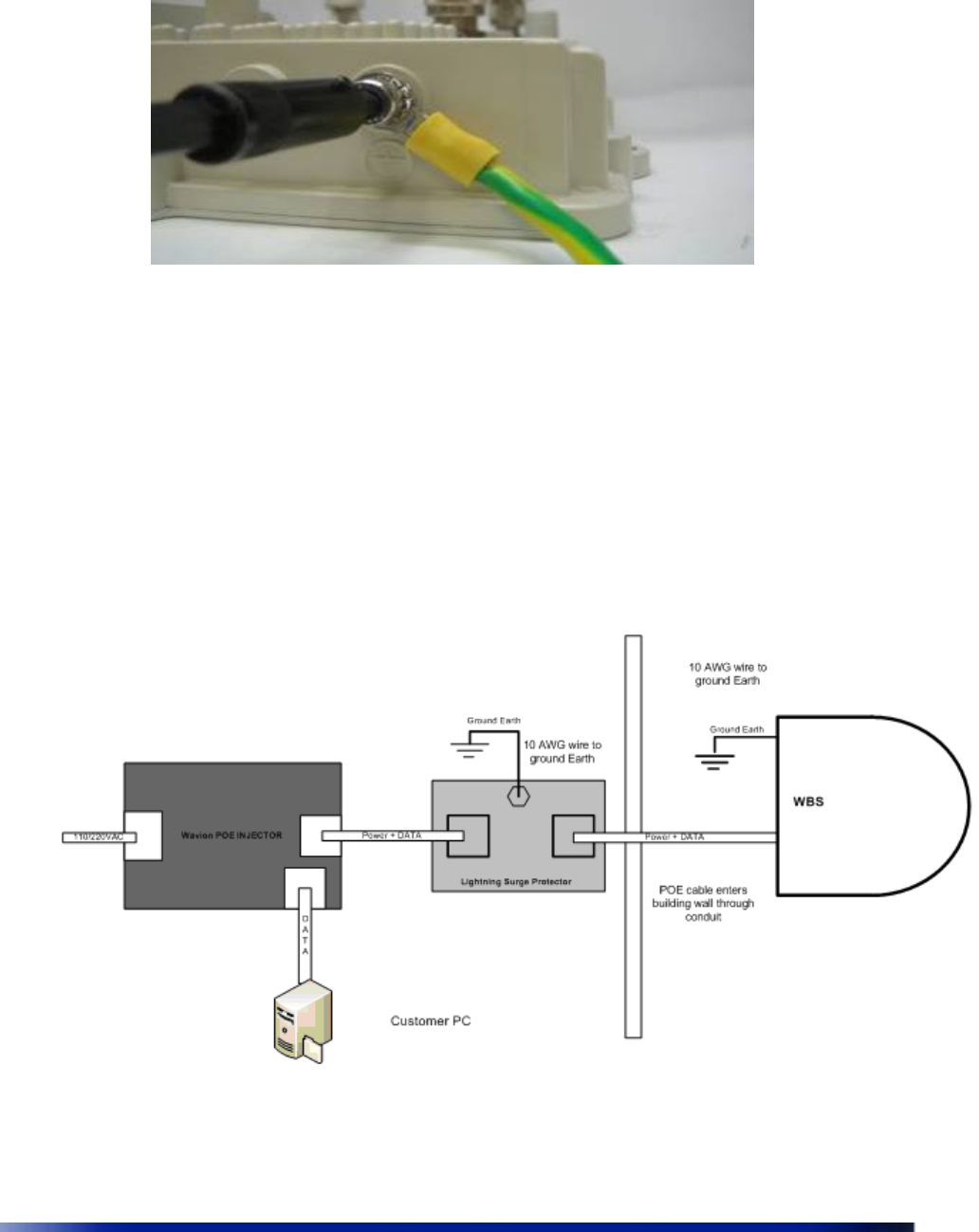

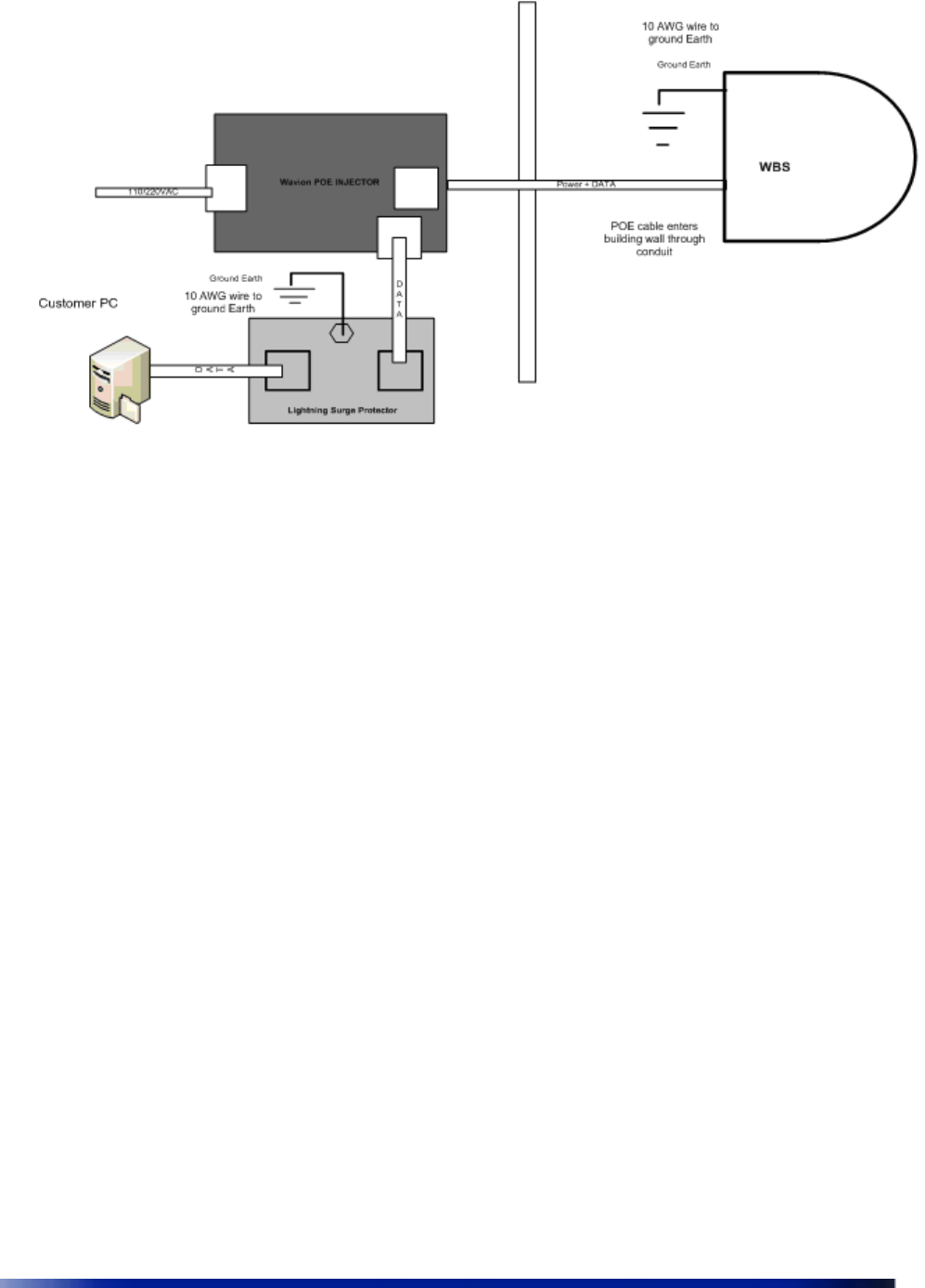

Figure 4.9 Grounding indoor injector by Network Protection Unit
Installation Guide 21
Figure 4.10 Grounding injector that located outdoor by Network Protection Unit
22 Wavion Networks
Connecting Antennas
This section explains how to connect the six antennas to the WBS-700X. In order for the
WBS-700 to work properly, six antennas must be connected.
Use 6 RF cables to connect all 6 Antennas to the unit body. Each RF cable has two sides with right
angle and straight N-type connectors.
Connect straight N-type to the antenna and right angle N-type to the unit body.

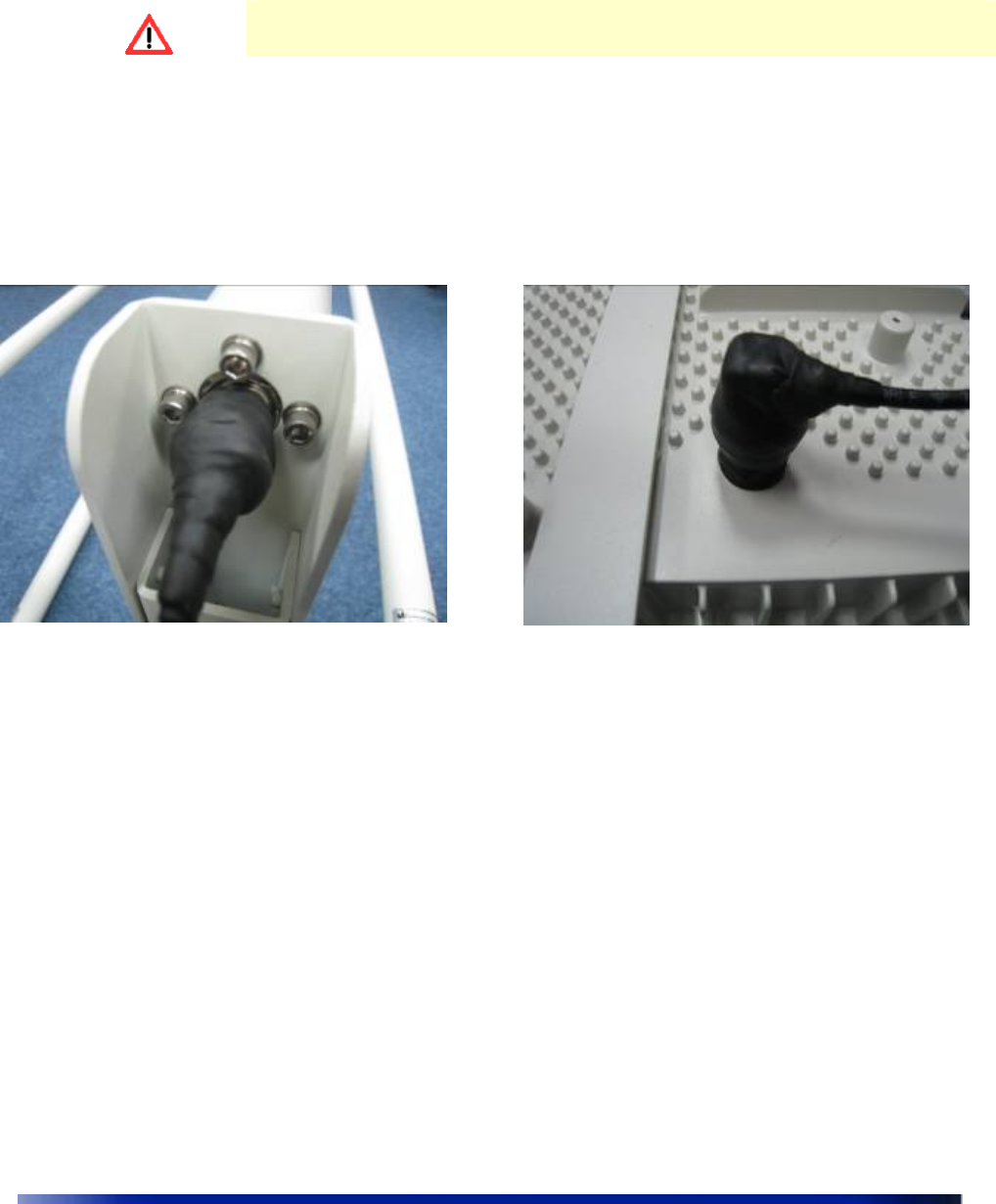

Figure 4.11 Connecting straight N-Type connector to the antenna
Installation Guide 23
Figure 4.12 Connecting right angle N-Type connector to the antenna

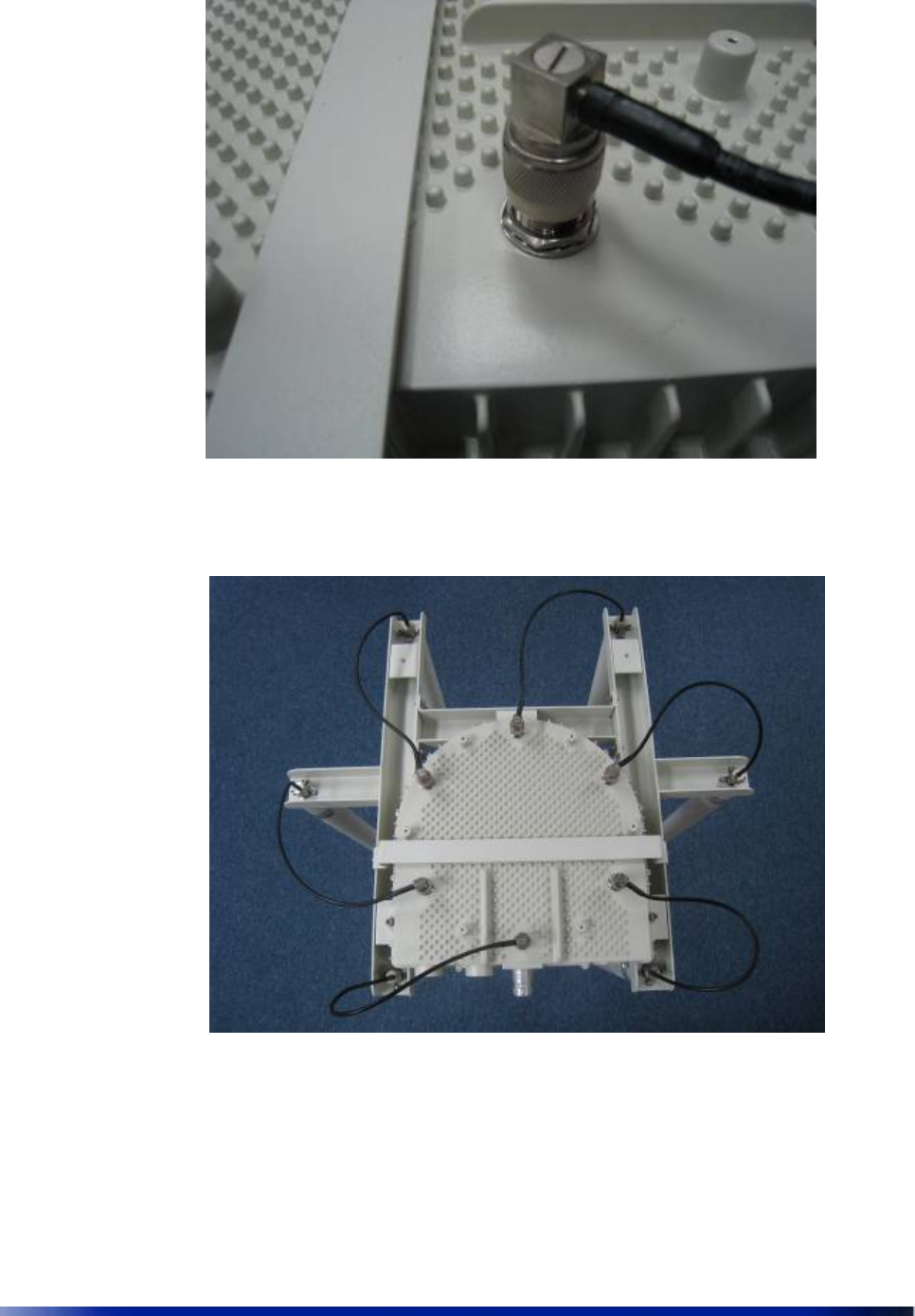

Figure 4.13 Connecting 6 antennas
24 Wavion Networks
WARNING: Only connect the unit to the power supply once all the antennas
are connected.
WARNING: Use caution when connecting the antennas. Undue haste can
damage the unit.
WARNING: Do not screw in the antenna when holding the top section of the
antenna. You will most likely damage the antenna.
WARNING: The installation should be done after connecting the antennas.
After installation, the user should connect the antennas.
Installation Guide 25
Antenna Sealing
The following describes antenna sealing procedure
Caution: It is important to read carefully this procedure and perform all
its steps to ensure maximal moisture protection.
Sealing Technique:
After the antenna is connected, use isolation material to cover the N-Type connectors
Apply the tape with tacky side up on the antenna and N-Type connector.
Stretch and lapped sealing tape to form smooth, void-free splice
Figure 4.14 Antenna sealing
26 Wavion Networks
Connecting Power and DATA
The following describes how to apply power and data to the WBS-700
Caution: You must always install an external grounding wire. Perform a
simple continuity check between the WBS-700and the ground termination
point to confirm. You must also ground the outdoor data protection device
to a ground rod or a bonded pipe. Make sure you have completed
grounding before you connect power to the WBS-700.
The Wavion WBS-700 is equipped with two RJ45 connectors. The right hand port named
"TEST" is for engineering use. Use the ETH port to connect data and power cable.
Figure 4.15 Connecting PoE cable
WARNING: The port named "TEST" is for engineering use only. In any
case do not connect PoE source to "TEST" port (!)
Installation Guide 27
When connecting to the Ethernet port, if you need to terminate the Ethernet cable, use a
standard RJ45 termination. Use a shielded RJ45 plug and be sure to connect the shield of
the Ethernet cable to the shield of the RJ 45 plug.
To connect to the data port:
1. Make sure that the power is turned off for the designated circuits.
2. Run shielded Category 5 Ethernet cable appropriates for outdoor use from a POE
injector to the Wavion WBS-700 through the lightning protection device. See
"Grounding the Data protection device" section for connection diagram.
3. Connect one end of the Category 5 cable to the "RADIO" port of the Wavion POE
injector.

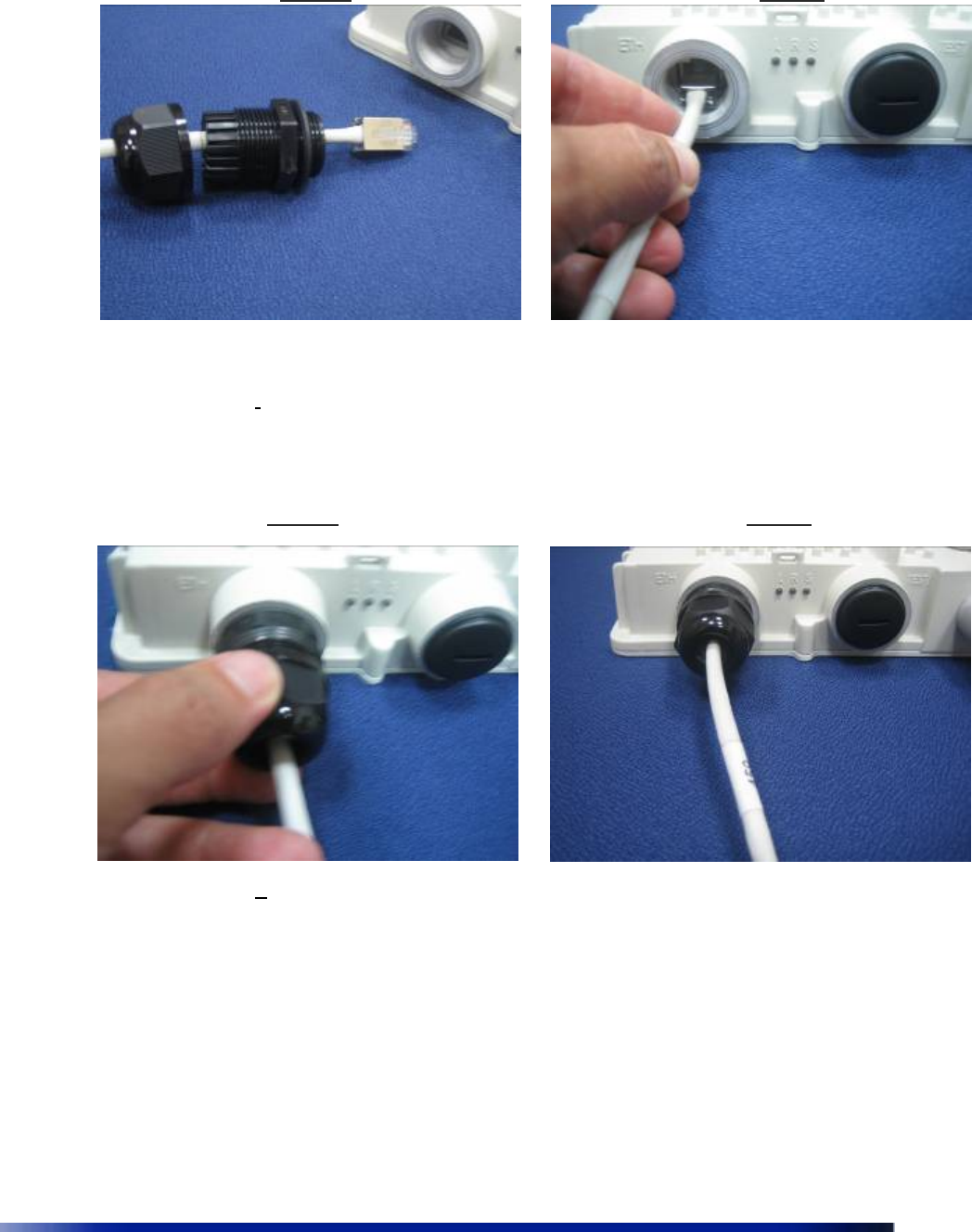

4. Unscrew the plastic cap and the cap cover from the Wavion WBS-700.
5. Thread the Ethernet cable through the cap cover and the cap.

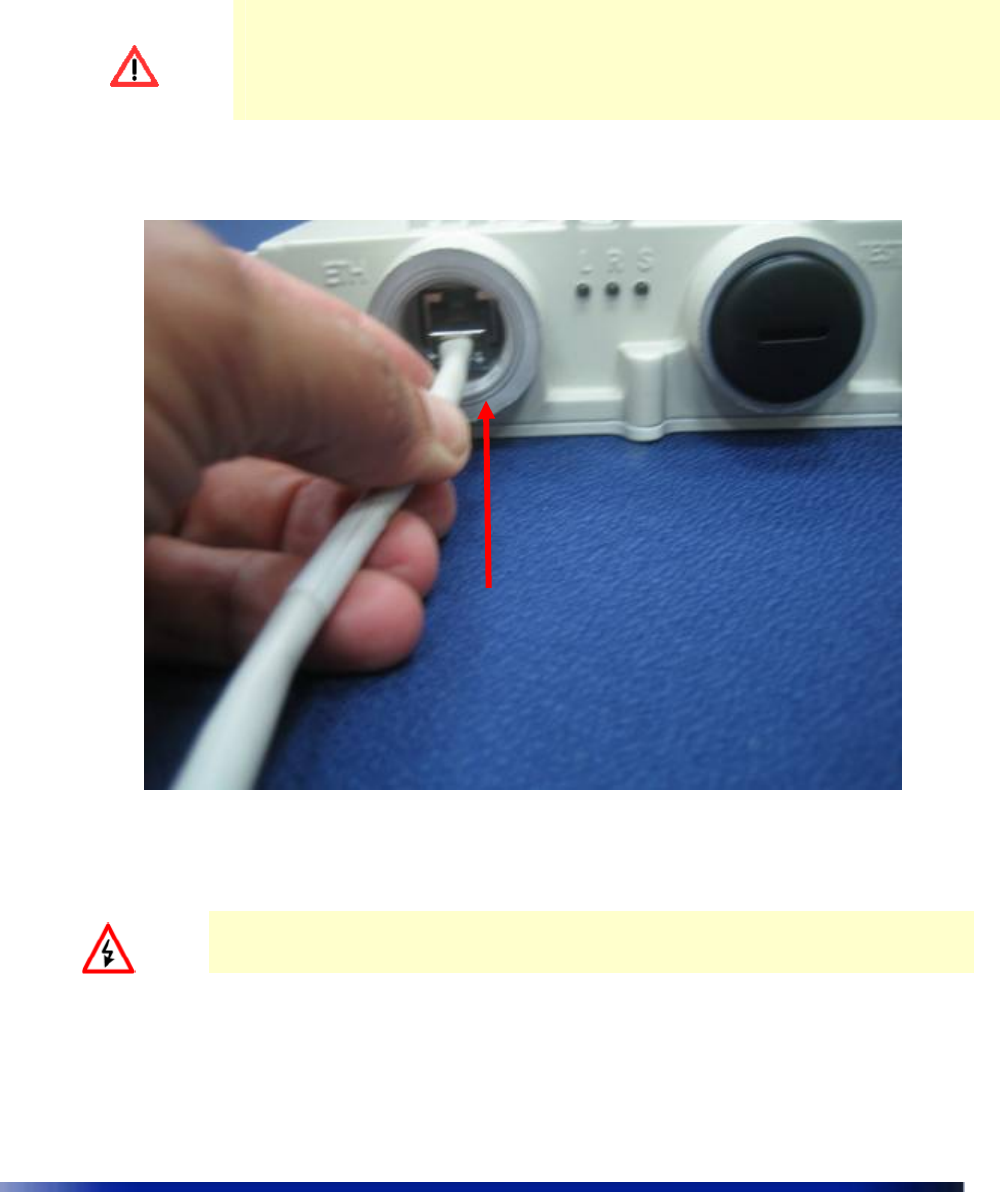

6. Connect the other cable end to ETH port on the WBS-700. Use a shielded RJ45 8-
pin modular plug to terminate the cables at the desired lengths
7. After connecting the Ethernet cable to the “ETH” port screw the plastic cap, make
sure it is well tighten.
8. Screw the cap cover to ensure perfect sealing. It will ensure IP-67 compliance.
9. “Test” port: The test port must be sealed with the provided plastic cap., make
sure it is attached properly.
WARNING: The shields of the Cat5 cable must be properly terminated and
bonded to the unit and to the protective earth (PE) at the building
entrance. This provides protection against the risk of fire, electrical hazard
and ensures the reliable operation of this equipment.
Note: National Electrical Codes (NEC) Article 800 requires the use of
an Agency Listed (UL/CSA) Building Entrance Protector for all power
and communications cables entering a building. Article 800 is intended
to protect the building and occupants from fires caused by transient
voltage and current surges.
Note: This is not a mid-span powered device. Do not attempt to daisy-
chain Power Over Ethernet devices.
28 Wavion Networks
Step 1 Step 2
Step 1 and Step 2: Unscrew the plastic cap and the cap cover. Thread the
Ethernet cable through the cap cover and the cap. Connect the Ethernet cable to the
“ETH” port.
Step 3 Step 4
Step 3 and Step 4: Screw the plastic cap; make sure it is well tightening.
Furthermore screw the cap cover to ensure perfect sealing. It will ensure IP-67
compliance.
Figure 4.16 Steps to connect the Ethernet cable.
Installation Guide 29
POE port RJ45 Pin Descriptions
Pin T/R Signal Color Description
1 T TXD+ Orange-White TX Data 10/100BaseT
2 R TXD- Orange TX Data 10/100BaseT
3 T RXD+ Green-White RX Data 10/100BaseT
4 R PoE+ Blue Power input, 55 VDC (+)
5 T PoE+ Blue-White Power input, 55 VDC (+)
6 R RXD- Green RX Data 10/100BaseT
7 T PoE- Brown-White Power input, 55 VDC (-)
8 R PoE- Brown Power input, 55 VDC (-)
30 Wavion Networks
Safety Information for the Wavion WBS-700
The Federal Communications Commission (FCC) with its action in ET Docket 96-8 has
adopted a safety standard for human exposure to RF electromagnetic energy emitted by
FCC certified equipment. Proper operation of the Wavion WBS-700according to the
instructions found in this manual, results in user exposure that is substantially below the
FCC recommended limits.
Follow these guidelines to ensure safe operation of the Wavion WBS-700:
Do not touch or move the antennas while the unit is transmitting or receiving.
Make sure the antennas are connected when operating the radio or attempting to
transmit data, otherwise, the radio may be damaged.
Do not hold the antenna to be close to or touching any exposed parts of the body,
especially the face or eyes, while transmitting.
The use of wireless devices on airplanes is governed by the Federal Aviation
Administration (FAA).
The use of wireless devices in hazardous locations is limited to the constraints posed
by the safety directors of such environments.
The use of wireless devices in hospitals is restricted to the limits set forth by each
hospital.
Do not operate a portable transmitter near unshielded blasting caps or in an explosive
environment.
The Wavion WBS-700 must be used only with Wavion approved components and
antennas.
Use safety cable to protect installed unit
Service Instructions
The Wavion WBS-700 contains no user serviceable parts inside.
Installation Guide 31
Chapter 5
Product Specification WBS-700
The tables in this chapter contain specifications for the Wavion WBS-700.
Physical Specifications
Network Interfaces Auto-sensing 10/100 Ethernet
Input from Wavion Injector
Power Input Power from a Wavion POE Injector.
Indicator Lights
Ethernet port LED Link/Act indicator
System Status LED indicator
RF channel status indicator
Physical Dimensions
Antenna Array Diameter: 650mm
Antenna Height: 1120mm
Weight: 9.8kg (with post clamp ,with antenna)
Power
Specifications
Power Input 55VDC, supplied over Ethernet from Wavion injector.
Input Power
Consumption
Power from Wavion Injector max.0.9A @ 55VDC
Power consumption may vary for the different part
numbers – maximum will be 50W.
32 Wavion Networks
Environmental Specifications
Operating Temperature Range -40°C to +55°C (without sun shield)
-40°C to +60°C (with sun shield)
Storage Temperature Range -45°C to +85°C
Weather Rating IP67
Wind Survivability 165 mph
Salt and Fog Rust Resistance MIL-STD-810F 509.4
Shock and Vibration ESTI 300-192-4 spec T41.E
Transportation ISTA2A
Approvals
RF FCC CFR 47 part 27
Safety
TUVus
EN 60950-1:2001+A11:2004
IEC 60950-1:2001
Second Edition
Information Technology equipment – Safety – Part 1
EMC FCC CFR 47 Part 15, Sub Part B, Class B (USA)
Installation Guide 33
Chapter 6
Installation Accessories
This chapter describes the accessories available for the WBS-700 and ordering
information. The following topics are covered in this chapter:
Ethernet Cables
Lightning Protection
Power Over Ethernet
Ethernet Cables
Description Manufacturer Part
Number Distributor Contact
Information
Outdoor
CAT5e
double
jacket 4-pair
data cable
Teldor 8393204101 G.Bares
Tel: +972-(4)-
8215450
Lightning Protection
Description Manufacturer Part Number Contact Information
Data protection
device Hyperlink
HGLN-CAT5-HP
High Power CAT5
Lightning
Protector
www.hyperlinktech.com
Power Over Ethernet
Description Product
Name Part
Number
Wavion Injector for powering the WBS-700 over an Ethernet
cable. Output 55VDC, 1A. WPI-AC-
55W 27002213
34 Wavion Networks
Chapter 7
Wind Loading Considerations
This chapter describes wind loading considerations for the WBS-700.
Note: It is recommended to evaluate the static and dynamic load
bearing capabilities for each assembly and installation individually. It
is your responsibility to evaluate the load bearing capabilities of the
structure.
The Wavion WBS-700 weighs approximately 22 lbs, including all mounting hardware.
When the Wavion WBS-700 is mounted on a pole, the sail area of the WBS-700 is
approximately TBD square foot. The Wavion WBS-700 can load a pole with a maximum
load of TBD Newton in wind conditions of 165mph.
Installation Guide 35
Chapter 8
Acronyms
Acronym Description
2P Two-Phase or Split Phase
2W Two-Wire
3W Three-Wire
AC Alternating Current
ANSI American National Standards Institute
AWG American Wire Gauge
C Celsius
CAT Category
CCK Complementary Code Keying
CFR Code of Federal Regulations
CSA Canadian Standard Association
dB Decibels
dBi Decibels Relative to an Isotropic Radiator
DBPSK Differential-Binary Phase-Shift Keying
DC Direct Current
DQPSK Differential-Quadrature Phase-Shift Keying
DSSS Direct-Sequence Spread Spectrum
EMC Electromagnetic Compatibility
EN IEC standard
ESD Electrostatic Discharge
FCC Federal Communications Commission
Hz Hertz
HPoE High Power over Ethernet
IEEE Institute of Electrical and Electronics Engineers
IP67 Ingress Protection Standard
ISTA International Safe Transit Association
LAN Local Area Network
Mbps Megabits Per Second
36 Wavion Networks
MHz Megahertz
MIL-STD Military Standard
N Neutral
NEC National Electrical Codes
NEMA National Electrical Manufacturers Association
OFDM Orthogonal Frequency Division Multiplexing
P Phase
PE Protective Earth
PoE Power over Ethernet
RJ45 Registered Jack 45
RSS Received Signal Strength
Rx Receive
RXD Receive Data
TUV Technical Inspection Association
Tx Transmit
TXD Transmit Data
UL Underwriters Laboratories
VAC Voltage (Alternating Current)
VCCI Voluntary Control Council for Interference
VDC Voltage (Direct Current)
W Watts
