Way Systems, Inc. Mobile Transaction Terminal way5000 Operating Instructions 1 5
Users Manual Revision 091007
way5000D™
Operating Instructions 1.5
WAY Systems, Inc.
200 Unicorn Park Drive
Woburn, MA 01801
Way5000D Operating Instruction
Page 2
Table of Content
1 way5000D keypad layout.................................................................................................3
2 USB, Audio Jack and Charge Indicator Location......................................................4
3 Device Back.........................................................................................................................4
4 Phone SIM Location ..........................................................................................................5
5 Box Contents.......................................................................................................................5
6 Display ..................................................................................................................................6
7 Turning On/Off....................................................................................................................6
8 GETTING STARTED...........................................................................................................6
9 MAIN MENU..........................................................................................................................7
9.1 Message Menu:............................................................................................................7
9.2 Enter Text Message:....................................................................................................8
9.3 Send, Save or Edit: ......................................................................................................8
10 Functional Description ...............................................................................................21
10.1 GPRS Radio................................................................................................................21
10.2 Microprocessor ...........................................................................................................21
10.3 Memory........................................................................................................................21
10.4 SIM................................................................................................................................21
10.5 SAM..............................................................................................................................21
10.6 USB ..............................................................................................................................21
10.7 Audio Jack...................................................................................................................21
10.8 MSR..............................................................................................................................22
10.9 IrDA...............................................................................................................................22
10.10 Battery......................................................................................................................22
10.11 Battery Charger ......................................................................................................22
10.12 Charge Indicator .....................................................................................................22
11 Specification: ................................................................................................................23
11.1 Class:............................................................................................................................23
11.2 Operating frequencies: ..............................................................................................23
11.3 Battery Type/Capacity: ..............................................................................................23
11.4 SIM................................................................................................................................23
11.5 SAM (2)........................................................................................................................23
11.6 USB (OTG)..................................................................................................................23
11.7 Wall charger: ...............................................................................................................23
11.8 Weight: .........................................................................................................................23
11.9 Size:..............................................................................................................................23
12 REQUIREMENTS OF PART 15 - FCC RULES........................................................24
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: .......................................................................................................24
(1) This device may not cause harmful interference.........................................................24
(2) This device must accept any interference received, including interference that may
cause undesired operation. ..................................................................................................24
13 SAR (Specific Absorption Rate)...............................................................................24
14 SAFETY INFORMATION .............................................................................................25
Way5000D Operating Instruction
Page 3
1 way5000D keypad layout
Mag
netic
Stripe
Card Reader (MSR)
Navigation
Button
Screen
Addressable
Soft Key (F1)
Send/Answer Key
Numeric Keypad
Screen
Addressable
Soft Key (F2)
Hang Up/End
Key
Cancel
Key
Clear/Back
-
Space Key
Enter
Key
Way5000D Operating Instruction
Page 4

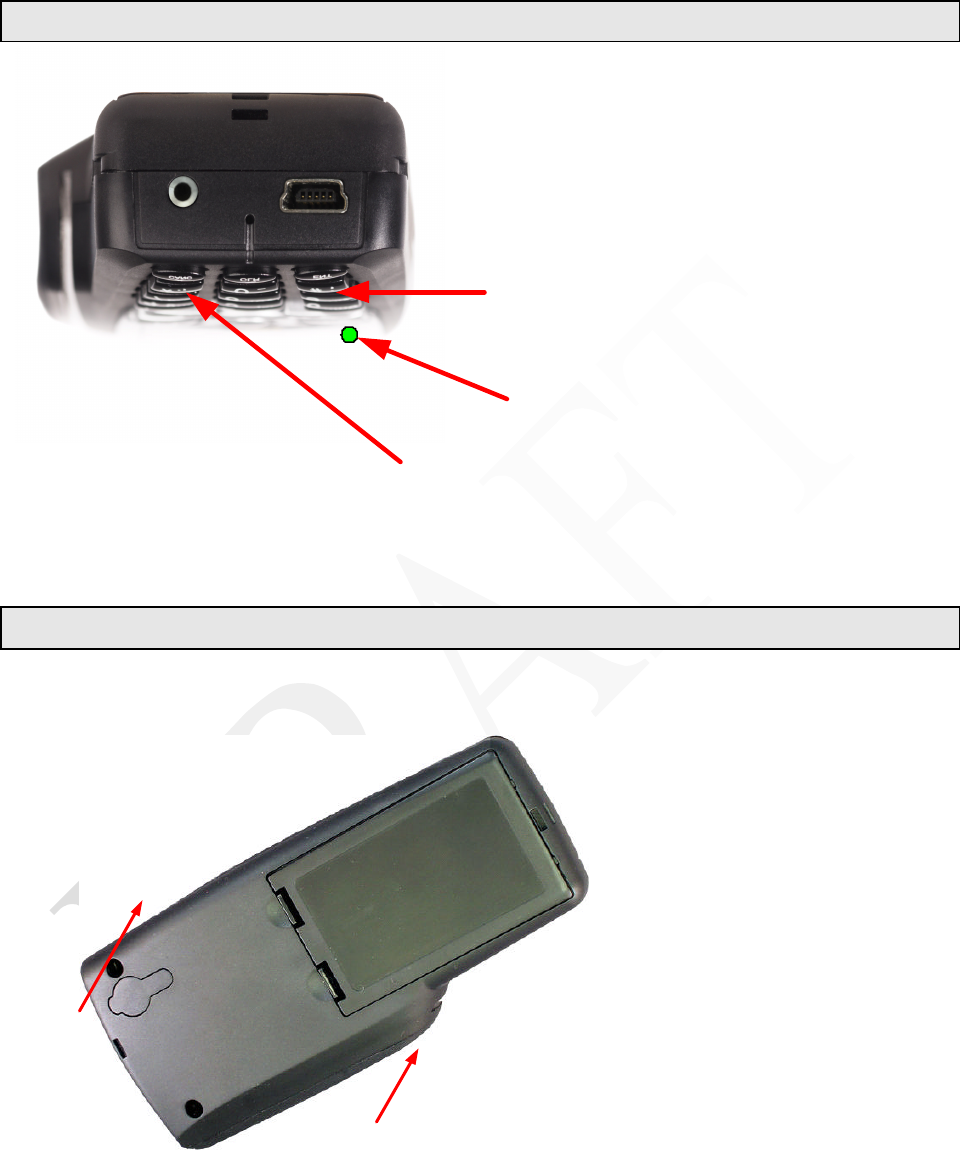

2 USB, Audio Jack and Charge Indicator Location
USB/Charge Port
Audio Jack
Charge Indicator
3 Device Back
Baterry/SIM/
SAM Cover
Auxiliary
Antenna Port
Way5000D Operating Instruction
Page 5

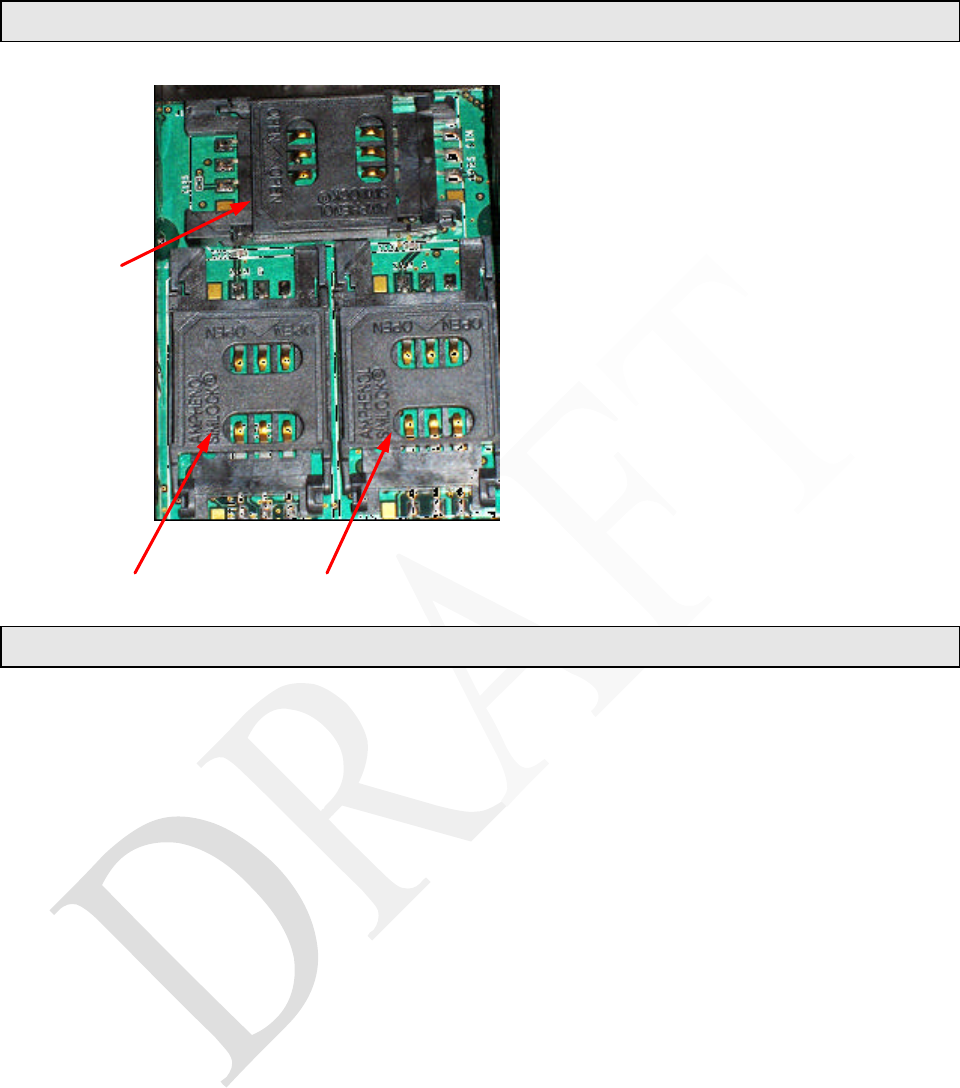

4 Phone SIM Location
Phone SIM
SAM1SAM2
5 Box Contents
way5000D
Wall Power Supply
Lithium-Ion Battery
Operating Instructions
Way5000D Operating Instruction
Page 6

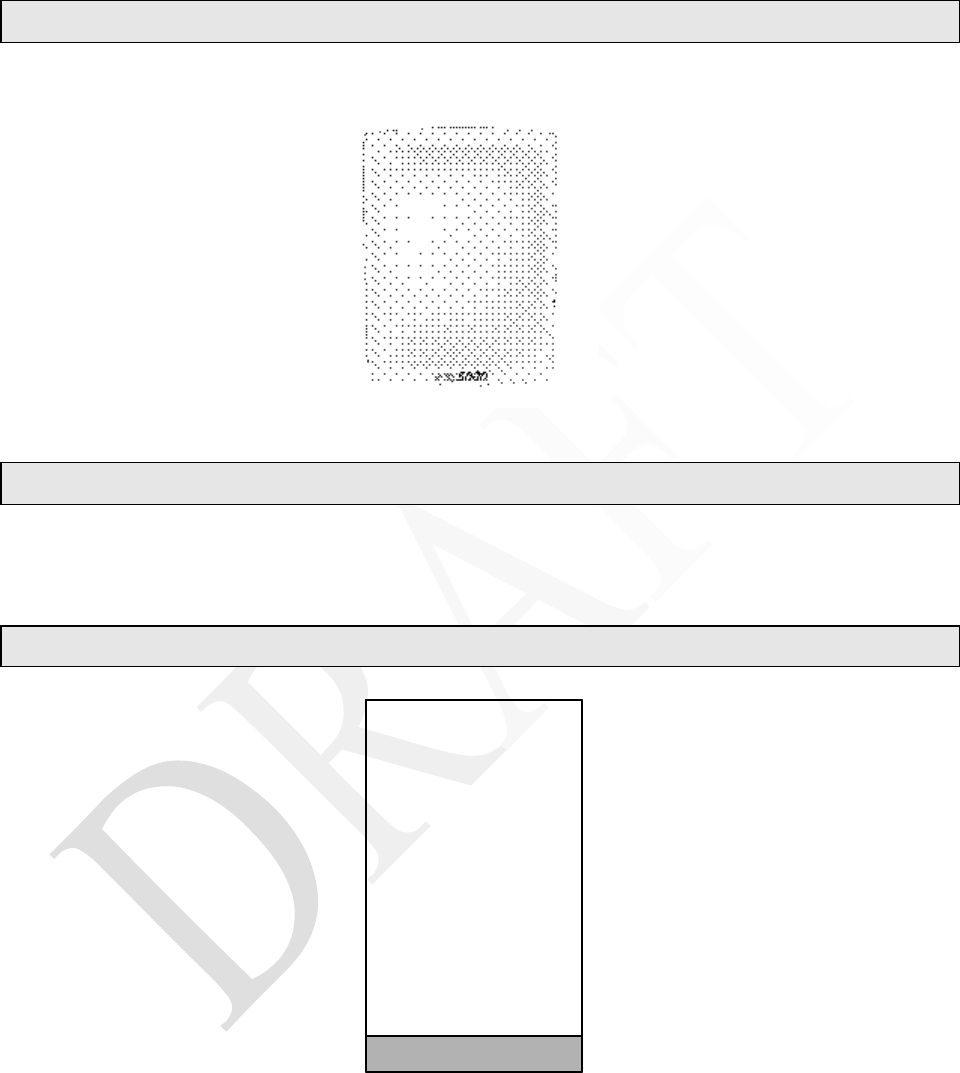

6 Display
7 Turning On/Off
To turn the way5000D power on, press the Hang Up/End Key for approximately 2
seconds and release.
8 GETTING STARTED
WAY Systems
Phone WAY2Pay
F1 F2
WAY Systems
Phone WAY2Pay
F1 F2
Make a Phone Call
Enter the phone number on the numeric keypad and press the [ENT] enter key.
To hang up, press the [F1] key.
Way5000D Operating Instruction
Page 7
9 MAIN MENU
To enter the main menu, press the [F1] key from the phone’s idle screen.
Main Menu
Messages
Call log
Phone book
Setup
Exit Select
F1 F2
Main Menu
Messages
Call log
Phone book
Setup
Exit Select
F1 F2
Press [F1] to Exit the Main Menu.
Press [F2] to access the Messages menu.
9.1 Message Menu:
Press [F2] to send a text message.
Send new SMS
Inbox
Outbox
Voice message
Back Select
F1 F2
Send new SMS
Inbox
Outbox
Voice message
Back Select
F1 F2
Way5000D Operating Instruction
Page 8
9.2 Enter Text Message:
Enter your message up to a maximum of 160 characters. To enter letters, press the
number key with the desired letter one, two or three times depending on the letter’s
location. To enter a number, press the key a fourth time.
After your message is complete, press [F2] to proceed or [F1] to cancel this message.
9.3 Send, Save or Edit:
Press [F2] to send your message. Press [F1] to go back to your message.
If you want to save your message, use the toggle key to select Save and press [F2].
Your message will be saved in your Outbox.
To edit this message, use the navigation key to select Edit and press F2.
If you selected Send, select either Enter phone no. or Use phone book. Press [F2]
to select.
Enter SMS
Meet me at noon
For lunch.
Cancel Proceed
F1 F2
Enter SMS
Meet me at noon
For lunch.
Cancel Proceed
F1 F2
Send
Save
Edit
Back Select
F1 F2
Send
Save
Edit
Back Select
F1 F2
Send
Save
Edit
Back Select
F1 F2
Way5000D Operating Instruction
Page 9
Enter phone no.
Use phone book
Back Select
F1 F2
Enter phone no.
Use phone book
Back Select
F1 F2
Enter phone no.
Use phone book
Back Select
F1 F2
You will be prompted to enter a phone number or to access your phone book.
Enter phone no.
7815690420
Back Send
F1 F2
Enter phone no.
7815690420
Back Send
F1 F2
Press [F2] to send your message. Press [F1] to go back to the previous screen.
Sending
7815690420
F1 F2
Sending
7815690420
F1 F2
Message Sent
F1 F2
Message Sent
F1 F2
Way5000D Operating Instruction
Page 10
After your message has been sent, you will be returned to the Messages menu.
Send new SMS
Inbox
Outbox
Voice message
Back Select
F1 F2
Send new SMS
Inbox
Outbox
Voice message
Back Select
F1 F2
Use the toggle key to select Inbox and press F2. A list of messages in your inbox will
be displayed.
Use the Navigation key to select a message then press [F2] for Options.
View
Reply
Edit
Delete
Save no.
Back Select
F1 F2
View
Reply
Edit
Delete
Save no.
Back Select
F1 F2
14811234567
R: 123
R: 155
Back Options
F1 F2
14811234567
R: 123
R: 155
Back Options
F1 F2
14811234567
R: 123
R: 155
Back Options
F1 F2
Way5000D Operating Instruction
Page 11
Use the Navigation key to select View then press [F2] to select.
02/10/07 11:15
123
OK. See you at noon.
Exit Options
F1 F2
02/10/07 11:15
123
OK. See you at noon.
Exit Options
F1 F2
Press [F2] to view Inbox message options.
Select Send Reply then press [F2] to select.
Read next msg
Edit next msg
Delete this msg
Send reply
Save sender no.
Back Select
F1 F2
Read next msg
Edit next msg
Delete this msg
Send reply
Save sender no.
Back Select
F1 F2
Way5000D Operating Instruction
Page 12
Write Message
Quick Text
Back Select
F1 F2
Write Message
Quick Text
Back Select
F1 F2
Select a reply option then press [F2].
I’m in meeting
Call me later
I’m Busy
Yes
No
Back Select
F1 F2
I’m in meeting
Call me later
I’m Busy
Yes
No
Back Select
F1 F2
Select a Quick Text option then press [F2].
F1 F2
14811234567
Back Send
F1 F2
14811234567
Back Send
Way5000D Operating Instruction
Page 13
Press [F2] to send.
After your message has been sent, you will be returned to the Messages menu.
Use the Navigation key to select Outbox, then press [F2]. A list of messages in your
Outbox will be displayed.
F1 F2
17812221234
MARY
UNKNOWN
Back Options
F1 F2
17812221234
MARY
UNKNOWN
Back Options
Send new SMS
Inbox
Outbox
Voice message
Back Select
F1 F2
Send new SMS
Inbox
Outbox
Voice message
Back Select
F1 F2
Message Sent
F1 F2
Message Sent
F1 F2
Sending
7815690420
F1 F2
Sending
7815690420
F1 F2
Way5000D Operating Instruction
Page 14
Use the Navigation key to select a message then press [F2] for Options.
View
Edit
Delete
Save no.
Back Select
F1 F2
View
Edit
Delete
Save no.
Back Select
F1 F2
Use the Navigation key to select an option then press [F2] to select. After completing
your selected option, you will be returned to the Messages Menu.
Send new SMS
Inbox
Outbox
Voice message
Back Select
F1 F2
Send new SMS
Inbox
Outbox
Voice message
Back Select
F1 F2
Use the Navigation key to select Voice Message, then press [F2].
Main Menu
Messages
Call log
Phone book
Setup
Exit Select
F1 F2
Main Menu
Messages
Call log
Phone book
Setup
Exit Select
F1 F2
Way5000D Operating Instruction
Page 15
Press [F2] to select Call log.
Missed Calls
Received Calls
Dialed Calls
Clear all lists
.
Back Select
F1 F2
Missed Calls
Received Calls
Dialed Calls
Clear all lists
.
Back Select
F1 F2
Use the Navigation key to select an option then press [F2] to select.
F1 F2
17812221234
14811234567
3335689
Back Options
F1 F2
17812221234
14811234567
3335689
Back Options
A list of calls is displayed. Use the Navigation key to select an option then press [F2] to
select.
F1 F2
17812221234
2/12/07
09:37a
Back Save
F1 F2
17812221234
2/12/07
09:37a
Back Save
Press [F2] to select save the number to your address book.
Way5000D Operating Instruction
Page 16
F1 F2
Number
17812221234
Name
Mary
Back Save
F1 F2
Number
17812221234
Name
Mary
Back Save
You will be prompted to enter the name of the caller. Type the name and press [F2] to
save. You will be returned to the call log options menu.
Main Menu
Messages
Call log
Phone book
Setup
Exit Select
F1 F2
Main Menu
Messages
Call log
Phone book
Setup
Exit Select
F1 F2
Press [F2] to select phone book.
Angel
4043330987
Bob
7812349876
Back Options
F1 F2
Angel
4043330987
Bob
7812349876
Back Options
F1 F2
Use the Navigation key to select an option then press [F2].
Way5000D Operating Instruction
Page 17
View
Find
New
Edit
Delete
Send SMS
Back Select
F1 F2
View
Find
New
Edit
Delete
Send SMS
Back Select
F1 F2
Use the Navigation key to select an option then press [F2].
Main Menu
Messages
Call log
Phone book
Setup
Exit Select
F1 F2
Main Menu
Messages
Call log
Phone book
Setup
Exit Select
F1 F2
Use the Navigation key to select an setup then press [F2].
Audio
Phone
Security
Network
Back Select
F1 F2
Audio
Phone
Security
Network
Back Select
F1 F2
Press [F2] to select audio setup.
Way5000D Operating Instruction
Page 18
Ringer On/Off
Ring Volume
Ring Tones
Back Select
F1 F2
Ringer On/Off
Ring Volume
Ring Tones
Back Select
F1 F2
Press [F2] to select ringer on/off
On
Off
Back Select
F1 F2
On
Off
Back Select
F1 F2
Use the Navigation key to select an option then press [F2].
Ringer On/Off
Ring Volume
Ring Tones
Back Select
F1 F2
Ringer On/Off
Ring Volume
Ring Tones
Back Select
F1 F2
Use the Navigation key to select Ring Volume then press [F2].
Way5000D Operating Instruction
Page 19
Level 1 (Mute)
Level 2 (Min.)
Level 3
Level 4
Level 5 (Max.)
Back Select
F1 F2
Level 1 (Mute)
Level 2 (Min.)
Level 3
Level 4
Level 5 (Max.)
Back Select
F1 F2
Use the Navigation key to select a ring volume level then press [F2].
Volume level 2
set
F1 F2
Volume level 2
set
F1 F2
This screen displays briefly then returns to the audio setup menu.
Ringer On/Off
Ring Volume
Ring Tones
Back Select
F1 F2
Ringer On/Off
Ring Volume
Ring Tones
Back Select
F1 F2
Use the Navigation key to select Ring Tone then press [F2].
Way5000D Operating Instruction
Page 20
Ring Tone 1
Ring Tone 2
Ring Tone 3
Ring Tone 4
Ring Tone 5
Ring Tone 6
Ring Tone 7
Back Select
F1 F2
Ring Tone 1
Ring Tone 2
Ring Tone 3
Ring Tone 4
Ring Tone 5
Ring Tone 6
Ring Tone 7
Back Select
F1 F2
Use the Navigation key to select a ring tone then press [F2].
Ring Tone 2
set
F1 F2
Ring Tone 2
set
F1 F2
This screen displays briefly then returns to the audio setup menu.
Audio
Phone
Security
Network
Back Select
F1 F2
Audio
Phone
Security
Network
Back Select
F1 F2
Press [F1] until you return to the desired screen.
Way5000D Operating Instruction
Page 21
10 Functional Description
10.1 GPRS Radio
• The radio is considered Class B device. “Class B mobile phones can be
attached to both GPRS and GSM services, using one service at a time.
Class B enables making or receiving a voice call, or sending/receiving an
SMS during a GPRS connection. During voice calls or SMS, GPRS
services are suspended and then resumed automatically after the call or
SMS session has ended.”
10.2 Microprocessor
• USIP (Universal Secure Integrated Platform)
• Secure System On Chip (SOC)
• Hardware encryption
• Embedded devices (MSR, Smart card, LCD, USB 2.0, IrDA)
• Intrusion detection
• 32 bit RISC Processor, operating at 12 MHz-96 MHz
• Internal: 128K SRAM, 256K FLASH, 128K ROM
• EMV Level 1 compliant
10.3 Memory
• Flash 16 Megabytes expandable to 32 megabytes
• SRAM 1 Mega Byte, expandable to 2 Megabytes (factory build option, not
field expandable)
10.4 SIM
• One SIM slot. Required for wireless functionality.
10.5 SAM
• (Secure Access Module) Capable of supporting up to two SAM cards at
once
• Supports Europay, MasterCard. Visa… SAMs
10.6 USB
• USB OTG. Master/Slave
10.7 Audio Jack
• Supports standard cellular headsets, with speaker and microphone
• 2.50 mm diameter
Way5000D Operating Instruction
Page 22
10.8 MSR
• Three track magnetic head, with flex circuit interconnect
• Low power
• Integrated ASIC F2F decoder
• Read all standard ISO cards
10.9 IrDA
• Compatible with both Woosim and Way printers
• Speed: Maximum 57.6K Baud
• Communication angles: +/- 15°
10.10 Battery
• Way Systems part number 36-0003-01
10.11 Battery Charger
• A fast charge, intelligent, Lithium Ion battery charger, conditions and
charges the phone’s internal battery in less than three hour, shutting off
automatically after the battery is topped off.
10.12 Charge Indicator
Charge status LED Color
Charge Disabled or Low Supply OFF
Charge Enable Without Battery or Fault Yellow
Battery Charging Red
Charge Completed Green
Way5000D Operating Instruction
Page 23
11 Specification:
11.1 Class:
• Class B device
11.2 Operating frequencies:
• Domestic (MC56): 850 MHz, 1800 MHz, 1900 MHz
• International (MC55): 900 MHz, 1800 MHz, 1900 MHz
11.3 Battery Type/Capacity:
• 3.6V, 1000 mAh Lithium Ion battery
• Battery life will vary due to signal strength, temperatures and features
11.4 SIM
• Compatible with all 1.8V, 3.0V and 5.0V SIMs
11.5 SAM (2)
• Compatible with all 1.8V, 3.0V and 5.0V SAMs
11.6 USB (OTG)
• USB 2.0
• Connector: B-Type
11.7 Wall charger:
• Designed to interface with all (5.0V +/- 0.5V) USB cell-phone (car/wall)
chargers, or any standard PC USB port.
11.8 Weight:
• 6.2 Ounces (Excluding case).
11.9 Size:
• 124mm (L) x 59mm (W) x 30mm (H)
Way5000D Operating Instruction
Page 24
12 REQUIREMENTS OF PART 15 - FCC RULES
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference
(2) This device must accept any interference received, including interference that
may cause undesired operation.
(3) The FCC label is located inside of the battery compartment
Information to the User - Part 15.105 (b)
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures: Reorient or relocate the receiving antenna; Increase the separation between
the equipment and receiver; Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected. Consult the dealer or an experienced
radio/TV technician for help.
Warning ( Part 15.21 )
Changes or modifications not expressly approved by Way Systems could void the
user’s authority to operate the equipment.
13 SAR (Specific Absorption Rate)
Definition: SAR is the measure of the rate of absorption of radio frequency (RF) energy
in the human body.
This product meets the government’s requirements for exposure to radio waves, and
complies with the EU Directive 1999/519/EC EMF for Mobile and Portable devices. The
way5000 is a wireless radio transmitter and receiver designed and manufactured by
Way Systems, not to exceed limits for exposure to RF energy set by the Federal
Communications Commission (FCC), and by the Canadian regulatory authorities. These
limits are part of comprehensive guidelines and establish permitted levels of RF energy
for the general population. The SAR limit set by the FCC and by the Canadian
regulatory authorities is 1.6 W/kg.1 Tests for SAR are conducted using standard
operating positions accepted by the FCC and by Industry Canada with the device
Way5000D Operating Instruction
Page 25
transmitting at its highest certified power level in all tested frequency bands. Although
the SAR is determined at the highest certified power level, the actual SAR level of the
way5000 while operating can be well below the maximum value. This is because the
way5000 is designed to operate at multiple power levels so as to use only the power
required to reach the network. In general, the closer you are to a wireless base station,
the lower the power output. Before a portable device is available for sale to the public in
the U.S. and Canada, it must be tested and certified to the FCC and Industry Canada
that it does not exceed the limit established by each government for safe exposure. The
tests are performed in positions and locations (e.g., hand-held, head, ear...) reported to
the FCC and available for review by Industry Canada. The highest SAR value as
measured on the way5000 are: head-0.553 W/kg, body-0.905 W/kg.
Additional information on SAR can be found CTIA Web site:
http://www.phonefacts.net
In the United States and Canada, the SAR limit for portable device used by the public is
1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a
substantial margin of safety to give additional protection for the public and to account for
any variations in measurements.
14 SAFETY INFORMATION
Approved Accessories
Only body worn approved way5000 accessories may be used. Operations are restricted
to belt-clips, holsters or similar accessories that have no metallic component in the
assembly. Using accessories not supplied or approved by Way Systems, may cause
your device to exceed RF energy exposure guidelines.
Pacemakers
If you have a pacemaker, consult your physician before using this product.
Persons with pacemakers should observe the following precautions:
1. When In the ON position, ALWAYS keep the way5000 more than 20 centimeters (8
inches) from your pacemaker
2. Do not carry the way5000 in the breast pocket.
3. Turn OFF the way5000 immediately if you have any reason to suspect that
interference is taking place.
Battery
1. Use only Way Systems, Inc. approved battery replacements.
2. Dispose of used batteries according to local codes pertaining to rechargeable
batteries.
3. Do not dispose of batteries in fire, as they may explode
4. Do not attempt to remove the batteries and charge them in a separate charging
unit.
5. Do not short-circuit the battery pack, as this may cause it to explode or catch fire.
Way5000D Operating Instruction
Page 26
Caution
Contact you local recycling center for proper battery disposal
Batteries can cause property damage and/or bodily injury such as burns if a conductive
material such as jewelry, keys, or beaded chains touch exposed terminals. The
conductive material may complete an electrical circuit and become very hot. Exercise
care in handling any charged battery, particularly when placing it inside a pocket, purse,
or other container with metal objects.
