Wayne Dalton 0001543 KEP-IV WIRELESS KEYLESS TRANSMITTER User Manual USERS MANUAL
Wayne Dalton Corporation KEP-IV WIRELESS KEYLESS TRANSMITTER USERS MANUAL
USERS MANUAL
5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598
Certification Exhibit
FCC ID: KJ8-0001543
IC: 3540A-0001543
FCC Rule Part: 15.231
IC Radio Standards Specification: RSS-210
ACS Report Number: 08-0038
Manufacturer: Wayne Dalton Corp
Model: KEP-IV
Manual
1
Look for the symbol for basic instructions.
Wireless Keyless
Entry
Model KEP-IV
Operating Instructions and
Owner’s Manual
Introduction/Package Content ................................................................................... 1
Warnings and Glossary ............................................................................................. 2
Programming to Opener ............................................................................................ 3
Mounting .................................................................................................................. 4
Operation/Battery Replacement ................................................................................ 5
Programming/Operation/Examples of use with Wireless Gateway...........................6-7
Warranty/Compliance................................................................................................ 8
Table of Contents
Control Garage Door Opener and
HomeSettings Home Controls
System with a secure Personal
Identification code (PIN)
Model # KEP-IV
Wireless Keyless Entry
Mounting Screws
1
Look for the symbol for basic instructions.
Wireless Keyless
Entry
Model KEP-IV
Operating Instructions and
Owner’s Manual
Package Content.......................................................................................................1
Warnings and Glossary.............................................................................................2
Programming to Operator.........................................................................................3
Mounting..................................................................................................................4
Operation/Battery Replacement................................................................................5
Programming/Operation/Examples of use withWireless Gateway...........................6-7
Compliance.............................................................................................................. 8
Table of Contents
Control Garage Door Opener and
HomeSettings Home Controls
System with a secure Personal
Identification code (PIN)
KEP-IV
Mounting Screws
Your new KEP-IV modelWireless Keyless Entry transmitter contains a state-of-the-art wireless digital
transmitter capable of operating an unlimited number of compatible garage door openers andWireless
Gateway Scenes. For added security, your Wireless Keyless Entry utilizes a “rolling code” technology that,
each time the transmitter communicates with the receiver, sets a new code, selecting from millions of
combinations, reducing the possibility of electronic equipment causing unwanted access.
Your newWireless Keyless Entry is compatible with Wayne-Dalton garage door openers, the Garage Door
Opener Conversion Module and theWireless Gateway to give you control of Z-Wave™ enabled modules
from theWayne-Dalton HomeSettings product line.
HomeSettings products byWayne-Dalton allow you to control your home by remote control. You can create
a complete Home Control andAccess Network by combining your Wireless Keyless Entry with the Wireless
Gateway, ModelWDHA-12R, to control other HomeSettings products such as indoor and outdoor lighting,
security systems, and thermostats.
PACKAGE CONTENTS
User Manual
Quick
Start
Thank you for purchasing the Wireless Keyless Entry (KEP-IV). The Wireless Keyless entry, uses a state
of the art rolling code radio frequency (RF) transmitter to control compatible peripherals.
Your new Wireless Keyless Entry can open and close your garage door when used with a Wayne-Dalton
idrive® or prodrive®, garage door opener. In addition, The Wireless Keyless Entry can control any brand
garage door opener when used in conjuction with the Wayne-Dalton Garage Door Opener Conversion
Module (model# WDRR-372R.)
For added functionality, The Wireless Keyless Entry can control scenes in a Z-Wave® enabled network
when used in conjunction with a Wayne-Dalton Wireless Gateway (model# WDHA-12R). A Z-Wave®
enabled network is made of modules which are capable of controlling indoor and outdoor lighting,
security systems, thermostats, door locks etc. Go to www.wayne-dalton.com/access for more
information.
Package contents:
User Manual
Quick
Sta rt
Installation
Safety Precautions
Never let children operate or play with door controls. Keep remote controls away from
children. Fatal injury could result should a child become trapped between the door and the
floor.
Always keep moving door in sight and keep people and objects away until it is completely
closed. To prevent serious injury or death, avoid standing in the open doorway or walking
through the doorway while door is moving.
Warning
2
Warning/Glossary
Copy – See Replicate.
Delete – Erase transmitter or SCENE information from Controller. Also known as Exclude.
Device – Any item that is connected to a Z-Wave® module (for example, lamps).
Exclude – Remove a module from the controller.
Include – Add a module to the controller.
LED – Light emitting diode.
Module – Any HomeSettings or Z-Wave® product that is controlled with a HomeSettings or
Z-Wave® remote controller. A module can be part of more than one scene.
Network – A collection of devices controlled by primary or secondary controllers operating on the
same system. A network has its own unique identification code so that no one else can control
the system.
Opener – Garage Door Opener
Primary Controller – The first controller used to set up your modules and network. NOTE: Only
the Primary Controller can be used to include or delete modules from a network. It is
recommended that you mark the primary controller for ease in modifying your network.
Replicate – Copy from one controller to another.
PIN – Personal Identification Number set by person programming the KEP-IV.
Scene – A scene is a series of Z-Wave® modules programmed to activate a specific level (on, off,
dim) with the push of a button on a controller.
Transmitter – Garage Door Opener transmitter
Glossary
Definition of Symbol
3

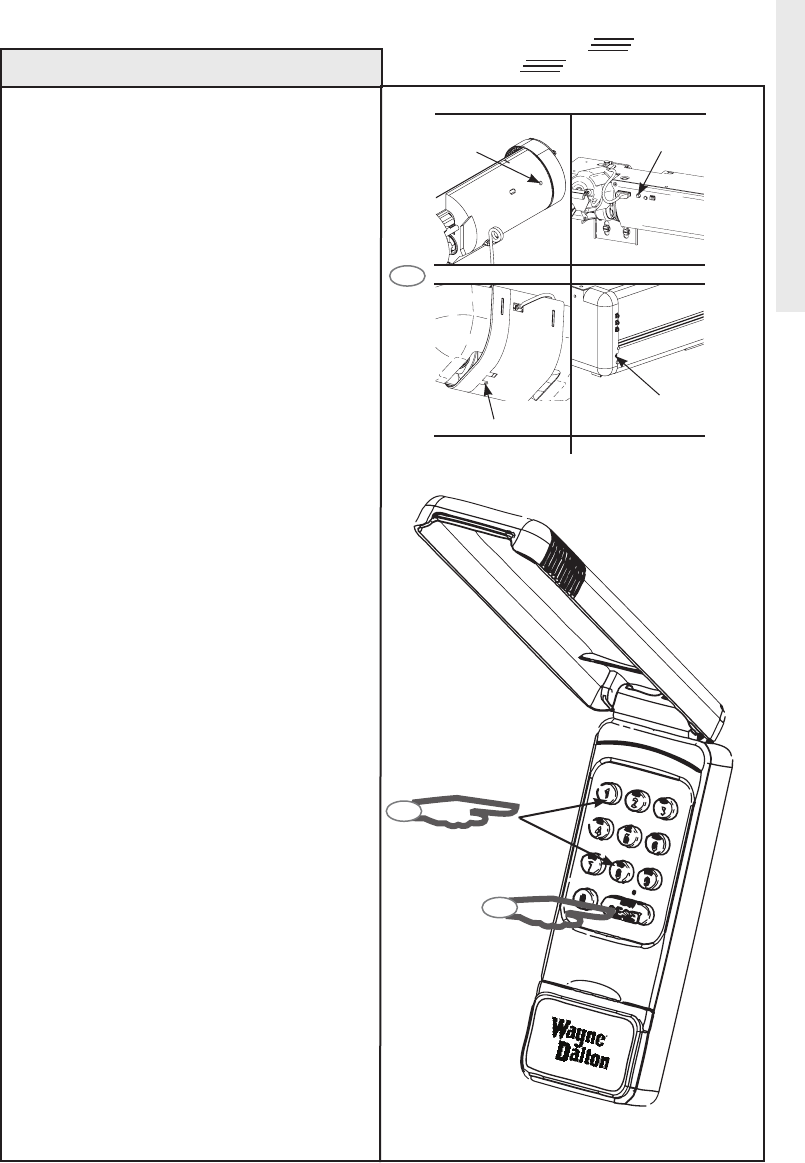

To program the KEP-IV to an Opener or to
change an existing PIN:
1. With new installations, it is recommended
to program the KEP-IV before mounting to wall,
otherwise proceed to Step 2.
2. Unit can be programmed with garage door in
either up or down position.
3. Press the transmitter PROGRAM BUTTON on
DoorMaster® light fixture, idrive®,
pro
drive®,
Quantum® or Classicdrive® opener. LED will light
or idrive® opener will beep once indicating that
it is ready to learn a transmitter. (See Illustration
on right)
The idrive® and idrive® Torsion opener will
remain in the learn mode for 30 seconds. The
DoorMaster® light fixture will remain in the learn
mode for 30 seconds. The
pro
drive®, Quantum®
or Classicdrive® opener will remain in learn
mode for 60 seconds.
4. Open the cover of the KEP-IV, then push the
ON/OFF/RESET button of the keyless entry. The
Keyless Entry keypad will light indicating it has
been activated and is waiting for commands
(illumination may not be visible in direct
sunlight.)
5. Press the desired four digit PIN number,
then hold the “0” key until the door moves.
(example:1-2-3-4-0). Release the “0” key.
Programming is now complete.
NOTE: If at any time, an error was made in
entering the codes, simply press the ON/
OFF/RESET button and repeat the above
procedures.
NOTE: One KEP-IV can be programmed
to open multiple garage door openers. To
program for additional openers, repeat steps
1 through 5 above except input a different
four digit PIN number for each additional
opener.
Only 1 PIN can be programmed to each
garage door opener.
ON/OFF/RESET
Programming KEP-IV to Opener
Programming to Opener
IDRIVE® TORSION IDRIVE® TORQUEMASTER
DOORMASTER®QUANTUM® & CLASSIC &
PRODRIVE®
PROGRAM
BUTTON
PROGRAM
BUTTON
PROGRAM
BUTTON
PROGRAM
BUTTON
Quick
Sta rt
USE KEYPAD TO
INPUT 4 DIGIT
PIN CODE
3
2
1
4

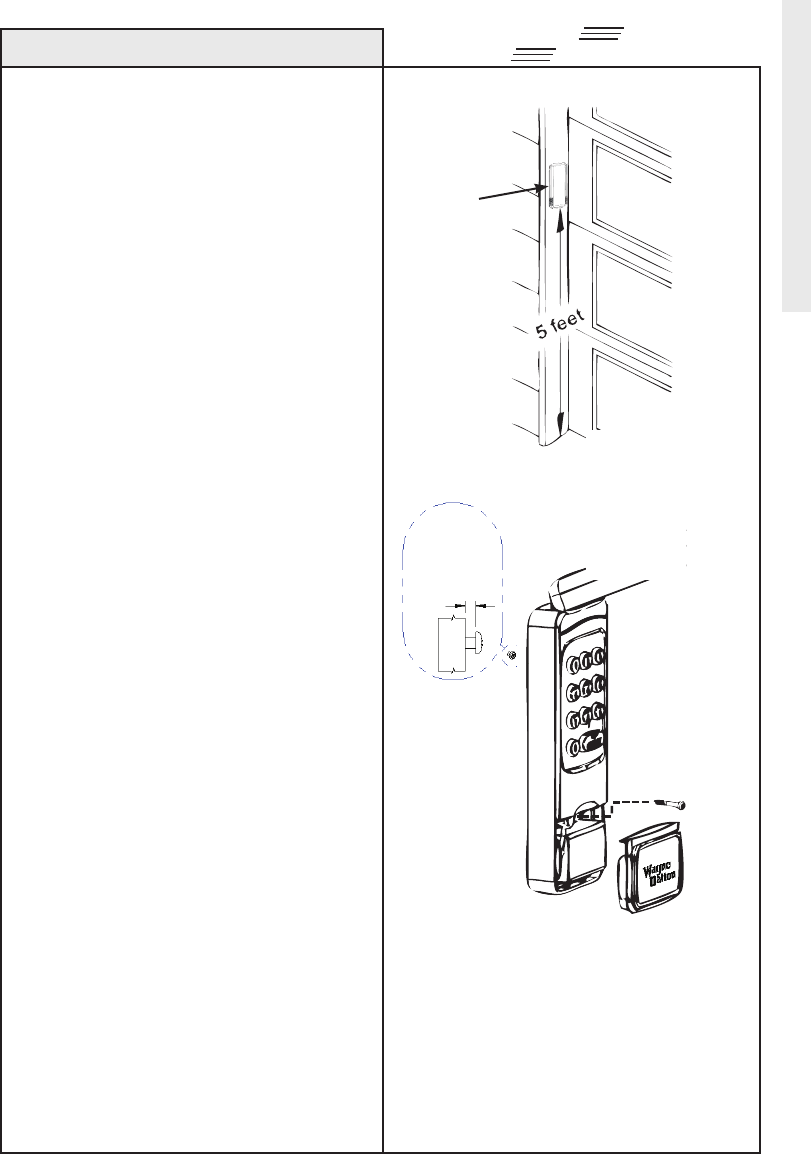

CAUTION: MOUNT THE KEP-IV A MINIMUM OF
5 FEET FROM THE FLOOR TO KEEP IT OUT OF
THE REACH OF SMALL CHILDREN.
With new installations, the KEP-IV should be
programmed before mounting to wall.
1. Choose a convenient location that does not
interfere with the normal opening and closing
operation of the door, such as the door jamb,
but is within sight of the door.
2. Two screws are included for proper
mounting into wood or other similar material.
A 5/64” X 3/4” pilot hole may need to be
drilled for the mounting screws. If mounting to
other materials consult a qualified building or
hardware specialist for the proper hardware to
insure secure mounting.
3. Insert Upper screw into upper pilot hole
leaving head of screw 1/16” away from wall as
shown in the illustration to the right.
4. Slide and lock back keyhole slot over
exposed screw and position unit vertically.
5. Remove battery door to expose lower screw
mounting hole.
6. Insert lower screw and tighten.
7. Replace battery door.
Mounting the KEP-IV
Mounting
Quick
Sta rt
1/16”
LOWER SCREW
MOUNTING HOLE
LOCATED BEHIND
BATTERY COVER
LEAVE UPPER
SCREW HEAD
AWAY 1/16”
FROM WALL
KEP-IV
WIRELESS
KEYLESS
ENTRY
5

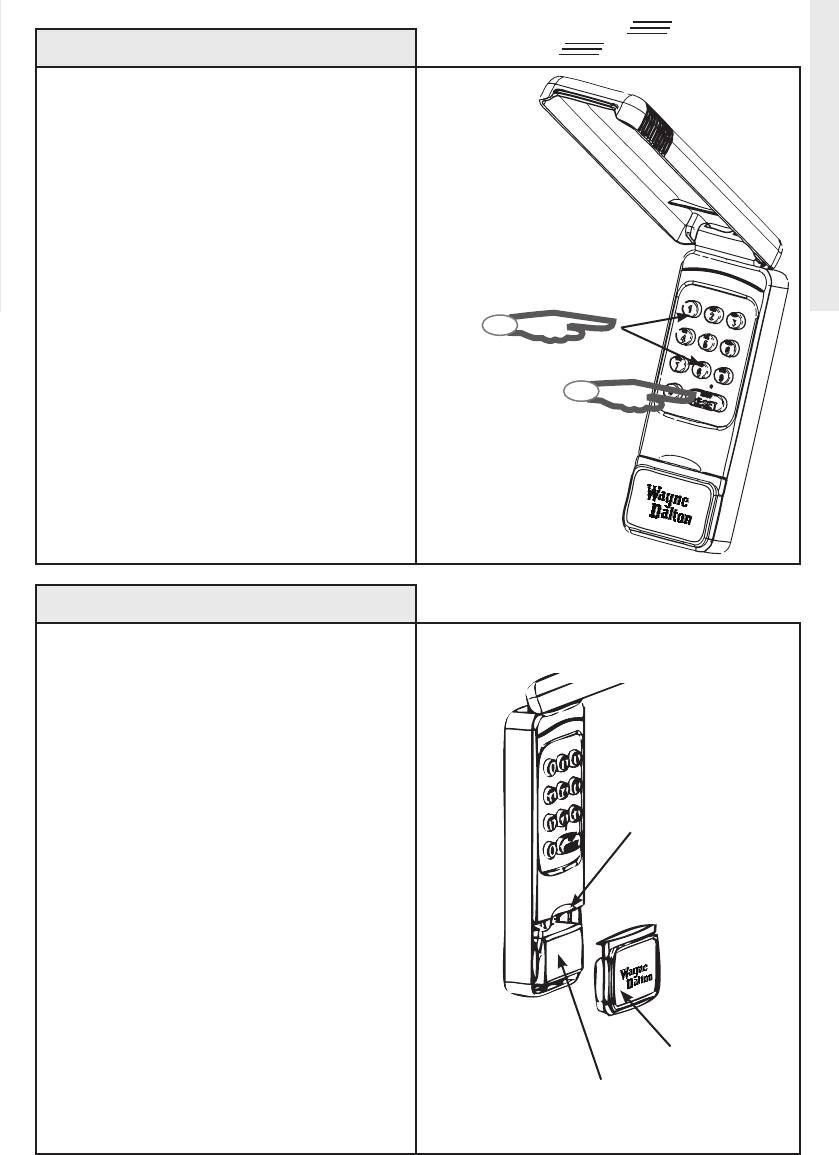

To OPEN, CLOSE, START, and STOP your
garage door opener:
1. Activate your keypad by pressing the ON/
OFF/RESET button. The keypad will illuminate.
2. Enter the 4 digit PIN (personal identification
number) for the garage door opener you want
to operate. The opener will begin to move the
door.
NOTE: The opener will not move the door
if the incorrect PIN is entered. Reset the
KEP-IV by pressing the ON/OFF/RESET
button and enter the correct PIN.
3. The KEP-IV will remain active for 15
seconds, pressing any key, except the ON/
OFF/RESET button will stop the opener from
opening the door if it is opening, and will stop
and reverse the door direction if it is closing.
KEP-IV Operation with Opener
Operation/Battery Replacement
WARNING! IF BATTERY IS SWALLOWED,
CONTACT PHYSICIAN IMMEDIATELY.
WARNING! FIRE AND BURN HAZARD. DO
NOT RECHARGE, DISASSEMBLE, HEAT, OR
INCINERATE. KEEP BATTERY OUT OF THE
REACH OF SMALL CHILDREN. INSTALL
BATTERY CORRECTLY. DISPOSE OF USED
BATTERIES PROMPTLY.
NOTE: Replace the 9 volt battery when
keypad light becomes dim or does not light
up.
1. Raise Keyless Entry Cover to expose battery
cover.
2. Snap open battery cover with a coin and
remove old battery.
3. Replace 9V battery, then replace battery
cover.
KEP-IV Battery Replacement
ON/OFF/RESET
USE KEYPAD
TO INPUT
4 DIGIT PIN
CODE
Quick
Sta rt
BATTERY
COVER
BATTERY
USE COIN TO PRY
OPEN BATTERY
COVER
1
2
6

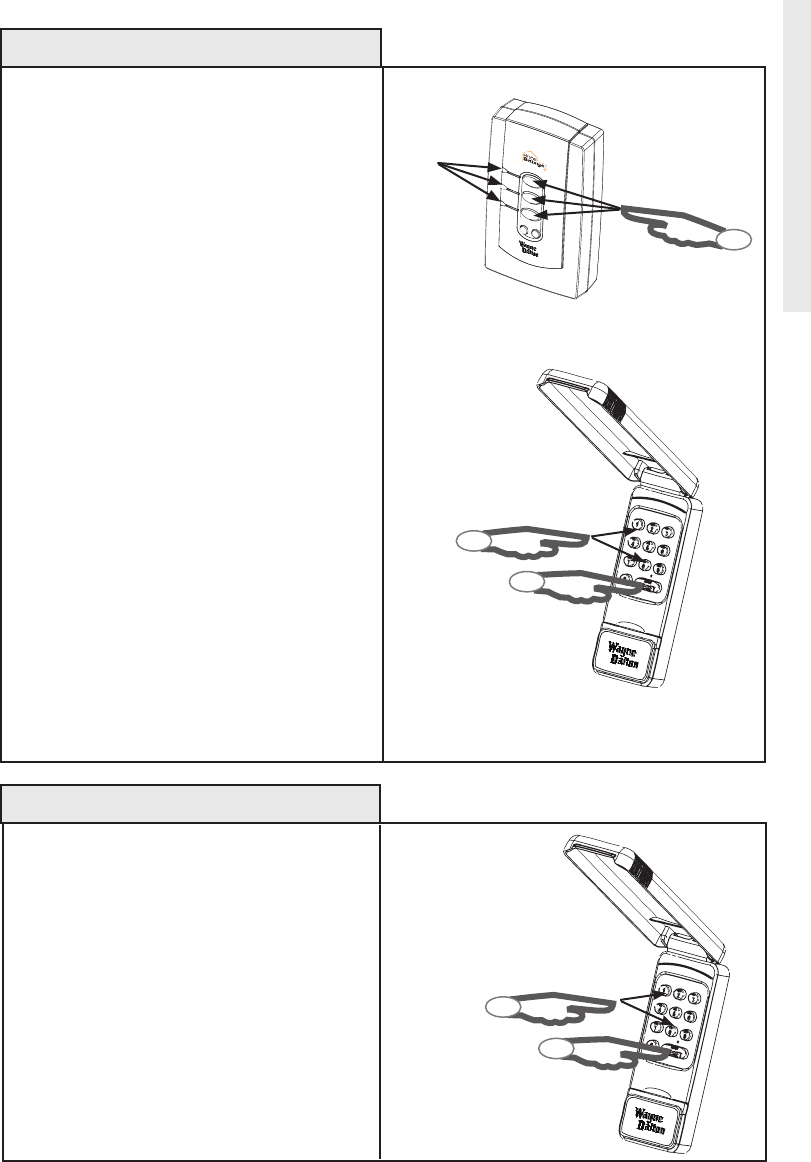

To program a PIN to a Scene button on the
Wireless Gateway, WDHA-12R, or to reassign a
PIN to a Scene button:
1. Press and Hold the Scene button you wish
to program on the Wireless Gateway, either
Scene 1, 2 or 3, until the LED turns off, then
immediately release the Scene button (before
the LED turns on again.)
2. Open the cover of the KEP-IV, then push the
ON/OFF/RESET button of the keyless entry. The
Keyless Entry keypad will light indicating it has
been activated and is waiting for commands
(illumination may not be visible in direct
sunlight.)
3. Press the desired four digit PIN number.
(example:1-2-3-4). Programming to the Scene
is now complete.
The LED on the Wireless Gateway will
flash three (3) times quickly to indicate the
programming is successful.
Note:
Your KEP-IV cannot directly operate
Z-Wave® modules, the Z-Wave® modules
must be programmed to the Gateway
Scene to which you have programmed your
KEP-IV PIN code. See the Gateway User
Manual for instructions on programming
Z-Wave® modules.
Note:
Each Scene on the Gateway must be
programmed with a different PIN.
To operate a Wireless Gateway Scene:
1. Activate your keypad by pressing the
ON/OFF/RESET button and the keypad will
illuminate.
2. Enter the 4 digit PIN (personal identification
number) for the specific Scene you want to
activate.
3. Your Keypad will turn off automatically in 15
seconds, or you may manually turn it off.
Programming KEP-IV to Wireless Gateway
KEP-IV Operation with Gateway
Scene 1
Scene 2
Scene 3
Delete
Copy
CHOOSE 1
SCENE BUTTON
LEDs
Programming to Gateway
ON/OFF/RESET
USE KEYPAD TO
INPUT 4 DIGIT
PIN CODE
ON/OFF/RESET
USE KEYPAD TO
INPUT 4 DIGIT
PIN CODE
2
3
1
2
1
7
Examples of how your KEP-IV can be used
with the Wireless Gateway, WDHA-12R are
described below. For further ideas, please
visit our website at www.wayne-dalton.
com/access.
1. Deck/Patio/Barbecue Area: Mount the
KEP-IV in a convenient location and pair it with
the Gateway to control outside lighting. Use it
to turn on or off your flood lights and landscape
lighting and control pre-configured dimmed
mood Scenes.
NOTE:
One KEP-IV may be used with
multiple Gateway’s to achieve the desired
number of Scenes.
2. Pool/Hot Tub Area: Use the battery powered
KEP-IV paired to the Gateway to safely control
outdoor and landscape lights from a pool/hot
tub area. Create pre-configured dimmed mood
Scenes on the Gateway and activate them using
the KEP-IV.
3. Outbuildings: Turn on/off the lighting of
your outbuildings from your back door for
convenience and safety.
4. Yard/Landscape Lighting: Turn on/off your
yard flood lights or landscape lighting from
outside. Save time and extra effort by mounting
a KEP-IV near your garden tools to control your
outdoor lighting.
Examples require the following modules:
X = Number required for your particular
application
1 - Wireless Gateway, WDHA-12R
1 - Wireless Keypad Entry, KEP-IV
X -Dimmer Switch Module HA-06WD (for each
in-wall mounted light switch)
X - Outdoor Module, HA-04WD (for outside
landscape lighting)
1 - Wireless Gateway, WDHA-12R
1 - Wireless Keypad Entry, KEP-IV
X -Dimmer Switch Module HA-06WD (for each
in-wall mounted light switch)
X - Outdoor Module, HA-04WD (for outside
landscape or pathway lighting)
1 - Wireless Gateway, WDHA-12R
1 - Wireless Keypad Entry, KEP-IV
X -Dimmer Switch Module HA-06WD (for each
in-wall mounted light switch)
X - Appliance Module, HA-02WD (for power
equipment or lighting)
1 - Wireless Gateway, WDHA-12R
1 - Wireless Keypad Entry, KEP-IV
X -Dimmer Switch Module HA-06WD (for each
in-wall mounted light switch)
X - Outdoor Module, HA-04WD (for outside
landscape or pathway lighting)
Examples of KEP-IV / Gateway Use
Examples/Patents
Covered by one or more of the following Patents D413,579; 6,903,650; 7,173,514; 7,327,107.
Other US and Foreign Patents pending.
FCC and IC Statement
You can reach us for Consumer Assistance online at www.wayne-dalton.com/access
© Copyright 2008 Wayne-Dalton Corp. Part No.0001684 Rev A 04/03/08
8
Limited Warranty Wireless Keyless Entry Model: KEP-IV
Warranty/Compliance
FCC Regulatory Information:
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the
interference by one or more of the following measures:
a) reorient or relocate the receiving antenna,
b) increase the separation between the equipment and receiver,
c) connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
IC Regulatory Information:
This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Operation
is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation of the device.
Cet appareillage numérique de la classe B répond a toutes les exigences de l’interférence canadienne causant des règlements
d’équipement. L’opération est sujette aux deux conditions suivantes: (1) ce dispositif peut ne pas causer l’interférence nocive, et (2)
ce dispositif doit accepter n’importe quelle interférence reçue, y compris l’interférence qui peut causer l’opération peu désirée.
WARNING: Changes or modications not expressively approved by the party responsible for compliance could void the user’s
authority to operate the equipment. The term “IC:” before the radio certication number only signies that Industry
Canada technical specications were met.
Subject to the terms and conditions contained in this Limited Warranty, Wayne-Dalton Corp. (“Manufacturer”) warrants the Wireless Keyless Entry,
including electronic components (Batteries are not warranted), which is described at the top of this page, for a period of ONE (1) YEAR from the date of
installation against:
(i) Any defects in material or workmanship.
This Limited Warranty is extended only to the person who purchased the product and continues to own the premises (where the product is installed) as
his/her primary residence (“Buyer”).This Limited Warranty does not apply to residences other than primary, or to commercial or industrial installations, or
to installations on rental property (even when used by a tenant as a residence). This Limited Warranty is not transferable to any other person (even when
the premises. is sold), nor does it extend benefits to any other person. As a result this Limited Warranty does NOT apply to any person who purchases the
product from someone other than an authorized Wayne-Dalton dealer or distributor.
The Manufacturer will not be responsible for any damage attributable to improper storage, improper installation, or any alteration of the product or its
components, abuse, fire, Acts of God, failure to properly maintain the product, or attempt to use the product, its components or related products for other
than its intended purpose and its customary usage. This Limited Warranty does not cover ordinary wear.
THIS LIMITED WARRANTY COVERS A CONSUMER PRODUCT AS DEFINED BY THE MAGNUSON-MOSS ACT. NO WARRANTIES, EXPRESS OR
IMPLIED (INCLUDING BUT NOT LIMITED TO THE WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE) WILL EXTEND BEYOND
THE TIME PERIOD SET FORTH IN UNDERSCORED BOLD FACE TYPE IN THIS LIMITED WARRANTY, ABOVE.
• Some States do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.
Any claim under this Limited Warranty must be made in writing, within the applicable warranty period, to the dealer from which the product was pur-
chased. Unless the dealer is no longer in business, a written claim to the Manufacturer will be the same as if no claim had been made at all.
At the Manufacturer’s option, pursuant to the dealer having notified the Manufacturer of a warranty claim, a service representative may inspect the prod-
uct on site, or Buyer may be required to return the product to the Manufacturer at Buyer’s expense. Buyer agrees to cooperate with any representative of
the Manufacturer and to give such representative full access to the product with the claimed defect and full access to the location of its installation.
If the Manufacturer determines that the claim is valid under the terms of this Limited Warranty, the Manufacturer will cause the defective product to
be repaired or replaced. The decision about the manner in which the defect will be remedied will be at the discretion of the Manufacturer, subject to
applicable law. THE REMEDY WILL COVER ONLY MATERIAL. THIS LIMITED WARRANTY DOES NOT COVER OTHER CHARGES, SUCH AS FIELD SERVICE
LABOR FOR REMOVAL, INSTALLATION, SHIPPING, ETC.
Any repairs or replacements arranged by Manufacturer will be covered by (and subject to) the terms, conditions, limitations and exceptions of this
Limited Warranty; provided, however, that the installation date for the repaired or replaced product will be deemed to be the date the original product
was installed, and this Limited Warranty will expire at the same time as if there had been no defect. If a claim under this Limited Warranty is resolved in a
manner other than described in the immediately preceding paragraph, then neither this Limited Warranty nor any other warranty from the Manufacturer
will cover the repaired or replaced portion of the product.
THE REMEDIES FOR THE BUYER DESCRIBED IN THIS LIMITED WARRANTY ARE EXCLUSIVE and take the place of any other remedy. The liability of the
Manufacturer, whether in contract or tort, under warranty, product liability, or otherwise, will not go beyond the Manufacturer’s obligation to repair or
replace, at its option, as described above. THE MANUFACTURER WILL NOT UNDER ANY CIRCUMSTANCES BE LIABLE FOR SPECIAL, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, including (but not limited to) damage or loss of other property or equipment, personal injury, loss of profits or revenues,
business or service interruptions, cost of capital , cost of purchase or replacement of other goods, or claims of third parties for any of the foregoing.
• Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not
apply to you.
No employee, distributor, dealer, representative, or other person has the authority to modify any term or condition contained in this Limited Warranty or to
grant any other warranty on behalf of or binding on the Manufacturer, and anyone’s attempt to do so will be null and void.
Buyer should be prepared to verify the date of installation to the satisfaction of the Manufacturer.
The rights and obligations of the Manufacturer and Buyer under this Limited Warranty will be governed by the laws of the State of Ohio, USA, to the
extent permitted by law.
• This Limited Warranty gives you specific legal rights and you may also have other rights, which may vary from State to State.
