55008 03/21/01
Liquid Propane Gas
A002.g
B003.d
C002.c
D002.g
®®
W
E
B
E
R
W
E
B
E
R
Owners Guide
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flames.
3. Open lid
4. If odor continues, keep away from the
appliance and immediately call your
gas supplier or your fire department.
Leaking gas may cause a fire or explosion
which can cause serious bodily injury or
death, or damage to property.
WARNING
1. Do not store spare liquid propane
cylinder within 10 feet (3m) of this
appliance.
2. Do not store or use gasoline or other
flammable liquids or vapors within 25
feet (8m) of this appliance.
WARNING: Follow all leak-check
procedures carefully in this manual prior
to barbecue operation. Do this even if the
barbecue was dealer-assembled.
NOTICE TO INSTALLER: These instructions
must be left with the owner and the owner
should keep them for future use.
THIS GAS APPLIANCE IS DESIGNED FOR
OUTDOOR USE ONLY.
WARNING: Do not try to light this
appliance without reading the “Lighting”
Instructions section of this manual
YOU MUST READ THIS OWNERS GUIDE
BEFORE OPERATING YOUR GAS GRILL
A-2
DANGER
Failure to follow the Dangers, Warnings and Cautions contained in this Owner’s Manual
may result in serious bodily injury or death, or in a fire or an explosion causing damage
to property.
WARNINGS
Do not store a spare or disconnected liquid propane cylinder under or near this barbecue.
Improper assembly may be dangerous. Please carefully follow the assembly instructions in
this manual.
After a period of storage, and/or nonuse, the Weber Gas Barbecue should be checked for gas
leaks and burner obstructions before use. See instructions in this manual for correct
procedures.
Do not operate the Weber gas barbecue if there is a gas leak present.
Do not use a flame to check for gas leaks.
Combustible materials should never be within 24 inches of the top, bottom, back or sides of
your Weber gas barbecue.
Do not put a barbecue cover or anything flammable on, or in the storage area under the
barbecue.
Your Weber Gas Barbecue should never be used by children. Accessible parts of the
barbecue may be very hot. Keep young children away while it is in use.
You should exercise reasonable care when operating your Weber gas barbecue. It will be hot
during cooking or cleaning and should never be left unattended, or moved while in operation.
Should the burners go out while in operation, turn all gas valves off. Open the lid and wait five
minutes before attempting to relight, using the lighting instructions.
Do not use charcoal or lava rock in your Weber gas barbecue.
Never lean over open grill or place hands or fingers on the front edge of the cooking box.
Should a grease fire occur, turn off all burners and leave lid closed until fire is out.
Do not enlarge valve orifices or burner ports when cleaning the valves or burners.
The Weber Gas Barbecue should be thoroughly cleaned on a regular basis.
Liquid propane gas is not natural gas. The conversion or attempted use of natural gas in a
liquid propane unit or liquid propane gas in a natural gas unit is dangerous and will void your
warranty.
Do not attempt to disconnect any gas fitting while your barbecue is in operation.
Use heat-resistant barbecue mitts or gloves when operating barbecue.
Combustion byproducts produced when using this product contain chemicals known to the
state of California to cause cancer, birth defects, or other reproductive harm.
LIQUID PROPANE GAS UNITS ONLY:
Use the regulator that is supplied with your Weber Gas Barbecue.
Do not attempt to disconnect the gas regulator or any gas fitting while your barbecue is in
operation.
A dented or rusty liquid propane cylinder may be hazardous and should be checked by your
liquid propane supplier. Do not use a liquid propane cylinder with a damaged valve.
Although your liquid propane cylinder may appear to be empty, gas may still be present, and
the cylinder should be transported and stored accordingly.
If you see, smell or hear the hiss of escaping gas from the liquid propane cylinder:
1. Move away from liquid propane cylinder.
2. Do not attempt to correct the problem yourself.
3. Call your fire department.
A-3
Weber-Stephen Products Co. (Weber) hereby warrants
to the ORIGINAL PURCHASER of this Weber Gas Grill
that it will be free of defects in material and
workmanship from the date of purchase as follows:
when assembled and operated in accordance with the
printed instructions accompanying it.
Weber may require reasonable proof of your date of
purchase. THEREFORE, YOU SHOULD RETAIN
YOUR SALES SLIP OR INVOICE.
This Limited Warranty shall be limited to the repair or
replacement of parts that prove defective under normal
use and service and which on examination shall
indicate, to Weber’s satisfaction, they are defective.
Before returning any parts, contact the Customer
service representative in your region using the contact
information sheet provided with your manual. If Weber
confirms the defect and approves the claim, Weber will
elect to replace such parts without charge. If you are
required to return defective parts, transportation
charges must be prepaid. Weber will return parts to the
purchaser, freight or postage prepaid.
This Limited Warranty does not cover any failures or
operating difficulties due to accident, abuse, misuse,
alteration, misapplication, vandalism, improper
installation or improper maintenance or service, or
failure to perform normal and routine maintenance,
including but not limited to damage caused by insects
within the burner tubes, as set out in this owner’s
manual.
Deterioration or damage due to severe weather
conditions such as hail, hurricanes, earthquakes or
tornadoes, discoloration due to exposure to chemicals
either directly or in the atmosphere, is not covered by
this Limited Warranty.
Aluminum Castings, lifetime, 1 year paint
Porcelain Hood Section, 25 years
Burners, 10 years
Igniter, 3 years
Cooking Grates, 3 years no rust through
Flavorizer Bars, 1 year no rust through
Thermoplastic/
Thermoset Parts, 10 years Excluding fading
All Remaining Parts, 5 years,
Warranty
There are no other express warrants except as set forth
herein and any applicable implied warranties of
merchantability and fitness are limited in duration to the
period of coverage of this express written Limited
Warranty. Some regions do not allow limitation on how
long an implied warranty lasts, so this limitation may not
apply to you.
Weber is not liable for any special, indirect or
consequential damages. Some regions do not allow the
exclusion or limitation of incidental or consequential
damages, so this limitation or exclusion may not apply
to you.
Weber does not authorize any person or company to
assume for it any other obligation or liability in
connection with the sale, installation, use, removal,
return, or replacement of its equipment; and no such
representations are binding on Weber.
This Warranty applies only to products sold at retail.
WEBER-STEPHEN PRODUCTS CO.
Customer Service Center
1890 Roselle Road, Suite 308
Schaumburg, IL 60195
USA
LP Cylinder
The LP cylinder manufacturer is responsible for the
materials, workmanship and performance of the
cylinder. If the cylinder has a defect, malfunctions, or
you have a question regarding the cylinder, call the
cylinder manufacturer’s customer service center. The
phone number is on the warning decal, which is
permanently attached to the cylinder. If the cylinder
manufacturer has not resolved the issue to your
satisfaction, then call Weber-Stephen Products Co.,
Customer Service Center.
A-4
Danger & Warnings ................................ A-2
Warranty ................................................. A-3
General Instructions ............................... A-5

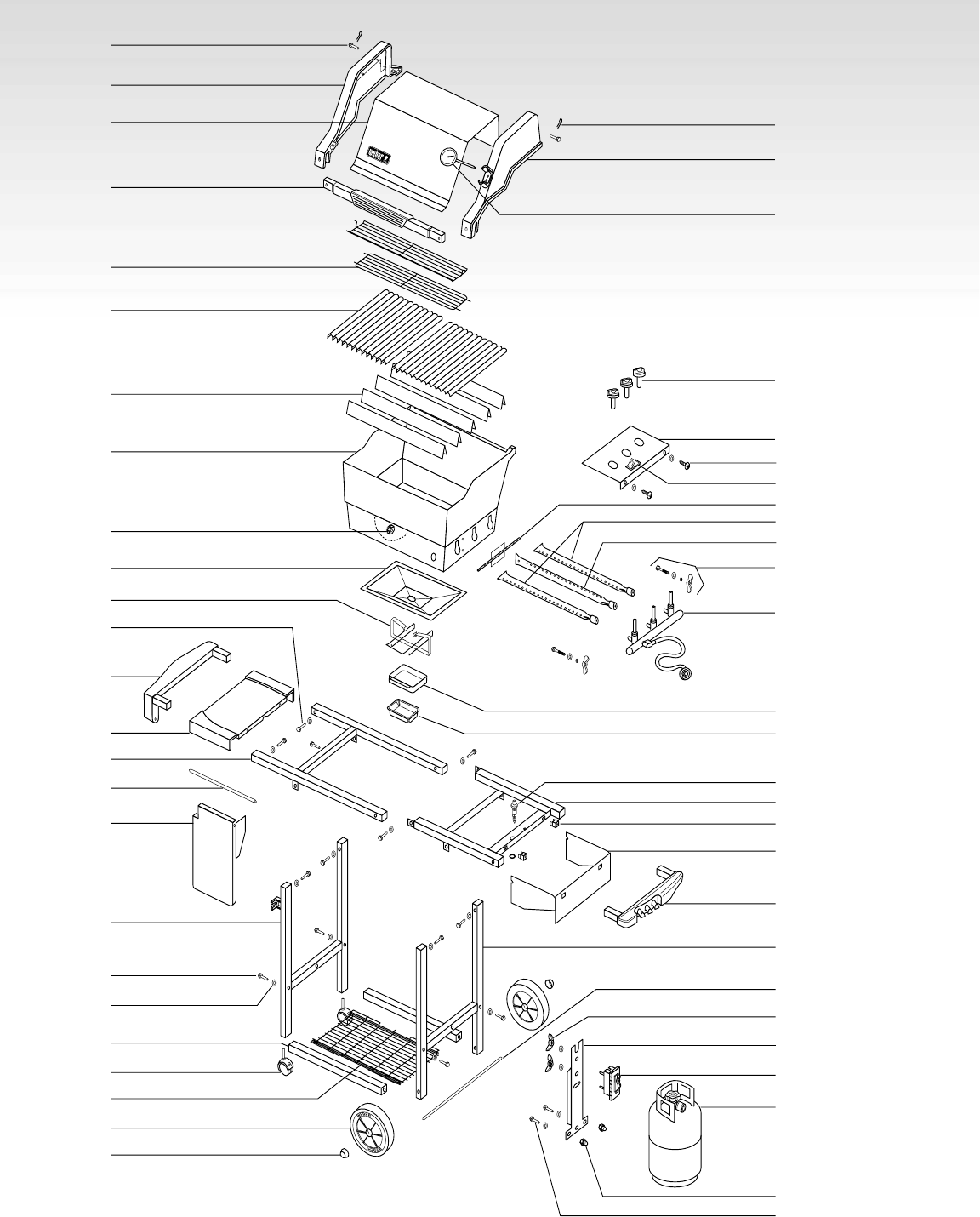

Exploded View........................................ A-6

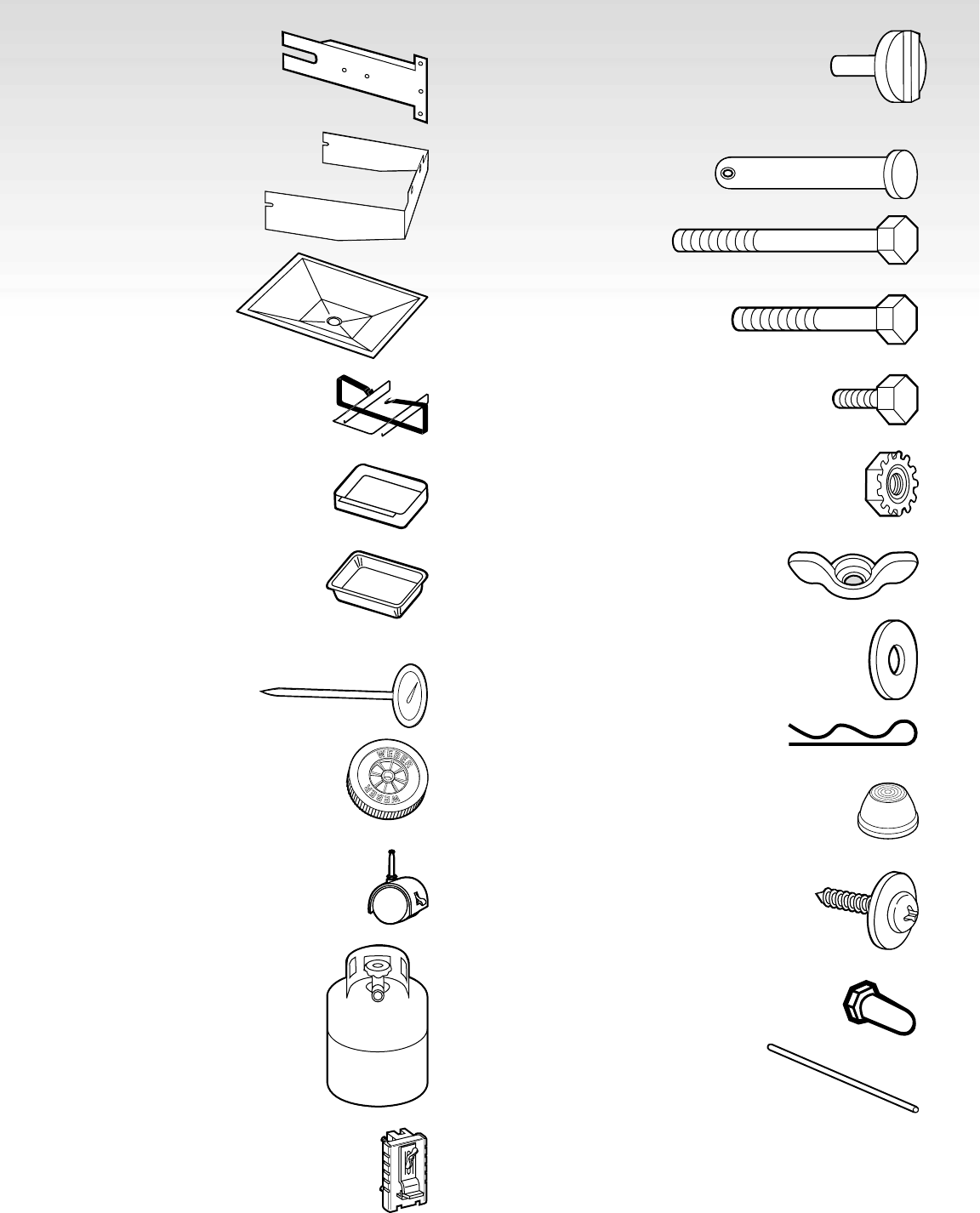

Parts List ................................................ A-9
Assembly Instructions ............................ B-1
Installing Features .................................. C-1
Operating ............................................... D-1
Lighting................................................... D-1
Manual Lighting ...................................... D-2
Cooking .................................................. D-3
Storage and/or Nouse ............................ D-3
Cleaning ................................................. D-3
Refilling the LP Cylinder ......................... D-4
Safe handling tips for LP Gas................. D-6
Annual Maintenance .............................. D-7
General Maintenance ............................. D-8
Replacing Main Burners ......................... D-9
Crossover Ignition System Operations ... D-10
Troubleshooting ...................................... D-11
Contents
A-5

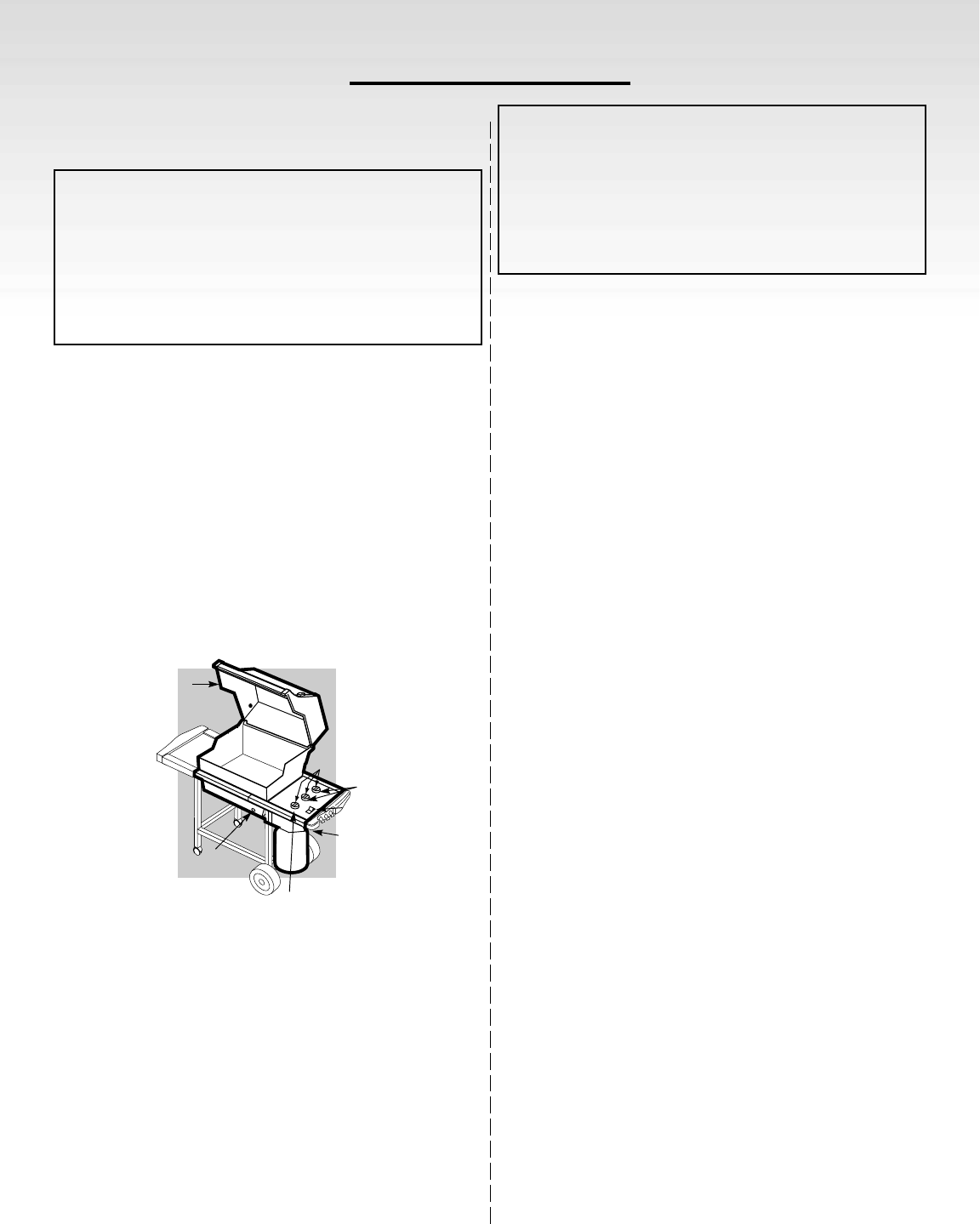

General Instructions
Your Weber Gas Barbecue is a portable outdoor
cooking appliance. With the Weber Gas Barbecue you
can grill, barbecue, roast and bake with results that are
difficult to duplicate with indoor kitchen appliances.
The closed lid and Flavorizer® Bars produce that
“outdoor” flavor in the food.
The Weber Gas Barbecue is portable so you can
easily change its location in your yard or on your patio.
Portability means you can take your Weber Gas
Barbecue with, if you move.
Liquid Propane (LP) gas supply is easy to use and
gives you more cooking control than charcoal fuel.
•These instructions will give you the minimum
requirements for assembling your Weber Gas
Barbecue. Please read the instructions carefully
before using your Weber Gas Barbecue. Improper
assembly can be dangerous.
•Not for use by children.
•If there are local codes that apply to portable gas
grills, you will have to conform to them. If there are
no local codes, you must conform to the latest
edition of the National Fuel Gas Code: ANSI Z
223.1.
•The pressure regulator supplied with the Weber
Gas Barbecue must be used. This regulator is set
for 10.5 inches of water column (pressure).
•This Weber Gas Barbecue is designed for use with
liquid propane (LP) gas only. Do not use with
natural (piped in city) gas. The valves, orifices,
hose and regulator are for LP gas only.
•Do not use with charcoal fuel.
•Check that the area under the control panel and
the bottom tray are free from debris that might
obstruct the flow of combustion or ventilation air.
•The areas around the LP cylinder must be free
and clear from debris.
For Installation in Canada
These instructions, while generally acceptable, do not
necessarily comply with the Canadian Installation
codes, particularly with piping above and below
ground. In Canada the installation of this appliance
must comply with local codes and/or Standard CAN/
CGA-B149.2 (Installation Code for Propane Burning
Appliances and Equipment).
Storage
•The gas must be turned OFF at the LP cylinder
when the Weber Gas Barbecue is not in use.
•When the Weber Gas Barbecue is stored indoors,
the gas supply must be disconnected and the LP
cylinder stored outdoors in a well-ventilated space.
•LP cylinders must be stored outdoors in a well-
ventilated area out of the reach of children.
Disconnected LP cylinders must not be stored in a
building, garage or any other enclosed area.
•When the LP cylinder is not disconnected from the
Weber Gas Barbecue, the appliance and LP
cylinder must be kept outdoors in a well-ventilated
space.
Operating
WARNING: Only use this barbecue outdoors in a
well-ventilated area. Do not use in a garage,
building, breezeway or any other enclosed area.
WARNING: Never use your Weber Gas Barbecue
under an unprotected combustible roof or
overhang.
WARNING: Your Weber Gas Barbecue is not
intended to be installed in or on recreational
vehicles and/or boats.
WARNING: Do not use combustible materials
within 24 inches of the top, bottom, back or sides
of the grill.
WARNING: The entire cooking box gets hot
when in use. Do not leave unattended.
WARNING: Keep any electrical supply cord and
the fuel supply hose away from any heated
surface.
WARNING: Keep the cooking area clear of
flammable vapors and liquids such as gasoline,
alcohol, etc., and combustible materials.
WARNING: Never store an extra (spare) LP
cylinder under or near the Weber Gas Barbecue.
A-6
Genesis Silver-B LP 011901
5
1
2
3
4
6
7
8
9
10
11
12
14
13
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
32
43
44
45
46
47
49
48
50
51
52
A-7
1. Hinge Pin
2. Left Endcap
3. Shroud
4. Handle
5. Warm-Up™ Basket
6. Warming Rack
7. Cooking Grates
8. Flavorizer Bars
9. Cooking Box
10. 1/4-20 keps nut
11. Slide Out Bottom Tray
12. Catch pan holder
13. 1/4-20 x 1/2 inch bolt
14. Left Trim piece
15. Work Surface
16. Left Frame
17. Hinge Rod
18. Swing-Up Work Surface
19. Caster Frame
20. 1/4-20 x 2 inch bolt
21. Nylon washers
22. Frame Connectors
23. Casters
24. Bottom Shelf
25. Wheels
26. Hubcap
27. Hair Pin Cotter
28. Right Endcap
29. Thermometer
30. Burner Control Knobs
31. Control Panel
32. Control Panel Hardware
33. Ignitor Button
34. Crossover Tube
35. Front and Back Burners
36. Center Burner
37. Manifold Hardware
38. Manifold, Hose and regulator (assembled)
39. Catch Pan
40. Disposable Drip Pan
41. Igniter
42. Right Frame
43. Control Panel Trim Piece
44. Right Trim Piece
45. Wheel Frame
46. Axle Rod
47. Wing Nuts
48. Cylinder Panel
49. Fuel Guage
50. Liquid Propane Cylinder
51. Cylinder Glides
52. 1/4-20 x 1 3/4 inch bolt
A-8
© 2001 Weber-Stephen Products Co., Weber, the silhouette, and the kettle configuration are registered trademarks
of Weber-Stephen Products Co., 200 East Daniels Road, Palatine, IL, 60067-6266, U.S.A. This product is covered by
one or more United States patents and patents in other nations globally. Printed in the U.S.A.
®
A-9

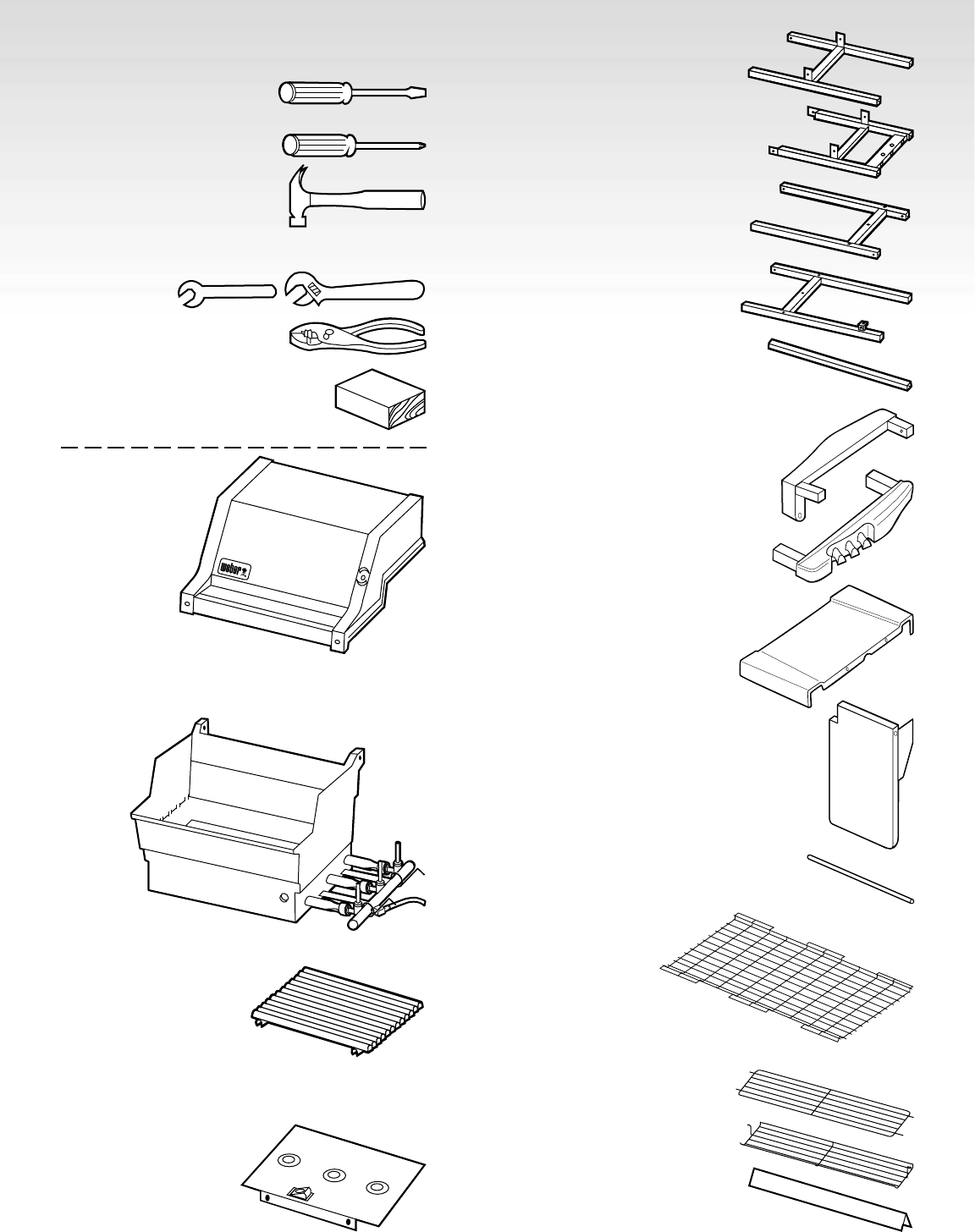

You will need:
Screwdriver
Phillips screwdriver
Hammer
7/16 open-end or an adjustable wrench
Pliers
Block of wood
Lid - 1
Cooking Box - 1
Cooking grates - 2
Control panel - 1
Left Frame - 1
Right Frame - 1
Wheel Frame - 1
Caster Frame - 1
Frame Connectors - 2
Left Trim - 1
Right Trim - 1
Work Surface - 1
Swing-Up Work Surface - 1
Hinge Rod - 1
Bottom Shelf - 1
Warming Rack - 1
Warm-Up Basket - 1
Flavorizer Bars - 5
®
®®®®
A-10
Cylinder Panel - 1
Wrap-Around Trim Piece - 1
Bottom tray - 1
Catch Pan Holder - 1
Catch-Pan - 1
Disposable Drip Pans - 2
Thermometer - 1
Wheels - 2
Casters - 2
Liquid Propane Cylinder - 1
Fuel Guage - 1
Burner Control Knobs - 3
Hinge Pins (1/4 x 1 1/2 inch clevis pin) - 2
2 inch bolts (1/4 x 20 x 2 inch bolts) - 5
1 3/4 inch bolts (1/4 x 20 x 1 3/4 inch bolts) - 2
1/2 inch bolts (1/4 x 20 x 1/2 inch bolts) - 8
Keps Nut (1/4 x 20 Keps Nut) - 1
Wing Nut (1/4 x 20 Wing Nut) - 2
Nylon Washers - 15
Hair Pin Cotter - 2
Hubcaps - 3
Control Panel Hardware
(Phillips screws/washers) - 2
Cylinder Glides - 2
Axle Rod - 1
1
Assembly Instructions

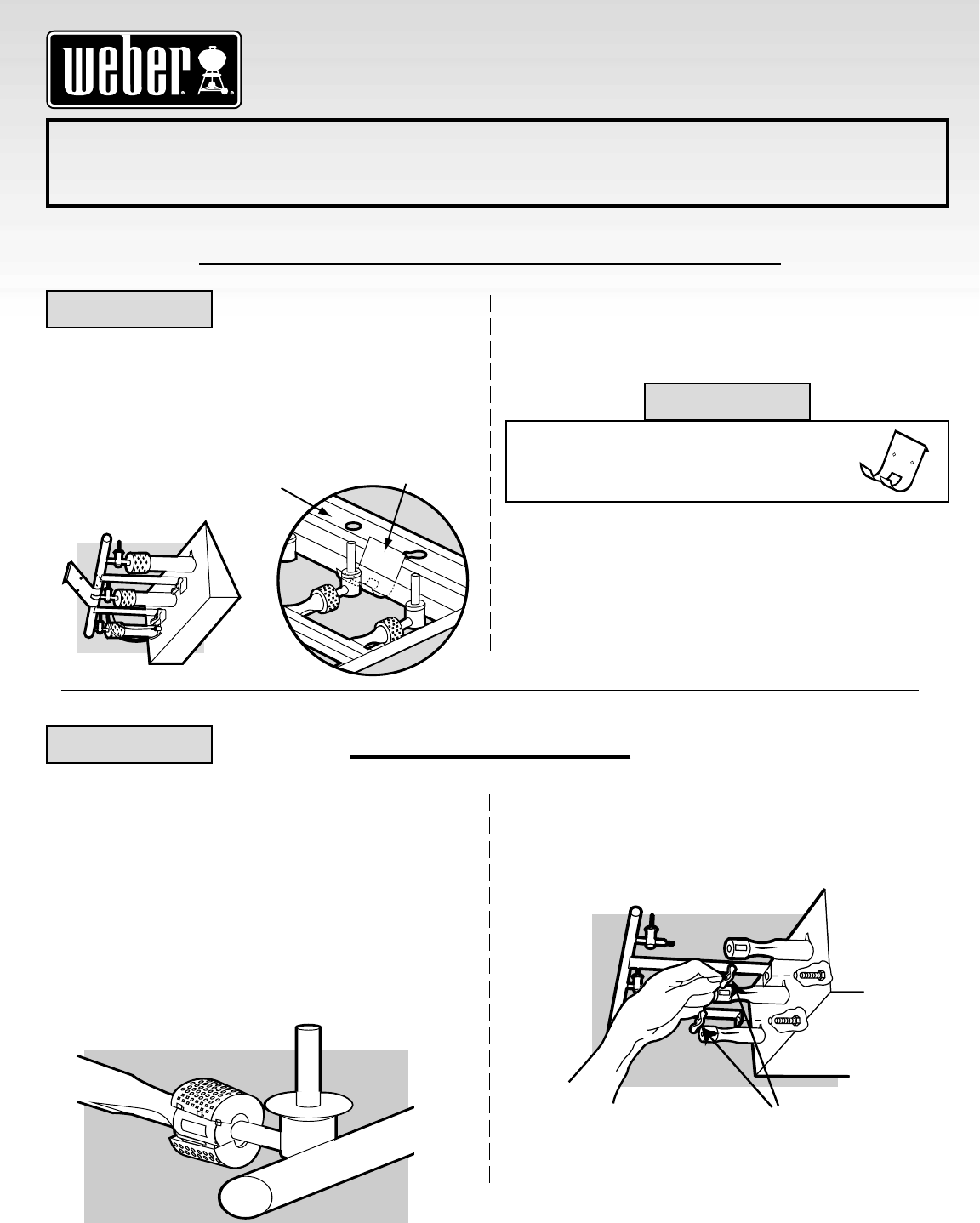

Install manifold bracket
You will need: manifold bracket
Hook the bracket(2) onto the manifold at the center
burner valve. Place your hand underneath the bracket.
Lift the manifold and cooking box slightly, then hook the
tab of the bracket on the frame brace(1).
(1) (2)
Addendum Sheet
* See Section B *
Operating
* See Section D *
General Maintenance

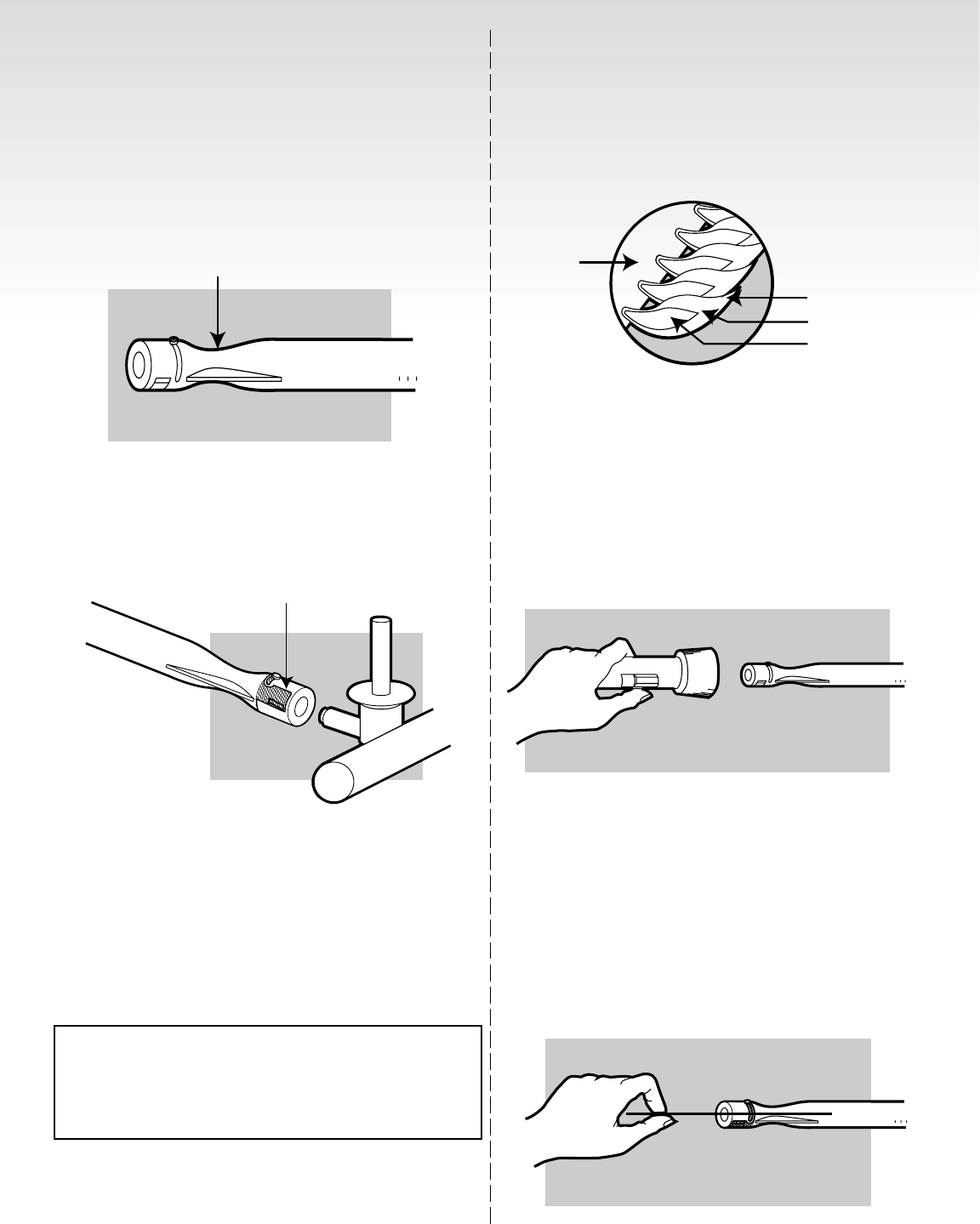

Weber Spider Stopper™ Guards
Your Weber Gas Barbecue, as well as any outdoor gas
appliance, is a target for spiders and other insects. They
can nest in the venturi section (Venturi(1), air shutter(2),
venturi fin(3) ) of the burner tubes. This blocks the
normal gas flow, and can cause the gas to flow back out
of the air shutter. This could result in a fire in and around
the air shutters, under the control panel, causing serious
damage to your barbecue.
(1)
The Weber Spider Stopper™ Guard(1) is factory installed.
It fits tightly around the air shutter section of the burner
tube and the valve, thereby preventing spiders and other
insects access to the burner tubes through the air shutter
openings.
You may have a different style manifold bracket and Spider Stopper Guard listed in your
instruction manual. If you do, please follow these steps below in place of the steps
included in the manual.
We recommend that you inspect the Weber Spider
Stopper Guards at least once a year. (See Section
“Annual Maintenance”.) Also inspect and clean the
Spider Stopper Guards if any of the following
symptoms should ever occur:
Manifold Support Bracket - 1
* See Section A *
ADD US 09/30/00
2
(1)
(1)
(1)
(2)
(1)
1) The smell of gas in conjunction with the burner flames
appearing yellow and lazy.
2) Barbecue does not reach temperature.
3) Barbecue heats unevenly.
4) One or more of the burners do not ignite.
DANGER
Failure to correct the above mentioned
symptoms may result in a fire, which can
cause serious bodily injury or death, and
cause damage to property.

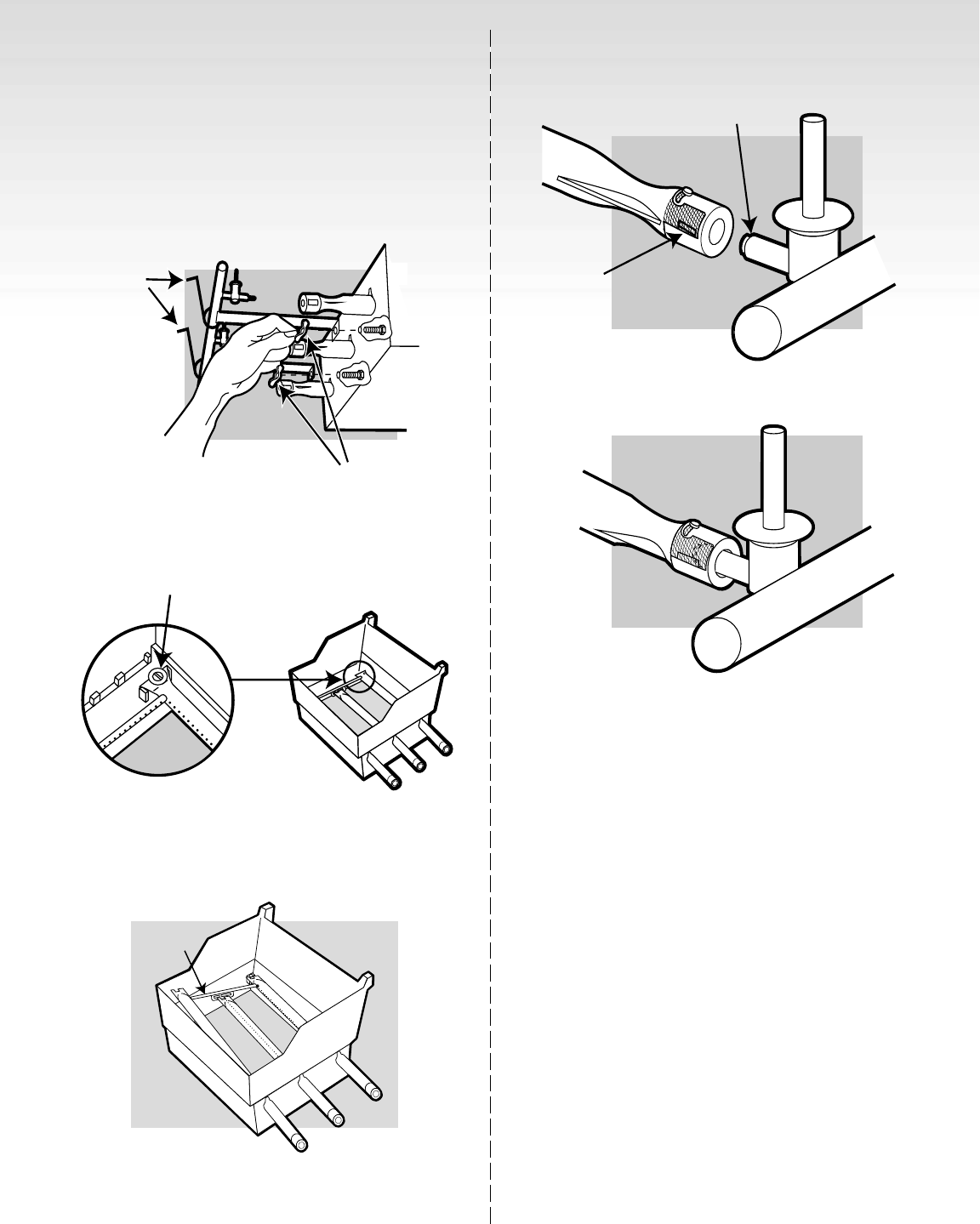

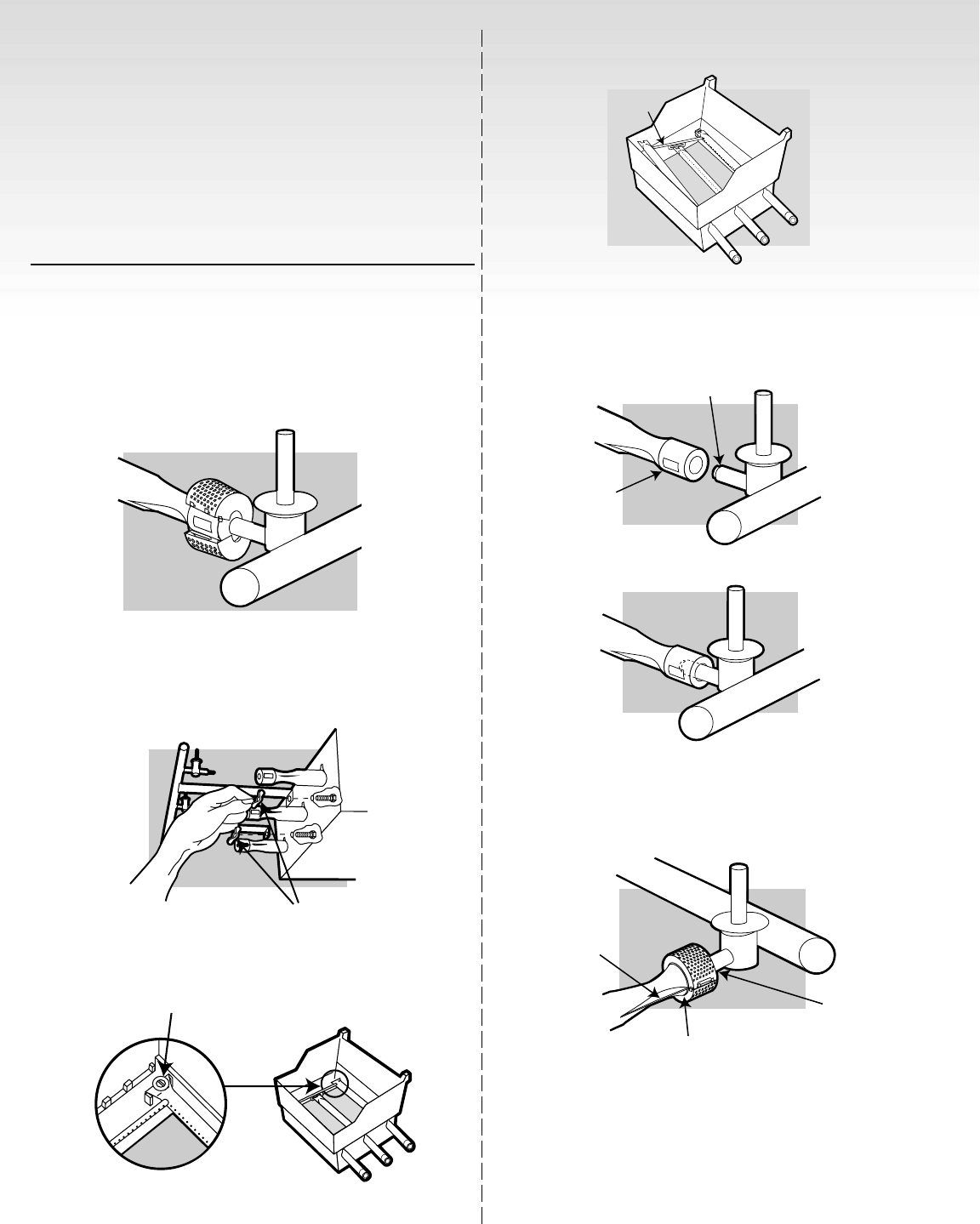

Replacing Main Burners
1) Your Weber Gas Barbecue must be OFF and cool.
2) Turn gas OFF at source.
3) To remove control panel: take off the burner control
knobs. Remove the screws holding the control panel in
place. Lift off the control panel.
4) Unlatch the Spider Stopper™ Guards and remove
them.
5) Remove the manifold bracket and unscrew the two
wing nuts(1) that hold the manifold to the cooking box.
Pull the manifold and valve assembly out of the
burners and carefully set it down.
6) Slide the burner assembly out from under the guide
screw and washer(1) in the corners of the cooking box.
7) Lift and twist the burner assembly slightly, to separate
8) To reinstall the burners, reverse 3) through 7).
CAUTION: The burner openings(1) must be
positioned properly over the valve orifices(2).
Check proper assembly before fastening manifold in
place.
9) Reinstall the Spider Stopper Guards. Slightly rotate
the Spider Stopper Guards so that the seams are in
line with the Venturi fins(1). There should be no gaps
in the seams or in the fit around the burners(2) and
valves(3).
(3)
(2)
(1)
the crossover tube(1) from the burners. Remove the
burners from the cooking box.
CAUTION: If the Spider Stopper Guards do not fit
tightly, contact the Customer Service Representative
in your region using the contact information sheet
provided with your manual.
WARNING: After reinstalling the gas lines, they
should be leak checked with a soap and water
solution before using the barbecue. (See Step:
“Check for gas leaks.”)
B-1
Assembly Instructions
W
E
B
E
R
W
E
B
E
R
(1)
(2)

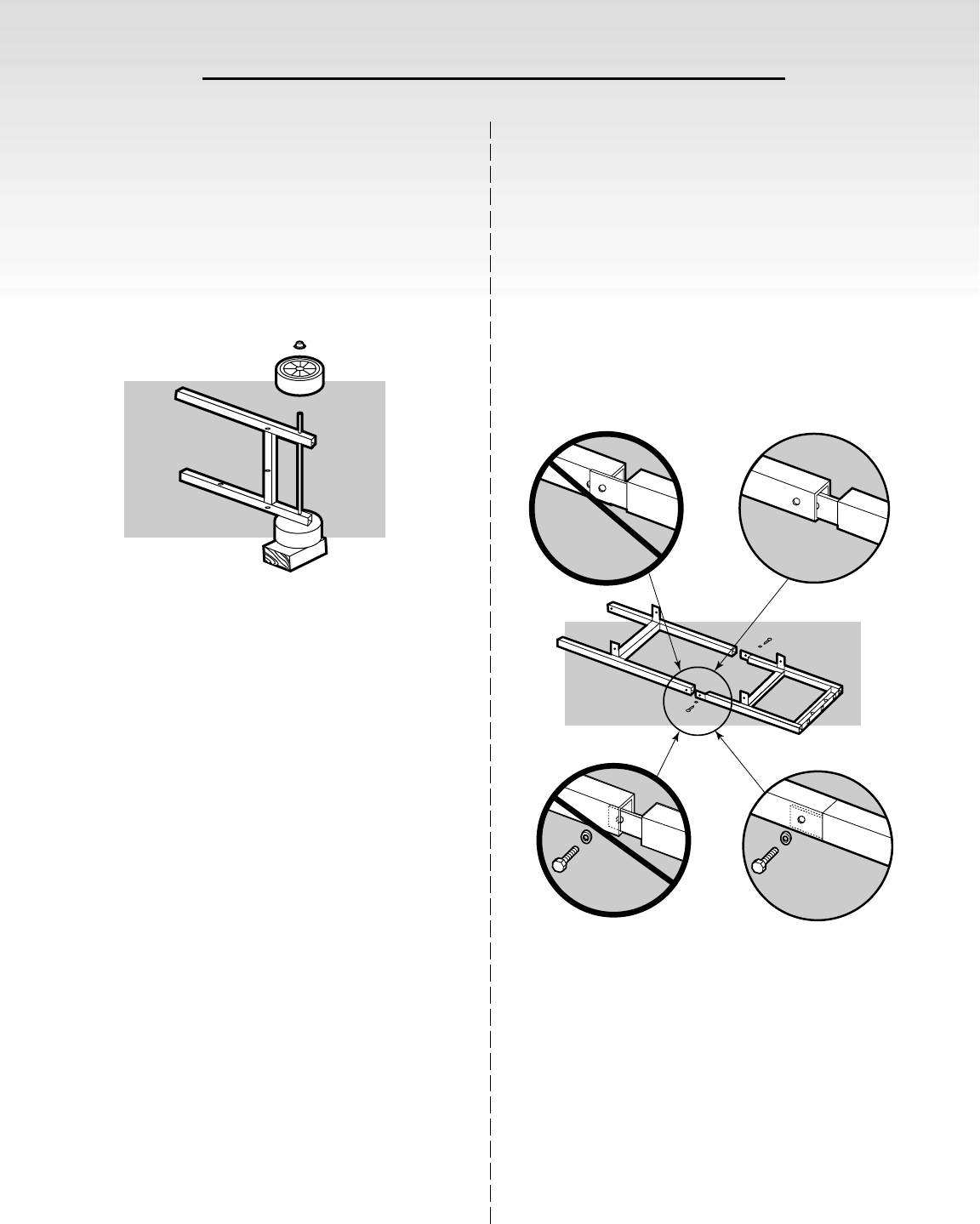

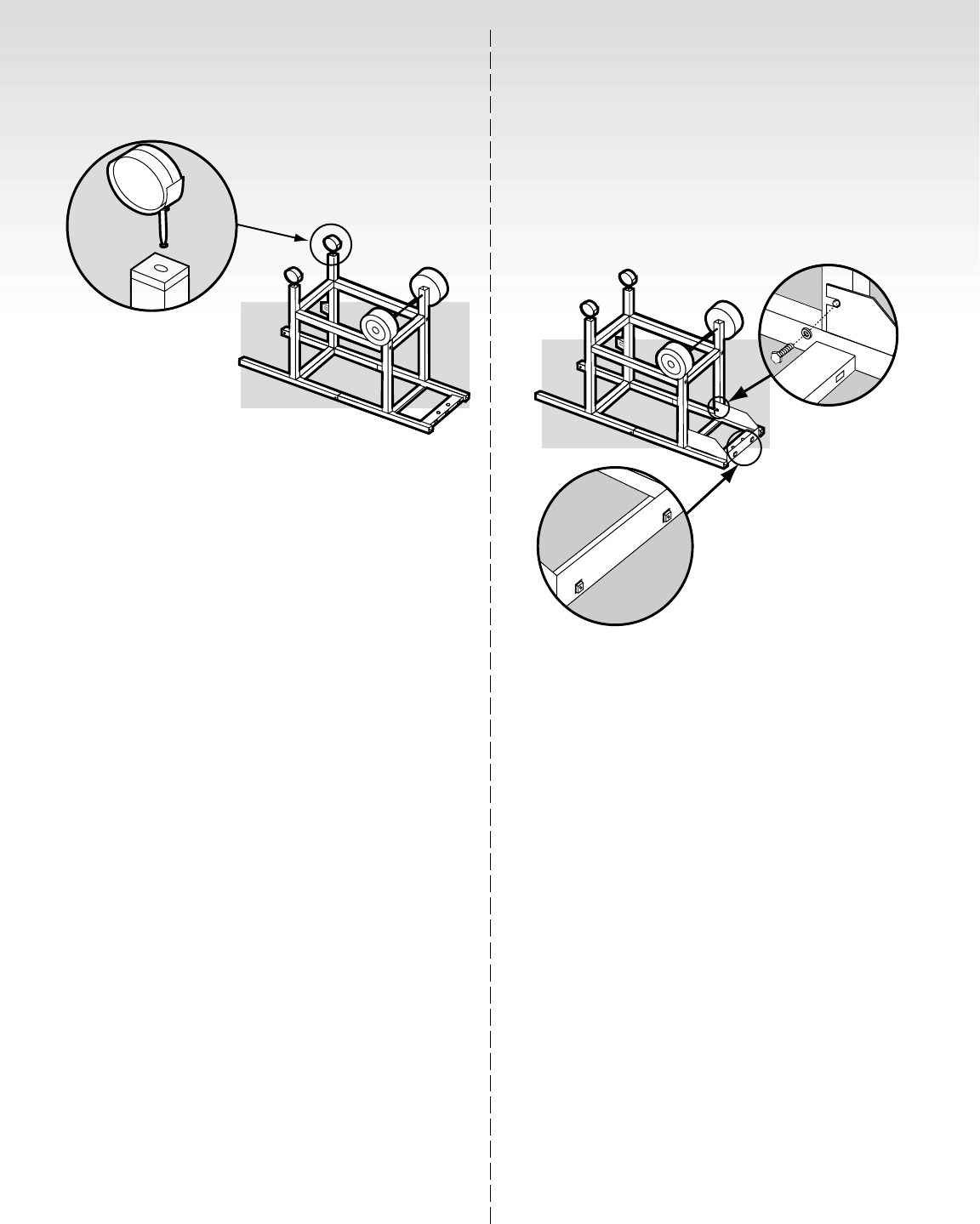

Assemble wheel frame
You will need: axle rod, two wheel hubcaps, two
wheels, wheel frame, hammer and a block of wood.
Place one end of the axle rod on the block of wood (or
other protected surface). Tap one hubcap onto the end
of the axle rod. Slide one wheel onto the axle, WEBER
name facing out. Next, slide the other end of the axle
rod through the wheel frame. Add the other wheel,
WEBER name side facing out. Tap the hubcap onto
the axle rod to complete the axle.
Assemble frame
You will need: left frame, right frame, two 1/2 inch
bolts, two nylon washers and a 7/16 inch or adjustable
wrench.
Note - Work on carpeted area (on grass or one of the
boxes) to protect the finish during frame assembly.
Lay the leg frame pieces as shown so the leg tabs
point up.
1) Connect the two frame pieces with the tabs inside
of the frame.
2) Slip washers on bolts, then insert bolts as shown
and tighten. (If you try to insert a bolt and there is
no hole, you have the left frame turned the wrong
way. Turn the left frame around.)
B003.d
B-2
(1)

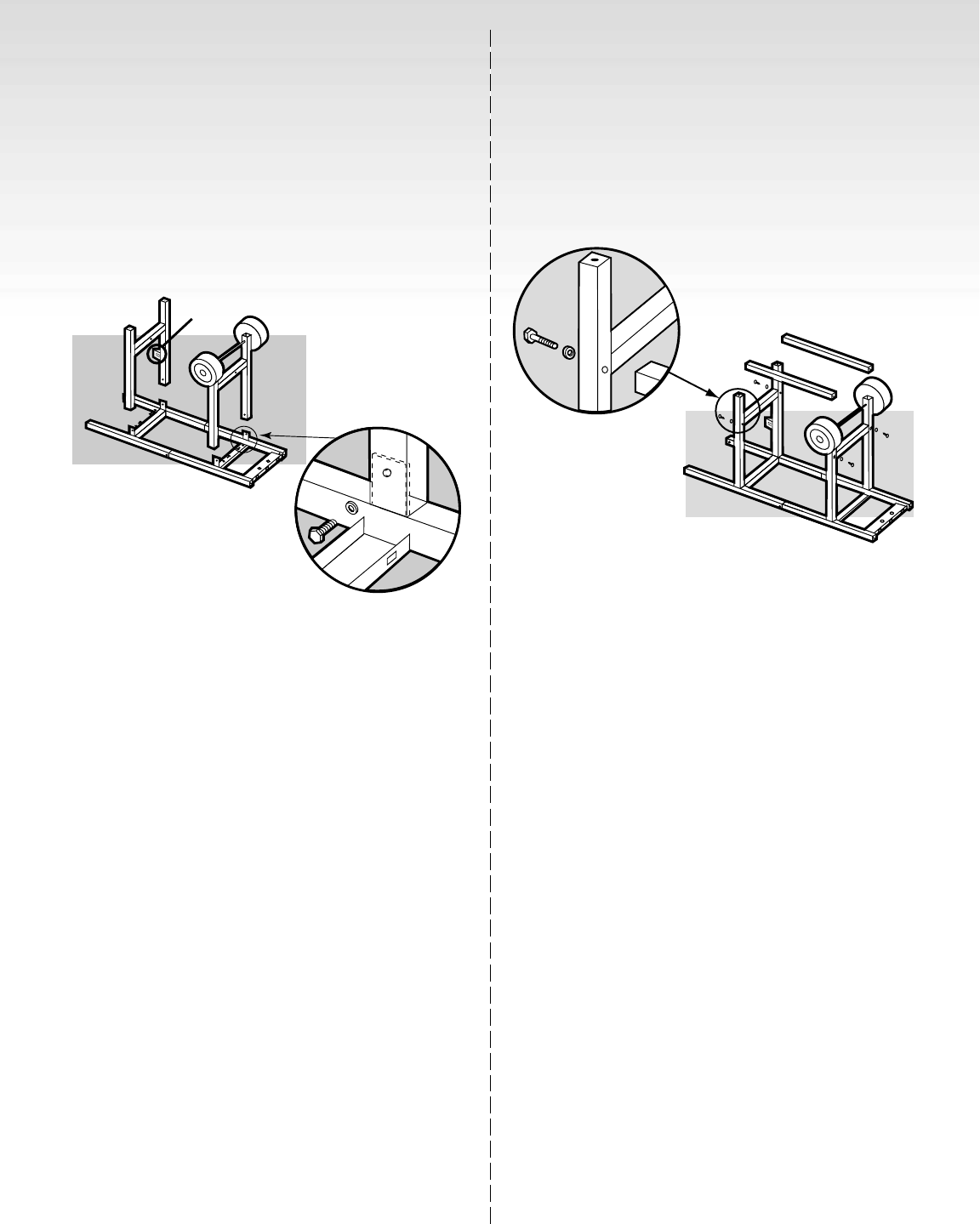

Continue frame assembly
You will need: caster frame, wheel frame, four 1/2 inch
bolts, four nylon washers and a 7/16 inch or adjustable
wrench.
Place the caster frame onto the tabs of the left frame,
so that the swing table locking latch(1) is to the rear.
Place the wheel frame onto the tabs of the right frame.
The leg tabs must be on the inside of the frames.
Add the washers to the bolts. Insert the bolts into the
holes as shown, do not tighten bolts on wheel
frame until a later step.
Complete frame assembly
You will need: partial frame assembly, two frame
connectors, four 2 inch bolts, four nylon
washers and a 7/16 inch or adjustable wrench.
Hold one frame connector between the caster frame
and wheel frame. Add the nylon washer to the bolt.
Insert the bolt through the frame and screw into frame
connector. Tighten bolt with wrench.
Repeat procedure with the other frame connector.
B-3
(1)
(2)
Insert casters
You will need: frame assembly and two casters.
Push the casters firmly into the inserts in the ends of
the caster frame.
Add Wrap-around Frame Panel
You will need: wrap around frame panel and a wrench.
Place wrap-around frame panel in place:
1) The cut-out tabs should fit between the washer
and the frame, as shown.
2) The square cut-out holes fit around the white plugs
in the frame as shown
Tighten Bolts with wrench.
Turn the frame over and continue with assembly.
B-4
(1)
(2)
(1) (2)
(3)

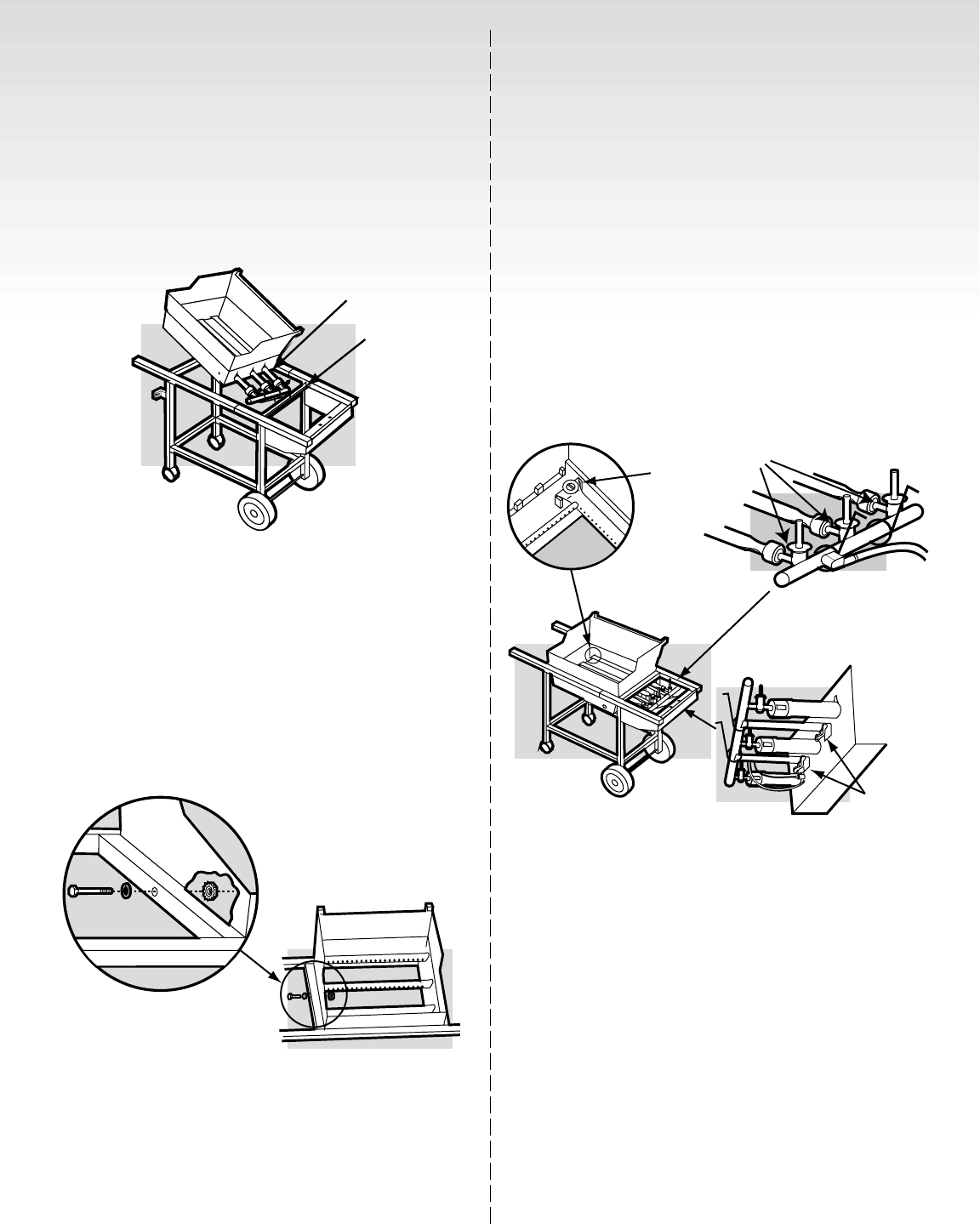

Add cooking box (assembly)
You will need: frame assembly, cooking box
(assembly), 2 inch bolt, nylon washer, keps nut, pliers
and a 7/16 inch or adjustable wrench.
Uncoil the hose.
Place the cooking box (assembly) in the frame
assembly so the burner tubes(1) are under the frame
brace(2).
Slide the cooking box (assembly) to the left within the
frame assembly. Add the nylon washer to the bolt.
Insert the bolt through the frame and cooking box with
the head of the bolt outside the box. Add the keps nut.
Tighten by holding the bolt with pliers while you tighten
the nut with a wrench.

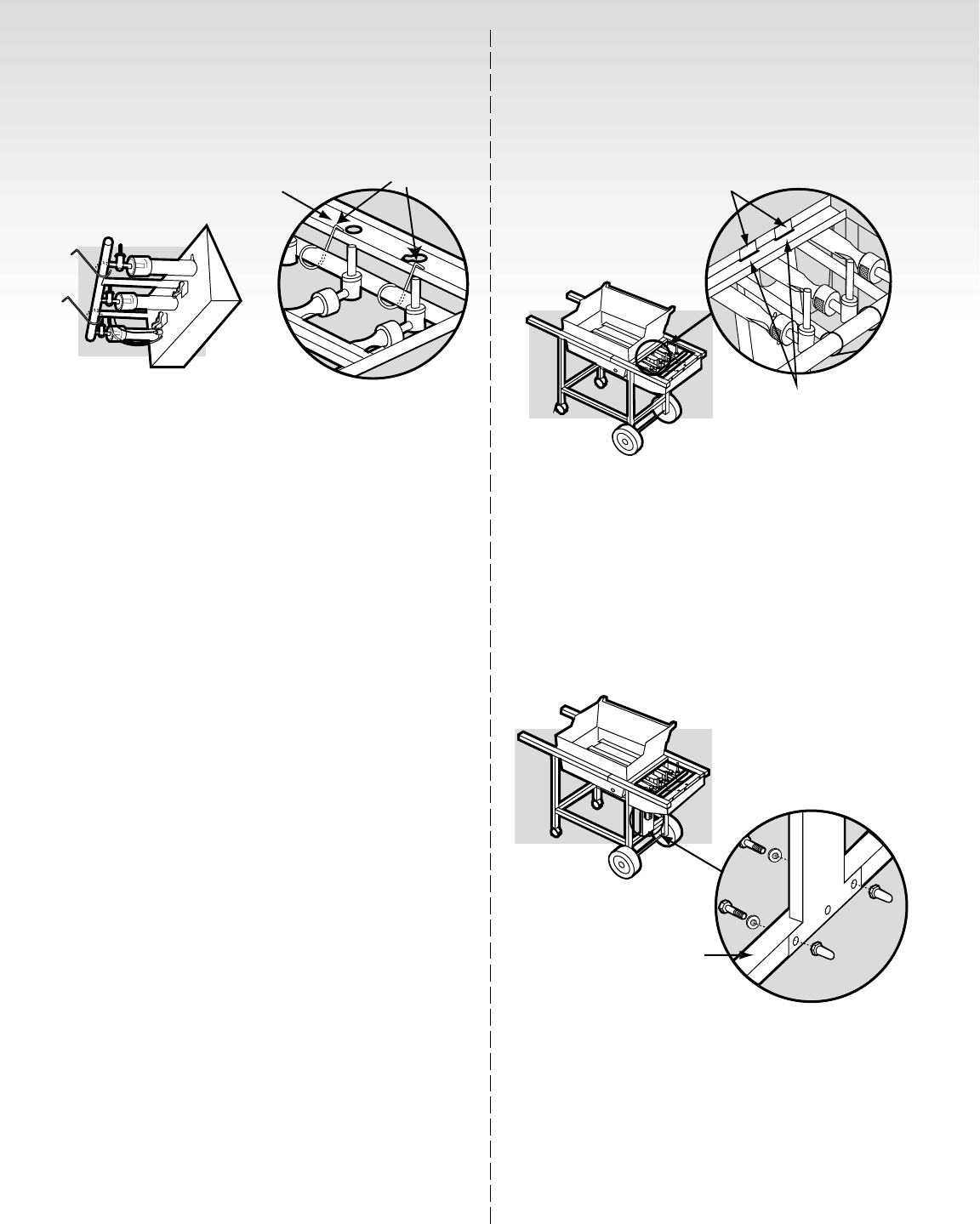

Your Weber Gas Grill manifold assembly, consisting of
gas manifold, valves, hose, regulator and gas burners
has been factory assembled, pressure and flame
tested. As a safety precaution, we recommend you
check the burner alignment:
1) Are the ends of the burners under the washers at
the left rear and left front of the cooking box? The
screws are only guides. Do not tighten.
2) Do the valves fit into the ends of the burners?
3) Are the wing nuts under the burner assembly
tight?
If you answered YES to 1, 2 and 3, the burners are
correctly aligned. If you answered NO, the burners are
misaligned. Contact the Customer Service
Representative in your region using the contact
information sheet provided with your manual. Do not
use grill.
B-5
(1)
(2)

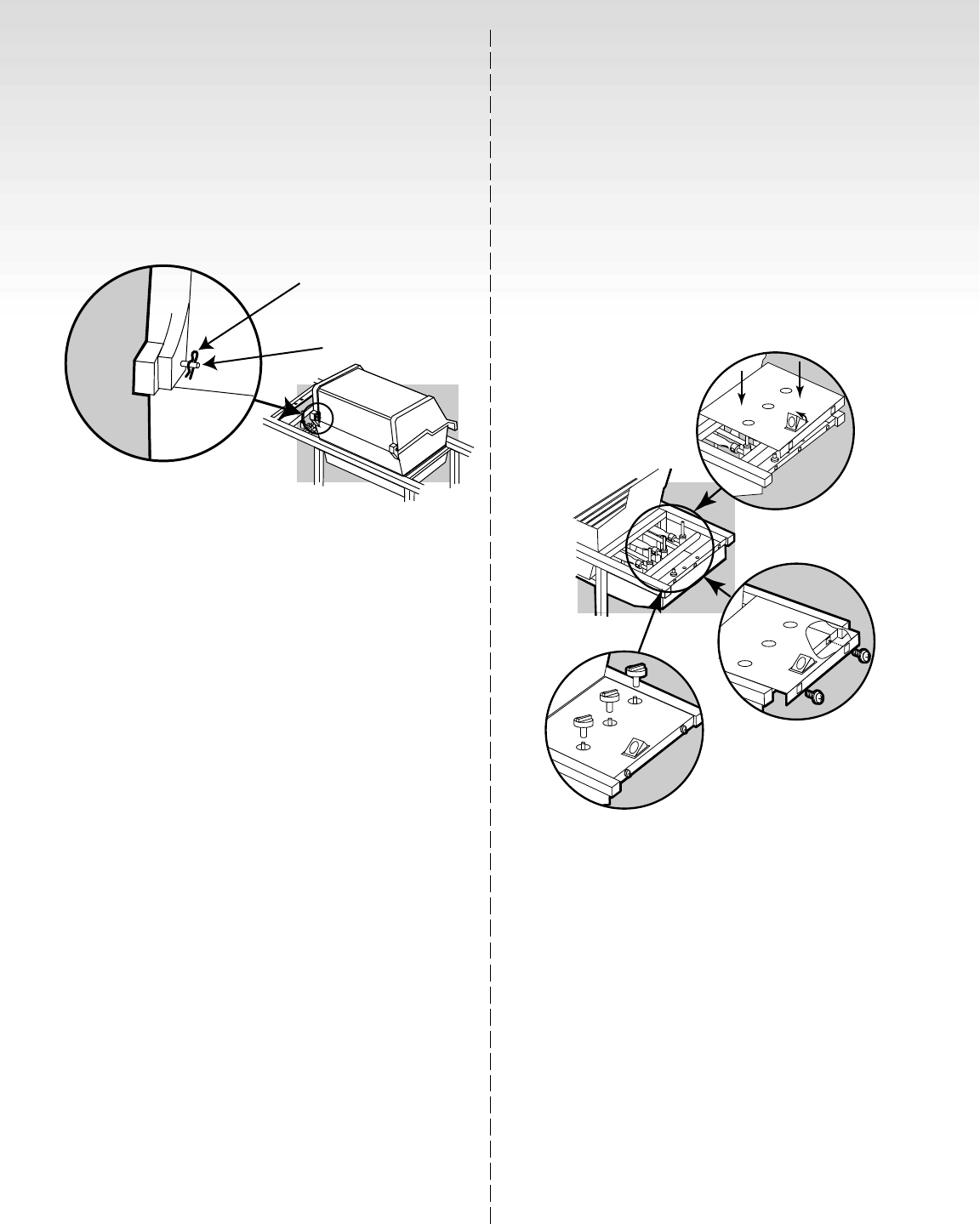

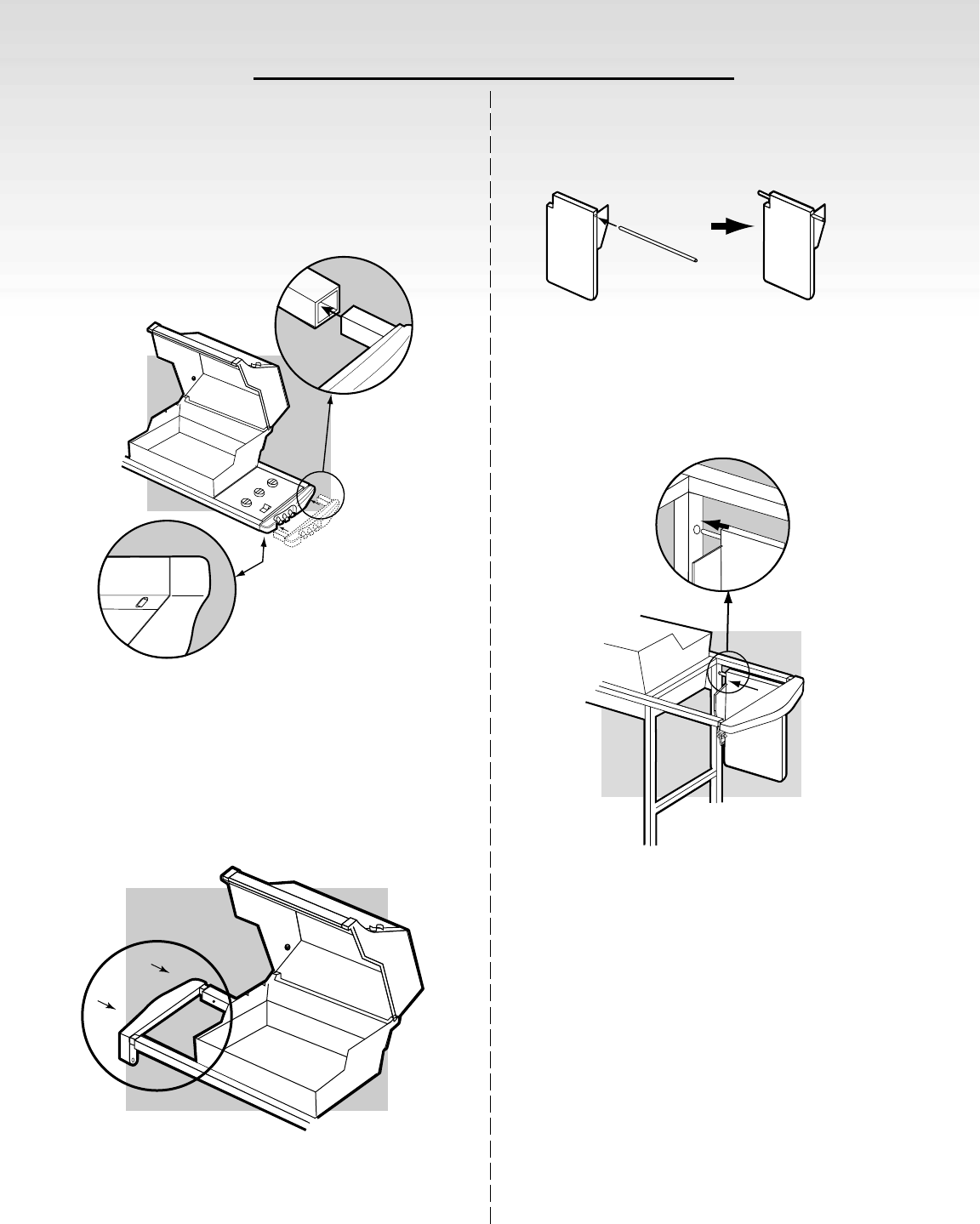

Install manifold brackets
The manifold brackets(2) are already in place on the
manifold between the valves.
Place your hand underneath the manifold. Lift the
manifold and cooking box slightly and hook the
manifold bracket(2) onto the frame brace(1).
Install cylinder panel
You will need: Cylinder panel, two 1 3/4inch bolts, two
nylon cylinder glides, two nylon washers a 7/16 inch or
adjustable wrench and pliers.
Insert the cylinder panel tabs(1) into the slots in the
frame brace(2).
Slide the cylinder panel up until notch at bottom of
panel fits over the cross brace(1). Add nylon washer to
bolt and insert through the hole in the wheel frame at
the bottom right of the cylinder panel, make sure that
the bolt slips through the hole in the cylinder panel.
Add nylon cylinder glide to bolt end and tighten bolt
with the wrench, while holding the cylinder glide with
the pliers. Repeat procedure with the hole on the
bottom left side of the cylinder panel.
(1)
(1) (2)
B-6
(1) (2)
(1)
(2)
(3)

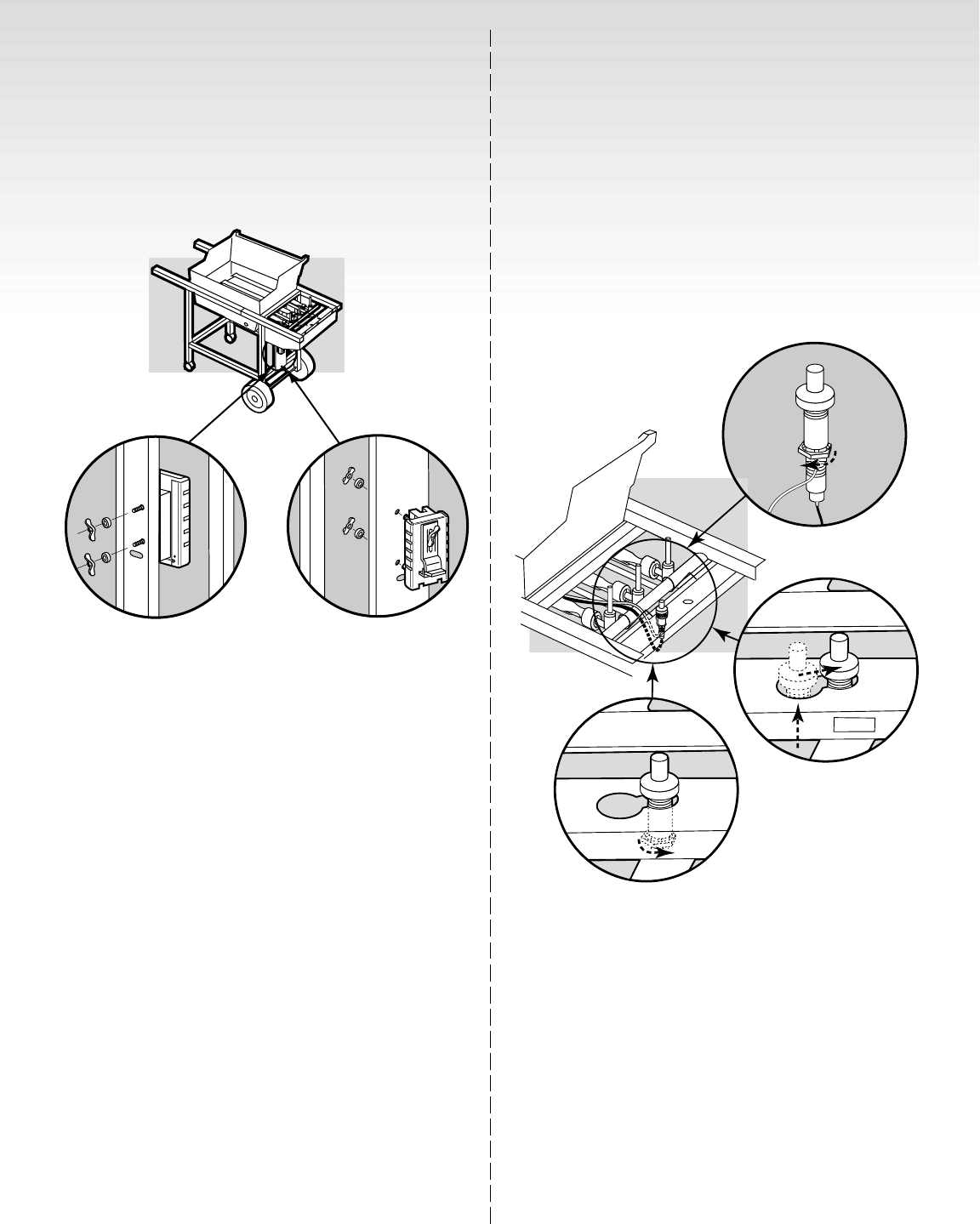

Add fuel gauge
You will need: fuel gauge, two wing nuts and two nylon
washers.
1) Slip the bolts on the back of the fuel gauge
through the two small holes in the cylinder panel.
2) Add washers to the bolts, then wing nuts, and
tighten with your fingers.

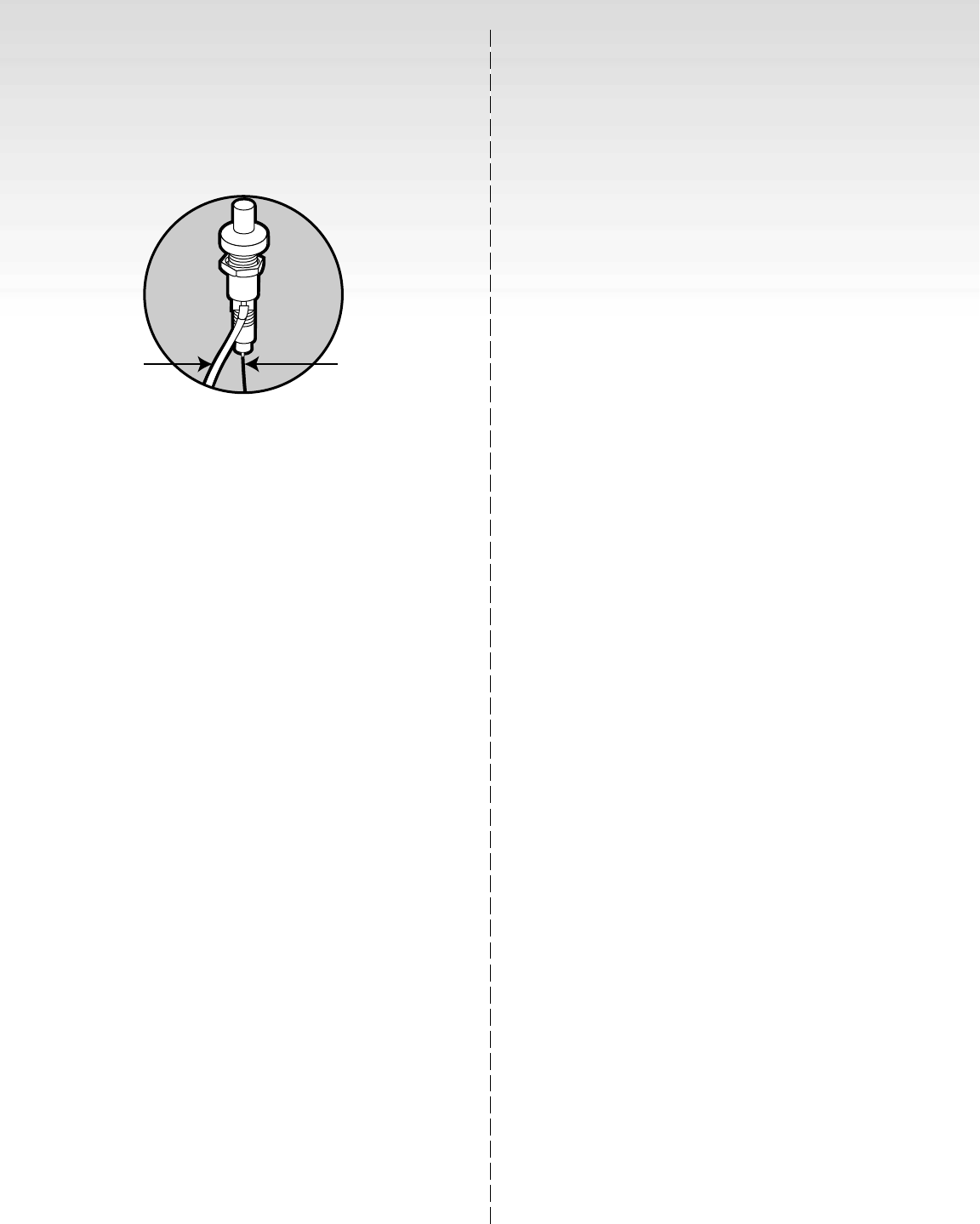

Install igniter
Note - The igniter wires are already attached to the
Gas Catcher Ignition Chamber and the igniter. This
was done to factory test the ignition system.
The igniter lock nut is on the igniter.
1) Loosen the igniter lock nut.
2) Insert the top of the igniter up through the large
part of the keyhole in the frame brace. Slide the
igniter into the small part of the keyhole.
3) Tighten the igniter lock nut back onto the igniter.
Note - If the igniter works loose, carefully tighten the
igniter lock nut with an adjustable wrench or pliers.
B-7

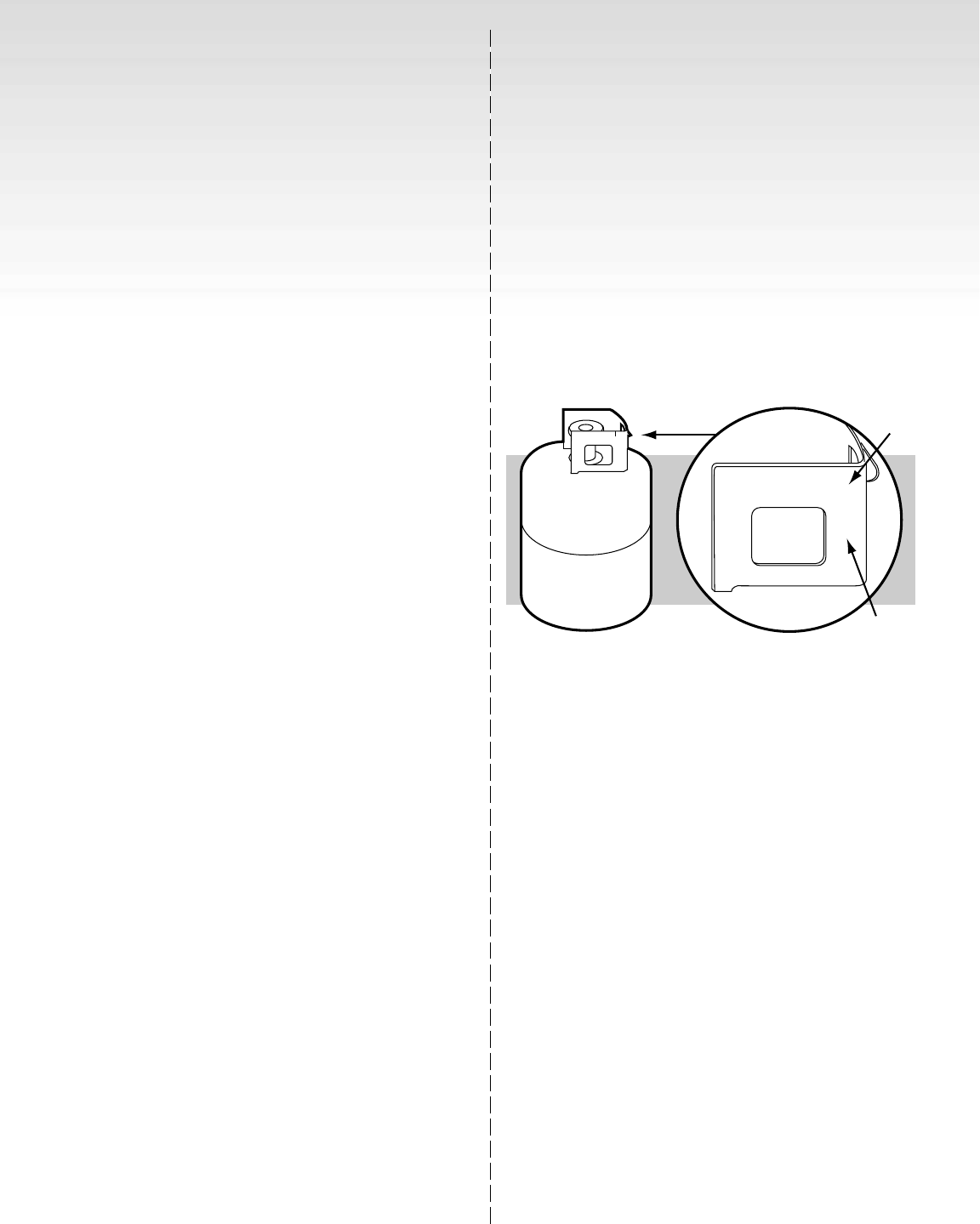

Fill liquid propane cylinder
Note - The liquid propane cylinder manufacturer is
responsible for the materials, workmanship and
performance of the cylinder. If the cylinder has a
defect, malfunctions, or you have a question regarding
the cylinder, call the cylinder manufacturer’s customer
service center. The phone number is on the warning
decal, which is permanently attached to the cylinder. If
the cylinder manufacturer has not resolved the issue to
your satisfaction, then contact the Customer Service
Representative in your region using the contact
information sheet provided with your manual.
To fill, take the liquid propane cylinder and filler
adapter to an RV center or look up gas-propane in the
phone book for other sources of liquid propane gas.
WARNING: We recommend that your liquid
propane cylinder be filled at an authorized liquid
propane gas dealer by a qualified attendant, who
fills the tank by weight.
IMPROPER FILLING IS DANGEROUS.
Tell your liquid propane dealer that this is a new liquid
propane cylinder. The air must be removed from a new
liquid propane cylinder before the initial filling. Your
liquid propane cylinder dealer is equipped to do this.
The liquid propane cylinder must be installed,
transported and stored in an upright position, and
should not be dropped or handled roughly.
Never store or transport the liquid propane cylinder
where temperatures can reach 125° Fahrenheit (too
hot to hold by hand – for example: do not leave the
liquid propane cylinder in a car on a hot day).
For full instructions on safe handling of liquid propane
cylinders, see Section “Operating”.
Check that all burner valves are off
You will need: burner control knobs.
Valves are shipped in the OFF position, but you should
check to be sure that they are turned OFF. Put the
knob on each valve. Check by pushing down and
turning clockwise. If they do not turn, they are off.
Proceed to the next step. If they do turn continue
turning them clockwise until they stop, then they are
off. Proceed to the next step.

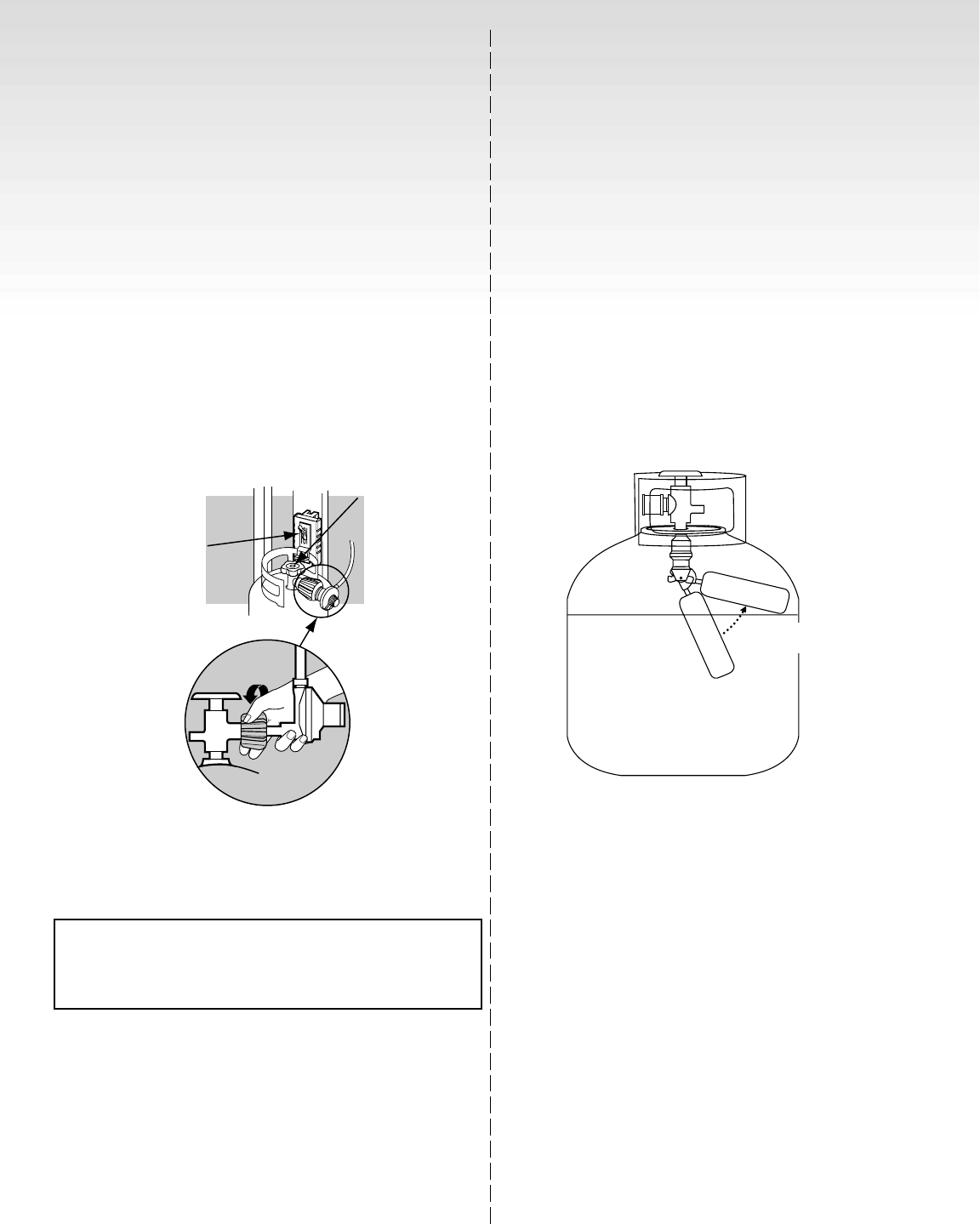

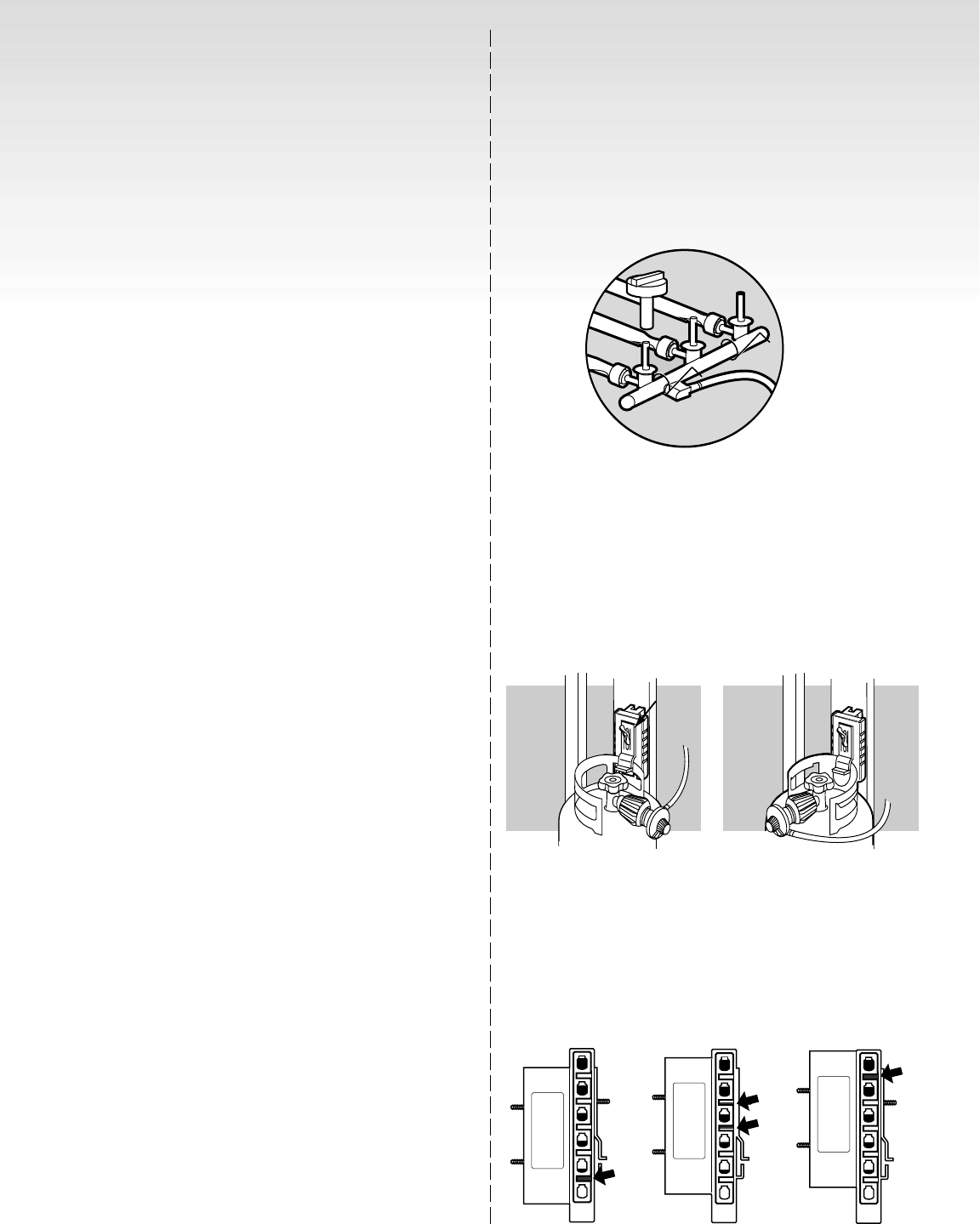

Connect filled liquid propane cylinder
WARNING: Make sure that the cylinder valve is
closed. Close by turning clockwise.
We utilize various LP tank manufacturers. Some of
the tanks have differing top collar assembles. (The top
collar is the metal protective ring around the valve.)
Checking the fuel level in your tank
Check the fuel level by viewing the color indicator level
line on the side of the tank scale.
1) Empty
2) Medium
3) Full
(1) (2) (3)
B-8

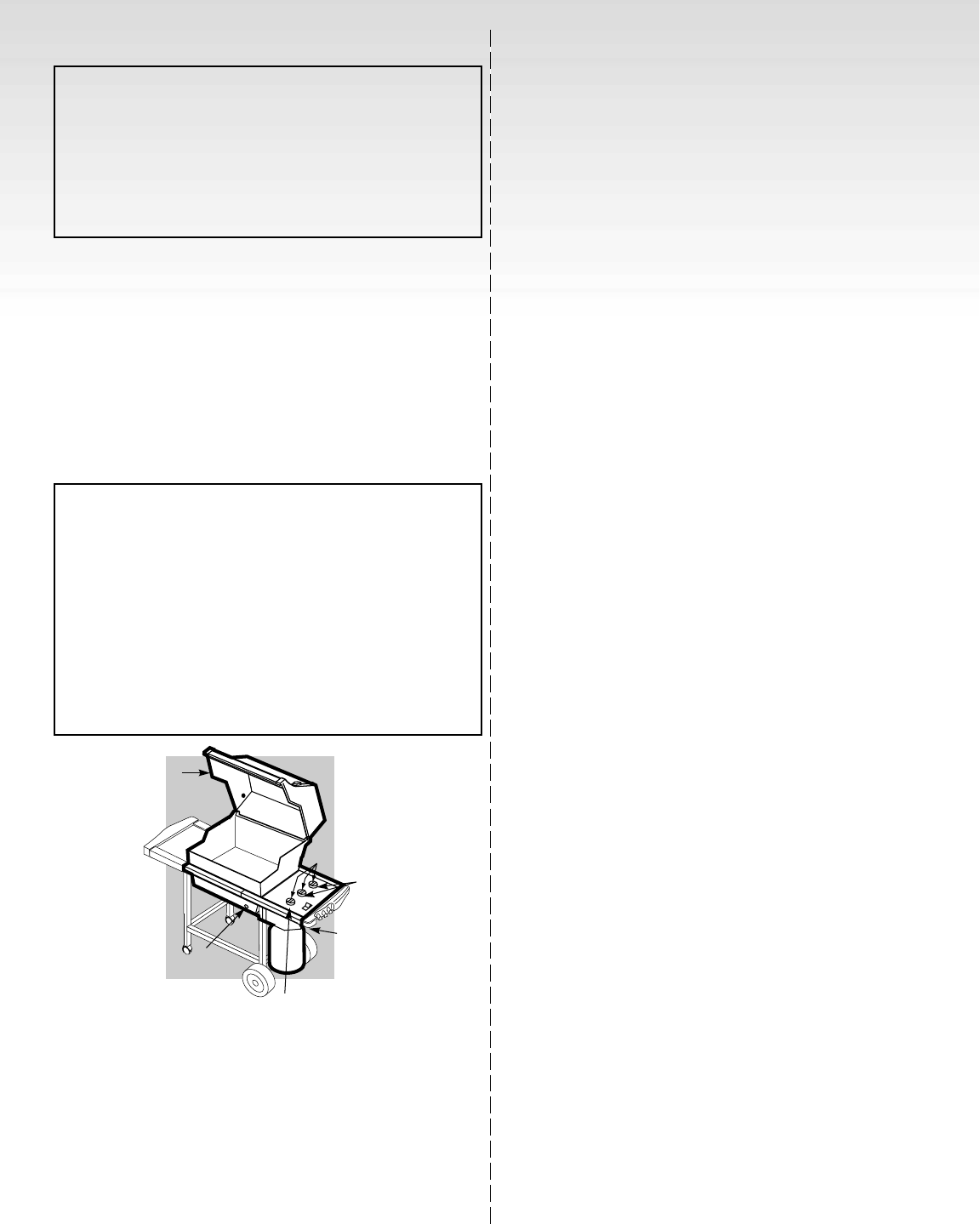

Check for gas leaks
DANGER
Do not use an open flame to check for gas
leaks. Be sure there are no sparks or open
flames in the area while you check for
leaks. Sparks or open flames will result in
a fire or explosion which can cause
serious bodily injury or death and damage
to property.
WARNING: You should check for gas leaks every
time you disconnect and reconnect a gas fitting.
Note - All factory-made connections have been
thoroughly checked for gas leaks. The burners have
been flame-tested. As a safety precaution however,
you should recheck all fittings for leaks before using
your Weber Gas Barbecue. Shipping and handling may
loosen or damage a gas fitting.
WARNING: Perform these leak checks even if
your barbecue was dealer or store assembled.
You will need: a soap and water solution, and a rag or
brush to apply it.
To perform leak checks: open tank valve by turning the
tank valve handwheel counterclockwise.
Check for leaks by wetting the connections with the
soap and water solution and watching for bubbles. If
bubbles form or if a bubble grows, there is a leak.
Note - Since some leak test solutions, including soap
and water, may be slightly corrosive, all connections
should be rinsed with water after checking for leaks.
WARNING: Do not ignite burners when leak
checking.

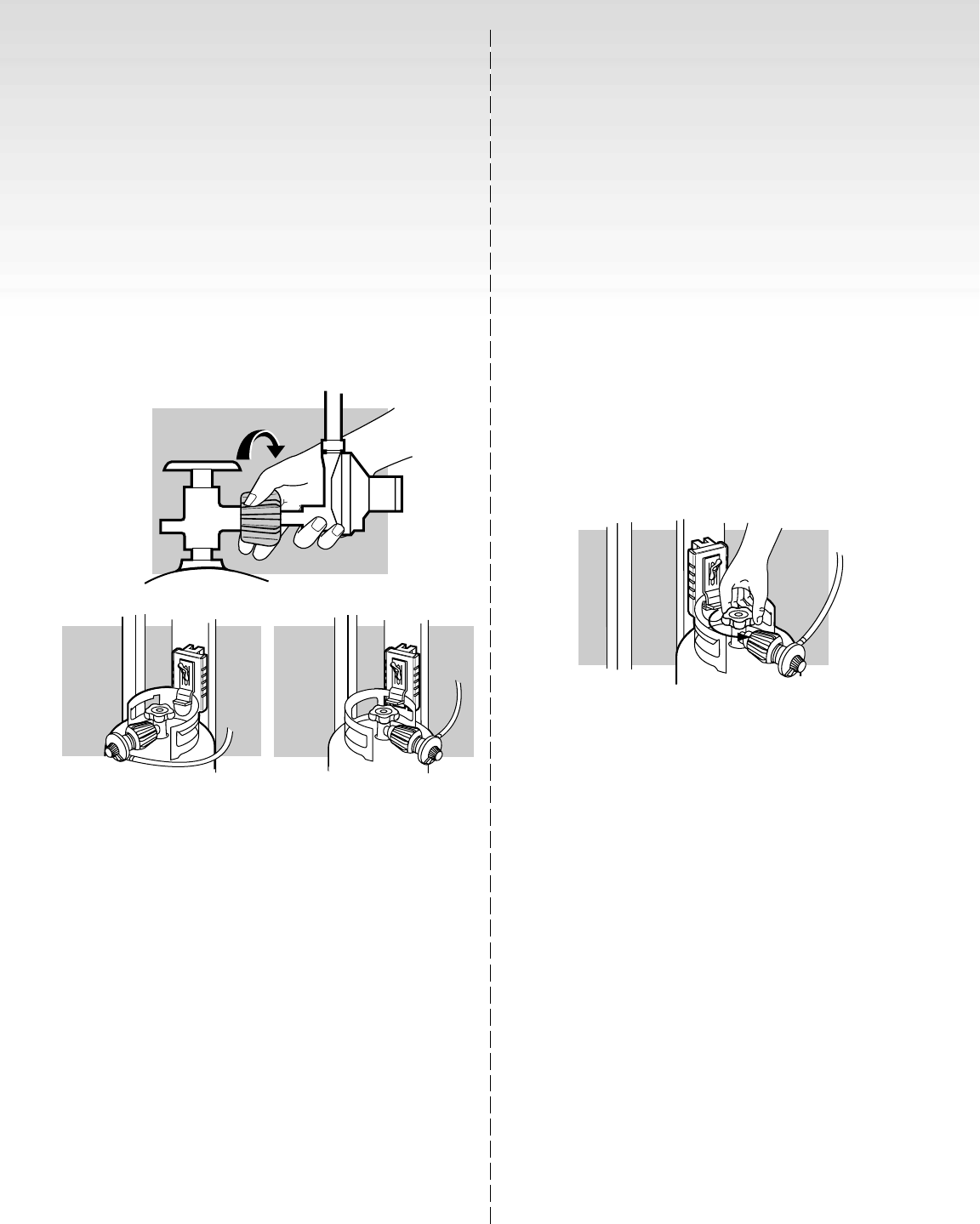

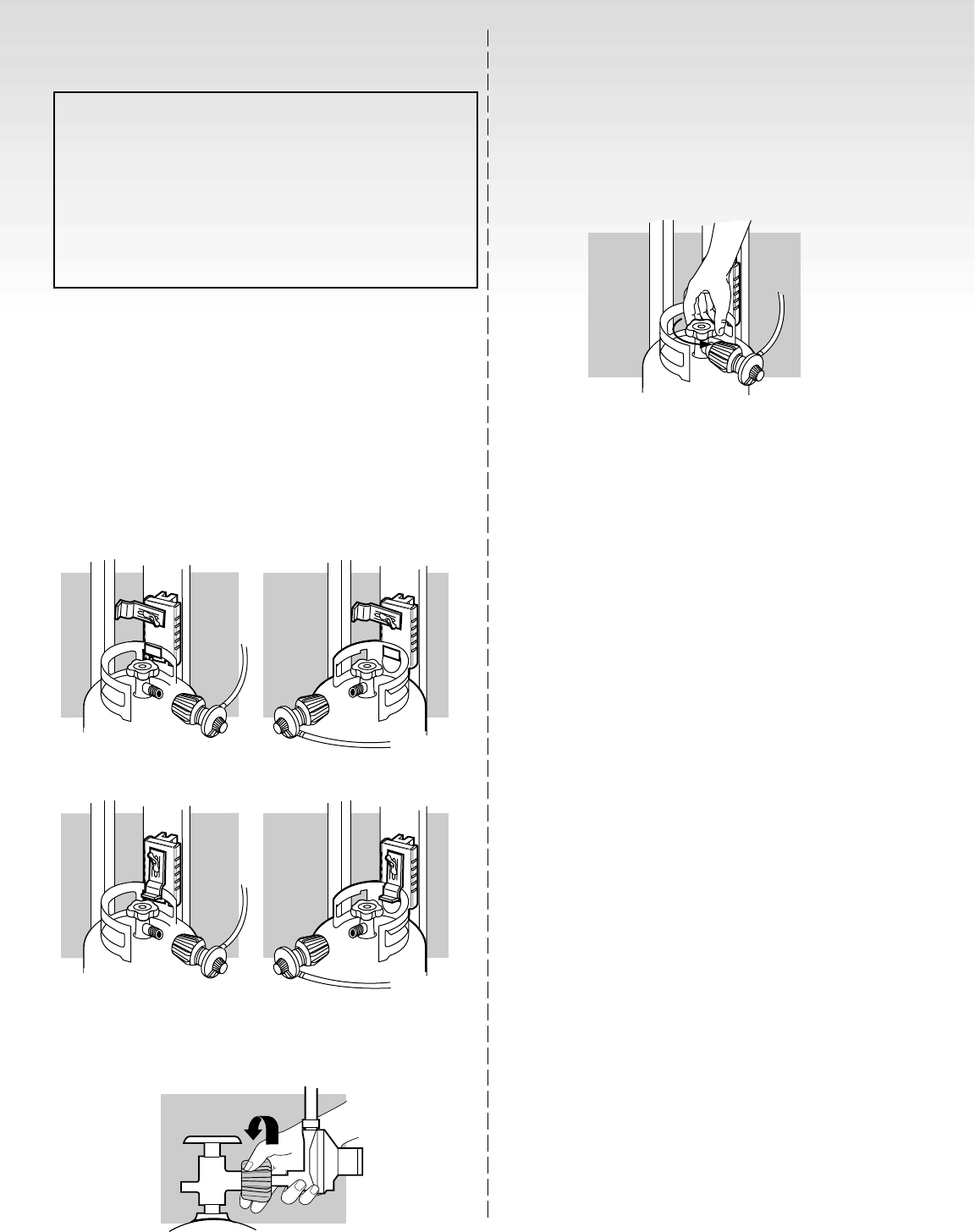

One series of tanks mount with the valve facing front.
The other tanks mount with the valve facing away from
the fuel scale. These types of tanks are illustrated
below.
Hook the liquid propane cylinder onto the fuel gauge.
Loosen the cylinder lock wing nut. Swing the cylinder
lock down. Tighten the wing nut.
Remove plastic dust cover from the fuel cylinder valve.
Screw the regulator coupling onto the cylinder
valve(1), clockwise, or to the right. Hand tighten only.
Note: This is a new type of connection. It tightens
clockwise and will not allow gas to flow unless the
connection is tight. The connection requires tightening
by hand only.
WARNING: Do not use a wrench to tighten the
connection. Using a wrench could damage the
regulator coupling and could cause a gas leak.
(1)
B-9
(1) (2)
(1)
(1)

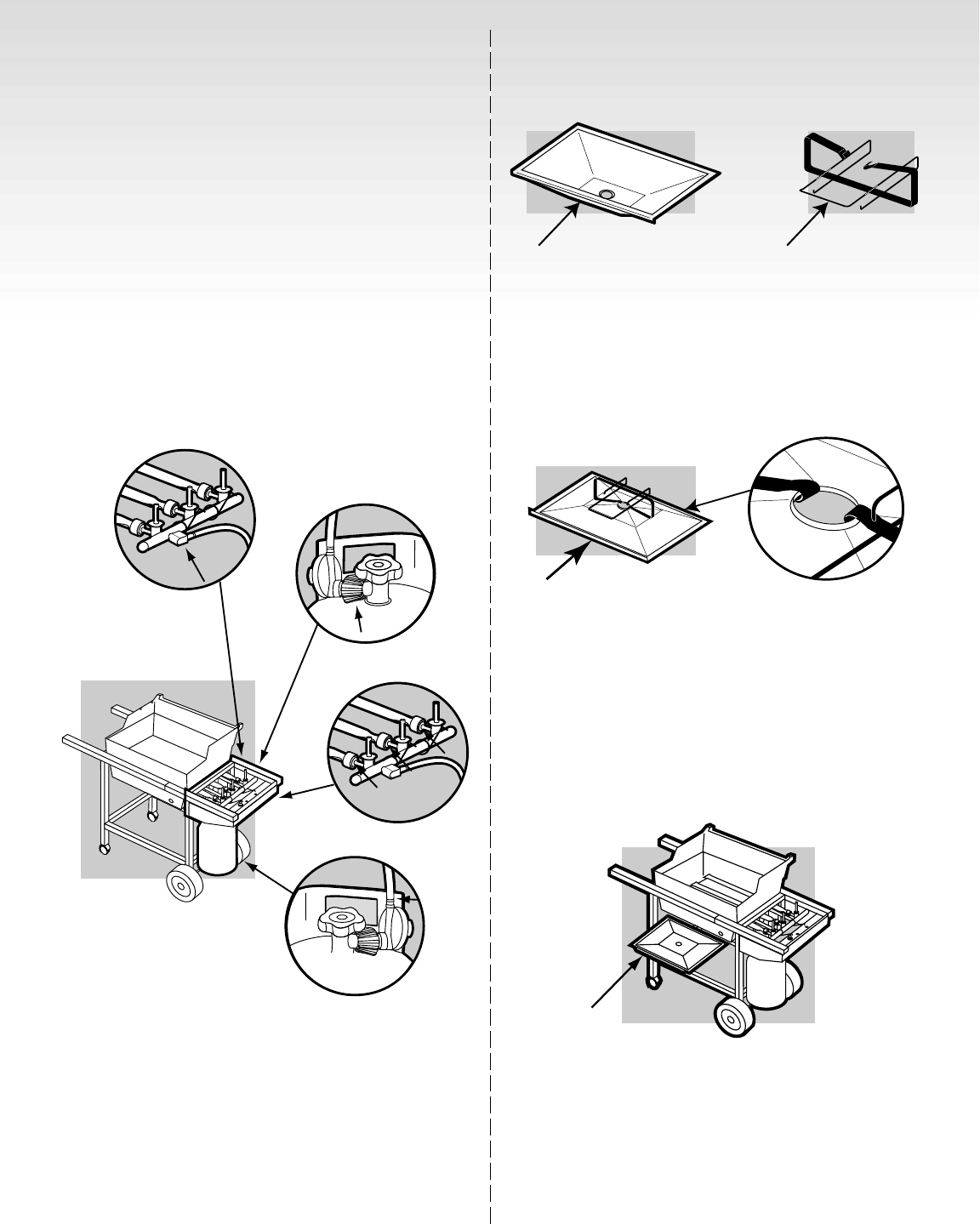

Install the slide out bottom tray
You will need: the slide out bottom tray(1), catch pan
holder(2), catch pan and one disposable drip pan.
Hook the ends of the catch pan holder into the hole in
the slide out bottom tray. The front of the catch pan
holder must be on the same side as the finger
grip(1) of the bottom tray.
Slide the bottom tray onto the mounting rails under the
cooking box with finger grip toward you(1).
WARNING: Do not line bottom tray with
aluminum foil. It can cause grease fires by trapping
the grease and not allowing grease to flow into the
catch pan.
Put the disposable drip pan into the catch pan.
Slide the catch pan into the catch pan holder with its
finger grip towards you(1).
(1)
(2)
(3)
(4)

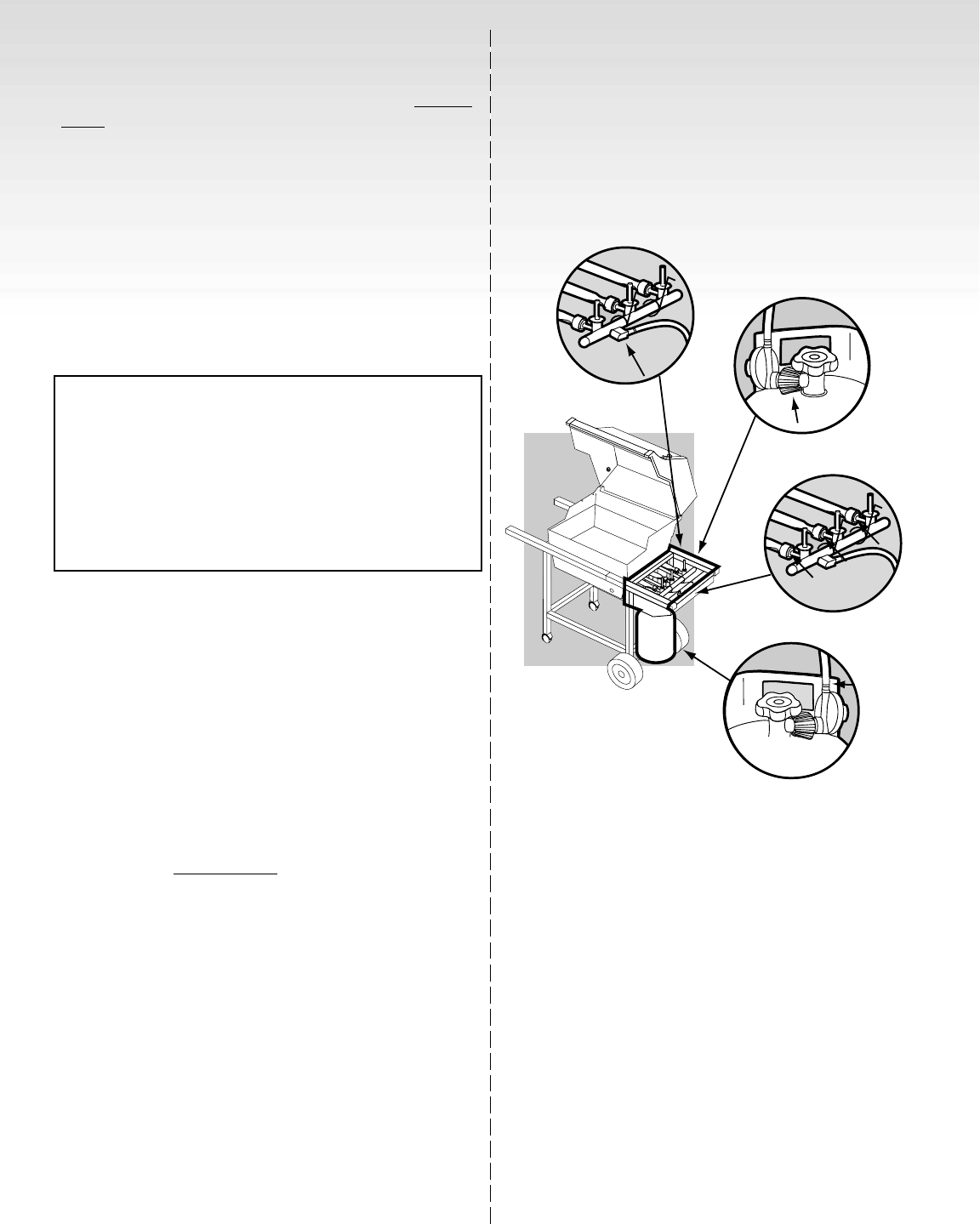

Check:
1) Hose to manifold connection.
WARNING: If there is a leak a connection(1),
retighten the fitting with a wrench and recheck for
leaks with soap and water solution.
If a leak persists after retightening the fitting, turn
OFF the gas. DO NOT OPERATE THE BARBECUE.
Contact the Customer Service Representative in
your region using the contact information sheet
provided with your manual.
2) Regulator to Cylinder connection
3) Valves to manifold connections
4) Hose to regulator connection
WARNING: If there is a leak at connections(2,3)
or(4) turn OFF the gas. DO NOT OPERATE THE
BARBECUE
Contact the Customer Service
Representative in your region using the contact
information sheet provided with your manual.
When leak checks are complete, turn gas supply OFF
at the source and rinse connections with water.
B-10
(1)
(2)
(1)
(2)
(3)
Install Lid
You will need: lid, two hair pin cotters(1) and two hinge
pins(2).
Place lid on top of the cooking box. Align the hinges at
the rear of the barbecue. Insert hinge pins through the
hinges from the outside. Insert hair pin cotters into the
small holes in the hinge pins.
Install control panel and burner control knobs
You will need: control panel, two Phillips screws/
washers, a Phillips screwdriver, and burner control
knobs.
1)
Set the control panel in place over both frame
braces. Hold the Crossover Ignition button up
while setting the control panel in place.
2)
Line up the holes in the control panel with the
holes in the white plastic plugs in the frame brace.
Insert screws and tighten with a Phillips
screwdriver until snug. Do not overtighten.
3)
Push each of the burner control knobs onto their
valve.
C-1
Installing Features

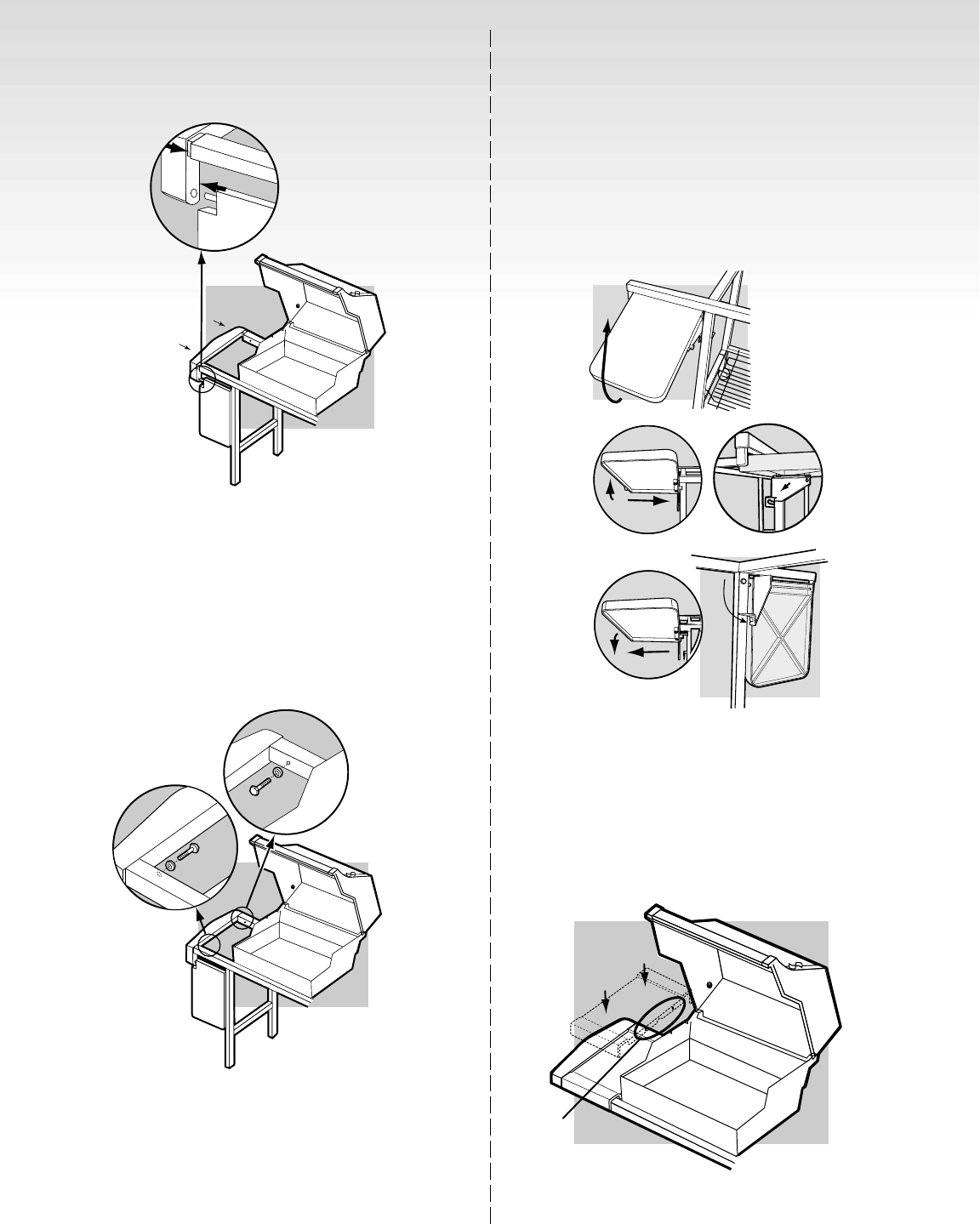

Install the right trim piece with tool holders
You will need: Right trim piece with tool holders
Push the Right trim piece into the frame as shown(1),
making sure that the tabs on the underside of the trim
piece are snapped into the slots in the frame.(2)
C002.c
(2)
(1)
Install the left end trim piece and swing-up work
surface
You will need: End trim piece, swing-up work surface,
swing-up work surface rod, two 1/2 inch bolts, two
nylon washers and a wrench
1.) Start the left end trim piece into the frame as
shown, do not push the trim piece in all of the
way and do not add bolts yet.
2.) Slide the swing-up work surface rod through the
holes at the top of the swing-up work surface.
3.) Insert one end of the swing-up work surface rod
into the hole in the frame.
C-2
4.) While holding swing-up work surface in position,
insert the other end of the swing-up work surface
rod into the left end trim piece. Push the trim piece
into the frame.
5.) Add a washer to each bolt and insert it through the
hole in the frame and the hole in the trim piece on
both sides. Tighten with a wrench.
To raise swing-up work surface: Lift table all the way
up and slide it to the right, then lower table until you
feel it lock in the up position.
To lower swing-up work surface: Lift table up until it
disengages and slide it to the left. Then lower it all the
way down so that the locking pin on the right side of
the table fits into the locking braket on the leg, which
will secure the table in the down position.
Do not use the work surface as a cutting board.
Install the work surface
You will need: work surface.
Place the work surface, so that the front and back
edges fit over the frame, in the area between the left
trim piece and the cooking box as shown.
Do not use the work surface as a cutting board.
(1)
(1) Make sure that the tabs on the side table are to the
right, next to the cooking box.
C-3
Install the bottom shelf

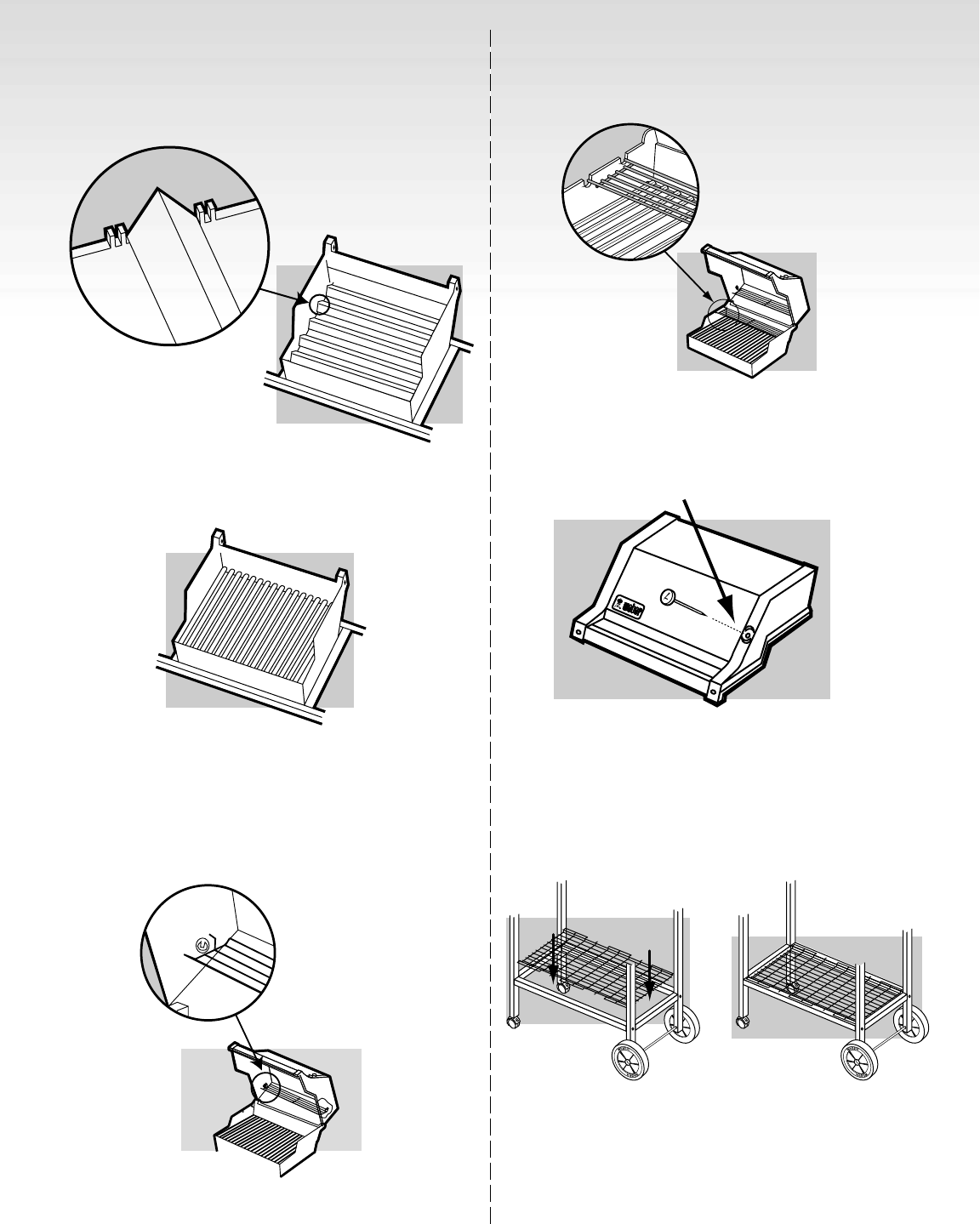

You will need: Bottom shelf.
Set the bottom shelf in place between the two frame
connectors underneath the cooking box.
Install the thermometer
You will need: Thermometer.
Insert the thermometer into its holder on the right side
of the lid.
Install Flavorizer® Bars and Cooking Grates
You will need: five Flavorizer Bars and two cooking
grates.
Place the Flavorizer Bars side by side in the cooking
box.
Installing the Warm-Up™ Basket
You will need: Warm-Up Basket
Insert one end of the Weber Warm-Up Basket into the
hole at the right side of the inside of the lid, and the
other end into the slot at the left side of the lid.
Installing the warming rack
You will need: warming rack.
Set the warming rack into the slots at the rear of the
cooking box.
Set the cooking grates onto the ledges in the cooking
box with the rounded sides up.
®®
®®
®®
®®
D-1
Lighting
Summary lighting instructions are on the control panel.
DANGER
Failure to open the lid while igniting the
barbecue’s burners, or not waiting 5
minutes to allow the gas to clear if the
barbecue does not light, may result in an
explosive flame-up which can cause
serious bodily injury or death.
Crossover Ignition® System
Note - The Crossover Ignition System ignites the Front
burner with a spark from the igniter electrode inside
the Gas Catcher™ Ignition Chamber. You generate the
energy for the spark by pushing the Crossover Ignition
Button until it clicks.
WARNING: Check hose before each use of
barbecue for nicks, cracking, abrasions or cuts. If
the hose is found to be damaged in any way, do
not use the barbecue. Replace using only Weber
authorized replacement hose. Contact the
Customer Service Representative in your region
using the contact information sheet provided with
your manual.
1) Open the lid.
2) Make sure all burner control knobs are turned
OFF. (Push control knob down and turn clockwise
to ensure that it is in the OFF position.)
WARNING: The burner control knobs must be in
the OFF position before turning on the liquid
propane cylinder tank valve. If they are not in the
OFF position, when you turn on the LP cylinder
valve, the “excess gas flow control” feature will
activate, limiting the flow of gas from the LP
cylinder. If this should occur, turn OFF the LP
cylinder valve and burner control knobs. Then start
over.
DANGER:
When the “excess gas flow control” feature is
activated, a small amount of gas I still flowing to
the burners. After turning OFF the cylinder knobs,
wait at least 5 minutes for the gas to clear before
attempting to light the barbecue. Failure to do so
may result in an explosive flame-up, which can
cause serious bodily injury or death.
3) Turn the cylinder on by turning the cylinder valve
counterclockwise.
WARNING: Do not lean over the open barbecue.
Keep your face and body at least one foot away
from the matchlight hole when lighting the
barbecue.
4) Push Front burner control knob down and turn to
START/HI.
5) Push the Crossover Ignition Button several times,
so it clicks each time.
6) Check that the burner is lit by looking through the
matchlight hole on the front of the cooking box. You
should see a flame.
WARNING: If the burner does not light, turn the
Front burner control knob to OFF and wait 5
minutes to let the gas clear before you try again or
try to light with a match.
7) After the FRONT burner is lit you can turn on the
other burner or burners.
Note - Always light the FRONT burner first. The other
burner or burners ignite from the FRONT burner.
To Extinguish
Push down and turn each burner control knob
clockwise to the OFF position. Turn gas supply
OFF at the source.
D002.g
Operating
*The grill illustrated may have slight differences than
the model purchased.
5
7
4
6
3
2
1
D-2
To Extinguish
Push down and turn each burner control knob
clockwise to the OFF position. Turn gas supply
OFF at the source.
Manual Lighting
DANGER
Failure to open the lid while igniting the
barbecue’s burners, or not waiting 5 minutes
to allow the gas to clear if the barbecue does
not light, may result in an explosive flame-
up which can cause serious bodily injury
or death.
1) Open the lid.
2) Make sure all burner control knobs are turned
OFF. (Push each knob down and turn clockwise to
ensure they are in the off position.)
WARNING: The burner control knobs must be in
the OFF position before turning on the liquid
propane cylinder valve. If they are not in the OFF
position, when you turn on the LP cylinder valve,
the “excess gas flow control” feature will activate,
limiting the flow of gas from the LP cylinder. If this
should occur, turn OFF the LP tank valve and
burner control knobs. Then start over.
DANGER
When the “excess gas flow control”
feature is activated, a small amount of gas
is still flowing to the burners. After turning
OFF the cylinder and burner control
knobs, wait at least 5 minutes for the gas
to clear before attempting to light the
barbecue. Failure to do so may result in
an explosive flame-up, which can cause
serious bodily injury or death.
3) Turn the cylinder on by turning the cylinder valve
counterclockwise.
4) Strike a match and put the flame into the
matchlight hole in the front of the cooking box.
WARNING: Do not lean over open barbecue.
Keep your face and body at least one foot away
from the matchlight hole when lighting the
barbecue.
5) Push Front burner control knob down and turn to
START/HI.
6) Check that the burner is lit by looking through the
matchlight hole on the front of the cooking box. You
should see a flame
WARNING: If the burner does not light, turn the
Front burner control knob to OFF and wait 5
minutes to let the gas clear before you try again or
try to light with a match.
7) After the FRONT burner is lit you can turn on the
other burner.
Note - Always light the FRONT burner first. The other
burner or burners ignite from the FRONT burner.
*The grill illustrated may have slight differences than
the model purchased.
5
7
4,6
3
2
1
D-3
Cooking
WARNING: Do not move the Weber Gas
Barbecue when operating or while barbecue is hot.
You can adjust the FRONT and BACK burners as
desired. The control settings: High (H), Medium (M),
Low (L), or Off (O) are described in your Weber
cookbook. The cookbook uses these notations to
describe the settings of the FRONT and BACK
burners. For example, to sear steaks, you would set all
burners at H (high). Then to complete cooking, you
would set FRONT and BACK at M (medium). Refer to
your Weber cookbook for detailed cooking instructions.
Note: The temperature inside your cooking box for the
first few uses, while surfaces are still very reflective,
may be hotter than those shown in your cookbook.
Cooking conditions. Such as wind and weather, may
require the adjustment of the burner controls to obtain
the correct cooking temperatures.
CAUTION: Replace thermometer in lid when not
in use. Do not leave thermometer in food while
cooking.
If burners go out during cooking, open lid, turn off
all burners and wait five minutes before relighting.
Preheating - Your Weber Gas Barbecue is an energy-
efficient appliance. It operates at an economical low
BTU rate. To preheat: after lighting, close lid and turn
all burners to high (HH). Preheating to between 500°
and 550° F (260° and 290° C) will take 10 to 15
minutes depending on conditions such as air
temperature and wind.
Drippings and grease - The Flavorizer® Bars are
designed to “smoke” the correct amount of drippings
for flavorful cooking. Excess drippings and grease will
accumulate in the catch pan under the slide out bottom
tray. Disposable foil drip pans are available that fit the
catch pan.
WARNING: Check the bottom tray for grease
build-up before each use. Remove excess grease
to avoid a grease fire in the slide out bottom tray.
Storage and/or Nonuse
■ The gas must be turned off at the liquid propane
cylinder when the Weber Gas Barbecue is not in use.
■ When the Weber Gas Barbecue is stored indoors,
the gas supply must be DISCONNECTED and the LP
cylinder stored outdoors in a well-ventilated space.
■ LP cylinder must be stored outdoors in a well -
ventilated area out of reach of children. Disconnected
LP cylinder must not be stored in a building, garage or
any other enclosed area.
■ When the LP cylinder is not disconnected from the
Weber Gas Barbecue, the appliance and LP tank must
be kept outdoors in a well-ventilated space.
■ The Weber Gas Barbecue should be checked for
gas leaks and any obstructions in the burner tubes
before using. (See Sections: “General Maintenance
and Annual Maintenance.”)
■ Check that the areas under the control panel and
the slide out bottom tray are free from debris that
might obstruct the flow of combustion or ventilation air.
■ The Spider /Insect Screens should also be checked
for any obstructions. (See Section: “Annual
Maintenance.”)
Cleaning
WARNING: Turn your Weber Gas Barbecue OFF
and wait for it to cool before cleaning.
CAUTION: Do not clean your Flavorizer® Bars or
cooking grates in a self-cleaning oven.
For availability of replacement cooking grates and
Flavorizer Bars contact the Customer Service
Representative in your region using the contact
information sheet provided with your manual.
Outside surfaces - Use a warm soapy water solution
to clean, then rinse with water.
CAUTION: Do not use oven cleaner, abrasive
cleansers (kitchen cleansers) cleaners that contain
citrus products, or abrasive cleaning pads on
barbecue or cart surfaces.
Slide out Bottom tray - Remove excess grease, then
wash with warm soapy water, then rinse
Flavorizer® Bars and Cooking Grates - Clean with a
suitable brass bristle brush. As needed, remove from
grill and wash with warm soapy water, then rinse with
water.
Catch pan - Disposable foil trays are available, or you
can line the catch pan with aluminum foil. To clean the
catch pan, wash with warm soapy water, then rinse.
Thermometer - Wipe with warm soapy water; clean
with plastic scrub ball. Do not put in dishwasher or
submerge in water.
Inside cooking module - Brush any debris off of
burner tubes. DO NOT ENLARGE BURNER PORTS
(OPENINGS). Wash inside of cooking box with warm
soapy water and a water rinse.
Inside Lid - While lid is warm, wipe inside with paper
towel to prevent grease build-up. Flaking built-up
grease resembles paint flakes.
Stainless steel surfaces - Wash with a soft cloth and
a soap and water solution.
Thermoset surfaces - Wash with a soft cloth and a
soap and water solution.
Do not use cleaners that contain acid, mineral
spirits or xylene. Rinse well after cleaning.
Thermoset work surfaces are not to be used as
cutting boards.
D-4
Refilling the Liquid
Propane Cylinder
We recommend that you refill the LP cylinder before it
is completely empty.
Removal of the LP cylinder
1) Close cylinder valve (turn clockwise).
2) Unscrew regulator coupling by turning
counterclockwise, by hand only.
3) Loosen cylinder lock wing nut and turn cylinder
lock up out of the way.
4) Lift cylinder off.
To refill, take LP cylinder to a “Gas Propane” dealer.
WARNING: We recommend that your LP cylinder
be filled at an authorized LP gas dealer, by a
qualified attendant, who fills the cylinder by
weight. IMPROPER FILLING IS DANGEROUS.
CAUTION: When transporting the LP cylinder
make sure the plastic dust cover is in place over
the valve. This will keep dust and dirt from the
threaded portion of the valve.
(2)
(3)
(1)
Important LP Cylinder Information
Failure to follow these DANGER statements exactly
may result in a fire causing death or serious injury.
DANGER
NEVER store a spare LP Cylinder under or near
this barbecue.
NEVER fill the tank beyond 80% full.
Your Weber gas grill is equipped with a cylinder
supply system designed for vapor withdrawal.
WARNING: Only use this grill outdoors in a well-
ventilated area. Do not use in a garage, building,
breezeway or any other enclosed area.
The LP cylinder supplied with your barbecue is
equipped with an OPD (Overfilling Prevention
Device) and a QCC1 or Type 1 (CGA810) cylinder
connection. The cylinder connection is compatible
with the barbecue connection.
This is a secondary device to prevent the overfilling of
your LP cylinder. The proper filling methods for the
filling of your cylinder are by weight or volume, as
described in NFPA 58. Please make sure your filling
station fills your LP cylinder by weight or volume. Ask
your filling station to read purging and filling
instructions on the LP cylinder before attempting to fill.
WARNING: Do not exchange the LP tank
provided with your barbecue, unless the exchange
LP tank is equipped with an OPD. Otherwise you
will lose the OPD (Overfilling Prevention Device)
feature. If there is not an LP tank available for
exchange equipped with an OPD, we recommend
that you have your LP tank filled at an authorized
LP gas dealer by a qualified attendant.
Raises up while filling
then stops when full.
D-5
Connecting the Liquid Propane Cylinder
WARNING: Make sure that the LP cylinder valve
is closed. Close by turning valve clockwise.
DANGER
Liquid Propane Cylinder
The liquid propane cylinder manufacturer is
responsible for the materials, workmanship and
performance of the tank. If the tank has a defect
malfunctions, or you have a question regarding the
tank, call the tank manufacturer’s customer service
center. The phone number is on the warning decal,
which is permanently attached to the tank. If the tank
manufacturer has not resolved the issue to your
satisfaction, then contact the Customer Service
Representative in your region using the contact
information sheet provided with your manual.
Do not use an open flame to check for gas
leaks. Be sure there are no sparks or open
flames in the area while you check for
leaks. Sparks or flames will result in a fire
or explosion which can cause serious
bodily injury or death, and damage to
property.
We utilize various LP tank manufacturers. Some of the
tanks have differing top collar assembles. (The top
collar is the metal protective ring around the valve.)
One series of tanks mount with the valve facing front.
The other tanks mount with the valve facing away from
the fuel scale. These types of tanks are illustrated
below.
You will need: LP cylinder, a soap and water solution
and a rag or brush to apply it.
1) Turn the LP cylinder so the opening of the valve is
either to the front, side or rear of the Weber Gas
Barbecue. Lift and hook the cylinder onto the fuel
gauge.
2) Loosen the cylinder lock wing nut. Swing the
cylinder lock down. Tighten the wing nut.
To Connect the hose to the cylinder:
3) Remove the plastic dust cover from the valve.
4) Screw the regulator coupling onto the tank valve,
clockwise, or to the right. Hand-tighten only.
Note: This is a new type of connection. It tightens
clockwise and will not allow gas to flow unless the
connection is tight. The connection requires tightening
by hand only.
WARNING: Do not use a wrench to tighten the
connection. Using a wrench could damage the
regulator coupling and could cause a leak.
5) Mix soap and water.
6) Turn on the cylinder valve.
7) Check for leaks by wetting the fitting with the soap
and water solution and watching for bubbles. If
bubbles form, or if a bubble grows, there is a leak.
If there is a leak, turn off the gas and tighten the fitting.
Turn the gas back on and recheck with the soap and
water solution.
If leak does not stop, Contact the Customer Service
Representative in your region using the contact
information sheet provided with your manual. Do not
use the barbecue.
8) When leak checking is complete, turn gas supply
OFF at the source and rinse connections with
water.
D-6
Safe handling tips for
Liquid Propane Gas
Cylinders
■ Liquid Propane (LP) gas is a petroleum product as
are gasoline and natural gas. LP gas is a gas at
regular temperatures and pressures. Under moderate
pressure, inside a cylinder, LP gas is a liquid. As the
pressure is released, the liquid readily vaporizes and
becomes gas.
■ LP gas has an odor similar to natural gas. You
should be aware of this odor.
■ LP gas is heavier than air. Leaking LP gas may
collect in low areas and prevent dispersion.
■ To fill, take the LP cylinder to an RV center, or look
up “gas-propane” in the phone book for other sources
of LP gas.
WARNING: We recommend that your LP cylinder
be filled at an authorized LP gas dealer, by a
qualified attendant, who fills the tank by weight.
IMPROPER FILLING IS DANGEROUS.
WARNING: If you exchange your LP cylinder,
make sure you get a similar tank in return. Your LP
cylinder is equipped with a quick closing coupling
or type 1 valve and an OPD (Overfilling Prevention
Device). Other LP cylinders may not be compatible
with your barbecue connection.
■ Air must be removed from a new LP cylinder before
the initial filling. Your LP dealer is equipped to do this.
■ The LP cylinder must be installed, transported and
stored in an upright position. LP cylinders should not
be dropped or handled roughly.
■ Never store or transport the LP cylinder where
temperatures can reach 125° F (too hot to hold by
hand - for example: do not leave the LP cylinder in a
car on a hot day).
Note - A refill will last about 20 hours of cooking time
at normal use. The fuel scale will indicate the propane
supply so you can refill before running out. You do not
have to run out before you refill.
■ Treat “empty” LP cylinders with the same care as
when full. Even when the LP tank is empty of liquid
there still may be gas pressure in the cylinder. Always
close the cylinder valve before disconnecting.
CAUTION: When transporting the LP cylinder
make sure the plastic dust cover is in place over
the valve. This will keep dust and dirt from the
threaded portion of the valve.
■ Do not use a damaged LP cylinder. Dented or rusty
LP cylinders or LP cylinders with a damaged valve
may be hazardous and should be replaced with a new
one immediately.
Liquid Propane (LP) Cylinder(s)
■ The joint where the hose connects to the LP cylinder
must be leak tested each time the LP cylinder is
reconnected. For example, test each time the LP
cylinder is refilled.
■ Be sure the regulator is mounted with the small vent
hole pointed downward so that it will not collect water.
This vent should be free of dirt, grease, bugs etc.
■ The LP cylinder and connections supplied with your
Weber Gas Barbecue have been designed and tested
to meet government, American Gas Association, and
Underwriters Laboratories requirements.
Liquid Propane Cylinder requirements
■ Replacement LP cylinders supplied by Weber satisfy
the above requirements. Check to be sure other
cylinders have a D.O.T. certification(1), and date
tested(2) is within five years. Your LP gas supplier can
do this for you.
If you have questions about spare LP cylinders
contact the Customer Service Representative in
your region using the contact information sheet
provided with your manual.
■ All LP tank supply systems must include a collar to
protect the cylinder valve.
■ The LP cylinder must be a 20-lb. size (18 1/4 inches
high, 12 1/4 inches in diameter).
■ The LP cylinder must be constructed and marked in
accordance with the specifications for LP gas cylinders
of the U.S. Department of Transportation (D.O.T.).
For Canada Only
Liquid Propane Cylinder requirements
WARNING: Replacement LP tanks must match
the regulator connection supplied with this
barbecue.
Note: Your retailer can help you match a replacement
tank to your barbecue
■ All LP tank supply systems must include a collar to
protect the cylinder valve.
■ The LP cylinder must be a 20-lb. size (18 1/4 inches
high, 12 1/4 inches in diameter).
■ The LP cylinder must be constructed and marked in
accordance with the specifications for LP gas
cylinders, T.C.
DOT 4BA240
00/01
(1)
(2)
D-7
Annual Maintenance
After a period of nonuse, we recommend that you
perform the following maintenance procedures for your
safety.
WARNING: Check the hose before each use of
the barbecue for nicks, cracking, abrasions or
cuts. If the hose is found to be damaged in any
way, do not use the barbecue. Replace using only
Weber authorized replacement hose. Contact the
Customer Service Representative in your region
using the contact information sheet provided with
your manual.
■ Inspect the burners for correct flame pattern. Clean
if necessary, following the procedures outlined in the
“General Maintenance” section of this manual.
■ Check all gas fittings for leaks.
DANGER
Do not use an open flame to check for gas
leaks. Be sure there are no sparks or open
flames in the area while you check for
leaks. Sparks or flames will result in a fire
or explosion, which can cause serious
bodily injury or death, and damage to
property.
WARNING: You should check for gas leaks every
time you disconnect and reconnect a gas fitting.
Note - All factory-made connections have been
thoroughly checked for gas leaks. The burners have
been flame tested. As a safety precaution however,
you should recheck all fittings for leaks before using
your Weber Gas Barbecue. Shipping and handling may
have loosened or damaged a gas fitting.
WARNING: Perform these leak checks even if
your barbecue was dealer- or store-assembled.
You will need: a soap and water solution and a rag or
brush to apply it.
To perform leak checks: Make sure all Burners are in
the off position. Turn on gas supply.
WARNING: Do not ignite burners while leak
checking.
Check for leaks by wetting the connections with the
soap and water solution and watching for bubbles. If
bubbles form, or if a bubble grows, there is a leak.
Note - Since some leak test solutions, including soap
and water, may be slightly corrosive, all connections
should be rinsed with water after checking for leaks.
Check:
1) Hose-to-manifold connection.
2) Regulator-to-Cylinder connection.
WARNING: If there is a leak at connection (1),
retighten the fitting with a wrench and recheck for
leaks with soap and water solution.
If a leak persists after retightening the fitting, turn
OFF the gas. DO NOT OPERATE THE BARBECUE.
Contact the Customer Service Representative in
your region using the contact information sheet
provided with your manual.
Inspection and cleaning of the Spider/Insect
screens
To inspect the spider/insect screens, remove the
control panel. If there is dust or dirt on the screens,
remove the burners for cleaning the screens. Refer to
Maintenance, Replacing Main Burners. Brush the
spider/inspect screens, lightly, with a soft bristle brush
(i.e. an old toothbrush).
Caution: Do not clean the spider/insect screens
with hard or sharp tools. Do not dislodge the
spider/insect screens or enlarge the screen
openings.
Lightly tap the burner to get debris and dirt out of the
burner tube. Once the spider/insect screens and
burners are clean replace the burners.
If the spider/insect screen becomes damaged or
cannot be cleaned, call Weber-Stephen Products
Customer Service for replacement parts.
Check:
3) Valves-to-manifold connections.
4) The hose-to-regulator connection.
WARNING: If there is a leak at connections (2),
(3) or (4), turn OFF the gas. DO NOT OPERATE
THE BARBECUE. Contact the Customer Service
Representative in your region using the contact
information sheet provided with your manual.
When leak checks are complete, turn gas supply OFF
at the source and rinse connections with water.
(1)
(2)
(3)
(4)
D-8
General Maintenance
Weber Spider /Insect screens
Your Weber Gas Barbecue, as well as any outdoor gas
appliance, is a target for spiders and other insects.
They can nest in the venturi section Venturi(1). This
blocks the normal gas flow, and can cause the gas to
flow back out of the air shutter. This could result in a
fire in and around the air shutters, under the control
panel, causing serious damage to your barbecue.
The burner tube air shutter is fitted with a stainless
steel screen(1) to prevent spiders and other insects
access to the burner tubes through the air shutter
openings.
We recommend that you inspect the Spider/Insect
screens at least once a year. (See Section “Annual
Maintenance”.) Also inspect and clean the the
Spider/Insect screens if any of the following
symptoms should ever occur:
1) The smell of gas in conjunction with the burner
flames appearing yellow and lazy.
2) Barbecue does not reach temperature.
3) Barbecue heats unevenly.
4) One or more of the burners do not ignite.
Main Burner Flame Pattern
The Weber Gas Barbecue burners have been factory
set for the correct air and gas mixture. The correct
flame pattern is shown.
1) Burner tube
2) Tips occasionally flicker yellow
3) Light blue
4) Dark blue
If the flames do not appear to be uniform throughout
the burner tube, follow the burner cleaning procedures.
Main Burner Cleaning Procedure
Turn off the gas supply. Remove the manifold.
Look inside each burner with a flashlight.
Clean the inside of the burners with a wire (a
straightened-out coat hanger will work). Check and
clean the air shutter opening at the ends of the
burners. Check and clean the valve orifices at the base
of the valves. Use a brass bristle brush to clean
outside of burners. This is to make sure all the burner
ports are fully open.
CAUTION: Do not enlarge the burner ports when
cleaning.
(1)
(2)
(3)
(4)
(1)
DANGER
Failure to correct the above mentioned symptoms
may result in a fire, which can cause serious
bodily injury or death, and cause damage to
property.
(1)
D-9
(2)
(1)
(1)
(1)
(2)
(1)
Replacing Main Burners
1) Your Weber Gas Barbecue must be OFF and cool.
2) Turn gas OFF at source.
3) To remove control panel: take off the burner
control knobs. Remove the screws holding the
control panel in place. Lift off the control panel.
4) Unhook the manifold bracket(1) and unscrew the
two wing nuts(2) that hold the manifold to the
cooking box. Pull the manifold and valve assembly
out of the burners and carefully set it down.
5) Slide the burner assembly out from under the
guide screw and washer(1) in the corners of the
cooking box.
6) Lift and twist the burner assembly slightly, to
separate the crossover tube(1) from the burners.
Remove the burners from the cooking box.
CAUTION: The burner openings(1) must be
positioned properly over the valve orifices(2).
Check proper assembly before fastening manifold in
place.
7) To reinstall the burners, reverse 3) through 7).
WARNING: After reinstalling the gas lines, they
should be leak checked with a soap and water
solution before using the barbecue. (See Step:
“Check for gas leaks.”)
D-10
Crossover® Ignition System Operations
If the Crossover Ignition System fails to ignite the Left
burner, light the Left burner with a match. If the Left
burner lights with a match, then check the Crossover
Ignition System.
■ Check that both the white(1) and black(2) ignition
wires are attached properly.
■ Check that the Crossover Ignition button pushes the
igniter (button) down, and returns to the up position.
■ Check to see if the igniter is loose in the frame.
Tighten if necessary; See Step “Install igniter” for
correct procedure.
If the Crossover Ignition System still fails to light,
Contact the Customer Service Representative in your
region using the contact information sheet provided
with your manual.
(1) (2)
Troubleshooting
Problem Check Cure
Burners burn with a yellow or
orange flame, in conjunction with
the smell of gas.
Inspect Weber Spider/Insect
Screens for possible obstructions.
(Blockage of holes.)
Clean Weber Spider/Insect Screens.
(See Section “Annual Maintenance”)
Burners do not light. -or- Burners
have a small flickering flame in
the HIGH position. -or-
Barbecue temperature only
reaches 250˚ to 300˚ in the HIGH
position.
The excess flow safety device,
which is part of the barbecue to
cylinder connection, may have
activated.
To reset the excess flow safety
device turn all burner control knobs
and the cylinder valve OFF.
Disconnect the regulator from the
cylinder. Turn burner control knobs to
HIGH. Wait at least 1 minute. Turn
burner control knobs OFF. Reconnect
the regulator to the cylinder. Turn
cylinder valve on slowly. Refer to
“Lighting Instructions”.
Burner does not light, or flame is
low in HIGH position.
Is LP fuel low or empty?
Is fuel hose bent or kinked?
Does the Front burner light with a
match?
Refill LP cylinder.
Straighten fuel hose.
If you can light the Front burner with
a match, then check the Crossover
Ignition System.
Experiencing flare-ups:
CAUTION: Do not line the
bottom tray with aluminum foil.
Are you preheating barbecue in the
prescribed manner?
Are the cooking grates and
Flavorizer bars heavily coated with
burned-on grease?
Is the bottom tray “dirty” and not
allowing grease to flow into catch
pan?
All burners on high for 10 to 15
minutes for preheating.
Clean thoroughly. (See Section
“Cleaning”)
Clean bottom tray
Burner flame pattern is erratic.
Flame is low when burner is on
HIGH. Flames do not run the
whole length of the burner tube.
Are burners clean? Clean burners. (See Section
“General Maintenance”.)
Inside of lid appears to be
“peeling.” (Resembles paint
peeling.)
The lid is porcelain-on-steel, not
paint. It cannot “peel”. What you are
seeing is baked on grease that has
turned to carbon and is flaking off.
THIS IS NOT A DEFECT.
Clean thoroughly. (See Section
“Cleaning”.)
If problems cannot be corrected by using these methods, please contact the Customer
Service Representative in your region using the contact information sheet provided with
your manual.
Kontaktinformation • Informations concernant les contacts • Kontakt •
Kontakt Information • Kontaktinformasjon • Contactinformatie • Yhteystiedot •
Elenco dei nominativi da contattare • Información de contacto • Contact Information
AUSTRALIA
R. McDonald Co. PTY. LTD.
A.C.N., 007 905 384
104 South Terrace
Adelaide, SA 5000
℡61.8.8221.6111
AUSTRIA (SLOVAKIA,
CZECH REPUBLIC,
HUNGARY)
Ignaz Rosler’s Nfg HG
Triester Strasse 223
P.O. Box 49
A-1232 Vienna
AUSTRIA
℡43.1.667.16.2450
BELGIUM
Graham SA/NV
Parc Industriel 21
1440 Wauthier-Braine
BELGIUM
℡32.2.367.1611
CANADA
Onward Multi Corp, INC.
585 Kumpf Drive
Waterloo, Ontario
CANADA N2V 1K3
℡800-265-2150
DENMARK
Weber Scandinavia A/S
Boegildmindevej 23B
P.O. Box 84
9400 Noerresundby
DENMARK
℡45.99.36.30.10
FRANCE
Le Creuset SA
rue Olivier Deguise
02230 Fresnoy-le-Grand
FRANCE
℡33.3.23.06.22.22
GERMANY
Le Creuset 6MBH
Zeppelinstrasse 9
73274 Notzingen
GERMANY
℡49.7021.97.490
GREECE
Fourlis Trade (Euroelectric SA)
Kifissias Avenue 340
15451 Neo Psychiko Athens
GREECE
℡30.1.629.3000
HONG KONG
Banyon Tree
18th floor, Horizon Plaza
2 Lee Wing Street
Apleichav, Hong Kong
℡852.2506.0033
HOLLAND
Markt (Holland)B.V.
Postbus 219
1380 AE Weesp
HOLLAND
℡31.294.238.640
ITALY
Magi & CO P.S.C.R.L.
Via Municipio 3
40033 Casalecchio Di Reno
ITALY
℡390.51.57.11.22
LATVIA
Bromma, Sia
Bikernieku 17
RIGA LV 1039
LATVIA
℡371.755.65.66
NEW ZEALAND
Supreme Barbeques LTD
6 Maurice Road
Penrose Auckland
NEW ZEALAND
℡649.579.6630
NORWAY
Weber Scandinavia A/S
Hoffsveien 17
0275 Oslo
Norway
℡47.22.51.01.81
PORTUGAL
Markt-Portugal LDA
Recta da Granja do Marques
Edificio GARDENA-Algueirao
2725-596 Mem Martins
PORTUGAL
℡351.21.9228530
SOUTH AFRICA
Galactex Outdoor (Pty) Ltd.
P.O. Box 3782
Edenvale, 1610
SOUTH AFRICA
℡27.31.579.9200
SPAIN
A.N.M.I. Andreu & Miriam, SA
Pere IV, 111
08018 Barcelona
SPAIN
℡34.93.300.26.18
55173 03/29/01
Kontaktinformation • Informations concernant les contacts • Kontakt •
Kontakt Information • Kontaktinformasjon • Contactinformatie • Yhteystiedot •
Elenco dei nominativi da contattare • Información de contacto • Contact Information
SWEDEN
Weber Scandinavia A/S
Almungevagen 2
194 51 Upplands-Vasby
SWEDEN
℡46.8.590.74.777
SWITZERLAND
Koenig Apparate AG
Eggbuhlstrasse 28
8052 Zurich
SWITZERLAND
℡41.1.306.11.44
TURKEY
Tropikal A/S
Soganlik Yanliz Selvi Cad No. 33
81440 Kartal, Istanbul,
TURKEY
℡90.216.451.89.59
UK
Weber-Stephen Products Ltd.
Suite 6 Croston House
L.E. Business Park
Centurion Way
Leyland
Lancashire PR5 1TZ
UK
℡44.1772.33.1900
UNITED STATES
Weber-Stephen Products Co.
Customer Service Center
1890 Roselle Road, Suite 308
Schaumburg, IL 60195
USA
℡800.446.1071
WARNING: Combustion byproducts produced
when using this product contain chemicals
known to the state of California to cause cancer,
birth defects, or other reproductive harm.
Register online at www.weber.com
PRODUCT REGISTRATION
Please complete and return the following
information to register your product and
confirm your product ownership.
Check here if you do NOT want to receive a free subscription to the Grill Out®Times
but still want to get all the benefits of registering your product with us:
1
8
Name of store or catalog where purchased:
6
301 D
For years Weber®has made better products and provided great service because we
know our customers. If you tell us about yourself below, it helps us do a better job.
If you choose, you can also receive information by mail about other relevant
products from responsible organizations Please check the box at the end of this
paragraph if you do not wish to learn more about Weber®or obtain information on
new and interesting opportunities from other companies.
9Which best describes your interest in grilling?
1. I’m a grilling fanatic
2. I enjoy grilling very much, but I’m not fanatical about it
3. I moderately enjoy grilling
4. I’m only marginally interested in grilling
10
PLEASE FOLD AND SEAL WITH TAPE BEFORE MAILING. DO NOT STAPLE.
Phone #:
2
3
Initial:
State:
First Name: Last name:
ZIP code:
Address: (number and street)
City:
Apt #:
Date of purchase:
4Month Day Year
Date of your birth:
Including yourself, what is the total number of people
living in your household?
(Examples: 01, 02, 03, 04...)
Month Day Year
Date of birth (month/year) of the other adults and
children in your household:
Male Female
1.2.
1.2.
For your primary residence, do you:
1. Own 2. Rent
12
15
13
16
14
Month Year
Male Female
1.2.
1.2.
Education:
(Please check which category applies to you):
1. Some high school 3. College degree
2. Completed high school 4. Graduate degree
Your marital status: 1. Married 2. Single
Your gender: 1. Male 2. Female
Month Year
Month Year
Month Year
11
17
18
19
21
I use these credit cards:
1. American Express 4. Visa
2. Gas/Retail 5. Other_______________
3. Master Card 6. Do not have credit cards
20
Purchase price: $ .00
5
Which grill did you purchase?
1. Gas Go-Anywhere®
2. Genesis® Silver-A
3. Genesis® Silver-B
4. Genesis® Silver-C
5. Genesis® Gold-B
6. Genesis® Gold-C
7. Genesis® Platinum-B
8. Genesis® Platinum-C
9. Summit® 450
10. Summit® 475
11. Summit® 650
12. Summit® 675
7Serial number:
Which best describes your household income?
1. Under $15,000 9. $50,000-$59,999
2. $15,000-$19,999 10. $60,000-$74,999
3. $20,000-$24,999 11. $75,000-$99,999
4. $25,000-$29,999 12. $100,000-$149,999
5. $30,000-$34,999 13. $150,000-$199,999
6. $35,000-$39,999 14. $200,000-$249,999
7. $40,000-$44,999 15. $250,000-$299,999
8. $45,000-$49,999 16. $300,000+
Have you ever owned a Weber®grill before?
1. Yes, Weber gas grill Qty
2. No, this is my first Weber gas grill
3. Yes, Weber charcoal grill Qty
4. Never owned a Weber charcoal grill
In the last six (6) months has anyone in your household
purchased any of the following items through the mail
and/or over the internet?
A. Mail B. Internet
1. Books/magazines 
2. Children’s products 
3. Clothes 
4. Insurance/financial products 
5. Music/video/DVD 
6. Travel 
7. Other 
Someone in my home participates in the following activities:
(Check all that apply)
1. Automotive work 19. Hunting/Shooting
2. Bible/Devotional 20. Investments (mutual funds, IRA’s)
3. Boating/Sailing 21. Investments (stocks & bonds)
4. Camping/Hiking 22. Movie watching
5. Casino gambling 23. Own a cat
6. Contribute to charitable causes 24. Own a dog
7. Crafts 25. Personal computing/Internet
8. Cultural art/Events 26. Photography
9. Cycling 27. Read books
10. Do-it-yourself 28. Snow skiing
11. Enter sweepstakes/Contests 29. Self improvement
12. Fishing 30. Soccer
13. Fitness/Exercise/Jogging 31. Tennis
14. Gardening 32. Travel-Foreign
15. Golf 33. Travel-U.S
16. Gourmet cooking/Food/Wines 34. TV shopping
17. Grandchildren 35. Vitamins/Natural foods
18. Home decorating 36. Watch sports on TV
▼
▼
▼
WEBER-STEPHEN PRODUCTS CO.
PO BOX 8556
DENVER CO 80201-9840
!8020198408!
Please send correspondence to:
WEBER-STEPHEN PRODUCTS CO.
Customer Service Center
1890 Roselle Road, Suite 308
Schaumburg, IL 60195
301 D
BUSINESS REPLY MAIL
FIRST-CLASS MAIL PERMIT NO. 40 PALATINE, IL
NO POSTAGE
NECESSARY
IF MAILED
IN THE
UNITED STATES
POSTAGE WILL BE PAID BY ADDRESSEE
Something to bring out the sizzle
in your new Weber®grill!
Complete and mail this product registration card and we’ll give you a free
subscription to the Grill Out®Times, our hot little newsletter filled with recipes,
tips, funny stories, and exclusive Weber®product offers just for readers. Mail this
card today and we’ll meet you at the grill!
If you don’t want to receive the newsletter, just check the box in question one.
You can complete the rest of the card and still realize the many benefits of
registering your product.
PRODUCT REGISTRATION
Complete this card and return, or register
via the Internet at www.weber.com.
Thanks for choosing Weber!
PLEASE FOLD AND SEAL WITH TAPE BEFORE MAILING. DO NOT STAPLE. 97049

Navigation menu
