2.4 G MINI DRONEUser’s Guide for Model DR157 v2137-01

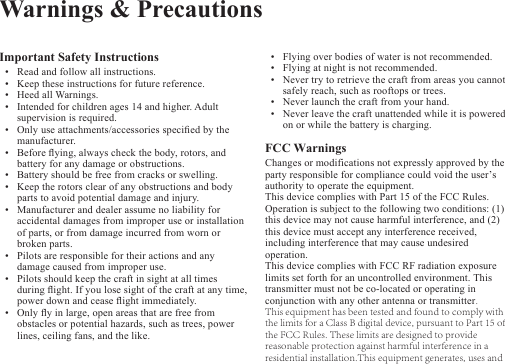

Important Safety Instructions•Read and follow all instructions.•Keep these instructions for future reference.•Heed all Warnings.•Intended for children ages 14 and higher. Adult supervision is required.•Only use attachments/accessories specied by themanufacturer. •Before ying, always check the body, rotors, and battery for any damage or obstructions.•Battery should be free from cracks or swelling.•Keep the rotors clear of any obstructions and bodyparts to avoid potential damage and injury.•Manufacturer and dealer assume no liability for accidental damages from improper use or installationof parts, or from damage incurred from worn or broken parts.•Pilots are responsible for their actions and anydamage caused from improper use.•Pilots should keep the craft in sight at all times during ight. If you lose sight of the craft at any time,power down and cease ight immediately.•Only y in large, open areas that are free from obstacles or potential hazards, such as trees, powerlines, ceiling fans, and the like.•Flying over bodies of water is not recommended.•Flying at night is not recommended.•Never try to retrieve the craft from areas you cannot safely reach, such as rooftops or trees.•Never launch the craft from your hand.•Never leave the craft unattended while it is poweredon or while the battery is charging.FCC Warnings Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and Warnings & Precautions

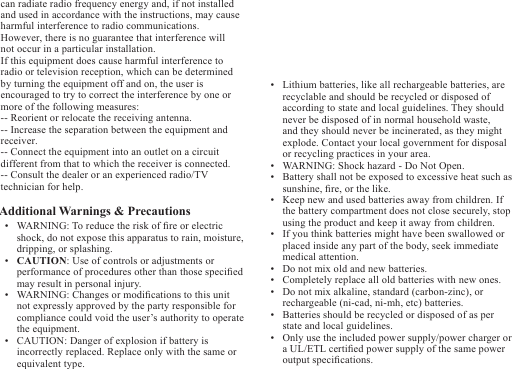

can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver.-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-- Consult the dealer or an experienced radio/TV technician for help. Additional Warnings & Precautions•WARNING: To reduce the risk of re or electric shock, do not expose this apparatus to rain, moisture,dripping, or splashing.•CAUTION: Use of controls or adjustments orperformance of procedures other than those speciedmay result in personal injury.•WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.•CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same orequivalent type.•Lithium batteries, like all rechargeable batteries, are recyclable and should be recycled or disposed of according to state and local guidelines. They should never be disposed of in normal household waste, and they should never be incinerated, as they might explode. Contact your local government for disposal or recycling practices in your area.•WARNING: Shock hazard - Do Not Open.•Battery shall not be exposed to excessive heat such assunshine, re, or the like.•Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children.•If you think batteries might have been swallowed orplaced inside any part of the body, seek immediate medical attention.•Do not mix old and new batteries.•Completely replace all old batteries with new ones.•Do not mix alkaline, standard (carbon-zinc), orrechargeable (ni-cad, ni-mh, etc) batteries.•Batteries should be recycled or disposed of as perstate and local guidelines.•Only use the included power supply/power charger or a UL/ETL certied power supply of the same power output specications.
5Table of ContentsMini Glow Quadcopter DroneFeatures–6Includes–6OverviewFeatures & Layout–7Remote ControlFunctions –9Battery Installation–10Charging the BatteryBattery Charging Procedure –12FlyingRemote Link & Gyro Calibration–14Setting Trim & Countering Drift–16Gyroscope Recalibration & Trim Reset–19Tips for Safe Operation–20Speed Setting–21Headless Mode–22Flips–23Parts & RepairRotor Replacement–24Parts & RepairParts Replacement –26TroubleshootingTroublshooting Guide–27Customer SupportContact Information –30International Support –30Warranty –30

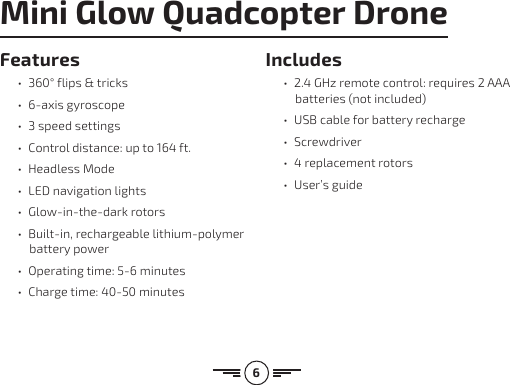

6Features•360° flips & tricks• 6-axis gyroscope• 3 speed settings• Control distance: up to 164 ft.• Headless Mode• LED navigation lights• Glow-in-the-dark rotors• Built-in, rechargeable lithium-polymer battery power• Operating time: 5-6 minutes• Charge time: 40-50 minutesIncludes• 2.4 GHz remote control: requires 2 AAA batteries (not included)• USB cable for battery recharge• Screwdriver• 4 replacement rotors• User’s guideMini Glow Quadcopter Drone

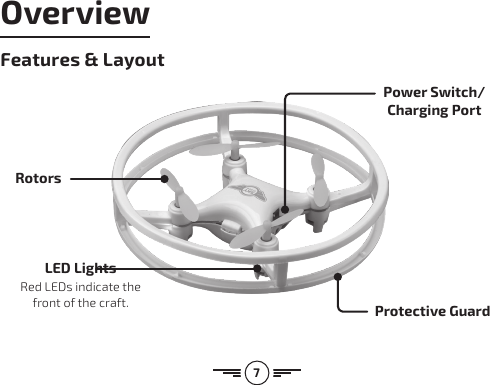

7Features & LayoutOverviewRotorsPower Switch/Charging PortLED LightsRed LEDs indicate the front of the craft. Protective Guard

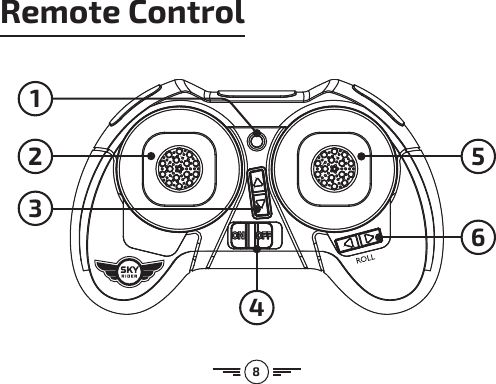

8Remote Control153426

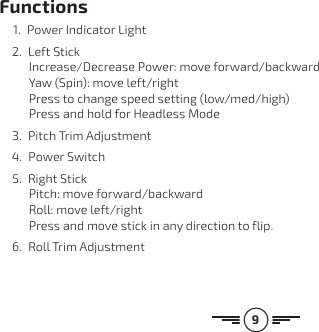

9Functions 1. Power Indicator Light2. Left Stick Increase/Decrease Power: move forward/backward Yaw (Spin): move left/right Press to change speed setting (low/med/high) Press and hold for Headless Mode3. Pitch Trim Adjustment4. Power Switch5. Right Stick Pitch: move forward/backward Roll: move left/right Press and move stick in any direction to flip.6. Roll Trim Adjustment

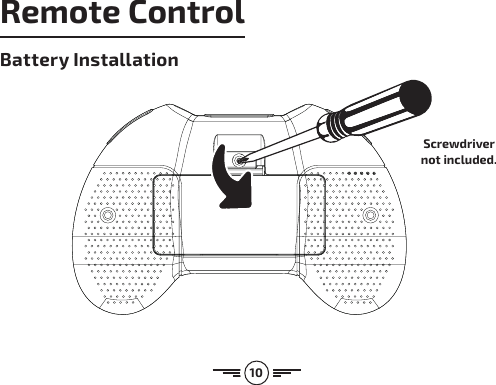

10Battery InstallationRemote ControlScrewdriver not included.

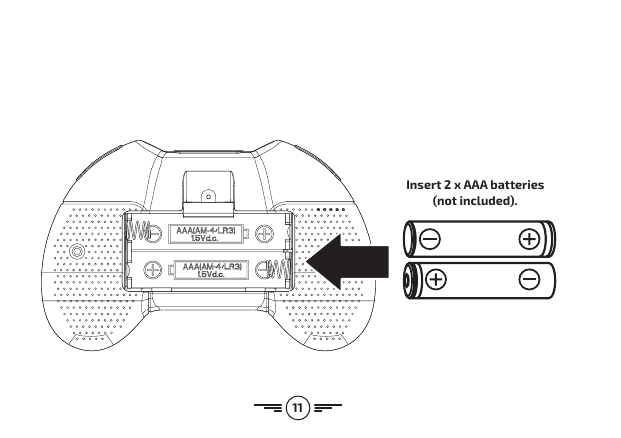

11Insert 2 x AAA batteries (not included).

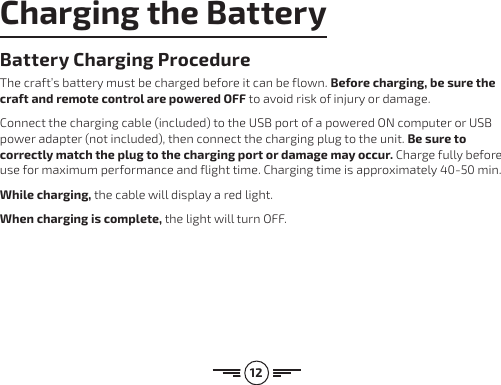

12Charging the BatteryBattery Charging Procedure The craft’s battery must be charged before it can be flown. Before charging, be sure the craft and remote control are powered OFF to avoid risk of injury or damage. Connect the charging cable (included) to the USB port of a powered ON computer or USB power adapter (not included), then connect the charging plug to the unit. Be sure to correctly match the plug to the charging port or damage may occur. Charge fully before use for maximum performance and flight time. Charging time is approximately 40-50 min.While charging, the cable will display a red light. When charging is complete, the light will turn OFF.
13REMINDER: Do not charge overnight. Do not leave unattended while charging.

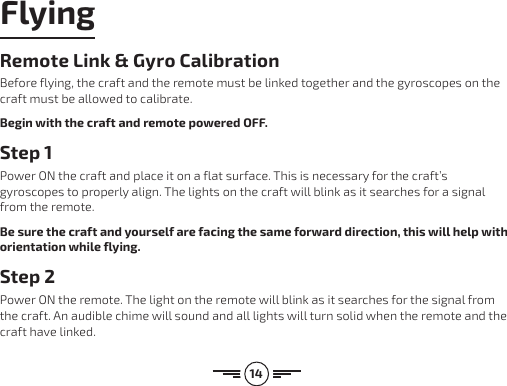

14FlyingRemote Link & Gyro CalibrationBefore flying, the craft and the remote must be linked together and the gyroscopes on the craft must be allowed to calibrate.Begin with the craft and remote powered OFF.Step 1Power ON the craft and place it on a flat surface. This is necessary for the craft’s gyroscopes to properly align. The lights on the craft will blink as it searches for a signal from the remote.Be sure the craft and yourself are facing the same forward direction, this will help with orientation while flying.Step 2Power ON the remote. The light on the remote will blink as it searches for the signal from the craft. An audible chime will sound and all lights will turn solid when the remote and the craft have linked.

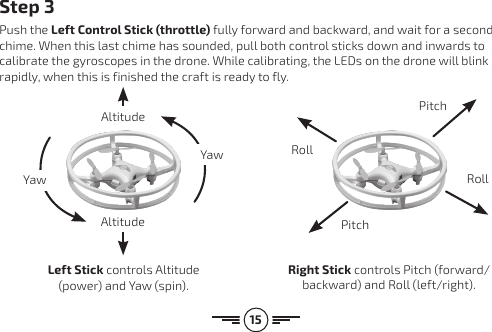

15Step 3Push the Left Control Stick (throttle) fully forward and backward, and wait for a second chime. When this last chime has sounded, pull both control sticks down and inwards to calibrate the gyroscopes in the drone. While calibrating, the LEDs on the drone will blink rapidly, when this is finished the craft is ready to fly.Left Stick controls Altitude (power) and Yaw (spin).AltitudeAltitudeYawYawRight Stick controls Pitch (forward/backward) and Roll (left/right).PitchPitchRollRoll

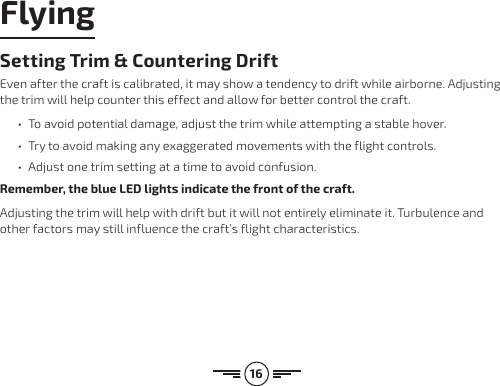

16Setting Trim & Countering DriftEven after the craft is calibrated, it may show a tendency to drift while airborne. Adjusting the trim will help counter this effect and allow for better control the craft. • To avoid potential damage, adjust the trim while attempting a stable hover. • Try to avoid making any exaggerated movements with the flight controls. • Adjust one trim setting at a time to avoid confusion.Remember, the blue LED lights indicate the front of the craft.Adjusting the trim will help with drift but it will not entirely eliminate it. Turbulence and other factors may still influence the craft’s flight characteristics.Flying

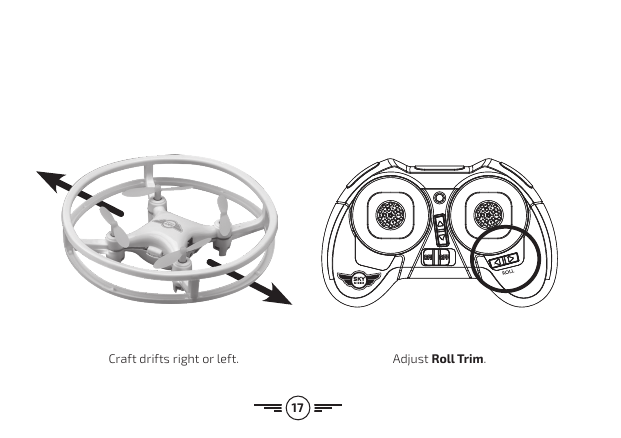

17Craft drifts right or left. Adjust Roll Trim.

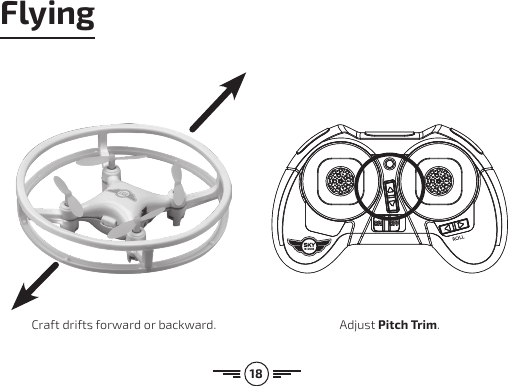

18Craft drifts forward or backward. Adjust Pitch Trim.Flying

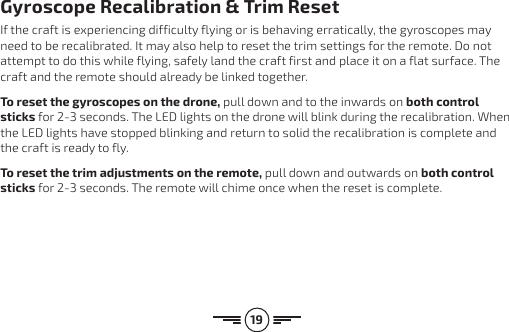

19Gyroscope Recalibration & Trim ResetIf the craft is experiencing difficulty flying or is behaving erratically, the gyroscopes may need to be recalibrated. It may also help to reset the trim settings for the remote. Do not attempt to do this while flying, safely land the craft first and place it on a flat surface. The craft and the remote should already be linked together.To reset the gyroscopes on the drone, pull down and to the inwards on both control sticks for 2-3 seconds. The LED lights on the drone will blink during the recalibration. When the LED lights have stopped blinking and return to solid the recalibration is complete and the craft is ready to fly.To reset the trim adjustments on the remote, pull down and outwards on both control sticks for 2-3 seconds. The remote will chime once when the reset is complete.

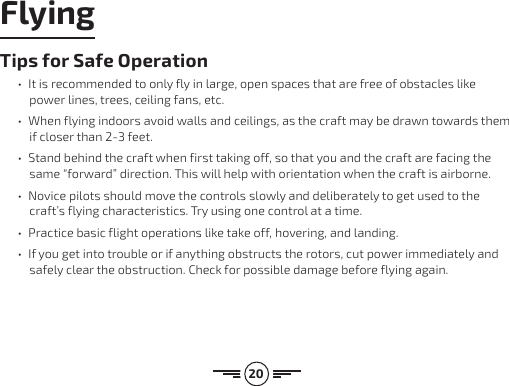

20Tips for Safe Operation• It is recommended to only fly in large, open spaces that are free of obstacles like power lines, trees, ceiling fans, etc.• When flying indoors avoid walls and ceilings, as the craft may be drawn towards them if closer than 2-3 feet.• Stand behind the craft when first taking off, so that you and the craft are facing the same “forward” direction. This will help with orientation when the craft is airborne. • Novice pilots should move the controls slowly and deliberately to get used to the craft’s flying characteristics. Try using one control at a time. • Practice basic flight operations like take off, hovering, and landing.• If you get into trouble or if anything obstructs the rotors, cut power immediately and safely clear the obstruction. Check for possible damage before flying again. Flying

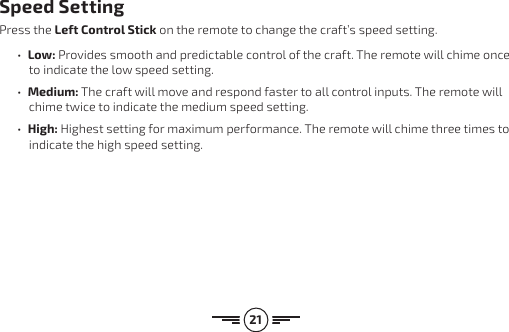

21Speed SettingPress the Left Control Stick on the remote to change the craft’s speed setting.• Low: Provides smooth and predictable control of the craft. The remote will chime once to indicate the low speed setting. • Medium: The craft will move and respond faster to all control inputs. The remote will chime twice to indicate the medium speed setting. • High: Highest setting for maximum performance. The remote will chime three times to indicate the high speed setting.

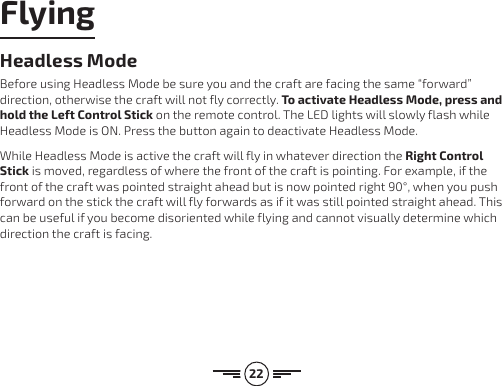

22Headless ModeBefore using Headless Mode be sure you and the craft are facing the same “forward” direction, otherwise the craft will not fly correctly. To activate Headless Mode, press and hold the Left Control Stick on the remote control. The LED lights will slowly flash while Headless Mode is ON. Press the button again to deactivate Headless Mode. While Headless Mode is active the craft will fly in whatever direction the Right Control Stick is moved, regardless of where the front of the craft is pointing. For example, if the front of the craft was pointed straight ahead but is now pointed right 90°, when you push forward on the stick the craft will fly forwards as if it was still pointed straight ahead. This can be useful if you become disoriented while flying and cannot visually determine which direction the craft is facing.Flying
23FlipsBefore attempting a flip, be sure that there is ample clear space around the craft, ideally 9-10 ft.. in all directions. It is not recommended to attempt to flip around or through any obstacles, as this may result in unintended damage. Press the Right Control Stick, then move it in any direction and the craft will perform a flip in the same direction.

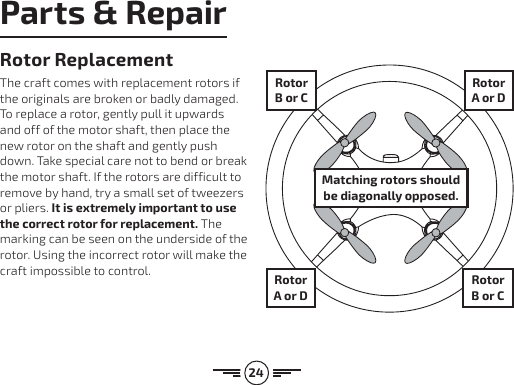

24Parts & RepairRotor ReplacementThe craft comes with replacement rotors if the originals are broken or badly damaged. To replace a rotor, gently pull it upwards and off of the motor shaft, then place the new rotor on the shaft and gently push down. Take special care not to bend or break the motor shaft. If the rotors are difficult to remove by hand, try a small set of tweezers or pliers. It is extremely important to use the correct rotor for replacement. The marking can be seen on the underside of the rotor. Using the incorrect rotor will make the craft impossible to control.Rotor A or DRotor A or DRotor B or CRotor B or CMatching rotors should be diagonally opposed.
25Removal Replacement

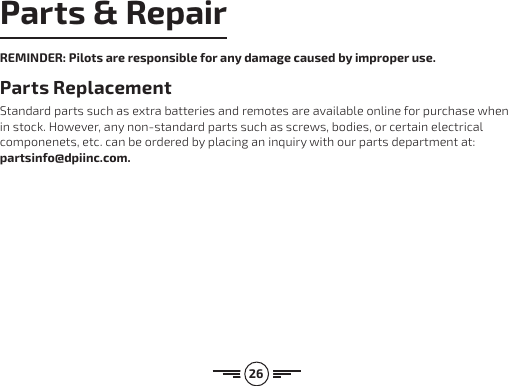

26Parts & RepairREMINDER: Pilots are responsible for any damage caused by improper use. Parts Replacement Standard parts such as extra batteries and remotes are available online for purchase when in stock. However, any non-standard parts such as screws, bodies, or certain electrical componenets, etc. can be ordered by placing an inquiry with our parts department at: partsinfo@dpiinc.com.
27TroubleshootingPROBLEM POSSIBLE CAUSES SOLUTIONCraft does not respond to controls. • No power to remote or craft. • Poor contact between power plugs. • Craft is out of range. • Check remote batteries, replace if needed. • Check craft battery, be sure it is fully charged. • Be sure the power plugs are firmly connected. • Be sure the remote has an unobstructed line of sight to the craft. • Remain within the remote’s 164 ft. range.Troublshooting Guide
28PROBLEM POSSIBLE CAUSES SOLUTIONCraft is difficult to control or flies erratically. • Gyroscopes may be misaligned. • Recalibrate gyroscopes (see pg. 19). • Power OFF remote and craft and reconnect (see pg. 14).Craft drifts while in flight. • Trim not set or needs adjustment. • Adjust trim settings (see pg. 16). • Reset trim settings (see pg. 13).Craft suffers from mechanical trouble. • Damage to body, rotors or other major components. • Repair or replace parts as needed.Troubleshooting

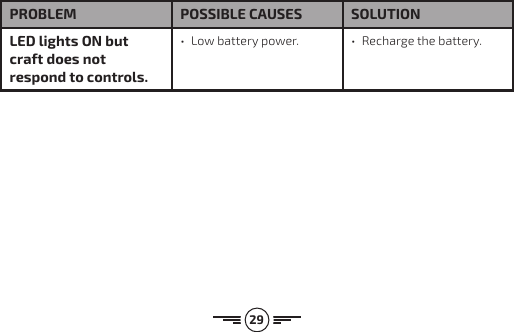

29PROBLEM POSSIBLE CAUSES SOLUTIONLED lights ON but craft does not respond to controls. • Low battery power. • Recharge the battery.
30International Support To download this User’s Guide in English, Spanish, and French, or to get answers to frequently asked questions, visit the support section at: www.gpx.comPara descargar este Manual del Usuario en inglés, español y francés, o para obtener respuestas a preguntas frecuentes, visite la sección de apoyo en: www.gpx.comPour télécharger ce guide de l’utilisateur en anglais, espagnol ou français, ou pour obtenir des réponses à des questions fréquemment posées, consultez la rubrique d’assistance sur: www.gpx.comContact Information Website: www.gpx.comEmail Support: prodinfo@dpiinc.comEmail Parts: partsinfo@dpiinc.comPhone Support: 1-888-999-4215Warranty See included 30 Day Warranty for warranty information. Warranty and the most up-to-date version of this User’s Guide can also be found at: www.gpx.comCustomer Support
31Protect for Today Sustain for TomorrowMade GreenCopyright © 2017 Digital Products International (DPI, Inc.) All other trademarks appearing herein are the property of their respective owners. Specifications are subject to change without notice.
