530085739 10/3/97

HT14/HT17/HT19/HT22

Frigidaire Home Products, Augusta, GA 30907

WCI Outdoor Products, Inc. 530085739 10/03/97

R

C

R

For Household Use Only

RTrademark

WARNING:

Read and follow all Safety Rules and Operating Instructions before

using this product. Failure to do so can result in serious injury.

ADVERTENCIA:

Lea el manual del operador y siga todas las advertencias e instruc-

ciones de seguridad. El no hacerlo puede resultar en lesiones graves.

AVERTISSEMENT:

Lire le manuel de l’utilisateur et bien respecter tous les avertisse-

ments et toutes les instructions de sécurité. Tout défaut de le faire

pourrait entraîner des blessures graves.

CUSTOMER ASSISTANCE 1-800-554-6723

Operator’s Manual

Manual del Operador

Manuel de L’utilisateur

ENGLISH ESPAÑOL FRANÇAIS

Do not return unit to retailer. Call 1--800--554--6723

for customer assistance.

Visit us at our web site: www.weedeater.com

2

SAFETY RULES

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using electric hedge trim-

mers,basic safety precautions should always

be followed to reduce the risk of fire, electric

shock, and personal injury. Read all instruc-

tions. Be thoroughly familiar with the controls

and the proper use of the equipment.

OPERATOR SAFETY

SDANGER:Risk of cut. Keep hands away

from blades. Keep both hands on handles

when power is on. Do not attempt to clear

away cut material when blades are in mo-

tion. Make sure trigger switch is not en-

gaged and power source is disconnected

when removing jammed material from

blades. Do not grab or hold unit by blades.

SWARNING: Do not use without handle

and guard. See Assembly section.

SDress properly. Always wear safety

glasses. Always wear face or dust mask if

operation is dusty. Always wear heavy, long

pants, boots, and gloves.Secure hair so it is

above shoulder length. Do not go barefoot

or wear short pants, sandals, jewelry, loose

clothing, or clothing with loosely hanging

straps, ties, tassels, etc.; they can be

caught in moving parts. Being fully covered

will help protect you from pieces of toxic

plants such as poison ivy thrown by the

blades, which could be more of a hazard

than touching the plant itself.

SStay alert. Do not operate unit when you

are tired, ill, or under the influence of alco-

hol, drugs, or medication. Watch what

you are doing. Use common sense.

SAvoid unintentional starting of unit. Never

carry unit with your finger on trigger switch.

Be sure trigger switch is not engaged be-

fore connecting extension cord.

SCAUTION: Blades move momentarily after

the trigger switch is released. Allow blades

to stop before removing them from the cut.

SWear hearing protection when using unit.

ELECTRICAL SAFETY

SWARNING: To reduce risk of electrical

shock, avoid dangerous environment. Do

not use on wet hedges or shrubbery, in

damp or wet locations, or around swim-

ming pools, hot tubs, etc. Do not expose

to snow, rain, or water to avoid the possi-

bility of electrical shock.

STo reduce the risk of electric shock, this ap-

pliance has a polarized plug (one blade is

wider than the other) and will require the

use of a polarized extension cord. The ap-

pliance plug will fit into a polarized exten-

sion cord only one way. If the plug does not

fit fully into the extension cord, reverse the

plug. If the plug still does not fit, obtain a

correct polarized extension cord. A polar-

ized extension cord will require the use of a

polarized wall outlet. This plug will fit into

the polarized wall outlet only one way. If the

plug does not fit fully into the wall outlet, re-

verse the plug. If the plug still does not fit,

contact a qualified electrician to install the

proper wall outlet. Do not change the

equipment plug, extension cord receptacle,

or extension cord plug in any way.

SWARNING: To reduce the risk of electri-

cal shock, use extension cords specifi-

cally marked as suitable for outdoor

appliances having electrical rating not

less than the rating of the unit. The cord

must be marked with the suffix “WA” (“W”

in Canada). An undersized extension

cord will cause a drop in line voltage re-

sulting in loss of power and overheating.

If in doubt, use the next heavier gauge.

The smaller the gauge number, the

heavier the cord. See Select an Exten-

sion Cord section.

SUse only a 120 A.C. voltage supply as

shown on the nameplate of unit.

SMake sure your extension cord is in good

condition.

SDo not use in the presence of flammable

liquids or gases to avoid creating a fire or

explosion and/or causing damage to unit.

SDo not attempt to repair unit. Inspect in-

sulation and connectors on unit and ex-

tension cord before each use. If there is

any damage, do not use until damage is

repaired by qualified service personnel.

Do not use a damaged extension cord.

SDon’t abuse cord. Never carry unit by

cord or yank cord to disconnect unit.

STo reduce the possibility of extension

cord disconnecting from unit during oper-

ation, attach extension cord to cord re-

tainer on unit. See illustration in Select an

Extension Cord section.

SDo not use unit if the trigger switch does

not turn the unit on and off properly. Re-

pairs tothe switch must bemade by quali-

fied service personnel.

SKeep the extension cord clear of the op-

erator, blades, and obstacles at all times.

Do not expose cords to heat, oil, water, or

sharp edges.

SAvoid body contact with any grounded con-

ductor, such as metal pipes or wire fences,

to avoid the possibility of electric shock.

UNIT SAFETY

SGround Fault Circuit Interrupter (GFCI)

protection should be provided on the cir-

cuit or outlet to be used for the hedge

3

trimmer. Receptacles are available hav-

ing built-in GFCI protection and may be

used for this measure of safety.

SInspect entire unit, including guards, be-

fore each use. Have damaged parts re-

placed by a qualified service dealer.

Make sure all fasteners are in place and

securely fastened.

SBefore using the unit, have your service

dealer replace blades or parts that are

cracked, chipped, broken, or damaged in

any other way. Throw away damaged or

bent blades.

SUse only Weed EaterRblades.

OPERATING SAFETY

SDon’t force the unit; it will do the job better

and with less likelihood of a risk of injury at

the rate for which it was designed.

SInspect area to be trimmed before each

use. Remove objects (rocks, broken

glass, nails, wire, string, etc.) which can

wrap around or be thrown by blades.

SKeep children away. Keep others includ-

ing children, animals, bystanders and

helpers outside the 30 foot (10 meter)

Hazard Zone. Stop the unit immediately if

you are approached.

SAlways keep unit in front of your body.

SDon’t overreach or stand on unstable

support such as ladders, stools, truck

beds, etc. Keep firm footing and balance

at all times.

SDo not raise unit above your shoulders.

The blades can come dangerously close

to your body.

SKeep all parts of body away from blades.

SUse unit properly. Use only for jobs ex-

plained in this manual.

SUse only in daylight or good artificial light.

MAINTENANCE SAFETY

SMaintain unit according to recommended

procedures.

SKeep blades/air vents free of debris.

SDisconnect unit from the power supply

before performing maintenance.

SUse only genuine Weed Eater replace-

ment parts as recommended.

TRANSPORTING AND STORAGE

SClean unit and labels with a damp sponge

and mild household detergent. Keep

handles dry, clean, and free from oil and

grease.

SDisconnect unit from the power supply

when not in use.

SHand carry unit with the motor stopped

and the blades away from your body.

SSecure the unit before storing or trans-

porting it in a vehicle.

SStore unit so blades cannot accidentally

cause injury. The unit can be hung by the

hole in the blades.

SStore unit indoors, unplugged in a high,

dry place out of the reach of children.

If situations occur which are not covered in

this manual, use care and good judgment.

If you need assistance, contact your Autho-

rized Service Dealer or call the Customer

Assistance Hotline, 1-800-554-6723.

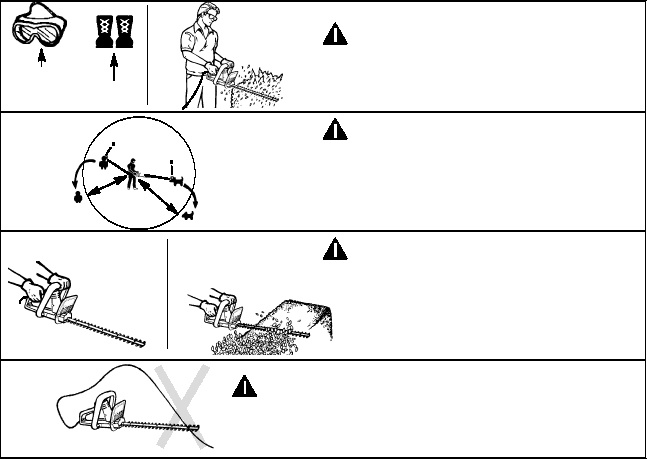

Allow blades to stop

before removing

them from the cut.

WARNING

Blades can throw objects violently.

DYou can be blinded or injured.

DWear safety glasses.

WARNING

Hazard zone for thrown objects

DBlades can throw objects violently.

DOthers can be blinded or injured.

DKeep people and animals 30 feet

(10 m) away.

Boots

Blades move

momentarily

after the

trigger is

released.

WARNING

Blades move momentarily after the

trigger is released.

DThe blades can seriously cut you or

others.

DAllow blades to stop before

removing them from the cut.

30 ft.

(10 m)

Safety

Glasses

WARNING

Blades can cut extension cord.

DKeep extension cord away from blades.

DA cut extension cord can cause serious electrical

shock to you or others.

SAVE THESE INSTRUCTIONS

4

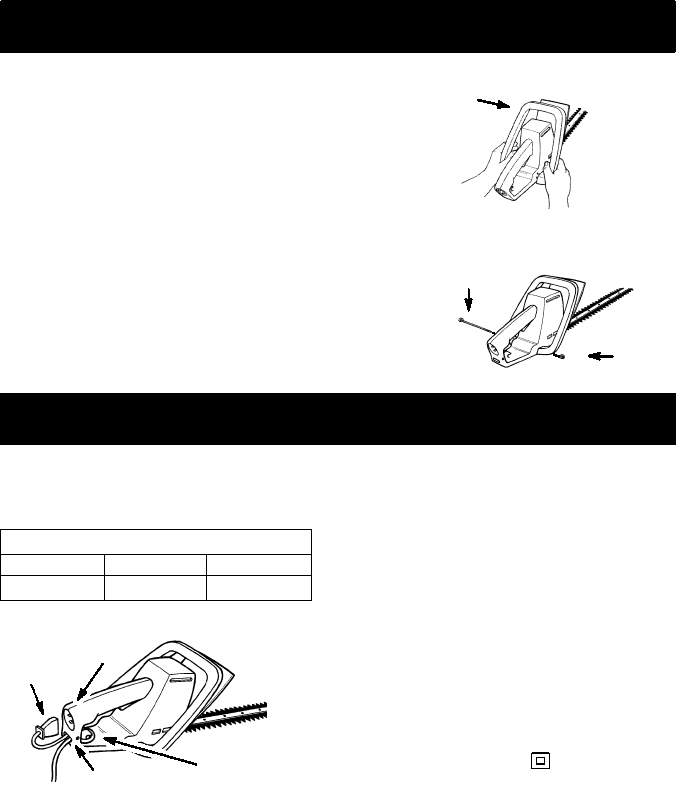

ASSEMBLY

CARTON CONTENTS

Hedge Trimmer

Assist Handle

Screw

Nut

Examine parts for damage. Do not use

damaged parts.

NOTE: If you need assistance or find parts

missing or damaged, call 1-800-554-6723.

If you receive your unit assembled, check

each step to be sure your unit is properly

assembled. Follow all safety information in

the manual and on unit.

ASSIST HANDLE ATTACHMENT

WARNING: Do not use without the as-

sist handle properly installed.

This unit is equipped with an assist handle

for extra comfort and control.

SPlace the assist handle on the unit.

Assist Handle

SInsert screw through assist handle and

motor housing.

Screw

Nut

SThread nut onto screw. Tighten securely.

OPERATION

Use only the voltage supply specified on your

unit. See chart below to select the proper ex-

tension cord.

SELECT AN EXTENSION CORD

Extension Cord Gauge Chart

100 ft.

16 gauge

50 ft.25 ft.

16 gauge 16 gauge

Extension cords are available for this unit.

Recessed

Plug

Cord

Receptacle

Cord Retainer Hook

DOUBLE INSULATION CONSTRUCTION

This unit is Double Insulated to help pro-

tect against electric shock. Double insula-

tion construction consists of two separate

“layers” of electrical insulation instead of

grounding.

Tools and appliances built with a double in-

sulation system are not intended to be

grounded. No grounding means is provided

on this unit, nor should a means of ground-

ing be added to this unit. As a result, the ex-

tension cord used with your unit can be

plugged into any standard 120 volt electri-

cal outlet.

Safety precautions must be observed

when operating any electrical tool. A

double insulation system only provides

added protection against injury resulting

from internal electrical insulation failure.

WARNING: All electrical repairs to this

unit, including housing, switch, motor, etc.,

must be diagnosed and repaired by quali-

fied service personnel. Replacement parts

for a double insulated appliance must be

identical to the parts they replace. A double

insulated appliance is marked with the

words DOUBLE INSULATION or DOUBLE IN-

SULATED. The symbol (square within a

square) may also be marked on the ap-

pliance. Failure to have the unit repaired by

qualified service personnel can cause the

double insulation construction to become

ineffective and result in serious injury.

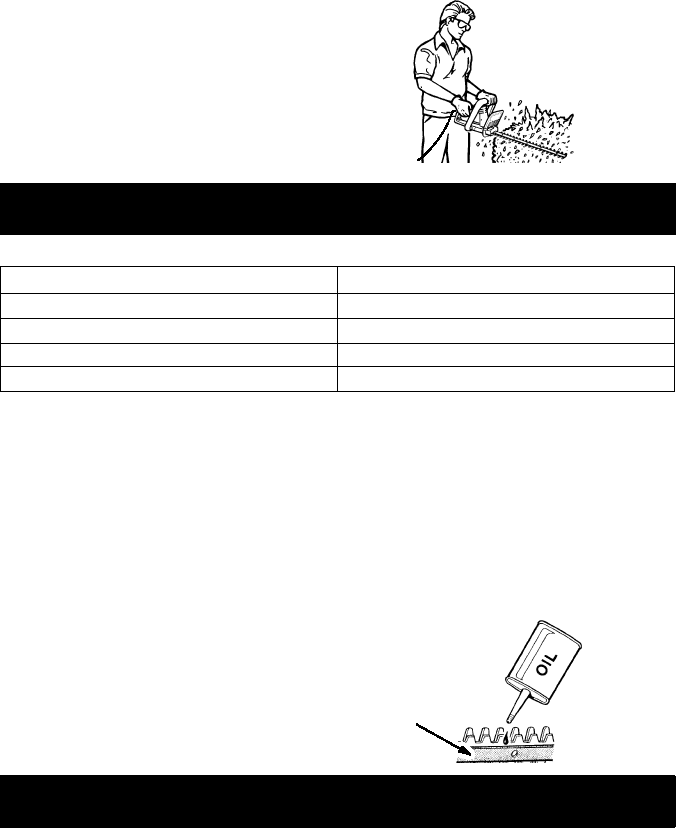

CORRECT OPERATING POSITION

Stand as shown; check for the following:

SOperator wearing safety glasses/eye

protection and proper clothing.

SRight hand holding rear handle, left hand

holding assist handle.

SUnit below waist level.

5

OPERATING YOUR UNIT

SSqueeze switch to operate your unit. To

turn off the unit, release the switch.

SRead important safety instructions be-

fore operating.

SHedge trimmer is not to be used to cut

stems greater than 3/8 inch thick.

SWhen operating the unit, keep the exten-

sion cord behind the trimmer; never

drape it over the hedge being trimmed.

Operating

Position

MAINTENANCE

CUSTOMER RESPONSIBILITIES

CARE & MAINTENANCE TASK WHEN TO PERFORM

Check for loose fasteners and parts Before each use

Check for damaged or worn parts Before each use

Clean unit and labels After each use

Lubricate blades After each use

BEFORE EACH USE

CHECK FOR LOOSE

FASTENERS AND PARTS

SAssist handle screws

SHousing Screws

CHECK FOR DAMAGED OR

WORN PARTS

Refer replacement of damaged/worn parts

to your Authorized Service Dealer.

SSwitch -- Ensure switch functions prop-

erly by moving the switch to the Off posi-

tion. Make sure motor stops; then re-

start motor and continue.

SPigtail plug and extension cord -- Have

damaged cords replaced by your Au-

thorized Service Dealer.

AFTER EACHUSE

CLEAN UNIT & LABELS

SClean the unit using a damp cloth with a

mild detergent.

SWipe off unit with a clean dry cloth.

LUBRICATE BLADES

SStop the motor and disconnect the unit

from the power source.

SRemove any debris on blades.

SClean all parts and check for damage.

Have damaged parts replaced. Be cau-

tious of sharp edges.

SApply a light machine oil along the edge

of the top and bottom straps.

NOTE: Ensure that handles remain clean

and dry.

Top Strap

STORAGE

Prepare unit for storage at end of season

or if it will not be used for 30 days or more.

SClean the unit before storing. Pay par-

ticular attention to the air intake and air

vents; keep them free of debris. Use a

mild soap and sponge dampened with

warm water to clean the plastic surfaces.

Avoid all other types of detergents, clean-

ers, or solvents; they can contain chemi-

cals, such as aromatic oils (lemon, pine)

or kerosene that can seriously damage

the plastic housing. Do not spray the unit

with water.

SMake sure the receptacle is free of ob-

structions.

SStore unit so that any sharp edges can-

not accidentally cause injury.

SNever immerse any part of the unit in any

liquid.

SNever douse or squirt the unit with water

or any other liquids.

SStore unit indoors in a cool, high, dry loca-

tion out of the reach of children.

6

SERVICE

TROUBLESHOOTING CHART

TROUBLE CAUSE REMEDY

Cutting blades

stop under a

load or do not

move when

switch is

pressed.

SCut at a slower pace.

SClean debris from blades.

SPlug unit into a 120 volt outlet.

STurn on breaker.

SContact your Service Dealer.

SForcing blade into ma-

terial being cut.

SBlades clogged with

debris.

SUnit not plugged in.

SCircuit breaker off.

SNone of the above.

NEED ASSISTANCE?

Call 1-800-554-6723. NEED SERVICE PART?

Contact your dealer/place of purchase.

LIMITED WARRANTY

FRIGIDAIRE HOME PRODUCTS war-

rants to the original purchaser that each

new WEED EATER or POULAN PRO

brand electric or cordless product is free

from defects in material and workmanship

and agrees to repair or replace under this

warranty any defective Weed Eater or

Poulan Pro brand electric or cordless

product within two (2) years from the origi-

nal date of purchase.

If your WEED EATER OR POULAN PRO

brand electric or cordless product should

fail within the limited warranty period, re-

turn it, complete, prepaid, with proof of pur-

chase, to the dealer from whom it was pur-

chased for repair or replacement at the

option of FRIGIDAIRE HOME PROD-

UCTS.

This warranty is not transferable and does

not cover damage or liability caused by im-

proper handling, improper maintenance or

the use of accessories and/or attachments

not specifically recommended by FRIGID-

AIRE HOME PRODUCTS for this tool. Ad-

ditionally, this warranty does not cover

parts that will wear and require replace-

ment with reasonable use during the war-

ranty period. This warranty does not cover

predelivery setup or normal adjustments

explained in the Operator’s Manual.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL

RIGHTS, AND YOU MAY HAVE OTHER RIGHTS

WHICH VARY FROM STATE TO STATE.

NO CLAIMS FOR CONSEQUENTIAL OR OTHER

DAMAGES WILL BE ALLOWED, AND THERE ARE

NO OTHER EXPRESS WARRANTIES EXCEPT

THOSE EXPRESSLY STIPULATED HEREIN.

SOME STATES DO NOT ALLOW LIMITATIONS ON

HOW LONG AN IMPLIED WARRANTY LASTS OR

THE EXCLUSION OR LIMITATIONS OF INCIDEN-

TAL OR CONSEQUENTIAL DAMAGES, SO THE

ABOVE LIMITATIONS OR EXCLUSION MAY NOT

APPLY TO YOU.

FRIGIDAIRE HOME PRODUCTS policy is

to continuously improve its products.

Therefore, FRIGIDAIRE HOME PROD-

UCTS reserves the right to change, modify,

or discontinue models, designs, specifica-

tions, and accessories of all products atany

time without notice or obligation to any pur-

chaser.
