GHT 220

RTrademark

WARNING:

Read and follow all Safety Rules and Operating Instructions before

using this product. Failure to do so can result in serious injury.

ADVERTENCIA:

Lea el manual de instrucciones y siga todas las advertencias e

instrucciones de seguridad. El no hacerlo puede resultar en lesiones

graves.

AVERTISSEMENT:

Lire le manuel d’instructions et bien respecter tous les avertisse-

ments et toutes les instructions de sécurité. Tout défaut de le faire

pourrait entraîner des blessures graves.

Instruction Manual

Manual de Instrucciones

Manuel d’Instructions

ENGLISH ESPAÑOL FRANÇAIS

530163751 10/9/03

Please do not return unit to retailer.

Por favor, no devuelva el aparato al lugar de compra.

Veuillez ne pas retourner l’outil au détaillant.

1-800-554-6723

www.weedeater.com

Electrolux Home Products, Inc.

250 Bobby Jones Expressway

Augusta, GA 30907

Copyright E2003 Electrolux Home Products, Inc.

Electrolux Canada Corporation

6150 McLaughlin Road

Mississauga, ON L5R 4C2

-- 2 --

SAFETY RULES

WARNING: Failure to follow all

Safety Rules and Precautions can result in

serious injury.

DANGER: THIS POWER TOOL CAN

BE DANGEROUS! This unit can cause serious

injury including amputation or blindness to the

operator and others. The warnings and safety

instructions in this manual must be followed to

provide reasonable safety and efficiency in us-

ing this unit. The operator is responsible for fol-

lowing the warnings and instructions in this

manual and on the unit. Never allow children to

use this tool.

KNOW YOUR UNIT

SRead your instruction manual carefully until

you completely understand and can follow

all warnings and safety rules before operat-

ing the unit.

DRestrict unit to users who understand and

will follow all warnings and safety rules in

this manual and on the unit.

PLAN AHEAD

WARNING: Inspect area before start-

ing unit. Remove all debris and hard objects

such as rocks, glass, wire, etc. that can rico-

chet, be thrown, or otherwise cause injury or

damage during operation.

DAlways wear eye protection when operating,

servicing, or performing maintenance on unit.

Wearing eye protection will help to prevent

brush or debris from being thrown or ricochet-

ing into eyes and face which can result in

blindness and/or serious injury. Eye protec-

tion should be marked Z87.

DWear hearing protection when using this

unit.

DSecure hair above shoulder length. Secure

or remove jewelry, loose clothing, or cloth-

ing with loosely hanging straps, ties, tas-

sels, etc. They can be caught in moving

parts.

DStay alert. Do not operate unit when you are

tired, ill, upset, or if you are under the influence

of alcohol, drugs, or medication.

DKeep children, bystanders, and animals

away from work area a minimum of 30 feet

(10 meters) when starting or operating unit.

HANDLE FUEL WITH CAUTION

DEliminate all sources of sparks or flame (in-

cluding smoking, open flames, or work that

can cause sparks) in the areas where fuel is

mixed, poured, or stored.

DMix and pour fuel in an outdoor area; store

fuel in a cool, dry, well ventilated place; use

an approved, marked container for all fuel

purposes.

DDo not smoke while handling fuel or while

operating the unit.

DDo not fill fuel tank while engine is running.

DMake sure the unit is properly assembled

and in good operating condition.

DAvoid spilling fuel or oil. Wipe up fuel spills

before starting the engine.

DMove at least 10 feet (3 meters) away from

fuel and fueling site before starting engine.

DAlways store gasoline in a container ap-

proved for flammable liquids.

OPERATE YOUR UNIT SAFELY

DANGER: RISK OF CUT; KEEP

HANDS AWAY FROM BLADE--Blade

moves momentarily after the trigger is re-

leased. Do not attempt to clear away cut ma-

terial when the blade is in motion. Make sure

the switch is in the OFF position, the spark

plug wire is disconnected, and the blade has

stopped moving before removing jammed

material from the cutting blade. Do not grabor

hold the unit by the cutting blade.

DInspect unit before each use for worn,

loose, missing, or damaged parts. Do not

use until unit is in proper working order.

DKeep outside surfaces free from oil and

fuel.

DNever start or run engine inside a closed

room or building. Breathing exhaust fumes

can kill.

DAvoid dangerous environments. Do notuse

in unventilated areas or where explosive

vapors or carbon monoxide build up could

be present.

DDo not overreach or use from unstable sur-

faces such as ladders, trees, steep slopes,

rooftops, etc. Keepfirm footing andbalance

at all times.

DDo not raise unit above your shoulders; the

cutting blade can come dangerously close

to your body.

DAlways keep unit in front of your body. Keep

all parts of your body away from the cutting

blade.

DKeep the cutting blade and air vents free

from debris.

DUse only for jobs explained in this manual.

MAINTAIN YOUR UNIT PROPERLY

DHave all maintenance other than the rec-

ommended procedures described in the in-

struction manual performed by an autho-

rized service dealer.

DDisconnect spark plug before performing

maintenance except for carburetor adjust-

ments.

DDo not use a cutting blade that is bent,

warped, cracked, broken, or damaged in

any other way. Have worn or damaged

parts replaced by an authorized service

dealer.

DUse only recommended Weed Eater!cut-

ting blades and replacement parts; use of

any other parts may void your warranty and

cause damage to your unit.

DEmpty fuel tank before storing the unit. Use

up fuel left in carburetor by starting engine and

letting it run until it stops.

DHand carry the unit with the engine stopped

and the muffler and cutting blade away from

your body.

DAllow engine to cool, empty the fuel tank,

and secure the unit before storing or trans-

porting it in a vehicle.

-- 3 --

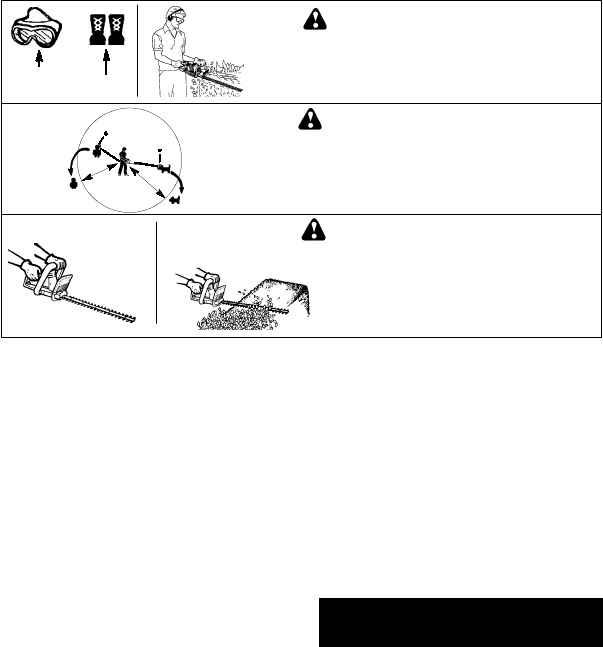

Allow blades to stop

before removing

them from the cut.

WARNING:

Blades can throw objects violently.

DYou can be blinded or injured.

DWear safety glasses.

WARNING:

Hazard zone for thrown objects

DBlades can throw objects violently.

DOthers can be blinded or injured.

DKeep people and animals 30 feet

(10 meters) away.

Boots

Blades move

momentarily

after the

trigger is

released.

WARNING:

Blades move momentarily after the

trigger is released.

DThe blades can seriously cut you or

others.

DAllow blades to stop before

removing them from the cut.

30 ft.

(10 m)

Safety

Glasses

DDo not store the unit or fuel in a closed area

where fuel vapors can reach sparks or an

open flame from hot water heaters, electric

motors or switches, furnaces, etc.

DStore the unit so the cutting blade cannot

accidentally cause injury.

DStore in a dry area out of reach of children.

SAFETY NOTICE:Exposure to vibrations

through prolonged use of gasoline powered

hand tools could cause blood vessel or nerve

damage in the fingers, hands, and joints of

people prone to circulation disorders or ab-

normal swelling. Prolonged use in cold

weatherhas beenlinked toblood vessel dam-

age in otherwise healthy people. If symptoms

occur such as numbness, pain, loss of

strength, change in skin color or texture, or

loss of feeling in the fingers, hands, or joints,

discontinue the use of this tool and seek

medical attention. An anti vibration system

does not guarantee the avoidance of these

problems. Users who operatepower tools on

a continual and regular basis must monitor

closely their physical condition and the condi-

tion of this tool.

SPECIAL NOTICE: This unit is equipped

with a temperature limiting muffler and spark

arresting screen which meets the require-

ments of California Codes 4442 and 4443. All

U.S. forest land and the states of California,

Idaho, Maine, Minnesota, New Jersey, Ore-

gon, and Washington require by law that

many internal combustion engines be

equippedwith a sparkarresting screen. Ifyou

operatein a locale where such regulations ex-

ist, you are legally responsible for maintaining

the operating condition of theseparts. Failure

to do so is a violation of the law. Refer to the

SERVICE section for maintenance of the

muffler and spark arresting screen.

ASSEMBLY

NOTE:It is normal for the fuel filter to rattle in

the empty fuel tank.

ASSEMBLY

Your hedge trimmer is fully assembled; no as-

sembly is required.

-- 4 --

OPERATION

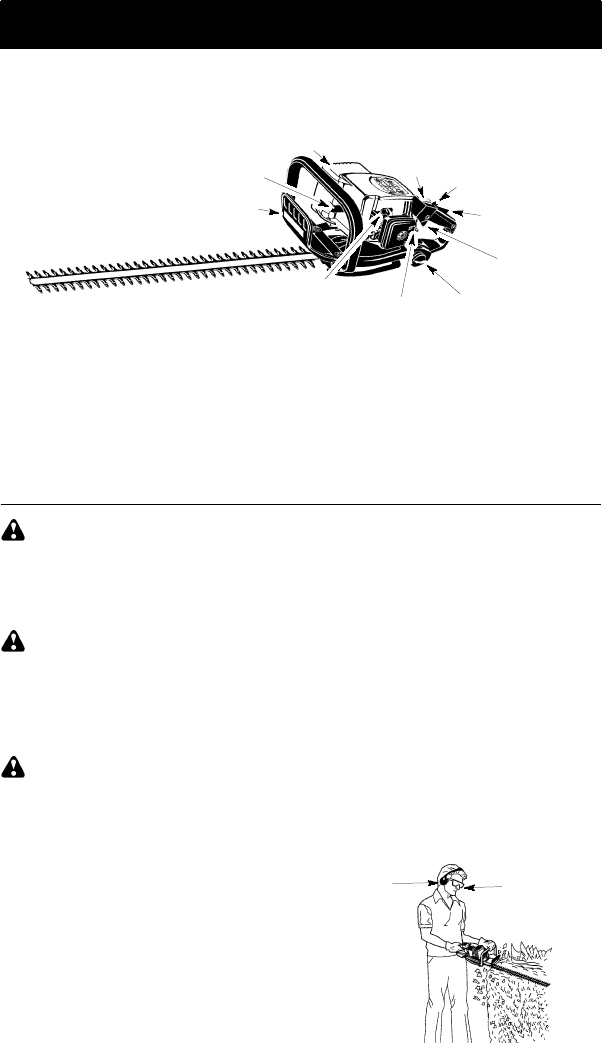

KNOW YOUR HEDGE TRIMMER

READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

UNIT. Compare the illustrations with your unit to familiarize yourself with the location of the vari-

ous controls and adjustments. Save this manual for future reference.

Hand Guard

Muffler

Spark Plug

Throttle

Trigger

ON/OFF

Switch

Throttle Lock

Throttle

Lock--out

Primer Bulb

Choke Lever Fuel Mix Fill Cap

ON/OFF SWITCH

The ON/OFF SWITCH is used to stop the en-

gine. To stop engine, move switch to OFF.

CHOKE

The CHOKE helps to supply fuel to the engine

to aid in cold starting. Activate the choke by

moving choke lever to the desired position. See

STARTING YOUR ENGINE for complete start-

ing information.

PRIMER BULB

The PRIMER BULBremoves air from the car-

buretor and fuel lines and fills them with fuel.

This allows you to start the engine with fewer

pulls on the starter rope. Activate the primer

bulb by pressing it and allowing it to return to

its original position.

THROTTLE TRIGGER

The THROTTLE TRIGGER controls engine

speed. Squeeze the trigger for full speed opera-

tion; release it for idle speed.

WARNING: Muffler is very hot during

and after use. Do not touch the muffler or al-

low combustible material such as dry grass or

fuel to do so.

BEFORE STARTING ENGINE

WARNING: Be sure to read the fuel

information in the safety rules before you be-

gin. If you do not understandthe safety rules,

do not attempt to fuel your unit. Call

1-800-554-6723.

FUELING ENGINE

WARNING: Remove fuel cap slowly

when refueling.

This engine is certified to operate on un-

leaded gasoline. Before operation, gasoline

must be mixed with a good quality synthetic

2-cycle air-cooled engine oil designed to be

mixed at a ratio of 40:1. Poulan/Weed Eater

brand synthetic oil is recommended. A 40:1

ratio is obtained by mixing 3.2 ounces (95 ml)

of oil with 1 gallon (4 liters) of unleaded gaso-

line. DO NOT USE automotive oil or boat oil.

These oils will cause engine damage. When

mixing fuel, follow instructions printed on oil

container. Once oil is added to gasoline,

shake container momentarily to assure that

the fuel is thoroughly mixed. Always read and

follow the safety rules listed under HANDLE

FUEL WITH CAUTION.

IMPORTANT

Experience indicates that alcohol blended fuels

(called gasohol or using ethanol or methanol)

can attract moisture which leads to separation

and formation of acids during storage. Acidic

gas can damage the fuel system of an engine

while in storage. To avoid engine problems,

empty the fuel system before storage for 30

days or longer. Drain the gas tank, start the en-

gine and let it run until the fuel lines and carbure-

tor are empty. Use fresh fuel next season. Nev-

er use engine or carburetor cleaner products in

the fuel tank or permanent damage may occur.

OPERATING INSTRUCTIONS

IMPORTANT POINTS

SUse the minimum throttle speed necessary

to effectively cut hedges for optimal hedge

trimmer performance.

SNever attempt to use this hedge trimmer to

cut hedges that have any branches with a

diameter larger than 7/16"(1 cm).

OPERATING POSITION

Eye

Protection

Hearing

Protection

-- 5 --

STOPPING YOUR ENGINE

DTo stop the engine, move the ON/OFF

switch to the OFF position.

STARTING YOUR ENGINE

DFuel engine. Move at least 10 feet (3 me-

ters) away from the fueling site.

DHold the unit on the ground in the starting

position as shown. Support unit so the

blade is off of the ground and away from

trees, bushes, onlookers, etc.

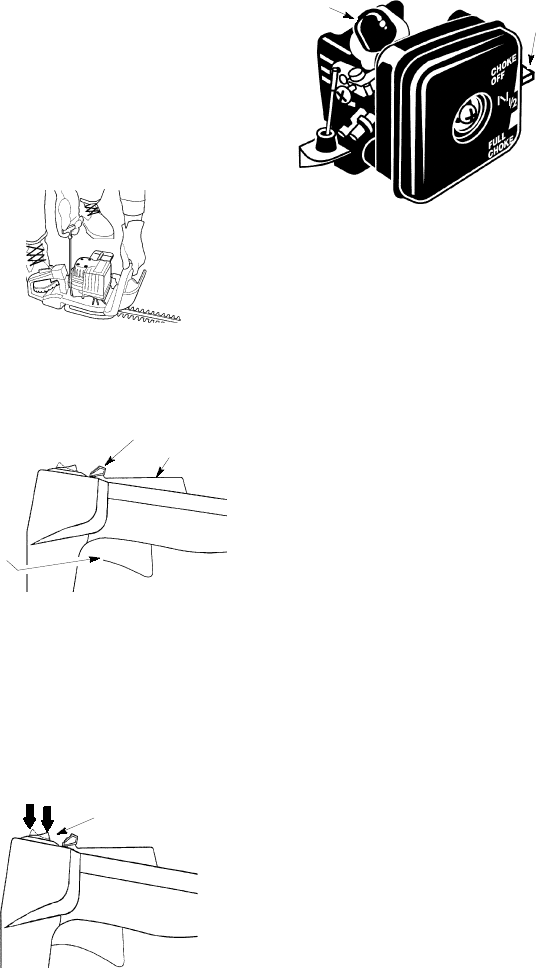

STARTING A COLD ENGINE (or a

warm engine after running out of

fuel)

Throttle Lock

Throttle

Lock-out

Throttle

Trigger

1. Move the ON/OFF switch to the ON posi-

tion.

2. Engage the throttle lock as follows:

Dpress the throttle lock--out;

Dsqueeze and hold throttle trigger;

Dpress and hold throttle lock, then

Drelease the throttle trigger

NOTE: Keep the throttle lock engaged until

the engine starts.

Switch

ON OFF

3. Slowly press the primer bulb 6 times.

4. Move the choke lever to the FULLCHOKE

position.

Choke

Lever

Primer Bulb

5. Pull starter rope handle sharply until en-

gine sounds as if it is trying to run, but do

not pull rope more than 6 times.

6. Move the choke lever to the HALF

CHOKE position.

7. Pull starter rope sharply until the engine

runs, but no more than 6 pulls.

NOTE: If the engine doesn’t start after 6

pulls (at the HALF CHOKE position),

check to make sure the ON/OFF switch is

in the ON position. Move the choke lever

to the FULL CHOKE position and press

the primer bulb 6 times; pull the starter

rope 2 more times. Move the choke lever

to the HALF CHOKE position and pull the

starter rope until the engine runs, but no

more than 6 more pulls. If the engine still

doesn’t start, it is probably flooded. Pro-

ceed to STARTING A FLOODED EN-

GINE.

8. Once the engine starts, allow the engine to

run 10 seconds, then move the choke lever

to theOFF CHOKE position. Allow the unit to

run for 30 more seconds at the OFF CHOKE

position before squeezing and releasing the

throttle trigger to release the throttle lock.

NOTE:If engine dies with the choke lever

in the OFF CHOKE position, move the

choke lever to the HALF CHOKE position

and pull the rope until the engine runs, but

no more than 6 pulls.

STARTING A WARM ENGINE

1. Move the ON/OFF switch to the ON posi-

tion.

2. Slowly press the primer bulb 6 times.

3. Move the choke lever to the HALF

CHOKE position.

4. Engage the throttle lock as directed in

STARTING A COLD ENGINE.

NOTE: Keep the throttle lock engaged until

the engine starts.

5. Pull starter rope sharply until engine runs,

but no more than 5 pulls.

6. Allow the engine to run 10 seconds, then

move the choke lever to the OFF CHOKE

position.

7. Releasethethrottle lock by squeezingand

releasing the trigger.

NOTE: If engine has not started, pull starter

rope 5 more pulls. If engine still does not run, it

is probably flooded. Proceed to STARTING A

FLOODED ENGINE.

-- 6 --

STARTING A FLOODED ENGINE

Flooded engines can be started by placing

theON/OFF switch in the ONposition andthe

choke lever in the OFF CHOKE position and

engaging the throttle lock as directed in the

STARTING A COLD ENGINE section; then,

pull the rope to clear the engine of excess

fuel. Starting could require pulling the starter

rope many times depending on how badly the

unit is flooded. If the unit still doesn’t start, refer

to the TROUBLESHOOTING TABLE or call

1-800-554-6723.

SERVICE

WARNING: Ensure ON/OFF switch

is in the OFF position and disconnect the

spark plug before performing maintenance

except for carburetor adjustments.

GENERAL RECOMMENDATIONS

Thewarranty onthis unit does not cover items

that have been subjected to operator abuse

or negligence. To receive full value from the

warranty, the operator must maintain unit as

instructed in this manual. Various adjust-

ments will need to be made periodically to

properly maintain your unit.

CHECK FOR LOOSE

FASTENERS AND PARTS

SSpark Plug Boot

SAir Filter

SHousing Screws

CHECK FOR DAMAGED OR

WORN PARTS

Contact an authorized service dealer for re-

placement of damaged or worn parts.

SON/OFF Switch -- Ensure ON/OFF switch

functions properly by moving the switch to the

OFF position. Make sure engine stops; then

restart engine and continue.

SFuel Tank -- Do not use unit if fuel tank shows

signs of damage or leaks.

INSPECT AND CLEAN UNIT AND

LABELS

SBefore and after each use, inspect com-

plete unit for loose or damaged parts. After

each use, clean the unit and labels using a

damp cloth with a mild detergent.

SWipe off unit with a clean dry cloth.

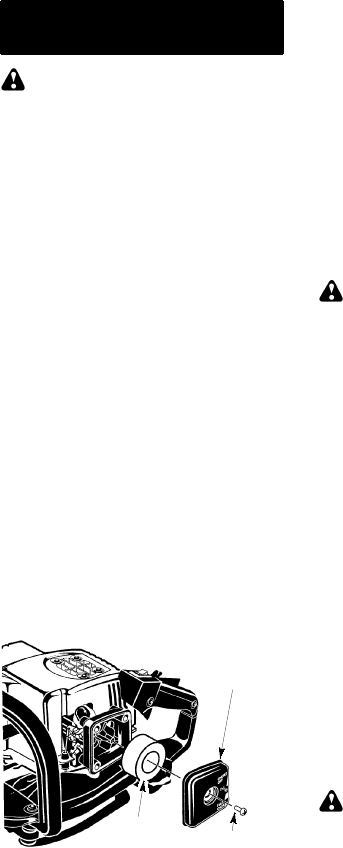

CLEAN AIR FILTER

Air Filter

Cover

Screw

Air Filter

Cleaning the air filter:

A dirty air filter decreases engine perform-

ance and increases fuel consumption and

harmful emissions. Always clean after every

5 hours of operation.

1. Clean the cover and the area around it to

keep debris from falling into thecarburetor

chamber when the cover is removed.

2. Remove parts as illustrated.

NOTE: Do not clean filter in gasoline or other

flammable solvent. Doing so can create a fire

hazard or produce harmful evaporative emis-

sions.

3. Wash the filter in soap and water.

4. Allow filter to dry.

5. Add a few drops of oil to the filter; squeeze

filter to distribute oil.

6. Replace parts.

INSPECT MUFFLER AND SPARK

ARRESTING SCREEN

NOTE: THE SPARK ARRESTING SCREEN

ON THIS UNIT IS NOT SERVICEABLE.

For normal homeowner use, the muffler and

spark arresting screen will not require any ser-

vice.

After 50 hours of use, we recommend that

your muffler be replaced by an authorized

service dealer.

CARBURETOR ADJUSTMENT

WARNING: Keep others away when

making idle speed adjustments. The blade

will be moving during most of this procedure.

Wear your protective equipment and observe

all safety precautions. When making adjust-

ments, use a screwdriver short enough to

keep your hands behind the handguard and

away from the blade. After making adjust-

ments, the blade must not move at idle speed.

The carburetor has been carefully set at the

factory. Adjustments may benecessary if you

notice any of the following conditions:

SEngine will not idle when the throttle is re-

leased.

SThe blade moves at idle.

Keep others away when making idle speed

adjustments. Make adjustments with the unit

resting on a level surface free of debris that

can be caught in the hedge trimmer blade.

Serious injury to the operator and others can

occur if the carburetor is not properly ad-

justed. Keep all parts of your body away from

the blade and muffler.

Idle Speed Adjustment

Allow engine to idle. Adjust speed until engine

runs without blademoving (idle too fast) or en-

gine stalling (idle speed too slow).

STurn idle speed screw clockwise to in-

crease enginespeedif enginestalls or dies.

STurn idle speed screw counterclockwise to

decrease engine speed if the blade moves

at idle.

WARNING: Recheck the idle speed

after each adjustment. The blade must not

move at idle speed to avoid serious injury to

the operator or others.

-- 7 --

Idle Speed Screw

If you require further assistance or are unsure

about performing this procedure, contact an

authorized service dealer or call

1--800--554--6723.

REPLACE SPARK PLUG

Replace spark plug each year to ensure the

engine starts easier and runs better. Set

spark plug gap at 0.025 inch. Ignition timing is

fixed, nonadjustable.

1. Twist, then pull off spark plug boot.

2. Remove spark plug from cylinder and dis-

card.

3. Replace with Champion RCJ-6Y spark

plug and tighten securely with a 3/4 inch

socket wrench.

4. Reinstall the spark plug boot.

REPLACE FUEL FILTER

To replace fuel filter, drain unit by running it dry

of fuel, then remove fuel cap/retainer assem-

bly from tank. Pull filter from tank andremove

it from the fuel line. Install new fuel filter on fuel

line; reinstall parts.

Fuel Line

Fuel Filter

STORAGE

WARNING: Perform the following

steps after each use:

SAllow engine to cool, and secure the unit

before storing or transporting.

SStore unit and fuel in a well ventilated area

where fuel vapors cannot reach sparks or

open flames from water heaters, electric

motors or switches, furnaces, etc.

SStore unit with all guards in place. Position

unit so that any sharp object cannot acci-

dentally cause injury.

SStore unit and fuel well out of the reach of

children.

SEASONAL STORAGE

Prepare unit for storage at end of season or if

it will not be used for 30 days or more.

If your unit is to be stored for a period of time:

SClean the entire unit.

SStore in a clean dry area.

SClean all parts and check for damage.

Have damaged parts repaired or replaced

by an authorized service dealer.

SKeep all nuts, bolts, and screws tight.

SLightly oil external metal surfaces, includ-

ing the blade.

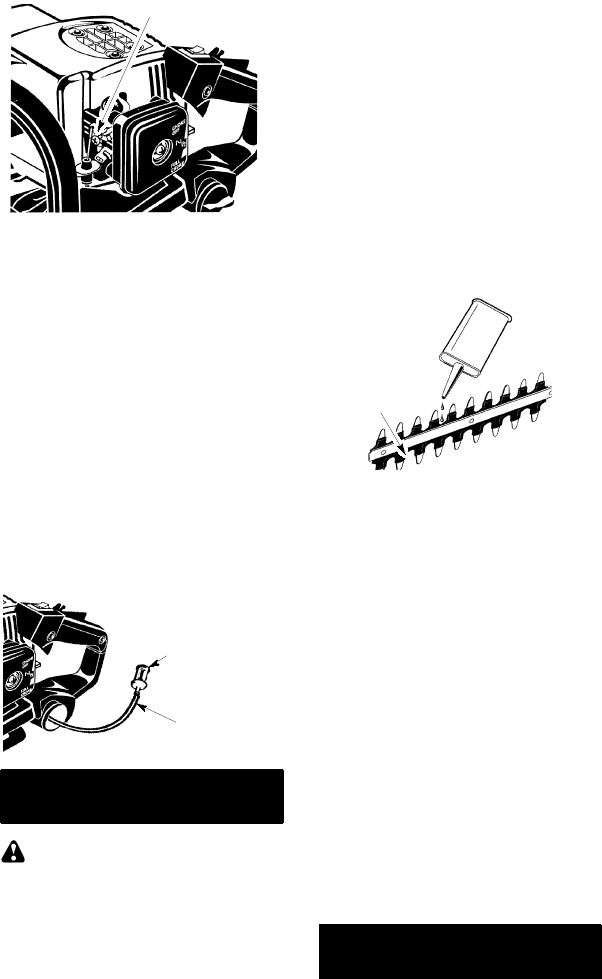

To oil the blade, do the following:

SStop the engine and allow blade to come to

a complete stop.

SEnsure ON/OFF switch is in the OFF posi-

tion.

SDisconnect the spark plug wire.

SApply a light machine oil along the edge of

the top strap as shown.

Top Strap

OIL

FUEL SYSTEM

Under FUELING ENGINE in the OPERA-

TION section of this manual,see message la-

beled IMPORTANT regarding the use of ga-

sohol in your engine. Fuel stabilizer is an ac-

ceptable alternative in minimizing the formation

of fuel gum deposits during storage. Add stabi-

lizer to gasoline in fuel tank or fuel storage con-

tainer. Follow the mix instructions found on sta-

bilizer container. Run engine at least 5 minutes

after adding stabilizer.

ENGINE

SRemove spark plug and pour1 teaspoon of

40:1, 2-cycle engine oil (air cooled) through

the spark plug opening. Slowly pull the

starter rope 8 to 10 times to distribute oil.

SReplace spark plug with new one of recom-

mended type and heat range (see RE-

PLACE SPARK PLUG section).

SClean air filter.

SCheck entire unit for loose screws, nuts,

and bolts. Replace any damaged, broken,

or worn parts.

SAt the beginning of the next season, use

only fresh fuel having the propergasoline to

oil ratio.

OTHER

SDo not store gasoline from one season to

another.

SReplace your gasoline can if it starts to rust.

NEED ASSISTANCE?

NEED ASSISTANCE?

Call 1-800-554-6723 for assistance.

NEED SERVICE PARTS?

Contact your authorized service dealer.

-- 8 --

TROUBLE CAUSE REMEDY

Engine will not

start.

Engine will

not idle

properly.

1. Carburetor requires

adjustment.

2. Crankshaft seals worn.

3. Compression low.

1. See “Carburetor Adjustment” in

Service and Adjustments Section.

2. Contact an authorized service dealer.

3. Contact an authorized service dealer.

1. Air filter dirty.

2. Spark plug fouled.

3. Carburetor requires

adjustment.

4. Carbon build-up on

muffler outlet screen.

5. Compression low.

Engine will not

accelerate,

lacks power,

or dies under

a load.

1. Clean or replace air filter.

2. Clean or replace plug

and regap.

3. Contact an authorized service dealer.

4. Contact an authorized service dealer.

5. Contact an authorized service dealer.

Engine

smokes

excessively.

1. Choke partially on.

2. Fuel mixture incorrect.

3. Air filter dirty.

4. Carburetor requires

adjustment.

1. Adjust choke.

2. Empty fuel tank and refill with

correct fuel mixture.

3. Clean or replace air filter.

4. Contact an authorized service dealer.

Engine runs

hot. 1. Fuel mixture incorrect.

2. Spark plug incorrect.

3. Carburetor requires

adjustment.

4. Carbon build-up on

muffler outlet screen.

1. See “Fueling Engine” in Operation

section.

2. Replace with correct spark plug.

3. Contact an authorized service dealer.

4. Contact an authorized service dealer.

WARNING: Always stop unit and disconnect spark plug before performingall of the

recommended remedies below except remedies that require operation of the unit.

TROUBLESHOOTING TABLE

1. ON/OFF switch in the

OFF position.

2. Engine flooded.

3. Fuel tank empty.

4. Spark plug not firing.

5. Fuel not reaching

carburetor.

6. Compression low.

1. Move ON/OFF switch to the ON

position.

2. See “Starting a Flooded Engine”

in Operation Section.

3. Fill tank with correct fuel mixture.

4. Install new spark plug.

5. Check for dirty fuel filter; replace.

Check for kinked or split fuel line;

repair or replace.

6. Contact an authorized service dealer.

-- 9 --

LIMITED WARRANTY

ELECTROLUX HOME PRODUCTS, INC.,

warrants to the original purchaser that each new

Weed EaterR

RR

Rbrand gasoline tool or attach-

ment is free from defects in material and work-

manship and agrees to repair or replace under

this warranty any defective gasoline product or

attachment as follows from the original date of

purchase.

2 YEARS -- Parts and Labor, when used for

household purposes.

60 DAYS -- Parts and Labor, when used for

commercial, professional, or income producing

purposes.

30 DAYS -- Parts and Labor, if used for rental

purposes.

This warranty is not transferable and does not

cover damage or liability caused by improper

handling, improper maintenance, or the use of

accessories and/or attachments not specifically

recommended by ELECTROLUX HOME

PRODUCTS, INC., for this tool. Additionally,

this warranty does not cover tune--ups, spark

plugs, filters, starter ropes, starter springs, cut-

ting line, or rotating head parts that will wear and

require replacement with reasonable use during

the warranty period. This warranty does not

cover predelivery setup or normal adjustments

explained in the instruction manual.

THIS WARRANTY GIVES YOU SPECIFIC

LEGAL RIGHTS, AND YOU MAY HAVE

OTHER RIGHTS WHICH VARY FROM

STATE TO STATE.

NO CLAIMS FOR CONSEQUENTIAL OR

OTHER DAMAGES WILL BE ALLOWED,

AND THERE ARE NO OTHER EXPRESS

WARRANTIES EXCEPT THOSE EX-

PRESSLY STIPULATED HEREIN.

SOME STATES DO NOT ALLOW LIMITA-

TIONS ON HOW LONG AN IMPLIED WAR-

RANTY LASTS OR THE EXCLUSION OR

LIMITATIONS OF INCIDENTAL OR CONSE-

QUENTIAL DAMAGES, SO THE ABOVE LIM-

ITATIONS OR EXCLUSION MAY NOT APPLY

TO YOU.

The policy of ELECTROLUX HOME PROD-

UCTS, INC., is to continuously improve its prod-

ucts. Therefore, ELECTROLUX HOME

PRODUCTS, INC., reserves the right to

change, modify, or discontinue models, de-

signs, specifications, and accessories of all

products at any time without notice or obligation

to any purchaser.

U.S. EPA / ENVIRONMENT CANADA

EMISSION CONTROL WARRANTY STATEMENT

YOUR WARRANTY RIGHTS AND OB-

LIGATIONS: The U. S. Environmental

Protection Agency, Environment Canadaand

ELECTROLUX HOME PRODUCTS, INC.,

are pleased to explain the emissions control

system warranty on your year 2002--2004

small off--road engine. ELECTROLUX

HOME PRODUCTS, INC., must warrant the

emission control system on your small off--

road engine for the periods of time listed be-

low provided there has been no abuse, ne-

glect, or improper maintenance of your small

off--road engine. Your emission control sys-

tem includes parts such as the carburetorand

the ignition system. Where a warrantable

condition exists, ELECTROLUX HOME

PRODUCTS, INC., will repair your small off--

road engine at no cost to you. Expenses cov-

ered under warranty include diagnosis, parts

and labor. MANUFACTURER’S WARRAN-

TY COVERAGE: If any emissions related

part on your engine (as listed under Emis-

sions Control Warranty Parts List) is defec-

tive or a defect in the materials or workman-

ship of the engine causes the failure of such

an emission related part, the part will be re-

paired or replaced by ELECTROLUX HOME

PRODUCTS, INC. OWNER’S WARRANTY

RESPONSIBILITIES: As the small off--road

engineowner, youare responsible for theper-

formance of the required maintenance listed

in your instruction manual. ELECTROLUX

HOME PRODUCTS,INC., recommendsthat

you retain all receipts covering maintenance

on your small off--road engine, but ELEC-

TROLUX HOME PRODUCTS, INC., cannot

deny warrantysolely for the lack of receipts or

for your failure to ensure the performance of

all scheduled maintenance. As the small off--

road engine owner, you should be aware that

ELECTROLUX HOME PRODUCTS, INC.,

may deny you warranty coverage if your

small off--road engine or a part of it has failed

due to abuse, neglect, improper mainte-

nance, unapproved modifications, or the use

of parts not made or approved by the original

equipment manufacturer. You are responsi-

ble for presenting your small off--road engine

to an ELECTROLUX HOME PRODUCTS,

INC., authorized repair center as soon as a

problem exists. Warranty repairs should be

completed in a reasonable amount of time,

not to exceed 30 days. If you have any ques-

tions regarding your warranty rights and re-

sponsibilities, you should contact your near-

est authorized service center or call ELEC-

TROLUX HOME PRODUCTS, INC., at

1--800--554--6723. WARRANTY COM-

MENCEMENT DATE: The warranty period

begins on the date the small off--road engine

is purchased. LENGTH OF COVERAGE:

This warranty shall be for a period of two

years from the initial date of purchase. WHAT

IS COVERED: REPAIR OR REPLACE-

MENT OF PARTS. Repair or replacement of

any warranted part will be performed at no

charge to the owner at an approved ELEC-

TROLUX HOME PRODUCTS, INC., servic-

ing center. If you have any questions regard-

ing your warranty rights and responsibilities,

you should contact your nearest authorized

service center or call ELECTROLUX HOME

-- 1 0 --

PRODUCTS, INC., at 1--800--554--6723.

WARRANTY PERIOD: Any warranted part

which is not scheduled for replacement as re-

quired maintenance, or which is scheduled

only for regular inspection to the effect of “re-

pair or replace as necessary” shall be war-

ranted for 2 years. Any warranted part which

is scheduled for replacement as required

maintenanceshall be warrantedfor theperiod

of time up to the first scheduled replacement

point for that part. DIAGNOSIS: The owner

shall not be charged for diagnostic labor

which leads to the determination that a war-

ranted part is defective if the diagnostic work

is performed at an approved ELECTROLUX

HOME PRODUCTS, INC., servicing center.

CONSEQUENTIAL DAMAGES: ELEC-

TROLUX HOME PRODUCTS, INC., may be

liable for damages to other engine compo-

nents caused by the failure of a warranted

part still under warranty. WHAT IS NOT

COVERED: All failures caused by abuse, ne-

glect, or improper maintenance are not cov-

ered. ADD--ON OR MODIFIED PARTS: The

use of add--on or modified parts can be

grounds for disallowing a warranty claim.

ELECTROLUXHOME PRODUCTS, INC.,is

not liable to cover failures of warranted parts

caused by the use of add--on or modified

parts. HOW TO FILE A CLAIM: If you have

any questions regarding your warranty rights

and responsibilities, you should contact your

nearest authorized service center or call

ELECTROLUXHOMEPRODUCTS,INC.,at

1--800--554--6723. WHERE TO GET WAR-

RANTY SERVICE: Warranty services or re-

pairs shall be provided at all ELECTROLUX

HOME PRODUCTS, INC., service centers.

Call 1--800--554--6723. MAINTENANCE,

REPLACEMENT AND REPAIR OF EMIS-

SION RELATED PARTS: Any ELECTRO-

LUX HOME PRODUCTS,INC.,approvedre-

placement part used in the performance of

any warranty maintenance or repair on emis-

sion related parts will be provided without

charge to the owner if the part is under war-

ranty. EMISSION CONTROL WARRANTY

PARTS LIST: Carburetor, Ignition System:

Spark Plug (covered up to maintenance

schedule), Ignition Module. MAINTENANCE

STATEMENT: The owner is responsible for

the performance of all required maintenance

as defined in the instruction manual.

The information on the product label indicates which standard your engine is certified.

Example: (Year) EPA Phase 1 or Phase 2 and/or CALIFORNIA.

This engine is certified to be emissions compliant for the following use:

Moderate (50 hours)

Intermediate (125 hours)

Extended (300 hours)
