ModelNo.831.150312

SerialNo.

Writetheserialnumberinthe

spaceaboveforreference.

SerialNumberDecal(underseat)

, Assembly

, Adjustments

, Part List and Drawing

,_CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manu-

al for future reference.

WEIGHT BENCH EXERCISER

User's Manual

tent Pending

Sears, Roebuck and Co., Hoffman Estates, IL 60179

TABLE OF CONTENTS

WARNING DECAL PLACEMENT .............................................................. 2

iMPORTANT PRECAUTIONS ................................................................. 3

BEFORE YOU BEGIN ....................................................................... 4

PART iDENTiFiCATiON CHART ............................................................... 5

ASSEMBLY ............................................................................... 6

ADJUSTMENTS .......................................................................... 10

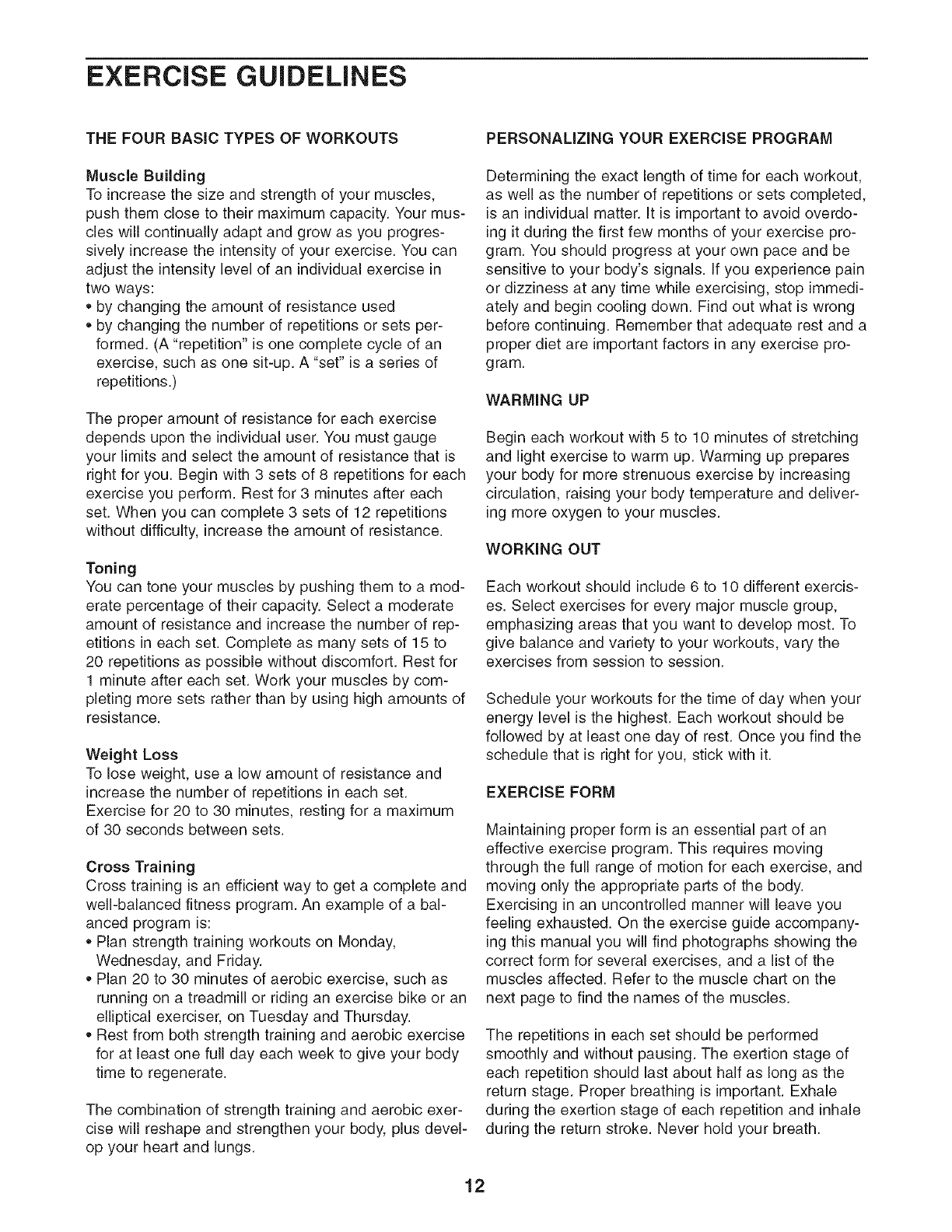

EXERCISE GUiDELiNES ................................................................... 12

PART LiST ............................................................................... 14

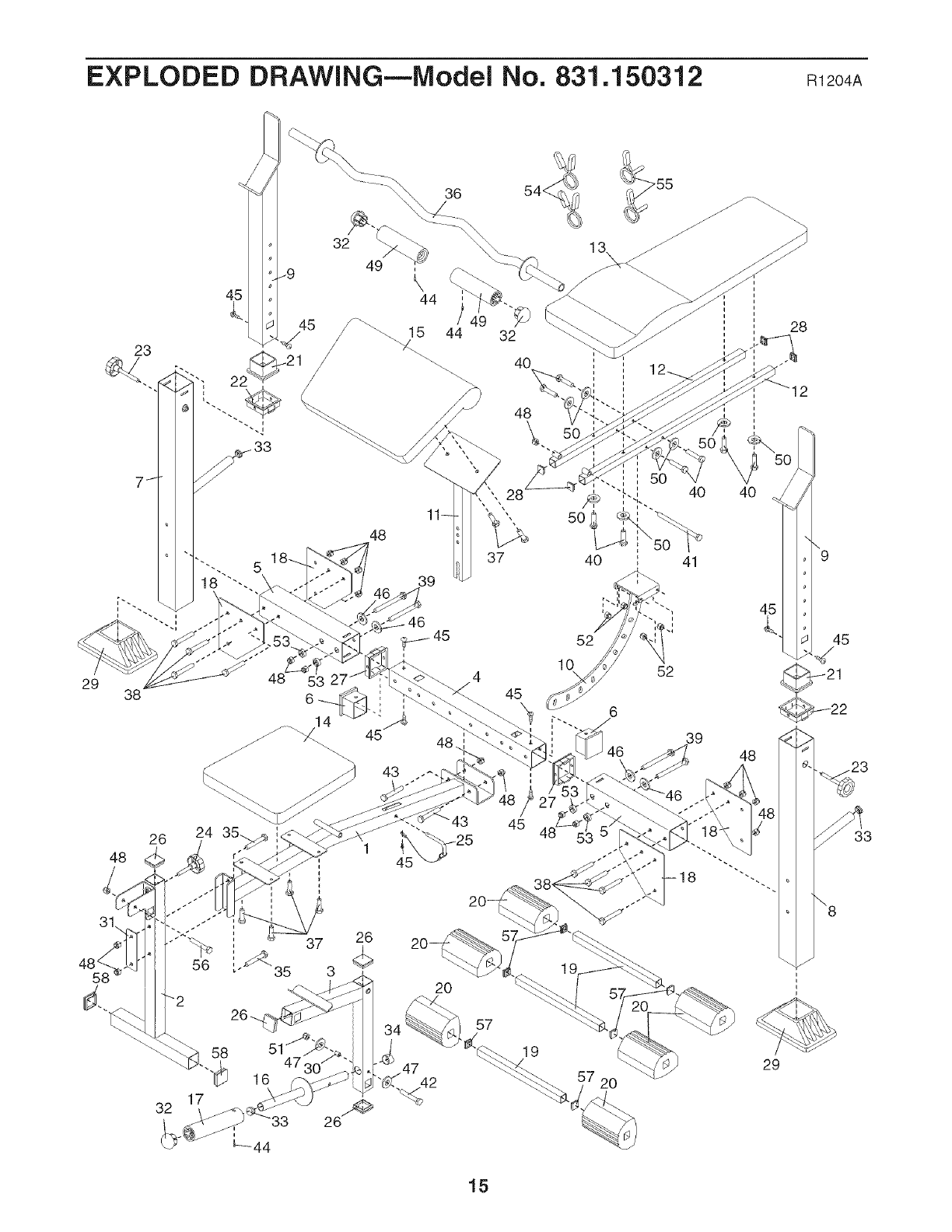

EXPLODED DRAWING ..................................................................... 15

ORDERING REPLACEMENT PARTS .................................................. Back Cover

FULL 90 DAY WARRANTY ........................................................... Back Cover

WARNING DECAL PLACEMENT

The warning decal shown

here has been placed on the

weight bench in the location

shown, if the decal is miss=

ing or illegible, please call

toll=free 1=877=992=5999,

Monday through Friday,

6 a.m. until 6p.m. Mountain

Time, to order a free replace=

ment decal. Place the decal

on the weight bench in the

location shown.

iMPORTANT PRECAUTIONS

WARNING: Toreducetheriskofsetous injury, readthefollowing important precau-

tionsbefore using the weight bench.

1. Read all instructions in this manual before

10. Always be sure there is an equal amount of

using the weight bench. Use the weight weight on each side of your barbell when

bench only as described in this manual, you are using it. Always keep some weight

on both ends of the barbell when adding or

it is the responsibility of the owner to ensure removing weights to prevent the barbell from

that all users of the weight bench are ade .........

quately informed of all precautions.

The weight bench is intended for home use

only. Do not use the weight bench in any

commercial, rental, or institutional setting.

4. Use the weight bench only on a level sur-

11. When you are using the leg lever, place a

barbell with the same amount of weight on

the weight rests to balance the bench.

12. Always wear athletic shoes for foot protec-

tion while exercising.

face. Cover the floor beneath the weight

bench to protect the floor. 13. Keep hands and feet away from moving parts.

5. Make sure all parts are properly tightened 14. Do not use a barbell that is longer than six

each time the weight bench is used. Replace feet with the weight bench.

any worn parts immediately.

15. Make sure that the adjustment knobs are

6. Make sure the set screws attaching the inserted completely and tightened into the

Olympic adapters are properly tightened uprights before beginning any exercise.

each time the adapters are used.

16. When you put weight on the weight rests,

7. Keep chUdren under 12 and pets away from make sure you put at least ten pounds on

the weight bench at all times, the leg lever to balance the weight bench.

8. The weight bench is designed to support a17. Always remove the cud post from the front

maximum user weight of 300 pounds, and aleg before performing leg cuds with the leg

maximum total weight of 610 pounds. Do not lever.

place more than 310 pounds, including abar=

bell and weights, on the weight rests. Do not 18. Keep the weight bench indoors, away from

place more than 150 pounds on the leg lever moisture and dust. Do not put the weight

or cud bar. Note: The weight bench does not bench in a garage or covered patio, or near

include a barbell or weights, water.

9. Always exercise with a partner. When you 19. if you feel pain or dizziness at any timewhile

are performing bench press exercises, your exercising, stop immediately and begin cool=

partner should stand behind you to catch the ing down.

barbell if you cannot complete arepetition.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. Sears assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

BEFORE YOU BEGIN

Thank you for selecting the versatile WELDER ®PRO

240 weight bench. The weight bench offers an impres-

sive array of weight stations designed to develop

every major muscle group of the body. Whether your

goal is to tone your body, build dramatic muscle size

and strength, or improve your cardiovascular system,

the weight bench will help you to achieve the specific

results you want.

For your benefit, read this manual carefully before

using the weight bench. If you have questions after

reading this manual, call 1-800-4-MY-HOME ®

(1-800-469-4663). To help us assist you, please note

the product model number and serial number before

calling. The model number is 831.150312. The serial

number can be found on a decal attached to the

weight bench (see the front cover of this manual for

the location of the decal).

Before reading further, please review the drawing

below and familiarize yourself with the parts that are

labeled.

ASSEMBLED

DIMENSIONS:

Height: 45 in.

Width: 47 in.

Depth: 71 in.

Upright

Storage Tube

Curl Pad

Seat

Leg

Ight Rests

Adjustment

Knob

Backrest

Bracket

Weight

Curl Bar

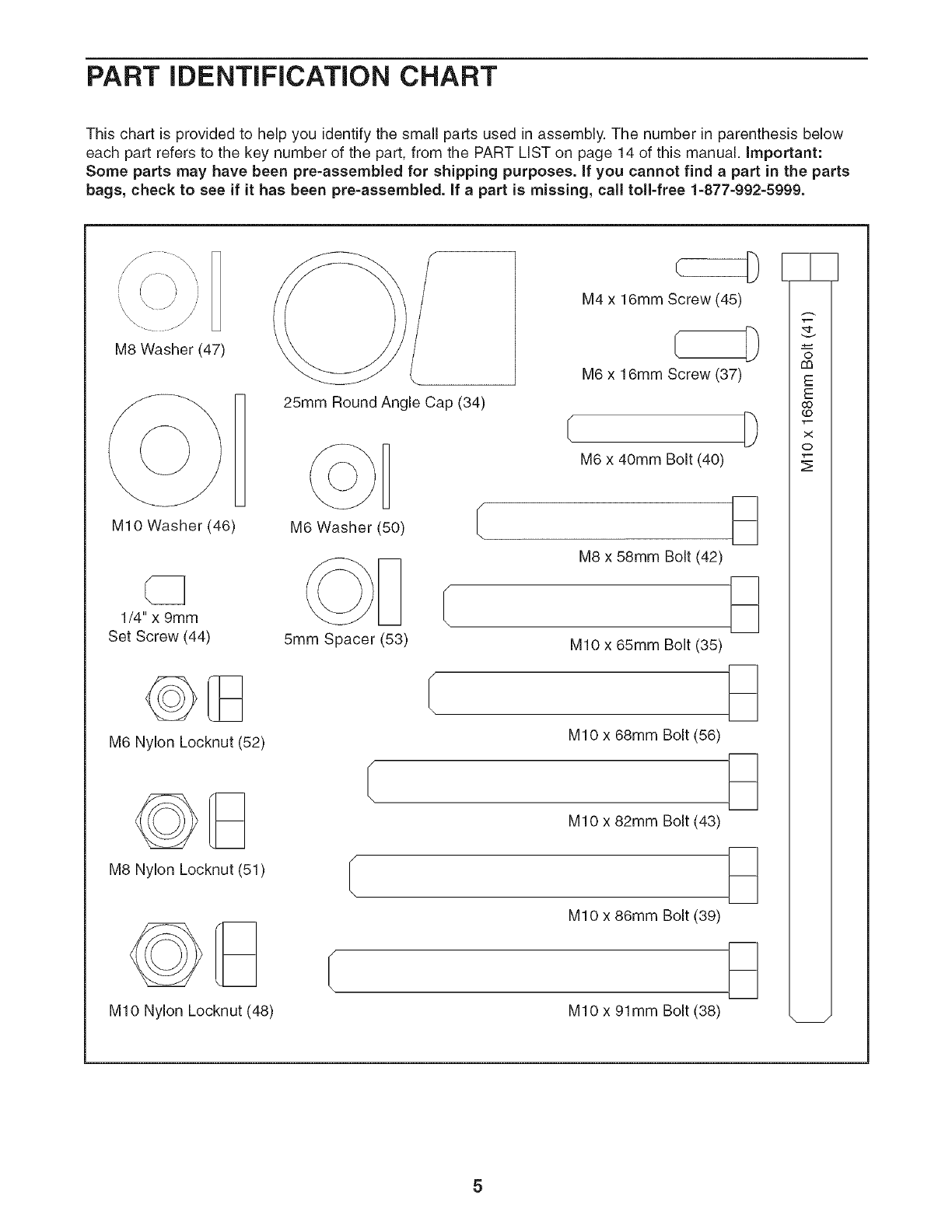

PART iDENTiFiCATiON CHART

This chart is provided to help you identify the small parts used in assembly. The number in parenthesis below

each part refers to the key number of the part, from the PART LIST on page 14 of this manual. Important:

Some parts may have been pre-assembled for shipping purposes. If you cannot find a part in the parts

bags, check to see if it has been pre=assembled, if apart is missing, call toll=free 1=877=992=5999.

M8 Washer (47) [

M10 Washer (46)

1/4"x 9mm

Set Screw (44)

M6 Nylon Locknut (52)

M8 Nylon Locknut (51)

M10 Nylon Locknut (48)

M4 x 16mm Screw (45)

M6 x 16mm Screw (37)

25mm Round Angle Cap (34)

M6 Washer (50)

5mm Spacer (53)

(

M6 x 40mm Bolt (40)

M8 x 58mm Bolt (42)

MIO x 65mm Bolt (35)

M10 x 68mm Bolt (56)

MIO x 82mm Bolt (43)

M10 x 86mm Bolt (39)

M10 x 91mm Bolt (38)

T--

r,n

T-

T--

ASSEMBLY

Make Things Easier for Yourself

Everything in this manual is designed to ensure

that the weight bench can be assembled suc-

cessfully by anyone. However. it is important to

realize that the versatile weight bench has many

parts and that the assembly process will take

time. Most people find that by setting aside plen-

ty of time. assembly will go smoothly.

Before beginning assembly, carefully read the

following information and instructions:

,Assembly requires two people.

, Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until assembly is completed.

Tighten all parts as you assemble them, unless

instructed to do otherwise.

• As you assemble the weight bench, make sure all

parts are oriented as shown in the drawings.

• For help identifying small parts, use the PART

iDENTiFiCATiON CHART on page 5.

The following tools (not included) are required

for assembly:

,Two adjustable wrenches

,One rubber mallet

,One standard screwdriver

One Phillips screwdriver

, Lubricant, such as grease or petroleum jelly,

and soapy water.

Assembly will be more convenient if you have a

socket set, a set of open-end or closed-end

wrenches, or a set of ratchet wrenches.

Before beginning assembly, make sure you

understand the information in the box

aboVe' For help identifying small parts,

use the PART IDENTIFICATION CHART,

Note: The weight bench can be adjusted to be

used with either a mid=width barbell or an

Olympic barbell.

Align the holes in a Crossbar Extension (5) with the

desired set of holes in the Crossbar (4). Secure the

Extension in place with two M10 x 86mm Bolts

(39), two 5mm Spacers (53), two M10 Washers

(46), and two M10 Nylon Locknuts (48). Make sure

the Locknuts and Spacers fit inside the hexa=

gon holes in the Extension.

Repeat this step with the other Crossbar

Extension (5).

Olympic Width

Mid-Width

Hexagon

Holes 39

Hexagon

Holes 46

53 5

Pressa Foot(29)ontothebottomof theRight

Upright(7).

LifttheWeightRest(9)intheRightUpright(7)

andsecureit ina raisedpositionwithaWeight

RestKnob(23).

Repeatthis stepwith theLeft Upright(not

shown).

AttachtheRightUpright(7)totherightCrossbar

Extension(5)withfourMIOx 91mmBolts(38),

twoJointPlates(18),andfourMIONylon

Locknuts(48).DonottightentheLocknutsyet.

Repeatthis stepwith theLeft Upright(not

shown).

AttachtheFrontLeg(2)totheBenchFrame(1)

withtwoMIOx 65mmBolts(35),thePlate(31),

andtwoMIONylonLocknuts(48).Donottight-

entheLocknutsyet.

Attach the Bench Frame (1) to the center holes in

the Crossbar (4) with two MIO x 82mm Bolts (43)

and two MIO Nylon Locknuts (48).

Tighten the MIO Nylon Locknuts (48) used in

steps 1-5.

Attach the Weight Tube (16) to the Leg Lever (3)

with an M8 x 58mm Bolt (42), two M8 Washers

(47), a lOmm Spacer (30), and an M8 Nylon

Locknut (51). Press a 25mm Round Angled Cap

(34) onto the end of the Weight Tube.

Lubricate an MIO x 68mm Bolt (56) with grease.

Attach the Leg Lever (3) to the Front Leg (2) with

the Bolt and an MIO Nylon Locknut (48). Do not

overtighten the Locknut; the Leg Lever must

be able to pivot easily.

Attach the Backrest Tubes (12) to the Backrest

Bracket (10) with four M6 x 40mm Bolts (40), four

M6 Washers (50), and four M6 Nylon Locknuts

(52).

Insert the Backrest Bracket (10) into the slot in

the Bench Frame (1).

Lubricate an MIO x 168mm Bolt (41) with grease.

Attach the Backrest Tubes (12) to the Bench

Frame (1) with the Bolt and an MIO Nylon Locknut

(48). Do not overtighten the Locknut; the

Backrest Tubes must be able to pivot easily.

4 Center

Holes

.48

Lubricate

40 50 52

52 50

5O 40

Lubricate 41

AttachtheBackrest(13)totheBackrestTubes

(12)withfourM6x 40mmBolts(40)andfourM6

Washers(50).

AttachthetetherontheAdjustmentPin(25)to

theBenchFrame(1)withanM4x 16mmScrew

(45).InsertthePinthroughtheBenchFrameand

theBackrestBracket(10).

10.AttachtheSeat(14)totheBenchFrame(1),with

thewideendtowardthefront,withfourM6x

16mmScrews(37).

11.SlidethePadTube(19)intothesquareholein

theFrontLeg(2).SlidetwoFoamPads(20)onto

thePadTube.

Repeatthis stepwith the other two Pad Tubes

(19) and the Leg Lever (3).

12. Attach the Curl Pad (15) to the Curl Post (11) with

two M6 x 16mm Screws (37).

13. Make sure that all parts are properly tightened

before you use the weight bench. The use of

all remaining parts will be explained in ADJUST-

MENTS, beginning on the following page.

Wide

End

45 4O

.20 2

ADJUSTMENTS

The weight bench is designed to be used with your own weight set (not included). The steps below explain how

the weight bench can be adjusted. See EXERCISE GUIDELINES on page 12 for important exercise information

and refer to the accompanying exercise guide to see the correct form for each exercise.

Make sure all parts are properly tightened each time the weight bench is used. Replace any worn parts immediate-

ly. The weight bench can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.

ADJUSTING THE BACKREST

The Backrest (13) can be used in a decline position,

a level position, or an incline position. To use the

Backrest in the decline position, remove the

Adjustment Pin (25) and lay the Backrest on the

Crossbar (4).

To use the Backrest (13) in the level or incline posi-

tion, lift the Backrest and insert the Adjustment Pin

(25) through the Bench Frame (1) and a hole in the

Backrest Bracket (10). Engage the top hole for a

level position, or one of the other holes for an incline

position.

ATTACHING WEIGHTS TO THE LEG LEVER

To use the Leg Lever (3), slide the desired weights

(not included) onto the Weight Tube (16). Secure the

weights with a Weight Clip (54 or 55).

Weights can be added to the Curl Bar (not shown) in

the same manner. Secure the weights to the Curl Bar

with two Weight Clips (54 or 55).

Weights can be stored on the tubes on the Uprights

(not shown).

Donotp aoomore

than 150 pounds 0n the Leg Lever (3)or the

Cud Bar (not shown). Use only the Weight

Clips (54 or 55) provided with the bench.

ADJUSTING THE WEIGHT RESTS

To change the height of the Weight Rests (9), remove

the Weight Rest Knobs (23). Position the Weight

Rests at the desired height in the Uprights (8, 7 [not

shown]) and secure them with the Weight Rest Knobs.

A wayssetboth

Weight Rests (9) at th esame heigh t. Make sure

the Weight Rest Knobs (23) are inserted into

both the Uprights (7, 8) and the Weight Rests.

Weight

ADJUSTING THE BENCH WIDTH z

To adjust the width of the bench to use either a mid-

width barbell or an Olympic barbell, remove the indi-

cated M10 Nylon Locknuts (48) and M10 x 86mm

Bolts (not shown) from the Crossbar Extensions (5).

Refer to assembly step 1 for instructions on how to

reassemble the Crossbar (4) at the desired width.

ATTACHING THE CURL POST

For some exercises, the Curl Post (11) must be

attached to the weight bench. Remove the 45mm

Square Inner Cap (26) from the Front Leg (2).

Slide the Curl Post (11) into the Front Leg (2). Align

one of the adjustment holes in the Curl Post with the

adjustment hole in the Front Leg. Tighten the Curl

Post Knob (24) into the adjustment hole in the Front

Leg. Make sure that you fully tighten the Knob.

Note: When the Curl Post (11) is not in use, the

45ram Square inner Cap (26) should be inserted

into the Front Leg (2).

OLYMPIC WEIGHT ADAPTER

Press a 48mm Round Inner Cap (32) into the Olympic

Adapter (17). Attach the Olympic Adapter to the

Weight Tube (16) with a 1/4" x 9mm Set Screw (44).

Make sure the Set Screw is on the bottom of the

Adapter.

The Curl Bar Olympic Adapters (not shown) can

be attached to the Curl Bar (not shown) in the

same manner. 32

EXERCISE GUiDELiNES

THE FOUR BASIC TYPES OF WORKOUTS

Muscle Building

To increase the size and strength of your muscles,

push them close to their maximum capacity. Your mus-

cles will continually adapt and grow as you progres-

sively increase the intensity of your exercise. You can

adjust the intensity level of an individual exercise in

two ways:

• by changing the amount of resistance used

by changing the number of repetitions or sets per-

formed. (A "repetition" is one complete cycle of an

exercise, such as one sit-up. A "set" is a series of

repetitions.)

The proper amount of resistance for each exercise

depends upon the individual user. You must gauge

your limits and select the amount of resistance that is

right for you. Begin with 3 sets of 8 repetitions for each

exercise you perform. Rest for 3 minutes after each

set. When you can complete 3 sets of 12 repetitions

without difficulty, increase the amount of resistance.

Toning

You can tone your muscles by pushing them to a mod-

erate percentage of their capacity. Select a moderate

amount of resistance and increase the number of rep-

etitions in each set. Complete as many sets of 15 to

20 repetitions as possible without discomfort. Rest for

1 minute after each set. Work your muscles by com-

pleting more sets rather than by using high amounts of

resistance.

Weight Loss

To lose weight, use a low amount of resistance and

increase the number of repetitions in each set.

Exercise for 20 to 30 minutes, resting for a maximum

of 30 seconds between sets.

Cross Training

Cross training is an efficient way to get a complete and

well-balanced fitness program. An example of a bal-

anced program is:

Plan strength training workouts on Monday,

Wednesday, and Friday.

Plan 20 to 30 minutes of aerobic exercise, such as

running on a treadmill or riding an exercise bike or an

elliptical exerciser, on Tuesday and Thursday.

Rest from both strength training and aerobic exercise

for at least one full day each week to give your body

time to regenerate.

The combination of strength training and aerobic exer-

cise will reshape and strengthen your body, plus devel-

op your heart and lungs.

PERSONALIZING YOUR EXERCISE PROGRAM

Determining the exact length of time for each workout,

as well as the number of repetitions or sets completed,

is an individual matter. It is important to avoid overdo-

ing it during the first few months of your exercise pro-

gram. You should progress at your own pace and be

sensitive to your body's signals. If you experience pain

or dizziness at any time while exercising, stop immedi-

ately and begin cooling down. Find out what is wrong

before continuing. Remember that adequate rest and a

proper diet are important factors in any exercise pro-

gram.

WARMING UP

Begin each workout with 5 to 10 minutes of stretching

and light exercise to warm up. Warming up prepares

your body for more strenuous exercise by increasing

circulation, raising your body temperature and deliver-

ing more oxygen to your muscles.

WORKING OUT

Each workout should include 6 to 10 different exercis-

es. Select exercises for every major muscle group,

emphasizing areas that you want to develop most. To

give balance and variety to your workouts, vary the

exercises from session to session.

Schedule your workouts for the time of day when your

energy level is the highest. Each workout should be

followed by at least one day of rest. Once you find the

schedule that is right for you, stick with it.

EXERCISE FORM

Maintaining proper form is an essential part of an

effective exercise program. This requires moving

through the full range of motion for each exercise, and

moving only the appropriate parts of the body.

Exercising in an uncontrolled manner will leave you

feeling exhausted. On the exercise guide accompany-

ing this manual you will find photographs showing the

correct form for several exercises, and a list of the

muscles affected. Refer to the muscle chart on the

next page to find the names of the muscles.

The repetitions in each set should be performed

smoothly and without pausing. The exertion stage of

each repetition should last about half as long as the

return stage. Proper breathing is important. Exhale

during the exertion stage of each repetition and inhale

during the return stroke. Never hold your breath.

Rest for a short period of time after each set. The

ideal resting periods are:

• Rest for three minutes after each set for a muscle

building workout.

• Rest for one minute after each set for a toning work-

out.

• Rest for 30 seconds after each set for a weight loss

workout.

Plan to spend the first couple of weeks familiarizing

yourself with the equipment and learning the proper

form for each exercise.

COOLING DOWN

End each workout with 5 to 10 minutes of stretching.

Include stretches for both your arms and legs. Move

slowly as you stretch and do not bounce. Ease into

each stretch gradually and go only as far as you can

without strain. Stretching at the end of each workout

is an effective way to increase flexibility.

STAYING MOTIVATED

For motivation, keep a record of each workout. List the

date, the exercises performed, the resistance used,

and the numbers of sets and repetitions completed.

Record your weight and key body measurements at

the end of every month. Remember, the key to achiev-

ing the greatest results is to make exercise a regular

and enjoyable part of your everyday life.

MUSCLE CHART

A. Sternomastoid (neck)

B. Pectoralis Major (chest)

C. Biceps (front of arm)

D. Obliques (waist)

E. Brachioradials (forearm)

R Hip Flexors (upper thigh)

G. Abductor (outer thigh)

H. Quadriceps (front of thigh)

I. Sartorius (front of thigh)

J. Tibialis Anterior (front of calf)

K. Soleus (front of calf)

L. Anterior Deltoid (shoulder)

M. RectusAbdominus (stomach)

N. Adductor (inner thigh)

O. Trapezius (upper back)

R Rhomboideus (upper back)

Q. Posterior Deltoid (shoulder)

R. Triceps (back of arm)

S. Latissimus Dorsi (mid back)

T. Spinae Erectors (lower back)

U. Gluteus Medius (hip)

V. Gluteus Maximus (buttocks)

W. Hamstring (back of leg)

X. Gastrocnemius (back of calf)

PART LIST--Model No. 831.150312 Rt204A

Key No. Qty. Description Key No. Qty. Description

1 1 Bench Frame 32 3 48mm Round Inner Cap

2 1 Front Leg 33 3 25mm Round Inner Cap

3 1 Leg Lever 34 1 25mm Round Angled Cap

4 1 Crossbar 35 2 MIO x 65mm Bolt

5 2 Crossbar Extension 36 1 Curl Bar

6 2 Crossbar Cap 37 6 M6 x 16mm Screw

7 1 Right Upright 38 8 MIO x 91mm Bolt

8 1 Left Upright 39 4 MIO x 86mm Bolt

9 2 Weight Rest 40 8 M6 x 40mm Screw

10 1 Backrest Bracket 41 1 MIO x 168mm Bolt

11 1 Curl Post 42 1 M8 x 58mm Bolt

12 2 Backrest Tube 43 2 MIO x 82mm Bolt

13 1 Backrest 44 3 1/4"x 9mm Set Screw

14 1 Seat 45 9 M4 x 16mm Screw

15 1 Curl Pad 46 4 MIO Washer

16 1 Weight Tube 47 2 M8 Washer

17 1 Olympic Adapter 48 18 MIO Nylon Locknut

18 4 Joint Plate 49 2 Curl Bar Olympic Adapter

19 3 Pad Tube 50 8 M6 Washer

20 6 Foam Pad 51 1 M8 Nylon Locknut

21 2 Weight Rest Cap 52 4 M6 Nylon Locknut

22 2 Square Bushing 53 4 5mm Spacer

23 2 Weight Rest Knob 54 2 1" Weight Clip

24 1 Curl Post Knob 55 2 48mm Weight Clip

25 1 Adjustment Pin 56 1 MIO x 68mm Bolt

26 4 45mm Square Inner Cap 57 6 19mm Square Inner Cap

27 2 Crossbar Bushing 58 2 45mm Thin Square Inner Cap

28 4 25mm Square Inner Cap # 1 User's Manual

29 2 Foot # 1 Exercise Guide

30 1 lOmm Spacer # 1 Allen Wrench

31 1 Plate # 1 Grease Pack

"#" Indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover of

this manual for information about ordering replacement parts. If a part is missing, call toll-free 1-877-992-5999.

EXPLODED DRAWING--Model No. 831.150312 R12o4A

7 _

29 38

45 32

_, J _--_.

15 44 32

_\'\\ \ \ 40

43 .^.

11- 50

45 48

7 20

48 .23

Your Home

® Registered Trademark /lM Trademark /SMService Mark of Sears, Roebuck and Co.

® Marca Registrada /rM Marca de F&brica /sMMarca de Servicio de Sears, Roebuck and Co.

FULL 90 DAY WARRANTY

For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this

WEIGHT BENCH EXERCISER, contact the nearest Sears Service Center throughout the United States

and Sears will repair or replace the WEIGHT BENCH EXERCISER, free of charge.

This warranty does not apply when the WEIGHT BENCH EXERCISER is used commercially or for

rental purposes.

This warranty gives you specific legal rights, and you may also have other rights which vary from state

to state.

Sears, Roebuck and Co., Dept 817WA, Hoffman Estates, IL 60179

Weider 831150312 User Manual PRO 240 WEIGHT BENCH Manuals And Guides L0803501

WEIDER Weight System Manual L0803501 WEIDER Weight System Owner's Manual, WEIDER Weight System installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
