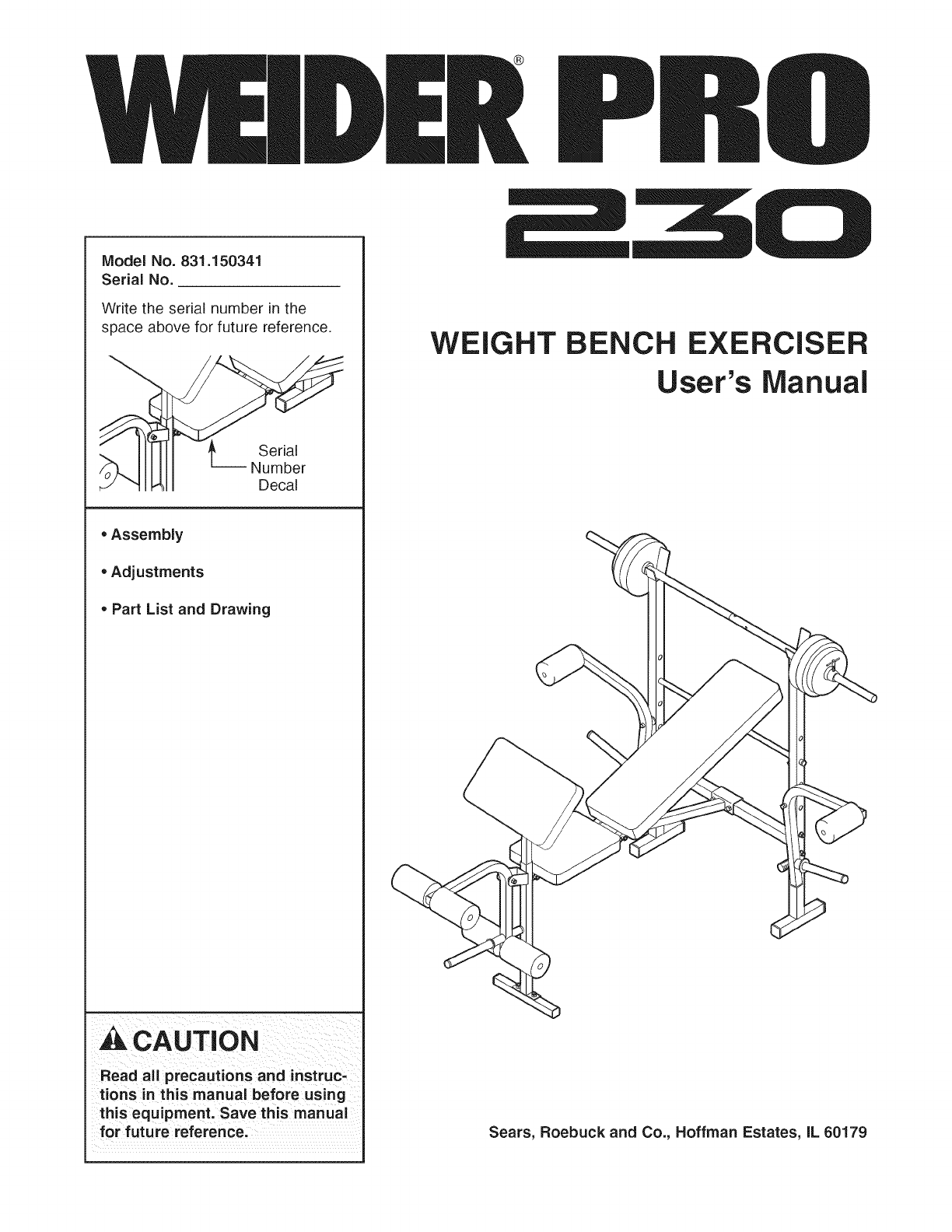

IVIodelNo.831.150341

Serial No.

Write the serial number in the

space above for future reference.

Serial

Number

Decal

oAssembly

Adjustments

Part List and Drawing

A CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

WEIGHT BENCH EXERCISER

User's Manual

Sears, Roebuck and Co., Hoffman Estates, IL 60179

//}EB

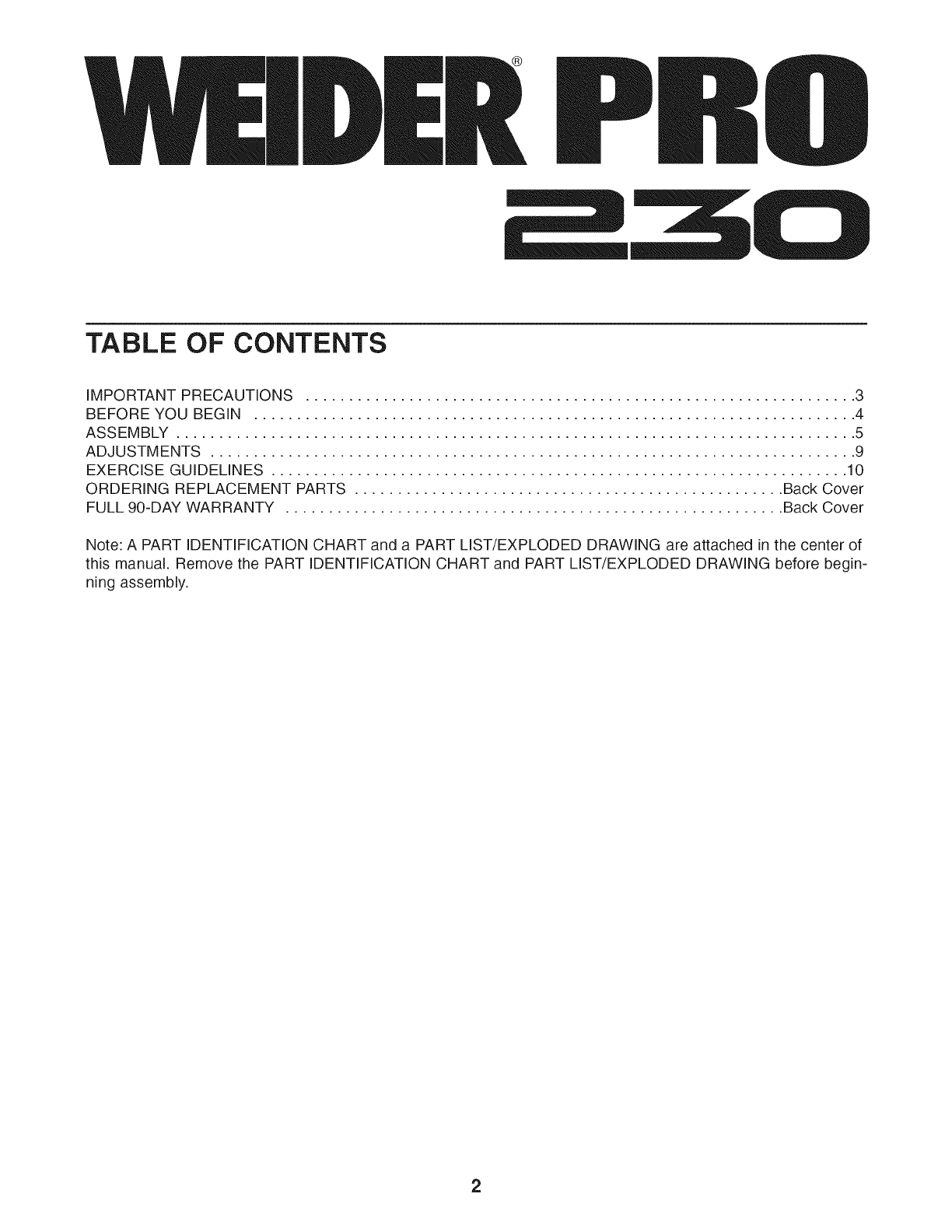

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS ................................................................ 3

BEFORE YOU BEGIN ...................................................................... 4

ASSEMBLY ............................................................................... 5

ADJUSTMENTS ........................................................................... 9

EXERCISE GUIDELINES ................................................................... 10

ORDERING REPLACEMENT PARTS .................................................. Back Cover

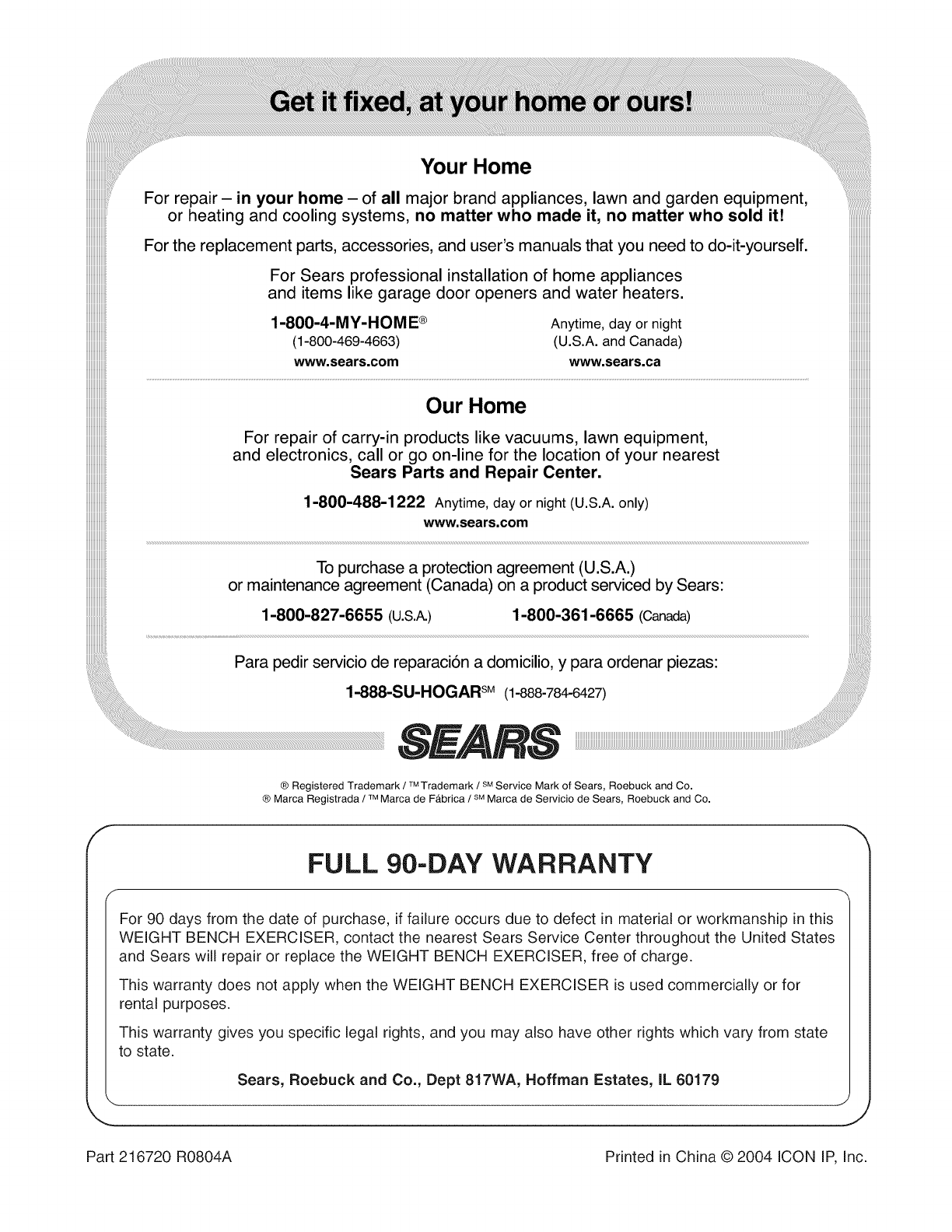

FULL 90-DAY WARRANTY .......................................................... Back Cover

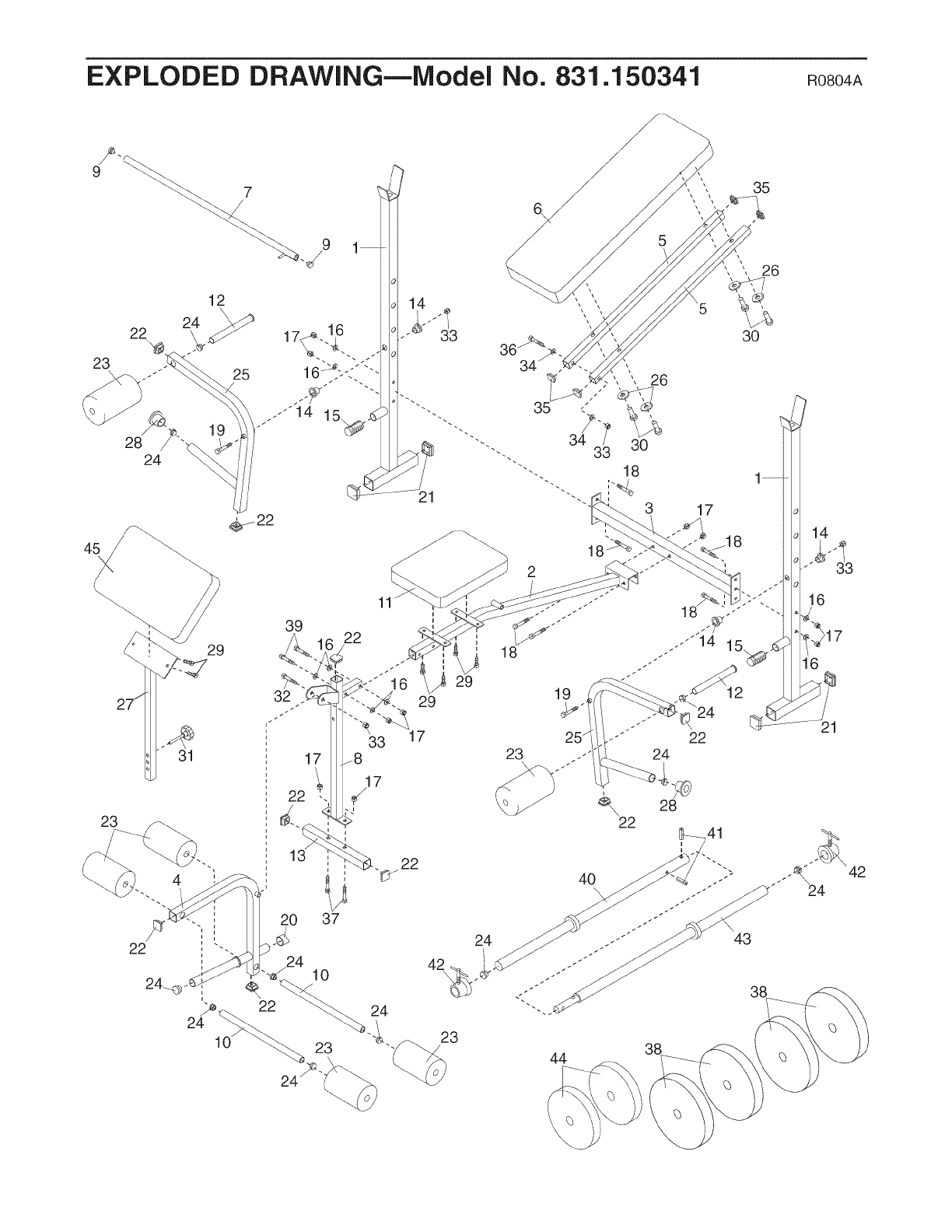

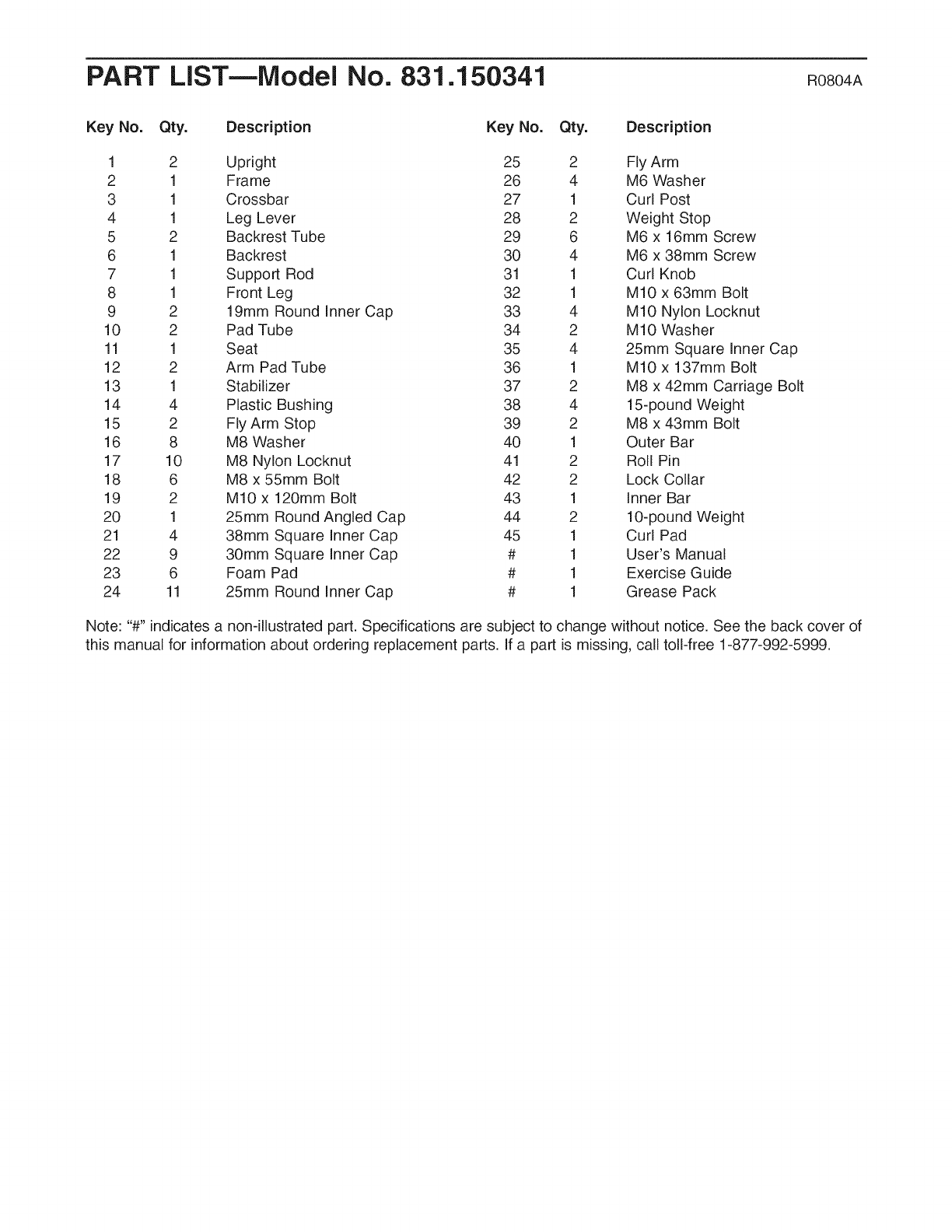

Note: A PART IDENTIFICATION CHART and a PART LIST/EXPLODED DRAWING are attached in the center of

this manual. Remove the PART IDENTIFICATION CHART and PART LIST/EXPLODED DRAWING before begin-

ning assembly,

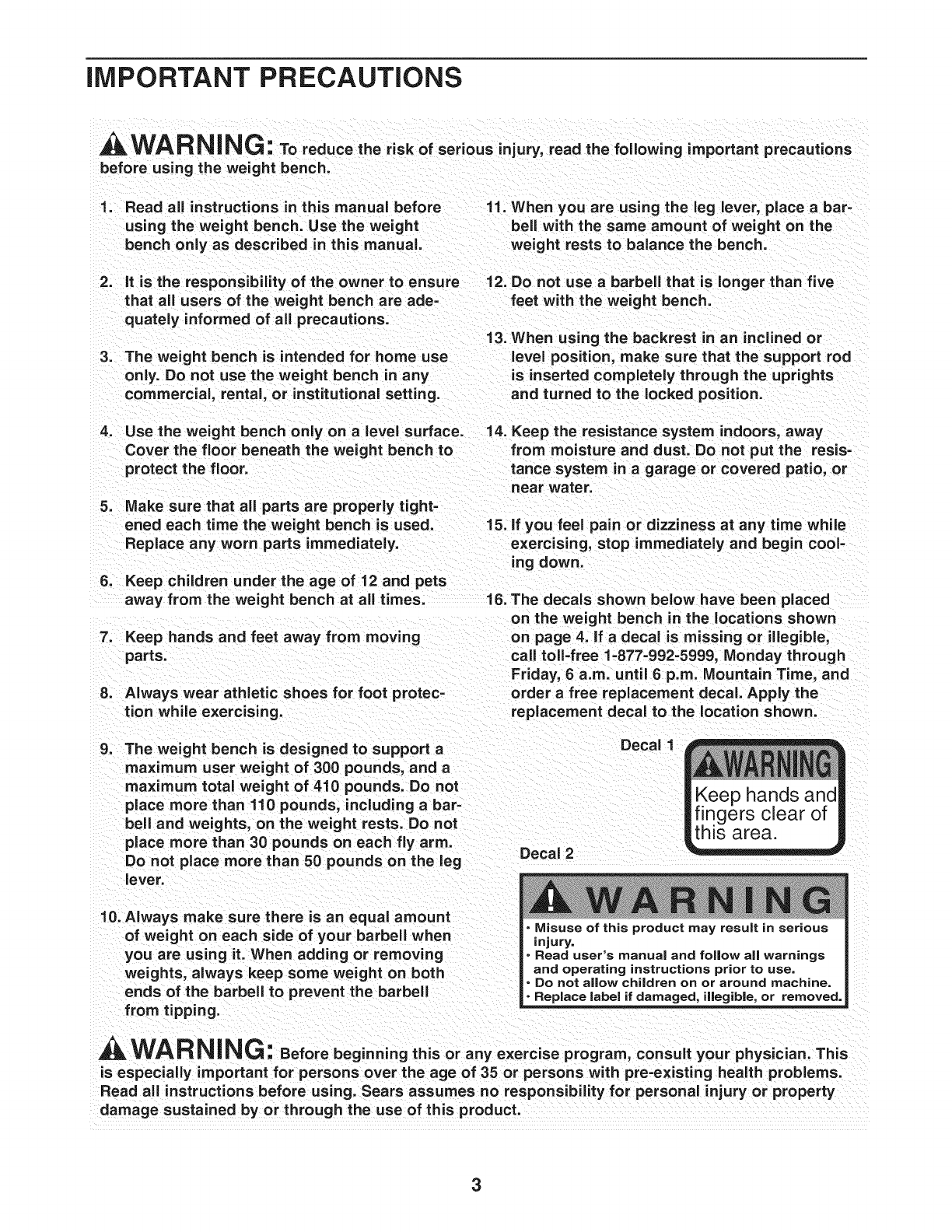

iMPORTANT PRECAUTIONS

WARNING: Toreducetheriskofseriousinjury, readthefollowing important precautions

before using the weight bench.

1. Read all instructions in this manual before

using the weight bench. Use the weight

bench only as described in this manual.

11. When you are using the leg lever, place abar-

bell with the same amount of weight on the

weig ht rests to balance the bench.

2. it is the responsibility of the owner to ensure

12. Do not use a barbell that is longer than five

that all users of the weight bench are ade- feet with the weight bench.

quately informed of all precautions.

13. When using the backrest in an inclined or

The weight bench is intended for home use level position, make sure that the support rod

only. Do not use the weight bench in any is inserted completely through the uprights

commercial, rental, or institutional setting, and turned to the locked position.

4. Use the weight bench only on a level surface. 14. Keep the resistance system indoors, away

Cover the floor beneath the weight bench to from moisture and dust. Do not put the resis-

protect the floor, tance system in agarage or covered patio, or

.Make sure that all parts are properly tight-

ened each time the weight bench is used.

Replace any worn parts immediately.

6. Keep children under the age of 12 and pets

away from the weight bench at all times.

7. Keep hands and feet away from moving

parts.

8. Always wear athletic shoes for foot protec-

tion while exercising.

near water.

15. If you feel pain or dizziness at any time while

exercising, stop immediately and begin cool-

ing down.

16. The decals shown below have been placed

on the weight bench in the locations shown

on page 4. If a decal is missing or illegible,

call toll-free 1-877-992-5999, Monday through

Friday, 6 a.m. until 6 p.m. Mountain Time, and

order a free replacement decal. Apply the

replacement decal to the location shown.

9. The weight bench is designed to support a

maximum user weight of 300 pounds, and a

maximum total weight of 410 pounds. Do not

place more than 110 pounds, including a bar-

bell and weights, on the weight rests. Do not

place more than 30 pounds on each fly arm. Decal 2

Do not place more than 50 pounds on the leg

lever.

Decal 1

10. Always make sure there is an equal amount

of weight on each side of your barbell when

you are using it. When adding or removing

weights, always keep some weight on both

ends of the barbell to prevent the barbell

from tipping.

- Misuse of this product may result in serious

injury.

- Read user's manual and fol|ow aU warnings

and operating instructions prior to use.

•Do not allow children on or around machine.

oReplace label if damaged, illegible, or removed.

_WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. Sears assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

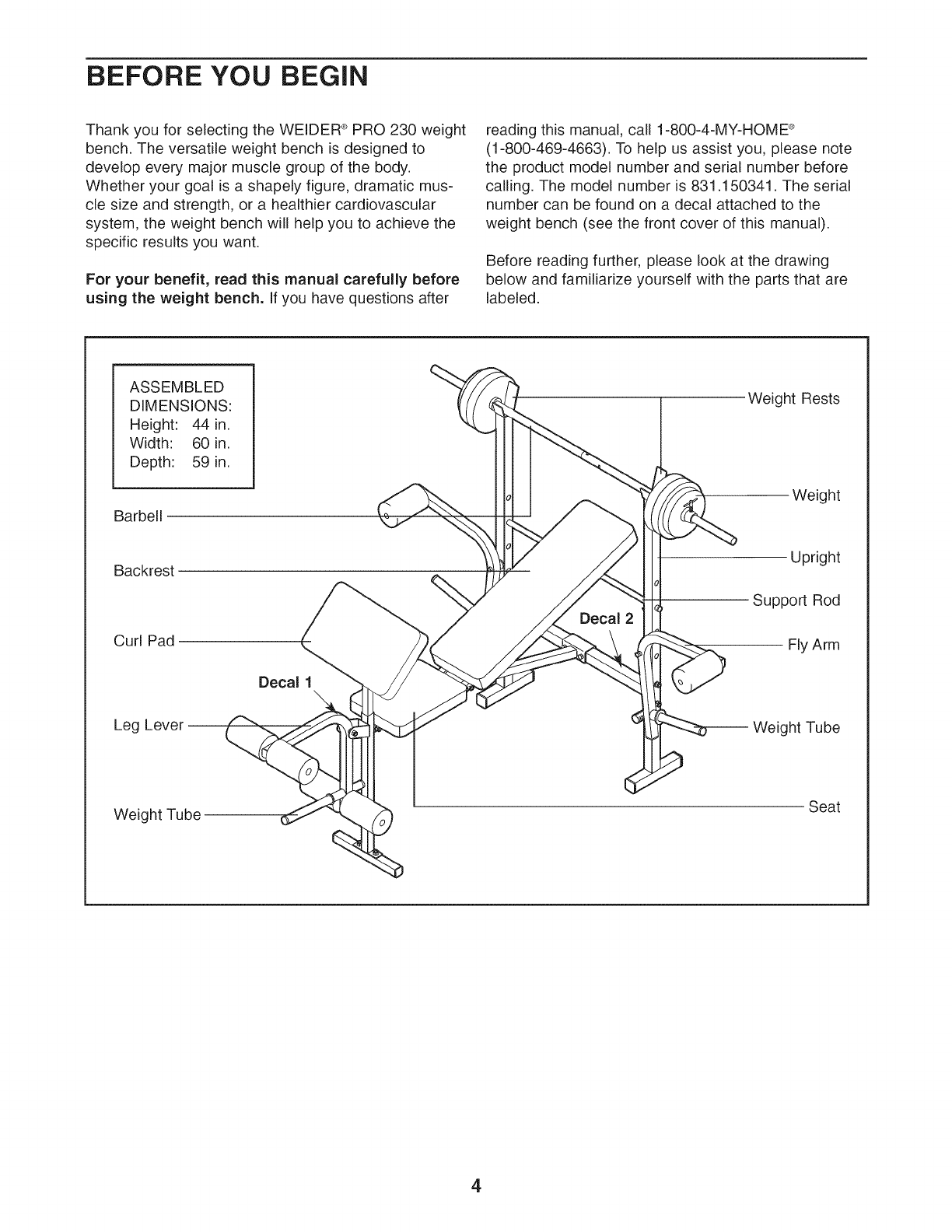

BEFORE YOU BEGIN

Thank you for selecting the WELDER _'>PRO 230 weight

bench. The versatile weight bench is designed to

develop every major muscle group of the body.

Whether your goal is a shapely figure, dramatic mus-

cle size and strength, or a healthier cardiovascular

system, the weight bench will help you to achieve the

specific results you want.

For your benefit, read this manual carefully before

using the weight bench. If you have questions after

reading this manual, call 1-800-4-MY-HOMF _

(1-800-469-4663). To help us assist you, please note

the product model number and serial number before

calling. The model number is 831.1 50341. The serial

number can be found on a decal attached to the

weight bench (see the front cover of this manual).

Before reading further, please look at the drawing

below and familiarize yourself with the parts that are

labeled.

ASSEMBLED

DIMENSIONS:

Height: 44 in.

Width: 60 in.

Depth: 59 in.

Barbell

Backrest

Curl Pad

Decal 1

Decal 2

Weight Rests

Weight

Upright

Support Rod

Fly Arm

Leg -- Weight Tube

Weight Tube Seat

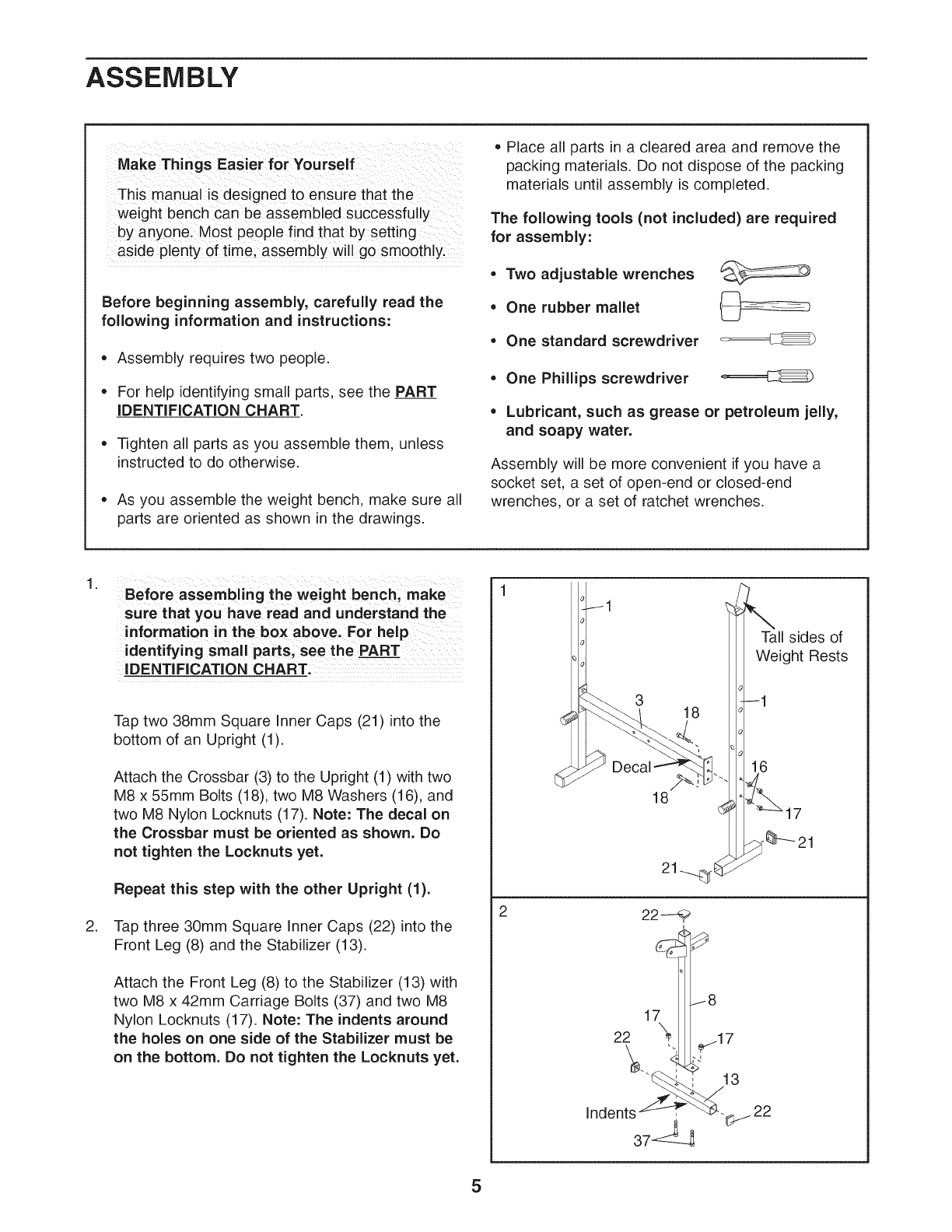

ASSEMBLY

Make Things Easier for Yourself

This manual is designed to ensure that the

weight bench can be assembled successfully

by anyone. Most people find that by setting

aside plenty of time. assembly will go smoothly.

Before beginning assembly, carefully read the

following information and instructions:

o Assembly requires two people.

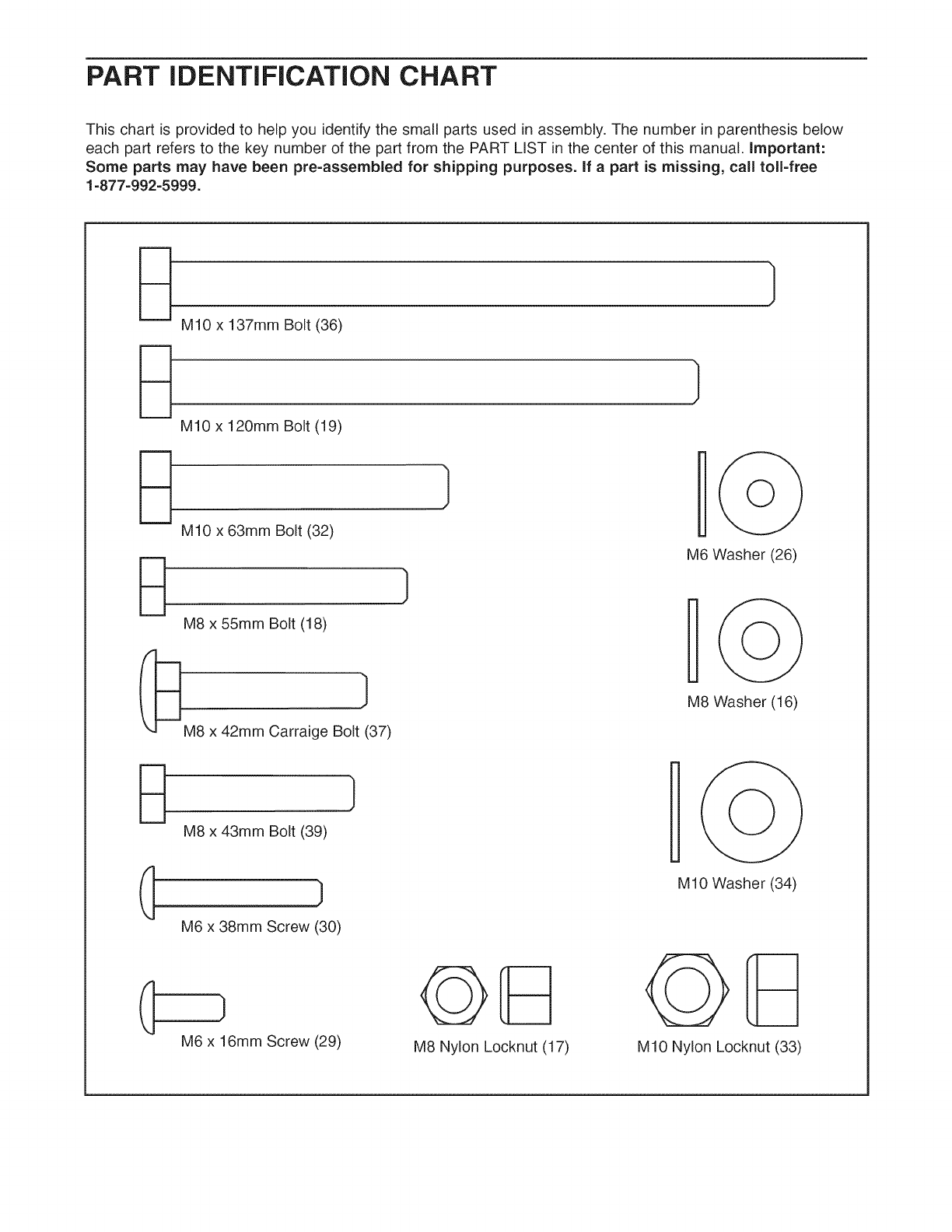

For help identifying small parts, see the PART

IDENTIFICATION CHART.

Tighten all parts as you assemble them, unless

instructed to do otherwise.

As you assemble the weight bench, make sure all

parts are oriented as shown in the drawings.

• Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until assembly is completed.

The following tools (not included) are required

for assembly:

Two adjustable wrenches

One rubber mallet

One standard screwdriver

One Phillips screwdriver

Lubricant, such as grease or petroleum jelly,

and soapy water.

Assembly will be more convenient if you have a

socket set, a set of open-end or closed-end

wrenches, or a set of ratchet wrenches.

1. Before assembling the weight bench, make

sure that you have read and understand the

information in the box above; For help

identifying small parts, see the_PART_ .............

IDENTIFICATION CHART.

Tap two 38ram Square Inner Caps (21) into the

bottom of an Upright (1).

Attach the Crossbar (3) to the Upright (1) with two

M8 x 55ram Bolts (18), two M8 Washers (16), and

two M8 Nylon Locknuts (17). Note: The decal on

the Crossbar must be oriented as shown. Do

not tighten the Locknuts yet.

Repeat this step with the other Upright (1).

Tap three 30mm Square Inner Caps (22) into the

Front Leg (8) and the Stabilizer (13).

Attach the Front Leg (8) to the Stabilizer (13) with

two M8 x 42mm Carriage Bolts (37) and two M8

Nylon Locknuts (17). Note: The indents around

the holes on one side of the Stabilizer must be

on the bottom. Do not tighten the Locknuts yet.

Tall sides of

Weight Rests

22--_,i

_jl 7

Indent3__ 22

3. 3

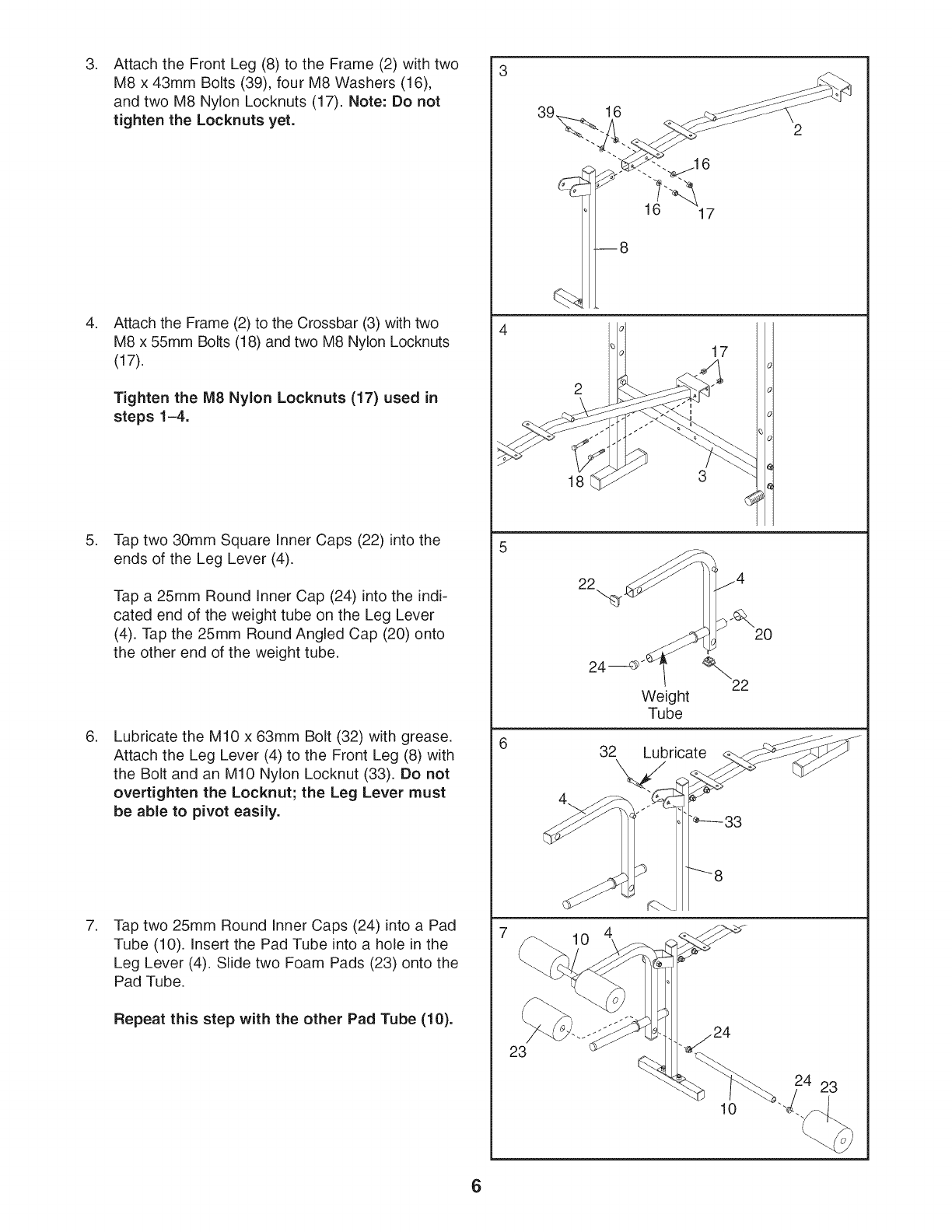

Attach the Front Leg (8) to the Frame (2) with two

M8 x 43mm Bolts (39), four M8 Washers (16),

and two M8 Nylon Locknuts (17). Note: Do not

tighten the Locknuts yet.

Attach the Frame (2) to the Crossbar (3) with two

M8 x 55mm Bolts (18) and two M8 Nylon Locknuts

(17).

Tighten the M8 Nylon Locknuts (17) used in

steps 1-4.

Tap two 30mm Square Inner Caps (22) into the

ends of the Leg Lever (4).

Tap a 25mm Round Inner Cap (24) into the indi-

cated end of the weight tube on the Leg Lever

(4). Tap the 25mm Round Angled Cap (20) onto

the other end of the weight tube.

Lubricate the M10 x 63mm Bolt (32) with grease.

Attach the Leg Lever (4) to the Front Leg (8) with

the Bolt and an M10 Nylon Locknut (33). Do not

overtighten the Locknut; the Leg Lever must

be able to pivot easily.

Tap two 25mm Round Inner Caps (24) into a Pad

Tube (10). Insert the Pad Tube into a hole in the

Leg Lever (4). Slide two Foam Pads (23) onto the

Pad Tube.

Repeat this step with the other Pad Tube (10).

--8

18 3

Weight

Tube

%22

32 Lubricate

10 4

24 23

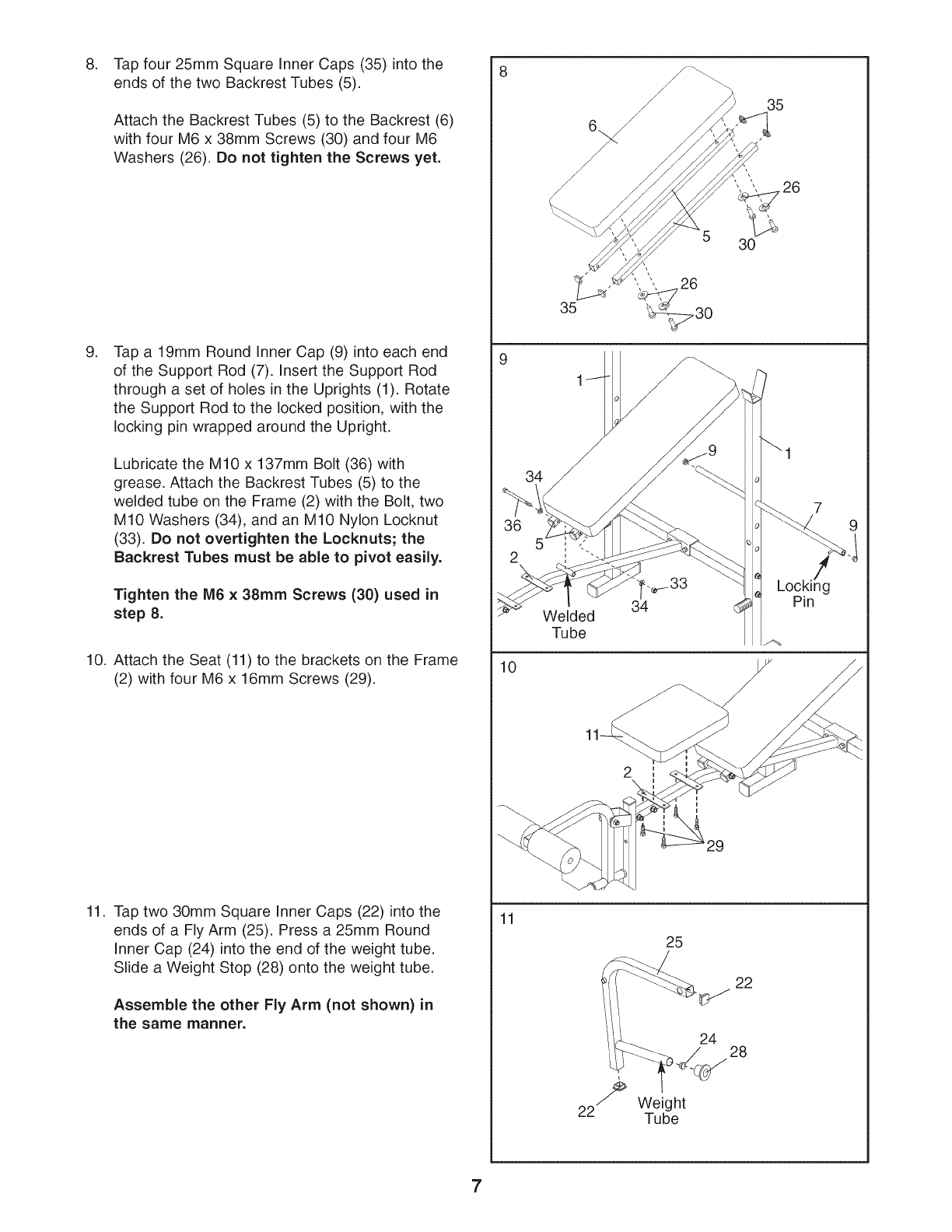

,Tap four 25mm Square Inner Caps (35) into the

ends of the two Backrest Tubes (5).

Attach the Backrest Tubes (5) to the Backrest (6)

with four M6 x 38mm Screws (30) and four M6

Washers (26). Do not tighten the Screws yet.

,Tap a 19mm Round Inner Cap (9) into each end

of the Support Rod (7). Insert the Support Rod

through a set of holes in the Uprights (1). Rotate

the Support Rod to the locked position, with the

locking pin wrapped around the Upright.

Lubricate the M10 x 137mm Bolt (36) with

grease. Attach the Backrest Tubes (5) to the

welded tube on the Frame (2) with the Bolt, two

M10 Washers (34), and an M10 Nylon Locknut

(33). Do not overtighten the Locknuts; the

Backrest Tubes must be able to pivot easily.

Tighten the M6 ×38mm Screws (30) used in

step 8.

10. Attach the Seat (11) to the brackets on the Frame

(2) with four M6 x 16mm Screws (29).

11. Tap two 30mm Square Inner Caps (22) into the

ends of a Fly Arm (25). Press a 25mm Round

Inner Cap (24) into the end of the weight tube.

Slide a Weight Stop (28) onto the weight tube.

Assemble the other Fly Arm (not shown) in

the same manner.

Welded

Tube

Locking

22 Weight

Tube

24 28

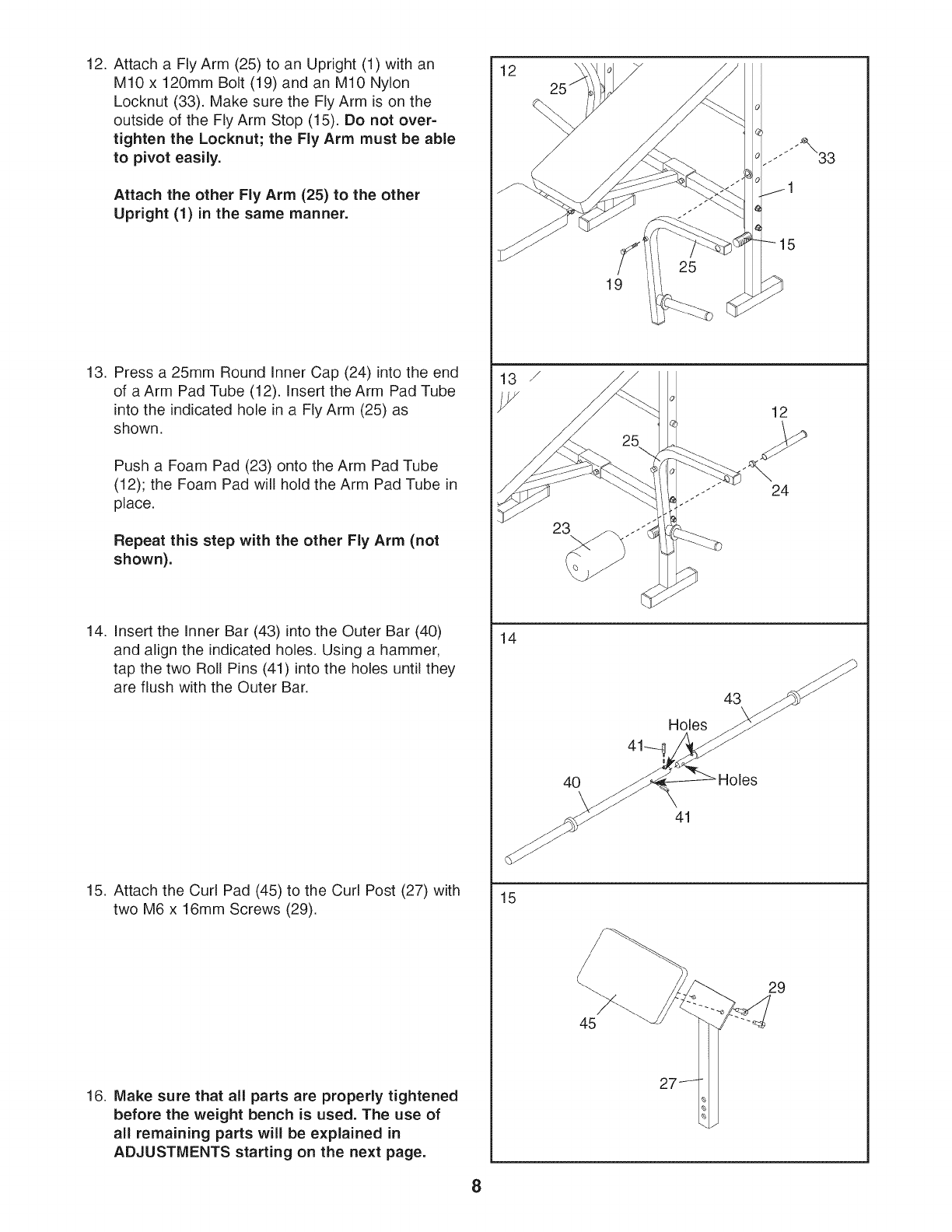

12. Attach a Fly Arm (25) to an Upright (1) with an

M10 x 120mm Bolt (19) and an M10 Nylon

Locknut (33). Make sure the Fly Arm is on the

outside of the Fly Arm Stop (15). Do not over-

tighten the Locknut; the Fly Arm must be able

to pivot easily.

Attach the other Fly Arm (25) to the other

Upright (1} in the same manner.

13. Press a 25mm Round Inner Cap (24) into the end

of a Arm Pad Tube (12). Insert the Arm Pad Tube

into the indicated hole in a Fly Arm (25) as

shown.

Push a Foam Pad (23) onto the Arm Pad Tube

(12); the Foam Pad will hold the Arm Pad Tube in

place.

Repeat this step with the other Fly Arm (not

shown).

14. Insert the Inner Bar (43) into the Outer Bar (40)

and align the indicated holes. Using a hammer,

tap the two Roll Pins (41) into the holes until they

are flush with the Outer Bar.

15. Attach the Curl Pad (45) to the Curl Post (27) with

two M6 x 16ram Screws (29).

16. Make sure that all parts are properly tightened

before the weight bench is used. The use of

all remaining parts will be explained in

ADJUSTMENTS starting on the next page.

-%24

Holes

40 \41

_les

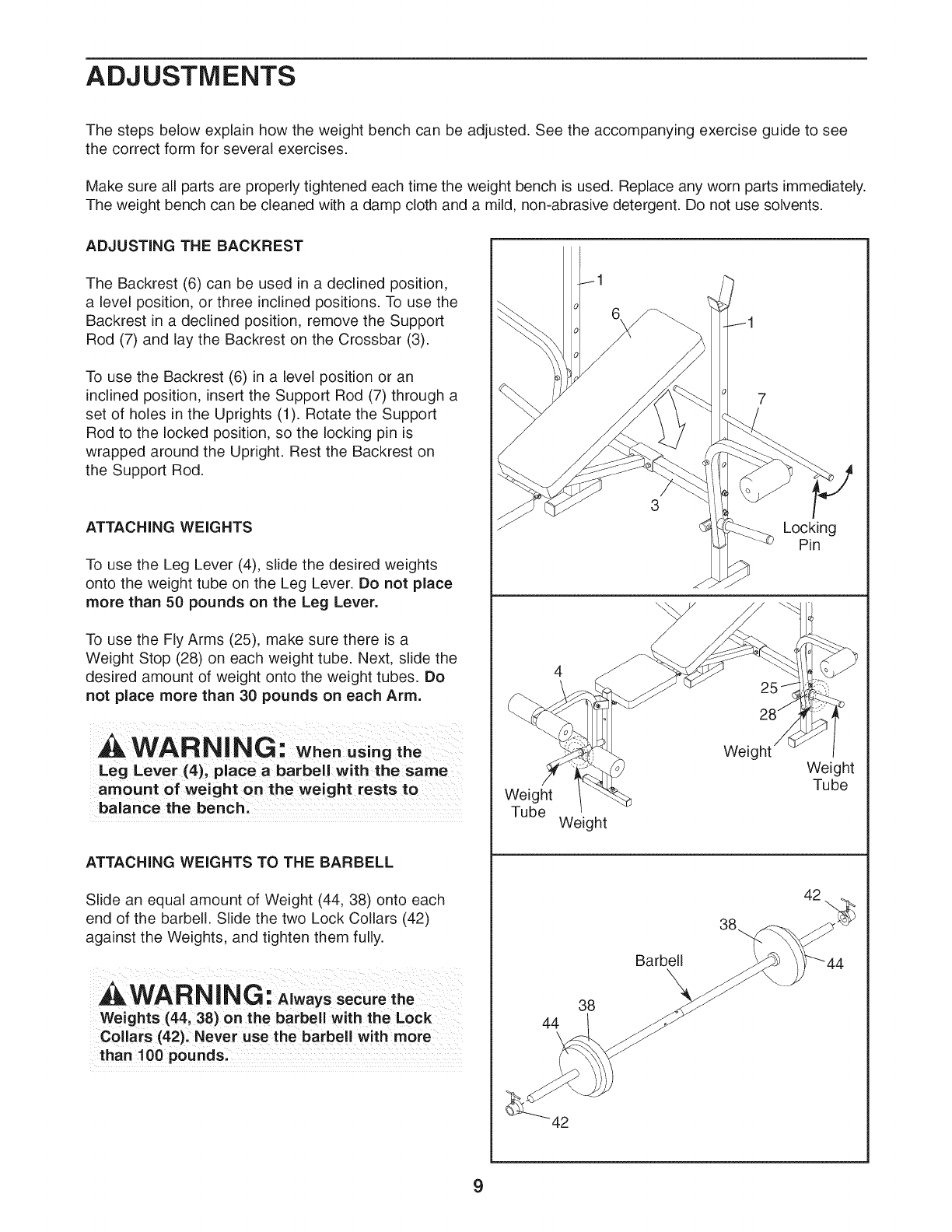

ADJUSTMENTS

The steps below explain how the weight bench can be adjusted. See the accompanying exercise guide to see

the correct form for several exercises.

Make sure all parts are properly tightened each time the weight bench is used. Replace any worn parts immediately.

The weight bench can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.

ADJUSTING THE BACKREST

The Backrest (6) can be used in a declined position,

a level position, or three inclined positions. To use the

Backrest in a declined position, remove the Support

Rod (7) and lay the Backrest on the Crossbar (3).

To use the Backrest (6) in a level position or an

inclined position, insert the Support Rod (7) through a

set of holes in the Uprights (1). Rotate the Support

Rod to the locked position, so the locking pin is

wrapped around the Upright. Rest the Backrest on

the Support Rod.

ATTACHING WEIGHTS

To use the Leg Lever (4), slide the desired weights

onto the weight tube on the Leg Lever. Do not place

more than 50 pounds on the Leg Lever.

To use the Fly Arms (25), make sure there is a

Weight Stop (28) on each weight tube. Next, slide the

desired amount of weight onto the weight tubes. Do

not place more than 30 pounds on each Arm.

WARNING: Whe°.si.gthe

Leg Lever (4)i place a barbell with the same

amount of weight On the weight rests to

balance the bench_

ATTACHING WEIGHTS TO THE BARBELL

Slide an equal amount of Weight (44, 38) onto each

end of the barbell. Slide the two Lock Collars (42)

against the Weights, and tighten them fully.

WARNING: A wayssecurethe

Weights (44, 38)on the barbell with the Lock

Collars (42). Never use the barbell with more

than 100pounds:

Locking

Weight

Tube Weight

Weig Weight

Tube

Barbell

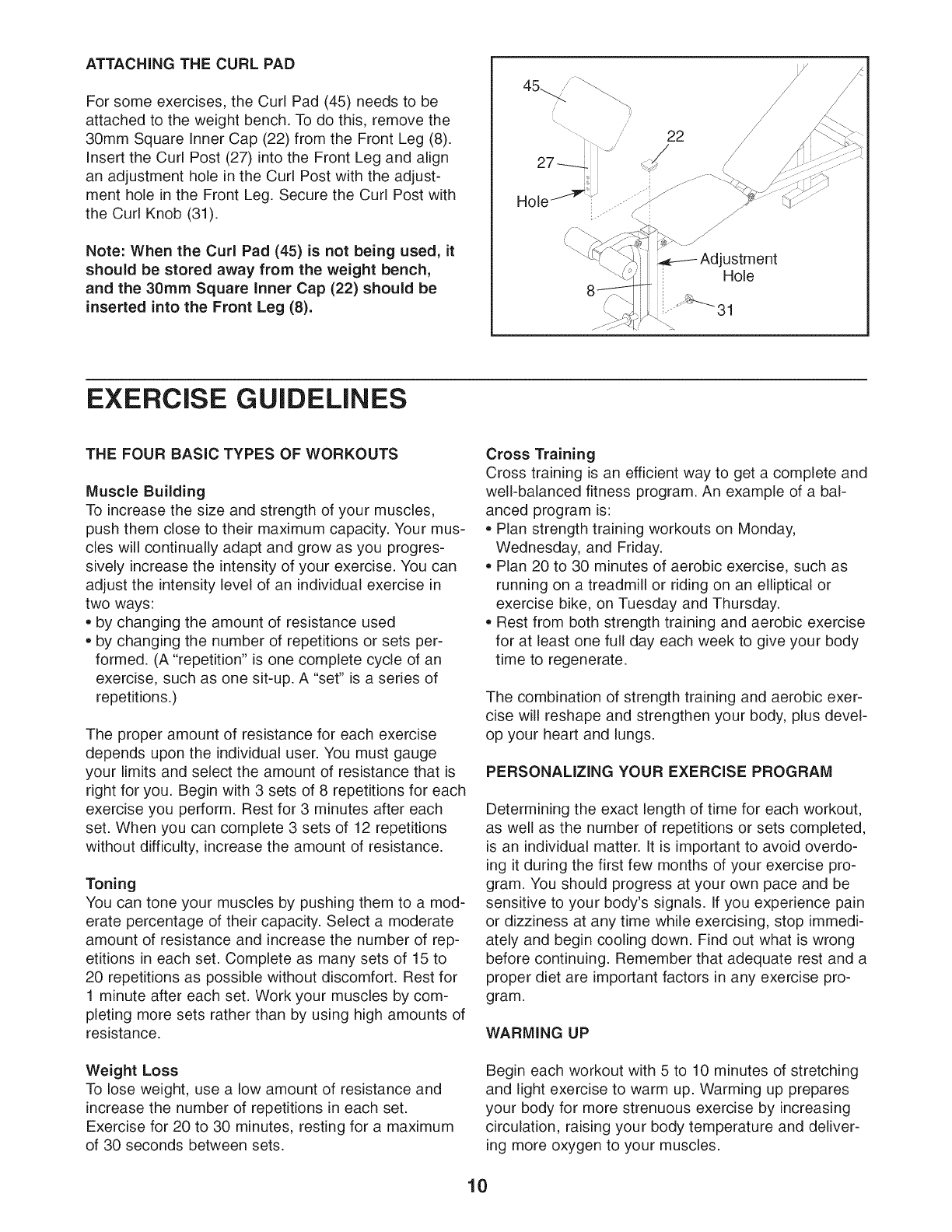

ATTACHING THE CURL PAD

For some exercises, the Curl Pad (45) needs to be

attached to the weight bench. To do this, remove the

30ram Square Inner Cap (22) from the Front Leg (8).

Insert the Curl Post (27) into the Front Leg and align

an adjustment hole in the Curl Post with the adjust-

ment hole in the Front Leg. Secure the Curl Post with

the Curl Knob (31).

Note: When the Curl Pad (45) is not being used, it

should be stored away from the weight bench,

and the 30ram Square inner Cap (22) should be

inserted into the Front Leg (8). \

-,e---- Adjustment

i Hole

; .... 31

EXERCISE GUIDELINES

THE FOUR BASIC TYPES OF WORKOUTS

Muscle Building

To increase the size and strength of your muscles,

push them close to their maximum capacity. Your mus-

cles will continually adapt and grow as you progres-

sively increase the intensity of your exercise. You can

adjust the intensity level of an individual exercise in

two ways:

- by changing the amount of resistance used

- by changing the number of repetitions or sets per-

formed. (A "repetition" is one complete cycle of an

exercise, such as one sit-up. A "set" is a series of

repetitions.)

The proper amount of resistance for each exercise

depends upon the individual user. You must gauge

your limits and select the amount of resistance that is

right for you. Begin with 3 sets of 8 repetitions for each

exercise you perform. Rest for 3 minutes after each

set. When you can complete 3 sets of 12 repetitions

without difficulty, increase the amount of resistance.

Toning

You can tone your muscles by pushing them to a mod-

erate percentage of their capacity. Select a moderate

amount of resistance and increase the number of rep-

etitions in each set. Complete as many sets of 15 to

20 repetitions as possible without discomfort. Rest for

1 minute after each set. Work your muscles by com-

pleting more sets rather than by using high amounts of

resistance.

Weight Loss

To lose weight, use a low amount of resistance and

increase the number of repetitions in each set.

Exercise for 20 to 30 minutes, resting for a maximum

of 30 seconds between sets.

Cross Training

Cross training is an efficient way to get a complete and

well-balanced fitness program. An example of a bal-

anced program is:

- Plan strength training workouts on Monday,

Wednesday, and Friday.

- Plan 20 to 30 minutes of aerobic exercise, such as

running on a treadmill or riding on an elliptical or

exercise bike, on Tuesday and Thursday.

- Rest from both strength training and aerobic exercise

for at least one full day each week to give your body

time to regenerate.

The combination of strength training and aerobic exer-

cise will reshape and strengthen your body, plus devel-

op your heart and lungs.

PERSONALIZING YOUR EXERCISE PROGRAM

Determining the exact length of time for each workout,

as well as the number of repetitions or sets completed,

is an individual matter. It is important to avoid overdo-

ing it during the first few months of your exercise pro-

gram. You should progress at your own pace and be

sensitive to your body's signals. If you experience pain

or dizziness at any time while exercising, stop immedi-

ately and begin cooling down. Find out what is wrong

before continuing. Remember that adequate rest and a

proper diet are important factors in any exercise pro-

gram.

WARMING UP

Begin each workout with 5 to 10 minutes of stretching

and light exercise to warm up. Warming up prepares

your body for more strenuous exercise by increasing

circulation, raising your body temperature and deliver-

ing more oxygen to your muscles,

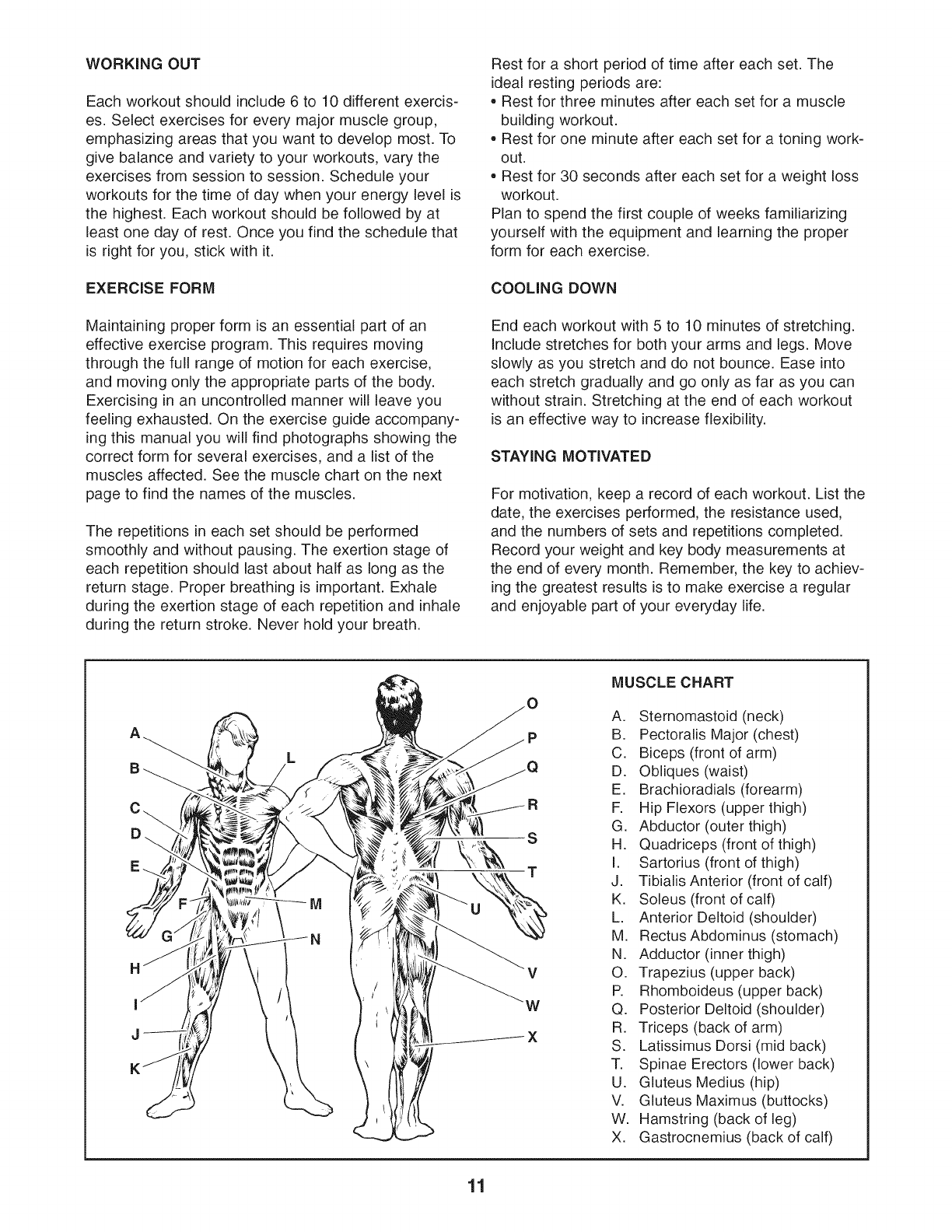

WORKING OUT

Each workout should include 6 to 10 different exercis-

es. Select exercises for every major muscle group,

emphasizing areas that you want to develop most. To

give balance and variety to your workouts, vary the

exercises from session to session. Schedule your

workouts for the time of day when your energy level is

the highest. Each workout should be followed by at

least one day of rest. Once you find the schedule that

is right for you, stick with it.

EXERCISE FORM

Maintaining proper form is an essential part of an

effective exercise program. This requires moving

through the full range of motion for each exercise,

and moving only the appropriate parts of the body.

Exercising in an uncontrolled manner will leave you

feeling exhausted. On the exercise guide accompany-

ing this manual you will find photographs showing the

correct form for several exercises, and a list of the

muscles affected. See the muscle chart on the next

page to find the names of the muscles.

The repetitions in each set should be performed

smoothly and without pausing. The exertion stage of

each repetition should last about half as long as the

return stage. Proper breathing is important. Exhale

during the exertion stage of each repetition and inhale

during the return stroke, Never hold your breath,

Rest for a short period of time after each set. The

ideal resting periods are:

- Rest for three minutes after each set for a muscle

building workout.

- Rest for one minute after each set for a toning work-

out.

- Rest for 30 seconds after each set for a weight loss

workout.

Plan to spend the first couple of weeks familiarizing

yourself with the equipment and learning the proper

form for each exercise,

COOLING DOWN

End each workout with 5 to 10 minutes of stretching.

Include stretches for both your arms and legs. Move

slowly as you stretch and do not bounce. Ease into

each stretch gradually and go only as far as you can

without strain. Stretching at the end of each workout

is an effective way to increase flexibility,

STAYING MOTIVATED

For motivation, keep a record of each workout. List the

date, the exercises performed, the resistance used,

and the numbers of sets and repetitions completed.

Record your weight and key body measurements at

the end of every month. Remember, the key to achiev-

ing the greatest results is to make exercise a regular

and enjoyable part of your everyday life.

MUSCLE CHART

A. Sternomastoid (neck)

B. Pectoralis Major (chest)

C. Biceps (front of arm)

D. Obliques (waist)

E. Brachioradials (forearm)

F. Hip Flexors (upper thigh)

G. Abductor (outer thigh)

H. Quadriceps (front of thigh)

I. Sartorius (front of thigh)

J. Tibialis Anterior (front of calf)

K. Soleus (front of calf)

L. Anterior Deltoid (shoulder)

M. RectusAbdominus (stomach)

N. Adductor (inner thigh)

O. Trapezius (upper back)

P. Rhomboideus (upper back)

Q. Posterior Deltoid (shoulder)

R. Triceps (back of arm)

S. Latissimus Dorsi (mid back)

T. Spinae Erectors (lower back)

U. Gluteus Medius (hip)

V. Gluteus Maximus (buttocks)

W. Hamstring (back of leg)

X. Gastrocnemius (back of calf)

PART iDENTiFiCATiON CHART

This chart is provided to help you identify the small parts used in assembly. The number in parenthesis below

each part refers to the key number of the part from the PART LIST in the center of this manual. Important:

Some parts may have been pre=assembled for shipping purposes, if a part is missing, call toll-free

1=877=992=5999.

)

M10 x 137mm Bolt (36)

M10 x 120mm Bolt (19)

M10 x 63mm Bolt (32)

)

M8 x 55ram Bolt (18)

(_M8 x 42mm Carraige Bolt!37)

M6 Washer (26)

M8 Washer (16)

M8 x 43ram Bolt (39)

M6 x 38mm Screw (30)

M6 x 16mm Screw (29) M8 Nylon Locknut (17)

M10 Washer (34)

M10 Nylon Locknut (33)

PART LiST--Model No. 831.150341 R0804A

Key No. Qty. Description Key No. Qty. Description

1 2 Upright 25 2 Fly Arm

2 1 Frame 26 4 M6 Washer

3 1 Crossbar 27 1 Curl Post

4 1 Leg Lever 28 2 Weight Stop

5 2 Backrest Tube 29 6 M6 x 16mm Screw

6 1 Backrest 30 4 M6 x 38ram Screw

7 1 Support Rod 31 1 Curl Knob

8 1 Front Leg 32 1 M10 x 63mm Bolt

9 2 19mm Round Inner Cap 33 4 M10 Nylon Locknut

10 2 Pad Tube 34 2 M10 Washer

11 1 Seat 35 4 25mm Square Inner Cap

12 2 Arm Pad Tube 36 1 M10 x 137mm Bolt

13 1 Stabilizer 37 2 M8 x 42mm Carriage Bolt

14 4 Plastic Bushing 38 4 15-pound Weight

15 2 Fly Arm Stop 39 2 M8 x 43mm Bolt

16 8 M8 Washer 40 1 Outer Bar

17 10 M8 Nylon Locknut 41 2 Roll Pin

18 6 M8 x 55mm Bolt 42 2 Lock Collar

19 2 M10 x 120mm Bolt 43 1 Inner Bar

20 1 25mm Round Angled Cap 44 2 10-pound Weight

21 4 38ram Square Inner Cap 45 1 Curl Pad

22 9 30ram Square Inner Cap # 1 User's Manual

23 6 Foam Pad # 1 Exercise Guide

24 11 25mm Round Inner Cap # 1 Grease Pack

Note: "#" indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover of

this manual for information about ordering replacement parts. If a part is missing, call toll-free 1-877-992-5999.

EXPLODED DRAWING--Model No. 831.150341 R0804A

4_-22

39 22

"'i 6 29

33 17

24 10

>17

iiiiiiiiiiiiii

Your Home

For repair -in your home - of all major brand appliances, lawn and garden equipment,

or heating and cooling systems, no matter who made it, no matter who sold it!

For the replacement parts, accessories, and user's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ®Anytime, day or night

(1-800-469-4663) (U.S.A. and Canada)

www, sears.oom www, sears.ca

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the location of your nearest

Sears Parts and Repair Center.

1-800-488-1222 Anytime, day or night (U.S.A. only)

www.sears.com

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (u.s._) 1-800-361-6665 (Canada)

Para pedir servicio de reparaci6n a domicilio, y para ordenar piezas:

1-888-SU-HOGAR SM (1-888-784-6427) .....

TM SM

® Registered Trademark /Trademark /Service Mark of Sears, Roebuck and Co.

TM SM

® Marca Registrada /Marca de F&brica /Marca de Servicio de Sears, Roebuck and Co.

FULL 90-DAY WARRANTY

For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this

WEIGHT BENCH EXERCISER, contact the nearest Sears Service Center throughout the United States

and Sears will repair or replace the WEIGHT BENCH EXERCISER, free of charge.

This warranty does not apply when the WEIGHT BENCH EXERCISER is used commercially or for

rental purposes,

This warranty gives you specific legal rights, and you may also have other rights which vary from state

to state.

Sears, Roebuck and Co., Dept 817WA, Hoffman Estates, IL 60179

Weider 831150341 User Manual PRO 230 WEIGHT BENCH Manuals And Guides 1309397L

Navigation menu

Versions of this User Manual:

Views

Navigation
