Page Count: 24

Model No. 831.153961

Serial No.

Write the serial number in the

space above for future reference.

Serial Number Decal (under seat)

_iiiiiiiiiiiii]!_@_i_iii_ii_ii(i_i_iiiiiiiiiii_i_iii_Ziii_ii_]iii_@iiiiiiii_iiiiiiiiiiiii

www,TheCrossBow.com

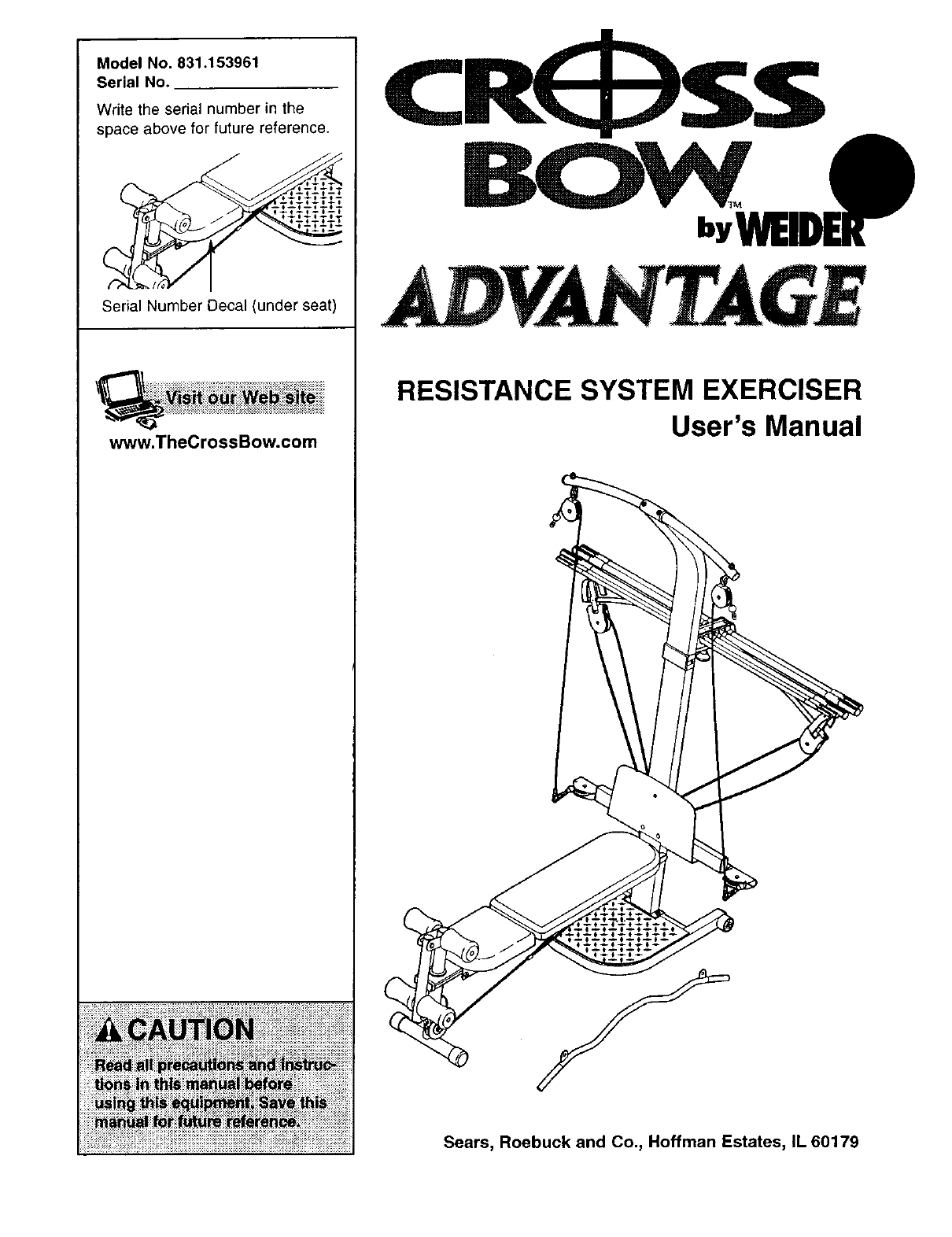

CR SS

RESISTANCE SYSTEM EXERCISER

User's Manual

Sears, Roebuck and Co., Hoffman Estates, IL 60179

TABLE OF CONTENTS

WARNING DECAL PLACEMENT .......................................................... 2

IMPORTANT PRECAUTIONS ............................................................. 3

BEFORE YOU BEGIN ................................................................... 4

ASSEMBLY ........................................................................... 5

ADJUSTMENTS ...................................................................... 13

CABLE DIAGRAM ..................................................................... 16

EXERCISE GUIDELINES ............................................................... 17

ORDERING REPLACEMENT PARTS ................................................ Back Cover

WARRANTY .................................................................. Back Cover

Note: A PART IDENTIFICATION CHART and a PART LIST/EXPLODED DRAWING are attached in the center of

this manual. Remove the PART IDENTIFICATION CHART and PART LIST/EXPLODED DRAWING before begin-

ning assembly.

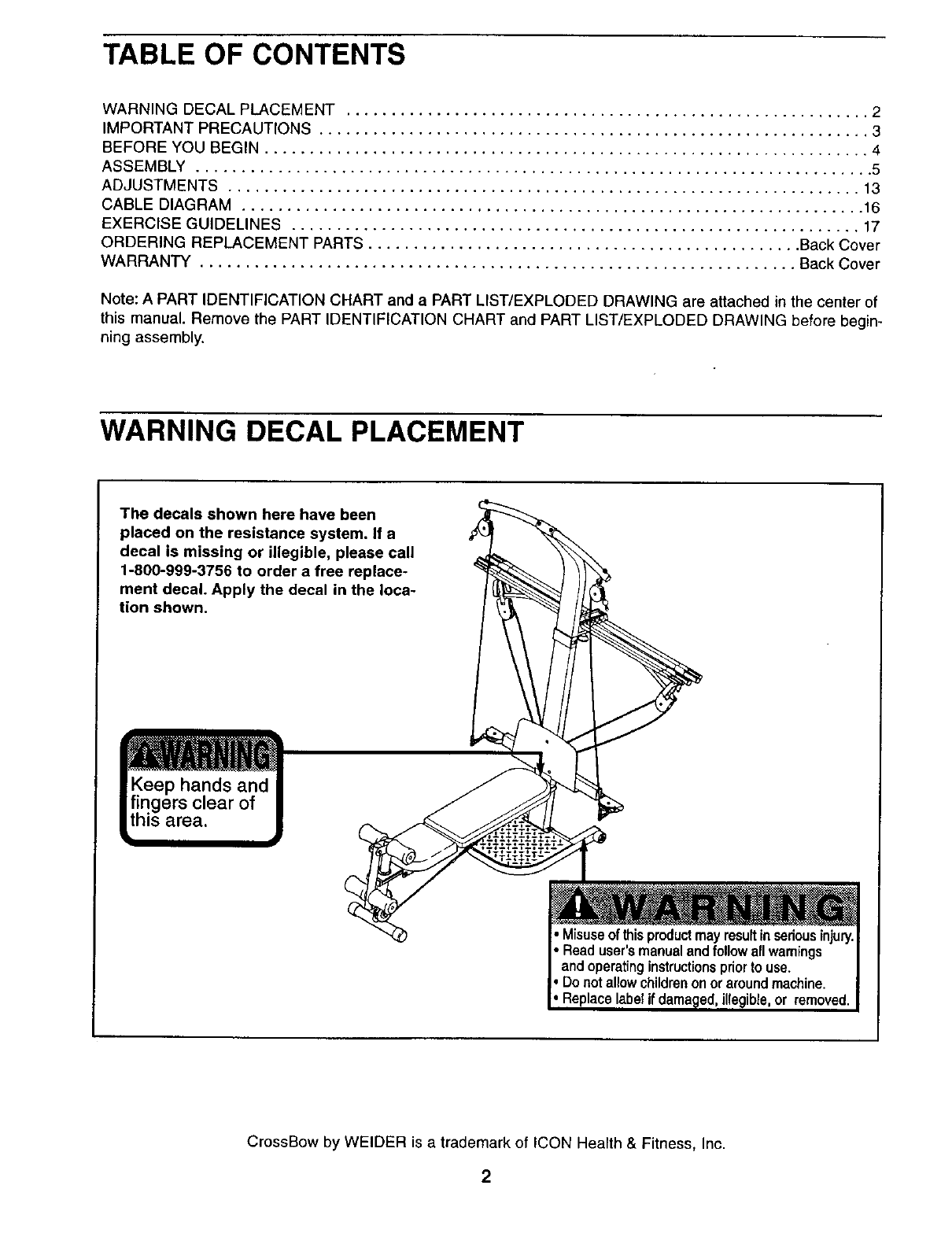

WARNING DECAL PLACEMENT

The decals shown here have been

placed on the resistance system. If a

decal is missing or illegible, please call

1-800-999-3756 to order a free replace-

ment decal. Apply the decal in the loca-

tion shown.

hands and

9rs clear of

• Misuseof this productmay resultinseriousinjury.

• Read user'smanualandfollow allwamings

and operatinginstructionspriorto use.

Do notallow children on or aroundmachine.

removed.

CrossBow by WELDER is a trademark of ICON Health & Fitness, Inc.

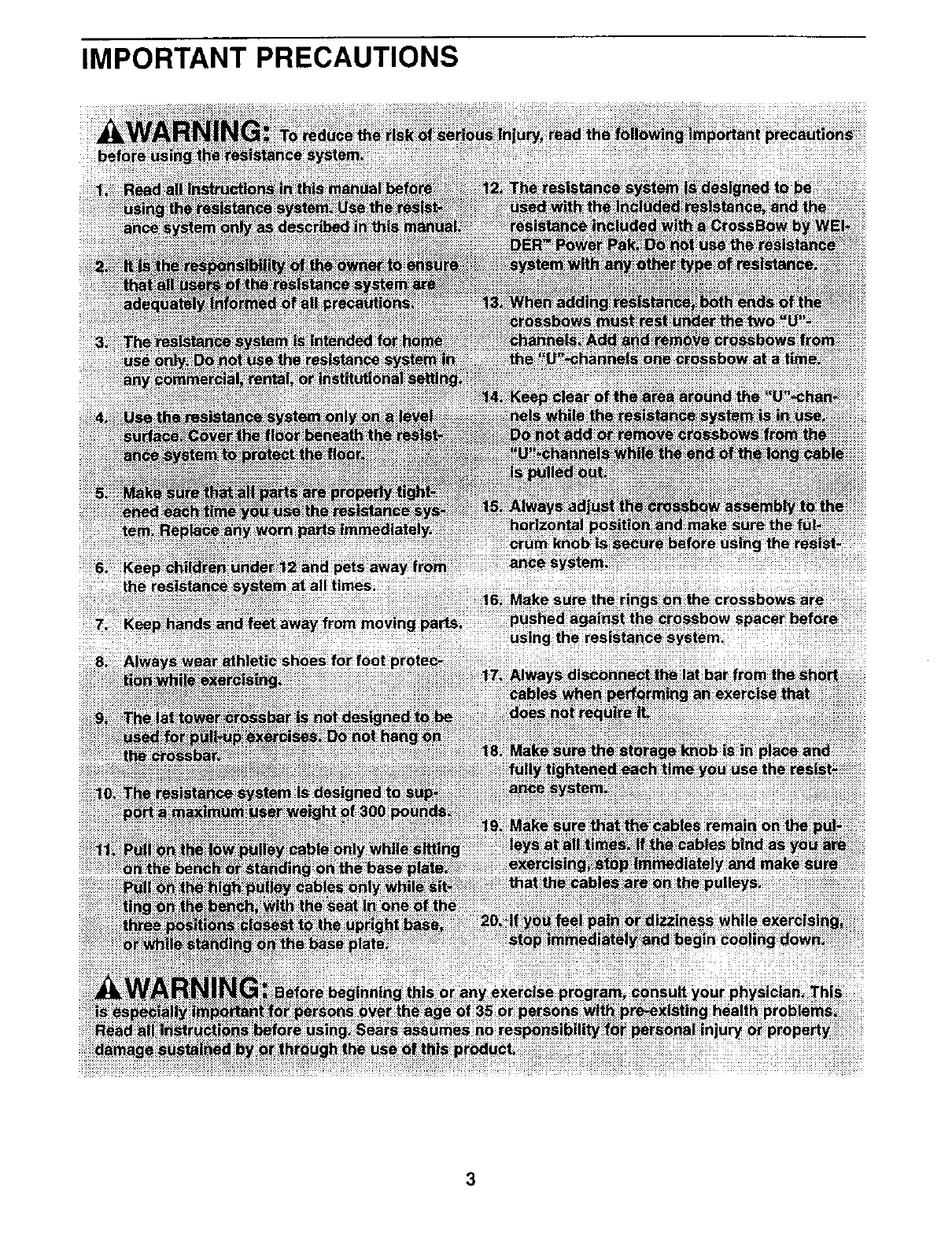

IMPORTANT PRECAUTIONS

from

pushed against the brossbow spacer before

BEFORE YOU BEGIN

Thank you for selecting the innovative CrossBow by

WELDER TM ADVANTAGE resistance system. The resist-

ance system offers a selection of stations designed to

develop every major muscle group ef the body. Whether

your goal is to tone your body, build dramatic muscle

size and strength, or improve your cardiovascular sys-

tem, the resistance system will help you to achieve the

specific results you want.

For your benefit, read this manual carefully before

using the resistance system, If you have questions

after reading this manual, call 1-800-4-MY-HOME ®

(1-800-469-4663). To help us assist you, please note

the product model number and serial number before

calling. The model number is 831.153961. The serial

number can be found on a decal attached to the resist-

ance system (see the front cover of this manual for the

location of the decal).

Before reading further, please review the drawing below

and famitiadze yourself with the parts that are labeled.

ASSEMBLED

DIMENSIONS:

Height: 82 in.

Width: 66 in.

Depth: 80 in.

Crossbar

Lat Tower

High Pulley

Fulcrum Knob Crossbows

Upright

Storage Knob

Backrest

Seat Knob

Leg Lever

Foot Plate

Low Pulley

Base Plate

Seat

Lat Bar

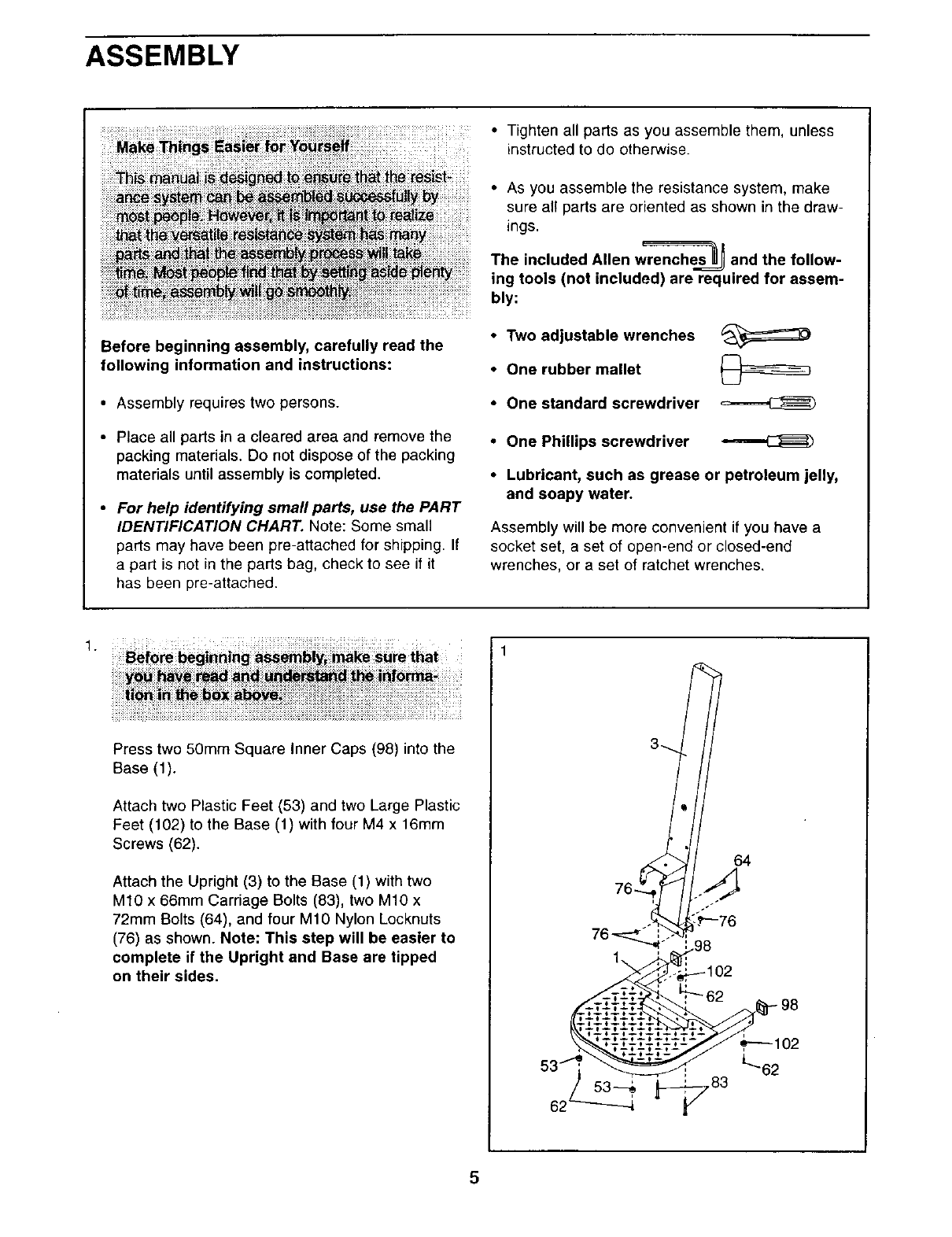

ASSEMBLY

•Tighten all parts as you assemble them, unless

instructed to do otherwise.

Before beginning assembly, carefully read the

following information and instructions:

•Assembly requires two persons.

•Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until assembly is completed.

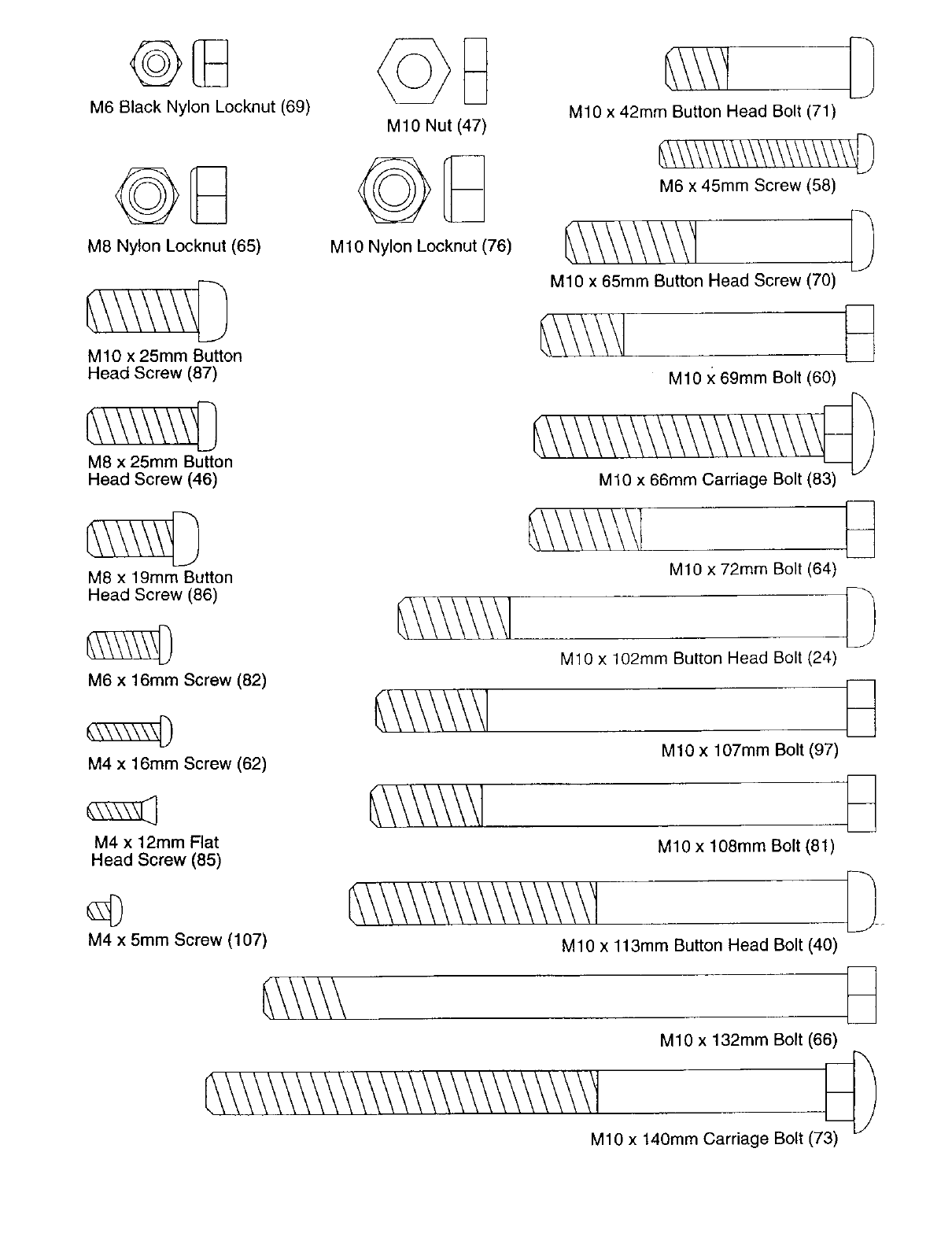

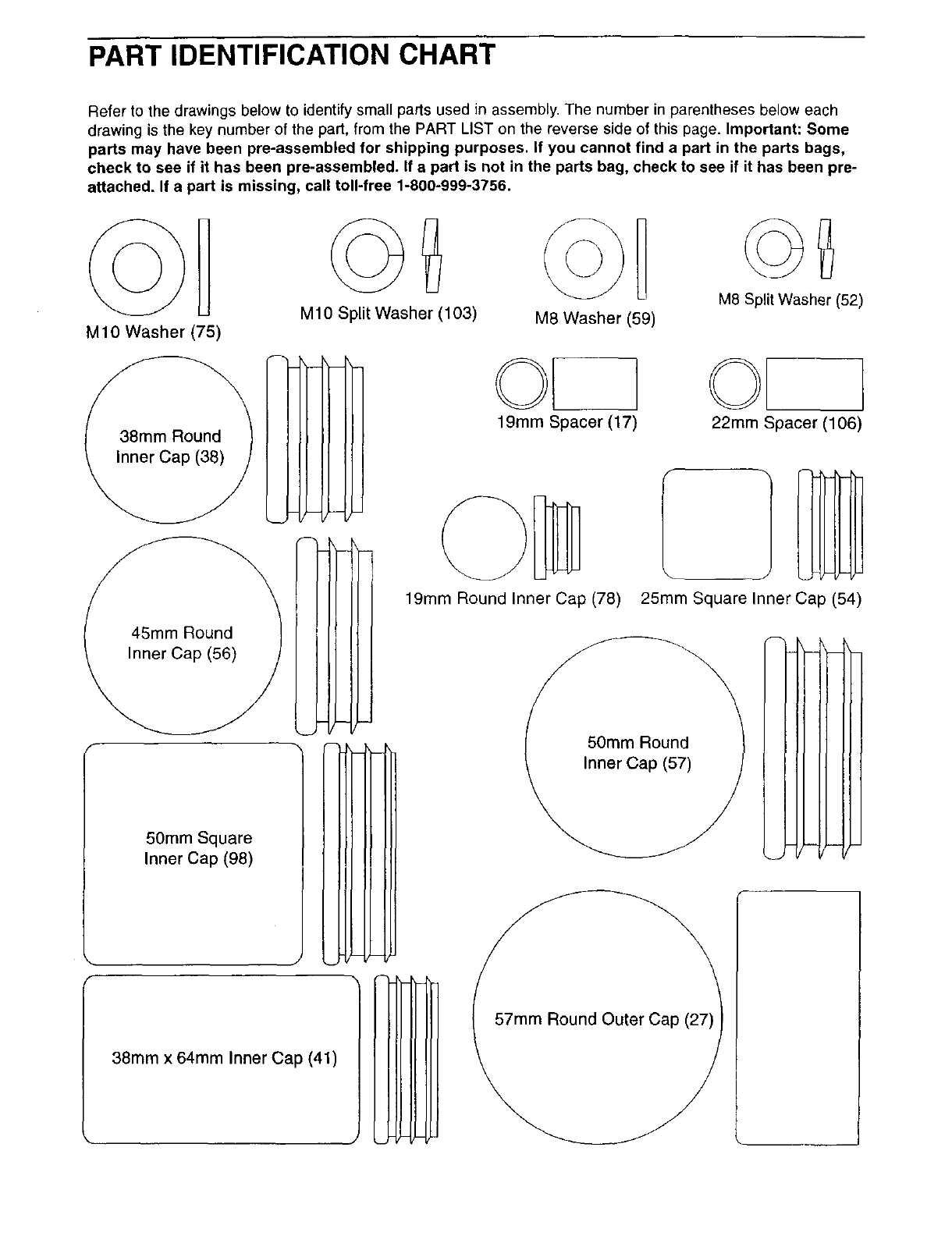

•For help identifying small parts, use the PART

IDENTIFICATION CHART. Note: Some small

parts may have been pre-attached for shipping. If

a part is not in the parts bag, check to see if it

has been pre-attached.

•As you assemble the resistance system, make

sure all parts are oriented as shown in the draw-

ings.

The included Allen w_ and the follow-

ing tools (not included) are required for assem-

bly:

•Two adjustable wrenches

•One rubber mallet

•One standard screwdriver

•One Phillips screwdriver

•Lubricant, such as grease or petroleum jelly,

and soapy water.

Assembly will be more convenient if you have a

socket set, a set of open-end or closed-end

wrenches, or a set of ratchet wrenches.

ii_ ;i__ Coxabov_ :::[[:#;::: ::

Press two 50mm Square Inner Caps (98) into the

Base (1).

Attach two Plastic Feet (53) and two Large Plastic

Feet (102) to the Base (1) with four M4 x 16mm

Screws (62).

Attach the Upright (3) to the Base (1) with two

M10 x 66mm Carriage Bolts (83), two M10 x

72mm Bolts (64), and four M10 Nylon Locknuts

(76) as shown. Note: This step will be easier to

complete if the Upright and Base are tipped

on their sides.

.,_'._--76

76_. '..98

,._-102

53 oo -82

2. Attach a Wheel (31) to the outside of the Base (1)

with an M10 x 108mm Bolt (81), three M10

Washers (75), and an M10 Nylon Locknut (76).

Do not overtighten the Nylon Locknut; the

Wheel must be able to turn easily.

Attach the other Wheel (not shown) in the

same manner.

,Press a 38mm x 64mm Inner Cap (41) into each

end of the Cross Tube (11).

Orient the Cross Tube (11) as shown, with the

welded tubes at the bottom. Attach the Foot Plate

(23) and the Cross Tube to the Upright (3) with

two M10 x 140mm Carriage Bolts (73), two M10

Washers (75), and two M10 Nuts (47). Do not

insert a bolt into the top hole in the Foot Plate

yet,

4, Press two 57mm Round Outer Caps (27) onto the

ends of the Front Leg (6).

Orient the Bench Rail (5) as shown. Slide the Rail

Bracket (105) into the indicated end of the Bench

Rail, and align the holes in the Bracket with the

holes in the Bench Rail.

Orient the Front Leg (6) as shown. Attach the

Front Leg to the Bench Rail (5) with the Rail

Bracket (105), four M8 x 25ram Button Screws

(46), and four M8 Split Washers (52).

5. See the inset drawing. Snap the Seat Knob (45)

into the Seat Carriage (12) and attach it with two

M6 x 16mm Screws (82) and two M6 Black Nylon

Locknuts (69). Make sure the slot in the Knob

is aligned with the slot in the Seat Carriage.

Orient the Seat (13) and Seat Backing (9) as

shQwn. Attach the Seat and Seat Backing to the

Seat Carriage (12) with four M6 x 16mm Screws

(82).

Round

End

176 75

;,V 76

23 3 41

75 47

Welded

Tube

105

82 45 69

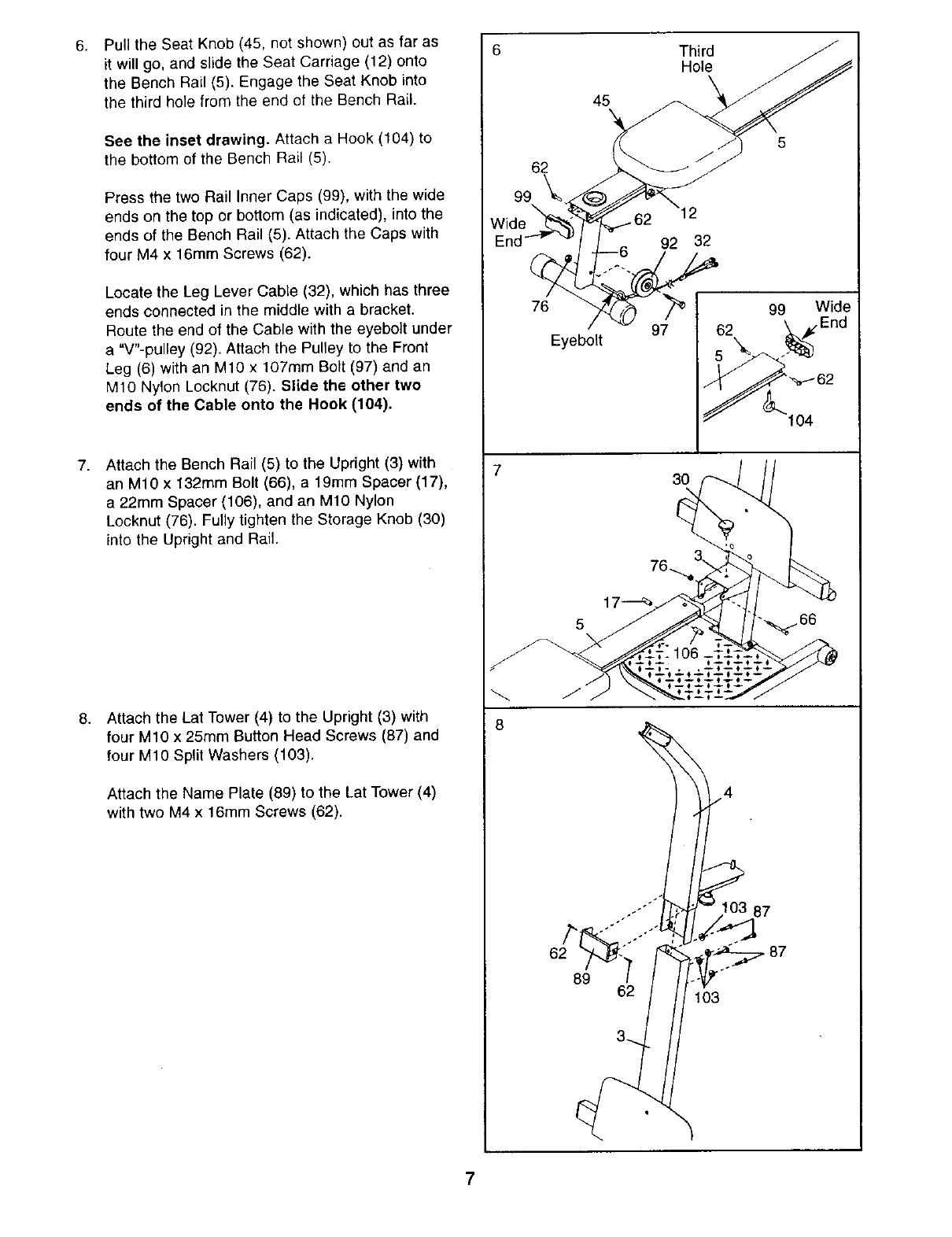

6, Pull the Seat Knob (45, not shown) out as far as

it will go, and slide the Seat Carriage (12) onto

the Bench Rail (5). Engage the Seat Knob into

the third hole from the end of the Bench Rail

See the inset drawing. Attach a Hook (104) to

the bottom of the Bench Rail (5).

Press the two Rail Inner Caps (99), with the wide

ends on the top or bottom (as indicated), into the

ends of the Bench Rail (5). Attach the Caps with

four M4 x 16mm Screws (62).

Locate the Leg Lever Cable (32), which has three

ends connected in the middle with a bracket.

Route the end of the Cable with the eyebolt under

a"V"-pulley (92). Attach the Pulley to the Front

Leg (6) with an MIO x 107ram Bo_t (97) and an

M10 Nylon Locknut (76). Slide the other two

ends of the Cable onto the Hook (104).

,Attach the Bench Rail (5) to the Upright (3) with

an M10 x 132mm Bolt (66), a 19ram Spacer (17),

a 22mm Spacer (106), and an M10 Nylon

Locknut (76). Fully tighten the Storage Knob (30)

into the Upright and Rail.

8. Attach the Lat Tower (4) to the Upright (3) with

four MtO x25ram Button Head Screws (87) and

four M10 Split Washers (103).

Attach the Name Plate (89) to the Lat Tower (4)

with two M4 x 16mm Screws (62).

Eyebolt

Third

Hole

.-'"" ! 03 87

.87

89 ""

62 103

9, Press two 38mm Round Inner Caps (38) into the

ends of the Lat Tower Crossbar (10).

Attach two Eyeboits (34) to the Lat Tower

Crossbar (10) with two M8 Washers (59) and two

M8 Nylon Locknuts (65). Do not overtighten the

Locknuts; the Eyebolts must be able to rotate

freely.

Attach the Lat Tower Crossbar (10) to the Lat

Tower (4) with two M10 x 65mm Button Head

Screws (70), two M10 Washers (75), and the

Crossbar Cover (93). Be sure that the Eyebolts

(34) are oriented as shown in the inset draw-

ing, If they are not, turn the Lat Tower

Crossbar around and reattach it.

10. Attach the two 10-pound Short Crossbow Caps

(20) to the 10-pound Center Crossbow (44) with

two M4 x 12mm Flat Head Screws (85).

Using ten M4 x 12mm Flat Head Screws (85),

attach the two 10-pound Crossbow Caps (101) to

the 10-pound Removable Crossbow (67), the two

20-pound Crossbow Caps (88) to the 20-pound

Removable Crossbow (36), the four 80-pound

Crossbow Caps (100) to the two 80-pound

Crossbows (95), and the two 40-pound Crossbow

Caps (79) to the 40-pound Crossbow (96).

11. Locate the Crossbow Fulcrum (18) on the Lat

Tower (4) (see the inset drawing). Slide the

Crossbow Spacer (35) onto the rods on the

Crossbow Fulcrum. Make sure the Spacer is

oriented as shown in the drawing.

Set the Crossbows into the Crossbow Spacer (35)

in the following order: the 10:pound Removable

Crossbow (67), the 20-pound Removable

Crossbow (36), an 80-pound Crossbow (95), the

10-pound Center Crossbow (44), an 80-pound

Crossbow (95), and the 40-pound Crossbow (96).

Make sure the indicated rings are on the side

shown and the arrows point toward the Spacer.

Attach the Crossbow Cover Plate (72), with the

edges up, to the Crossbow Spacer (35) with two

M8 x 19mm Button Head Screws (86).

59 -_ 75

Side View

10,,

101

85 J' %"_ 20

Rings or

this

Rods 67

100

12. Press two 25mm Square Inner Caps (54) into the 12

indicated end of the Backrest Frame (15),

Attach a Plastic Foot (53) to the Backrest Frame

(15) with an M4 x 16mm Screw (62).

Orient the Backrest (14) and the Backrest

Backing (8) as shown. Attach the Backrest and

the Backrest Backing to the Backrest Frame (15)

with four M6 x 45mm Screws (58).

13. Insert the rod on the Backrest Frame (15) into the

slot in the Seat Carriage (12). Hold the Backrest

Frame vertically over the Seat Carriage and

slide the rod into the slot, as shown in the

inset drawing,

14. Press two 50mm Round Inner Caps (57) into the

top and bottom of the Leg Developer (19). Press

two 45mm Round Inner Caps (56) into the top

and bottom of the Leg Lever (7).

Lubricate an M10 x 69mm Bolt (60) with grease.

Attach the Leg Lever (7) to the Leg Developer

(19) with the Bolt and an M10 Nylon Locknut (76).

Do not overtighten the Locknut; the Leg Lever

must be able to pivot easily,

Press two 19mm Round Inner Caps (78) into the

tube on the Leg Lever (7). Slide two Foam Pads

(26) onto the tubes. Repeat with the tube on the

Leg Developer (19).

Rod

56 .Je

Tube/57

19-.. Lubricate

_--- 57

"(_78

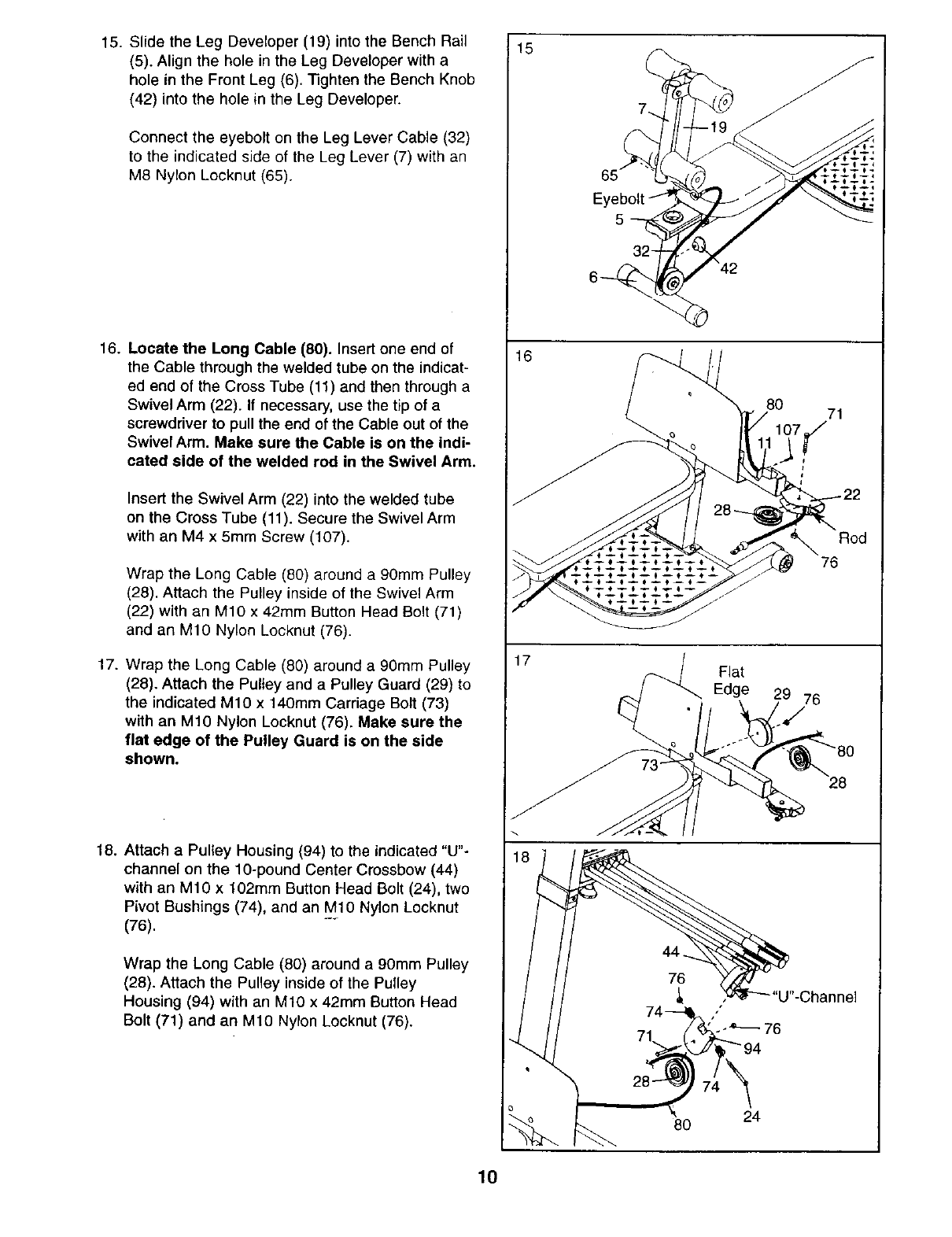

15. Slide the Leg Developer (19) into the Bench Rail

(5). Align the hole in the Leg Developer with a

hole in the Front Leg (6). Tighten the Bench Knob

(42) into the hole in the Leg Developer.

Connect the eyebolt on the Leg Lever Cable (32)

to the indicated side of the Leg Lever (7) with an

M8 Nylon Locknut (65).

16. Locate the Long Cable (80). Insert one end of

the Cable through the welded tube on the indicat-

ed end of the Cross Tube (11) and then through a

Swivel Arm (22). If necessary, use the tip of a

screwdriver to pull the end of the Cable out of the

Swivel Arm. Make sure the Cable is on the indi-

cated side of the welded rod in the Swivel Arm.

Insert the Swivel Arm (22) into the welded tube

on the Cross Tube (11). Secure the Swivel Arm

with an M4 x 5mm Screw (107).

Wrap the Long Cable (80) around a 90ram Pulley

(28). Attach the Pulley inside of the Swivel Arm

(22) with an M10 x 42mm Button Head Bolt (71)

and an M10 Nylon Locknut (76).

17. Wrap the Long Cable (80) around a 90mm Pulley

(28). Attach the Pulley and a Pulley Guard (29) to

the indicated M10 x 140ram Carriage Bolt (73)

with an M10 Nylon Locknut (76). Make sure the

flat edge of the Pulley Guard is on the side

shown.

18. Attach a Pulley Housing (94) to the indicated "U"-

channel on the 10-pound Center Crossbow (44)

with an M10 x 102mm Button Head Bolt (24), two

Pivot Bushings (74), and an M10 Nylon Locknut

(76).

Wrap the Long Cable (80) around a 90mm Pulley

(28). Attach the Pulley inside of the Pulley

Housing (94) with an M10 x 42mm Button Head

Bolt (71) and an M10 Nylon Locknut (76).

Eyebolt

Flat

Edge

29 76

Rod

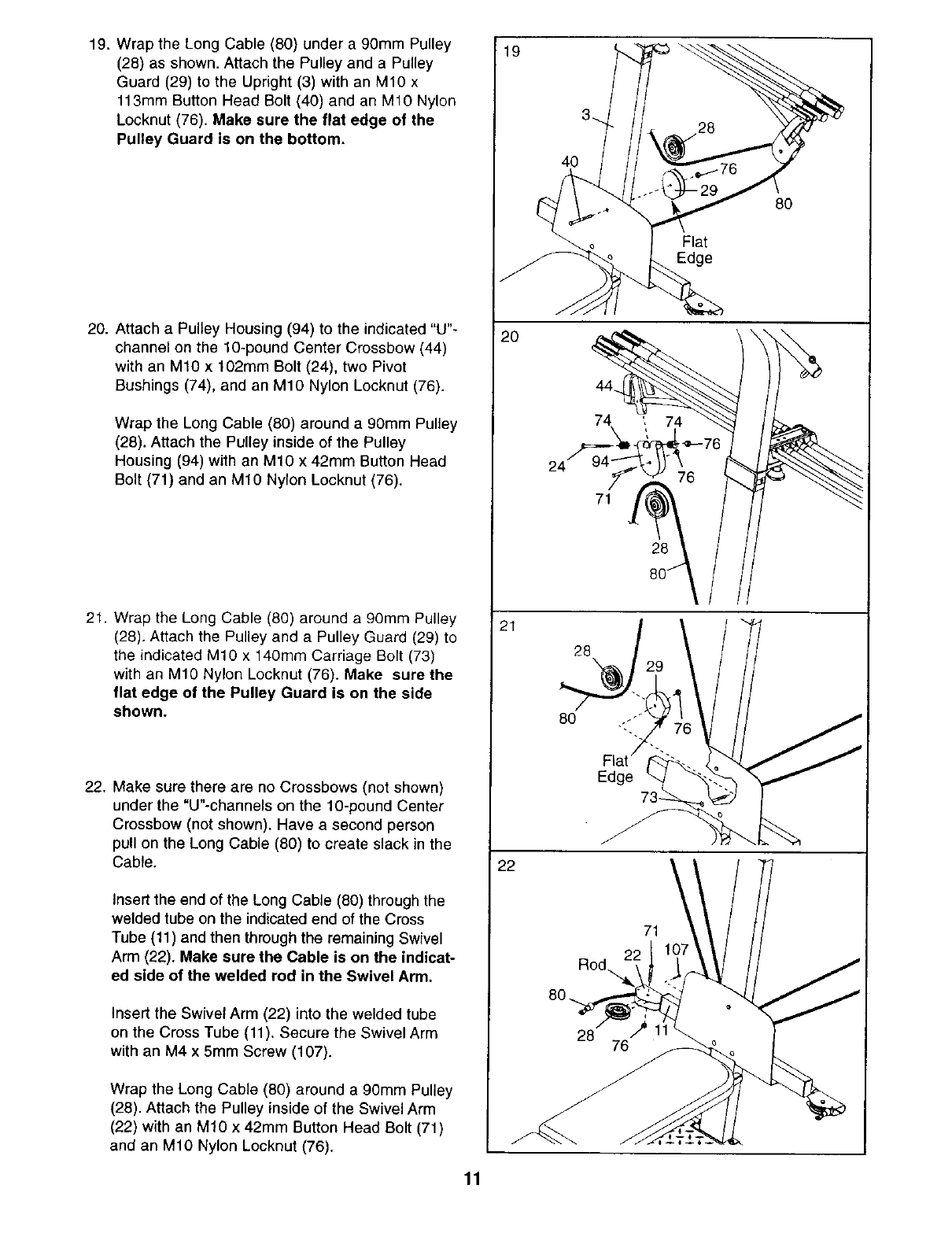

19. Wrap the Long Cable (80) under a 90mm Pulley

(28) as shown. Attach the Pulley and a Pulley

Guard (29) to the Upright (3) with an M10 x

113mm Button Head Bolt (40) and an M10 Nylon

Locknut (76). Make sure the flat edge of the

Pulley Guard is on the bottom.

20. Attach a Pulley Housing (94) to the indicated "U"-

channel on the 10-pound Center Crossbow (44)

with an M10 x 102ram Bolt (24), two Pivot

Bushings (74), and an M10 Nylon Locknut (76).

Wrap the Long Cable (80) around a 90ram Pulley

(28). Attach the Pulley inside of the Pulley

Housing (94) with an M10 x 42ram Button Head

Bolt (71) and an M10 Nylon Locknut (76).

21. Wrap the Long Cable (80) around a 90ram Pulley

(28). Attach the Pulley and a Pulley Guard (29) to

the indicated M10 x 140ram Carriage Bolt (73)

with an M10 Nylon Locknut (76). Make sure the

flat edge of the Pulley Guard is on the side

shown.

22. Make sure there are no Crossbows (not shown)

under the "U"-channels on the 10-pound Center

Crossbow (not shown). Have a second person

pull on the Long Cable (80) to create slack in the

Cable.

Insert the end of the Long Cable (80) through the

welded tube on the indicated end of the Cross

Tube (11) and then through the remaining Swivel

Arm (22). Make sure the Cable is on the indicat-

ed side of the welded rod in the Swivel Arm.

Insert the Swivel Arm (22) into the welded tube

on the Cross Tube (11). Secure the Swivel Arm

with an M4 x 5mm Screw (107).

Wrap the Long Cable (80) around a 90mm Pulley

(28). Attach the Pulley inside of the Swivel Arm

(22) with an M10 x 42mm Button Head Bolt (71)

and an M10 Nylon Locknut (76).

Edge

Flat

Edge

', 74

23. Locate the two Short Cables (33). Wrap one of

the Cables around a 90mm Pulley (28). Attach

the Pulley to a High Pulley Housing (21) with an

M10 x 42mm Button Head Bolt (71) and an MIO

Nylon Locknut (76).

Repeat this step with the other Short Cable

(33).

76\. ,, 21

24. Make sure that all parts have been properly tightened. The use of the remaining parts will be explained in

ADJUSTMENTS, beginning on the following page.

Before using the resistance system, pull the long cable a few times to be sure that it moves smoothly over

the pulleys. If the cable does not move smoothly, find and correct the problem. IMPORTANT: If the cables

are not properly installed, they may be damaged when heavy resistance is used. See the CABLE

DIAGRAM on page 16 for proper cable routing.

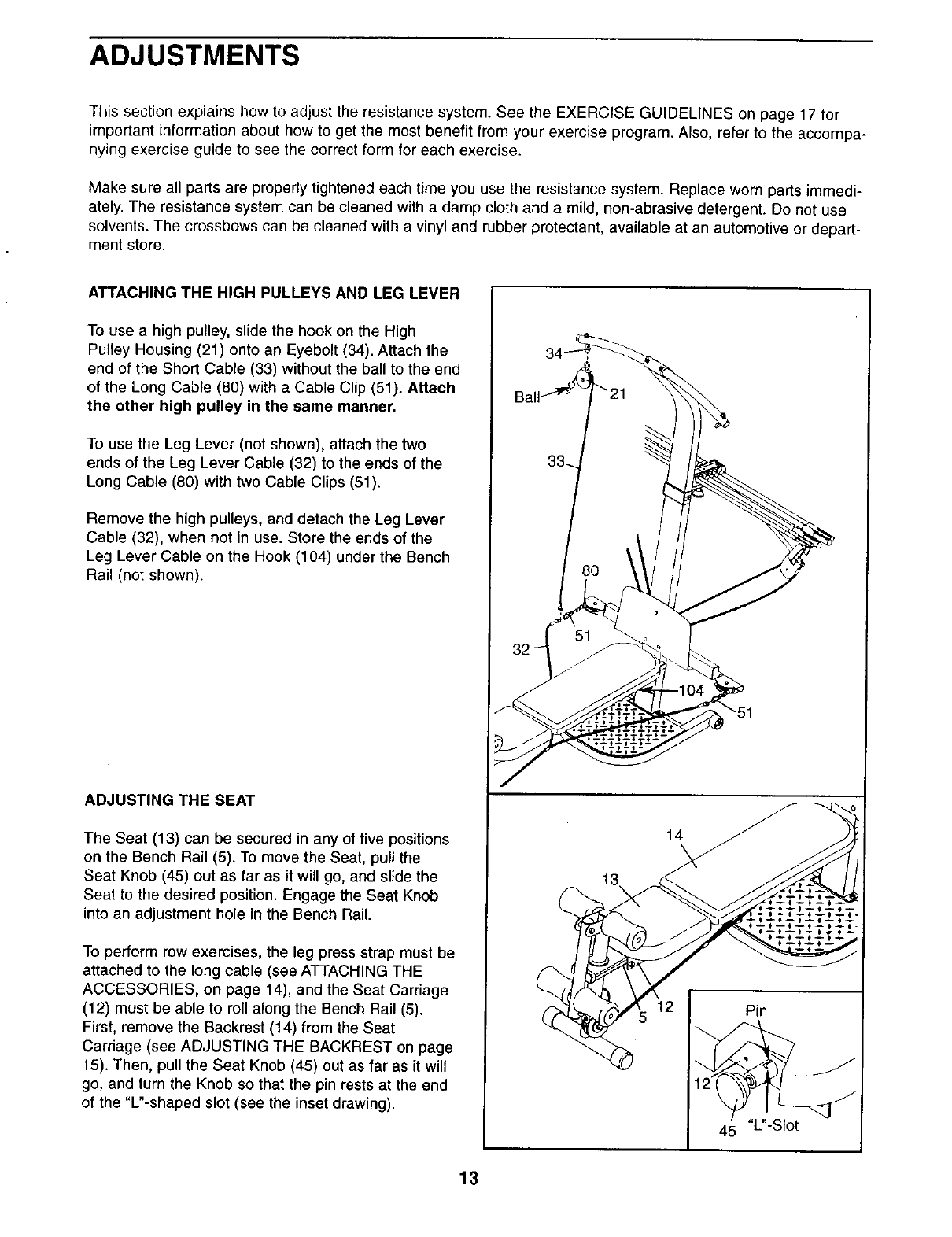

ADJUSTMENTS

This section explains how to adjust the resistance system. See the EXERCISE GUIDELINES on page 17 for

important information about how to get the most benefit from your exercise program. Also, refer to the accompa-

nying exercise guide to see the correct form for each exercise.

Make sure all parts are properly tightened each time you use the resistance system. Replace worn parts immedi-

ately. The resistance system can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use

solvents. The crossbows can be cleaned with a vinyl and rubber protectant, available at an automotive or depart-

meat store.

ATTACHING THE HIGH PULLEYS AND LEG LEVER

To use a high pulley, slide the hook on the High

Pulley Housing (21) onto an Eyebolt (34). Attach the

end of the Short Cable (33) without the ball to the end

of the Long Cable (80) with a Cable Clip (51). Attach

the other high pulley in the same manner.

To use the Leg Lever (not shown), attach the two

ends of the Leg Lever Cable (32) to the ends of the

Long Cable (80) with two Cable Clips (51).

Remove the high pulleys, and detach the Leg Lever

Cable (32), when not in use. Store the ends of the

Leg Lever Cable on the Hook (104) under the Bench

Rail (not shown).

ADJUSTING THE SEAT

The Seat (13) can be secured in any of five positions

on the Bench Rail (5). To move the Seat, pull the

Seat Knob (45) out as far as it will go, and slide the

Seat to the desired position. Engage the Seat Knob

into an adjustment hole in the Bench Rail.

To perform row exercises, the leg press strap must be

attached to the long cable (see ATTACHING THE

ACCESSORIES, on page 14), and the Seat Carriage

(12) must be able to roll along the Bench Rai! (5).

First, remove the Backrest (14) from the Seat

Carriage (see ADJUSTING THE BACKREST on page

15). Then, pull the Seat Knob (45) out as far as it will

go, and turn the Knob so that the pin rests at the end

of the "L"-shaped slot (see the inset drawing).

:12

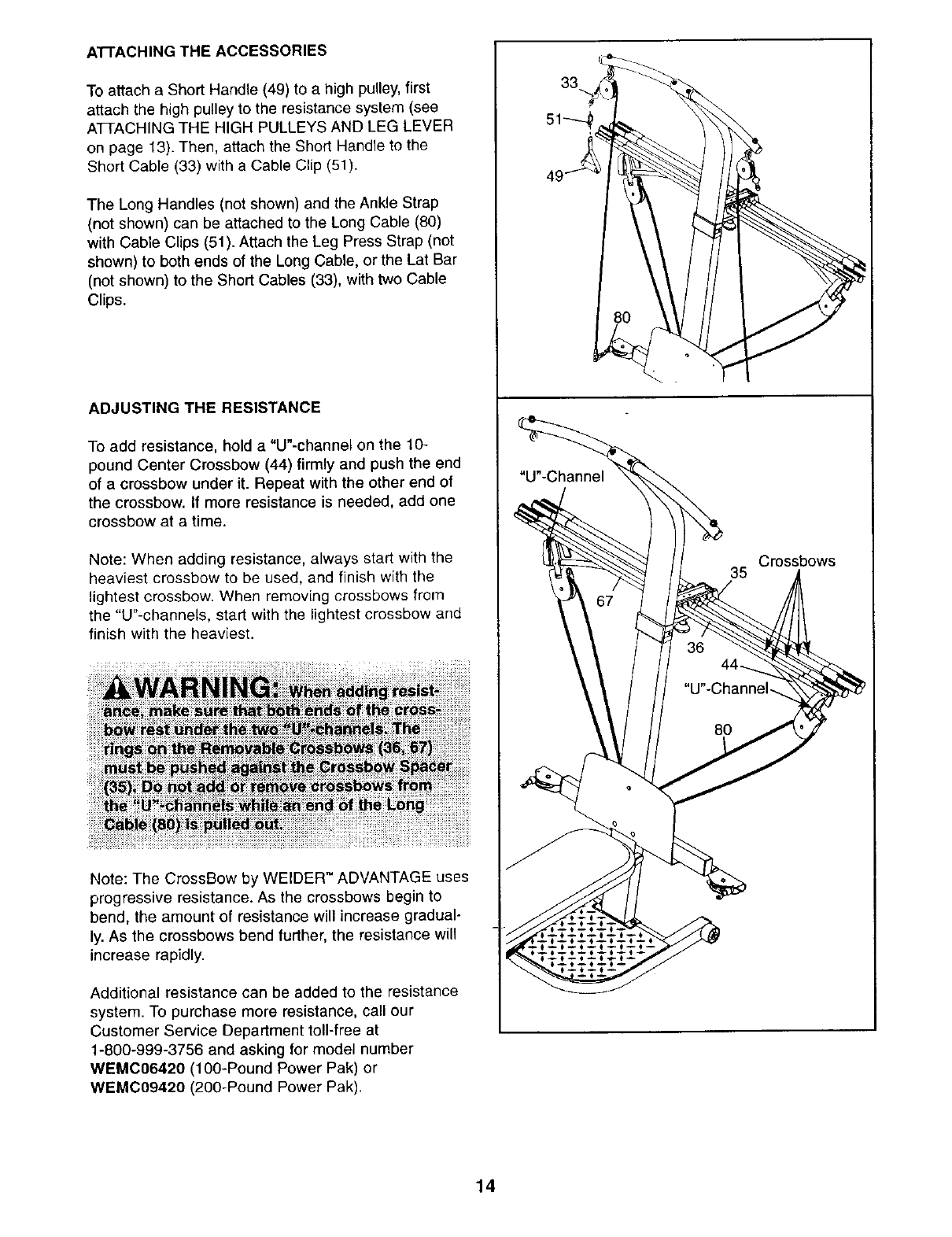

An'ACHING THE ACCESSORIES

To attach a Short Handle (49) to a high pulley, first

attach the high pulley to the resistance system (see

A'R-ACHING THE HIGH PULLEYS AND LEG LEVER

on page 13). Then, attach the Short Handle to the

Short Cable (33) with a Cable Clip (51).

The Long Handles (not shown) and the Ankle Strap

(not shown) can be attached to the Long Cable (80)

with Cable Clips (51). Attach the Leg Press Strap (not

shown) to both ends of the Long Cable, or the Lat Bar

(not shown) to the Short Cables (33), with two Cable

Clips.

ADJUSTING THE RESISTANCE

To add resistance, hold a "U"-channel on the 10-

pound Center Crossbow (44) firmly and push the end

of a crossbow under it. Repeat with the other end of

the crossbow. If more resistance is needed, add one

crossbow at a time.

Note: When adding resistance, always start with the

heaviest crossbow to be used, and finish with the

lightest crossbow. When removing crossbows from

the "U"-channels, start with the lightest crossbow and

finish with the heaviest.

Note: The CrossBow by WELDER TM ADVANTAGE uses

progressive resistance. As the crossbows begin to

bend, the amount of resistance will increase gradual-

ly. As the crossbows bend further, the resistance will

increase rapidly.

Additional resistance can be added to the resistance

system. To purchase more resistance, call our

Customer Service Department toll-free at

1-800-999-3756 and asking for model number

WEMC06420 (100-Pound Power Pak) or

WEMC09420 (200-Pound Power Pak).

Crossbows

ADJUSTING THE BACKREST

The Backrest (14) can be used in a level position or

one of three inclined positions. To use the Backrest in a

level position, secure the Seat Carriage (12) at the hole

in the Bench Rail (5) closest to the Leg Developer (19)

(see ADJUSTING THE SEAT on page 13).

To use the Backrest (14) in an inclined position,

secure the Seat Frame (12) at one of the three

adjustment holes on the Upright (3) side of the Bench

Rail (5). Rest the Backrest against the Upright (3).

For row exercises and for using the Leg Lever (7),

remove the Backrest (14) from the Seat Carriage

(12). Hold the Backrest vertically over the Seat (13)

and lift the rod out of the slot in the Seat Carriage

(see the inset drawing). To use the Leg Lever (7),

secure the Seat Carriage (12) at the second hole

from the Leg Developer.

STORING THE RESISTANCE SYSTEM

To store the resistance system, slide the ends of the

Leg Lever Cable (32) onto the Hook (104). Be sure

the Seat (13) is in the position closest to the Front

Leg (6) (see ADJUSTING THE SEAT on page 13).

Next, remove the Storage Knob (30) from the Upright

(3). Lift the Front Leg toward the Lat Tower Crossbar

(10), and tighten the Storage Knob into the side of

the Upright and the Bench Rail. Remove all of the

crossbows from the "U"-channels on the 10-pound

Center Crossbow (44) (see ADJUSTING THE

RESISTANCE on page 14). Finally, loosen the

Fulcrum Knob (43) and pull it out as far as it will go.

Turn the crossbow assembly vertically and engage

the Fulcrum Knob into the fulcrum on the Lat Tower

(4). Note: Storing the crossbows vertically will

prolong the life of the crossbows.

To move the resistance system, place the toe of your

shoe on the end of the Base (1) and hold the resist-

ance system in the indicated area. Tilt the resistance

system back onto the Wheels (31) and roll it to the

new location. Be careful not to let the Front Leg (6)

or Leg Lever (7) pinch your hands when you tilt

the system back.

Stored Position

Hold in

this area

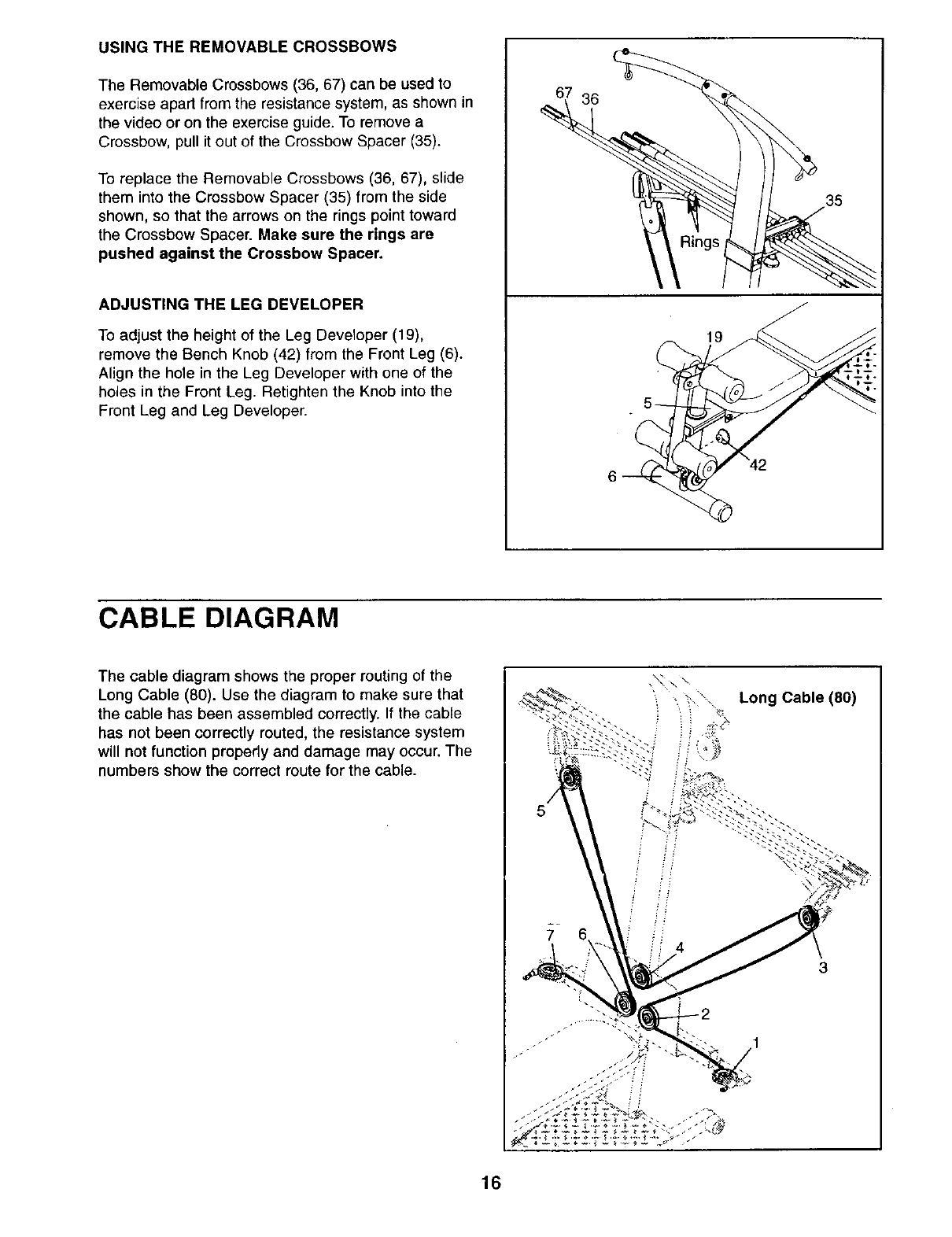

USING THE REMOVABLE CROSSBOWS

The Removable Crossbows (36, 67) can be used to

exercise apart from the resistance system, as shown in

the video or on the exercise guide. To remove a

Crossbow, pull it out of the Crossbow Spacer (35).

To replace the Removable Crossbows (36, 67), slide

them into the Crossbow Spacer (35) from the side

shown, so that the arrows on the rings point toward

the Crossbow Spacer. Make sure the rings are

pushed against the Crossbow Spacer.

ADJUSTING THE LEG DEVELOPER

To adjust the height of the Leg Developer (19),

remove the Bench Knob (42) from the Front Leg (6).

Align the hole in the Leg Developer with one of the

holes in the Front Leg. Retighten the Knob into the

Front Leg and Leg Developer.

67 36

Rings

CABLE DIAGRAM

The cable diagram shows the proper routing of the

Long Cable (80). Use the diagram to make sure that

the cable has been assembled correctly. If the cable

has not been correctly routed, the resistance system

will not function properly and damage may occur. The

numbers show the correct route for the cable.

Long Cable (80)

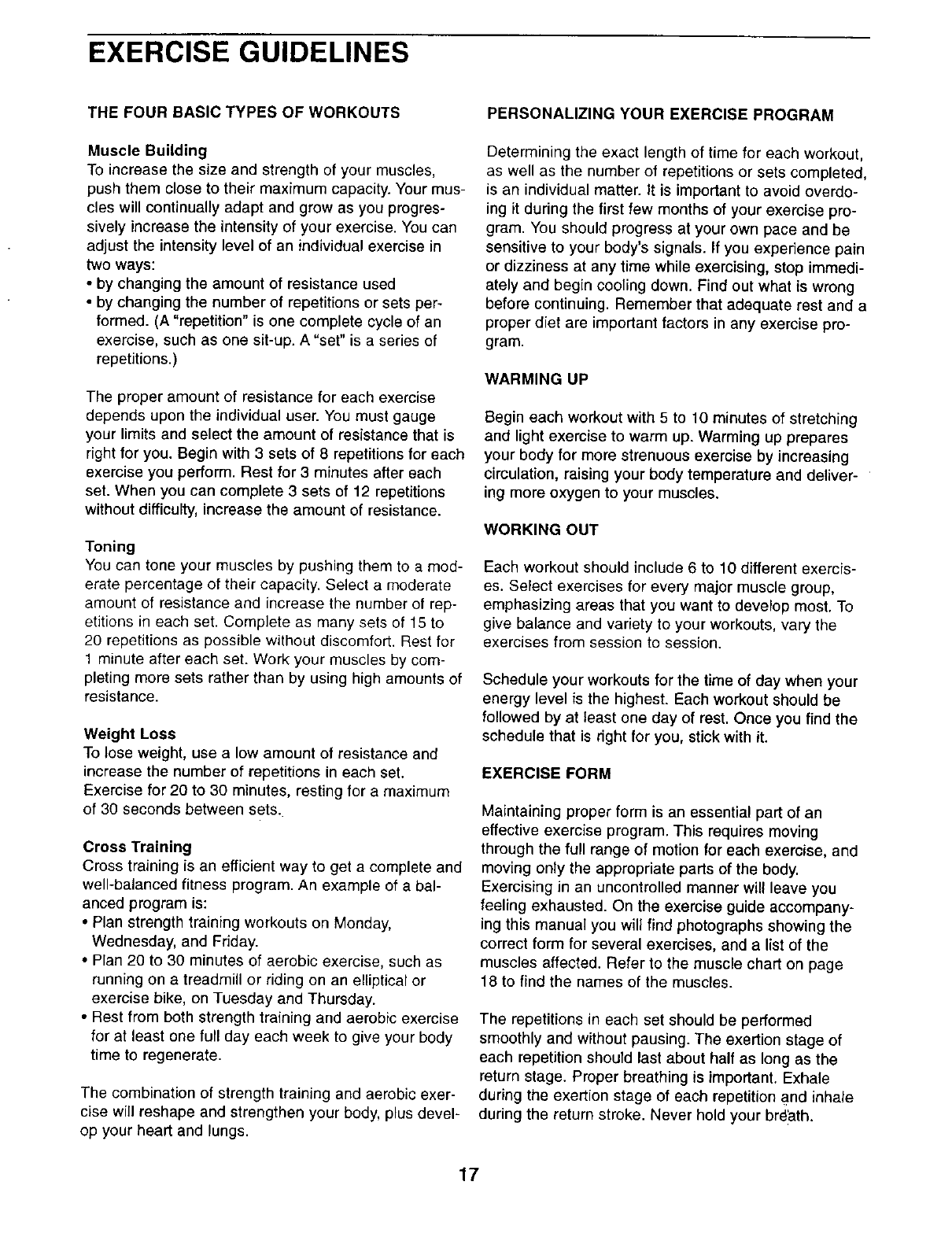

EXERCISE GUIDELINES

THE FOUR BASIC TYPES OF WORKOUTS

Muscle Building

To increase the size and strength of your muscles,

push them close to their maximum capacity. Your mus-

cles will continually adapt and grow as you progres-

sively increase the intensity of your exercise. You can

adjust the intensity level of an individual exercise in

two ways:

• by changing the amount of resistance used

• by changing the number of repetitions or sets per-

formed. (A "repetition" is one complete cycle of an

exercise, such as one sit-up. A "set" is a series of

repetitions.)

The proper amount of resistance for each exercise

depends upon the individual user. You must gauge

your limits and select the amount of resistance that is

right for you. Begin with 3 sets of 8 repetitions for each

exercise you perform. Rest for 3 minutes after each

set. When you can complete 3 sets of 12 repetitions

without difficulty, increase the amount of resistance.

Toning

You can tone your muscles by pushing them to a mod-

erate percentage of their capacity. Select a moderate

amount of resistance and increase the number of rep-

etitions in each set. Complete as many sets of 15 to

20 repetitions as possible without discomfort. Rest for

1 minute after each set. Work your muscles by com-

pleting more sets rather than by using high amounts of

resistance.

Weight Loss

To lose weight, use a low amount of resistance and

increase the number of repetitions in each set.

Exercise for 20 to 30 minutes, resting for a maximum

of 30 seconds between sets.

Cross Training

Cross training is an efficient way to get a complete and

well-balanced fitness program. An example of a bal-

anced program is:

• Plan strength training workouts on Monday,

Wednesday, and Friday.

• Plan 20 to 30 minutes of aerobic exercise, such as

running on a treadmill or riding on an elliptical or

exercise bike, on Tuesday and Thursday.

• Rest from both strength training and aerobic exercise

for at least one furl day each week to give your body

time to regenerate.

The combination of strength training and aerobic exer-

cise will reshape and strengthen your body, plus devel-

op your heart and lungs.

PERSONALIZING YOUR EXERCISE PROGRAM

Determining the exact length of time for each workout,

as well as the number of repetitions or sets completed,

is an individual matter. It is important to avoid overdo-

ing it during the first few months of your exercise pro-

gram. You should progress at your own pace and be

sensitive to your body's signals. If you experience pain

or dizziness at any time while exercising, stop immedi-

ately and begin cooling down. Find out what is wrong

before continuing. Remember that adequate rest and a

proper diet are important factors in any exercise pro-

gram.

WARMING UP

Begin each workout with 5 to 10 minutes of stretching

and light exercise to warm up. Warming up prepares

your body for more strenuous exercise by increasing

circulation, raising your body temperature and deliver-

ing more oxygen to your muscles.

WORKING OUT

Each workout should include 6 to 10 different exercis-

es. Select exercises for every major muscle group,

emphasizing areas that you want to develop most. To

give balance and variety to your workouts, vary the

exercises from session to session.

Schedule your workouts for the time of day when your

energy level is the highest. Each workout should be

followed by at least one day of rest. Once you find the

schedule that is right for you, stick with it.

EXERCISE FORM

Maintaining proper form is an essential part of an

effective exercise program. This requires moving

through the full range of motion for each exercise, and

moving only the appropriate parts of the body.

Exercising in an uncontrolled manner will leave you

feeling exhausted. On the exercise guide accompany-

ing this manual you will find photographs showing the

correct form for several exercises, and a list of the

muscles affected. Refer to the muscle chart on page

18 to find the names of the muscles.

The repetitions in each set should be performed

smoothly and without pausing. The exertion stage of

each repetition shourd last about half as long as the

return stage. Proper breathing is important. Exhale

during the exertion stage of each repetition and inhale

during the return stroke. Never hold your bre'ath.

Rest for a short period of time after each set. The

ideal resting periods are:

• Rest for three minutes after each set for a muscle

building workout.

• Rest for one minute after each set for a toning work-

out.

• Rest for 30 seconds after each set for a weight loss

workout.

Plan to spend the first couple of weeks familiarizing

yourself with the equipment and learning the proper

form for each exercise.

COOLING DOWN

End each workout with 5 to 10 minutes of stretching.

Include stretches for both your arms and legs. Move

slowly as you stretch and do not bounce. Ease into

each stretch gradually and go only as far as you can

without strain. Stretching at the end of each workout

is an effective way to increase flexibility.

STAYING MOTIVATED

For motivation, keep a record of each workout. The

chart on page 19 of this manual can be photocopied

and used to schedule and record your workouts. List

the date, the exercises performed, the resistance

used, and the numbers of sets and repetitions com-

pleted. Record your weight and key body measure-

ments at the end of every month. Remember, the key

to achieving the greatest results is to make exercise a

regular and enjoyable part of your everyday life.

MUSCLE CHART

A. Sternomastoid (neck)

B. Pectoralis Major (chest)

C. Biceps (front of arm)

D. Obliques (waist)

E. Brachioradials (forearm)

F. Hip Flexors (upper thigh)

G. Abductor (outer thigh)

H. Quadriceps (front of thigh)

I. Sartorius (front of thigh)

J. Tibialis Anterior (front of calf)

K. Soleus (front of calf)

L. Rectus Abdominus (stomach)

M. Adductor (inner thigh)

N. Trapezius (upper back)

O. Rhomboideus (upper back)

P. Deltoid (shoulder)

Q. Triceps (back of arm)

R. Latissimus Dorsi (mid back)

S. Spinae Erectors (lower back)

T. Gluteus Medius (hip)

U. Gluteus Maximus (buttocks)

V. Hamstring (backof leg)

W. Gastrocnemius (back of calf)

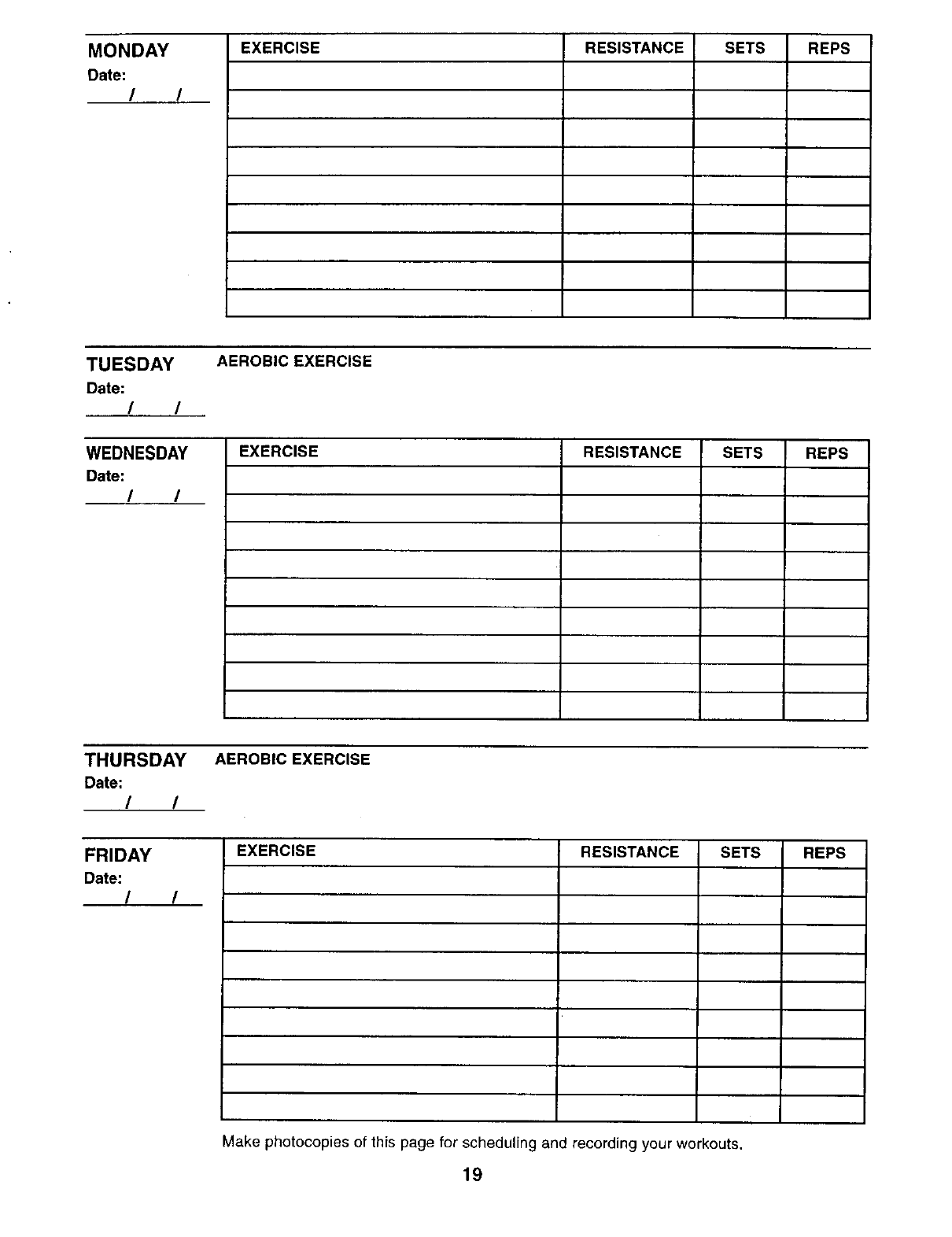

MONDAY EXERCISE RESISTANCE SETS REPS

Date:

/ /

TUESDAY

Date:

/ /

AEROBIC EXERCISE

WEDNESDAY EXERCISE RESISTANCE SETS REPS

Date:

/ /

THURSDAY

Date:

/ /

AEROBIC EXERCISE

FRIDAY EXERCISE RESISTANCE SETS REPS

Date:

/ /

Make photocopies of this page for scheduling and recording your workouts.

PART IDENTIFICATION CHART

Refer to the drawings below to identify small parts used in assembly. The number in parentheses below each

drawing is the key number of the part, from the PART LIST on the reverse side of this page. Important: Some

parts may have been pre-assembled for shipping purposes. If you cannot find a part in the parts bags,

check to see if it has been pre-assembled. If a part is not in the parts bag, check to see if it has been pre-

attached. If a part is missing, call toll-free 1-800-999-3756.

M10 Washer (75)

M10 Split Washer (103) M8 Washer (59)

50mm Square

Inner Cap (98)

38mm x 64mm Inner Cap (41)

19rnm Spacer (17

19mm Round Inner Cap (78)

M8 Split Washer (52)

22mrn Spacer (106)

25mm Square Inner Cap (54)

M6 Black Nylon Locknut (69)

M8 Nylon Locknut (65)

MIO x 25mm Button

Head Screw (87)

M8 x 25mm Button

Head Screw (46)

M10 Nut (47)

M10 Nylon Locknut (76)

M10 x 42mm Button Head Bolt (71)

_\\\\\\\\\\\\\\\\\\\\_

M6 x 45mm Screw (58)

M10 x 65ram Button Head Screw (70)

M10 x 69mm Bolt (60)

M10 x 66mm Carriage Bolt (83)

M8 x 19mm Button

Head Screw (86)

M6 x 16mm Screw (82)

M4 x 16mm Screw (62)

M4 x 12mm Flat

Head Screw (85)

M4 x 5mm Screw (107)

M10 x 72mm Bolt (64)

MIO x 102mm Button Head Bolt (24)

M10 x 107mm Bolt (97)

M10 x 108mm Bolt (81)

M10 x 113mm Button Head Bolt (40)

M10 x 132mm Bolt (66)

M10 x 140mm Carriage Bolt (73)

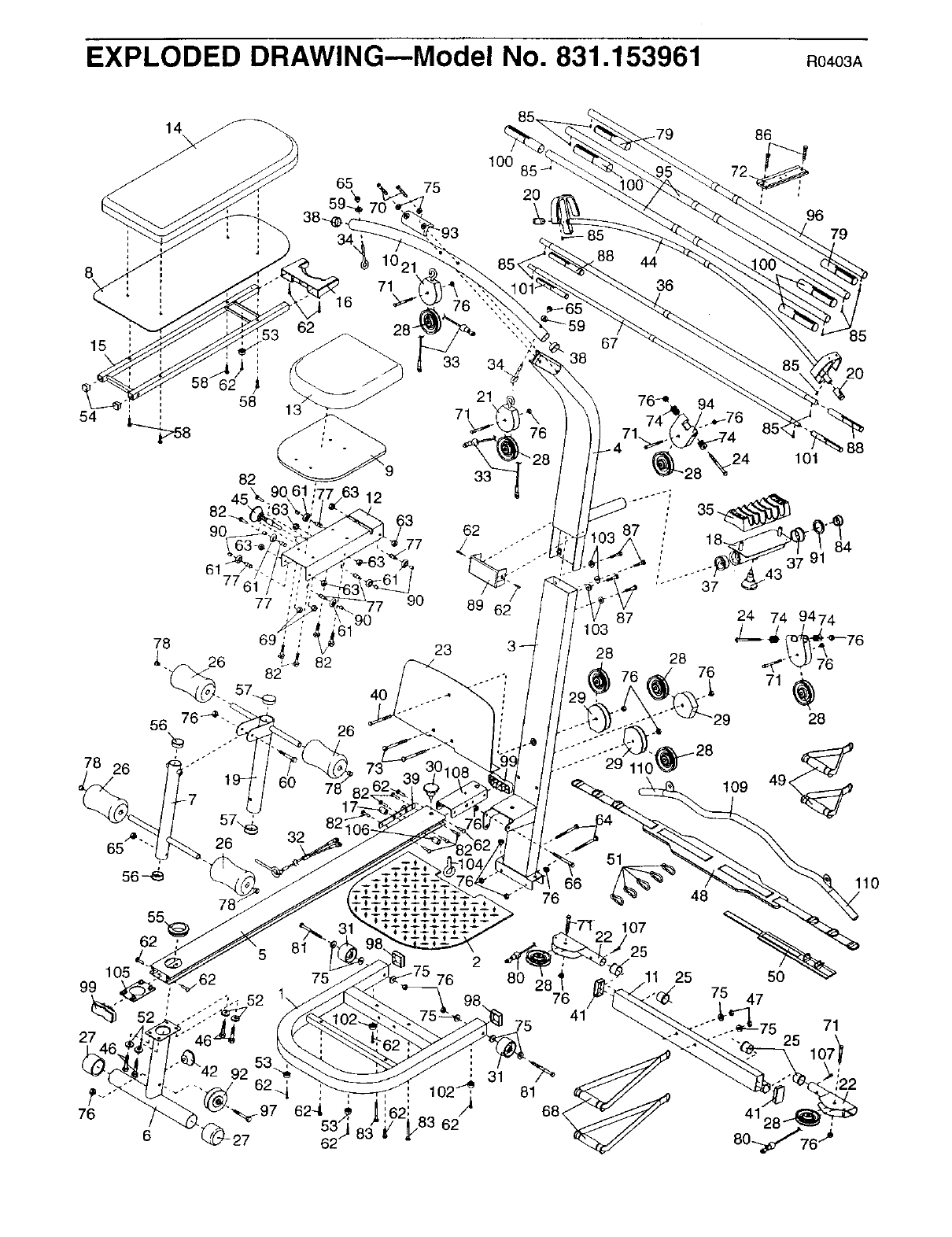

EXPLODED DRAWINGmModel No. 831.153961 Ro4o3A

871

62 28"

56 76_'"

s7._

58-_

105

81 2

75 -75 76

100 85

53.

_..- 82--4- , 102-_,

78 .97 624, /_ _i821 /1

6 @27 523_ 83_/ _/83 62

,_,---65

33 34 "38

82 _-_

B8 44

/_,._76

(_)_28_24 101

1O3

28 28

24 74 9474

"_ _ _"--78

_, 71 _)

29 28

"/....."_'11°@_2810949

107

48 110

80 _ 25 50

76_ 75 47

41 71

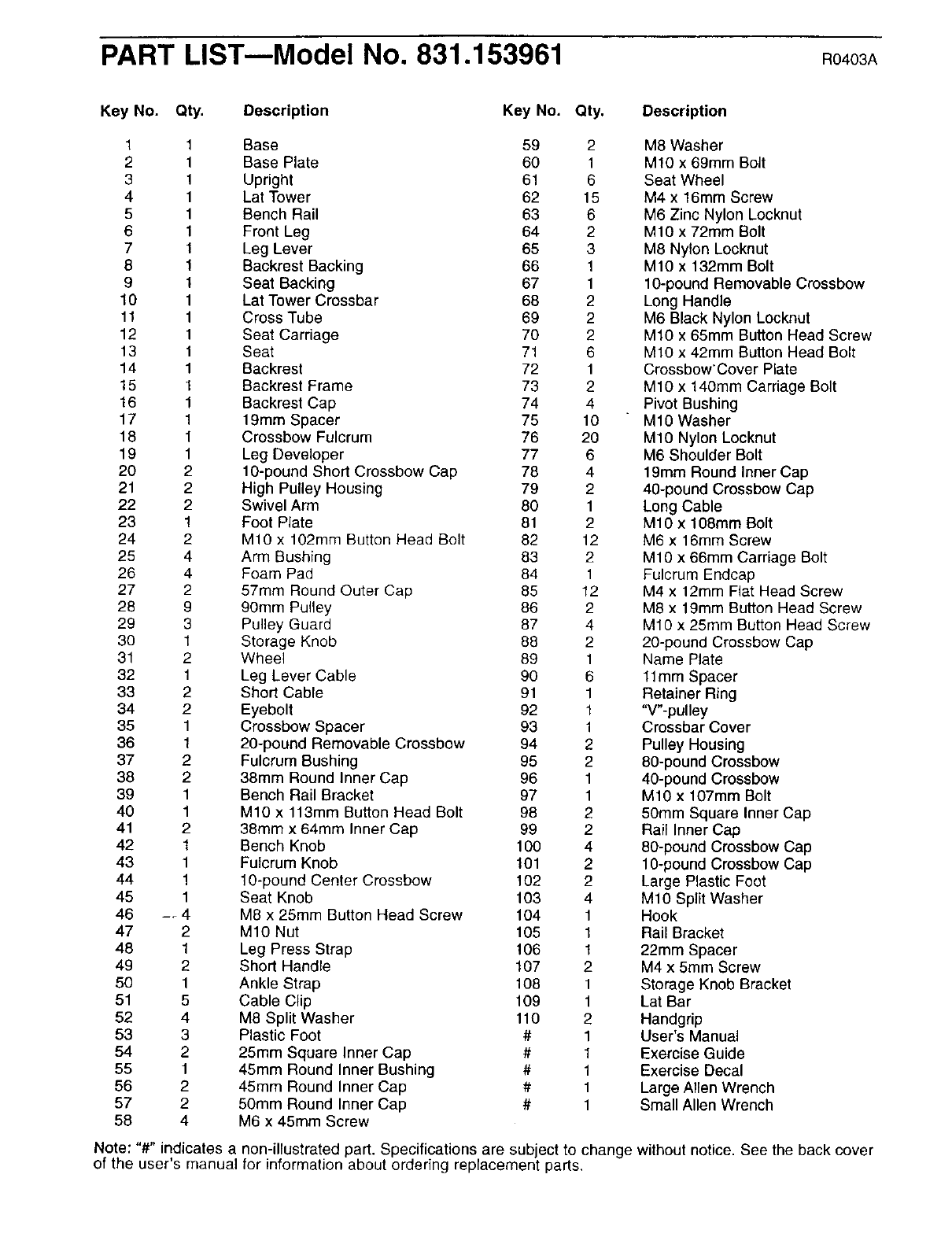

PART LISTmModel NO. 831.153961 R0403A

Key No. Qty. Description Key No. Qty. Description

1 1 Base 59 2 M8 Washer

2 1 Base Plate 60 1 M10 x 69ram Bolt

3 1 Upright 61 6 Seat Wheel

4 1 Lat Tower 62 15 M4 x 16ram Screw

5 1 Bench Rail 63 6 M6 Zinc Nylon Locknut

6 1 Front Leg 64 2 M10 x 72ram Bolt

7 1 Leg Lever 65 3 M8 Nylon Locknut

8 1 Backrest Backing 66 1 M10 x 132mm Bolt

9 1 Seat Backing 67 1 10-pound Removable Crossbow

10 1 Lat Tower Crossbar 68 2 Long Handle

11 1 Cross Tube 69 2 M6 Black Nylon Locknut

12 1 Seat Carriage 70 2 M10 x65mm Button Head Screw

13 1 Seat 71 6 M10 x 42mm Button Head Bolt

14 1 Backrest 72 1 Crossbow'Cover Plate

15 1 Backrest Frame 73 2 M 10 x 140mm Carriage Bolt

16 1 Backrest Cap 74 4 Pivot Bushing

17 1 19mm Spacer 75 10 M10 Washer

18 1 Crossbow Fulcrum 76 20 M10 Nylon Locknut

19 1 Leg Developer 77 6 M6 Shoulder Bolt

20 2 10-pound Short Crossbow Cap 78 4 19mm Round Inner Cap

21 2 High Pulley Housing 79 2 40-pound Crossbow Cap

22 2 Swivel Arm 80 1 Long Cable

23 1 Foot Plate 81 2 M10 x 108ram Bolt

24 2 M10 x 102mm Button Head Bolt 82 12 M6 x 16ram Screw

25 4 Arm Bushing 83 2 M10 x 66mm Carriage Bolt

26 4 Foam Pad 84 1 Fulcrum Endcap

27 2 57ram Round Outer Cap 85 12 M4 x 12mm Flat Head Screw

28 9 90mm Pulley 86 2 M8 x 19mm Button Head Screw

29 3 Pulley Guard 87 4 M10 x 25mm Button Head Screw

30 1 Storage Knob 88 2 20-pound Crossbow Cap

31 2 Wheel 89 1 Name Plate

32 1 Leg Lever Cable 90 6 11mm Spacer

33 2 Short Cabre 91 1 Retainer Ring

34 2 Eyebolt 92 1 "V"-pulley

35 1 Crossbow Spacer 93 1 Crossbar Cover

36 1 20-pound Removable Crossbow 94 2 Pulley Housing

37 2 Fulcrum Bushing 95 2 80-pound Crossbow

38 2 38mm Round Inner Cap 96 1 40-pound Crossbow

39 1 Bench Rail Bracket 97 1 M10 x 107ram Bolt

40 1 M10 x 113mm Button Head Bolt 98 2 50ram Square Inner Cap

41 2 38ram x 64mm Inner Cap 99 2 Rail Inner Cap

42 1 Bench Knob 100 4 80-pound Crossbow Cap

43 1 Fulcrum Knob 101 2 10-pound Crossbow Cap

44 1 10-pound Center Crossbow 102 2 Large Plastic Foot

45 1 Seat Knob 103 4 M10 Split Washer

46 -_ 4 M8 x 25mm Button Head Screw 104 1 Hook

47 2 M10 Nut 105 1 Rail Bracket

48 1 Leg Press Strap 106 t 22mm Spacer

49 2 Short Handle 107 2 M4 x5ram Screw

50 1 Ankle Strap 108 1 Storage Knob Bracket

51 5 Cable Clip 109 1 Lat Bar

52 4 M8 Split Washer 110 2 Handgrip

53 3 Plastic Foot # 1 User's Manual

54 2 25mm Square Inner Cap # 1 Exercise Guide

55 1 45mm Round Inner Bushing # 1 Exercise Decal

56 2 45ram Round Inner Cap # 1 Large Allen Wrench

57 2 50ram Round Inner Cap # 1 Small Allen Wrench

58 4 M6 x 45mm Screw

Note: "#" indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover

of the user's manual for information about ordering repracement pads,

!i!iiiiii!iiii!i

Your Home

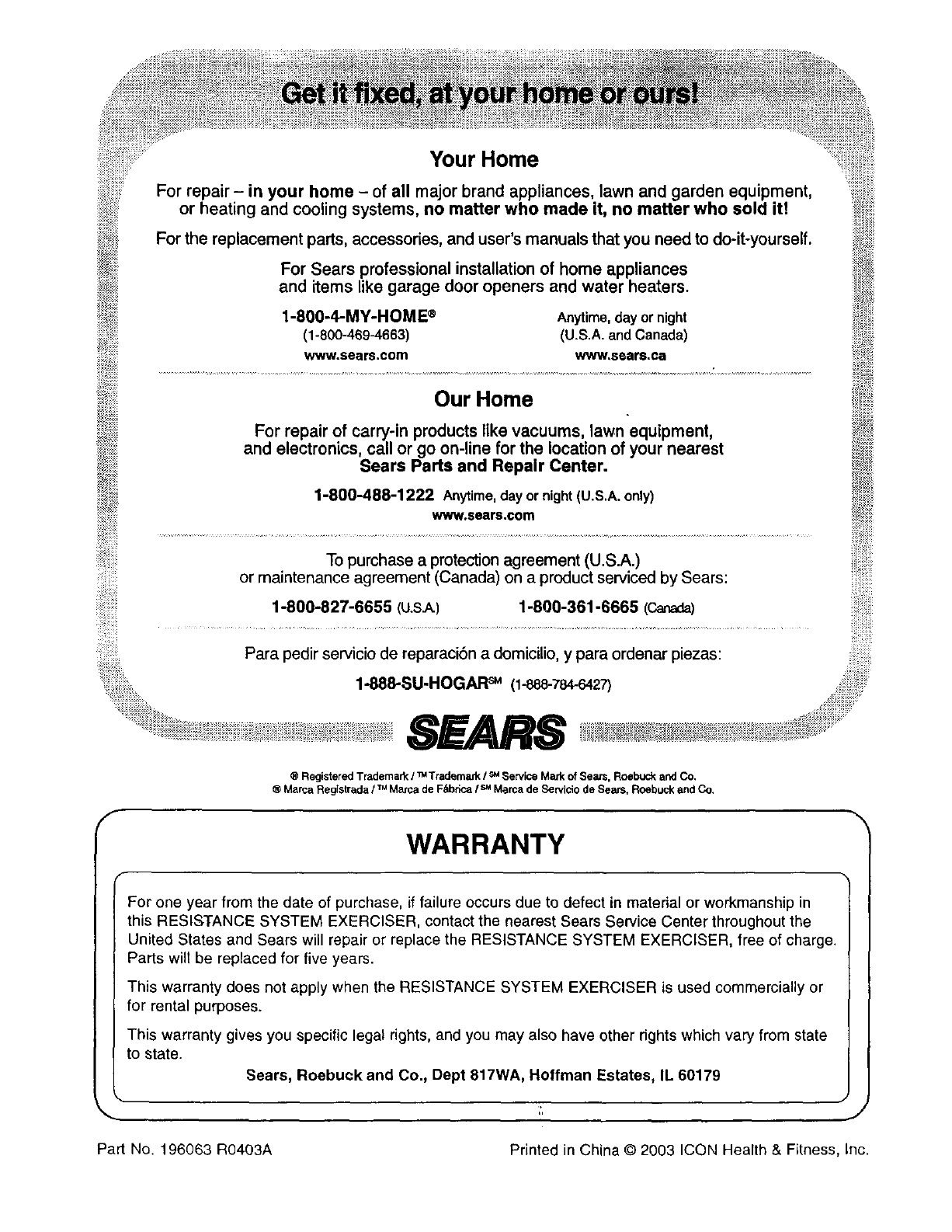

For repair - in your home - of all major brand appliances, lawn and garden equipment,

or heating and cooling systems, no matter who made it, no matter who sold it!

For the replacement pads, accessories, and user's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ®Anytime, day or night

(1-800-469-4663) (U.S.A. and Canada)

www.sears.com www.sear$.ca

.... ......... ........ ....... ,,.. ........ ,, ,,,,. ........

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the location of your nearest

Sears Parts and Repair Center.

1-800-488-1222 Anytime, day or night (U.S,A. only)

www.sears.com

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparaci6n a domicilio, y para ordenar piezas:

1-888-SU-HOGAR sM (1-888-784-6427)

8_1! 8 ....._:!_i_ili_i_i_i_iiii__

®Registered Trademark /TM Trademark /SMService Mark of Sears, Roebuck and Co,

®Marca Reglstrada /TMMarca de F_bdca IsMMarca de Servlcio de Sears, Roebuck and Co,

WARRANTY

For one year from the date of purchase, if failure occurs due to defect in material or workmanship in

this RESISTANCE SYSTEM EXERCISER, contact the nearest Sears Service Center throughout the

United States and Sears will repair or replace the RESISTANCE SYSTEM EXERCISER, free of charge.

Parts wilt be replaced for five years.

This warranty does not apply when the RESISTANCE SYSTEM EXERCISER is used commercially or

for rental purposes.

This warranty gives you specific legal rights, and you may also have other rights which vary from state

to state.

Sears, Roebuck and Co., Dept 817WA, Hoffman Estates, IL 60179

Weider 831153961 User Manual CROSSBOW ADVANTAGE Manuals And Guides L0304226

WEIDER Weight System Manual L0304226 WEIDER Weight System Owner's Manual, WEIDER Weight System installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
