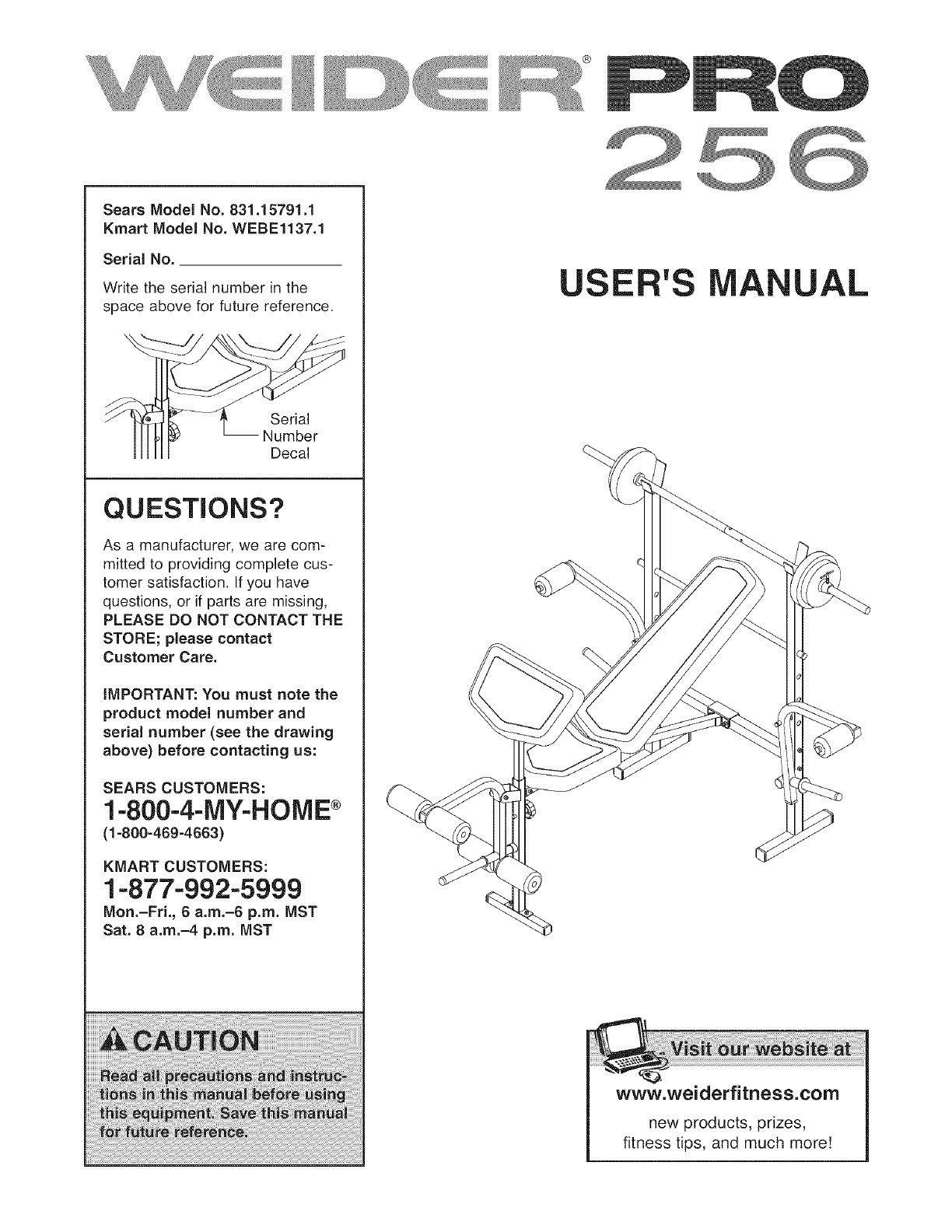

SearsModelNo.831.15791.1

Kmart Model No. WEBE1137.1

Serial No.

Write the serial number in the

space above for future reference.

Serial

-- Number

Decal

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete cus-

tomer satisfaction. If you have

questions, or if parts are missing,

PLEASE DO NOT CONTACT THE

STORE; please contact

Customer Care.

IMPORTANT: You must note the

product model number and

serial number (see the drawing

above) before contacting us:

SEARS CUSTOMERS:

1-800-4-1VlY-HOME®

(1-800-469-4663)

KMART CUSTOMERS:

1-877-992-5999

Mon.-Fri., 6 a.m.-6 p.m. MST

Sat. 8 a.m.-4 p.m. MST

'S IAL

www.weiderfitness.com

new products, prizes,

fitness tips, and much more!

TABLE OF CONTENTS

WARNING DECAL PLACEMENT .............................................................. 2

IMPORTANT PRECAUTIONS ................................................................ 3

BEFORE YOU BEGIN ...................................................................... 4

PART IDENTIFICATION CHART .............................................................. 5

ASSEMBLY ............................................................................... 6

ADJUSTMENT ........................................................................... 10

EXERClSE GUIDELINES ................................................................... 12

PART LIST .............................................................................. 14

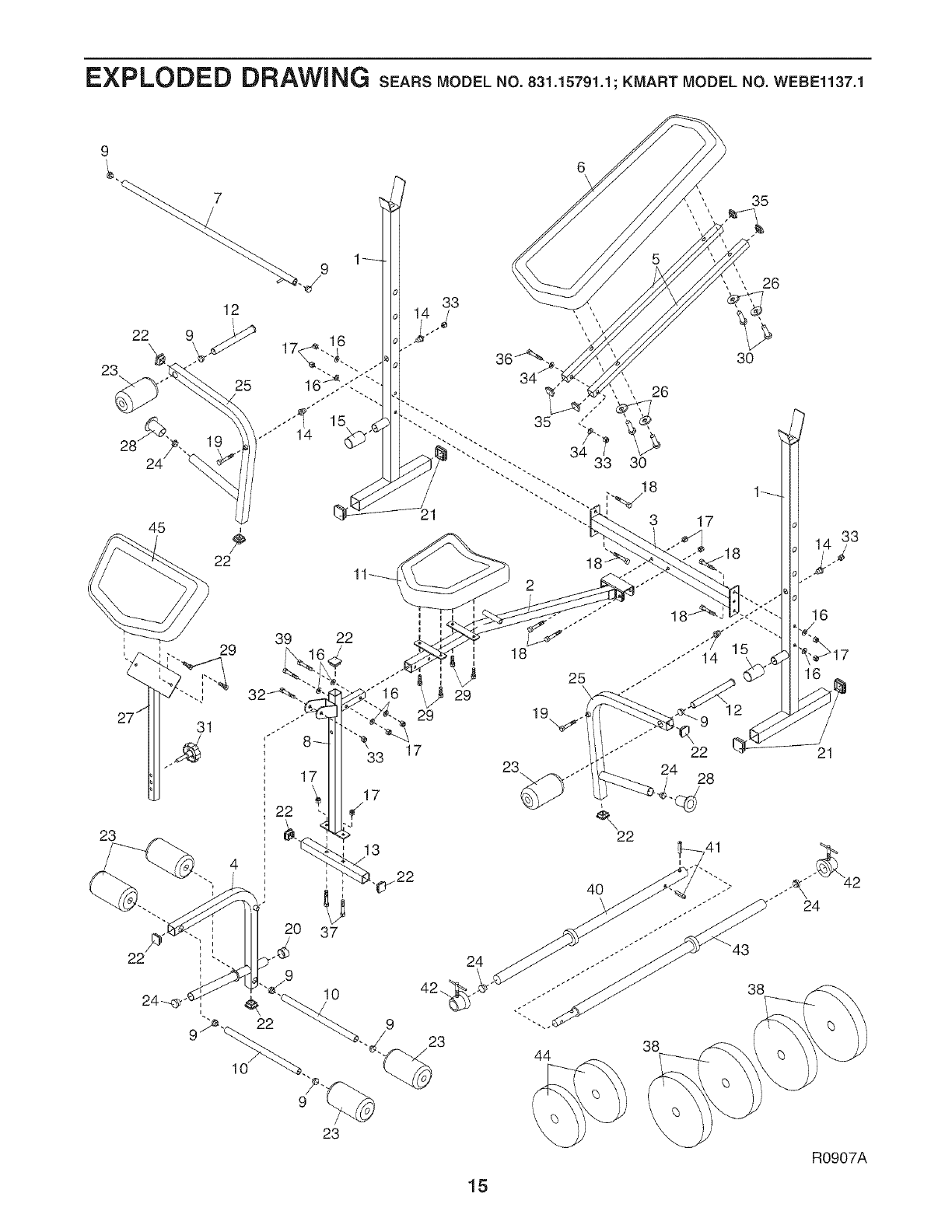

EXPLODED DRAWING .................................................................... 15

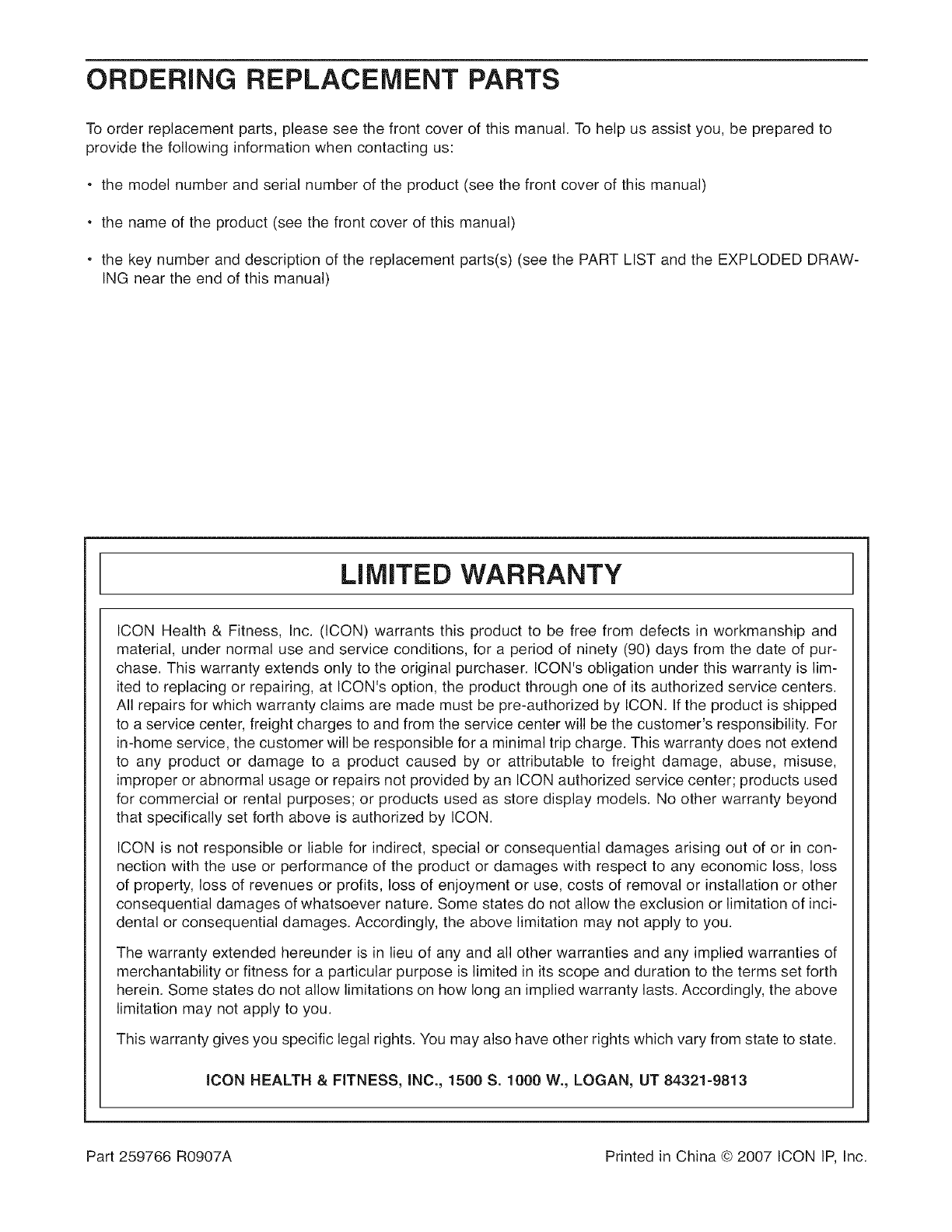

ORDERING REPLACEMENT PARTS .................................................. Back Cover

LIMITED WARRANTY .............................................................. Back Cover

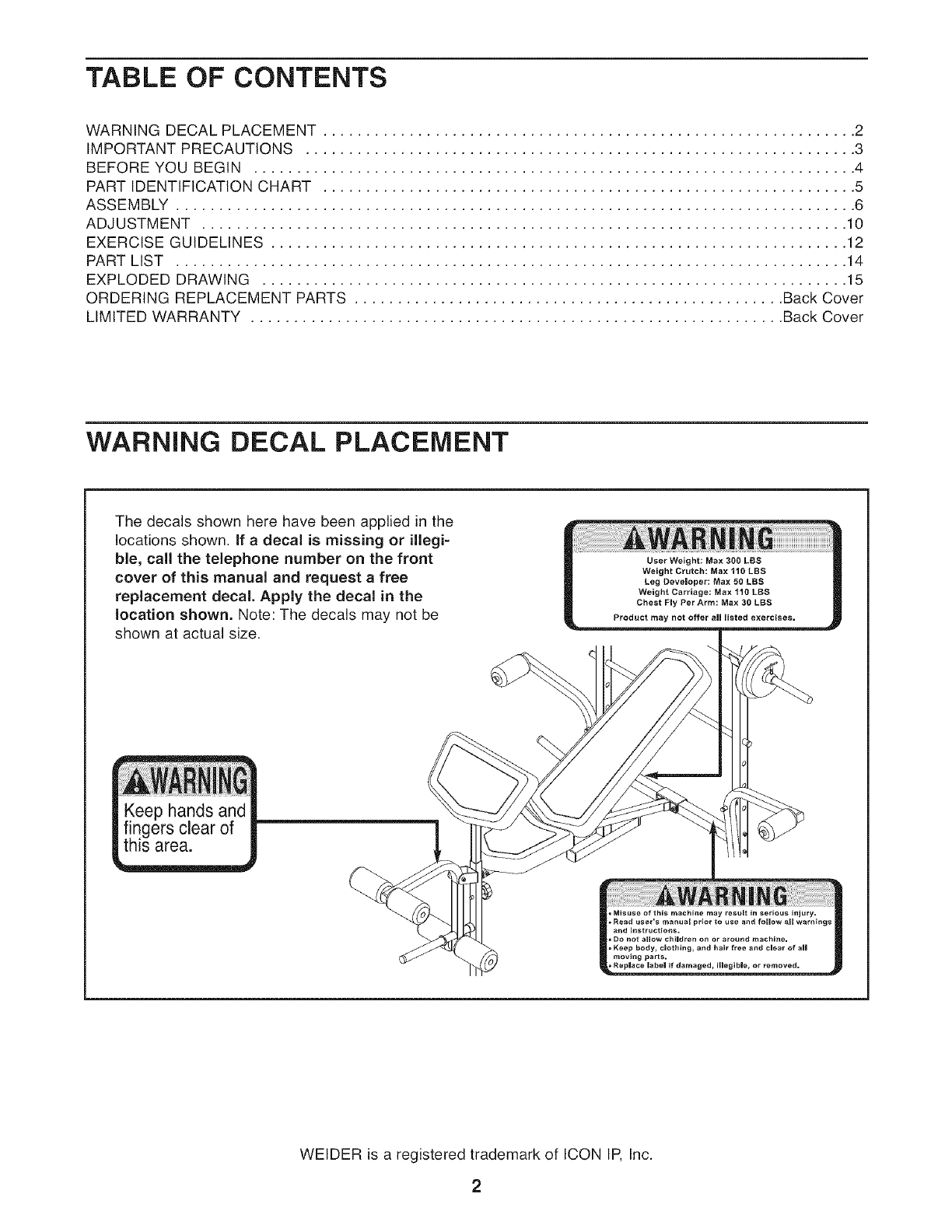

WARNING DECAL PLACEMENT

The decals shown here have been applied in the

locations shown. If a decal is missing or illegi-

ble, call the telephone number on the front

cover of this manual and request a free

replacement decal, Apply the decal in the

location shown, Note: The decals may not be

shown at actual size.

User Weight: Max 300 LBS

Weight Crutch: Max t10 LBS

Leg Developer: Max 50 LBS

Weight Carriage: Max 110 LBS

Chest Fly Per Arm: Max 30 LBS

Product may not offer ag listed exercises,

Keep hands and

fingers clear of

this area.

,igisuse of this machine may result in serious injury.

,Read user's manual prior to use and fogow all warnings

and instructions.

DO not allow chgdren on or around machine.

,Keep body, clothing, and hair free and clear of ag

moving parts.

,Replace label if damaged, igegible, or removed.

WELDER is a registered trademark of ICON IP, Inc.

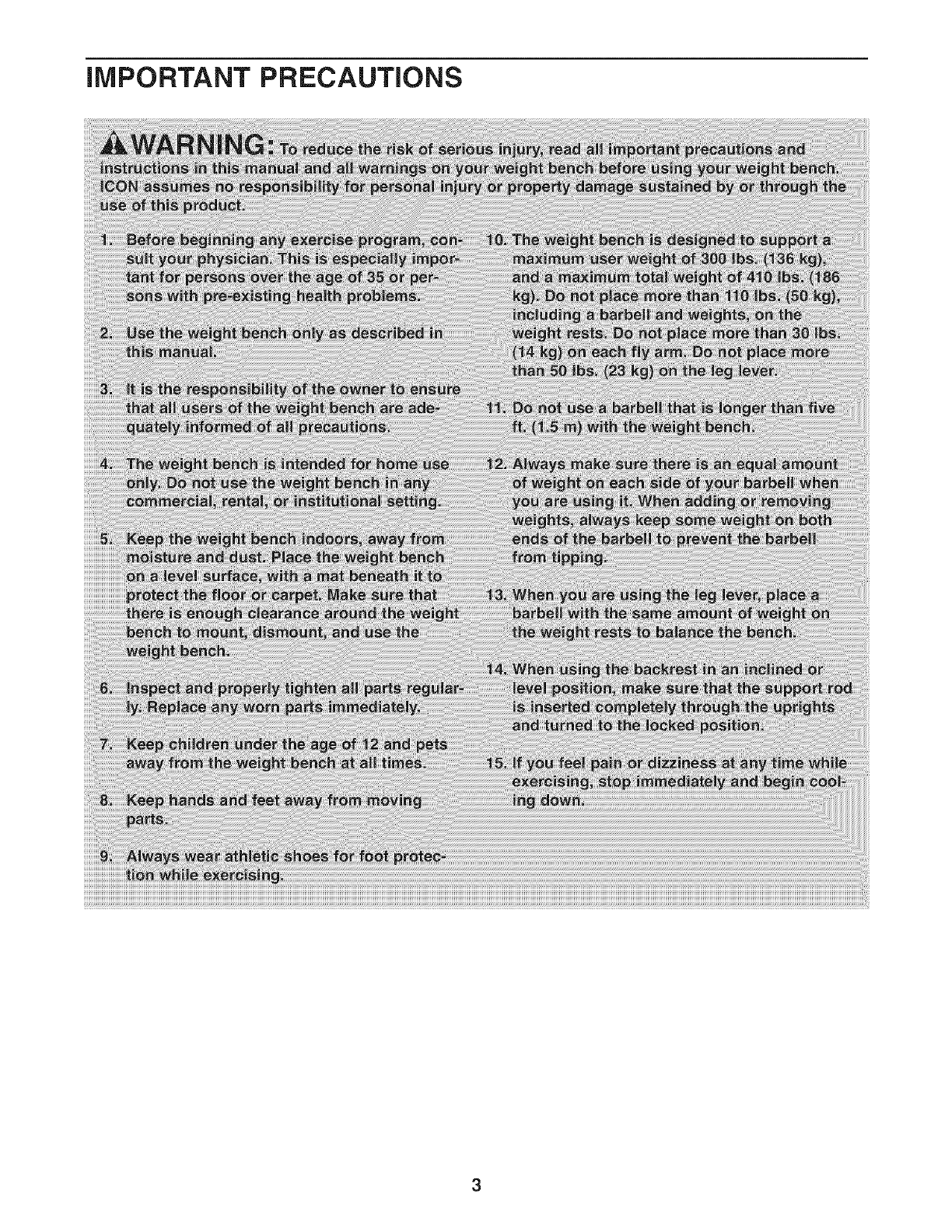

iMPORTANT PRECAUTIONS

BEFORE YOU BEGIN

Thank you for selecting the WELDER _'PRO 256 weight

bench. The versatile weight bench is designed to

develop every major muscle group of the body.

Whether your goal is a shapely figure, dramatic mus-

cle size and strength, or a healthier cardiovascular

system, the weight bench will help you to achieve the

specific results you want.

For your benefit, read this manual carefully before

using the weight bench. If you have questions after

reading this manual, please see the front cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

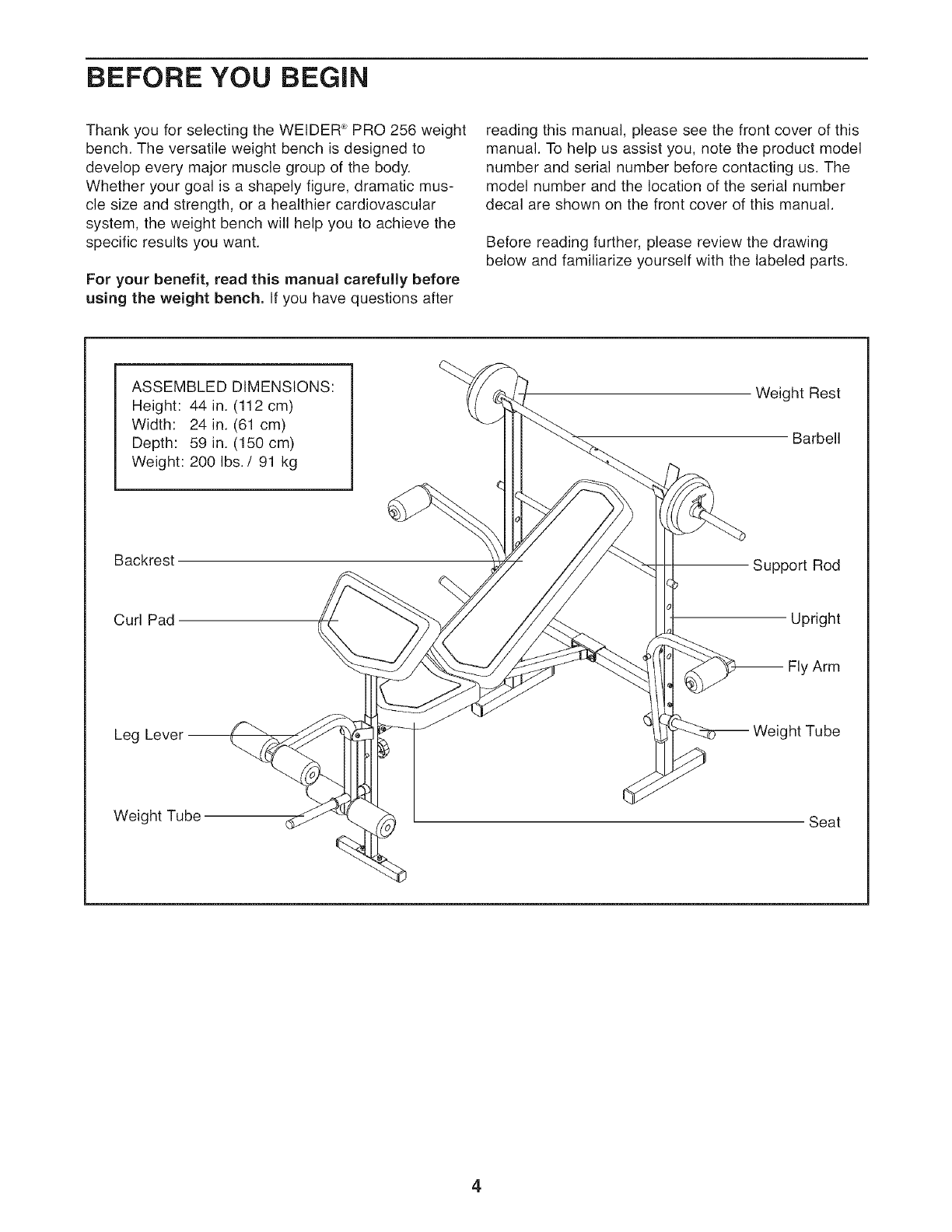

Before reading further, please review the drawing

below and familiarize yourself with the labeled parts.

ASSEMBLED DIMENSIONS:

Height: 44 in. (112 cm)

Width: 24 in. (61 cm)

Depth: 59 in. (150 cm)

Weight: 200 Ibs./ 91 kg

Weight Rest

Barbell

Backrest Support Rod

Curl Pad Upright

jArm

Leg Lever-- -- Weight Tube

Weight Tube Seat

PART iDENTiFiCATiON CHART

This chart is provided to help you identify the small parts used in assembly. The number in parenthesis below

each part refers to the key number of the part from the PART LIST near the end of this manual, important:

Note: Some small parts may have been preattached. Jf a part Js not Jn the parts bag, check to see Jf Jt

has been preattached.

)

MIO x 137mm Bolt (36)

M10 x 120mm Bolt (19)

MIO x 63mm Bolt (32)

}

M8 x 55mm Bolt (18)

M8 x 43mm Bolt (39)

M10 Nylon Locknut (33)

M8 x 42mm Carriage Bolt (37)

M6 x 38mm Screw (30)

M8 Nylon Locknut (17)

M6 Washer (26)

M8 Washer (16)

MIO Washer (34)

(} )

M6 x 16mm Screw (29)

ASSEMBLY

Before beginning assembly, carefully read the fol-

lowing information and instructions:

• Assembly requires two people.

• Because of its size, the weight bench should be

assembled in the location where it will be used.

Make sure that there is enough clearance to walk

around the weight bench as you assemble it.

• Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until assembly is completed.

•For help identifying small parts, use the PART

IDENTIFICATION CHART on page 5.

As you assemble the weight bench, make sure all

parts are oriented as shown in the drawings.

Tighten all parts as you assemble them, unless

instructed to do otherwise.

The included grease and the following tools (not

included) may be required for assembly:

Two adjustable wrenches

One rubber mallet

One standard screwdriver

One Phillips screwdriver (_

Assembly will be more convenient if you have a

socket set, a set of open-end or closed-end

wrenches, or a set of ratchet wrenches.

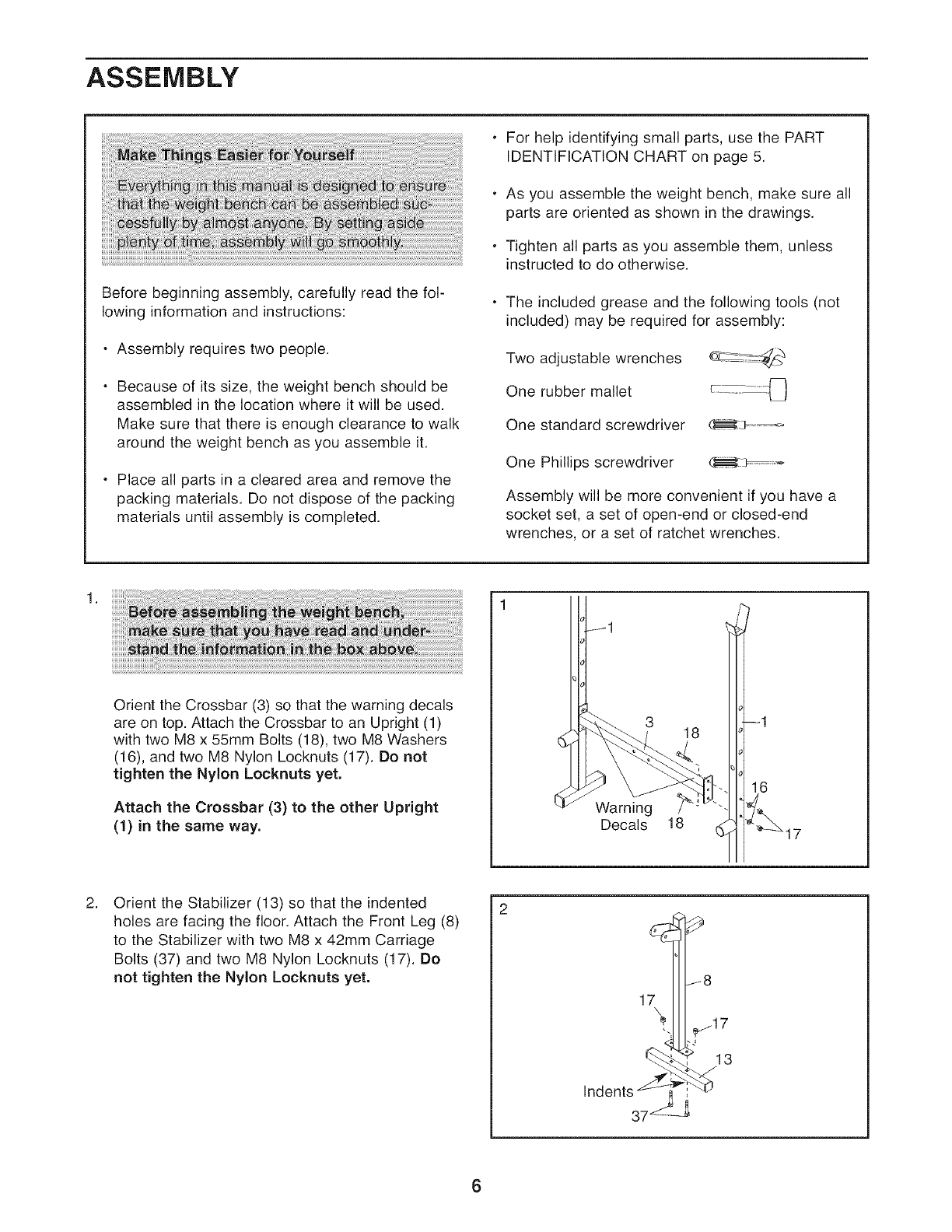

Orient the Crossbar (3) so that the warning decals

are on top. Attach the Crossbar to an Upright (1)

with two M8 x 55mm Bolts (18), two M8 Washers

(16), and two M8 Nylon Locknuts (17). Do not

tighten the Nylon Locknuts yet.

Attach the Crossbar (3) to the other Upright

(1) in the same way.

Warning

Decals

Orient the Stabilizer (13) so that the indented

holes are facing the floor. Attach the Front Leg (8)

to the Stabilizer with two M8 x 42mm Carriage

Bolts (37) and two M8 Nylon Locknuts (17). Do

not tighten the Nylon Locknuts yet.

3. 3

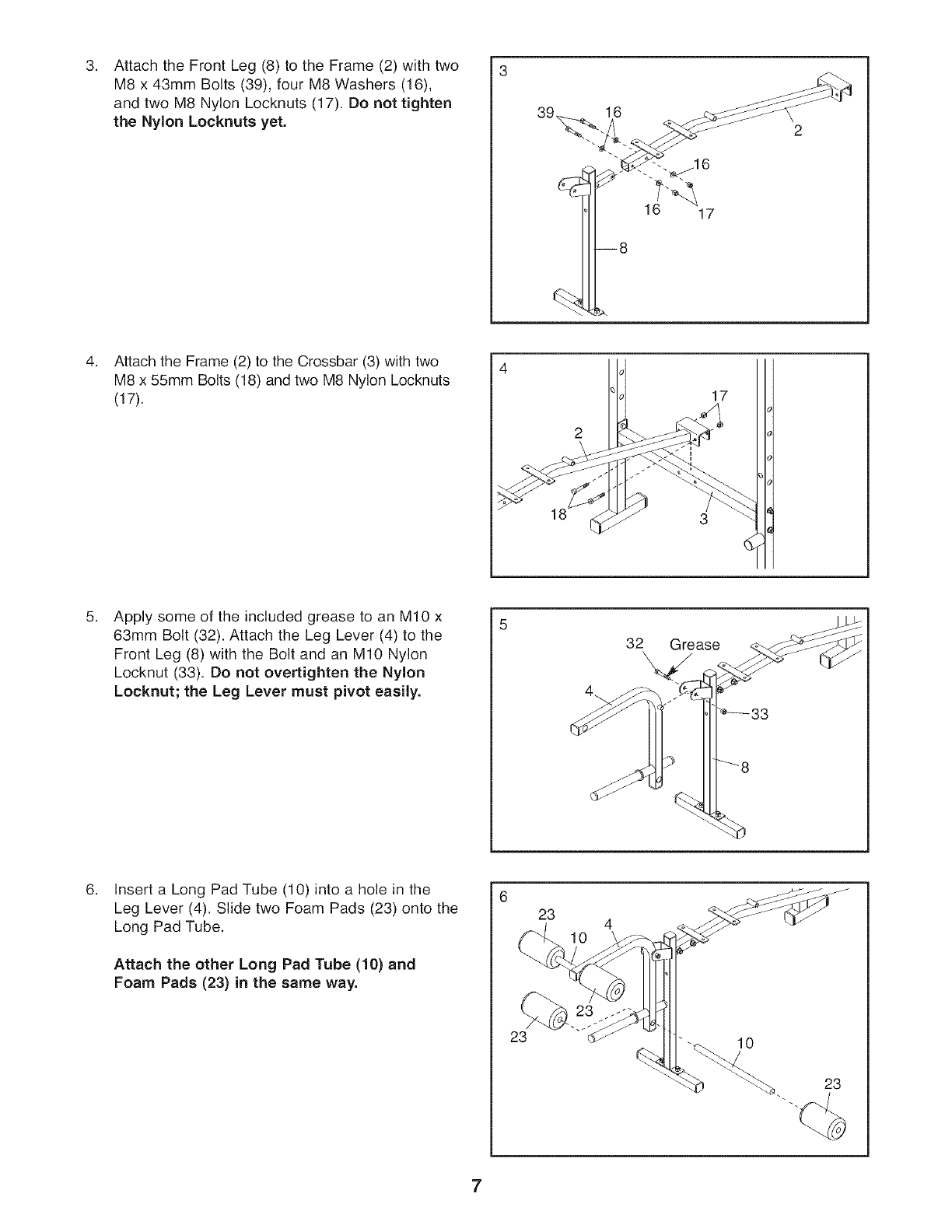

Attach the Front Leg (8) to the Frame (2) with two

M8 x 43mm Bolts (39), four M8 Washers (16),

and two M8 Nylon Locknuts (17). Do not tighten

the Nylon Locknuts yet.

._16

16 17

Attach the Frame (2) to the Crossbar (3) with two

M8 x 55mm Bolts (18) and two M8 Nylon Locknuts

(17).

Apply some of the included grease to an M10 x

63mm Bolt (32). Attach the Leg Lever (4) to the

Front Leg (8) with the Bolt and an M10 Nylon

Locknut (33). Do not overtighten the Nylon

Locknut; the Leg Lever must pivot easily.

Grease

Insert a Long Pad Tube (10) into a hole in the

Leg Lever (4). Slide two Foam Pads (23) onto the

Long Pad Tube.

Attach the other Long Pad Tube (10) and

Foam Pads (23) in the same way.

23 10

7. 7

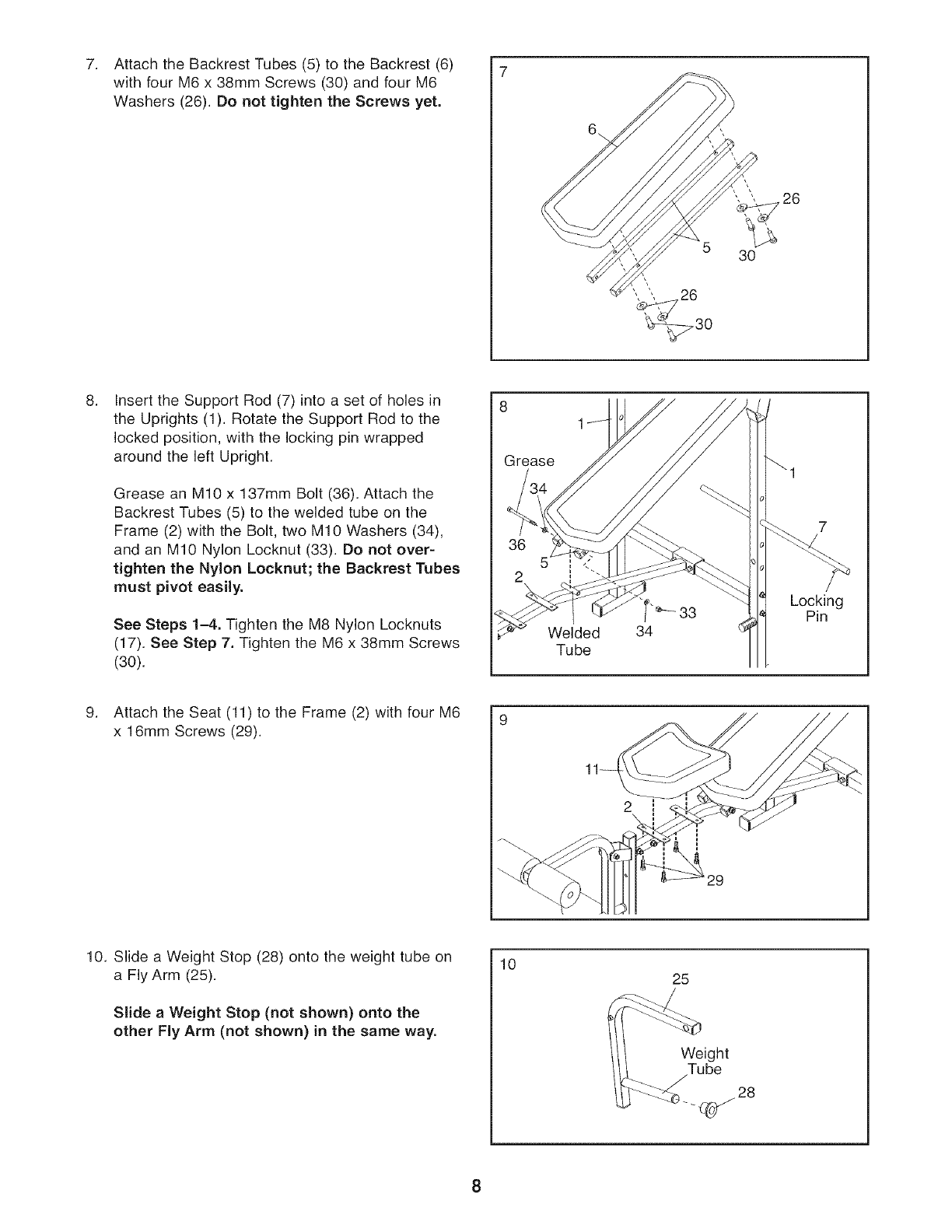

Attach the Backrest Tubes (5) to the Backrest (6)

with four M6 x 38mm Screws (30) and four M6

Washers (26). Do not tighten the Screws yet.

Insert the Support Rod (7) into a set of holes in

the Uprights (1). Rotate the Support Rod to the

locked position, with the locking pin wrapped

around the left Upright.

Grease an M10 x 137mm Bolt (36). Attach the

Backrest Tubes (5) to the welded tube on the

Frame (2) with the Bolt, two M10 Washers (34),

and an M10 Nylon Locknut (33). Do not over-

tighten the Nylon Locknut; the Backrest Tubes

must pivot easily.

See Steps 1-4. Tighten the M8 Nylon Locknuts

(17). See Step 7. Tighten the M6 x 38mm Screws

(30).

Grease

Welded

Tube

Locking

Attach the Seat (11) to the Frame (2) with four M6

x 16mm Screws (29).

10. Slide a Weight Stop (28) onto the weight tube on

a Fly Arm (25).

Slide a Weight Stop (not shown) onto the

other Fly Arm (not shown) in the same way,

10 25

Weight

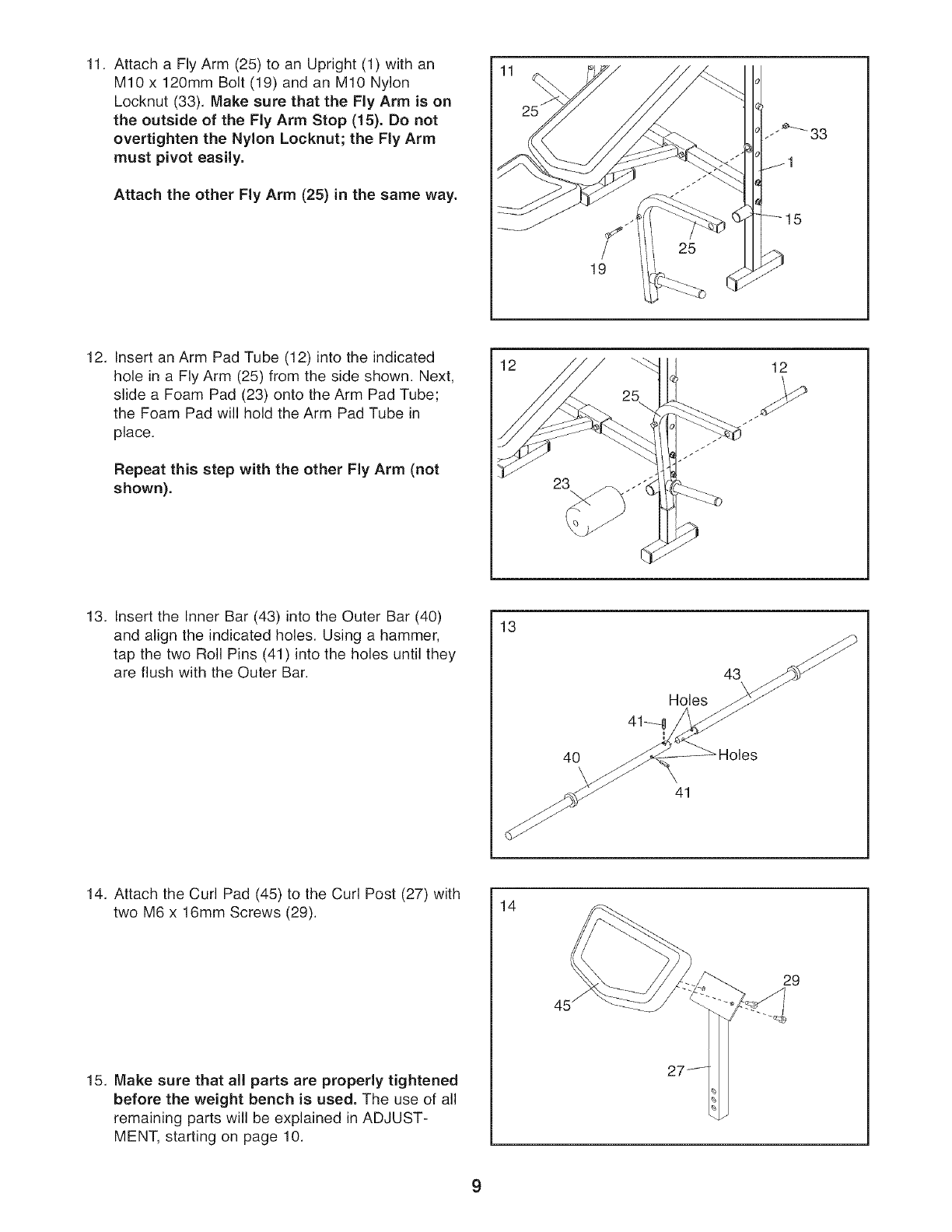

11.Attacha FlyArm(25)to anUpright(1)withan

M10x 120mmBolt(19)andanM10Nylon

Locknut(33).Makesure that the Fly Arm is on

the outside of the Fly Arm Stop (15). Do not

overtighten the Nylon Locknut; the Fly Arm

must pivot easily.

Attach the other Fly Arm (25) in the same way.

12. Insert an Arm Pad Tube (12) into the indicated

hole in a Fly Arm (25) from the side shown. Next,

slide a Foam Pad (23) onto the Arm Pad Tube;

the Foam Pad will hold the Arm Pad Tube in

place.

Repeat this step with the other Fly Arm (not

shown).

13. Insert the Inner Bar (43) into the Outer Bar (40)

and align the indicated holes. Using a hammer,

tap the two Roll Pins (41) into the holes until they

are flush with the Outer Bar.

Holes

14. Attach the Curl Pad (45) to the Curl Post (27) with

two M6 x 16mm Screws (29).

15. Make sure that all parts are properly tightened

before the weight bench is used, The use of all

remaining parts will be explained in ADJUST-

MENT, starting on page 10.

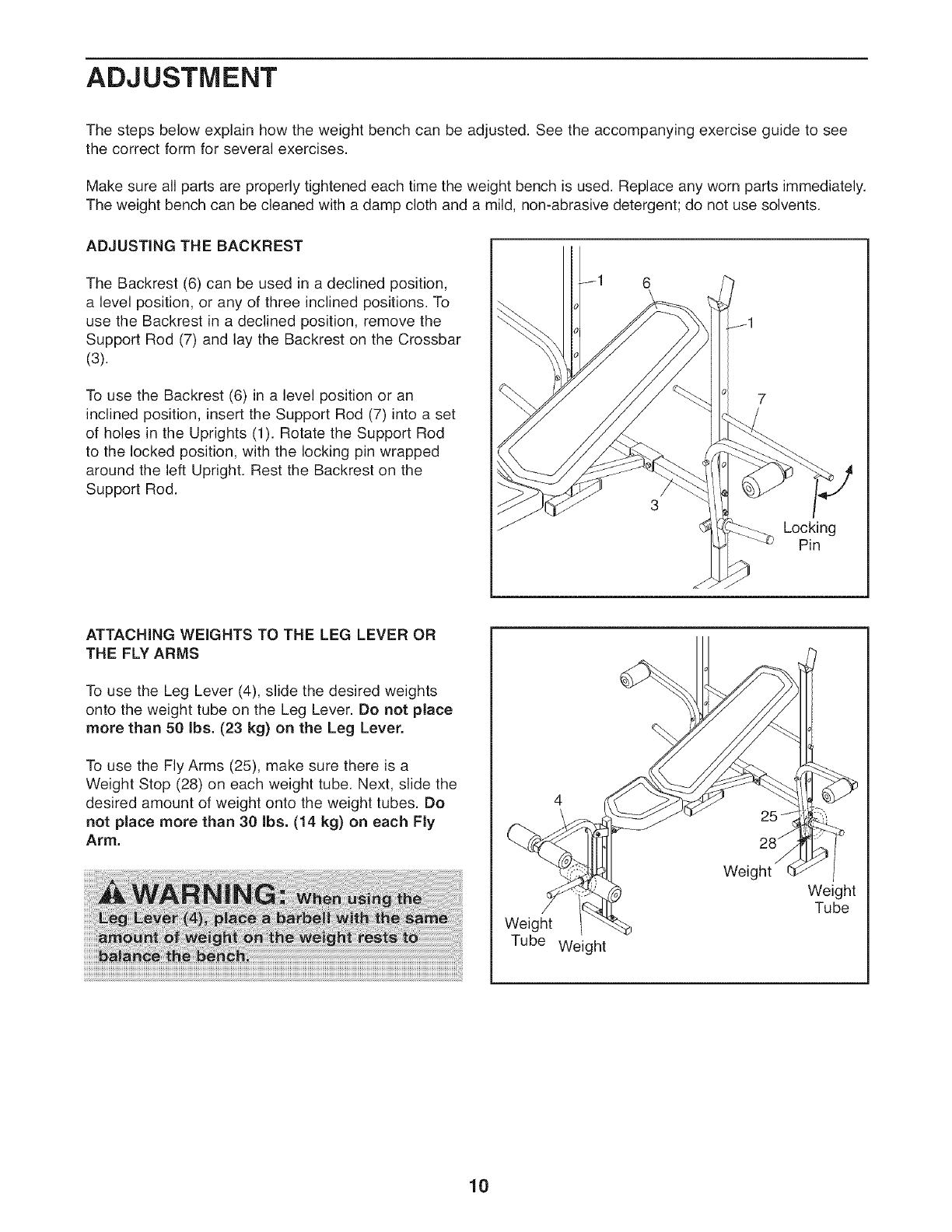

ADJUSTMENT

The steps below explain how the weight bench can be adjusted. See the accompanying exercise guide to see

the correct form for several exercises.

Make sure all parts are properly tightened each time the weight bench is used. Replace any worn parts immediately.

The weight bench can be cleaned with a damp cloth and a mild, non-abrasive detergent; do not use solvents.

ADJUSTING THE BACKREST

The Backrest (6) can be used in a declined position,

a level position, or any of three inclined positions. To

use the Backrest in a declined position, remove the

Support Rod (7) and lay the Backrest on the Crossbar

(3).

To use the Backrest (6) in a level position or an

inclined position, insert the Support Rod (7) into a set

of holes in the Uprights (1). Rotate the Support Rod

to the locked position, with the locking pin wrapped

around the left Upright. Rest the Backrest on the

Support Rod.

Locking

ATTACHING WEIGHTS TO THE LEG LEVER OR

THE FLY ARMS

To use the Leg Lever (4), slide the desired weights

onto the weight tube on the Leg Lever. Do not place

more than 50 Ibs. (23 kg) on the Leg Lever.

To use the Fly Arms (25), make sure there is a

Weight Stop (28) on each weight tube. Next, slide the

desired amount of weight onto the weight tubes. Do

not place more than 30 Ibs. (14 kg) on each Fly

Arm.

Weight

Tube Weight

Weight

Tube

ATTACHING WEIGHTS TO THE BARBELL

Slide an equal amount of Weight (38, 44) onto each

end of the barbell. Slide the two Lock Collars (42)

against the Weights, and tighten them fully.

Barbell

38 44 42\

ATTACHING THE CURL PAD

For some exercises, the Curl Pad (45) must be

attached to the weight bench. Remove the 30mm

Square Inner Cap (22) from the Front Leg (8). Insert

the Curl Post (27) into the Front Leg, and align an

adjustment hole in the Curl Post with the adjustment

hole in the Front Leg. Secure the Curl Post with the

Curl Knob (31).

Note: When the Curl Pad (45) is not being used,

store it away from the weight bench, and insert

the 30ram Square inner Cap (22) into the Front

Leg (8).

Adjustment Hole

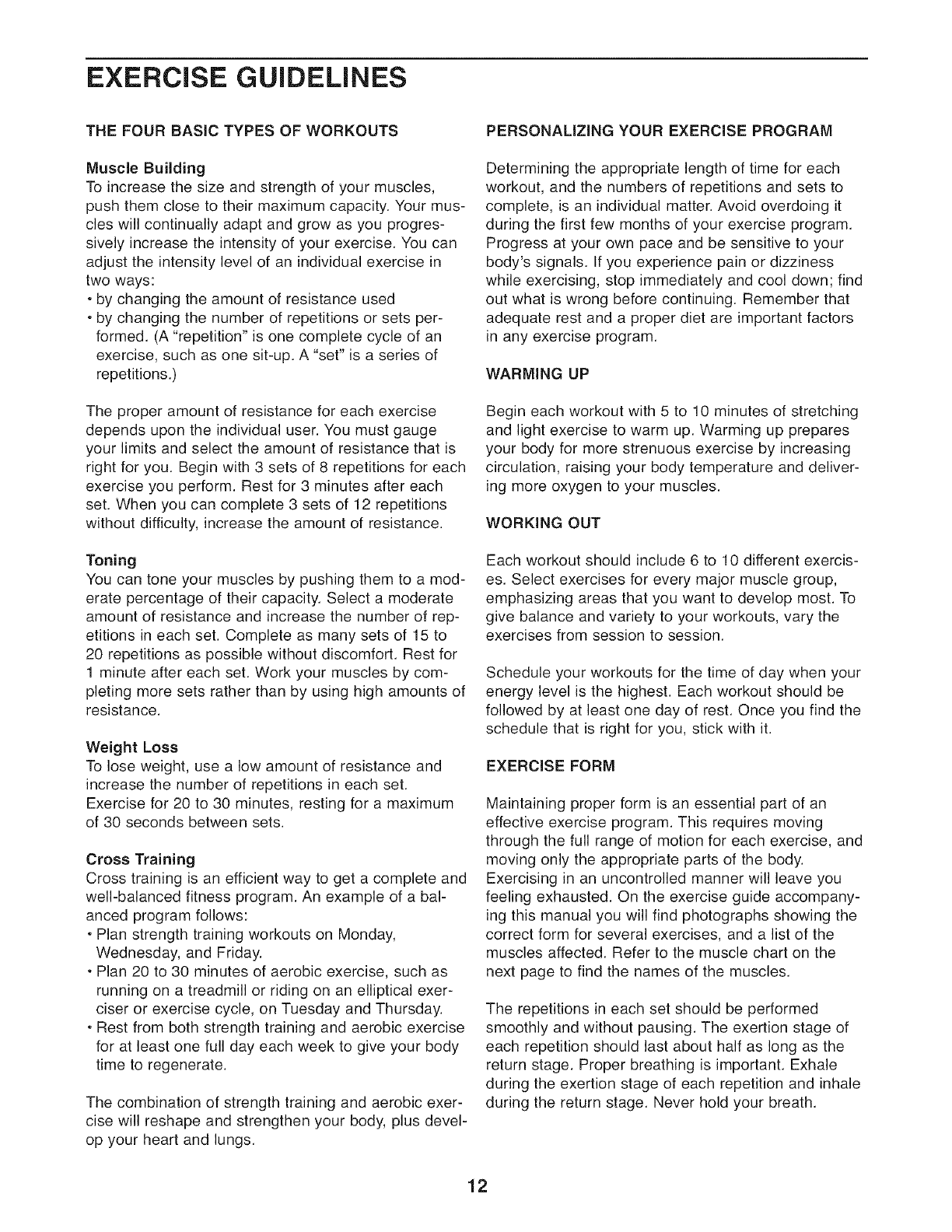

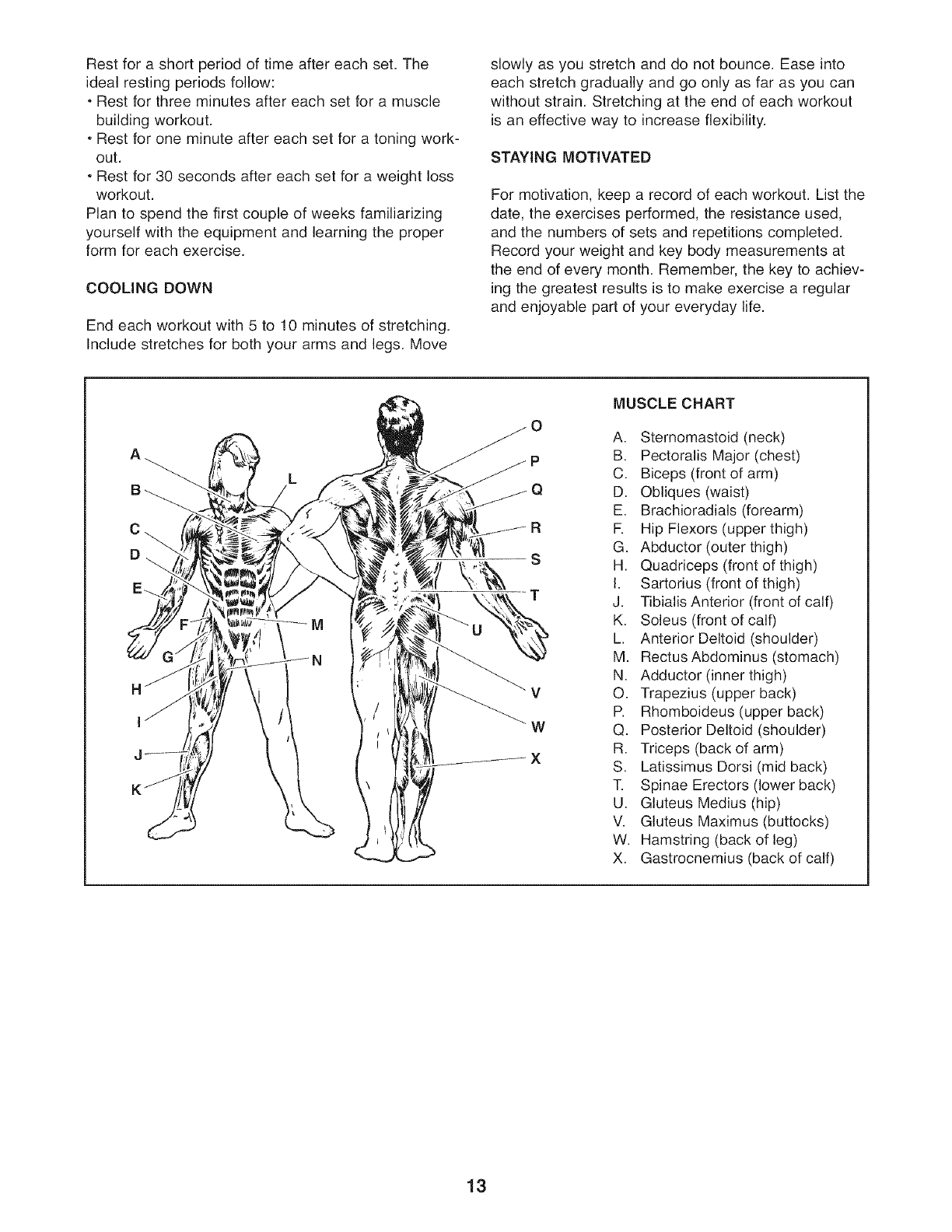

EXERCISE GUiDELiNES

THE FOUR BASIC TYPES OF WORKOUTS

Muscle Building

To increase the size and strength of your muscles,

push them close to their maximum capacity. Your mus-

cles will continually adapt and grow as you progres-

sively increase the intensity of your exercise. You can

adjust the intensity level of an individual exercise in

two ways:

• by changing the amount of resistance used

• by changing the number of repetitions or sets per-

formed. (A "repetition" is one complete cycle of an

exercise, such as one sit-up. A "set" is a series of

repetitions.)

The proper amount of resistance for each exercise

depends upon the individual user. You must gauge

your limits and select the amount of resistance that is

right for you. Begin with 3 sets of 8 repetitions for each

exercise you perform. Rest for 3 minutes after each

set. When you can complete 3 sets of 12 repetitions

without difficulty, increase the amount of resistance.

Toning

You can tone your muscles by pushing them to a mod-

erate percentage of their capacity. Select a moderate

amount of resistance and increase the number of rep-

etitions in each set. Complete as many sets of 15 to

20 repetitions as possible without discomfort. Rest for

1 minute after each set. Work your muscles by com-

pleting more sets rather than by using high amounts of

resistance.

Weight Loss

To lose weight, use a low amount of resistance and

increase the number of repetitions in each set.

Exercise for 20 to 30 minutes, resting for a maximum

of 30 seconds between sets.

Cross Training

Cross training is an efficient way to get a complete and

well-balanced fitness program. An example of a bal-

anced program follows:

• Plan strength training workouts on Monday,

Wednesday, and Friday.

• Plan 20 to 30 minutes of aerobic exercise, such as

running on a treadmill or riding on an elliptical exer-

ciser or exercise cycle, on Tuesday and Thursday.

• Rest from both strength training and aerobic exercise

for at least one full day each week to give your body

time to regenerate.

The combination of strength training and aerobic exer-

cise will reshape and strengthen your body, plus devel-

op your heart and lungs.

PERSONALIZING YOUR EXERCISE PROGRAM

Determining the appropriate length of time for each

workout, and the numbers of repetitions and sets to

complete, is an individual matter. Avoid overdoing it

during the first few months of your exercise program.

Progress at your own pace and be sensitive to your

body's signals. If you experience pain or dizziness

while exercising, stop immediately and cool down; find

out what is wrong before continuing. Remember that

adequate rest and a proper diet are important factors

in any exercise program.

WARMING UP

Begin each workout with 5 to 10 minutes of stretching

and light exercise to warm up. Warming up prepares

your body for more strenuous exercise by increasing

circulation, raising your body temperature and deliver-

ing more oxygen to your muscles.

WORKING OUT

Each workout should include 6 to 10 different exercis-

es. Select exercises for every major muscle group,

emphasizing areas that you want to develop most. To

give balance and variety to your workouts, vary the

exercises from session to session.

Schedule your workouts for the time of day when your

energy level is the highest. Each workout should be

followed by at least one day of rest. Once you find the

schedule that is right for you, stick with it.

EXERCISE FORM

Maintaining proper form is an essential part of an

effective exercise program. This requires moving

through the full range of motion for each exercise, and

moving only the appropriate parts of the body.

Exercising in an uncontrolled manner will leave you

feeling exhausted. On the exercise guide accompany-

ing this manual you will find photographs showing the

correct form for several exercises, and a list of the

muscles affected. Refer to the muscle chart on the

next page to find the names of the muscles.

The repetitions in each set should be performed

smoothly and without pausing. The exertion stage of

each repetition should last about half as long as the

return stage. Proper breathing is important. Exhale

during the exertion stage of each repetition and inhale

during the return stage. Never hold your breath.

Rest for a short period of time after each set. The

ideal resting periods follow:

• Rest for three minutes after each set for a muscle

building workout.

• Rest for one minute after each set for a toning work-

out.

• Rest for 30 seconds after each set for a weight loss

workout.

Plan to spend the first couple of weeks familiarizing

yourself with the equipment and learning the proper

form for each exercise.

COOLING DOWN

End each workout with 5 to 10 minutes of stretching.

Include stretches for both your arms and legs. Move

slowly as you stretch and do not bounce. Ease into

each stretch gradually and go only as far as you can

without strain. Stretching at the end of each workout

is an effective way to increase flexibility.

STAYING MOTIVATED

For motivation, keep a record of each workout. List the

date, the exercises performed, the resistance used,

and the numbers of sets and repetitions completed.

Record your weight and key body measurements at

the end of every month. Remember, the key to achiev-

ing the greatest results is to make exercise a regular

and enjoyable part of your everyday life.

MUSCLE CHART

OA. Sternomastoid (neck)

p B. Pectoralis Major (chest)

C. Biceps (front of arm)

Q D. Obliques (waist)

E. Brachioradials (forearm)

R R Hip Flexors (upper thigh)

G. Abductor (outer thigh)

S H. Quadriceps (front of thigh)

I. Sartorius (front of thigh)

T J. Tibialis Anterior (front of calf)

K. Soleus (front of calf)

L. Anterior Deltoid (shoulder)

M. RectusAbdominus (stomach)

N. Adductor (inner thigh)

V O. Trapezius (upper back)

P. Rhomboideus (upper back)

W Q. Posterior Deltoid (shoulder)

R. Triceps (back of arm)

XS. Latissimus Dorsi (mid back)

T. Spinae Erectors (lower back)

U. Gluteus Medius (hip)

V. Gluteus Maximus (buttocks)

W. Hamstring (back of leg)

X. Gastrocnemius (back of calf)

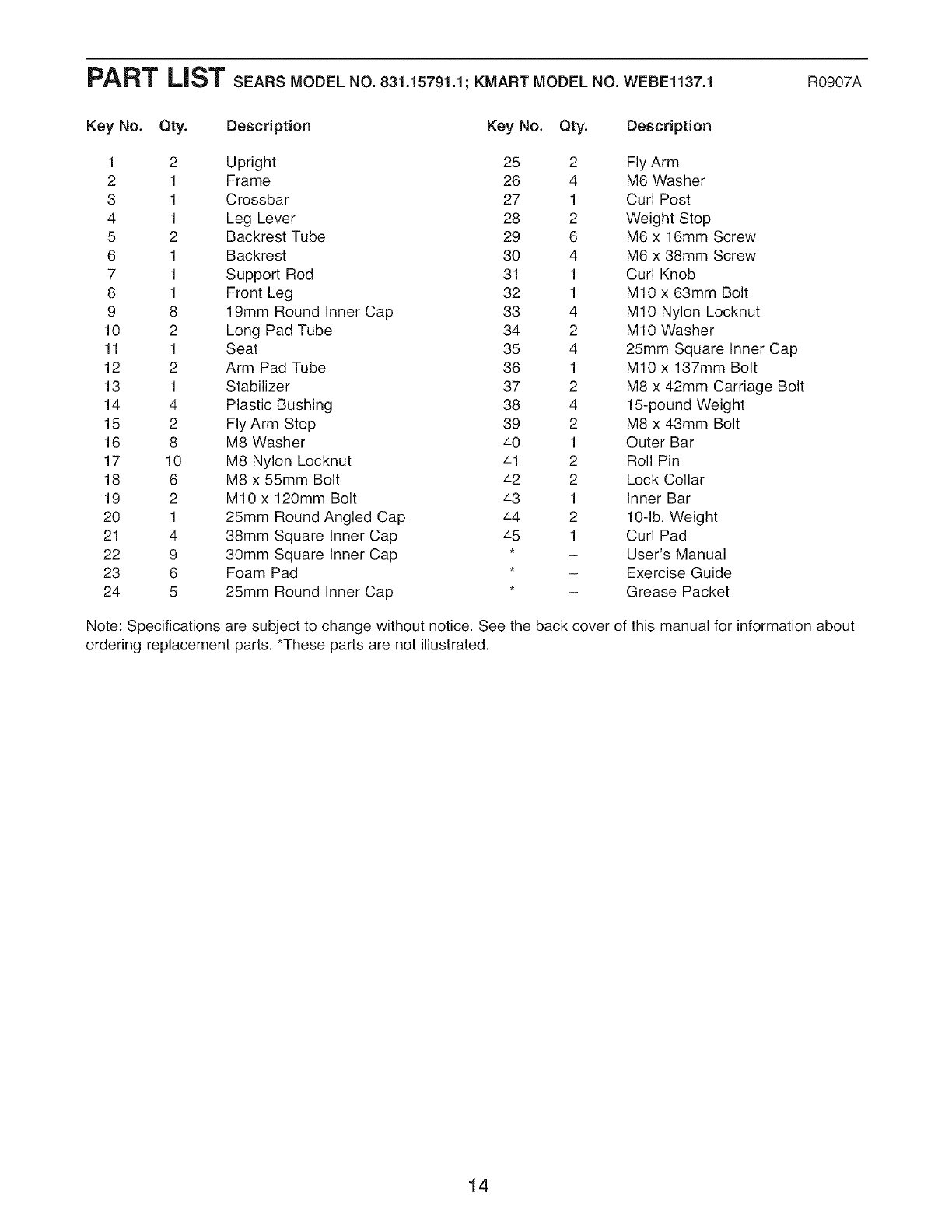

PART LIST SEARS MODEL NO. 831.15791.1; KMART MODEL NO. WEBE1137.1 R0907A

Key No. Qty. Description Key No. Qty. Description

1 2 Upright 25 2 Fly Arm

2 1 Frame 26 4 M6 Washer

3 1 Crossbar 27 1 Curl Post

4 1 Leg Lever 28 2 Weight Stop

5 2 Backrest Tube 29 6 M6 x 16mm Screw

6 1 Backrest 30 4 M6 x 38mm Screw

7 1 Support Rod 31 1 Curl Knob

8 1 Front Leg 32 1 M10 x 63mm Bolt

9 8 19mm Round Inner Cap 33 4 M10 Nylon Locknut

10 2 Long Pad Tube 34 2 M10 Washer

11 1 Seat 35 4 25mm Square Inner Cap

12 2 Arm Pad Tube 36 1 M10 x 137mm Bolt

13 1 Stabilizer 37 2 M8 x 42mm Carriage Bolt

14 4 Plastic Bushing 38 4 15-pound Weight

15 2 Fly Arm Stop 39 2 M8 x 43mm Bolt

16 8 M8 Washer 40 1 Outer Bar

17 10 M8 Nylon Locknut 41 2 Roll Pin

18 6 M8 x 55mm Bolt 42 2 Lock Collar

19 2 M10 x 120mm Bolt 43 1 Inner Bar

20 1 25mm Round Angled Cap 44 2 10-lb. Weight

21 4 38mm Square Inner Cap 45 1 Curl Pad

22 9 30mm Square Inner Cap * - User's Manual

23 6 Foam Pad * - Exercise Guide

24 5 25mm Round Inner Cap * - Grease Packet

Note: Specifications are subject to change without notice. See the back cover of this manual for information about

ordering replacement parts. *These parts are not illustrated.

EXPLODED DRAWING SEARSMODELNO.831.1_791.1;KMAR:MODELNO.WEBE1137.1

39 22

14 33

23_ .- 24 28

,41

RO907A

ORDERING REPLACEMENT PARTS

To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to

provide the following information when contacting us:

• the model number and serial number of the product (see the front cover of this manual)

• the name of the product (see the front cover of this manual)

• the key number and description of the replacement parts(s) (see the PART LIST and the EXPLODED DRAW-

ING near the end of this manual)

LiMiTED WARRANTY

ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and

material, under normal use and service conditions, for a period of ninety (90) days from the date of pur-

chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim-

ited to replacing or repairing, at ICON's option, the product through one of its authorized service centers.

All repairs for which warranty claims are made must be pre-authorized by ICON. If the product is shipped

to a service center, freight charges to and from the service center will be the customer's responsibility. For

in-home service, the customer will be responsible for a minimal trip charge. This warranty does not extend

to any product or damage to a product caused by or attributable to freight damage, abuse, misuse,

improper or abnormal usage or repairs not provided by an ICON authorized service center; products used

for commercial or rental purposes; or products used as store display models. No other warranty beyond

that specifically set forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con-

nection with the use or performance of the product or damages with respect to any economic loss, loss

of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other

consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci-

dental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of

merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth

herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above

limitation may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

ICON HEALTH &FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813

Part 259766 R0907A Printed in China @2007 ICON IP, Inc.

Weider 831157911 User Manual PRO 256 Manuals And Guides L0711521

WEIDER Weight System Manual L0711521 WEIDER Weight System Owner's Manual, WEIDER Weight System installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
