CAUTION

Read all precautions and

instructions in this manual before

using this equipment. Keep this

manual for future reference.

Model No. 831.15968.0

Serial No.

Write the serial number in the space

above for reference.

Sears, Roebuck and Co.

Hoffman Estates, IL 60179

• Assembly

• Operation

• Maintenance

• Part List and Drawing

WEIGHT RACK EXERCISER

8VHU·V0DQXDO

Serial

Number

Decal

2

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

ADJUSTMENT ............................................................................10

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

PART LIST ...............................................................................14

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

90 DAY FULL WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

TABLE OF CONTENTS

Adjust as follows:

WARNING DECAL PLACEMENT

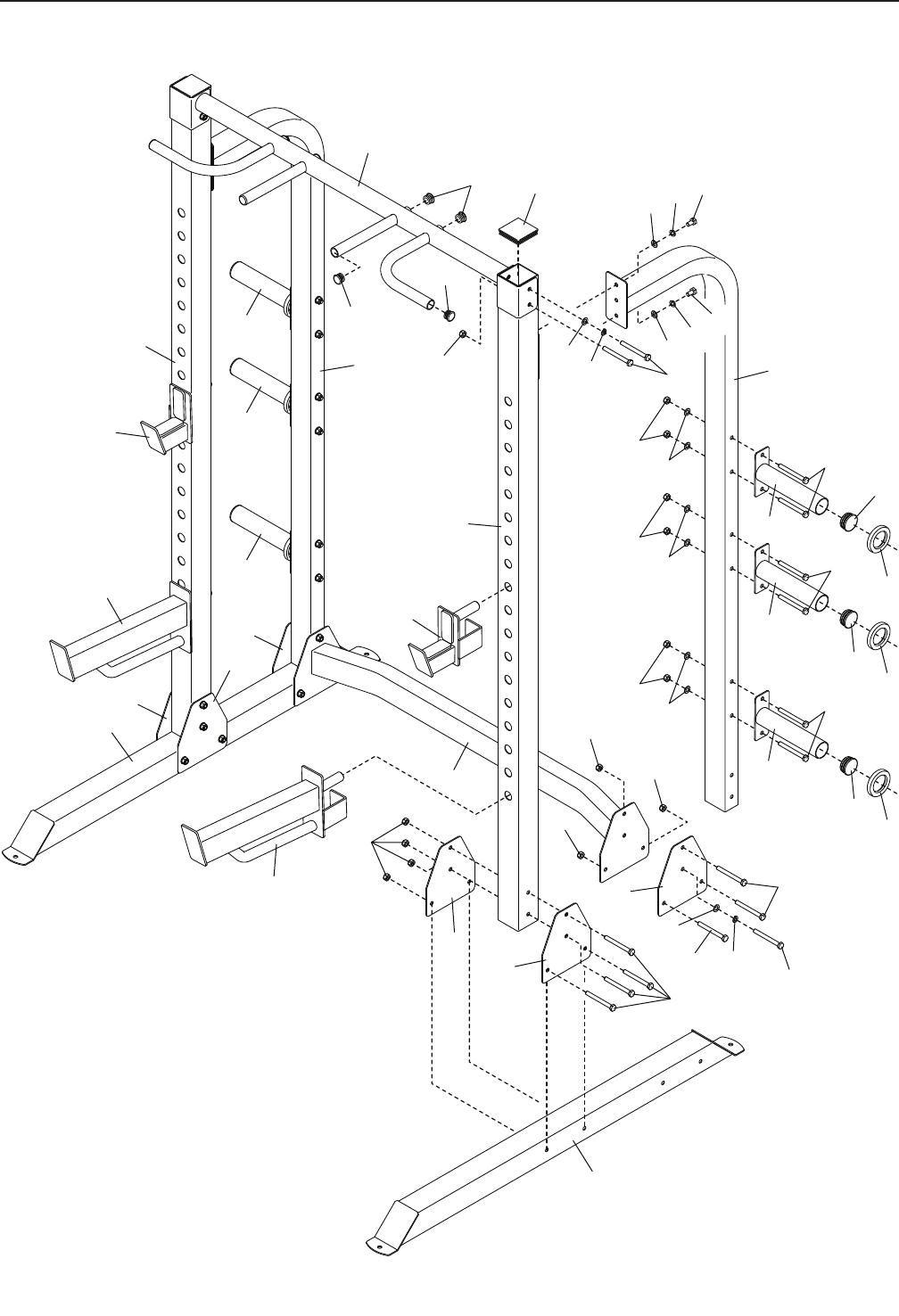

This drawing shows the location(s) of the warning decal(s). If a decal is missing or illegible, call

1-877-992-5999 and request a free replacement decal. Apply the decal in the location shown.

Note: The decal(s) may not be shown at actual size.

3

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on the weight rack before using the weight rack. Sears

assumes no responsibility for personal injury or property damage sustained by or through the use of

this product.

1. It is the responsibility of the owner to ensure

that all users of the weight rack are ade-

quately informed of all precautions

2. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or persons

with pre-existing health problems.

3. The weight rack is not intended for use by

persons with reduced physical, sensory, or

mental capabilities or lack of experience and

knowledge, unless they are given supervi-

sion or instruction about use of the weight

rack by someone responsible for their safety.

4. Use the weight rack only as described in this

manual.

5. The weight rack is intended for home use

only. Do not use the weight rack in any com-

mercial, rental, or institutional setting.

6. Keep the weight rack indoors, away from

moisture and dust. Do not put the weight

rack in a garage or covered patio, or near

water.

7. Place the weight rack on a level surface, with

enough clearance around the weight rack to

mount, dismount, and use the weight rack.

To protect the floor or carpet from damage,

place a mat under the weight rack.

8. Using the four anchor holes to provide

maximum stability, the weight rack must

be anchored to the floor where required or

whenever possible.

9. Inspect and properly tighten all parts each

time the weight rack is used. Replace any

worn parts immediately.

10. Keep children under age 13 and pets away

from the weight rack at all times.

11. Keep hands and feet away from moving

parts.

12. Wear appropriate clothes while exercising;

do not wear loose clothes that could become

caught on the weight rack. Always wear ath-

letic shoes for foot protection while using the

weight rack.

13. The weight rack is designed to support a

maximum user weight of 300 lbs. (136 kg),

and a maximum total weight of 610 lbs. (277

kg). Do not use the weight bench with more

than 310 lbs. (141 kg) of weight, including a

barbell. The pull-up bar is designed to sup-

port a maximum user weight of 300 lbs. (136

kg). Note: The weight rack does not include

weights or a barbell.

14. Always place both weight rests at the same

height and both spotters at the same height.

Make sure that there are at least three adjust-

ment holes between the weight rests and the

spotters.

15. Over exercising may result in serious injury

or death. If you feel faint, if you become short

of breath, or if you experience pain while

exercising, stop immediately and cool down.

4

Thank you for selecting the WEIDER® PRO 7500

weight rack. The PRO 7500 is designed to help

you develop the major muscle groups of your body.

Whether your goal is to tone your body, build dramatic

muscle size and strength, or improve your cardiovas-

cular system, the weight rack will help you to achieve

WKHVSHFLÀFUHVXOWV\RXZDQW

For your benefit, read this manual carefully before

you use the weight rack. If you have questions after

reading this manual, please see the back cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

Before reading further, please familiarize yourself with

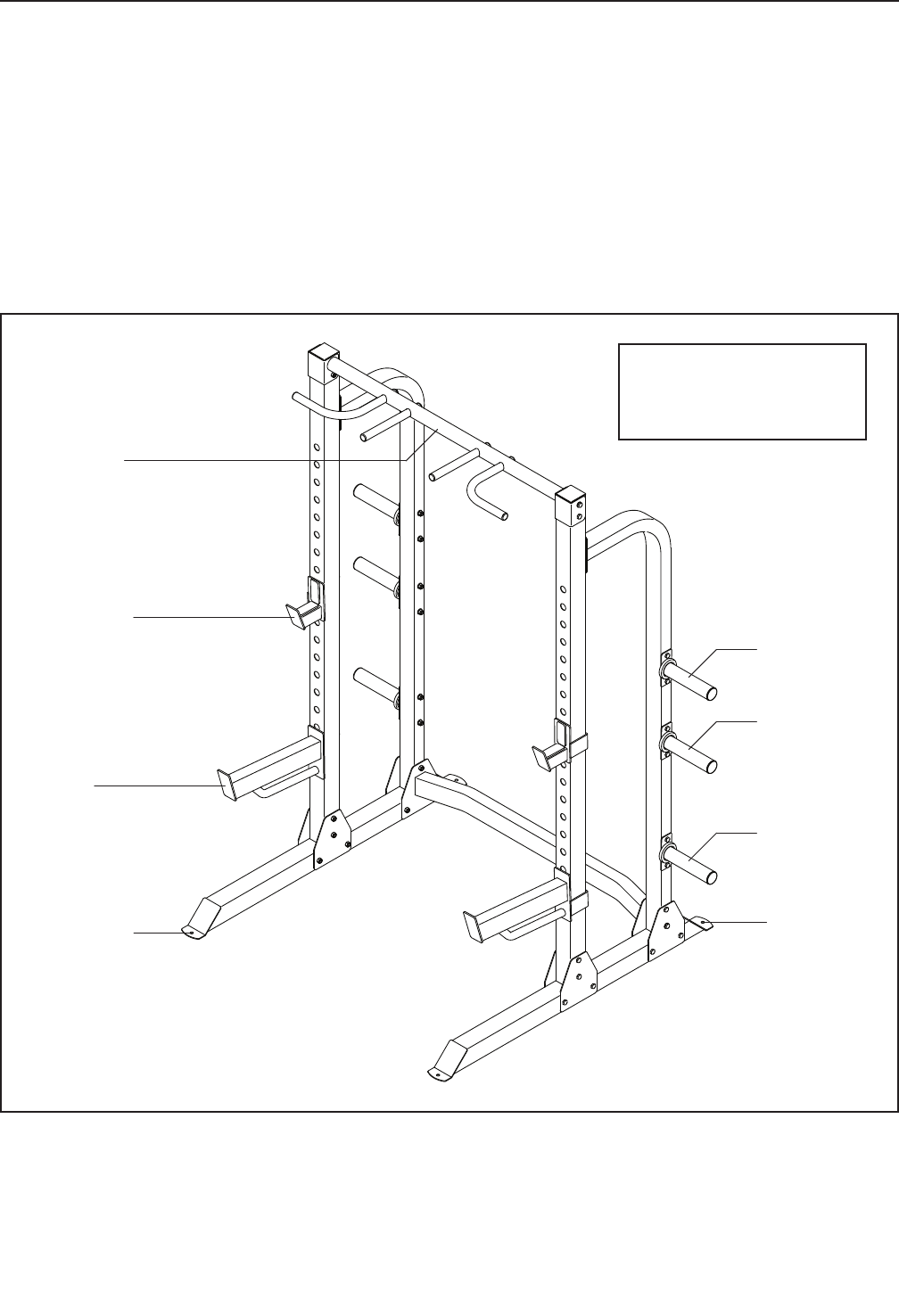

the parts that are labeled in the drawing below.

BEFORE YOU BEGIN

Height: 7 ft. 1 in. (217 cm)

Length: 4 ft. 5 in. (135 cm)

Width: 5 ft. 9 in. (175 cm)

Spotter

Anchor Hole

Anchor Hole

Storage Tube

Weight Rest

Pull-up Bar

Storage Tube

Storage Tube

5

PART IDENTIFICATION CHART

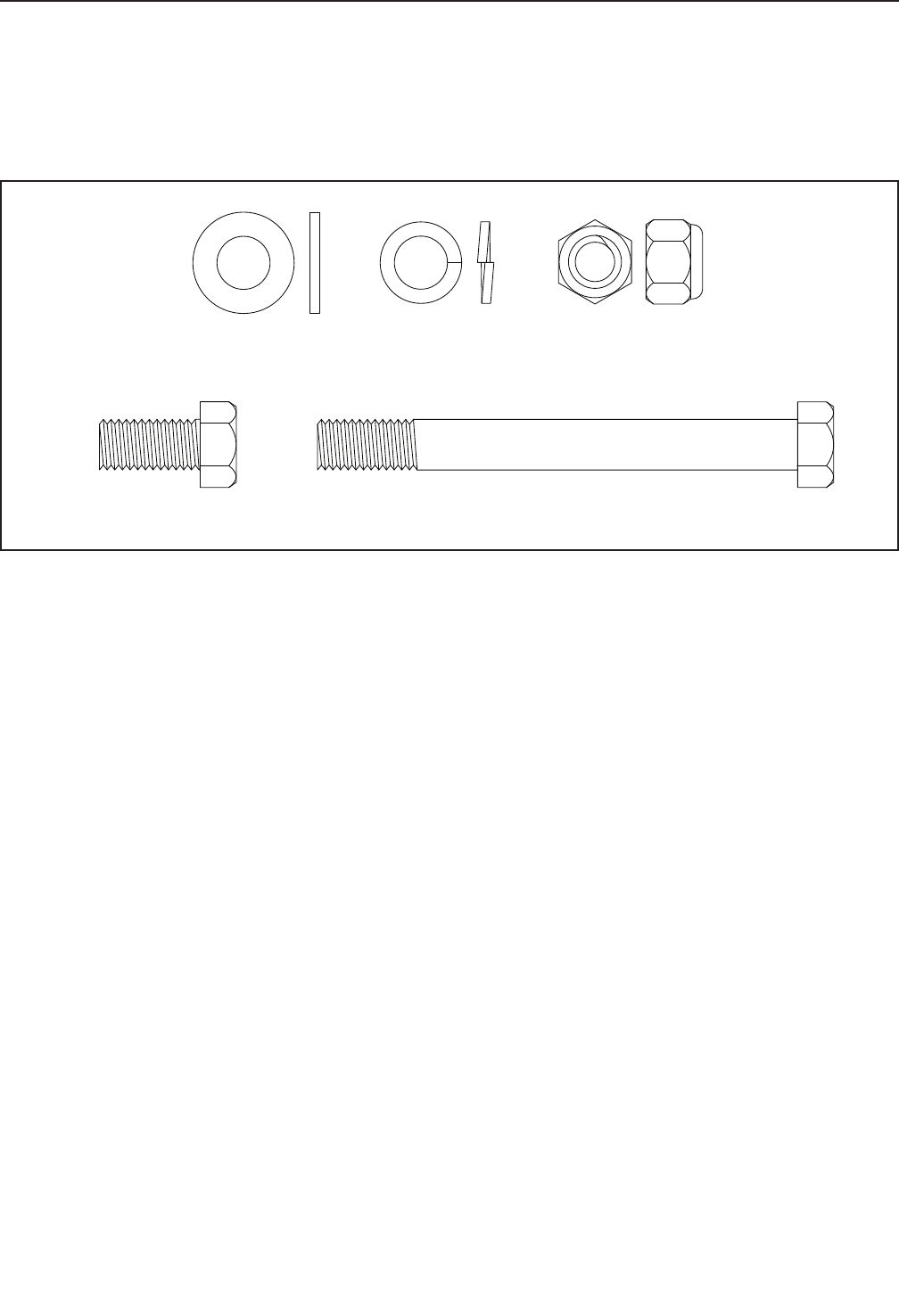

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each

drawing is the key number of the part, from the PART LIST near the end of this manual. Note: If a part is not in

the hardware kit, check to see whether it has been preassembled. Extra hardware may be included. If a

part is missing, call 1-877-992-5999.

M10 x 95mm Bolt (19)–32

M10 x 20mm Screw (22)–4

M10 Split Washer

(23)–8

M10 Washer

(20)–20

M10 Locknut

(21)–28

6

ASSEMBLY

• Assembly requires two persons.

• Because of its weight and size, assemble the

weight rack in the location where it will be used.

Make sure that there is enough clearance to walk

around the weight rack as you assemble it.

• Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

PDWHULDOVXQWLO\RXÀQLVKDOODVVHPEO\VWHSV

• To identify small parts, see page 5.

• Left parts are marked “L” or “Left” and right parts

are marked “R” or “Right.”

• In addition to the included tool(s), assembly

requires the following tools:

two adjustable wrenches

Assembly may be easier if you have a set of

wrenches. To avoid damaging parts, do not use

power tools.

1. Go to www.weiderservice.com/registration on

your computer and register your product.

• activates your warranty

• saves you time if you ever need to contact

Customer Care

• allows us to notify you of upgrades and offers

Note: If you do not have internet access, call

1-877-992-5999 and register your product.

1

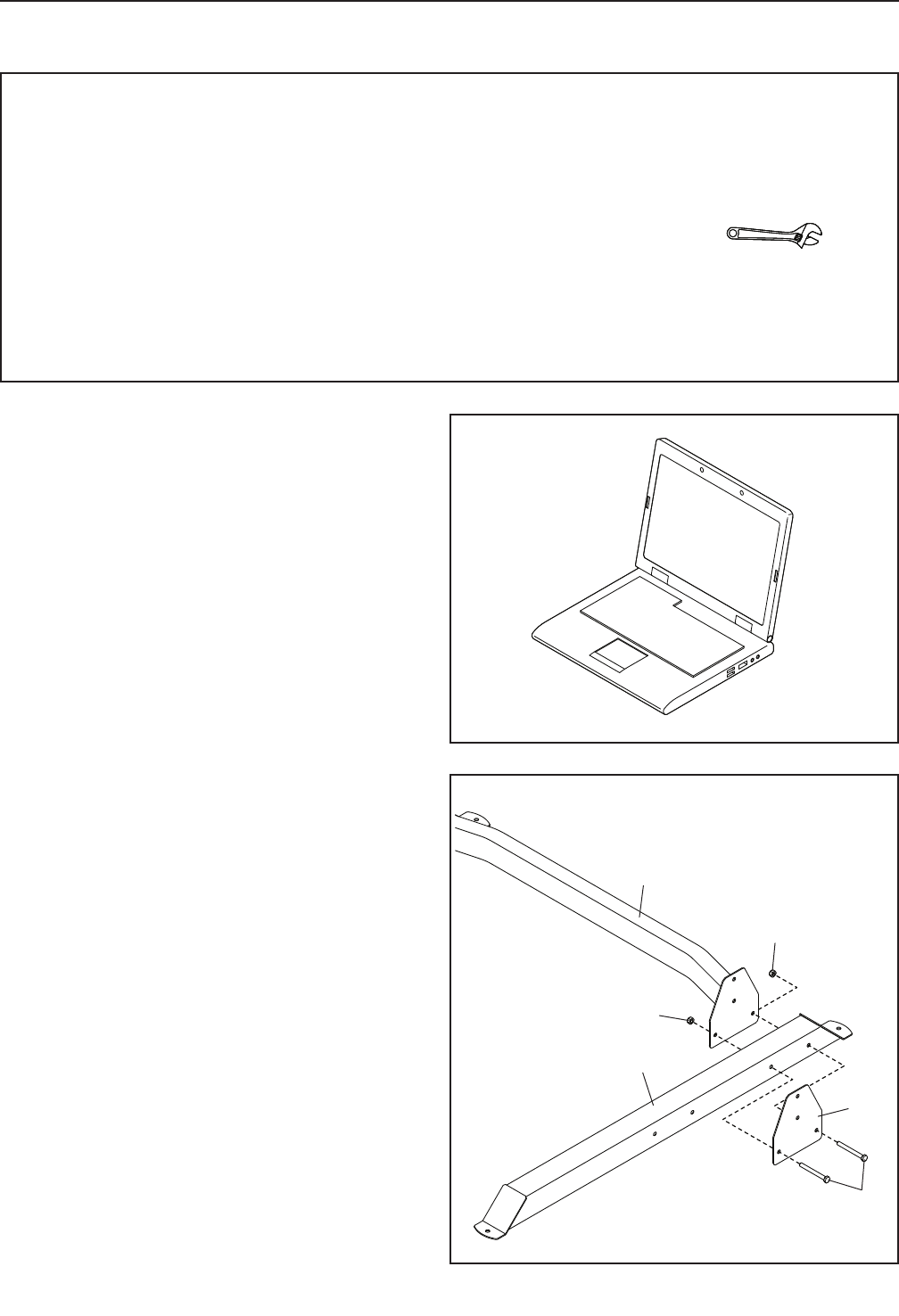

2. Identify the Crossbar (7) and the Right Base (1),

and orient them as shown.

Attach the Right Base (1) to the Crossbar (7)

with two M10 x 95mm Bolts (19), a Support Plate

(13), and two M10 Locknuts (21); do not fully

tighten the Locknuts yet.

Attach the Left Base (not shown) to the other

end of the Crossbar (7) in the same way.

7

21

21

1

13

19

2

7

3

4

3. Identify the Right Rear Upright (5) and orient it

as shown.

Attach the Right Rear Upright (5) to the

Crossbar (7) and the Support Plate (13) with two

M10 x 95mm Bolts (19), an M10 Split Washer

(23), an M10 Washer (20), and an M10 Locknut

(21); do not fully tighten the Bolts yet.

Attach the Left Rear Upright (not shown) to

the other side of the weight rack in the same

way.

4. Identify the Right Front Upright (3) and orient it

so that the indicated holes (A) are in the position

shown.

Attach the Right Front Upright (3) to the Right

Base (1) with four M10 x 95mm Bolts (19), two

Support Plates (13), and four M10 Locknuts (21);

do not fully tighten the Locknuts yet.

Attach the Left Front Upright (not shown) to

the other side of the weight rack in the same

way.

5

19

3

A

1

13

13

19

21

23

20

13

21

7

8

5

5. Attach the Right Rear Upright (5) to the Right

Front Upright (3) with two M10 x 20mm Screws

(22), two M10 Split Washers (23), and two M10

Washers (20); do not fully tighten the Screws

yet.

Repeat this step on the other side of the

weight rack.

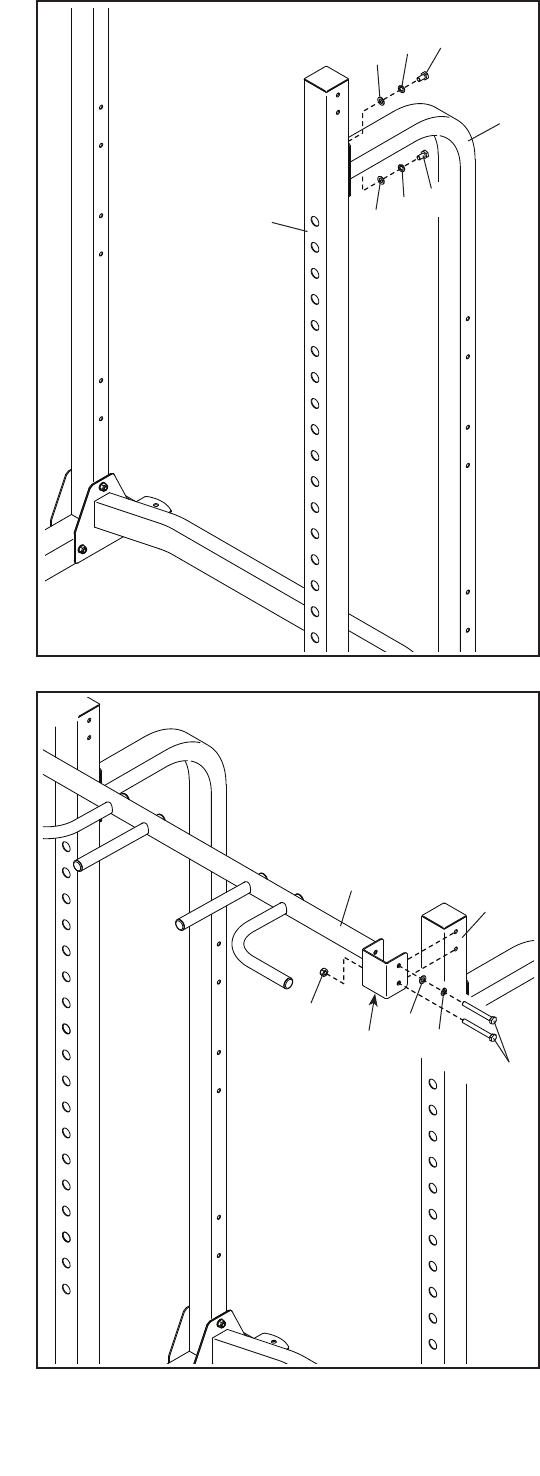

6. Identify the Pull-up Bar (8) and orient it so that

the long side of the bracket (B) is in the indi-

cated location.

Attach the Pull-up Bar (8) to the Right Front

Upright (3) with two M10 x 95mm Bolts (19), an

M10 Split Washer (23), an M10 Washer (20),

and an M10 Locknut (21); do not fully tighten

the Bolts yet.

Repeat this step on the other side of the

weight rack.

22

22

19

8

23

23

23

20

20

20

21

5

3

3

B

6

9

7

8

9. Make sure that all parts of the weight rack are properly tightened. Extra parts may be included. Place a

mat under the weight rack to protect the floor.

5

14

14

14

9

11

19

20

21

16

7. See steps 2–6. Tighten all the M10 Locknuts

(21), M10 x 95mm Bolts (19), and M10 x 20mm

Screws (22).

Next, attach a Storage Tube (14) to the Right

Rear Upright (5) with two M10 x 95mm Bolts

(19), two M10 Washers (20), and two M10

Locknuts (21).

Then, slide a Bumper (16) onto the Storage

Tube (14).

Attach two more Storage Tubes (14) to the

Right Rear Upright (5) in the same way.

Repeat this step on the other side of the

weight rack.

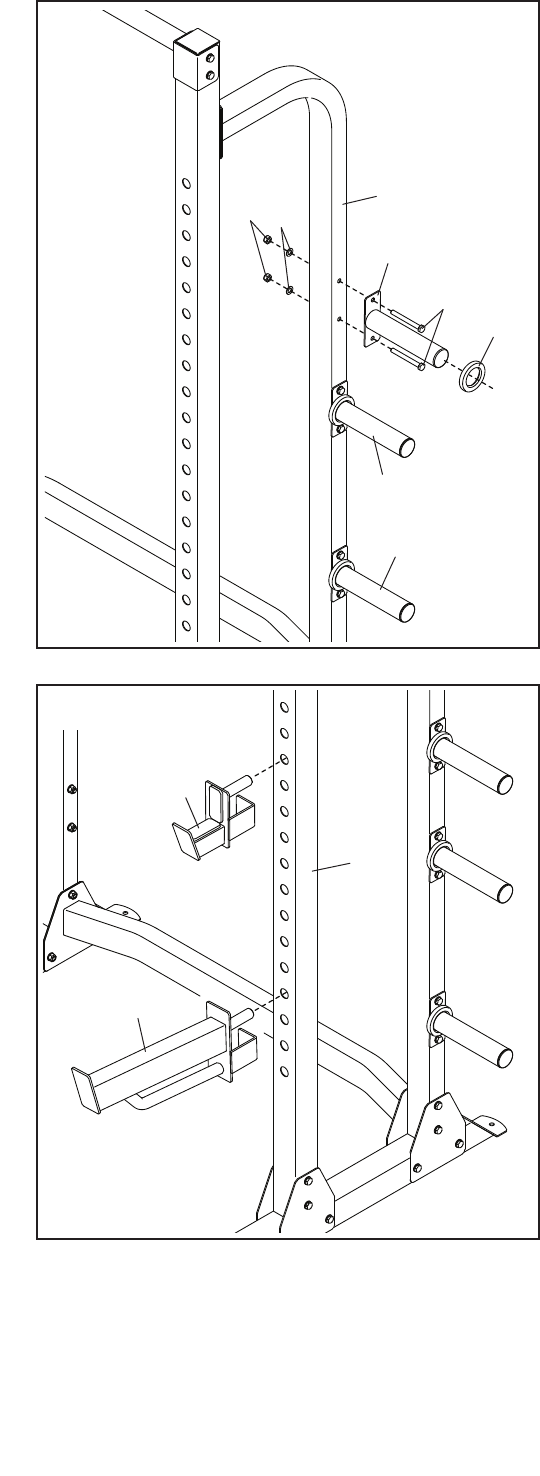

8. Insert the Right Weight Rest (9) into the desired

adjustment hole in the Right Front Upright

(3). Then, insert the Right Spotter (11) into an

adjustment hole below the Right Weight Rest.

Repeat this step on the other side of the

weight rack.

Make sure to insert both Weight Rests (9, 10

[not shown]) and both Spotters (11, 12 [not

shown]) at the same height.

3

10

ADJUSTMENT

This section explains how to adjust the weight rack. See the EXERCISE GUIDELINES on page 11 for important

LQIRUPDWLRQDERXWKRZWRJHWWKHPRVWEHQHÀWIURP\RXUH[HUFLVHSURJUDP$OVRUHIHUWRWKHDFFRPSDQ\LQJH[HU-

cise guide to see the correct form for several exercises.

ADJUSTING THE WEIGHT RESTS AND THE

SPOTTERS

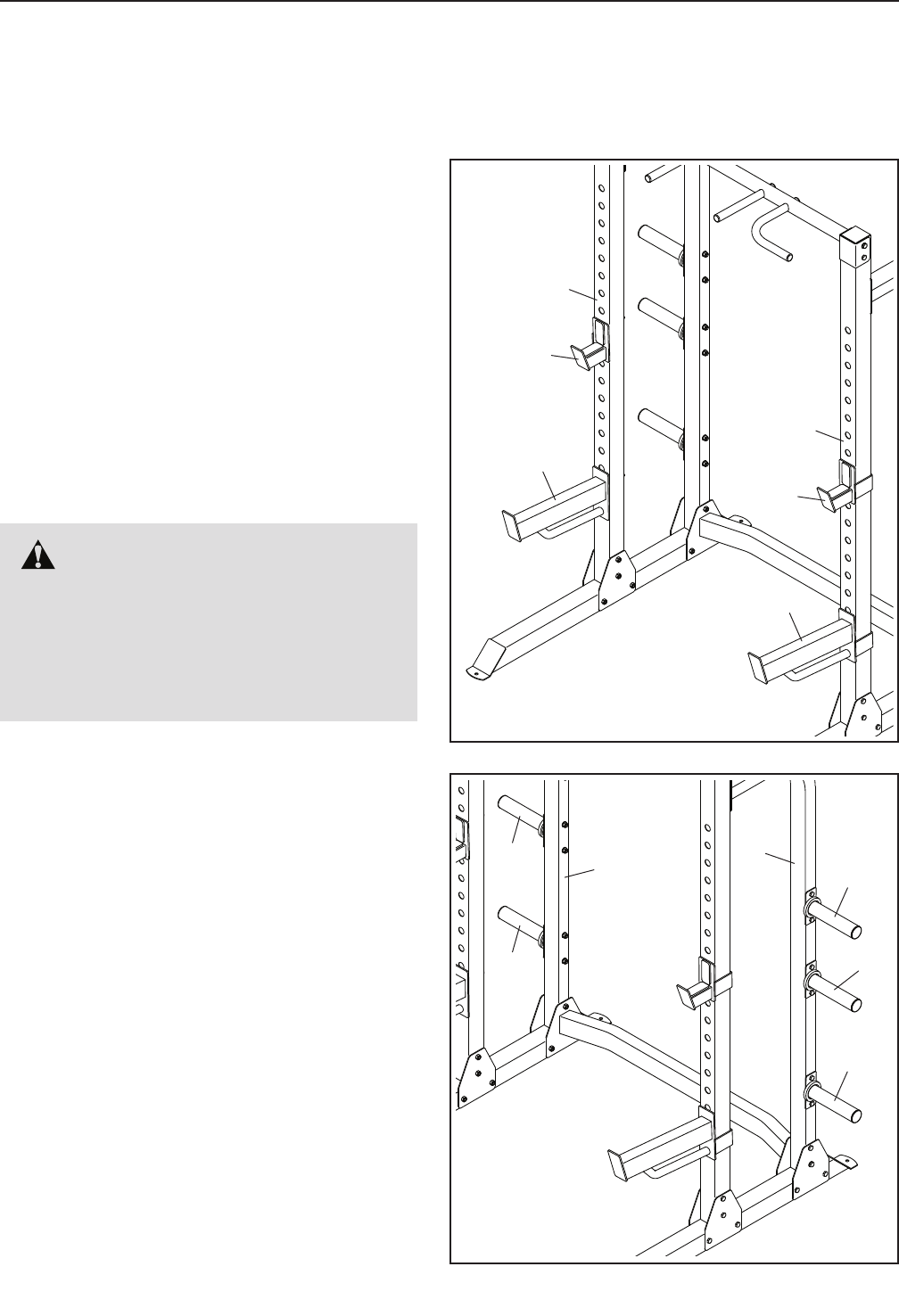

To adjust the height of the Weight Rests (9, 10), first

remove the Weight Rests from the Front Uprights (3,

4), and then insert them into the desired adjustment

holes in the Uprights. Make sure that the Weight

Rests are at the same height.

To adjust the height of the Spotters (11, 12), first

remove the Spotters from the Front Uprights (3, 4),

and then insert them into the desired adjustment

holes in the Uprights. Make sure that the Spotters

are at the same height and make sure that there

are at least three adjustment holes between the

Weight Rests and the Spotters.

WARNING: Do not place more

than 310 lbs. (141 kg) on the Weight Rests

(9, 10). Always place both Weight Rests at

the same height and both Spotters (11, 12)

at the same height. Make sure that there are

at least three adjustment holes between the

Weight Rests and the Spotters.

12

10

4

6

5

STORING WEIGHTS

Store weights (not included) by placing them on the

Storage Tubes (14) on the Rear Uprights (5, 6).

14

14

11

9

3

14

14

14

11

EXERCISE GUIDELINES

FOUR TYPES OF STRENGTH WORKOUTS

Note: A “repetition” is one complete cycle of an

exercise, such as one sit-up. A “set” is a series of

repetitions.

Muscle Building—Work your muscles near their maxi-

mum capacity and progressively increase the intensity

of your exercise. Adjust the intensity level of an indi-

vidual exercise as follows:

• Change the amount of resistance used.

• Change the number of repetitions or sets performed.

Use your own judgment to determine the amount of

resistance that is right for you. Begin with 3 sets of 8

repetitions for each exercise you perform. Rest for 3

minutes after each set. When you can complete 3 sets

of 12 repetitions without difficulty, increase the amount

of resistance.

Toning—Tone your muscles by working them to a

moderate percentage of their capacity. Select a moder-

ate amount of resistance and increase the number of

repetitions in each set. Complete as many sets of 15 to

20 repetitions as possible without discomfort. Rest for

1 minute after each set. Work your muscles by com-

pleting more sets rather than by using high amounts of

resistance.

Weight Loss—To lose weight, use a low amount of

resistance and increase the number of repetitions in

each set. Exercise for 20 to 30 minutes, resting for a

maximum of 30 seconds between sets.

Cross Training—Combine strength training and aero-

bic exercise by following this type of program:

• Strength training workouts on Monday, Wednesday,

and Friday.

• 20 to 30 minutes of aerobic exercise on Tuesday and

Thursday.

• One full day of rest each week to give your body time

to regenerate.

WORKOUT GUIDELINES

Familiarize yourself with the equipment and learn the

proper form for each exercise. Use your own judgment

to determine the appropriate length of time for each

workout, and the numbers of repetitions and sets to

complete. Progress at your own pace and be sensi-

WLYHWR\RXUERG\·VVLJQDOV)ROORZHDFKZRUNRXWZLWKDW

least one day of rest.

Warming Up—Start with 5 to 10 minutes of stretch-

ing and light exercise. A warm-up increases your body

temperature, heart rate, and circulation in preparation

for exercise.

Working Out—Include 6 to 10 different exercises in

each workout. Select exercises for every major muscle

group, emphasizing areas that you want to develop.

To give balance and variety to your workouts, vary the

exercises from workout to workout.

Cooling Down—Finish with 5 to 10 minutes of stretch-

ing. Stretching increases the flexibility of your muscles

and helps to prevent post-exercise problems.

EXERCISE FORM

Move through the full range of motion for each exer-

cise and move only the appropriate parts of the body.

Perform the repetitions in each set smoothly and

without pausing. The exertion stage of each repeti-

tion should last about half as long as the return stage.

Exhale during the exertion stage of each repetition and

inhale during the return stroke. Never hold your breath.

Rest for a short period of time after each set:

• Muscle Building—Rest for three minutes after each

set.

• Toning—Rest for one minute after each set.

• Weight Loss—Rest for 30 seconds after each set.

STAYING MOTIVATED

For motivation, keep a record of each workout. Write

the date, the exercises performed, the resistance used,

and the numbers of sets and repetitions completed.

Record your weight and key body measurements once

a month. To achieve good results, make exercise a

regular and enjoyable part of your life.

12

EXERCISE LOG

Make copies of this page, and use the copies to schedule and record your strength and aerobic workouts.

Scheduling and recording your workouts will help you to make exercise a regular and enjoyable part of your life.

Exercise Lbs. Sets Reps Exercise Lbs. Sets Reps

1. 6.

2. 7.

3. 8.

4. 9.

5. 10.

Strength

Date:

Exercise Lbs. Sets Reps Exercise Lbs. Sets Reps

1. 6.

2. 7.

3. 8.

4. 9.

5. 10.

Exercise Lbs. Sets Reps Exercise Lbs. Sets Reps

1. 6.

2. 7.

3. 8.

4. 9.

5. 10.

Strength

Date:

Strength

Date:

Exercise Time Distance Speed

Aerobic

Date:

Exercise Time Distance Speed

Aerobic

Date:

Exercise Time Distance Speed

Aerobic

Date:

13

NOTES

14

Key No. Qty. Description Key No. Qty. Description

1 1 Right Base

2 1 Left Base

3 1 Right Front Upright

4 1 Left Front Upright

5 1 Right Rear Upright

6 1 Left Rear Upright

7 1 Crossbar

8 1 Pull-up Bar

9 1 Right Weight Rest

10 1 Left Weight Rest

11 1 Right Spotter

12 1 Left Spotter

13 6 Support Plate

14 6 Storage Tube

15 6 Large Round Cap

16 6 Bumper

17 2 Square Cap

18 8 Small Round Cap

19 32 M10 x 95mm Bolt

20 20 M10 Washer

21 28 M10 Locknut

22 4 M10 x 20mm Screw

23 8 M10 Split Washer

  ² 8VHU·V0DQXDO

Note: Specifications are subject to change without notice. For information about ordering replacement parts, see

the back cover of this manual. If a part is missing, call 1-877-992-5999. *These parts are not illustrated.

PART LIST Model No. 831.15968.0 R0716A

15

1

3

6

8

10

12

5

2

4

7

9

11

16

18

18

18

19

19

13

13

13

13

15

17

20

20

20

20

21

21

23

23

23

22

14

16

19

15

20

21

16

19

19

19

19

15

20

20

21

21

14

14

23

22

19

21

21

21

13

13

14

14

14

EXPLODED DRAWING Model No. 831.15968.0 R0716A

Part No. 386036 R0716A Printed in China © 2016 ICON Health & Fitness, Inc.

If this Sears Weight Rack Exerciser fails due to a defect in material or workmanship within 90 days of the

date of purchase, call 1-800-4-MY-HOME® (1-800-469-4663) to arrange for free repair (or replacement if

repair proves impossible).

This warranty does not apply when the Weight Rack Exerciser is used commercially or for rental

purposes. This warranty gives you specific legal rights, and you may also have other rights which vary

from state to state.

Sears, Roebuck and Co., Hoffman Estates, IL 60179

90 DAY FULL WARRANTY
