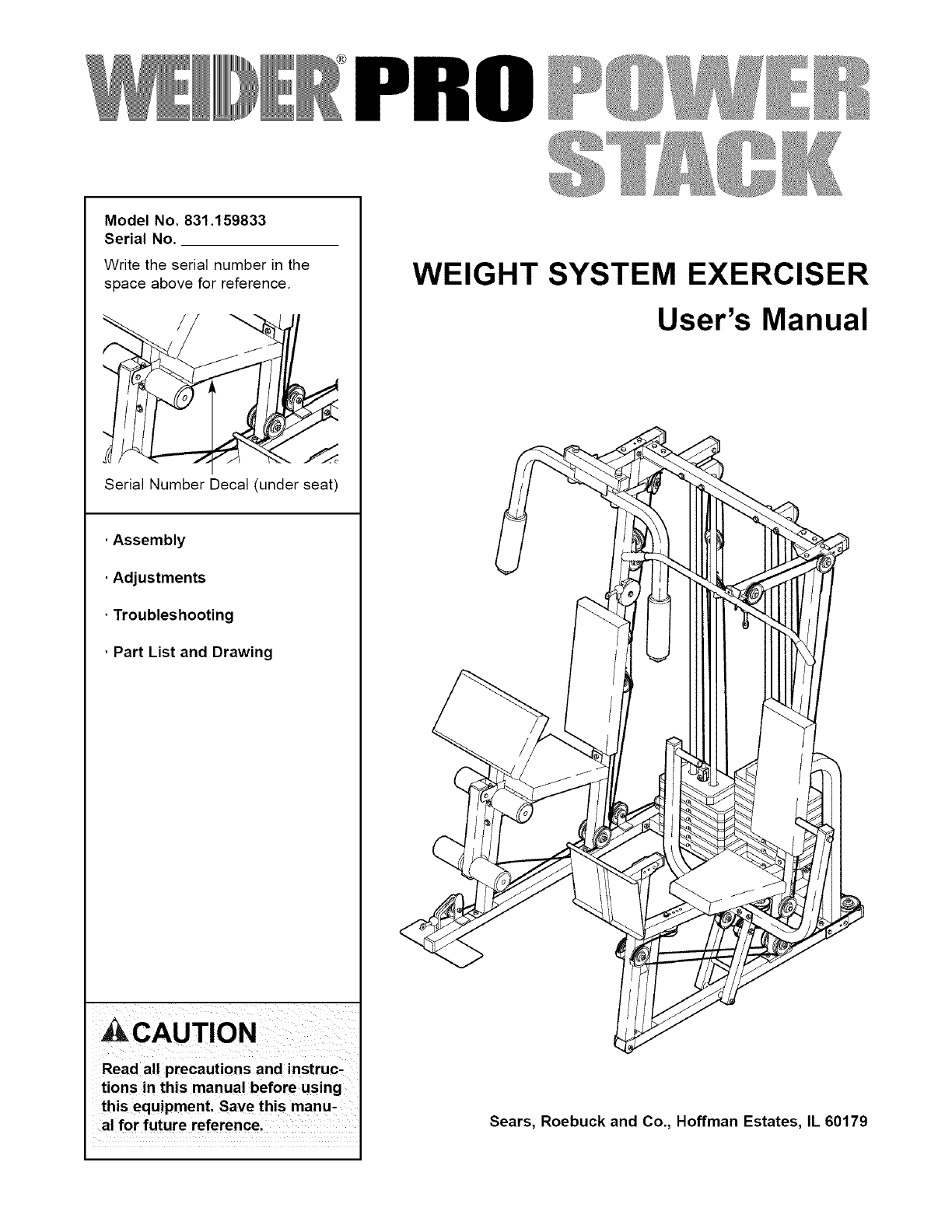

PRO

Model No• 831•159833

Serial No.

Write the serial number in the

space above for reference.

Serial Number Decal under seat)

• Assembly

• Adjustments

•Troubleshooting

• Part List and Drawing

_kCAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment• Save this manu-

al for future reference.

WEIGHT SYSTEM EXERCISER

User's Manual

Sears, Roebuck and Co., Hoffman Estates, IL 60179

PRO

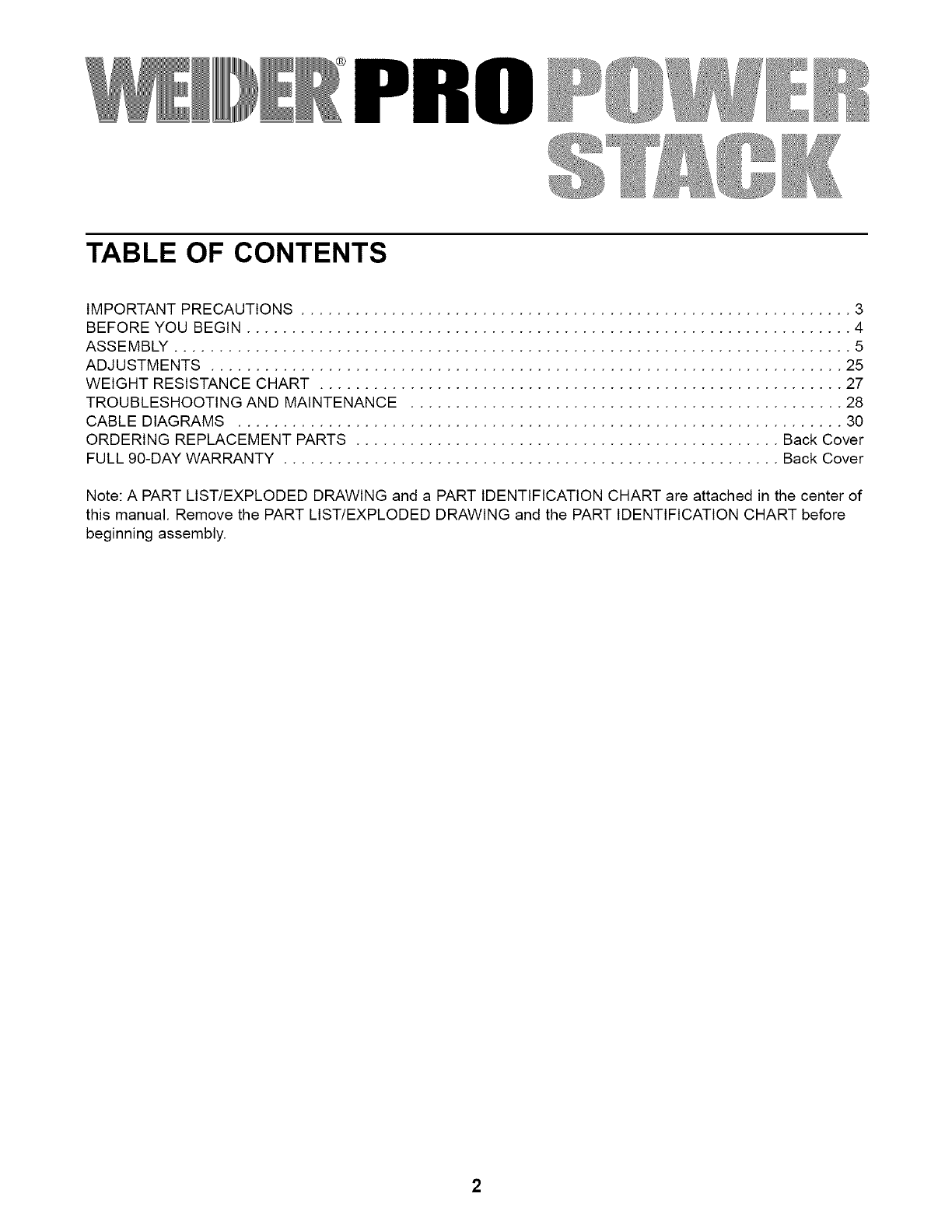

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS ............................................................. 3

BEFORE YOU BEGIN ................................................................... 4

ASSEMBLY ........................................................................... 5

ADJUSTMENTS ...................................................................... 25

WEIGHT RESISTANCE CHART .......................................................... 27

TROUBLESHOOTING AND MAINTENANCE ................................................ 28

CABLE DIAGRAMS ................................................................... 30

ORDERING REPLACEMENT PARTS ............................................... Back Cover

FULL 90-DAY WARRANTY ....................................................... Back Cover

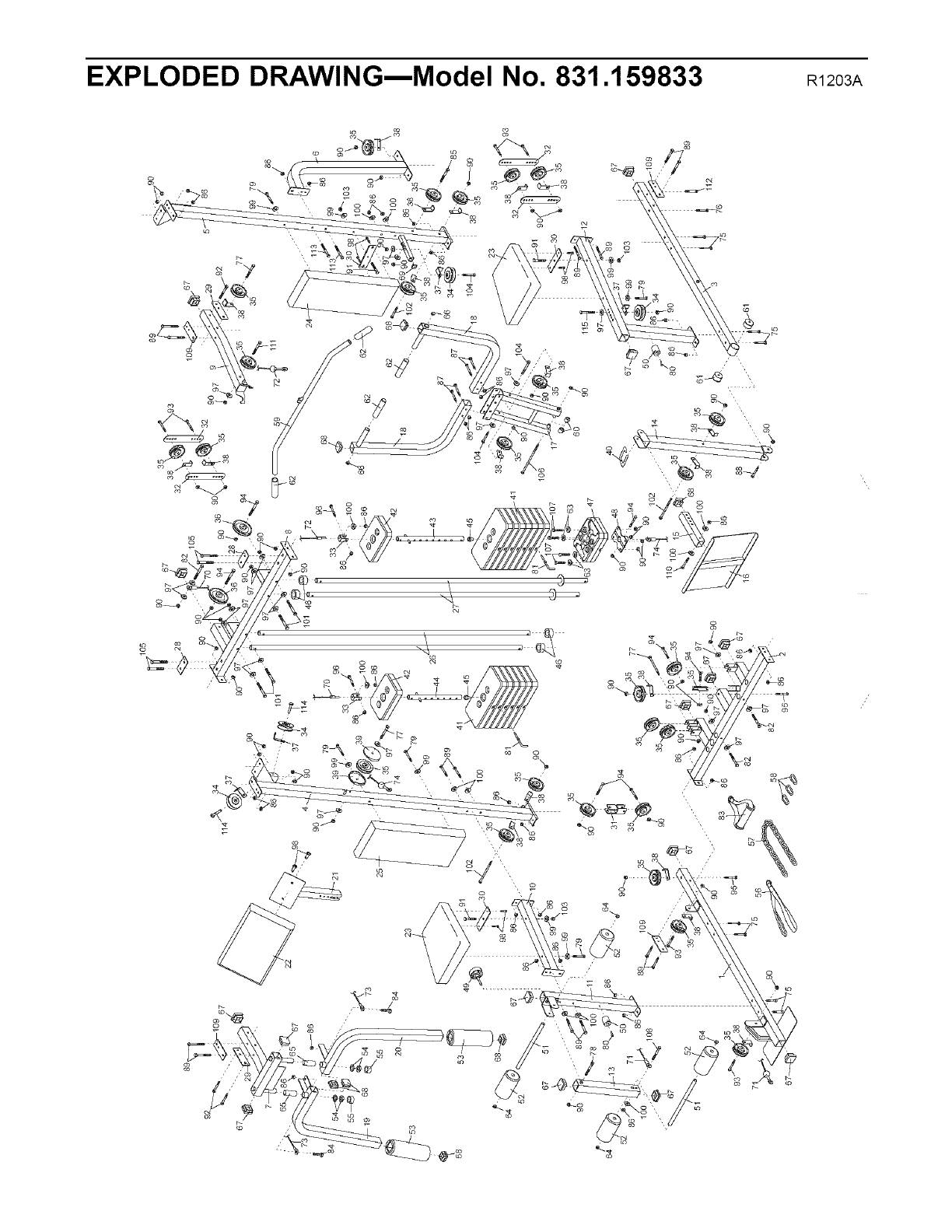

Note: A PART LIST/EXPLODED DRAWING and a PART IDENTIFICATION CHART are attached in the center of

this manual. Remove the PART LIST/EXPLODED DRAWING and the PART IDENTIFICATION CHART before

beginning assembly.

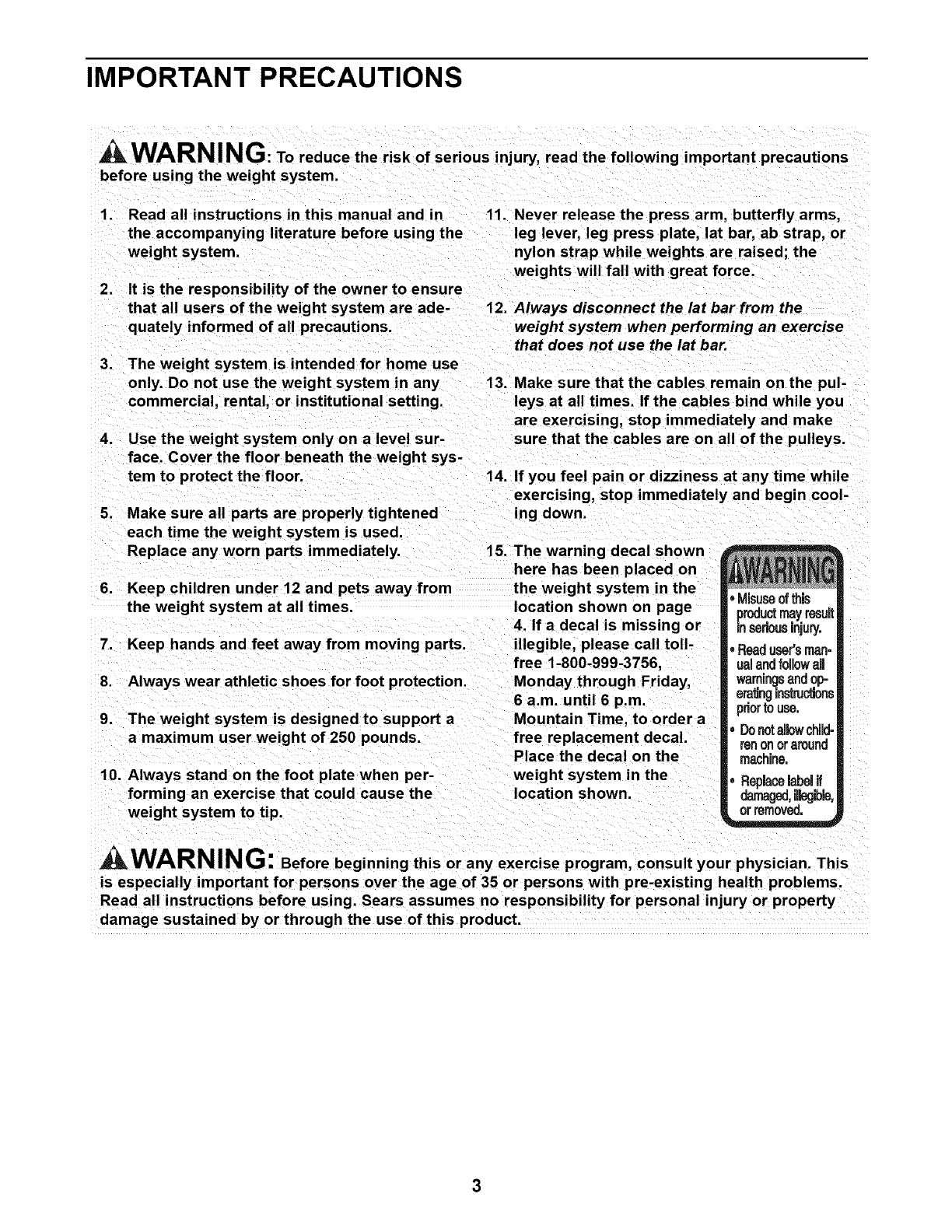

IMPORTANT PRECAUTIONS

J.L WARNING: To reduce the risk of serious injury, read the following important precautions

before using the weight system.

1. Read all instructions in this manual and in 11. Never release the press arm, butterfly arms,

the accompanying literature before using the leg lever, leg press plate, lat bar, ab strap, or

weight system, nylon strap while weights are raised; the

weights will fall with great force.

It is the responsibility of the owner to ensure

that all users of the weight system are ado- 12. Always disconnect the lat bar from the

quately informed of all precautions, weight system when performing an exercise

The weight system is intended for home use

only. Do not use the weight system in any

commercial, rental, or institutional setting.

that does not use the lat bar.

13. Make sure that the cables remain on the pul-

leys at all times. If the cables bind while you

are exercising, stop immediately and make

Use the weight system only on a level sur- sure that the cables are on all of the pulleys.

face. Cover the floor beneath the weight sys-

tem to protect the floor, 14. If you feel pain or dizziness at any time while

exercising, stop immediately and begin cool-

5. Make sure all parts are properly tightened

each time the weight system is used.

Replace any worn parts immediately.

ing down,

15. The warning decal shown

here has been placed on

the weight system in the

location shown on page

6. Keep children under 12 and pets away from

the weight system at all times.

4. If a decal is missing or

7. Keep hands and feet away from moving parts, illegible, please call toll-

free 1-800-999-3756,

8. Always wear athletic shoes for foot protection. Monday through Friday,

6 a.m. until 6 p.m.

9. The weight system is designed to support a Mountain Time, to order a

a maximum user weight of 250 pounds, free replacement decal.

Place the decal on the

10. Always stand on the foot plate when per- weight system in the

forming an exercise that could cause the location shown.

weight system to tip.

Misuseofthis

productm.ay.result

insen0usinjury.

=Readuser'sman-

ualandfoil0wall

Namin_sand0p

.=raenginstruc_0ns

_dortouse,

Donotallowchild-

renOn oraround

machine,

Replacelabelif

damaged,illegible,

orr0m0ved.

WARNIN G: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. Sears assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

BEFORE YOU BEGIN

Thank you for selecting the innovative and versatile

WELDER ®PRO POWER STACK weight system. The

weight system offers a unique selection of weight sta-

tions designed to develop every major muscle group of

the body. Whether your goal is to tone your body, build

dramatic muscle size and strength, or improve your

cardiovascular system, the weight system will help you

to achieve the results you want.

For your benefit, read this manual carefully before

using the weight system. If you have questions after

reading this manual, call 1-800-4-MY-HOME ®

(1-800-469-4663). To help us assist you, please note

the product model number and serial number before

calling. The model number is 831.159833. The serial

number can be found on a decal attached to the

weight system (see the front cover of this manual for

the location of the decal).

Please use the drawing below to familiarize your-

self with the major parts and how they fit together.

Butterfly Arm

Ab Pulley

Station

Backrest

Curl Pad

Seat

Weig

Leg Lever

Low Pulley

Station --

Foot Plate

ASSEMBLED

DIMENSIONS:

Height: 77 in.

Width: 80 in.

Depth: 59 in.

High Pulley

Station

Lat Bar

Warning

-- Decal

Backrest

Press Arm

Seat

Leg Press Plate

Leg Press Lever

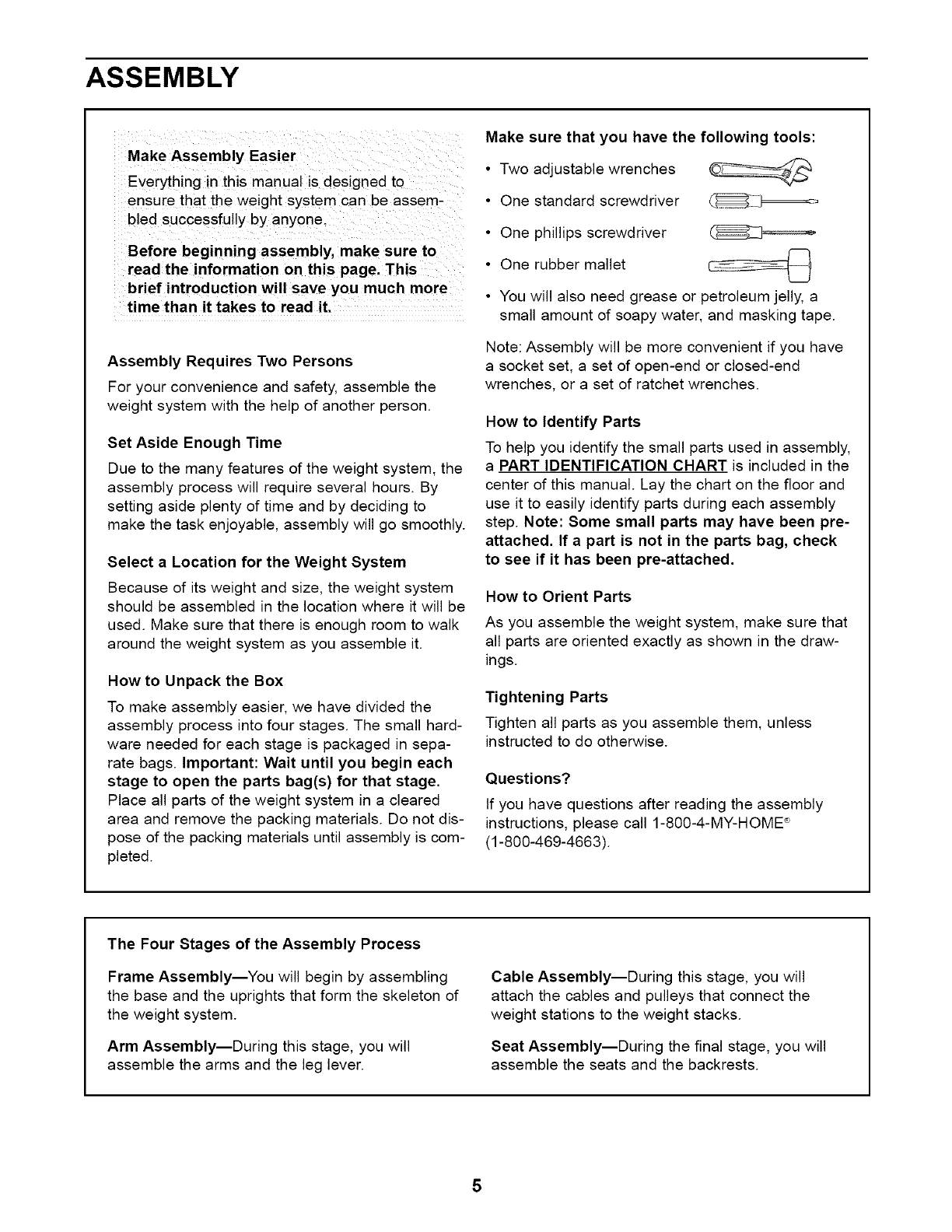

ASSEMBLY

Make Assembly Easier

Everything in this manual is designed to

ensure that the weight system can be assem-

bled successfully by anyone.

Before beginning assembly, make sure to

read the information on this page. This

brief introduction will save you much more

time than it takes to read it,

Assembly Requires Two Persons

For your convenience and safety, assemble the

weight system with the help of another person.

Set Aside Enough Time

Due to the many features of the weight system, the

assembly process will require several hours. By

setting aside plenty of time and by deciding to

make the task enjoyable, assembly will go smoothly.

Select a Location for the Weight System

Because of its weight and size, the weight system

should be assembled in the location where it will be

used. Make sure that there is enough room to walk

around the weight system as you assemble it.

How to Unpack the Box

To make assembly easier, we have divided the

assembly process into four stages. The small hard-

ware needed for each stage is packaged in sepa-

rate bags. Important: Wait until you begin each

stage to open the parts bag(s) for that stage.

Place all parts of the weight system in a cleared

area and remove the packing materials. Do not dis-

pose of the packing materials until assembly is com-

pleted.

Make sure that you have the following tools:

•Two adjustable wrenches

• One standard screwdriver _i?_}_

• One phillips screwdriver

• One rubber mallet _t

• You will also need grease or petroleum jelly, a

small amount of soapy water, and masking tape.

Note: Assembly will be more convenient if you have

a socket set, a set of open-end or closed-end

wrenches, or a set of ratchet wrenches.

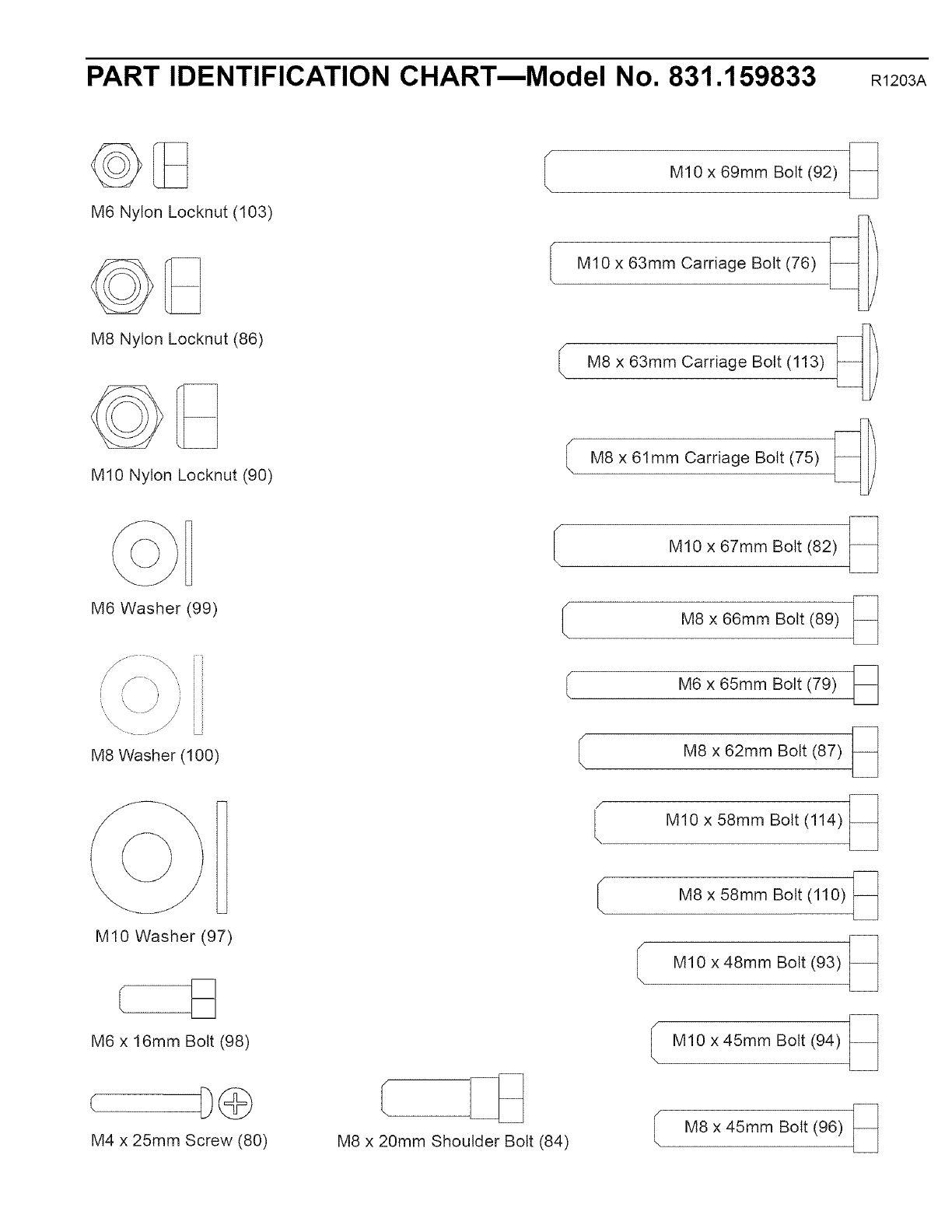

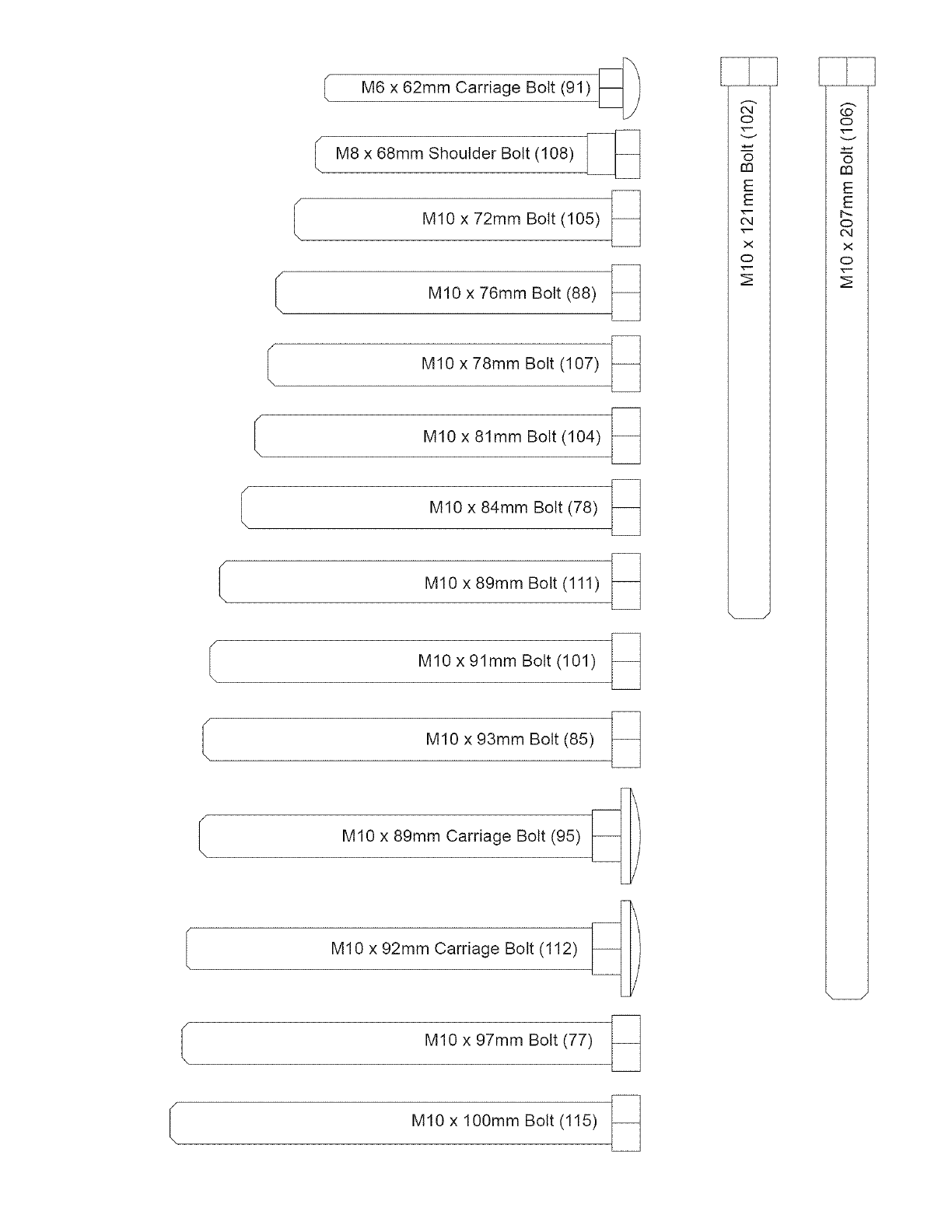

How to Identify Parts

To help you identify the small parts used in assembly,

a PART IDENTIFICATION CHART is included in the

center of this manual. Lay the chart on the floor and

use it to easily identify parts during each assembly

step. Note: Some small parts may have been pre-

attached. If a part is not in the parts bag, check

to see if it has been pre-attached.

How to Orient Parts

As you assemble the weight system, make sure that

all parts are oriented exactly as shown in the draw-

ings.

Tightening Parts

Tighten all parts as you assemble them, unless

instructed to do otherwise.

Questions?

If you have questions after reading the assembly

instructions, please call 1-800-4-MY-HOME ®

(1-800-469-4663).

The Four Stages of the Assembly Process

Frame Assembly--You will begin by assembling

the base and the uprights that form the skeleton of

the weight system.

Arm Assembly--During this stage, you will

assemble the arms and the leg lever.

Cable Assembly--During this stage, you will

attach the cables and pulleys that connect the

weight stations to the weight stacks.

Seat Assembly--During the final stage, you will

assemble the seats and the backrests.

Before beginning, be sure that you have read

and understood the information on page 5.

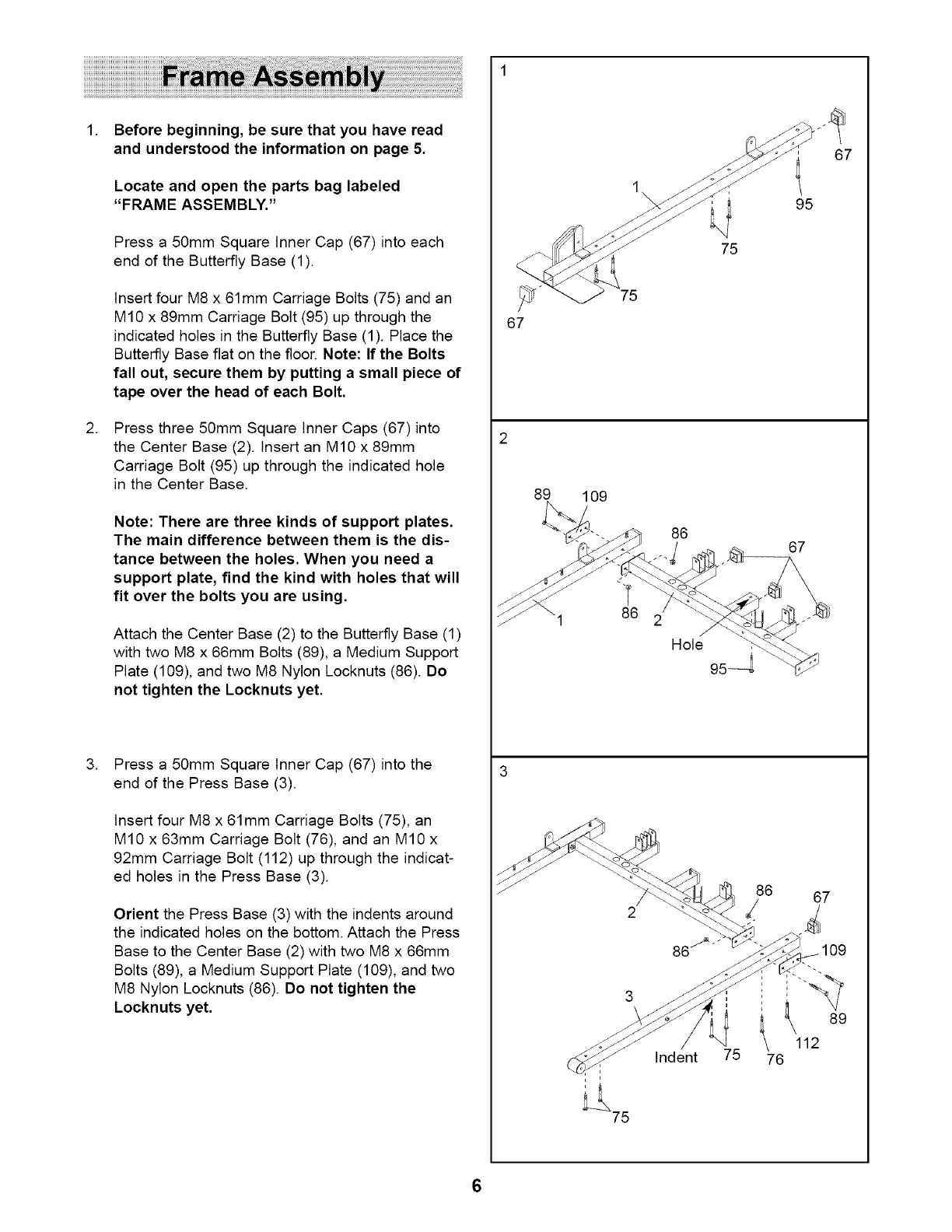

Locate and open the parts bag labeled

"FRAME ASSEMBLY."

Press a 5Omm Square Inner Cap (67) into each

end of the Butterfly Base (1).

Insert four M8 x 61mm Carriage Bolts (75) and an

M10 x 89mm Carriage Bolt (95) up through the

indicated holes in the Butterfly Base (1). Place the

Butterfly Base flat on the floor. Note: If the Bolts

fall out, secure them by putting a small piece of

tape over the head of each Bolt.

Press three 50mm Square Inner Caps (67) into

the Center Base (2). Insert an M10 x 89mm

Carriage Bolt (95) up through the indicated hole

in the Center Base.

Note: There are three kinds of support plates.

The main difference between them is the dis-

tance between the holes. When you need a

support plate, find the kind with holes that will

fit over the bolts you are using.

Attach the Center Base (2) to the Butterfly Base (1)

with two M8 x 66mm Bolts (89), a Medium Support

Plate (109), and two M8 Nylon Locknuts (86). Do

not tighten the Locknuts yet.

Press a 50mm Square Inner Cap (67) into the

end of the Press Base (3).

Insert four M8 x 61mm Carriage Bolts (75), an

M10 x 63mm Carriage Bolt (76), and an M10 x

92mm Carriage Bolt (112) up through the indicat-

ed holes in the Press Base (3).

Orient the Press Base (3) with the indents around

the indicated holes on the bottom. Attach the Press

Base to the Center Base (2) with two M8 x 66mm

Bolts (89), a Medium Support Plate (10% and two

M8 Nylon Locknuts (86). Do not tighten the

Locknuts yet.

109

86 67

Indent 75 76

109

112

4. 4

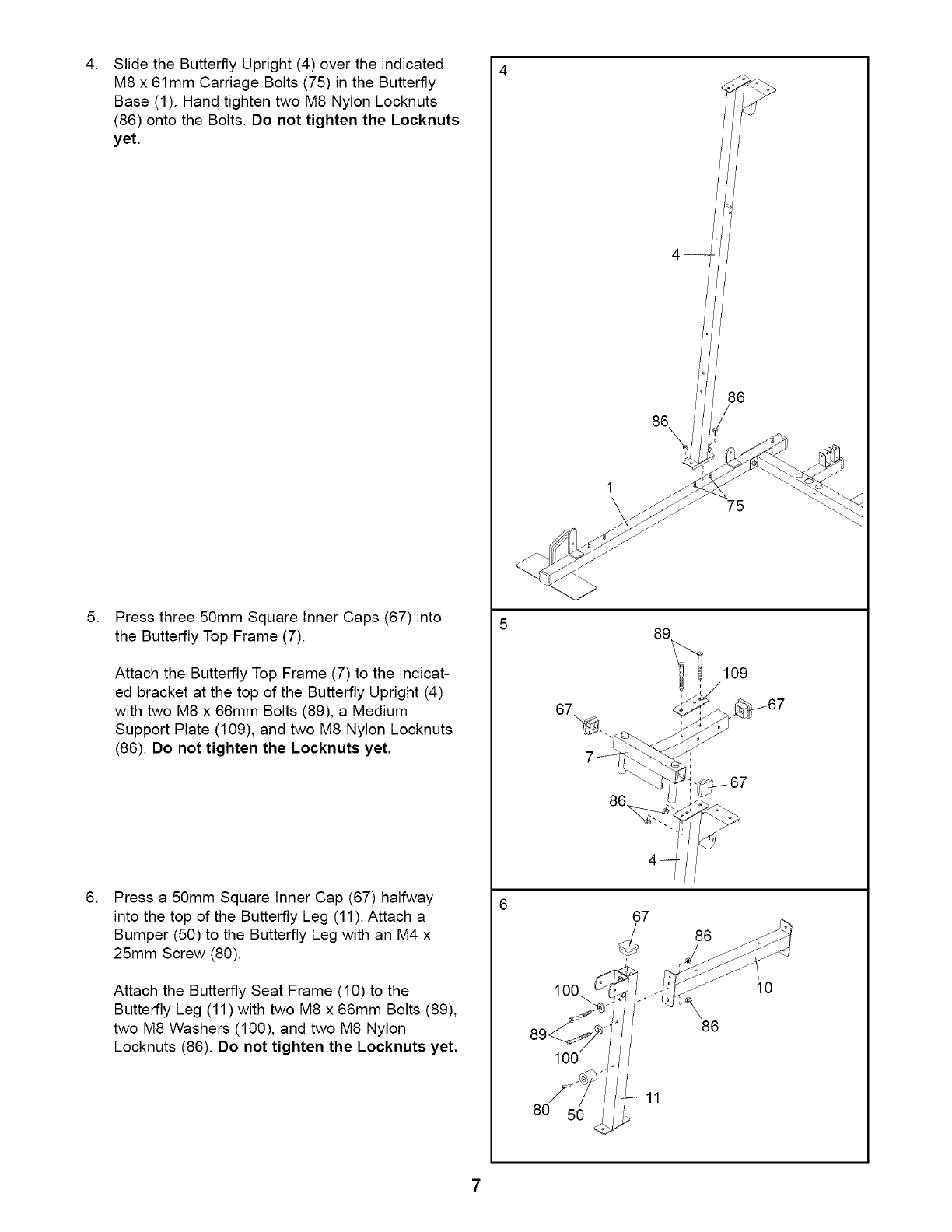

Slide the Butterfly Upright (4) over the indicated

M8 x 61mm Carriage Bolts (75)in the Butterfly

Base (1). Hand tighten two M8 Nylon Locknuts

(86) onto the Bolts. Do not tighten the Locknuts

yet.

Press three 50mm Square Inner Caps (67) into

the Butterfly Top Frame (7).

Attach the Butterfly Top Frame (7) to the indicat-

ed bracket at the top of the Butterfly Upright (4)

with two M8 x 66mm Bolts (89), a Medium

Support Plate (109), and two M8 Nylon Locknuts

(86). Do not tighten the Locknuts yet.

Press a 50mm Square Inner Cap (67) halfway

into the top of the Butterfly Leg (11). Attach a

Bumper (50) to the Butterfly Leg with an M4 x

25mm Screw (80).

Attach the Butterfly Seat Frame (10) to the

Butterfly Leg (11) with two M8 x 66mm Bolts (89),

two M8 Washers (100), and two M8 Nylon

Locknuts (86). Do not tighten the Locknuts yet.

86\

109

_,_67

100\

\86

7. 7

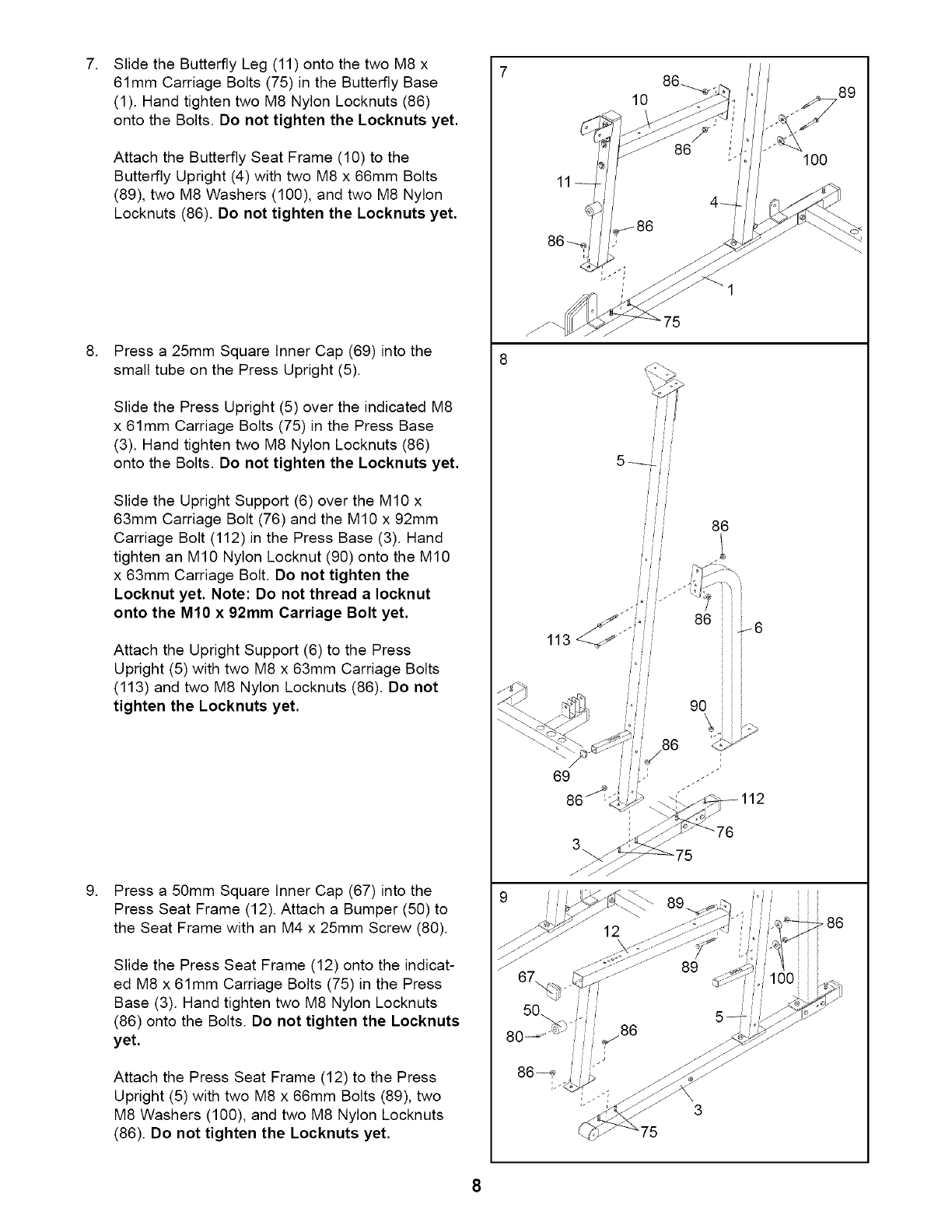

Slide the Butterfly Leg (11) onto the two M8 x

61mm Carriage Bolts (75)in the Butterfly Base

(1). Hand tighten two M8 Nylon Locknuts (86)

onto the Bolts. Do not tighten the Locknuts yet.

Attach the Butterfly Seat Frame (10) to the

Butterfly Upright (4) with two M8 x 66mm Bolts

(89), two M8 Washers (100), and two M8 Nylon

Locknuts (86). Do not tighten the Locknuts yet.

Press a 25mm Square Inner Cap (69) into the

small tube on the Press Upright (5).

Slide the Press Upright (5) over the indicated M8

x 61mm Carriage Bolts (75)in the Press Base

(3). Hand tighten two M8 Nylon Locknuts (86)

onto the Bolts. Do not tighten the Locknuts yet.

Slide the Upright Support (6) over the M10 x

63mm Carriage Bolt (76) and the M10 x 92mm

Carriage Bolt (112)in the Press Base (3). Hand

tighten an M10 Nylon Locknut (90) onto the M10

x 63mm Carriage Bolt. Do not tighten the

Locknut yet. Note: Do not thread a Iocknut

onto the MIO x 92mm Carriage Bolt yet.

Attach the Upright Support (6) to the Press

Upright (5) with two M8 x 63mm Carriage Bolts

(113) and two M8 Nylon Locknuts (86). Do not

tighten the Locknuts yet.

Press a 50mm Square Inner Cap (67) into the

Press Seat Frame (12). Attach a Bumper (50) to

the Seat Frame with an M4 x 25mm Screw (80).

Slide the Press Seat Frame (12) onto the indicat-

ed M8 x 61mm Carriage Bolts (75)in the Press

Base (3). Hand tighten two M8 Nylon Locknuts

(86) onto the Bolts. Do not tighten the Locknuts

yet.

Attach the Press Seat Frame (12) to the Press

Upright (5) with two M8 x 66mm Bolts (89), two

M8 Washers (100), and two M8 Nylon Locknuts

(86). Do not tighten the Locknuts yet.

"75

113

'86

i,i i

/86

///

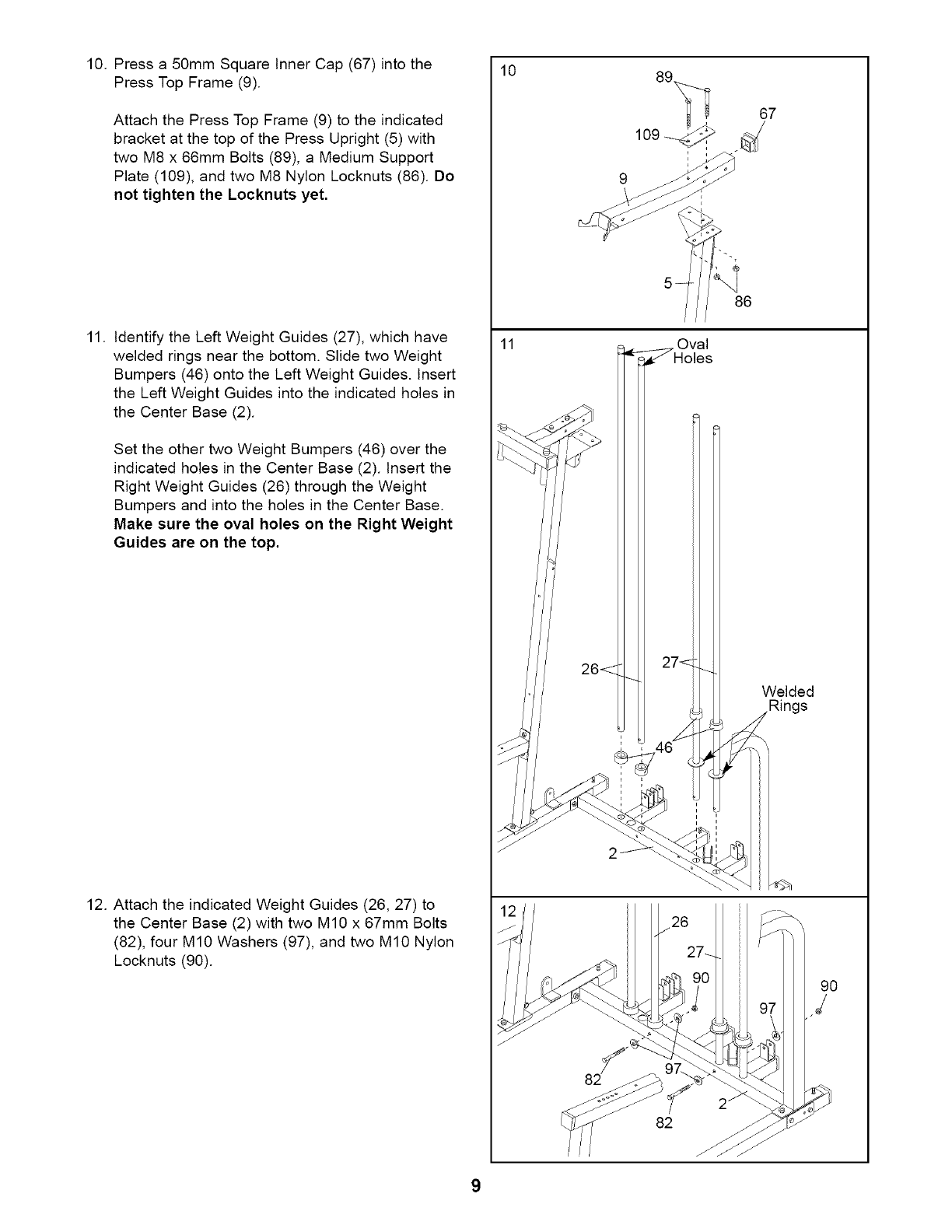

10. Press a 50mm Square Inner Cap (67) into the

Press Top Frame (9).

Attach the Press Top Frame (9) to the indicated

bracket at the top of the Press Upright (5) with

two M8 x 66mm Bolts (89), a Medium Support

Plate (109), and two M8 Nylon Locknuts (86). Do

not tighten the Locknuts yet.

11. Identify the Left Weight Guides (27), which have

welded rings near the bottom. Slide two Weight

Bumpers (46) onto the Left Weight Guides. Insert

the Left Weight Guides into the indicated holes in

the Center Base (2).

Set the other two Weight Bumpers (46) over the

indicated holes in the Center Base (2). Insert the

Right Weight Guides (26) through the Weight

Bumpers and into the holes in the Center Base.

Make sure the oval holes on the Right Weight

Guides are on the top.

12. Attach the indicated Weight Guides (26, 27) to

the Center Base (2) with two M10 x 67mm Bolts

(82), four M10 Washers (97), and two M10 Nylon

Locknuts (90).

109 °

Welded

Rings

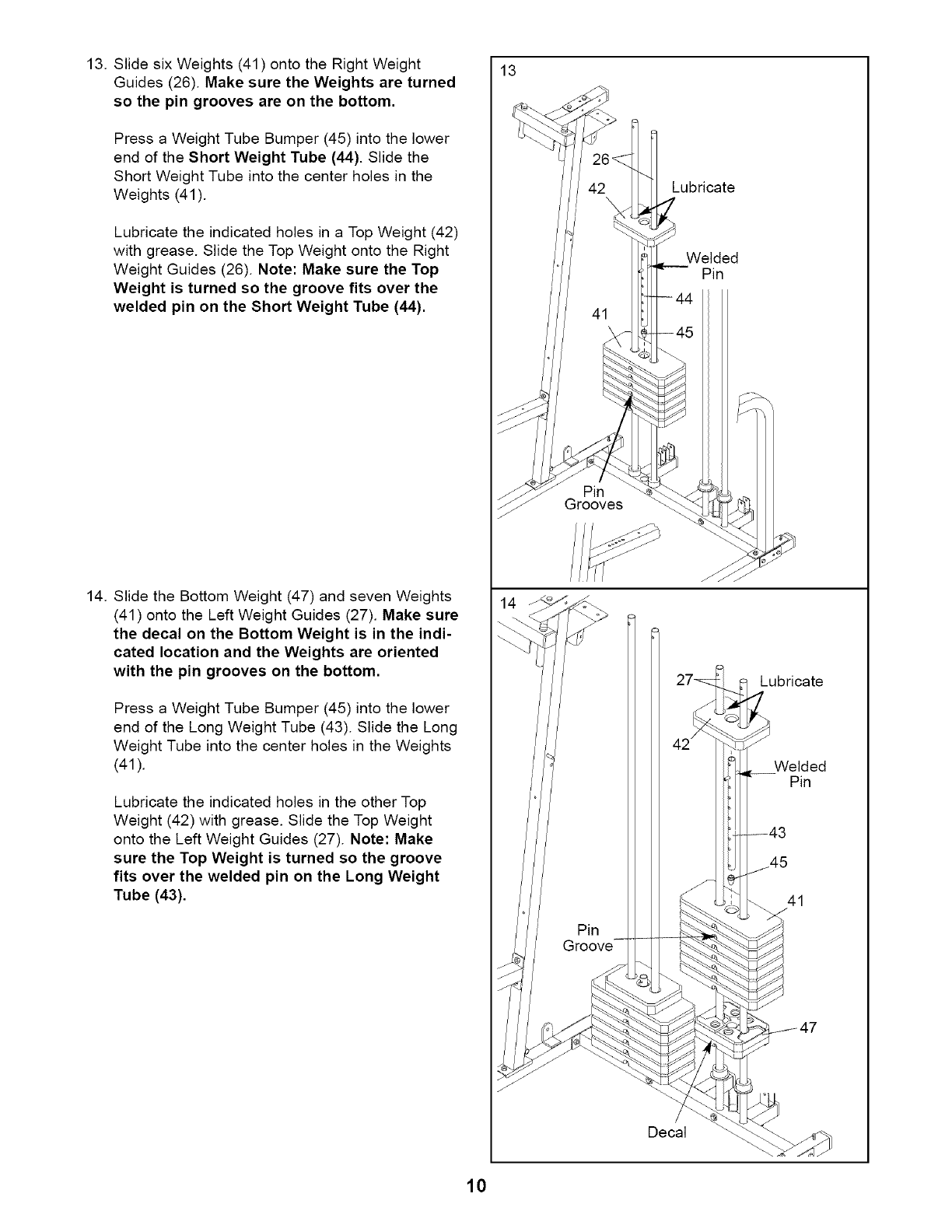

13.SlidesixWeights(41)ontotheRightWeight

Guides(26).MakesuretheWeightsareturned

so thepin groovesareonthebottom.

Pressa WeightTubeBumper(45)intothelower

endoftheShortWeightTube(44).Slidethe

ShortWeightTubeintothecenterholesinthe

Weights(41).

LubricatetheindicatedholesinaTopWeight(42)

withgrease.SlidetheTopWeightontotheRight

WeightGuides(26).Note: Make sure the Top

Weight is turned so the groove fits over the

welded pin on the Short Weight Tube (44).

14. Slide the Bottom Weight (47) and seven Weights

(41) onto the Left Weight Guides (27). Make sure

the decal on the Bottom Weight is in the indi-

cated location and the Weights are oriented

with the pin grooves on the bottom.

Press a Weight Tube Bumper (45) into the lower

end of the Long Weight Tube (43). Slide the Long

Weight Tube into the center holes in the Weights

(41).

Lubricate the indicated holes in the other Top

Weight (42) with grease. Slide the Top Weight

onto the Left Weight Guides (27). Note: Make

sure the Top Weight is turned so the groove

fits over the welded pin on the Long Weight

Tube (43).

Grooves

Lubricate

Welded

Decal

Lubricate

Welded

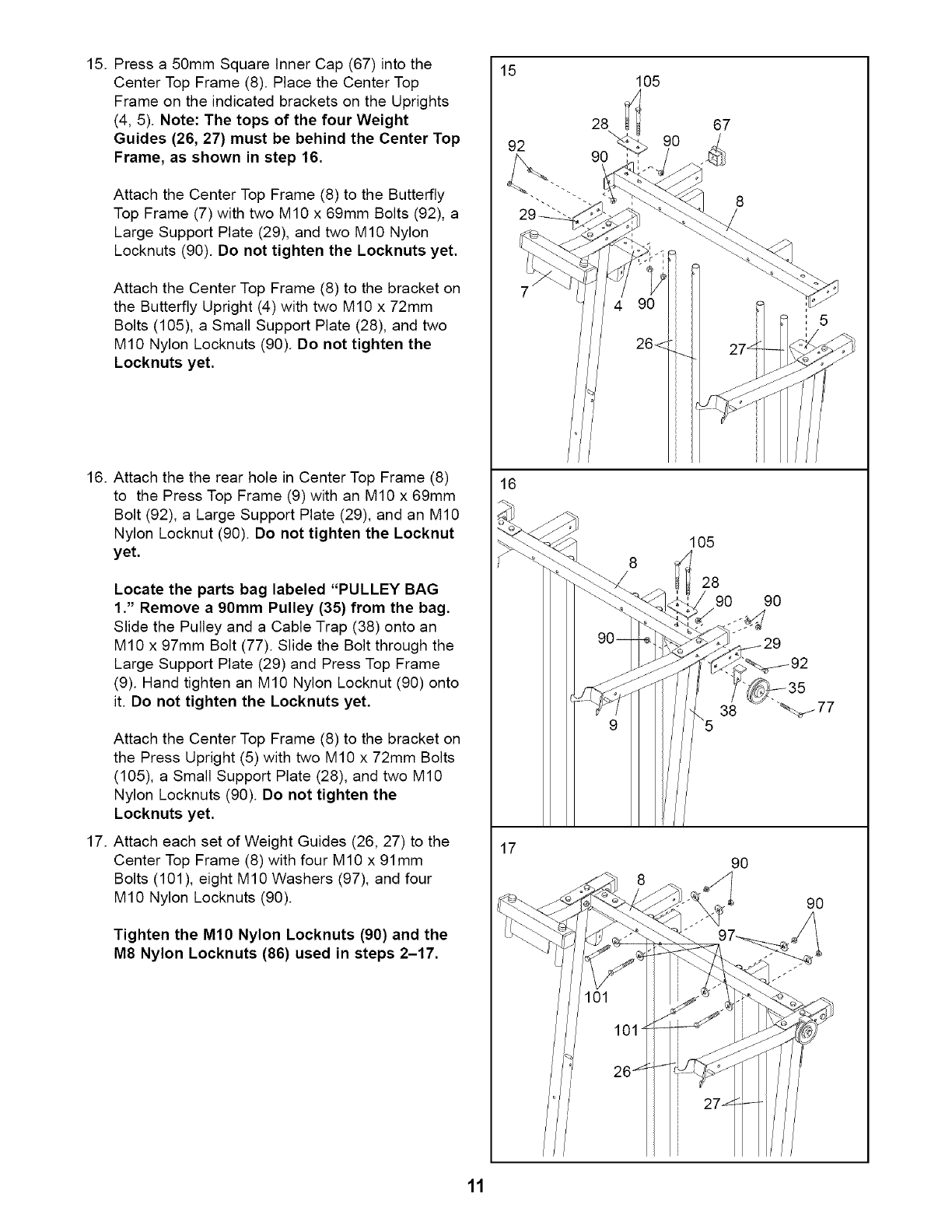

15. Press a 50mm Square Inner Cap (67) into the

Center Top Frame (8). Place the Center Top

Frame on the indicated brackets on the Uprights

(4, 5). Note: The tops of the four Weight

Guides (26, 27) must be behind the Center Top

Frame, as shown in step 16.

Attach the Center Top Frame (8) to the Butterfly

Top Frame (7) with two M10 x 69mm Bolts (92), a

Large Support Plate (29), and two M10 Nylon

Locknuts (90). Do not tighten the Locknuts yet.

Attach the Center Top Frame (8) to the bracket on

the Butterfly Upright (4) with two M10 x 72mm

Bolts (105), a Small Support Plate (28), and two

M10 Nylon Locknuts (90). Do not tighten the

Locknuts yet.

16. Attach the the rear hole in Center Top Frame (8)

to the Press Top Frame (9) with an M10 x 69mm

Bolt (92), a Large Support Plate (29), and an M10

Nylon Locknut (90). Do not tighten the Locknut

yet.

Locate the parts bag labeled "PULLEY BAG

1." Remove a 90mm Pulley (35) from the bag.

Slide the Pulley and a Cable Trap (38) onto an

M10 x 97mm Bolt (77). Slide the Bolt through the

Large Support Plate (29) and Press Top Frame

(9). Hand tighten an M10 Nylon Locknut (90) onto

it. Do not tighten the Locknuts yet.

Attach the Center Top Frame (8) to the bracket on

the Press Upright (5) with two M10 x 72mm Bolts

(105), a Small Support Plate (28), and two M10

Nylon Locknuts (90). Do not tighten the

Locknuts yet.

17. Attach each set of Weight Guides (26, 27) to the

Center Top Frame (8) with four M10 x 91mm

Bolts (101), eight M10 Washers (97), and four

M10 Nylon Locknuts (90).

Tighten the M10 Nylon Locknuts (90) and the

M8 Nylon Locknuts (86) used in steps 2-17.

92 90

101

105

90 9O

)7 d

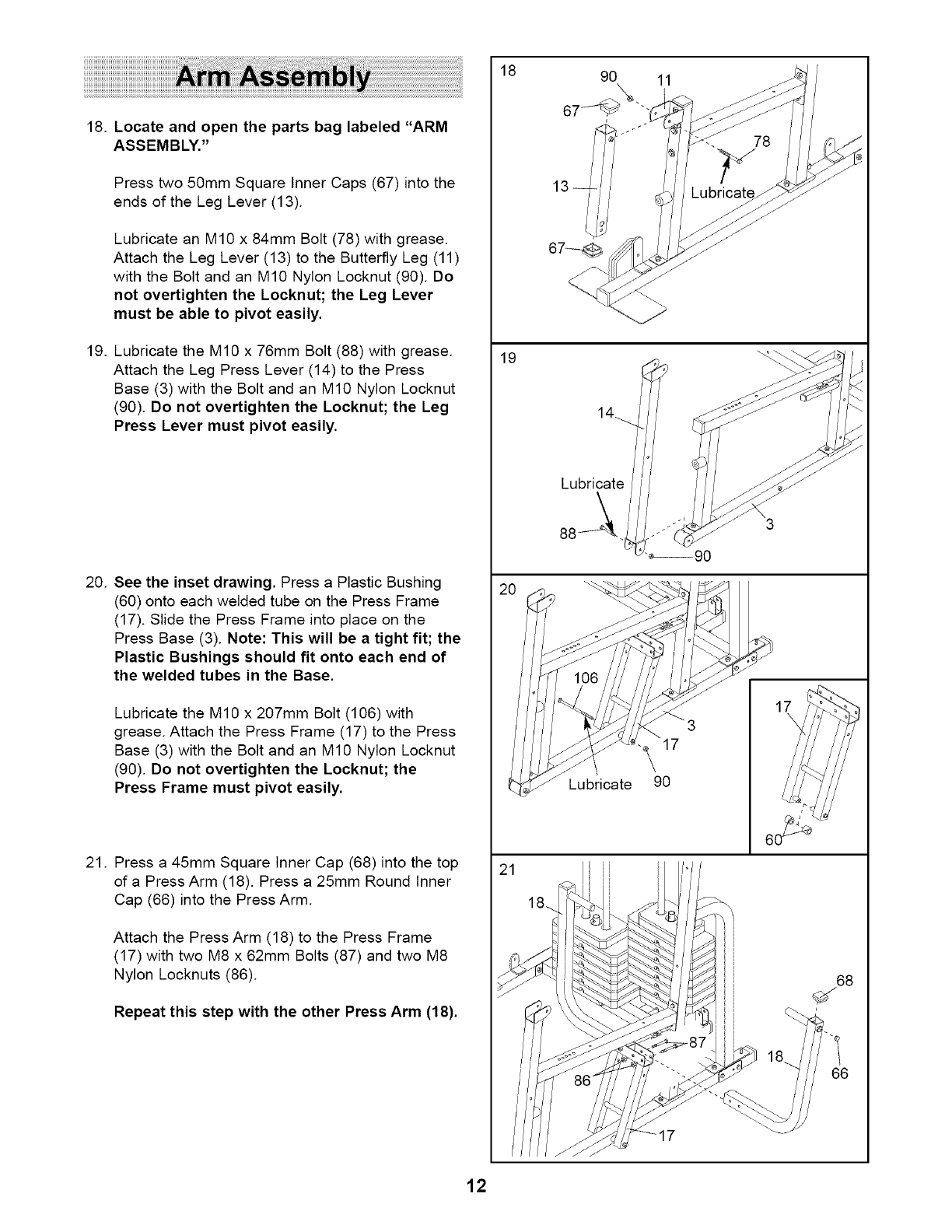

18. Locate and open the parts bag labeled "ARM

ASSEMBLY."

Press two 50mm Square Inner Caps (67) into the

ends of the Leg Lever (13).

Lubricate an M10 x 84mm Bolt (78) with grease.

Attach the Leg Lever (13) to the Butterfly Leg (11)

with the Bolt and an M10 Nylon Locknut (90). Do

not overtighten the Locknut; the Leg Lever

must be able to pivot easily.

19. Lubricate the M10 x 76mm Bolt (88) with grease.

Attach the Leg Press Lever (14) to the Press

Base (3) with the Bolt and an M10 Nylon Locknut

(90). Do not overtighten the Locknut; the Leg

Press Lever must pivot easily.

20. See the inset drawing. Press a Plastic Bushing

(60) onto each welded tube on the Press Frame

(17). Slide the Press Frame into place on the

Press Base (3). Note: This will be a tight fit; the

Plastic Bushings should fit onto each end of

the welded tubes in the Base.

Lubricate the M10 x 207mm Bolt (106) with

grease. Attach the Press Frame (17) to the Press

Base (3) with the Bolt and an M10 Nylon Locknut

(90). Do not overtighten the Locknut; the

Press Frame must pivot easily.

21. Press a 45mm Square Inner Cap (68) into the top

of a Press Arm (18). Press a 25mm Round Inner

Cap (66) into the Press Arm.

Attach the Press Arm (18) to the Press Frame

(17) with two M8 x 62mm Bolts (87) and two M8

Nylon Locknuts (86).

Repeat this step with the other Press Arm (18).

18 11

Lubricate

88 t. i

Lubricate

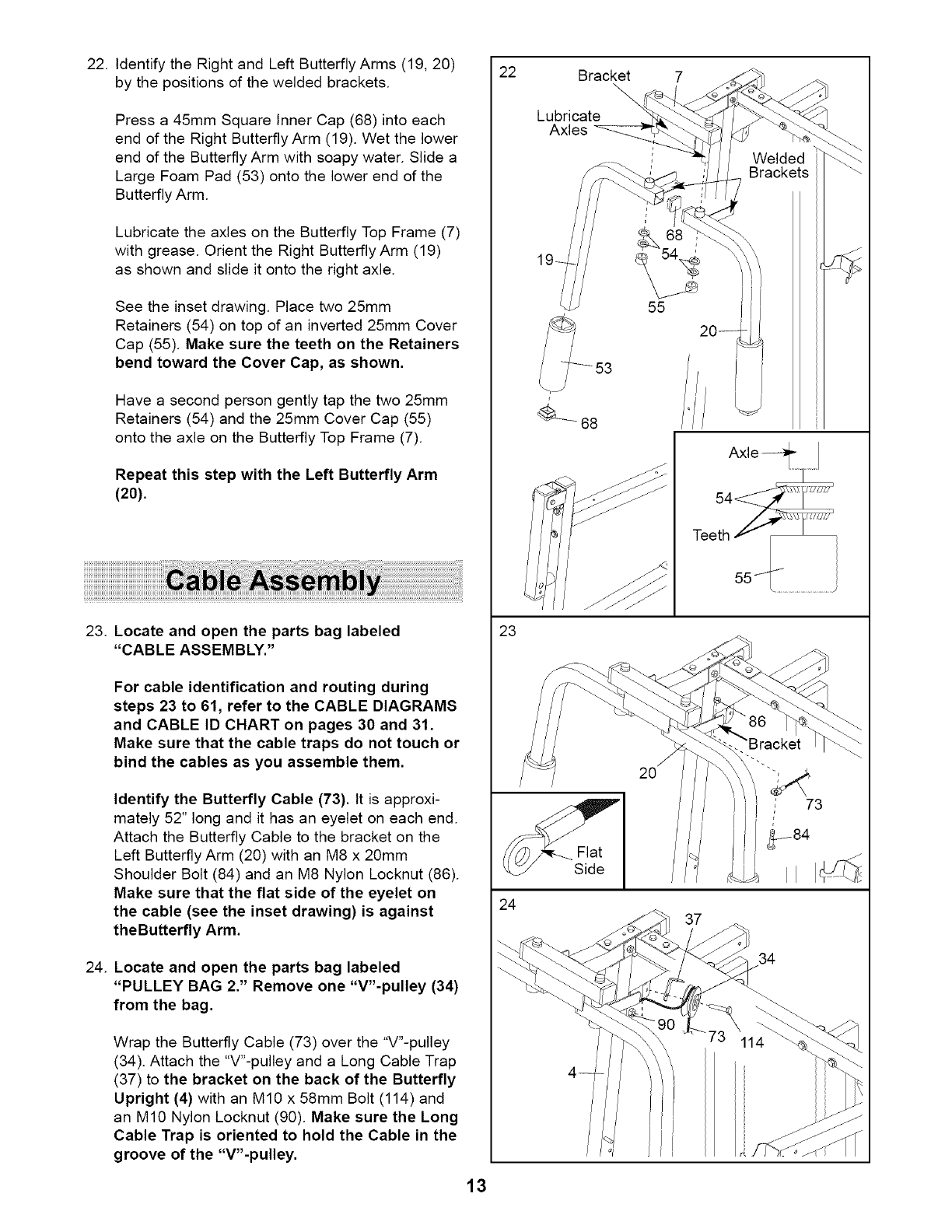

22. Identify the Right and Left Butterfly Arms (19, 20)

by the positions of the welded brackets.

Press a 45mm Square Inner Cap (68) into each

end of the Right Butterfly Arm (19). Wet the lower

end of the Butterfly Arm with soapy water. Slide a

Large Foam Pad (53) onto the lower end of the

Butterfly Arm.

Lubricate the axles on the Butterfly Top Frame (7)

with grease. Orient the Right Butterfly Arm (19)

as shown and slide it onto the right axle.

See the inset drawing. Place two 25mm

Retainers (54) on top of an inverted 25mm Cover

Cap (55). Make sure the teeth on the Retainers

bend toward the Cover Cap, as shown.

Have a second person gently tap the two 25mm

Retainers (54) and the 25mm Cover Cap (55)

onto the axle on the Butterfly Top Frame (7).

Repeat this step with the Left Butterfly Arm

(20).

23. Locate and open the parts bag labeled

"CABLE ASSEMBLY."

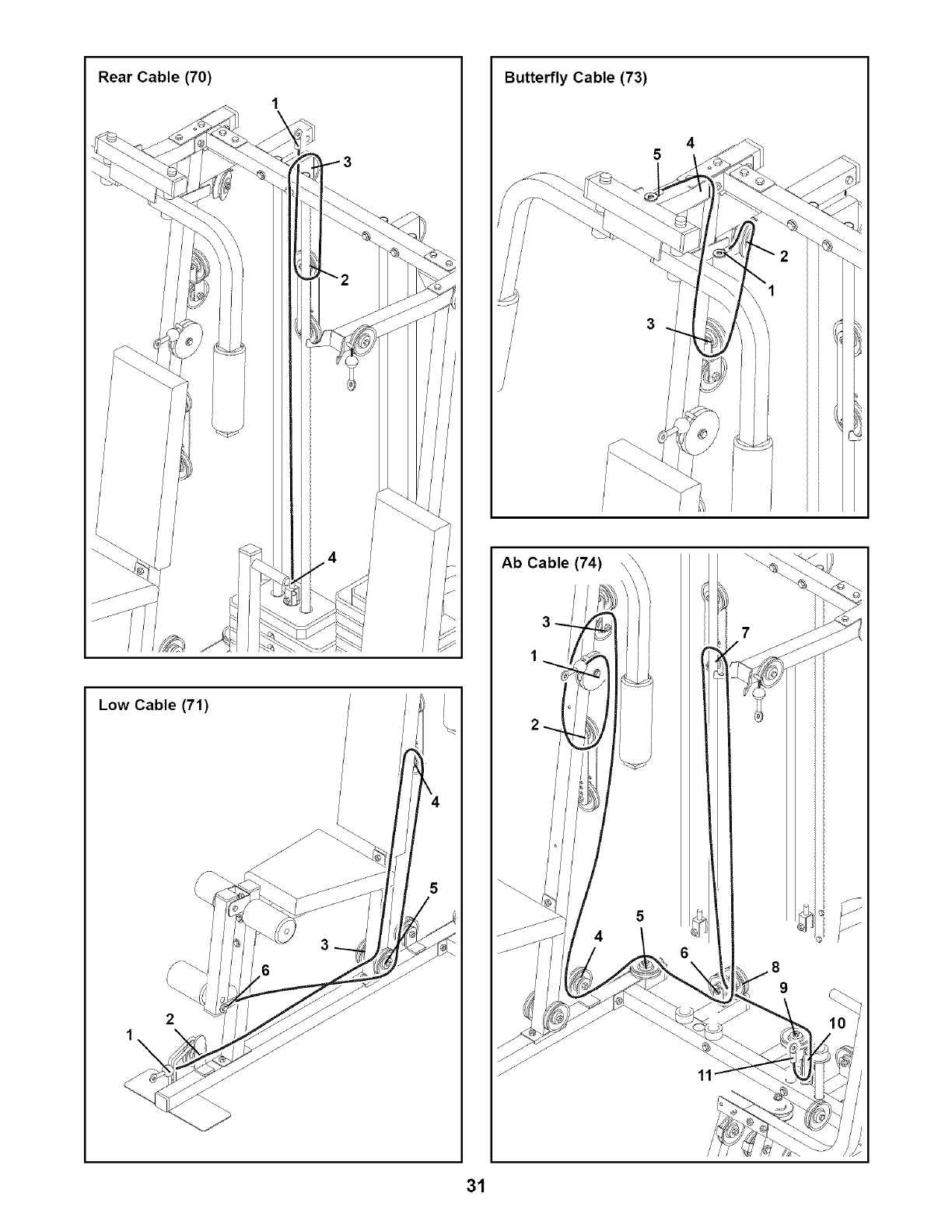

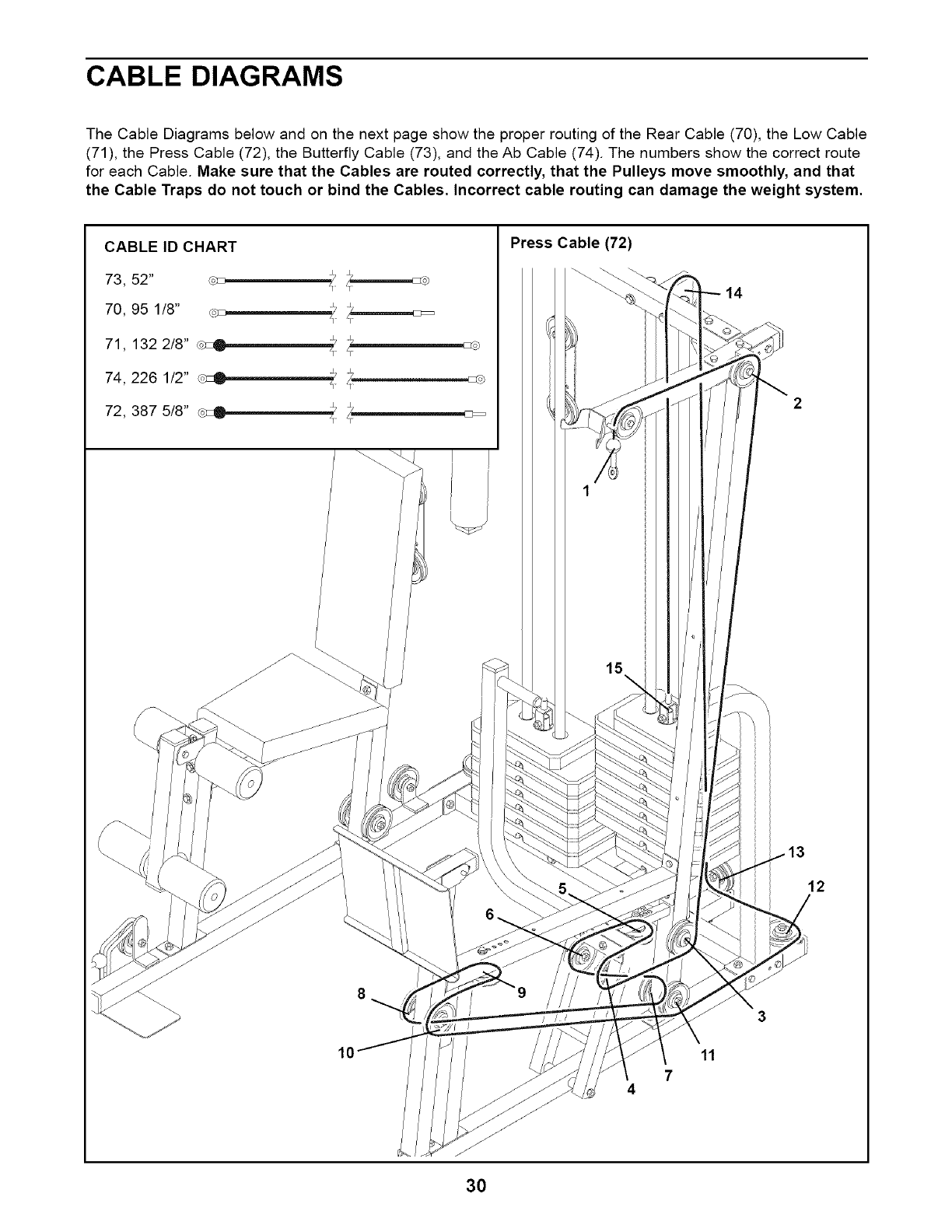

For cable identification and routing during

steps 23 to 61, refer to the CABLE DIAGRAMS

and CABLE ID CHART on pages 30 and 31.

Make sure that the cable traps do not touch or

bind the cables as you assemble them.

Identify the Butterfly Cable (73). It is approxi-

mately 52" long and it has an eyelet on each end.

Attach the Butterfly Cable to the bracket on the

Left Butterfly Arm (20) with an M8 x 20mm

Shoulder Bolt (84) and an M8 Nylon Locknut (86).

Make sure that the flat side of the eyelet on

the cable (see the inset drawing) is against

theButterfly Arm.

24. Locate and open the parts bag labeled

"PULLEY BAG 2." Remove one "V"-pulley (34)

from the bag.

Wrap the Butterfly Cable (73) over the "V"-pulley

(34). Attach the "V"-pulley and a Long Cable Trap

(37) to the bracket on the back of the Butterfly

Upright (4) with an M10 x 58mm Bolt (114) and

an M10 Nylon Locknut (90). Make sure the Long

Cable Trap is oriented to hold the Cable in the

groove of the "V"-pulley.

_..Bracket P_

_84

,0 --73

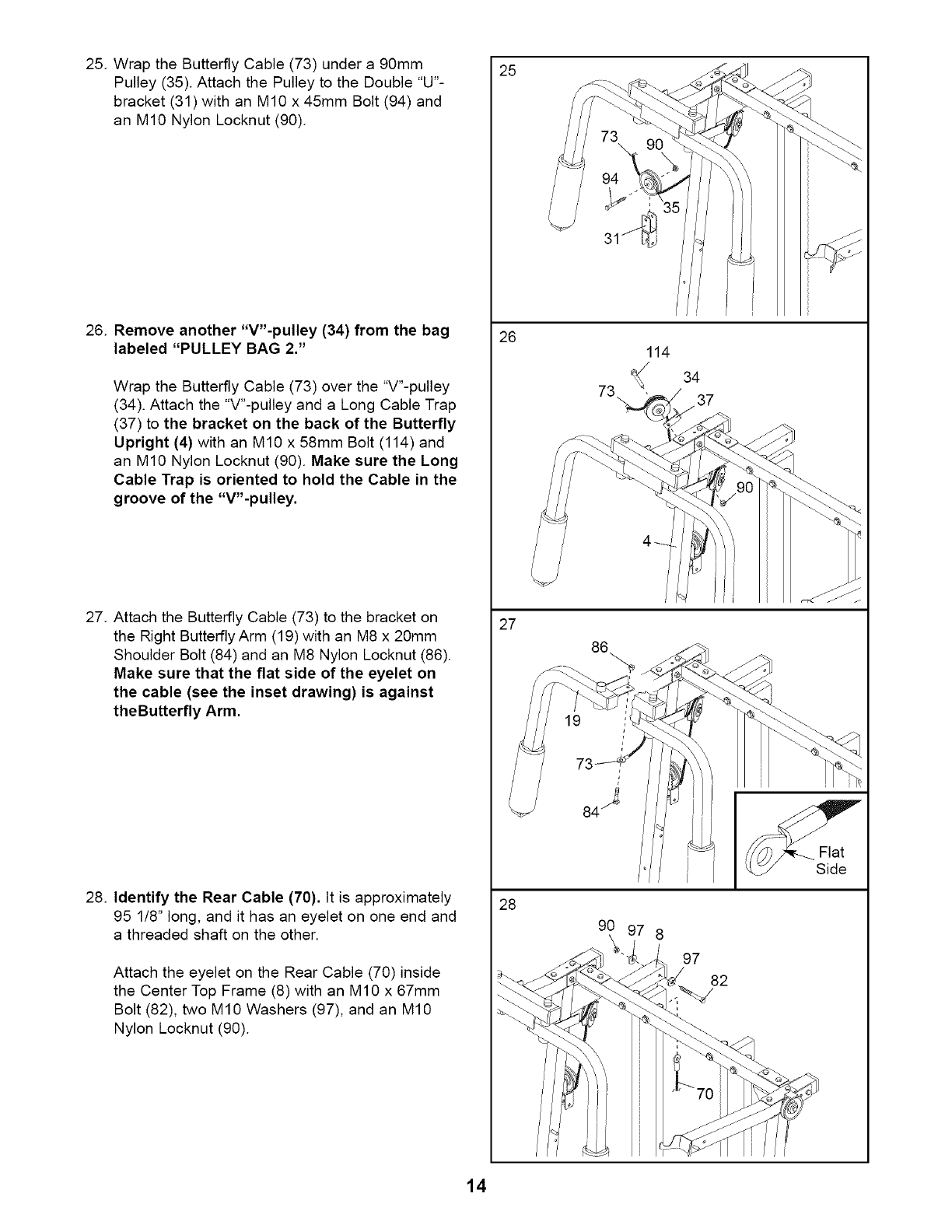

25. Wrap the Butterfly Cable (73) under a 90mm

Pulley (35). Attach the Pulley to the Double "U"-

bracket (31) with an M10 x 45mm Bolt (94) and

an M10 Nylon Locknut (90).

26. Remove another "V"-pulley (34) from the bag

labeled "PULLEY BAG 2."

Wrap the Butterfly Cable (73) over the "V"-pulley

(34). Attach the "V"-pulley and a Long Cable Trap

(37) to the bracket on the back of the Butterfly

Upright (4) with an M10 x 58mm Bolt (114) and

an M10 Nylon Locknut (90). Make sure the Long

Cable Trap is oriented to hold the Cable in the

groove of the "V"-pulley.

27. Attach the Butterfly Cable (73) to the bracket on

the Right Butterfly Arm (19) with an M8 x 20mm

Shoulder Bolt (84) and an M8 Nylon Locknut (86).

Make sure that the flat side of the eyelet on

the cable (see the inset drawing) is against

theButterfly Arm.

28. Identify the Rear Cable (70). It is approximately

95 1/8" long, and it has an eyelet on one end and

a threaded shaft on the other.

Attach the eyelet on the Rear Cable (70) inside

the Center Top Frame (8) with an M10 x 67mm

Bolt (82), two M10 Washers (97), and an M10

Nylon Locknut (90).

114

Flat

Side

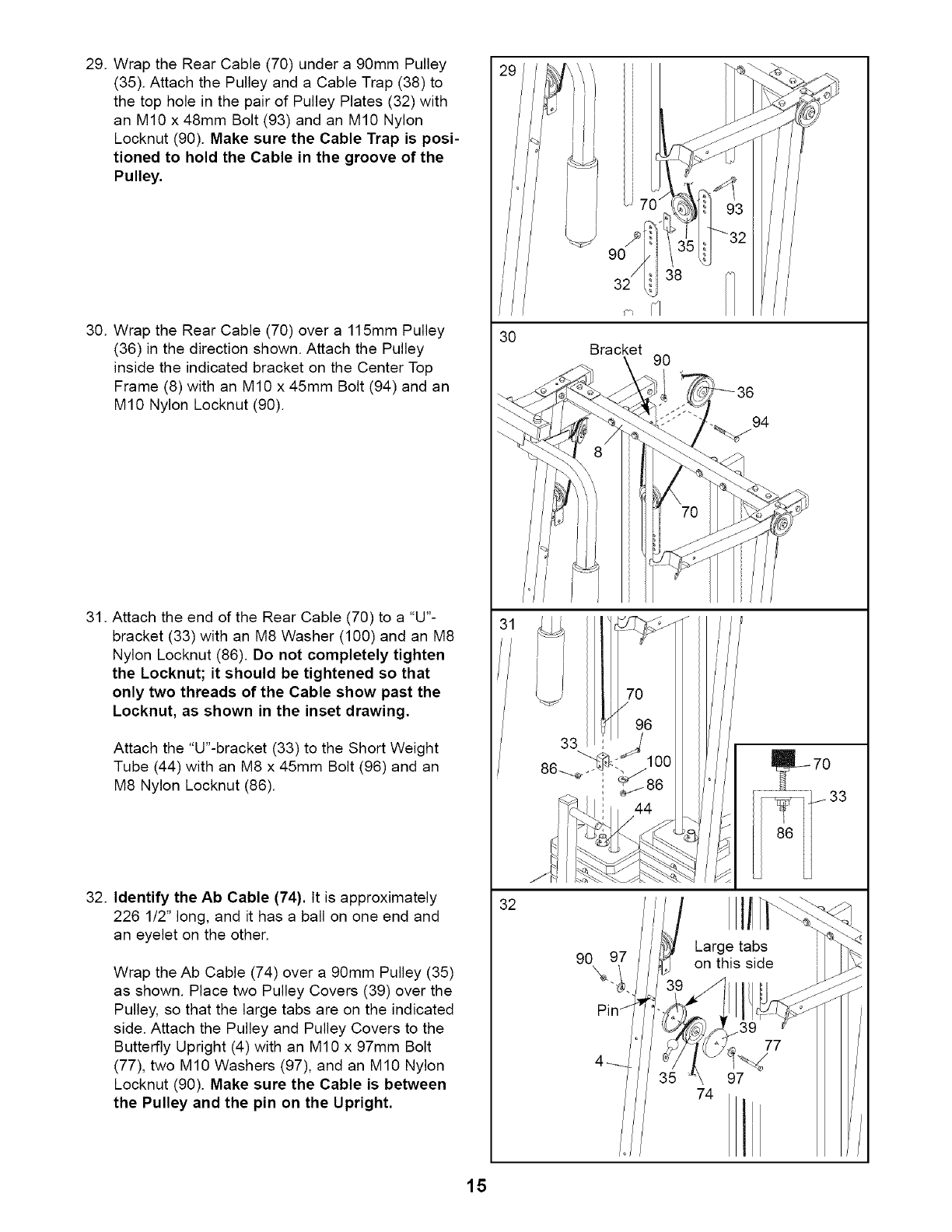

29. Wrap the Rear Cable (70) under a 90mm Pulley

(35). Attach the Pulley and a Cable Trap (38) to

the top hole in the pair of Pulley Plates (32) with

an M10 x48mm Bolt (93) and an M10 Nylon

Locknut (90). Make sure the Cable Trap is posi-

tioned to hold the Cable in the groove of the

Pulley.

30. Wrap the Rear Cable (70) over a 115mm Pulley

(36) in the direction shown. Attach the Pulley

inside the indicated bracket on the Center Top

Frame (8) with an M10 x 45mm Bolt (94) and an

M10 Nylon Locknut (90).

31. Attach the end of the Rear Cable (70) to a "U"-

bracket (33) with an M8 Washer (100) and an M8

Nylon Locknut (86). Do not completely tighten

the Locknut; it should be tightened so that

only two threads of the Cable show past the

Locknut, as shown in the inset drawing.

Attach the "U"-bracket (33) to the Short Weight

Tube (44) with an M8 x 45mm Bolt (96) and an

M8 Nylon Locknut (86).

32. Identify the Ab Cable (74). It is approximately

226 1/2" long, and it has a ball on one end and

an eyelet on the other.

Wrap the Ab Cable (74) over a 90mm Pulley (35)

as shown. Place two Pulley Covers (39) over the

Pulley, so that the large tabs are on the indicated

side. Attach the Pulley and Pulley Covers to the

Butterfly Upright (4) with an M10 x 97mm Bolt

(77), two M10 Washers (97), and an M10 Nylon

Locknut (90). Make sure the Cable is between

the Pulley and the pin on the Upright.

m /

Bracket

86_

90 97

33. Wrap the Ab Cable (74) under a 90mm Pulley

(35). Attach the Pulley and a Cable Trap (38) to

the top hole in the pair of Pulley Plates (32) with

an M10 x48mm Bolt (93) and an M10 Nylon

Locknut (90). Make sure the Cable Trap is posi-

tioned to hold the Cable in the groove of the

Pulley.

34. Wrap the Ab Cable (74) over a 90mm Pulley (35)

in the direction shown. Attach the Pulley to the

Double "U"-bracket (31) with an M10 x 45mm Bolt

(94) and an M10 Nylon Locknut (90).

35. Wrap the Ab Cable (74) under a 90mm Pulley

(35). Attach the Pulley and a Cable Trap (38) to

the indicated bracket on the Butterfly Base (1)

with an M10 x 48mm Bolt (93) and an M10 Nylon

Locknut (90). Make sure the Cable Trap is posi-

tioned to hold the Cable in the groove of the

Pulley.

36. Wrap the Ab Cable (74) around a 90mm Pulley

(35) in the direction shown. Slide a Cable Trap

(38) and the Pulley onto the M10 x 89mm Carriage

Bolt (95) in the Butterfly Base (1). Secure the

Pulley with an M10 Nylon Locknut (90). Make

sure the Cable Trap is positioned to hold the

Cable in the groove of the Pulley.

31-

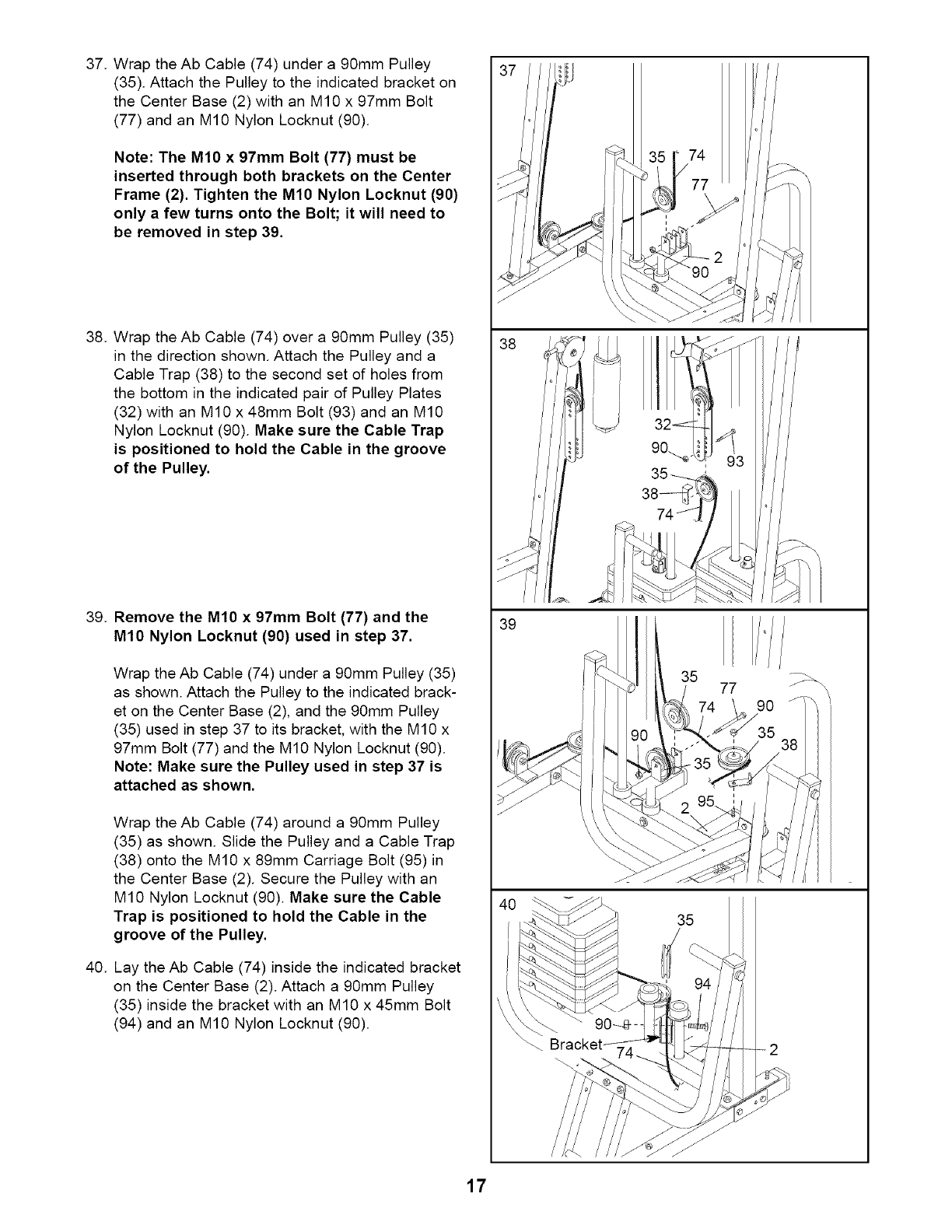

37. Wrap the Ab Cable (74) under a 90mm Pulley

(35). Attach the Pulley to the indicated bracket on

the Center Base (2) with an M10 x 97mm Bolt

(77) and an M10 Nylon Locknut (90).

Note: The M10 x 97mm Bolt (77) must be

inserted through both brackets on the Center

Frame (2). Tighten the M10 Nylon Locknut (90)

only a few turns onto the Bolt; it will need to

be removed in step 39.

38. Wrap the Ab Cable (74) over a 90mm Pulley (35)

in the direction shown. Attach the Pulley and a

Cable Trap (38) to the second set of holes from

the bottom in the indicated pair of Pulley Plates

(32) with an M10 x 48mm Bolt (93) and an M10

Nylon Locknut (90). Make sure the Cable Trap

is positioned to hold the Cable in the groove

of the Pulley.

39. Remove the M10 x 97mm Bolt (77) and the

M10 Nylon Locknut (90) used in step 37.

Wrap the Ab Cable (74) under a 90mm Pulley (35)

as shown. Attach the Pulley to the indicated brack-

et on the Center Base (2), and the 90mm Pulley

(35) used in step 37 to its bracket, with the M10 x

97mm Bolt (77) and the M10 Nylon Locknut (90).

Note: Make sure the Pulley used in step 37 is

attached as shown.

Wrap the Ab Cable (74) around a 90mm Pulley

(35) as shown. Slide the Pulley and a Cable Trap

(38) onto the M10 x 89mm Carriage Bolt (95)in

the Center Base (2). Secure the Pulley with an

M10 Nylon Locknut (90). Make sure the Cable

Trap is positioned to hold the Cable in the

groove of the Pulley.

40. Lay the Ab Cable (74) inside the indicated bracket

on the Center Base (2). Attach a 90mm Pulley

(35) inside the bracket with an M10 x 45mm Bolt

(94) and an M10 Nylon Locknut (90).

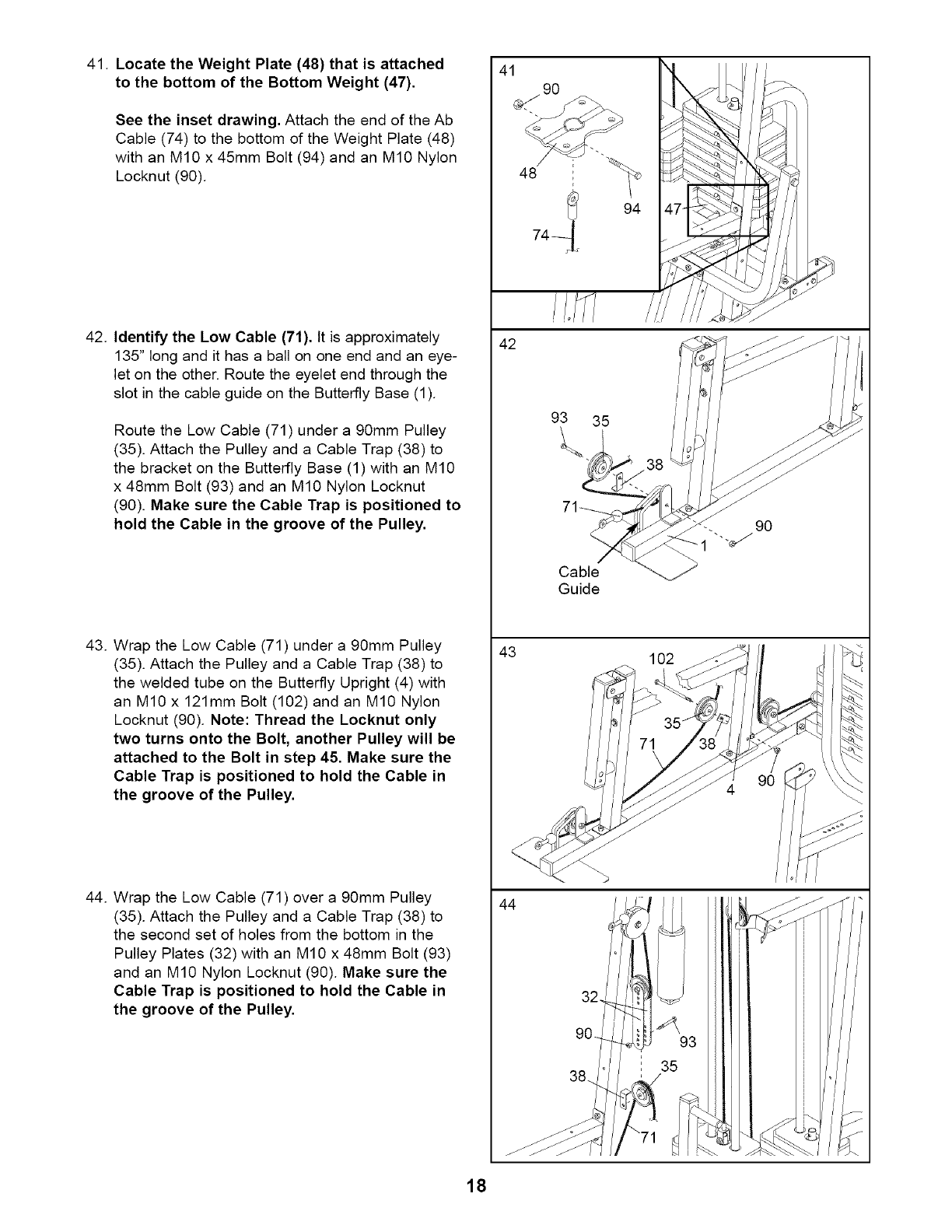

41. Locate the Weight Plate (48) that is attached

to the bottom of the Bottom Weight (47).

See the inset drawing. Attach the end of the Ab

Cable (74) to the bottom of the Weight Plate (48)

with an M10 x 45mm Bolt (94) and an M10 Nylon

Locknut (90).

42. Identify the Low Cable (71). tt is approximately

135" long and it has a ball on one end and an eye-

let on the other. Route the eyelet end through the

slot in the cable guide on the Butterfly Base (1).

Route the Low Cable (71) under a 90mm Pulley

(35). Attach the Pulley and a Cable Trap (38) to

the bracket on the Butterfly Base (1) with an M10

x 48mm Bolt (93) and an M10 Nylon Locknut

(90). Make sure the Cable Trap is positioned to

hold the Cable in the groove of the Pulley.

43. Wrap the Low Cable (71) under a 90mm Pulley

(35). Attach the Pulley and a Cable Trap (38) to

the welded tube on the Butterfly Upright (4) with

an M10 x 121mm Bolt (102) and an M10 Nylon

Locknut (90). Note: Thread the Locknut only

two turns onto the Bolt, another Pulley will be

attached to the Bolt in step 45. Make sure the

Cable Trap is positioned to hold the Cable in

the groove of the Pulley.

44. Wrap the Low Cable (71) over a 90mm Pulley

(35). Attach the Pulley and a Cable Trap (38) to

the second set of holes from the bottom in the

Pulley Plates (32) with an M10 x 48mm Bolt (93)

and an M10 Nylon Locknut (90). Make sure the

Cable Trap is positioned to hold the Cable in

the groove of the Pulley.

93 35

Cable

Guide

32.

90_

102

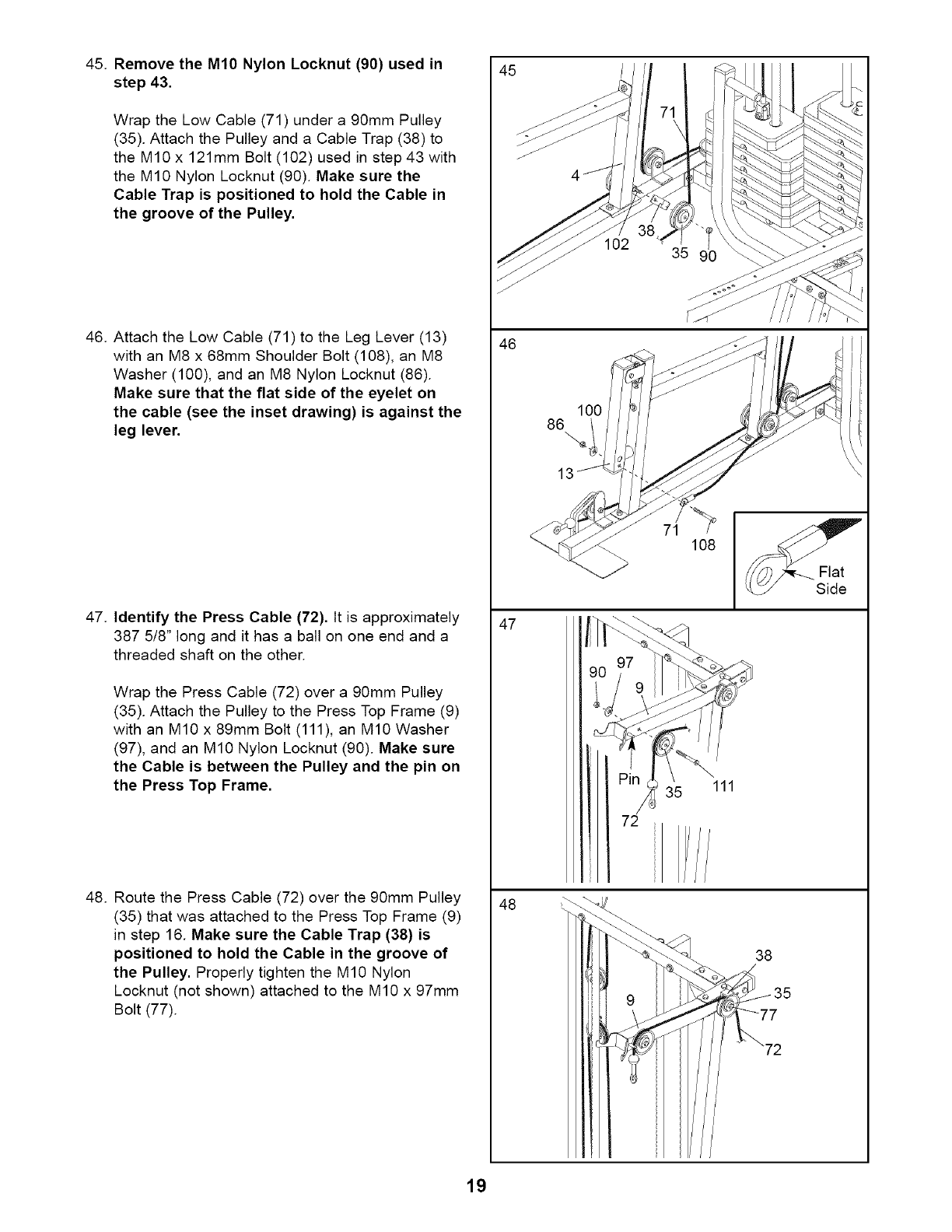

45. Remove the MIO Nylon Locknut (90) used in

step 43.

Wrap the Low Cable (71) under a 90mm Pulley

(35). Attach the Pulley and a Cable Trap (38) to

the M10 x 121mm Bolt (102) used in step 43 with

the M10 Nylon Locknut (90). Make sure the

Cable Trap is positioned to hold the Cable in

the groove of the Pulley.

46. Attach the Low Cable (71) to the Leg Lever (13)

with an M8 x 68mm Shoulder Bolt (108), an M8

Washer (100), and an M8 Nylon Locknut (86).

Make sure that the fiat side of the eyelet on

the cable (see the inset drawing) is against the

leg lever.

47. Identify the Press Cable (72). tt is approximately

387 5/8" long and it has a ball on one end and a

threaded shaft on the other.

Wrap the Press Cable (72) over a 90mm Pulley

(35). Attach the Pulley to the Press Top Frame (9)

with an M10 x 89mm Bolt (111), an M10 Washer

(97), and an M10 Nylon Locknut (90). Make sure

the Cable is between the Pulley and the pin on

the Press Top Frame.

48. Route the Press Cable (72) over the 90mm Pulley

(35) that was attached to the Press Top Frame (9)

in step 16. Make sure the Cable Trap (38) is

positioned to hold the Cable in the groove of

the Pulley. Properly tighten the M10 Nylon

Locknut (not shown) attached to the M10 x 97mm

Bolt (77).

102

100

71 108

111

Flat

Side

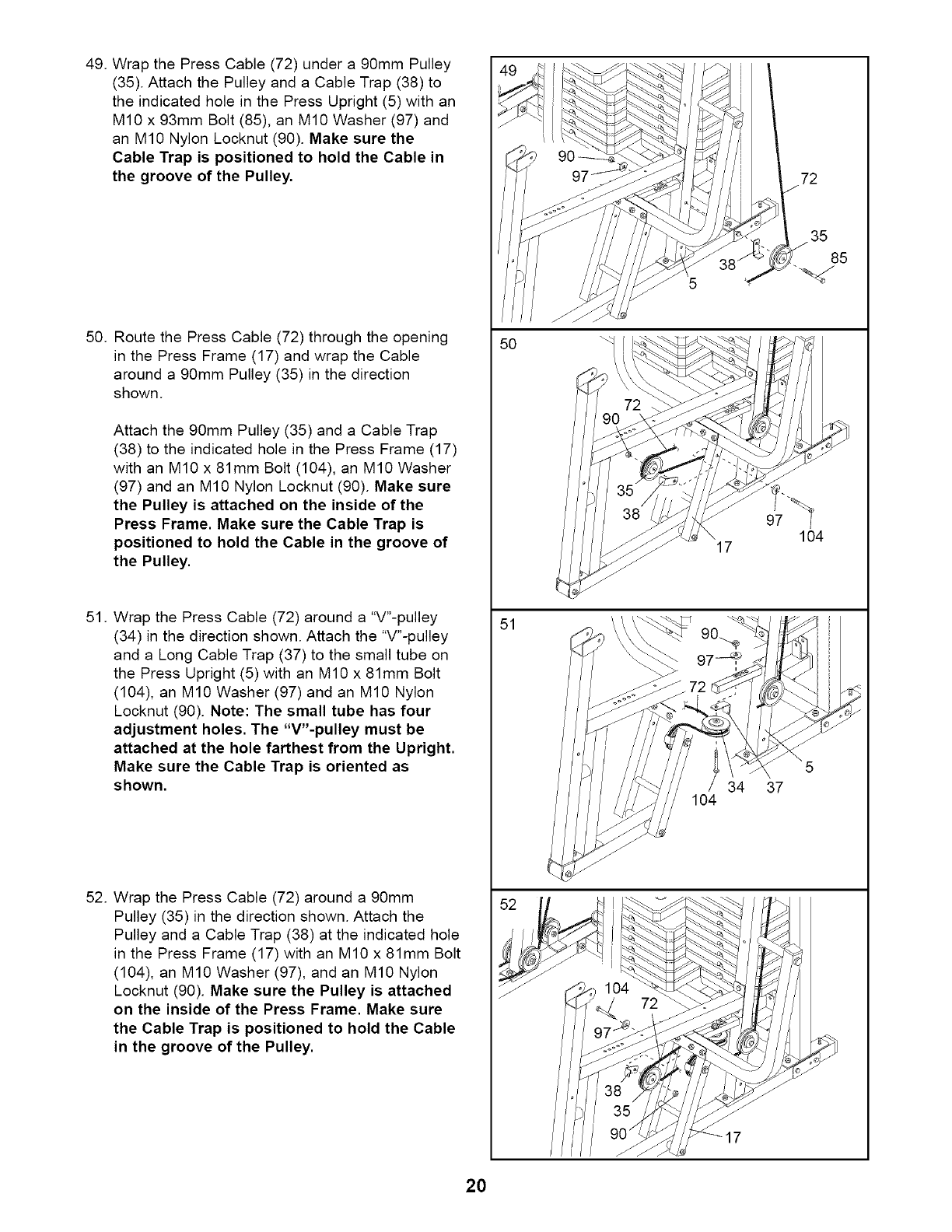

49. Wrap the Press Cable (72) under a 90mm Pulley

(35). Attach the Pulley and a Cable Trap (38) to

the indicated hole in the Press Upright (5) with an

M10 x 93mm Bolt (85), an M10 Washer (97) and

an M10 Nylon Locknut (90). Make sure the

Cable Trap is positioned to hold the Cable in

the groove of the Pulley.

50. Route the Press Cable (72) through the opening

in the Press Frame (17) and wrap the Cable

around a 90mm Pulley (35) in the direction

shown.

Attach the 90mm Pulley (35) and a Cable Trap

(38) to the indicated hole in the Press Frame (17)

with an M10 x 81mm Bolt (104), an M10 Washer

(97) and an M10 Nylon Locknut (90). Make sure

the Pulley is attached on the inside of the

Press Frame. Make sure the Cable Trap is

positioned to hold the Cable in the groove of

the Pulley.

51. Wrap the Press Cable (72) around a "V"-pulley

(34) in the direction shown. Attach the "V"-pulley

and a Long Cable Trap (37) to the small tube on

the Press Upright (5) with an M10 x 81mm Bolt

(104), an M10 Washer (97) and an M10 Nylon

Locknut (90). Note: The small tube has four

adjustment holes. The "V"-pulley must be

attached at the hole farthest from the Upright.

Make sure the Cable Trap is oriented as

shown.

52. Wrap the Press Cable (72) around a 90mm

Pulley (35) in the direction shown. Attach the

Pulley and a Cable Trap (38) at the indicated hole

in the Press Frame (17) with an M10 x 81mm Bolt

(104), an M10 Washer (97), and an M10 Nylon

Locknut (90). Make sure the Pulley is attached

on the inside of the Press Frame. Make sure

the Cable Trap is positioned to hold the Cable

in the groove of the Pulley.

1O4

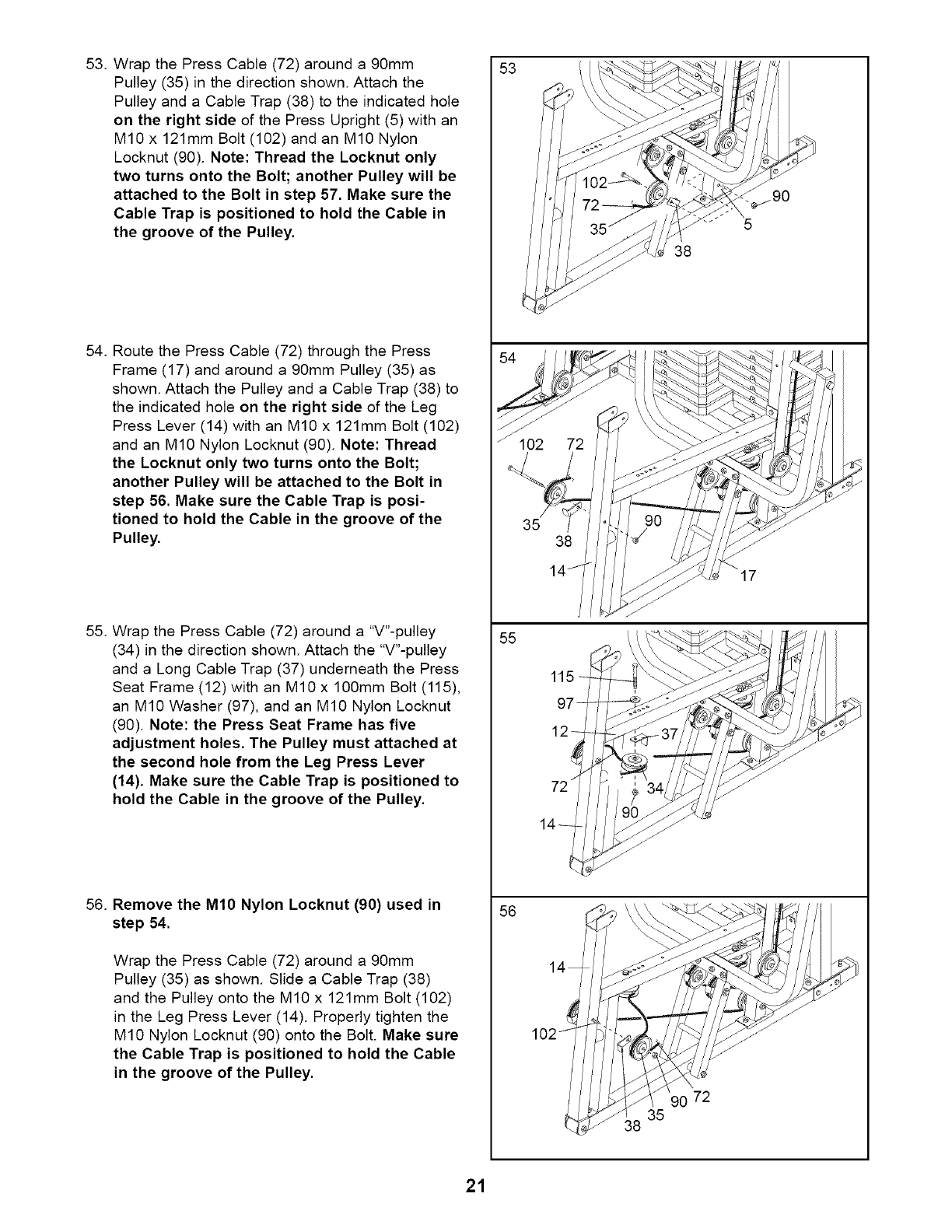

53. Wrap the Press Cable (72) around a 90mm

Pulley (35) in the direction shown. Attach the

Pulley and a Cable Trap (38) to the indicated hole

on the right side of the Press Upright (5) with an

M10 x 121mm Bolt (102) and an M10 Nylon

Locknut (90). Note: Thread the Locknut only

two turns onto the Bolt; another Pulley will be

attached to the Bolt in step 57. Make sure the

Cable Trap is positioned to hold the Cable in

the groove of the Pulley.

54. Route the Press Cable (72) through the Press

Frame (17) and around a 90mm Pulley (35) as

shown. Attach the Pulley and a Cable Trap (38) to

the indicated hole on the right side of the Leg

Press Lever (14) with an M10 x 121mm Bolt (102)

and an M10 Nylon Locknut (90). Note: Thread

the Locknut only two turns onto the Bolt;

another Pulley will be attached to the Bolt in

step 56. Make sure the Cable Trap is posi-

tioned to hold the Cable in the groove of the

Pulley.

55. Wrap the Press Cable (72) around a "V"-pulley

(34) in the direction shown. Attach the "V"-pulley

and a Long Cable Trap (37) underneath the Press

Seat Frame (12) with an M10 x 100mm Bolt (115),

an M10 Washer (97), and an M10 Nylon Locknut

(90). Note: the Press Seat Frame has five

adjustment holes. The Pulley must attached at

the second hole from the Leg Press Lever

(14). Make sure the Cable Trap is positioned to

hold the Cable in the groove of the Pulley.

56. Remove the M10 Nylon Locknut (90) used in

step 54.

Wrap the Press Cable (72) around a 90mm

Pulley (35) as shown. Slide a Cable Trap (38)

and the Pulley onto the M10 x 121mm Bolt (102)

in the Leg Press Lever (14). Properly tighten the

M10 Nylon Locknut (90) onto the Bolt. Make sure

the Cable Trap is positioned to hold the Cable

in the groove of the Pulley.

102 72

35 38

115

90 72

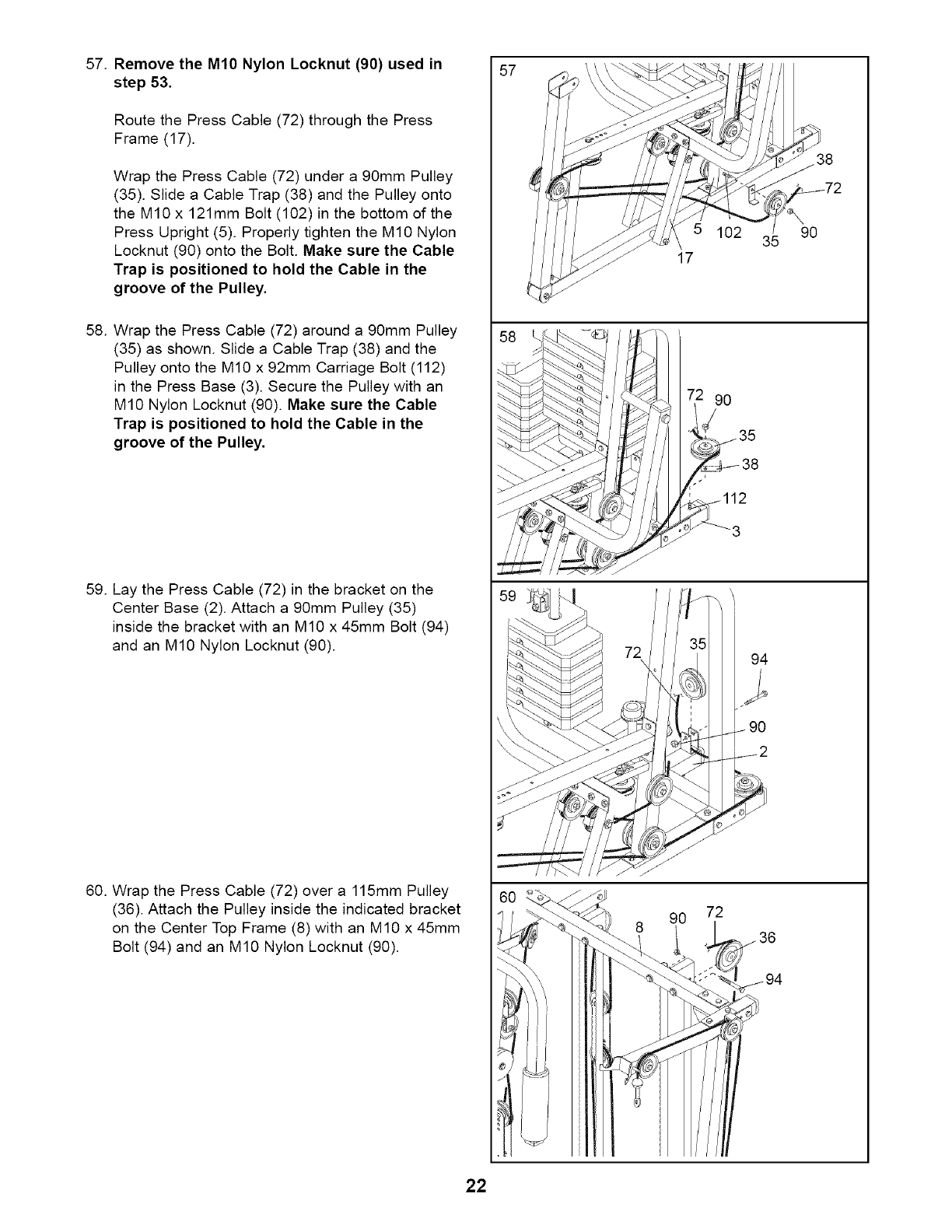

57. Remove the M10 Nylon Locknut (90) used in 57

step 53.

Route the Press Cable (72) through the Press

Frame (17).

Wrap the Press Cable (72) under a 90mm Pulley

(35). Slide a Cable Trap (38) and the Pulley onto

the M10 x 121mm Bolt (102) in the bottom of the

Press Upright (5). Properly tighten the M10 Nylon

Locknut (90) onto the Bolt. Make sure the Cable

Trap is positioned to hold the Cable in the

groove of the Pulley.

58. Wrap the Press Cable (72) around a 90mm Pulley

(35) as shown. Slide a Cable Trap (38) and the

Pulley onto the M10 x 92mm Carriage Bolt (112)

in the Press Base (3). Secure the Pulley with an

M10 Nylon Locknut (90). Make sure the Cable

Trap is positioned to hold the Cable in the

groove of the Pulley.

59. Lay the Press Cable (72) in the bracket on the

Center Base (2). Attach a 90mm Pulley (35)

inside the bracket with an M10 x 45mm Bolt (94)

and an M10 Nylon Locknut (90).

60. Wrap the Press Cable (72) over a 115mm Pulley

(36). Attach the Pulley inside the indicated bracket

on the Center Top Frame (8) with an M10 x 45mm

Bolt (94) and an M10 Nylon Locknut (90).

5 102 35

.< 90 72

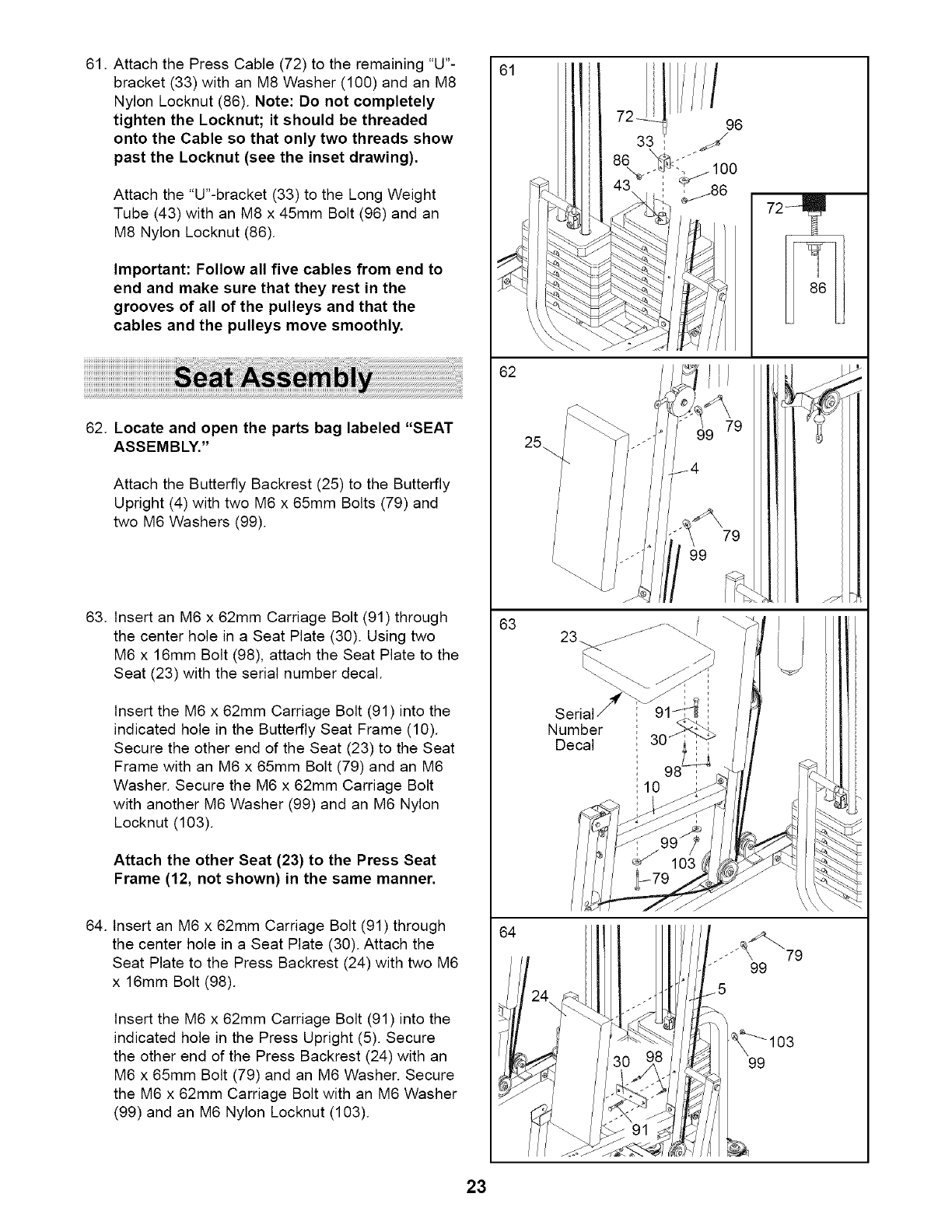

61. Attach the Press Cable (72) to the remaining "U"-

bracket (33) with an M8 Washer (100) and an M8

Nylon Locknut (86). Note: Do not completely

tighten the Locknut; it should be threaded

onto the Cable so that only two threads show

past the Locknut (see the inset drawing).

Attach the "U"-bracket (33) to the Long Weight

Tube (43) with an M8 x 45mm Bolt (96) and an

M8 Nylon Locknut (86).

Important: Follow all five cables from end to

end and make sure that they rest in the

grooves of all of the pulleys and that the

cables and the pulleys move smoothly.

62. Locate and open the parts bag labeled "SEAT

ASSEMBLY."

Attach the Butterfly Backrest (25) to the Butterfly

Upright (4) with two M6 x 65mm Bolts (79) and

two M6 Washers (99).

63. Insert an M6 x 62mm Carriage Bolt (91) through

the center hole in a Seat Plate (30). Using two

M6 x 16mm Bolt (98), attach the Seat Plate to the

Seat (23) with the serial number decal.

Insert the M6 x 62mm Carriage Bolt (91) into the

indicated hole in the Butterfly Seat Frame (10).

Secure the other end of the Seat (23) to the Seat

Frame with an M6 x 65mm Bolt (79) and an M6

Washer. Secure the M6 x 62mm Carriage Bolt

with another M6 Washer (99) and an M6 Nylon

Locknut (103).

Attach the other Seat (23) to the Press Seat

Frame (12, not shown) in the same manner.

64. Insert an M6 x 62mm Carriage Bolt (91) through

the center hole in a Seat Plate (30). Attach the

Seat Plate to the Press Backrest (24) with two M6

x 16mm Bolt (98).

Insert the M6 x 62mm Carriage Bolt (91) into the

indicated hole in the Press Upright (5). Secure

the other end of the Press Backrest (24) with an

M6 x 65mm Bolt (79) and an M6 Washer. Secure

the M6 x 62mm Carriage Bolt with an M6 Washer

(99) and an M6 Nylon Locknut (103).

Serial

Number

Decal

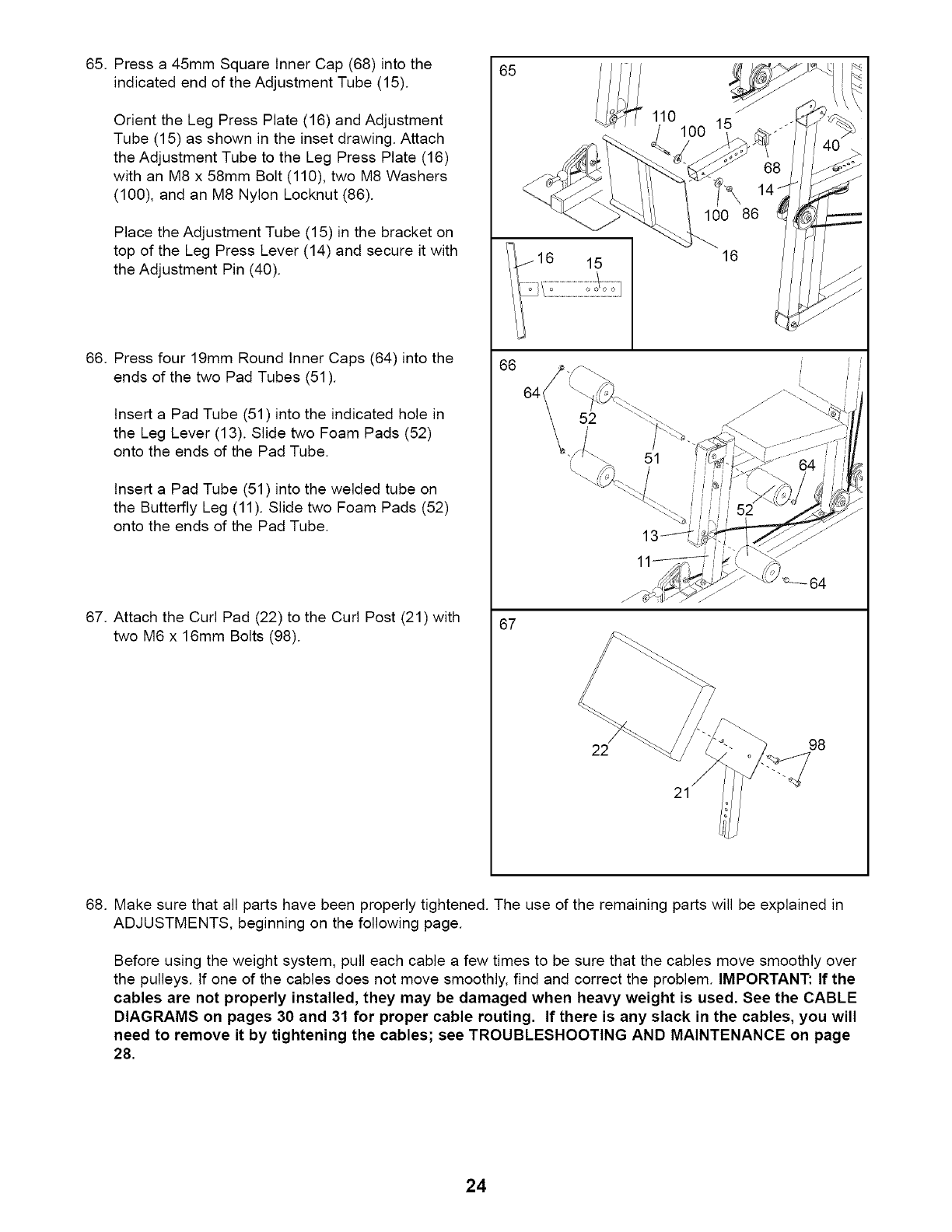

65. Press a 45mm Square Inner Cap (68) into the

indicated end of the Adjustment Tube (15).

Orient the Leg Press Plate (16) and Adjustment

Tube (15) as shown in the inset drawing. Attach

the Adjustment Tube to the Leg Press Plate (16)

with an M8 x 58mm Bolt (110), two M8 Washers

(100), and an M8 Nylon Locknut (86).

Place the Adjustment Tube (15) in the bracket on

top of the Leg Press Lever (14) and secure it with

the Adjustment Pin (40).

66. Press four 19mm Round Inner Caps (64) into the

ends of the two Pad Tubes (51).

Insert a Pad Tube (51) into the indicated hole in

the Leg Lever (13). Slide two Foam Pads (52)

onto the ends of the Pad Tube.

Insert a Pad Tube (51) into the welded tube on

the Butterfly Leg (11). Slide two Foam Pads (52)

onto the ends of the Pad Tube.

67. Attach the Curl Pad (22) to the Curl Post (21) with

two M6 x 16mm Bolts (98).

110 1:

100

100 86

22 98

68. Make sure that all parts have been properly tightened. The use of the remaining parts will be explained in

ADJUSTMENTS, beginning on the following page.

Before using the weight system, pull each cable a few times to be sure that the cables move smoothly over

the pulleys. If one of the cables does not move smoothly, find and correct the problem. IMPORTANT: If the

cables are not properly installed, they may be damaged when heavy weight is used. See the CABLE

DIAGRAMS on pages 30 and 31 for proper cable routing. If there is any slack in the cables, you will

need to remove it by tightening the cables; see TROUBLESHOOTING AND MAINTENANCE on page

28.

ADJUSTMENTS

The instructions below describe how each part of the weight system can be adjusted. Refer to the exercise

guide accompanying this manual to see how the weight system should be set up for each exercise. IMPOR-

TANT: When using an accessory, make sure it is in the correct starting position for the exercise to be

performed. If there is any slack in the cables or chain as an exercise is performed, the effectiveness of

the exercise will be reduced.

ATTACHING THE ACCESSORIES

Attach the Lat Bar (59) to the Low Cable (71) at the

low pulley station with a Cable Clip (58). For some

exercises, the Chain (57) should be attached between

the Lat Bar and the Cable with two Cable Clips.

Adjust the length of the Chain between the Lat Bar

and the Cable so the Lat Bar is in the correct start-

ing position for the exercise to be performed.

The Nylon Strap (83) or Ab Strap (56) can be attached

in the same manner. The accessories can be attached

to the ab pulley station or high pulley station in the

same manner.

ADJUSTING THE LEG PRESS PLATE

To adjust the position of the Leg Press Plate (16), pull

out the Adjustment Pin (40) and slide the Adjustment

Tube (15) either backward or forward in the bracket

on the Leg Press Lever (14). Line up one of the

adjustment holes in the Adjustment Tube with the

hole in the bracket and re-insert the Adjustment Pin.

ATTACHING THE CURL PAD

To use the Curl Pad (22), remove the 50mm Square

Inner Cap (67) from the Butterfly Leg (11). Slide the

Curl Post (21) to the desired height in the Butterfly

Leg. Tighten the Curl Knob (49) into the Butterfly Leg

and an adjustment hole in the Curl Post.

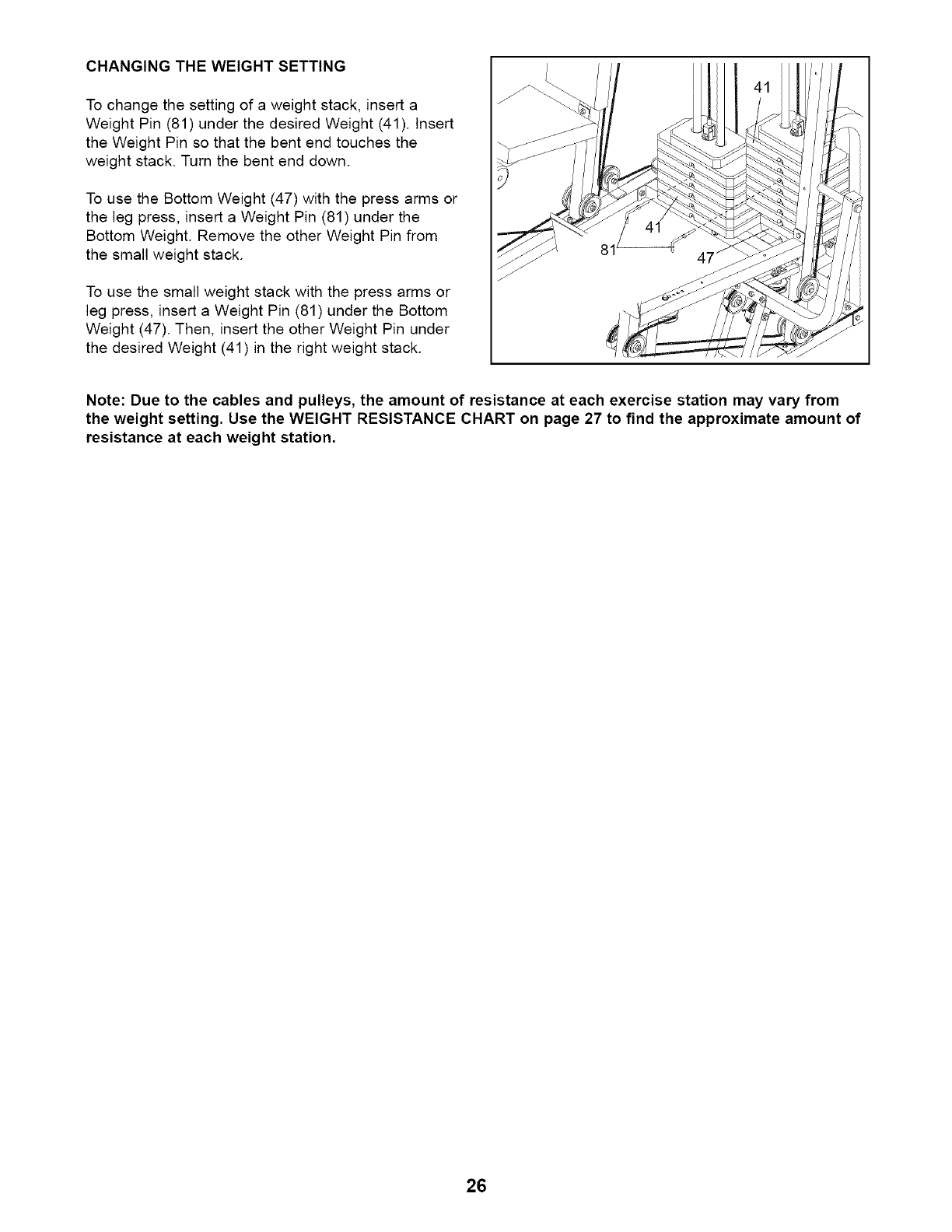

CHANGING THE WEIGHT SETTING

To change the setting of a weight stack, insert a

Weight Pin (81) under the desired Weight (41). Insert

the Weight Pin so that the bent end touches the

weight stack. Turn the bent end down.

To use the Bottom Weight (47) with the press arms or

the leg press, insert a Weight Pin (81) under the

Bottom Weight. Remove the other Weight Pin from

the small weight stack.

To use the small weight stack with the press arms or

leg press, insert a Weight Pin (81) under the Bottom

Weight (47). Then, insert the other Weight Pin under

the desired Weight (41) in the right weight stack.

Note: Due to the cables and pulleys, the amount of resistance at each exercise station may vary from

the weight setting. Use the WEIGHT RESISTANCE CHART on page 27 to find the approximate amount of

resistance at each weight station.

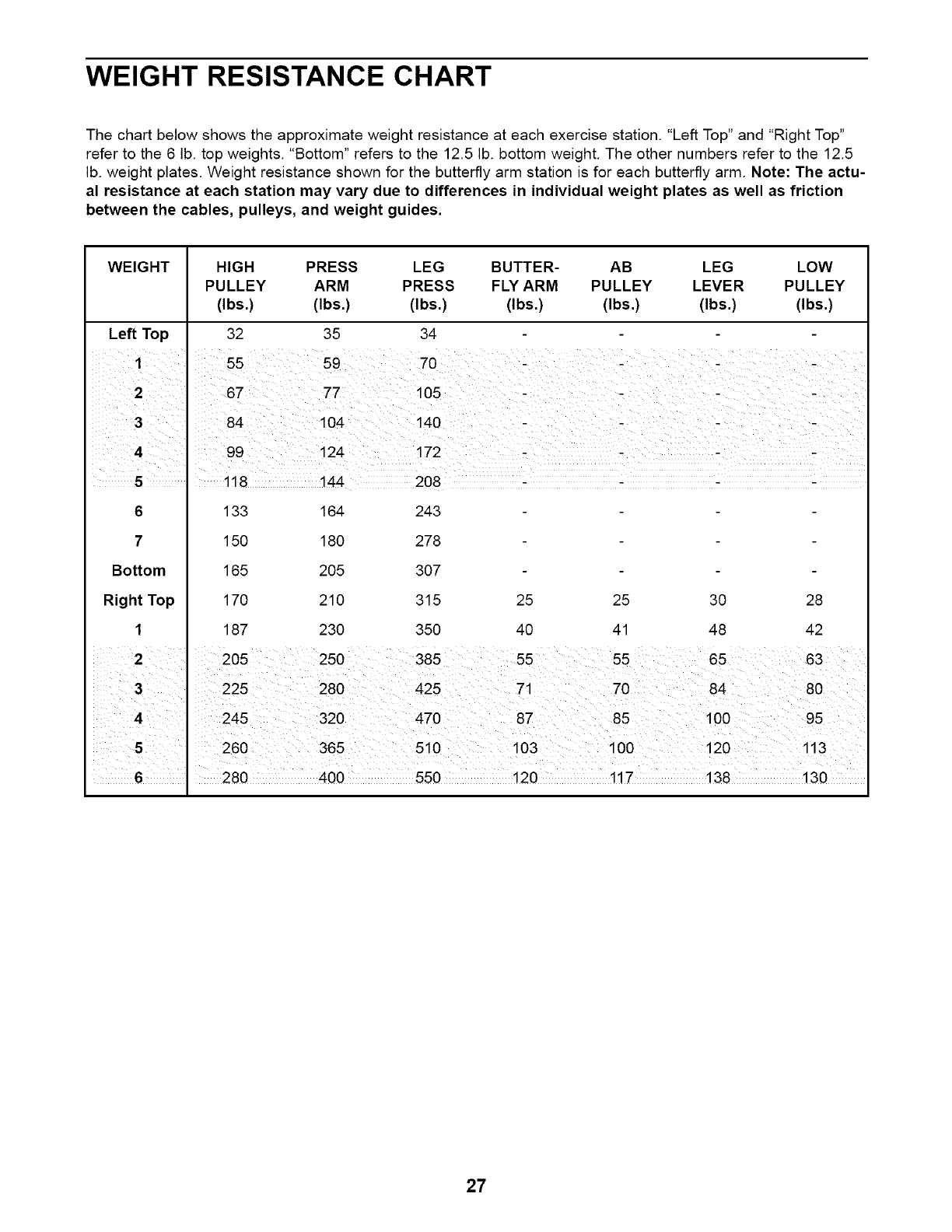

WEIGHT RESISTANCE CHART

The chart below shows the approximate weight resistance at each exercise station. "Left Top" and "Right Top"

refer to the 6 lb. top weights. "Bottom" refers to the 12.5 lb. bottom weight. The other numbers refer to the 12.5

lb. weight plates. Weight resistance shown for the butterfly arm station is for each butterfly arm. Note: The actu-

al resistance at each station may vary due to differences in individual weight plates as well as friction

between the cables, pulleys, and weight guides,

WEIGHT

LeffTop

Bottom

Right Top

HIGH PRESS LEG BUTTER- AB LEG LOW

PULLEY ARM PRESS FLY ARM PULLEY LEVER PULLEY

(Ibs.) (Ibs.) (Ibs.) (Ibs.) (Ibs.) (Ibs.) (Ibs.)

32 35 34

133 164 243

150 180 278

165 205 307

170 210 315

187 230 350

25 25 30 28

40 41 48 42

6! . 280 400 i 550 i 120 i 117 138 130

TROUBLESHOOTING AND MAINTENANCE

Make sure all parts are properly tightened each time the weight system is used. Replace any worn parts immedi-

ately. The weight system can be cleaned using a damp cloth and mild non-abrasive detergent. Do not use solvents.

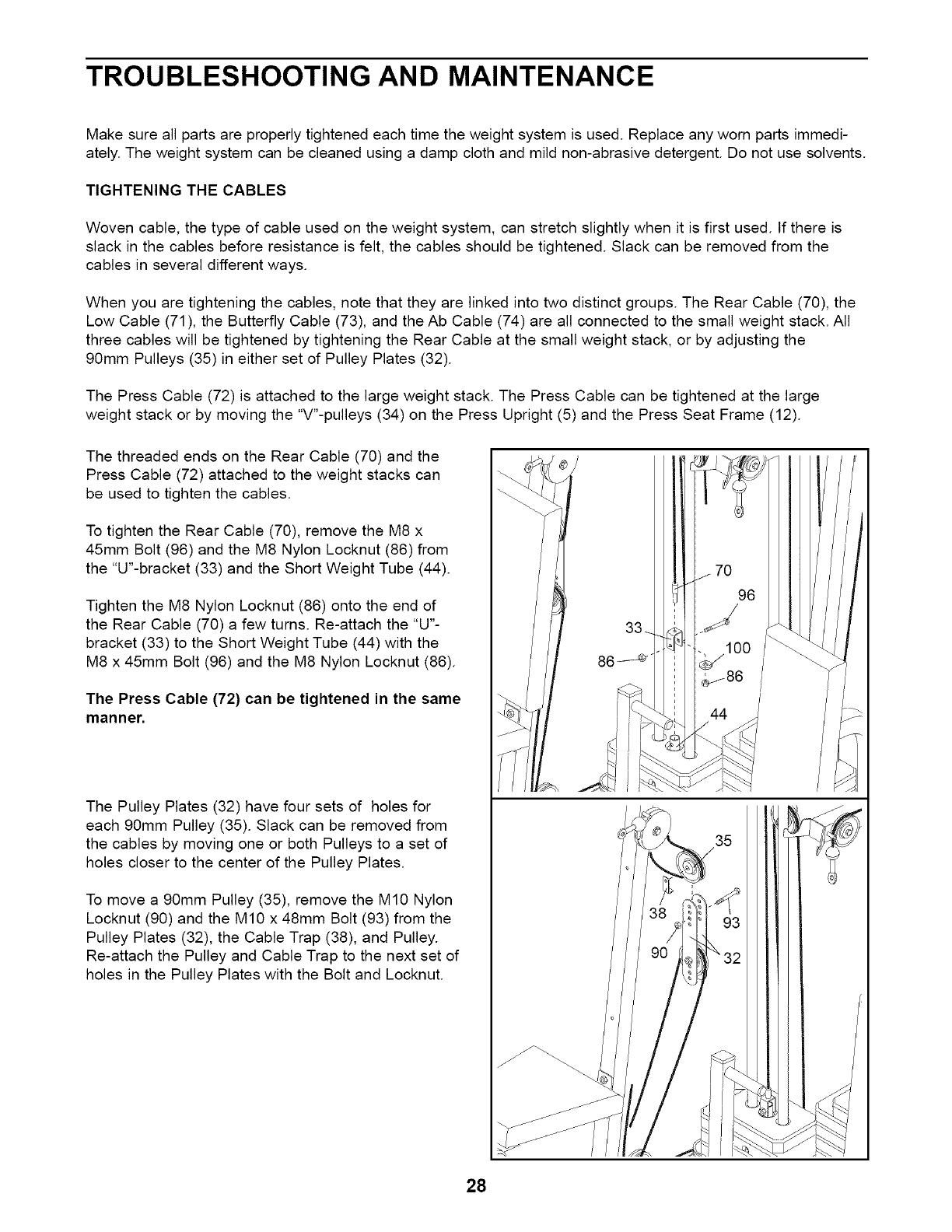

TIGHTENING THE CABLES

Woven cable, the type of cable used on the weight system, can stretch slightly when it is first used. tf there is

slack in the cables before resistance is felt, the cables should be tightened. Slack can be removed from the

cables in several different ways.

When you are tightening the cables, note that they are linked into two distinct groups. The Rear Cable (70), the

Low Cable (71), the Butterfly Cable (73), and the Ab Cable (74) are all connected to the small weight stack. All

three cables will be tightened by tightening the Rear Cable at the small weight stack, or by adjusting the

90mm Pulleys (35) in either set of Pulley Plates (32).

The Press Cable (72) is attached to the large weight stack. The Press Cable can be tightened at the large

weight stack or by moving the "V"-pulleys (34) on the Press Upright (5) and the Press Seat Frame (12).

The threaded ends on the Rear Cable (70) and the

Press Cable (72) attached to the weight stacks can

be used to tighten the cables.

To tighten the Rear Cable (70), remove the M8 x

45mm Bolt (96) and the M8 Nylon Locknut (86) from

the "U"-bracket (33) and the Short Weight Tube (44).

Tighten the M8 Nylon Locknut (86) onto the end of

the Rear Cable (70) a few turns. Re-attach the "U"-

bracket (33) to the Short Weight Tube (44) with the

M8 x 45mm Bolt (96) and the M8 Nylon Locknut (86).

The Press Cable (72) can be tightened in the same

manner.

The Pulley Plates (32) have four sets of holes for

each 90mm Pulley (35). Slack can be removed from

the cables by moving one or both Pulleys to a set of

holes closer to the center of the Pulley Plates.

To move a 90mm Pulley (35), remove the M10 Nylon

Locknut (90) and the M10 x 48mm Bolt (93) from the

Pulley Plates (32), the Cable Trap (38), and Pulley.

Re-attach the Pulley and Cable Trap to the next set of

holes in the Pulley Plates with the Bolt and Locknut.

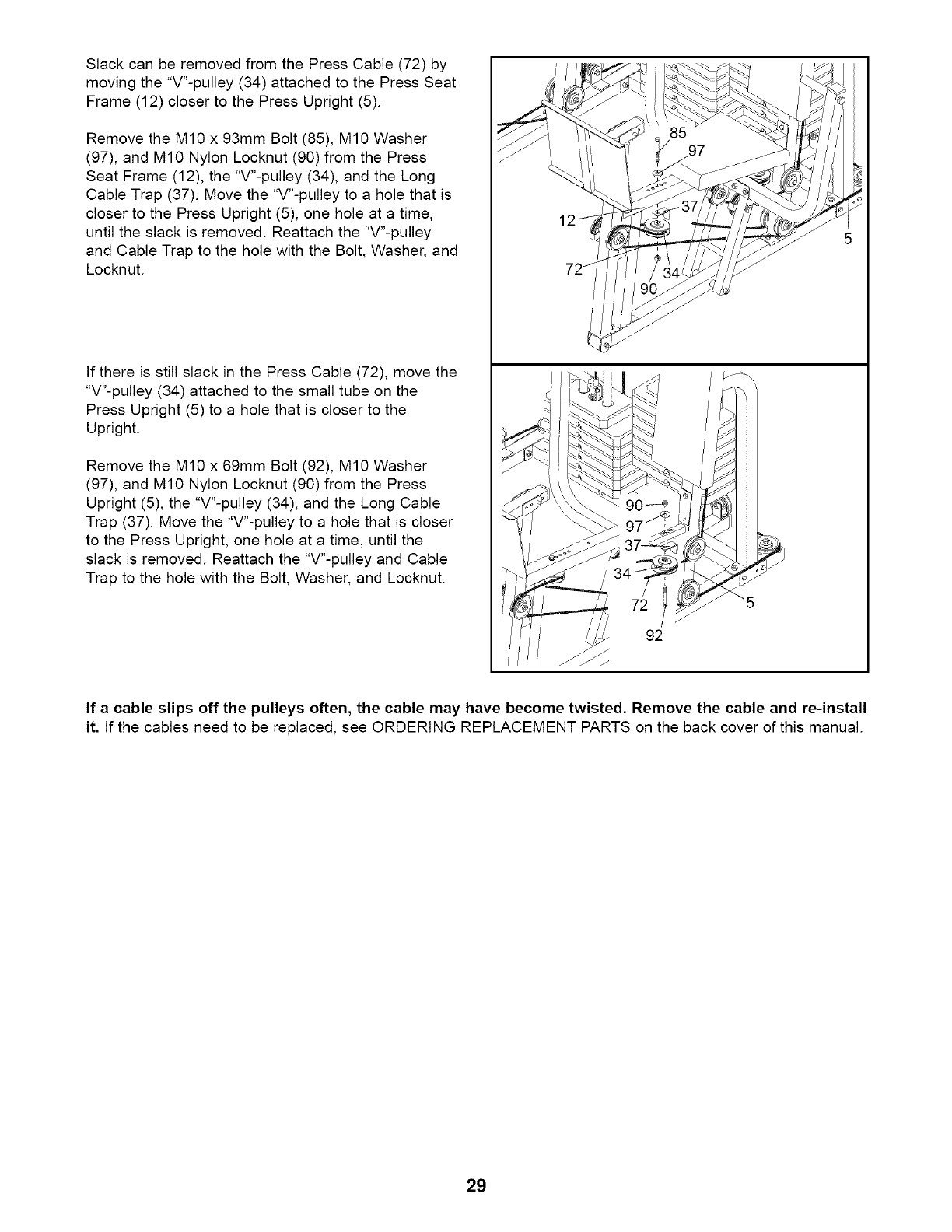

Slack can be removed from the Press Cable (72) by

moving the "V"-pulley (34) attached to the Press Seat

Frame (12) closer to the Press Upright (5).

Remove the M10 x 93mm Bolt (85), M10 Washer

(97), and M10 Nylon Locknut (90) from the Press

Seat Frame (12), the "V"-pulley (34), and the Long

Cable Trap (37). Move the "V"-pulley to a hole that is

closer to the Press Upright (5), one hole at a time,

until the slack is removed. Reattach the "V"-pulley

and Cable Trap to the hole with the Bolt, Washer, and

Locknut.

If there is still slack in the Press Cable (72), move the

"V"-pulley (34) attached to the small tube on the

Press Upright (5) to a hole that is closer to the

Upright.

Remove the M10 x 69mm Bolt (92), M10 Washer

(97), and M10 Nylon Locknut (90) from the Press

Upright (5), the "V"-pulley (34), and the Long Cable

Trap (37). Move the "V"-pulley to a hole that is closer

to the Press Upright, one hole at a time, until the

slack is removed. Reattach the "V"-pulley and Cable

Trap to the hole with the Bolt, Washer, and Locknut.

If a cable slips off the pulleys often, the cable may have become twisted. Remove the cable and re-install

it. If the cables need to be replaced, see ORDERING REPLACEMENT PARTS on the back cover of this manual.

CABLE DIAGRAMS

The Cable Diagrams below and on the next page show the proper routing of the Rear Cable (70), the Low Cable

(71), the Press Cable (72), the Butterfly Cable (73), and the Ab Cable (74). The numbers show the correct route

for each Cable. Make sure that the Cables are routed correctly, that the Pulleys move smoothly, and that

the Cable Traps do not touch or bind the Cables. Incorrect cable routing can damage the weight system.

Press Cable (72)

15 \

Rear Cable (70)

Low Cable (71)

Butterfly Cable (73)

Ab Cable (74)

PART IDENTIFICATION CHART--Model No. 831.159833 R 2o3A

M6 Nylon Locknut (103)

M8 Nylon Locknut (86)

M10 Nylon Locknut (90)

M6 Washer (99)

M8 Washer (100)

M10 x 69mm Bolt (92) [_

I M10 x 63mm Carriage Bolt (76)

I M8 x 63mm Carriage Bolt (113)

M8 x 61ram Carriage Bolt (75)

I M10 X 67ram B°lt (82) _

M8 x 66mm Bolt (89)

(Me x 65mm Bolt (79)

I M8x62mmBott(87) _

M10 x 58mm Bolt (114)

I M8 x 58mm Bolt (110)

M10 Washer (97)

M6 x 16mm Bolt (98)

M4 x 25ram Screw (80) M8 x 20mm Shoulder Bolt (84)

M10 x 48ram Bolt (93)

I M10 x45mm Bolt (94)

M8 x 45mm Bolt (96)

M6 x 62mm Carriage Bolt (91) i_

M8 x 68mm Shoulder Bolt (108)

MIO x 72mm Bolt (105) _

M10 x 76mm Bolt (88)

MIO x78mm Bolt (107) _

M10 x 81mm Bolt (104)

M10 x 84mm Bolt (78)

I M10 x 89mm Bolt (111)

M10 x 91ram Bolt (101)

M10 x 93mm Bolt (85)

I M10 x 89ram Carriage Bott (95)

M10 x 92mm Carriage Bolt (112)

M10 x 97ram Bolt (77)

M10 x 100ram Bolt (115)

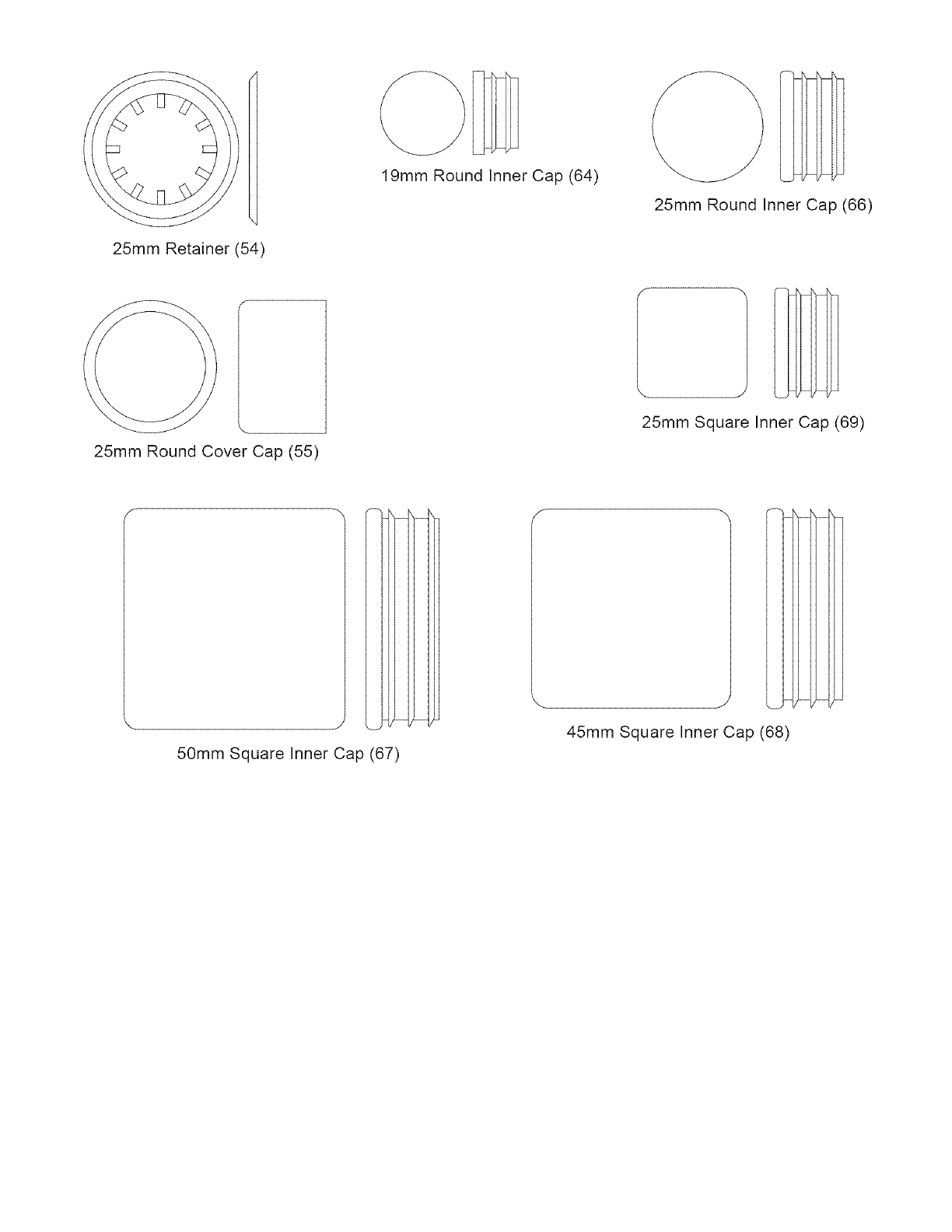

19mm Round Inner Cap (64)

25mm Round Inner Cap (66)

25mm Retainer (54)

25mm Round Cover Cap (55)

25mm Square Inner Cap (69)

50mm Square Inner Cap (67)

45mm Square Inner Cap (68)

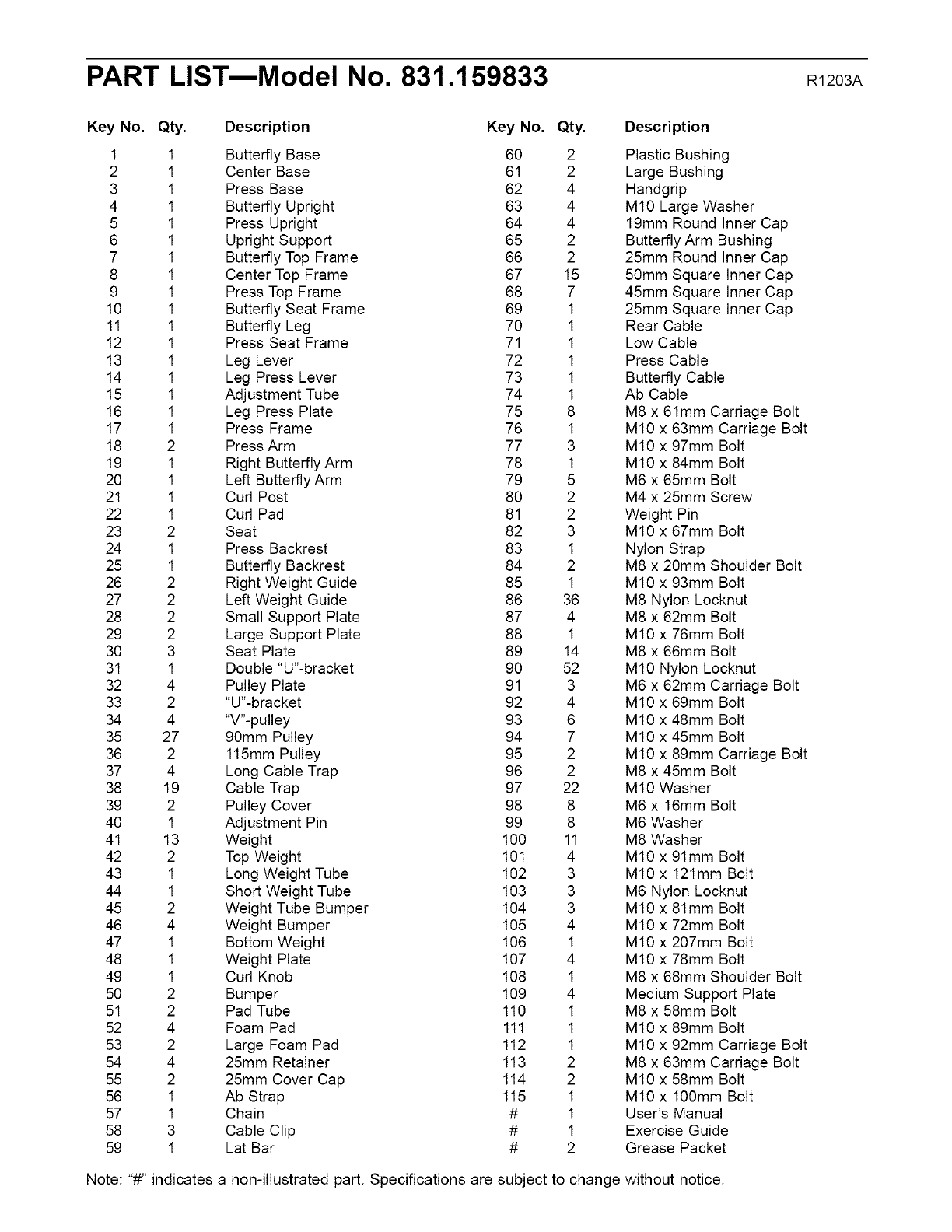

PART LIST--Model No. 831.159833 m1203A

Key No. Qty. Description Key No. Qty.

1 1 Butterfly Base 60 2

2 1 Center Base 61 2

3 1 Press Base 62 4

4 1 Butterfly Upright 63 4

5 1 Press Upright 64 4

6 1 Upright Support 65 2

7 1 Butterfly Top Frame 66 2

8 1 Center Top Frame 67 15

9 1 Press Top Frame 68 7

10 1 Butterfly Seat Frame 69 1

11 1 Butterfly Leg 70 1

12 1 Press Seat Frame 71 1

13 1 Leg Lever 72 1

14 1 Leg Press Lever 73 1

15 1 Adjustment Tube 74 1

16 1 Leg Press Plate 75 8

17 1 Press Frame 76 1

18 2 Press Arm 77 3

19 1 Right Butterfly Arm 78 1

20 1 Left Butterfly Arm 79 5

21 1 Curl Post 80 2

22 1 Curl Pad 8t 2

23 2 Seat 82 3

24 1 Press Backrest 83 1

25 1 Butterfly Backrest 84 2

26 2 Right Weight Guide 85 1

27 2 Left Weight Guide 86 36

28 2 Small Support Plate 87 4

29 2 Large Support Plate 88 1

30 3 Seat Plate 89 14

3t 1 Double "U"-bracket 90 52

32 4 Pulley Plate 91 3

33 2 "U"-bracket 92 4

34 4 "V"-pulley 93 6

35 27 90mm Pulley 94 7

36 2 115mm Pulley 95 2

37 4 Long Cable Trap 96 2

38 19 Cable Trap 97 22

39 2 Pulley Cover 98 8

40 1 Adjustment Pin 99 8

41 13 Weight 100 11

42 2 Top Weight 101 4

43 1 Long Weight Tube 102 3

44 1 Short Weight Tube 103 3

45 2 Weight Tube Bumper 104 3

46 4 Weight Bumper 105 4

47 1 Bottom Weight 106 1

48 1 Weight Plate 107 4

49 1 Curl Knob 108 1

50 2 Bumper 109 4

51 2 Pad Tube 110 1

52 4 Foam Pad 111 1

53 2 Large Foam Pad 112 1

54 4 25mm Retainer 113 2

55 2 25mm Cover Cap 114 2

56 1 Ab Strap 115 1

57 1 Chain # 1

58 3 Cable Clip # 1

59 1 Lat Bar # 2

Description

Plastic Bushing

Large Bushing

Handgrip

Mt0 Large Washer

19mm Round Inner Cap

Butterfly Arm Bushing

25mm Round Inner Cap

50mm Square Inner Cap

45mm Square Inner Cap

25mm Square Inner Cap

Rear Cable

Low Cable

Press Cable

Butterfly Cable

Ab Cable

M8 x 61mm Carriage Bolt

M10 x 63mm Carriage Bolt

M10 x 97mm Bolt

M10 x 84mm Bolt

M6 x 65mm Bolt

M4 x 25mm Screw

Weight Pin

M10 x 67mm Bolt

Nylon Strap

M8 x 20mm Shoulder Bolt

M10 x 93mm Bolt

M8 Nylon Locknut

M8 x 62mm Bolt

M10 x 76mm Bolt

M8 x 66mm Bolt

M10 Nylon Locknut

M6 x 62mm Carriage Bolt

M10 x 69mm Bolt

M10 x 48mm Bolt

M10 x 45mm Bolt

M10 x 89mm Carriage Bolt

M8 x 45mm Bolt

M10 Washer

M6 x 16mm Bolt

M6 Washer

M8 Washer

M10 x 91mm Bolt

M10 x 121mm Bolt

M6 Nylon Locknut

M10 x 81mm Bolt

M10 x 72mm Bolt

M10 x 207mm Bolt

M10 x 78mm Bolt

M8 x 68mm Shoulder Bolt

Medium Support Plate

M8 x 58mm Bolt

M10 x 89mm Bolt

M10 x 92mm Carriage Bolt

M8 x 63mm Carriage Bolt

M10 x 58mm Bolt

M10 x 100mm Bolt

User's Manual

Exercise Guide

Grease Packet

Note: "#" indicates a non-illustrated part. Specifications are subject to change without notice.

EXPLODED DRAWING--Model No. 831.159833 R_2O3A

Your Home

For repair- in your home - of all major brand appliances, lawn and garden equipment,

or heating and cooling systems, no matter who made it, no matter who sold it!

iiiiiiiiiiiiiii

For the replacement parts, accessories, and user's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

iiiiiiiiiiiiiii

1-800-4-MY-ROME ® Anytime, day or night

(1-800-469-4663) (U.S.A. and Canada)

www.sears.com www.sears.ca

OurHome

iiiiiiiiiiiiiii For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the location of your nearest

Sears Parts and Repair Center.

HHHHHHHi 1-800-488-1222Aoyt_medayo,n_gh,/USAon,yl

www.sears.com

To purchase aprotection agreement (U.S.A.)

ormaintenanceagreement/Oaoada!onaproductse icedbySears:

HHHHHHHi 1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparaciSn a domicilio, y pare ordenar piezas:

® Registered Trademark /TMTrademark /SMService Mark of Sears, Roebuck and Co.

® Marca Registrada /TMMarca de Fa.brica /sMMarca de Servicio de Sears, Roebuck and Co.

FULL 90-DAY WARRANTY

For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this

WEIGHT SYSTEM EXERCISER, contact the nearest Sears Service Center throughout the United

States and Sears will repair or replace the WEIGHT SYSTEM EXERCISER, free of charge.

This warranty does not apply when the WEIGHT SYSTEM EXERCISER is used commercially or for

rental purposes.

This warranty gives you specific legal rights, and you may also have other rights which vary from state

to state.

Sears, Roebuck and Co., Dept 817WA, Hoffman Estates, IL 60179

Weider 831159833 User Manual PRO POWER STACK Manuals And Guides L0804127

WEIDER Weight System Manual L0804127 WEIDER Weight System Owner's Manual, WEIDER Weight System installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
