CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

Model No. WESY1955.0

Serial No.

Write the serial number in the

space above for future reference.

Serial Number Decal (Under Seat)

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction. If you

have questions, or if a part is

damaged or missing, PLEASE

CONTACT OUR CUSTOMER

SERVICE DEPARTMENT

DIRECTLY.

CALL TOLL-FREE:

1-877-992-5999

Mon.–Fri., 6 a.m.–6 p.m. MST

ON THE WEB:

www.weiderservice.com

USER’S MANUAL

Visit our website at

www.weiderfitness.com

new products, prizes,

fitness tips, and much more!

WARNING DECAL PLACEMENT

WEIDER is a registered trademark of ICON IP

,Inc.

TABLE OF CONTENTS

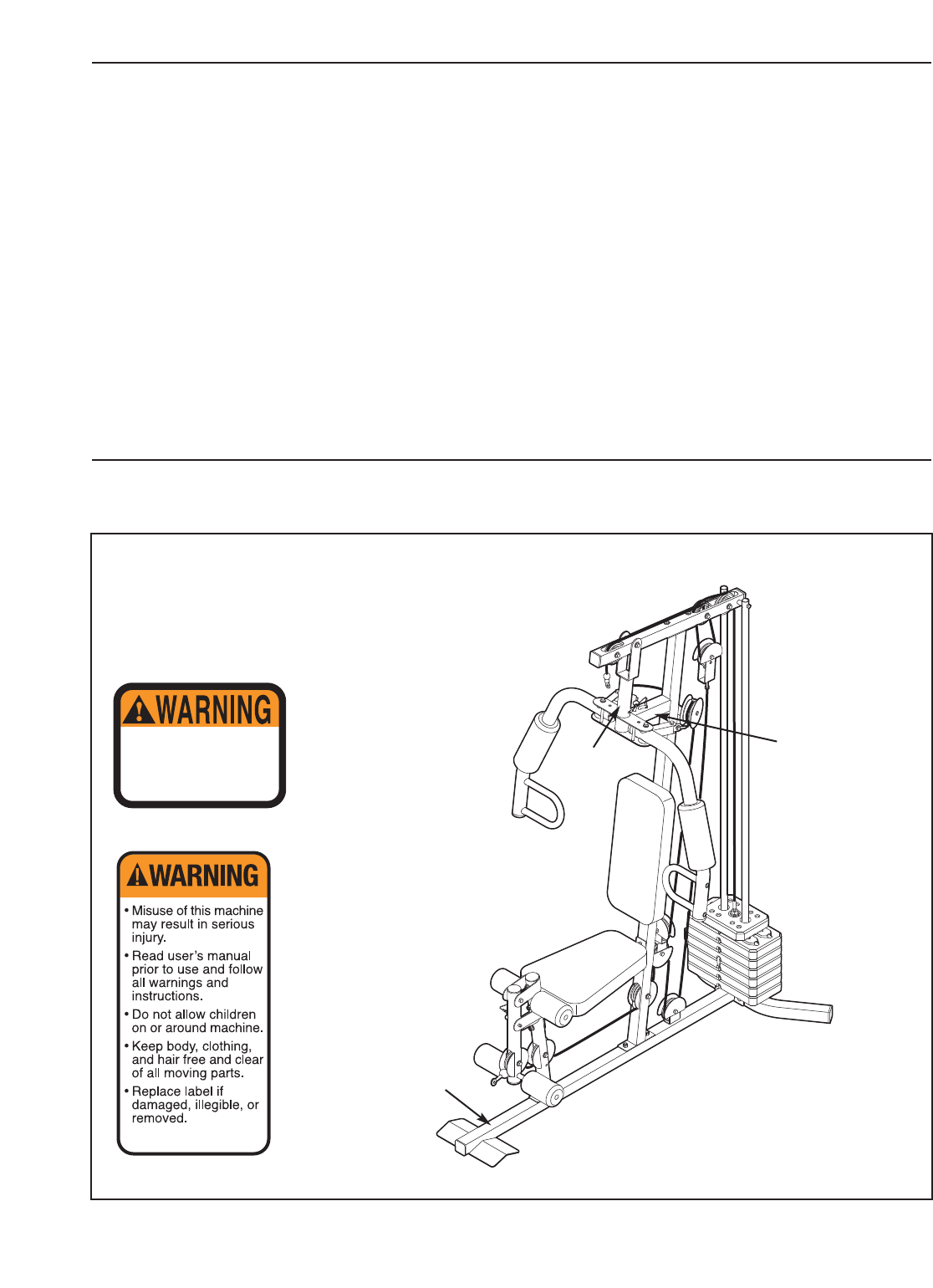

The decals shown here have been placed on the

weight system. If a decal is missing or illegible,

please call the toll-free telephone number on the front

cover of this manual and order a free replacement

decal. Apply the decal in the location shown.

Decal 1

Keep hands and

fingers clear of

this area.

Decal 2

Decal 1 Decal 1—This

decal is placed

on both sides

of the upright

Decal 2

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

WEIGHT RESISTANCE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

CABLE DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

Note: A PART IDENTIFICATION CHART and a PART LIST/EXPLODED DRAWING are attached in the center of

this manual. Remove the PART IDENTIFICATION CHART and PART LIST/EXPLODED DRAWING before begin-

ning assembly.

1. Read all instructions in this manual and all

warnings on the weight system before using

the weight system. Use the weight system

only as described in this manual.

2. It is the responsibility of the owner to ensure

that all users of the weight system are ade-

quately informed of all precautions.

3. The weight system is intended for home use

only. Do not use the weight system in any

commercial, rental, or institutional setting.

4. Keep the weight system indoors, away from

moisture and dust. Place the weight system

on a level surface, with a mat beneath it to

protect the floor or carpet. Make sure that

there is enough clearance around the weight

system to mount, dismount, and use the

weight system.

5. Inspect and properly tighten all parts regular-

ly. Replace any worn parts immediately.

6. Keep children under 12 and pets away from

the weight system at all times.

7. Always wear athletic shoes for foot protec-

tion while exercising.

8. The weight system is designed to support a

maximum user weight of 300 pounds.

9. Keep hands and feet away from moving parts.

10. Always secure the weight stack with the lock

pin and lock after exercising to prevent

unauthorized use of the weight system (see

LOCKING THE WEIGHT STACK on page 17).

11. Make sure that the cables remain on the pul-

leys at all times. If the cables bind as you are

exercising, stop immediately and make sure

that the cables are on the pulleys. Replace all

cables at least every two years.

12. The weight system is designed to be used

only with the included weight. Do not use the

weight system with dumbbells or any other

type of weight to increase the resistance.

13. Do not use the weight system with the top

weight pinned in an elevated position.

14. Always stand on the foot plate when per-

forming an exercise that could cause the

weight system to tip.

15. Never release the arms, leg lever, lat bar, or

handle strap while weights are raised. The

weights will fall with great force.

16. Always disconnect the lat bar from the

weight system when performing an exercise

that does not use the lat bar.

17. If you feel pain or dizziness while exercising,

stop immediately and begin cooling down.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. ICON assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

WARNING: To reduce the risk of serious injury, read the following important precautions

before using the weight system.

IMPORTANT PRECAUTIONS

High Pulley Station

Low Pulley Station

Right Side

Left Side

Note: The terms “right side” and “left side” are determined

relative to a person sitting on the seat; they do not corre-

spond to right and left on the drawings in the manual.

Backrest

Weights

Leg Lever

Foot Plate

Seat

Arm

Arm Pin

Leg Lever Pin

BEFORE YOU BEGIN

Thank you for selecting the versatile WEIDER®1200

weight system. The weight system offers a selection of

weight stations designed to develop every major mus-

cle group of the body. Whether your goal is to tone

your body, build dramatic muscle size and strength, or

improve your cardiovascular system, the weight system

will help you to achieve the specific results you want.

For your benefit, read this manual carefully before

using the weight system. If you have questions after

reading this manual, see the front cover of this manu-

al. To help us assist you, please note the product

model number and serial number before calling. The

model number is WESY1955.0. The serial number can

be found on a decal attached to the weight system

(see the front cover of this manual).

To avoid a registration fee for any service needed

under warranty, you must register the weight sys-

tem at www.weiderservice.com/registration.

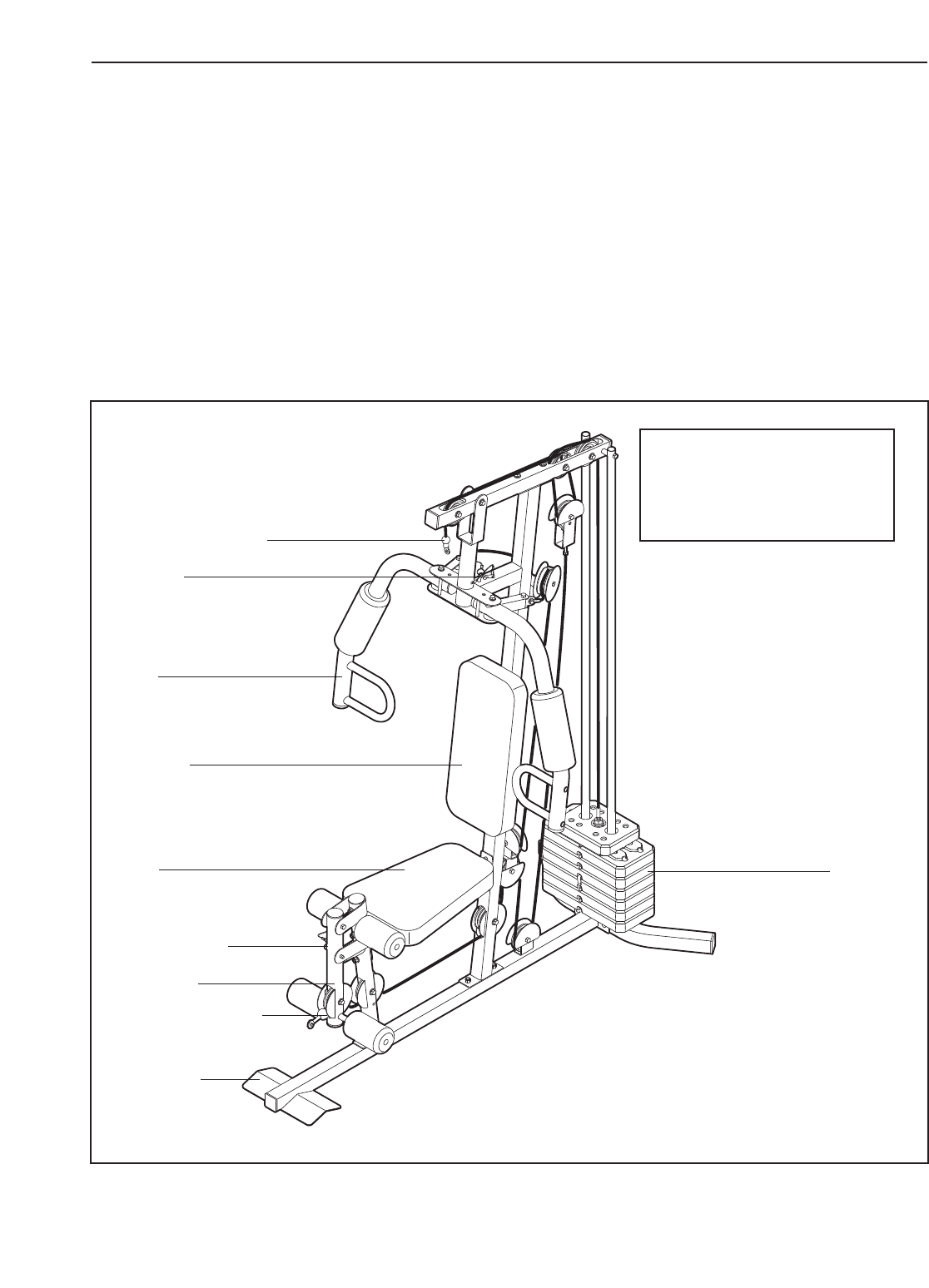

Before reading further, please review the drawing

below and familiarize yourself with the parts that are

labeled.

ASSEMBLED DIMENSIONS:

Height: 76 in. / 193 cm

Width: 37 in. / 94 cm

Depth: 65 in. / 165 cm

Place all parts of the weight system in a cleared area

and remove the packing materials. Do not dispose of

the packing materials until assembly is completed.

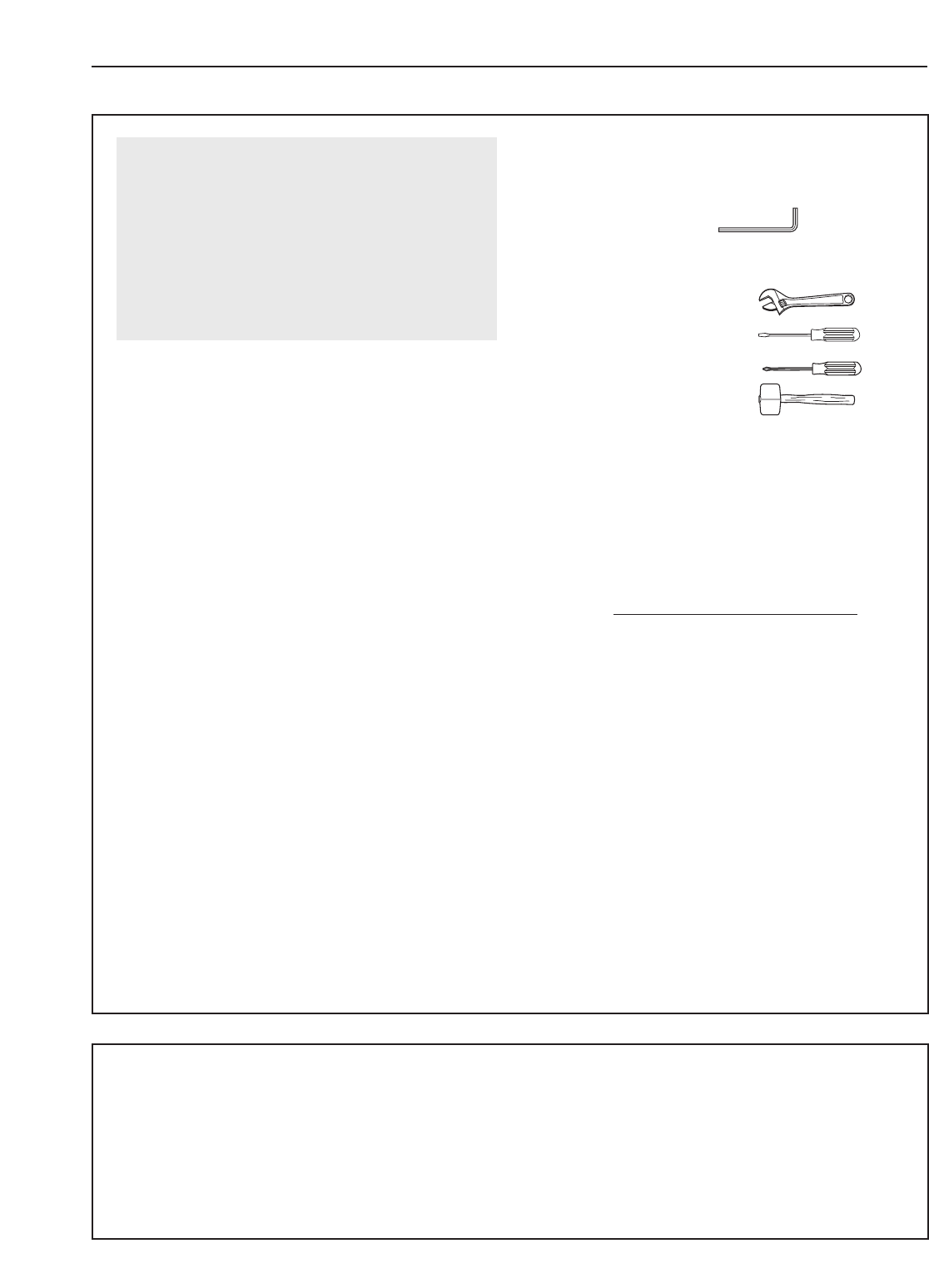

The included hex key(s) and grease,

and the following tools (not included) may be

required for assembly:

•Two adjustable wrenches

•One standard screwdriver

•One phillips screwdriver

•One rubber mallet

•A small amount of soapy water, and clear tape or

masking tape.

Note: Assembly may be more convenient if you have

asocket set, a set of open-end or closed-end

wrenches, or a set of ratchet wrenches.

How to Identify Parts

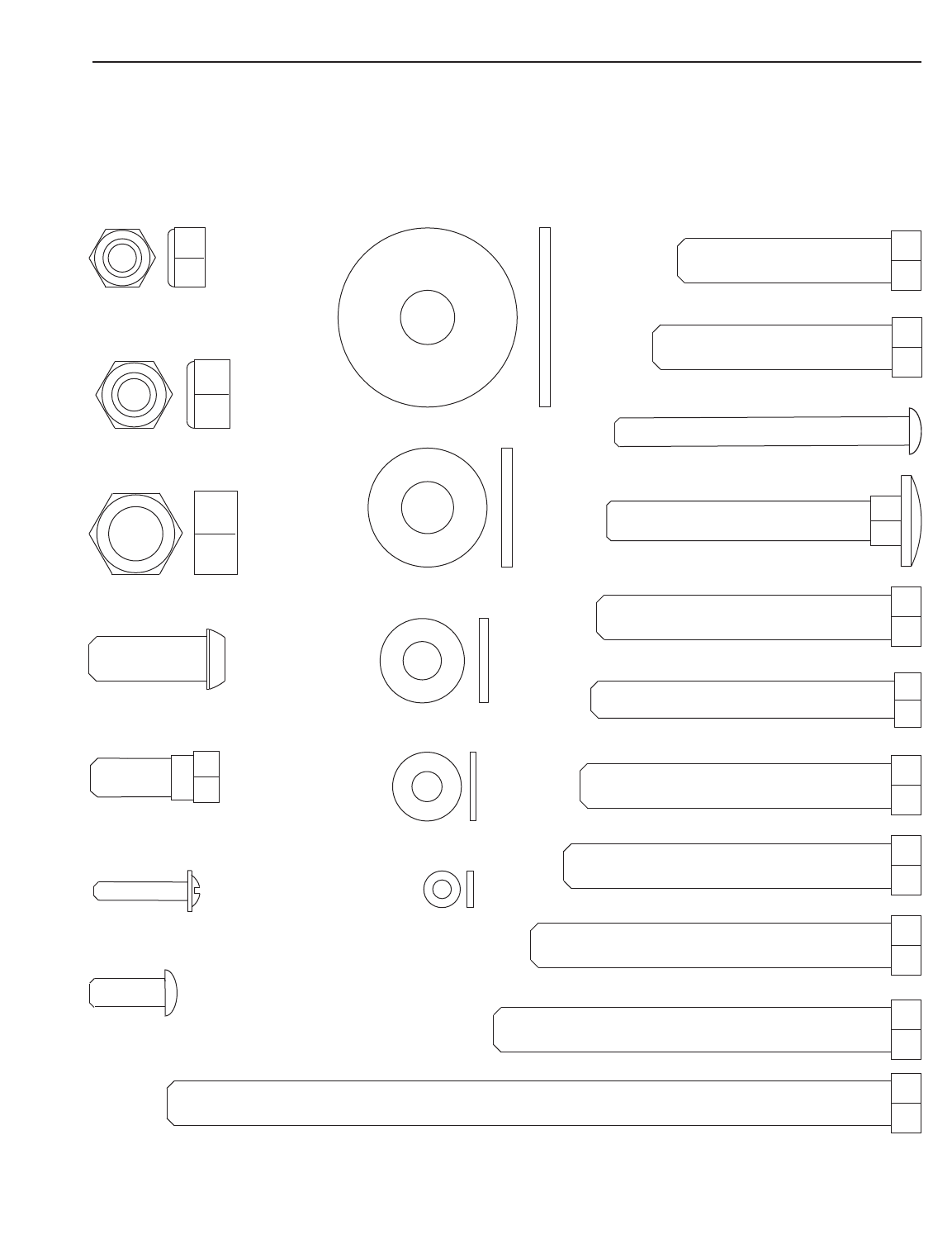

Refer to the PART IDENTIFICATION CHART in the

center of this manual to identify the small parts used

in assembly. Note: Some small parts may have

been pre-attached. If a part is not in the parts

bag, check to see if it has been pre-attached.

How to Orient Parts

As you assemble the weight system, make sure all

parts are oriented exactly as shown in the drawings.

Tightening Parts

Tighten all parts as you assemble them, unless

instructed to do otherwise.

Questions?

If you have questions after reading the assembly

instructions, please see the front cover of this manual.

ASSEMBLY

Hire an Authorized Service Technician

To hire an authorized service technician to

assemble the weight system, call toll-free

1-800-445-2480.

Assembly Requires Two Persons

For your convenience and safety,assemble the

weight system with the help of another person.

Set Aside Enough Time

Assembling the weight system may require several

hours. By deciding to make the task enjoyable,

assembly will go smoothly. You may want to assem-

ble the weight system over a couple of evenings.

Select a Location for the Weight System

Because of its weight and size, the weight system

should be assembled in the location where it will be

used. Make sure that there is enough clearance to

walk around the weight system as you assemble it.

How to Unpack the Box

To make assembly as easy as possible, we have

divided the assembly process into four stages. The

parts needed for each stage are found in individual

packages. Important: Wait until you begin each

stage to open the parts package for that stage.

Make Assembly Easier for Yourself

Everything in this manual is designed to

ensure that the weight system can be assem-

bled successfully by almost anyone. Before

beginning assembly, make sure to read the

information on this page. This brief intro-

duction will save you much more time than

it takes to read it.

The Four Stages of the Assembly Process

Frame Assembly—You will begin by assembling

the base and the uprights that form the skeleton of

the weight system.

Arm Assembly—During this stage you will assem-

ble the arms and the moving parts.

Cable Assembly—During this stage you will attach

the cables and pulleys that connect the arms to the

weights.

Seat Assembly—During the final stage you will

assemble the seats, the backrests, and other parts.

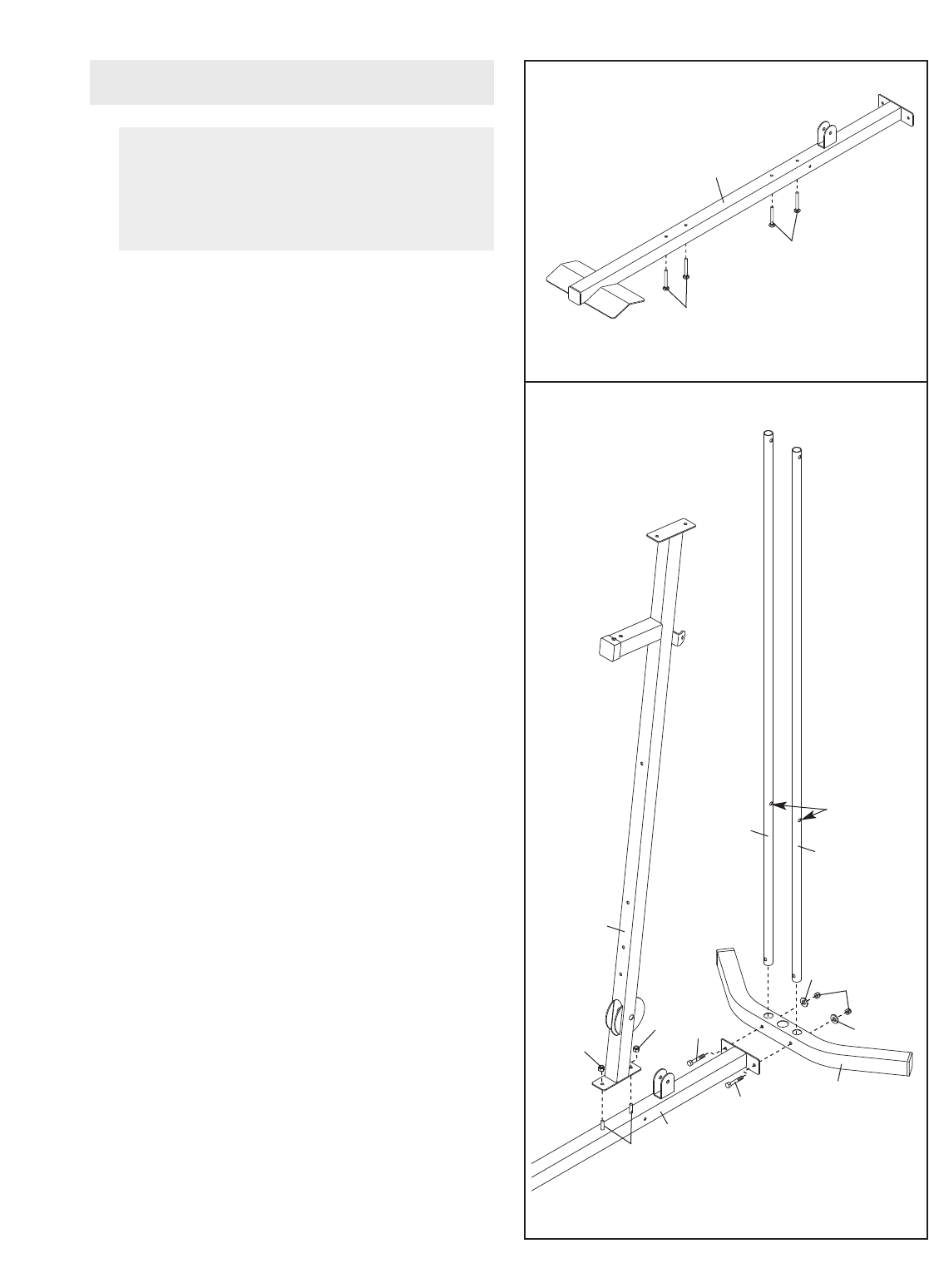

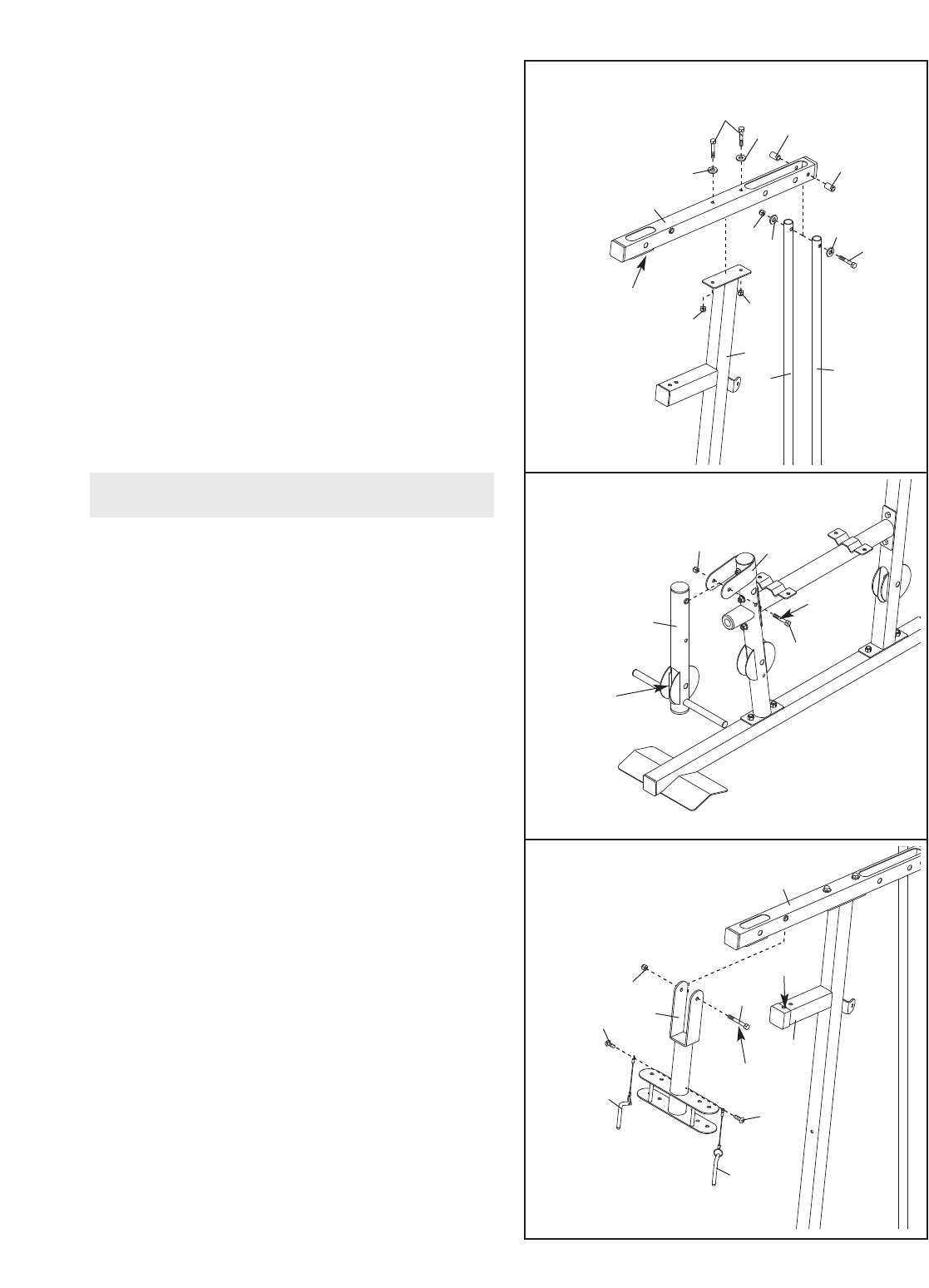

2. Attach the Base (1) and the two Weight Guides

(21) to the Stabilizer (2) with two M10 x 67mm

Bolts (71), two M10 Washers (57), and two M10

Nylon Locknuts (56). Make sure the indicated

holes in the Weight Guides are nearer the

bottom. Fully tighten the Locknuts.

Attach the Upright (3) to the Base (1) with the two

indicated M8 x 63mm Carriage Bolts (64) and two

M8 Nylon Locknuts (58). Do not tighten the

Locknuts yet.

Insert four M8 x 63mm Carriage Bolts (64) up

through the Base (1). Note: It may be helpful to

place a piece of tape over the bolt heads to

hold them in place.

Before beginning assembly, make sure you

understand the information in the box on

page 5. Refer to the PART IDENTIFICATION

CHART in the center of this manual for help

identifying small parts.

Frame Assembly 1

58 71

71 2

Holes

3. Attach the Front Leg (7) to the Base (1) with the

two M8 x 63mm Carriage Bolts (64) and two M8

Nylon Locknuts (58). Donot tighten the

Locknut yet.

Attach the Leg Bumper (60) to the Front Leg (7)

with an M4 x 20mm Self-tapping Screw (69) and

an M4 Washer (33). Make sure the end of the

Bumper is pointing up.

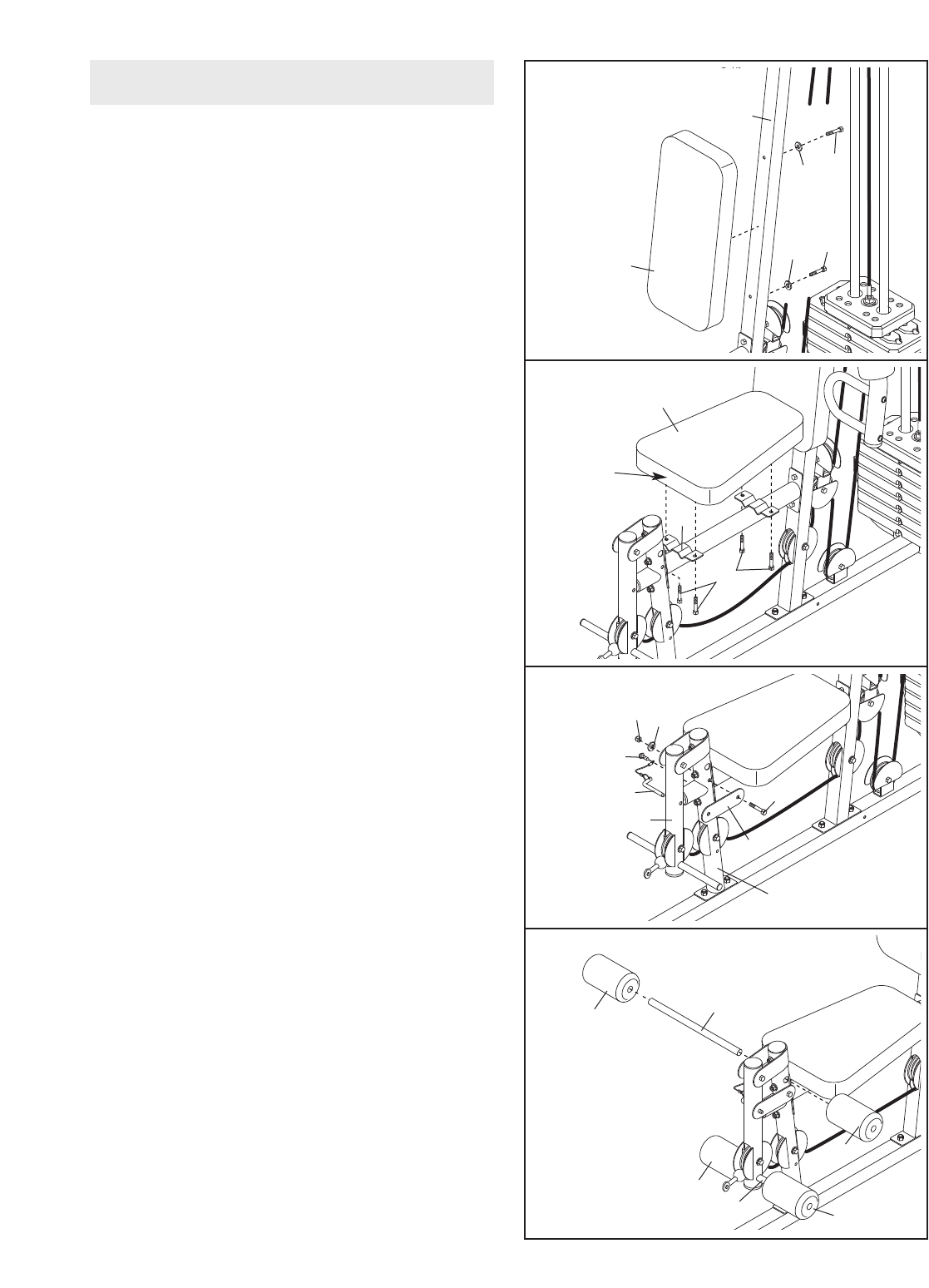

4. Attach the Seat Frame (6) to the Upright (3) with

two M8 x 65mm Bolts (68), two M8 Washers (59),

and two M8 Nylon Locknuts (58). Do not tighten

the Locknuts yet.

Attach the Seat Frame (6) to the Front Leg (7)

in the same manner.

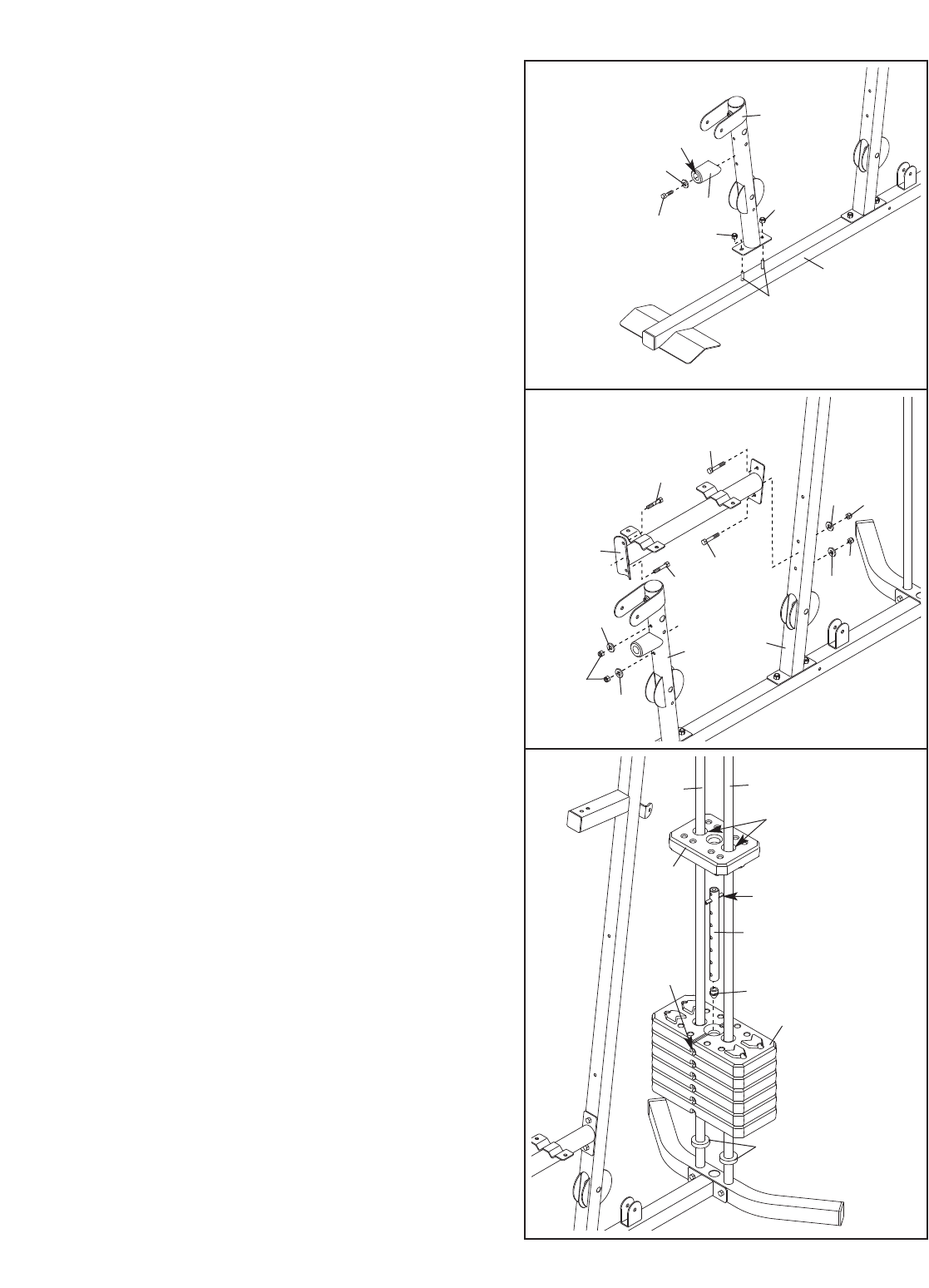

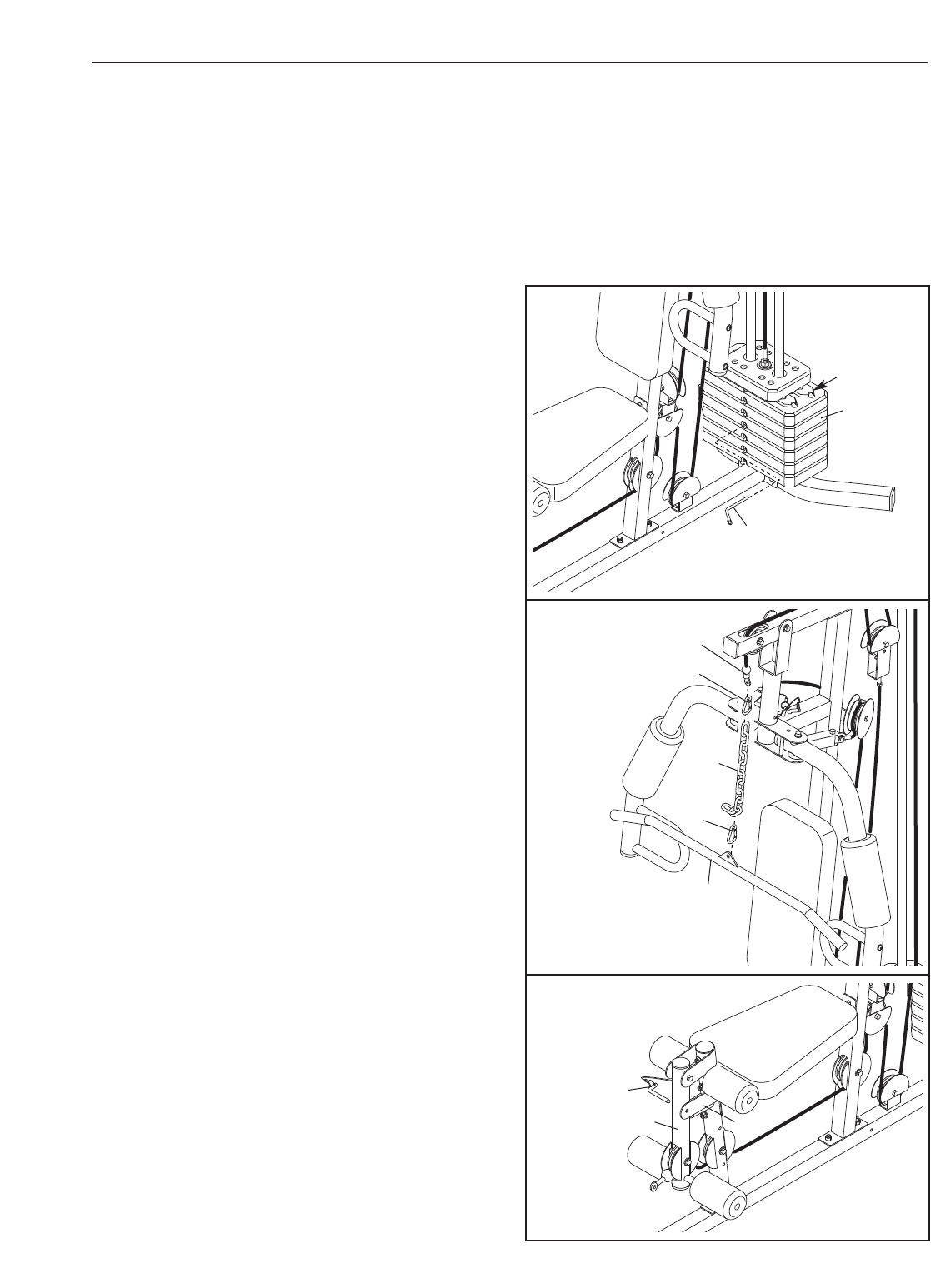

5. Slide the two Weight Bumpers (27) onto the

Weight Guides (21). Orient the six Weights (22)

with the pin holes on the bottom as shown. Slide

the Weights onto the Weight Guides.

Insert the Weight Tube Bumper (23) into the

Weight Tube (24). Insert the Weight Tube into the

six Weights (22). Make sure the pin on the

Weight Tube is oriented as shown.

Lubricate the indicated holes in the Top Weight

(25) with the included grease packet. Slide the

Top Weight onto the Weight Guides (21).

21 21

Hole

Grease

6. Orient the Top Frame (4) with the welded support

on the bottom.

Attach the Top Frame (4) to the Upright (3) with

two M8 x 65mm Bolts (68), two M8 Washers (59),

and two M8 Nylon Locknuts (58). Do not tighten

the Locknuts yet.

Attach the Top Frame (4) between the Weight

Guides (21) with an M10 x 155mm Bolt (74), two

M10 Washers (57), two 19mm Spacers (76), and

an M10 Nylon Locknut (56).

Tighten the M8 Nylon Locknuts (58) used in

steps 2–6.

Welded

Support

56 74

5976

7. Grease an M10 x 77mm Bolt (79). Orient the Leg

Lever (8) with the welded support on the side

shown. Attach the Leg Lever to the Front Leg (7)

with the Bolt and an M10 Nylon Locknut (56). Do

not overtighten the Locknut; the Leg Lever

must be able to pivot easily.

8. Grease an M10 x 77mm Bolt (79). Attach the

Pivot Frame (5) to the Top Frame (4) with the Bolt

and an M10 Nylon Locknut (56). Do not over-

tighten the Locknut; the Pivot Frame must be

able to pivot easily.

Attach the two Arm Pins (40) to the Pivot Frame

(5) with two M4 x 20mm Self-tapping Screws

(69). Insert the Arm Pins into the two holes in the

Upright (3).

Grease

Welded

Support

Grease

Holes

56 79

Arm Assembly

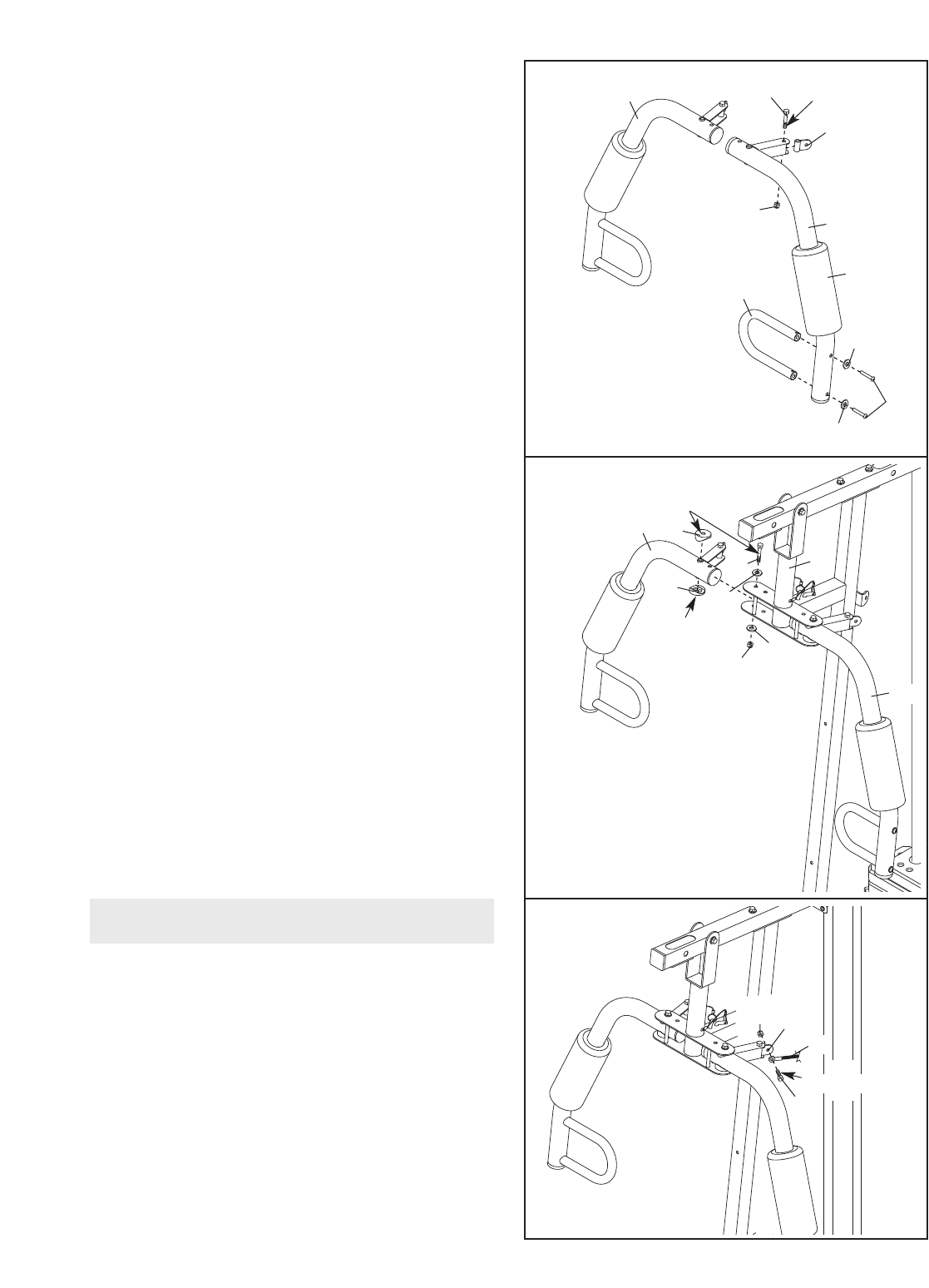

9. Grease an M10 x 51mm Bolt (66). Attach a Cable

Pivot (39) to the Left Arm (10) with the Bolt and

anM10 Nylon Locknut (56). Donot overtighten

the Locknut; the Cable Pivot must be able to

pivot easily.

Wet the inside of a Large Foam Pad (42) with

soapy water. Slide the Large Foam Pad onto the

Left Arm (10).

Attach a Handle (11) to the Left Arm (10) with two

M10 x 25mm Button Bolts (77) and two M10

Washers (57).

Assemble the Right Arm (9) in the same

manner.

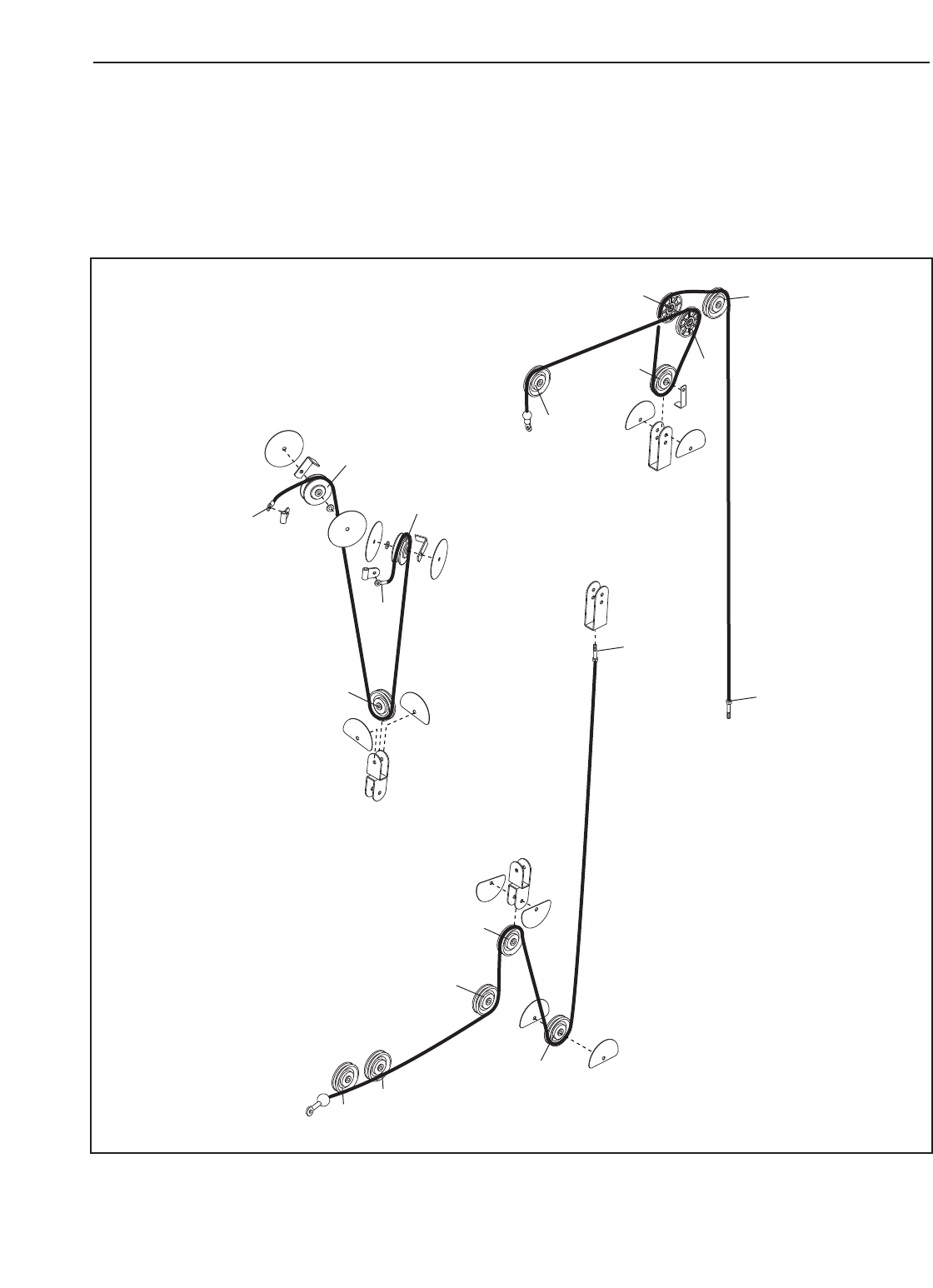

11. Refer to the CABLE DIAGRAMS on page 19 as

you assemble the cables and to identify the

cables.

Locate the Arm Cable (54). Grease an M8 x

22mm Shoulder Bolt (65). Attach the Cable to the

indicated Cable Pivot (39) with the Bolt and an

M8 Nylon Locknut (58). Make sure that the

cable end can pivot easily on the shoulder

bolt.

10. Grease an M10 x 85mm Bolt (67) and two Arm

Bushings (44). Attach the Right Arm (9) to the

Pivot Frame (5) with the Bolt, two M10 Washers

(57), the two Arm Bushings, and an M10 Nylon

Locknut (56). Do not overtighten the Locknut;

the Arm must be able to pivot easily.

Attach the Left Arm (10) to the Pivot Frame (5)

in the same manner.

56 57

Grease

Cable Assembly

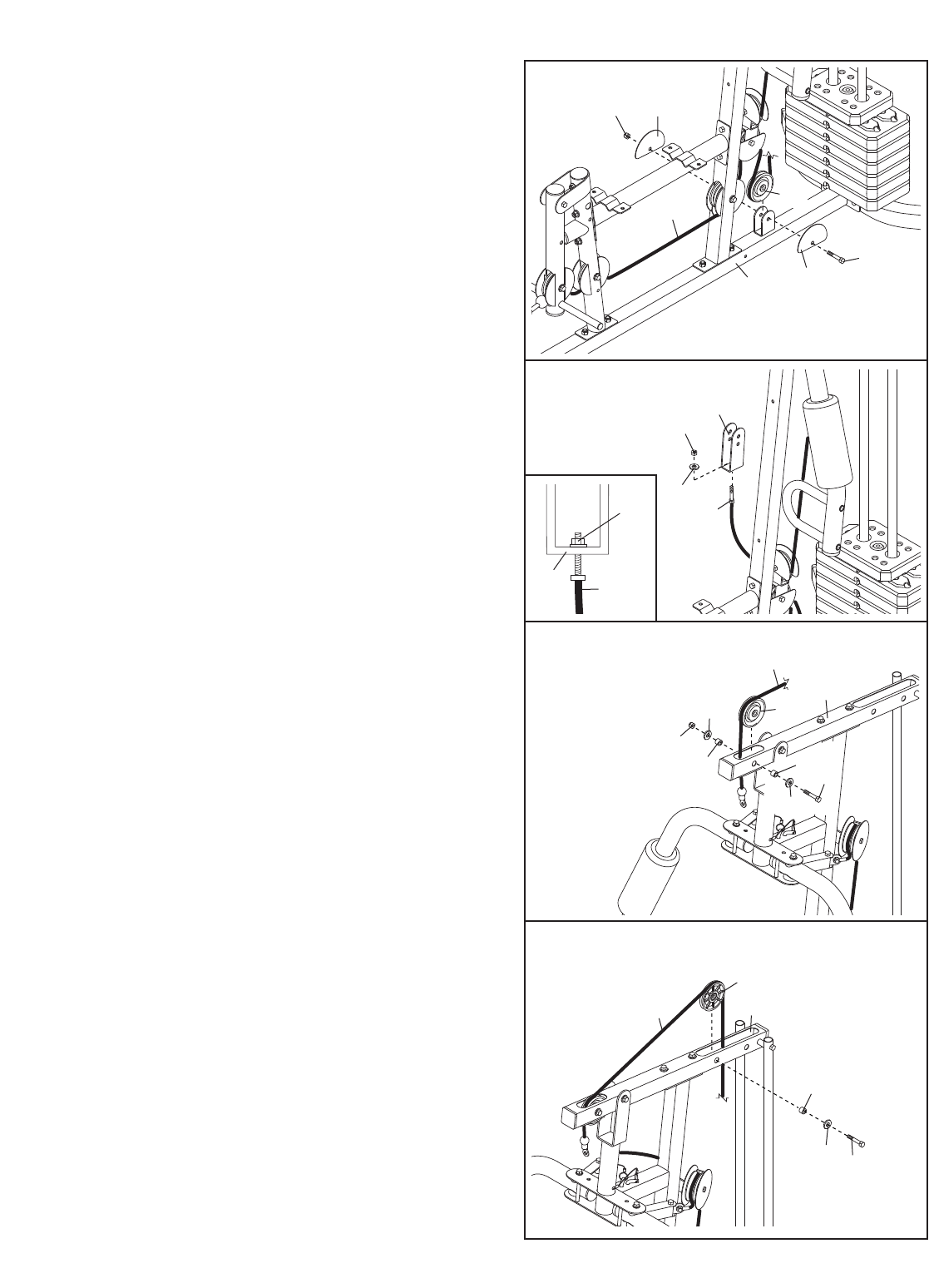

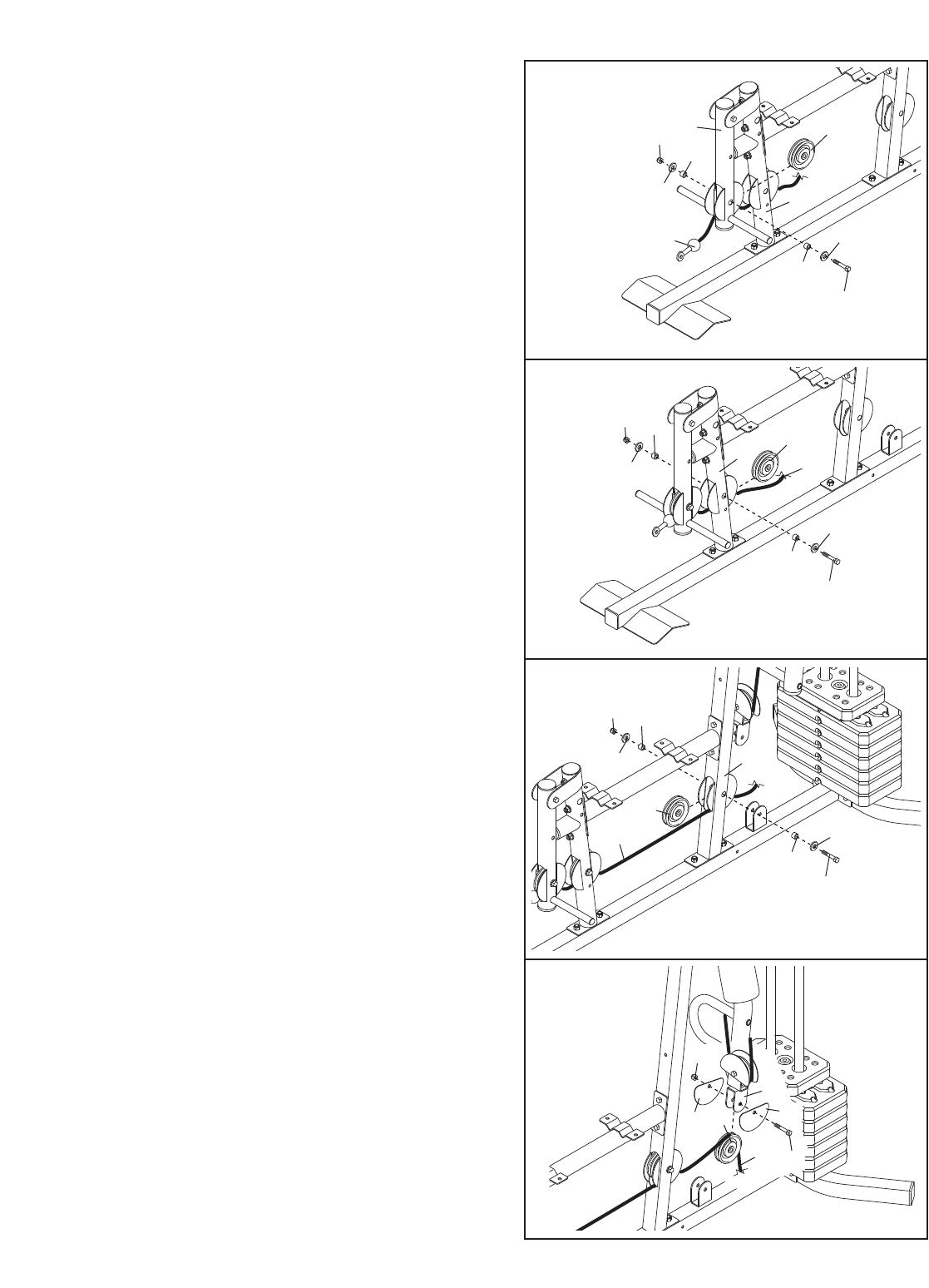

12. Route the Arm Cable (54) over a “V”-pulley (46).

Attach the “V”-pulley, a Large Cable Trap (50),

two Full Finger Guards (41), and an M10 Washer

(57) to the Upright (3) with an M10 x 63mm Bolt

(75) and an M10 Nylon Locknut (56). Make sure

the Cable Trap is oriented to hold the Cable in

the groove of the “V”-pulley.

14. Route the Arm Cable (54) over a “V”-pulley (46).

Attach the “V”-pulley, a Large Cable Trap (50),

two Full Finger Guards (41), and an M10 Washer

(57) to the Upright (3) with an M10 x 63mm Bolt

(75) and an M10 Nylon Locknut (56). Make sure

the Cable Trap is oriented to hold the Cable in

the groove of the “V”-pulley.

15. Grease an M8 x 22mm Shoulder Bolt (65). Attach

the Arm Cable (54) to the indicated Cable Pivot

(39) with the Bolt and an M8 Nylon Locknut (58).

Make sure that the cable end can pivot easily

on the shoulder bolt.

13. Route the Arm Cable (54) under a 90mm Pulley

(48). Attach the Pulley and two Half Finger

Guards (43) to the Double “U”-bracket (63) with

an M10 x 46mm Bolt (81) and an M10 Nylon

Locknut (56). Make sure the Finger Guards are

on the outside of the “U”-bracket as shown.

5746 5041

54 39

Grease

16. Locate the Low Cable (53). Route the Cable

through the Leg Lever (8) and the Front Leg (7).

Attach a 90mm Pulley (48) inside of the Leg

Lever (8), over the Low Cable (53), with an M10 x

67mm Bolt (71), two M10 Washers (57), two

12mm Spacers (52), and an M10 Nylon Locknut

(56).

18. Route the Low Cable (53) under a 90mm Pulley

(48) and through the Upright (3). Attach the Pulley

inside of the upright with an M10 x 67mm Bolt

(71), two M10 Washers (57), two 12mm Spacers

(52), and an M10 Nylon Locknut (56).

19. Route the Low Cable (53) over a 90mm Pulley

(48). Attach the Pulley and two Half Finger

Guards (43) to the Double “U”-bracket (63) with

an M10 x 46mm Bolt (81) and an M10 Nylon

Locknut (56). Make sure the Finger Guards are

on the outside of the “U”-bracket as shown.

17. Attach a 90mm Pulley (48) inside of the Front Leg

(7), over the Low Cable (53), with an M10 x

67mm Bolt (71), two M10 Washers (57), two

12mm Spacers (52), and an M10 Nylon Locknut

(56).

753

48 43

20. Route the Low Cable (53) under a 90mm Pulley

(48). Attach the Pulley and two Half Finger

Guards (43) to the Base (1) with an M10 x 46mm

Bolt (81) and an M10 Nylon Locknut (56). Make

sure the Finger Guards are on the outside of

the bracket as shown.

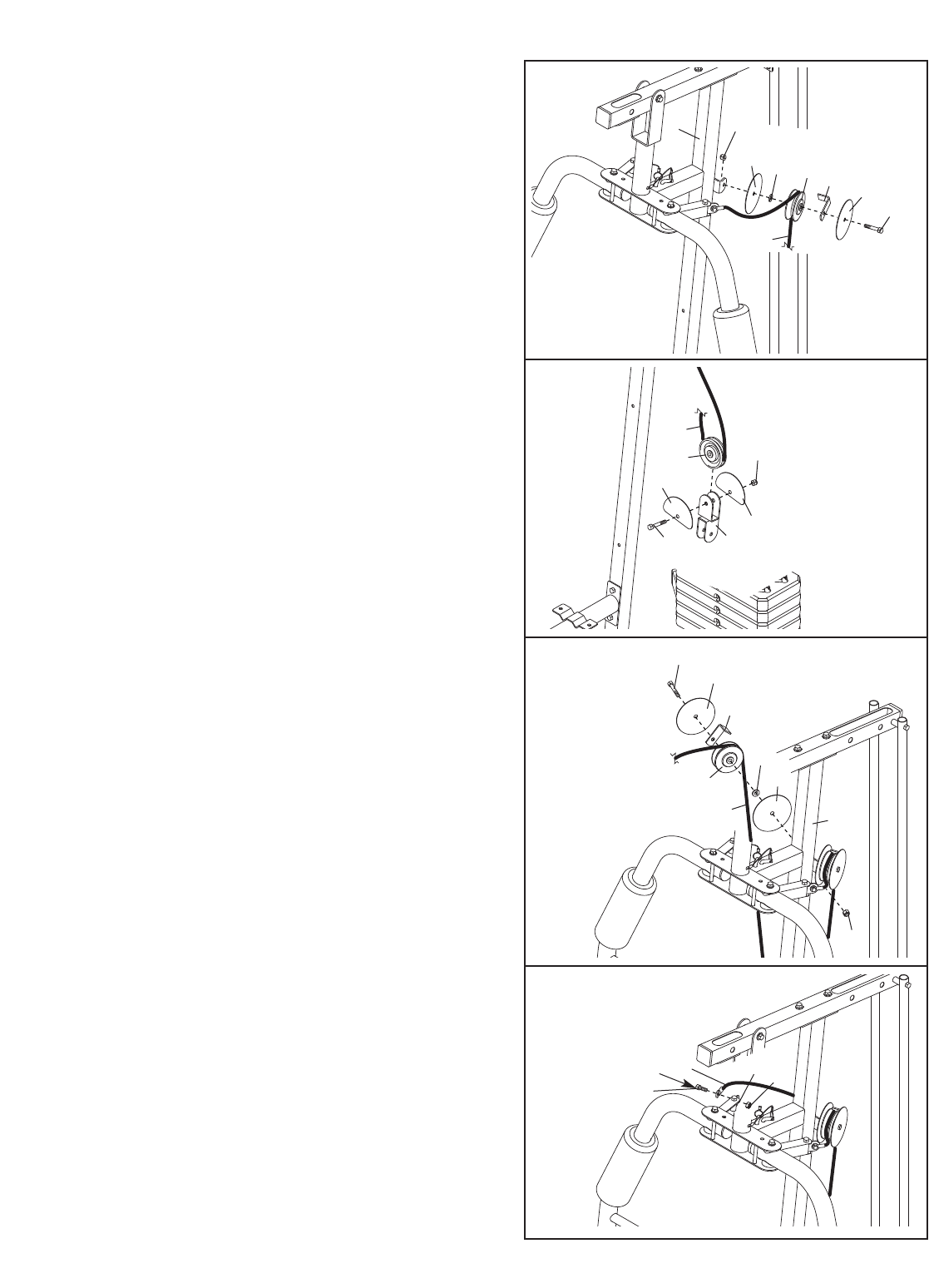

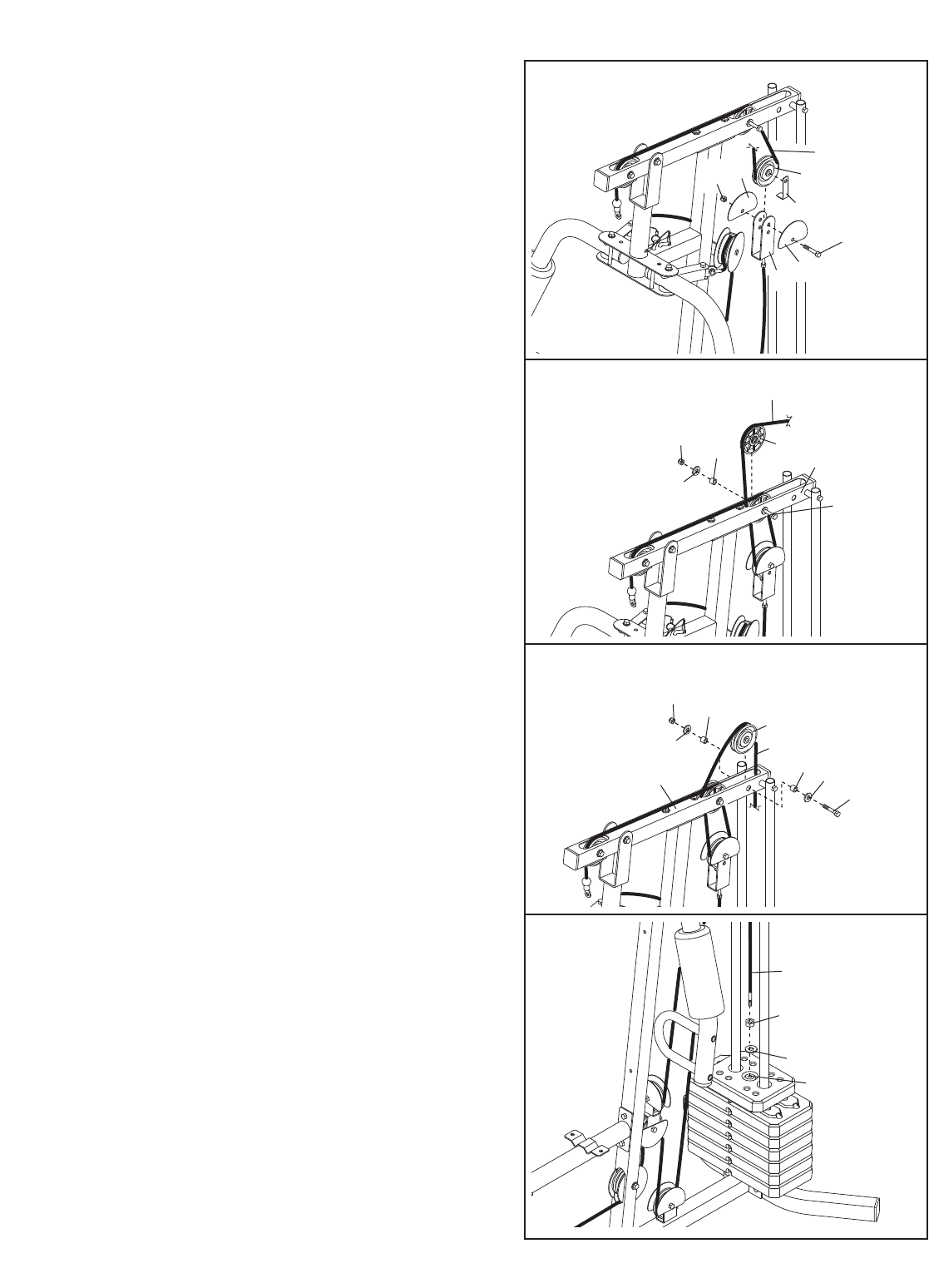

22. Locate the High Cable (55). Route the Cable up

through the Top Frame (4) and over a 90mm

Pulley (48). Attach the Pulley inside of the Top

Frame with an M10 x 67mm Bolt (71), two M10

Washers (57), two 12mm Spacers (52), and an

M10 Nylon Locknut (56).

23. Route the High Cable (55) over a 90mm Thin

Pulley (47) and down through the Top Frame (4).

Attach the Pulley inside of the Top Frame with an

M10 x 67mm Bolt (71), an M10 Washer (57), and

an 11mm Spacer (49). Make sure that the

Pulley does not fall out of the Top Frame while

completing steps 24 and 26.

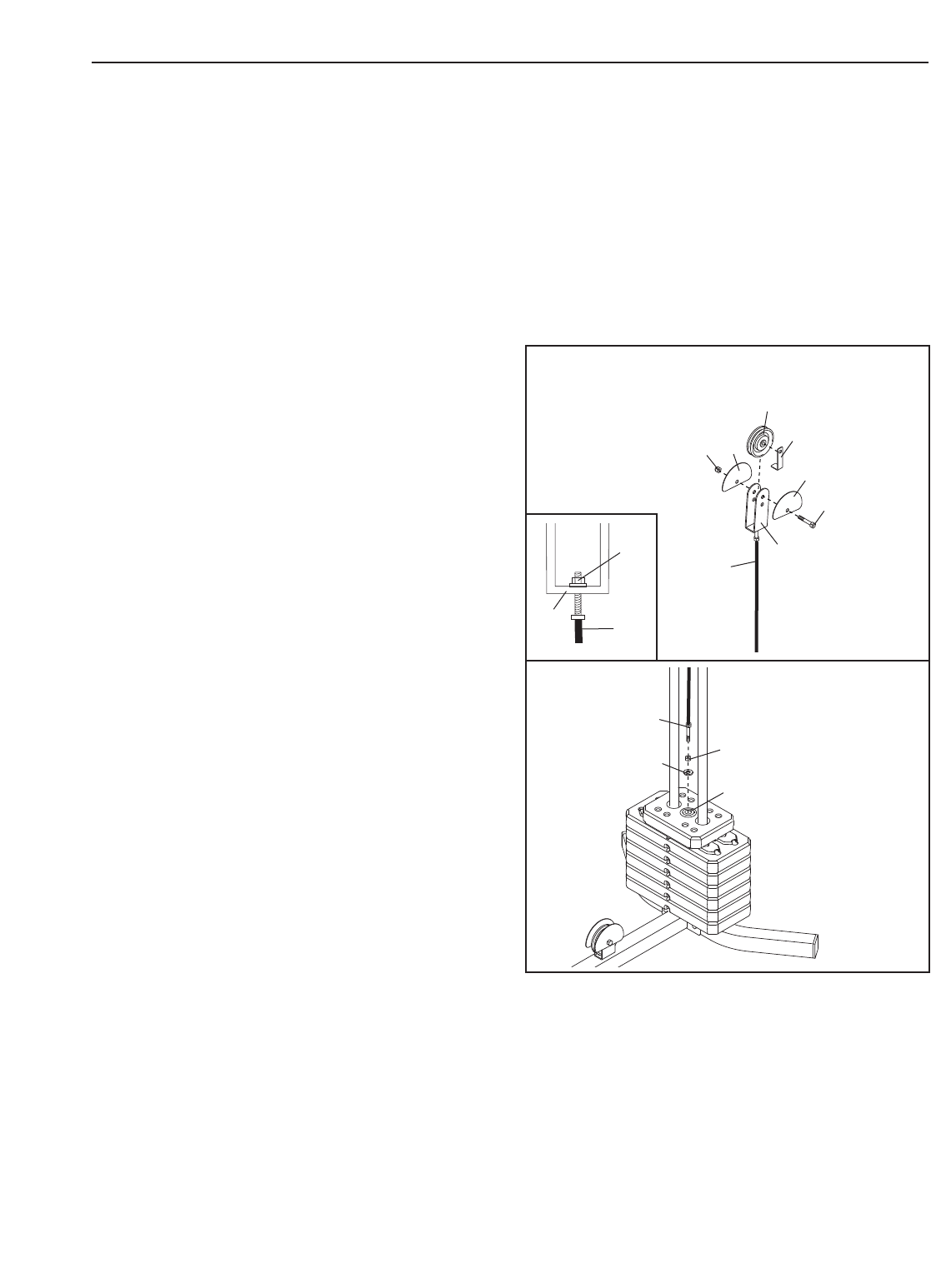

21. Attach the Low Cable (53) to the “U”-bracket (45)

with an M8 Washer (59) and an M8 Nylon

Locknut (58). See the inset drawing. Do not

overtighten the Nylon Locknut; it should be

threaded onto the end of the Cable so that

only two threads are showing above the nut.

52 52

24. Wrap the High Cable (55) under a 90mm Pulley

(48). Attach the Pulley, a Cable Trap (51), and

two Half Finger Guards (43) at the upper hole in

the “U”-bracket (45) with an M10 x 51mm Bolt

(66) and an M10 Nylon Locknut (56). Make sure

the Cable Trap is oriented to hold the Cable in

the groove of the Pulley and that the Finger

Guards are on the outside of the “U”-bracket.

26. Route the High Cable (55) over a 90mm Pulley

(48) and down through the Top Frame (4). Attach

the Pulley inside of the Top Frame with an M10 x

67mm Bolt (71), two M10 Washers (57), two

12mm Spacers (52), and an M10 Nylon Locknut

(56).

27. Completely thread an M12 Nut (82) onto the High

Cable (55). Place a Large Washer (78) on top of

the Weight Tube (24).

Tighten the High Cable (55) into the Weight Tube

(24) until all the slack is removed from the cables.

Tighten the M12 Nut (82) against the Large

Washer (78).

25. Route the High Cable (55) up through the Top

Frame (4) and over a 90mm Thin Pulley (47).

Attach the Pulley inside of the Top Frame with the

M10 x 67mm Bolt (71) used in step 23, an 11mm

Spacer (49), an M10 Washer (57), and an M10

Nylon Locknut (56).

56 48

457

28. Attach the Backrest (16) to the Upright (3) with

two M6 x 63mm Screws (70) and two M6

Washers (80).

30. Attach the Lock Plate (73) to the Front Leg (7)

with an M10 x 70mm Bolt (72), an M10 Washer

(57), and an M10 Nylon Locknut (56). Do not

overtighten the Locknut; the Lock Plate must

be able to pivot easily.

Attach the Leg Lever Pin (38) to the Front Leg (7)

with an M4 x 20mm Self-tapping Screw (69).

Insert the Leg Lever Pin through the Leg Lever

(8) and the Lock Plate (73).

31. Insert the Pad Tube (29) through the Front Leg

(7). Slide two Small Foam Pads (28) onto the

ends of the Pad Tube.

Slide two Small Foam Pads (28) onto the Leg

Lever (8).

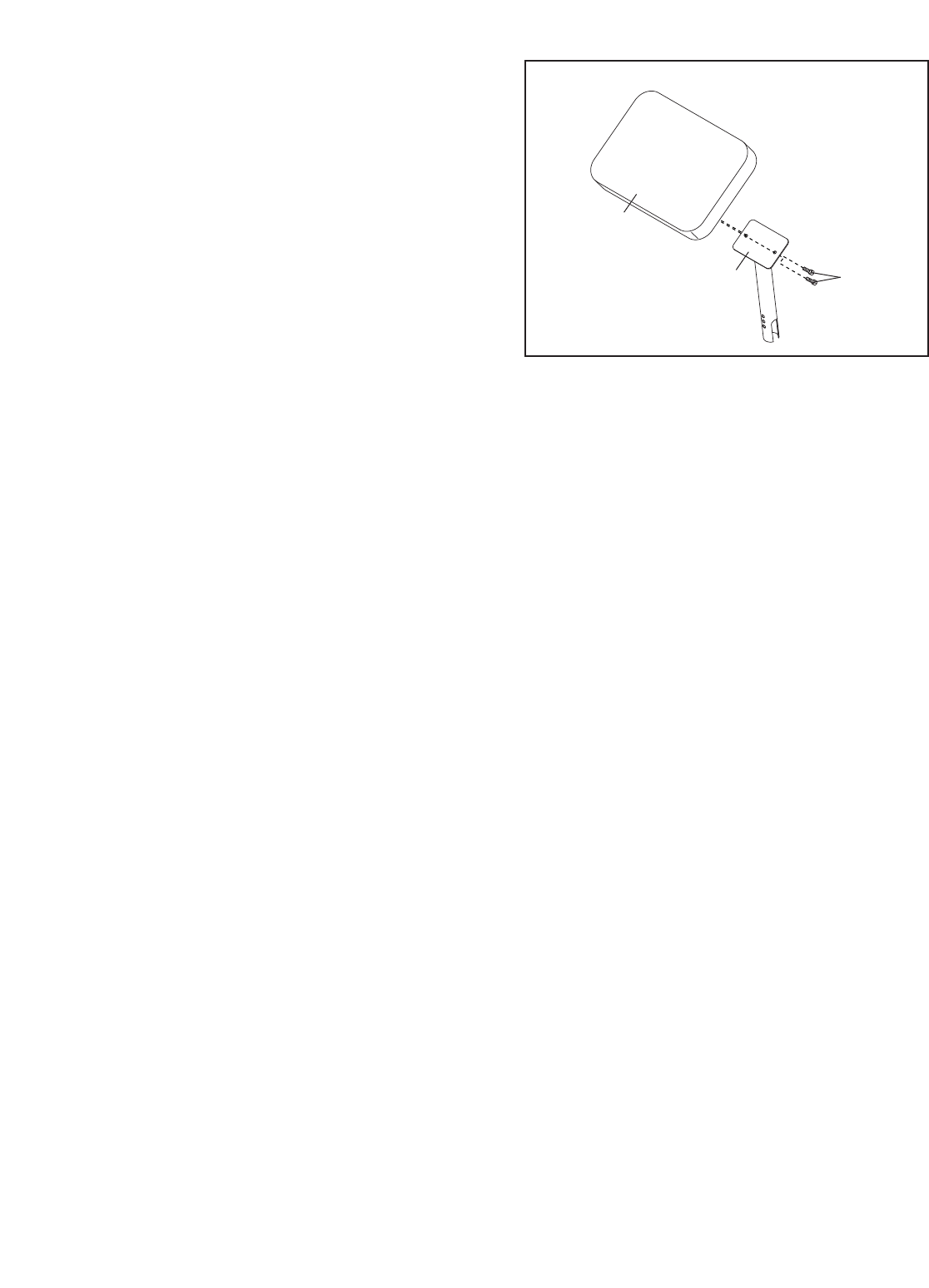

29. Attach the Seat (15) to the Seat Frame (6) with

four M6 x 16mm Screws (62), as shown.

Wide

End

56 57

38 72

Seat Assembly

32. Orient the Curl Pad (14) so that the holes on the

back are closer to the lower edge. Attach the Curl

Pad to the Curl Post (13) with two M6 x 16mm

Screws (62).

33. Make sure that all parts have been properly tightened. The use of the remaining parts will be explained in

ADJUSTMENTS, beginning on the following page.

Before using the weight system, pull each cable a few times to make sure that the cables move smoothly

around the pulleys. If one of the cables does not move smoothly, find and correct the problem. IMPORTANT:

If the cables are not properly installed, they may be damaged when heavy weight is used. See the

CABLE DIAGRAMS on page 19 of this manual for proper cable routing. If there is any slack in the

cables, you will need to remove the slack by tightening the cables. See MAINTENANCE on page 20.

13 62

This section explains how to adjust the weight system. See the EXERCISE GUIDELINES on page 21 for impor-

tant information about how to get the most benefit from your exercise program. Also, refer to the accompanying

exercise guide to see the correct form for each exercise.

Make sure all parts are properly tightened each time the weight system is used. Replace any worn parts immediate-

ly. The weight system can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.

CHANGING THE WEIGHT SETTING

To change the setting of a weight stack, insert the

Weight Pin (26) under the desired Weight (22). Insert

the Weight Pin so that the bent end touches the

weight stack. Turn the bent end down. Note: Do not

use the Top Weight (25) by itself.

Note: Due to the cables and pulleys, the amount

of resistance at each exercise station may vary

from the weight setting. Use the WEIGHT

RESISTANCE CHART on page 18 to find the

approximate amount of resistance at each weight

station.

ATTACHING THE ACCESSORIES TO A PULLEY

STATION

Attach the Lat Bar (35) to the High Cable (55) at the

high pulley station with a Cable Clip (37). For some

exercises, the Chain (19) should be attached between

the Lat Bar and the Cable with two Cable Clips. Adjust

the length of the Chain between the Lat Bar and

the Cable so that the Lat Bar is in the correct start-

ing position for the exercise to be performed.

The Lat Bar (35) or the Handle Strap (not shown) can

be attached at either pulley station in the same man-

ner.Always engage the Lock Plate (not shown) when

using the low pulley station (see USING THE LOCK

LEVER below).

USING THE LOCK LEVER

When using the low pulley station, engage the Leg

Lever Pin (38) into the Leg Lever (8) and the Lock

Plate (73).

873

ADJUSTMENTS

ARM CONVERSION

To use the Arms (9, 10) as butterfly arms, insert the

Arm Pins (40) into the holes in the Upright (3) and the

Pivot Frame (5) as shown.

To use the Arms (9, 10) as press arms, insert the Arm

Pins (40) into the holes in the Pivot Frame (5) and

Arms.

Holes

LOCKING THE WEIGHT STACK

Lock the weight stack by inserting the Lock Pin (18)

through a Weight Guide (21) and securing the Lock

(17) onto the Lock Pin.

USING THE CURL PAD

To use the Curl Pad (14), remove the 50mm Round

Inner Cap (30) from the Front Leg (7). Insert the Curl

Post (13) into the Front Leg and secure it in place

with the Curl Knob (61).

Remove the Curl Pad (14) and replace the 50mm

Round Inner Cap (30) into the Front Leg (7) when per-

forming an exercise that does not require the Curl Pad.

Store the Curl Pad away from the weight system.

WEIGHT RESISTANCE CHART

The chart below shows the approximate weight resistance at each exercise station. “Top” refers to the 6 lb. top

weight. The other numbers refer to the 12.5 lb. weight plates. Weight resistance shown for the butterfly arm sta-

tion is for each arm. Note: The actual resistance at each station may vary due to differences in individual

weight plates as well as friction between the cables, pulleys, and weight guides.

WEIGHT

Top

HIGH

PULLEY

(lbs.)

101

BUTTERFLY

ARM

(lbs.)

PRESS ARM

(lbs.)

127

144

173

LEG LEVER

(lbs.)

111

159

182

214

LOW

PULLEY

(lbs.)

119

148

163

187

CABLE DIAGRAMS

The cable diagrams below show the proper routing of the Low Cable (53), the Arm Cable (54), and the High

Cable (55). Use the diagrams to make sure that the cables, cable traps, and finger guards have been assem-

bled correctly. If the cables have not been correctly routed, the weight system will not function properly and dam-

age may occur. The numbers show the correct route for each cable. Make sure that the cable traps do not

touch or bind the cables.

Arm Cable (54)

Length: 89 inches

High Cable (55)

Length: 114 inches

Low Cable (53)

Length: 128 inches

Make sure all parts are properly tightened each time the weight system is used. Replace any worn parts imme-

diately. The weight system can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use

solvents.

TIGHTENING THE CABLES

Woven cable, the type of cable used on the weight system, can stretch slightly when it is first used. If there is

slack in the cables before resistance is felt, the cables should be tightened. To tighten the cables, first insert the

weight pin into the middle of the weight stack. Slack can be removed from these cables several ways:

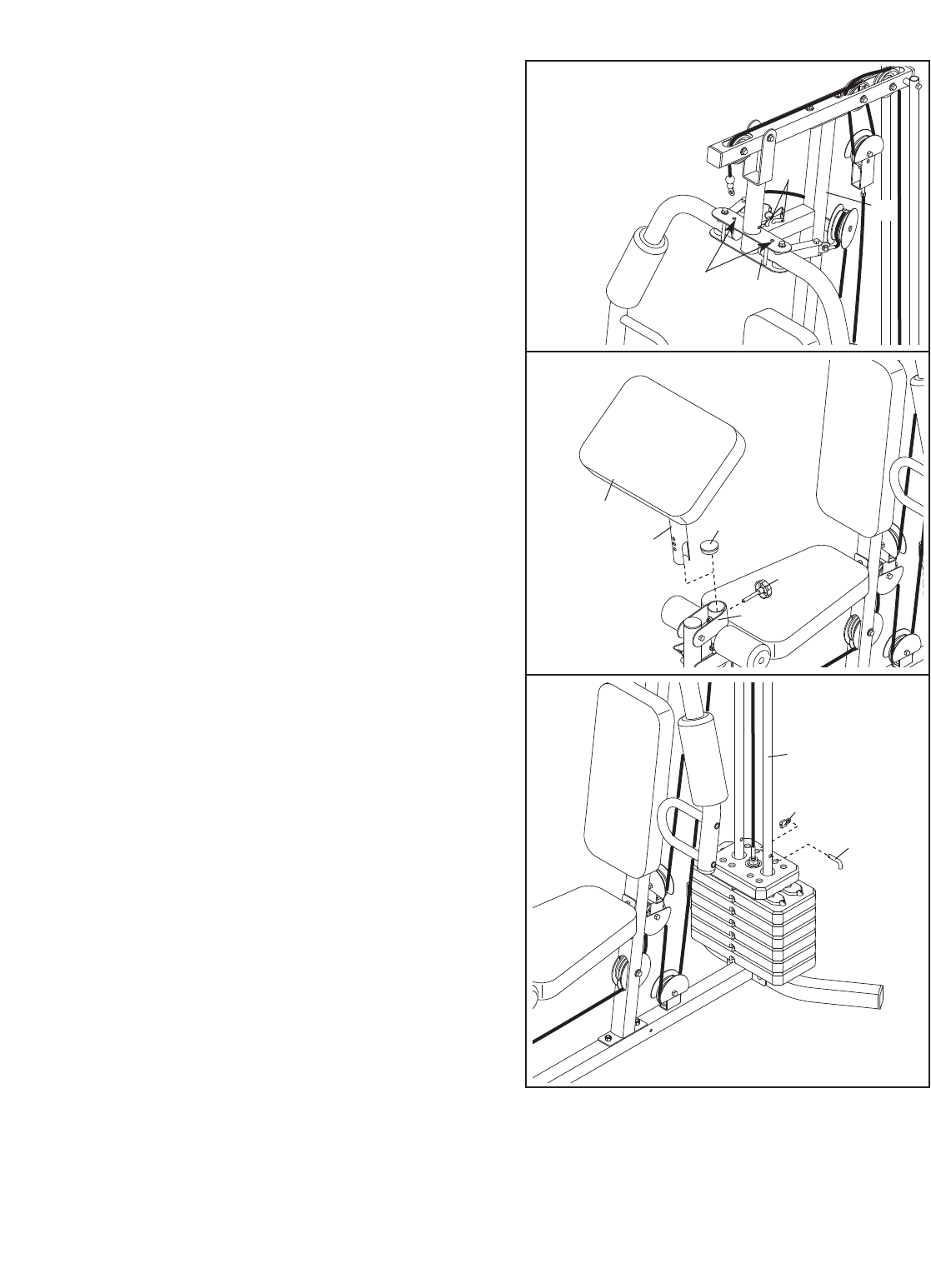

•See drawing 1 inset. Tighten the M8 Nylon

Locknut (58) that connects the end of the Low

Cable (53) to the “U”-bracket (45).

•See drawing 1. Remove the M10 Nylon Locknut

(56) and the M10 x 51mm Bolt (66) from the

Cable Trap (51), 90mm Pulley (48), the two Half

Finger Guards (43), and “U”-bracket (45).

Reattach the Pulley, Cable Trap, and Finger

Guards to the other hole in the “U”-bracket. Make

sure that the Cable Trap is in the proper posi-

tion and that the Cable and Pulley move

smoothly.

•See drawing 2. Loosen the M12 Nut (82) on the

High Cable (55). Tighten the High Cable into the

Weight Tube (24) until the slack is removed from

the Cable. Retighten the M12 Nut against the

Large Washer (78).

Do not overtighten the cables. If the cables are overtightened, the top weight will be lifted off the weight

stack. If a cable tends to slip off the pulleys often, it may have become twisted. Remove the cable and

re-install it. If the cables need to be replaced, see ORDERING REPLACEMENT PARTS on the back cover of

this manual.

MAINTENANCE

EXERCISE GUIDELINES

THE FOUR BASIC TYPES OF WORKOUTS

Muscle Building

Toincrease the size and strength of your muscles,

push them close to their maximum capacity. Your mus-

cles will continually adapt and grow as you progres-

sively increase the intensity of your exercise. You can

adjust the intensity level of an individual exercise in

two ways:

•by changing the amount of resistance used

•by changing the number of repetitions or sets per-

formed. (A “repetition” is one complete cycle of an

exercise, such as one sit-up. A “set” is a series of

repetitions.)

The proper amount of resistance for each exercise

depends upon the individual user. You must gauge

your limits and select the amount of resistance that is

right for you. Begin with 3 sets of 8 repetitions for each

exercise you perform. Rest for 3 minutes after each

set. When you can complete 3 sets of 12 repetitions

without difficulty, increase the amount of resistance.

Toning

You can tone your muscles by pushing them to a mod-

erate percentage of their capacity. Select a moderate

amount of resistance and increase the number of rep-

etitions in each set. Complete as many sets of 15 to

20 repetitions as possible without discomfort. Rest for

1minute after each set. Work your muscles by com-

pleting more sets rather than by using high amounts of

resistance.

Weight Loss

To lose weight, use a low amount of resistance and

increase the number of repetitions in each set.

Exercise for 20 to 30 minutes, resting for a maximum

of 30 seconds between sets.

Cross Training

Cross training is an efficient way to get a complete and

well-balanced fitness program. An example of a bal-

anced program is:

•Plan strength training workouts on Monday,

Wednesday, and Friday.

•Plan 20 to 30 minutes of aerobic exercise, such as

running on a treadmill or riding on an elliptical exer-

ciser or exercise bike, on Tuesday and Thursday.

•Rest from both strength training and aerobic exercise

for at least one full day each week to give your body

time to regenerate.

The combination of strength training and aerobic exer-

cise will reshape and strengthen your body, plus devel-

op your heart and lungs.

PERSONALIZING YOUR EXERCISE PROGRAM

Determining the exact length of time for each workout,

aswell as the number of repetitions or sets completed,

is an individual matter. It is important to avoid overdo-

ing it during the first few months of your exercise pro-

gram. You should progress at your own pace and be

sensitive to your body’s signals. If you experience pain

or dizziness at any time while exercising, stop immedi-

ately and begin cooling down. Find out what is wrong

before continuing. Remember that adequate rest and a

proper diet are important factors in any exercise pro-

gram.

WARMING UP

Begin each workout with 5 to 10 minutes of stretching

and light exercise to warm up. Warming up prepares

your body for more strenuous exercise by increasing

circulation, raising your body temperature and deliver-

ing more oxygen to your muscles.

WORKING OUT

Each workout should include 6 to 10 different exercis-

es. Select exercises for every major muscle group,

emphasizing areas that you want to develop most. To

give balance and variety to your workouts, vary the

exercises from session to session.

Schedule your workouts for the time of day when your

energy level is the highest. Each workout should be

followed by at least one day of rest. Once you find the

schedule that is right for you, stick with it.

EXERCISE FORM

Maintaining proper form is an essential part of an

effective exercise program. This requires moving

through the full range of motion for each exercise, and

moving only the appropriate parts of the body.

Exercising in an uncontrolled manner will leave you

feeling exhausted. On the exercise guide accompany-

ing this manual you will find photographs showing the

correct form for several exercises, and a list of the

muscles affected. Refer to the muscle chart on the

next page to find the names of the muscles.

The repetitions in each set should be performed

smoothly and without pausing. The exertion stage of

each repetition should last about half as long as the

return stage. Proper breathing is important. Exhale

during the exertion stage of each repetition and inhale

during the return stroke. Never hold your breath.

Rest for a short period of time after each set. The

ideal resting periods are:

•Rest for three minutes after each set for a muscle

building workout.

•Rest for one minute after each set for a toning work-

out.

•Rest for 30 seconds after each set for a weight loss

workout.

Plan to spend the first couple of weeks familiarizing

yourself with the equipment and learning the proper

form for each exercise.

COOLING DOWN

End each workout with 5 to 10 minutes of stretching.

Include stretches for both your arms and legs. Move

slowly as you stretch and do not bounce. Ease into

each stretch gradually and go only as far as you can

without strain. Stretching at the end of each workout

is an effective way to increase flexibility.

STAYING MOTIVATED

For motivation, keep a record of each workout. The

chart on page 23 of this manual can be photocopied

and used to schedule and record your workouts. List

the date, the exercises performed, the resistance

used, and the numbers of sets and repetitions com-

pleted. Record your weight and key body measure-

ments at the end of every month. Remember, the key

to achieving the greatest results is to make exercise a

regular and enjoyable part of your everyday life.

MUSCLE CHART

A. Sternomastoid (neck)

B. Pectoralis Major (chest)

C. Biceps (front of arm)

D. Obliques (waist)

E. Brachioradials (forearm)

F. Hip Flexors (upper thigh)

G. Abductor (outer thigh)

H. Quadriceps (front of thigh)

I. Sartorius (front of thigh)

J. Tibialis Anterior (front of calf)

K. Soleus (front of calf)

L. Anterior Deltoid (shoulder)

M. Rectus Abdominus (stomach)

N. Adductor (inner thigh)

O. Trapezius (upper back)

P. Rhomboideus (upper back)

Q. Posterior Deltoid (shoulder)

R. Triceps (back of arm)

S. Latissimus Dorsi (mid back)

T. Spinae Erectors (lower back)

U. Gluteus Medius (hip)

V. Gluteus Maximus (buttocks)

W. Hamstring (back of leg)

X. Gastrocnemius (back of calf)

MONDAY

Date:

EXERCISE WEIGHT SETS REPS

AEROBIC EXERCISE

TUESDAY

Date:

/ /

WEDNESDAY

Date:

/ /

THURSDAY

Date:

/ /

FRIDAY

Date:

/ /

Make photocopies of this page for scheduling and recording your workouts.

M6 Washer (80)

M8 Nylon Locknut (58)

M8 Washer (59)

M10 Nylon Locknut (56)

M4 Washer (33)

M10 x 70mm Bolt (72)

M10 x 46mm Bolt (81)

M10 x 63mm Bolt (75)

M10 x 67mm Bolt (71)

M10 x 85mm Bolt (67)

M10 x 25mm Button Bolt (77)

M10 x 155mm Bolt (74)

M8 x 65mm Bolt (68)

M8 x 22mm Shoulder Bolt (65)

M6 x 63mm Screw (70)

M6 x 16mm Screw (62)

M4 x 20mm Self-tapping Screw (69)

M10 x 77mm Bolt (79)

M10 x 51mm Bolt (66)

M8 x 63mm Carriage Bolt (64)

M10 Washer (57)

M12 Nut (82)

Large Washer (78)

PART IDENTIFICATION CHART

Refer to the drawings below to identify small parts used in assembly. The number in parentheses by each draw-

ing is the key number of the part, from the PART LIST in the center of this manual. Note: Some small parts

may have been pre-attached. If a part is not in the parts bag, check to see if it has been pre-attached.

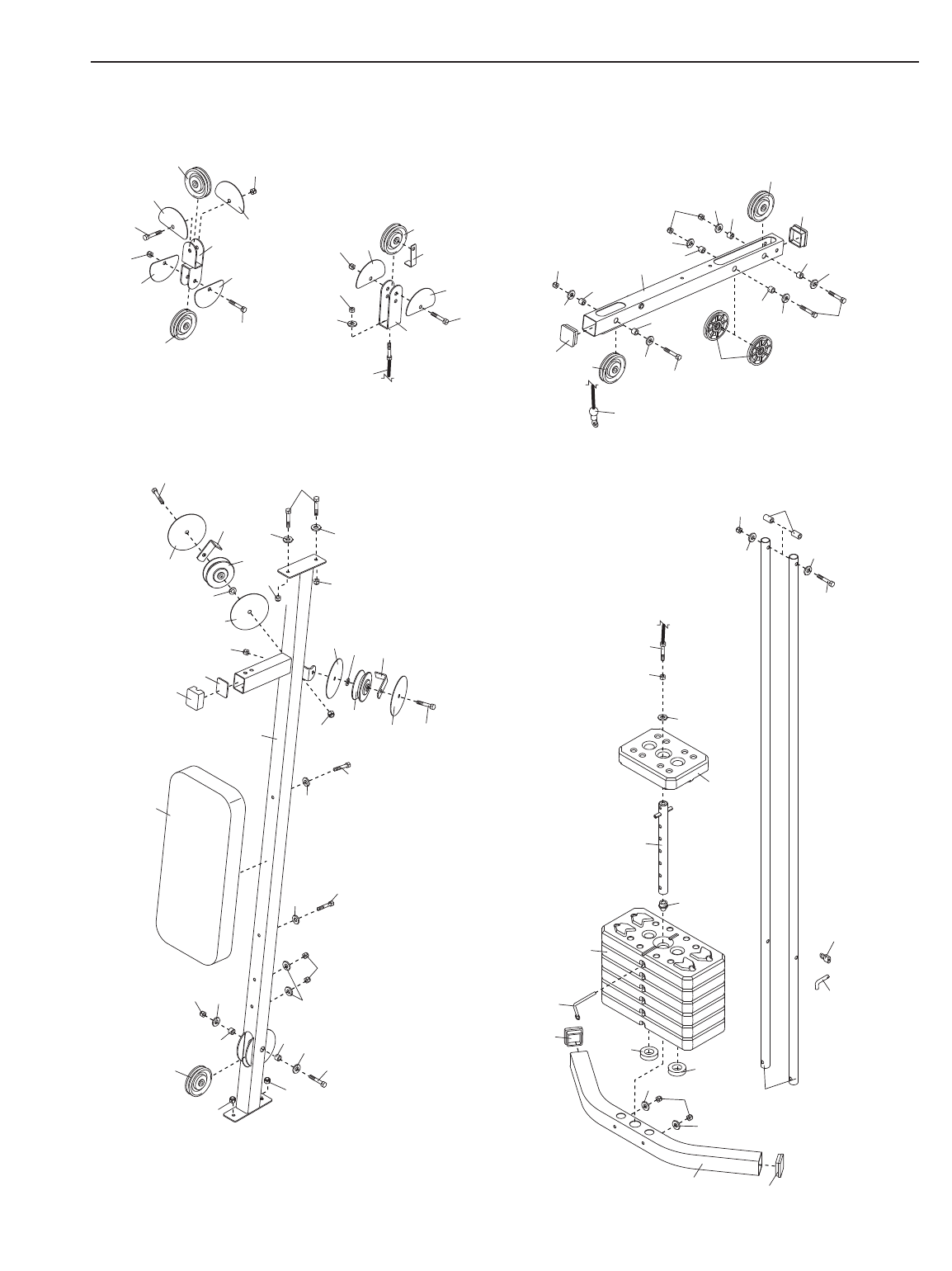

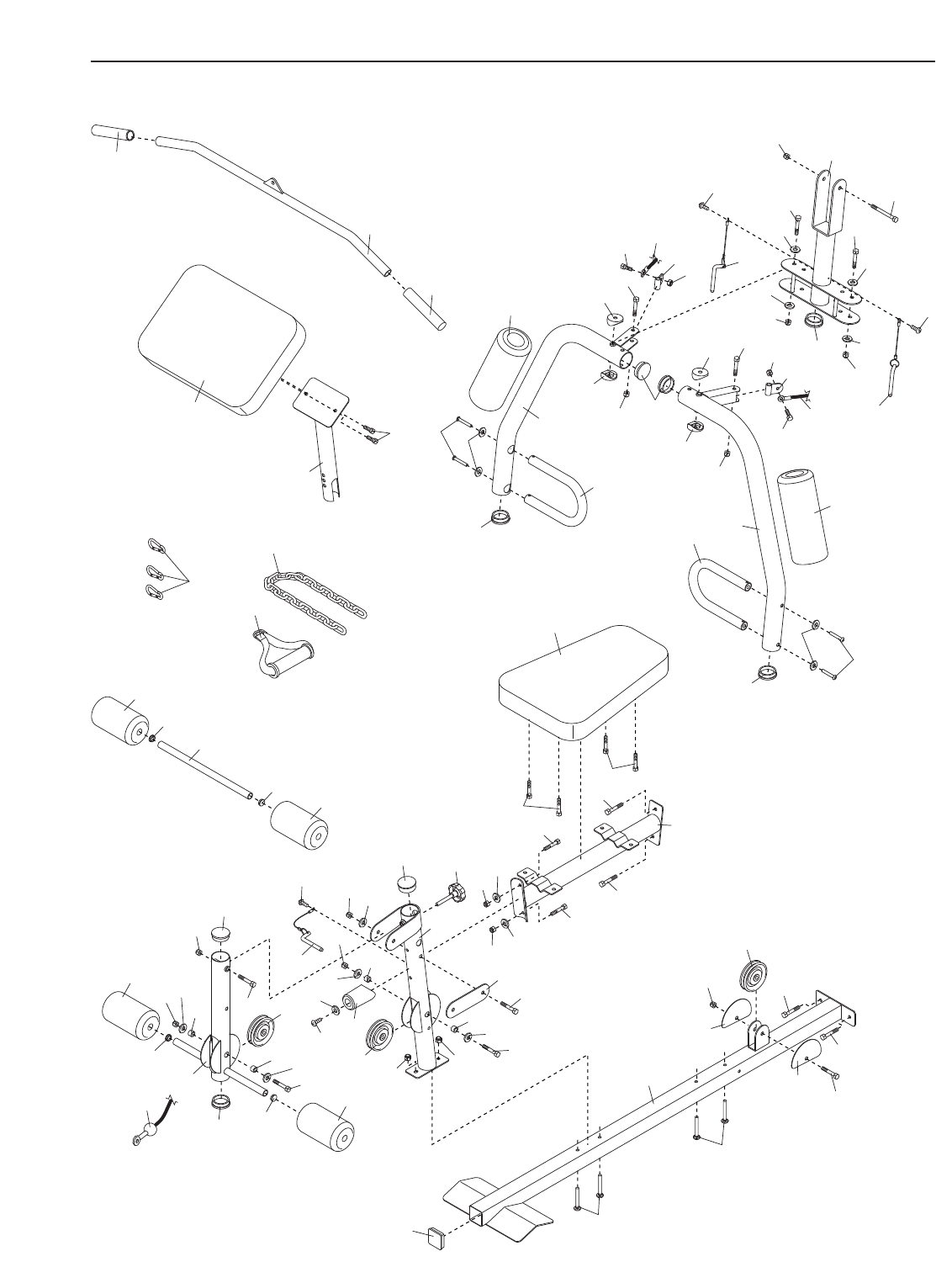

Key No. Qty. Description Key No. Qty. Description

1 1 Base

2 1 Stabilizer

3 1 Upright

41 Top Frame

5 1 Pivot Frame

6 1 Seat Frame

7 1 Front Leg

8 1 Leg Lever

9 1 Right Arm

10 1 Left Arm

11 2 Handle

12 1 Square Plate

13 1 Curl Post

14 1 Curl Pad

15 1 Seat

16 1 Backrest

17 1 Lock

18 1 Lock Pin

19 1 Chain

20 1 Handle Strap

21 2 Weight Guide

22 6 Weight

23 1 Weight Tube Cap

24 1 Weight Tube

25 1 Top Weight

26 1 Weight Pin

27 2 Weight Bumper

28 4 Small Foam Pad

29 1 Pad Tube

30 8 50mm Round Inner Cap

31 5 50mm Square Inner Cap

32 1 38mm Square Outer Cap

33 1 M4 Washer

34 4 19mm Round Inner Cap

35 1 Lat Bar

36 2 Handgrip

37 3 Cable Clip

38 1Leg Lever Pin

39 2 Cable Pivot

40 2 Arm Pin

41 4 Full Finger Guard

42 2 Large Foam Pad

43 8 Half Finger Guard

44 4 Arm Bushings

45 1 “U”-bracket

46 2 “V”-pulley

47 2 90mm Thin Pulley

48 9 90mm Pulley

49 2 11mm Spacer

50 2 Large Cable Trap

51 1 Cable Trap

52 10 12mm Spacer

53 1 Low Cable

54 1 Arm Cable

55 1 High Cable

56 22 M10 Nylon Locknut

57 27 M10 Washer

58 13 M8 Nylon Locknut

59 7 M8 Washer

60 1 Leg Bumper

61 1 Curl Knob

62 6 M6 x 16mm Screw

63 1 Double “U”-bracket

64 4 M8 x 63mm Carriage Bolt

65 2 M8 x 22mm Shoulder Bolt

66 3 M10 x 51mm Bolt

67 2 M10 x 85mm Bolt

68 6 M8 x 65mm Bolt

69 4 M4 x 20mm Self-tapping Screw

70 2 M6 x 63mm Screw

71 8 M10 x 67mm Bolt

72 1 M10 x 70mm Bolt

73 1 Lock Plate

74 1 M10 x 155mm Bolt

75 2 M10 x 63mm Bolt

76 2 19mm Spacer

77 4 M10 x 25mm Button Bolt

78 1 Large Washer

79 2 M10 x 77mm Bolt

80 2 M6 Washer

81 3M10 x 46mm Bolt

82 1 M12 Nut

# 1 User’s Manual

# 1 Exercise Guide

# 2 Grease Packet

# 1 Allen Wrench

PART LIST—Model No. WESY1955.0 R0705B

Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover

of the user’s manual for information about ordering replacement parts.

65 54

56 57

48 58 58

31 64

60 57

EXPLODED DRAWING A—Model No. WESY1955.0 R0705B

57 71 47

56 4

57 71

56 51

56 41 57

41 75

59 59

52 52

EXPLODED DRAWING B—Model No. WESY1955.0 R0705B

LIMITED WARRANTY

Toorder replacement parts, see the front cover of this manual. To help us assist you, please be prepared to give

the following information:

1. the MODEL NUMBER of the product (WESY1955.0)

2. the NAME of the product (WEIDER 1200 weight system)

3. the SERIAL NUMBER of the product (see the front cover of this manual)

4. the KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST and EXPLODED DRAWING at the

center of this manual)

ORDERING REPLACEMENT PARTS

ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and mate-

rial, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This

warranty extends only to the original purchaser.ICON's obligation under this warranty is limited to replacing

or repairing, at ICON's option, the product through one of its authorized service centers. All repairs for which

warranty claims are made must be pre-authorized by ICON. If the product is shipped to a service center, freight

charges to and from the service center will be the customer’s responsibility. For in-home service, the customer

will be responsible for a minimal trip charge. This warranty does not extend to any product or damage to a

product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs

not provided by an ICON authorized service center; products used for commercial or rental purposes; or prod-

ucts used as store display models. No other warranty beyond that specifically set forth above is authorized by

ICON.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection

with the use or performance of the product or damages with respect to any economic loss, loss of property,

loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other consequential

damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or conse-

quential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of mer-

chantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein.

Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation

may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813

Weider 1200 System Wesy1955 Users Manual WESY1955.0 231435

Weider-Wesy19550-Owner-S-Manual weider-wesy19550-owner-s-manual

Navigation menu

Versions of this User Manual:

Views

Navigation
