USER’S MANUAL

Model No. 831.150850

Serial No.

Write the serial number in the

space above for reference.

Serial Number Decal

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference. SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179

PATENT PENDING

®

2

FULL 90 DAY WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

USING THE WEIGHT BENCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

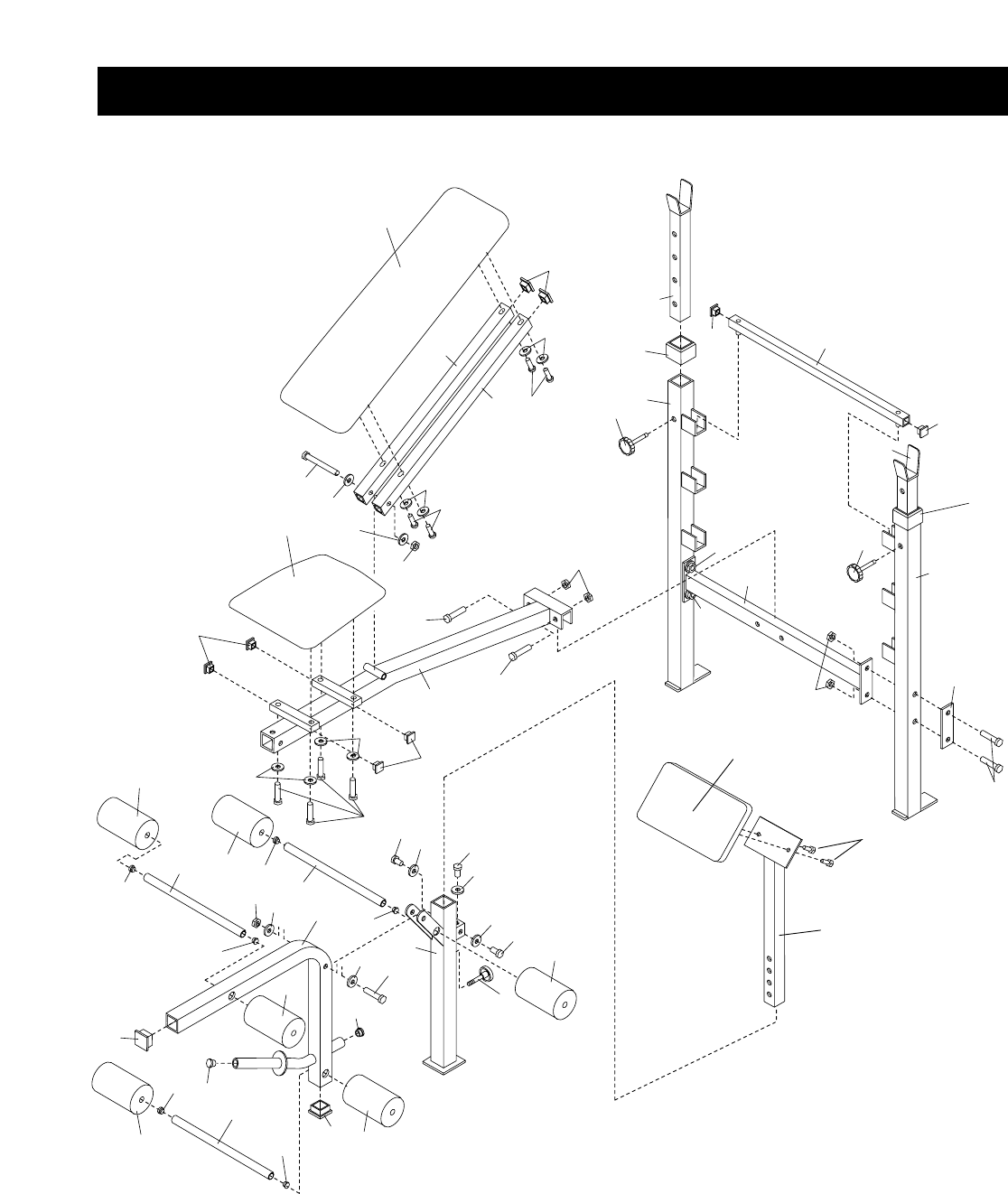

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this

SEARS WEIGHT BENCH EXERCISER, contact the nearest SEARS Service Center throughout the United

States and SEARS will repair or replace the WEIGHT BENCH EXERCISER, free of charge.

This warranty does not apply when the WEIGHT BENCH EXERCISER is used commercially or for rental

purposes.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to

state.

SEARS, ROEBUCK AND CO., DEPT. 817WA, HOFFMAN ESTATES, IL 60179

Full 90 Day Warranty

Table of Contents

WEIDER is a registered trademark of ICON Health & Fitness, Inc.

3

1. Read all instructions in this manual before

using the weight bench.

2. Use the weight bench only as described in

this manual.

3. It is the responsibility of the owner to ensure

that all users of the weight bench are ade-

quately informed of all precautions.

4. Use the weight bench only on a level surface.

Cover the floor beneath the weight bench for

protection.

5. Inspect and tighten all parts each time you

use the weight bench. Replace any worn

parts immediately.

6. Keep children under the age of 12 and pets

away from the weight bench at all times.

7. Always use an equal amount of weight on

each side of your barbell (not included).

8. Do not use a barbell that is longer than five

feet with the weight bench.

9. When you are using the leg lever, place a

barbell with the same amount of weight on

the weight rests to balance the bench.

10. Always wear athletic shoes for foot protec-

tion while exercising.

11. Keep hands and feet away from moving parts.

12. The weight bench is designed to support a

maximum of 360 pounds, including the user,

a weight bar, and weights. Do not place more

than 110 pounds, including a weight bar and

weights, on the weight rests; do not place

more than 50 pounds on the leg lever for nor-

mal use; the leg lever can support 100

pounds when stationary.

13. When using the backrest in an inclined posi-

tion, make sure that the support tube is fully

seated in the adjustment brackets on the

uprights.

14. If you feel pain or dizziness at any time while

exercising, stop immediately and begin cool-

ing down.

15. The weight bench is intended for home use

only. Do not use the weight bench in any

commercial, rental or institutional setting.

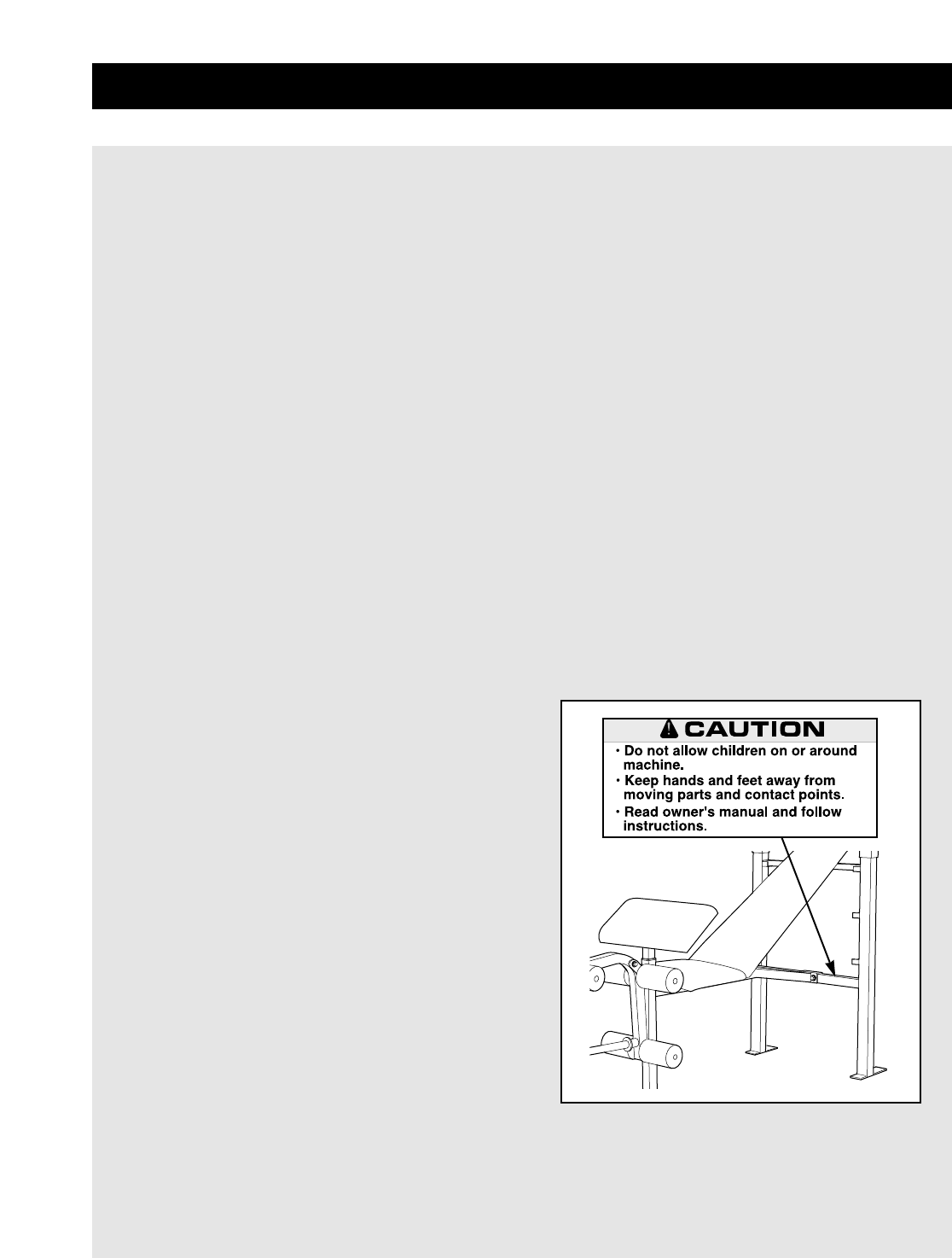

16. WARNING DECAL PLACEMENT: The decal

shown below has been placed on the weight

bench. If the decal is missing, or if it is not

legible, please call our Customer Service

Department toll-free at 1-800-736-6879,

Monday through Saturday, 7 a.m. until 7 p.m.

Central Time, to order a replacement decal.

Apply the replacement decal in the location

shown.

WARNING: Before beginning this or any exercise program, consult your physician. This is especially

important for persons over the age of 35 or persons with pre-existing health problems. Read all

instructions before using. ICON assumes no responsibility for personal injury or property damage

sustained by or through the use of this product.

Decal shown at 75%

To reduce the risk of serious injury, read the following important precautions

before using the weight bench.

WARNING:

Important Precautions

4

Backrest

Support Tube

Weight Rests

Seat

Weight Tube

Leg Lever

Thank you for selecting the versatile WEIDER®145

Weight Bench. The WEIDER®145 Weight Bench is

designed to let you develop every major muscle group

of the body. Whether your goal is a shapely figure, dra-

matic muscle size and strength, or a healthier cardio-

vascular system, the WEIDER®145 Weight Bench will

help you to achieve the specific results you want.

For your benefit, read this manual carefully before

using the WEIDER®145 Weight Bench. If you have

additional questions, please call our Customer Service

Department toll-free at 1-800-736-6879, Monday

through Saturday, 7 a.m. until 7 p.m. Central Time

(excluding holidays). To help us assist you, please note

the product model number and serial number before

calling. The model number is 831.150850. The serial

number can be found on a decal attached to the WEI-

DER®145 Weight Bench (see the front cover of this

manual).

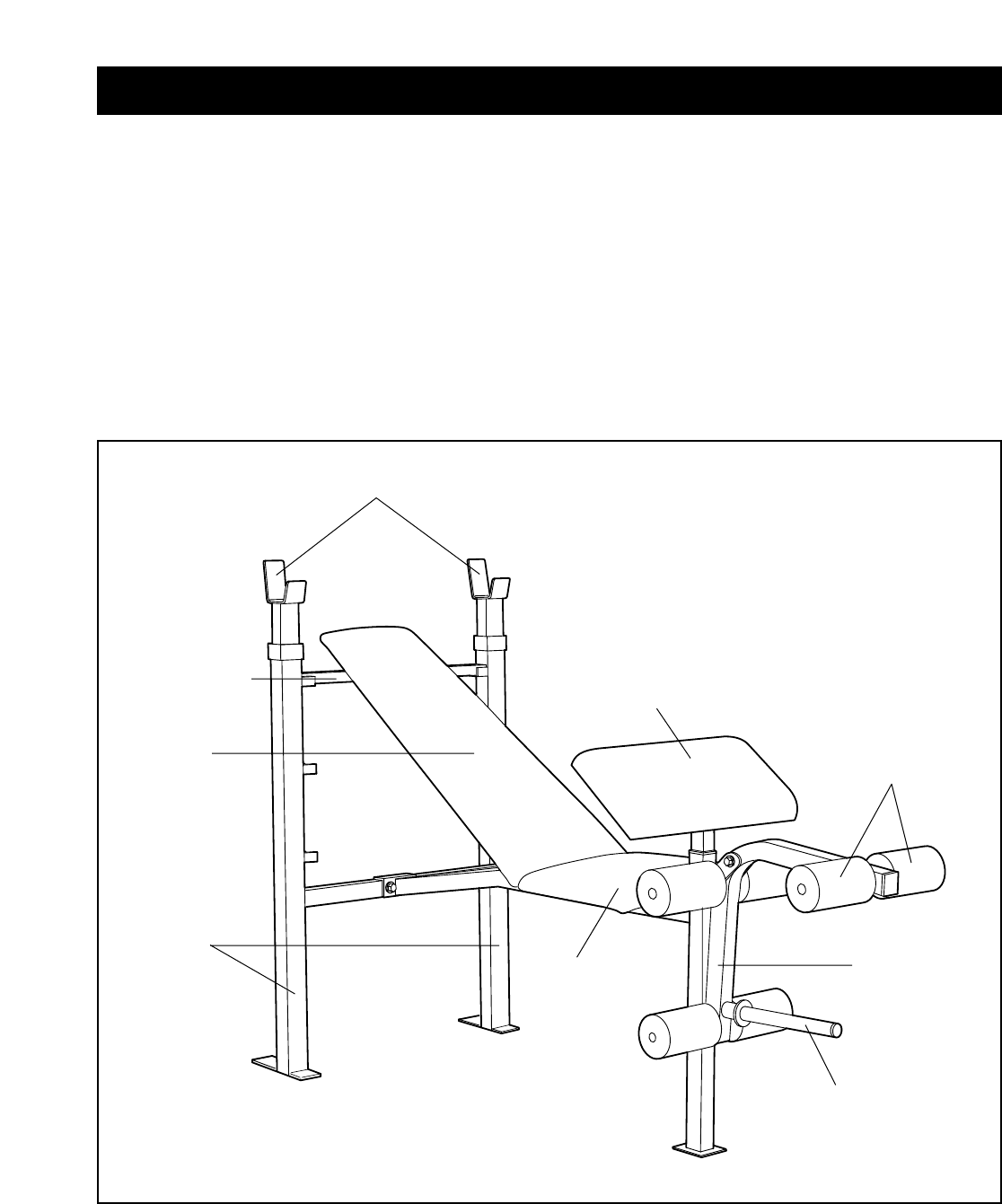

Before reading further, please review the drawing

below and familiarize yourself with the parts that are

labeled.

Before You Begin

Uprights

Foam Pads

Curl Pad

5

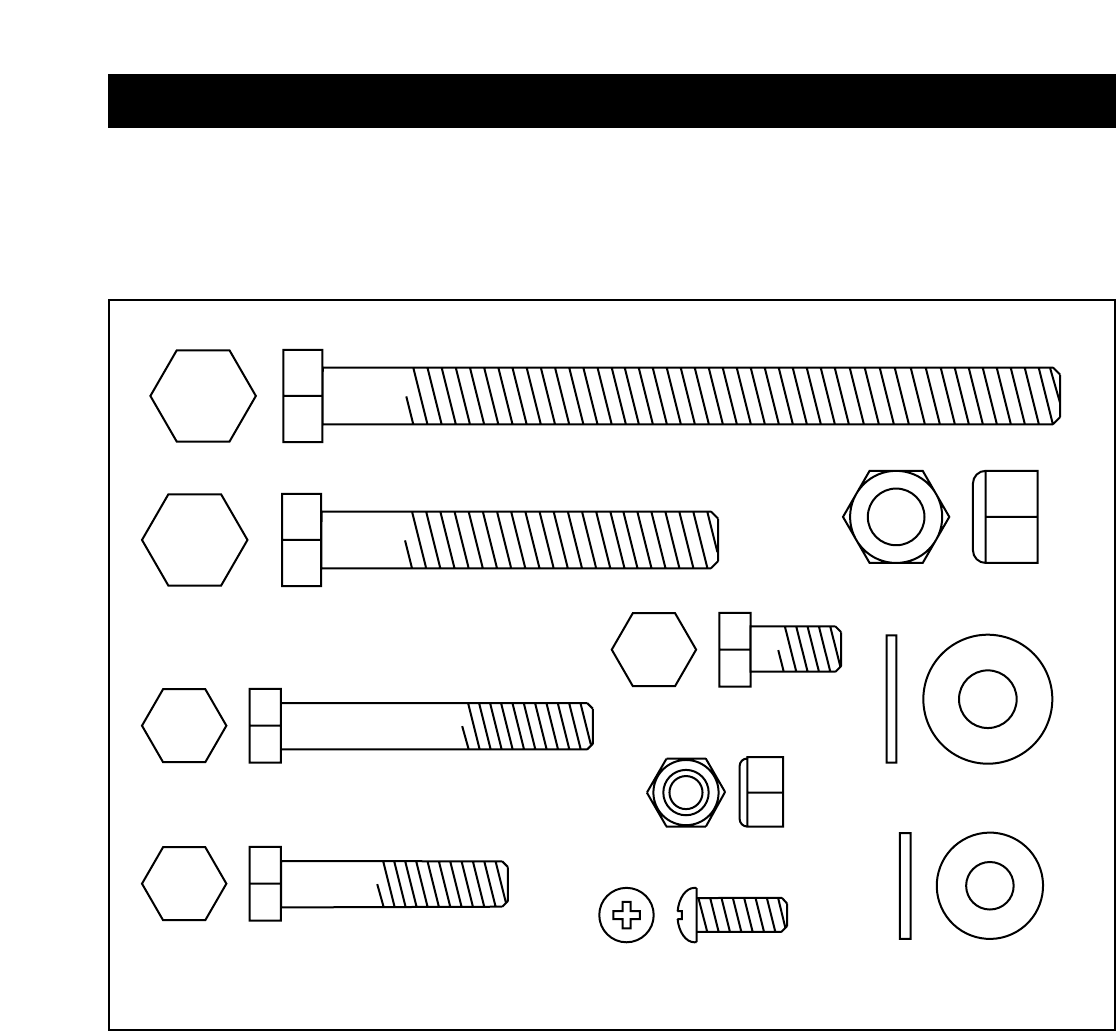

M10 x 130mm Bolt (9)–1

M8 Washer (17)–11

M10 Washer (29)–4

M10 Nylon Locknut (30)–6

M10 x 70mm Bolt (26)–5

M8 x 16mm Bolt (28)–3

M8 x 40mm Bolt (27)–8

M8 x 55mm Bolt (25)–2

M8 Nylon Locknut (34)—2

M6 x 16mm Screw (24)–2

This chart is provided to help you identify the small

parts used in assembly. Important: Some parts may

have been pre-assembled for shipping purposes. If

you cannot find a part in the parts bags, check to

see if it has been pre-assembled. The number in

parenthesis below each part refers to the key number

of the part. The second number refers to the quantity

needed for assembly.

Part Identification Chart

6

Before beginning assembly, carefully read the

following information and instructions:

•Place all parts in a cleared area and remove the

packing materials; do not dispose of the packing

materials until assembly is completed.

•Tighten all parts as you assemble them, unless

instructed to do otherwise.

•For help identifying the small parts used in

assembly, use the PART IDENTIFICATION

CHART on the page 5.

•As you assemble the weight bench, be sure that

all parts are oriented as shown in the drawings.

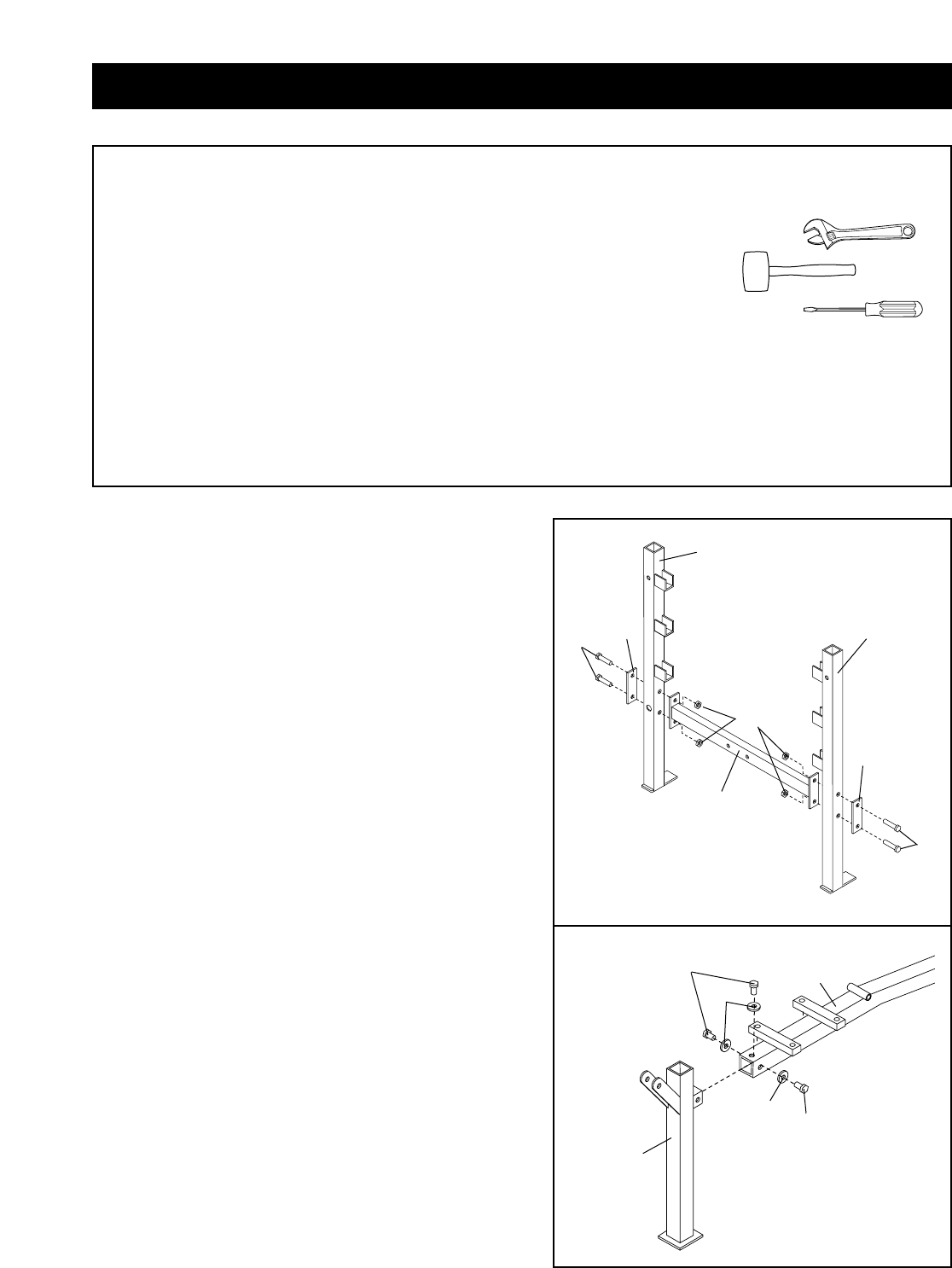

THE FOLLOWING TOOLS (NOT INCLUDED) ARE

REQUIRED FOR ASSEMBLY:

• Two (2) adjustable wrenches

• One (1) rubber mallet

• One (1) standard screwdriver

• Lubricant, such as grease or petroleum jelly

plus soapy water.

Assembly will be more convenient if you have the

following tools: A socket set, a set of open-end or

closed-end wrenches or a set of ratchet wrenches.

2

1

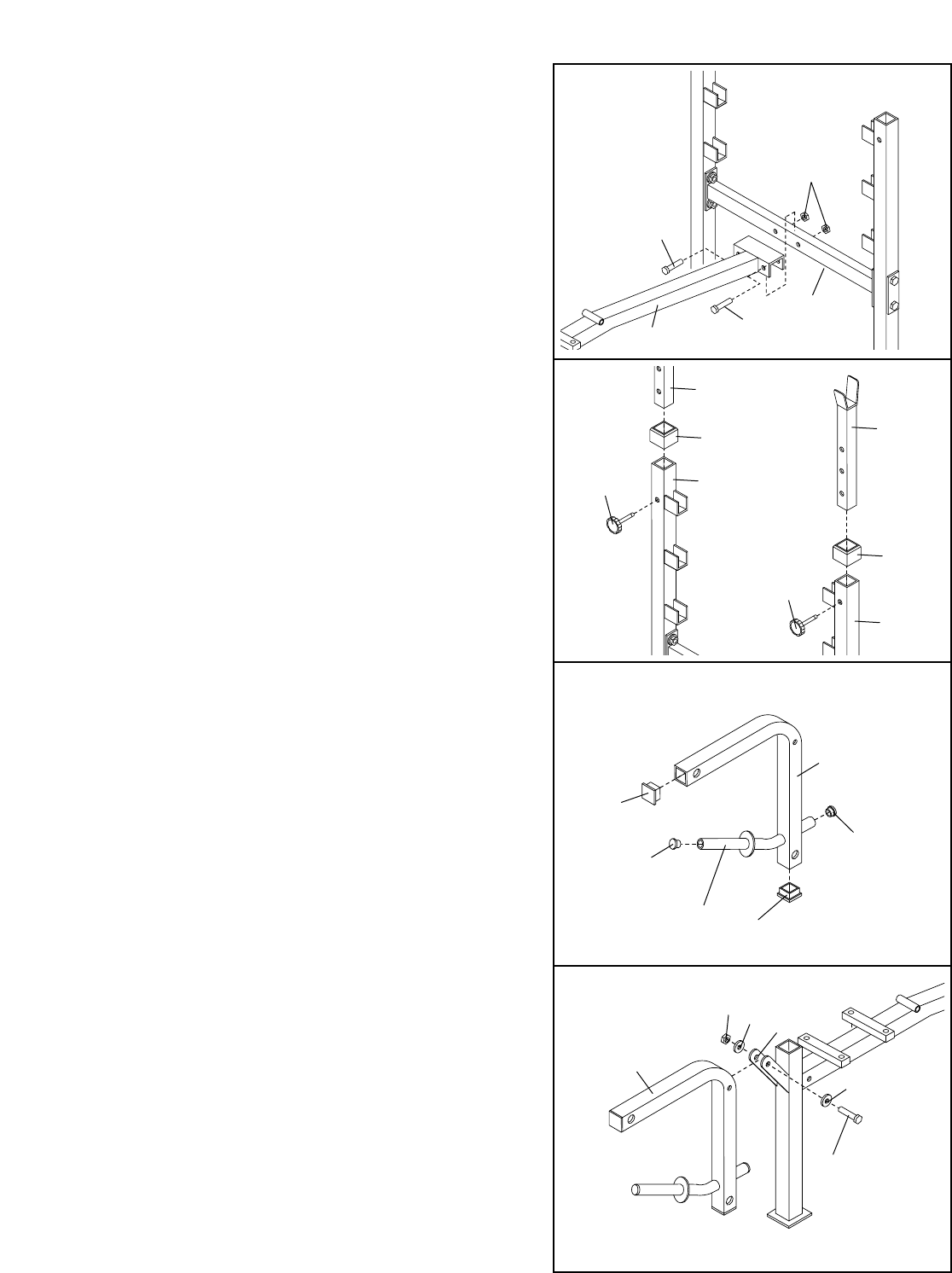

1. Before assembling this product, be sure that

you have read and understand the information

in the box above.

Attach the Crossbar (3) to Upright A (1) with two

M10 x 70mm Bolts (26), a Support Plate (14) and

two M10 Nylon Locknuts (30). The Upright must

be oriented as shown.

Attach the Crossbar (3) to Upright B (15) in the

same manner.

2. Attach the Front Leg (8) to the Frame (2) with three

M8 x 16mm Bolts (28) and three M8 Washers (17).

Assembly

26 14

14

26

3

15

30

8

28

28

17

2

17

1

7

3. Attach the Frame (2) to the Crossbar (3) with two

M8 x 55mm Bolts (25) and two M8 Nylon Locknuts

(34).

4. Press a 50mm Square Bushing (31) onto each

Upright (1, 15) and tap them in place with a rubber

mallet.

Slide a Weight Rest (16) into Upright A (1). Align

one of the adjustment holes in the Weight Rest with

the adjustment hole in the Upright. Tighten the

Large Threaded Knob (20) into the adjustment hole

in the Upright.

Attach the other Weight Rest (16) to Upright B (15)

in the same manner.

5. Tap a 38mm Square Inner Cap (32) into each end

of the Leg Lever (4).

Tap a 25.4mm Round Inner Cap (21) into each end

of the weight tube.

6. Lubricate the M10 x 70mm Bolt (26). Attach the Leg

Lever (4) to the Front Leg (8) with the Bolt, two M10

Washers (29) and the M10 Nylon Locknut (30).

6

3

4

5

34

25

16

16

31

15

32

4

30

26–Lubricate

29 8

29

21

4

21

32

Weight Tube

20

20

31

1

25

3

2

8

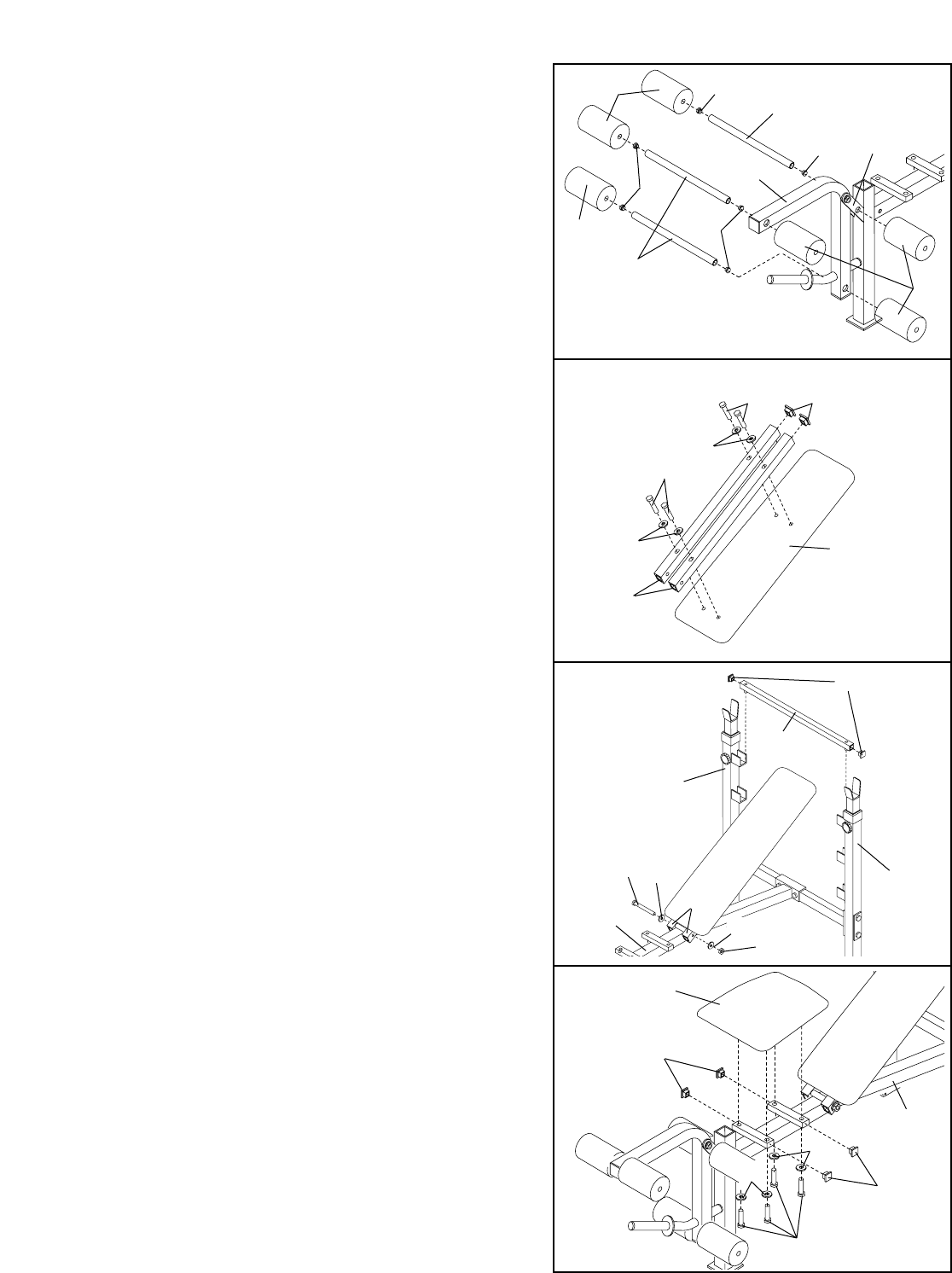

7. Press two 19mm Round Inner Caps (33) into each

Short Pad Tube (10). Press two 19mm Round Inner

Caps into the Long Pad Tube (23).

Insert the Short Pad Tubes (10) into the holes in the

Leg Lever (4). Slide two Foam Pads (22) onto each

Pad Tube.

Insert the Long Pad Tube (23) into the holes in the

bracket on the Front Leg (8). Slide a Foam Pad (22)

onto each end of the Long Pad Tube.

8. Press a 1” Square Inner Cap (18) into the indicated

end of each Backrest Tube (5).

Attach each Backrest Tube (5) to the Backrest (6)

with two M8 x 40mm Bolts (27) and two M8

Washers (17). The Backrest Tubes must be ori-

ented as shown.

Do not tighten the four Bolts yet.

9. Press a 1” Square Inner Cap (18) into each end of

the Support Tube (7). Set the Support Tube into the

highest set of adjustment brackets on the Uprights

(1, 15).

Lubricate the M10 x 130mm Bolt (9). Attach the

Backrest Tubes (5) to the Frame (2) with the Bolt,

two M10 Washers (29) and an M10 Nylon Locknut

(30). Do not overtighten the Nylon Locknut.

Rest the Backrest (6) on the Support Tube (7).

Tighten the four M8 x 40mm Bolts (27) securing the

support tubes to the seat (see Step 8).

10. Press a 1” Square Inner Cap (18) into each end of

the seat support brackets on the Frame (2).

Attach the Seat (11) to the seat support brackets on

the Frame (2) with four M8 x 40mm Bolts (27) and

four M8 Washers (17).

10

7

8

9

22

33

33

33 8

22

6

5

18

29

30

9

2

2

11

17

27

17

29

1

5

15

7

17

17

27

27 18

23

4

10

33

22

18

18

9

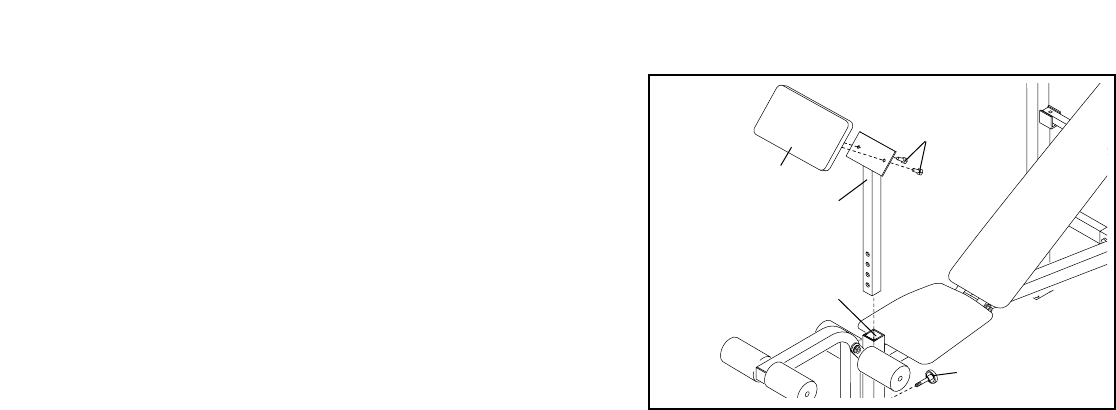

11. Attach the Curl Pad (12) to the Curl Upright (13)

with two M6 x 16mm Screws (24).

Slide the Curl Upright (13) into the Front Leg (8).

Align one of the adjustment holes in the Curl

Upright with the adjustment hole in the Front Leg.

Tighten the Small Threaded Knob (19) into the

adjustment hole in the Front Leg.

11

12

13

19

8

24

10

4

Weight Tube

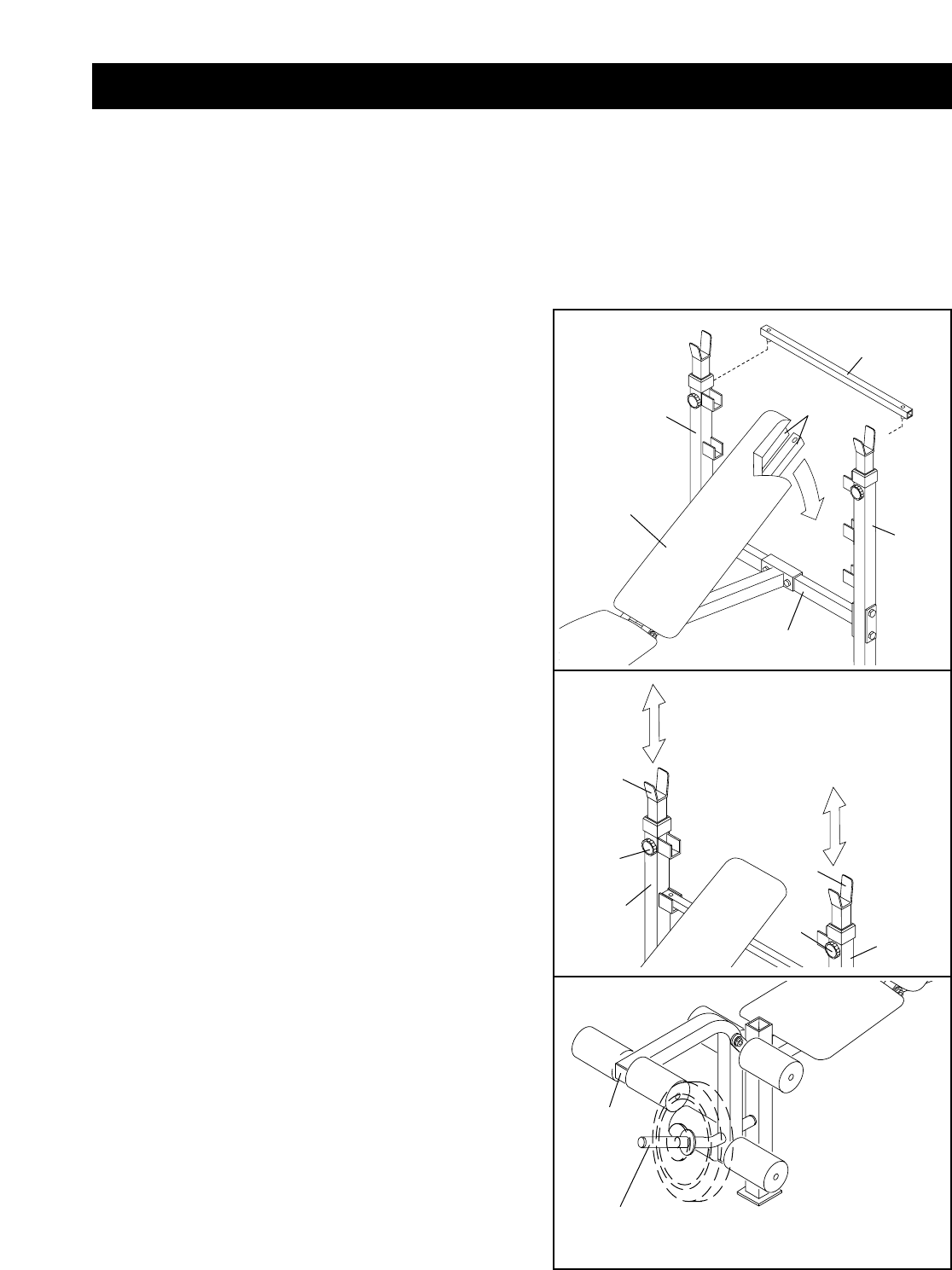

ADJUSTING THE BACKREST

The Backrest (6) can be used in a level position, an

inclined position or a declined position. To use the

Backrest in a level position, first lift the Backrest. Insert

the Support Tube (7) into the lowest set of adjustment

brackets in the Uprights (1, 15). Lay the Backrest Tubes

(5) on the Support Tube.

To use the Backrest (6) in an inclined position, first lift

the Backrest. Insert the Support Tube (7) into one of the

two upper sets of adjustment brackets in the Uprights

(1, 15). Lay the Backrest Tubes (5) on the Support

Tube.

To use the Backrest (6) in a declined position, lift the

Backrest and remove the Support Tube. Lay the

Backrest Tubes (5) on the Crossbar (3).

ADJUSTING THE WEIGHT RESTS

To adjust the Weight Rests (1), remove the Large

Threaded Knobs (20) from the Uprights (1, 15). Move

the Weight Rests to the desired height. Replace the

Large Threaded Knobs. The Weight Rests must be set

to the same heights.

ATTACHING WEIGHTS TO THE WEIGHT BENCH

Note: Remove the Curl Upright before using the Leg

lever (see Assembly, step 11 on page 9).

To use the Leg Lever (4), slide the desired weights (not

included) onto the weight tube. WARNING: Do not

place more than 50 pounds on the Leg Lever for

normal use.

The weight bench is designed to be used with your own weight set (not included). The steps below explain how

the weight bench can be adjusted. See EXERCISE GUIDELINES on page 11 for important exercise information

and refer to the accompanying exercise poster to see the correct form for each exercise. Refer also to the exer-

cise information accompanying your weight set (not included) for additional exercises.

Inspect and tighten all parts each time you use the weight bench. Replace any worn parts immediately. The

weight bench can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.

16

16

15

20

20

1

7

1

15

3

6

5

Using the Weight Bench

11

THE FOUR BASIC TYPES OF WORKOUTS

• Muscle Building

In order to increase the size and strength of your

muscles, you must push your muscles to a high per-

centage of their capacity. You must also progressively

increase the intensity of your exercise so that your

muscles continue to adapt and grow. Each exercise

can be tailored to the proper intensity level by chang-

ing the amount of weight used, or the number of repe-

titions or sets performed. (A “repetition” is one com-

plete cycle of an exercise, such as one sit-up. A “set”

is a series of repetitions performed consecutively.)

The proper amount of weight for each exercise

depends upon the individual user. It is up to you to

gauge your limits. Select the amount of weight that

you think is right for you. Begin with 3 sets of 8 repeti-

tions for each exercise that you perform. Rest for 3

minutes after each set. When you can complete 3 sets

of 12 repetitions without difficulty, increase the amount

of weight.

• Toning

To tone your muscles, you must push your muscles to

a moderate percentage of their capacity. Select a

moderate amount of weight and increase the number

of repetitions in each set. Complete as many sets of

15 to 20 repetitions as possible without discomfort.

Rest for 1 minute after each set. Work your muscles

by completing more sets rather than by using high

amounts of weight.

• Weight Loss

To lose weight, use a low amount of weight and

increase the number of repetitions in each set.

Exercise for 20 to 30 minutes, resting for a maximum

of 30 seconds between sets.

• Cross Training

In the pursuit of a complete and well-balanced fitness

program, many have found that cross training is the

answer. We recommend that on Monday, Wednesday

and Friday, you plan weight training workouts. On

Tuesday and Thursday, plan 20 to 30 minutes of aero-

bic exercise, such as cycling, running or swimming.

Rest from both weight training and aerobic exercise

for at least one full day each week to give your body

time to regenerate. By combining weight training with

aerobic exercise, you can reshape and strengthen

your body, plus develop a stronger heart and lungs.

PERSONALIZING YOUR EXERCISE PROGRAM

We have not specified an exact length of time for

each workout, or a specific number of repetitions or

sets for each exercise. It is very important to avoid

overdoing it during the first few months of your exer-

cise program, and to progress at your own pace. If

you experience pain or dizziness at any time while

exercising, stop immediately and begin to cool down.

Find out what is wrong before continuing. Remember

that adequate rest and a proper diet are also impor-

tant.

WARMING UP

Begin each workout with 5 to 10 minutes of light

stretching and exercise to warm up. Warming up pre-

pares your body for exercise by increasing circulation,

raising your body temperature and delivering more

oxygen to your muscles.

WORKING OUT

Each workout should include 6 to 10 different exercis-

es. Select exercises for every major muscle group,

with emphasis on the areas that you want to develop

the most. To give balance and variety to your work-

outs, vary the exercises from workout to workout.

Schedule your workouts for the time of day when your

energy level is the highest. Each workout should be

followed by at least one day of rest. Once you find the

schedule that is right for you, stick with it.

EXERCISE FORM

In order to obtain the greatest benefits from exercis-

ing, it is essential to maintain proper form.

Maintaining proper form means moving through the

full range of motion for each exercise, and moving

only the appropriate parts of the body. Exercising in

an uncontrolled manner will leave you feeling exhaust-

ed. On the exercise poster accompanying this manual,

you will find photographs showing the correct form for

several exercises. A description of each exercise is

also provided, along with a list of the muscles affect-

ed. Refer to the muscle chart on page 15 to find the

locations of the muscles.

The repetitions in each set should be performed

smoothly and without pausing. The exertion stage of

each repetition should last about half as long as the

return stage. Proper breathing is important. Exhale

during the exertion stage of each repetition and inhale

Exercise Guidelines

12

during the return stroke; never hold your breath. Rest

for 3 minutes after each set if you are doing a muscle

building workout, 1 minute after each set if you are

doing a toning workout, and 30 seconds after each

set if you are doing a weight loss workout. Plan to

spend the first couple of weeks familiarizing yourself

with the equipment and learning the proper form for

each exercise.

COOLING DOWN

End each workout with 5 to 10 minutes of stretching.

Include stretches for both your arms and legs. Move

slowly as you stretch—do not bounce. Ease into each

stretch gradually and go only as far as you can with-

out strain. Stretching at the end of each workout is

very effective for increasing flexibility.

STAYING MOTIVATED

For motivation, keep a record of each workout. The

charts on pages 16 and 17 of this manual can be

photocopied and used to schedule and record your

workouts. List the date, exercises performed, weight

and numbers of sets and repetitions completed.

Record your weight and key body measurements at

the end of every month.

Remember, the key to achieving the greatest results

is to make exercise a regular and enjoyable part of

your everyday life.

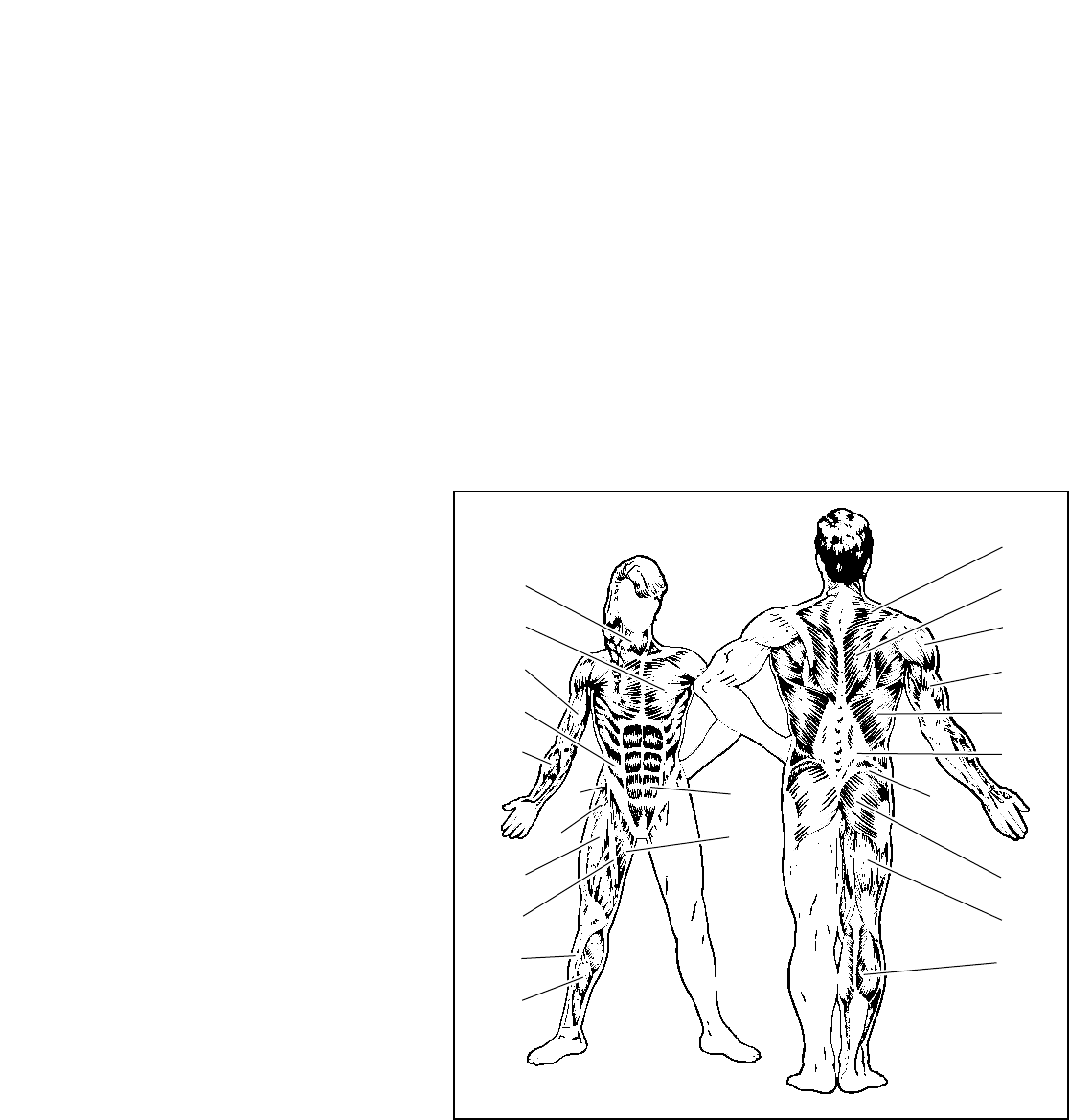

MUSCLE CHART

A. Sternomastoid (neck)

B. Pectoralis Major (chest)

C. Biceps (front of arm)

D. Obliques (waist)

E. Brachioradials (forearm)

F. Hip Flexors (upper thigh)

G. Abductor (outer thigh)

H. Quadriceps (front of thigh)

I. Sartorius (front of thigh)

J. Tibialis Anterior (front of calf)

K. Soleus (front of calf)

L. Rectus Abdominus (stomach)

M. Adductor (inner thigh)

N. Trapezius (upper back)

O. Rhomboideus (upper back)

P. Deltoid (shoulder)

Q. Triceps (back of arm)

R. Latissimus Dorsi (mid back)

S. Spinae Erectors (lower back)

T. Gluteus Medius (hip)

U. Gluteus Maximus (buttocks)

V. Hamstring (back of leg)

W. Gastrocnemius (back of calf)

N

O

P

Q

R

S

T

U

W

V

M

L

J

G

F

H

I

K

E

C

D

B

A

13

MONDAY

Date:

/ /

EXERCISE WEIGHT SETS REPS

EXERCISE WEIGHT SETS REPS

EXERCISE WEIGHT SETS REPS

AEROBIC EXERCISE

AEROBIC EXERCISE

TUESDAY

Date:

/ /

WEDNESDAY

Date:

/ /

THURSDAY

Date:

/ /

FRIDAY

Date:

/ /

Make photocopies of this page for scheduling and recording your workouts.

14

Key No. Qty. Description

1 1 Upright A

2 1 Frame

3 1 Crossbar

4 1 Leg Lever

5 2 Backrest Tube

6 1 Backrest

7 1 Support Tube

8 1 Front Leg

9 1 M10 x 130mm Bolt

10 2 Short Pad Tube

11 1 Seat

12 1 Curl Pad

13 1 Curl Upright

14 2 Support Plate

15 1 Upright B

16 2 Weight Rest

17 11 M8 Washer

18 8 1” Square Inner Cap

Key No. Qty. Description

19 1 Small Threaded Knob

20 2 Large Threaded Knob

21 2 25.4mm Round Inner Cap

22 6 Foam Pad

23 1 Long Pad Tube

24 2 M6 x 16mm Screw

25 2 M8 x 55mm Bolt

26 5 M10 x 70mm Bolt

27 8 M8 x 40mm Bolt

28 3 M8 x 16mm Bolt

29 4 M10 Washer

30 6 M10 Nylon Locknut

31 2 50mm Square Bushing

32 2 38mm Square Inner Cap

33 6 19mm Round Inner Cap

34 2 M8 Nylon Locknut

# 1 User’s Manual

# 1 Exercise Poster

“#” Indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover of

this manual for information about ordering replacement parts.

Part List—Model No. 831.150850 R0698A

6

5

11

2

4

10

10

22

22

22

22

8

3

14

15

7

16

19

23

22 33

33

33

33

30 29

29 26

32

32

33 21

21

33

22

26

30

34

16

31

18

18

31

27

17

17

27

1

30

30

17

17

17 28

28

28

17

17

27

25

25

29

30

29

9

5

18

24

12

13

18

18

20

20

15

Exploded Drawing—Model No. 831.150850 R0698A

Part No. 147267 H01516AC R0798A Printed in China © 1998 Sears, Roebuck and Co.

Model No. 831.150850

QUESTIONS?

If you find that:

• you need help assembling or

operating the WEIDER®145

• a part is missing

• or you need to schedule repair

service

call our toll-free HELPLINE

1-800-736-6879

Monday–Saturday, 7 am–7 pm

Central Time (excluding holidays)

REPLACEMENT

PARTS

If parts become worn and need to

be replaced, call the following toll-

free number

1-800-FON-PART

(1-800-366-7278)

The model number and serial number of your WEIDER®145 are

listed on a decal attached to the frame. See the front cover of

this manual to find the location of the decal.

All replacement parts are available for immediate purchase or

special order when you visit your nearest SEARS Service

Center. To request service or to order parts by telephone, call the

toll-free numbers listed at the left.

When requesting help or service, or ordering parts, please be

prepared to provide the following information:

• The MODEL NUMBER of the product (831.150850).

• The NAME of the product (WEIDER®145 Weight Bench).

• The PART NUMBER of the PART (see the PART LIST and the

EXPLODED DRAWING on pages 14 and 15 of this manual).

• The DESCRIPTION of the PART (see the PART LIST and the

EXPLODED DRAWING on pages 14 and 15 of this manual).

SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179
