QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction. If you

have questions, or if there are

missing or damaged parts, we

will guarantee complete satisfac-

tion through direct assistance

from our factory.

TO AVOID DELAYS, PLEASE

CALL DIRECT TO OUR TOLL-

FREE CUSTOMER HOT LINE.

The trained technicians on our

customer hot line will provide

immediate assistance, free of

charge.

CUSTOMER HOT LINE:

1-800-999-3756

Mon.–Fri., 6 a.m.–6 p.m. MST

Model No. WEBE15420

Serial No.

Write the serial number in the

space above for reference.

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manu-

al for future reference.

Serial Number Decal (under seat)

USER’S MANUAL

Patent Pending

Visit our website at

www.weiderfitness.com

new products, prizes,

fitness tips, and much more!

WARNING DECAL PLACEMENT

2

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

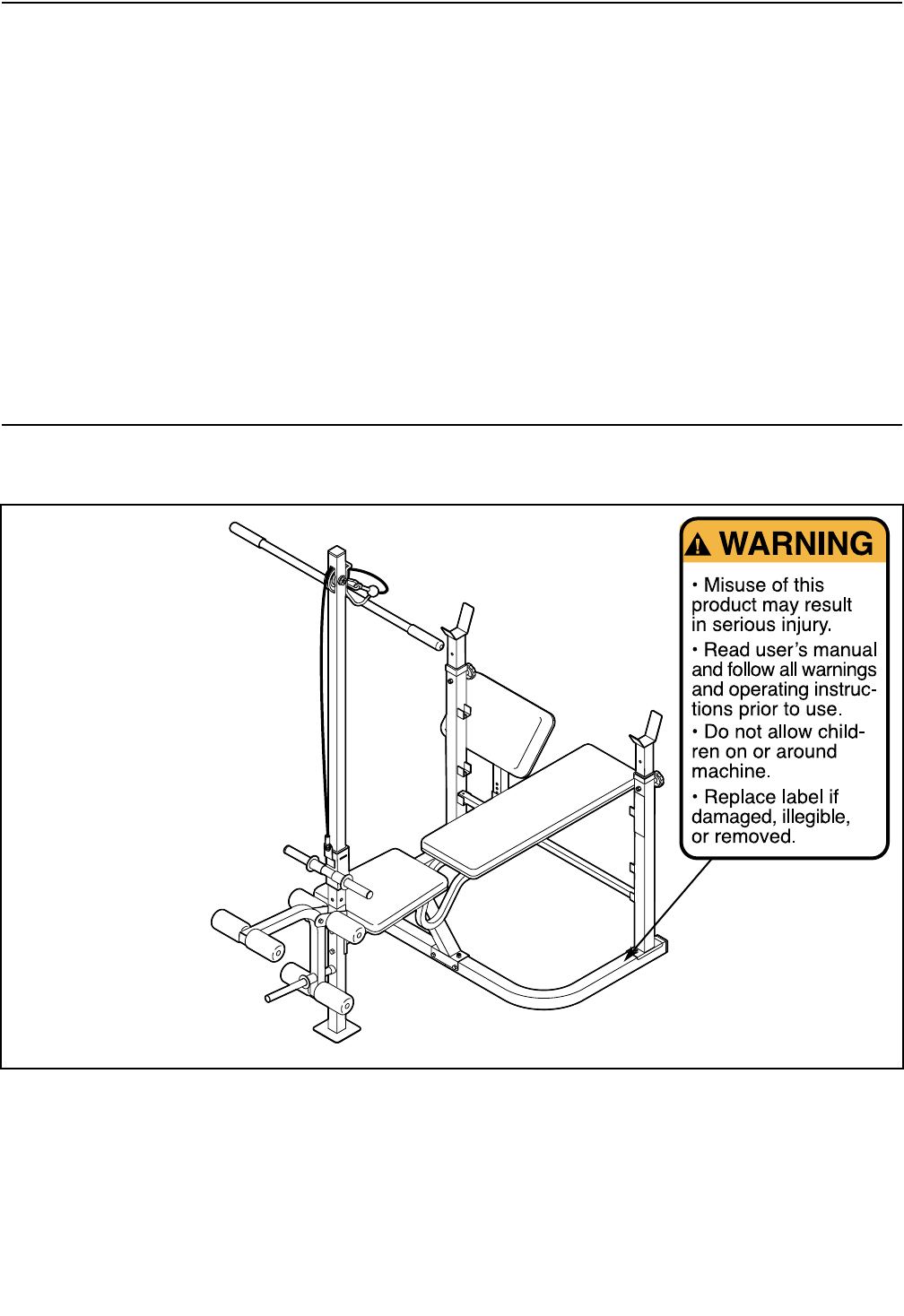

The decal shown here has

been placed on the weight

bench. If the decal is missing

or illegible, please call our

Customer Service Department

toll-free at 1-800-999-3756,

Monday through Friday, 6 a.m.

until 6 p.m. Mountain Time, to

order a free replacement decal.

Apply the replacement decal in

the location shown.

WEIDER is a registered trademark of ICON Health & Fitness, Inc.

TABLE OF CONTENTS

3

1. Read all instructions in this manual before

using the weight bench. Use the weight

bench only as described in this manual.

2. It is the responsibility of the owner to ensure

that all users of the weight bench are ade-

quately informed of all precautions.

3. The weight bench is intended for home use

only. Do not use the weight bench in any

commercial, rental, or institutional setting.

4. Keep children under the age of 12 and pets

away from the weight bench at all times.

5. Use the weight bench only on a level surface.

Cover the floor beneath the weight bench to

protect the floor.

6. Make sure all parts are properly tightened

each time you use the weight bench. Replace

any worn parts immediately.

7. Always wear athletic shoes for foot protec-

tion while exercising.

8. Make sure that the adjustment knobs are

inserted completely and tightened into the

uprights before beginning any exercise.

9. When adjusting the backrest, make sure the

adjustment tube is securely seated in the

adjustment brackets.

10. Keep hands and feet away from moving parts.

11. Do not use a barbell that is longer than six

feet with the weight bench. Note: The weight

bench does not include weights or a barbell.

12. When you are using the leg lever, place a

barbell with the same amount of weight on

the weight rests to balance the bench.

13. Always keep an equal amount of weight on

both ends of your barbell when you are

using it. When adding or removing weights,

always keep some weight on both ends of

the barbell to prevent the barbell from tip-

ping.

14. Always remove the curl post from the front

leg before performing leg curls with the leg

lever.

15. The weight bench is designed to support a

maximum user weight of 300 pounds. Do not

place more that 210 pounds, including a

weight bar and weights, on the weight rests.

Do not place more than 130 pounds on the

leg lever or weight carriage.

16. Always exercise with a partner. When you

are performing bench press exercises, your

partner should stand behind you to catch the

barbell if you cannot complete a repetition.

17. If you feel pain or dizziness while exercising,

stop immediately and begin cooling down.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. ICON assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

WARNING: To reduce the risk of serious injury, read the following important precautions

before using the weight bench.

IMPORTANT PRECAUTIONS

4

Thank you for selecting the versatile WEIDER®170

weight bench. The WEIDER®170 weight bench is

designed to be used with your own weight set (not

included) to help you develop every major muscle

group of the body. Whether your goal is a shapely fig-

ure, dramatic increase in muscle size and strength, or

a healthier cardiovascular system, the weight bench

will help you achieve the specific results you want.

For your benefit, read this manual carefully before

using the weight bench. If you have additional ques-

tions, please call our Customer Service Department

toll-free at 1-800-999-3756, Monday through Friday,

6 a.m. until 6 p.m. Mountain Time (excluding holidays).

To help us assist you, please note the product model

number and serial number before calling. The model

number is WEBE15420. The serial number can be

found on a decal attached to the weight bench (see

the front cover of this manual).

Before reading further, please look at the drawing

below and familiarize yourself with the parts that are

labeled.

Seat

Leg Lever

Weight Tube

Curl Pad

Adjustment Tube

Backrest

Weight Rests

Adjustment

Knob

Lat Tower

Weight Carriage

Lat Bar

BEFORE YOU BEGIN

Right Side

Left Side

Note: The terms “right side” and “left side” are deter-

mined relative to a person sitting on the bench; they do

not correspond to what is right and left on the drawings

in the manual.

ASSEMBLED

DIMENSIONS:

Height: 77 in.

Width: 48 in.

Depth: 72 in.

5

M10 Washer (29)

M6 Washer (26)

M8 Nylon Locknut (25)

M8 x 58mm Carriage Bolt (36)

M6 x 62mm Screw (38)

M8 x 68mm Bolt (22)

M8 x 60mm Bolt (30)

M10 x 168mm Bolt (8)

M6 x 38mm Screw (14)

M10 x 64mm Bolt (12)

M8 Washer (10)

M10 Nylon Locknut (11)

M6 x 16mm Screw (31)

M10 x 19mm Bolt (48)

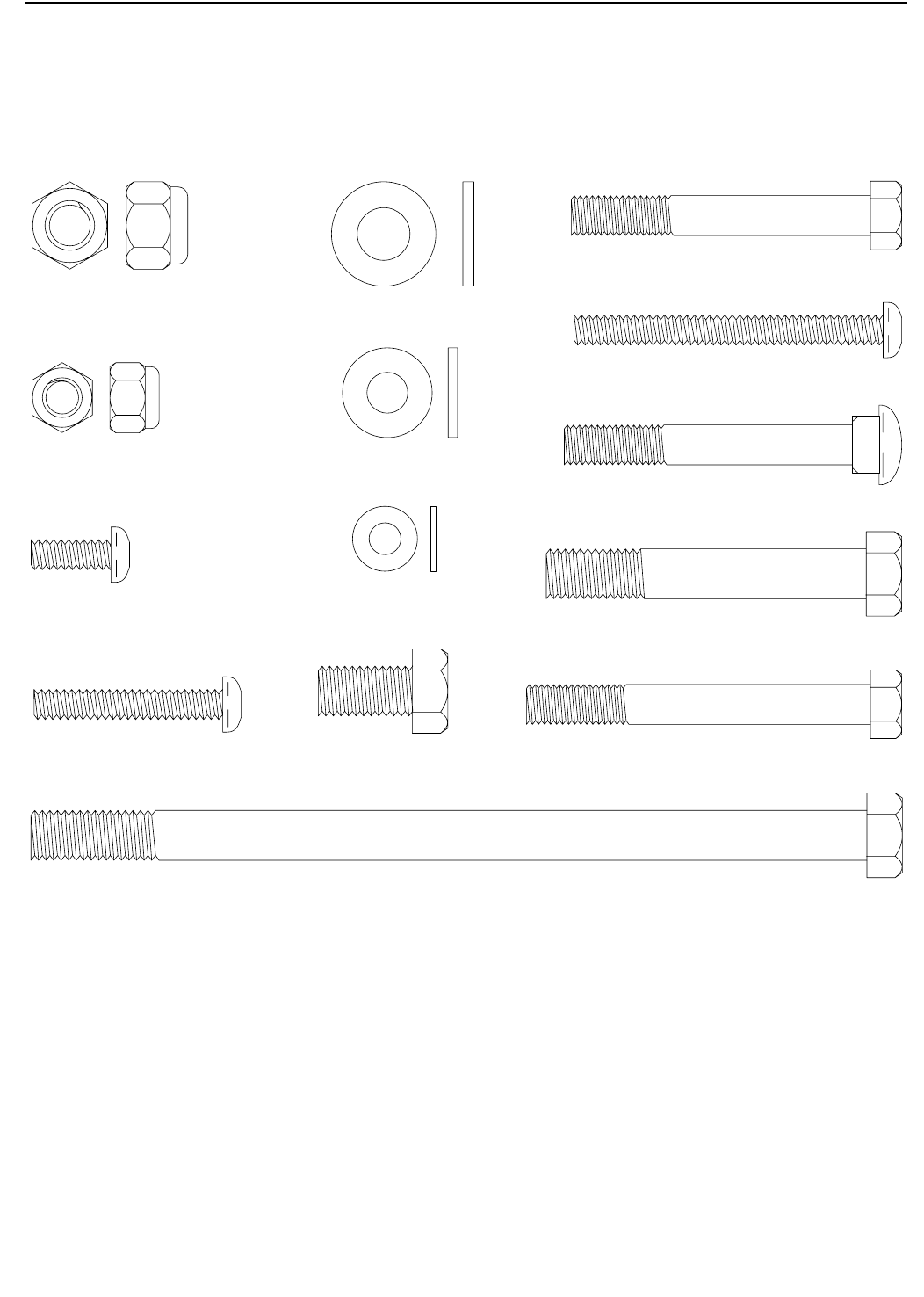

Refer to the drawings below to identify small parts used in assembly. The number in parentheses by each draw-

ing is the key number of the part, from the PART LIST on page 14 of this manual. Note: Some small parts may

have been pre-attached. If a part is not in the parts bag, check to see if it has been pre-attached.

PART IDENTIFICATION CHART

Before beginning assembly, carefully read the

following information and instructions:

•Assembly requires two people.

•Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until assembly is completed.

•Tighten all parts as you assemble them, unless

instructed to do otherwise.

•As you assemble the weight bench, make sure all

parts are oriented as shown in the drawings.

• For help identifying small parts, use the PART

IDENTIFICATION CHART on page 5.

The following tools (not included) are required

for assembly:

• Two adjustable wrenches

• One rubber mallet

• One standard screwdriver

• One Phillips screwdriver

• Lubricant, such as grease or petroleum jelly,

and soapy water.

Assembly will be more convenient if you have a

socket set, a set of open-end or closed-end

wrenches, or a set of ratchet wrenches.

Make Things Easier for Yourself

Everything in this manual is designed to ensure

that the weight bench can be assembled suc-

cessfully by anyone. However, it is important to

realize that the versatile weight bench has many

parts and that the assembly process will take

time. Most people find that by setting aside plen-

ty of time, assembly will go smoothly.

ASSEMBLY

6

1. Before assembling the weight bench, make sure

that you have read and understand the informa-

tion in the box above.

Press a 50mm Square Inner Cap (24) into the end

of the Bench Frame (1).

Attach the Bench Frame (1) to the Front Leg (2)

using two M8 x 60mm Bolts (30), two M8 Washers

(10), and two M8 Nylon Locknuts (25).

2. Insert a 50mm Square Inner Cap (24) into the Left

Base (3). Attach the Left Base to the Bench Frame

(1) using an M8 x 58mm Carriage Bolt (36), an M8

x 68mm Bolt (22), and two M8 Nylon Locknuts (25).

Attach the Right Base (35) in the same manner.

Attach the Left Upright (4) to the Left Base (3) with

two M8 x 58mm Carriage Bolts (36) and two M8

Nylon Locknuts (25). Attach the Right Upright (5)

to the Right Base (35) in the same manner.

1

24

1

2

30 10

10

25

25

2

5

4

24

24

25

25

35

3

36

36

22

1

7

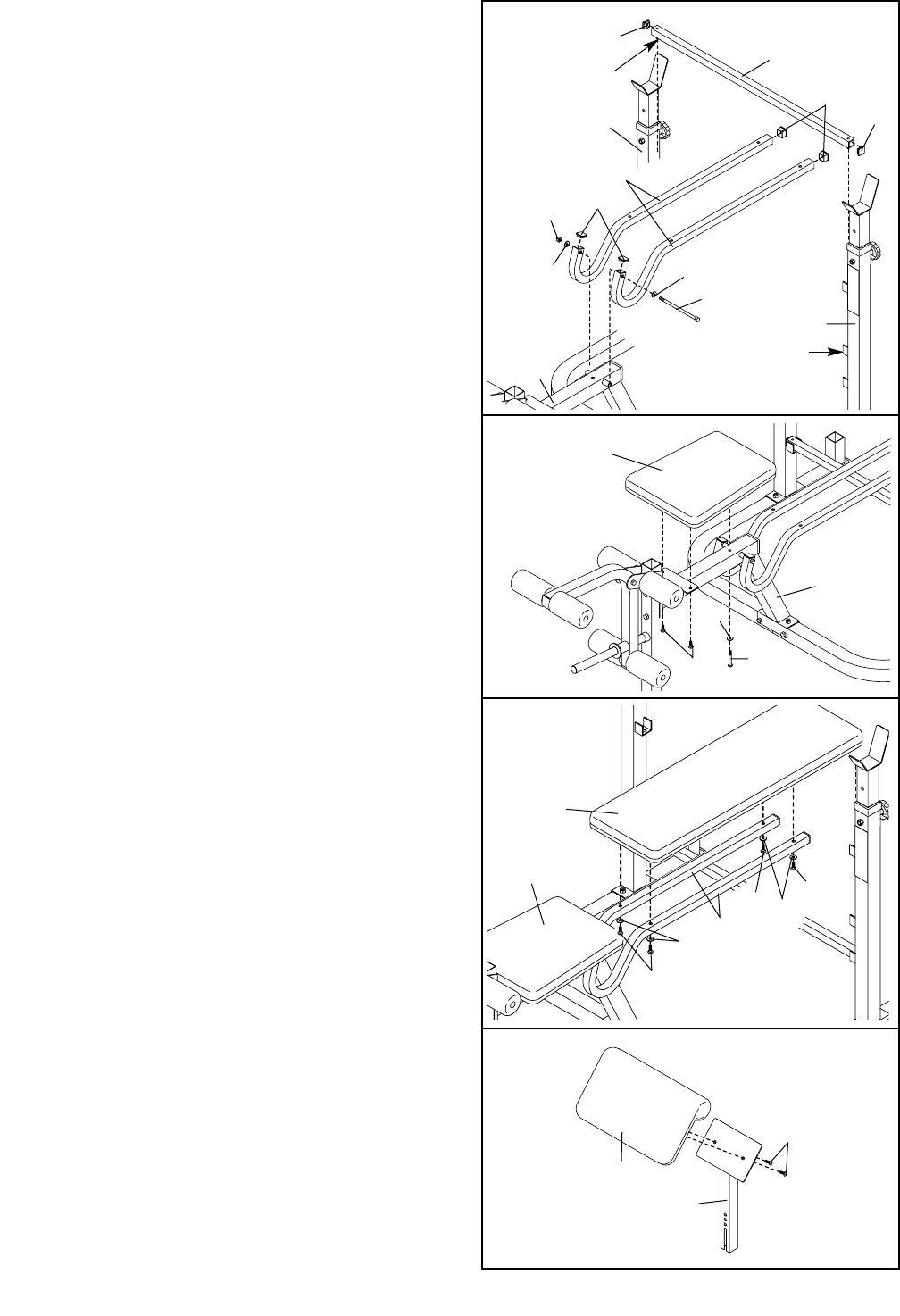

3. Press two 2” Square Bushings (23) onto the Left

and Right Uprights (4, 5). Slide the Weight Rests

(6) into the Uprights and secure them at the desired

height with two Long Adjustment Knobs (27). Both

Weight Rests should be set at the same height.

3

6

6

5

4

27

23

23 27

4. Press two 38mm Square Inner Caps (32) into the

ends of the Leg Lever (9). Press a 1” Round Inner

Cap (21) into the indicated end of the weight tube.

Slide a Weight Stop (34) over the weight tube.

Press a 1” Round Angle Cap (28) onto the opposite

end of the weight tube.

Press four 3/4” Round Inner Caps (18) into the

ends of two Pad Tubes (19). Slide the Pad Tubes

into the holes at the ends of the Leg Lever (9).

Slide four Foam Pads (33) onto the ends of the Pad

Tubes.

4

33

32

34

Weight

Tube

32

33

33

21

33

18

18

18

18

19

19

28

9

5. Press two 3/4” Round Inner Caps (18) into the ends

of a Pad Tube (19). Slide the Pad Tube into the

large hole in the Front Leg (2) as shown. Slide a

Foam Pad (33) onto each end of the Pad Tube.

Attach the Leg Lever (9) to the Front Leg (2) using

an M10 x 64mm Bolt (12) and an M10 Nylon

Locknut (11). Do not overtighten the Nylon

Locknut; the Leg Lever must be able to pivot

freely.

5

33

33

12

9

11

18

19

2

8

6. Press two 1” Square Inner Caps (7) into the ends of

both Backrest Tubes (20).

Lubricate the M10 x 168mm Bolt (8) with grease.

Attach the Backrest Tubes (20) to the Bench Frame

(1) with the Bolt, two M10 Washers (29), and an

M10 Nylon Locknut (11). Do not overtighten the

Nylon Locknut; the Backrest Tubes must be

able to pivot freely.

Press two 25mm x 38mm Square Inner Caps (39)

into the Adjustment Tube (37). Slide the Adjustment

Tube into the adjustment brackets on the Uprights

(4, 5) with the pins on the Adjustment Tube facing

downward.

7. Attach the Seat (16) to the Bench Frame (1) using

two M6 x 16mm Screws (31), an M6 x 62mm Screw

(38), and an M6 Washer (26).

6

7

8

29

29

1

39

Pin

Bracket

39

37

4

5

7

16

31

1

38

26

7

20

8. Attach the Backrest (15) to the Backrest Tubes (20)

using four M6 x 38mm Screws (14) and four M6

Washers (26).

Make sure that the Backrest (15) is oriented so

that there is a gap between the Backrest and the

Seat (16).

8

26 20

15

16

14

14 14

26

9

9. Attach the Curl Pad (17) to the Curl Post (13) using

two M6 x 16mm Screws (31).

17

13

31

11

9

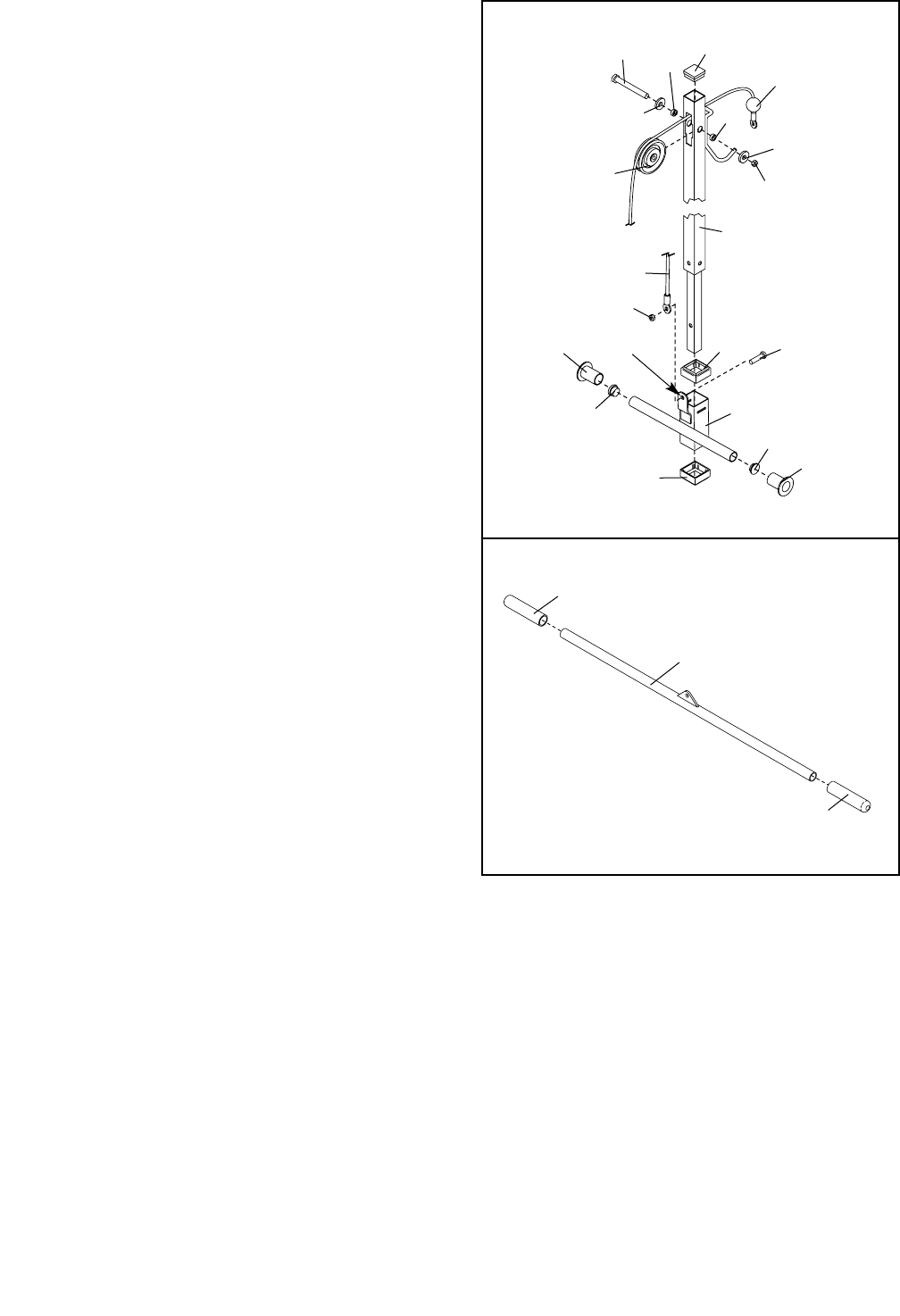

10. Press a 45mm Square Inner Cap (43) into the top

of the Lat Tower (40).

route the Cable (46) through the slot in the Lat

Tower (40) and around a 4 1/2” Pulley (44). Attach

the Pulley inside the Lat Tower with an M10 x

64mm Bolt (12), two M10 Washers (29), two 10mm

Spacers (45), and an M10 Nylon Locknut (11).

Press two 2” Square Bushings (23) into the top and

bottom of the Weight Carriage (41). Press two 1”

Round Inner Caps (21) into the ends of the tube on

the Weight Carriage. Slide a Weight Stop (34) onto

the tube. Insert an M10 x 19mm Bolt (48) into the

bracket on the Weight Carriage.

Slide the Weight Carriage (41) onto the Lat Tower

(40), with the bracket on the side shown.

Attach the Cable (46) to the M10 x 19mm Bolt (48)

with an M10 Nylon Locknut (11).

10

48

11

41

34

34

43

Bracket

45

45

12

46

46

44

29

29

23

23

40

11

11. Wet the ends of the Lat Bar (49) with soapy water.

Slide the two Handgrips (50) onto the ends of the

Lat Bar.

12. Make sure all parts of the weight bench are

properly tightened. The use of all remaining

parts will be explained in ADJUSTMENTS, begin-

ning on the following page.

11

50

50

49

21

21

10

The weight bench is designed to be used with your own weight set (not included). The steps below explain how

the weight bench can be adjusted. See EXERCISE GUIDELINES on page 12 for important exercise information

and refer to the accompanying exercise guide to see the correct form for each exercise.

Make sure all parts are properly tightened each time the weight bench is used. Replace any worn parts immediate-

ly. The weight bench can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.

ADJUSTING THE BACKREST

The Backrest (15) can be set to three different posi-

tions: a level position, a decline position, and an incline

position.

To change the position of the Backrest (15), move the

Adjustment Tube (37) to a different set of adjustment

brackets on the Uprights (4, 5).

Make sure that the Adjustment Tube (37) is securely

seated in the adjustment brackets.

15

Brackets

5

4

37

ADJUSTMENTS

15

49

47

46

FOLDING THE BACKREST

To perform squat exercises, you will need to fold the

Backrest (15) to the upright position.

To fold the Backrest (15), lift and pull it forward as far

as it will go. It will be held in place by its own weight.

ATTACHING THE LAT BAR

Attach the Lat Bar (49) to the Cable (46) with the Cable

Clip (47).

WARNING: Always fold the Backrest

(15) out of the way when performing squat exer-

cises. Do not sit on the seat when the Backrest is

folded.

When performing squat exercises, always place

50 pounds on the leg lever to balance the bench.

Do not stand with your back to the weight bench

when performing squat exercises. You should be

able to see the weight rests while exercising so

that you can safely return the barbell (not includ-

ed) when you finish the exercise.

11

ATTACHING WEIGHTS TO THE LEG LEVER

To use the the Leg Lever (9) or Lat Tower (40), slide the

desired amount of weight (not included) onto the weight

tube on the Leg Lever or Weight Carriage (41). Secure

the weight on the Weight Carriage with the two Weight

Clips (52).

WARNING: Do not place more than

50 pounds on the Leg Lever (9).

9

40

41

52

Weight

Tube 52

ADJUSTING THE WEIGHT RESTS

To change the height of the Weight Rests (6), remove

your barbell from the Weight Rests. Then, remove

the Long Adjustment Knobs (27) from both Uprights (4,

5). Position the Weight Rests at the desired height, so

that the holes in the Weight Rests and the Uprights are

aligned. Fully tighten the Adjustment Knobs into the

Weight Rests and the Uprights.

WARNING: The Long Adjustment

Knobs (27) must be inserted through the Weight

Rests (6) and the Uprights (4, 5) and be firmly

tightened. Never tighten an Adjustment Knob into

an Upright before inserting the Weight Rest.

Always set both Weight Rests at the same height.

6

6

27

27

5

4

ATTACHING THE CURL POST

For some exercises, the Curl Post (13) or Lat Tower

(not shown) must be attached to the weight bench.

Insert the Curl Post (13) into the indicated hole in the

Front Leg (2). Align the holes in the Front Leg and the

Curl Post. Secure the Curl Post with the Short

Adjustment Knob (51). Make sure that you fully tight-

en the Adjustment Knob.

The Lat Tower (not shown) can be attached to the Front

Leg (2) in the same manner. Be sure that the Lat

Tower is oriented as shown on the front cover of

this manual.

See the inset drawing. When the Curl Pad (17) is not in

use, it can be stored in the tube on the Right Base (35).

51

13

17

2

17

35

12

EXERCISE GUIDELINES

THE FOUR BASIC TYPES OF WORKOUTS

Muscle Building

To increase the size and strength of your muscles,

push them close to their maximum capacity. Your mus-

cles will continually adapt and grow as you progres-

sively increase the intensity of your exercise. You can

adjust the intensity level of an individual exercise in

two ways:

• by changing the amount of weight used

• by changing the number of repetitions or sets per-

formed. (A “repetition” is one complete cycle of an

exercise, such as one sit-up. A “set” is a series of

repetitions.)

The proper amount of weight for each exercise

depends upon the individual user. You must gauge

your limits and select the amount of weight that is right

for you. Begin with 3 sets of 8 repetitions for each

exercise you perform. Rest for 3 minutes after each

set. When you can complete 3 sets of 12 repetitions

without difficulty, increase the amount of weight.

Toning

You can tone your muscles by pushing them to a mod-

erate percentage of their capacity. Select a moderate

amount of weight and increase the number of repeti-

tions in each set. Complete as many sets of 15 to 20

repetitions as possible without discomfort. Rest for 1

minute after each set. Work your muscles by complet-

ing more sets rather than by using high amounts of

weight.

Weight Loss

To lose weight, use a low amount of weight and

increase the number of repetitions in each set.

Exercise for 20 to 30 minutes, resting for a maximum

of 30 seconds between sets.

Cross Training

Cross training is an efficient way to get a complete and

well-balanced fitness program. An example of a bal-

anced program is:

• Plan weight training workouts on Monday,

Wednesday, and Friday.

• Plan 20 to 30 minutes of aerobic exercise, such as

cycling or swimming, on Tuesday and Thursday.

• Rest from both weight training and aerobic exercise

for at least one full day each week to give your body

time to regenerate.

The combination of weight training and aerobic exer-

cise will reshape and strengthen your body, plus devel-

op your heart and lungs.

PERSONALIZING YOUR EXERCISE PROGRAM

Determining the exact length of time for each workout,

as well as the number of repetitions or sets completed,

is an individual matter. It is important to avoid overdo-

ing it during the first few months of your exercise pro-

gram. You should progress at your own pace and be

sensitive to your body’s signals. If you experience pain

or dizziness at any time while exercising, stop immedi-

ately and begin cooling down. Find out what is wrong

before continuing. Remember that adequate rest and a

proper diet are important factors in any exercise pro-

gram.

WARMING UP

Begin each workout with 5 to 10 minutes of stretching

and light exercise to warm up. Warming up prepares

your body for more strenuous exercise by increasing

circulation, raising your body temperature and deliver-

ing more oxygen to your muscles.

WORKING OUT

Each workout should include 6 to 10 different exercis-

es. Select exercises for every major muscle group,

emphasizing areas that you want to develop most. To

give balance and variety to your workouts, vary the

exercises from session to session.

Schedule your workouts for the time of day when your

energy level is the highest. Each workout should be

followed by at least one day of rest. Once you find the

schedule that is right for you, stick with it.

EXERCISE FORM

Maintaining proper form is an essential part of an

effective exercise program. This requires moving

through the full range of motion for each exercise, and

moving only the appropriate parts of the body.

Exercising in an uncontrolled manner will leave you

feeling exhausted. On the exercise guide accompany-

ing this manual you will find photographs showing the

correct form for several exercises, and a list of the

muscles affected. Refer to the muscle chart on page

13 to find the names of the muscles.

The repetitions in each set should be performed

smoothly and without pausing. The exertion stage of

each repetition should last about half as long as the

return stage. Proper breathing is important. Exhale

during the exertion stage of each repetition and inhale

during the return stroke. Never hold your breath.

13

Rest for a short period of time after each set. The

ideal resting periods are:

• Rest for three minutes after each set for a muscle

building workout.

• Rest for one minute after each set for a toning work-

out.

• Rest for 30 seconds after each set for a weight loss

workout.

Plan to spend the first couple of weeks familiarizing

yourself with the equipment and learning the proper

form for each exercise.

COOLING DOWN

End each workout with 5 to 10 minutes of stretching.

Include stretches for both your arms and legs. Move

slowly as you stretch and do not bounce. Ease into

each stretch gradually and go only as far as you can

without strain. Stretching at the end of each workout

is an effective way to increase flexibility.

STAYING MOTIVATED

For motivation, keep a record of each workout. List

the date, the exercises performed, the weight used,

and the numbers of sets and repetitions completed.

Record your weight and key body measurements at

the end of every month. Remember, the key to

achieving the greatest results is to make exercise a

regular and enjoyable part of your everyday life.

MUSCLE CHART

A. Sternomastoid (neck)

B. Pectoralis Major (chest)

C. Biceps (front of arm)

D. Obliques (waist)

E. Brachioradials (forearm)

F. Hip Flexors (upper thigh)

G. Abductor (outer thigh)

H. Quadriceps (front of thigh)

I. Sartorius (front of thigh)

J. Tibialis Anterior (front of calf)

K. Soleus (front of calf)

L. Rectus Abdominus (stomach)

M. Adductor (inner thigh)

N. Trapezius (upper back)

O. Rhomboideus (upper back)

P. Deltoid (shoulder)

Q. Triceps (back of arm)

R. Latissimus Dorsi (mid back)

S. Spinae Erectors (lower back)

T. Gluteus Medius (hip)

U. Gluteus Maximus (buttocks)

V. Hamstring (back of leg)

W. Gastrocnemius (back of calf)

N

O

P

Q

R

S

T

U

W

V

M

L

J

G

F

H

I

K

E

C

D

B

A

14

Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover

of this manual for information about ordering replacement parts.

1 1 Bench Frame

2 1 Front Leg

3 1 Left Base

4 1 Left Upright

5 1 Right Upright

6 2 Weight Rest

7 4 1” Square Inner Cap

8 1 M10 x 168mm Bolt

9 1 Leg Lever

10 2 M8 Washer

11 4 M10 Nylon Locknut

12 2 M10 x 64mm Bolt

13 1 Curl Post

14 4 M6 x 38mm Screw

15 1 Backrest

16 1 Seat

17 1 Curl Pad

18 6 3/4” Round Inner Cap

19 3 Pad Tube

20 2 Backrest Tube

21 3 1” Round Inner Cap

22 2 M8 x 68mm Bolt

23 4 2” Square Bushing

24 3 50mm Square Inner Cap

25 10 M8 Nylon Locknut

26 5 M6 Washer

27 2 Long Adjustment Knob

28 1 1” Round Angle Cap

29 4 M10 Washer

30 2 M8 x 60mm Bolt

31 4 M6 x 16mm Screw

32 2 38mm Square Inner Cap

33 6 Foam Pad

34 3 Weight Stop

35 1 Right Base

36 6 M8 x 58mm Carriage Bolt

37 1 Adjustment Tube

38 1 M6 x 62mm Screw

39 2 25mm x 38mm Inner Cap

40 1 Lat Tower

41 1 Weight Carriage

42 4 Clip Cover

43 1 45mm Square Inner Cap

44 1 4 1/2” Pulley

45 2 10mm Spacer

46 1 Cable

47 1 Cable Clip

48 1 M10 x 19mm Bolt

49 1 Lat Bar

50 2 Handgrip

51 1 Short Adjustment Knob

52 2 Weight Clip

# 1 User’s Manual

# 1 Exercise Guide

Key No. Qty. Description Key No. Qty. Description

PART LIST—Model No. WEBE15420 R1102A

19

19

19

18

18

18

18

28

30

10

10

33

33

18

18

12 31

31

25

9

33

32

34 21

32

33

11

36

35

25

25

36

24

25

25

11

29 7

24

38

22

27

23

6

16

15

6

7

7

23

27

14

14

14

29 8

25

25

25

25

36

3

36

24

5

4

20

2626

26

26

2

1

37

39

39

13

31

17

51

40

41

23

23

34

34

21

21

43

4445

45

46

46

47

1229

29

11

48

11

49

50

50

52

42

15

EXPLODED DRAWING—Model No. WEBE15420 R1102A

Part No. 189143 R1102A Printed in China © 2002 ICON Health & Fitness, Inc.

To order replacement parts, simply call our Customer Service Department toll-free at 1-800-999-3756, Monday

through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be pre-

pared to give the following information when calling:

• The MODEL NUMBER of the product (WEBE15420)

• The NAME of the product (WEIDER®170 weight bench)

• The SERIAL NUMBER of the product (see the front cover of this manual)

• The KEY NUMBER and DESCRIPTION of the desired part(s) (see the PART LIST and the EXPLODED

DRAWING on pages 14 and 15 of this manual).

ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and mate-

rial, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This

warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing

or repairing, at ICON's option, the product through one of its authorized service centers. All repairs for which

warranty claims are made must be pre-authorized by ICON. This warranty does not extend to any product or

damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage

or repairs not provided by an ICON authorized service center; products used for commercial or rental pur-

poses; or products used as store display models. No other warranty beyond that specifically set forth above

is authorized by ICON.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection

with the use or performance of the product or damages with respect to any economic loss, loss of property,

loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other consequential

damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or conse-

quential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of mer-

chantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein.

Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation

may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813

LIMITED WARRANTY

ORDERING REPLACEMENT PARTS
