USER'S MANUAL

Visit our website at

www.weiderfitness.com

new products, prizes,

fitness tips, and much more!

Patent Pending

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

Model No. 831.153930

Serial No.

Write the serial number in the

space above for reference.

Serial Number Decal (under seat)

SEARS, ROEBUCK AND CO.

HOFFMAN ESTATES, IL 60179

2

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

WEIGHT RESISTANCE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

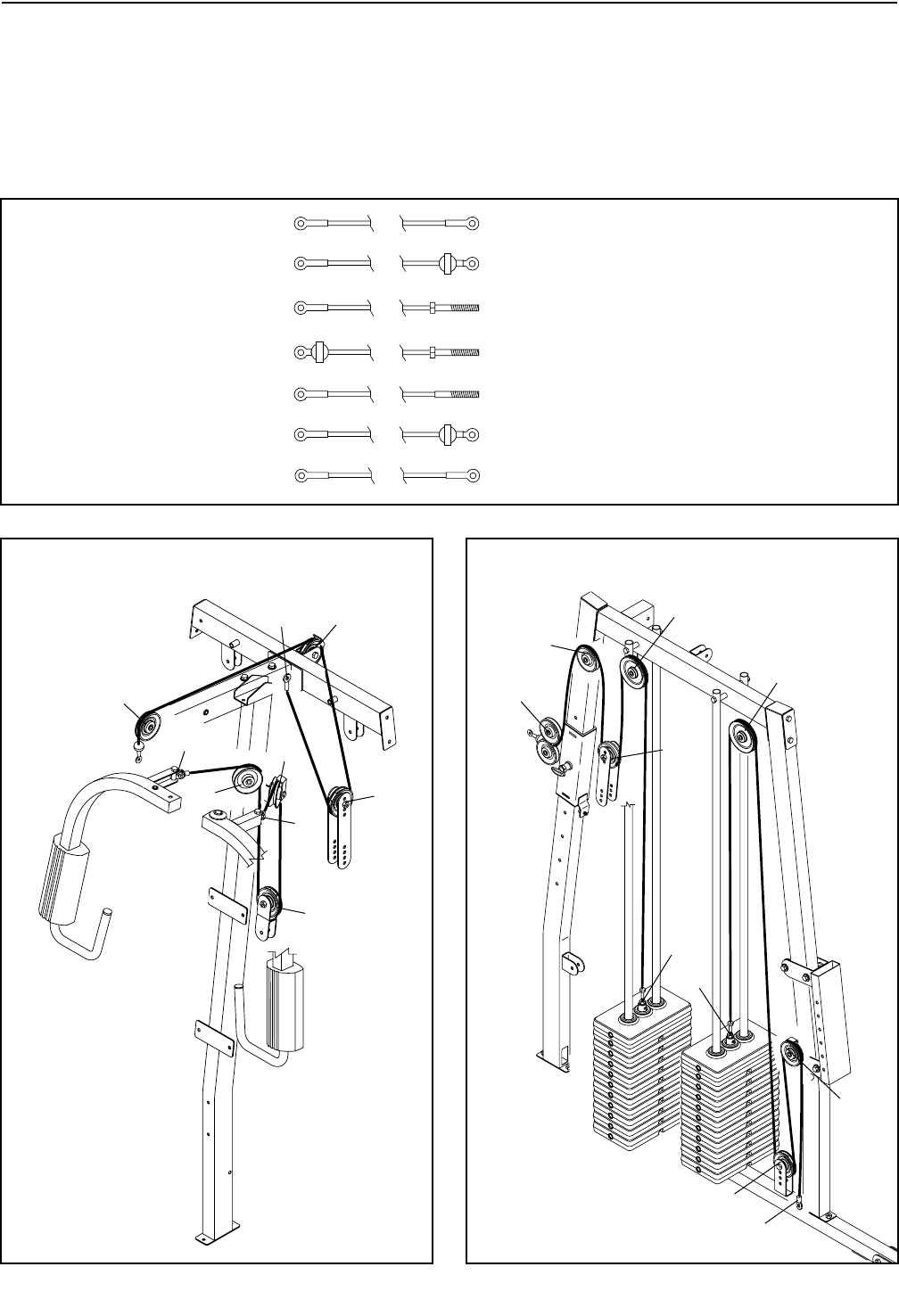

CABLE DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

FULL 90 DAY WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

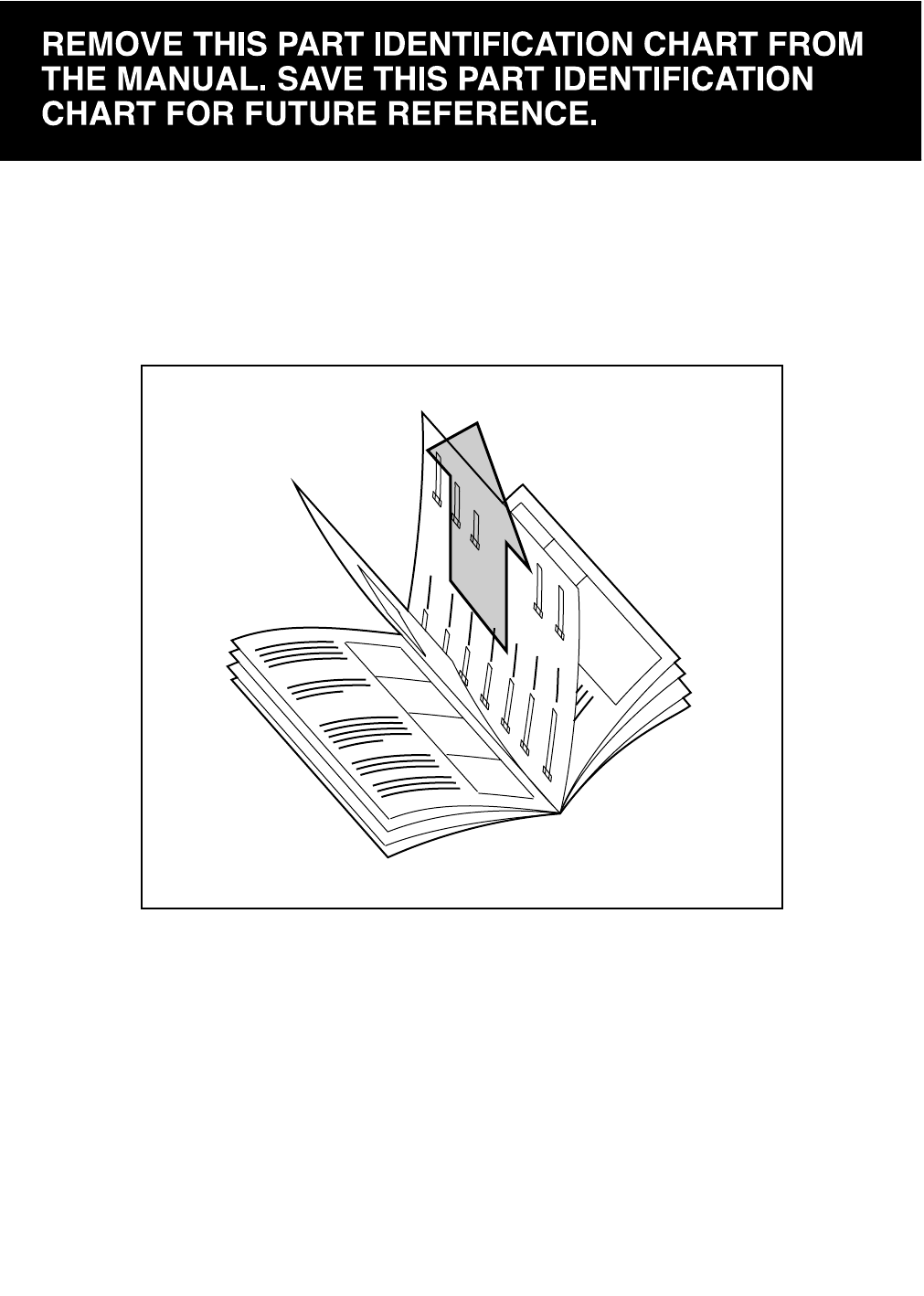

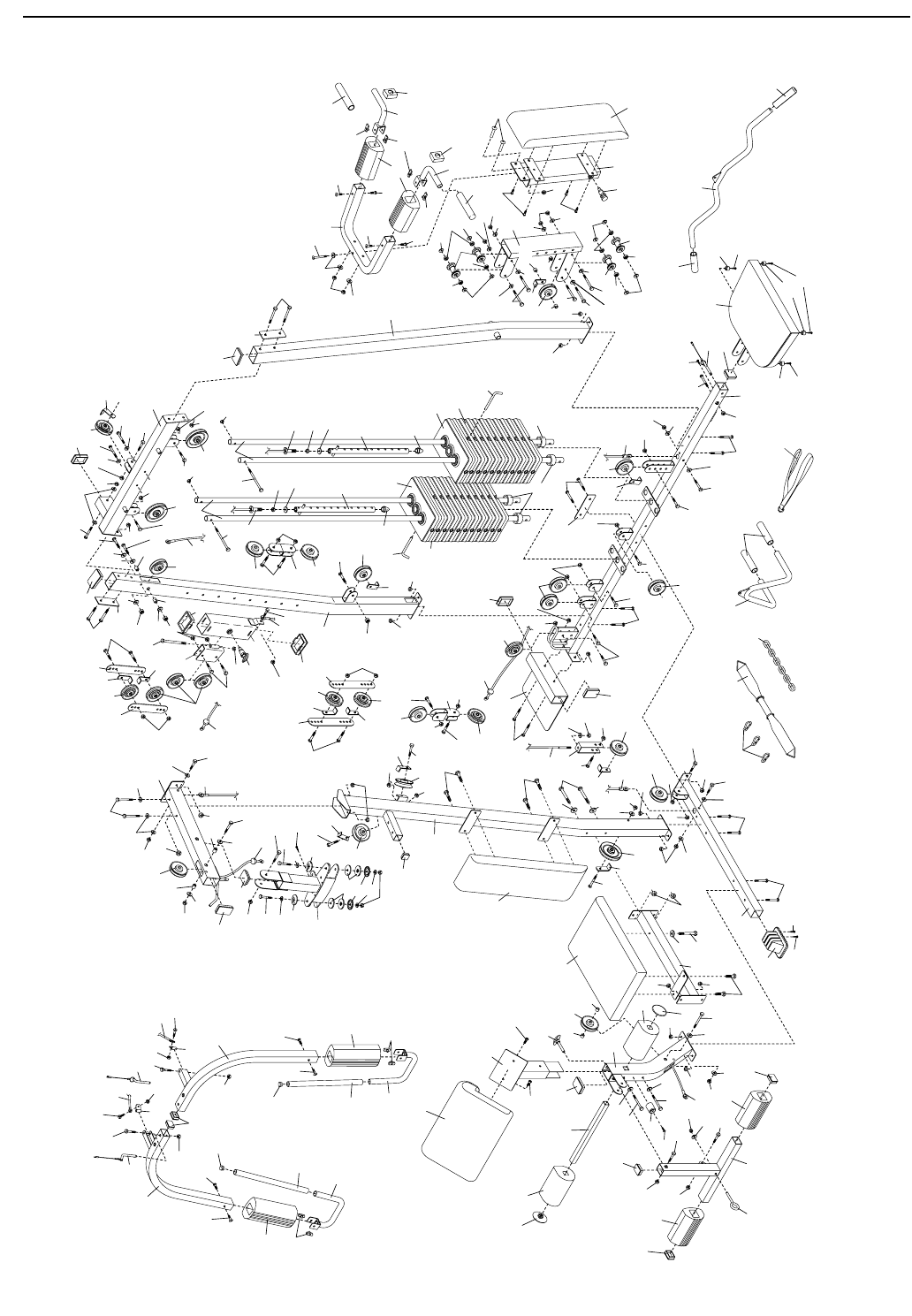

Note: A PART IDENTIFICATION CHART and a PART LIST/EXPLODED DRAWING are attached in the center of

this manual. Remove the PART IDENTIFICATION CHART and the PART LIST/EXPLODED DRAWING before

beginning assembly.

IMPORTANT PRECAUTIONS

3

1. Read all instructions in this manual and in

the accompanying literature before using the

weight system.

2. It is the responsibility of the owner to ensure

that all users of the weight system are ade-

quately informed of all precautions.

3. The weight system is intended for home use

only. Do not use the weight system in any

commercial, rental, or institutional setting.

4. Use the weight system only on a level sur-

face. Cover the floor beneath the weight sys-

tem to protect the floor.

5. Make sure that all parts are properly tight-

ened each time you use the weight system.

Replace any worn parts immediately.

6. Keep children under 12 and pets away from

the weight system at all times.

7. Keep hands and feet away from moving parts.

8. Always wear athletic shoes for foot protection.

9. The weight system is designed to support a

a maximum user weight of 300 pounds.

10. The weight system should not be used by

more than one person at a time.

11. Always stand on the foot plate when per-

forming an exercise that could cause the

weight system to tip.

12. Never release the butterfly arms, leg lever,

squat arm, lat bar, row bar, or handle while

weights are raised. The weights will fall with

great force.

13. Always disconnect the lat bar from the

weight system when performing an exercise

that does not use the lat bar.

14. Make sure that the cables remain on the pul-

leys at all times. If the cables bind while you

are exercising, stop immediately and make

sure that the cables are on all of the pulleys.

15. If you feel pain or dizziness at any time while

exercising, stop immediately and begin cool-

ing down.

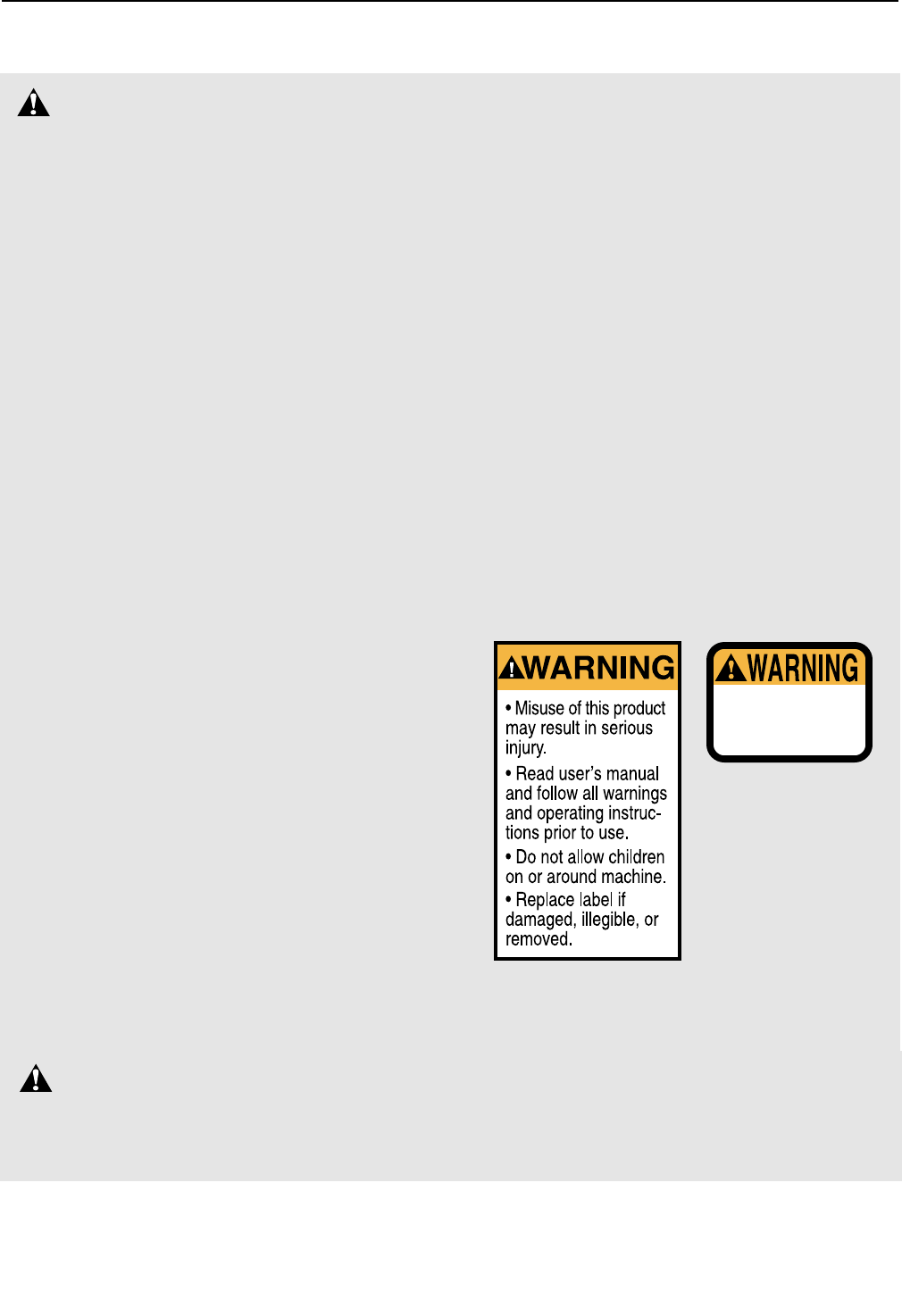

16. The warning decals shown here have been

placed on the weight system in the locations

shown on page 4. If a decal is missing or

illegible, please call our toll-free HELPLINE at

1-800-736-6879, Monday through Saturday, 7

a.m. until 7 p.m. Central Time, to order a free

replacement decal. Place the decal on the

weight system in the location shown.

WARNING: To reduce the risk of serious injury, read the following important precautions

before using the weight system.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. SEARS assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

Keep hands and

fingers clear of

this area.

Decal 2

Decal 1

4

BEFORE YOU BEGIN

ASSEMBLED

DIMENSIONS:

Height: 77 in.

Width: 81 in.

Length: 59 in.

Squat Knee Rest

Curl Pad

Low Pulley Station

High Pulley Station

Lat Bar

Swivel Carriage

Adjustment Knob

Butterfly Arm/Press Arm

Leg Lever

Seat

Squat Arm

Weight Stack

Backrest

Backrest

WARNING

DECAL 1

WARNING DECAL 2

(one on each side)

WARNING

DECAL 2

Thank you for selecting the versatile WEIDER®PRO

4850 weight system. The WEIDER®PRO 4850 weight

system offers an impressive array of weight stations

designed to develop every major muscle group of the

body. Whether your goal is to tone your body, build

dramatic muscle size and strength, or improve your

cardiovascular system, the PRO 4850 weight system

will help you to achieve the specific results you want.

For your benefit, read this manual carefully before

using the weight system. If you have additional

questions, please call our toll-free HELPLINE at

1-800-736-6879, Monday through Saturday, 7 a.m.

until 7 p.m. Central Time (excluding holidays). To help

us assist you, please note the product model number

and serial number before calling. The model number is

831.153930. The serial number can be found on a

decal attached to the weight system (see the front

cover of this manual for the location of the decal).

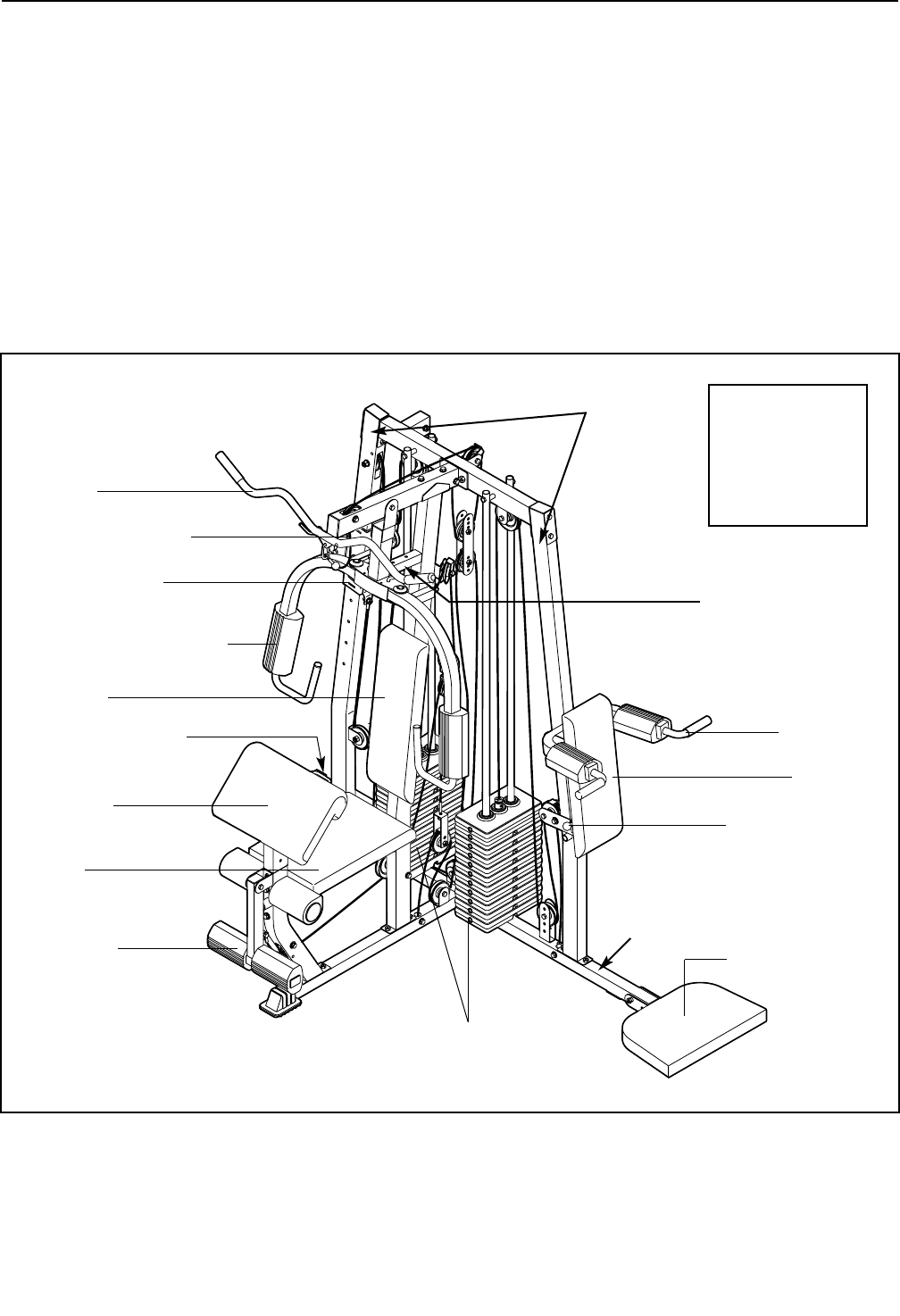

Before reading further, please review the drawing

below and familiarize yourself with the parts that are

labeled.

5

ASSEMBLY

Make sure that you have the following tools:

• Two adjustable wrenches

• One standard screwdriver

• One phillips screwdriver

• One rubber mallet

• You will also need grease or petroleum jelly, a

small amount of soapy water, and masking tape.

Note: Assembly will be more convenient if you have

a socket set, a set of open-end or closed-end

wrenches, or a set of ratchet wrenches.

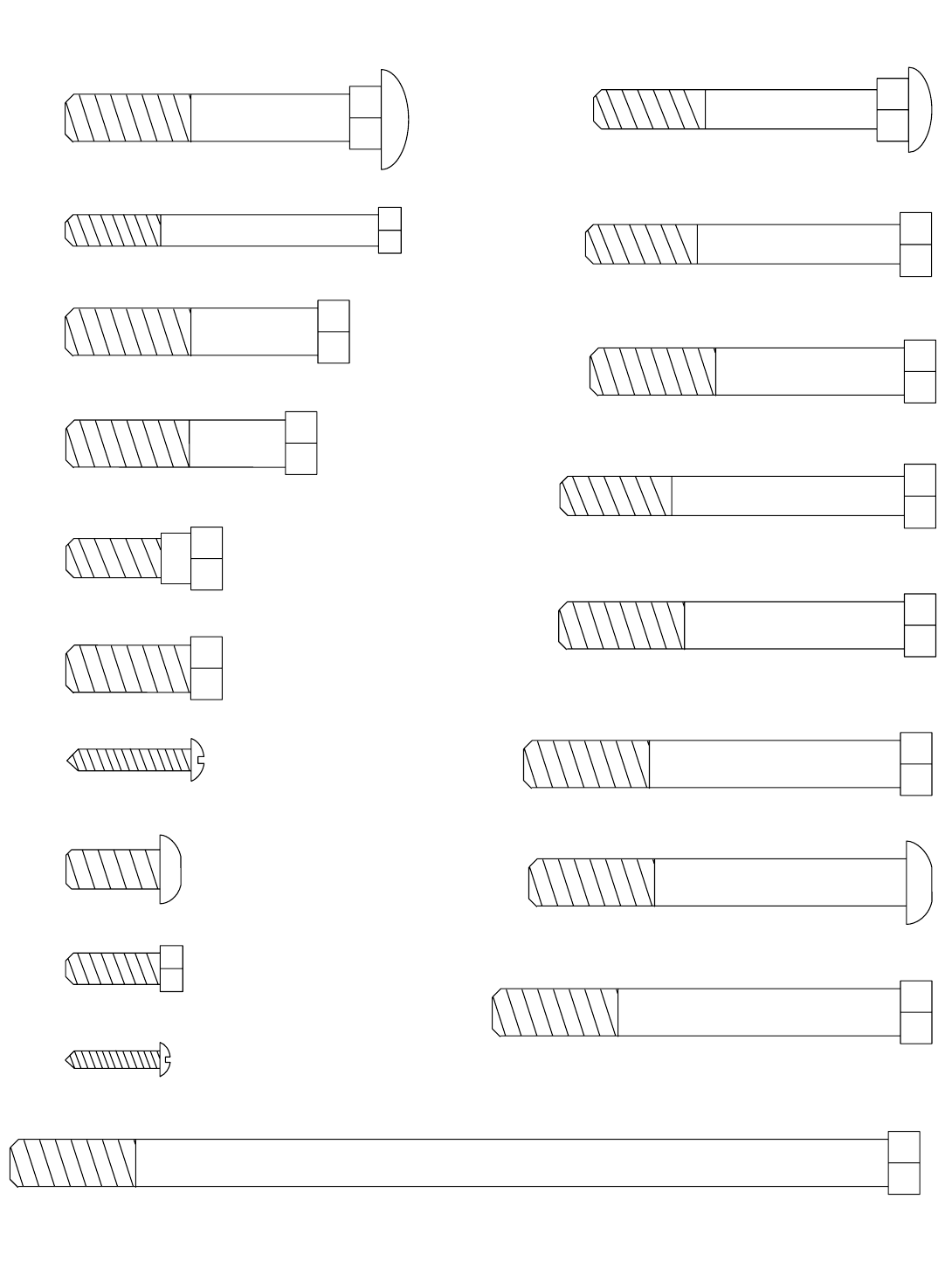

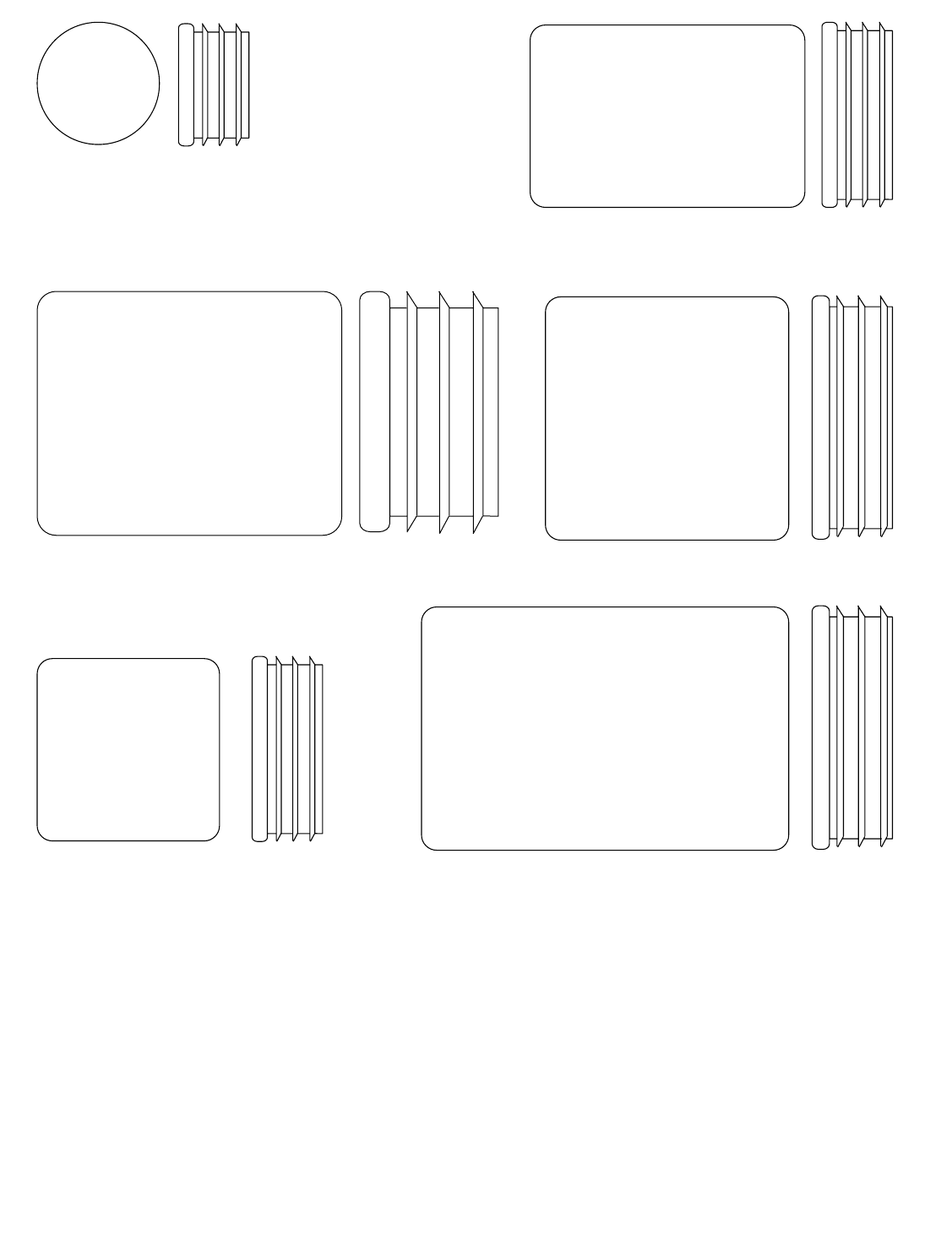

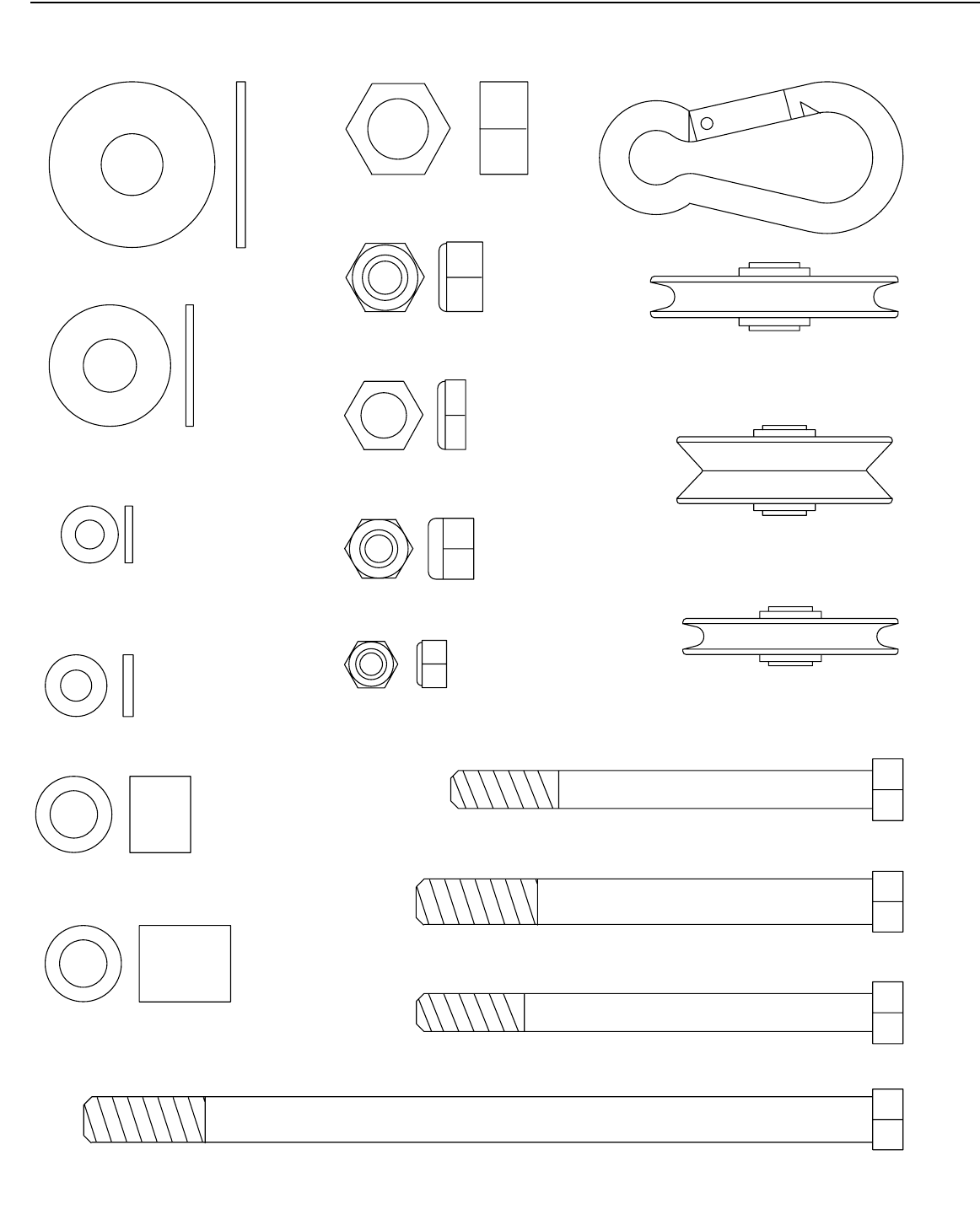

How to Identify Parts

To help you identify the small parts used in assembly,

a PART IDENTIFICATION CHART is included in the

center of this manual. Lay the chart on the floor and

use it to easily identify parts during each assembly

step. Note: Some small parts may have been pre-

attached. If a part is not in the parts bag, check

to see if it has been pre-attached.

How to Orient Parts

As you assemble the weight system, make sure that

all parts are oriented exactly as shown in the draw-

ings.

Tightening Parts

Tighten all parts as you assemble them, unless

instructed to do otherwise.

Questions?

If you have questions after reading the assembly

instructions, please call our Customer Service

Department toll-free at 1-800-999-3756, Monday

through Friday, 6 a.m. until 6 p.m. Mountain Time.

Assembly Requires Two Persons

For your convenience and safety, assemble the

weight system with the help of another person.

Set Aside Enough Time

Due to the many features of the weight system, the

assembly process will require several hours. By

setting aside plenty of time and by deciding to

make the task enjoyable, assembly will go smoothly.

Select a Location for the Weight System

Because of its weight and size, the weight system

should be assembled in the location where it will be

used. Make sure that there is enough room to walk

around the weight system as you assemble it.

How to Unpack the Box

To make assembly easier, we have divided the

assembly process into four stages. The small hard-

ware needed for each stage is packaged in sepa-

rate bags. Important: Wait until you begin each

stage to open the parts bag(s) for that stage.

Place all parts of the weight system in a cleared

area and remove the packing materials. Do not dis-

pose of the packing materials until assembly is com-

pleted.

Make Assembly Easier

Everything in this manual is designed to

ensure that the weight system can be assem-

bled successfully by anyone.

Before beginning assembly, make sure to

read the information on this page. This

brief introduction will save you much more

time than it takes to read it.

The Four Stages of the Assembly Process

Frame Assembly—You will begin by assembling

the base and the uprights that form the skeleton of

the weight system.

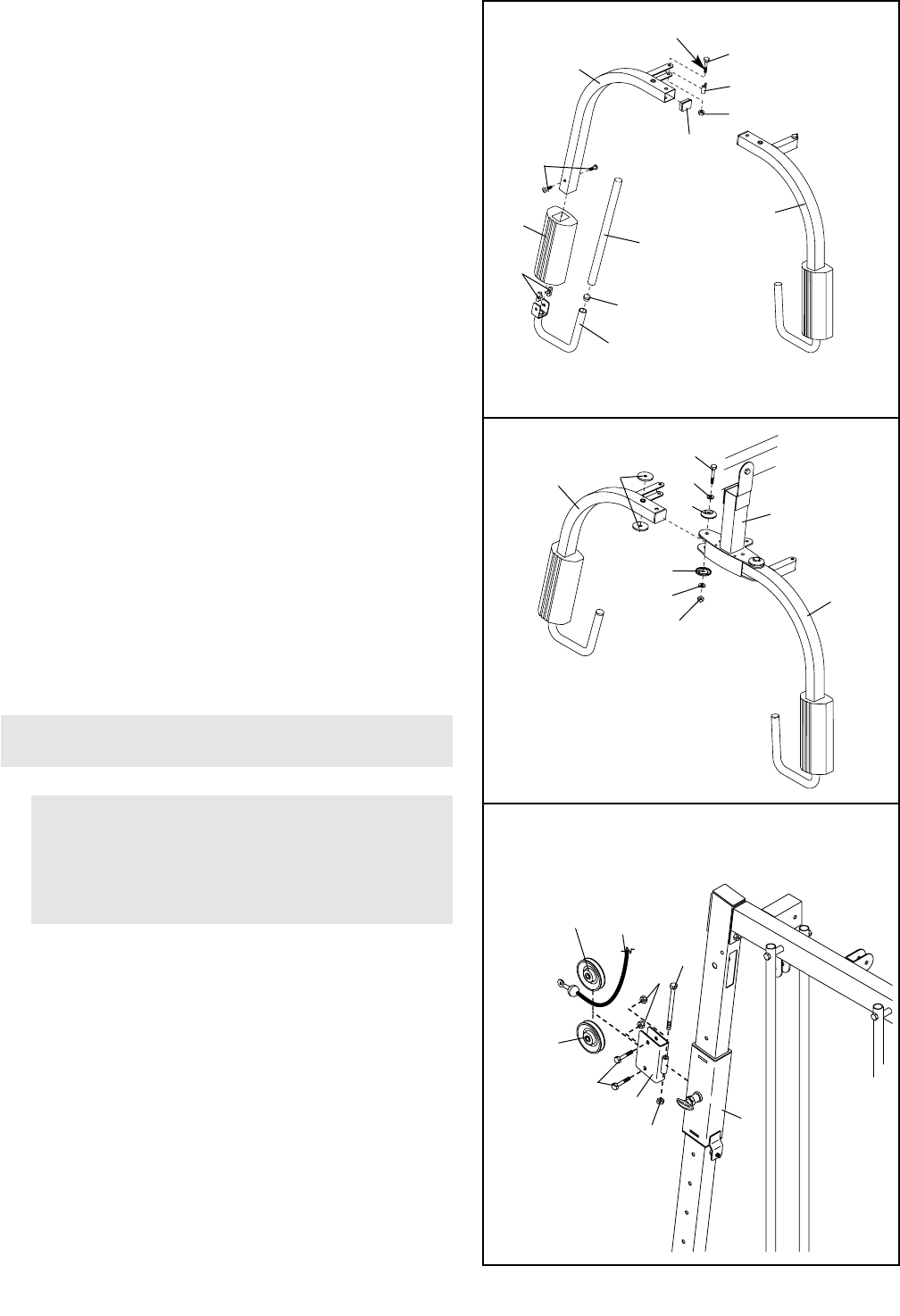

Arm Assembly—During this stage, you will

assemble the arms and the leg lever.

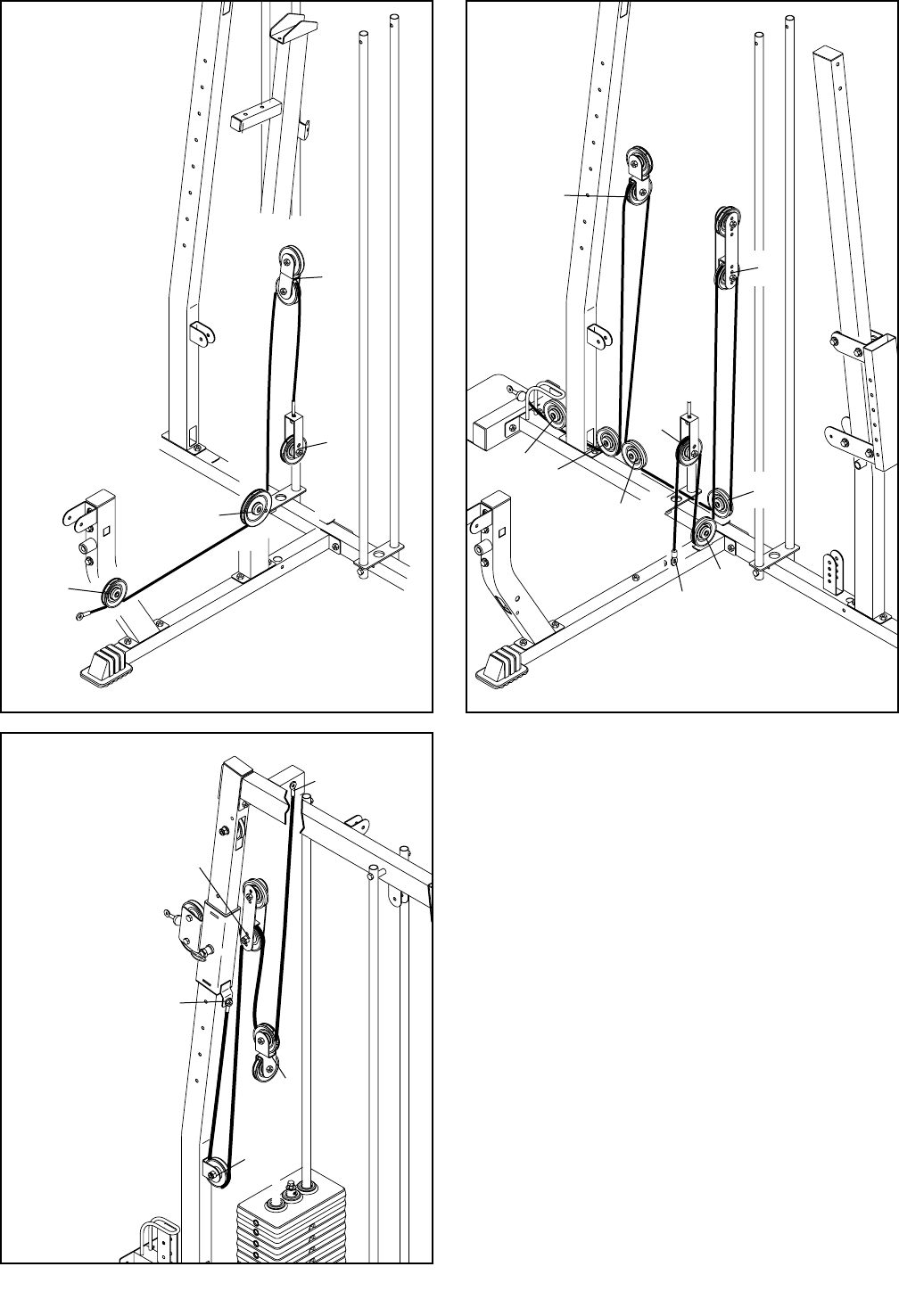

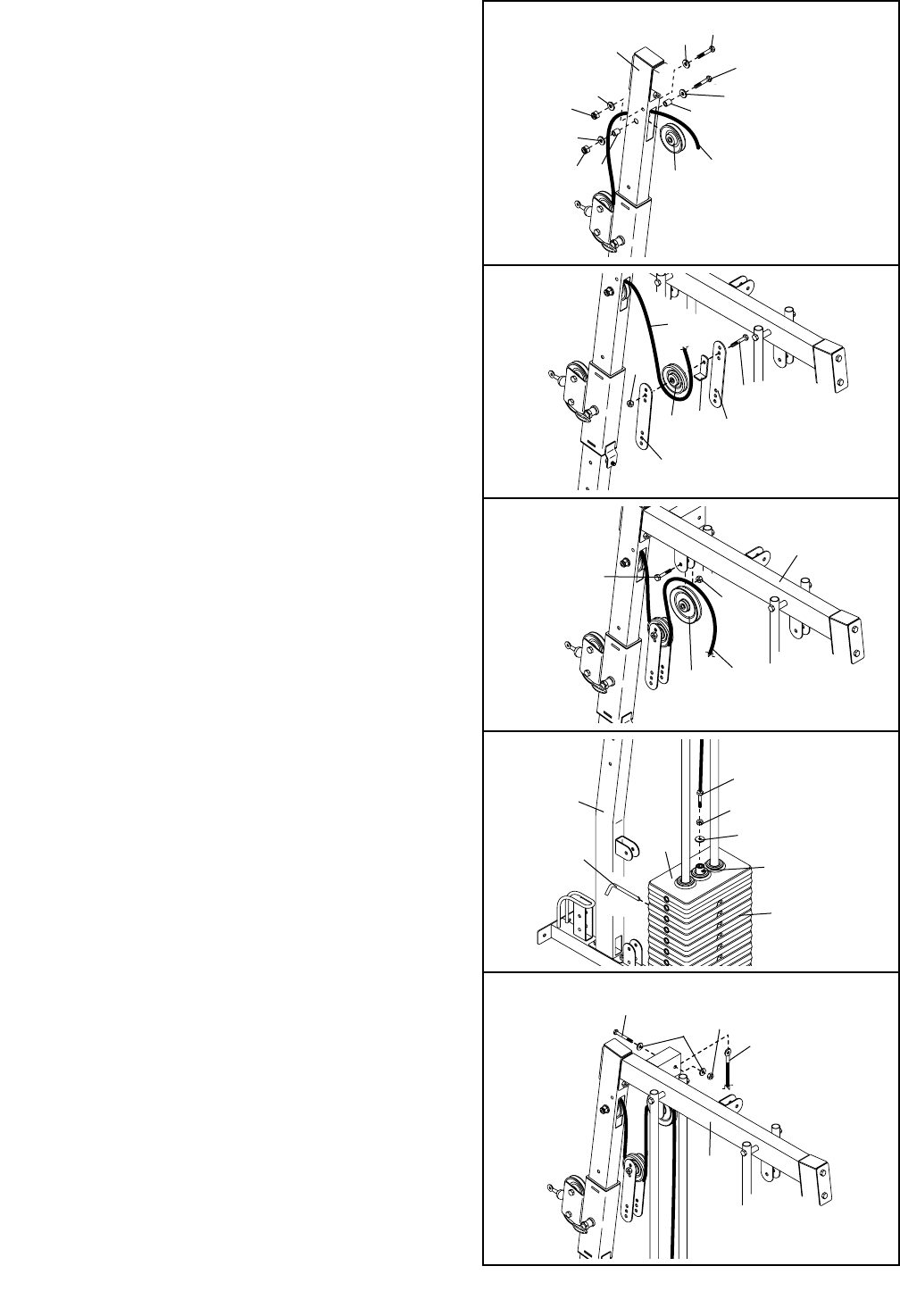

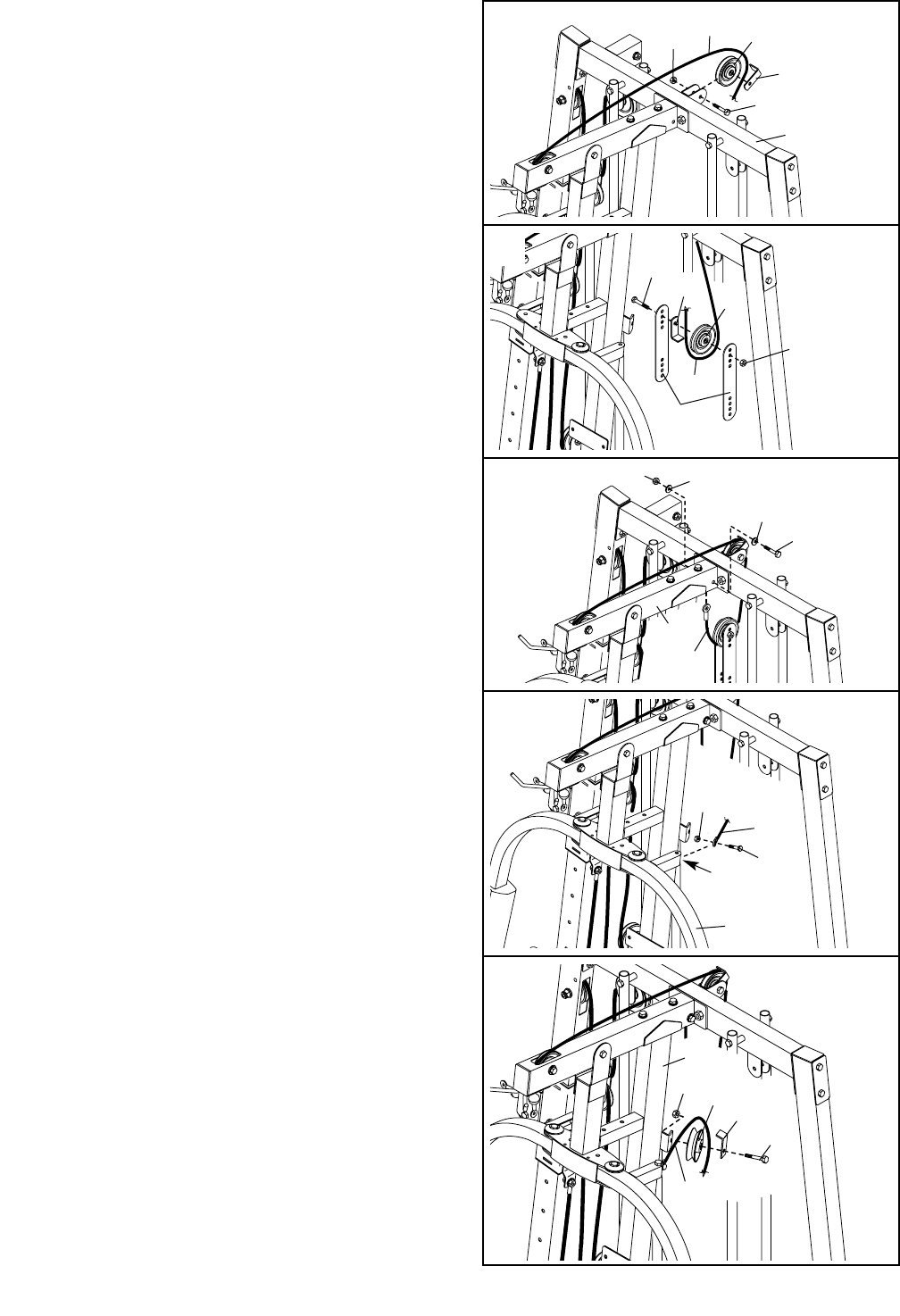

Cable Assembly—During this stage, you will

attach the cables and pulleys that connect the

weight stations to the weight stacks.

Seat Assembly—During the final stage, you will

assemble the seat and the backrests.

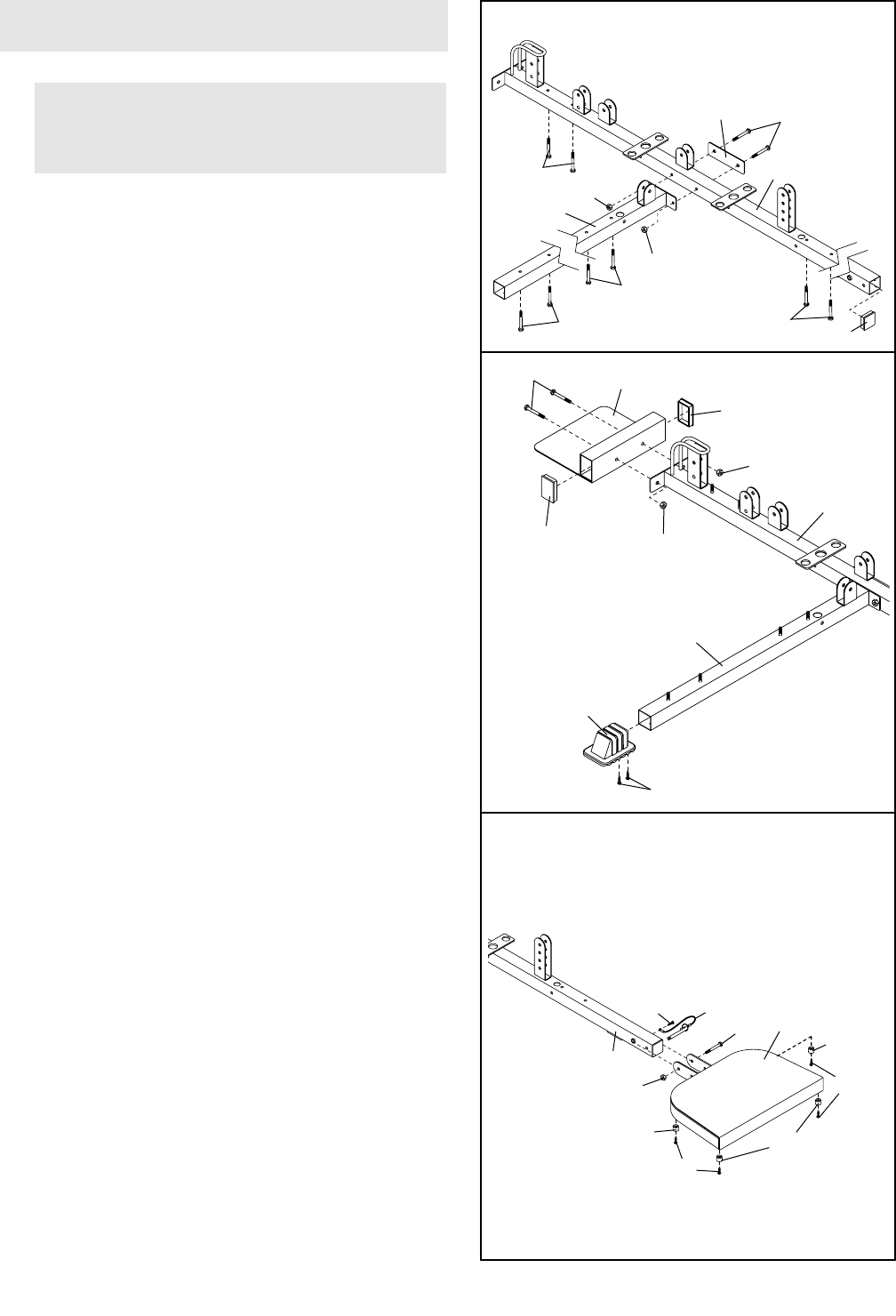

1.

Locate and open the parts bags labeled “FRAME

ASSEMBLY 1” and “FRAME ASSEMBLY 2.”

Press a 2” Square Inner Cap (105) into the open

end of the Long Base (120).

Insert eight 5/16” x 2 1/2” Carriage Bolts (110) up

through the Long Base (120) and the Short Base (2)

as shown. Note: It may be helpful to place tape

over the heads of the Carriage Bolts to hold

them in place.

Attach the Short Base (2) to the Long Base (120)

with two 5/16” x 2 3/4” Bolts (85), the Long Frame

Plate (71), and two 5/16” Nylon Locknuts (86).

FRAME ASSEMBLY

6

Make sure that you understand all of the

information on page 5 before you begin

assembling the weight system.

1

85

86

105

120

71

2

86

2. Attach the Outer Cap (24) to the Short Base (2)

with two #8 x 3/4” Screws (98).

Press two 2” x 3” Inner Caps (58) into the Foot

Plate (53). Attach the Foot Plate to the Long Base

(120) with two 5/16” x 2 1/2” Carriage Bolts (110)

and two 5/16” Nylon Locknuts (86).

3. Attach the tether on the Pin (112) to the Long Base

(120) with a #10 x 1” Screw (14).

Attach the four Knee Rest Bumpers (123) to the

Squat Knee Rest (41) with four #10 x 1” Screws

(14). Attach the Squat Knee Rest to the Long Base

(120) with a 3/8” x 3 1/4” Bolt (96) and a 3/8” Nylon

Locknut (87). Do not overtighten the Nylon

Locknut; the Squat Knee Rest must be able to

pivot.

3

120

112

87

14

96 41

123

123

123

14

14

110

110

110

110

2

2

86

86

58

58

110 53

120

98

24

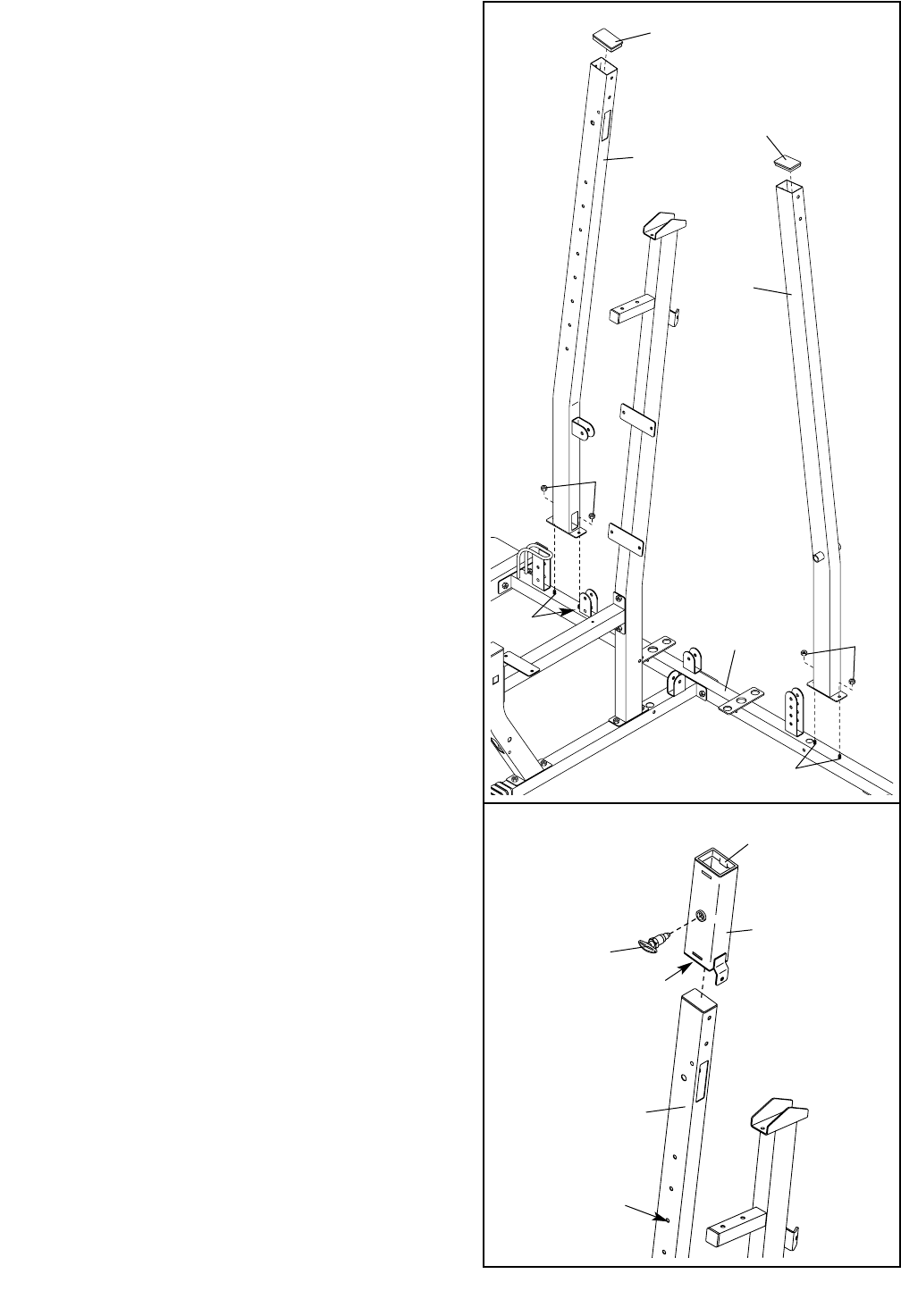

4. Press a 1 1/2” Square Inner Cap (67) into the

square tube on the Butterfly Upright (3).

Slide the Butterfly Upright (3) onto the two indicated

5/16” x 2 1/2” Carriage Bolts (110) in the Short Base

(2). Finger tighten a 5/16” Nylon Locknut (86) onto

each Carriage Bolt. Do not tighten the Nylon

Locknuts yet.

5. Press a 2” x 3” Inner Cap (58) into the top of the

Seat Upright (9). Attach the Leg Lever Bumper (77)

to the Seat Upright with a #10 x 1” Screw (14).

Slide the Seat Upright (9) onto the two indicated

5/16” x 2 1/2” Carriage Bolts (110) in the Short

Base (2). Finger tighten a 5/16” Nylon Locknut (86)

onto each Carriage Bolt. Do not tighten the Nylon

Locknuts yet.

7

4

3

86

110

86

2

67

5

2

110

86

86

77

14

58

9

6

9

92

92

90

3

90

90

90

86

86

8

6. Hold the Seat Frame (8) between the Seat Upright

(9) and the Butterfly Upright (3). Attach the Seat

Frame to the Seat Upright with two 5/16” x 3 3/4”

Bolts (92), two 5/16” Washers (90), and two 5/16”

Nylon Locknuts (86). Do not tighten the Nylon

Locknuts yet.

Attach the Seat Frame (8) to the Butterfly Upright

(3) with two 5/16” x 3 3/4” Bolts (92), two 5/16”

Washers (90), and two 5/16” Nylon Locknuts (86).

Do not tighten the Nylon Locknuts yet.

8

7. Press a 2” x 3” Inner Cap (58) into the top of the

Squat Upright (4). Slide the Squat Upright onto the

two indicated 5/16” x 2 1/2” Carriage Bolts (110) in

the Long Base (120). Finger tighten a 5/16” Nylon

Locknut (86) onto each Carriage Bolt. Do not tight-

en the Nylon Locknuts yet.

Press a 2” x 3” Inner Cap (58) into the top of the

Swivel Upright (5). Slide the Swivel Upright onto the

two indicated 5/16” x 2 1/2” Carriage Bolts (110) in

the Long Base (120). Finger tighten a 5/16” Nylon

Locknut (86) onto each Carriage Bolt. Do not tight-

en the Nylon Locknuts yet.

7

8

58

58

5

4

120 86

86

110

110

46

66

66

65

5

Adjustment

Hole

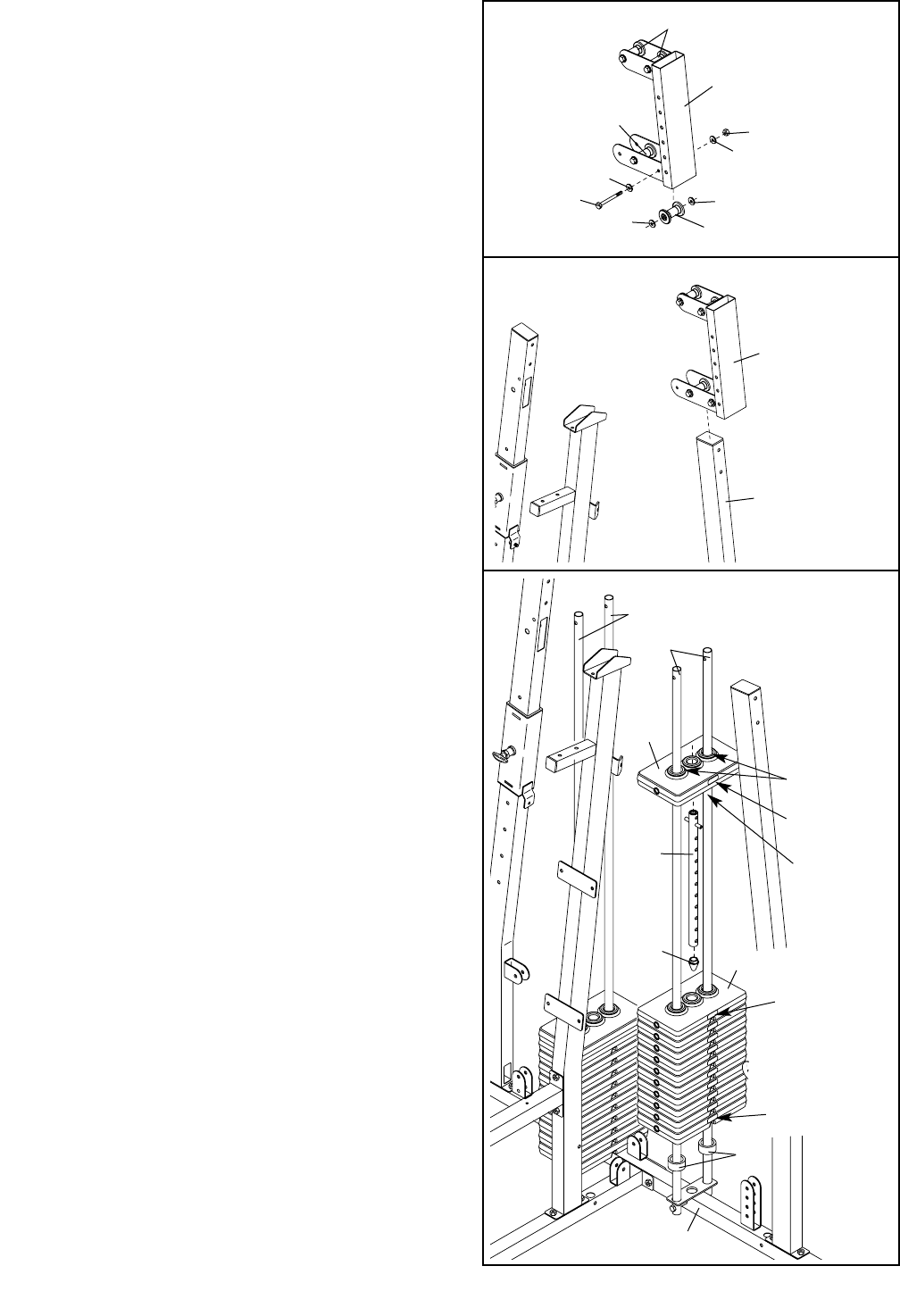

8. Press two Swivel Bushings (66) into the Swivel

Carriage (46).

Tighten an Adjustment Handle (65) into the Swivel

Carriage (46). Orient the Swivel Carriage as shown.

Slide the Carriage onto the Swivel Upright (5) and

engage the Adjustment Handle into an adjustment

hole in the Swivel Upright.

9

9. Attach a Roller (39) and two 5/16” Washers (90)

between the indicated set of holes in the Squat

Slider (38) with a 5/16” x 3 1/2” Bolt (94), two 5/16”

Washers (90), and a 5/16” Nylon Locknut (86) as

shown.

Assemble the other three Rollers (39) to the

Squat Slider (38) in the same manner.

10. Slide the Squat Slider (38) down onto the Squat

Upright (4).

11. Insert the ends of two Weight Guides (42) into the

indicated bracket on the Long Base (120). Slide two

Weight Bumpers (49) onto the Weight Guides. Next,

slide ten Weights (44) onto the Weight Guides. Make

sure that the Weights are turned so the grooved

sides of the Weights are facing downward.

Press a Weight Tube Bumper (48) into the lower

end of a Weight Tube (43). Insert the Weight Tube

into the centers of the Weights (44). Make sure

that the Weight Tube is turned as shown.

Lubricate the two outer holes in a Top Weight (45).

Slide the Top Weight onto the Weight Guides (42).

Make sure that the Top Weight is turned so the

grooved side is facing downward.

Apply a number “10” decal to the Top Weight (45) in

the location shown. Apply decals with the numbers

20 through 110 to the ten Weights (44).

Assemble the other weight stack in the same

way.

9

10

49

120

Groove

Lubricate

43

48

42

45

44

“10” Decal

“110” Decal

11

42

38

4

39

39

39

90

90

90

94

86

90

38

“20” Decal

10

14. Open the parts bag labeled “ARM ASSEMBLY.”

Press three 1 1/2” x 2” Inner Caps (21) into the Leg

Lever (10). Attach the Eyebolt (116) to the Leg

Lever with a 3/8” Washer (91) and a 3/8” Nylon

Jamnut (113).

Lubricate a 3/8” x 2 1/2” Bolt (18) with grease. Turn

the Leg Lever (10) so that the welded tab is on the

indicated side, and attach the Leg Lever to the Seat

Upright (9) with the Bolt and a 3/8” Nylon Locknut

(87). Do not overtighten the Nylon Locknut; the

Leg Lever must be able to pivot easily.

15. Press a 2” x 2 1/2” Inner Cap (125) into the

Butterfly Frame (47). Attach the tethers on the two

“L”-pins w/Tether (60) to the Butterfly Frame with a

#8 x 3/4” Screw (98).

Lubricate a 3/8” x 3” Bolt (107) with grease. Attach

the Butterfly Frame (47) to the Butterfly Top Frame

(7) with the Bolt and a 3/8” Nylon Locknut (87). Do

not overtighten the Nylon Locknut; the Butterfly

Frame must be able to pivot easily.

ARM ASSEMBLY

13. Press two 2” x 3” Inner Caps (58) into the Top Frame

(6) and the Butterfly Top Frame (7).

Attach the Butterfly Top Frame (7) to the Top Frame

(6) with two 5/16” x 2 3/4” Bolts (85), two 5/16”

Washers (90), and two 5/16” Nylon Locknuts (86).

Do not tighten the Locknuts yet.

Attach the Butterfly Top Frame (7) to the Butterfly

Upright (3) with two 5/16” x 3 3/4” Bolts (92), two

5/16” Washers (90), and two 5/16” Nylon Locknuts

(86).

Tighten all of the 5/16” Nylon Locknuts (86) and

3/8” Nylon Locknuts (87) used in steps 2–13.

12

13

14

21

21

116 91

113

21

10

87

18

Lubricate

9

Tab

15

125

87 107—Lubricate

47

60

98

7

60

6

86

86

4

5

95

95

87

42

87

52

92

52

92

786

85

90

90

6

86

3

58

92

90

58

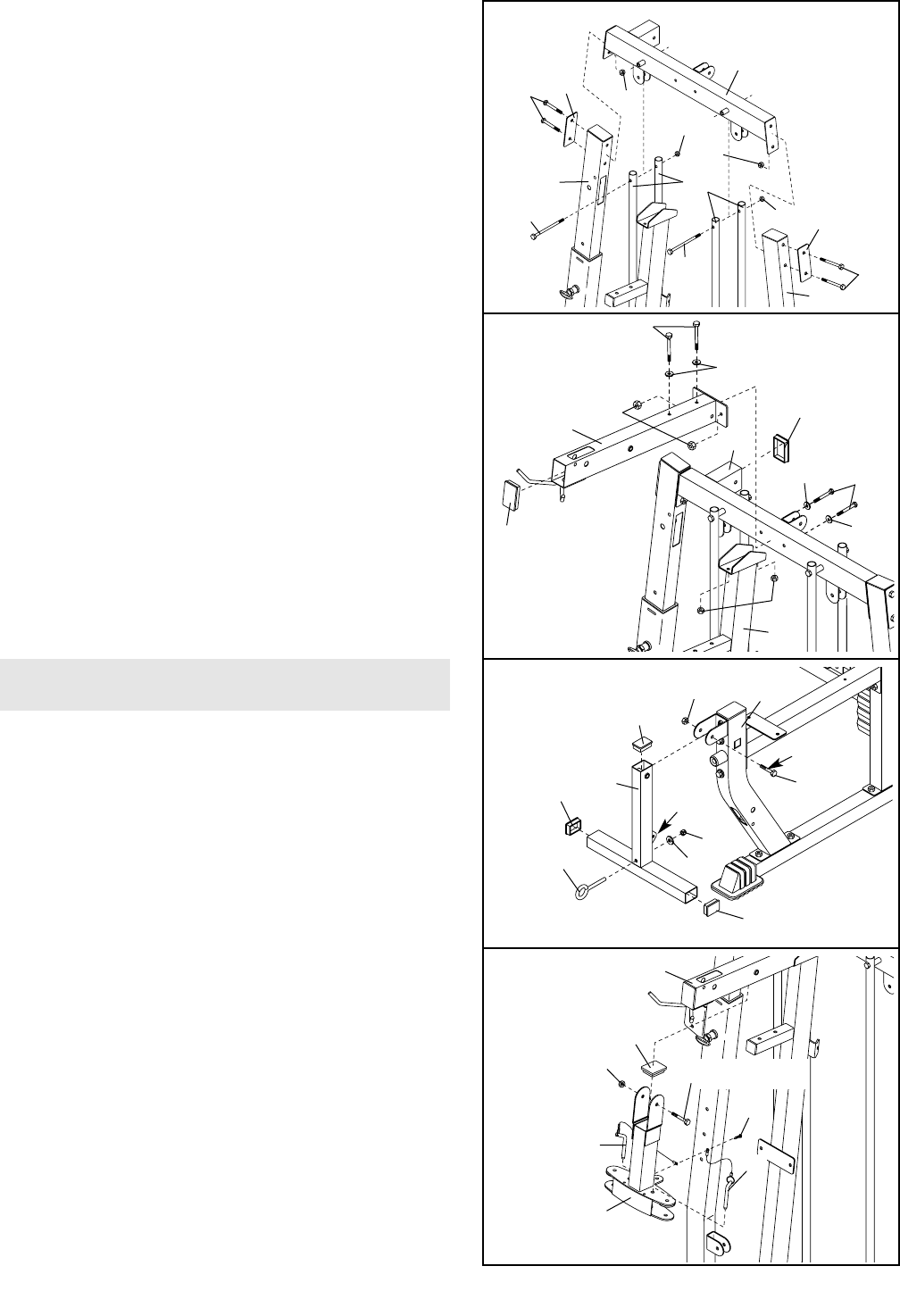

12. Attach the Top Frame (6) between the Squat Upright

(4) and the Swivel Upright (5) with four 5/16” x 3 3/4”

Bolts (92), the two Short Frame Plates (52), and two

5/16” Nylon Locknuts (86) as shown. Do not tighten

the Bolts and Locknuts yet.

Attach the four Weight Guides (42) to the Top Frame

(6) with two 3/8” x 6 1/2” Bolts (95) and two 3/8”

Nylon Locknuts (87).

18.

Locate and open the parts bags labeled “CABLE

ASSEMBLY” and “PULLEYS.”

Lubricate the 3/8” x 7” Bolt (30) with grease. Attach

the Swivel Cage (76) to the Swivel Carriage (46)

with the Bolt and a 3/8” Nylon Locknut (87).

Locate the Swivel High Cable (74), which is 126

1/2” long and has a ball on one end and a

threaded bolt on the other end. Wrap the Cable

around a 3 1/2” Pulley (78). Attach two Pulleys to

the Swivel Cage (76) with two 3/8” x 1 3/4” Bolts

(93) and two 3/8” Nylon Locknuts (87).

11

16. Press a 1 1/2” x 2” Inner Cap (21) into the Right

Butterfly Arm (26). Wet the lower end of the Arm with

soapy water. Slide a Long Pad (54) onto the Arm.

Slide two Nut Clips (108) onto a Press Handle (27).

Attach the Press Handle to the Right Butterfly Arm

(26) with two 5/16” x 3/4” Button Head Screws (51).

Slide the Long Pad (54) down so that the bottom is

flush with the lower end of the Arm. Press a 1”

Round Inner Cap (29) into the Press Handle. Wet

the Press Handle with soapy water. Slide a Long

Handgrip (28) onto the Press Handle.

Lubricate a 3/8” x 2” Bolt (100) with grease. Attach

a Pivot Bracket (70) to the Right Butterfly Arm (26)

with the Bolt and a 3/8” Nylon Jamnut (113). Do not

overtighten the Nylon Jamnut; the Pivot Bracket

must be able to pivot easily. Repeat this step

with the Left Butterfly Arm (25).

17. Lubricate a 3/8” x 3” Button Head Bolt (104) and

both sides of two Plastic Washers (56) with grease.

Attach the Right Butterfly Arm (26) to the Butterfly

Frame (47) with the Bolt, the two Plastic Washers,

two Butterfly Caps (57), two 3/8” Washers (91), and

a 3/8” Nylon Jamnut (113) as shown. Make sure

that the recessed sides of the Plastic Washers

are fitted over the welded bushing in the

Butterfly Arm. Do not overtighten the Nylon

Jamnut; the Butterfly Arm must be able to pivot

easily.

Repeat this step with the Left Butterfly Arm (25).

16

CABLE ASSEMBLY

74

18

78

78

87

93

76

87

17

IMPORTANT: Refer to the Cable Identification

Chart on page 26 for help identifying the

cables. Do not overtighten the bolts and

nuts attaching the pulleys. The pulleys must

be able to turn freely.

26

47

113

56

104

91

57

57

91 25

21

100

Lubricate

70

113

26

25

51

29

28

27

54

108

30

46

12

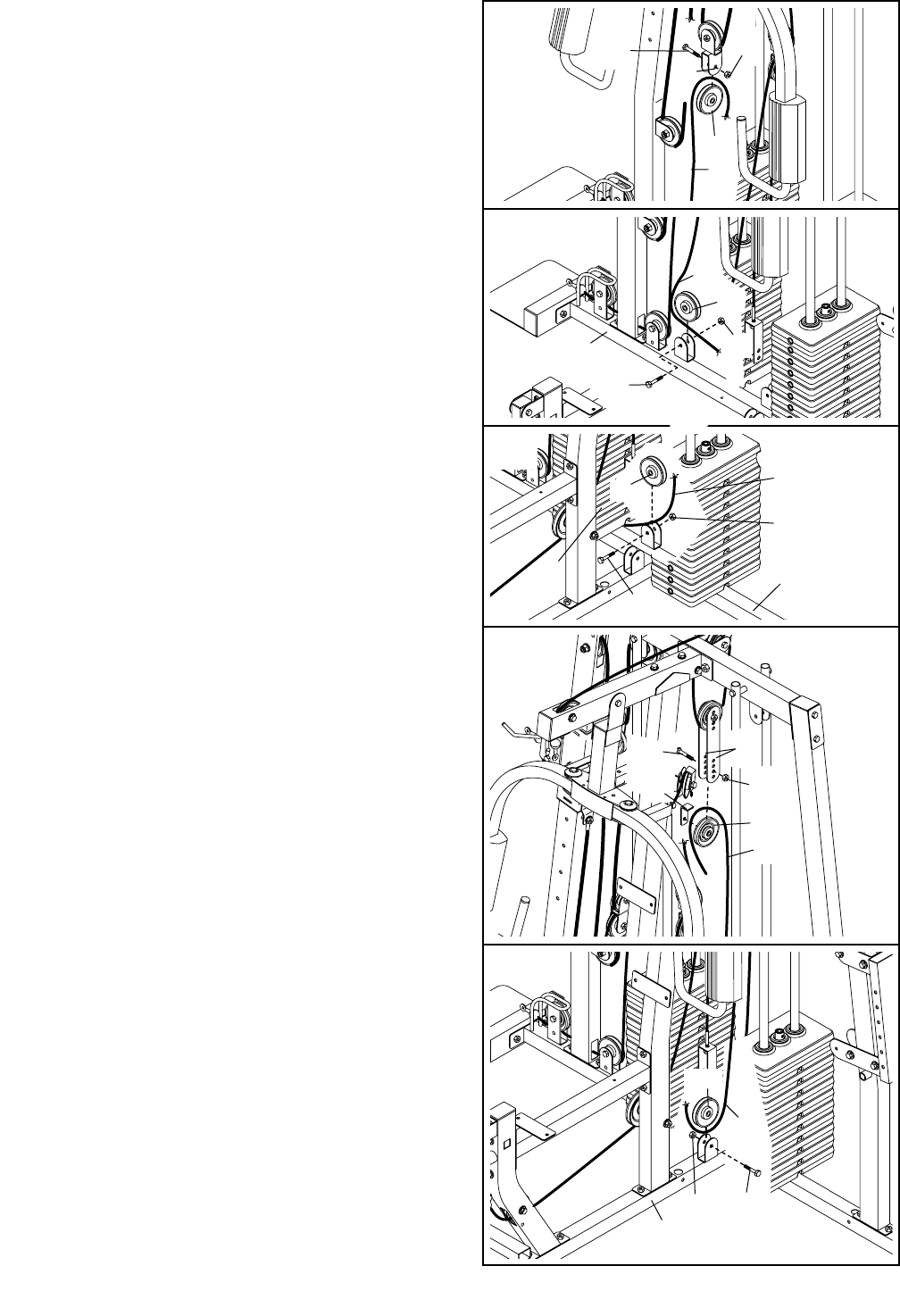

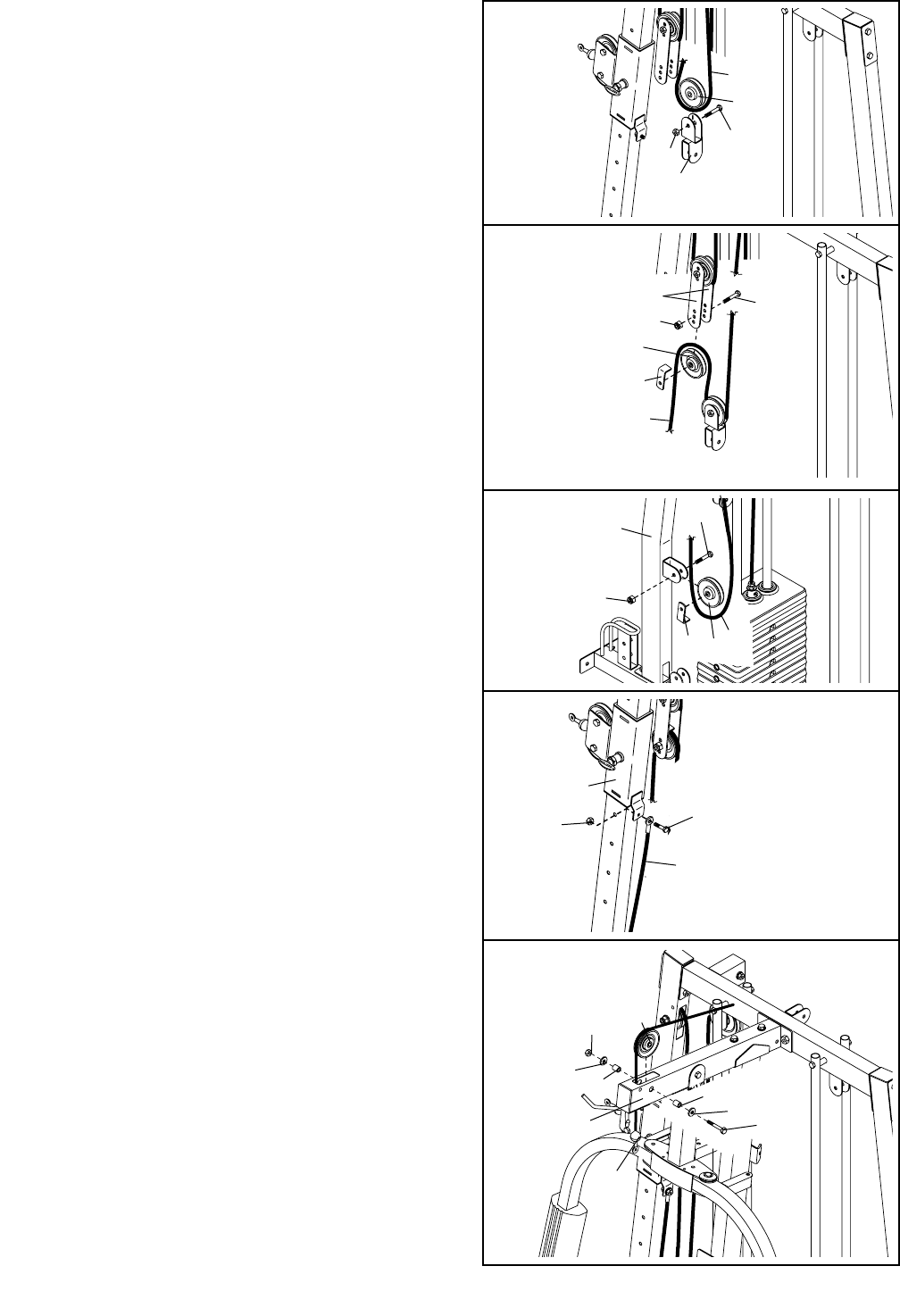

20. Remove the preattached 3 1/2” Pulleys (78) from

the Small Pulley Plates (31).

Wrap the Swivel High Cable (74) over a 3 1/2”

Pulley (78). Attach the Pulley and a Cable Trap (68)

to the second set of holes from the top of the Small

Pulley Plates (31) with a 3/8” x 2” Bolt (100) and a

3/8” Nylon Locknut (87). Make sure the Cable

Trap is turned to hold the Cable in the groove of

the Pulley.

21. Wrap the Swivel High Cable (74) over a 4 1/2”

Pulley (119). Attach the Pulley inside of the indicat-

ed bracket on the Top Frame (6) with 3/8” x 1 3/4”

Bolt (93) and a 3/8” Nylon Locknut (87).

22. Lift the Weight Tube (43) and the Top Weight (45)

closest to the Swivel Upright (5). Make sure that the

small pin on the Weight Tube is inside of the groove

under the Top Weight.

Insert a Weight Pin (50) into the stack of Weights

(44). Place a 1/2” Washer (1) on top of the Weight

Tube (43). Tighten a 1/2” Nut (118) halfway onto the

end of the Swivel High Cable (74). Screw the end of

the Cable two full turns into the Weight Tube. Then,

tighten the Nut against the 1/2” Washer.

23. Locate the Swivel Cable (17), which is 115 3/8”

long and has an eyelet on each end. Attach the

Cable inside the Top Frame (6) with a 5/16” x 2 1/2”

Bolt (59), two 5/16” Washers (90), and a 5/16”

Nylon Locknut (86).

23

20

21

22

74

118

1

43

44

45

50

5

6

74

74

87

87

93

31

31

100

119

78 68

59 86

90

6

17

19. Route the Swivel High Cable (74) through the Swivel

Upright (5) and over a 4 1/2” Pulley (119). Attach the

Pulley inside the Upright with a 3/8” x 2 3/4” Bolt

(101), two 3/8” Washers (91), two 1/2” Spacers (89),

and a 3/8” Nylon Locknut (87).

Attach a 3/8” x 2 1/2” Bolt (18), two 3/8” Washers

(91), and a 3/8” Nylon Locknut (87) to the Swivel

Upright (5).

19

87 74

91

87 91

101

89

89

91

91

18

5

119

13

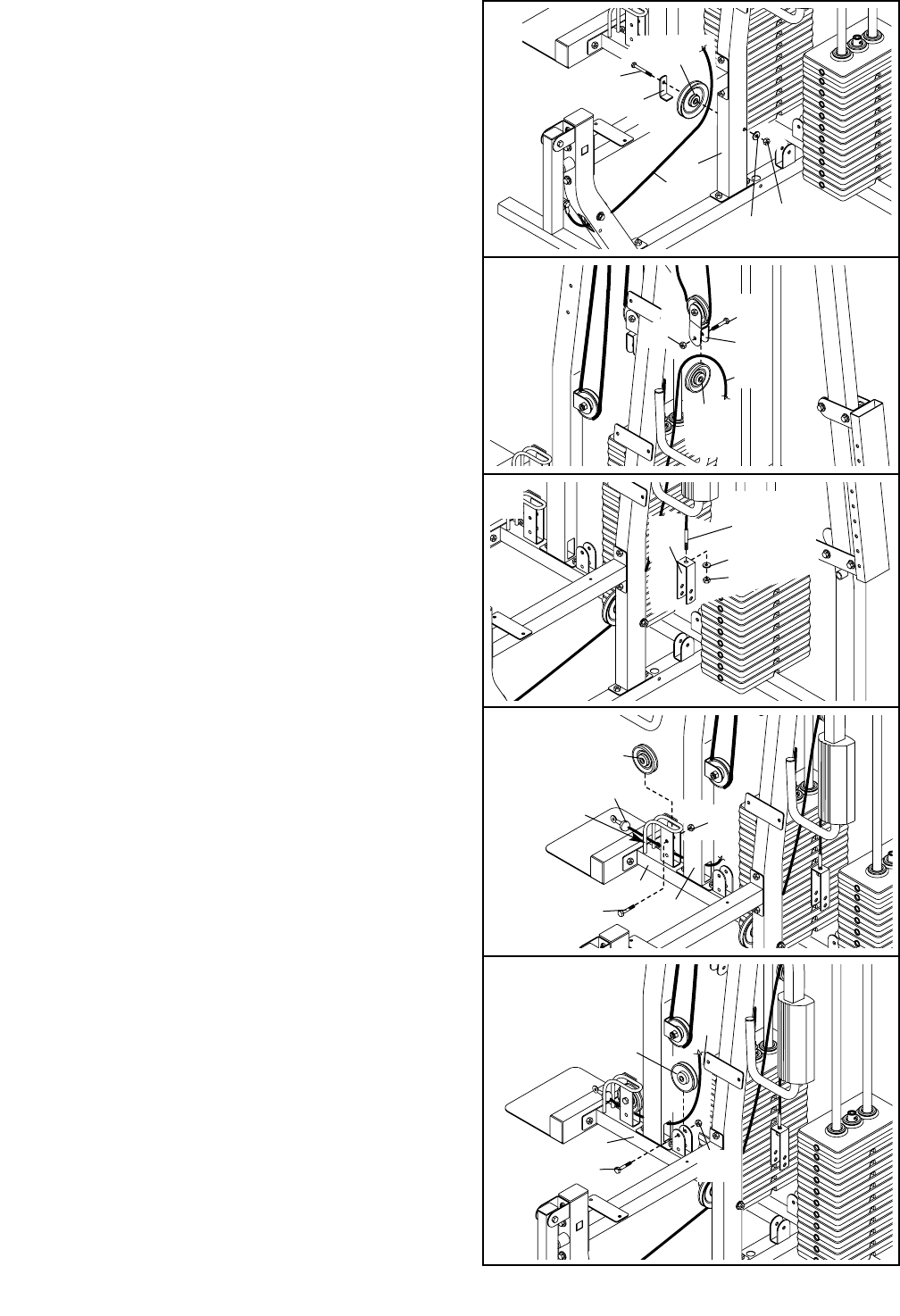

24. Remove the preattached 3 1/2” Pulleys (78) from

the Offset Double “U”-bracket (61).

Wrap the Swivel Cable (17) around a 3 1/2” Pulley

(78). Attach the Pulley to the Offset Double “U”-

bracket (61) with a 3/8” x 1 3/4” Bolt (93) and a 3/8”

Nylon Locknut (87).

25. Wrap the Swivel Cable (17) around a 3 1/2” Pulley

(78). Attach the Pulley and a Cable Trap (68) to the

next to bottom hole in the Small Pulley Plates (31)

with a 3/8” x 2” Bolt (100) and a 3/8” Nylon Locknut

(87). Make sure the Cable Trap is turned to hold

the Cable in the groove of the Pulley.

26. Wrap the Swivel Cable (17) around a 3 1/2” Pulley

(78). Attach the Pulley and a Cable Trap (68) to the

bracket on the Swivel Upright (5) with a 3/8” x 2”

Bolt (100) and a 3/8” Nylon Locknut (87). Make

sure the Cable Trap is turned to hold the Cable

in the groove of the Pulley.

27. Attach the end of the Swivel Cable (17) to the

bracket on the Swivel Carriage (46) with a 3/8” x 1”

Bolt (13) and a 3/8” Nylon Locknut (87).

28. Locate the Lat Cable (88), which is 89 1/4” long

and has a ball on one end and an eyelet on the

other. Route the eyelet end of the Cable up through

the Butterfly Top Frame (7) and around a 3 1/2”

Pulley (78). Attach the Pulley inside of the Butterfly

Top Frame with a 3/8” x 2 3/4” Bolt (101), two 3/8”

Washers (91), two 1/2” Spacers (89), and a 3/8”

Nylon Locknut (87).

28

24

25

26

27

78

87

93

17

61

100

78

17

78

68

46

87

17

13

17

87

68

101

87

88

91

91

89 89

7

78

31

87 100

5

14

29. Wrap the Lat Cable (88) around a 3 1/2” Pulley

(78). Attach the Pulley and a Long Cable Trap (102)

to the Top Frame (6) with a 3/8” x 1 3/4” Bolt (93)

and a 3/8” Nylon Jamnut (113). Make sure the

Cable Trap is turned to hold the Cable in the

groove of the Pulley.

33. Wrap the Butterfly Cable (69) over a “V”-pulley (55).

Attach the Pulley and a Long Cable Trap (102) to

the indicated bracket on the Butterfly Upright (3)

with a 3/8” x 2 1/2” Bolt (18) and a 3/8” Nylon

Locknut (87). Make sure that the Long Cable

Trap is turned to hold the Cable in the groove of

the Pulley.

30. Remove the preattached 3 1/2” Pulleys (78) from

the Pulley Plates (63).

Wrap the Lat Cable (88) around a 3 1/2” Pulley

(78). Attach the Pulley and a Cable Trap (68) to the

second set of holes from the top of the Pulley

Plates (63) with a 3/8” x 2” Bolt (100) and a 3/8”

Nylon Locknut (87). Make sure the Cable Trap is

turned to hold the Cable in the groove of the

Pulley.

31. Attach the end of the Lat Cable (88) inside of the

Butterfly Top Frame (7) with a 5/16” x 2 1/2” Bolt

(59), two 5/16” Washers (90), and a 5/16” Nylon

Locknut (86).

29

30

31

32

33

63

86 90

90

59

88

113

102

78

87

88

100

88 78

93

6

103

7

70

69

25

69

3

87 55 102

18

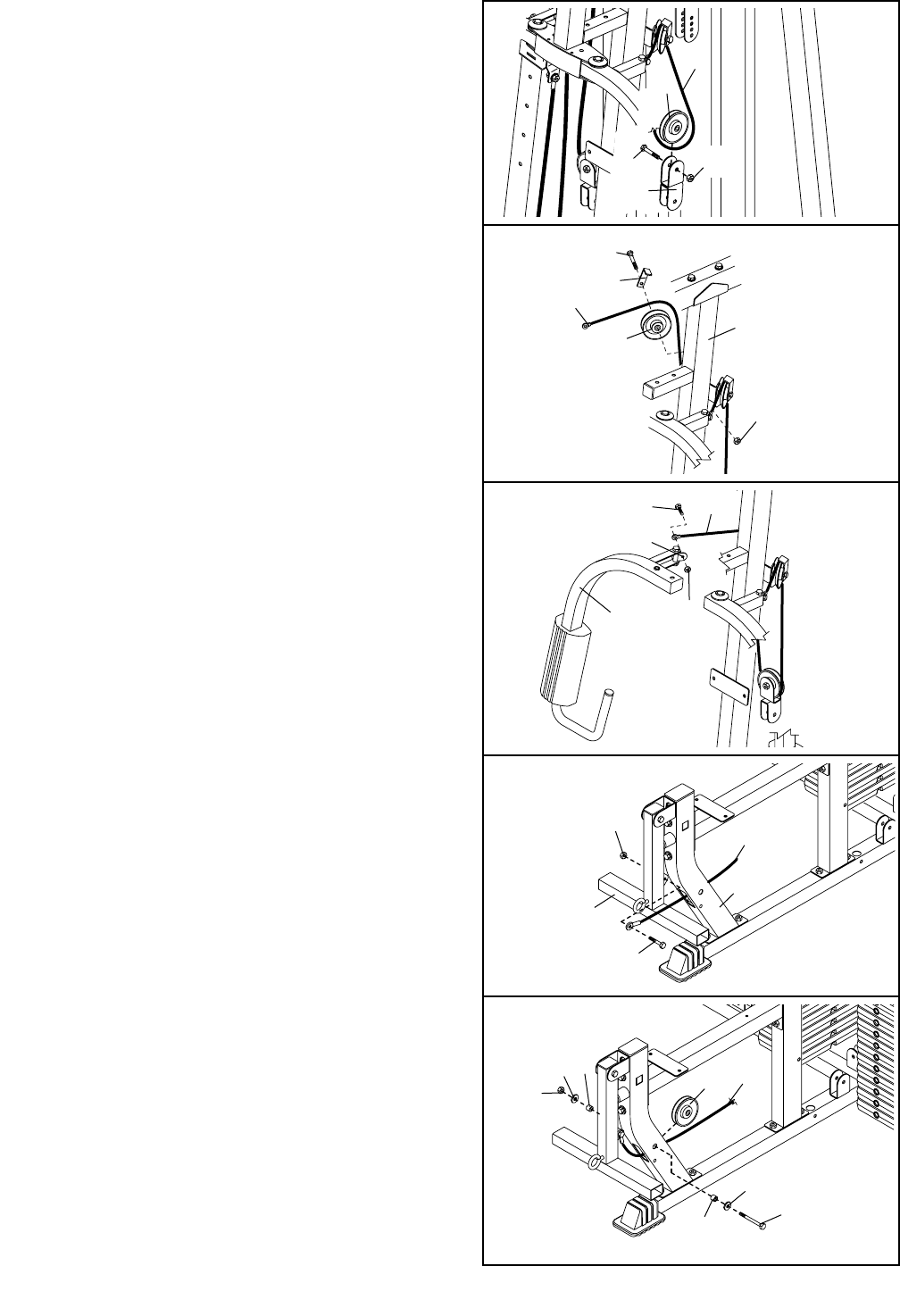

32. Locate the Butterfly Cable (69), which is the

shortest Cable. Attach the Cable to the Pivot

Bracket (70) on the Left Butterfly Arm (25) with a

5/16” x 1” Shoulder Bolt (103) and a 5/16” Nylon

Locknut (86).

86

68

15

35

36

38

37

34. Remove the preattached 3 1/2” Pulleys (78) from

the Double “U”-bracket (62).

Wrap the Butterfly Cable (69) under a 3 1/2” Pulley

(78). Attach the Pulley to the Double “U”-bracket

(62) with a 3/8” x 1 3/4” Bolt (93) and a 3/8” Nylon

Locknut (87).

35. Wrap the Butterfly Cable (69) over a “V”-pulley (55).

Attach the Pulley and a Long Cable Trap (102) to

the other bracket on the Butterfly Upright (3) with a

3/8” x 2 1/2” Bolt (18) and a 3/8” Nylon Locknut

(87). Make sure that the Long Cable Trap is

turned to hold the Cable in the groove of the

Pulley.

36. Attach the Butterfly Cable (69) to the Pivot Bracket

(70) on the Right Butterfly Arm (26) with a 5/16” x 1”

Shoulder Bolt (103) and a 5/16” Nylon Locknut (86).

37. Locate the Leg Lever Cable (75), which is 98 1/2”

long and has an eyelet on one end and a thread-

ed pin on the other end. Route the eyelet end of

the Cable through the Seat Upright (9) and attach it

to the tab on the Leg Lever (10) with a 5/16” x 1”

Shoulder Bolt (103) and a 5/16” Nylon Locknut (86).

38. Attach a 3 1/2” Pulley (78) inside of the Seat

Upright (9) with a 3/8” x 2 3/4” Bolt (101), two 3/8”

Washers (91), two 1/2” Spacers (89), and a 3/8”

Nylon Locknut (87), as shown.

34

69

78

87

62

93

69

55

69

103

18

102

87

75

78

87

101

89

89

91

91

3

86 75

10

9

103

70

26 86

16

41. Remove the preattached 3 1/2” Pulley (not

shown) from the “U”-bracket (64).

Attach the end of the Leg Lever Cable (75) to the

“U”-bracket (64) with a 1/4” Washer (97) and a 1/4”

Nylon Locknut (34). Note: Do not completely

tighten the Locknut; it should be threaded only

two turns onto the end of the Cable.

42. Locate the Swivel Low Cable (72), which is the

only remaining cable that has an eyelet on one

end and a ball on the other end. Route the eyelet

end of the Cable through the cage on the Long

Base (120) and through the Swivel Upright (5) as

shown.

Attach a 3 1/2” Pulley (78) to the indicated bracket

on the Long Base (120) with 3/8” x 1 3/4” Bolt (93)

and a 3/8” Nylon Locknut (87).

43. Wrap the Swivel Low Cable (72) under a 3 1/2”

Pulley (78). Attach the Pulley to the indicated brack-

et on the Long Base (120) with a 3/8” x 1 3/4” Bolt

(93) and a 3/8” Nylon Locknut (87).

39

40

41

42

122

64

75

78

97

72

87 62

93

34

43

75

91 113

3

119

121

120

78

Cage

93

87

5

72

120

93

78

87

75

39. Route the Leg Lever Cable (75) under a 4 1/2”

Pulley (119). Attach the Pulley and a Large Cable

Trap (121) to the indicated side of the Butterfly

Upright (3) with a 3/8” x 3 3/4” Bolt (122), a 3/8”

Washer (91), and a 3/8” Nylon Jamnut (113). Make

sure that the Large Cable Trap is turned to hold

the Cable in the groove of the Pulley.

40. Wrap the Leg Lever Cable (75) over a 3 1/2” Pulley

(78). Attach the Pulley to the Double “U”-bracket

(62) with a 3/8” x 1 3/4” Bolt (93) and a 3/8” Nylon

Locknut (87).

17

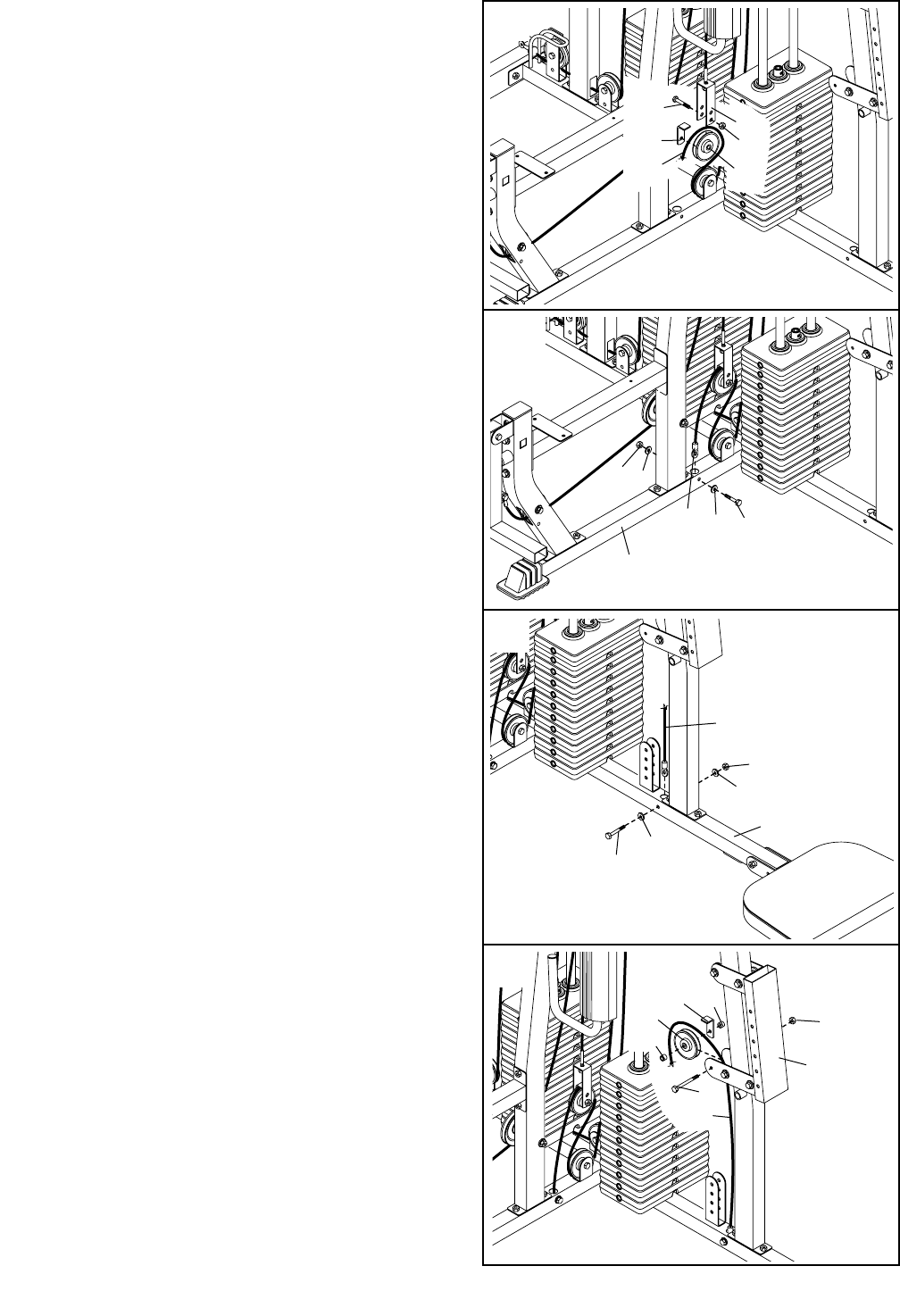

45. Wrap the Swivel Low Cable (72) under a 3 1/2”

Pulley (78). Attach the Pulley to the indicated brack-

et on the Long Base (120) with a 3/8” x 1 3/4” Bolt

(93) and a 3/8” Nylon Locknut (87).

46. Route the Swivel Low Cable (72) under the indicat-

ed stack of Weights (44).

Wrap the Swivel Low Cable (72) under a 3 1/2”

Pulley (78). Attach the Pulley to the indicated brack-

et on the Long Base (120) with a 3/8” x 1 3/4” Bolt

(93) and a 3/8” Nylon Locknut (87).

47. Wrap the Swivel Low Cable (72) over a 3 1/2”

Pulley (78). Attach the Pulley and a Cable Trap (68)

between the indicated holes in the Pulley Plates

(63) with a 3/8” x 2” Bolt (100) and a 3/8” Nylon

Locknut (87). Make sure that the Cable Trap is

turned to hold the Cable in the groove of the

Pulley.

48. Wrap the Swivel Low Cable (72) under a 3 1/2”

Pulley (78). Attach the Pulley to the indicated brack-

et on the Short Base (2) with a 3/8” x 1 3/4” Bolt

(93) and a 3/8” Nylon Locknut (87).

48

44

46

45

47

61

78

72

93

120

78

44

72

72

87

93

87

120

68

100 63

2

72

93

87

78

78

87

44. Wrap the Swivel Low Cable (72) over a 3 1/2” Pulley

(78). Attach the Pulley to the Offset Double “U”-

bracket (61) with a 3/8” x 1 3/4” Bolt (93) and a 3/8”

Nylon Locknut (87).

72

87

78

93

18

49. Wrap the Swivel Low Cable (72) over a 3 1/2”

Pulley (78). Attach the Pulley and a Cable Trap (68)

between the lower set of holes in the “U”-bracket

(64) with a 3/8” x 2” Bolt (100) and a 3/8” Nylon

Locknut (87). Make sure that the Cable Trap is

turned to hold the Cable in the groove of the

Pulley.

51. Locate the Squat Cable (73), which is the only

remaining cable. Attach the eyelet end of the

Cable inside of the Long Base (120) with a 5/16” x

2 1/2” Bolt (59), two 5/16” Washers (90), and a

5/16” Nylon Locknut (86).

50. Attach the end of the Swivel Low Cable (72) inside

of the Short Base (2) with a 5/16” x 2 1/2” Bolt (59),

two 5/16” Washers (90), and a 5/16” Nylon Locknut

(86).

52. Wrap the Squat Cable (73) over a 3 1/2” Pulley

(78). Attach the Pulley, a Cable Trap (68), and two

3/4” Spacers (124) between the indicated brackets

on the Squat Slider (38) with a 3/8” x 3 1/4” Bolt

(96) and a 3/8” Nylon Jamnut (113). Make sure

that the Cable Trap is turned to hold the Cable

in the groove of the Pulley.

49

50

51

52

59

90

2

113

38

68

72

100 64

87

124

86

59

90

73

90

86

120

72

96

73

78

124

90

78

68

19

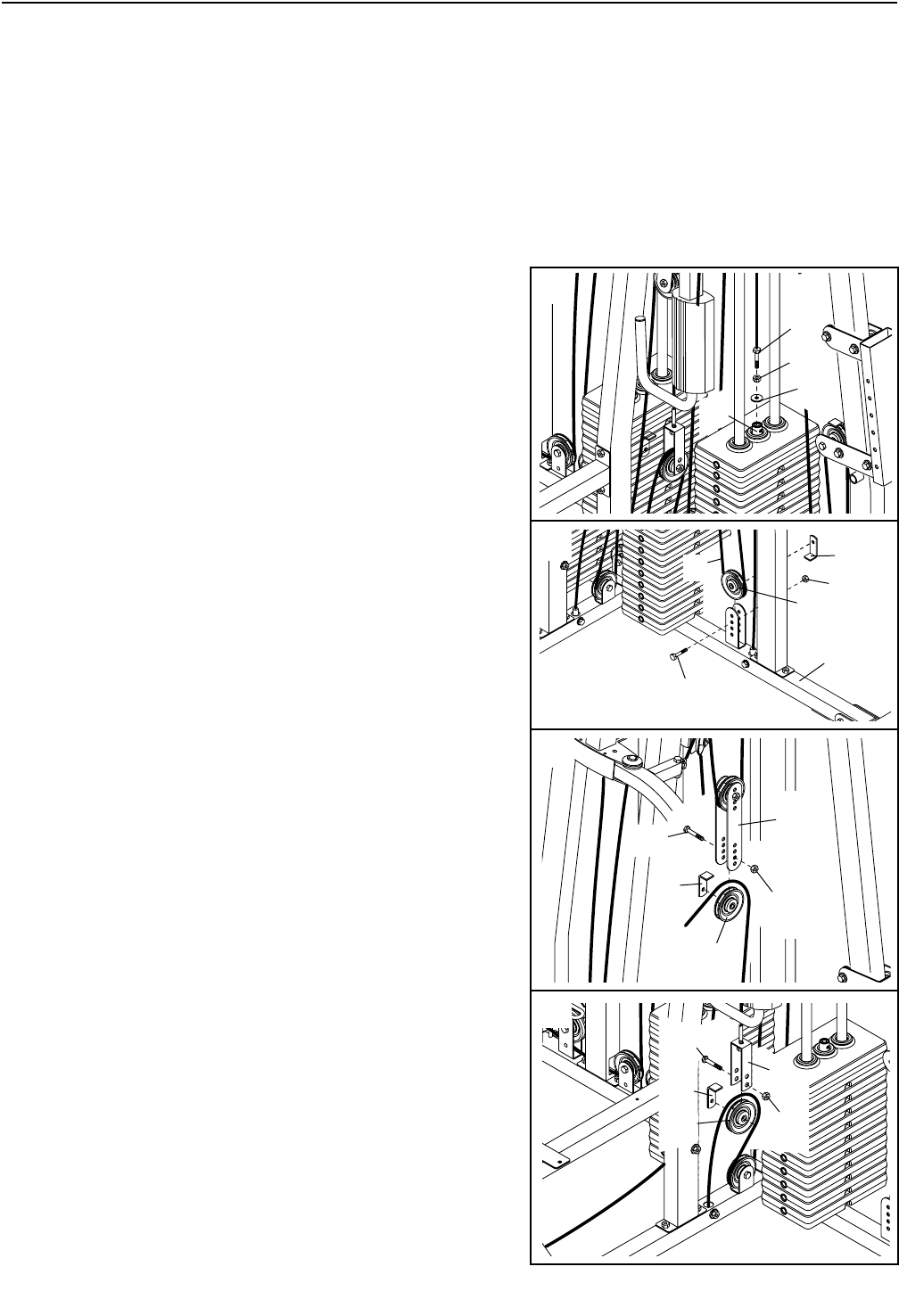

53. Wrap the Squat Cable (73) under a 3 1/2” Pulley

(78). Attach the Pulley and a Cable Trap to the sec-

ond set of holes from the top in the indicated brack-

et on the Long Base (120) with a 3/8” x 2” Bolt

(100) and a 3/8” Nylon Locknut (87). Make sure

that the Cable Trap is turned to hold the Cable

in the groove of the Pulley.

54. Wrap the Squat Cable (73) over a 4 1/2” Pulley

(119). Attach the Pulley to the indicated bracket on

the Top Frame (6) with a 3/8” x 1 3/4” Bolt (93) and

a 3/8” Nylon Locknut (87).

55. Place a 1/2” Washer (1) on top of the Weight Tube

(43) closest to the Squat Upright (4). Tighten a 1/2”

Nut (118) halfway onto the end of the Squat Cable

(73).

Lift the Weight Tube (43) and the Top Weight (45)

and make sure that the small pin on the Weight

Tube is inside of the groove under the Top Weight.

Hold the Weight Tube (43) and the Top Weight (45)

a few inches over the weight stack and insert the

Weight Pin (50). Screw the end of the Cable (73)

two full turns into the Weight Tube. Then, tighten the

Nut against the 1/2” Washer (1). Remove the Weight

Pin and set the Top Weight back on the weight

stack. Replace the Pin.

56. Locate and open the parts bag labeled “SEAT

ASSEMBLY.”

Insert the Pad Tube (23) into the square hole in the

Seat Upright (9). Slide the two Knee Pads (19) onto

the Pad Tube as shown. Press the two Knee Pad

Caps (109) into the ends of the Pad Tube.

Slide two Short Pads (20) onto the Leg Lever (10).

56

53

54

55

119

73

10

20

20

23

19

19

9

109

109

87

78

68

100 120

SEAT ASSEMBLY

73

687

93

43

4

73

118

145

50

20

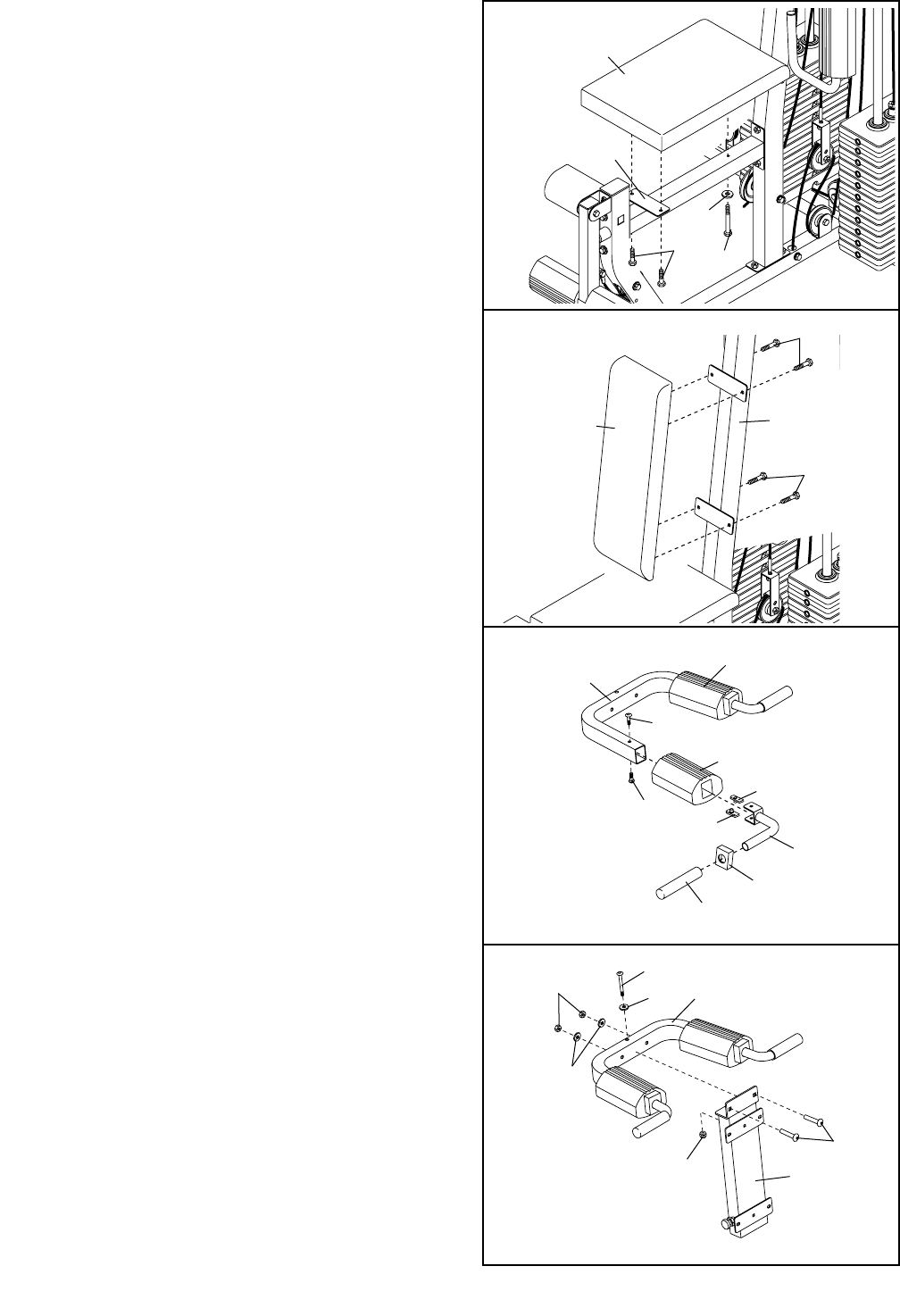

57. Attach the Seat (16) to the Seat Frame (8) with two

1/4” x 3/4” Screws (114), a 1/4” x 2 1/2” Screw (99),

and a 1/4” Washer (97).

58. Attach the Butterfly Backrest (15) to the Butterfly

Upright (3) with four 1/4” x 3/4” Screws (114).

59. Wet one end of the Squat Arm (32) with soapy

water. Slide a Short Pad (20) onto the Squat Arm

as shown.

Slide two Nut Clips (108) onto a Squat Handle (33).

Attach the Squat Handle to the Squat Arm (32) with

two 5/16” x 3/4” Button Head Screws (51). Slide an

Inner Cap w/Hole (111) onto the Squat Handle and

press it onto the end of the Squat Arm. Wet the

Squat Handle with soapy water. Slide an 8”

Handgrip (84) onto the Squat Handle.

Repeat this step with the other end of the Squat

Arm (32).

57

58

59

51

51

20

108

108

20

32

33

111

84

97

114

114

99

114

16

8

15 3

60

60. Attach the Squat Arm (32) to the Squat Bracket (37)

with two 3/8” x 2 1/2” Carriage Bolts (106), two 3/8”

Washers (91), and two 3/8” Nylon Locknuts (87).

Do not tighten the Nylon Locknuts yet.

Finish attaching the Squat Arm (32) to the Squat

Bracket (37) with a 3/8” x 3” Bolt (107), a 3/8”

Washer (91), and a 3/8” Nylon Locknut (87).

Tighten all of the 3/8” Nylon Locknuts (87) used

in this step.

91

87

32

106

37

91

107

87

21

61

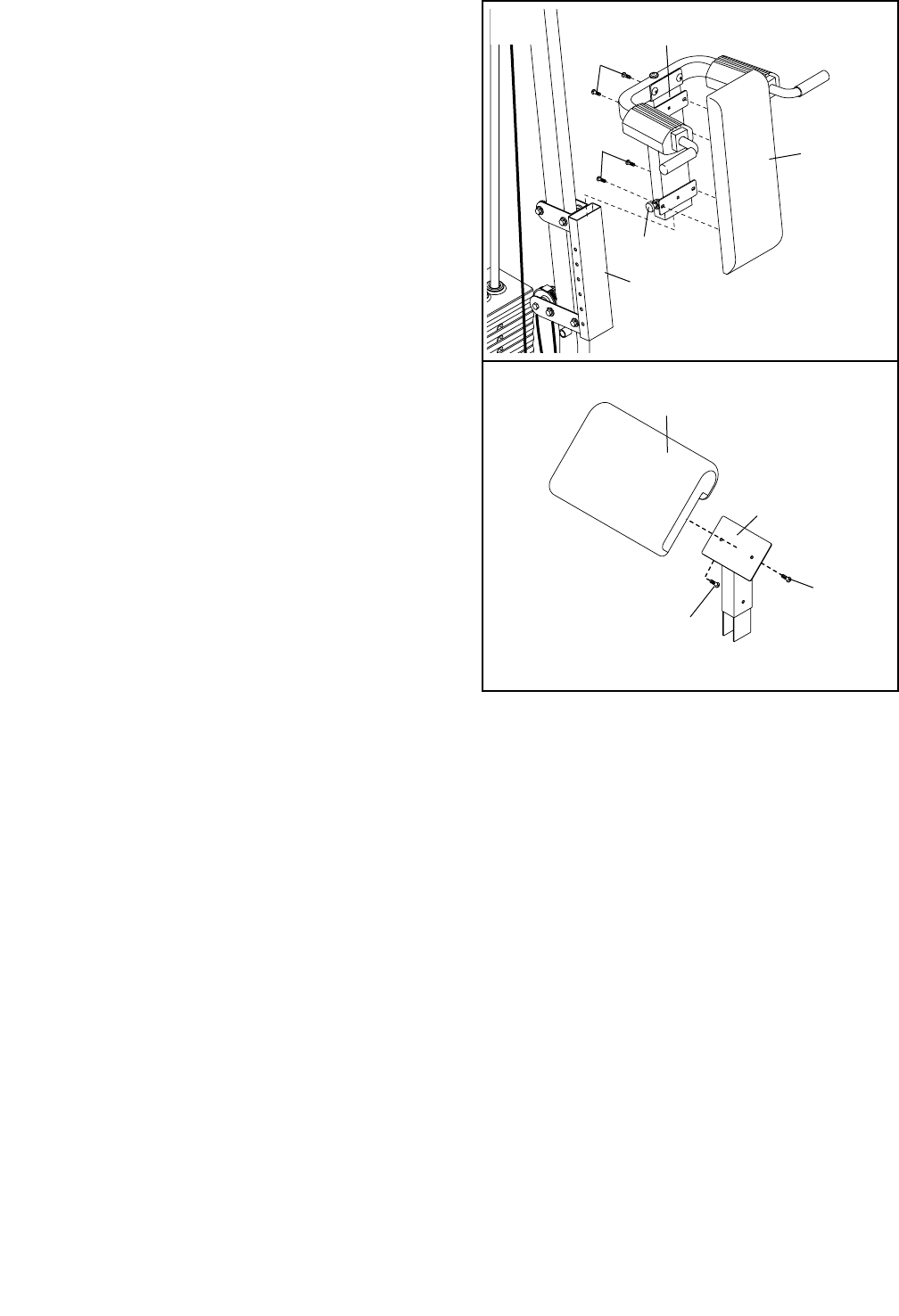

61. Unscrew the Adjustment Knob (115) and remove it

from the Squat Bracket (37). Turn the Squat

Backrest (35) so that the four screw holes are clos-

er to the bottom of the Squat Backrest than the top.

Attach the Squat Backrest to the Squat Bracket with

four 1/4” x 3/4” Screws (114). Reattach the

Adjustment Knob to the Squat Bracket.

Turn the Adjustment Knob (115) counterclockwise

several times to loosen it. Next, pull the Knob and

slide the Squat Bracket (37) down onto the Squat

Slider (38). Engage the Knob into one of the holes

in the Squat Slider, and then turn the Knob clock-

wise until it is tight.

63. Make sure that all parts have been properly tightened. The use of the remaining parts will be explained in

ADJUSTMENTS, beginning on page 22 of this manual.

Before using the weight system, pull each cable a few times to make sure that the cables move smoothly

over the pulleys. If one of the cables does not move smoothly, find and correct the problem. IMPORTANT: If

the cables are not properly installed, they may be damaged when heavy weight is used. See the

CABLE DIAGRAMS on page 26 and 27 of this manual for proper cable routing. If there is any slack in

the cables, you will need to remove the slack by tightening the cables. See TROUBLESHOOTING on

page 25.

35

37

38

115

114

114

6262. Attach the Curl Pad (11) to the Curl Post (12) with

two 1/4” x 3/4” Screws (114).

12

11

114

114

22

ADJUSTMENTS

The instructions below describe how each part of the weight system can be adjusted. Refer to the exercise

guide accompanying this manual to see how the weight system should be set up for various exercises. IMPOR-

TANT: When attaching the lat bar, row bar, or handle, make sure that the attachments are in the correct

starting position for the exercise to be performed. If there is any slack in the cables or chain as an exer-

cise is performed, the effectiveness of the exercise will be reduced.

81

83

79

50

44

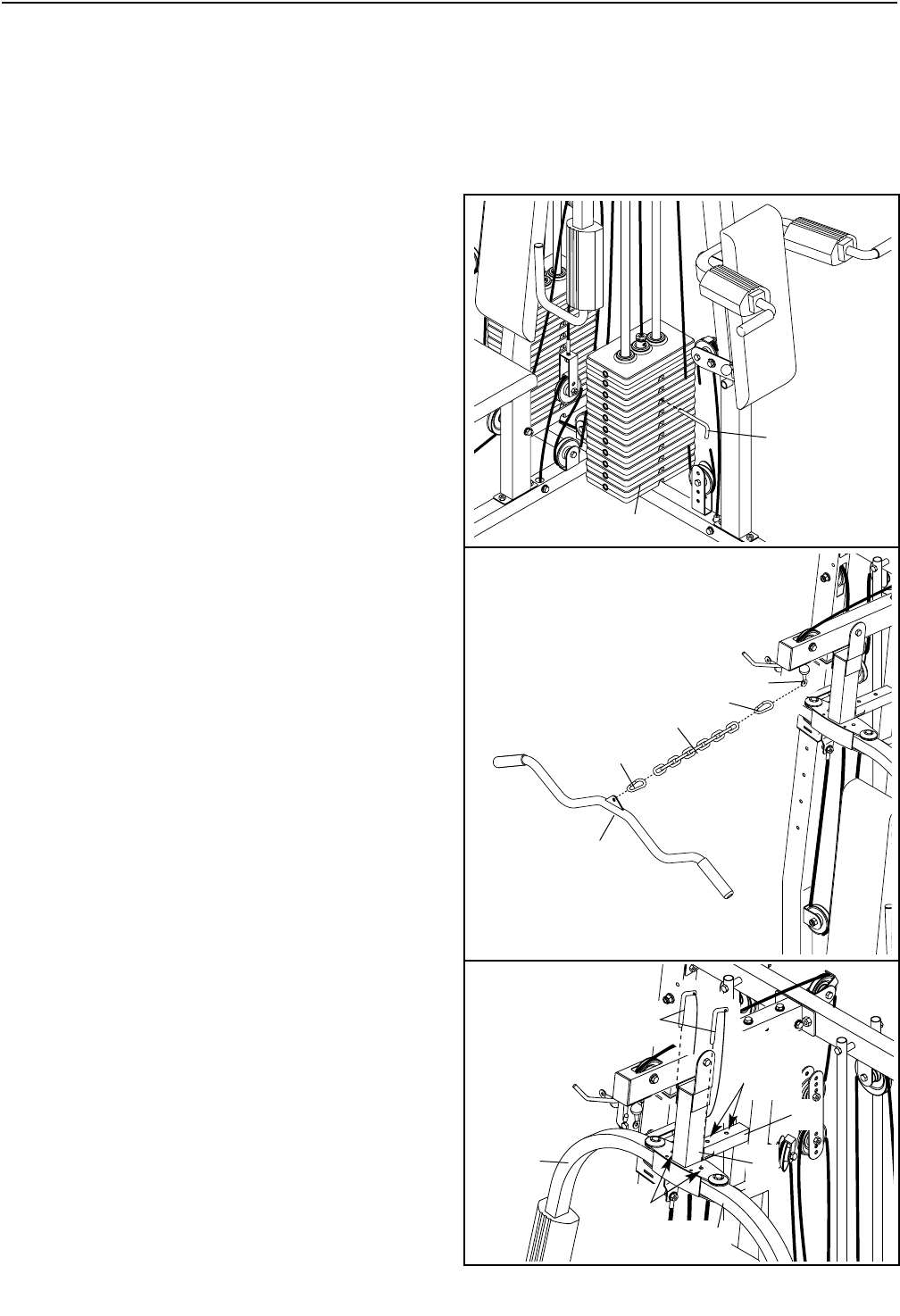

CHANGING THE WEIGHT SETTING

To change the weight setting of either weight stack,

insert a Weight Pin (50) under the desired Weight

(44) until the bent end of the Weight Pin is touching

the Weights. Turn the bent end downward. The

weight setting of each weight stack can be changed

from 10 pounds to 110 pounds, in 10-pound incre-

ments. Note: Due to the cables and pulleys, the

amount of resistance at each exercise station may

vary from the weight setting. Use the WEIGHT

RESISTANCE CHART on page 24 to find the

approximate amount of resistance at each weight

station.

ATTACHING THE ACCESSORIES TO THE HIGH

PULLEY STATION OR THE LOW PULLEY STATION

Attach the Lat Bar (79) to the Lat Cable (88) with a

Cable Clip (83). For some exercises, the Chain (81)

should be attached between the Lat Bar and the Lat

Cable with two Cable Clips. Adjust the length of the

Chain between the Lat Bar and the Lat Cable so the

Lat Bar is in the correct starting position for the

exercise to be performed.

The Lat Bar (79) can be attached to the Swivel Low

Cable (not shown) in the same way.

The Row Bar (not shown), the Handle (not shown), or

Ab Strap (not shown) can be attached to the Lat Cable

(88) or the Swivel Low Cable (not shown) in the same

way.

CONVERTING THE BUTTERFLY ARMS

To use the Butterfly Arms (25, 26) as butterfly arms,

insert the “L”-pins w/Tethers (60) into the butterfly holes

in the Butterfly Upright (3).

To use the Butterfly Arms (25, 26) as press arms, insert

the “L”-pins w/Tethers (60) into the press holes in the

Butterfly Frame (47).

Make sure that both “L”-pins w/Tethers (60) are fully

inserted into the same set of holes before perform-

ing any exercise.

83 88

47

26

60

Butterfly

Holes

3

Press

Holes 25

23

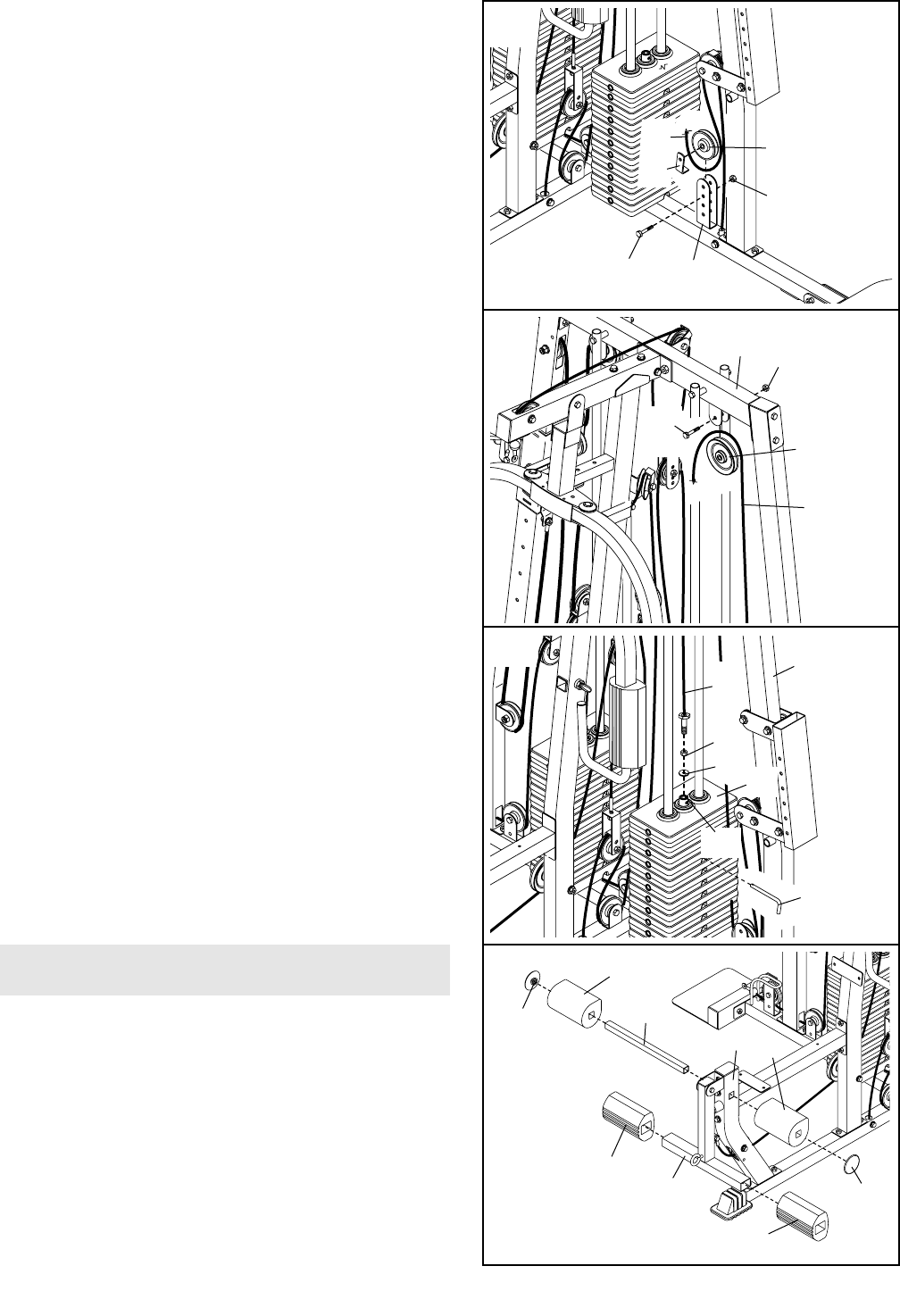

ADJUSTING THE SQUAT ARM OR SWIVEL

CARRIAGE

To adjust the height of the Squat Arm (32), first turn

the Adjustment Knob (115) on the Squat Bracket (37)

counterclockwise several turns to loosen it. Next, pull

the Handle and slide the Squat Bracket up or down to

the desired position. Engage the Handle into one of

the holes in the Squat Slider (not shown), and then

turn the Handle clockwise until it is tight.

The height of the Swivel Carriage (not shown) can be

adjusted in the same way using the Adjustment Handle

(not shown).

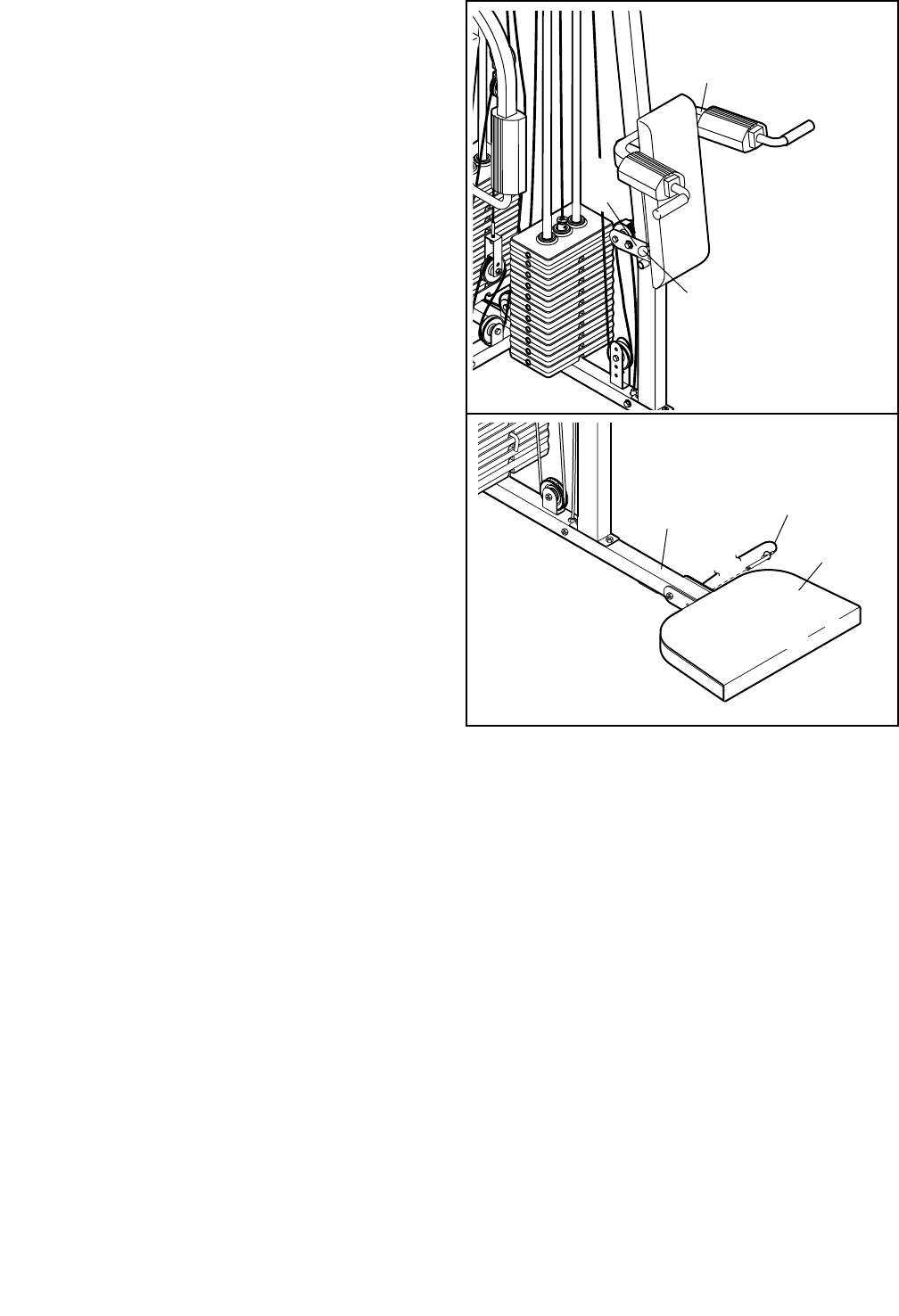

ADJUSTING THE SQUAT KNEE REST

To use the Squat Knee Rest (41), pivot it down to the

position shown and insert the Pin w/Tether (112) into

the holes in the Squat Knee Rest and the Long Base

(120).

When the Squat Knee Rest (41) is not in use, pivot it

up to a vertical position and then insert the Pin

w/Tether (112) into the hole in the Long Base (120).

32

120

41

112

115

37

HIGH

PULLEY

(lbs.)

14

25

38

48

61

68

80

96

101

112

122

LOW

PULLEY

(lbs.)

14

25

36

44

60

70

80

91

104

111

122

LEG

LEVER

(lbs.)

22

35

53

67

91

111

122

148

160

184

190

BUTTERFLY

ARM

(lbs.)

17

26

36

45

54

63

71

80

91

100

108

PRESS

ARM

(lbs.)

24

39

55

70

89

104

118

136

154

167

187

SQUAT

STATION

(lbs.)

59

87

116

136

170

192

203

223

239

254

270

SWIVEL

STATION

(lbs.)

16

26

39

52

59

74

84

90

104

116

122

WEIGHT

Top

1

2

3

4

5

6

7

8

9

10

24

WEIGHT RESISTANCE CHART

The chart below shows the approximate weight resistance at each weight station. “Top” refers to the 10-pound

top weight. The other numbers refer to the 10-pound weight plates. The butterfly arm resistance listed is the

resistance for each butterfly arm. Note: The actual resistance at each weight station may vary due to differ-

ences in individual weight plates as well as friction between the cables, pulleys, and weight guides.

25

TROUBLESHOOTING

Make sure all parts are properly tightened each time the weight system is used. Replace any worn parts immedi-

ately. The weight system can be cleaned using a damp cloth and mild non-abrasive detergent. Do not use solvents.

TIGHTENING THE CABLES

Woven cable, the type of cable used on the weight system, can stretch slightly when it is first used. If there is

slack in the cables before resistance is felt, the cables should be tightened. To tighten the cables, first insert the

weight pins into the centers of the weight stacks. Slack can be removed from the cables in several ways:

See drawing 1. To tighten the Squat Cable (73) or the Swivel

High Cable (not shown), first loosen the 1/2” Nut (118) on the

end of the Cable, away from the 1/2” Washer (1). Screw the

end of the Cable farther into the Weight Tube (43). Then,

retighten the Nut against the Washer.

See drawing 3. To tighten the other five cables, first remove

the upper or lower 3/8” Nylon Locknut (87), 3/8” x 2” Bolt

(100), 3 1/2” Pulley (78), and Cable Trap (68) from the Pulley

Plates (63) or Small Pulley Plates (not shown). Reattach the

Pulley and the Cable Trap between a set of holes closer to

the center of the Pulley Plates with the Bolt and Locknut.

See drawing 2. To further tighten the Squat Cable (73), first

remove the 3/8” Nylon Locknut (87), the 3/8" x 2" Bolt (100),

Cable Trap (68), and 3 1/2” Pulley (78) from the indicated

bracket on the Long Base (120). Reattach the Pulley and

Cable Trap between a lower set of holes with the Bolt and

Nylon Locknut.

See drawing 4. To remove additional slack, first remove the

3/8” Nylon Locknut (87), 3/8” x 2” Bolt (100), 3 1/2” Pulley

(78), and Cable Trap (68) from the “U”-bracket (64). Reattach

the Pulley and the Cable Trap between the higher set of

holes in the “U”-bracket with the Bolt and Nylon Locknut.

Do not overtighten the cables. If the cables are overtight-

ened, the top weights will be lifted off the weight stacks.

If a cable slips off the pulleys repeatedly, it may have

become twisted. Remove the cable and re-install it. If the

cables need to be replaced, see ORDERING REPLACE-

MENT PARTS on the back cover of this manual.

100

68

3

1

2

4

73

1

118

43

78

68

73

87

120

100

87

87

63

64

78

100

68

78

26

CABLE DIAGRAMS

The cable identification chart below shows the ends of each cable and the lengths of the cables. The cable dia-

grams on this page and the following page show the proper routing of the cables. The numbers in the diagrams

show the routes of the cables. Use the diagrams to make sure that the cables have been assembled correctly.

IMPORTANT: If the cables have not been correctly routed, the weight system will not function properly

and damage may occur.

Butterfly

Cable (69)

Lat Cable (88) Swivel High Cable (74)

Butterfly Cable (69)—58”

Swivel Low Cable (72)—205”

Squat Cable (73)—175 1/4”

Swivel High Cable (74)—126 1/2”

Leg Lever Cable (75)—98 1/2”

Lat Cable (88)—89 1/4”

Swivel Cable (17)—115 3/8”

Cable Identification Chart

1

1

2

3

4

2

3

4

5

1

2

1

2

3

3

4

4

5

5

Squat Cable (73)

27

Leg Lever

Cable (75)

Swivel Low

Cable (72)

1

1

3

2

4

5

6

7

9

2

3

4

1

2

3

4

5

8

Swivel Cable (17)

Part No. 190959 R1102A Printed in Canada © 2002 Sears, Roebuck and Co.

FULL 90 DAY WARRANTY

For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this

SEARS WEIGHT SYSTEM EXERCISER, contact the nearest SEARS Service Center throughout the

United States and SEARS will repair or replace the WEIGHT SYSTEM EXERCISER, free of charge.

This warranty does not apply when the WEIGHT SYSTEM EXERCISER is used commercially or for

rental purposes.

This warranty gives you specific legal rights, and you may also have other rights which vary from state

to state.

SEARS, ROEBUCK AND CO., DEPT. 817WA, HOFFMAN ESTATES, IL 60179

Model No. 831.153930

QUESTIONS?

If you find that:

• you need help assembling or

operating the WEIDER®PRO

4850 weight system

• a part is missing

• or you need to schedule repair

service

call our toll-free HELPLINE

1-800-736-6879

Monday–Saturday, 7 am–7 pm

Central Time (excluding holidays)

REPLACEMENT

PARTS

If parts become worn and need to

be replaced, call the following toll-

free number

1-800-FON-PART

(1-800-366-7278)

The model number and serial number of your WEIDER®PRO

4850 weight system are listed on a decal attached to the frame.

See the front cover of this manual to find the location of the

decal.

All replacement parts are available for immediate purchase or

special order when you visit your nearest SEARS Service

Center. To request service or to order parts by telephone, call the

toll-free numbers listed at the left.

When requesting help or service, or ordering parts, please be

prepared to provide the following information:

• The MODEL NUMBER of the product (831.153930)

• The NAME of the product (WEIDER®PRO 4850 weight sys-

tem)

• The KEY NUMBER and DESCRIPTION of the PART (see the

PART LIST and EXPLODED DRAWING in the center of this

manual)

SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179

Note: Assembly is divided into four stages: 1) frame assembly, 2) arm

assembly, 3) cable assembly, and 4) seat assembly. The hardware for

each stage is packaged in separate bags. WAIT UNTIL YOU BEGIN EACH

ASSEMBLY STAGE TO OPEN THE PARTS BAG LABELED FOR THAT

ASSEMBLY STAGE.

This chart is provided to help you identify the small parts used in assembly. The number in parenthesis below

each part refers to the key number of the part from the PART LIST in the center of this manual. Important:

Some parts may have been pre-assembled for shipping purposes. If you cannot find a part in the parts

bags, check to see if it has been pre-assembled.

1" Round Inner Cap (29)

1 1/2" x 2” Inner Cap (21)

2" Square Inner Cap (105)

1 1/2" Square Inner Cap (67) 2" x 3” Inner Cap (58)

2" x 2 1/2” Inner Cap (125)

Cable Clip (83)

3 1/2" Pulley (78)

(Not shown to scale)

"V" Pulley (55)

(Not shown to scale)

4 1/2" Pulley (119)

(Not shown to scale)

3/8" x 3 3/4" Bolt (122)

3/8" x 6 1/2" Bolt (95)

5/16" Washer (90)

5/16" x 3 3/4" Bolt (92)

5/16" x 3 1/2" Bolt (94)

1/2" Nut (118)

3/8" Nylon Locknut (87)

5/16" Nylon Locknut (86)

3/8" Washer (91)

3/8" Nylon Jamnut (113)

1/4" Nylon Locknut (34)

1/4" Washer (97)

1/2" Washer (1)

1/2" Spacer (89)

3/4" Spacer (124)

PART IDENTIFICATION CHART—Model No. 831.153930 R1102A

3/8" x 2" Bolt (100)

3/8" x 1 3/4" Bolt (93)

3/8" x 1" Bolt (13)

#10 x 1" Screw (14)

3/8" x 2 1/2" Bolt (18)

5/16" x 2 3/4" Bolt (85)

3/8" x 2 3/4" Bolt (101)

3/8" x 3" Bolt (107)

3/8" x 3 1/4" Bolt (96)

5/16" x 3/4" Button Head Screw (51)

5/16" x 2 1/2" Bolt (59)

#8 x 3/4" Screw (98)

1/4" x 1 1/2" Bolt (99)

5/16" x 1" Shoulder Bolt (103)

3/8" x 3" Button Head Bolt (104)

5/16" x 2 1/2" Carriage Bolt (110)

3/8" x 2 1/2" Carriage Bolt (106)

1/4" x 3/4" Screw (114)

3/8" x 7" Bolt (30)

81

REMOVE THIS PART LIST/EXPLODED DRAWING

FROM THE MANUAL.

SAVE THIS PART LIST/EXPLODED DRAWING FOR FUTURE REFERENCE

PART LIST—Model No. 831.153930 R1102A

Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice.

1 2 1/2” Washer

2 1 Short Base

3 1 Butterfly Upright

4 1 Squat Upright

5 1 Swivel Upright

6 1 Top Frame

7 1 Butterfly Top Frame

8 1 Seat Frame

9 1 Seat Upright

10 1 Leg Lever

11 1 Curl Pad

12 1 Curl Post

13 1 3/8” x 1” Bolt

14 6 #10 x 1” Screw

15 1 Butterfly Backrest

16 1 Seat

17 1 Swivel Cable

18 4 3/8” x 2 1/2” Bolt

19 2 Knee Pad

20 4 Short Pad

21 5 1 1/2" x 2" Inner Cap

22 1 Ab Strap

23 1 Pad Tube

24 1 Base Cap

25 1 Left Butterfly Arm

26 1 Right Butterfly Arm

27 2 Press Handle

28 2 Long Handgrip

29 2 1" Round Inner Cap

30 1 3/8” x 7” Bolt

31 2 Small Pulley Plate

32 1 Squat Arm

33 2 Squat Handle

34 1 1/4” Nylon Locknut

35 1 Squat Backrest

36 4 5” Handgrip

37 1 Squat Bracket

38 1 Squat Slider

39 4 Roller

40 8 Roller Bearing

41 1 Squat Knee Rest

42 4 Weight Guide

43 2 Weight Tube

44 20 Weight

45 2 Top Weight

46 1 Swivel Carriage

47 1 Butterfly Frame

48 2 Weight Tube Bumper

49 4 Weight Bumper

50 2 Weight Pin

51 8 5/16” x 3/4” Button

Head Screw

52 2 Short Frame Plate

53 1 Foot Plate

54 2 Long Pad

55 2 "V"-pulley

56 4 Plastic Washer

57 4 Butterfly Cap

58 7 2” x 3” Inner Cap

59 4 5/16” x 2 1/2” Bolt

60 2 “L”-pin w/Tether

61 1 Offset Double

“U”-bracket

62 1 Double “U”-bracket

63 2 Pulley Plate

64 1 "U"-bracket

65 1 Adjustment Handle

66 2 Swivel Bushings

67 1 1 1/2" Square Inner

Cap

68 8 Cable Trap

69 1 Butterfly Cable

70 2 Pivot Bracket

71 1 Long Frame Plate

72 1 Swivel Low Cable

73 1 Squat Cable

74 1 Swivel High Cable

75 1 Leg Lever Cable

76 1 Swivel Cage

77 1 Leg Lever Bumper

78 22 3 1/2" Pulley

79 1 Lat Bar

80 1 Row Bar

81 1 Chain

82 1 Handle

83 3 Cable Clip

84 2 8” Handgrip

85 4 5/16” x 2 3/4” Bolt

86 33 5/16" Nylon Locknut

87 36 3/8" Nylon Locknut

88 1 Lat Cable

89 6 1/2” Spacer

90 34 5/16" Washer

91 17 3/8" Washer

92 8 5/16” x 3 3/4” Bolt

93 14 3/8" x 1 3/4" Bolt

94 4 5/16” x 3 1/2” Bolt

95 2 3/8" x 6 1/2" Bolt

96 2 3/8” x 3 1/4” Bolt

97 2 1/4" Washer

98 3 #8 x 3/4” Screw

99 1 1/4" x 2 1/2" Screw

100 9 3/8" x 2" Bolt

101 3 3/8” x 2 3/4” Bolt

102 3 Long Cable Trap

103 3 5/16” x 1” Shoulder

Bolt

104 2 3/8” x 3” Button Head

Bolt

105 1 2” Square Inner Cap

106 2 3/8” x 2 1/2” Carriage

Bolt

107 2 3/8” x 3” Bolt

108 8 Nut Clip

109 2 Knee Pad Cap

110 10 5/16” x 2 1/2”

Carriage Bolt

111 2 Inner Cap w/Hole

112 1 Pin w/Tether

113 8 3/8” Nylon Jamnut

114 12 1/4” x 3/4” Screw

115 1 Adjustment Knob

116 1 Eyebolt

117 1 Curl Knob

118 2 1/2” Nut

119 4 4 1/2” Pulley

120 1 Long Base

121 1 Large Cable Trap

122 1 3/8” x 3 3/4” Bolt

123 4 Knee Rest Bumper

124 2 3/4” Spacer

125 1 2” x 2 1/2” Inner Cap

# 1 User’s Manual

# 1 Exercise Guide

Key

No. Qty. Description

Key

No. Qty. Description

Key

No. Qty. Description

4

6

5

7

3

2

8

9

10

12

16

109

109

19

19

20

20

21

21

20

116

21

23

24

25

26

27

27

28

29

29

28

32

33

33 111

111

35

37

38

39

39

40

40

40

42

42

43

43

47

45

44

45

44

48

48

49

50

50

114

114

52

52

55

55

56

57

57

57

58

54

54

21

60 60

64

115

67

68

102

69

69

70

70

72

72

73

74

17

75

75

78

119

78

78

78

78

78

102

102

78

79

36

36

36

80

81

82

83

78

119

119

78

77

110

110

113

87

87

87

86

113

87

113

87

87

86

113

86

87

87

86

87

87

87

88

88

89

89

78

89

89

97

91

91

51

51

51

51

51 51

51

51

92

92

93

100

87

100

87

92

122

93

93

93

85

95

95

94

94

59

14

18

99

106

103

103

101

92

18

18

104

98

107

49

92

92

59

93

125

107

58

58

124

59

86

120

41

112

71

58

73

78

78

110

110

87

87

87

87

87

93

93

100

59

96

85

78

58

93

90

90

90

14

34

97

90

90

90

90

90

90

91

91

90

90

58

101

91

86

86

86

86

86

86

86

86

90 86

86

90

86

86

98

110

86

105

86

86

86

100

100

113

113

91

86

86

87

108

108

108

108

108

96

90

90

90

90

90

90

86

103

91

91

53

84

84

90

90

90

68

91

91

87

104

91

86

121

85

90

118

118

90

90

40

90

86

90

94 40

40

39

98

1

1

123

14

14

123

14

123

124

86

63

63

68

68

78

78

87

100

46

30

119

78

78

87

101

89

91

89

87

91

65

87

100

68

68

76

31

31

66

66

87

13

86 17

68

93

87

74

68

58

61

78

87

87

93

93

78

113

114

114

114

86

11

117

114

114

86

15

62

22

91

18

91

EXPLODED DRAWING—Model No. 831.153930 R1102A
