Model No. 831.159380

Serial No.

The serial number can be found in the

location shown below. Write the serial

number in the space above.

CAUTION

Read all precautions and instruc-

tions in this manual before

using this equipment. Save this

manual for future reference.

USER'S MANUAL

SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179

Serial Number Decal

PATENT PENDING

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

HOW TO USE THE HOME GYM SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

WEIGHT RESISTANCE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

TROUBLE-SHOOTING AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

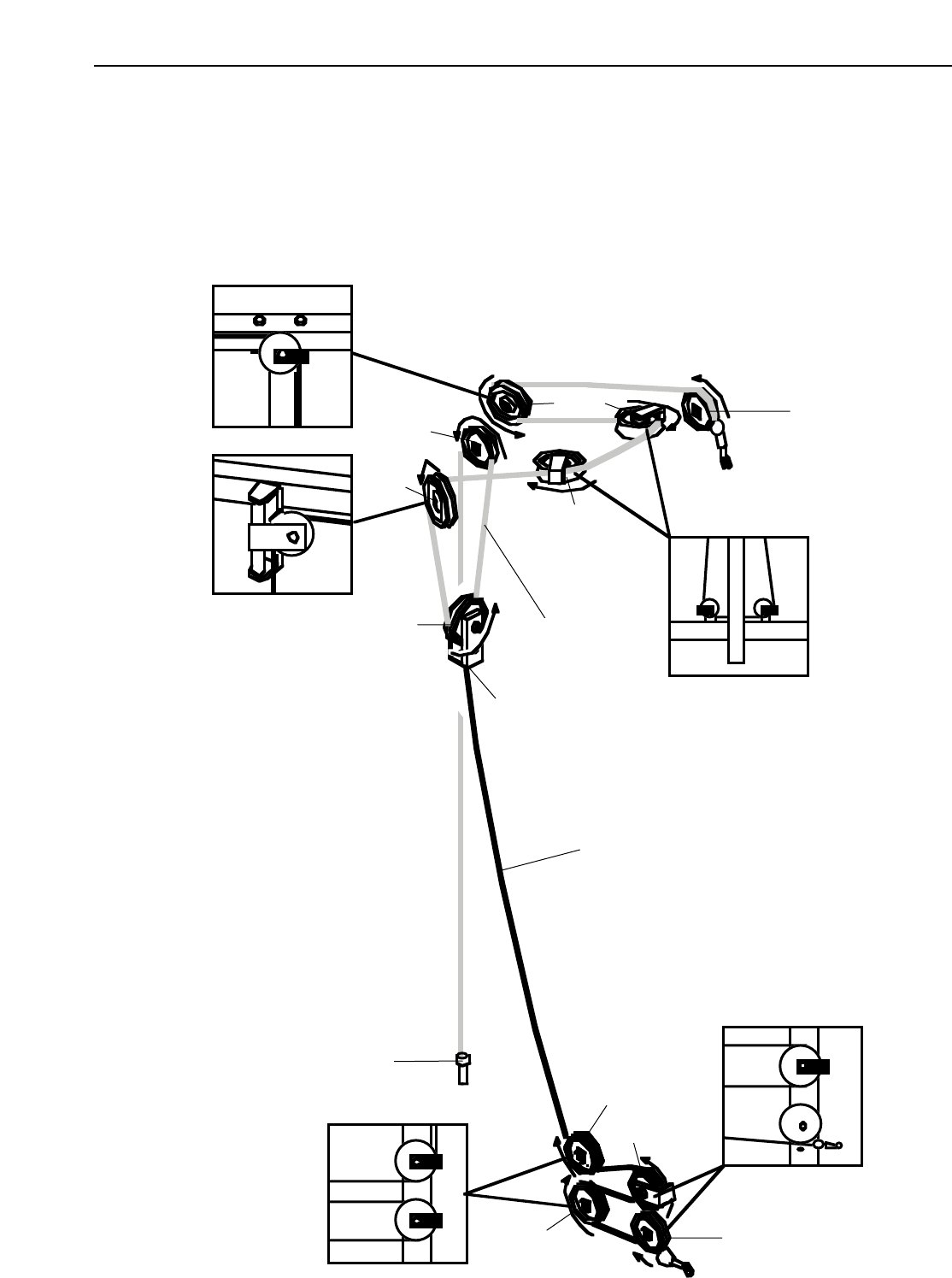

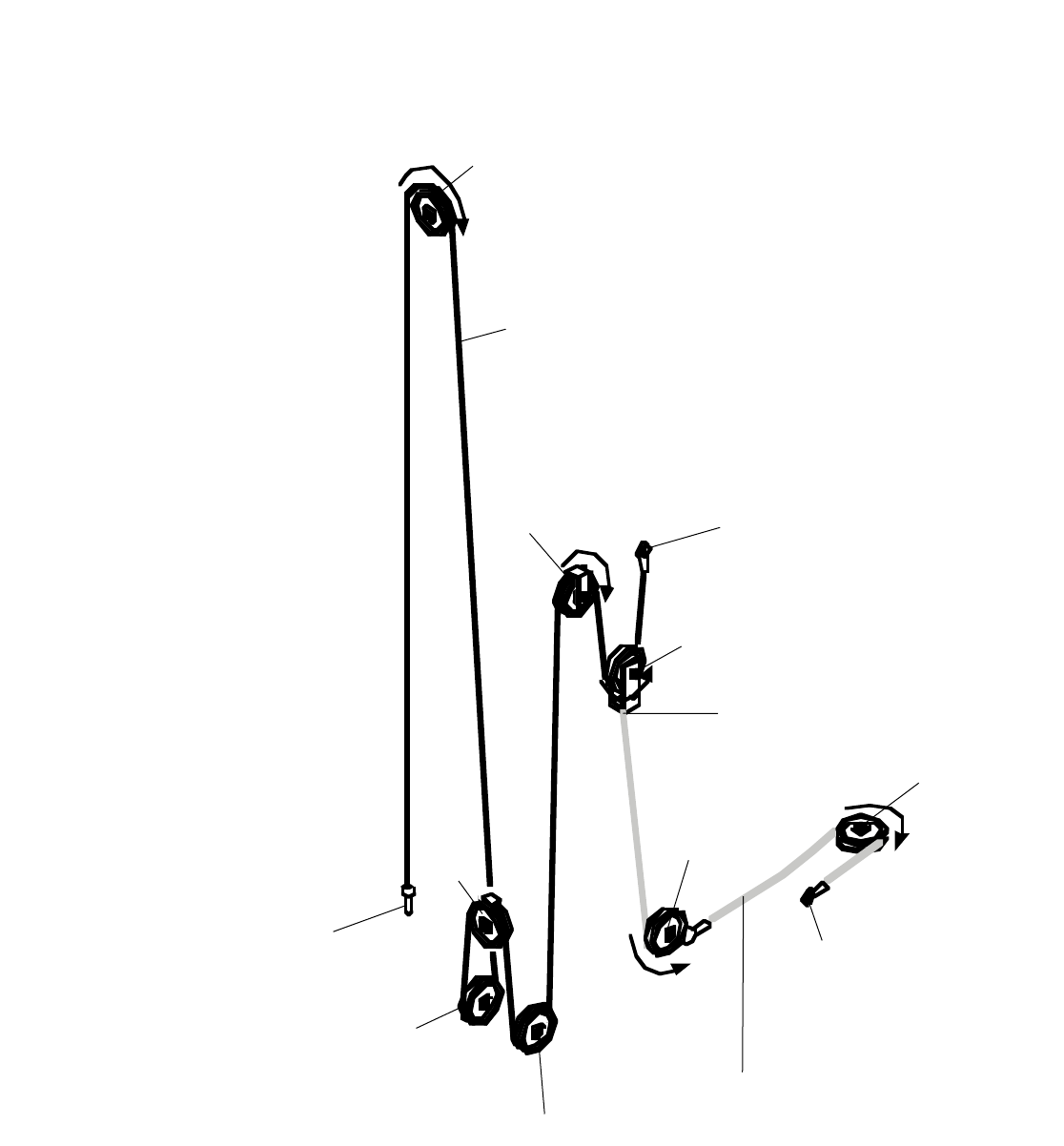

CABLE DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

FULL 90 DAY WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

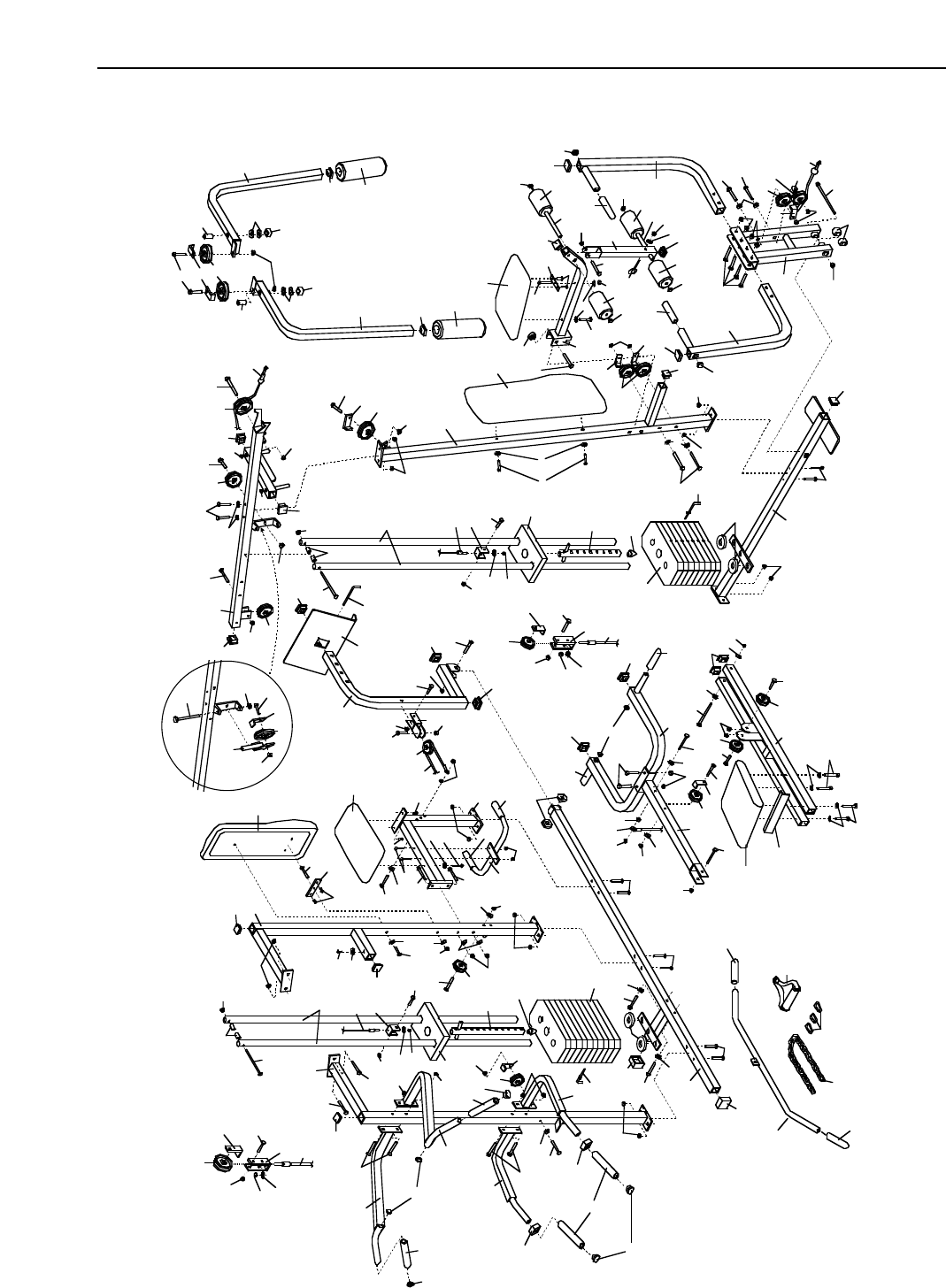

Note: A PART IDENTIFICATION CHART and a PART LIST/EXPLODED DRAWING are attached to the center of

this manual. Remove them before beginning assembly.

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read the following important precautions before using

the home gym system.

1. It is the responsibility of the owner to ensure

that all users of the home gym system are

adequately informed of all precautions.

2. The home gym system is intended for home

use only. Do not use the home gym system in

any commercial, rental, or institutional set-

ting.

3. Read all instructions in this manual and in

the accompanying literature before using the

home gym system.

4. Use the home gym system only on a level

surface. Cover the floor beneath the home

gym system for protection.

5. Inspect and tighten all parts often. Replace

any worn parts immediately.

6. Keep small children and pets away from the

home gym system at all times.

7. Always stand on a foot plate when perform-

ing an exercise that could cause the home

gym system to tip.

8. Keep your hands away from the leg press

upright when the military press arm is being

used. Your hand could become pinched

between the leg press upright and the mili-

tary press arm.

9. Never release the press arm, butterfly arms,

military press arm, leg lever, leg press plate,

lat bar or nylon strap when weights are

raised. The weights will fall with great force.

10. Keep hands and feet away from moving parts.

Always wear athletic shoes for foot protection.

11. Keep your hands away from the assist

upright when the assist arm is being used.

Your hand could become pinched between

the assist upright and the assist arm.

12. Always be sure that your body weight is fully

supported by the dip arms or the pull-up

arms before kneeling on the assist arm. The

assist arm can drop quickly when your body

weight is placed on it.

13. Make sure that the cables remain on the pul-

leys at all times. If the cables bind while you

are exercising, stop immediately and make

sure that the cables are on all of the pulleys.

14. Always disconnect the lat bar from the home

gym system when performing an exercise

that does not use the lat bar.

15. If you feel pain or dizziness at any time while

exercising, stop immediately and begin cool-

ing down.

WARNING: Before beginning this or any exercise program, consult your physician. This is especially

important for persons over the age of 35 or persons with pre-existing health problems. Read all

instructions before using. SEARS assumes no responsibility for personal injury or property damage

sustained by or through the use of this product.

BEFORE YOU BEGIN

ASSEMBLED

DIMENSIONS:

Height: 78 in.

Width: 86 in.

Length: 66 in.

Foot Plate

Low Pulley

Station

High Pulley Station

Lat Bar

Leg Lever

Butterfly Arms

Military Press Arm

Assist Arm Press Arm

Weight Stacks

Backrests

Dip Handles

Pull-up Handles

Leg Press

Plate

Thank you for selecting the versatile WEIDER®PRO

9645 Home Gym System. The PRO 9645 offers a

selection of weight stations designed to develop every

major muscle group of the body. Whether your goal is

to tone your body, build dramatic muscle size and

strength, or improve your cardiovascular system, the

PRO 9645 will help you to achieve the specific results

you want.

For your benefit, read this manual carefully before

using the WEIDER®PRO 9645 Home Gym System.

If you have additional questions, please call our toll-

free HELPLINE at 1-800-736-6879, Monday through

Saturday, 7 a.m. until 7 p.m. Central Time (excluding

holidays). To help us assist you, please note the prod-

uct model number and serial number before calling.

The model number is 831.159380. The serial number

can be found on a decal attached to the WEIDER®

PRO 9645 (see the front cover of this manual).

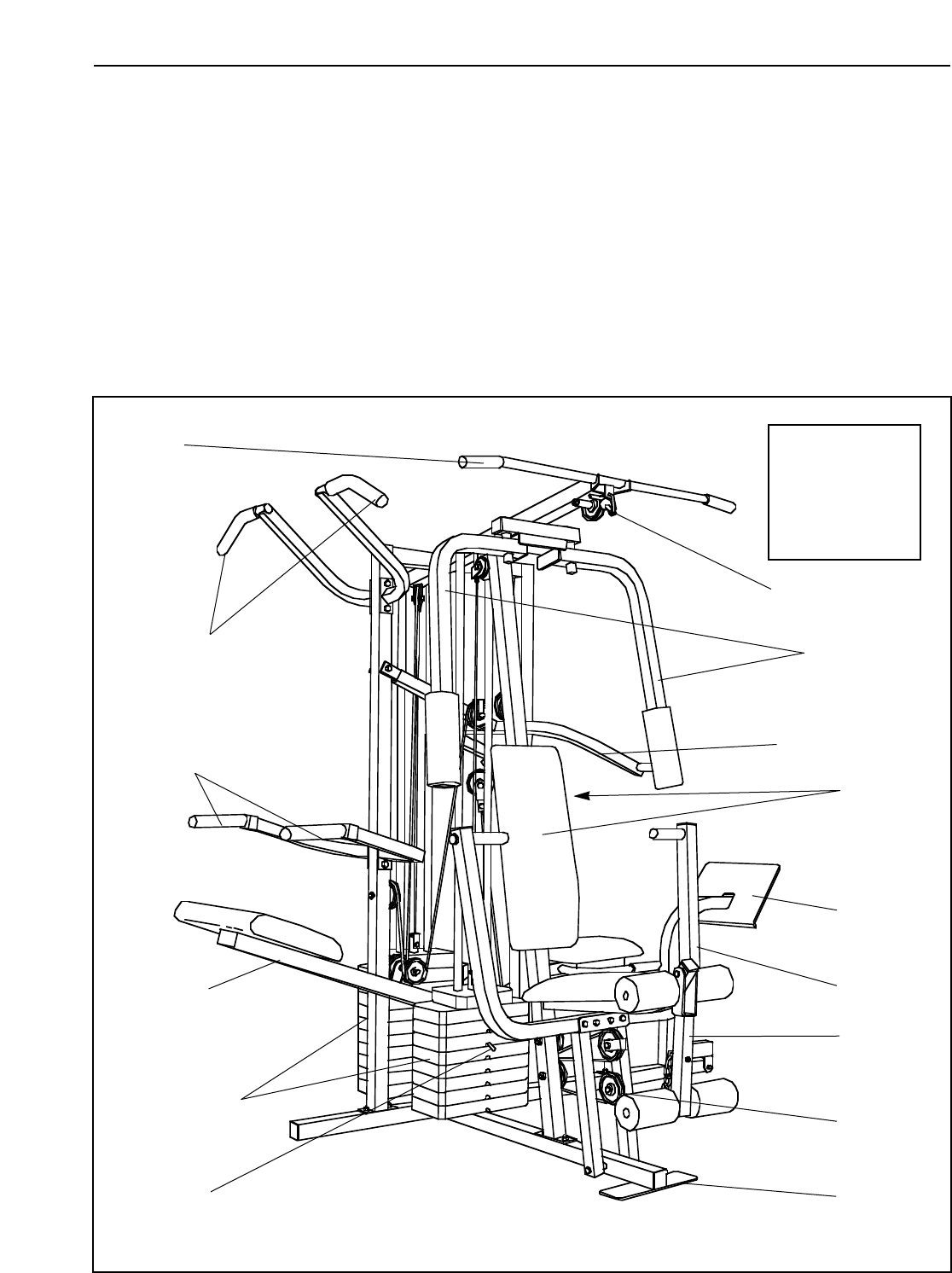

Before reading further, please review the drawing

below and familiarize yourself with the parts that are

labeled.

Weight Pin

ASSEMBLY

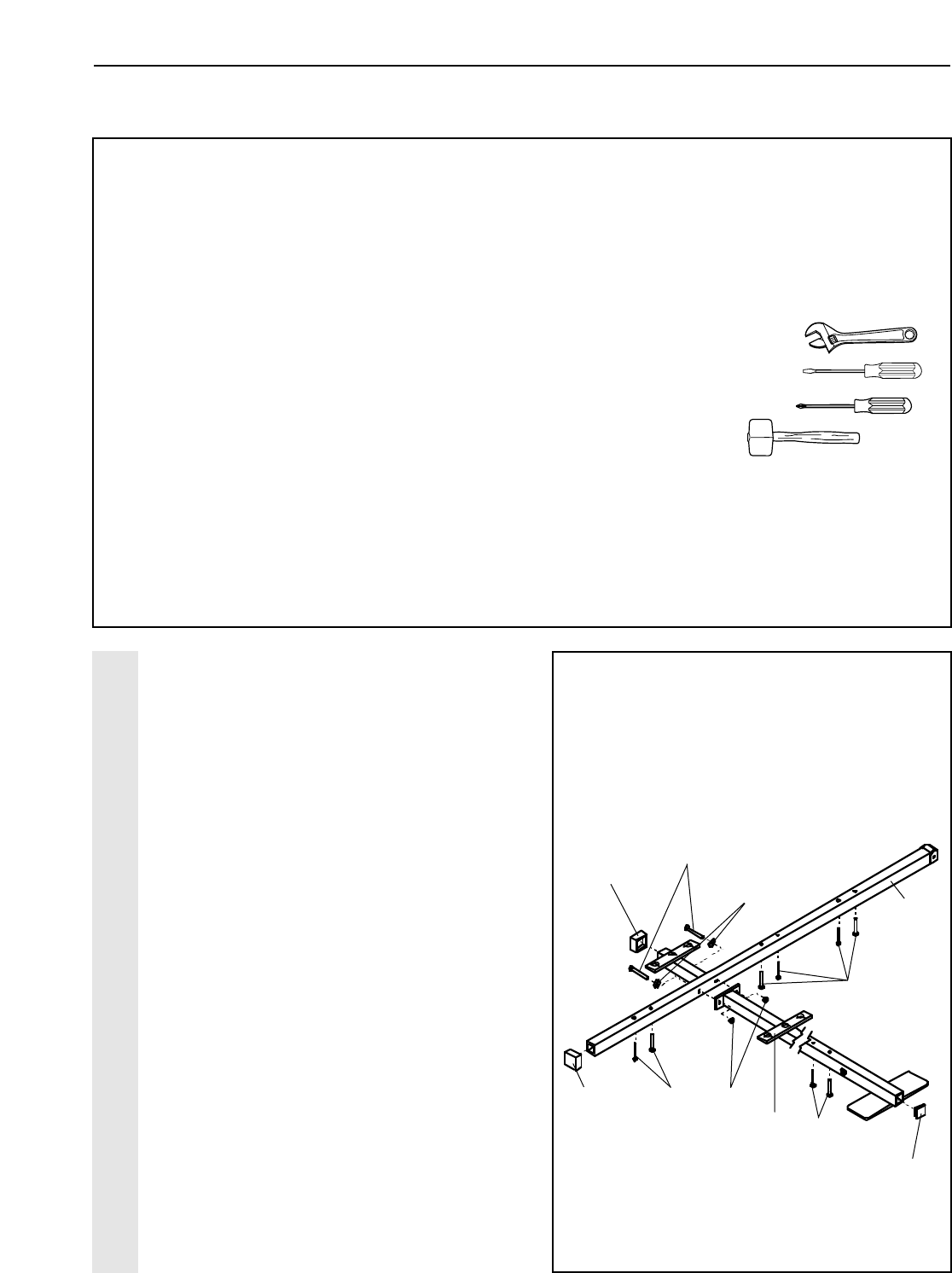

1. Before beginning assembly, be sure that

you have read and understand the infor-

mation in the box above.

Locate and open the parts bag labeled

“FRAME ASSEMBLY.”

Press two 2” Square Outer Caps (51) onto

the Stabilizer (5). Press a 2” Square Inner

Cap (27) into the Base (4).

Insert six 5/16” x 2 1/2” Carriage Bolts (1) up

through the Stabilizer (5). Insert two 5/16” x

2 1/2” Carriage Bolts up through the Base

(4).

Attach the Base (4) to the Stabilizer (5) with

two 5/16” x 2 3/4” Bolts (11), two 5/16” Flat

Washers (8), and two 5/16” Nylon Locknuts

(3). Do not tighten the Nylon Locknuts

yet.

FRAME ASSEMBLY

Before beginning assembly, carefully read the

following information and instructions:

•Place all parts of the PRO 9645 in a cleared area

and remove the packing materials; do not dispose

of the packing materials until assembly is com-

pleted.

• The assembly is broken into four stages: 1) frame

assembly, 2) arm assembly, 3) cable and pulley

assembly, and 4) seat and backrest assembly.

The hardware for each stage is packaged sepa-

rately.

• Wait until you begin each assembly stage to open

the parts bag labeled for that assembly stage.

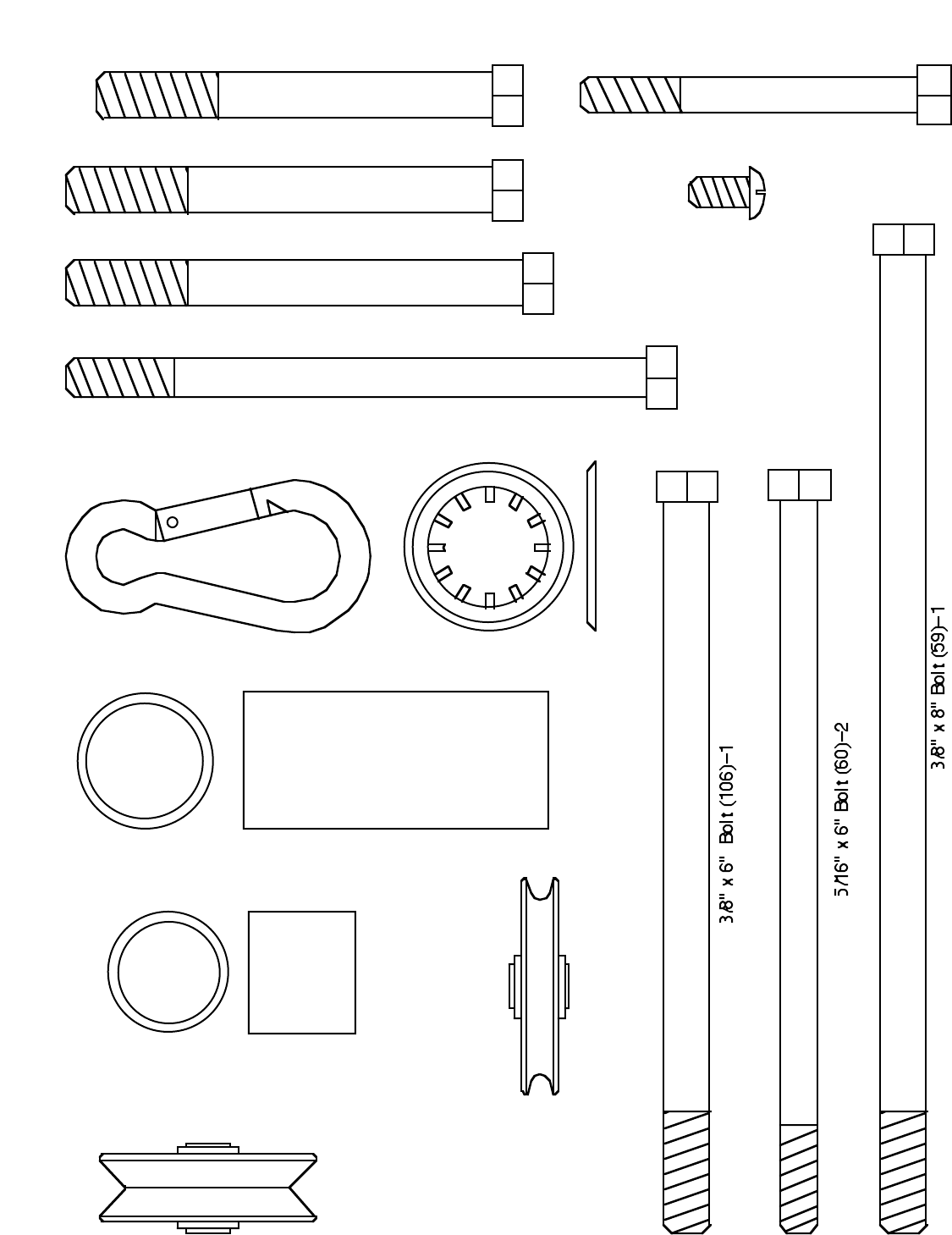

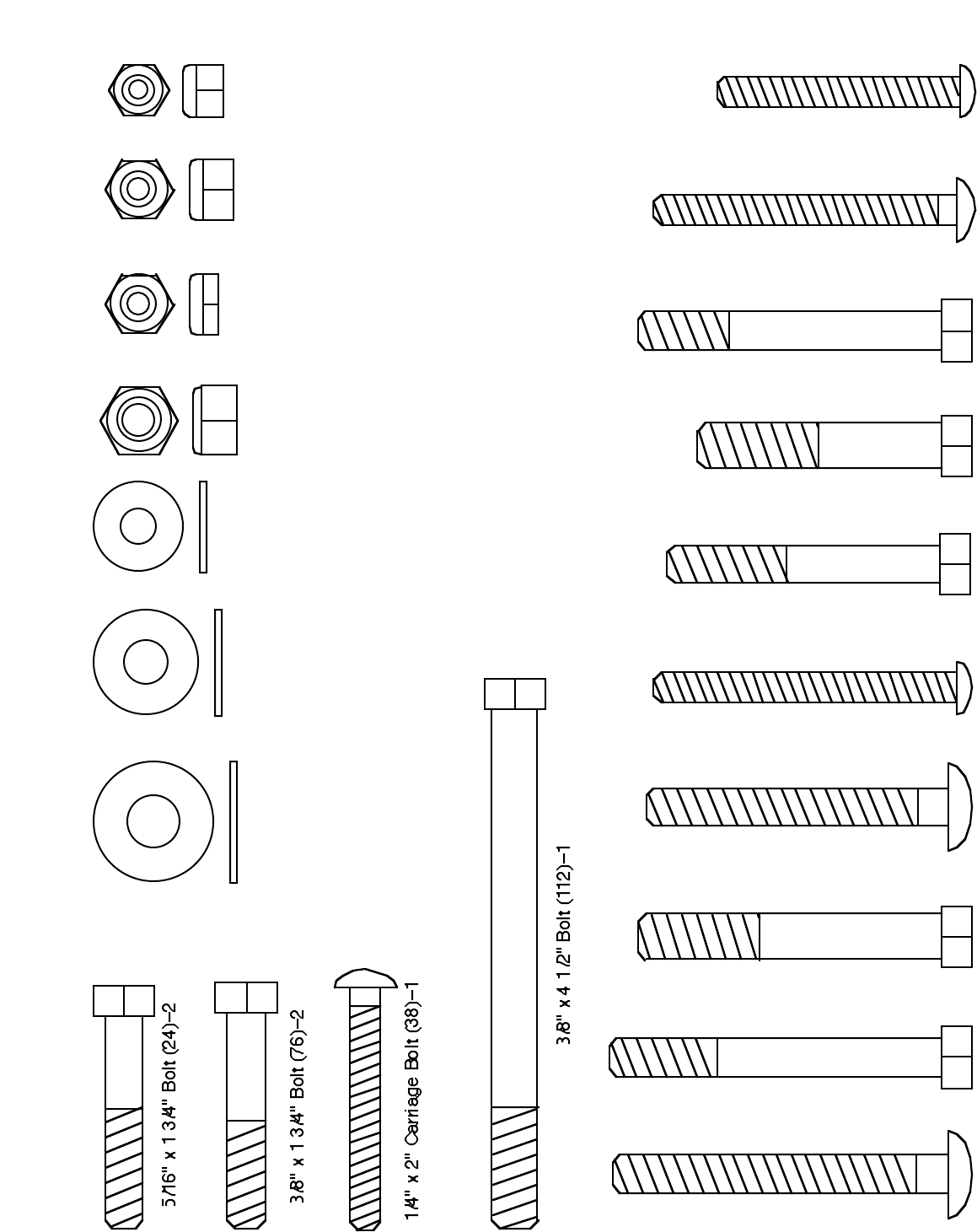

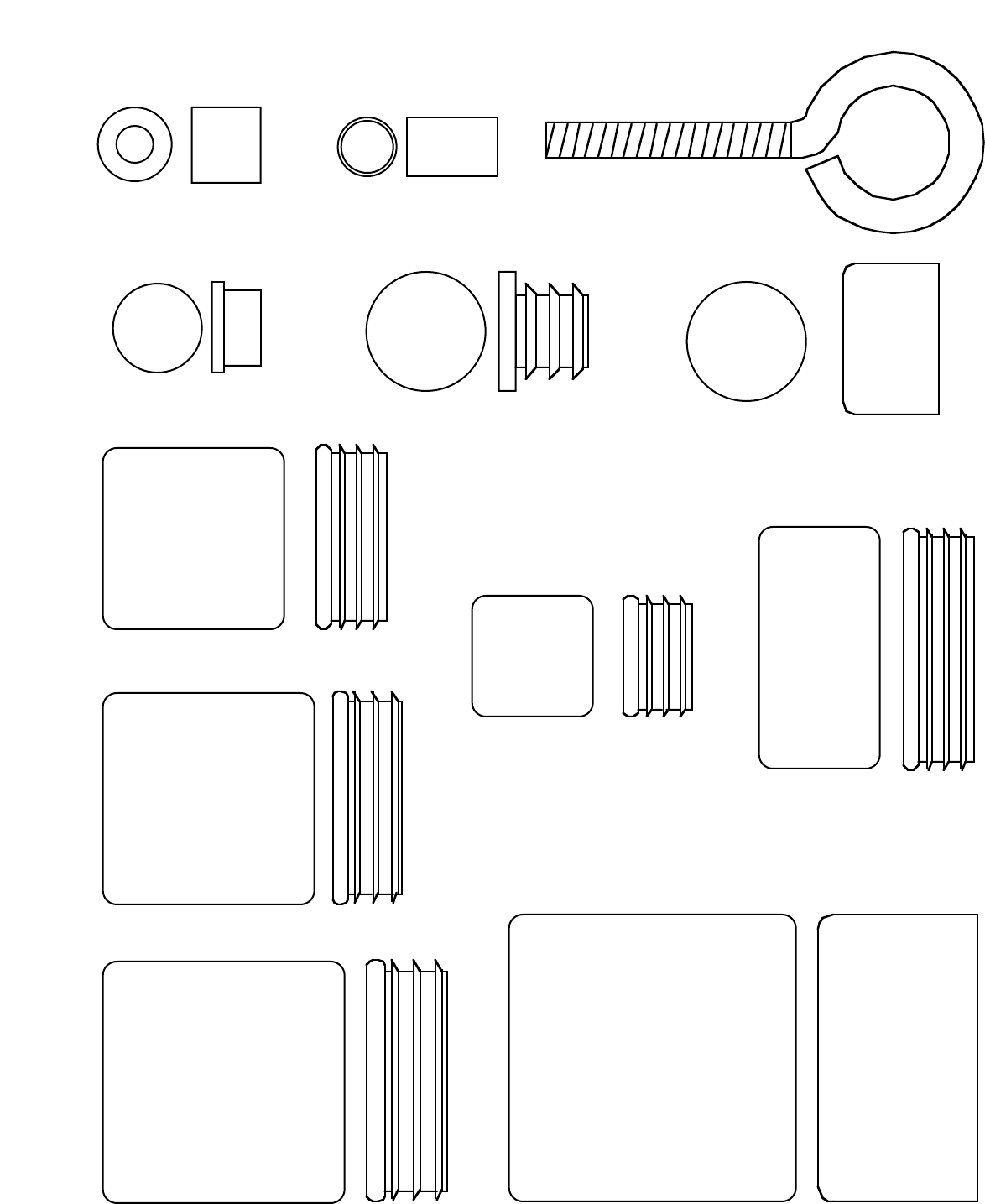

•For help identifying the small parts used in

assembly, use the PART IDENTIFICATION

CHART located in the center of this manual.

Note: Some small parts may have been pre-

attached for shipping. If a part is not in the parts

bag, check to see if it has been pre-attached.

•As you assemble the PRO 9645 be sure that all

parts are oriented as shown in the drawings.

•Tighten all parts as you assemble them, unless

instructed to do otherwise.

THE FOLLOWING TOOLS (NOT INCLUDED) ARE

REQUIRED FOR ASSEMBLY:

• Two (2) adjustable wrenches

• One (1) standard screwdriver

• One (1) phillips screwdriver

• One (1) rubber mallet

• Lubricant, such as grease or petroleum jelly,

and soapy water will also be needed.

Assembly will be more convenient if you have the

following tools: A socket set, a set of open-end or

closed-end wrenches, or a set of ratchet wrenches.

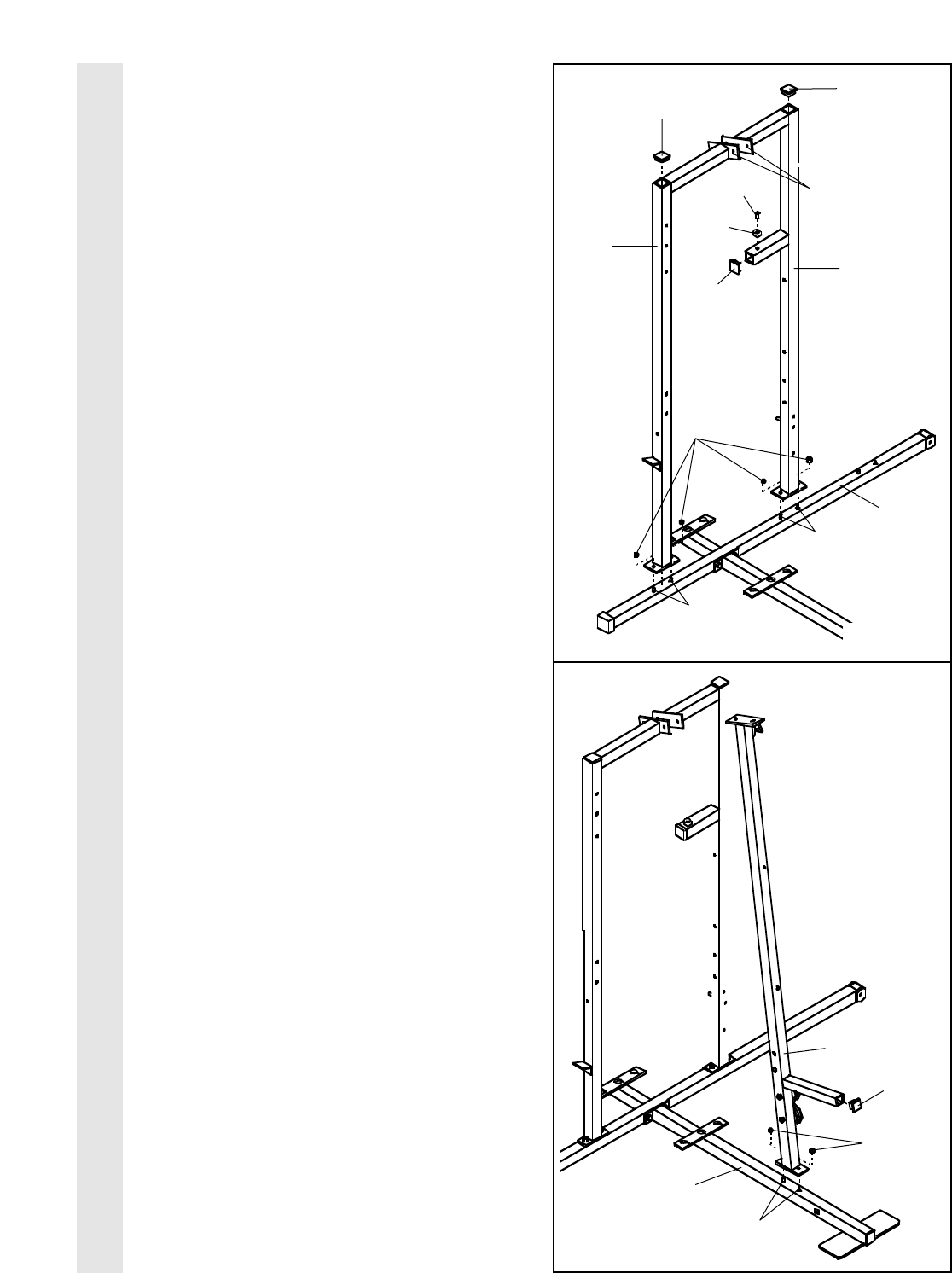

2. Slide the Assist Upright (74) and the Leg

Press Upright (56) onto the indicated 5/16” x

2 1/2” Carriage Bolts (1) in the Stabilizer (5).

The high side of the brackets on the Assist

Upright and Leg Press Upright should be

on the side shown. Hand-tighten four 5/16”

Nylon Locknuts (3) onto the Carriage Bolts.

Do not tighten the Nylon Locknuts yet.

Press two 2” Square Inner Caps (27) into the

Leg Press Upright (56). Press a 2” Square

Inner Cap into the Assist Upright (74).

Attach the Rubber Bumper (91) to the Leg

Press Upright (56) with the #8 x 1/2” Self-tap-

ping Screw (87).

3. Slide the Front Upright (42) onto the 5/16” x

2 1/2” Carriage Bolts (1) in the Base (4).

Hand-tighten a 5/16” Nylon Locknut (3) onto

each Carriage Bolt. Do not tighten the Nylon

Locknuts yet.

Press a 1” Square Inner Cap (6) into the Front

Upright (42).

High Sides

of Brackets

FRAME ASSEMBLY

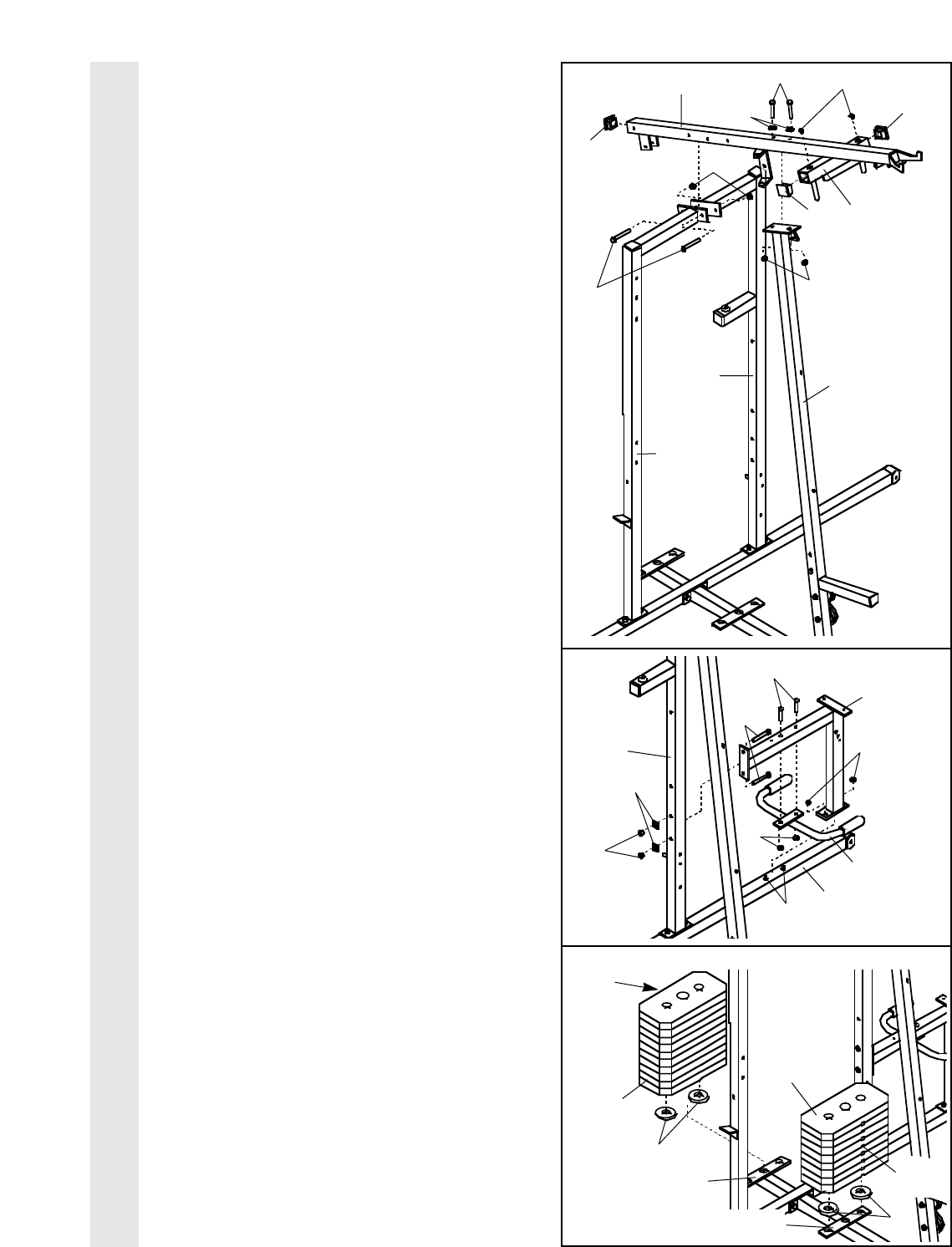

4. Press a 2” Square Inner Cap (27) into the end

of the Top Frame (55). Press a 1 3/4” Square

Inner Cap (44) into each end of the crossbar

on the Top Frame. Press two 1” Round Inner

Caps (49) into the top of the crossbar.

Attach the Top Frame (55) to the Assist

Upright (74) and the Leg Press Upright (56)

with two 5/16” x 2 3/4” Bolts (11) and two

5/16” Nylon Locknuts (3).

Attach the Top Frame (55) to the Front Upright

(42) with two 5/16” x 2 3/4” Bolts (11), two

5/16” Flat Washers (8), and two 5/16” Nylon

Locknuts (3).

5. Slide the Rear Seat Frame (100) onto the

indicated 5/16” x 2 1/2” Carriage Bolts (1) in

the Stabilizer (5). Hand-tighten two 5/16”

Nylon Locknuts (3) onto the Carriage Bolts.

Do not tighten the Nylon Locknuts yet.

Attach the other end of the Rear Seat Frame

(100) to the Leg Press Upright (56) with two

5/16” x 2 3/4” Bolts (11), two 5/16” Flat

Washers (8), and two 5/16” Nylon Locknuts (3).

Attach the Handle (82) to the Rear Seat

Frame (100) with two 5/16” x 2 1/2” Carriage

Bolts (1) and two 5/16” Nylon Locknuts (3).

Tighten all Nylon Locknuts used in steps

1–5.

6. Set two Weight Bumpers (19) on the bracket

on the Base (4) as shown. Set two Weight

Bumpers (19) on the bracket on the Stabilizer

(5).

Stack ten Weights (25) onto the bracket on

the Stabilizer (5). Stack eight Weights onto the

bracket on the Base (4). Be sure that the pin

grooves are all on the same side of each

stack of Weights.

Be careful not to tip either stack of

Weights (25) until step 8 is complete.

56 42

Crossbar

100

5—Bracket

4—Bracket

FRAME ASSEMBLY

Grooves

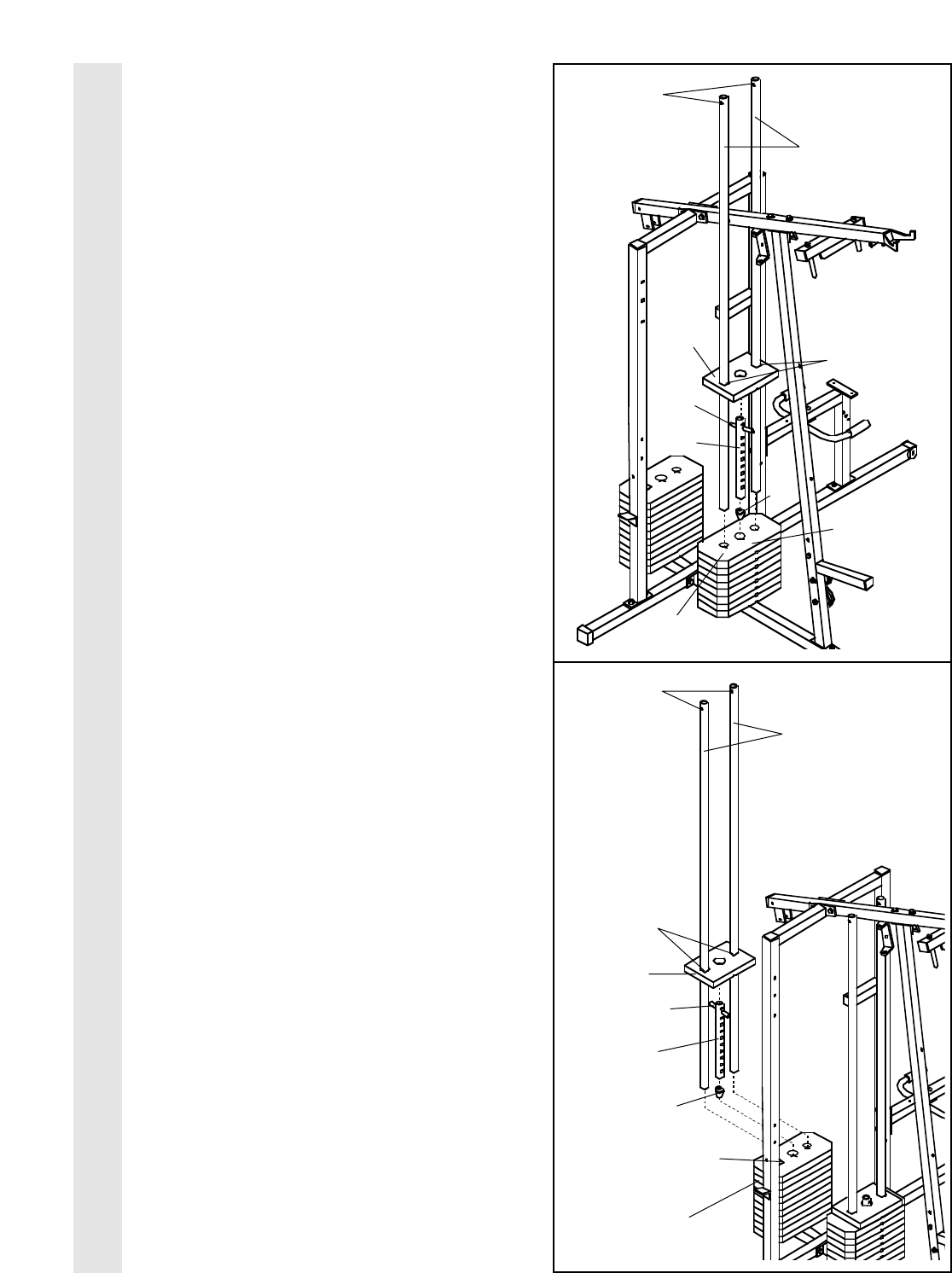

7. Press a Weight Tube Bumper (64) into the

end of the Short Weight Tube (108). Insert the

Weight Tube into the front stack of Weights

(25). Be sure that the pin on the Weight

Tube is sitting in the pin grooves in the top

Weight.

Lubricate the inside of the holes in a Top

Weight (65). Set the Top Weight onto the front

stack of Weights (25). Insert both Long Weight

Guides (62) into the stack of Weights. Be

sure that the holes in the Weight Guides

are at the top, as shown.

8. Press a Weight Tube Bumper (64) into the

end of the Long Weight Tube (63). Insert the

Weight Tube into the rear stack of Weights

(25). Be sure that the pin on the Weight

Tube is sitting in the pin grooves in the top

Weight.

Lubricate the inside of the holes in the other

Top Weight (65). Set the Top Weight onto the

rear stack of Weights (25). Insert both Short

Weight Guides (73) into the stack of Weights.

Be sure that the holes in the Weight

Guides are at the top, as shown.

7Holes

Lubricate

108

Pin Grooves

Holes

Lubricate

Pin Grooves

FRAME ASSEMBLY

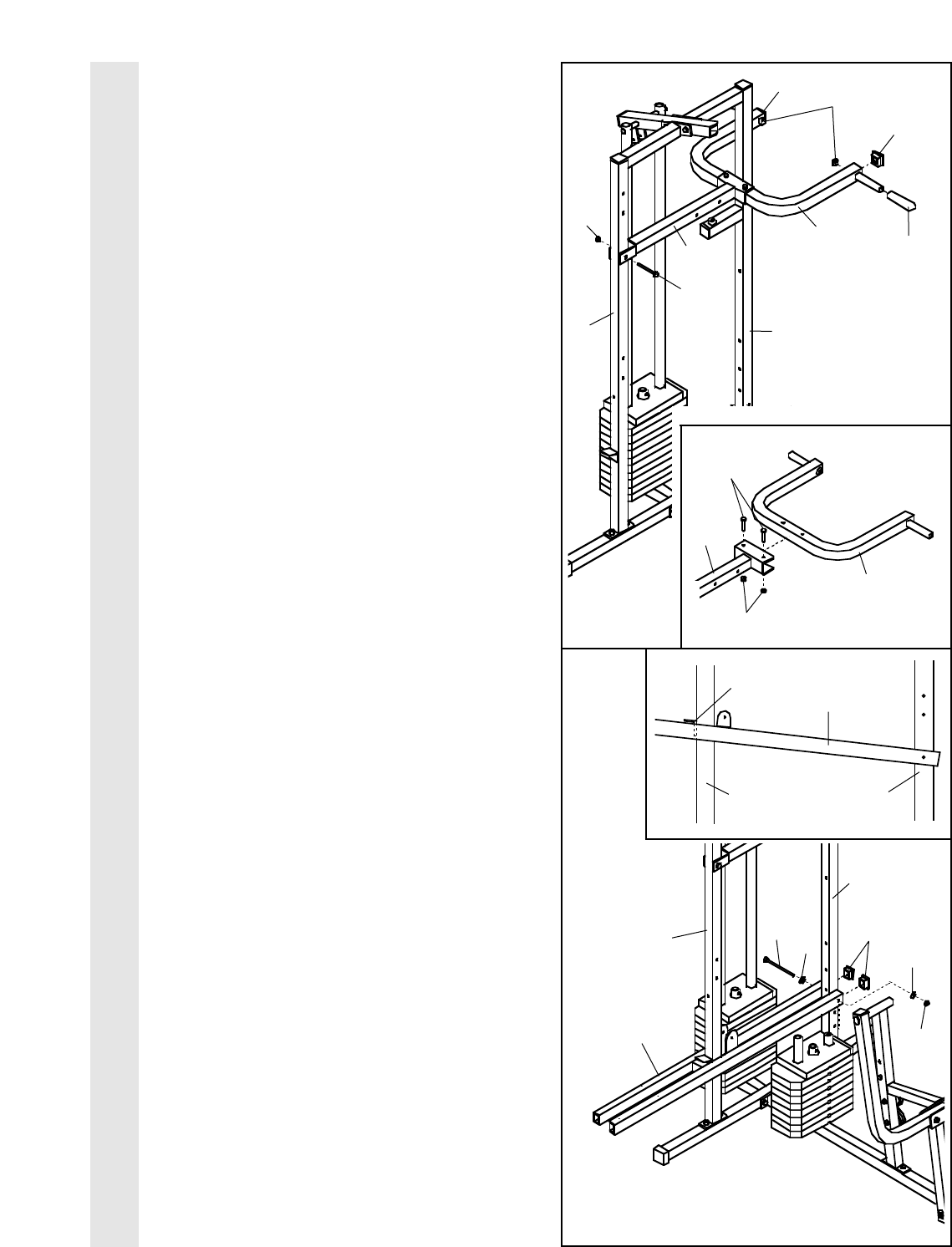

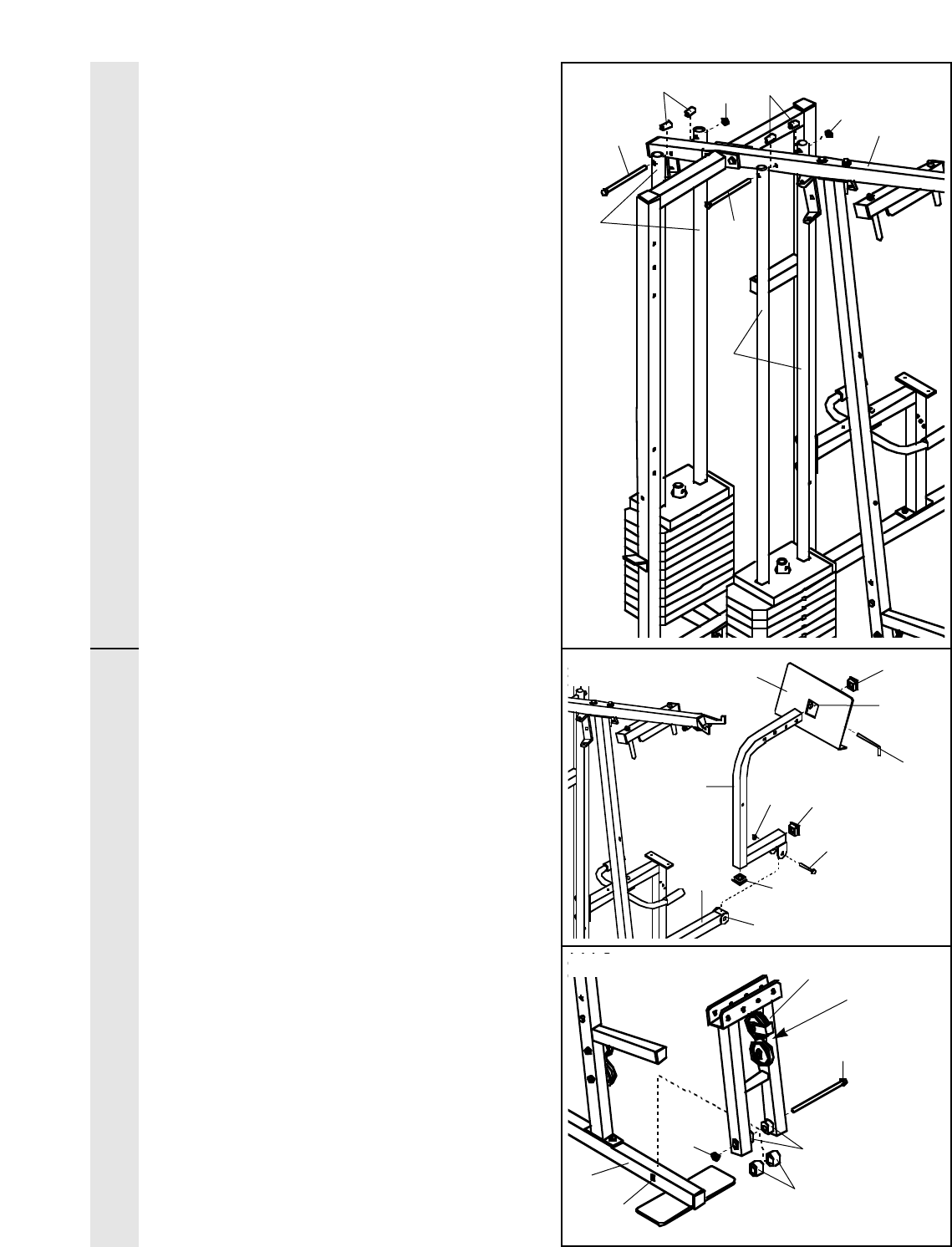

9. Attach the upper ends of the Short Weight

Guides (73) to the Top Frame (55) with a 5/16”

x 6” Bolt (60), two 1/2” x 3/4” Spacers (61), and

a 5/16” Nylon Locknut (3).

Attach the upper ends of the Long Weight

Guides (62) to the Top Frame (55) in the same

manner.

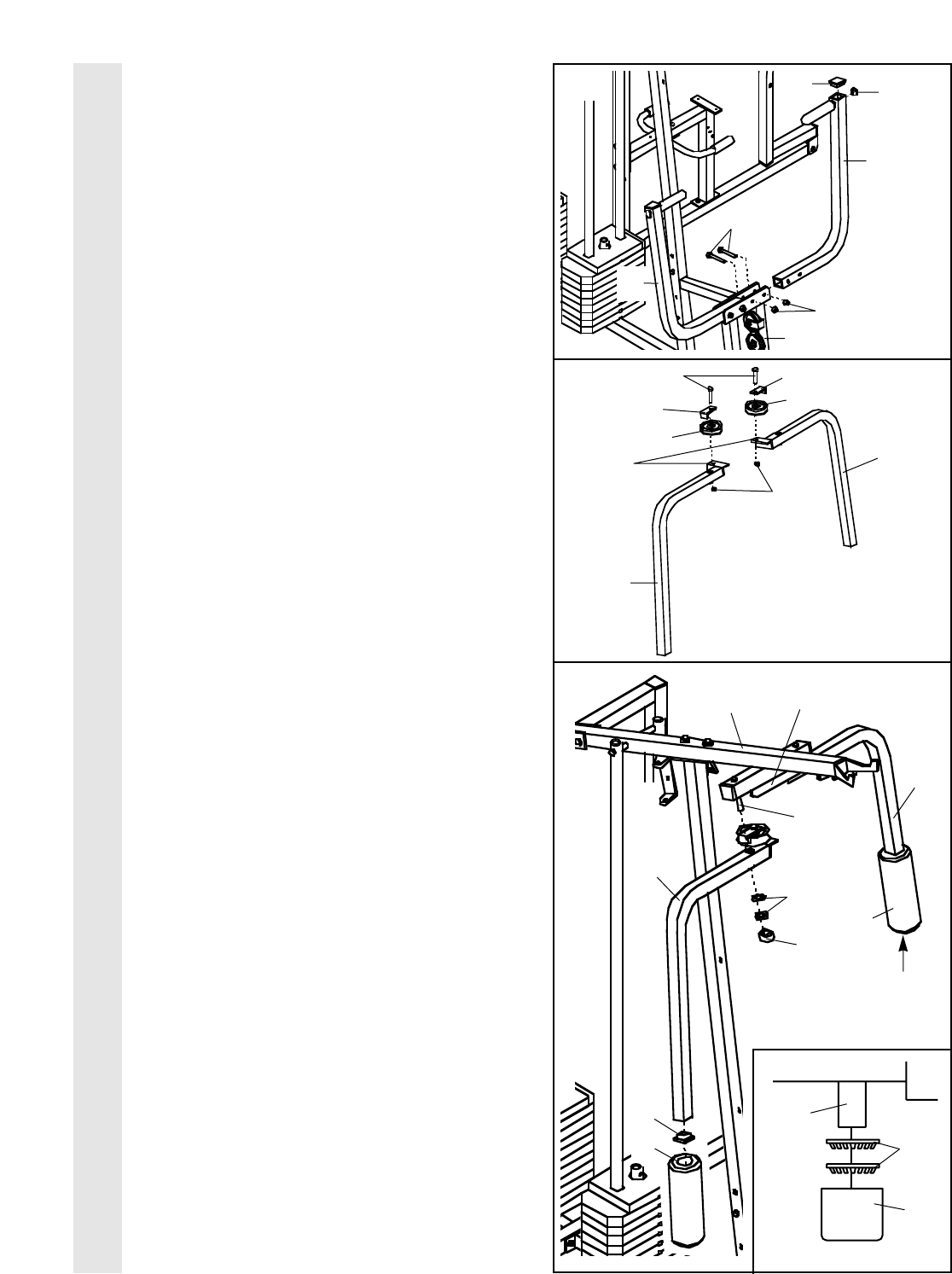

10. Locate and open the parts bag labeled

“ARM ASSEMBLY.”

Be sure there is a Bushing (98) in each side of

the Stabilizer (5). Press a 2” Square Inner Cap

(27) into each end of the Leg Press Arm (96).

Lubricate a 3/8” x 3 1/4” Bolt (67). Attach the

Leg Press Arm (96) to the Stabilizer (5) with the

Bolt and a 3/8” Nylon Locknut (21). Do not over-

tighten the Nylon Locknut. The Leg Press

Arm must be able to pivot freely.

Align the welded tubes on the Leg Press Plate

(95) with one set of holes in the Leg Press Arm

(96). Attach the Leg Press Plate to the Leg

Press Arm with the Press Pin (97).

11. Press a 1” x 7/8” Plastic Bushing (90) onto

each welded spacer on the Press Frame (17).

Slide the Press Frame into place onto the Base

(4). Note: This will be a tight fit. The Plastic

Bushings should fit on each end of the indi-

cated tube in the Base. Make sure that the

pulleys are on the side shown.

Lubricate the 3/8” x 8” Bolt (59). Attach the

Press Frame (17) to the Base (4) with the Bolt

and a 3/8” Nylon Locknut (21).

11 17 Pulleys

must be on

this side

59—Lubricate

Welded Spacers

Tube 90

FRAME ASSEMBLYARM ASSEMBLY

61 61

Welded

Tube

96 21

67—Lubricate

12. Press a 1” Round Inner Cap (49) into one of

the Press Arms (46). Press a 1 3/4” Square

Inner Cap (44) into the Press Arm.

Attach the Press Arm (46) to one side of the

Press Frame (17) with two 5/16” x 2 1/2” Bolts

(22) and two 5/16” Nylon Locknuts (3).

Assemble the other Press Arm (46) in the

same manner.

13. Identify the Right Arm (48) and the Left Arm

(47). Note the position of the welded bracket

on each Arm. Arm identification is very

important for step 14.

Attach a “V”-Pulley (50) and a Long Cable

Trap (31) to the Right Arm (48) with a 3/8” x

2 1/2” Bolt (86) and a 3/8” Nylon Locknut (21).

Do not tighten the Nylon Locknut yet.

Attach a “V”-Pulley (50) and a Long Cable

Trap (31) to the Left Arm (47) in the same

manner.

14. Lubricate both axles on the Top Frame (55).

Slide the Right Arm (48) onto the right axle.

Note: Be careful not to confuse the Right

Arm with the Left Arm (47); refer to step 13

to identify the Right Arm. Be sure that the

upper end of the Right Arm is behind the

indicated bracket on the Top Frame (55).

Tap two 1” Retainers (69) and a 1” Round

Cover Cap (70) onto the axle. Be sure that

the teeth on the Retainers bend toward the

Round Cover Cap, as shown in the inset

drawing.

Attach the Left Arm (47) in the same manner.

Press 1 3/4” Square Inner Caps (44) into the

lower ends of the Right and Left Arms (47,

48). Wet the lower end of each Arm with

soapy water. Slide a 10” Pad (45) onto the

lower end of each Arm.

13 86

Welded

Brackets

ARM ASSEMBLY

44 49

55 Bracket

Lubricate

Axle

15. See the inset drawing. Attach the Military

Press Arm (84) to the Pivot Arm (101) with

two 5/16” x 2 1/4” Bolts (33) and two 5/16”

Nylon Locknuts (3).

Press two 1 1/2” Square Inner Caps (32) into

the Military Press Arm (84). Press two 1”

Round Inner Caps (49) into the Military Press

Arm. Slide two 5” Plastic Handgrips (83) onto

the Military Press Arm.

Attach the Pivot Arm (101) to the Assist

Upright (74) with a 3/8” x 3 1/4” Bolt (67) and

a 3/8” Nylon Locknut (21).

16. Press two 1” x 2” Inner Caps (107) into the

Assist Arm (105).

Attach the Assist Arm (105) to the Leg Press

Upright (56) with a 3/8” x 6” Bolt (106), two

3/8” Flat Washers (9), and a 3/8” Nylon

Locknut (21). See the inset drawing. The

Assist Arm must be attached to the lowest

hole in the Leg Press Upright (56). The

Assist Arm must also be below the welded

bracket on the Assist Upright (74).

101

5674

ARM ASSEMBLY

107

106

105

Bracket

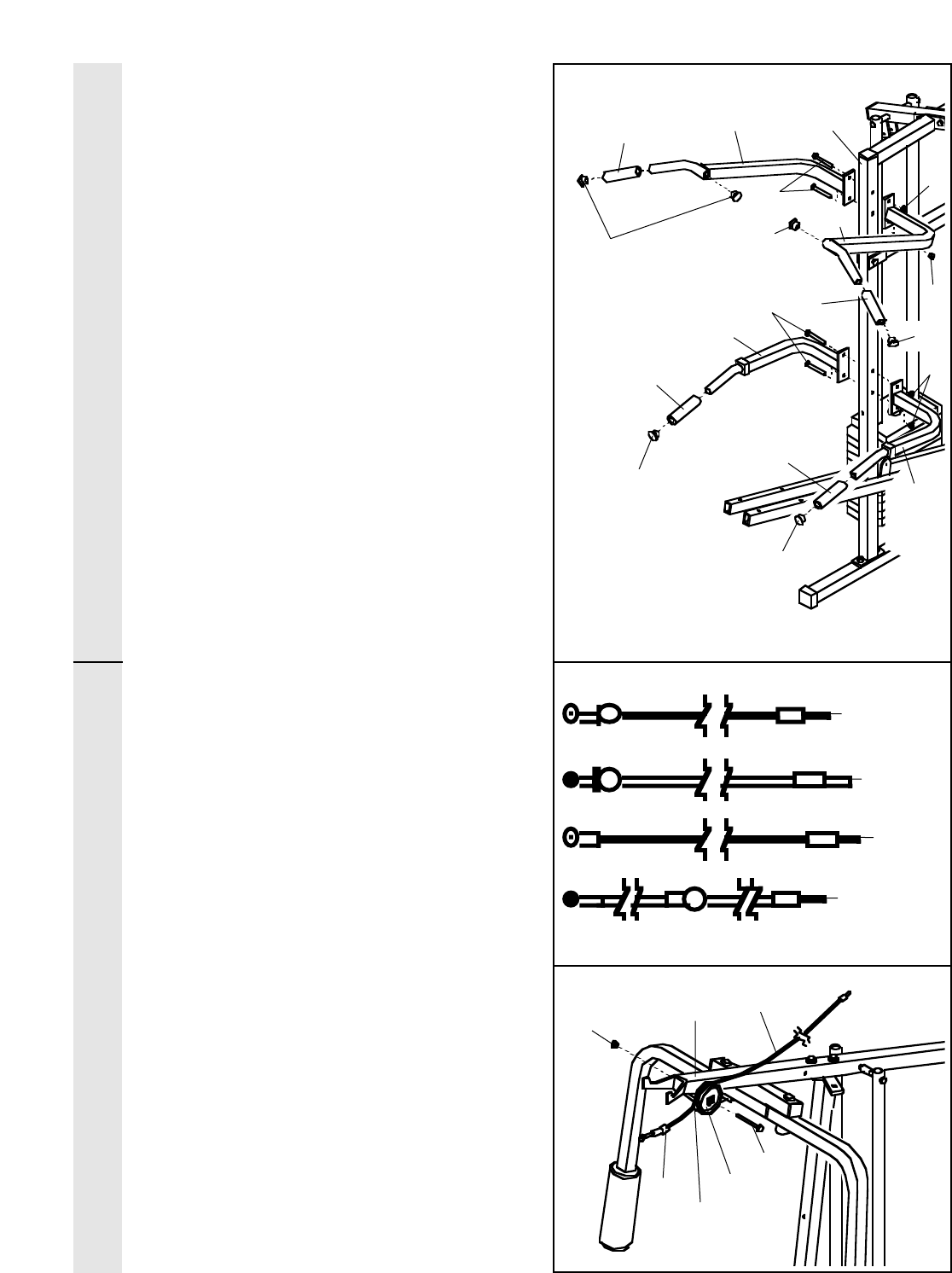

17. Attach the Left Pull-up Arm (75) and the Right

Pull-up Arm (77) to the Assist Upright (74)

with two 5/16” x 2 3/4” Bolts (11) and two

5/16” Nylon Locknuts (3).

Attach the Left Dip Arm (78) and the Right

Dip Arm (79) to the Assist Upright (74) with

two 5/16” x 2 3/4” Bolts (11) and two 5/16”

Nylon Locknuts (3).

Wet the ends of the Left and Right Pull-up

Arms (75, 77) with soapy water. Slide a Long

Foam Handgrip (113) onto each Pull-up Arm.

Press two 1 1/4” Round Inner Caps (109) into

each Pull-up Arm.

Wet the ends of the Left and Right Dip Arms

(78, 79) with soapy water. Slide a Short

Handgrip (80) onto each Dip Arm. Press a

1 1/4” Round Inner Cap (109) into each Dip

Arm.

18. Locate and open the parts bags labeled

“CABLE ASSEMBLY” and “PULLEYS.”

During steps 19 through 39, refer to the

CABLE DIAGRAMS on pages 26–27 of this

manual to verify proper cable routing. Before

beginning this section, fully unwind the four

Cables. Identify the four Cables by comparing

the lengths and ends of the Cables. The

approximate length of each Cable is listed (in

inches) after the key number in the drawing.

IMPORTANT: While assembling the cables,

do not overtighten the bolts and nuts

attaching the pulleys. The pulleys must be

able to turn freely.

19. Locate the High Cable (58). Wrap the High

Cable around a 3 1/2” Pulley (15). Attach the

Pulley to the Top Frame (55) with a 3/8” x

3 3/4” Bolt (88) and a 3/8” Nylon Locknut (21).

Be sure that the end of the Cable with the

ball is on the indicated side of the Pulley

and that the Cable is between the Pulley

and the hook.

Ball

Hook

75 74

23—79”

58—150”

72—192”

99—64”

ARM ASSEMBLYCABLE ASSEMBLY

109 109

109

113

109

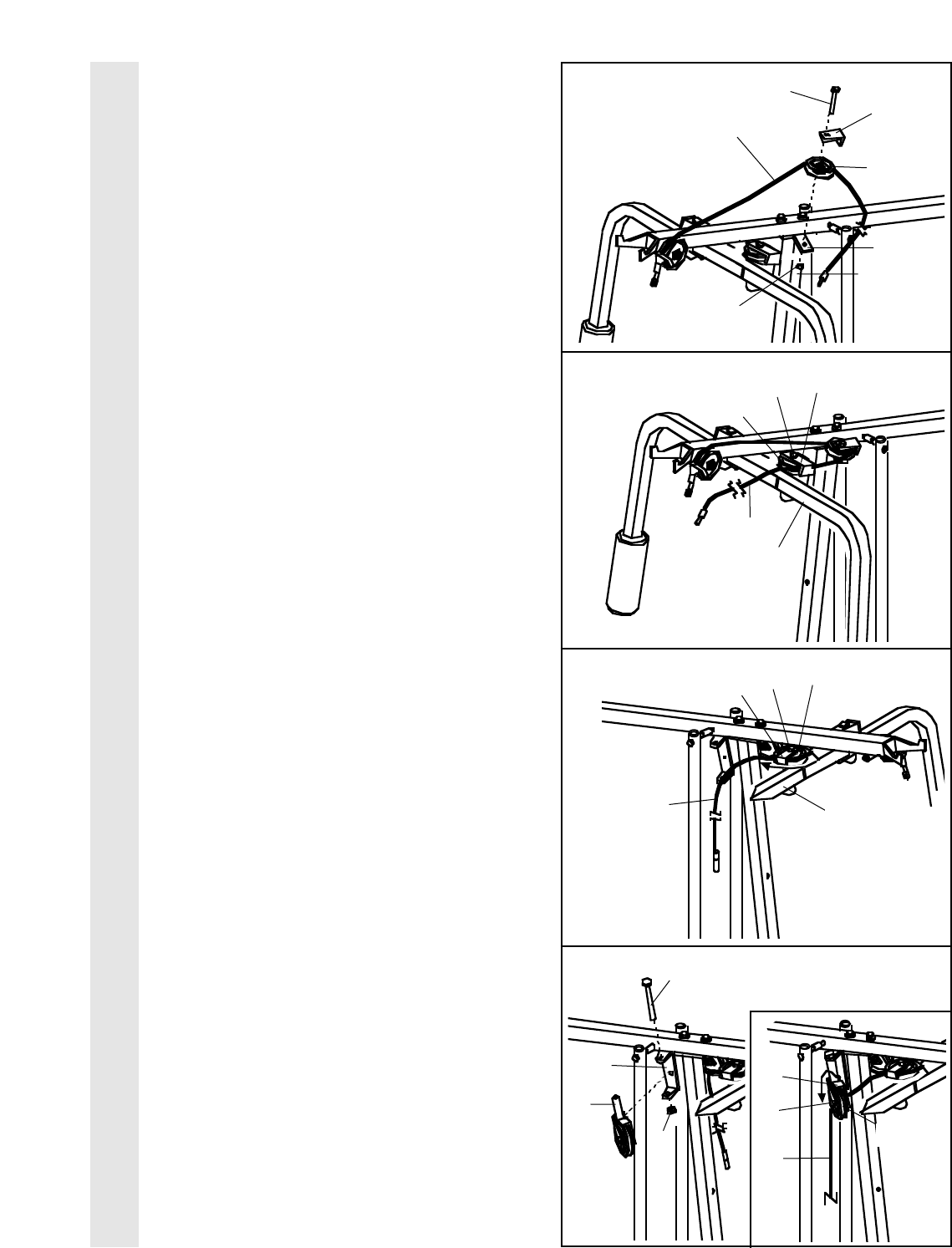

20. Wrap the High Cable (58) around a “V”-Pulley

(50). Attach the “V”-Pulley and a Long Cable

Trap (31) to the indicated bracket on the Front

Upright (42) with a 3/8” x 2 1/2” Bolt (86) and

a 3/8” Nylon Locknut (21). Be sure that the

Long Cable Trap is positioned to hold the

Cable in place.

21. Route the High Cable (58) around the “V”-

Pulley (50) on the Left Arm (47). Be sure that

the Cable is in the groove of the Pulley

and that the Long Cable Trap (31) is posi-

tioned to hold the Cable in place. Tighten

the 3/8” x 2 1/2” Bolt (86) and the 3/8” Nylon

Locknut (not shown).

22. Route the High Cable (58) around the “V”-

Pulley (50) on the Right Arm (48). Be sure

that the Cable is in the groove of the “V”-

Pulley and that the Long Cable Trap (31) is

turned to hold the Cable in place. Tighten

the 3/8” x 2 1/2” Bolt (86) and the 3/8” Nylon

Locknut (not shown).

23. Attach the Pulley Bracket (20) to the Top

Frame (55) with the 5/16” x 5” Bolt (68) and a

5/16” Nylon Locknut (3). Do not overtighten

the Nylon Locknut; the Pulley Bracket

must be able to move freely.

See the inset drawing. Route the High Cable

(58) around the 3 1/2” Pulley (15) attached to

the Pulley Bracket (20). Tighten the 3/8” x 2”

Bolt (12) and a 3/8” Nylon Locknut (not

shown). Be sure that the Cable is in the

groove of the Pulley and that the Cable

Trap (66) is turned to hold the Cable in

place.

20 86

CABLE ASSEMBLY

31 50

Bracket

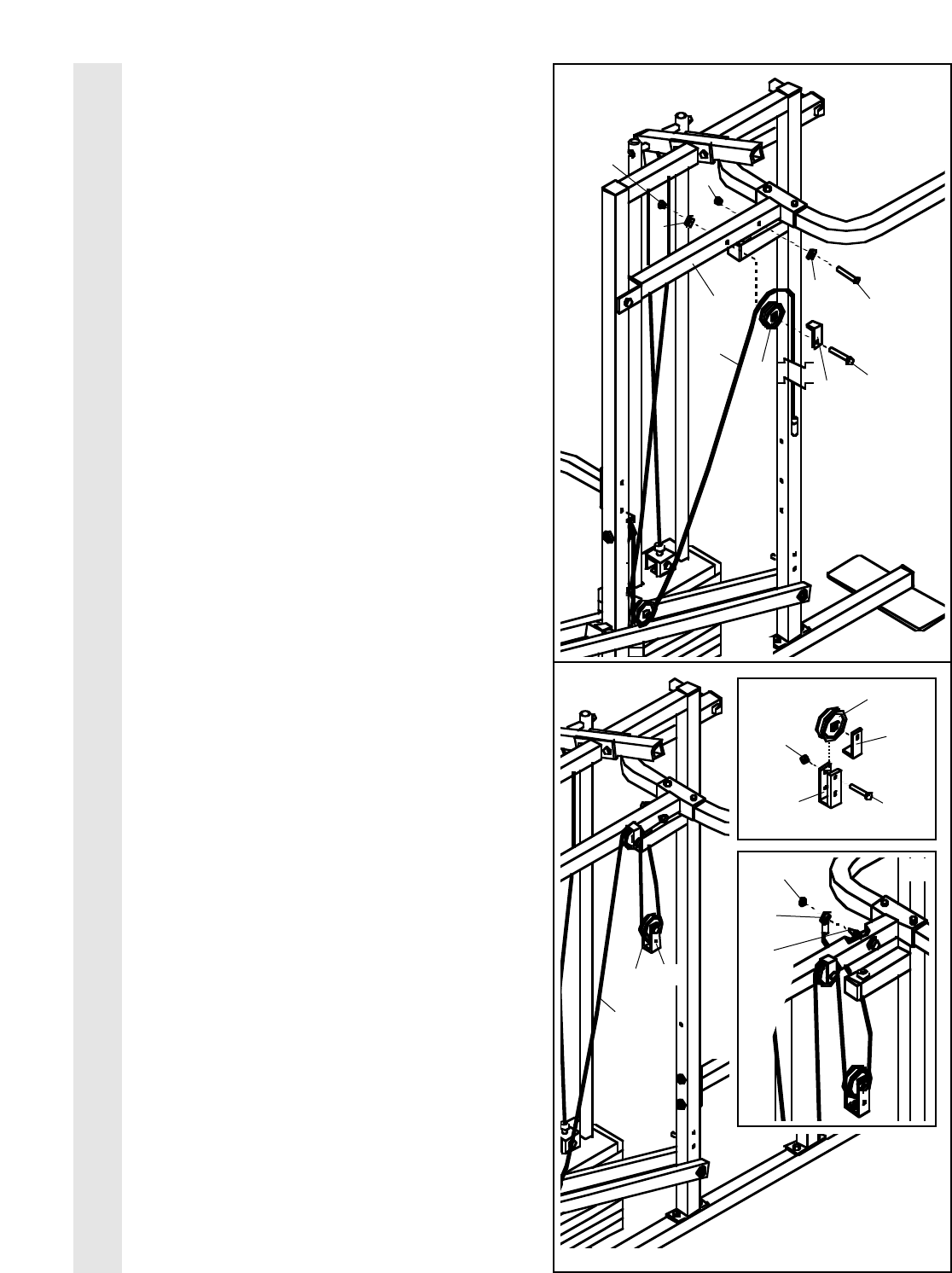

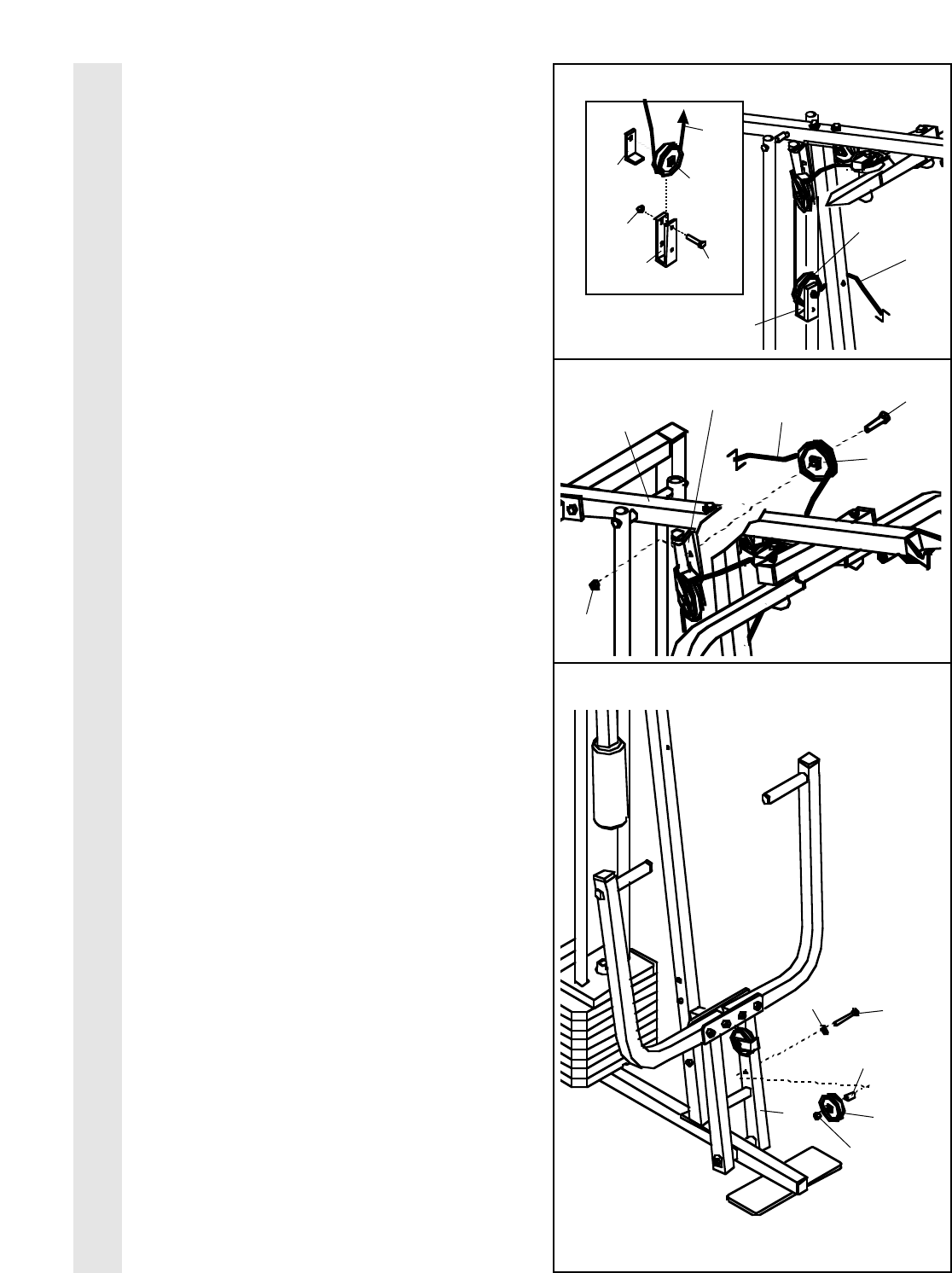

24. See the inset drawing. Attach a 3 1/2” Pulley

(15) and a Cable Trap (66) to the upper hole in

a Long “U”-Bracket (57) with a 3/8” x 2” Bolt

(12) and a 3/8” Nylon Locknut (21). Be sure

that the Cable Trap is inside the Long “U”-

Bracket. Note: This may come pre-assem-

bled.

Route the High Cable (58) through the Long

“U”-Bracket (57) and the 3 1/2” Pulley (15)

shown in the inset drawing. Be sure that the

Cable is in the groove of the Pulley and that

the Cable and Pulley move smoothly.

25. Wrap the High Cable (58) around a 3 1/2”

Pulley (15). Attach the Pulley to the bracket on

the Top Frame (55) with a 3/8” x 2” Bolt (12)

and a 3/8” Nylon Locknut (21). Be sure that

the Cable is in the groove of the Pulley and

that the Cable and Pulley move smoothly.

26. Note: This assembly step shows how to

complete the assembly of several pre-

attached parts.

The 5/8” x 9/16” Spacer (7) has been pre-

attached on the outside of the 3 1/2” Low

Pulley (102) for shipping purposes. Remove

the 3/8” Nylon Locknut (21), the Spacer, and

the Pulley from the 3/8” x 3 3/4” Bolt (88). Do

not remove the Bolt. The Bolt has been

shown removed for part identification.

Reattach the 3 1/2” Low Pulley (102), with the

5/8” x 9/16” Spacer (7) between the Pulley and

the Press Frame (17). Do not tighten the 3/8”

Nylon Locknut (21) yet. Be sure that the

3/8” x 3 3/4” Bolt (88), the 3/8” Flat Washer

(9), the 5/8” x 9/16” Spacer (7), the 3 1/2”

Low Pulley (102), and the 3/8” Nylon

Locknut (21) are oriented as shown.

Bracket

CABLE ASSEMBLY

17 102

988

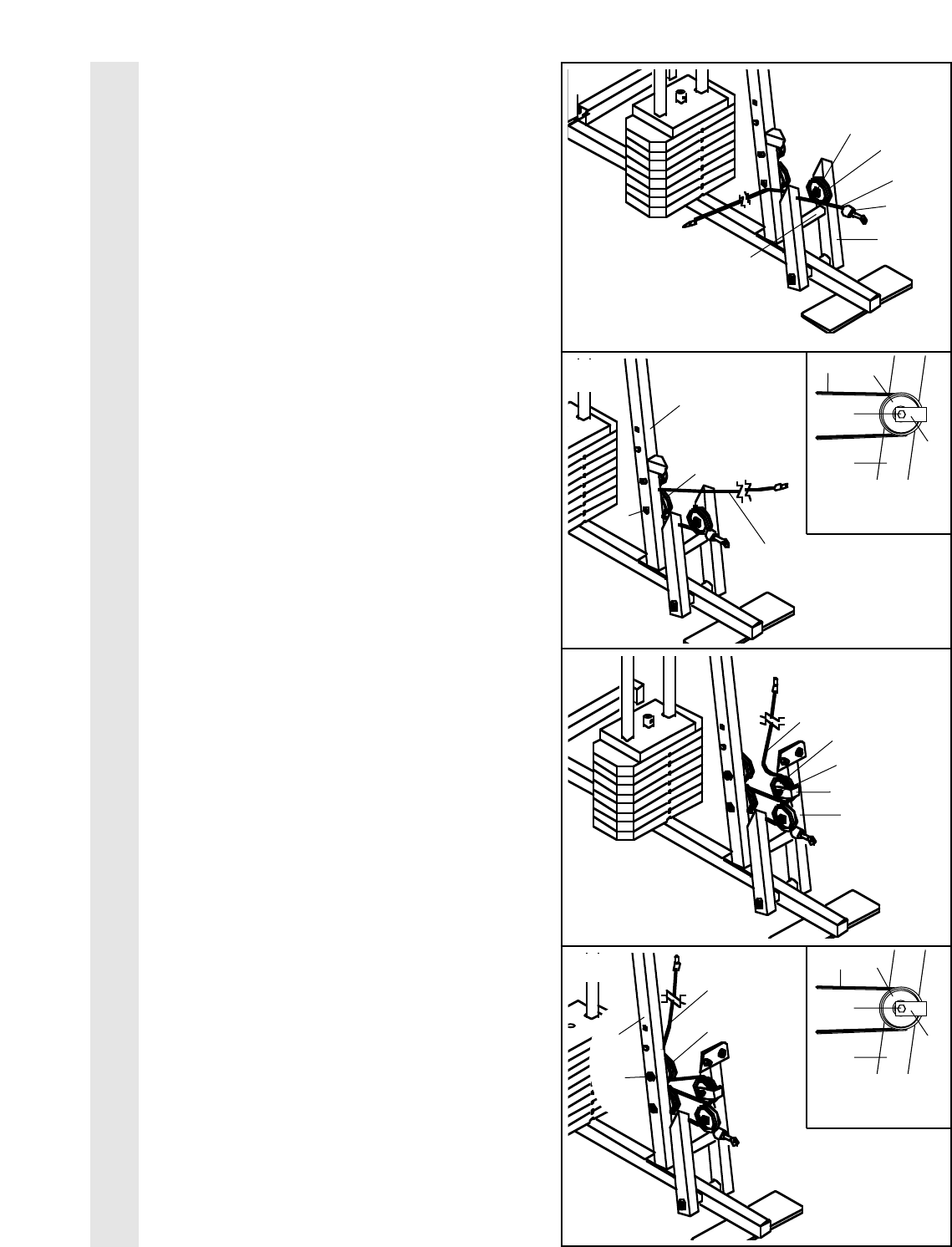

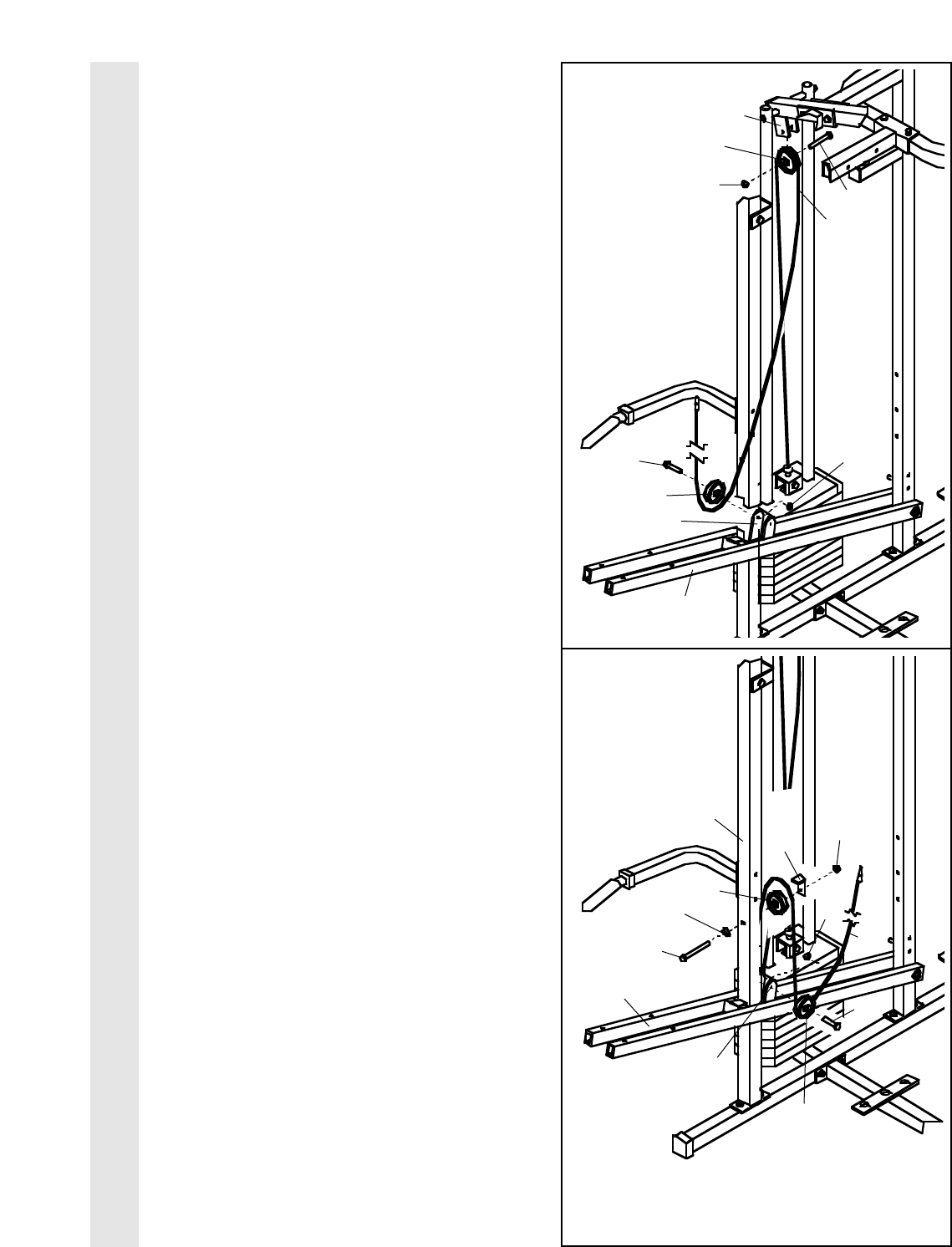

27. Locate the Low Cable (23). Route the Low

Cable under the 3 1/2” Low Pulley (102). Be

sure that the end of the Cable with the ball

is on the indicated side of the Press Frame

(17) and that the Cable is between the

Pulley and the crossbar on the Press

Frame. Tighten the 3/8” Nylon Locknut (21)

and the 3/8” x 3 3/4” Bolt (not shown).

28. Route the Low Cable (23) around the 3 1/2”

Pulley (15) attached to the lower hole in the

Front Upright (42). See the inset drawing. Be

sure that the Cable Trap (66) is turned to

hold the Cable in place and that the Cable

is routed around the Pulley as shown.

Tighten the 3/8” Nylon Locknut (21) and the

3/8” x 3 3/4” Bolt (88).

29. Route the Low Cable (23) around the 3 1/2”

Pulley (15) attached to the upper hole in the

Press Frame (17). Be sure that the Cable

Trap (66) is turned to hold the Cable in

place and that the Cable is routed around

the Pulley as shown. Tighten the 3/8” Nylon

Locknut (21) and the 3/8” x 3 1/2” Bolt (not

shown).

30. Route the Low Cable (23) around the 3 1/2”

Pulley (15) attached to the upper hole in the

Front Upright (42). See the inset drawing. Be

sure that the Cable Trap (66) is turned to

hold the Cable in place and that the Cable

is routed around the Pulley as shown.

Tighten the 3/8” Nylon Locknut (21) and the

3/8” x 3 3/4” Bolt (88).

Inset shows view

from other side

CABLE ASSEMBLY

Ball

Inset shows view

from other side

23 15

102

Crossbar

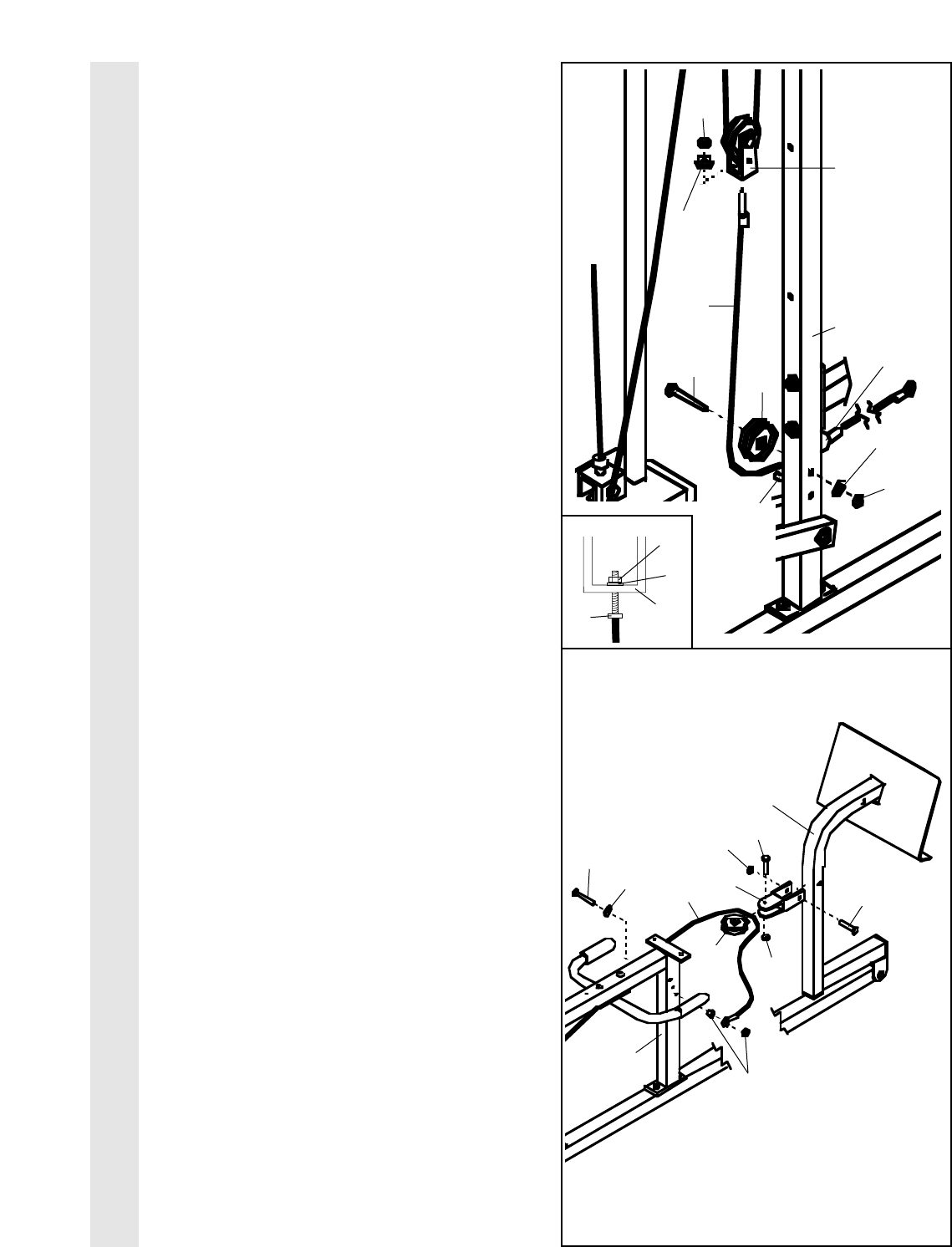

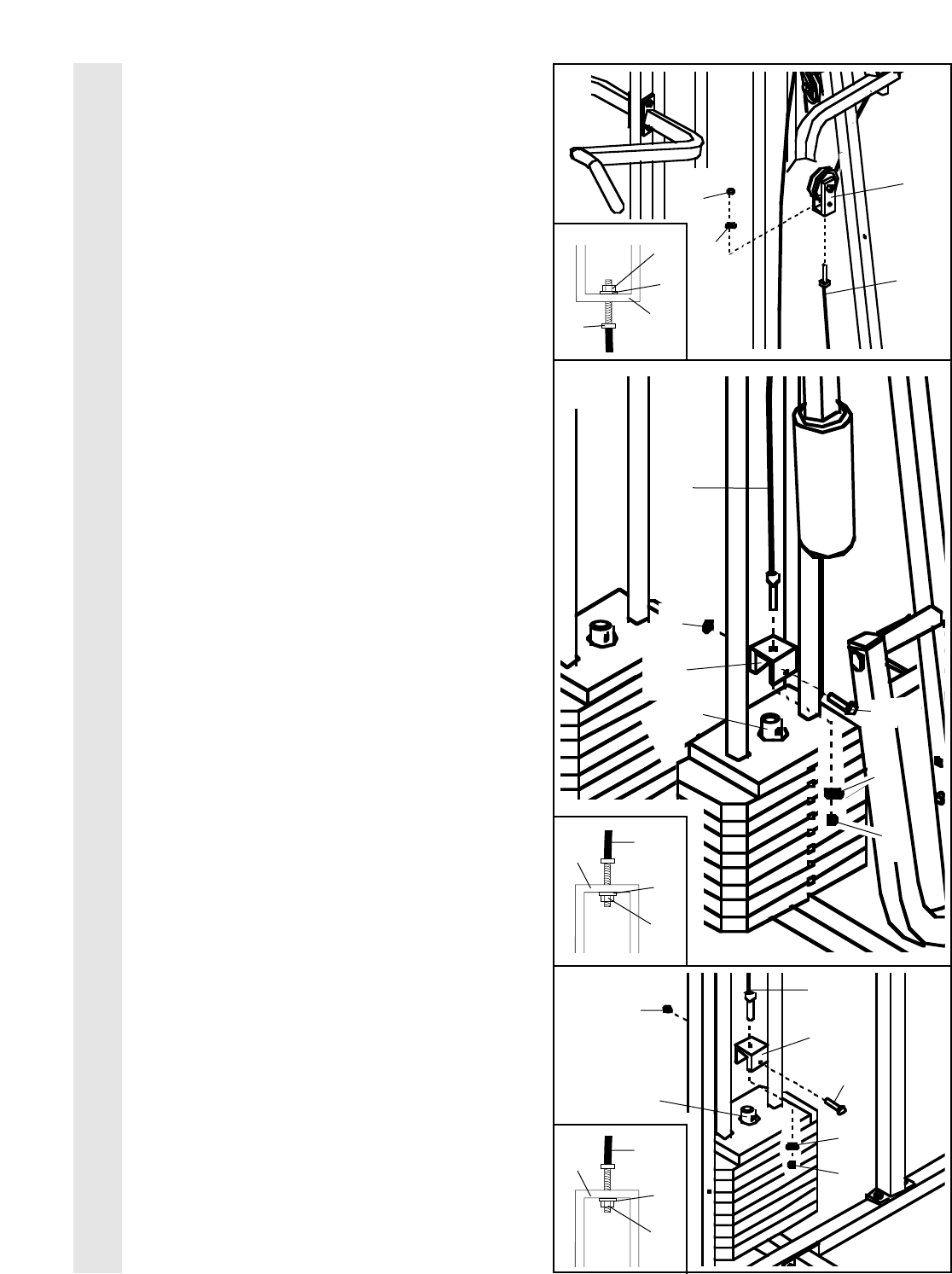

31. Attach the end of the Low Cable (23) to the

Long “U”-Bracket (57) with a 1/4” Nylon

Locknut (2) and a 1/4” Flat Washer (10). Do

not completely tighten the Nylon Locknut.

It should be threaded onto the end of the

Cable so only a couple of threads are

showing above the Nylon Locknut, as

shown in the inset drawing.

32. Attach the High Cable (58) to a Small “U”-

Bracket (71) with a 1/4” Nylon Locknut (2) and

a 1/4” Flat Washer (10). Do not completely

tighten the Nylon Locknut. It should be

threaded onto the end of the Cable only a

couple of turns, as shown in the inset

drawing.

Attach the Small “U”-Bracket (71) to the Short

Weight Tube (108) with a 5/16” x 1 3/4” Bolt

(24) and a 5/16” Nylon Locknut (3).

33. Locate the Military Press Cable (72). Attach

the Military Press Cable to the other Small

“U”-Bracket (71) with a 1/4” Nylon Locknut (2)

and a 1/4” Flat Washer (10). Do not com-

pletely tighten the Nylon Locknut. It should

be threaded onto the end of the Cable only

a couple of turns, as shown in the inset

drawing.

Attach the Small “U”-Bracket (71) to the Long

Weight Tube (63) with a 5/16” x 1 3/4” Bolt

(24) and a 5/16” Nylon Locknut (3).

CABLE ASSEMBLY

108

34. Wrap the Military Press Cable (72) around a

“V”-Pulley (50). Attach the “V”-Pulley to the

Top Frame (55) with a 3/8” x 2 1/2” Bolt (86)

and a 3/8” Nylon Locknut (21).

Wrap the Military Press Cable (72) around a 3

1/2” Pulley (15). Attach the Pulley to the indi-

cated bracket on the Assist Arm (105) with a

3/8” x 1 3/4” Bolt (76) and a 3/8” Nylon

Locknut (21). Be sure that the Cable is

between the Pulley and the Assist Arm

and that the Cable and Pulley move

smoothly.

35. Wrap the Military Press Cable (72) around a

“V”-Pulley (50). Attach the “V”-Pulley and a

Long Cable Trap (31) to the Assist Upright

(74) with a 3/8” x 4 1/2” Bolt (112), a 3/8” Flat

Washer (9), and a 3/8” Nylon Locknut (21). Be

sure that the Long Cable Trap is turned to

hold the Cable in place and that the Cable

is routed around the Pulley as shown.

Wrap the Military Press Cable (72) around a

3 1/2” Pulley (15). Attach the Pulley to the

other bracket on the Assist Arm (105) with a

3/8” x 1 3/4” Bolt (76) and a 3/8” Nylon

Locknut (21). Be sure that the Cable is

between the Pulley and the Assist Arm

and that the Cable and Pulley move

smoothly.

CABLE ASSEMBLY

Bracket

105

Bracket

36. Slide a 5/16” Flat Washer (8) onto a 5/16” x

2 3/4” Bolt (11). Insert the Bolt through the indi-

cated hole in the Pivot Arm (101). The Bolt

must be inserted from the side shown.

Fully tighten a 5/16” Nylon Jam Nut (93) onto

the Bolt.

Wrap the Military Press Cable (72) around a

3 1/2” Pulley (15). Attach the Pulley and a

Cable Trap (66) to the Pivot Arm (101) with

the 3/8” x 3 3/4” Bolt (88), a 3/8” Flat Washer

(9), and a 3/8” Nylon Locknut (21). Be sure

that the Pulley is on the side shown and

that the Cable Trap is positioned to hold

the Cable in place.

37. See inset drawing A. Attach a 3 1/2” Pulley

(15) and a Cable Trap (66) to the upper hole

in a Long “U”-Bracket (57) with a 3/8” x 2” Bolt

(12) and a 3/8” Nylon Locknut (21). Be sure

that the Cable Trap is inside the Long “U”-

Bracket. (Note: This may come pre-assem-

bled.)

Route the Military Press Cable (72) through

the Long “U”-Bracket (57) and the 3 1/2”

Pulley (15). Be sure that the Cable is in the

groove of the Pulley and that the Cable

and Pulley move smoothly.

See inset drawing B. Slide the end of the

Military Press Cable (72) onto the end of the

5/16” x 2 3/4 Bolt (11). Thread another 5/16”

Nylon Jam Nut (93) onto the Bolt. Do not

fully tighten the second Jam Nut. There

must be room between the two Jam Nuts

for the end of the Cable to pivot.

CABLE ASSEMBLY

101

38. Locate the Leg Press Cable (99). Attach the

end of the Leg Press Cable to the Long “U”-

Bracket (57) with a 1/4” Nylon Locknut (2) and

a 1/4” Flat Washer (10). Do not completely

tighten the Nylon Locknut. It should be

threaded onto the end of the Cable only a

couple of turns, as shown in the inset

drawing.

Wrap the Leg Press Cable (99) around a

3 1/2” Pulley (15). Attach the Pulley to the Leg

Press Upright (56) with the 3/8” x 3 3/4” Bolt

(88), a 3/8” Flat Washer (9), and a 3/8” Nylon

Locknut (21). The ball on the Cable must be

on the indicated side of the Pulley. Be sure

that the Cable and Pulley move smoothly

and that the Cable is between the Pulley

and the welded rod.

39. Attach the Press Bracket (94) to the Leg

Press Arm (96) with a 5/16” x 3” Bolt (111)

and a 5/16” Nylon Locknut (3).

Wrap the Leg Press Cable (99) around a 3 1/2”

Pulley (15). Attach the Pulley to the Press

Bracket (94) with the 3/8” x 2” Bolt (12) and a

3/8” Nylon Locknut (21).

Slide a 5/16” Flat Washer (8) onto a 5/16” x

2 3/4” Bolt (11). Insert the Bolt through the

lowest hole in the Rear Seat Frame (100)

from the indicated side. (Note: The three holes

are for cable adjustment.) Tighten a 5/16”

Nylon Jam Nut (93) onto the Bolt. Slide the

end of the Leg Press Cable (99) onto the end

of the Bolt. Thread another 5/16” Nylon Jam

Nut onto the Bolt. Do not fully tighten the

second Jam Nut. There must be room

between the two Jam Nuts for the end of

the Cable to pivot.

CABLE ASSEMBLY

111

100

Ball

Welded

Rod

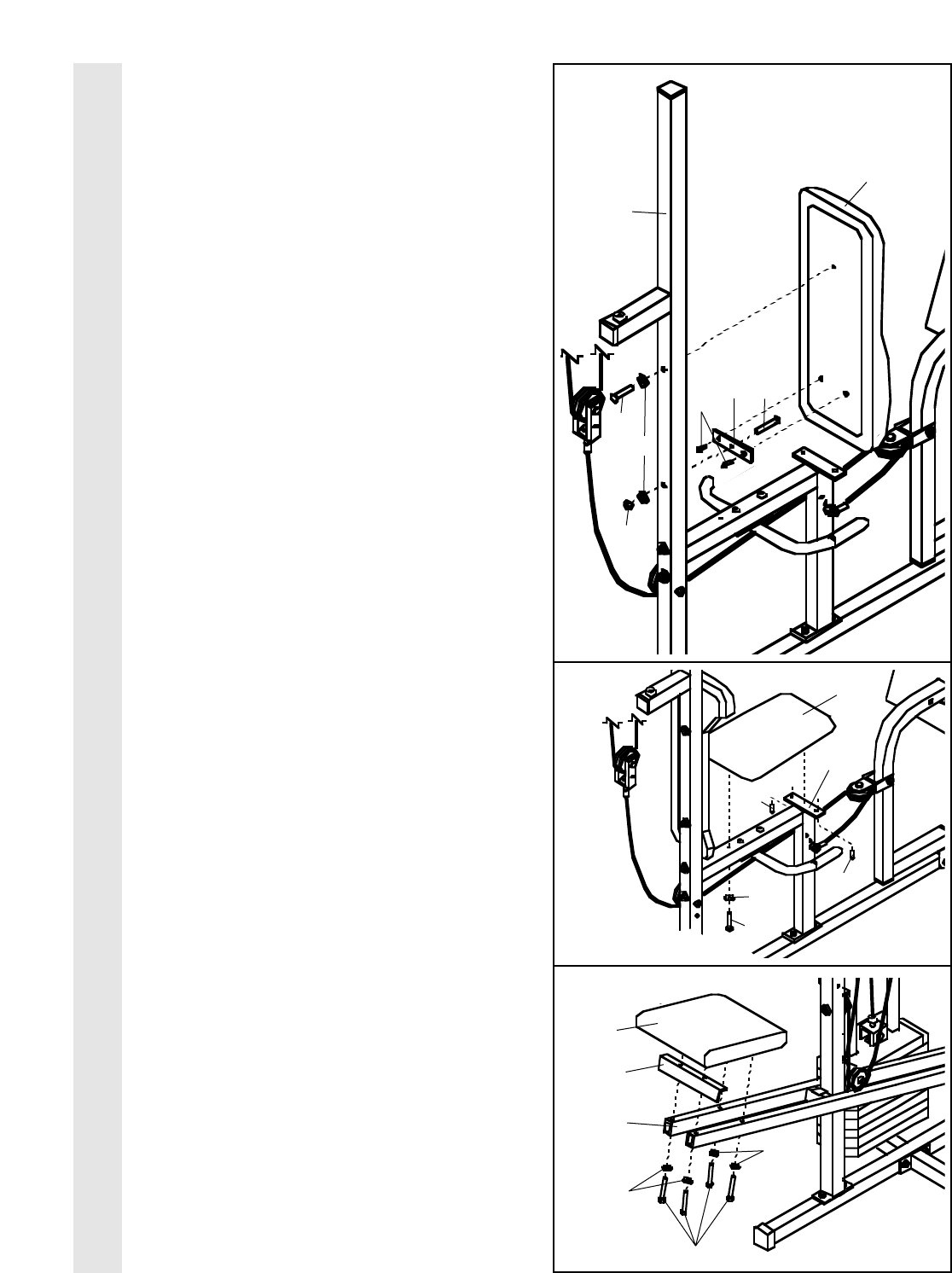

40. Locate and open the parts bag labeled

“SEAT ASSEMBLY.”

Insert a 1/4” x 2 1/2” Carriage Bolt (92)

through the center hole in a Seat Plate (37).

Attach the Seat Plate to the Rear Backrest

(85) with two 1/4” x 1/2” Screws (18).

Insert the 1/4” x 2 1/2” Carriage Bolt (92)

through the indicated hole in the Leg Press

Upright (56). Tighten a 1/4” Nylon Locknut (2)

with a 1/4” Flat Washer (10) onto the Carriage

Bolt. Attach the top of the Rear Backrest (85)

to the Leg Press Upright with a 1/4” x 2 1/2”

Screw (43) and a 1/4” Flat Washer (10).

41. Attach one end of a Seat (13) to the Rear

Seat Frame (100) with two 1/4” x 1/2” Screws

(18). Attach the other end of the Seat to the

Rear Seat Frame with a 1/4” Flat Washer (10)

and a 1/4” x 2 1/2” Screw (43).

42. Attach the Assist Seat (104) and the Angle

Bracket (110) to the Assist Arm (105) with

four 1/4” Flat Washers (10) and four 1/4” x 2

1/2” Screws (43).

SEAT ASSEMBLY

18 92

104

105

100

110

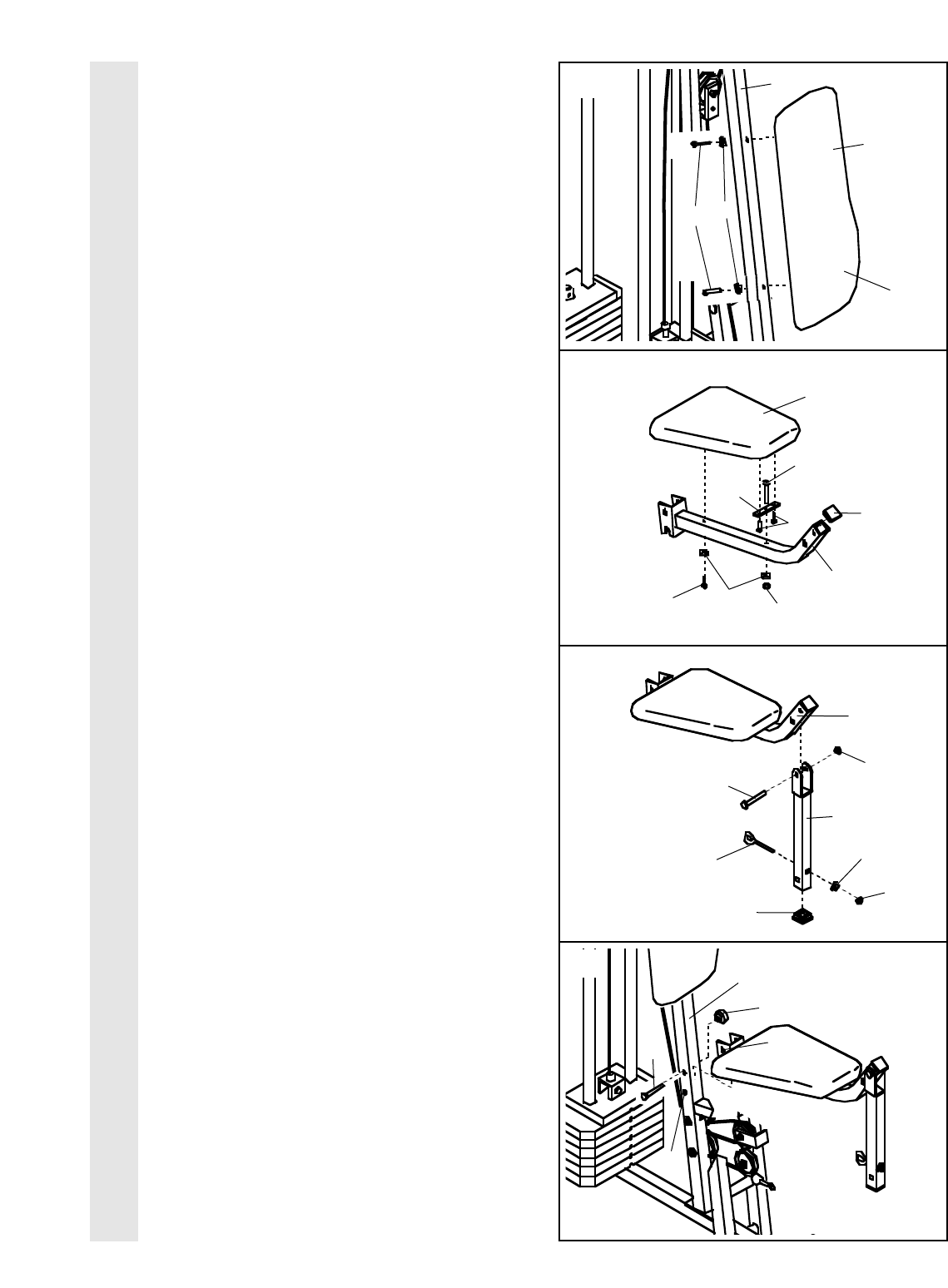

43. Attach the Front Backrest (41) to the Front

Upright (42) with two 1/4” x 2 1/2” Screws (43)

and two 1/4” Flat Washers (10). The Backrest

must be oriented as shown.

44. Press a 1 1/2” Square Inner Cap (32) into the

Front Seat Frame (36).

Insert a 1/4” x 2” Carriage Bolt (38) through

the center hole in the Seat Plate (37). Attach

the Seat Plate to the Seat (13) with two 1/4” x

1/2” Screws (18).

Insert the 1/4” x 2” Carriage Bolt (38) through

the indicated hole in the Front Seat Frame

(36). Tighten a 1/4” Nylon Locknut (2) with a

1/4” Flat Washer (10) onto the Carriage Bolt.

Attach the other end of the Seat (13) to the

Front Seat Frame (36) with a 1/4” Flat Washer

(10) and a 1/4” x 2” Machine Screw (81).

45. Press a 1 1/2” Square Inner Cap (32) into the

Leg Lever (29).

Lubricate the 5/16” x 2 1/4” Bolt (33). Attach

the Leg Lever (29) to the Front Seat Frame

(36) with the Bolt and a 5/16” Nylon Locknut

(3).

Insert the 5/16” x 2” Eyebolt (35) into the Leg

Lever (29) from the direction shown. Tighten a

5/16” Nylon Locknut (3) with a 5/16” Flat

Washer (8) onto the Eyebolt.

46. Rest the Front Seat Frame (36) on the indicat-

ed pin in the Front Upright (42). Attach the

Front Seat Frame to the Front Upright with a

5/16” x 2 3/4” Carriage Bolt (14) and the Seat

Knob (40).

SEAT ASSEMBLY

Thick

End

Lubricate—33

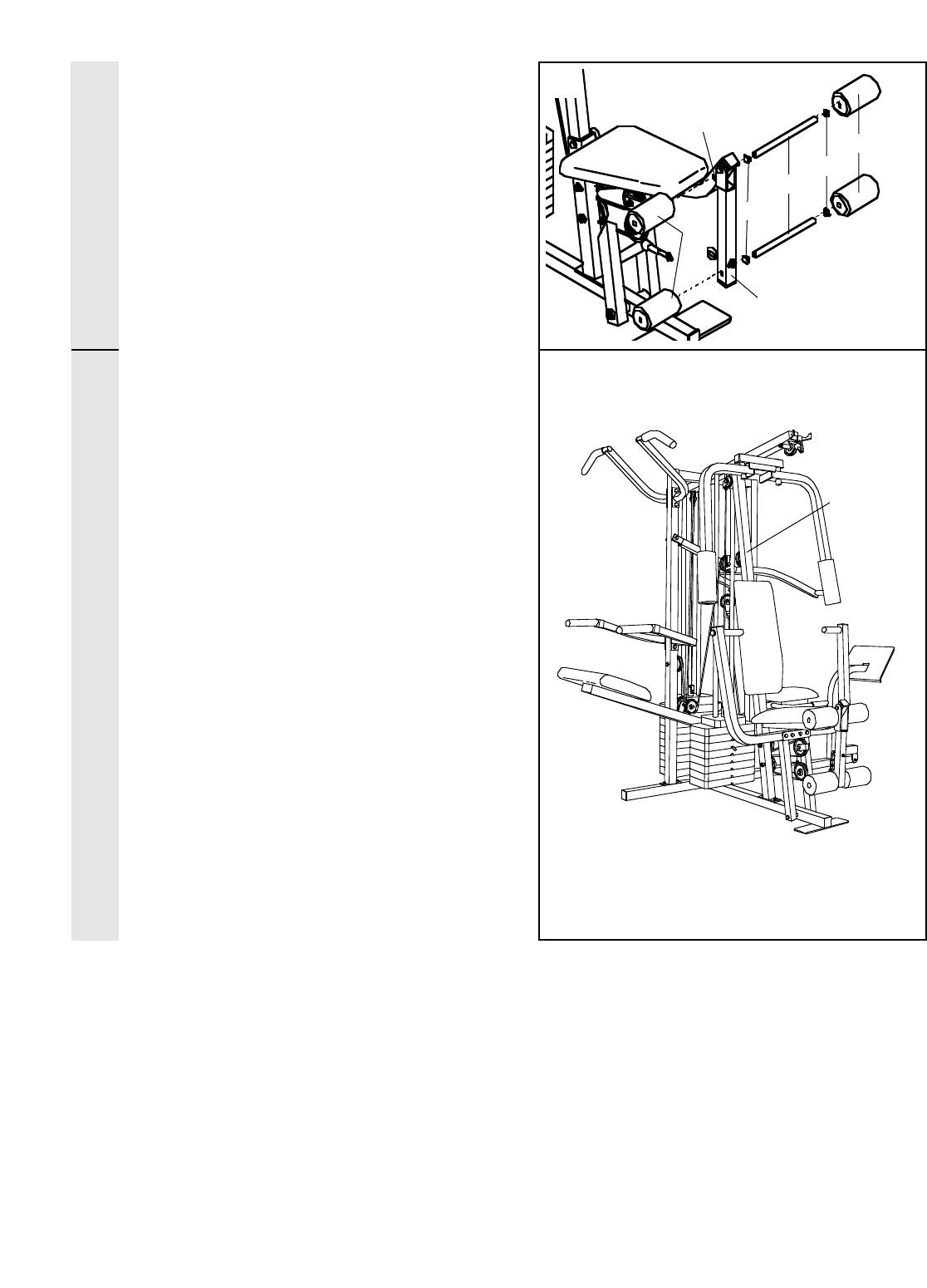

47. Press two 3/4” Round Inner Caps (34) into

each Pad Tube (28).

Insert a Pad Tube (28) into the Front Seat

Frame (36). Slide a Foam Pad (30) onto each

end of the Pad Tube.

Insert the other Pad Tube (28) into the Leg

Lever (29). Slide a Foam Foam Pad (30) onto

each end of the Pad Tube.

48. Remove the backing from the PRO 9645

decal and apply it to the home gym system as

shown.

Make sure that all parts have been properly

tightened. The use of the remaining parts will

be explained in HOW TO USE THE HOME

GYM SYSTEM, beginning on page 22 of this

manual.

Before using the home gym system, pull each

cable a few times to be sure that the cables

move smoothly over the pulleys. If one of the

cables does not move smoothly, find and cor-

rect the problem. IMPORTANT: If the cables

are not properly installed, they may be

damaged when heavy weight is used. See

the CABLE DIAGRAMS on pages 26 and 27

of this manual for proper cable routing. If

there is any slack in the cables, you will

need to remove it by tightening the cables.

See TROUBLE-SHOOTING AND MAINTE-

NANCE on page 25.

SEAT ASSEMBLY

DECAL

PRO 9645

HOW TO USE THE HOME GYM SYSTEM

The instructions below describe how each part of the home gym system can be adjusted. Refer to the exercise

poster accompanying this manual to see how the home gym system should be set up for each exercise. IMPOR-

TANT: When attaching the lat bar or nylon strap, make sure that the attachments are in the correct start-

ing position for the exercise to be performed. If there is any slack in the cables or chain as an exercise is

performed, the effectiveness of the exercise will be reduced.

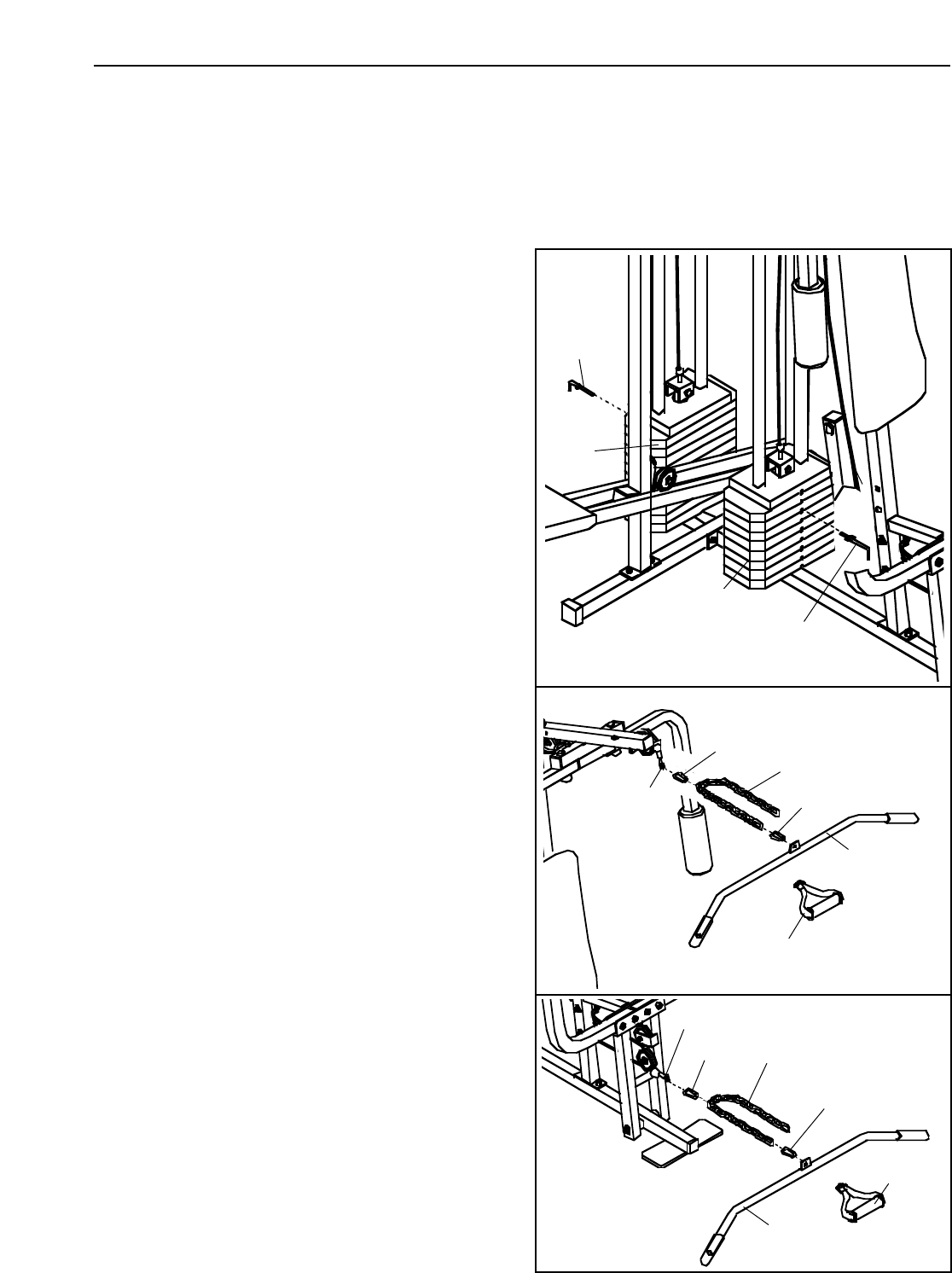

CHANGING THE WEIGHT SETTING

The PRO 9645 features two weight stacks. The front

weight stack is connected to the upper and lower pul-

leys, the press arm, and the butterfly arms. The rear

weight stack is connected to the military press arm,

assist arm, and leg press.

To change the weight setting of either weight stack,

insert a Weight Pin (26) under the desired Weight

(25). Insert the Weight Pin until the bent end of the

Weight Pin is touching the Weights, and turn the bent

end downward. The weight setting of either weight

stack can be changed from 6.5 pounds to 106.5

pounds, in increments of 12.5 pounds. Note: Due to

the cables and pulleys, the amount of resistance

at each exercise station may vary from the weight

setting. Use the WEIGHT RESISTANCE CHART on

page 24 to find the approximate amount of resis-

tance at each weight station.

ATTACHING THE LAT BAR OR NYLON STRAP TO

THE HIGH PULLEY STATION

Attach the Lat Bar (54) to the High Cable (58) with a

Cable Clip (53). For some exercises, the Chain (52)

should be attached between the Lat Bar and the High

Cable with two Cable Clips. Adjust the length of the

Chain between the Lat Bar and the High Cable so

the Lat Bar is in the correct starting position for

the exercise to be performed.

The Nylon Strap (39) can be attached in the same

manner.

ATTACHING THE LAT BAR OR NYLON STRAP TO

THE LOW PULLEY STATION

Attach the Lat Bar (54) to the Low Cable (23) with a

Cable Clip (53). For some exercises, the Chain (52)

should be attached between the Lat Bar and the Low

Cable with two Cable Clips. Adjust the length of the

Chain between the Lat Bar and the Low Cable so

the Lat Bar is in the correct starting position for

the exercise to be performed.

The Nylon Strap (39) can be attached in the same

manner.

ATTACHING AND REMOVING THE SEAT

To attach the Seat (13), set the bracket on the Front

Seat Frame (36) onto the indicated pins on the Front

Upright (42). Attach the Front Seat Frame to the Front

Upright with the 5/16” x 2 3/4” Carriage Bolt (14) and

the Seat Knob (40).

For some exercises, the Seat (13) must be removed.

First, be sure that the chain is not attached to the leg

lever. Next, remove the Seat Knob (40) and the 5/16”

x 2 3/4” Carriage Bolt (14) from the Seat Frame (36).

Lift the Front Seat Frame off the Front Upright (42).

ATTACHING THE LEG LEVER TO THE LOW

PULLEY STATION

To use the Leg Lever (29), the seat must be attached

to the front upright (see ATTACHING AND REMOV-

ING THE SEAT above).

Attach one end of the Chain (52) to the Short Cable

(23) with a Cable Clip (53). Attach the other end of

the Chain to the Eyebolt (35) with a Cable Clip.

ADJUSTING THE LEG PRESS PLATE

Remove the Press Pin (97) from the Leg Press Plate

(95) and the Leg Press Arm (96).

Align the welded tubes on the Leg Press Plate (95)

with the desired set of holes in the Leg Press Arm

(96). Re-insert the Press Pin (97) through the welded

tubes on Leg Press Plate and the holes in the Leg

Press Arm.

36 13

53 52

Welded

Tube

WEIGHT RESISTANCE CHART

This chart shows the approximate weight resistance at each weight station. “Top” refers to the 6.5 lb. top weight.

The other numbers refer to the 12.5 lb. weight plates. The butterfly arm resistance listed is the resistance for

each butterfly arm.

WEIGHT PRESS BUTTERFLY LEG HIGH LOW MILITARY LEG ASSIST

ARM ARM LEVER PULLEY PULLEY PRESS ARM PRESS ARM

PLATES (lbs.) (lbs.) (lbs.) (lbs.) (lbs.) (lbs.) (lbs.) (lbs.)

Top3117252336303611

15935503667517838

2 81 40 71 54 95 74 123 66

3 104 70 97 70 123 97 171 95

4 132 80 111 88 155 115 219 117

5 154 110 131 98 191 135 265 142

6 196 115 156 120 220 164 299 186

7 206 130 172 135 252 183 333 213

8 227 140 184 144 273 194 387 232

9 – – – – – 218 440 256

10 – – – – – 246 455 293

The actual resistance at each weight station may vary due to differences in individual weight plates, as

well as friction between the cables, pulleys, and weight guides.

TROUBLE-SHOOTING AND MAINTENANCE

Inspect and tighten all parts each time you use the home gym system. Replace any worn parts immediately. The

home gym system can be cleaned using a damp cloth and mild non-abrasive detergent. Do not use solvents.

TIGHTENING THE CABLES

Woven cable, the type of cable used on the home gym system, can stretch slightly when it is first used. If there

is slack in the cables before resistance is felt, the cables should be tightened. If any slack is felt when using the

front weight stack, both the High Cable (58) and the Low Cable (23) will need to be tightened. If any slack is felt

when using the rear weight stack, both the Military Press Cable (72) and the Leg Press Cable (99) will need to

be tightened.

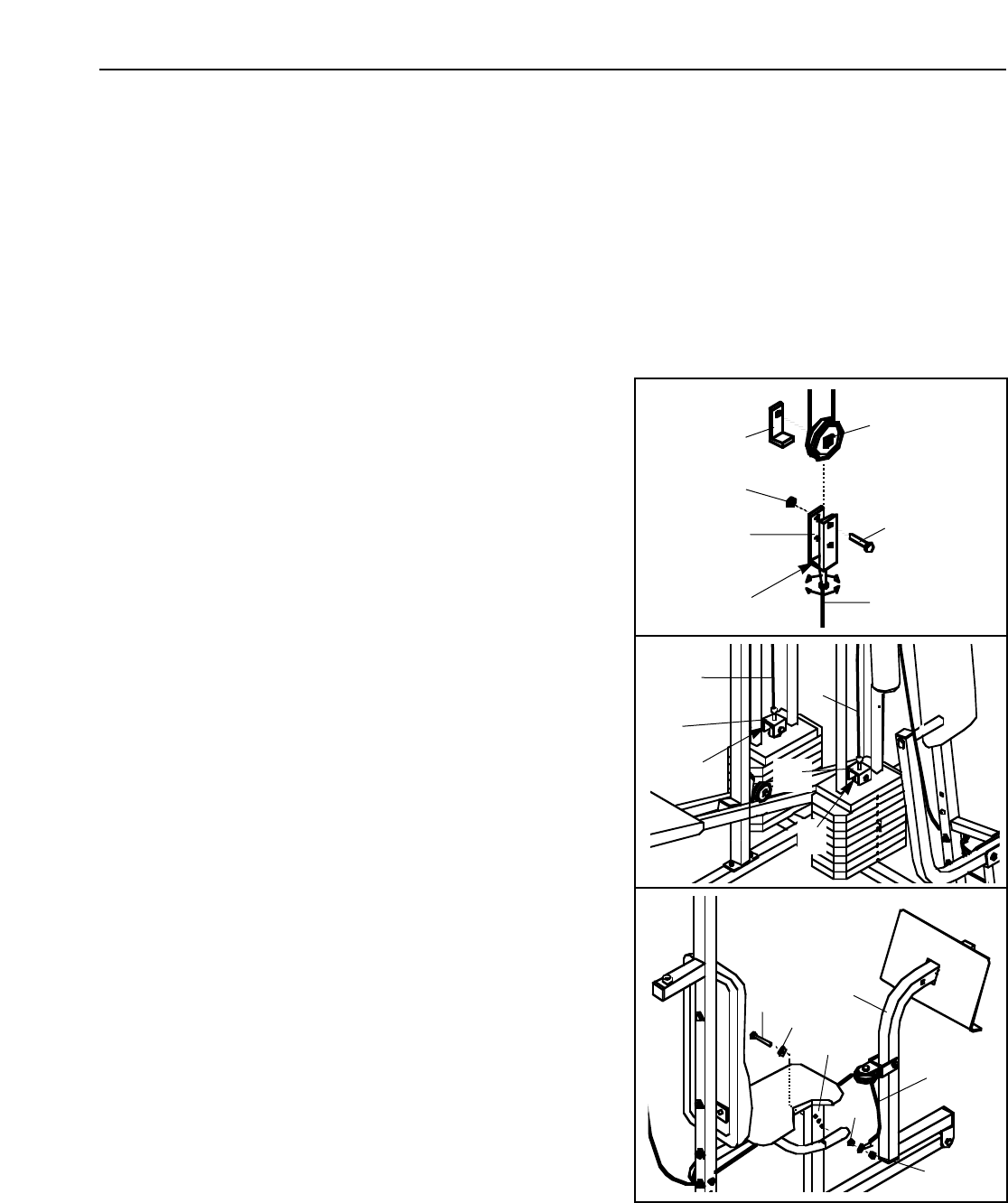

To tighten the cables, insert the weight pin into the middle of

the weight stack. Slack can be removed from these cables

several ways:

• See drawing 1. Tighten the 1/4” Nylon Locknut (2) that

connects the end of the Low Cable (23) to the Long “U”-

Bracket (57).

The Leg Press Cable (99) can be tightened in the same

manner.

• See drawing 1. Move the 3 1/2” Pulley (15) to the other

hole in one of the Long “U”-Brackets (57). Remove the

3/8” Nylon Locknut (21) and the 3/8” x 2” Bolt (12) from

the Cable Trap (66), Pulley, and Long “U”-Bracket. Re-

attach the Pulley and Cable Trap. Be sure that the Cable

Trap is in the proper position and that the Cable and

Pulley move smoothly.

The other Long “U”-Bracket (57) can be adjusted in the

same manner.

• See drawing 2. Tighten the 1/4” Nylon Locknut (2) that

connects the end of the High Cable (58) to the Small “U”-

Bracket (71).

The Military Press Cable (72) can be tightened in the

same manner.

• See Drawing 3. If additional slack is felt while using the

Leg Press Arm (96), then the end of the Leg Press Cable

(99) must be moved to the next hole in the Rear Seat

Frame (100). Remove the 5/16” x 2 3/4” Bolt (11), the

5/16” Washer (8), the end of the Cable, and both 5/16”

Nylon Jam Nuts (93) from the Rear Seat Frame. Re-

attach the Bolt, the Washer, the end of the Cable, and

both Nylon Jam Nuts to the next hole in the Rear Seat

Frame.

Do not overtighten the cables; the top weight will be lifted off the weight stack.

If a cable tends to slip off the pulleys often, it may have become twisted. Remove the cable and re-install it.

If the cables need to be replaced, see ORDERING REPLACEMENT PARTS on the back cover of this manual.

66 15

23 or 99

100

11 8

CABLE DIAGRAMS

The cable diagrams on these pages show the proper routing of the High Cable (58), the Low Cable (23), the

Military Press Cable (72), and the Leg Press Cable (99). Use the diagrams to be sure that the four cables and

the cable traps have been assembled correctly. If the cables have not been correctly routed, the home gym sys-

tem will not function properly and damage may occur. The insets show the proper positioning of the cable traps.

The cable traps should be positioned so that the cables will not come off the pulleys. Be sure that the cable

traps do not touch or bind the cables.

Low Cable (23)

—Low Pulley

—Long “U”-Bracket

—High Pulley

High Cable (58)

Front Weight Stack—

High Cable (58) and Low Cable (23)

Military Press Cable (72)

Leg Press Cable (99)

Rear Weight Stack—1

4—

Rear Seat Frame

8—

Pivot Arm

1—

Long “U”-Bracket

Military Press Cable (72) and Leg Press Cable (99)

1" Round Inner Cap (49)–6

1" Round Cover Cap (70)–2

3/4" Round Inner Cap (34)–4

1/2" x 3/4" Spacer (61)–4 5/16" x 2" Eyebolt (35)—1

1 1/2" Square Inner Cap (32)–4

1 3/4" Square Inner Cap (44)–6

2" Square Inner Cap (27)–8 2" Square Outer Cap (51)–2

1" Square Inner Cap (6)–1

1" x 2" Inner Cap (107)–2

5/8" x 9/16" Spacer (7)–1

5/16" Nylon Locknut (3)–36

1/4" Flat Washer (10)–15

5/16" Flat Washer (8)–9

3/8" Flat Washer (9)–9

1/4" x 2 1/2" Screw (43)–8

3/8" Nylon Locknut (21)–23

1/4" x 2" Machine Screw (81)–1

5/16" Nylon Jam Nut (93)–4

5/16" x 2 1/2" Carriage Bolt (1)–10

5/16" x 2 3/4" Carriage Bolt (14)–1

3/8" x 2" Bolt (12)–5

5/16" x 2 1/2" Bolt (22)–4

3/8" x 2 1/2" Bolt (86)–4

5/16" x 2 3/4" Bolt (11)–14

5/16" x 2 1/4" Bolt (33)–3

1/4" Nylon Locknut (2)–6

1/4" x 2 1/2" Carriage Bolt (92)–1

1" Retainer (69)–4

3/8" x 3 1/2" Bolt (16)–1 1/4" x 1/2" Screw (18)–6

5/16" x 5" Bolt (68)–1

3/8" x 3 3/4" Bolt (88)–6

Cable Clip (53)–3

1 1/8" x 2 1/2" Plastic Bushing (89)–2

1" x 7/8" Plastic Bushing (90)–2

3 1/2" Pulley (15)–13

(Not shown to scale)

"V"-Pulley (50)–5

(Not shown to scale)

3/8" x 3 1/4" Bolt (67)–2

5/16" x 3" Bolt (111)–1

PART LIST—Model No. 831.159380 R1096A

Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice.

Key Part

No. No. Qty. Description

1 100291

10 5/16” x 2 1/2” Carriage Bolt

2 012139 6 1/4” Nylon Locknut

3 012056 36 5/16” Nylon Locknut

4 133351 1 Base

5 133352 1 Stabilizer

6 120696 1 1” Square Inner Cap

7 121845 1 5/8” x 9/16” Spacer

8 014073 9 5/16” Flat Washer

9 014132 9 3/8” Flat Washer

10 014063 15 1/4” Flat Washer

11 119377 14 5/16” x 2 3/4” Bolt

12 013601 5 3/8” x 2” Bolt

13 133379 2 Seat

14 123385 1 5/16” x 2 3/4” Carriage Bolt

15 134031 13 3 1/2” Pulley

16 120003 1 3/8” x 3 1/2” Bolt

17 133360 1 Press Frame

18 123148 6 1/4” x 1/2” Screw

19 115644 4 Weight Bumper

20 133359 1 Pulley Bracket

21 012149 23 3/8” Nylon Locknut

22 127948 4 5/16” x 2 1/2” Bolt

23 133395 1 Low Cable

24 102073 2 5/16” x 1 3/4” Bolt

25 120294 18 Weight

26 122693 2 Weight Pin

27 108874 8 2” Square Inner Cap

28 133373 2 Pad Tube

29 133358 1 Leg Lever

30 103805 4 Foam Pad

31 133361 4 Long Cable Trap

32 103833 4 1 1/2” Square Inner Cap

33 121421 3 5/16” x 2 1/4” Bolt

34 119170 4 3/4” Round Inner Cap

35 129051 1 5/16” x 2” Eyebolt

36 133380 1 Front Seat Frame

37 133362 2 Seat Plate

38 128281 1 1/4” x 2” Carriage Bolt

39 115177 1 Nylon Strap

40 119192 1 Seat Knob

41 133357 1 Front Backrest

42 133356 1 Front Upright

43 128283 8 1/4” x 2 1/2” Screw

44 113666 6 1 3/4” Square Inner Cap

45 120596 2 10” Pad

46 133355 2 Press Arm

47 133364 1 Left Arm

48 133366 1 Right Arm

49 120733 6 1” Round Inner Cap

50 115164 5 “V”-Pulley

51 120822 2 2” Square Outer Cap

52 116868 1 Chain

53 103087 3 Cable Clip

54 133367 1 Lat Bar

55 133368 1 Top Frame

56 133370 1 Leg Press Upright

57 133375 2 Long “U”-Bracket

58 133396 1 High Cable

Key Part

No. No. Qty. Description

59 128292 1 3/8” x 8” Bolt

60 128293 2 5/16” x 6” Bolt

61 131516 4 1/2” x 3/4” Spacer

62 130361 2 Long Weight Guide

63 133376 1 Long Weight Tube

64 122691 2 Weight Tube Bumper

65 126866 2 Top Weight

66 133381 7 Cable Trap

67 120354 2 3/8” x 3 1/4” Bolt

68 128297 1 5/16” x 5” Bolt

69 108778 4 1” Retainer

70 120808 2 1” Round Cover Cap

71 133371 2 Small “U”-Bracket

72 133397 1 Military Press Cable

73 131911 2 Short Weight Guide

74 133377 1 Assist Upright

75 133383 1 Left Pull-up Arm

76 013399 2 3/8” x 1 3/4” Bolt

77 133382 1 Right Pull-up Arm

78 133384 1 Left Dip Arm

79 133385 1 Right Dip Arm

80 133369 2

Short Handgrip

81 128276 1 1/4” x 2” Machine Screw

82 133378 1 Handle

83 119702 8 5” Plastic Handgrip

84 133386 1 Military Press Arm

85 133372 1 Rear Backrest

86 013581 4 3/8” x 2 1/2” Bolt

87 102308 1 #8 x 1/2” Self-tapping Screw

88 118471 6 3/8” x 3 3/4” Bolt

89 126891 2 1 1/8” x 2 1/2” Plastic Bushing

90 126808 2 1” x 7/8” Plastic Bushing

91 122950 1 Rubber Bumper

92 121422 1 1/4” x 2 1/2” Carriage Bolt

93 100427 4 5/16” Nylon Jam Nut

94 133387 1 Press Bracket

95 133388 1 Leg Press Plate

96 133389 1 Leg Press Arm

97 131522 1 Press Pin

98 131910 2 Bushing

99 133398 1 Leg Press Cable

100 133354 1 Rear Seat Frame

101 133353 1 Pivot Arm

102 124590 1 3 1/2” Low Pulley

103 133390 2 Handle Cap

104 133391 1 Assist Seat

105 133392 1 Assist Arm

106 118522 1 3/8” x 6” Bolt

107 127231 2 1” x 2” Inner Cap

108 133394 1 Short Weight Tube

109 124819 6 1 1/4” Round Inner Cap

110 133231 1 Angle Bracket

111 126145 1 5/16” x 3” Bolt

112 013485 1 3/8” x 4 1/2” Bolt

113 134434 2

Long Handgrip

# 133393 1 User’s Manual

# 125056 1 Exercise Poster

86 11

108

1043

15 29

34 34

44 83

19 11 8

2526

321

111

100

84 83

93 93

101

18 37

102

107

76 21

106

921

104

105

103

112

113

77 3

11 3

110

109

EXPLODED DRAWING—Model No. 831.159380 R1096A

Model No. 831.159380

QUESTIONS?

If you find that:

• you need help assembling or

operating the WEIDER®PRO 9645

• a part is missing

• or you need to schedule repair

service

call our toll-free HELPLINE

1-800-736-6879

Monday–Saturday, 7 am–7 pm

Central Time (excluding holidays)

REPLACEMENT PARTS

If parts become worn and need to

be replaced, call the following toll-

free number

1-800-FON-PART

(1-800-366-7278)

The model number and serial number of your WEIDER®PRO 9645

are listed on a decal attached to the frame. See the front cover of

this manual to find the location of the decal.

All replacement parts are available for immediate purchase or

special order when you visit your nearest SEARS Service Center.

To request service or to order parts by telephone, call the toll-free

numbers listed at the left.

When requesting help or service, or ordering parts, please be pre-

pared to provide the following information:

• The MODEL NUMBER of the product (831.159380).

• The NAME of the product (WEIDER®PRO 9645 Home Gym

System).

• The PART NUMBER of the PART (see the PART LIST and the

EXPLODED DRAWING at the center of this manual).

• The DESCRIPTION of the PART (see the PART LIST and the

EXPLODED DRAWING at the center of this manual).

FULL 90 DAY WARRANTY

For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this

SEARS WEIGHT SYSTEM EXERCISER, contact the nearest SEARS Service Center throughout the

United States and SEARS will repair or replace the WEIGHT SYSTEM EXERCISER, free of charge.

This warranty does not apply when the WEIGHT SYSTEM EXERCISER is used commercially or for

rental purposes.

This warranty gives you specific legal rights, and you may also have other rights which vary from state

to state.

SEARS, ROEBUCK AND CO., DEPT. 817WA, HOFFMAN ESTATES, IL 60179

Weider 831 15938 Users Manual .SYOM 831.159380 133393

Weider-Pro-9645-159380-Owners-Manual weider-pro-9645-159380-owners-manual

831.159380 to the manual e1fd9a19-f0af-4efb-b0f6-9ace6d2b6fbc

Navigation menu

Versions of this User Manual:

Views

Navigation
