CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

Model No. WESY47330

Serial No.

Write the serial number in the

space above for future reference.

Serial Number Decal (Under Seat)

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction. If you

have questions, or if there are

missing or damaged parts, we

will guarantee complete satis-

faction through direct assis-

tance from our factory.

TO AVOID DELAYS, PLEASE

CALL DIRECT TO OUR TOLL-

FREE CUSTOMER HOT LINE.

The trained technicians on our

customer hot line will provide

immediate assistance, free of

charge.

CUSTOMER HOT LINE:

1-800-999-3756

Mon.–Fri., 6 a.m.–6 p.m. MST

Visit our website at

www.weiderfitness.com

new products, prizes,

fitness tips, and much more!

USER’S MANUAL

Patent Pending

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

WEIGHT RESISTANCE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

CABLE DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

TROUBLE SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

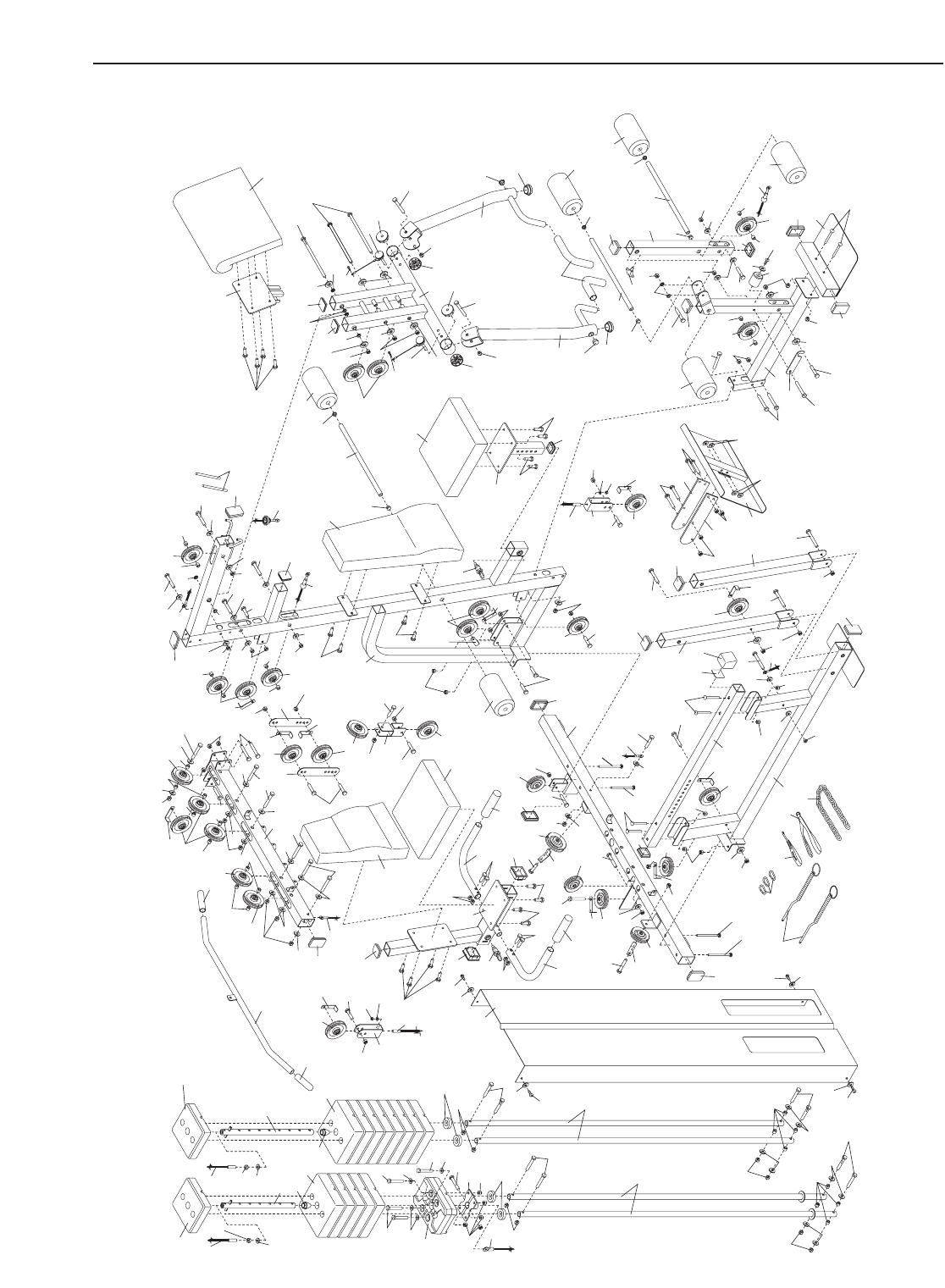

Note: A PART IDENTIFICATION CHART and a PART LIST/EXPLODED DRAWING are attached in the center of

this manual. Remove the PART IDENTIFICATION CHART and PART LIST/EXPLODED DRAWING before begin-

ning assembly.

WEIDER is a registered trademark of ICON Health & Fitness, Inc.

TABLE OF CONTENTS

WARNING DECAL PLACEMENT

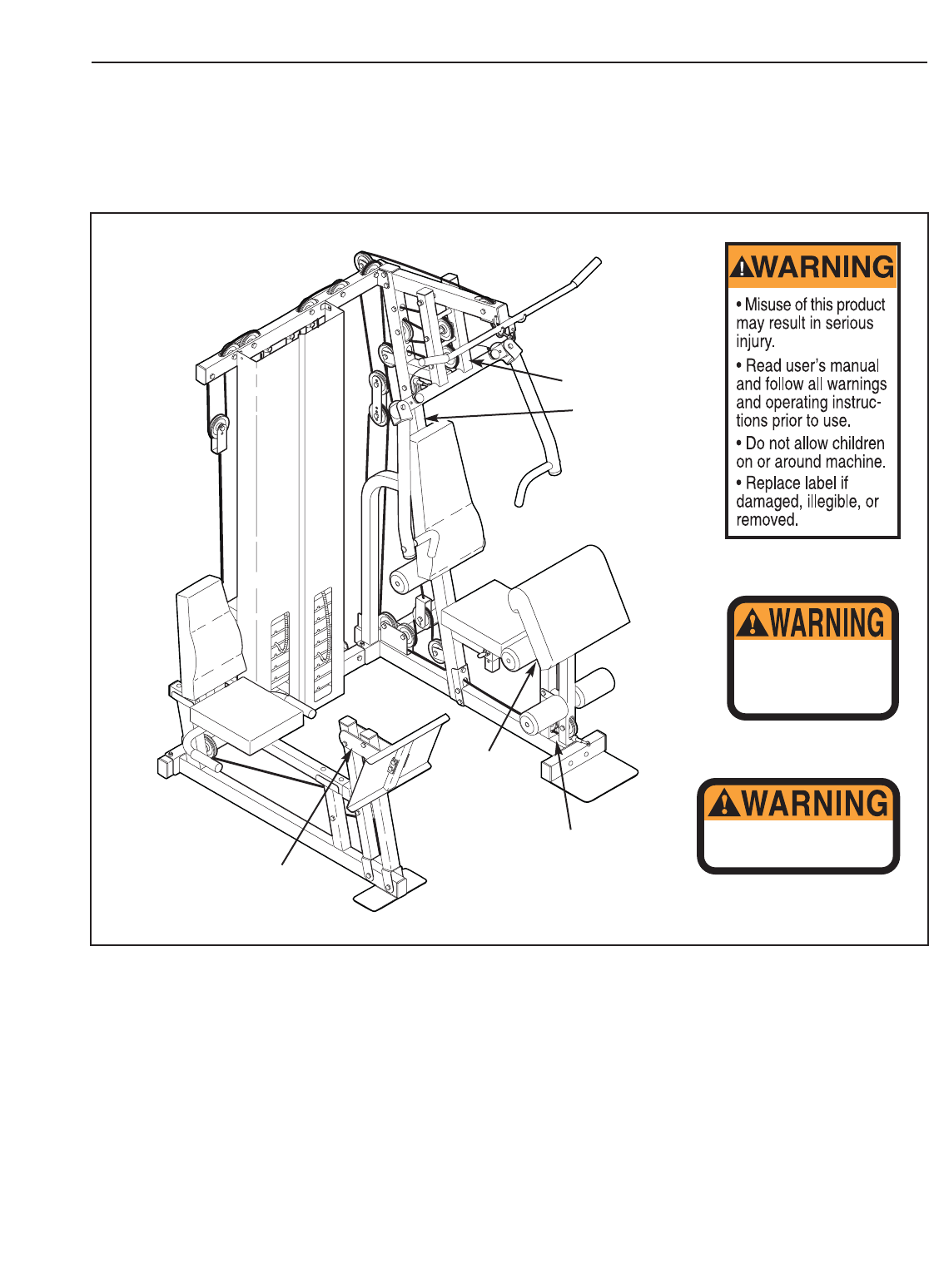

The decals shown here have been placed on the weight system. If a decal is missing or illegible, please

call our Customer Service Department toll-free at 1-800-999-3756, Monday through Friday, 6 a.m. until

6 p.m. Mountain Time, to order a free replacement decal. Apply the decal in the location shown.

Decal 1

Decal 2

Decal 3

Decal 2

Decal 3

Decal 2

Keep hands and

fingers clear of

this area.

• Keep clear of

this area.

1. Read all instructions in this manual before

using the weight system. Use the weight sys-

tem only as described in this manual.

2. It is the responsibility of the owner to ensure

that all users of the weight system are ade-

quately informed of all precautions.

3. The weight system is intended for home use

only. Do not use the weight system in any

commercial, rental, or institutional setting.

4. Use the weight system only on a level sur-

face. Cover the floor beneath the weight sys-

tem to protect the floor.

5. Make sure all parts are properly tightened

each time the weight system is used.

Replace any worn parts immediately.

6. Keep children under 12 and pets away from

the weight bench at all times.

7. Keep hands and feet away from moving parts.

8. Always wear athletic shoes for foot protec-

tion while exercising.

9. The weight system is designed to support a

maximum user weight of 300 pounds. The

weight system is designed to be used by

only one person at a time.

10. Make sure that the cables remain on the pul-

leys at all times. If the cables bind as you are

exercising, stop immediately and make sure

that the cables are on the pulleys.

11. Always stand on the foot plate when per-

forming an exercise that could cause the

weight system to tip.

12. Never release the butterfly arms, leg lever, lat

bar, leg press, or accessories while weights

are raised; the weights will fall with great

force.

13. Always disconnect the lat bar from the

weight system when performing an exercise

that does not use it.

14. If you feel pain or dizziness at any time while

exercising, stop immediately and begin cool-

ing down.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. ICON assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

WARNING: To reduce the risk of serious injury, read the following important precautions

before using the weight system.

IMPORTANT PRECAUTIONS

BEFORE YOU BEGIN

Thank you for selecting the versatile WEIDER®CLUB

C4800 weight system. The weight system offers a

selection of weight stations designed to develop every

major muscle group of the body. Whether your goal is to

tone your body, build dramatic muscle size and

strength, or improve your cardiovascular system, the

weight system will help you to achieve the specific

results you want.

For your benefit, read this manual carefully before

using the weight system. If you have additional ques-

tions, please call our Customer Service Department toll-

free at 1-800-999-3756, Monday through Friday,

6 a.m. until 6 p.m. Mountain Time (excluding holidays).

To help us assist you, please note the product model

number and serial number before calling. The model

number is WESY47330. The serial number can be

found on a decal attached to the weight system (see the

front cover of this manual).

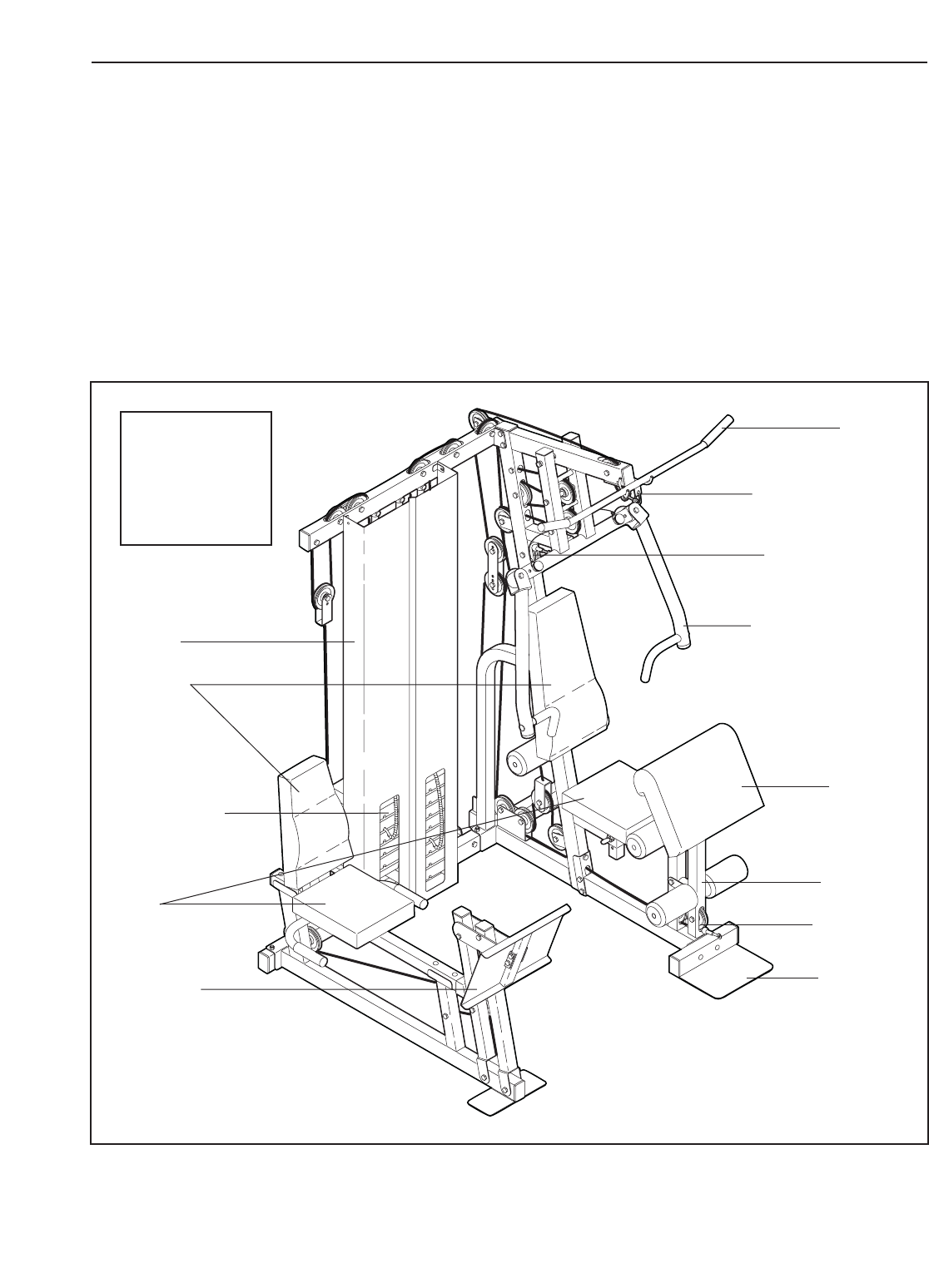

Before reading further, please review the drawing below

and familiarize yourself with the parts that are labeled.

ASSEMBLED

DIMENSIONS:

Height: 82 in.

Width: 74 in.

Length: 60 in.

Low Pulley

Station

Foot Plate

High Pulley Station

Curl Pad

Shroud

Seat

Leg Press

Backrest

Leg Lever

AB Pulley Station

Butterfly/Press Arm

Lat Bar

Weight Stack

Make sure you have the following tools:

• Two adjustable wrenches

• One standard screwdriver

• One phillips screwdriver

• One rubber mallet

•You will also need grease or petroleum jelly, a

small amount of soapy water, and clear tape or

masking tape.

Note: Assembly will be more convenient if you have

a socket set, a set of open-end or closed-end

wrenches, or a set of ratchet wrenches.

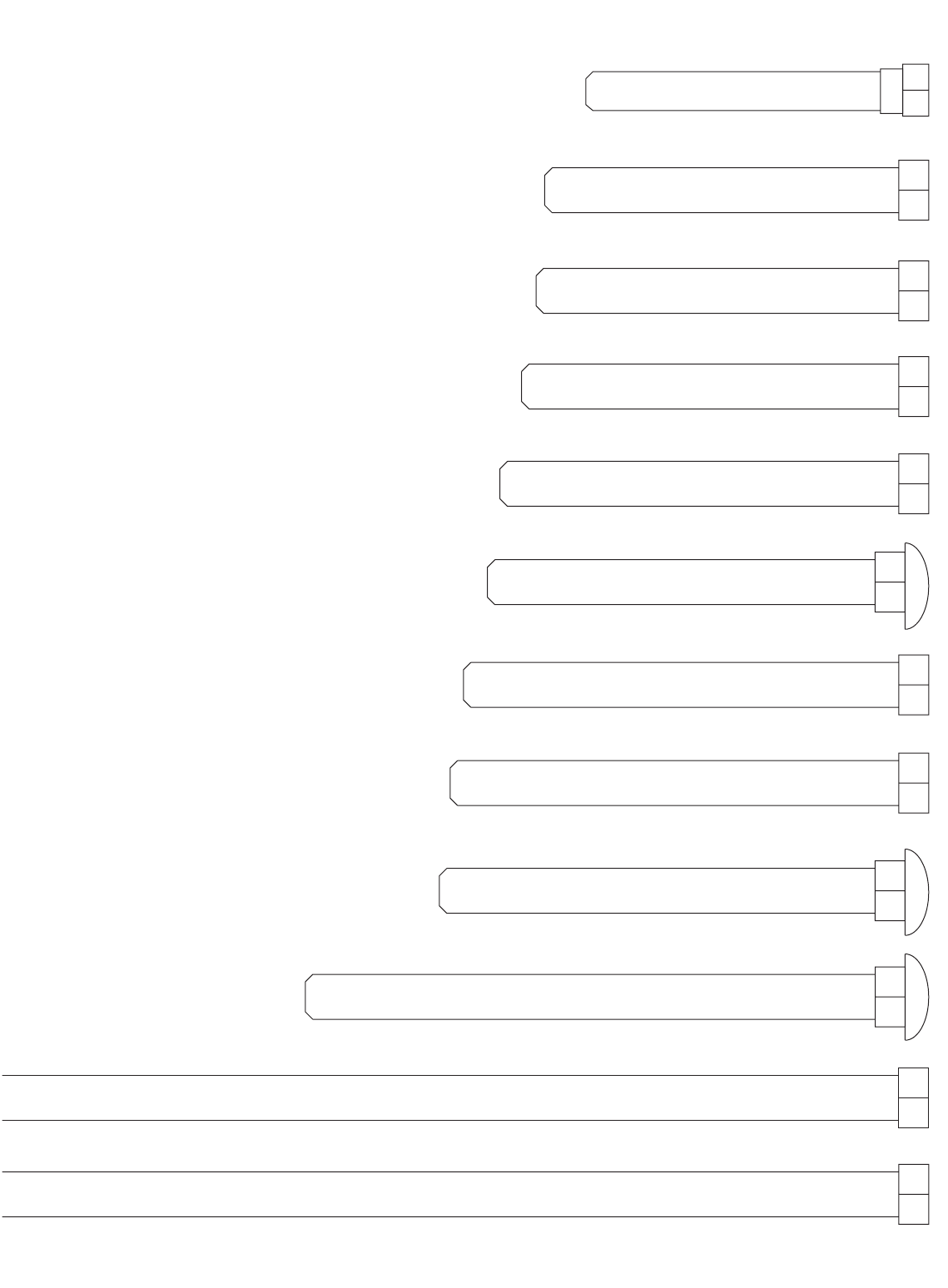

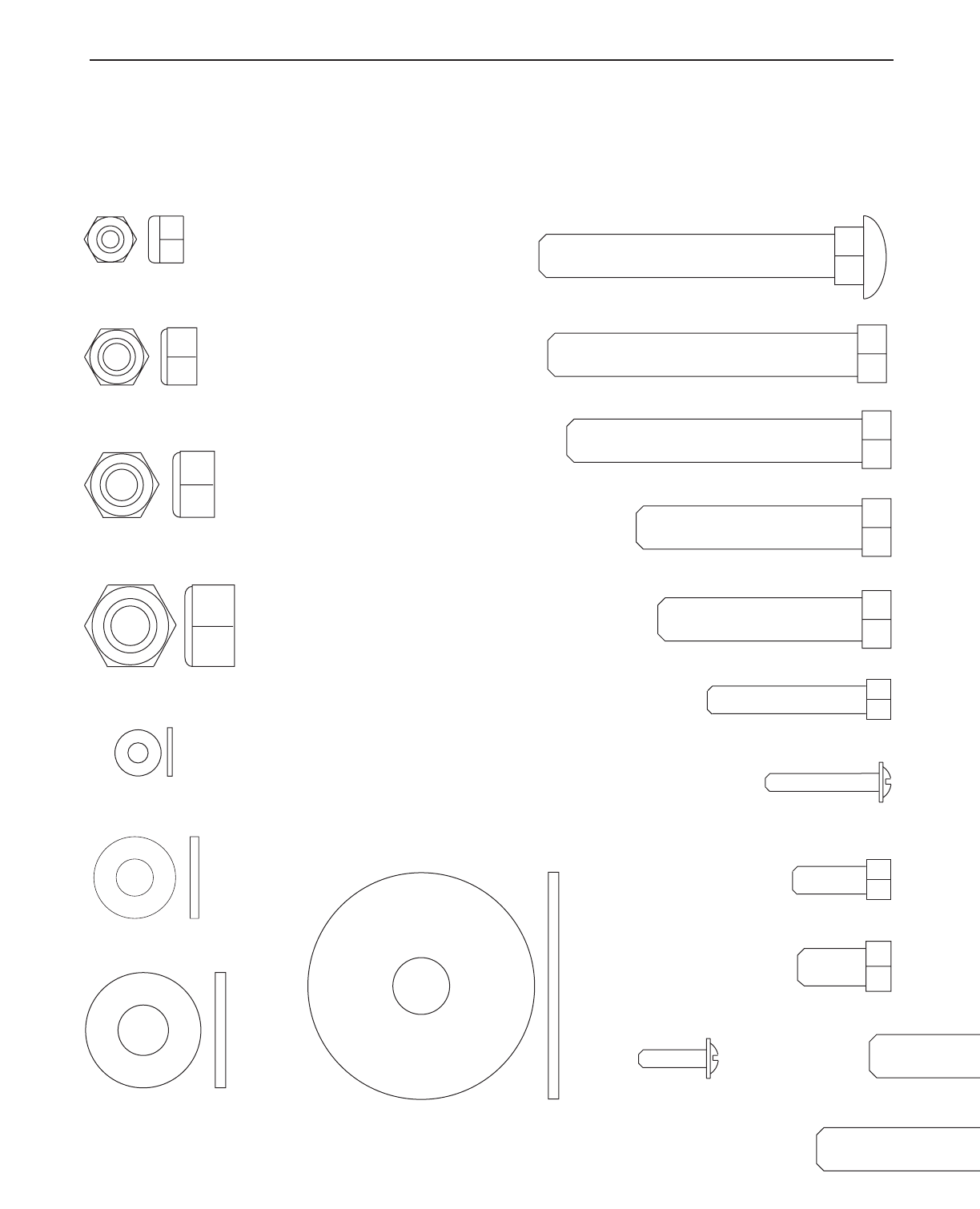

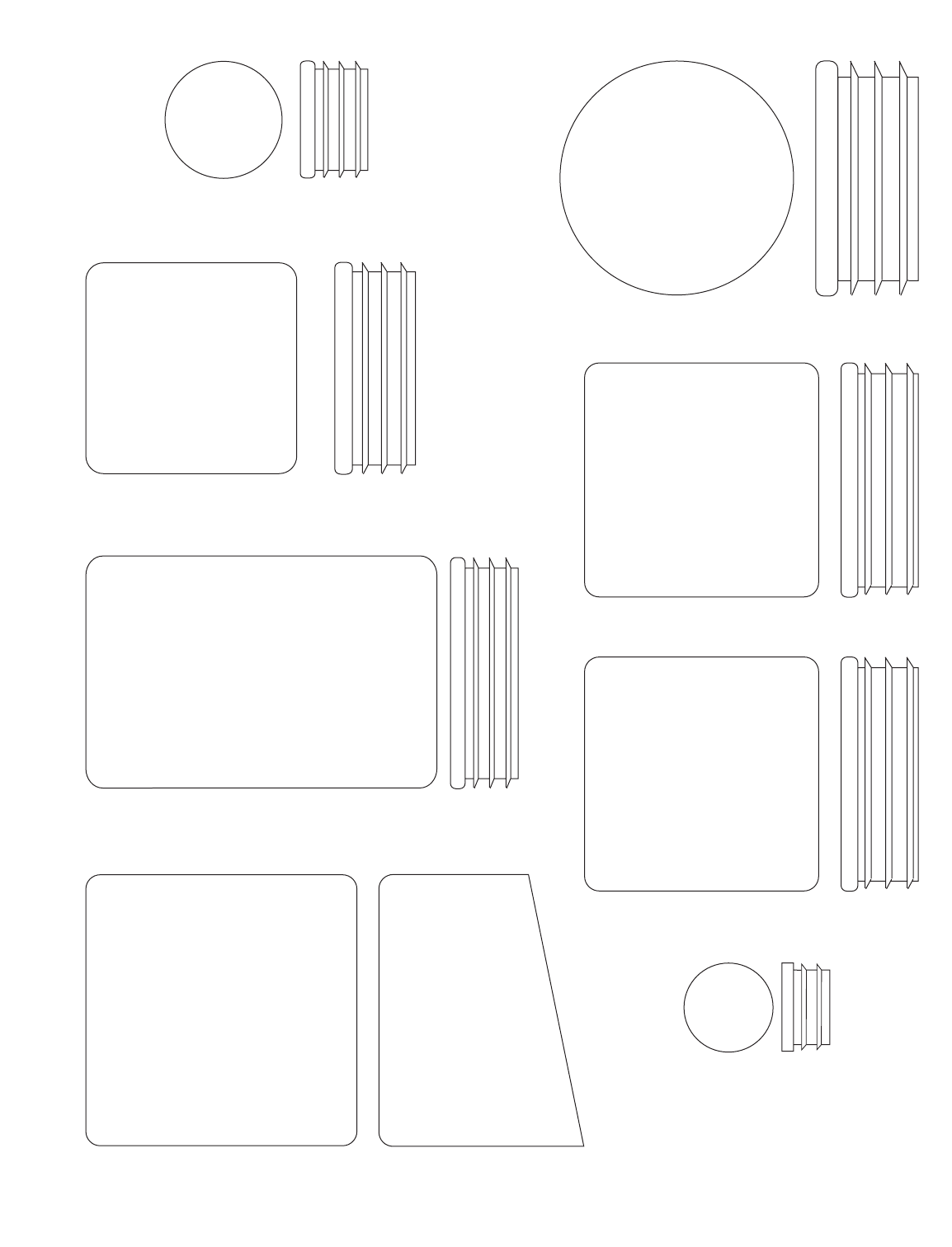

How to Identify Parts

To help you identify the small parts used in assembly,

we have included a PART IDENTIFICATION CHART

in the center of this manual. Place the chart on the

floor and use it to easily identify parts during each

assembly step. Note: Some small parts may have

been pre-attached. If a part is not in the parts

bag, check to see if it has been pre-attached.

How to Orient Parts

As you assemble the weight system, make sure that

all parts are oriented exactly as shown in the draw-

ings.

Tightening Parts

Tighten all parts as you assemble them, unless

instructed to do otherwise.

Questions?

If you have questions after reading the assembly

instructions, please call our Customer Service

Department at 1-800-999-3756.

Assembly Requires Two Persons

For your convenience and safety, assemble the

weight system with the help of another person.

Set Aside Enough Time

Due to the many features of the weight system, the

assembly process will require several hours. By

setting aside plenty of time and by deciding to

make the task enjoyable, assembly will go smoothly.

You may want to assemble the weight system over

a couple of evenings.

Select a Location for the Weight System

Because of its weight and size, the weight system

should be assembled in the location where it will be

used. Make sure that there is enough room to walk

around the weight system as you assemble it.

How to Unpack the Box

To make assembly as easy as possible, we have

divided the assembly process into four stages. The

parts needed for each stage are found in individual

bags. Important: Wait until you begin each stage

to open the parts bag for that stage. Place all

parts of the weight system in a cleared area and

remove the packing materials. Do not dispose of

the packing materials until assembly is completed.

Make Assembly Easier for Yourself

Everything in this manual is designed to

ensure that the weight system can be assem-

bled successfully by anyone. Before begin-

ning assembly, make sure to read the

information on this page. This brief intro-

duction will save you much more time than

it takes to read it.

The Four Stages of the Assembly Process

Frame Assembly—You will begin by assembling

the base and the uprights that form the skeleton of

the weight system.

Arm Assembly—During this stage you will

assemble the arms and the leg lever.

Cable Assembly—During this stage you will

attach the cables and pulleys that connect the

arms to the weights.

Seat Assembly—During the final stage you will

assemble the seats and the backrests.

ASSEMBLY

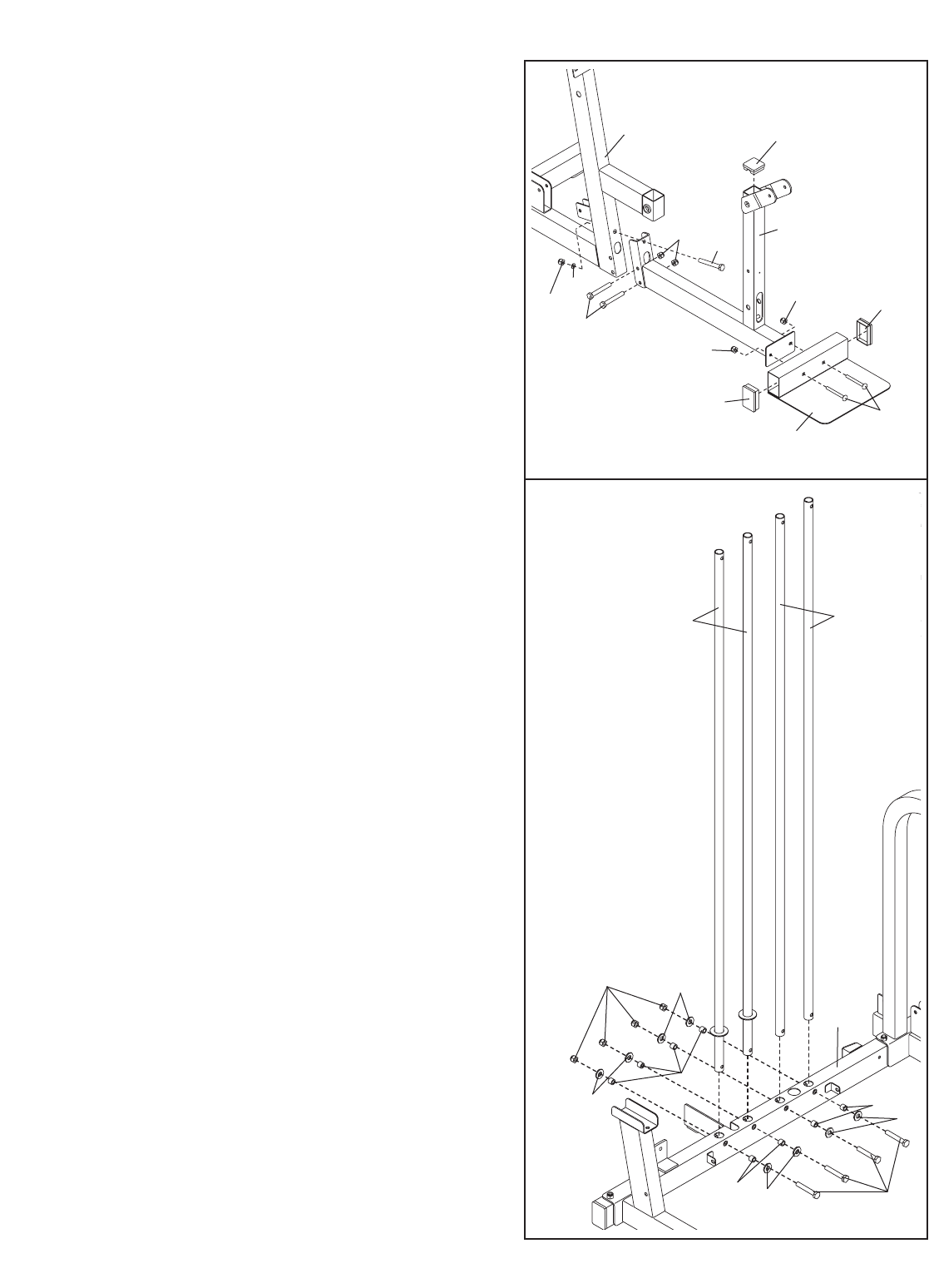

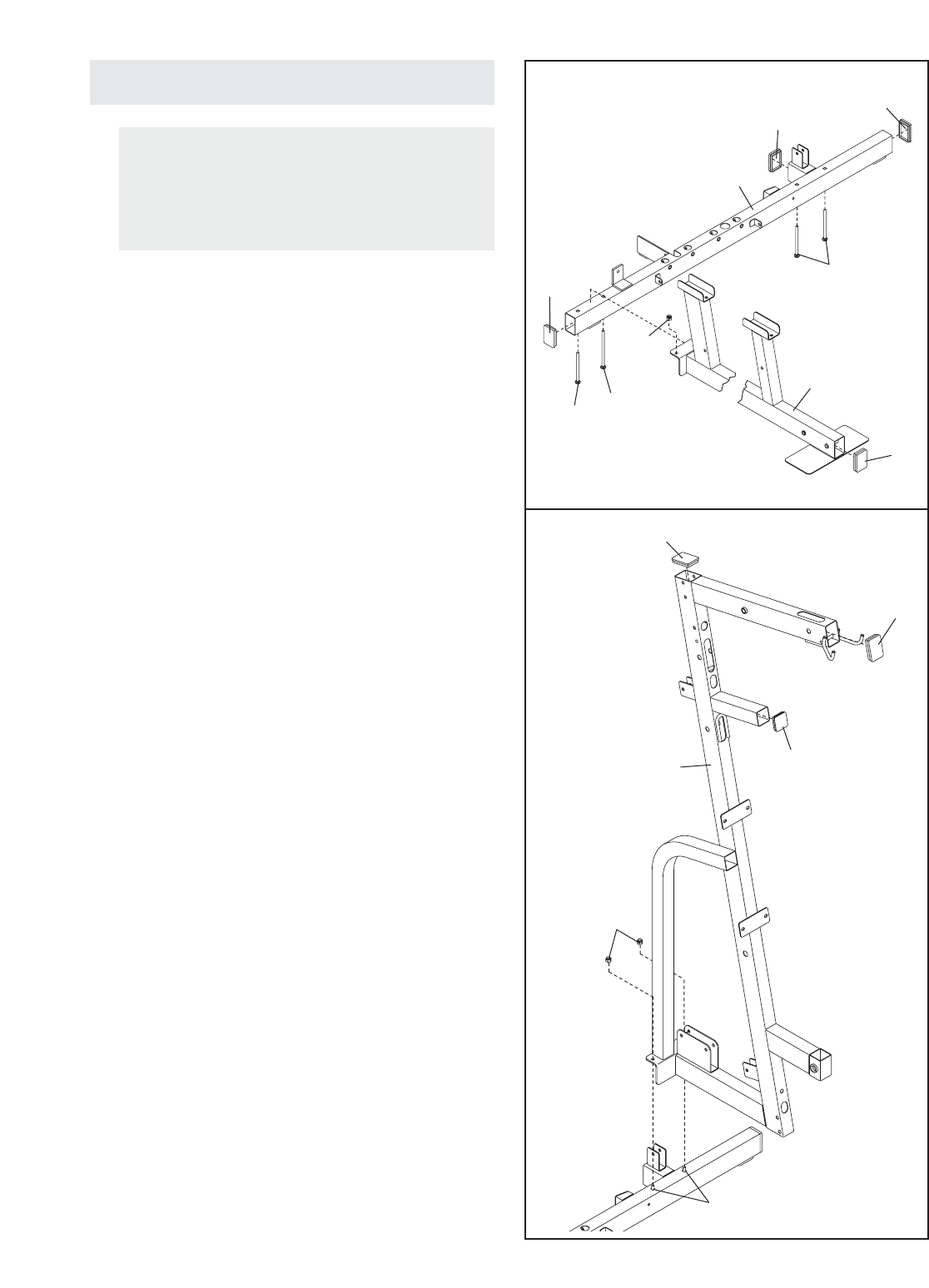

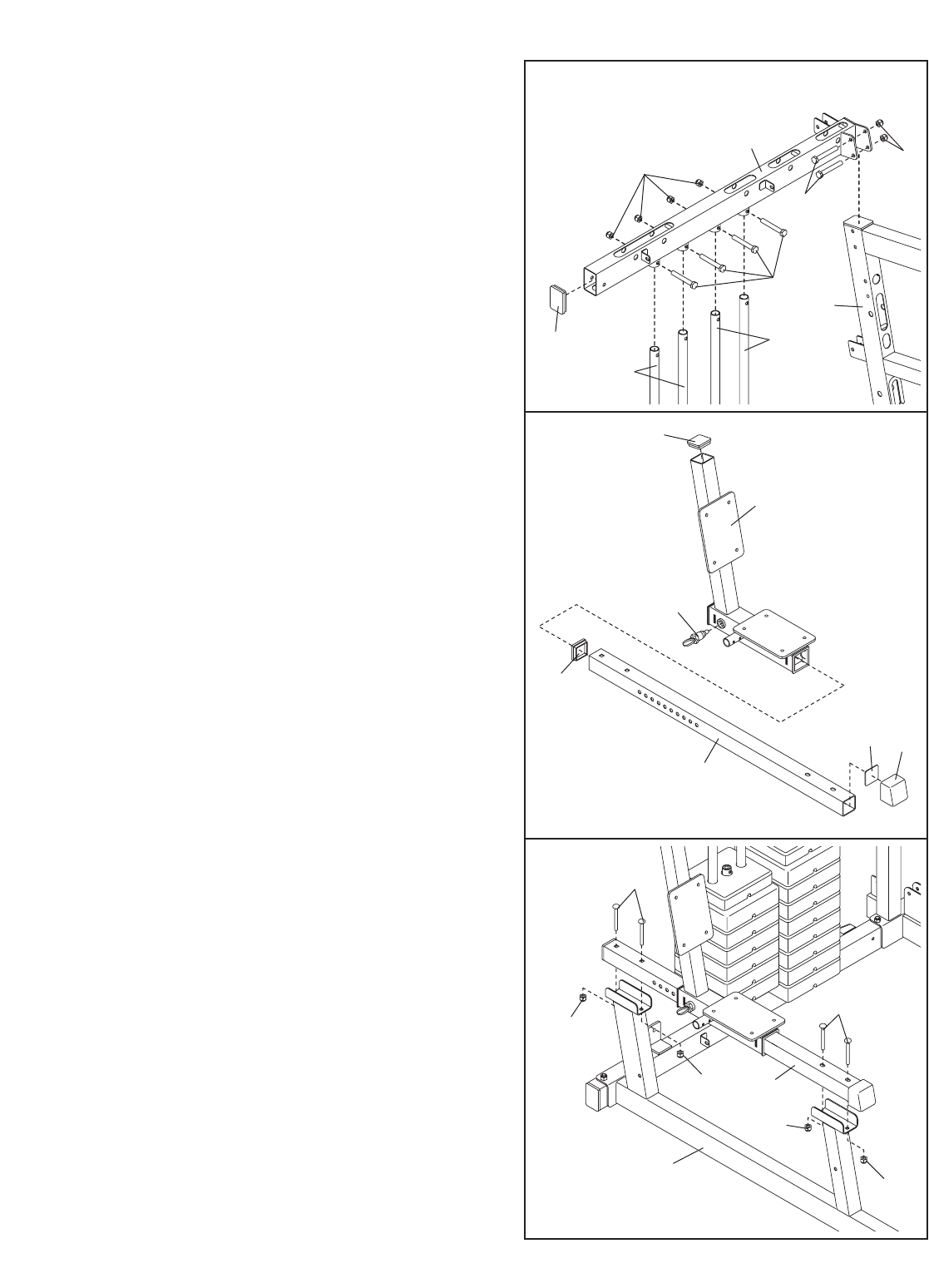

Press four 50mm x 75mm Inner Caps (46) into

the Base (1) and the Leg Press Base (3).

Insert three M10 x 92mm Carriage Bolts (85) and

an M10 x 121mm Carriage Bolt (49) up into the

Base (1).

Slide the Leg Press Base (3) onto the indicated

M10 x 92mm Carriage Bolt (85) and the M10 x

121mm Carriage Bolt (49). Thread an M10 Nylon

Locknut (101) onto the M10 x 92mm Carriage

Bolt. Do not tighten the Locknut yet.

2. Press two 50mm x 75mm Inner Caps (46) and a

50mm Square Inner Cap (45) into the Butterfly

Upright (2).

Slide the Butterfly Upright (2) on the indicated

M10 x 92mm Carriage Bolts (85) and thread two

M10 Nylon Locknuts (101) onto the Bolts. Do not

tighten the Locknuts yet.

101

85 49

101

Before beginning assembly, make sure you

understand the information in the box on

page 6. Refer to the PART IDENTIFICATION

CHART in the center of this manual for help

identifying small parts.

Frame Assembly

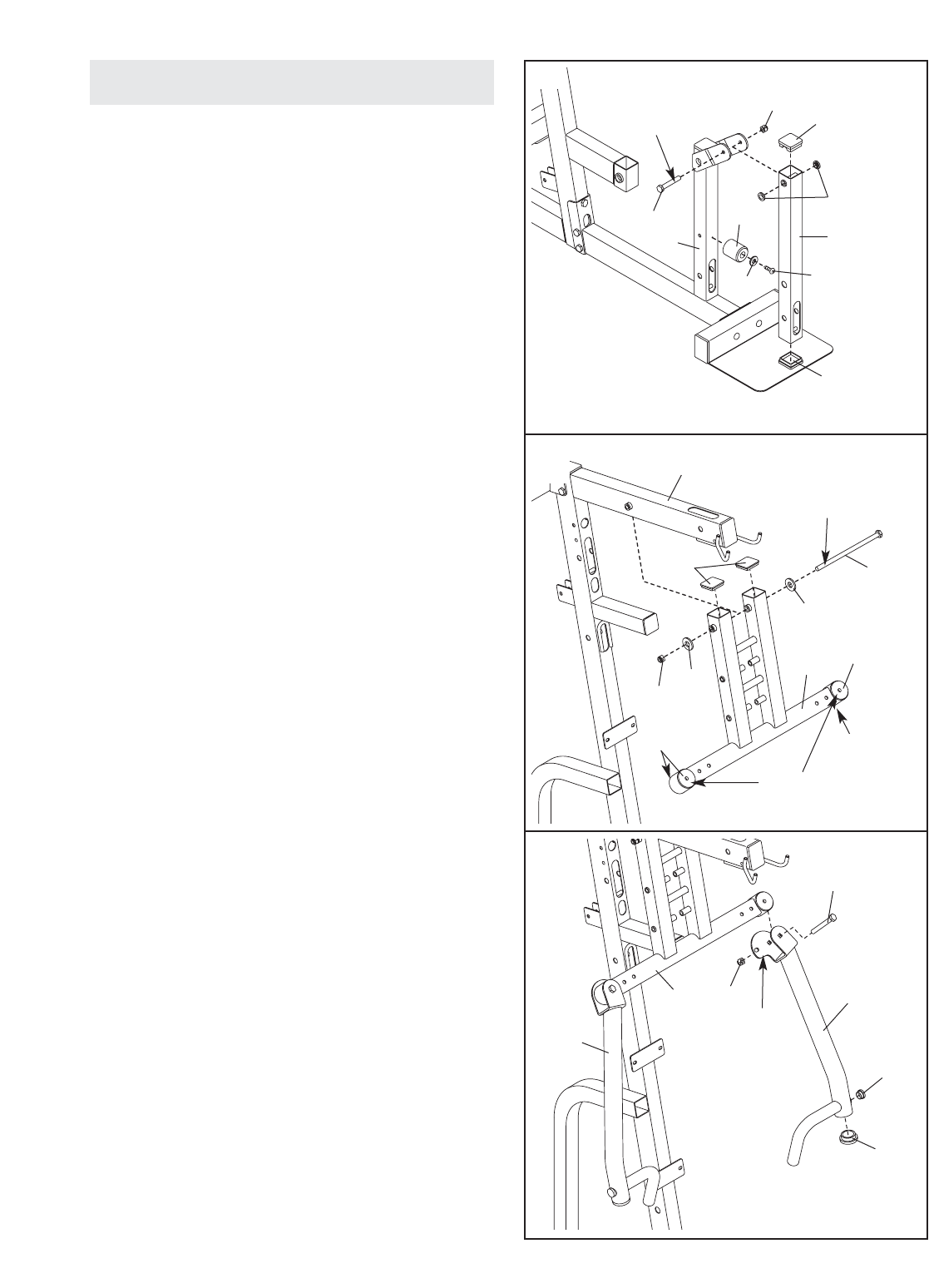

3. Press a 50mm Thick Square Inner Cap (47) into

the Leg Lever Base (5). Press two 50mm x 75mm

Inner Caps (46) into the Foot Plate (6).

Attach the Leg Lever Base (5) to the Butterfly

Upright (2) with two M10 x 75mm Bolts (82), an

M10 x 95mm Bolt (105), an M10 Washer (99),

and three M10 Nylon Locknuts (101). Do not

tighten the Locknuts yet.

Attach the Foot Plate (6) to the Leg Lever Base

(5) with two M10 x 65mm Carriage Bolts (88) and

two M10 Nylon Locknuts (101). Do not tighten

the Locknuts yet.

4. Insert the two Weight Guides with Rings (19) into

the indicated holes in the Base (1). Attach the

Weight Guides with Rings to the Base with two

M10 x 65mm Bolts (80), four M10 Washers (99),

four 12.5mm Spacers (69), and two M10 Nylon

Locknuts (101).

Insert the two Weight Guides (18) into the indicat-

ed holes in the Base (1). Attach the Weight

Guides to the Base with two M10 x 65mm Bolts

(80), four M10 Washers (99), four 12.5mm

Spacers (69), and two M10 Nylon Locknuts (101).

105

46 88

101

19 18

101

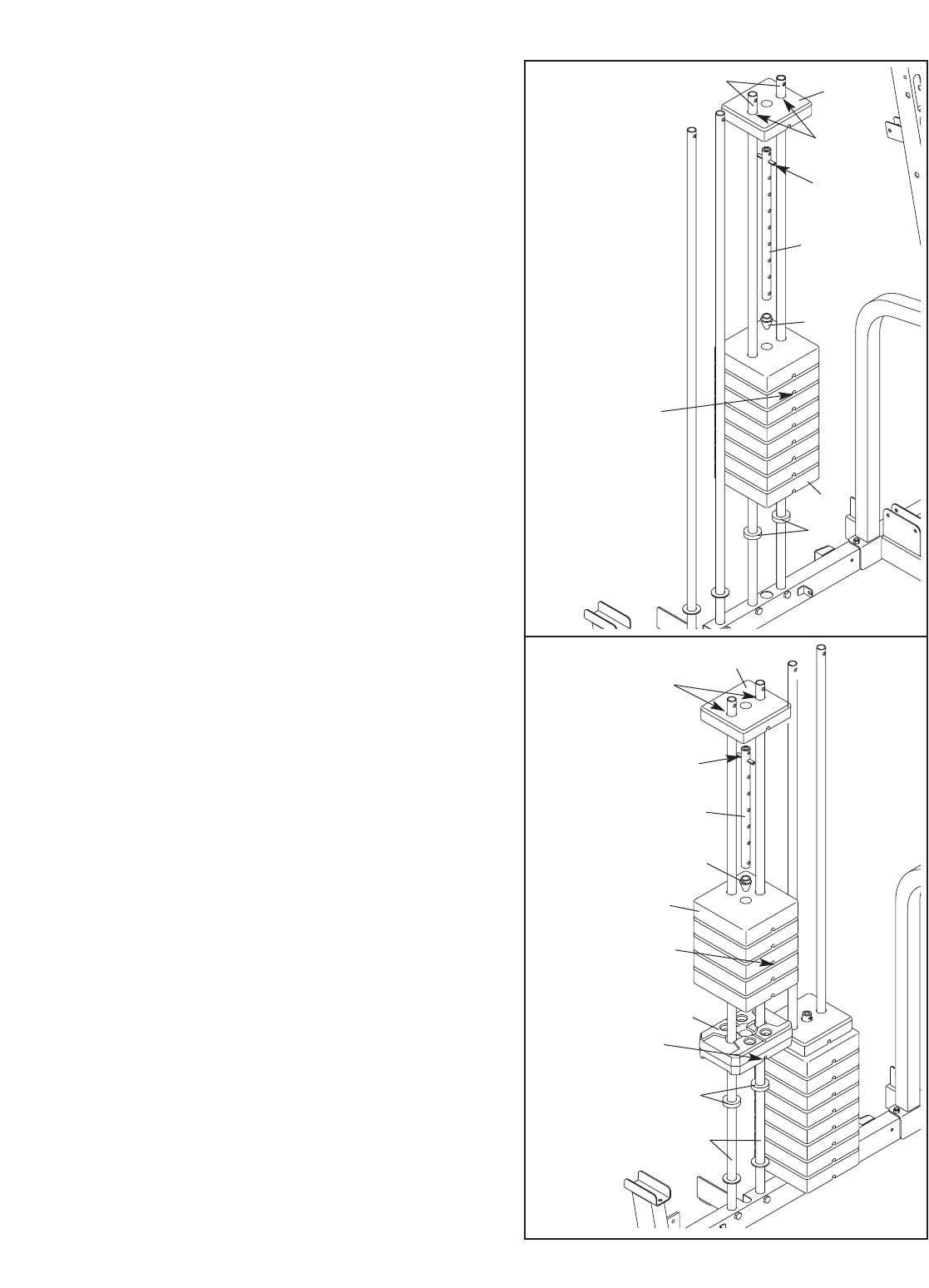

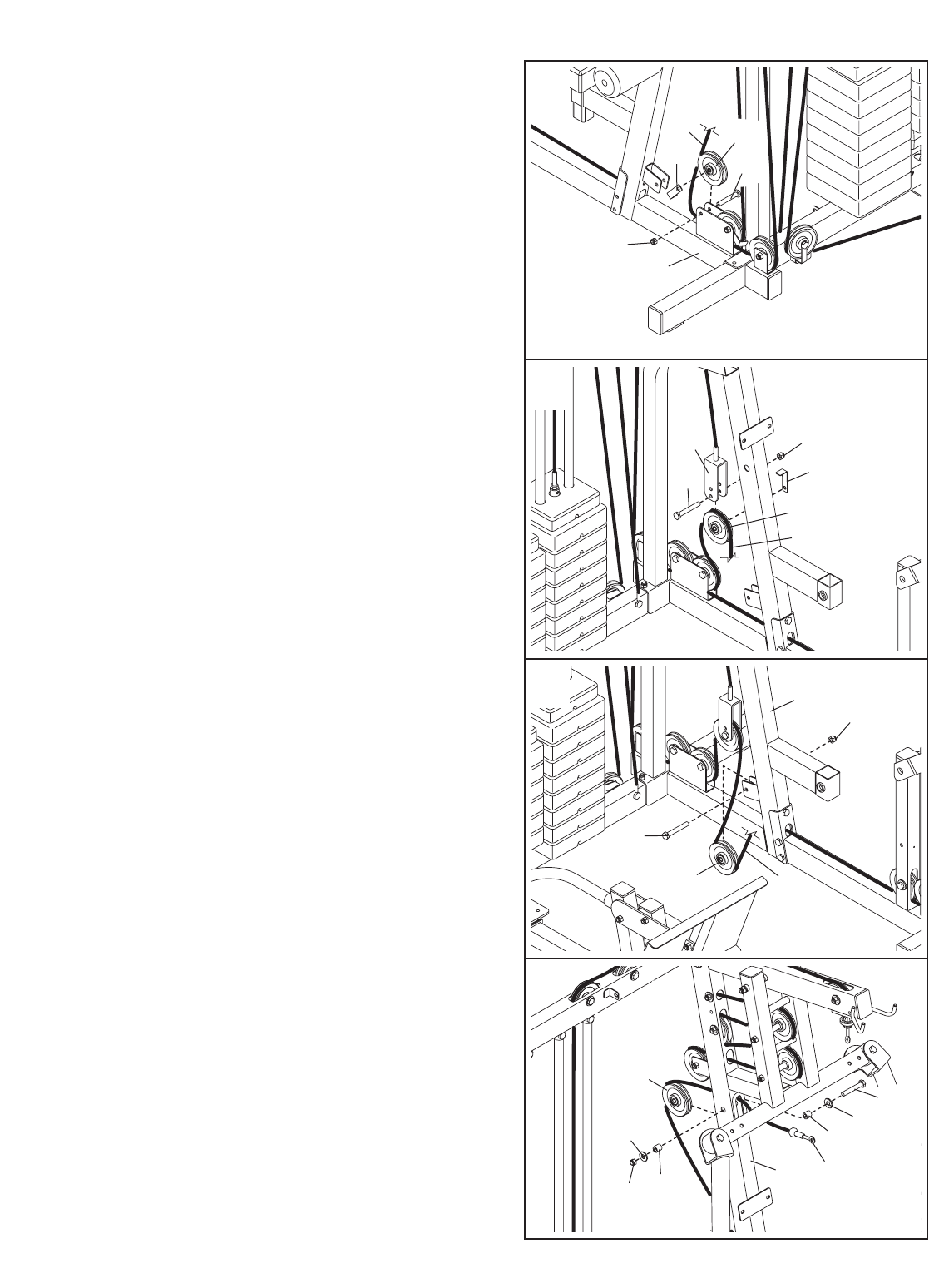

5. Slide two Weight Bumpers (71) onto the Weight

Guides (18).

Slide eight Weights (22) onto the Weight Guides

(18). Make sure the Weights are oriented with

the pin grooves on the side shown.

Press a Weight Tube Bumper (54) into the Long

Weight Tube (23). Insert the Long Weight Tube

into the Weights (22).

Lubricate the indicated holes in a Top Weight (25)

with grease. Slide the Top Weight onto the Weight

Guides (18). Make sure the pin on the Long

Weight Tube (23) rests in the grooves in the

bottom of the Top Weight.

6. Slide two Weight Bumpers (71) onto the Weight

Guides with Rings (19).

Slide the Bottom Weight (21) onto the Weight

Guides with Rings (19). Make sure the Weight is

oriented with the pin groove on the side

shown.

Slide five Weights (22) onto the Weight Guides

with Rings (19). Make sure the Weights are ori-

ented with the pin grooves on the side shown.

Press a Weight Tube Bumper (54) into the Short

Weight Tube (24). Slide the Short Weight Tube

into the Weights (22).

Lubricate the indicated holes in the other Top

Weight (25) with grease. Slide the Top Weight

onto the Weight Guides with Rings (19). Make

sure the pin on the Short Weight Tube (24)

rests in the grooves in the bottom of the Top

Weight.

18 25

Groove

Lubricate

Groove

Lubricate

Groove

7. Press a 50mm x 75mm Inner Cap (46) into the

Top Frame (9).

Slide the welded tubes on the Top Frame (9) over

the upper ends of the Weight Guides (18, 19).

Attach the Top Frame (9) to the Butterfly Upright

(2) with two M10 x 75mm Bolts (82) and two M10

Nylon Locknuts (101). Do not tighten the

Locknuts yet.

Attach the Top Frame (9) to the Weight Guides

(18, 19) with four M10 x 45mm Bolts (51) and

four M10 Nylon Locknuts (101). Do not tighten

the Locknuts yet.

9. Attach the Seat Adjustment Frame (4) to the Leg

Press Base (3) with four M10 x 65mm Carriage

Bolts (88) and four M10 Nylon Locknuts (101).

Tighten the M10 Nylon Locknuts (101) used in

steps 1–3 and 7–9.

8. Press a 50mm Thick Square Inner Cap (47) into

the Sliding Seat Frame (8). Press a 50mm Square

Inner Cap (45) into the indicated end of the Seat

Adjustment Frame (4). Press the Metal Plate (44)

and the 50mm Angled Outer Cap (43) onto the

other end of the Seat Adjustment Frame.

Tighten a “T”-handle (59) into the Sliding Seat

Frame (8). Turn the “T”-handle counterclockwise

to loosen it. Pull out the handle as far as possible

and slide the Seat Adjustment Frame (4) into the

Sliding Seat Frame. Release the handle and let it

engage one of the adjustment holes in the Seat

Adjustment Frame. Then, tighten the handle.

101

44 43

101

10. Attach the Leg Lever Bumper (60) to the Leg

Lever Base (5) with an M4 x 25mm Self-tapping

Screw (103) and an M4 Washer (104).

Press two 50mm Square Inner Caps (45) and two

M10 Round Bushings (79) into the Leg Lever (7).

Lubricate an M10 x 85mm Bolt (96) with grease.

Attach the Leg Lever (7) to the Leg Lever Base

(5) with the Bolt and an M10 Nylon Locknut (101).

Do not overtighten the Locknut; the Leg Lever

must be able to pivot easily.

12. Identify the Left Butterfly Arm (11) by the position

of the indicated bracket. Press a 50mm Round

Inner Cap (52) and a 25mm Round Inner Cap

(76) into the Butterfly Arm.

Attach the Left Butterfly Arm (11) to the Butterfly

Frame (10) with an M10 x 82mm Carriage Bolt

(93) and an M10 Nylon Locknut (101). Do not

overtighten the Locknut; the Butterfly Arm

must be able to pivot easily.

Repeat this step with the Right Butterfly Arm

(12).

11.Press two 50mm Square Inner Caps (45) into the

Butterfly Frame (10).

Lubricate an M10 x 225mm Bolt (86) with grease.

Attach the Butterfly Frame (10) to the Butterfly

Upright (2) with the Bolt, two M10 Washers (99),

and an M10 Nylon Locknut (101). Do not over-

tighten the Locknut; the Butterfly Frame must

be able to pivot easily.

Lubricate the four 56mm Round Bushings (53)

with grease.

96 79

103

104

101

Lubricate

99 10 53

101

Bracket

Lubricate

Arm Assembly

13. Attach a Seat Arm (26) to the Sliding Seat Frame

(8) with two M6 x 35mm Bolts (83) and two M6

Nylon Locknuts (102).

Repeat with the other Seat Arm (26).

15. Lubricate wo M10 x 80mm Bolts (110) with

grease. Attach the two Leg Press Brackets (16) to

the Press Arms (13, 14) with the Bolts and two

M10 Nylon Locknuts (101). Do not tighten the

Locknuts yet. Make sure the warining decal is

in the location shown.

14. Press a 50mm Thick Angled Cap (109) into the

top of the Rear Press Arm (13). Press a 50mm

Angled Cap (108) into the top of the Front Press

Arm (14).

Lubricate an M10 x 77mm Bolt (106) with grease.

Attach the Rear Press Arm (13), which has a hole

in the lower area, to the Leg Press Base (3) with

the Bolt and an M10 Nylon Locknut (101). Do not

overtighten the Locknut; the Press Arm must

be able to pivot easily.

Attach the Front Press Arm (14) to the Leg

Press Base (3) in the same manner.

102

109

108

106

Hole

101

110

Lubricate

Warning

Decal

101

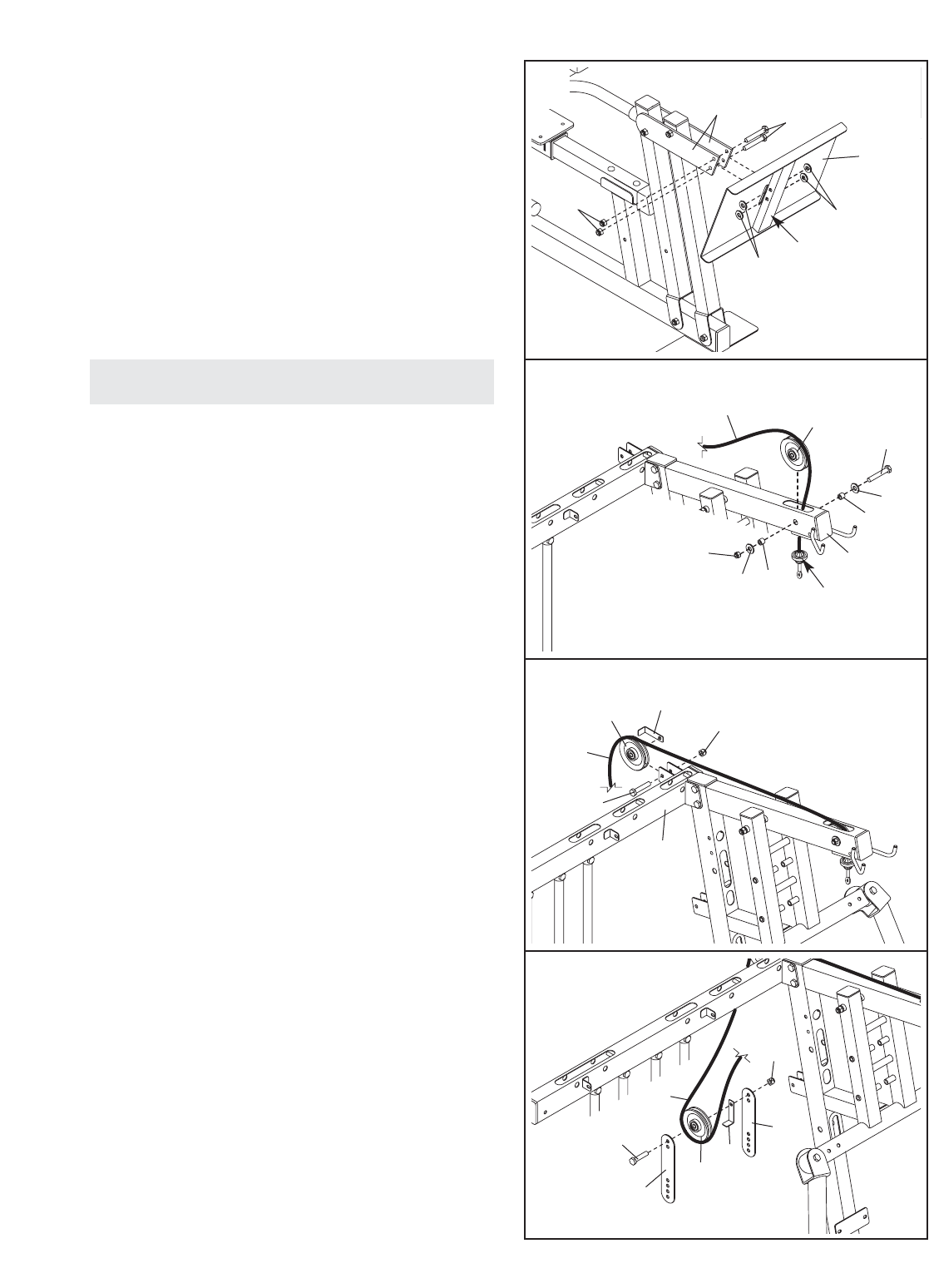

16. Attach the Leg Press Plate (15) to the Leg Press

Brackets (16) with two M10 x 85mm Bolts (96),

four M10 Thick Spacers (70), and two M10 Nylon

Locknuts (101).

Note: The four M10 Thick Spacers (70) must

be between the Leg Press Brackets (16) and

the welded tube on the Leg Press Plate (15).

The two holes in the welded tube must be

closer to the top of the Leg Press Plate.

Tighten the M10 Nylon Locknuts (101) used in

step 15. Do not overtighten the Locknuts; the

leg press arms must be able to pivot easily.

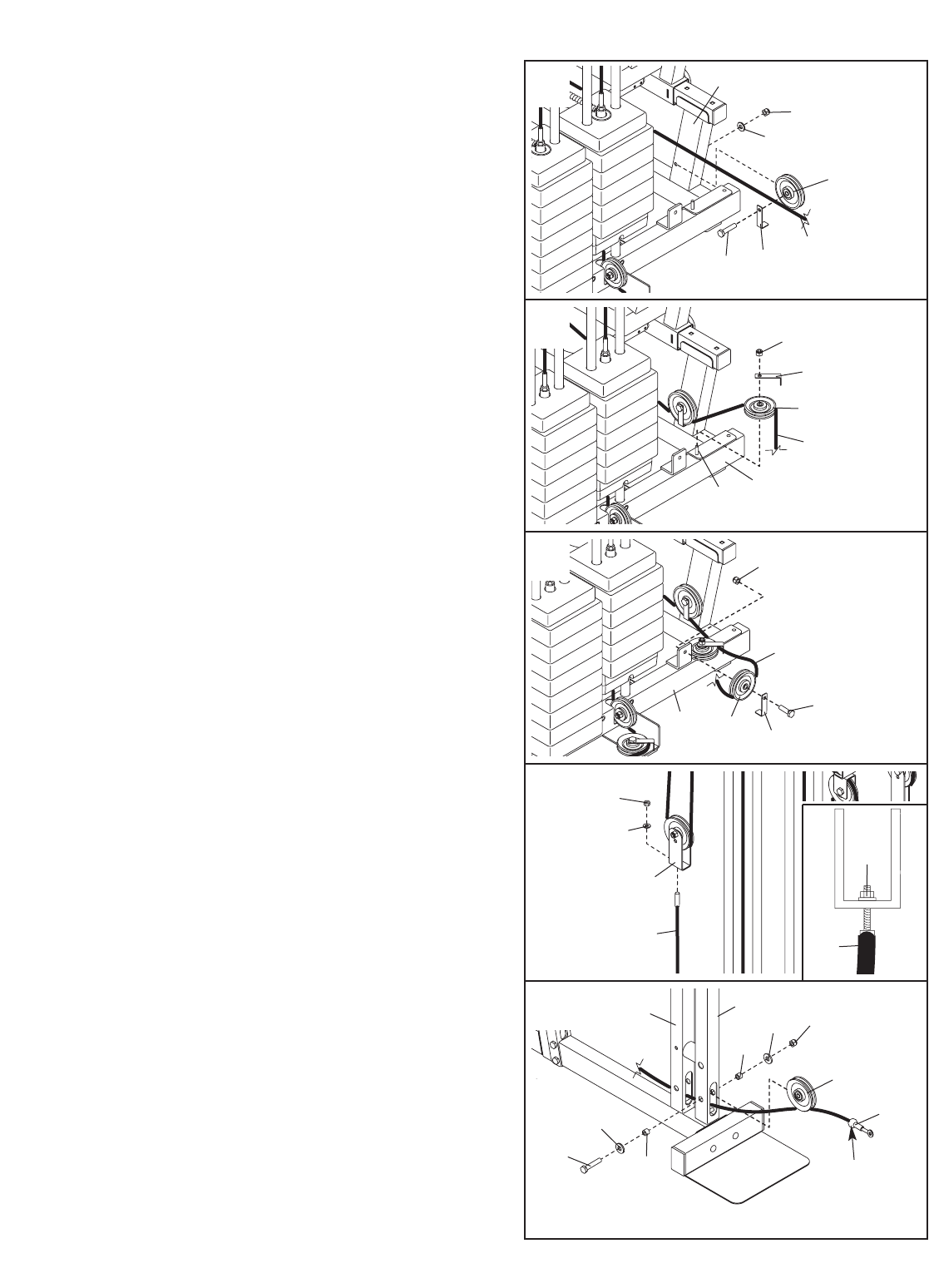

18. Wrap the Lat Cable (62) over a 100mm Pulley

(38). Attach the Pulley and a Long Cable Trap

(68) to the Top Frame (9) with an M10 x 50mm

Bolt (81) and an M10 Nylon Locknut (101). Make

sure the Cable Trap is oriented to hold the

Cable in the groove of the Pulley.

19. Wrap the Lat Cable (62) under a 100mm Pulley

(38). Attach the Pulley and a Long Cable Trap

(68) to the top set of holes in the indicated end of

the two Pulley Plates (41) with an M10 x 50mm

Bolt (81) and an M10 Nylon Locknut (101). Make

sure the Cable Trap is oriented to hold the

Cable in the groove of the Pulley.

17. Refer to the CABLE DIAGRAMS on pages 29

and 30 as you assemble the cables and to

identify the cables.

Identify the Lat Cable (62). Route the Cable up

through the Butterfly Upright (2), so that the ball

is in the indicated location, and around a 100mm

Pulley (38). Attach the Pulley inside the Upright

with an M10 x 65mm Bolt (80), two M10 Washers

(99), two 12.5mm Spacers (69), and an M10

Nylon Locknut (101).

62 38

Ball

Welded

Tube

101

38 68

Cable Assembly

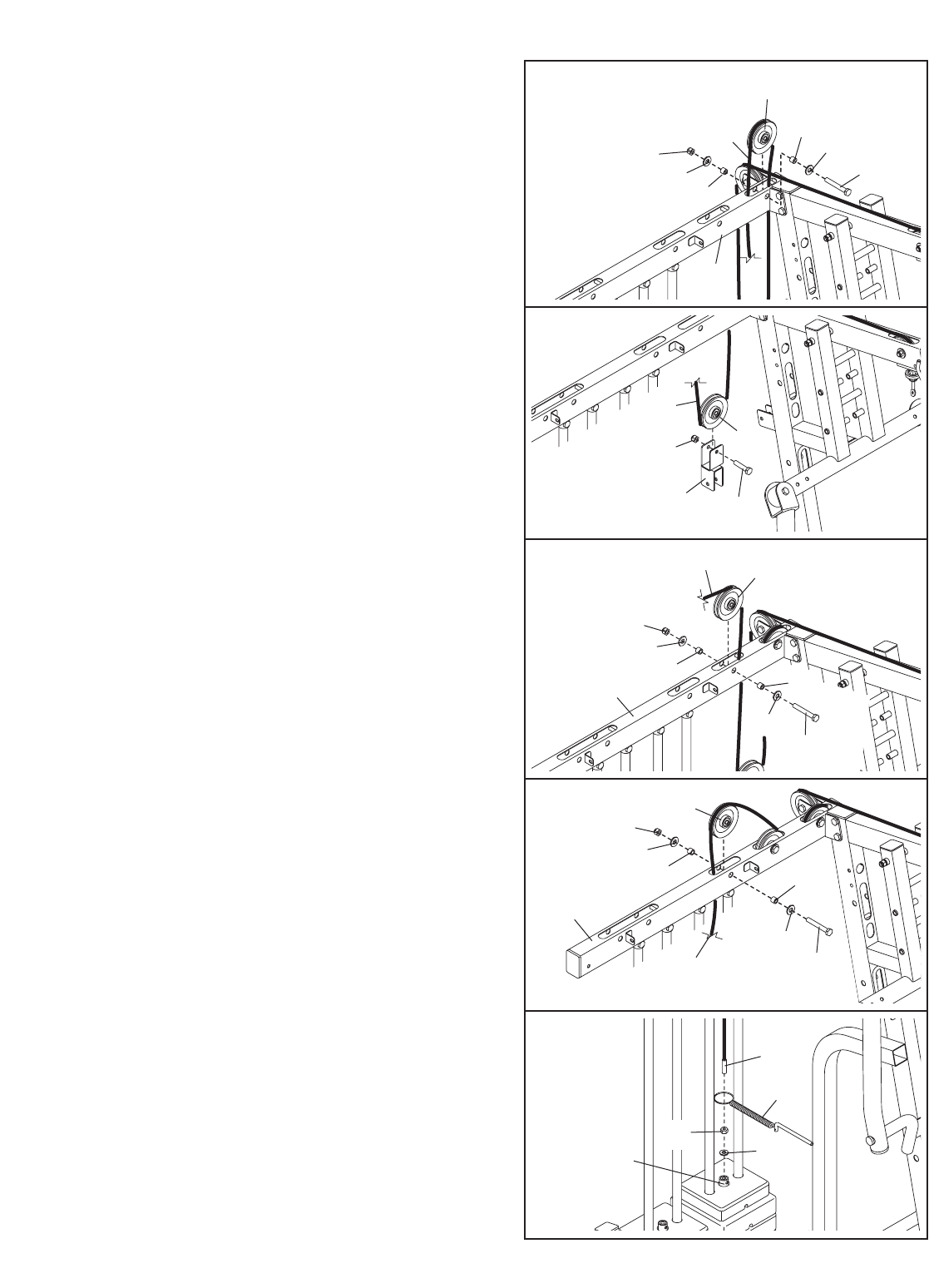

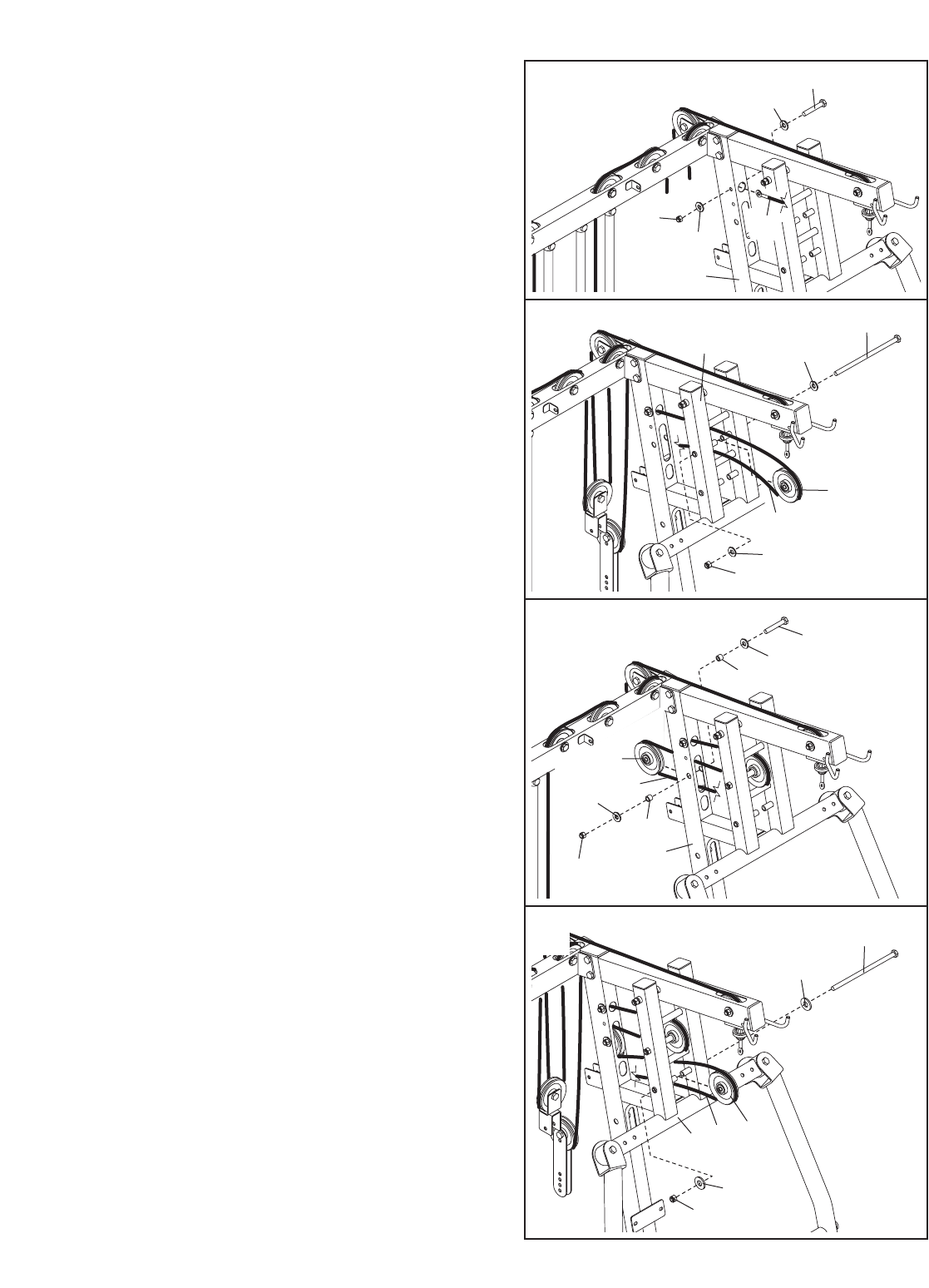

20. Route the Lat Cable (62) up through the Top

Frame (9), over a 100mm Pulley (38), and back

down through the Top Frame. Attach the Pulley

inside the Top Frame with an M10 x 65mm Bolt

(80), two M10 Washers (99), two 12.5mm

Spacers (69), and an M10 Nylon Locknut (101).

21. Wrap the Lat Cable (62) under a 100mm Pulley

(38). Attach the Pulley to the Double “U”-bracket

(42) with an M10 x 45mm Bolt (51) and an M10

Nylon Locknut (101).

23. Route the Lat Cable (62) over a 100mm Pulley

(38) and down through the Top Frame (9). Attach

the Pulley inside the Top Frame with an M10 x

65mm Bolt (80), two M10 Washers (99), two

12.5mm Spacers (69), and an M10 Nylon Locknut

(101).

24. Set the tether on a Weight Pin (98) over the Long

Weight Tube (23). Set a 50mm Washer (95) on

the Weight Tube.

Thread an M12 Nut (58) all the way onto the Lat

Cable (62). Screw the Cable partway into the

Long Weight Tube (23). Tighten the Nut against

the 50mm Washer (95).

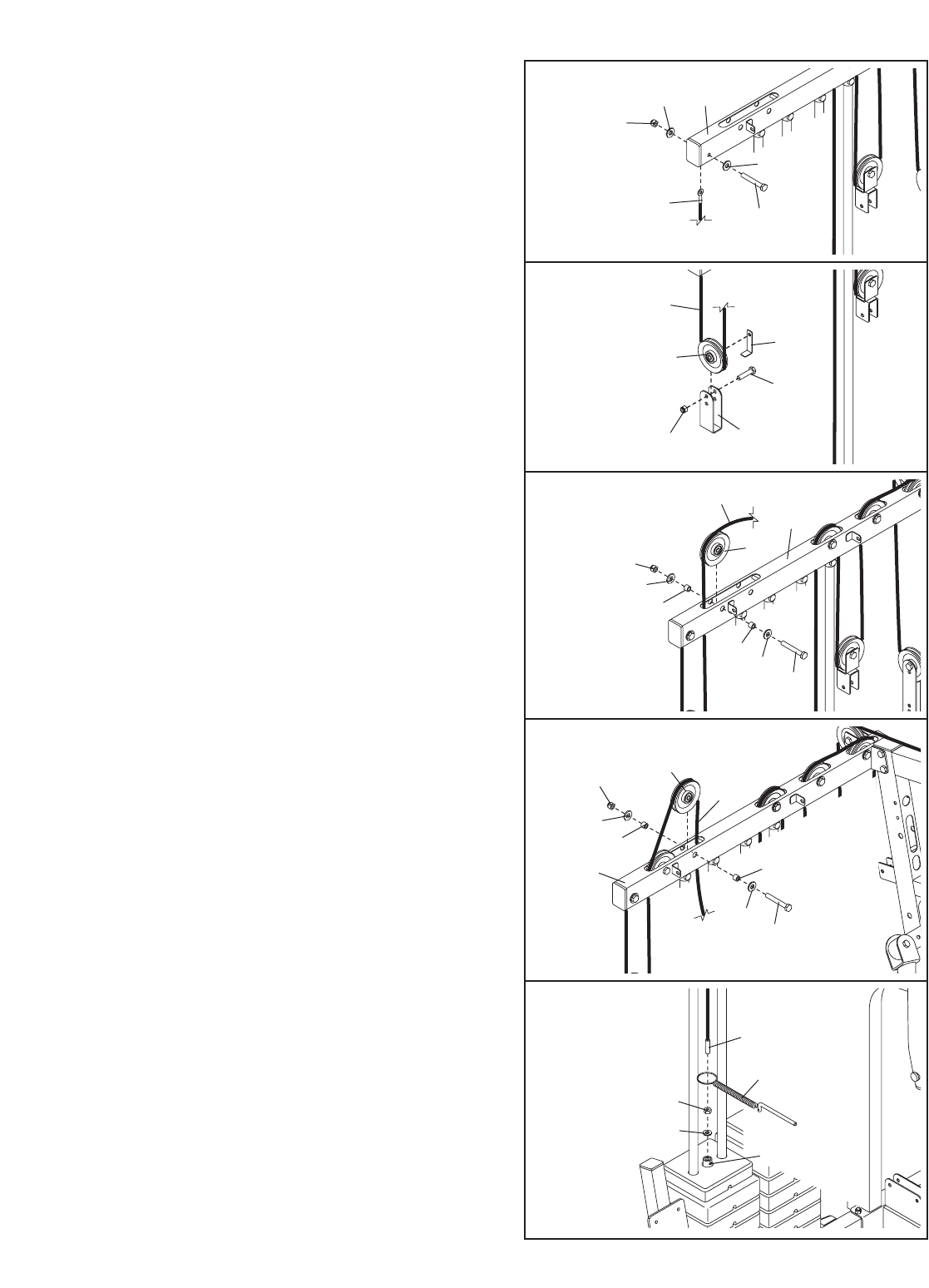

22. Route the Lat Cable (62) up through the Top

Frame (9) and over a 100mm Pulley (38). Attach

the Pulley inside the Top Frame with an M10 x

65mm Bolt (80), two M10 Washers (99), two

12.5mm Spacers (69), and an M10 Nylon Locknut

(101).

101

23 95

25. Identify the Upper Short Stack Cable (63).

Attach the Cable inside the Top Frame (9) with an

M10 x 65mm Bolt (80), two M10 Washers (99),

and an M10 Nylon Locknut (101).

27. Route the Upper Short Stack Cable (63) up

through the Top Frame (9) and over a 100mm

Pulley (38). Attach the Pulley inside the Top

Frame with an M10 x 65mm Bolt (80), two M10

Washers (99), two 12.5mm Spacers (69), and an

M10 Nylon Locknut (101).

28. Route the Upper Short Stack Cable (63) over a

100mm Pulley (38) and down through the Top

Frame (9). Attach the Pulley inside the Top Frame

with an M10 x 65mm Bolt (80), two M10 Washers

(99), two 12.5mm Spacers (69), and an M10

Nylon Locknut (101).

29. Set the tether on the other Weight Pin (98) over

the Short Weight Tube (24). Set a 50mm Washer

(95) on the Weight Tube.

Thread an M12 Nut (58) all the way onto the

Upper Short Stack Cable (63). Screw the Cable

partway into the Short Weight Tube (24). Tighten

the Nut against the 50mm Washer (95).

26. Wrap the Upper Short Stack Cable (63) under a

100mm Pulley (38). Attach the Pulley and a Long

Cable Trap (68) to the indicated hole in a “U”-

bracket (40) with an M10 x 50mm Bolt (81) and

an M10 Nylon Locknut (101). Make sure the

Cable Trap is oriented to hold the Cable in the

groove of the Pulley.

101

38 68

101

30. Identify the Butterfly Cable (67). Attach the

Cable inside the Butterfly Upright (2) with an M10

x 65mm Bolt (80), two M10 Washers (99), and an

M10 Nylon Locknut (101).

31. Wrap the Butterfly Cable (67) around a 100mm

Pulley (38). Attach the Pulley to the Butterfly

Frame (10) with an M10 x 213mm Bolt (92), two

M10 Washers (99), and an M10 Nylon Locknut

(101).

32. Wrap the Butterfly Cable (67) around a 100mm

Pulley (38). Attach the Pulley to the Butterfly

Upright (2) with an M10 x 65mm Bolt (80), two

M10 Washers (99), two 12.5mm Spacers (69),

and an M10 Nylon Locknut (101).

33. Wrap the Butterfly Cable (67) around a 100mm

Pulley (38). Attach the Pulley to the Butterfly

Frame (10) with an M10 x 213mm Bolt (92), two

M10 Washers (99), and an M10 Nylon Locknut

(101).

101

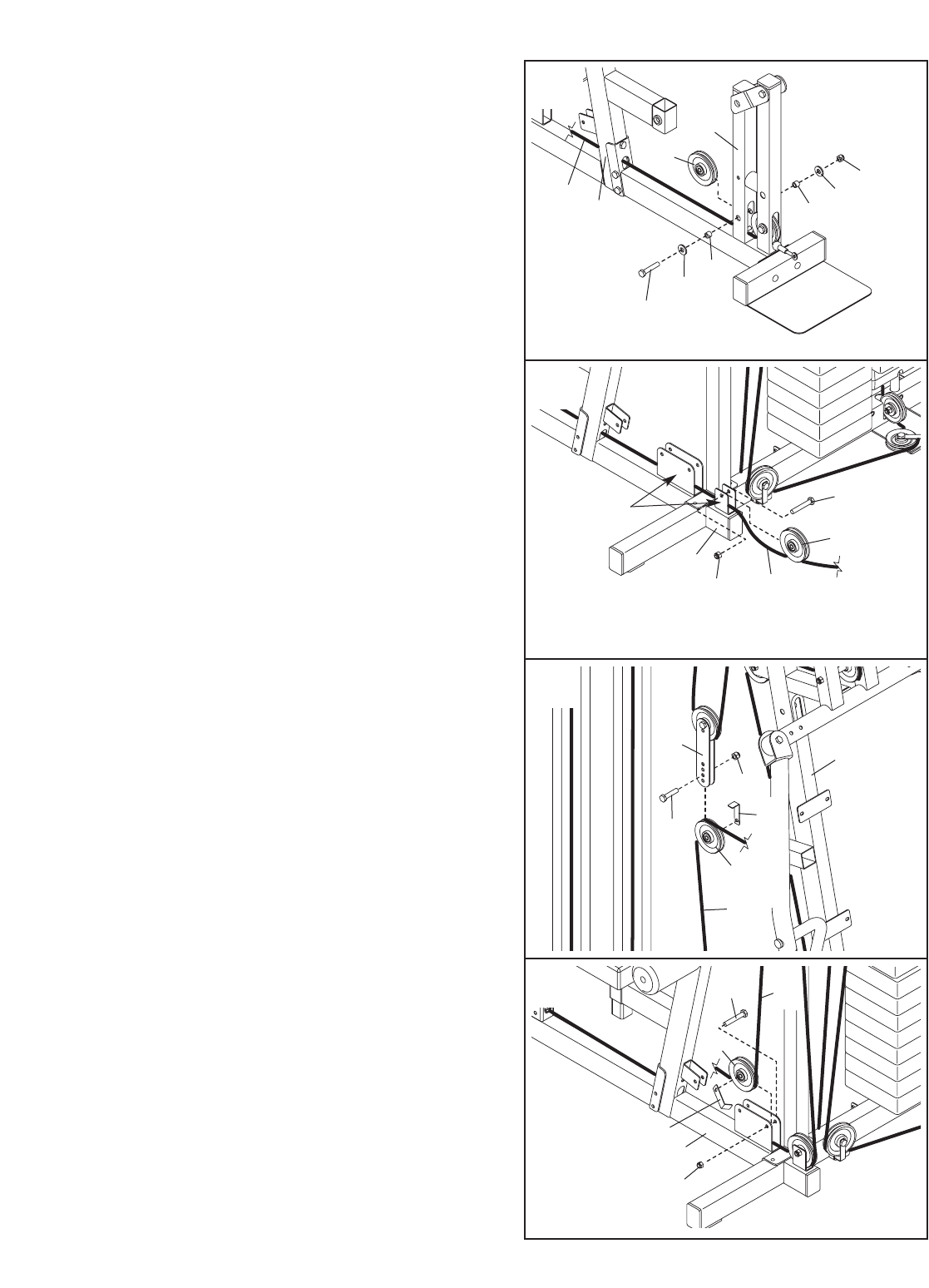

35. Attach the end of the Butterfly Cable (67) to the

“U”-bracket (40) with an M8 Washer (100) and an

M8 Nylon Locknut (87). Note: Do not complete-

ly tighten the Locknut; it should be tightened

so that only two threads of the Cable show

past the Locknut, as shown in the inset draw-

ing.

36. Identify the Lower Short Stack Cable (64).

Attach the Cable to the Base (1) with an M8 x

67mm Shoulder Bolt (90), two M8 Washers (100),

and an M8 Nylon Locknut (87).

37. Wrap the Lower Short Stack Cable (64) over a

100mm Pulley (38). Attach the Pulley to the

Double “U”-bracket (42) with an M10 x 45mm Bolt

(51) and an M10 Nylon Locknut (101).

38. Note: The following steps are shown from the

back of the weight system.

Wrap the Lower Short Stack Cable (64) under a

100mm Pulley (38). Attach the Pulley and a Long

Cable Trap (68) to the Base (1) with an M10 x

45mm Bolt (51). Make sure the Cable Trap is

oriented to hold the Cable in the groove of the

Pulley.

34. Route the Butterfly Cable (67) through the

Butterfly Upright (2) and over a 100mm Pulley

(38). Attach the Pulley and a Long Cable Trap

(68) to the Butterfly Upright with an M10 x 50mm

Bolt (81) and an M10 Nylon Locknut (101). Make

sure the Cable Trap is oriented to hold the

Cable in the groove of the Pulley.

67 2

100

101

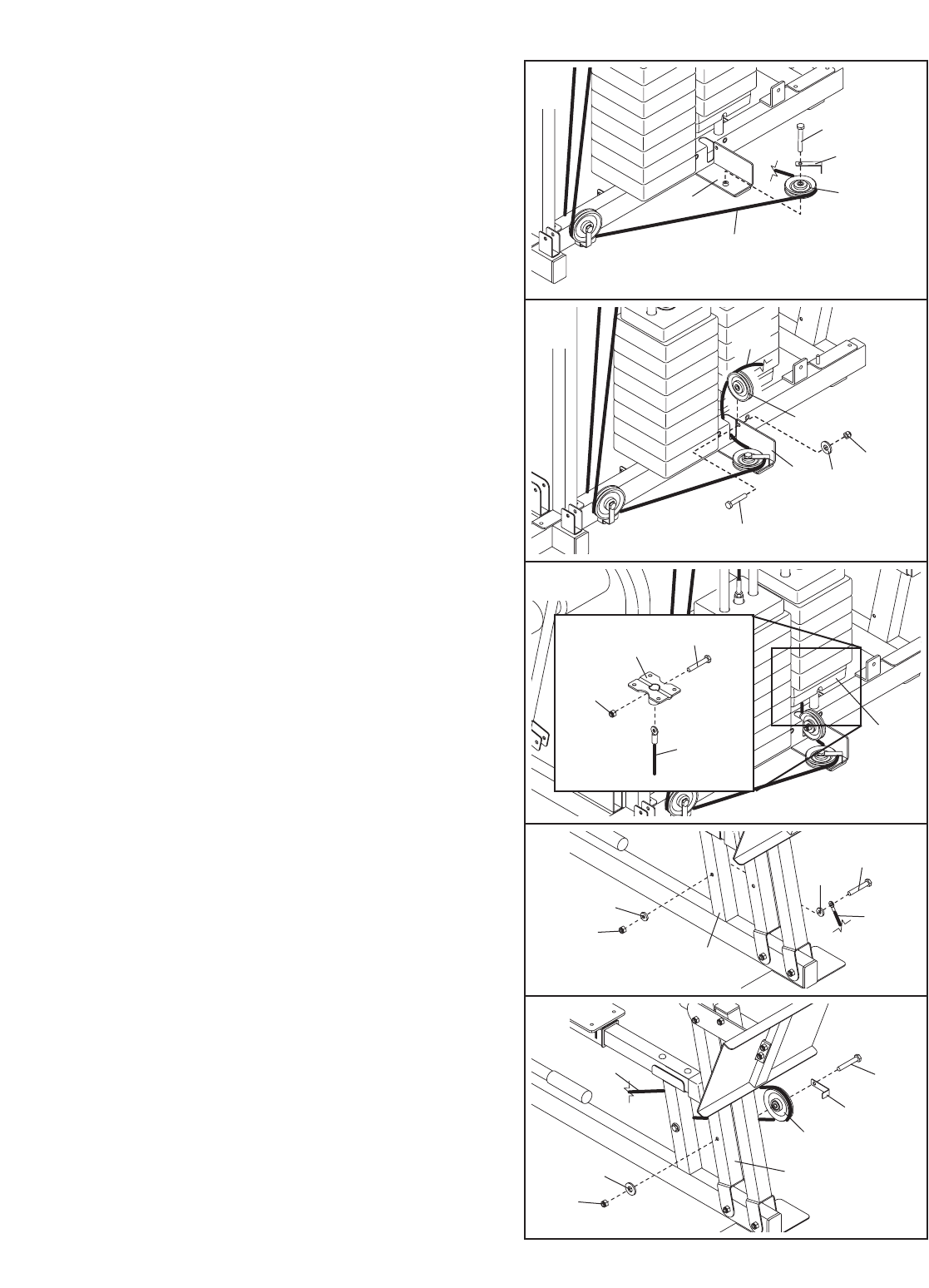

39. Wrap the Lower Short Stack Cable (64) around a

90mm Pulley (39). Attach the Pulley and a Short

Cable Trap (48) to the Base (1) with an M10 x

45mm Bolt (51). Make sure the Cable Trap is

oriented to hold the Cable in the groove of the

Pulley.

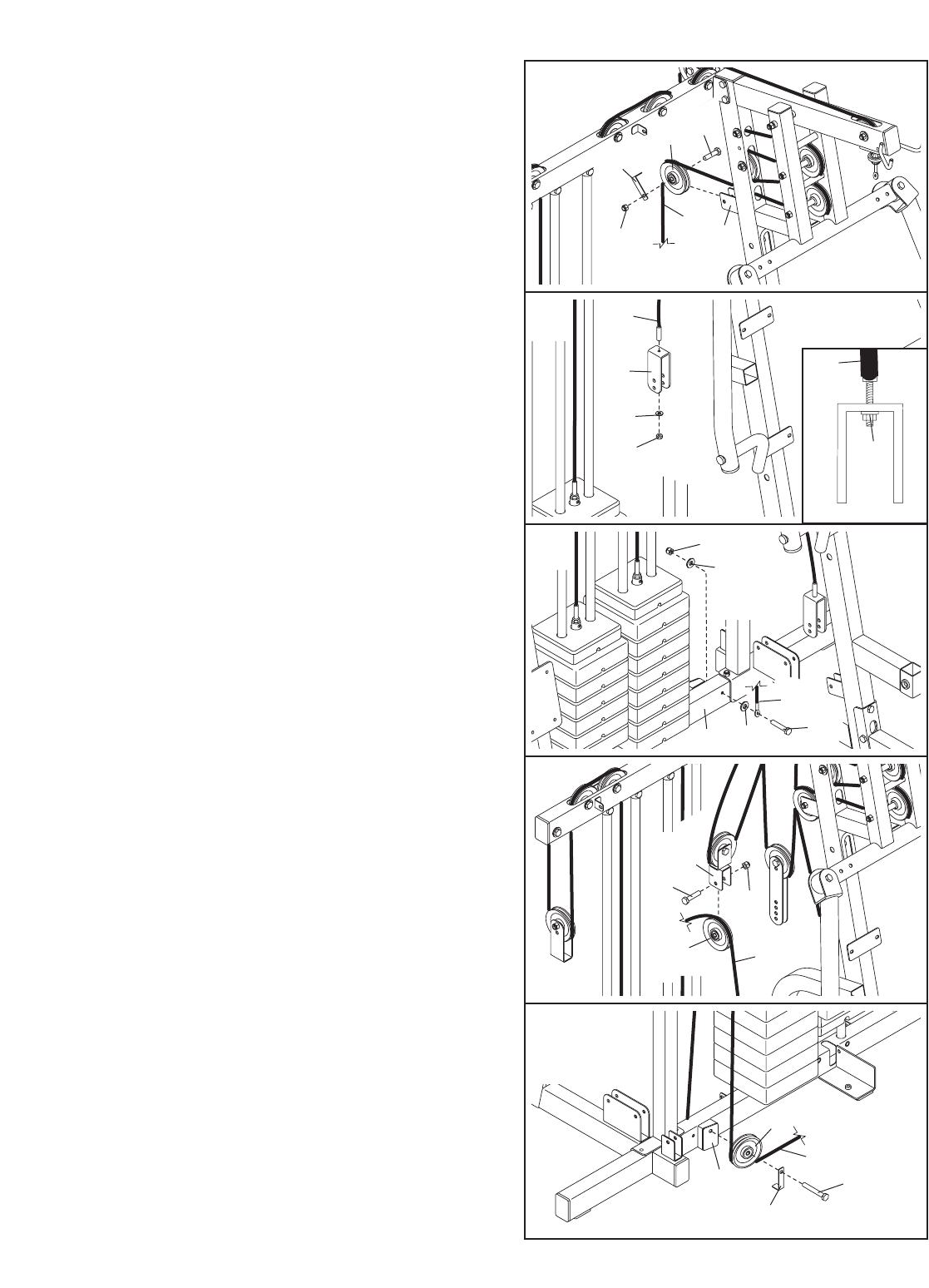

41. Locate the Weight Plate (20) that is attached

to the bottom of the Bottom Weight (21).

See the inset drawing. Attach the end of the

Lower Short Stack Cable (64) to the Weight Plate

(20) with an M10 x 45mm Bolt (51) and an M10

Nylon Locknut (101).

42. Identify the Leg Press Cable (65). Attach the

Cable to the Leg Press Base (3) with an M8 x

67mm Shoulder Bolt (90), two M8 Washers (100),

and an M8 Nylon Locknut (87).

43. Wrap the Leg Press Cable (65) around a 100mm

Pulley (38). Attach the Pulley and a Large Cable

Trap (68) to the Rear Press Arm (13) with an M10

x 92mm Bolt (55), an M10 Washer (99), and an

M10 Nylon Locknut (101). Make sure the Cable

Trap is oriented to hold the Cable in the

groove of the Pulley.

40. Wrap the Lower Short Stack Cable (64) under a

90mm Pulley (39). Attach the Pulley to the Base

(1) with an M10 x 45mm Bolt (51), an M10

Washer (99), and an M10 Nylon Locknut (101).

64 21

101

100

101

99 13

100

44. Note: The following steps are shown from the

back of the weight system.

Route the Leg Press Cable (65) under a 100mm

Pulley (38). Attach the Pulley and a Long Cable

Trap (68) to the Leg Press Base (3) with an M10

x 92mm Bolt (55), an M10 Washer (99), and an

M10 Nylon Locknut (101). Make sure the Cable

Trap is oriented to hold the Cable in the

groove of the Pulley.

46. Wap the Leg Press Cable (65) under a 90mm

Pulley (39). Attach the Pulley and a Short Cable

Trap (48) to the Base (1) with an M10 x 50mm

Bolt (81) and an M10 Nylon Locknut (101). Make

sure the Cable Trap is oriented to hold the

Cable in the groove of the Pulley.

45. Wap the Leg Press Cable (65) around a 90mm

Pulley (39). Attach the Pulley and a Short Cable

Trap (48) to the M10 x 121mm Carriage Bolt (49)

in the Base (1) with an M10 Nylon Locknut (101).

Make sure the Cable Trap is oriented to hold

the Cable in the groove of the Pulley.

47. Attach the end of the Leg Press Cable (65) to the

“U”-bracket (40) with an M8 Washer (100) and an

M8 Nylon Locknut (87). Note: Do not complete-

ly tighten the Locknut; it should be tightened

so that only two threads of the Cable show

past the Locknut, as shown in the inset draw-

ing.

Large

Ball

101

100

48. Identify the Ab Cable (66). Route the Cable

under a 100mm Pulley (38) and through the Leg

Lever (7) and the Leg Lever Base (5). Attach the

Pulley inside the Leg Lever with an M10 x 65mm

Bolt (80), two M10 Washers (99), two 12.5mm

Spacers (69), and an M10 Nylon Locknut (101).

Make sure the large ball on the Cable is in the

position shown.

101

49 1

55 65

101

148

49. Route the Ab Cable (66) through the Butterfly

Upright (2). Attach a 100mm Pulley (38) inside

the Leg Lever Base (5) with an M10 x 65mm Bolt

(80), two M10 Washers (99), two 12.5mm

Spacers (69), and an M10 Nylon Locknut (101).

50. Note: This step is shown from the back of the

weight system.

Lay the Ab Cable (66) in the indicated brackets.

Attach a 100mm Pulley (38) inside the bracket on

the Base (1) with an M10 x 45mm Bolt (51) and

an M10 Nylon Locknut (101).

51. Wrap the Ab Cable (66) over a 100mm Pulley

(38). Attach the Pulley and a Long Cable Trap

(68) to the second set of holes from the bottom of

the two Pulley Plates (41) with an M10 x 50mm

Bolt (81) and an M10 Nylon Locknut (101). Make

sure the Cable Trap is oriented to hold the

Cable in the groove of the Pulley. Make sure

the Cable is routed over the Pulley toward the

front of the Butterfly Upright (2).

99 101

101

Brackets

101

52. Note: The following steps are shown from the

back of the weight system.

Wrap the Ab Cable (66) under a 100mm Pulley

(38). Attach the Pulley and a Long Cable Trap

(68) to the Butterfly Upright (2) with an M10 x

50mm Bolt (81) and an M10 Nylon Locknut (101).

Make sure the Cable Trap is oriented to hold

the Cable in the groove of the Pulley.

54. Wrap the Ab Cable (66) over a 100mm Pulley

(38). Attach the Pulley and a Long Cable Trap

(68) to the indicated hole in the indicated “U”-

bracket (40) with an M10 x 50mm Bolt (81) and

an M10 Nylon Locknut (101). Make sure the

Cable Trap is oriented to hold the Cable in the

groove of the Pulley.

55. Wrap the Ab Cable (66) under a 100mm Pulley

(38). Attach the Pulley to the Butterfly Upright (2)

with an M10 x 45mm Bolt (51) and an M10 Nylon

Locknut (101).

53. Wrap the Ab Cable (66) under a 100mm Pulley

(38). Attach the Pulley and a Long Cable Trap

(68) to the Butterfly Upright (2) with an M10 x

50mm Bolt (81) and an M10 Nylon Locknut (101).

Make sure the Cable Trap is oriented to hold

the Cable in the groove of the Pulley.

56. Route the Ab Cable (66) over a 100mm Pulley

(38) and through the Butterfly Upright (2). Attach

the Pulley inside the Upright with an M10 x 65mm

Bolt (80), two M10 Washers (99), two 12.5mm

Spacers (69), and an M10 Nylon Locknut (101).

101

69 66

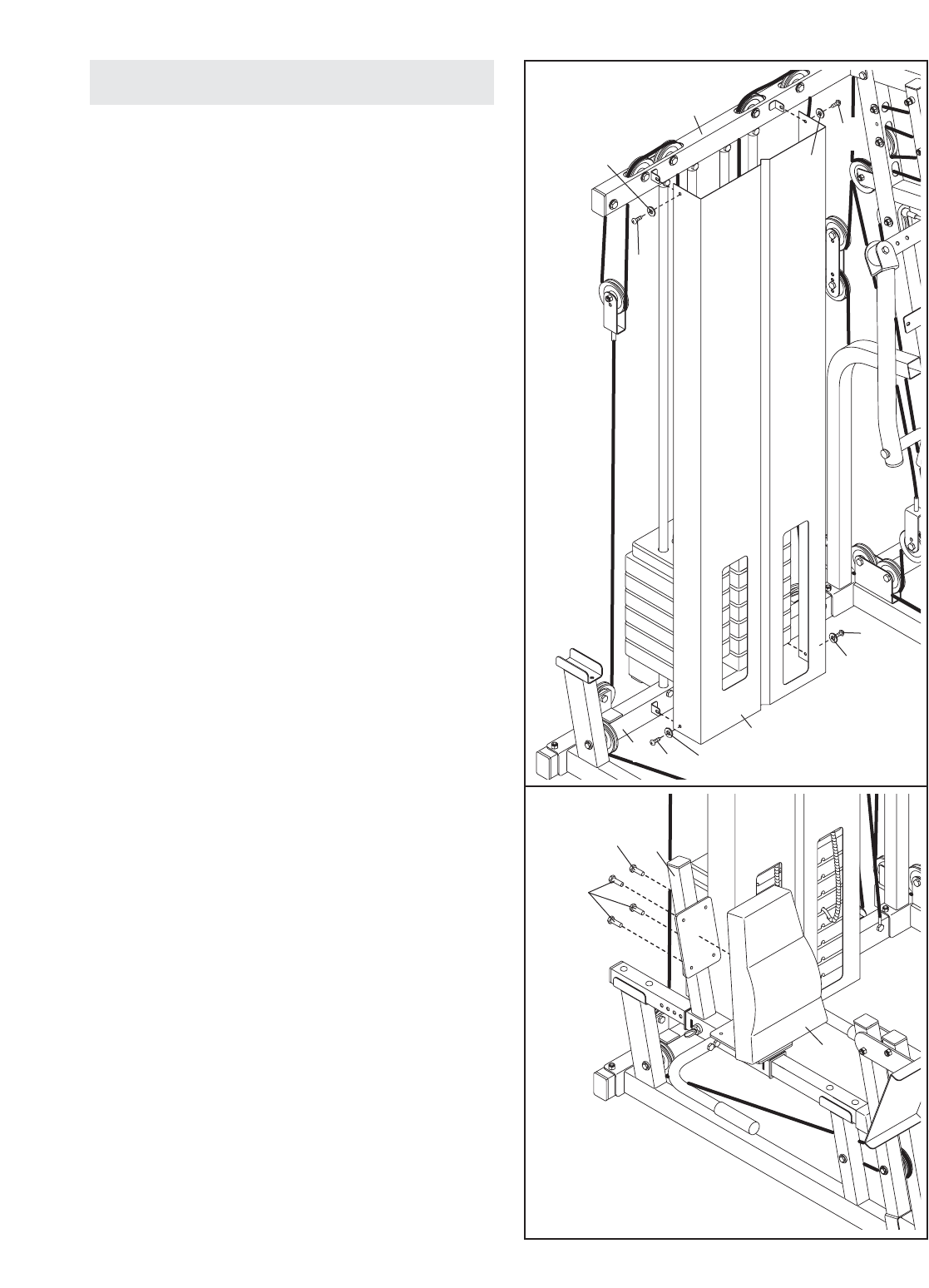

57. Attach the Shroud (17) to the Top Frame (9) and

the Base (1) with four M8 x 15mm Bolts (97) and

four M8 Washers (100).

58. Attach the Backrest (32) to the Sliding Seat

Frame (8) with four M6 x 16mm Bolts (89). 58

Seat Assembly

89 8

100

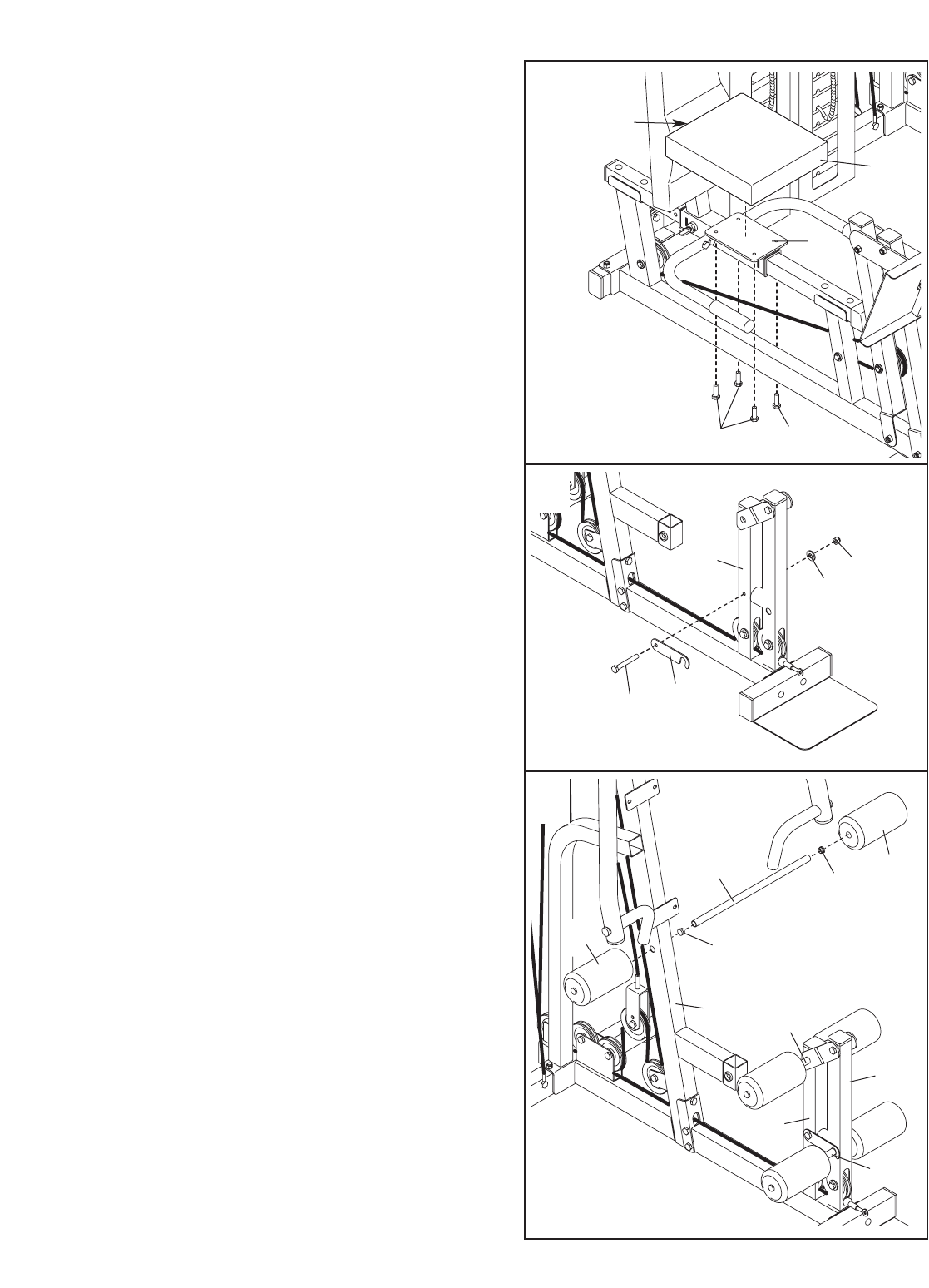

60. Attach the Leg Lever Lock (61) to the Leg Lever

Base (5) with an M10 x 68mm Bolt (84), an M10

Washer (99), and an M10 Nylon Locknut (101).

Do not overtighten the Locknut; the Leg Lever

Lock must be able to pivot easily.

59. Attach a Seat (30) to the Sliding Seat Frame (8)

with four M6 x 16mm Bolts (89). Note: The holes

in the Seat are not centered; orient the Seat

so that the holes are closer to the indicated

end.

61. Press two 19mm Round Inner Caps (57) into a

Pad Tube (33). Insert the Pad Tube into the

Butterfly Upright (2). Slide two Round Pads (34)

onto the Pad Tube.

Repeat this step with the other two Pad Tubes

(33), the Leg Lever Base (5), and the Leg

Lever (7).

Holes should

be closer to

this end

99 101

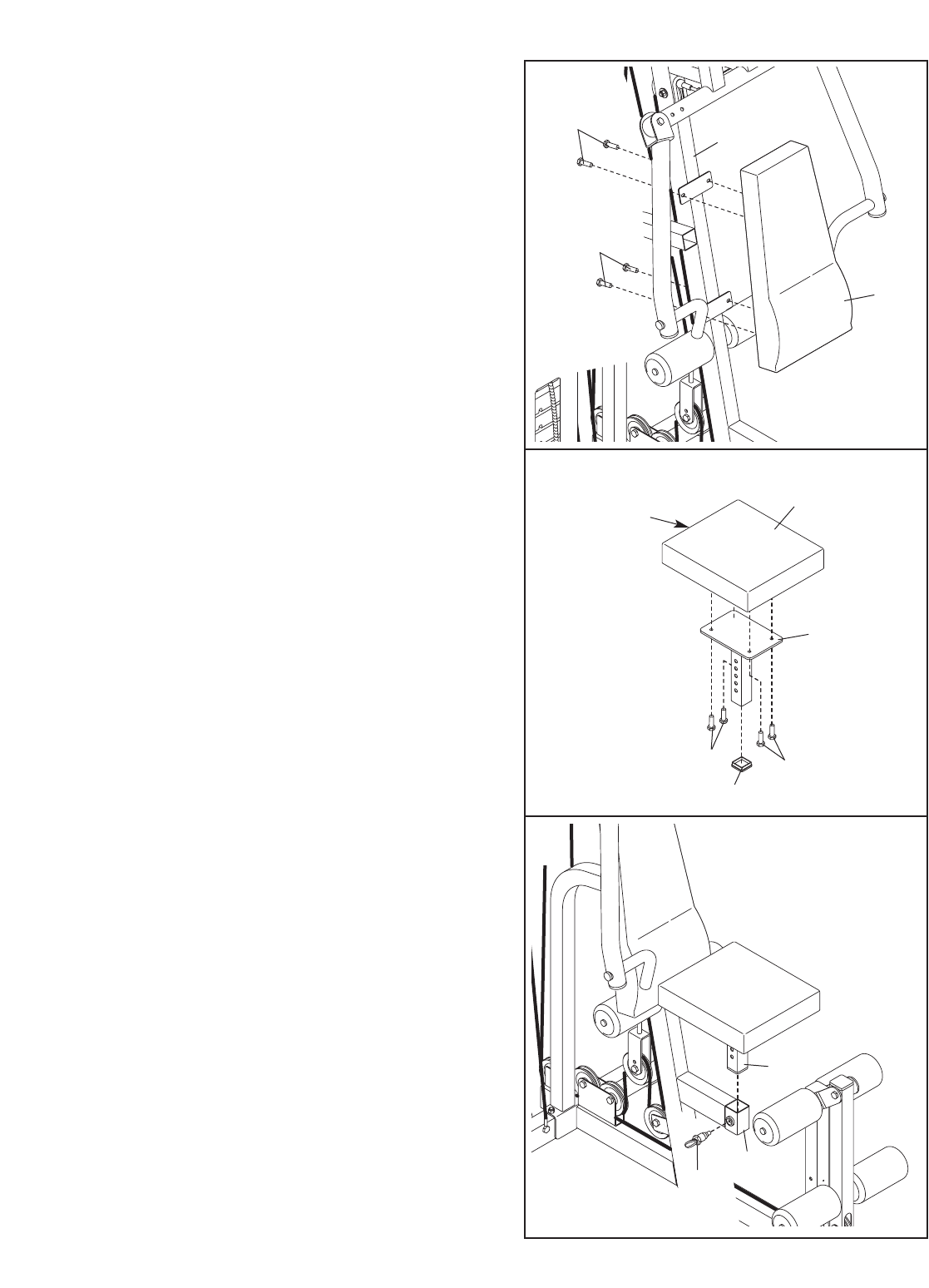

63. Press a 45mm Square Inner Cap (50) into the

Seat Post (27).

Attach the other Seat (30) to the Seat Post (27)

with four M6 x 16mm Bolts (89). Note: The holes

in the Seat are not centered; orient the Seat

so that the holes are closer to the indicated

end.

62. Attach the Butterfly Backrest (31) to the Butterfly

Upright (2) with four M6 x 16mm Bolts (89).

64. Attach a “T”-handle (59) to the Butterfly Upright

(2).

Pull the “T”-handle (59) out as far as it will go and

slide the Seat Post (27) into the Butterfly Upright

(2). Engage the “T”-handle into the Seat Post.

89 2

Holes should

be closer to

this end

59 2

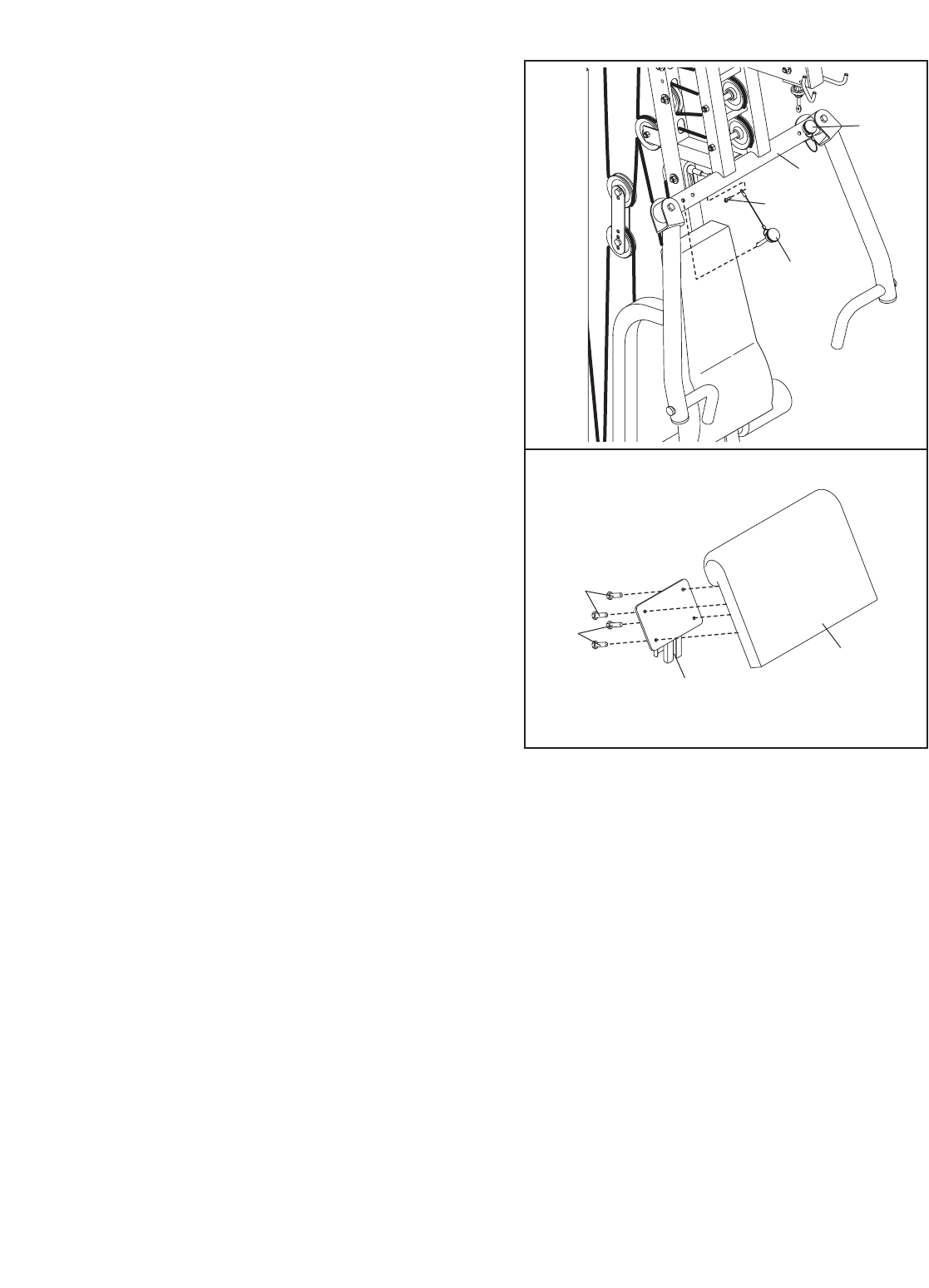

65. Attach the tether on a Butterfly Pin (78) to the

Butterfly Frame (10) with an M4 x 15mm Self-tap-

ping Screw (107).

Repeat this step with the other Butterfly Pin

(78).

66. Attach the Curl Pad (29) to the Curl Post (28) with

four M6 x 16mm Bolts (89).

67. Make sure that all parts have been properly tightened. The use of the remaining parts will be explained in

ADJUSTMENTS, beginning on the following page.

Before using the weight system, pull each cable a few times to be sure that the cables move smoothly over

the pulleys. If one of the cables does not move smoothly, find and correct the problem. IMPORTANT: If the

cables are not properly installed, they may be damaged when heavy weight is used. See the CABLE

DIAGRAMS on pages 29 and 30 of this manual for proper cable routing. If there is any slack in the

cables, you will need to remove the slack by tightening the cables. See TROUBLESHOOTING AND

MAINTENANCE on page 31.

107

This section explains how to adjust the weight system. See the EXERCISE GUIDELINES on page 32 for impor-

tant information about how to get the most benefit from your exercise program.

Make sure all parts are properly tightened each time the weight system is used. Replace any worn parts immediate-

ly. The weight system can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.

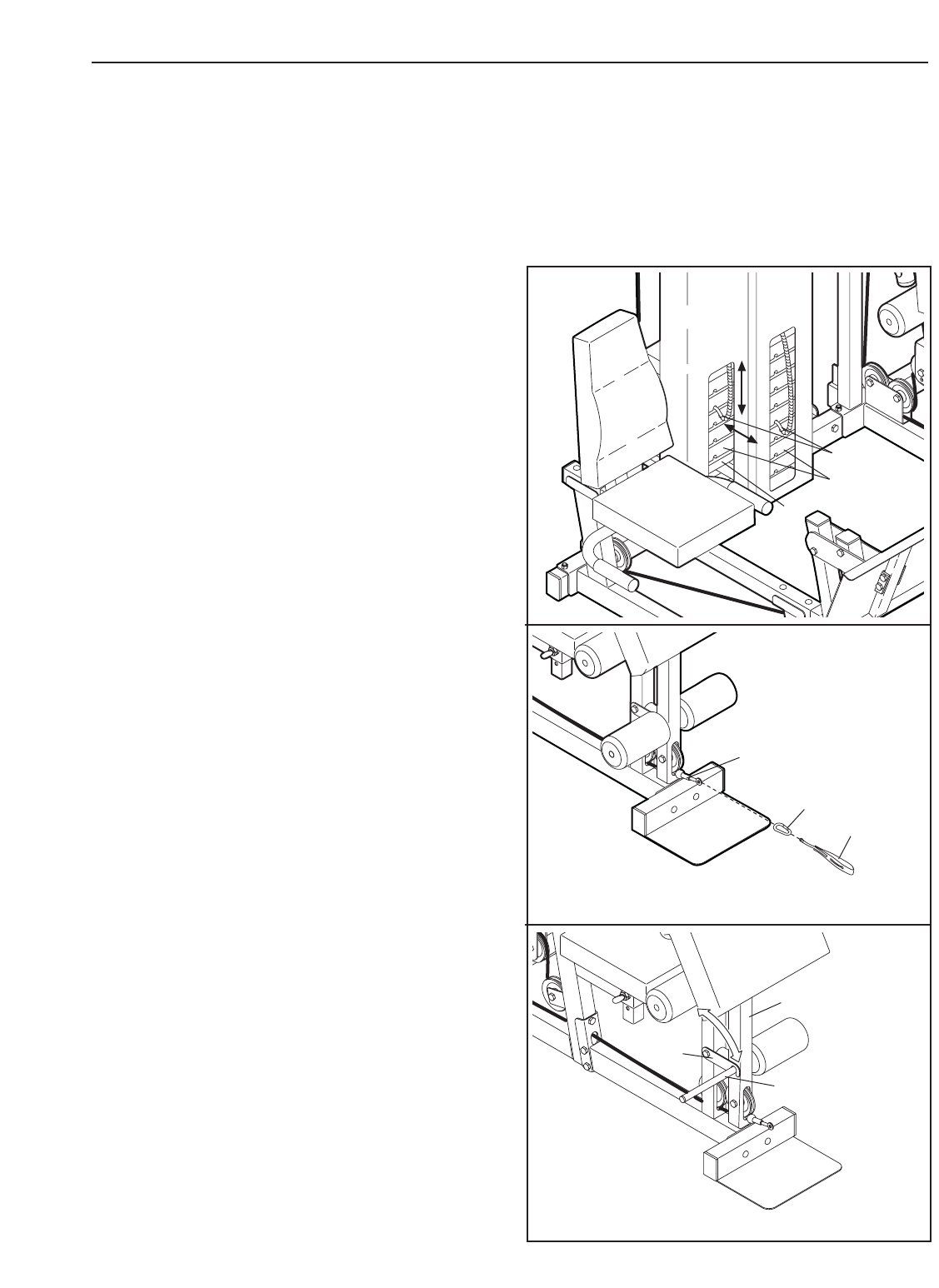

CHANGING THE WEIGHT SETTING

To change the setting of a weight stack, insert a

Weight Pin (98) under the desired Weight (22). Insert

the Weight Pin so that the bent end touches the

weight stack. Turn the bent end down.

To use the Bottom Weight (21) with the leg press,

insert the Weight Pin (98) under the Bottom Weight.

Remove the other Weight Pin from the left weight

stack.

To use the left weight stack with the leg press, insert

a Weight Pin (98) under the Bottom Weight (21).

Then, insert the other Weight Pin under the desired

Weight (22) in the right weight stack.

Note: Due to the cables and pulleys, the amount

of resistance at each exercise station may vary

from the weight setting. Use the WEIGHT

RESISTANCE CHART on page 28 to find the

approximate amount of resistance at each weight

station.

ATTACHING THE ACCESSORIES TO A PULLEY

STATION

Attach the Ankle Strap (74) to the Ab Cable (66) at the

low pulley station with a Spring Clip (75). The other

accessories can be attached at any pulley station in

the same manner.

For some exercises, the 16” Chain (73) should be

attached between the accessory and the cable with

two Spring Clips (75). Adjust the length of the Chain

between the accessory and the cable so the acces-

sory is in the correct starting position for the exer-

cise to be performed.

USING THE LEG LEVER LOCK

Some exercises, such as the preacher curl, can be

performed more comfortably with the Leg Lever (7)

locked in position. To lock the Leg Lever, turn the Leg

Lever Lock (61) until it engages the Pad Tube (33) in

the Leg Lever.

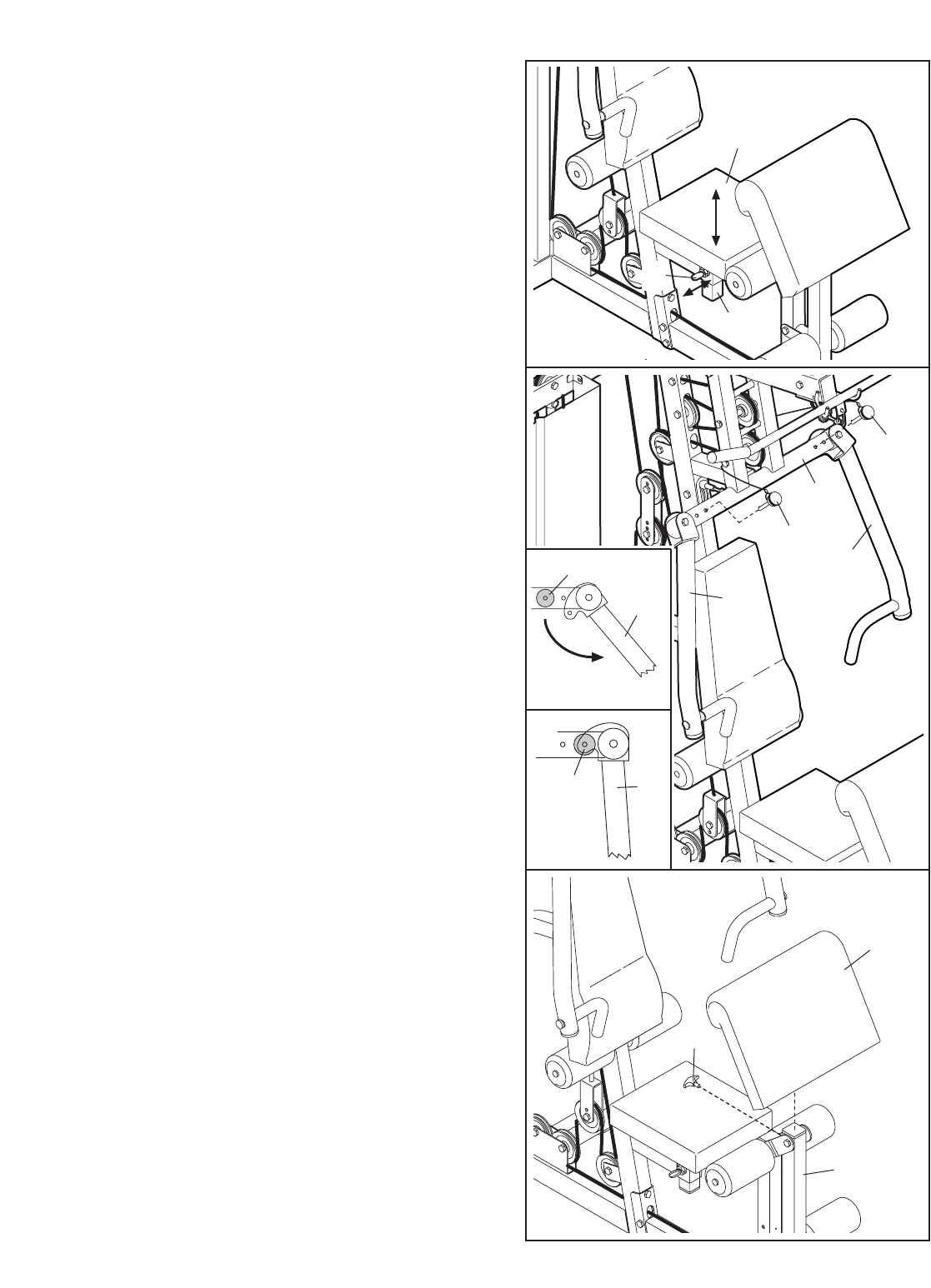

ADJUSTMENTS

ADJUSTING THE SEAT

To adjust the height of the Seat (30), loosen the

“T”-handle (59) and pull it out as far as it will go.

Move the Seat to the desired height and reengage

the “T”-handle into the Seat Post (27). Fully tighten

the “T”-handle.

ATTACHING THE CURL PAD

To use the Curl Pad (29), first engage the leg lever

lock (see USING THE LEG LEVER LOCK on the pre-

vious page.) Slide the Curl Post (not shown) onto the

Leg Lever (7). Tighten the Curl Post “T”-handle (94)

into the Curl Post and the Leg Lever.

CONVERTING THE BUTTERFLY ARMS

To use the Butterfly Arms (11, 12) as fly arms, insert

the Butterfly Pins (78) into the inner holes in the

Butterfly Frame (10) (see inset drawing A).

To use the Butterfly Arms (11, 12) as press arms,

insert the Butterfly Pins (78) into the outer holes in the

Butterfly Frame (10) and the tabs on the Butterfly

Arms (see inset drawing B).

Make sure that the Butterfly Pins (78) are fully

inserted into the same holes on both sides of the

Butterfly Frame (10) before performing any exer-

cises.

WEIGHT RESISTANCE CHART

The chart below shows the approximate weight resistance at each exercise station. “Left Top” and “Right Top”

refer to the 6 lb. top weights. “Bottom” refers to the 12.5 lb. bottom weight. The other numbers refer to the 12.5

lb. weight plates. Weight resistance shown for the butterfly arm station is for each butterfly arm. Note: The actu-

al resistance at each station may vary due to differences in individual weight plates as well as friction

between the cables, pulleys, and weight guides.

WEIGHT

Left Top

Bottom

Right Top

LEG

PRESS

(lbs.)

112

140

168

232

275

303

331

365

400

435

455

495

HIGH

PULLEY

(lbs.)

102

117

136

BUTTER-

FLY ARM

(lbs.)

109

122

134

PRESS

ARM

(lbs.)

107

135

162

189

217

245

269

PULLEY

(lbs.)

110

124

137

LEG

LEVER

(lbs.)

104

124

144

165

185

LOW

PULLEY

(lbs.)

102

116

130

CABLE DIAGRAMS

The cable diagrams show the approximate lengths and the proper routing of the Lat Cable (62), Upper Short

Stack Cable (63), Lower Short Stack Cable (64), Leg Press Cable (65), Ab Cable (66), and Butterfly Cable (67).

Use the diagrams to make sure that the cables and the cable traps have been assembled correctly. If the cables

have not been correctly routed, the weight system will not function properly and damage may occur. The num-

bers show the correct route for each cable. Make sure that the cable traps do not touch or bind the cables.

Upper Short Stack Cable (63)

Length: 82 3/4 inches

Lower Short Stack Cable (64)

Length: 153 1/2 inches

Leg Press Cable (65)

Length: 119 inches

Butterfly Cable (67)

Length: 107 1/2 inches

Ab Cable (66)

Length: 217 inches

Lat Cable (62)

Length: 188 1/4 inches

TROUBLESHOOTING

Make sure all parts are properly tightened each time the weight system is used. Replace any worn parts immedi-

ately. The weight system can be cleaned using a damp cloth and mild non-abrasive detergent. Do not use solvents.

TIGHTENING THE CABLES

Woven cable, the type of cable used on the weight system, can stretch slightly when it is first used. If there is

slack in the cables before resistance is felt, the cables should be tightened. To tighten the cables, first insert the

weight pins into the centers of the weight stacks. Slack can be removed from the cables in several ways:

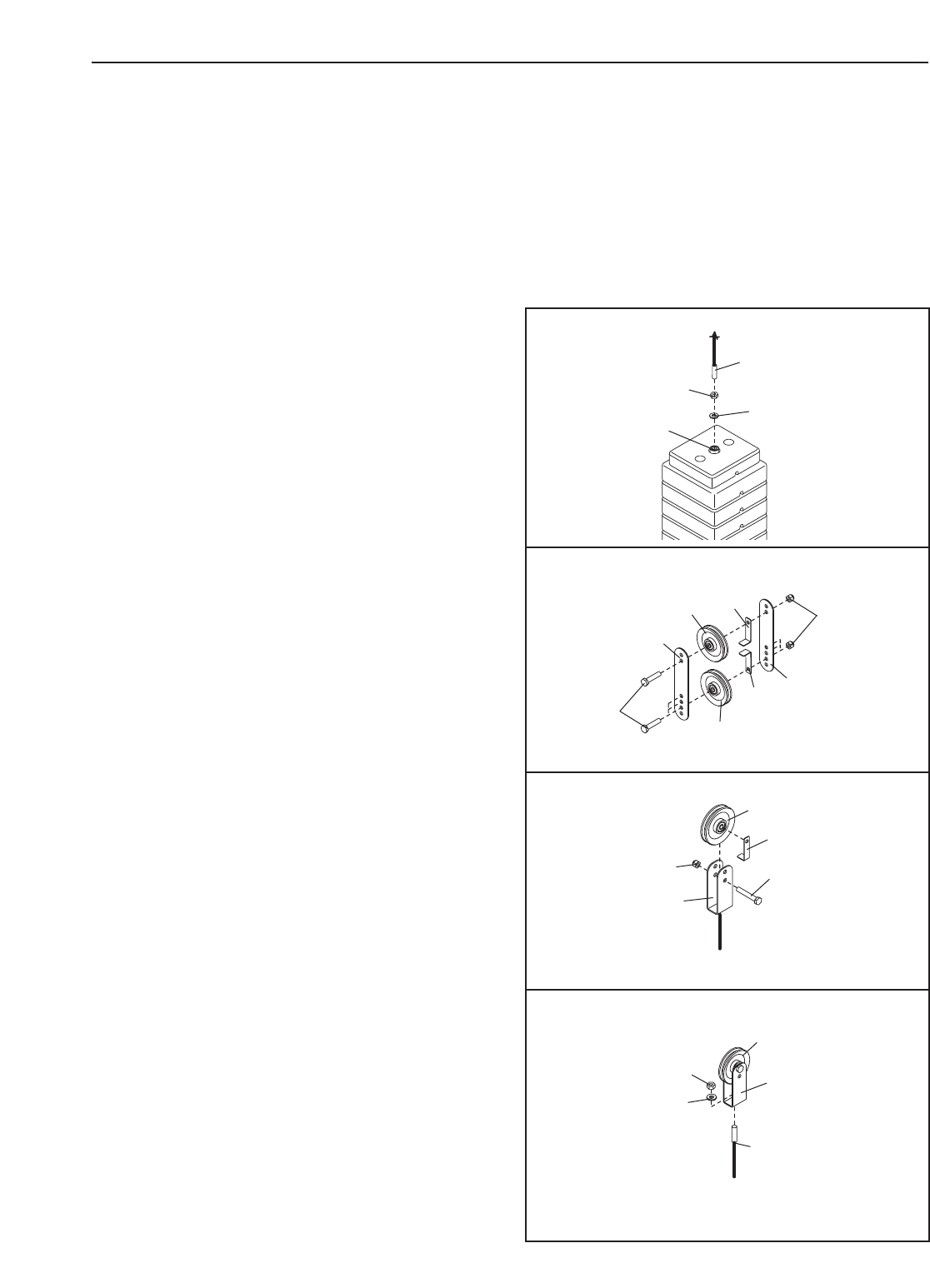

See drawing 1. To tighten the Lat Cable (62) or the

Upper Short Stack Cable (not shown), first loosen the

M12 Nut (58) on the end of the Cable away from the

50mm Washer (95). Screw the end of the Cable far-

ther into the Long Weight Tube (23) or the Short

Weight Tube (not shown). Finally, retighten the

Locknut against the Washer.

See drawing 2. Slack can be removed from the

cables by moving a 100mm Pulley (38) in the Pulley

Plates (41). First, remove the upper or lower M10

Nylon Locknut (101), M10 x 50mm Bolt (81), Pulley,

and Long Cable Trap (68) from the Pulley Plates.

Reattach the Pulley and the Cable Trap between a

set of holes closer to the center of the Pulley Plates

with the Bolt and Locknut. Make sure the Cable Trap

is oriented to hold the cable in the groove of the

Pulley.

See drawing 3. To remove additional slack, remove

the M10 Nylon Locknut (101), M10 x 50mm Bolt (81),

100mm Pulley (38), and Long Cable Trap (68) from

either “U”-bracket (40). Reattach the Pulley and the

Cable Trap between the indicated set of holes in the

“U”-bracket with the Bolt and Locknut.

See drawing 4. Slack can also be removed from the

cables by tightening the M8 Nylon Locknut (87) at the

end of the Leg Press Cable (65) or the Butterfly

Cable (67). To do this you may need to remove the

100mm Pulley (38) from the “U”-bracket (40).

Do not overtighten the cables. If the cables are

overtightened, the top weights will be lifted off the

weight stacks.

If a cable slips off the pulleys repeatedly, it may

have become twisted. Remove the cable and re-

install it. If the cables need to be replaced, see

ORDERING REPLACEMENT PARTS on the back

cover of this manual.

101

65 or 67

101

100

EXERCISE GUIDELINES

THE FOUR BASIC TYPES OF WORKOUTS

Muscle Building

To increase the size and strength of your muscles,

push them close to their maximum capacity. Your mus-

cles will continually adapt and grow as you progres-

sively increase the intensity of your exercise. You can

adjust the intensity level of an individual exercise in

two ways:

• by changing the amount of resistance used

• by changing the number of repetitions or sets per-

formed. (A “repetition” is one complete cycle of an

exercise, such as one sit-up. A “set” is a series of

repetitions.)

The proper amount of resistance for each exercise

depends upon the individual user. You must gauge

your limits and select the amount of resistance that is

right for you. Begin with 3 sets of 8 repetitions for each

exercise you perform. Rest for 3 minutes after each

set. When you can complete 3 sets of 12 repetitions

without difficulty, increase the amount of resistance.

Toning

You can tone your muscles by pushing them to a mod-

erate percentage of their capacity. Select a moderate

amount of resistance and increase the number of rep-

etitions in each set. Complete as many sets of 15 to

20 repetitions as possible without discomfort. Rest for

1 minute after each set. Work your muscles by com-

pleting more sets rather than by using high amounts of

resistance.

Weight Loss

To lose weight, use a low amount of resistance and

increase the number of repetitions in each set.

Exercise for 20 to 30 minutes, resting for a maximum

of 30 seconds between sets.

Cross Training

Cross training is an efficient way to get a complete and

well-balanced fitness program. An example of a bal-

anced program is:

• Plan strength training workouts on Monday,

Wednesday, and Friday.

• Plan 20 to 30 minutes of aerobic exercise, such as

running on a treadmill or riding on an elliptical or

exercise bike, on Tuesday and Thursday.

• Rest from both strength training and aerobic exercise

for at least one full day each week to give your body

time to regenerate.

The combination of strength training and aerobic exer-

cise will reshape and strengthen your body, plus devel-

op your heart and lungs.

PERSONALIZING YOUR EXERCISE PROGRAM

Determining the exact length of time for each workout,

as well as the number of repetitions or sets completed,

is an individual matter. It is important to avoid overdo-

ing it during the first few months of your exercise pro-

gram. You should progress at your own pace and be

sensitive to your body’s signals. If you experience pain

or dizziness at any time while exercising, stop immedi-

ately and begin cooling down. Find out what is wrong

before continuing. Remember that adequate rest and a

proper diet are important factors in any exercise pro-

gram.

Warming Up

Begin each workout with 5 to 10 minutes of stretching

and light exercise to warm up. Warming up prepares

your body for more strenuous exercise by increasing

circulation, raising your body temperature and deliver-

ing more oxygen to your muscles.

Working Out

Each workout should include 6 to 10 different exercis-

es. Select exercises for every major muscle group,

emphasizing areas that you want to develop most. To

give balance and variety to your workouts, vary the

exercises from session to session.

Schedule your workouts for the time of day when your

energy level is the highest. Each workout should be

followed by at least one day of rest. Once you find the

schedule that is right for you, stick with it.

Exercise Form

Maintaining proper form is an essential part of an

effective exercise program. This requires moving

through the full range of motion for each exercise, and

moving only the appropriate parts of the body.

Exercising in an uncontrolled manner will leave you

feeling exhausted. On the exercise guide accompany-

ing this manual you will find photographs showing the

correct form for several exercises, and a list of the

muscles affected. Refer to the muscle chart on the

next page to find the names of the muscles.

The repetitions in each set should be performed

smoothly and without pausing. The exertion stage of

each repetition should last about half as long as the

return stage. Proper breathing is important. Exhale

during the exertion stage of each repetition and inhale

during the return stroke. Never hold your breath.

Rest for a short period of time after each set. The

ideal resting periods are:

• Rest for three minutes after each set for a muscle

building workout.

• Rest for one minute after each set for a toning work-

out.

• Rest for 30 seconds after each set for a weight loss

workout.

Plan to spend the first couple of weeks familiarizing

yourself with the equipment and learning the proper

form for each exercise.

Cooling Down

End each workout with 5 to 10 minutes of stretching.

Include stretches for both your arms and legs. Move

slowly as you stretch and do not bounce. Ease into

each stretch gradually and go only as far as you can

without strain. Stretching at the end of each workout

is an effective way to increase flexibility.

Staying Motivated

For motivation, keep a record of each workout. The

chart on pages 34 and 35 of this manual can be pho-

tocopied and used to schedule and record your work-

outs. List the date, the exercises performed, the resist-

ance used, and the numbers of sets and repetitions

completed. Record your weight and key body meas-

urements at the end of every month. Remember, the

key to achieving the greatest results is to make exer-

cise a regular and enjoyable part of your everyday life.

MUSCLE CHART

A. Sternomastoid (neck)

B. Pectoralis Major (chest)

C. Biceps (front of arm)

D. Obliques (waist)

E. Brachioradials (forearm)

F. Hip Flexors (upper thigh)

G. Abductor (outer thigh)

H. Quadriceps (front of thigh)

I. Sartorius (front of thigh)

J. Tibialis Anterior (front of calf)

K. Soleus (front of calf)

L. Anterior Deltoid (shoulder)

M. Rectus Abdominus (stomach)

N. Adductor (inner thigh)

O. Trapezius (upper back)

P. Rhomboideus (upper back)

Q. Posterior Deltoid (shoulder)

R. Triceps (back of arm)

S. Latissimus Dorsi (mid back)

T. Spinae Erectors (lower back)

U. Gluteus Medius (hip)

V. Gluteus Maximus (buttocks)

W. Hamstring (back of leg)

X. Gastrocnemius (back of calf)

MONDAY

Date:

/ /

EXERCISE WEIGHT SETS REPS

AEROBIC EXERCISE

TUESDAY

Date:

/ /

WEDNESDAY

Date:

/ /

THURSDAY

Date:

/ /

FRIDAY

Date:

/ /

Make photocopies of this page for scheduling and recording your workouts.

MONDAY

Date:

/ /

EXERCISE WEIGHT SETS REPS

AEROBIC EXERCISE

TUESDAY

Date:

/ /

WEDNESDAY

Date:

/ /

THURSDAY

Date:

/ /

FRIDAY

Date:

/ /

Make photocopies of this page for scheduling and recording your workouts.

M10 x 45mm Bolt (51)

M10 x 65mm Bolt (80)

M10 x 50mm Bolt (81)

M10 x 68mm Bolt (84)

M10 x 65mm Carriage Bolt (88)

M8 x 15mm Bolt (97)

M6 x 16mm Bolt (89)

M6 x 35mm Bolt (83)

M4 x 25mm Self-

tapping Screw (103)

M10 Nylon Locknut (101)

M8 Nylon Locknut (87)

M6 Nylon Locknut (102)

M12 Nut (58)

50mm Washer (95)

M8 Washer (100)

M4 Washer (104)

M4 x 15mm Self-

tapping Screw (107)

M10 Washer (99)

PART IDENTIFICATION CHART

Refer to the drawings below to identify small parts used in assembly. The number in parentheses by each draw-

ing is the key number of the part, from the PART LIST in the center of this manual. Note: Some small parts

may have been pre-attached. If a part is not in the parts bag, check to see if it has been pre-attached.

M10 x 121mm Carriage Bolt (49)

M10 x 92mm Bolt (55)

M10 x 75mm Bolt (82)

M10 x 92mm Carriage Bolt (85)

M10 x 225mm Bolt (86)

M10 x 213mm Bolt (92)

M10 x 82mm Carriage Bolt (93)

M10 x 85mm Bolt (96)

M8 x 67mm Shoulder Bolt (90)

M10 x 80mm Bolt (110)

M10 x 77mm Bolt (106)

M10 x 95mm Bolt (105)

50mm Square Inner Cap (45)

45mm Square Inner Cap (50)

50mm Round Inner Cap (52)

50mm x 75mm Inner Cap (46)

50mm Thick Square Inner Cap (47)

25mm Round Inner Cap (76)

19mm Round Inner Cap (57)

50mm Angled Outer Cap (43)

Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover

of the user’s manual for information about ordering replacement parts.

Key No. Qty. Description Key No. Qty. Description

11Base

21Butterfly Upright

31Leg Press Base

41Seat Adjustment Frame

51Leg Lever Base

61Foot Plate

71Leg Lever

81Sliding Seat Frame

91Top Frame

10 1 Butterfly Frame

11 1 Left Butterfly Arm

12 1 Right Butterfly Arm

13 1 Rear Press Arm

14 1 Front Press Arm

15 1 Leg Press Plate

16 2 Leg Press Bracket

17 1 Shroud

18 2 Weight Guide

19 2 Weight Guide with Ring

20 1 Weight Plate

21 1 Bottom Weight

22 13 Weight

23 1 Long Weight Tube

24 1 Short Weight Tube

25 2 Top Weight

26 2 Seat Arm

27 1 Seat Post

28 1 Curl Post

29 1 Curl Pad

30 2 Seat

31 1 Butterfly Backrest

32 1 Backrest

33 3 Pad Tube

34 6 Round Pad

35 2 Handgrip

36 2 Butterfly Arm Grip

37 2 Lat Bar Grip

38 27 100mm Pulley

39 4 90mm Pulley

40 2 “U”-bracket

41 2 Pulley Plate

42 1 Double “U”-bracket

43 1 50mm Angled Outer Cap

44 1 Metal Plate

45 6 50mm Square Inner Cap

46 9 50mm x 75mm Inner Cap

47 2 50mm Thick Square Inner Cap

48 3 Short Cable Trap

49 1 M10 x 121mm Carriage Bolt

50 1 45mm Square Inner Cap

51 12 M10 x 45mm Bolt

52 2 50mm Round Inner Cap

53 4 56mm Round Bushing

54 2 Weight Tube Bumper

55 2 M10 x 92mm Bolt

56 2 Square Bushing

57 6 19mm Round Inner Cap

58 2 M12 Nut

59 2 “T”-handle

60 1 Leg Lever Bumper

61 1 Leg Lever Lock

62 1 Lat Cable

63 1 Upper Short Stack Cable

64 1 Lower Short Stack Cable

65 1 Leg Press Cable

66 1 Ab Cable

67 1 Butterfly Cable

68 11 Long Cable Trap

69 28 12.5mm Spacer

70 8 M10 Thick Spacer

71 4 Weight Bumper

72 1 Ab Strap

73 1 16” Chain

74 1 Ankle Strap

75 3 Spring Clip

76 2 25mm Round Inner Cap

77 1 Lat Bar

78 2 Butterfly Pin

79 8 M10 Round Bushing

80 16 M10 x 65mm Bolt

81 9 M10 x 50mm Bolt

82 4 M10 x 75mm Bolt

83 4 M6 x 35mm Bolt

84 1 M10 x 68mm Bolt

85 3 M10 x 92mm Carriage Bolt

86 1 M10 x 225mm Bolt

87 4 M8 Nylon Locknut

88 6 M10 x 65mm Carriage Bolt

89 20 M6 x 16mm Bolt

90 2 M8 x 67mm Shoulder Bolt

91 2 Plastic Grip

92 2 M10 x 213mm Bolt

93 2 M10 x 82mm Carriage Bolt

94 1 Curl Post “T”-handle

95 2 50mm Washer

96 3 M10 x 85mm Bolt

97 4 M8 x 15mm Bolt

98 2 Weight Pin

99 43 M10 Washer

100 10 M8 Washer

101 69 M10 Nylon Locknut

102 4 M6 Nylon Locknut

103 1 M4 x 25mm Self-tapping Screw

104 1 M4 Washer

105 1 M10 x 95mm Bolt

106 6 M10 x 77mm Bolt

107 2 M4 x 15mm Self-Tapping Screw

108 1 50mm Angled Cap

109 1 50mm Thick Angled Cap

110 2 M10 x 80mm Bolt

#1User’s Manual

#1Grease Pack

PART LIST—Model No. WESY47330 R1003B

80 46 88

60 69 38

66 34

105

57 33

101

7969 69

68 38

100

51 38

46 81

81 100

110

108

106

99 38

64 71

106

25 25

100 65

106

109

101

101 87

101

102

101

101 101

101

101 101

101

101 101

101

103

101

107

69 69

54 68

100

101

100

104

EXPLODED DRAWING—Model No. WESY47330 R1003B

LIMITED WARRANTY

ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and mate-

rial, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This

warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing

or repairing, at ICON's option, the product through one of its authorized service centers. All repairs for which

warranty claims are made must be pre-authorized by ICON. This warranty does not extend to any product or

damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage

or repairs not provided by an ICON authorized service center; products used for commercial or rental pur-

poses; or products used as store display models. No other warranty beyond that specifically set forth above

is authorized by ICON.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection

with the use or performance of the product or damages with respect to any economic loss, loss of property,

loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other consequential

damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or conse-

quential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of mer-

chantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein.

Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation

may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813

To order replacement parts, simply call our Customer Service Department toll-free at 1-800-999-3756, Monday

through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be pre-

pared to give the following information:

1. The MODEL NUMBER of the product (WESY47330)

2. The NAME of the product (WEIDER®CLUB C4800 weight system)

3. The SERIAL NUMBER of the product (see the front cover of this manual)

4. The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST and EXPLODED DRAWING in the

center of this manual)

ORDERING REPLACEMENT PARTS

Weider Club C4800 System Wesy4733 Users Manual *WESY47330 198381

Weider-Wesy47330-Owner-S-Manual weider-wesy47330-owner-s-manual

WESY47330 to the manual 3e60134b-2a3e-43ce-a682-f815e2d55050

Navigation menu

Versions of this User Manual:

Views

Navigation
