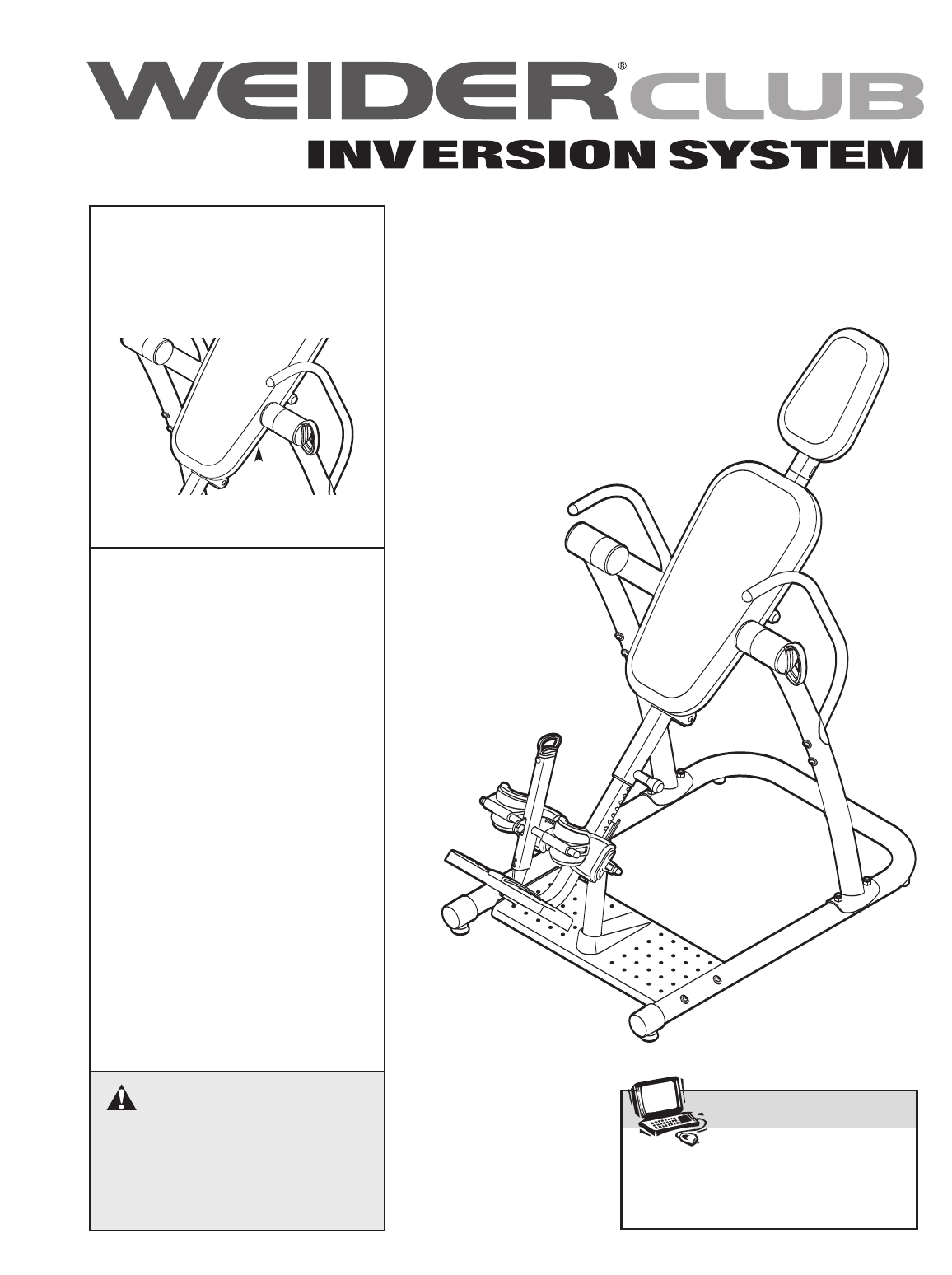

Model No. WEBE1996.0

Serial No.

Write the serial number in the

space above for future reference.

Visit our website at

www.proform.com

new products, prizes,

fitness tips, and much more!

Visit our website at

www.healthrider.com

new products, prizes,

fitness tips, and much more!

Visit our website at

www.nordictrack.com

new products, prizes,

fitness tips, and much more!

Visit our website at

www.weiderfitness.com

new products, prizes,

fitness tips, and much more!

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

Serial Number Decal (Under Seat)

QUESTIONS?

As a manufacturer,we are com-

mitted to providing complete

customer satisfaction. If you

have questions, or if a part is

damaged or missing, PLEASE

CONTACT OUR CUSTOMER

SERVICE DEPARTMENT

DIRECTLY.

CALL TOLL-FREE:

1-877-992-5999

Mon.–Fri., 6 a.m.–6 p.m. MST

ON THE WEB:

www.weiderservice.com

USER’S MANUAL

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

ROTATING ON THE INVERSION TABLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

DEVELOPING A PROGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

TABLE OF CONTENTS

WEIDER is a registered trademark of ICON IP, Inc.

1. Read all instructions in this manual before

using the inversion table. Use the inversion

table only as described in this manual.

2. It is the responsibility of the owner to ensure

that all users of the inversion table are ade-

quately informed of all precautions.

3. The inversion table is intended for home use

only. Do not use the inversion table in any

commercial, rental, or institutional setting.

4. Keep the inversion table indoors, away from

moisture and dust. Do not put the inversion

table in a garage or covered patio, or near

water.

5. Use the inversion table only on a level sur-

face. Cover the floor beneath the inversion

table to protect the floor.

6. Make sure that all parts are properly tight-

ened each time the inversion table is used.

Replace any worn parts immediately.

7. Keep children under 12 and pets away from

the inversion table at all times.

8. The inversion table is designed to support a

maximum user weight of 300 lbs. (136 kg).

Do not use weights with the inversion table.

9. Always wear athletic shoes with laces to help

secure your feet in the inversion table, and

for foot protection while exercising.

10. The inversion table should be used only by

persons 6 ft. 6 in. (198 cm) tall or less.

11. Keep hands and feet away from moving

parts.

12. Always make sure that the ankle lock is

secured snugly against your ankles and that

the short knob is fully tightened before you

use the inversion table.

13. Perform all activities on the inversion table in

aslow, controlled manner. Aggressive exer-

cise can cause the inversion table to tip over.

14. Always exercise with a partner.

Your partner

should be ready to return the backrest to the

upright position if you cannot complete the

rotation.

15. If you feel pain or dizziness while exercising,

stop immediately and begin cooling down.

16. Following is a list of factors and conditions

that may make inverting inadvisable (this list

is not exhaustive; it is intended only for refer-

ence). If one or more factors or conditions

apply to you, consult your physician before

using the inversion table.

•Pregnancy

•Hiatal hernia or ventral hernia

•Glaucoma, retinal detachment, or conjunc-

tivitis

•High blood pressure, hypertension, or

recent stroke or transient ischemic attack

•Heart or circulatory disorders for which

you are being treated

•Middle ear infection and extreme obesity

•Spinal injury, cerebral sclerosis, or acutely

swollen joints

•Bone weakness (osteoporosis), recent

unhealed fractures, medullary pins, or sur-

gically implanted orthopedic supports

•The use of anticoagulants, including high

doses of aspirin

17. The decal shown on page 4 has been placed

on the inversion table. If the decal is missing

or illegible, call the toll-free telephone num-

ber on the front cover of this manual and

order a free replacement decal. Apply the

decal in the location shown.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. ICON assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

WARNING: To reduce the risk of serious injury, read the following important precautions

before using the inversion table.

IMPORTANT PRECAUTIONS

Handle

Left Frame

Long Adjustment Knob

Backrest

Headrest

Foot Plate

Ankle Brace

Lock Handle

Index Handle

Short Adjustment Knob

Right Frame

ASSEMBLED DIMENSIONS:

Height: 62 in. (157 cm)

Width: 36 in. (91 cm)

Depth: 66 in. (168 cm)

BEFORE YOU BEGIN

Thank you for selecting the WEIDER®CLUB INVER-

SION SYSTEM inversion table. The inversion table will

increase your intervertebral dimension, decrease pres-

sure on intervertebral discs, stretch and relax your

muscles, and temporarily relieve back pain associated

with the listed conditions.

For your benefit, read this manual carefully before

using the inversion table. If you have questions after

reading this manual, please see the front cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number is WEBE1996.0. The serial number can

be found on a decal attached to the inversion table (see

the front cover of this manual).

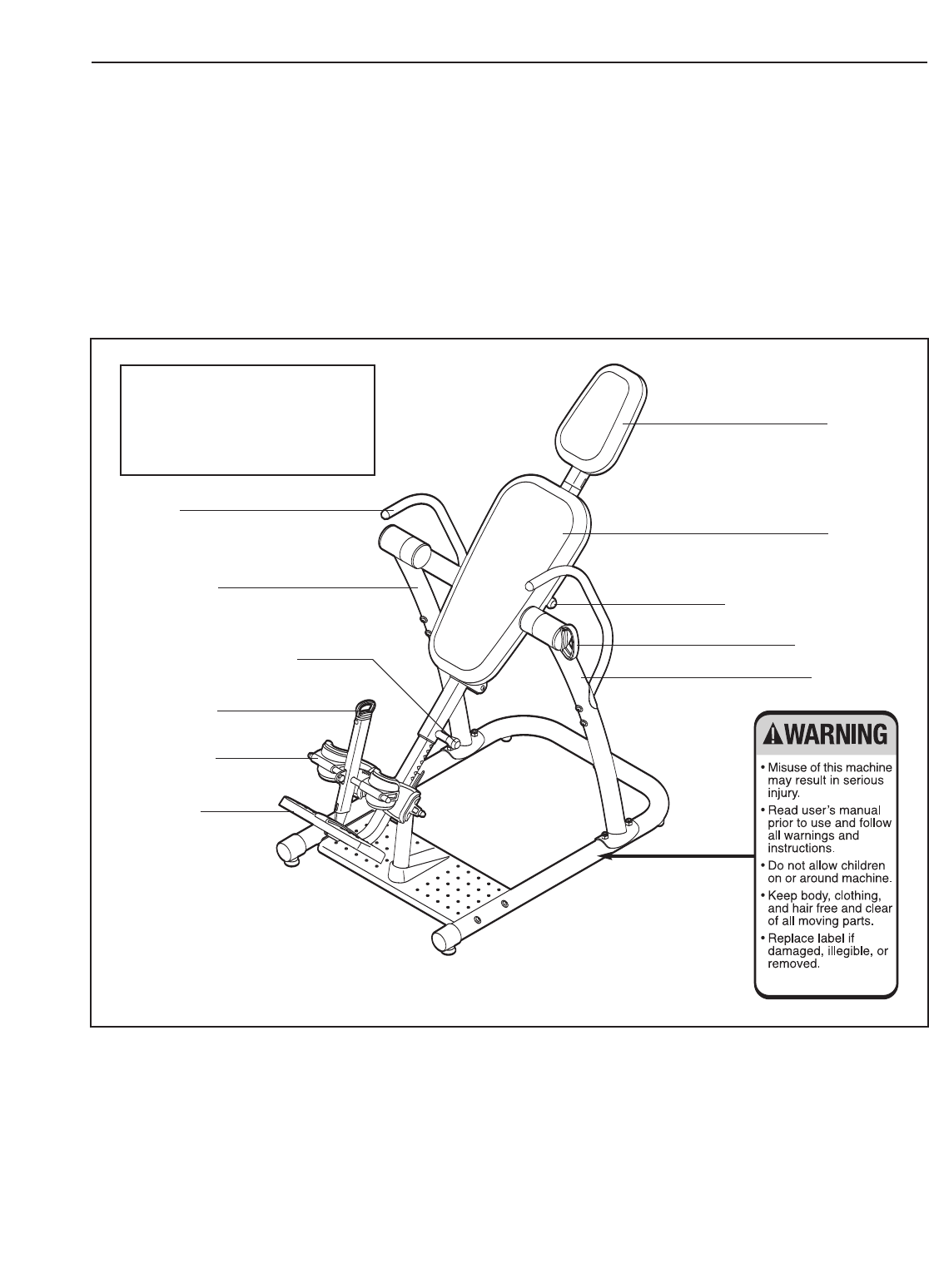

Before reading further, please review the drawing below

and familiarize yourself with the parts that are labeled.

M10 Nylon

Locknut (65)

M8 Nylon

Locknut (72)

M6 Washer (62)

M4 x 15mm

Screw (58)

M10 x 85mm Button Bolt (51)

M10 x 95mm Button Bolt (73)

M6 x 18mm

Button Screw (55)

M6 x 55mm Button Screw (56)

M4 x 25mm

Screw (60)

M4 x 30mm

Screw (63)

M4 x 20mm

Screw (71)

M10 Curved Washer (50)

M10 Washer (68)

M10 x 35mm

Button Bolt (53)

M10 x 16mm

Button Screw (54)

M10 x 75mm Button Bolt (57)

M10 x 80mm Button Bolt (52)

M10 x 53mm Button Bolt (49)

M8 x 16mm

Button Bolt (61)

M5 x 25mm

Screw (59)

M10 Large Washer (64)

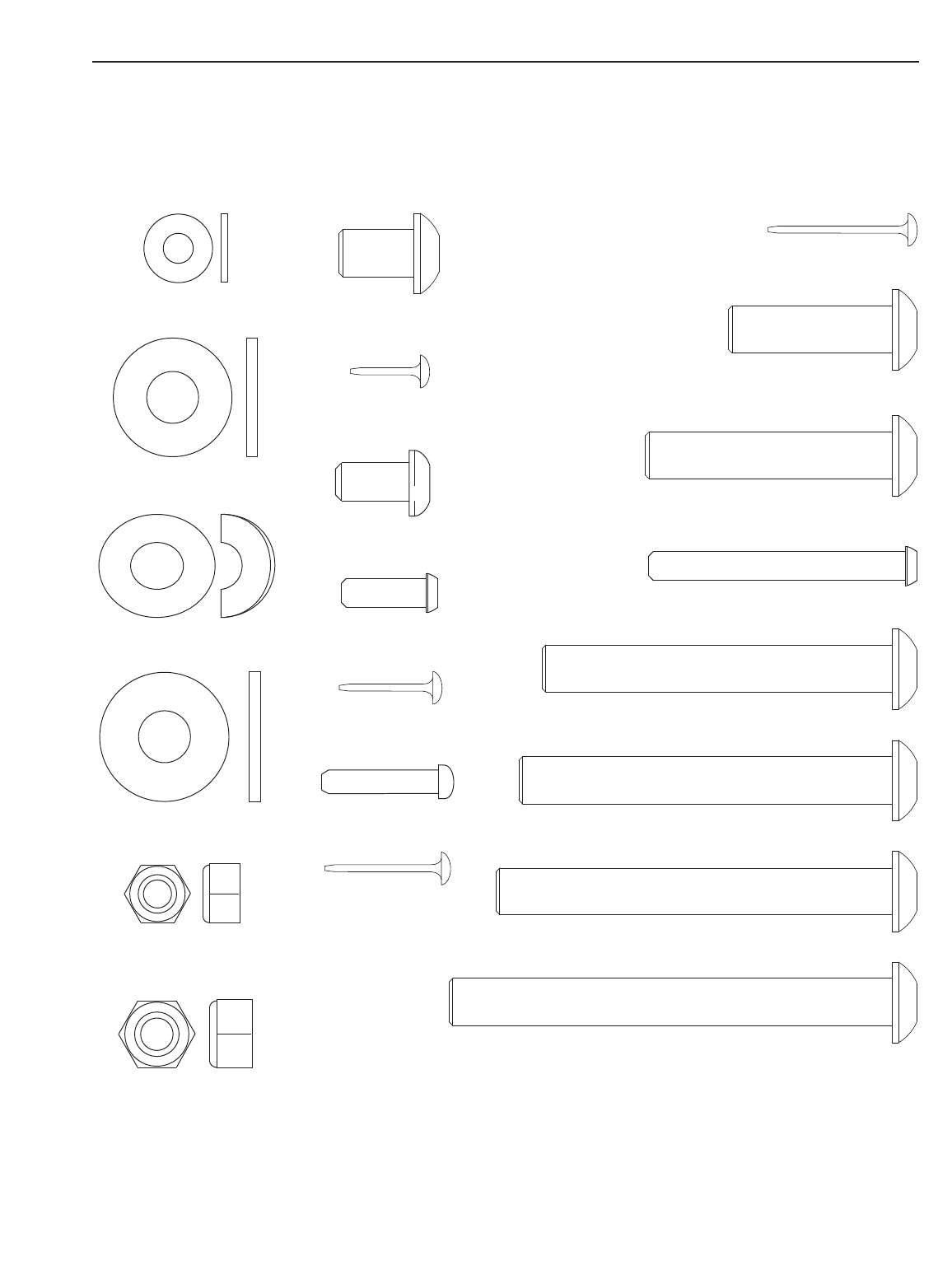

PART IDENTIFICATION CHART

See the drawings below to identify small parts used in assembly. The number in parentheses by each drawing is

the key number of the part, from the PART LIST on page 18. Note: Some small parts may have been pre-

assembled. If a part is not in the parts bag, check to see if it has been preassembled.

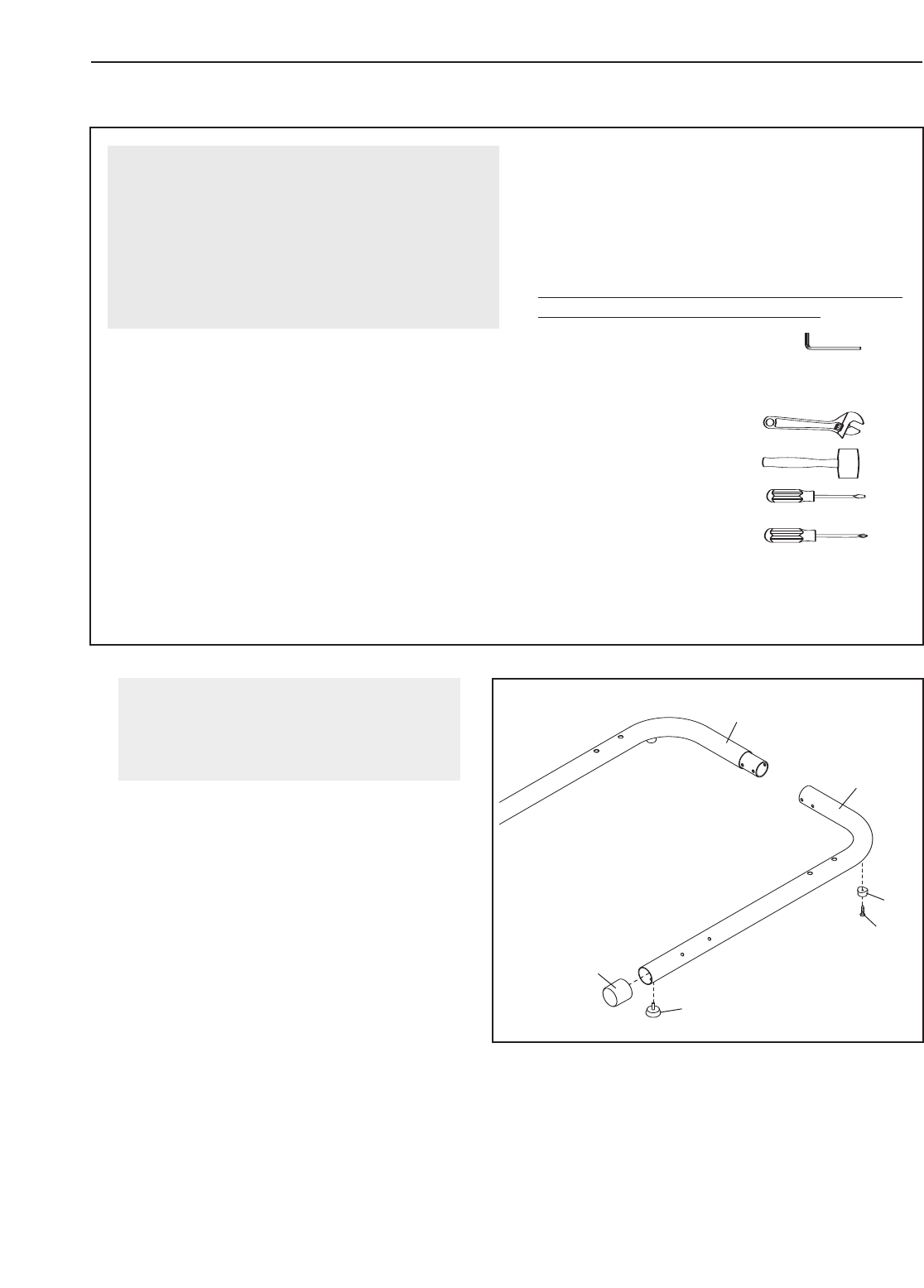

Press a 63mm Round Cap (40) onto the Left

Base (1).

Attach a Foot (42) to the Left Base (1) with an

M4 x 20mm Screw (71). Next, tighten a

Leveling Foot (41) into the Left Base.

Repeat this step for the Right Base (2).

Before beginning assembly, make sure

that you understand the information in

the box above. For help identifying

small parts, see page 5.

Before beginning assembly, carefully read the

following information and instructions:

• Assembly requires two persons.

•Because of its weight and size, the inversion

table should be assembled in the location where

it will be used. Make sure that there is enough

clearance to walk around the inversion table as

you assemble it.

•Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until assembly is completed.

•Tighten all parts as you assemble them, unless

instructed to do otherwise.

•As you assemble the inversion table, make sure

that all parts are oriented as shown in the

drawings.

• For help identifying small parts, use the PART

IDENTIFICATION CHART on page 5.

In addition to the included hex key

and grease packets, the following tools (not

included) may be required for assembly:

• two adjustable wrenches

• one rubber mallet

• one standard screwdriver

• one Phillips screwdriver

Assembly will be more convenient if you have a

socket set, a set of open-end or closed-end

wrenches, or a set of ratchet wrenches.

Make Assembly Easier

This manual is designed to ensure that the

inversion table can be assembled successfully

by almost anyone. However, the inversion table

has many parts, and the assembly process will

take time. Most people find that if they set aside

plenty of time, assembly goes smoothly.

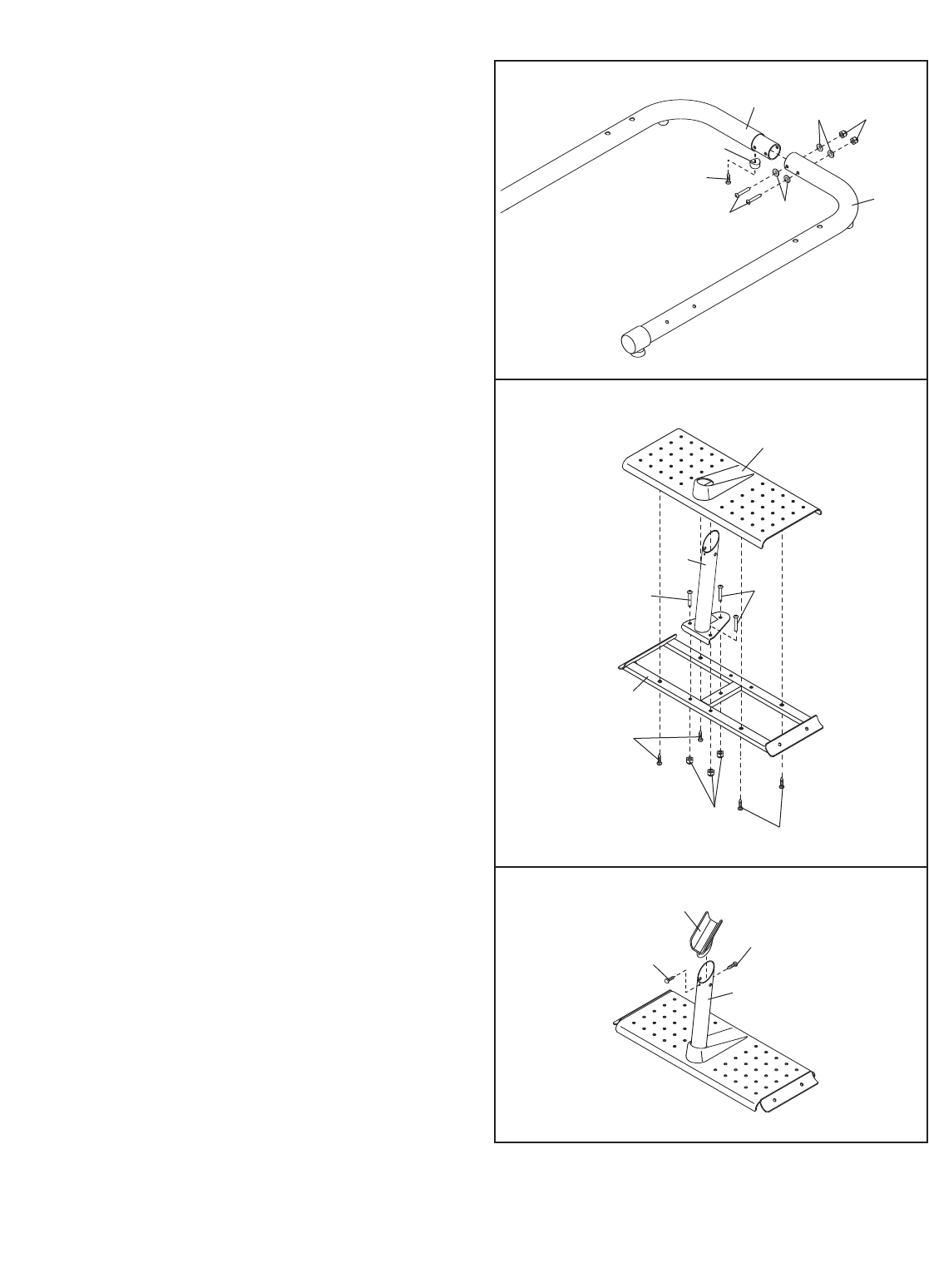

ASSEMBLY

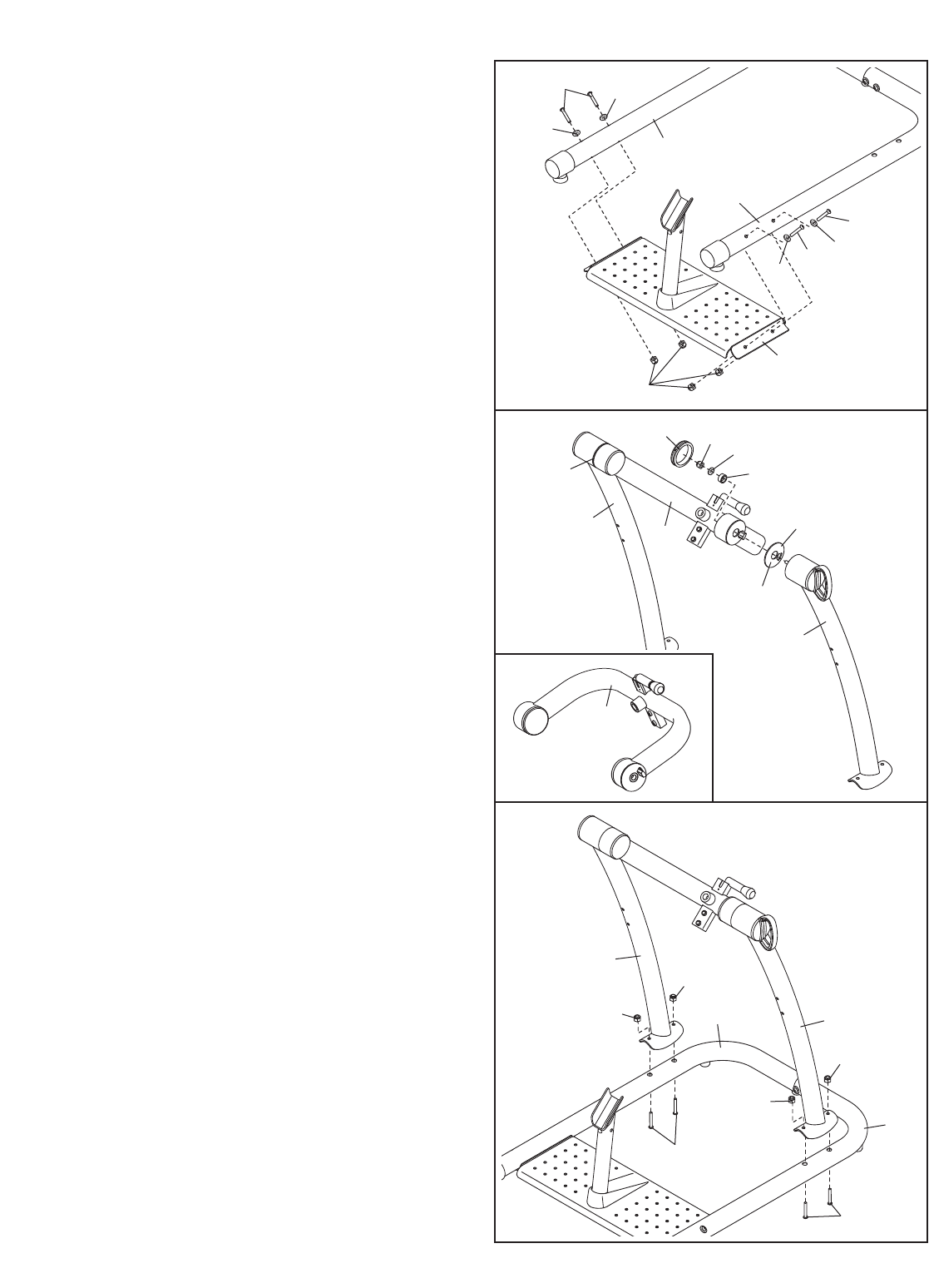

2. Attach the Left Base (1) to the Right Base (2)

with two M10 x 80mm Button Bolts (52), four

M10 Curved Washers (50), and two M10

Nylon Locknuts (65).

Attach another Foot (42) to the Right Base (2)

with an M4 x 20mm Screw (71).

3. Attach the Support Leg (13) to the Center

Base (3) with three M10 x 35mm Button Bolts

(53) and three M10 Nylon Locknuts (65).

Attach the Base Plate (14) to the Center Base

(3) with four M5 x 25mm Screws (59).

4. Attach the Support Bracket (15) to the Support

Leg (13) with two M4 x 15mm Screws (58).

52 50

5065

5. Attach the Center Base (3) to the Left and

Right Bases (1, 2) with four M10 x 80mm

Button Bolts (52), four M10 Curved Washers

(50), and four M10 Nylon Locknuts (65).

6. See the inset drawing. Identify the Center

Frame (7).

Apply some of the included grease to both

sides of the Left Large Spacer (31).

Attach the Left Large Spacer (31) and the Left

Frame (4) to the Center Frame (7) with an

M10 Nylon Locknut (65), an M10 Large

Washer (64), and a 29mm Spacer (48). Then,

press an 89mm Cap (32) into the Center

Frame.

Repeat this step with the Right Large

Spacer (70) and the Right Frame (5).

7. Attach the Left and Right Frames (4, 5) to the

Left and Right Bases (1, 2) with four M10 x

85mm Button Bolts (51) and four M10 Nylon

Locknuts (65).

55250

32 65 64

731

Grease

8. Attach the Top Cover (23) and the Bottom

Cover (24) to the Center Frame (7) with two

M4x15mm Screws (58) and an M4 x 30mm

Screw (63).

Attach the Center Frame Extension (6) to the

Center Frame (7) with two M10 x 53mm

Button Bolts (49) and two M10 Nylon Locknuts

(65).

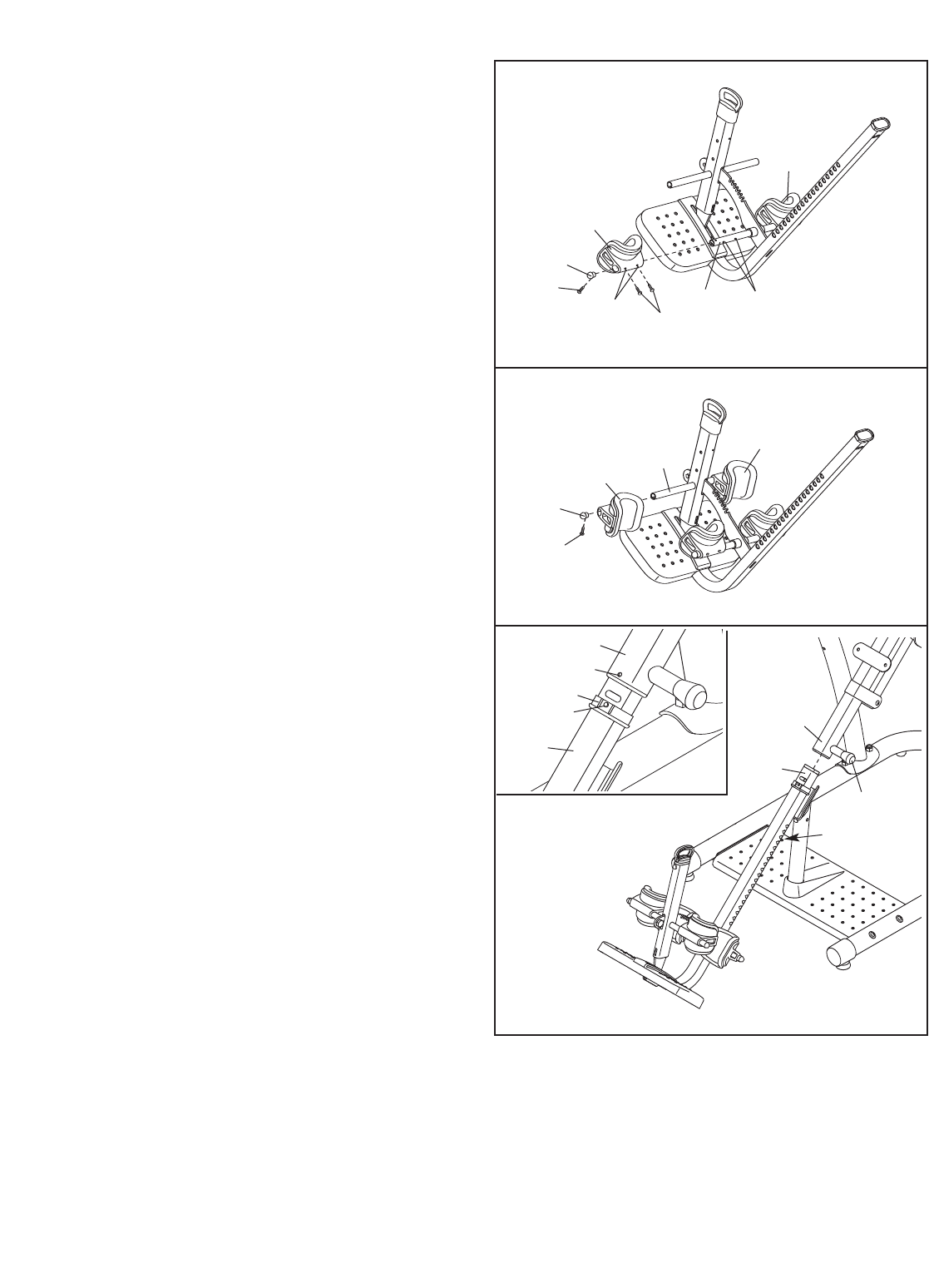

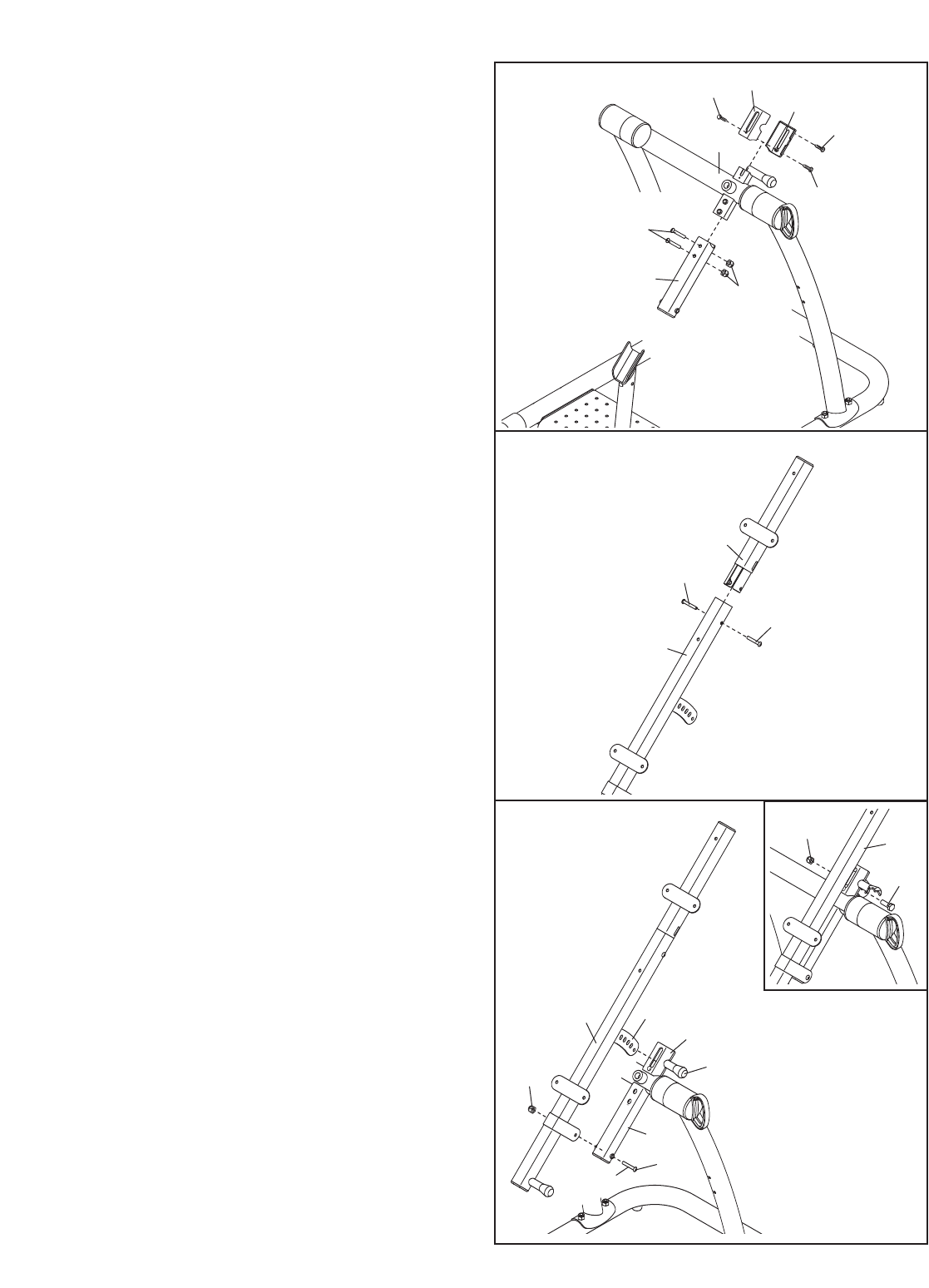

9. Orient the Headrest Frame (9) and the

Backrest Frame (8) as shown. Attach the

Headrest Frame to the Backrest Frame with

two M10 x 16mm Button Screws (54).

10. Apply a small amount of grease to an M10 x

95mm Button Bolt (73).

Pull the Long Adjustment Knob (37) out as far

as it will go. Insert the bracket on the Backrest

Frame (8) into the Top Cover (23). Next, attach

the Backrest Frame to the Center Frame

Extension (6) with the M10 x 95mm Button

Bolt (73) and an M10 Nylon Locknut (65).

Then, engage the Long Adjustment Knob into

one of the holes in the bracket.

See the inset drawing. Attach an M8 x 16mm

Button Bolt (61) and an M8 Nylon Locknut (72)

to the hole in the end of the bracket on the

Backrest Frame (8).

Bracket

Grease

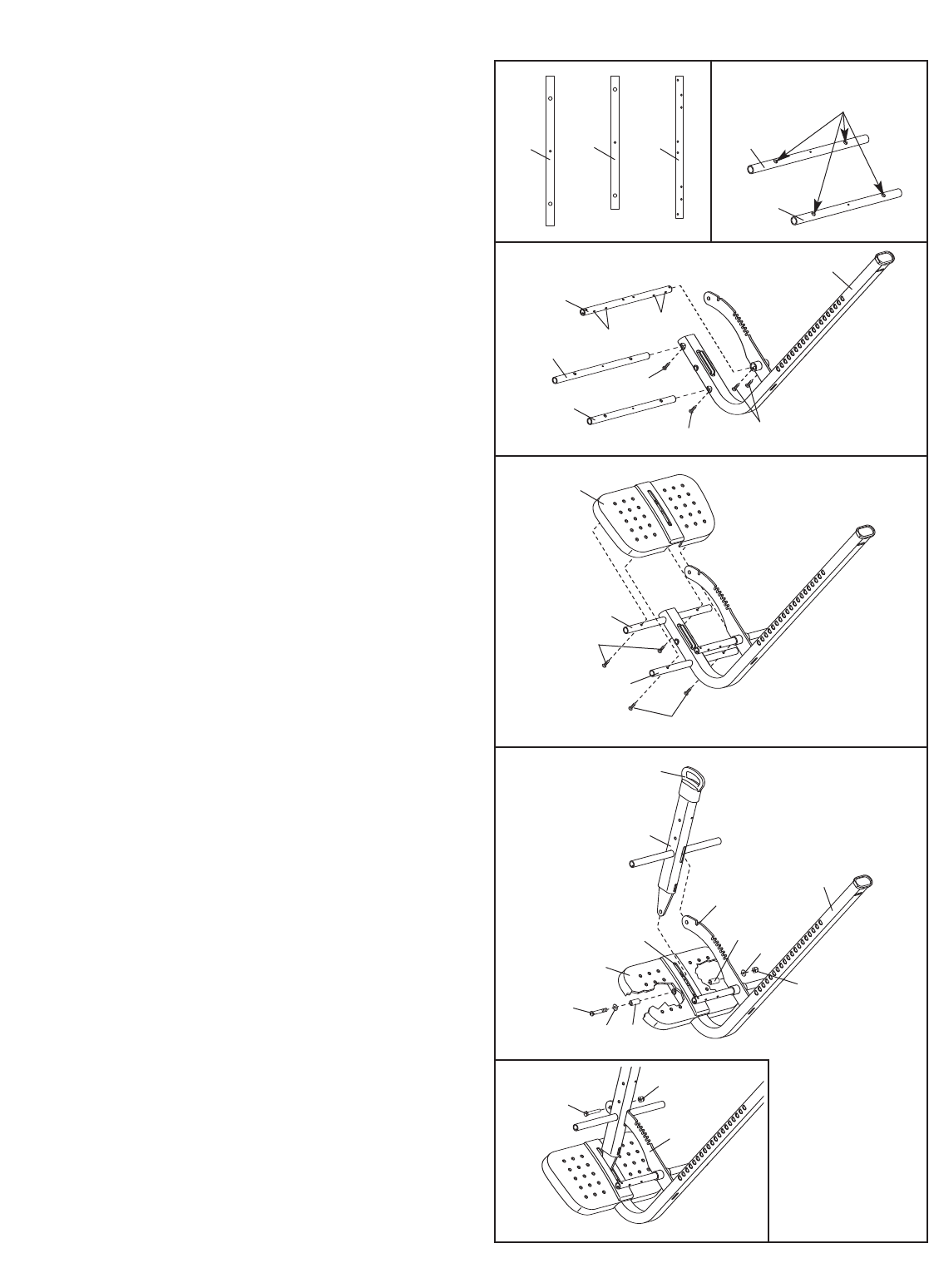

11. See the left inset drawing. Identify the Top

Tube (16), the Bottom Tube (17), and the

Ankle Brace Tube (18); the Tubes have differ-

ent lengths and holes in different positions.

Orient the Top Tube (16) and the Bottom

Tube (17) so that the largest holes are on top

(see the right inset drawing), and insert

them into the indicated holes in the Leg

Frame (10). Attach each Tube with an M4 x

15mm Screw (58).

Orient the Ankle Brace Tube (18) as shown,

and insert it into the Leg Frame (10). Attach

the Ankle Brace Tube with two M4 x 15mm

Screws (58).

Make sure that the M4 x 15mm Screws

(58) are tightened into the holes in the bot-

toms of the Tubes (16, 17, 18).

12. Set the Foot Plate (19) on the Top Tube (16)

and the Bottom Tube (17). Finger tighten

four M4 x 25mm Screws (60) through the

Tubes into the Foot Plate. Do not tighten the

Screws yet.

13. Slide the Lock Frame (11) onto the notched

bracket on the Leg Frame (10), and insert the

lower end of the Lock Frame into the slot in

the Foot Plate (19). Attach the Lock Frame

with an M10 x 75mm Button Bolt (57), two

M10 Washers (68), two 16mm Spacers (46),

and an M10 Nylon Locknut (65) as shown.

Make sure that the Button Bolt is inserted

through the hole in the lower end of the

Lock Frame.

See step 12. Tighten the four M4 x 25mm

Screws (60).

Pull the Lock Handle (33) upward and pivot

the Lock Frame (11) over the indicated notch

in the bracket on the Leg Frame (10).

Release the Lock Handle and engage the

Lock Frame into the notch.

See the inset drawing. Attach an M8 x

16mm Button Bolt (61) and an M8 Nylon

Locknut (72) to the hole in the end of the

bracket on the Leg Frame (10).

Notch

1617

Holes

Slot

Holes

Largest holes

must be on top

14. Identify the two Rear Ankle Braces (34), which

have holes in the indicated locations.

Slide a Rear Ankle Brace (34) onto the Ankle

Brace Tube (18). Attach the Rear Ankle Brace

with two M4 x 15mm Screws (58). Make sure

that the Screws are tightened into the indi-

cated holes in the Ankle Brace Tube. Next,

press a 19mm Round Cap (45) into the Ankle

Brace Tube, and attach the Round Cap with

an M4 x 15mm Screw (58).

Attach the other Rear Ankle Brace (80) to

the Ankle Brace Tube (18) in the same way.

15. Slide a Front Ankle Brace (22) onto the round

tube on the Lock Frame (11). Next, press a

19mm Round Cap (45) into the round tube,

and attach the Round Cap with an M4 x 15mm

Screw (58).

Attach the other Front Ankle Brace (22) in

the same way.

18 Holes

Holes

16. Pull the Short Adjustment Knob (74) out as far

as it will go, and insert the end of the Leg

Frame (10) a few inches into the Backrest

Frame (8).

See the inset drawing. Press the round tab

on the Leg Frame Bushing (38), and press the

Leg Frame Bushing upward into the Backrest

Frame (8). Make sure that the round tab is

in the indicated hole in the Backrest Frame.

Then, slide the Leg Frame (10) farther into the

Backrest Frame (8), and engage the Short

Adjustment Knob (74) into one of the holes in

the Leg Frame.

Holes

Hole

Tab

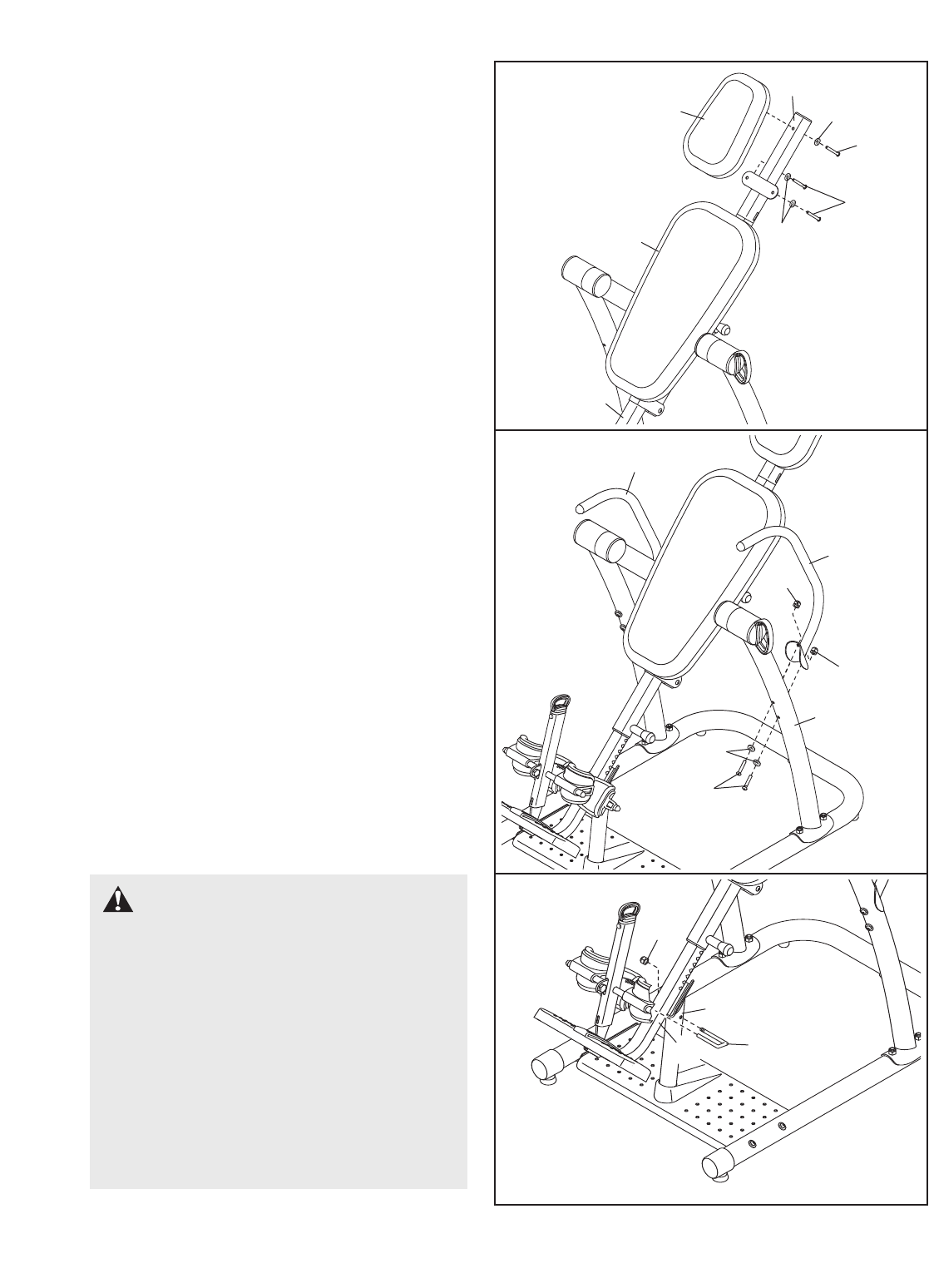

17. Attach the Headrest (20) to the Headrest

Frame (9) with two M6 x 18mm Button Screws

(55), an M6 x 55mm Button Screw (56), and

three M6 Washers (62).

Attach the Backrest (21) to the Backrest

Frame (8) in the same way.

18. Attach a Handle (12) to the Left Frame (4) with

two M10 x 80mm Button Bolts (52), two M10

Curved Washers (50), and two M10 Nylon

Locknuts (65).

Attach the other Handle (12) in the same

way.

Make sure that all parts are properly tight-

ened before you use the inversion table.

WARNING:

HOW TO LOCK THE INVERSION TABLE

FOR STORE DISPLAY OR TO PREVENT

UNSUPERVISED USE

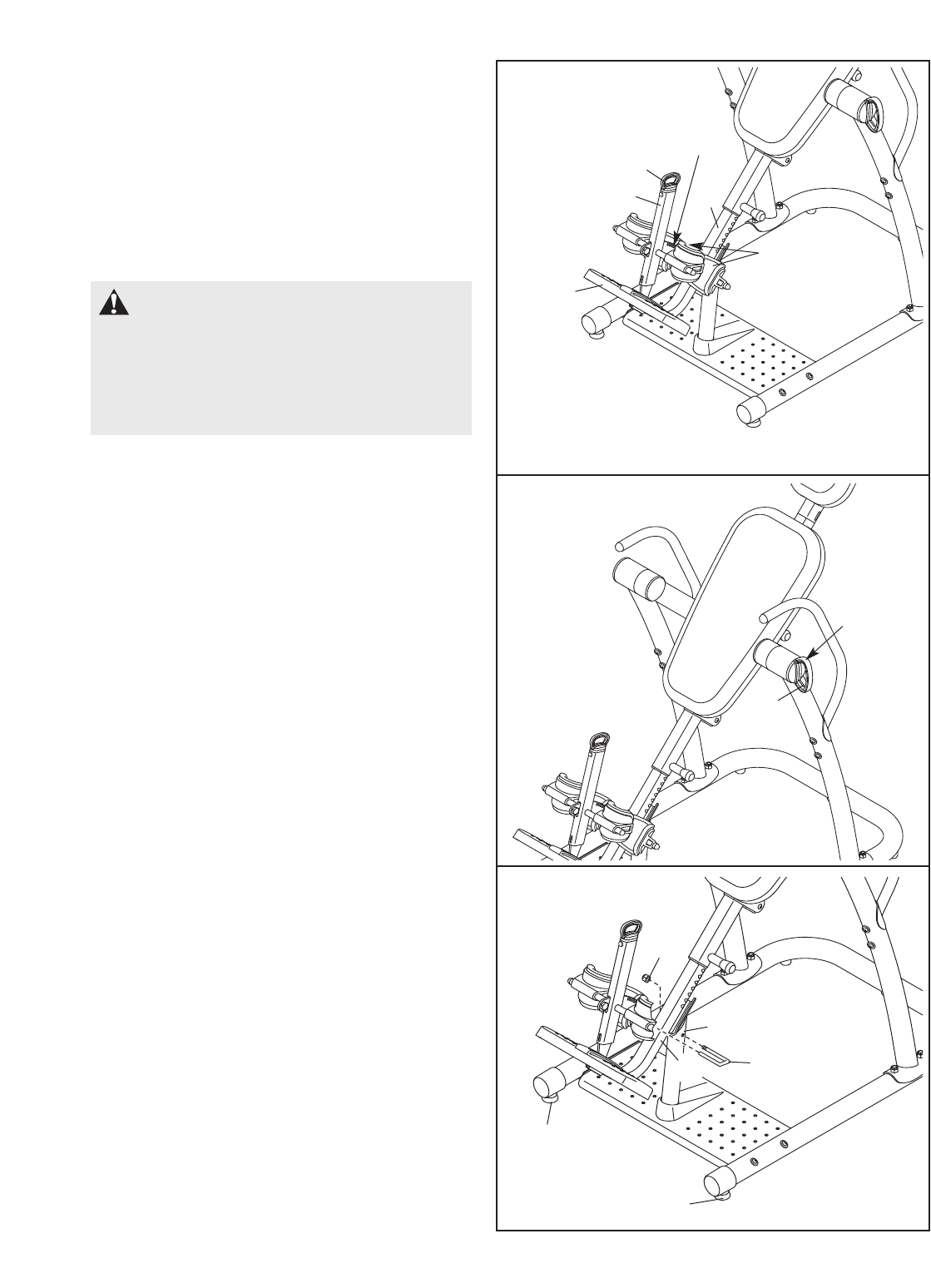

When the inversion table is displayed in a

store, or when it is not in use, it should be

locked to prevent unsupervised use. First,

insert the threaded end of the Lock Pin (50)

into the Support Leg (13), and position the

other end of the Lock Pin on top of the Leg

Frame (10). Then, tighten an M10 Nylon

Locknut (65) onto the Lock Pin.

This section explains how to adjust the inversion table. See DEVELOPING A PROGRAM on page 16 for impor-

tant information about how to get the most benefit from the inversion table.

Make sure that all parts are properly tightened each time you use the inversion table. Replace any worn parts

immediately. The inversion table can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use

solvents to clean the inversion table.

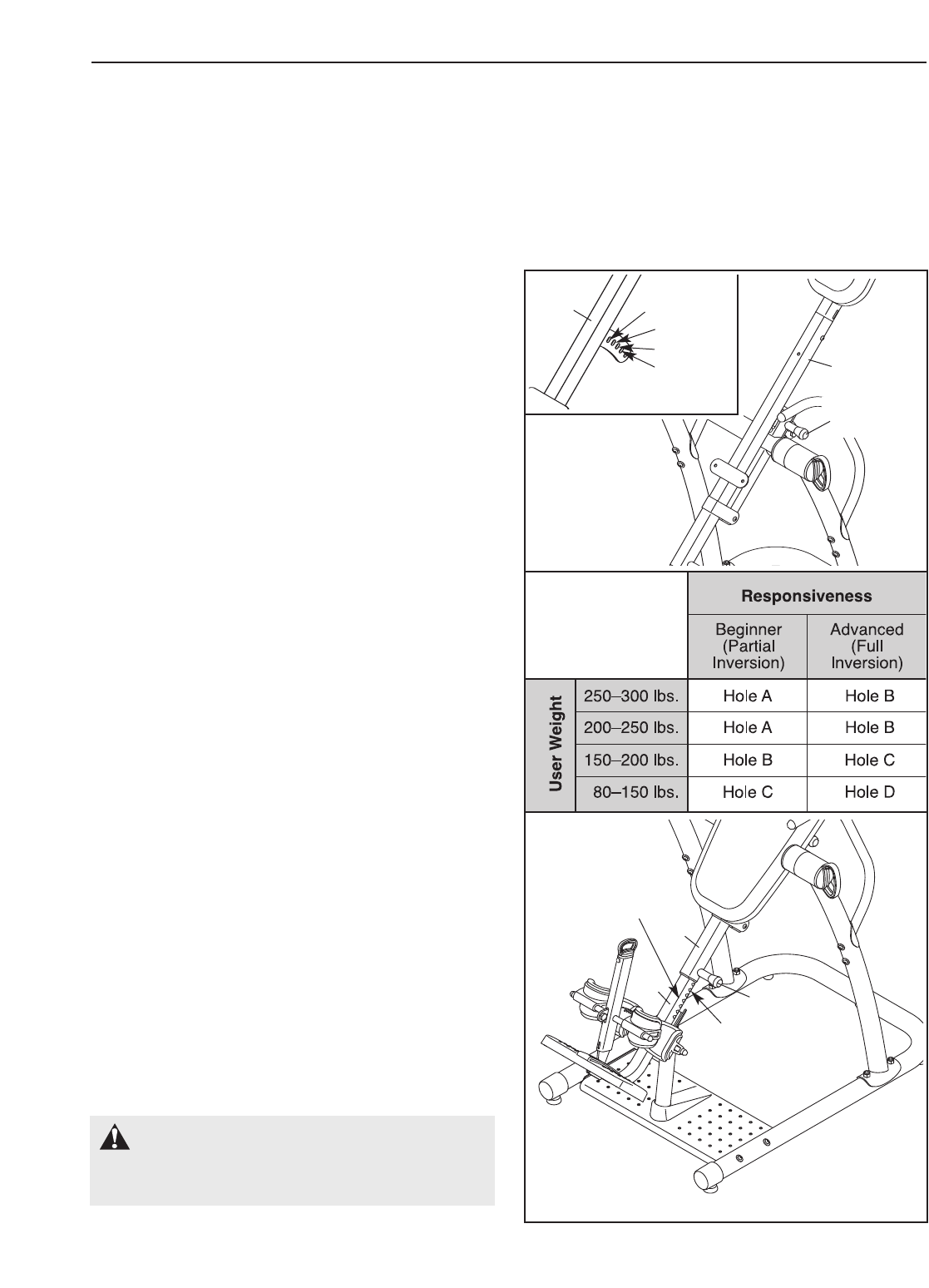

SELECTING THE BACKREST FRAME POSITION

See the inset drawing. The bracket on the Backrest

Frame (8) has four adjustment holes. The correct hole

to use will depend on your body weight and the

desired level of responsiveness. See the chart to

determine which hole to use. For example, if you

weigh between 200 and 250 pounds and you are a

beginning user, the chart recommends that you use

hole A.

To adjust the Backrest Frame (8), first pull the Long

Adjustment Knob (43) out as far as it will go. Move the

Backrest Frame and engage the Long Adjustment

Knob into the desired hole in the bracket on the

Backrest Frame.

Try the inversion table with the Backrest Frame (8)

adjusted to each position to determine which one is

best for you.

Hole A

Hole B

Hole C

Hole D 8

ADJUSTMENT

ADJUSTING THE LEG FRAME

The length of the Leg Frame (10) can be adjusted to

correspond to your height. Pull the Short Adjustment

Knob (74) out as far as it will go. Slide the Leg Frame

into or out of the Backrest Frame (8) so that the first

or second measurement greater than your height is

covered by the Backrest Frame. Then, engage the

Short Adjustment Knob into adjustment holes in the

Leg Frame and the Backrest Frame.

Use the inversion table with the Leg Frame (10)

adjusted to a few different lengths to determine which

length is best for you.

WARNING: The inversion table is

designed to be used by persons 6 ft. 6 in. (198

cm) tall or less.

Adjustment

Hole

Height

Measurements

LEVELING THE INVERSION TABLE

If the inversion table rocks slightly on your floor,

turn one or both of the Leveling Feet (41) until the

inversion table is level.

LOCKING THE INVERSION TABLE

To lock the inversion table when you are not using

it, insert the threaded end of the Lock Pin (50) into

the Support Leg (13), and position the other end of

the Lock Pin on top of the Leg Frame (10). Then,

tighten an M10 Nylon Locknut (65) onto the Lock

Pin.

SETTING THE INVERSION ANGLE

The inversion table can be set to rotate between

15° and 90°, in 15° increments. To set the inver-

sion angle, pull the Index Handle (25) out as far as

it will go, and turn the Index Handle until the arrow

on top of the Index Handle points to the desired

degree setting. Then, release the Index Handle;

make sure that the Index Handle is fully

engaged.

Arrow

USING THE ANKLE LOCK

Tosecure your ankles in the inversion table, pull

the Lock Handle (33) out as far as it will go, and

move the Lock Frame (11) away from the Leg

Frame (10). Stand on the Foot Plate (19), with the

backs of your legs against the Rear Ankle Braces

(34). Then, push the Lock Frame against your

ankles and engage the Lock Handle into a notch in

the Leg Frame.

WARNING: Always make sure

that the Lock Frame (11) is secured snugly

against your ankles before using the inver-

sion table. Always wear athletic shoes with

laces to help secure your feet in the inversion

table.

Notches

This section explains how to rotate back on the inversion table, and then return to the starting position. Before

using the inversion table, see the ADJUSTMENT section starting on page 13 to correctly set up the

inversion table. It may be helpful to have a second person ready to assist you as you learn to use the inversion

table.

ROTATING ON THE INVERSION TABLE

ROTATING BACK ON THE INVERSION TABLE

To rotate back on the inversion table, slowly lift your

arms over your head until you reach the desired posi-

tion. The speed at which you lift your arms will deter-

mine how quickly the inversion table will rotate. Rest

your arms in a comfortable position that does not

cause the inversion table to rotate. Note: The inversion

table will rotate only to the degree setting set by the

index handle.

ROTATING UP ON THE INVERSION TABLE

To return to the starting position, move your hands

toward your waist until you rotate to a horizontal posi-

tion. Rest in a horizontal position for 30 to 60 seconds

before rotating to the starting position. This will allow

your body to readjust. Return to the starting position

slowly. Dizziness after using the inversion table is an

indication that you have returned to the starting position

too quickly.

To rotate up from the fully inverted position, pull your-

self up using the handles.

Do not sit up to return to the starting position.

BENEFITING FROM USING THE INVERSION TABLE

If you feel nauseated while using the inversion table,

return to the starting position. Note that it may take a

few weeks of use for your inner ear to become accus-

tom to being inverted.

Do not use the inversion table right after you have

eaten.

Moving while using the inversion table may make it a

more comfortable experience, and may help joints and

muscles stretch and relax. Always move in a slow, con-

trolled manner.

The greater the angle at which the inversion table is

used, the shorter the time that you should rotate back

before rotating up. Increase the amount of inverted time

and the angle of use gradually.

Always pay attention to how your body feels as you use

the inversion table. Increase the level of intensity only

as it is comfortable for you. When you feel like you have

had enough, return to the starting position.

BEGINNER PROGRAM

The following are suggestions for persons who are just

starting to use the inversion table.

Set the index handle to allow the backrest frame to

rotate to 15° or less for the first one or two weeks. This

will allow your body time to adjust to the change in

gravitational pull.

Use the inversion table for one or two minutes at a

time, two or three times a day.

Stay inverted only for as long as it is comfortable. This

may be only a few seconds at first.

INTERMEDIATE PROGRAM

The following are suggestions for persons who have

become comfortable using the inversion table as

described under the BEGINNER PROGRAM.

Increase the angle to which the inversion table can

rotate, as it is comfortable. Adjust the index handle to

allow the inversion table to rotate to up to 60°, a few

degrees at a time.

Start to do gentle stretching while using the inversion

table.

Gradually increase the amount of time that you use

the inversion table to ten minutes or more, two or

three times a day. Routines can be varied from rotat-

ing back for one or two minutes and then up for 30

seconds, to rotating back and up for equal amounts of

time.

FULL INVERSION PROGRAM

The following are suggestions for persons who have

become comfortable using the inversion table as

described under the INTERMEDIATE PROGRAM and

desire to rotate to greater angles. Note that all the

benefits of inversion can be gained by rotating to 60°.

Do not attempt to do sit-ups.

Increase the angle to which the inversion table can

rotate, as it is comfortable. Adjust the index handle to

allow the inversion table to rotate until it comes in con-

tact with the center frame.

Adjust the backrest frame so that the long adjustment

knob is in the top hole (see SELECTING THE BACK-

REST FRAME POSITION on page 13). If you weigh

220 lbs. (100 kg) or more, adjust the long adjustment

knob to the center hole in the backrest frame. Rotate

back and up as described on page 15.

This section contains information and suggestions about using the inversion table. Make sure that all parts are

properly tightened each time you use the inversion table. Replace any worn parts immediately. See the ADJUST-

MENT section starting on page 13 to identify parts referred to in this section.

DEVELOPING A PROGRAM

NOTES

Key No. Qty. Description Key No. Qty. Description

PART LIST—Model No. WEBE1996.0 R0307A

Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover

of this manual for information about ordering replacement parts.

11 Left Base

2 1 Right Base

31 Center Base

4 1 Left Frame

5 1 Right Frame

6 1 Center Frame Extension

7 1 Center Frame

8 1 Backrest Frame

9 1 Headrest Frame

10 1 Leg Frame

11 1 Lock Frame

12 2 Handle

13 1 Support Leg

14 1 Base

15 1 Support Bracket

16 1 Top Tube

17 1 Bottom Tube

18 1 Ankle Brace Tube

19 1 Foot Plate

20 1 Headrest

21 1 Backrest

22 2 Front Ankle Brace

23 1 Top Cover

24 1 Bottom Cover

25 1 Index Handle

26 1 Index Ring

27 1 Cup Washer

28 1 Small Spring

29 1 Cup Bushing

30 1 Index Cup

31 1 Left Large Spacer

32 3 89mm Cap

33 1 Ankle Lock Assembly

34 2 Rear Ankle Brace

35 1 Lock Pin

36 1 Bumper

37 1 Long Adjustment Knob

38 1 Leg Frame Bushing

39 2 42mm x 70mm Cap

40 2 63mm Round Cap

41 2 Leveling Foot

42 3 Foot

43 1 M6 Nut

44 2 32mm Round Cap

45 4 19mm Round Cap

46 2 16mm Spacer

47 2 Pivot Bushing

48 2 29mm Spacer

49 2 M10 x 53mm Button Bolt

50 12 M10 Curved Washer

51 4 M10 x 85mm Button Bolt

52 10 M10 x 80mm Button Bolt

53 3 M10 x 35mm Button Bolt

54 2 M10 x 16mm Button Screw

55 4 M6 x 18mm Button Screw

56 2 M6 x 55mm Button Screw

57 1 M10 x 75mm Button Bolt

58 20 M4 x 15mm Screw

59 4 M5 x 25mm Screw

60 4 M4 x 25mm Screw

61 2 M8 x 16mm Button Bolt

62 7 M6 Washer

63 1 M4 x 30mm Screw

64 2 M10 Large Washer

65 24 M10 Nylon Locknut

66 1 M6 x 15mm Screw

67 2 M5 x 15mm Screw

68 2 M10 Washer

69 1 30mm x 60mm Cap

70 1 Right Large Spacer

71 3 M4 x 20mm Screw

72 2 M8 Nylon Locknut

73 1 M10 x 95mm Button Bolt

74 1 Short Adjustment Knob

75 1 M6 x 60mm Button Bolt

# - User’s Manual

# - Hex Key

# - Grease Packet

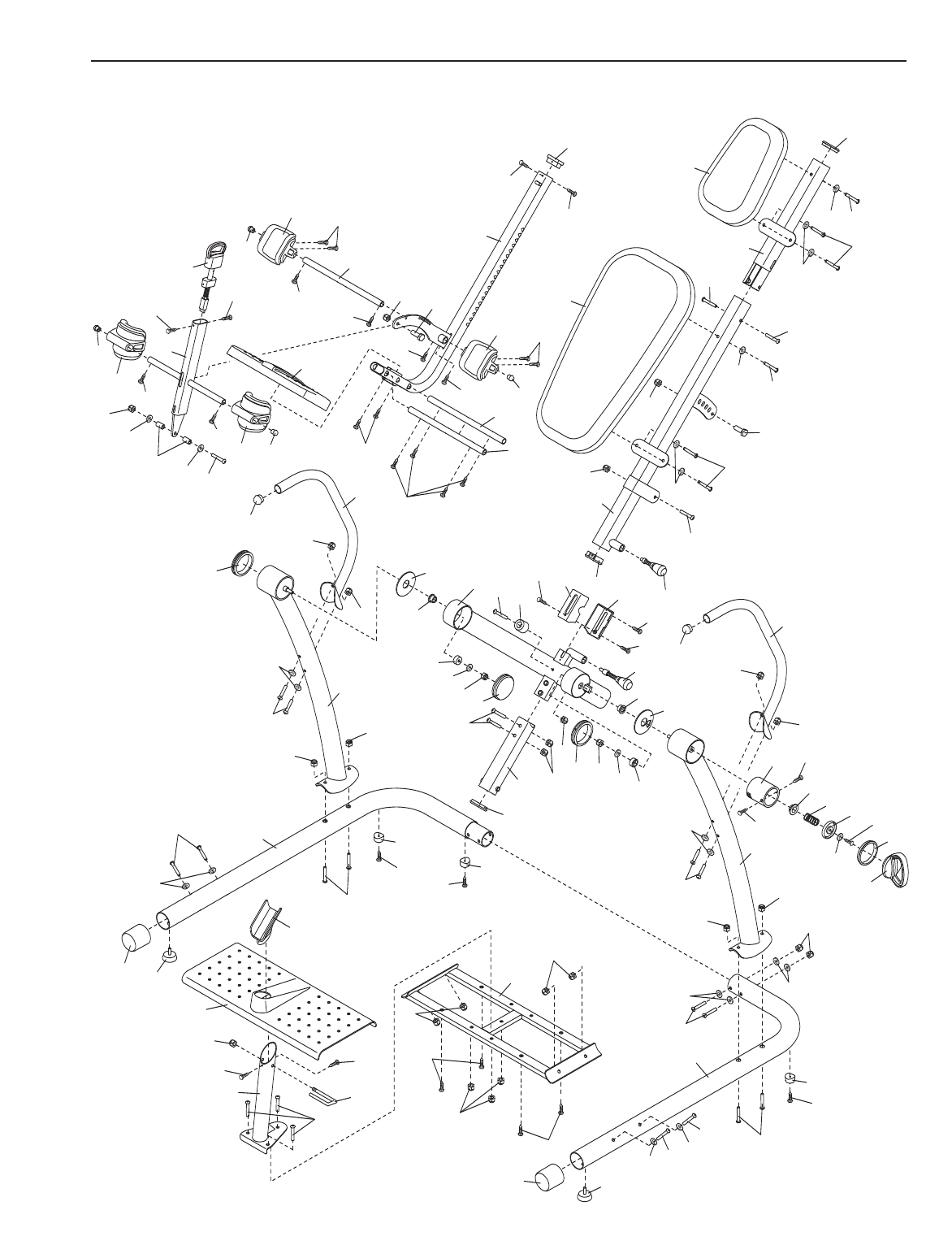

EXPLODED DRAWING—Model No. WEBE1996.0 R0307A

23 24

69 39

37 44

50 50

65 72

67 66

To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to

provide the following information when contacting us:

• the MODEL NUMBER of the product (WEBE1996.0)

• the NAME of the product (WEIDER CLUB INVERSION SYSTEM inversion table)

• the SERIAL NUMBER of the product (see the front cover of this manual)

• the KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST and the EXPLODED DRAWING on

pages 18 and 19)

ORDERING REPLACEMENT PARTS

LIMITED WARRANTY

ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and mate-

rial, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This

warranty extends only to the original purchaser.ICON's obligation under this warranty is limited to replacing

or repairing, at ICON's option, the product through one of its authorized service centers. All repairs for which

warranty claims are made must be pre-authorized by ICON. If the product is shipped to a service center,

freight charges to and from the service center will be the customer’s responsibility. For in-home service, the

customer will be responsible for a minimal trip charge. This warranty does not extend to any product or dam-

age to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or

repairs not provided by an ICON authorized service center; products used for commercial or rental purposes;

or products used as store display models. No other warranty beyond that specifically set forth above is author-

ized by ICON.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection

with the use or performance of the product or damages with respect to any economic loss, loss of property,

loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other consequential

damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or conse-

quential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of mer-

chantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein.

Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation

may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813

Weider Club Inversion Sys Bench Webe1996 Users Manual

Weider-Webe19960-Owner-S-Manual weider-webe19960-owner-s-manual

Navigation menu

Versions of this User Manual:

Views

Navigation
