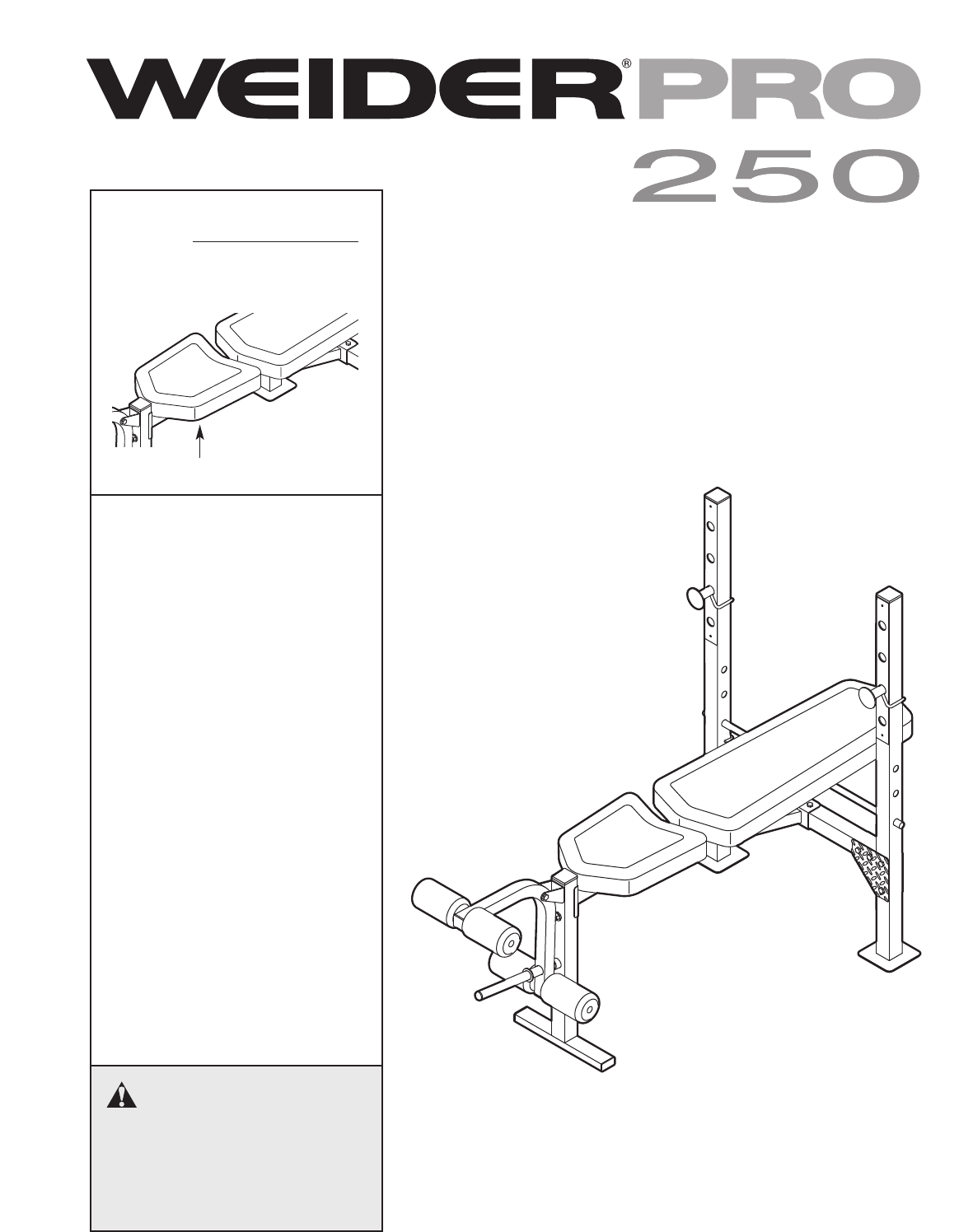

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manu-

al for future reference.

Model No. 831.15707.0

Serial No.

Write the serial number in the

space above for reference.

Serial Number Decal (under seat)

Sears, Roebuck and Co., Hoffman Estates, IL 60179

•Assembly

•Adjustment

•Troubleshooting

•Part List and Drawing

WEIGHT BENCH EXERCISER

User’s Manual

WARNING DECAL PLACEMENT

2

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

90-DAY FULL WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

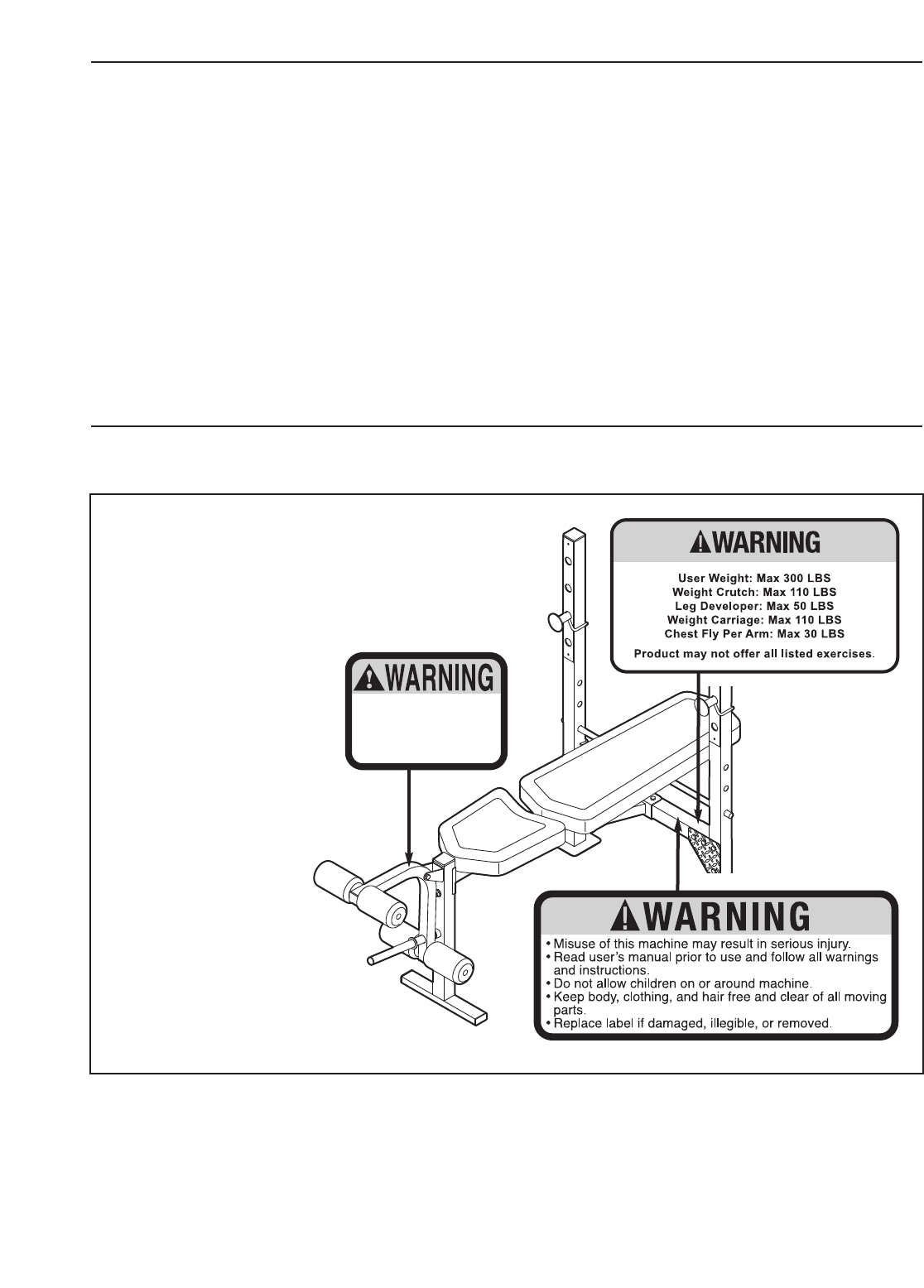

The warning decals

shown here have been

placed on the weight

bench in the locations

shown. If a decal is

missing or illegible,

call toll-free

1-877-992-5999 and

order a free replace-

ment decal. Place the

decal on the weight

bench in the location

shown. Note: The

decals shown may not

be shown at actual

size.

Keep hands and

fingers clear of

this area.

TABLE OF CONTENTS

3

WARNING: Toreduce the risk of serious injury, read the following important precau-

tions before using the weight bench.

1. Read all instructions in this manual and all

warnings on the weight bench before using

the weight bench. Use the weight bench only

as described in this manual.

2. It is the responsibility of the owner to ensure

that all users of the weight bench are ade-

quately informed of all precautions.

3. The weight bench is intended for home use

only. Do not use the weight bench in any

commercial, rental, or institutional setting.

4. Keep the weight bench indoors, away from

moisture and dust. Place the weight bench

on a level surface, with a mat beneath it to

protect the floor or carpet. Make sure that

there is enough clearance around the weight

bench to mount, dismount, and use the

weight bench.

5. Use the weight bench only on a level surface.

Cover the floor beneath the weight bench to

protect the floor.

6. Inspect and properly tighten all parts regular-

ly.Replace any worn parts immediately.

7. Keep children under age 12 and pets away

from the weight bench at all times.

8. Always wear athletic shoes for foot protec-

tion while exercising.

9. Keep hands and feet away from moving parts.

10. Do not use a barbell that is longer than six

feet with the weight bench. Note: The weight

bench does not include a barbell or weights.

11. The weight bench is designed to support a

maximum user weight of 300 pounds (136

kg) and a maximum total weight of 410

pounds (186 kg). Do not place more than 110

pounds (50 kg), including a barbell and

weights, on the weight rests. Do not place

more than 50 pounds (23 kg) on the leg lever.

12. Always make sure that there is an equal

amount of weight on each side of your bar-

bell when you are using it. Always keep

some weight on both ends of the barbell

when adding or removing weights to prevent

the barbell from tipping.

13. When you are using the leg lever,place a

barbell with the same amount of weight on

the weight rests to balance the weight bench.

14. Always exercise with a partner. When you

are performing bench press exercises, your

partner should stand behind you to catch the

barbell if you cannot complete a repetition.

15. When using the backrest in an inclined posi-

tion, make sure that the support rod is insert-

ed completely through both uprights, and

that the support rod is turned to the locked

position.

16. If you feel pain or dizziness while exercising,

stop immediately and cool down.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. Sears assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

IMPORTANT PRECAUTIONS

4

Backrest

Weight Rests

Upright

Support Rod

Seat

Leg Lever

Weight Tube

Thank you for selecting the versatile WEIDER®PRO

250 weight bench. The weight bench offers an impres-

sive array of weight stations designed to develop

every major muscle group of the body. Whether your

goal is to tone your body, build dramatic muscle size

and strength, or improve your cardiovascular system,

the weight bench will help you to achieve the specific

results you want.

For your benefit, read this manual carefully before

using the weight bench. If you have questions after

reading this manual, call 1-800-4-MY-HOME®

(1-800-469-4663). To help us assist you, please note

the product model number and serial number before

calling. The model number is 831.15707.0. The serial

number can be found on a decal attached to the

weight bench (see the front cover of this manual for

the location of the decal).

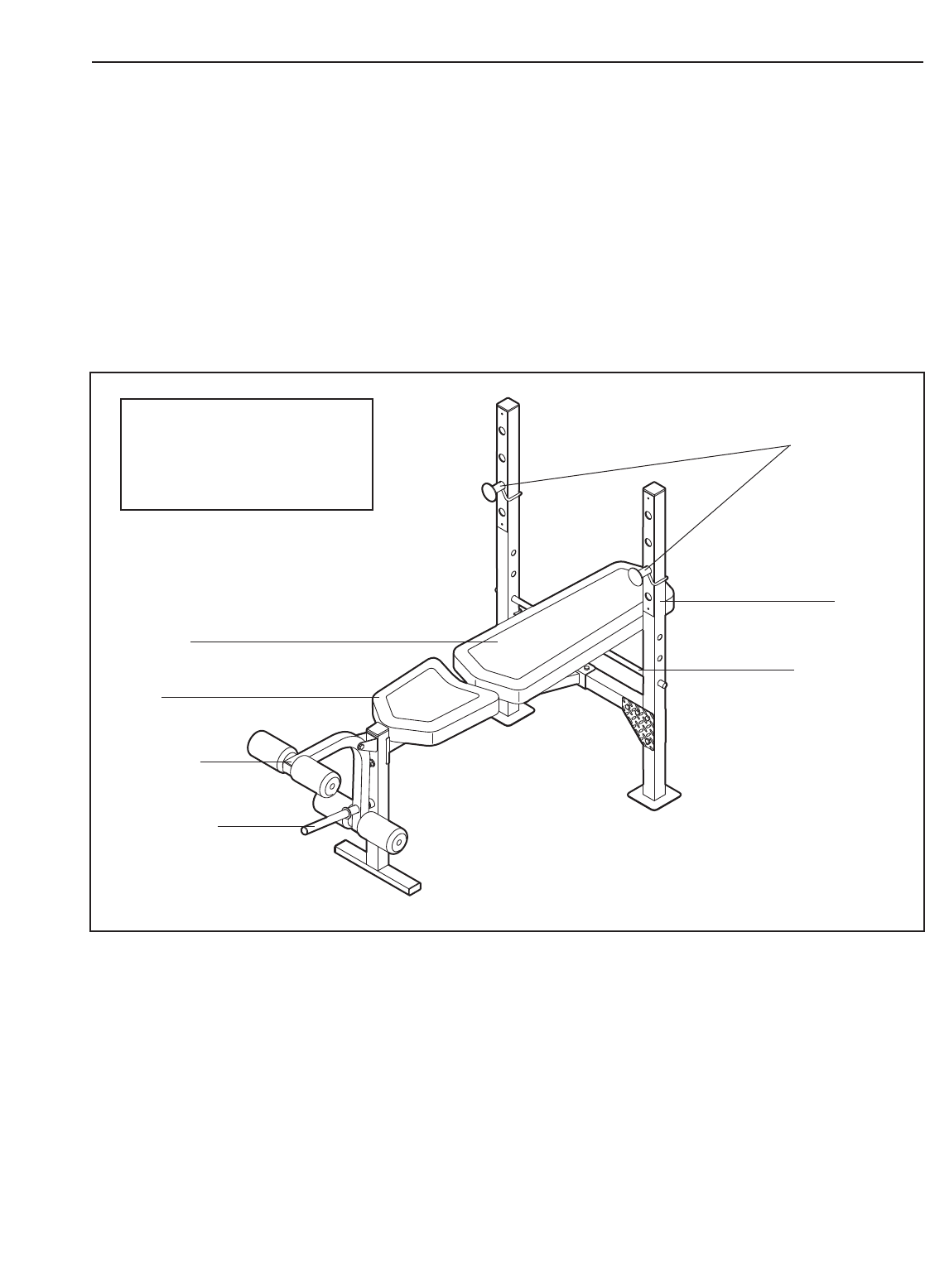

Before reading further, please review the drawing

below and familiarize yourself with the parts that are

labeled.

BEFORE YOU BEGIN

ASSEMBLED DIMENSIONS:

Height: 47 in. (119 cm)

Width: 30 in. (76 cm)

Depth: 62 in. (157 cm)

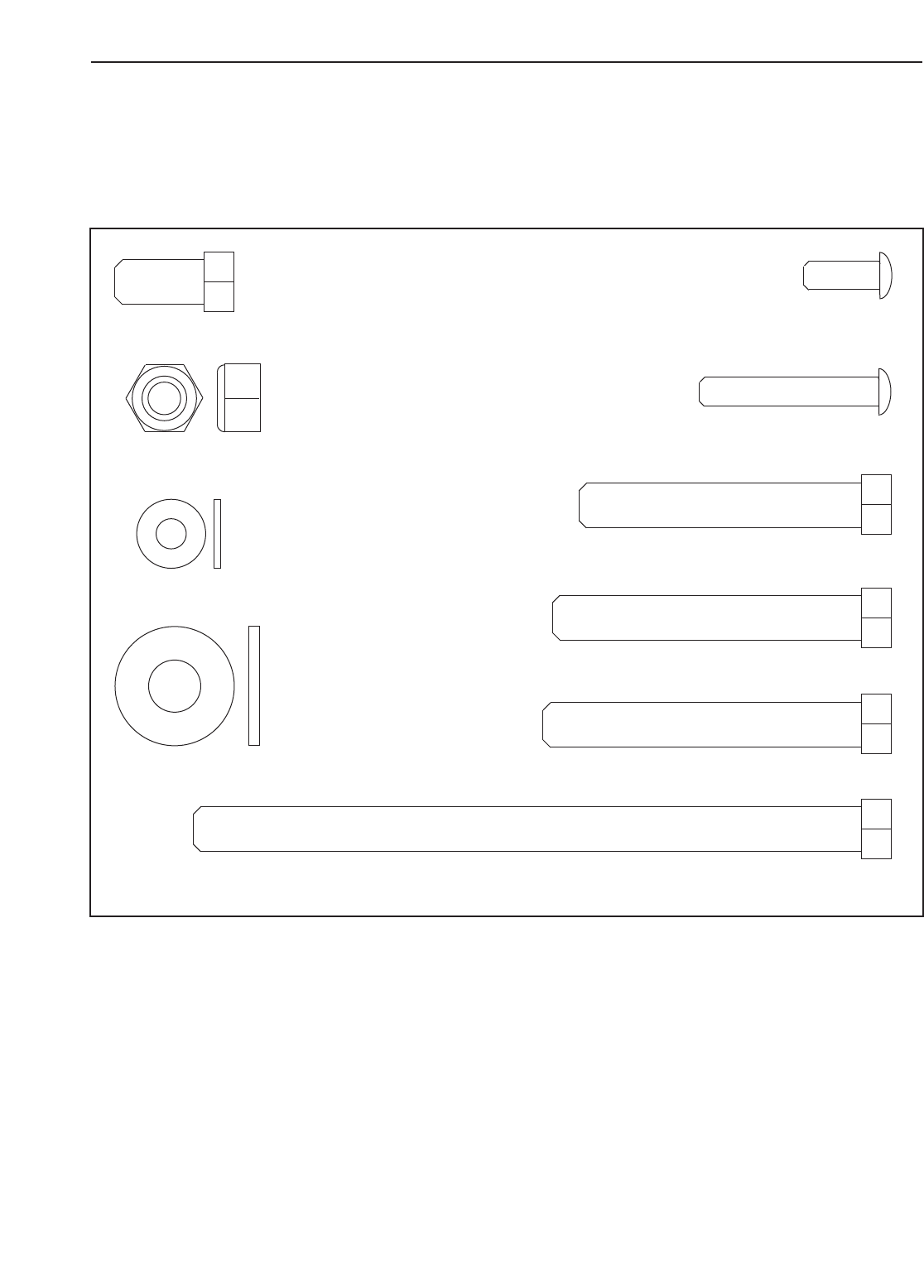

This chart is provided to help you identify the small parts used in assembly. The number in parenthesis below

each part refers to the key number of the part, from the PART LIST on page 14. Important: Some parts may

have been pre-assembled for shipping purposes. If you cannot find a part in the parts bags, check to

see if it has been pre-assembled. Ifapart is missing, call 1-877-992-5999.

M6 Washer (22)

M10 Nylon Locknut (31)

M10 x 142mm Bolt (23)

M10 x 60mm Bolt (25)

M10 x 68mm Bolt (27)

M10 x 66mm Bolt (28)

M6 x 16mm

Screw (24)

M

M6 x 38mm Screw (32)

M10 x 19mm Screw (5)

M10 Washer (30)

PART IDENTIFICATION CHART

5

Before beginning assembly, carefully read the

following information and instructions:

•Assembly requires two people.

•Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until assembly is completed.

•Tighten all parts as you assemble them, unless

instructed to do otherwise.

•Asyou assemble the weight bench, make sure all

parts are oriented as shown in the drawings.

•For help identifying small parts, use the Part

Identification Chart.

The following tools (not included) are required for

assembly:

• Two adjustable wrenches

• One rubber mallet

• One standard screwdriver

•One Phillips screwdriver

Assembly will be more convenient if you have a

socket set, a set of open-end or closed-end

wrenches, or a set of ratchet wrenches.

Make Assembly Easier

Everything in this manual is designed to ensure

that the weight bench can be assembled suc-

cessfully by anyone. However, it is important to

realize that the versatile weight bench has

many parts and that the assembly process will

take time. Most people find that by setting aside

plenty of time, assembly goes smoothly.

6

ASSEMBLY

1

28

11

35

1

1

31

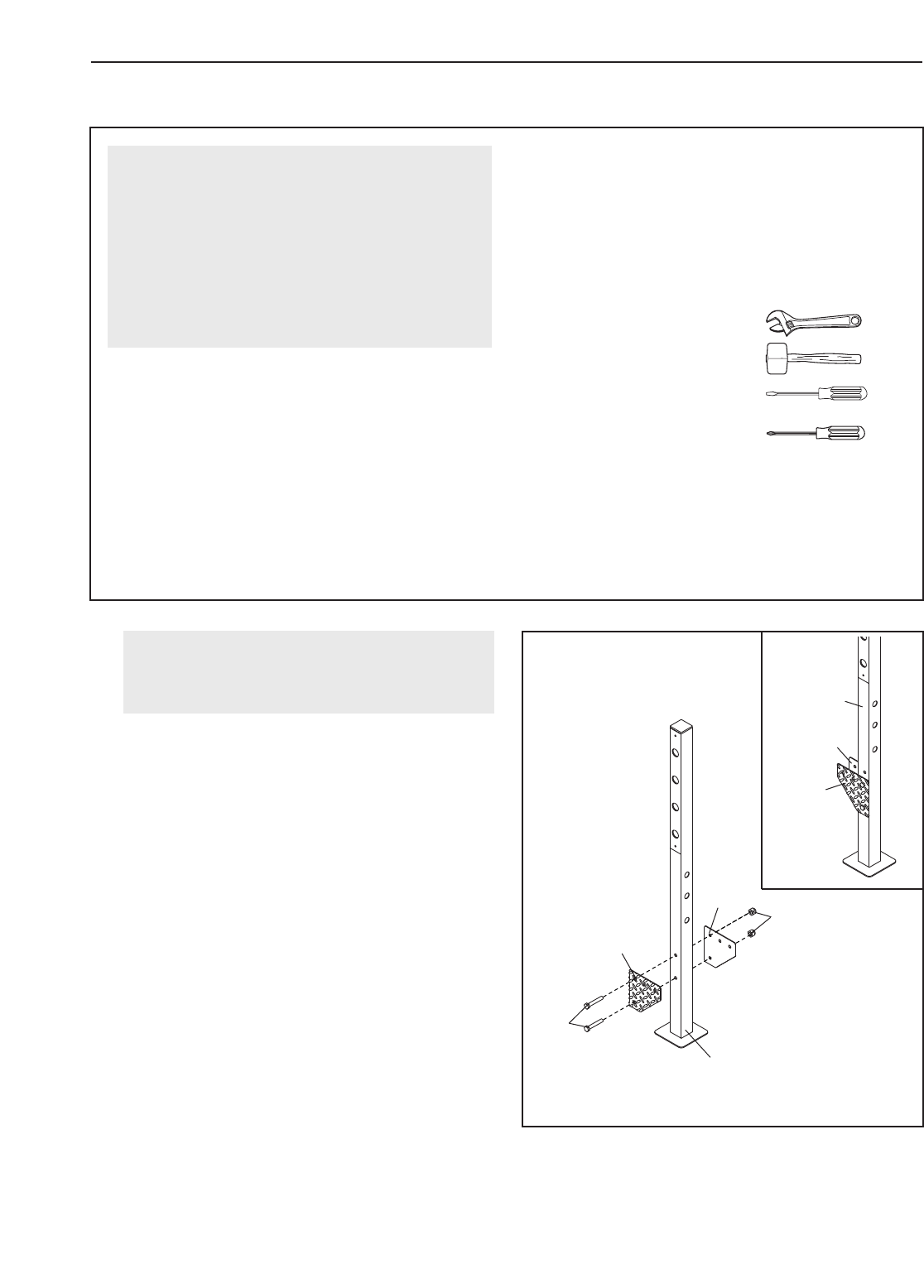

1.

Attach a Right Joint Plate (11) and a Left Joint

Plate (35) to an Upright (1) with two M10 x 66mm

Bolts (28) and two M10 Nylon Locknuts (31). Do

not tighten the Nylon Locknuts yet.

See the inset drawing. Repeat this step with

the other Upright (1). Make sure that the Joint

Plates (11, 35) are oriented as shown.

11

35

Before assembling the weight bench, make

sure that you have read and understand

the information in the box above.

7

3

28

5

30

31

3

4

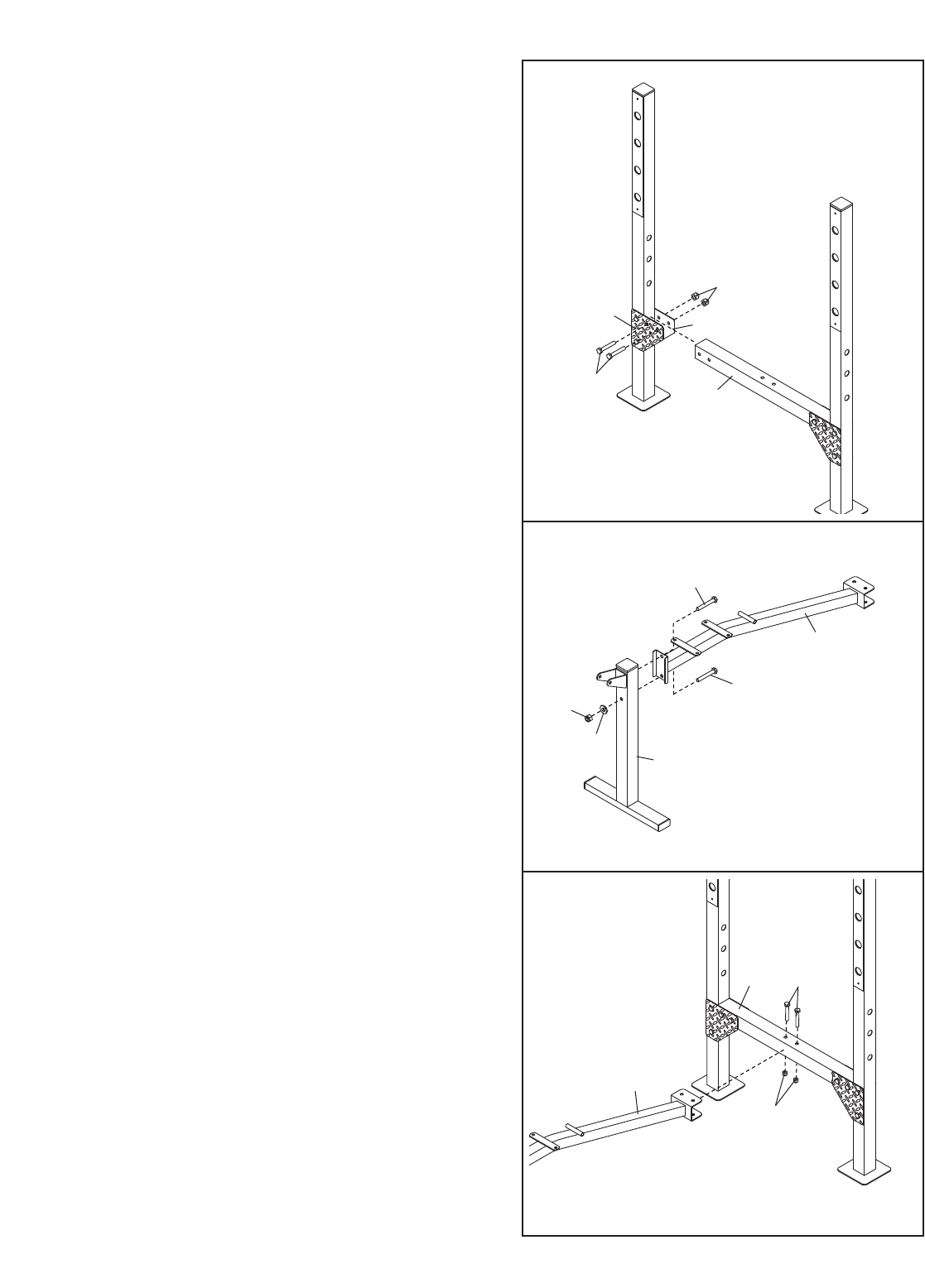

2. Attach one end of the Crossbar (2) to two Joint

Plates (11, 35) with two M10 x 66mm Bolts (28)

and two M10 Nylon Locknuts (31). Donot tight-

en the Nylon Locknuts yet.

Attach the other end of the Crossbar (2) in the

same way.

3. Attach the Front Leg (4) to the Bench Frame (3)

with an M10 x 19mm Screw (5), an M10 x 66mm

Bolt (28), an M10 Washer (30), and an M10

Nylon Locknut (31). Do not tighten the Nylon

Locknut or Screw yet.

2

28

35 11

2

31

4. Attach the Bench Frame (3) to the Crossbar (2)

with two M10 x 68mm Bolts (27) and two M10

Nylon Locknuts (31). Do not tighten the Nylon

Locknuts yet.

3

2

31

27

4

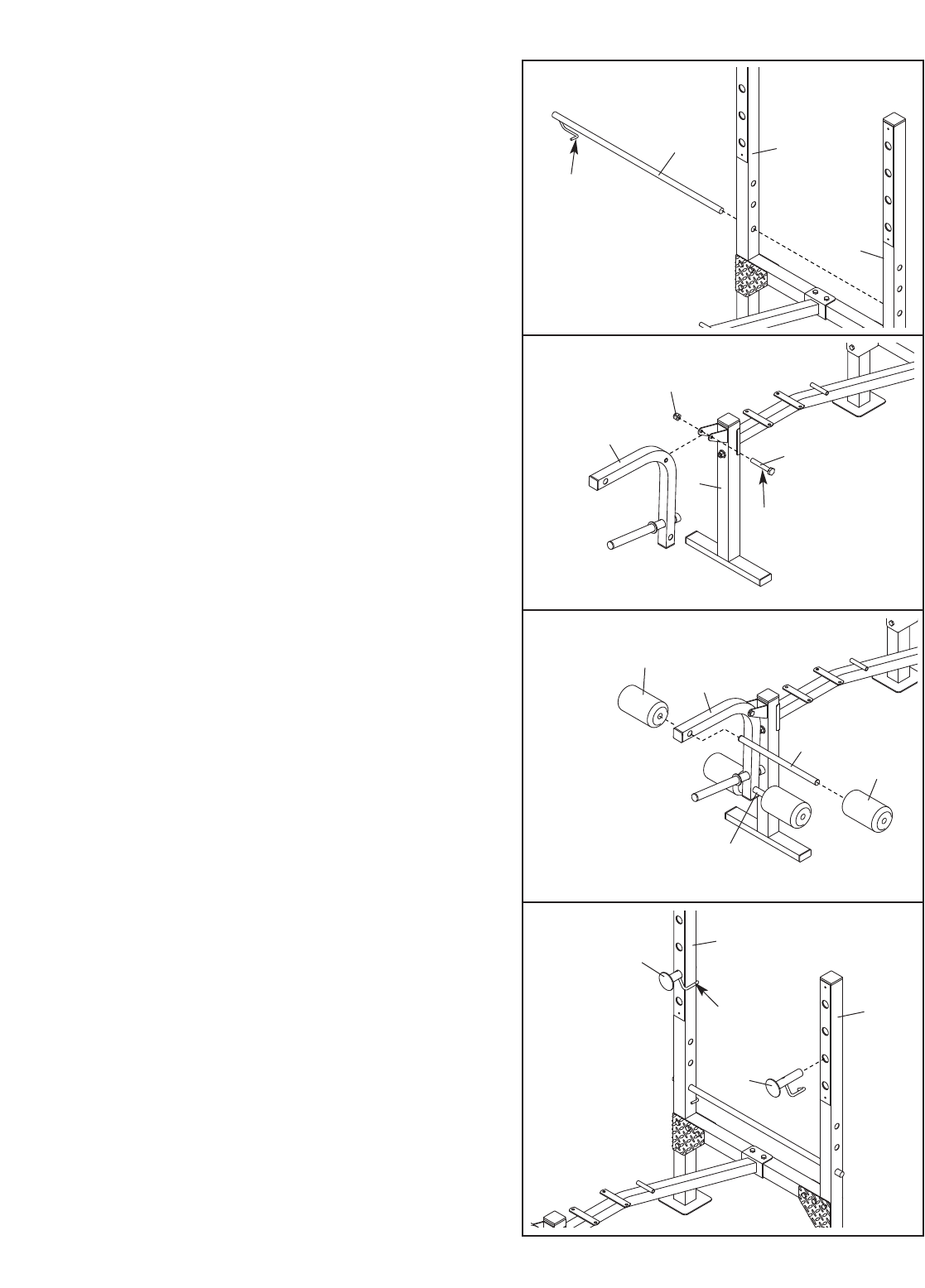

5. Insert the Support Rod (14) into a set of holes in

the Uprights (1). Turn the Support Rod so the

locking pin is wrapped around the Upright.

Tighten the M10 Nylon Locknuts (31) and M10

x19mm Screw (5) used in steps 1–4.

1

1

14

5

8

6. Lubricate the M10 x 60mm Bolt (25) with part of

the included grease packet. Attach the Leg Lever

(6) to the Front Leg (4) with the Bolt and an M10

Nylon Locknut (31). Do not overtighten the Nylon

Locknut; the Leg Lever must pivot easily.

7. Insert a Pad Tube (12) into the Leg Lever (6).

Slide a Foam Pad (13) onto each end of the Pad

Tube.

Repeat this step with the other Pad Tube (12). 6

13

13

12

12

Locking

Pin

25

31

Lubricate

6

4

6

7

8. Insert a Weight Rest (15) into an Upright (1). Turn

the Weight Rest so the locking pin is wrapped

around the Upright.

Repeat this step with the other Weight Rest

(15). Make sure that the Weight Rests are at

the same height.

15

15

Locking

Pin

1

1

8

12. Make sure that all parts are properly tightened

before you use the weight bench. The use of

all remaining parts will be explained in ADJUST-

MENT, beginning on page 10.

9

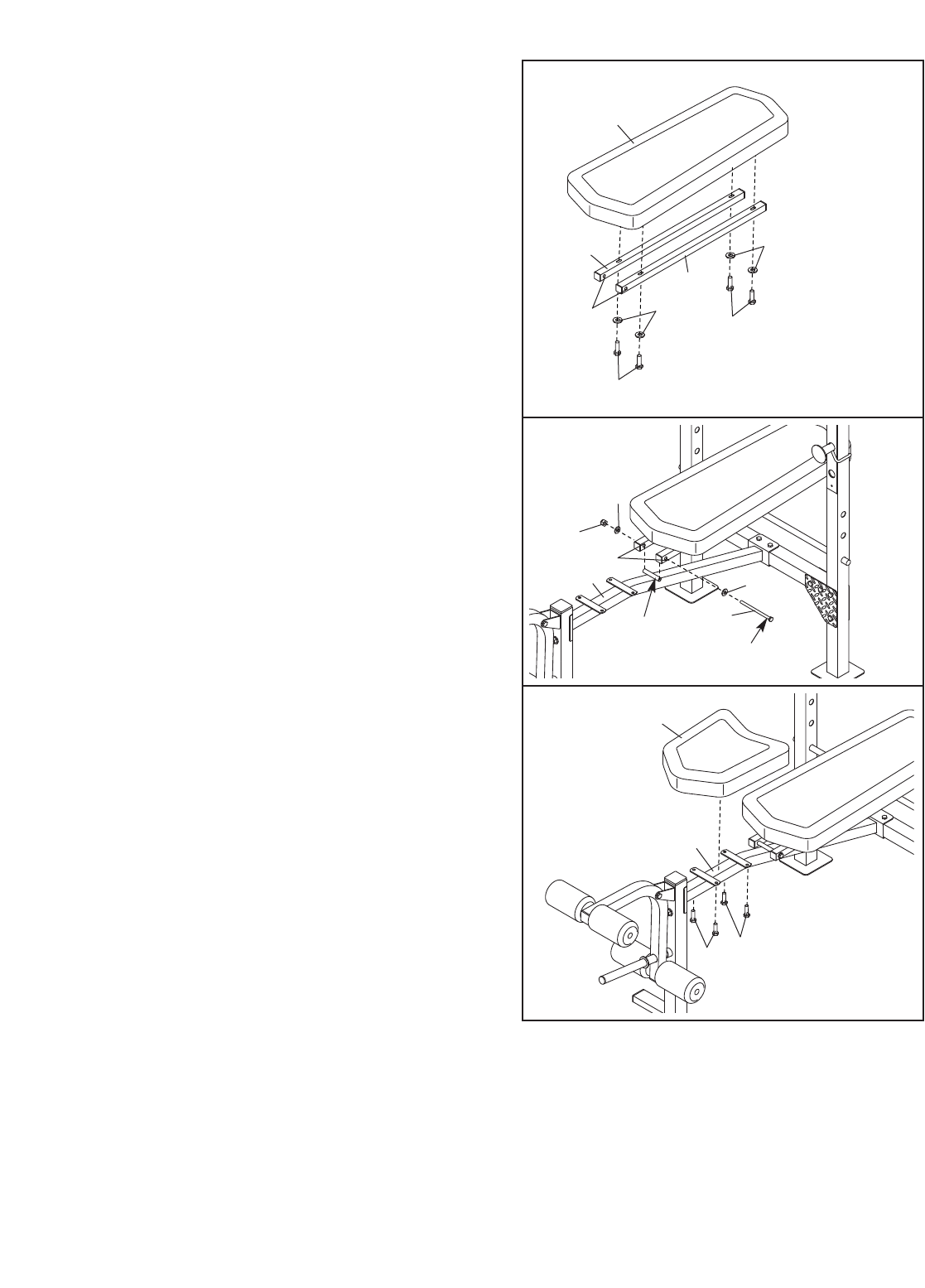

9. Orient the Backrest Tubes (7) with the indicated

holes in the position shown. Attach the Backrest

Tubes to the Backrest (8) with four M6 x 38mm

Screws (32) and four M6 Washers (22). Do not

tighten the Screws yet.

10. Lubricate an M10 x 142mm Bolt (23) with the

included grease packet. Attach the Backrest

Tubes (7) to the welded tube on the Bench Frame

(3) with the Bolt, two M10 Washers (30), and an

M10 Nylon Locknut (31). Do not overtighten the

Nylon Locknut; the Backrest Tubes must pivot

easily.

See step 9 and tighten the M6 x 38mm Screws

(32).

11. Attach the Seat (9) to the Bench Frame (3) with

four M6 x 16mm Screws (24). Make sure that

the Seat is oriented as shown.

8

7

7

Holes

22

32

22

32

31

30

7

3

9

3

24 24

Tube 23

Lubricate

9

10

11

30

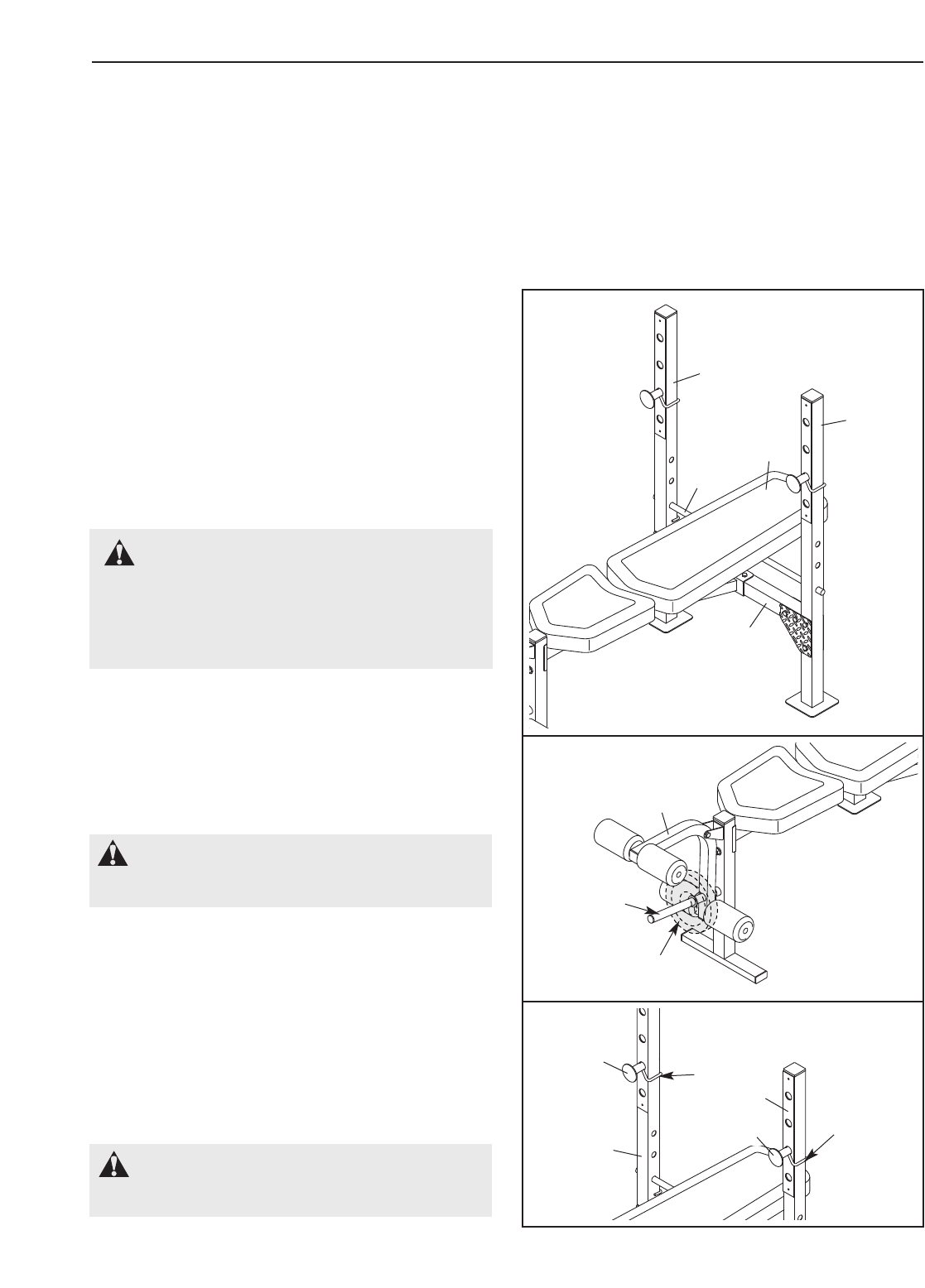

ADJUSTING THE BACKREST

The Backrest (8) can be used in a decline position, a

level position, or two incline positions. To use the

Backrest in the decline position, remove the Support

Rod (14) and lay the Backrest on the Crossbar (2).

To use the Backrest (8) in the level or inclined posi-

tion, lift the Backrest and insert the Support Rod (14)

through one of the set of holes in the Uprights (1).

Rotate the locking pin into place around the Upright.

10

The weight bench is designed to be used with your own weight set (not included). The steps below explain how

the weight bench can be adjusted. See EXERCISE GUIDELINES on page 11 for important exercise information

and refer to the accompanying exercise guide to see the correct form for each exercise. Refer also to the

exercise information accompanying your weight set for additional exercises.

Make sure all parts are properly tightened each time the weight bench is used. Replace any worn parts immediate-

ly. The weight bench can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.

ATTACHING WEIGHTS TO THE LEG LEVER

To use the Leg Lever (6), slide the desired weights

(not included) onto the weight tube.

ADJUSTING THE WEIGHT RESTS

To change the height of the Weight Rests (15),

remove them from the Uprights (1) and insert them

into the desired set of holes. Rotate the Weight Rests

so that the locking pins wrap around the Uprights.

1

8

2

15

1

6

Weight

Locking

Pin

Locking

Pin

Weight

Tube

14

1

15

1

WARNING: Do not place more

than 50 lbs. (23 kg) on the Leg Lever (6).

WARNING: When using the

Backrest (8) in a level or incline position,

insert the Support Rod (14) completely

through both Uprights (1) and turn it to the

locked position.

WARNING: Always set both

Weight Rests (15) at the same height.

ADJUSTMENT

11

EXERCISE GUIDELINES

THE FOUR BASIC TYPES OF WORKOUTS

Muscle Building

To increase the size and strength of your muscles,

push them close to their maximum capacity. Your mus-

cles will continually adapt and grow as you progres-

sively increase the intensity of your exercise. You can

adjust the intensity level of an individual exercise in

two ways:

•by changing the amount of resistance used

•by changing the number of repetitions or sets per-

formed. (A “repetition” is one complete cycle of an

exercise, such as one sit-up. A “set” is a series of

repetitions.)

The proper amount of resistance for each exercise

depends upon the individual user. You must gauge

your limits and select the amount of resistance that is

right for you. Begin with 3 sets of 8 repetitions for each

exercise you perform. Rest for 3 minutes after each

set. When you can complete 3 sets of 12 repetitions

without difficulty,increase the amount of resistance.

Toning

You can tone your muscles by pushing them to a mod-

erate percentage of their capacity. Select a moderate

amount of resistance and increase the number of rep-

etitions in each set. Complete as many sets of 15 to

20 repetitions as possible without discomfort. Rest for

1minute after each set. Work your muscles by com-

pleting more sets rather than by using high amounts of

resistance.

Weight Loss

To lose weight, use a low amount of resistance and

increase the number of repetitions in each set.

Exercise for 20 to 30 minutes, resting for a maximum

of 30 seconds between sets.

Cross Training

Cross training is an efficient way to get a complete and

well-balanced fitness program. An example of a bal-

anced program is:

•Plan strength training workouts on Monday,

Wednesday, and Friday.

•Plan 20 to 30 minutes of aerobic exercise, such as

running on a treadmill or riding on an exercise cycle,

on Tuesday and Thursday.

•Rest from both strength training and aerobic exercise

for at least one full day each week to give your body

time to regenerate.

The combination of strength training and aerobic exer-

cise will reshape and strengthen your body,plus devel-

op your heart and lungs.

PERSONALIZING YOUR EXERCISE PROGRAM

Determining the appropriate length of time for each

workout, and the number of repetitions or sets to com-

plete, is an individual matter. Avoid overdoing it during

the first few months of your exercise program.

Progress at your own pace and be sensitive to your

body’s signals. If you experience pain or dizziness

while exercising, stop immediately and cool down.

Find out what is wrong before continuing. Remember

that adequate rest and a proper diet are important fac-

tors in any exercise program.

WARMING UP

Begin each workout with 5 to 10 minutes of stretching

and light exercise to warm up. Warming up prepares

your body for more strenuous exercise by increasing

circulation, raising your body temperature and deliver-

ing more oxygen to your muscles.

WORKING OUT

Each workout should include 6 to 10 different exercis-

es. Select exercises for every major muscle group,

emphasizing areas that you want to develop most. To

give balance and variety to your workouts, vary the

exercises from workout to workout.

Schedule your workouts for the time of day when your

energy level is the highest. Each workout should be

followed by at least one day of rest. Once you find the

schedule that is right for you, stick with it.

EXERCISE FORM

Maintaining proper form is an essential part of an

effective exercise program. This requires moving

through the full range of motion for each exercise, and

moving only the appropriate parts of the body.

Exercising in an uncontrolled manner will leave you

feeling exhausted. On the exercise guide accompany-

ing this manual you will find photographs showing the

correct form for several exercises, and a list of the

muscles affected. Refer to the muscle chart on the

next page to find the names of the muscles.

The repetitions in each set should be performed

smoothly and without pausing. The exertion stage of

each repetition should last about half as long as the

return stage. Proper breathing is important. Exhale

during the exertion stage of each repetition and inhale

during the return stroke. Never hold your breath.

12

Rest for a short period of time after each set. The

ideal resting periods are:

•Rest for three minutes after each set for a muscle

building workout.

•Rest for one minute after each set for a toning work-

out.

•Rest for 30 seconds after each set for a weight loss

workout.

Plan to spend the first couple of weeks familiarizing

yourself with the equipment and learning the proper

form for each exercise.

COOLING DOWN

End each workout with 5 to 10 minutes of stretching.

Include stretches for both your arms and legs. Move

slowly as you stretch and do not bounce. Ease into

each stretch gradually and go only as far as you can

without strain. Stretching at the end of each workout

is an effective way to increase flexibility.

STAYING MOTIVATED

For motivation, keep a record of each workout. List the

date, the exercises performed, the resistance used,

and the numbers of sets and repetitions completed.

Record your weight and key body measurements at

the end of every month. Remember, the key to achiev-

ing the greatest results is to make exercise a regular

and enjoyable part of your everyday life.

O

P

Q

R

S

T

U

V

X

W

N

M

J

G

F

H

I

K

E

C

D

B

A

L

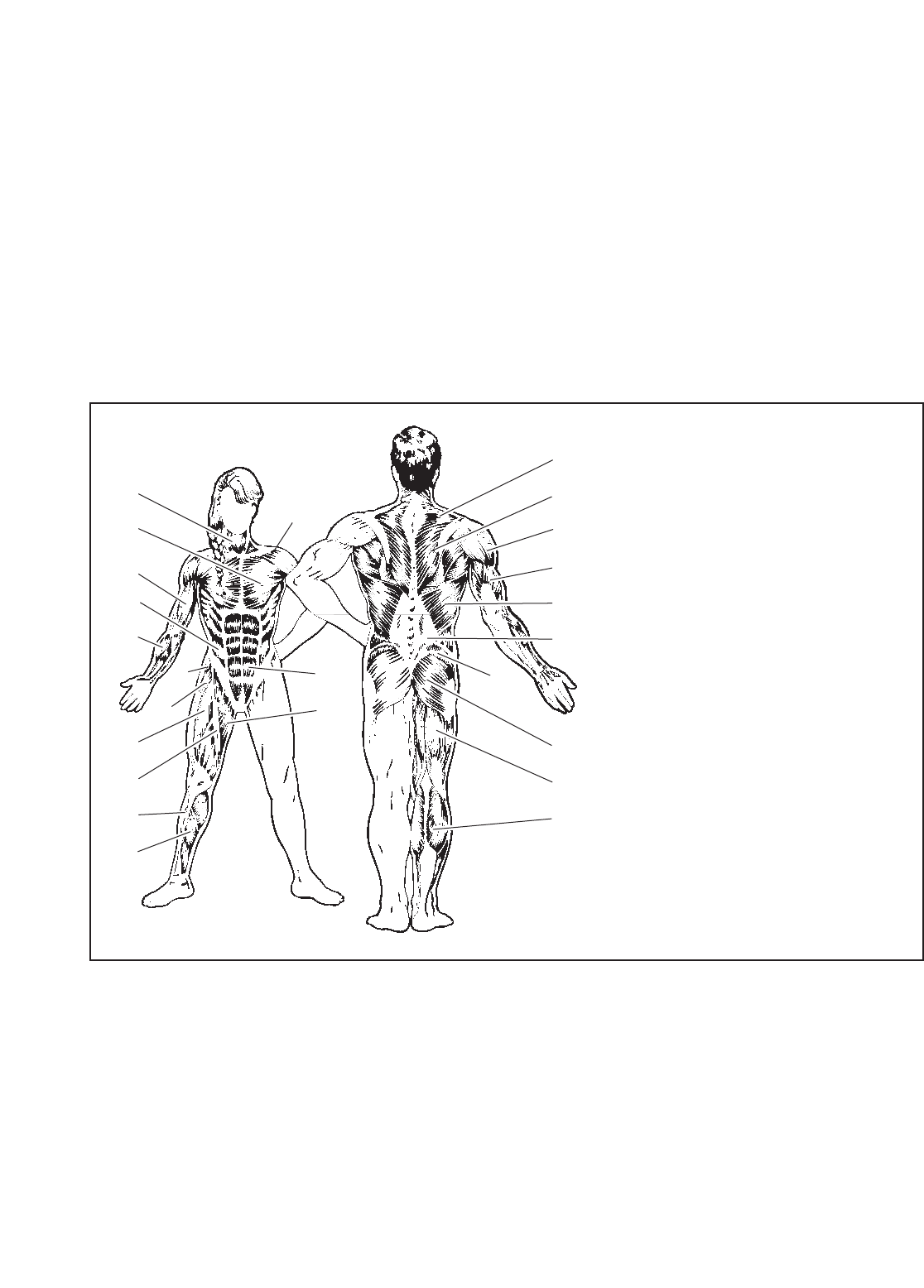

MUSCLE CHART

A. Sternomastoid (neck)

B. Pectoralis Major (chest)

C. Biceps (front of arm)

D. Obliques (waist)

E. Brachioradials (forearm)

F. Hip Flexors (upper thigh)

G. Abductor (outer thigh)

H. Quadriceps (front of thigh)

I. Sartorius (front of thigh)

J. Tibialis Anterior (front of calf)

K. Soleus (front of calf)

L. Anterior Deltoid (shoulder)

M. Rectus Abdominus (stomach)

N. Adductor (inner thigh)

O. Trapezius (upper back)

P. Rhomboideus (upper back)

Q. Posterior Deltoid (shoulder)

R. Triceps (back of arm)

S. Latissimus Dorsi (mid back)

T. Spinae Erectors (lower back)

U. Gluteus Medius (hip)

V. Gluteus Maximus (buttocks)

W. Hamstring (back of leg)

X. Gastrocnemius (back of calf)

13

NOTES

Key No. Qty. Description Key No. Qty. Description

1 2 Upright

21 Crossbar

3 1 Bench Frame

41 Front Leg

5 1 M10 x 19mm Screw

6 1 Leg Lever

7 2 Backrest Tube

8 1 Backrest

9 1 Seat

10 2 Upright Cover

11 2 Right Joint Plate

12 2 Pad Tube

13 4 Foam Pad

14 1 Support Rod

15 2 Weight Rest

16 3 50mm Square Inner Cap

17 1 25mm Round Angled Cap

18 2 38mm Square Inner Cap

19 4 25mm Square Inner Cap

20 2 25mm Round Inner Cap

21 2 21mm Round Inner Cap

22 4 M6 Washer

23 1 M10 x 142mm Bolt

24 4 M6 x 16mm Screw

25 1 M10 x 60mm Bolt

26 2 25mm x 50mm Inner Cap

27 2 M10 x 68mm Bolt

28 9 M10 x 66mm Bolt

29 4 M4 x 16mm Screw

30 3 M10 Washer

31 13 M10 Nylon Locknut

32 4 M6 x 38mm Screw

33 1 25mm Round Thick Inner Cap

34 4 19mm Square Inner Cap

35 2 Left Joint Plate

*- User’s Manual

*- Exercise Guide

*- Grease Packet

Note: Specifications are subject to change without notice. See the back cover of this manual for information

about ordering replacement parts. If a part is missing, call 1-877-992-5999. *These parts are not illustrated.

PART LIST—Model No. 831.15707.0 R0407A

14

316

4

6

12

13

7

7

8

12

13

18

18

34

34

33

17

19

32

24

24

25

22

31

30

31

26 26

13

13

5

28

9

14

21

21

27

31

35

2

11

35 11

28

28

31

31

1

1

16

16

10

20

15

29

29

10

15

20

29

29

19 23

30

30

31

32

22

EXPLODED DRAWING—Model No. 831.15707.0 R0407A

15

Part No. 252484 R0407A Printed in China © 2007 ICON IP, Inc.

90-DAY FULL WARRANTY

If this Sears WEIGHT BENCH EXERCISER fails due to a defect in material or workmanship within 90

days of the date of purchase, call 1-800-4-MY-HOME®(1-800-469-4663) to arrange for free repair (or

replacement if repair proves impossible).

This warranty does not apply when the WEIGHT BENCH EXERCISER is used commercially or for rental

purposes. This warranty gives you specific legal rights, and you may also have other rights which vary

from state to state.

Sears, Roebuck and Co., Hoffman Estates, IL 60179

Your Home

For repair—in your home—of all major brand appliances, lawn and garden equipment,

or heating and cooling systems, no matter who made it, no matter who sold it!

For the replacement parts, accessories, and user’s manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME®(1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call or go on-line for the location of your nearest

Sears Parts & Repair Center.

1-800-488-1222 Call anytime, day or night (U.S.A. only)

www.sears.com

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparación a domicilio, y para ordenar piezas:

1-888-SU-HOGAR®(1-888-784-6427)

Get it fixed, at your home or ours!

®Registered Trademark / TM Trademark / SM Service Mark of Sears Brands, LLC

®Marca Registrada / TM Marca de Fábrica / SM Marca de Servicio de Sears Brands, LLC
