Sears Model No. 831.15891.0

Kmart Model No. WEBE0938.0

Serial No.

Write the serial number in the

space above for future reference.

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

Serial Number

Decal

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction. If you have

questions, or if parts are missing,

PLEASE DO NOT CONTACT THE

STORE; please contact

Customer Care.

IMPORTANT: You must note the

product model number and

serial number (see the drawing

above) before contacting us:

SEARS CUSTOMERS:

1-800-4-MY-HOME®

(1-800-469-4663)

KMART CUSTOMERS:

1-877-992-5999

Mon.–Fri., 6 a.m.–6 p.m. MT

Sat. 8 a.m.–4 p.m. MT

USER'S MANUAL

Visit our website at

www.weiderfitness.com

new products, prizes,

fitness tips, and much more!

WARNINGDECALPLACEMENT ..............................................................2

IMPORTANTPRECAUTIONS ................................................................3

BEFOREYOUBEGIN ......................................................................4

PARTIDENTIFICATIONCHART ..............................................................5

ASSEMBLY ...............................................................................6

ADJUSTMENT ...........................................................................10

EXERCISEGUIDELINES ...................................................................12

PARTLIST ..............................................................................14

EXPLODEDDRAWING ....................................................................15

ORDERINGREPLACEMENTPARTS ..................................................BackCover

LIMITEDWARRANTY ..............................................................BackCover

TABLE OF CONTENTS

WARNING DECAL PLACEMENT

This drawing shows the location(s) of the warning

decal(s). If a decal is missing or illegible, call

the telephone number on the front cover of

this manual and request a free replacement

decal. Apply the decal in the location shown.

Note: The decal(s) may not be shown at actual

size.

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your weight bench before using your weight bench.

ICON assumes no responsibility for personal injury or property damage sustained by or through the

use of this product.

1. Before beginning any exercise program,

consult your physician. This is especially

important for persons over the age of 35 or

persons with pre-existing health problems.

2. Use the weight bench only as described in

this manual.

3. It is the responsibility of the owner to ensure

that all users of the weight bench are ade-

quately informed of all precautions.

4. The weight bench is intended for home use

only. Do not use the weight bench in any

commercial, rental, or institutional setting.

5. Keep the weight bench indoors, away from

moisture and dust. Place the weight bench

on a level surface, with a mat beneath it to

protect the floor or carpet. Make sure that

there is enough clearance around the weight

bench to mount, dismount, and use the

weight bench.

6. Inspect and properly tighten all parts regular-

ly. Replace any worn parts immediately.

7. Keep children under age 12 and pets away

from the weight bench at all times.

8. Keep hands and feet away from moving

parts.

9. Always wear athletic shoes for foot protec-

tion while exercising.

10. The weight bench is designed to support a

maximum user weight of 300 lbs. (136 kg)

and a maximum total weight of 410 lbs. (186

kg). Do not place more than 110 lbs. (50 kg),

including a barbell and weights, on the

weight rests. Do not place more than 110 lbs.

(50 kg) on the weight carriage. Do not place

more than 50 lbs. (23 kg) on the leg lever.

11. Do not use a barbell that is longer than five

ft. (1.5 m) with the weight bench.

12. Always make sure there is an equal amount

of weight on each side of the barbell when

you are using it. When adding or removing

weights, always keep some weight on both

ends of the barbell to prevent the barbell

from tipping.

13. When you are using the leg lever, place a

barbell with the same amount of weight on

the weight rests to balance the bench.

14. When using the backrest in an inclined or

level position, make sure that the backrest

support is inserted completely through the

uprights and turned to the locked position.

15. Always remove the curl post and the lat

tower from the front leg before using the leg

lever.

16. If you feel pain or dizziness at any time while

exercising, stop immediately and begin cool-

ing down.

17. Always exercise with a partner. Your partner

should stand behind you to catch the barbell

if you cannot complete a repetition.

IMPORTANT PRECAUTIONS

Backrest

Weight Rest

Backrest Support

Upright

Leg Lever

Weight Tube

Barbell

Lat Bar

Lat Tower

Thank you for selecting the WEIDER PRO™ 290 W

weight bench. The versatile 290 W weight bench is

designed to develop every major muscle group of the

body. Whether your goal is to tone your body, build

dramatic muscle size and strength, or develop a

healthier cardiovascular system, the weight bench will

help you to achieve the specific results you want.

For your benefit, read this manual carefully before

using the weight bench. If you have questions after

reading this manual, please see the front cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

Before reading further, please review the drawing

below and familiarize yourself with the labeled parts.

Seat

Adjustment Knob

BEFORE YOU BEGIN

ASSEMBLED DIMENSIONS:

Height: 6 ft. (183 cm)

Width: 5 ft. (152 cm)

Depth: 6 ft. (183 cm)

Weight: 200 lbs. (91 kg)

This chart is provided to help you identify the small parts used in assembly. The number in parentheses below

each part refers to the key number of the part from the PART LIST near the end of this manual. Note: Some

small parts may have been preattached. If a part is not in the hardware kit, check to see if it has been

preattached.

M8 Locknut (17)

M6 x 16mm Screw (29)

M10 Locknut (33)

M10 x 63mm Bolt (32)

M6 x 38mm Screw (30)

M8 Washer (16)

M10 Washer (34)

M6 Washer (26)

M10 x 137mm Bolt (36)

M8 x 55mm Bolt (18)

M8 x 43mm Bolt (39)

M8 x 42mm Carriage Bolt (37)

M10 x 50mm Bolt (47)

M10 x 19mm Bolt (48)

PART IDENTIFICATION CHART

Before beginning assembly, carefully read the fol-

lowing information and instructions:

•Assembly requires two people.

•Because of its size, the weight bench should be

assembled in the location where it will be used.

Make sure that there is enough clearance to walk

around the weight bench as you assemble it.

•Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until assembly is completed.

•For help identifying small parts, use the PART

IDENTIFICATION CHART on page 5.

•As you assemble the weight bench, make sure all

parts are oriented as shown in the drawings.

•Tighten all parts as you assemble them, unless

instructed to do otherwise.

• The included grease and the following tools (not

included) may be required for assembly:

Two adjustable wrenches

One hammer

One standard screwdriver

One Phillips screwdriver

Assembly will be more convenient if you have a

socket set, a set of open-end or closed-end

wrenches, or a set of ratchet wrenches.

Make Things Easier for Yourself

Everything in this manual is designed to ensure

that the weight bench can be assembled suc-

cessfully by almost anyone. Set aside plenty of

time so that assembly will go smoothly.

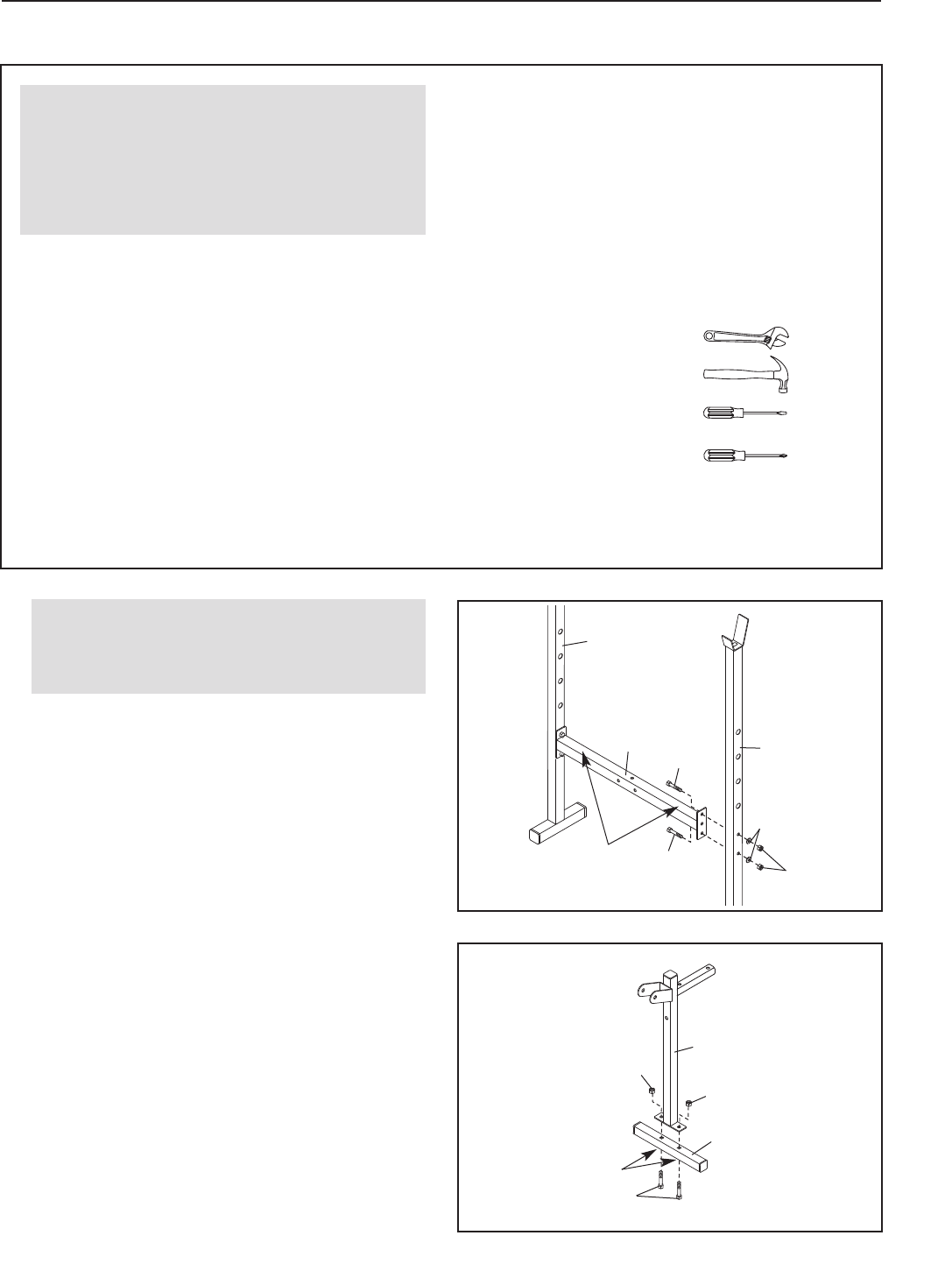

ASSEMBLY

Indents

Warning

Decals 18

Orient the Crossbar (3) so that the warning decals

are on top. Attach the Crossbar to an Upright (1)

with two M8 x 55mm Bolts (18), two M8 Washers

(16), and two M8 Locknuts (17); do not tighten

the Locknuts yet.

Attach the Crossbar (3) to the other Upright

(1) in the same way.

2. Orient the Stabilizer (13) so that the indented

holes are facing the floor. Attach the Front Leg (8)

to the Stabilizer with two M8 x 42mm Carriage

Bolts (37) and two M8 Locknuts (17); do not

tighten the Locknuts yet.

Before assembling the weight bench,

make sure that you have read and under-

stand the information in the box above.

3. Attach the Front Leg (8) to the Frame (2) with two

M8 x 43mm Bolts (39), four M8 Washers (16),

and two M8 Locknuts (17); do not tighten the

Locknuts yet.

4. Attach the Frame (2) to the Crossbar (3) with three

M8 x 55mm Bolts (18), two M8 Washers (16), and

three M8 Locknuts (17); do not tighten the

Locknuts yet.

5. Apply some of the included grease to an M10 x

63mm Bolt (32). Attach the Leg Lever (4) to the

Front Leg (8) with the Bolt and an M10 Locknut

(33). Do not overtighten the Locknut; the Leg

Lever must pivot easily.

Grease

6. Insert a Long Pad Tube (10) into a hole in the

Leg Lever (4). Slide two Foam Pads (23) onto the

Long Pad Tube.

Attach the other Long Pad Tube (10) and

Foam Pads (23) in the same way.

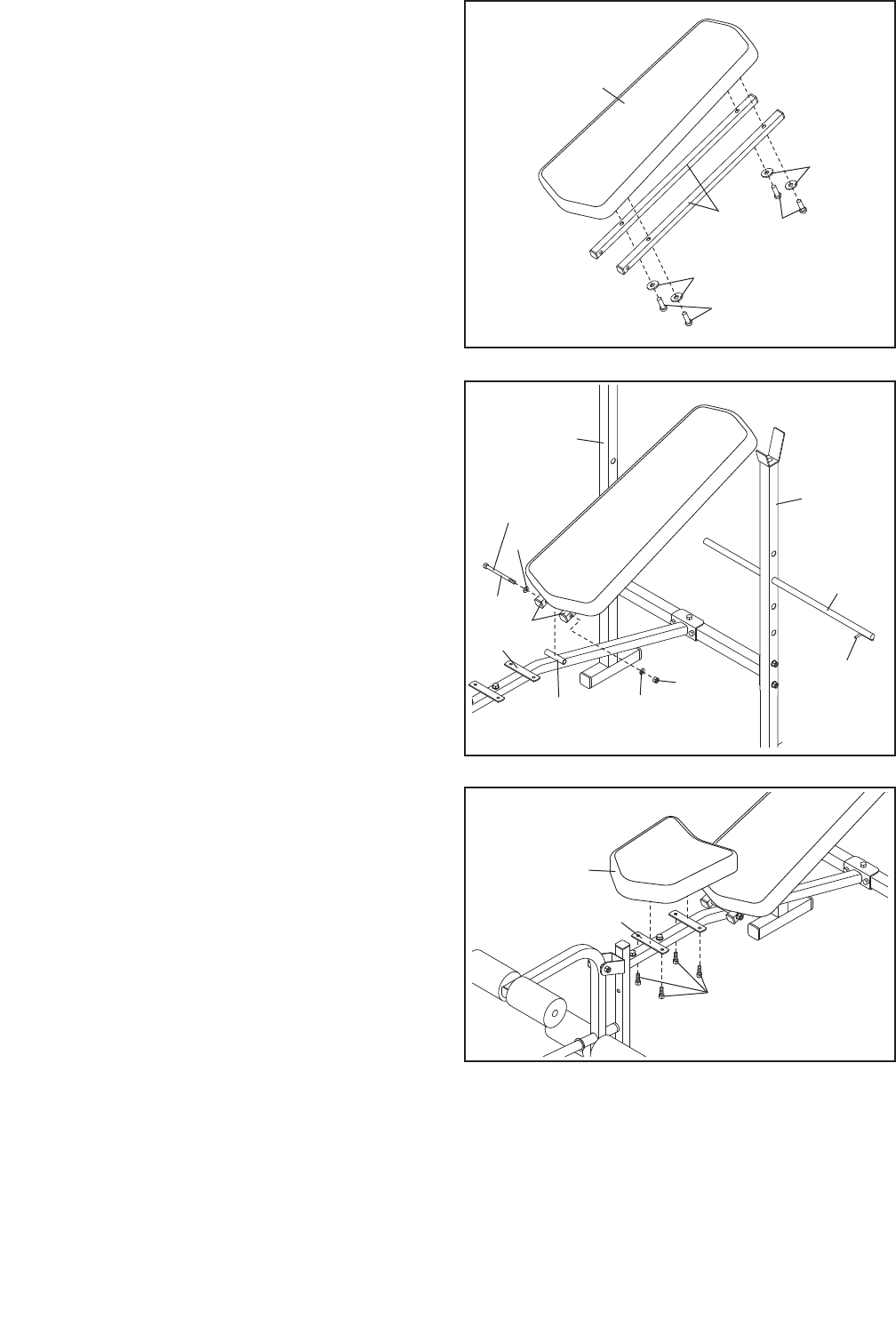

7. Attach the Backrest Tubes (5) to the Backrest (6)

with four M6 x 38mm Screws (30) and four M6

Washers (26); do not tighten the Screws yet.

8. Insert the Backrest Support (7) into a set of holes

in the Uprights (1). Rotate the Backrest Support

to the locked position, with the locking pin

wrapped around the left Upright.

Grease an M10 x 137mm Bolt (36). Attach the

Backrest Tubes (5) to the welded tube on the

Frame (2) with the Bolt, two M10 Washers (34),

and an M10 Locknut (33). Do not overtighten

the Locknut; the Backrest Tubes must pivot

easily.

See steps 1–4. Tighten the M8 Locknuts (17).

See step 7. Tighten the M6 x 38mm Screws (30).

9. Attach the Seat (11) to the Frame (2) with four M6

x 16mm Screws (29).

530

Grease

Welded

Tube

Locking

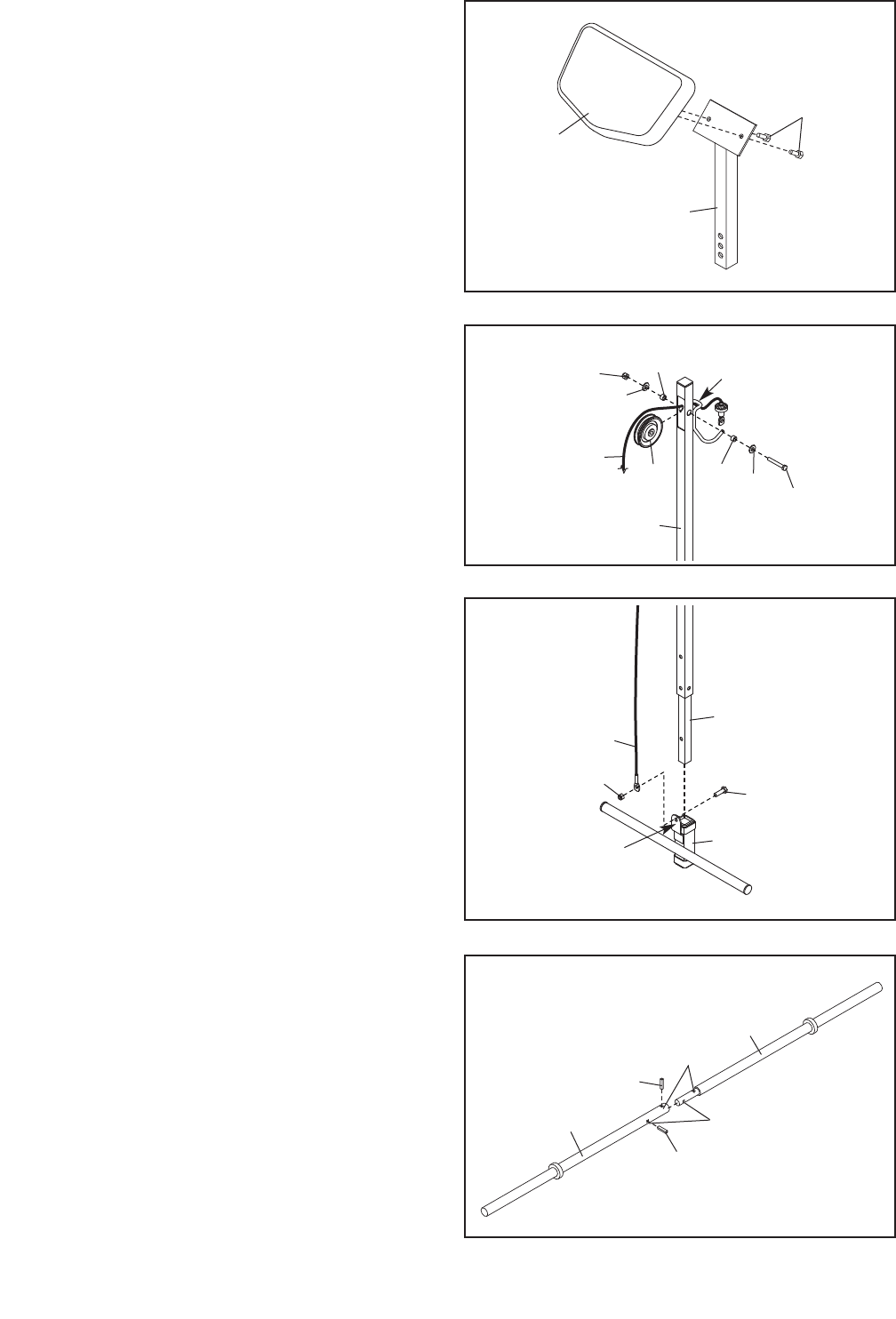

10. Attach the Curl Pad (45) to the Curl Post (27) with

two M6 x 16mm Screws (29). 10

49 34

33 49

13. Insert the Inner Bar (43) into the Outer Bar (40)

and align the indicated holes. Using a hammer,

tap the two Roll Pins (41) into the holes until they

are flush with the Outer Bar.

Holes

11. Route the Cable (19) through the Lat Tower (14)

and over the Pulley (25). Make sure that the

Cable is under the lat bar rest. Attach the Pulley

inside the Lat Tower with an M10 x 50mm Bolt

(47), two M10 Washers (34), two 10mm Large

Spacers (49), and an M10 Locknut (33).

12. Insert an M10 x 19mm Bolt (48) into the bracket

on the Weight Carriage (12).

Slide the Weight Carriage (12) onto the Lat Tower

(14). Make sure that the bracket on the Weight

Carriage and the lat bar rest (see step 11) on

the Lat Tower are on opposite sides of the Lat

Tower. Attach the Cable (19) to the M10 x 19mm

Bolt (48) with an M10 Locknut (33).

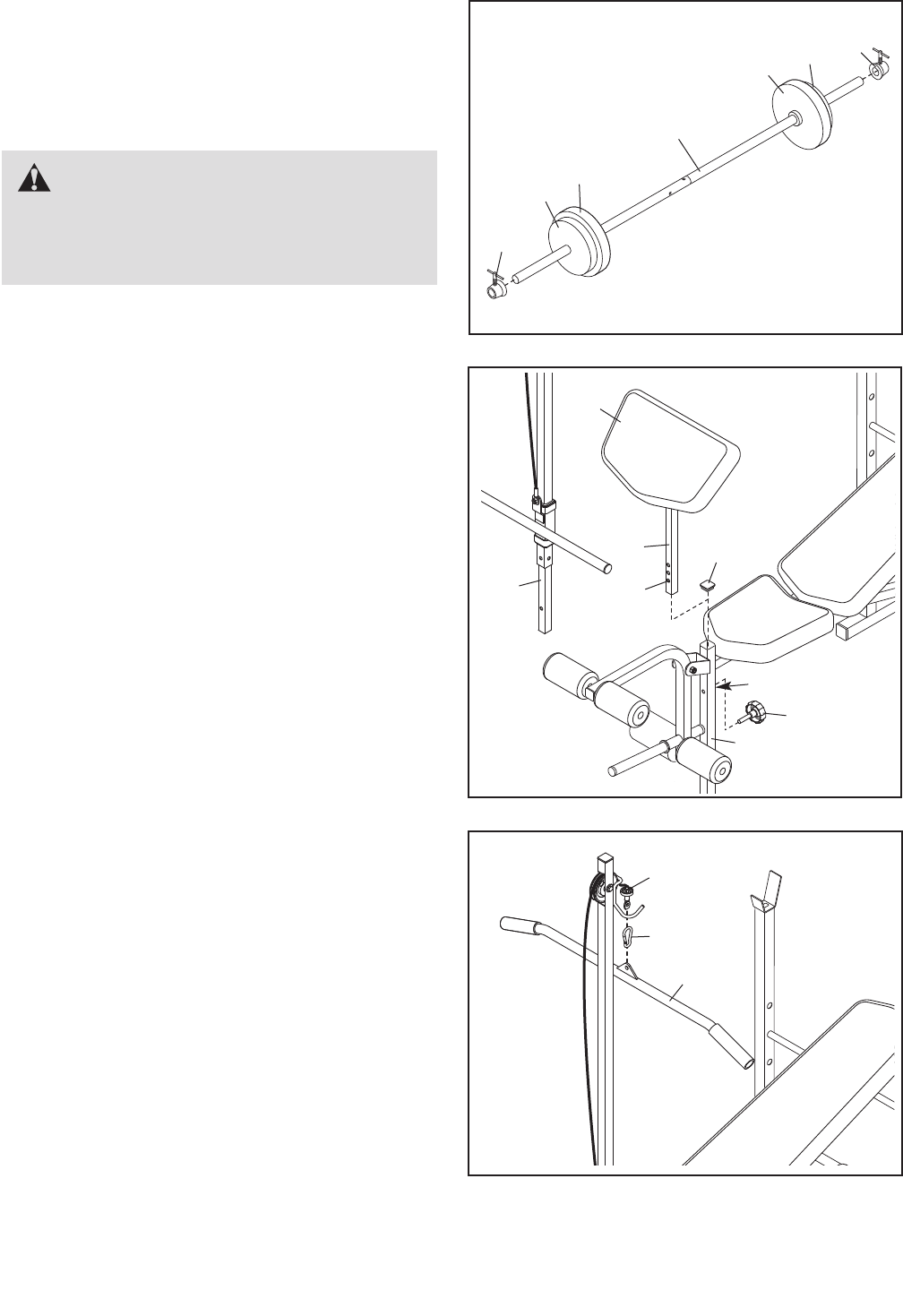

Lat Bar

Rest

Bracket

14. Make sure that all parts are properly tightened

before the weight bench is used. Note: Some

hardware may be left over after assembly is com-

pleted. The use of all remaining parts will be

explained in ADJUSTMENT, starting on page 10.

ATTACHING WEIGHTS TO THE WEIGHT CARRIAGE

OR THE LEG LEVER

To use the Weight Carriage (12), first slide the Weight

Spacers (52) onto the Weight Carriage as shown.

Next, slide the desired Weights (38, 44) onto the

Weight Carriage. Then, slide the two Small Weight

Collars (51) against the Weights, and fully tighten

the Small Weight Collars.

To use the Leg Lever (4), slide the desired Weights

(38, 44) onto the weight tube on the Leg Lever.

ADJUSTING THE BACKREST

The Backrest (6) can be used in a declined position,

a level position, or any of three inclined positions. To

use the Backrest in a declined position, remove the

Backrest Support (7) and lay the Backrest on the

Crossbar (3).

To use the Backrest (6) in a level position or an

inclined position, insert the Backrest Support (7) into

a set of holes in the Uprights (1). Rotate the Backrest

Support to the locked position, with the locking pin

wrapped around the left Upright. Rest the Backrest on

the Backrest Support.

Weight

Tube 38, 44

38, 44

Locking

WARNING:

Do not place more

than 110 lbs. (50 kg) on the Weight Carriage

(12).

Always secure the Weights (38, 44) on

the Weight Carriage with the Small Weight

Collars (51).

Do not place more than 50 lbs. (23 kg) on the

Leg Lever (4)

When using the Leg Lever,

place a barbell with the same amount of

weight on the weight rests to balance the

bench.

ADJUSTMENT

The steps below explain how the weight bench can be adjusted. See the accompanying exercise guide to see

the correct form for several exercises.

Make sure all parts are properly tightened each time the weight bench is used. Replace any worn parts immediately.

Clean the weight bench with a damp cloth and a mild, non-abrasive detergent; do not use solvents to clean the

weight bench.

ATTACHING WEIGHTS TO THE BARBELL

Slide an equal amount of Weight (38, 44) onto each

end of the barbell. Then, slide the two Large Weight

Collars (42) against the Weights, and fully tighten the

Large Weight Collars.

Barbell

WARNING: Do not place more

than 100 lbs. (45 kg) on the barbell. Always

secure the Weights (38, 44) on the barbell with

the Large Weight Collars (42).

ATTACHING THE CURL PAD OR THE LAT TOWER

For some exercises, the Curl Pad (45) must be

attached to the weight bench. Remove the 30mm

Square Inner Cap (22) from the Front Leg (8). Insert

the Curl Post (27) into the Front Leg, and align an

adjustment hole in the Curl Post with the adjustment

hole in the Front Leg. Secure the Curl Post with the

Curl Knob (31).

The Lat Tower (14) can be attached in the same way.

Note: When the Curl Pad (45) or the Lat Tower (14)

are not being used, store them away from the

weight bench, and insert the 30mm Square Inner

Cap (22) into the Front Leg (8).

Hole

Adjustment Hole

ATTACHING THE LAT BAR

Attach the Lat Bar (15) to the Cable (19) with a Cable

Clip (50). Remove the Lat Bar when performing an

exercise that does not require it.

EXERCISE GUIDELINES

THE FOUR BASIC TYPES OF WORKOUTS

Muscle Building

To increase the size and strength of your muscles,

push them close to their maximum capacity. Your mus-

cles will continually adapt and grow as you

progressively increase the intensity of your exercise.

You can adjust the intensity level of an individual exer-

cise in two ways:

• by changing the amount of resistance used

• by changing the number of repetitions or sets per-

formed. (A “repetition” is one complete cycle of an

exercise, such as one sit-up. A “set” is a series of

repetitions.)

The proper amount of resistance for each exercise

depends upon the individual user. You must gauge

your limits and select the amount of resistance that is

right for you. Begin with 3 sets of 8 repetitions for each

exercise you perform. Rest for 3 minutes after each

set. When you can complete 3 sets of 12 repetitions

without difficulty, increase the amount of resistance.

Toning

You can tone your muscles by pushing them to a mod-

erate percentage of their capacity. Select a moderate

amount of resistance and increase the number of rep-

etitions in each set. Complete as many sets of 15 to

20 repetitions as possible without discomfort. Rest for

1 minute after each set. Work your muscles by com-

pleting more sets rather than by using high amounts of

resistance.

Weight Loss

To lose weight, use a low amount of resistance and

increase the number of repetitions in each set.

Exercise for 20 to 30 minutes, resting for a maximum

of 30 seconds between sets.

Cross Training

Cross training is an efficient way to get a complete and

well-balanced fitness program. An example of a bal-

anced program follows:

• Plan strength training workouts on Monday,

Wednesday, and Friday.

• Plan 20 to 30 minutes of aerobic exercise, such as

running on a treadmill or riding on an elliptical exer-

ciser or exercise cycle, on Tuesday and Thursday.

• Rest from both strength training and aerobic exercise

for at least one full day each week to give your body

time to regenerate.

The combination of strength training and aerobic exer-

cise will reshape and strengthen your body, plus

develop your heart and lungs.

PERSONALIZING YOUR EXERCISE PROGRAM

Determining the appropriate length of time for each

workout, and the numbers of repetitions and sets to

complete, is an individual matter. Avoid overdoing it

during the first few months of your exercise program.

Progress at your own pace and be sensitive to your

bodyʼs signals. If you experience pain or dizziness

while exercising, stop immediately and cool down.

Find out what is wrong before continuing. Remember

that adequate rest and a proper diet are important fac-

tors in any exercise program.

WARMING UP

Begin each workout with 5 to 10 minutes of stretching

and light exercise to warm up. Warming up prepares

your body for more strenuous exercise by increasing

circulation, raising your body temperature, and deliver-

ing more oxygen to your muscles.

WORKING OUT

Each workout should include 6 to 10 different exercis-

es. Select exercises for every major muscle group,

emphasizing areas that you want to develop most. To

give balance and variety to your workouts, vary the

exercises from workout to workout.

Schedule your workouts for the time of day when your

energy level is the highest. Each workout should be

followed by at least one day of rest. Once you find the

schedule that is right for you, stick with it.

EXERCISE FORM

Maintaining proper form is an essential part of an

effective exercise program. This requires moving

through the full range of motion for each exercise, and

moving only the appropriate parts of the body.

Exercising in an uncontrolled way will leave you feel-

ing exhausted. On the exercise guide accompanying

this manual you will find photographs showing the cor-

rect form for several exercises, and a list of the

muscles affected. See the muscle chart on the next

page to find the names of the muscles.

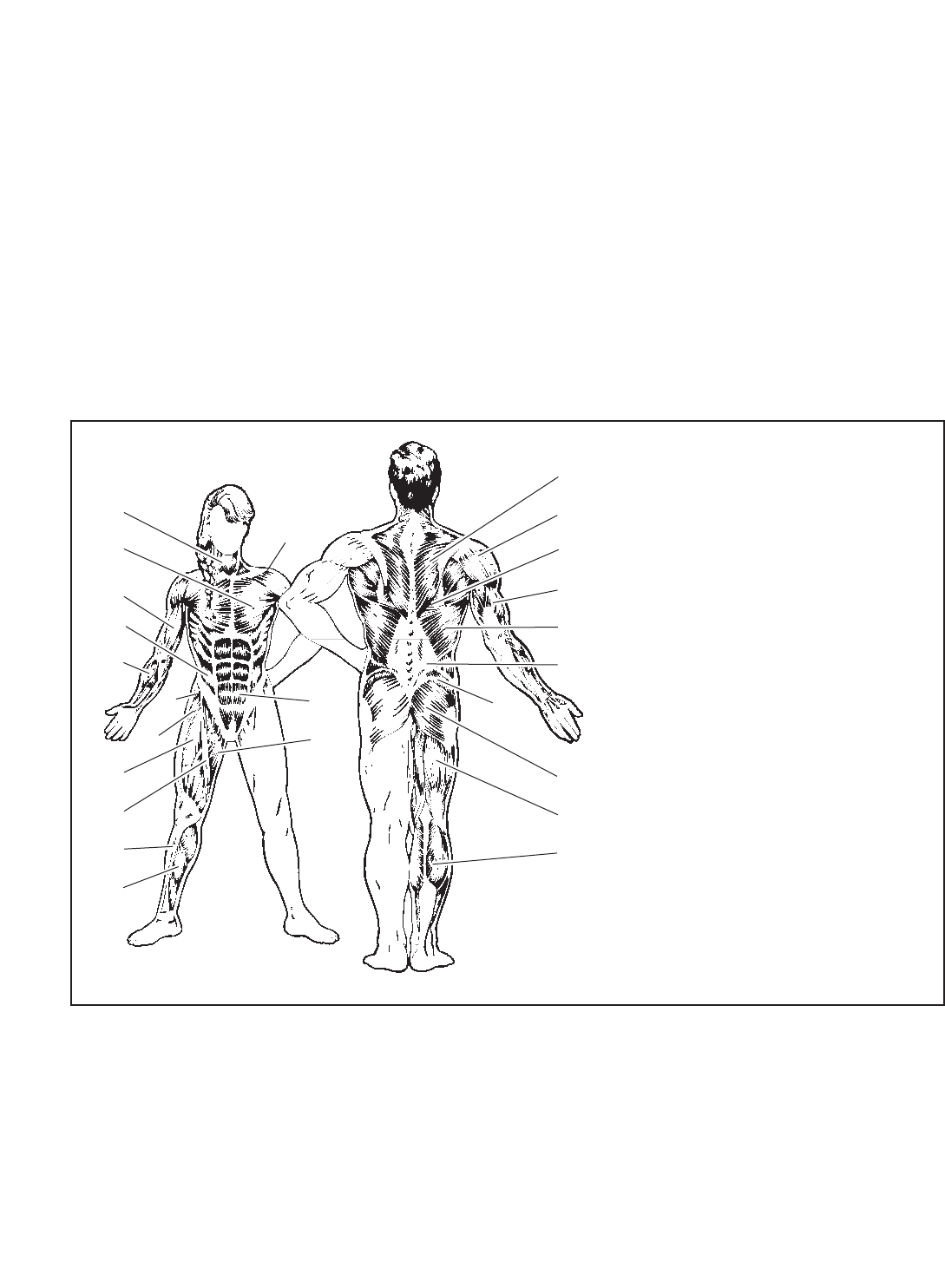

MUSCLE CHART

A. Sternomastoid (neck)

B. Pectoralis Major (chest)

C. Biceps (front of arm)

D. Obliques (waist)

E. Brachioradials (forearm)

F. Hip Flexors (upper thigh)

G. Abductor (outer thigh)

H. Quadriceps (front of thigh)

I. Sartorius (front of thigh)

J. Tibialis Anterior (front of calf)

K. Soleus (front of calf)

L. Anterior Deltoid (shoulder)

M. Rectus Abdominus (stomach)

N. Adductor (inner thigh)

O. Trapezius (upper back)

P. Rhomboideus (upper back)

Q. Posterior Deltoid (shoulder)

R. Triceps (back of arm)

S. Latissimus Dorsi (mid back)

T. Spinae Erectors (lower back)

U. Gluteus Medius (hip)

V. Gluteus Maximus (buttocks)

W. Hamstring (back of leg)

X. Gastrocnemius (back of calf)

The repetitions in each set should be performed

smoothly and without pausing. The exertion stroke of

each repetition should last about half as long as the

return stroke. Proper breathing is important. Exhale

during the exertion stroke of each repetition and

inhale during the return stroke. Never hold your

breath.

Rest for a short period of time after each set. The

ideal resting periods follow:

• Rest for three minutes after each set for a muscle

building workout.

• Rest for one minute after each set for a toning work-

out.

• Rest for 30 seconds after each set for a weight loss

workout.

Plan to spend the first couple of weeks familiarizing

yourself with the equipment and learning the proper

form for each exercise.

COOLING DOWN

End each workout with 5 to 10 minutes of stretching.

Include stretches for both your arms and legs. Move

slowly as you stretch and do not bounce. Ease into

each stretch gradually and go only as far as you can

without strain. Stretching at the end of each workout

is an effective way to increase flexibility.

STAYING MOTIVATED

For motivation, keep a record of each workout. Write

the date, the exercises performed, the resistance

used, and the numbers of sets and repetitions com-

pleted. Record your weight and key body

measurements at the end of every month. The key to

achieving the greatest results is to make exercise a

regular and enjoyable part of your everyday life.

Key No. Qty. Description Key No. Qty. Description

12 Upright

21Frame

31Crossbar

41Leg Lever

52Backrest Tube

61Backrest

71Backrest Support

81Front Leg

9619mm Round Inner Cap

10 2 Long Pad Tube

11 1 Seat

12 1 Weight Carriage

13 1 Stabilizer

14 1 Lat Tower

15 1 Lat Bar

16 10 M8 Washer

17 11 M8 Locknut

18 7 M8 x 55mm Bolt

19 1 Cable

20 1 25mm Round Angled Cap

21 4 38mm Square Inner Cap

22 6 30mm Square Inner Cap

23 4 Foam Pad

24 7 25mm Round Inner Cap

25 1 Pulley

26 4 M6 Washer

27 1 Curl Post

28 2 Lat Handgrip

29 6 M6 x 16mm Screw

30 4 M6 x 38mm Screw

31 1 Curl Knob

32 1 M10 x 63mm Bolt

33 4 M10 Locknut

34 4 M10 Washer

35 4 25mm Square Inner Cap

36 1 M10 x 137mm Bolt

37 2 M8 x 42mm Carriage Bolt

38 4 15-pound Weight

39 2 M8 x 43mm Bolt

40 1 Outer Bar

41 2 Roll Pin

42 2 Large Weight Collar

43 1 Inner Bar

44 2 10-lb. Weight

45 1 Curl Pad

46 2 Lat Tower Bushing

47 1 M10 x 50mm Bolt

48 1 M10 x 19mm Bolt

49 2 10mm Large Spacer

50 1 Cable Clip

51 2 Small Weight Collar

52 2 Weight Spacer

*–Userʼs Manual

*–Exercise Guide

*–Grease Packet

PART LIST SEARS MODEL NO. 831.15891.0; KMART MODEL NO. WEBE0938.0 R0608A

Note: Specifications are subject to change without notice. See the back cover of this manual for information about

ordering replacement parts. *These parts are not illustrated.

18 16

40 42

27 31

49 34 47

28 15

51 52

34 33

R0608A

EXPLODED DRAWING

SEARS MODEL NO. 831.15891.0; KMART MODEL NO. WEBE0938.0

ORDERING REPLACEMENT PARTS

To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to

provide the following information when contacting us:

• the model number and serial number of the product (see the front cover of this manual)

• the name of the product (see the front cover of this manual)

• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING

near the end of this manual)

LIMITED WARRANTY

ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and

material, under normal use and service conditions. Parts and labor are warranted for ninety (90) days

from the date of purchase.

This warranty extends only to the original purchaser. ICONʼs obligation under this warranty is limited to

repairing or replacing, at ICONʼs option, the product through one of its authorized service centers. All

repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped to

a service center, freight charges to and from the service center will be the customerʼs responsibility. For

replacement parts shipped while the product is under warranty, the customer will be responsible for a

minimal handling charge. For in-home service, the customer will be responsible for a minimal trip

charge. This warranty does not extend to any damage to a product caused by or attributable to freight

damage, abuse, misuse, improper or abnormal usage, or repairs not provided by an ICON authorized

service center; products used for commercial or rental purposes; or products used as store display

models. No other warranty beyond that specifically set forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in con-

nection with the use or performance of the product; damages with respect to any economic loss, loss of

property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or

other consequential damages of whatsoever nature. Some states do not allow the exclusion or limita-

tion of incidental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties

of merchantability or fitness for a particular purpose are limited in their scope and duration to the terms

set forth herein. Some states do not allow limitations on how long an implied warranty lasts.

Accordingly, the above limitation may not apply to you.

This warranty gives you specific legal rights. You may also have other rights that vary from state to state.

ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813

Weider Pro 290 W Bench 15891 Users Manual PFEL39031 208048

Weider-158910-Owner-S-Manual weider-158910-owner-s-manual

Weider-Webe09380-Owner-S-Manual weider-webe09380-owner-s-manual

Navigation menu

Versions of this User Manual:

Views

Navigation
