USER'S MANUAL

QUESTIONS?

As a manufacturer, we are

committed to providing complete

customer satisfaction. If you

have questions, or if parts are

missing, we will guarantee com-

plete satisfaction through assis-

tance from our factory.

TO AVOID DELAYS, PLEASE

CALL DIRECT TO OUR TOLL-

FREE CUSTOMER HOT LINE.

The technicians on our cus-

tomer hot line will provide imme-

diate assistance, free of charge.

CUSTOMER HOT LINE:

1-800-999-3756

Mon.–Fri., 6 a.m.–6 p.m. MST

Model No. WESY39522

Serial No.

Write the serial number in the

space above for future reference.

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

Visit our website at

www.weiderfitness.com

new products, prizes,

fitness tips, and much more!

Serial Number Decal (Under Seat)

Patent Pending

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

WEIGHT RESISTANCE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

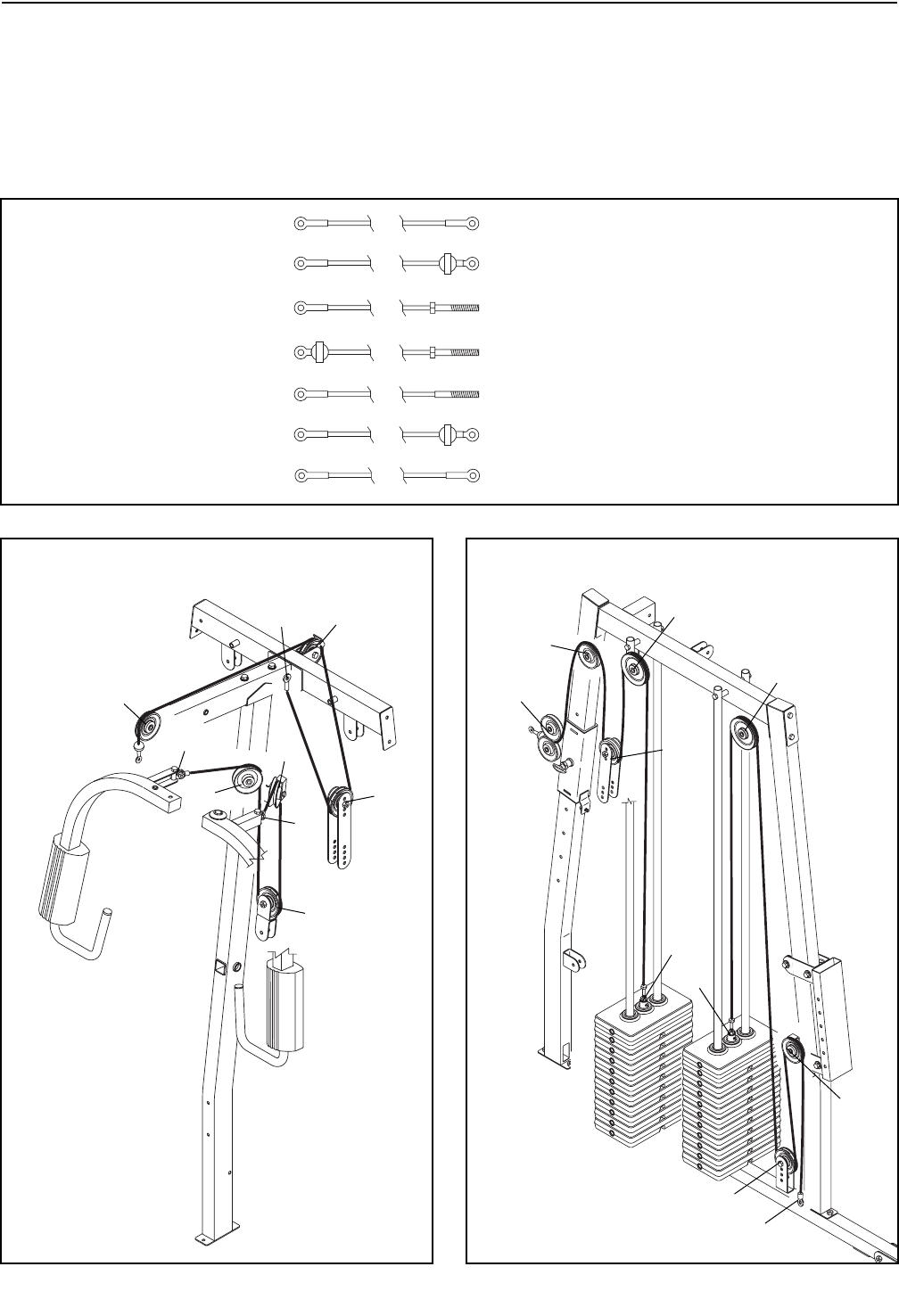

CABLE DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

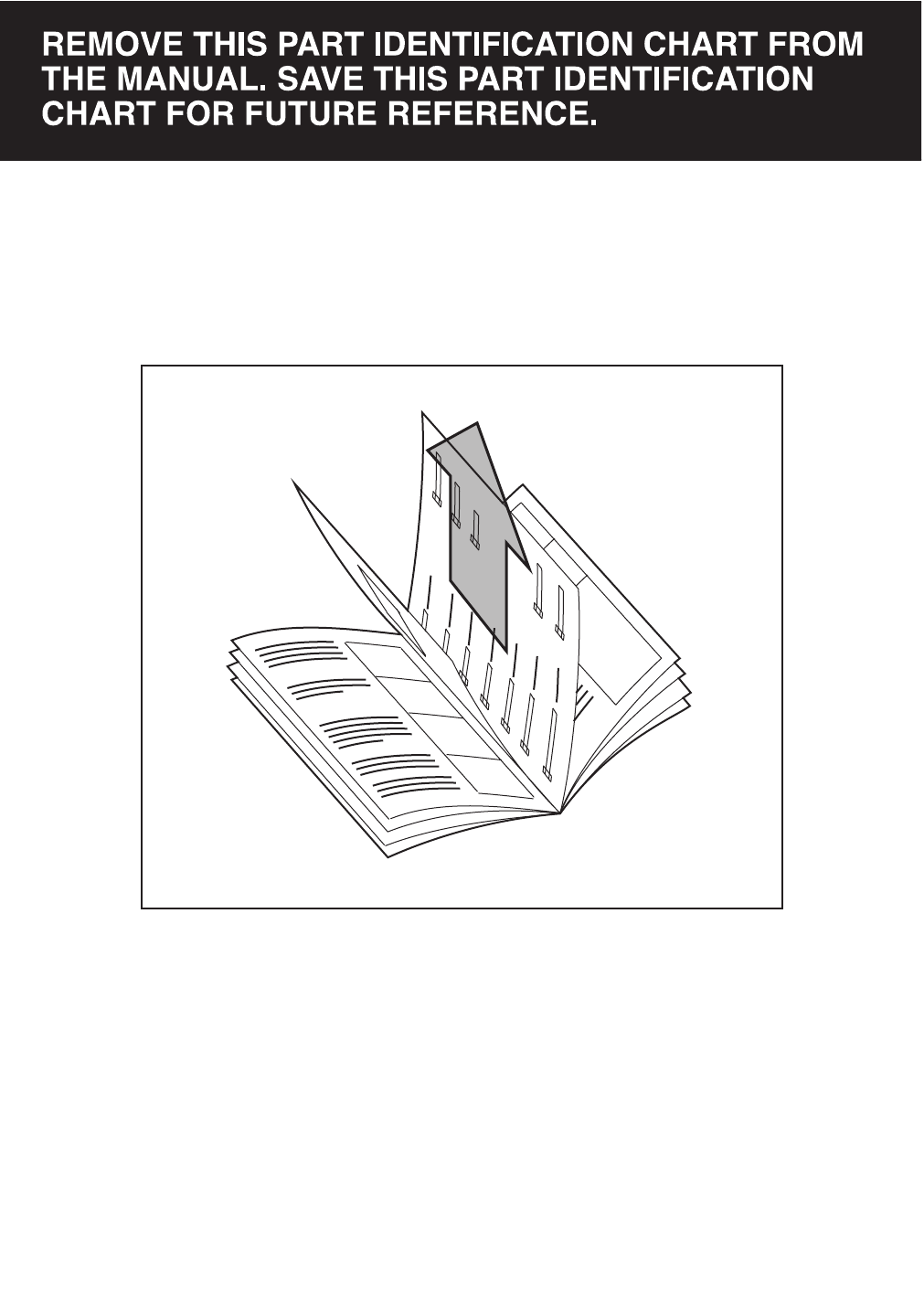

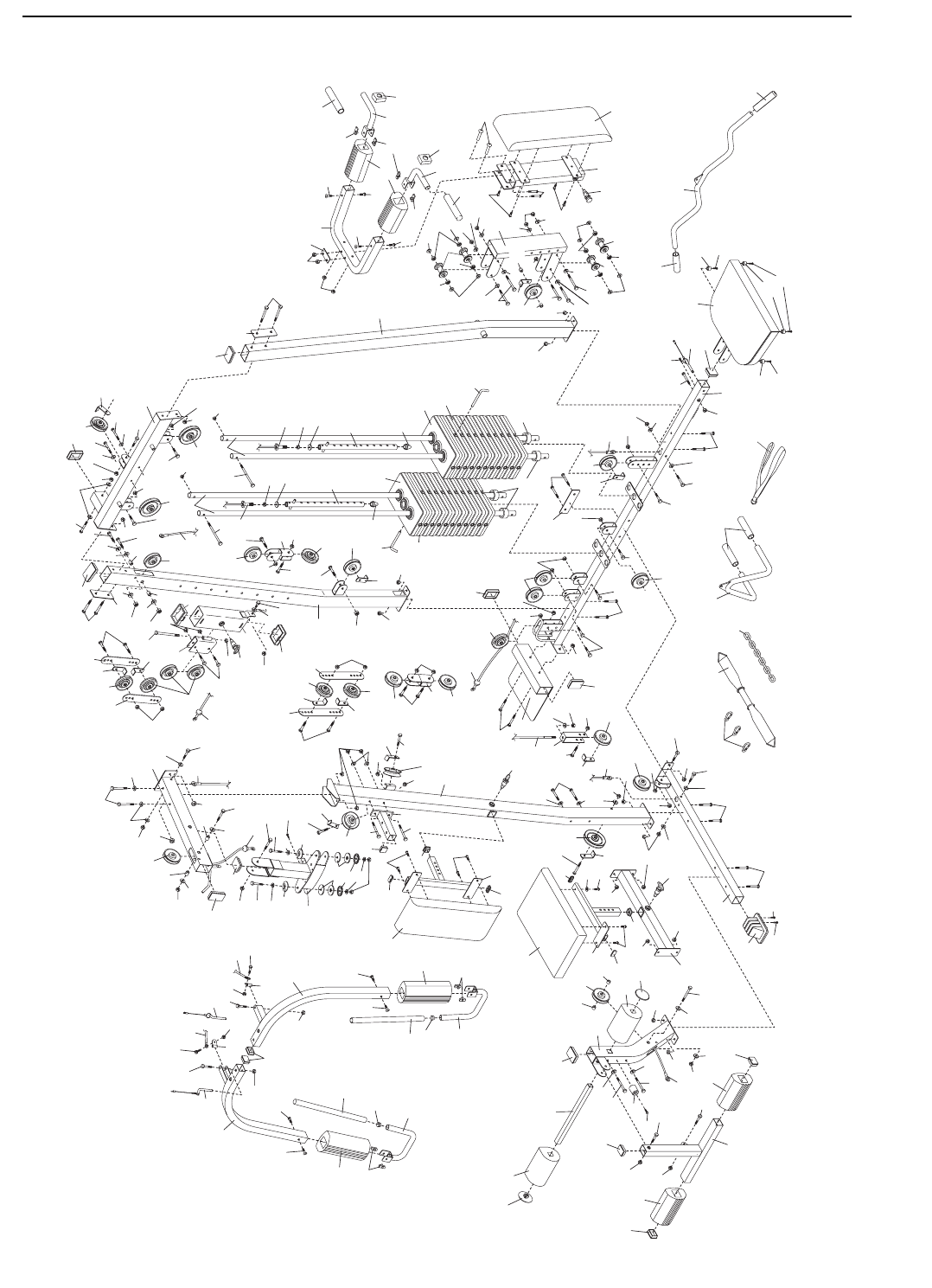

Note: A PART IDENTIFICATION CHART and a PART LIST/EXPLODED DRAWING are attached in the center of

this manual. Remove the PART IDENTIFICATION CHART and the PART LIST/EXPLODED DRAWING before

beginning assembly.

WEIDER is a registered trademark of ICON Health & Fitness, Inc.

IMPORTANT PRECAUTIONS

1. Read all instructions in this manual and in

the accompanying literature before using the

weight system.

2. It is the responsibility of the owner to ensure

that all users of the weight system are ade-

quately informed of all precautions.

3. The weight system is intended for home use

only. Do not use the weight system in any

commercial, rental, or institutional setting.

4. Use the weight system only on a level sur-

face. Cover the floor beneath the weight sys-

tem to protect the floor.

5. Make sure that all parts are properly tight-

ened each time the weight system is used.

Replace any worn parts immediately.

6. Keep children under 12 and pets away from

the weight system at all times.

7. Keep hands and feet away from moving parts.

8. Always wear athletic shoes for foot protection.

9. The weight system is designed to support a

a maximum user weight of 300 pounds.

10. The weight system should not be used by

more than one person at a time.

11. Always stand on the foot plate when per-

forming an exercise that could cause the

weight system to tip.

12. Never release the butterfly arms, leg lever,

squat arm, lat bar, row bar, or handle while

weights are raised; the weights will fall with

great force.

13. Always disconnect the lat bar from the

weight system when performing an exercise

that does not use the lat bar.

14. Make sure that the cables remain on the pul-

leys at all times. If the cables bind while you

are exercising, stop immediately and make

sure that the cables are on all of the pulleys.

15. If you feel pain or dizziness at any time while

exercising, stop immediately and begin cool-

ing down.

16. The decals shown below have been placed

on the weight system in the locations shown

on page 4. If a decal is missing or illegible,

call our toll-free Customer Hot Line at

1-800-999-3756 and order a free replacement

decal. Apply the decal in the location shown.

WARNING: To reduce the risk of serious injury, read the following important precautions

before using the weight system.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. ICON assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

Keep hands and

fingers clear of

this area.

Decal 2

Decal 1

BEFORE YOU BEGIN

ASSEMBLED

DIMENSIONS:

Height: 81 in.

Width: 96 in.

Length: 57 in.

Squat Knee Rest

Low Pulley Station

High Pulley Station

Lat Bar

Swivel Carriage

Adjustment Knob

Adjustment Handle

Butterfly Arm/Press Arm

Leg Lever

Seat

Squat Arm

Weight Stack

Backrest

WARNING

DECAL 1

WARNING DECAL 2

(one on each side)

WARNING

DECAL 2

Adjustment Handle

Thank you for selecting the versatile WEIDER®PRO

3650 weight system. The WEIDER®PRO 3650 weight

system offers an impressive array of weight stations

designed to develop every major muscle group of the

body. Whether your goal is to tone your body, build

dramatic muscle size and strength, or improve your

cardiovascular system, the PRO 3650 weight system

will help you to achieve the specific results you want.

For your benefit, read this manual carefully before

using the weight system. If you have additional

questions, please call our Customer Service

Department toll-free at 1-800-999-3756, Monday

through Friday, 6 a.m. until 6 p.m. Mountain Time

(excluding holidays). To help us assist you, please

note the product model number and serial number

before calling. The model number is WESY39522. The

serial number can be found on a decal attached to the

weight system (see the front cover of this manual for

the location of the decal).

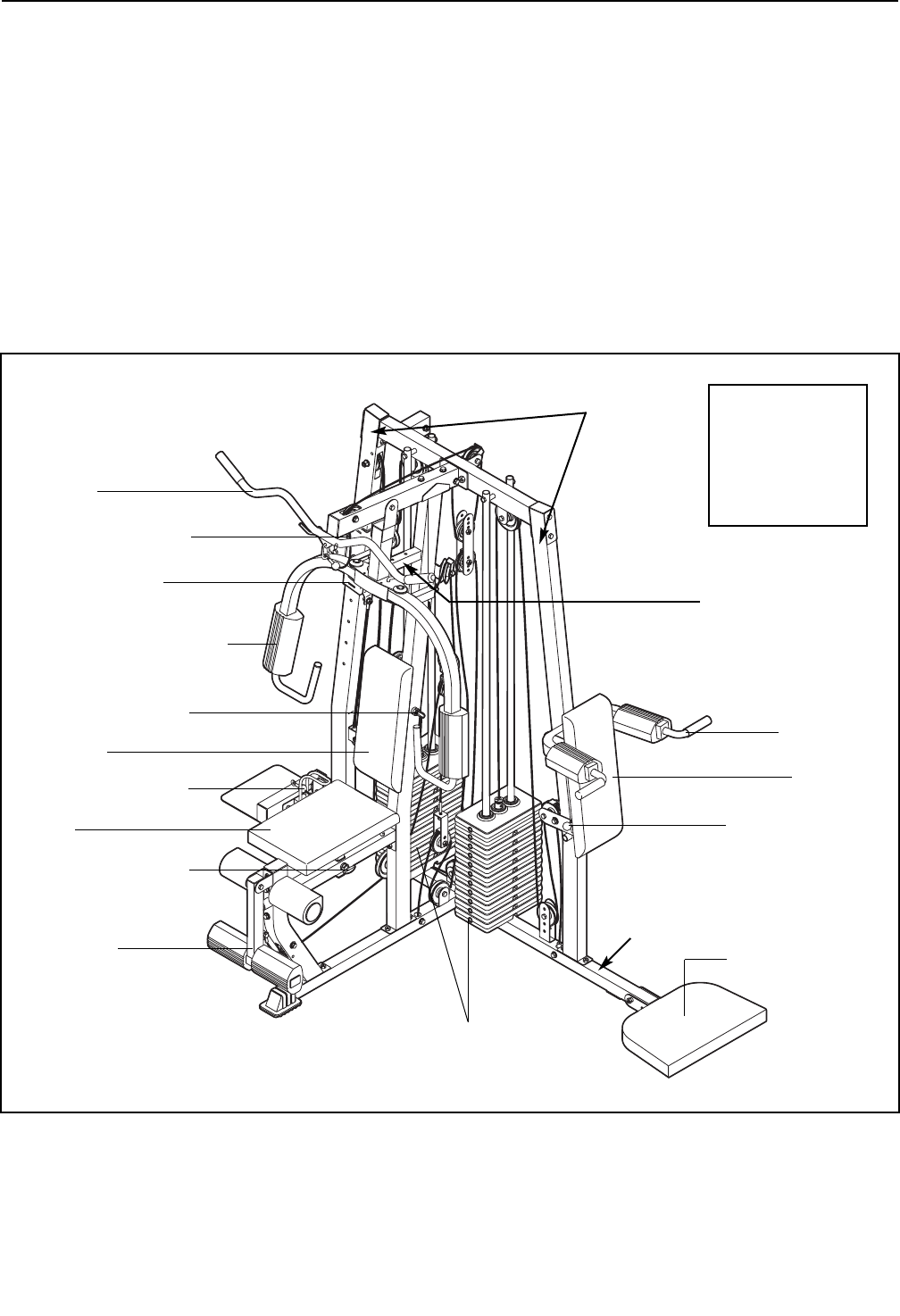

Before reading further, please review the drawing

below and familiarize yourself with the parts that are

labeled.

ASSEMBLY

Make sure that you have the following tools:

• Two adjustable wrenches

• One standard screwdriver

• One phillips screwdriver

• One rubber mallet

• You will also need grease or petroleum jelly, a

small amount of soapy water, and masking tape.

Note: Assembly will be more convenient if you have

a socket set, a set of open-end or closed-end

wrenches, or a set of ratchet wrenches.

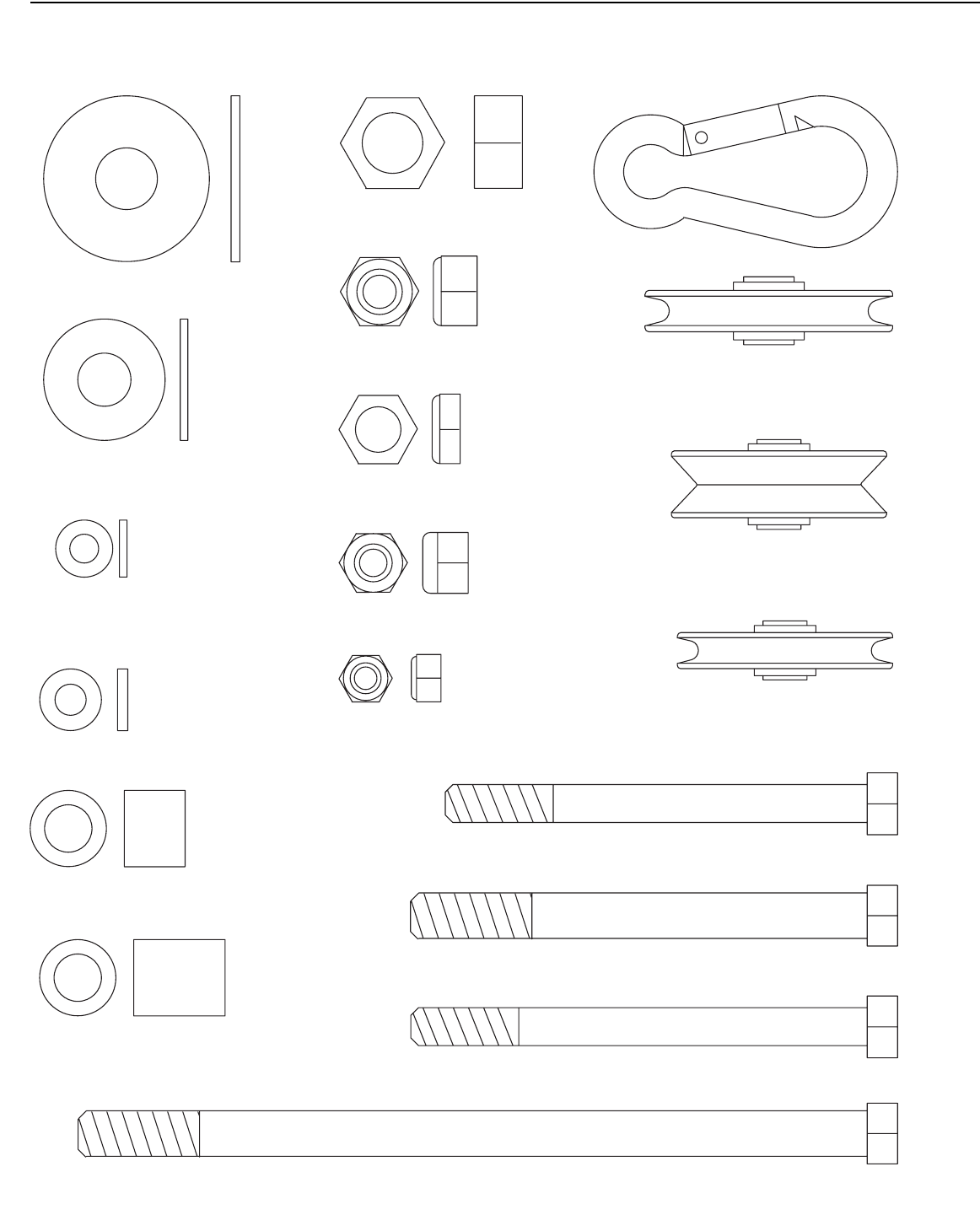

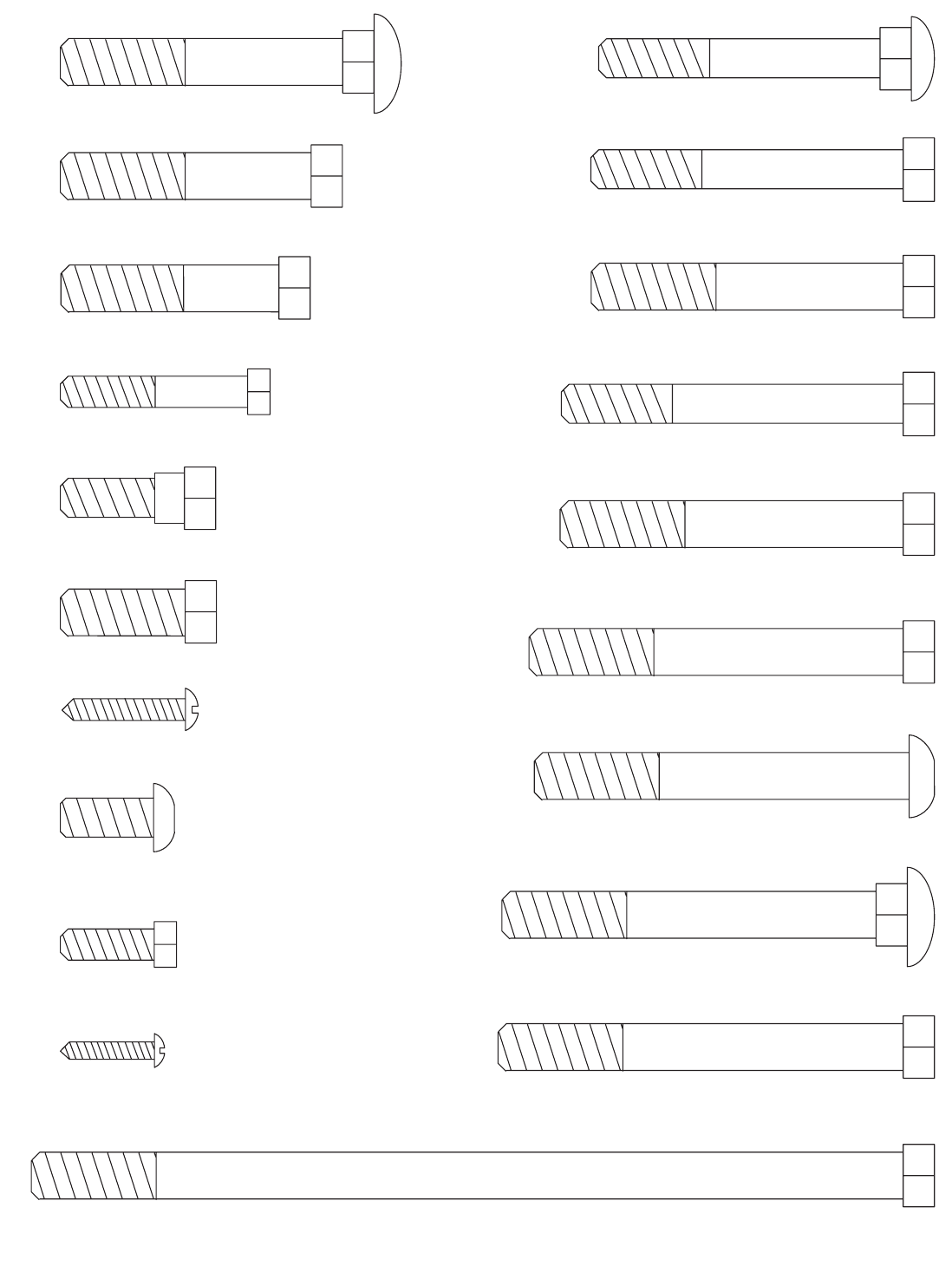

How to Identify Parts

To help you identify the small parts used in assembly,

a PART IDENTIFICATION CHART is included in the

center of this manual. Lay the chart on the floor and

use it to easily identify parts during each assembly

step. Note: Some small parts may have been pre-

attached. If a part is not in the parts bag, check

to see if it has been pre-attached.

How to Orient Parts

As you assemble the weight system, make sure that

all parts are oriented exactly as shown in the draw-

ings.

Tightening Parts

Tighten all parts as you assemble them, unless

instructed to do otherwise.

Questions?

If you have questions after reading the assembly

instructions, please call our Customer Service

Department toll-free at 1-800-999-3756, Monday

through Friday, 6 a.m. until 6 p.m. Mountain Time.

Assembly Requires Two Persons

For your convenience and safety, assemble the

weight system with the help of another person.

Set Aside Enough Time

Due to the many features of the weight system, the

assembly process will require several hours. By

setting aside plenty of time and by deciding to

make the task enjoyable, assembly will go smoothly.

Select a Location for the Weight System

Because of its weight and size, the weight system

should be assembled in the location where it will be

used. Make sure that there is enough room to walk

around the weight system as you assemble it.

How to Unpack the Box

To make assembly easier, we have divided the

assembly process into four stages. The small hard-

ware needed for each stage is packaged in sepa-

rate bags. Important: Wait until you begin each

stage to open the parts bag(s) for that stage.

Place all parts of the weight system in a cleared

area and remove the packing materials. Do not dis-

pose of the packing materials until assembly is com-

pleted.

Make Assembly Easier

Everything in this manual is designed to

ensure that the weight system can be assem-

bled successfully by anyone.

Before beginning assembly, make sure to

read the information on this page. This

brief introduction will save you much more

time than it takes to read it.

The Four Stages of the Assembly Process

Frame Assembly—You will begin by assembling

the base and the uprights that form the skeleton of

the weight system.

Arm Assembly—During this stage, you will

assemble the arms and the leg lever.

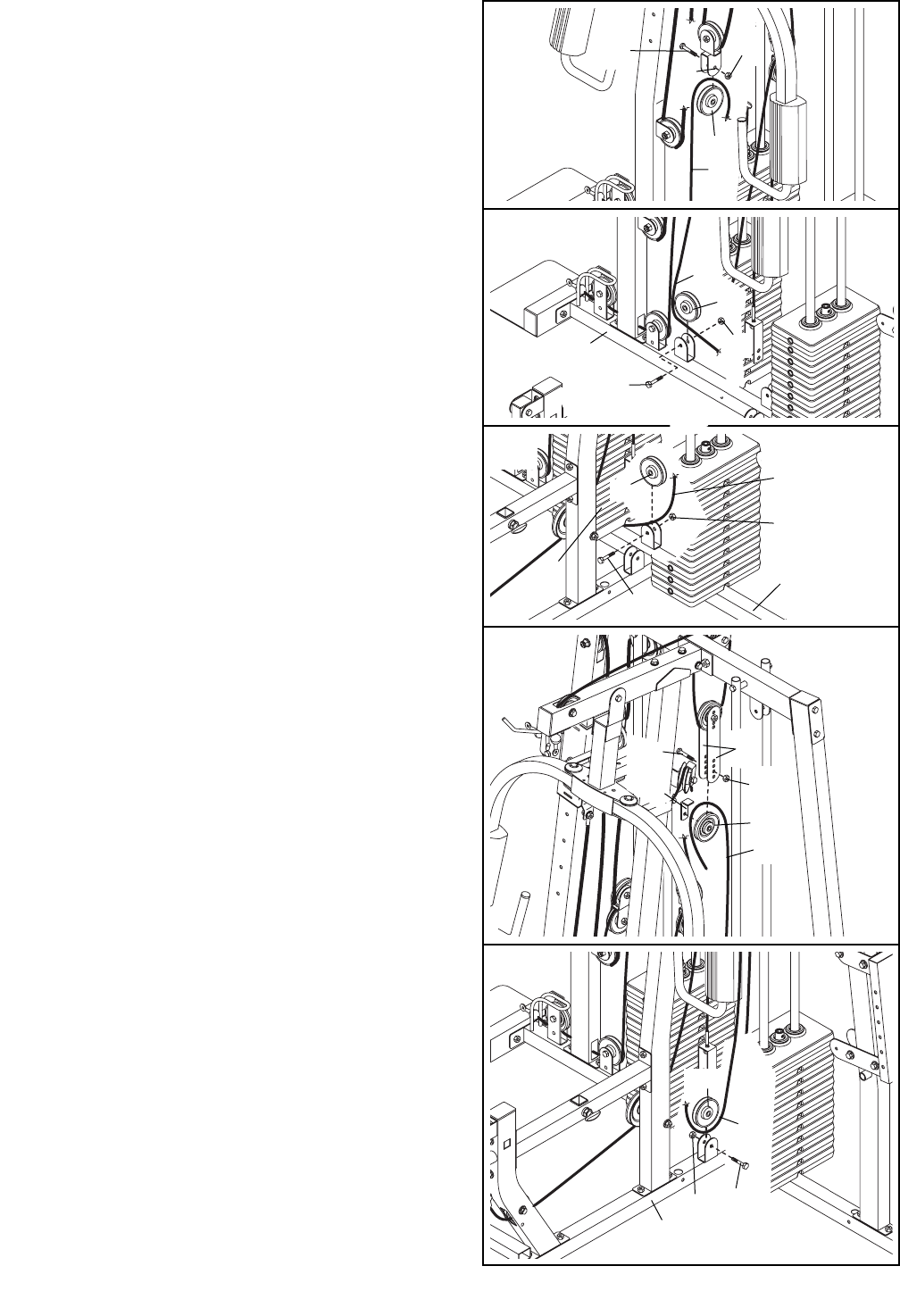

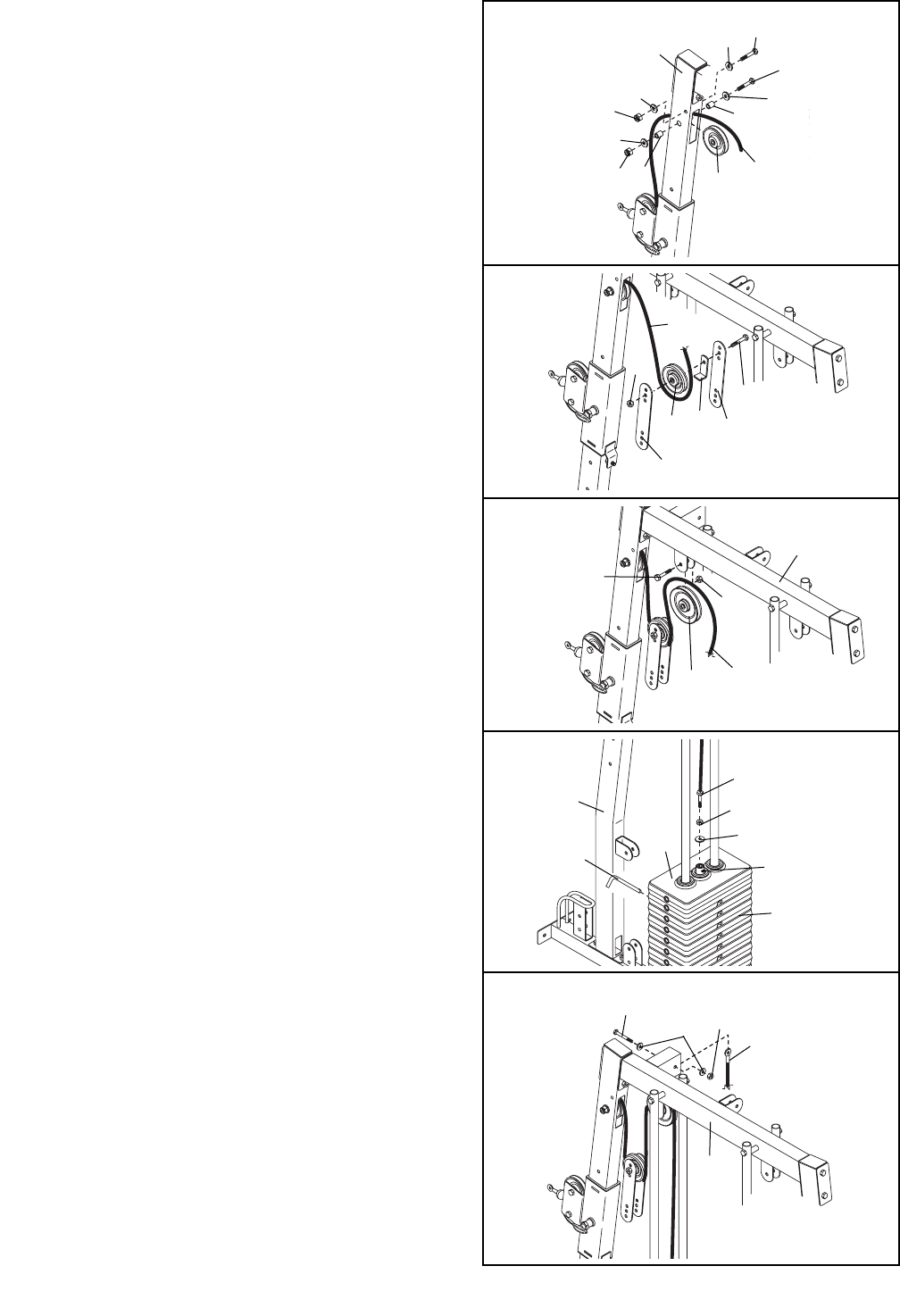

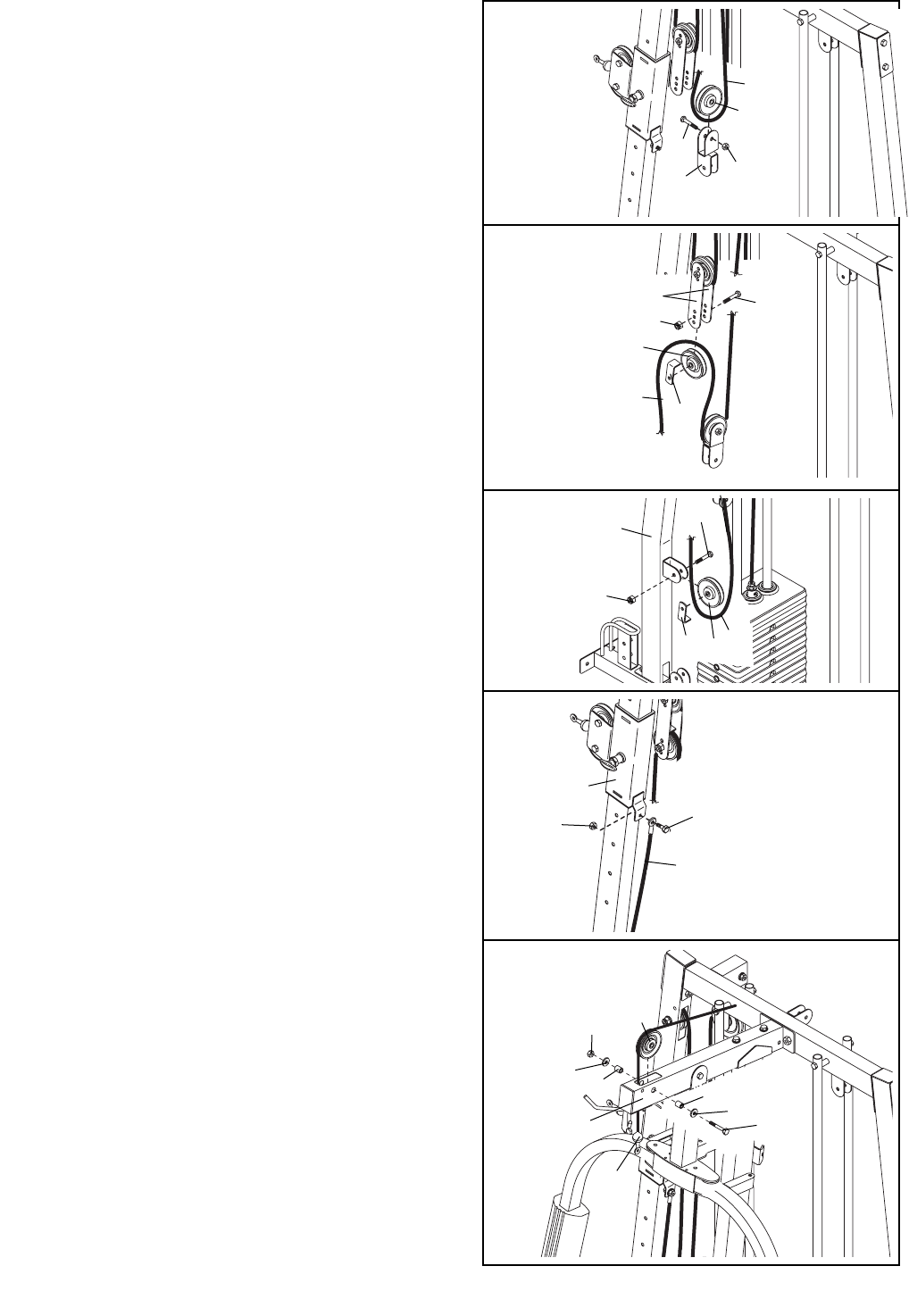

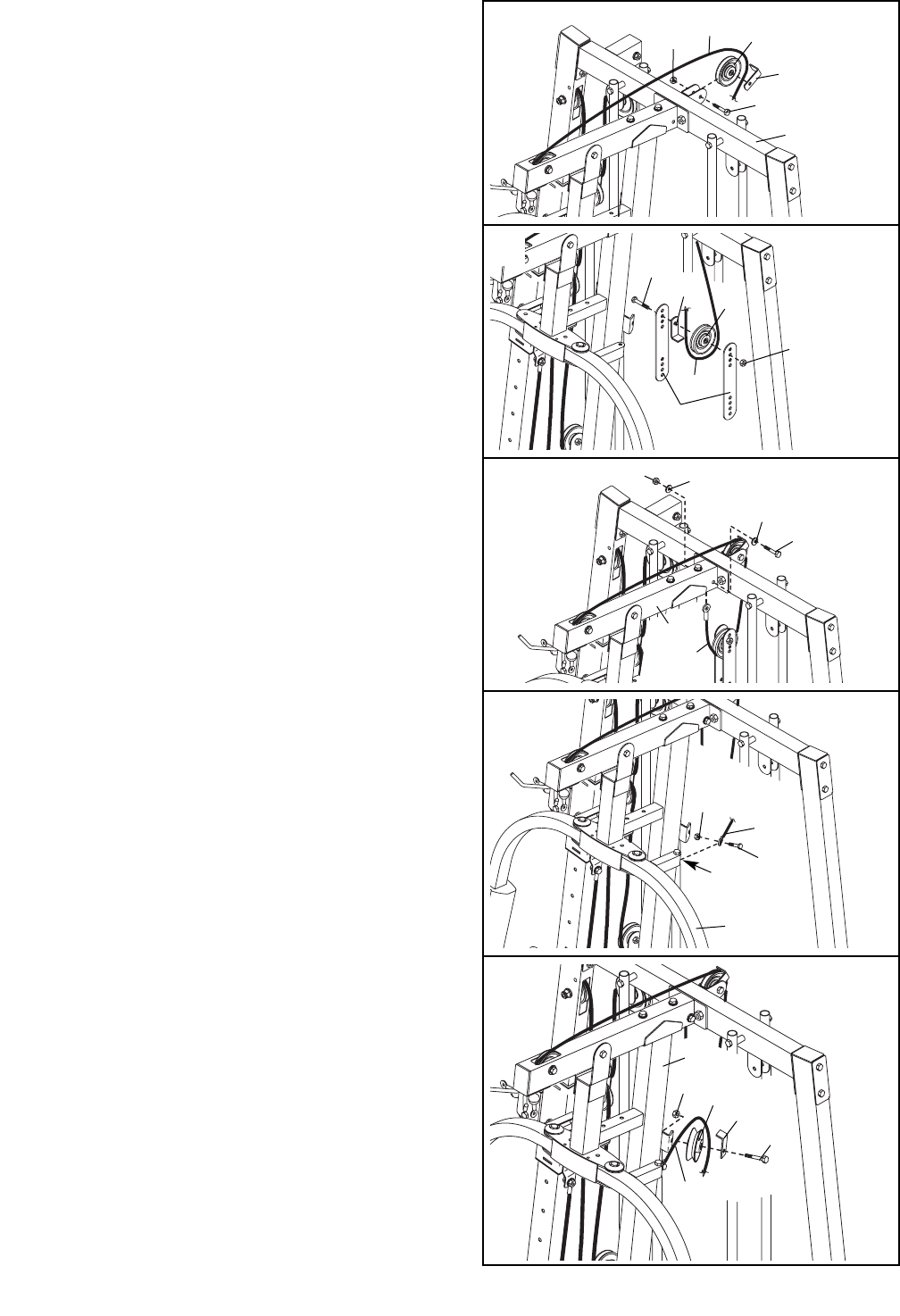

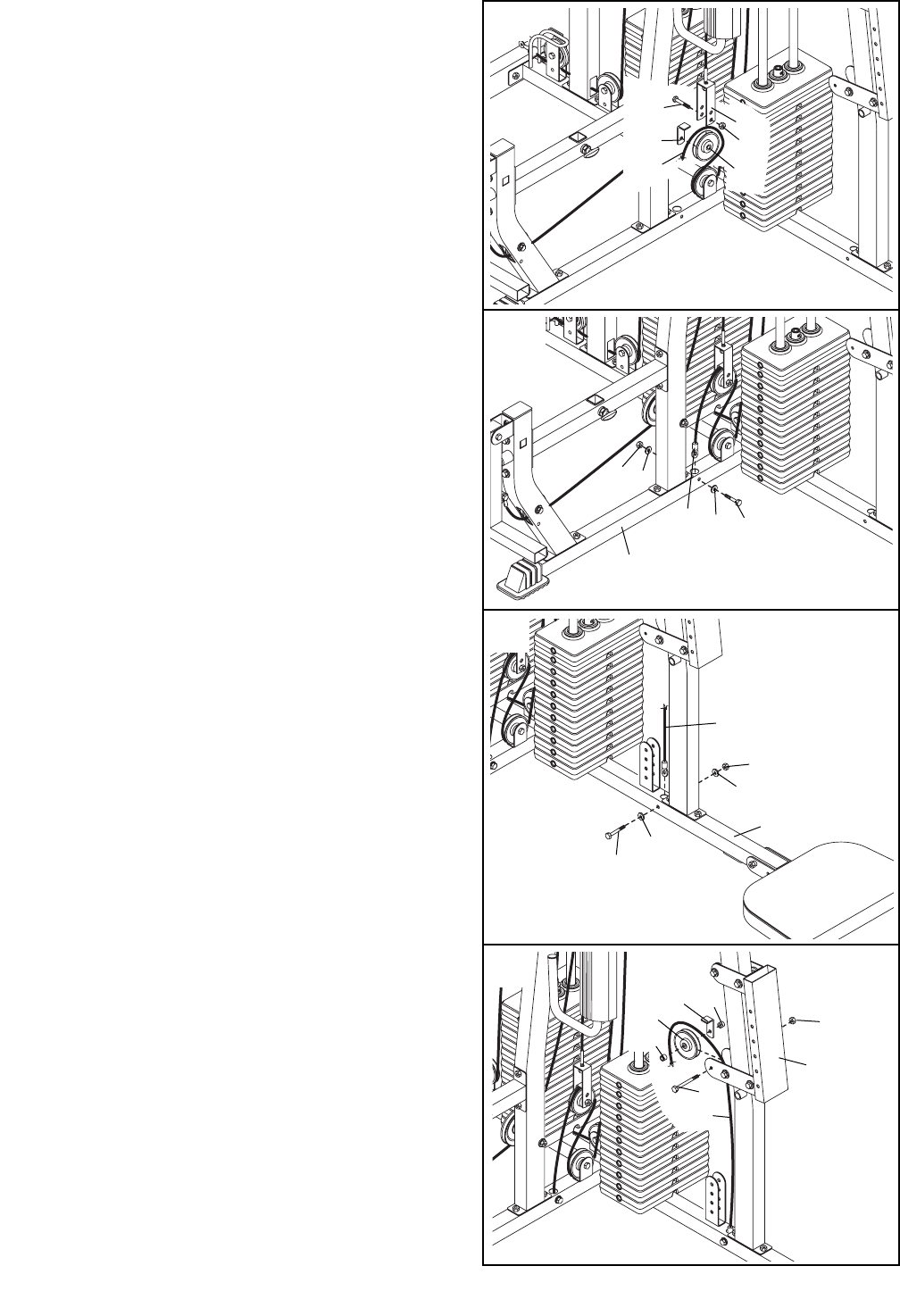

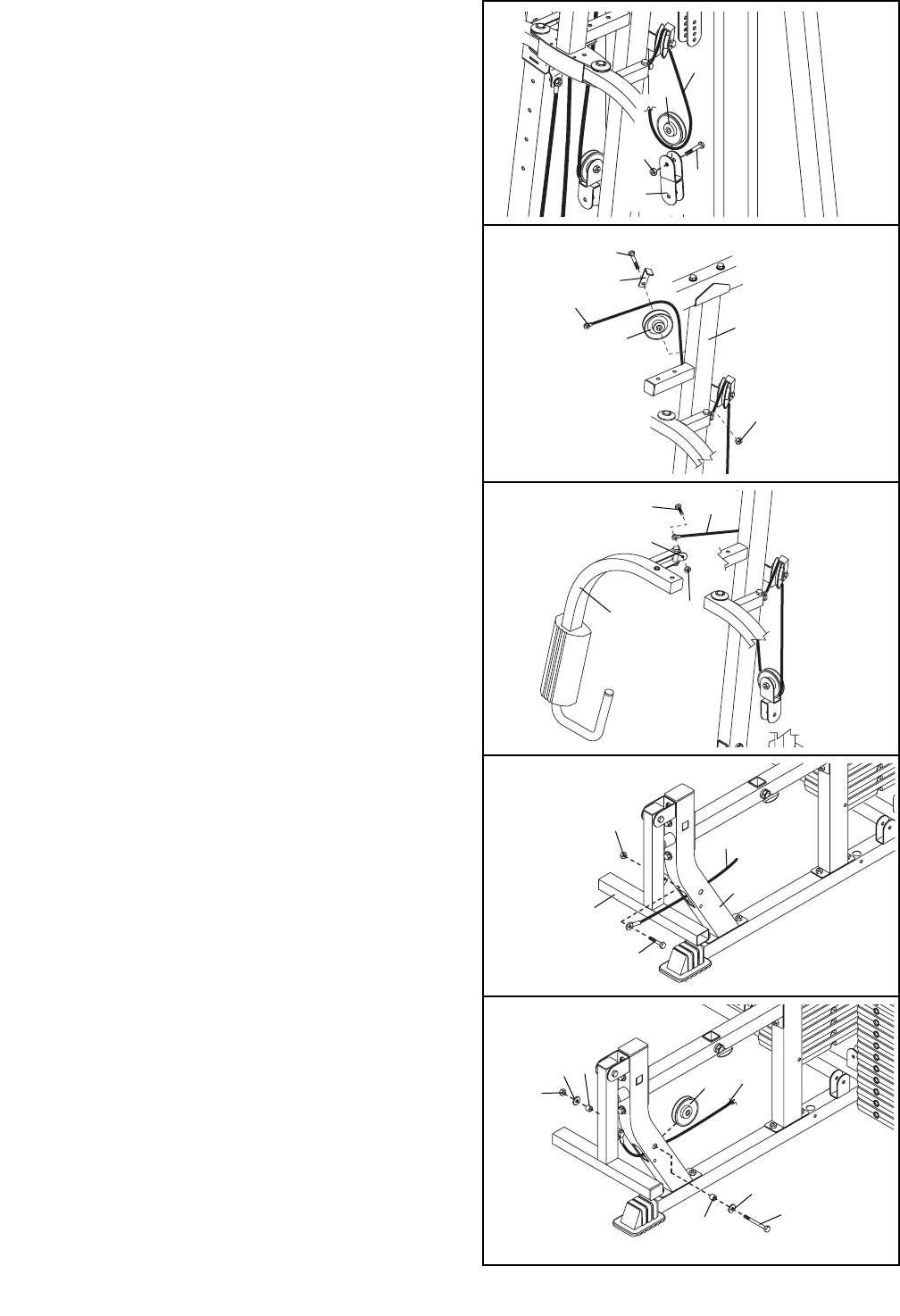

Cable Assembly—During this stage, you will

attach the cables and pulleys that connect the

weight stations to the weight stacks.

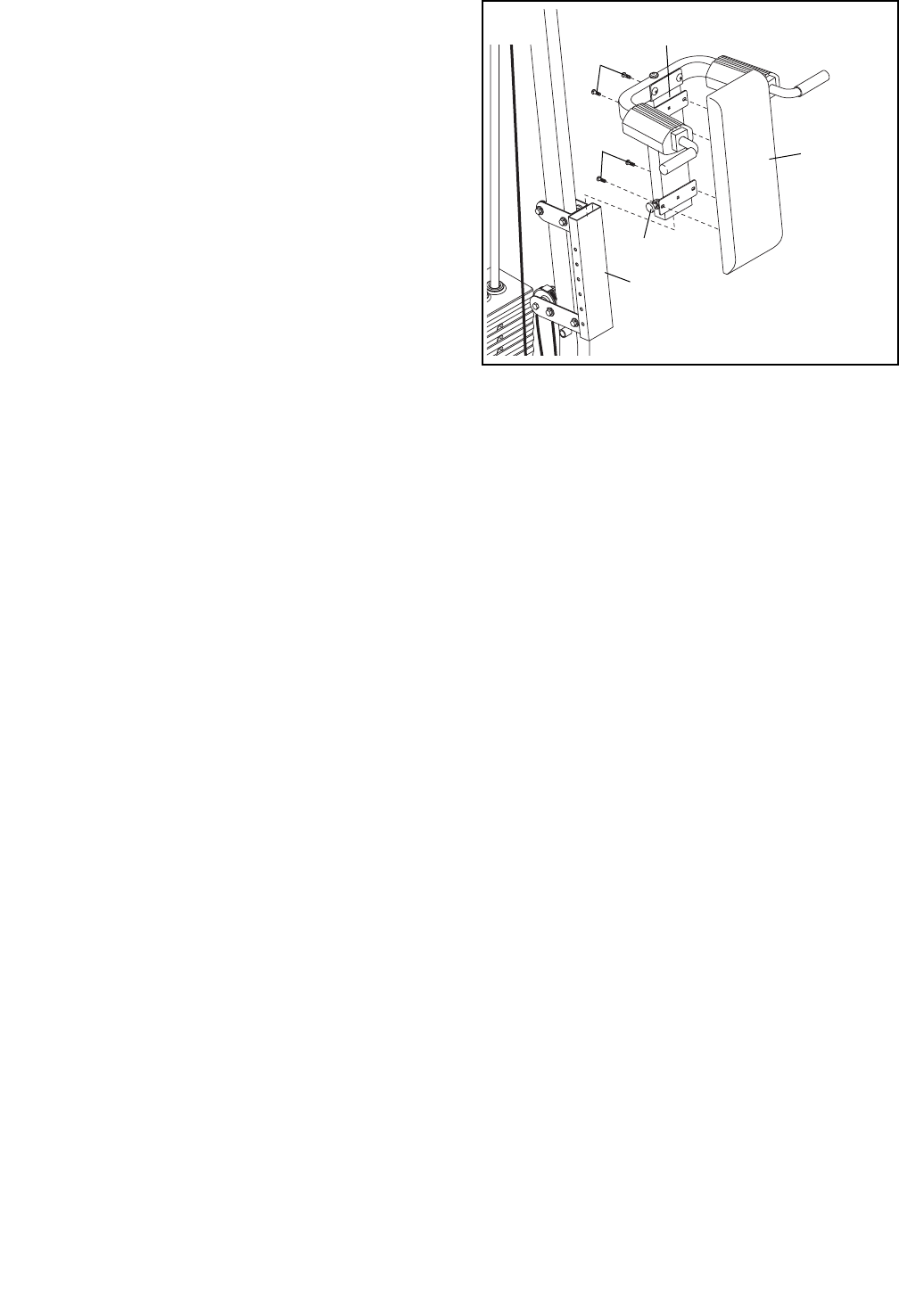

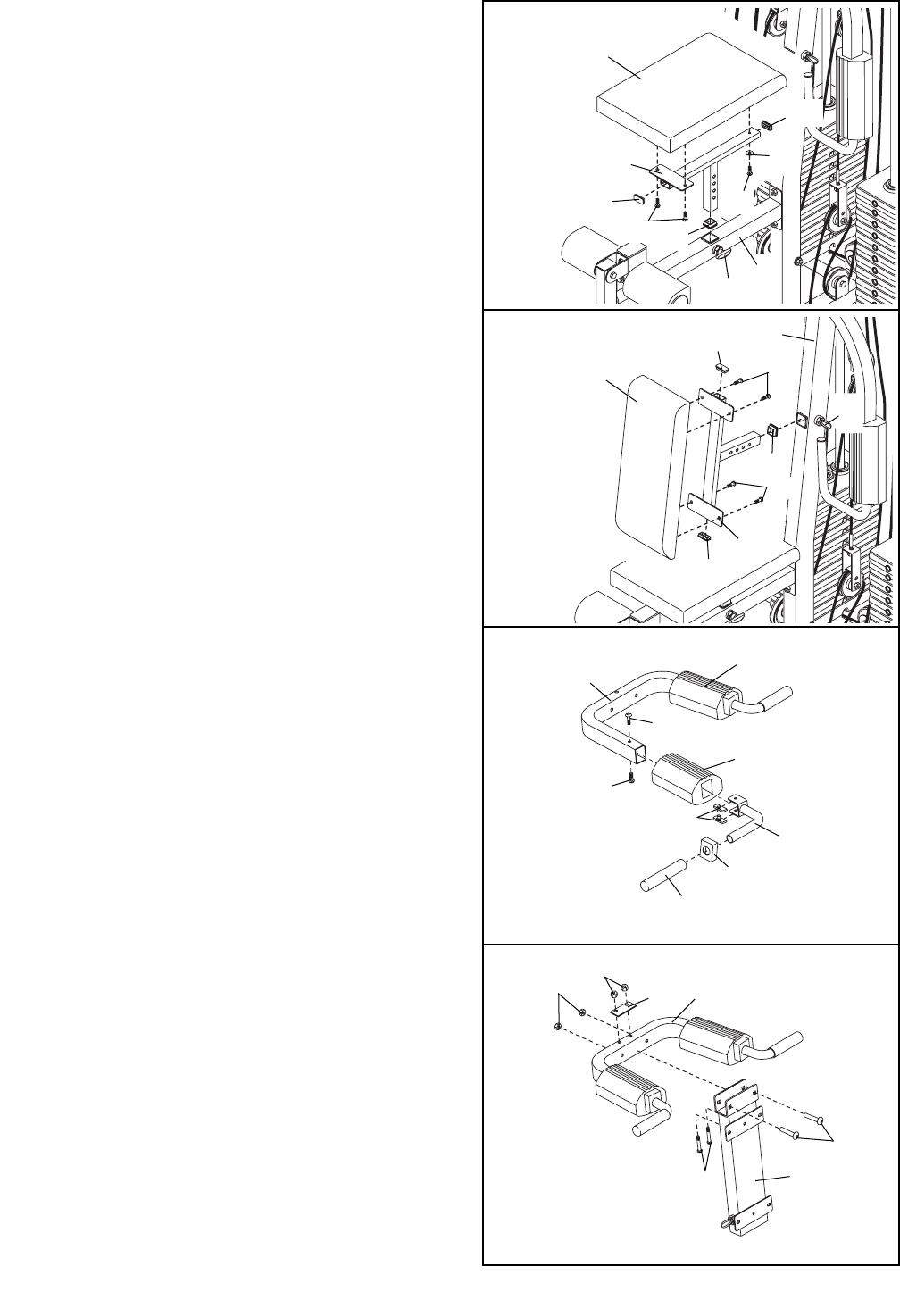

Seat Assembly—During the final stage, you will

assemble the seat and the backrests.

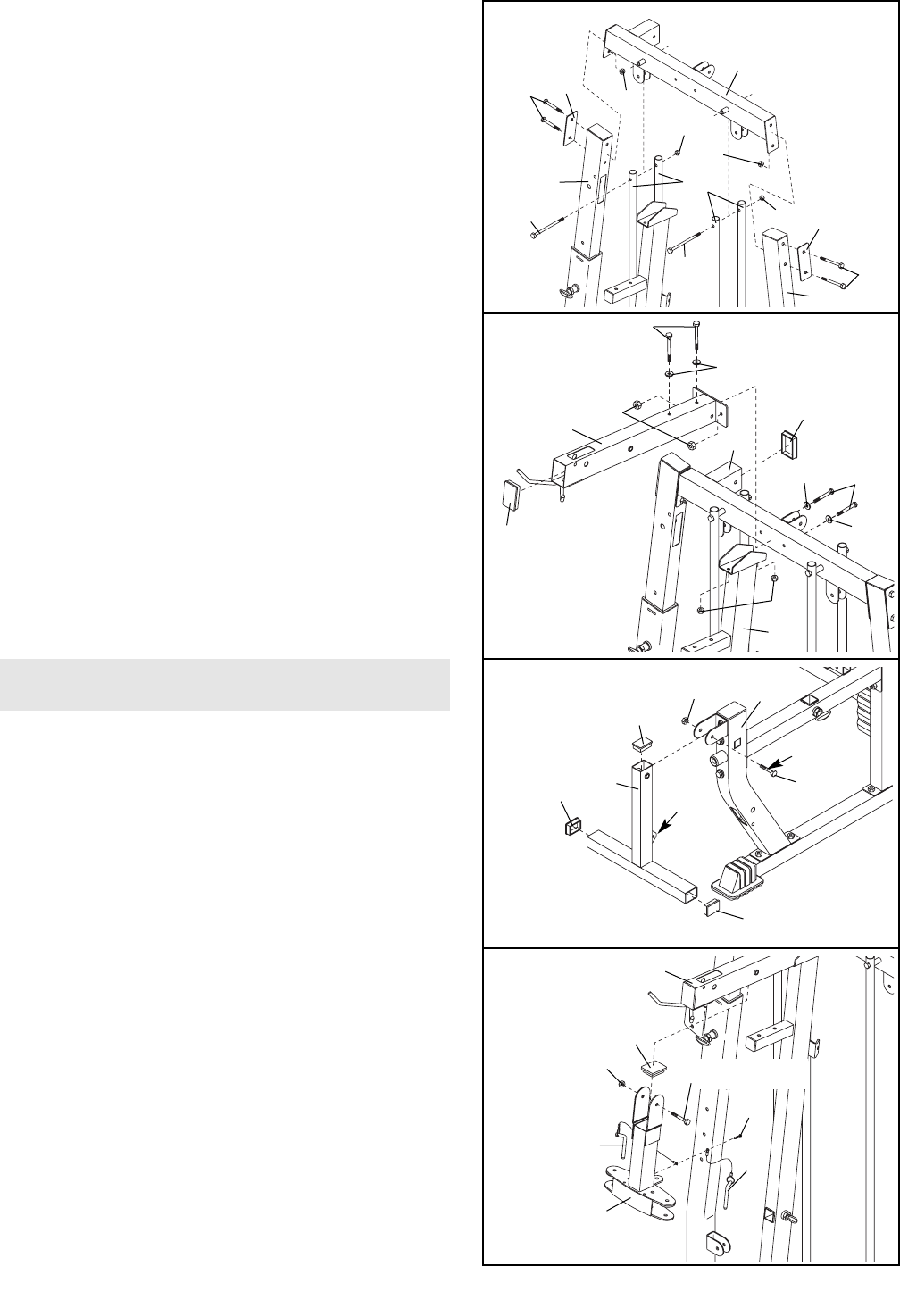

Locate and open the parts bags labeled “FRAME

ASSEMBLY 1” and “FRAME ASSEMBLY 2.”

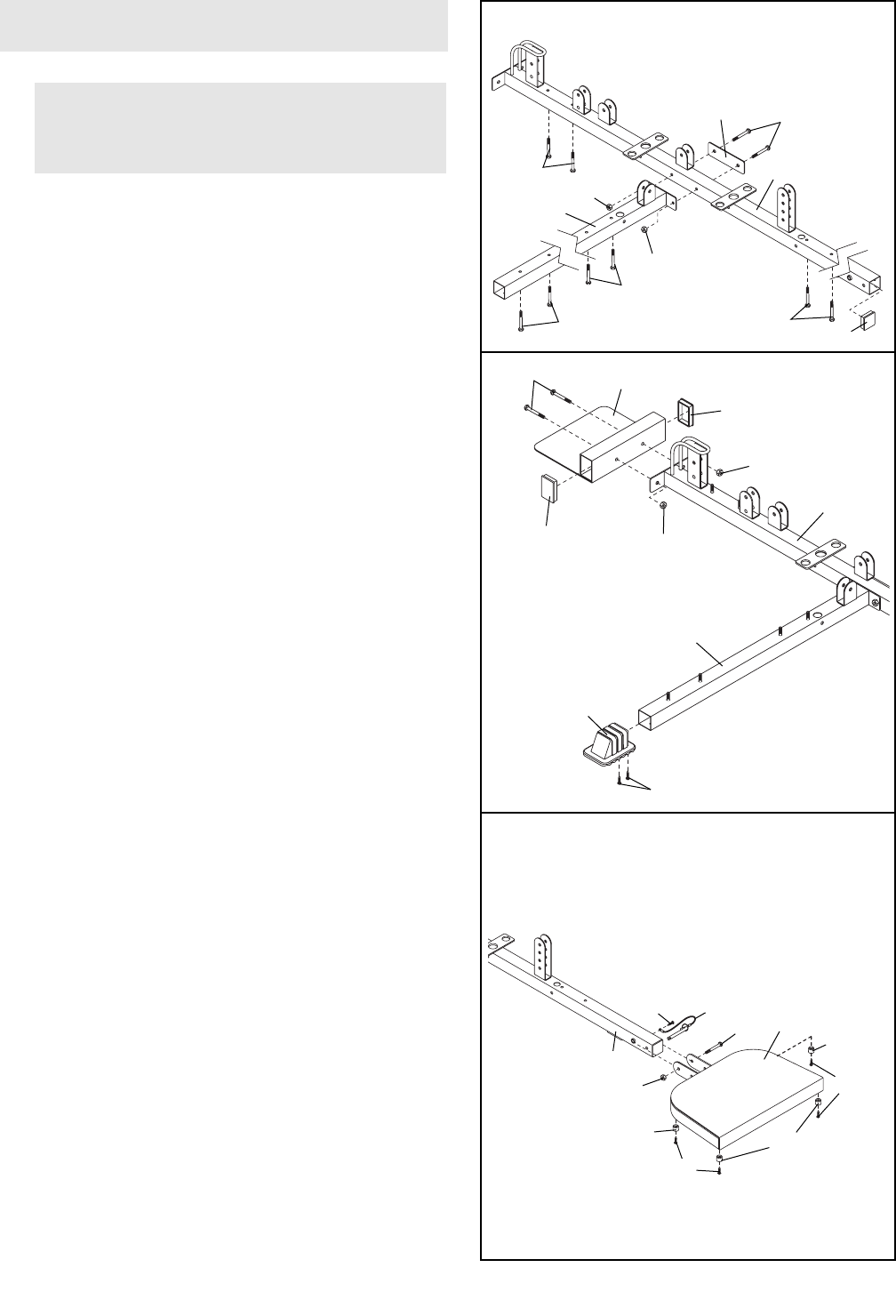

Press a 2” Square Inner Cap (105) into the open

end of the Long Base (120).

Insert eight 5/16” x 2 1/2” Carriage Bolts (110) up

through the Long Base (120) and the Short Base (2)

as shown. Note: It may be helpful to place tape

over the heads of the Carriage Bolts to hold

them in place.

Attach the Short Base (2) to the Long Base (120)

with two 5/16” x 2 3/4” Bolts (85), the Long Frame

Plate (71), and two 5/16” Nylon Locknuts (86).

FRAME ASSEMBLY

Make sure that you understand all of the

information on page 5 before you begin

assembling the weight system.

105

120

2. Attach the Base Cap (24) to the Short Base (2) with

two #8 x 3/4” Screws (98).

Press two 2” x 3” Inner Caps (58) into the Foot

Plate (53). Attach the Foot Plate to the Long Base

(120) with two 5/16” x 2 1/2” Carriage Bolts (110)

and two 5/16” Nylon Locknuts (86).

3. Attach the tether on the Pin w/Tether (112) to the

Long Base (120) with a #10 x 1” Screw (14).

Attach the four Knee Rest Bumpers (123) to the

Squat Knee Rest (41) with four #10 x 1” Screws

(14). Attach the Squat Knee Rest to the Long Base

(120) with a 3/8” x 3 1/4” Bolt (96) and a 3/8” Nylon

Locknut (87). Do not overtighten the Locknut;

the Squat Knee Rest must be able to pivot.

120

112

96 41

123

110

110 53

120

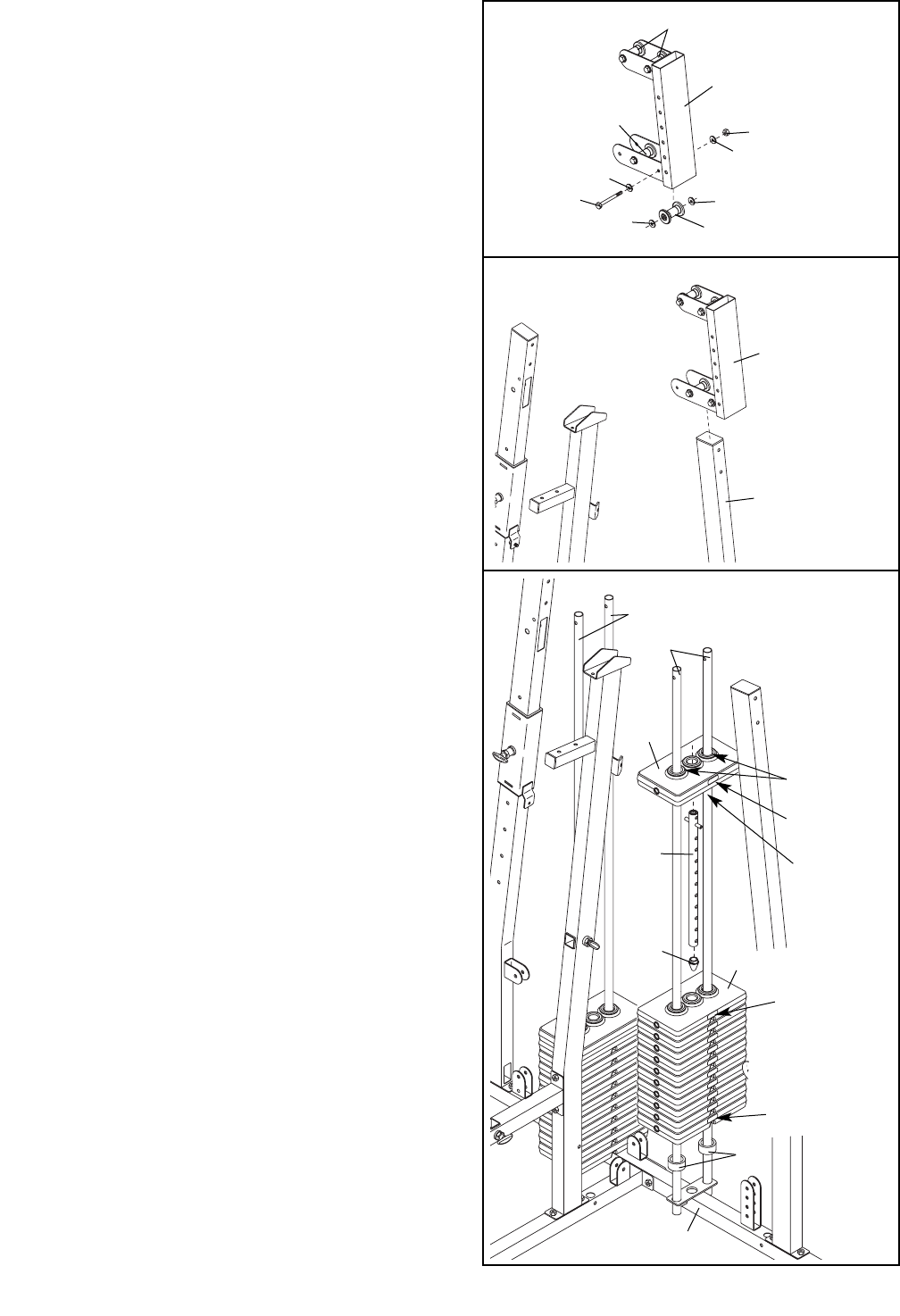

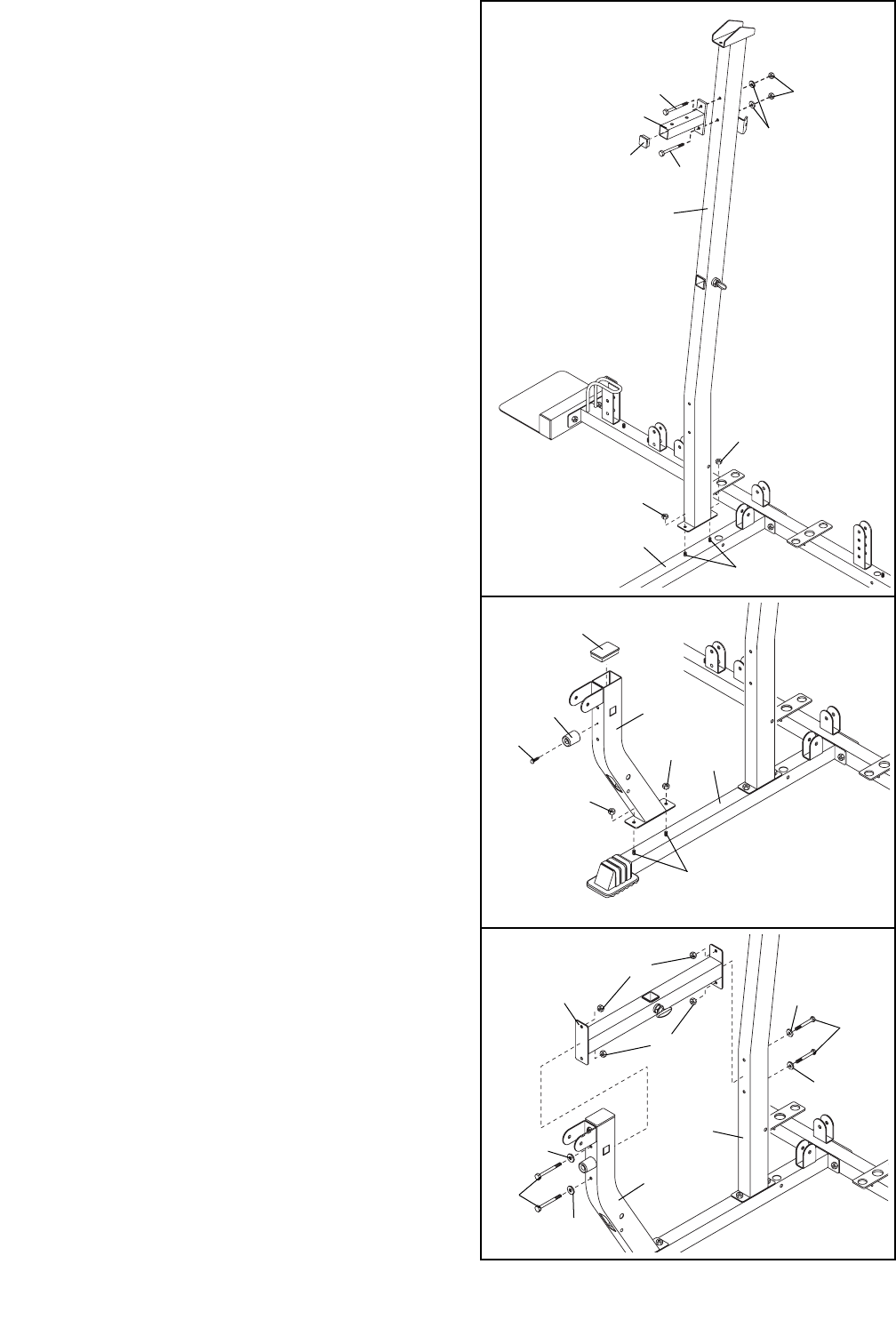

4. Press a 1 1/2” Square Inner Cap (67) into the

Upright Extension (12).

Attach the Upright Extension (12) to the Butterfly

Upright (3) with two 5/16” x 3 3/4” Bolts (92), two

5/16” Washers (90), and two 5/6” Nylon Locknuts

(86).

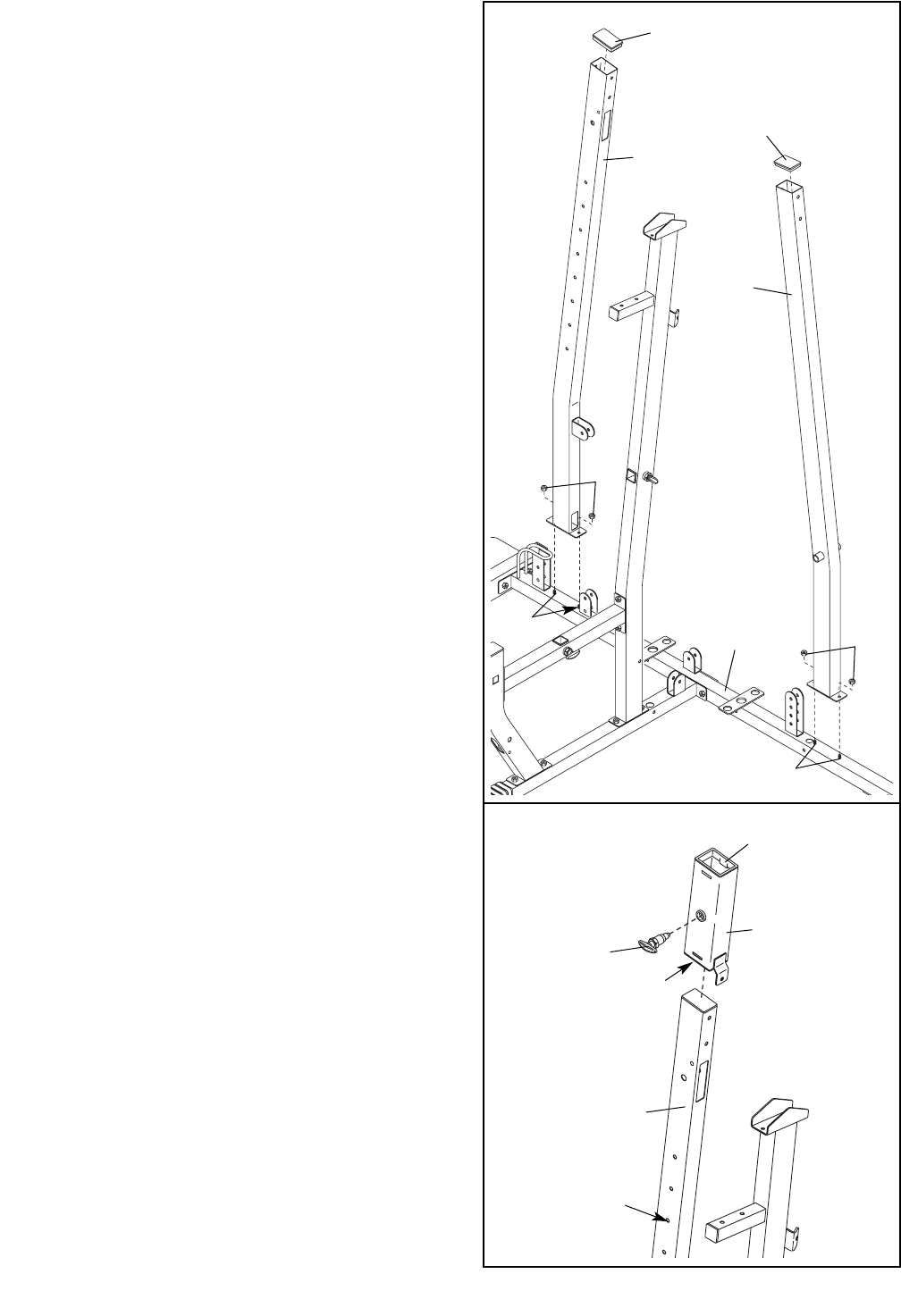

Slide the Butterfly Upright (3) onto the two indicated

5/16” x 2 1/2” Carriage Bolts (110) in the Short Base

(2). Finger tighten a 5/16” Nylon Locknut (86) onto

each Carriage Bolt. Do not tighten the Nylon

Locknuts yet.

5. Press a 2” x 3” Inner Cap (58) into the top of the

Seat Upright (9). Attach the Leg Lever Bumper (77)

to the Seat Upright with a #10 x 1” Screw (14).

Slide the Seat Upright (9) onto the two indicated

5/16” x 2 1/2” Carriage Bolts (110) in the Short

Base (2). Finger tighten a 5/16” Nylon Locknut (86)

onto each Carriage Bolt. Do not tighten the Nylon

Locknuts yet.

110

6. Hold the Seat Frame (8) between the Seat Upright

(9) and the Butterfly Upright (3). Attach the Seat

Frame to the Seat Upright with two 5/16” x 3 3/4”

Bolts (92), two 5/16” Washers (90), and two 5/16”

Nylon Locknuts (86). Do not tighten the Nylon

Locknuts yet.

Attach the Seat Frame (8) to the Butterfly Upright

(3) with two 5/16” x 3 3/4” Bolts (92), two 5/16”

Washers (90), and two 5/16” Nylon Locknuts (86).

Do not tighten the Nylon Locknuts yet.

7. Press a 2” x 3” Inner Cap (58) into the top of the

Squat Upright (4). Slide the Squat Upright onto the

two indicated 5/16” x 2 1/2” Carriage Bolts (110) in

the Long Base (120). Finger tighten a 5/16” Nylon

Locknut (86) onto each Carriage Bolt. Do not tight-

en the Nylon Locknuts yet.

Press a 2” x 3” Inner Cap (58) into the top of the

Swivel Upright (5). Slide the Swivel Upright onto the

two indicated 5/16” x 2 1/2” Carriage Bolts (110) in

the Long Base (120). Finger tighten a 5/16” Nylon

Locknut (86) onto each Carriage Bolt. Do not tight-

en the Nylon Locknuts yet.

120 86

110

Adjustment

Hole

8. Press two Swivel Bushings (66) into the Swivel

Carriage (46).

Tighten an Adjustment Handle (65) into the Swivel

Carriage (46). Orient the Swivel Carriage as shown.

Slide the Carriage onto the Swivel Upright (5) and

engage the Adjustment Handle into an adjustment

hole in the Swivel Upright.

9. Attach a Roller (39) and two 5/16” Washers (90)

between the indicated set of holes in the Squat

Slider (38) with a 5/16” x 3 1/2” Bolt (94), two 5/16”

Washers (90), and a 5/16” Nylon Locknut (86) as

shown.

Assemble the other three Rollers (39) to the

Squat Slider (38) in the same manner.

10. Slide the Squat Slider (38) down onto the Squat

Upright (4).

11. Insert the ends of two Weight Guides (42) into the

indicated bracket on the Long Base (120). Slide two

Weight Bumpers (49) onto the Weight Guides. Next,

slide ten Weights (44) onto the Weight Guides. Make

sure that the Weights are turned so the grooved

sides of the Weights are facing downward.

Press a Weight Tube Bumper (48) into the lower

end of a Weight Tube (43). Insert the Weight Tube

into the centers of the Weights (44). Make sure

that the Weight Tube is turned as shown.

Lubricate the two outer holes in a Top Weight (45).

Slide the Top Weight onto the Weight Guides (42).

Make sure that the Top Weight is turned so the

grooved side is facing downward.

Apply a number “10” decal to the Top Weight (45) in

the location shown. Apply decals with the numbers

20 through 110 to the ten Weights (44).

Assemble the other weight stack in the same

way.

120

Groove

Lubricate

“10” Decal

“110” Decal

“20” Decal

14. Open the parts bag labeled “ARM ASSEMBLY.”

Press three 1 1/2” x 2” Inner Caps (21) into the Leg

Lever (10).

Lubricate a 3/8” x 2 1/2” Bolt (18) with grease. Turn

the Leg Lever (10) so that the welded tab is on the

indicated side, and attach the Leg Lever to the Seat

Upright (9) with the Bolt and a 3/8” Nylon Locknut

(87). Do not overtighten the Nylon Locknut; the

Leg Lever must be able to pivot easily.

15. Press a 2” x 2 1/2” Inner Cap (125) into the

Butterfly Frame (47). Attach the tethers on the two

“L”-pins w/Tether (60) to the Butterfly Frame with a

#8 x 3/4” Screw (98).

Lubricate a 3/8” x 3” Bolt (107) with grease. Attach

the Butterfly Frame (47) to the Butterfly Top Frame

(7) with the Bolt and a 3/8” Nylon Locknut (87). Do

not overtighten the Nylon Locknut; the Butterfly

Frame must be able to pivot easily.

ARM ASSEMBLY

13. Press two 2” x 3” Inner Caps (58) into the Top Frame

(6) and the Butterfly Top Frame (7).

Attach the Butterfly Top Frame (7) to the Top Frame

(6) with two 5/16” x 2 3/4” Bolts (85), two 5/16”

Washers (90), and two 5/16” Nylon Locknuts (86).

Do not tighten the Locknuts yet.

Attach the Butterfly Top Frame (7) to the Butterfly

Upright (3) with two 5/16” x 3 3/4” Bolts (92), two

5/16” Washers (90), and two 5/16” Nylon Locknuts

(86).

Tighten all of the 5/16” Nylon Locknuts (86) and

3/8” Nylon Locknuts (87) used in steps 2–13.

Lubricate

Tab

125

87 107—Lubricate

786

12. Attach the Top Frame (6) between the Squat Upright

(4) and the Swivel Upright (5) with four 5/16” x 3 3/4”

Bolts (92), the two Short Frame Plates (52), and two

5/16” Nylon Locknuts (86) as shown. Do not tighten

the Bolts and Locknuts yet.

Attach the four Weight Guides (42) to the Top Frame

(6) with two 3/8” x 6 1/2” Bolts (95) and two 3/8”

Nylon Locknuts (87).

18.

Locate and open the parts bags labeled “CABLE

ASSEMBLY” and “PULLEYS.”

Lubricate the 3/8” x 7” Bolt (30) with grease. Attach

the Swivel Cage (76) to the Swivel Carriage (46)

with the Bolt and a 3/8” Nylon Locknut (87).

Locate the Swivel High Cable (74), which is

126 1/2” long and has a ball on one end and a

threaded bolt on the other end. Wrap the Cable

around a 3 1/2” Pulley (78). Attach two Pulleys to

the Swivel Cage (76) with two 3/8” x 1 3/4” Bolts

(93) and two 3/8” Nylon Locknuts (87).

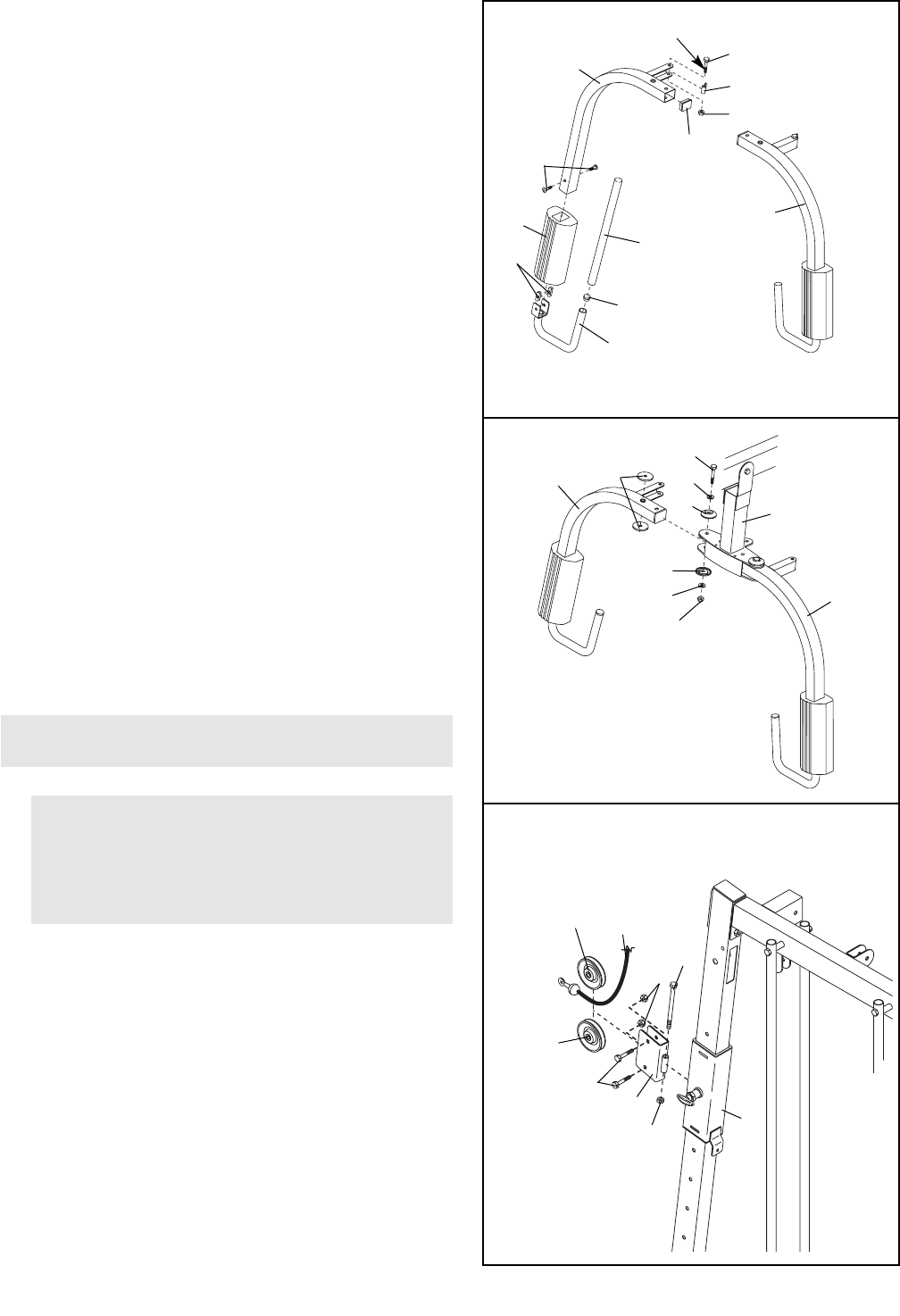

16. Press a 1 1/2” x 2” Inner Cap (21) into the Right

Butterfly Arm (26). Wet the lower end of the Arm with

soapy water. Slide a Long Pad (54) onto the Arm.

Attach a Press Handle (27) to the Right Butterfly

Arm (26) with two 5/16” x 3/4” Button Head Screws

(51) and two Nut Clips (108). Slide the Long Pad

(54) down so that the bottom is flush with the lower

end of the Arm. Press a 1” Round Inner Cap (29)

into the Press Handle. Wet the Press Handle with

soapy water. Slide a Long Handgrip (28) onto the

Press Handle.

Lubricate a 3/8” x 2” Bolt (100) with grease. Attach

a Pivot Bracket (70) to the Right Butterfly Arm (26)

with the Bolt and a 3/8” Nylon Jamnut (113). Do not

overtighten the Nylon Jamnut; the Pivot Bracket

must be able to pivot easily. Repeat this step

with the Left Butterfly Arm (25).

17. Lubricate a 3/8” x 3” Button Head Bolt (104) and

both sides of two Plastic Washers (56) with grease.

Attach the Right Butterfly Arm (26) to the Butterfly

Frame (47) with the Bolt, the two Plastic Washers,

two Butterfly Caps (57), two 3/8” Washers (91), and

a 3/8” Nylon Jamnut (113) as shown. Make sure

that the recessed sides of the Plastic Washers

are fitted over the welded bushing in the

Butterfly Arm. Do not overtighten the Nylon

Jamnut; the Butterfly Arm must be able to pivot

easily.

Repeat this step with the Left Butterfly Arm (25).

CABLE ASSEMBLY

IMPORTANT: Refer to the Cable Identification

Chart on page 26 for help identifying the

cables. Do not overtighten the bolts and

nuts attaching the pulleys. The pulleys must

be able to turn freely.

113

104

91 25

100

Lubricate

113

108

20. Remove the preattached 3 1/2” Pulleys (78) from

the Small Pulley Plates (31).

Wrap the Swivel High Cable (74) over a 3 1/2”

Pulley (78). Attach the Pulley and a Cable Trap (68)

to the second set of holes from the top of the Small

Pulley Plates (31) with a 3/8” x 2” Bolt (100) and a

3/8” Nylon Locknut (87). Make sure the Cable

Trap is turned to hold the Cable in the groove of

the Pulley.

21. Wrap the Swivel High Cable (74) over a 4 1/2”

Pulley (119). Attach the Pulley inside of the indicat-

ed bracket on the Top Frame (6) with 3/8” x 1 3/4”

Bolt (93) and a 3/8” Nylon Locknut (87).

22. Lift the Weight Tube (43) and the Top Weight (45)

closest to the Swivel Upright (5). Make sure that the

small pin on the Weight Tube is inside of the groove

under the Top Weight.

Insert a Weight Pin (50) into the stack of Weights

(44). Place a 1/2” Washer (1) on top of the Weight

Tube (43). Tighten a 1/2” Nut (118) halfway onto the

end of the Swivel High Cable (74). Screw the end of

the Cable two full turns into the Weight Tube. Then,

tighten the 1/2” Nut against the 1/2” Washer.

23. Locate the Swivel Cable (17), which is 115 3/8”

long and has an eyelet on each end. Attach the

Cable inside the Top Frame (6) with a 5/16” x 2 1/2”

Bolt (59), two 5/16” Washers (90), and a 5/16”

Nylon Locknut (86).

118

100

119

78 68

59 86

19. Route the Swivel High Cable (74) through the Swivel

Upright (5) and over a 4 1/2” Pulley (119). Attach the

Pulley inside the Upright with a 3/8” x 2 3/4” Bolt

(101), two 3/8” Washers (91), two 1/2” Spacers (89),

and a 3/8” Nylon Locknut (87).

Attach a 3/8” x 2 1/2” Bolt (18), two 3/8” Washers

(91), and a 3/8” Nylon Locknut (87) to the Swivel

Upright (5).

87 74

87 91

101

119

24. Remove the preattached 3 1/2” Pulleys (78) from

the Offset Double “U”-bracket (61).

Wrap the Swivel Cable (17) around a 3 1/2” Pulley

(78). Attach the Pulley to the Offset Double “U”-

bracket (61) with a 3/8” x 1 3/4” Bolt (93) and a 3/8”

Nylon Locknut (87).

25. Wrap the Swivel Cable (17) around a 3 1/2” Pulley

(78). Attach the Pulley and a Cable Trap (68) to the

next to bottom hole in the Small Pulley Plates (31)

with a 3/8” x 2” Bolt (100) and a 3/8” Nylon Locknut

(87). Make sure the Cable Trap is turned to hold

the Cable in the groove of the Pulley.

26. Wrap the Swivel Cable (17) around a 3 1/2” Pulley

(78). Attach the Pulley and a Cable Trap (68) to the

bracket on the Swivel Upright (5) with a 3/8” x 2”

Bolt (100) and a 3/8” Nylon Locknut (87). Make

sure the Cable Trap is turned to hold the Cable

in the groove of the Pulley.

27. Attach the end of the Swivel Cable (17) to the

bracket on the Swivel Carriage (46) with a 3/8” x 1”

Bolt (126) and a 3/8” Nylon Locknut (87).

28. Locate the Lat Cable (88), which is 89 1/4” long

and has a ball on one end and an eyelet on the

other. Route the eyelet end of the Cable up through

the Butterfly Top Frame (7) and around a 3 1/2”

Pulley (78). Attach the Pulley inside of the Butterfly

Top Frame with a 3/8” x 2 3/4” Bolt (101), two 3/8”

Washers (91), two 1/2” Spacers (89), and a 3/8”

Nylon Locknut (87).

100

126

101

89 89

87 100

29. Wrap the Lat Cable (88) around a 3 1/2” Pulley

(78). Attach the Pulley and a Long Cable Trap (102)

to the Top Frame (6) with a 3/8” x 1 3/4” Bolt (93)

and a 3/8” Nylon Jamnut (113). Make sure the

Cable Trap is turned to hold the Cable in the

groove of the Pulley.

33. Wrap the Butterfly Cable (69) over a “V”-pulley (55).

Attach the Pulley and a Long Cable Trap (102) to

the indicated bracket on the Butterfly Upright (3)

with a 3/8” x 2 1/2” Bolt (18) and a 3/8” Nylon

Locknut (87). Make sure that the Long Cable

Trap is turned to hold the Cable in the groove of

the Pulley.

30. Remove the preattached 3 1/2” Pulleys (78) from

the Pulley Plates (63).

Wrap the Lat Cable (88) around a 3 1/2” Pulley

(78). Attach the Pulley and a Cable Trap (68) to the

second set of holes from the top of the Pulley

Plates (63) with a 3/8” x 2” Bolt (100) and a 3/8”

Nylon Locknut (87). Make sure the Cable Trap is

turned to hold the Cable in the groove of the

Pulley.

31. Attach the end of the Lat Cable (88) inside of the

Butterfly Top Frame (7) with a 5/16” x 2 1/2” Bolt

(59), two 5/16” Washers (90), and a 5/16” Nylon

Locknut (86).

86 90

113

102

100

88 78

103

87 55 102

32. Locate the Butterfly Cable (69), which is the

shortest Cable. Attach the Cable to the Pivot

Bracket (70) on the Left Butterfly Arm (25) with a

5/16” x 1” Shoulder Bolt (103) and a 5/16” Nylon

Locknut (86).

34. Remove the preattached 3 1/2” Pulleys (78) from

the Double “U”-bracket (62).

Wrap the Butterfly Cable (69) under a 3 1/2” Pulley

(78). Attach the Pulley to the Double “U”-bracket

(62) with a 3/8” x 1 3/4” Bolt (93) and a 3/8” Nylon

Locknut (87).

35. Wrap the Butterfly Cable (69) over a “V”-pulley (55).

Attach the Pulley and a Long Cable Trap (102) to

the other side of the bracket on the Butterfly Upright

(3) with a 3/8” x 2 1/2” Bolt (18) and a 3/8” Nylon

Locknut (87). Make sure that the Long Cable

Trap is turned to hold the Cable in the groove of

the Pulley.

36. Attach the Butterfly Cable (69) to the Pivot Bracket

(70) on the Right Butterfly Arm (26) with a 5/16” x 1”

Shoulder Bolt (103) and a 5/16” Nylon Locknut (86).

37. Locate the Leg Lever Cable (75), which is 98 1/2”

long and has an eyelet on one end and a thread-

ed pin on the other end. Route the eyelet end of

the Cable through the Seat Upright (9) and attach it

to the tab on the Leg Lever (10) with a 5/16” x 1”

Shoulder Bolt (103) and a 5/16” Nylon Locknut (86).

38. Attach a 3 1/2” Pulley (78) inside of the Seat

Upright (9) with a 3/8” x 2 3/4” Bolt (101), two 3/8”

Washers (91), two 1/2” Spacers (89), and a 3/8”

Nylon Locknut (87), as shown.

103

102

101

103

26 86

62 93

41. Remove the preattached 3 1/2” Pulley (not

shown) from the “U”-bracket (64).

Attach the end of the Leg Lever Cable (75) to the

“U”-bracket (64) with a 1/4” Washer (97) and a 1/4”

Nylon Locknut (34). Note: Do not completely

tighten the Locknut; it should be threaded only

two turns onto the end of the Cable.

42. Locate the Swivel Low Cable (72), which is the

only remaining cable that has an eyelet on one

end and a ball on the other end. Route the eyelet

end of the Cable through the cage on the Long

Base (120) and through the Swivel Upright (5), as

shown.

Attach a 3 1/2” Pulley (78) to the indicated bracket

on the Long Base (120) with 3/8” x 1 3/4” Bolt (93)

and a 3/8” Nylon Locknut (87).

43. Wrap the Swivel Low Cable (72) under a 3 1/2”

Pulley (78). Attach the Pulley to the indicated brack-

et on the Long Base (120) with a 3/8” x 1 3/4” Bolt

(93) and a 3/8” Nylon Locknut (87).

122

91 113

119

121

120

Cage

120

39. Route the Leg Lever Cable (75) under a 4 1/2”

Pulley (119). Attach the Pulley and a Large Cable

Trap (121) to the indicated side of the Butterfly

Upright (3) with a 3/8” x 3 3/4” Bolt (122), a 3/8”

Washer (91), and a 3/8” Nylon Jamnut (113). Make

sure that the Large Cable Trap is turned to hold

the Cable in the groove of the Pulley.

40. Wrap the Leg Lever Cable (75) over a 3 1/2” Pulley

(78). Attach the Pulley to the Double “U”-bracket

(62) with a 3/8” x 1 3/4” Bolt (93) and a 3/8” Nylon

Locknut (87).

45. Wrap the Swivel Low Cable (72) under a 3 1/2”

Pulley (78). Attach the Pulley to the indicated brack-

et on the Long Base (120) with a 3/8” x 1 3/4” Bolt

(93) and a 3/8” Nylon Locknut (87).

46. Route the Swivel Low Cable (72) under the indicat-

ed stack of Weights (44).

Wrap the Swivel Low Cable (72) under a 3 1/2”

Pulley (78). Attach the Pulley to the indicated brack-

et on the Long Base (120) with a 3/8” x 1 3/4” Bolt

(93) and a 3/8” Nylon Locknut (87).

47. Wrap the Swivel Low Cable (72) over a 3 1/2”

Pulley (78). Attach the Pulley and a Cable Trap (68)

between the indicated holes in the Pulley Plates

(63) with a 3/8” x 2” Bolt (100) and a 3/8” Nylon

Locknut (87). Make sure that the Cable Trap is

turned to hold the Cable in the groove of the

Pulley.

48. Wrap the Swivel Low Cable (72) under a 3 1/2”

Pulley (78). Attach the Pulley to the indicated brack-

et on the Short Base (2) with a 3/8” x 1 3/4” Bolt

(93) and a 3/8” Nylon Locknut (87).

120

100 63

44. Wrap the Swivel Low Cable (72) over a 3 1/2” Pulley

(78). Attach the Pulley to the Offset Double “U”-

bracket (61) with a 3/8” x 1 3/4” Bolt (93) and a 3/8”

Nylon Locknut (87).

49. Wrap the Swivel Low Cable (72) over a 3 1/2”

Pulley (78). Attach the Pulley and a Cable Trap (68)

between the lower set of holes in the “U”-bracket

(64) with a 3/8” x 2” Bolt (100) and a 3/8” Nylon

Locknut (87). Make sure that the Cable Trap is

turned to hold the Cable in the groove of the

Pulley.

51. Locate the Squat Cable (73), which is the only

remaining cable. Attach the eyelet end of the

Cable inside of the Long Base (120) with a 5/16” x

2 1/2” Bolt (59), two 5/16” Washers (90), and a

5/16” Nylon Locknut (86).

50. Attach the end of the Swivel Low Cable (72) inside

of the Short Base (2) with a 5/16” x 2 1/2” Bolt (59),

two 5/16” Washers (90), and a 5/16” Nylon Locknut

(86).

52. Wrap the Squat Cable (73) over a 3 1/2” Pulley

(78). Attach the Pulley, a Cable Trap (68), and two

3/4” Spacers (124) between the indicated brackets

on the Squat Slider (38) with a 3/8” x 3 1/4” Bolt

(96) and a 3/8” Nylon Jamnut (113). Make sure

that the Cable Trap is turned to hold the Cable

in the groove of the Pulley.

113

100 64

124

120

124

53. Wrap the Squat Cable (73) under a 3 1/2” Pulley

(78). Attach the Pulley and a Cable Trap (68) to the

second set of holes from the top in the indicated

bracket on the Long Base (120) with a 3/8” x 2” Bolt

(100) and a 3/8” Nylon Locknut (87). Make sure

that the Cable Trap is turned to hold the Cable

in the groove of the Pulley.

54. Wrap the Squat Cable (73) over a 4 1/2” Pulley

(119). Attach the Pulley to the indicated bracket on

the Top Frame (6) with a 3/8” x 1 3/4” Bolt (93) and

a 3/8” Nylon Locknut (87).

55. Place a 1/2” Washer (1) on top of the Weight Tube

(43) closest to the Squat Upright (4). Thread a 1/2”

Nut (118) halfway onto the end of the Squat Cable

(73).

Lift the Weight Tube (43) and the Top Weight (45)

and make sure that the small pin on the Weight

Tube is inside of the groove under the Top Weight.

Hold the Weight Tube (43) and the Top Weight (45)

a few inches over the weight stack and insert the

Weight Pin (50). Screw the end of the Squat Cable

(73) two full turns into the Weight Tube. Then, tighten

the 1/2” Nut (118) against the 1/2” Washer (1).

Remove the Weight Pin and set the Top Weight

back on the weight stack. Replace the Pin.

56. Locate and open the parts bag labeled “SEAT

ASSEMBLY.”

Insert the Pad Tube (23) into the square hole in the

Seat Upright (9). Slide the two Knee Pads (19) onto

the Pad Tube as shown. Press the two Knee Pad

Caps (109) into the ends of the Pad Tube.

Slide two Short Pads (20) onto the Leg Lever (10).

119

109

100 120

SEAT ASSEMBLY

687

118

145

57. Press two 3/4” x 1 1/2” Inner Caps (116) and a 1 1/4”

Square Inner Cap (117) into the Seat Bracket (11).

Attach the Seat (16) to the Seat Bracket (11) with

two 1/4” x 3/4” Screws (114), a 1/4” x 1 1/2” Screw

(99), and a 1/4” Washer (97).

Turn the indicated Adjustment Handle (65) counter-

clockwise several turns to loosen it. Next, pull the

Handle and insert the Seat Bracket (11) into the

Seat Frame (8). Engage the Handle into one of the

holes in the Seat Bracket, and then turn the Handle

clockwise until it is tight.

58. Press two 3/4” x 1 1/2” Inner Caps (116) and a 1 1/4”

Square Inner Cap (117) into the Backrest Bracket

(13).

Attach the Butterfly Backrest (15) to the Backrest

Bracket (13) with four 1/4” x 3/4” Screws (114).

Turn the indicated Adjustment Handle (65) counter-

clockwise several turns to loosen it. Next, pull the

Handle and insert the Backrest Bracket (13) into the

Butterfly Upright (3). Engage the Handle into one of

the holes in the Backrest Bracket, and then turn the

Handle clockwise until it is tight.

59. Wet one end of the Squat Arm (32) with soapy

water. Slide a Short Pad (20) onto the Squat Arm

as shown.

Attach a Squat Handle (33) to the Squat Arm (32)

with two 5/16” x 3/4” Button Head Screws (51) and

two Nut Clips (108). Slide an Inner Cap w/Hole

(111) onto the Squat Handle and press it onto the

end of the Squat Arm. Wet the Squat Handle with

soapy water. Slide an 8” Handgrip (84) onto the

Squat Handle.

Repeat this step with the other end of the Squat

Arm (32).

108

111

116

114

117

114

117

114

116

60. Attach the Squat Arm (32) to the Squat Bracket (37)

with two 3/8” x 2 1/2” Carriage Bolts (106) and two

3/8” Nylon Locknuts (87). Do not tighten the

Nylon Locknuts yet.

Finish attaching the Squat Arm (32) to the Squat

Bracket (37) with two 3/8” x 3” Carriage Bolts (128),

a Small Support Plate (127), and two 3/8” Nylon

Locknuts (87).

Tighten all of the 3/8” Nylon Locknuts (87) used

in this step.

106

127

128

61. Turn the Squat Backrest (35) so that the four screw

holes are closer to the bottom of the Squat

Backrest than the top. Attach the Squat Backrest to

the Squat Bracket (37) with four 1/4” x 3/4” Screws

(114).

Turn the knob on the Adjustment Knob (115) coun-

terclockwise several times to loosen it. Next, pull

the Knob and slide the Squat Bracket (37) down

onto the Squat Slider (38). Engage the Knob into

one of the holes in the Squat Slider, and then turn

the Knob clockwise until it is tight.

62. Make sure that all parts have been properly tightened. The use of the remaining parts will be explained in

ADJUSTMENTS, beginning on the following page.

Before using the weight system, pull each cable a few times to make sure that the cables move smoothly

over the pulleys. If one of the cables does not move smoothly, find and correct the problem. IMPORTANT: If

the cables are not properly installed, they may be damaged when heavy weight is used. See the

CABLE DIAGRAMS on page 26 and 27 of this manual for proper cable routing. If there is any slack in

the cables, you will need to remove the slack by tightening the cables. See TROUBLESHOOTING on

page 25.

115

114

ADJUSTMENTS

The instructions below describe how each part of the weight system can be adjusted. Refer to the exercise

guide accompanying this manual to see how the weight system should be set up for various exercises. IMPOR-

TANT: When attaching the lat bar, row bar, or handle, make sure that the accessories are in the correct

starting position for the exercise to be performed. If there is any slack in the cables or chain as an exer-

cise is performed, the effectiveness of the exercise will be reduced.

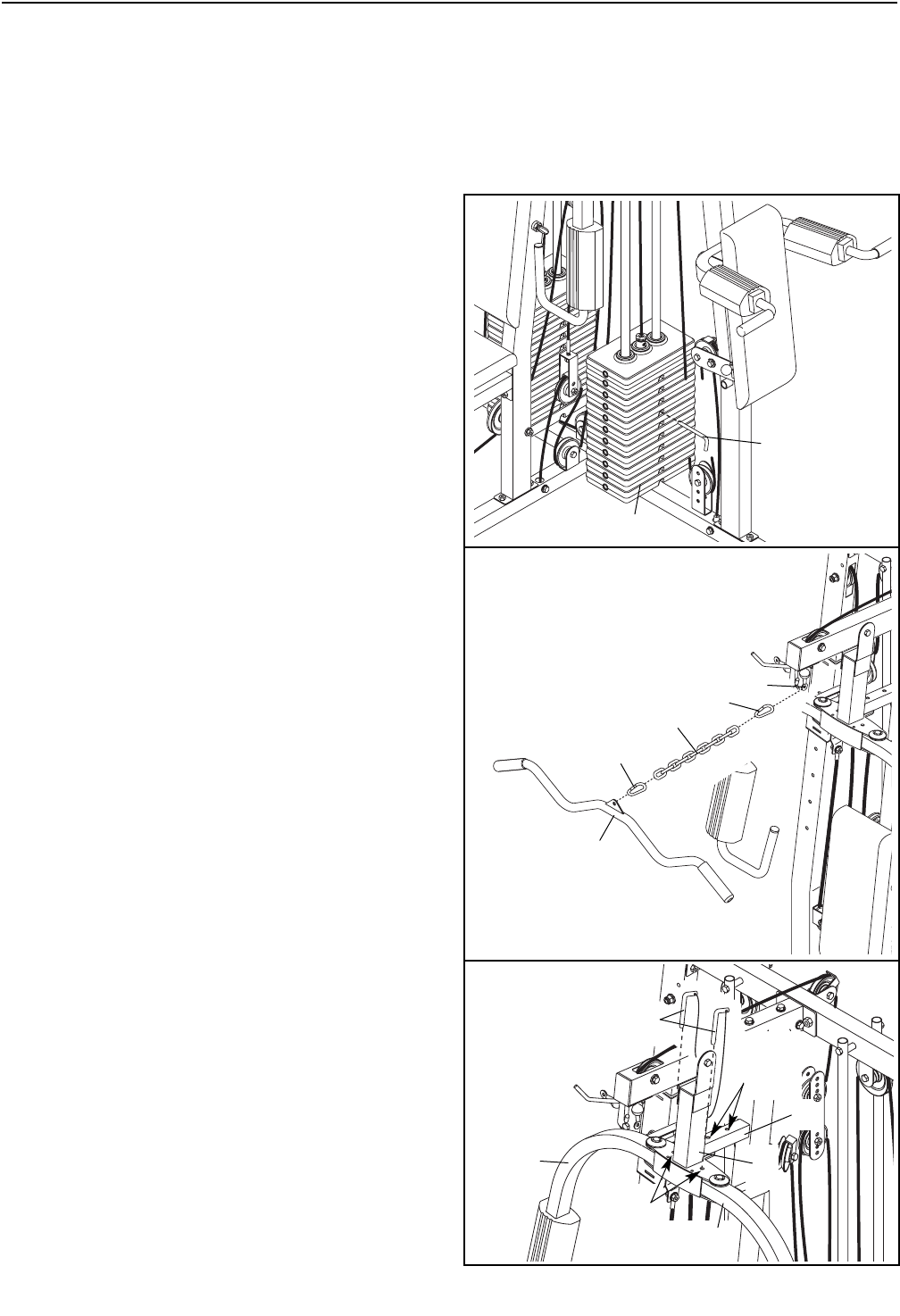

CHANGING THE WEIGHT SETTING

To change the weight setting of either weight stack,

insert a Weight Pin (50) under the desired Weight

(44) until the bent end of the Weight Pin is touching

the Weights. Turn the bent end downward. The

weight setting of each weight stack can be changed

from 10 pounds to 110 pounds, in 10-pound incre-

ments. Note: Due to the cables and pulleys, the

amount of resistance at each exercise station may

vary from the weight setting. Use the WEIGHT

RESISTANCE CHART on page 24 to find the

approximate amount of resistance at each weight

station.

ATTACHING THE ACCESSORIES TO THE HIGH

PULLEY STATION OR THE LOW PULLEY STATION

Attach the Lat Bar (79) to the Lat Cable (88) with a

Cable Clip (83). For some exercises, the Chain (81)

should be attached between the Lat Bar and the Lat

Cable with two Cable Clips. Adjust the length of the

Chain between the Lat Bar and the Lat Cable so the

Lat Bar is in the correct starting position for the

exercise to be performed.

The Lat Bar (79) can be attached to the Swivel Low

Cable (not shown) in the same way.

The Row Bar (not shown), the Handle (not shown), or

Ab Strap (not shown) can be attached to the Lat Cable

(88) or the Swivel Low Cable (not shown) in the same

way.

CONVERTING THE BUTTERFLY ARMS

To use the Butterfly Arms (25, 26) as butterfly arms,

insert the “L”-pins w/Tethers (60) into the butterfly holes

in the Butterfly Upright (3).

To use the Butterfly Arms (25, 26) as press arms, insert

the “L”-pins w/Tethers (60) into the press holes in the

Butterfly Frame (47).

Make sure that both “L”-pins w/Tethers (60) are fully

inserted into the same set of holes before perform-

ing any exercise.

83 88

Butterfly

Holes

Press

Holes 25

ADJUSTING THE SQUAT ARM, SEAT, OR

BUTTERFLY BACKREST

To adjust the height of the Squat Arm (32), first turn

the Adjustment Knob (115) on the Squat Bracket (37)

counterclockwise several turns to loosen it. Next, pull

the Handle and slide the Squat Bracket up or down to

the desired position. Engage the Handle into one of

the holes in the Squat Slider (not shown), and then

turn the Handle clockwise until it is tight.

The height of the Seat (16), the position of the

Butterfly Backrest (15), and the Swivel Carriage (not

shown) can be adjusted in the same way using the

three Adjustment Handles (65).

ADJUSTING THE SQUAT KNEE REST

To use the Squat Knee Rest (41), pivot it down to the

position shown and insert the Pin w/Tether (112) into

the holes in the Squat Knee Rest and the Long Base

(120).

When the Squat Knee Rest (41) is not in use, pivot it

up to a vertical position and then insert the Pin

w/Tether (112) into the hole in the Long Base (120).

120

112

115

HIGH

PULLEY

(lbs.)

101

112

122

LOW

PULLEY

(lbs.)

104

111

122

LEG

LEVER

(lbs.)

111

122

148

160

184

190

BUTTERFLY

ARM

(lbs.)

100

108

PRESS

ARM

(lbs.)

104

118

136

154

167

187

SQUAT

STATION

(lbs.)

116

136

170

192

203

223

239

254

270

SWIVEL

STATION

(lbs.)

104

116

122

WEIGHT

Top

WEIGHT RESISTANCE CHART

The chart below shows the approximate weight resistance at each weight station. “Top” refers to the 10-pound

top weight. The other numbers refer to the 10-pound weight plates. The butterfly arm resistance listed is the

resistance for each butterfly arm. Note: The actual resistance at each weight station may vary due to differ-

ences in individual weight plates as well as friction between the cables, pulleys, and weight guides.

TROUBLESHOOTING

Make sure all parts are properly tightened each time the weight system is used. Replace any worn parts immedi-

ately. The weight system can be cleaned using a damp cloth and mild non-abrasive detergent. Do not use solvents.

TIGHTENING THE CABLES

Woven cable, the type of cable used on the weight system, can stretch slightly when it is first used. If there is

slack in the cables before resistance is felt, the cables should be tightened. To tighten the cables, first insert the

weight pins into the centers of the weight stacks. Slack can be removed from the cables in several ways:

See drawing 1. To tighten the Squat Cable (73) or the Swivel

High Cable (not shown), first loosen the 1/2” Nut (118) on the

end of the Cable, away from the 1/2” Washer (1). Screw the

end of the Cable farther into the Weight Tube (43). Then,

retighten the Nut against the Washer.

See drawing 3. To tighten the other five cables, first remove

the upper or lower 3/8” Nylon Locknut (87), 3/8” x 2” Bolt

(100), 3 1/2” Pulley (78), and Cable Trap (68) from the Pulley

Plates (63) or Small Pulley Plates (not shown). Reattach the

Pulley and the Cable Trap between a set of holes closer to

the center of the Pulley Plates with the Bolt and Locknut.

See drawing 2. To further tighten the Squat Cable (73), first

remove the 3/8” Nylon Locknut (87), the 3/8" x 2" Bolt (100),

Cable Trap (68), and 3 1/2” Pulley (78) from the indicated

bracket on the Long Base (120). Reattach the Pulley and

Cable Trap between a lower set of holes with the Bolt and

Nylon Locknut.

See drawing 4. To remove additional slack, first remove the

3/8” Nylon Locknut (87), 3/8” x 2” Bolt (100), 3 1/2” Pulley

(78), and Cable Trap (68) from the “U”-bracket (64). Reattach

the Pulley and the Cable Trap between the higher set of

holes in the “U”-bracket with the Bolt and Nylon Locknut.

Do not overtighten the cables. If the cables are overtight-

ened, the top weights will be lifted off the weight stacks.

If a cable slips off the pulleys repeatedly, it may have

become twisted. Remove the cable and re-install it. If the

cables need to be replaced, see ORDERING REPLACE-

MENT PARTS on the back cover of this manual.

100

118

120

100

CABLE DIAGRAMS

The cable identification chart below shows the ends of each cable and the lengths of the cables. The cable dia-

grams on this page and the following page show the proper routing of the cables. The numbers in the diagrams

show the routes of the cables. Use the diagrams to make sure that the cables have been assembled correctly.

IMPORTANT: If the cables have not been correctly routed, the weight system will not function properly

and damage may occur.

Butterfly

Cable (69)

Lat Cable (88) Swivel High Cable (74)

Butterfly Cable (69)—58”

Swivel Low Cable (72)—205”

Squat Cable (73)—175 1/4”

Swivel High Cable (74)—126 1/2”

Leg Lever Cable (75)—98 1/2”

Lat Cable (88)—89 1/4”

Swivel Cable (17)—115 3/8”

Cable Identification Chart

Squat Cable (73)

Leg Lever

Cable (75)

Swivel Low

Cable (72)

Swivel Cable (17)

ORDERING REPLACEMENT PARTS

To order replacement parts, simply call our Customer Service Department toll-free at 1-800-999-3756, Monday

through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be pre-

pared to give the following information:

• The MODEL NUMBER of the product (WESY39522)

• The NAME of the product (WEIDER®PRO 3650 weight system)

• The SERIAL NUMBER of the product (see the front cover of this manual)

• The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST and EXPLODED DRAWING

attached in the center of this manual)

LIMITED WARRANTY

ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and

material, under normal use and service conditions, for a period of ninety (90) days from the date of pur-

chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim-

ited to replacing or repairing, at ICON's option, the product through one of its authorized service centers.

All repairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not

extend to any product or damage to a product caused by or attributable to freight damage, abuse, mis-

use, improper or abnormal usage or repairs not provided by an ICON authorized service center; products

used for commercial or rental purposes; or products used as store display models. No other warranty

beyond that specifically set forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con-

nection with the use or performance of the product or damages with respect to any economic loss, loss

of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other

consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci-

dental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of

merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth

herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above

limitation may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813

Note: Assembly is divided into four stages: 1) frame assembly, 2) arm

assembly, 3) cable assembly, and 4) seat assembly. The hardware for

each stage is packaged in separate bags. WAIT UNTIL YOU BEGIN EACH

ASSEMBLY STAGE TO OPEN THE PARTS BAG LABELED FOR THAT

ASSEMBLY STAGE.

This chart is provided to help you identify the small parts used in assembly. The number in parenthesis below

each part refers to the key number of the part from the PART LIST in the center of this manual. Important:

Some parts may have been pre-assembled for shipping purposes. If you cannot find a part in the parts

bags, check to see if it has been pre-assembled.

Cable Clip (83)

3 1/2" Pulley (78)

(Not shown to scale)

"V" Pulley (55)

(Not shown to scale)

4 1/2" Pulley (119)

(Not shown to scale)

3/8" x 3 3/4" Bolt (122)

3/8" x 6 1/2" Bolt (95)

5/16" Washer (90)

5/16" x 3 3/4" Bolt (92)

5/16" x 3 1/2" Bolt (94)

1/2" Nut (118)

3/8" Nylon Locknut (87)

5/16" Nylon Locknut (86)

3/8" Washer (91)

3/8" Nylon Jamnut (113)

1/4" Nylon Locknut (34)

1/4" Washer (97)

1/2" Washer (1)

1/2" Spacer (89)

3/4" Spacer (124)

PART IDENTIFICATION CHART—Model No. WESY39522 R1202A

3/8" x 2" Bolt (100)

3/8" x 1 3/4" Bolt (93)

#10 x 1" Screw (14)

3/8" x 2 1/2" Bolt (18)

5/16" x 2 3/4" Bolt (85)

3/8" x 2 3/4" Bolt (101)

3/8" x 3" Bolt (107)

3/8" x 3 1/4" Bolt (96)

5/16" x 3/4" Button Head Screw (51)

5/16" x 2 1/2" Bolt (59)

#8 x 3/4" Screw (98)

1/4" x 1 1/2" Bolt (99)

5/16" x 1" Shoulder Bolt (103)

3/8" x 3" Button Head Bolt (104)

5/16" x 2 1/2" Carriage Bolt (110)

3/8" x 2 1/2" Carriage Bolt (106)

1/4" x 3/4" Screw (114)

3/8" x 7" Bolt (30)

3/8" x 1" Bolt (126)

3/8" x 3" Carriage Bolt (128)

1 1/4" Square Inner Cap (117)

1" Round Inner Cap (29)

1 1/2" x 2” Inner Cap (21)

2" Square Inner Cap (105)

1 1/2" Square Inner Cap (67)

2" x 3” Inner Cap (58)

3/4” x 1 1/2" Inner Cap (116)

2" x 2 1/2” Inner Cap (125)

REMOVE THIS PART LIST/EXPLODED DRAWING

FROM THE MANUAL.

SAVE THIS PART LIST/EXPLODED DRAWING FOR FUTURE REFERENCE

PART LIST—Model No. WESY39522 R1202A

Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice.

1 2 1/2” Washer

2 1 Short Base

3 1 Butterfly Upright

4 1 Squat Upright

5 1 Swivel Upright

6 1 Top Frame

7 1 Butterfly Top Frame

8 1 Seat Frame

9 1 Seat Upright

10 1 Leg Lever

11 1 Seat Bracket

12 1 Upright Extension

13 1 Backrest Bracket

14 6 #10 x 1” Screw

15 1 Butterfly Backrest

16 1 Seat

17 1 Swivel Cable

18 4 3/8” x 2 1/2” Bolt

19 2 Knee Pad

20 4 Short Pad

21 5 1 1/2" x 2" Inner Cap

22 1 Ab Strap

23 1 Pad Tube

24 1 Base Cap

25 1 Left Butterfly Arm

26 1 Right Butterfly Arm

27 2 Press Handle

28 2 Long Handgrip

29 2 1" Round Inner Cap

30 1 3/8” x 7” Bolt

31 2 Small Pulley Plate

32 1 Squat Arm

33 2 Squat Handle

34 1 1/4” Nylon Locknut

35 1 Squat Backrest

36 4 5” Handgrip

37 1 Squat Bracket

38 1 Squat Slider

39 4 Roller

40 8 Roller Bearing

41 1 Squat Knee Rest

42 4 Weight Guide

43 2 Weight Tube

44 20 Weight

45 2 Top Weight

46 1 Swivel Carriage

47 1 Butterfly Frame

48 2 Weight Tube Bumper

49 4 Weight Bumper

50 2 Weight Pin

51 8 5/16” x 3/4” Button

Head Screw

52 2 Short Frame Plate

53 1 Foot Plate

54 2 Long Pad

55 2 "V"-pulley

56 4 Plastic Washer

57 4 Butterfly Cap

58 7 2” x 3” Inner Cap

59 4 5/16” x 2 1/2” Bolt

60 2 “L”-pin w/Tether

61 1 Offset Double

“U”-bracket

62 1 Double “U”-bracket

63 2 Pulley Plate

64 1 "U"-bracket

65 3 Adjustment Handle

66 2 Swivel Bushings

67 1 1 1/2" Square Inner

Cap

68 8 Cable Trap

69 1 Butterfly Cable

70 2 Pivot Bracket

71 1 Long Frame Plate

72 1 Swivel Low Cable

73 1 Squat Cable

74 1 Swivel High Cable

75 1 Leg Lever Cable

76 1 Swivel Cage

77 1 Leg Lever Bumper

78 22 3 1/2" Pulley

79 1 Lat Bar

80 1 Row Bar

81 1 Chain

82 1 Handle

83 3 Cable Clip

84 2 8” Handgrip

85 4 5/16” x 2 3/4” Bolt

86 35 5/16" Nylon Locknut

87 37 3/8" Nylon Locknut

88 1 Lat Cable

89 6 1/2” Spacer

90 34 5/16" Washer

91 13 3/8" Washer

92 12 5/16” x 3 3/4” Bolt

93 14 3/8" x 1 3/4" Bolt

94 4 5/16” x 3 1/2” Bolt

95 2 3/8" x 6 1/2" Bolt

96 2 3/8” x 3 1/4” Bolt

97 2 1/4" Washer

98 3 #8 x 3/4” Screw

99 1 1/4" x 1 1/2" Screw

100 9 3/8" x 2" Bolt

101 3 3/8” x 2 3/4” Bolt

102 3 Long Cable Trap

103 3 5/16” x 1” Shoulder

Bolt

104 2 3/8” x 3” Button Head

Bolt

105 1 2” Square Inner Cap

106 2 3/8” x 2 1/2” Carriage

Bolt

107 1 3/8” x 3” Bolt

108 8 Nut Clip

109 2 Knee Pad Cap

110 10 5/16” x 2 1/2”

Carriage Bolt

111 2 Inner Cap w/Hole

112 1 Pin w/Tether

113 7 3/8” Nylon Jamnut

114 10 1/4” x 3/4” Screw

115 1 Adjustment Knob

116 4 3/4” x 1 1/2” Inner Cap

117 2 1 1/4” Square Inner

Cap

118 2 1/2” Nut

119 4 4 1/2” Pulley

120 1 Long Base

121 1 Large Cable Trap

122 1 3/8” x 3 3/4” Bolt

123 4 Knee Rest Bumper

124 2 3/4” Spacer

125 1 2” x 2 1/2” Inner Cap

126 1 3/8” x 1” Bolt

127 1 Small Support Plate

128 2 3/8” x 3” Carriage Bolt

# 1 User’s Manual

# 1 Exercise Guide

Key

No. Qty. Description

Key

No. Qty. Description

Key

No. Qty. Description

109

33 111

111

114

60 60

115

102

78 119

102

119

110

113

51 51

100

122

93 93

114

106

103

103 101

104

107

125

128

124

120

112

110

100

101

90 86

110

105

86 86

100

113

108

103

116

117

127

104

121

118

94 40

123

124

100

119

101

100

126

87 17

93 87

EXPLODED DRAWING—Model No. WESY39522 R1202A

Weider Pro 3650 System Wesy3952 Users Manual *WESY39522 194061

Weider-Wesy39522-Owner-S-Manual weider-wesy39522-owner-s-manual

WESY39522 to the manual 14014d78-7270-480e-bae8-1548cbaa4dd5

Navigation menu

Versions of this User Manual:

Views

Navigation
