CAUTION

Read all precautions and instruc-

tions in this manual before

using this equipment. Save this

manual for future reference.

Serial Number Decal (Under Seat)

Model No. WEBE15210

Serial No.

Write the serial number in the

space above for future reference.

Visit our website at

www.weiderfitness.com

new products, prizes,

fitness tips, and much more!

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction. If you

have questions, or if there are

missing parts, we will guarantee

complete satisfaction through

direct assistance from our factory.

TO AVOID UNNECESSARY

DELAYS, PLEASE CALL DIRECT

TO OUR TOLL-FREE CUSTOMER

HOT LINE. The trained techni-

cians on our customer hot line

will provide immediate assis-

tance, free of charge to you.

CUSTOMER HOT LINE:

1-800-999-3756

Mon.–Fri., 6 a.m.–6 p.m. MST

USER’S MANUAL

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

Keep hands and

fingers clear of

this area.

TABLE OF CONTENTS

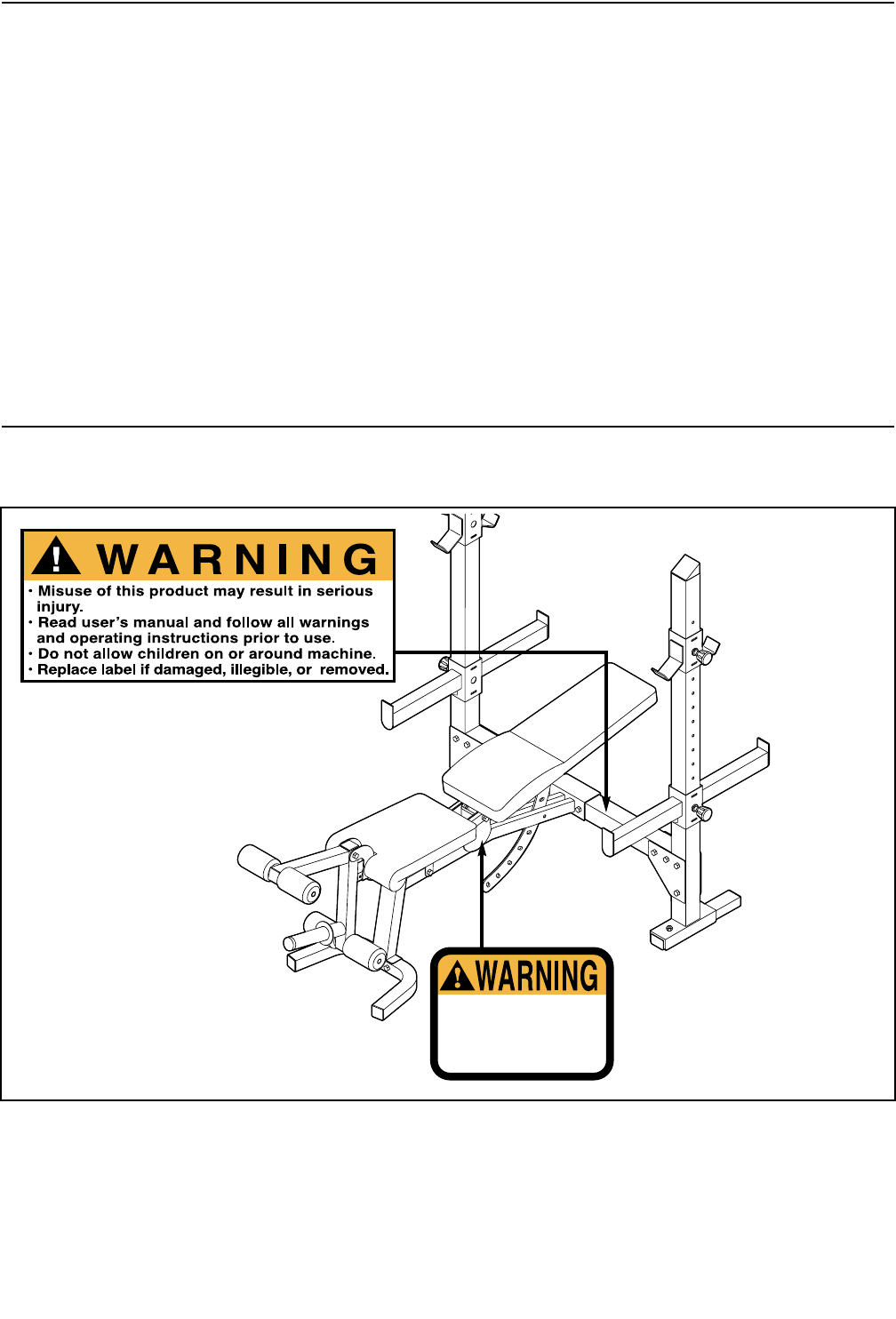

WARNING DECAL PLACEMENT

The decals shown here

have been placed on the

weight bench. If a decal

is missing, or if it is not

legible, please call our

Customer Service

Department toll-free at

1-800-999-3756, Monday

through Friday, 6 a.m.

until 6 p.m. Mountain

Time, to order a free

replacement decal.

Apply the replacement

decal in the location

shown. Note: This decal is placed on

the plastic plate, on both

sides of the weight bench.

1. Read all instructions in this manual before

using the weight bench. Use the weight

bench only as described in this manual.

2. The weight bench is intended for home use

only. Do not use the weight bench in any

commercial, rental, or institutional setting.

3. It is the responsibility of the owner to ensure

that all users of the weight bench are ade-

quately informed of all precautions.

4. Use the weight bench only on a level surface.

Cover the floor beneath the weight bench to

protect the floor.

5. Make sure all parts are properly tightened

each time you use the weight bench. Replace

any worn parts immediately.

6. Keep children under the age of 12 and pets

away from the weight bench at all times.

7. Always wear athletic shoes for foot protec-

tion while exercising.

8. Keep hands and feet away from moving parts.

9. Always keep an equal amount of weight on

each end of your barbell when you are using

it. When adding or removing weights, always

keep some weight on both ends of the bar-

bell to prevent the barbell from tipping. Note:

The weight bench does not include a barbell

or weights.

10. Do not use a barbell that is longer than six

feet with the weight bench.

11. When you put weight on the weight rests,

make sure you put at least ten pounds on the

leg lever to balance the weight bench.

12. When you are using the leg lever, place a

barbell with the same amount of weight on

the weight rests to balance the bench.

13. When adjusting the position of the backrest,

make sure that the backrest adjustment knob

is fully inserted through the backrest bracket.

14. Make sure that the large adjustment knobs

are inserted completely and tightened into

the uprights before beginning any exercise.

15.

Always set both weight rests and both

weight spotters at the same height.

16. The weight bench is designed to support a

maximum of 560 pounds, including the user,

a barbell, and weights. Do not place more

than 310 pounds, including a barbell and

weights, on the weight rests. Do not place

more than 150 pounds on the leg lever.

17. Always exercise with a partner. When you

are performing bench press exercises, your

partner should stand behind you to catch the

barbell if you cannot complete a repetition.

18. If you feel pain or dizziness while exercising,

stop immediately and begin cooling down.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. ICON assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

WARNING: To reduce the risk of serious injury, read the following important precautions

before using the weight bench.

IMPORTANT PRECAUTIONS

Backrest

Backrest Bracket

Weight Rests

Weight

Spotter

Upright

Adjustment

Knob

Seat

Leg Lever

Weight Tube

Thank you for selecting the WEIDER®PRO 425 weight

bench. The versatile WEIDER®PRO 425 weight bench

is designed to be used with your own weight set (not

included) to develop every major muscle group of the

body. Whether your goal is a shapely figure, dramatic

increase in muscle size and strength, or a healthier

cardiovascular system, the WEIDER®PRO 425 will

help you to achieve the specific results you want.

For your benefit, read this manual carefully before

using the WEIDER®PRO 425 weight bench. If you

have additional questions, please call our Customer

Service Department toll-free at 1-800-999-3756,

Monday through Friday, 6 a.m. until 6 p.m. Mountain

Time (excluding holidays). To help us assist you,

please note the product model number and serial

number before calling. The model number is

WEBE15210. The serial number can be found on a

decal attached to the weight bench (see the front

cover of this manual).

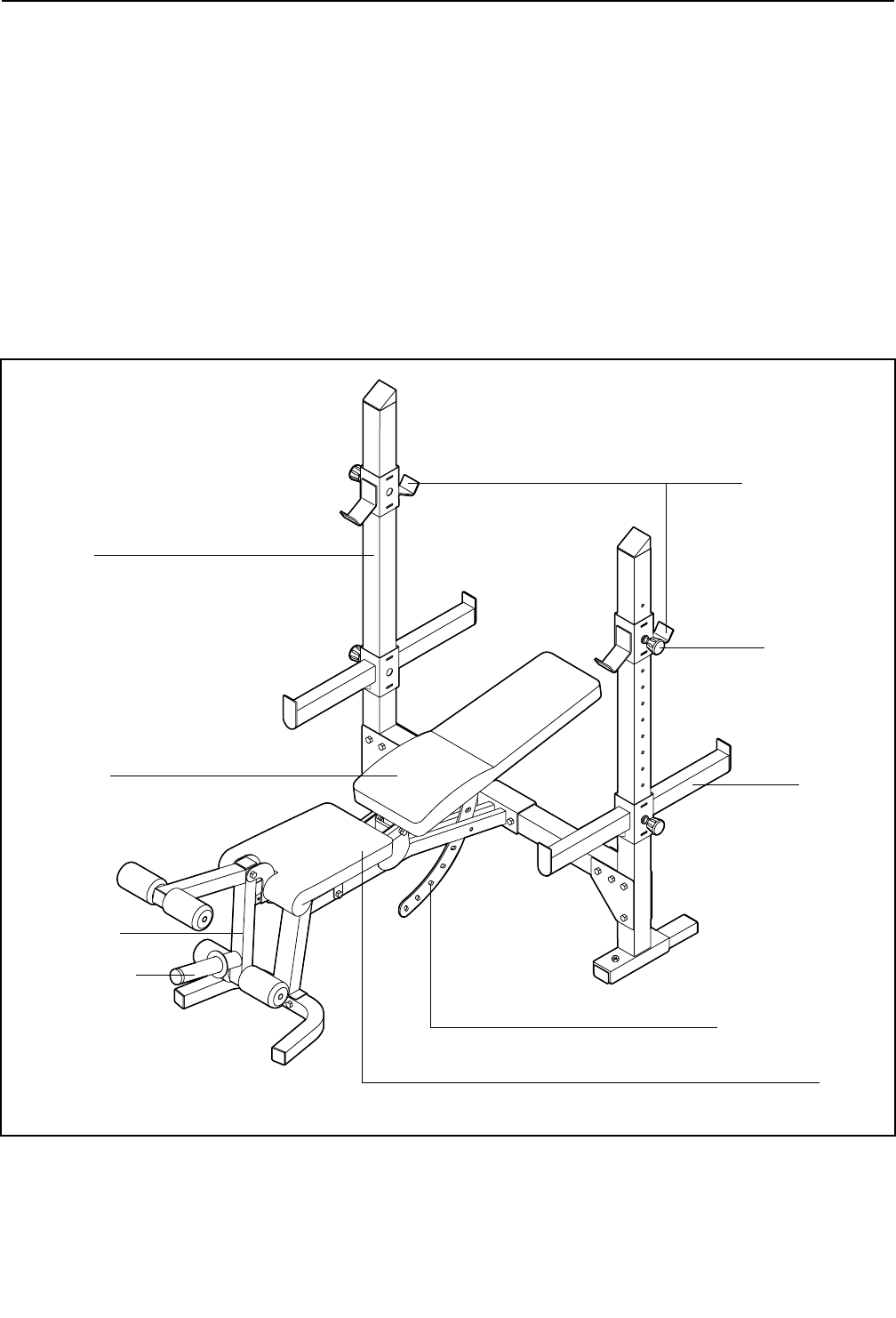

Before reading further, please look at the drawing

below and familiarize yourself with the parts that are

labeled.

BEFORE YOU BEGIN

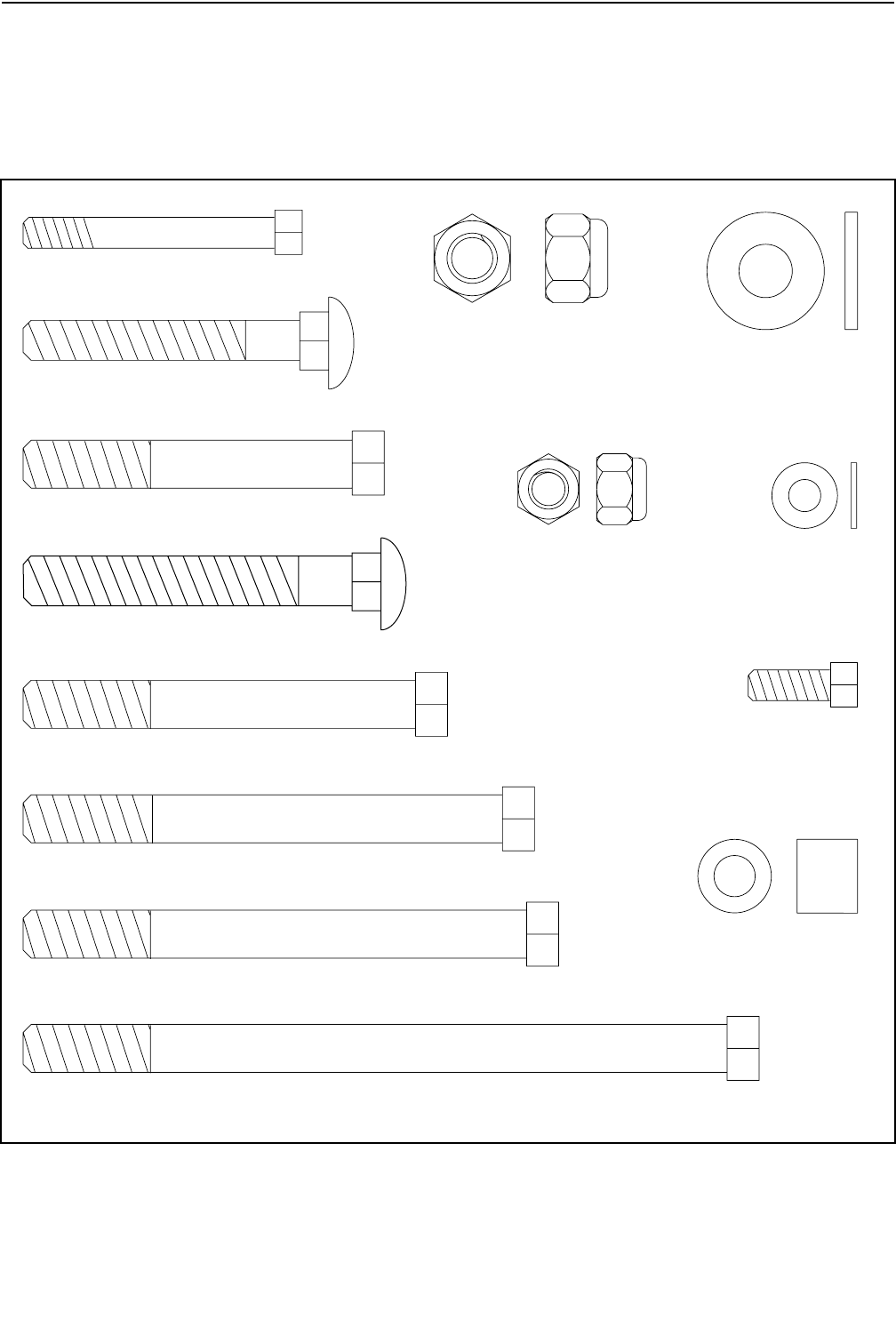

This chart is provided to help you identify the small parts used in assembly. The number in parentheses below

each part refers to the key number of the part from the PART LIST on page 14 of this manual. Important: Some

parts may have been pre-assembled for shipping purposes. If you cannot find a part in the parts bags,

check to see if it has been pre-assembled.

M10 Nylon Locknut (35)

12.5mm Spacer (33)

M8 Nylon Locknut (42) M6 Washer (19)

M10 Washer (27)

M10 x 65mm Bolt (36)

M10 x 78mm Bolt (28)

M10 x 100mm Bolt (38)

M10 x 140mm Bolt (37)

M6 x 16mm Bolt (31)

M6 x 50mm Bolt (39)

M8 x 55mm Carriage Bolt (40)

M10 x 95mm Bolt (34)

M10 x 65mm Carriage Bolt (41)

PART IDENTIFICATION CHART

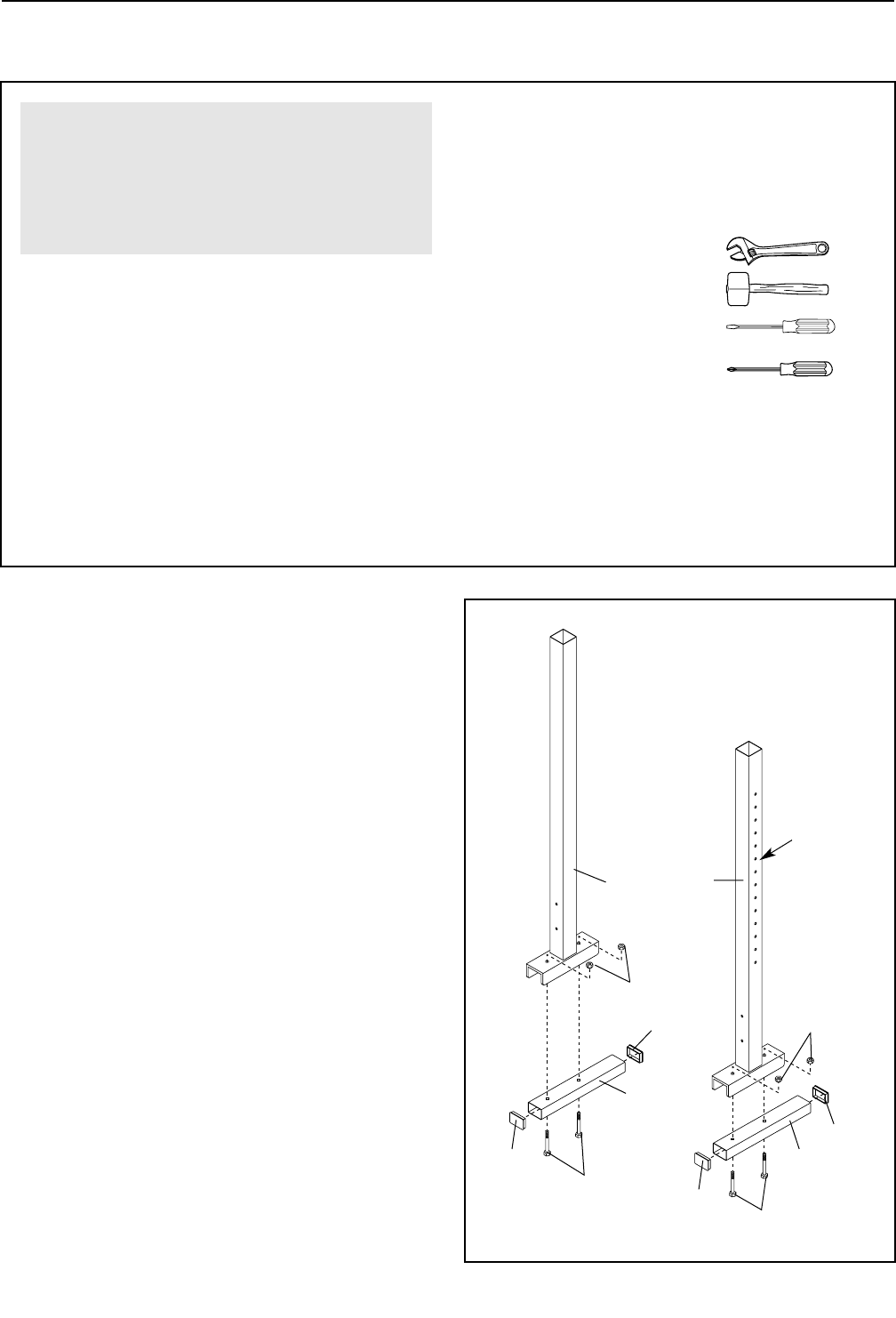

1. Before assembling this weight bench, be sure

that you have read and understand the infor-

mation in the box above.

Press two 75mm x 50mm Inner Caps (20) into the

ends of an Upright Stabilizer (5).

Attach an Upright (4) to the Upright Stabilizer (5)

with two M10 x 65mm Carriage Bolts (41) and

two M10 Nylon Locknuts (35). Note: There are

indents around the holes on one side of the

Upright Stabilizers; this side must be on the

bottom.

Assemble the other Upright (4) and Upright

Stabilizer (5) in the same manner.

Do not tighten the M10 Nylon Locknuts (35) yet.

Orient the Uprights (4) with the adjustment holes

on the outside, as shown.

Adjustment

Holes

Before beginning assembly, carefully read the

following information and instructions:

•Assembly requires two people.

•For help identifying small parts, use the PART

IDENTIFICATION CHART on page 5.

•Tighten all parts as you assemble them, unless

instructed to do otherwise.

•As you assemble the weight bench, make sure all

parts are oriented as shown in the drawings.

•Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until assembly is completed.

The following tools (not included) are required

for assembly:

• Two adjustable wrenches

• One rubber mallet

• One standard screwdriver

• One Phillips screwdriver

• Lubricant, such as grease or petroleum jelly,

and soapy water.

Assembly will be more convenient if you have a

socket set, a set of open-end or closed-end

wrenches, or a set of ratchet wrenches.

Make Things Easier for Yourself

This manual is designed to ensure that the

weight bench can be assembled successfully

by anyone. Most people find that by setting

aside plenty of time, assembly will go smoothly.

ASSEMBLY

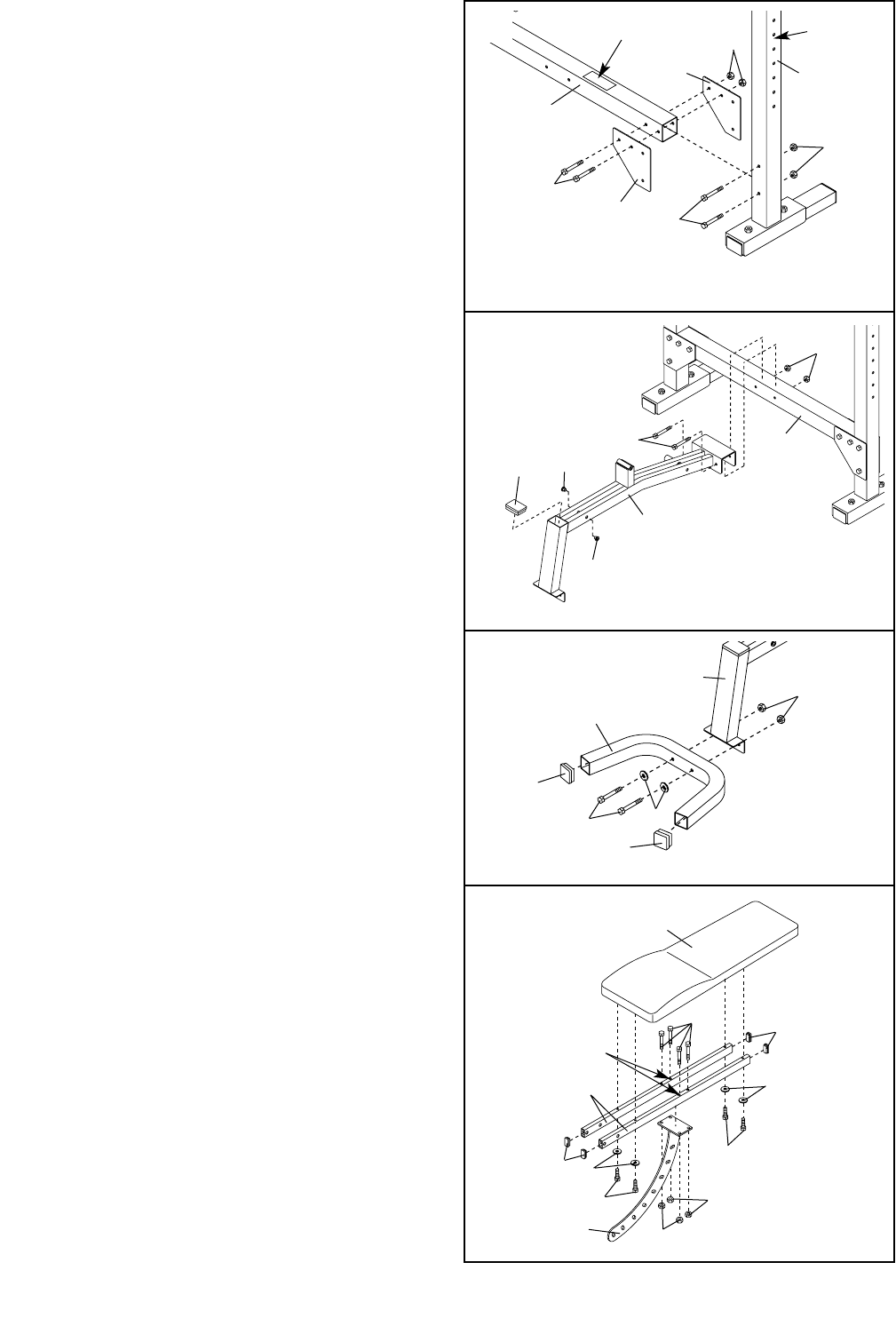

2. Position the Crossbar (3) between the two

Uprights (4). Note: Make sure the decal on the

Crossbar is in the position shown. Attach the

Crossbar to each Upright with four M10 x 95mm

Bolts (34), two Support Plates (21), and four M10

Nylon Locknuts (35). Do not tighten the Nylon

Locknuts yet.

3. Attach the Frame (1) to the Crossbar (3) with two

M10 x 95mm Bolts (34) and two M10 Nylon

Locknuts (35). Do not tighten the Nylon

Locknuts yet.

Press two 8mm Bushings (32) into the indicated

locations on the Frame (1).

Press a 75mm x 50mm Inner Cap (20) into the

Frame (1).

4. Press two 50mm Square Inner Caps (22) into the

Front Stabilizer (2).

Attach the Front Stabilizer (2) to the Frame (1)

with two M10 x 65mm Bolts (36), two M10

Washers (27), and two M10 Nylon Locknuts (35).

Tighten the M10 Nylon Locknuts (34) used in

steps 1-4.

5. Press four 20mm x 40mm Inner Caps (43) into

the Backrest Frames (10). Orient the Backrest

Frames as shown. Note: The indents in the

Backrest Frames must be on top.

Attach the Backrest Bracket (9) to the Backrest

Frames (10) with four M8 x 55mm Carriage Bolts

(40) and four M8 Nylon Locknuts (42). Do not

tighten the Nylon Locknuts yet.

Attach the Backrest (8) to the Backrest Frames

(10) with four M6 x 50mm Bolts (39) and four M6

Washers (19). Do not tighten the Bolts yet.The

Backrest must be oriented as shown.

Decal Holes

Indent

6. Screw the Backrest Adjustment Knob (30) into the

Frame (1). Pull the Knob out as far as it will go

and lower the Backrest Bracket (9) between the

Bench Frame. Snap the Knob into an adjustment

hole in the Backrest Bracket.

Lubricate an M10 x 140mm Bolt (37). Attach the

indicated set of holes in the Backrest Frames (10)

and the two Plastic Plates (26) to the Bench

Frame (1) with the Bolt, two M10 Washers (27),

and an M10 Nylon Locknut (35). Note: The warn-

ing decals on the Plastic Plates must face

away from the bench. Do not overtighten the

M10 Nylon Locknut; the Backrest (8) must be

able to pivot easily.

7. Press the 40mm x 50mm Inner Cap (45) into the

Seat Frame (6). Press six 8mm Bushings (32) into

the Seat Frame and the Backrest Frames (10) .

Attach the Seat Bracket (14) to the Seat Frame

(6) with an M10 x 78mm Bolt (28) and an M10

Nylon Locknut (35).

Attach the Seat Bracket (14) to the Frame (1) with

an M10 x 100mm Bolt (38) and an M10 Nylon

Locknut (35).

Lubricate an M10 x 140mm Bolt (37). Attach the

bottom set of holes in both the Backrest Frames

(10) and the two Plastic Plates (26), and two

12.5mm Spacers (33), to the Seat Frame (6) with

the Bolt and an M10 Nylon Locknut (35). Do not

overtighten the M10 Nylon Locknut; the

Backrest (8) must be able to pivot easily.

Tighten the M8 Nylon Locknuts (42) used in

step 5.

8. Press two 8mm Bushings (32) into the Leg Lever

Bracket (13).

Attach the Leg Lever Bracket (13) to the Seat

Frame (6) with the Small Adjustment Knob (29).

Lubricate

Hole

Adjustment Hole Decal

33 45

32 6

9. Press three 50mm Square Inner Caps (22) into

the Leg Lever (15). Press a 50mm Round Inner

Cap (44) into the weight tube.

Lubricate an M10 x 78mm Bolt (28). Attach the

Leg Lever (15) to the Leg Lever Bracket (13) with

the Bolt and an M10 Nylon Locknut (35). Do not

overtighten the Nylon Locknut; the Leg Lever

must pivot freely. 22

22 35 13

Weight

Tube

Lubricate

32 33

28 10

Adjustment Hole

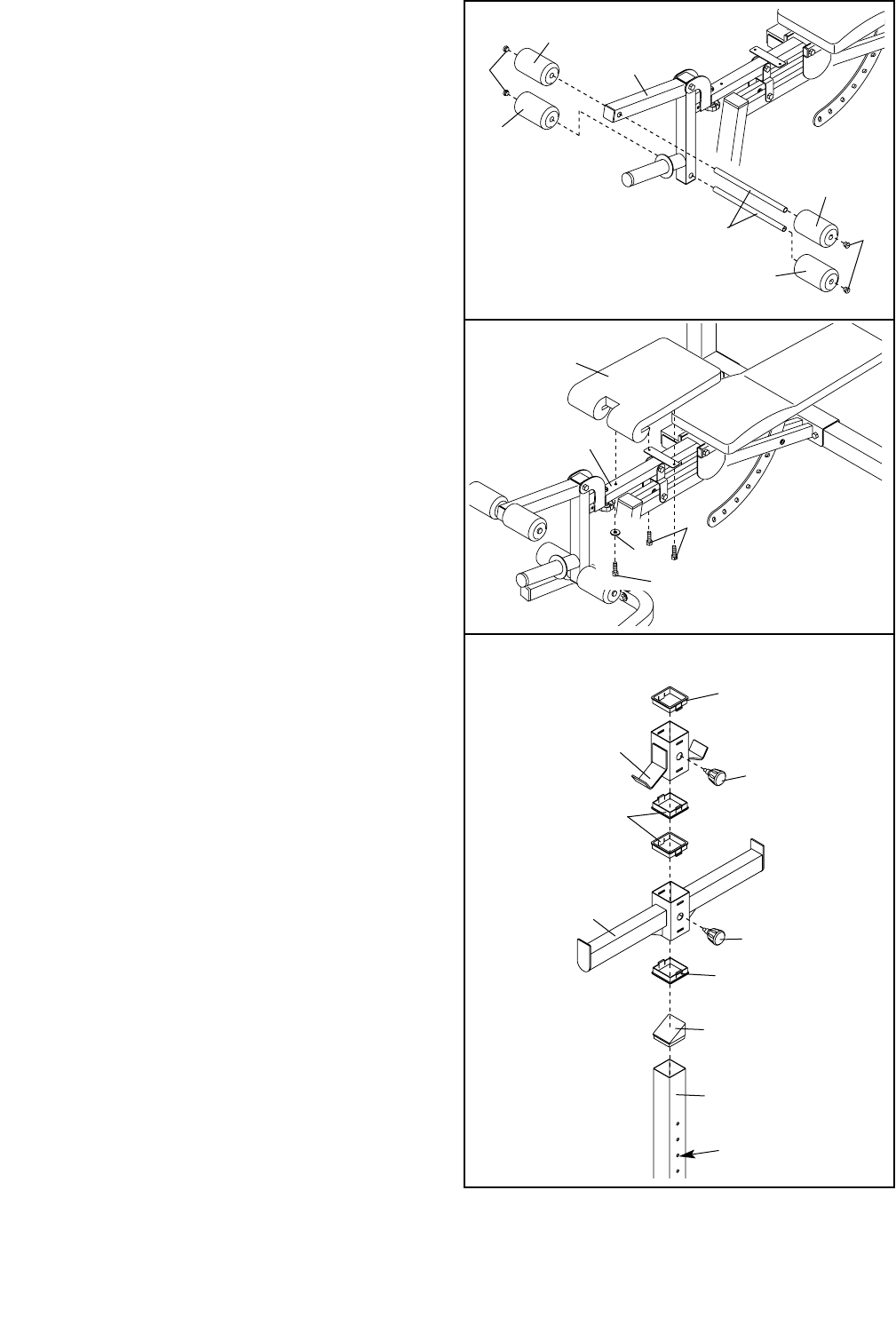

11. Attach the Seat (7) to the bracket on the Seat

Frame (6) using two M6 x 16mm Bolts (31). Attach

the other end of the Seat to the Seat Frame with

an M6 Washer (19) and an M6 x 50mm Bolt (39).

10. Press four 19mm Round Inner Caps (24) into the

ends of the two Pad Tubes (25).

Insert the Pad Tubes (25) into the holes in the

Leg Lever (15). Slide two Foam Pads (23) onto

each Pad Tube.

12. Press a Square Bushing (16) into the top and bot-

tom of a Weight Rest (12) and a Weight Spotter

(11). Screw a Large Adjustment Knob (18) into the

Weight Rest and the Weight Spotter.

Pull the Large Adjustment Knob (18) in the Weight

Spotter (11) out as far as it will go. Slide the

Weight Spotter over an Upright (4). Snap the

Knob into one of the lower adjustment holes in the

Upright. Turn the Knob clockwise until tight. Attach

a Weight Rest (12) to the Upright in the same

manner. Press an Upright Cap (17) into the top of

the Upright.

Repeat this step with the other Upright (4).

Note: Make sure both Weight Rests (12) and

both Weight Spotters (11) are set at the same

height.

13. Make sure that all parts are properly tightened

before you use the weight bench. The use of

all remaining parts will be explained in ADJUST-

MENTS on page 10.

ADJUSTING THE BACKREST

The Backrest (8) can be used in eight different posi-

tions. To adjust the Backrest, hold the Backrest up

and pull the Backrest Adjustment Knob (30) out as far

as it will go. Move the Backrest to the desired posi-

tion and insert the Knob into an adjustment hole in

the Backrest Bracket (9).

ADJUSTING THE WEIGHT REST AND WEIGHT

SPOTTER

Before beginning an exercise, move the Weight

Rests (12) and the Weight Spotters (11) to sets of

holes in the Uprights (4) that are best suited for that

exercise. Do this by turning the Adjustment Knobs

(18) counterclockwise until loose. Pull the Knobs out

and slide the Weight Rests or the Weight Spotters to

the desired height. Snap the Knobs into the adjust-

ment holes in the Uprights and turn the Knobs clock-

wise until tight.

The selected holes for the Weight Spotters (11)

should represent the lowest point to which you want

the barbell to go during the exercise. The selected

holes for the Weight Rests (12) should be at a com-

fortable height for lifting and replacing the barbell.

Perform the exercise as shown on the accompanying

exercise guide. Note: Make sure the Adjustment

Knobs (18) are fully tightened.

WARNING: When adjusting the

position of the Backrest (8), first remove all

weight from the weight tube on the Leg Lever

(15). Make sure that the Backrest Adjustment

Knob (30) is fully inserted through the

Backrest Bracket (9).

12 18

The weight bench is designed to be used with your own weight set (not included). The steps below explain how

the weight bench can be adjusted. See EXERCISE GUIDELINES on page 11 for important exercise information

and refer to the accompanying exercise guide to see the correct form for several exercises.

Make sure all parts are properly tightened each time you use the weight bench. Replace any worn parts immediate-

ly. The weight bench can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.

Adjustment Hole

ADJUSTMENTS

WARNING: Always set both Weight

Rests (12) at the same height and both Weight

Spotters (11) at the same height.

EXERCISE GUIDELINES

THE FOUR BASIC TYPES OF WORKOUTS

Muscle Building

To increase the size and strength of your muscles,

push them close to their maximum capacity. Your mus-

cles will continually adapt and grow as you progres-

sively increase the intensity of your exercise. You can

adjust the intensity level of an individual exercise in

two ways:

• by changing the amount of weight used

• by changing the number of repetitions or sets per-

formed. (A “repetition” is one complete cycle of an

exercise, such as one sit-up. A “set” is a series of

repetitions.)

The proper amount of weight for each exercise

depends upon the individual user. You must gauge

your limits and select the amount of weight that is right

for you. Begin with 3 sets of 8 repetitions for each

exercise you perform. Rest for 3 minutes after each

set. When you can complete 3 sets of 12 repetitions

without difficulty, increase the amount of weight.

Toning

You can tone your muscles by pushing them to a mod-

erate percentage of their capacity. Select a moderate

amount of weight and increase the number of repeti-

tions in each set. Complete as many sets of 15 to 20

repetitions as possible without discomfort. Rest for 1

minute after each set. Work your muscles by complet-

ing more sets rather than by using high amounts of

weight.

Weight Loss

To lose weight, use a low amount of weight and

increase the number of repetitions in each set.

Exercise for 20 to 30 minutes, resting for a maximum

of 30 seconds between sets.

Cross Training

Cross training is an efficient way to get a complete and

well-balanced fitness program. An example of a bal-

anced program is:

• Plan weight training workouts on Monday,

Wednesday, and Friday.

• Plan 20 to 30 minutes of aerobic exercise, such as

cycling or swimming, on Tuesday and Thursday.

• Rest from both weight training and aerobic exercise

for at least one full day each week to give your body

time to regenerate.

The combination of weight training and aerobic exer-

cise will reshape and strengthen your body, plus devel-

op your heart and lungs.

PERSONALIZING YOUR EXERCISE PROGRAM

Determining the exact length of time for each workout,

as well as the number of repetitions or sets completed,

is an individual matter. It is important to avoid overdo-

ing it during the first few months of your exercise pro-

gram. You should progress at your own pace and be

sensitive to your body’s signals. If you experience pain

or dizziness at any time while exercising, stop immedi-

ately and begin cooling down. Find out what is wrong

before continuing. Remember that adequate rest and a

proper diet are important factors in any exercise pro-

gram.

WARMING UP

Begin each workout with 5 to 10 minutes of stretching

and light exercise to warm up. Warming up prepares

your body for more strenuous exercise by increasing

circulation, raising your body temperature and deliver-

ing more oxygen to your muscles.

WORKING OUT

Each workout should include 6 to 10 different exercis-

es. Select exercises for every major muscle group,

emphasizing areas that you want to develop most. To

give balance and variety to your workouts, vary the

exercises from session to session.

Schedule your workouts for the time of day when your

energy level is the highest. Each workout should be

followed by at least one day of rest. Once you find the

schedule that is right for you, stick with it.

EXERCISE FORM

Maintaining proper form is an essential part of an

effective exercise program. This requires moving

through the full range of motion for each exercise, and

moving only the appropriate parts of the body.

Exercising in an uncontrolled manner will leave you

feeling exhausted. On the exercise guide accompany-

ing this manual you will find photographs showing the

correct form for several exercises, and a list of the

muscles affected. Refer to the muscle chart on page

12 to find the names of the muscles.

The repetitions in each set should be performed

smoothly and without pausing. The exertion stage of

each repetition should last about half as long as the

return stage. Proper breathing is important. Exhale

during the exertion stage of each repetition and inhale

during the return stroke. Never hold your breath.

Rest for a short period of time after each set. The

ideal resting periods are:

• Rest for three minutes after each set for a muscle

building workout.

• Rest for one minute after each set for a toning work-

out.

• Rest for 30 seconds after each set for a weight loss

workout.

Plan to spend the first couple of weeks familiarizing

yourself with the equipment and learning the proper

form for each exercise.

COOLING DOWN

End each workout with 5 to 10 minutes of stretching.

Include stretches for both your arms and legs. Move

slowly as you stretch and do not bounce. Ease into

each stretch gradually and go only as far as you can

without strain. Stretching at the end of each workout

is an effective way to increase flexibility.

STAYING MOTIVATED

For motivation, keep a record of each workout. The

chart on page 13 of this manual can be photocopied

and used to schedule and record your workouts. List

the date, the exercises performed, the weight used,

and the numbers of sets and repetitions completed.

Record your weight and key body measurements at

the end of every month. Remember, the key to

achieving the greatest results is to make exercise a

regular and enjoyable part of your everyday life.

MUSCLE CHART

A. Sternomastoid (neck)

B. Pectoralis Major (chest)

C. Biceps (front of arm)

D. Obliques (waist)

E. Brachioradials (forearm)

F. Hip Flexors (upper thigh)

G. Abductor (outer thigh)

H. Quadriceps (front of thigh)

I. Sartorius (front of thigh)

J. Tibialis Anterior (front of calf)

K. Soleus (front of calf)

L. Rectus Abdominus (stomach)

M. Adductor (inner thigh)

N. Trapezius (upper back)

O. Rhomboideus (upper back)

P. Deltoid (shoulder)

Q. Triceps (back of arm)

R. Latissimus Dorsi (mid back)

S. Spinae Erectors (lower back)

T. Gluteus Medius (hip)

U. Gluteus Maximus (buttocks)

V. Hamstring (back of leg)

W. Gastrocnemius (back of calf)

MONDAY

Date:

/ /

EXERCISE WEIGHT SETS REPS

AEROBIC EXERCISE

TUESDAY

Date:

/ /

WEDNESDAY

Date:

/ /

THURSDAY

Date:

/ /

FRIDAY

Date:

/ /

Make photocopies of this page for scheduling and recording your workouts.

Key No. Qty. Description Key No. Qty. Description

1 1 Frame

2 1 Front Stabilizer

3 1 Crossbar

4 2 Upright

5 2 Upright Stabilizer

6 1 Seat Frame

7 1 Seat

8 1 Backrest

9 1 Backrest Bracket

10 2 Backrest Frame

11 2 Weight Spotter

12 2 Weight Rest

13 1 Leg Lever Bracket

14 1 Seat Bracket

15 1 Leg Lever

16 8 Square Bushing

17 2 Upright Cap

18 4 Large Adjustment Knob

19 5 M6 Washer

20 5 75mm x 50mm Inner Cap

21 4 Support Plate

22 5 50mm Square Inner Cap

23 4 Foam Pad

24 4 19mm Round Inner Cap

25 2 Pad Tube

26 2 Plastic Plate

27 4 M10 Washer

28 2 M10 x 78mm Bolt

29 1 Small Adjustment Knob

30 1 Backrest Adjustment Knob

31 2 M6 x 16mm Bolt

32 10 8mm Bushing

33 2 12.5mm Spacer

34 10 M10 x 95mm Bolt

35 21 M10 Nylon Locknut

36 2 M10 x 65mm Bolt

37 2 M10 x 140mm Bolt

38 1 M10 x 100mm Bolt

39 5 M6 x 50mm Bolt

40 4 M8 x 55mm Carriage Bolt

41 4 M10 x 65mm Carriage Bolt

42 4 M8 Nylon Locknut

43 4 20mm x 40mm Inner Cap

44 1 50mm Round Inner Cap

45 1 40mm x 50mm Inner Cap

# 1 User’s Manual

# 1 Exercise Guide

“#” Indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover for

information on ordering replacement parts.

PART LIST—Model No. WEBE15210 R1001A

29 30

32 32

42 42

520

EXPLODED DRAWING—Model No. WEBE15210 R1001A

ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and mate-

rial, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This

warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing

or repairing, at ICON's option, the product at one of its authorized service centers. All products for which war-

ranty claim is made must be received by ICON at one of its authorized service centers with all freight and other

transportation charges prepaid, accompanied by sufficient proof of purchase. All returns must be pre-autho-

rized by ICON. This warranty does not extend to any product or damage to a product caused by or attribut-

able to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON

authorized service center, products used for commercial or rental purposes, or products used as store display

models. No other warranty beyond that specifically set forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection

with the use or performance of the product or damages with respect to any economic loss, loss of property,

loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential dam-

ages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequen-

tial damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of mer-

chantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein.

Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation

may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813

To order replacement parts, simply call our Customer Service Department toll-free at 1-800-999-3756, Monday

through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be pre-

pared to give the following information when calling:

1. The MODEL NUMBER of the product (WEBE15210)

2. The NAME of the product (WEIDER®PRO 425 weight bench)

3. The SERIAL NUMBER of the product (see the front cover of this manual)

4. The KEY NUMBER and DESCRIPTION of the desired part(s) (see the PART LIST and the EXPLODED

DRAWING on pages 14 and 15).

LIMITED WARRANTY

ORDERING REPLACEMENT PARTS

Weider Pro 425 Bench Webe1521 Users Manual *WEBE15210 177215

Weider-Webe15210-Owner-S-Manual weider-webe15210-owner-s-manual

WEBE15210 to the manual 498f3156-2ce1-4a22-9511-ef9864886009

Navigation menu

Versions of this User Manual:

Views

Navigation
