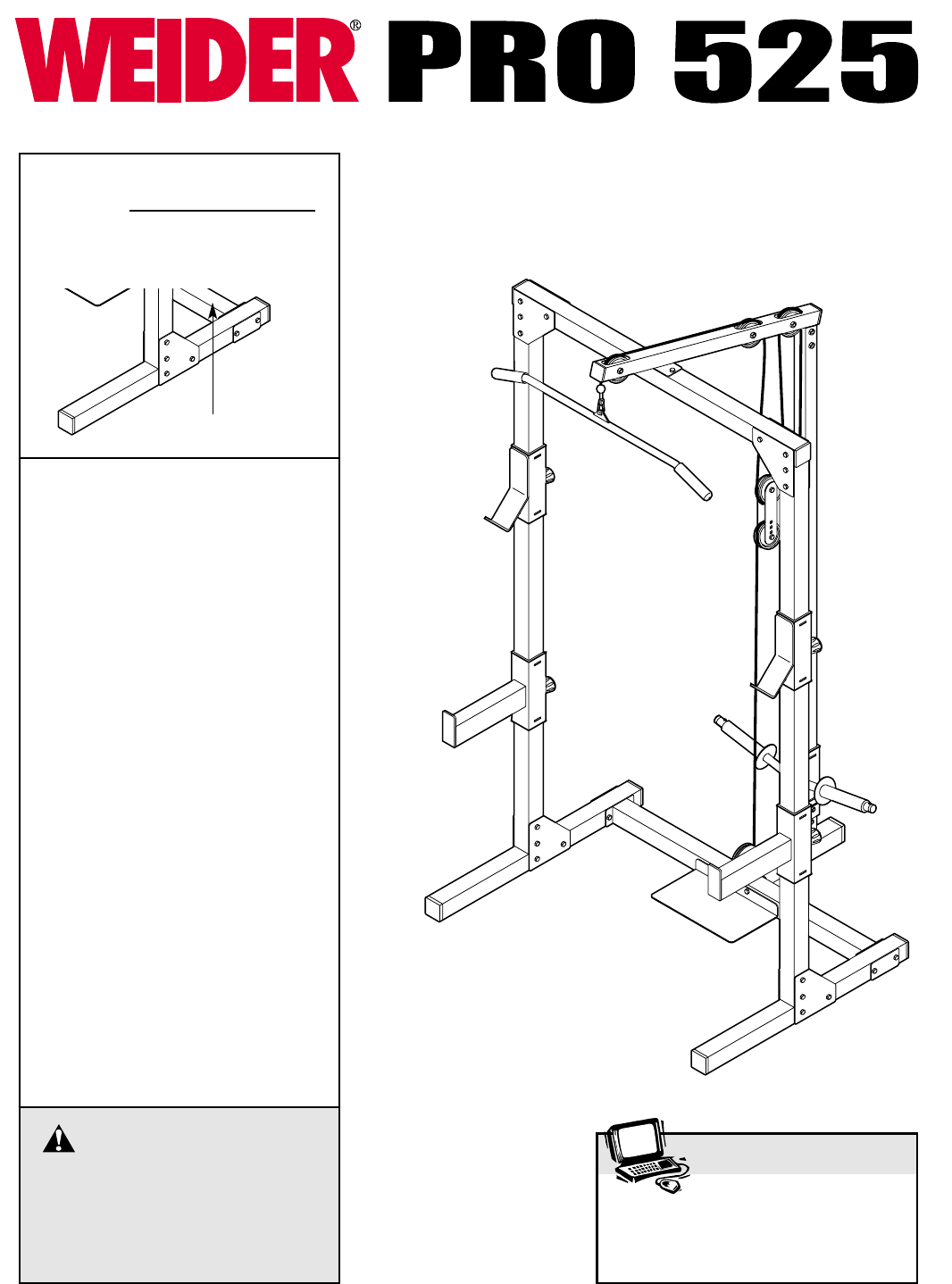

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction. If you have

questions, or if there are missing

parts, we will guarantee complete

satisfaction through direct assis-

tance from our factory.

TO AVOID UNNECESSARY

DELAYS, PLEASE CALL DIRECT

TO OUR TOLL-FREE CUSTOMER

HOT LINE. The trained techni-

cians on our customer hot line

will provide immediate assis-

tance, free of charge to you.

CUSTOMER HOT LINE:

1-800-999-3756

Mon.–Fri., 6 a.m.–6 p.m. MST

Model No. WEBE19510

Serial No.

Write the serial number in the

space above for reference.

CAUTION

Read all precautions and instruc-

tions in this manual before

using this equipment. Save this

manual for future reference.

Serial Number Decal

USER’S MANUAL

Visit our website at

www.weiderfitness.com

new products, prizes,

fitness tips, and much more!

Patent Pending

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

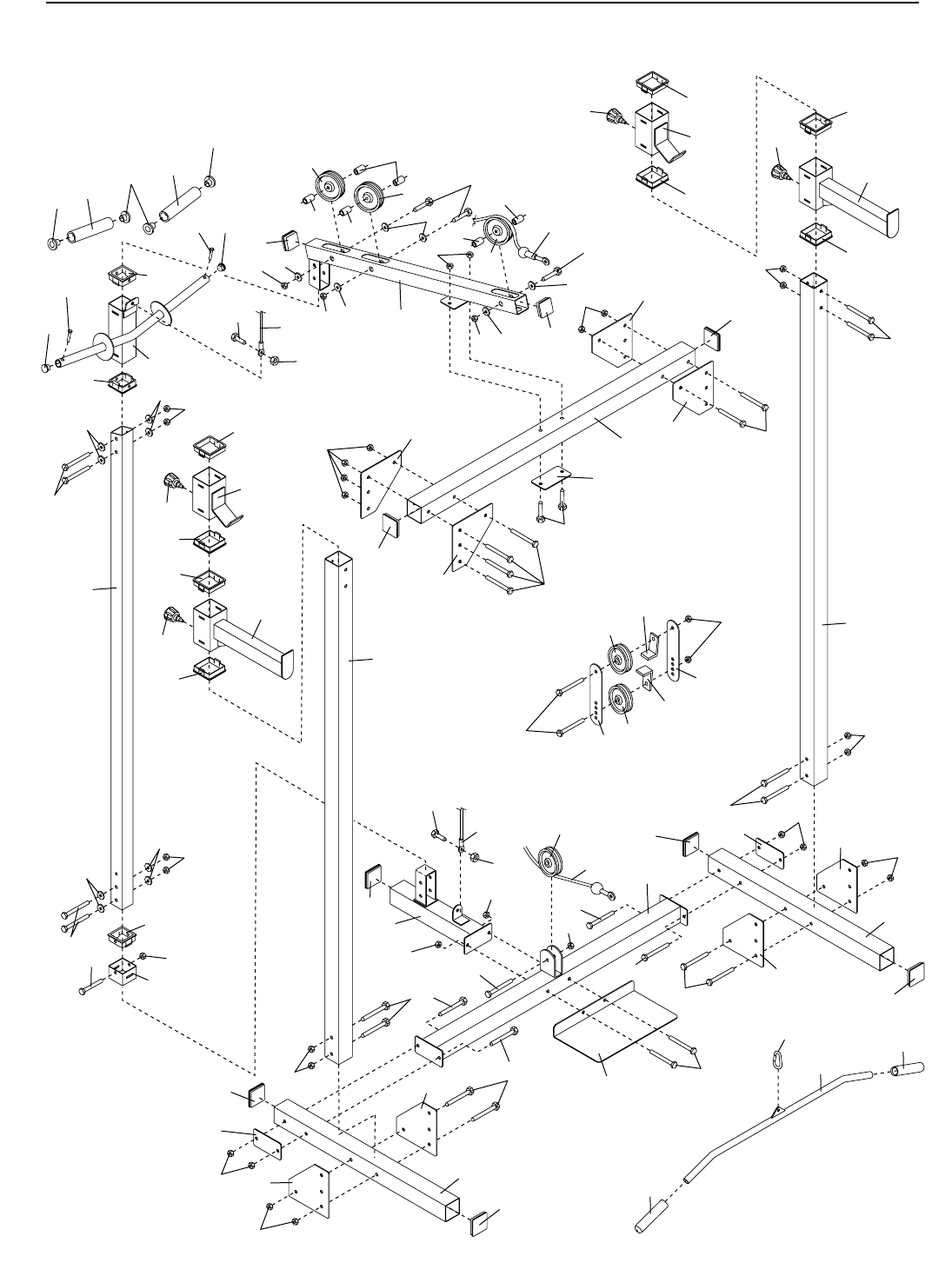

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

WEIDER is a registered trademark of ICON Health & Fitness, Inc.

TABLE OF CONTENTS

1. Read all instructions in this manual before

using the weight rack. Use the weight rack

only as described in this manual.

2. It is the responsibility of the owner to ensure

that all users of the weight rack are ade-

quately informed of all precautions.

3. The weight rack is intended for home use

only. Do not use the weight rack in a com-

mercial, rental, or institutional setting.

4. Use the weight rack only on a level surface.

Cover the floor beneath the weight rack to

protect the floor.

5. Make sure that all parts are properly tight-

ened each time you use the weight rack.

Replace any worn parts immediately.

6. Keep children under 12 and pets away from

the weight rack at all times.

7. Keep hands and feet away from moving

parts.

8. Always wear athletic shoes for foot protec-

tion while exercising.

9. The weight rack is designed to support a

maximum of 300 pounds, including a barbell

and weights. Do not place more than 300

pounds, including a barbell, on the weight

rests. Do not place more than 150 pounds on

the weight carriage. Note: The weight rack

does not include a barbell or weights.

10. Always make sure that there is an equal

amount of weight on each side of the weight

carriage.

11. Always set both weight rests and both safety

spotters at the same height.

12. Always remove the lat bar when performing

an exercise that does not require the use of

the lat bar.

13. Always lower the weight carriage in a con-

trolled manner; never let the weight carriage

drop.

14. Always move your bench out of the way

when performing an exercise that does not

use the bench.

15. If you feel pain or dizziness while exercising,

stop immediately and begin cooling down.

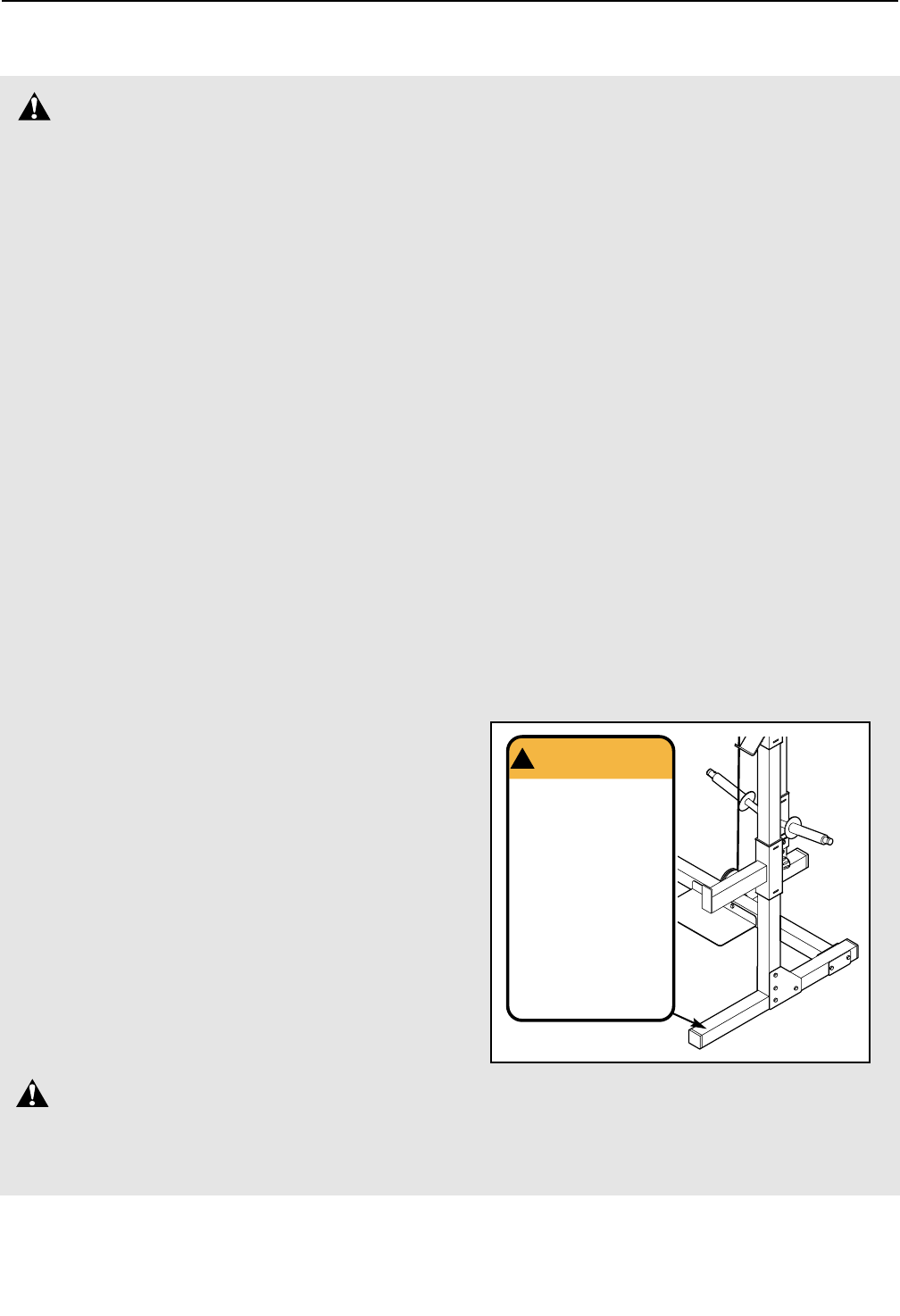

16. The decal shown below has been placed on

the weight rack. If the decal is missing or

illegible, please call our Customer Service

Department toll-free at 1-800-999-3756,

Monday through Friday, 6 a.m. until 6 p.m.

Mountain Time, to order a free replacement

decal. Apply the decal in the location shown.

WARNING: To reduce the risk of serious injury, read the following important precautions

before using the weight rack.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. ICON assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

• Misuse of this

product may result in

serious injury.

WARNING

• Read user’s manual

and follow all warnings

and operating instruc-

tions prior to use.

• Replace label if

damaged, illegible,

or removed.

• Do not allow children

on or around machine.

IMPORTANT PRECAUTIONS

Upright

Lat Bar

High Pulley Station

Safety Spotter

Low Pulley Station

Weight Carriage

Foot Plate

Weight Rest

Thank you for selecting the versatile WEIDER®PRO

525 weight rack. The PRO 525 is designed to help you

develop every major muscle group of the body.

Whether your goal is a shapely figure, dramatic

increase in muscle size and strength, or a healthier

cardiovascular system, the PRO 525 will help you

achieve the specific results you want.

For your benefit, read this manual carefully before

using the weight rack. If you have additional ques-

tions, please call our Customer Service Department

toll-free at 1-800-999-3756, Monday through Friday, 6

a.m. until 6 p.m. Mountain Time (excluding holidays).

To help us assist you, please note the product model

number and serial number before calling. The model

number is WEBE19510. The serial number can be

found on a decal attached to the weight rack (see the

front cover of this manual).

Before reading further, please review the drawing

below and familiarize yourself with the parts that are

labeled.

BEFORE YOU BEGIN

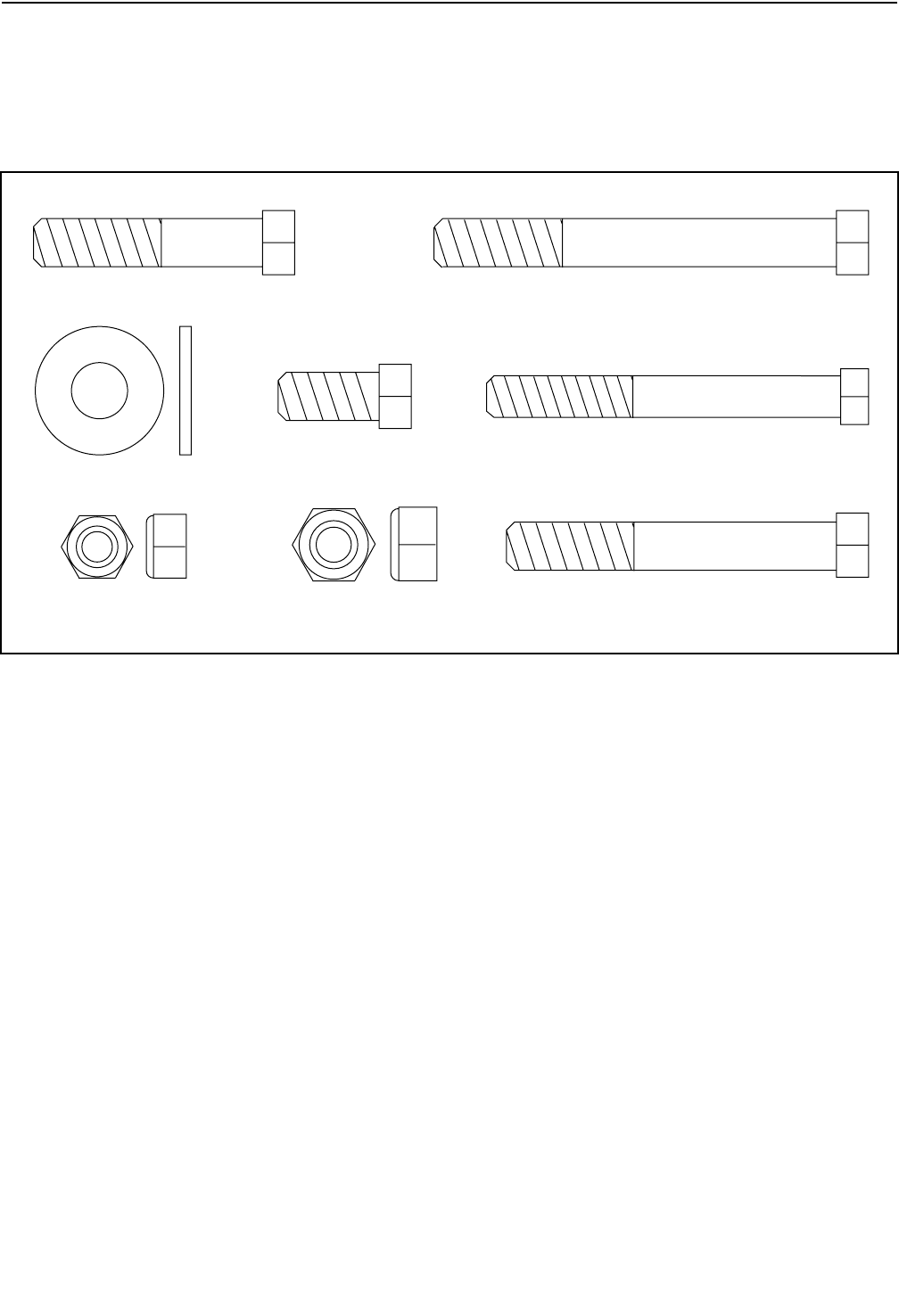

M10 x 80mm Bolt (22)

M10 x 20mm Bolt (21)

M10 x 65mm Bolt (19)

M10 x 45mm Bolt (18)

M8 x 70mm Bolt (25)

M10 Nylon Locknut (20)

M8 Nylon Locknut (28)

M10 Washer (15)

Refer to the drawings below to identify small parts used in assembly. The number in parentheses below each

drawing is the key number of the part, from the PART LIST on page 18 of this manual. Note: Some small parts

may have been pre-attached. If a part is not in the parts bag, check to see if it has been pre-attached.

PART IDENTIFICATION CHART

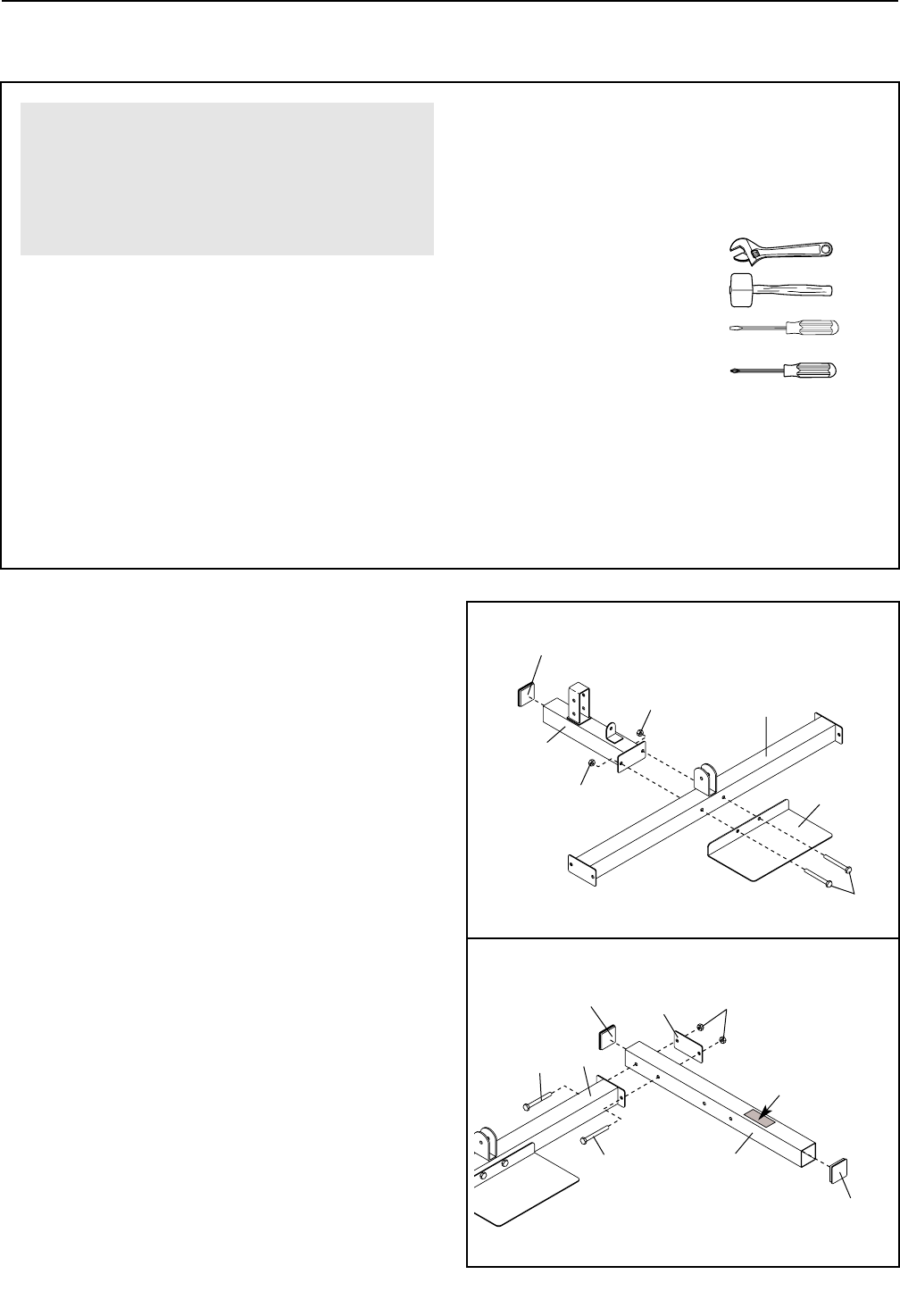

1. Before beginning, make sure that you under-

stand the information in the box above. Note:

Some parts described in the assembly steps

may be pre-assembled.

Press a 60mm Square Inner Cap (11) into the

end of the Rear Base (8).

Attach the Rear Base (8) and the Foot Plate (10)

to the Base (3) with two M10 x 80mm Bolts (22)

and two M10 Nylon Locknuts (20). Do not tighten

the Nylon Locknuts yet.

2. Press two 60mm Square Inner Caps (11) into the

ends of each Stabilizer (5).

Attach the Stabilizer (5) to one end of the Base

(3) with two M10 x 80mm Bolts (22), a Support

Plate (29), and two M10 Nylon Locknuts (20). Do

not tighten the Nylon Locknuts yet.

Assemble the other Stabilizer (5) in the same

manner. Note: There is a warning decal on one

of the Stabilizers; make sure it is in the posi-

tion shown.

Decal

Before beginning assembly, carefully read the

following information and instructions:

•Assembly requires two people.

•For help identifying small parts, use the PART

IDENTIFICATION CHART on page 5.

•Tighten all parts as you assemble them, unless

instructed to do otherwise.

•As you assemble the weight rack, make sure all

parts are oriented as shown in the drawings.

•Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until assembly is completed.

The following tools (not included) are required

for assembly:

• Two adjustable wrenches

• One rubber mallet

• One standard screwdriver

• One Phillips screwdriver

• Lubricant, such as grease or petroleum jelly,

and soapy water.

Assembly will be more convenient if you have a

socket set, a set of open-end or closed-end

wrenches, or a set of ratchet wrenches.

Make Things Easier for Yourself

This manual is designed to ensure that the

weight rack can be assembled successfully by

anyone. Most people find that by setting aside

plenty of time, assembly will go smoothly.

ASSEMBLY

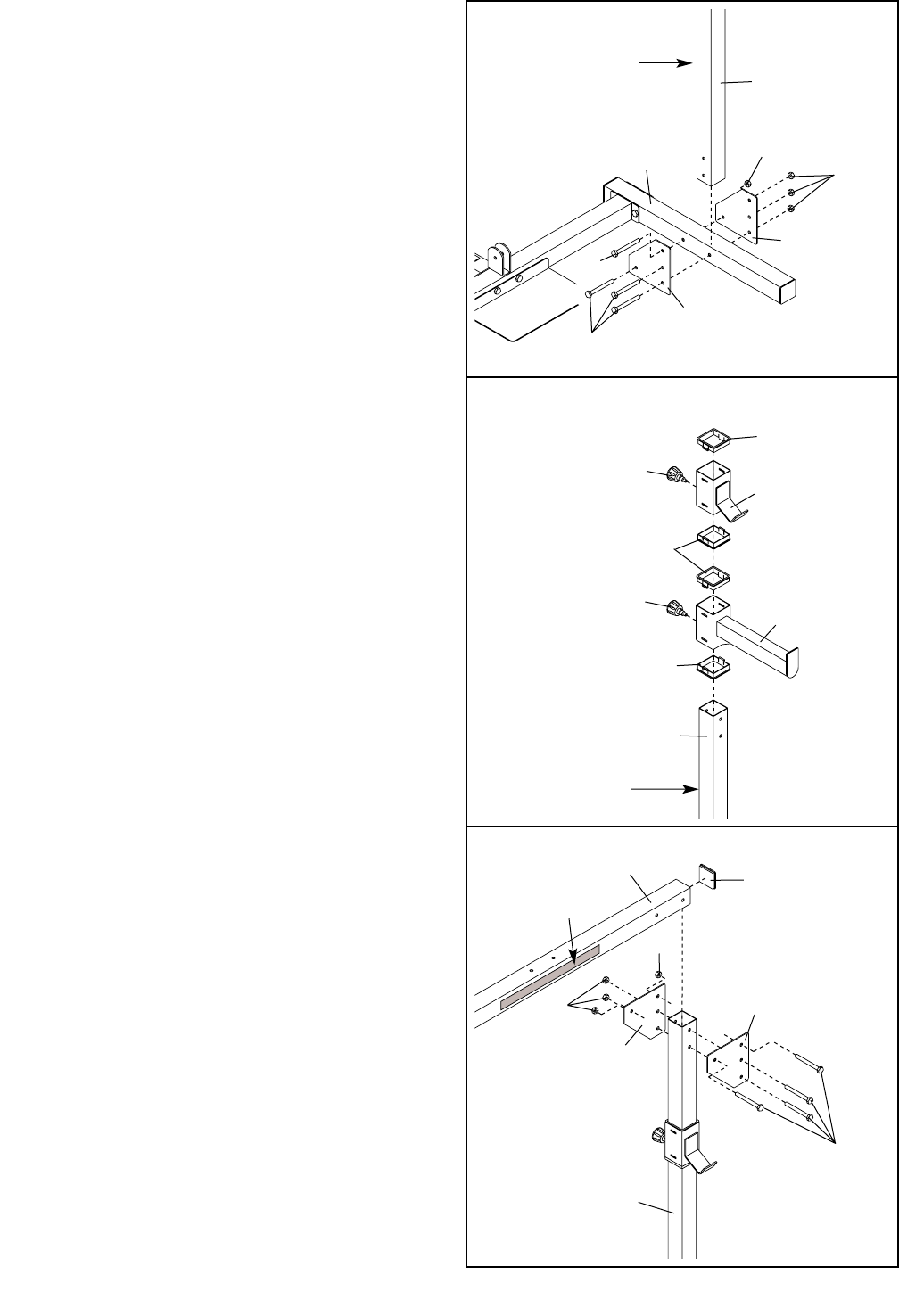

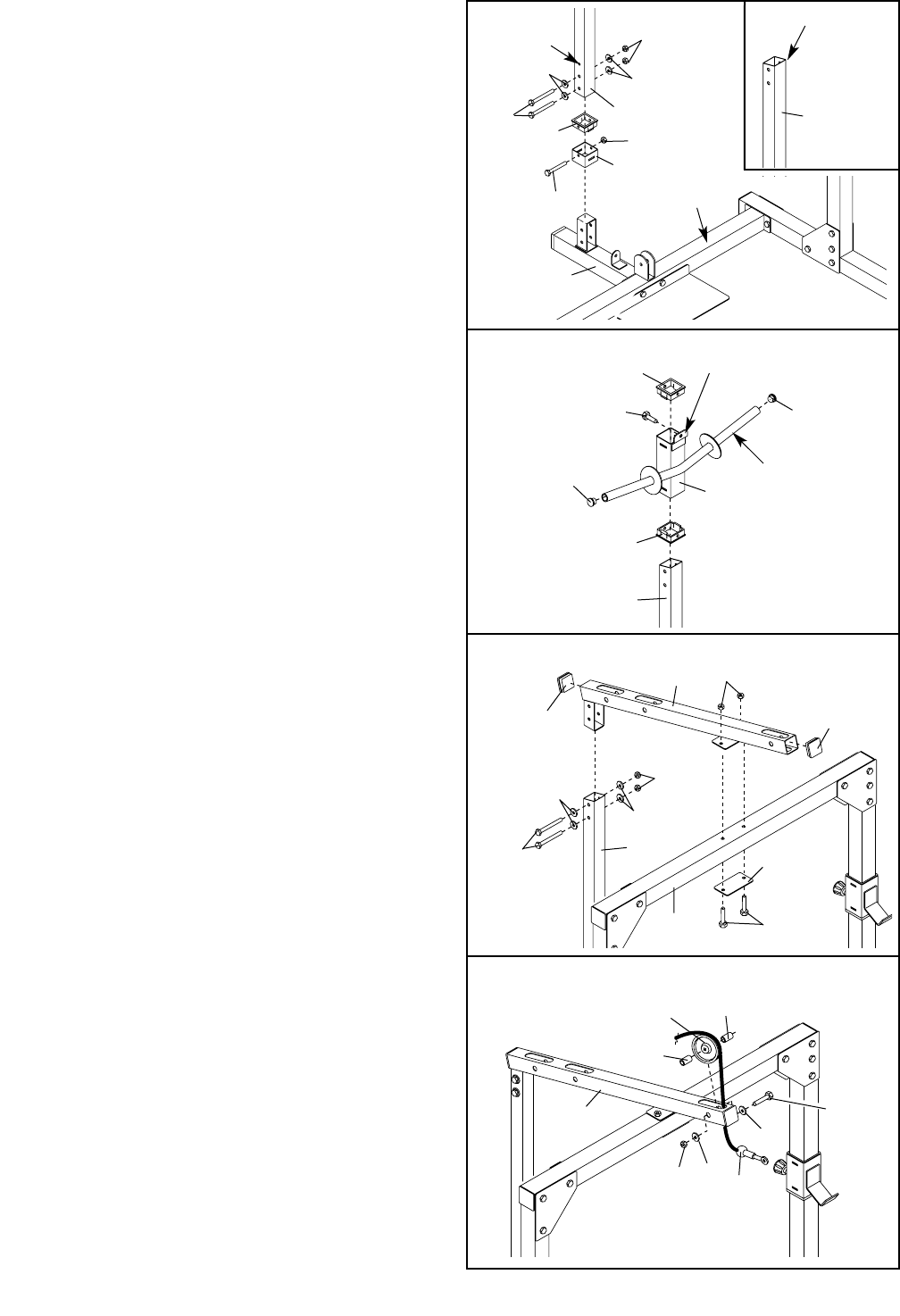

3. Attach an Upright (1) to a Stabilizer (5) with four

M10 x 80mm Bolts (22), two Joint Plates (9), and

four M10 Nylon Locknuts (20). Make sure that

the Uprights are oriented with the adjustment

holes on the side indicated. Do not tighten the

Nylon Locknuts yet.

Repeat this step with the other Upright (1).

Adjustment Holes

on this side

4. Press 75mm x 65mm Bushings (32) into the top

and bottom of a Weight Rest (30) and a Safety

Spotter (31). Screw Adjustment Knobs (33) into

the Weight Rest and the Safety Spotter.

Pull the Adjustment Knob (33) on the Safety

Spotter (31) out as far as it will go. Slide the

Safety Spotter over an Upright (1). Snap the Knob

into one of the lower adjustment holes in the

Upright. Turn the Knob clockwise until it is tight.

Attach a Weight Rest (30) to the Upright in the

same manner. Be sure the Adjustment Knobs

are on the same side of the Uprights as the

adjustment holes.

Repeat this step with the other Upright (1).

Note: Make sure that both Weight Rests (30)

and both Safety Spotters (31) are at the same

height.

5. Press a 60mm Square Inner Cap (11) into each

end of the Crossbar (4).

Attach the Crossbar (4) to each Upright (1) with

four M10 x 80mm Bolts (22), two Joint Plates (9),

and four M10 Nylon Locknuts (20). Do not tight-

en the Nylon Locknuts yet. Be sure the name

decal is on the side shown.

Name Decal

Adjustment Holes

on this side

6. Press a 60mm x 50mm Bushing (13) into the top

of the Carriage Stop (14). Slide the Carriage Stop

onto the lower end of the Rear Upright (2). Attach

the Carriage Stop to the indicated hole in the

Rear Upright with an M8 x 70mm Bolt (25) and an

M8 Nylon Locknut (28).

Orient the angled top of the Rear Upright (2) as

shown in the inset drawing. Slide the Rear

Upright onto the bracket on the Rear Base (8).

Attach the Rear Upright to the Rear Base using

two M10 x 65mm Bolts (19), four M10 Washers

(15), and two M10 Nylon Locknuts (20). Do not

tighten the Nylon Locknuts yet.

Base

Hole

620

16 17

Bracket

Weight Tube

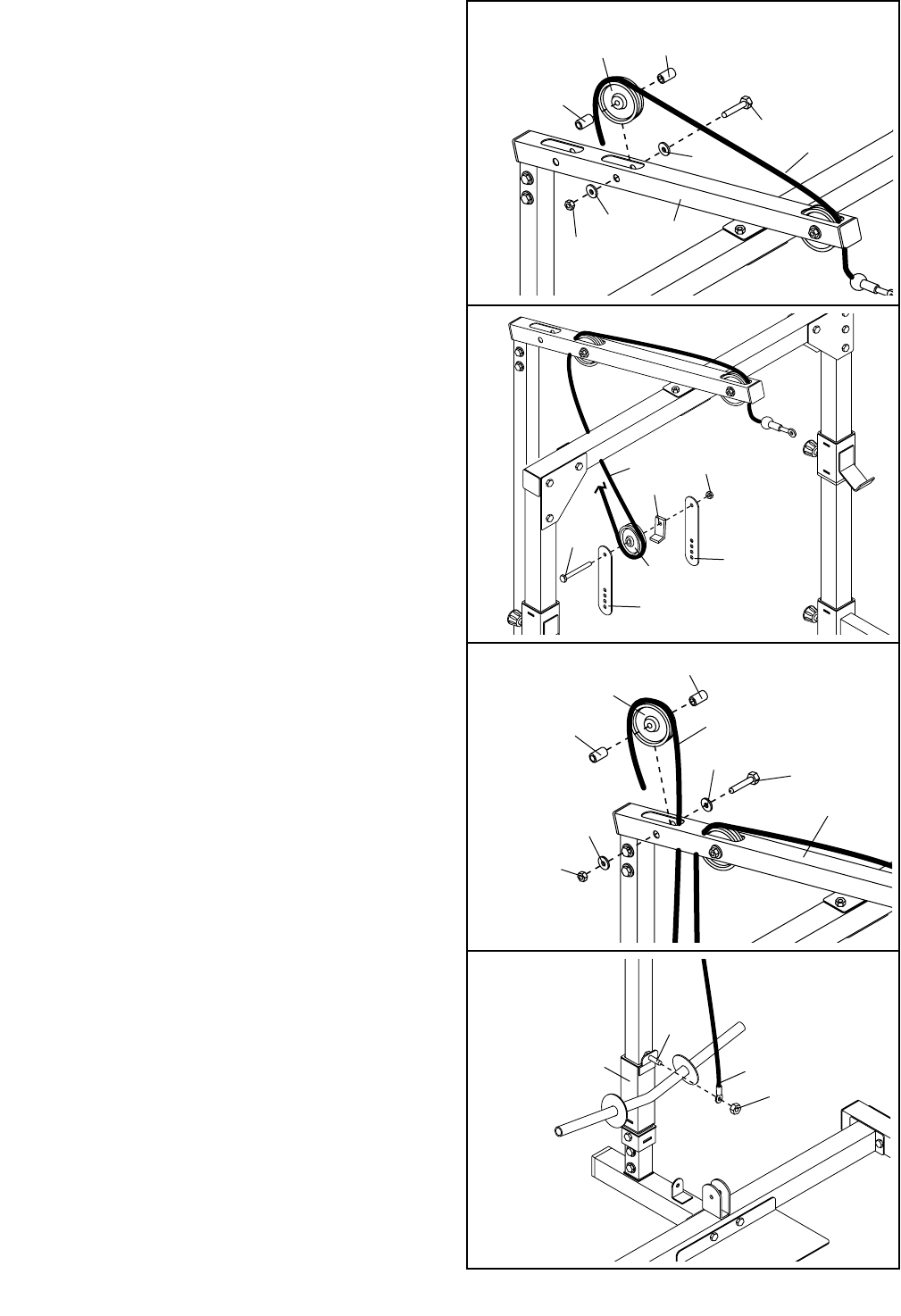

9. Locate the High Cable (23), which is the shorter

of the two cables. Route the metal-sleeve end of

the High Cable up through the indicated slot in

the Top Frame (6).

Wrap the High Cable (23) around a 3 1/2” Pulley

(16) as shown. Attach the Pulley inside the slot in

the Top Frame (6) with an M10 x 65mm Bolt (19),

two M10 Washers (15), two 15mm x 10.5mm

Spacers (17), and an M10 Nylon Locknut (20).

Do not overtighten the Nylon Locknut; the

Pulley must be able to turn freely.

7. Press 60mm x 50mm Bushings (13) into the top

and bottom of the Weight Carriage (7). Press

25mm Round Inner Caps (40) into the ends of the

weight tube on the Weight Carriage.

Insert an M10 x 20mm Bolt (21) into the bracket

on the Weight Carriage (7).

Slide the Weight Carriage (7) onto the Rear

Upright (2) as shown. Be sure the Weight

Carriage is turned so that the bracket is at the

top on the side shown.

8. Press two 50mm Square Inner Caps (12) into the

ends of the Top Frame (6).

Slide the bracket on the Top Frame (6) into the

Rear Upright (2) as shown. Attach the Top Frame

to the Rear Upright with two M10 x 65mm Bolts

(19), four M10 Washers (15), and two M10 Nylon

Locknuts (20).

Attach the Top Frame (6) to the Crossbar (4) with

two M10 x 80mm Bolts (22), a Support Plate (29),

and two M10 Nylon Locknuts (20).

Tighten all of the M10 Nylon Locknuts (20)

used in steps 1–8.

High Side

Toward

the Base

12. Route the High Cable (23) up through the Top

Frame (6), around a 3 1/2” Pulley (16), and back

through the Top Frame. Attach the Pulley inside

the slot in the Top Frame with an M10 x 65mm

Bolt (19), two M10 Washers (15), two 15mm x

10.5mm Spacers (17), and an M10 Nylon Locknut

(20). Do not overtighten the Nylon Locknut;

the Pulley must be able to turn freely.

19 23

13. Attach the end of the High Cable (23) to the M10

x 20mm Bolt (21) in the Weight Carriage (7) with

an M10 Nylon Locknut (20) onto the Bolt.

11. Orient the Pulley Plates (27) as shown. Wrap the

High Cable (23) around a 3 1/2” Pulley (16).

Attach the Pulley and a Cable Trap (26) to the top

set of holes in the Pulley Plates with an M10 x

45mm Bolt (18) and an M10 Nylon Locknut (20).

Make sure the Cable Trap is turned to hold the

Cable in the groove of the Pulley. Do not over-

tighten the Nylon Locknut; the Pulley must be

able to turn freely.

10. Route the High Cable (23) around a 3 1/2” Pulley

(16) and through the indicated slot in the Top

Frame (6). Attach the Pulley inside the slot using

an M10 x 65mm Bolt (19), two M10 Washers

(15), two 15mm x 10.5mm Spacers (17), and an

M10 Nylon Locknut (20). Do not overtighten the

Nylon Locknut; the Pulley must be able to

turn freely.

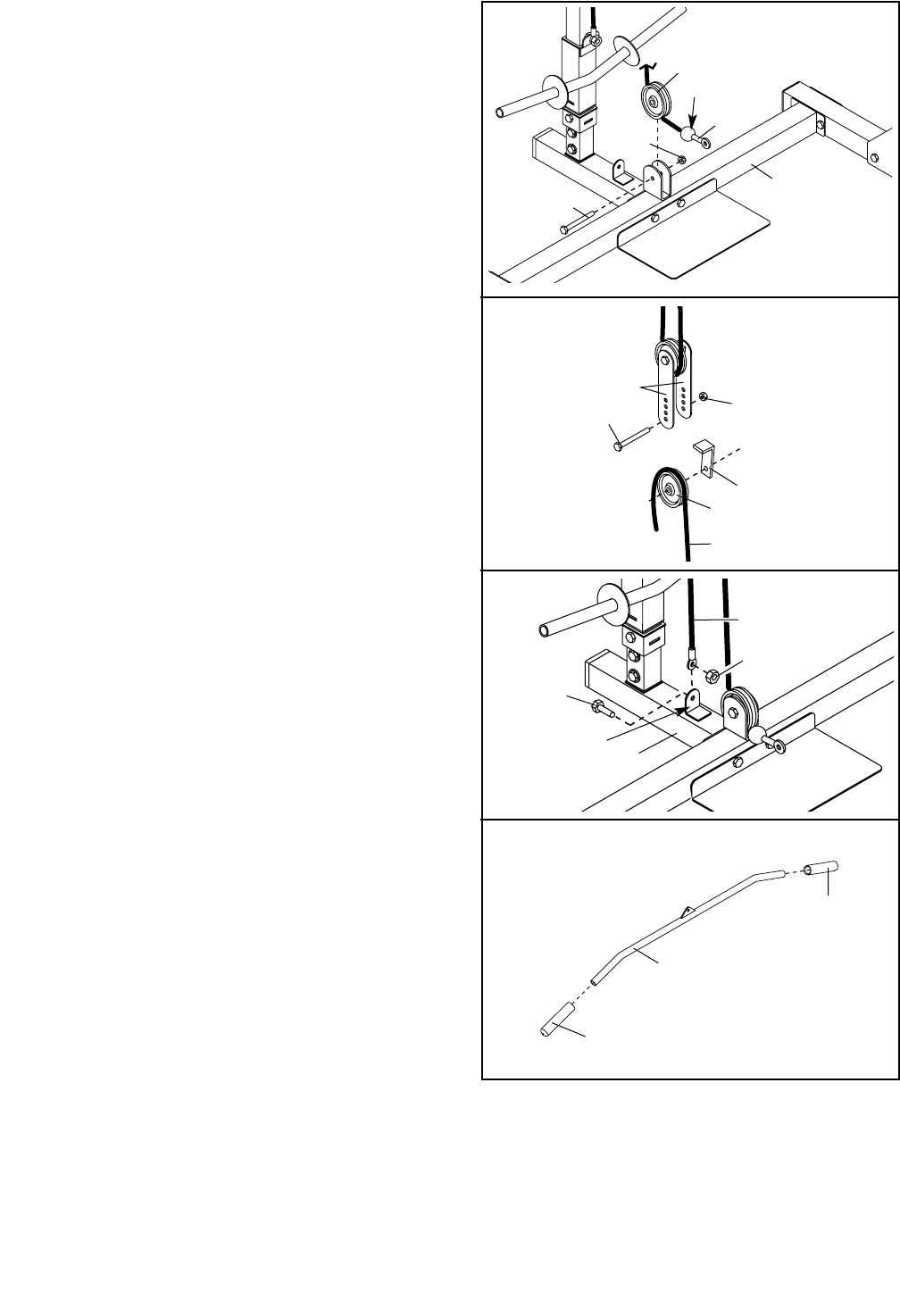

15. Wrap the Low Cable (24) around a 3 1/2” Pulley

(16). Attach the Pulley and a Cable Trap (26) to the

bottom set of holes in the Pulley Plates (27) with an

M10 x 45mm Bolt (18) and an M10 Nylon Locknut

(20). Make sure the Cable Trap is turned to hold

the Cable in the groove of the Pulley. Do not

overtighten the Nylon Locknut; the Pulley must

be able to turn freely.

Ball

16. Attach the Low Cable (24) to the bracket on the

Rear Base (8) with an M10 x 20mm Bolt (21) and

an M10 Nylon Locknut (20).

17. Wet the ends of the Lat Bar (38) with soapy water.

Slide a Handgrip (39) onto each end of the Lat Bar.

18. Make sure all parts are properly tightened before

you use the weight rack. The use of all remaining

parts will be explained in ADJUSTMENTS, beginning

on the following page.

Bracket

14. Locate the Low Cable (24). Lay the Low Cable in

the bracket on the Base (3) so that the ball is on

the indicated side. Attach a 3 1/2” Pulley (16) to the

bracket with an M10 x 45mm Bolt (18) and an M10

Nylon Locknut (20). Do not overtighten the Nylon

Locknut; the Pulley must be able to turn freely.

ADJUSTMENTS

This section explains how the weight rack can be adjusted. Make sure all parts are properly tightened each time

you use the weight rack. Replace any worn parts immediately. The weight rack can be cleaned with a damp

cloth and a mild, non-abrasive detergent. Do not use solvents.

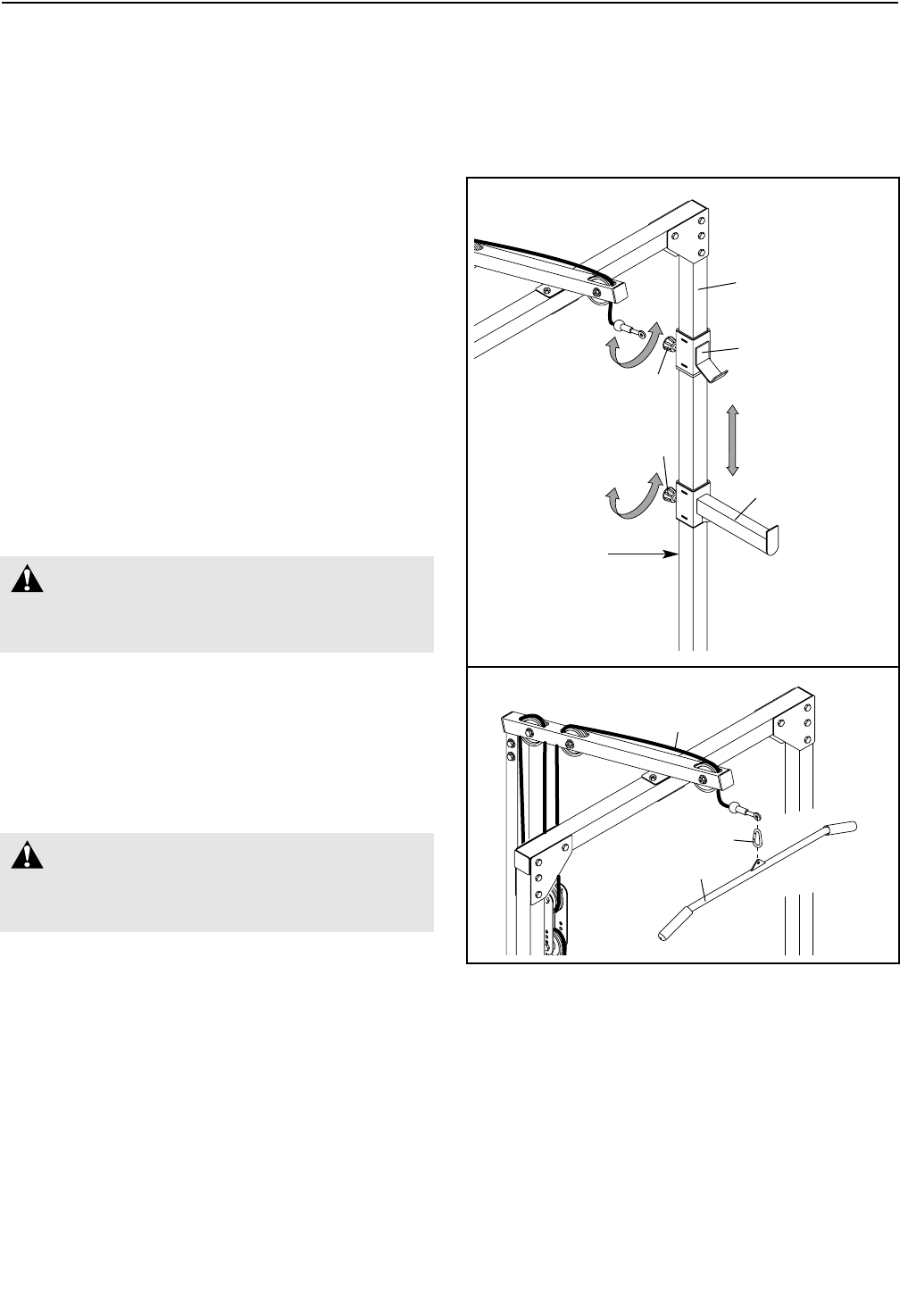

USING THE WEIGHT RESTS AND SAFETY

SPOTTERS

Before beginning an exercise, move the Weight Rests

(30) and the Safety Spotters (31) to sets of holes in

the Uprights (1) that are best suited for that exercise.

Turn the Adjustment Knob (33) counter-clockwise, and

pull it out as far as it will go. Slide the Weight Rest or

Safety Spotter to the desired height. Snap the Knob

into an adjustment hole in the Upright. Turn the Knob

clockwise until tight.

The selected holes for the Safety Spotters (31) should

represent the lowest point to which you want the bar-

bell to go during the exercise. The selected holes for

the Weight Rests (30) should be at a comfortable

height for lifting and replacing the barbell.

ATTACHING THE LAT BAR TO THE HIGH PULLEY

STATION OR THE LOW PULLEY STATION

To use the high or low pulley station, attach the Lat

Bar (38) to the High Cable (23) or the Low Cable (not

shown) using a Cable Clip (37).

WARNING: Always set both Weight

Rests (30) and both Safety Spotters (31) at the

same height.

WARNING: Always remove the Lat

Bar (38) when performing an exercise that does

not require the use of the Lat Bar.

Adjustment

Holes

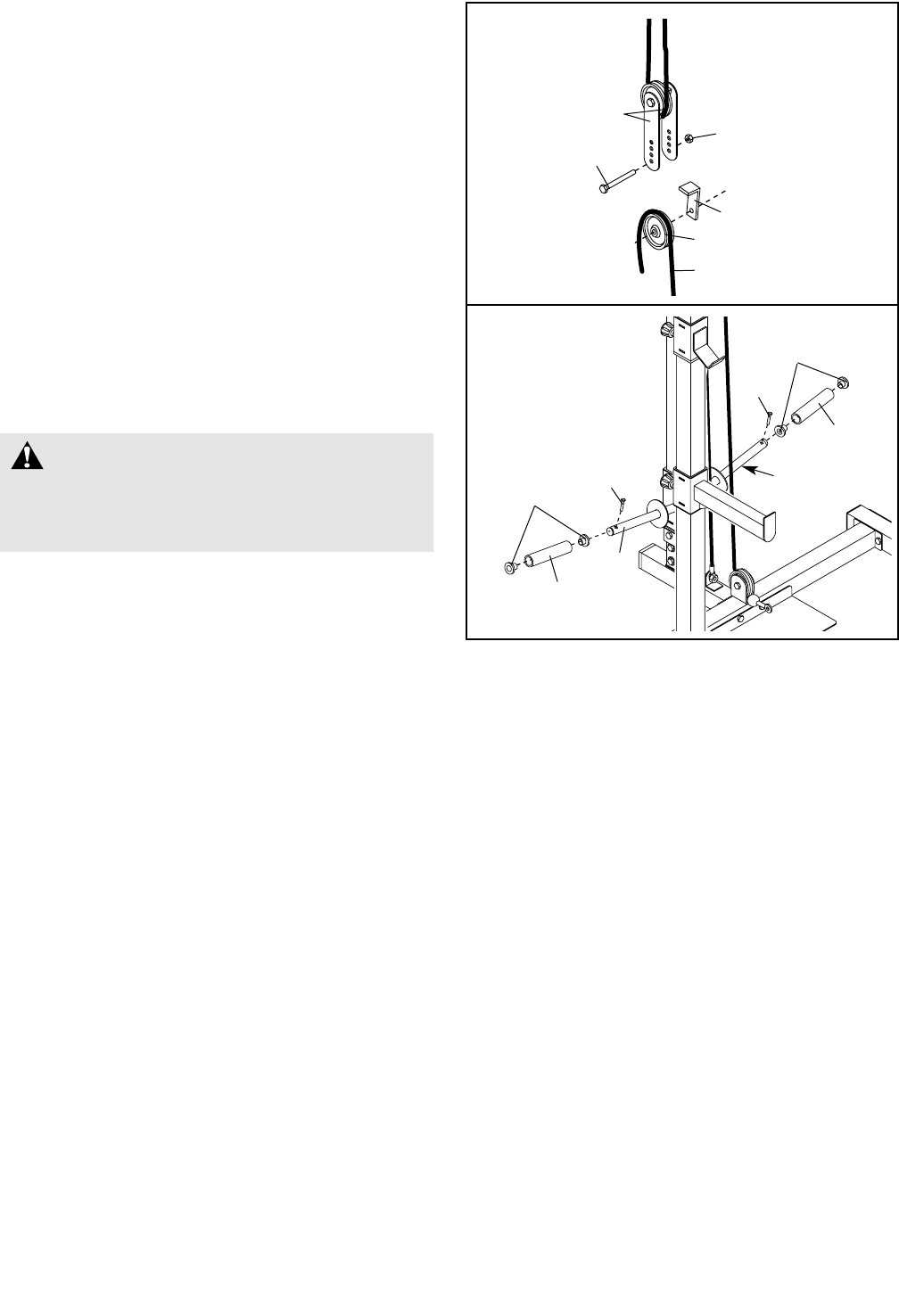

TIGHTENING THE CABLES

Woven cable, the type of cable used on the weight

rack, can stretch slightly when it is first used. If the

cables need to be tightened, remove the M10 Nylon

Locknut (20) and the M10 x 45mm Bolt (18) from the

lower ends of the Pulley Plates (27). Reattach the

3 1/2” Pulley (16) and Cable Trap (26) to the next

higher set of holes in the Pulley Plates. Make sure

the Cable Trap holds the Low Cable (24) in the

groove of the Pulley. Continue to move the Pulley up

until the Cable is tight. Do not overtighten the

Nylon Locknut. The Pulley must be able to turn

freely.

ATTACHING WEIGHTS TO THE WEIGHT CARRIAGE

To use the Weight Carriage (7), slide the desired

amount of weight (not included) onto each side of the

weight tube on the Weight Carriage.

To use Olympic weights, press two Weight Adapter

Bushings (36) into the ends of each Weight Adapter

(35). Slide a Weight Adapter onto each side of the

weight tube on the Weight Carriage (7). Insert the two

Lock Pins (34) into the weight tube.

Weight Tube

WARNING: Do not place more than

150 pounds on the Weight Carriage (7). Always

place the same amount of weight on each side

of the Weight Carriage.

EXERCISE GUIDELINES

THE FOUR BASIC TYPES OF WORKOUTS

Muscle Building

To increase the size and strength of your muscles,

push them close to their maximum capacity. Your mus-

cles will continually adapt and grow as you progres-

sively increase the intensity of your exercise. You can

adjust the intensity level of an individual exercise in

two ways:

• by changing the amount of weight used

• by changing the number of repetitions or sets per-

formed. (A “repetition” is one complete cycle of an

exercise, such as one sit-up. A “set” is a series of

repetitions.)

The proper amount of weight for each exercise

depends upon the individual user. You must gauge

your limits and select the amount of weight that is right

for you. Begin with 3 sets of 8 repetitions for each

exercise you perform. Rest for 3 minutes after each

set. When you can complete 3 sets of 12 repetitions

without difficulty, increase the amount of weight.

Toning

You can tone your muscles by pushing them to a mod-

erate percentage of their capacity. Select a moderate

amount of weight and increase the number of repeti-

tions in each set. Complete as many sets of 15 to 20

repetitions as possible without discomfort. Rest for 1

minute after each set. Work your muscles by complet-

ing more sets rather than by using high amounts of

weight.

Weight Loss

To lose weight, use a low amount of weight and

increase the number of repetitions in each set.

Exercise for 20 to 30 minutes, resting for a maximum

of 30 seconds between sets.

Cross Training

Cross training is an efficient way to get a complete and

well-balanced fitness program. An example of a bal-

anced program is:

• Plan weight training workouts on Monday,

Wednesday, and Friday.

• Plan 20 to 30 minutes of aerobic exercise, such as

cycling or swimming, on Tuesday and Thursday.

• Rest from both weight training and aerobic exercise

for at least one full day each week to give your body

time to regenerate.

The combination of weight training and aerobic exer-

cise will reshape and strengthen your body, plus devel-

op your heart and lungs.

PERSONALIZING YOUR EXERCISE PROGRAM

Determining the exact length of time for each workout,

as well as the number of repetitions or sets completed,

is an individual matter. It is important to avoid overdo-

ing it during the first few months of your exercise pro-

gram. You should progress at your own pace and be

sensitive to your body’s signals. If you experience pain

or dizziness at any time while exercising, stop immedi-

ately and begin cooling down. Find out what is wrong

before continuing. Remember that adequate rest and a

proper diet are important factors in any exercise pro-

gram.

WARMING UP

Begin each workout with 5 to 10 minutes of stretching

and light exercise to warm up. Warming up prepares

your body for more strenuous exercise by increasing

circulation, raising your body temperature and deliver-

ing more oxygen to your muscles.

WORKING OUT

Each workout should include 6 to 10 different exercis-

es. Select exercises for every major muscle group,

emphasizing areas that you want to develop most. To

give balance and variety to your workouts, vary the

exercises from session to session.

Schedule your workouts for the time of day when your

energy level is the highest. Each workout should be

followed by at least one day of rest. Once you find the

schedule that is right for you, stick with it.

EXERCISE FORM

Maintaining proper form is an essential part of an

effective exercise program. This requires moving

through the full range of motion for each exercise, and

moving only the appropriate parts of the body.

Exercising in an uncontrolled manner will leave you

feeling exhausted. On the exercise guide accompany-

ing this manual you will find photographs showing the

correct form for several exercises, and a list of the

muscles affected. Refer to the muscle chart on page

14 to find the names of the muscles.

The repetitions in each set should be performed

smoothly and without pausing. The exertion stage of

each repetition should last about half as long as the

return stage. Proper breathing is important. Exhale

during the exertion stage of each repetition and inhale

during the return stroke. Never hold your breath.

Rest for a short period of time after each set. The

ideal resting periods are:

• Rest for three minutes after each set for a muscle

building workout.

• Rest for one minute after each set for a toning work-

out.

• Rest for 30 seconds after each set for a weight loss

workout.

Plan to spend the first couple of weeks familiarizing

yourself with the equipment and learning the proper

form for each exercise.

COOLING DOWN

End each workout with 5 to 10 minutes of stretching.

Include stretches for both your arms and legs. Move

slowly as you stretch and do not bounce. Ease into

each stretch gradually and go only as far as you can

without strain. Stretching at the end of each workout

is an effective way to increase flexibility.

STAYING MOTIVATED

For motivation, keep a record of each workout. The

charts on pages 15 and 16 of this manual can be pho-

tocopied and used to schedule and record your work-

outs. List the date, the exercises performed, the

weight used, and the numbers of sets and repetitions

completed. Record your weight and key body mea-

surements at the end of every month. Remember, the

key to achieving the greatest results is to make exer-

cise a regular and enjoyable part of your everyday life.

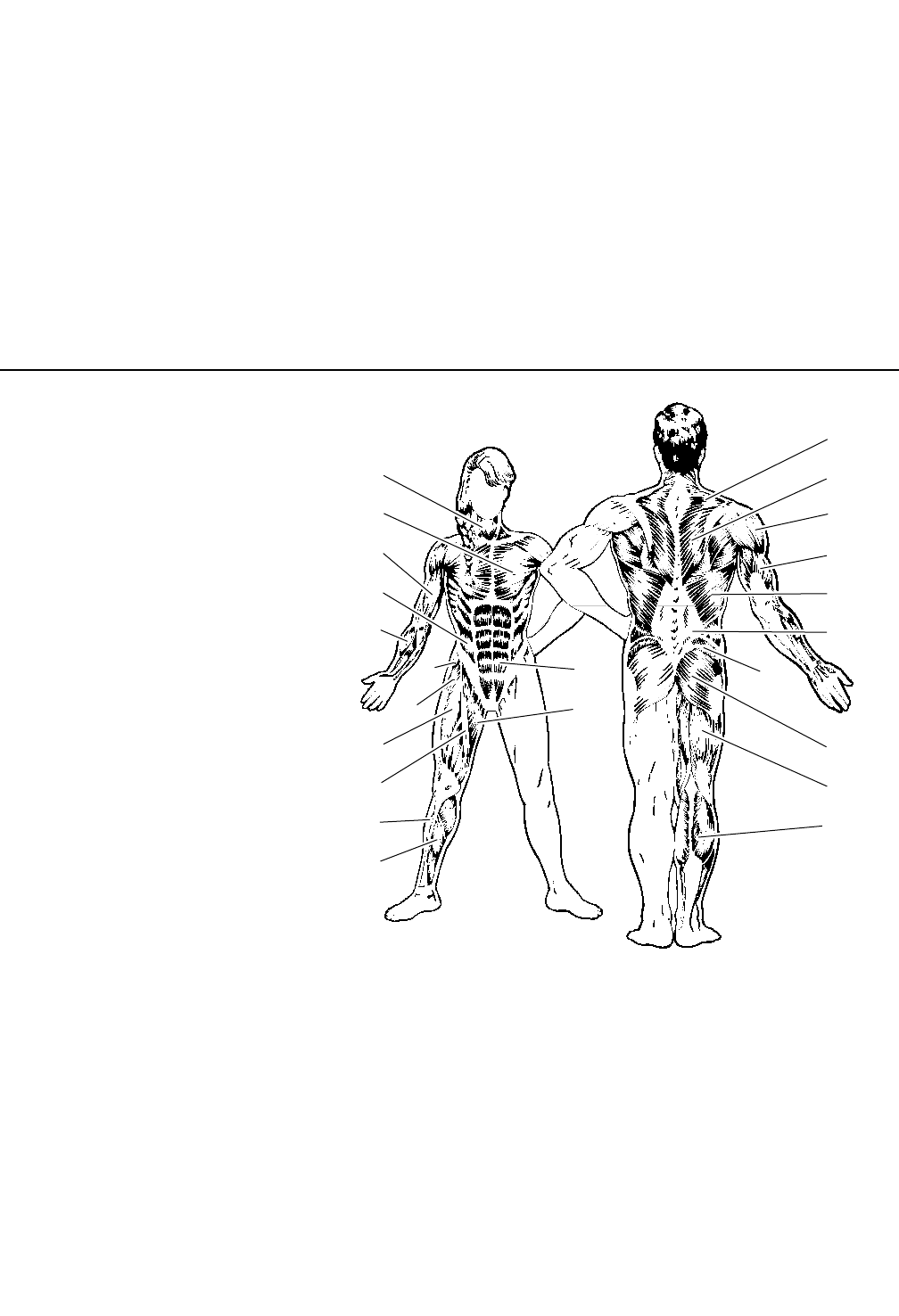

MUSCLE CHART

A. Sternomastoid (neck)

B. Pectoralis Major (chest)

C. Biceps (front of arm)

D. Obliques (waist)

E. Brachioradials (forearm)

F. Hip Flexors (upper thigh)

G. Abductor (outer thigh)

H. Quadriceps (front of thigh)

I. Sartorius (front of thigh)

J. Tibialis Anterior (front of calf)

K. Soleus (front of calf)

L. Rectus Abdominus (stomach)

M. Adductor (inner thigh)

N. Trapezius (upper back)

O. Rhomboideus (upper back)

P. Deltoid (shoulder)

Q. Triceps (back of arm)

R. Latissimus Dorsi (mid back)

S. Spinae Erectors (lower back)

T. Gluteus Medius (hip)

U. Gluteus Maximus (buttocks)

V. Hamstring (back of leg)

W. Gastrocnemius (back of calf)

MONDAY

Date:

/ /

EXERCISE WEIGHT SETS REPS

AEROBIC EXERCISE

TUESDAY

Date:

/ /

WEDNESDAY

Date:

/ /

THURSDAY

Date:

/ /

FRIDAY

Date:

/ /

Make photocopies of this page for scheduling and recording your workouts.

MONDAY

Date:

/ /

EXERCISE WEIGHT SETS REPS

AEROBIC EXERCISE

TUESDAY

Date:

/ /

WEDNESDAY

Date:

/ /

THURSDAY

Date:

/ /

FRIDAY

Date:

/ /

Make photocopies of this page for scheduling and recording your workouts.

NOTES

Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover

of the user’s manual for information about ordering replacement parts.

Key No. Qty. Description Key No. Qty. Description

1 2 Upright

2 1 Rear Upright

3 1 Base

4 1 Crossbar

5 2 Stabilizer

6 1 Top Frame

7 1 Weight Carriage

8 1 Rear Base

9 8 Joint Plate

10 1 Foot Plate

11 7 60mm Square Inner Cap

12 2 50mm Square Inner Cap

13 3 60mm x 50mm Bushing

14 1 Carriage Stop

15 14 M10 Washer

16 6 3 1/2” Pulley

17 6 15mm x 10.5mm Spacer

18 3 M10 x 45mm Bolt

19 7 M10 x 65mm Bolt

20 36 M10 Nylon Locknut

21 2 M10 x 20mm Bolt

22 24 M10 x 80mm Bolt

23 1 High Cable

24 1 Low Cable

25 1 M8 x 70mm Bolt

26 2 Cable Trap

27 2 Pulley Plate

28 1 M8 Nylon Locknut

29 3 Support Plate

30 2 Weight Rest

31 2 Safety Spotter

32 8 75mm x 65mm Bushing

33 4 Adjustment Knob

34 2 Lock Pin

35 2 Weight Adapter

36 4 Weight Adapter Bushing

37 1 Cable Clip

38 1 Lat Bar

39 2 Handgrip

40 2 25mm Round Inner Cap

# 1 User’s Manual

# 1 Exercise Guide

PART LIST—Model No. WEBE19510 R0901A

25 9

21 23 20

16 19

20 19

20 15

EXPLODED DRAWING—Model No. WEBE19510 R0901A

LIMITED WARRANTY

To order replacement parts, simply call our Customer Service Department toll-free at 1-800-999-3756, Monday

through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be pre-

pared to give the following information when calling:

• The MODEL NUMBER of the product (WEBE19510)

• The NAME of the product (WEIDER PRO 525 weight rack)

• The SERIAL NUMBER of the product (see the front cover of this manual)

• The KEY NUMBER and DESCRIPTION of the desired part(s) (see the PART LIST and the EXPLODED

DRAWING on pages 18 and 19).

ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and mate-

rial, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This

warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing

or repairing, at ICON's option, the product at one of its authorized service centers. All products for which war-

ranty claim is made must be received by ICON at one of its authorized service centers with all freight and other

transportation charges prepaid, accompanied by sufficient proof of purchase. All returns must be pre-autho-

rized by ICON. This warranty does not extend to any product or damage to a product caused by or attribut-

able to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON

authorized service center, products used for commercial or rental purposes, or products used as store display

models. No other warranty beyond that specifically set forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection

with the use or performance of the product or damages with respect to any economic loss, loss of property,

loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential dam-

ages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequen-

tial damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of mer-

chantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein.

Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation

may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813

ORDERING REPLACEMENT PARTS

Weider Pro 525 Bench Webe1951 Users Manual *WEBE19510 176743

Weider-Webe19510-Owner-S-Manual weider-webe19510-owner-s-manual

WEBE19510 to the manual 45f07ac0-9f67-443c-baec-10e19a6210c6

Navigation menu

Versions of this User Manual:

Views

Navigation
