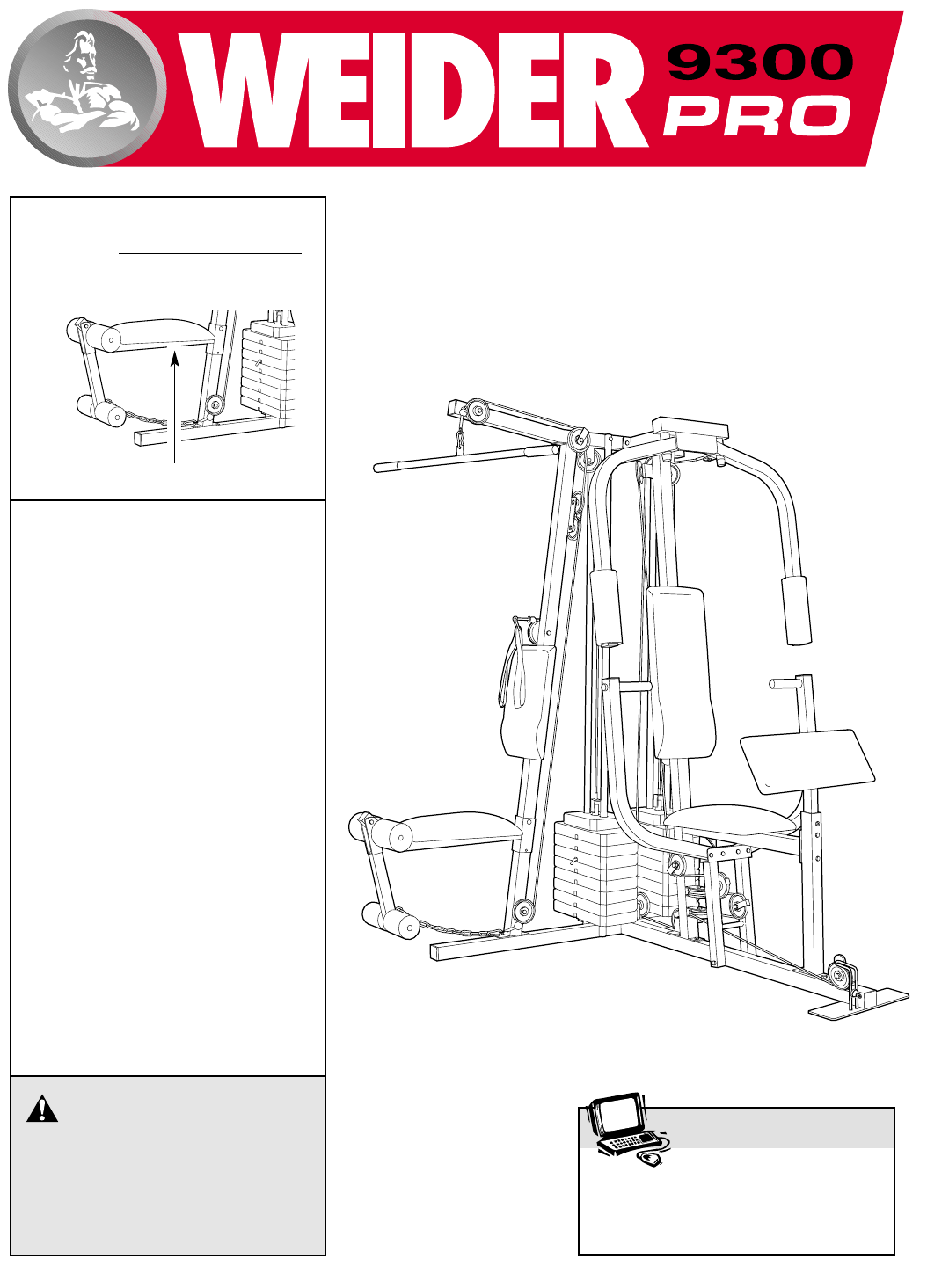

USER'S MANUAL

®

QUESTIONS?

As a manufacturer, we are

committed to providing complete

customer satisfaction. If you

have questions, or if there are

missing parts, we will guarantee

complete satisfaction through

assistance from our factory.

TO AVOID UNNECESSARY

DELAYS, PLEASE CALL DIRECT

TO OUR TOLL-FREE CUSTOMER

HOT LINE. The trained techni-

cians on our customer hot line

will provide immediate assis-

tance, free of charge to you.

CUSTOMER HOT LINE:

1-800-999-3756

Mon.–Fri., 6 a.m.–6 p.m. MST

Model No. WESY29101

Serial No.

Write the serial number in the space

above for future reference.

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

Serial Number Decal (Under Seat)

Visit our website at

www.weiderfitness.com

new products, prizes,

fitness tips, and much more!

2

TABLE OF CONTENTS

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

HOW TO USE THE TRAINING SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

WEIGHT RESISTANCE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

TROUBLE-SHOOTING AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

CABLE DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

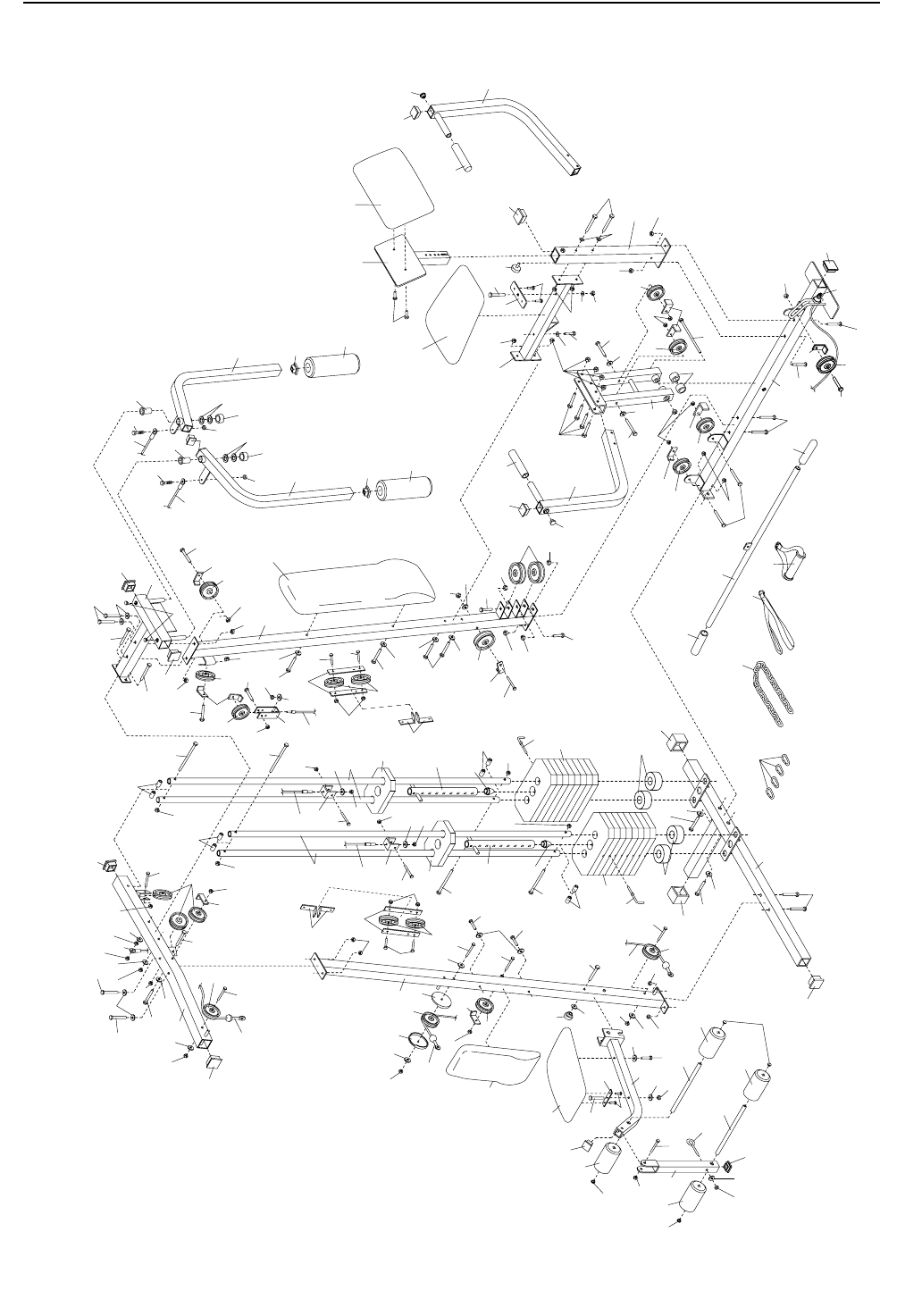

Note: A PART IDENTIFICATION CHART and a PART LIST/EXPLODED DRAWING are attached in the center of

this manual. Remove the PART IDENTIFICATION CHART and the PART LIST/EXPLODED DRAWING before

beginning assembly.

WEIDER is a registered trademark of ICON Health & Fitness, Inc.

LIMITED WARRANTY

ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and

material, under normal use and service conditions, for a period of ninety (90) days from the date of pur-

chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim-

ited to replacing or repairing, at ICON's option, the product at one of its authorized service centers. All

products for which warranty claim is made must be received by ICON at one of its authorized service cen-

ters with all freight and other transportation charges prepaid, accompanied by sufficient proof of purchase.

All returns must be pre-authorized by ICON. This warranty does not extend to any product or damage to

a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or

repairs not provided by an ICON authorized service center, products used for commercial or rental pur-

poses, or products used as store display models. No other warranty beyond that specifically set forth

above is authorized by ICON.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con-

nection with the use or performance of the product or damages with respect to any economic loss, loss

of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other

consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci-

dental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of

merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth

herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above

limitation may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813

IMPORTANT PRECAUTIONS

3

1. It is the responsibility of the owner to ensure

that all users of the training system are ade-

quately informed of all precautions.

2. Read all instructions in this manual and in

the accompanying literature before using the

training system.

3. Use the training system only on a level sur-

face. Place a mat beneath the training sys-

tem to protect the floor or carpet.

4. Inspect and tighten all parts often. Replace

any worn parts immediately.

5. Keep children under the age of 12 and pets

away from the training system at all times.

6. Never release the press arm, butterfly arms,

leg lever, lat bar, ab strap, or nylon strap

while weights are raised. The weights will fall

with great force.

7. Keep hands and feet away from moving parts.

8. Always wear athletic shoes for foot protec-

tion.

9. Always disconnect the lat bar from the train-

ing system when performing an exercise that

does not use the lat bar.

10. Make sure that the cables remain on the pul-

leys at all times. If the cables bind while you

are exercising, stop immediately and make

sure that the cables are on all of the pulleys.

11. If you feel pain or dizziness at any time while

exercising, stop immediately and begin cool-

ing down.

12. The training system is intended for home use

only. Do not use the training system in any

commercial, rental, or institutional setting.

13. The decals shown

at the right (1) and

below (2) have been

attached to the

training system in

the locations

shown on page 4. If

a decal is missing

or illegible, please

call toll-free 1-800-

999-3756 to order a

free replacement

decal. Apply the

decal in the loca-

tion shown.

Keep hands and

fingers clear of

this area.

WARNING: To reduce the risk of serious injury, read the following important precautions

before using the training system.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. ICON assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

4

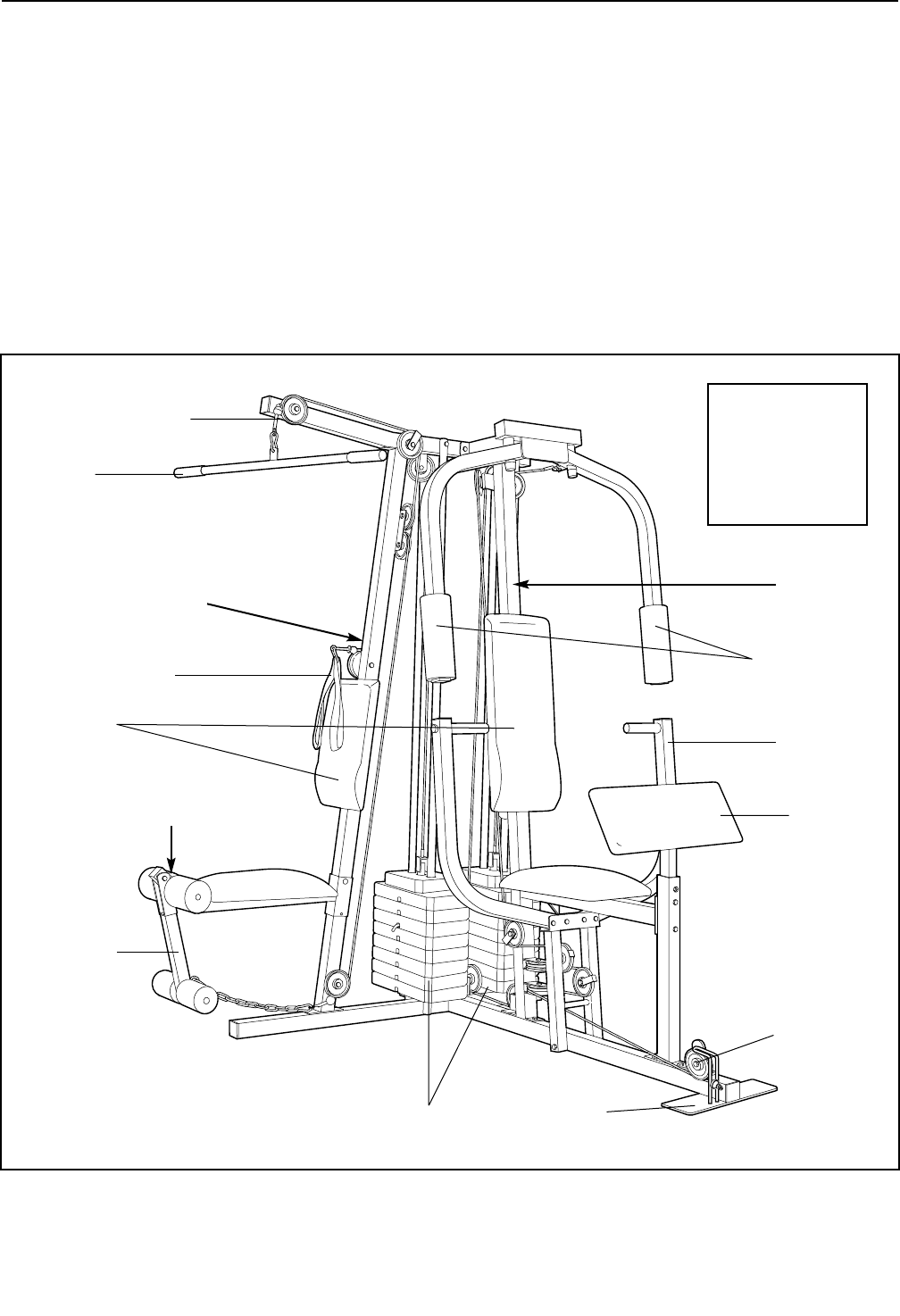

BEFORE YOU BEGIN

ASSEMBLED

DIMENSIONS:

Height: 78 in.

Width: 64 in.

Length: 70 in.

Foot Plate

Low Pulley

Station

High Pulley Station

Lat Bar

Leg Lever

Butterfly Arms

Press Arm

Weight Stacks

Backrests

Curl Pad

Ab Pulley Station

WARNING DECAL 1

WARNING DECAL 2

WARNING

DECAL 1

Thank you for selecting the versatile WEIDER®9300

PRO training system. The WEIDER®9300 PRO offers

a selection of weight stations designed to develop

every major muscle group of the body. Whether your

goal is to tone your body, build dramatic muscle size

and strength, or improve your cardiovascular system,

the WEIDER®9300 PRO will help you to achieve the

specific results you want.

For your benefit, read this manual carefully before

using the WEIDER®9300 PRO. If you have additional

questions, please call our Customer Service

Department toll-free at 1-800-999-3756, Monday

through Friday, 6 a.m. until 6 p.m. Mountain Time

(excluding holidays). To help us assist you, please

note the product model number and serial number

before calling. The model number is WESY29101. The

serial number can be found on a decal attached to the

training system (see the front cover of this manual).

Before reading further, please review the drawing

below and familiarize yourself with the parts that are

labeled.

5

ASSEMBLY

Make sure you have the following tools:

• Two (2) adjustable wrenches

• One (1) standard screwdriver

• One (1) phillips screwdriver

• One (1) rubber mallet

• You will also need grease or petroleum jelly, a

small amount of soapy water, and clear tape or

masking tape.

Note: Assembly will be more convenient if you have

a socket set, a set of open-end or closed-end

wrenches, or a set of ratchet wrenches.

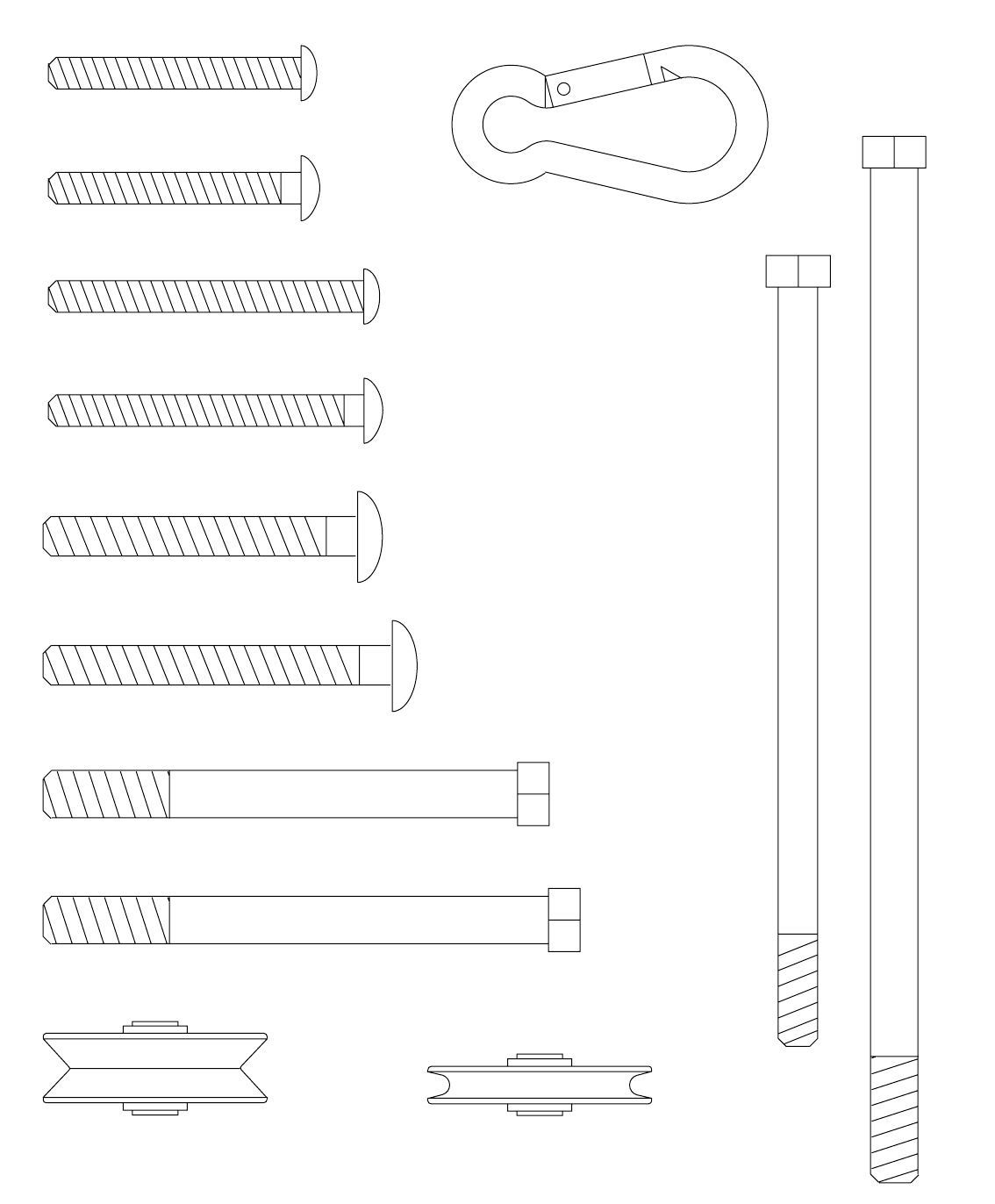

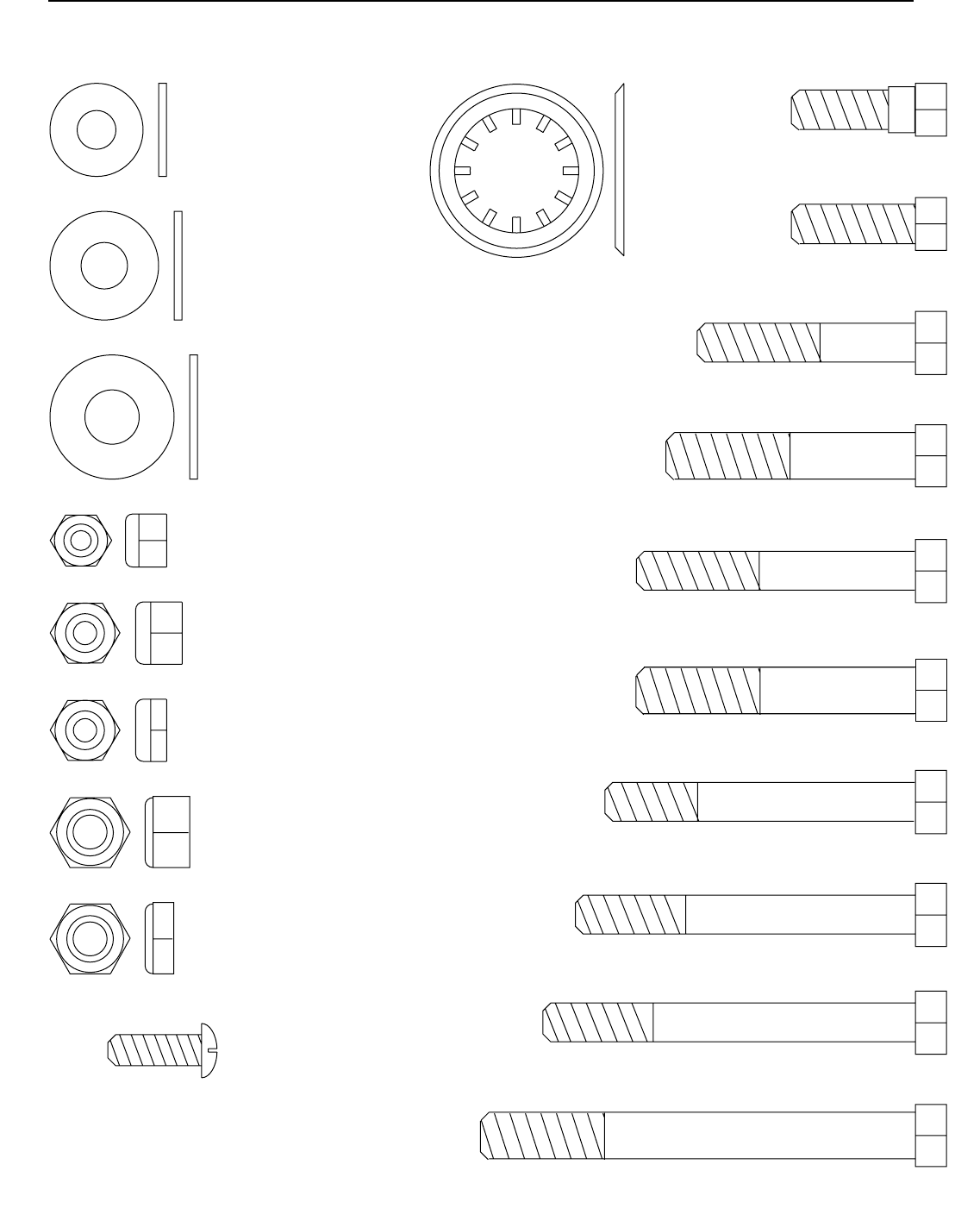

How to Identify Parts

To help you identify the small parts used in assembly,

we have included a PART IDENTIFICATION CHART

in the center of this manual. Place the chart on the

floor and use it to easily identify parts during each

assembly step. Note: Some small parts may have

been pre-attached. If a part is not in the parts

bag, check to see if it has been pre-attached.

How to Orient Parts

As you assemble the training system, make sure

that all parts are oriented exactly as shown in the

drawings.

Tightening Parts

Tighten all parts as you assemble them, unless

instructed to do otherwise.

Questions?

If you have questions after reading the assembly

instructions, please call our Customer Service

Department toll-free at 1-800-999-3756, Monday

through Friday, 6 a.m. until 6 p.m. Mountain Time.

Assembly Requires Two Persons

For your convenience and safety, assemble the

training system with the help of another person.

Set Aside Enough Time

Due to the many features of the training system,

the assembly process will require about six hours.

By setting aside plenty of time and by deciding to

make the task enjoyable, assembly will go smoothly.

You may want to assemble the training system over

a couple of evenings.

Select a Location for the Training

System

Because of its weight and size, the training system

should be assembled in the location where it will be

used. Make sure that there is enough room to walk

around the training system as you assemble it.

How to Unpack the Box

To make assembly as easy as possible, we have

divided the assembly process into four stages. The

parts needed for each stage are found in individual

bags. Important: Wait until you begin each stage

to open the parts bag for that stage. Place all

parts of the training system in a cleared area and

remove the packing materials. Do not dispose of

the packing materials until assembly is completed.

Make Assembly Easier for Yourself!

Everything in this manual is designed to

ensure that the training system can be

assembled successfully by anyone. Before

beginning assembly, make sure to read the

information on this page. This brief intro-

duction will save you much more time than

it takes to read it!

The Four Stages of the Assembly Process

Frame Assembly—You will begin by assembling

the base and the uprights that form the skeleton of

the training system.

Arm Assembly—During this stage you will

assemble the arms and the leg lever.

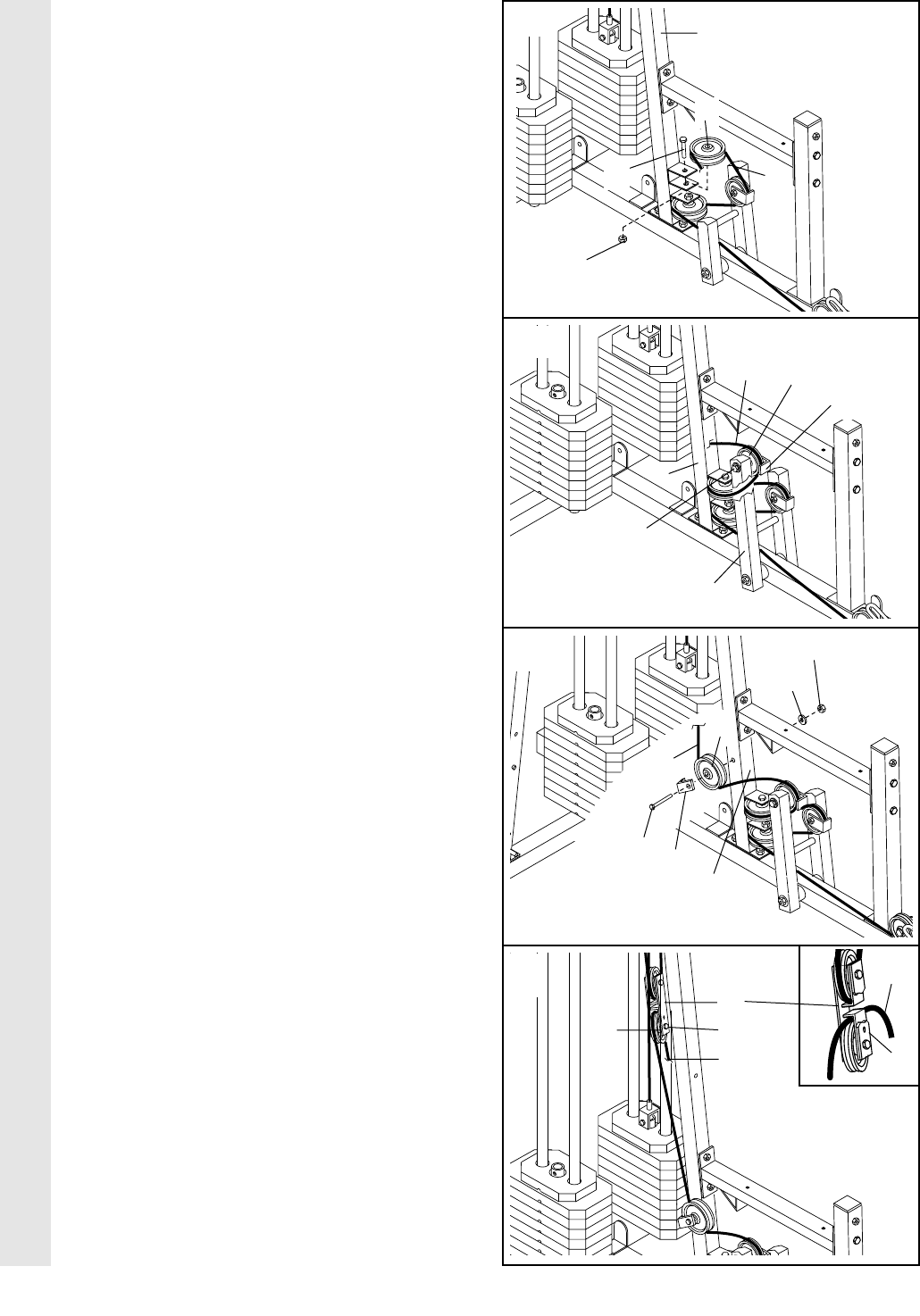

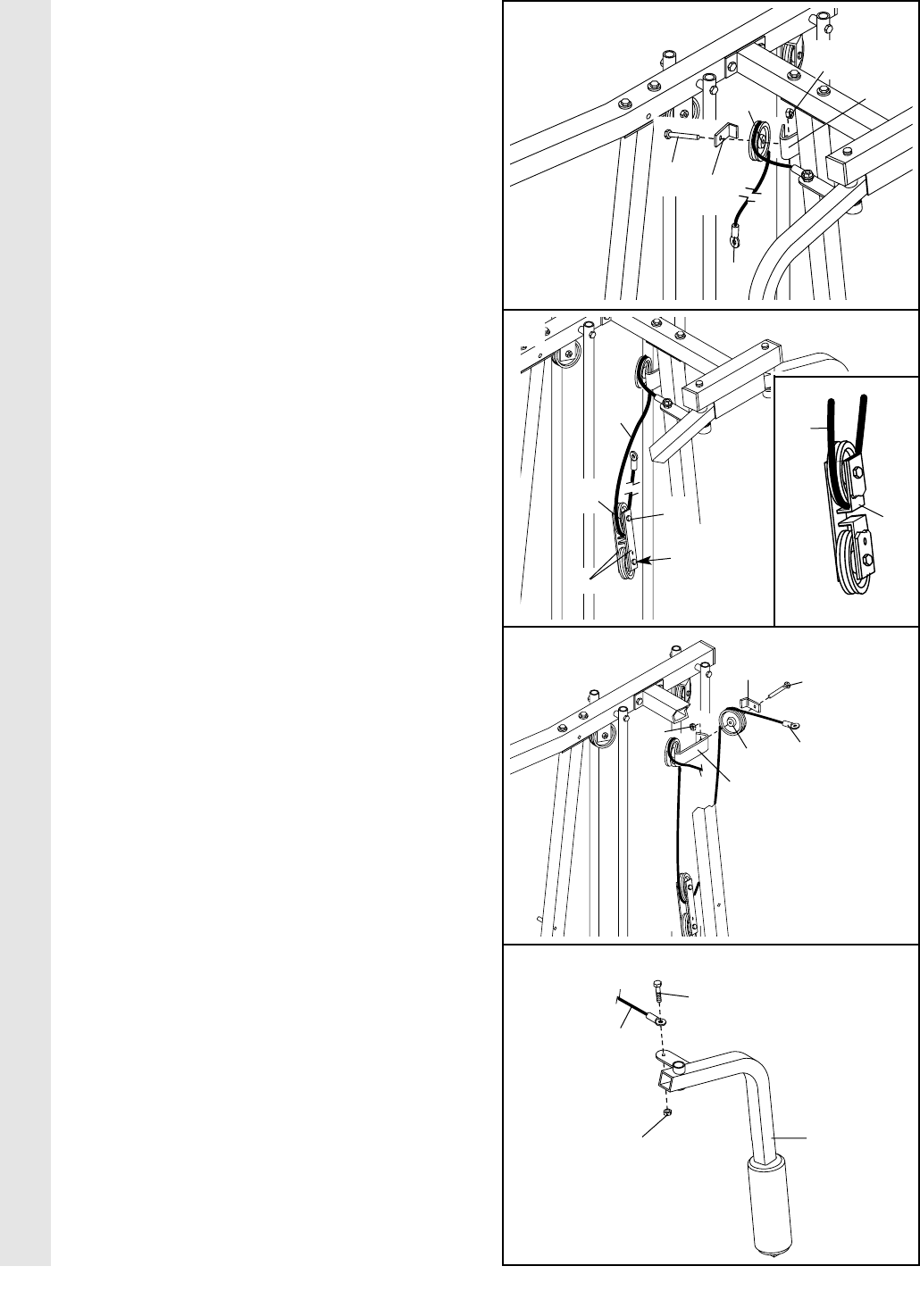

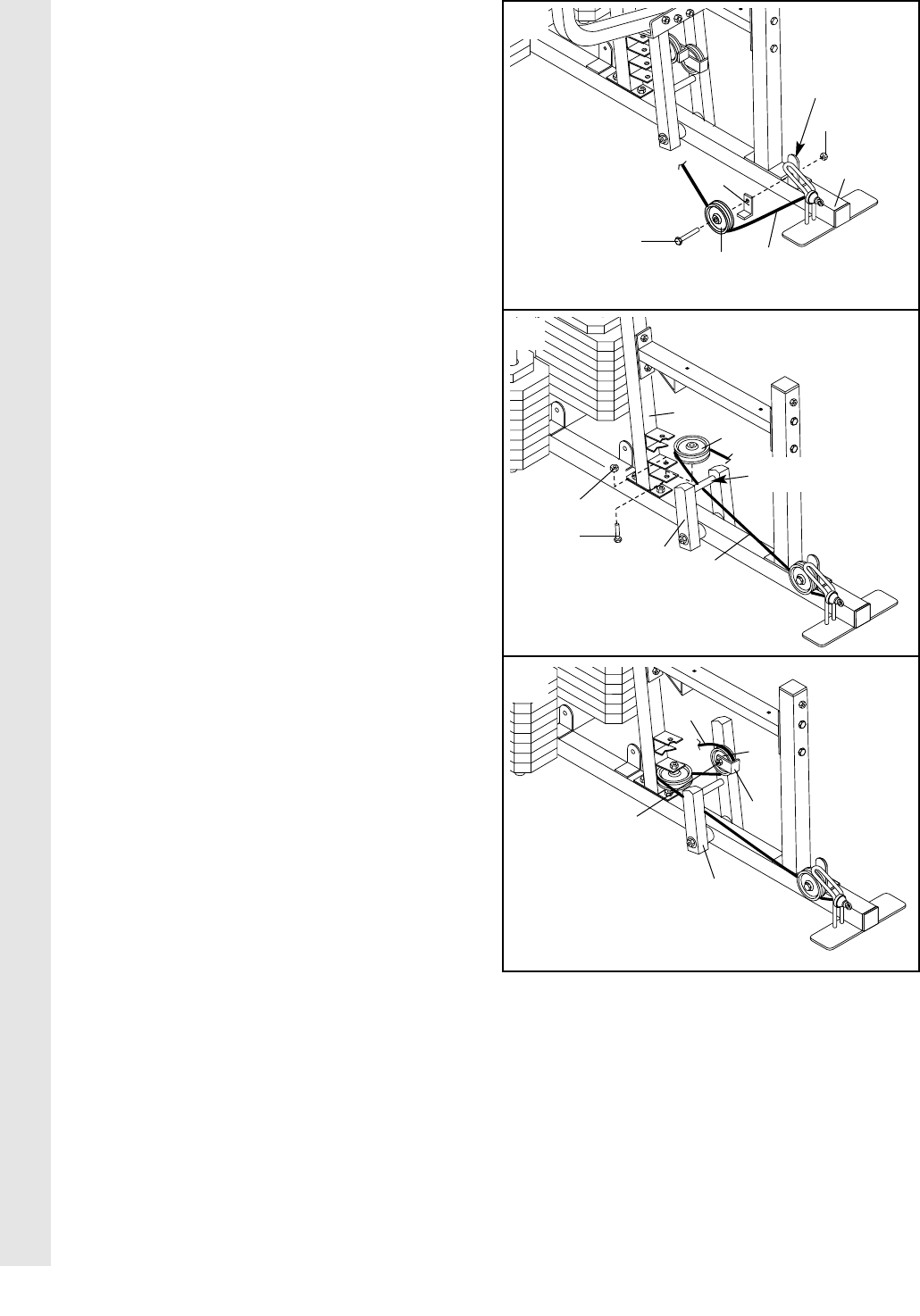

Cable Assembly—During this stage you will

attach the cables and pulleys that connect the

arms to the weights.

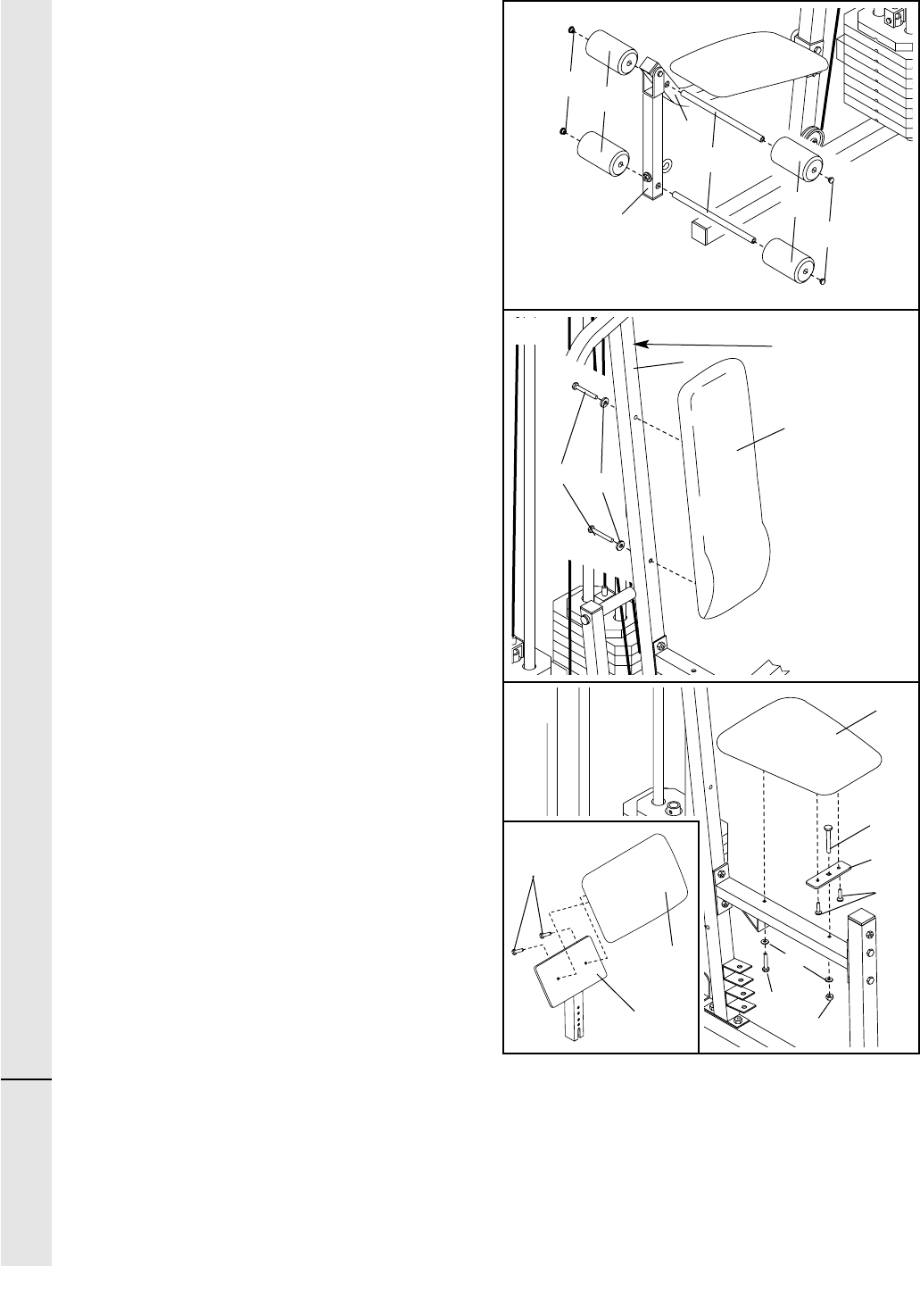

Seat Assembly—During the final stage you will

assemble the seats and the backrests.

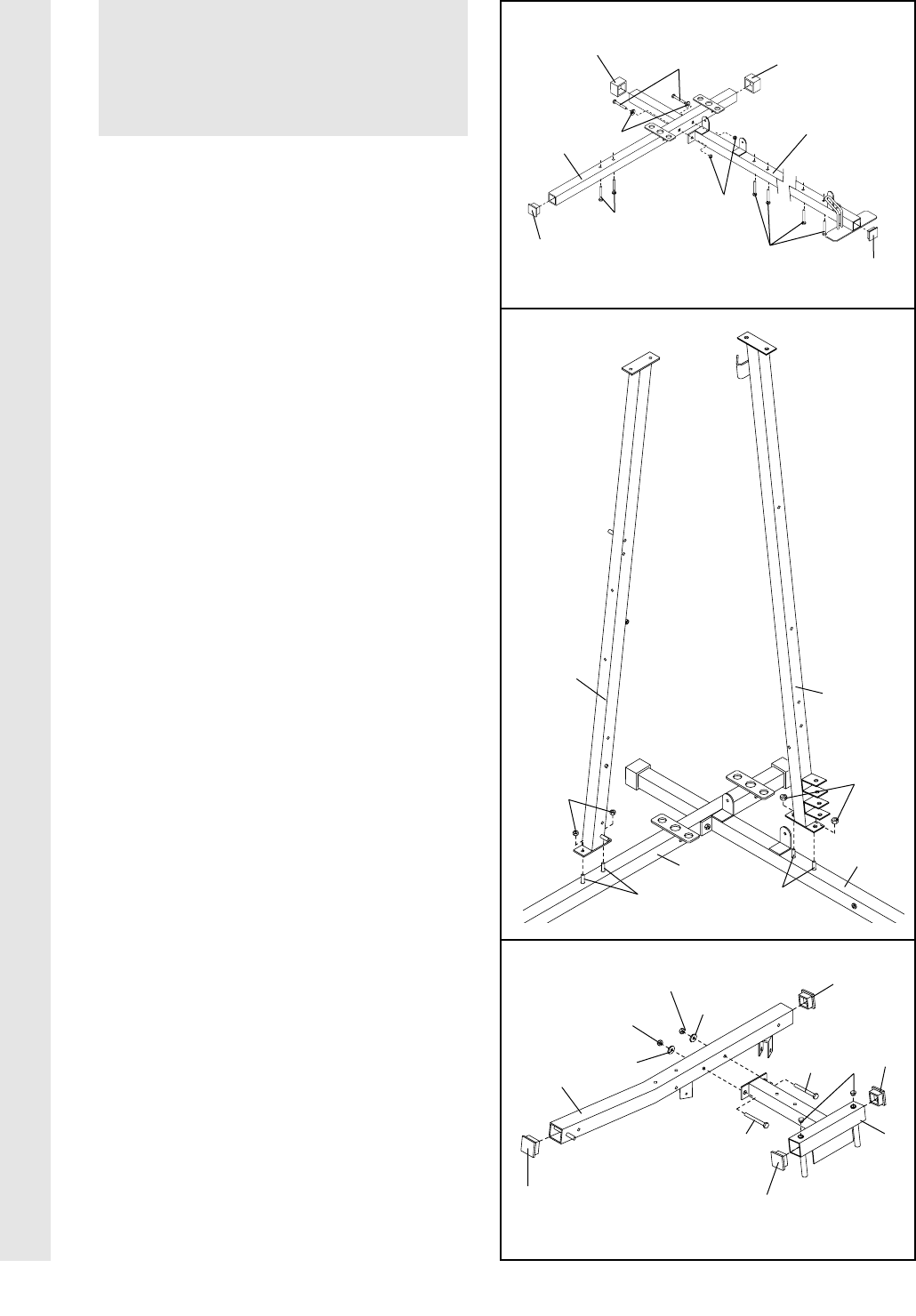

1.

Locate and open the parts bags labeled

“FRAME ASSEMBLY BAG ONE” and

“FRAME ASSEMBLY BAG TWO.”

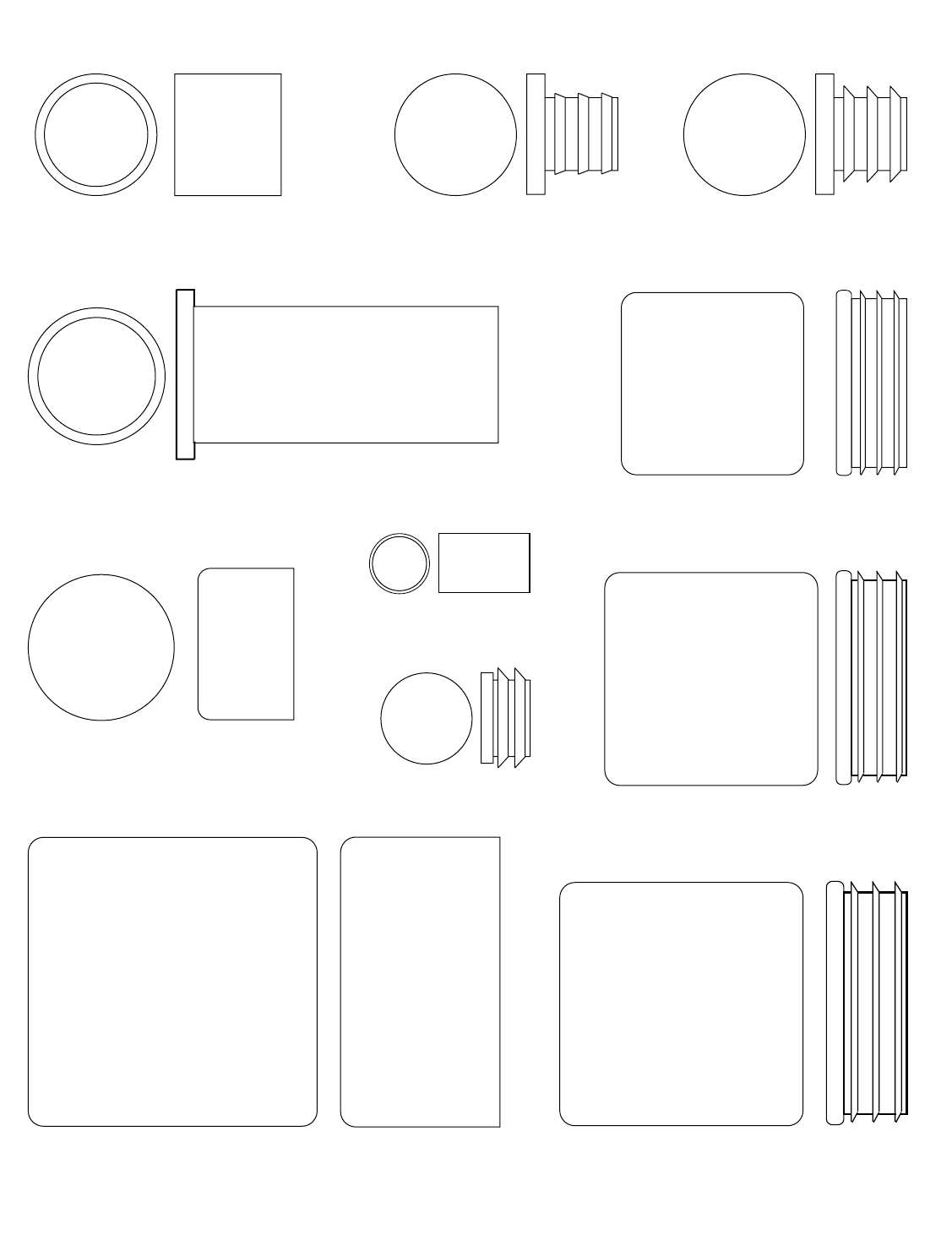

Press two 2” Square Outer Caps (58) onto the

Weight Base (14) in the indicated locations.

Press a 2” Square Inner Cap (56) into the end

of the Weight Base.

Insert two 5/16” x 2 1/2” Carriage Bolts (49)

up through the Weight Base (14). Insert four

5/16” x 2 1/2” Carriage Bolts up through the

Press Base (13).

Press a 2” Square Inner Cap (56) into the end

of the Press Base (13). Attach the Press Base

to the Weight Base (14) with two 5/16” x 2

3/4” Bolts (55), two 5/16” Washers (20), and

two 5/16” Nylon Locknuts (40).

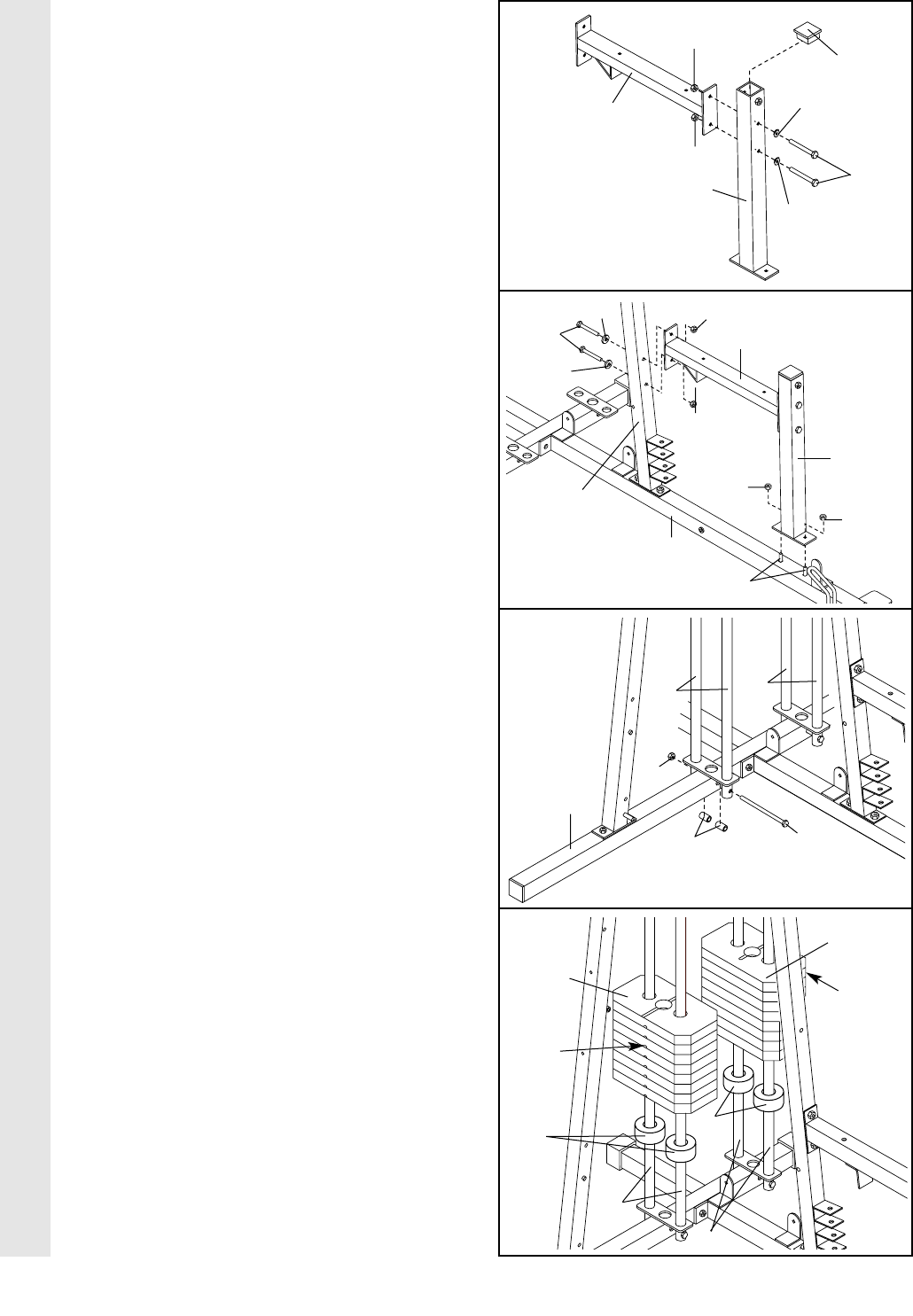

2. Slide the Ab Upright (1) onto the indicated

5/16” x 2 1/2” Carriage Bolts (49) in the

Weight Base (14). Hand tighten two 5/16”

Nylon Locknuts (40) onto the Carriage Bolts.

Do not tighten the Nylon Locknuts yet.

Slide the Press Upright (4) onto the indicated

5/16” x 2 1/2” Carriage Bolts (49) in the Press

Base (13). Hand tighten two 5/16” Nylon

Locknuts (40) onto the Carriage Bolts. Do not

tighten the Nylon Locknuts yet.

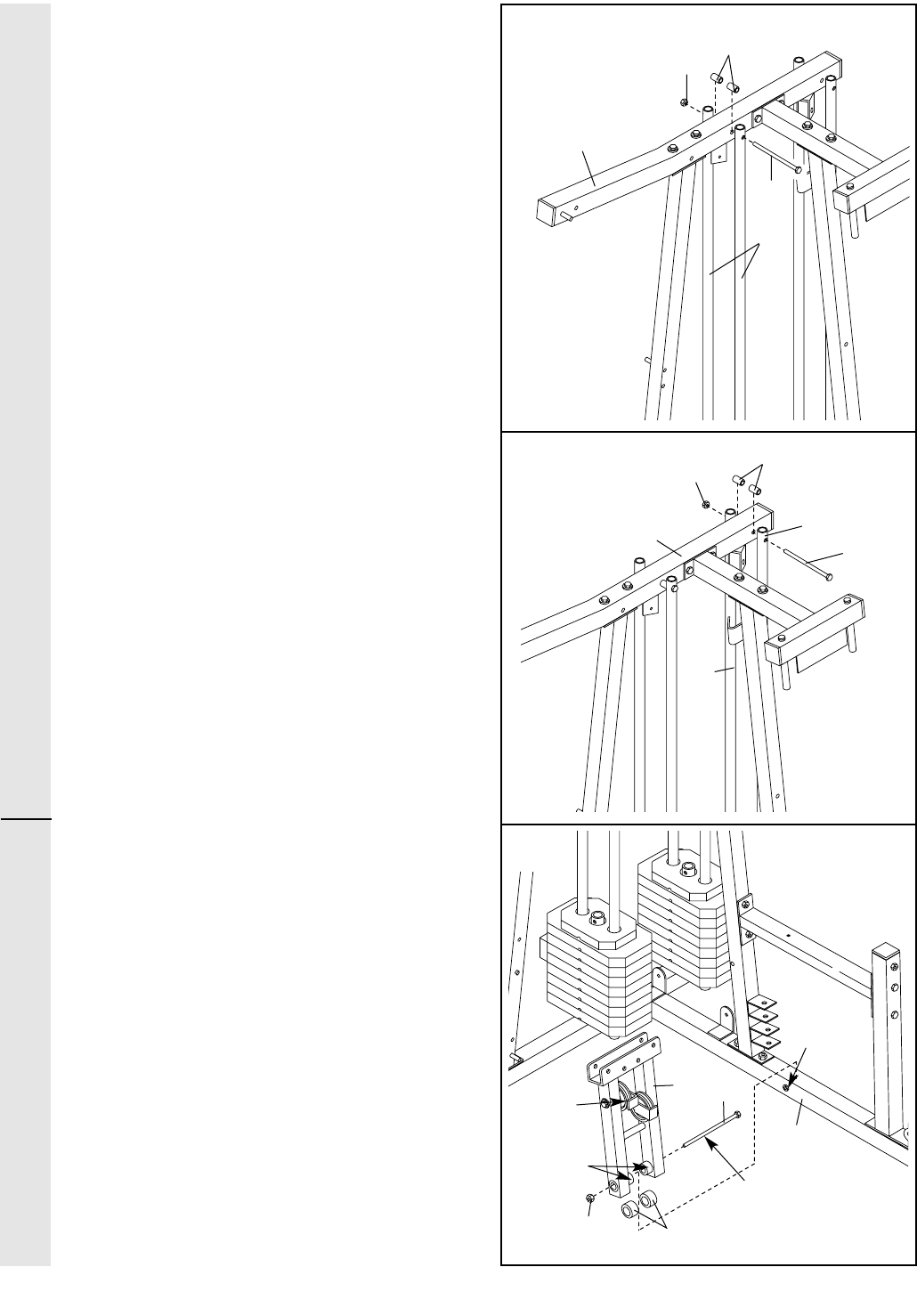

3. Press two 2” Square Inner Caps (56) into the

ends of the Top Frame (2). Press two 2”

Square Inner Caps (56) into the indicated

sides of the Butterfly Frame (3). Press two 1”

Inner Caps (65) into the top of the Butterfly

Frame.

Attach the Butterfly Frame (3) to the Top

Frame (2) with a 5/16” x 3” Bolt (91), 5/16”

Washers (20), and a 5/16” Nylon Jam Nut

(90). Be sure that the Bolt is on the side

shown.

Finish attaching the Butterfly Frame (3) to the

Top Frame (2) with a 5/16” x 2 3/4” Bolt (55),

5/16” Washers (20), and a 5/16” Nylon

Locknut (40).

2

3

FRAME ASSEMBLY

6

14

40 40

49 49

13

2

3

14

55

40

20

56 56

56

56

91 65

20

90

Before you begin this step, make sure

that you have read all of the information

on page 5. This brief introduction will

save you much more time than it takes

to read it!

1

56

58

58 55

56

20

49 40

49

13

14

4. Insert the two 5/16” x 2 3/4” Bolts (55)

through the two indicated 5/16” Washers (20),

and into the Curl Post (9).

Slide the Seat Frame (8) onto the ends of the

5/16” x 2 3/4” Bolts (55) and secure the Seat

Frame with two 5/16” Nylon Locknuts (40).

Press a 2” Square Inner Cap (56) into the top

of Curl Post (9).

5. Slide the Curl Post (9) onto the indicated

5/16” x 2 1/2” Carriage Bolts (49) in the Press

Base (13). Hand tighten two 5/16” Nylon

Locknuts (40) onto the Carriage Bolts.

Attach the Seat Frame (8) to the Press

Upright (4) with two 5/16” x 2 3/4” Bolts (55),

two 5/16” Washers (20), and two 5/16” Nylon

Locknuts (40). Do not tighten the Nylon

Locknuts yet.

6. Insert two Weight Guides (23) into one of the

brackets on the Weight Base (14). Attach the

lower end of the Weight Guides with a 5/16” x

6” Bolt (67), two 1/2” x 3/4” Spacers (69), and

a 5/16” Nylon Locknut (40). Do not over

tighten the Nylon Locknut.

Attach the other Weight Guides (23) to the

other bracket in the same manner.

7. Slide a Weight Bumper (27) onto each of the

Weight Guides (23).

Slide eight Weights (89) onto each set of

Weight Guides (23). Be sure that the pin

grooves are on the indicated side of each

stack of Weights.

7

6

7

FRAME ASSEMBLY

Pin

Grooves

40

69 67

14

23 23

Pin

Grooves

89

89

27 27

23

23

5

49

55

20

20

8

9

40

40

40

40

13

4

4

9

20

20

55

56

8

40

40

8

10

8

FRAME ASSEMBLY

26

20

14

3

20

20

40 40

2

55

55

89 89

25

9

23

24

23

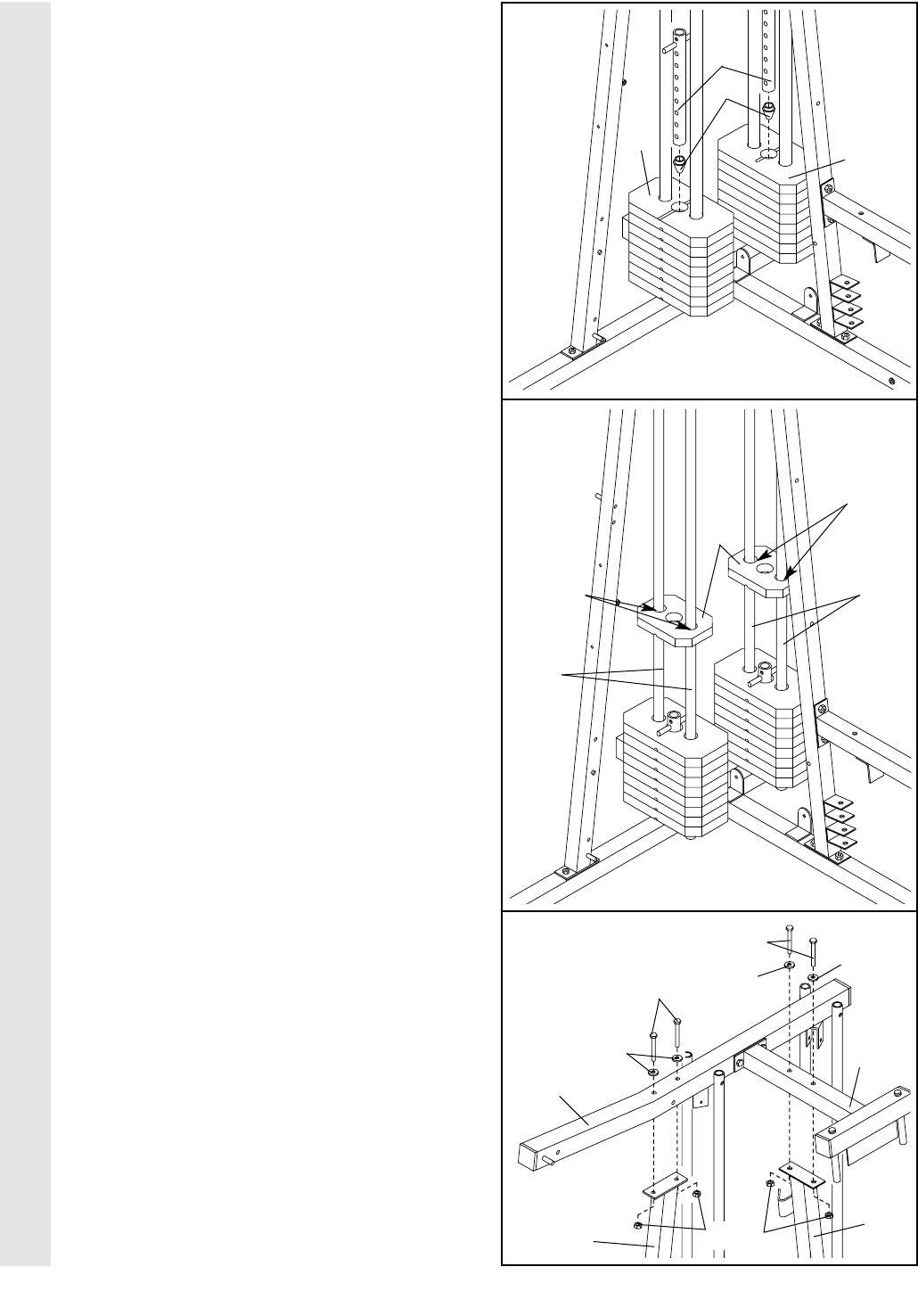

8. Press a Weight Tube Bumper (26) into each

Weight Tube (25).

Insert a Weight Tube (25) into each stack of

Weights (89). Be sure that the pins on the

Weight Tubes are in the pin grooves in the

upper Weights.

9. Lubricate the insides of the holes in the Top

Weights (24) as shown. Slide a Top Weight

onto each set of Weight Guides (23).

10. Attach the Top Frame (2) to the Ab Upright (1)

with two 5/16” x 2 3/4” Bolts (55), two 5/16”

Washers (20), and two 5/16” Nylon Locknuts

(40). Do not tighten the Nylon Locknuts

yet.

Attach the Butterfly Frame (3) to the Press

Upright (4) with two 5/16” x 2 3/4” Bolts (55),

two 5/16” Washers (20), and two 5/16” Nylon

Locknuts (40). Do not tighten the Nylon

Locknuts yet.

Lubricate

Lubricate

11

12

9

ARM ASSEMBLY

69

23

23

67

69

40

2

23

67

40

2

54

42

12

13

52

Lubricate

Tube

Welded

Spacers

High

Pulley

FRAME ASSEMBLY

11. Attach the upper ends of one set of Weight

Guides (23) to the Top Frame (2) with a 5/16”

x 6” Bolt (67), two 1/2” x 3/4” Spacers (69),

and a 5/16” Nylon Locknut (40). Do not over

tighten the Nylon Locknut.

12. Attach the upper ends of the other set of

Weight Guides (23) to the Top Frame (2) with

a 5/16” x 6” Bolt (67), two 1/2” x 3/4” Spacers

(69), and a 5/16” Nylon Locknut (40). Do not

over tighten the Nylon Locknut.

Before continuing, firmly tighten all nylon

locknuts used in steps 1 through 12.

13. Locate and open the parts bag labeled

“ARM ASSEMBLY.”

Press a 1” x 7/8” Plastic Bushing (54) onto

each welded spacer on the Press Frame (12).

Slide the Press Frame onto the Press Base

(13) so that the Plastic Bushings are aligned

with the indicated tube. Note: This will be a

tight fit. Make sure that the high pulley is

on the side shown.

Lubricate the 3/8” x 8” Bolt (52). Attach the

Press Frame (12) to the Press Base (13) with

the Bolt and a 3/8” Nylon Locknut (42).

13

10

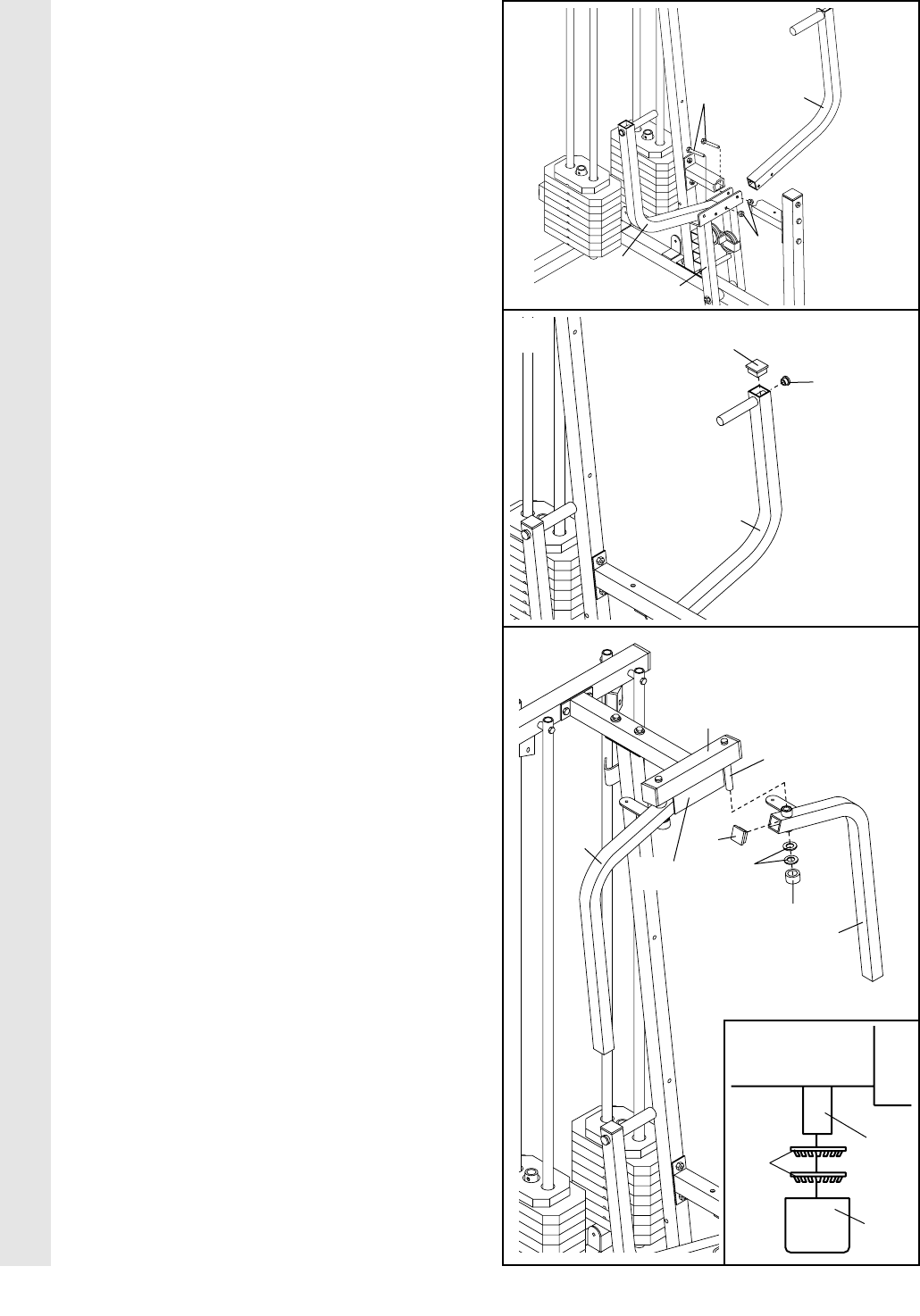

14. Attach a Press Arm (7) to one side of the

Press Frame (12) with two 5/16” x 2 1/2” Bolts

(39) and two 5/16” Nylon Locknuts (40).

Attach the other Press Arm (7) to the Press

Frame (12) in the same manner.

15. Press a 1” Round Inner Cap (70) into one of

the Press Arms (7). Press a 1 3/4” Square

Inner Cap (48) into the Press Arm.

Repeat this step for the other Press Arm (not

shown).

16. Lubricate both axles on the Butterfly Frame (3).

Refer to the drawing and identify the Right Fly

Arm (5) and the Left Fly Arm (6).

Press a 1 3/4” Square Inner Cap (48) into the

upper end of the Left Arm (6). Slide the Left

Fly Arm onto the indicated axle. Note: Be

careful not to confuse the Left Arm with

the Right Arm (5). Be sure that the upper

end of the Left Arm is behind the indicated

bracket on the Butterfly Frame (3).

IMPORTANT NOTE: Before assembling the

1” Retainers (45) used in this step, be sure

that you thoroughly understand the step.

The Retainers can be assembled only once.

If they must be removed, you will need to

order new Retainers.

Tap two 1” Retainers (45) and a 1” Round

Outer Cap (46) onto the axle. Be sure that

the teeth on the Retainers bend toward the

Round Outer Cap, as shown in the inset

drawing.

Attach the Right Fly Arm (5) in the same

manner.

14

15

16

ARM ASSEMBLY

39 7

70

40

48

12

7

7

3

Lubricate Axle

Axle

6

5

45

48

46

Bracket

45

46

11

17. Press a 1 3/4” Square Inner Cap (48) into the

lower end of the Left Fly Arm (6). Wet the

lower end of the Left Fly Arm with soapy

water. Slide a 10” Pad (22) onto the Left Arm.

Repeat this step with the Right Fly Arm (5).

18. Locate and open the parts bags labeled

“CABLE ASSEMBLY” and “PULLEYS.”

During steps 19 through 45, refer to the

CABLE DIAGRAMS on pages 25 and 26 of

this manual to verify proper cable routing.

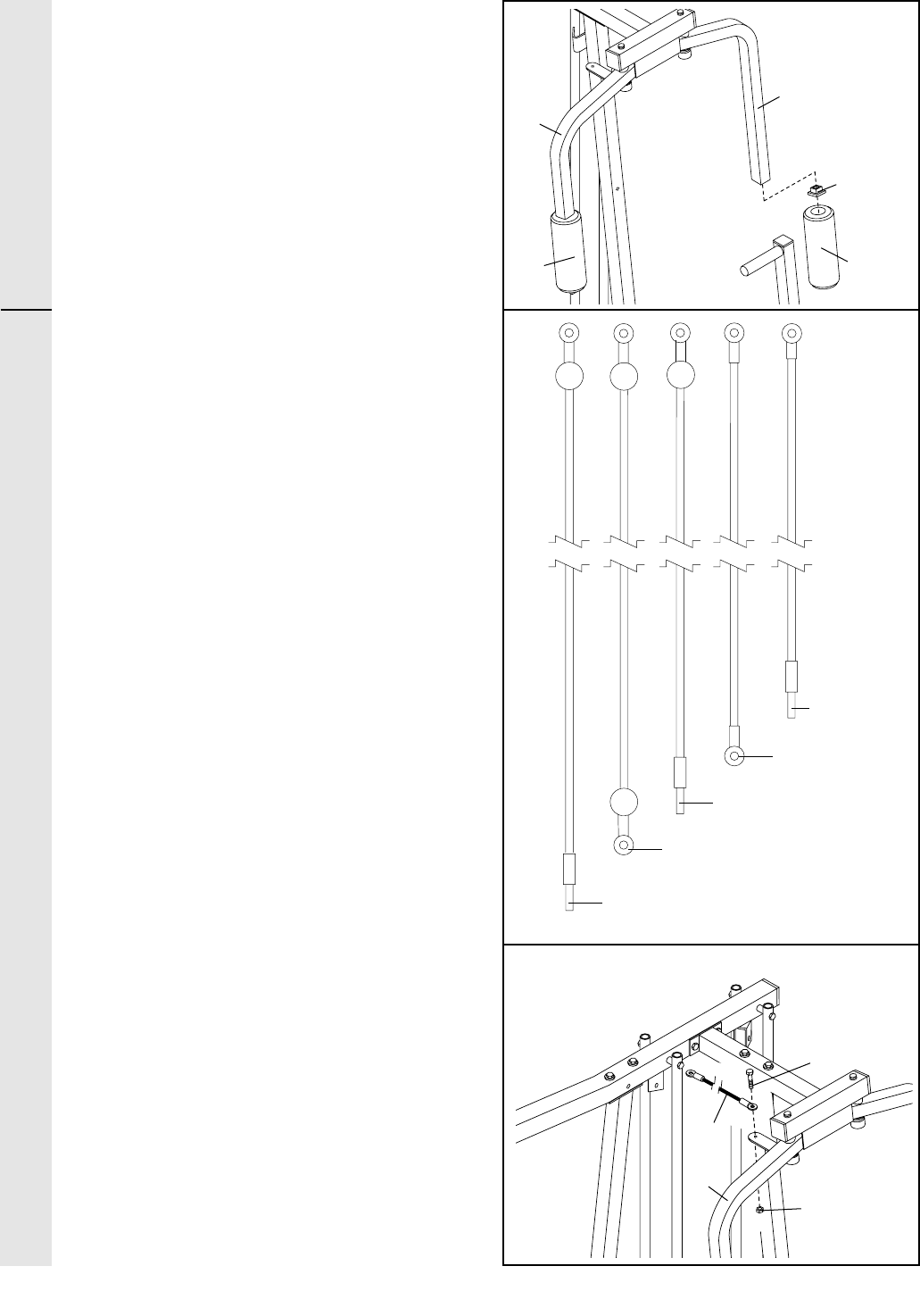

Before beginning this section, fully unwind the

five Cables and identify the Cables by com-

paring the lengths and the ends. The approxi-

mate length of each Cable, in inches, is listed

after the key number in the drawing.

IMPORTANT: While assembling the cables,

do not over tighten the bolts and nuts

attaching the pulleys. The pulleys must be

able to turn freely.

19. Identify the Butterfly Cable (88)—this is the

second shortest Cable. Attach one end of

the Butterfly Cable to the the bracket on the

Right Fly Arm (5) with a 5/16” x 1” Shoulder

Bolt (51) and a 5/16” Nylon Nylon Locknut

(40).

19

17

18

CABLE ASSEMBLY ARM ASSEMBLY

5

6

48

22

87—212 1/2”

40

5

51

88

22

85—110”

84—99 5/8”

88—82 3/16”

86—71 1/2”

12

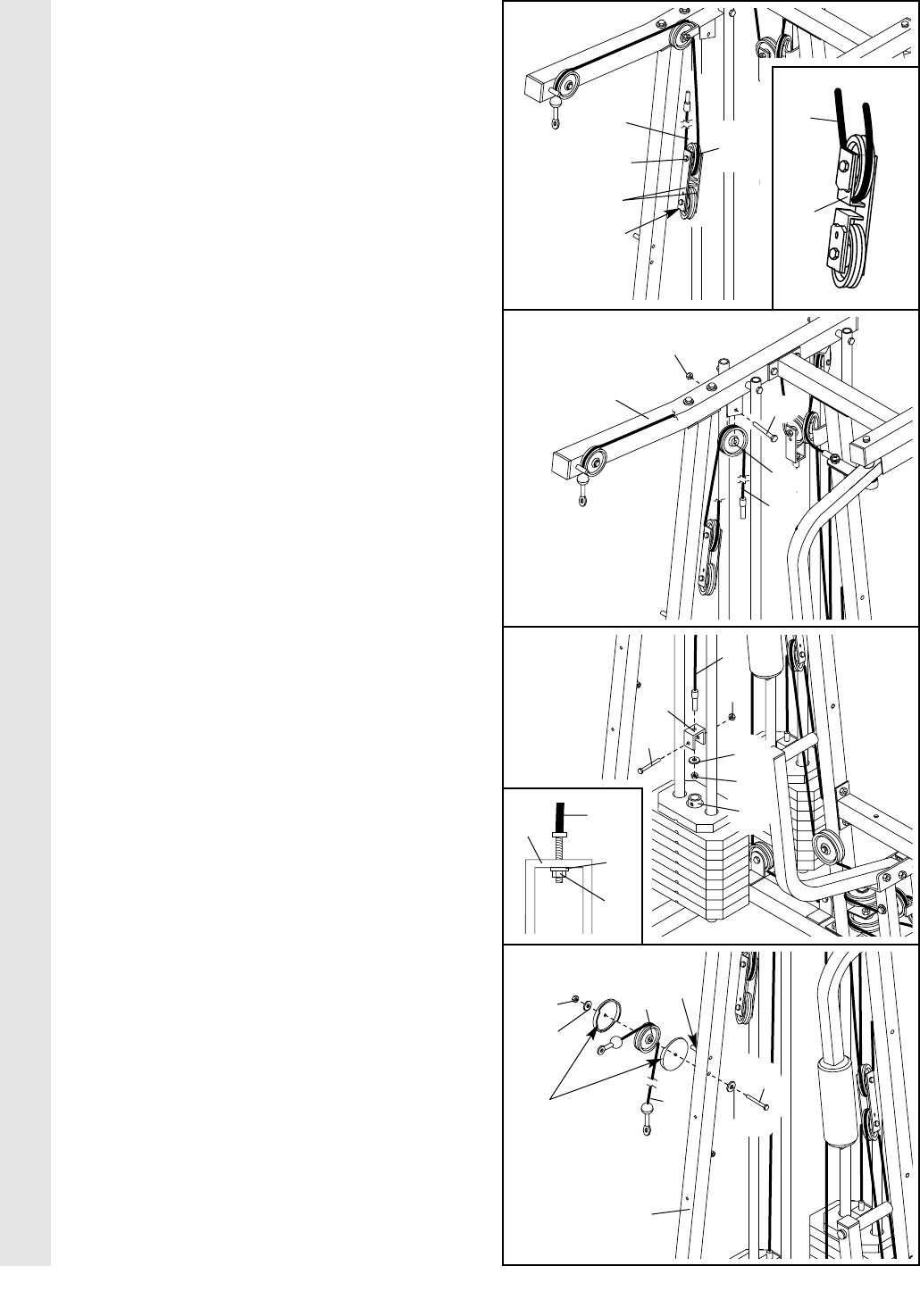

20. Wrap the Butterfly Cable (88) around a 3 1/2”

Pulley (82) as shown. Attach the Pulley and a

Cable Trap (80) to the bracket on the Press

Upright (4) with a 3/8” x 2” Bolt (50) and a

3/8” Nylon Locknut (42). The Cable Trap

must be oriented as shown and be posi-

tioned to hold the Cable in the groove of

the Pulley.

21. Locate one of the preassembled pairs of

Pulley Plates (31) and 3 1/2” Pulleys (82).

Route the Butterfly Cable (88) under the indi-

cated 3 1/2” Pulley (82). The end of the Pulley

Plates (31) with two holes should be down-

ward. Be sure that the Cable is between

the Cable Trap (80) and the Pulley, and that

the Cable Trap is positioned to hold the

Cable in place. Refer to the inset drawing.

Tighten the 3/8” x 2” Bolt (50) and the 3/8”

Nylon Locknut (not shown).

22. Wrap the Butterfly Cable (88) around a 3 1/2”

Pulley (82) as shown. Attach the Pulley and a

Cable Trap (80) to the other side of the bracket

on the Press Upright (4) with a 3/8” x 2” Bolt

(50) and a 3/8” Nylon Locknut (42). The

Cable Trap must be oriented as shown and

be positioned to hold the Cable in the

groove of the Pulley.

23. Note: The Left Fly Arm (6) is shown

removed for easier part identification.

Attach the Butterfly Cable (88) to the the

bracket on the Left Fly Arm (6) with a 5/16” x

1” Shoulder Bolt (51) and a 5/16” Nylon Nylon

Locknut (40).

23

20

21

22

CABLE ASSEMBLY

6

End with

two holes

should be

down

82

31

4

88

82

50 80

4

42 88

82

50

80

88 88

50 80

40

51

88

42

13

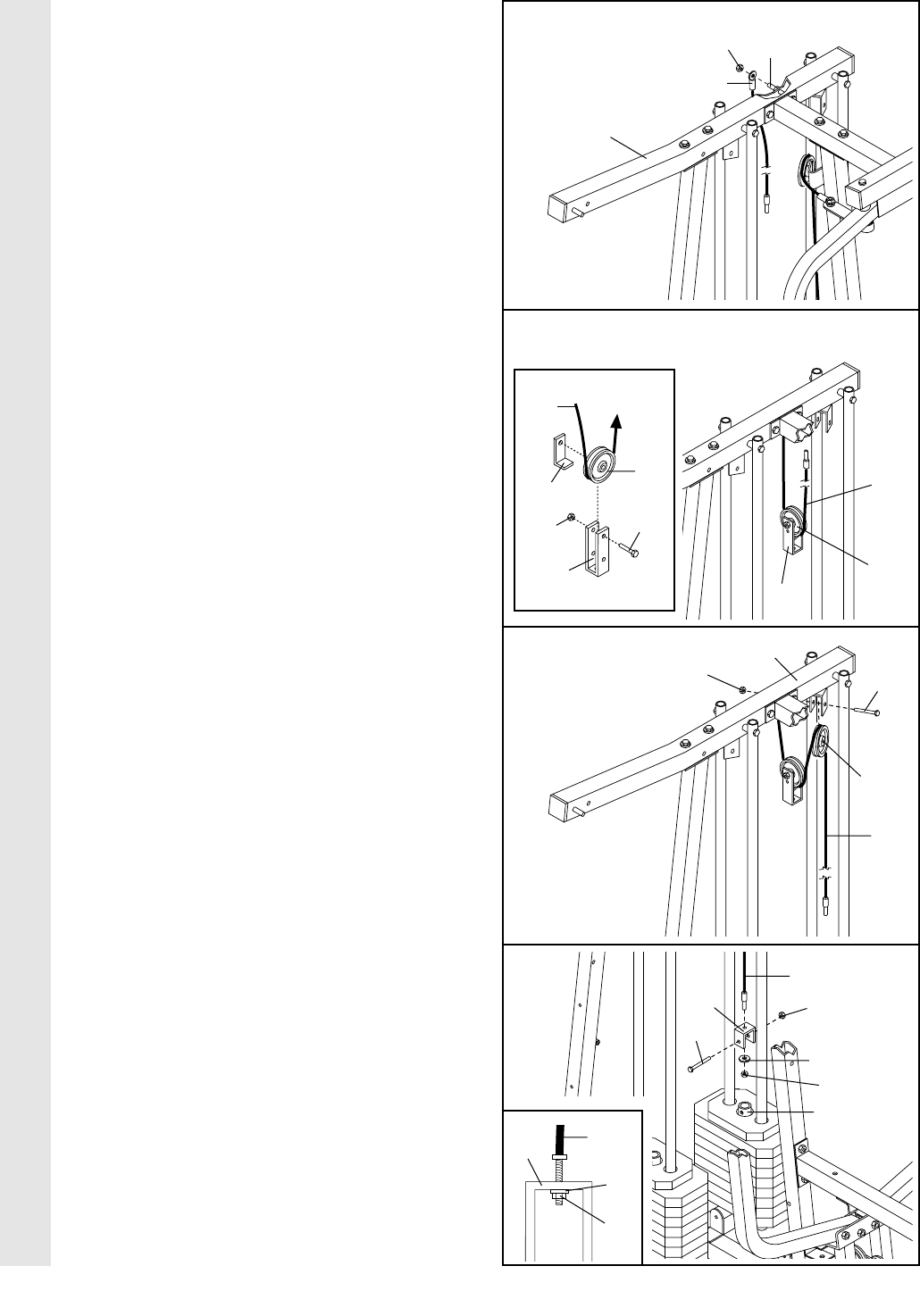

24. Identify the Rear Cable (86)—this is the

shortest Cable. Slide one end of the Rear

Cable onto the 5/16” x 3” Bolt (91) on the Top

Frame (2). Thread a 5/16” Nylon Jam Nut (90)

onto the Bolt. Do not fully tighten the Jam

Nut; leave enough room between the two

Jam Nuts for the Cable to pivot.

25. See the inset drawing. Attach a 3 1/2” Pulley

(82) and a Cable Trap (80) to the upper hole

in the Large “U” Bracket (83) with a 3/8” x 2”

Bolt (50) and a 3/8” Nylon Locknut (42). Be

sure that the Cable Trap is inside the

Large “U” Bracket. Note: This may come

pre-assembled.

Route the Rear Cable (86) through the Large

“U” Bracket (83) and the 3 1/2” Pulley (82).

Be sure that the Cable is in the groove of

the Pulley and that the Cable and Pulley

move smoothly.

26. Wrap the Rear Cable (86) around a 3 1/2”

Pulley (82). Attach the Pulley to the Top

Frame (2) with a 3/8” x 2” Bolt (50) and a 3/8”

Nylon Locknut (42). The Cable must be

routed in the direction shown.

27. Attach the Rear Cable (86) to a Small “U”

Bracket (32) with a 1/4” Washer (37) and a

1/4” Nylon Locknut (44). Do not completely

tighten the Nylon Locknut. It should be

threaded onto the end of the Cable only a

couple of turns, as shown in the inset

drawing.

Attach the Small “U” Bracket (32) to the indi-

cated Weight Tube (25) with a 5/16” x 1 3/4”

Bolt (68) and a 5/16” Nylon Locknut (40).

27

24

25

26

CABLE ASSEMBLY

91

90

86

2

86

80

42

83

50

82

82

82

50

42

37

44

25

32

68

2

86

83

86

86

40

86

44

32

37

14

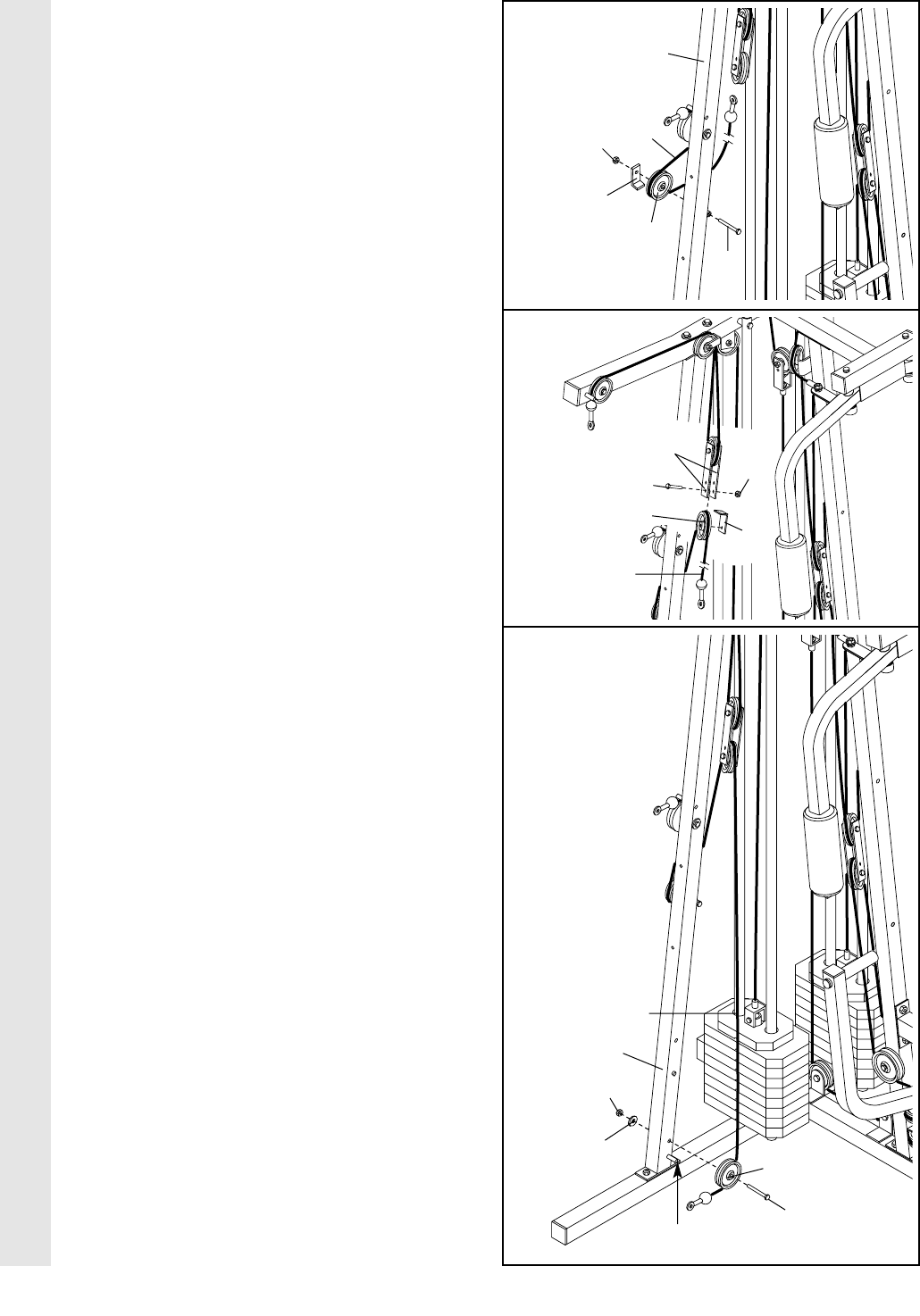

28. Identify the Press Cable (87)—this is the

longest Cable. Wrap the Press Cable around

a 3 1/2” Pulley (82). Attach the Pulley and a

Cable Trap (80) to the indicated bracket on

the Press Base (13) with a 3/8” x 2” Bolt (50)

and a 3/8” Nylon Locknut (42). Be sure that

the Cable Trap is turned to hold the Cable

in place.

29. Route the Press Cable (87) under the cross-

bar on the Press Frame (12). Wrap the Press

Cable around a “V” Pulley (81). Attach the “V”

Pulley to the lower bracket on the Press

Upright (4) with a 3/8” x 2 1/4” Bolt (71) and a

3/8” Nylon Jam Nut (43).

30. Route the Press Cable (87) around the indi-

cated 3 1/2” Pulley (82) attached to the Press

Frame (12). Be sure that the Cable Trap

(80) is turned to hold the Cable in place.

Tighten the 3/8” Nylon Locknut (42) and the

3/8” x 3 1/2” Bolt (not shown).

28

29

30

CABLE ASSEMBLY

87

82

50

80 13

42

Bracket

87

Crossbar

71 12

81

4

43

87

82

80

42

12

15

32

33

34

CABLE ASSEMBLY

31. Wrap the Press Cable (87) around a “V”

Pulley (81). Attach the “V” Pulley to the upper

bracket on the Press Upright (4) with a 3/8” x

2 1/4” Bolt (71) and a 3/8” Nylon Jam Nut

(43).

32. Route the Press Cable (87) up around the

indicated 3 1/2” Pulley (82) that is attached

inside the Press Frame (12). Be sure that

the Cable Trap (80) is turned to hold the

Cable in place and that the Cable is

between the Pulley and the crossbar on

the Press Frame. Tighten the 3/8” Nylon

Locknut (not shown) and the 3/8” x 3 1/2” Bolt

(66).

33. Route the Press Cable (87) around a 3 1/2”

Pulley (82). Attach the Pulley and a Cable

Trap (80) to the Press Upright (4) with a 3/8”

x 3 3/4” Bolt (76), a 3/8” Washer (38) and a

3/8” Nylon Jam Nut (43). Be sure that the

Cable Trap is turned to hold the Cable in

place.

34. Route the Press Cable (87) over the indicated

3 1/2” Pulley (82) attached to the Pulley

Plates (31). The Cable must be routed in

the direction shown.

Refer to the inset drawing. Be sure that the

Cable is between the Cable Trap (80) and

the Pulley, and that the Cable Trap is posi-

tioned to hold the Cable in place.

Tighten the 3/8” x 2” Bolt (50) and the 3/8”

Nylon Locknut (not shown).

31 4

71

81

43

87

12

87 82

87

76 80

4

38

43

82

82

87

50

31

66

4

80

87

80

16

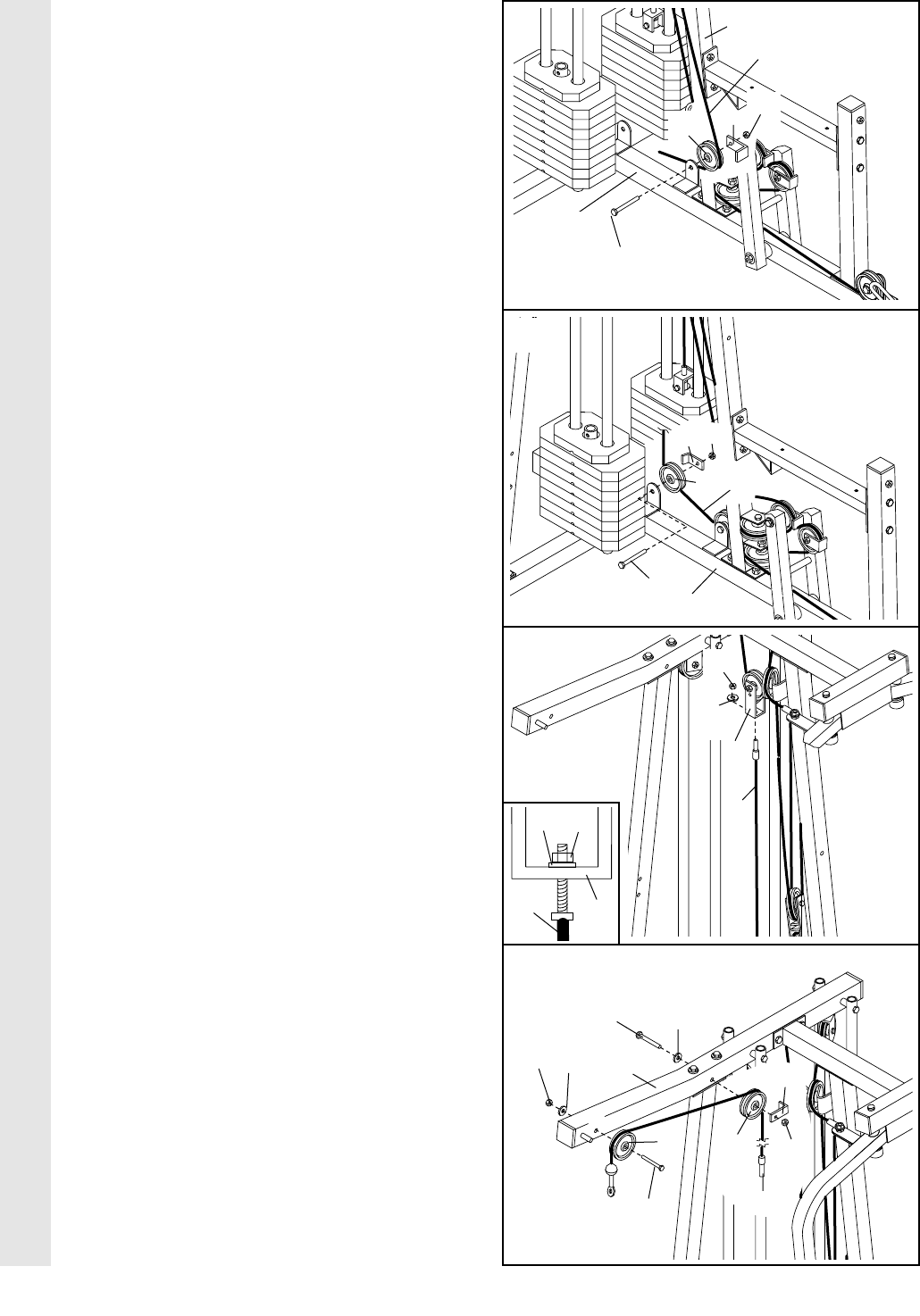

35. Wrap the Press Cable (87) around a 3 1/2”

Pulley (82). Attach the Pulley and a Cable

Trap (80) to the bracket on the Press Base

(13) closest to the Press Upright (4) with a

3/8” x 2” Bolt (50) and a 3/8” Nylon Locknut

(42). Be sure that the Cable Trap is turned

to hold the Cable in place.

36. Wrap the Press Cable (87) around a 3 1/2”

Pulley (82). Attach the Pulley and a Cable

Trap (80) to the other bracket on the Press

Base (13) with a 3/8” x 2” Bolt (50) and a 3/8”

Nylon Locknut (42). Be sure that the Cable

Trap is turned to hold the Cable in place.

37. Attach the end of the Press Cable (87) to the

Large “U” Bracket (83) with a 1/4” Washer

(37) and a 1/4” Nylon Locknut (44). Do not

completely tighten the Nylon Locknut. It

should be threaded onto the end of the

Cable so only a couple of threads are

showing above the Nylon Locknut, as

shown in the inset drawing.

38. Identify the High Cable (84)—this is the

shortest remaining Cable. Wrap the High

Cable around a 3 1/2” Pulley (82). Attach the

Pulley to the Top Frame (2) with a 3/8” x 3

3/4” Bolt (76), a 3/8” Washer (38), and a 3/8”

Nylon Locknut (42).

Wrap the High Cable (84) around another 3

1/2” Pulley (82). Attach the Pulley and a

Cable Trap (80) to the Top Frame (2) with a

3/8” x 3 3/4” Bolt (76), a 3/8” Washer (38),

and a 3/8” Nylon Jam Nut (43). Be sure that

the Cable Trap is positioned to hold the

Cable in place.

35

36

37

CABLE ASSEMBLY

87

42

4

50

13

13

82 80

83

87

80

87

82

50

42

87 83

37 44

84

80

38

38

42

76

76

2

82

82 43

38

37

44

17

39. Locate the remaining preassembled pair of

Pulley Plates (31) and 3 1/2” Pulleys (82).

Route the High Cable (84) around the indicat-

ed 3 1/2” Pulley (82). The end of the Pulley

Plates (31) with two holes should be down-

ward. Be sure that the Cable is between

the Cable Trap (80) and the Pulley, and that

the Cable Trap is positioned to hold the

Cable in place. Refer to the inset drawing.

Tighten the 3/8” x 2” Bolt (50) and the 3/8”

Nylon Locknut (not shown).

40. Wrap the High Cable (84) around a 3 1/2”

Pulley (82). Attach the Pulley to the Top

Frame (2) with a 3/8” x 2” Bolt (50) and a 3/8”

Nylon Locknut (42). The Cable must be

routed in the direction shown.

41. Attach the High Cable (84) to a Small “U”

Bracket (32) with a 1/4” Washer (37) and a

1/4” Nylon Locknut (44). Do not completely

tighten the Nylon Locknut. It should be

threaded onto the Cable enough to be

secure; as shown in the inset drawing.

Attach the Small “U” Bracket (32) to the indi-

cated Weight Tube (25) with a 5/16” x 1 3/4”

Bolt (68) and a 5/16” Nylon Locknut (40).

42. Lay the Ab Cable (85) over a 3 1/2” Pulley

(82). Attach the Pulley and both Pulley Covers

(74) to the Ab Upright (1) with the 3/8” x 4”

Bolt (73), two 3/8” Washers (38), and a 3/8”

Nylon Locknut (42). Make sure that the

Cable is between the Pulley and the post.

Do not over tighten the Nylon Locknut; the

Pulley should turn easily.

The Pulley Covers (74) must be turned so

that the small tabs face away from the

training system.

42

39

40

41

CABLE ASSEMBLY

84 84

80

50

31

42 Post

1

85

74; Small

tabs must

be in this

location

38

38

73

82

End with two

holes should

be down

50

82

2

42

32

68

84

40

37

44

25

84

44

32

37

82

84

18

43. Wrap the Ab Cable (85) around a 3 1/2”

Pulley (82). Attach the Pulley and a Cable

Trap (80) to the Ab Upright (1) with the 3/8” x

3 3/4” Bolt (76) and a 3/8” Nylon Locknut (42).

Be sure that the Cable Trap is in the indi-

cated position.

44. Remove the indicated 3/8” x 2” Bolt (50), the

3/8” Nylon Locknut (42), the 3 1/2” Pulley

(82), and the Cable Trap (80) from the indicat-

ed Pulley Plates (31). Lay the Ab Cable (85)

over the Pulley. Reattach the Pulley and the

Cable Trap to the lowest hole in the Pulley

Plates with the Bolt and the Nylon Locknut.

Make sure that the Cable Trap is turned to

hold the Cable in place.

45. Wrap the Ab Cable (85) around a 3 1/2”

Pulley (82). Attach the Pulley to the Ab

Upright (1) with the 3/8” x 3 3/4” Bolt (76), a

3/8” Washer (38), and a 3/8” Nylon Locknut

(42). The ball on the Cable must be on the

indicated side of the Pulley. Be sure that

the Cable is between the Pulley and the

post, and that the Cable and Pulley move

smoothly.

43

44

45

CABLE ASSEMBLY

42

31

42

82 80

50

80

82

85

76

1

42

38 82

76

Post

85

1

85

19

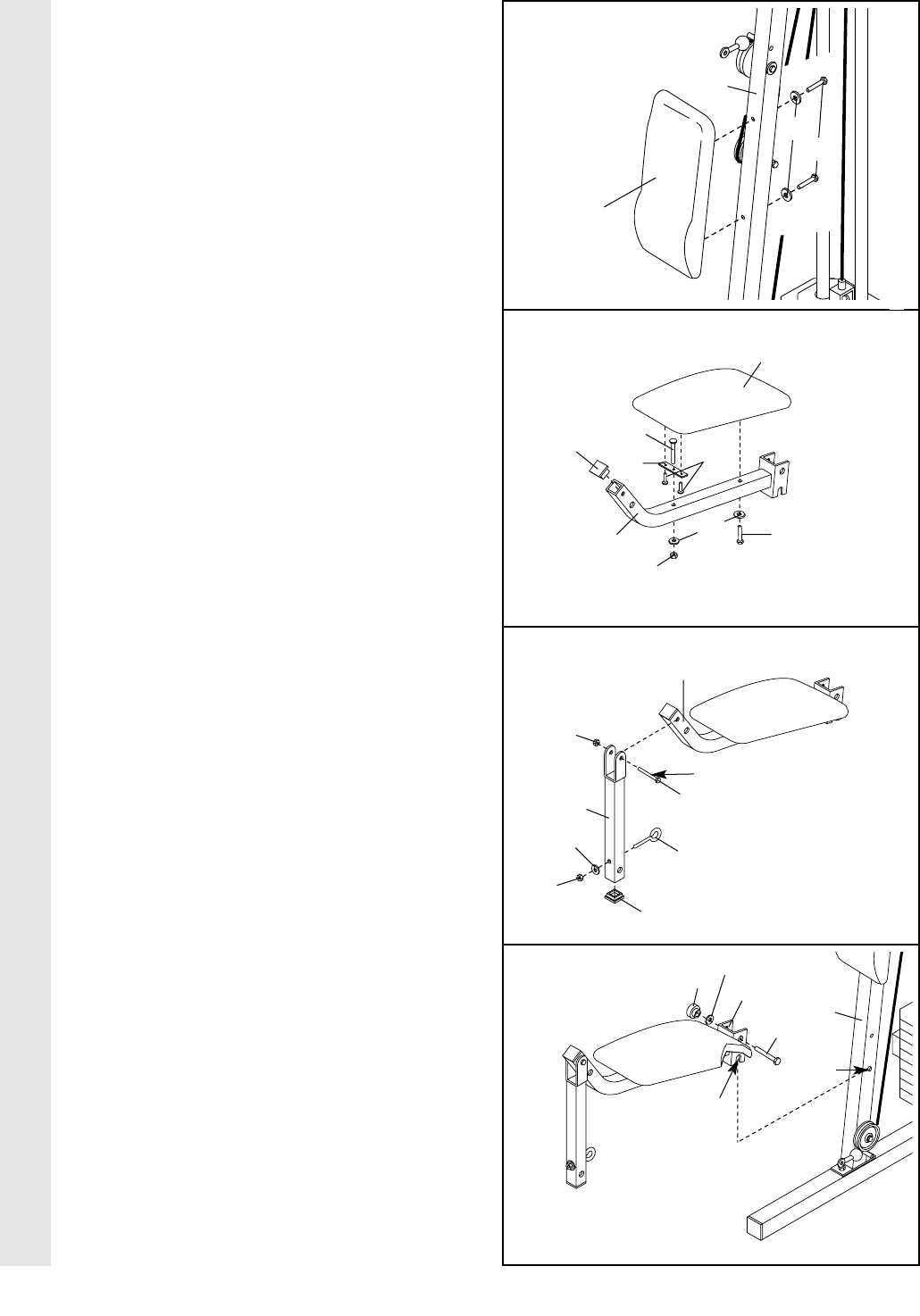

46. Locate and open the parts bag labeled

“SEAT ASSEMBLY.”

Attach the Small Backrest (18) to the Ab

Upright (1) with two 1/4” Washers (37) and

two 1/4” x 2 1/2” Machine Screws (64).

47. Press a 1 1/2” Square Inner Cap (57) into the

Rear Seat Frame (16).

Insert a 1/4” x 2” Carriage Bolt (61) through

the center hole in a Seat Plate (41). Attach

the Seat Plate to the Seat (17) with two 1/4” x

3/4” Screws (59).

Insert the 1/4” x 2” Carriage Bolt (61) through

the indicated hole in the Rear Seat Frame

(16). Attach a 1/4” Washer (37) and a 1/4”

Nylon Locknut (44) onto the Carriage Bolt.

Attach the other end of the Seat (17) to the

Rear Seat Frame (16) with a 1/4” Washer (37)

and a 1/4” x 2” Machine Screw (63).

48. Press a 1 1/2” Square Inner Cap (57) into the

Leg Lever (15).

Lubricate the 5/16” x 2 1/4” Bolt (62). Attach

the Leg Lever (15) to the Rear Seat Frame

(16) with the Bolt and a 5/16” Nylon Locknut

(40). Do not over tighten the Nylon

Locknut; the Leg Lever must pivot freely.

Insert the 3/8” x 2” Eyebolt (79) into the Leg

Lever (15) from the direction shown. Tighten a

3/8” Nylon Locknut (42) and a 3/8” Washer

(38) onto the Eyebolt.

49. Rest the slot in the Rear Seat Frame (16) on

the indicated post in the Ab Upright (1). Attach

the Rear Seat Frame to the Ab Upright with a

5/16” x 2 3/4” Carriage Bolt (77), 5/16”

Washer (20) and the Seat Knob (30).

49

46

47

48

SEAT ASSEMBLY

Slot

44

63

17

16

57 41

61

59

1

18

Post

1

77

16

30 20

16

Lubricate

57

42

38

40

15

79

62

37 64

37

20

50

51

52 17

60

41

59

44

37

64

SEAT ASSEMBLY

MISC.

53. Make sure that all parts have been properly tightened. The use of the remaining parts will be explained

in HOW TO USE THE TRAINING SYSTEM, beginning on page 21 of this manual.

Before using the training system, pull each cable a few times to be sure that the cables move smoothly

over the pulleys. If one of the cables does not move smoothly, find and correct the problem. IMPOR-

TANT: If the cables are not properly installed, they may be damaged when heavy weight is

used. See the CABLE DIAGRAMS on page 25 and 26 of this manual for proper cable routing. If

there is any slack in the cables, you will need to remove the slack by tightening the cables. See

TROUBLESHOOTING AND MAINTENANCE on page 24.

50. Press two 3/4” Round Inner Caps (78) into

each Pad Tube (28).

Insert a Pad Tube (28) into the Rear Seat

Frame (16). Slide a Foam Pad (29) onto each

end of the Pad Tube.

Insert the other Pad Tube (28) into the Leg

Lever (15). Slide a Foam Pad (29) onto each

end of the Pad Tube.

51. Attach the Large Backrest (19) to the Press

Upright (4) with two 1/4” Washers (37) and

two 1/4” x 2 1/2” Machine Screws (64).

Remove the ‘WEIDER 9300 PRO’ decal from

the backing paper and apply the decal to the

Press Upright (4) above the warning decal,

where shown.

52. Insert a 1/4” x 2 1/2” Carriage Bolt (60) into a

Seat Plate (41). Attach the Seat Plate to the

Seat (17) with two 1/4” x 3/4” Screws (59).

Attach the Seat (17) to the Seat Frame (8)

with a 1/4” Washer (37) and a 1/4” x 2 1/2”

Machine Screw (64). Slide a 1/4” Washer (37)

onto the 1/4 x 2 1/2” Carriage Bolt (60) and

tighten a 1/4” Nylon Locknut (44) onto the

Carriage Bolt.

See the inset drawing. Attach the Curl Pad

(11) to the Curl Frame (10) with two 1/4” x

3/4” Screws (59).

4

19

37

64

16

15

78 29

28

78

29

WEIDER 9300

PRO decal

11

10

59

21

HOW TO USE THE TRAINING SYSTEM

The instructions below describe how each part of the training system can be adjusted. Refer to the exercise

poster accompanying this manual to see how the training system should be set up for each exercise. IMPOR-

TANT: When attaching the lat bar or nylon strap, make sure that the attachments are in the correct start-

ing position for the exercise to be performed. If there is any slack in the cables or chain as an exercise

is performed, the effectiveness of the exercise will be reduced.

72

84

33

34

36

75

75 89

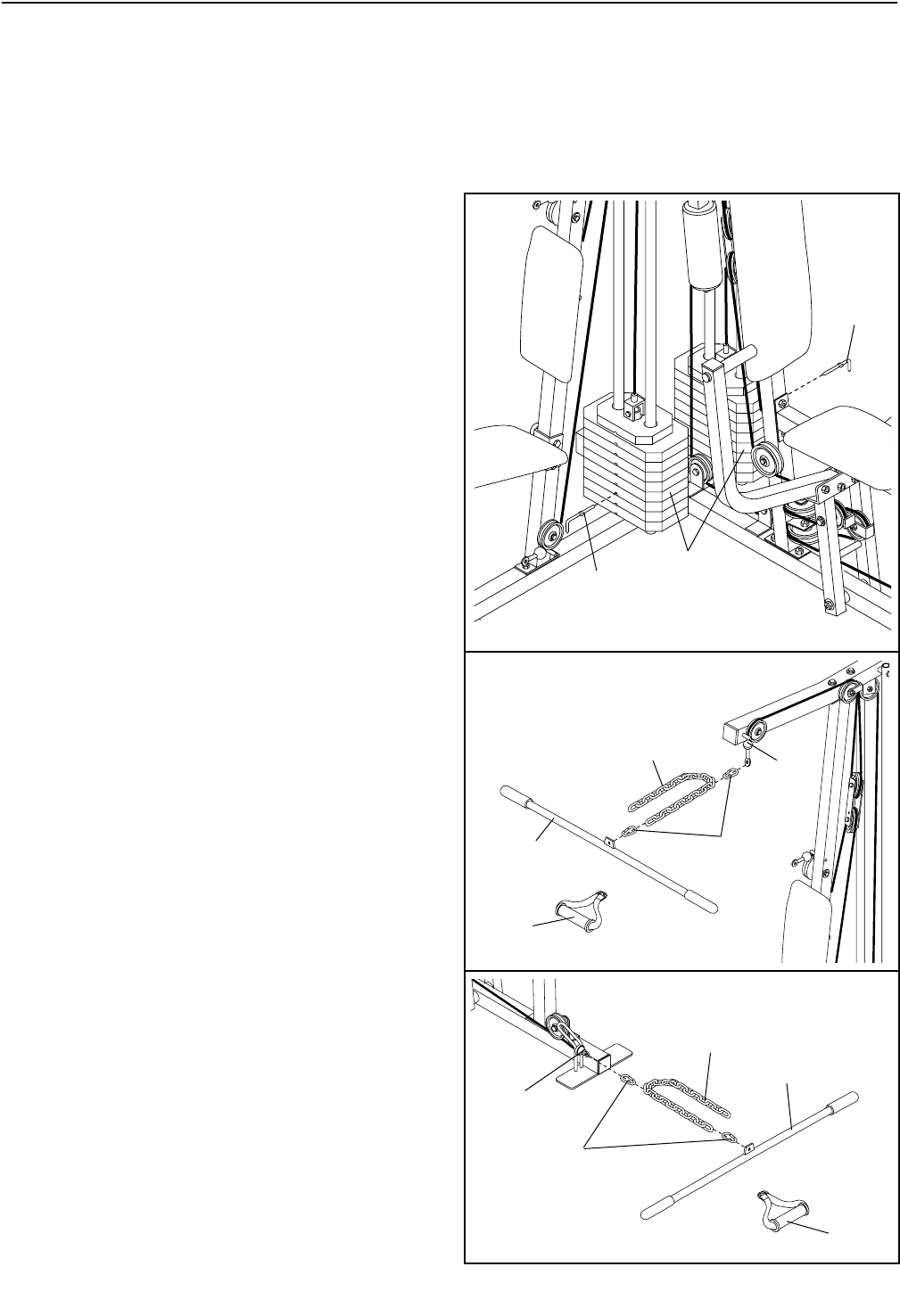

CHANGING THE WEIGHT SETTING

The Training System features two weight stacks. The

one weight stack is connected to the ab, upper, and

lower pulley stations. The other weight stack is con-

nected to the fly and press arms.

To change the weight setting of either weight stack,

insert a Weight Pin (75) under the desired Weight

(89). Insert the Weight Pin until the bent end of the

Weight Pin is touching the Weights, and turn the bent

end downward. The weight setting of either weight

stack can be changed from 6.5 pounds to 106.5

pounds, in increments of 12.5 pounds. Note: Due to

the cables and pulleys, the amount of resistance

at each exercise station may vary from the weight

setting. Use the WEIGHT RESISTANCE CHART on

page 23 to find the approximate amount of resis-

tance at each weight station.

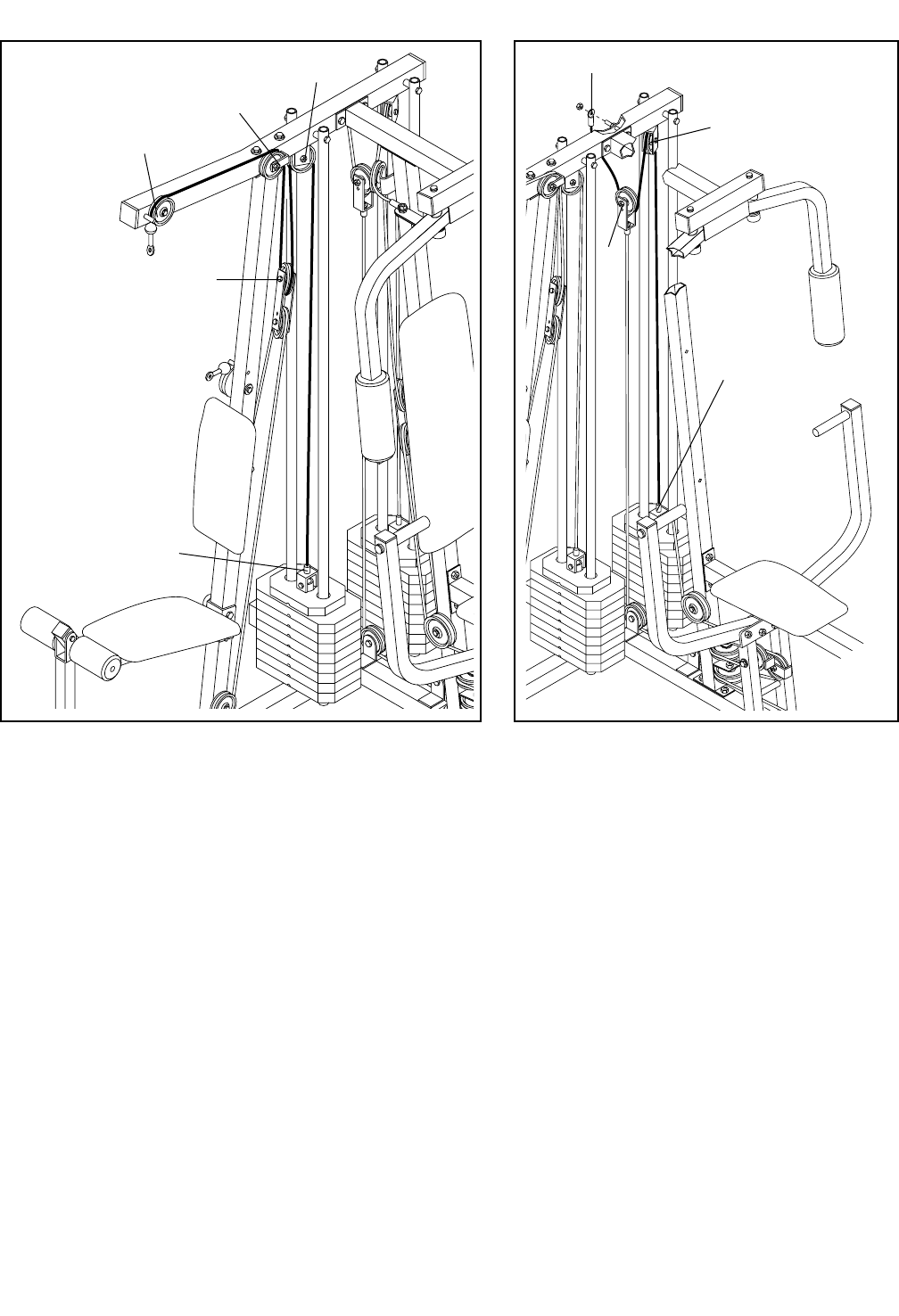

ATTACHING THE LAT BAR OR NYLON STRAP TO

THE HIGH PULLEY STATION

Attach the Lat Bar (36) to the High Cable (84) with a

Cable Clip (33). For some exercises, the Chain (34)

should be attached between the Lat Bar and the High

Cable with two Cable Clips. Adjust the length of the

Chain between the Lat Bar and the High Cable so

the Lat Bar is in the correct starting position for

the exercise to be performed.

The Nylon Strap (72) can be attached in the same

manner.

ATTACHING THE LAT BAR OR NYLON STRAP TO

THE LOW PULLEY STATION

Attach the Lat Bar (36) to the Press Cable (87) with a

Cable Clip (33). For some exercises, the Chain (34)

should be attached between the Lat Bar and the

Press Cable with two Cable Clips. Adjust the length

of the Chain between the Lat Bar and the Press

Cable so the Lat Bar is in the correct starting

position for the exercise to be performed.

The Nylon Strap (72) can be attached in the same

manner as the Chain. 72

87

33

34

36

22

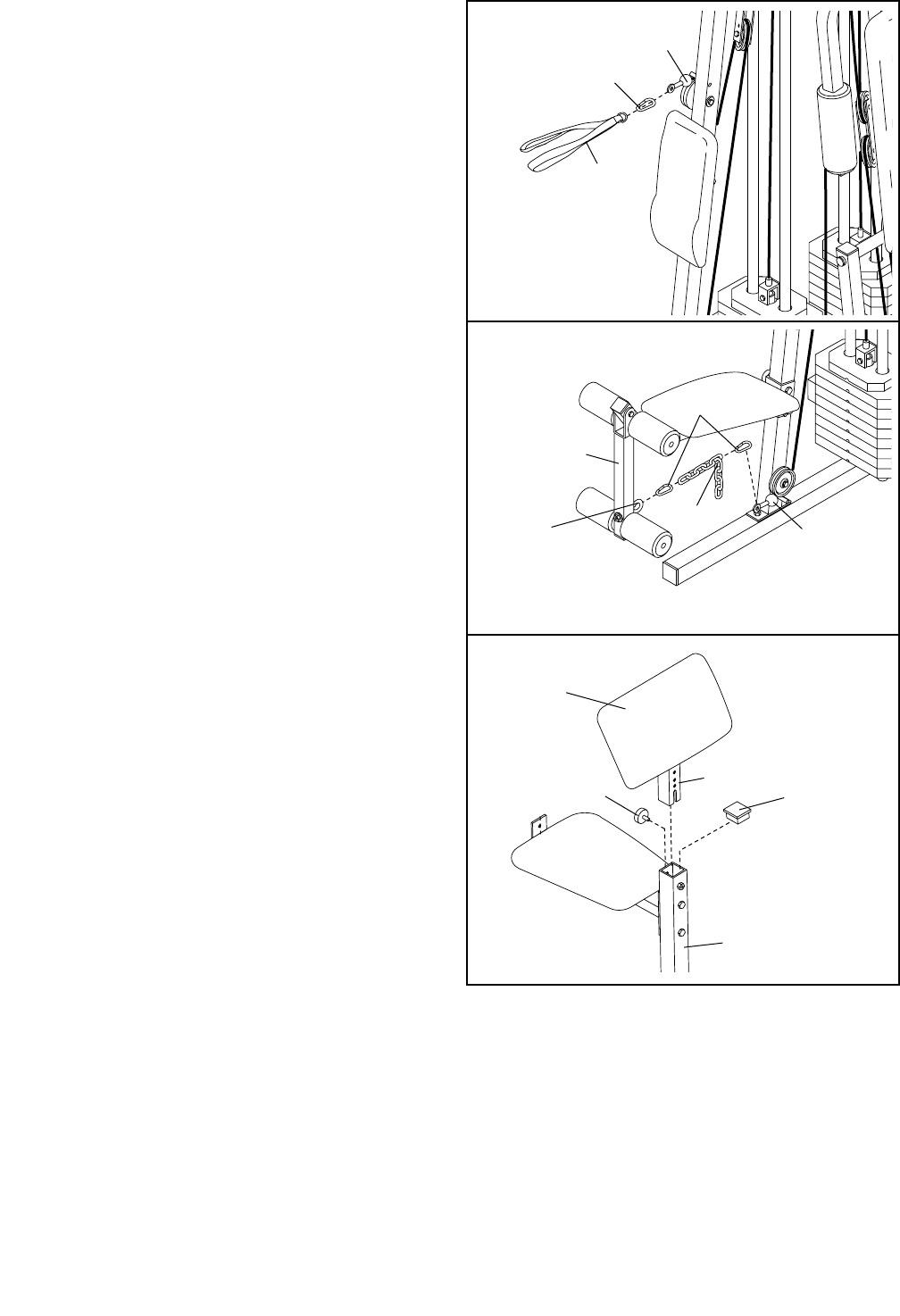

ATTACHING THE AB STRAP TO THE AB PULLEY

STATION

Attach the Ab Strap (35) to the Ab Cable (85) at the ab

pulley station with a Cable Clip (33).

ATTACHING THE LEG LEVER TO THE LOW

PULLEY STATION

To use the Leg Lever (15), the seat must be attached

to the front upright.

Attach one end of the Chain (34) to the Ab Cable (85)

with a Cable Clip (33). Attach the other end of the

Chain to the 3/8” x 2” Eyebolt (79) with a Cable Clip.

ADJUSTING THE CURL PAD

Remove the Curl Post Knob (53) from the Curl Post (9).

Align the holes in the Curl Frame (10) with the desired

set of holes in the Curl Post (9). Re-insert the Curl

Post Knob (53) through the holes in the Curl Post and

the holes in the Curl Frame.

If you are not using the Curl Pad (11), remove the Curl

Pad and insert a 2” Square Inner Cap (56) into the

Curl Post (9).

15

79 85

33

34

85

33

35

56

11

10

53

9

23

WEIGHT RESISTANCE CHART

This chart shows the approximate weight resistance at each weight station. “Top” refers to the 6.5 lb. top weight.

The other numbers refer to the 12.5 lb. weight plates. The butterfly arm resistance listed is the resistance for

each butterfly arm. Note: The actual resistance at each weight station may vary due to differences in indi-

vidual weight plates, as well as friction between the cables, pulleys, and weight guides.

WEIGHT PRESS BUTTERFLY LEG HIGH LOW AB

PLATES ARM ARM LEVER PULLEY PULLEY PULLEY

(lbs.) (lbs.) (lbs.) (lbs.) (lbs.) (lbs.)

Top 27 20 9 10 36 10

1533718245325

2795033406940

3 101 65 38 53 86 53

4 125 83 48 66 102 68

5 148 103 58 80 119 83

6 175 120 68 96 135 96

7 205 143 76 107 152 110

8 240 173 90 123 168 124

24

TROUBLESHOOTING AND MAINTENANCE

Inspect and tighten all parts each time you use the training system. Replace any worn parts immediately. The

training system can be cleaned using a damp cloth and mild non-abrasive detergent. Do not use solvents.

TIGHTENING THE CABLES

Woven cable, the type of cable used on the training system, can stretch slightly when it is first used. If there is

slack in the cables before resistance is felt, the cables should be tightened. If any slack is felt when using the

weight stack closest to the ab upright, both the High Cable (84) and the Ab Cable (85) will need to be tightened.

If any slack is felt when using the other weight stack, the Rear Cable (86), the Press Cable (87), and the

Butterfly Cable (88) will need to be tightened.

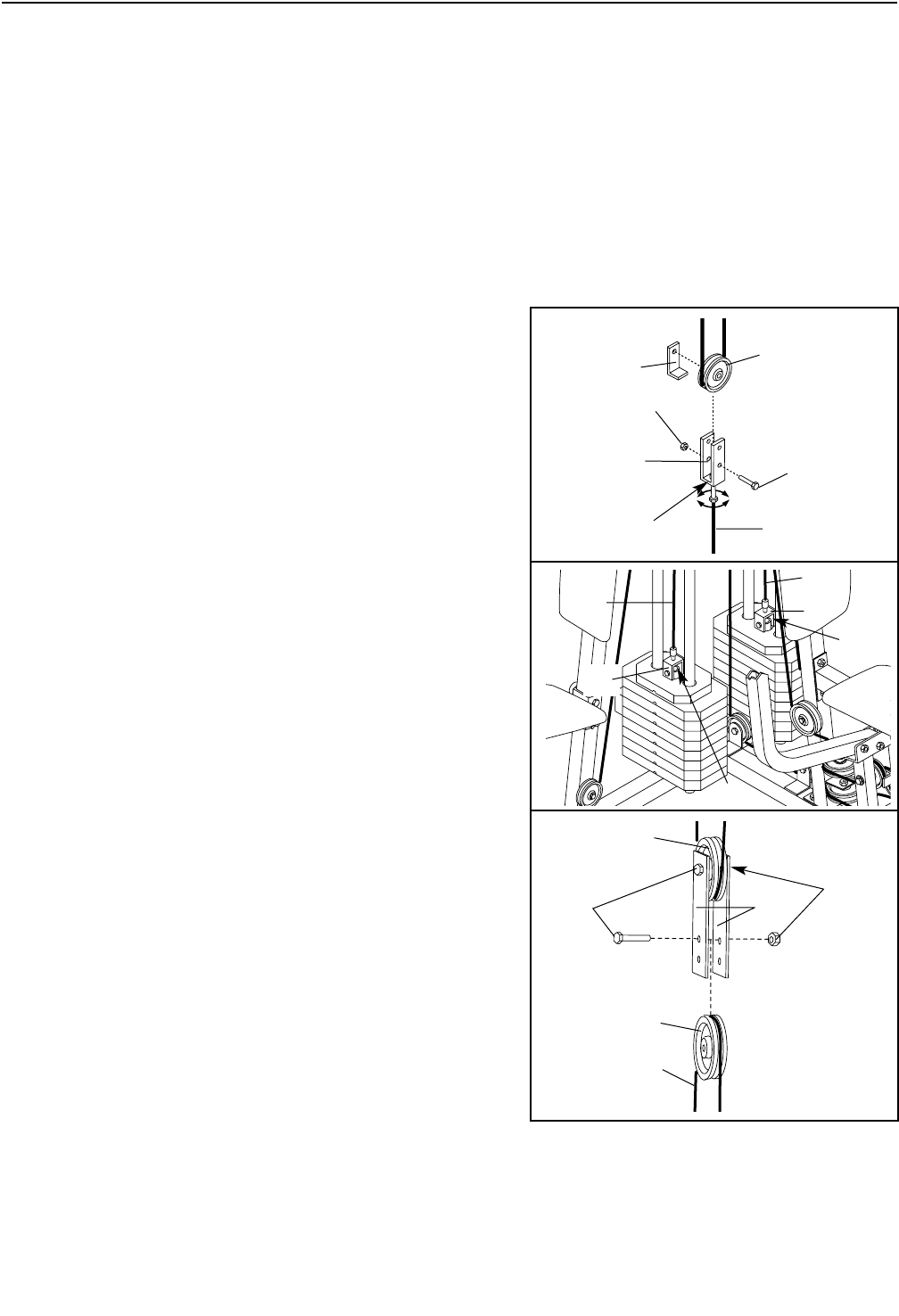

To tighten the cables, first insert the weight pin into the mid-

dle of the weight stack. Slack can be removed from these

cables several ways:

•See drawing 1. Tighten the 1/4” Nylon Locknut (44) that

connects the end of the Press Cable (87) to the Large “U”

Bracket (83).

•See drawing 1. Remove the 3/8” Nylon Locknut (42) and

the 3/8” x 2” Bolt (50) from the Cable Trap (80), 3 1/2”

Pulley (82), and Large “U” Bracket (83). Reattach the

Pulley and Cable Trap to the lower hole in the Large “U”

Bracket. Be sure that the Cable Trap is in the proper

position and that the Cable and Pulley move smoothly.

•See drawing 2. Tighten the 1/4” Nylon Locknut (44) that

connects the end of the High Cable (84) to the Small “U”

Bracket (32).

The Rear Cable (86) can be tightened in the same

manner.

•See Drawing 3. If you feel additional slack while using

the training system, the Ab Cable (85) and the Press

Cable (87) can be tightened further.

Remove the 3/8” x 2” Bolts (50), the 3/8” Nylon Locknuts

(42), the 3 1/3” Pulleys (82), and the Cable Traps (not

shown) from the Pulley Plates (31). Reattach the upper

Pulley without the Cable Trap. Reattach the lower

Pulley to the higher hole in the Pulley Plates without the

Cable Trap. Keep the Cable Traps for future use. Be sure

that the Cable and Pulley move smoothly.

Do not over tighten the cables. If the cables are over

tightened, the top weight will be lifted off the weight

stack.

If a cable tends to slip off the pulleys often, it may have

become twisted. Remove the cable and re-install it.

If the cables need to be replaced, see ORDERING REPLACEMENT PARTS on the back cover of this manual.

83

32

32

80 82

44

44

44

87

42

86

84

85, 87

82

82

31 42

50

2

3

1

50

25

CABLE DIAGRAMS

The cable diagrams on this page and the next page show the proper routing of the Press Cable (87), the Ab

Cable (85), the Butterfly Cable (88), the High Cable (84), and the Rear Cable (86). Use the diagrams to be sure

that the Cables have been assembled correctly. The starting and ending points of each Cable have been

labeled. The numbers show the proper route for each Cable. IMPORTANT: If the Cables have not been cor-

rectly routed, the training system will not function properly and damage may occur.

Ab Cable (85)

Butterfly Cable (88)

Press Cable (87)

2

4

1—Right Arm

3

5—Left Arm

2

3

4—Low Pulley

10—Large “U” Bracket

8

9

3

Ab Pulley—1

7

6

2

1

45

26

High Cable (84) Rear Cable (86)

Weight Stack—5

High Pulley—1

2

2

3

3

1—Top Frame

4—Weight Stack

4

27

NOTES

1/2" x 3/4" Spacer (69)

2" Square Inner Cap (56)2" Square Outer Cap (58)

1 3/4" Square Inner Cap (48)

1" Round Outer Cap (46)

1 1/2" Square Inner Cap (57)

1" Round Inner Cap (70)

1" x 7/8" Plastic Bushing (54)

1 1/8" x 2 1/2" Plastic Bushing (47)

3/4" Round Inner Cap (78)

1" Inner Cap (98)

1”Inner Cap (65)

1”Inner Cap (65)

3/8" Nylon Jam Nut (43)

5/16" x 1 3/4" Bolt (68)

3/8" x 2" Bolt (50)

5/16" x 2 1/4" Bolt (62)

5/16" x 2 1/2" Bolt (39)

5/16" x 2 3/4" Bolt (55)

5/16" x 3" Bolt (91)

3/8" x 3 1/2" Bolt (66)

1/4" Washer (37)

5/16" Washer (20)

3/8" Washer (38)

1/4" Nylon Locknut (44)

5/16" Nylon Locknut (40)

5/16" Nylon Jam Nut (90)

3/8" Nylon Locknut (42)

1" Retainer (45)

3/8" x 2 1/4" Bolt (71)

1/4" x 3/4" Screw (59)

5/16" x 1" Shoulder Bolt (51)

5/16" x 1" Bolt (51)

PART IDENTIFICATION CHART—Model No. WESY29101

Cable Clip (33)

3/8" x 3 3/4" Bolt (76)

5/16" x 2 3/4" Carriage Bolt (77)

5/16" x 2 1/2" Carriage Bolt (49)

1/4" x 2 1/2" Carriage Bolt (60)

1/4" x 2 1/2" Machine Screw (64)

1/4" x 2" Carriage Bolt (61)

1/4" x 2" Machine Screw (63)

"V" Pulley (81)

(Not shown to scale) 3 1/2" Pulley (82)

(Not shown to scale)

5/16" x 6" Bolt (67)

3/8" x 8" Bolt (52)

3/8" x 4" Bolt (73)

PART LIST—Model No. WESY29101 R1002A

Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice.

Key No. Qty. Description

1 1 Ab Upright

2 1 Top Frame

3 1 Butterfly Frame

4 1 Press Upright

5 1 Right Fly Arm

6 1 Left Fly Arm

7 2 Press Arm

8 1 Seat Frame

9 1 Curl Post

10 1 Curl Frame

11 1 Curl Pad

12 1 Press Frame

13 1 Press Base

14 1 Weight Base

15 1 Leg Lever

16 1 Rear Seat Frame

17 2 Seat

18 1 Small Backrest

19 1 Large Backrest

20 13 5/16” Washer

21 4 5” Plastic Grip

22 2 10” Pad

23 4 Weight Guide

24 2 Top Weight

25 2 Weight Tube

26 2 Weight Tube Bumper

27 4 Weight Bumper

28 2 Pad Tube

29 4 Foam Pad

30 1 Seat Knob

31 4 Pulley Plate

32 2 Small “U” Bracket

33 4 Cable Clip

34 1 Chain

35 1 Ab Strap

36 1 Lat Bar

37 11 1/4” Washer

38 9 3/8” Washer

39 4 5/16” x 2 1/2” Bolt

40 30 5/16” Nylon Locknut

41 2 Seat Plate

42 20 3/8” Nylon Locknut

43 4 3/8” Nylon Jam Nut

44 5 1/4” Nylon Locknut

45 4 1” Retainer

46 2 1” Round Outer Cap

47 2 1 1/8” x 2 1/2” Plastic Bushing

Key No. Qty. Description

48 6 1 3/4” Square Inner Cap

49 6 5/16” x 2 1/2” Carriage Bolt

50 12 3/8” x 2” Bolt

51 2 5/16” x 1” Shoulder Bolt

52 1 3/8” x 8” Bolt

53 1 Curl Post Knob

54 2 1” x 7/8” Plastic Bushing

55 11 5/16” x 2 3/4” Bolt

56 7 2” Square Inner Cap

57 2 1 1/2” Square Inner Cap

58 2 2” Square Outer Cap

59 6 1/4” x 3/4” Screw

60 1 1/4” x 2 1/2” Carriage Bolt

61 1 1/4” x 2” Carriage Bolt

62 1 5/16” x 2 1/4” Bolt

63 1 1/4” x 2” Machine Screw

64 5 1/4” x 2 1/2” Machine Screw

65 2 1” Inner Cap

66 2 3/8” x 3 1/2” Bolt

67 4 5/16” x 6” Bolt

68 2 5/16” x 1 3/4” Bolt

69 8 1/2” x 3/4” Spacer

70 2 1” Round Inner Cap

71 2 3/8” x 2 1/4” Bolt

72 1 Nylon Strap

73 1 3/8” x 4” Bolt

74 2 Pulley Cover

75 2 Weight Pin

76 5 3/8” x 3 3/4” Bolt

77 1 5/16” x 2 3/4” Carriage Bolt

78 4 3/4” Round Inner Cap

79 1 3/8” x 2” Eyebolt

80 15 Cable Trap

81 2 “V” Pulley

82 20 3 1/2” Pulley

83 1 Large “U” Bracket

84 1 High Cable

85 1 Ab Cable

86 1 Rear Cable

87 1 Press Cable

88 1 Butterfly Cable

89 16 Weight

90 2 5/16” Nylon Jam Nut

91 1 5/16” x 3” Bolt

# 1 User’s Manual

# 1 Exercise Guide

7

21

48

31

82

42 50

50

80

1

2

3

4

5

6

7

12

13

14

15

16

17

18

19

17

21

22

22

23

23

24

24

25

25

26

26

27

27

28

28

29

29

29

29

30

31

32

32

33

34 35

36

21

21

84

84

86

85

41

41

85

86

87

88

88

56

76

82

38

42

20

55

55

76

50

38

40 20

56

42

82

80 43

42

50

40

69

40

69

67

67

40

68 37

44

40

37

68

44

67

40

40

67

42

50

82

58

55 20

55

20

49

56

58

71

43

40

20

20

76

82

43

43

81

40

37

64

40

82 80

50

42 42

82

80

50 4056

55

91

65

20

55

56 51

51

47

47

40

40 45

45

46

46

48

48

50

40

8280 42

80

82

49

49

38

38

66 66

40

39

54

70

48

82 42

80

52

44

40

82

59

64

37

60

40

70

78

57

38

42

79

62

78

78

40

44

37

37

63

59

57

61

42

38

40 40

82

76

77

37

64

64

76

82

80

42

42

82

73

38

40

37

44

83

42

82

50

71

89

89

90 90

38

74

74

75

75

80

80

72

48

38

69

69

49 80

82

50 87

56

40

53

37

40

55

42

59

20

9

8

11

10

56

20

20

55

37

64

EXPLODED DRAWING—Model No. WESY29101 R1002A

ORDERING REPLACEMENT PARTS

To order replacement parts, simply call our Customer Service Department toll-free at 1-800-999-3756, Monday

through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be pre-

pared to give the following information:

1. The MODEL NUMBER of the product (WESY29101)

2. The NAME of the product (WEIDER®9300 PRO training system)

3. The SERIAL NUMBER of the product (see the front cover of this manual)

4. The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST and EXPLODED DRAWING

attached at the center of this manual).

Part No. 184415 R1002A Printed in Canada © 2002 ICON Health & Fitness, Inc.
