Patent Pending

Model No. 831.159390

Serial No.

The serial number can be found in the

location shown below. Write the serial

number in the space above.

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

USER’S MANUAL

Serial Number Decal

SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179

TABLE OF CONTENTS

FULL 90 DAY WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

HOW TO USE THE HOME GYM SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

WEIGHT RESISTANCE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

TROUBLE-SHOOTING AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

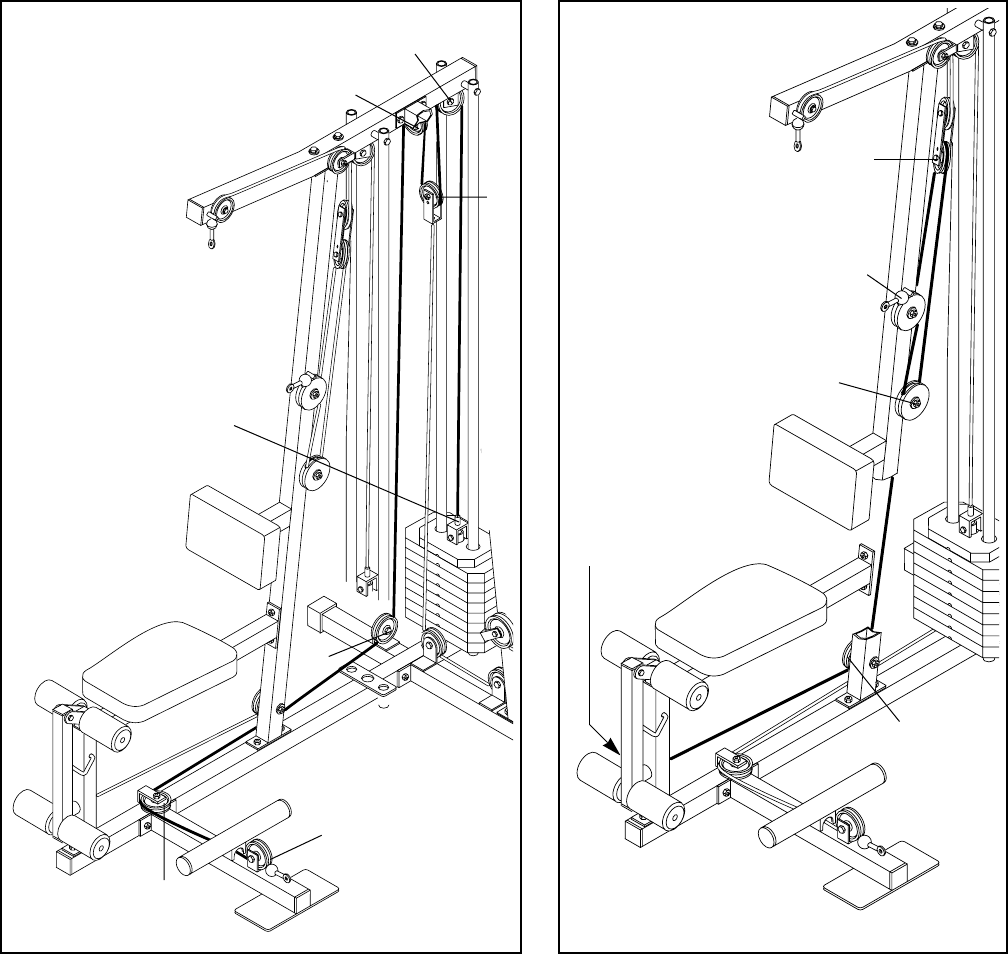

CABLE DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

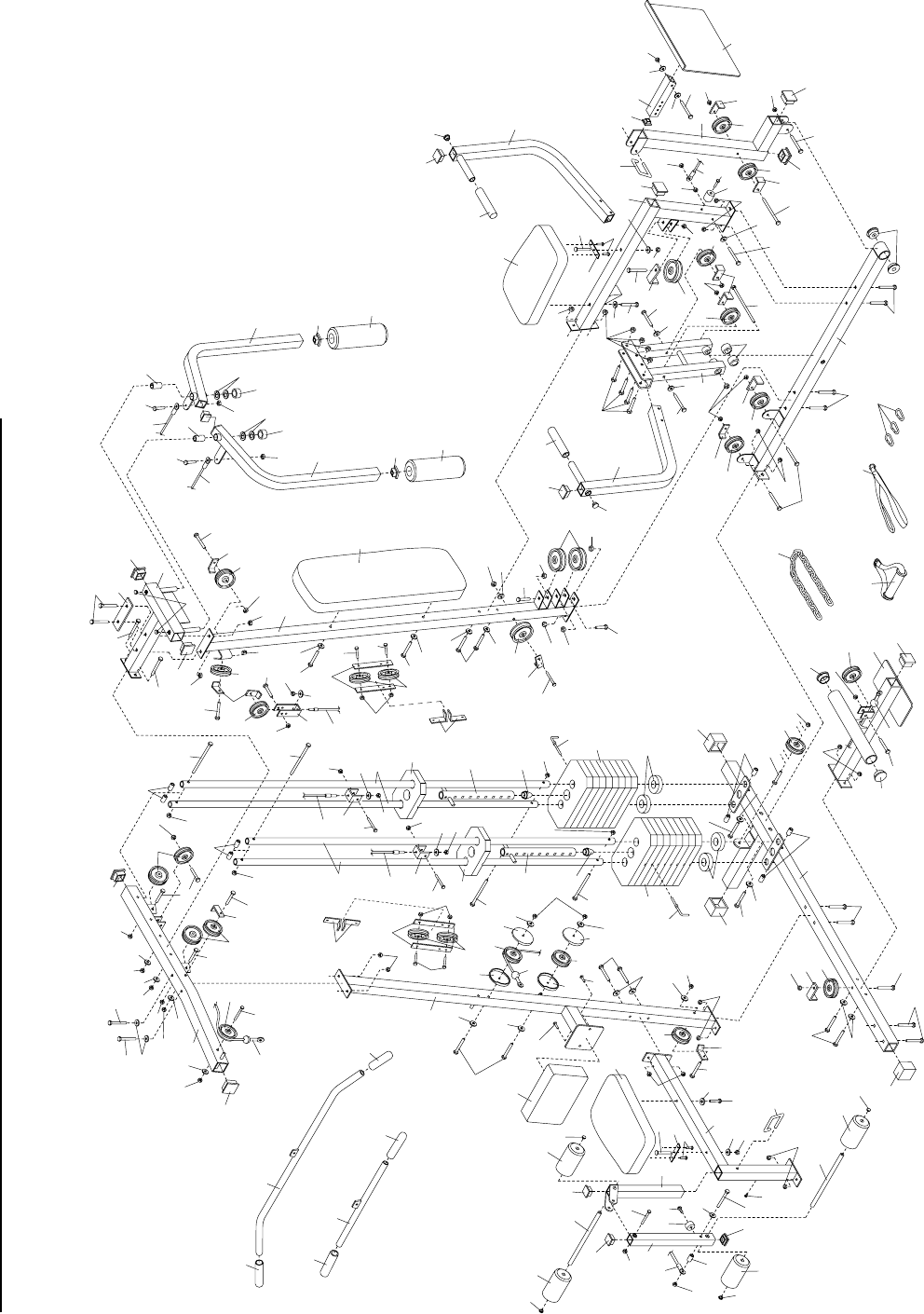

Note: A PART IDENTIFICATION CHART and a PART LIST/EXPLODED DRAWING are attached to the center of

this manual. Remove the PART IDENTIFICATION CHART and the PART LIST/EXPLODED DRAWING before

beginning assembly.

FULL 90 DAY WARRANTY

For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this

SEARS WEIGHT SYSTEM EXERCISER, contact the nearest SEARS Service Center throughout the

United States and SEARS will repair or replace the WEIGHT SYSTEM EXERCISER, free of charge.

This warranty does not apply when the WEIGHT SYSTEM EXERCISER is used commercially or for

rental purposes.

This warranty gives you specific legal rights, and you may also have other rights which vary from state

to state.

SEARS, ROEBUCK AND CO., DEPT. 817WA, HOFFMAN ESTATES, IL 60179

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read the following important precautions before

using the home gym system.

1. It is the responsibility of the owner to ensure

that all users of the home gym system are

adequately informed of all precautions.

2. Read all instructions in this manual and in

the accompanying literature before using the

home gym system.

3. Use the home gym system only on a level

surface. Place a mat beneath the home gym

system to protect the floor or carpet.

4. Inspect and tighten all parts often. Replace

any worn parts immediately. All cables

should be replaced every two years.

5. Keep children under 12 and pets away from

the home gym system at all times.

6. Always wear athletic shoes for foot protec-

tion.

7. Keep hands and feet away from moving

parts.

8. Never release the press arm, butterfly arms,

leg lever, leg press plate, lat bar, row bar, ab

strap, or nylon strap while weights are

raised. The weights will fall with great force.

9. When using the leg press station, always be

sure that the lock pin is fully inserted and

that the lock pin is clipped in place on the

adjustment tube (see page 27).

10. When using the leg lever station, always be

sure that the lock pin is fully inserted and

that the lock pin is clipped in place on the

rear seat frame (see page 27).

11. The lock pin must always be inserted

through both the rear seat frame and leg

lever frame and clipped in place on the rear

seat frame.

12. Always stand on the foot plate when per-

forming an exercise that could cause the

home gym system to tip.

13. Make sure that the cables remain on the pul-

leys at all times. If the cables bind while you

are exercising, stop immediately and make

sure that the cables are on all of the pulleys.

14. Always disconnect the lat bar from the home

gym system when performing an exercise

that does not use the lat bar.

15. If you feel pain or dizziness at any time while

exercising, stop immediately and begin cool-

ing down.

16. The home gym system is intended for home

use only. Do not use the home gym system

in any commercial, rental or institutional set-

ting.

WARNING: Before beginning this or any exercise program, consult your physician. This is especially

important for persons over the age of 35 or persons with pre-existing health problems. Read all

instructions before using. SEARS assumes no responsibility for personal injury or property damage

sustained by or through the use of this product.

BEFORE YOU BEGIN

ASSEMBLED

DIMENSIONS:

Height: 79 in.

Width: 70 in.

Length: 64 in.

Foot Plate

Low Pulley

Station

High Pulley Station

Lat Bar

Leg Lever

Butterfly Arms

Press Arm

Weight Stacks

Backrests

Leg Press

Plate

Ab Pulley Station

Thank you for selecting the versatile WEIDER®PRO

9735 Home Gym System. The PRO 9735 offers a

selection of weight stations designed to develop every

major muscle group of the body. Whether your goal is

to tone your body, build dramatic muscle size and

strength, or improve your cardiovascular system, the

PRO 9735 will help you to achieve the specific results

you want.

For your benefit, read this manual carefully before

using the WEIDER®PRO 9735 Home Gym System.

If you have additional questions, please call our toll-

free HELPLINE at 1-800-736-6879, Monday through

Saturday, 7 a.m. until 7 p.m. Central Time (excluding

holidays). To help us assist you, please note the prod-

uct model number and serial number before calling.

The model number is 831.159390. The serial number

can be found on a decal attached to the WEIDER®

PRO 9735 Home Gym System (see the front cover of

this manual).

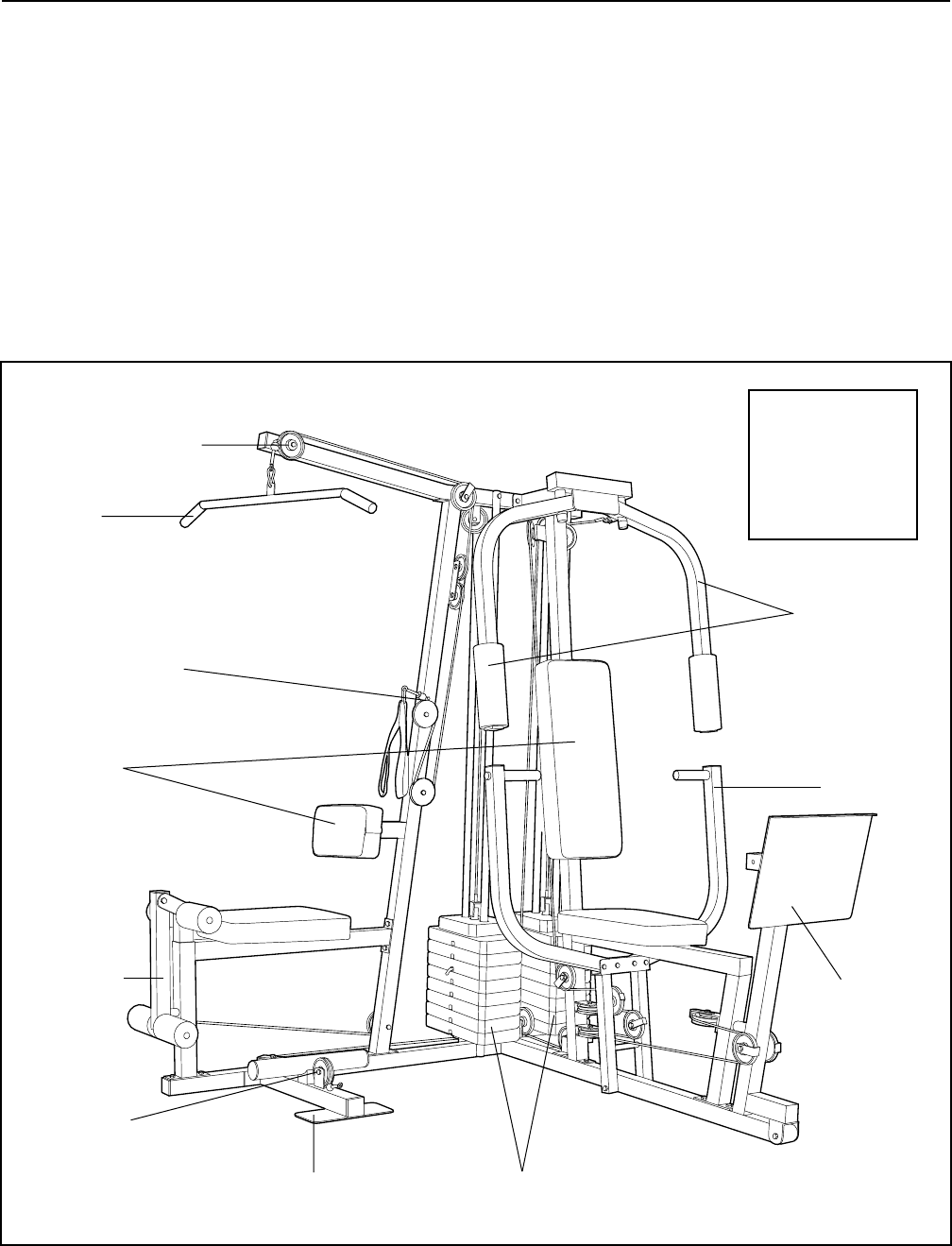

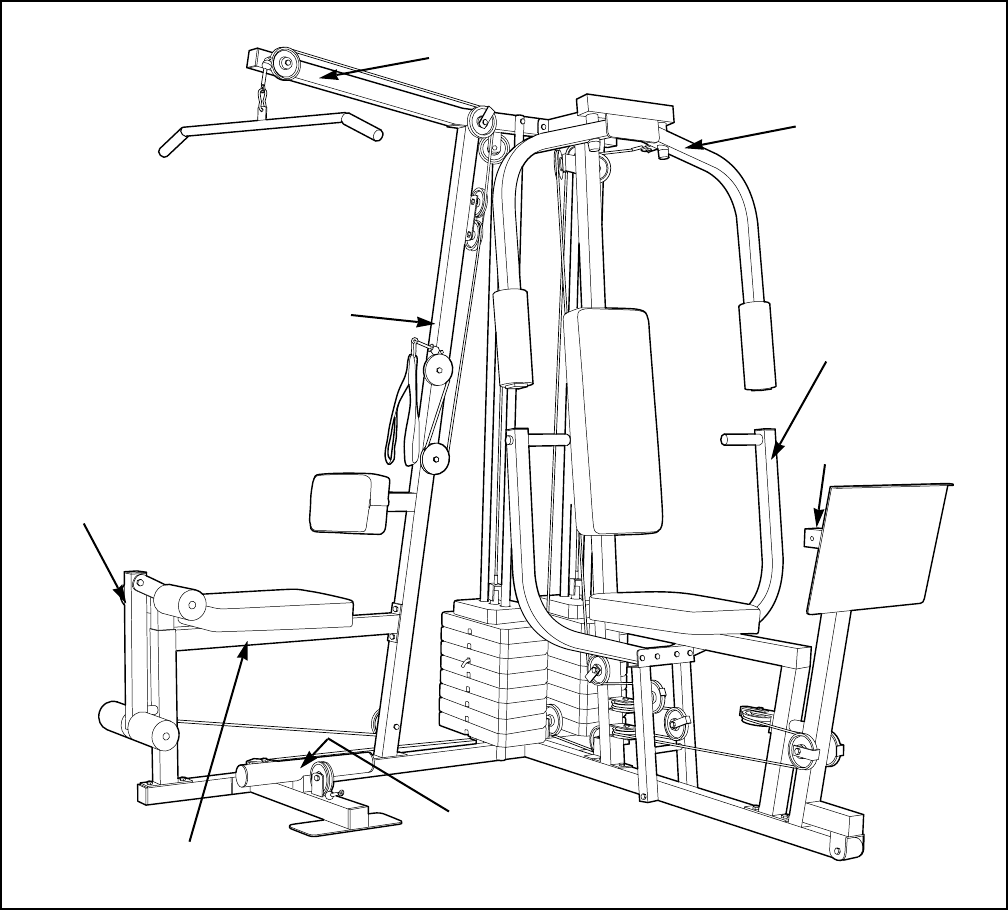

Before reading further, please review the drawing

below and familiarize yourself with the parts that are

labeled.

ASSEMBLY

58 55

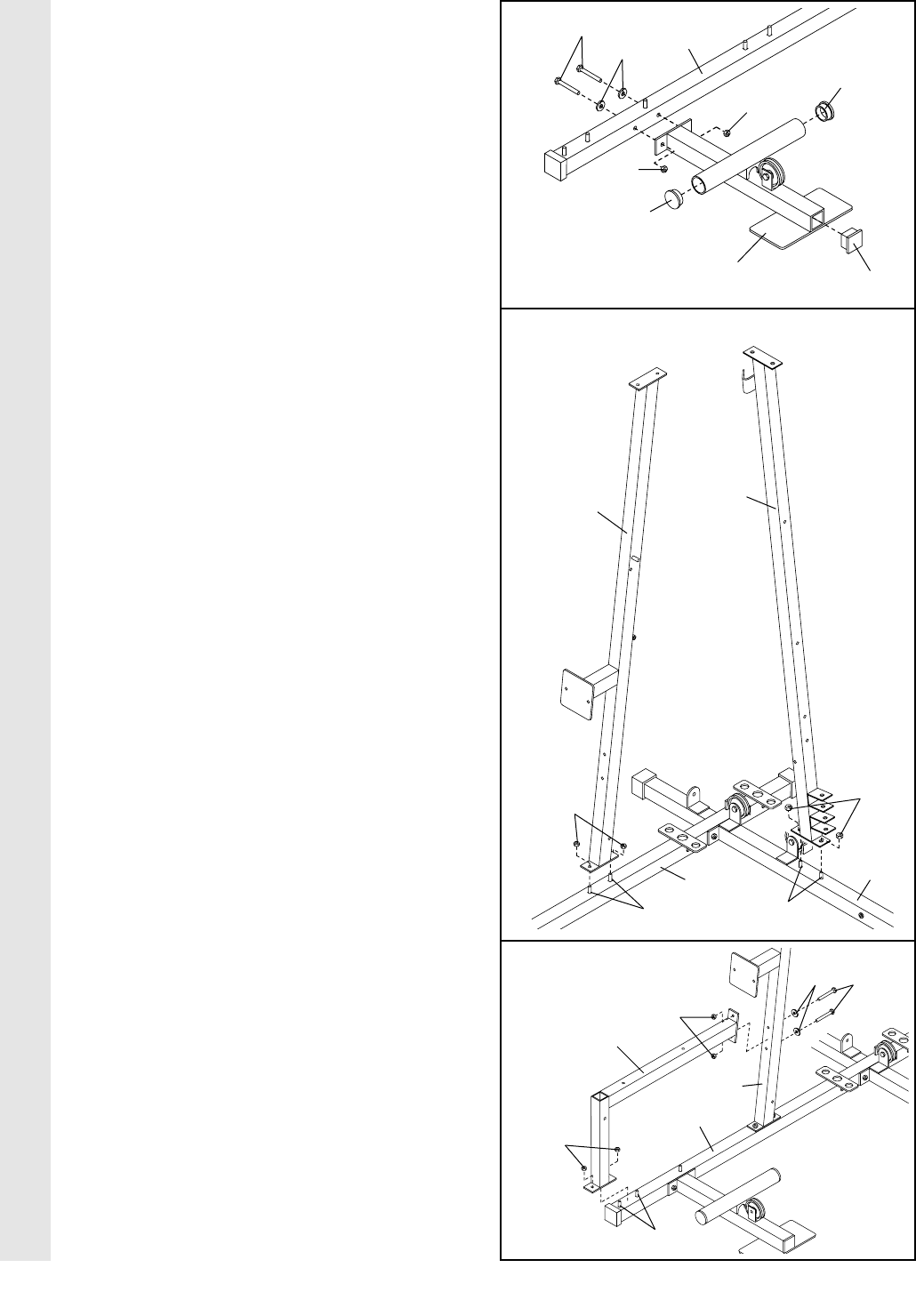

1. Before beginning assembly, be sure that

you have read and understand the infor-

mation in the box above.

Locate and open the parts bags labeled

“FRAME ASSEMBLY—METAL” and

“FRAME ASSEMBLY—PLASTIC.”

Press three 2” Square Outer Caps (58) onto

the Weight Base (14) in the indicated loca-

tions.

Insert four 5/16” x 2 1/2” Carriage Bolts (49)

up through the Press Base (13). Insert four

5/16” x 2 1/2” Carriage Bolts up through the

Weight Base (14). Insert a 3/8” x 4” Carriage

Bolt (57) up through the Weight Base.

Attach the Press Base (13) to the Weight

Base (14) with two 5/16” x 2 3/4” Bolts (55),

two 5/16” Washers (20) and two 5/16” Nylon

Locknuts (40). Fully tighten the Nylon

Locknuts.

FRAME ASSEMBLY

Before beginning assembly, carefully read the

following information and instructions:

•Place all parts in a cleared area and remove the

packing materials; do not dispose of the packing

materials until assembly is completed.

• Assembly is divided into four stages: 1) frame

assembly, 2) press and butterfly arm assembly,

3) cable and pulley assembly and 4) seat and

backrest assembly. The hardware for each stage

is packaged separately.

• Wait until you begin each assembly stage to open

the parts bag labeled for that assembly stage.

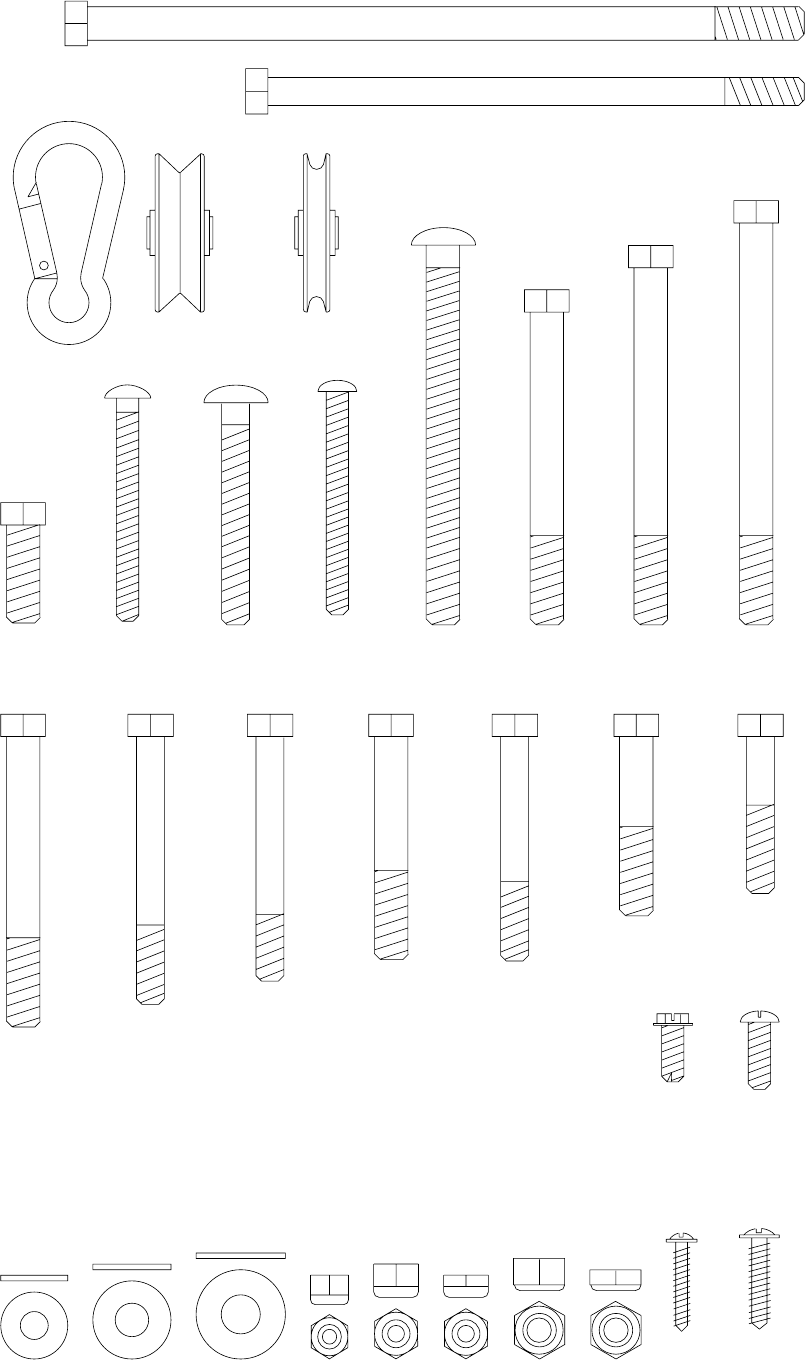

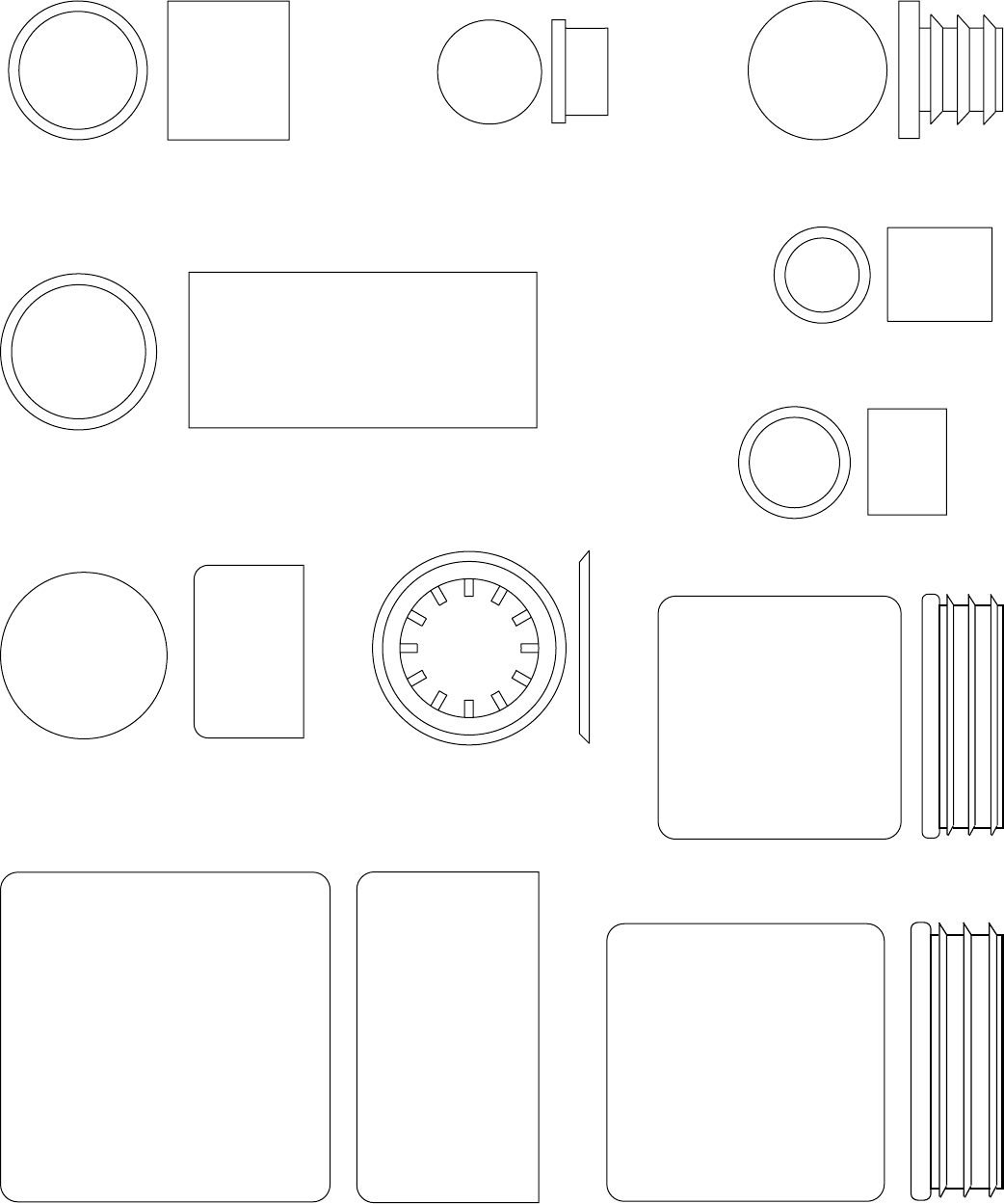

•For help identifying the small parts used in

assembly, use the PART IDENTIFICATION

CHART located in the center of this manual.

Note: Some small parts may have been pre-

attached for shipping. If a part is not in the parts

bag, check to see if it has been pre-attached.

•As you assemble this product, be sure that all

parts are oriented as shown in the drawings.

•Tighten all parts as you assemble them, unless

instructed to do otherwise.

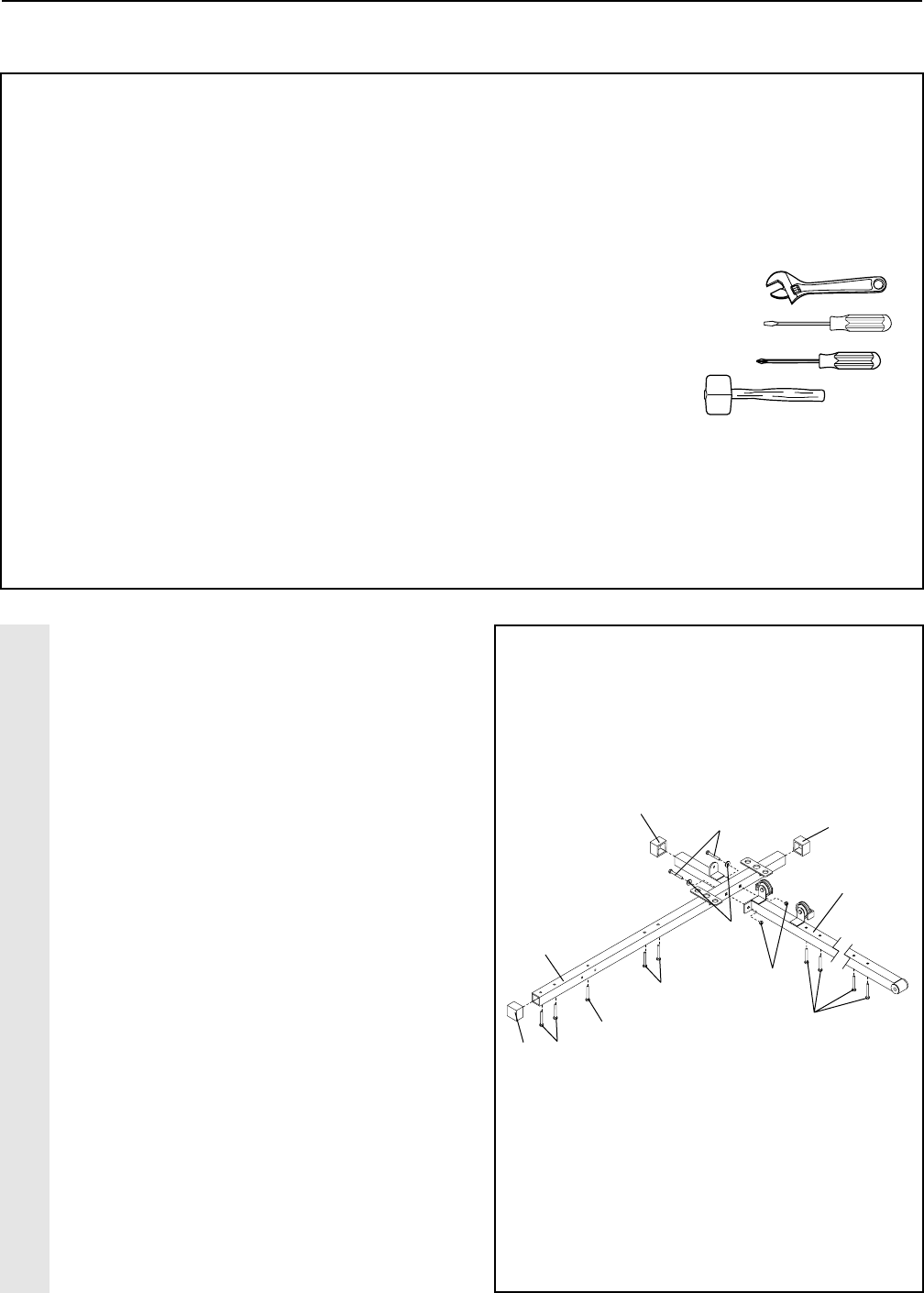

THE FOLLOWING TOOLS (NOT INCLUDED) ARE

REQUIRED FOR ASSEMBLY:

• Two (2) adjustable wrenches

• One (1) standard screwdriver

• One (1) phillips screwdriver

• One (1) rubber mallet

• Lubricant, such as grease or petroleum jelly,

and soapy water will also be needed.

Assembly will be more convenient if you have the

following tools: A socket set, a set of open-end or

closed-end wrenches, or a set of ratchet wrenches.

2. Press a Row Tube Endcap (51) into each side

of the Pulley Base (79). Press a 2” Square

Inner Cap (56) into the end of the Pulley

Base.

Attach the Pulley Base (79) to the Weight

Base (14) with two 5/16” x 2 3/4” Bolts (55),

two 5/16” Washers (20) and two 5/16” Nylon

Locknuts (40). Do not fully tighten the

Nylon Locknuts.

3. Slide the Ab Upright (1) onto the indicated

5/16” x 2 1/2” Carriage Bolts (49) in the

Weight Base (14). Partially tighten a 5/16”

Nylon Locknut (40) onto each Carriage Bolt.

Do not fully tighten the Nylon Locknuts.

Slide the Leg Press Upright (4) onto the indi-

cated 5/16” x 2 1/2” Carriage Bolts (49) in the

Press Base (13). Partially tighten a 5/16”

Nylon Locknut (40) onto each Carriage Bolt.

Do not fully tighten the Nylon Locknuts.

4. Slide the Rear Seat Frame (16) onto the indi-

cated 5/16” x 2 1/2” Carriage Bolts (49) in the

Weight Base (14). Partially tighten a 5/16”

Nylon Locknut (40) onto each Carriage Bolt.

Do not fully tighten the Nylon Locknuts.

Attach the other end of the Rear Seat Frame

(16) to the Ab Upright (1) with two 5/16” x

2.3/4” Bolts (55), two 5/16” Washers (20) and

two 5/16” Nylon Locknuts (40). Do not fully

tighten the Nylon Locknuts.

FRAME ASSEMBLY

40 40

20 55

55 20

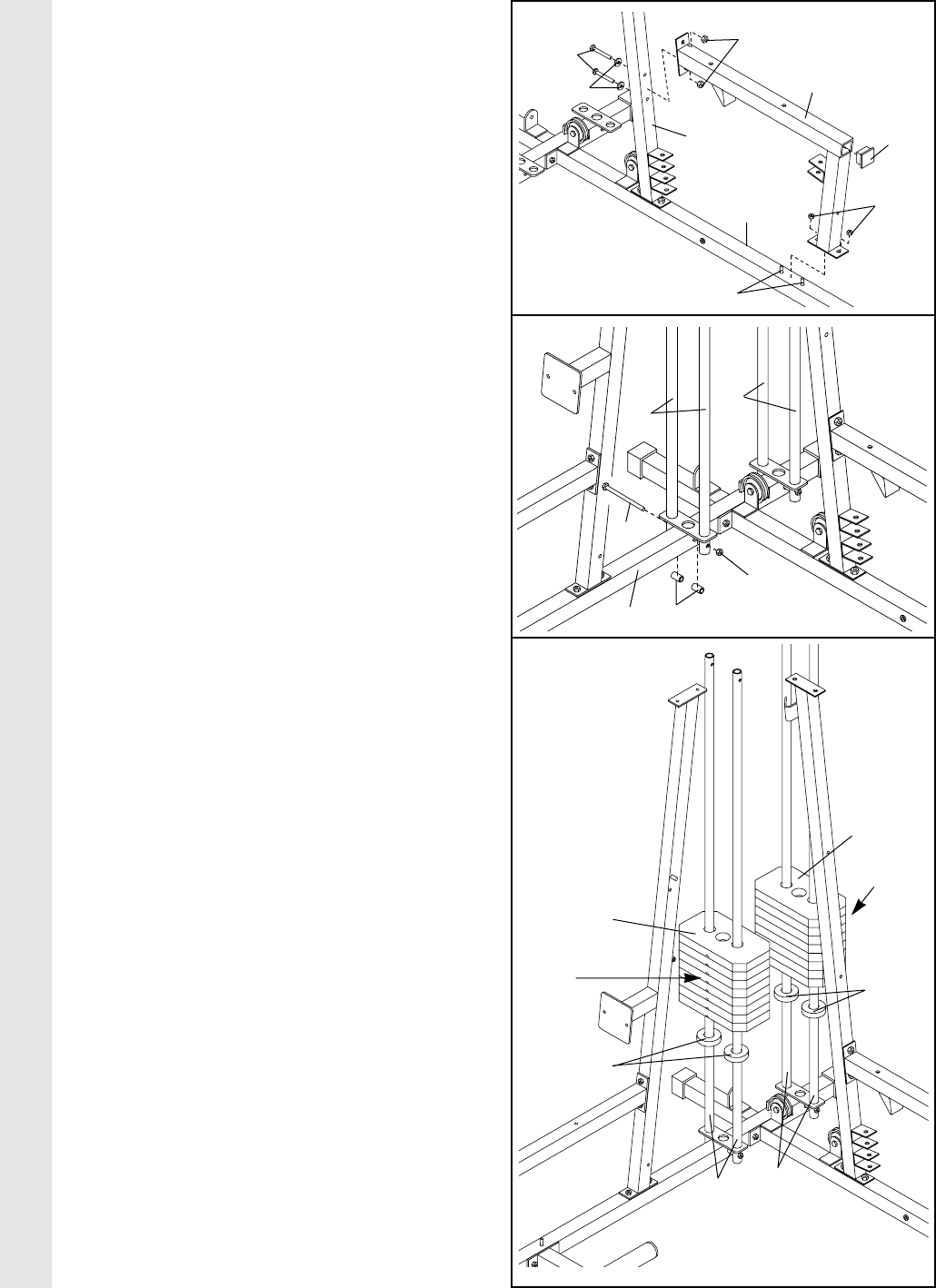

5. Slide the Front Seat Frame (8) onto the indi-

cated 5/16” x 2 1/2” Carriage Bolts (49) in the

Press Base (13). Partially tighten a 5/16”

Nylon Locknut (40) onto each Carriage Bolt.

Do not fully tighten the Nylon Locknuts.

Attach the other end of the Front Seat Frame

(8) to the Leg Press Upright (4) with two 5/16”

x 2 3/4” Bolts (55), two 5/16” Washers (20)

and two 5/16” Nylon Locknuts (40). Do not

fully tighten the Nylon Locknuts.

Press a 2” Square Inner Cap (56) into the

Front Seat Frame (8).

6. Insert two Weight Guides (23) into one of the

brackets on the Weight Base (14). Attach the

lower ends of the Weight Guides (23) to the

Weight Base with a 5/16” x 6” Bolt (67), two

1/2” x 3/4” Spacers (69) and a 5/16” Nylon

Locknut (40). Do not overtighten the Nylon

Locknut.

Attach the other Weight Guides (23) to the

Weight Base (14) in the same manner.

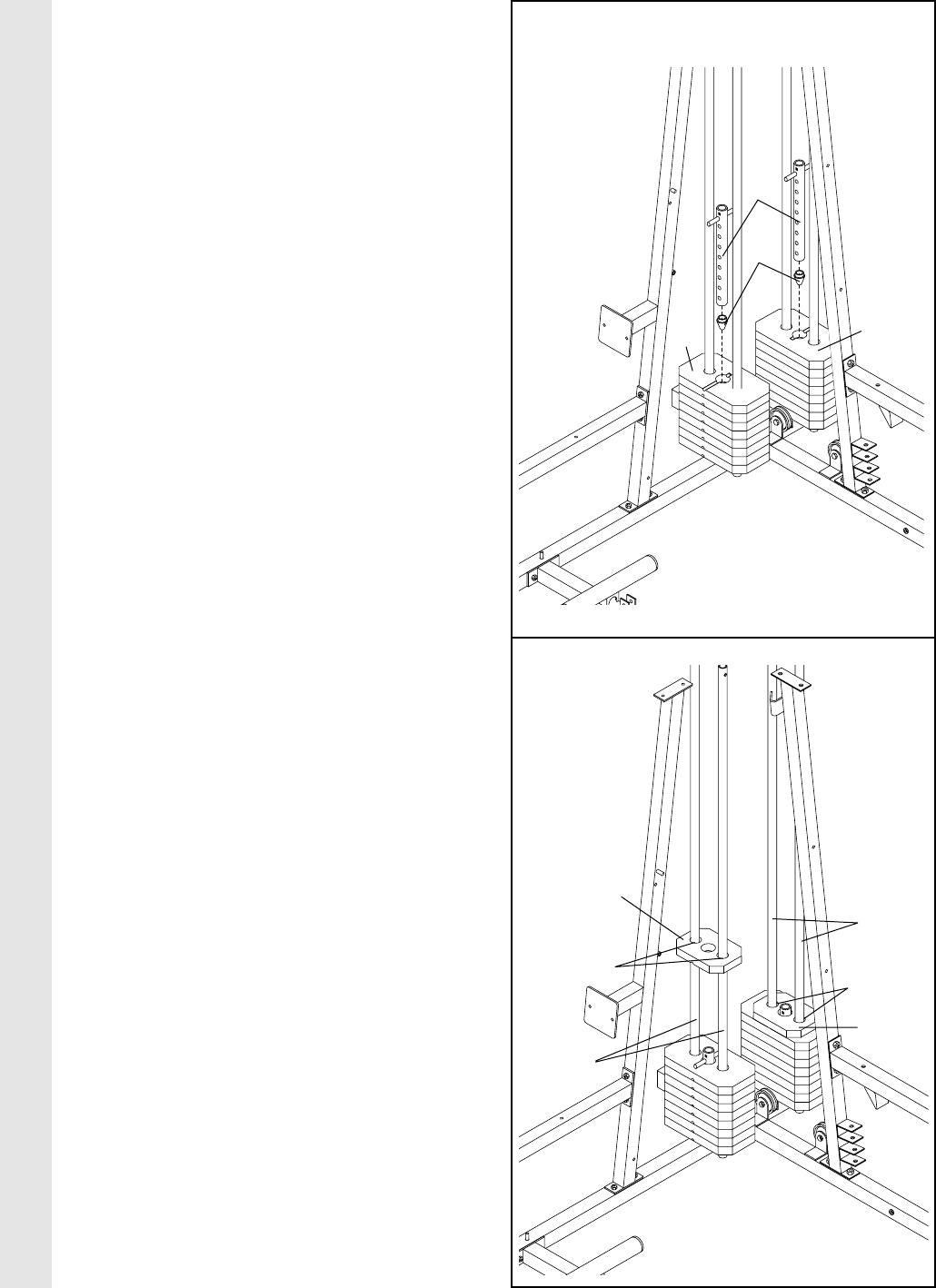

7. Slide a Weight Bumper (27) onto each of the

Weight Guides (23).

Slide eight Weights (90) onto each set of

Weight Guides (23). Be sure that the pin

grooves are on the indicated side of each

stack of Weights.

FRAME ASSEMBLY

Grooves

23 23

Grooves

23 23

8. Press a Weight Tube Bumper (26) into each

Weight Tube (25).

Insert a Weight Tube (25) into each stack of

Weights (90). Be sure that the pins on the

Weight Tubes are in the pin grooves in the

upper Weights.

9. Lubricate the insides of the holes in the Top

Weights (24) as shown. Slide a Top Weight

onto each set of Weight Guides (23).

FRAME ASSEMBLY

90 90

Lubricate

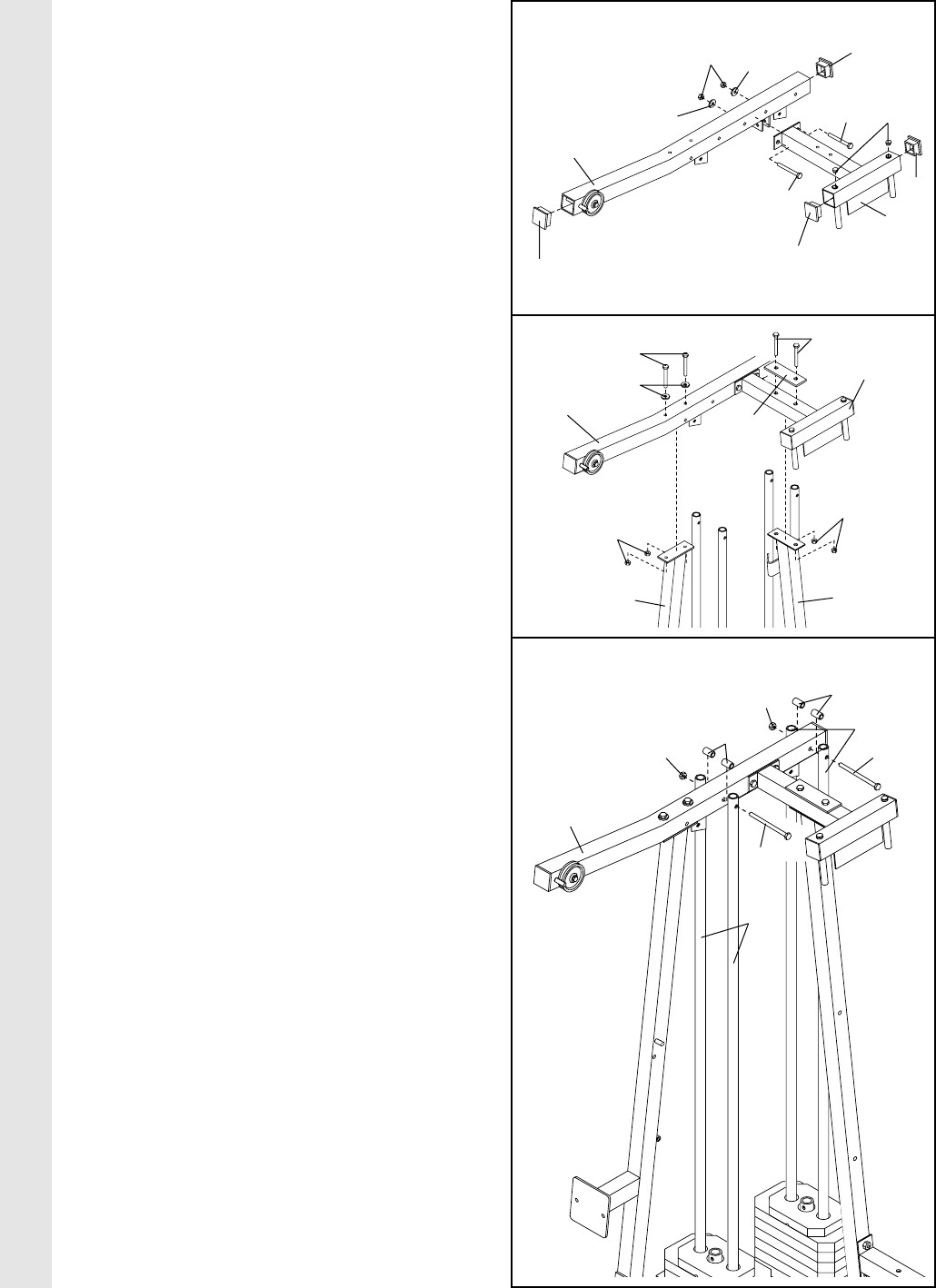

10. Press a 2” Square Inner Cap (56) into each

end of the Top Frame (2). Press a 2” Square

Inner Cap (56) into each side of the Butterfly

Frame (3). Press two 1” Round Inner Caps

(70) into the top of the Butterfly Frame.

Attach the Butterfly Frame (3) to the Top

Frame (2) with two 5/16” x 2 3/4” Bolts (55),

two 5/16” Washers (20) and two 5/16” Nylon

Locknuts (40).

11. Attach the Top Frame (2) to the Ab Upright (1)

with two 5/16” x 2 3/4” Bolts (55), two 5/16”

Washers (20) and two 5/16” Nylon Locknuts

(40). Do not tighten the Nylon Locknuts

yet.

Attach the Butterfly Frame (3) to the Leg

Press Upright (4) with two 5/16” x 3” Bolts

(92), the Support Plate (98) and two 5/16”

Nylon Locknuts (40). Do not tighten the

Nylon Locknuts yet.

12. Attach the upper ends of one set of Weight

Guides (23) to the Top Frame (2) with a 5/16”

x 6” Bolt (67), two 1/2” x 3/4” Spacers (69)

and a 5/16” Nylon Locknut (40).

Attach the upper ends of the other set of

Weight Guides (23) in the same manner.

Before continuing, firmly tighten all nylon

locknuts used in steps 2 through 12.

FRAME ASSEMBLY

56 56

55 70

55 92

40 40

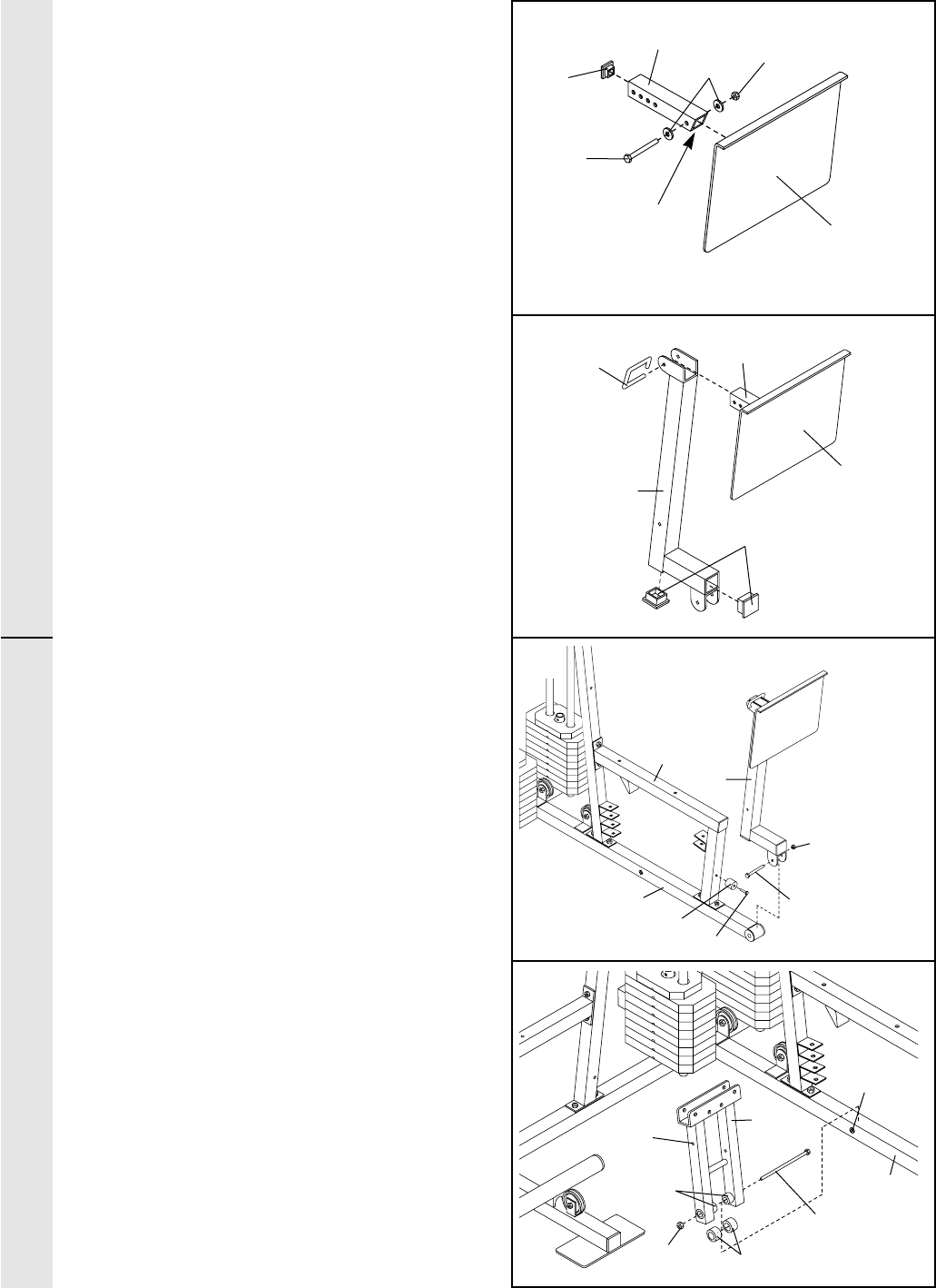

13. Attach the Leg Press Plate (11) to the

Adjustment Tube (10) with a 5/16” x 2 1/2”

Bolt (39), two 5/16” Washers (20) and a 5/16”

Nylon Locknut (40). Be sure that the Leg

Press Plate and Adjustment Tube are ori-

ented as shown.

Press a 1 3/4” Square Inner Cap (48) into the

Adjustment Tube (10).

14. Attach the Adjustment Tube (10) to the Leg

Press Arm (9) with the Small Lock Pin (73).

Be sure the Leg Press Plate (11) is orient-

ed as shown.

Press two 2” Square Inner Caps (56) into the

Leg Press Arm (9).

15. Locate and open the parts bag labeled

“ARM ASSEMBLY.”

Attach the Large Bumper (53) to the Front

Seat Frame (8) with the #10 x 1” Tap Screw

(100).

Lubricate the 3/8” x 3 1/4” Bolt (71). Attach

the Leg Press Arm (9) to the Press Base (13)

with the Bolt and a 3/8” Nylon Locknut (42).

16. Press a 1” x 7/8” Plastic Bushing (54) onto

each welded spacer on the Press Frame (12).

Slide the Press Frame onto the Press Base

(13) so that the Plastic Bushings are aligned

with the indicated tube. Note: This will be a

tight fit. Make sure that the higher hole is

on the side shown.

Lubricate the 3/8” x 8” Bolt (52). Attach the

Press Frame (12) to the Press Base (13) with

the Bolt and a 3/8” Nylon Locknut (42).

ARM ASSEMBLY FRAME ASSEMBLY

20 40

Angle

71—Lubricate

53 100

52—Lubricate

Tube

Welded

Spacers

Higher

Hole

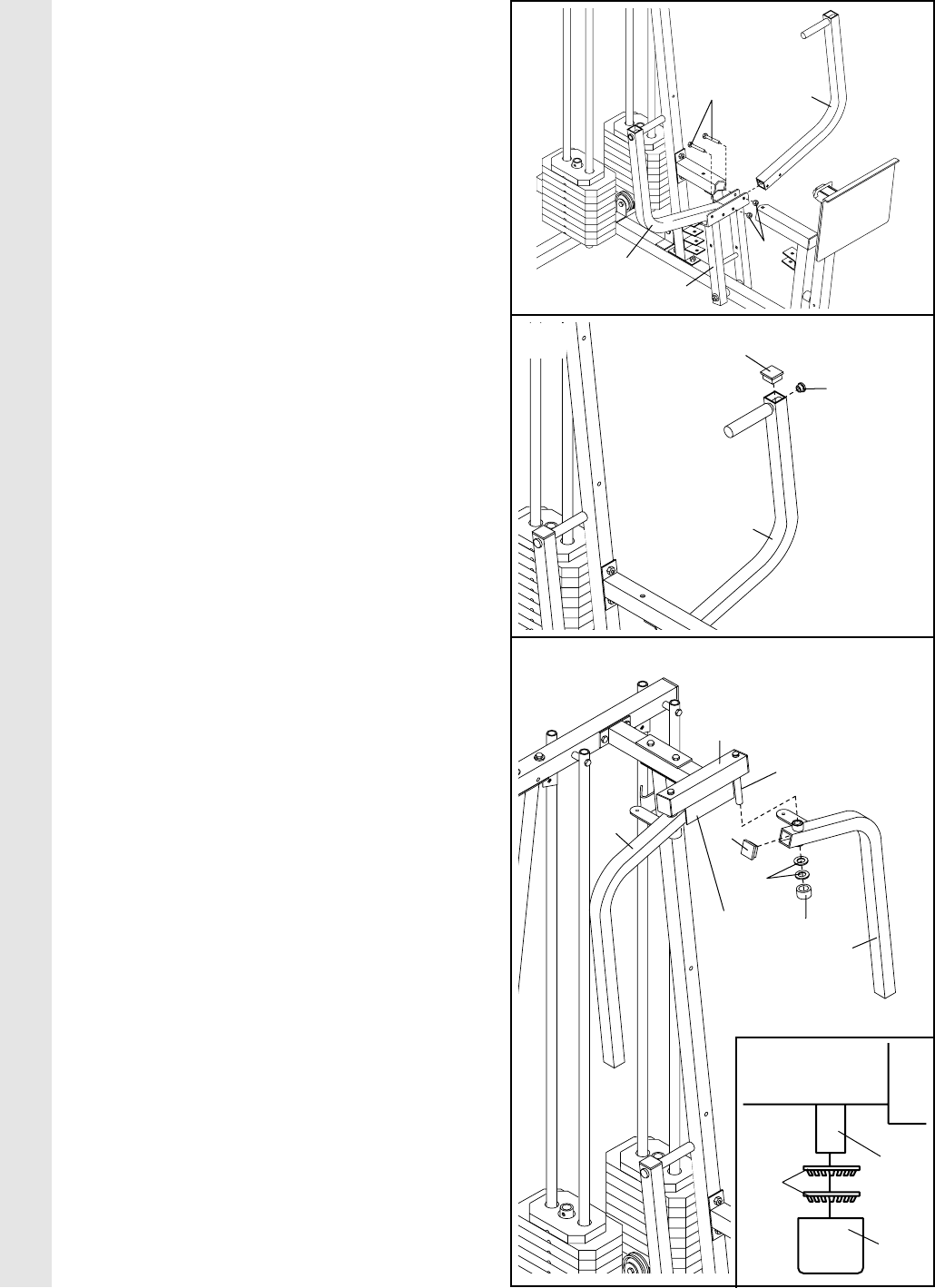

17. Attach a Press Arm (7) to one side of the

Press Frame (12) with two 5/16” x 2 1/2” Bolts

(39) and two 5/16” Nylon Locknuts (40).

Attach the other Press Arm (7) to the Press

Frame (12) in the same manner.

18. Press a 1” Round Inner Cap (70) into one of

the Press Arms (7). Press a 1 3/4” Square

Inner Cap (48) into the Press Arm.

Repeat this step for the other Press Arm (not

shown).

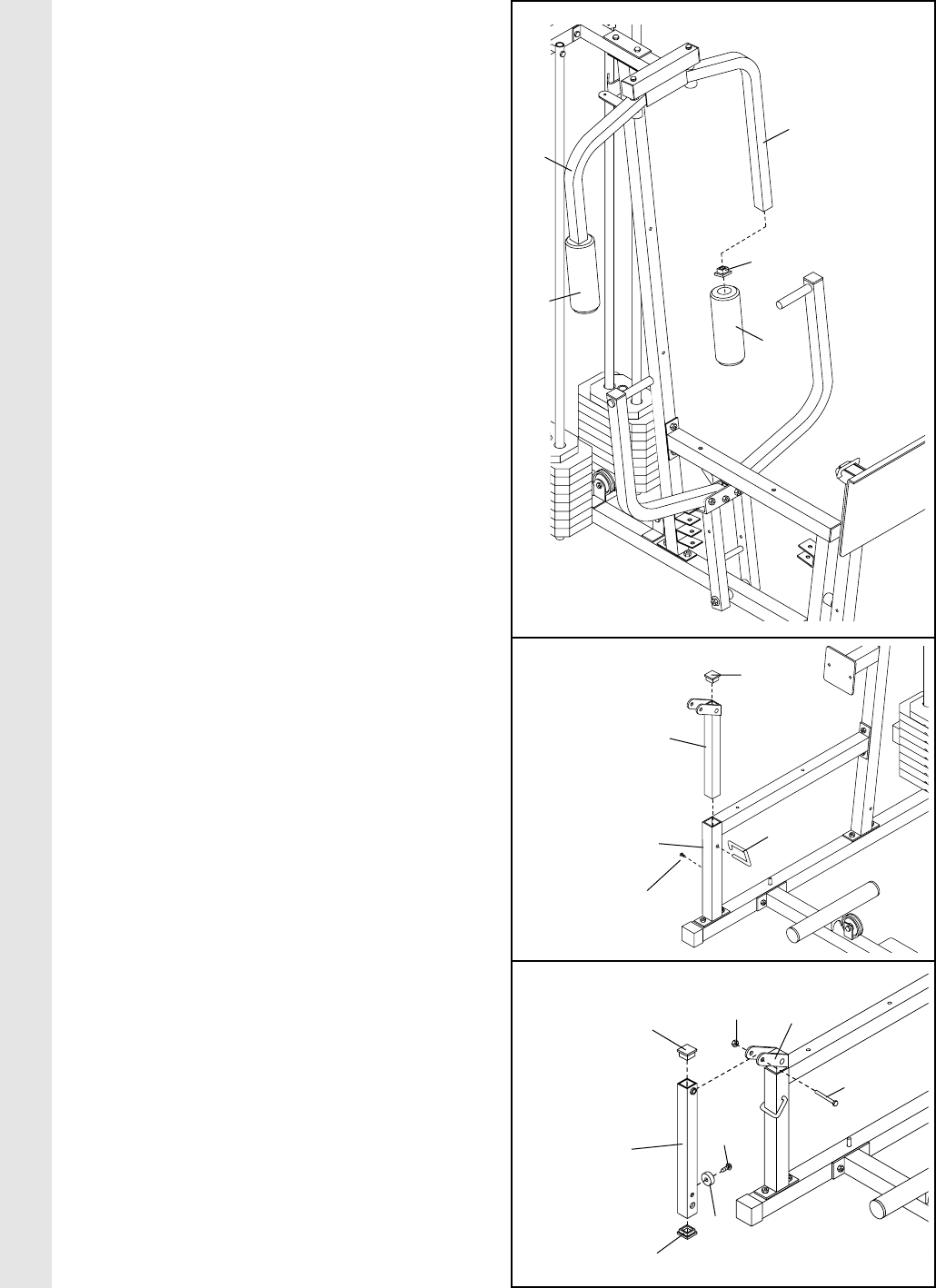

19. Lubricate both axles on the Butterfly Frame

(3).

Refer to the drawing and identify the Right

Arm (5) and the Left Arm (6).

Press a 1 3/4” Square Inner Cap (48) into the

upper end of the Left Arm (6). Slide the Left

Arm onto the indicated axle. Note: Be careful

not to confuse the Left Arm with the Right

Arm (5). Be sure that the upper end of the

Left Arm is behind the indicated bracket

on the Butterfly Frame (3).

IMPORTANT NOTE: Before assembling the

1” Retainers (45) used in this step, be sure

that you thoroughly understand the step.

The Retainers can be assembled only once.

If they must be removed, you will need to

order new Retainers.

Tap two 1” Retainers (45) and a 1” Round

Outer Cap (46) onto the axle. Be sure that

the teeth on the Retainers bend toward the

Round Outer Cap, as shown in the inset

drawing.

Attach the Right Arm (5) in the same manner.

ARM ASSEMBLY

39 7

Lubricate Axle

Axle

Bracket

20. Press a 1 3/4” Square Inner Cap (48) into the

lower end of the Left Arm (6). Wet the lower

end of the Left Arm with soapy water. Slide a

10” Pad (22) onto the Left Arm.

Repeat this step with the Right Arm (5).

21. Press a 1 3/4” Square Inner Cap (48) into the

top of the Leg Lever Frame (30).

Slide the Leg Lever Frame (30) into the Rear

Seat Frame (16). Align one of the holes in the

Leg Lever Frame with the upper hole in the

Rear Seat Frame. Insert the Large Lock Pin

(96) into the Rear Seat Frame.

Tighten the 1/4” x 5/8” Screw (99) into the

lower hole in the Rear Seat Frame (16).

22. Press a 1 3/4” Square Inner Cap (48) into

each end of the Leg Lever (15). Attach the

Small Bumper (95) to the Leg Lever with a 1”

Tap Screw (72).

Lubricate a 3/8” x 2 1/2” Bolt (65). Attach the

Leg Lever (15) to the Leg Lever Frame (30)

with the Bolt and a 3/8” Nylon Jam Nut (43).

ARM ASSEMBLY

43 30

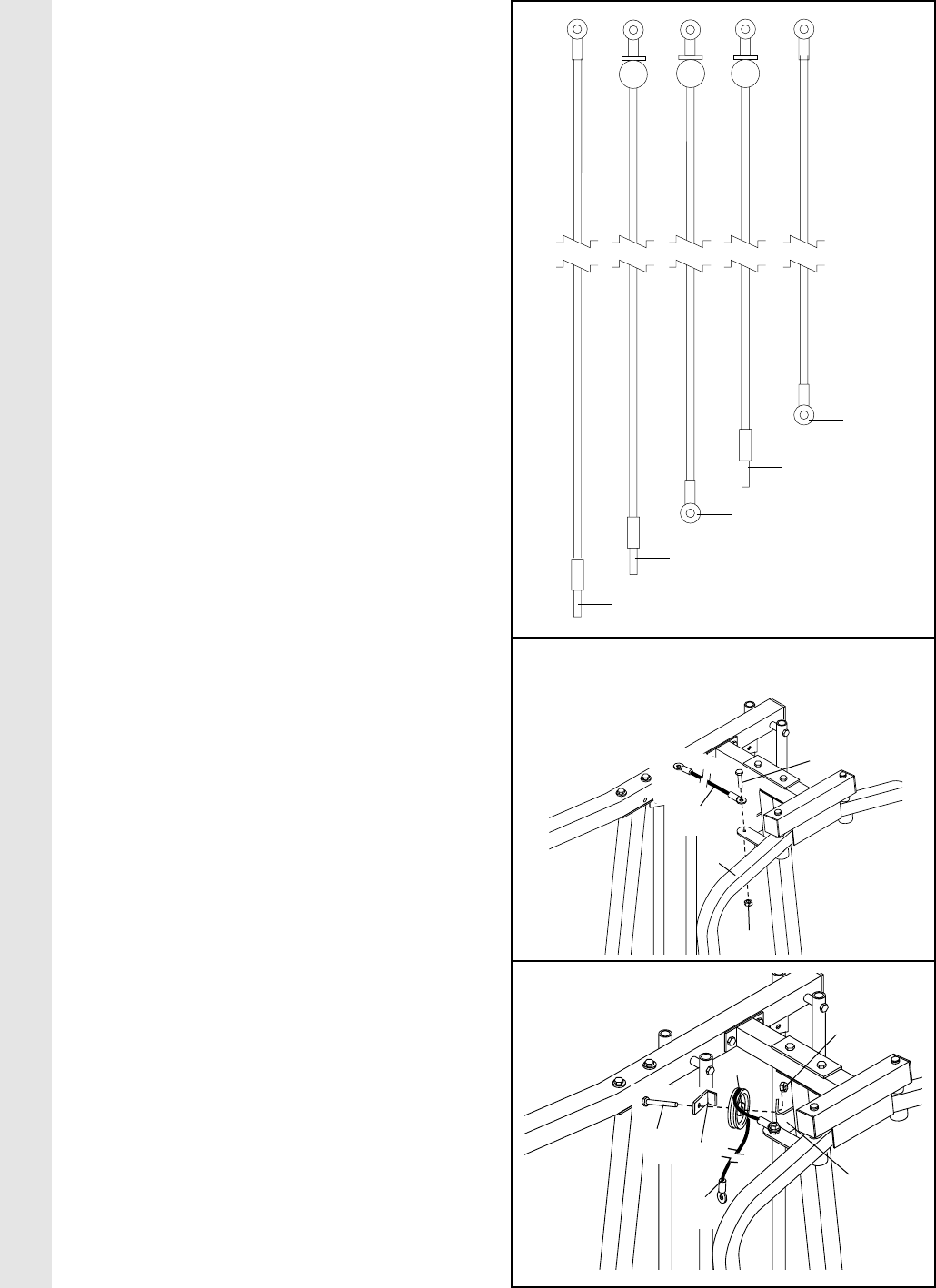

23. Locate and open the parts bags labeled

“CABLE ASSEMBLY” and “PULLEYS.”

During steps 23 through 58, refer to the

CABLE DIAGRAMS on pages 30 and 31 of

this manual to verify proper cable routing.

Before beginning this section, fully unwind the

five Cables and identify the Cables by com-

paring the lengths and the ends. The approxi-

mate length of each Cable, in inches, is listed

after the key number in the drawing.

IMPORTANT: While assembling the Cables,

do not overtighten the bolts and nuts

attaching the pulleys. The pulleys must be

able to turn freely.

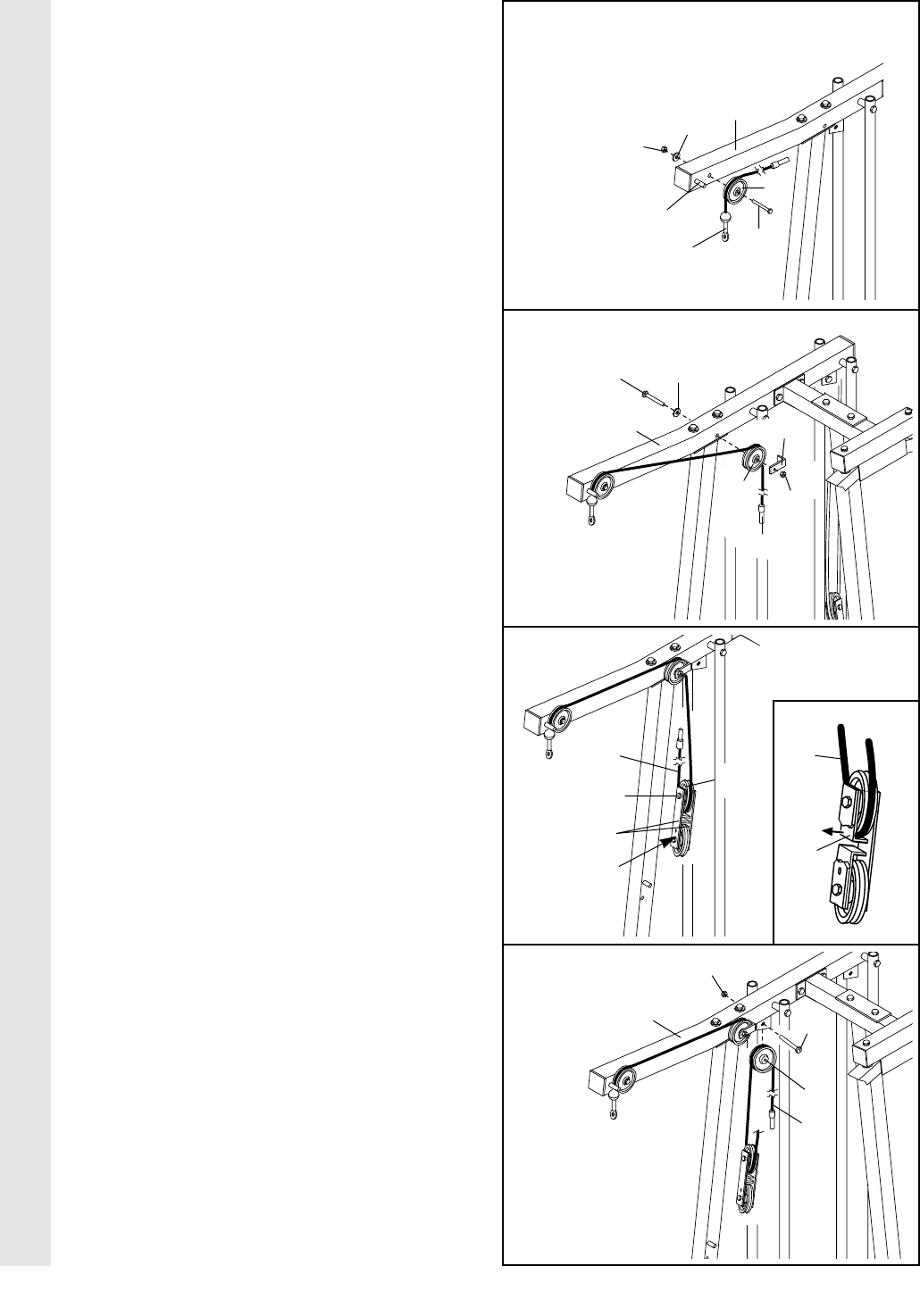

24. Find the Butterfly Cable (85)—this is the

shortest Cable. Slide one end of the Butterfly

Cable onto a 3/8” x 1” Bolt (77). Insert the

Bolt through the bracket on the Right Arm

(5).Thread a 3/8” Nylon Locknut (42) onto the

Bolt, but do not fully tighten it. Leave just

enough room for the Cable to pivot.

25. Wrap the Butterfly Cable (85) around a 3 1/2”

Pulley (82) as shown. Attach the Pulley and a

Cable Trap (80) to the bracket on the Leg

Press Upright (4) with a 3/8” x 2” Bolt (50)

and a 3/8” Nylon Locknut (42). The Cable

Trap must be oriented as shown and be

positioned to hold the Cable in the groove

of the Pulley.

CABLE ASSEMBLY

88—243”

87—148.75”

86—103”

85—72.5”

89—209.5”

50 80

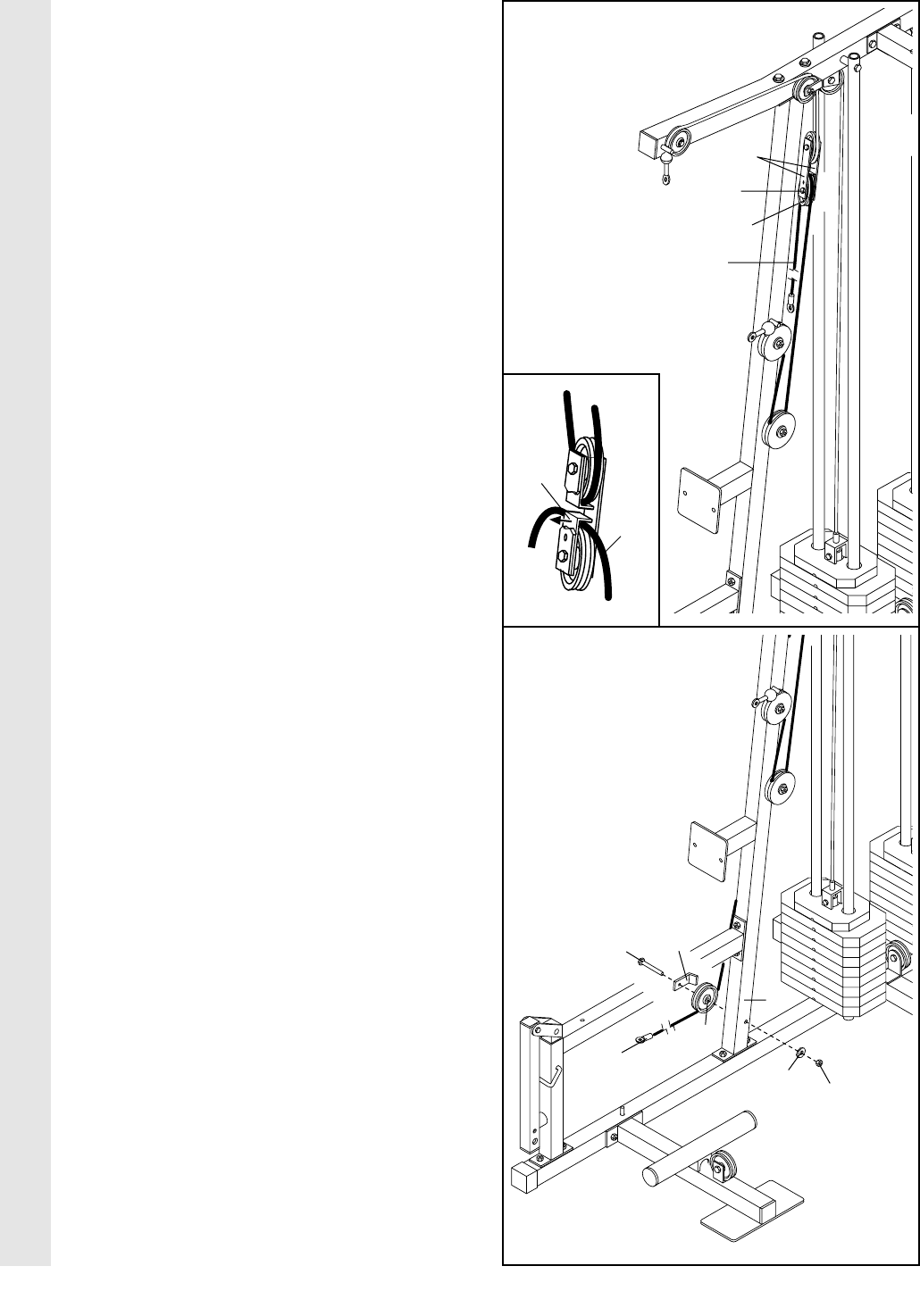

26. Locate one of the pre-assembled pairs of

Pulley Plates (31) and 3 1/2” Pulleys (82).

Route the Butterfly Cable (85) under the indi-

cated 3 1/2” Pulley (82). The end of the Pulley

Plates (31) with two holes should be down-

ward. Refer to the inset drawing. Be sure

that the Cable is between the Cable Trap

(80) and the Pulley, and that the Cable Trap

is positioned to hold the Cable in place.

Tighten the 3/8” x 2” Bolt (50) and the 3/8”

Nylon Locknut (not shown).

27. Wrap the Butterfly Cable (85) around a 3 1/2”

Pulley (82) as shown. Attach the Pulley and a

Cable Trap (80) to the other side of the bracket

on the Leg Press Upright (4) with a 3/8” x 2”

Bolt (50) and a 3/8” Nylon Locknut (42). The

Cable Trap must be oriented as shown and

be positioned to hold the Cable in the

groove of the Pulley.

28. Note: The Left Arm (6) is shown removed

for easier part identification. Slide the other

end of the Butterfly Cable (85) onto a 3/8” x 1”

Bolt (77). Insert the Bolt through the bracket

on the Left Arm (6). Thread a 3/8” Nylon

Locknut (42) onto the Bolt, but do not fully

tighten it. Leave just enough room for the

Cable to pivot.

CABLE ASSEMBLY

End with

two holes

should be

down

42 85

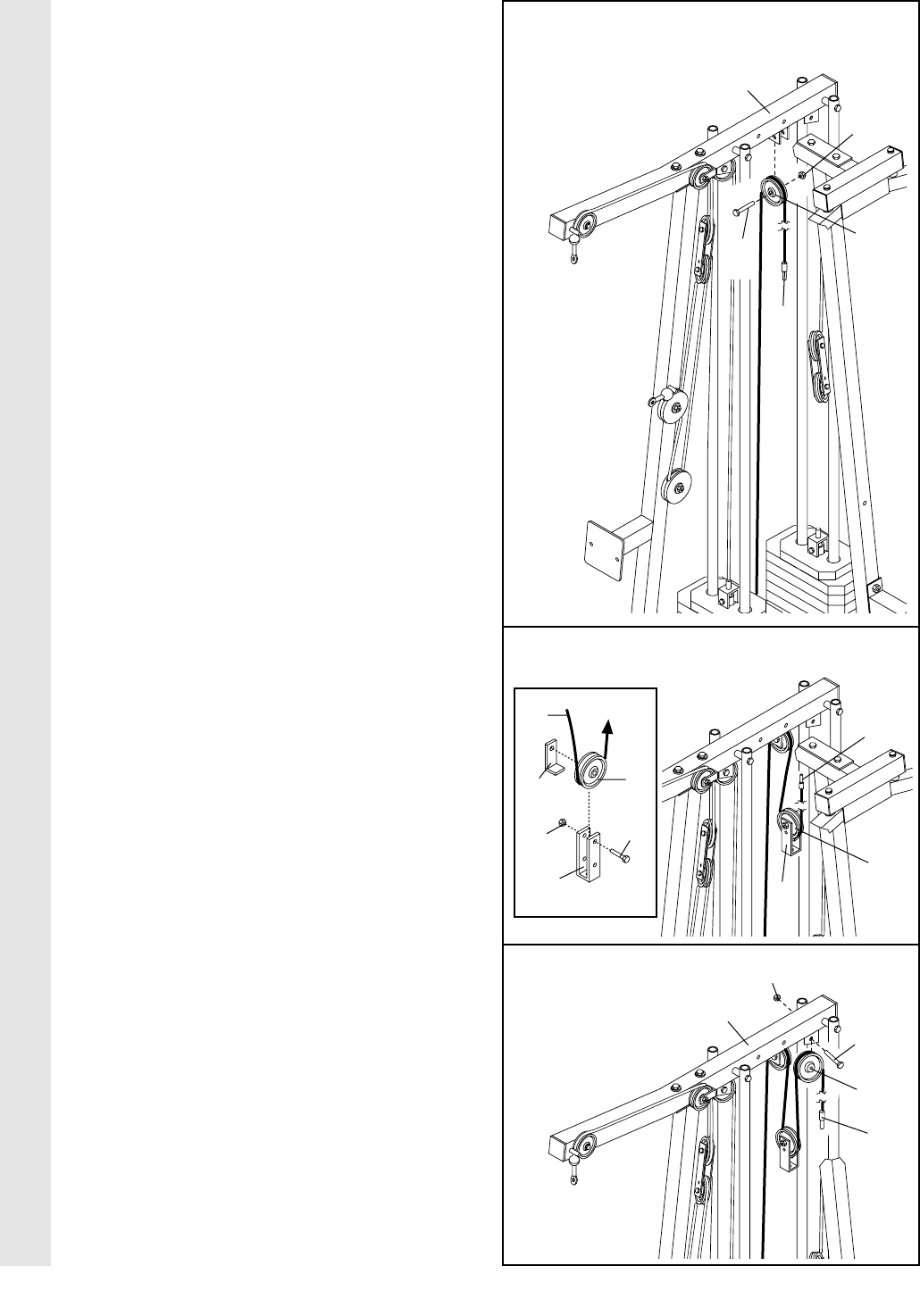

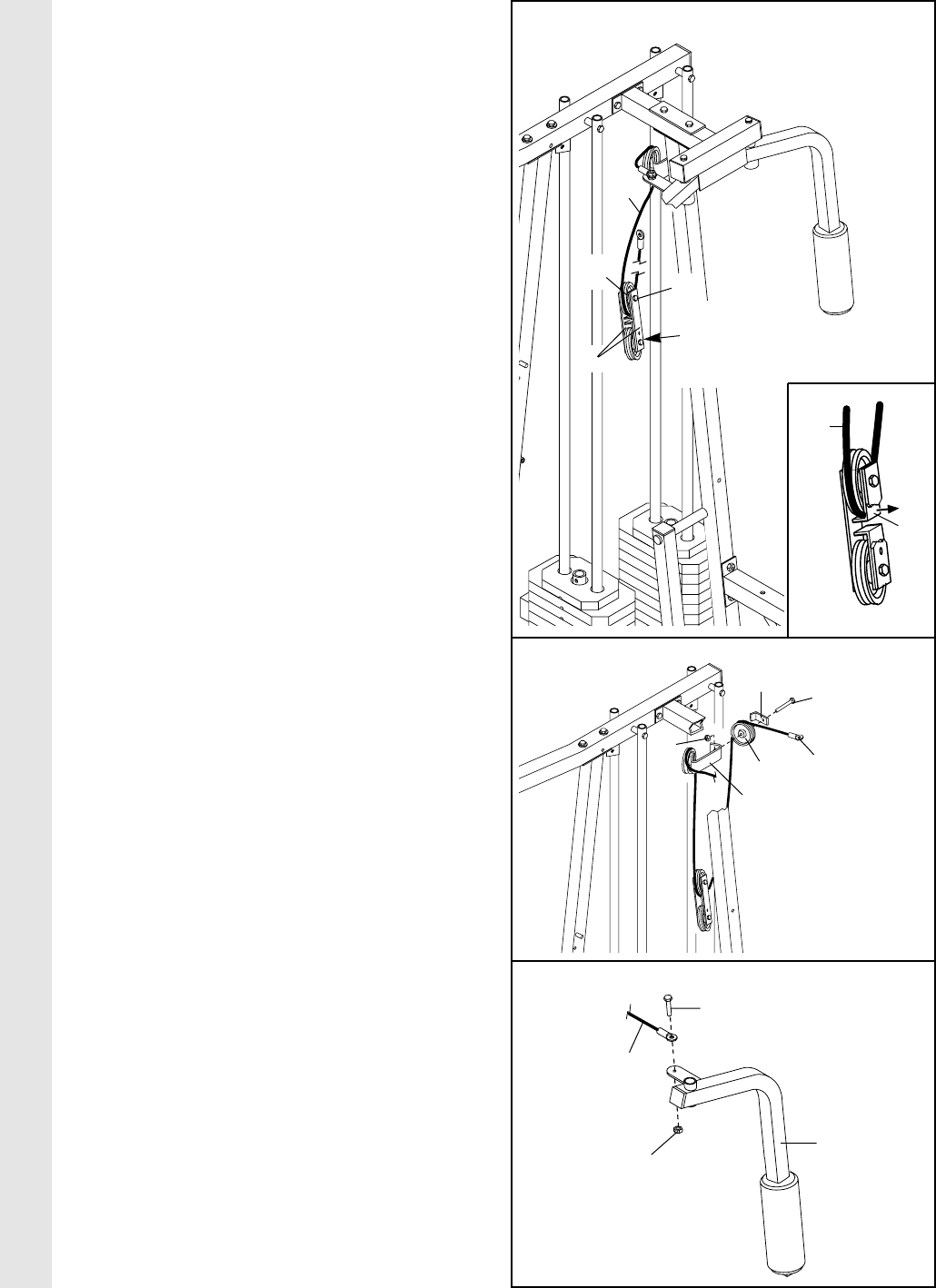

29. Note: The 3 1/2” Pulley (82) in this step is

pre-assembled. It is shown removed for

easier part identification.

Locate the High Cable (86)—this is the

shortest remaining Cable. Route the High

Cable around the 3 1/2” Pulley (82) attached

to the Top Frame (2). Be sure that the end of

the Cable with the ball is on the indicated

side of the Pulley and that the Cable is

between the Pulley and the post. Tighten

the 3/8” x 3 1/2” Bolt (66) and the 3/8” Nylon

Locknut (42), with the 3/8” Washer (38).

30. Wrap the High Cable (86) around a 3 1/2”

Pulley (82). Attach the Pulley and a Cable

Trap (80) to the Top Frame (2) with a 3/8” x

3 1/2” Bolt (66), a 3/8” Washer (38) and a 3/8”

Nylon Jam Nut (43). Be sure that the Cable

Trap is positioned to hold the Cable in

place.

31. Locate the remaining pre-assembled pair

of Pulley Plates (31) and 3 1/2” Pulleys

(82).

Route the High Cable (86) under the indicated

3 1/2” Pulley (82). The end of the Pulley

Plates (31) with two holes should be down-

ward. Refer to the inset drawing. Be sure

that the Cable is between the Cable Trap

(80) and the Pulley, and that the Cable Trap

is positioned to hold the Cable in place.

Tighten the 3/8” x 2” Bolt (50) and the 3/8”

Nylon Locknut (not shown).

32. Wrap the High Cable (86) around a 3 1/2”

Pulley (82). Attach the Pulley to the Top

Frame (2) with a 3/8” x 2” Bolt (50) and a 3/8”

Nylon Locknut (42). The Cable must be

routed from the direction shown.

CABLE ASSEMBLY

42 38 2

Post

82 43

86 86

End with two

holes should

be down

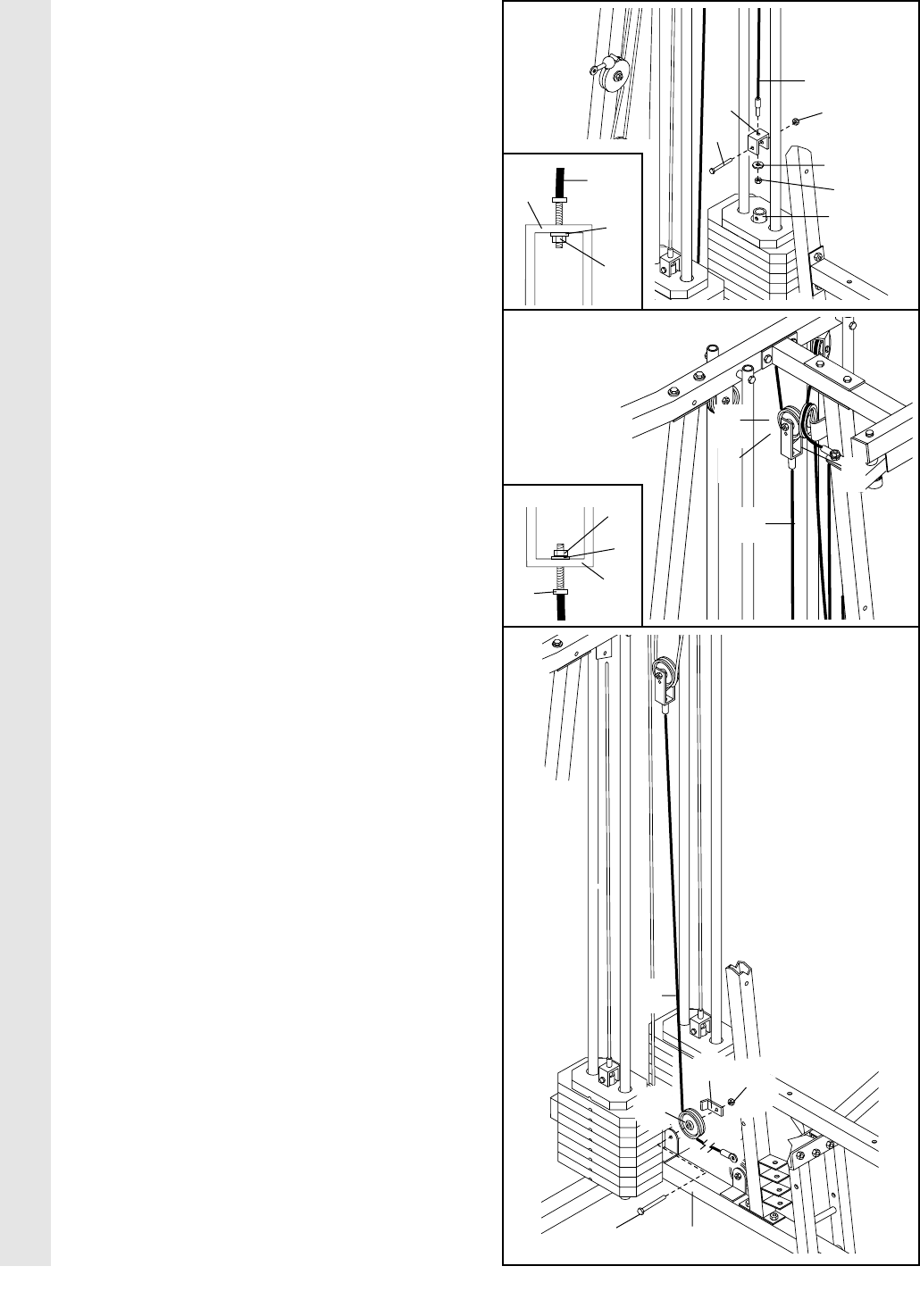

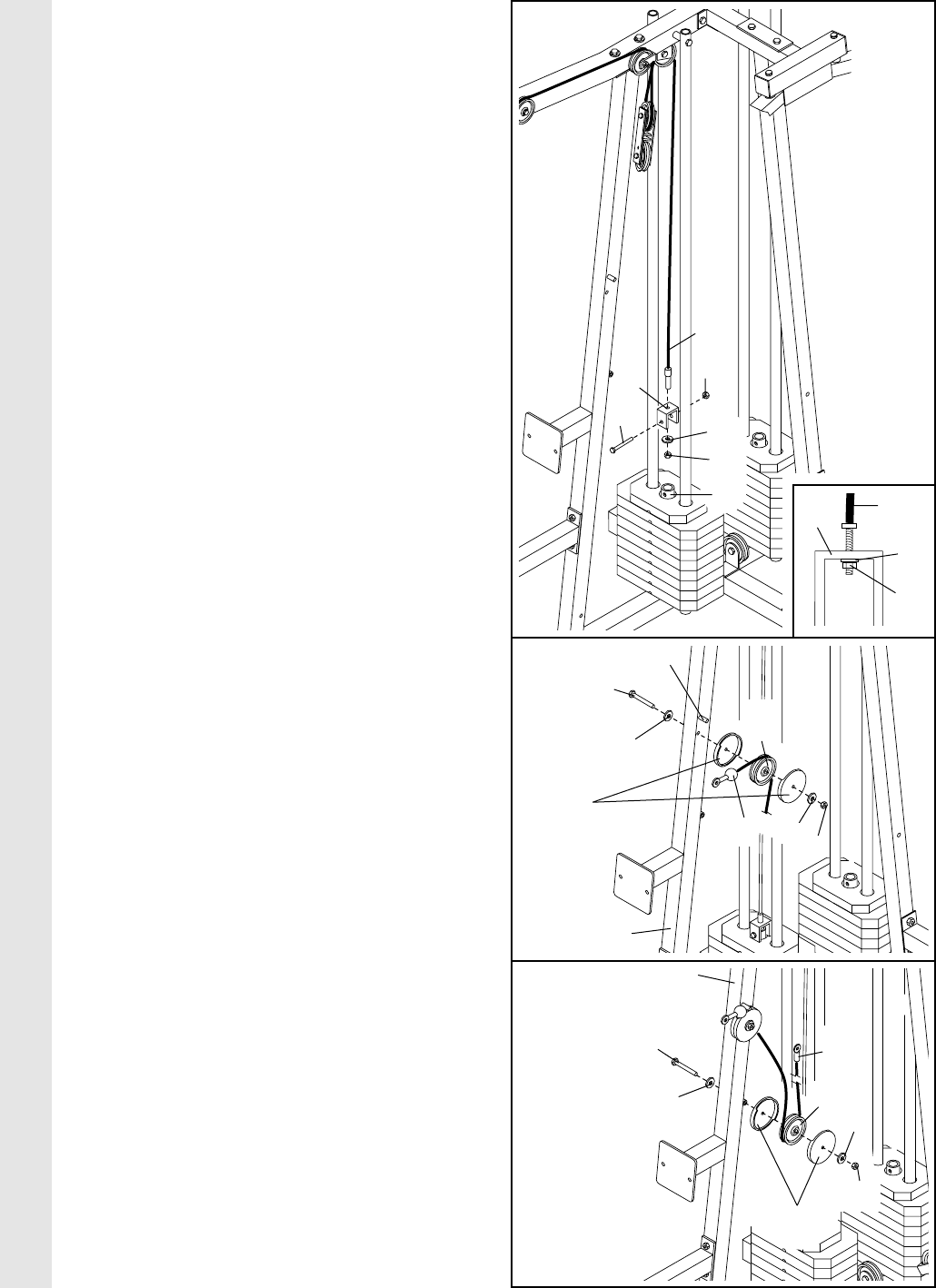

33. Attach the High Cable (86) to a Small “U”

Bracket (32) with a 1/4” Nylon Locknut (44)

and a 1/4” Washer (37). Do not completely

tighten the Nylon Locknut. It should be

threaded onto the end of the Cable so only

a couple of threads are showing above the

Nylon Locknut, as shown in the inset

drawing.

Attach the Small “U” Bracket (32) to the indi-

cated Weight Tube (25) with a 5/16” x 1 3/4”

Bolt (68) and a 5/16” Nylon Locknut (40).

34. Locate the Rear Cable (87)—this is again

the shortest remaining Cable. Wrap the

Rear Cable around a 3 1/2” Pulley (82).

Attach the Pulley and two Pulley Covers (62)

to the Ab Upright (1) with a 3/8” x 4” Bolt (76),

two 3/8” Washers (38) and a 3/8” Nylon

Locknut (42). Do not overtighten the Nylon

Locknut; the Pulley should turn easily.

Make sure that the Cable is between the

Pulley and the post, and that the Pulley

Covers are turned so the wide tabs are on

the indicated side.

35. Wrap the Rear Cable (87) around a 3 1/2”

Pulley (82). Attach the Pulley and two Pulley

Covers (62) to the Ab Upright (1) with a 3/8” x

4” Bolt (76), two 3/8” Washers (38) and a 3/8”

Nylon Locknut (42). Do not overtighten the

Nylon Locknut; the Pulley should turn eas-

ily. Make sure that the Cable is between

the Pulley and the post.

CABLE ASSEMBLY

Post

Wide Tabs

must be

on this

side

38 82

25 86

38 38

87 38 42

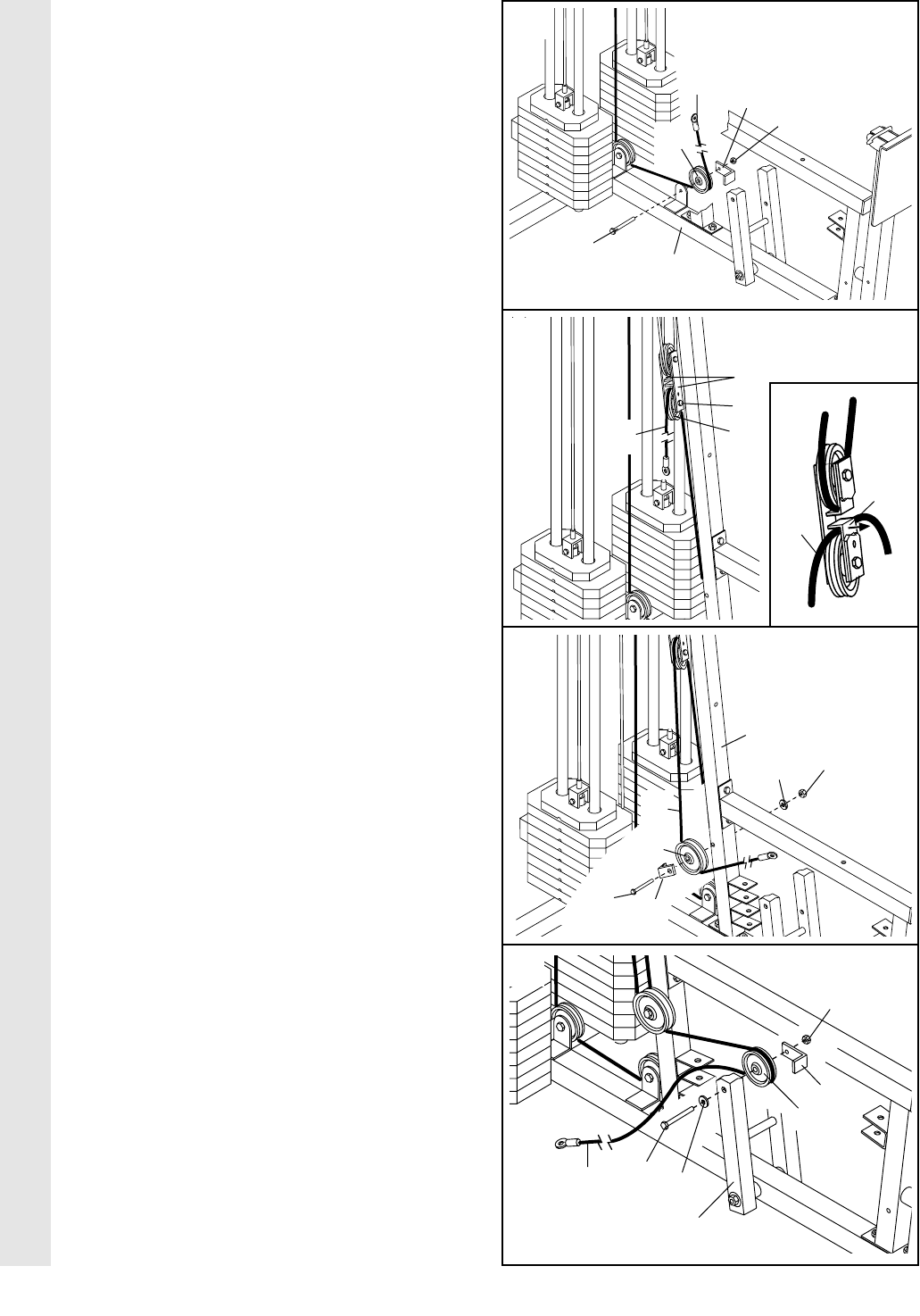

36. Route the Press Cable (88) over the indicated

3 1/2” Pulley (82) attached to the Pulley

Plates (31). The Cable must be routed from

the direction shown. Refer to the inset draw-

ing. Be sure that the Cable is between the

Cable Trap (80) and the Pulley, and that the

Cable Trap is positioned to hold the Cable

in place.

37. Wrap the Rear Cable (87) around a 3 1/2”

Pulley (82). Attach the Pulley and a Cable

Trap (80) to the Ab Upright (1) with a 3/8” x 3

1/2” Bolt (66), a 3/8” Washer (38) and a 3/8”

Jam Nut (43). Be sure that the Cable and

Pulley move smoothly and that the Cable

is between the Pulley and the post.

CABLE ASSEMBLY

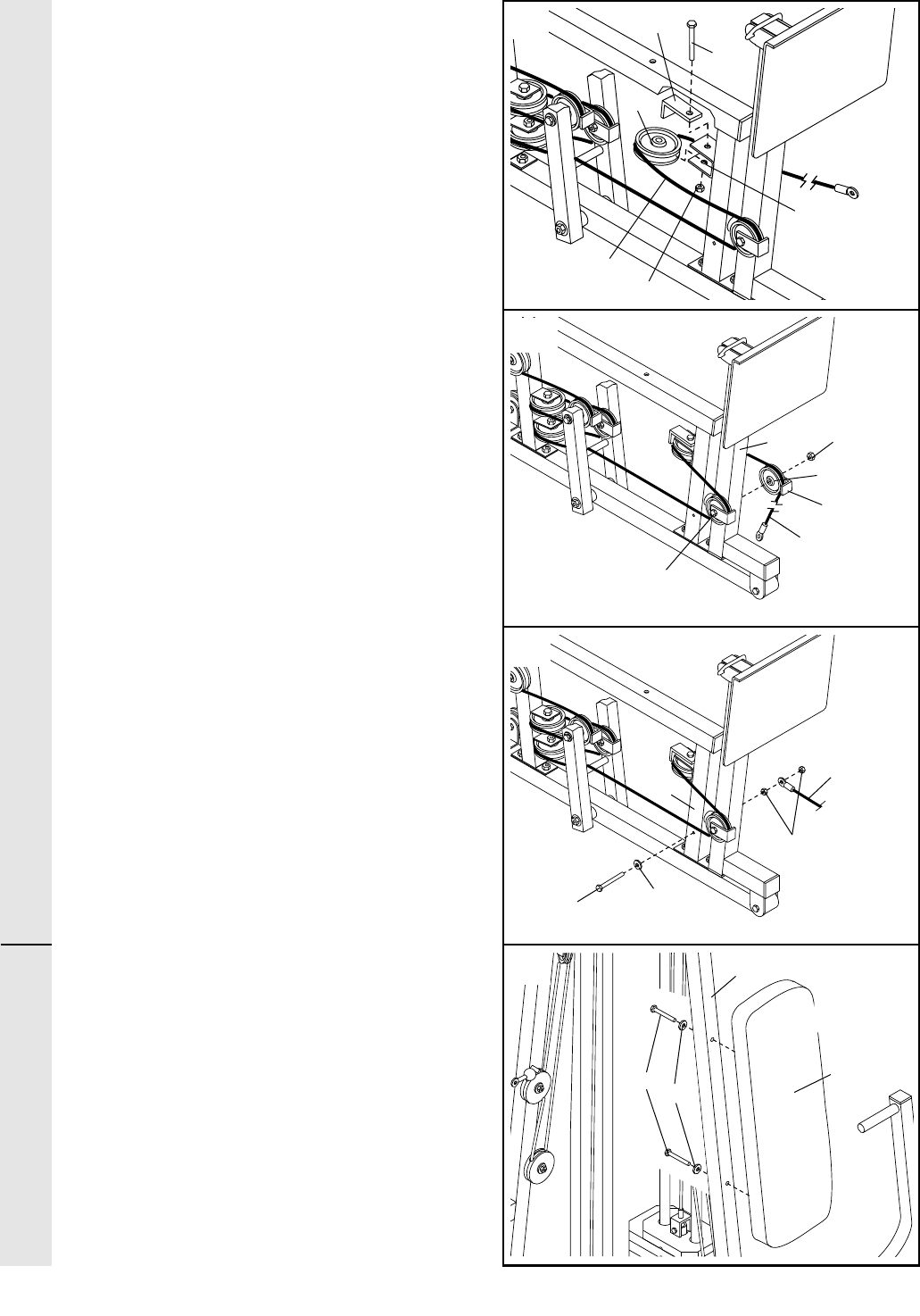

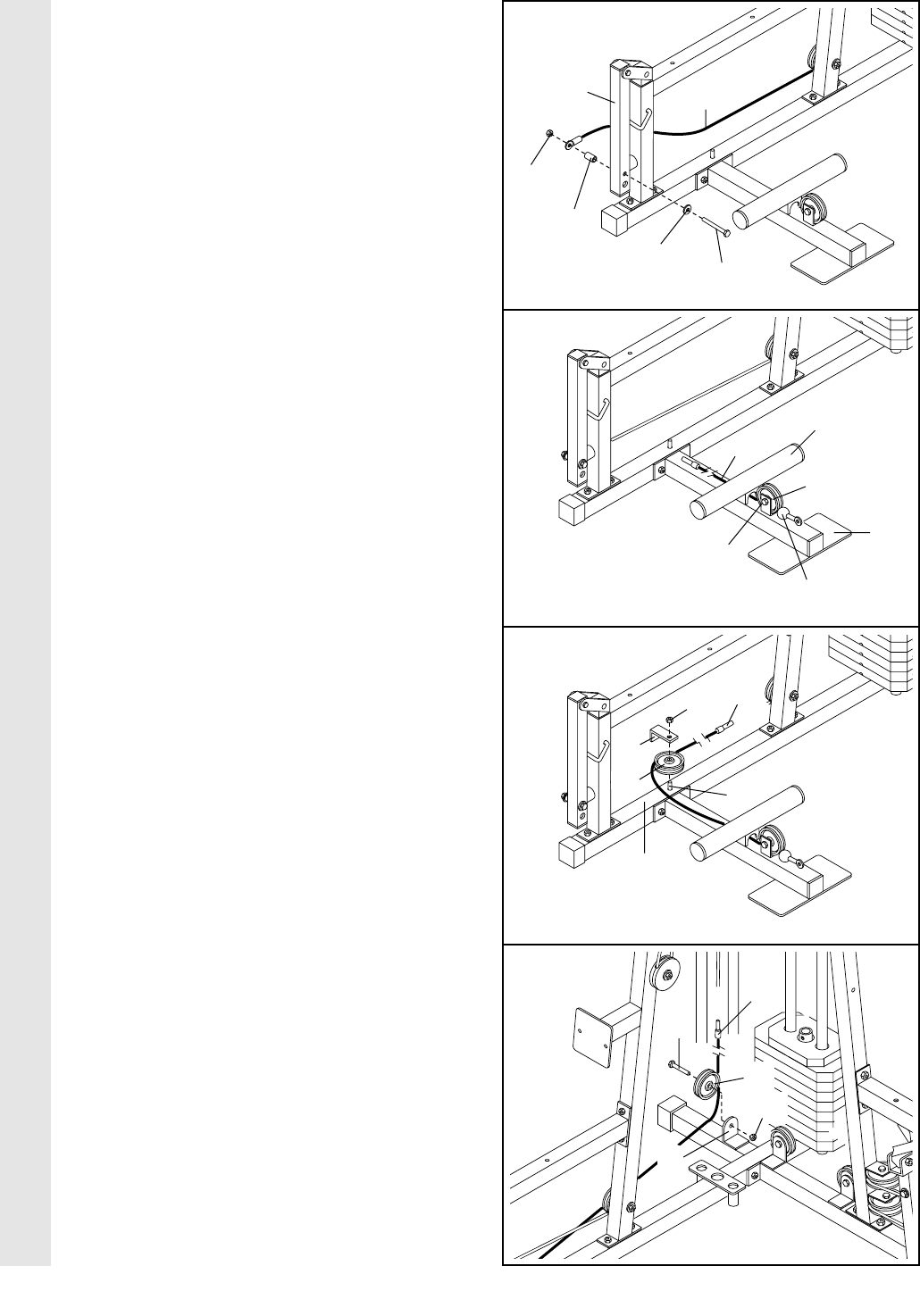

38. Attach the Rear Cable (87) to the Leg Lever

(15) with a 5/16” x 3” Bolt (92), a 5/16”

Washer (20), a 5/8” x 9/16” Bushing (61) and

a 5/16” Nylon Locknut (40).

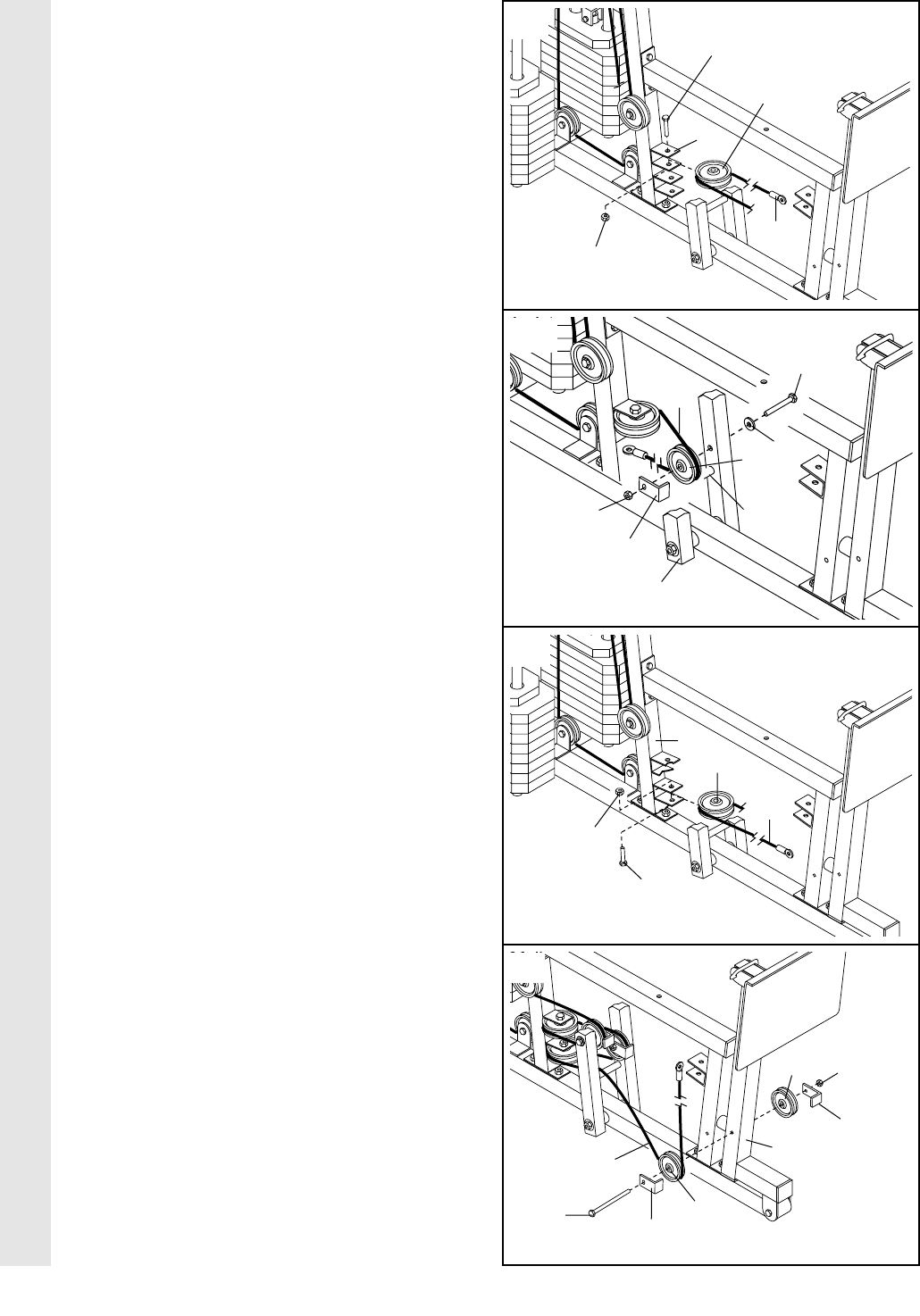

39. Find the Low Cable (89)—this is the short-

est of the two remaining Cables. Feed the

Low Cable under the 3 1/2” Pro Pulley (97)

and the row tube on the Pulley Base (79).

The ball on the Cable must be on the side

shown. Tighten the 3/8” x 2” Bolt (50) and

3/8” Nylon Locknut (not shown).

40. Wrap the Low Cable (89) around a “V” Pulley

(81). Slide the “V” Pulley and a Large Cable

Trap (83) onto the 3/8” x 4” Carriage Bolt (57)

in the Weight Base (14). Tighten a 3/8” Nylon

Locknut (42) onto the Carriage Bolt.

41. Wrap the Low Cable (89) around a 3 1/2”

Pulley (82). Attach the Pulley to the bracket

on the Weight Base (14) with a 3/8” x 2” Bolt

(50) and a 3/8” Nylon Locknut (42).

CABLE ASSEMBLY

Row Tube

50 79

Ball

42. Wrap the Low Cable (89) around a 3 1/2”

Pulley (82). Attach the Pulley to the indicated

bracket on the Top Frame (2) with a 3/8” x 2”

Bolt (50) and a 3/8” Nylon Locknut (42). The

Cable must be routed from the direction

shown.

43. See the inset drawing. Attach a 3 1/2” Pulley

(82) and a Cable Trap (80) to the upper hole

in the Large “U” Bracket (84) with a 3/8” x 2”

Bolt (50) and a 3/8” Nylon Locknut (42). Be

sure that the Cable Trap is inside the

Large “U” Bracket. Note: This may come

pre-assembled.

Route the Low Cable (89) through the Large

“U” Bracket (84) and the 3 1/2” Pulley (82).

Be sure that the Cable is in the groove of

the Pulley and that the Cable and Pulley

move smoothly.

44. Wrap the Low Cable (89) around a 3 1/2”

Pulley (82). Attach the Pulley to the Top

Frame (2) with a 3/8” x 2” Bolt (50) and a 3/8”

Nylon Locknut (42). The Cable must be

routed from the direction shown.

CABLE ASSEMBLY

45. Attach the Low Cable (89) to a Small “U”

Bracket (32) with a 1/4” Nylon Locknut (44)

and a 1/4” Washer (37). Do not completely

tighten the Nylon Locknut. It should be

threaded onto the end of the Cable so only

a couple of threads are showing above the

Nylon Locknut, as shown in the inset

drawing.

Attach the Small “U” Bracket (32) to the indi-

cated Weight Tube (25) with a 5/16” x 1 3/4”

Bolt (68) and a 5/16” Nylon Locknut (40).

46. Find the Press Cable (88). Attach the end of

the Press Cable (88) to the Large “U” Bracket

(84) with a 1/4” Nylon Locknut (44) and a 1/4”

Washer (37). Do not completely tighten the

Nylon Locknut. It should be threaded onto

the end of the Cable so only a couple of

threads are showing above the Nylon

Locknut, as shown in the inset drawing.

47. Note: The 3 1/2” Pulley (82) in this step is

pre-assembled. It is shown dis-assembled

for easier part identification.

Route the Press Cable (88) around the 3 1/2”

Pulley (82) attached to the indicated bracket

on the Press Base (13). Be sure that the

Cable is in the groove of the Pulley and

that the Cable Trap (80) is turned as shown

to hold the Cable in place. Tighten the 3/8”

x 2” Bolt (50) and the 3/8” Nylon Locknut (42).

CABLE ASSEMBLY

37 84

50 13

80 42

48. Note: The 3 1/2” Pulley (82) in this step is

pre-assembled. It is shown dis-assembled

for easier part identification.

Route the Press Cable (88) around the 3 1/2”

Pulley (82) attached to the indicated bracket

on the Press Base (13). Be sure that the

Cable is in the groove of the Pulley and

that the Cable Trap (80) is turned as shown

to hold the Cable in place. Tighten the 3/8”

x 2” Bolt (50) and the 3/8” Nylon Locknut (42).

49. Route the Press Cable (88) over the indicated

3 1/2” Pulley (82) attached to the Pulley

Plates (31). The Cable must be routed from

the direction shown. Refer to the inset draw-

ing. Be sure that the Cable is between the

Cable Trap (80) and the Pulley, and that the

Cable Trap is positioned to hold the Cable

in place.

Tighten the 3/8” x 2” Bolt (50) and the 3/8”

Nylon Locknut (not shown).

50. Wrap the Press Cable (88) around a 3 1/2”

Pulley (82). Attach the Pulley and a Cable

Trap (80) to the Leg Press Upright (4) with a

3/8” x 3 1/2” Bolt (66), a 3/8” Washer (38) and

a 3/8” Nylon Jam Nut (43). Be sure that the

Cable Trap is turned to hold the Cable in

place.

51. Wrap the Press Cable (88) around a 3 1/2”

Pulley (82). Attach the Pulley and a Cable

Trap (80) to the indicated hole in the Press

Frame (12) with a 3/8” x 3 1/2” Bolt (66), a

3/8” Washer (38) and a 3/8” Nylon Locknut

(42). Be sure that the Cable Trap is turned

to hold the Cable in place.

CABLE ASSEMBLY

80 42

38 43

52. Wrap the Press Cable (88) around a “V”

Pulley (81). Attach the “V” Pulley to the upper

bracket on the Leg Press Upright (4) with a

3/8” x 2” Bolt (50) and a 3/8” Nylon Jam Nut

(43).

53. Wrap the Press Cable (88) around a 3 1/2”

Pulley (82). Attach the Pulley and a Cable

Trap (80) to the indicated hole in the Press

Frame (12) with a 3/8” x 3 1/2” Bolt (66), a

3/8” Washer (38) and a 3/8” Nylon Locknut

(42). Be sure that the Cable Trap is turned

to hold the Cable in place and that the

Cable is between the Pulley and the cross-

bar on the Press Frame.

54. Wrap the Press Cable (88) around a “V”

Pulley (81). Attach the “V” Pulley to the lower

bracket on the Leg Press Upright (4) with a

3/8” x 2” Bolt (50) and a 3/8” Nylon Jam Nut

(43).

55. Wrap the Press Cable (88) around a 3 1/2”

Pulley (82). Attach the Pulley and a Cable

Trap (80) to the Leg Press Arm (9) with the

3/8” x 4 1/2” Bolt (74).

Slide another 3 1/2” Pulley (82) with a Cable

Trap (80) onto the 3/8” x 4 1/2” Bolt (74).

Hand tighten a 3/8” Nylon Jam Nut (43) onto

the Bolt. Do not fully tighten the Nylon

Locknut until step 57.

CABLE ASSEMBLY

Crossbar

82 38

56. Wrap the Press Cable (88) around a “V”

Pulley (81). Attach the “V” Pulley and a Large

Cable Trap (83) to the bracket on the Front

Seat Frame (8) with a 3/8” x 2 1/2” Bolt (65)

and a 3/8” Nylon Locknut (42). Be sure that

the Large Cable Trap is turned to hold the

Cable in place and that the Cable and

Pulley move smoothly.

57. Note: The 3 1/2” Pulley (82) used in this

step was attached in step 55. It is shown

removed for easier part identification.

Route the Press Cable (88) around the 3 1/2”

Pulley (82). Be sure that the Cable Trap (80)

is turned to hold the Cable in place and

that the Cable is routed as shown. Tighten

the 3/8” x 4 1/2” Bolt (74) and the 3/8” Nylon

Jam Nut (43).

58. Slide a 5/16” Washer (20) onto a 5/16” x 2 3/4”

Bolt (55). Insert the Bolt into the Front Seat

Frame (8). Fully tighten a 5/16” Nylon Jam

Nut (91) onto the Bolt. Slide the end of the

Press Cable (88) onto the Bolt. Thread anoth-

er 5/16” Nylon Jam Nut (91) onto the Bolt, but

do not fully tighten it. Leave enough room

between the two Jam Nuts for the Cable to

pivot.

59. Locate and open the parts bag labeled

“SEAT ASSEMBLY.”

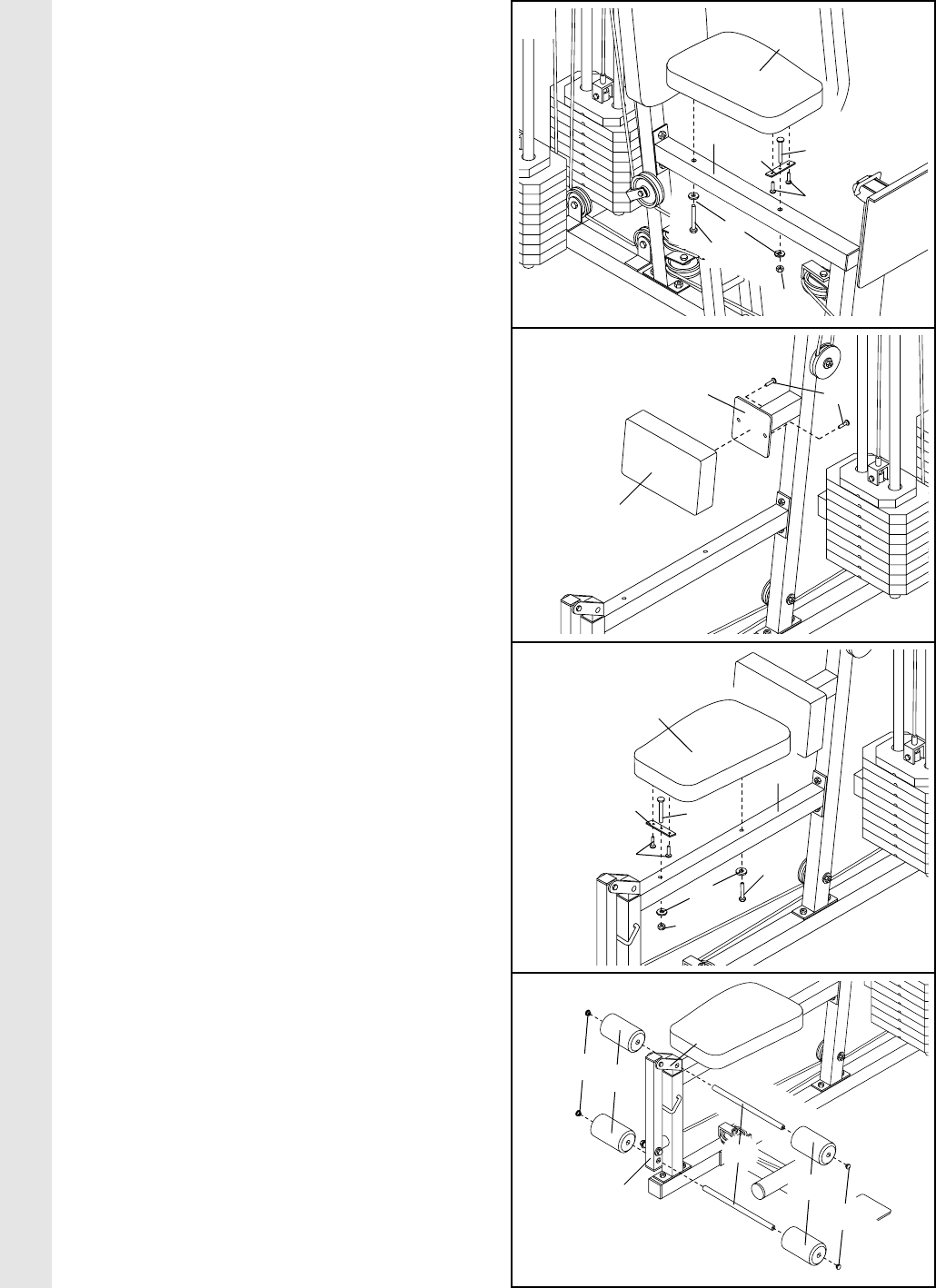

Attach the Large Backrest (19) to the Leg

Press Upright (4) with two 1/4” x 2 1/2”

Machine Screws (64) and two 1/4” Washers

(37).

CABLE ASSEMBLYSEAT ASSEMBLY

888

60. Insert a 1/4” x 2 1/2” Carriage Bolt (60)

through the center hole in a Seat Plate (41).

Attach the Seat Plate to the Seat (17) with

two 1/4” x 3/4” Screws (59).

Insert the 1/4” x 2 1/2” Carriage Bolt (60)

through the indicated hole in the Front Seat

Frame (8). Tighten a 1/4” Nylon Locknut (44)

with a 1/4” Washer (37) onto the Carriage

Bolt.

Attach the other end of the Seat (17) to the

Front Seat Frame (8) with a 1/4” Washer (37)

and a 1/4” x 2 1/2” Machine Screw (64).

61. Attach the Small Backrest (18) to the Ab

Upright (1) with two 1/4” x 3/4” Screws (59).

62. Insert a 1/4” x 2 1/2” Carriage Bolt (60)

through the center hole in a Seat Plate (41).

Attach the Seat Plate to a Seat (17) with two

1/4” x 3/4” Screws (59).

Insert the 1/4” x 2 1/2” Carriage Bolt (60)

through the indicated hole in the Rear Seat

Frame (16). Tighten a 1/4” Nylon Locknut (44)

with a 1/4” Washer (37) onto the Carriage Bolt.

Attach the other end of the Seat (17) to the

Rear Seat Frame (16) with a 1/4” Washer (37)

and a 1/4” x 2 1/2” Machine Screw (64).

63. Press 3/4” Round Inner Caps (78) into the

ends of each Pad Tube (28).

Insert a Pad Tube (28) into the Leg Lever

Frame (30). Slide a Foam Pad (29) onto each

end of the Pad Tube.

Insert the other Pad Tube (28) into the Leg

Lever (15). Slide a Foam Pad (29) onto each

end of the Pad Tube.

SEAT ASSEMBLY

78 29

65. Make sure that all parts have been properly tightened. The use of the remaining parts will be explained in

HOW TO USE THE HOME GYM SYSTEM, beginning on page 26 of this manual.

Before using the home gym system, pull each cable a few times to be sure that the cables move smoothly

over the pulleys. If one of the cables does not move smoothly, find and correct the problem. IMPORTANT: If

the cables are not properly installed, they may be damaged when heavy weight is used. See the

CABLE DIAGRAMS on page 30 and 31 of this manual for proper cable routing. If there is any slack in

the cables, you will need to remove the slack by tightening the cables. See TROUBLE-SHOOTING

AND MAINTENANCE on page 29.

BUTTERFLY

64. Remove the decals from the decal sheets (not shown) and apply them to the home gym system in the loca-

tions shown in the illustration below.

ARM

PRESS

LEG

PRESS

LOW PULLEY/ROW

LEG EXTENSION/CURL

HIGH PULLEY

SERIAL NUMBER

DECAL

HOW TO USE THE HOME GYM SYSTEM

The instructions below describe how each part of the home gym system can be adjusted. Refer to the exercise

poster accompanying this manual to see how the home gym system should be set up for each exercise.

IMPORTANT: When attaching the lat bar, row bar, ab strap, or nylon strap, make sure that the attach-

ments are in the correct starting position for the exercise to be performed. If there is any slack in the

cables or chain as an exercise is performed, the effectiveness of the exercise will be reduced.

93 90

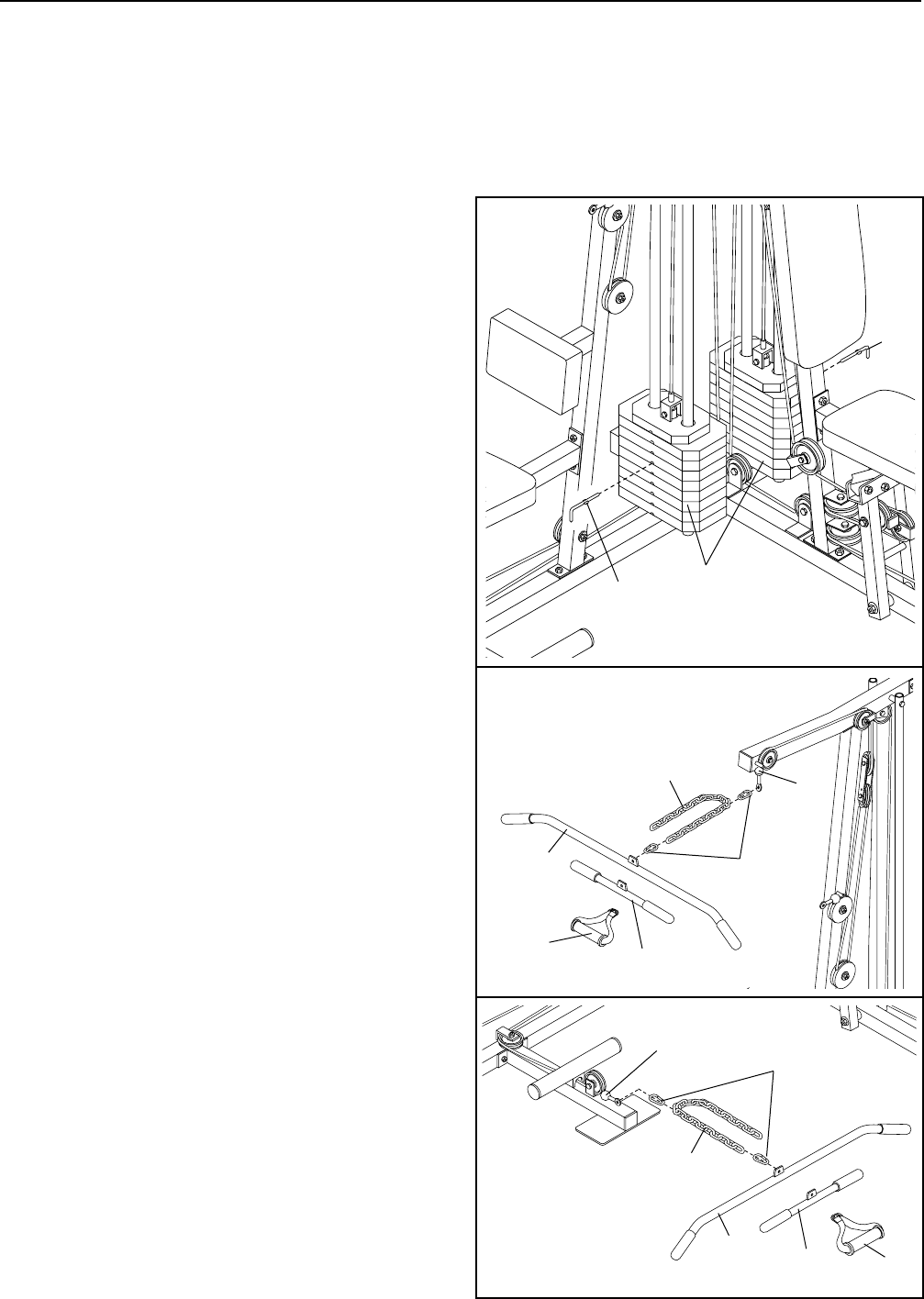

CHANGING THE WEIGHT SETTING

The PRO 9735 features two weight stacks. One

weight stack is connected to the ab pulley, high pulley

and leg lever stations. The other weight stack is con-

nected to the butterfly and press arms, the leg press,

and the low pulley station.

To change the weight setting of either weight stack,

insert a Weight Pin (93) under the desired Weight

(90). Insert the Weight Pin until the bent end of the

Weight Pin is touching the Weights and turn the bent

end downward. The weight setting of either weight

stack can be changed from 6.5 pounds to 106.5

pounds, in increments of 12.5 pounds. Note: Due to

the cables and pulleys, the amount of resistance

at each exercise station may vary from the weight

setting. Use the WEIGHT RESISTANCE CHART on

page 28 to find the approximate amount of resis-

tance at each weight station.

ATTACHING THE LAT BAR, ROW BAR, OR NYLON

STRAP TO THE HIGH PULLEY STATION

Attach the Lat Bar (36) to the High Cable (86) with a

Cable Clip (33). For some exercises, the Chain (34)

should be attached between the Lat Bar and the High

Cable with two Cable Clips. Adjust the length of the

Chain between the Lat Bar and the High Cable so

the Lat Bar is in the correct starting position for

the exercise to be performed.

The Row Bar (94) and Nylon Strap (63) can be

attached in the same manner.

ATTACHING THE LAT BAR, ROW BAR, OR NYLON

STRAP TO THE LOW PULLEY STATION

Attach the Lat Bar (36) to the Low Cable (89) with a

Cable Clip (33). For some exercises, the Chain (34)

should be attached between the Lat Bar and the Low

Cable with two Cable Clips. Adjust the length of the

Chain between the Lat Bar and the Low Cable so

the Lat Bar is in the correct starting position for

the exercise to be performed.

The Row Bar (94) and Nylon Strap (63) can be

attached in the same manner. 63

89 33

36 94

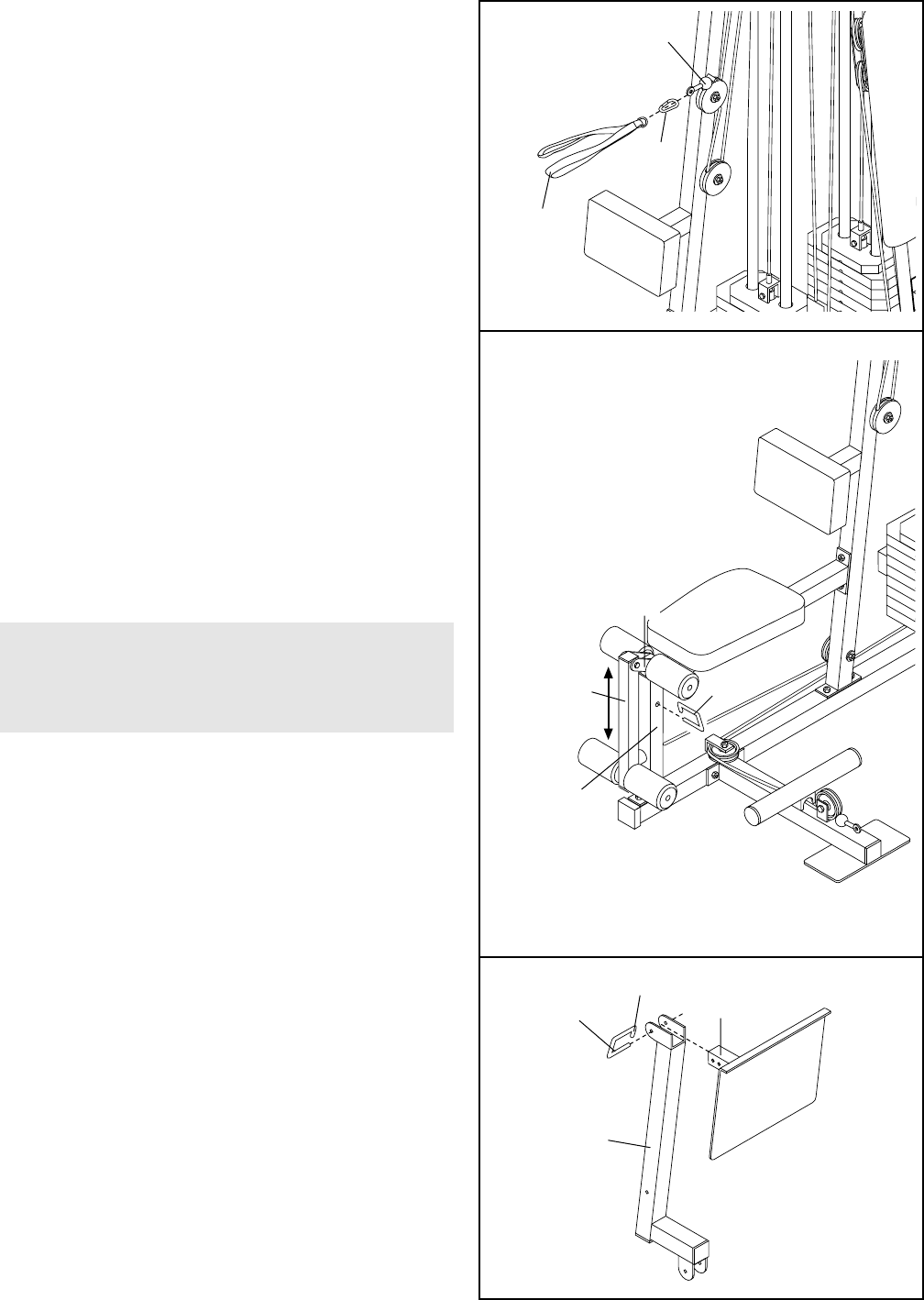

ATTACHING THE AB STRAP TO THE AB PULLEY

STATION

Attach the Ab Strap (35) to the Rear Cable (87) at the

ab pulley station with a Cable Clip (33).

ADJUSTING THE LEG LEVER

To change the height of the Leg Lever (15), remove

the Large Lock Pin (96) from the Rear Seat Frame

(16) and Leg Lever Frame. Position the Leg Lever

Frame at the desired height, align the holes in the

Rear Seat Frame and Leg Lever Frame and re-insert

the Lock Pin. Be sure that the hook on the Lock Pin

is clipped in place on the Rear Seat Frame. Also,

when the Leg Lever Frame is at the highest position,

you can use the upper foam pads to hold your legs in

place while you use the high pulley station.

ADJUSTING THE LEG PRESS PLATE

Remove the Small Lock Pin (73) from the Adjustment

Tube (10).

Align the holes in the Leg Press Arm (9) with the

desired set of holes in the Adjustment Tube (10). Re-

insert the Lock Pin (73) through the holes in the Leg

Press Arm and the holes in the Adjustment Tube. Be

sure that the hook on the Lock Pin is clipped in

place on the Adjustment Tube.

Hook

WARNING: The lock pin must always be inserted

through both the rear seat frame and leg lever

frame and clipped in place on the rear seat

frame.

WEIGHT RESISTANCE CHART

This chart shows the approximate weight resistance at each weight station. “Top” refers to the 6.5 lb. top weight.

The other numbers refer to the 12.5 lb. weight plates. The butterfly arm resistance is the resistance for each

butterfly arm.

WEIGHT PRESS BUTTERFLY LEG HIGH LOW LEG AB

ARM ARM LEVER PULLEY PULLEY PRESS PULLEY

PLATES (lbs.) (lbs.) (lbs.) (lbs.) (lbs.) (lbs.) (lbs.)

Top 36 191012156216

1 63 3525273113233

2 97 5538434719046

3 125 73 54 58 65 244 61

4 151 93 75 75 81 293 77

5 181 113 85 91 96 336 91

6 222 131 104 103 113 377 107

7 253 157 118 117 135 430 126

8 275 185 132 132 151 480 135

The actual resistance at each weight station may vary due to differences in individual weight plates, as

well as friction between the cables, pulleys and weight guides.

TROUBLE-SHOOTING AND MAINTENANCE

Inspect and tighten all parts each time you use the home gym system. Replace any worn parts immediately. The

home gym system can be cleaned using a damp cloth and mild non-abrasive detergent. Do not use solvents.

TIGHTENING THE CABLES

Woven cable, the type of cable used on the home gym system, can stretch slightly when it is first used. If there

is slack in the cables before resistance is felt, the cables should be tightened. If any slack is felt when using the

weight stack closest to the ab upright, both the High Cable (86) and the Rear Cable (87) will need to be tight-

ened. If any slack is felt when using the other weight stack, the Press Cable (88) and Low Cable (89) will need

to be tightened.

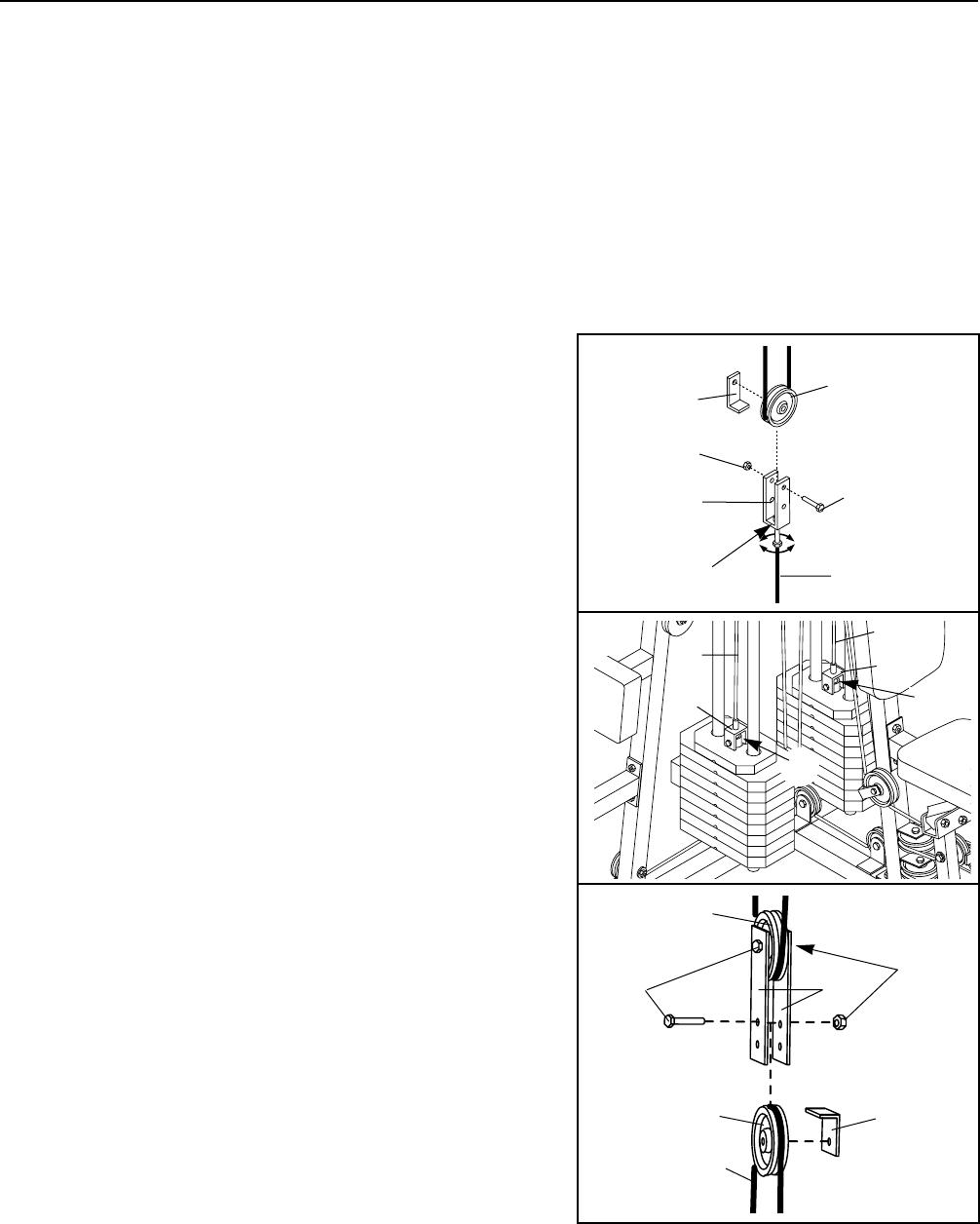

To tighten the cables, first insert the weight pin into the mid-

dle of the weight stack. Slack can be removed from these

cables several ways:

• See drawing 1. Tighten the 1/4” Nylon Locknut (44) that

connects the end of the Press Cable (88) to the Large “U”

Bracket (84).

• See drawing 1. Remove the 3/8” Nylon Locknut (42) and

the 3/8” x 2” Bolt (50) from the Cable Trap (80), 3 1/2”

Pulley (82) and Large “U” Bracket (84). Re-attach the

Pulley and Cable Trap to the other hole in the Large “U”

Bracket. Be sure that the Cable Trap is in the proper

position and that the Cable and Pulley move smoothly.

• See drawing 2. Tighten the 1/4” Nylon Locknut (44) that

connects the end of the High Cable (86) to the Small “U”

Bracket (32).

The Low Cable (89) can be tightened in the same man-

ner.

• See Drawing 3. If you feel additional slack while using the

home gym system, the Rear Cable (87) and the Press

Cable (88) can be tightened further.

Remove the 3/8” x 2” Bolts (50), the 3/8” Nylon Locknuts

(42), the 3 1/2” Pulleys (82), and the Cable Traps (80)

from the Pulley Plates (31). Reattach the High Pulley

without the Cable Trap. Reattach the Low Pulley to the

higher hole in the Pulley Plates without the Cable Trap.

Keep the Cable Traps for future use. Be sure that the

Cable and Pulley move smoothly.

Do not overtighten the cables. If the cables are overtight-

ened, the top weight will be lifted off the weight stack.

If a cable tends to slip off the pulleys often, it may have

become twisted. Remove the cable and re-install it.

All cables should be replaced every two years. When the cables need to be replaced, see ORDERING

REPLACEMENT PARTS on the back cover of this manual.

80 82

87, 88

CABLE DIAGRAMS

The cable diagrams on this page and the next page show the proper routing of the Butterfly Cable (85), the High

Cable (86), the Rear Cable (87), the Press Cable (88), and the Low Cable (89). Use the diagrams to be sure

that the Cables have been assembled correctly. The starting and ending points of each Cable have been

labeled. The numbers show the proper route for each Cable. IMPORTANT: If the Cables have not been cor-

rectly routed, the WEIDER PRO 9735 will not function properly and damage may occur.

High Cable (86)

Butterfly Cable (85)

Press Cable (88)

1—Right Arm

5—Left Arm

Leg Press—13

Weight Stack—5

High Pulley—1

1—Long “U” Bracket

Low Cable (89)

1—Low Pulley

Rear Cable (87)

5—Leg Lever

Ab Pulley—1

Weight Stack—7

2" Square Inner Cap (56)2" Square Outer Cap (58)

1 3/4" Square Inner Cap (48)

1" Retainer (45)

1" Round Outer Cap (46)

1" Round Inner Cap (70)

3/4" Round Inner Cap (78)

1" x 7/8" Plastic Bushing (54)

1 1/8" x 2 1/2" Plastic Bushing (47)

5/8" x 9/16" Plastic Bushing (61)

1/2 x 3/4" Spacer (69)

3/8" Nylon Jam Nut (43)

1/4" x 2 1/2" Machine Screw (64)

Cable Clip (33)

5/16" x 1 3/4" Bolt (68)

3/8" x 2" Bolt (50)

5/16" x 3" Bolt (92)

3/8" x 3 1/4" Bolt (71)

3/8" x 3 1/2" Bolt (66)

1/4" Washer (37)

5/16" Washer (20)

3/8" Washer (38)

1/4" Nylon Locknut (44)

5/16" Nylon Locknut (40)

5/16" Nylon Jam Nut (91)

3/8" Nylon Locknut (42)

3/8" x 4 1/2" Bolt (74)

5/16" x 2 1/2" Carriage Bolt (49)

1/4" x 2 1/2" Carriage Bolt (60)

"V" Pulley (81)

(Not shown to scale)

3 1/2" Pulley (82)

(Not shown to scale)

5/16" x 6" Bolt (67)

3/8" x 8" Bolt (52)

3/8" x 4" Bolt (76)

5/16" x 2 1/2" Bolt (39)

1/4" x 3/4" Screw (59)

3/8" x 2 1/2" Bolt (65)

3/8" x 1" Bolt (77)

5/16" x 2 3/4" Bolt (55)

3/8" x 4" Carriage Bolt (57)

1/4" x 5/8" Screw (99)

#10 x 1" Tap Screw (100)

1" Tap Screw (72)

PART LIST—Model No. 831.159390 R0698A

Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice.

Key No. Qty. Description

1 1 Ab Upright

2 1 Top Frame

3 1 Butterfly Frame

4 1 Leg Press Upright

5 1 Right Arm

6 1 Left Arm

7 2 Press Arm

8 1 Front Seat Frame

9 1 Leg Press Arm

10 1 Adjustment Tube

11 1 Leg Press Plate

12 1 Press Frame

13 1 Press Base

14 1 Weight Base

15 1 Leg Lever

16 1 Rear Seat Frame

17 2 Seat

18 1 Small Backrest

19 1 Large Backrest

20 16 5/16” Washer

21 6 5” Plastic Grip

22 2 10” Pad

23 4 Weight Guide

24 2 Top Weight

25 2 Weight Tube

26 2 Weight Tube Bumper

27 4 Weight Bumper

28 2 Pad Tube

29 4 Foam Pad

30 1 Leg Lever Frame

31 4 Pulley Plate

32 2 Small “U” Bracket

33 3 Cable Clip

34 1 Chain

35 1 Ab Strap

36 1 Lat Bar

37 9 1/4” Washer

38 10 3/8” Washer

39 5 5/16” x 2 1/2” Bolt

40 34 5/16” Nylon Locknut

41 2 Seat Plate

42 26 3/8” Nylon Locknut

43 6 3/8” Nylon Jam Nut

44 5 1/4” Nylon Locknut

45 4 1” Retainer

46 2 1” Round Outer Cap

47 2 1 1/8” x 2 1/2” Plastic Bushing

48 10 1 3/4” Square Inner Cap

49 8 5/16” x 2 1/2” Carriage Bolt

50 16 3/8” x 2” Bolt

51 2 Row Tube Endcap

Key No. Qty. Description

52 1 3/8” x 8” Bolt

53 1 Large Bumper

54 2 1” x 7/8” Plastic Bushing

55 13 5/16” x 2 3/4” Bolt

56 8 2” Square Inner Cap

57 1 3/8” x 4” Carriage Bolt

58 3 2” Square Outer Cap

59 6 1/4” x 3/4” Screw

60 2 1/4” x 2 1/2” Carriage Bolt

61 1 5/8” x 9/16” Bushing

62 4 Pulley Cover

63 1 Nylon Strap

64 4 1/4” x 2 1/2” Machine Screw

65 2 3/8” x 2 1/2” Bolt

66 6 3/8” x 3 1/2” Bolt

67 4 5/16” x 6” Bolt

68 2 5/16” x 1 3/4” Bolt

69 8 1/2” x 3/4” Spacer

70 4 1” Round Inner Cap

71 1 3/8” x 3 1/4” Bolt

72 1 1” Tap Screw

73 1 Small Lock Pin

74 1 3/8” x 4 1/2” Bolt

75 2 Press Bushing

76 2 3/8” x 4” Bolt

77 2 3/8” x 1” Bolt

78 4 3/4” Round Inner Cap

79 1 Pulley Base

80 16 Cable Trap

81 4 “V” Pulley

82 23 3 1/2” Pulley

83 2 Large Cable Trap

84 1 Large “U” Bracket

85 1 Butterfly Cable

86 1 High Cable

87 1 Rear Cable

88 1 Press Cable

89 1 Low Cable

90 16 Weight

91 2 5/16” Nylon Jam Nut

92 3 5/16” x 3” Bolt

93 2 Weight Pin

94 1 Row Bar

95 1 Small Bumper

96 1 Large Lock Pin

97 1 3 1/2” Pro Pulley

98 1 Support Plate

99 1 1/4” x 5/8”” Screw

100 1 #10 x 1” Tap Screw

# 1 User’s Manual

# 1 Exercise Poster

89 31

55 55

8066 40

68 37

55 20

42 50

82 80

42 42

50 4056

77 47

42 45

8280 42

49 75

66 66

82 42

81 42

53100

65 37

44 56

74 8082

71 56

82 80

20 40

48 70

95 72

55 81

82 42

40 51

50 89 56

82 42

40 20

85 77

EXPLODED DRAWING—Model No. 831.159390 R0698A

Model No. 831.159390

QUESTIONS?

If you find that:

• you need help assembling or

operating the WEIDER®PRO 9735

Home Gym System

• a part is missing

• or you need to schedule repair

service

call our toll-free HELPLINE

1-800-736-6879

Monday–Saturday, 7 am–7 pm

Central Time (excluding holidays)

REPLACEMENT

PARTS

If parts become worn and need to

be replaced, call the following toll-

free number

1-800-FON-PART

(1-800-366-7278)

The model number and serial number of your WEIDER®PRO 9735

Home Gym System are listed on a decal attached to the frame.

See the front cover of this manual to find the location of the decal.

All replacement parts are available for immediate purchase or

special order when you visit your nearest SEARS Service Center.

To request service or to order parts by telephone, call the toll-free

numbers listed at the left.

When requesting help or service, or ordering parts, please be pre-

pared to provide the following information:

• The MODEL NUMBER of the product (831.159390).

• The NAME of the product (WEIDER®PRO 9735 Home Gym

System).

• The KEY NUMBER and DESCRIPTION of the PART (see the

PART LIST/EXPLODED DRAWING at the center of this manual).

SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179

Weider Pro 9735 System 15939 Users Manual

Weider-159390-Owner-S-Manual weider-159390-owner-s-manual

Weider-831-15939-Users-Manual-233699 weider-831-15939-users-manual-233699

831.159390 to the manual 9e512786-767e-4027-9019-c65117a6a634

Navigation menu

Versions of this User Manual:

Views

Navigation
