USER’S MANUAL

Model No. 831.159530

Serial No.

The serial number is found in the

location shown below. Write the

serial number in the space above.

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manu-

al for future reference.

Serial Number Decal

Patent Pending

Visit our website at

www.weiderfitness.com

new products, prizes,

fitness tips, and much more!

SEARS, ROEBUCK AND CO.

HOFFMAN ESTATES, IL 60179

2

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

WEIGHT RESISTANCE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

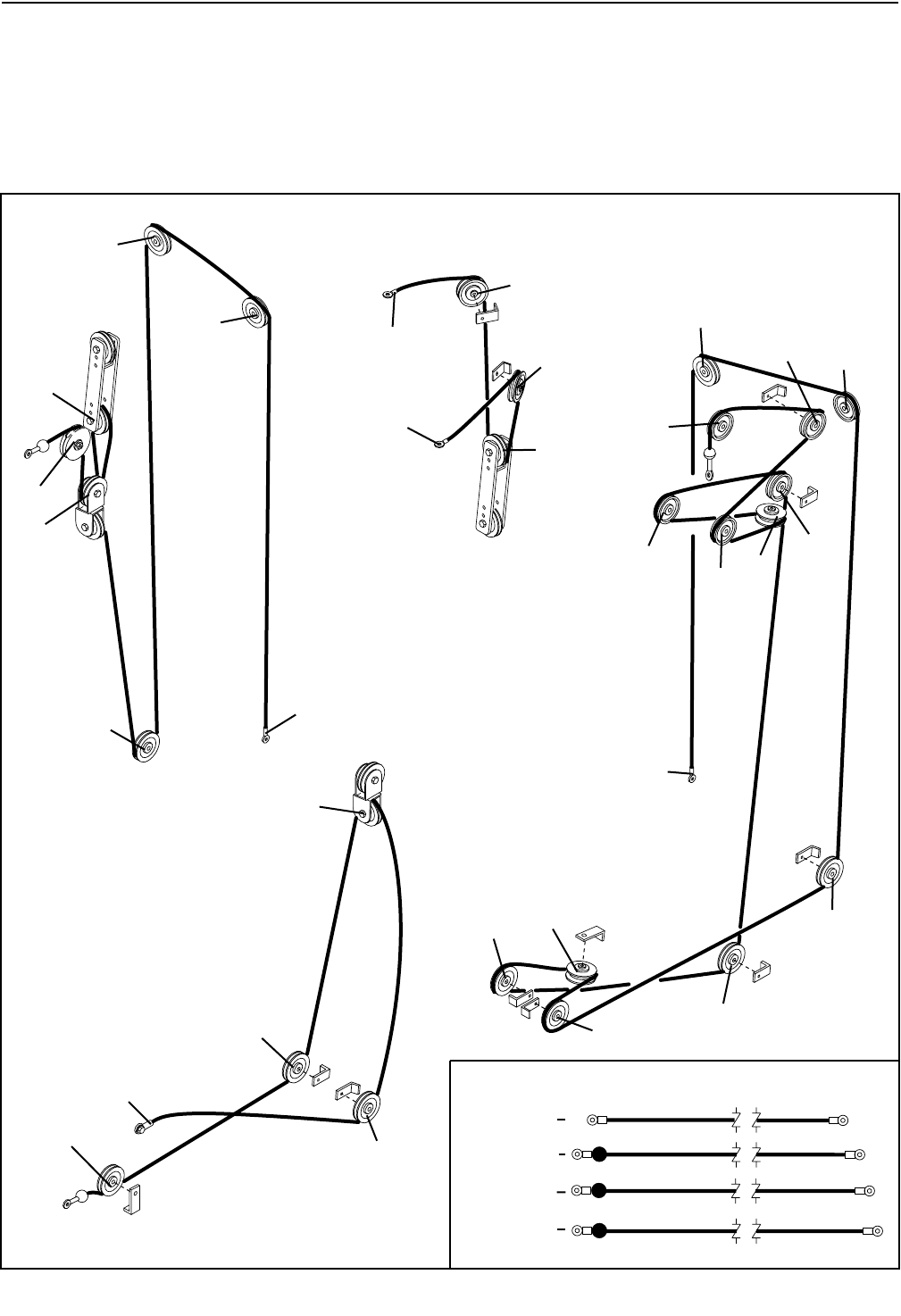

CABLE DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

TROUBLE-SHOOTING AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

FULL 90-DAY WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

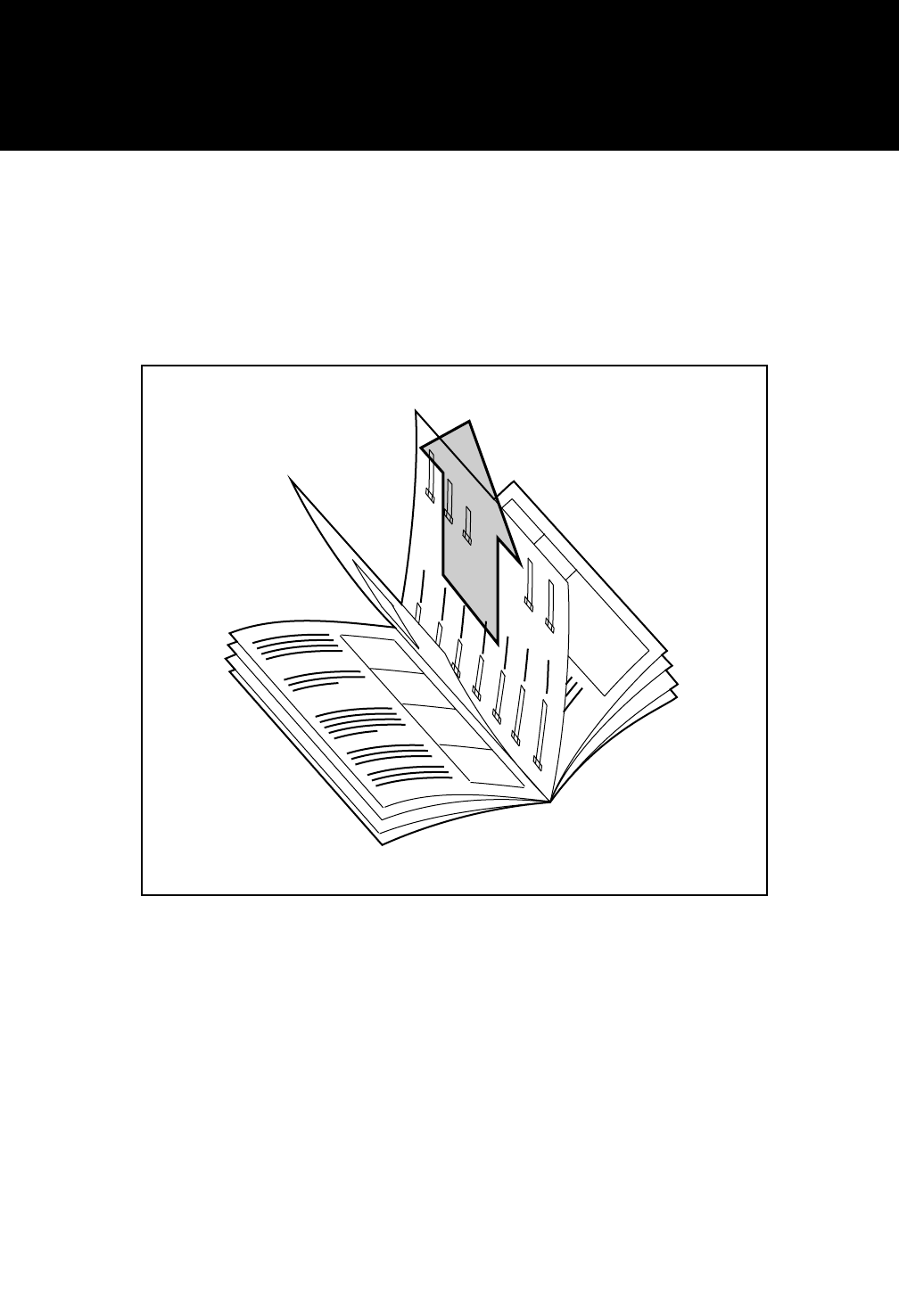

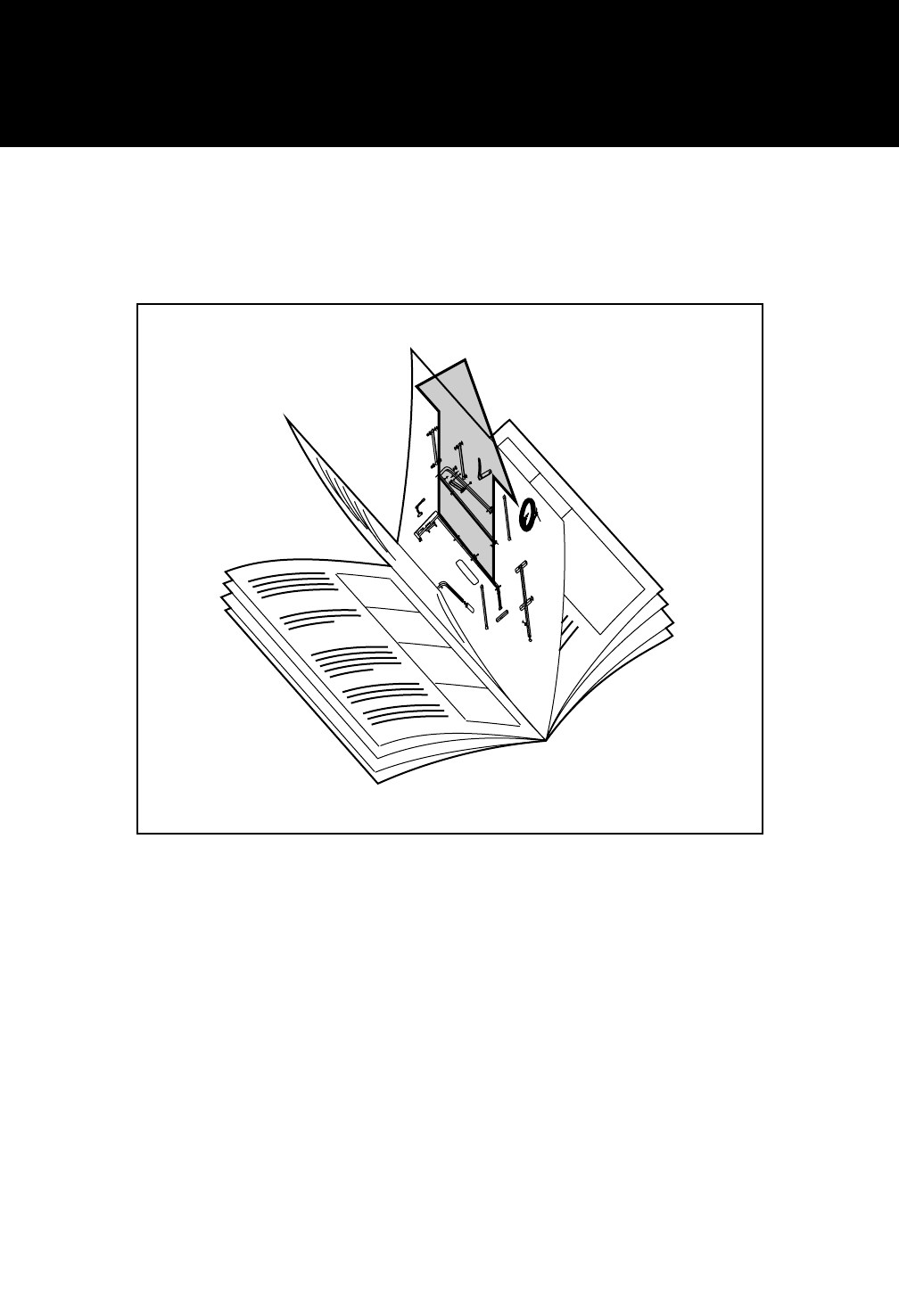

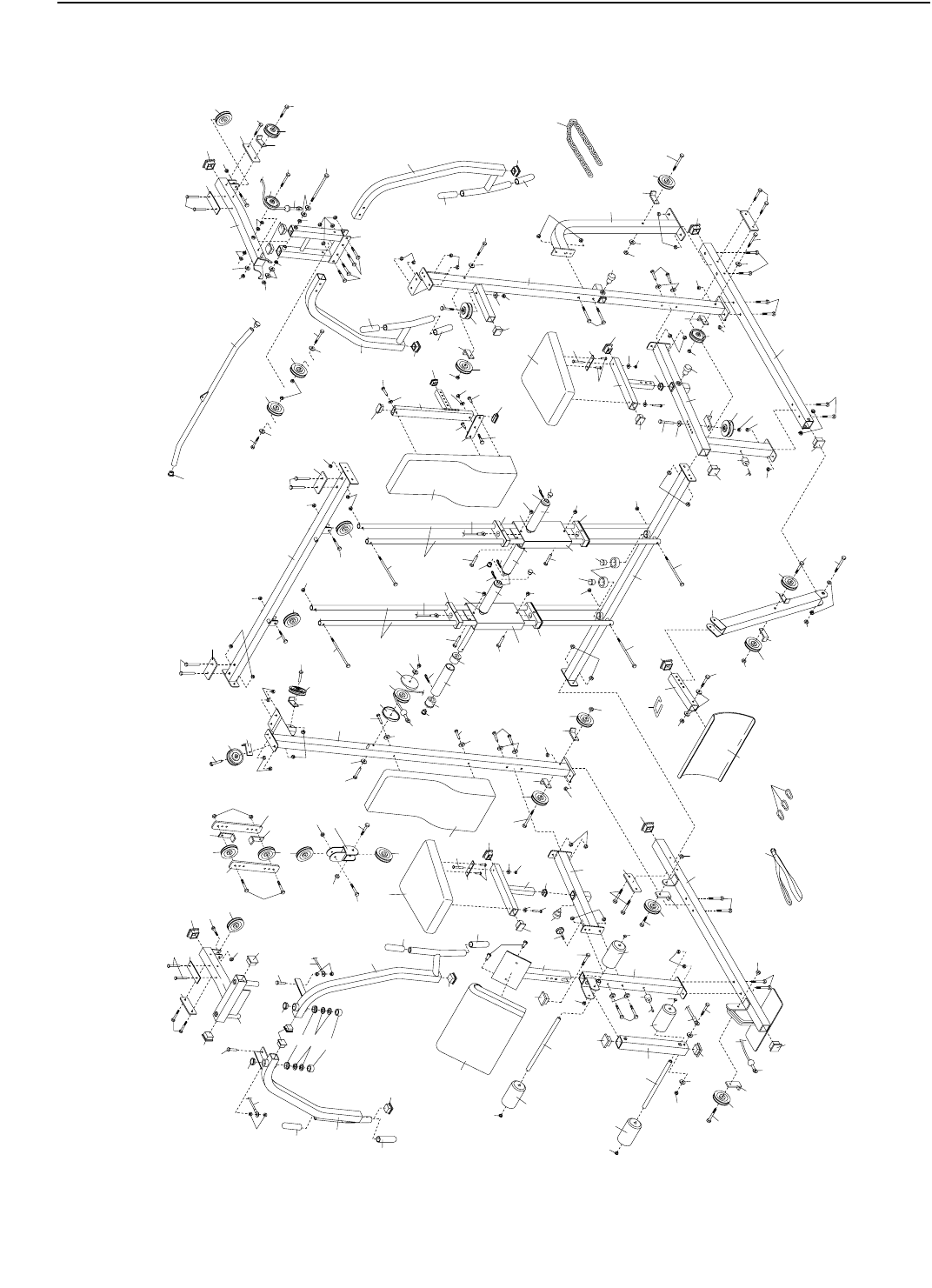

Note: A PART LIST/EXPLODED DRAWING and a PART IDENTIFICATION CHART are attached in the center of

this manual. Remove the PART LIST/EXPLODED DRAWING and the PART IDENTIFICATION CHART before

beginning assembly.

TABLE OF CONTENTS

1. Read all instructions in this manual and in

the accompanying literature before using the

weight system.

2. It is the responsibility of the owner to ensure

that all users of the weight system are ade-

quately informed of all precautions.

3. The weight system is intended for home use

only. Do not use the weight system in a com-

mercial, rental, or institutional setting.

4. Use the weight system only on a level sur-

face. Cover the floor or carpet beneath the

weight system to protect the floor or carpet.

5. Make sure all parts are properly tightened

each time you use the weight system.

Replace any worn parts immediately.

6. Keep children under the age of 12 and pets

away from the weight system at all times.

7. The weight system is designed to be used by

no more than two people at a time.

8. Always wear athletic shoes for foot protec-

tion when exercising.

9. Keep hands and feet away from moving parts.

10. Make sure the cables remain on the pulleys

at all times. If the cables bind while you are

exercising, stop immediately and make sure

the cables are on all of the pulleys.

11. Always stand on the foot plate when perform-

ing an exercise that could cause the weight

system to tip.

12. Never release the press arms, butterfly arms,

leg lever, lat bar, or ab strap while weights

are raised. The weights will fall with great

force.

13. Always disconnect the lat bar or ab strap

from the weight system when performing an

exercise that does not use the attachments.

14. If you feel pain or dizziness at any time while

exercising, stop immediately and begin cool-

ing down.

15. Do not place more that 200 pounds on either

weight carriage. Always place the same

amount of weight on both sides of each

weight carriage.

16. The warning decals

shown here have

been placed on the

weight system in the

locations shown on

page 4. Note that

decal 1 has been

placed in two loca-

tions. If a decal is

missing or illegible,

please call our toll-

free HELPLINE at

1-800-736-6879,

Monday through

Saturday, 7 a.m. until

7 p.m. Central Time,

to order a free

replacement decal.

Place the decal on

the weight system in

the location shown.

3

WARNING: To reduce the risk of serious injury, read the following important precau-

tions before using the weight system.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. SEARS assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

IMPORTANT PRECAUTIONS

Keep hands and

fingers clear of

this area.

Decal 1

Decal 2

4

ASSEMBLED

DIMENSIONS:

Height: 77 in.

Width: 103 in.

Depth: 55 in.

Low Pulley

Station

Foot Plate

Leg Lever

Press Arms

Decal 1

Decal 1

Decal 2

Backrest

Curl Pad

Butterfly Arms

Ab Pulley Station

Leg Press Arm

Thank you for selecting the innovative and versatile

WEIDER®PRO 9950 weight system. The WEIDER®

PRO 9950 offers a unique selection of weight stations

designed to develop every major muscle group of the

body. Whether your goal is to tone your body, build

dramatic muscle size and strength or improve your

cardiovascular system, the WEIDER®PRO 9950

makes it easy to achieve the results you want.

For your benefit, read this manual carefully before

using the WEIDER®PRO 9950 weight system. If you

have additional questions, please call our toll-free

HELPLINE at 1-800-736-6879, Monday through

Saturday, 7 a.m. until 7 p.m. Central Time (excluding

holidays). To help us assist you, please note the prod-

uct model number and serial number before calling.

The model number is 831.159530. The serial number

can be found on a decal attached to the weight system

(see the front cover of this manual).

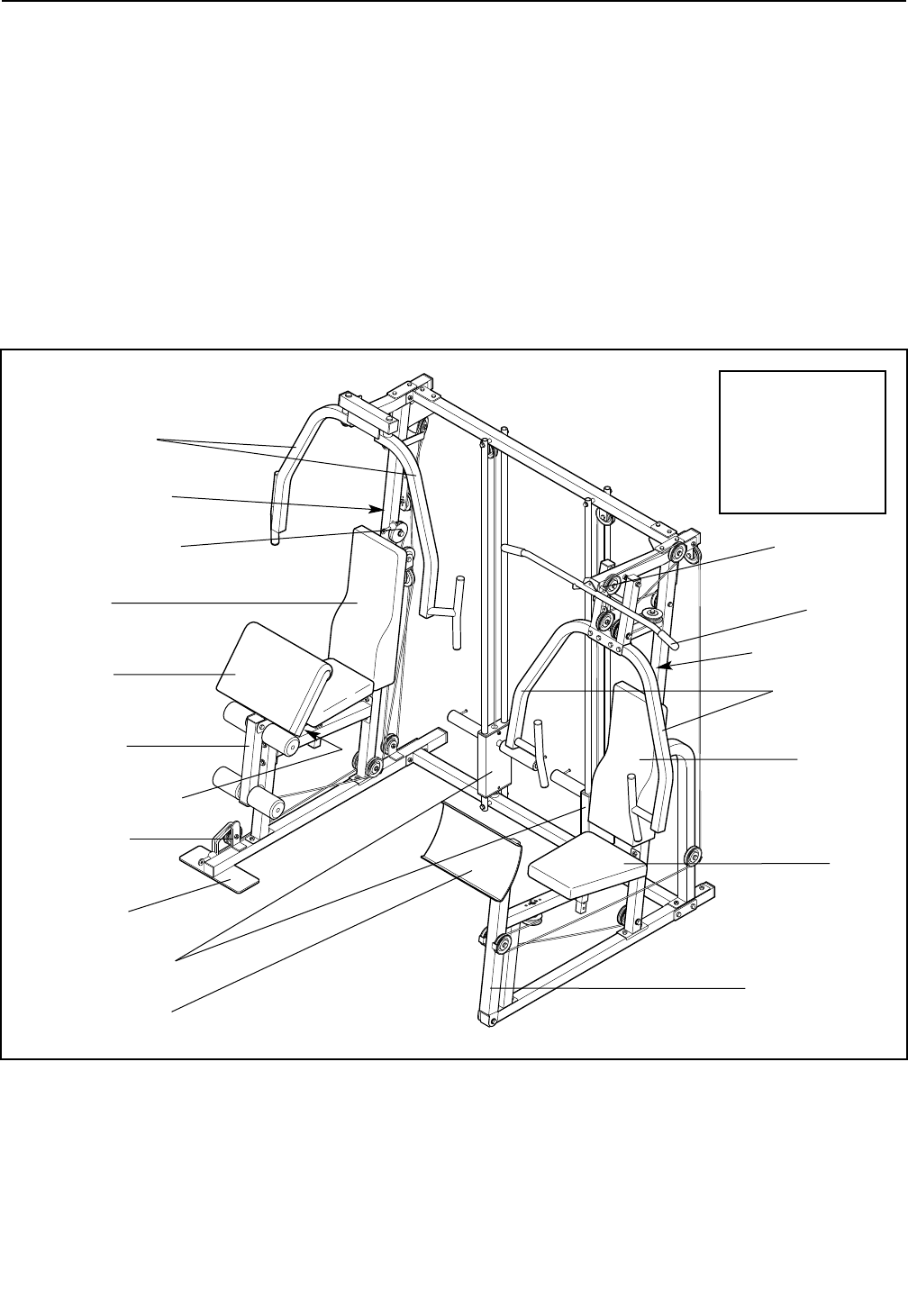

Please use the drawing below to familiarize your-

self with the major parts and how they fit together.

Leg Press Plate

Weight Carriage

Backrest

Seat

High Pulley

Station

Lat Bar

BEFORE YOU BEGIN

5

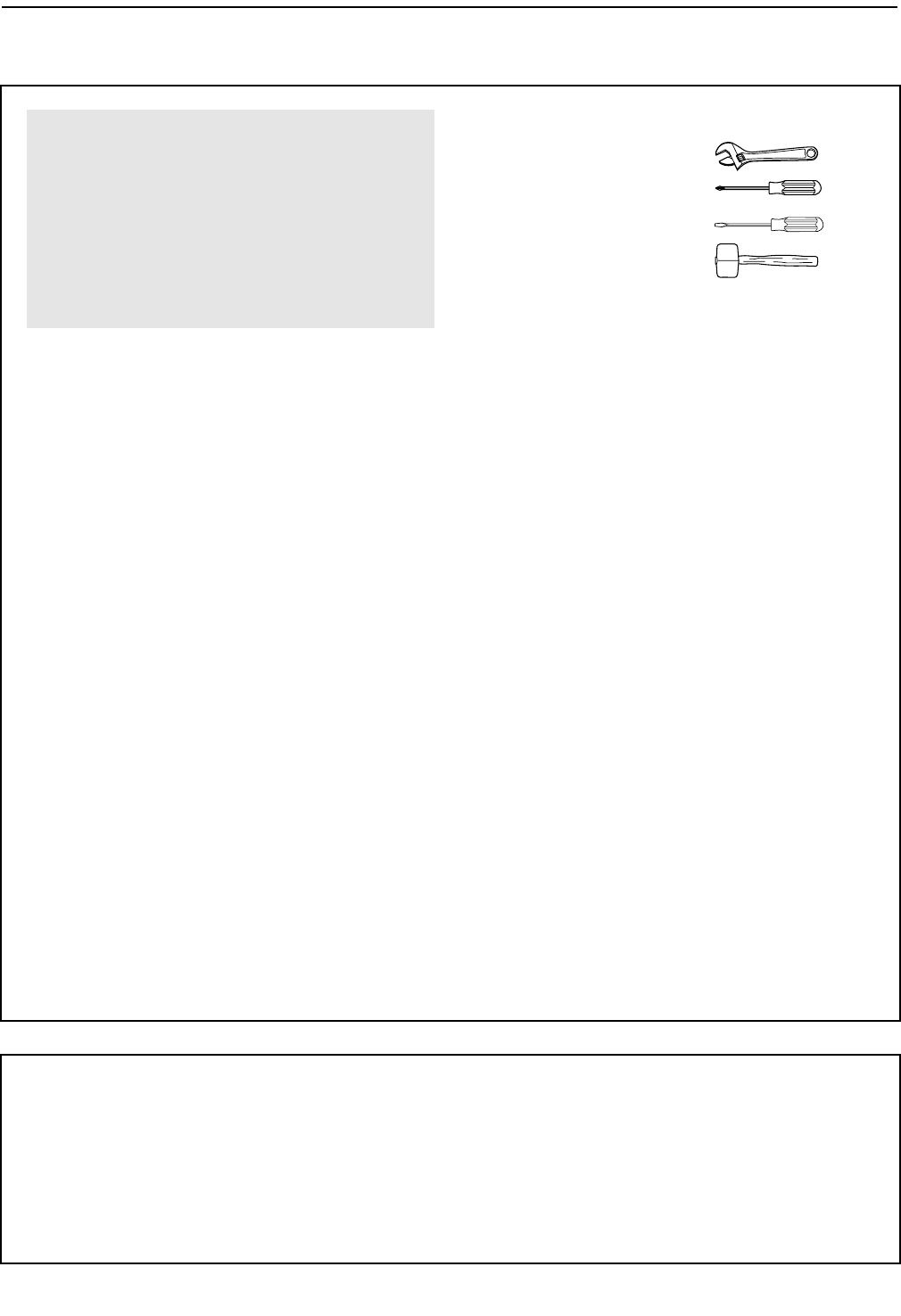

Make sure you have the following tools:

• Two adjustable wrenches

• One standard screwdriver

• One phillips screwdriver

• One rubber mallet

• You will also need grease or petroleum jelly, a

small amount of soapy water, and clear tape or

masking tape.

Note: Assembly will be more convenient if you have

a socket set, a set of open-end or closed-end

wrenches, or a set of ratchet wrenches.

How to Identify Parts

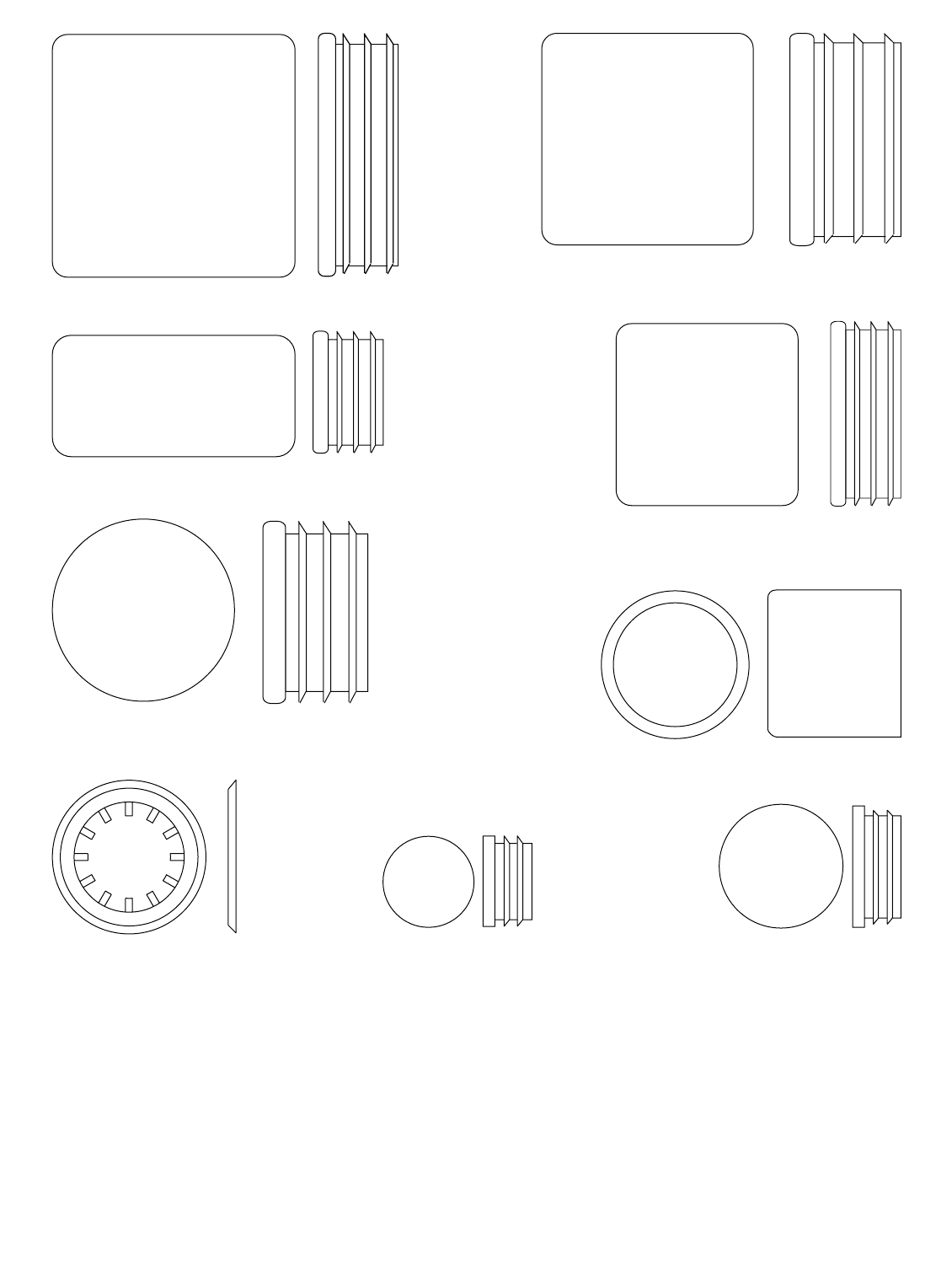

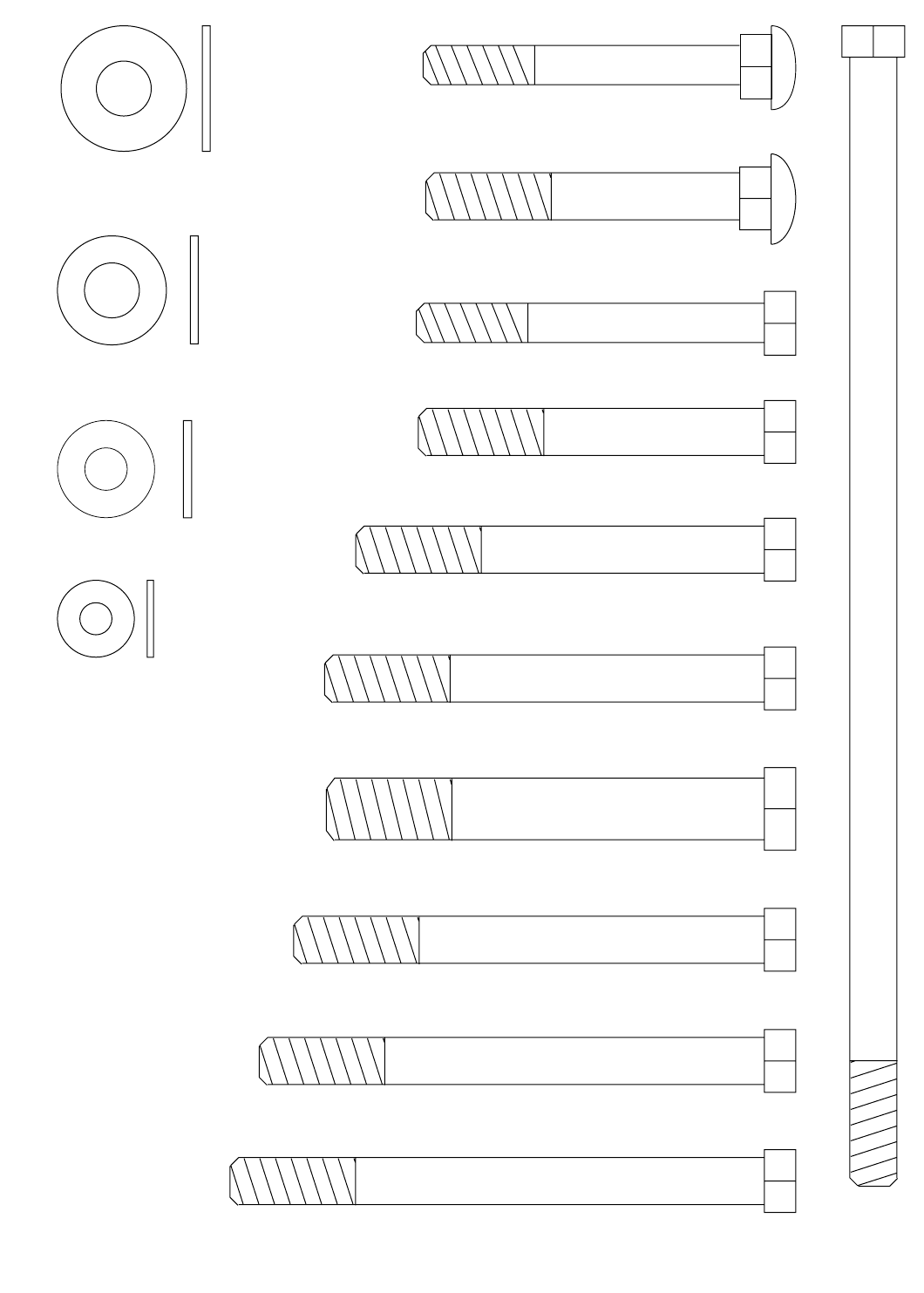

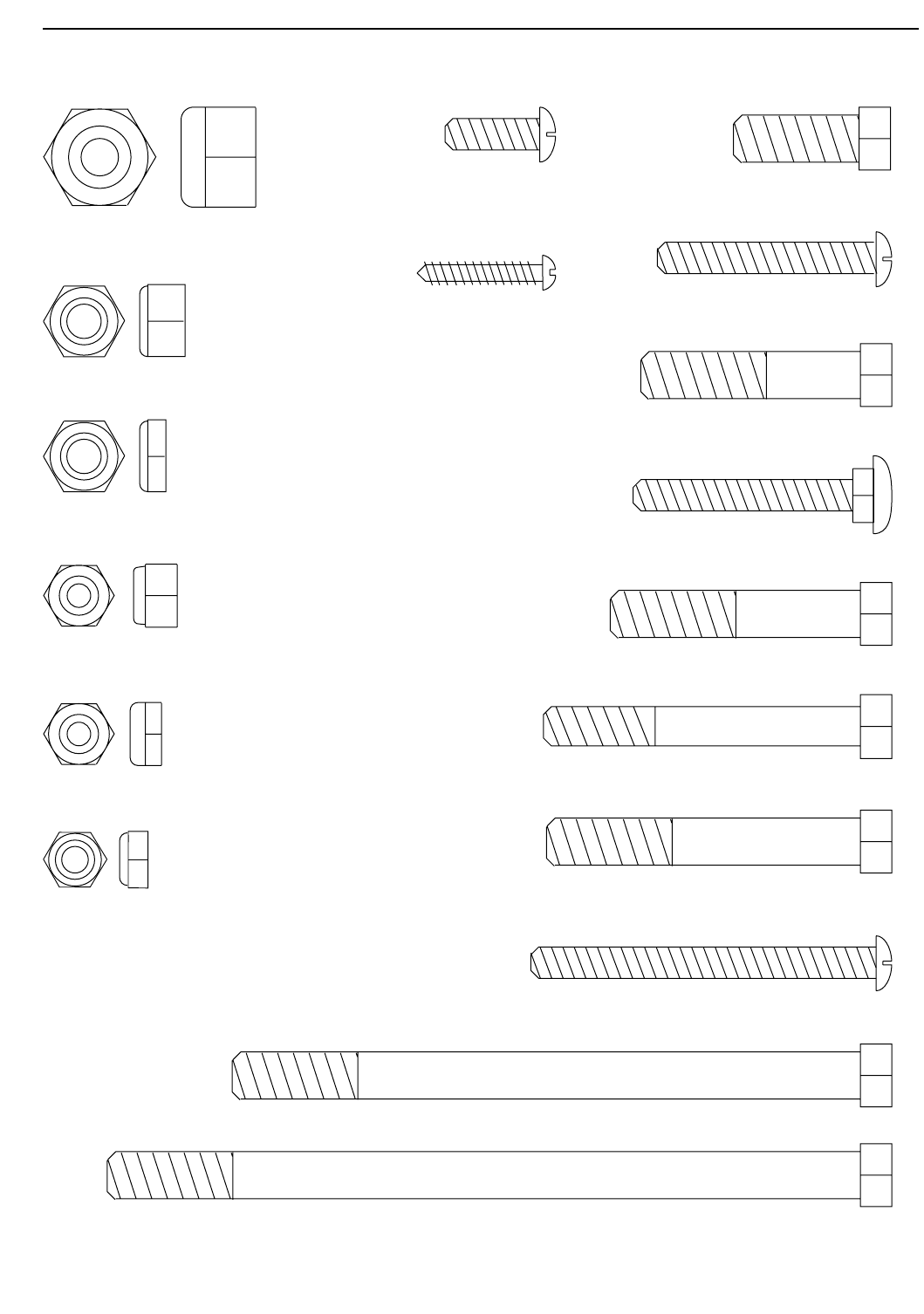

To help you identify the small parts used in assembly,

we have included a PART IDENTIFICATION CHART

in the center of this manual. Place the chart on the

floor and use it to easily identify parts during each

assembly step. Note: Some small parts may have

been pre-attached. If a part is not in the parts

bag, check to see if it has been pre-attached.

How to Orient Parts

As you assemble the weight system, make sure that

all parts are oriented exactly as shown in the draw-

ings.

Tightening Parts

Tighten all parts as you assemble them, unless

instructed to do otherwise.

Questions?

If you have questions after reading the assembly

instructions, please call our HELPLINE at

1-800-736-6879.

Assembly Requires Two Persons

For your convenience and safety, assemble the

weight system with the help of another person.

Set Aside Enough Time

Due to the many features of the weight system, the

assembly process will take time. By setting aside

plenty of time and by deciding to make the task

enjoyable, assembly will go smoothly. You may want

to assemble the weight system over a couple of

evenings.

Select a Location for the Weight System

Because of its weight and size, the weight system

should be assembled in the location where it will be

used. Make sure that there is enough room to walk

around the weight system as you assemble it.

How to Unpack the Box

To make assembly as easy as possible, we have

divided the assembly process into four stages. The

parts needed for each stage are found in individual

bags. Important: Wait until you begin each stage

to open the parts bag for that stage. Place all

parts of the weight system in a cleared area and

remove the packing materials. Do not dispose of

the packing materials until assembly is completed.

Make Assembly Easier for Yourself

Everything in this manual is designed to

ensure that the weight system can be assem-

bled successfully by anyone. Before begin-

ning assembly, make sure to read the

information on this page. This brief intro-

duction will save you much more time than

it takes to read it.

The Four Stages of the Assembly Process

Frame Assembly—You will begin by assembling

the base and the uprights that form the skeleton of

the weight system.

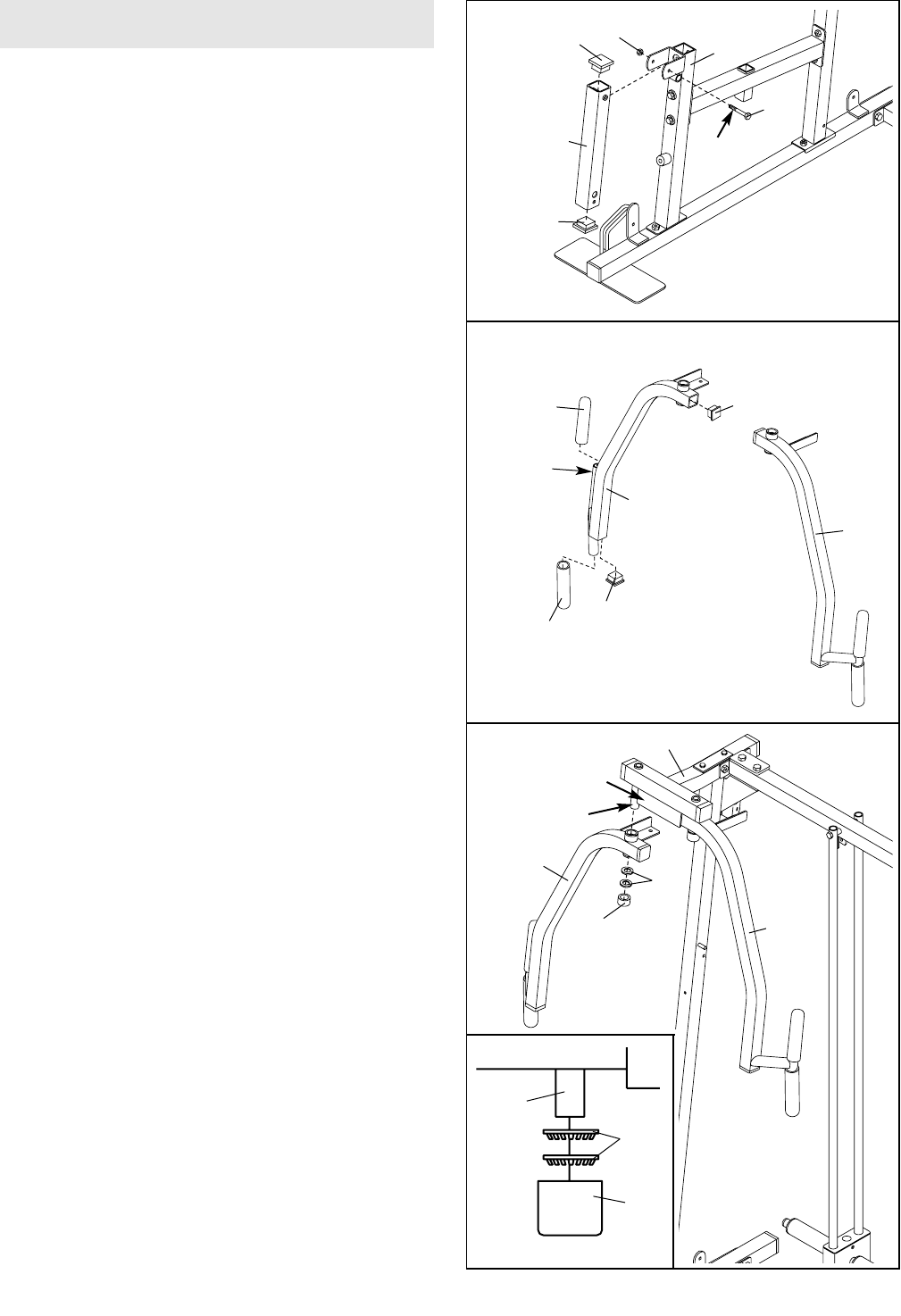

Arm Assembly—During this stage you will

assemble the arms and the leg lever.

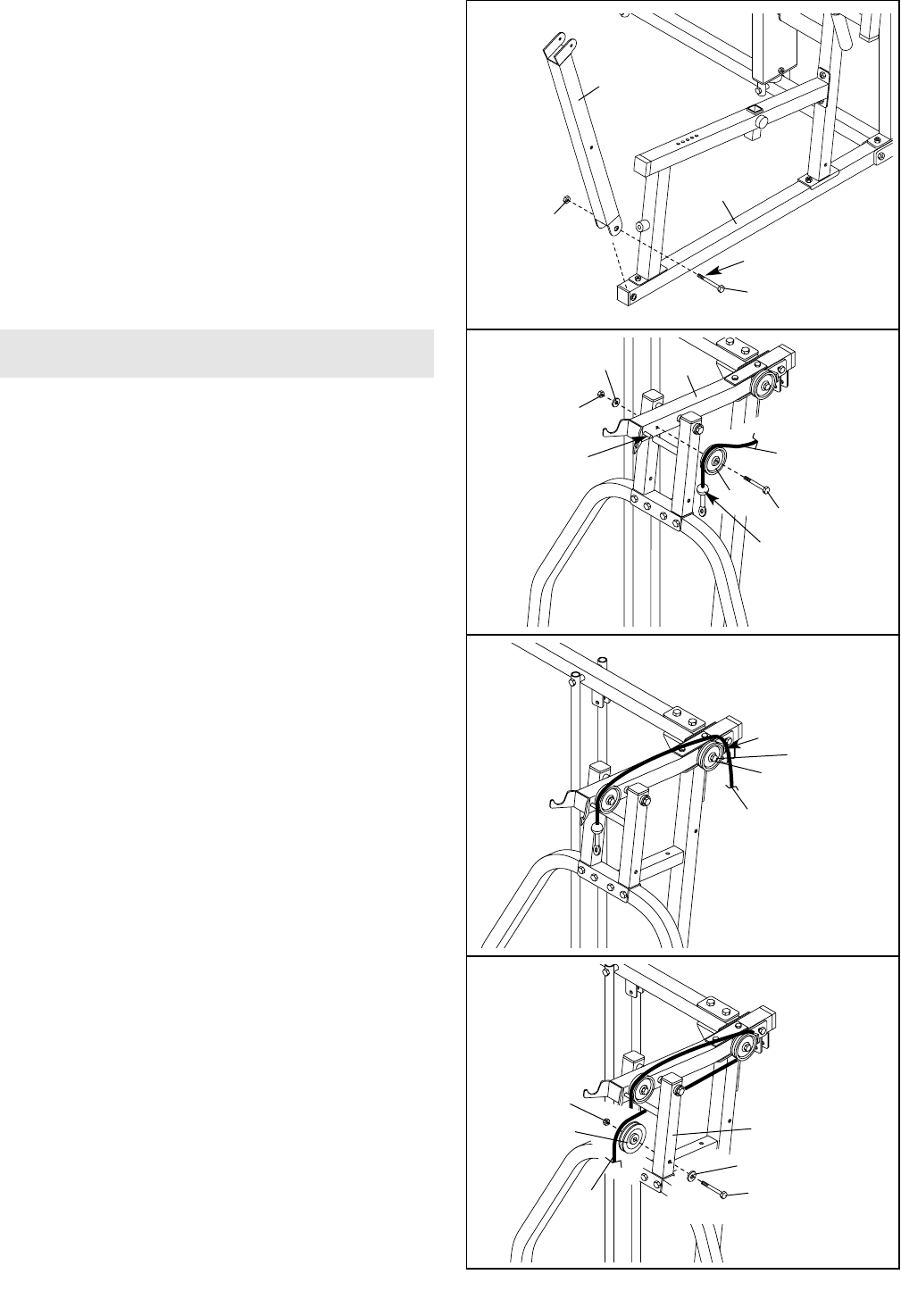

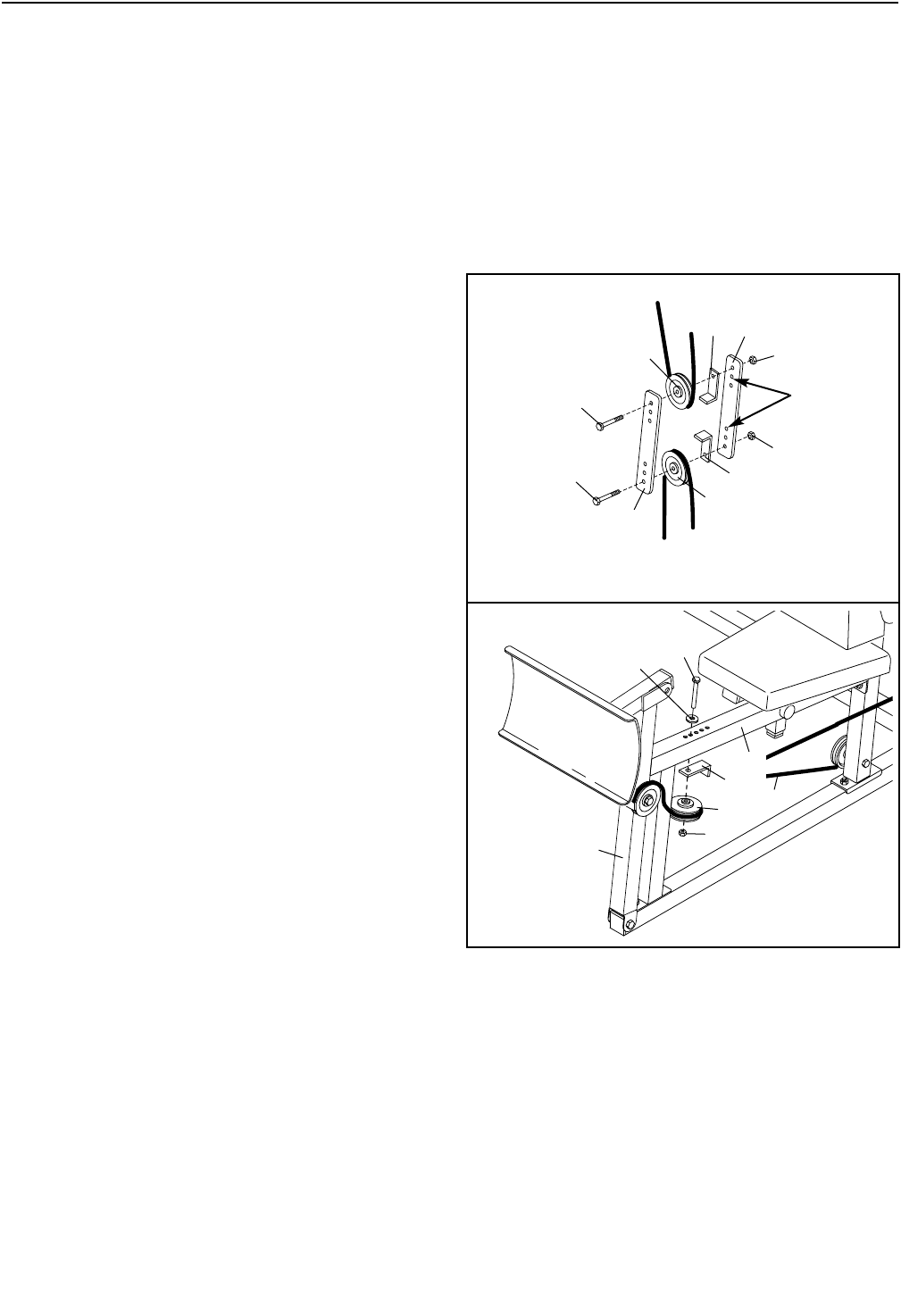

Cable Assembly—During this stage you will

attach the cables and pulleys that connect the

arms to the weights.

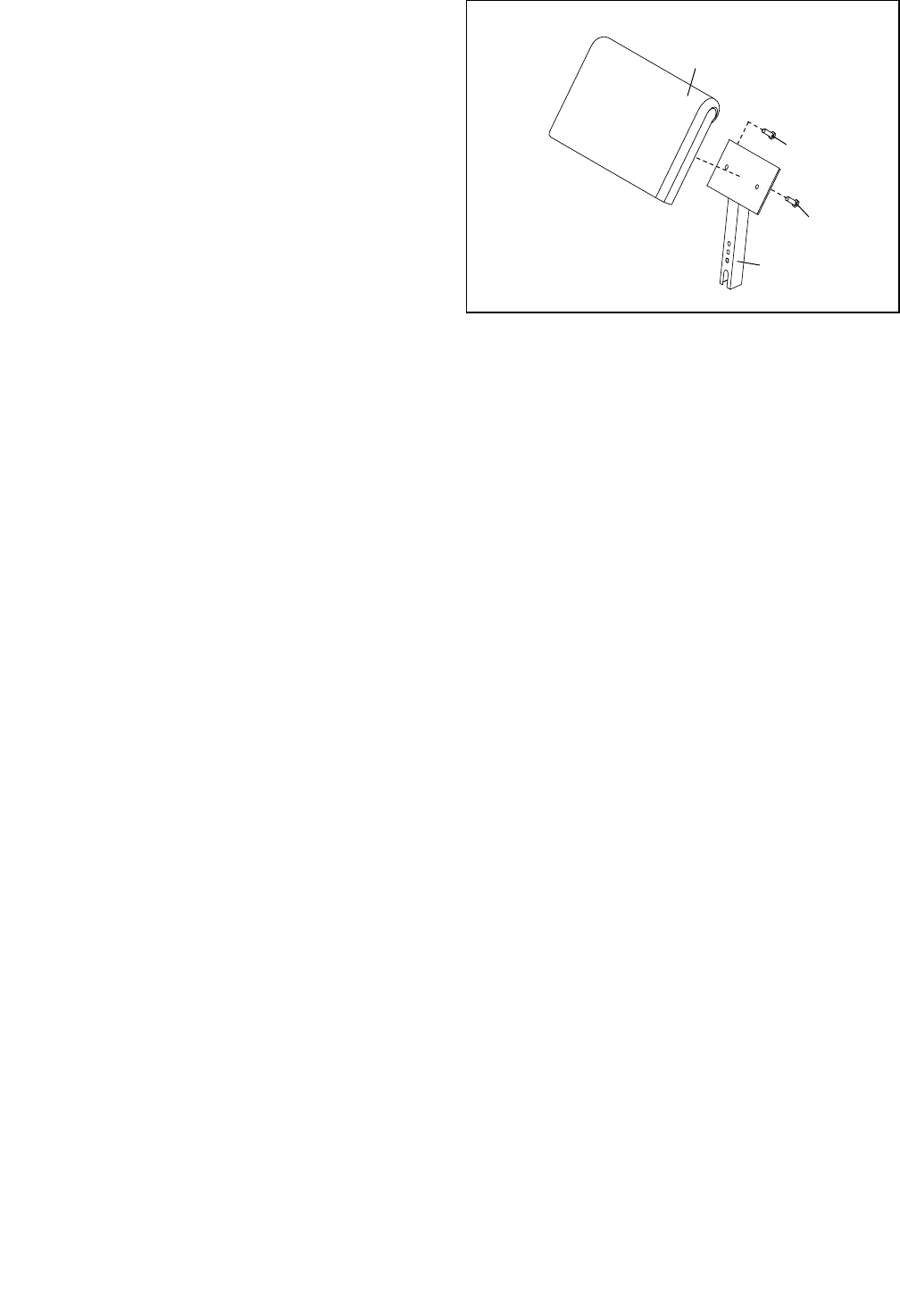

Seat Assembly—During the final stage you will

assemble the seats and the backrests.

ASSEMBLY

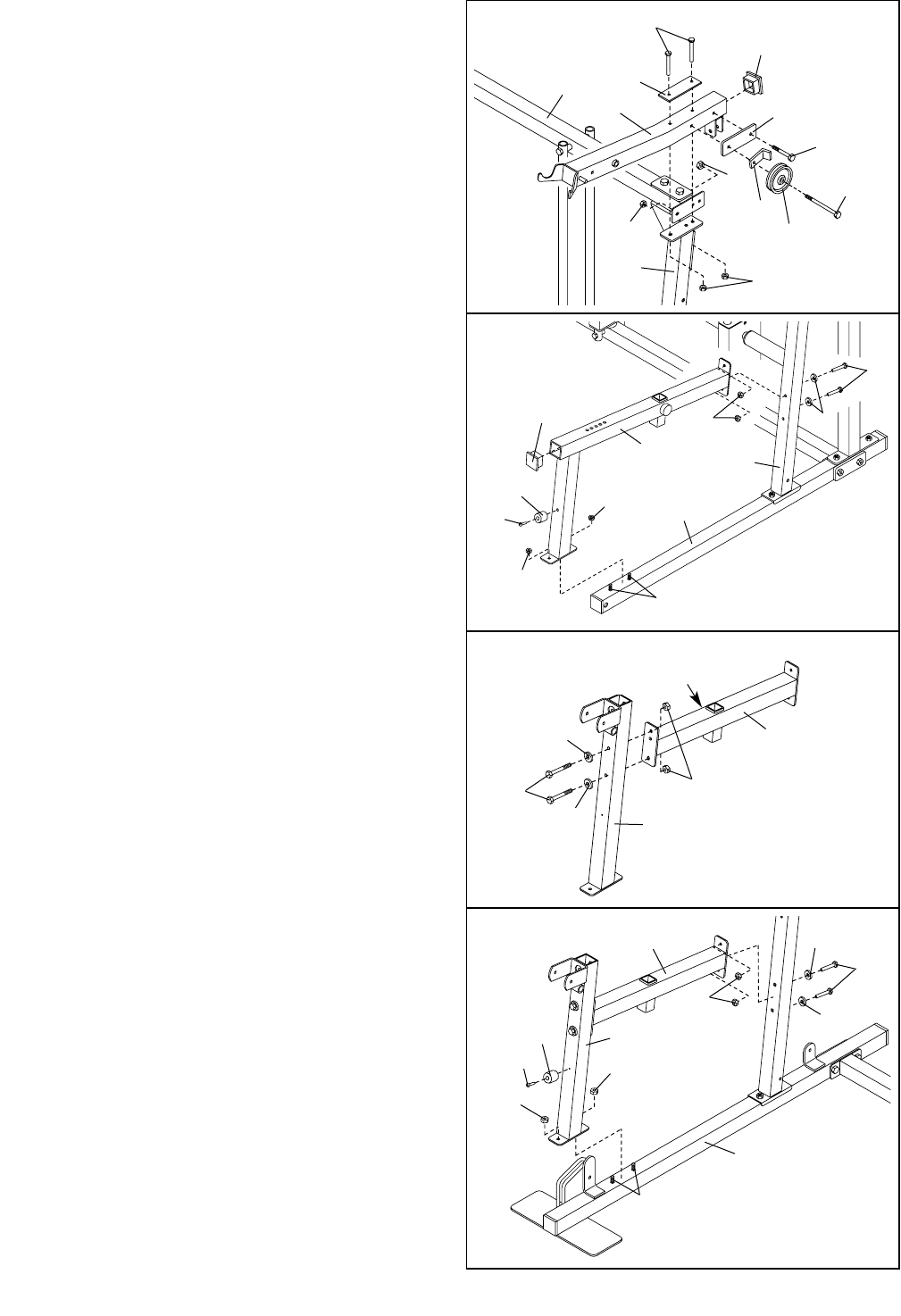

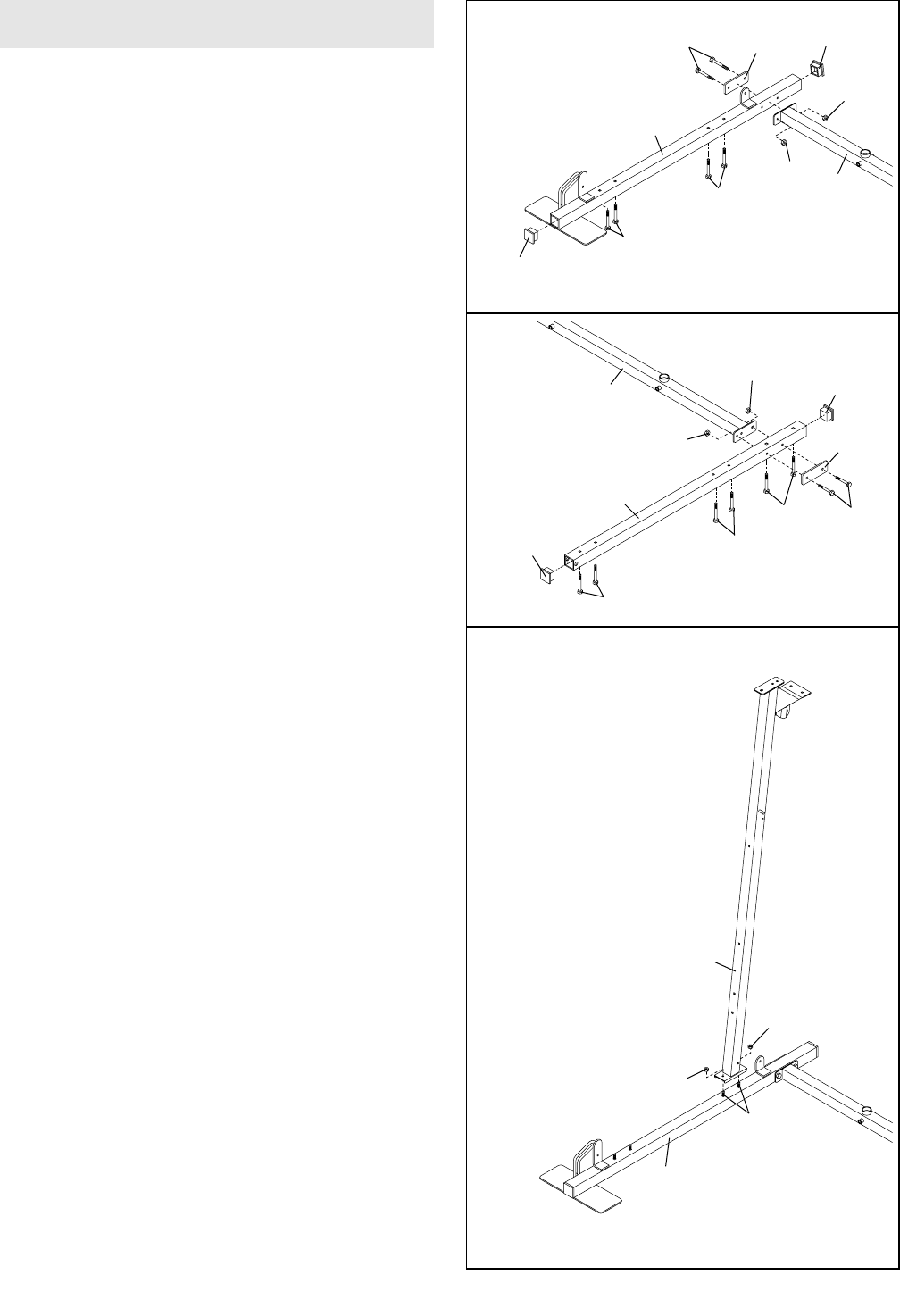

1. Before beginning, make sure that you have

read and understood the information on page 5.

Locate and open the parts bags labeled

“FRAME ASSEMBLY 1 and 2.”

Press a 2” Square Inner Cap (59) into each end

of the Butterfly Base (1).

Insert four 5/16” x 2 1/2” Carriage Bolts (54) up

through the Butterfly Base (1). Place the Butterfly

Base flat on the floor. Note: If the Bolts fall out,

secure them with a small piece of tape.

Attach the Center Base (2) to the Butterfly Base

(1) with two 5/16” x 2 3/4” Bolts (55), a Long

Support Plate (34), and two 5/16” Nylon Locknuts

(64). Do not tighten the Nylon Locknuts yet.

2. Press a 2” Square Inner Cap (59) into each end

of the Press Base (3).

Insert four 5/16” x 2 1/2” Carriage Bolts (54) and

two 3/8” x 2 1/2” Carriage Bolts (76) up through

the Press Base (3). Place the Press Base flat on

the floor. Note: If the Bolts fall out, secure

them with a small piece of tape.

Attach the Press Base (3) to the Center Base (2)

with two 5/16” x 2 3/4” Bolts (55), a Long Support

Plate (34), and two 5/16” Nylon Locknuts (64). Do

not tighten the Nylon Locknuts yet.

1

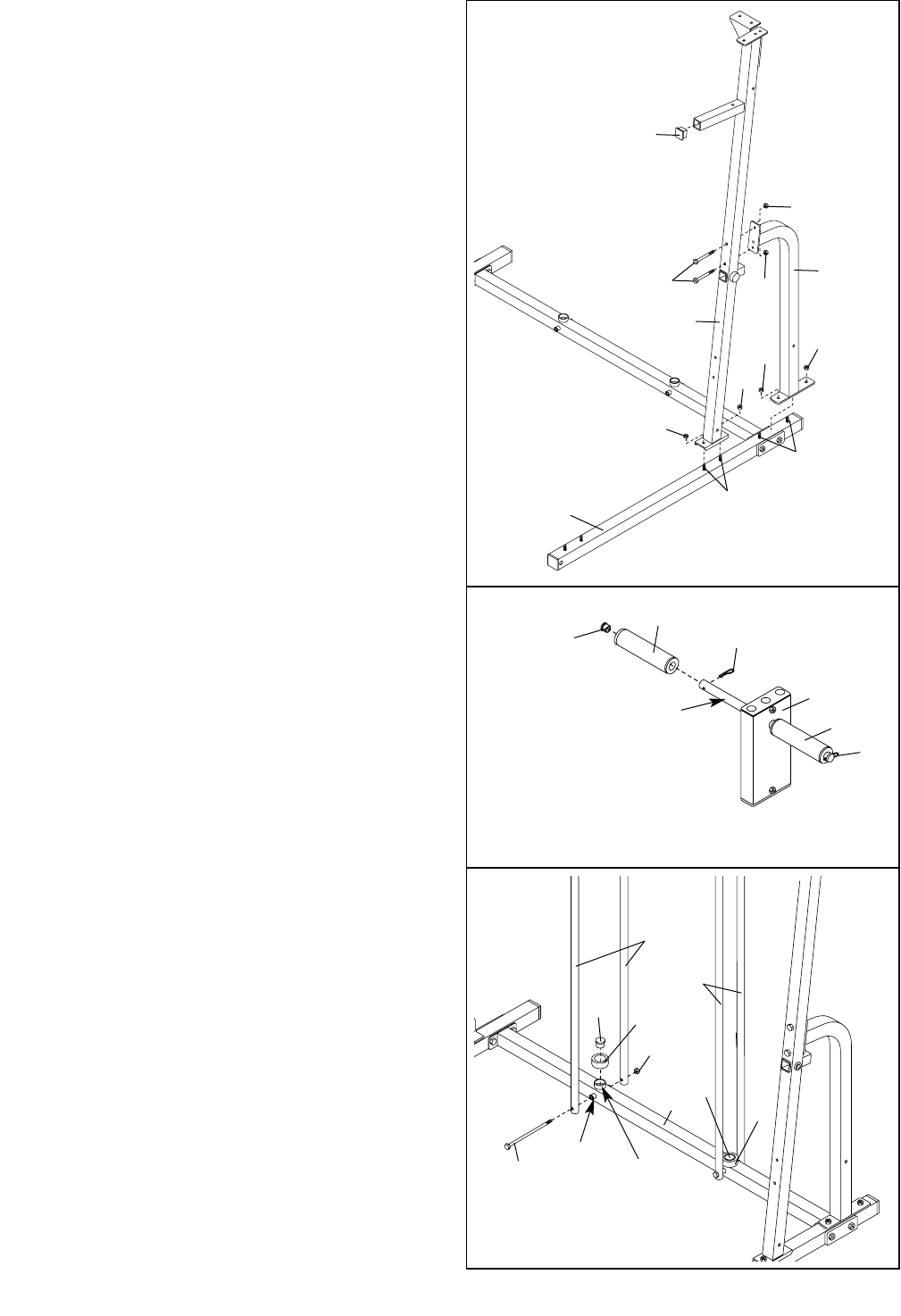

3. Orient the Butterfly Upright (4) as shown. Attach

the Butterfly Upright to the indicated 5/16” x 2

1/2” Carriage Bolts (54) in the Butterfly Base (1)

with two 5/16” Nylon Locknuts (64). Do not tight-

en the Nylon Locknuts yet.

3

6

Frame Assembly

2

55 34

64

64

59

54

54

59

1

64

1

4

64

54

2

55

76

54

54

64

64

2

34

3

59

59

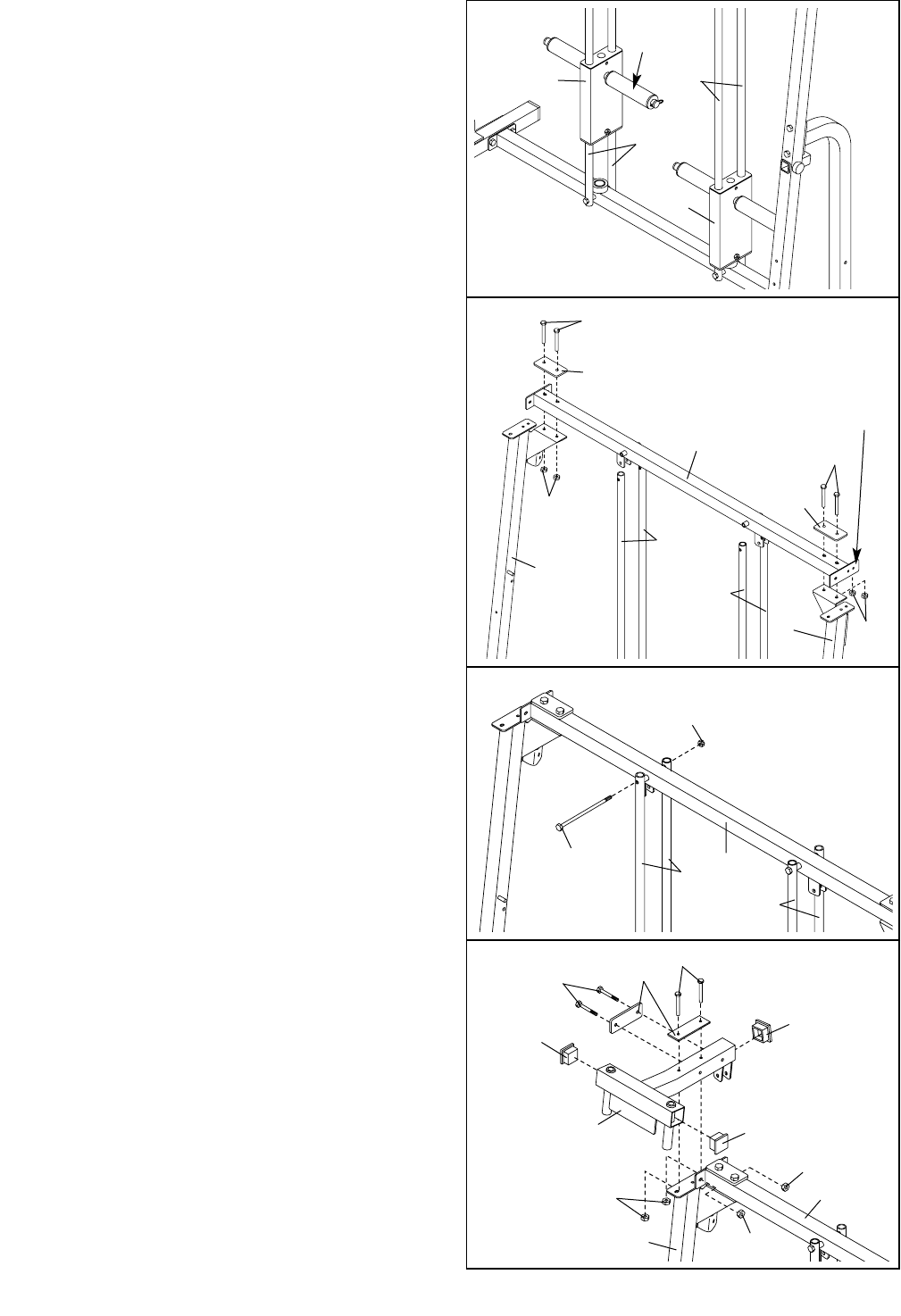

4. Press a 1 1/2” Square Inner Cap (100) into the

indicated part of the Press Upright (6).

Orient the Press Upright (6) as shown. Attach the

Press Upright to the indicated 5/16” x 2 1/2”

Carriage Bolts (54) in the Press Base (3) with two

5/16” Nylon Locknuts (64).

Attach the Support Brace (7) to the indicated 3/8”

x 2 1/2” Carriage Bolts (76) in the Press Base (3)

with two 3/8” Nylon Locknuts (74).

Attach the Support Brace (7) to the Press Upright

(6) with two 5/16” x 2 1/2” Carriage Bolts (54) and

two 5/16” Nylon Locknuts (64).

Do not tighten the Nylon Locknuts (64, 74) yet.

4

7

5. Press two 1” Inner Caps (32) into the ends of the

weight tube on a Weight Carriage (28).

If you will be using Olympic weights with the

weight system, slide a Weight Sleeve (27) onto

each end of the weight tube on the Weight

Carriage (28). Secure each Weight Sleeve with a

Locking Pin (31). Note: The drawings in this

manual show the Weight Sleeves attached.

The Locking Pins will be found in the bag

labled “SEAT ASSEMBLY”.

Repeat this step with the other Weight Carriage

(28).

5

64

64

64

100

64

74 74

32 31

31

354

54

6

7

76

28

Weight Tube

6. Press a Weight Bumper (56) onto each bumper

tube on the Center Base (2). Press a 1 1/2”

Round Inner Cap (67) into each bumper tube.

Attach two Weight Guides (33) to the indicated

tube in the Center Base (2) with a 3/8” x 6” Bolt

(89) and a 3/8” Nylon Locknut (74).

Attach the other set of Weight Guides (33) in the

same manner.

Do not tighten the 3/8” Nylon Locknuts (74)

yet.

6

89

33

33

74

Bumper

Tube

Tube

67

67

56

56

2

27

27

8. Attach the Top Frame (5) to the Butterfly Upright

(4) with two 3/8” x 2 3/4” Bolts (58), a Short

Support Plate (26), and two 3/8” Nylon Locknuts

(74). Note: Be sure that the Top Frame is ori-

ented with the long bracket on the side

shown, and that it rests between the Weight

Guides (33) as shown in step 9.

Attach the Top Frame (5) to the Press Upright (6)

in the same manner.

Do not tighten the 3/8” Nylon Locknuts (74) yet.

9. Attach each set of Weight Guides (33) to the Top

Frame (5) with a 3/8” x 6” Bolt (89) and a 3/8”

Nylon Locknut (74). Do not tighten the Nylon

Locknuts yet.

8

8

7. Slide a Weight Carriage (28) onto each set of

Weight Guides (33). Be sure the weight tubes

are near the top of the Weight Carriages

7

33

33

5

89

58

58

28

28

33

33

26

26

Long Bracket

74

33

33

74

5

74

4

6

Weight

Tube

10. Press three 2” Square Inner Caps (59) into the

Butterfly Top Frame (19).

Attach the Butterfly Top Frame (19) to the

Butterfly Upright (4) with two 5/16” x 2 3/4” Bolts

(55), a Long Support Plate (34), and two 5/16”

Nylon Locknuts (64).

Attach the Butterfly Top Frame (19) to the Top

Frame (5) with two 5/16” x 2 3/4” Bolts (55), a

Long Support Plate (34), and two 5/16” Nylon

Locknuts (64).

Do not tighten the 5/16” Nylon Locknuts (64)

yet.

10

9

464

64

64

5

19

34

59

59

59

55

55

9

12

13

14

55

55

66

66

9

Adjustment knob

must be on this side

64

10

54

64

12

59

71

72 3

64

64 66

55

6

10

66

66

64

11. Press a 2” Square Inner Cap (59) into the Press

Top Frame (13).

Attach the Press Top Frame (13) to the Press

Upright (6) with two 5/16” x 2 3/4” Bolts (55), a

Long Support Plate (34), and two 5/16” Nylon

Locknuts (64).

Attach the back hole on the side of the Press Top

Frame (13) to the Top Frame (5) with a 5/16” x 2

3/4” Bolt (55), the Pulley Support Plate (107), and

a 5/16” Nylon Locknut (64).

Attach the next hole on the side of the Press Top

Frame (13), a 3 1/2” Pulley (37) and a Cable Trap

(44) to the Top Frame (5) with a 3/8” x 4” Bolt

(91), the Pulley Support Plate (107), and a 3/8”

Nylon Locknut (74). Do not overtighten the

Nylon Locknut; the Pulley must be able to turn

easily.

Do not tighten the Nylon Locknuts (64, 74) yet.

11

107

34

13

5

55

91

55

6

64

64

44

37

74

54

1

9

64

64

59

12. Attach a Bumper (71) to the Press Seat Frame

(12) with a Bumper Screw (72).

Attach the Press Seat Frame (12) to the 5/16” x

2 1/2” Carriage Bolts (54) in the Press Base (3)

with two 5/16” Nylon Locknuts (64).

Attach the Press Seat Frame (12) to the Press

Upright (6) with two 5/16” x 2 3/4” Bolts (55), two

5/16” Washers (66), and two 5/16” Nylon

Locknuts (64).

Do not tighten the 5/16” Nylon Locknuts (64)

yet.

13. Attach the Butterfly Seat Frame (10) to the

Butterfly Front Leg (9) with two 5/16” x 2 3/4”

Bolts (55), two 5/16” Washers (66), and two 5/16”

Nylon Locknuts (64). Do not tighten the Nylon

Locknuts yet. Be sure the Adjustment Knob

(not shown) is on the indicated side.

14. Attach a Bumper (71) to the Butterfly Front Leg

(9) with a Bumper Screw (72).

Attach the Butterfly Front Leg (9) to the 5/16” x

2 1/2” Carriage Bolts (54) in the Butterfly Base (1)

with two 5/16” Nylon Locknuts (64).

Attach the Butterfly Seat Frame (10) to the

Butterfly Upright (4) with two 5/16” x 2 3/4” Bolts

(55), two 5/16” Washers (66), and two 5/16”

Nylon Locknuts (64).

Tighten all of the Nylon Locknuts (64, 74)

used in steps 1 to 14.

71

72

85

86

Axle

10

15. Locate and open the parts bag labeled “ARM

ASSEMBLY.”

Press a 2” Square Inner Cap (59) into each end

of the Leg Lever (8).

Lubricate the 3/8” x 3 1/4” Bolt (101). Attach the

Leg Lever (8) to the Butterfly Front Leg (9) with

the Bolt and a 3/8” Nylon Jamnut (88).

16. Press two 1 3/4” Square Inner Caps (60) into the

ends of the the Right Butterfly Arm (18). Press

two Handgrips (99) onto the handle on the Right

Butterfly Arm.

Assemble the Left Butterfly Arm (17) in the same

manner.

17

59

60

18

99

99

Handle

60

9

17. Lubricate both axles on the Butterfly Top Frame

(19). Slide the Right Butterfly Arm (18) onto the

indicated axle. Be sure the upper end of the

Butterfly Arm is behind the bracket on the

Butterfly Top Frame.

Tap two 1” Retainers (85) and a 1” Round Cover

Cap (86) onto the axle. Be sure that the teeth

on the Retainers bend toward the Round

Cover Cap, as shown in the inset drawing.

Attach the Left Butterfly Arm (17) in the same

manner.

17

85

18

19

86 17

101

59 88

8

Arm Assembly

Lubricate

Bracket

Axle

15

16

18

18. Press two 1 3/4” Square Inner Caps (60) into the

top of the Press Frame (14).

Lubricate the 3/8” x 9” Bolt (92). Attach the Press

Frame (14) to the Press Top Frame (13) with the

Bolt, four 3/8” SAE Washers (102), and a 3/8”

Nylon Locknut (74). Do not overtighten the

Nylon Locknut; the Press Frame must be able

to pivot easily.

20. Attach the Right Press Arm (16) to the Press

Frame (14) with two 5/16” x 2 1/2” Bolts (63) and

two 5/16” Nylon Locknuts (64).

Attach the Left Press Arm (15) in the same man-

ner.

11

19

20

13

74

14

60

92

102

102

60

16

63

15

99

99

16

64

14 15

Handle

19. Press a 1 3/4” Square Inner Cap (60) into the bot-

tom of the Right Press Arm (16). Press two

Handgrips (99) onto the top and bottom of the

handle.

Assemble the Left Press Arm (15) in the same

manner.

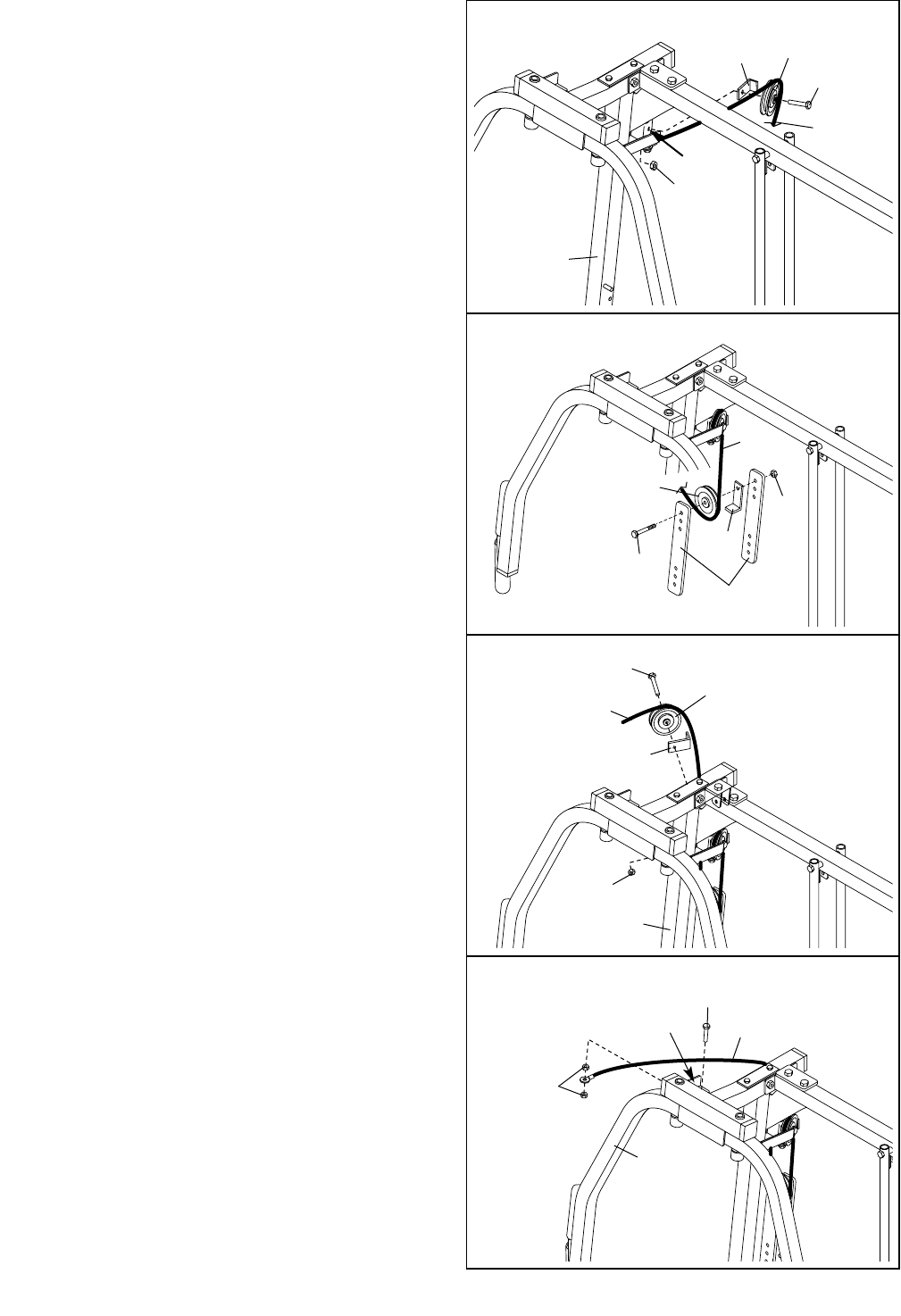

21

12

24. Wrap the Press Cable (80) around a 3 1/2” Pulley

(37). Attach the Pulley to the indicated side of the

Press Frame (14) with a 3/8” x 3 1/2” Bolt (65), a

3/8” Washer (75), and a 3/8” Nylon Locknut (74).

24

22. Locate and open the parts bag labeled

“CABLE ASSEMBLY.” For Cable identification

and routing during steps 22 to 52, refer to the

CABLE DIAGRAMS and CABLE ID CHART on

page 26.

Do not overtighten the nylon locknuts attach-

ing the pulleys to the weight system; the pul-

leys must be able to turn freely.

Identify the Press Cable (80). It is approximately

387.25” long and it has a ball on one end and a

loop on the other. Wrap the Press Cable around a

3 1/2” Pulley (37). Attach the Pulley to the Press

Top Frame (13) with a 3/8” x 3 1/2” Bolt (65), a

3/8” Washer (75), and a 3/8” Nylon Locknut (74).

Be sure the Cable is between the Pulley and

the rod on the Press Top Frame, and that the

ball is on the side shown.

22

23

37

75

80

74

Rod

Ball

13

65

44

91

21. Lubricate the 1/2” x 3 1/2” Bolt (96). Attach the

Leg Press Arm (22) to the Press Base (3) with the

Bolt and a 1/2” Nylon Locknut (95). Do not over-

tighten the Nylon Locknut; the Leg Press Arm

must be able to pivot easily.

3

95

22

Lubricate

96

80

74

80

37

75

14

65

37

Cable Assembly

23. Loosen the 3/8” Nylon Locknut (not shown) on

the 3/8” x 4” Bolt (91). Wrap the Press Cable (80)

around the 3 1/2” Pulley (37), making sure the

Cable is between the Pulley and the Cable Trap

(44). Re-tighten the Nylon Locknut.

13

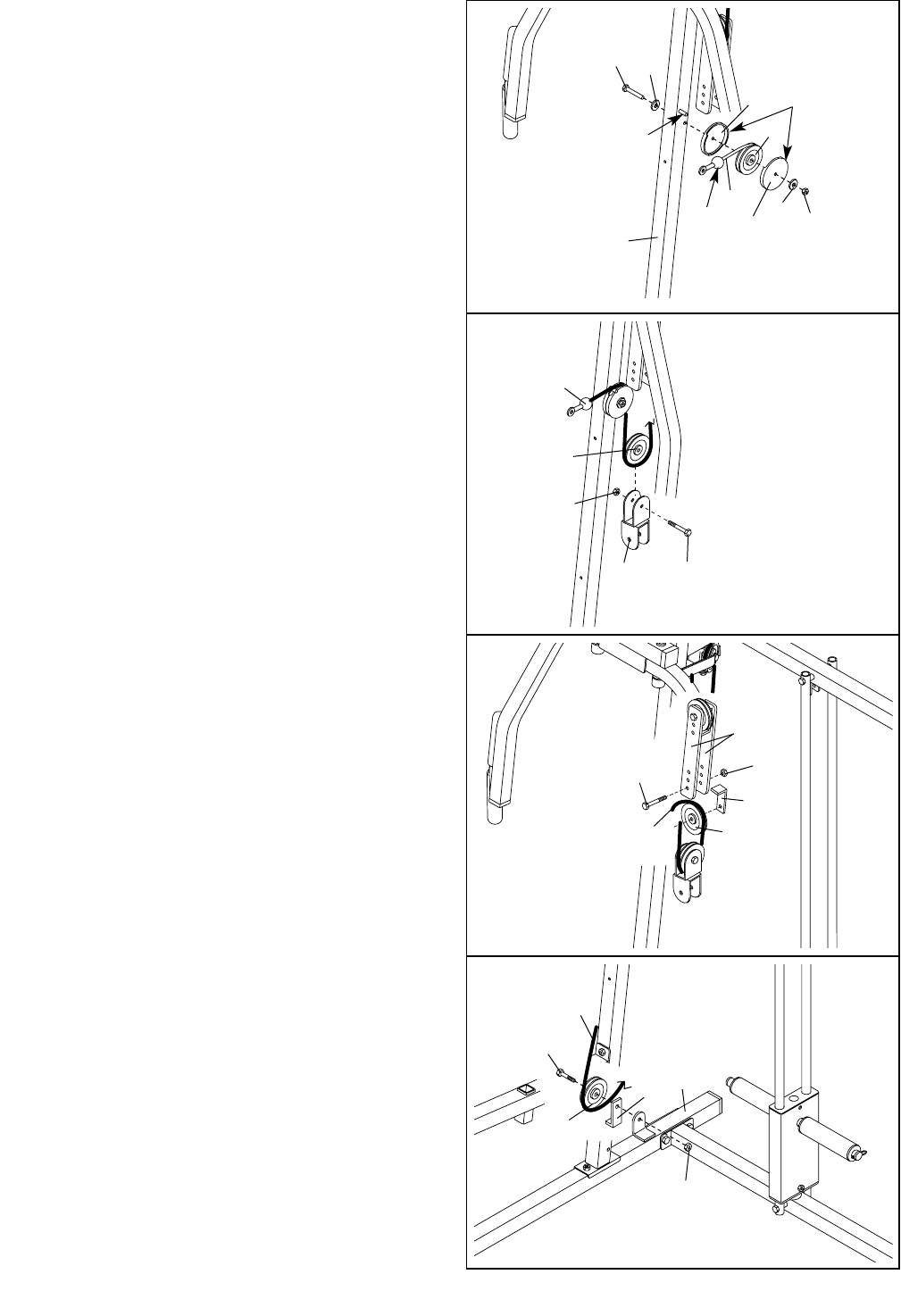

27. Wrap the Press Cable (80) around a 3 1/2” Pulley

(37). Attach the Pulley and a Cable Trap (44) to

the Press Upright (6) with a 3/8” x 3 3/4” Bolt

(62), a 3/8” Washer (75), and a 3/8” Nylon

Locknut (74). Make sure the Cable Trap is

turned to hold the Cable in the groove of the

Pulley.

27

80

44

37

74

75

62

6

28. Wrap the Press Cable (80) around a 3 1/2” Pulley

(37). Attach the Pulley and a Cable Trap (44) to

the bottom of the Press Upright (6) with a 3/8” x

3 3/4” Bolt (62), a 3/8” Washer (75), and a 3/8”

Nylon Locknut (74). Make sure the Cable Trap

is turned to hold the Cable in the groove of

the Pulley.

28

80 44

74

75

62

37

6

26. Wrap the Press Cable (80) around a 3 1/2” Pulley

(37). Attach the Pulley to the other side of the

Press Frame (14) with a 3/8” x 3 1/2” Bolt (65), a

3/8” Washer (75), and a 3/8” Nylon Locknut (74).

26

14

65

75

80

74

25. Wrap the Press Cable (80) around a “V”-Pulley

(38). Attach the Pulley to the Press Upright (6)

with a 3/8” x 3 3/4” Bolt (62), a 3/8” Washer (75),

and a 3/8” Nylon Locknut (74).

25

38

62

75

6

80

74

37

14

30. Wrap the Press Cable (80) around a “V”-Pulley

(38). Attach the Pulley and a Long Cable Trap

(50) to the indicated hole in the Press Seat

Frame (12), using a 3/8” x 4 1/4” Bolt (104), a

3/8” Washer (75) and a 3/8” Nylon Locknut (74).

Be sure the Cable Trap is turned to hold the

Cable in the groove of the Pulley.

30

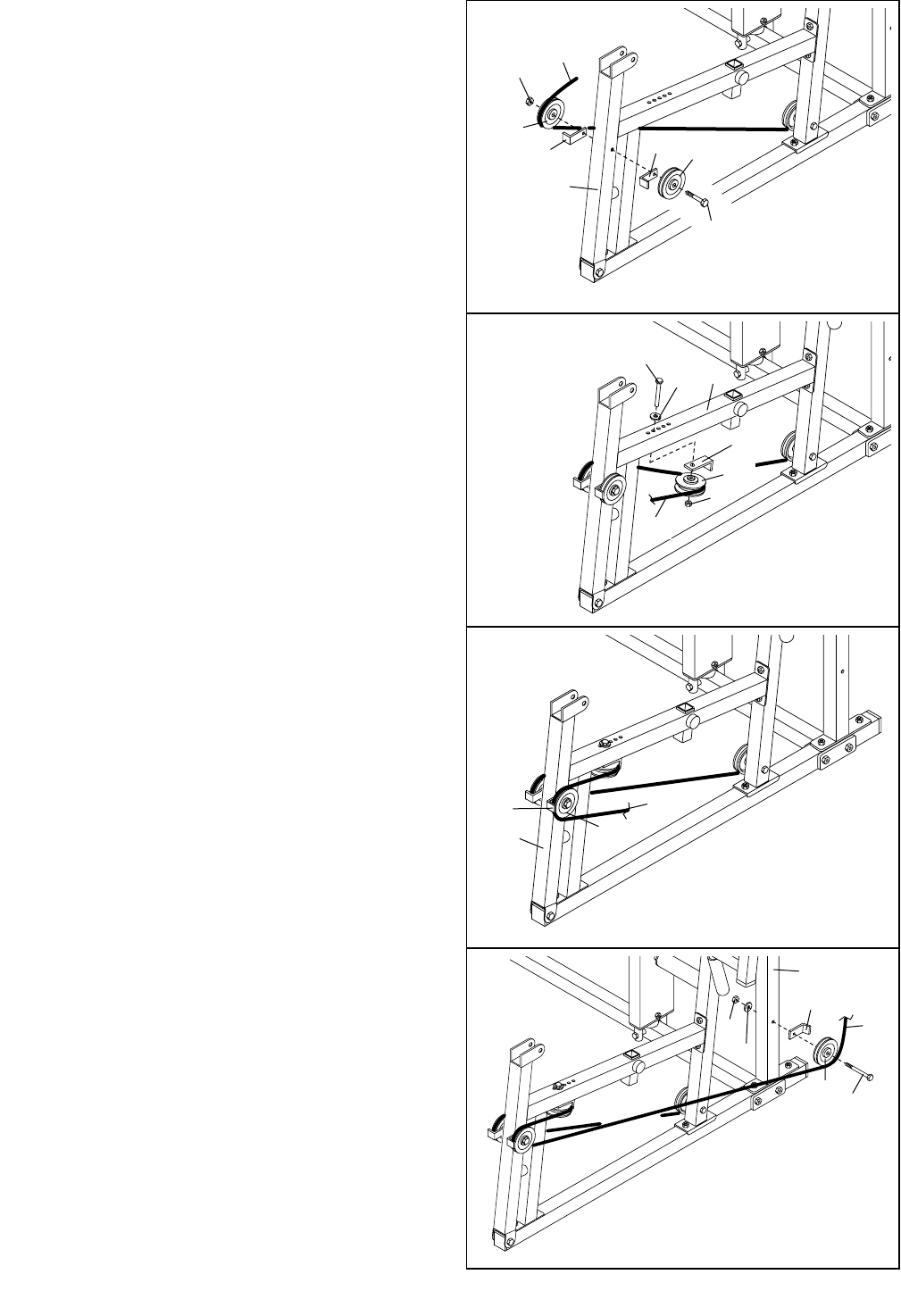

29. Slide a 3/8” x 5” Bolt (61) through a 3 1/2” Pulley

(37), a Cable Trap (44), and the Leg Press Arm

(22) from the indicated side. Be sure the Cable

Trap is oriented as shown.

Wrap the Press Cable (80) around another 3 1/2”

Pulley (37). Attach the Pulley and a Cable Trap

(44) to the 3/8” x 5” Bolt (61) with a 3/8” Nylon

Locknut (74). Be sure the Cable Trap is turned

to hold the Cable in the groove of the Pulley.

Do not tighten the Nylon Locknut yet.

29

44 44

61

22

74 80

74

104

38

75

22

44

12

50

80

80

37

31. Wrap the Press Cable (80) around the indicated

3 1/2” Pulley (37) on the Leg Press Arm (22).

Make sure the Cable Trap is turned to hold the

Cable in the groove of the Pulley. Tighten the

3/8” Nylon Locknut (not shown) used in step 29.

32. Wrap the Press Cable (80) around a 3 1/2” Pulley

(37). Attach the Pulley and a Cable Trap (44) to

the Support Brace (7) with a 3/8” x 3 3/4” Bolt

(62), a 3/8” Washer (75), and a 3/8” Nylon

Locknut (74). Make sure the Cable Trap is

turned to hold the Cable in the groove of the

Pulley.

31

32

37

37

75

74

7

80

44

62

37

15

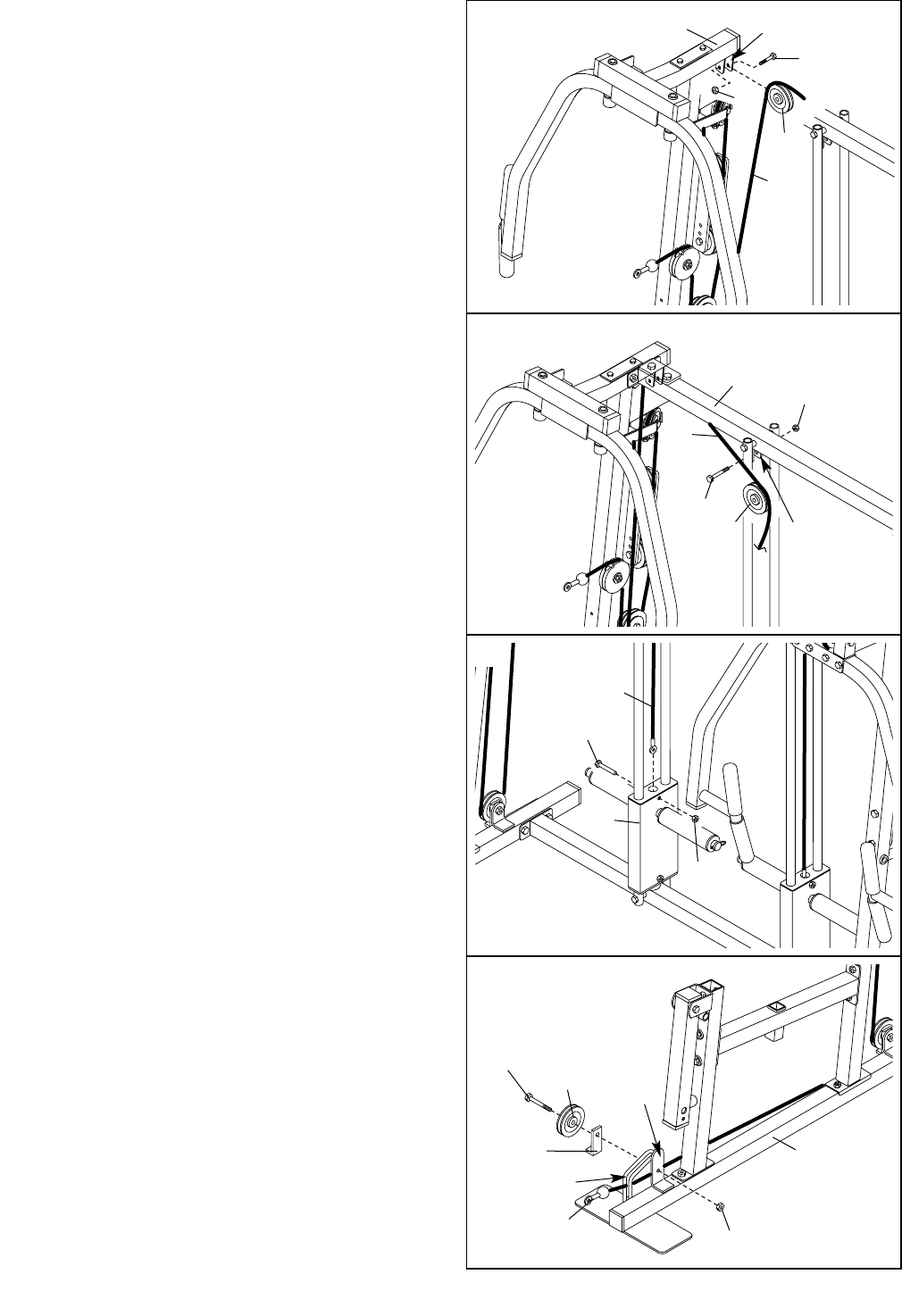

34. Wrap the Press Cable (80) around a 3 1/2” Pulley

(37). Attach the Pulley to the bracket on the Top

Frame (5) with a 3/8” x 2” Bolt (79) and a 3/8”

Nylon Locknut (74).

33. Wrap the Press Cable (80) around a 3 1/2” Pulley

(37). Attach the Pulley to the bracket on the Press

Top Frame (13) with a 3/8” x 2” Bolt (79) and a

3/8” Nylon Locknut (74).

33 13

37

74

79

5

Bracket

74

80

Bracket

37

35. Remove the 3/8” x 2 1/2” Bolt (78) from the top of

the indicated Weight Carriage (28). Attach the end

of the Press Cable (80) to the Weight Carriage

with the Bolt (78) and 3/8” Nylon Locknut (74).

36. Identify the Butterfly Cable (81); it is approximate-

ly 52” long and it has a loop on both ends.

Secure a 3/8” x 1” Bolt (97) to the bracket on the

Left Butterfly Arm (17) with a 3/8” Nylon Jamnut

(88). Attach one end of the Butterfly Cable (81) to

the Bolt with another 3/8” Nylon Jamnut. Do not

tighten the second Nylon Jamnut; the Cable

must be able to pivot freely.

80

79

35

36

Bracket

81

97

88

17

34

80

28

74

78

16

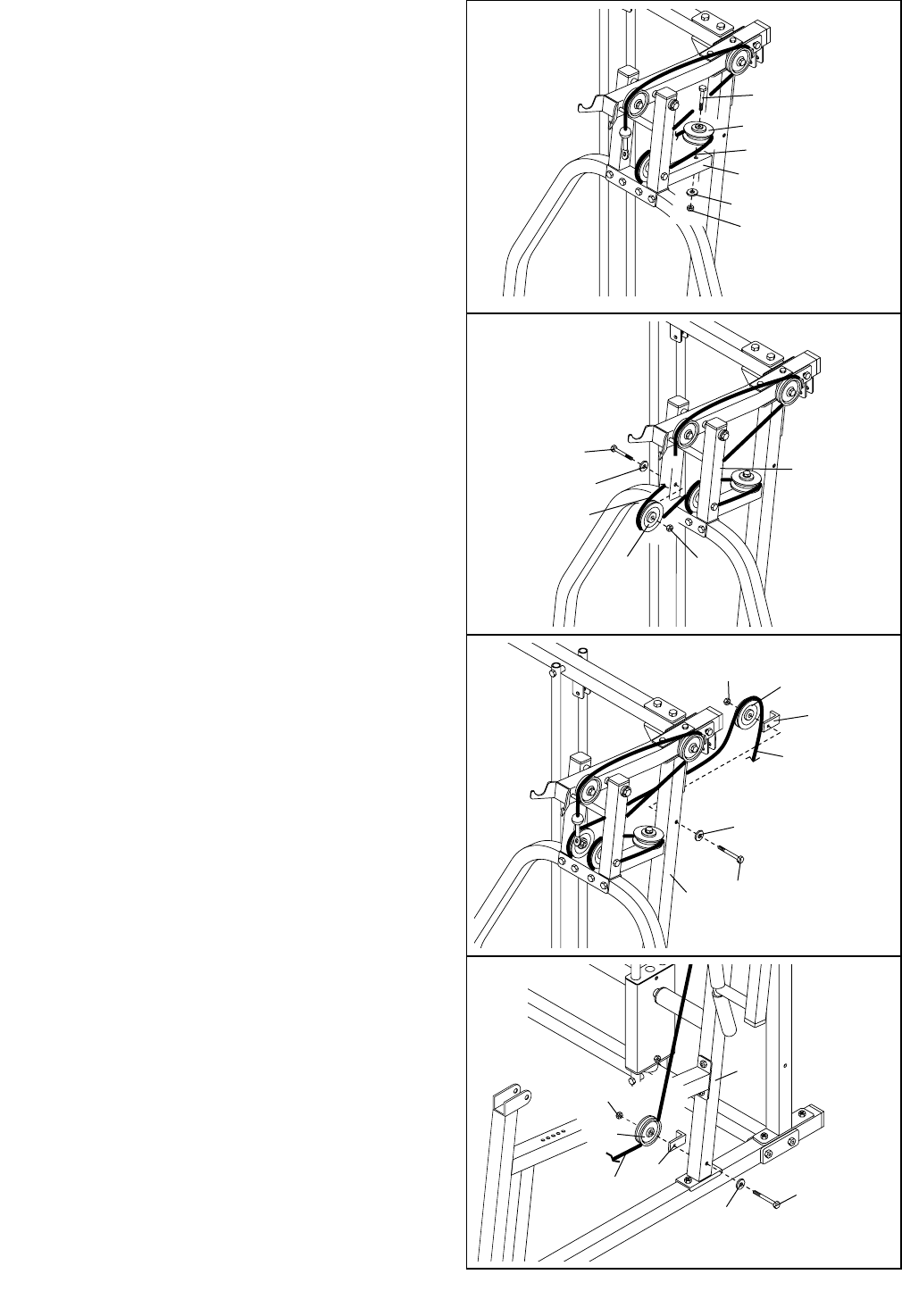

37. Wrap the Butterfly Cable (81) around a “V”-Pulley

(38). Attach the Pulley and a Long Cable Trap

(50) to the indicated side of the bracket on the

Butterfly Upright (4) with a 3/8” x 2 1/2” Bolt (78)

and a 3/8” Nylon Locknut (74). Be sure the Long

Cable Trap is turned to hold the Cable in the

groove of the Pulley.

37

78

4

38

74

81

50

Bracket

38. Remove the two 3 1/2” Pulleys (37) and two

Cable Traps (44) from the set of Pulley Plates

(43). Wrap the Butterfly Cable (81) around the

Pulley. Reattach a Pulley and a Cable Trap to the

top set of holes in the Pulley Plates with a 3/8” x

2” Bolt (79) and a 3/8” Nylon Locknut (74). Be

sure the Cable Trap is turned to hold the

Cable in the groove of the Pulley.

38

44

37

74

79

81

39. Wrap the Butterfly Cable (81) around a “V”-Pulley

(38). Attach the Pulley and a Long Cable Trap

(50) to the other side of the bracket on the

Butterfly Upright (4) with a 3/8” x 2 1/2” Bolt (78)

and a 3/8” Nylon Locknut (74). Be sure the Long

Cable Trap is turned to hold the Cable in the

groove of the Pulley.

39

50

4

78

74

38

81

40. Secure a 3/8” x 1” Bolt (97) to the bracket on the

Right Butterfly Arm (18) with a 3/8” Nylon Jamnut

(88). Attach the end of the Butterfly Cable (81) to

the Bolt with another 3/8” Nylon Jamnut. Do not

tighten the second Nylon Jamnut; the Cable

must be able to pivot freely.

40

81

88

18

97

Bracket

43

17

41

37

74

49

49

83

Rod

Ball

Large tabs

must be on

this side

4

75

75

41. Identify the Ab Cable (83); it is approximately

220.25” long and it has a ball on one end and a

loop on the other.

Wrap the Ab Cable (83) around a 3 1/2” Pulley

(37). Place two Pulley Covers (49) over the

Pulley; make sure that the large tabs are in the

position shown. Attach the Pulley and Pulley

Covers to the Butterfly Upright (4) with a 3/8” x 4”

Bolt (91), two 3/8” Washers (75), and a 3/8” Nylon

Locknut (74). Be sure that the Cable is between

the Pulley and the rod on the Upright, and that

the ball is on the side shown.

42. Remove the two 3 1/2” Pulleys (37) from the

Double U-bracket (42). Wrap the Ab Cable (83)

around a Pulley. Reattach the Pulley to the

Double U-bracket with the 3/8” x 2” Bolt (79) and

3/8” Nylon Locknut (74).

43

79

37

44

83

43

74

43. Wrap the Ab Cable (83) around the other 3 1/2”

Pulley (37) removed in step 38. Reattach the

Pulley and Cable Trap (44) to the bottom set of

holes in the Pulley Plates (43) with the 3/8” x 2”

Bolt (79) and the 3/8” Nylon Locknut (74). Be

sure the Cable Trap is turned to hold the

Cable in the groove of the Pulley.

44

83

88

1

37

103

44. Wrap the Ab Cable (83) around a 3 1/2” Pulley

(37). Attach the Pulley and a Cable Trap (44) to

the Butterfly Base (1) with a 3/8” x 1 3/4” Bolt

(103) and a 3/8” Nylon Jamnut (88). Make sure

the Cable Trap is oriented as shown.

42

74

79

42

83

37

91

44

18

45. Wrap the Ab Cable (83) around a 3 1/2” Pulley

(37). Attach the Pulley to the bracket on the

Butterfly Top Frame (19) with a 3/8” x 2” Bolt (79)

and a 3/8” Nylon Locknut (74).

45

37

19

83

Bracket

74

79

46. Wrap the Ab Cable (83) around a 3 1/2” Pulley

(37). Attach the Pulley to the bracket on the Top

Frame (5) with a 3/8” x 2” Bolt (79) and a 3/8”

Nylon Locknut (74). 74

Bracket

79

37

47. Attach the end of the Ab Cable (83) to the indicat-

ed Weight Carriage (28) with a 3/8” x 2 1/2” Bolt

(78) and a 3/8” Nylon Locknut (74).

47

83

78

28

74

48. Identify the Leg Lever Cable (82). It is approxi-

mately 142.75” long and it has a ball on one end

and a loop on the other.

Route the loop end of the Leg Lever Cable (82)

through the cage on the Butterfly Base (1) and

under a 3 1/2” Pulley (37). Attach the Pulley and

a Cable Trap (44) to the bracket on the Butterfly

Base with a 3/8” x 2” Bolt (79) and a 3/8” Nylon

Locknut (74). Make sure the Cable Trap is ori-

ented to hold the Cable in the groove of the

Pulley.

48

79

37

44 1

74

Bracket

Cage

82

83

5

46

49

50

19

49. Wrap the Leg Press Cable (82) around a 3 1/2”

Pulley (37). Attach the Pulley and a Cable Trap

(44) to the Butterfly Upright (4) with a 3/8” x 5”

Bolt (61) and a 3/8” Nylon Locknut (74). Do not

tighten the Nylon Locknut yet. Be sure that

the Cable Trap is turned to hold the Cable in

the groove of the Pulley.

474

44

82

37

61

50. Wrap the Leg Press Cable (82) around the 3 1/2”

Pulley (37) removed in step 42. Attach the Pulley

to the bottom of the Double U-bracket (42) with

the 3/8” x 2” Bolt (79) and the 3/8” Nylon Locknut

(74). 37

79

82

42

74

51. Wrap the Leg Press Cable (82) around a 3 1/2”

Pulley (37). Attach the Pulley and a Cable Trap

(44) to the 3/8” x 5” Bolt (61) in the Butterfly

Upright (4) with a 3/8” Nylon Locknut (74). Be

sure that the Cable Trap is turned to hold the

Cable in the groove of the Pulley.

51

37 74

44

4

61

82

52. Attach the end of the Leg Press Cable (82) to the

Leg Lever (8) with a 5/16” x 2 1/2” Bolt (61), two

5/16” Washers (66), and a 5/16” Nylon Jamnut

(105). Do not overtighten the Nylon Jamnut;

the Cable must be able to pivot freely.

52

105

82

66

66

8

63

20

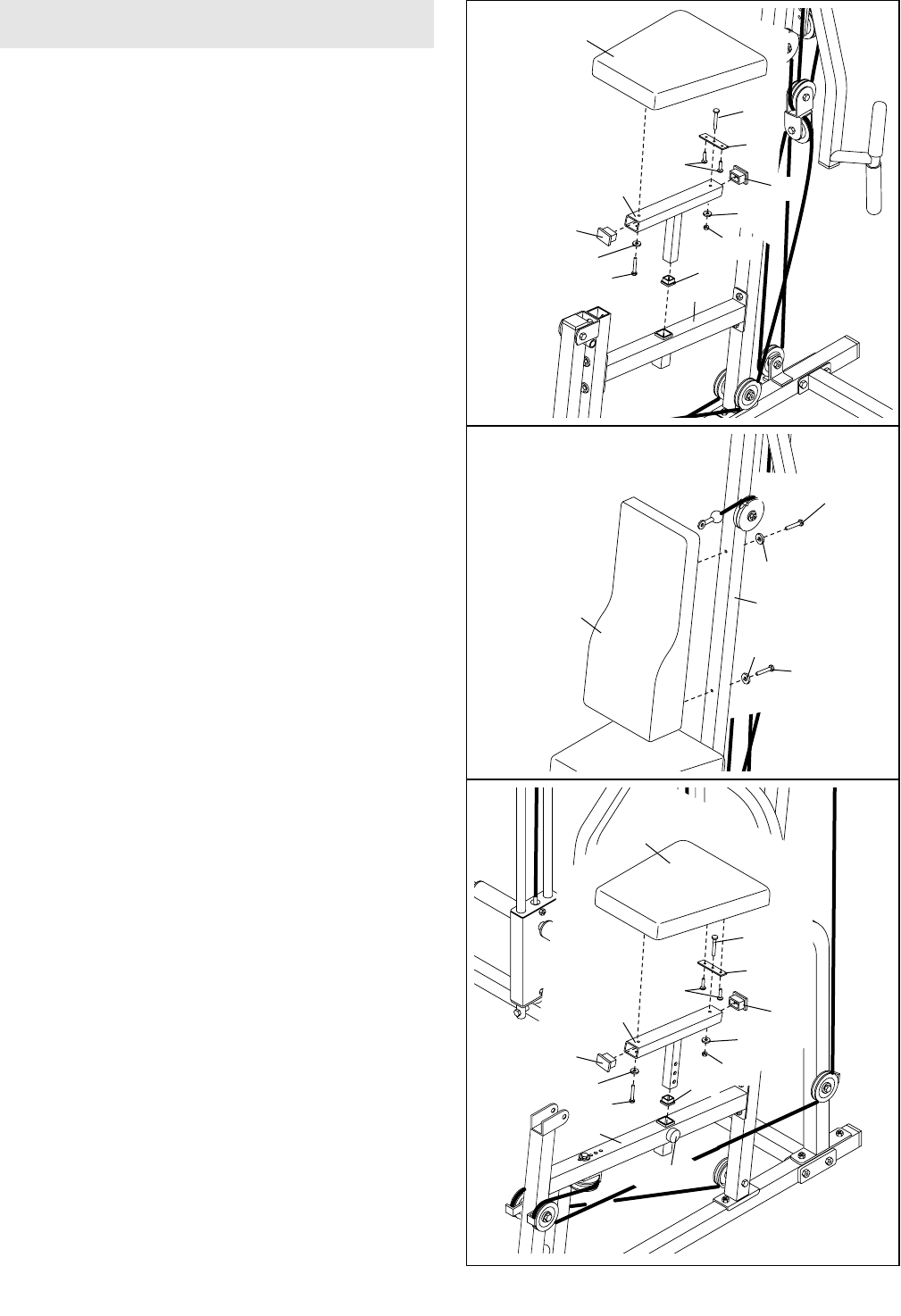

53. Locate and open the parts bag labeled “SEAT

ASSEMBLY.”

Press a 1 1/2” Square Inner Cap (100) into the

bottom of a Seat Bracket (11). Press two 1” x 2”

Inner Caps (70) into the ends of the Seat Bracket.

Insert a 1/4” x 1 3/4” Carriage Bolt (93) into the

center hole of a Support Plate (57). Attach the

Support Plate to a Seat (25) with two 1/4” x 3/4”

Screws (90). Attach the Seat to the Seat Bracket

(11) with the Carriage Bolt, a 1/4” Washer (84),

and a 1/4” Nylon Locknut (106). Attach the other

end the Seat to the Seat Bracket with 1/4” x

1 3/4” Screw (98) and a 1/4” Washer (84).

Loosen the Adjustment Knob (not shown) by turn-

ing it counterclockwise, and pull it out as far as

possible. Insert the Seat Bracket (11) into the

Butterfly Seat Frame (10) and align an adjustment

hole with the Adjustment Knob. Snap the Knob into

the adjustment hole and turn it clockwise until tight.

53

93

57

70

90

11

84

106

100

70

84

98 10

25

54. Attach the Butterfly Backrest (53) to the Butterfly

Upright (4) with two 1/4” x 2 3/4” Screws (94) and

two 1/4” Washers (84).

54

53 4

84

84

55. Press a 1 1/2” Square Inner Cap (100) into the

bottom of a Seat Bracket (11). Press two 1” x 2”

Inner Caps (70) into the ends of the Seat Bracket.

Insert a 1/4” x 1 3/4” Carriage Bolt (93) into the

center hole of a Support Plate (57). Attach the

Support Plate to a Seat (25) with two 1/4” x 3/4”

Screws (90). Attach the Seat to the Seat Bracket

(11) with the Carriage Bolt, a 1/4” Washer (84),

and a 1/4” Nylon Locknut (106). Attach the other

end the Seat to the Seat Bracket with 1/4” x

1 3/4” Screw (98) and a 1/4” Washer (84).

Loosen the Adjustment Knob (51) by turning it

counterclockwise, and pull it out as far as possi-

ble. Insert the Seat Bracket (11) into the Press

Seat Frame (12) and align an adjustment hole

with the Adjustment Knob. Snap the Knob into the

adjustment hole and turn it clockwise until tight.

55

94

94

Seat Assembly

93

57

70

90

11

84

106

100

70

84

98

51

12

25

21

56

106

57

90

90

84

51

6

70

21

84

98

100

93

20

57. Press a 1 3/4” Square Inner Cap (60) into the

back of the Adjustment Tube (23).

Attach the Adjustment Tube (23) to the Press

Plate (24) with a 5/16” x 2 1/2” Bolt (63), two

5/16” Washers (66), and a 5/16” Nylon Locknut

(64).

Attach the Adjustment Tube (23) to the Leg Press

Arm (22) with the Press Pin (46).

57

64

63

22

24

46

60

23

66

66

70

58

39

73

73

73

73 Welded

Tube

41

41

41

41

8

40

9

58. Press four 3/4” Round Inner Caps (73) into the

ends of the Long and Short Pad Tube (39, 40).

Insert the Long Pad Tube (39) into the welded

tube on the Butterfly Front Leg (9). Slide two

Foam Pads (41) onto the ends of the Pad Tube.

Insert the Short Pad Tube (40) into the hole in the

Leg Lever (8). Slide two Foam Pads (41) onto the

ends of the Pad Tube

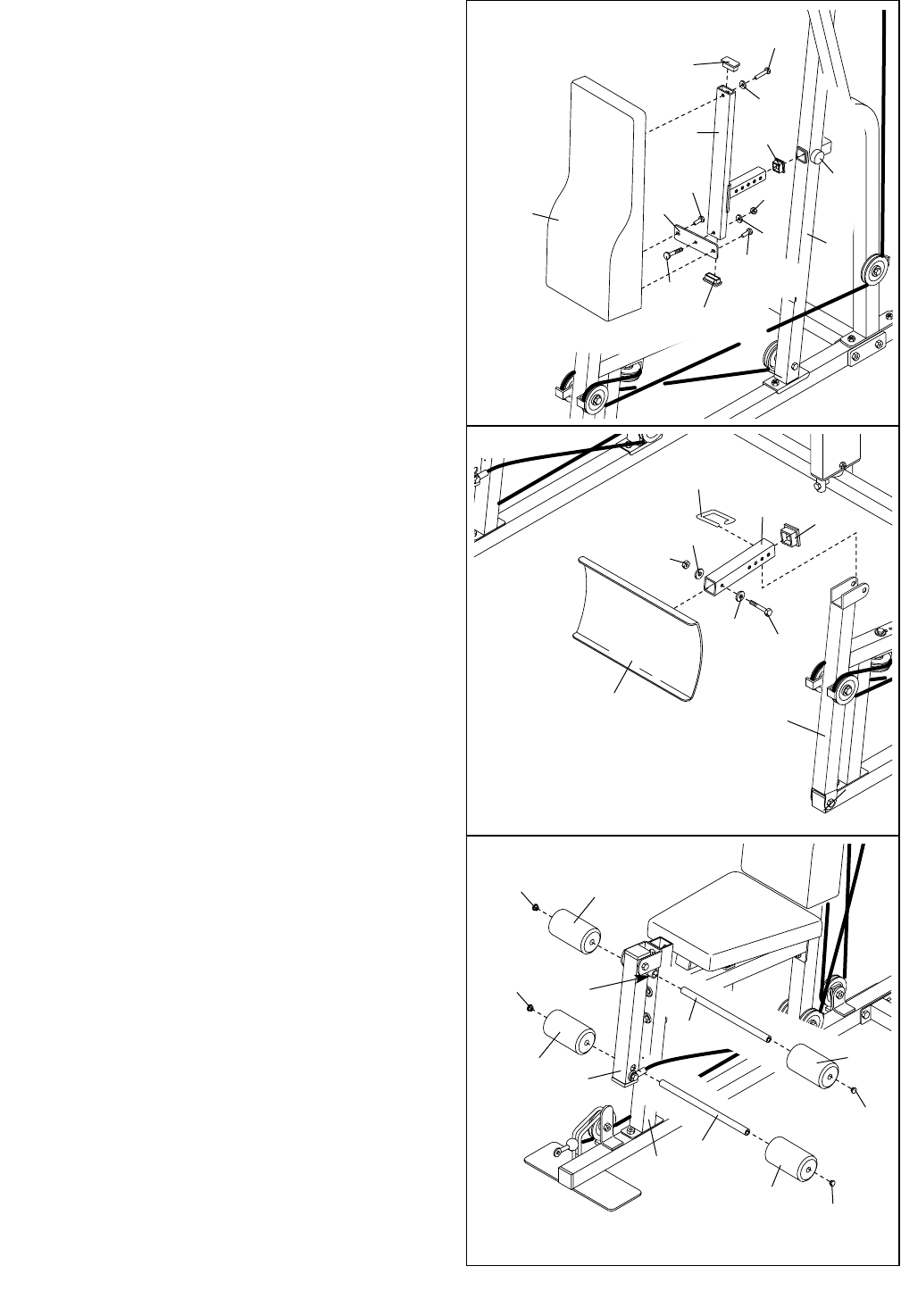

56. Press a 1 1/2” Square Inner Cap (100) into the

back of the Backrest Bracket (21). Press two 1” x

2” Inner Caps (70) into the top and bottom of the

Backrest Bracket.

Insert a 1/4” x 1 3/4” Carriage Bolt (93) into the

center hole of a Support Plate (57). Attach the

Support Plate to Press Backrest (20) with two

1/4” x 3/4” Screws (90). Attach the Backrest to

the Backrest Bracket (21) with the Carriage Bolt,

a 1/4” Washer (84), and a 1/4” Nylon Locknut

(106). Attach the top of the Backrest to the

Backrest Bracket with 1/4” x 1 3/4” Screw (98)

and a 1/4” Washer (84).

Loosen the Adjustment Knob (51) by turning it

counterclockwise, and pull it out as far as possi-

ble. Insert the Backrest Bracket (21) into the

Press Upright (6) and align an adjustment hole

with the the Adjustment Knob. Snap the Knob into

the adjustment hole and turn it clockwise until

tight.

59

22

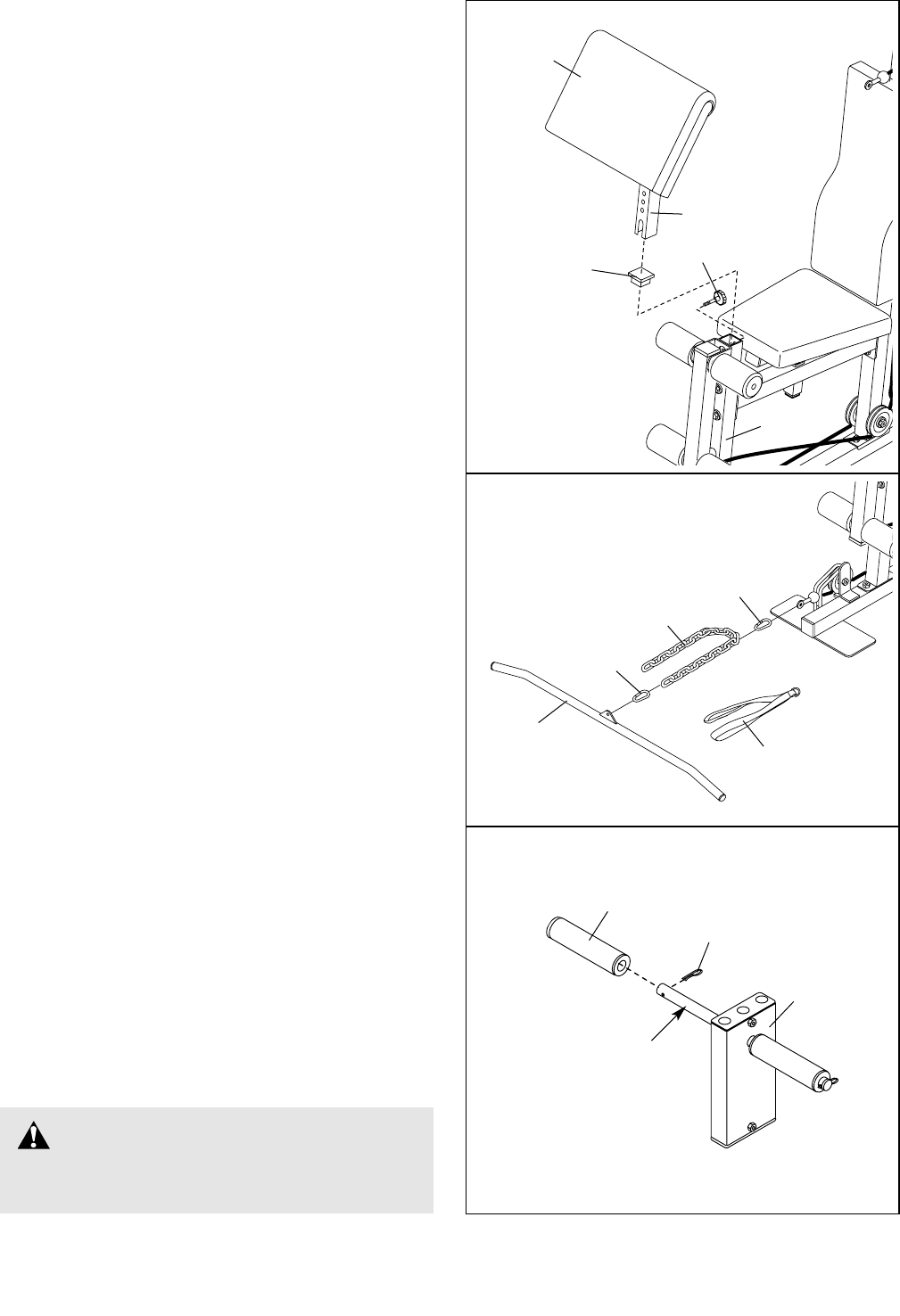

59. Attach the Curl Pad (36) to the Curl Post (35) with

two 1/4” x 3/4” Bolts (90).

35

90

90

36

60. Make sure that all parts have been properly tightened before using the weight system. The use of the

remaining parts will be explained in ADJUSTMENTS, beginning on page 23 of this manual.

Before using the weight system, pull each cable a few times to make sure that the cables move smoothly

over the pulleys. If one of the cables does not move smoothly, find and correct the problem. Refer to the

CABLE DIAGRAMS on page 26 for correct cable routing. IMPORTANT: If the cables are not properly

installed, they may be damaged when heavy weight is used. If there is any slack in the cables, you

will need to remove the slack by tightening the cables. See TROUBLE-SHOOTING AND MAINTE-

NANCE on page 27.

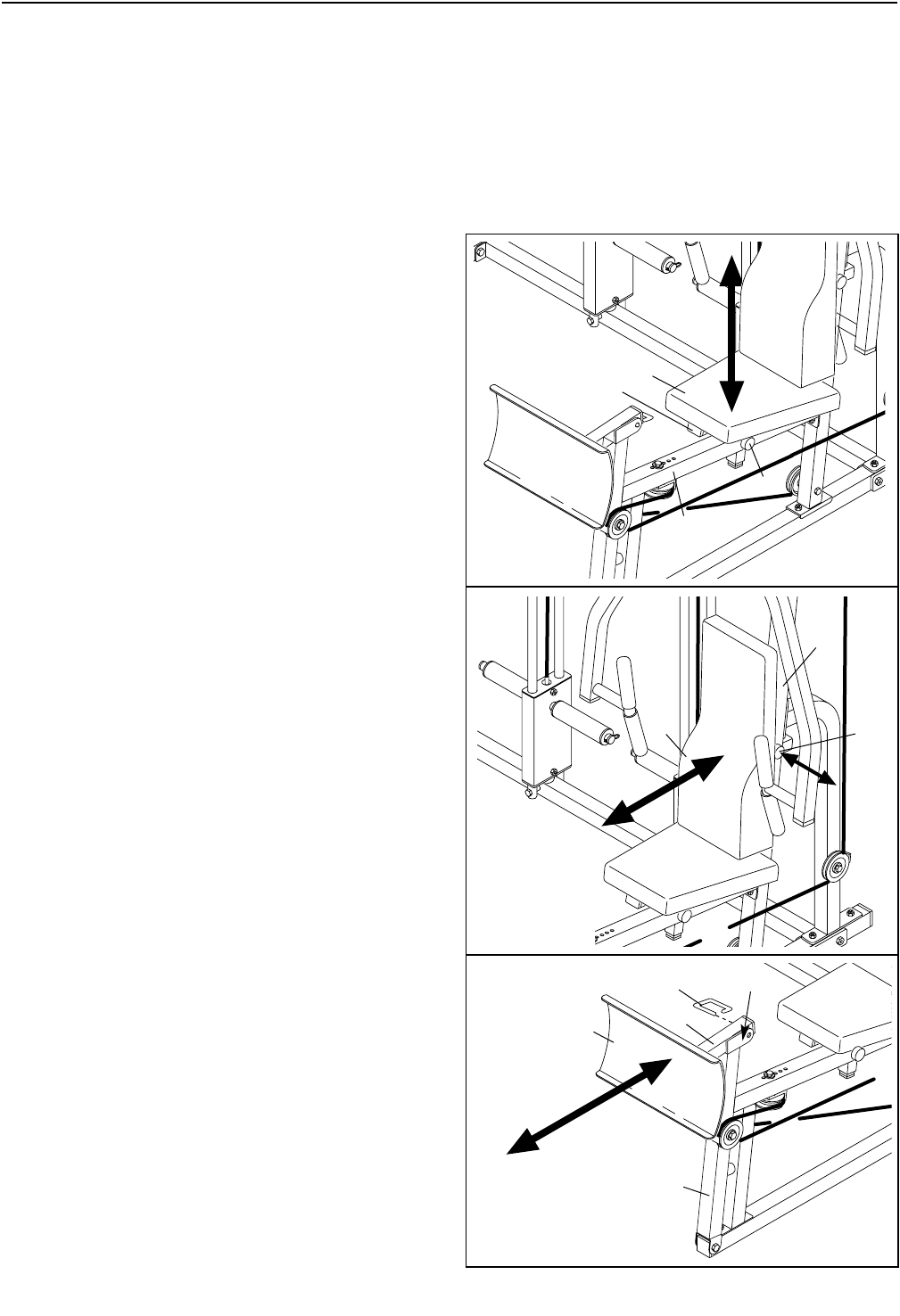

ADJUSTING THE SEAT

To adjust the height of the Seat (25) on the Press

Seat Frame (12), loosen the Adjustment Knob (51) by

turning it counterclockwise, and pull it out as far as

possible. Move the Seat to the desired height and

snap the Knob into an adjustment hole in the Seat

Bracket (11). Turn the Adjustment Knob clockwise

until tight.

The Seat (not shown) in the Butterfly Seat Frame (not

shown) can be adjusted in the same way.

The weight system is designed to be used with your own weight set (not included). The steps below explain how the

weight system can be adjusted. Refer to the accompanying exercise guide to see the correct form for several exer-

cise.

Make sure all parts are properly tightened each time you use the weight system. Replace any worn parts immediate-

ly. The weight system can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.

23

ADJUSTING THE PRESS PLATE

To adjust the position of the Press Plate (24), pull out

the Press Pin (46) and slide the Adjustment Tube (23)

to the desired position in the bracket on the Leg

Press Arm (22). Line up one of the adjustment holes

in the Adjustment Tube with the hole in the bracket

and re-insert the Press Pin.

Bracket

23

46

24

22

6

ADJUSTING THE PRESS BACKREST

To adjust the Press Backrest (20) loosen the

Adjustment Knob (51) by turning it counterclockwise,

and pull it out as far as possible. Move the Backrest

to the desired position and snap the Knob into an

adjustment hole in the Backrest Bracket (not shown).

Turn the Adjustment Knob clockwise until tight. 51

12

51

25

11

ADJUSTMENTS

20

24

36

35

59

9

45

47

47

68

48

27

31

Weight

Tube

28

52

ATTACHING THE CURL PAD

To use the Curl Pad (36), remove the 2” Square Inner

Cap (59) and insert the Curl Post (35) into the

Butterfly Front Leg (9). Secure the Curl Post with the

Curl Adjustment Knob (52).

Replace the 2” Square Inner Cap (59) in the Butterfly

Front Leg (9) when performing exercising that does

not require the Curl Pad (36). Store the Curl Pad

away from the weight system when it is not being

used.

ATTACHING THE LAT BAR

Attach the Lat Bar (68) to the Leg Lever Cable (82) or

Press Cable (not shown) with a Cable Clip (47). For

some exercises, the Chain (45) should be attached

between the Lat Bar and the Cable with two Cable

Clips. Adjust the length of the Chain between the

Cable and the Lat Bar so that the Lat Bar is in the

correct starting position for the exercise to be

performed.

The Strap (48) can be attached to the Leg Lever

Cable (82), Press Cable (not shown), or Ab Cable

(not shown) in the same manner.

USING THE WEIGHT CARRIAGE

To use standard weights (not included), slide the

desired amount of weight onto the weight tube on a

Weight Carriage (28). Secure the weight with two

Locking Pins (31).

To use Olympic weights (not included), slide a Weight

Sleeve onto each side of the weight tube on the

Weight Carriage (28). Next, slide the desired amount

of weight onto the Weight Sleeves. Secure the weight

with two Locking Pins (31).

WARNING: Always place the

same amount of weight on each side of the

Weight Carriage (28).

25

Weight High Arm Leg Butterfly Leg Lever Low Arm

(lbs.) Pulley Press Press Arm (lbs.) Pulley

(lbs.) (lbs.) (lbs.) (lbs.)* (lbs.)

20 30 23 44 9 26 22

40 60 45 88 18 52 45

60 90 68 132 27 78 67

80 120 90 176 36 104 90

100 150 113 220 45 130 112

120 180 135 264 55 156 135

140 210 158 308 64 182 157

160 240 180 352 73 208 180

180 270 205 396 82 234 202

200 300 225 440 92 260 225

The chart below shows the approximate weight resistance at each exercise station. Note: The actual resis-

tance at each station may vary due to differences in individual weight plates as well as friction between

the cables, pulleys, and weight guides. The weight resistance listed for the Butterfly Arm is for each

arm.

WEIGHT RESISTANCE CHART

26

The cable diagrams below show the proper routing of the Butterfly Cable (81), the Ab Cable (83), the Leg Lever

Cable (82) and the Press Cable (80). The numbers show the correct route for each Cable. Make sure that the

Cables are routed correctly, that the pulleys move smoothly, and that the cable traps do not touch or

bind the Cables. Incorrect cable routing can damage the weight system.

Leg Lever Cable (82)

5

6

4

7

3

1

2

1

212

13

14

34

5

3

4

5

1

9

10

11

8

6

2

1

3

4

5

2

Butterfly Cable (81)

Cable ID Chart

(81) 52”

(82) 142.75”

(83) 220.25”

(80) 387.25”

7

CABLE DIAGRAMS

Ab Cable (83)

Press Cable (80)

27

Slack can be removed form the Press Cable (80) by

moving the indicated “V”-Pulley (38) to one of the four

free holes in the Press Seat Frame (12). Remove the

3/8” x 4 1/4” Bolt (104), 3/8” Washer (75), and 3/8”

Nylon Locknut (74) from the Press Seat Frame,

Pulley, and Long Cable Trap (50). Reattach the Pulley

and Long Cable Trap to the next hole with the Bolt,

Washer, and Nylon Locknut. Move the Pulley away

from the Leg Press Arm (22) one hole at a time, until

the Cable is tight.

Be sure the Long Cable Trap (50) is positioned to

hold the Press Cable (80) in the groove of the “V”-

Pulley (38).

43

37

37

43

Adjustment

Holes

74

74

44

44

79

79

75 104

22

12

50

38

74

80

The Pulley Plates (43) have several sets of adjust-

ment holes. By moving one or both 3 1/2” Pulleys

(37) to a different set of holes, you will tighten the

cables.

To move a 3 1/2” Pulley (37), remove the 3/8” Nylon

Locknut (74) and the 3/8” x 2” Bolt (79) from the

Pulley, Cable Trap (44) and Pulley Plates (43). Re-

attach the Pulley and Cable Trap to the appropriate

adjustment hole in the Pulley Plates with the Bolt and

Nylon Locknut. Note: Begin by moving one Pulley

to the second adjustment hole. If the cables are

still too loose, move the same Pulley to the third

hole. If additional adjustment is needed, move the

other Pulley until the cables are tight.

TROUBLE-SHOOTING AND MAINTENANCE

TIGHTENING THE CABLES

If a cable slips off the pulleys often, the cable may have become twisted. Remove the cable and re-install

it. If the cables need to be replaced, see ORDERING REPLACEMENT PARTS on the back cover of this manual.

The type of cable used on the weight system can stretch slightly when it is first used. If there is slack in the

cables before resistance is felt, the cables should be tightened. Slack can be removed from the cables in two

different ways:

Part No. 177796 R1001A Printed in Canada © 2001 Sears, Roebuck and Co.

SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179

Model No. 831.159530

QUESTIONS?

If you find that:

• you need help assembling or

operating the WEIDER®PRO 9950

weight system

• a part is missing

• or you need to schedule repair

service

call our toll-free HELPLINE

1-800-736-6879

Monday–Saturday, 7 am–7 pm

Central Time (excluding holidays)

REPLACEMENT

PARTS

If parts become worn and need to

be replaced, call the following toll-

free number

1-800-FON-PART

(1-800-366-7278)

The model number and serial number of your WEIDER®PRO

9950 weight system are listed on a decal attached to the frame.

See the front cover of this manual to find the location of the decal.

All replacement parts are available for immediate purchase or

special order when you visit your nearest SEARS Service Center.

To request service or to order parts by telephone, call the toll-free

numbers listed at the left.

When requesting help or service, or ordering parts, please be pre-

pared to provide the following information:

• The MODEL NUMBER of the product (831.159530)

• The NAME of the product (WEIDER®PRO 9950 weight system)

• The KEY NUMBER and DESCRIPTION of the PART (see the

PART LIST/EXPLODED DRAWING in the center of this manual).

FULL 90 DAY WARRANTY

For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this

SEARS WEIGHT SYSTEM EXERCISER, contact the nearest SEARS Service Center throughout the

United States and SEARS will repair or replace the WEIGHT SYSTEM EXERCISER, free of charge.

This warranty does not apply when the WEIGHT SYSTEM EXERCISER is used commercially or for

rental purposes.

This warranty gives you specific legal rights, and you may also have other rights which vary from state

to state.

SEARS, ROEBUCK AND CO., DEPT. 817WA, HOFFMAN ESTATES, IL 60179

Note: Assembly is divided into four stages: 1) frame assembly; 2) arm

assembly; 3) cable assembly; and 4) seat assembly. The hardware for

each assembly stage is packaged separately. Wait until you begin each

stage to open that parts bag.

REMOVE THIS PART IDENTIFICATION

CHART FROM THE MANUAL

This chart is provided to help you identify the small parts used in assembly. The number in parenthesis below

each part refers to the key number of the part from the PART LIST in the center of this manual. Important:

Some parts may have been pre-assembled for shipping purposes. If you cannot find a part in the parts

bags, check to see if it has been pre-assembled.

1” Retainer (85)

1" CoverCap (86)

1 3/4" Square Inner Cap (60)

1" Inner Cap (32)

1" x 2” Inner Cap (70)

1 1/2" Round Inner Cap (67)

3/4" Round Inner Cap (73)

2" Square Inner Cap (59)

1 1/2" Square Inner Cap (100)

3/8" Nylon Locknut (74)

3/8" Nylon Jamnut (88)

5/16" Nylon Jamnut (105)

1/2" Nylon Locknut (95)

1/4" x 1 3/4" Screw (98)

5/16" Nylon Locknut (64) 3/8" x 2" Bolt (79)

3/8" x 1" Bolt (97)

1/4" Nylon Locknut (106)

5/16" x 2 1/2" Bolt (63)

3/8" x 1 3/4" Bolt (103)

3/8" x 2 1/2" Bolt (78)

3/8" x 5" Bolt (61)

3/8" x 6" Bolt (89)

1/4" x 1 3/4" Carriage Bolt (93)

1/4" x 2 3/4" Screw (94)

1/4" x 3/4" Screw (90)

Bumper Screw (72)

PART LIST—Model No. 831.159530 R1001A

3/8" x 3 1/2" Bolt (65)

3/8" Washer (75)

3/8" x 3 3/4" Bolt (62)

3/8

"

x 9

"

Bolt (92)

5/16" Washer (66)

5/16" x 2 3/4" Bolt (55)

3/8" x 3 1/4" Bolt (101)

3/8" x 4" Bolt (91)

3/8" x 4 1/4" Bolt (104)

5/16" x 2 1/2" Carriage Bolt (54)

3/8" x 2 1/2" Carriage Bolt (76)

1/2" x 3 1/2" Bolt (96)

3/8" x 2 3/4" Bolt (58)

3/8" SAE Washer (102)

1/4" Washer (84)

81

REMOVE THIS PART LIST/EXPLODED

DRAWING FROM THE MANUAL

Key No. Qty. Description Key No. Qty. Description

1 1 Butterfly Base

2 1 Center Base

3 1 Press Base

4 1 Butterfly Upright

5 1 Top Frame

6 1 Press Upright

7 1 Support Brace

8 1 Leg Lever

9 1 Butterfly Front Leg

10 1 Butterfly Seat Frame

11 2 Seat Bracket

12 1 Press Seat Frame

13 1 Press Top Frame

14 1 Press Frame

15 1 Left Press Arm

16 1 Right Press Arm

17 1 Left Butterfly Arm

18 1 Right Butterfly Arm

19 1 Butterfly Top Frame

20 1 Press Backrest

21 1 Backrest Bracket

22 1 Leg Press Arm

23 1 Adjustment Tube

24 1 Press Plate

25 2 Seat

26 2 Short Support Plate

27 4 Weight Sleeve

28 2 Weight Carriage

29 4 Carriage Bushing

30 8 Weight Sleeve Bushing

31 4 Locking Pin

32 6 1” Inner Cap

33 4 Weight Guide

34 5 Long Support Plate

35 1 Curl Post

36 1 Curl Pad

37 22 3 1/2” Pulley

38 4 “V”-Pulley

39 1 Long Pad Tube

40 1 Short Pad Tube

41 4 Foam Pad

42 1 Double U-bracket

43 2 Pulley Plate

44 12 Cable Trap

45 1 Chain

46 1 Press Pin

47 3 Cable Clip

48 1 Strap

49 2 Pulley Cover

50 3 Long Cable Trap

51 3 Adjustment Knob

52 1 Curl Adjustment Knob

53 1 Butterfly Backrest

54 10 5/16" x 2 1/2" Carriage Bolt

55 17 5/16" x 2 3/4" Bolt

56 2 Weight Bumper

57 3 Support Plate

58 4 3/8" x 2 3/4" Bolt

59 12 2" Square Inner Cap

60 9 1 3/4" Square Inner Cap

61 2 3/8" x 5" Bolt

62 4 3/8" x 3 3/4" Bolt

63 6 5/16" x 2 1/2" Bolt

64 32 5/16" Nylon Locknut

65 3 3/8" x 3 1/2" Bolt

66 10 5/16" Washer

67 2 1 1/2" Round Inner Cap

68 1 Lat Bar

69 4 1/2” Brass Bushing

70 6 1" x 2” Inner Cap

71 2 Bumper

72 2 Bumper Screw

73 4 3/4" Round Inner Cap

74 38 3/8" Nylon Locknut

75 10 3/8" Washer

76 2 3/8" x 2 1/2" Carriage Bolt

77 6 3/8” Brass Bushing

78 6 3/8" x 2 1/2" Bolt

79 9 3/8" x 2" Bolt

80 1 Press Cable

81 1 Butterfly Cable

82 1 Leg Lever Cable

83 1 Ab Cable

84 8 1/4” Washer

85 4 1" Retainer

86 2 1" Cover Cap

87 4 1" Brass Bushing

88 6 3/8” Nylon Jamnut

89 4 3/8” x 6” Bolt

90 8 1/4" x 3/4" Screw

91 2 3/8” x 4” Bolt

92 1 3/8” x 9” Bolt

93 3 1/4” x 1 3/4” Carriage Bolt

94 2 1/4” x 2 3/4” Screw

95 1 1/2” Nylon Locknut

96 1 1/2” x 3 1/2” Bolt

97 2 3/8” x 1” Bolt

98 3 1/4” x 1 3/4” Screw

99 8 Handgrip

100 4 1 1/2” Square Inner Cap

101 1 3/8” x 3 1/4” Bolt

102 4 3/8” SAE Washer

103 1 3/8” x 1 3/4” Bolt

104 1 3/8” x 4 1/4” Bolt

105 1 5/16” Nylon Jamnut

106 3 1/4” Nylon Locknut

107 1 Pulley Support Plate

# 1 User’s Manual

# 1 Exercise Guide

Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover

of this manual for information about ordering replacement parts.

PART LIST—Model No. 831.159530 R1001A

45

48 47

24

64

46

23 60

66 63

22

74

37

44 44 37

61

96

69

95

89

89

74

74

64

2

29

29

74

32

32

32

32

31

30

30

31

30

30

27

27

27

27

30

30

31

78

78

78

78

28

28

29

29

80

83

33

33

64

74

74

74

20

53

37

91

55

107

37

44

74

34

55

79

65

37

77

77 13

74 75

77

74

77

92

80

64

63 14

15

60

99

99

74

64

62

75

64

7

75

74

74

44

37

62

51

54

59

34

55

62

76

54

3

64

64

44

37

64

51

11

106

84

90

57

93

25

70

70 84

98

104

75

12

50

38

74

64

59

54

69

59

74

100

6

62

38

99

60

16

65

75

37

74

37

75

65 32

68

32

44

37

74

90

106

84

21

57 90

93

84

98

74

64

26

58

74

89

37

79

5

74

64

26

58

37

74

89

79

78

38

50

74

78

38

50

64

74

74

75

49

37

49

94

84

83

75

91 4

94

84

55

66

64

44 37

74

64

44

37

61

64

59

88

1

54

74

54

59

82

44

37

79

66

105

73 41

40

8

59 66

82

63

64

55

72

71

73

41

66

9

59

41 73

103

37

44

34

55

64

10

52

90

35 51 98

84

84

106

70

70

90

11

57

93

39

41

73

36

25

60

99

99

17

99

99

60

85

86

87

60

18

88

81

87

97

87 97

88

81

59

59

19

59

37

79

55

34

55 34

74

37

37

37

79

79

74

74

42

74

43

79

43

44

44

31

30

55

66

99

88 101

74

64

102

102

59

70

100

100

100

75

70

66

67

56 67

88

7

60

59

75

72

71

EXPLODED DRAWING—Model No. 831.159530 R1001A
